3 TONNE
TROLLEY
JACK
1.1 Product Reference
User Manual for: 3 Tonne Trolley Jack
Stock No: 09179
Part No: TJ3CS
1.2 Revisions
Version 1: January 2024
First release
As our manuals are continually updated, always ensure
that the latest version is used.
Download the latest version from:
drapertools.com/manuals
1.3 Understanding the Safety Content of
This Manual
WARNING!
– Situations or actions that may result
in personal injury or death.
CAUTION! – Situations or actions that may result
in damage to the product or surroundings.
Important: – Information or instructions of particular
importance.
1.4 Copyright © Notice
Copyright © Draper Tools Limited.
Permission is granted to reproduce this manual for
personal and educational use ONLY. Commercial
copying, redistribution, hiring or lending is strictly
prohibited.
No part of this manual may be stored in a retrieval system
or transmitted in any other form or means without written
permission from Draper Tools Limited.
In all cases, this copyright notice must remain intact.
1. Preface
These are the original product instructions. This
document is part of the product; retain it for the life
of the product, passing it on to subsequent holders.
Read this manual in full before attempting to
assemble, operate, or maintain this product.
This Draper Tools manual describes the purpose
of the product and contains all the necessary
information to ensure its correct and safe use.
Following all the instructions and guidance in
this manual will ensure the safety of both the
product and the operator and increase the
lifespan of the product.
All photographs and drawings within this manual are
supplied by Draper Tools to help illustrate correct
operation of the product.
Every eort has been made to ensure the
information contained in this manual is accurate.
However, Draper Tools reserves the right to amend
this document without prior warning. Always use the
latest version of the product manual.
– 2 –
2. Contents
– 3 –
EN
1. Preface 2
1.1 Product Reference 2
1.2 Revisions 2
1.3 Understanding the Safety Content of This
Manual 2
1.4 Copyright © Notice 2
2. Contents 3
3. Product Introduction 4
3.1 Intended Use 4
3.2 Specication 4
4. Explanation of Symbols 5
5. Health and Safety Information 6
5.1 General Health and Safety Precautions 6
5.2 Preparing the Vehicle to be lifted 6
5.3 Correct Use of the Jack 7
6. Identication and Unpacking 8
6.1 Product Overview 8
6.2 What’s in The Box? 9
6.3 Packaging 9
7. Operating Instructions 10
7.1 Preparing the Jack 10
7.1.1 Assemble the handle 10
7.1.2 Bleed the jack piston 10
7.1.3 Test the jack 11
7.2 Raising a Load 12
7.3 Lowering a Load 12
8. Maintenance 13
8.1 General Maintenance 13
8.2 Checking and Replacing the Oil 13
8.3 Storing the Jack 13
8.4 Troubleshooting 14
9. Disposal 14
10. Warranty 15
– 4 –
3. Product Introduction
3.1 Intended Use
This trolley jack is designed for the lifting of vehicles of
up to the stated maximum weight limit as part of
domestic and light-duty commercial use.
Any other application beyond the conditions established
for use will be considered misuse. Draper Tools accepts
no responsibility for improper use of this product.
This product complies with the requirements dened by
EN 1494:2000+A1:2008.
Read this manual in full before assembling, operating or
maintaining the product, and retain it for later use.
3.2 Specication
Stock No. 09179
Part No. TJ3CS
Rated load: 3,000kg
Max. Lifting range: 315–465mm
Saddle diameter: 95.7mm
Handle length: 1,013mm
Chassis length: 572mm
Net weight: 27.4kg
4. Explanation of Symbols
Read the instruction manual
Warning!
Do not incinerate or throw onto re
Mandatory action required
Do not abandon in the environment
Use only on level surfaces
Apply the handbrake and put
the vehicle in gear
Chock all grounded wheels
Support raised vehicles with axle stands
Do not work under vehicles when
supported only by a jack
Maximum lifting capacity
Un-raised jack height
Maximum lifting height
Saddle diameter
Handle height
Overall length
EN 1494:2000+A1:2008
compliant
Net product weight
European conformity
UK Conformity Assessed
– 5 –
EN
– 6 –
Important: Read all Health and Safety instructions
before operating, maintaining or repairing this product.
Non-compliance with these instructions may result in
injury or damage to the user, the product or the vehicle to
be lifted. Draper Tools accepts no responsibility for
improper use of this jack.
5.1 General Health and Safety
Precautions
• Only authorised personnel who have carefully read
and understood this manual should operate this
product.
• ALWAYS wear adequate protective footwear when
using the jack.
• ALWAYS ensure that the working area is well
illuminated and free from obstructions.
• Keep bystanders at a safe distance during operation.
• Allow a minimum distance of 0.5m between the
vehicle and surrounding objects to allow the vehicle
to tip when lifted.
• The wheels of this product DO NOT lock.
− Ensure that the jack will not roll once positioned
for use.
• Care must be taken when handling and lifting.
− Dropping the jack may result in damage to the
product or personal injury.
• DO NOT modify this product in any way.
• Stay alert to external interference that may cause the
raised load to rock during preparation and operation.
• Ensure that the load to be lifted does not exceed the
maximum capacity specied for the jack.
• When not in use, lower the lifting arm, put the handle
shaft into an upright position and twist it clockwise
until strong resistance is felt.
− This prevents the handle shaft from creating a trip
hazard and holds it in the upright position.
− Alternatively, lower the lifting arm, remove the
handle shaft and lay it at on the oor.
5.2 Preparing the Vehicle to be lifted
WARNING! DO NOT lift the vehicle if it may
result in the spillage of dangerous substances,
including fuel or battery acid.
• Ensure that there is no one inside the vehicle.

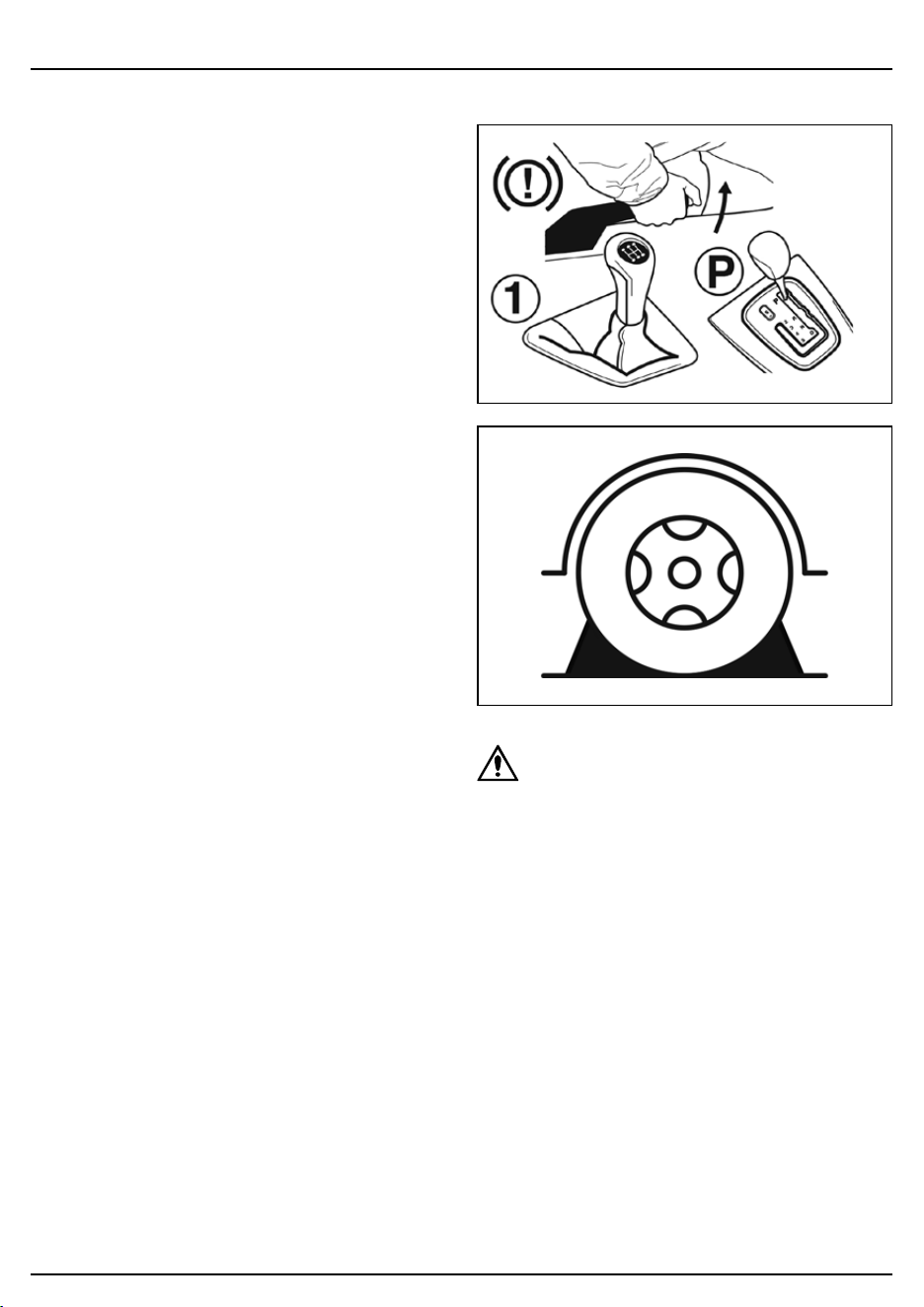

• Switch o the engine and apply the handbrake.
• Put the vehicle into gear (for manual transmission) or
“Park” (for automatic transmission).
• Take any necessary precautions to prevent the vehicle
from sliding.
• Grounded wheels should be securely blocked with
wheel chocks.
5. Health and Safety Information
– 7 –
5.3 Correct Use of the Jack
Important: The jack is a lifting device ONLY and should
never be used to move the vehicle. The vehicle to be
lifted should never exceed the rated capacity of the jack.
• ALWAYS bleed the jack piston before use.

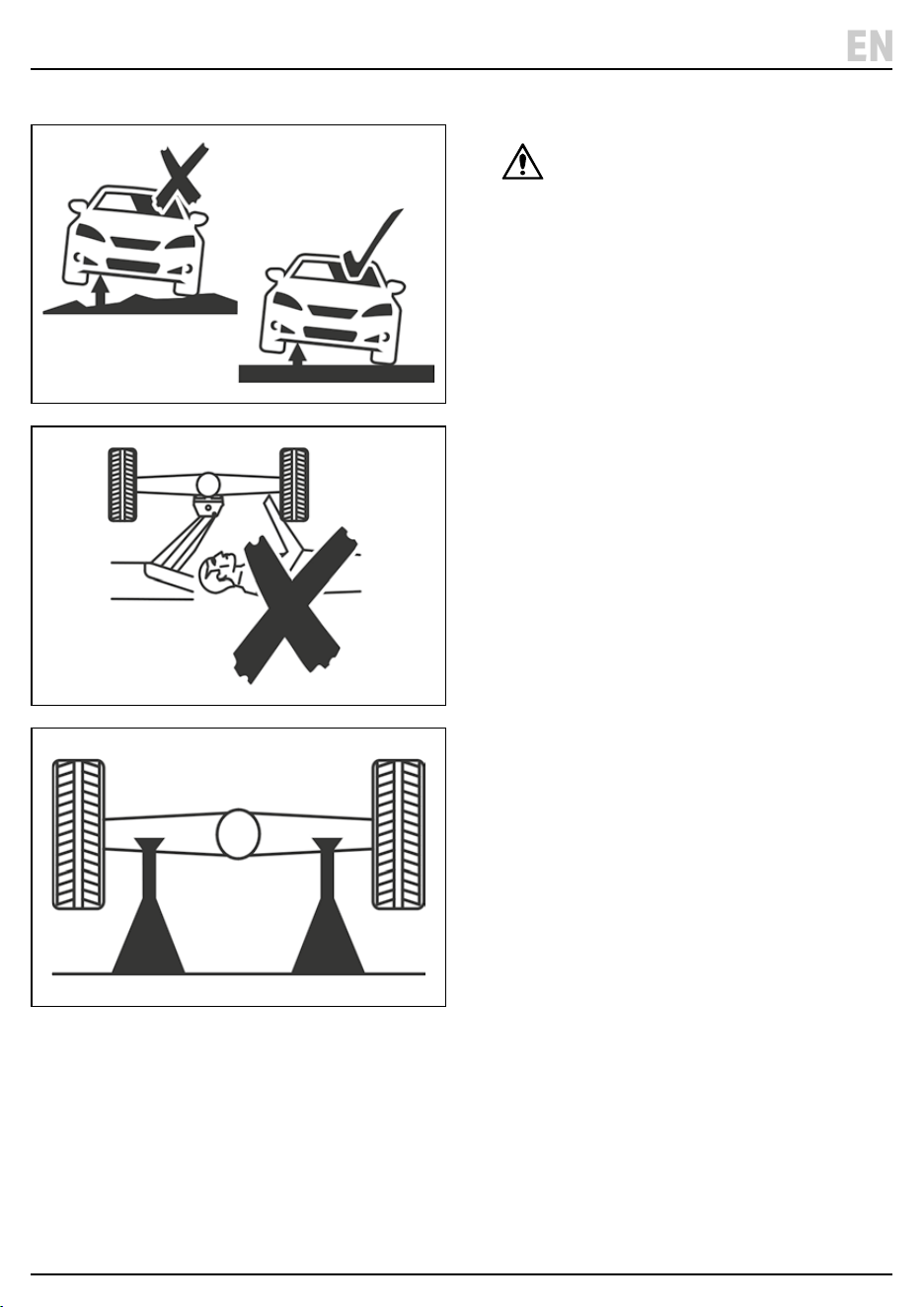

• ONLY operate the jack on solid, level and horizontal
surfaces.
− A concrete surface is recommended, where
possible.
− All four wheels of the jack should be in contact
with the operating surface when in use.
WARNING! Never use the jack on any surface
that is slippery or may sink or rock.
• When positioning the jack, ALWAYS use the
manufacturer’s recommended lifting point.
− These points vary between vehicles; consult the
manufacturer’s manual or the Haynes workshop
manual for the specic vehicle information.
• Ensure that the lifting point is not dirty, greasy or
corroded.
• The lifting point must remain centred over the saddle
during raising and lowering; o-centred loads may
slip and cause injury.
• Position the jack so that no part of the operator is
required to be underneath the vehicle at any time
during lifting or lowering.
• Keep clear of all movable parts of the jack mechanism
when in use.
• To prevent overloading, the jack is tted with an
overload valve set at the factory.
Important: The overload valve should not be adjusted
under any circumstances. If the capacity of the jack is
exceeded, the valve will prevent the lifting operation.
• Take all precautions to prevent movement of the
vehicle during raising and lowering.
− Be aware that trac and other external forces may
cause the load to rock if used at the roadside.
• Remain alert and observe the load at all times during
operation.
− Should any dangerous conditions occur, including
unexpected movement of the vehicle, cease all
operation until these conditions have been
rectied.
• NEVER work under a raised vehicle without using the
correct axle supports or other appropriate supporting
methods.
• DO NOT enter the vehicle or start the engine while it is
supported on the jack or axle stand.
• NEVER leave the jack unattended when in use.
• NEVER detach the handle shaft while the jack is
under load.
• ALWAYS ensure that there are no persons or
obstacles beneath the vehicle before lowering.
5. Health and Safety Information
EN
– 8 –

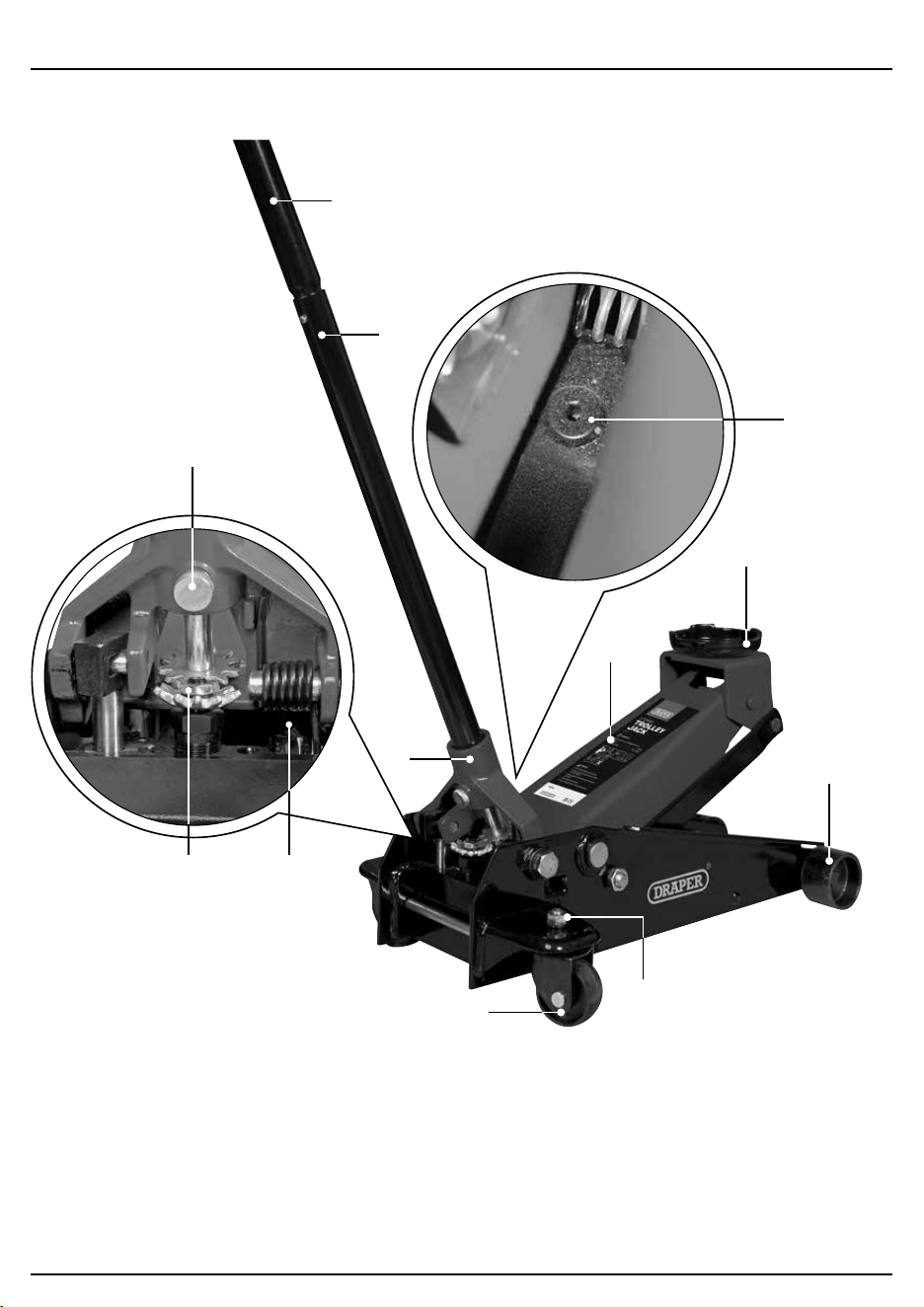

(1) Saddle
(2) Lifting Arm
(3) Handle Upper Shaft
(4) Handle Lower Shaft
(5) Handle Socket
(6) Wheels
(7) Castor Bolts
(8) Castors
(9) Handle Locking Bolt
(10) Release Valve
(11) Overload protection Valve
(12) Oil Filler plug
6. Identication and Unpacking
6.1 Product Overview
(1)
(9)
(6)
(2)
(3)
(4)
(5)
(8)
(7)
(11)(10)
(12)
– 9 –
6.3 Packaging
Keep the product packaging for the duration of the
warranty period for reference should the product need to
be returned for repair.
WARNING! Keep packaging materials out of
reach of children. Dispose of packaging
correctly and responsibly and in accordance
with local regulations.

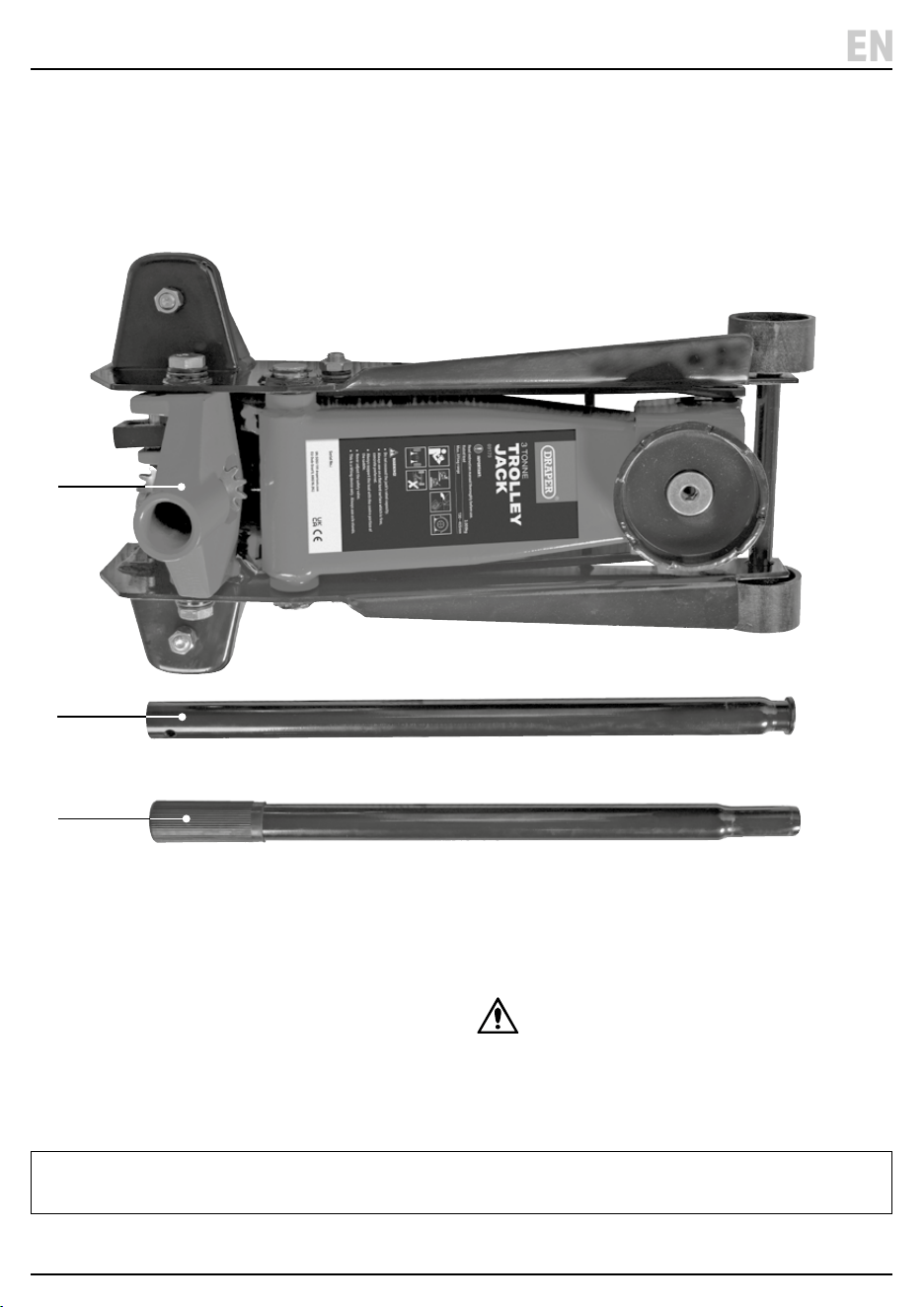

(A) 1 × Base unit
(B) 1 × Lower handle shaft
(C) 1 × Upper handle shaft
(A)
(B)
(C)
6. Identication and Unpacking
6.2 What’s in The Box?
Carefully remove the product from the packaging and
examine it for any signs of damage that may have
occurred during shipment.
Before assembling the product, lay the contents out and
check them against the parts shown below. If any part is
damaged or missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details can
be found at the back of this manual.
Please visit drapertools.com for our full range of accessories and consumables.
EN
– 10 –
Important: Before lifting any load, read and understand
all the safety instructions listed in this manual. ALWAYS
bleed the jack piston before use.
7.1 Preparing the Jack
Prepare the jack correctly before each use:
• Check the jack for bent, broken, cracked or loose
parts and oil leaks; ensure that the wheels (6) rotate
freely and that the bolts (7) are tightly fastened.
WARNING! Do not use the product if defects
are present. If it is suspected that the jack
has been subjected to abnormal loads or has
suered any knocks, withdraw it from
service until the product has been repaired.

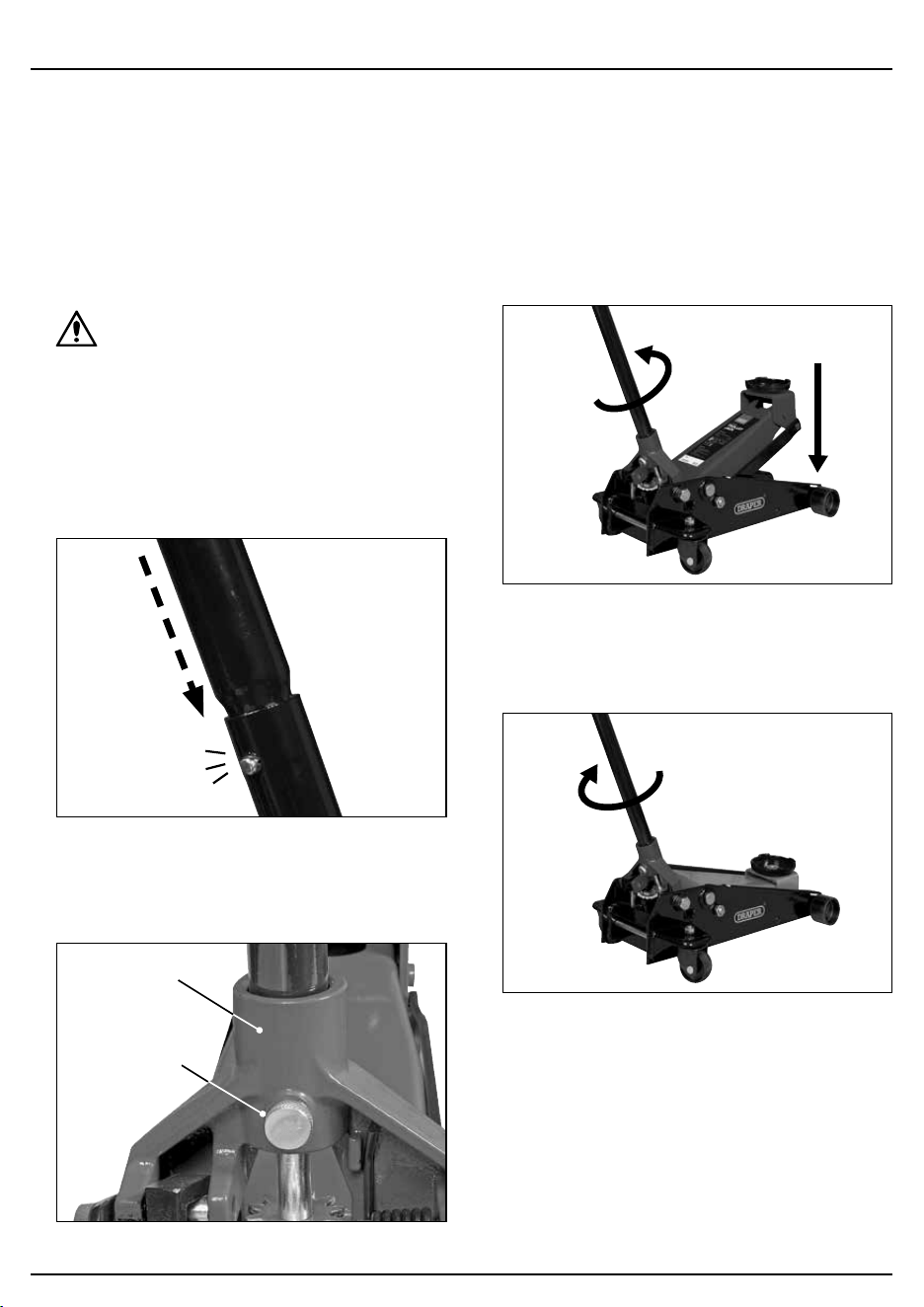

7.1.1 Assemble the handle
a. Attach the upper part to the lower part of the handle
shaft by aligning the top handle pin with the hole in
the lower section (g.1)
1 Fig.
b. Insert the complete handle shaft into the handle
socket (5) and secure it with the locking bolt (9)
(g.2).
2 Fig.
(9)
(5)
Important: The handle shaft should be securely
fastened but able to be twisted without excessive
force. Over tightening may prevent movement of the
handle.

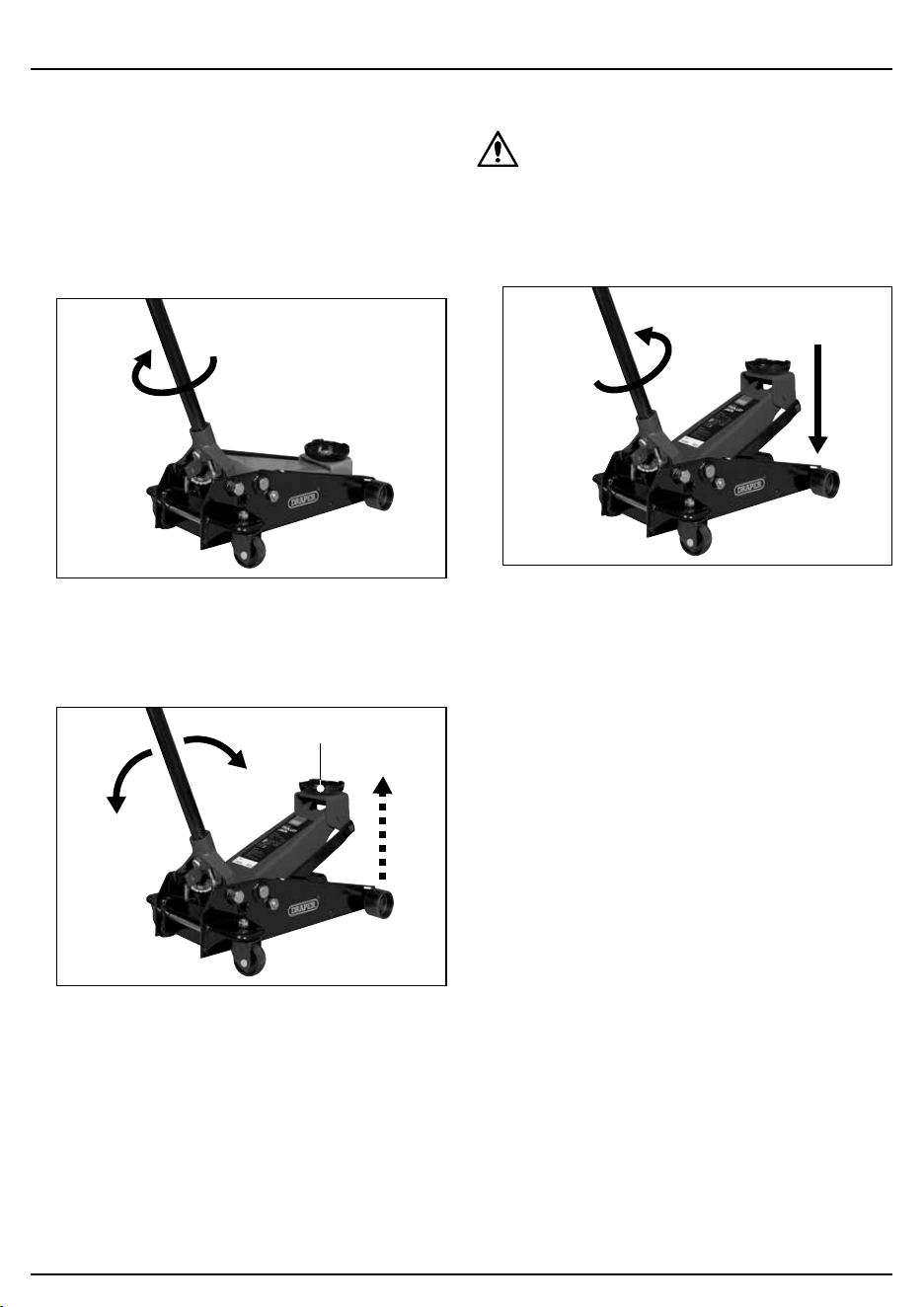

7.1.2 Bleed the jack piston
a. Twist the handle shaft anticlockwise to open the
release valve (g.3) and allow the lifting arm to drop
to its lowest position.
3 Fig.
b. Pump the handle shaft down and up at least ten times
using the full stroke range to lubricate the piston and
expel any accumulated air.
4 Fig.
c. Twist the handle shaft clockwise to close the release
valve and until strong resistance is felt to seal the
release valve (Fig.4).
7. Operating Instructions
– 11 –
7. Operating Instructions
EN

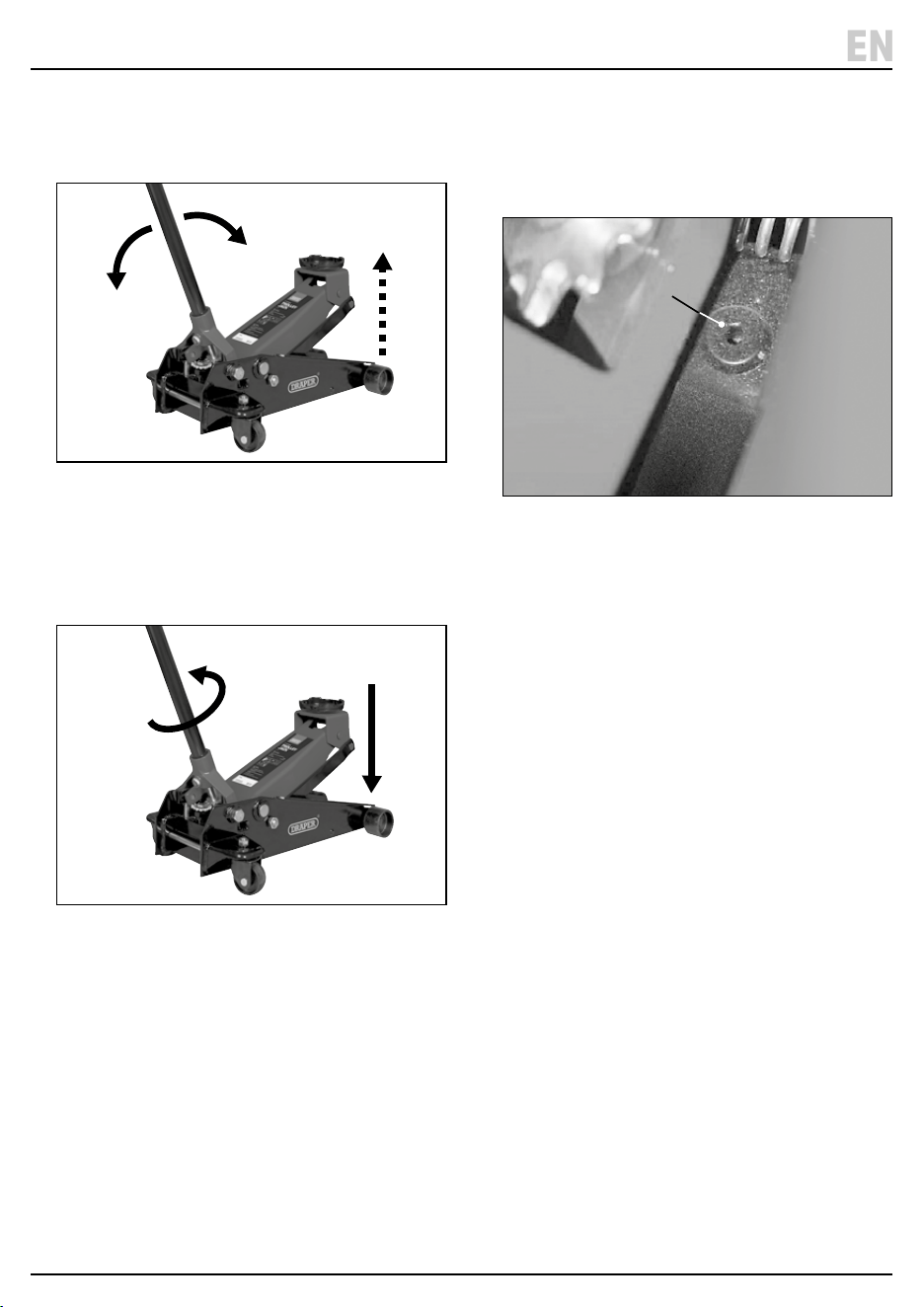

7.1.3 Test the jack
a. Pump the handle shaft down and up to raise the
lifting arm to its highest position.
5 Fig.
b. Observe the saddle to check that it does not drop.
c. If the lifting arm begins to drop without intervention:
d. Twist the handle shaft anticlockwise and allow the
lifting arm to drop to its lowest position.
6 Fig.
e. Slightly loosen the oil ller plug (12) to allow any air
to escape the chamber.
– Escaping air will hiss as it leaves the chamber.
f. Re-tighten the oil ller plug.
7 Fig.
(12)
g. Test the jack again by raising the lifting arm and
ensuring that it does not drop without intervention.
– Repeat this process if necessary. If the issue is not
resolved after several attempts, contact Draper
Tools for assistance.
h. The jack is now ready for use.
7. Operating Instructions
7.2 Raising a Load
a. Position the jack directly beneath the approved
vehicle lifting point.
– See the vehicle manufacturer information for
the approved lifting points.
b. Twist the handle shaft clockwise until strong
resistance is felt.
8 Fig.
c. Pump the handle shaft up and down until contact is
made with the vehicle and check that the saddle (1) is
positioned correctly.
9 Fig.
(1)
d. Pump the handle shaft up to lift the vehicle.
– Use the full stroke range to lift more quickly
• Important: If the jack drops under load,
safely lower the load (see 7.3) and bleed the
piston chamber (see 7.1.2).
e. Immediately secure the raised vehicle with an
appropriate axle stand, placing it as instructed in the
manufacturer's manual.
7.3 Lowering a Load
WARNING! Always ensure that there are no
persons or obstacles beneath the vehicle before
lowering.
a. Gently pump the handle shaft to raise the vehicle
slightly then remove the axle stand once it is safe to
do so.
10 Fig.
b. When the axle stand is clear, carefully twist the
handle shaft anticlockwise to gently lower the load.
Do not turn the handle shaft more than a half turn
at a time during lowering.
– 12 –
– 13 –
8. Maintenance
EN
Important: Maintenance and repair of the jack must only
be performed by qualied personnel with sucient
knowledge of the hydraulics systems used in these
devices.
8.1 General Maintenance
• Keep the jack clean and regularly lubricate all
external moving parts at least every 3 months.
− Dust and debris may cause components to
become clogged or jammed, and the product may
not perform at its best.
− Protect the jack and its components from adverse
environmental and weather conditions, both
during use and when stored. The components may
rust if exposed to damp air for prolonged periods.
• Use only spare parts supplied by Draper Tools.
• Before each use, check the jack for signs of damage or
disrepair.
8.2 Checking and Replacing the Oil
To extend the working life of the product, keep the oil at
an appropriate level and replace it after periods of
prolonged intensive use.
CAUTION! Use SAE10 hydraulic oil. Never use
brake or engine oil.
WARNING! Oil spillage may cause the operating
surface to become slippery. Do not operate the
jack on oily surfaces.
To check, drain and rell the oil capsule:
1. Place the jack on a level, horizontal surface.
2. Fully lower the lifting arm (2) and handle shaft.
3. Remove the oil ller plug (12) and check the oil level
Important: The correct oil level is 5mm below the
ller plug hole.
4. If the oil is dirty or needs replacing:
a. Drain any remaining contents into a container.
b. Rell the chamber with new oil as required,
keeping the oil free of dirt.
CAUTION! Excessive quantities of oil
may render the jack inoperable.
5. Replace the oil ller plug and wipe away any excess oil.
6. Return the handle shaft to an upright position.
Always drain the jack of oil before disposal. Dispose
of oil according to local regulations.
8.3 Storing the Jack
When the jack is not in use:
• Detach the handle shaft by unscrewing the locking
bolt (9).
• Ensure that the lifting arm (2) is fully lowered and
apply an anti-corrosion product to the pistons if
appropriate.
• Store the jack in a clean and dry location, out of reach
of children.
– 14 –
Problem Possible Cause Remedy
The lifting arm does not raise when
the handle shaft is pumped.
The release valve is not fully closed. Twist the handle shaft clockwise
until strong resistance is felt and
bleed the piston if necessary (see
section 7.1.2).
The maximum load has been
exceeded.
Use an appropriately rated jack or
reduce the weight of the load.
DO NOT adjust the overload valve.
The piston system is corroded. DO NOT use the jack. Contact
Draper Tools to discuss repair or
replacement options.
The saddle drops once lifted. The release valve is not fully closed. Twist the handle shaft clockwise
until strong resistance is felt
and bleed the piston if necessary.
The hydraulics mechanism
is damaged.
DO NOT use the jack. Contact
Draper Tools to discuss repair or
replacement options.
The handle shaft cannot be
operated or raises the saddle slowly.
The piston system is not
appropriately lubricated.
Follow steps in section 7.1.
The handle shaft cannot
be twisted.
The attaching bolt has been
overtightened.
Slightly loosen the attaching bolt.
8.4 Troubleshooting
8. Maintenance
At the end of its working life, or when it can no longer be
repaired, dispose of the jack according to local regulations.
Contact your local authority for details of collection
schemes in your area.
In all circumstances:
• DO NOT dispose of this product with domestic waste
• DO NOT incinerate
• Before decommissioning, drain and dispose of the oil
from the jack in line with local regulations
• DO NOT abandon in the environment
9. Disposal
– 15 –
10. Warranty
Draper Tools products are carefully tested and inspected
before shipment and are guaranteed to be free from
defective materials and workmanship.
Should the tool develop a fault, return the complete tool
to your nearest distributor or contact Draper Tools
directly. Contact information can be found at the back of
this manual.
Proof of purchase must be provided.
If, upon inspection, it is found that the fault occurring is
due to defective materials or workmanship, repairs will
be carried out free of charge.
This warranty period covers
parts and labour for 12 months from the date of purchase.
Where tools have been hired out, the warranty period
covers 90 days from the date of purchase.
This warranty does not apply to any consumable parts,
batteries or normal wear and tear, nor does it cover any
damage caused by misuse, careless or unsafe handling,
alterations, accidents, or repairs attempted or made by
any personnel other than the authorised Draper Tools
repair agent.
In all cases, to make a claim for faulty workmanship or
materials within the standard warranty period, please
contact or return the product to the place of purchase.
Proof of purchase may be required.
If the place of purchase is no longer trading or if you
experience any diculties with your warranty, please
contact Customer Services with the product details and
your proof of purchase. Contact details can be found at
the back of this manual.
If the tool is not covered by the terms of this warranty,
repairs and carriage charges will be quoted and charged
accordingly.
This warranty supersedes any other guarantees
expressed or implied and variations of its terms are not
authorised.
Your Draper Tools guarantee is not eective until you can
produce, upon request, a dated receipt or invoice to
verify your purchase within the guarantee period.
Please note that this warranty is an additional benet
and does not aect your statutory rights.
Draper Tools Limited
© Published by Draper Tools Limited© Published by Draper Tools Limited
Delta International
Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Email: [email protected]
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
General Fax: +44 (0) 23 8026 0784
Please contact the Draper Tools Product Helpline for repair and servicing enquiries.
