OIL HOSE END GUN WITH DIGITAL METER
MODEL NO: AK4565D.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure health & safety, local authority, and general workshop practice regulations are strictly adhered to when using this
equipment.
9 Familiariseyourselfwithproductapplicationandlimitations,aswellasthespecicpotentialhazardspeculiartothisproduct.
the pump station in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts will invalidate the warranty.
9 Use only to pump oils up to SAE 150 viscosity.
9 Ensure safety eye protection and protective clothing are worn when using this product.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnonslipshoes.
9 Keep children and unauthorised persons away from the working area.
9 Afteruse,drainanyuidsfromtheequipmentbeforestorage.
9 Dispose of waste liquids in accordance with local authority regulations.
8 DO NOT exceed the maximum pressure of 750psi.
8 DO NOTpointthenozzleatpeopleoranimals.
8 DO NOTusetheequipmentnearopenames.
8 DO NOT smoke whilst using this equipment.
8 DO NOTusetoextractcorrosiveuids.
8 DO NOT dismantle, tamper with or adapt the equipment for any purpose other than for which it is designed.
8 DO NOT use the unit if it has been dropped or mishandled, check the unit to ensure there is no damage.
9 Keep the pump clean and store in a safe dry, childproof location.
WARNING! DO NOTallowuncontrolleddischargeofuidsthuspollutingtheenvironment.Allliquidsmustbedisposedofaccordingto
local authority regulations.
2. i INTRODUCTION
Robustoildispensinggunincorporatingdigitalmeter,manualshut-oandtoughrubberprotectionguard.Fittedwithexibleextension
andnon-dripnozzle.Easy-to-read5-digitLCDdisplaywithresettableindividualorcumulativetotals.
Please note that this gun is not approved for the resale of oil.
3. i SPECIFICATION
Model No: ...............................................................AK4565D
Maximum Flow Rate: ................................................ 35L/min
Accuracy: ..................................................................... ±0.5%
InletSize: .................................................................. 1/2”BSP
Battery .......................................... LithiumCR23V1400mAh
4. ASSEMBLY
4.1. Remove the blanking plug from the outlet end of the meter. Ensure that the
threadsonthenozzlepipeassemblyarecleanandapplysomeliquidthread
sealant onto the male connection. Screw both parts together and tighten.
NOTE: DO NOT apply too much thread sealant and ensure that none gets
into the meter.
4.2. Remove the blanking plug from the handle end and connect to the male end
of the supply hose.
WARNING! DO NOT over tighten as this may cause damage to the swivel
connection.
WARNING! Ensure that the system pressure does not exceed the 750psi of
the digital meter.
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear protective
gloves
Wear eye
protection
Wear protective
clothing
AK4565D.V2Issue120/04/21

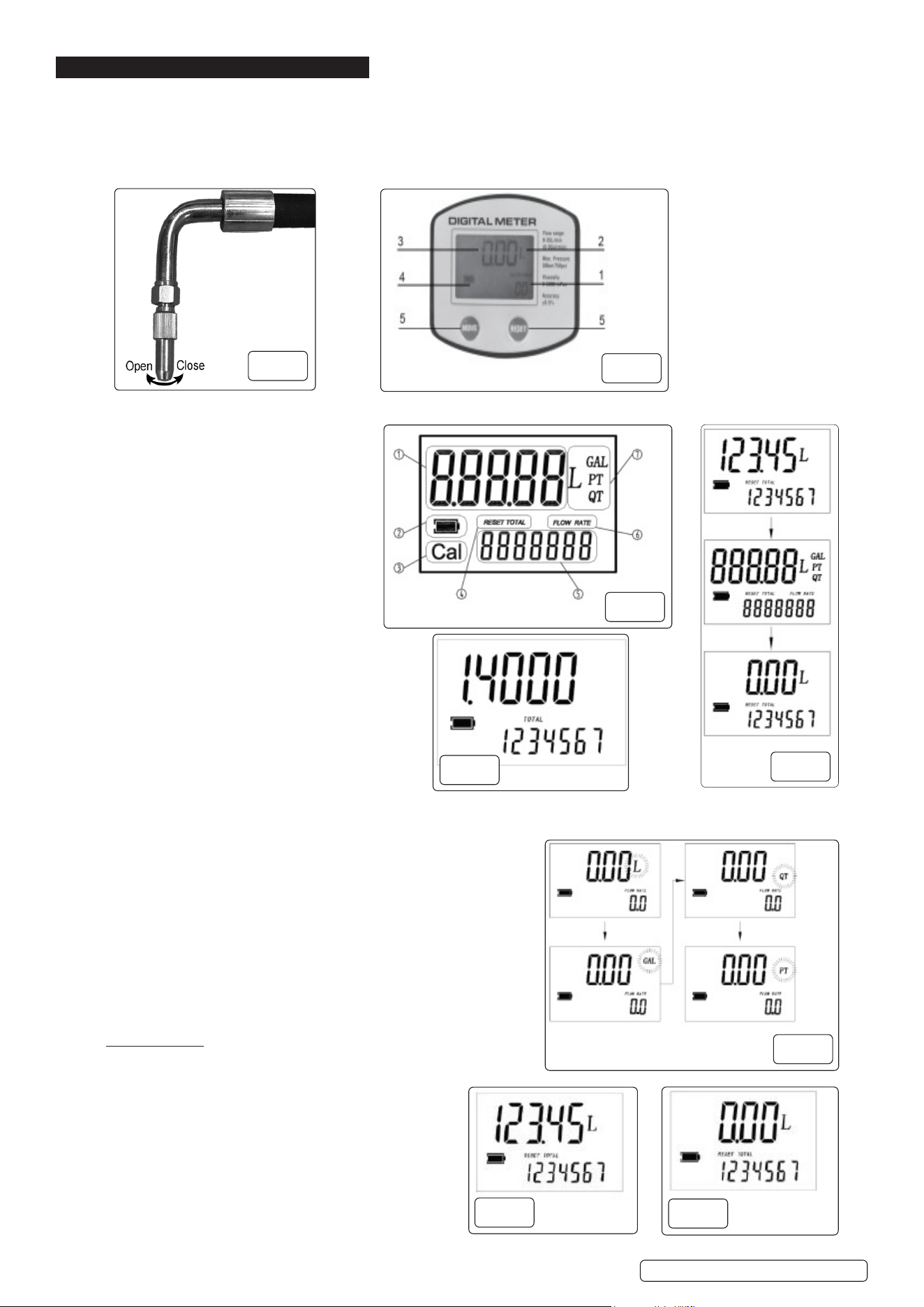

5. OPERATION
5.1. OPERATING THE GUN
WARNING!Ensurethatthetriggerisnotdepressedbeforeopeningthenozzlevalve.
5.1.1. PresstheResetbuttonfor1sectozerothedisplay.
5.1.2. Withthenozzlepointingintothereceivingcontainer,openthenozzlevalveasshowning.1.
5.1.3. Depressthetriggeranddispensetheliquidtheamountdispensedisshownonthedisplay(g.2.4).
5.1.4. Releasetriggerandclosethenozzlevalve.
5.2. LCD INTERFACE USAGE
5.2.1. UserButtons(g.2)
1.LCDdisplaysdeliveryvolumeandtotals
2. Units: L, GAL, PT, QT
3. Two decimal place values
4. Low battery indicator
5.MOVEandRESETbuttons
5.2.2. Displaykey(g.3)
1.VolumesincelastRESET
2. Battery state
3.Calibrationmodeindicator
4.Resettozeroindicator
5. Total register
6. Flow rate mode
7. Units (Lts/gall/pint/quart)
5.2.3. MOVE/RESETUsage(g.2.5)
MOVEkeyenters‘calibration’mode
RESET key for register and total
Bothkeyspressedenters‘conguration’mode
5.2.4. ToRESETcurrenttotal(g.4)
From standby press RESET
All segments light up
Currenttotalresetsto0.00
5.2.5. To display correction factor and Total(g.5)
HoldMOVEandRESETfor3seconds
Value“1.4000”iscorrectionfactor.
”1234567” overall total
5.2.6. TochangeUnits(g.6)
HoldMOVEandRESETforseveralseconds
Area2ing.2showsunits
Press RESET to change units
PressandholdMOVEtoconrmchoice
5.3. DETERMINING THE CORRECTION FACTOR
5.3.1. Dispense at least 1 litre of liquid into a calibrated container.
5.3.2. Record the quantity of liquid in the container and record the quantity of
liquid dispensed as indicated on the meter display. Press the
Move+Resetbuttons(g.2.5andg.2.5)simultaneouslytodisplay
the current correction factor.
Qty Dispensed
Qty Indicated
x Current Correction Factor = New Correction Factor.
5.4. ALTERING CORRECTION FACTOR DIRECTLY
5.4.1. Waitformetertogotostandby(g.7).
5.4.2. Reset total (5.2.4)g.8tozero.
Original Language Version
© Jack Sealey Limited
fig.
1
fig.
2
fig.
3
fig.
4
fig.
5
fig.
6
fig.
7
fig.
8
AK4565.V2Issue120/04/21
AK4565.V2Issue120/04/21
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE).Whentheproductisnolongerrequired,itmustbedisposedofinanenvironmentallyprotectiveway.Contactyourlocalsolid
waste authority for recycling information.
BATTERY REMOVAL SEE SECTION 6
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containingbatteries(asdefinedwithintheseregulations),thattheyareregisteredwithValpak’sregisteredcompliancescheme.Jack
Sealey Ltd Batteries Producer Registration Number (BPRN) is BPRN00705.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call our
technicalteamontechnical@sealey.co.ukor01284757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

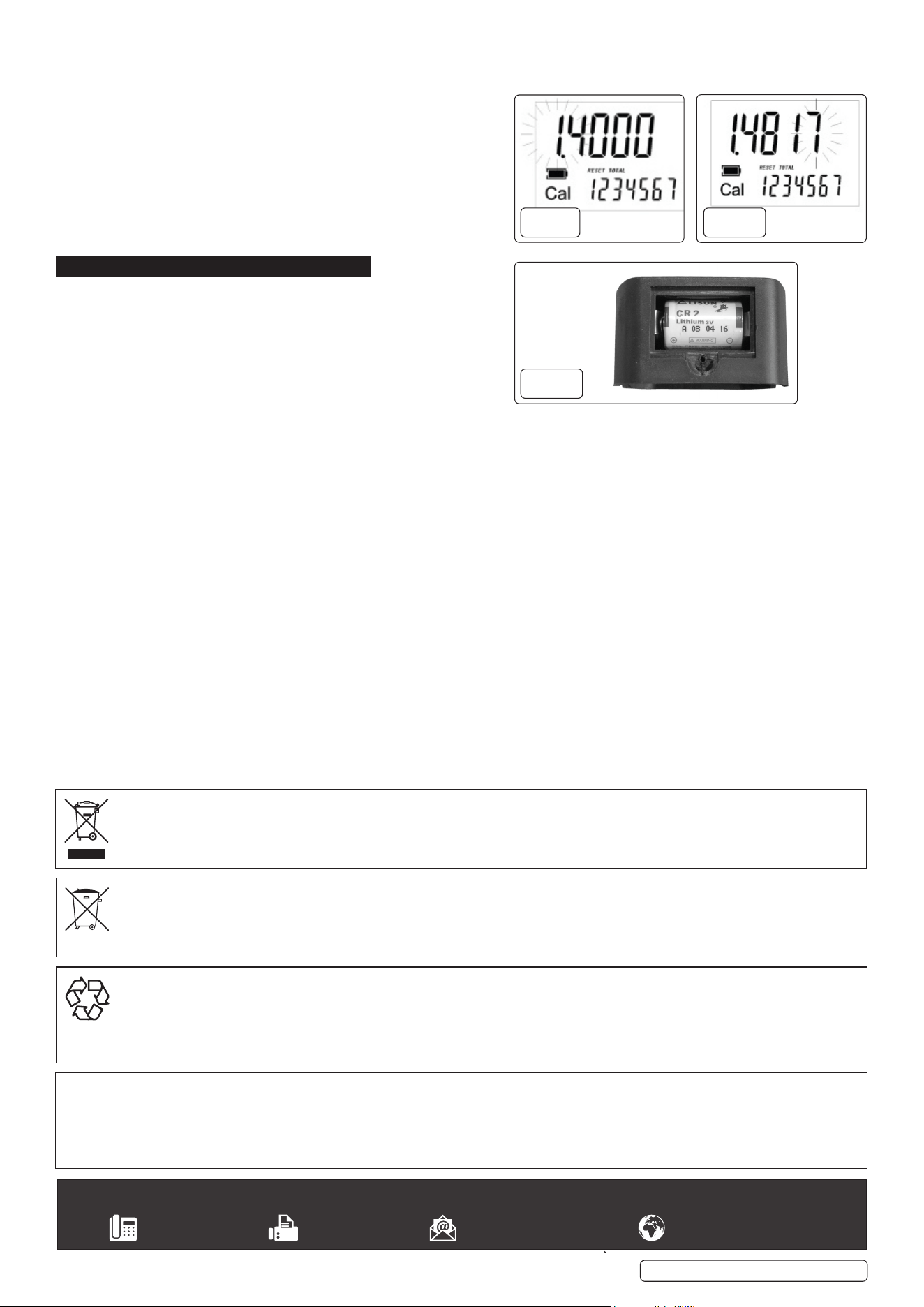

5.4.3. PressandholdMOVEkeyuntilalldigitsilluminateanddisplayshows‘Cal’(g.9).
5.4.4. PressRESETtosetdigitvalues(fromrighttoleft)(g.10).
5.4.5. OncevalueiscorrectholddownMOVEkeyuntilCalmodequits.
5.5. ALTERING CORRECTION FACTOR INDIRECTLY
5.5.1. Waitformetertogotostandby(g.7).
5.5.2. Resetthetotal(5.2.4)g.8tozero.
5.5.3. Dispense into measuring container (minimum 5 litres) and record.
5.5.4. If displayed value does not match actual measured value
pressandholdMOVEkeyuntileachdigitreadsasperthe
measuredvalue.PressMOVEkeytovisiteachdigitinturn.
5.5.5. Once value is correct (i.e. matches measured value) press and
holdMOVEkeyuntilCalmodequits(g.8).
6. MAINTENANCE
6.1. CHANGING THE BATTERY
6.1.1. Batterytype:LithiumCR23V1400mAh.
6.1.2. Remove the rubber protective cover from the meter.
6.1.3. Remove the screw and cover from the side of the meter.
6.1.4. Removeandreplacebattery(g.11).
6.1.5. Replace cover and secure with screw.
6.1.6. Replace the protective rubber cover.
6.2. Checktheunitconnectionsbeforeeachuse.
6.3. Checkthenozzlevalveforleaks,ifitdoesnotseal,replacebeforeusing.
fig.
9
fig.
10
fig.
11
