enjoy your ride
M4PRO S+
The product is slightly different from the picture, for your safety and the safety of
others, please read the instructions before riding.
When using the product, please comply with the laws and regulations in your
area. We are not responsible for any claims, liabilities or losses that arise or
may arise from the consumer's violation of local laws and regulations.
Packing list-------------------------------------------------------02
Product introduction-------------------------------------03-08
Charging method of electric scooter------------------------09
Riding method--------------------------------------------10-11
Folding and carrying-----------------------------------------12
Specifications of electric scooter
-----------
--------------13-14
Safety instructions----------------------------------------15-18
Safety tips-------------------------------------------------19-20
Daily care and maintenance
Catalog
------------------------------21-22
-01-

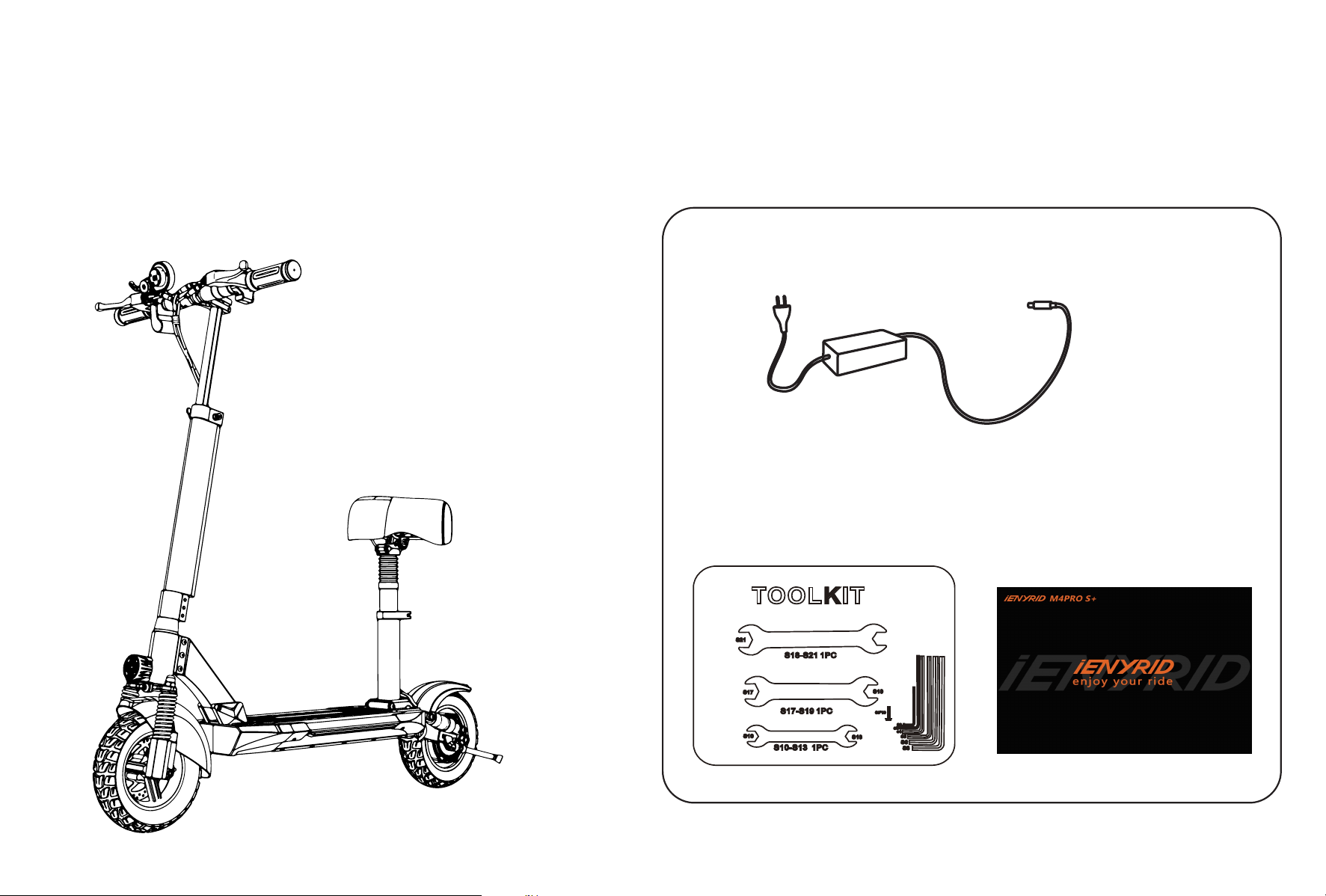

Packing list
Electric Scooter Accessories：
Charger
S21
S19
S17
S
13
S10
S6
S5
s
4
S2. 5
s3
S8
S5* 16
S18-S21 1PC
S17-S19 1PC
S10-S13 1PC
TOOLKIT
Toolkit User manual
Seat
-02-
Product introduction
Taillight
Kickst and
Seat
Rear Fender
Pneumat ic t yre
M ot or
Seat support
Turn light
Rear shock absorber
Color light
Silicone ant i-slip mat
Ruber Cover
f olding sw it ch
Front shock absorber
Pneumat ic t yre
Front w heel
Direct ion Rod
Brake level
Ext ension Rod
Handlebar Grip
Bat t ery compart ment
Disc Brake
Charging Port
Seat f olding sw it ch
-03-
Digit al display sw it ch w it h key
Headlight sw it ch
Int egrat ion Line
Front light
Front Fender
Brake level
Brake level
Accelerat ion
t hrot t le
Key
Handlebar Grip
Handlebar Grip
Folding handle
Folding handle
Ext ension rod locking buckle
Horn Sw it ch
Turn signal
sw it ch
Headlight sw it ch
Power switch
-04-
It contains threads that need to be loosened first and pushed outward.
-05-
Warm tip: for the convenience of folding, the collar and shaft is not fully tightened.
It is a normal phenomenon if there is a gap.
Please rest assured that this will not affect the safety of driving.
If necessary, you can adjust: clockwise adjustment of the threads will loosen the
handle, counter clockwise adjustment of the threads will tighten the handle.
Smart Accelerator and Display Dashboard
Gear
Cruise control
Error code
Speed
Trip distance
Total distance
Non-zero start
Speed indicator
Battery Indicator
Multi-function display area:
total distance
, trip distance, battery voltage,
run time, error code
Power switch
Gear switch key + function
key
-06-
-07-
Error display
When there is an error in the electric vehicle, the meter displays the error code and
you can check the E-00X error code in a few short presses;
The error list is as follows.
E-001: indicates motor error
E-002: indicates the Speed lever error
E-003: indicates controller error
E-004: indicates brake error
E-005: indicates low voltage protection
E-006: indicates that the controller signal is not received by the display
E-007: indicates that the display signal is not received by the controller

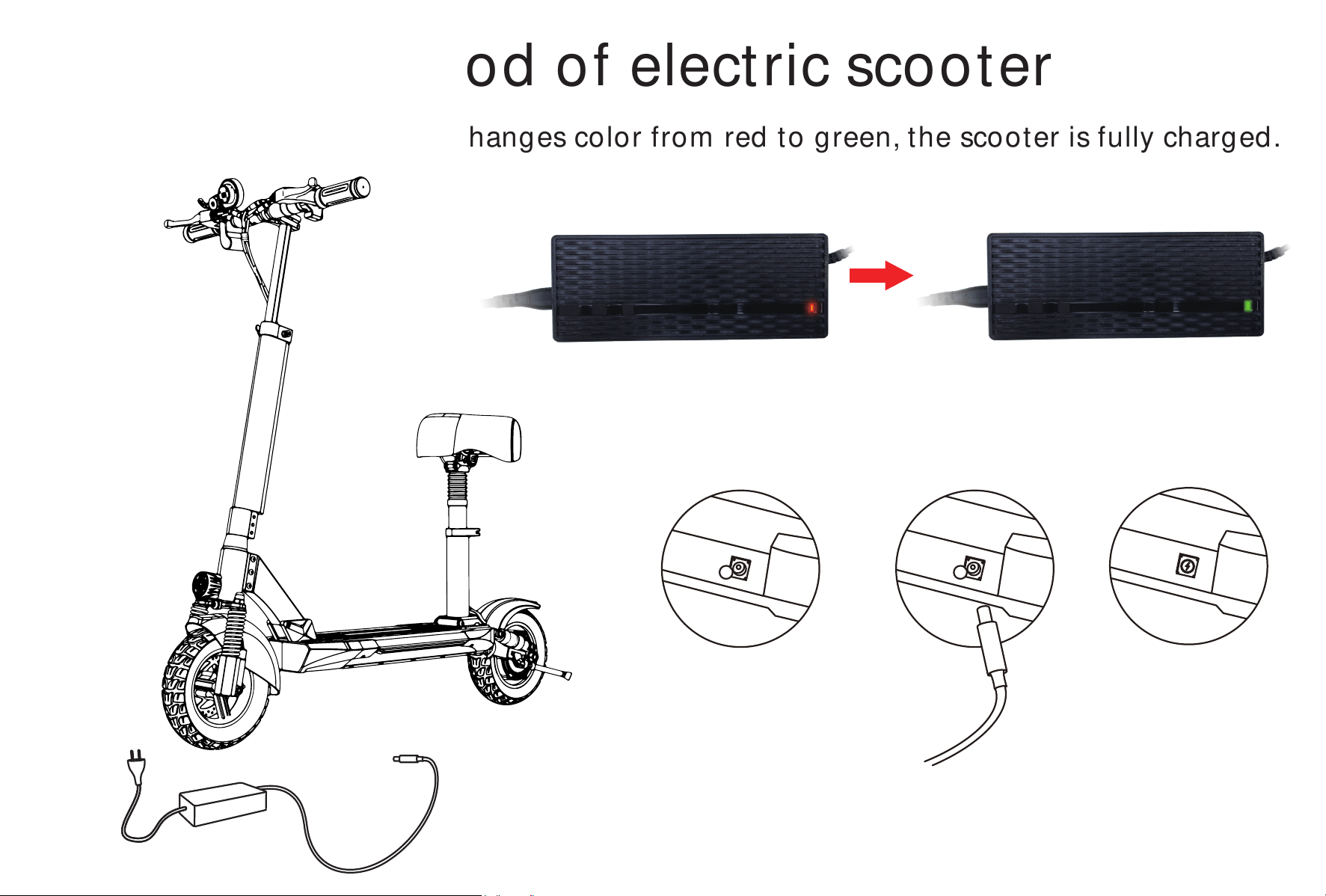

When the LED on the charger changes color from red to green, the scooter is fully
Charging method of electric scooter
charged.
Fully Charging Charged
Open the plastic cover of the charging port
-08
Insert the charger into the charging port
After charging is complete, cover
back to the plastic cover
-
Riding method
-09-
１． Ｔｕｒｎ ｏｎ ｔｈｅ ｓｃｏｏｔｅｒ ａｎｄ ｃｈｅｃｋ ｔｈｅ ｐｏｗｅｒ ｉｎｄｉｃａｔｏｒ

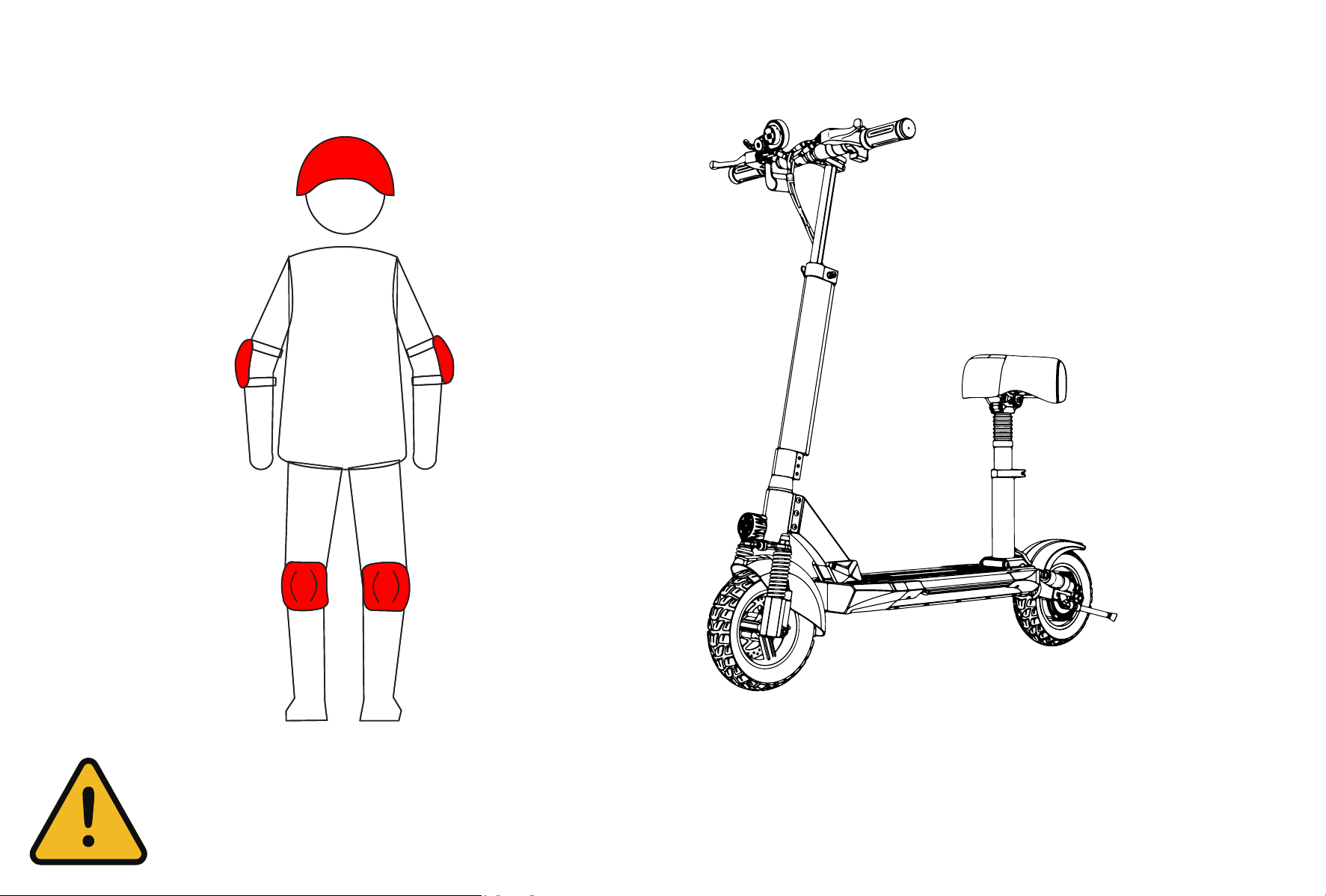

WARNING: Wear a helm et, elbow pads and knee pads when riding.
Please read the manual carefully before use. Do not touch the brake
system.For more inform ation, please refer to the instructions.
-10-
-11

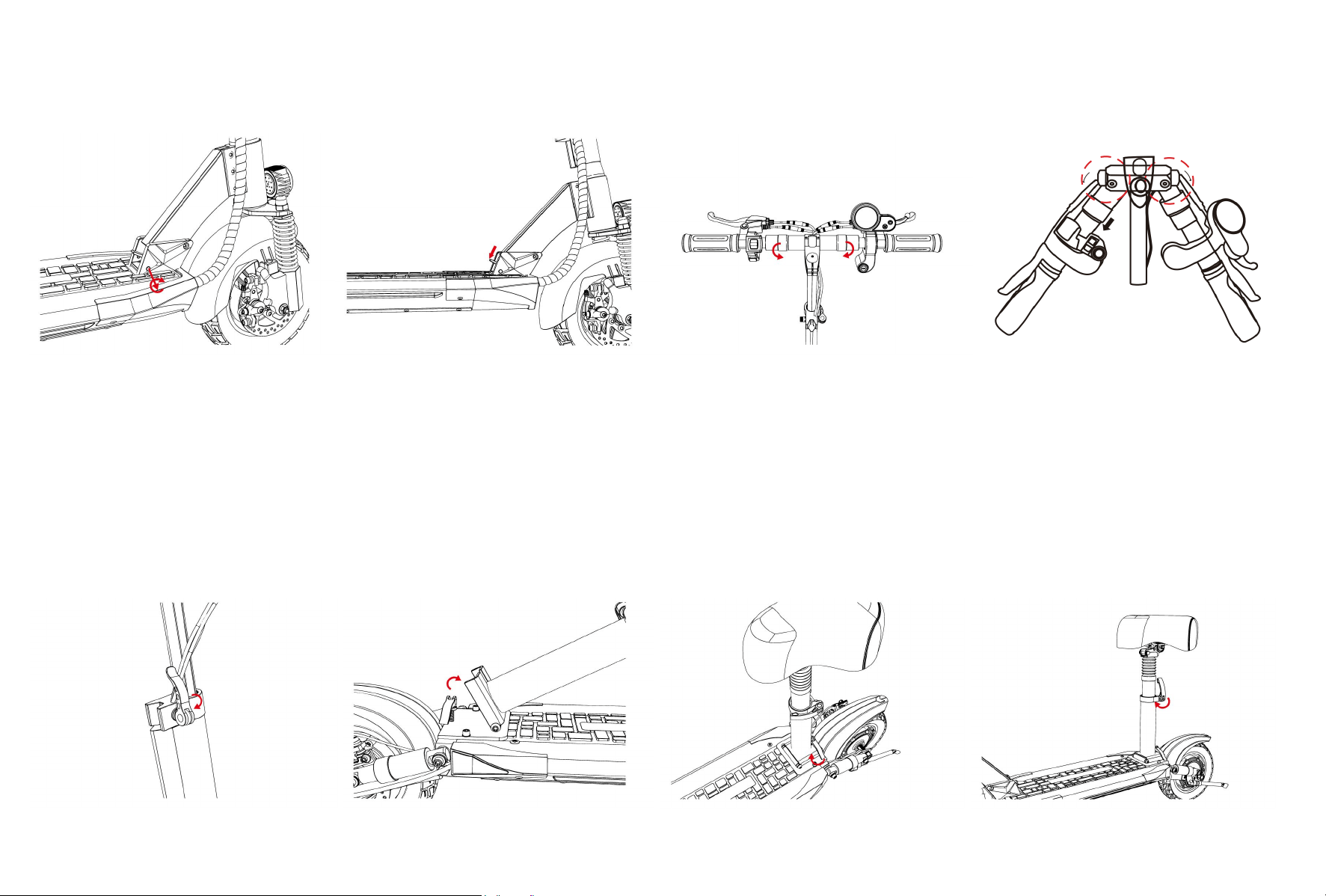

Folding and carrying
-
③
① ④
⑤
⑦
②
⑧
⑥
Specifications
119.5*26*47.5c
Model:
m
10AH/23.01kg 16AH/24.26
10AH/28.21kg 16AH/29.39
KG
KG
48V 10AH/16AH
48V
15
10" off-road pneumatic tires
0KG
45KM/H 1-3
6
-8H
adjustable gears
10AH(25-35KM) 16AH(30-50KM)
Package Size:
-12-
800W
Aluminum alloy
Disc brake + Electronic brake
Gross Weight：
Battery
Net Weight：
：
Tires
Voltage：
Motor Power：
：
Max Load：
Frame Material：
Charging Time：
Brake System：
Range
Max. Speed：
：
1 month：-20 - 60℃ (-4~140°F)
3 months
：-20 - 45℃ (-4~113°F)
1 year：-20 - 20℃ (-4~68°F)
18650 Lithium battery
-10 ~ 40℃ (14~104°F)
10 ~ 40 ℃ (50~104°F)
5% ~ 95%
-13
Note: Data and specifications may vary depending on the model.
-
Storage Temperature：
Battery Type：
Working Temperature：
Storage Humidity
Charging Temperature：
：
Do not ride in t he rain
Do not accelerat e w hen
going dow nhill
Wat ch out doors, elevat ors and
ot her overhead obst acles
Do not accelerat e w hen pushing
-14-
Be caref ul t o avoid obst acles
Do not hang bags or ot her heavy object s
on t he handlebars
Do not ride on one f oot
Keep your speed bet w een 5 -10 km/ h w hen
crossing speed bumps, t ight sect ions, bumpy
roads or ot her uneven surfaces.
-15-
Do not ride in t he mot orw ay
Do not t urn your handlebars violent ly
w hen riding at high speed
Do not ride over puddles or any ot her
(w at er) obst acle. In t his case, reduce your
speed and go around t he obst acle
Do not ride w it h anyone else
(including children)
-16-
-17-
Do not put your f eet on t he rear f ender
Do not t ake your hands of f t he handlebars
w hile riding
Do not t ouch t he disc brakes
Do not t ry t o go up and dow n st airs
and jump over obst acles
Safety tips
-18-
1. Scooters are intended for riders 16 years of age and older. Do not ride a scooter if
you have reduced physical, sensory or mental abilities. Riders who are lack of exper-
ience or knowledge should drive with caution.
2. This electric scooter is a recreational device. However, once it is in public area, it is
considered to be a vehicle and is subject to any risks associated with vehicles. For your
safety, please follow the instructions in the manual and the traffic laws set by the gove
-rnment and regulatory agencies.
3. Also, you should understand that risks can not be completely avoided because
others may violate traffic laws and drive carelessly. The faster a scooter goes, the
longer it takes to stop. On smooth surfaces, scooters may slip, lose their balance, or
even cause falls. Therefore, you must exercise caution and maintain the proper speed
and distance especially if you are not familiar with the area.
-19
4. Riding at high speed or speed that is not appropriate for the current
conditions (adverse weather conditions, poor ground conditions, etc.) may
result in potential loss of stability or loss of control. To reduce any risk, you
must follow all instructions in this user manual. Be careful when folding and
unfolding the product, it can fall off and cause injury.
5. Inspect the scooter before each use. When you notice loose parts, low
battery alarms, tire leaks, excessive tire wear, strange noises, errors and
other abnormalities, stop riding immediately and seek professional support.
6. When riding a scooter, you need to hold the handlebars with both hands
to avoid shaking and falling.
7. Always place the scooter on its stand on a flat and stable surface.
Do not place the scooter with the front side down, as the stand may close
and tip the machine.
-
Daily care and maintenance
-20
Cleaning and storage
If you see a stain on the scooter body, wipe it off with a damp cloth. If the
stain doesn't come off, smear some toothpaste, brush it off with a
toothbrush, and then wipe it off with a damp cloth. If you see scratches on
the plastic parts, polish them with sandpaper or other abrasive material.
Note
Do not use alcohol, gasoline, kerosene or other corrosive and volatile
chemical solvents to clean the scooter as this may cause serious damage.
Do not use high pressure water jets to clean the scooter.
During cleaning, make sure the scooter is off, unplug the charging cable and
close the rubber cover, as water leakage may cause electric shock or other
major problems.
When the scooter is not in use, keep it indoors in a dry and cool place. Do
not leave it outside for long periods of time. Excessive sunlight, excessive
heat and cold will accelerate tire deterioration and affect the life of the
scooter and battery.
-
-21
M aintenance：
Always charge the battery before it runs out of power to extend the life of the
battery. The battery pack performs better at room temperature and less well
below 0°C. For example, below -20°C, the riding range is half or less than
normal. When the temperature rises, the riding range is restored.
The scooter can only use the original battery and the scooter can only be
charged by the original charging adapter included with the scooter. (or a
compatible battery model or charging adapter model approved by the
manufacturer)
Do not leave the battery in an environment where the ambient temperature
is above 50°C or below -20°C
(e.g., do not leave the scooter or battery pack in a sun-drenched vehicle for
an extended period of time)
If the scooter is expected to be idle for more than 30 days, keep the battery
fully charged and in a dry, cool place.
Remember to recharge the battery every 30 days to protect it from potential
damage beyond the limited warranty.
-
