USER’S MANUAL
WARRANTY Information can be viewed online at
https://www.galaxyaudio.com/support/warranty
THREE YEAR LIMITED WARRANTY
V20171017
1-800-369-7768 www.galaxyaudio.com
Specifications in this manual are subject to change without notice.
© Copyright Galaxy Audio 2017
Printed in China
www.galaxyaudio.com/support/warranty
www.galaxyaudio.com

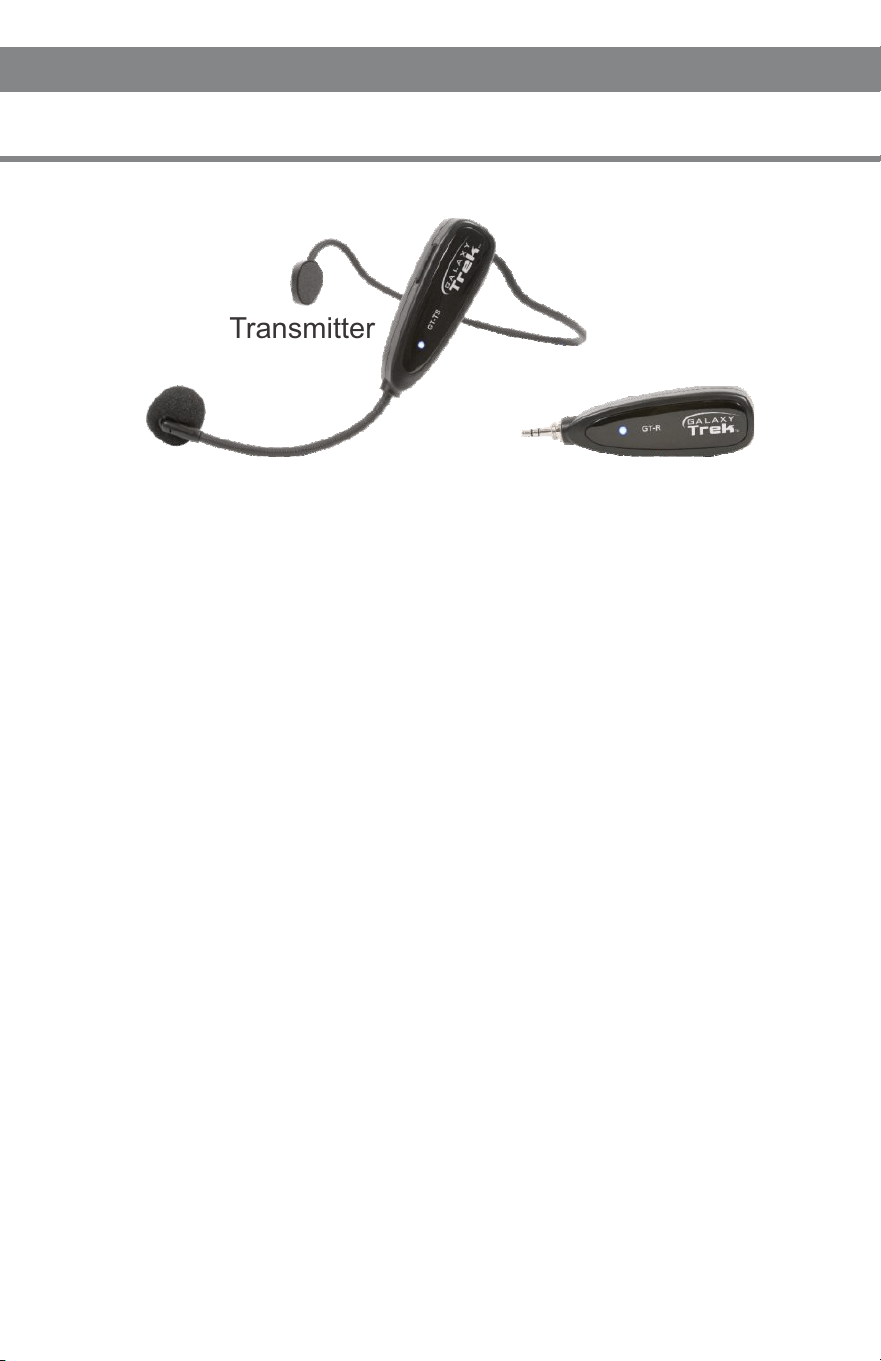

Transmitter
Receiver
Galaxy Trek Headset Mic System GT-S
GT-S
Galaxy Trek Headset Mic System GT-S
1. Put the receiver into the 1/8" (3.5 mm) Mic input of an amplifier, powered speaker, or other
audio device or use the included 1/4" (6.5 mm) adapter for 1/4" inputs. For Apple or
Android phones, use the included phone adapter cables.
2. Attach the Transmitter onto the included headband.
3. On the Receiver, move the Power switch to On. The LED will begin
flashing.
4. On the Transmitter, move the Power switch to On. The LED will briefly flash until the
Transmitter and Receiver automatically pair. The LED will then remain on.
5. Adjust the volume to a suitable level. It is ready for use.
Specifications
Frequency Range: 2.4GHz Frequency Hopping
Bandwidth 24MHz
Frequency Response: 20Hz-20KHz
Audio 16bit, 44.1KHz
S/N Ratio: >63dB
Auto-Match Pairing
Transmitter:
On-Off Power Switch
Level Control
Condenser Cardioid Mic Capsule
Lithium-Ion Rechargeable Battery
Mini USB Charging Input
Power and Pairing Indicator LED
Detachable Headband
Receiver:
On-Off Power switch
3.5mm stereo output plug
Lithium Ion battery
Mini USB charging input
Power and pairing indicator LED
Included Accessories:
Headband
Cell Phone Adapter Cables (Red for Android, Black for Apple)
1/8 inch to 1/4 inch Adapter
USB Charging Cable
19.7 inch Female to Male Extension Cable
Windscreen
Caution
The LED will turn red when power is low, and will turn off when
less than 10%. The LED will also turn red when charging.
Store in a dry location away from moisture. Avoid excessive heat.
For repair services, please contact Galaxy Audio. Do not attempt
open or repair it. Doing so will void warranty.
Transmitter
Receiver
Galaxy Trek Headset Mic System GT-S
GT-S
Galaxy Trek Headset Mic System GT-S
1. Put the receiver into the 1/8" (3.5 mm) Mic input of an amplifier, powered speaker, or other
audio device or use the included 1/4" (6.5 mm) adapter for 1/4" inputs. For Apple or
Android phones, use the included phone adapter cables.
2. Attach the Transmitter onto the included headband.
3. On the Receiver, move the Power switch to On. The LED will begin
flashing.
4. On the Transmitter, move the Power switch to On. The LED will briefly flash until the
Transmitter and Receiver automatically pair. The LED will then remain on.
5. Adjust the volume to a suitable level. It is ready for use.
Specifications
Frequency Range: 2.4GHz Frequency Hopping
Bandwidth 24MHz
Frequency Response: 20Hz-20KHz
Audio 16bit, 44.1KHz
S/N Ratio: >63dB
Auto-Match Pairing
Transmitter:
On-Off Power Switch
Level Control
Condenser Cardioid Mic Capsule
Lithium-Ion Rechargeable Battery
Mini USB Charging Input
Power and Pairing Indicator LED
Detachable Headband
Receiver:
On-Off Power switch
3.5mm stereo output plug
Lithium Ion battery
Mini USB charging input
Power and pairing indicator LED
Included Accessories:
Headband
Cell Phone Adapter Cables (Red for Android, Black for Apple)
1/8 inch to 1/4 inch Adapter
USB Charging Cable
19.7 inch Female to Male Extension Cable
Windscreen
Caution
The LED will turn red when power is low, and will turn off when
less than 10%. The LED will also turn red when charging.
Store in a dry location away from moisture. Avoid excessive heat.
For repair services, please contact Galaxy Audio. Do not attempt
open or repair it. Doing so will void warranty.
USER’S MANUAL
WARRANTY Information can be viewed online at
https://www.galaxyaudio.com/support/warranty
THREE YEAR LIMITED WARRANTY
V20171017
1-800-369-7768 www.galaxyaudio.com
Specifications in this manual are subject to change without notice.
© Copyright Galaxy Audio 2017
Printed in China
www.galaxyaudio.com/support/warranty
www.galaxyaudio.com
