Sealey DCD230V Diamond Core Drill 230V User Manual

230V DIAMOND CORE DRILL

MODEL NO: DCD230V

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these

instructions, and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

1.1. ELECTRICAL SAFETY

 WARNING! It is the user’s responsibility to check the following:

Check all electrical equipment and appliances to ensure that they are safe before using.

Inspect power supply leads, plugs and all electrical connections for wear and damage.

Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.

8 DO NOT use worn or damaged cables, plugs or connectors.

9  Ensurethatanyfaultyitemisrepairedorisreplacedimmediatelybyaqualiedelectrician.

9  Ifthecableorplugisdamagedduringuse,switcho󰀨theelectricitysupplyandremovefromuse.

 Ensurethatrepairsarecarriedoutbyaqualiedelectrician.

9  SealeyrecommendthatanRCD(ResidualCurrentDevice)isusedwithallelectricalproducts.

Important:Ensurethatthevoltageratingontheappliancesuitsthepowersupplytobeusedandthattheplugisttedwiththe 

correct fuse.

8 DO NOT pull or carry the appliance by the power cable.

8 DO NOT pull the plug from the socket by the cable.

1.2. GENERAL SAFETY

9  Disconnectthedrillfromthemainspowerbeforechangingaccessories,servicingorperforminganymaintenance.

9  Maintaindrillingoodcondition.Checkmovingpartsandalignmentandkeepdrillbitssharp.Ifnecessaryuseanauthorisedservice

agent.

9  Replaceorrepairdamagedparts.Userecommendedpartsonly.Unauthorisedpartsmaybedangerousandwillinvalidatethe 

warranty.

9  Wearapprovedsafetyeyeprotectionwithsideshieldsandadustmaskifdrillinggeneratesdust.Rubberglovesarerecommended

 whenusingoutdoorsandsafetygloveswhendrillingitemssuchassteel,brickworketc.

9  Removeillttingclothing.Removeties,watches,rings,otherloosejewelleryandcontainlonghair.

9 Use drill in an adequate working area for its function, keep area clean, tidy and free from unrelated materials and ensure adequate

lighting.

9  Preventbodycontactwithgroundedsurfacestoavoidelectricshocki.e.pipes,radiators,ranges,refrigeratorsetc.

9  Evaluateyourworkingareabeforeusingthedrilli.e.ceiling,oorsandenclosuresmaycontainhiddenelectricalwiresorwater 

piping.

9 Maintain correct balance and footing.

9 The supplementary handle grip should always be attached for use.

9 Keep children and unauthorised persons away from the working area.

9  Securenonstableworkpiecewithaclamp,viceorotheradequateholdingdevice.

9  Avoidunintentionalstartingandensurethelock-onbuttonisdisengagedbeforeuse.

9 Use suitable detectors to determine if utility lines are hidden in the work area or contact local utility companies for assistance.

 Contactwithelectriclinescanleadtoreandelectricshock.Damagingagaslinecanleadtoexplosion.Penetratingawaterline

causes property damage and may cause electric shock.

9 Hold the tool only by the insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring

 oritsowncord.Contactwitha“live”wirewillalsomaketheexposedmetalpartsofthepowertool“live”andshocktheoperator.

9  Whenworkingwithmachine,alwaysholditrmlywithbothhandsandprovideforasecurestance.Thepowertoolisguidedmore

securely with both hands.

9  Alwayswaituntilthemachinehascometoacompletestopbeforeplacingitdown.Thetoolinsertcanjamandleadtolossof 

control of the power tool.

9  Takeprotectivemeasureswhendustcandevelopduringworkingthatisharmfultoone’shealth,combustibleorexplosive.

9  Alwaysusetheauxiliaryhandlesuppliedwiththemachine.Lossofcontrolcancausepersonalinjury.

8 DO NOT work materials containing asbestos. Asbestos is considered carcinogenic.

8 DO NOTforcethedrilltoachieveataskitwasnotdesignedtoperform.

8 DO NOToperatedrillwherethereareammableliquidsorgasses.

8 DO NOT get the drill wet or use in damp or wet locations.

8 DO NOToperatethedrillifanypartsaremissingorthedrillisdamagedasthismaycausefailureand/orpossiblepersonalinjury.

8 DO NOToperatethedrillwhenyouaretired,undertheinuenceofalcohol,drugsorintoxicatingmedication.

8 DO NOTcarrythedrillwithyourngeronthepowerswitch,orcarrybythepowercord,orleavethedrillrunningwhilstunattended.

DCD230VIssue4(2)27/08/24

Original Language Version

Refer to

instructions

Wear eye

protection

Wearprotective

gloves

Wear ear

protection

Wear safety

footwear

Wearprotective

clothing

Wear a mask

8 DO NOTover-reachandensuretheoorisnotslipperyandwearnonskidshoes.

8 DO NOT hold unsecured work in your hand.

8 DO NOT use the machine with a damaged cable. DO NOTtouchthedamagedcable,butturno󰀨thepowersupplyatsocket.

8 DO NOTusethedrillwithouttheauxiliaryhandletted

9  Whennotinuse,switchdrillo󰀨,removeplugfrompowersupply,cleanthedrillandstoreinsafe,dry,childproofarea

1.3. DIAMOND CORE DRILL BIT SAFETY

 WARNING! Once a core cutter is within the hole and cutting, it can snag or grab at any moment without warning. This can easily

harm your wrist or arm.

9  Whendrillingthroughoorsmakesuretheareabeneaththeooryouareworkingoniscordonedo󰀨andthatco-workersareaware

 ofwhatyouaredoing.Thecoreislikelytofallfromtheceilingwhenyouhavenisheddrilling.

9 Check both the inside and outside of the core drill for damage, wear or debris before using it.

9 Silica dust will be created when drilling concrete wear a mask.

9  Diamondcoredrillingistheslowestmethodofcuttingahole.Haverealisticexpectationsastothetimerequiredforcutting.

2. INTRODUCTION

Manufacturedusinghighqualitycomponentsforperformanceandreliability.Lightweightandcompactunit.Fittedwithsoftstartandoverload

protection. Designed for use in construction and other applications when working with masonry and concrete. Supplied with adaptor, water

cooling kit and side handles. Can be used independently or with optional Model No. DCDST Diamond Core Drill Stand.

3. SPECIFICATION

Model No:..............................................................DCD230V

Masonry Drilling Range: ........................................18-160mm

Concrete Drilling Range: .......................................18-130mm

Power Supply: ................................................... 230V ~ 50Hz

Motor Power:...............................................................2300W

No Load Speed: ..................................................0-1900rpm

Borehole Depth: .........................................................380mm

MaximumCutterSize: .................................... Ø160x380mm

Adaptor: ....................................................1-1/4”UNCThread

Optional Drill Stand: ..................................Model No. DCDST

Cable Length:.................................................................3.5m

4. OPERATION

 WARNING!Makesuretherearenocablesorpipeshiddeninthewall.Neverassumethatworkhasn’tbeendonebysomeoneelse

in the intended drilling area beforehand.

4.1.  Choosethecorrectsizedrillfortheholethatyouwishtomake,rectifyingmistakesmaybedi󰀩cult.

Note: If the depth of the hole is longer than the drill bit you will need to withdraw the drill bit and chop out the core with a hammer and

bolster.

8 DO NOTforcethedrillwhilstdrillinghoweveruselesspressurewhenyouarenearlynishedcuttingyourhole.

4.2.  Makesureyouhaveselectedthecorrecttypeofcuttingbitforthematerialyouwillbedrillinginto.

4.3. CONNECTING TO A WATER SUPPLY

9 Make sure the water source that you are connecting to is clean and free from grit and other particulate.

9 Make sure the supply you are connecting to is no more that 3 bar of pressure.

8 DO NOT get the power supply or drill wet.

4.3.1.  Attachtheshortreinforcedsuctionhosetothecollarabovethechuck.

4.3.2. Connect water hose to the reinforced tube.

9 Make sure that all water connections are secure before turning the water supply on.

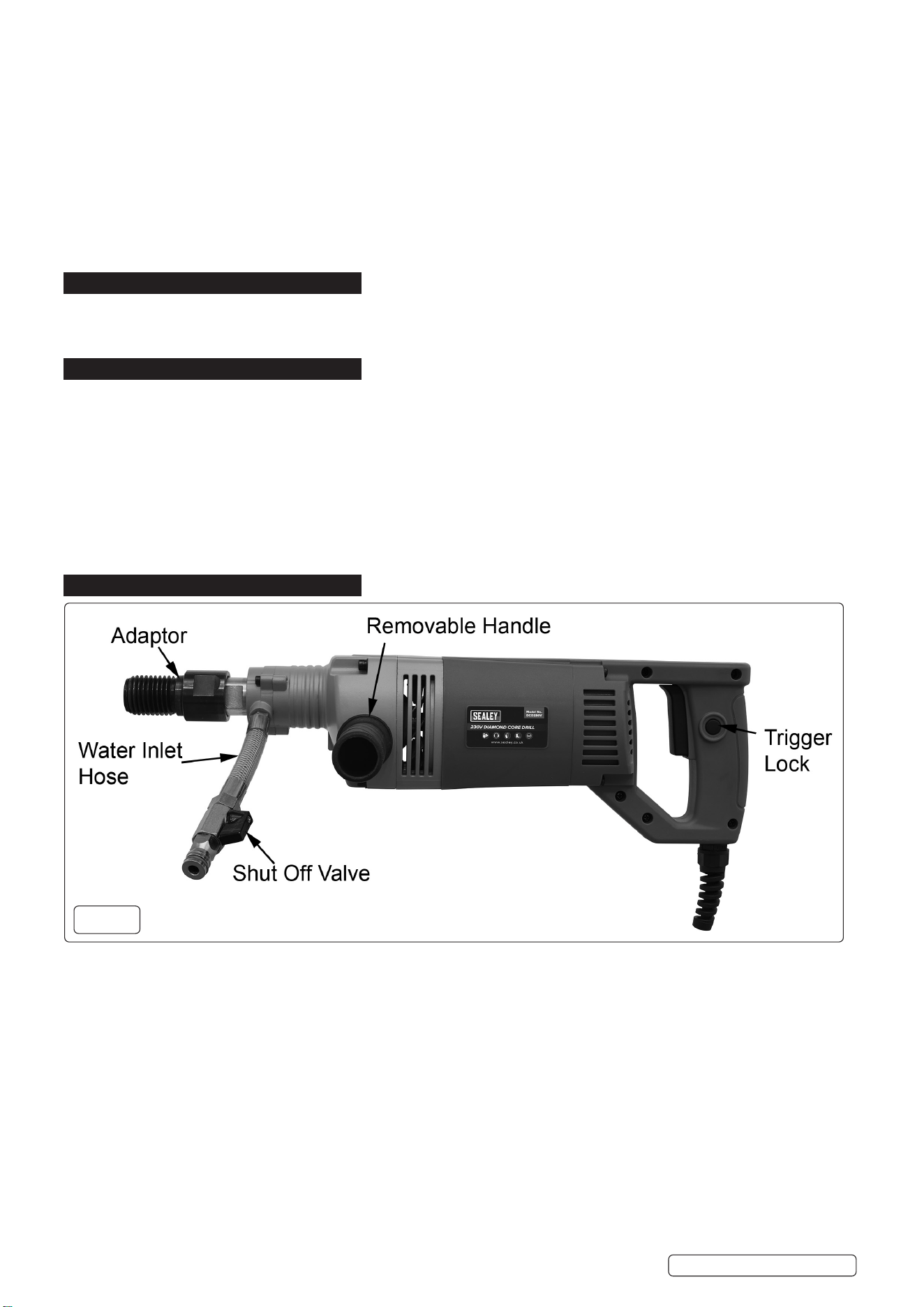

g.1

Original Language Version

Noise power .............................................................. 85dB(A)

Noise pressure ..........................................................69dB(A)

Vibration ...................................................................<2.5m/s²

Uncertainty .................................................................1.5m/s²

Weight: .............................................................................7kg

Plug Type: ................................................ Yellow-16A-2P+E

DCD230VIssue4(2)27/08/24

5. MAINTENANCE

 WARNING! Disconnect from mains supply before performing any maintenance.

5.1. Brushes should be replaced by a competent person. Contact your Sealey stockist for more information.

5.2.  Removethecuttingbit,beforestoring.

5.3. Keep the tool clean.

5.4. Store in a dry, childproof location in its case.

6. TROUBLESHOOTING

DiamondCoreDrillNotLasting-ShortLifeSpan Possible incorrect choice of diamond core drill due to a mismatch between the

bond of the segment and the material.

Checkthatasu󰀩cientrateofwaterisreachingthedrillingarea.

Check that the plug or debris is not lodged inside the core drill.

Consider using a Water Feed to run water through the internal hole of the drill.

Check the rotation speed for the diameter of the core drill and the material.

Make sure the material is held securely using clamps.

FAULT SOLUTION

OverheatingMaterialWhileDrilling There is not enough water reaching the drilling area.

Run water through the core at a high pressure.

Run water through the sides of the drill pointed at the drilling area.

Material/DrillVibration,ResultinginUnevenDrill

Holes

Checkyourmachineandrigforrunout(ifusingarig).

Make sure the machine is mounted correctly, if using a rig.

Make sure the core bit is tightly connected to the machine.

Make sure the material is held securely using clamps.

Dressthedrilltoexposeafreshlayerofdiamondtocutthematerial.Make3-5

drillholesinanabrasivestonesuchassandstoneusingplentyofwater.Doing

thisseveraltimesshouldbeenoughtowearawaythemetalcarriertoexposea

fresh layer of diamond to cut the material.

ExcessiveChippingWithDiamondCoreDrills Possible incorrect choice of diamond core drill due to a mismatch between the

bond of the segment and the material.

Check the rotation speed for the diameter of the core drill and the material.

Make sure the material is held securely using clamps.

Check the condition of the machine being used.

Make sure there is enough water in the drilling area.

Diamond Drill is Drilling Material Very Slowly Thisisoftenduetothe“glazing”ofthediamondsegment,wherethedrillmay

havebeenusedatanincorrectspeedandthetoolhasbecomeoverheated,

resulting in the metal bond that holds the diamond failing to wear away at the

correctratetoexposurenewdiamondcrystals.

UseaSharpeningBlocktodressthedrilltoexposeafreshlayerofdiamondto

cutthematerial.Make3-5drillholesinanabrasivestonesuchassandstone

usingplentyofwater.Doingthisseveraltimesshouldbeenoughtowearawaythe

metalcarriertoexposeafreshlayerofdiamondtocutthematerial.

Check that the core plug or debris is not lodged inside the core drill.

AdjusttheRPMspeedandfeedrate.

Segment Loss When Core Drilling This is the most common issue we see with core drills. It usually caused by

overheatingwhichresultsinafractureatthepointofthesegmentweldora

collision caused by an unsecured workpiece.

Consider using a Water Feed to run water through the internal hole of the drill.

Checkthatasu󰀩cientrateofwaterisreachingthedrillingarea.

Make sure the material is held securely using clamps.

Check that the core plug or debris is not lodged inside the core drill.

Diamond Drill Is Not Drilling or Cutting Thisisalsousuallyassociatedwiththe“glazing”ofthediamondtip.

Check the rotation speed for the diameter of the core drill and the material.

UseaSharpeningBlocktodressthedrilltoexposeafreshlayerofdiamondto

cutthematerial.Make3-5drillholesinanabrasivestonesuchassandstone

usingplentyofwater.Doingthisseveraltimesshouldbeenoughtowearawaythe

metalcarriertoexposeafreshlayerofdiamondtocutthematerial.

Increase the RPM speed.

Check that the core plug or debris is not lodged inside the core drill.

Possible incorrect choice of diamond core drill due to a mismatch between the

bond of the segment and the material.

Original Language Version

DCD230VIssue4(2)27/08/24

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 sales@sealey.co.uk www.sealey.co.uk

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,

takentoarecyclingcentreanddisposedofinamannerwhichiscompatiblewiththeenvironment.Whentheproduct

becomescompletelyunserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersand

dispose of the product and fluids according to local regulations.

WEEE REGULATIONS

DisposeofthisproductattheendofitsworkinglifeincompliancewiththeEUDirectiveonWasteElectricalandElectronicEquipment

(WEEE).Whentheproductisnolongerrequired,itmustbedisposedofinanenvironmentallyprotectiveway.Contactyourlocalsolid

waste authority for recycling information.

Note:Itisourpolicytocontinuallyimproveproductsandassuchwereservetherighttoalterdata,specificationsandcomponentpartswithoutprior

notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

WARNING!–RiskofHandArmVibrationInjury.

This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.

  ThistoolissubjecttothevibrationtestingsectionoftheMachineryDirective2006/42/EC.

This tool is to be operated in accordance with these instructions.

Measured vibration emission value (a): <2.5 m/s²

Uncertainty value (k): 1.5 m/s²

Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend

that a specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.

 Ahealthandsafetyassessmentbytheuser(oremployer)willneedtobecarriedouttodeterminethesuitabledurationofuseforeach

tool.

NB: StatedVibrationEmissionvaluesaretype-testvaluesandareintendedtobetypical.

 Whilstinuse,theactualvaluewillvaryconsiderablyfromanddependonmanyfactors.

Such factors include; the operator, the task and the inserted tool or consumable.

NB:ensurethatthelengthofleaderhosesissufficienttoallowunrestricteduse,asthisalsohelpstoreducevibration.

The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm

Vibration Syndrome.

Health surveillance.

 Werecommendaprogrammeofhealthsurveillancetodetectearlysymptomsofvibrationinjurysothatmanagementprocedurescanbe

modified accordingly.

Personal protective equipment.

 Wearenotawareofanypersonalprotectiveequipment(PPE)thatprovidesprotectionagainstvibrationinjurythatmayresultfromthe

 uncontrolleduseofthistool.Werecommendasufficientsupplyofclothing(includinggloves)toenabletheoperatortoremainwarmand

 dryandmaintaingoodbloodcirculationinfingersetc.Pleasenotethatthemosteffectiveprotectionisprevention,pleaserefertothe

 CorrectUseandMaintenancesectionintheseinstructions.Guidancerelatingtothemanagementofhandarmvibrationcanbefoundon

the HSC website

 www.hse.gov.uk-Hand-ArmVibrationatWork.

Original Language Version

PURCHASE HERE

DCD230VIssue4(2)27/08/24

Sealey DCD230V Diamond Core Drill 230V

Product's Documents

Instructions

Specifications

Sealey DCD230V Questions and Answers
