CK53UCF UNDERCUPBOARD RANGEHOOD
CK75UCF UNDERCUPBOARD RANGEHOOD
Glem Gas Australasia Pty Ltd
48 Percy Street Auburn NSW 2144
Tel 1 300 307 917
Dear Customer,
If you follow the recommendations contained in this Instruction Manual,
our appliance will give you constant high performance and will remain
efficient for many years to come.
RECOMMENDATIONS AND SUGGESTIONS
CHARACTERISTICS INSTALLATION & USE MAINTENANCE
TROUBLE SHOOTING
Product Specification & Technical Parameters
Model CK53UCF/CK75UCF
Rated Voltage 230V
Rated Power Frequency 50Hz
Light Power 2x2W (LED)
Motor Power 230W
Total Power 234W
Motor 1
Diameter of Outlet Adapter 150mm
Dimension (mm) W520/750 x D286x H250
INSTALLATION and USE
• The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
• Please read this instruction manual before installing and using this
rangehood. Please keep this instruction manual in a safe place for future
reference.
• Only a qualified and trained service technician can undertake the work
of installation and servicing.
• Check that the main voltage corresponds to the one indicated on the
rating plate fixed inside the hood.
• Do not connect the hood to exhaust ducts carrying combustion
fumes (boilers, fireplaces, etc.)
• If the hood is used in conjunction with non-electrical appliances (e.g.
gas burning appliances), a sufficient degree of ventilation must be
guaranteed in the room in order to prevent the backflow of exhaust gas.
The kitchen must have an opening directly with the open air in order to
guarantee the entry of clean air.
• The minimum distance is 750mm from the cooker hood to a gas hob, and
is 650mm to an electric hob. If the installation instructions for gas hobs
specify a greater distance, this must be taken into account.
NOTICE: Two or more people are required to install or move this appliance.
Failure to do so can cause physical injuries.
USE
• The rangehood has been designed only for domestic use to eliminate
kitchen fumes.
• Never use the hood for purposes other than what it has been designed
for. Never leave high naked flames under the hood when it is in
operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only;
making sure that it does not engulf the pan sides.
• Deep fryer fat must be continuously monitored during use: overheated
oil can burst into flame.
• The hood should not be used by children or person not instructed in its
correct use.
MAINTENANCE
• Proper maintenance of the rangehood will assure proper performance of
the unit.
• Disconnect the hood from the main supply before carrying out any
maintenance work.
• Clean and/or replace aluminum grease filters and activated charcoal
filters after specified period of time.
• Clean the hood using a damp cloth and a neutral liquid detergent.
• DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is
necessary.
WARNING!!
In certain circumstances electrical appliances may be a danger hazard.
• Do not check the status of the filters while the rangehood is operating.
• Do not touch the light bulbs after appliance use.
• Do not disconnect the appliance with wet hands.
• Avoid free flame, as it is damaging for the filters and a fire hazard.
• Constantly check food frying. Overheated oil may become a fire hazard.
• Disconnect the electrical plug prior to any maintenance.
• Children don’t recognize the risks of electrical appliances. Therefore use
or keep the appliance only under supervision of adults and out of the
reach from children.
• Don’t use this product outdoors.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction,
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
• There should be adequate ventilation of the room where the range hood
is used at the same time as appliances burning gas or other fuels. * There
is a fire risk if cleaning is not carried out in accordance with instructions.
• Do not flambé under the rangehood.
• The exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
CHARACTERISTICS

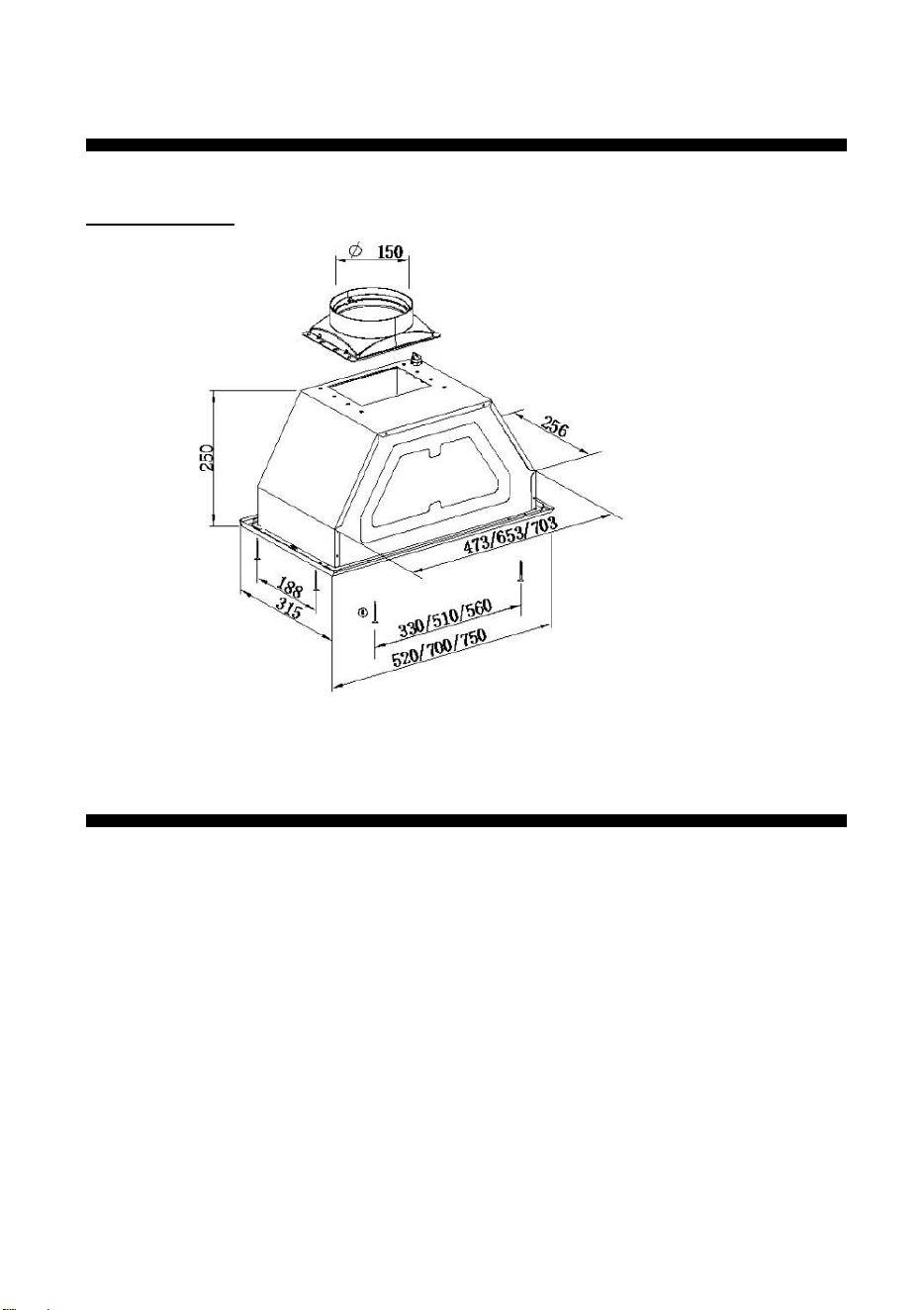

DIMENSIONS
INSTALLATION & USE
Note 1: On stainless steel hoods, carefully
remove the plastic protective film from all
exterior surfaces of the hood prior to final
installation.
Note 2: At least two people will be required to
mount the hood.
DESCRIPTION / CONNECTIONS
The hood is only installed in the Ducting version.
The hood draws cooking fumes saturated with
fumes and odour through the grease filters and
expels it to the outside through an outlet pipe.
Caution: To reduce the risk of fire, use of metal
ductwork is preferred. Do not use flammable
material to convey exhaust air.

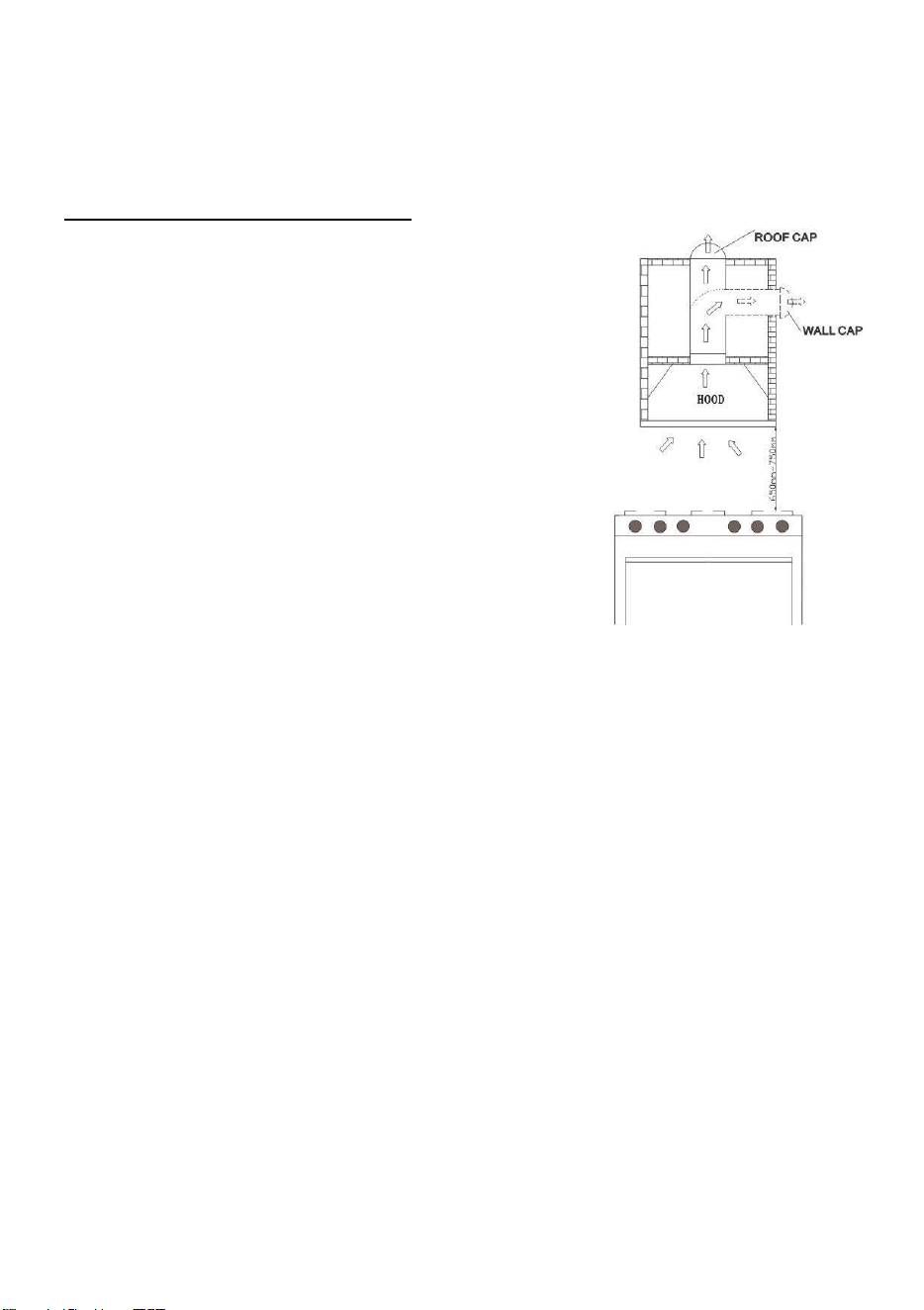

1. Decide where the ductwork will run between the hood and the outside.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce the performance of
the hood. Use as few of them as possible. Larger ducting may be
required for best performance with longer duct runs.
4. It is recommended that φ150mm round duct is to be used, however a
reducer from φ150mm to φ120mm can be ordered supplied should
φ120mm be required.
5. The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels. Regulations
concerning the discharge of air have to be followed. Check with the
local authority and building code for exhaust ducting requirements.
6. Install a roof/wall cap. Connect round ductwork to cap and work back
towards hood location.
Electrical Connection
Electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards. Turn off electrical power at service
entrance before wiring.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard. *
Do not use the plug and an extension cord other than the ones initially
supplied with the hood.
INSTALLATION
Before beginning installation, to better handle the hood, we advise
removing the face plate.

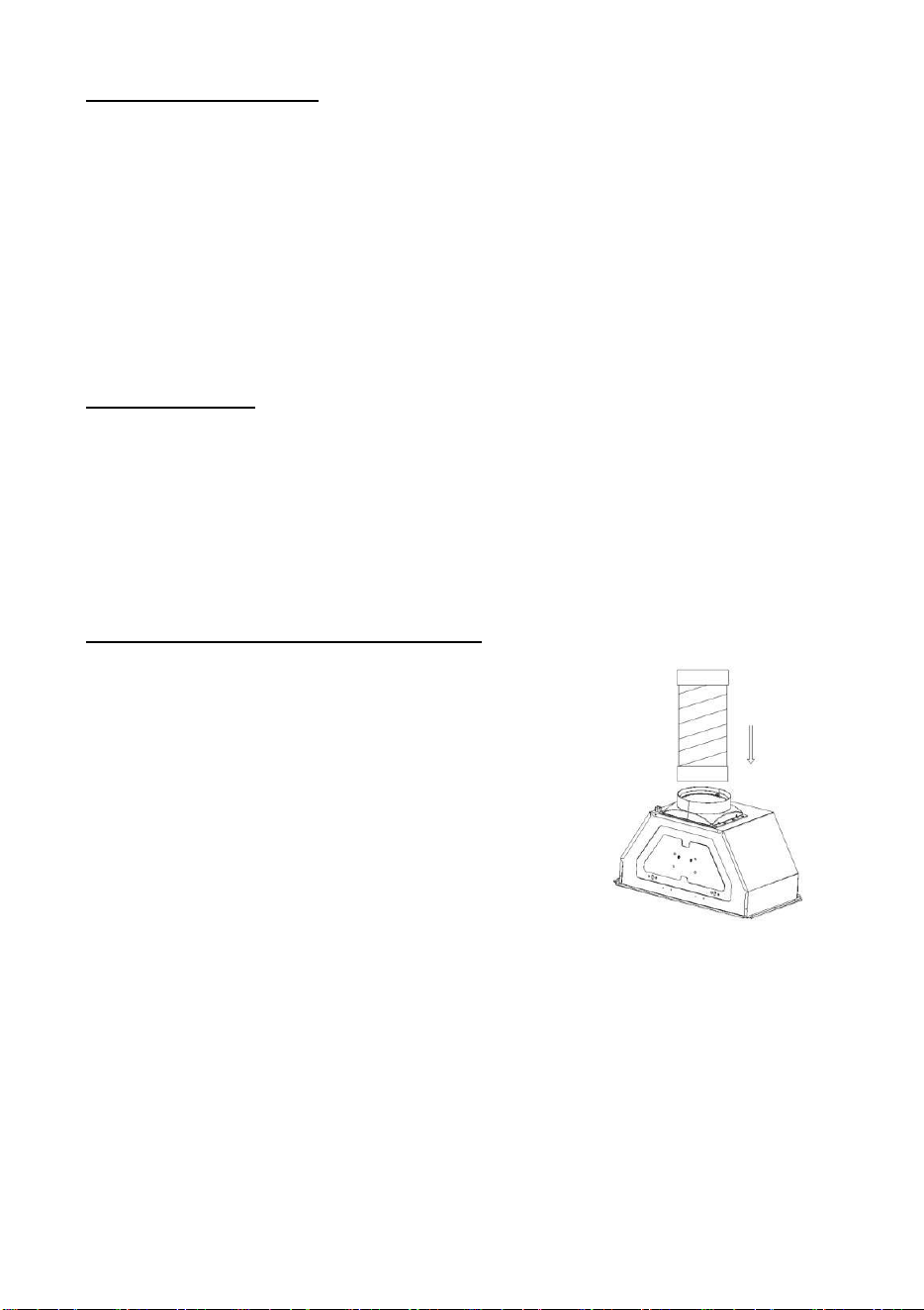

1. Attach the air outlet adapter over the hood. Tighten it with 4 screws.
2. The range hood is designed to operated with φ150mm exhaust Ducting.
DUCTING VERSION INSTALLATION:
Before fixing, the outlet exhaust duct for air
evacuation to the outside must be installed. Use
an outlet exhaust duct with: - minimum
indispensable length; -Minimum possible bends
(maximum angle of bend: 90°); -certified
material (according to local, building and fire
regulations); and as smooth as possible inside. It
is also advisable to avoid any drastic changes in
duct cross-section
(recommended diameter: 150mm).

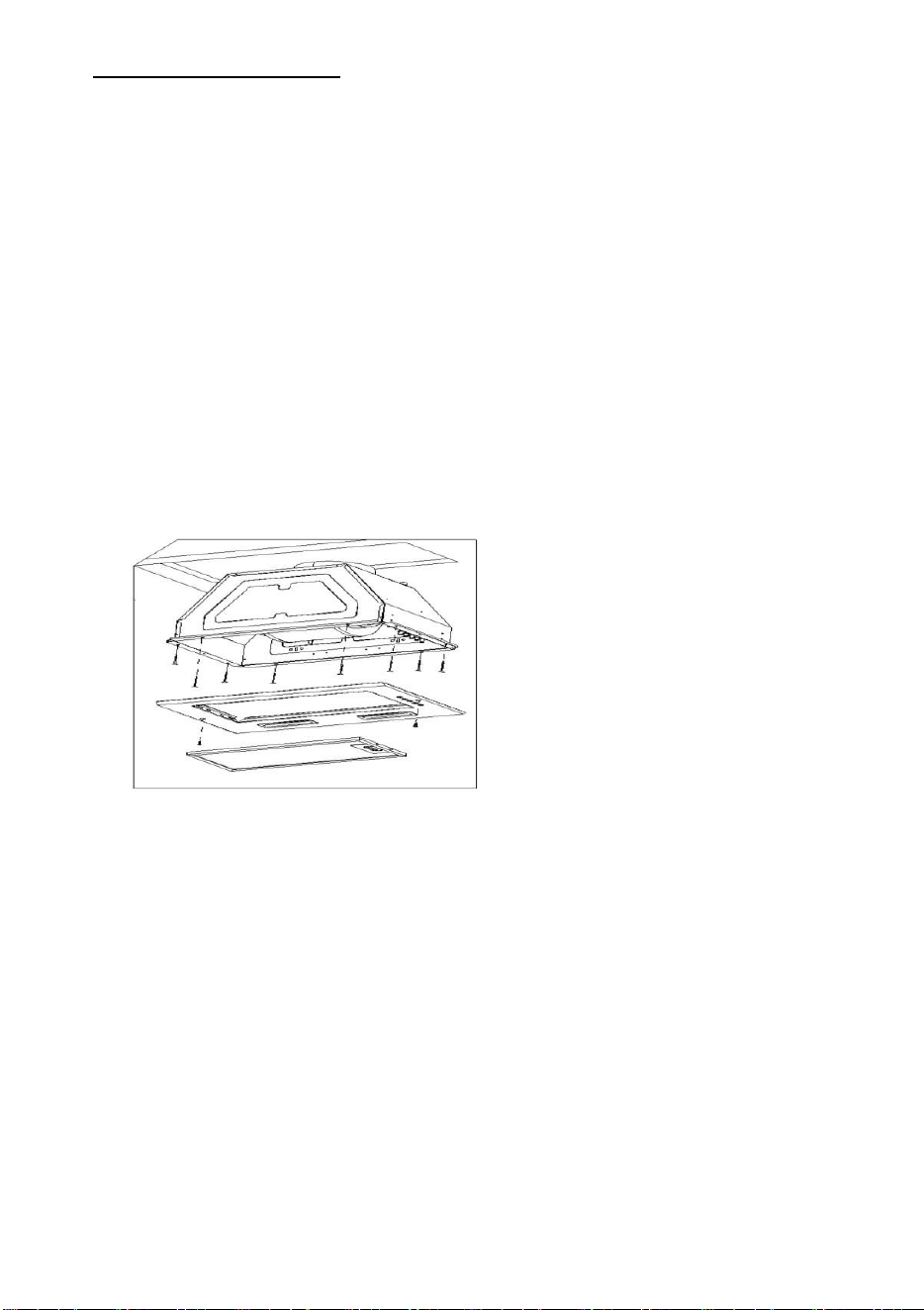

Fitting under wall unit
1. Before fixing the hood to the unit, drill a hole of 165mm diameter for
φ150mm exhaust Ducting or 135mm for φ120mm exhaust Ducting in
the wall unit.
2. In any case, check the position of the power outlet and consider where
the power cable will run, since a hole might have to be made in the wall
unit to accommodate it.
3. Unscrew the 2 visible screws located on hood of both the side-ends and
remove the face plate. The 8 mounting holes around the unit are then
accessible.
4. Lift the rangehood and fit through the opening of the cabinet. Secure
unit by using 8 long mounting screws. Fit the face plate on the hood by
screwing 2 screws.
5. Make the electrical connection.
Installation is now complete.

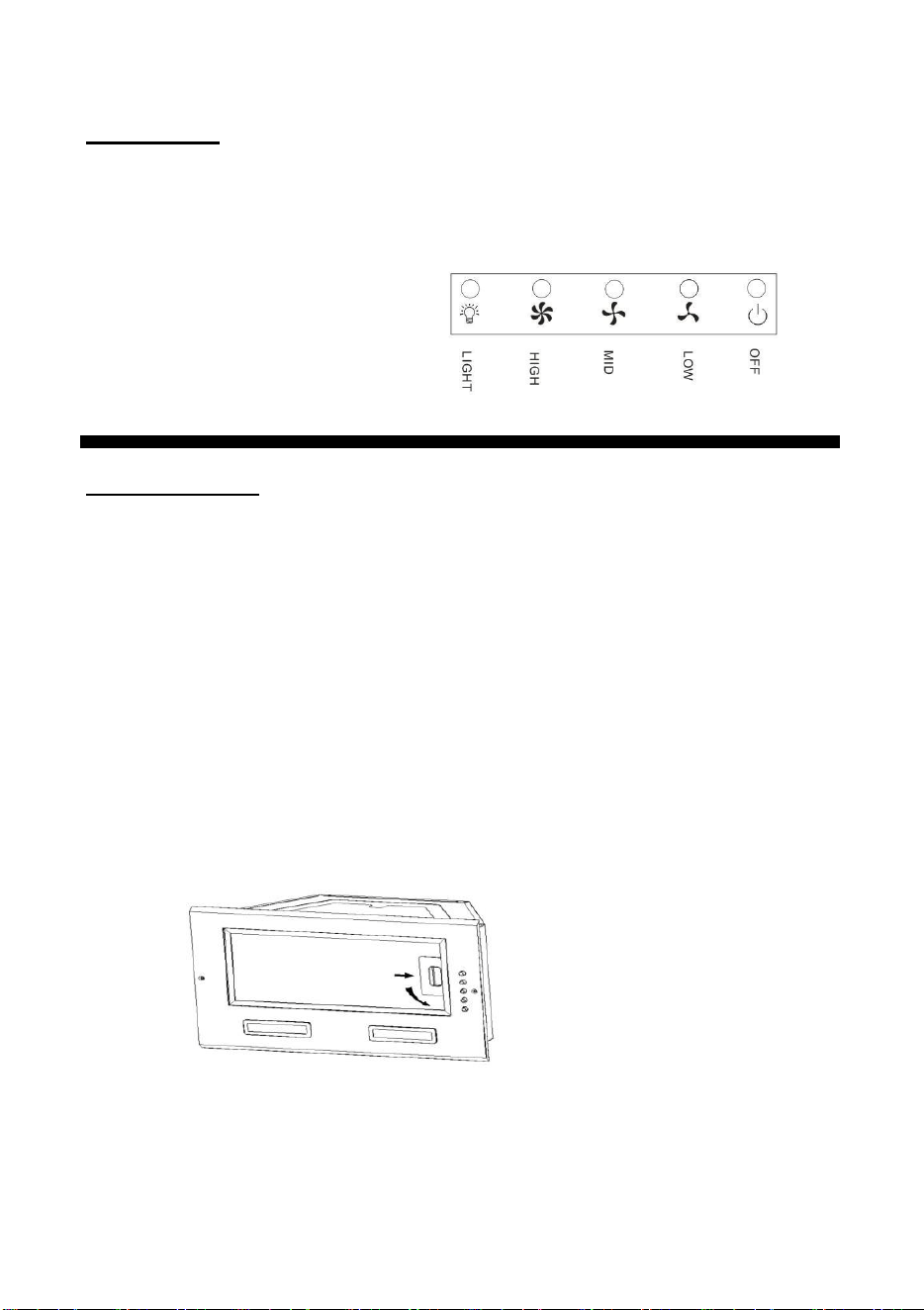

OPERATION
This hood may be operated using the push button on the face plate.
The light switch turns the lamps on and off.
The fan switch turns the fan on to three speed settings:
0 – OFF
1 - LOW SPEED
2 - MEDIUM SPEED
3 - HIGH SPEED
MAINTENANCE
GREASE FILTER
* The grease filters should be cleaned frequently (every two months of
operation, or more frequently for heavy use). Use a warm detergent
solution.
* Grease filters are washable.
1. push in on the metal latch tab. This will disengage the filter from the
hood. Tilt the filter downward and remove.
2. Wash the filters, taking care not to bend them. Allow them to be dry
before refitting.
3. To install the grease filter, align rear filter tabs with slots in the hood.
Push in the metal latch tab, push filter into position and release. Make
sure the filter is securely engaged after assembly.
7

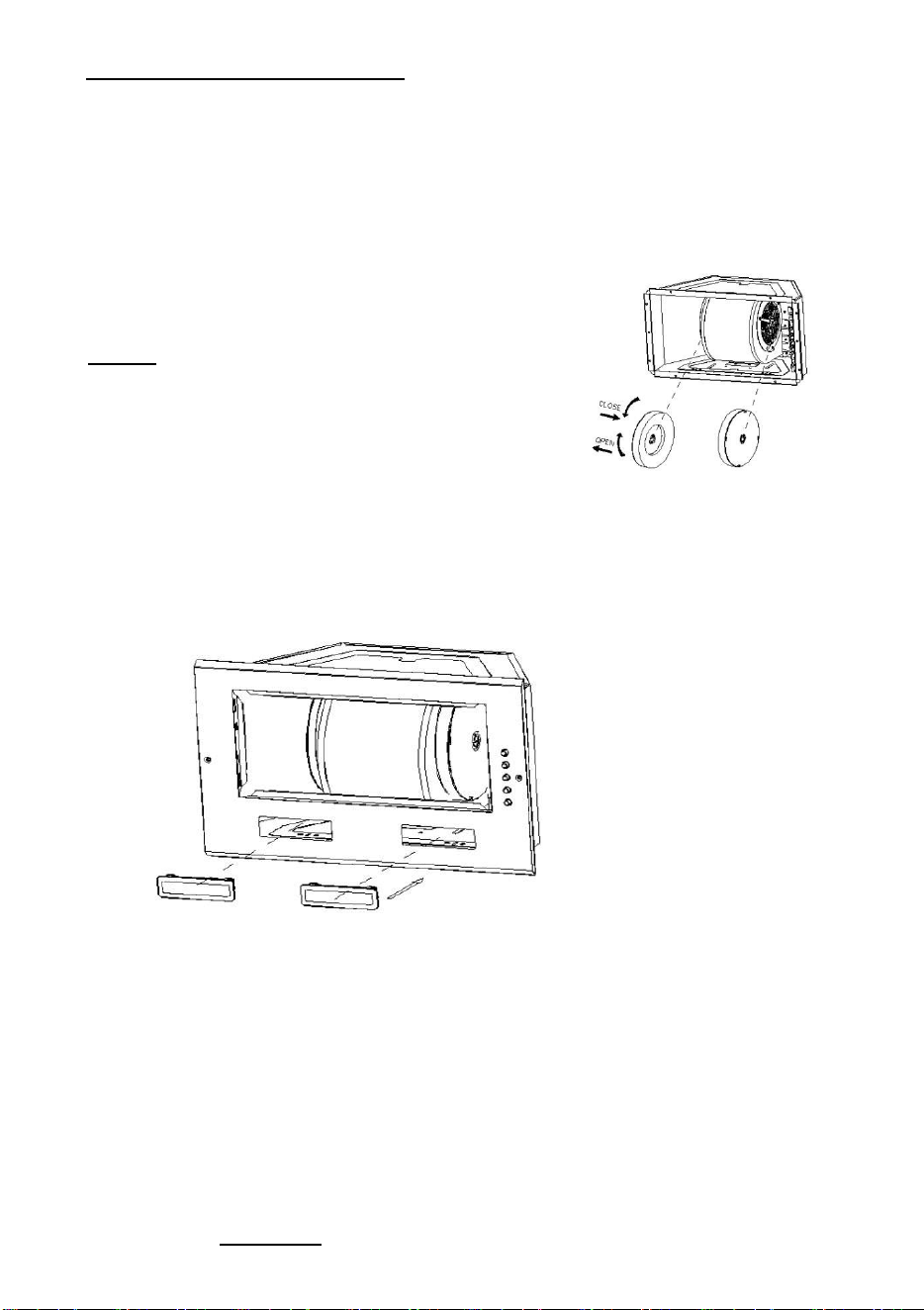

CHARCOAL FILTER(optional)
This filter is not washable, cannot be regenerated, and should be replaced
approximately every 3 months of operation, or more frequently in the case
of heavy usage.
1. To install the charcoal filter, lock it until the stop click is heard.
2. Install the face plate after charcoal filter is installed.
3. To remove the charcoal filters, remove the
charcoal filter by turning anti-clockwise.
LAMPS
This rangehood may require two LED lamps
(AC 230V, 2W Max)
WARNING: Always switch off the electrical
supply before carrying out any operation on the appliance.
To change lights:
1. Push the LED lights from inside to outside. The lights will come out.
2. Undo the light wire terminal, and replace with LED lights of same kind.
CAUTION:
1. THE SURFACE, THE LIGHT COVER MAY BE HOT. TAKE CARE WHEN
REPLACING LED LAMPS.
2. THE LED LAMPS MAY BE HOT. TAKE CARE WHEN REPLACING LED
LAMPS.
We recommend only using lamps of the same specification as the
ones being replaced.
HOOD CLEANING
Stainless steel is one of the easiest materials to keep clean. Occasional care
will help preserve its fine appearance.
Cleaning tips:
* Hot water with soap or detergent is all that is usually needed.
* Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft
cloth to avoid water marks.
* For discolorations or deposits that persist, use a non-scratching household
cleanser or stainless steel polishing powder with a little water and a soft
cloth.
* For stubborn cases use a plastic scouring pad or soft bristle brush together
with cleanser and water. Rub lightly in direction of polishing lines or “
grain” of the stainless finish. Avoid using too much pressure that may
damage the surface.
* Do not allow deposits to remain for long periods of time.
* Do not use ordinary steel wool or steel brushes. Small bits of steel may
adhere to the surface causing rust.
* Do not allow salt solutions, disinfectants, bleaches, or cleaning
compounds to remain in contact with stainless steel for extended periods.
Many of these compounds contain chemicals that may be harmful. Rinse
with water after exposure and wipe dry with a clean cloth.
* Painted surfaces should be cleaned with warm water and mild detergent
only.
TROUBLE SHOOTING
The rangehood may not work or work improperly. Before calling after-sales
service, switch off the appliance, unplug the power supply and refer to this
guide to determine the problem.
If malfunction persist, contact our After Sales Service and specify the nature
of the problem, appliance model no and serial number (on the rating plate
inside the hood)
STATUS
REASONS
SOLUTIONS
1. The plug is off from the
power socket.
2. The power cord is
damaged.
1. Ensure that the plug is put
into the power socket
properly.
2. Replace the power cord if
the power cord is damaged.
No Response of
the lamps
And the motor
The fuse on the PCB board
is damaged.
Replace the fuse on the
PCB board.
The switch is damaged. Repair or replace the switch.
The lamp
doesn’t work
The lamp is damaged.
Replace the damaged lamp.
The hood body
gives out strong
vibrations and a
loud noise
1. The hood has not
been installed properly
according to the
installation process
described in the
instruction manual.
2. Check if the joint
connection of each
part is damaged.
Ensure the hood has been
installed properly according to
the instruction manual.
Check if the distance
between the hood and the
cooker top is too big.
The ideal distance is 65-75cm.
Ensure there is
adequate ventilation.
Open the door and
windows properly.
Improve the
environment.
The duct is damaged. Repair or replace the damaged
duct.
The air exhaust
performance is
bad.
Grease Filters or charcoal
filter clogged or air outlet
clogged
Replace or clean the filters Clear
the air exhaust outlet
