INTRO
This document contains tips and recommendations on how to use
RoadWatch application running on Hanwha cameras.
This document describes the following application sections:
Live view of the recognitions in the Events tab.
Work with the Notifications.
Look for the stored events in the Search tab.
Review historical data in the Statistics tab.
Configure the application in the Settings tab.
Manage the black and white lists in the List Management tab.
3 | RoadWatch application User Guide
EVENTS TAB FEATURES
1.1 Full Screen Mode / Window Mode
Full-screen mode allows using the
entire screen area.

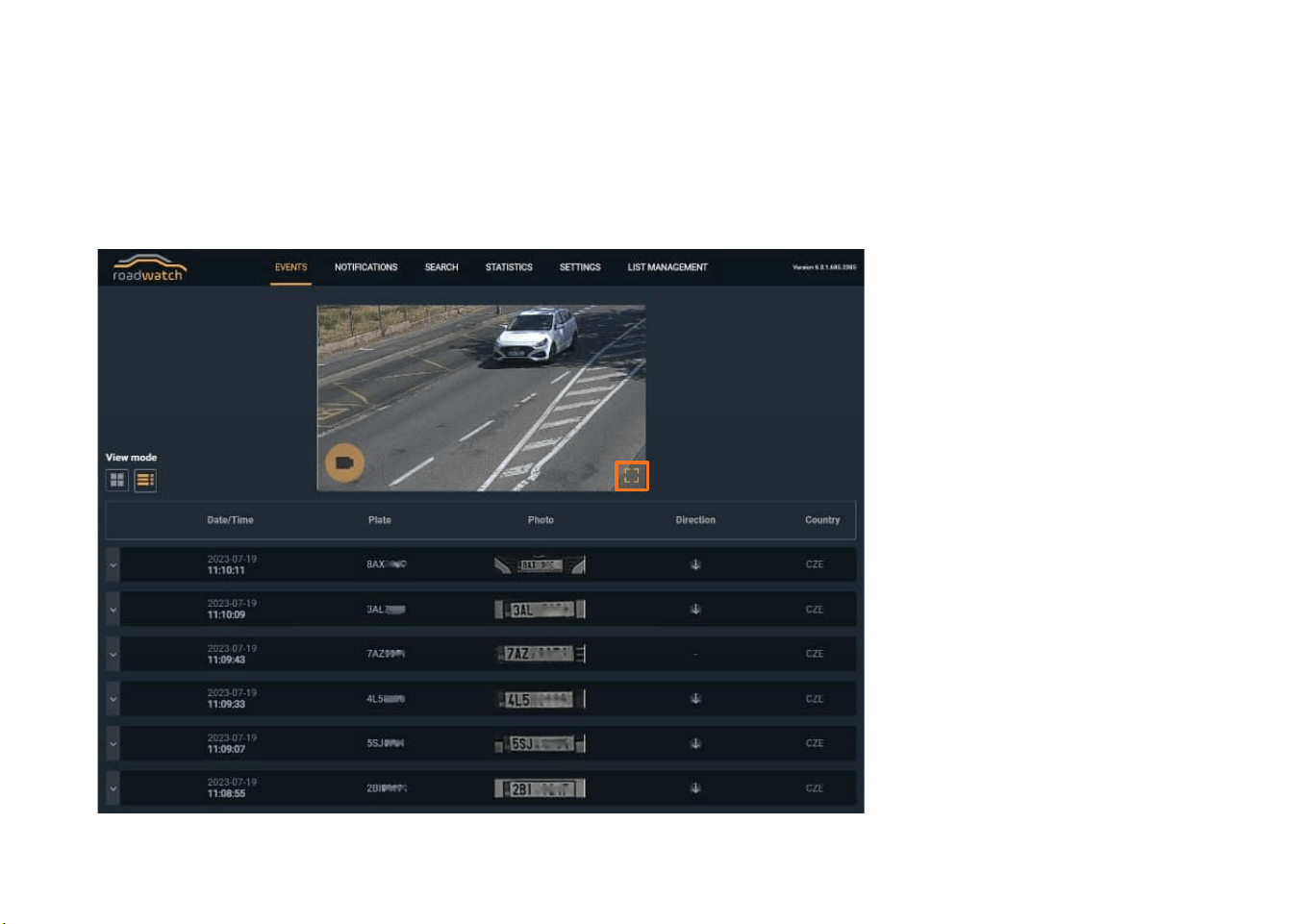

To view the live image from the
camera in full screen mode, click the
full screen mode icon.
To exit full screen mode, click
anywhere on the screen.
1
4 | RoadWatch application User Guide

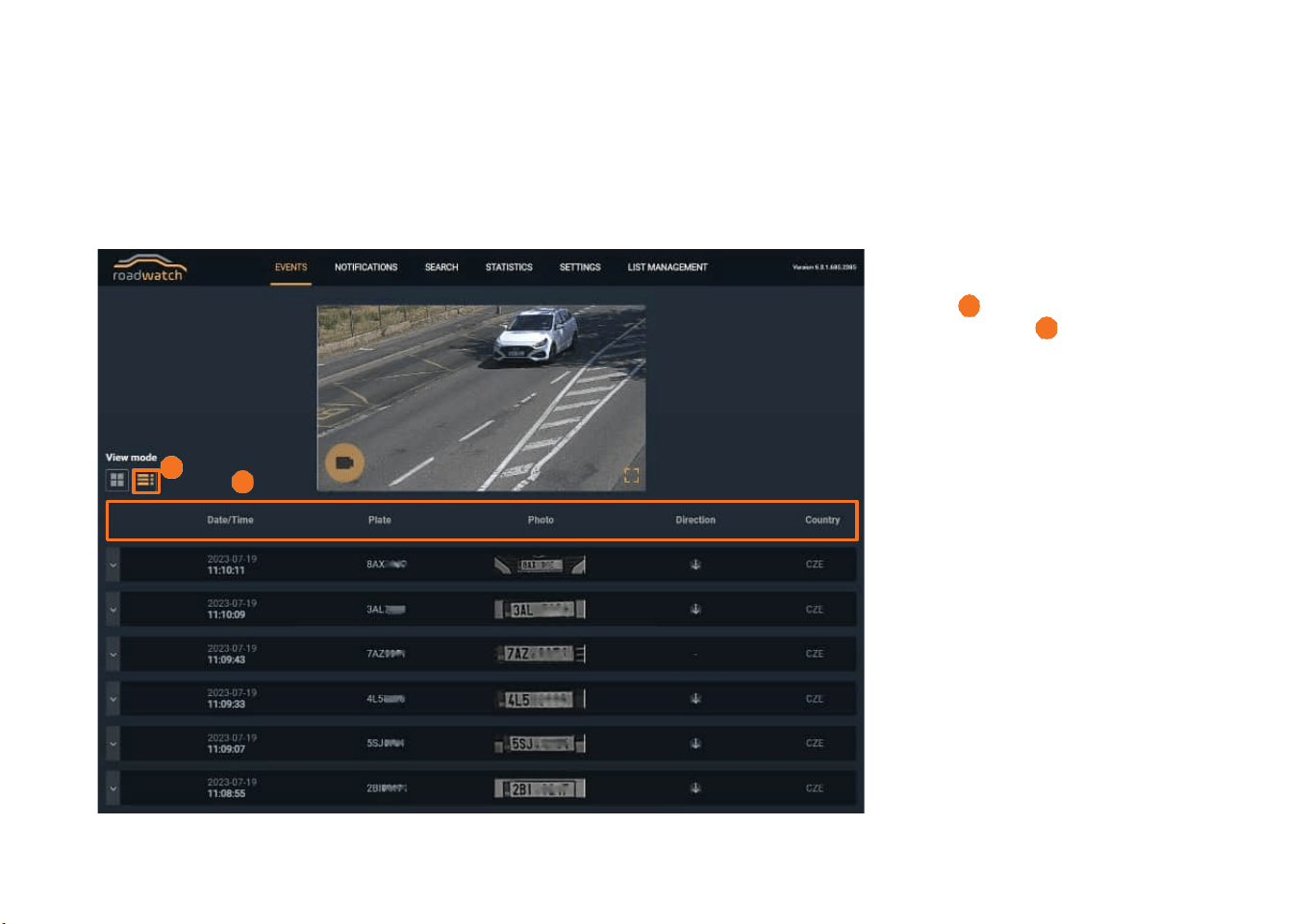

To enable the list display of events,
click the A corresponding button.
Event parameters B such as
Date/Time, Plate, Direction, Photo,
and Country are displayed as a table.
The events are displayed in a list from
the newest to the oldest.
1.2 List Mode
After hovering the cursor over the
Country field, a hint with the field
value pops up.
5 | RoadWatch application User Guide
B
A
AA
B

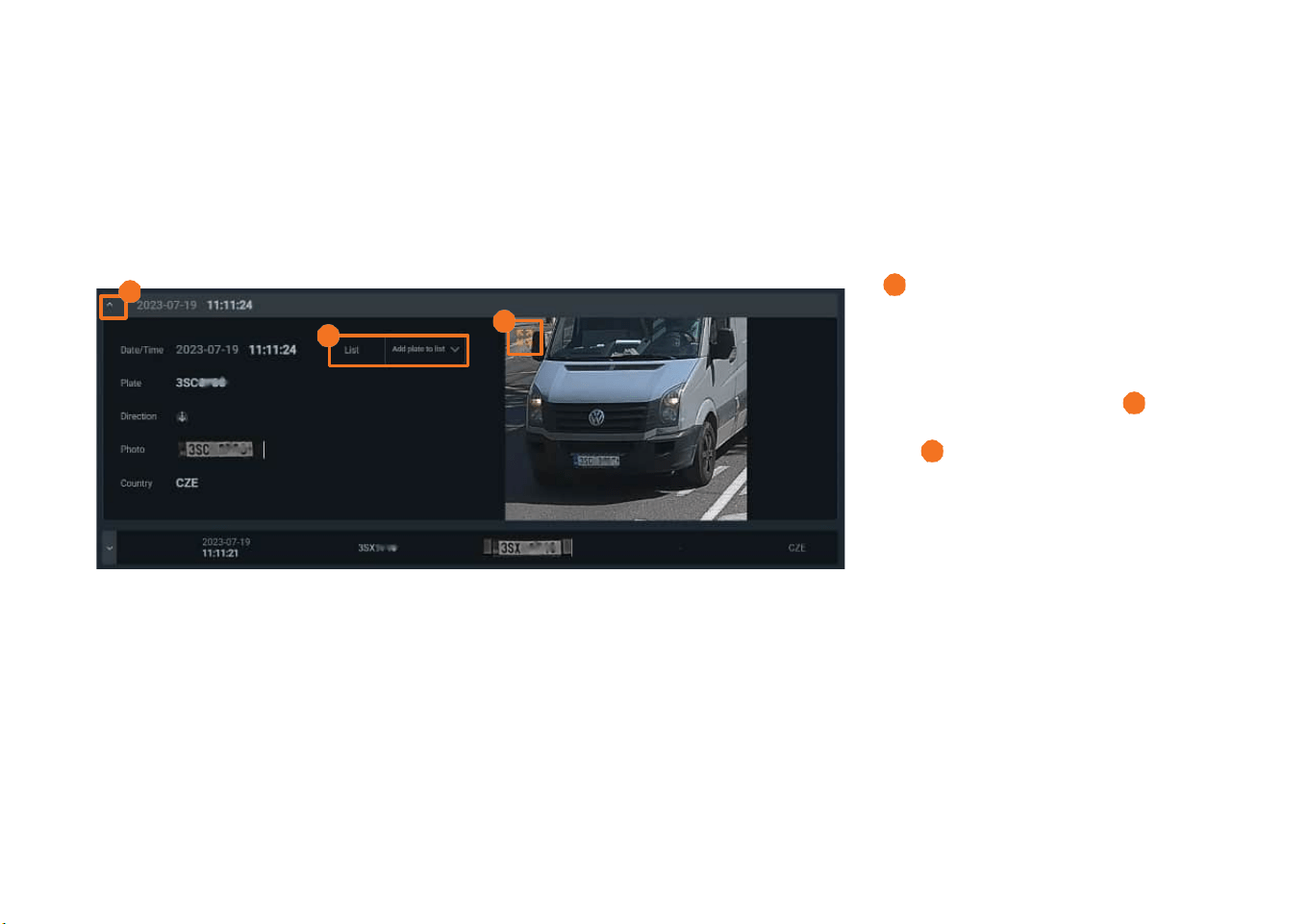

This menu allows viewing images in
full screen mode (click the B icon in
the left upper corner of the preview),
and C adding/removing the selected
plate number to/from the white or
black list.
A To display full event data in the List
mode, expand the selected event data.
1.3 Preview in the List Mode
The display of the new events will be
paused until the list is collapsed.
After collapsing, the list will be
updated with the past events. If the
list isn’t collapsed manually, it will be
collapsed and updated automatically
in one minute.
6 | RoadWatch application User Guide
A
B
C
A
C
B
This menu allows viewing images in full
screen mode (click the B icon in the
right bottom corner of the preview).
NOTE: Adding/removing the selected
plate number to/from the white or black
list is only available in the list mode.

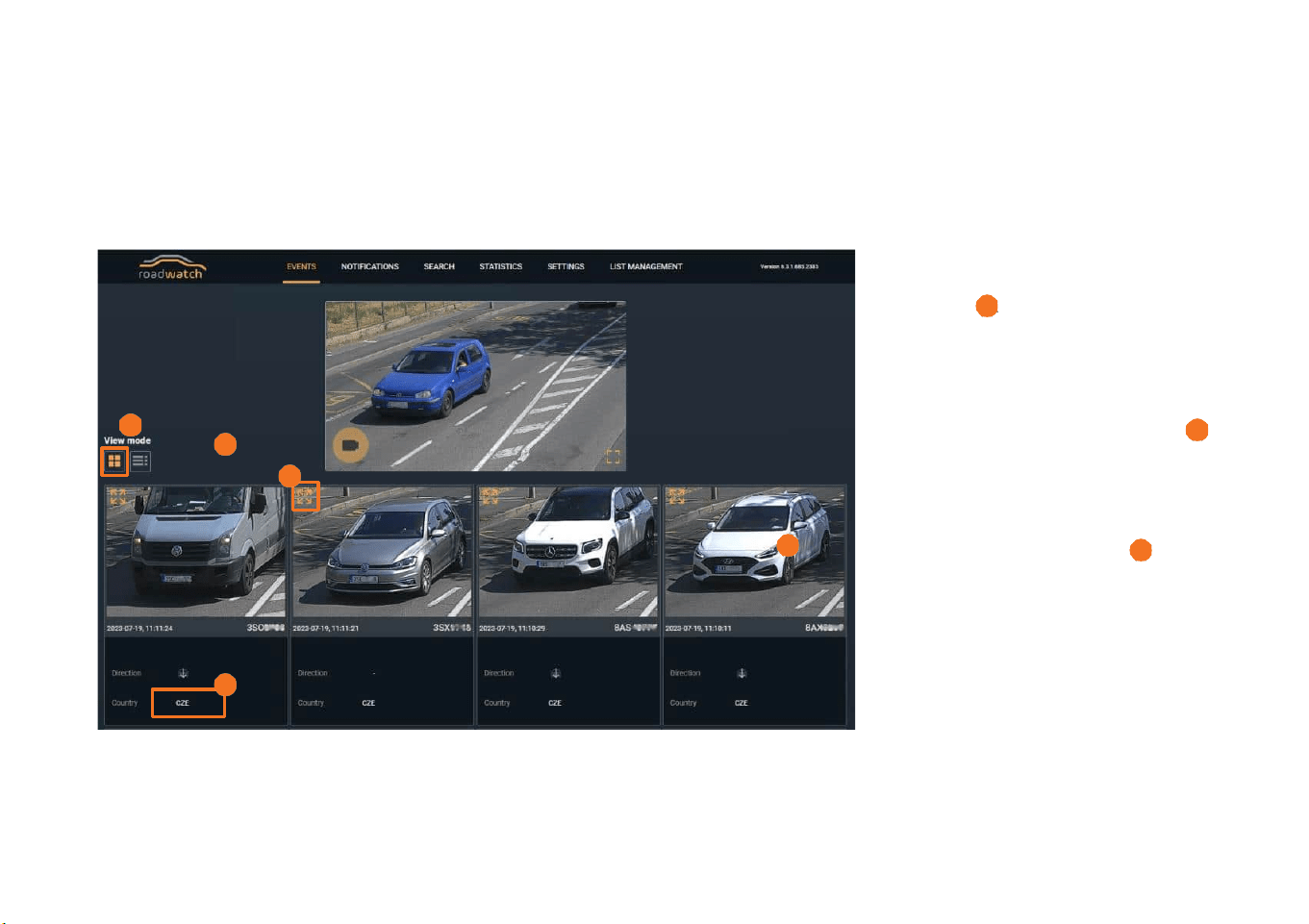

To activate the display of the events
as tiles, click A button. In this mode
events and their parameters
(Date/Time, Plate, Direction, Photo,
and Country) are displayed in tiles.
1.4 Tile mode
After hovering the cursor over the
Country field, a hint with the field
value pops up.
7 | RoadWatch application User Guide
A
C
A
C
B
A
C
B

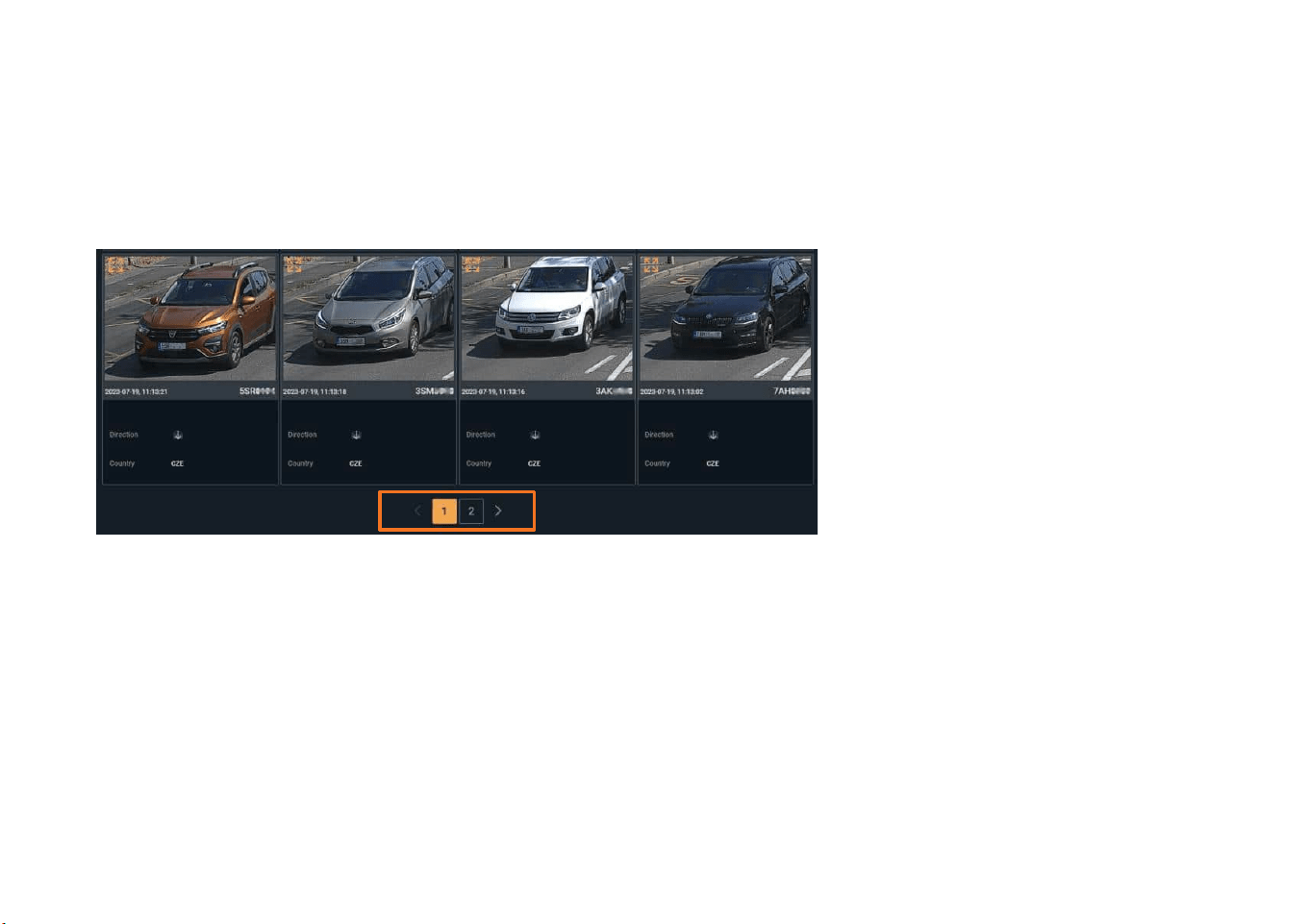

1.5 Navigation
You can navigate through the events
tab using left and right arrows or page
buttons below the events list.
The events are displayed from the
newest ones to the oldest ones.
8 | RoadWatch application User Guide
A

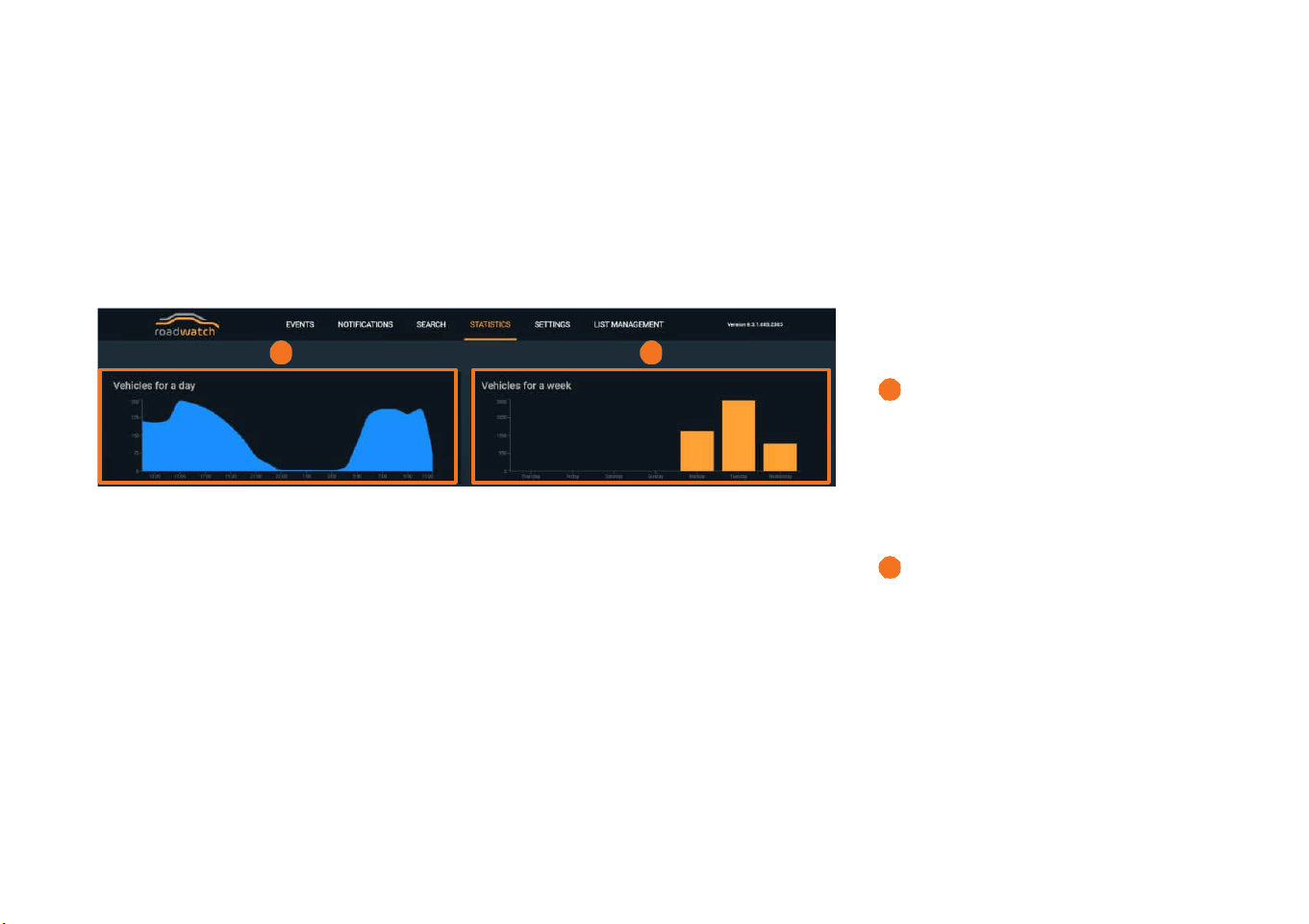

The Vehicles widget displays the
statistics on the number of cars
registered for the last 24 hours.
Moving the cursor over a certain place
on the widget, you can see the
number of cars for the specified hour.
STATISTICS TAB FEATURES
2.1 Vehicles for a day and vehicles for a week widgets
In the Statistics tab you can find
dashboard with visualized statistics on
different parameters.
B
The Vehicles for a week widget
displays the statistics on the number
of cars registered for the last week.
Moving the cursor over a certain date
on the widget, you can see the number
of cars for the specified 24 hours.
2
9 | RoadWatch application User Guide
A B
A
B
Up to 100,000 (WN7) or 1,000 (WN5)
latest cars are taken into account due
to the limitation of the database size.
LIST MANAGEMENT TAB FEATURES
3.1 Black and white list management
3
10 | RoadWatch application User Guide

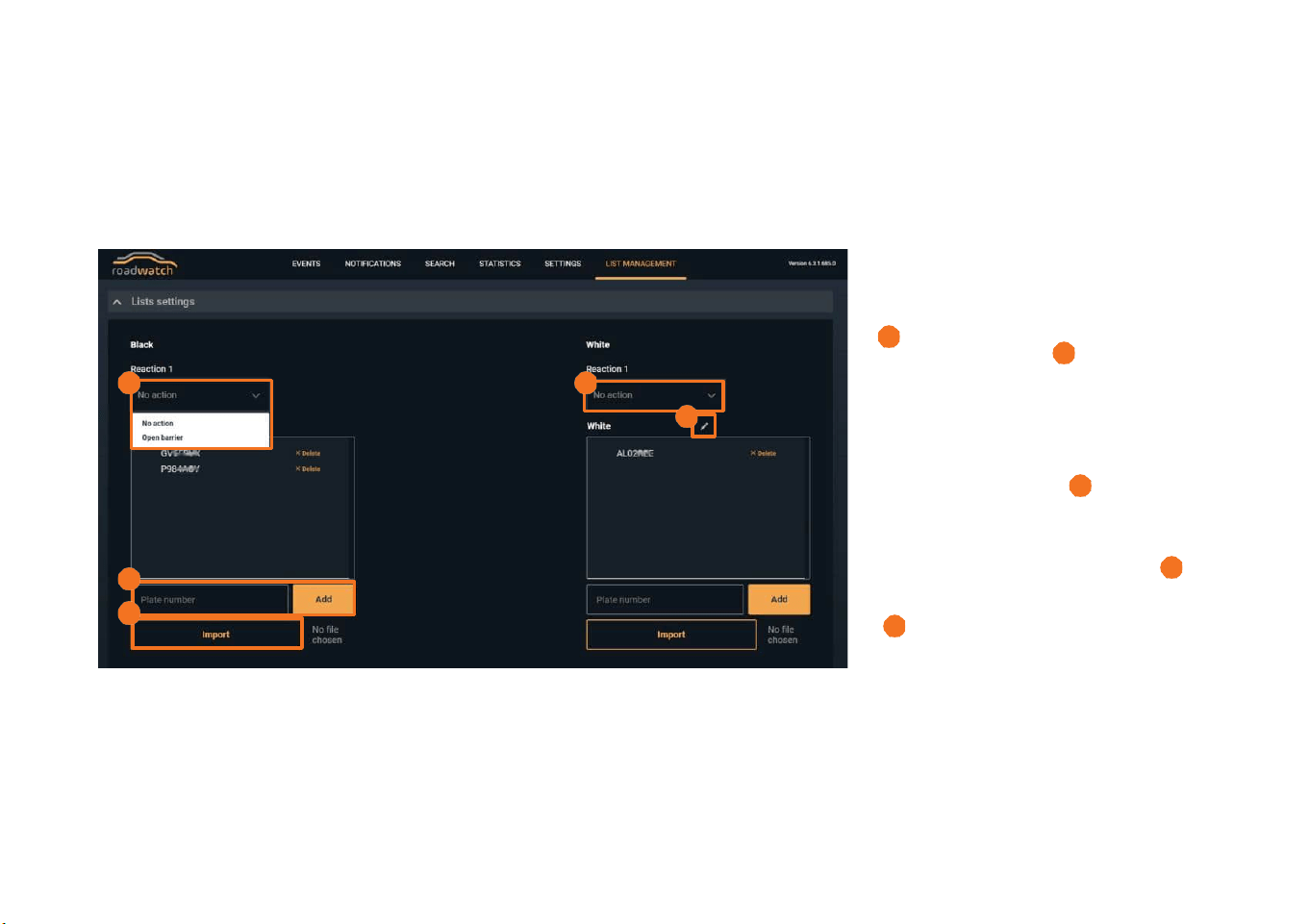

You can edit the title of the Black /
White list by clicking
B
Edit icon on
the top of the list.
C. To add an item to the list, enter a
number and then click the Add button.
D. Import the list in the .csv format
You can also add plate numbers to
the white or black list from the
expanded List menu in the Events
tab.
In the List settings section you can set
reactions to events from the white
and black list.
A
To select a reaction, open the drop-
down list. Two options are available:
No action
and Open barrier.
C
D
A
B
C
D
D
A
B
C
A

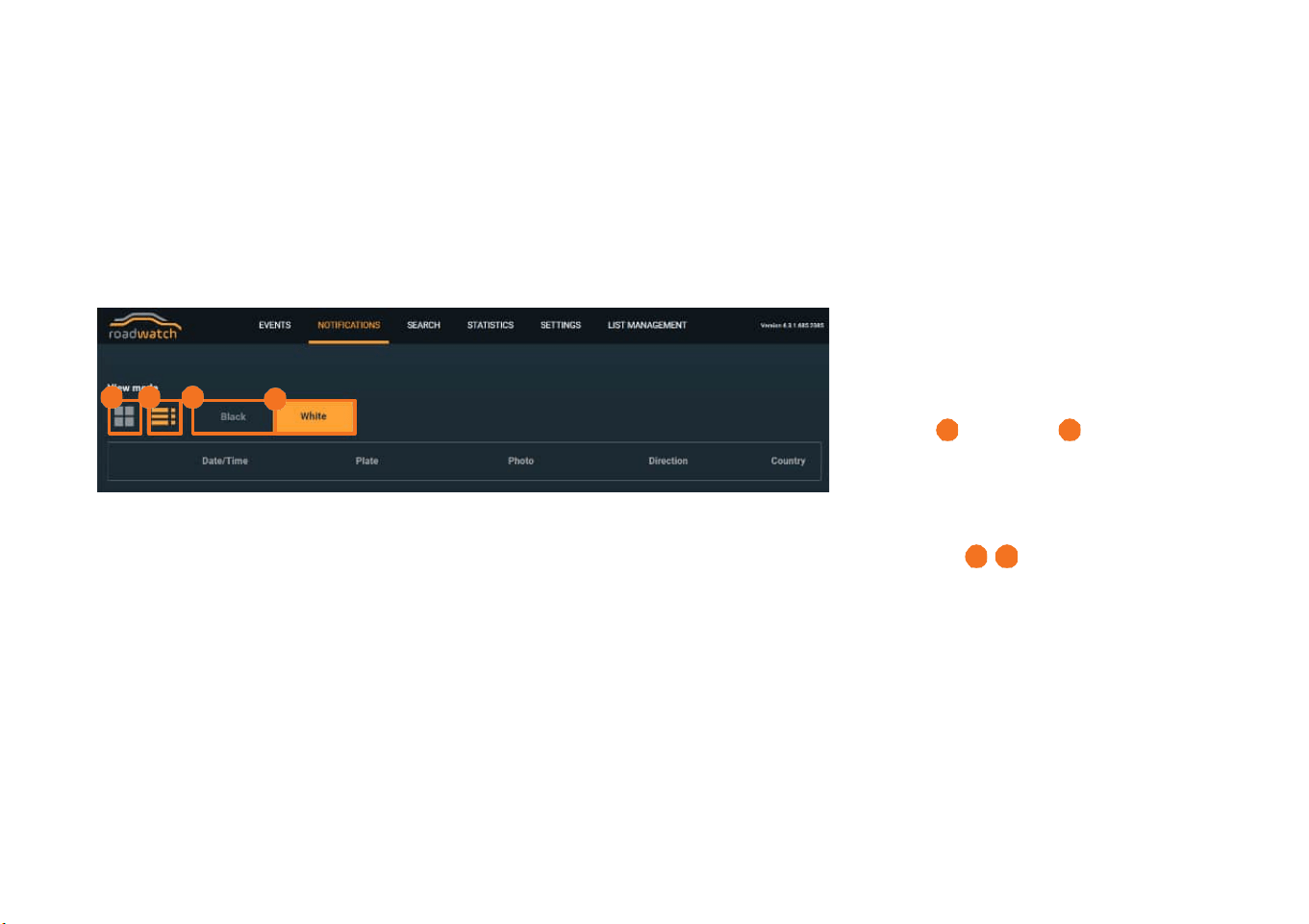

You can switch between Black and
White lists is using corresponding
buttons (
C
,
D
).
You can choose the display mode: Tile
mode
A
, List mode
B
, similar to the
Events tab.
NOTIFICATIONS TAB FEATURES
4.1 Notifications feature
The Notifications tab allows to see the
registered license plate numbers that
were added either to the white or
black list.
4
11 | RoadWatch application User Guide
A B
C D
A B C
D
Search results can be exported by
clicking Export CSV button.
12 | RoadWatch application User Guide
The Search tab allows searching by
plate, country, date, and a
combination of these criteria.
You can search by partial plate
number or any characters present on
the plate.
SEARCH TAB FEATURES
5.1 Search by plate
5
A

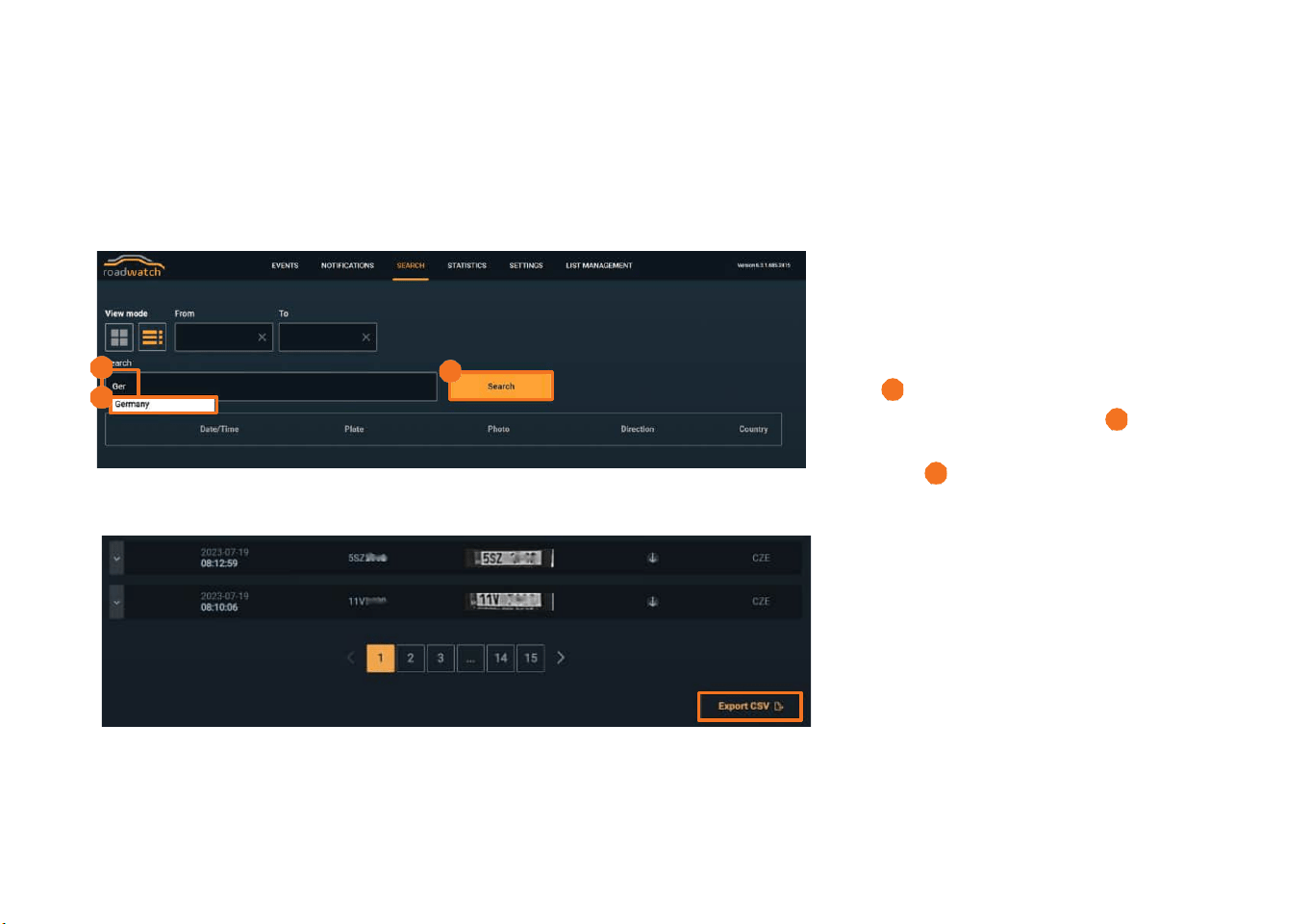

To search by Country, start entering
the first letters.
B
Then select the
desired country from the list and
C
click Search button.
A
B
C
A
C
B

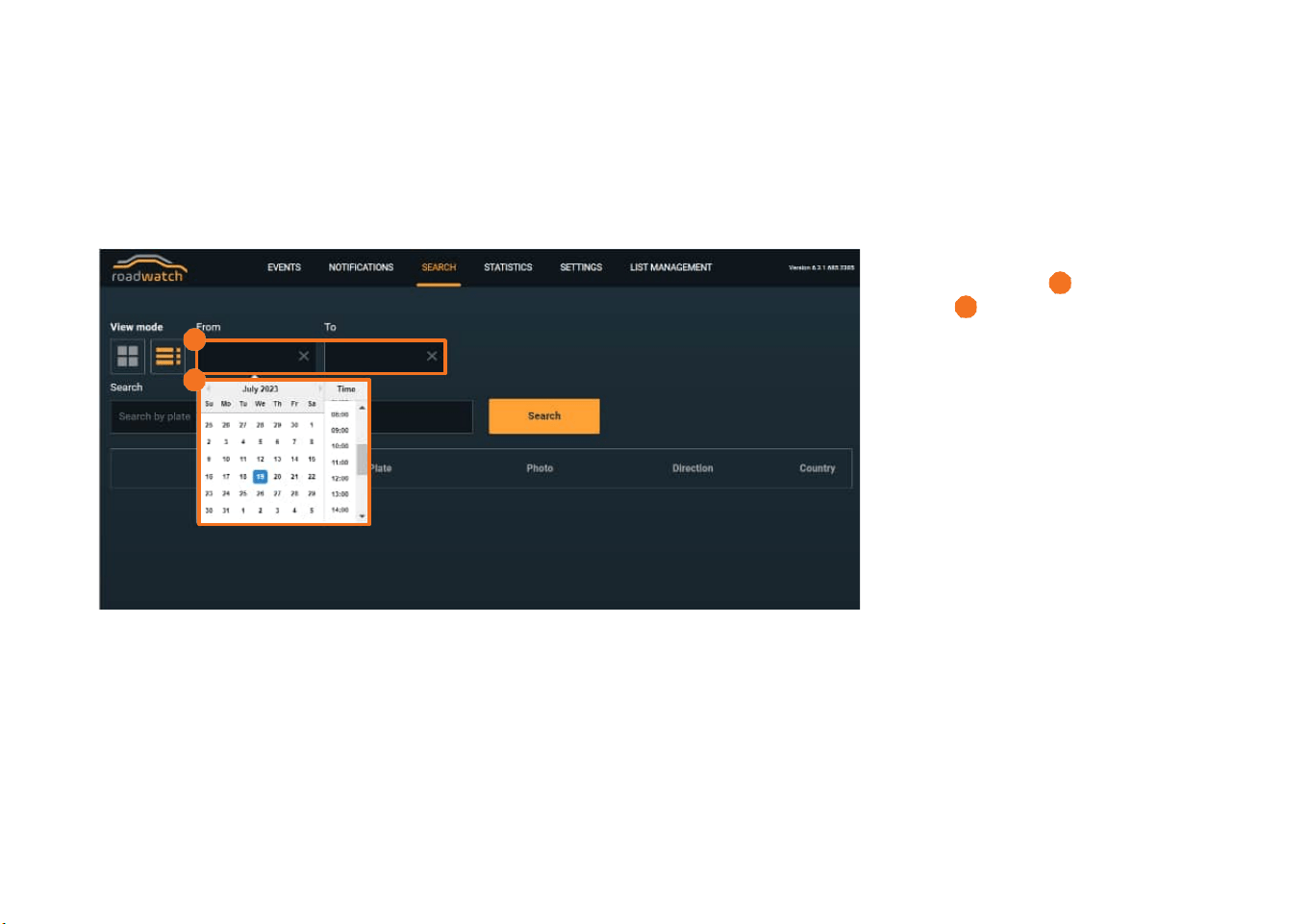

To search by date, A click From or To
box and B select the start or end date
of the search.
5.2 Search by date and date range
You can search the events within a
date range. You can also combine
search by date with search by license
plate and / or color.
The depth of the search results
database is 100,000 (WN7) or 1,000
(WN5).
13 | RoadWatch application User Guide
A
B
A
B
A

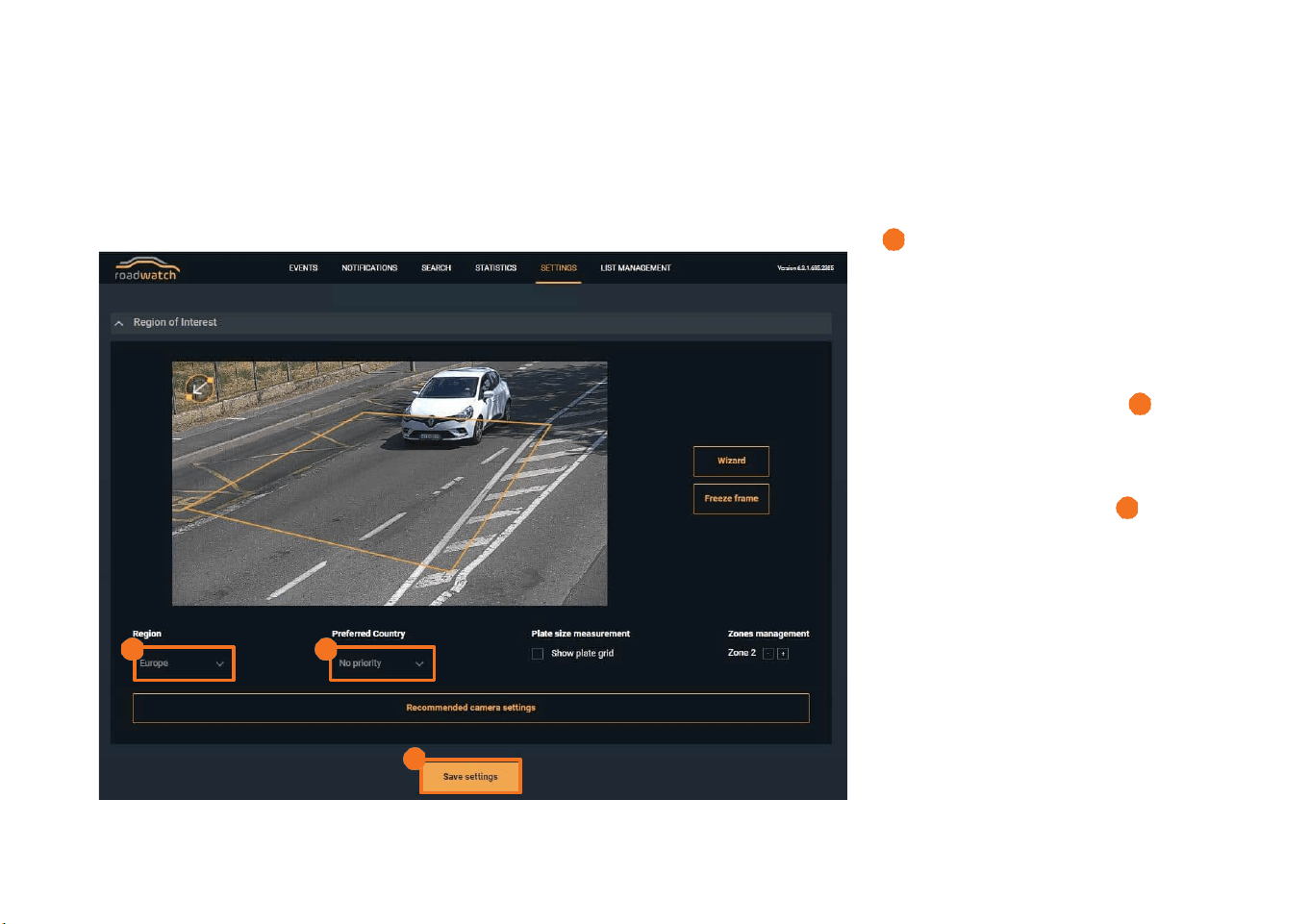

First, choose the Region.
1)Choose the correct region that matches
your country/region (Europe is set by
default).
For Europe region specify the
Preferred country to improve the ANPR
accuracy.
1)Save the settings. Click Save
settings. The application will restart
for the selected region to take effect.
After clicking C Reload, wait for
several seconds and reload the
browser page.
SETTINGS TAB FEATURES
6.1 Setting up RoadWatch
6
14 | RoadWatch application User Guide
A
A
B
B
C
C

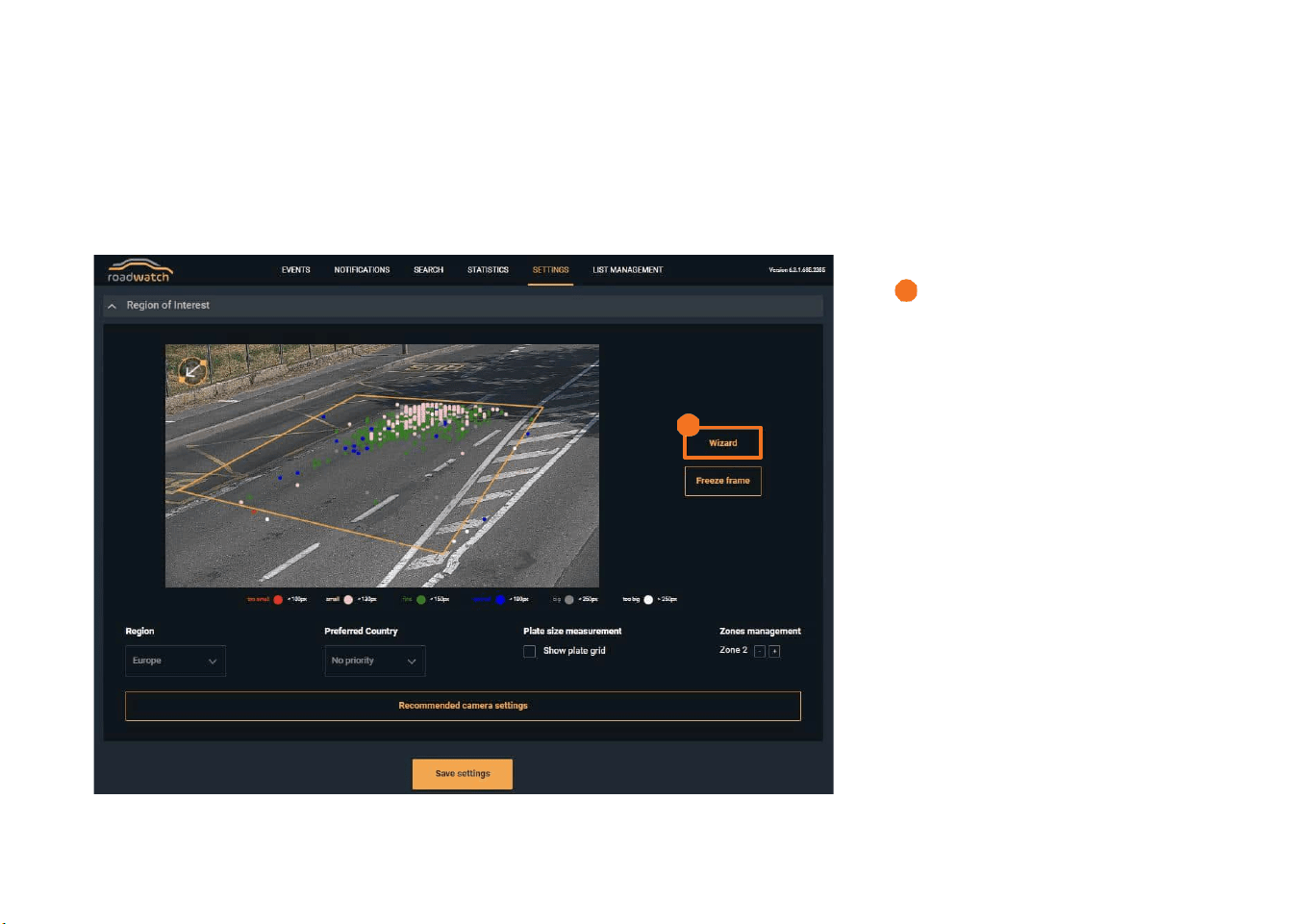

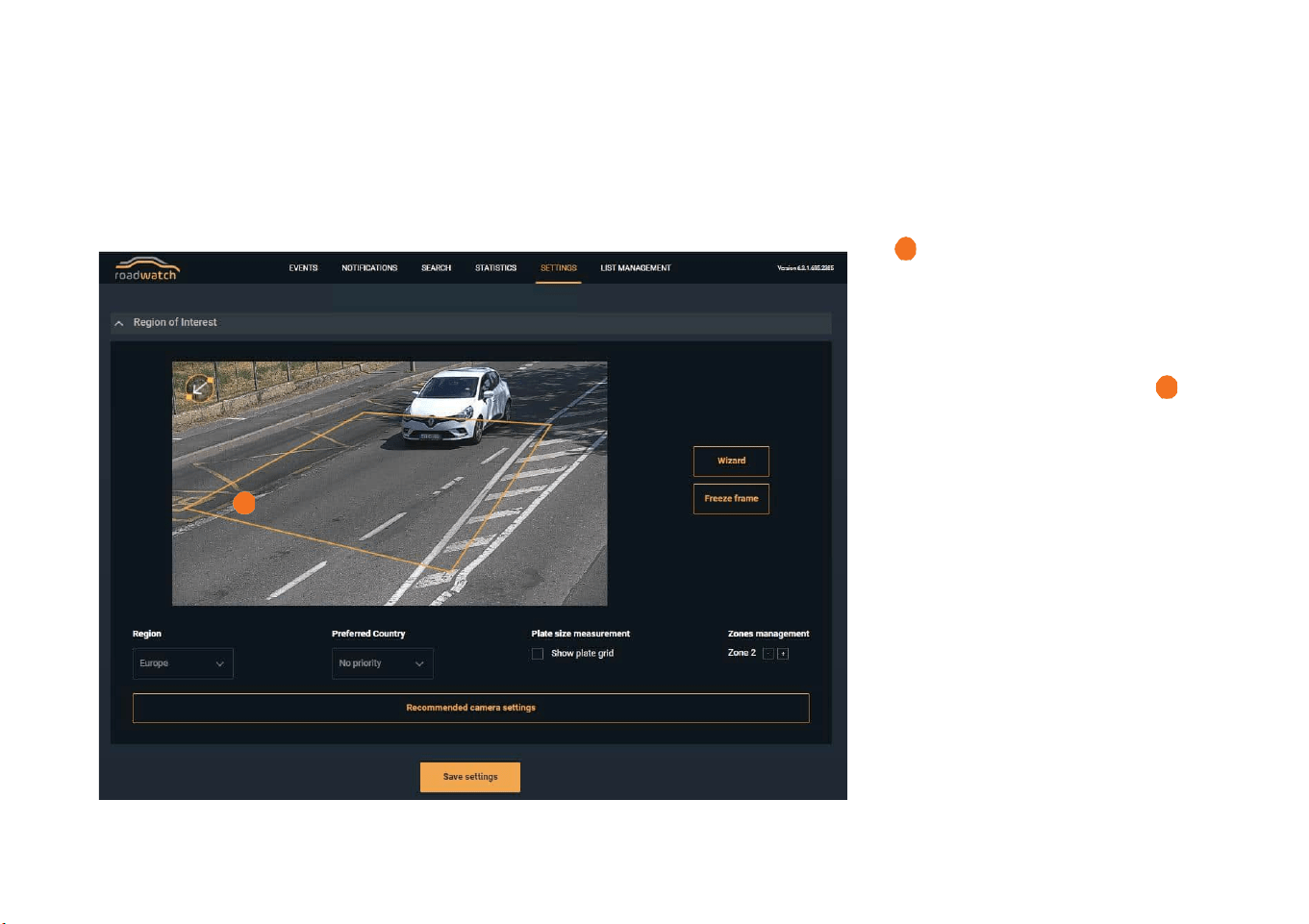

A. Set up the Region of Interest
(ROI), a zone that frames the recognition
zone.
B. Keep it tight to assure the best
performance of the application.
Please set the upper border of the
recognition zone further from the edge of
the frame. This allows vehicle being fully
visible during detection and improves
ANPR performance.
6.1 Setting up RoadWatch (continued)
A
15 | RoadWatch application User Guide
A
A
A

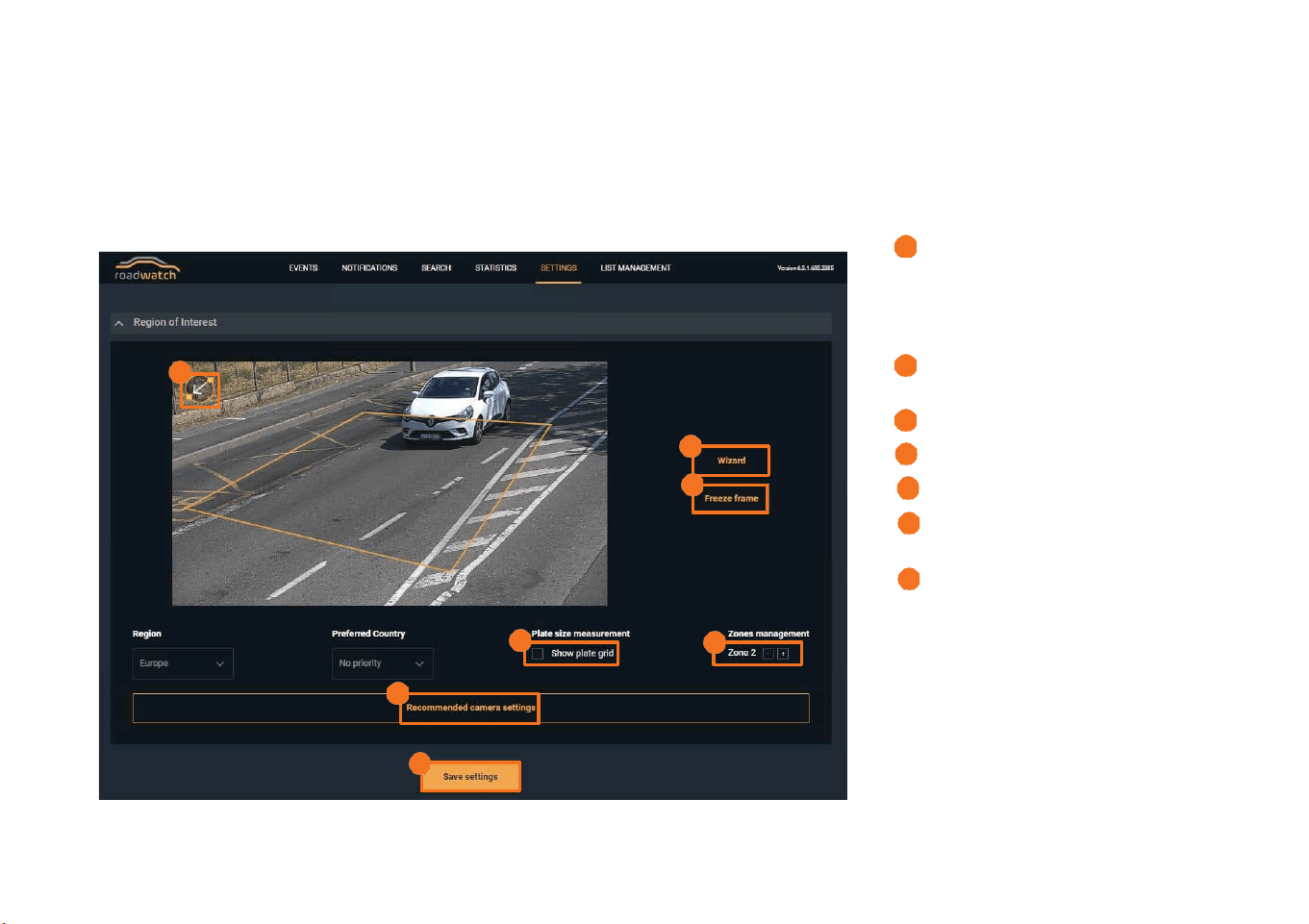

Set the vehicle direction: align the
arrow in parallel to the vehicle direction
vector, pointing the arrow towards the
chosen standard vehicle direction.
Show/hide the Plate size measurement
tool.
Add License Plate Recognition Zone.
Wizard tool.
Freeze frame button.
Apply the Recommended camera
settings.
Click Save settings.
6.1 Setting up RoadWatch (continued)
16 | RoadWatch application User Guide
A
B
B
D
F
E
G
C
D
F
E
G
C
A
NOTE: The Recommended camera
settings are a starting point for the
camera setup. Please, adjust the
settings up to your installation
conditions.
Make sure the number plates are well
visible both in day and night.
A
Wizard tool displays the statistic on
location and sizes of the latest 1000
recognized plates.
6.1 Setting up RoadWatch (Continued)
Use it to adjust the camera zoom and
the recognition zone.
Try to keep plates in green and blue
range.
At least 100 plates should be registered
to display the data.
17 | RoadWatch application User Guide
A
A
Please, keep in mind the app will be
restarted automatically after saving the
settings.
A
In the Events settings, you can
change the number of events displayed
on a page (16 by default).
Changing this parameter will lead to
changes in the Events, Notifications,
and Search tabs.
Event quantity per page should be
between 10 to 50.
6.2 Setting up Events
18 | RoadWatch application User Guide
A
A

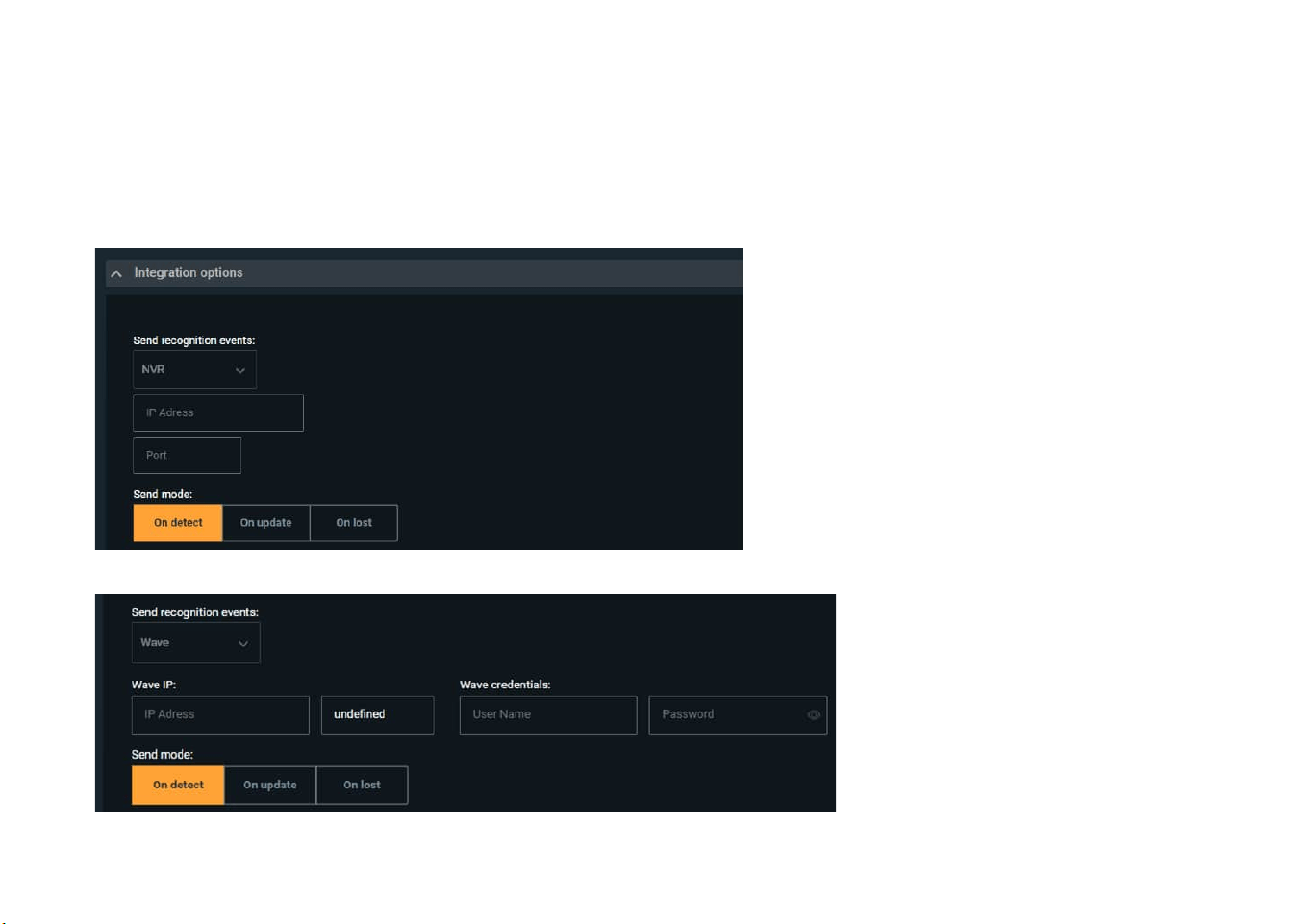

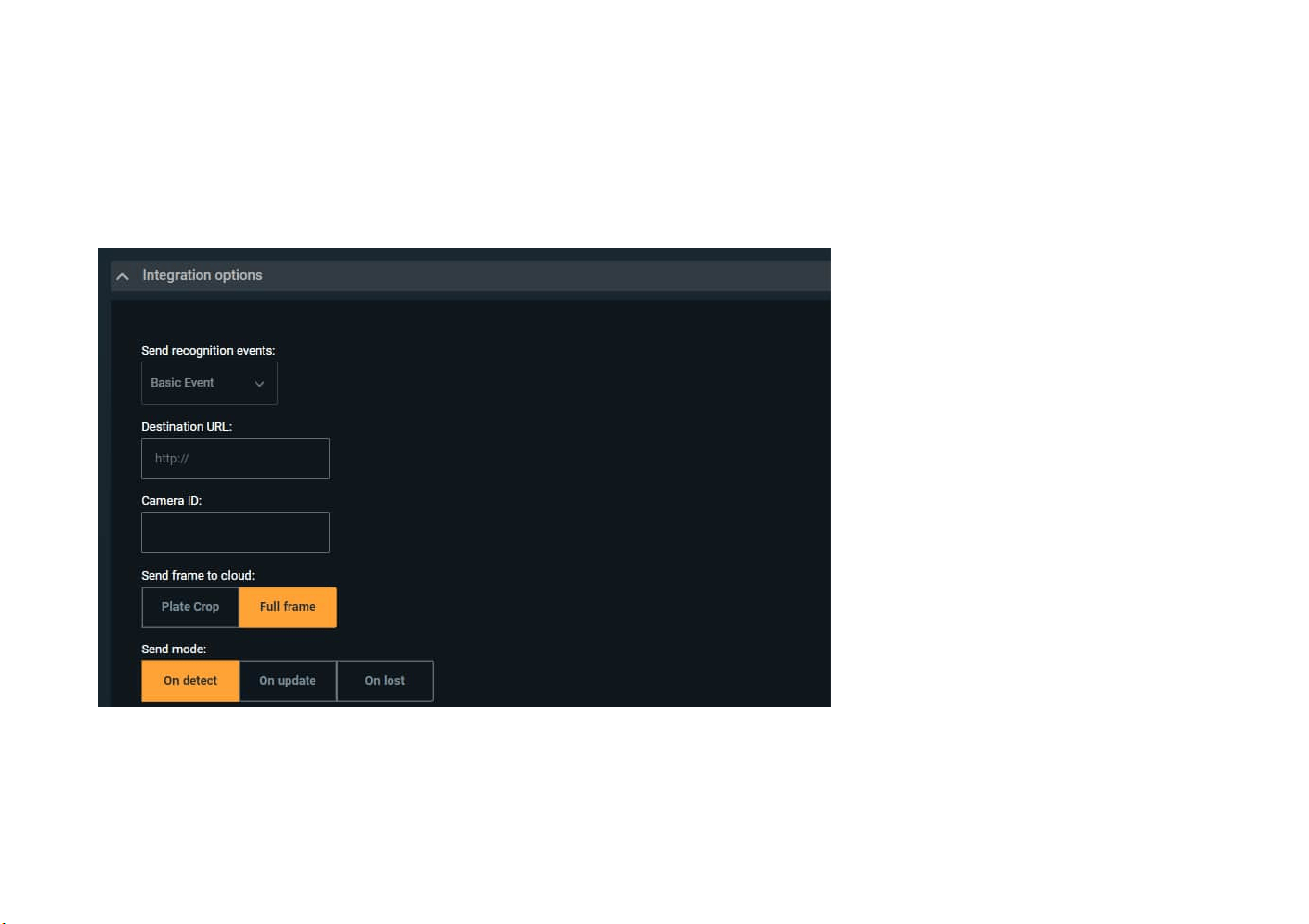

In the Integration options section, you
can set up to two different integrations.
Available options are:
Basic Event ( JSON over HTTP)
6.3 Integration options
19 | RoadWatch application User Guide
6.3 Integration options
20 | RoadWatch application User Guide

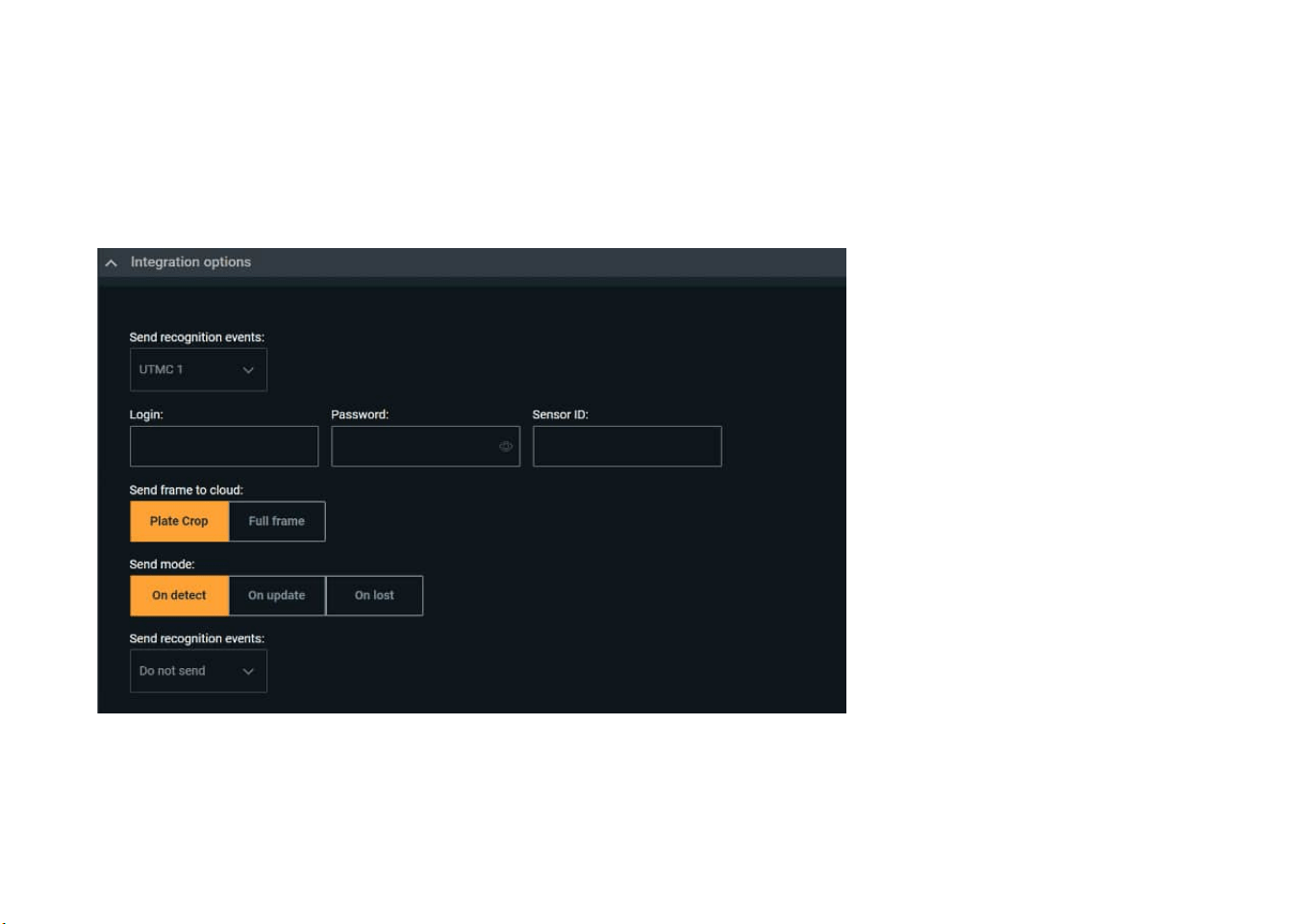

UTMC 1 and UTMC 2
NVR
On the NVR side, you need to configure
the events to be received properly.
Refer to the additional guide on page 22
on the supported options and commands.
Wave
Configuring this will get you only the
generic events in the Wave server. For
full integration in to Wave with the
metadata, use the Wave version that
supports the full meta data.
B
To ensure the correct integration, fill in
all the fields requested for selected
option and save the changes.
6.3 Integration options (Continued)
21 | RoadWatch application User Guide

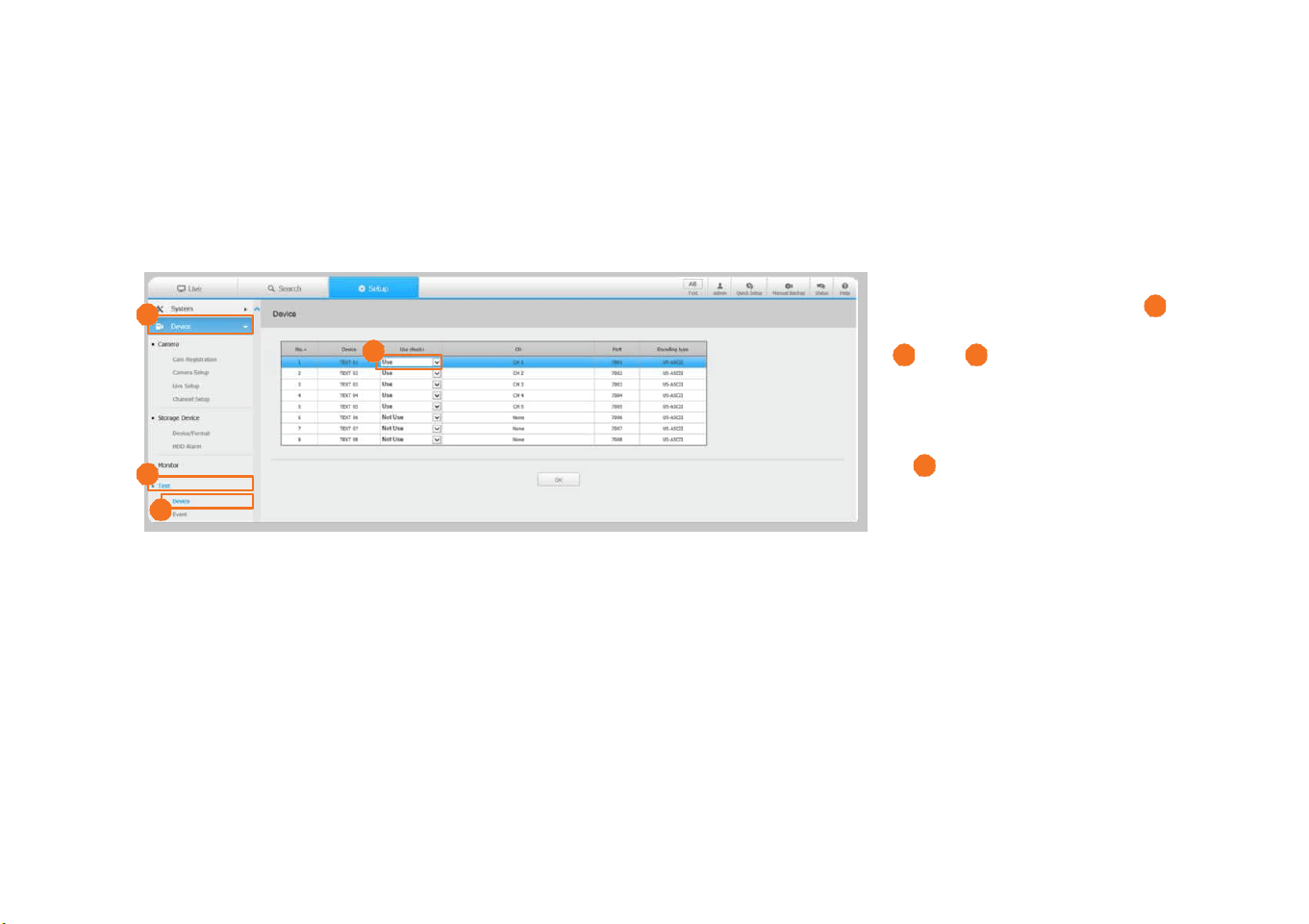

Check the NVR settings to obtain
corresponding Port number in A
Device
; B Text ; C Device setting
(by default port 7001 for CH 1, 7002
for CH 2, etc.)
6.3 Integration options (Continued)
Set D Use per channels as
appropriate.
A
B
C
D
22 | RoadWatch application User Guide
A
B C
D

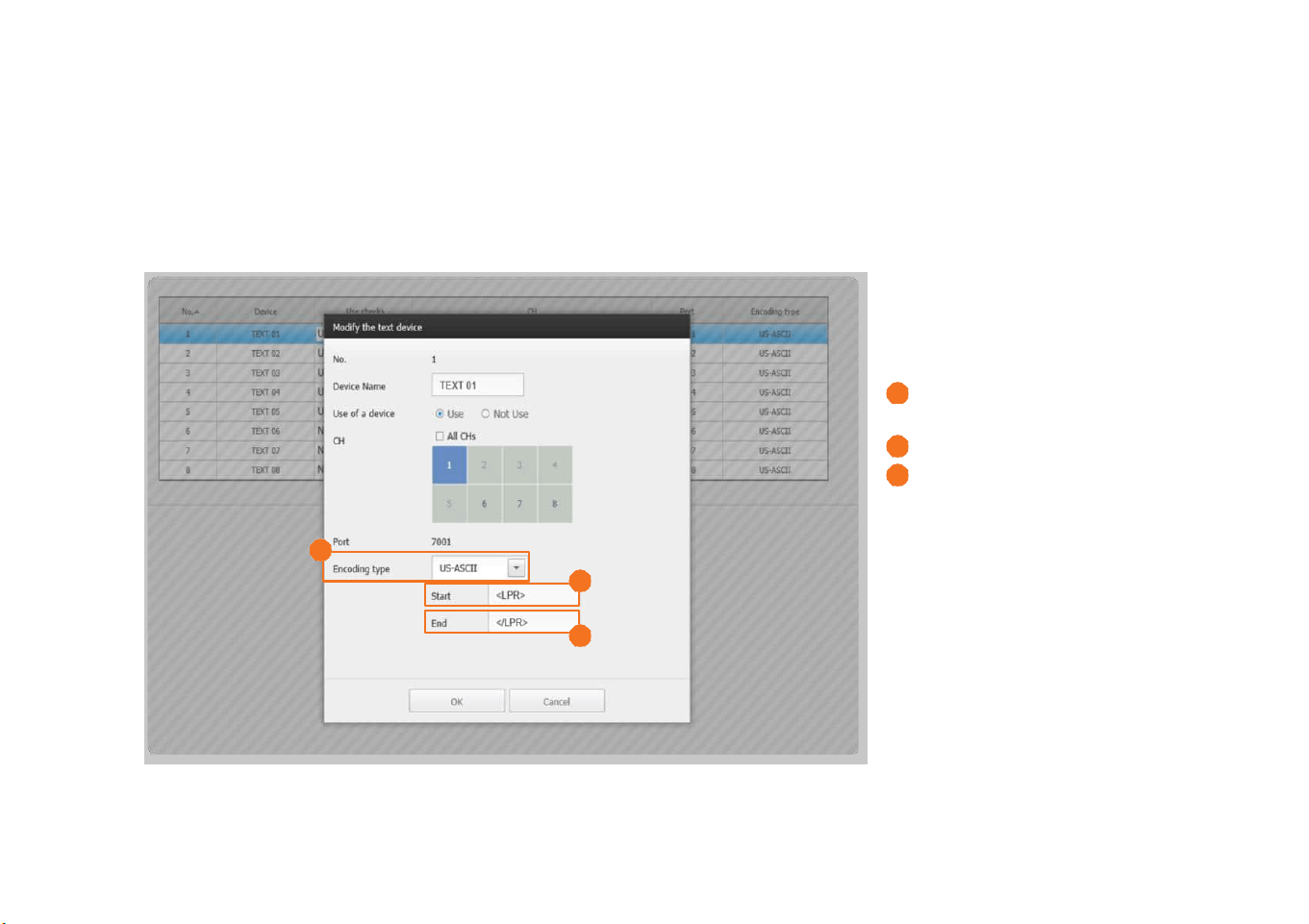

Set
A. Encoding type : US-
ASCII
B. Start string : <LPR>
C. End string : </LPR>
6.3 Integration options (Continued)
Click the channel row to open
channel settings.
NOTE:
NVR may not show LPR events if
there is no video stream bound to the
same channel.
23 | RoadWatch application User Guide
A
B
C
A
B
C
C
Export/Import buttons allow
storing current configuration and
database for later re-use.
A
SD card status
NOTE:
Please be aware that the event
images are stored on the SD card and
will not be exported.
24 | RoadWatch application User Guide
A
B
6.4 SD card and Backup
A
B

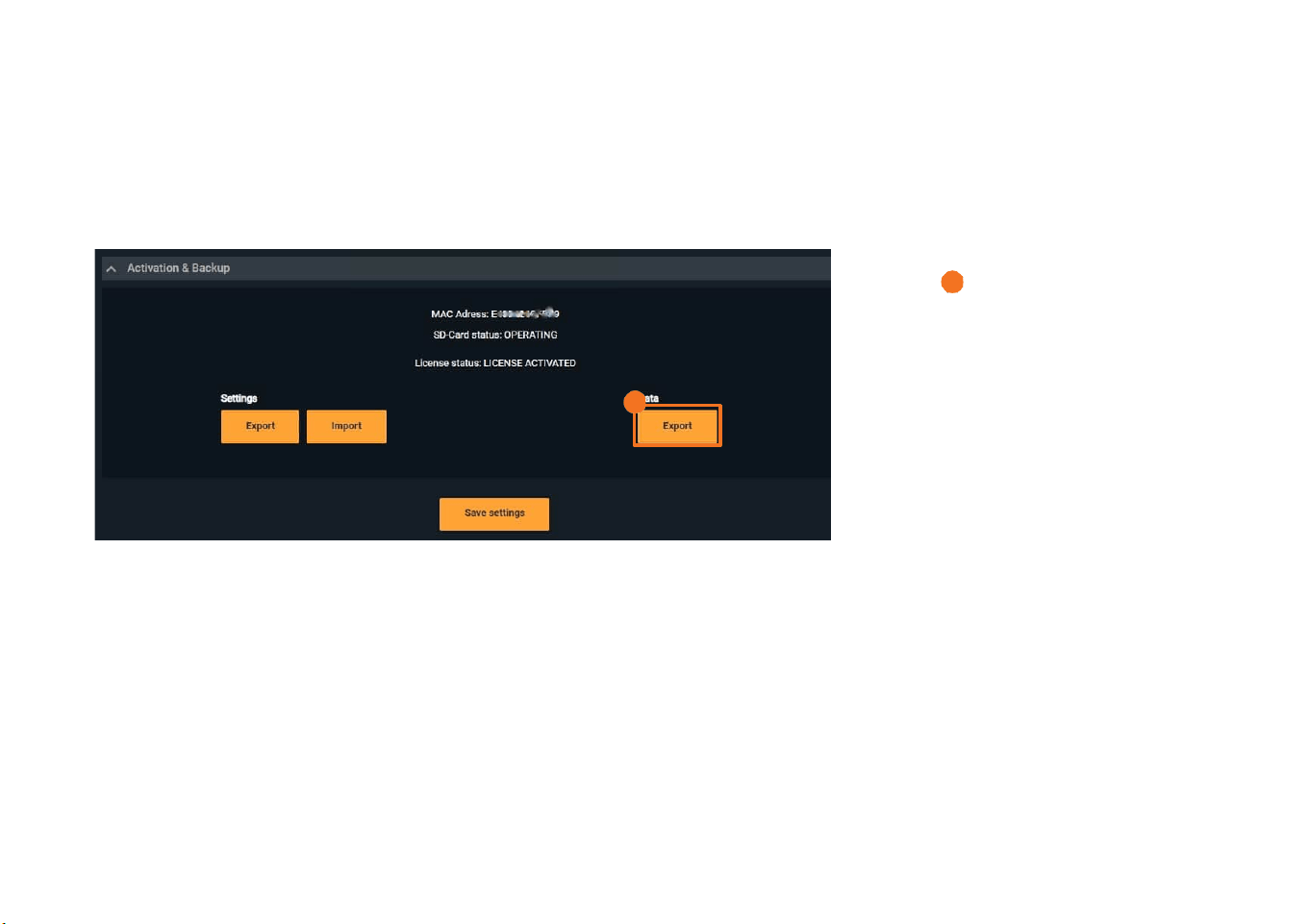

Select A to export the database (DB)
on device.
It is highly recommended to export
DB after all of settings have been
saved.
Select the path for downloading.
6.5 DB Export
Keep in mind that database does not
contain event images. They are
stored on the SD card.
D
25 | RoadWatch application User Guide
A
A
C. Click “....” button to select App
file to update.
C. Click Install button to update
App.

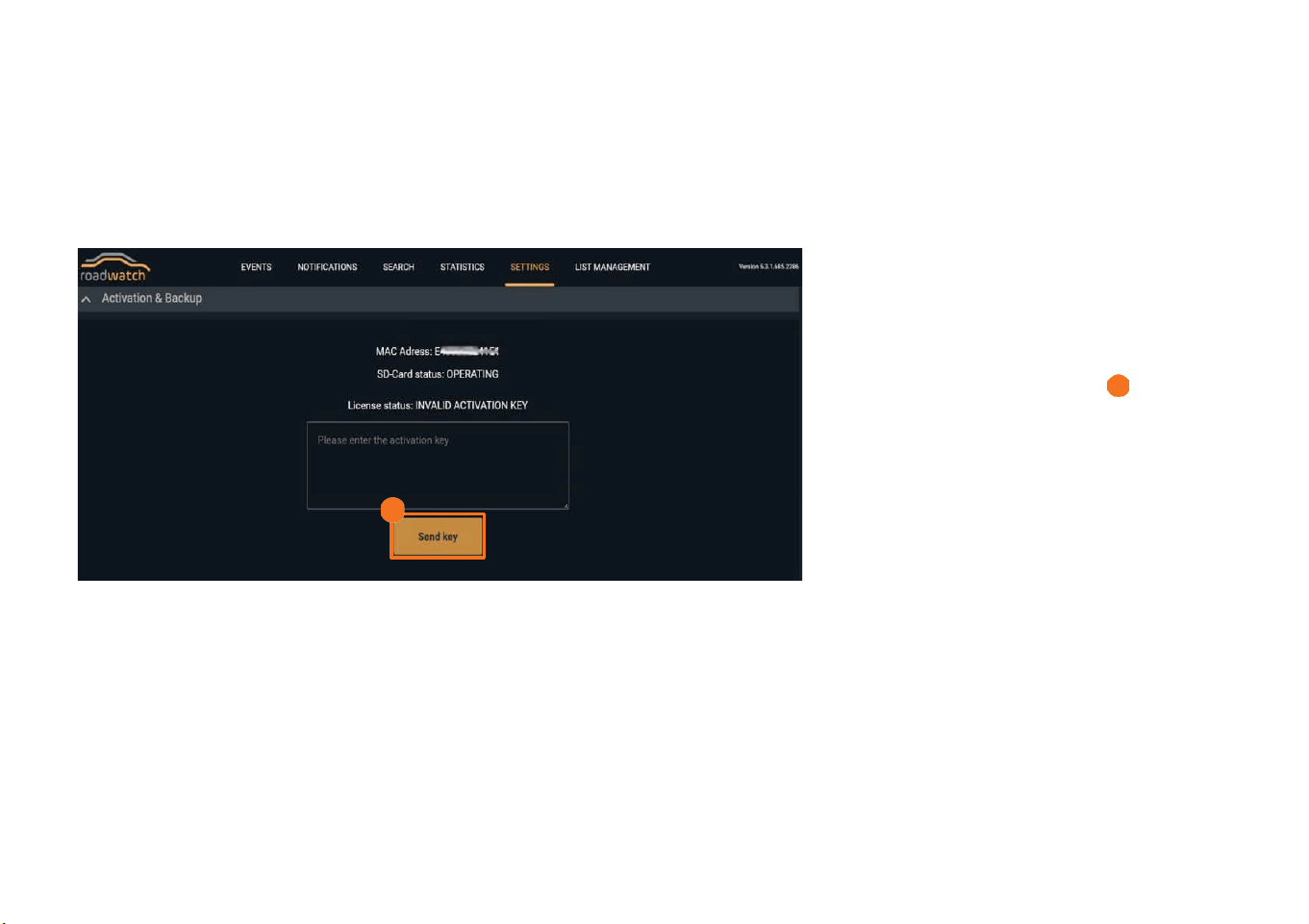

Note: you will need to re-apply
license key
B

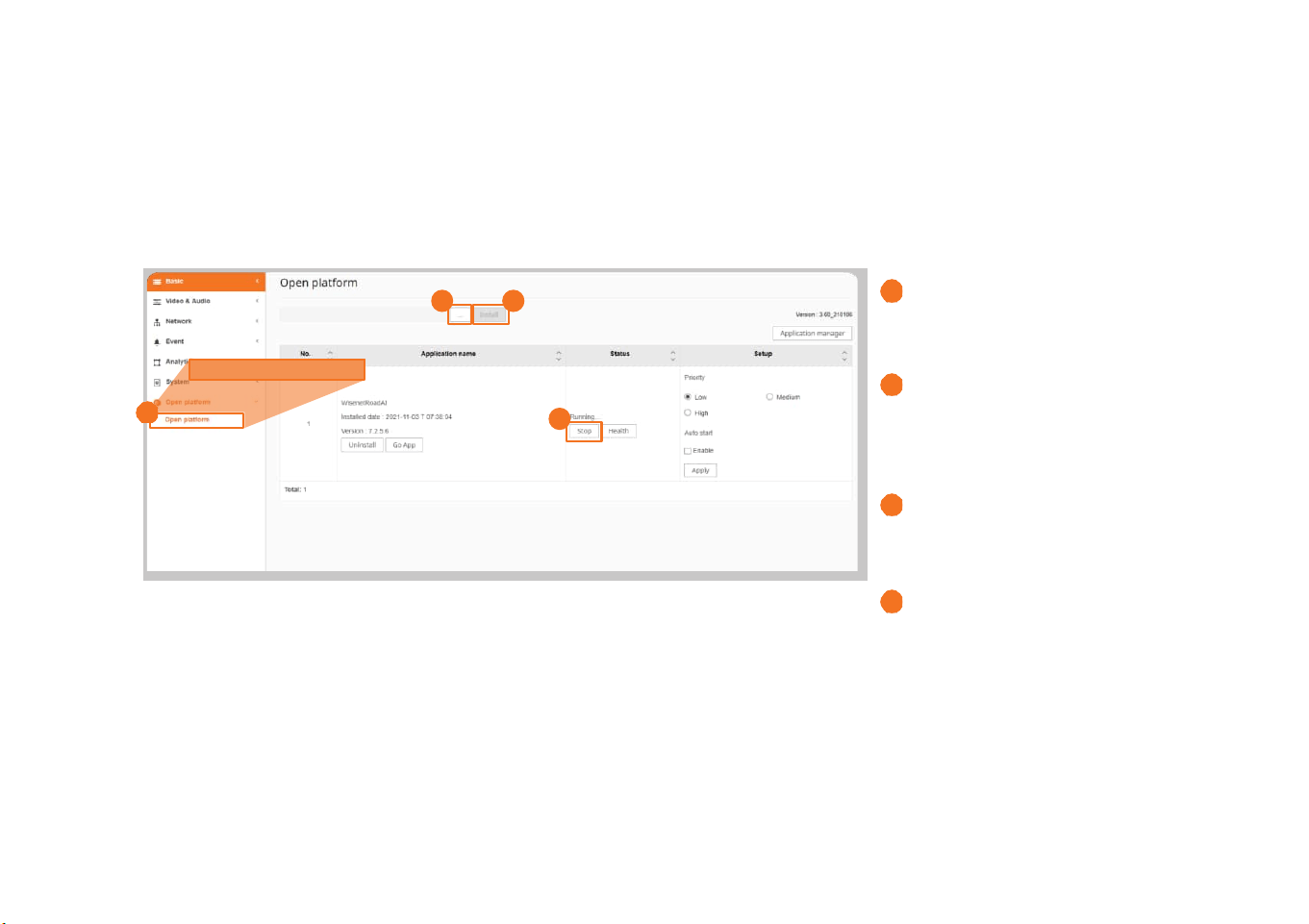

Click Stop box to stop RoadWatch App
It is very important to stop App before
updating App.
A
Go to Open platform section in
camera web viewer.
6.6 Updating the App
To update the App, go to the camera web viewer.
Open platform
C
D
B
A
26 | RoadWatch application User Guide
A
B
C
D
27 | RoadWatch application User Guide
6.6 License Activation
If your camera did not come with the
RoadWarch application activated, you need to
activate it in order to start registering the
vehicles.You would also need to activate your
application when you update or reinstall it.
Indicate the license key, click Send key
button, and wait for the application to
restart. Then reload the page in the browser.
You can request the license key from Hanwha
Vision Europe support.
Note: license is registered to the MAC address
of the camera, please keep it safe.
A
A
TROUBLESHOOTING
How to install the application
You will have RoadWatch application pre-installed. In case you need to manually install or update the app.
Please find it at the Hanwha Vision website.
If you are upgrading the existing application it is recommended to stop the app before installing the newer
version. Check the compatible firmware version and upgrade the camera if necessary. Check that you have
one of the supported camera models.
Please keep in mind that the latest firmware version support could come in a few weeks, so do not rush to
upgrade the camera without confirmation of compatibility.
Application restarts from time to time - is that normal?
Both your camera and the application have protective mechanisms to avoid crashes and stalling. Those
watchdogs could restart the application. Please contact the support if the situation happens too often.
Check that built-in video-analytics is disabled, as it consumes the camera resources and affects application
performance; micro SD card health; camera’s firmware version is compatible.
Do I need a micro SD-card?
The micro SD-card is needed to store the images of the events. Also, it is mandatory to have micro SD-card
installed and operating to send data via HTTP(s) integration and store the application logs.
Your camera have an micro SD-card (32Gb) pre-inserted. In case you need to change it, please select a
compatible option (32Gb at least, class 10).
28 | RoadWatch application User Guide
7
TROUBLESHOOTING (CONTINUED)
I do not see event images in the application
Please check the following:
-Micro SD-card is inserted in the camera
-Micro SD-card status is OPERATING in the Settings tab
-Micro SD-card is class 10 and above
Try to restart the camera to re-initialize the microSD-card if all the above is OK.
How to obtain logs?
In some cases additional information needed to check the issues with the
application. There are two types of logs: 1) in-camera, 2) in-application ones.
In-camera logs are accessible through camera configuration in System>Log section.
In-application logs could be downloaded via your browser by following the addresses below.
Keep in mind that micro SD-card is needed to store and download logs.
29 | RoadWatch application User Guide
TROUBLESHOOTING (CONTINUED)
How to obtain logs? (continued)
Accessing camera logs:
http://<CameraIP>/home/setup/opensdk/html/RoadWatch/logs/AppLog.log
High-level log
http://<CameraIP>/home/setup/opensdk/html/RoadWatch/logs/AppErrors.log
Useful links to check application status:
http://<CameraIP>/home/setup/opensdk/apps/RoadWatch/AppConfig.json
The application configuration is stored here
http://<CameraIP>/stw-cgi/opensdk.cgi?msubmenu=metaframeschema&action=view
Check if integration with VMS (SSM, Milestone, Genetec) is enabled
http://<CameraIP>/stw-cgi/debugcgi?msubmenu=data&action=view
Check internal camera debug information
How can I delete all Number Plates from the SD Card to have an empty database?
You can format the micro SD-card after removing it from a camera. That will remove stored images without removing
the events from the database. Re-installing the app would clear the database. Also, you can import empty database
in the Settings tab.
30 | RoadWatch application User Guide
How many events can be stored?
The application stores up to 100,000 (WN7) or 1,000 (WN5) events in the camera. You can store more events by
saving them on the back-end side via different integration types available.
Bad recognition at night. How to fix that?
This might be result of:
1.Improper focusing. Consider that the area with sharp details varies during daytime and nighttime. You can even
configure two setups for day and night recognition with different focus.
2.AGC (automatic gain control) is set to Normal or High, which results in noise and affects recognition performance.
3.Shutter speed is low (slower than recommended minimum 1/500)
4.IR power is not configured properly (either a vehicle is too far and IR does not illuminate enough, or is too close
that plates are over-exposed; also the closer the plate to the frame borders, the stronger is a vignette effect).
Consider using external IR for longer distances or higher vehicle speeds.
5.Camera does not switch to the B/W mode during nighttime, as in case of high illumination it can stay in Color
mode, but the conditions would be poor for plates reading and IR would not affect the image.
Application does not perform Make, Model and Color recognition at night. This is normal. With the help of IR,
it can only read the plate numbers. Occasionally it gives the make and model but it may not be the exact
match due to poor lighting conditions.
31 | RoadWatch application User Guide
TROUBLESHOOTING (CONTINUED)
Do I need to activate the application after installation?
You do not need to activate the application in any way - you can install it on any of the supported camera models and use
it right away.
Application does not recognize licence plates, vehicle models
Check if the application is installed. Follow the installation guides to configure the whole setup properly.
Check if application is running.
Check the image requirements in case you have a video in a preview, but do not have recognition.
Make sure your browser is supported.
Use Plate Size checker and Freeze Frame tools in the settings tab to check if the plate size, tilt angle, positioning are
valid. Change the application resolution to FullHD if plates are too big or to 4K if they are too small. Adjust the plate size
with the camera zoom.
Make sure to start the application and opt-in the ‘Enable Auto Start” setting.
If you go in to the RoadWatch app without actually starting the app, you only get a dark screen with the logo.
Image requirements
Plates should fit the following restrictions for better recognition :
-Plate width should be in range of 130-350 pixels on a
frame
-Plate vertical and horizontal angles are less than 30˚
-Clearly visible and readable by human
-Plate tilt angle is less than 5˚
Check the Installation Guide for details.
32 | RoadWatch application User Guide
TROUBLESHOOTING (CONTINUED)
Recommended browsers
We recommend using Chrome, Firefox, Safari. Check the details in the Installation Guide, section Camera Settings >
Important note on web browsers
False recognitions: grass / asphalt / textures detected
1.Configure the Region of Interest in the Settings tab to avoid appearance of unnecessary texture and limit it
only to plates appearance zone.
2.Use manual focusing in camera settings and adjust focus to provide a sharp picture of license plates in the area they
appear.
False recognition: low picture quality
Try improving picture quality through camera settings: sharpness, focus, exposure
False recognition: small objects detected
Change Region of Interest in the Settings tab to avoid detecting small plates. Use zoom or in-app resolution to adjust.
Can’t see video in browser
1.Check whether you use supported browser if you are in the same network with camera.
2.Port 6162 from camera should be forwarded through router to view video from remote network.
33 | RoadWatch application User Guide
TROUBLESHOOTING (CONTINUED)
Recommended Settings does not apply
Some of the camera settings are interconnected. Try to reset Video settings to default and use Recommended
Settings button, or just follow the Installation Guide to set the camera manually.
Region selection, resolution selection does not apply
Changing region and resolution will apply to GUI firstly. You need to restart the application in the Open
Platform section of camera setting to fully apply changes.
How can I integrate with Milestone/Genetec
Please use Hanwha Vision AI plug-ins for your VMS to obtain vehicle recognition events from RoadWatch.
No additional settings needed on the application side.
What happens if I reset the camera
You will not lose the application setup or data if you reset camera keeping Network & OpenPlatform
parameters. Otherwise, the application will be removed with only event images stored on the SD-card. The only
way to obtain images is to remove card from the camera in that case.
We strongly recommend exporting application settings and database in the Settings tab prior reset or
application reinstallation/update.
If you hard reset the camera through the physical reset button, you have to re-install the application.
34 | RoadWatch application User Guide
TROUBLESHOOTING (CONTINUED)
Head Office
Heriot House, Heriot Road
Chertsey, Surrey
KT16 9DT
United Kingdom
© 2023 Hanwha Vision Co., Ltd. All rights reserved.
DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Hanwha
Vision Co.,Ltd.
* Wisenet is the proprietary brand of Hanwha Vision, formerly known as Samsung Techwin.
For more information visit us at
hanwhavision.eu
Version 1.0
