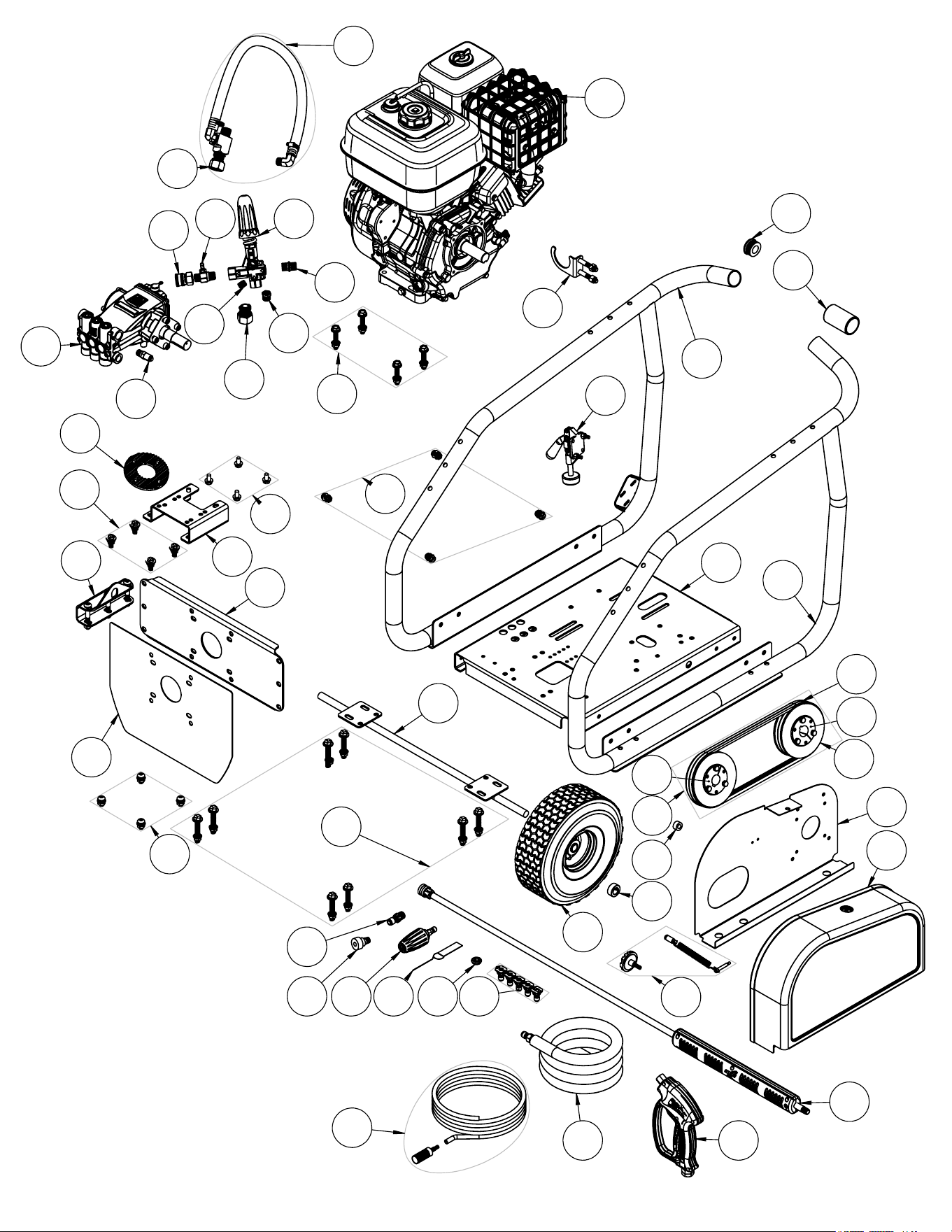

65211 SPW4040SCBDMRC IPL *
REV.
-
- -
-
03/08/21
KG
SERVICE APPR.
Q.A. APPR.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
DATE
NAME
Version:
MODEL:
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1 7112300
BYPASS SVC KIT
1
2 7100051
INLET FITTING, 1/2NPT(M) X 3/4GHT
1
3 100702
SIMPSON 420CC 50ST RECOIL START
1
4 7103277
HARDWARE KIT, ENGINE MOUNTING
1
5 7112334
GUN/HOSE HANGER KIT
2
6 7109946
END CAP
2
7 7109947
GRIP, RUBBER
2
8
7109719BK1
RIGHT HOOP
1
9 7112331
WHEEL BRAKE KIT
1
10 7111230
FRAME, BASE
1
11
7109717BK1
LEFT HOOP
1
12 7109721
AXLE ASSEMBLY
1
13 7112353
HARDWARE KIT, PLATE
1
14 7100621
NIPPLE 3/8 X 3/8 HEXSTEEL
1
15 7101604
REDUCER, 3/8" NPTM X 1/4" NPTF
1
16 7100051
INLET FITTING, 1/2" NPTM X 3/4" GHT
1
17 7102470
REC. ALLEN HEAD, BRASS
1
18 7110707
UNLOADER, P1, 4500 PSI
1
19 7111619
CHEMICAL INJECTOR, FIXED, GP
1
20 7100019
COUPLER, 3/8" QC(F) X 3/8" NPT(F)
1
21 530036
PUMP
1
22 7101359
THERMAL RELIEF VALVE, 1/4" NPT
1
23 7101037
PUMP BUMPER
1
24 7112351
HARDWARE KIT, PUMP
1
25 7104880
BRACKET, PUMP
1
26 7103703
MOUNT, PUMP, HARDWARE
1
27 7112333
LIFTING BRACKET KIT
1
28 7109723
HOSE REEL BRACKET
1
29 7113668
FRONT PANEL SVC ASSY
1
30 7112332
FRONT PANEL HARDWARE KIT
1
31 7110800
RC AXLE MOUNTING HARDWARE
1
32 7101079
QUICK CONNECT 3/8 MNPT
1
33 7103266
INLET ADAPTER
1
65211 SPW4040SCBDMRC IPL *
REV.
-
- -
-
03/08/21
KG
SERVICE APPR.
Q.A. APPR.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
DATE
NAME
Version:
MODEL:
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
34 7109529
4500PSI TURBO NOZZLE
1
35 7102045
TOOL, NOZZLE CLEANING, UNIVERSAL
1
36 7106833
HOLDER, NOZZLE SINGLE
1
37 7101683
NOZZLE SET, 0, 15, 25, 40, SOAP
1
38 7106254
KIT, SOAP HOSE & FILTER
1
39 7108730
HOSE, 3/8X4500X50'
1
40 7108134
GUN,5075PSI
1
41 7100551
LANCE, 48”, INSULATED
1
42 7103599
BELT GUARD TENSIONER KIT
1
43 7103619
POWER WASHER WHEEL
1
44 7101803
COLLAR, LOCKING 5/8I.D.
1
45 7101166
SPACER, BACK
1
46 7109688
PULLY KIT 23 X 500 X SH
1
47 7108664
BUSHING, SH X 24MM
1
48 7101998
BELT 3VX375
2
49 7105676
BUSHING, SH1
1
50 7108665
PULLEY, 23V500 X SH
2
51 7108531
BELTGUARD, REAR
1
52 7108530
BELTGUARD, FRONT
1
