OMEGA ALTISE
OPERATION, MAINTENANCE
AND SAFETY INSTRUCTIONS
FOR OMEGA ALTISE
Tower Fan and Fan Heater
Model OTD71W
OMEGA ALTISE
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................................. 3
TECHNICAL DETAILS ......................................................................................................................................... 4
CONTROL PANEL AND SETTINGS ................................................................................................................... 5
CLEANING & MAINTENANCE ............................................................................................................................ 7
TROUBLESHOOTING ......................................................................................................................................... 7
TROUBLESHOOTING ......................................................................................................................................... 7

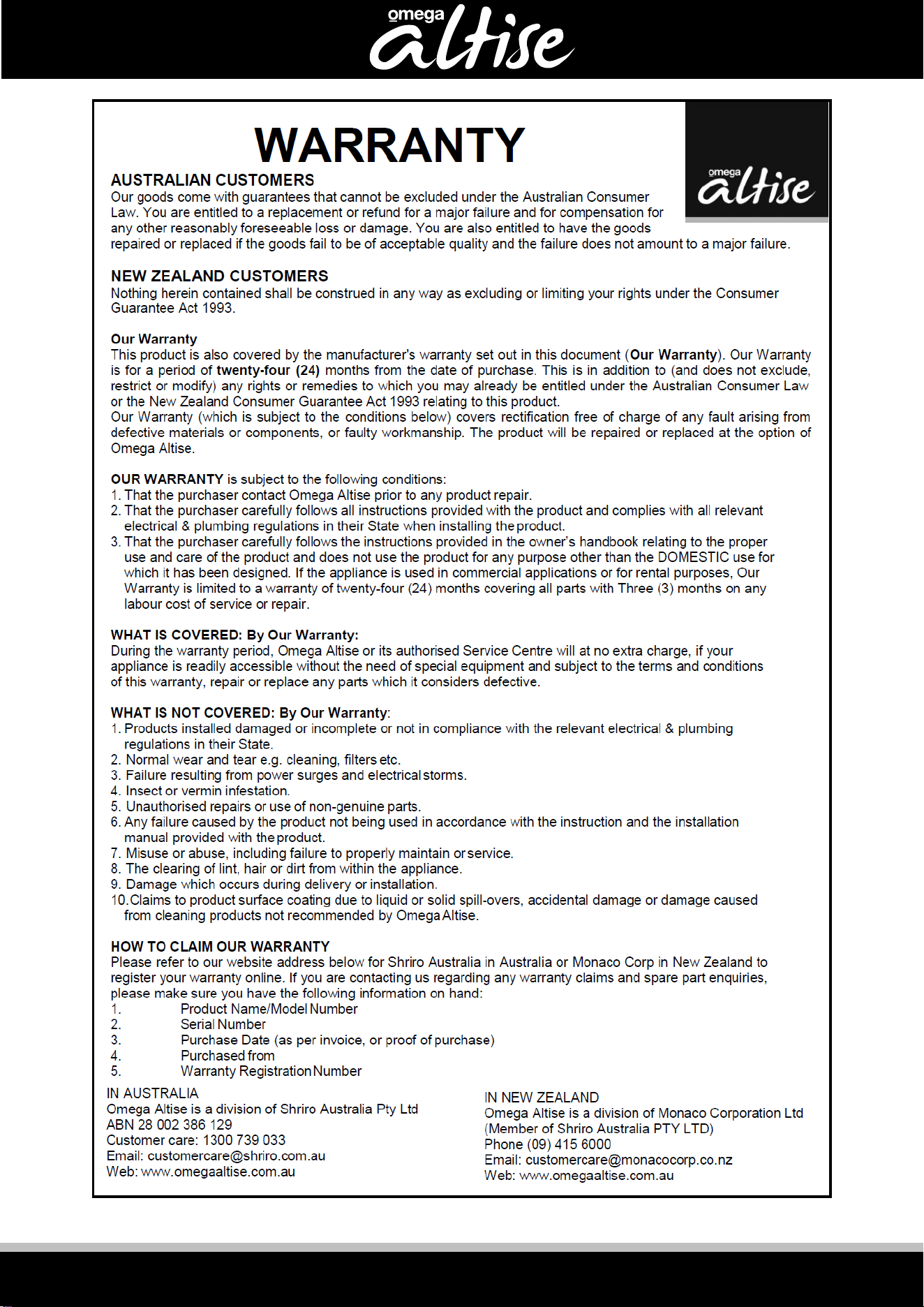

WARRANTY ……………………………………………………………………………………………………………….8
OMEGA ALTISE
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the safety precautions of this booklet carefully before attempting to assemble, install, operate or
maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with instructions could result in personal injury and/or property damage. If you are unsure
about anything regarding your fan or these instructions, please contact Omega Altise on 1300 795 572 in
Australia or (09) 415 6000 in New Zealand before operating your appliance.
1. Read all instructions carefully before using the tower fan and fan heater.
2. Use this fan only as described in this manual. Any other use not recommended by the manufacturer
may cause fire, electrical shock, or injury to persons. Do not modify this appliance. Do not try to
repair this appliance – there are no user serviceable parts within.
3. Remove the packaging and ensure that the appliance is undamaged (keep packing box for later
storage). In case of doubt do not use the appliance and contact Omega Altise Service. Do not let
children play with any parts of the packaging.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety. Children
should be supervised to ensure that they do not play with the appliance. Extreme caution is necessary
when the fan is used by or near children or individuals with decreased mental and physical capacity
and whenever the fan is left operating unattended.
5. Before you use the appliance, check if the voltage marked on the rating label corresponds to the
mains in your home. The appliance must be connected to a grounded power supply.
6. Do not use this appliance with a programmer, timer or any other device that switches the appliance
on automatically, since a fire risk exists if the appliance is covered or positioned incorrectly.
7. Do not pull the power cord to disconnect with the power source. Always grasp the plug to pull it out.
8. Do not run power cords under rugs, curtains, or other combustible materials. Do not place power cords
in areas where they can be a tripping hazard. Do not operate directly below a power outlet.
9. Do not let the power cord touch or near the air outlet. It will damage the insulation layer of wires.
10. Do not insert any objects into the appliance as it may cause an electric shock or fire or damage to the
appliance. Do not block or tamper with the appliance in any manner while it is in operation. To
prevent a possible fire, do not cover the appliance in any manner. Do not place on soft surfaces, like a
bed, where openings may become blocked.
11. Do not leave the appliance unattended. Always unplug the appliance when not in use. Take care
that it is not obstructed when oscillating.
12. Keep materials such as hair, net curtains, tablecloths & clothes away from the openings of the fan, as
material may be sucked into the appliance causing injury, damage to property or the appliance.
13. The appliance has hot and arcing or sparking parts inside. It must NOT be used in potentially
dangerous locations such as flammable, explosive, chemical-laden, corrosive, salty or wet
atmospheres. This appliance is intended for general indoor domestic use ONLY.
14. This appliance is not intended for use in wet or damp locations. Never locate it where it may fall into a
bathtub or other water container.
15. Do not use the appliance outdoors. Do not use close to windows or in direct sunlight.
16. Always place the appliance on flat, stable surfaces before use. Always place the appliance
vertically on its base.
17. Do not put any objects on the appliance and put the appliance immediately below a socket-outlet.
18. Do not touch the air outlet when operating.
19. Please keep the air inlet and the air outlet unblocked to minimize the risk of fire or malfunction.
20. After a period of operation, abnormal noise and uneven air volume may appeared because of dust
blocking the airflow. It will disappear after cleaning the back net.
21. For maximum performance, the minimum distance from a wall or object should be 10cm.
22. Do not use this heater if it has been dropped. Do not use if there are visible signs of damage to the
heater.
23. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
24. WARNING: To reduce the risk of fire, keep textiles, or any other flammable material a minimum
distance of 1 meter from the air outlet.
3
OMEGA ALTISE
WARINNG:
To avoid danger of electric shock, unplug from outlet when not in use and before
cleaning. If the supply cord is damaged, it must be replaced by the manufacturer, its
Service Agent or similarly qualified persons in order to avoid a hazard. In order to
avoid overheating, do not cover the appliance. Do not use the appliance in the
immediate surrounding of a bath, shower or swimming pool.
IMPORTANT:
During the abnormal conditions like the motor is locked or the air inlet is blocked etc.,
the thermal cut-out will cut off the heating element due to the overheat. In these
cases, you should pull out the plug and let the heater cool down, check if the air inlet
is blocked or the motor is blocked and then try to eliminate the abnormal condition.
About 13 hours later, you can restart the heater. if the heater still cannot emit heat, it
must be repaired by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
WARNING:
The Function Switch should not be used as the sole means of disconnecting
power. Always unplug the power cord before servicing or moving the appliance.
TECHNICAL DETAILS
Model
OTD71W
Fan Speeds
8
Rated Input
2400 Watt
Power Supply
220-240Vac/50Hz
Net Weight
5.64 kg
Dimensions
267.8 x 267.8 x 672.5 mm
4
OMEGA ALTISE
CONTROL PANEL AND SETTINGS
1. ON/OFF BUTTON
First use the main switch to “I” position behind the product to power on, then press on the control panel,
the product enter into standby mode. If the product is not needed for further use, press to switch off.
2. FAN FUNCTION
When you press , Fan function will start to work, the white LED lights around panel and Fan icon will
light up. Press or on the control panel to choose the fan speed you need. There are 8
speeds(1-2-3...-8) for choosing.
3. HEATER FUNCTION
When you press , heater starts operation on low power, the red LED lights around panel and “LO” icon
light up with setting temperature shown. Press the key again, heater will work on high power with
“HI” icon light on.
In heating mode, press or button to increase or decrease the temperature (5°C to 35°C) you want
to set. Long pressing the or button for 3 seconds, the temperature will change automatically. The
default temperature is 25°C.
NOTE: The heater will automatically stop heating when the ambient temperature is warmed up to the target
temperature.
5
OMEGA ALTISE
4. SWING BUTTON
When you press in heating mode or Fan mode, SWING function will start to work.
5. TIMER BUTTON
Press to set the countdown time (0.5-24 hours).
To adjust the countdown time, value will increase 0.5 hour per time, value will increase 1 hour per time after
the countdown time up to 10 hours.
To switch off the countdown timer, press clock icon until its icon disappeared on the display.
6. INDICATOR LIGHT BUTTON
Heater is equipped with four indicator lights. When desired mode is selected, the heater will operate under
setting mode with corresponding indicator light on. When heater is on standby mode, the corresponding
indicator light will blink.
To turn off or on indicator light:
Press “Fan” button for 3 seconds to turn off indicator lights.
Press “Fan” button for 3 seconds to resume indicator lights.
NOTE:
1. During heater mode. After switching off, the fan will run 120 seconds more in order to lower the temperature of
the internal parts of the product.
2. During fan mode, after switching off, the fan will stop accordingly.
3. 15 seconds after the last operation, the indicator lights will be dimmed. Press any keys on the control panel to
light up it again.
6
OMEGA ALTISE
CLEANING & MAINTENANCE
WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING, DO NOT
IMMERSE APPLIANCE IN WATER!
1. Cleaning and maintenance shall not be made by children without supervision.
2. Clean the body of fan with a soft damp cloth.
3. Always make sure that the appliance is completely dry before connecting back to the mains
supply.
4. Make sure no water enters the control panel or fan motor.
5. Store the appliance in a cool dry place.
CAUTION: Do not use gasoline, benzene, thinner, harsh cleaners, etc. as they will damage the tower fan.
NEVER use ALCOHOL OR SOLVENTS.
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty
and may cause bodily harm.
Issue
Possible Reason
Solution
No power
1. Power cord is unconnected
2. There is no power from socket
3. The power switch is not on
1. Connect the power cord
2. Check socket is turned on
3. Turn the unit on
Odour
emission
from unit
1. New unit. When the unit is used for the first
time the fan motor may produce and odour
which will dissipate within a week of use
1. No action required
Strong
vibrations
and noise
1. Fan is not used on a flat surface
2. Fan may be damaged
1. Place on a flat surface. May put
an anti-vibration mat underneath
2. If fan is damaged discontinue
use and contact service centre.
If the above solutions do not resolve the problem please contact the service centre.
It is important that you retain these instructions, proof of purchase as well as other important documents about
this product for future reference. Due to continual product development, Omega Altise reserves the right to
alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where
facilities are available.
7
OMEGA ALTISE
8
OMEGA ALTISE
A division of Shriro Australia Pty Ltd
2-34 Davidson Street Chullora NSW 2190
In Australia: 1300 795 572
In New Zealand: (09) 415 6000
www.omegaaltise.com.au
IM Ref: OTD71W 08/2021/10FC
