Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Additional Safety Information
7 Explanation of Symbols
8 Description of Parts
10 Before First Use of Your Ice Maker
11 Instructions for Use – Ice Maker
12 Automatic Self-Cleaning
12 Cleaning and Maintenance
13 Technical Specification
13 Troubleshooting Guide
14 Plug Wiring Information
14 Recycling Information
15 Customer Support
Back Page Warranty Information
3
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should always
be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using Ice Maker.
• Before plugging your Ice Maker into the mains, visually
check that it is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance near
children.
• Never leave this appliance within reach of children.
• This appliance can be used by children aged from 8 years
and above if they have been given supervision or instruction
concerning use if the appliance in a safe way and if they
understand the hazards involved. Cleaning and user
maintenance shall not be made by children unless they are
older than 8 and supervised. Keep the appliance and its
cord out of reach of children aged less than 8 years. This
appliance can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
4
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance.
• Always use this appliance on a solid, level, non-flammable
surface.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• If the supply cord is damaged, it must be replaced by the
manufacturer, service agent or similarly qualified person in
order to avoid hazard.
• Repairs to electrical appliances should only be performed by
qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the mains
cable to ensure no damage is evident. Should there be any
signs of damage the appliance should not be used.
• DO NOT allow the mains cable to hang over sharp edges or
come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• Allow the unit to cool before storage.
• Never place the appliance near to flammable material or
high-pressure containers.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
5
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• DO NOT immerse the appliance, base or its cord in water or
any other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
•
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Ensure appliance is situated in an open area, do not allow it
to come in contact with cupboards, curtains, wall coverings,
clothing or other flammable materials.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT cover this appliance.
• Never place this appliance on an electric, gas, or any other
type of hob.
• Never fill the Ice-Maker more than its capacity – ensure the
water level is not exceed the max marks on the water tank.
• Always close the tank lid during use and do not open the lid
or remove the filter holder whilst the water is boiling.
THIS APPLIANCE MUST BE EARTHED
6
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
ADDITIONAL SAFETY INFORMATION
• This appliance is intended for use in domestic households only, it
must not be used for commercial use.
• DO NOT cover the Ice Maker.
• Allow to the ice maker to cool fully before storing.
• DO NOT place anything on top of the appliance.
• Ensure that the water level in the water tank does not exceed
the MAX mark whilst filling
• DO NOT obstruct the air intakes on the rear and left hand side
of the ice maker.
• DO NOT obstruct the fan outlet on the outside of the ice maker.
• DO NOT use the ice maker in temperatures of less than 5°C.
7
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

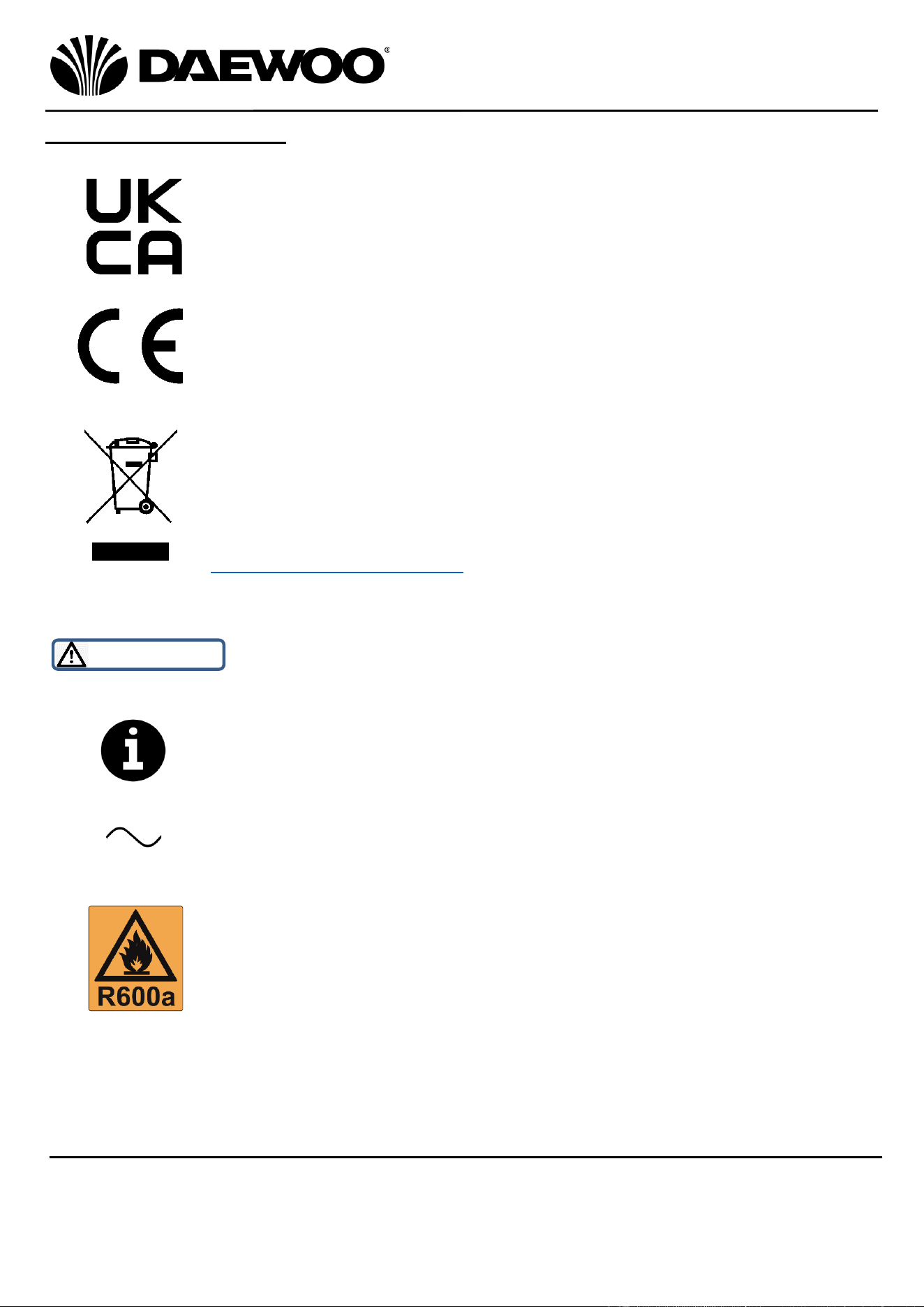

Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
WARNING!
This symbol provides useful additional information on the use
of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
Warning: Risk of Fire/flammable materials used.
This designates a hazard with moderate risk, which may result
in severe injury if not adhered to.
8
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

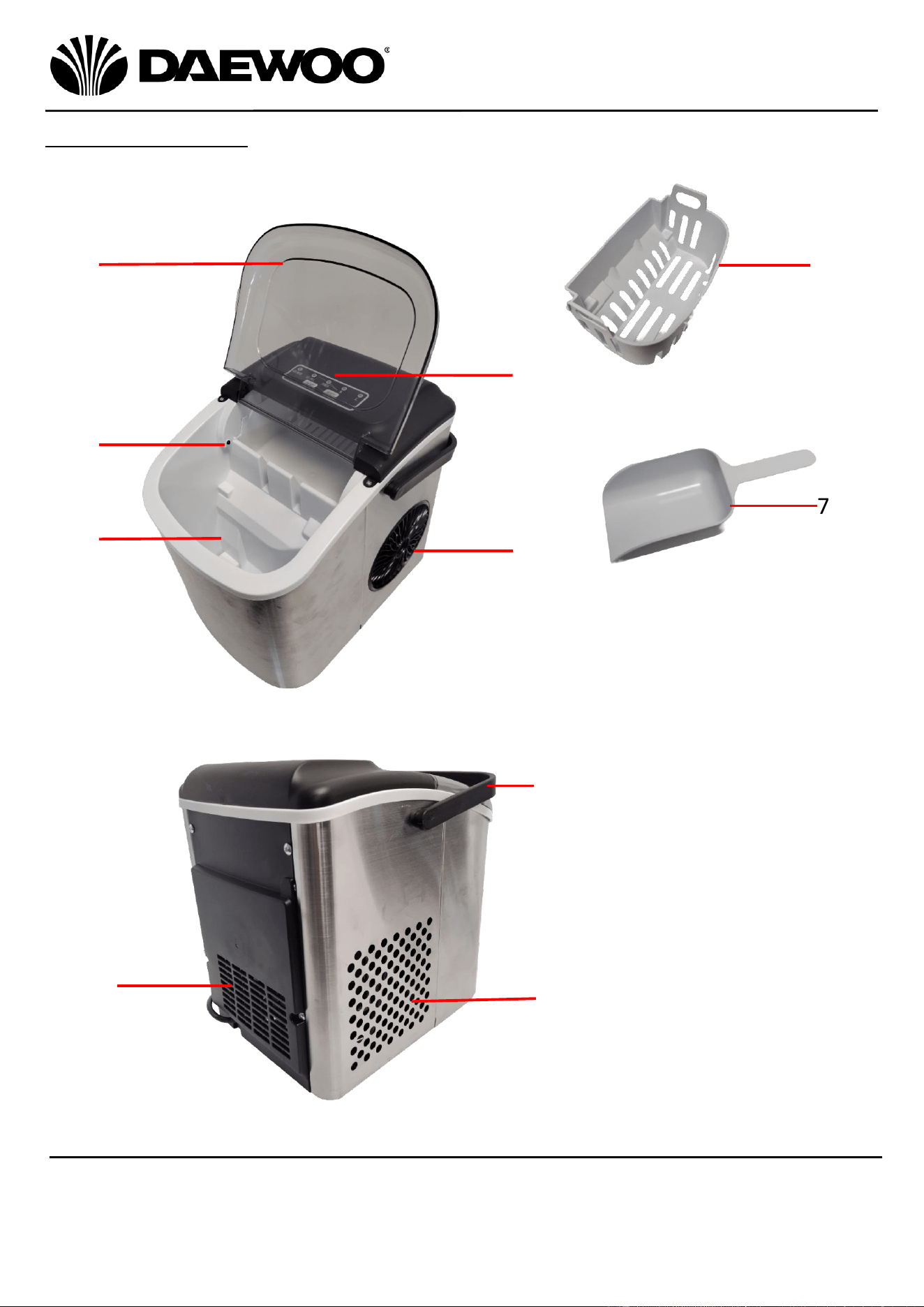

Description of Parts
1. Lid (with transparent
Window)
2. Ice full Sensor
3. Water Tank
4. Control Panel
5. Air outlet fan
6. Ice Storage Basket
7. Ice Scoop
8. Handle
9. Air intake
10. Air intake
11. Water Drain Cap
3
2
4
6
10
7
5
8
5
9
1
9
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Parts

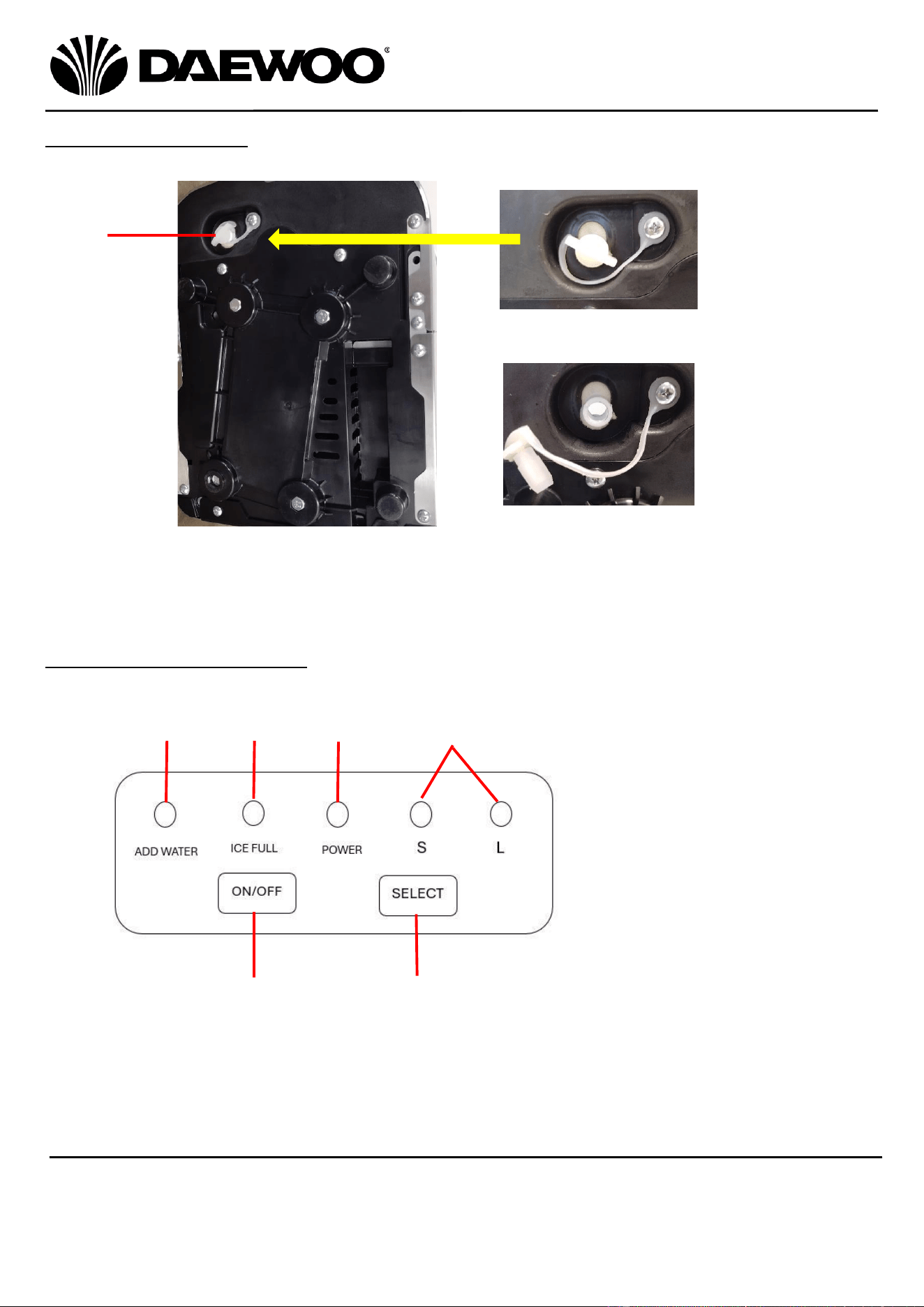

Control Panel Description
11
A. Ice cube size indicator,
Small and Large.
B. Power On indicator.
C. Ice full indicator.
D. Add water indicator.
E. Power On button.
F. Ice cube size selector.
Cap closed
Cap open
A
B
C
D
E
F
10
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Before first Use of Your Ice Maker
• Remove all packing materials and discard responsibly.
• Ensure all parts are present - see Description of Parts above.
• Check that there is no transit damage to the mains cable or product.
• Place the appliance on a solid, level, heat resistant surface clear of all
obstructions as described above.
• Wash all the accessories (6 & 7) and Water Tank (3) in warm soapy then rinse
and dry thoroughly.

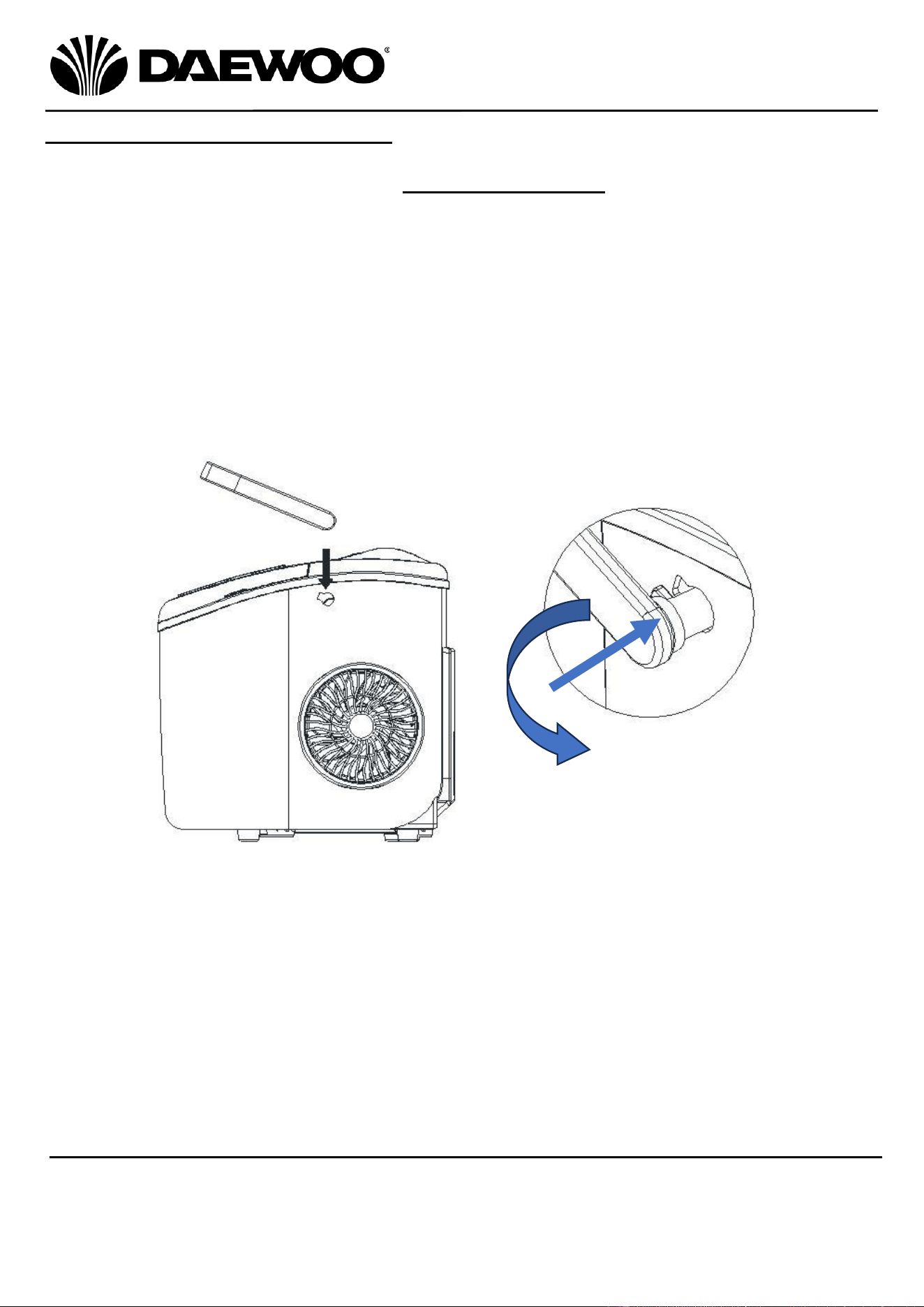

• Attaching the Handle (8) – Rotate the Handle (8) to the same angle as the
mounting holes on either side of the ice maker and insert. See fig. 1 below:
Fig 1
11
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

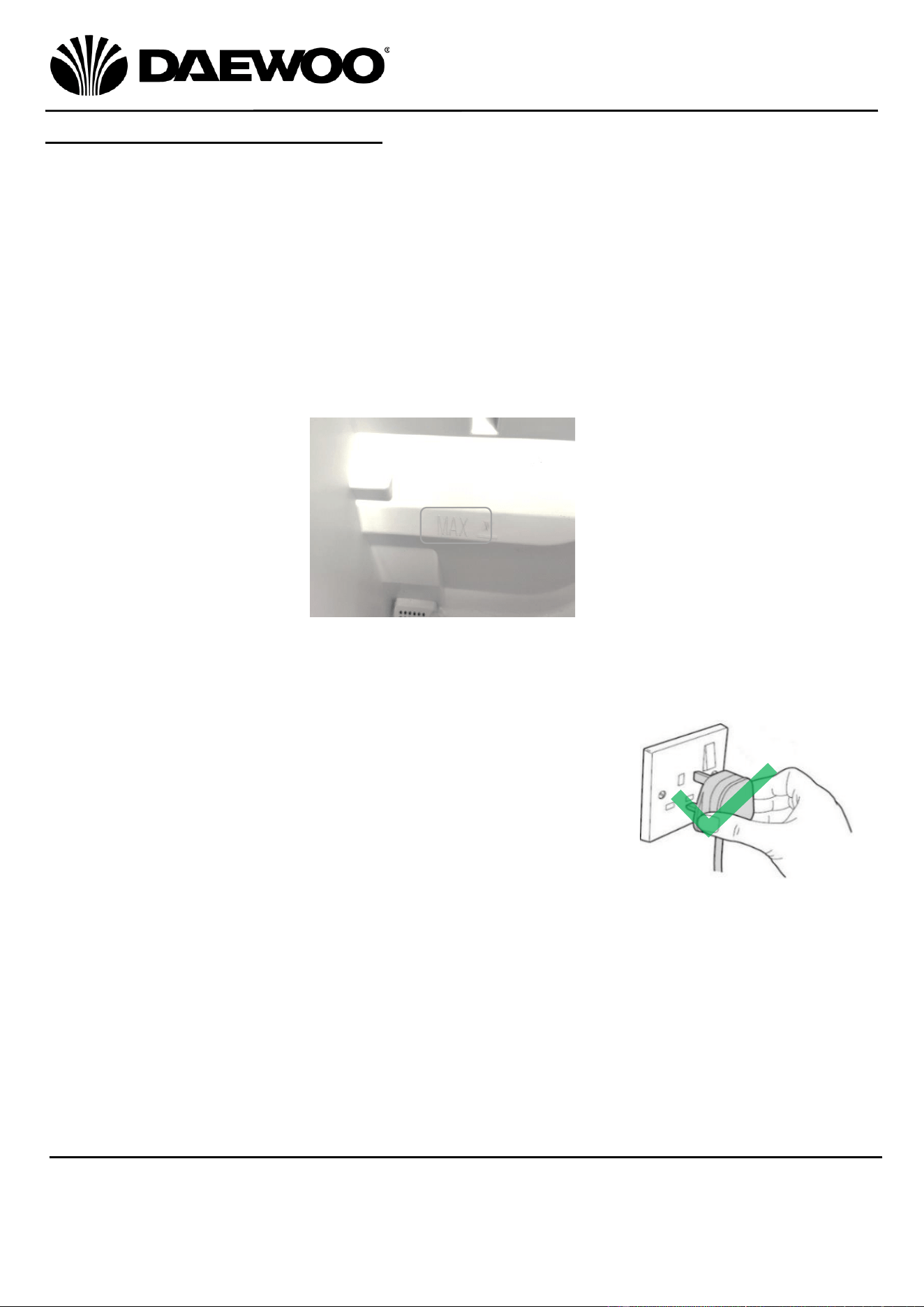

Instructions for Use – Ice Making
1. Place the ice maker on a solid level surface ensuring that it is strong enough to
hold the weight of the unit.
2. Choose a position that is out of direct sunlight and away from sources of heat
otherwise the performance of the machine will be compromised.
3. Ensure that all inlet and outlet vents have a minimum of 20cm clearance.
4. Once in the correct position allow the Ice Maker to sit for half an hour before
connecting to the mains to allow the internal coolant to settle.
5. Open the Ice Maker Lid (1) and remove the Ice Storage Basket (6).
6. Replace the Ice Storage Basket (6) and fill the Water Tank (3) up to the ‘MAX’
mark as shown in fig. 2 below:
7. NB Only water should be used with this ice maker – do not use alcohol or any
other liquid as this will impair or damage the unit.
8. Place the ice storage basket onto the unit.
9. Insert the mains plug into the nearest socket.
10. The POWER Indicator (B) will continuously flash.
11. Press the ON/OFF button (E) to power up the ice maker, the POWER Indicator
(B) and ‘L’ Indicator (A) will illuminate and the ice maker will begin to create
large ice cubes.
12. If you want change to small ice cubes, press the SELECT button (F), the ‘S’
Indicator (A) will illuminate and the unit will begin to create small ice cubes.
13. The ice making cycle is around 6 to 13 minutes, it will depend on the room
temperature and ice cube size.
Fig. 2
12
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
14. As they are formed, the ice cubes will drop into the Ice Storage Basket (6). Once
the basket is full of ice cubes, the red ‘ICE Full’ Indicator (C) will illuminate.
NB only after removing, emptying and refitting the Ice Storage Basket (6) will
the machine resume making ice cubes.
15. If the ice maker should run out of water, the red ‘Add Water’ Indicator (D) will
illuminate showing that the water tank requires water adding.
Automatic Self-Cleaning
• Insert the mains plug into the socket.
• Press ‘ON/OFF’ button on control panel for more than 5 seconds.
• It will enter the self-Cleaning program of 30 minutes, the ‘S’, ‘L’ LED will
continuously flashes during cleaning.
• After cleaning, drain the water from the water tank through the drainage
outlet at the bottom of the ice maker.
Cleaning and Maintenance
• Always unplug from the mains before cleaning.
• To drain the water from the ice maker, disconnect the ice maker from the
mains and place it onto a sink draining board with the rear of the unit towards
the sink. Remove the Cap and Bung (11) from the water tank drain and allow
the water to drain off. Replace the bung and cap once the tank is empty.
• Clean inside and outside of the unit with a clean damp cloth. Never clean with
harsh or abrasive cleaners
• Clean the outside of the ice maker with clean damp cloth.
• Dry the inside of the unit with a soft dry cloth, it is recommended that the lid
is left open for a while to allow the ice maker to dry thoroughly
• Do not submerge the unit in water or any other liquids.
• Do not clean your ice maker in a dishwasher.
• Whilst not in use it is advised to leave the Lid (1) open to allow the Ice Maker
to dry out thoroughly and thus prevent the build up of mould and mildew.
Clean the appliance after every use to keep it in good working order.
Do not allow water to sit in the tank, empty the tank after every use.
13
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Technical Specification
Rated Voltage
220-240V~ 50Hz
Rated Current -Ice Making
0.8A
Rated Current – Ice Harvest
1.0A
Model Number
SDA2693
Protection Class
I (This Appliance Must Be Earthed)
Climate Type
SN/N/ST/T
Refrigerant
R600a /22g
Vesicant
C
5
H
10
Water tank capacity (maximum)
1.2 Litres
Net Weight
6.2Kg
Troubleshooting Guide
Problem
Possible Cause
Possible Fix
Ice Cubes sticking together
The ice making cycle is
too long
Stop the ice maker, remove the
ice cubes from basket, and re-
start it after several minutes
Water temperature of
water tank is too low
Refill the water, water
temperature recommended
between 8°C-32°C
No ice cubes formed
Too high temperature of
water or in room
The room temperature should be
10-43℃, water temperature
should be 8-32℃
Refrigerant in cooling
system leaks.
Verify by a qualified technician.
Pipe in the cooling
system is blocked.
Verify by a qualified technician.
Red ‘ADD WATER’ LED is
ONs
Lack of water
Press ON/OFF to turn off the ice
maker, Fill the tank with water,
press ‘ON/OFF’ button to turn on it
Red ‘ICE FULL’ LED is ON
Ice cubes are full in the
storage basket
Remove ice cubes from the storage
basket, press ‘SELECT’ button 5
seconds, the ice maker can be
re-start
14
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

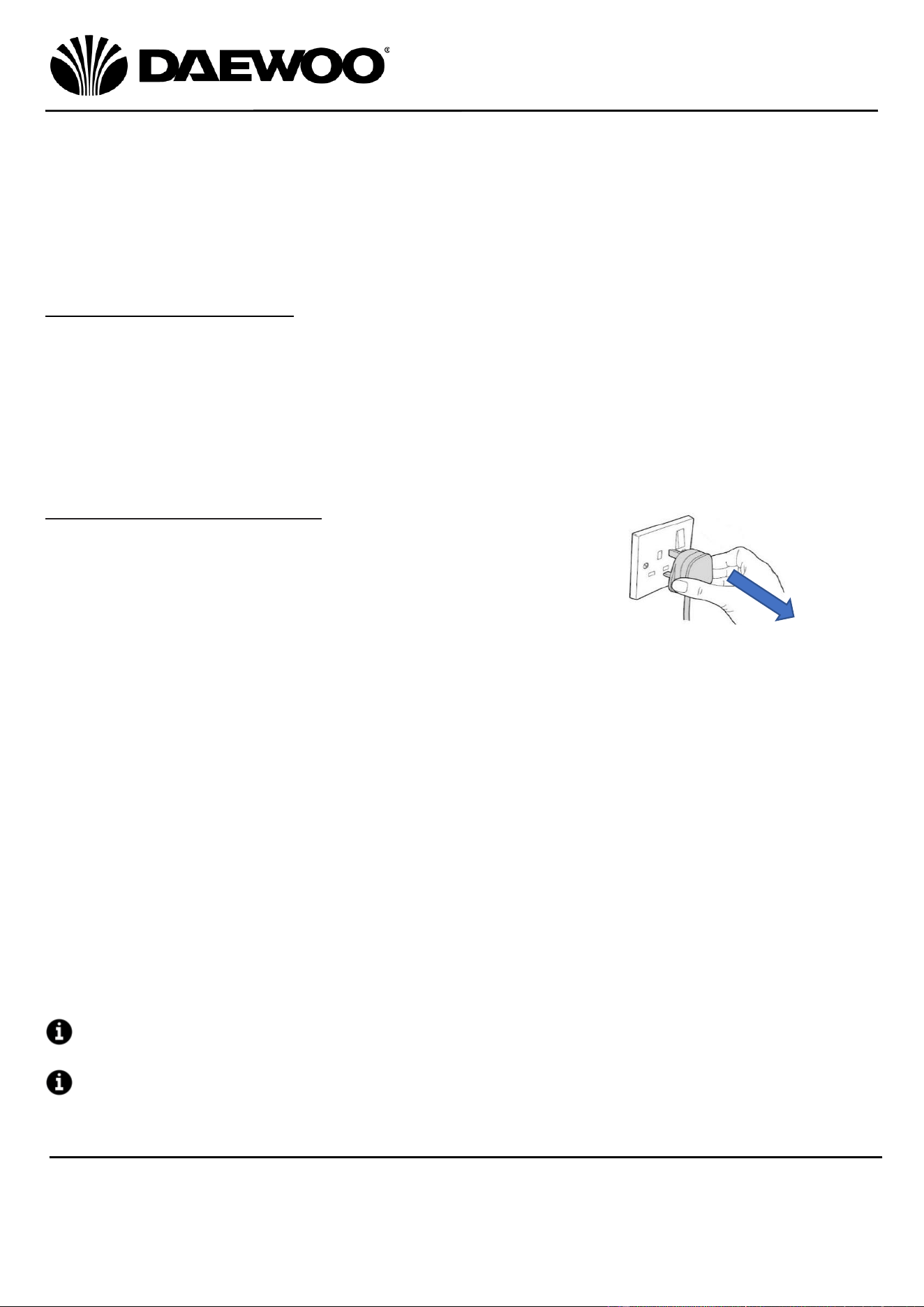

Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). If in doubt, consult a qualified
electrician. Never use a plug with the fuse cover missing.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk enter
your postcode to find out your nearest recycling site.
15
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
16
Ice Maker
Model No. SDA2693
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
