OHNIYOU
ENERGY SAVING LIFE
Ceiling Fan With Light
User Manual
020

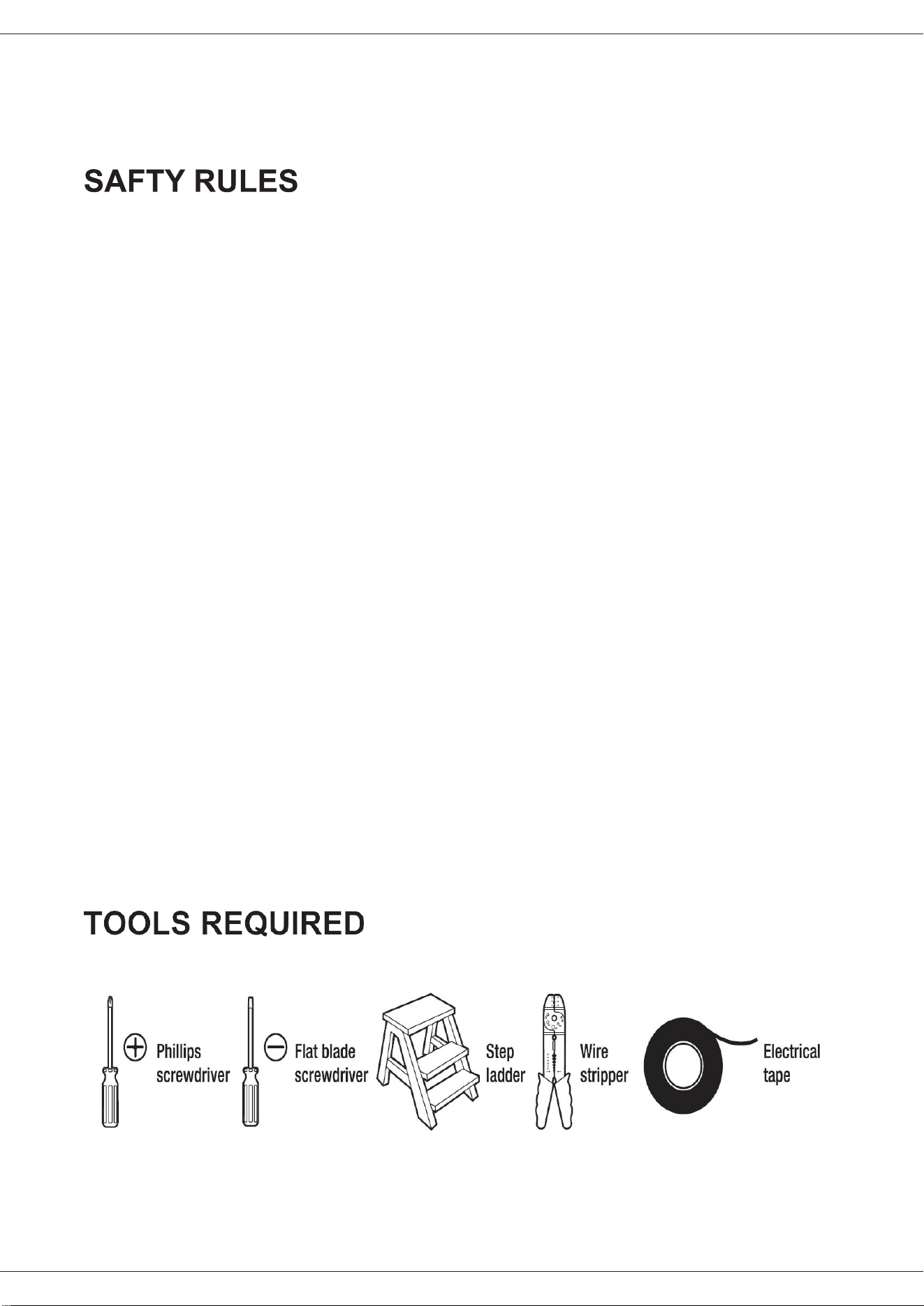

1. To reduce the risk of electric shock, turn off the electricity to the fan at the main fuse box or circuit panel
before beginning.
2. All wiring must be in accordance with the local electrical codes or National Electrical Code. Electrical
installation should be performed by a qualified licensed electrician.
3. To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
4. Make sure the installation site you choose allows clear space for the blades to rotate and at least 7 feet(2.13
meters) of clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of
the blades are at least 18 inches (45.72 centimeters) from walls or other upright structures.
5. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount fan only to an outlet box
marked acceptable for fan support and use mounting screws provided with the outlet box. Most outlet boxes
commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be
replaced. Consult a qualified electrician if in doubt.
6. The outlet box and ceiling support structure must be securely mounted and capable of supporting at least
45KGs.
7. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning
the fan.
8. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
9. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-
grounding conductor on one side of the outlet box.
10. Electrical diagrams are for reference only.
11. The fan is suitable for indoor and covered outdoor.
DC motor Control Driver
Model:XH-0SFS-24V-84 433
Input:AC110-265V 50/60HZ
LED OUT:50-200W 220816 C
This manual is designed to make it as easy as possible for you to assemble, install, operate and maintain your
ceiling fan.
Materials
Wiring outlet box and box connectors must be of
type required by the local code. The minimum wire
would be a 3-conductor(2-wire with ground) of the
following size:
Installed Wire Length Wire Size A.W.G
Up to 50 ft 14
50-100 ft 12
NOTE: Place the parts from the loose parts bags in a
small container to keep them from being lost. If any
parts are missing contact your local retailer.

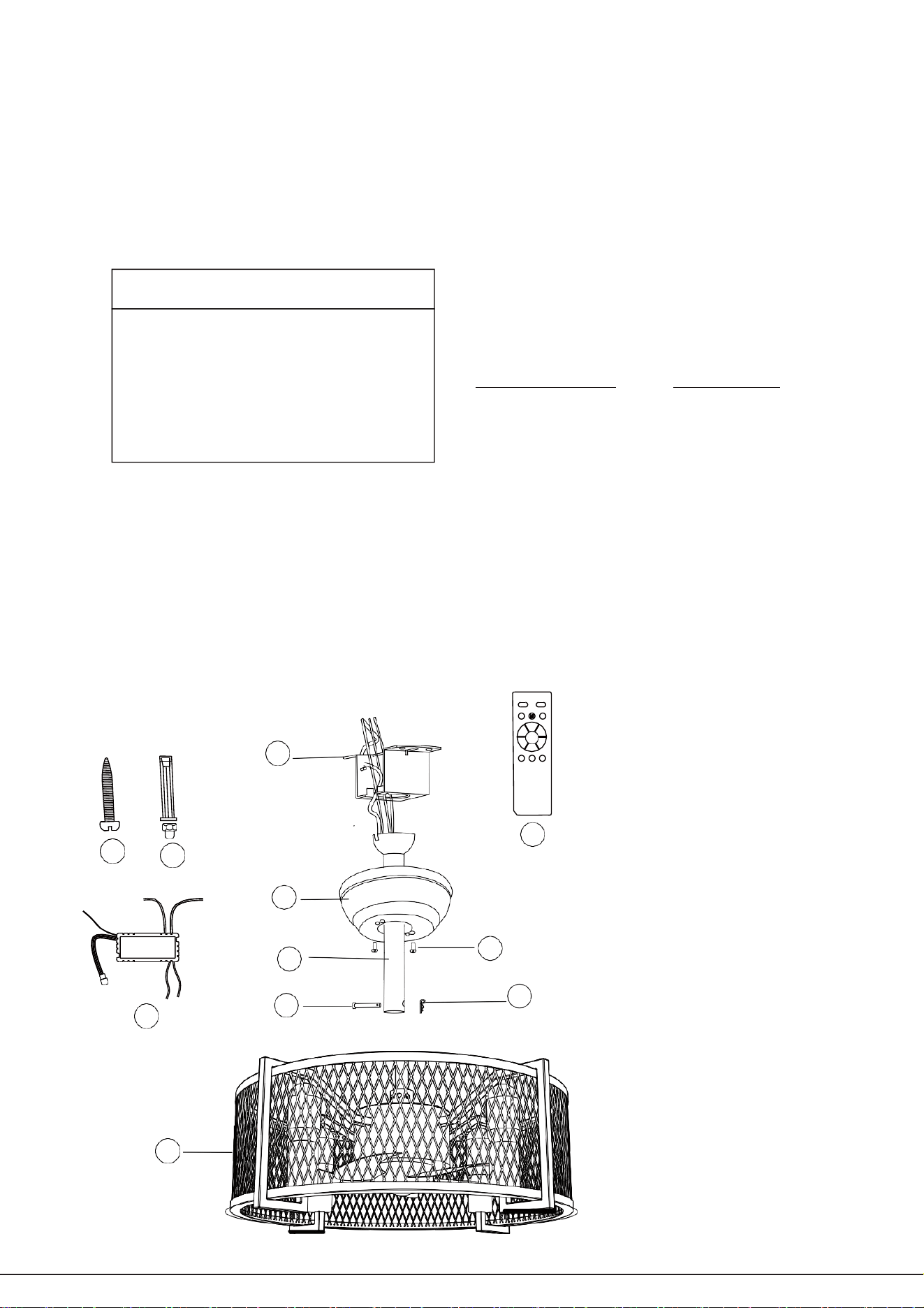

Package Includes
Check to see that you have received the following parts:
9
10
1. Mounting Bracket
2. Canopy
3. Canopy Screws
4. 4 & 8 inches Downrod
5. Cross Pin
6. Clamp Pin
7. Ceiling Fan Body

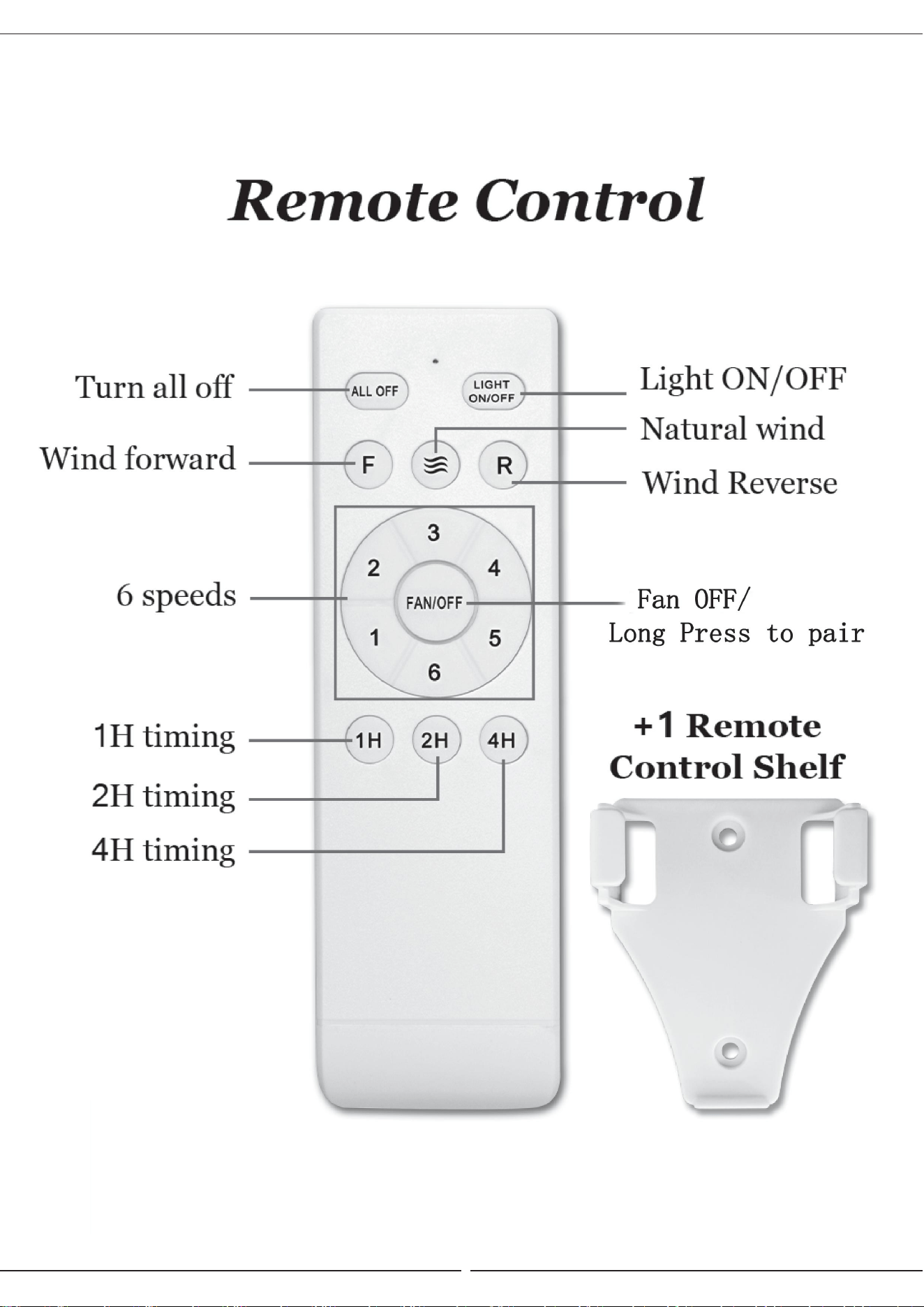

8. Hand-held Remote
9. Wood Screws
10. Expansion Screws
11. Receiver
1
ALL OFF
LIGHT
ON/OFF
F R
3
2 4
FAN/ OFF
1
1 5
6
1H 2H
4H
8
2
4
3
5
6
11
7
Before assembling your ceiling fan, refer
to section on proper method of wiring
your fan (page 10). If you feel you do not
have enough wiring knowledge or
experience, have your fan installed by a
licensed electrician.
⚠
WARNING
2

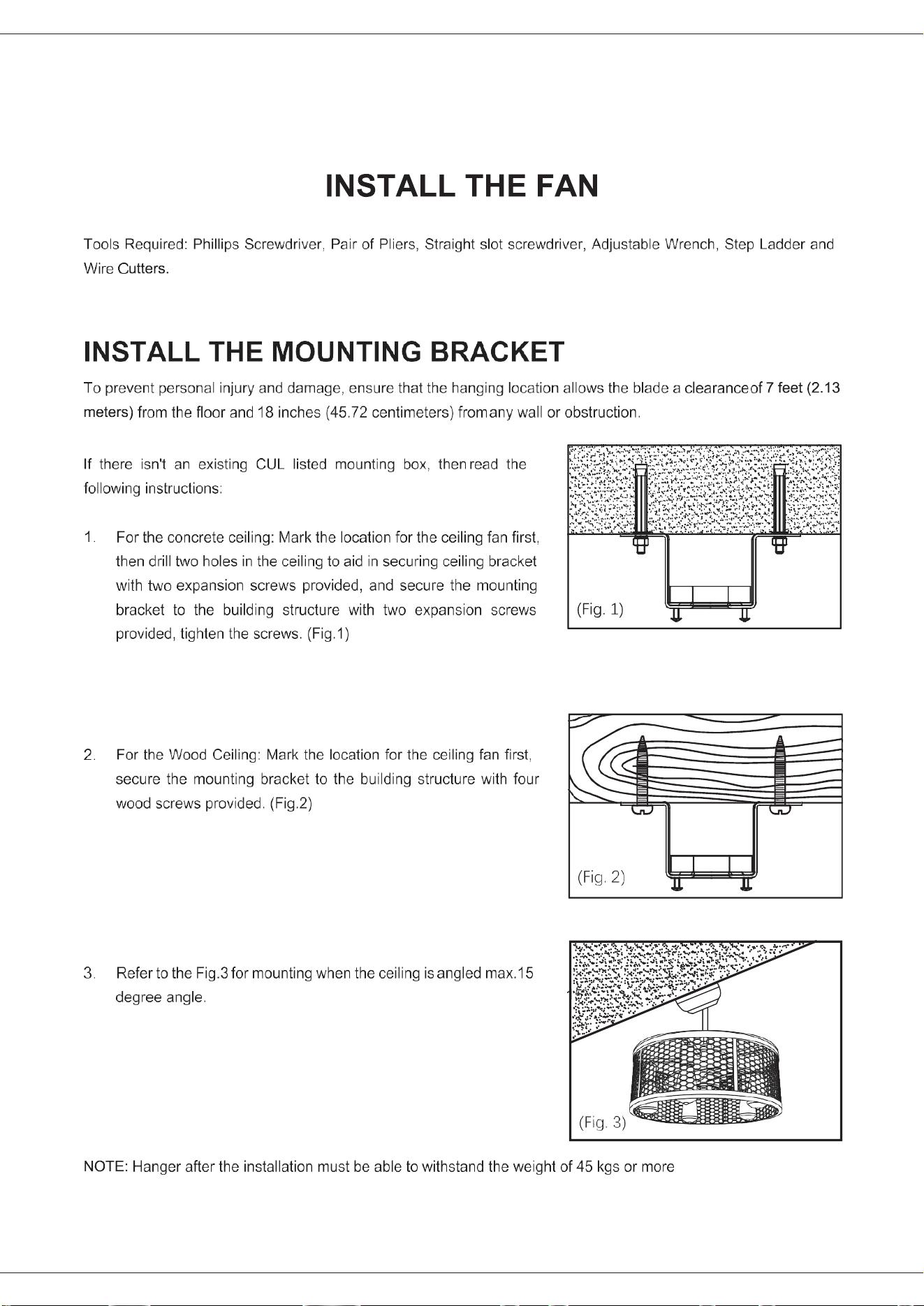

3
1.
8
6

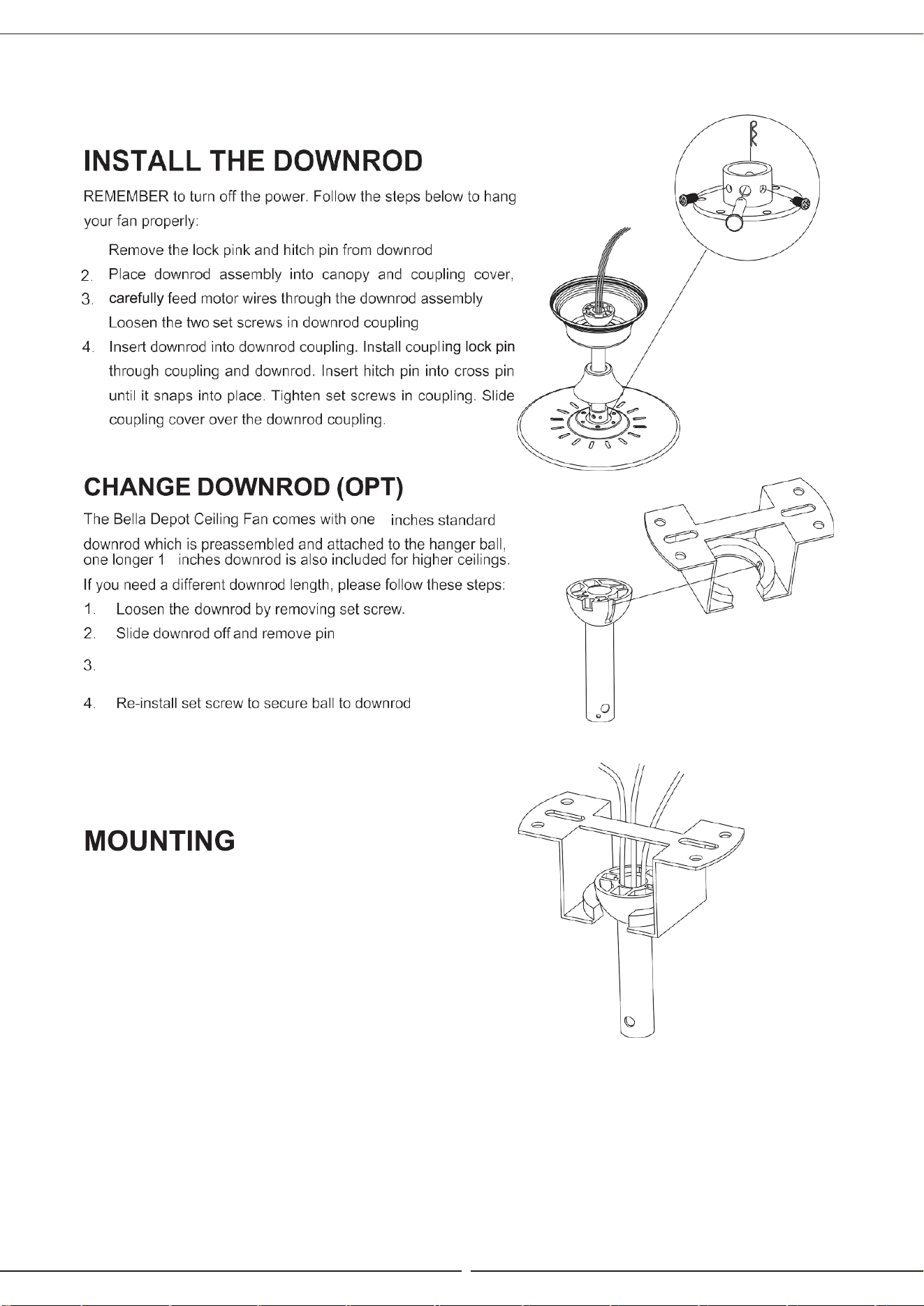

Re-install pin into extended downrod, and fixed downrod to
the hanging bracket
1. Carefully lift motor assembly and place downrod onto the
ball. Install pin into the downrod, and two fixed screw
2. Adjust the length of the safety cable attach the safety cable
from fan unit to hook, secure by looping zip tie through safety
cable and hook. Tighten zip tie securely
4

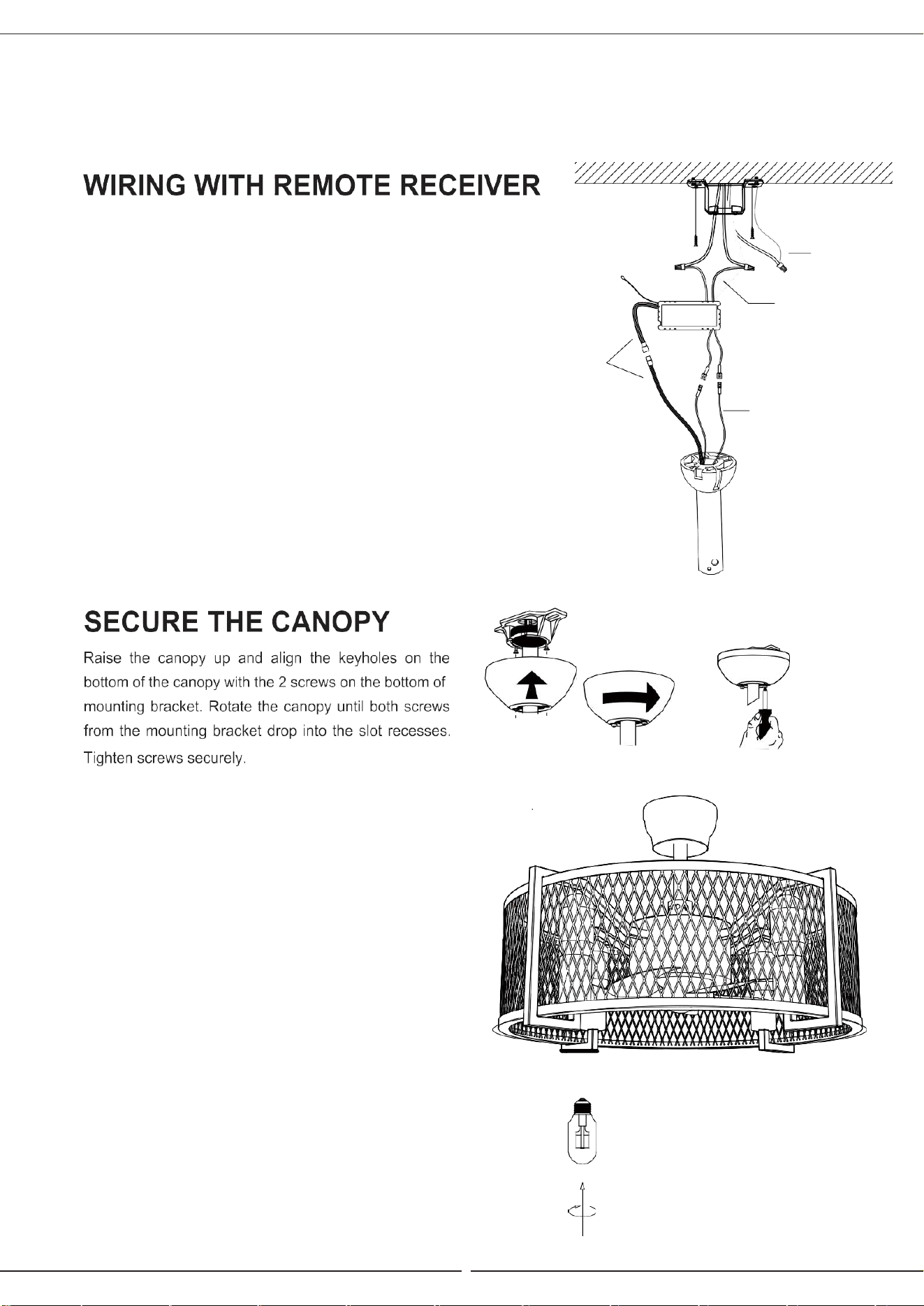

Plug the wires of the controller with the
corresponding color of the fan, and
then connect the other section of the
controller to the zero wire and the fire
wire, and then connect the ground
wire.
Motor Wire
Ground Wire
Zero wire
Fire wire
Light Wire
INSTALL THE LIGHT BULB
1.
Make wiring connections. please refer to the figure right
for the electrician between fan motor and light bulb.
2.
Rotate the
5*
E26 bulb into the lamp slot.
4-E26
DC motor Control Driver
Model:XH-0SFS-24V-84 433
Input:AC110-265V 50/60HZ
LED OUT:50-200W 220816 C
5
√
×
×
×
6

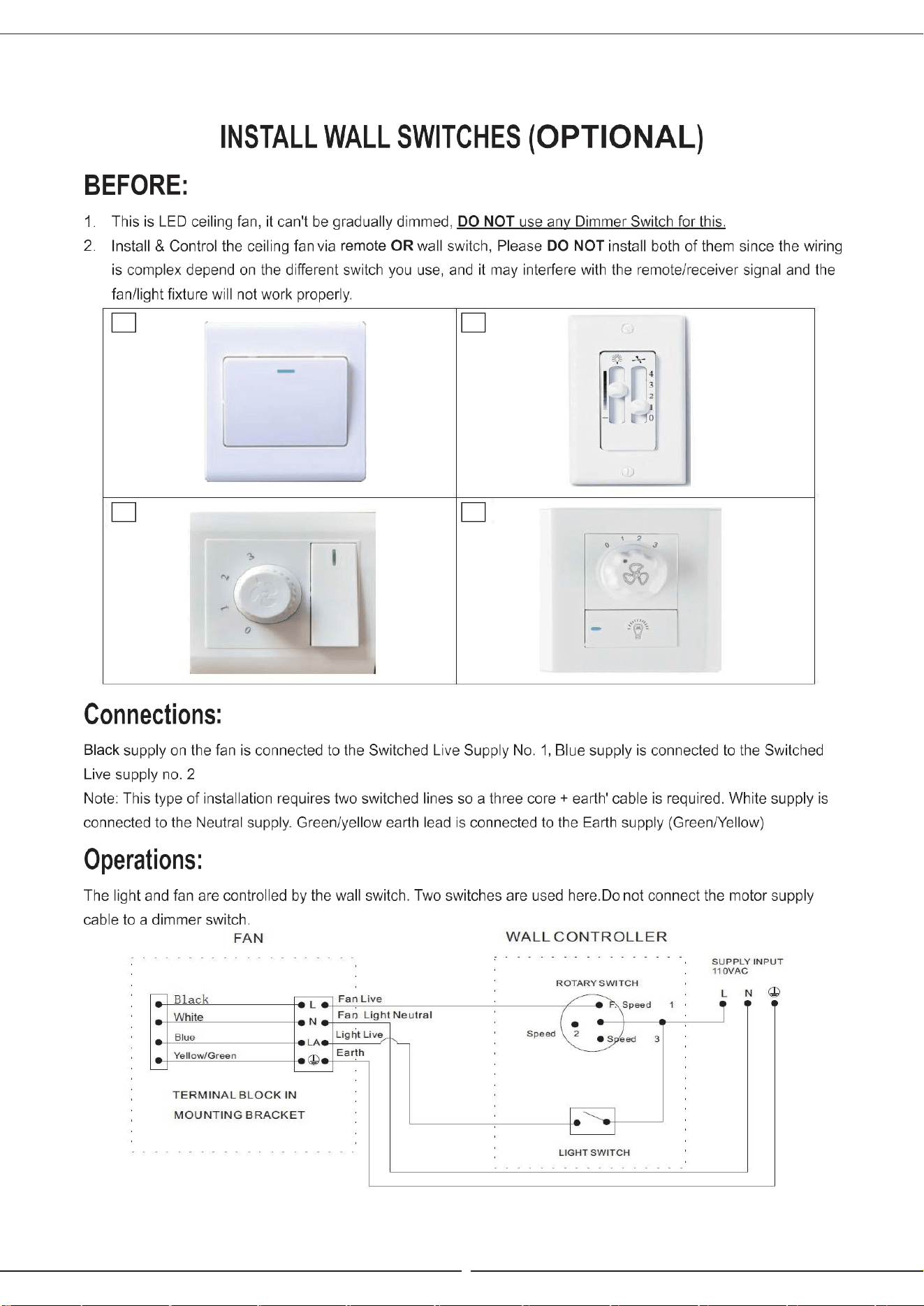

7
For your own safety turn off power at fuse box or circuit breaker before trouble shooting.
⚠WARNING
Troubleshooting
Trouble
Probable Cause
Suggested Remedy
1. FAN WILL NOT START
1.
Fuse or circuit breaker blown.
2.
Loose power line connections
to the fan, or loose switch wire
connections in the switch
housing.
3.
Dead battery in remote control.
4.
Reversing switch in neutral
position.
1.
Check main and branch circuit
fuses or circuit breakers.
2.
Check line wire connections to fan
and switch wire connections in the
switch housings.
CAUTION: Make sure main power is
turned off !
3.
Replace with new battery.
4.
Make sure reversing switch
position is all the way to one side.
2. FAN SOUNDS NOISY
1.
Loose screws in motor housing.
2.
Wire connectors inside housing
rattling.
3.
Motor noise caused by solid
state variable speed control.
1.
Check to make sure all screws in
motor housing are snug (do not
over-tighten).
2.
Check to make sure wire
connectors in switch housing are not
rattling against each other or against
the interior wall of the switch
housing.
CAUTION: Make sure main power is
turned off!
3.
Some fan motors are sensitive to
signals from solid-state variable speed
controls. Solid-state control are not
recommended, choose an alternative
control method.
3. FAN WOBBLES
EXCESSIVELY
1.
Setscrew in downrod support is
loose.
2.
Setscrew in downrod/hanger
ball assembly is loose.
3.
Hanger bracket and/or ceiling
outlet box is not securely
fastened.
1.
Tighten both setscrews securely in
downrod support.
2.
Tighten the setscrew in the
downrod/hanger ball assembly.
3.
Tighten the hanger bracket screws
to the outlet box, and secure outlet
box.
8
Do not use water to cleaning your ceiling fan. It
could damage the motor or the finish and create the
possibility of electrical shock.
CAUTION
Maintenance
1. Periodic cleaning of your new ceiling fan is the only maintenance that is needed.
When cleaning use only a soft brush or lint free cloth to avoid scratching the finish.
Abrasive cleaning agents are not required and should be avoided to prevent
damage to finish.
Warranty
Dear Customer:
OHNIYOU warrants that this product is free from defects in materials and workmanship
for a period of 1 years from the day of purchase. If the product has been misused,
damaged by accident or in any other way of improper use, this warranty becomes void.
Please feel free to contact us:
ohniyou@ledphy.com
