OWNER'S MANUAL
FRIDGE & FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
MFL72087005
Rev.00_032224
www.lg.com
Copyright © 2024 LG Electronics Inc. All Rights Reserved.
Scan the QR code to see the manual.
TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
CAUTION .............................................................................................................9
CARING FOR THE ENVIRONMENT..................................................................11
INSTALLATION
Before Installation ...........................................................................................12
Removing the Fridge and Freezer Door........................................................13
Levelling and Door Alignment........................................................................15
Turning on the Power......................................................................................15
Moving the Appliance for Relocation ............................................................15
OPERATION
Before Use ........................................................................................................17
Product Features..............................................................................................19
Control Panel ....................................................................................................21
Drawer...............................................................................................................23
Door Basket ......................................................................................................24
MAINTENANCE
Cleaning ............................................................................................................25
TROUBLESHOOTING
Before Calling for Service................................................................................26
3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into
‘WARNING’
and
‘CAUTION’
as
described below.
Safety Messages
WARNING
WARNING
To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic precautions,
including the following:
Technical Safety
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
4
SAFETY INSTRUCTIONS
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• This refrigerating appliance is not intended to be used as a built-in
appliance.
• This appliance is not for use in portable or mobile installations, such
as marine or RV uses, where it will be in motion while operating.
•
• This appliance contains a small amount of isobutane refrigerant
(R600a), but it is also combustible. When transporting and installing
the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
• The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
• Do not damage the refrigerant circuit.
This symbol alerts you to flammable materials that can
ignite and cause a fire if you do not take care.
5
SAFETY INSTRUCTIONS
ENGLISH
• If the power cord is damaged or the hole of the outlet socket is loose,
it must be replaced. Do not use the power cord and contact an
authorized service centre in order to avoid a hazard.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the outlet
socket.
• Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Do not tilt the appliance to pull or push it when transporting.
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not use mechanical devices or other means to accelerate the
defrosting process.
• Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• Make sure not to get a body part such as a hand or foot stuck while
moving the appliance.
• Disconnect the power cord before cleaning the appliance interior or
exterior.
• Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
6
SAFETY INSTRUCTIONS
• Only qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG
Electronics customer information centre if you move and install the
appliance in a different location.
Risk of Fire and Flammable Materials
• If a leak is detected, avoid any naked flames or potential sources of
ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size of the
room in which the appliance is used should correspond to the
amount of refrigerant used. The room must be 1 m² in size for every
8 g of R600a refrigerant inside the appliance.
• Refrigerant leaking out of the pipes could ignite or cause an
explosion.
• The amount of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
Installation
• This appliance should only be transported by two or more people
holding the appliance securely.
• Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Install the appliance in a place where it is easy to unplug the power
plug of the appliance.
• Be careful not to let the appliance door fall during assembly or
disassembly.
7
SAFETY INSTRUCTIONS
ENGLISH
• Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
• Be careful not to point the power plug up or let the appliance lean
against the power plug.
• Do not connect a plug adapter or other accessories to the power
plug.
• Do not modify or extend the power cable.
• Ensure that the outlet socket is properly grounded, and that the earth
pin on the power cord is not damaged or removed from the power
plug. For more details on grounding, inquire at an LG Electronics
customer information centre.
• This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate outlet socket that is installed
and grounded in accordance with all local codes and ordinances.
• Never start up an appliance showing any signs of damage. If in doubt,
consult your dealer.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
• Do not plug the appliance into a multi socket adapter which does not
have a power cable (mounted).
• The appliance should be connected to a dedicated power line which
is separately fused.
• Do not use a multi socket outlet which is not properly grounded
(portable). In case of using a properly-grounded multi socket outlet
(portable), use the multi socket outlet with the current capacity of the
power cord rating or higher and use the multi socket outlet only for
the appliance.
Operation
• Do not use the appliance for any purpose (storage of medical or
experimental materials or shipping) other than any domestic
household food storage use.
8
SAFETY INSTRUCTIONS
• If water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
• Unplug the power plug during a severe thunderstorm or lightening
or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet
hands.
• Do not bend the power cable excessively or place a heavy object on it.
• Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour, or
smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the
appliance.
• Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects (such as candles, lamps,
etc.), or heating devices (such as stoves, heaters, etc.) on the
appliance.
• Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not
touch the appliance or power plug and ventilate the area
immediately. This appliance uses a refrigerant gas (isobutane,
R600a). Although it uses a small amount of the gas, it is still
combustible gas. Gas leakage during appliance transport, installation
or operation can cause fire, explosion or injury if sparks are caused.
9
SAFETY INSTRUCTIONS
ENGLISH
• Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide, air
freshener, cosmetics, etc.) near the appliance.
• This appliance incorporates an earth connection for functional
purposes.
• Connect to potable water supply only.
- If connected to a water supply, connect to a potable water supply
only.
• Fill with potable water only.
- If using an icemaker or dispenser water tank, make sure to fill it with
potable water only.
Disposal
• When discarding the appliance, remove the door gasket while leaving
the shelves and baskets in place and keep children away from the
appliance.
CAUTION
CAUTION
To reduce the risk of minor injury to persons, malfunction, or damage
to the product or property when using this product, follow basic
precautions, including the following:
Installation
• After unpacking, check the appliance for any damage that may have
occurred during transit.
• Wait for at least 3 to 4 hours in order to ensure the refrigerant circuit
is fully efficient.
• Move the appliance carefully on sensitive floors to avoid damage to
the floor.
10
SAFETY INSTRUCTIONS
Operation
• Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves or
ice bucket that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch it
with hands.
• Do not hang from the appliance doors, storage room, shelf or climb
up into it.
• Do not store an excessive amount of water bottles or containers for
side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates
improperly, stop using the appliance and contact an authorized
service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in
the freezer compartment.
• Make sure not to get a hand or foot stuck upon opening or closing the
appliance door or door in door.
Maintenance

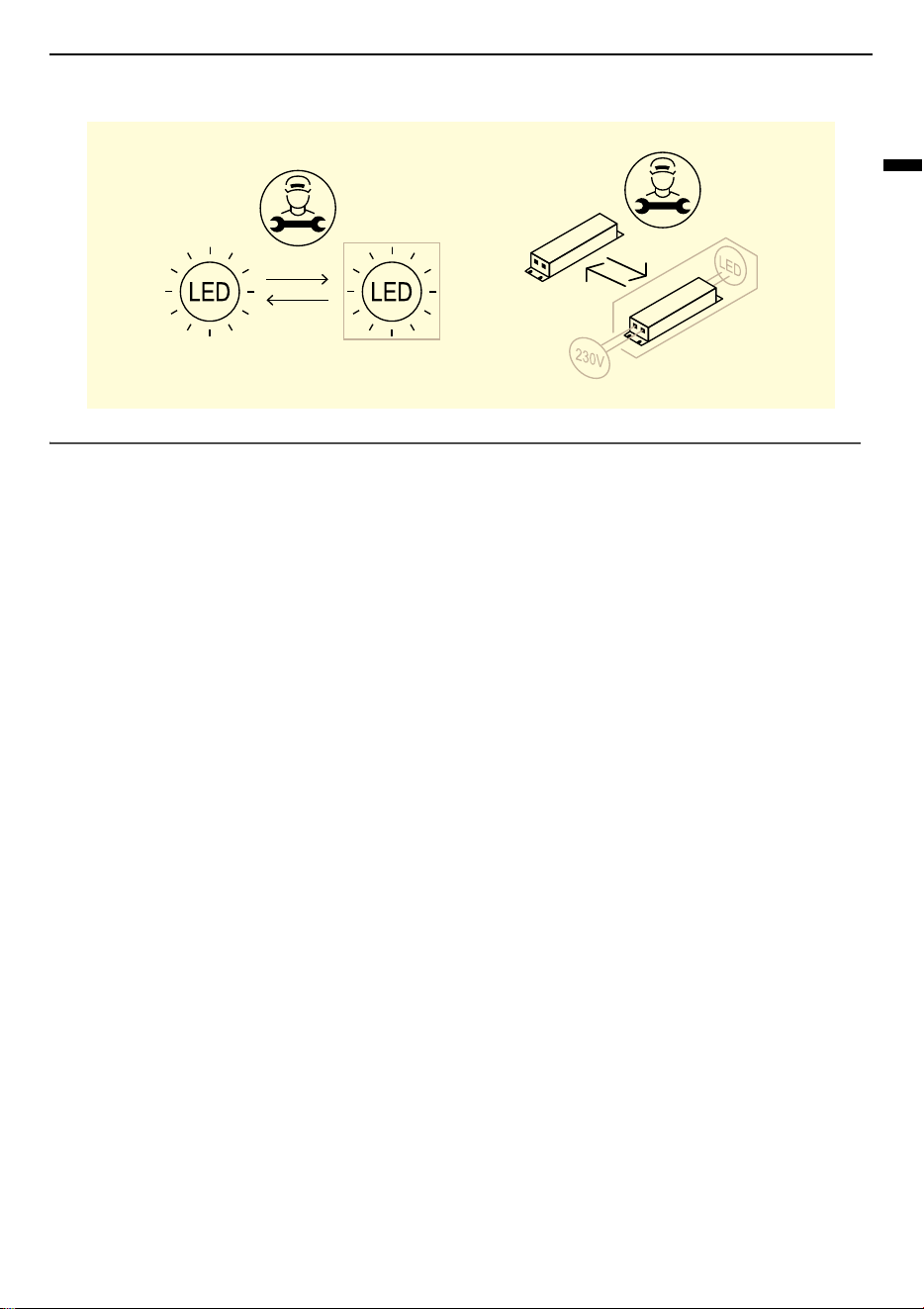

• This appliance is equipped with maintenance-free LED interior light.
Do not remove cover or LED lamp in any attempt to repair or change
it. Contact an LG Electronics customer information centre.
• Do not clean glass shelves or covers with warm water when they are
cold. They may shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics
customer information centre.
11
SAFETY INSTRUCTIONS
ENGLISH
• Dispose of the ice inside the ice bucket in the freezer compartment
during an extended power outage.
CARING FOR THE ENVIRONMENT
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste
electrical and electronic products (WEEE) should be
disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances
so correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health. Your old appliance may contain reusable
parts that could be used to repair other products, and
other valuable materials that can be recycled to conserve
limited resources.
• You can take your appliance either to the shop where you
purchased the product, or contact your local government
waste office for details of your nearest authorised WEEE
collection point. For the most up to date information for
your country please see www.lg.com/global/recycling.
12
INSTALLATION
INSTALLATION
Before Installation
Dimensions and Clearances
Too small of a distance from adjacent items may
result in the degradation of freezing capability and
increased electricity costs. When installing the
appliance, a minimum distance of 100 mm must be
maintained from all neighbouring walls.
NOTE
• You can determine what type of appliance it is by
looking at the label inside the appliance.
Ambient Temperature
• The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone.
• The internal temperatures could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening and
so on.
• The climate class can be found on the rating
label.
* Australia, India, Kenya
** Argentina
NOTE
• The appliances rated from SN to T are intended
to be used at an ambient temperature between
10 ºC and 43 ºC.
- Type A (mm)
A833
B1775
C653
D570
E653
F1000
G1400
Climate Class
Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38 / +18 - +38**
T (Tropical) +10 - +43* / +16 - +43 /
+18 - +43**
13
INSTALLATION
ENGLISH
Accessories
*1 This feature is only available on some models.
a
C-Clip (Snap Ring)
*1
Removing the Fridge and
Freezer Door
If your entrance door is too narrow for the
appliance to pass through, remove the appliance
doors and pass the appliance laterally.
WARNING
• Disconnect the power cord, house fuse or circuit
breaker before installing, removing the doors, or
cleaning the appliance. Failure to follow these
instructions may result in death, fire or electric
shock.
Removing the Hinge Cover
Remove the screws from the hinge cover at the top
of the appliance. Lift the hook (not visible), located
at the bottom of the front side of the cover with a
flat-head screwdriver.
Removing the Left Fridge Door
1
Disconnect all wire harnesses. Unscrew the
screws.
NOTE
• The number of wire harnesses may vary
depending on the model.
2
Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door, inside facing up, on a non-
scratching surface.
14
INSTALLATION
Removing the Right Fridge Door
1
Disconnect all wire harnesses.
NOTE
• The number of wire harnesses may vary
depending on the model.
2
Lift the right fridge door until it is free of the
middle hinge assembly.
CAUTION
• Place the door on a non-scratching surface with
the inner side facing up.
Removing the Freezer Door
1
Remove the two hinge bolts.
2
Twist the hinge to raise the pivoting end so that
the door can be lifted off. Lift the door off the
lower hinge pin and remove it.
3
Remove the door by lifting it off the lower
hinge pin.
Refitting the Fridge and Freezer
Door
Refit the doors in the reverse sequence of their
removal once the appliance has been passed
through all access doors.
15
INSTALLATION
ENGLISH
Levelling and Door
Alignment
Before Beginning
When the appliance doors appear to be uneven,
follow the instructions below to align the doors.
Levelling the Appliance
The appliance has two front levelling legs. Adjust
the legs to alter the tilt from front to back or side to
side. If the appliance seems unsteady, or the doors
do not close easily, adjust the appliance’s tilt using
the instructions below.
It is quite normal for the appliance to have a
backward lean even when the front legs are turned
all the way.
Adjusting procedures:
• Turn the feet clockwise to raise the fridge.
• Turn the feet counterclockwise to lower the
fridge.
• Adjust the right and left feet based on the
procedures above to a horizontal level.
NOTE
• Levelling the doors may not be possible when
the floor is not level, or is of weak or poor
construction.
• The refrigerator is heavy and should be installed
on a rigid, flat and solid surface.
• Some timber flooring may cause levelling
difficulties if it flexes excessively.
Door Alignment for Fridge Door
If the door is too low, lift the door up and use a pair
of long nose pliers to insert C-Clips until both doors
are level.
Turning on the Power
Connecting the Appliance
To turn on the appliance, connect the power plug
into the outlet socket. Do not double up with other
appliances on the same outlet.
NOTE
• After connecting the power supply cord (or plug)
to the outlet, wait 3 or 4 hours before you put
food into the appliance. If you add food before
the appliance has cooled completely, your food
may spoil.
• To turn off the appliance, disconnect the power
plug from the outlet socket.
Moving the Appliance for
Relocation
Moving the Appliance
1
Remove all food from inside the appliance.
2
Fix the power plug.
• Models with a power plug hook:
16
INSTALLATION
Pull the power plug out, insert and fix it into
the power plug hook at the rear or on top of
the appliance.
• Models without a power plug hook:
Pull the power plug out and fix the power
supply cable with a tape to the side of the
appliance where the power socket is located
at the installation site.
3
Tape parts such as shelves and the door handle
to prevent from falling off while moving the
appliance.
4
Move the appliance with more than two people
carefully. When transporting the appliance
over a long distance, keep the appliance
upright.
CAUTION
• Move the appliance carefully on sensitive floors
to avoid damage to the floor.
- Use cardboard, floor mat or carpet to prevent
scratches on the floor when installing or
moving the appliance.
- Do not move the appliance in zigzags.
5
After installing the appliance, connect the
power plug into a mains outlet socket and
switch it on.
17
OPERATION
ENGLISH
OPERATION
Before Use
Notes for Operation
• Users should keep in mind that frost can form if
the door is not closed completely or if the
humidity is high during the summer.
• Ensure there is sufficient space between food
stored on the shelf or door basket to allow the
door to close completely.
• Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
• If the refrigerating appliance is left empty for
long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould
developing within the appliance.
• Note that a temperature rise after defrosting has
a permissible range in the appliance
specifications. If you wish to minimise the impact
on the food storage due to a temperature rise,
seal or wrap the stored food in several layers.
Door Open Alarm
This feature is only available on some models.
The alarm sounds if the door is left open or not
completely closed.
NOTE
• Contact the LG Electronics customer information
centre if the alarm sound continues even after
closing all doors.
Failure Detection
The appliance can automatically detect problems
during the operation.
NOTE
• If a problem is detected, the appliance may not
operate and an error code is displayed even
when any button is pressed.
• If an error code is indicated on the display, do
not turn off the power. Immediately contact the
LG Electronics customer information centre and
report the error code. If you turn off the power,
the repair technician from the our information
centre may have difficulty finding the problem.
Suggestion for Energy Saving
• For the most efficient use of energy, keep all
inner parts (e.g. door baskets, drawers and
shelves) on their original location.
• Ensure there is sufficient space between stored
foods. This allows cold air to be circulated evenly
and lowers electricity bills.
• Store hot food only after it has cooled in order to
prevent dew or frost.
• When storing food in the freezer compartment,
set the freezer temperature lower than the
temperature indicated on the food.
• Do not set the temperature of the appliance
lower than needed.
• Do not put food near the temperature sensor of
the fridge compartment. Keep a distance of at
least 3 cm from the sensor.
Storing Foods Effectively
• Food may freeze or spoil if stored at the wrong
temperature. Set the refrigerator to the correct
temperature for the food being stored.
• Store frozen food or refrigerated food inside
sealed containers.
• Check the expiration date and label (storage
instructions) before storing food in the
appliance.
• Do not store food for a long period of time if it
spoils easily at a low temperature.
• Do not place unfrozen food in direct contact with
food that is already frozen. It could be necessary
to reduce the quantity to be frozen if freezing
every day is anticipated.
18
OPERATION
• Place the refrigerated food or frozen food in
each fridge or freezer compartment
immediately after purchasing.
• Store raw meat and fish in suitable containers in
the refrigerator, so that it is not in contact with or
drip onto other food.
• Refrigerated foods and other food items can be
stored on top of the vegetable drawer.
• Avoid refreezing any food which has been
completely thawed. Freezing any food which has
been completely thawed again will lower its taste
and nutrition.
• Do not overfill the appliance. Cold air can not
circulate properly if the appliance is overfilled.
• Cool hot food before storing. If too much hot
food is placed inside, the internal temperature of
the appliance can increase and negatively affect
other foods stored in the appliance.
• If you set an excessively low temperature for
food, it may become frozen. Do not set a
temperature lower than the required
temperature for the food to be stored correctly.
• If there are chill compartments in the appliance,
do not store vegetables and fruits with higher
moisture content in the chill compartments as
they may freeze due to the lower temperature.
• In the event of a blackout, call the electricity
company and ask how long it is going to last.
- You should avoid door openings while the
power is off.
- When the power supply gets back to normal,
check the condition of the food.
Maximum Freezing Capacity
• For maximum freezing capacity, set the freezer
temperature to the coldest temperature setting.
•
Super Freeze
function will allow the freezer to
reach its maximum freezing capacity. This
generally takes up to 43 hours and automatically
switches off.
•
Super Freeze
must be switched on for 5 hours
before fresh products are placed in the freezer
compartment.
• To freeze food items quickly, store the food on
the top freezer trays. Food items will freeze most
quickly on the freezer trays.
• To get better air circulation, insert all inner parts
like baskets, drawers, and shelves.
Freezing the Maximum Amount
of Food
If large quantities of food are to be stored, all the
freezer drawers should be taken out of the
appliance except the bottom one and the food shall
be stacked directly on the freezer compartment.
CAUTION
• To remove the drawers, first remove the food
from drawers and then pull out the drawers
carefully. Not doing so could cause injury or
damage to the drawers.
NOTE
• The shape of each drawer may be different,
insert in the right position.
19
OPERATION
ENGLISH
Product Features
The appearance or components of the appliance may differ from model to model.
Exterior
a
Control Panel
Sets the fridge temperature and freezer temperature.
20
OPERATION
Interior
a
LED Lamp
The LED lamps inside the fridge light up when you open the door.
b
Fridge Door Basket
Stores small packages of refrigerated foods, drinks and sauce containers.
c
Variable Temperature Compartment
The
Fresh Switch
button allows you to adjust the settings to store vegetables, fruits, drinks, or meat as
per your preference.
d
Fridge Shelf
Stores refrigerated foods and fresh foods.
Stores the foods with higher moisture content at the front of the shelf.
The shelf height can be adjusted by inserting the shelf in another groove of different height.
e
Freezer Tray
Stores small packaged frozen food or frequently-used foods. The sliding trays allow easy access and
convenience of use.
f
Freezer Drawer
Stores frozen food for longer storage.
g
Temperature Sensor
h
Fridge Drawer
Keeps fruits and vegetables fresh.
21
OPERATION
ENGLISH
Control Panel
The actual control panel may differ from model to model.
Control Panel and Functions
*1 This feature is only available on some models.
a
Refrigerating Icon
b
Temperature Display
c
Super Cool/Freeze Icon
d
Fruit/Vegetable Icon
e
Temperature Up Button
f
Temp. Control
Temperature zone selection button
g
Temperature Down Button
h
Freezer Icon
i
Meat Icon
j
Drink Icon
k
Fresh Switch
Press the button to adjust the setting
temperature of the various temperature
compartment.
l
LOCK
Lock/Unlock Button
m
Display
Operation instructions
Display
• When the fridge is turned on, the display screen
lights up for 3 seconds and the alarm sounds.
• The default fridge and freezer temperatures are
4 ℃ and -18 ℃.
• When the error occurs, the display shows the
error code (refer to the
Error Indication
section).
• Under normal circumstances, if there is no
operation on the display panel or door opening
action within 30 seconds, then the display is
locked.
Lock / Unlock
This locks the buttons on the control panel.
• To lock the control panel buttons, press and hold
the
LOCK
button
l
for 3 seconds in the
unlocked state until the function is activated.
• To disable the function, press and hold the
LOCK
button
l
for 3 seconds until the function is
deactivated.
Setting the temperature of the
refrigerating compartment
• Press the
Temp. Control
button to choose the
setting temperature zone of the refrigerating
compartment, and then press
J
or
K
to adjust
the setting temperature of the refrigerating
compartment.
• The temperature setting range for the
refrigerating compartment is between 2 ℃ and 8
℃.
22
OPERATION
Setting the temperature of the
freezer compartment
• Press the
Temp. Control
button to choose the
setting temperature zone of the freezer
compartment, and then press
J
or
K
to adjust
the setting temperature of the freezer
compartment.
• The temperature setting range for the freezer
compartment is between -24 ℃ and -16 ℃.
Setting the temperature of the
variable temperature compartment
Press the
Fresh Switch
button to adjust the setting
temperature of the compartment.
• Fruit/Vegetable: suitable for storing all kinds of
fruits and vegetables
• Drink: suitable for storing dry goods and drinks
• Meat: suitable for a small amount of meat stored
for 1-2 days
Setting the Super Cool and Super
Freeze mode
• Super Cool mode
- To set the Super Cool mode, press the
temperature down button (
K
) after the
temperature of the refrigeration
compartment is adjusted to 2 ℃. In the Super
Cool mode, the temperature of the
refrigerating compartment is automatically
set to 2 ℃.
- The Super Cool mode automatically exits after
6 hours. To disable the mode manually, press
the temperature up button (
J
). After exiting
the Super Cool mode, the temperature of the
refrigeration compartment will automatically
return to the temperature set before the
mode.
• Super Freeze mode
This function can quickly freeze a large amount
of ice or frozen foods.
- To set the Super Freeze mode, press the
temperature down button (
K
) after the
temperature of the freezer compartment is
adjusted to -24 ℃. In the Super Freeze mode,
the temperature of the freezer compartment
is automatically set to -24 ℃.
- The Super Freeze mode automatically exits
after 43 hours. To disable the mode manually,
press the temperature up button (
J
). After
exiting the Super Freeze mode, the
temperature of the freezer compartment will
automatically return to the temperature set
before the mode.
Shabbath mode
• To set the Shabbath mode, unlock the fridge,
and then press the
K
button and the
LOCK
button at the same time for 4 seconds.
• To disable the mode, press any button to exit.
In Shabbath mode:
• Control control and lights remain off, and the
alarm is disabled.
• The fridge cools normally.
• Compressor and fan motor status does not
change within five minutes of the door opening.
Error Indication
The appliance can automatically detect problems
during the operation.
• If a problem is detected, the appliance may not
operate and an error code is displayed even
when any button is pressed.
• If an error code is indicated on the display, do
not turn off the power. Immediately contact the
LG Electronics customer information centre and
report the error code. If you turn off the power,
the repair technician from the our information
centre may have difficulty finding the problem.
Error Code Description
E1 Temperature sensor failure in
the fridge compartment
E2 Temperature sensor failure in
the freezer compartment
E3 Temperature sensor failure in
the variable temperature
compartment
23
OPERATION
ENGLISH
NOTE
• For optimal food preservation, increasing or
decreasing 1 °C from the default temperature is
recommended for each compartment.
• The control panel automatically turns off for
energy saving.
• If there is any finger or skin contacts to the
control panel while cleaning it, the button
function may operate.
• The actual inner temperature varies depending
on the food status, as the indicated setting
temperature is a target temperature, not actual
temperature within the appliance.
• In the event of a power outage, the operating
state is immediately locked and remains until
connecting the power again.
Drawer
CAUTION
• Always empty the drawers before removing
them, and use both hands when removing and
refitting them.
• Make sure that the fridge doors are fully open
before removing and refitting the drawers.
Removing/Refitting the Fridge
Drawer
This feature may vary depending on model
purchased.
1
Open both fridge doors completely. Hold the
cover with both hands and tilt the cover slightly
while pulling it out.
2
Remove the contents of the drawer. Hold the
handle of the vegetable drawer and gently pull
it out.
3
Mount the fridge drawer in the reverse order of
the removal process.
Using the Freezer Drawer
The sliding freezer drawers allow easy access and
convenience of use.
• Use the upper compartment to store packaged
frozen foods and frequently-used foods.
• Use the lower compartment for larger frozen
foods and items stored for longer periods.
E4 Defrosting sensor failure in the
fridge compartment
E5 Freezing defrost sensor
detection circuit error
E6 Communication Error
E7 Circulation of temperature
detection circuit error
EH Moisture sensor error
Error Code Description
24
OPERATION
Removing/Refitting the Freezer
Drawer
This feature may vary depending on model
purchased.
1
Open both freezer doors completely. Pull out
the freezer drawer to full extension and
remove all of the contents.
2
With the drawer fully extended, lift up the front
and pull the drawer out to remove it.
3
Mount the freezer drawer in the reverse order
of the removal process.
CAUTION
• The drawers are heavy. Always use two hands
when removing or refitting the drawers to avoid
product damage or personal injury.
• Always open the freezer doors completely
before removing or refitting the drawers.
Door Basket
Removing/Refitting the Door
Basket
This feature may vary depending on model
purchased.
The door baskets are removable for easy cleaning
and adjustment.
1
Use both hands to squeeze the basket, push it
upward, and take it out.
2
To assemble the basket, slide it in and push
down to the desired height.
25
MAINTENANCE
ENGLISH
MAINTENANCE
Cleaning
General Cleaning Tips
• Performing manual defrosting, maintenance or
cleaning of the appliance while food is stored in
the freezer can raise the temperature of the food
and reduce its storage life.
• Regularly clean any surfaces that can come in
contact with food.
• When cleaning the inside or outside of the
appliance, do not wipe it with a rough brush,
toothpaste, or flammable materials. Do not use
cleaning agents containing flammable
substances. This may cause discolouration or
damage to the appliance.
- Flammable substances: alcohol (ethanol,
methanol, isopropyl alcohol, isobutyl alcohol,
etc.), thinner, bleach, benzene, flammable
liquid, abrasive, etc.
• After cleaning, check if the power cable is
damaged.
Cleaning the Exterior
• When cleaning the outside air vents of the
appliance by means of vacuuming, then the
power cord should be unplugged from the outlet
to avoid any static discharge that can damage
the electronics or cause an electric shock.
Regular cleaning of the rear and side ventilation
covers is recommended to maintain reliable and
economical operation of the unit.
• Keep the air vents on the exterior of the
appliance clean. Blocked air vents can cause fire
or appliance damage.
• For the appliance exterior, use a clean sponge or
soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry
thoroughly with a soft cloth. Do not use
contaminated cloths when cleaning the stainless
steel doors. Always use a dedicated cloth and
wipe in the same direction as the grain. This
helps reduce surface staining and tarnishing.
Cleaning the Interior
• When removing a shelf or drawer from inside
the appliance, remove all stored foods from the
shelf or drawer to prevent injury or damage to
the appliance. Otherwise, injury may occur due
to the weight of stored foods.
• Detach the shelves and drawers and clean them
with water, and then dry them sufficiently,
before replacing them.
• Regularly wipe the door gaskets with a wet soft
towel.
• Door basket spills and stains should be cleaned
as they can compromise storage ability of the
basket and could even be damaged.
• Never clean the shelves or containers in the
dishwasher. The parts may become deformed
due to the heat.
• The automatic defrosting system in the
appliance ensures that the compartment
remains free of ice buildup under normal
operating conditions. Users do not need to
defrost it manually.
Cleaning the Condenser Cover
Use a vacuum cleaner with a brush to clean the
condenser cover and vents. Do not remove the
panel covering the condenser coil area.
We strongly recommend that this be done every 12
months to maintain operating efficiency. Failing to
do so could cause loss of cooling, higher energy
usage and compressor overheating.
26
TROUBLESHOOTING
TROUBLESHOOTING
Before Calling for Service
Cooling
Symptoms Possible Cause & Solution
There is no
refrigeration or
freezing.
Is there a power interruption?
• Check the power of other appliances.
Appliance is unplugged.
• Plug the power plug in the outlet properly.
A fuse in your home may be blown or the circuit breaker tripped. Or the
appliance is connected to a GFCI (Ground Fault Circuit Interrupter)
outlet, and the outlet's circuit breaker has tripped.
• Check the main electrical box and replace the fuse or reset the circuit
breaker. Do not increase fuse capacity. If the problem is a circuit overload,
have it corrected by a qualified electrician.
• Reset the circuit breaker on the GFCI. If the problem persists, contact an
electrician.
There is poor
refrigeration or
freezing.
Is the fridge or freezer temperature set to its warmest setting?
• Set the fridge or freezer temperature to a colder setting.
Is the appliance in direct sunlight, or is it near a heat generating object
such as cooking oven or heater?
• Check the installation area and reinstall it away from heat generating
objects.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
Did you put in too much food?
• Maintain an appropriate space between food.
Are the appliance doors completely closed?
• Completely close the door and make sure that stored food is not
obstructing in the door.
Is there enough space around the appliance?
• Adjust the installation position to make enough space around the
appliance.
The appliance contains
a bad smell.
Is the fridge or freezer temperature set to its warmest setting?
• Set the fridge or freezer temperature to a colder setting.
27
TROUBLESHOOTING
ENGLISH
Condensation & Frost
The appliance contains
a bad smell.
Did you put in food with a strong smell?
• Store foods with strong smells in sealed containers.
Vegetables or fruit may have spoiled in the drawer.
• Throw away rotten vegetables and clean the vegetable drawer. Do not
store vegetables too long in the vegetable drawer.
Symptoms Possible Cause & Solution
There is condensation
inside the appliance or
on the bottom of the
vegetable drawer
cover.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it inside the fridge or freezer.
Did you leave the appliance door open?
• Although the condensation will disappear soon after you close the
appliance door, you can wipe it with a dry cloth.
Do you open and close the appliance door too frequently?
• Condensation can form due to the temperature difference from the
outside. Wipe out the dampness with a dry cloth.
Did you put warm or moist food inside without sealing it in a container?
• Store food in a covered or sealed container.
Frost has formed in the
freezer compartment.
Doors may not be closed properly.
• Check if the food item inside the appliance is blocking the door and make
sure that the door is tightly closed.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
Is the air entry or exit of the freezer compartment blocked?
• Make sure that air entry or exit is not blocked so that the air can circulate
inside.
Is the freezer compartment overfilled?
• Maintain an appropriate space between items.
Frost or condensation
has formed inside or
outside the appliance.
Did you open and close the appliance door frequently or is the appliance
door improperly closed?
• Frosts or condensation can form if the outside air penetrates inside the
appliance.
Symptoms Possible Cause & Solution
28
TROUBLESHOOTING
Parts & Features
Frost or condensation
has formed inside or
outside the appliance.
Is the installation environment humid?
• Condensation can appear on the exterior of the appliance if the installation
area is too humid or on a humid day such as a rainy day. Wipe off any
moisture with a dry cloth.
The side or front of the
appliance is warm.
There are anti condensation pipes fitted to these areas of the appliance
to reduce condensation forming from around the door area.
• The heat releasing pipe to prevent condensation is installed on the front
and side of the appliance. You may feel it particularly hot right after the
appliance is installed or during the summer. You can be assured that this
is not a problem and is quite normal.
There is water inside or
outside of the
appliance.
Is there water leakage around the appliance?
• Check if the water has leaked from a sink or another place.
Is there water on the bottom of the appliance?
• Check if the water is from the thawed frozen food or a broken or dropped
container.
Symptoms Possible Cause & Solution
The appliance door is
not closed tightly.
Is the appliance leaning forward?
• Adjust the front feet to raise the front side slightly.
Were the shelves properly assembled?
• Refit the shelves if needed.
Did you close the door with excessive force?
• If you apply too much force or speed when closing the door, it may remain
briefly open before closing. Make sure that you do not slam the door
closed. Close the door gently.
It is difficult to open
the appliance door.
Did you open the door right after you closed it?
• If you try to open the appliance door within one minute after you closed it,
you may have difficulties because of the pressure inside the appliance. Try
to open the appliance door again in a few minutes so that the internal
pressure stabilizes.
Door mullion does not
fold in and out
properly.
Are front levelling legs extended, the appliance level, and doors aligned?
• Once the door baskets are filled, the doors may become misaligned,
preventing the door mullion or the Auto Open Door function from working
properly. Extend both front levelling legs fully so they are in firm contact
with the floor. Follow the instruction in the Door Alignment section to raise
the left fridge door until the door mullion is once again working properly.
Adjust the right fridge door so it aligns with the left fridge door.
Symptoms Possible Cause & Solution
29
TROUBLESHOOTING
ENGLISH
Noises
The inside lamp in the
appliance does not
turn on.
Lamp failure
• Close the door and re-open. If the lamp does not turn on, please contact
the LG Electronics customer information centre. Do not attempt removal
of the lamp.
Symptoms Possible Cause & Solution
The appliance is noisy
and generates
abnormal sounds.
Is the appliance installed on a weak floor or improperly levelled?
• Install the appliance on a solid and flat area.
Does the rear of the appliance touch the wall?
• Adjust the installation position to allow enough clearance around the
appliance.
Are objects scattered behind the appliance?
• Remove the scattered objects from behind the appliance.
Is there an object on top of the appliance?
• Remove the object on top of the appliance.
Clicking noises The defrost control will click when the automatic defrost cycle begins
and ends. The thermostat control (or appliance control on some models)
will also click when cycling on and off.
• Normal Operation
Rattling noises Rattling noises may come from the flow of appliance, the water line on
the back of the unit (for plumbed models only), or items stored around
the appliance.
• Normal Operation
Appliance is not resting evenly on the floor.
• Floor is weak or uneven or levelling legs need to be adjusted. See the Door
Alignment section.
Appliance with a compressor was moved while operating.
• Normal operation. If the compressor does not stop rattling after three
minutes, turn the power to the appliance off and then on again.
Whooshing noises Evaporator fan motor is circulating air through the fridge and freezer
compartments.
• Normal Operation
Air is being forced over the condenser by the condenser fan.
• Normal Operation
Symptoms Possible Cause & Solution
30
TROUBLESHOOTING
Customer Care and Service
Contact an LG Electronics customer information centre.
• To find information on LG authorized service centre, visit our website at www.lg.com
.
• Only qualified service personnel from LG authorized service centre should disassemble, repair, or
modify the appliance.
• The minimum warranty period of this refrigerating appliance is 24 months.
• Spare parts referenced in Regulation EU 2019/2019 are available for 7 years (only door gaskets are
available for 10 years).
• To purchase spare parts, contact an LG Electronics customer information centre or our website at
www.lg.com
.
NOTE
• Regulation EU 2019/2019, valid from 1st March 2021, is related to the Energy Efficiency classes by
Regulation EU 2019/2016.
• For more information about the energy efficiency of the appliance, visit https://eprel.ec.europa.eu
and
search using the model name (valid from 1st March 2021).
• Scan the QR code on the energy label supplied with the appliance, which provides a web link to the
information related to the performance of the appliance in the EU EPREL database. Keep the energy
label for reference and all other documents supplied with the appliance (valid from 1st March 2021).
• The model name can be found on the rating label of the appliance.
Gurgling noises Appliance flowing through the cooling system.
• Normal Operation
Popping noises Contraction and expansion of the inside walls due to changes in
temperature.
• Normal Operation
Vibrating If the side or back of the appliance is touching a cabinet or wall, some of
the normal vibrations may make an audible sound.
• To eliminate the noise, make sure that the sides and back do not make any
contact with any wall or cabinet.
Symptoms Possible Cause & Solution
31
TROUBLESHOOTING
ENGLISH
• This product contains a light source of energy efficiency class G.
