Metal radiant heater with non glowing element
Adjustable wall and ceiling bracket
Black anodised aluminium
1.6m long power cord
Designed for indoor and outdoor use
Ideal for use in alfresco areas, verandahs and garages
The Heater (2400W & 3200W) requires 15A power point to be installed by qualified electrician
RADIANT HEATER
Remote control
RHP-E76RC-1800-BK / RHP-E76RC-2400-BK / RHP-E76RC-3200-BK
32
Safety
Before attempting to operate this heater, the following
basic safety precautions should be taken to reduce
the risk of re, electric shock and personal injury. It
is important to read the instruction manual and to
understand its’ applications, limitations and potential
hazards associated with this heater. This heater is not
intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning the use of
the appliance by a person responsible for their safety.
This heater is not designed for use within 1m or above
a water source. It is important that you read, understand
and follow these instructions very carefully. They are
designed for the safety of yourself and others ensuring a
long and trouble free service life from your heater. This
electric heater complies with Australian and International
standards and safety requirements. Repairs should only
be carried out by qualied persons using original spare
parts. Failure to do so may result in considerable danger
to the operator.
SAFE OPERATION
Beware of Children and Pets
Children should not be allowed to touch or operate
heaters or touch extension cords, if used. All heaters
should be kept out of reach of children, preferably stored
or locked in a secure cabinet or room when not in use.
Do Not Abuse the Power Cord
Never yank or pull on the power cord to disconnect it from
the mains supply socket. Never carry your heater by its’
power cord. Keep the power cord away from heat, oil,
solvents and sharp edges. Check the power cord regularly
for any damage and if the power cord becomes damaged
have it replaced by an authorised service facility.
Extension Cords and Reels
This heater is NOT designed to run off an extension cord.
If you require an additional power point please have one
installed by a qualied electrician.
The use of extension cords may cause power voltage loss
which will result in damage to the appliance this will NOT
be covered under warranty.
Installation
Always ensure you select the correct xing accessories
which suit the particular wall/ceiling material you are
attaching to, if in doubt please discuss with your local
retailer or local hardware store. This heater is not
designed for use within 1m or above a water source.
All installations must meet the requirements of Australia
Standard AS/NZS 3000:2007.
Ensure that the heater is not positioned directly above,
below or in front of a power point or switch.
This heater is not designed to be used with 3rd party timer
or programmable system.
FOR YOUR SAFETY
WARNING: Fire risk exists if this heater is covered by
or positioned close to curtains or other combustible
materials.
NOTE: If using this heater outside ensure that it is
connected directly to an outdoor power point.
The electrical system of this heater must be
connected with an automatic 30mA circuit breaker
and/or residual current device (RCD). If uncertain
have a qualied electrician check your electrical
system before installation and/or use.
All electrical connections are made in a dry area.
Outdoor power points must be weatherproof and
installed by a qualied electrician.
Sitro Group Australia Pty Ltd is not responsible for
incorrectly chosen xing accessories or any damage
which may be caused by an incorrectly tted wall
heater.
If required 15AMP power points must be installed by
a qualied electrician.
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
32
SPECIFIC SAFETY INSTRUCTIONS
WARNINGS
Do not use the heater in areas where there is a risk of
explosion or re from ammable gases. Ensure that the
heating area is kept clear of combustible materials. Do not
use the heater in damp areas, without suitable ventilation.
This heater is not designed for use within 1m or above a
water source. Do not place within one metre (1m) of any
water source. Do not place directly in front of, below or
above any power points or switches.
Fire risk exists if this heater is covered by or positioned
close to curtains or other combustible materials.
• This heater is intended for domestic/household use
only.
• Always ensure that this heater is installed as per
the requirements noted in Australian Standard
AS/NZS 3000:2007.
• Always keep heater at least one metre (1m) from
combustible materials.
• DO NOT locate this heater directly below, above or
in front of the power supply socket or switch.
• DO NOT use this heater within 1 metre or above any
water source.
• DO NOT use this heater in either the bathroom or
ensuite without suitable ventilation.
• DO NOT use a 3rd party timer, or programmable
system with this heater.
• DO NOT clean the heater while the heater is on or
plugged into the mains power supply.
• DO NOT touch any part of the heater while on, hot
surfaces may burn.
• DO NOT use the wall heater as a dryer.
• DO NOT attempt to modify the heater, power cord,
power plug or the supplied accessories in any way.
• DO NOT expose the heater to rain, water, or use in
damp wet conditions.
• NEVER cover this heater.
• NEVER carry the heater by its power supply cord.
• NEVER use with the power cord coiled, bundled up
or tied up. Always extend fully before use.
• NEVER use the heater if any part of it is damaged.
• Ensure that the heater is disconnected from the
mains supply when installing, cleaning or removing/
installing.
• Ensure this heater is not left on when unattended.
• Ensure the heater is not used in areas where
ammable gases are present, e.g. paint, petrol etc.
• Always turn the heater OFF at the unit switch and
the power point switch when not in use for extended
periods of time.
• Always allow the heater to cool, about one (1) hour
after the heater has been turned o, before cleaning
the heater.
• Always ensure that the power cord is fully extended
and NOT in contact with any part of the heater.
• Always ensure that the heater is kept clean and free
from dust.
• Only use this heater when securely attached to the
wall/ceiling.
54
IMPORTANT
This product is tted with a sealed electrical connection plug that is compatible with the heater, the mains supply for
Australia and meets the requirements of international standards. This heater must be connected to a supply voltage
that is equal to that stated on the rating label. If the mains connection plug or power cord becomes damaged it must be
replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised service
centre. Always follow the Australian requirements for connection to the mains supply. If in doubt always consult a
qualied electrician.
ELECTRICAL DATA

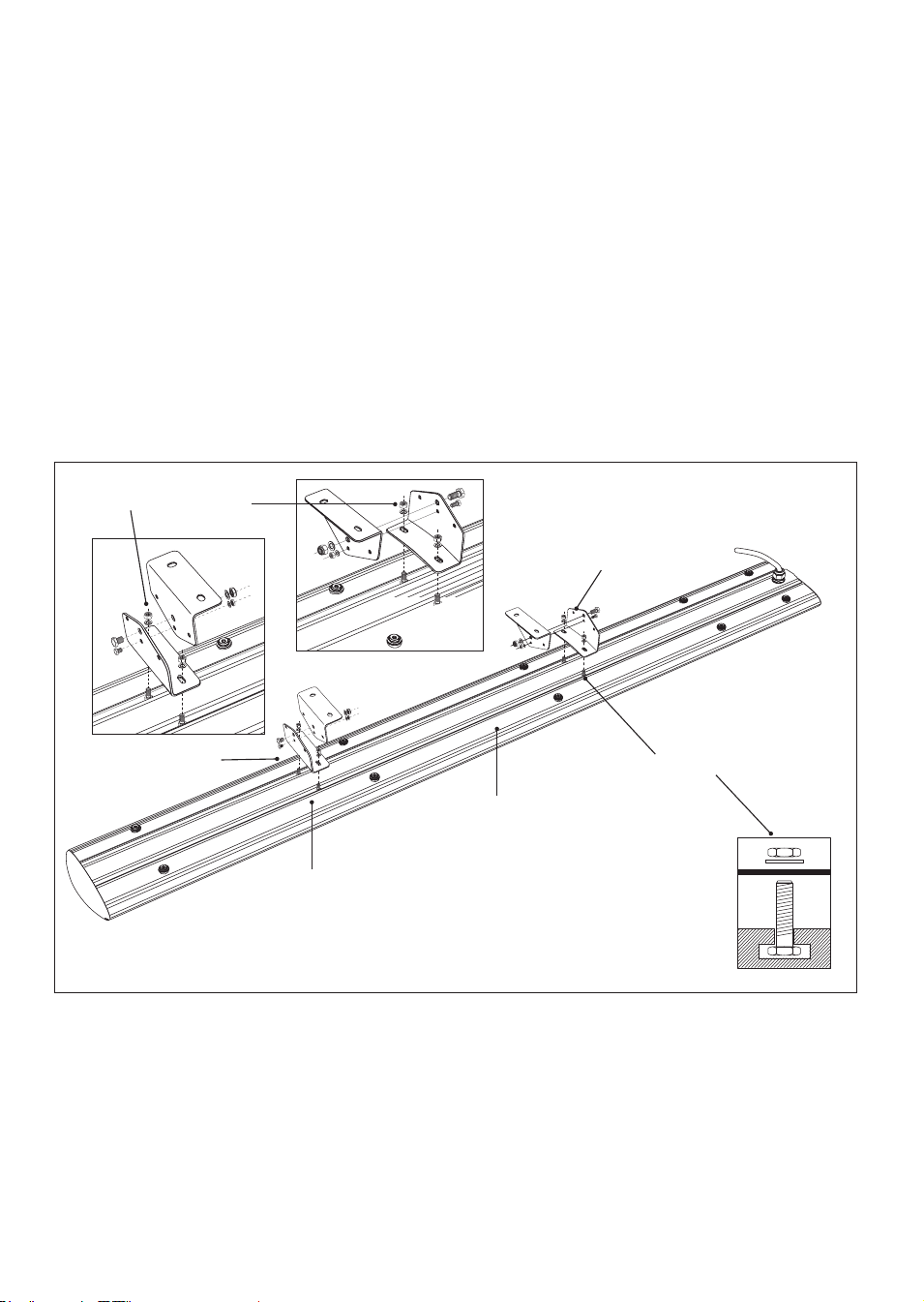

Assembly
HEATER HEAD
Attach the heater rear bracket (B) to the heater body (A) using bolts, washers and nuts. You can either
mount side or lengthways depending on the mounting surface.
Mounting Bolts
Mounting Nuts
and Washers
Mounting Bolts
To adjust mounting bolts,
remove nut and slide
mounting bolts between
units mounting bolt groove
then fit bracket, replace
nut and tighten.
(B) Heater Rear
Bracket
(B) Heater Rear
Bracket
(A) Heater
Body
54
GENERAL MOUNTING SUGGESTIONS
If unsure please discuss with your local hardware store.
• Ensure the xing screws are at least suitable for 10Kg each.
• If tting to a stud wall or ceiling ensure all xing screws are into timber.
Plasterboard IS NOT suitable by itself.
• If no timber stud/joists are available we would suggest installing a timber
batten to attach to.

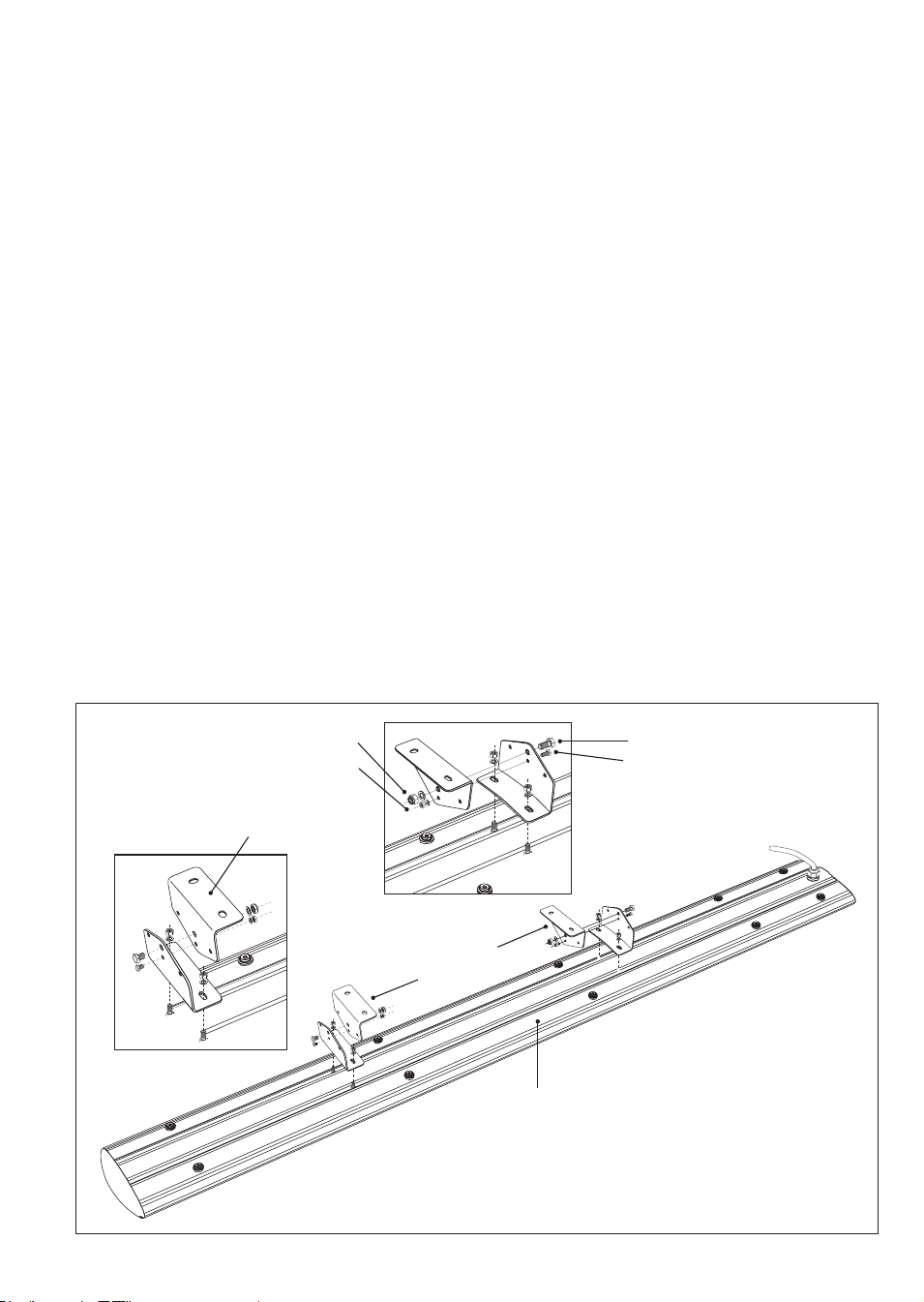

WALL/CEILING BRACKET ASSEMBLY
1. The bottom of the heater body should be 1.8m above the foor, see page 7.
2. Do not position the heater directly above or below a power point or switch.
Do not position heater in front of a power point.
3. Mark and drill 2 mounting holes for bracket (C).
4. Using 2 suitable screws (not supplied) attach the bracket to the wall
or ceiling.
Note: If unsure what screws to use please discuss with your local
hardware store.
5. Using the nuts and bolts join the bracket (C) to the heater bracket (B) and
tighten fully.
6. Heater is now mounted and ready for use. Check the safety distance
between the heater body and ammable surface when wall or corner
mounted (see page 7 ). Do not mount the heater in the ceiling, always mount
to the ceiling (see page ).
MOUNTING HEATER
(C) Ceiling/Wall
Brackets
(C) Ceiling/Wall
Brackets
(A) Heater
Body
Locking Bolt
Locking Nut and Washer
Head Tilt Bolt
Head Tilt Nut and Washer
NOTE: To adjust bracket position
7
7
76
TO TILT HEAD
Note: Always ensure that the heater is switched o,
disconnected from the mains power supply and is cold to
touch. If heater has been recently used, please leave the
wall heater one (1) hour to cool before tilting head.
1.
Loosen the locking bolt and remove.
2. Loosen the head tilt bolt, do not remove.
3. Head can be tilted through 30°.
4.
Tighten the head tilt bolt when the desired angle is
achieved.
5.
Insert and tighten the locking bolt if possible to stop
any unintentional movement of the heater.
Note: If locking bolt can not be tted ensure the head tilt
bolt is very tight.
Head
Tilt Bolt
30°
Locking Bolt
76

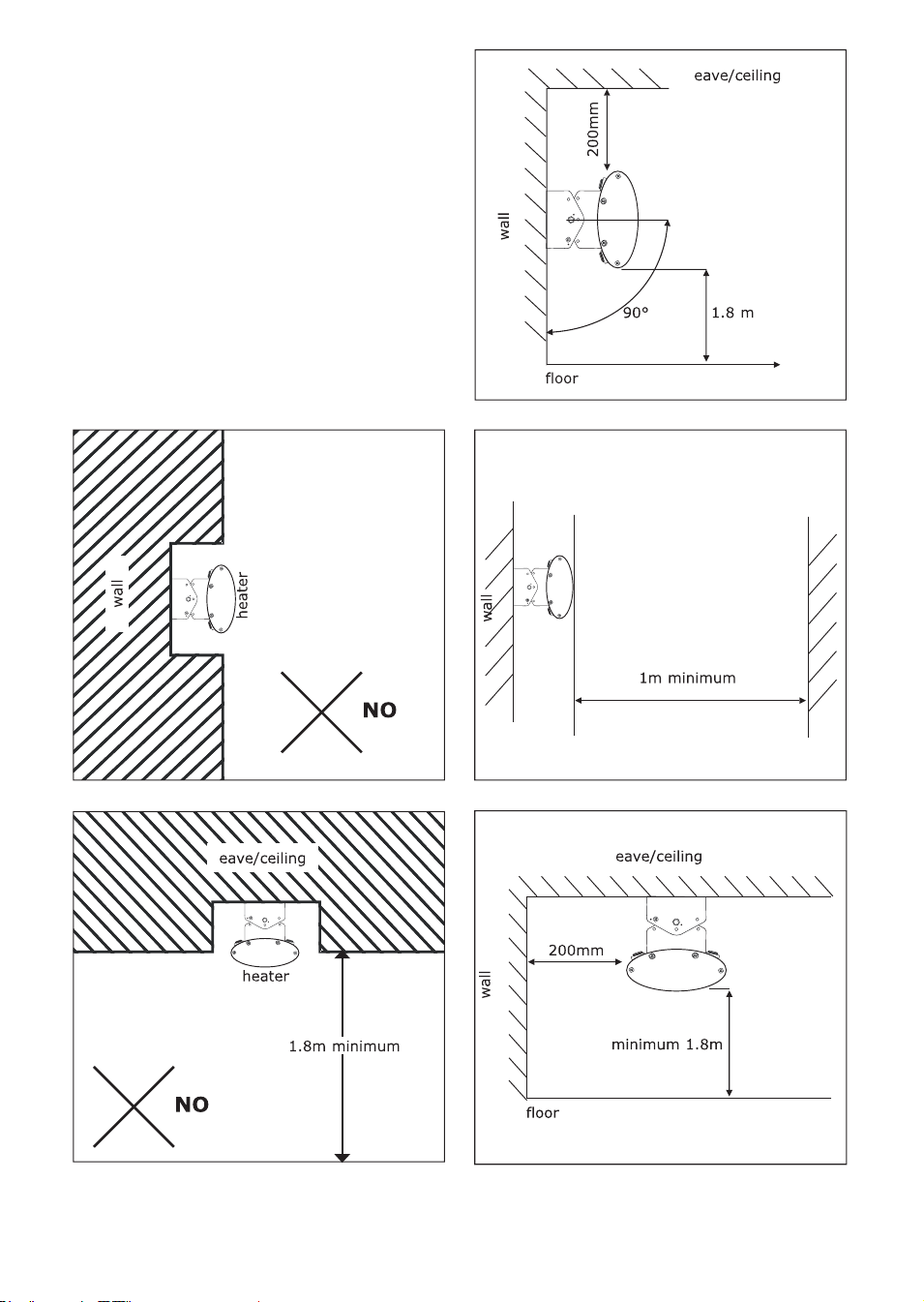

HEATER POSITIONING
1. Position heater at least 200mm from the eave lining or
ceiling or wall at 90˚ to heater.
2. Position heater at least 1.8m above the oor.
3. Never position in front, above or below a power point.
4. If heater is facing another vertical surface, example –
wall, the gap must be at least 1 metre.
5. Never mount heater within 1 metre of a water source,
example – tap.
NOTE: Never mount heater into the wall or ceiling. Only
mount to the surface.
8
CLEANING
Always ensure that the wall heater has been left for one (1) hour to cool before cleaning.
1. Turn of and disconnect from mains power, allow to cool.
2. Wipe unit over with a damp clean soft lint free cloth.
3.
For stubborn marks you can use a mild dish washing solution on a damp clean soft lint free cloth.
NEVER allow water or a mild dish washing solution to enter or drip onto the wall heater.
NEVER use solvents, e.g. Petrol, Toluene, Methylated Spirits etc to clean the foor heater, as these will damage
the surface fnish and may cause a fre when unit is next used.

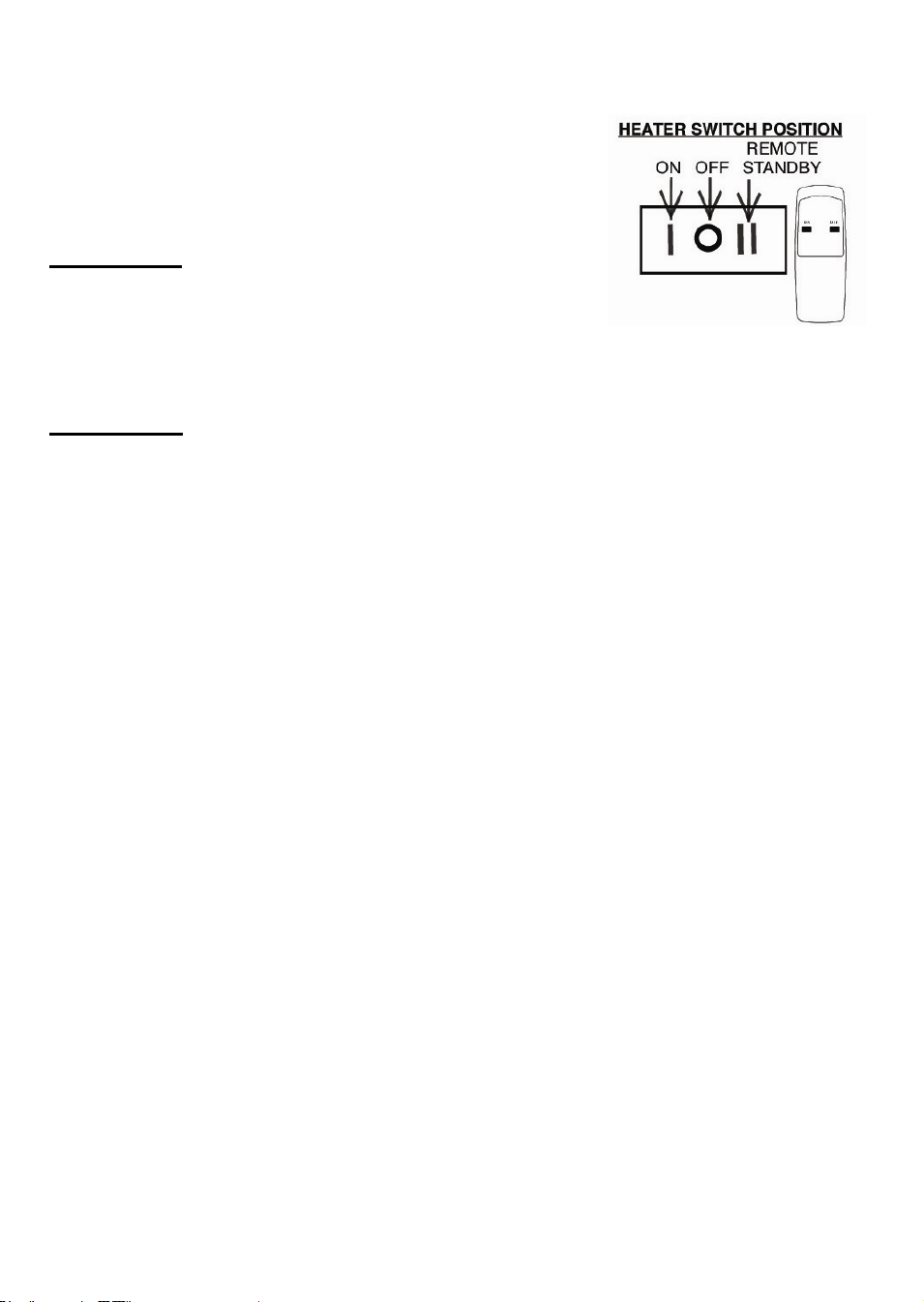

To Operate
Turn the switch on the panel to the O or off setting.
When everything is in order, connect the panel to the electrical network using the external
switch (or by inserting the plug into the socket).
Turn to the setting you would like to use to control the panel:
I = manual control
II = remote control
Manual control
Turn the switch to I: the light -red control light will come on. The heater
15 minutes to warm up to its normal working temperature.
the external switch or by removing the plug from the socket.
Remote control
Turn the switch to II: the panel will be on standby.
Insert 2 small penlite batteries (AAA - 1.5V) into the remote control. Point the remote control at
the panel and press the ON button. The light - red control light will come on.
The heater will now start working. After the panel has been turned on it takes around 15
minutes to warm up to its normal working temperature.
will now start working. After the panel has been turned on it takes around
To turn off, turn the switch on the panel to O. Follow by turning off the power supply with
To turn the panel off, point the remote control at the panel and press the OFF button. The panel
will be on standby again.
the external switch or by removing the plug from the socket.
To turn off, turn the switch on the panel to O. Follow by turning off the power supply with
