Warning and Safety instructions
4
It is essential to read these instructions.
This vacuum cleaner conforms to current safety requirements. In-
appropriate use can lead to personal injury and damage to prop-
erty.
Please read the operating instructions before using the vacuum
cleaner and charging the battery for the first time. They contain im-
portant information on the safety, use and maintenance of the va-
cuum cleaner. This will prevent both personal injury and damage to
the appliance.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
“Commissioning” section as well as the safety instructions and
warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating instructions in a safe place and pass them on
to any future owner/operator.
Always switch the vacuum cleaner off when you have finished us-
ing it, before changing any accessories, as well as for maintenance
work, cleaning and troubleshooting. Use the On/Off switch on the
handle to do this.
Correct application
This vacuum cleaner is intended for cleaning flooring in domestic
households and similar residential environments. This vacuum
cleaner is not suitable for use on construction sites.
This vacuum cleaner is not intended for outdoor use.
This vacuum cleaner can be used for all normal cleaning of carpets,
rugs and robust hard flooring.
Warning and Safety instructions
5
This vacuum cleaner is intended for use at altitudes of up to
4000m above sea level.
The vacuum cleaner must only be used to vacuum dry floor sur-
faces. Do not vacuum people or animals. Any other types of use, im-
permissible modifications or alterations are not permitted.
The vacuum cleaner can only be used by people (including chil-
dren) with reduced physical, sensory, or mental capabilities, or lack of
experience or knowledge, if they are supervised whilst using it or
have been shown how to use it in a safe way and understand and re-
cognise the consequences of incorrect operation.
Safety with children
Young children must be kept away from the vacuum cleaner unless
they are constantly supervised.
Older children may only use the vacuum cleaner without supervi-
sion if they have been shown how to use it in a safe manner. Children
must be able to understand and recognise the possible dangers
caused by incorrect operation.
Children must not be allowed to clean or maintain the vacuum
cleaner unsupervised.
Please supervise children in the vicinity of the vacuum cleaner and
do not let them play with it.
Danger of suffocation. Packaging, e.g. plastic wrappings, must be
kept out of the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their head and
suffocate.
Warning and Safety instructions
6
Technical safety
The vacuum cleaner operates at 25.2V / 25.69V.
It is classified as a class III appliance .
This appliance is supplied by a safety extra-low voltage (SELV) power
source where the voltage is low enough to protect users from the risk
of electrical shock. A Class II charger is used for supplying power to
charge the vacuum cleaner .
Compare the connection data on the data plate of the charger
(voltage and frequency) with that of the mains electricity supply. This
data must match exactly. Without modifications, the charger is suit-
able for 50Hz and 60Hz.
The mains electrical outlet must be fitted with an appropriate cir-
cuit breaker.
Check both the vacuum cleaner and all accessories supplied with
it for any visible signs of damage before use. Do not use a damaged
vacuum cleaner or damaged accessory.
The MieleMultiFloorelectrobrush and the MieleElectro Com-
pacthandheldbrush (depending on the model) are additional motor-
driven devices designed specially for this Miele vacuum cleaner. For
safety reasons, the vacuum cleaner must not be used with a different
Miele electrobrush/handheld brush or an electrobrush/handheld
brush produced by another manufacturer.
Before and during use, make sure that no coarse dirt or debris is/
gets trapped in the bottom of the MultiFloorelectrobrush or in the
bottom of the Electro Compacthandheldbrush (supplied depending
on the model).
Store the vacuum cleaner and all accessories at an ambient tem-
perature between 0°C and 45°C.
Only store the vacuum cleaner in a horizontal position or fit it into
the wall bracket.
If the vacuum cleaner is to be stored unused for a long period, the
battery should be removed.
Warning and Safety instructions
7
The supply terminals must not be short-circuited.
Repairs should only be undertaken by a Miele authorised service
technician. Otherwise the warranty will be invalidated.
Repairs and other work by unqualified persons can cause consid-
erable danger to users.
Correct use
Do not use the vacuum cleaner without the pre-filter and fine dust
filter fitted.
Keep the vacuum cleaner away from naked flames or other heat
sources. Do not heat the vacuum cleaner. Do not expose the vacuum
cleaner to direct sunlight.
Do not vacuum up anything which has been burning or is still glow-
ing e.g. cigarettes, ashes or coal, whether glowing or apparently ex-
tinguished.
Do not vacuum up liquid. Allow steam-cleaned or shampooed car-
pets and rugs to dry out completely before vacuuming.
Do not use the vacuum cleaner to vacuum toner dust. Toner, such
as that used in printers and photocopiers, can conduct electricity.
Do not vacuum up any inflammable or combustible liquids or
gases and do not vacuum in areas where such substances are stored.
Never touch the roller brush of the MultiFloor electrobrush or Elec-
tro Compact handheld brush (depending on the model) while it is ro-
tating.
Do not use the MultiFloor electrobrush or the Electro Compact
handheld brush (depending on the model) at head height.
Do not vacuum at head height and do not let the suction get any-
where near a person's head.
Warning and Safety instructions
8
Warning and safety notes for AP10/AP11 battery, LG02 char-
ger, LS10 SpeedLock wall bracket (depending on the model)
Safety with children
People (including children) with reduced physical, sensory or men-
tal capabilities, or lack of experience or knowledge, who are unable to
use the LG02 charger or LS10 SpeedLock wall bracket safely may
only use this vacuum cleaner if they are supervised whilst using it or
have been shown how to use it in a safe way and understand and re-
cognise the consequences of incorrect operation.
Keep the AP10/AP11battery out of the reach of children.
Children must be kept away from the LG02 charger and the LS10
SpeedLock wall bracket unless they are constantly supervised.
Do not let children play with the chargers.
Technical safety
The AP10/AP11 battery, the LG02 charger and the standard or
LS10 SpeedLock wall brackets are designed for use with the
MieleHS23 vacuum cleaner. For safety reasons, the vacuum cleaner
must not be used with another battery, charger or wall bracket pro-
duced by another manufacturer.
If you are using a mains plug adapter, make sure that it is approved
for continuous operation.
Warning and Safety instructions
9
Only use the LG02/xx charger supplied for charging the AP10/
AP11 battery.
xx stands for 01, 02, 03, 04, 05, 06 or 07 and therefore the version
of your LG02 charger:
xx
01 AT, BE, BG, CH, CL, CZ, DE, DK, EE, ES, FI, FR, GR, HR, HU, IT, KZ, LT,
LU, LV, NL, NO, PL, PT, RO, RS, RU, SE, SI, SK, TR, UA, ZA
02 AE, HK, MY, SG
03 BR, CA, JP, MX, US
04 AU, NZ
05 CN
06 KR
07 IE, UK
Charging with a self-sufficient or non-mains synchronous energy
supply system (e.g. isolated networks, back-up systems) is possible.
A requirement for charging is that the energy supply system complies
with all current local and national requirements that apply to stand-
alone, solar and/or battery systems.
The protective measures provided in the domestic installation and in
this Miele product must also be assured in their function and opera-
tion in isolated operation or in non-mains synchronous operation, or
replaced with equivalent measures in the installation.
Charge the AP10/AP11 battery at an ambient temperature
between 10°C and 40°C.
Use the AP10/AP11 battery at an ambient temperature between
0°C and 45°C.
Using the AP10/AP11 battery outside of this ambient temperature
range will limit its performance.
Warning and Safety instructions
10
Stop using the AP10/AP11 battery immediately if you notice an un-
usual smell from it, if liquid is leaking from it, if it is significantly over-
heating or if it is discoloured or deformed. Dispose of the AP10/AP11
battery immediately (see safety note “Disposing of the AP10/AP11
battery” at the end of the following section “Correct use”, as well as
“Sustainability and environmental protection – Disposing of old bat-
teries”).
Batteries will deplete over time. They can then leak corrosive flu-
ids. Avoid contact with the eyes and skin. In the event of contact,
rinse thoroughly with water and seek medical advice.
To deal with leaking batteries, refer to the Safety Data Sheet (con-
tact Miele to request a copy).
The AP10/AP11 lithium-ion battery is subject to the dangerous
goods legislation. The user is permitted to transport the AP10/AP11
battery by road, but may be subject to further requirements. Only
send AP10/AP11 batteries that are undamaged and have been fully
run down. Insulate the metal contacts with adhesive tape to prevent
short circuits. Pack the AP10/AP11 battery in such a way that it is not
able to move around inside the packaging.
Correct use
Do not drop or throw the AP10/AP11 battery. For safety reasons,
do not continue to use an AP10/AP11 battery which has been dam-
aged.
Keep the AP10/AP11 battery away from naked flames or other heat
sources. Do not heat the AP10/AP11 battery. Do not expose the re-
chargeable battery to direct sunlight.
Do not dismantle the AP10/AP11 battery.
Do not cause a short circuit by bridging the contacts of the AP10/
AP11 battery, either unintentionally or deliberately.
Do not allow the AP10/AP11 battery to come into contact with li-
quids.
Warning and Safety instructions
11
Disposing of the AP10/AP11 battery: remove the AP10/AP11 bat-
tery from the vacuum cleaner. Insulate the metal contacts with ad-
hesive tape to prevent short circuits. Dispose of the AP10/AP11 bat-
tery in a municipal recycling facility. Do not dispose of the AP10/AP11
battery with your household waste.
The rechargeable battery must be removed before the appliance is
scrapped.
Cleaning
Do not immerse the vacuum cleaner or any accessories supplied
with it in water. Clean the vacuum cleaner and accessories only with
a dry or slightly damp cloth when disconnected from the power sup-
ply.
The MultiFloor electrobrush and the Electro Compact handheld
brush (depending on the model), the PowerUnit and the suction tube
contain electrical wires. The plug connectors must not come into
contact with water. Danger of electric shock. They should only be
cleaned with a dry cloth.
Accessories and spare parts
Only use genuine accessories with the Miele logo on the pack-
aging. The manufacturer cannot otherwise guarantee the safety of
the product.
Miele can only guarantee the safety of the appliance when genuine
Miele replacement parts are used. Faulty components must only be
replaced with genuine Miele replacement parts.
Transport
The packaging material protects the vacuum cleaner from trans-
port damage. We recommend you keep the packaging for transport
purposes.
Guide to the appliance
12
Guide to the appliance
13

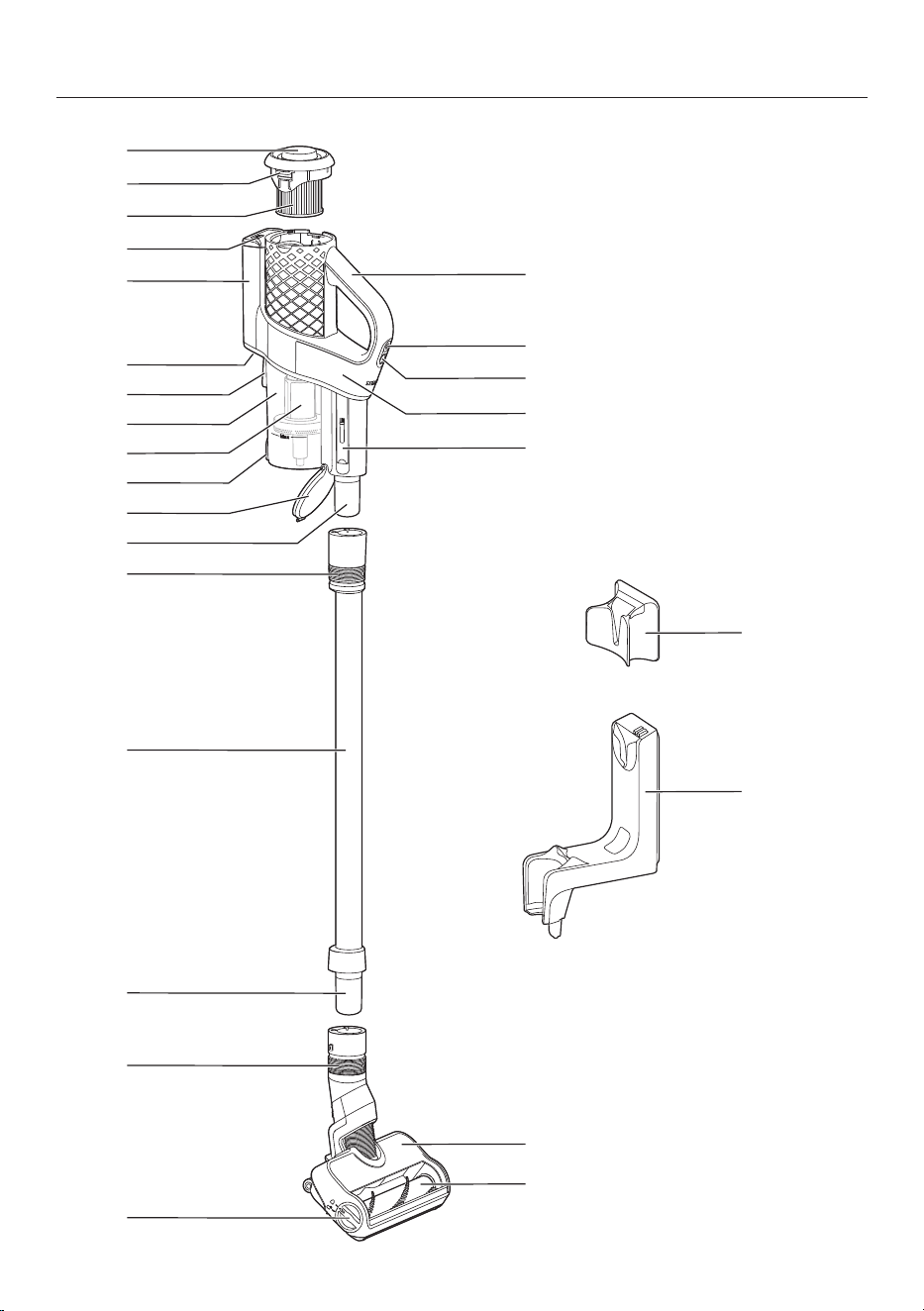

a
Screw cap for the ComfortClean self-cleaning function
b
Release catch for removing the fine dust filter
c
Fine dust filter
d
Battery charging state indicator
e
Battery compartment
f
Charging socket (at the bottom)
g
Attachment device for wall bracket
h
Dust container
i
Pre-filter
j
Release catch for dust container flap
k
Dust container flap
l
PowerUnit connector
m
Sliding ring for releasing the PowerUnit
n
Suction tube
o
Suction tube connector
p
Sliding ring for releasing the electrobrush
q
Release catch for opening the electrobrush
r
Removable roller brush
s
MultiFloor electrobrush
t
Cleaning tool
u
PowerUnit
v
Suction power selector
w
On/Off switch
x
Handle
y
Standard wall bracket
z
SpeedLock wall bracket
Sustainability and environmental protection
14
Disposing of the packaging ma-
terial
The packaging material is used for hand-
ling and protects the appliance from
transport damage. The packaging ma-
terial used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use ma-
terial-specific collection points for valu-
able materials and take advantage of re-
turn options.
We recommend you keep the packaging
material for transport purposes.
Disposing of your old appliance
Before disposing of your old appliance,
remove the fine dust filter and dispose
of it with your household waste.
Electrical and electronic appliances con-
tain many valuable materials. They also
contain certain materials, compounds,
and components which were essential
for their correct functioning and safety.
These could be hazardous to human
health and to the environment if dis-
posed of with household waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local com-
munity waste collection/recycling
centre for electrical and electronic appli-
ances, or contact Miele. You should re-
move any old batteries which are not
securely enclosed by the appliance.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
Sustainability and environmental protection
15
Disposing of old batteries and
rechargeable batteries
In many cases, electrical and electronic
appliances contain batteries and re-
chargeable batteries which must not be
disposed of with household waste after
use. You should remove any removable
batteries or rechargeable batteries and
dispose of them immediately in a suit-
able recycling box for batteries. Insulate
the metal contacts with adhesive tape
to prevent short circuits.
Batteries and rechargeable bat-
teries contain substances which can
be harmful to human health and the
environment and should be kept out
of the reach of children. Even flat bat-
teries can still be dangerous. If you
suspect a child has swallowed a bat-
tery, seek medical advice immedi-
ately.
The labeling on the battery and re-
chargeable battery will provide further
information. A crossed out bin means
that the battery or rechargeable battery
must on no account be disposed of with
your household waste. We are also re-
quired to inform you that a crossed out
bin, which also has one or more chem-
ical symbols below it, indicates that the
battery or rechargeable battery contains
lead (Pb), cadmium (Cd) and/or mercury
(Hg).
3E&G+J
Old batteries and rechargeable batteries
contain important raw materials which
can be recycled. Disposing of batteries
and rechargeable batteries separately
makes them easier to handle and re-
cycle.
Commissioning
16

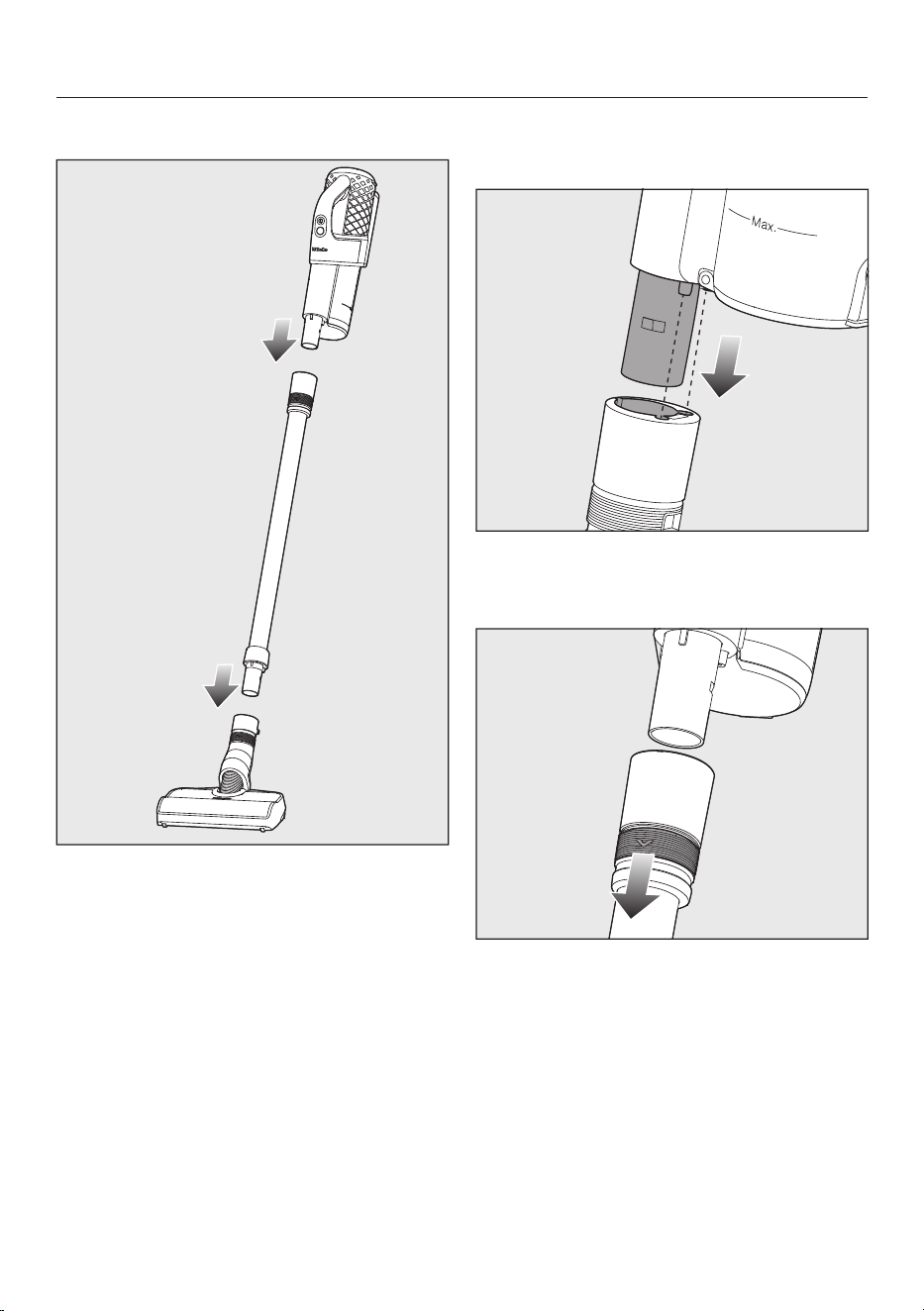

Assembling the vacuum cleaner
Assemble the vacuum cleaner.
Connecting the PowerUnit and
the suction tube
Push the PowerUnit connector into
position in the suction tube until it
audibly clicks into place.
Slide the sliding ring on the suction
tube down to separate the individual
sections from each other.
Commissioning
17

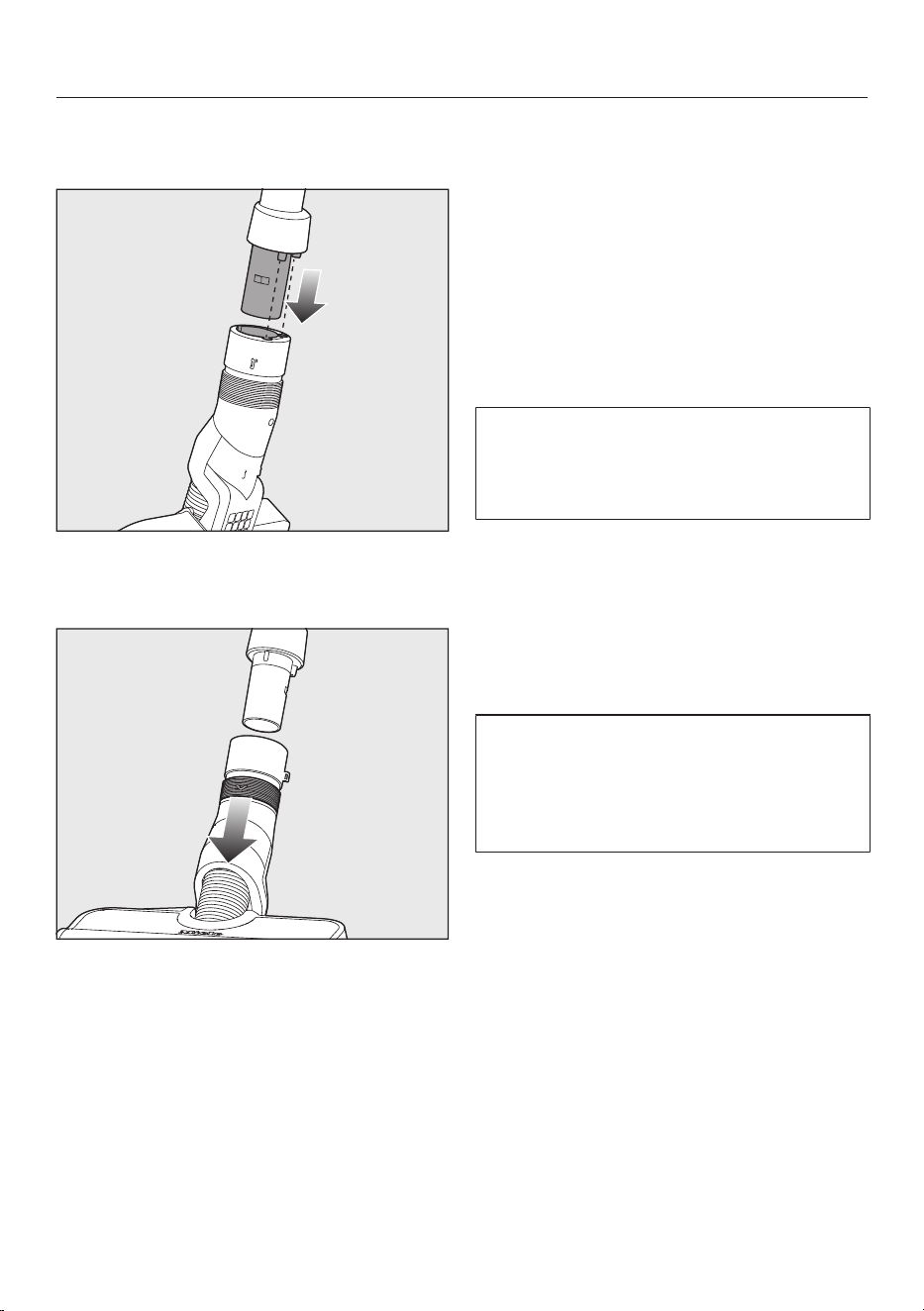

Connecting the suction tube
and the electrobrush
Push the suction tube connector into
the electrobrush from above until it
audibly clicks into place.
Slide the sliding ring on the electro-
brush down to separate the individual
sections from each other.
General battery information
The rechargeable battery is supplied not
fully charged.
Charge the battery completely before
using it for the first time. Allow approx-
imately 3.5hours for this.
Once the battery is fully charged, the
battery charging state indicator at the
top of the PowerUnit switches off to
conserve energy.
The maximum charging capacity is
only achieved once the battery has
been charged and run down approx.
five times.
A full charge provides enough power for
17minutes if the vacuum cleaner is used
in its fully assembled state.
However, if you use the PowerUnit solo
(see “Operation” – “Using the
PowerUnit solo”), you can vacuum for
up to 55minutes at a time.
The running time depends on the se-
lected power level, the flooring and
how the vacuum cleaner is used, as
well as on the degree of soiling of the
filter system.
Commissioning
18
Charging the battery (without
wall mounting)
You can charge the battery directly.
Before charging the battery for the first
time, you must read the information in
“Commissioning” – “General battery
information”.

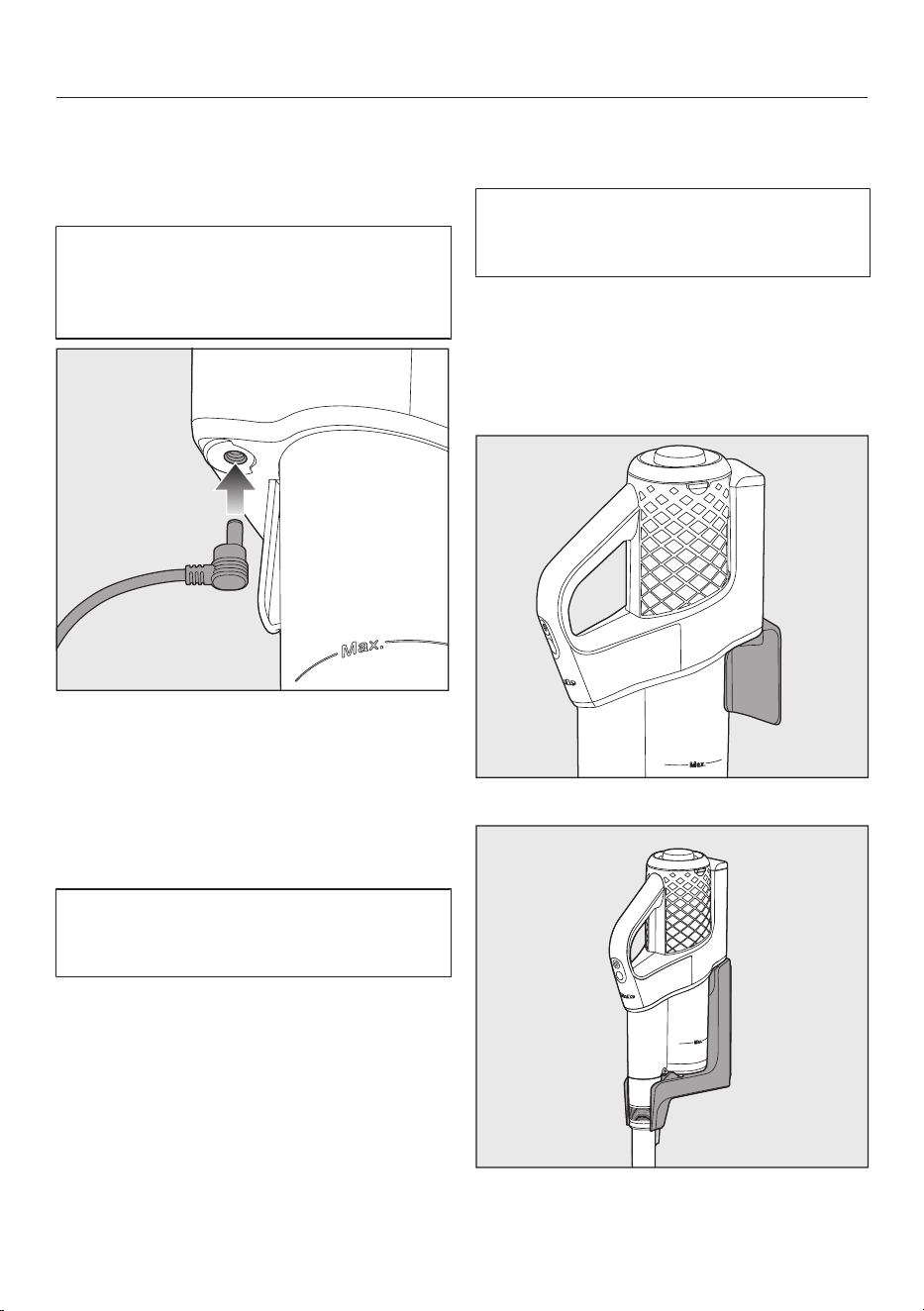

Plug the charging plug of the supplied
charging cable into the charging
socket on the bottom at the rear of
the PowerUnit.
Plug the charger into a power socket.
The charging process will start.
You can read more about this in “Bat-
tery charging state indicator (while
charging)”.
Charging the battery (with wall
mounting)
You will need a suitable location near a
free power socket for mounting the ap-
pliance on the wall.
Depending on the model, the scope of
delivery of your vacuum cleaner in-
cludes one of the following wall brack-
ets.

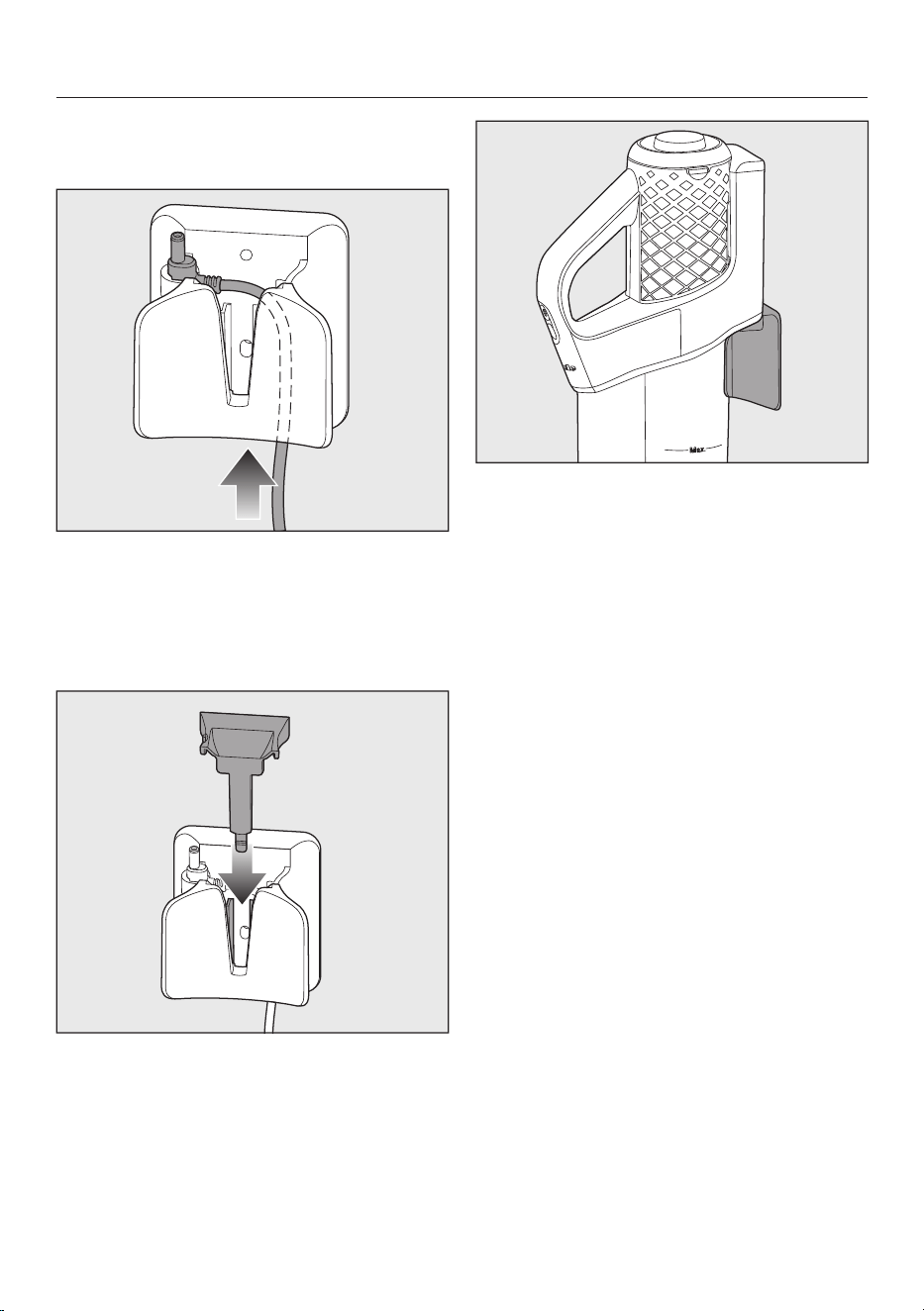

Standard wall bracket
SpeedLock wall bracket
Commissioning
19
Before charging the battery for the first
time, you must read the information in
“Commissioning” – “General battery
information”.

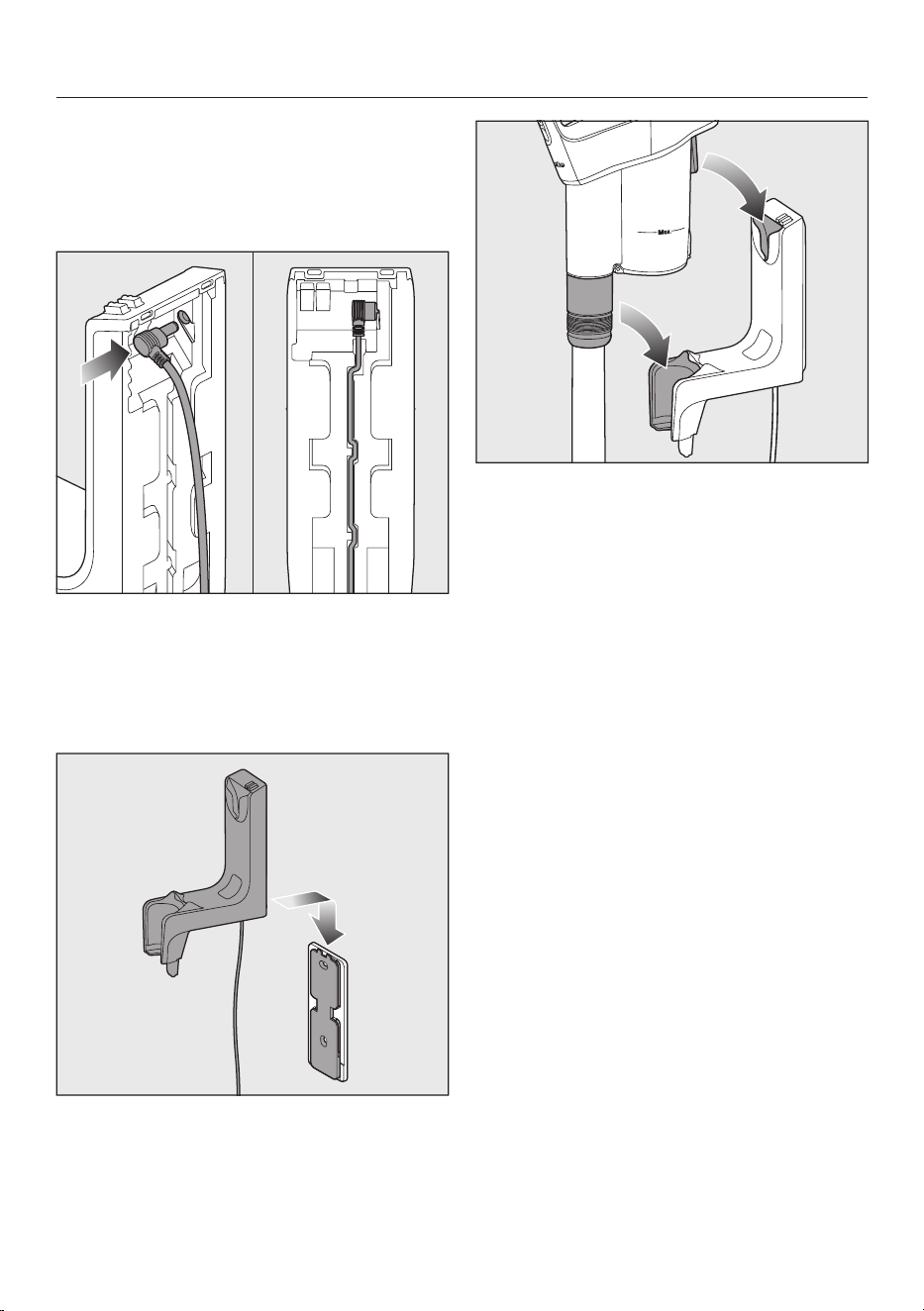

Screwing the wall bracket to the
wall

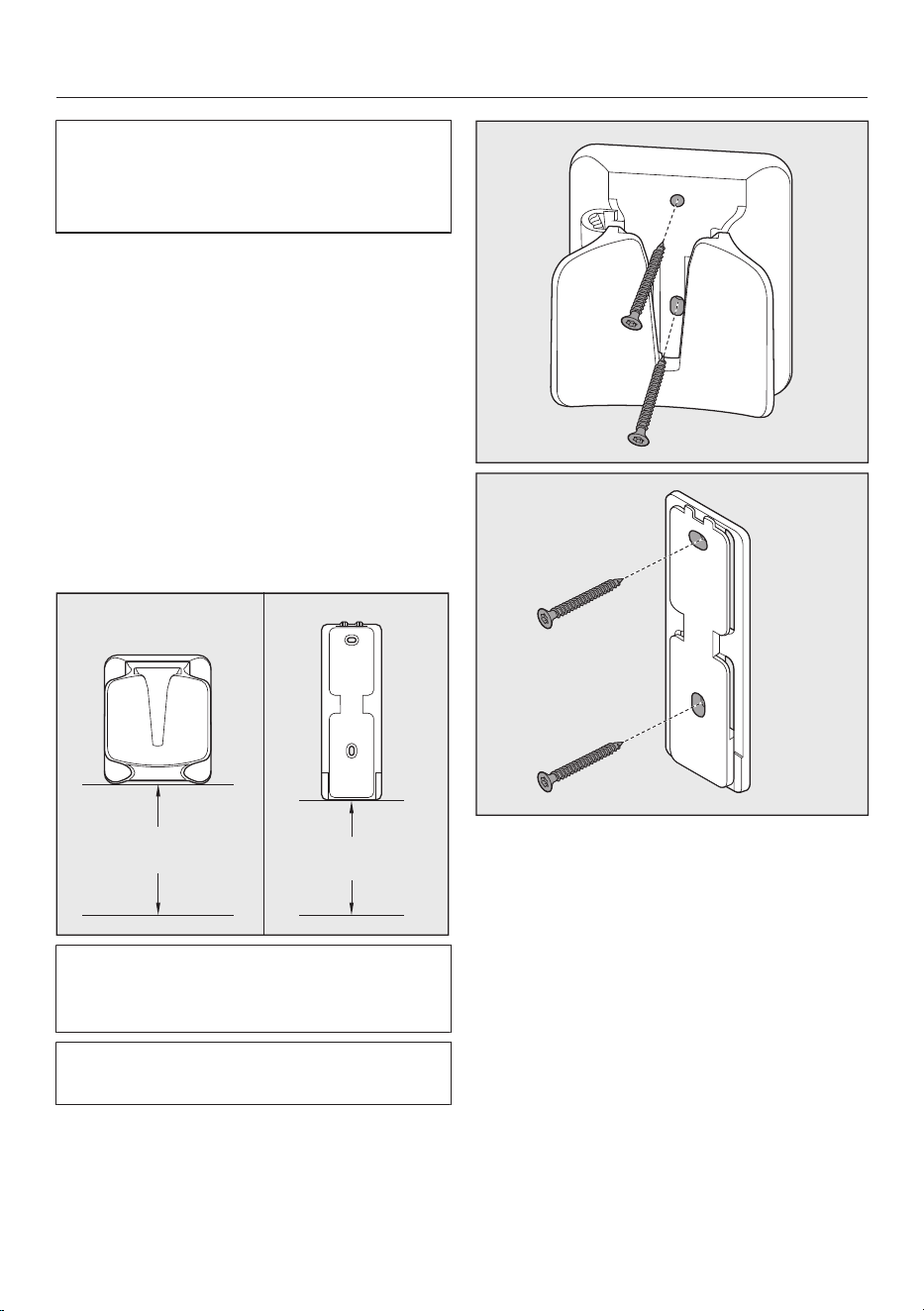

2 plugs and 2 T20TORX screws are
supplied for attaching the wall bracket.
You will also need a battery-operated
screwdriver or a drill (with a drilling dia-
meter of 6mm).
Depending on the wall bracket, select a
distance of 106cm (standard wall
bracket) or 96cm (SpeedLock wall
bracket) between the bottom edge of
the wall bracket and the floor.
106 cm
42 in
96 cm
38 in
You will need a suitable location near a
free power socket for mounting the ap-
pliance on the wall.
Be careful not to damage any cables
laid in the wall.
Attach the standard wall bracket or
the mounting plate of the SpeedLock
wall bracket to the wall.
Commissioning
20
Attaching the charging cable to
the standard wall bracket
Push the charging plug of the char-
ging cable through the wall bracket
from below.
Plug the charging plug into the plug
holder and press it in firmly.
Slide the cover down into the wall
bracket from above until it audibly
clicks into place.
The charging cable is held securely in
the wall bracket.
Place the vacuum cleaner into the
wall bracket from above.
Plug the charger into the power
socket.
The charging process will start.
Commissioning
21
Attaching the charging cable to
the SpeedLock wall bracket
A cable guide is located on the rear of
the wall bracket.
Plug the charging plug of the charging
cable firmly into the socket (left part
of the image).
Lay the charging cable in its guide
(right part of the image).
Push the wall bracket down into the
mounting plate from above until it
audibly clicks into place.
The charging cable is held securely in
the wall bracket.
Place the vacuum cleaner into the
wall bracket making sure it fits prop-
erly.
Plug the charger into the power
socket.
The charging process will start.
Commissioning
22
Battery charging state indicator
(while charging)
The battery charging state is displayed
on the top of the PowerUnit.
Charging capacity Display
Minimum char-
ging capacity
Left indicator
lights up
Increasing char-
ging capacity
Left indicator
lights up; middle
light flashes
Charging capacity
increasing further
Left and middle
indicators light up;
right indicator
flashes
Charged capacity
approx. 91–99%
Left, middle and
right indicators
light up
100% Switches off
Once the battery is fully charged, the
battery charging state indicator
switches off to conserve energy.
If the battery has not been used for a
long time and has run down, it will
switch to safe mode. As a result, the
battery charging state indicator will
only respond after approximately 30–
60minutes.
Battery charging state indicator
(while in use)
The battery charging state is displayed
on the top of the PowerUnit.
Charging capacity Display
Maximum charging
capacity
All indicators
light up
Decreasing charging
capacity
Two indicators
light up
Charging capacity
decreasing further
One indicator
lights up
Minimum charging
capacity
One indicator
flashes
Using the supplied accessories
23
Miele offers a range of suitable ac-
cessories for many special applica-
tions (see “Optional accessories”).
Dusting brush
Accessory for vacuuming skirting
boards, carved furniture or orna-
ments.
Crevice nozzle
Accessory for cleaning in folds,
crevices or corners.
Upholstery nozzle
Accessory for cleaning upholstery,
mattresses and cushions.

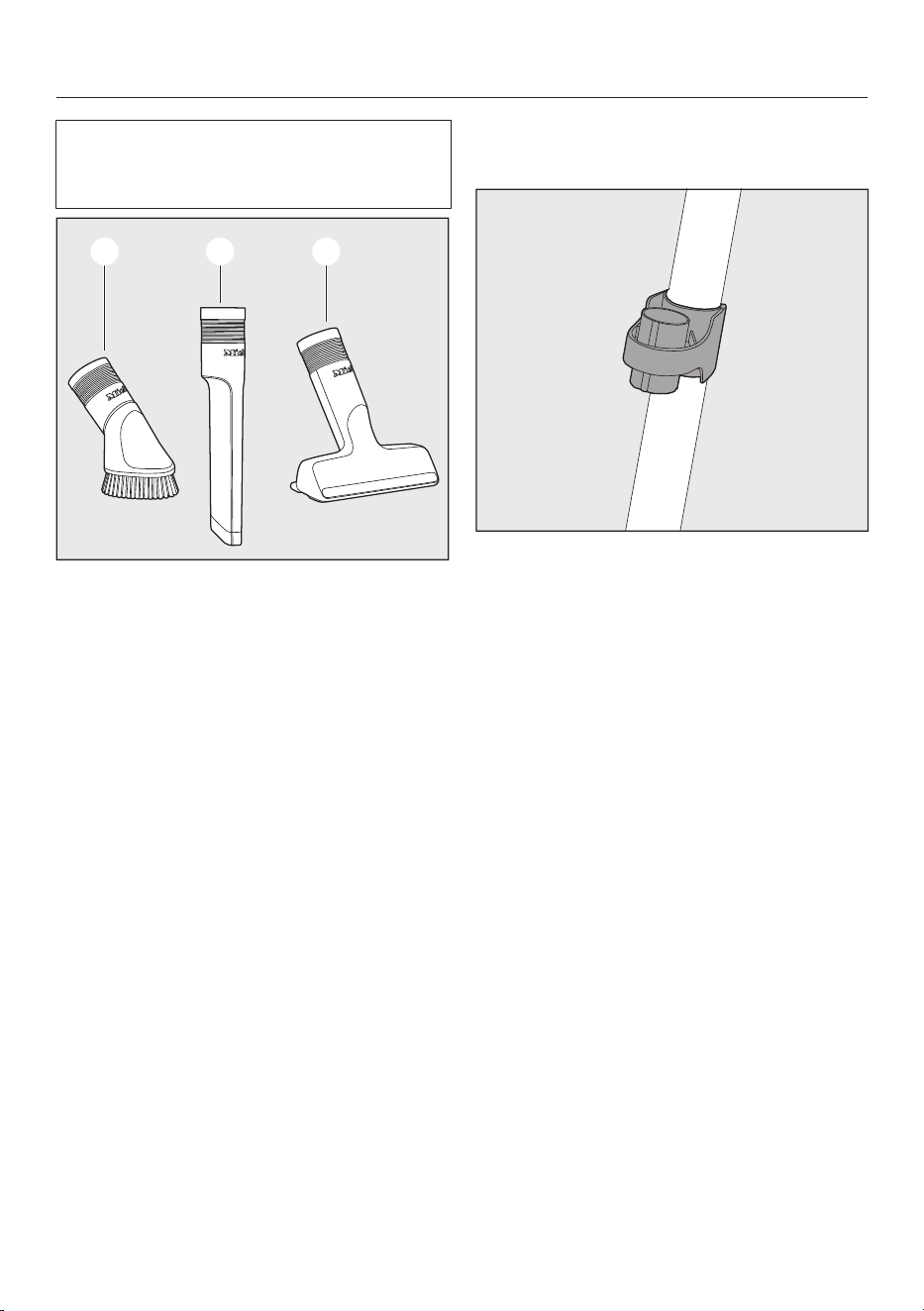

Accessories holder for the suc-
tion tube
This accessories holder allows you to
carry around 2accessories from the
three-piece accessory set while you va-
cuum.
Using the supplied accessories
24

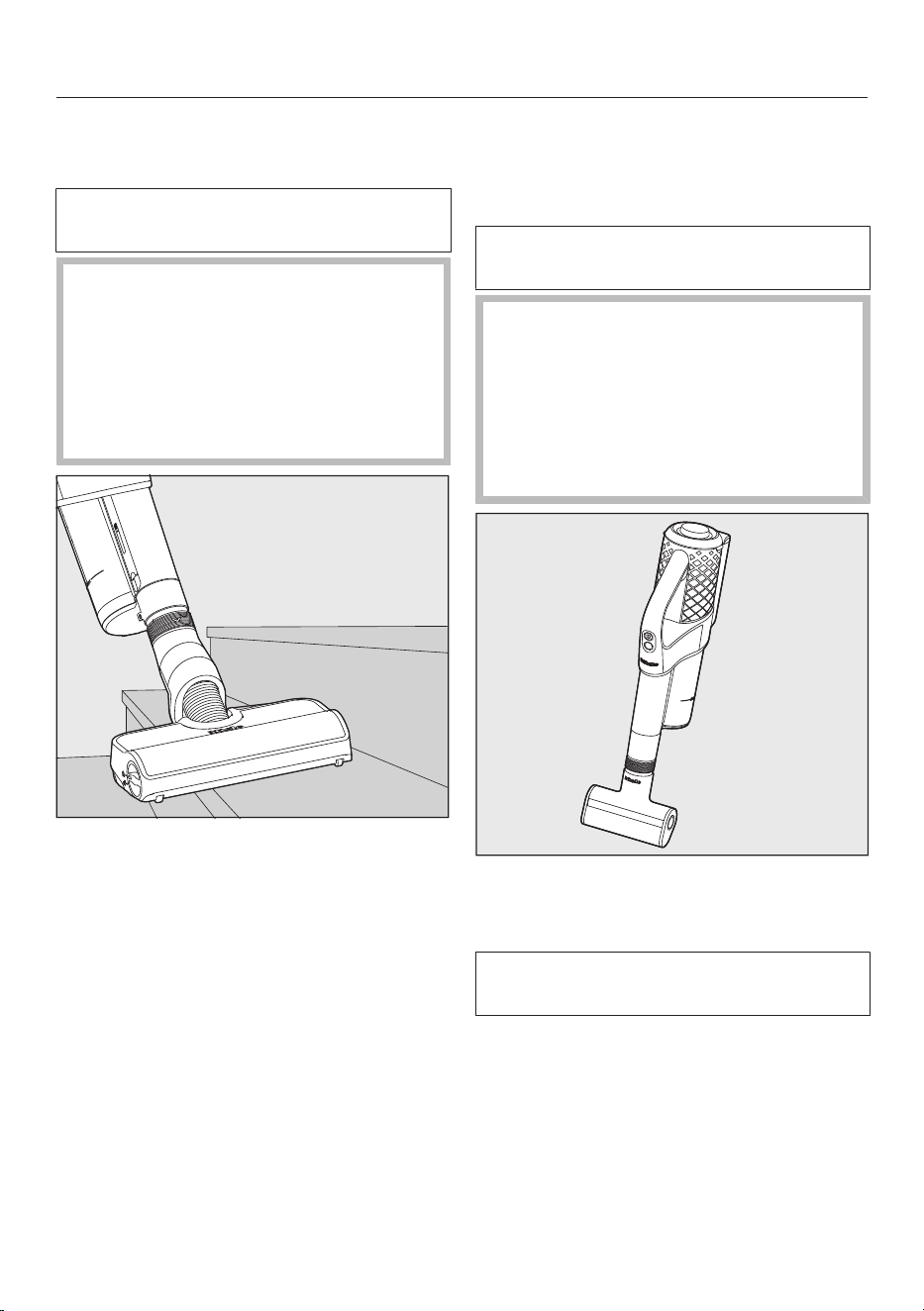

MultiFloor electrobrush (HX-
EB20)
Follow the flooring manufacturer’s
cleaning and care instructions.
Damage caused by trapped ma-
terial.
Risk of the flooring getting scratched.
Make sure that there is no coarse dirt
or debris trapped in the bottom of
the electrobrush, e.g. shards of glass
or stones.
The electrobrush can be used for daily
cleaning of carpets, rugs and hard
floors.
Tip: The suction tube is not a conveni-
ent option for cleaning carpeted stairs.
Tip: If you ever need to vacuum up sub-
stantial amounts of coarse dirt or
debris, use the PowerUnit solo configur-
ation concept (see “Operation” – “Us-
ing the PowerUnit solo”).
Electro Compact handheld
brush (HX-EC20)
(depending on the model)
Follow the flooring manufacturer’s
cleaning and care instructions.
Damage caused by trapped ma-
terial.
Risk of the flooring getting scratched.
Make sure that there is no coarse dirt
or debris trapped in the bottom of
the handheld brush, e.g. shards of
glass or stones.
The handheld brush is particularly suit-
able for intensive cleaning of upholstery
and car seats.
For optimum cleaning results on up-
holstery, use the upholstery nozzle.
Tip: The suction tube is not a conveni-
ent option for cleaning upholstery or car
seats.
Using the supplied accessories
25

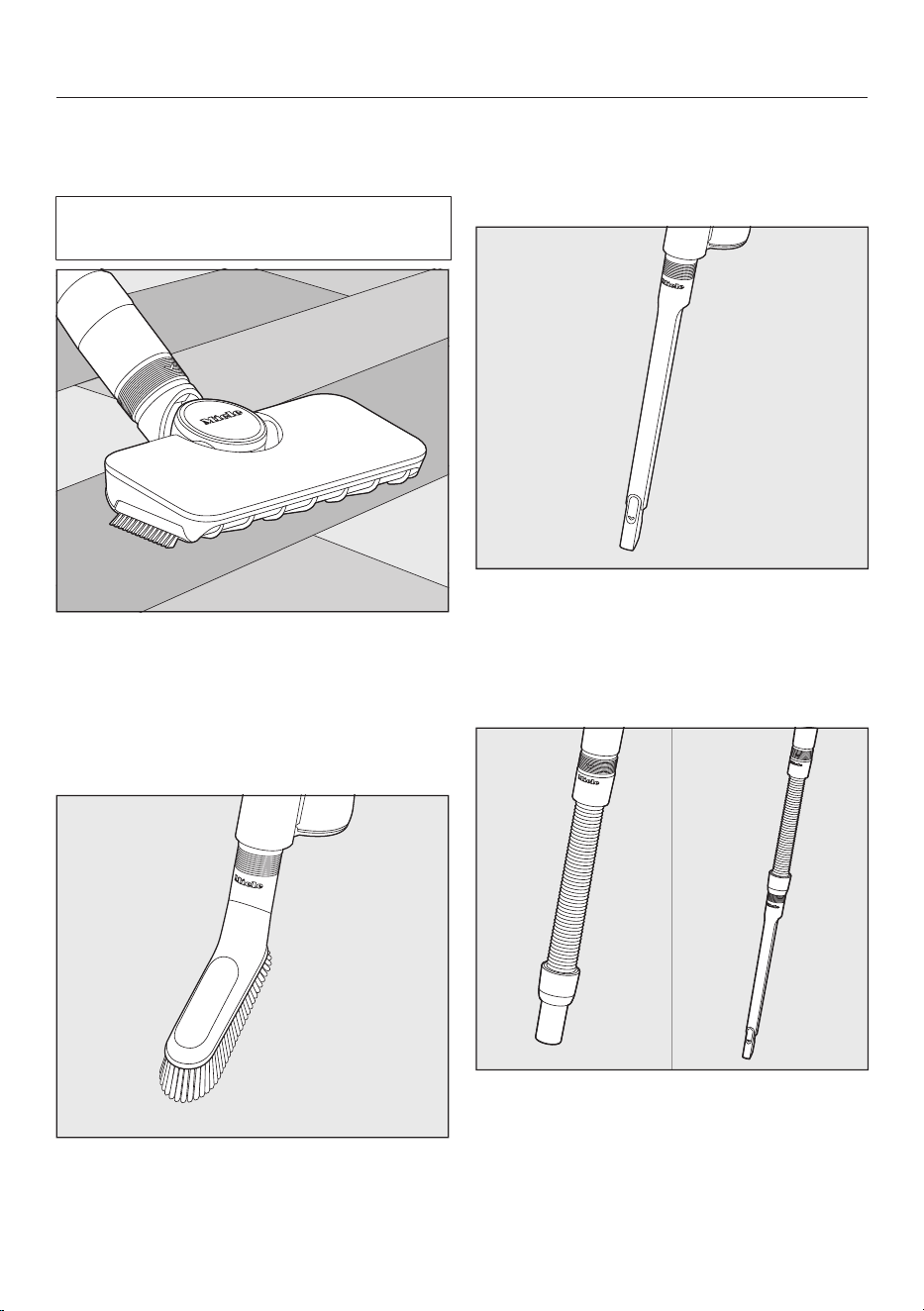

AllFloor floorbrush (HX-AF20)
(depending on the model)
Follow the flooring manufacturer’s
cleaning and care instructions.
This flat and light floorbrush is particu-
larly suitable for cleaning underneath
very low furniture.
Universal brush (HX-UB)
(depending on the model)
For gentle vacuuming of books, shelves
or similar.
Extendable flexible XL crevice
nozzle (HX-CNXL)
(depending on the model)
Can reach 60cm for cleaning hard-to-
reach areas.
Hose extension (HX-FSH20)
(depending on the model)
The hose extension can be extended to
a maximum length of 120cm. It can be
extended further using the extendable
flexible crevice nozzle.
Operation
26

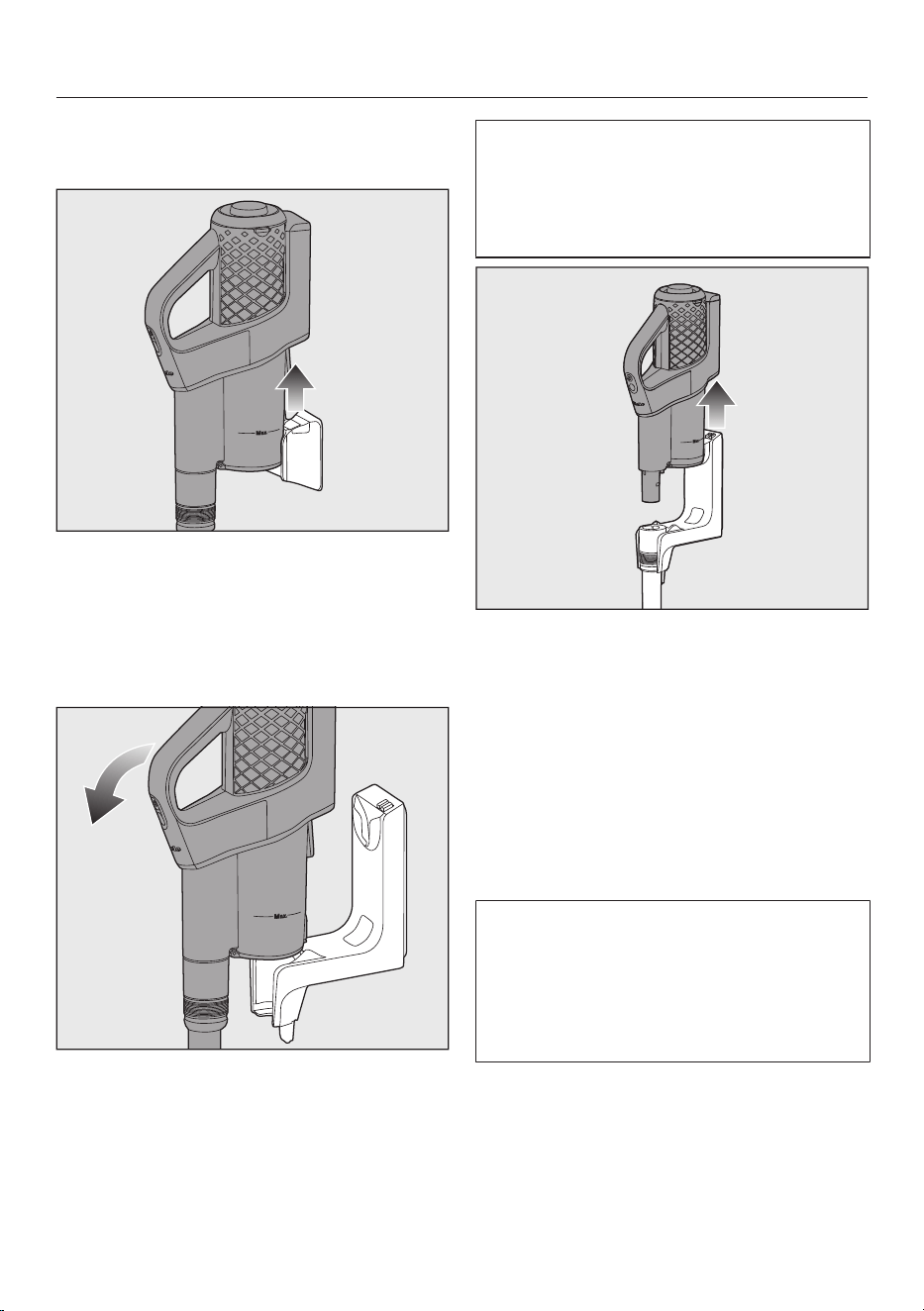

Removing the vacuum cleaner
from the standard wall bracket
Remove the vacuum cleaner from the
wall bracket by pulling it upwards.
Removing the vacuum cleaner
from the SpeedLock wall
bracket
Remove the vacuum cleaner from the
wall bracket by pulling it forwards.
The SpeedLock wall bracket offers the
option of using the PowerUnit con-
veniently as a PowerUnit solo, without
having to release it manually from the
suction tube.
Pull the PowerUnit upwards out of the
wall bracket guide.
The suction tube and the electrobrush
stay in the wall bracket.
Switching on and off
If you have charged the battery dir-
ectly, pull the charging plug out of the
charging socket on the bottom on the
rear of the PowerUnit.
For the best possible cleaning results,
always start the ComfortClean self-
cleaning function before switching on
the vacuum cleaner (see “Cleaning and
care” – “Activating the ComfortClean
self-cleaning function”).
Operation
27

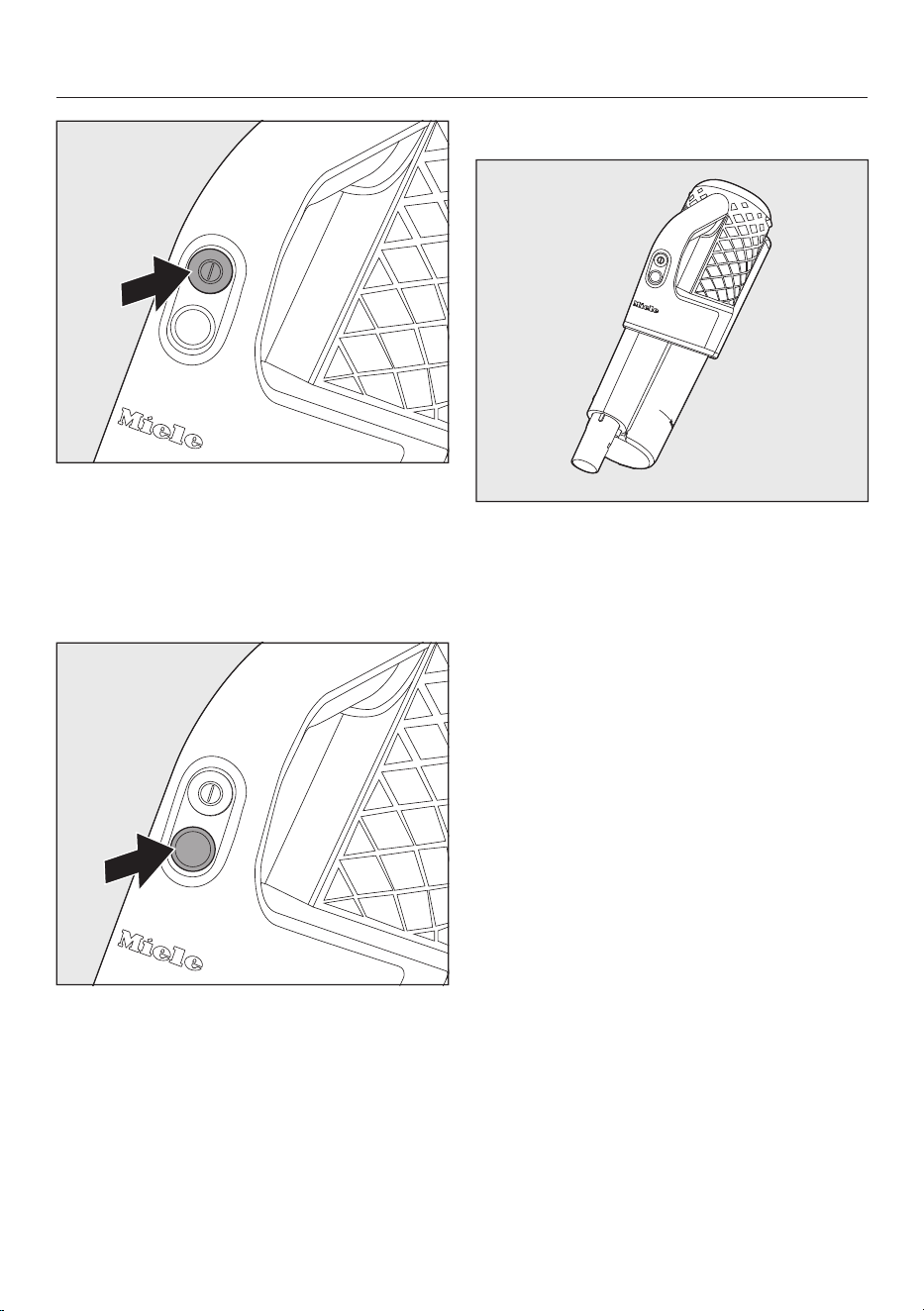

Press the upper button on the
handle.
The vacuum cleaner will switch on using
the lowest power level.
Increasing the suction power
Press the lower button on the handle.
The higher power level is selected and
the LED lights up.
Press the button again to return to the
lower power level.
Using the PowerUnit solo
The PowerUnit can be used on its own
without the suction tube and electro-
brush as a quick way of vacuuming up
crumbs and fluff in specific areas.
Tip: This configuration is particularly
suitable when using the three-piece ac-
cessory set (see “Using the supplied ac-
cessories”).
Cleaning and care
28
Risk of injury caused by rotating
roller brush.
You can injure yourself on the rotating
roller brush.
Always switch the vacuum cleaner
off before cleaning and caring for it.
Use the On/Off switch on the handle
to do this.

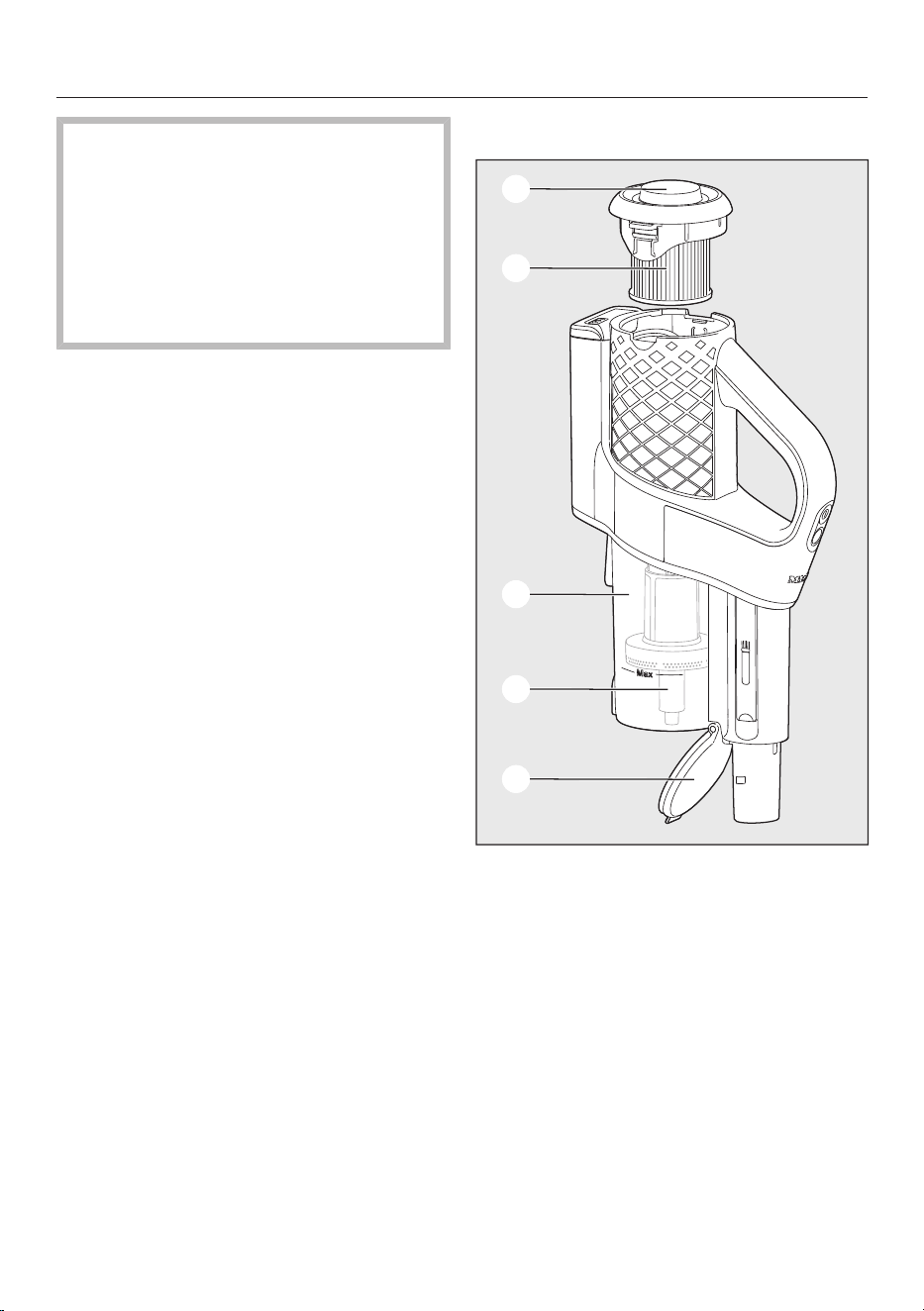

Filter system
Screw cap
Fine dust filter
Dust container
d Pre-filter
e Dust container flap
Cleaning and care
29

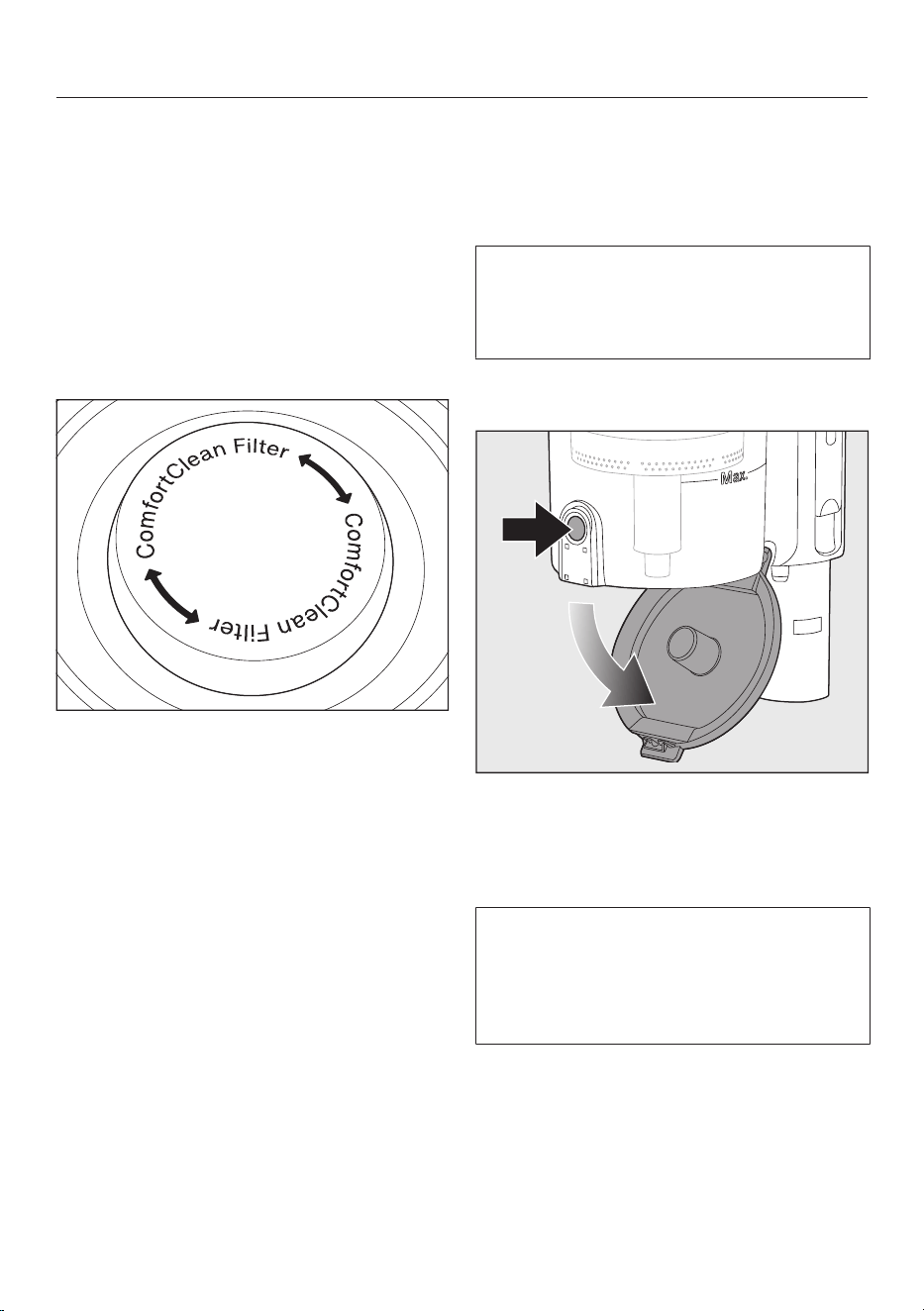

Activating the ComfortClean
self-cleaning function
Always run the interim cleaning function
for the fine dust filter before emptying
the dust container. You should also run
it whenever the suction power begins to
drop.
This enables the vacuum cleaner to
achieve the very best cleaning perform-
ance again straight away.
Turn the screw cap 3times by 180°.
When turning the cap, you will hear a
noise, which is a normal part of how the
ComfortClean self-cleaning function
works.
Emptying the dust container
Empty the dust container at the latest
when the dust has reached the Max.
marking on the dust container.
Provided that no prohibited sub-
stances are present, the contents of
the dust container can be disposed of
with normal household waste.

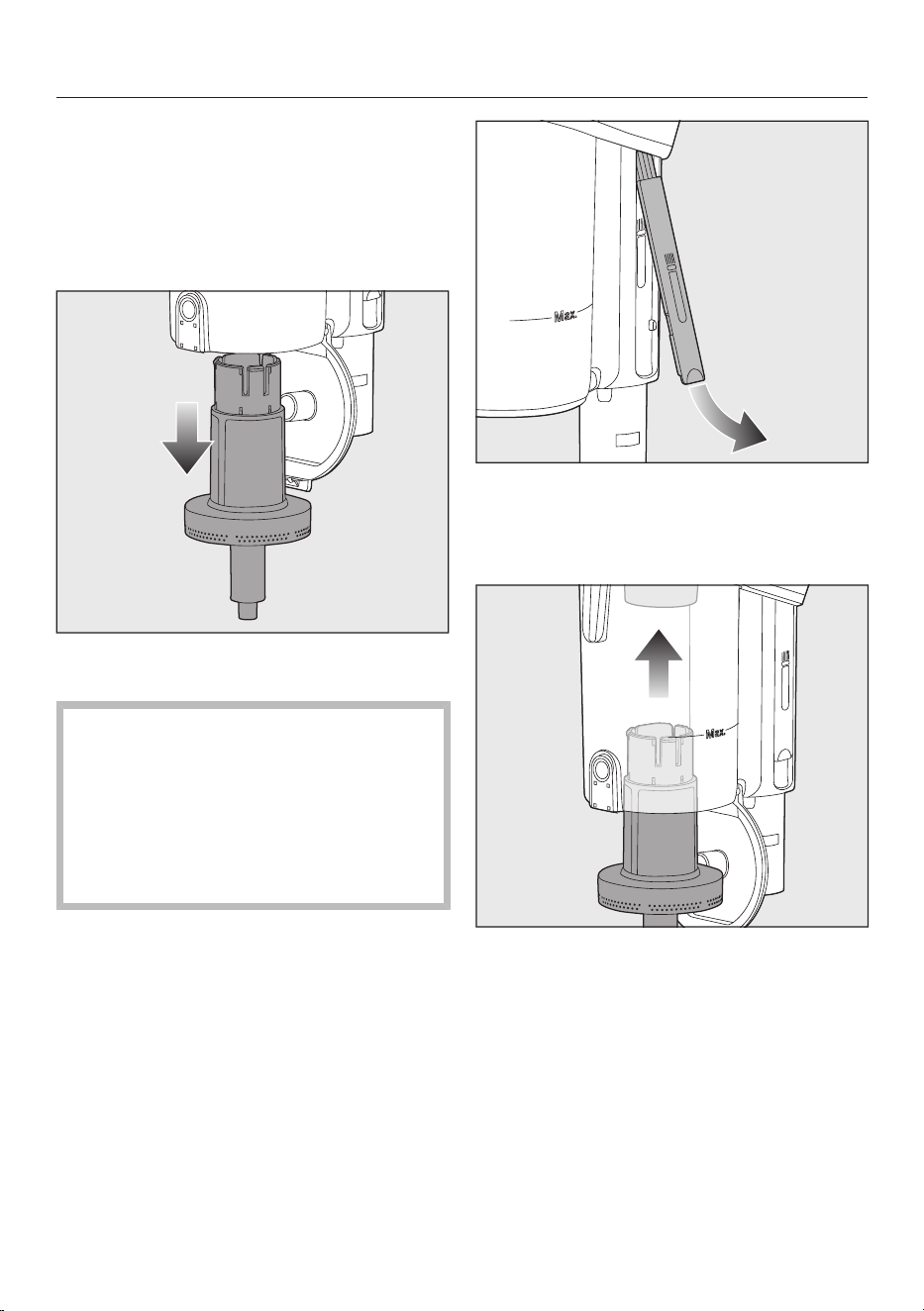

Hold the dust container close to the
bin to prevent dust from billowing out.
Press the release button on the bot-
tom of the dust container.
The flap will open and the dust will fall
out.

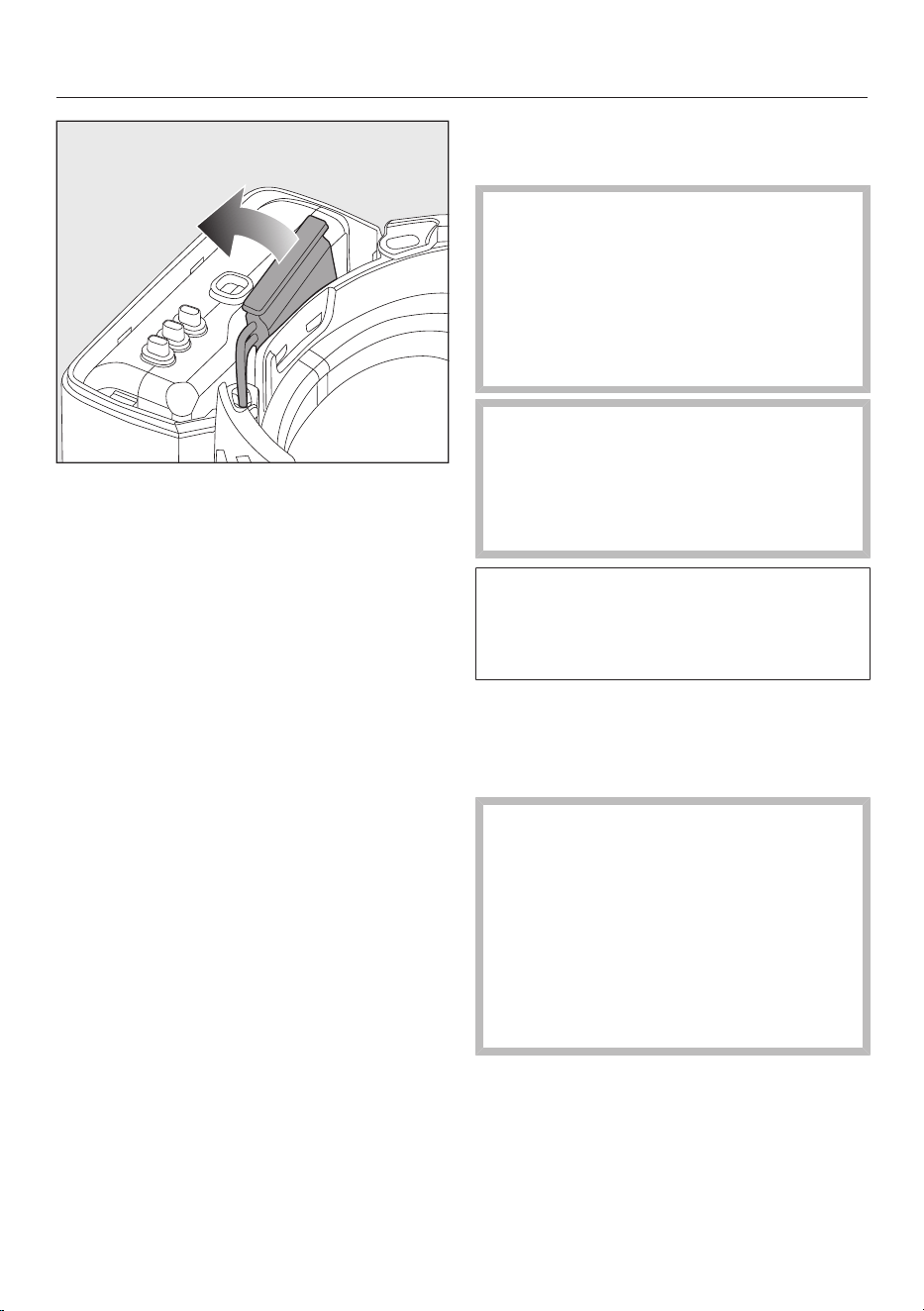

If dust balls, hair or coarse debris do
not fall out, remove the pre-filter by
pulling it downwards (see the following
section: “Cleaning the dust container
and pre-filter”).
Close the dust container flap, making
sure it clicks into place.
Cleaning and care
30
Cleaning the dust container and
pre-filter
Clean the dust container and pre-filter
as required.
Empty the dust container over a bin.
Remove the pre-filter by pulling it
downwards.
Risk of damage caused by incor-
rect cleaning.
The pre-filter can become damaged
and be less effective as a result.
Do not clean the pre-filter with water.
Do not use pointed or sharp-edged
objects to clean the filter.
Clean the dust container and pre-filter
with a dry cloth or with a cleaning tool
which is located on the side of the
PowerUnit.
Reinsert the cleaned pre-filter into the
cleaned dust container as far as it will
go.
Close the dust container flap, making
sure it clicks into place.
Cleaning the fine dust filter
Clean the fine dust filter thoroughly at
least once every 3months outside the
PowerUnit.
Cleaning and care
31
Risk of damage caused by incor-
rect cleaning.
The fine dust filter can become dam-
aged and be less effective as a result.
Do not clean the fine dust filter with
water and avoid cleaning the inside.
Do not use pointed or sharp-edged
objects to clean the filter. Do not
brush the fine dust filter (not even
with the cleaning tool supplied).

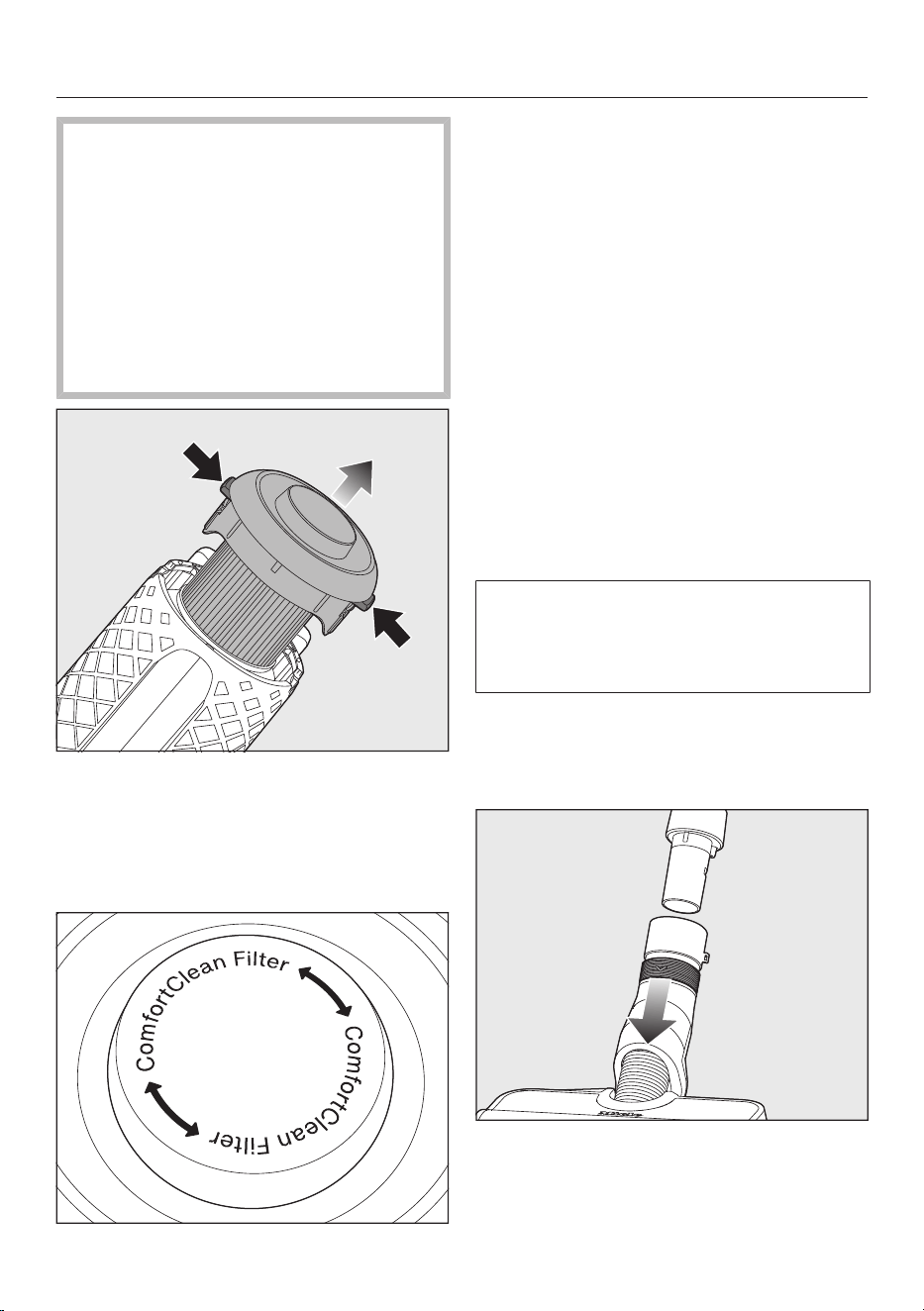

Press both release buttons at the side
of the fine dust filter lid and remove
the fine dust filter by pulling it up-
wards.
Hold the fine dust filter over a bin.
Take hold of the black section of the
fine dust filter underneath the screw
cap and turn the screw cap 10times
through 180°.
When turning the cap, you will hear a
noise, which is a normal part of how the
ComfortClean self-cleaning function
works.
Empty the fine dust filter by carefully
tapping the lower edge.
Turn the fine dust filter slightly while
you do this to free the dirt from all of
the crevices.
Refit the cleaned fine dust filter into
the PowerUnit, making sure it clicks
into position.
To continue achieving the best pos-
sible cleaning results, replace the fine
dust filter (HX-FDF20) with a new one
after approx. 3years.
Cleaning the electrobrush/
handheld brush (depending on
the model)
Disconnect the electrobrush/hand-
held brush from the vacuum cleaner.
Cleaning and care
32
Place the electrobrush/handheld
brush upside down on a level, clean
surface.

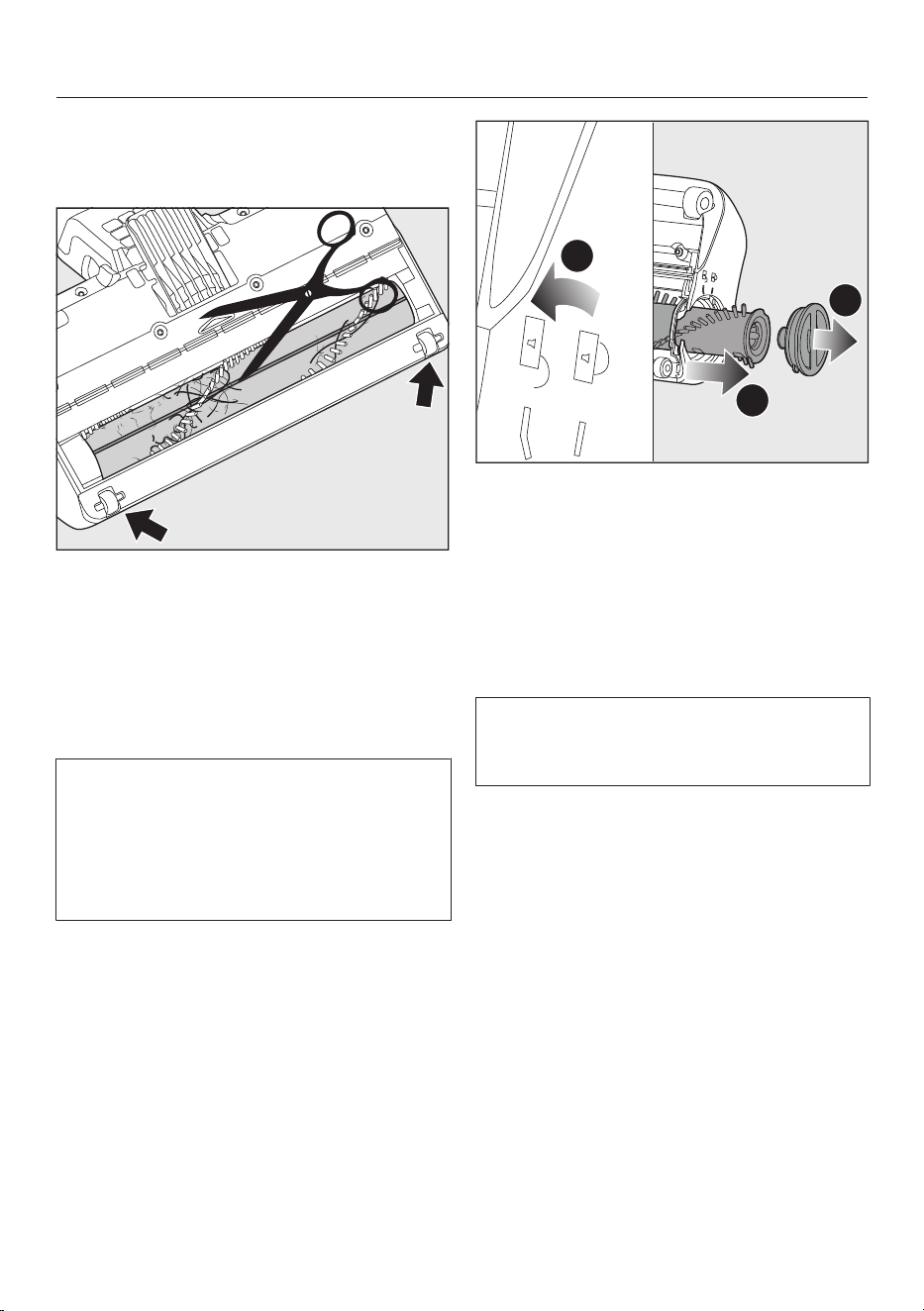

Cut any threads or hairs that have
wound themselves around the roller
brush with a pair of scissors. To guide
the scissors, there are two guide
tracks on the roller brush.
Then run the vacuum cleaner to vacuum
up the cut threads and hairs.

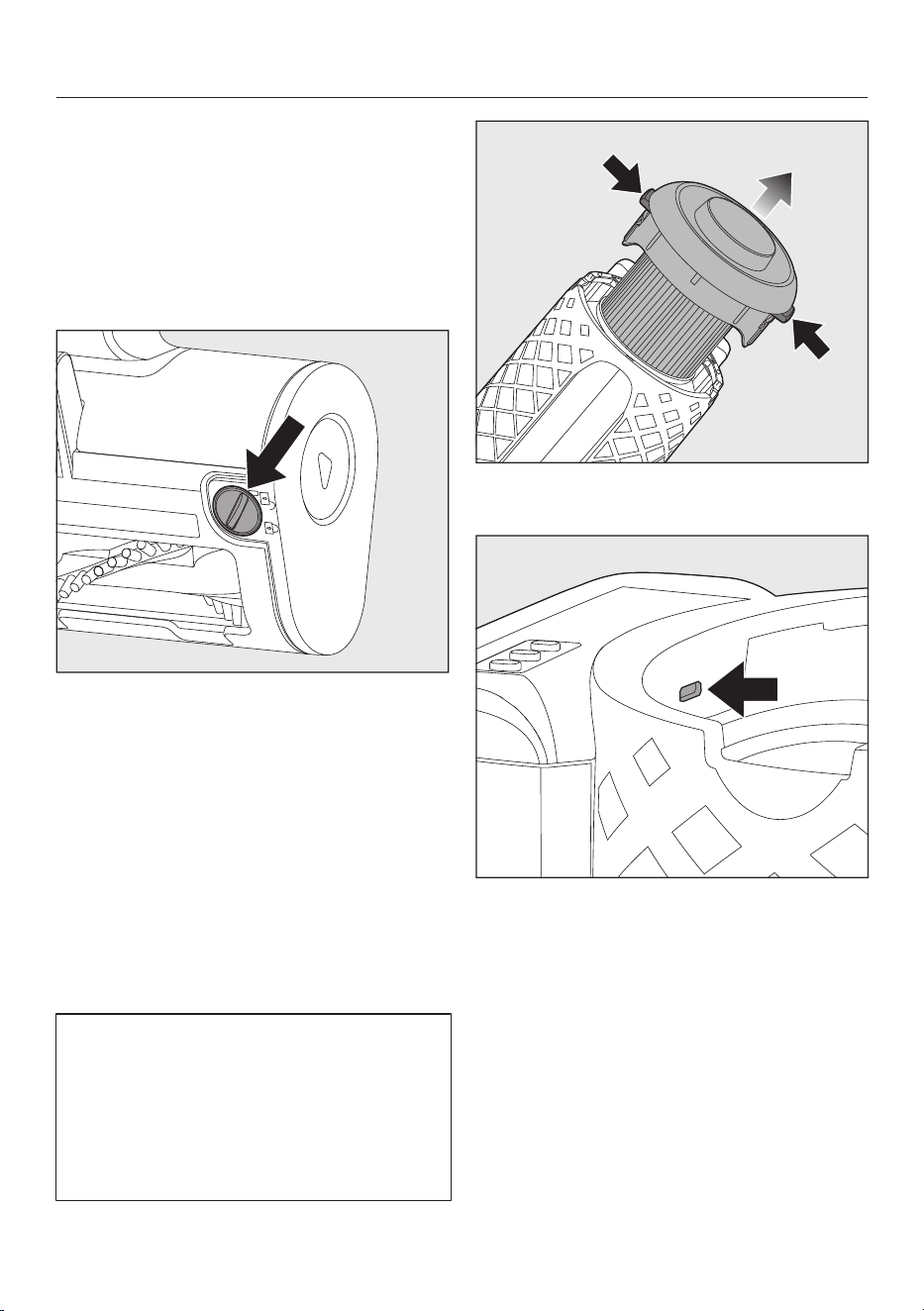

If the small running wheels are very
heavily soiled or blocked, you can re-
move them for easier cleaning (not
possible in the case of the handheld
brush). To remove them, use a flat-
head screwdriver.
Removing the roller brush from
the electrobrush
You can take the roller brush out of the
electrobrush in order to remove stub-
born soiling and clean the inside of the
electrobrush.
1
3
2
A Turn the arrow on the handle on the
side of the electrobrush to the
symbol.
The roller brush is released.
B Remove the roller brush.
Clean the roller brush and remove any
stubborn dirt inside the electrobrush.
If there is heavy soiling between the
handle and the roller brush, you can re-
lease the handle.
C Pull lightly on the handle until it is re-
leased.
Remove the soiling.
Lock the cleaned handle back into the
roller brush.
Push the roller brush as far as it will
go into the electrobrush until it is in
position.
Lock the roller brush.
Cleaning and care
33
Removing the roller brush from
the handheld brush (depending
on the model)
You can take the roller brush out of the
handheld brush in order to remove stub-
born soiling and clean the inside of the
handheld brush.
A Release the roller brush using a coin.
B Remove the roller brush.
Clean the roller brush and remove any
stubborn dirt inside the handheld
brush.
Reassemble the handheld brush in re-
verse order.
Replacing the battery
An original Miele AP10/AP11 lithium-ion
rechargeable battery is required.
Follow the instructions regarding the
handling and disposal of rechargeable
batteries found in the following sec-
tions: “Warning and safety notes”,
“Sustainability and environmental pro-
tection” and “Commissioning” (“Gen-
eral battery information”).
Remove the fine dust filter from the
PowerUnit.
Use a flat-head screwdriver to care-
fully release the battery compartment
cover.
Cleaning and care
34
Carefully release the plug and replace
the battery.
Reinsert the plug, making sure that it
fits properly.
Close the battery compartment and
reinsert the fine dust filter into the
PowerUnit, making sure it clicks into
position.
Caring for the vacuum cleaner
and accessories
Risk of injury caused by rotating
roller brush.
You can injure yourself on the rotating
roller brush.
Always switch the vacuum cleaner
off before caring for it. Use the On/
Off switch on the handle to do this.
Risk of electric shock from mains
voltage.
If moisture gets into the charger,
there is a risk of electric shock.
Do not let the charger get wet.
Follow the special cleaning instruc-
tions for the pre-filter, fine dust filter
and dust container in the “Cleaning
and care” section.
The vacuum cleaner and all plastic ac-
cessories should be cleaned with a
commercially available cleaner suitable
for plastic.
Damage due to unsuitable clean-
ing agents.
All surfaces are susceptible to
scratching. Contact with unsuitable
cleaning agents can alter or discolour
all surfaces.
Do not use abrasive cleaning agents,
glass cleaning agents, all-purpose
cleaners or oil-based care products.
Troubleshooting
35
Many malfunctions and faults that can occur in daily operation can be easily
remedied. You can save time and money in many cases, as you do not need to call
the Miele Customer Service Department.
Information to help you remedy faults yourself can be found at www.miele.com/
service.
The following tables are designed to help you to find the cause of a malfunction or a
fault and to resolve it.
Risk of injury caused by rotating roller brush.
You can injure yourself on the rotating roller brush.
Switch the vacuum cleaner off before dealing with any problems. Use the On/
Off switch on the handle to do this.
Problem Cause and remedy
Battery charging state
indicator when switch-
ing on: left and middle
indicators flash rapidly.
Temperature fault
Wait for approximately 30minutes before switch-
ing the vacuum cleaner back on again.
Battery charging state
indicator when charging:
right and middle indicat-
ors flash rapidly
Battery errors
If you are charging the battery without a wall
mounting, pull the charging plug out of the char-
ging socket on the rear of the PowerUnit.
Remove the vacuum cleaner from the wall bracket
if you are charging the battery in the wall bracket..
Wait approx. 5minutes before continuing to charge
the battery.
It is essential to take prescribed ambient temperat-
ures into account when charging and changing the
battery; see “Warning and safety notes”.
LED on the handle is
flashing.
“Battery is discharged” fault
Charge the battery (see “Commissioning” – “Gen-
eral battery information” and “Charging the bat-
tery”).
Internal system error
Check the vacuum cleaner airways for any block-
ages.
Clean the dust container, pre-filter and fine dust fil-
ter (see “Cleaning and care”).
Wait for approximately 30minutes before switch-
ing the vacuum cleaner back on again.
Troubleshooting
36
Problem Cause and remedy
The vacuum cleaner
does not start when it is
switched on.
The rechargeable battery is not sufficiently charged.
Charge the battery (see “Commissioning” – “Gen-
eral battery information” and “Charging the bat-
tery”).
An original Miele battery has not been inserted.
Insert an original Miele AP10/AP11 lithium-ion re-
chargeable battery.
The charging plug is still plugged in.
If you are charging the battery without a wall
mounting, pull the charging plug out of the char-
ging socket on the rear of the PowerUnit.
Remove the vacuum cleaner from the wall bracket
if you are charging the battery in the wall bracket.
The cleaning perform-
ance is poor.
The battery life is de-
creasing.
The dust container is full.
Empty the dust container (see “Cleaning and care”
– “Emptying the dust container”).
The dust container/pre-filter is dirty.
Clean the dust container and the pre-filter (see
“Cleaning and care” – “Cleaning the dust container
and pre-filter”).
The fine dust filter is dirty.
Run the interim cleaning function for the fine dust
filter (see “Cleaning and care” – “Activating the
ComfortClean self-cleaning function”).
Clean the fine dust filter (see “Cleaning and care” –
“Cleaning the fine dust filter”).
The electrobrush is dirty/blocked.
Clean the electrobrush (see “Cleaning and care” –
“Cleaning the electrobrush” and “Removing the
roller brush from the electrobrush”).
The airways are blocked.
Clean all the airways.
The fine dust filter is worn.
Insert a new fine dust filter.
Troubleshooting
37
Problem Cause and remedy
The operating noise is
changing during vacu-
uming.
The airways are soiled.
Clean all the airways.
The electrobrush power rating is automatically set to
the optimum level based on the type of flooring.
The noise is not unusual – the vacuum cleaner is
functioning normally.
The electrobrush
switches itself off.
The electrobrush is overloaded – this can happen on
surfaces like deep-pile carpet.
Switch the vacuum cleaner off and on again. Use
the On/Off switch on the handle to do this.
The roller brush is not
rotating.
The roller brush is dirty.
Clean the roller brush (see “Cleaning and care” –
“Cleaning the electrobrush” and “Removing the
roller brush from the electrobrush”).
Service
38
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in case of malfunction
In the event of any faults which you can-
not remedy yourself, please contact
Miele.
Contact information for Miele can be
found at the end of this document.
Warranty
The manufacturer's warranty for this ap-
pliance is 2 years.
For more information about country
specific warranty terms and conditions,
please contact Miele.
Optional accessories
39
Follow the flooring manufacturer’s
cleaning and care instructions.
We recommend using only genuine
Miele accessories bearing the Miele
logo on the packaging. Only these will
guarantee the optimum performance
of your vacuum cleaner and the best
possible cleaning results.
Please note that faults and damage
caused by use of accessories which do
not bear the Miele logo on the pack-
aging are not covered by the vacuum
cleaner warranty.
Purchasing accessories
Original Miele accessories are available
from the Miele webshop, the Miele
Customer Service Department and from
your Miele dealer.
Original Miele accessories are identified
by the Miele logo on the packaging.
With 3D4U, Miele also offers free ac-
cessories to download for your 3D
printer (www.miele.com, Service,
3D4U).
Certain models are supplied with one or
more of the following accessories as
standard.
Electro Compact handheld
brush (HX-EC20)
For intensive cleaning of car seats and
carpeted stairs.
Hardfloor Care soft roller
(HX-HCT20)
For cleaning delicate hard floors.
Insert the HardfloorCaresoftroller into
the electrobrush instead of the roller
brush fitted as standard (see “Cleaning
and care” – “Removing the roller brush
from the electrobrush”).
AllFloor floorbrush (HX-AF20)
Flat floorbrush for cleaning underneath
very low furniture. It is also quiet, light
and stands out due to its very good
pick-up of coarse dirt.
Universal brush (HX-UB)
For gentle vacuuming of books, shelves
or similar.
Extendable flexible XL crevice
nozzle (HX-CNXL)
The flexible crevice nozzle can reach
60cm for cleaning hard-to-reach areas.
Hose extension (HX-FSH20)
For increasing the vacuuming radius by
maximum 120cm.
Electrical connection
40
All work should be carried out by a suit-
ably qualified and competent person in
strict accordance with national and local
safety regulations. The voltage and rated
load are given on the data plate located
underneath the vacuum cleaner. Please
ensure that these match the household
mains supply. The charger is supplied
with a cable and moulded plug ready for
connection to a 230V/50Hz AC single
phase supply.
Test Marks Electrical safety
RCM Mark
Electrically sup-
pressed
according to
CISPR 14.1
Miele Australia Pty. Ltd.
Miele New Zealand Limited
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
1300 464 353 (1300 4 MIELE)
www.miele.com.au
SQLL0 - 0624 M.-Nr. 12 471 421 / 00
