Milwaukee 2441-20 M12 10oz. Caulk And Adhesive Gun User Manual

OPERATOR'S MANUAL

MANUEL de L'UTILISATEUR

MANUAL del OPERADOR

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S

MANUAL.

AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN

COMPRENDRE LE MANUEL DE L'UTILISATEUR.

PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL

MANUAL DEL OPERADOR.

M12™ CORDLESS CAULK AND ADHESIVE GUN

PISTOLET À COLLE ET CALFEUTRAGE M12™

PISTOLA DE CALAFATEO Y APLICACION DE ADHESIVO DE M12™

Cat. No.

No de cat.

2441-20 Series

Série 2441-20

Serie 2441-20

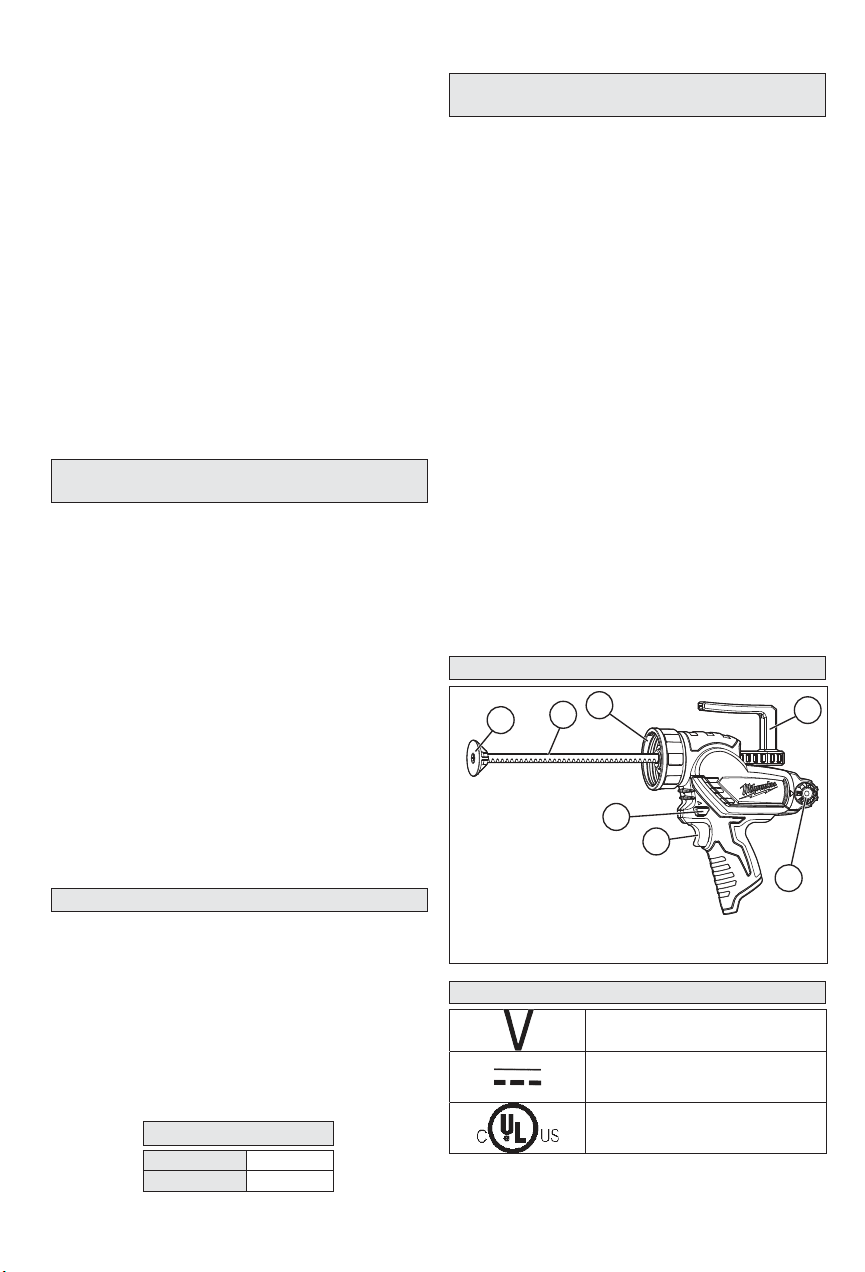

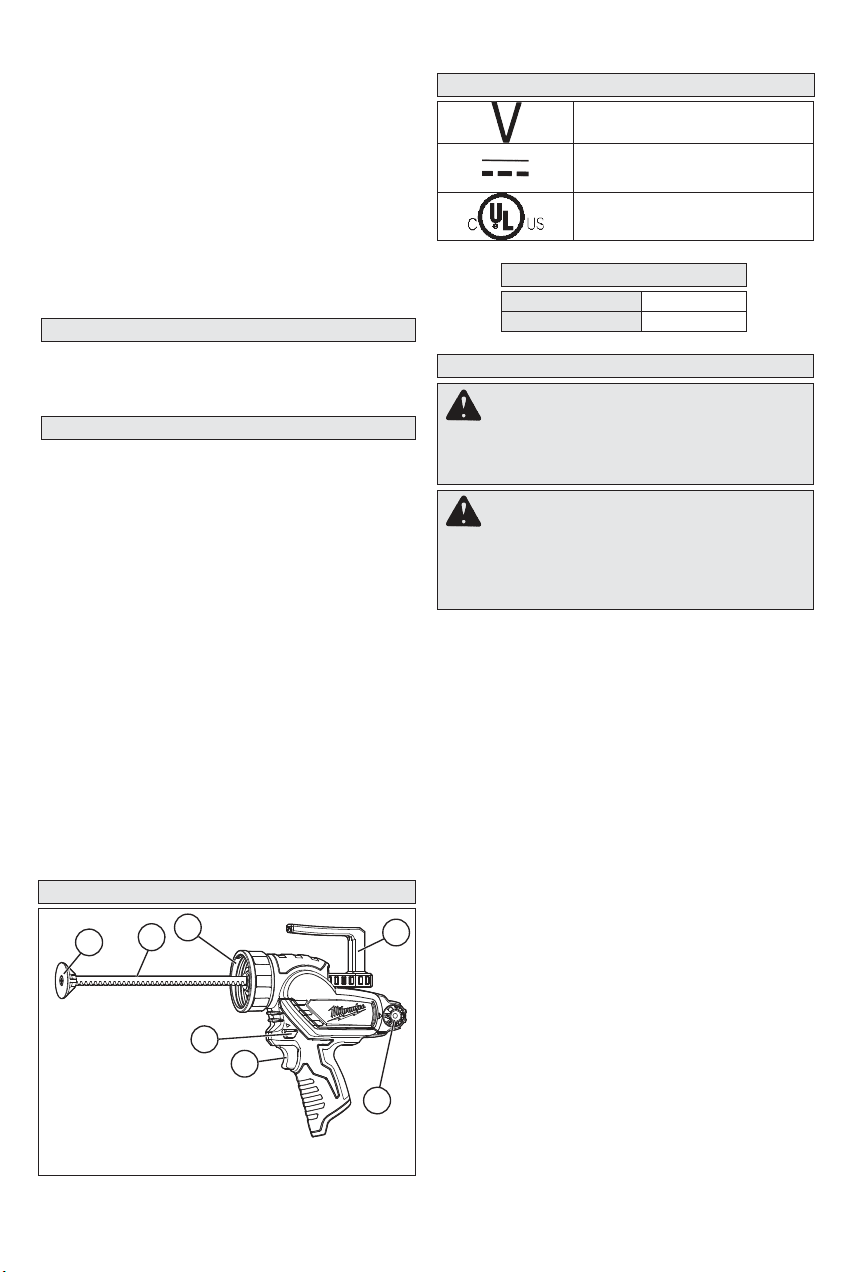

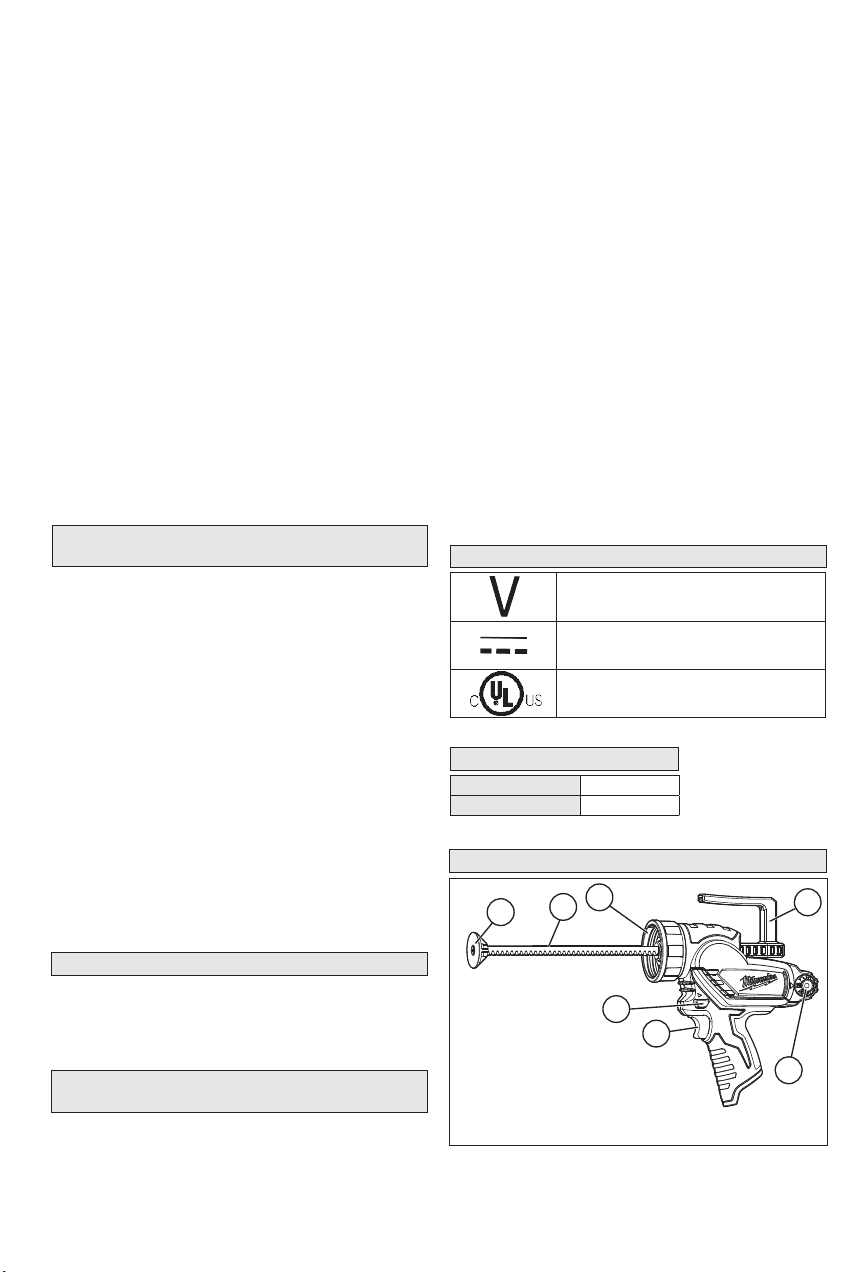

FUNCTIONAL DESCRIPTION

SPECIFICATIONS

Cat. No. Volts DC

2441 Series 12

SYMBOLOGY

Volts

Direct Current

Underwriters Laboratories, Inc.

United States and Canada

SPECIFIC SAFETY RULES

• Keep hands out of the piston and rod area of

the caulk gun. Fingers can be pinched between

the tube holder and the piston.

• Maintain labels and nameplates. These carry

important information. If unreadable or missing,

contact a MILWAUKEE service facility for a free

replacement.

• WARNING Some dust created by power sanding,

sawing, grinding, drilling, and other construction

activities contains chemicals known to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other

masonry products, and

• arsenic and chromium from chemically-treated

lumber.

Your risk from these exposures varies, depending

on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well

ventilated area, and work with approved safety

equipment, such as those dust masks that are spe-

cially designed to ﬁ lter out microscopic particles.

1. Piston

2. Rod

3. Carriage collar

4. Rod handle

5. Speed dial

6. Trigger

7. Control switch

PERSONAL SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WORK AREA SAFETY

ELECTRICAL SAFETY

• Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

• Do not operate power tools in explosive atmo-

spheres, such as in the presence of ﬂ ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Keep children and bystanders away while

operating a power tool. Distractions can cause

you to lose control.

• Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power

tools. Unmodiﬁ ed plugs and matching outlets will

reduce risk of electric shock.

• Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase

the risk of electric shock.

• Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords

increase the risk of electric shock.

• When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use

of a cord suitable for outdoor use reduces the risk

of electric shock.

• If operating a power tool in a damp location

is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces

the risk of electric shock.

• Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewel-

lery or long hair can be caught in moving parts.

• If devices are provided for the connection of

dust extraction and collection facilities, ensure

these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct

power tool for your application. The correct

power tool will do the job better and safer at the

rate for which it was designed.

• Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must

be repaired.

• Disconnect the plug from the power source

and/or the battery pack from the power tool

before making any adjustments, changing

accessories, or storing power tools. Such

preventive safety measures reduce the risk of

starting the power tool accidentally.

• Store idle power tools out of the reach of chil-

dren and do not allow persons unfamiliar with

the power tool or these instructions to operate

the power tool. Power tools are dangerous in the

hands of untrained users.

• Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts

and any other condition that may affect the

power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits

etc., in accordance with these instructions,

taking into account the working conditions and

the work to be performed. Use of the power tool

for operations different from those intended could

result in a hazardous situation.

• Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under

the inﬂ uence of drugs, alcohol or medication. A

moment of inattention while operating power tools

may result in serious personal injury.

• Use personal protective equipment. Always

wear eye protection. Protective equipment such

as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions

will reduce personal injuries.

• Prevent unintentional starting. Ensure the

switch is in the off-position before connecting

to power source and/or battery pack, picking

up or carrying the tool. Carrying power tools with

your ﬁ nger on the switch or energising power tools

that have the switch on invites accidents.

• Recharge only with the charger speciﬁ ed by

the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of ﬁ re

when used with another battery pack.

BATTERY TOOL USE AND CARE

WARNING

READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.

Failure to follow the warnings and instructions may result in electric shock, ﬁ re and/or

serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or

battery-operated (cordless) power tool.

• Use power tools only with speciﬁ cally desig-

nated battery packs. Use of any other battery

packs may create a risk of injury and ﬁ re.

• When battery pack is not in use, keep it away

from other metal objects like paper clips,

coins, keys, nails, screws, or other small metal

objects that can make a connection from one

terminal to another. Shorting the battery termi-

nals together may cause burns or a ﬁ re.

• Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact ac-

cidentally occurs, ﬂ ush with water. If liquid con-

tacts eyes, additionally seek medical help. Liquid

ejected from the battery may cause irritation or burns.

SERVICE

• Have your power tool serviced by a qualiﬁ ed

repair person using only identical replacement

parts. This will ensure that the safety of the power

tool is maintained.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

Inserting/Removing the Battery

To remove the battery, push in the release buttons

and pull the battery pack away from the tool.

To insert the battery, slide the pack into the body

of the tool. Make sure it latches securely into place.

Inserting the Rod

The piston and rod must match the carriage be-

ing used to avoid possible damage to the tool or

material. Use only rods and carriages speciﬁ cally

designed for the M12 Caulk and Adhesive Gun.

Other rods and carriages may cause damage to

the tool.

1. Push the control switch to the Rack Release

position. Remove the battery pack.

2. Grasp the rod handle. The teeth on the rod

should point down.

3. Insert the rod from the rear of the tool. It may be

necessary to wiggle the rod slightly while pushing

it through the tool. Do not run the tool to pull the

rod through the tool, this will damage the tool

and rod.

4. Attach the piston.

NOTE: Keep the piston and rod clean. Retracting

or inserting a piston that is covered with material

may damage the internal parts of the tool.

Installing the Carriage or Barrel

Use only rods and carriages speciﬁ cally designed

for the M12 Caulk and Adhesive Gun. Other rods

and carriages may cause damage to the tool.

Place the carriage over the piston and rod. Hold the

carriage collar securely while screwing the carriage

into the collar.

ASSEMBLY

WARNING

Recharge only with the

charger specified for the battery. For spe-

ciﬁ c charging instructions, read the operator’s

manual supplied with your charger and battery.

FUNCTIONAL DESCRIPTION

SPECIFICATIONS

Cat. No. Volts DC

2441 Series 12

SYMBOLOGY

Volts

Direct Current

Underwriters Laboratories, Inc.

United States and Canada

SPECIFIC SAFETY RULES

• Keep hands out of the piston and rod area of

the caulk gun. Fingers can be pinched between

the tube holder and the piston.

• Maintain labels and nameplates. These carry

important information. If unreadable or missing,

contact a MILWAUKEE service facility for a free

replacement.

• WARNING Some dust created by power sanding,

sawing, grinding, drilling, and other construction

activities contains chemicals known to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other

masonry products, and

• arsenic and chromium from chemically-treated

lumber.

Your risk from these exposures varies, depending

on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well

ventilated area, and work with approved safety

equipment, such as those dust masks that are spe-

cially designed to ﬁ lter out microscopic particles.

1. Piston

2. Rod

3. Carriage collar

4. Rod handle

5. Speed dial

6. Trigger

7. Control switch

PERSONAL SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WORK AREA SAFETY

ELECTRICAL SAFETY

• Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

• Do not operate power tools in explosive atmo-

spheres, such as in the presence of ﬂ ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Keep children and bystanders away while

operating a power tool. Distractions can cause

you to lose control.

• Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power

tools. Unmodiﬁ ed plugs and matching outlets will

reduce risk of electric shock.

• Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase

the risk of electric shock.

• Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled cords

increase the risk of electric shock.

• When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use

of a cord suitable for outdoor use reduces the risk

of electric shock.

• If operating a power tool in a damp location

is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces

the risk of electric shock.

• Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewel-

lery or long hair can be caught in moving parts.

• If devices are provided for the connection of

dust extraction and collection facilities, ensure

these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct

power tool for your application. The correct

power tool will do the job better and safer at the

rate for which it was designed.

• Do not use the power tool if the switch does not

turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must

be repaired.

• Disconnect the plug from the power source

and/or the battery pack from the power tool

before making any adjustments, changing

accessories, or storing power tools. Such

preventive safety measures reduce the risk of

starting the power tool accidentally.

• Store idle power tools out of the reach of chil-

dren and do not allow persons unfamiliar with

the power tool or these instructions to operate

the power tool. Power tools are dangerous in the

hands of untrained users.

• Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts

and any other condition that may affect the

power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits

etc., in accordance with these instructions,

taking into account the working conditions and

the work to be performed. Use of the power tool

for operations different from those intended could

result in a hazardous situation.

• Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under

the inﬂ uence of drugs, alcohol or medication. A

moment of inattention while operating power tools

may result in serious personal injury.

• Use personal protective equipment. Always

wear eye protection. Protective equipment such

as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions

will reduce personal injuries.

• Prevent unintentional starting. Ensure the

switch is in the off-position before connecting

to power source and/or battery pack, picking

up or carrying the tool. Carrying power tools with

your ﬁ nger on the switch or energising power tools

that have the switch on invites accidents.

• Recharge only with the charger speciﬁ ed by

the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of ﬁ re

when used with another battery pack.

BATTERY TOOL USE AND CARE

WARNING

READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.

Failure to follow the warnings and instructions may result in electric shock, ﬁ re and/or

serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or

battery-operated (cordless) power tool.

• Use power tools only with speciﬁ cally desig-

nated battery packs. Use of any other battery

packs may create a risk of injury and ﬁ re.

• When battery pack is not in use, keep it away

from other metal objects like paper clips,

coins, keys, nails, screws, or other small metal

objects that can make a connection from one

terminal to another. Shorting the battery termi-

nals together may cause burns or a ﬁ re.

• Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact ac-

cidentally occurs, ﬂ ush with water. If liquid con-

tacts eyes, additionally seek medical help. Liquid

ejected from the battery may cause irritation or burns.

SERVICE

• Have your power tool serviced by a qualiﬁ ed

repair person using only identical replacement

parts. This will ensure that the safety of the power

tool is maintained.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

Inserting/Removing the Battery

To remove the battery, push in the release buttons

and pull the battery pack away from the tool.

To insert the battery, slide the pack into the body

of the tool. Make sure it latches securely into place.

Inserting the Rod

The piston and rod must match the carriage be-

ing used to avoid possible damage to the tool or

material. Use only rods and carriages speciﬁ cally

designed for the M12 Caulk and Adhesive Gun.

Other rods and carriages may cause damage to

the tool.

1. Push the control switch to the Rack Release

position. Remove the battery pack.

2. Grasp the rod handle. The teeth on the rod

should point down.

3. Insert the rod from the rear of the tool. It may be

necessary to wiggle the rod slightly while pushing

it through the tool. Do not run the tool to pull the

rod through the tool, this will damage the tool

and rod.

4. Attach the piston.

NOTE: Keep the piston and rod clean. Retracting

or inserting a piston that is covered with material

may damage the internal parts of the tool.

Installing the Carriage or Barrel

Use only rods and carriages speciﬁ cally designed

for the M12 Caulk and Adhesive Gun. Other rods

and carriages may cause damage to the tool.

Place the carriage over the piston and rod. Hold the

carriage collar securely while screwing the carriage

into the collar.

ASSEMBLY

WARNING

Recharge only with the

charger specified for the battery. For spe-

ciﬁ c charging instructions, read the operator’s

manual supplied with your charger and battery.

OPERATION

WARNING

To reduce the risk of in-

jury, keep hands away from all moving parts.

Always wear safety goggles or glasses with

side shields.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

5. Insert tube into the carriage.

6. Push the rod handle forward until the piston is

against the tube.

7. Push the control switch to the Forward position.

8. To remove the tube, push the control switch to the

Rack Release position and pull the rod handle

back. Lift the tube out of the carriage.

Installing Sausage Type Pack

Always check sausage packs for punctures or

damage before installing. Do not use a damaged

or frozen pack.

1. Push the control switch to the Rack Release

position. Remove the battery pack.

2. Pull the rod handle back to allow the pack to ﬁ t

inside the barrel

3. Insert pack into barrel.

4. Cut off end of sausage pack per manufacturer's

recommendation.

NOTE: Before using a partially ﬁ lled pack, re-

move any hardened material.

5. Insert nozzle supplied with the sausage pack

into the nozzle cap and screw onto the barrel

6. Cut nozzle at an angle and size per manufac-

turer's recommendation to suit the job (unless

the nozzle is pre-cut). A smaller nozzle diameter

requires more force to push the caulk and re-

duces battery life.

7. Push the rod handle forward until the piston is

against the pack.

8. Push the control switch to the Forward position.

Using the Control Switch

The control switch may be set to two positions:

forward and rack release.

For forward, push in the control

switch from the right side of the tool.

The tool will run normally.

To lock the trigger and release the

rack, push in the control switch from

the left side of the tool. The rack

can be moved to the desired posi-

tion. The trigger will not work while

the control switch is in the locked

position. Always lock the trigger

or remove the battery pack before

performing maintenance, changing

accessories, storing the tool and

any time the tool is not in use.

Fuel Gauge

To determine the amount of charge left in the bat-

tery, pull the trigger. The Fuel Gauge will light up

for 2-3 seconds.

To signal the end of charge, 1 light on the fuel

gauge will ﬂ ash for 2-3 seconds.

Anti-Drip and Rod Release

The caulk gun features an automatic anti-drip to

prevent drips after the trigger is released.

End of travel

When a tube is emptied, the motor will automatically

reverse to release pressure, then shut off. Release

the trigger and change the tube.

Overload

When an overload occurs, the tool will reach the

maximum drive force and continue to hold this

maximum force until the user releases the trigger.

If material is not dispensing, make sure that:

• Nozzle tip is cut

• Inner seal in the caulk tube is broken

• Hardened material is removed from the nozzle

• Caulk tube is not damaged or frozen

• Rod is free of caulk/adhesive materials

Starting and Stopping and Controlling Speed

1. Pull trigger to dispense material.

2. Increase or decrease pressure on the trigger to

dispense the material. Adjust the speed dial to

select the maximum speed for proper bead width

and material ﬂ ow rate ("1" for slowest, "6" for

fastest). The trigger pressure, selected speed,

material type, temperature and nozzle diameter

will all affect the ﬂ ow rate. When using a tube or

pack with a smaller nozzle diameter use a slower

speed or the material may be forced around the

rear tube seat.

NOTE: Operating the gun at high speeds may

damage the dispensing tube or pack for some

materials. For best results, gradually increase

speed settings.

3. Release trigger to stop dispensing material.

NOTE: The piston will stop automatically when it

has reached the end of the tube.

MAINTENANCE

Cleaning

Clean dust and debris from charger and tool

vents. Keep tool handles clean, dry and free of oil

or grease. Use only mild soap and a damp cloth

to clean the tool, battery pack and charger since

certain cleaning agents and solvents are harmful to

plastics and other insulated parts. Some of these

include gasoline, turpentine, lacquer thinner, paint

thinner, chlorinated cleaning solvents, ammonia

and household detergents containing ammonia.

Never use flammable or combustible solvents

around tools.

Repairs

For repairs, return the tool, battery pack and char-

ger to the nearest service center.

WARNING

To reduce the risk of per

sonal injury and damage, never immerse your

tool, battery pack or charger in liquid or allow

a liquid to ﬂ ow inside them.

WARNING

To reduce the risk of injury,

always unplug the charger and remove the bat-

tery pack from the charger or tool before per-

forming any maintenance. Never disassemble

the tool, battery pack or charger. Contact a

MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool, battery pack and charger in good

repair by adopting a regular maintenance program.

After six months to one year, depending on use,

return the tool, battery pack and charger to A

MILWAUKEE service facility for:

• Lubrication

• Mechanical inspection and cleaning (gears,

spindles, bearings, housing, etc.)

• Electrical inspection (battery pack, charger,

motor)

• Testing to assure proper mechanical and electrical

operation

If the tool does not start or operate at full power

with a fully charged battery pack, clean the contacts

on the battery pack. If the tool still does not work

properly, return the tool, charger and battery pack,

to a MILWAUKEE service facility for repairs.

WARNING

To reduce the risk of injury,

keep hands out of the piston area of the tool.

Fingers can be pinched between carriage and

the piston.

FORWARD

RACK

RELEASE

Installing Caulk or Adhesive Tube

Always check tubes for punctures or damage

before installing. Do not use a damaged or frozen

tube.

1. Push the control switch to the Rack Release

position. Remove the battery pack.

2. Cut nozzle of tube at an angle and size per

manufacturer's recommendation to suit the job

(unless the nozzle is pre-cut). A smaller nozzle

diameter requires more force to push the caulk

and reduces battery life.

3. Break the inner seal of the tube. If the inner seal

is not broken, the caulk material may be forced

out the rear end of the tube and damage the

tool.

NOTE: Before using a partially ﬁ lled tube, re-

move any hardened material with a long nail or

piece of wire.

4. Pull the rod handle back to allow the tube to ﬁ t

inside the carriage.

ACCESSORIES

For a complete listing of accessories refer to your

MILWAUKEE Electric Tool catalog or go online

to www.milwaukeetool.com. To obtain a catalog,

contact your local distributor or service center.

WARNING

Always remove battery pack

before changing or removing accessories.

Only use accessories specifically recom-

mended for this tool. Others may be hazardous.

M12™ 10oz. Cartridge Conversion Kit

Cat. No. 48-08-0900

M12™ 20oz. Aluminum Sausage Style Conversion Kit

Cat. No. 48-08-0905

M12™ Quart Conversion Kit

Cat. No. 48-08-0910

20oz. Aluminum Barrel Only

Cat. No. 48-08-1091

20oz. Clear Barrel Only

Cat. No. 48-08-1096

Caulk Gun Nozzle - Black

Cat. No. 31-12-0700

OPERATION

WARNING

To reduce the risk of in-

jury, keep hands away from all moving parts.

Always wear safety goggles or glasses with

side shields.

WARNING

Always remove battery

pack before changing or removing acces-

sories. Only use accessories specifically

recommended for this tool. Others may be

hazardous.

5. Insert tube into the carriage.

6. Push the rod handle forward until the piston is

against the tube.

7. Push the control switch to the Forward position.

8. To remove the tube, push the control switch to the

Rack Release position and pull the rod handle

back. Lift the tube out of the carriage.

Installing Sausage Type Pack

Always check sausage packs for punctures or

damage before installing. Do not use a damaged

or frozen pack.

1. Push the control switch to the Rack Release

position. Remove the battery pack.

2. Pull the rod handle back to allow the pack to ﬁ t

inside the barrel

3. Insert pack into barrel.

4. Cut off end of sausage pack per manufacturer's

recommendation.

NOTE: Before using a partially ﬁ lled pack, re-

move any hardened material.

5. Insert nozzle supplied with the sausage pack

into the nozzle cap and screw onto the barrel

6. Cut nozzle at an angle and size per manufac-

turer's recommendation to suit the job (unless

the nozzle is pre-cut). A smaller nozzle diameter

requires more force to push the caulk and re-

duces battery life.

7. Push the rod handle forward until the piston is

against the pack.

8. Push the control switch to the Forward position.

Using the Control Switch

The control switch may be set to two positions:

forward and rack release.

For forward, push in the control

switch from the right side of the tool.

The tool will run normally.

To lock the trigger and release the

rack, push in the control switch from

the left side of the tool. The rack

can be moved to the desired posi-

tion. The trigger will not work while

the control switch is in the locked

position. Always lock the trigger

or remove the battery pack before

performing maintenance, changing

accessories, storing the tool and

any time the tool is not in use.

Fuel Gauge

To determine the amount of charge left in the bat-

tery, pull the trigger. The Fuel Gauge will light up

for 2-3 seconds.

To signal the end of charge, 1 light on the fuel

gauge will ﬂ ash for 2-3 seconds.

Anti-Drip and Rod Release

The caulk gun features an automatic anti-drip to

prevent drips after the trigger is released.

End of travel

When a tube is emptied, the motor will automatically

reverse to release pressure, then shut off. Release

the trigger and change the tube.

Overload

When an overload occurs, the tool will reach the

maximum drive force and continue to hold this

maximum force until the user releases the trigger.

If material is not dispensing, make sure that:

• Nozzle tip is cut

• Inner seal in the caulk tube is broken

• Hardened material is removed from the nozzle

• Caulk tube is not damaged or frozen

• Rod is free of caulk/adhesive materials

Starting and Stopping and Controlling Speed

1. Pull trigger to dispense material.

2. Increase or decrease pressure on the trigger to

dispense the material. Adjust the speed dial to

select the maximum speed for proper bead width

and material ﬂ ow rate ("1" for slowest, "6" for

fastest). The trigger pressure, selected speed,

material type, temperature and nozzle diameter

will all affect the ﬂ ow rate. When using a tube or

pack with a smaller nozzle diameter use a slower

speed or the material may be forced around the

rear tube seat.

NOTE: Operating the gun at high speeds may

damage the dispensing tube or pack for some

materials. For best results, gradually increase

speed settings.

3. Release trigger to stop dispensing material.

NOTE: The piston will stop automatically when it

has reached the end of the tube.

MAINTENANCE

Cleaning

Clean dust and debris from charger and tool

vents. Keep tool handles clean, dry and free of oil

or grease. Use only mild soap and a damp cloth

to clean the tool, battery pack and charger since

certain cleaning agents and solvents are harmful to

plastics and other insulated parts. Some of these

include gasoline, turpentine, lacquer thinner, paint

thinner, chlorinated cleaning solvents, ammonia

and household detergents containing ammonia.

Never use flammable or combustible solvents

around tools.

Repairs

For repairs, return the tool, battery pack and char-

ger to the nearest service center.

WARNING

To reduce the risk of per

sonal injury and damage, never immerse your

tool, battery pack or charger in liquid or allow

a liquid to ﬂ ow inside them.

WARNING

To reduce the risk of injury,

always unplug the charger and remove the bat-

tery pack from the charger or tool before per-

forming any maintenance. Never disassemble

the tool, battery pack or charger. Contact a

MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool, battery pack and charger in good

repair by adopting a regular maintenance program.

After six months to one year, depending on use,

return the tool, battery pack and charger to A

MILWAUKEE service facility for:

• Lubrication

• Mechanical inspection and cleaning (gears,

spindles, bearings, housing, etc.)

• Electrical inspection (battery pack, charger,

motor)

• Testing to assure proper mechanical and electrical

operation

If the tool does not start or operate at full power

with a fully charged battery pack, clean the contacts

on the battery pack. If the tool still does not work

properly, return the tool, charger and battery pack,

to a MILWAUKEE service facility for repairs.

WARNING

To reduce the risk of injury,

keep hands out of the piston area of the tool.

Fingers can be pinched between carriage and

the piston.

FORWARD

RACK

RELEASE

Installing Caulk or Adhesive Tube

Always check tubes for punctures or damage

before installing. Do not use a damaged or frozen

tube.

1. Push the control switch to the Rack Release

position. Remove the battery pack.

2. Cut nozzle of tube at an angle and size per

manufacturer's recommendation to suit the job

(unless the nozzle is pre-cut). A smaller nozzle

diameter requires more force to push the caulk

and reduces battery life.

3. Break the inner seal of the tube. If the inner seal

is not broken, the caulk material may be forced

out the rear end of the tube and damage the

tool.

NOTE: Before using a partially ﬁ lled tube, re-

move any hardened material with a long nail or

piece of wire.

4. Pull the rod handle back to allow the tube to ﬁ t

inside the carriage.

ACCESSORIES

For a complete listing of accessories refer to your

MILWAUKEE Electric Tool catalog or go online

to www.milwaukeetool.com. To obtain a catalog,

contact your local distributor or service center.

WARNING

Always remove battery pack

before changing or removing accessories.

Only use accessories specifically recom-

mended for this tool. Others may be hazardous.

M12™ 10oz. Cartridge Conversion Kit

Cat. No. 48-08-0900

M12™ 20oz. Aluminum Sausage Style Conversion Kit

Cat. No. 48-08-0905

M12™ Quart Conversion Kit

Cat. No. 48-08-0910

20oz. Aluminum Barrel Only

Cat. No. 48-08-1091

20oz. Clear Barrel Only

Cat. No. 48-08-1096

Caulk Gun Nozzle - Black

Cat. No. 31-12-0700

RÈGLES DE SÉCURITÉ GÉNÉRALES RELATIVES AUX

OUTILS ÉLECTRIQUES

AVERTISSEMENT

LIRE TOUTES LES RÈGLES ET INSTRUCTIONS DE SÉCURITÉ.

Ne pas suivre l’ensemble des règles et instructions peut entraîner une électrocution,

un incendie ou des blessures graves.

Conserver les règles et les instructions à des

ﬁ ns de référence ultérieure.

Le terme «outil électrique» ﬁ gurant dans les avertissements ci-

dessous renvoie à l’outil électrique à alimentation par le réseau (à cordon) ou par batterie (sans ﬁ l).

• Maintenir la zone de travail propre et bien

éclairée. Les zones encombrées ou mal éclairées

sont favorables aux accidents.

• Ne pas utiliser d’outil électrique dans une at-

mosphère explosive, telle qu’en en présence

de liquides, de gaz ou de poussières inﬂ am-

mables. Les outils électriques génèrent des

étincelles qui peuvent enﬂ ammer les poussières

ou les fumées.

• Tenir les enfants et les personnes non autorisées

à l’écart pendant le fonctionnement d’un outil

électrique. Un manque d’attention de l’opérateur

risque de lui faire perdre le contrôle de l’outil.

• La ﬁ che de l’outil électrique doit correspondre

à la prise d’alimentation. Ne jamais modiﬁ er la

ﬁ che d’une manière quelconque. Ne pas utilis-

er d’adaptateur avec les outils électriques mis

à la terre (à la masse). Des ﬁ ches non modiﬁ ées

et des prises d’alimentation assorties réduisent le

risque de choc électrique.

• Éviter tout contact corporel avec des surfaces

reliées à la masse ou à la terre telles que tuy-

aux, radiateurs, cuisinières et réfrigérateurs.

Un risque de choc électrique plus élevé existe si

le corps est relié à la masse ou à la terre.

• Ne pas exposer les outils électriques à la pluie

ou à l’humidité. Le risque de choc électrique aug-

mente si de l’eau s’inﬁ ltre dans un outil électrique.

• Prendre soin du cordon. Ne jamais utiliser le

cordon pour transporter, tirer ou débrancher

l’outil électrique. Tenir le cordon à l’écart de la

chaleur, des huiles, des arêtes coupantes ou

des pièces en mouvement. Un cordon endom-

magé ou emmêlé présente un risque accru de

choc électrique.

• Se procurer un cordon d’alimentation appro-

prié en cas d’utilisation d’un outil électrique à

l’extérieur. L’utilisation d’un cordon d’alimentation

pour usage extérieur réduit le risque de choc

électrique.

• S’il est nécessaire d’utiliser l’outil électrique

dans un endroit humide, installer un appareil

à courant résiduel (RCD). L’utilisation d’un RCD

réduit le risque de décharge électrique.

• Porter l’équipement de protection requis.

Toujours porter une protection oculaire.

Selon les conditions, porter aussi un masque anti-

poussières, des bottes de sécurité antidérapantes,

un casque protecteur ou une protection auditive

aﬁ n de réduire les blessures.

• Empêcher les démarrages accidentels.

S’assurer que la gâchette est en position

d’arrêt avant de brancher l’outil à une source

de courant, d’insérer la batterie, de le ramasser

ou de le transporter. Le fait de transporter

l’outil en gardant le doigt sur la gâchette ou de le

brancher lorsque la gâchette est en position de

marche favorise les accidents.

• Retirer toute clé de réglage avant de mettre

l’outil sous tension. Une clé laissée attachée sur

une pièce mobile de l’outil électrique peut entraîner

des blessures.

• Ne pas travailler à bout de bras. Bien garder

un bon équilibre à tout instant. Ceci permet de

mieux préserver la maîtrise de l’outil électrique

dans des situations imprévues.

• Porter des vêtements adéquats. Ne pas porter

de vêtements amples ni de bijoux. Ne pas ap-

procher les cheveux, vêtements et gants des

pièces en mouvement. Les vêtements amples,

les bijoux ou les cheveux longs risquent d’être

happés par les pièces en mouvement.

• Si des dispositifs sont prévus pour l’extraction

et la récupération des poussières, vérifier

qu’ils sont connectés et utilisés correctement.

L’utilisation de ces dispositifs peut réduire les

risques liés aux poussières.

SÉCURITÉ

INDIVIDUELLE

SÉCURITÉ

ÉLECTRIQUE

SÉCURITÉ DU LIEU DE TRAVAIL

UTILISATION ET ENTRETIEN

DE L’OUTIL ÉLECTRIQUE

• Ne pas forcer l’outil électrique. Utiliser l’outil

électrique approprié à l’application considérée.

L’outil électrique adapté au projet considéré produ-

ira de meilleurs résultats, dans des conditions de

sécurité meilleures, à la vitesse pour laquelle il a

été conçu.

• Ne pas utiliser l’outil électrique si le commuta-

teur ne le met pas sous ou hors tension. Tout

outil électrique dont le commutateur de marche-ar-

rêt est inopérant est dangereux et doit être réparé.

• Débrancher la ﬁ che de la prise d’alimentation

et/ou la batterie de l’outil électrique avant

d’effectuer des réglag es, de changer

d’accessoires ou de ranger l’outil. De telles

mesures de sécurité préventive réduisent le risque

de mettre l’outil en marche accidentellement.

• Ranger les outils électriques inutilisés hors

de la portée des enfants et ne pas laisser des

personnes qui connaissent mal les outils élec-

triques ou ces instructions utiliser ces outils.

• Être sur ses gardes, être attentif et faire preuve

de bon sens en utilisant un outil électrique. Ne

pas utiliser un outil électrique en cas de fatigue

ou sous l’inﬂ uence de drogues, d’alcool ou

de médicaments. Un instant d’inattention lors

de l’utilisation d’un outil électrique peut entraîner

des blessures graves.

TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date.

This warranty card covers any defect in material and workmanship on this Power Tool.

To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased the

product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of

purchase to the ASC.

Call toll-free 1 800 832 1949 to ﬁ nd the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you purchased the

product, and there any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative

with this warranty process.

Exceptions

This warranty is not valid in the following situations:

a) When the product is used in a different manners from the end-user guide or instruction manual.

b) When the conditions of use are not normal.

c) When the product was modiﬁ ed or repaired by people not authorized by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER

Rafael Buelna No.1.

Col. Tezozomoc Mexico, Azcapotzalco D.F.

Ph. 01 800 832 1949

IMPORTED AND COMMERCIALIZED BY:

TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.

Av. Santa Fe 481 piso 6, Col. Curz Manca.

CP 05349, Cuajimalpa, D.F.

LIMITED WARRANTY - USA AND CANADA

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA AND CARIBBEAN

Model:

Date of Purchase:

Distributor or Store Stamp:

Every MILWAUKEE power tool (including cordless product – tool, battery pack(s) - see separate & distinct CORDLESS BATTERY

PACK LIMITED WARRANTY statements & battery charger and Work Lights*) is warranted to the original purchaser only to

be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part

on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship

for a period of ﬁ ve (5) years* after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE

factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of

the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE

determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations,

abuse, normal wear and tear, lack of maintenance, or accidents.

*The warranty period for, Job Site Radios, M12™ Power Port and Trade Titan™ Industrial Work Carts is one (1) year from the

date of purchase. The warranty period for a LED Work Light and LED Upgrade Bulb is a limited LIFETIME warranty to the

original purchaser only, if during normal use the LED bulb fails the Work Light or Upgrade Bulb will be replaced free of charge.

*This warranty does not cover Air Nailers & Stapler, Airless Paint Sprayer, Cordless Battery Packs, Gasoline Driven Portable

Power Generators, Hand Tools, Hoist – Electric, Lever & Hand Chain, M12™ Heated Jackets, Reconditioned product and Test

& Measurement products. There are separate and distinct warranties available for these products.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manu-

facturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time

warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF

THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION,

YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL,

SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES

OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT

INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLU-

SION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION

MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES,

WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES,

INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES

ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES

DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT

APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only.

Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www.milwaukeetool.com

or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest MILWAUKEE factory Service Center location.
