Model No. DG65
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DG65 Issue:1 26/08/21
www.dellonda.co.uk

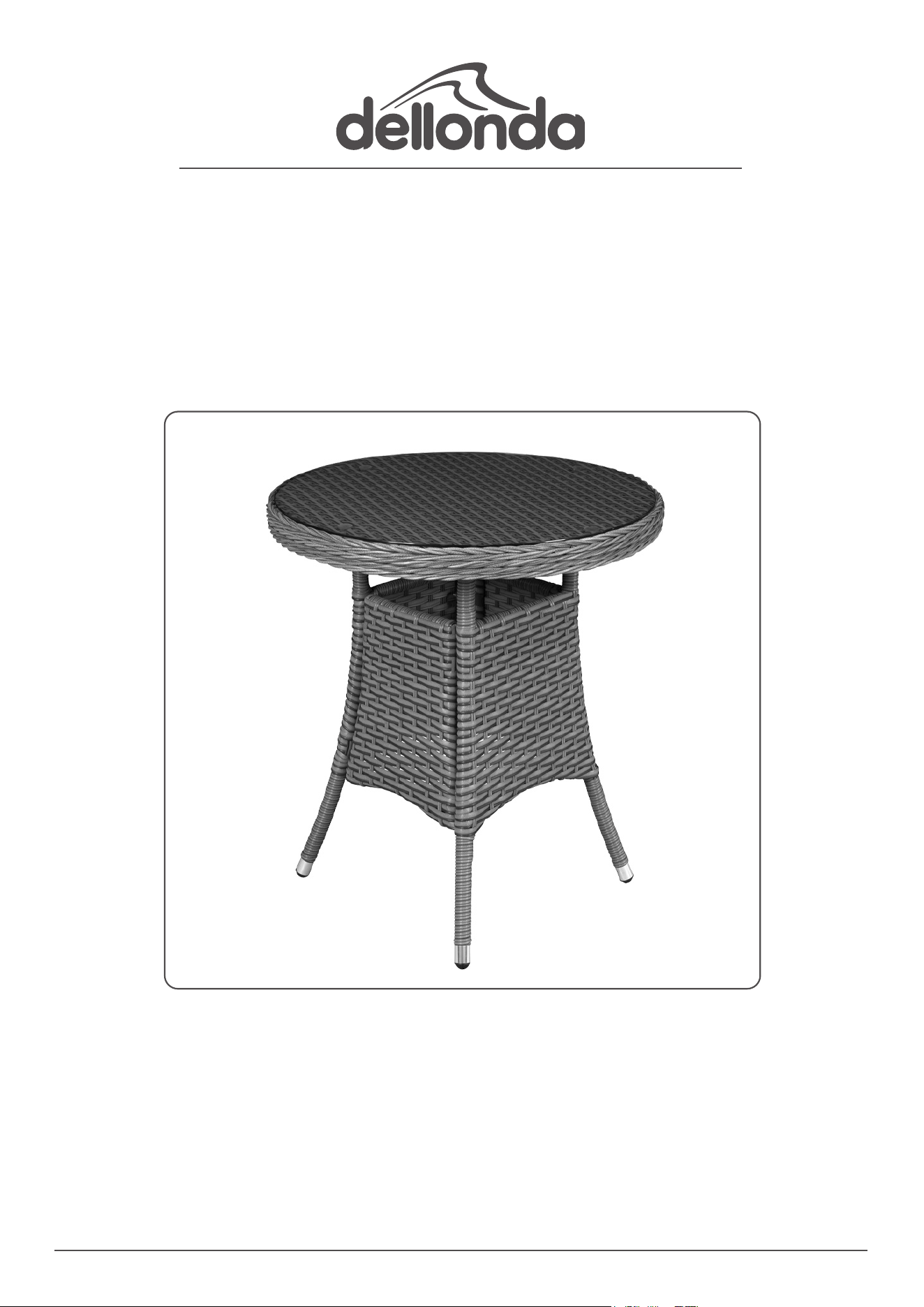

Rattan Outdoor Dining/Bistro Table with
Tempered Glass Top
About the Product
Manufactured using premium quality PE weave rattan material. UV Treated, fade resistant and weatherproof design can be used outside all year
round. Easy to clean 5mm clear tempered glass table top. Can be used as a side table, snack table or bistro table. Disclaimer: Colours may slightly
vary due to lighting conditions. Material: Polyurethane Rattan.
• SPECIFICATION
• Model no: ............................................................................................ DG65
• Table dimensions (Ø x H): ...................................................... Ø70 x 74cm
• Material: ..................................................................... Polyurethane Rattan
Safety Instructions
• Always read these instructions fully before assembling and using your furniture.
• WARNING! Keep all ame and heat sources away from this furniture.
• DO NOT use bleach, alkaline or harsh detergents for cleaning. Soap and warm water are recommended.
• DO NOT use a high-pressure washer to clean this product.
• This product has a reasonable level of protection against UV degradation, however as with any material it will begin to fade and degrade after
long periods of exposure to the sun.
Contents
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
1
www.dellonda.co.uk
Refer to
instruction
manual
TABLE TOP
BOLT (M6X35)
TABLE BASE
LEGS
TABLE BASE
INFILL PANELS
BOLT (M6X20) NUT (M6)
STEEL
WASHER (M6)
PLASTIC
WASHER
PLASTIC BOLT
CAP (M6)
GLASS TOP
SPANNER
HEX KEY
Assembly
• Carefully turn the table top (A) onto it’s face and
position the two legs (B) and bolt in place using the
M6 x 20mm bolts (E) and M6 steel washers (G).
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it
in an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. It is our
policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is accepted
for incorrect use of this product.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
• Offer up the two table base inll panels (C) into
the table base legs (B), using the shown nut a bolt
sequence to secure, pass a steel washer (G) onto
the M6 x 35mm bolt (D) then pass this through the
two tabs trapping a plastic washer (H) in between,
then push on another M6 steel washer (G) and
secure with an M6 nut (F), cover the bolt head by
pushing the plastic bolt cap (I).
• Repeat this sequence for the other seven
connecting positions.
• It may be useful to only tighten the bolts for
all eight locations at the end of the assembly
sequence.
• Turn the table assembly onto its feet and carefully
lift into position the glass table top (J).
STORAGE
• Ensure that the table is clean dry before being
stored in a cool, dry and well ventilated location.
• Wipe down the table’s frame and legs and any
areas that could have been exposed to mud and
dirt.
• Store the table during long periods of not being
used prolong the usable life of all parts.
J
