[en] Instruction manual
Extractor hood
DID068R59
à Table of contents[en] Instruction manual
: Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
Danger of death!
Risk of poisoning from flue gases that are drawn back in.
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air t...
In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked ...
â Adequate incoming air must therefore always be ensured.
â An incoming/exhaust air wall box alone will not ensure compliance with the limit.
Safe operation is possible only when the partial vacuum in the place where the heat- producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that can...
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
Risk of fire!
â Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Risk of fire!
â Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non- rem...
Risk of fire!
â Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
Risk of fire!
â When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them.
Risk of fire!
â Operating several gas burners at the same time gives rise to a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Never operate two gas burners simultaneously on the highest flame for longer t...
Risk of burns!
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
Risk of injury!
â Components inside the appliance may have sharp edges. Wear protective gloves.
Risk of injury!
â Items placed on the appliance may fall down. Do not place any objects on the appliance.
Risk of electric shock!
â A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock!
â Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
Risk of electric shock!
â Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
Causes of damage
Caution!
Environmental protection
Saving energy
Environmentally-friendly disposal
Operating modes
Exhaust air mode
Note
Circulating-air mode
Note
Operating the appliance
Note
Remote control
Remote control
1. Press and hold the @ button.
2. Attach the appliance to the mains voltage.
Note
Setting the fan
1. Press the @ button.
2. Press the @ or A button to set a different fan setting.
Note
Intensive setting
Note
Fan run-on
Note
Lighting
Note
Saturation signal
Resetting the saturation signal
Note
Switching over the appliance to air recirculation
1. Switch off the appliance.
2. Press and hold the y button for four seconds until an audible signal sounds.
Switching over the appliance to air extraction
1. Switch off the appliance.
2. Press and hold the y button for four seconds until two audible signals sound.
Cleaning and maintenance
: Risk of burns!
: Risk of electric shock!
: Risk of electric shock!
: Risk of injury!
Cleaning agents
Cleaning the metal mesh grease filters
: Risk of fire!
Notes
By hand:
Note
In the dishwasher:
Note

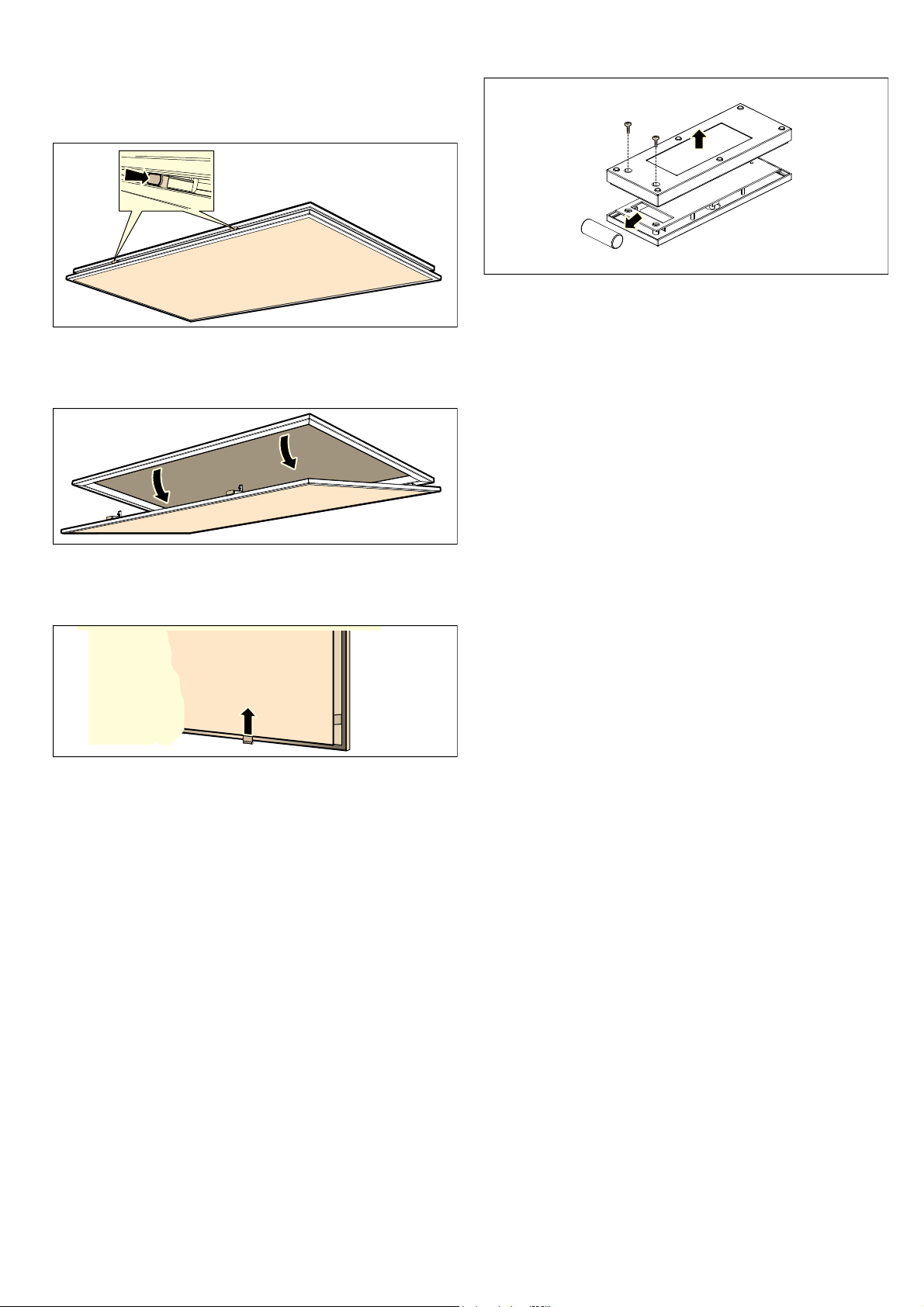

Removing metal grease filter
1. Press the lock on the filter cover.
Note
2. Open the filter cover downwards.
Note
3. Press the lock on the metal grease filters.
Note
4. Take the metal grease filter out of the holder.
Note
5. Clean the appliance from the inside.
6. Clean the metal grease filter and let it dry before re-fitting.
Installing the metal mesh grease filter
1. Insert metal grease filter.
2. Fold up metal grease filter and engage the lock.
3. Close the filter cover upwards.
Note
Replacing the batteries in the remote control
1. Undo screws.
2. Remove cover.
3. Remove the batteries.
4. Correctly insert the new batteries (23AE 12 V).
5. Dispose of flat or faulty batteries according to local regulations.
Note
Trouble shooting
: Risk of electric shock!
Malfunction table
After-sales service
To book an engineer visit and product advice
Accessories for circulated air mode
