Table of contents
1 Safety...........................................4
1.1 General information................... 4
1.2 Intended use.............................. 4
1.3 Restriction on user group.......... 4
1.4 Safe installation ......................... 5
1.5 Safe use .................................... 7
1.6 Safe cleaning and mainten-
ance........................................... 9
2 Preventing material damage ....10
3 Environmental protection and
saving energy............................11
3.1 Disposing of packaging .......... 11
3.2 Save energy and conserve
resources................................. 11
3.3 Energy saving mode ............... 12
4 Installation and connection......12
4.1 Unpacking the appliance ........ 12
4.2 Contents of package ............... 12
4.3 Requirements for the install-
ation location ........................... 12
4.4 Removing the transit bolts ...... 13
4.5 Connecting the appliance ....... 14
4.6 Aligning the appliance............. 16
5 Familiarising yourself with
your appliance...........................17
5.1 Appliance ................................ 17
5.2 Detergent drawer..................... 17
5.3 Control panel........................... 18
5.4 Operating logic........................ 18
6 Before using for the first time ..19
6.1 Starting an empty washing
cycle ........................................ 19
7 Display .......................................20
8 Buttons ......................................23
9 Programmes ..............................26
10 Accessories.............................30
11 Laundry....................................30
11.1 Preparing the laundry............ 30
12 Detergents and care
products ..................................31
13 Basic operation .......................31
13.1 Switching on the appliance ... 31
13.2 Setting a programme ............ 31
13.3 Adjusting the programme
settings .................................. 31
13.4 Saving the programme set-
tings....................................... 31
13.5 Loading laundry..................... 32
13.6 Adding detergent and care
product .................................. 32
13.7 Starting the programme ........ 32
13.8 Adding laundry ...................... 32
13.9 Cancelling the programme.... 32
13.10 Unloading the laundry ......... 33
13.11 Switching off the appli-
ance..................................... 33
14 Childproof lock........................33
14.1 Activating the childproof
lock........................................ 33
14.2 Deactivating the childproof
lock........................................ 33
15 Intelligent dosing system .......33
15.1 Starting the programme
with intelligent dosing sys-
tem......................................... 33
en
3
15.2 Filling the dispensers ............ 34
15.3 Dispenser contents ............... 35
15.4 Basic dosage ........................ 35
16 HomeConnect ........................35
16.1 Setting up the HomeCon-
nect app ................................ 36
16.2 Setting up HomeConnect..... 36
16.3 Activating Wi-Fi on the ap-
pliance ................................... 36
16.4 Deactivating Wi-Fi on the
appliance............................... 37
16.5 Resetting the appliance
network settings .................... 37
16.6 Remote start .......................... 37
16.7 Data protection...................... 37
17 Basic settings..........................39
17.1 Overview of the basic set-
tings....................................... 39
17.2 Changing the basic set-
tings....................................... 40
18 Cleaning and servicing...........40
18.1 Cleaning the drum................. 40
18.2 Cleaning the detergent
drawer.................................... 40
18.3 Cleaning the drain pump....... 42
19 Troubleshooting......................45
19.1 Emergency release ............... 57
20 Transportation, storage and
disposal ...................................57
20.1 Removing the appliance ....... 57
20.2 Inserting the transit bolts....... 57
20.3 Using the appliance again .... 57
20.4 Disposing of old appliance ... 58
21 Customer Service....................58
21.1 Product number (E-Nr.) and
production number (FD)........ 58
22 Consumption values...............59
23 Technical data .........................59
24 Declaration of Conformity ......60
en Safety
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ For washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ With tap water and commercially available detergents and care
products suitable for washing machines.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ up to an altitude of max. 4000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safety en
5
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶ Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶ The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
▶ When using a residual current circuit breaker, only use a type
with the mark.
▶ Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶ When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
all-pole isolating switch must be installed in the permanent elec-
trical installation according to the installation regulations.
▶ When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance
parts or heat sources.
▶ Never let the power cord come into contact with sharp points or
edges.
▶ Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-
turer.
▶ If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
en Safety
6
WARNING‒Risk of injury!
The high weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack,
the installed appliance may fall.
▶ Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer . No other installation
method is permitted.
▶ Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
▶ Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
▶ Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
▶ Place the appliance on a clean, even, solid surface.
▶ Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
▶ Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
▶ Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶ Do not touch the sharp edges on the appliance.
Safety en
7
▶ Wear protective gloves when installing and transporting the ap-
pliance.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
▶ Call customer services. →Page58
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶ Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
▶ With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
en Safety
8
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Laundry that has been pretreated with cleaning agents that con-
tain solvents may cause an explosion in the appliance.
▶ Rinse pretreated laundry thoroughly with water before washing.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
▶ Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the drum while it is still turning may cause hand in-
juries.
▶ Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution gets
hot.
▶ Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance. Contact with eyes or skin may
cause irritation.
▶ Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
Safety en
9
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained
specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
▶ Do not use cleaning agents that contain solvents.
en Preventing material damage
10
2 Preventing material
damage
ATTENTION!
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
▶ Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page26
The appliance is secured for trans-
portation using transit bolts. Transit
bolts which have not been removed
may result in material damage and
damage to the appliance.
▶ Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
▶ Before transport, fit the transit bolts
fully in order to prevent damage in
transit.
Material damage may be caused if
the water inlet hose is connected in-
correctly.
▶ Tighten the screw connections on
the water inlet until they are hand-
tight.
▶ Ideally, connect the water inlet
hose directly to the water tap,
without any additional connecting
elements such as adapters, exten-
sions, valves or similar.
▶ Make sure that the valve housing
for the water inlet hose does not
come into contact with its sur-
roundings and is not subjected to
any external forces.
▶ Ensure that the inner diameter of
the water tap is at least 17 mm.
▶ Make sure that the length of the
thread on the connection to the
water tap is at least 10 mm.
If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
▶ Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
▶ If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the drinking water
connection and the hose set of the
appliance.
▶ Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler.
Modified or damaged water hoses
may result in material damage and
damage to the appliance.
▶ Never kink, crush, modify or cut
through water hoses.
▶ Only use the water hoses supplied
with the appliance or genuine
spare hoses.
▶ Never re-use water hoses that
have been used before.
Operating the appliance using water
that is dirty or too hot may lead to
material damage and damage to the
appliance.
▶ Only operate the appliance with
cold mains water.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶ Do not use harsh or abrasive de-
tergents.
▶ Do not use cleaning products with
a high alcohol content.
▶ Do not use hard scouring pads or
cleaning sponges.
▶ Clean the appliance with nothing
but water and a soft, damp cloth.
Environmental protection and saving energy en
11
▶ Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶ Sort the individual components by
type and dispose of them separ-
ately.
3.2 Save energy and con-
serve resources
If you follow these instructions, your
appliance will use less electricity and
less water.
Choose programmes with low tem-
peratures and longer wash times and
use maximum load capacity.
a
Energy consumption and water
consumption is most efficient.
Use the economy programme set-
tings.
a
If you adjust the programme set-
tings for a programme, the display
shows the expected consumption.
Add detergent based on the laun-
dry's degree of soiling.
a
For light to normal soiling, a smal-
ler amount of detergent is suffi-
cient. Observe the dosage recom-
mendation from the detergent
manufacturer.
Reduce the washing temperature for
lightly and normally soiled laundry.
a
At lower temperatures, the appli-
ance consumes less energy. For
light to normal soiling, lower tem-
peratures than indicated on the
care label are also sufficient.
Set the maximum spin speed if you
want to dry the laundry in the tumble
dryer afterwards.
a
The drier the laundry, the shorter
the programme duration when dry-
ing which, in turn, reduces energy
consumption. A higher spin speed
reduces the residual moisture in
the laundry and increases the
volume of the spin noise.
Wash the laundry without prewash.
a
Washing with prewash increases
the programme duration and in-
creases energy and water con-
sumption.
The appliance has a continuous
automatic load adjustment function.
a
Depending on the type of fabric
and load capacity, the continuous
automatic load adjustment func-
tion optimally adjusts the water
consumption and programme dur-
ation.
The appliance comes with an Aqua-
Sensor.
a
During the rinse cycle, the Aqua-
Sensor checks the degree of tur-
bidity of the rinsing water, and ad-
justs the duration and number of
rinse cycles accordingly.
en Installation and connection
12
3.3 Energy saving mode
If you do not use the appliance for an
extended period, it automatically
switches to energy-saving mode.
Energy-saving mode ends when you
use the appliance again.
Note:If Wi-Fi is activated, the appli-
ance will not switch itself off automat-
ically.
4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶ Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
→"Disposing of packaging",
Page11
2. Check the appliance for visible
damage.
3. Open the door.
4. Remove any accessories from the
drum.
5. Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION!
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
▶ Do not operate the appliance with
incomplete or defective accessor-
ies.
▶ Replace the accessories in ques-
tion before operating the appli-
ance.
→"Accessories", Page30
Note:The appliance has been tested
at the factory to check it is in working
order. As a result, water stains may
remain in the appliance. These marks
will disappear after the first wash
cycle.
The delivery consists of the following:
¡ Washing machine
¡ Accompanying documents
¡ Transit bolts
→"Removing the transit bolts",
Page13
¡ Cover caps
¡ Water inlet hose
→"Connecting the water inlet
hose", Page14
4.3 Requirements for the in-
stallation location
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶ Do not operate the appliance
without a cover cap.
Installation and connection en
13
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
▶ Always secure the feet of the appli-
ance to a base using the manufac-
turer's fixing brackets →Page30
before using the appliance for the
first time.
ATTENTION!
If residual water in the appliance
freezes, this may cause damage to
the appliance.
▶ Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
▶ Tilt the appliance carefully.
▶ Transport the appliance in an up-
right position.

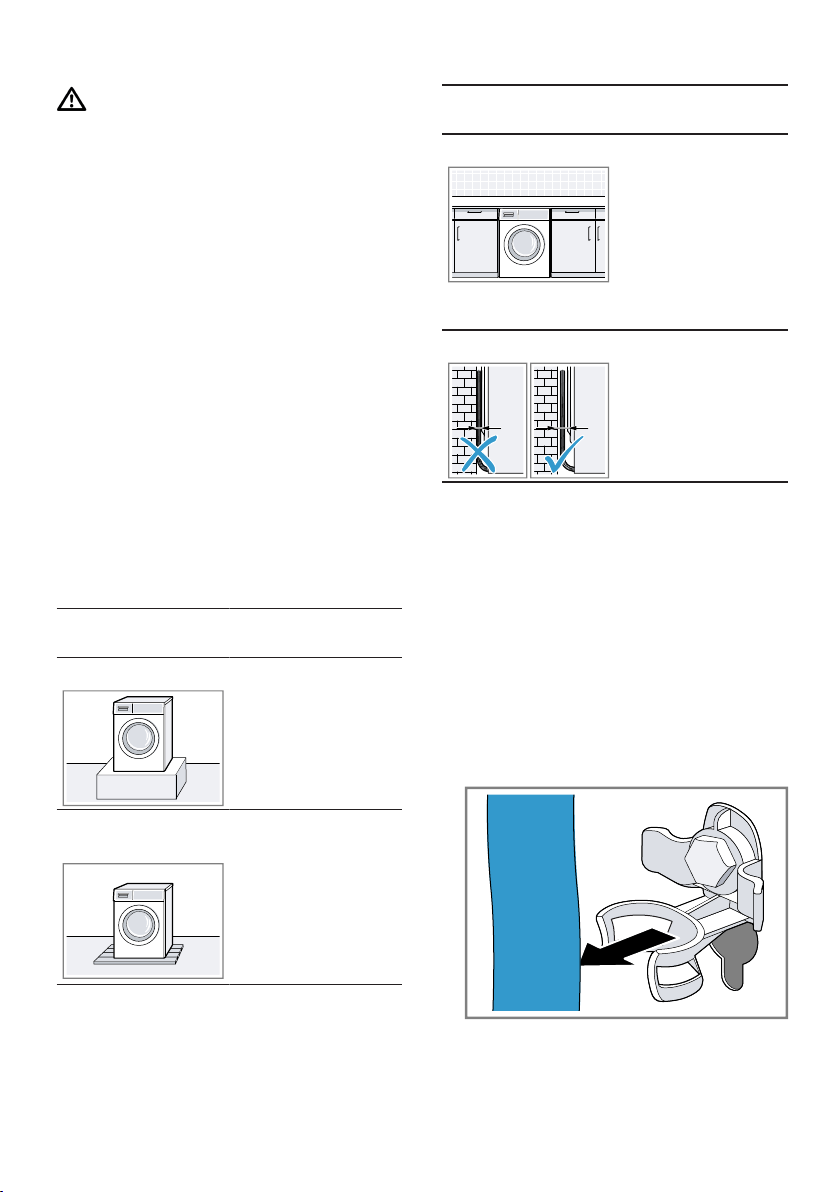

Installation loca-
tion
Requirements
Base Secure the appli-
ance with fixing
brackets
→Page30.
Wooden joist
floor
Place the appli-
ance on a water-
resistant wooden
board (minimum
thickness of
30mm) which is
screwed tightly to
the floor.
Installation loca-
tion
Requirements
Kitchen unit Only install the
appliance under-
neath a continu-
ous worktop that
is securely con-
nected to adja-
cent cabinets.
Required niche
width: 60cm.
Against a wall Do not trap the
power cord or
the hoses
between the wall
and the appli-
ance.
4.4 Removing the transit
bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Note:Keep the transit bolt screws
and the sleeves in a safe place for fu-
ture transport.
→"Inserting the transit bolts",
Page57
1. Pull the hoses out of the holders.
en Installation and connection
14
2. Unscrew and remove all of
the screws for the 4 transit bolts
using a WAF 13 wrench.
3. Remove the power cable from the
holder.
4. Remove the 4 sleeves.
5. Put on the 4 cover caps.
6. Push the 4 cover caps downwards.
Note:To install the transport locks to
transport the appliance, perform
these steps again in the reverse or-
der.
4.5 Connecting the appliance

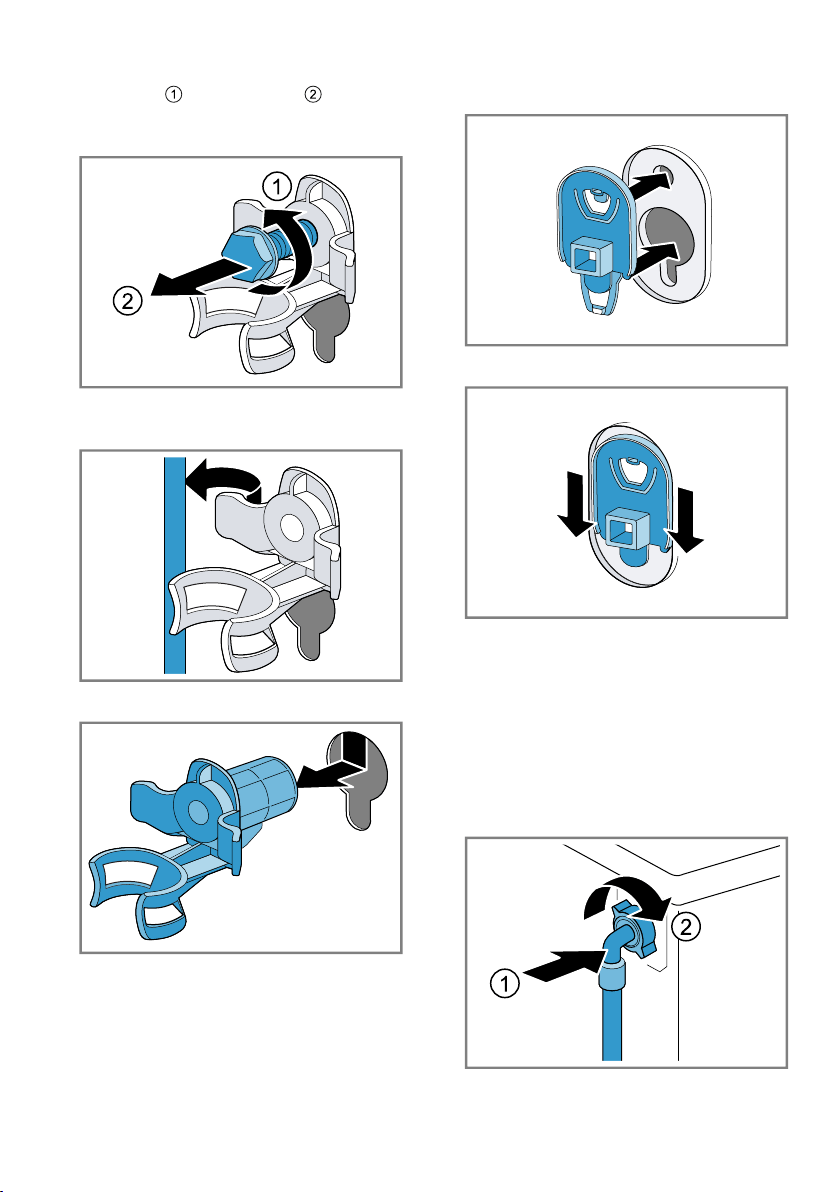

Connecting the water inlet hose
1. Connect the water inlet hose.
Installation and connection en
15

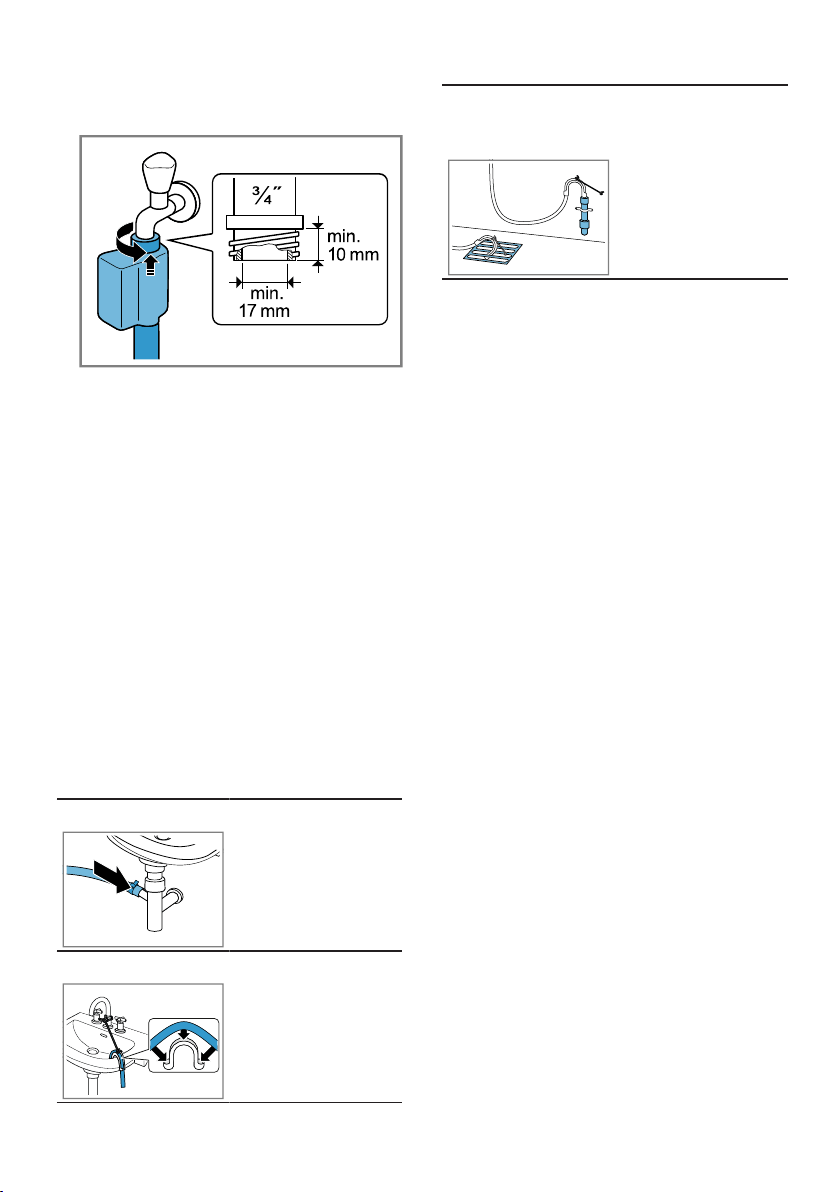

2. Connect the water inlet hose to a
tap (26.4mm=3/4").
3. Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
ATTENTION!
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
▶ Secure the water outlet hose
against unintentional loosening.
Note:Observe the draining heights.
The maximum draining height is
100cm.
Siphon Secure the con-
nection point with
a (24–40 mm)
hose clamp.
Sink Fix and secure
the water outlet
hose with an el-
bow
→Page30.
Plastic pipe with
rubber sleeve or
gully
Fix and secure
the water outlet
hose with an el-
bow
→Page30.
Connecting the appliance to the
electricity supply
Note:Your electrical domestic install-
ation for this appliance must comply
with the local legal provisions and
safety regulations, and should in-
clude a residual current circuit-
breaker.
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data →Page59.
2. Check the mains plug is inserted
properly.
en Installation and connection
16
4.6 Aligning the appliance
In order to reduce noise and vibra-
tion and to prevent the appliance
from moving, align the appliance cor-
rectly.

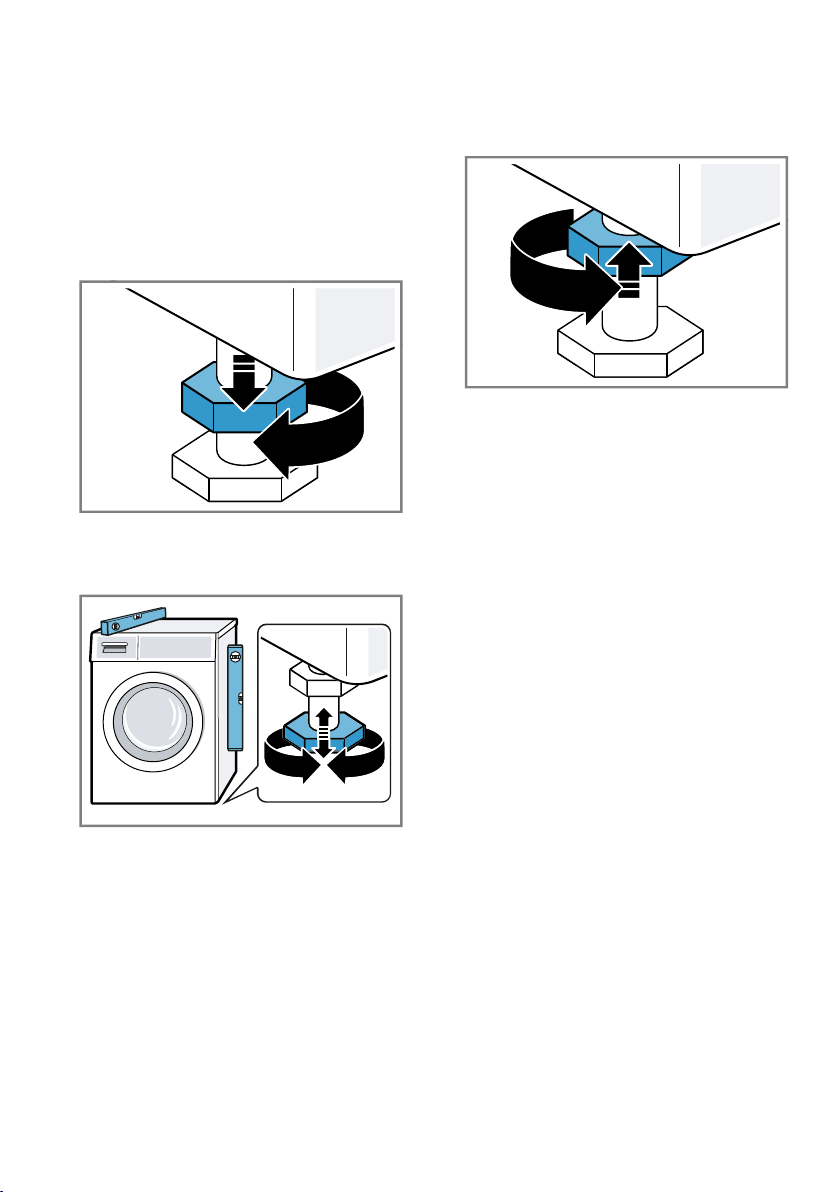

1. Use a WAF 17 wrench to loosen
the lock nuts in a clockwise direc-
tion.
2. To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
3. Use a WAF 17 wrench to tighten
the lock nuts against the housing
until they are hand-tight.
In doing so, hold the foot tight and
do not adjust its height.
Familiarising yourself with your appliance en
17
5 Familiarising yourself with your appliance
5.1 Appliance

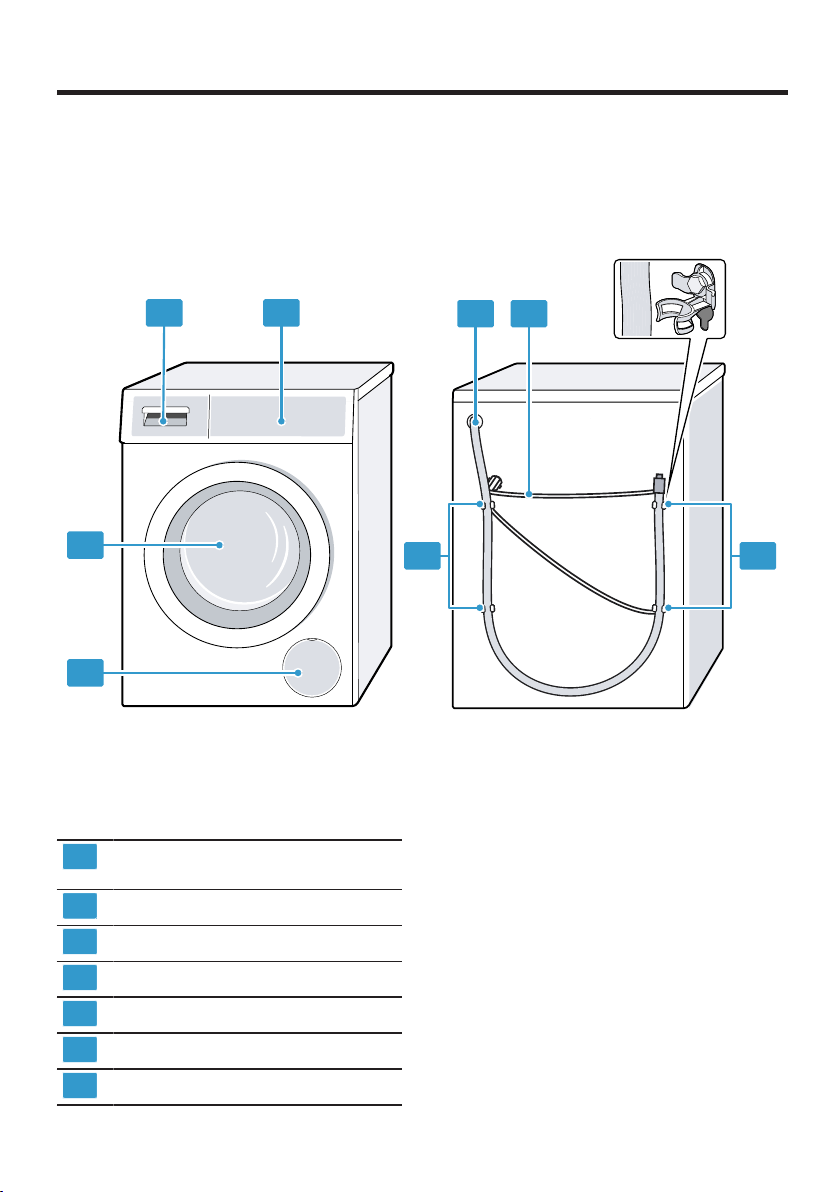

You can find an overview of the parts of your appliance here.
1
2
4
6
3
5
7
7
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
Maintenance flap for the drain
pump →Page42
2
Door
3
Detergent drawer →Page17
4
Control panel →Page18
5
Water outlet hose →Page15
6
Power cord →Page15
7
Transit bolts →Page13
5.2 Detergent drawer
Note:Observe the manufacturer's in-
structions on the use and dosage of
the detergent and care product and
the information in the programme de-
scriptions.
→"Programmes", Page26
en Familiarising yourself with your appliance
18

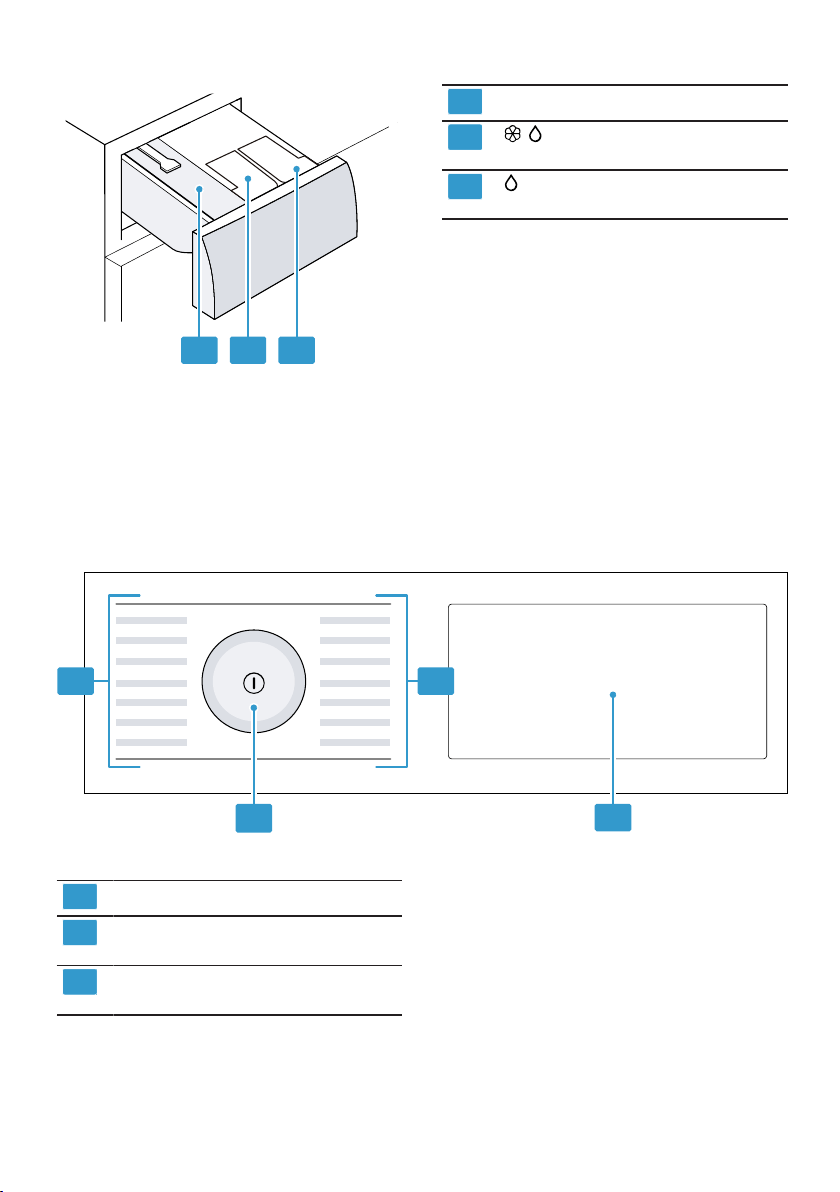

2 31
1
Manual dosing compartment
2
/ : Dispenser for fabric
softener or liquid detergent
3
: Dispenser for liquid deter-
gent
5.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
3
1 1
2
1
Programmes →Page26
2
Programme selector
→Page31
3
Buttons and display
→Page20
5.4 Operating logic
Some areas of the display respond to
touch. You can activate settings by
pressing the buttons. The activated
settings are highlighted brightly on
the display. You can change or deac-
first time en
19
tivate the activated settings by re-
peatedly pressing on the relevant
buttons on the display.
ATTENTION!
Pressing on the display with force
may cause damage.
▶ Do not apply heavy pressure on
the display.
▶ Do not press on the display using
pointed or sharp objects.
1 2
first time
6 Before using for the
first time
first time
Prepare the appliance for use.
6.1 Starting an empty wash-
ing cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.

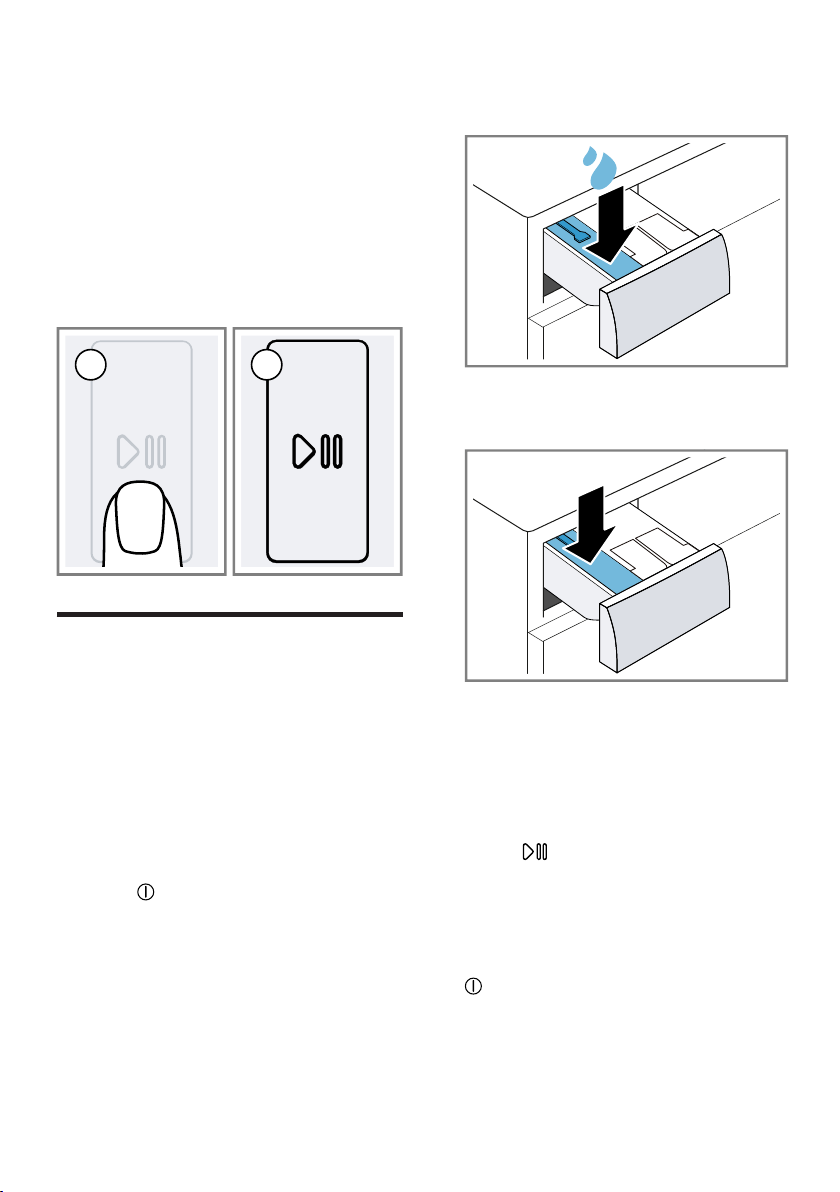

1. Press .
The switch-on process takes a few
seconds.
2. Set the Drum Clean ล้างถังซัก pro-
gramme.
3. Close the door.
4. Pull out the detergent drawer.
5. Pour approx. 1 litre of water into
the manual dosing compartment.
6. Add washing powder that contains
a bleaching agent to the manual
dosing compartment.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
7. Push in the detergent drawer.
8. Press to start the programme.
a The display shows the remaining
programme duration.
a After the programme has ended,
the display shows: End.
9. Start the first wash cycle or press
to switch off the appliance.
→"Basic operation", Page31
en Display
20

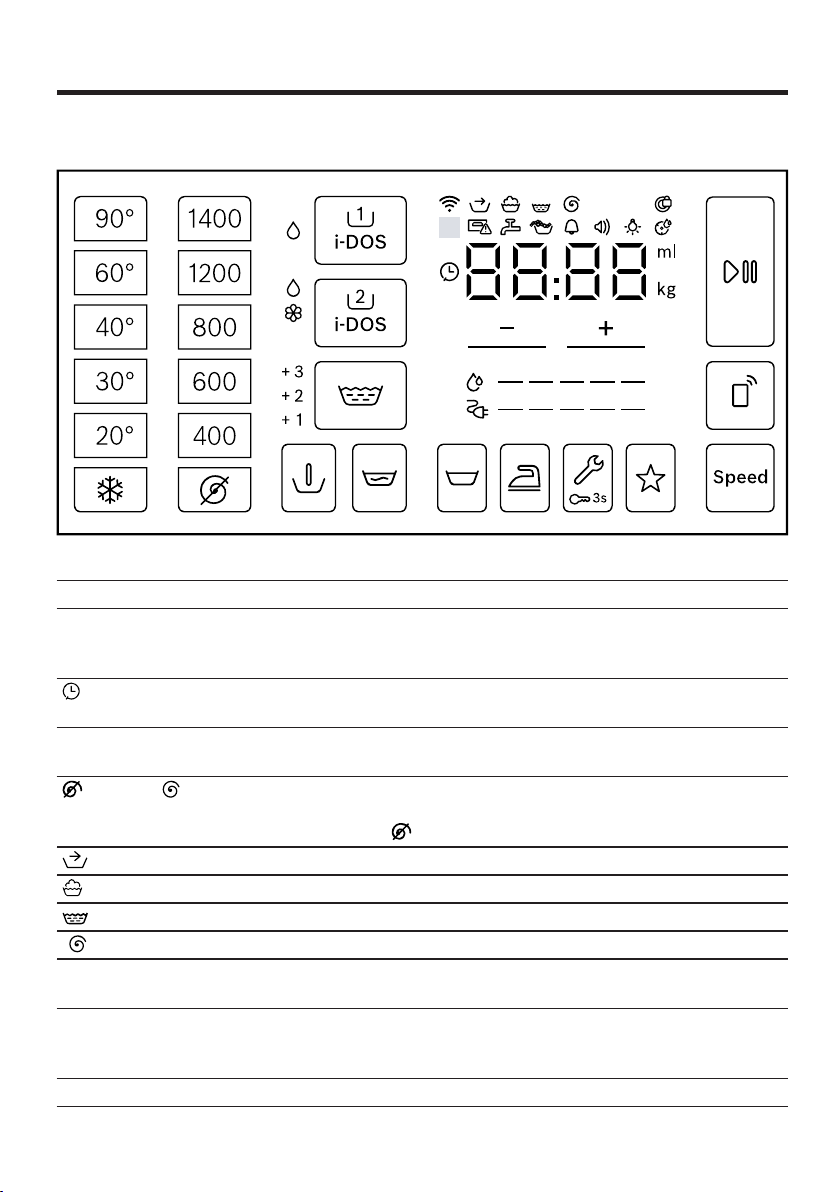

7 Display
The display shows the current settings, options or relevant information.
Example: Display
Display Designation More information
0:40
1
Programme dura-
tion/programme
time remaining
Expected programme duration or pro-
gramme time remaining in hours and
minutes.
1
Programme end
time
→"Buttons", Page23
9.0
1
Recommended
load
The maximum load capacity for the selec-
ted programme in kg.
- 1400 Spin speed Set spin speed in rpm.
→"Buttons", Page23
: No spin cycle, draining only
Pretreatment Programme status
Wash Programme status
Rinse Programme status
Spin Programme status
End End of pro-
gramme
Programme status
+1
+2
+3
Additional rinse Additional rinse cycles are activated.
→"Buttons", Page24
1
Example
Display en
21
Display Designation More information
Energy consump-
tion
Energy consumption for the selected pro-
gramme.
¡ : Low energy consumption
¡ : High energy consumption
Water consump-
tion
Water consumption for the selected pro-
gramme.
¡ : Low water consumption
¡ : High water consumption
End signal Basic setting
Button signal Basic setting
Display brightness Basic setting
Reminder to clean
the drum
Flashes: Drum is dirty. Run the Drum
Clean ล้างถังซัก programme for cleaning
and caring for the drum and the outer tub.
→"Cleaning the drum", Page40
Wi-Fi ¡ Lights up: The appliance is connected
to your home network.
¡ Flashes: The appliance is trying to con-
nect to your home network.
→"HomeConnect ", Page35
Dispenser for li-
quid detergent
¡ Lights up: The intelligent dosing system
for liquid detergent is activated.
¡ Flashes: The fill level of the dispenser is
below the minimum level.
→"Intelligent dosing system", Page33
(liquid detergent)
Dispenser for li-
quid detergent or
fabric softener.
¡ Lights up: The intelligent dosing system
for liquid detergent or fabric softener is
activated.
¡ Flashes: The fill level of the dispenser is
below the minimum level.
→"Intelligent dosing system", Page33
(liquid detergent)
(fabric softener)
50 ml
1
Basic dosage Basic dosage for detergent or fabric
softener.
→"Basic dosage", Page35
1
Example
en Display
22
Display Designation More information
Voltage control
system
Flashes: The automatic voltage control
system detects impermissible voltage
drops. This will pause the programme.
Note:The programme will continue when
the voltage is permissible again.
Voltage control
system
Flashes: The programme has been
paused because of impermissible voltage
drops. The voltage is permissible again
and the programme will continue.
Note:The programme duration is exten-
ded.
Foam detection
system
The appliance has detected too much
foam.
Door ¡ Lights up: The door is locked and can-
not be opened.
¡ Flashes: The door is not closed prop-
erly.
¡ Off: The door is unlocked and can be
opened.
Tap ¡ No water pressure.
¡ The water pressure is too low.
Detergent drawer The detergent drawer has not been
pushed in fully.
E:35 / -10
1
Error Error code, error display, signal.
1
Example
Buttons en
23
8 Buttons
The selection of programme settings depends on the programme that is set.
Button Selection More information
(Start/Pause) ¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause the pro-
gramme.
Speed ¡ Activate
¡ Deactivate
Activate or deactivate a shorter pro-
gramme duration.
Note:Energy consumption increases.
The washing result is not affected by
this.
i-DOS ¡ Activate
¡ Deactivate
¡ Basic dosage
Briefly press the button to activate or
deactivate the intelligent dosing sys-
tem for liquid detergent .
Press the button for approx. 3
seconds to set the basic dosage.
→"Intelligent dosing system",
Page33
i-DOS ¡ Activate
¡ Deactivate
¡ Dispenser con-
tents
¡ Basic dosage
Briefly press the button to activate or
deactivate the intelligent dosing sys-
tem for fabric softener or liquid de-
tergent .
Press the button for approx. 3
seconds to specify the contents of the
dispenser or set the basic dosage.
→"Intelligent dosing system",
Page33
/
(Ready In)
Up to 24 hours Set the programme end time.
The programme duration is already in-
cluded in the set number of hours.
Once the programme has started, the
programme duration is displayed.
- 90°
(Temperature se-
lection)
- 90 Adjust the temperature.
Set temperature in °C.
- 1400
(Spin)
- 1400 Adjust the spin speed or deactivate
the spin cycle.
Set spin speed in rpm.
If is selected, the water is drained
and the spin cycle is deactivated. The
laundry stays wet inside the drum.
en Buttons
24
Button Selection More information
(Off) (mains
switch)
¡ Switch on
¡ Switch off
Switch the appliance on or off.
(Remote Start) ¡ Activate
¡ Deactivate
¡ Open the
HomeConnect
menu
→"Remote start", Page37
3s (Child lock) ¡ Activate
¡ Deactivate
→"Childproof lock", Page33
(Settings)
Multiple selection
→"Basic settings", Page39
(Prewash) ¡ Activate
¡ Deactivate
Activate or deactivate prewash, e.g.
for washing heavily soiled laundry.
Note:If the intelligent dosing system
is activated, the detergent will be dis-
pensed automatically for the prewash
and the main wash.
If the intelligent dosing system is de-
activated, place the detergent for the
prewash directly in the drum.
(Rinse Plus)
¡ +1
¡ +2
¡ +3
Activate or deactivate up to three ad-
ditional rinse cycles.
Recommended for particularly sensit-
ive skin or in regions with very soft
water.
(Rinse Hold) ¡ Activate
¡ Deactivate
Activate or deactivate spinning and
draining at the end of the washing
cycle.
The laundry remains in the water after
the last rinse cycle.
(Soaking) ¡ Activate
¡ Deactivate
Activate or deactivate soaking.
Before the main wash cycle starts, the
laundry remains in the water for
longer.
For laundry with particularly stubborn
soiling.
Buttons en
25
Button Selection More information
(Easy Iron)
¡ Activate
¡ Deactivate
Activate or deactivate the reduced
creasing programme.
In order to reduce creasing in the
laundry, the spin cycle and the spin
speed are adapted.
Note:The laundry has a higher resid-
ual moisture after washing. To reduce
creasing, hang up the laundry immedi-
ately after washing.
(Memory) ¡ Saving
¡ Setting
Press the button for approx. 3
seconds to save your customised pro-
gram settings.
→"Saving the programme settings",
Page31
If you briefly press the button, you can
set customised program settings for
your program.
en Programmes
26
9 Programmes
Note:The laundry's care labels provide you with additional information on pro-
gramme selection.
Programme Description Max.
load
(kg)
Cottons ผ้าคอต
ต้อน
Wash hard-wearing items made from cotton, linen
or blended fabrics.
Also suitable as a short programme for normally
soiled laundry when you activate Speed.
Programme setting:
¡ Max. 90 °C
¡ Max. 1400rpm
9.0
5.0
1
Cottons Eco ซัก
ประหยัด
Wash hard-wearing items made from cotton, linen
or blended fabrics.
Energy-saving programme.
Note:To save energy, the actual washing temperat-
ure may deviate from the set washing temperature.
The washing performance meets legal require-
ments.
Programme setting:
¡ Max. 90 °C
¡ Max. 1400rpm
9.0
Synthetics ผ้า
สังเคราะห์
Wash items made from synthetic or blended fab-
rics.
Programme setting:
¡ Max. 60 °C
¡ Max. 1200 rpm
4.0
Mix Load ผ้า
หลายชนิด
Wash items made from cotton, linen, or synthetic or
blended fabrics.
Suitable for lightly soiled laundry.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
4.0
Delicates/ Silk
ผ้าบอบบาง/ผ้า
ไหม
Wash delicate, washable items made from silk, vis-
cose and synthetic fabrics.
Use a detergent that is suitable for delicates or silk.
Note:Wash especially delicate items or items with
hooks, eyelets or clips in a mesh laundry bag.
2.0
1
Speed activated
2
Washing not possible
Programmes en
27
Programme Description Max.
load
(kg)
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
Wool ซักถนอม
ผ้าขนสัตว์
Hand- or machine-washable items that are made
from wool or contain wool.
To prevent the laundry from shrinking, the drum
moves the items very gently with long pauses.
Use a detergent that is suitable for wool.
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
2.0
Rinse ล้างน้ำ Rinse and then spin the laundry, and drain the wa-
ter.
Programme setting: Max. 1400 rpm
–
Spin/Drain ปั่น
หมาด/ระบายน้ำ
Spin and drain the water.
If you only want to drain the water, activate . The
laundry is not spun.
Programme setting: Max. 1400 rpm
–
… Add on Progr. Select additional programmes directly via the
HomeConnect app.
A description of the programmes can be found in
the HomeConnect app.
Note:Your appliance must be connected to your
home network and registered in your HomeCon-
nect app.
→"HomeConnect ", Page35
–
AlergyPlus
ป้องกันภูมิแพ้
Wash hard-wearing items made from cotton, linen
or blended fabrics.
Suitable for allergy sufferers and for strict hygiene
requirements.
Note:Once the set temperature has been reached,
it remains constant throughout the entire washing
process.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
6.5
1
Speed activated
2
Washing not possible
en Programmes
28
Programme Description Max.
load
(kg)
Automatic 40°
ซักอัตโนมัติ
40°C
Wash hard-wearing items made from cotton, or syn-
thetic or blended fabrics.
The degree of soiling and the type of fabric are
automatically detected. The washing process is ad-
apted.
Note:The temperature and spin speed cannot be
adjusted in this programme and are set automatic-
ally.
The maximum temperature is 40 °C.
The maximum spin speed is 1400 rpm.
6.0
Quilt / Blanket
ผ้านวม
Wash pillows or quilts stuffed with synthetic fibres
or down fillings.
Wash large items separately.
Use a detergent that is suitable for down or delic-
ates.
Use sparingly.
Do not use fabric softener.
Note:To prevent excessive foaming, remove air
from laundry items by rolling them up before you
wash them.
Programme setting:
¡ Max. 60 °C
¡ Max. 1200rpm
2.5
Drum Clean ล้าง
ถังซัก
Clean and care for the drum.
Use this programme in the following cases:
¡ Before using the appliance for the first time
¡ If you regularly wash at temperatures of 40°C or
lower
¡ After a prolonged period of non-use
Use washing powder that contains bleach. Place
the washing powder containing bleach in the
manual dosing compartment.
→"Detergent drawer", Page17
Halve the amount of detergent to avoid foaming.
Do not use fabric softener.
Do not use liquid detergent or detergent that is in-
tended for woollens or delicates.
Note:The drum cleaning indicator flashes to re-
mind you if you have not used a programme at
60°C or higher for a long time.
–
2
1
Speed activated
2
Washing not possible
Programmes en
29
Programme Description Max.
load
(kg)
Quick 15/30
min ด่วน
15นาที/30นาที
Wash items made from cotton, or synthetic or blen-
ded fabrics.
Short programme for small items of lightly soiled
laundry.
The programme duration is approx. 30 minutes.
If you wish to reduce the programme duration to 15
minutes, activate Speed. The maximum load is re-
duced to 2.0kg.
Programme setting:
¡ Max. 40 °C
¡ Max. 1200rpm
4.0
1
Speed activated
2
Washing not possible
en Accessories
30
10 Accessories
Use original accessories. These have
been made especially for your appli-
ance.
Note:Some accessories are avail-
able in other colours. Contact
→"Customer Service", Page58.
Use Order number
Water inlet hose exten-
sion
Extend the water inlet
hose for cold water or
AquaStop (approx. 2.50
m).
WMZ2381
Fixing brackets Improves the stability of
the appliance.
WMZ2200
Elbow Secure the water outlet
hose in place.
00655300
Platform Install the appliance at a
raised height so that it
can be easily loaded and
unloaded.
WMZ20490
11 Laundry
11.1 Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶ Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are
protected when you prepare your
laundry.
¡ Brush off sand and soil
¡ Sort the laundry according to col-
our and textiles and observe the
care labels
¡ Close all zips, Velcro fasteners,
hooks and eyes
¡ Tie cloth belts, cloth straps and
cords together
¡ Remove curtain fittings and lead
strips
¡ Wash small or particularly delicate
items in a mesh washing bag
¡ Wash large and small items of
laundry together
¡ Wash laundry with fresh stains im-
mediately
¡ Pretreat laundry with dried stains
and wash several times
¡ Load the laundry unfolded into the
drum
Detergents and care products en
31
12 Detergents and care
products
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
¡ When using liquid detergents, only
use liquid detergents that are self-
flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products that have ex-
pired or are highly congealed
¡ do not use products containing
solvents, caustic agents or volatile
substances
¡ Use dyes sparingly as salt may
damage stainless steel
¡ Do not use color-bleaching agents
in the appliance
¡ Do not pour vinegar into the dis-
pensers →Page34 of the intelli-
gent dosing system
operation
13 Basic operation
operation
13.1 Switching on the appli-
ance
Requirement:The appliance has
been correctly installed and connec-
ted.
→"Installation and connection",
Page12
▶ Press .
The switch-on process takes a few
seconds.
a An audible function test is carried
out.
13.2 Setting a programme
1. Turn the programme selector and
set the required programme.
→"Programmes", Page26
2. If required, adjust the programme
settings.
→"Adjusting the programme set-
tings", Page31
13.3 Adjusting the pro-
gramme settings
Requirement:A programme has
been set.
→"Setting a programme", Page31
▶ Adjust the programme settings.
→"Buttons", Page23
Observe the information about op-
erating logic →Page18.
Notes
¡ The programme settings are not
saved permanently for the pro-
gramme.
¡ The setting is saved if you activate
or deactivate the intelligent dosing
system.
13.4 Saving the programme
settings
You can save your individual pro-
gramme settings as favourites.
Requirements
¡ A programme is set.
→"Setting a programme",
Page31
¡ The programme settings have
been adjusted.
→"Adjusting the programme set-
tings", Page31
▶ Press and hold for approx. 3
seconds.
Press to call up the saved pro-
gramme.
en operation
32
Note:To overwrite the saved pro-
gramme, repeat the steps above.
13.5 Loading laundry
Note:To prevent creasing, note the
maximum load for the programmes.
→"Programmes", Page26
Requirements
¡ The laundry is prepared and sor-
ted.
→"Laundry", Page30
¡ The drum is empty.
1. Open the door.
2. Place the laundry in the drum.
3. Close the door.
Ensure that there is no laundry
trapped in the door.
13.6 Adding detergent and
care product
For programmes in which intelligent
dosing is not possible or desirable,
you can add detergent manually.
Tip:In addition to intelligent dosing,
you can also add additional care
product for laundry, e.g. stain re-
mover, starch or bleach, to the
manual dosing compartment. Do not
add any additional detergent to the
manual dosing compartment to avoid
overdosage and/or foaming.
Note:Observe the information about
detergents and care products
→Page31.
1. Pull out the detergent drawer.
2. Pour in detergent.
→"Detergent drawer", Page17
3. If required, add the care product.
4. Push in the detergent drawer.
13.7 Starting the programme
Requirement:A programme is set.
→"Setting a programme", Page31
▶ Press .
a The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
a The display shows the programme
duration or the programme end
time.
a After the programme has ended,
the display shows: End.
13.8 Adding laundry
After the programme starts, you can
remove or add laundry depending on
the programme status.
1. Press .
The appliance pauses.
Note:If you want to add laundry,
follow the instructions on the dis-
play.
→"Display", Page22
2. Open the door.
3. Add or remove laundry.
4. Close the door.
5. Press .
13.9 Cancelling the pro-
gramme
1. Press .
2. Open the door.
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the Rinse ล้างน้ำ programme.
– If the water level is high, start
the Spin ปั่นหมาด programme or
select a suitable programme for
draining.
→"Programmes", Page26
3. Remove the laundry.
→"Unloading the laundry",
Page33
Childproof lock en
33
13.10 Unloading the laundry
1. Open the door.
2. Remove the laundry from the
drum.
13.11 Switching off the appli-
ance
1. Press .
2. Turn off the tap.
3. Wipe the rubber gasket dry and re-
move any foreign objects.
4. Leave the appliance door and de-
tergent drawer open so that resid-
ual water can evaporate.
14 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
14.1 Activating the childproof
lock
▶ Press and hold 3s for approx. 3
seconds.
a The control elements are locked.
a The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
14.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶ Press and hold 3s for approx. 3
seconds.
15 Intelligent dosing sys-
tem
The optimum quantities of liquid de-
tergent and fabric softener are dis-
pensed automatically depending on
the programme and settings.
15.1 Starting the programme
with intelligent dosing
system
If you do not want to dose liquid de-
tergent and fabric softener manually,
use the intelligent dosing system.
This function is available depending
on the selected programme and is
activated automatically.
Note
If you are using the intelligent dosing
system, do not add additional deter-
gent or fabric softener into the com-
partment for manual dosing.
→"Adding detergent and care
product", Page32
If you want to dose manually for a set
programme, observe the following
information:
¡ Deactivate the intelligent dosing
system before starting the pro-
gramme. The selected settings are
retained even after the appliance
has been switched off.
→"Buttons", Page23
→"Buttons", Page23
en Intelligent dosing system
34
¡ Pour detergent or fabric softener
into the compartment for manual
dosing.
→"Adding detergent and care
product", Page32
¡ Activate the intelligent dosing sys-
tem once the programme has
ended.
→"Buttons", Page23
→"Buttons", Page23
Requirements
¡ The laundry is prepared.
→"Preparing the laundry", Page30
¡ The laundry is sorted.
¡ The laundry is placed in the appli-
ance.
→"Loading laundry", Page32
¡ The programme is set.
→"Setting a programme", Page31
¡ The intelligent dosing system is ac-
tivated.
→"Buttons", Page23
→"Display", Page21
→"Display", Page21
1. Fill the dispensers.
→"Filling the dispensers",
Page34
To replace the contents of the dis-
penser with another product, clean
the detergent drawer.
→"Cleaning the detergent drawer",
Page40
2. If required, adjust the contents of
the dispenser →Page35.
3. If required, adjust the basic
dosage →Page35.
4. If required, adjust the programme
settings.
→"Adjusting the programme set-
tings", Page31
5. Start the programme.
→"Starting the programme",
Page32
6. Remove the laundry.
→"Unloading the laundry",
Page33
15.2 Filling the dispensers
If you want to use the intelligent dos-
ing system or if the appliance dis-
plays a notification during operation
of the appliance, fill the dispensers.
Note:Fill the dispensers only with
suitable detergent and care products
→Page31.
If you want to add more liquid deter-
gent or fabric softener in the dis-
penser, use the same product.
If you want to replace the liquid de-
tergent or fabric softener in the dis-
penser with another product, clean
the detergent drawer beforehand.
→"Cleaning the detergent drawer",
Page40
If you want to use both dispensers
for liquid detergent, adjust the con-
tents of the dispensers →Page35.
Requirement:The display shows a
notification to fill the dispenser.
→"Display", Page21
→"Display", Page21
1. Pull out the detergent drawer.
2. Open the dispenser cover.
HomeConnect en
35

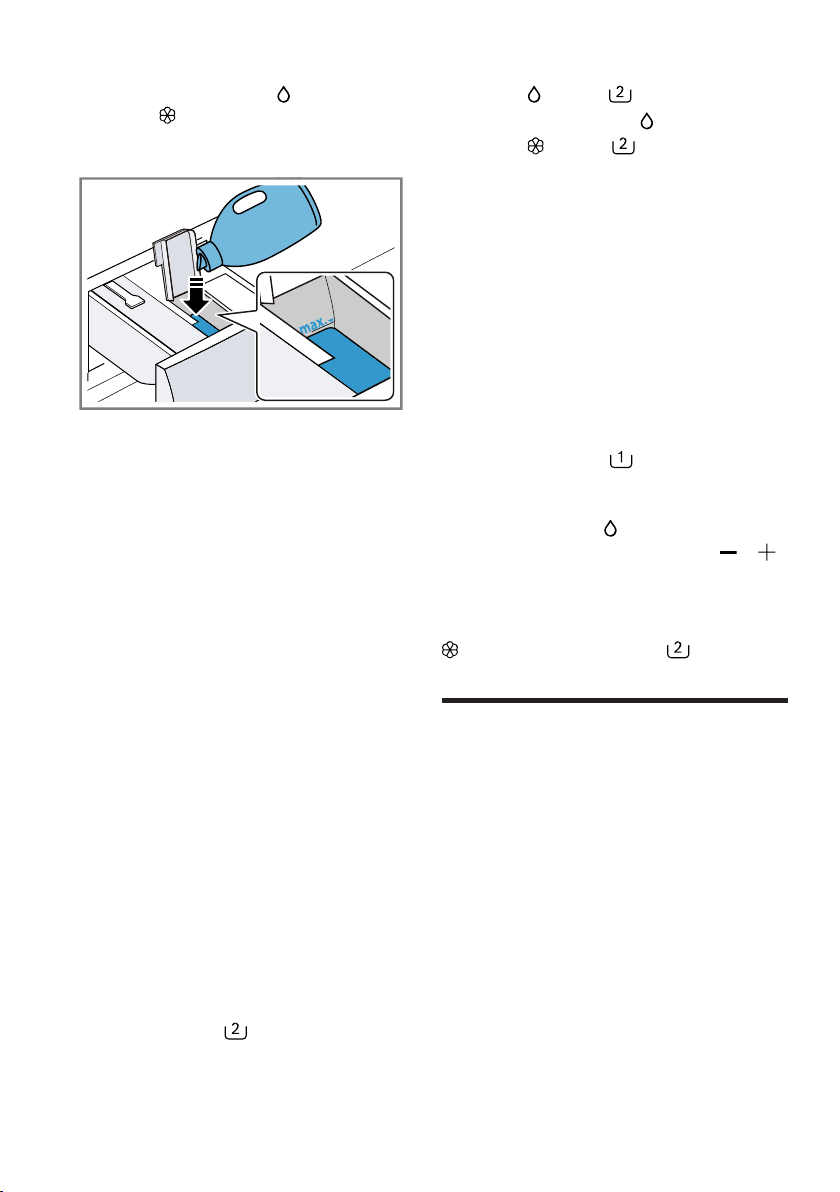

3. Pour liquid detergent and fabric
softener into the relevant dis-
pensers.
→"Detergent drawer", Page17
Do not exceed the marking for the
maximum fill level when filling.
4. Close the dispenser cover.
Note:To prevent the liquid deter-
gent or fabric softener from drying
out, close the dispenser cover im-
mediately after filling.
5. If required, pour washing aid into
the compartment for manual dos-
ing.
→"Adding detergent and care
product", Page32
6. Push in the detergent drawer.
7. Adjust the basic dosage
→Page35.
15.3 Dispenser contents
Notes
¡ If you change the contents of the
dispenser, the basic dosage for
this dispenser is reset.
¡ If you use both dispensers for li-
quid detergent, you must select a
dispenser which is to be used dur-
ing washing.
Adjusting the dispenser contents
1. Press and hold i-DOS for ap-
prox. 3 seconds.
2. To set , press i-DOS.
a The display shows .
3. To set , press i-DOS again.
4. To end the setting process, wait
briefly.
15.4 Basic dosage
The basic dosage depends on the
manufacturer's instructions for the de-
tergent, the water hardness and the
degree of soiling of the laundry.
Always set a basic dosage that cor-
responds to the dosage for a stand-
ard load of 4.5 kg.
Adjusting the basic dosage
1. Press and hold i-DOS for ap-
prox. 3 seconds.
a The display shows the basic
dosage set for .
2. To adjust the setting, press / .
3. To end the setting process, wait
briefly.
Note:To adjust the basic dosage for
, repeat the steps with i-DOS.
HomeConnect
16 HomeConnect
HomeConnect
This appliance is network-capable.
Connecting your appliance to a mo-
bile device lets you control its func-
tions via the HomeConnect app, ad-
just its basic settings and monitor its
operating status.
The HomeConnect services are not
available in every country. The avail-
ability of the HomeConnect function
depends on the availability of
HomeConnect services in your coun-
try. You can find information about
this at: www.home-connect.com.
en HomeConnect
36
The HomeConnect app guides you
through the entire login process. Fol-
low the instructions in the HomeCon-
nect app to configure the settings.
Tips
¡ Please consult the documents sup-
plied by HomeConnect.
¡ Please also follow the instructions
in the HomeConnect app.
Notes
¡ Please note the safety precautions
in this instruction manual and
make sure that they are also ob-
served when operating the appli-
ance via the HomeConnect app.
→"Safety", Page4
¡ Operating the appliance on the ap-
pliance itself always takes priority.
During this time it is not possible
to operate the appliance using the
HomeConnect app.
16.1 Setting up the
HomeConnect app
1. Install the HomeConnect app on
your mobile device.
1
2. Start the HomeConnect app and
set up access for HomeConnect.
The HomeConnect app guides
you through the entire login pro-
cess.
16.2 Setting up HomeCon-
nect
Requirements
¡ The HomeConnectapp has been
installed on your mobile device.
¡ Wi-Fi has been activated on the
router.
¡ The appliance is receiving signals
from the WLAN home network (Wi-
Fi) at its installation location.
1. Use the HomeConnect app to
scan the QR code.
2. Follow the instructions in the
HomeConnect app.
16.3 Activating Wi-Fi on the
appliance
Note:When Wi-Fi is activated, the en-
ergy consumption increases in com-
parison to the values specified in the
consumption value table.
1. Press and hold for approx. 3
seconds.
2. Set the programme to position 4.
a The display shows Con.
3. Press repeatedly until the dis-
play shows on.
a Wi-Fi is activated.
1
Apple App Store und the Apple App Store logo are trademarks of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC.
HomeConnect en
37
Note:If Wi-Fi is activated, the appli-
ance will not switch itself off automat-
ically.
16.4 Deactivating Wi-Fi on the
appliance
1. Press and hold for at least
threeseconds.
2. Set the programme to position 4.
a The display shows Con.
3. Press repeatedly until the dis-
play shows oFF.
a Wi-Fi is deactivated.
Note:The connection is automatically
re-established when the Wi-Fi is
switched back on.
16.5 Resetting the appliance
network settings
1. Press and hold for at least
3seconds.
2. Set the programme to position5.
a The display shows rES.
3. Press .
a The display shows Yes.
4. Press .
a The network settings are reset.
a If End is shown on the display, the
network settings are reset.
16.6 Remote start
Enable the appliance for remote start
via the HomeConnect app.
Note
Remote start is deactivated for safety
reasons in the following
circumstances:
¡ The appliance door is opened.
¡ is pressed.
¡ is pressed.
¡ The appliance is switched off.
¡ Following a power cut.
Activating remote start
Requirements
¡ The appliance is connected to your
home WiFi network.
¡ The appliance is connected to the
HomeConnect app.
¡ A programme is selected.
¡ The appliance door is closed.
¡ The detergent drawer has been
pushed in.
▶ Press .
a lights up and the appliance is
enabled for remote start via the
HomeConnect app.
Deactivating remote start
▶ Press .
a goes out.
16.7 Data protection
Please see the information on data
protection.
The first time your appliance is
registered on a home network
connected to the Internet, your
appliance will transmit the following
types of data to the HomeConnect
server (initial registration):
¡ Unique appliance identification
(consisting of appliance codes as
well as the MAC address of the
Wi-Fi communication module in-
stalled).
¡ Security certificate of the Wi-Fi
communication module (to ensure
a secure data connection).
¡ The current software and hardware
version of your appliance.
¡ Status of any previous reset to
factory settings.
This initial registration prepares the
HomeConnect functions for use and
is only required when you want to
use the HomeConnect functions for
the first time.
en HomeConnect
38
Note:Please note that the
HomeConnect functions can only be
utilised with the HomeConnect app.
Information on data protection can be
retrieved in the HomeConnect app.
Basic settings en
39
17 Basic settings
You can configure the basic settings for your appliance to meet your needs.
17.1 Overview of the basic settings
Basic setting Symbol Value Description
End signal 0 (off)
1 (quiet)
2 (me-
dium)
3 (loud)
4 (very
loud)
Set the volume of the signal at the
end of the programme.
Button signal 0 (off)
1 (quiet)
2 (me-
dium)
3 (loud)
4 (very
loud)
The volume of the audible signal
emitted when the buttons are
pressed.
Display bright-
ness
1 (low)
2 (me-
dium)
3 (high)
4 (very
high)
Set the display brightness.
Drum cleaning
reminder
On
OFF
Activate or deactivate the re-
minder to clean the drum.
en Cleaning and servicing
40
17.2 Changing the basic set-
tings
1. To call up the basic settings, press
.
a The display shows the selected ba-
sic setting and the current value.
2. Select the required basic setting.
→"Overview of the basic settings",
Page39
3. To change the value, press / .
4. To save the changes, switch off
the appliance.
18 Cleaning and servi-
cing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
18.1 Cleaning the drum
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
▶ Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
▶ Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
▶ Run the Drum Clean ล้างถังซัก pro-
gramme without laundry and with a
cleaning agent for caring for the in-
side of the appliance or with wash-
ing powder that contains bleach.
18.2 Cleaning the detergent
drawer
If you want to replace the liquid de-
tergent or fabric softener in the dis-
penser with another product or if the
detergent drawer is dirty, clean the
detergent dispenser.
ATTENTION!
The pump unit contains electrical
components. Electrical components
may be damaged if they come into
contact with liquids.
▶ Do not clean the pump unit in the
dishwasher and do not immerse it
in water.
▶ Protect the electrical connection
on the rear against water, deter-
gent and fabric softener residue.
1. Switch off the appliance.
→"Switching off the appliance",
Page33
2. Pull out the detergent drawer.
3. Press down on the insert and re-
move the detergent drawer.
Cleaning and servicing en
41

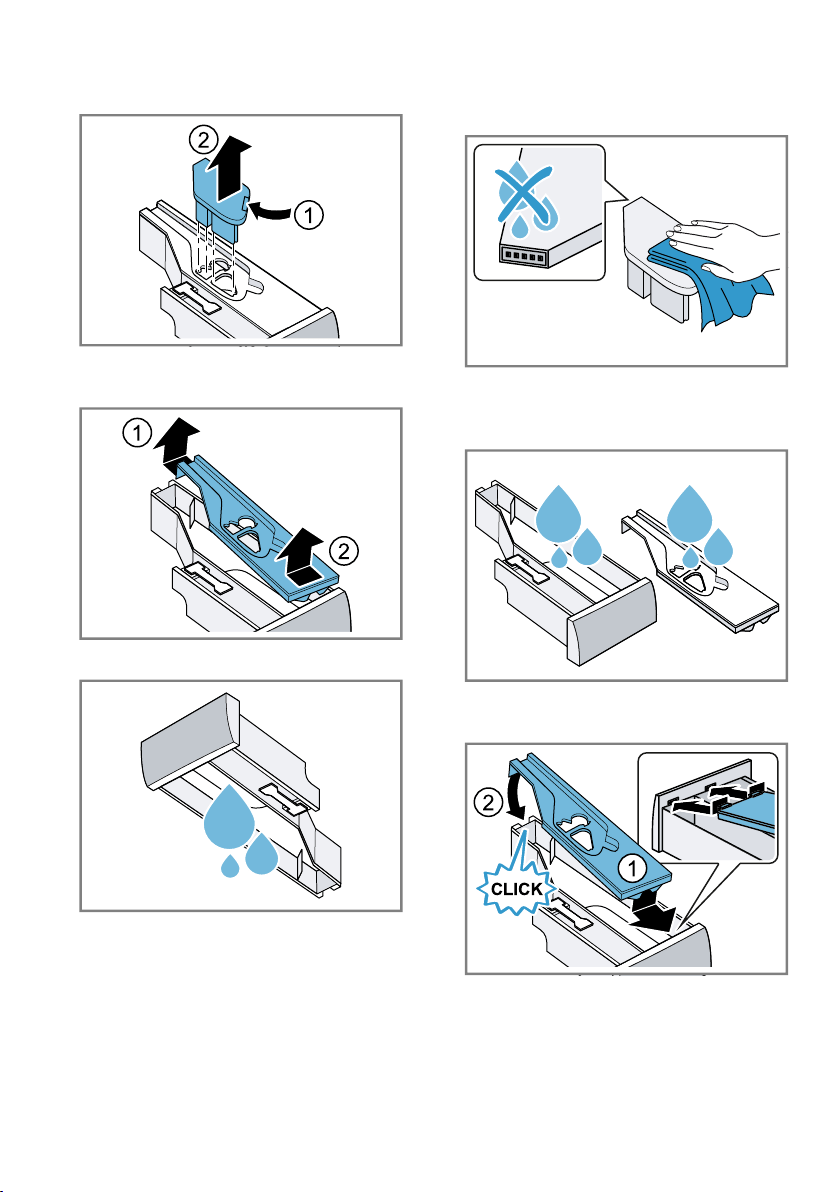

4. Remove the pump unit.
5. Unclip the detergent drawer cover
and remove it.
6. Empty the detergent drawer.
7. Clean the pump unit with a damp
cloth.
8. Clean the detergent drawer and
the cover with a soft, damp cloth
or hand shower.
9. Dry the detergent drawer, cover
and pump unit and reinsert them.
en Cleaning and servicing
42

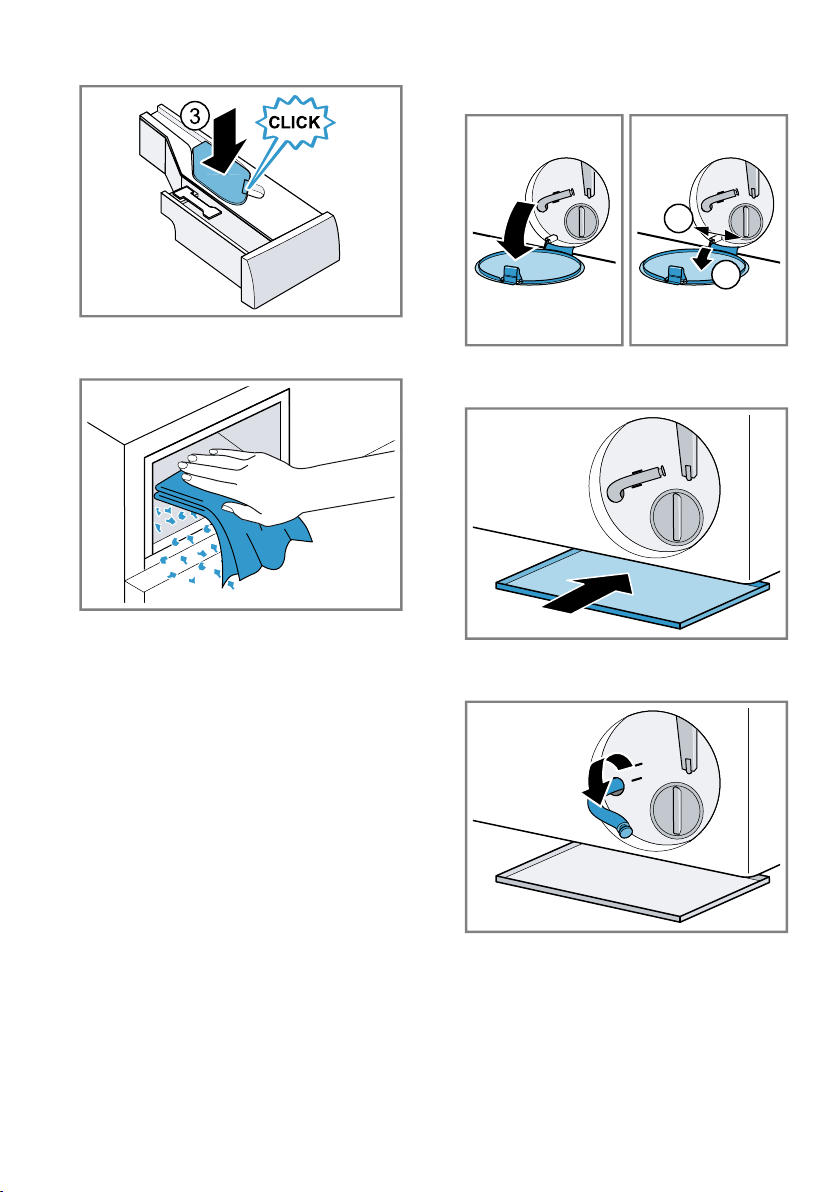

10.Clean the housing of the detergent
drawer in the appliance.
11.Push in the detergent drawer.
18.3 Cleaning the drain pump
Clean the drain pump regularly, at
least once a year, as well as in the
event of faults, e.g. blockages or rat-
tling noises.
Emptying the drain pump
1. Turn off the tap.
2. Switch off the appliance.
→"Switching off the appliance",
Page33
3. Disconnect the appliance's mains
plug from the power supply.
4. Open and remove the service flap.
1
2
5. Slide a sufficiently large container
under the opening.
6. Take the drain hose out of the
holder.
Cleaning and servicing en
43

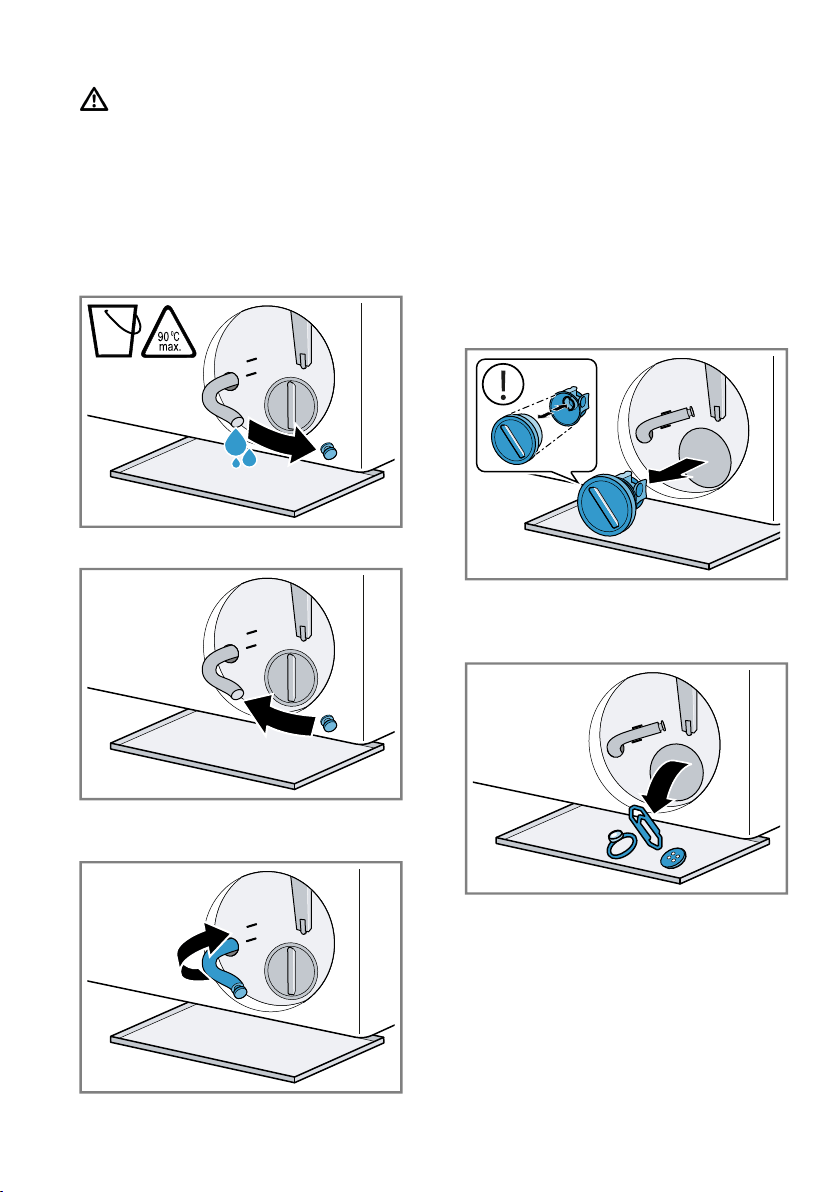

7.
CAUTION-Risk of scalding!
When you wash at high temperat-
ures, the detergent solution gets
hot.
▶ Do not touch the hot detergent
solution.
To allow the detergent solution to
flow out into the container, remove
the sealing cap.
8. Firmly press on the sealing cap.
9. Insert the drain hose into the
holder.
Cleaning the drain pump
Requirement:The drain pump is
empty. →Page42
1. Since water may remain in the
drain pump, unscrew the pump
cap carefully.
‒ The filter insert in the pump
housing may become stuck due
to coarse particles of dirt.
Loosen the dirt and remove the
filter insert.
2. Clean the interior, the thread on
the pump cap and the pump hous-
ing.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
3. Ensure that the impeller in the
drain pump can rotate.
en Cleaning and servicing
44

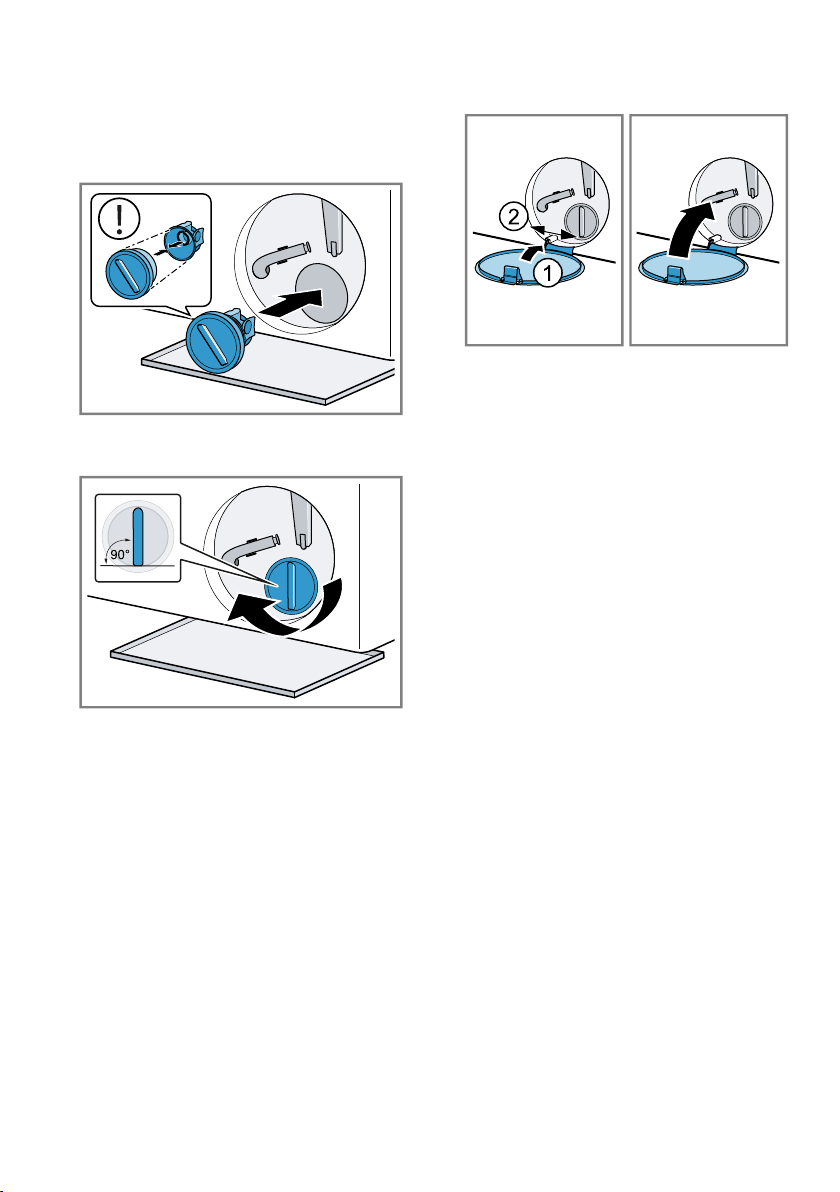

4. Insert the pump cap.
‒ Ensure that the parts of the
pump cap are correctly as-
sembled.
5. Screw the pump cap as far as it
will go.
The handle on the pump cap must
be in a vertical position.
6. Insert and close the service flap.
Before the next wash
To prevent unused detergent from
flowing straight into the outlet in the
next wash, run a suitable programme
for draining after you have emptied
the drain pump.
1. Open the water tap.
2. Insert the mains plug.
3. Switch on the appliance.
4. Pour 1litre of water into the
manual dosing compartment.
5. Select a suitable programme for
draining.
→"Programmes", Page26
Troubleshooting en
45
19 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Incorrect repairs are dangerous.
▶ Repairs to the appliance should only be carried out by trained specialist
staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and flashes.
Energy-saving mode is active
▶ Press any button.
a The symbol lights up again.
"E:30 / -80" Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
▶ Ensure that the drain pipe and water drain hose are
not kinked or trapped.
The water outlet hose is connected too high.
▶ Install the water outlet hose at a maximum height of
1 metre.
Unapproved extension installed on the water drain
hose.
▶ Remove any unapproved extensions from the water
hose.
→"Connecting the appliance", Page14
Drain pump is blocked.
▶
→"Cleaning the drain pump", Page42
Pump cover is not correctly assembled.
▶ Correctly assemble the pump cover.
The pump cap is not fully screwed in.
▶ Ensure that the pump cap is screwed in all the way
into the appliance. The handle on the pump cap
must be in a vertical position.
Detergent dosage is too high.
en Troubleshooting
46
Fault Cause and troubleshooting
"E:30 / -80" ▶ Immediate measure: Mix one tablespoon of fabric
softener with 0.5 litres of water and pour the mix-
ture into the compartment for manual dosing (not
for outdoor clothing, sportswear or items stuffed
with down).
▶ If intelligent dosing is activated, reduce the basic
dosage →Page35.
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
"E:36 / -25 / -26" Drain pump is blocked.
▶
→"Cleaning the drain pump", Page42.
"E:10 / -00 / -10 /
-20"
The pump for the intelligent dosing system is blocked.
1. Switch off the appliance.
2. Clean the pump unit.
→"Cleaning the detergent drawer", Page40
3. Switch the appliance on.
4. If the display appears again after you clean the
pump unit, call customer service.
→"Customer Service", Page58
Note:You can deactivate and manually dose the intel-
ligent dosing system until the fault is rectified.
→"Buttons", Page23
"H:32" The unbalanced load detection system has interrupted
the spin cycle because the laundry is unevenly distrib-
uted.
▶ Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in
the drum. Different sized items of laundry distribute
themselves better during the spin cycle.
"E:30 / -10" and/or The water pressure is low.
No remedial action possible.
The filters in the water inflow are blocked.
▶ Clean the filters in the water inflow.
The tap is turned off.
▶ Turn on the tap.
The water inlet hose is kinked or jammed.
▶ Ensure that the water inlet hose is not kinked or
jammed.
Water level measurement system is defective.
Note:With the error message, the appliance starts a
draining process.
Troubleshooting en
47
Fault Cause and troubleshooting
"E:30 / -10" and/or 1. First wait approx. 5 minutes until the drain process
ends.
2. To reset the error message, switch the appliance
off.
3. Switch the appliance back on.
4. If the error message is displayed again, call cus-
tomer service.
→"Customer Service", Page58
The detergent drawer has not been pushed in fully.
▶ Push in the detergent drawer until the symbol goes
out.
The pump unit is not inserted.
1. Insert the pump unit into the detergent drawer.
→"Cleaning the detergent drawer", Page40
2. Push in the detergent drawer until the symbol goes
out.
flashes. The automatic voltage control system detects an un-
authorised voltage drop.
▶ No remedial action possible.
Note:If the power supply is stable, the programme
continues to run as normal.
Voltage under-usage may cause extension of a pro-
gramme.
No remedial action possible.
Detergent dosage is too high.
▶ Immediate measure: Mix one tablespoon of fabric
softener with 0.5 litres of water and pour the mix-
ture into the compartment for manual dosing (not
for outdoor clothing, sportswear or items stuffed
with down).
▶ If intelligent dosing is activated, reduce the basic
dosage →Page35.
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
lights up. The temperature is too high.
▶ Wait until the temperature has dropped.
▶
→"Cancelling the programme", Page32
Water level is too high.
▶ Select a suitable programme for draining.
→"Programmes", Page26
en Troubleshooting
48
Fault Cause and troubleshooting
flashes. Door is not closed.
▶ Close the door.
Laundry is caught in the door.
▶ Remove any trapped laundry.
"E:30/-20" Detergent dosage is too high.
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
Additional water is added.
▶ Do not add any extra water to the appliance while it
is operating.
Solenoid valve defective.
▶ Call the after-sales service.
→"Customer Service", Page58
All other error codes. Malfunction
1. Switch the appliance off and then on again.
2. If the message appears again, disconnect the appli-
ance from the power supply for at least 30 seconds
by pulling out the plug or by switching off the relev-
ant circuit breaker in the fuse box.
a If the fault was a one-off, the message disappears.
3. If the message appears again, call the after-sales
service. Please specify the exact error message
when calling.
→"Customer Service", Page58
The appliance is not
working.
The mains plug of the power cord is not plugged in.
▶ Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
▶ Check the circuit breaker in the fuse box.
There has been a power cut.
▶ Check whether the lighting in your kitchen or other
appliances are working.
The programme does
not start.
You have not pressed .
▶ Press .
Door is not closed.
▶ Close the door.
Childproof lock is activated.
▶ Deactivate childproof lock.
→"Deactivating the childproof lock", Page33
/ is activated.
Troubleshooting en
49
Fault Cause and troubleshooting
The programme does
not start.
▶ Check whether / is activated.
→"Buttons", Page23
Laundry is caught in the door.
▶ Remove any trapped laundry.
The detergent drawer has not been pushed in fully.
▶ Push in the detergent drawer until the symbol goes
out.
The pump for the intelligent dosing system is blocked.
1. Switch off the appliance.
2. Clean the pump unit.
→"Cleaning the detergent drawer", Page40
3. Switch the appliance on.
4. If the display appears again after you clean the
pump unit, call customer service.
→"Customer Service", Page58
Note:You can deactivate and manually dose the intel-
ligent dosing system until the fault is rectified.
→"Buttons", Page23
The door cannot
beopened.
is activated.
▶ Continue the programme by selecting Spin ปั่นหมาด
or Drain ระบายน้ำ and pressing .
The temperature is too high.
▶ Wait until the temperature has dropped.
▶ Cancel the programme.
→"Cancelling the programme", Page32
Water level is too high.
▶ Select a suitable programme for draining.
→"Programmes", Page26
Power failure.
▶ Open the door using the emergency release.
→"Emergency release", Page57
The water is not drain-
ing.
Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
▶ Ensure that the drain pipe and water drain hose are
not kinked or trapped.
Drain pump is blocked.
▶
→"Cleaning the drain pump", Page42
is activated.
en Troubleshooting
50
Fault Cause and troubleshooting
The water is not drain-
ing.
▶ Continue the programme by selecting Spin ปั่นหมาด
or Drain ระบายน้ำ and pressing .
The water outlet hose is connected too high.
▶ Install the water outlet hose at a maximum height of
1 metre.
Pump cover is not correctly assembled.
▶ Correctly assemble the pump cover.
Detergent dosage is too high.
▶ Immediate measure: Mix one tablespoon of fabric
softener with 0.5 litres of water and pour the mix-
ture into the compartment for manual dosing (not
for outdoor clothing, sportswear or items stuffed
with down).
▶ If intelligent dosing is activated, reduce the basic
dosage →Page35.
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
Unapproved extension installed on the water drain
hose.
▶ Remove any unapproved extensions from the water
hose.
→"Connecting the appliance", Page14
The pump cap is not fully screwed in.
▶ Ensure that the pump cap is screwed in all the way
into the appliance. The handle on the pump cap
must be in a vertical position.
Water is not flowing
in. Detergent is not
being dispensed.
You have not pressed .
▶ Press .
The filters in the water inflow are blocked.
▶ Clean the filters in the water inflow.
The tap is turned off.
▶ Turn on the tap.
The water inlet hose is kinked or jammed.
▶ Ensure that the water inlet hose is not kinked or
jammed.
Troubleshooting en
51
Fault Cause and troubleshooting
The spin cycle runs
several times.
The unbalanced load detection system eliminates an
imbalance by repeatedly redistributing the laundry.
▶ Not a fault – no action required.
Note:When loading, where possible, place large and
small items of laundry together in the drum. Different
sized items of laundry distribute themselves better
during the spin cycle.
The programme dura-
tion changes during
the wash cycle.
The programme operation is optimised electronically.
This may change the programme duration.
▶ Not a fault – no action required.
The unbalanced load detection system eliminates an
imbalance by repeatedly redistributing the laundry.
▶ Not a fault – no action required.
Note:When loading, where possible, place large and
small items of laundry together in the drum. Different
sized items of laundry distribute themselves better
during the spin cycle.
Foam detection system switches on a rinse cycle if
foam build-up is too high.
▶ Not a fault – no action required.
No water is visible in
the drum.
Water is below the visible area.
▶ Not a fault – no action required.
▶ Do not add any extra water to the appliance while it
is operating.
Drum jerks after the
programme starts.
This is caused by an internal motor test.
▶ Not a fault – no action required.
Vibrations and move-
ment of the appliance
whilst spinning.
Appliance is not correctly aligned.
▶
→"Aligning the appliance", Page16
The appliance feet are not fixed.
▶ Secure the appliance feet.
→"Aligning the appliance", Page16
Transit bolts have not been removed.
▶
→"Removing the transit bolts", Page13.
Drum rotates, water
does not flow in.
Load detection is active.
▶ Not a fault – no action required.
Note:The load detection can take up to two minutes.
en Troubleshooting
52
Fault Cause and troubleshooting
Heavy foam build-up Detergent dosage is too high.
▶ Immediate measure: Mix one tablespoon of fabric
softener with 0.5 litres of water and pour the mix-
ture into the compartment for manual dosing (not
for outdoor clothing, sportswear or items stuffed
with down).
▶ If intelligent dosing is activated, reduce the basic
dosage →Page35.
▶ If you dose manually, reduce the amount of deter-
gent for the next washing cycle with the same load.
i-DOS i-DOS
cannot be actuated.
Intelligent dosing is not intended for this programme.
▶ Not a fault – no action required.
→"Starting the programme with intelligent dosing
system", Page33
Programme progress does not allow intelligent dos-
ing.
No remedial action possible.
High spin speed not
reached.
A low spin speed is selected.
▶ The next time you run a wash cycle, set a higher
spin speed.
is activated.
▶ Select the programmes that are suitable for the
type of fabric.
Unbalance load detection system is using a reduced
spin speed to eliminate an unbalance.
▶ Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in
the drum. Different sized items of laundry distribute
themselves better during the spin cycle.
▶ Start the Spin ปั่นหมาดprogramme.
The spin programme
does not start.
Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
▶ Ensure that the drain pipe and water drain hose are
not kinked or trapped.
The unbalanced load detection system has interrupted
the spin cycle because the laundry is unevenly distrib-
uted.
▶ Redistribute the laundry in the drum.
Troubleshooting en
53
Fault Cause and troubleshooting
The spin programme
does not start.
Note:Where possible, mix large and small items in
the drum. Different sized items of laundry distribute
themselves better during the spin cycle.
▶ Start the Spin ปั่นหมาดprogramme.
Rushing, hissing
noise.
Water is flushed under pressure into the detergent
drawer.
▶ Not a fault – normal operating noise.
Longer, whirring noise
before the start of the
wash cycle or fabric
softening.
Intelligent dosing system dispenses detergent or care
products.
▶ Not a fault – normal operating noise.
Brief whirring noise
after switching on the
appliance.
Intelligent dosing system carries out a function test.
▶ Not a fault – normal operating noise.
Loud noises during
the spin cycle.
Appliance is not correctly aligned.
▶
→"Aligning the appliance", Page16
The appliance feet are not fixed.
▶ Secure the appliance feet.
→"Aligning the appliance", Page16
Transit bolts have not been removed.
▶
→"Removing the transit bolts", Page13.
Banging noises, rat-
tling in the drain
pump.
Foreign bodies have got into the drain pump.
▶
→"Cleaning the drain pump", Page42
Slurping, rhythmical
suction noise.
The drain pump is active, the detergent solution is
pumped out.
▶ Not a fault – normal operating noise.
Creasing. The spin speed is too high.
▶ The next time you run a wash cycle, set a lower
spin speed.
The load is too large.
▶ The next time you run a wash cycle, reduce the
amount of laundry being loaded.
Unsuitable programme for the type of fabric.
▶ Select the programmes that are suitable for the
type of fabric.
The spin result is not
satisfactory. The laun-
dry is too wet/too
damp.
A low spin speed is selected.
▶ The next time you run a wash cycle, set a higher
spin speed.
▶ Start the Spin ปั่นหมาดprogramme.
en Troubleshooting
54
Fault Cause and troubleshooting
The spin result is not
satisfactory. The laun-
dry is too wet/too
damp.
is activated.
▶ Select the programmes that are suitable for the
type of fabric.
Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
Drain pipe or water drain hose is caught or jammed.
▶ Ensure that the drain pipe and water drain hose are
not kinked or trapped.
The unbalanced load detection system has interrupted
the spin cycle because the laundry is unevenly distrib-
uted.
▶ Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in
the drum. Different sized items of laundry distribute
themselves better during the spin cycle.
▶ Start the Spin ปั่นหมาดprogramme.
Unbalance load detection system is using a reduced
spin speed to eliminate an unbalance.
▶ Redistribute the laundry in the drum.
Note:Where possible, mix large and small items in
the drum. Different sized items of laundry distribute
themselves better during the spin cycle.
▶ Start the Spin ปั่นหมาดprogramme.
Detergent residue on
the damp washing.
Detergents may contain water-insoluble substances
that deposit on the laundry.
▶ Start the Rinse ล้างน้ำprogramme.
Unsuitable detergent added to the dispenser of the in-
telligent dosing system.
1. Check whether the detergent used is suitable.
→"Detergents and care products", Page31
2. Drain the dispenser.
→"Cleaning the detergent drawer", Page40
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispensers", Page34
Basic dosage is not correctly adjusted.
▶ If intelligent dosing is activated, reduce the basic
dosage →Page35.
Troubleshooting en
55
Fault Cause and troubleshooting
Detergent residue on
the dry laundry.
Detergents may contain water-insoluble substances
that deposit on the laundry.
▶ Brush out the laundry after washing and drying.
Unsuitable detergent added to the dispenser of the in-
telligent dosing system.
1. Check whether the detergent used is suitable.
→"Detergents and care products", Page31
2. Drain the dispenser.
→"Cleaning the detergent drawer", Page40
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispensers", Page34
Basic dosage is not correctly adjusted.
▶ If intelligent dosing is activated, reduce the basic
dosage →Page35.
Insufficient cleaning. Basic dosage not adjusted.
▶ If intelligent dosing is activated, adjust the basic
dosage →Page35.
Detergent or care products have congealed in dis-
pensers of the intelligent dosing system.
1. Check whether the detergent used is suitable.
→"Detergents and care products", Page31
2. Drain the dispenser.
→"Cleaning the detergent drawer", Page40
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispensers", Page34
Unsuitable detergent added to the dispenser of the in-
telligent dosing system.
1. Check whether the detergent used is suitable.
→"Detergents and care products", Page31
2. Drain the dispenser.
→"Cleaning the detergent drawer", Page40
3. Clean the dispenser.
4. Refill the dispenser.
→"Filling the dispensers", Page34
HomeConnect is not
working properly.
Different causes are possible.
▶ Go to www.home-connect.com.
No connection to the
home network.
Wi-Fi is switched off.
▶ Activating Wi-Fi on the appliance.
→"Activating Wi-Fi on the appliance", Page36.
en Troubleshooting
56
Fault Cause and troubleshooting
No connection to the
home network.
Wi-Fi is activated but a connection to your home net-
work cannot be established.
1. Ensure that the home network is available.
2. Reconnect the appliance to the home network.
→"Setting up HomeConnect", Page36
Water is leaking out at
the water inlet hose.
Water inlet hose is not correctly/securely connected.
1. Connect the water supply hose correctly.
→"Connecting the water inlet hose", Page14
2. Tighten the screw connection.
Water is leaking out at
the water outlet hose.
The water outlet hose is damaged.
▶ Replace the damaged water outlet hose.
Water outlet hose is not connected correctly.
▶ Connect the water outlet hose correctly.
→"Water outlet connection types", Page15
Odours have formed
in the appliance.
Humidity and detergent residue may promote the
formation of bacteria.
▶
→"Cleaning the drum", Page40
▶ If you are not using the appliance, leave the door
and detergent drawer open so that residual water
can evaporate.
Water is leaking from
below the door.
Dirt on the door or seal causes leaks.
▶ Clean the door and the seal.
Transportation, storage and disposal en
57

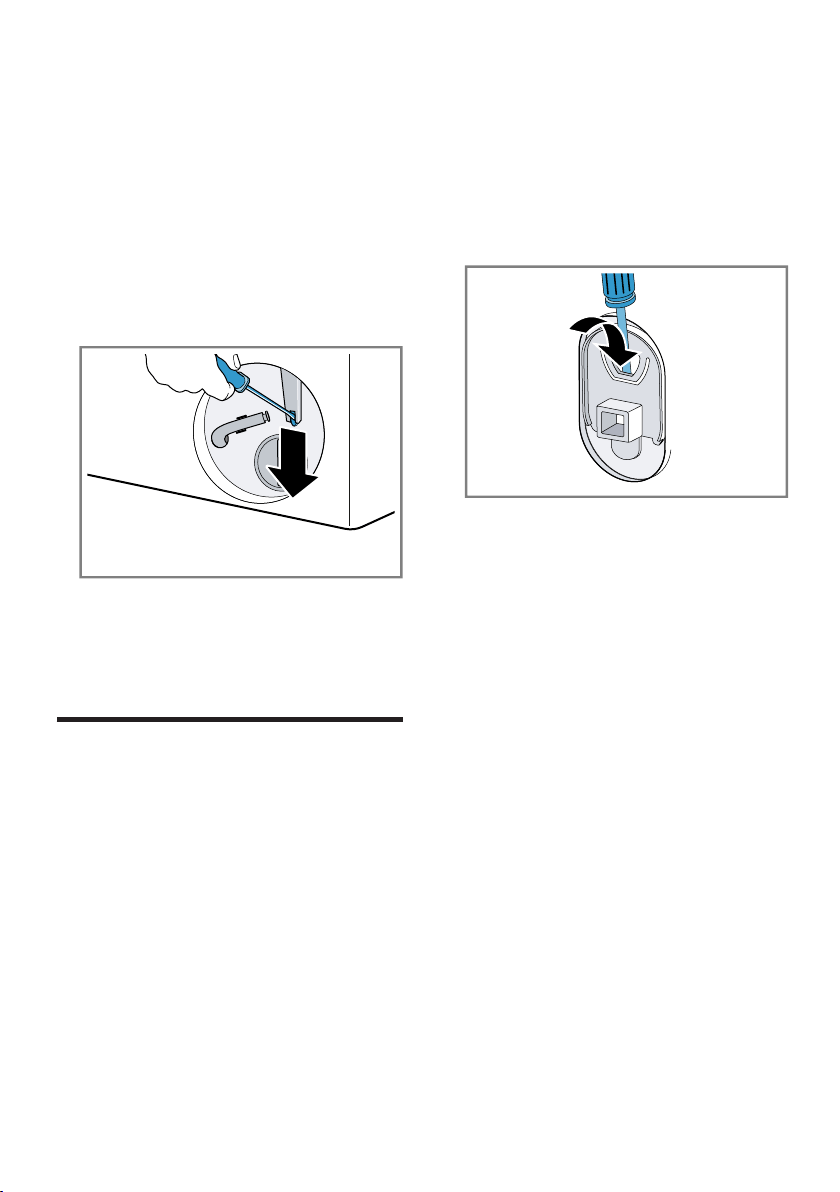

19.1 Emergency release
Releasing the door
Requirement:The drain pump is
empty. →Page42
1. ATTENTION! Escaping water may
cause material damage.
▶ Do not open the door if you can
see water through the glass.
Pull the emergency release down-
wards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the maintenance flap.
20 Transportation, stor-
age and disposal
20.1 Removing the appliance
1. Turn off the tap.
2. Empty the water inlet hose.
3. Switch off the appliance.
→"Switching off the appliance",
Page33
4. Unplug the appliance's mains plug.
5. Drain the water.
→"Cleaning the drain pump",
Page42
6. Detach the hoses.
7. Empty the dispensers.
20.2 Inserting the transit
bolts
Secure the appliance before trans-
portation using transit bolts in order
to prevent transport damage.
1. Use a screwdriver to remove the 4
cover caps.
Keep the cover caps.
2. Insert the 4 transit bolts.
→"Removing the transit bolts",
Page13
20.3 Using the appliance
again
▶ For further information, see
→"Installation and connection",
Page12 and
→"Starting an empty washing
cycle", Page19.
en Customer Service
58
20.4 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶ Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶ With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
This appliance is la-
belled in accordance
with European Directive
2012/19/EU concerning
used electrical and elec-
tronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determ-
ines the framework for
the return and recycling
of used appliances as
applicable throughout
the EU.
21 Customer Service
Function-relevant genuine spare parts
according to the corresponding Eco-
design Order can be obtained from
Customer Service for a period of at
least 10 years from the date on
which your appliance was placed on
the market within the European Eco-
nomic Area.
Note:Under the terms of the manu-
facturer's warranty the use of Cus-
tomer Service is free of charge.
Detailed information on the warranty
period and terms of warranty in your
country is available from our after-
sales service, your retailer or on our
website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
The contact details for Customer Ser-
vice can be found in the enclosed
Customer Service directory or on our
website.
21.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
Consumption values en
59
22 Consumption values
The indicated consumption values are approximate.
The values may deviate from the indicated values depending on water pres-
sure, water hardness, water inlet temperature, room temperature, type of laun-
dry, amount and soiling of laundry, detergent used, fluctuations in the mains
voltage and selected settings.
Programme Temperat-
ure (°C)
Load (kg) Energy
consump-
tion
(kWh)
1
Water con-
sumption
(l)
1
Pro-
gramme
duration
(h:min)
1
Cottons ผ้าคอต
ต้อน
20 9.0 0.250 90.0 2:45
Cottons ผ้าคอต
ต้อน
40 9.0 1.100 90.0 3:00
Cottons ผ้าคอต
ต้อน
60 9.0 1.160 90.0 2:45
Synthetics ผ้า
สังเคราะห์
40 4.0 0.710 64.0 2:00
Mix Load ผ้า
หลายชนิด
40 4.0 0.600 45.0 1:15
Delicates/ Silk
ผ้าบอบบาง/ผ้า
ไหม
30 2.0 0.190 37.0 0:45
Wool ซัก
ถนอมผ้าขนสัตว์
30 2.0 0.190 41.0 0:45
1
values determined according to the valid version of IEC60456
23 Technical data
Appliance height 84.8cm
Appliance width 59.8cm
Appliance depth 59.0cm
Appliance depth
with door closed
63.2cm
Appliance depth
with door open
106.3cm
Weight 68.5kg
Maximum load 9.0kg
Mains voltage 220-240V,
50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 2300W
Water pressure ¡ Minimum:
100kPa
(1bar)
¡ Maximum:
1000kPa
(10bar)
Length of the wa-
ter inlet hose
150cm
en Declaration of Conformity
60
Length of the wa-
ter outlet hose
150cm
Length of the
power cord
160cm
You can find more information about
your model online at https://
eprel.ec.europa.eu/
1
. This web ad-
dress is linked to the official EU
EPREL product database. Please
then follow the instructions on
searching for the model. The model
identifier is made up of the charac-
ters before the slash in the product
number (E-Nr.) on the rating plate. Al-
ternatively, you can also find the
model identifier in the first line of the
EU energy label.
24 Declaration of Con-
formity
BSH Hausgeräte GmbH hereby de-
clares that the appliance with Home
Connect functionality conforms to the
basic requirements and other relev-
ant provisions of Directive 2014/53/
EU.
A detailed RED Declaration of Con-
formity can be found online at
www.bosch-home.com among the
additional documents on the product
page for your appliance.
Hereby, BSH Hausgeräte GmbH de-
clares that the appliance with
HomeConnect functionality is in
compliance with relevant statutory
requirements.
2
A detailed Declaration of Conformity
can be found online at www.bosch-
home.co.uk among the additional
documents on the product page for
your appliance.
2
Declaration of conformity: BSH Haus-
geräte GmbH hereby declares that
the appliance with HomeConnect
functionality conforms to NTC/NBTC
technical requirement.
2.4 GHz band (2400–2483.5MHz):
Max. 100mW
1
Only applies to countries in the European Economic Area
2
Only applies to Great Britain
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001778911*
9001778911 (030309)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
