Thermal Network Hybrid Camera
Web Operation Manual
V1.0.
5
I
Foreword
General
This user’s manual (hereinafter referred to as "the Manual") introduces the characteristics, basic
configurations, daily operation and maintenance of the thermal camera (hereinafter referred to as
"the Camera").
Thermal hybrid camera contains all the binocular and trinocular cameras.
Ports
The Manual is mainly about on the web interface, how to operate your Camera. For description of
ports such as ports connection and ports debugging, contact technical staffs.
Safety Instructions
The following categorized signal words with defined meaning might appear in the Manual：
Signal Words Meaning
DANGER
Indicates a high potential hazard which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
CAUTION
Indicates a potential risk which, if not avoided, could result in property
damage, data loss, lower performance, or unpredictable result.
TIPS
Provides methods to help you solve a problem or save you time.
NOTE
Provides additional information as the emphasis and supplement to
the text.
Revision History
Version Revision Content Release Time
V1.0.0 First release. January 13, 2017
V1.0.1 "Cybersecurity Recommendations" added. October 18, 2017
V1.0.2
Content about Camera initialization added.
Interface screenshots updated.
Description of reserved spots’ input and output
added.
Content about safety management added.
February 1, 2017
V1.0.3
Function of safety management modified.
Parameters of camera modified.
Screenshots of interfaces updated.
GDPR requirements added.
July 15, 2018
V1.0.4 Updated whole document. March 2020
V1.0.5 Updated "Temperature Measuring Settings". June 2022
II
Privacy Protection Notice
As the Camera user or data controller, you might collect personal data of others such as face,
fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be in
compliance with the local privacy protection laws and regulations to protect the legitimate rights
and interests of other people by implementing measures include but not limited to: providing clear
and visible identification to inform data subject the existence of surveillance area and providing
related contact.
About the Manual
The Manual is for reference only. If there is inconsistency between the Manual and the actual
product, the actual product shall prevail.
We are not liable for any loss caused by the operations that do not comply with the Manual.
The Manual would be updated according to the latest laws and regulations of related regions.
For detailed information, see the paper manual, CD-ROM, QR code or our official website. If
there is inconsistency between paper manual and the electronic version, the electronic version
shall prevail.
All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the Manual. Please
contact the customer service for the latest program and supplementary documentation.
There still might be deviation in technical data, functions and operations description, or errors
in print. If there is any doubt or dispute, please refer to our final explanation.
Upgrade the reader software or try other mainstream reader software if the Manual (in PDF
format) cannot be opened.
All trademarks, registered trademarks and the company names in the Manual are the properties
of their respective owners.
Please visit our website, contact the supplier or customer service if there is any problem
occurred when using the Camera.
If there is any uncertainty or controversy, please refer to our final explanation.
III
Table of Contents
Foreword ..................................................................................................................................................... I
1 Product Introduction ............................................................................................................................... 1
Overview ......................................................................................................................................... 1 1.1
Features .......................................................................................................................................... 1 1.2
Functions ........................................................................................................................................ 2 1.3
2 Basic Settings ........................................................................................................................................... 7
Initializing Camera ........................................................................................................................... 7 2.1
Modifying IP Address ....................................................................................................................... 7 2.2
2.2.1 Modifying One IP Address ...................................................................................................... 8

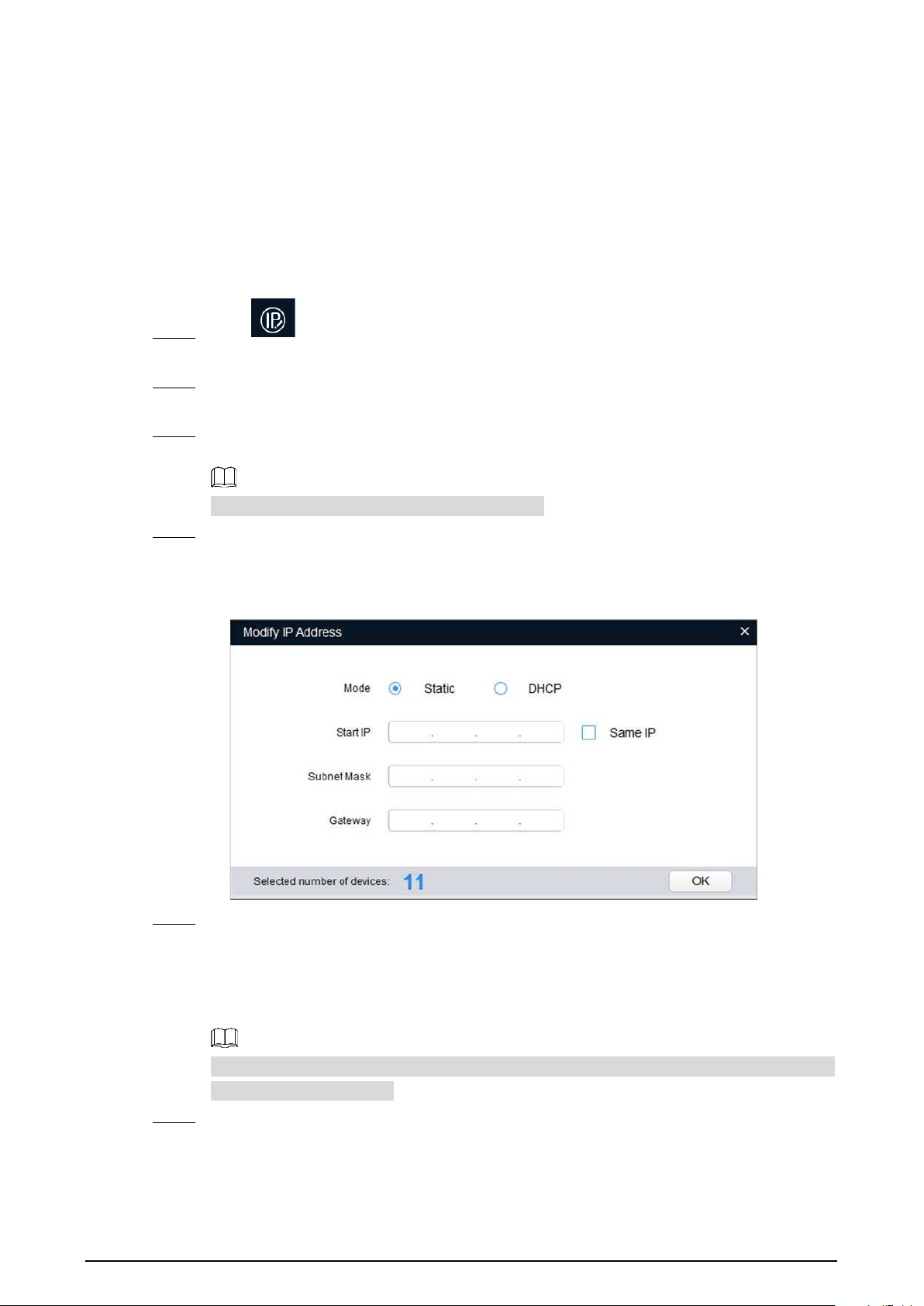

2.2.2 Modifying Several IP Addresses .............................................................................................. 8

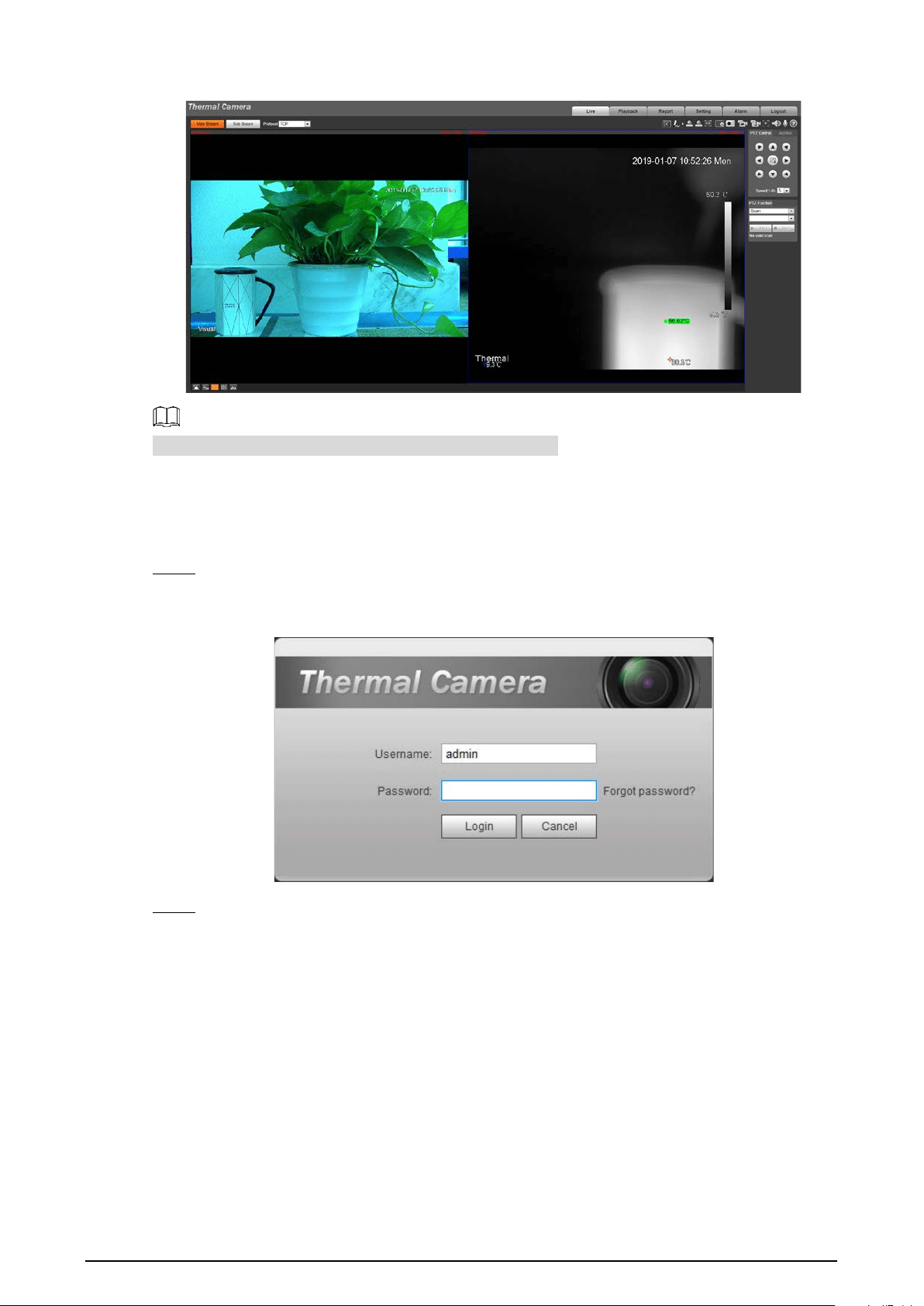

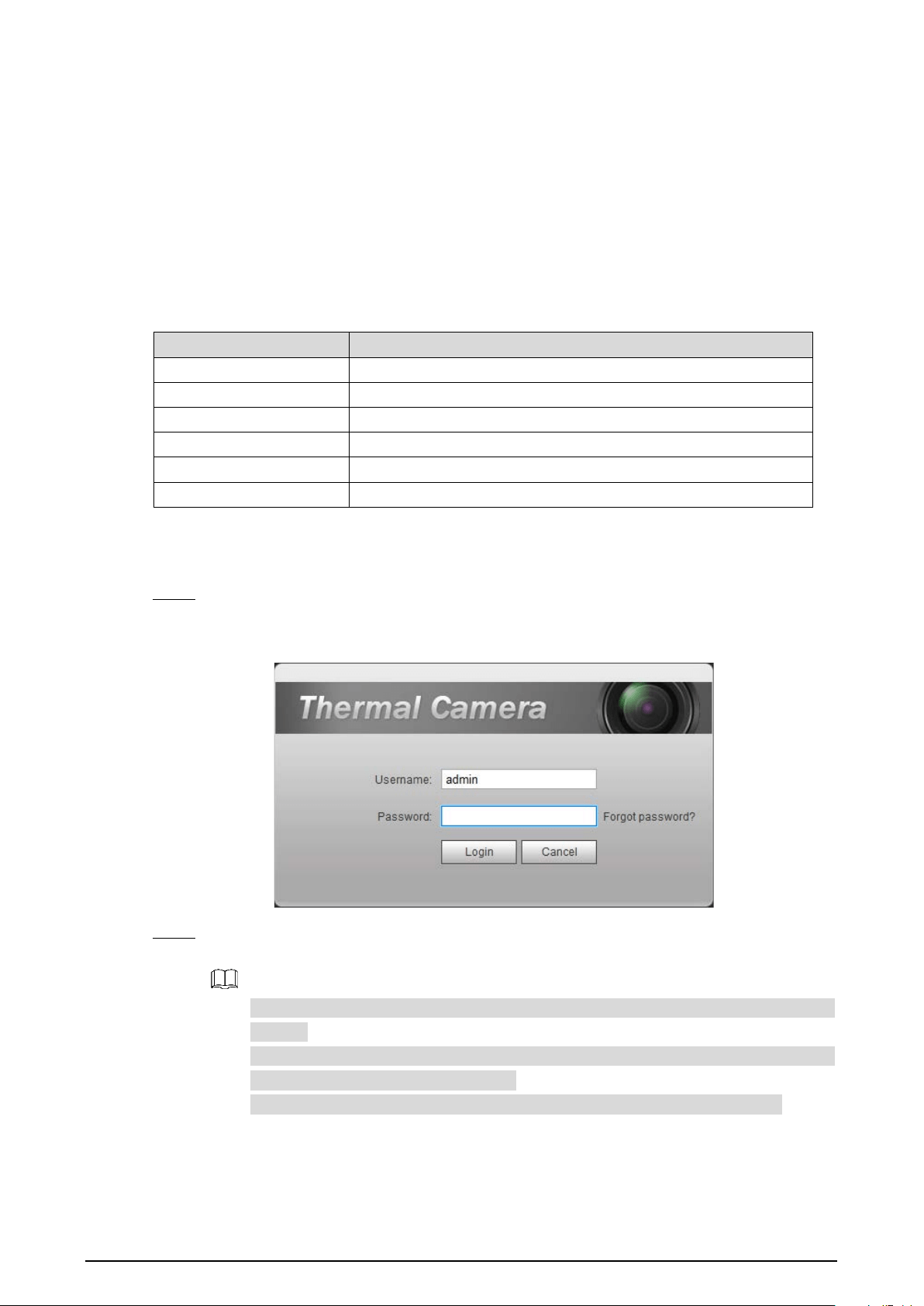

Logging in to Web Interface ........................................................................................................... 10 2.3
Resetting Password ......................................................................................................................... 11 2.4
3 Daily Operation ..................................................................................................................................... 13
Live ............................................................................................................................................... 13 3.1
3.1.1 Introduction to Live Interface ............................................................................................... 13

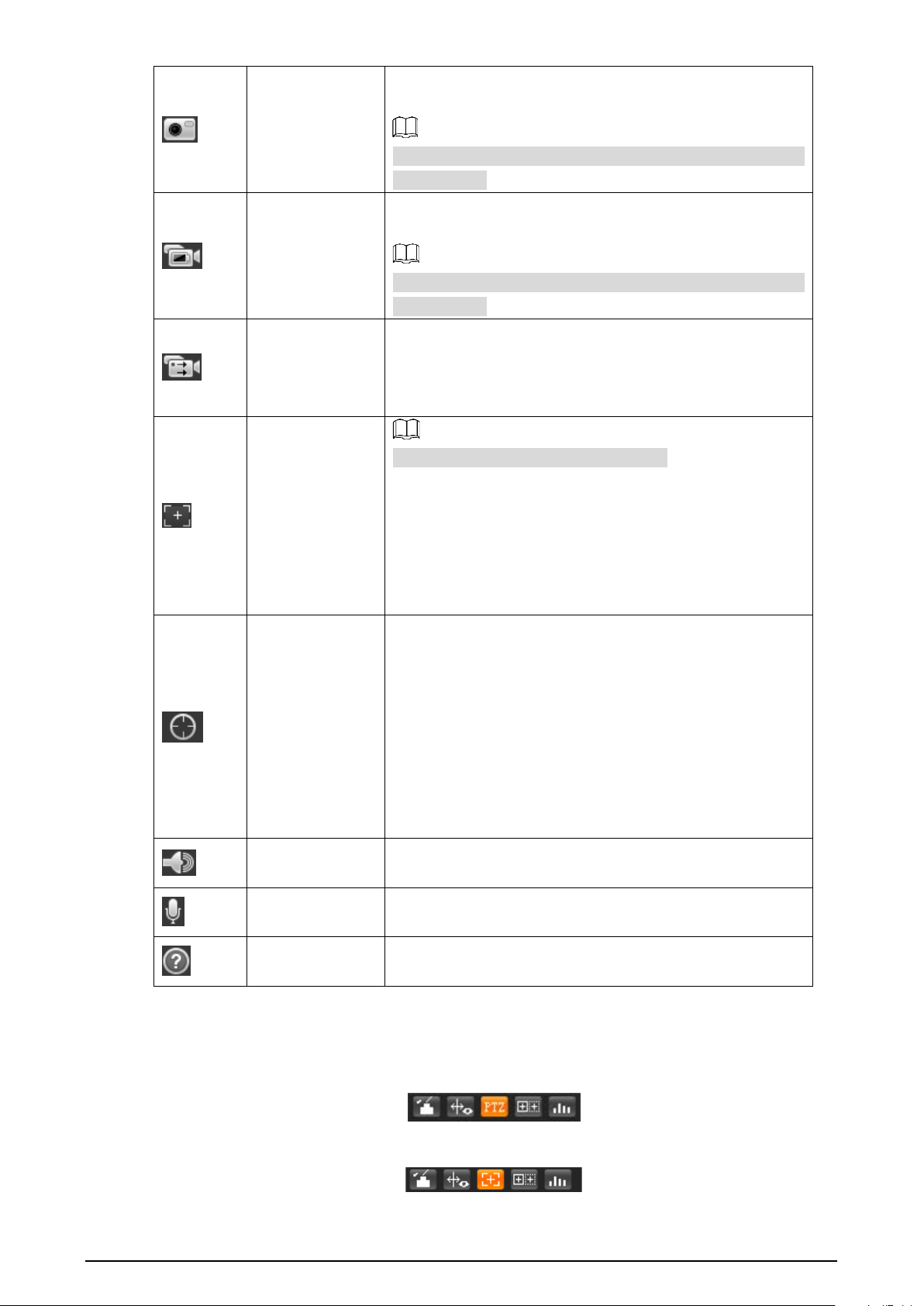

3.1.2 Function Bar ........................................................................................................................ 14
3.1.3 Window Adjustment ............................................................................................................ 15
3.1.4 More Functions .................................................................................................................... 18

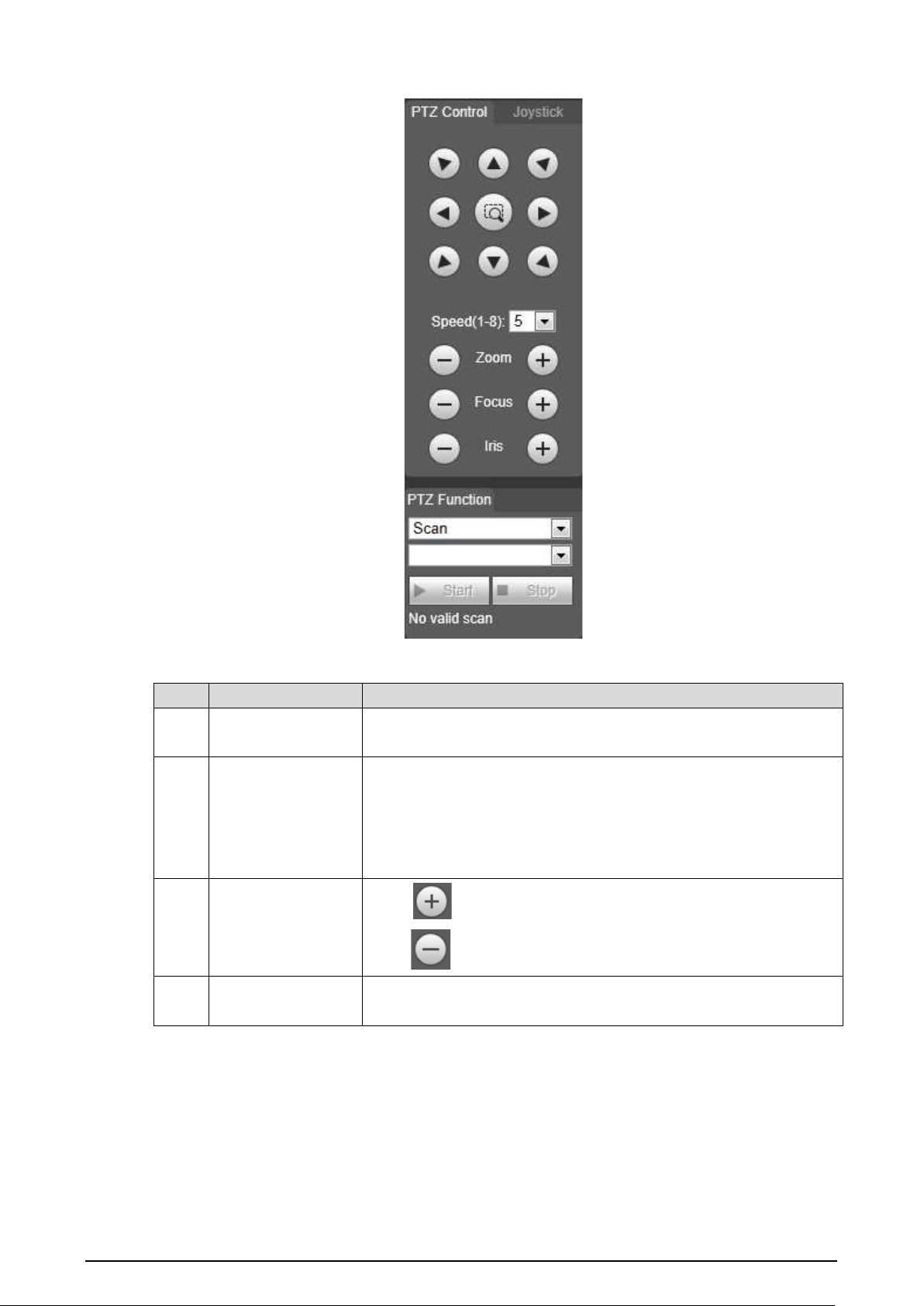

PTZ................................................................................................................................................ 19 3.2
3.2.1 Bullet Cameras ..................................................................................................................... 19

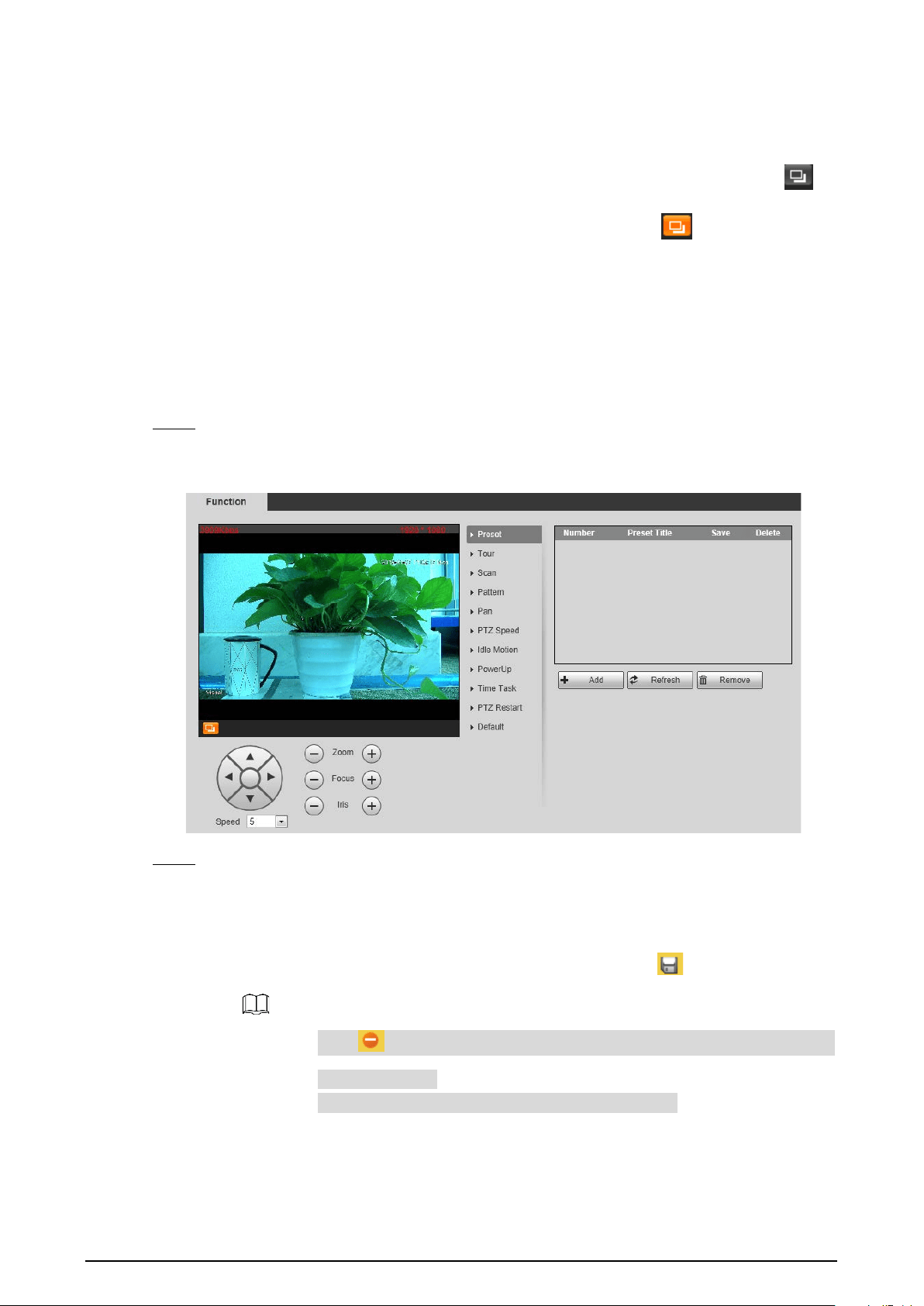

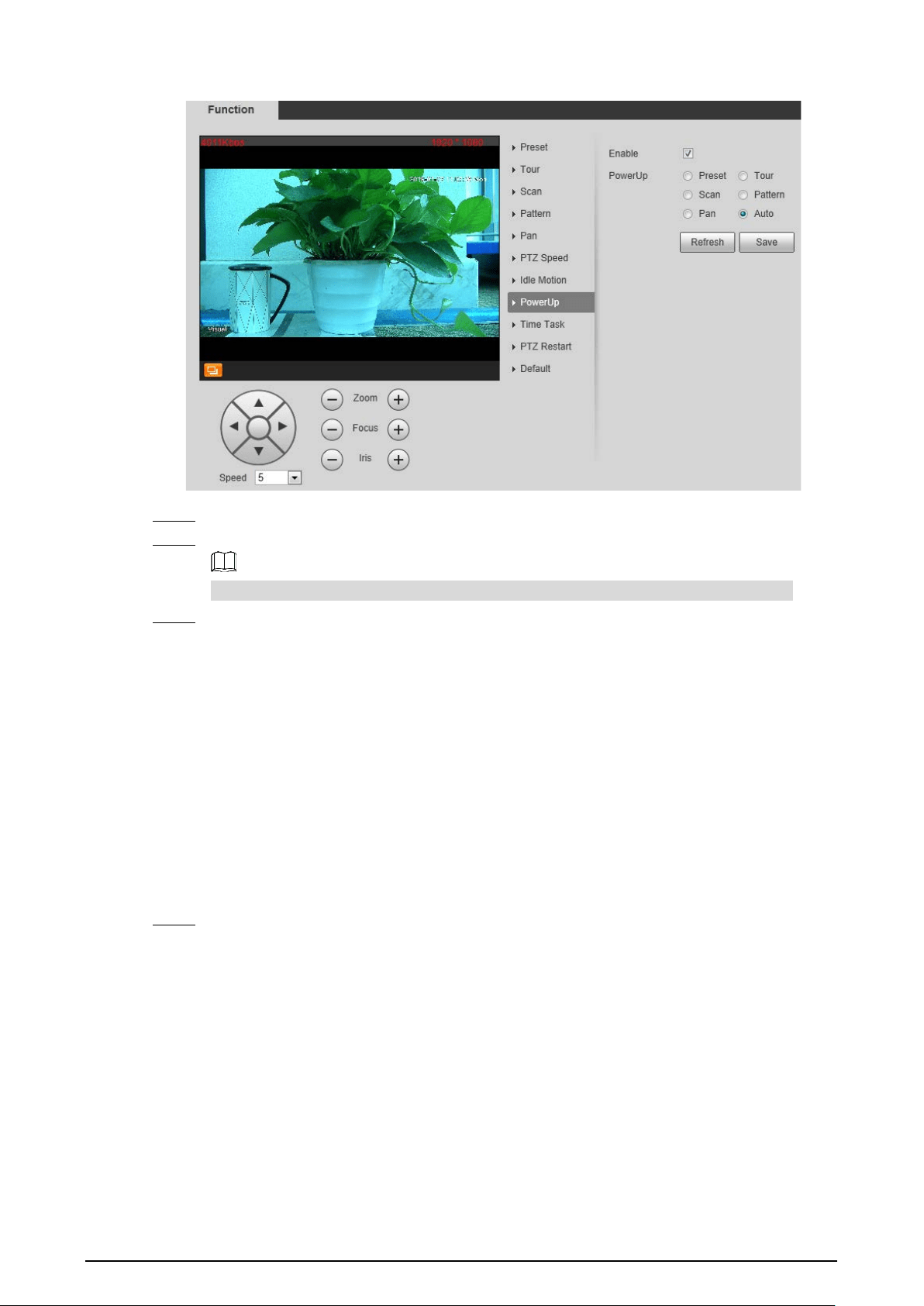

3.2.2 Speed Dome Cameras & Pan Tilt Cameras ............................................................................. 23
Playback ........................................................................................................................................ 35 3.3

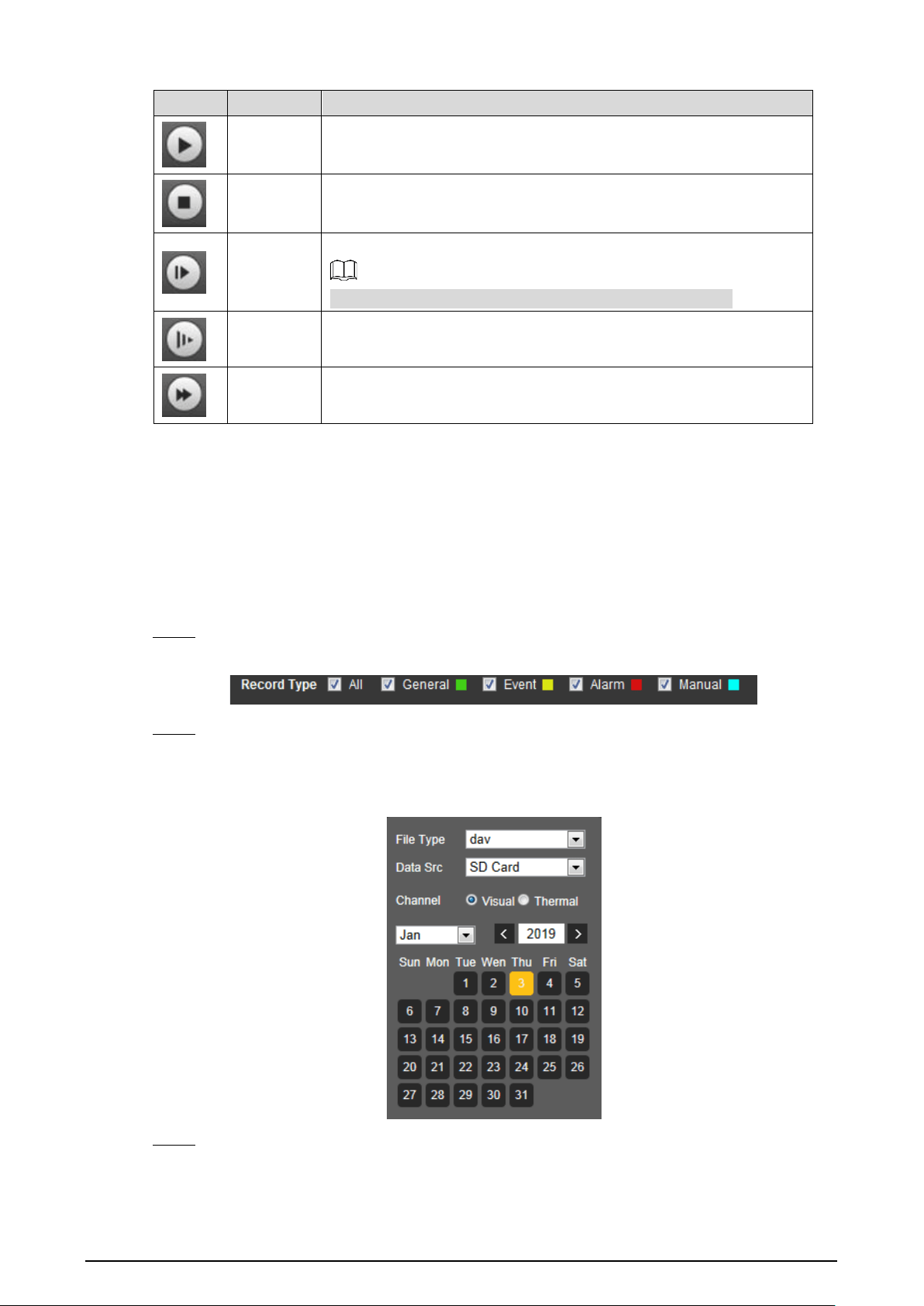

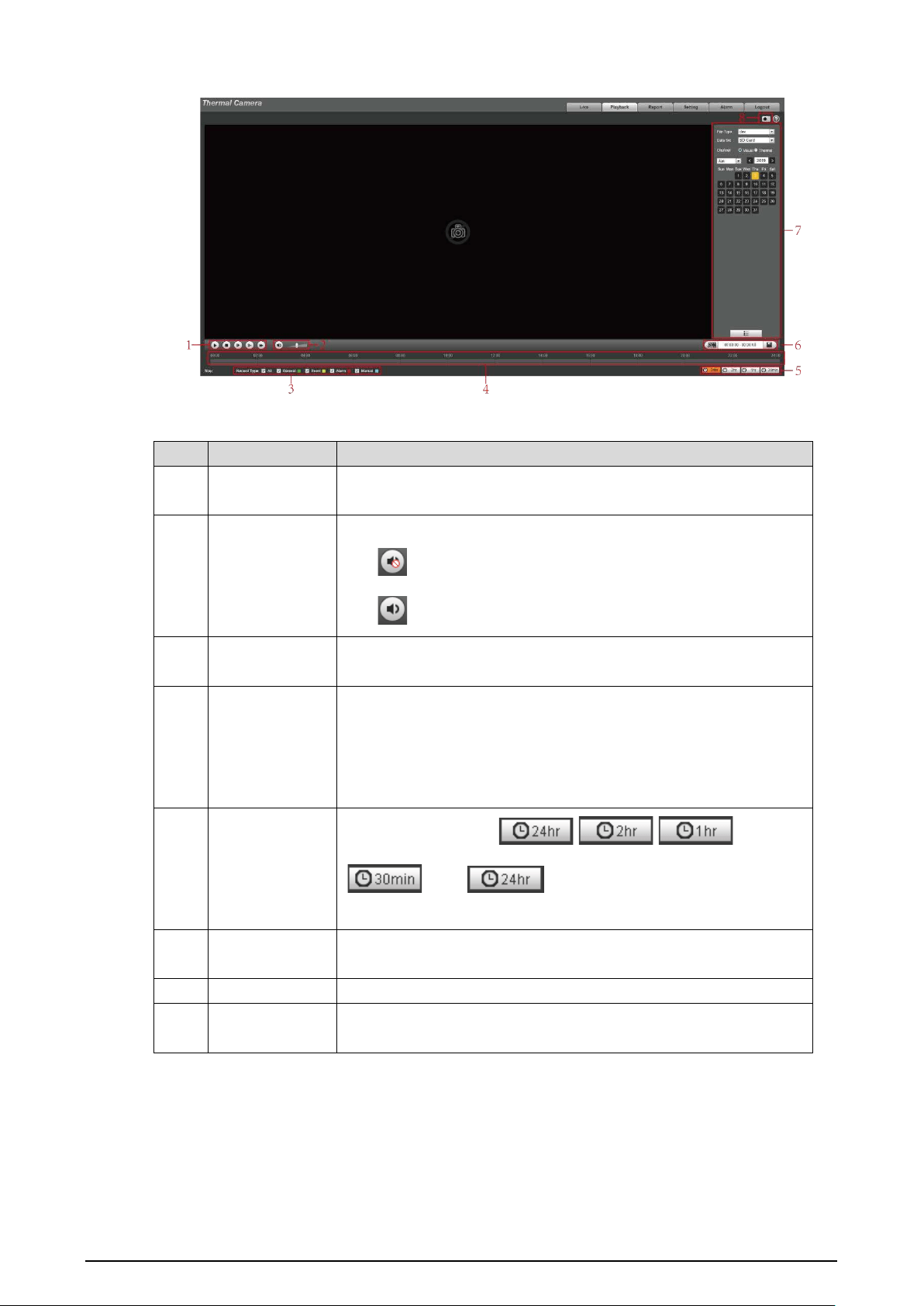

3.3.1 Video Playback ..................................................................................................................... 35
3.3.2 Picture Playback ................................................................................................................... 40
Reports ......................................................................................................................................... 42 3.4
Alarm ............................................................................................................................................ 43 3.5
3.5.1 Introduction to Alarm Types ................................................................................................. 43
3.5.2 Subscribing Alarm Information ............................................................................................. 44
4 Setting ................................................................................................................................................... 46
Configuring Camera ....................................................................................................................... 46 4.1

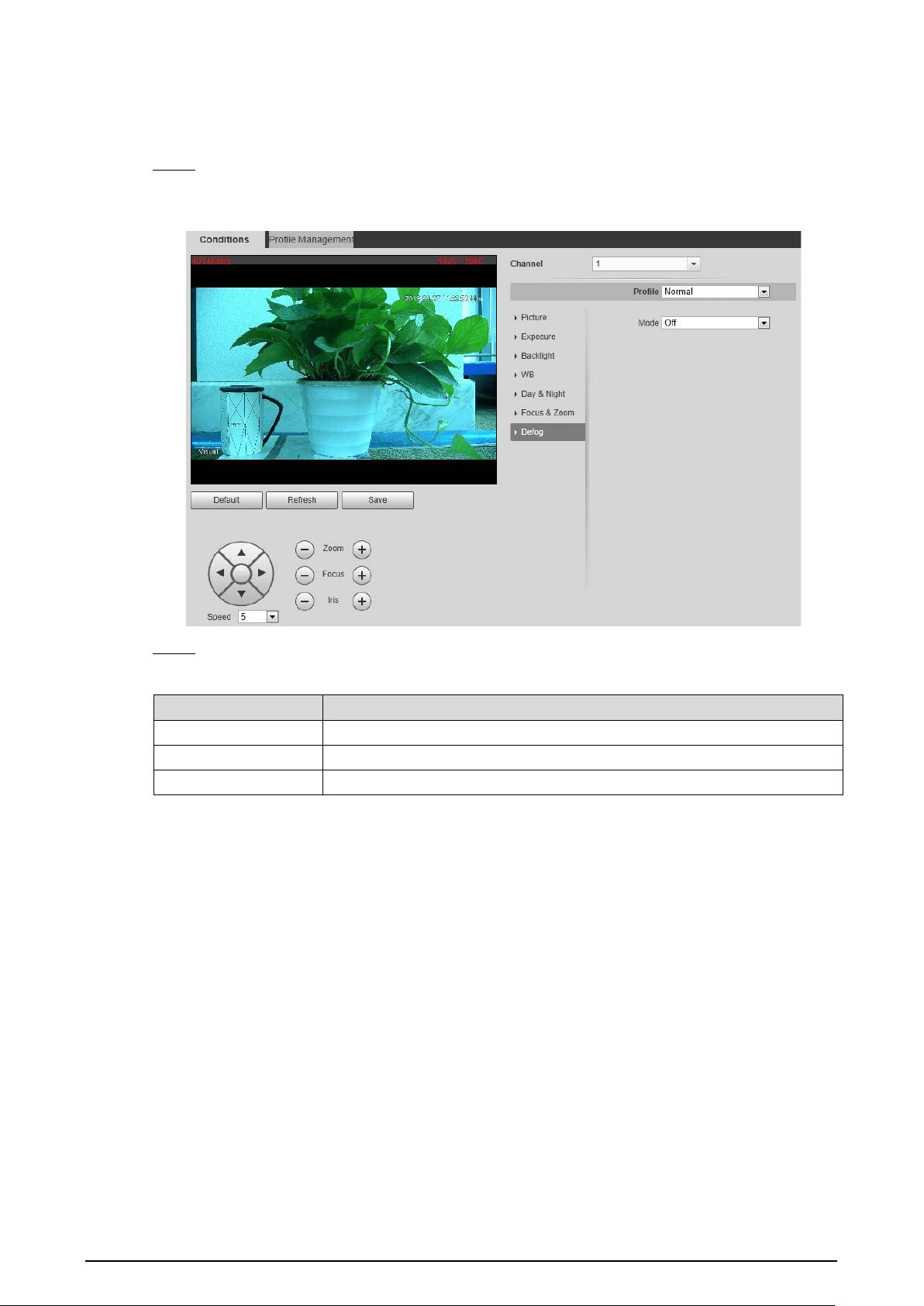

4.1.1 Configuring Lens ................................................................................................................. 46

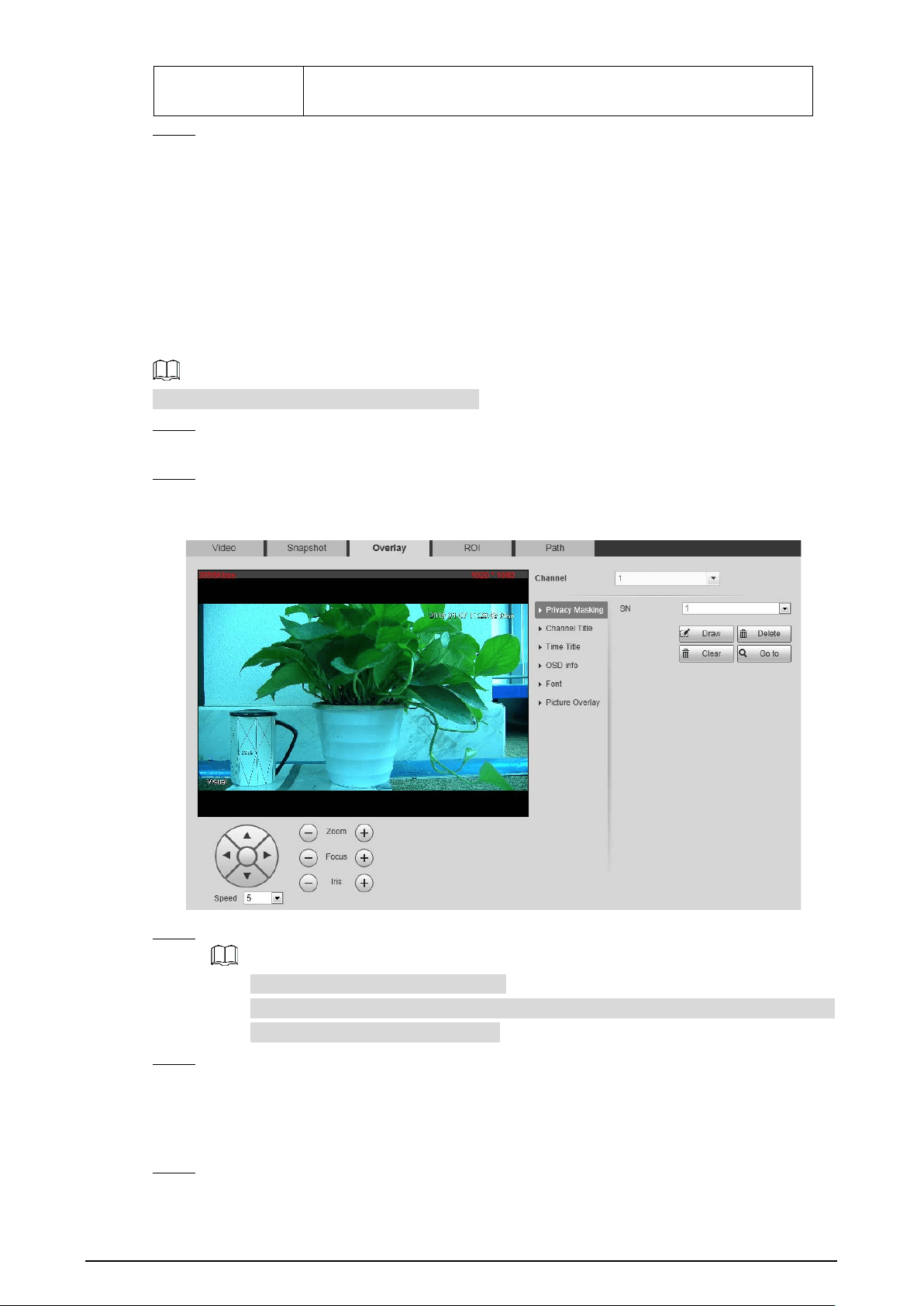

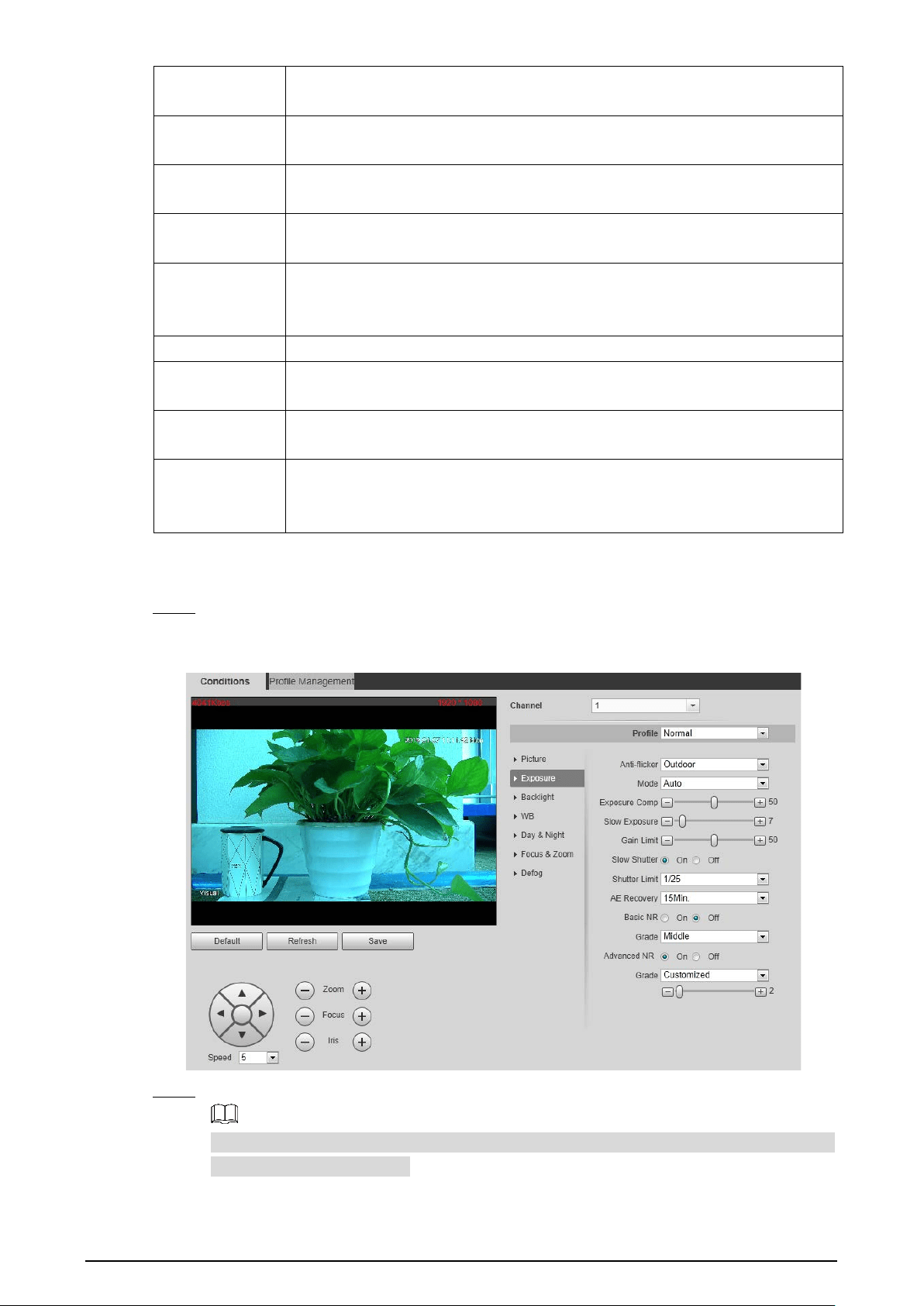

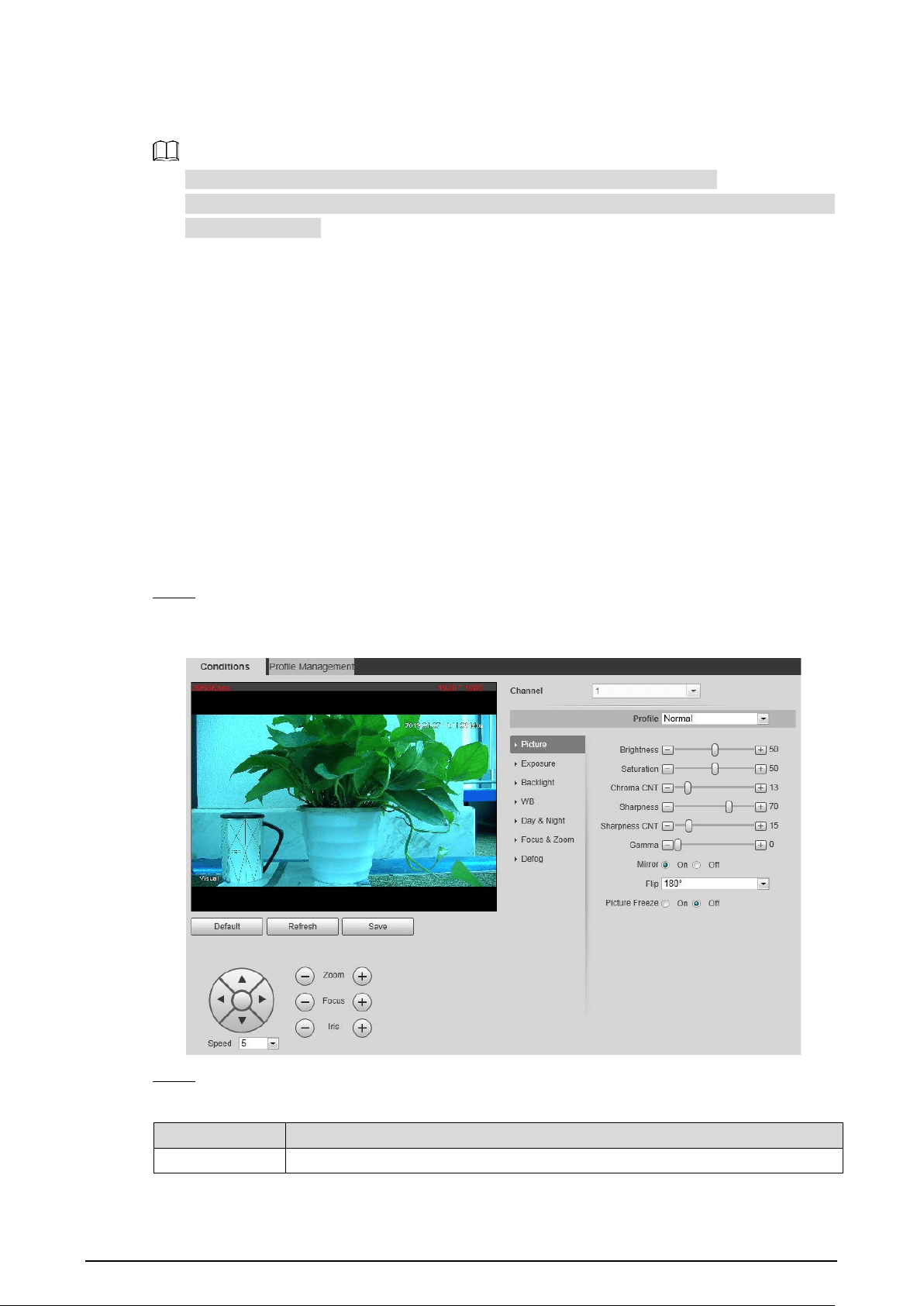

4.1.2 Configuring Video Parameters .............................................................................................. 58
4.1.3 Configuring Audio Parameters ............................................................................................. 66
Configuring Network ..................................................................................................................... 68 4.2
4.2.1 Configuring TCP/IP ............................................................................................................... 68

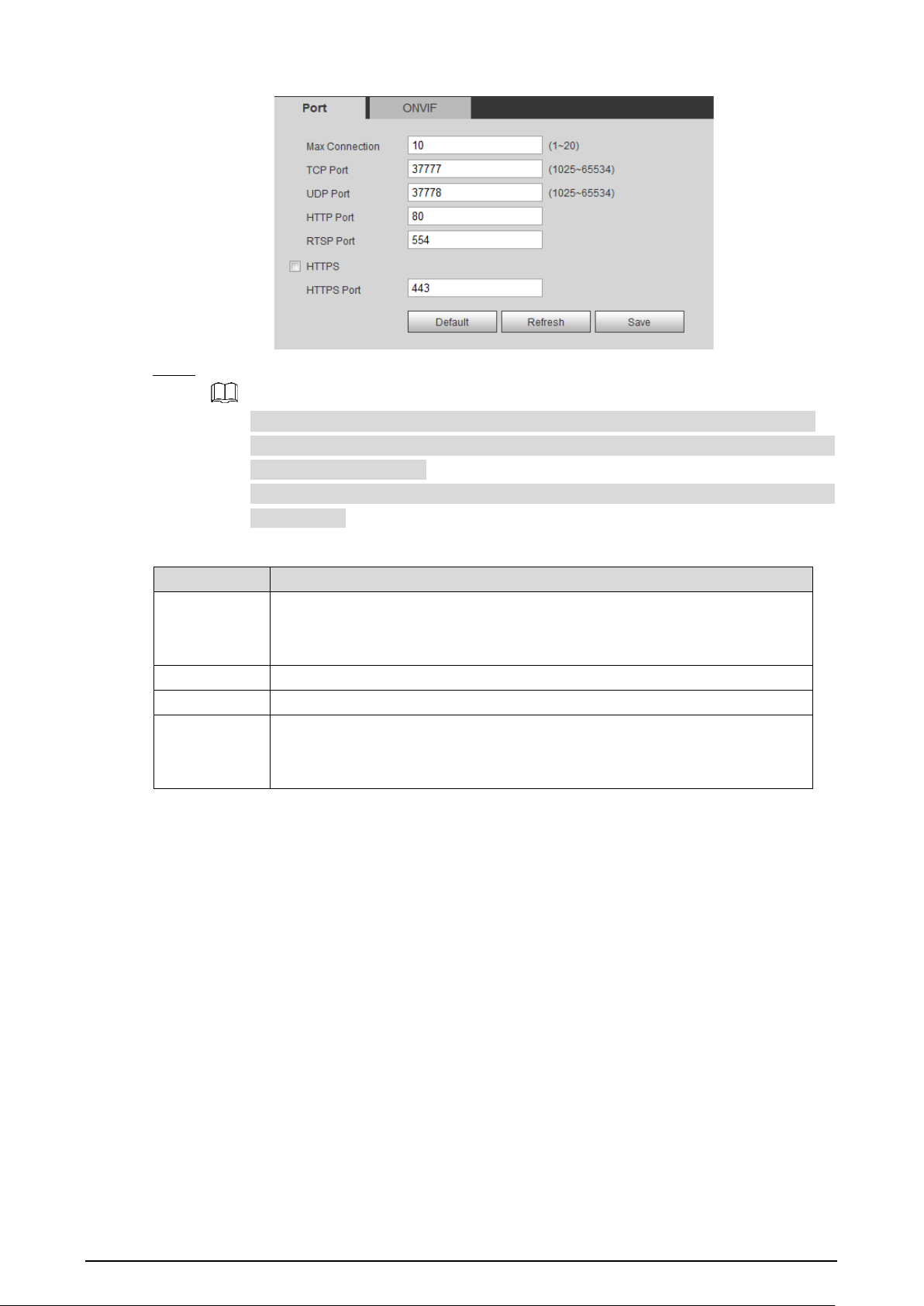

4.2.2 Configuring Port .................................................................................................................. 70

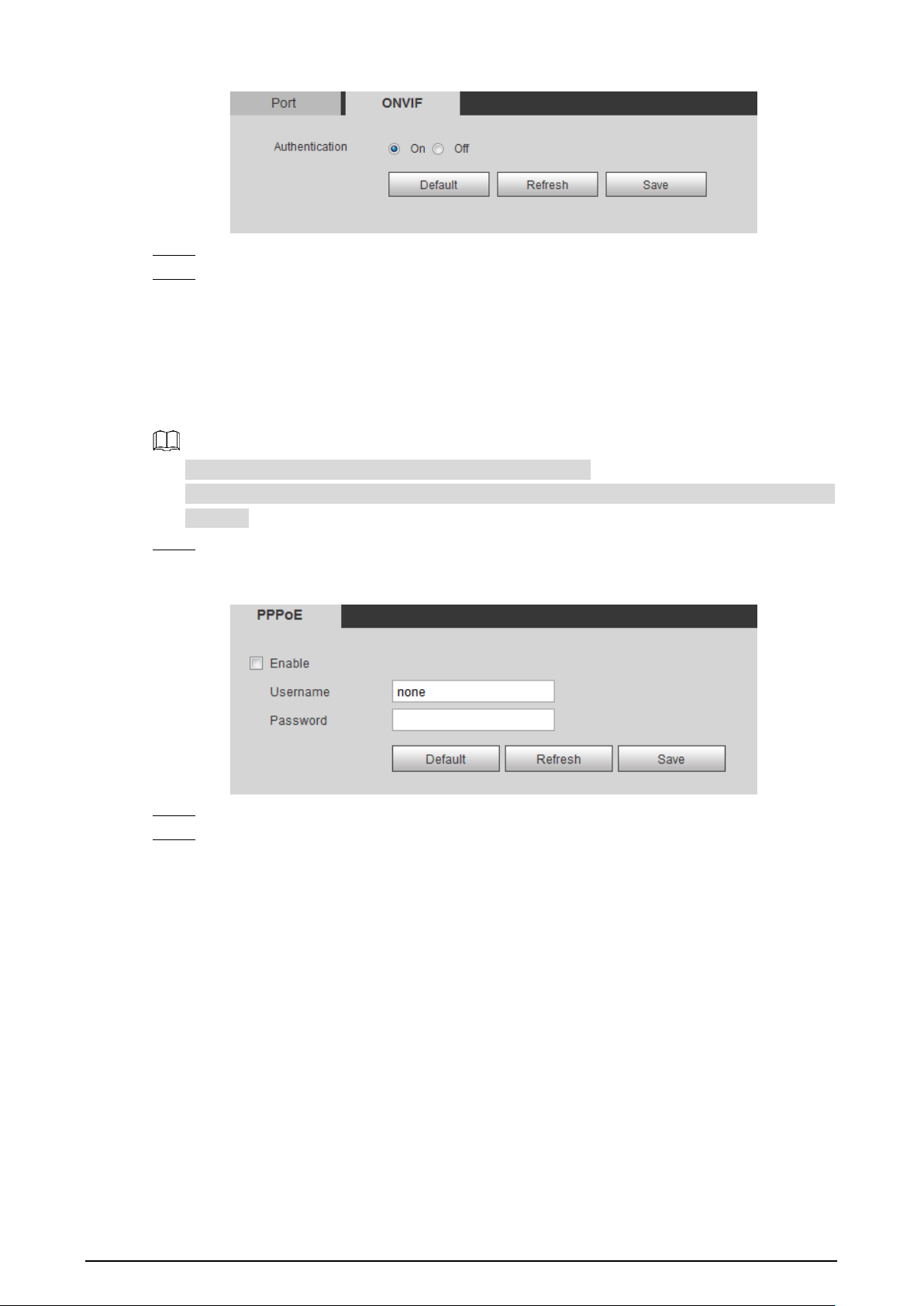

4.2.3 Configuring PPPoE ............................................................................................................... 73

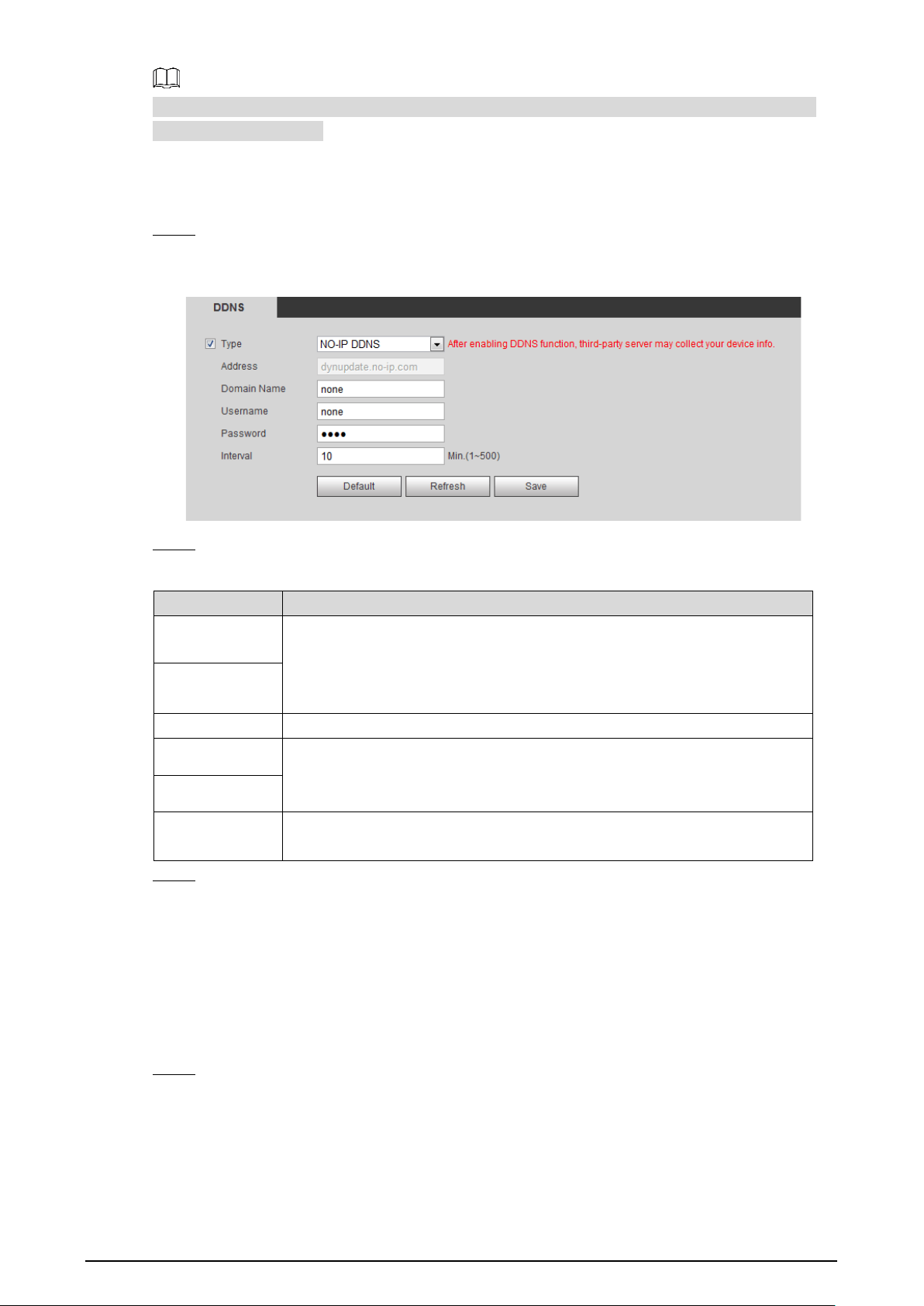

4.2.4 Configuring DDNS ............................................................................................................... 73

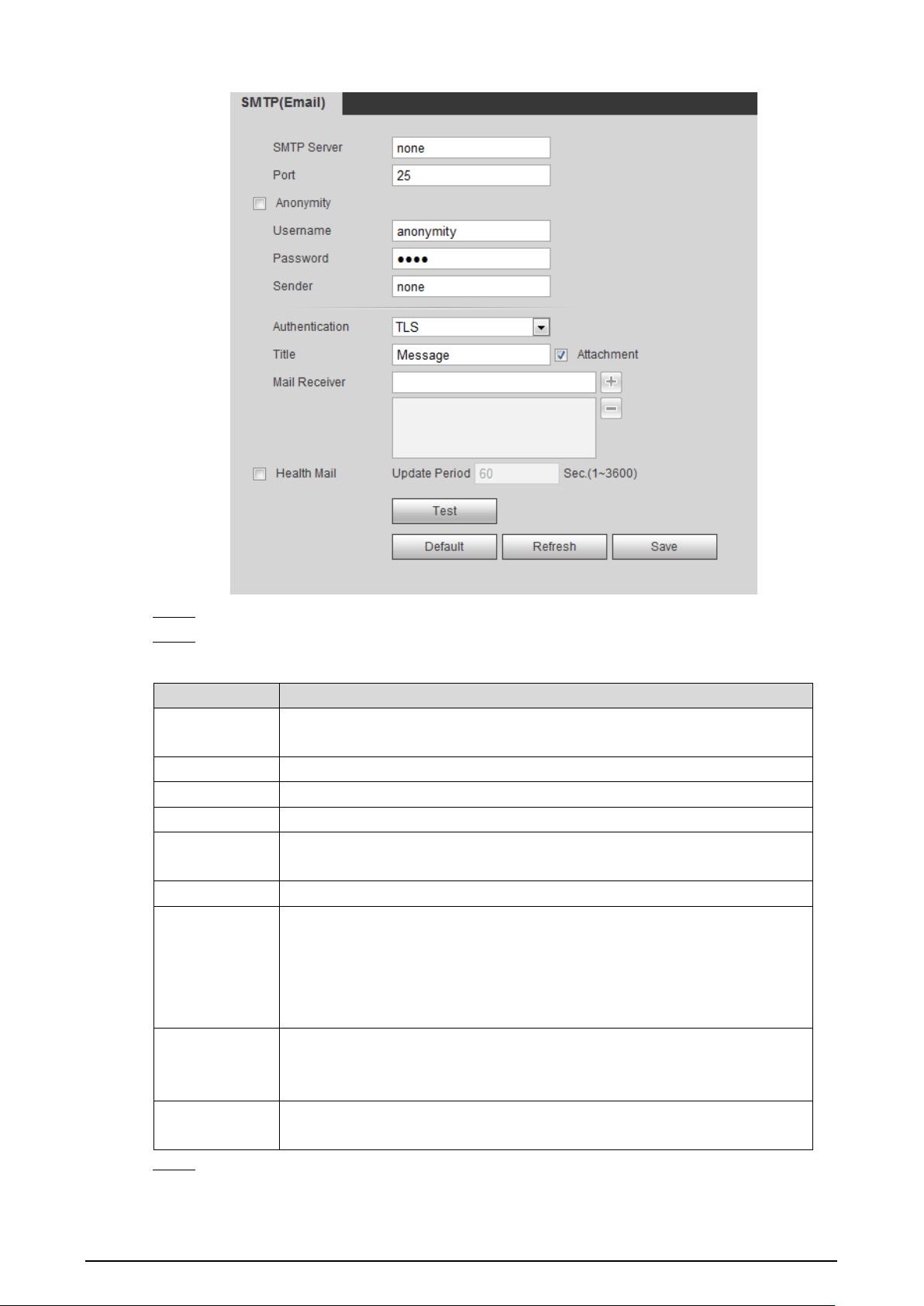

4.2.5 Configuring SMTP ................................................................................................................ 74
4.2.6 Configuring UPnP ................................................................................................................ 76

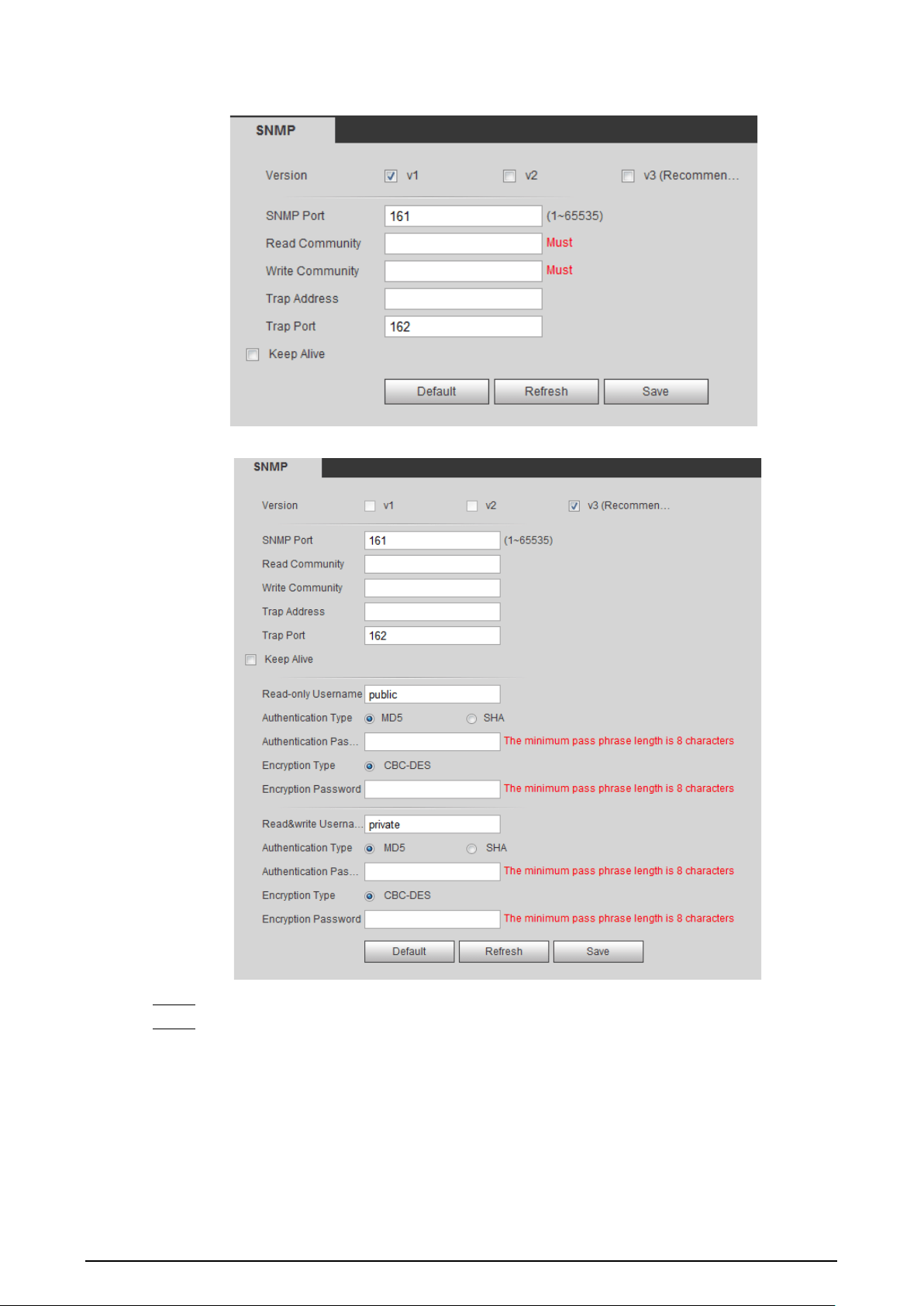

4.2.7 Configuring SNMP ............................................................................................................... 76
4.2.8 Configuring Bonjour ............................................................................................................ 79
4.2.9 Configuring Multicast........................................................................................................... 79
4.2.10 Configuring Auto Registration ............................................................................................ 80
IV
4.2.11 Configuring 802.1X ............................................................................................................ 80
4.2.12 Configuring QoS ................................................................................................................ 81
Peripheral ...................................................................................................................................... 82 4.3
4.3.1 Configuring IR Light ............................................................................................................. 82
4.3.2 Configuring Wiper ................................................................................................................ 82

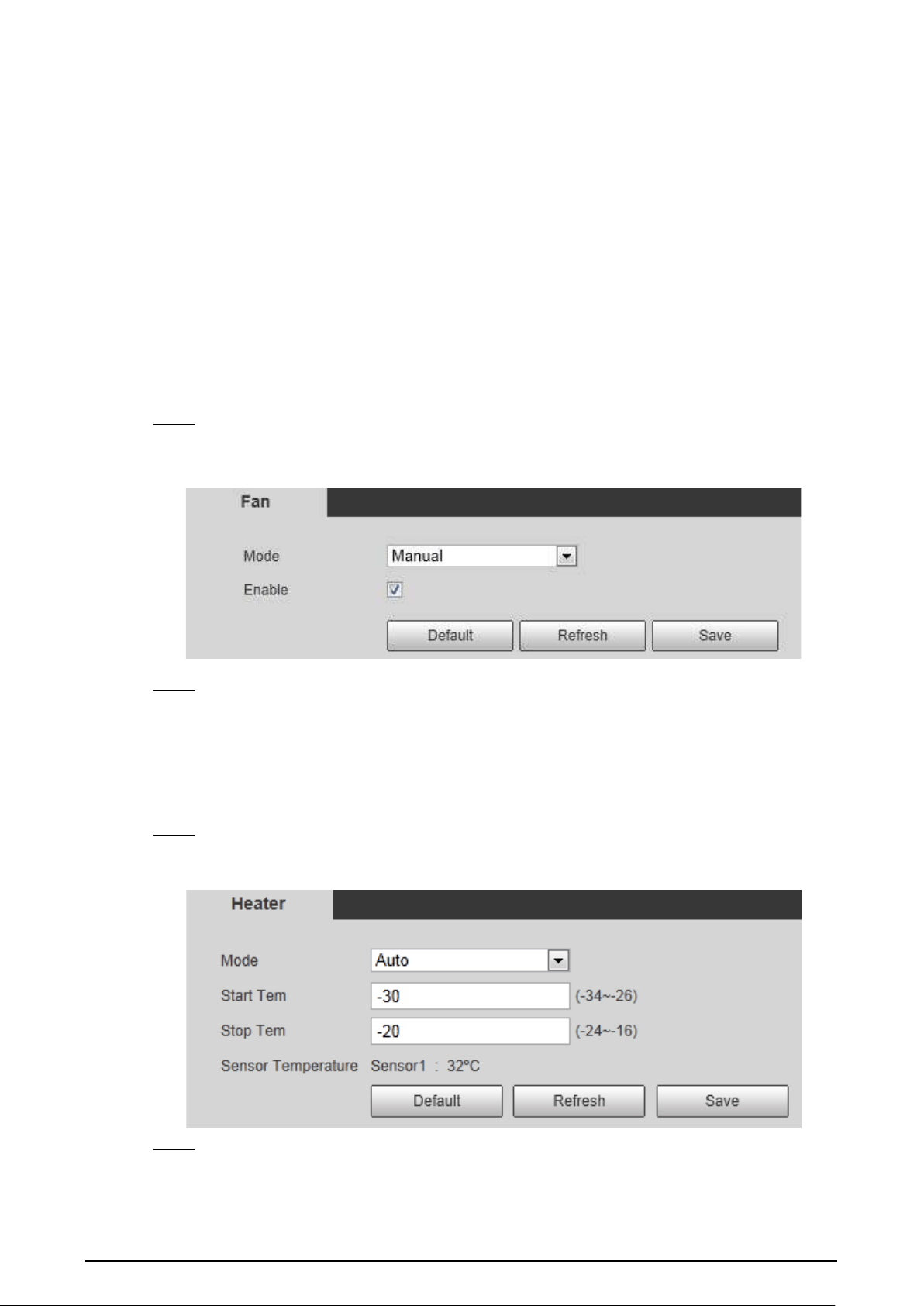

4.3.3 Configuring Fan ................................................................................................................... 83
4.3.4 Configuring Heater .............................................................................................................. 83
Smart Thermal ............................................................................................................................... 84 4.4
4.4.1 Configuring Smart Plan ........................................................................................................ 84

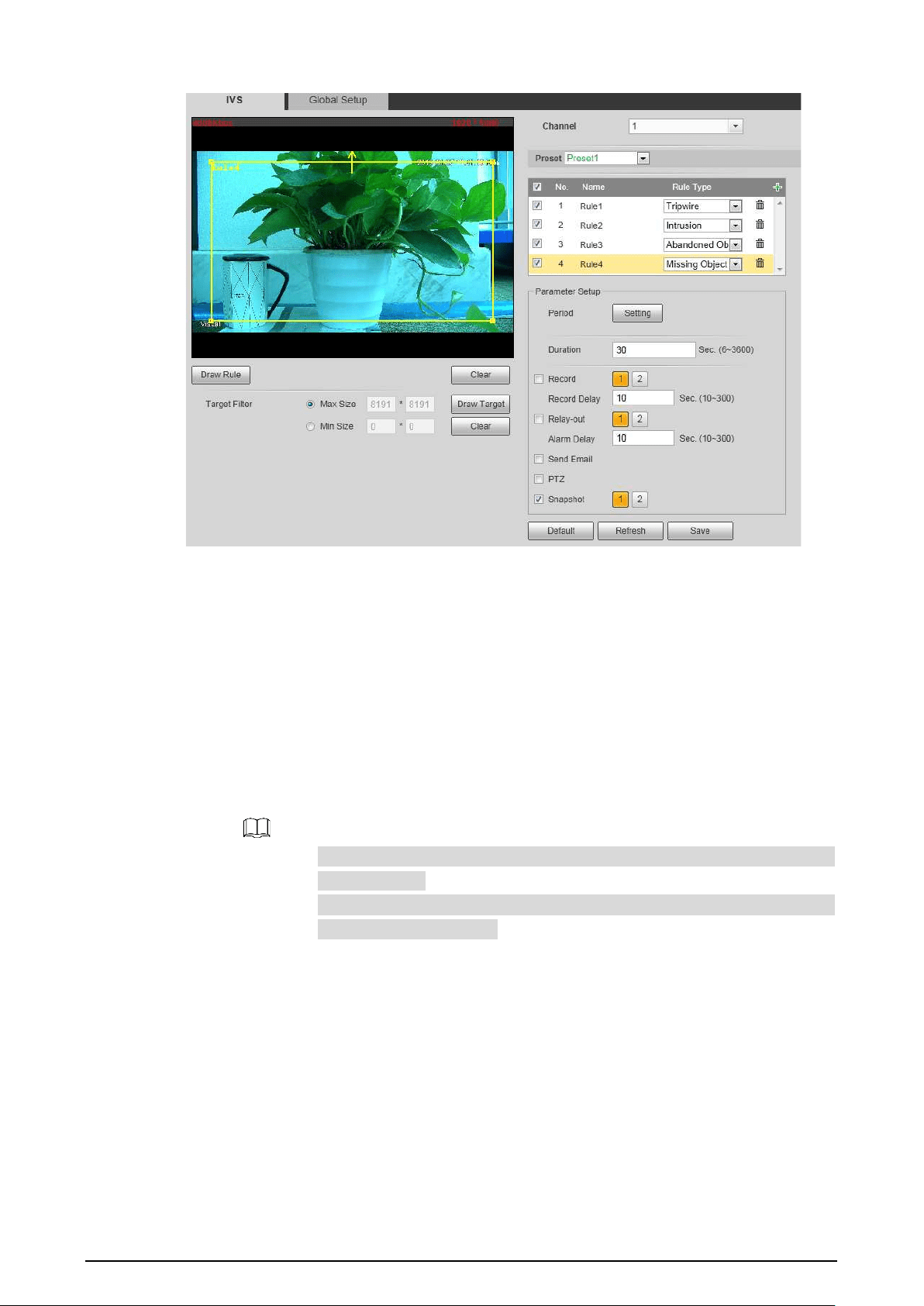

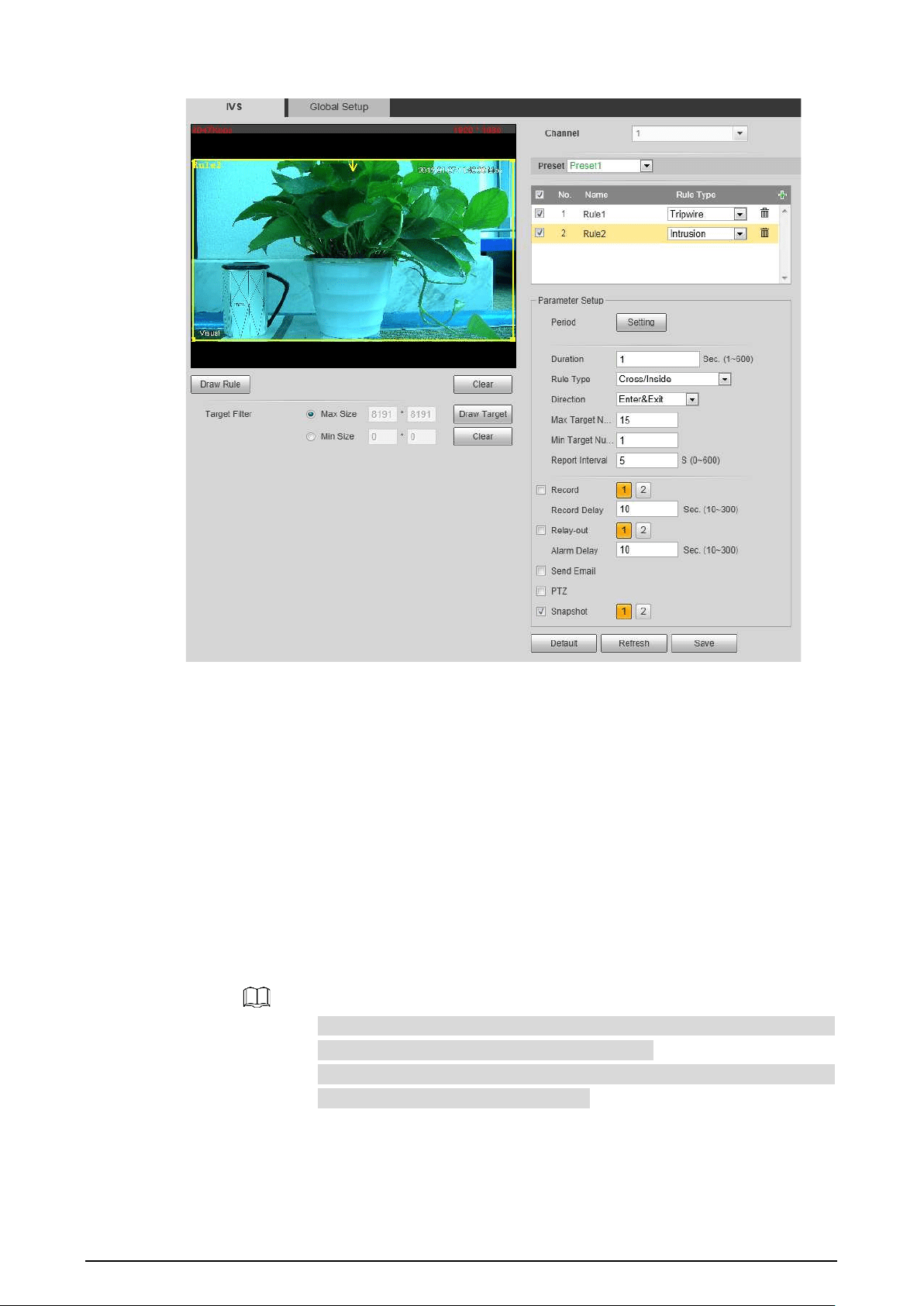

4.4.2 Configuring Intelligent Video Surveillance (IVS) ..................................................................... 84

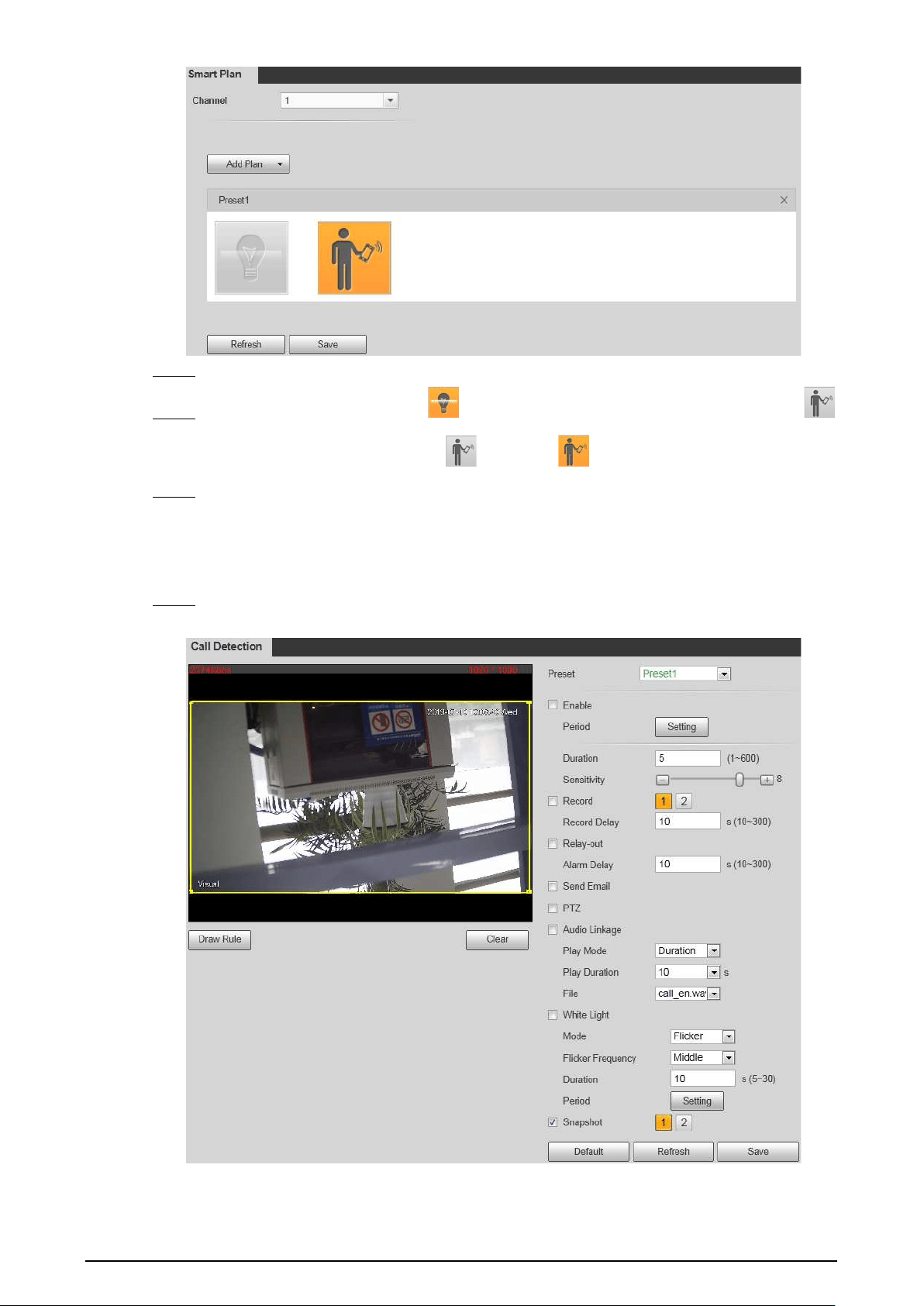

4.4.3 Call Detection ...................................................................................................................... 96
4.4.4 Smoking Detection .............................................................................................................. 98
4.4.5 Boat Detection ................................................................................................................... 100

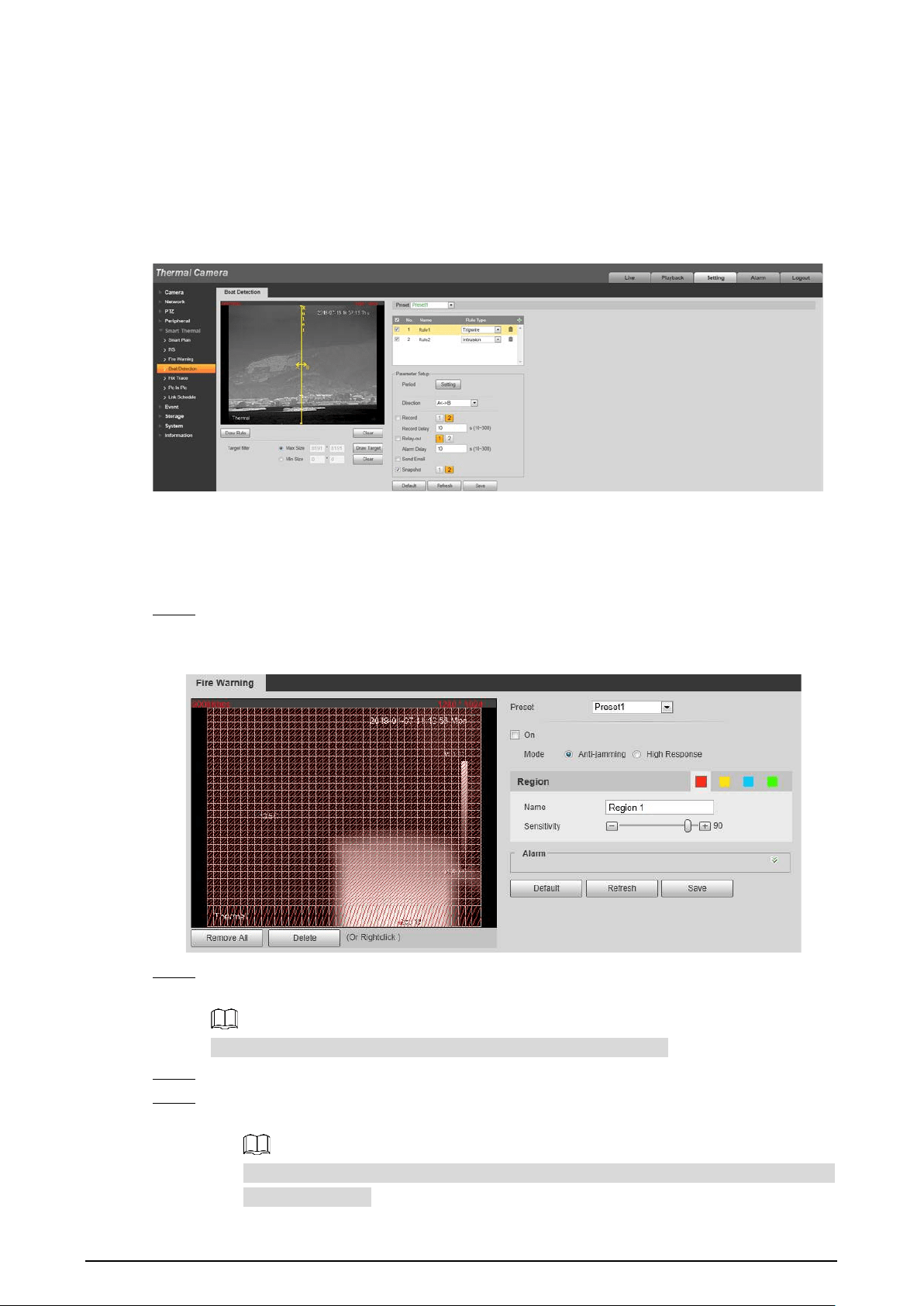

4.4.6 Configuring Fire Warning ................................................................................................... 102

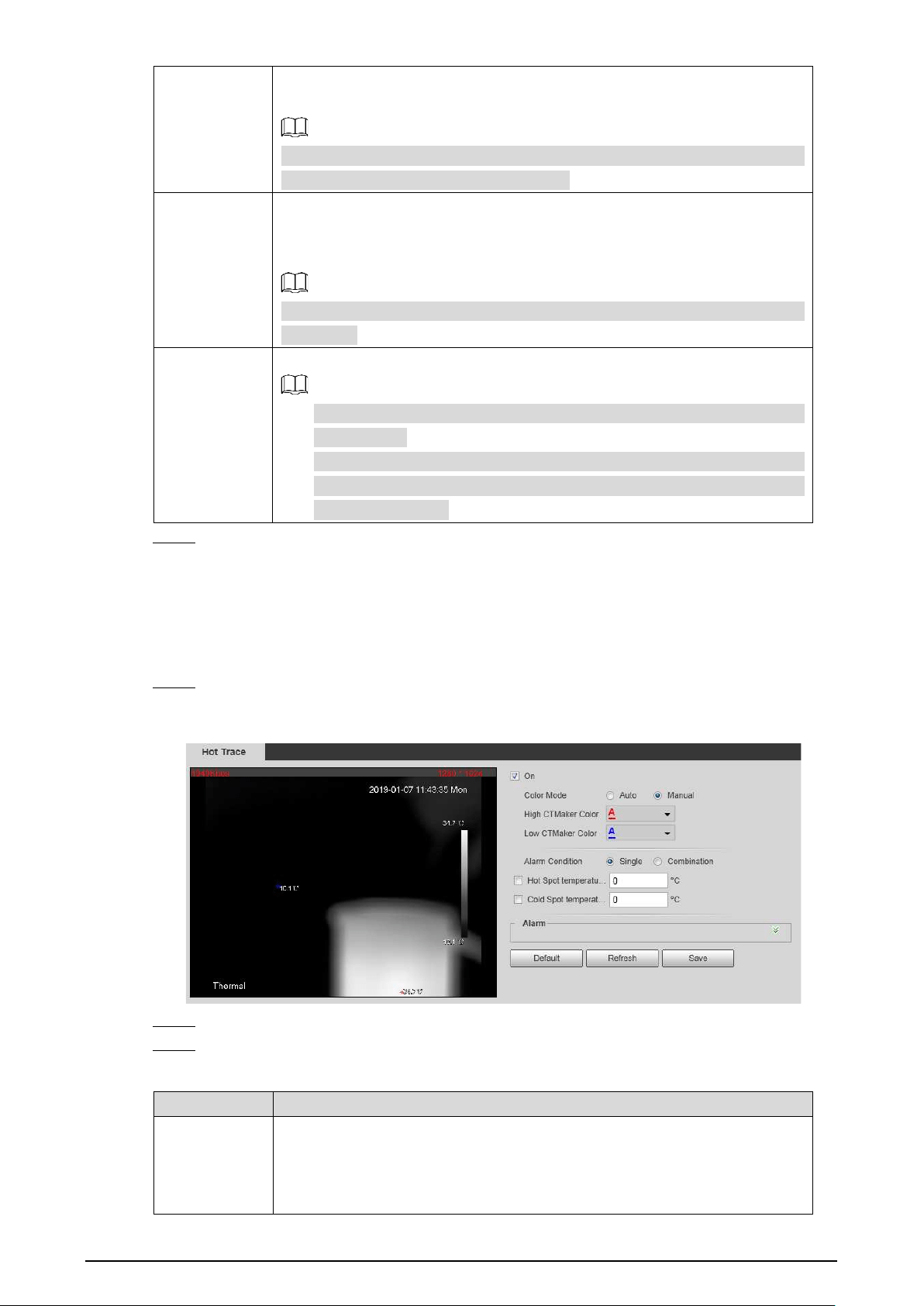

4.4.7 Configuring Hot Trace ........................................................................................................ 104
4.4.8 Configuring Pic in Pic ......................................................................................................... 106
4.4.9 Configuring Link Schedule ................................................................................................. 107
4.4.10 Configure Linked Measures .............................................................................................. 108
Event ............................................................................................................................................110 4.5

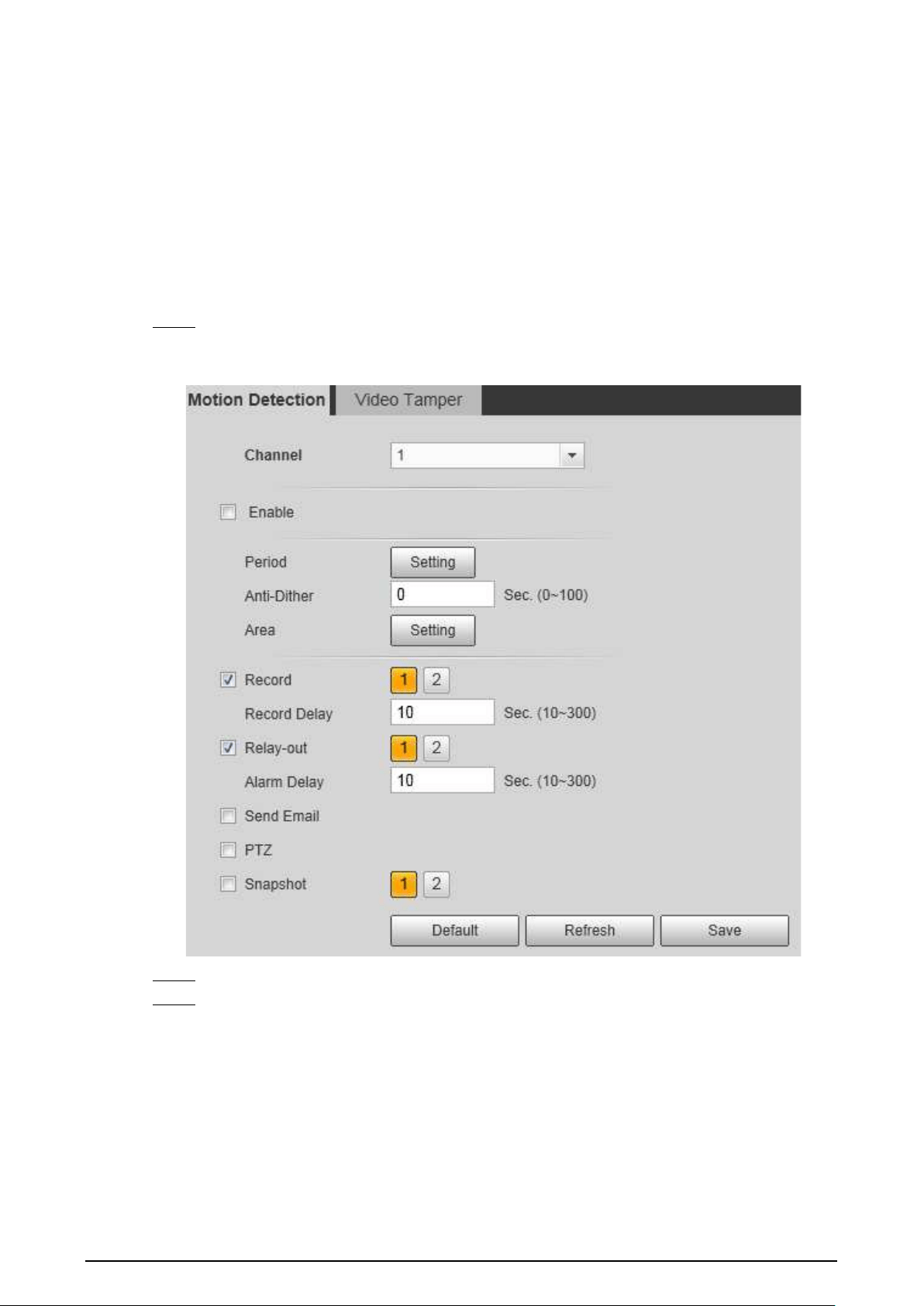

4.5.1 Configuring Video Detection ...............................................................................................110

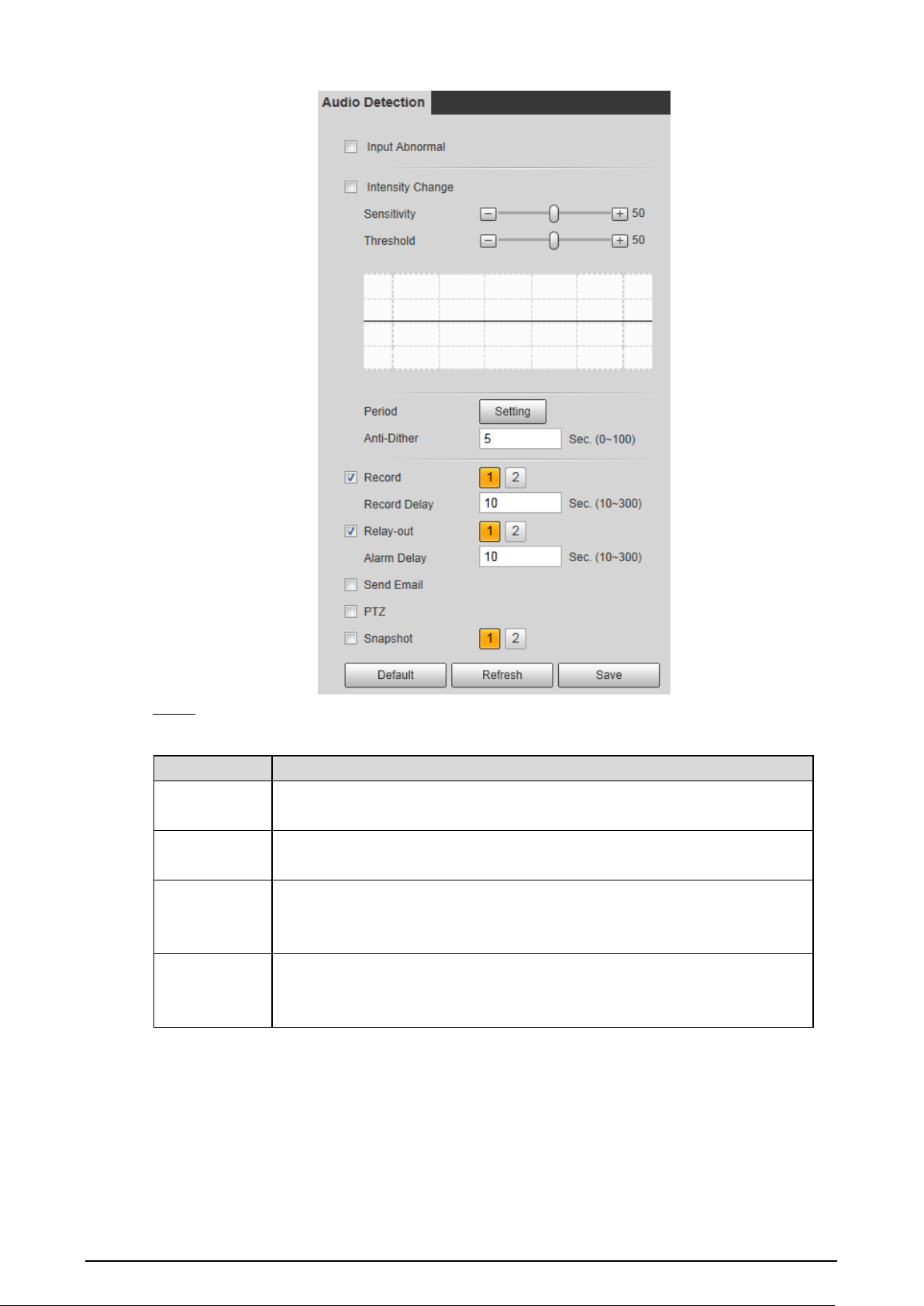

4.5.2 Configuring Audio Detection ..............................................................................................114
4.5.3 Configuring Temperature Alarm ..........................................................................................117

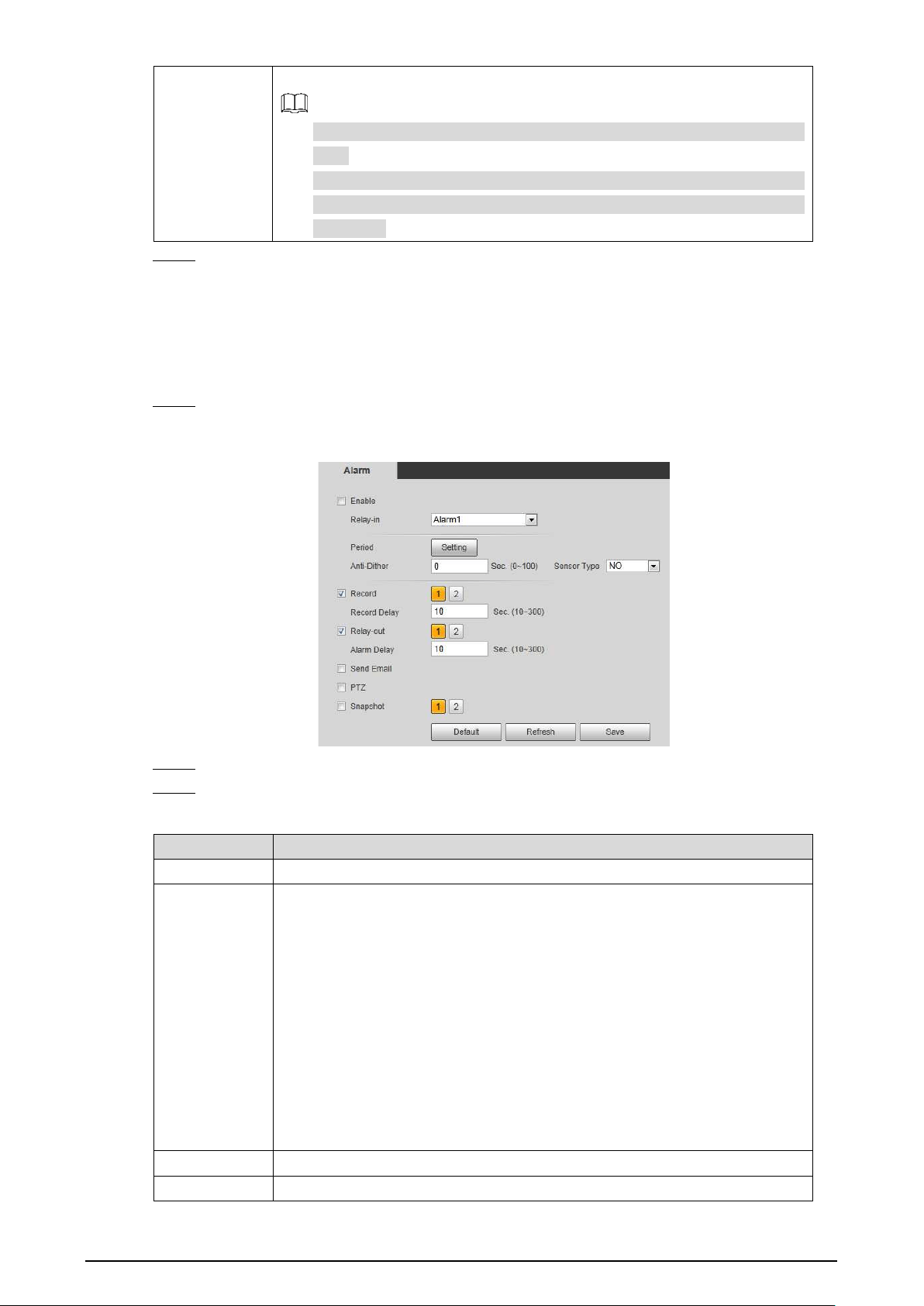

4.5.4 Configuring Alarm ..............................................................................................................119
4.5.5 Configuring Abnormality ................................................................................................... 120
Temperature Measuring Settings .................................................................................................. 124 4.6
4.6.1 Configuring Rules .............................................................................................................. 124

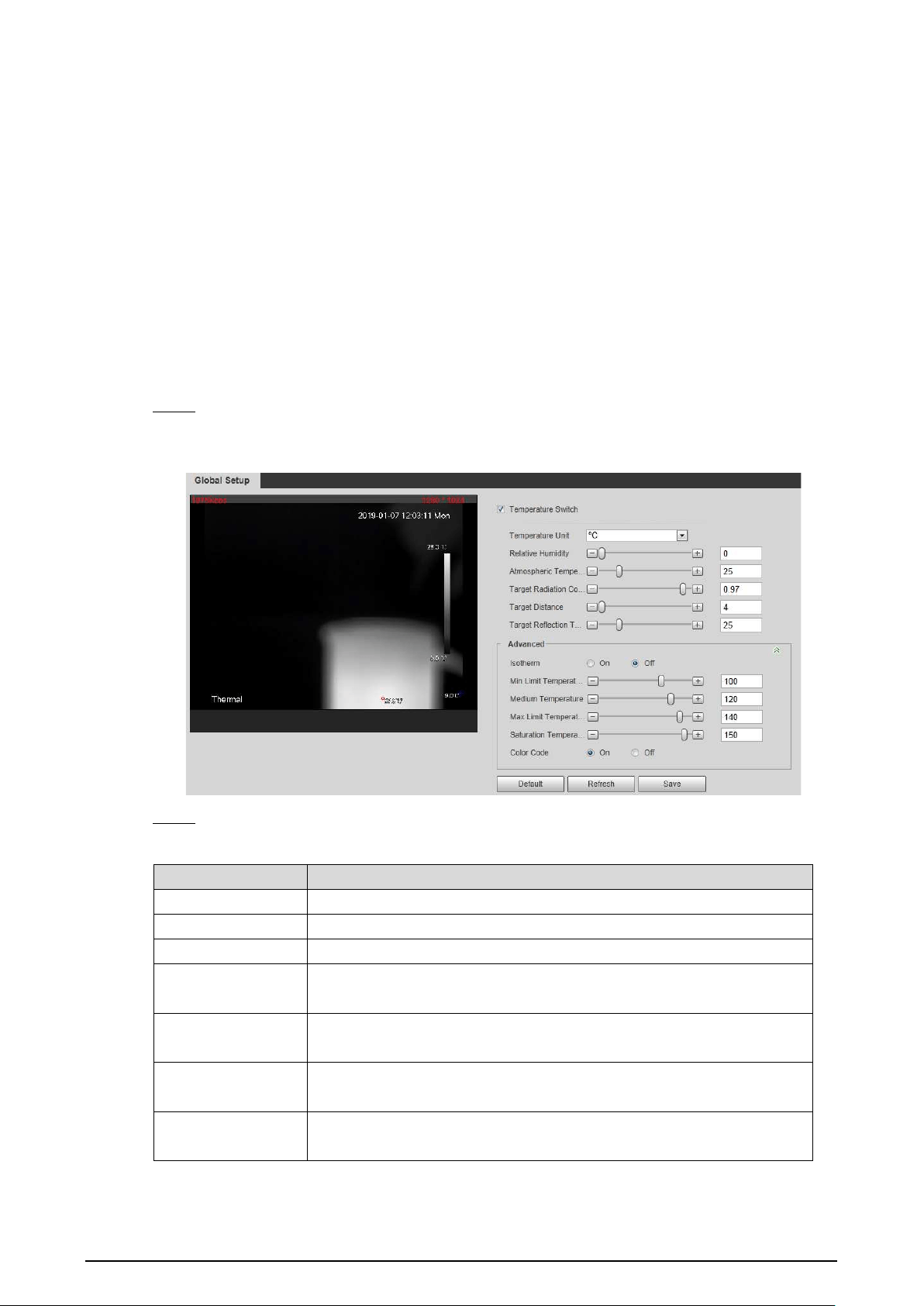

4.6.2 Configuring Global Setup ................................................................................................... 128
4.6.3 Exporting Heat Map ........................................................................................................... 130
Storage Management .................................................................................................................. 131 4.7

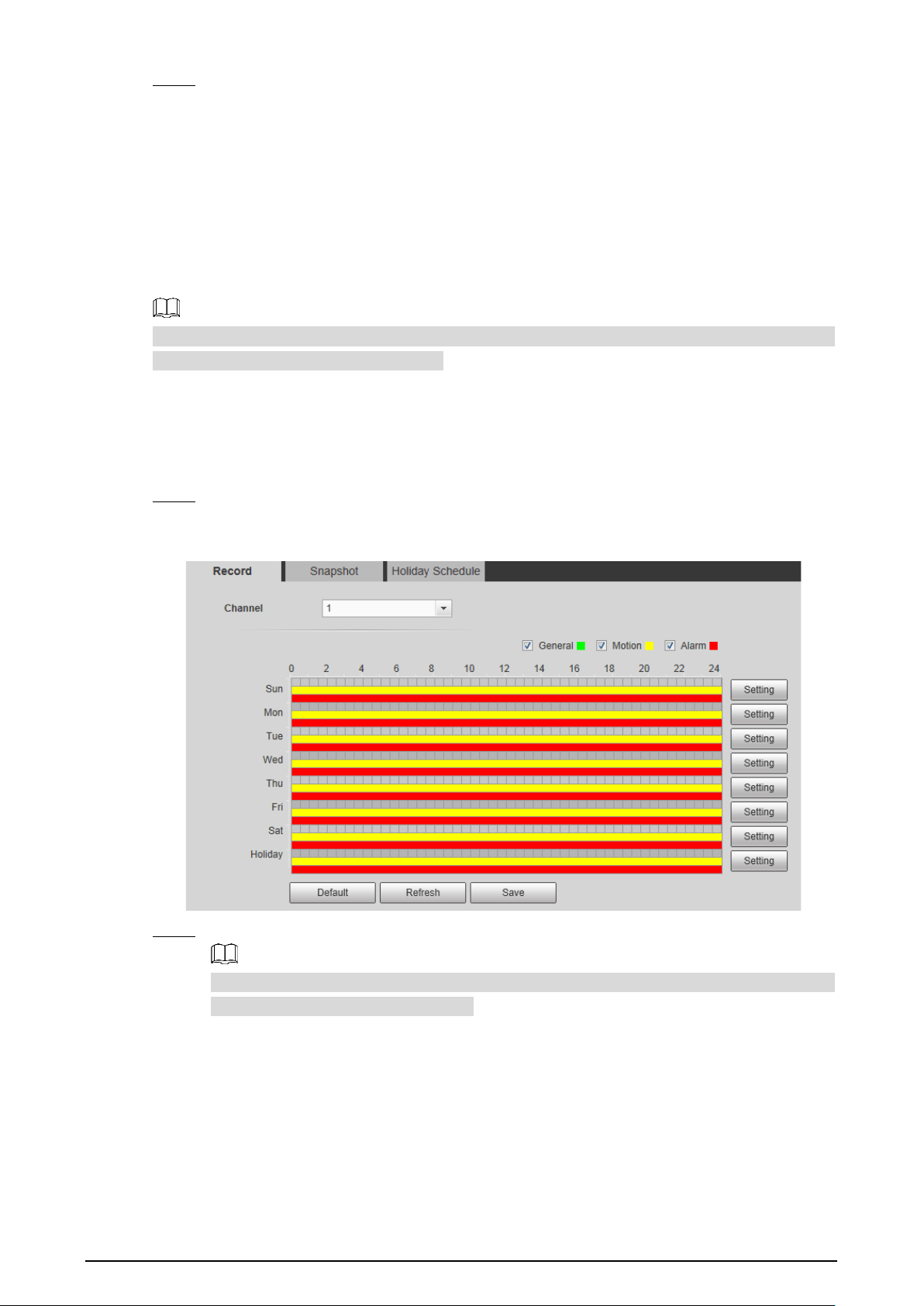

4.7.1 Configuring Schedule ........................................................................................................ 131
4.7.2 Camera Storage ................................................................................................................. 134
4.7.3 Configuring Record Control Parameters .............................................................................. 136
System Management ................................................................................................................... 137 4.8
4.8.1 General Settings ................................................................................................................ 137

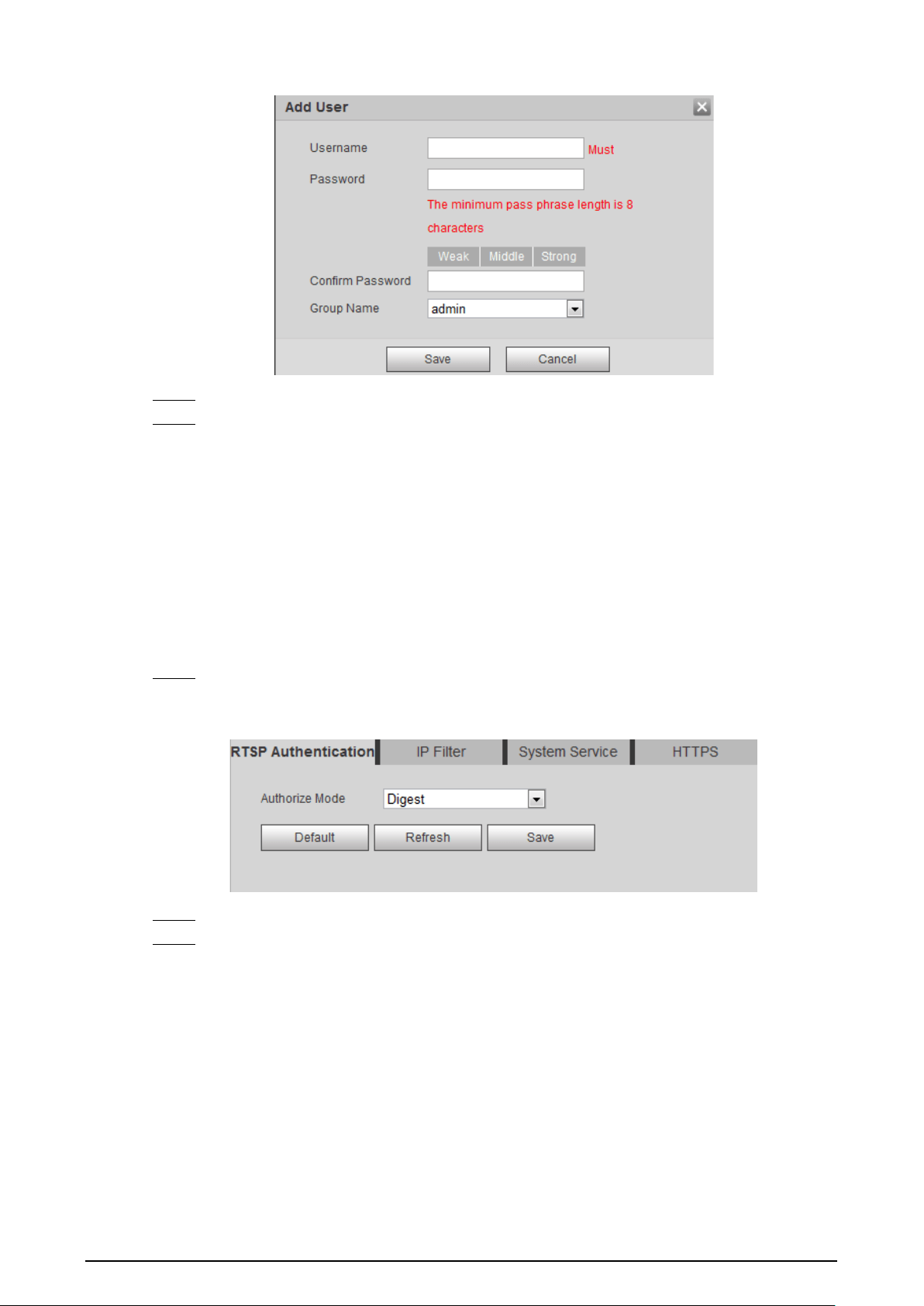

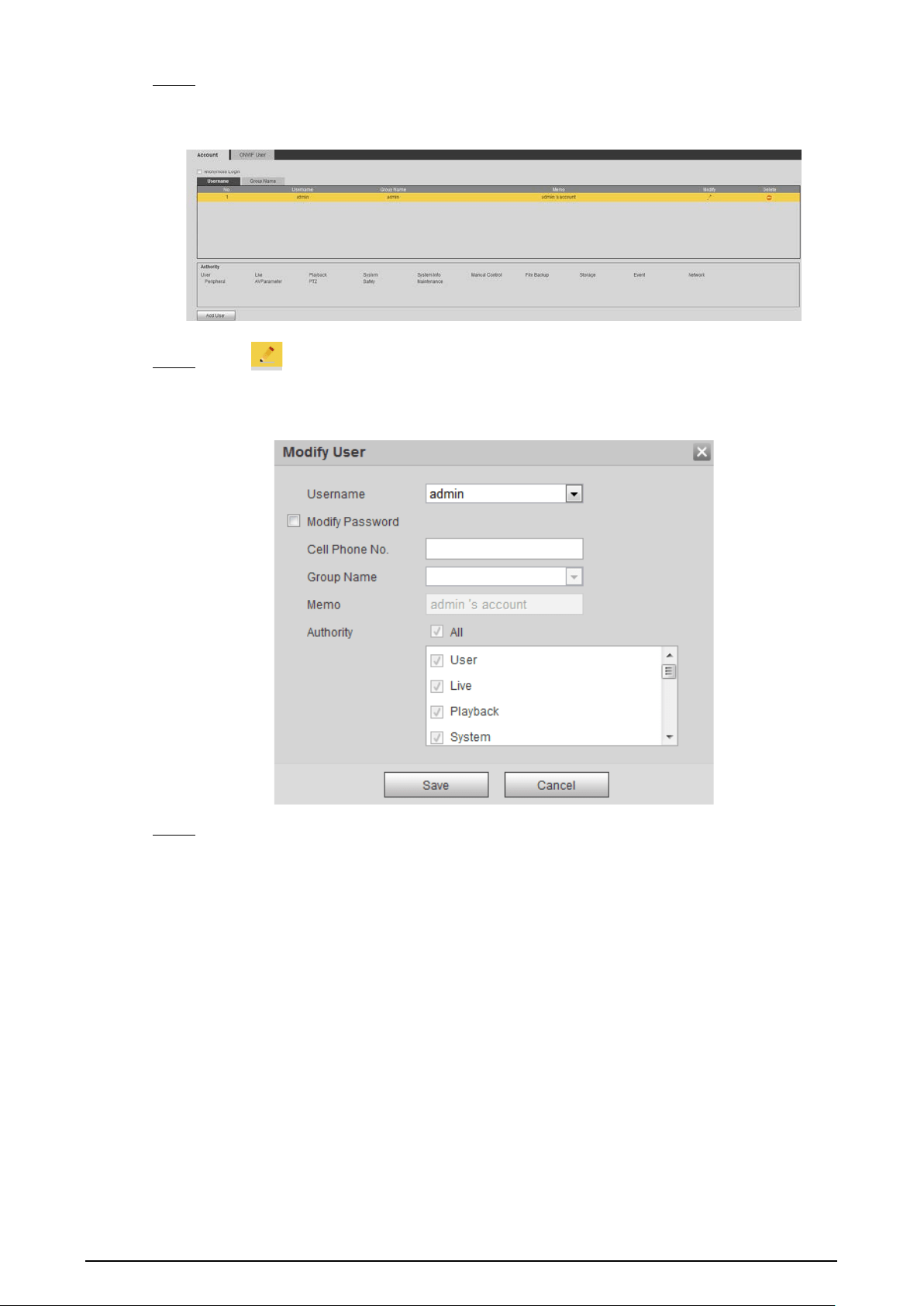

4.8.2 User Management ............................................................................................................. 139
4.8.3 Adding ONVIF User ............................................................................................................ 144

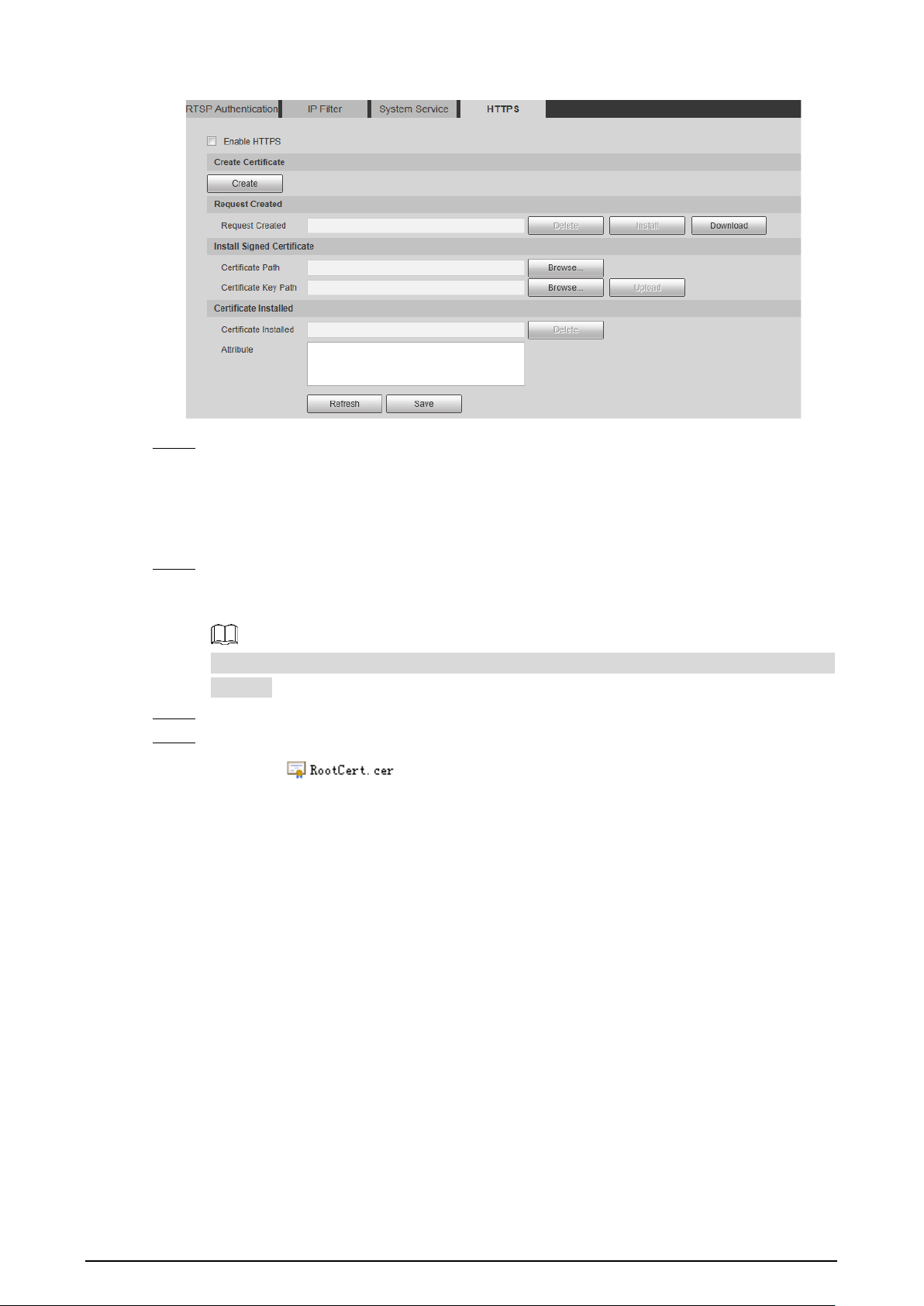

4.8.4 Safety Management ........................................................................................................... 145
5 System Maintenance............................................................................................................................ 157
Maintenance Requirements ......................................................................................................... 157 5.1

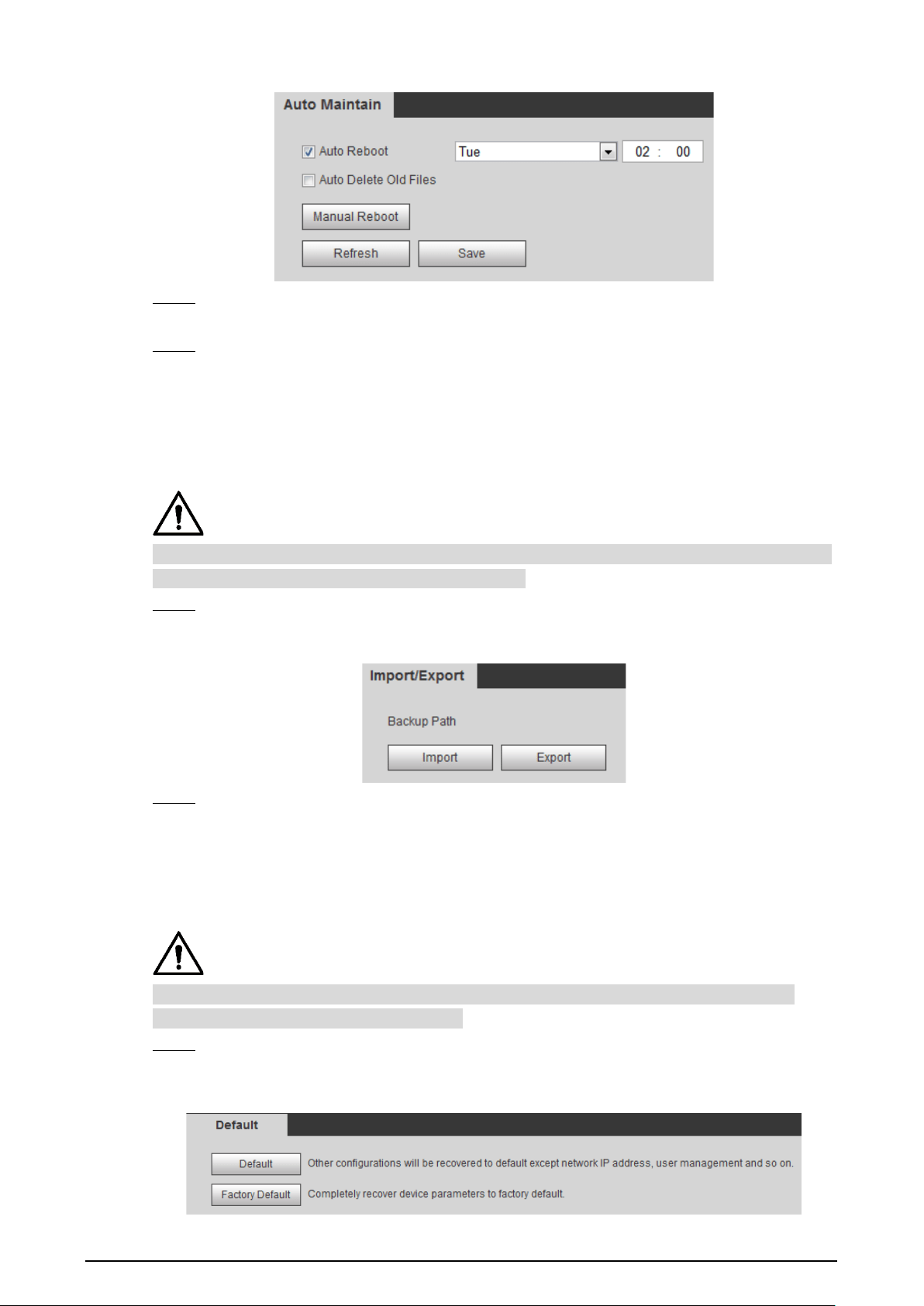

Auto Maintenance ....................................................................................................................... 157 5.2
5.2.1 Rebooting Camera ............................................................................................................. 157
5.2.2 Deleting Old Files ............................................................................................................... 157
Backing Up and Restoring ............................................................................................................ 158 5.3
5.3.1 Importing and Exporting .................................................................................................... 158
5.3.2 Default Settings ................................................................................................................. 158
Upgrading Firmware .................................................................................................................... 159 5.4
Version Information ..................................................................................................................... 159 5.5
V
System Log .................................................................................................................................. 160 5.6
5.6.1 Searching System Logs ....................................................................................................... 160
5.6.2 Remote View...................................................................................................................... 161
Online User .................................................................................................................................. 162 5.7
6 Additional Accessing Methods ............................................................................................................ 163

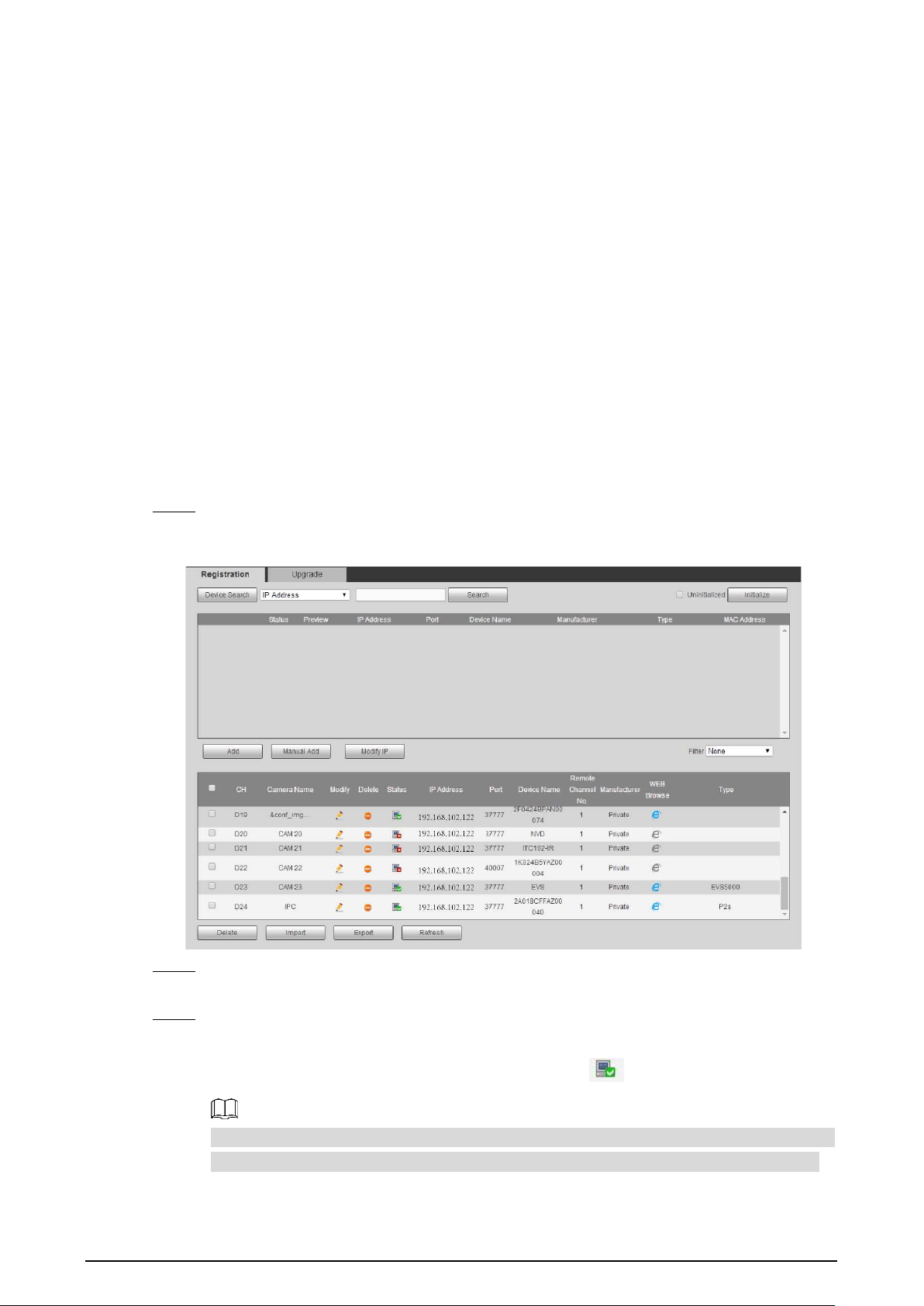

Accessing through NVR ................................................................................................................ 163 6.1

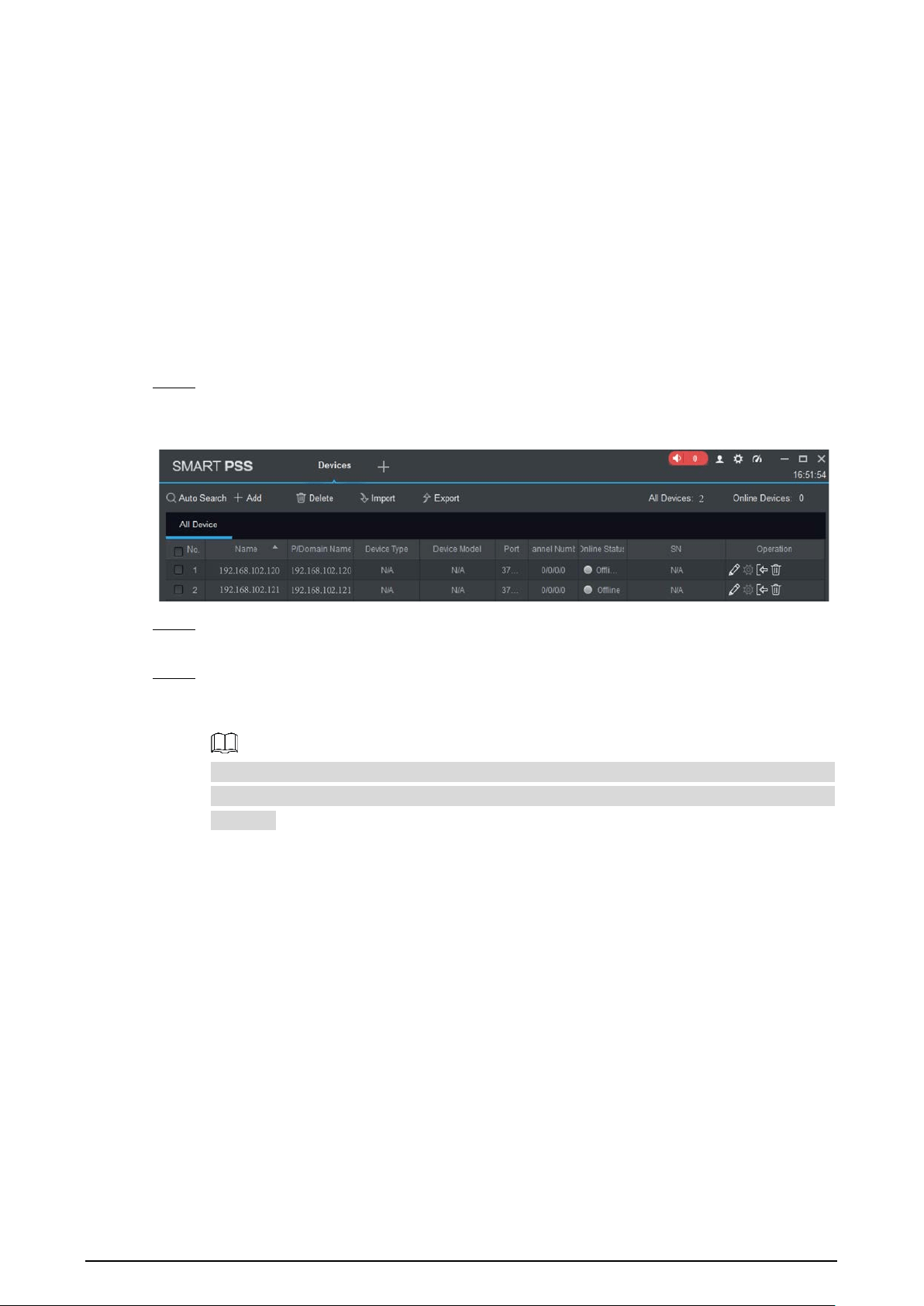

Accessing through SmartPSS ........................................................................................................ 164 6.2
Cybersecurity Recommendations ...................................................................................... 165 Appendix 1
1
1 Product Introduction
Overview 1.1
Thermal Hybrid Camera is based on requirements such as temperature measurement, fire prevention,
safety protection and night vision. This product can help you view videos, videotape an object, test
temperature, warn the potential fire, track a cold/hot spot and analyze a special behavior. This
product can be used in energy industry, transportation, building, power system, public security,
government, enterprises, and other fields (such as science, education, culture and health). You can
use the product alone or combine the product with other storage Cameras to provide solutions for
safety/intelligence city, production safety, safety protection of residential buildings and public area
safety.
Features 1.2
Safe and stable.
With a full embedded system, this Camera can implement all-day monitoring in a stable way.
A long detection distance.
Wide monitoring range and long detection distance. Used for surveillance of wide range and
long distance.
Strong detection ability.
With night vision ability, this Camera can clearly distinguish different objects in the dark and can
tell camouflage and hidden objects.
Strong anti-interference ability.
This Camera can get rid of interference of light intensity under backlight or strong light
environment.
Adaptive capacity to complex environment.
Applicable to such environment as smoke, smog, rain, snow, and dust which will block your eyes
and is very confusing in colors.
This product can be used in various scenarios and the "small application scenarios" is taken as an
example here for detailed description. See Figure 1-1.
2

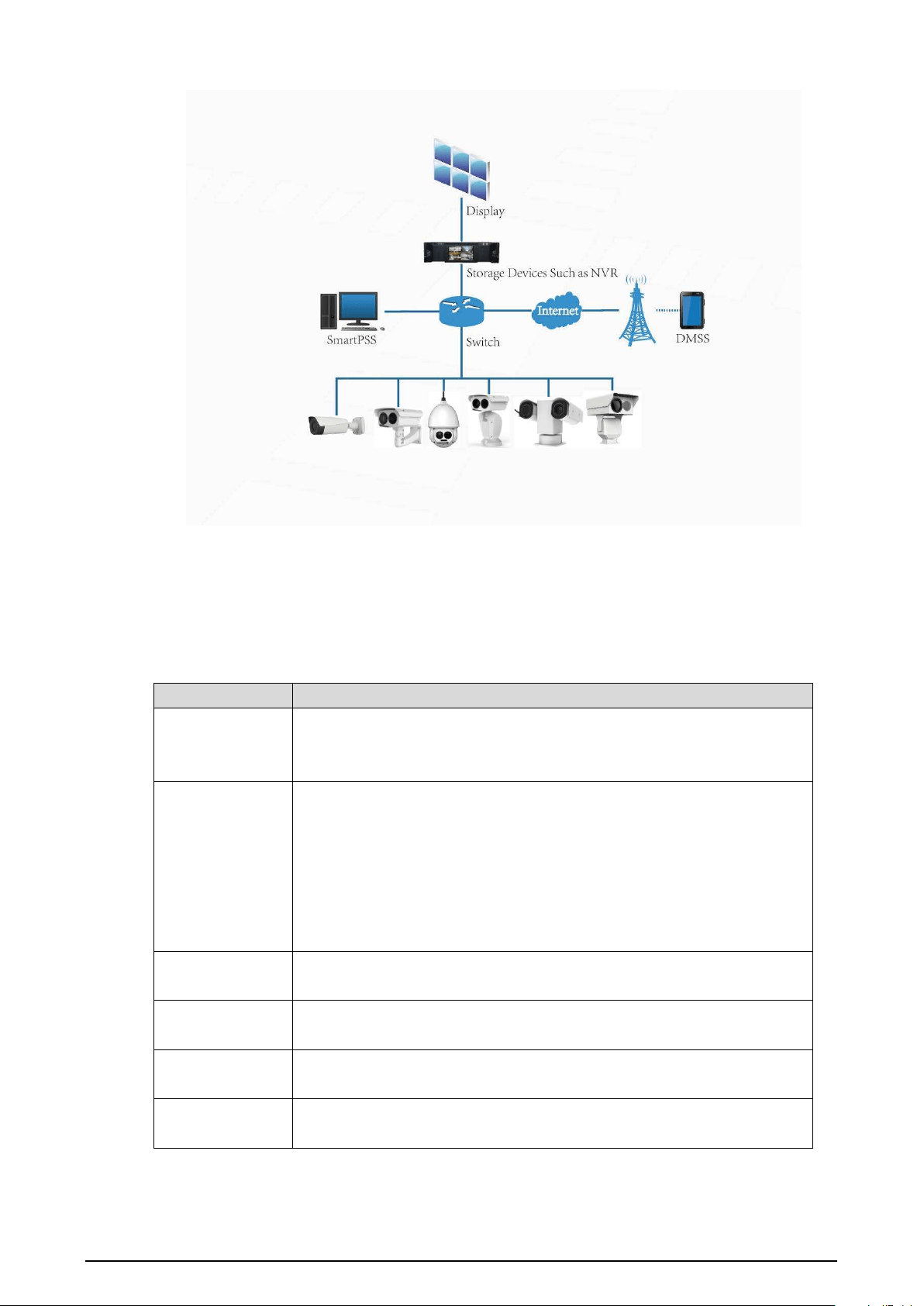

Application scenarios Figure 1-1
Functions 1.3

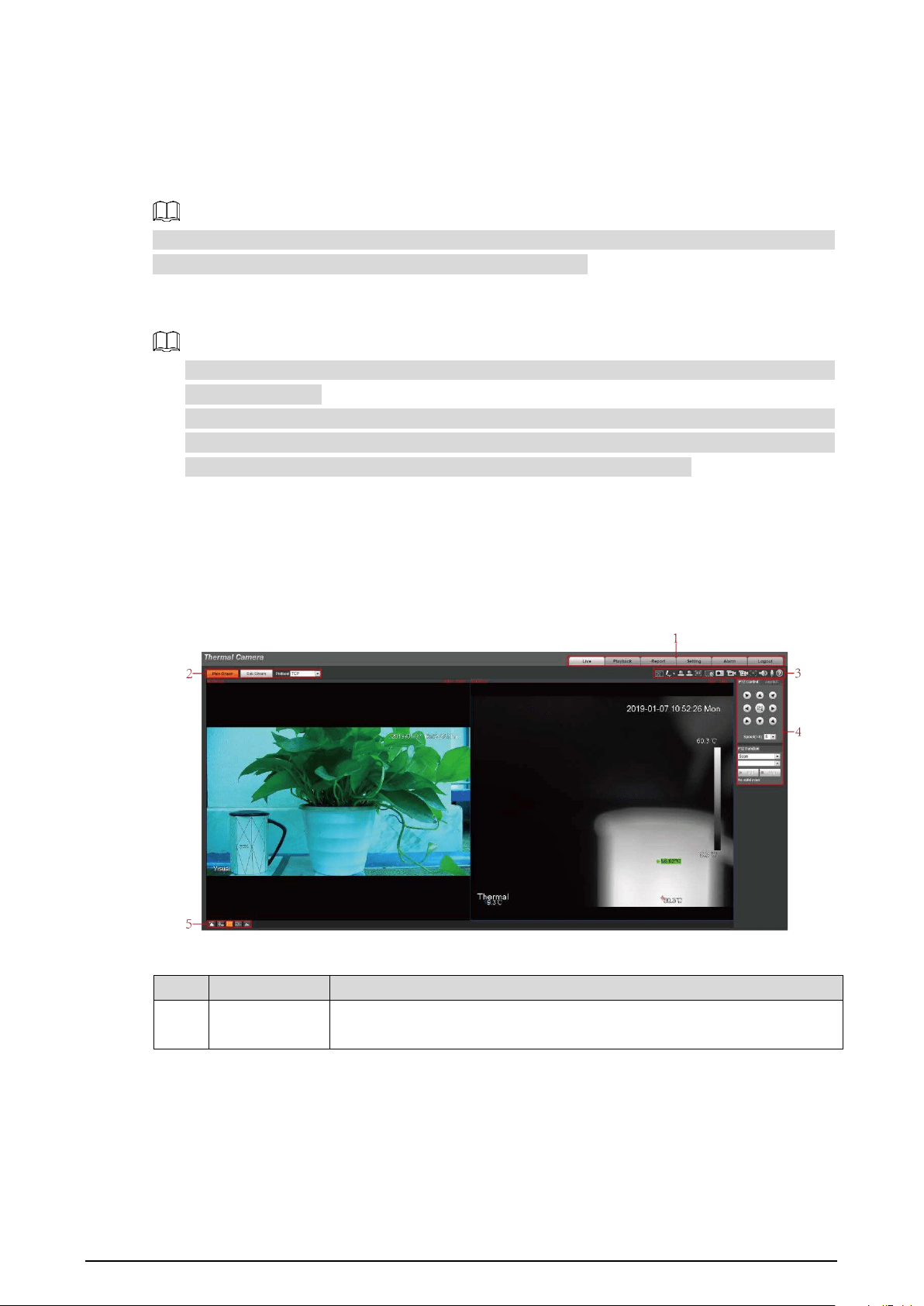

Live
Table 1-1 Function description
Function Description
Live
You can view both the visible images and thermal images.
You can use thermal images to identify an object, and then use visible images
to view more details of the object.
PTZ operation

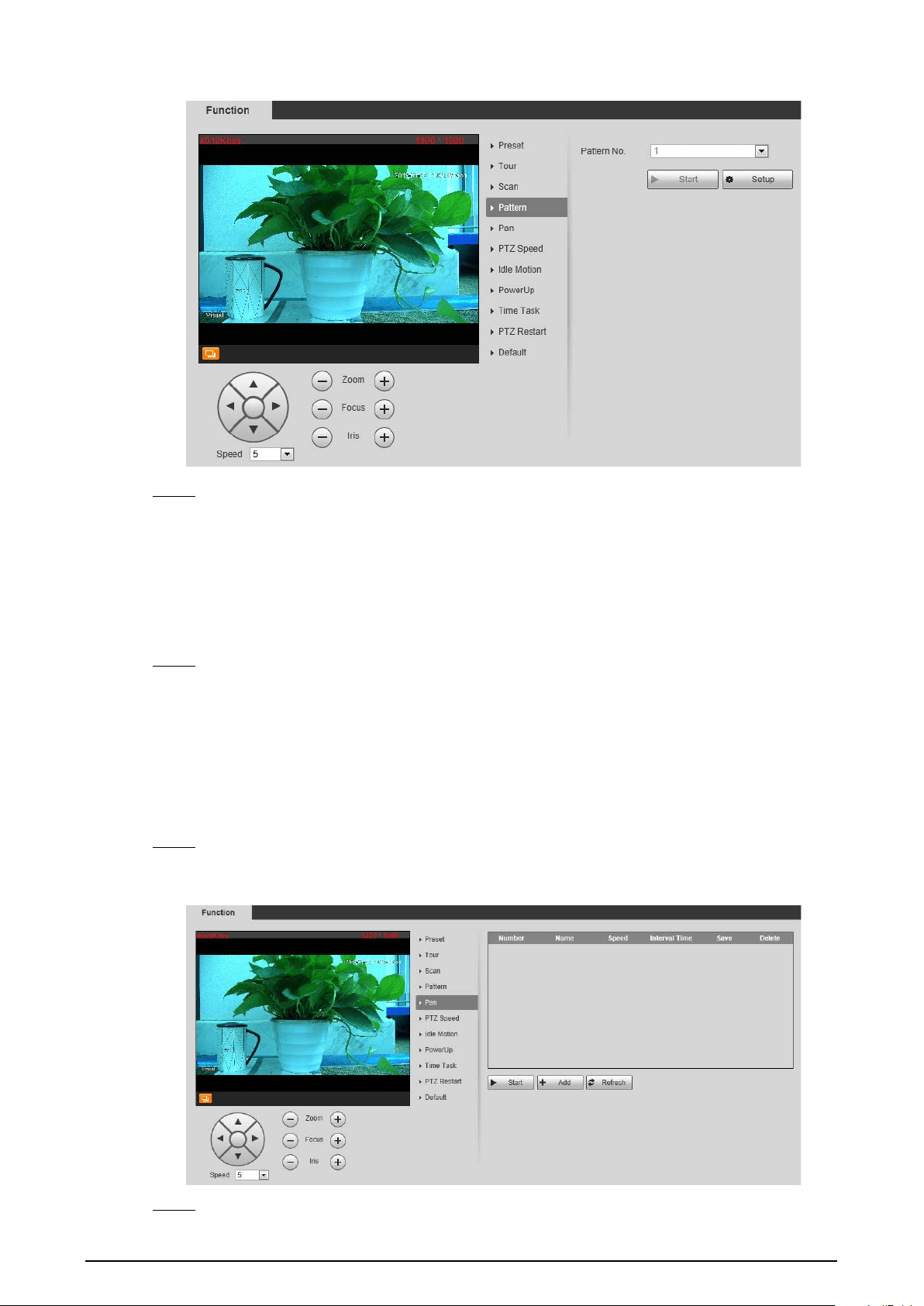

For those cameras with PTZ, you can use the PTZ to operate the cameras to
enlarge the surveillance range and identify details of an object.
For bullet cameras, you can set a bullet camera’s PTZ functions such as
preset, tour and pattern.

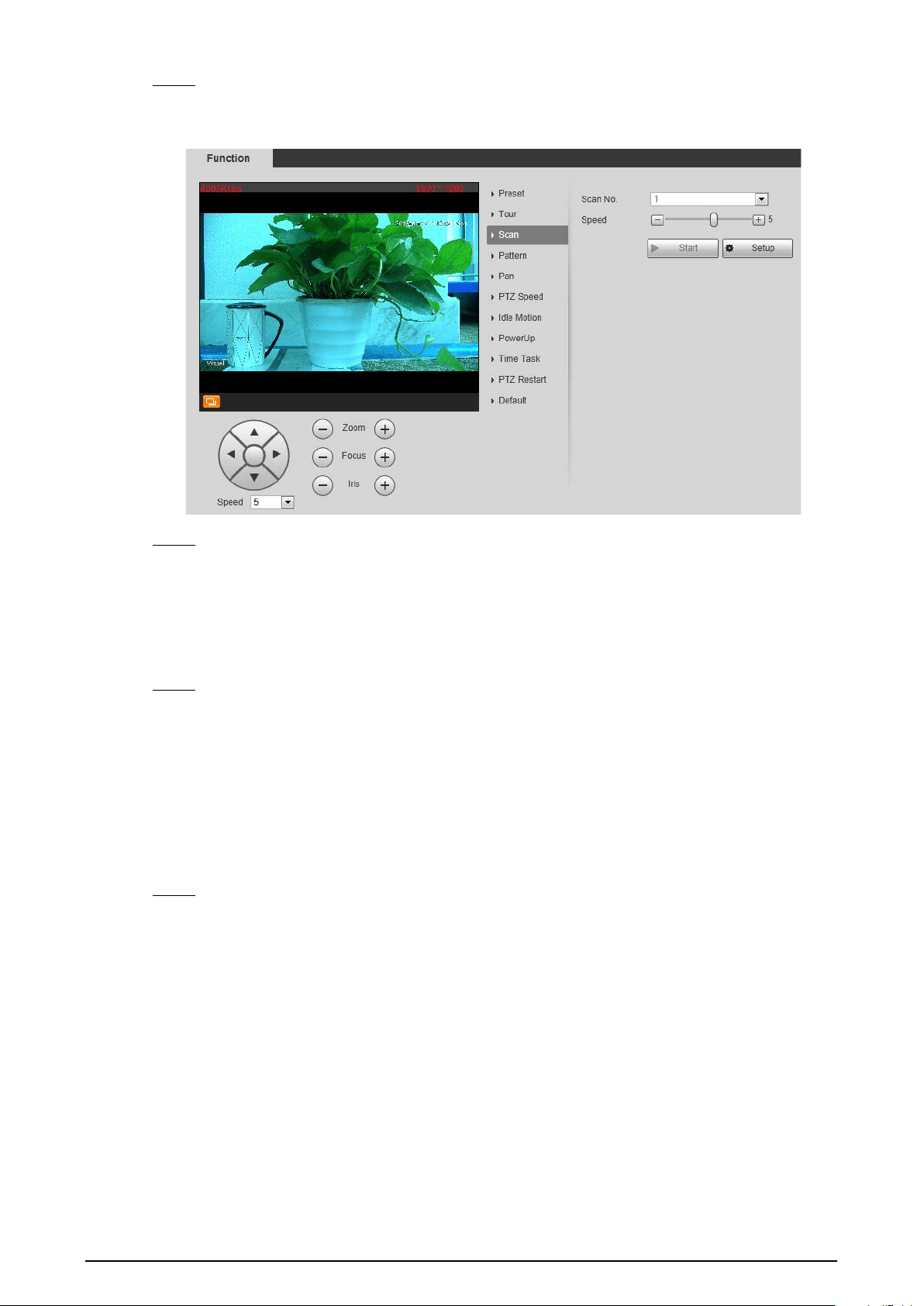

You can set a speed dome camera’s PTZ functions or a pan & tilt camera’s
PTZ functions such as preset

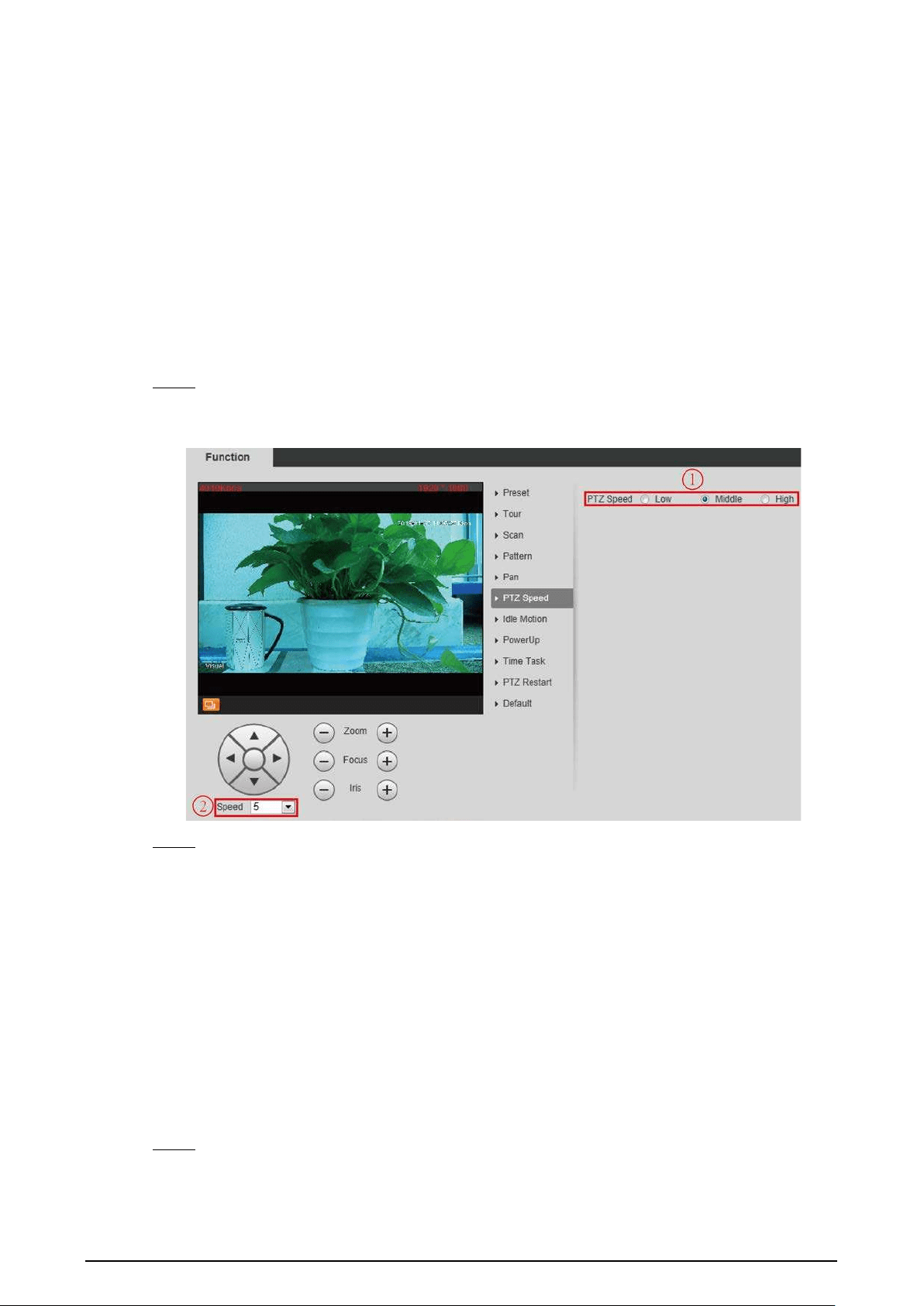

, tour, pattern, horizontal rotation, PTZ
speed, free action, boot action and timing task.
Voice intercom
For cameras with voice intercom function, you can talk indoors with a person
near the outdoor monitor to facilitate problem solution.
Snapshot
When previewing, you can snapshot an abnormal image for further check and
handling.
Local recording
When previewing, you can record abnormal images for further check and
handling.
Real-time reports
For cameras with temperature measuring, you can check the real-time
temperature data of your monitoring area.
3
Real-time spot
temperature
measurement
For cameras with temperature measuring, you can check the real-time
temperature data of any spot in your monitoring area.
Laser ranging
For cameras with laser ranging, you can measure the distance between the
camera and the object in the middle of the image.
Additional
functions
Switch video bit stream or streaming protocol.
The visible image will be adjusted to the relevant location when you
zoom in or out the thermal image.
Mark information you need in the surveillance image.
Check whether there is any alarm output.
Magnify part of the surveillance image. Or, scroll the mouse to zoom the
whole surveillance image.
You can help the camera focus manually on the web interface.
Set a smart rule. When the rule is broken and an alarm is triggered,
you can track the target manually.

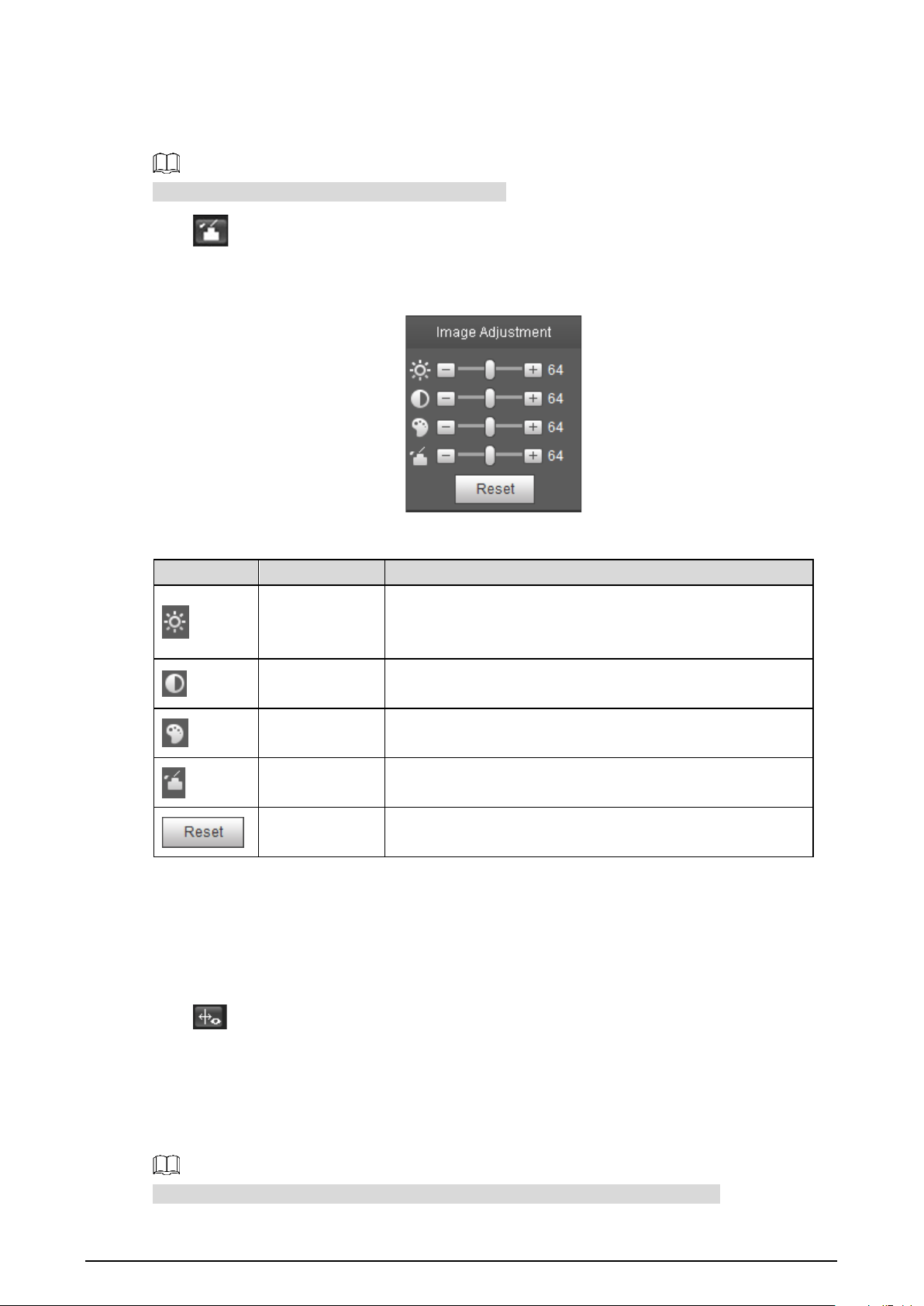

Adjust display effect of the surveillance images.
Boot up or shut down the intelligent rule display.
Playback
Table 1-2 Description of playback function
Function Description
Videotaping
manually
When playing back a video, you can record the key information of the
previous video for further check and handling.

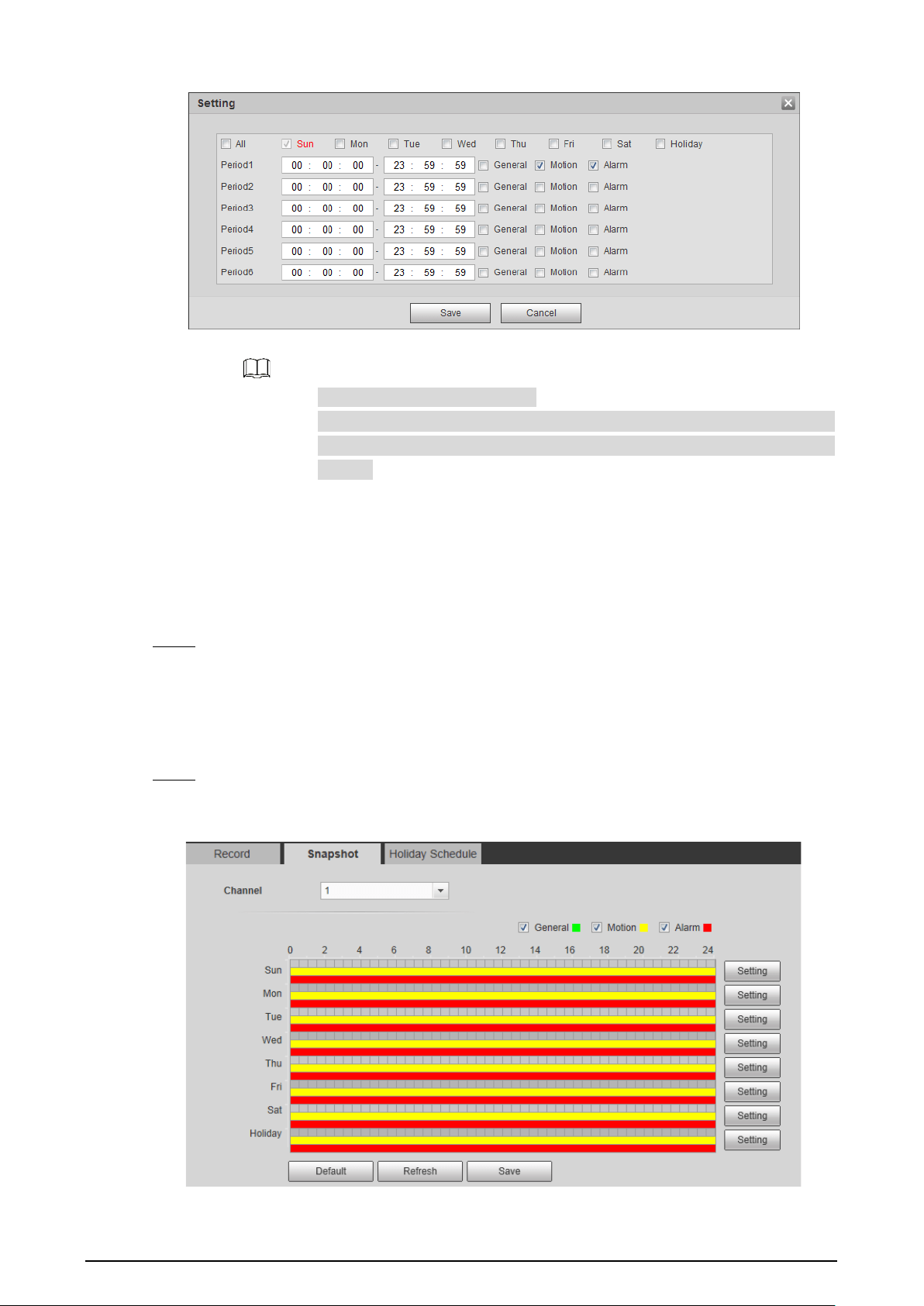

Planned recording After you set a recording plan, the system will record automatically.

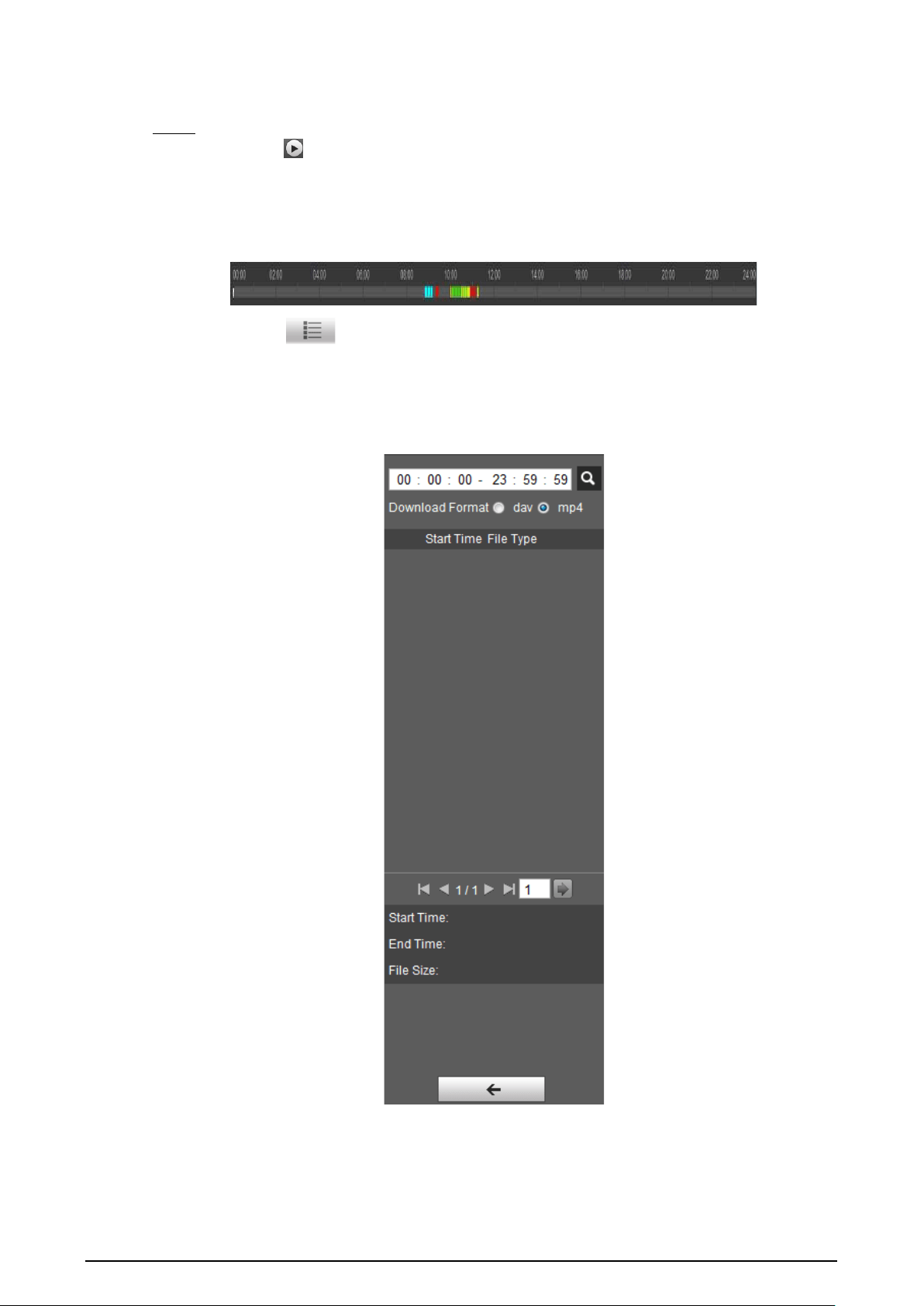

Video playback
and download
Play back a previous video to find some valuable video fragments.
Download the valuable video fragments for further judgment.

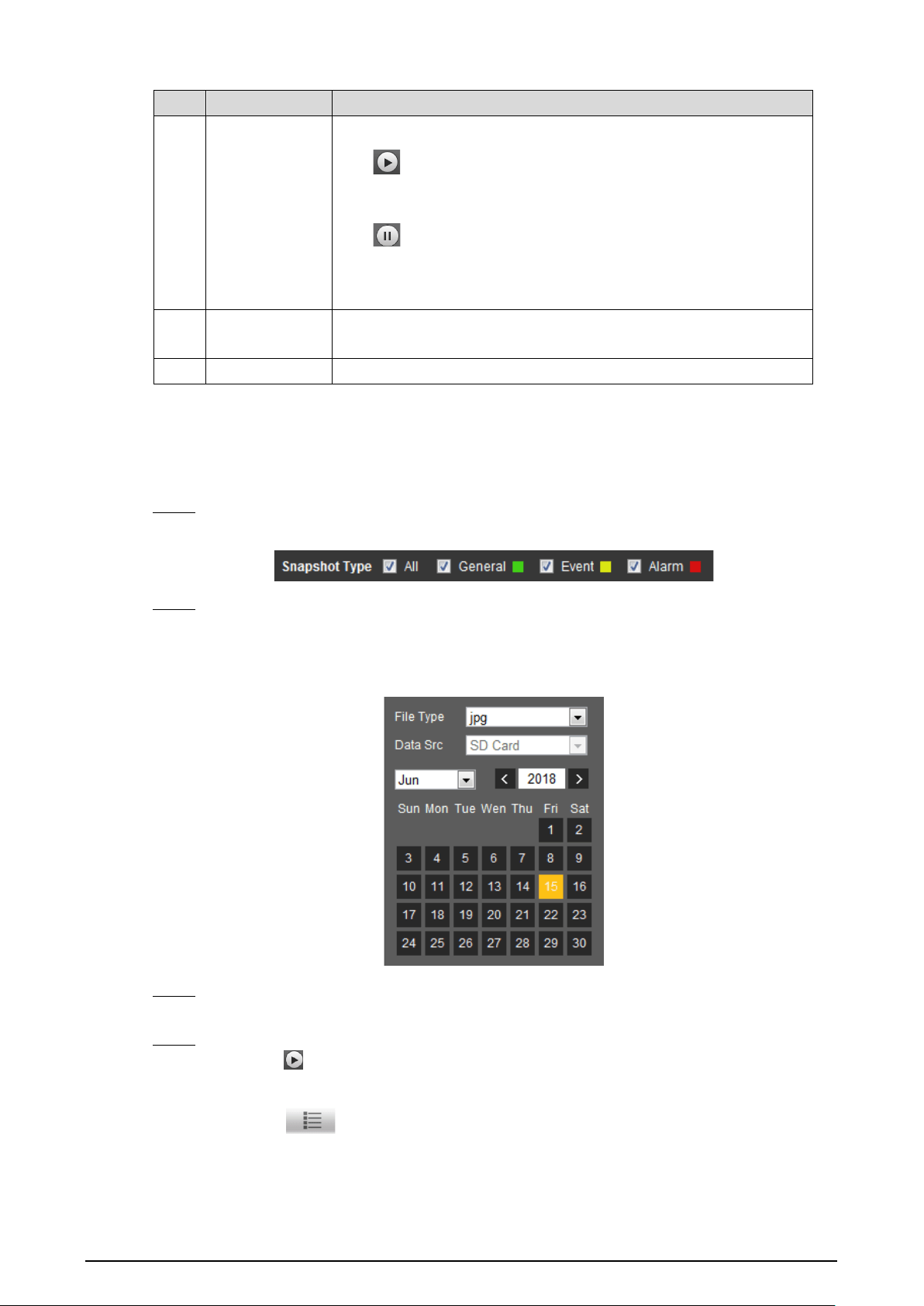

Picture playback Play back pictures you have snapshot to find something valuable.
Relay activation When there is an alarm, the system will videotape automatically.
Report
You need to follow certain rules such as time sequence to check history data of temperature saved in
the Camera Micro SD card.
Alarm
Set prompting mode (sound, for example) based on the alarm type.
View alarm information.
Account Management
Table 1-3 Function description
Function Description

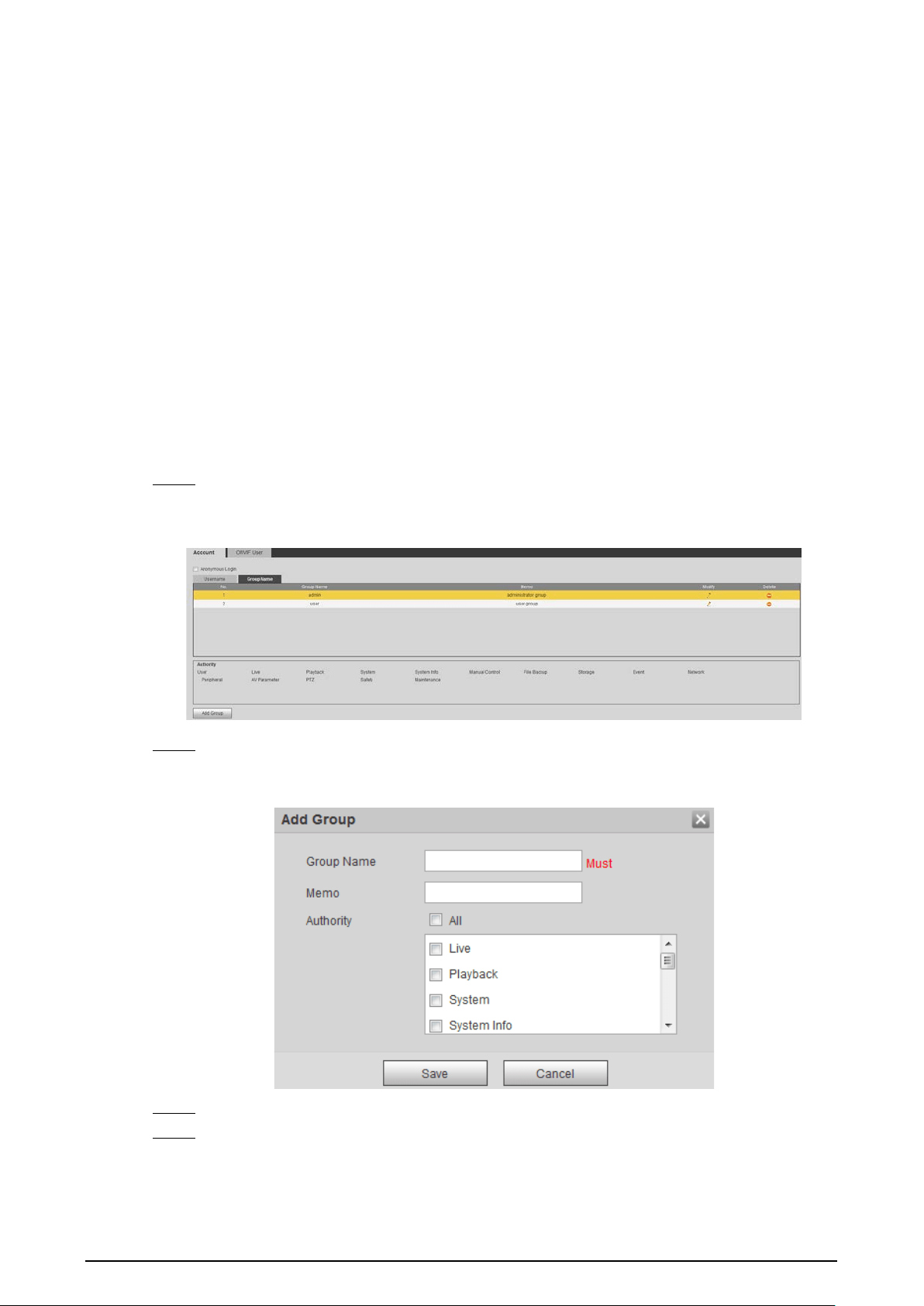

Management of
user group
Add, modify or delete an account group.
Manage user permissions based on user groups.
4

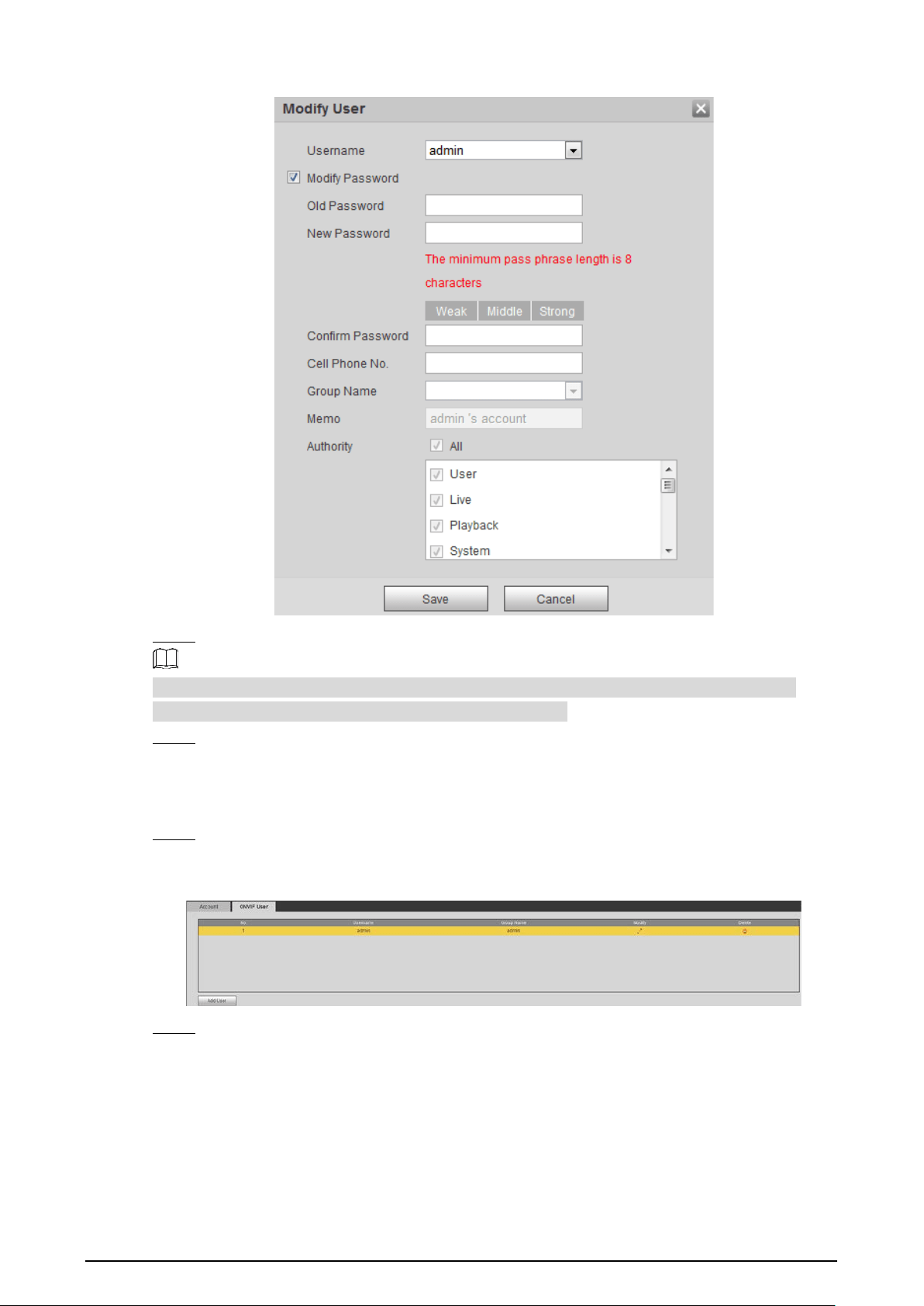

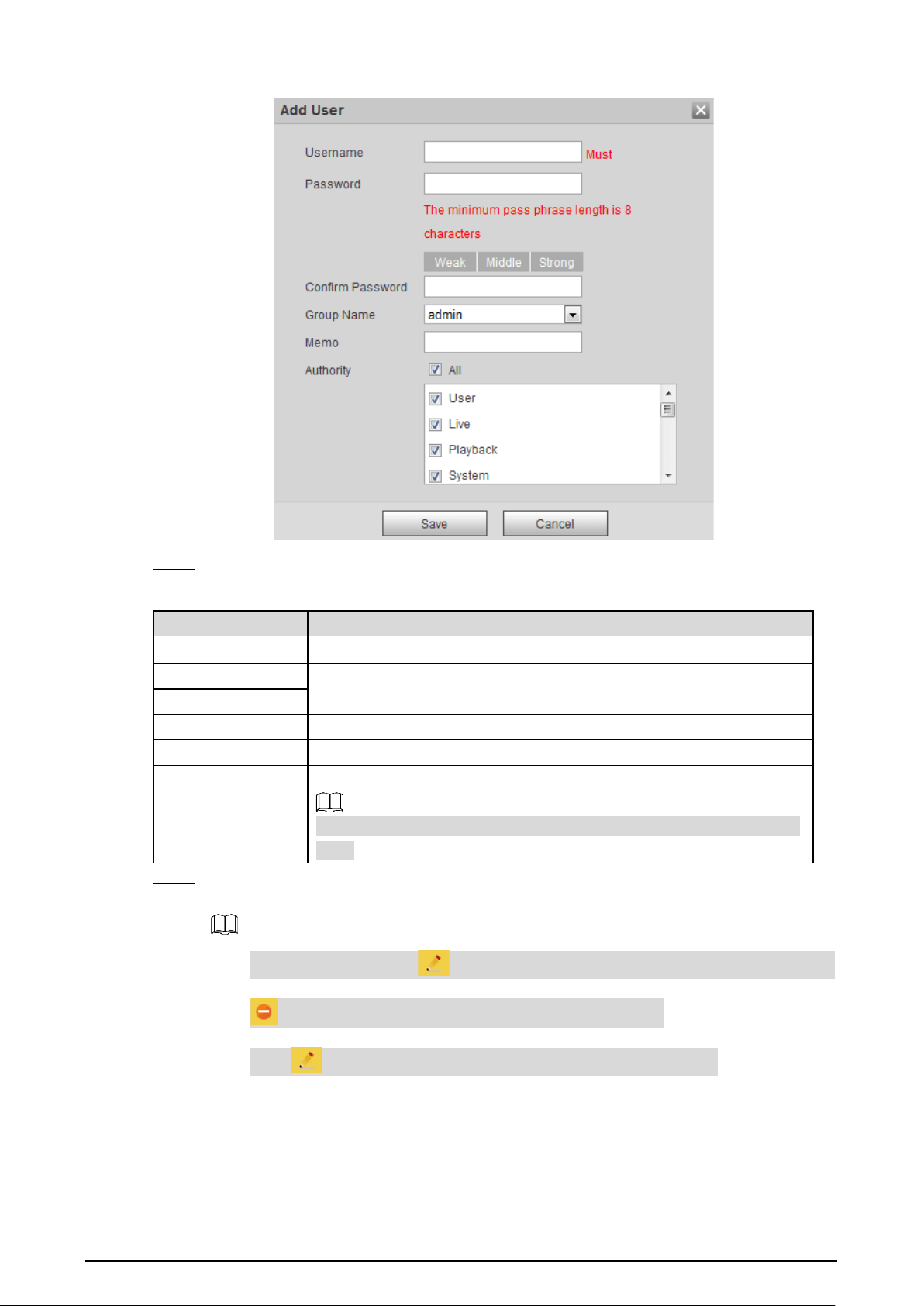

User Management
Add, modify or delete a user account.
Set the user permissions.
Change password Change users’ admin password.
External Camera Management
You can manage your camera’s external Cameras such as heater, fill light and wiper.
Smart Thermal
Table 1-4 Function description
Function Description
Intelligent Video
Surveillance
Both visible channel and thermal channel have intelligent rules.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.
Supports addition of detection area and exclusion area.
You can set the tracking mode in the linked tracking function.
Calling Behavior
Detection
Available in visible channel.
When the Camera detects calling
behavior, linked measures will be
triggered such as Audio Linkage, White Light, Send Email and Record.

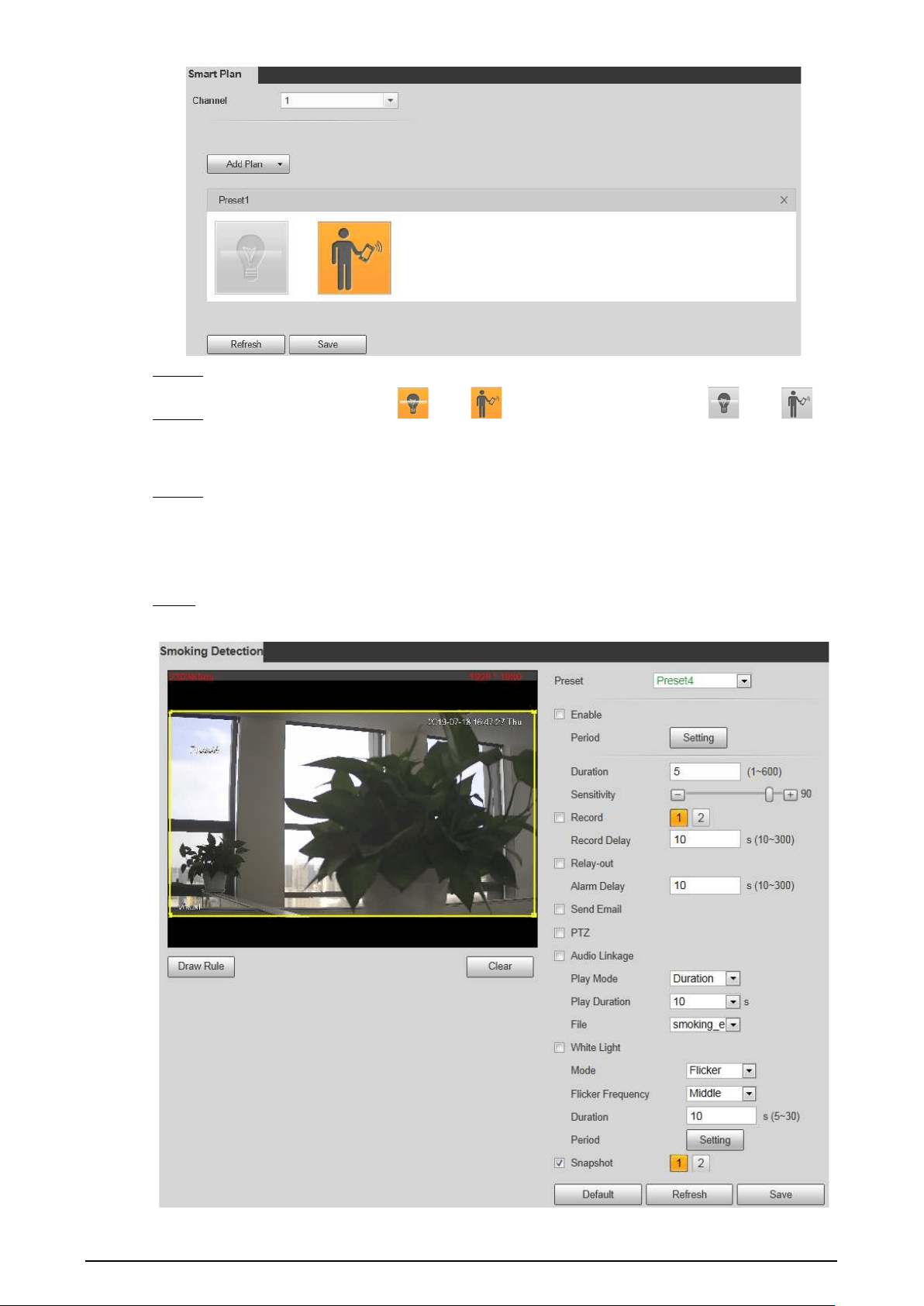

Smoking
Detection
Available in visible channel.
When the Camera detects smoking behavior, linked measures will be
triggered such as Audio Linkage, White Light, Send Email and Record.

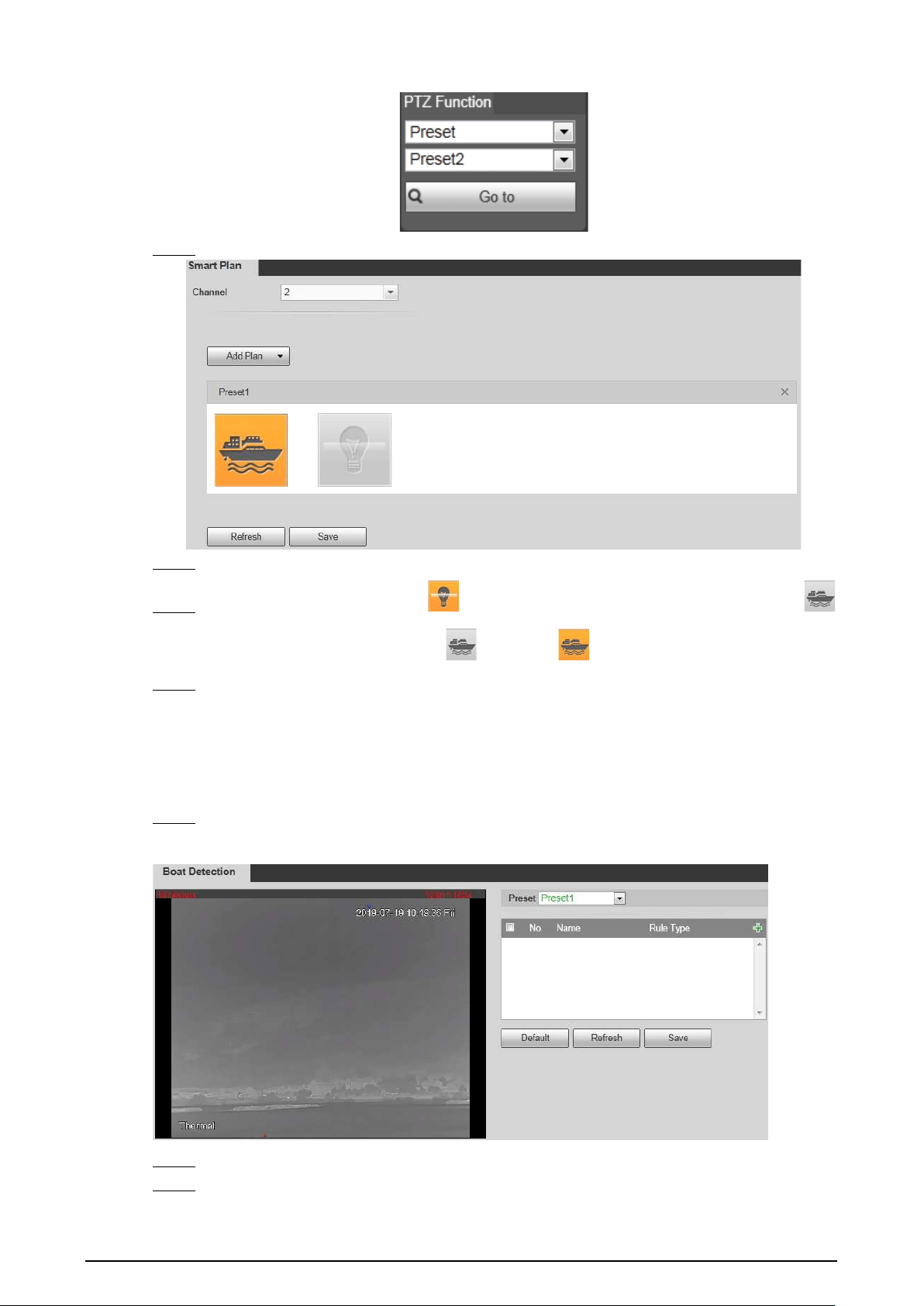

Boat Detection
Available in thermal channel.
When the Camera detects unexpected boat, linked measures will be
triggered such as Relay-out, Send Email and Record.
Fire Warning
Available in thermal channel.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.

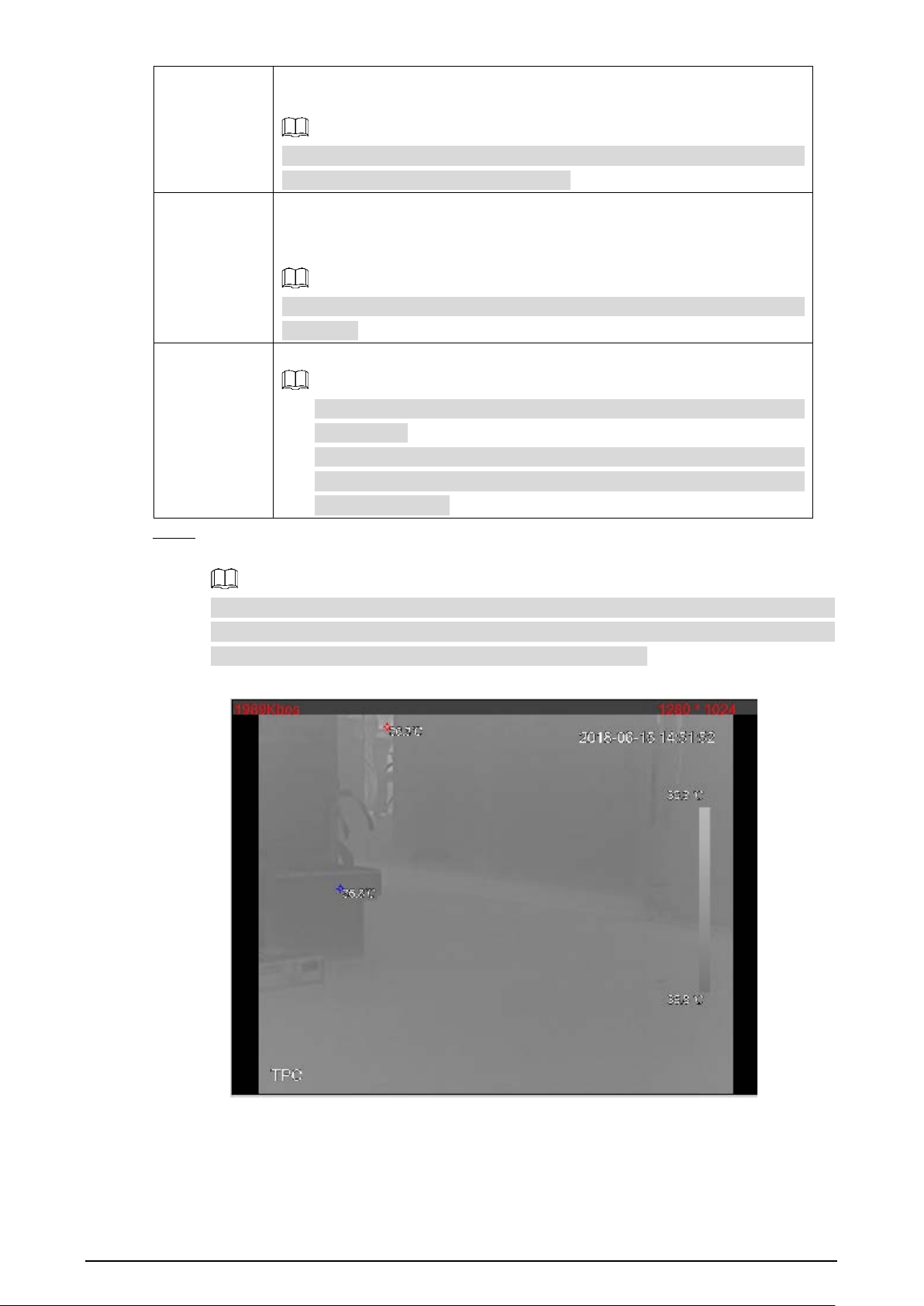

Cold/hot spot
tracking
Only thermal channel can implement the cold/hot spot tracking
operation.
Supports real-time display of surveillance scenario’s cold spots and hot
spots according to different colors.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.

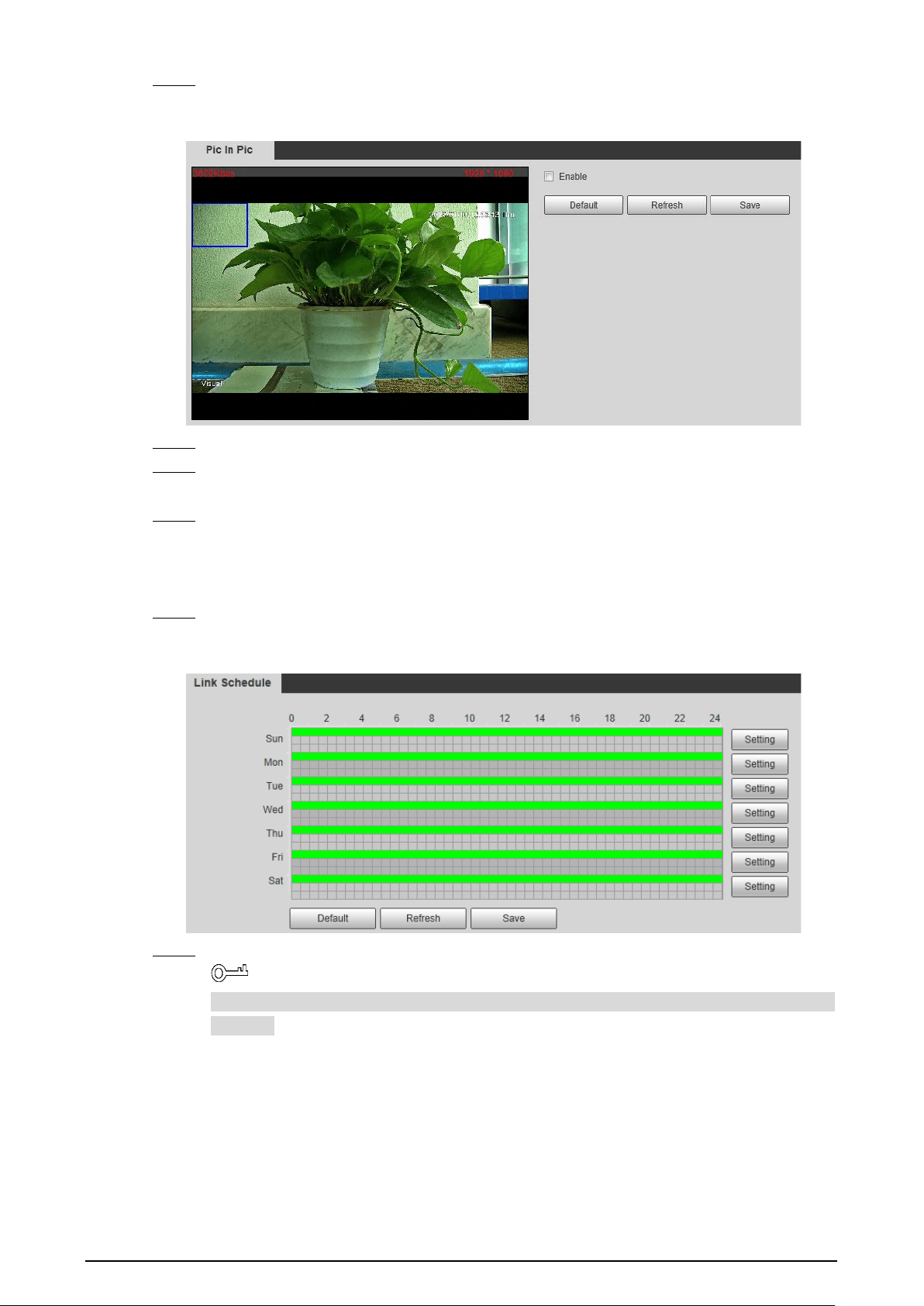

Picture in picture
Only visible channel can implement the picture in picture operation.
You can put the thermal image into the visible image.
5
Event
Table 1-5 Function description
Function Description

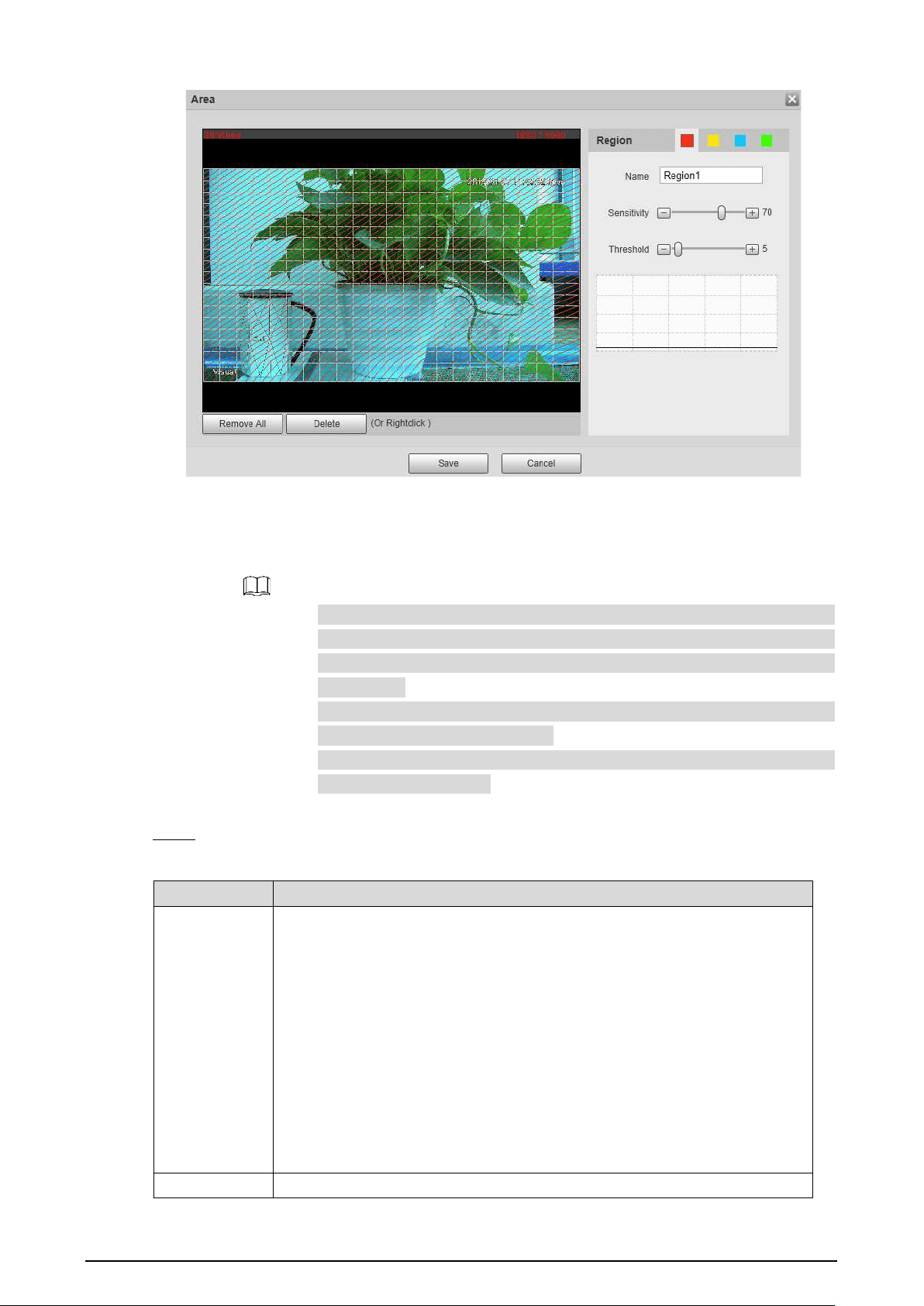

Video detection
You can implement operation of motion detection and video masking
detection.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.
Audio detection
Supports detection of input exception and mutation of acoustic
intensity.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.

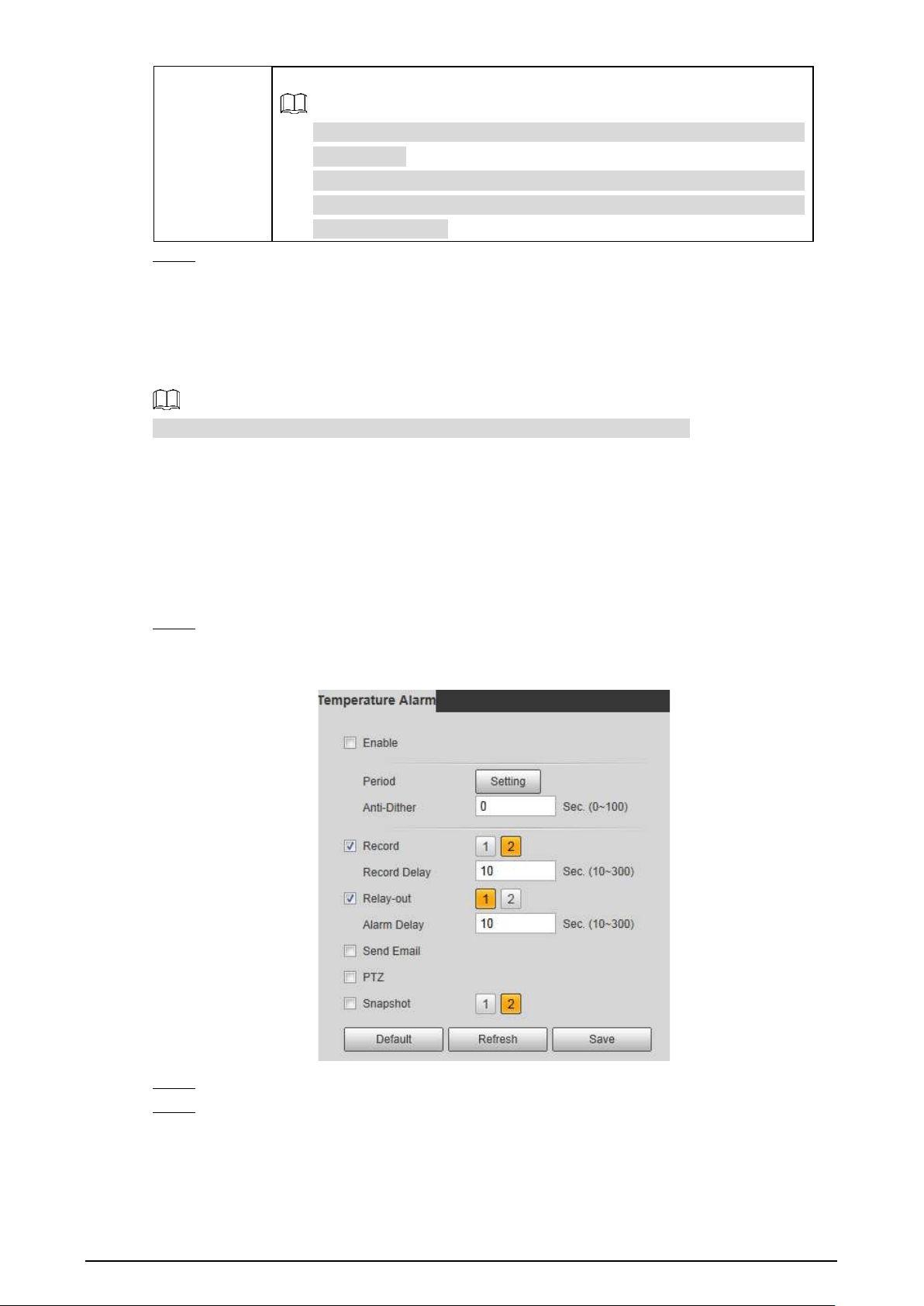

Temperature
alarm
When temperature satisfies the alarm conditions of temperature testing
rules, an alarm is triggered.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.
Alarm settings
The alarm is triggered when there is an alarm from external Camera.
When there is an alarm, you can implement following operations at the
same time such as linkage video recording, alarm output, email delivery,
PTZ operation and screenshots.

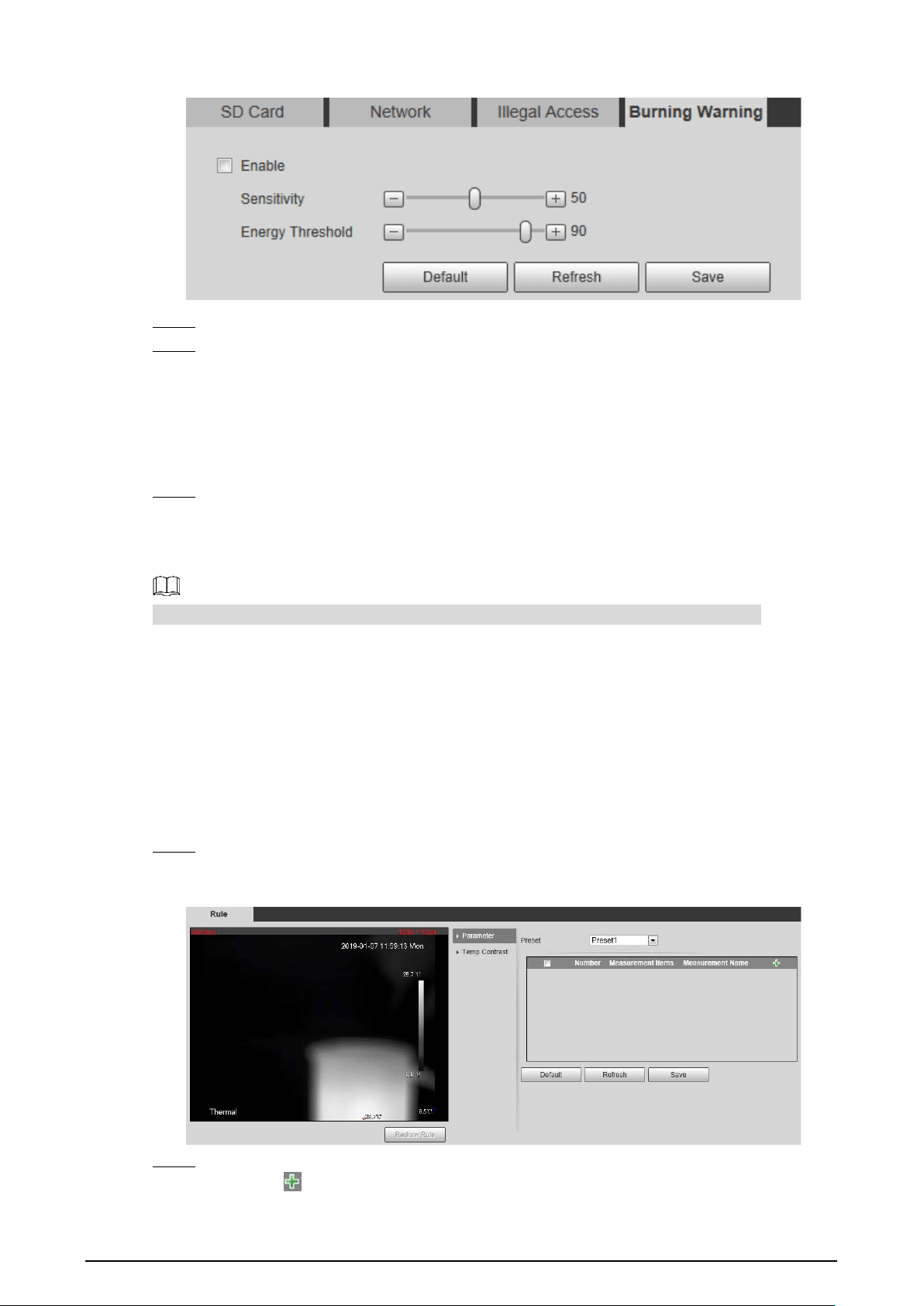

Abnormality

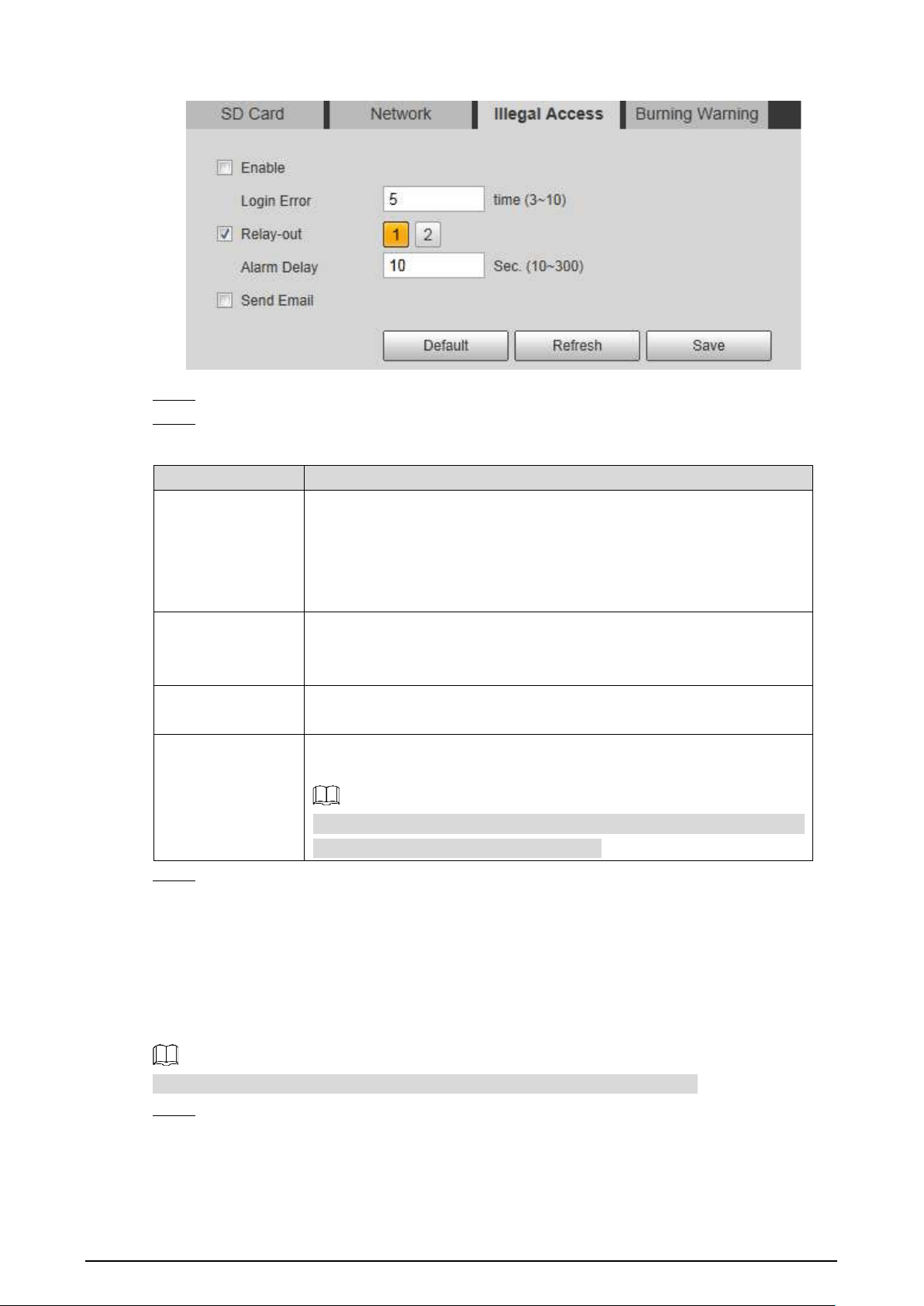

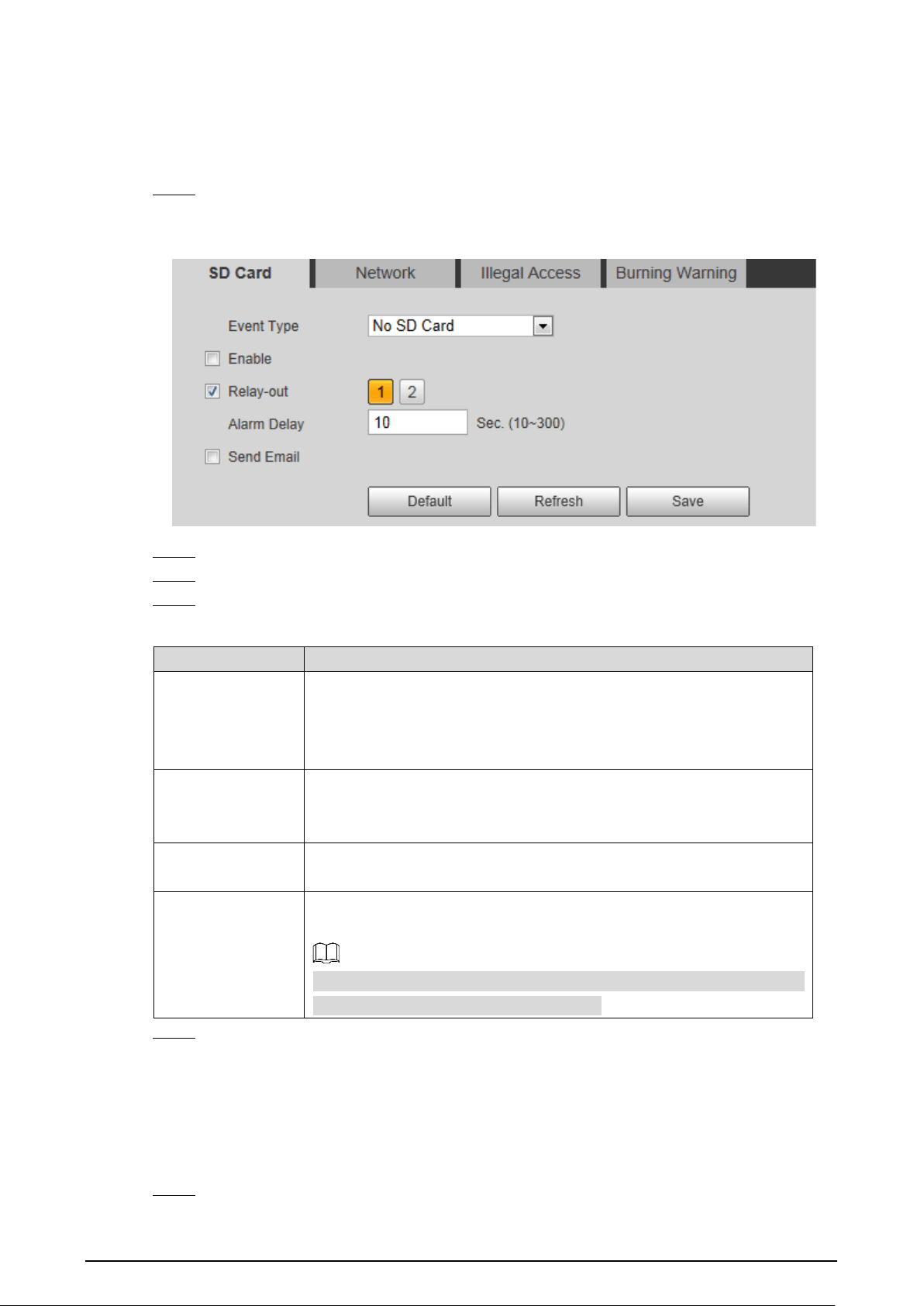

Supports detection of SD card or network abnormality and illegal access.
When there is SD card abnormality or illegal access, you can implement
following operations at the same time such as linkage video alarm
output, and email delivery.
When there is an alarm of network abnormality, you can implement
following operations at the same time such as linkage video recording,
and alarm output.
Temperature Measuring Settings
This function is available on select model.
Table 1-6 Function description
Function Description
Temperature
measuring rules
Supports measuring spot, line, polygon and ellipse’s average
temperature, maximum temperature and minimum temperature.
Supports outputting alarm based on different conditions.
Supports setting different alarm output conditions to different objects
that need to be measured.
Temperature
contrast
Supports temperature contrast of different objects that needs to be
measured.
Supports outputting alarm based on different conditions.
Supports setting different alarm output conditions to different
temperature contrast rules.
6

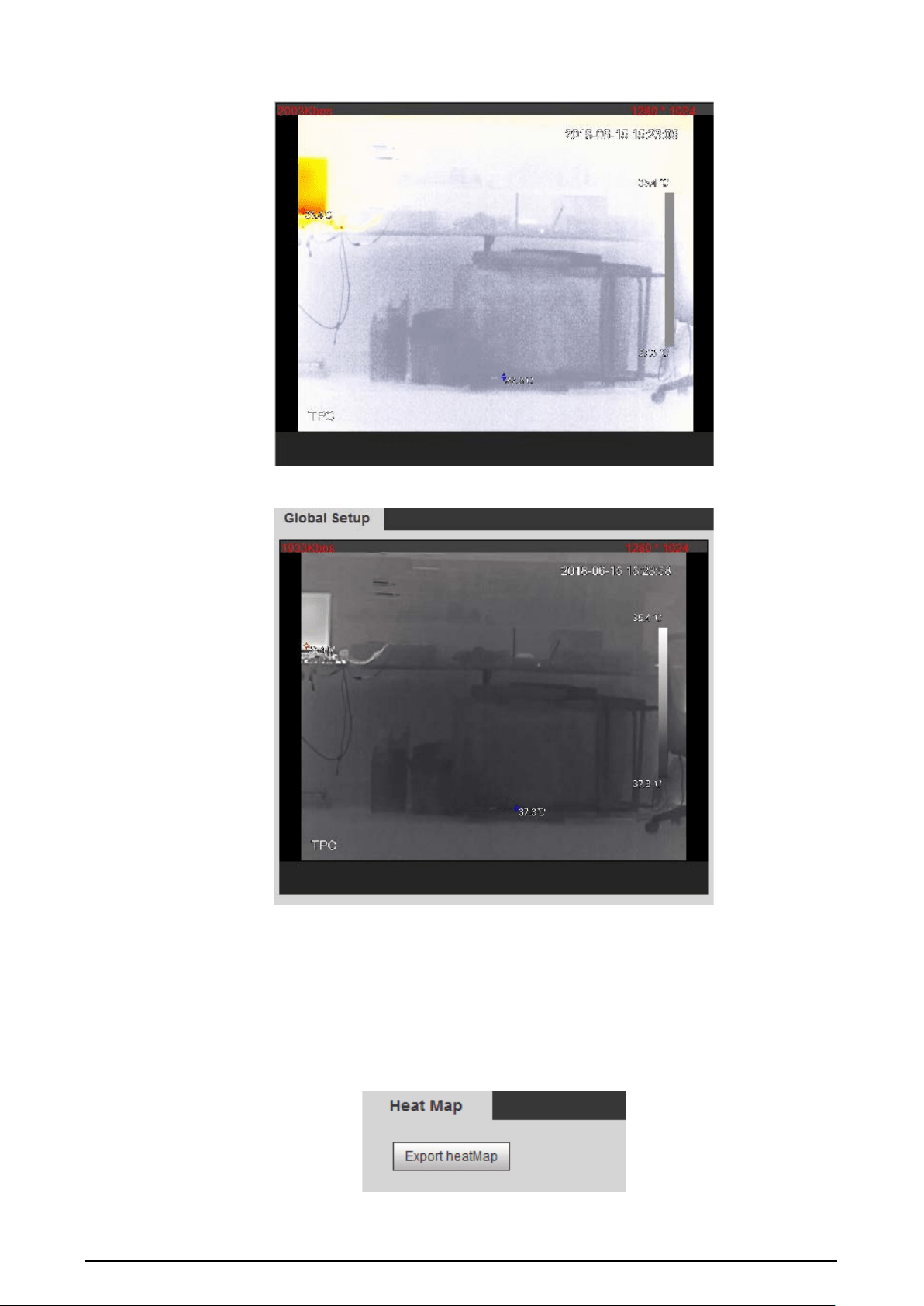

Heat map
Supports outputting real-time heat map information. Then, you can do the
further analysis through the heat map tools.
Additional
functions
Supports enabling or closing temperature testing rules.
Supports enabling or closing isotherm.
Supports enabling or closing color code articles.
7
2 Basic Settings
Initializing Camera 2.1
Initialize your Camera and set the user password when you are logging in for the first time or after
you have restored your camera to default settings. Initialize the Camera by ConfigTool or through
web. This section takes web for example.
Ensure your Camera IP address (192.168.1.108 by default) and your PC IP address are in the same
network segment.
To secure the Camera data, keep admin password well after initialization and modify it regularly.
Open a browser, enter Camera default IP address in the address bar, and then press Enter. Step 1

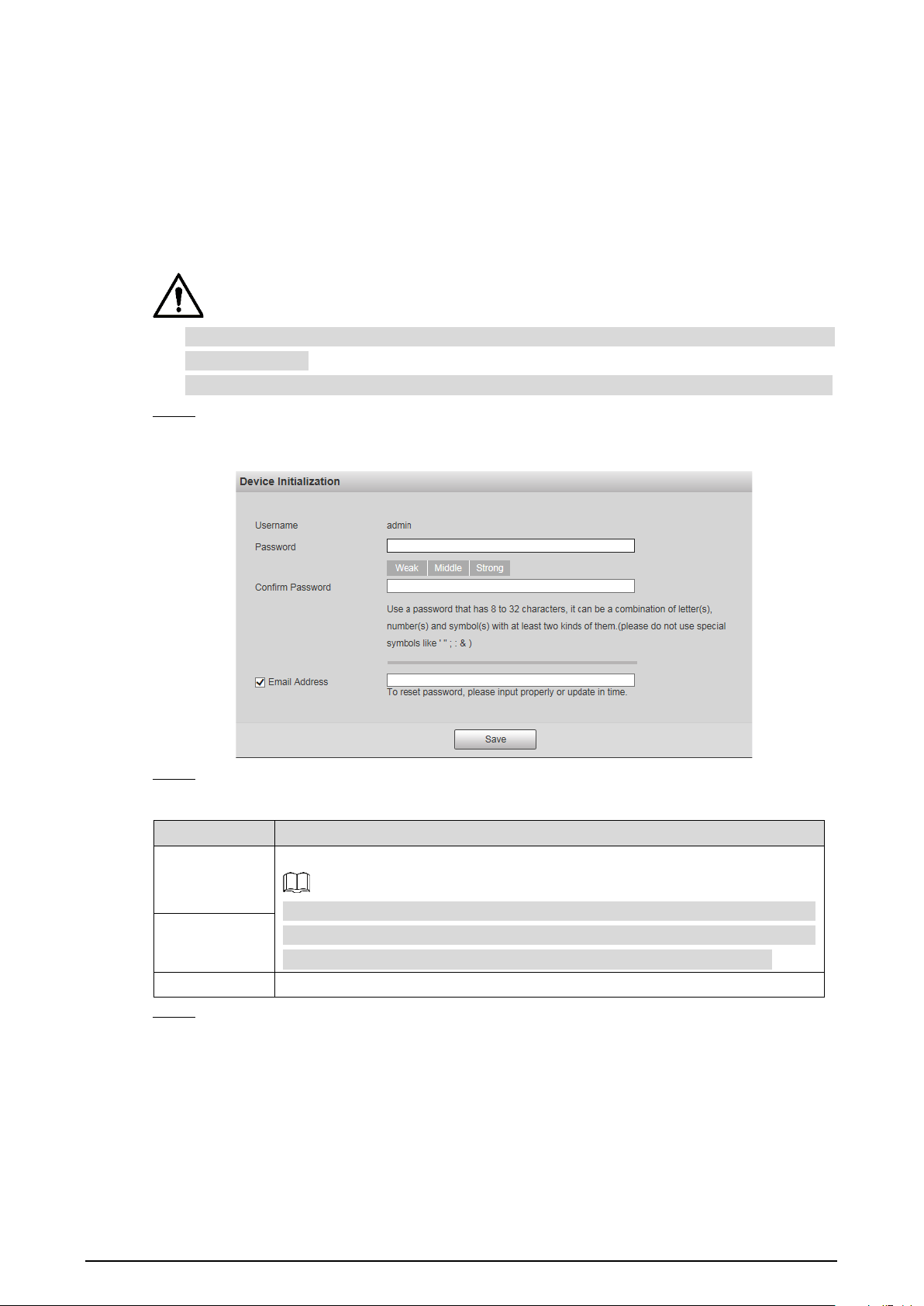

The Device Initialization interface is displayed. See Figure 2-1.
Initializing camera Figure 2-1
Set the login password for admin account. See Table 2-1. Step 2
Table 2-1 Password setting description
Parameter Description
Password
Enter your password and enter it again to confirm it.
It is recommended to use strong password. The password must consist of 8 to
32 non-blank characters and contain at least two types of characters among
upper case, lower case, number, and special character (excluding ' " ; : &).
Confirm
Password
Email Address Enter an email address to reset password when you forget it.
Click Save. Step 3
Modifying IP Address 2.2
Modify Camera IP address and ensure it is fitted to the actual network segment to get the Camera
access network.
You can modify one or several IP addresses through ConfigTool. You can also log in the web client to
modify IP addresses.
8
2.2.1 Modifying One IP Address
When there are only a few Cameras or the login passwords of Cameras are different, you can modify
only one IP address at one time. Logging in web client to modify IP addresses is taken as an example
for detailed description.
Log in Camera web interface. Step 1
Select Setup > Network > TCP/IP. Step 2

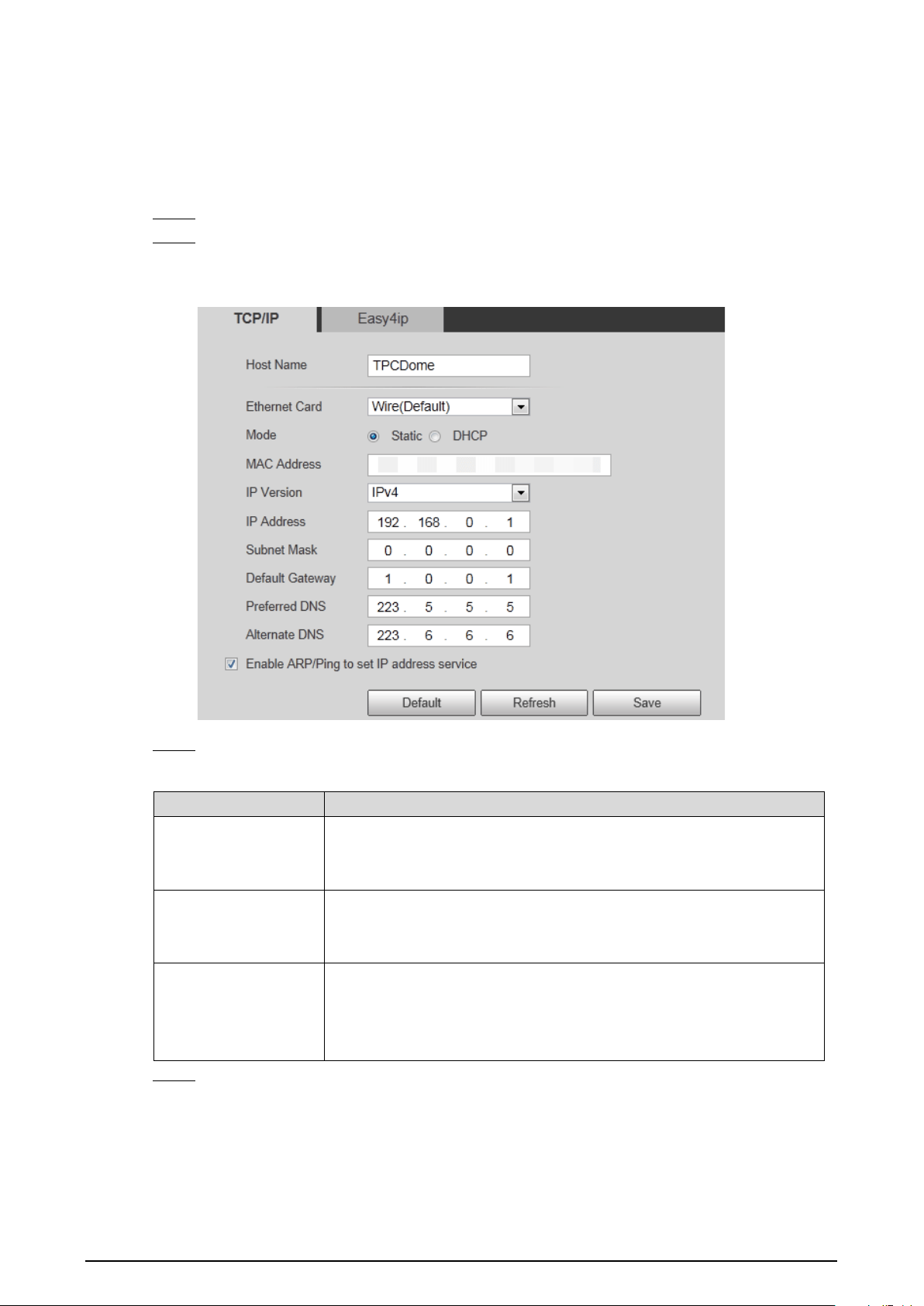

The TCP/IP interface is displayed. See Figure 2-2.

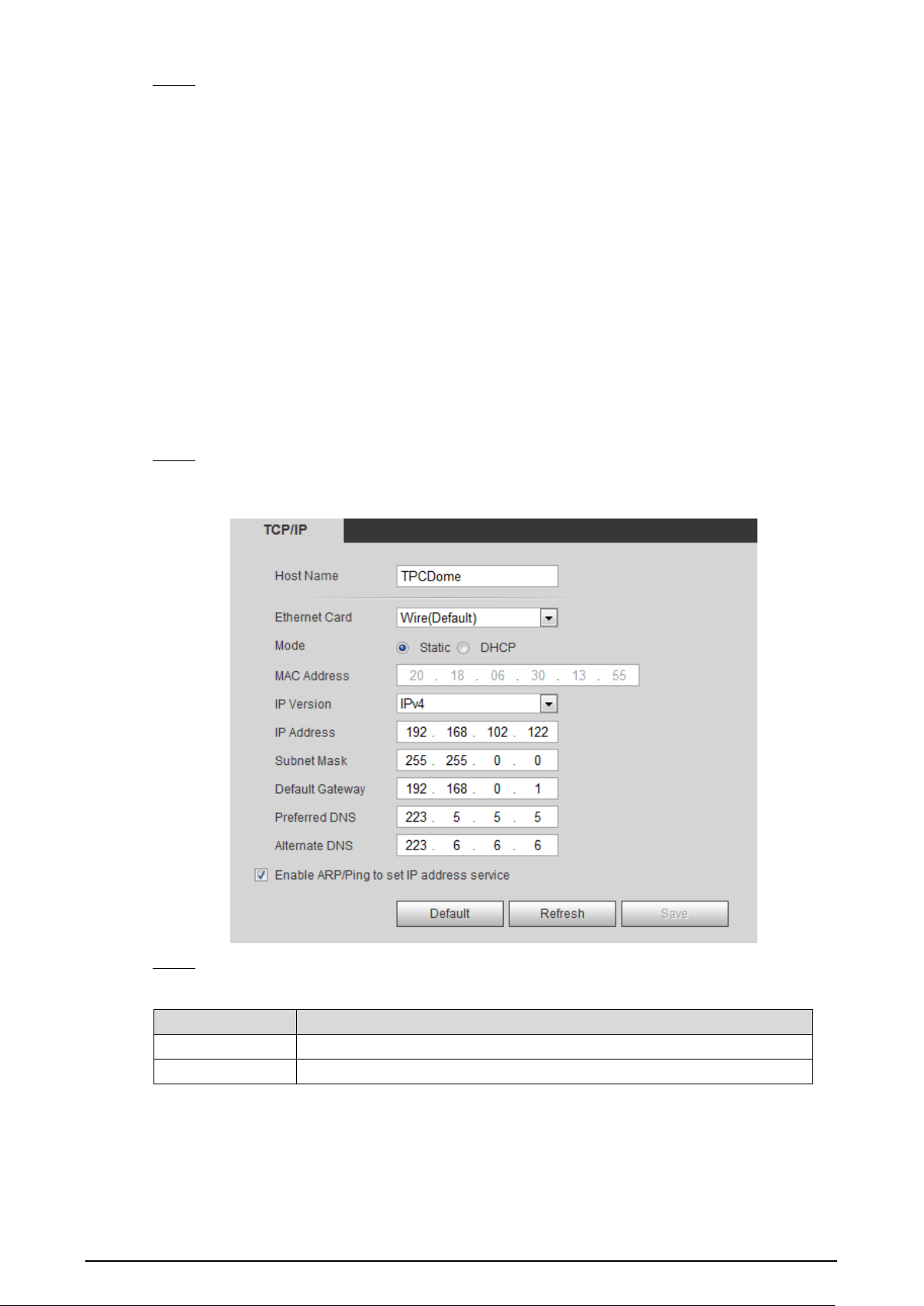

TCP/IP Figure 2-2
Configure TCP/IP parameters. See Table 2-2. Step 3
Table 2-2 TCP/IP parameters
Parameter Description
Host Name
Give your Camera a name (TPCDome, for example) to help others, (a
router operator, for example), know the Camera information such as
shape information—dome thermal camera.
IP Address, Subnet
Mask and Default
Gateway
Fill in the three item values according to the actual network segment.
Ethernet Card, Mode,
MAC Address, IP
Version, Preferred DNS
and Alternate DNS
Leave them to the default values.
Click Save. Step 4
2.2.2 Modifying Several IP Addresses
When there are several Cameras or the login passwords of Cameras are the same, you can modify
several IP address at the same time through the ConfigTool.
9
Preparation
You have obtained the installation package of ConfigTool. To obtain the installation package,
you can consult technical support staffs.
You have achieved network communication between PC (which is with ConfigTool) and the
Camera.
Procedure
Click . Step 1
The Modify IP interface is displayed.
Click Search Settings. Step 2
The dialog box named by "settings" is displayed.
Set the network segment of the Camera, admin and password. Then click Save. Step 3
After the search, the system displays Cameras that have been searched.
Default user name and password are both admin.
Select Cameras whose IP address needs to be modified and click the icon indicating that you Step 4
can modify several IP addresses at one time.
The dialog box of Modify IP Address is displayed. See Figure 2-3.
Modifying IP address Figure 2-3
Select the mode of IP address based on the actuality. Step 5
DHCP mode: When there is a DHCP server in the network, set the Mode as DHCP and
the Camera obtains IP addresses from the DHCP server automatically.
Manual mode: Set Mode as Static and enter Starting IP, Subnet Mask and Gateway.
Then, IP addresses of Cameras are incrementally modified from the start IP address.
Select the check box of The Same IP and set the IP addresses of the Cameras you have
picked up as the same one.
Click Save. Step 6
10
Logging in to Web Interface 2.3
After you have modified the IP addresses, you can log in the WEB interface of the Camera through a
browser to operate, configure and maintain the Camera.
Background Information
To log in the Camera in a smooth way, you need to make sure that the PC connected to the Camera
satisfies the following requirements. See Table 2-3.
Table 2-3 Recommended PC configuration
PC items Recommended configuration
Operation system ≥ Windows 7
CPU ≥ Intel core i3
Graphics card ≥ Intel HD Graphics
Storage ≥ 2GB
Display ≥ 1024×768 Resolution
Browser Internet Explorer 9/10/11
Procedure
Open browser, enter IP address in the address bar, and then press Enter. Step 1
The login interface is displayed. See Figure 2-4.
Login Figure 2-4
Enter username and password, and click Login. Step 2
After the successful login, the Live interface is displayed. See Figure 2-5.
The default user is admin. The password is the one that was configured during initial
settings.
It will prompt you to install plug-in for the first system login. Please download and
install plug-in according to the prompt.
Functions of different Cameras might vary, and the actual product shall prevail.
11
Live Interface Figure 2-5
Click Log out on the upper right corner to exit the interface.
Resetting Password 2.4
If you forget the password, you can use the reserved e-mail address to achieve password resetting.
Open IE browser and type the camera’s IP address. Then press Enter. Step 1
The Thermal Camera interface is displayed. See Figure 2-6.
Logging in the Camera Figure 2-6
Click Forgot Password? Step 2
The Reset the password (1/2) interface is displayed. See Figure 2-7.
12

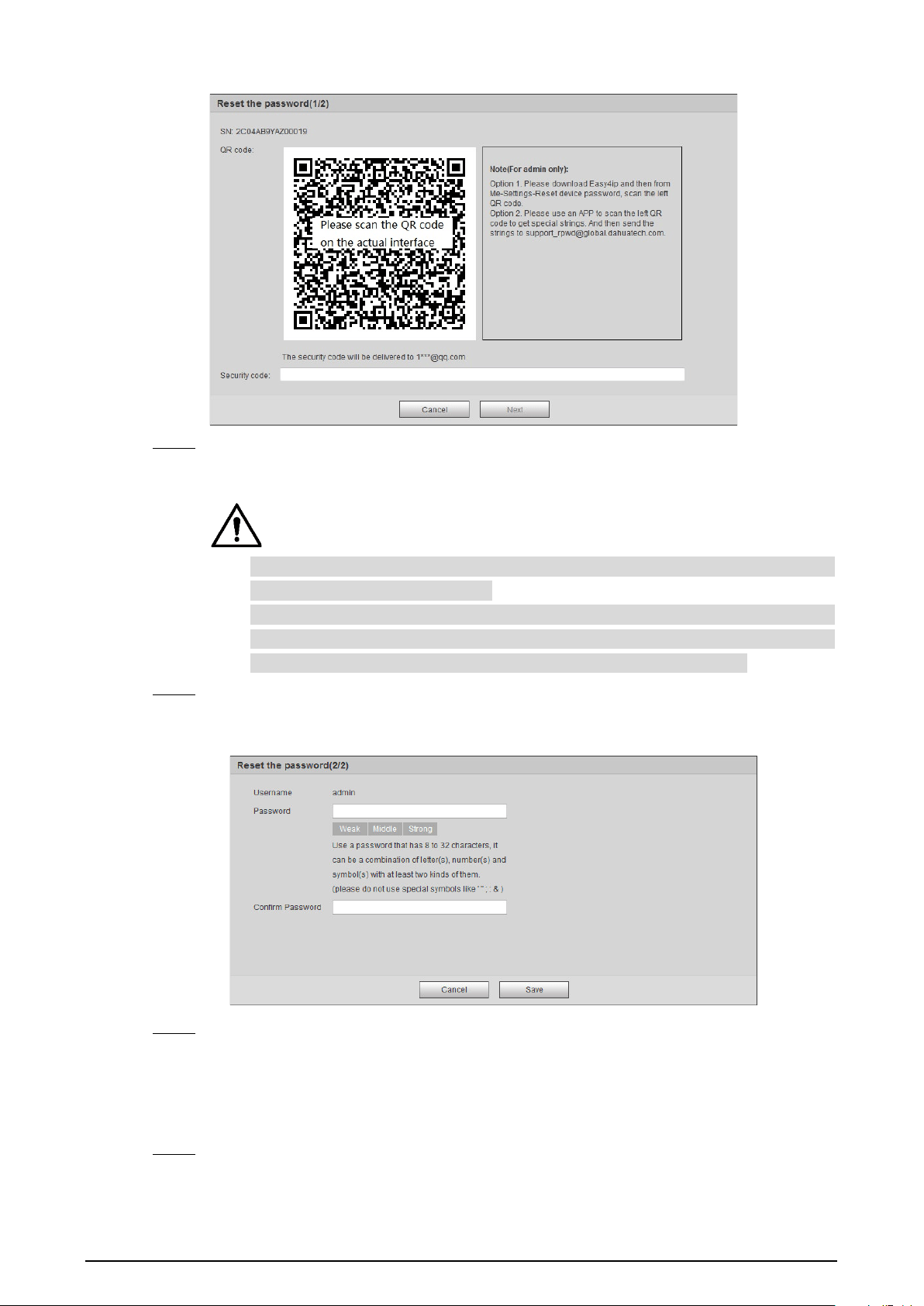

Reset the password(1/2) Figure 2-7
Reset the password. Step 3
Scan the QR code, and the security code will be sent to the email address you have already
fulfilled. Type the security code then.
Reset the password in time when you receive the security code, because the security
code will be invalid within 24 hours.
If you get security codes twice but do not use them, when you get the security code
for the third time, the system will prompt failure. To solve this problem, you need to
restore your Camera to default settings or wait 24 hours to get a new one.
Click Next. Step 4
The Reset the password (2/2) interface is displayed. See Figure 2-8.
Resetting the password(2/2) Figure 2-8
Fill in a new password and confirm it. Step 5
The password is made up of characters for 8–32 digits and the password must contain two
of the three forms (number, letter, and the common characters. “'”、“"”、“;”、“:”、“&”are not
included.) You should obey the prompt of the password’s security level and set a password
with high security level.
Click Save. Step 6
The login interface is displayed.
13
3 Daily Operation
Live 3.1
Cameras of different models might have different functions. The web operation manual is for thermal
hybrid cameras of all models. So your final interface shall prevail.
On the Live interface, you can do operations to the real-time surveillance images such as viewing,
taking snapshots and recording videos.
Image channel with a box around it is the one that has been chosen. All your operation is valid
only to this channel.
Double-click an image channel and the image channel is displayed in a full video display area.
Double-click the image channel again and the channel will be displayed in a full screen. Then,
right-click the full-screen image and the image returns to its previous state.
3.1.1 Introduction to Live Interface
Click the Live tab, and the Live interface is displayed. See Figure 3-1. In the live interface, there are
five function bars. See Table 3-1.
The live interface Figure 3-1
Table 3-1 Description of function bar
No. Name Description
1 System menu
Click each function tab in the system menu to go to the corresponding
interface.
14
2 Encode bar
Select bit stream type and streaming protocol when previewing a video.
Main Stream:
It has large bit stream value and image with high
resolution, but also requires large bandwidth. This option is normally
used for storage and surveillance.
Sub Stream: It has small b
it stream value and smooth image, and
requires little bandwidth. This option is normally used to replace main
stream when bandwidth is not enough.
Streaming protocol: A network transmission protocol,
supports TCP,
UDP and Multicast.
3
Live view
function bar
For functions and operations of live view bar, see "3.1.2 Function Bar."
4 PTZ control For details of PTZ control, see "3.2 PTZ."
5
Adjustment bar
of video
window
Supports adjusting clarity of video images, displaying intelligent rules,
zooming with focusing at the same time, checking real-time reports. See
"3.1.3 Window Adjustment".
3.1.2 Function Bar

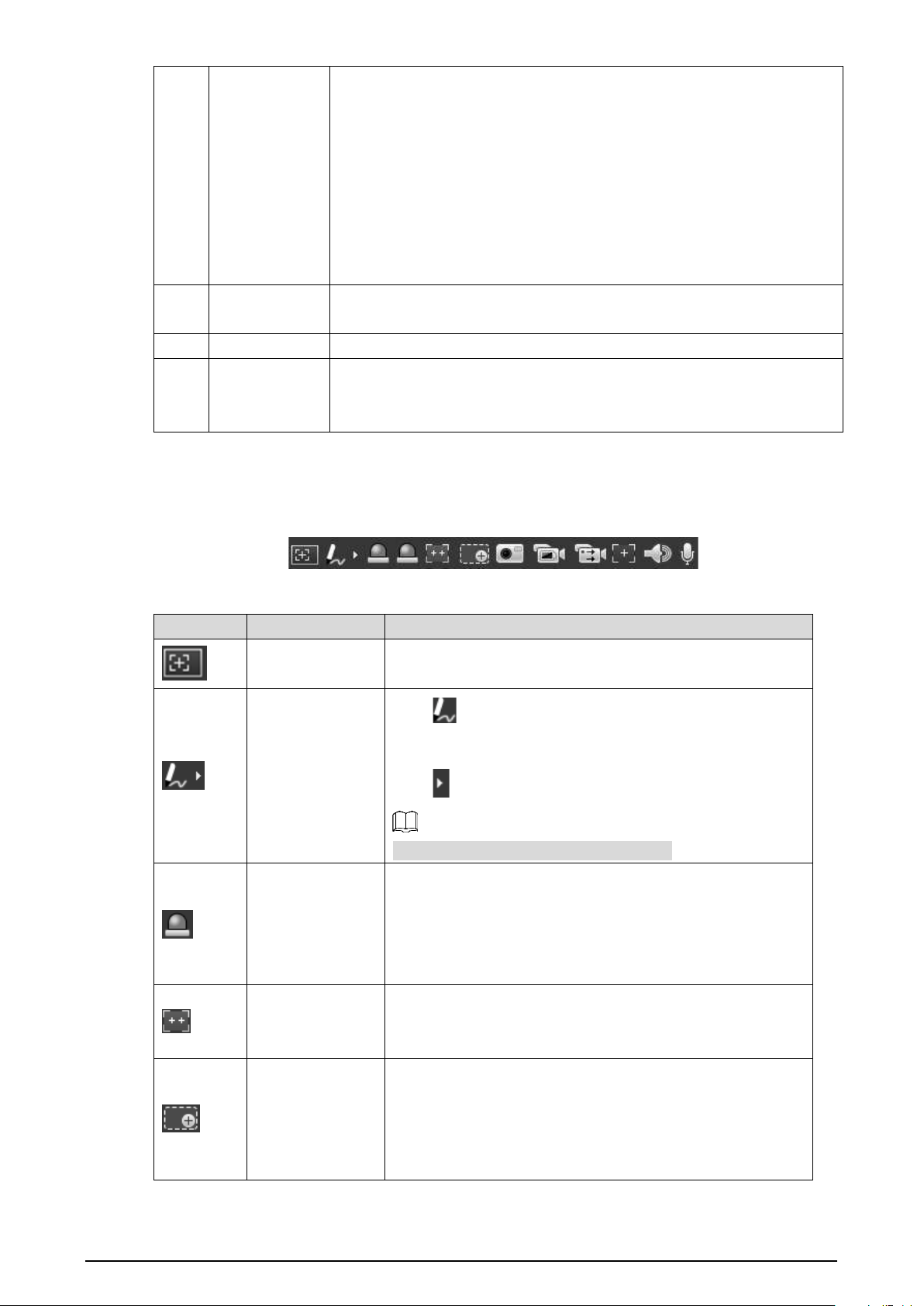

Live view function Figure 3-2
Table 3-2 Live view function description
Icon Name Description
Regional focus
Click this icon, and click or draw a box on the video image.
Then the camera will implement auto focus.
Mark pen
Click to mark a target on the video image and the
default pen color is red.
Click to switch the pen color from red, green and blue.
Marks are not carried in video recordings.
Relay-out
Shows alarm output state. Click the icon to force enable or
force disable alarm output.
Alarm output state description:
Red: Alarm output.
Grey: Alarm over.
Fixed Focus
Click this icon. Then the visible image adjusts its values of
zoom and focus in accordance with values of the thermal
image.
Zoom in
You can zoom in video image with two operations:
Click the icon to enlarge part of visible light or thermal
images. Right-click to resume.
Click the icon to zoom a video image by scrolling the
mouse.
15
Snapshot
Click the icon to capture a live image and save it under the
path you have set.

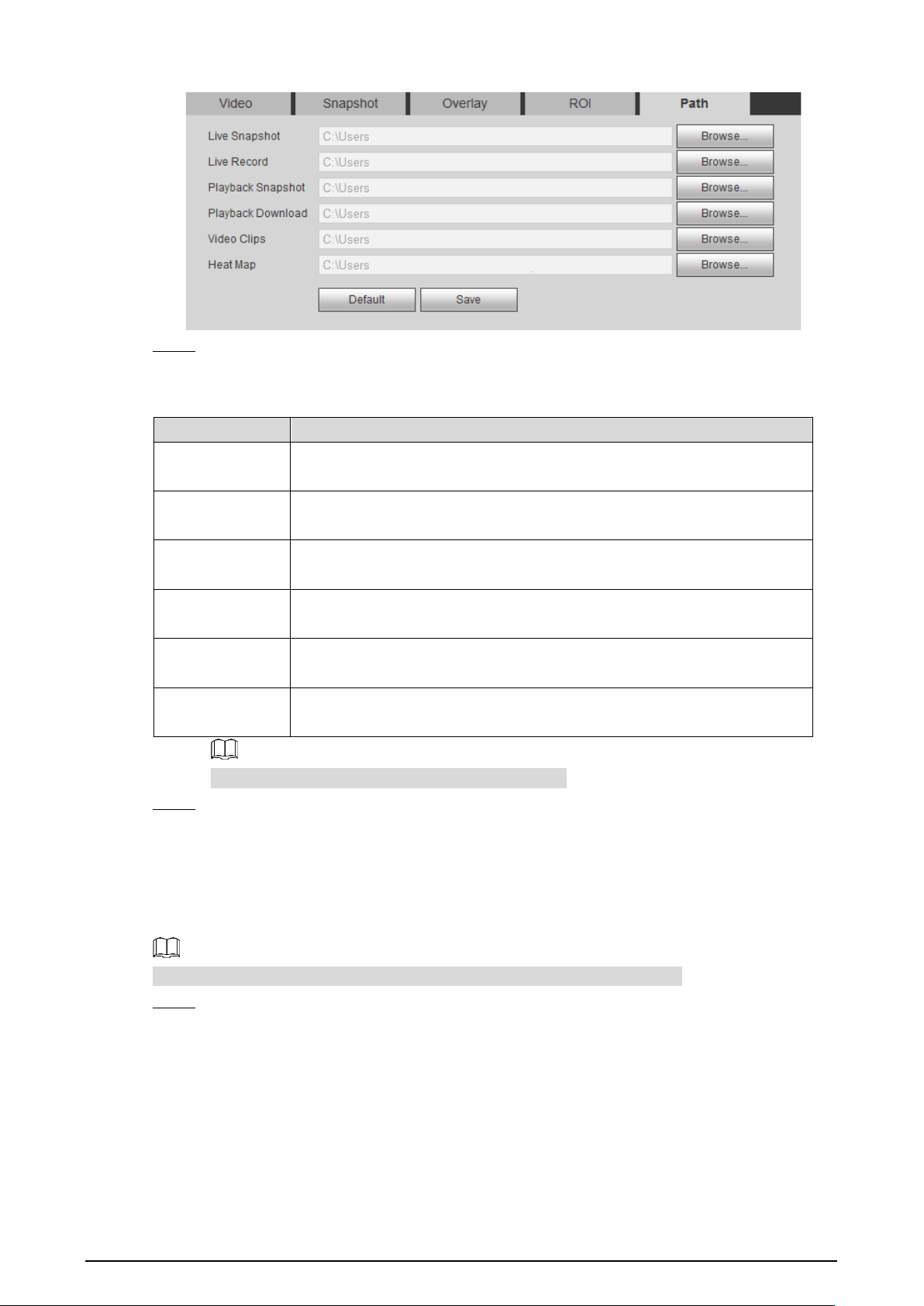

To check or modify the storage path, see "4.7.2.1 Configuring
Storage Path."
Single-channel
video recording
Select visible image or thermal image. Then click this icon to
start video recording.
To check or modify the storage path, see "4.7.2.1 Configuring
Storage Path."
Double-channel
video recording
If you want to record both visible image and thermal image
at the same time, click this icon. And, when you play the
videos, videos of both visible image and thermal image will
be played.
Easy Focus
Only thermal image supports easy focus.
Click this icon. Then you can see the two parameters of AF
Peak and AF Max.
AF Peak: The live image clarity value.
AF Max: The best image clarity value.
The closer AF Peak is to AF Max, the better the focusing
effect. Easy focus will be disabled after five minutes.
Object Tracking
Refer to "4.4.2 Configuring
Intelligent Video Surveillance
(IVS)" to configure smart rules. Then click the icon and draw a
box where the object you are interested in is located. Then
the box will follow the object to help you track the object.
For example, in a square crowded with people, decide a
people you are interested in and draw a box around the
people. Then the box will help you identify or track the
people when he/she is going through or trying to hide in the
crowd.
Audio Click the icon to enable or disable audio output.
Voice Talk
Click this icon to enable or disable the intercom function.
Open stereo remix after enable the voice intercom function.
Help Click to open help document.
3.1.3 Window Adjustment
Window adjustment (speed dome cameras and pan & tilt cameras) Figure 3-3
Window adjustment (bullet cameras) Figure 3-4
16
3.1.3.1 Image Adjustment
Adjust brightness, contrast, hue and saturation of video images on your web.
For detailed operations, see "4.1.1 Configuring Lens."
Click , and the Image Adjustment interface is displayed at the right side of live interface. See
Figure 3-5.
Image adjustment interface Figure 3-5
Table 3-3 Image adjustment configuration
Icon Function Description
Brightness
Adjusts the overall image brightness, change the value
when the image is too bright or too dark. The bright and
dark areas will have equal changes.
Contrast
Change the value when the image brightness is proper but
contrast is not enough.
Hue
Makes the color deeper or lighter. The default value is made
by the light sensor and is recommended.
Saturation
Adjusts color depth. This value doesn’t change the overall
image brightness.
Reset
Click the icon to reset brightness, contrast, hue and
saturation to their default values.
3.1.3.2 Display of Smart Rules
You can control whether rules information is displayed on surveillance images. It is set by default that
this function is in opening state.
Click to select Enable, and then select Enable to display smart rules and detection box; select
Disable to stop.
3.1.3.3 Zoom and Focus
Zooming and focusing functions are only available on motorized vari-focal Cameras.
17
Adjust focal length of your lens to zoom in or out surveillance images; adjust optical afterfocus of
your lens to improve clarity level of video images.
Click , and the zooming and focusing interface is displayed at the right side of live interface.
Select the visible channel and you can zoom, focus and change the aperture.
Select the thermal channel and you can zoom and focus.
Table 3-4 Zoom and focus description
Parameters Description
Variable focal
length
Click or , and adjust the optical back focal length of thermal tunnel
to make images more clear.
Auto focus Auto focus.
3.1.3.4 Optical Axis Calibration
Used only for calibrating the Camera lens when the Camera is being debugged in the factory. You do
not need to operate this function.
3.1.3.5 Real-time Reports
Within the set time, record the average temperature of the presets, lines and area that you have
selected.
Only Cameras with temperature-measuring function support this function, and the actual product
shall prevail.
Preparation
You have set the temperature measuring rules. For detailed operation, see "4.6.1.1 Configuring
Temperature Measuring Rules."
Procedure
Click and the real-time reports interface is displayed. Select the temperature-measuring
program and set the time circle. Then the real-time temperature change is displayed. See Figure 3-6.
18

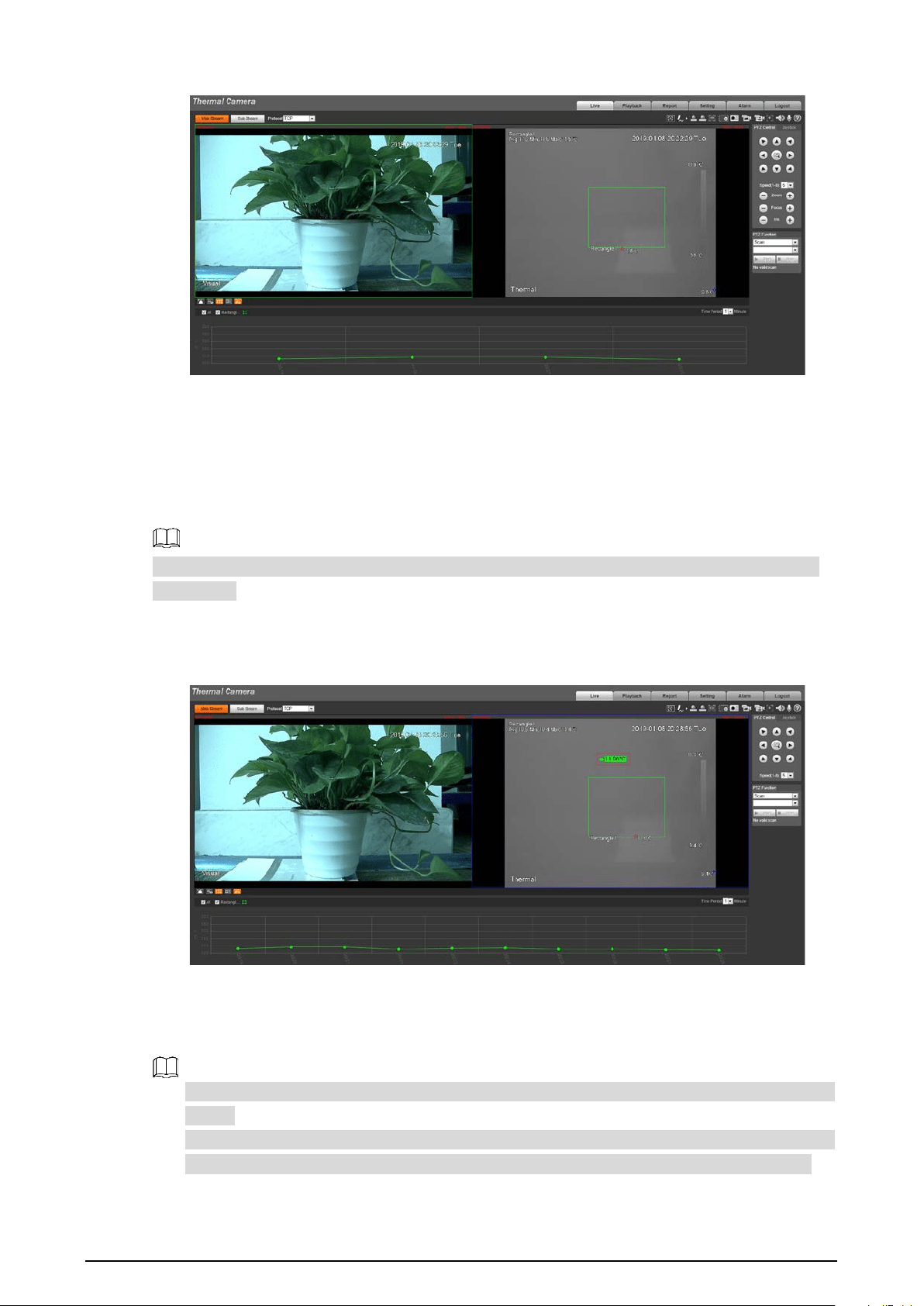

Temperature recording area Figure 3-6
3.1.4 More Functions
3.1.4.1 Real-time Spot Temperature Measuring
Only Cameras with temperature-measuring function support this function, and the actual product
shall prevail.
Move the pointer to any position of the video image and click. Then the real-time temperature of this
spot is displayed. See Figure 3-7.
Real-time spot temperature measuring Figure 3-7
3.1.4.2 Laser Ranging
Only Camera with laser ranging can implement this operation and the actual interface shall
prevail.
Laser ranging does not perform well to those objects (such as glass and marble) with strong
reflection ability. During laser ranging, select those objects with rough surface as your target.
19
Mind the distance during laser ranging. Less than 50 m will result in a damaged laser.
Click Start Ranging, and the camera starts to measure the distance from itself to the object in the
middle of the image (as indicated with the red cross sign).
PTZ 3.2
3.2.1 Bullet Cameras
PTZ setting of bullet camera is used for controlling external PTZ Camera. Connect the Camera to
external PTZ through RS-485 port before using this function.
3.2.1.1 Configuring Protocol
If you want to control the external PTZ by your bullet camera, you need to set the PTZ protocol first
and then connect PTZ to your camera.
Select Setting > System Management > PTZ Setting. Step 1
The PTZ Settings interface is displayed. See Figure 3-8.

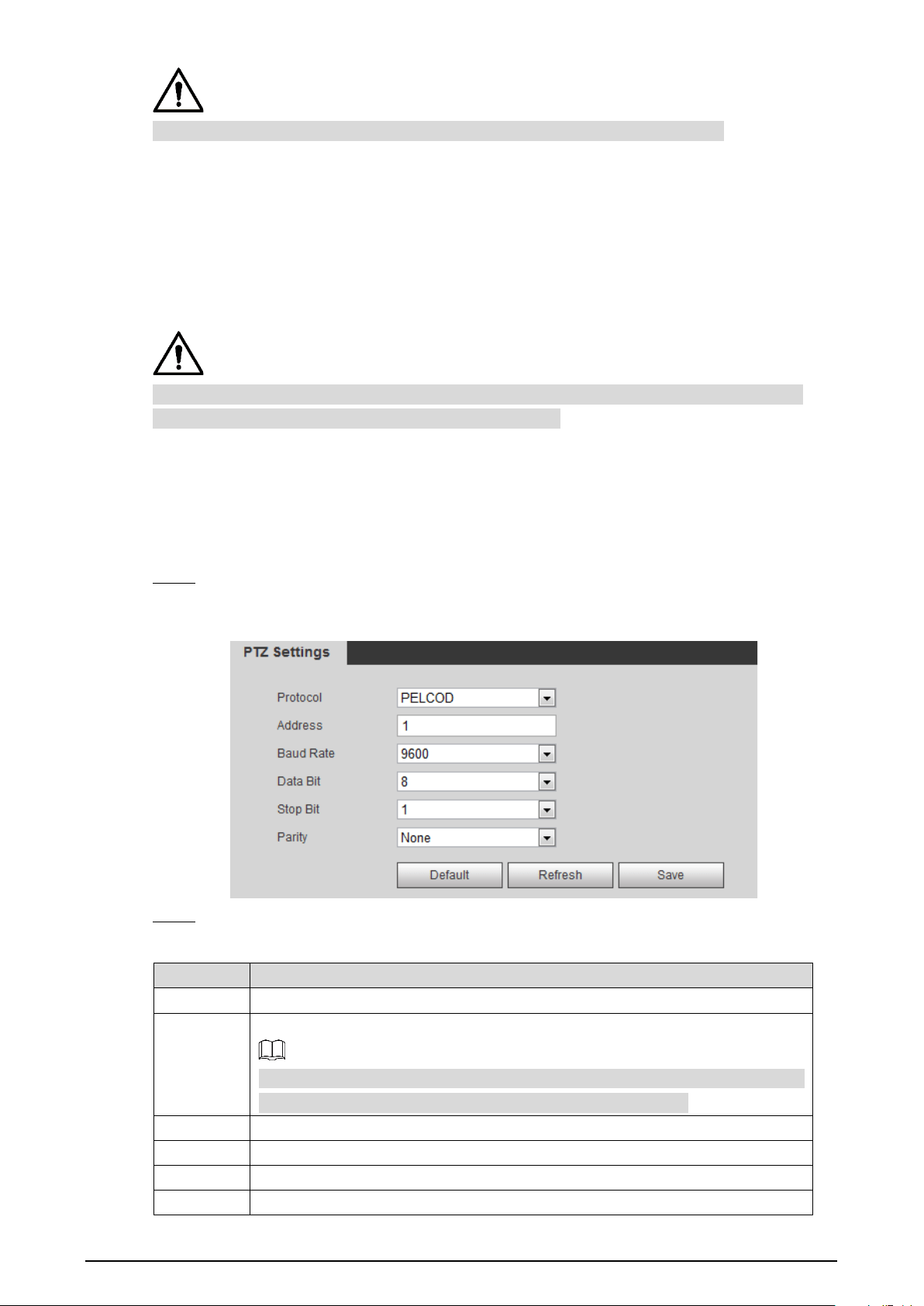

PTZ settings Figure 3-8
Configure PTZ parameters. See Table 3-5. Step 2
Table 3-5 Parameter description
Parameter Description
Protocol Matches with the PTZ protocol.
Address
Enter the corresponding Camera address.
The entered address must be the same with the address configured on the PTZ;
otherwise the PTZ cannot be controlled from the bullet camera.
Baud rate Configure Camera baud rate.
Data bit The default is "8".
Stop bit The default is "1".
Parity The default is "none".
20
Click Save. Step 3
3.2.1.2 Configuring PTZ Functions
The protocol setting has been completed. For detailed operations about protocol setting, see
"3.2.1.1 Configuring Protocol".
For images representing the effect of external PTZ, you need to preview on the preview images
of the external PTZ, not on the preview image of the bullet camera.
The following functions are available only when your bullet camera is connected to the external
PTZ.

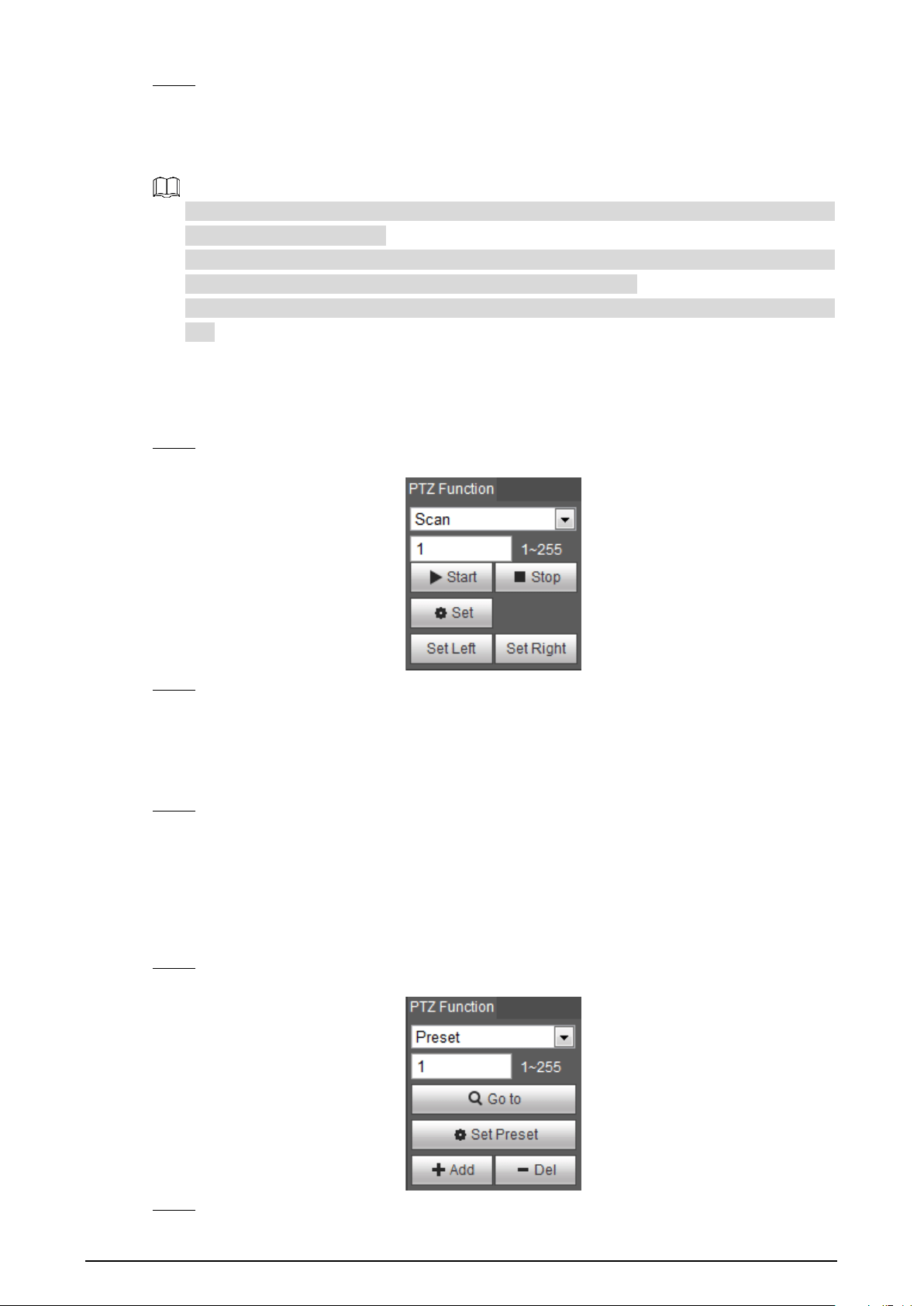

3.2.1.2.1 Configuring Scan
The camera scans on the horizontal direction between the left and right borders.
Click the PTZ tab and select Scan in the PTZ function setting list. Step 1
Linear sweep Figure 3-9
Type the scan number and set the left and right border. Step 2
1) Through the direction button, move the camera to the left border that you want and
click Set Left.
2) Through the direction button, move the camera to the right border that you want and
click Set Right.
Click Start to start scan; click Stop to end it. Step 3
3.2.1.2.2 Configuring Presets
By configuring presets, the camera can store parameters such as PTZ’s horizontal angle, inclination
angle, and the lens focal length under the current situation to the Camera. If you need those
parameters later, you can quickly adopt them and adjust the PTZ and camera to those locations.
Click the PTZ tab and select Preset in the PTZ Function setting list. Step 1
Preset Figure 3-10
Through the direction button, move the camera to the surveillance direction that you need. Step 2
21
In the preset box, type the preset number. Step 3
Range of the preset number is limited by the PTZ protocol.
Click Add to add a preset. Step 4
Enter a preset number and click Go to. The camera turns to the corresponding position. Step 5
3.2.1.2.3 Configuring Tour
By configuring tour, you can put the presets to the auto tour to make the camera move back and
forward quickly and automatically according to the presets.
Preparation
You have set several presets.
Procedure
Click the PTZ tab and select Tou r in the PTZ Function setting list. Step 1
In the tour typing box, type the tour number. Step 2
Range of the preset number is limited by the PTZ protocol.
In the preset typing box, type the preset number. Step 3
Click Add Preset to add a preset in the tour. Step 4
Repeat step 3 to step 4 to add several presets in the tour.
Type a preset number and click Delete Preset to delete preset it in the tour group.
Type a tour number. Click Start to start touring; click Stop to end it. Step 5
3.2.1.2.4 Configuring Pattern
By configuring pattern, you can record continuously your operation to the PTZ and record the
moving pattern of the camera’s lens. The Camera will make the location where the recording begins
as the beginning point, and move back and forward automatically following the preset movement
pattern.
Click the PTZ tab and select Pattern in the PTZ Function setting list. Step 1
In the pattern typing box, type a pattern number.
Range of the pattern number is limited by the PTZ protocol.
Click Start Rec. Step 2
By operating the PTZ control panel, you can control the camera’s surveillance direction, Step 3
zoom images or change the focal length.
Click Stop Rec to complete setting of the pattern. Step 4
Select a pattern number. Click Start to start pattern; click Stop to end it. Step 5

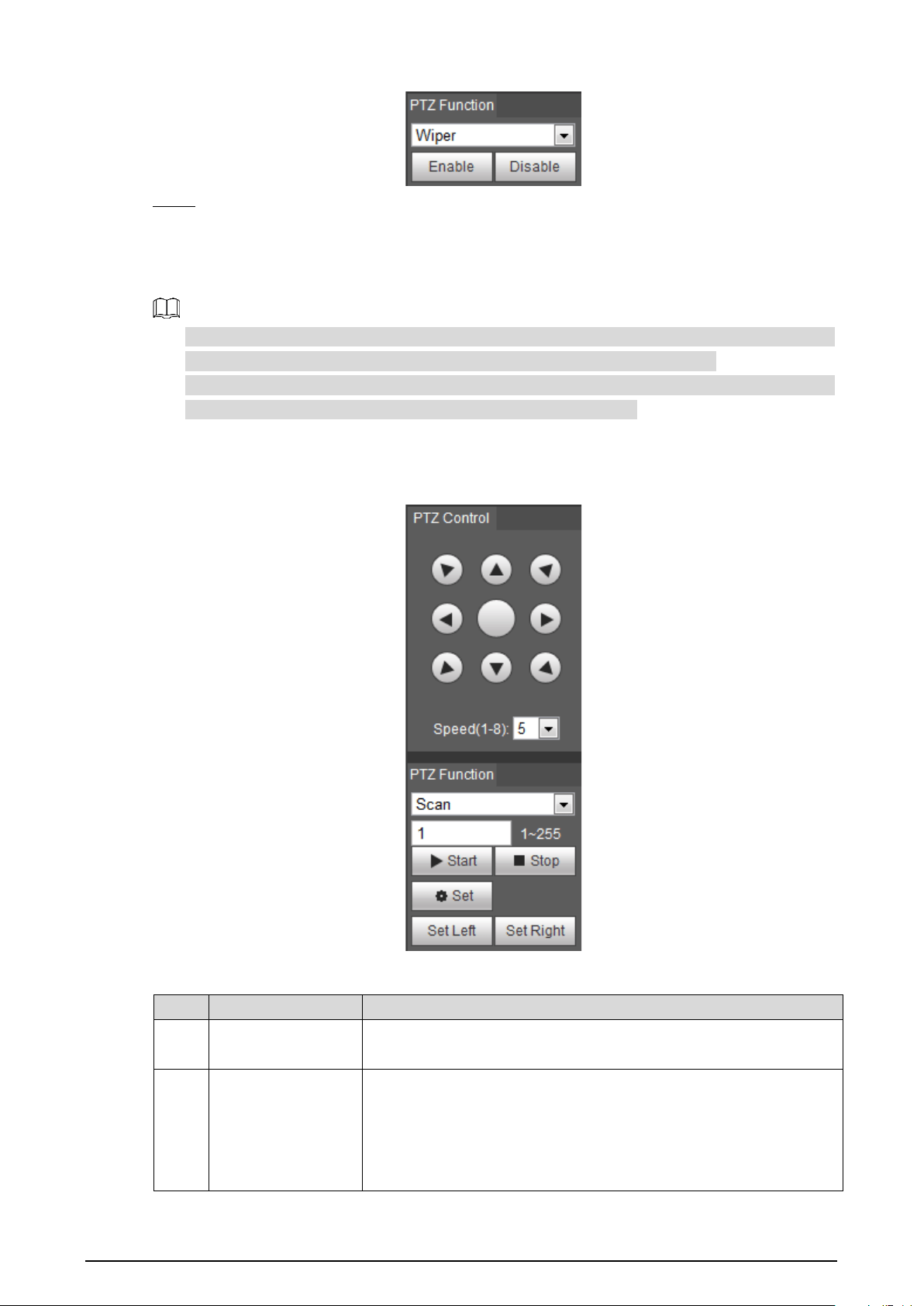

3.2.1.2.5 Turing on Wiper
Click the PTZ tab and select Wiper in the PTZ Function setting list. See Figure 3-11. Step 1
22

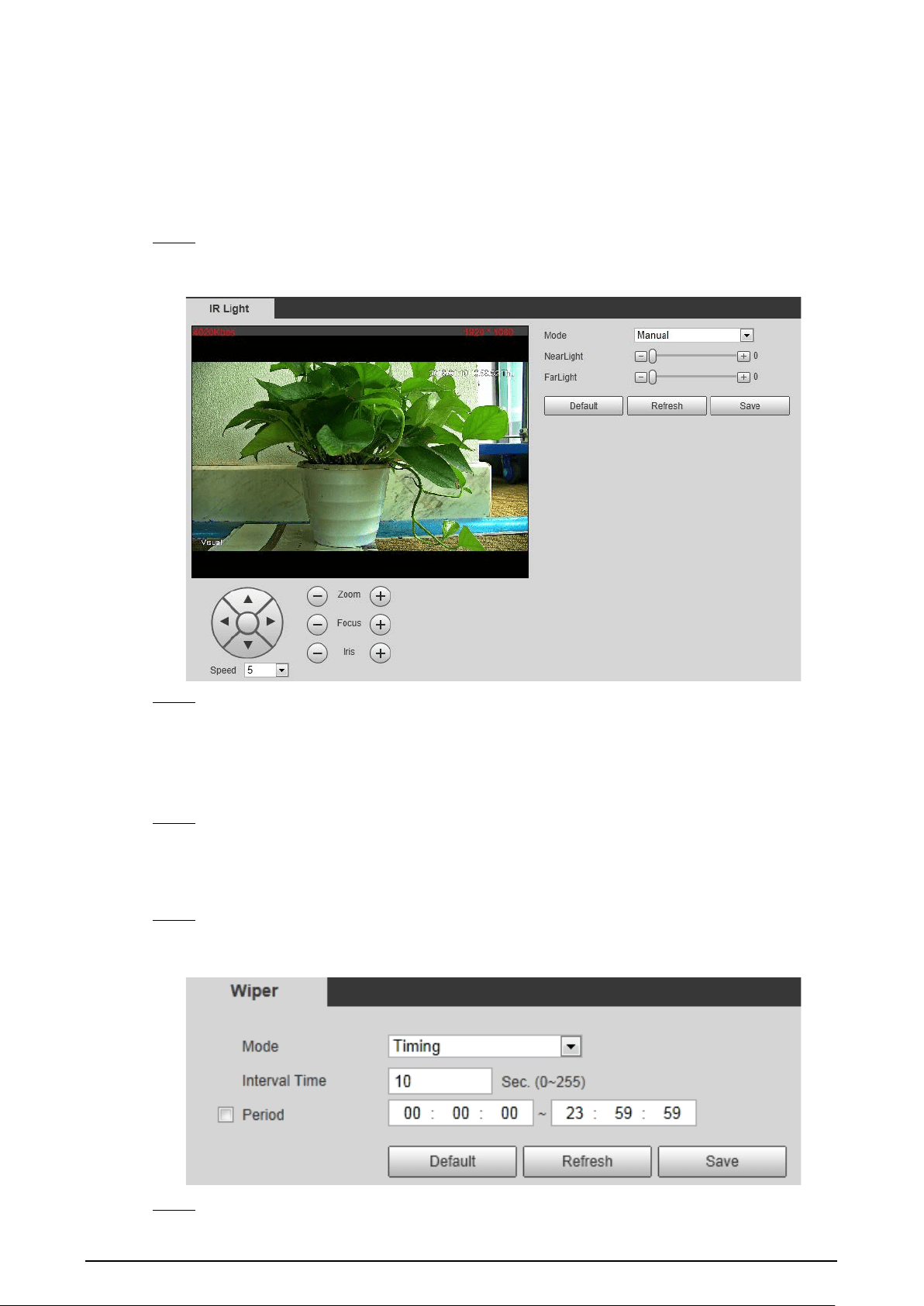

Wiper Figure 3-11
Click Enable to enable the wiper; click Disable to disable it. Step 2
3.2.1.3 Operating PTZ
The corresponding protocol setting and function setting have been completed. See "3.2.1.1
Configuring Protocol" and "3.2.1.2 Configuring PTZ Functions" for more details.
For images representing the effect of external PTZ, you need to preview on the preview images
of the external PTZ, not on the preview image of the bullet camera.
Click the PTZ tab and the PTZ control panel is displayed on the right side of the PTZ interface. See
Figure 3-12.
PTZ control panel Figure 3-12
Table 3-6 Parameter description
No. Function Description
1 Direction button
Eight directions are contained: up, down, left, right, upper left, upper
right, lower left, and lower right.
2 Speed
Controls the movement speed. The bigger the value is, the faster the
movement will be.
With this function, you can also change the speed of adjusting the
PTZ direction, zooming, changing the focal length and adjusting the
aperture.
23
3 PTZ function
For detailed operations of PTZ, see "3.2.1.2 Configuring PTZ
Functions."

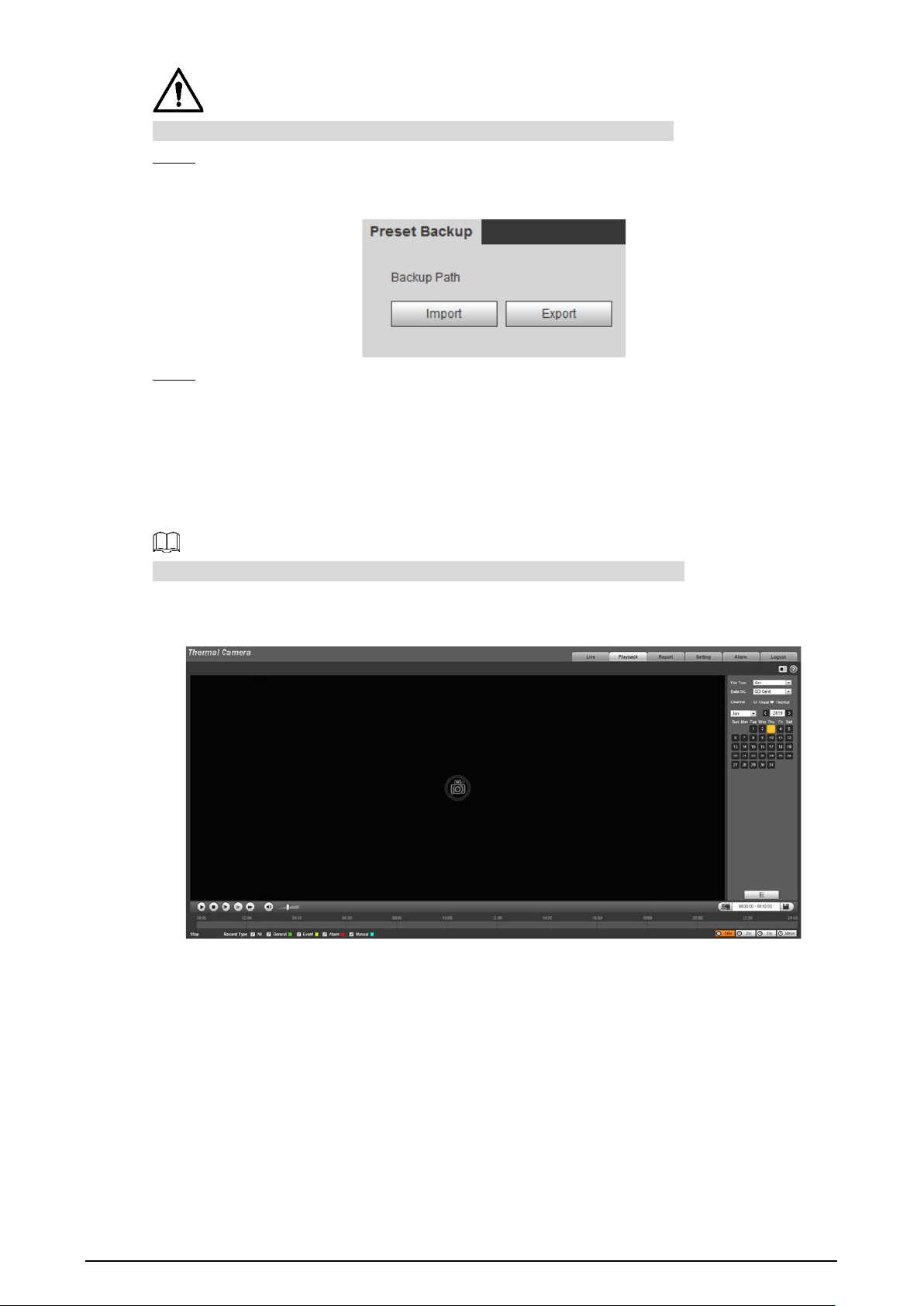

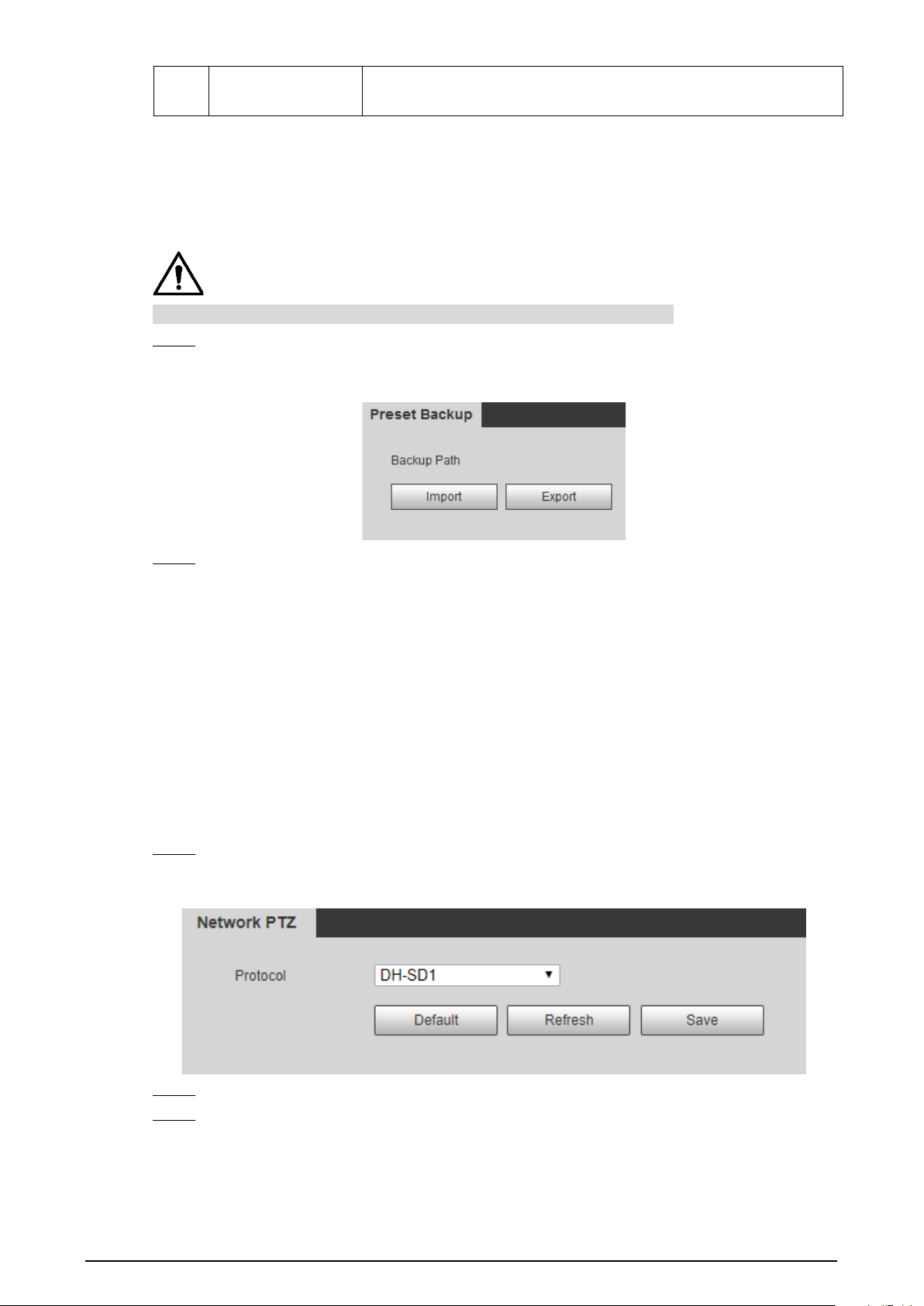

3.2.1.4 Configuring Preset Backup
You can export presets you have set to back them up. When you need those presets, you can import
them to your Camera and restore them.
If you want to export or import presets, you have to obey the following steps.
Select Setting > PTZ > Preset Backup. Step 1
The Preset Backup interface is displayed.
Preset backup Figure 3-13
Export or import presets. Step 2
Click Export to export presets for backup.
Click Import to import presets you have already backed up
3.2.2 Speed Dome Cameras & Pan Tilt Cameras
3.2.2.1 Configuring Protocol
For external Cameras (such as network keyboard, NVR), if you want to use them to control the dome
camera or its PTZ, you need to set the protocol to connect the external Cameras to the dome camera
or its PTZ first.
Select Setting > PTZ > Protocol. Step 1
The Network PTZ interface is displayed. See Figure 3-14.
Network PTZ setting Figure 3-14
Select the protocol that is matched with the camera. Step 2
Click Save. Step 3
24
3.2.2.2 Configuring PTZ Functions
Select Setting > PTZ > Function and the Function interface is displayed.
It’s set by default that the thermal image is displayed. In the thermal image, you can click to
switch the image to visible image. And, in the visible image, you can click to switch the image
to thermal image.
3.2.2.2.1 Configuring Preset
By configuring presets, the camera can store parameters such as PTZ’s horizontal angle, inclination
angle, and the lens focal length under the current situation to the Camera. If you need those
parameters later, you can quickly adopt them and adjust the PTZ and camera to those locations.
Select Setting > PTZ > Function. Step 1
The Preset interface is displayed. See Figure 3-15.
The preset interface Figure 3-15
Configure preset. Step 2
1) Click Add to add a new preset.
2) Operate the PTZ control panel to move the camera lens to a specific direction you need.
3) Double-click the preset’s Number to modify it.
4) Double-click the preset’s Preset Title to modify it. Then click .
Click to delete a preset that is wrongly configured or that is not
needed anymore.
Click Delete to delete all the presets you have added.
25

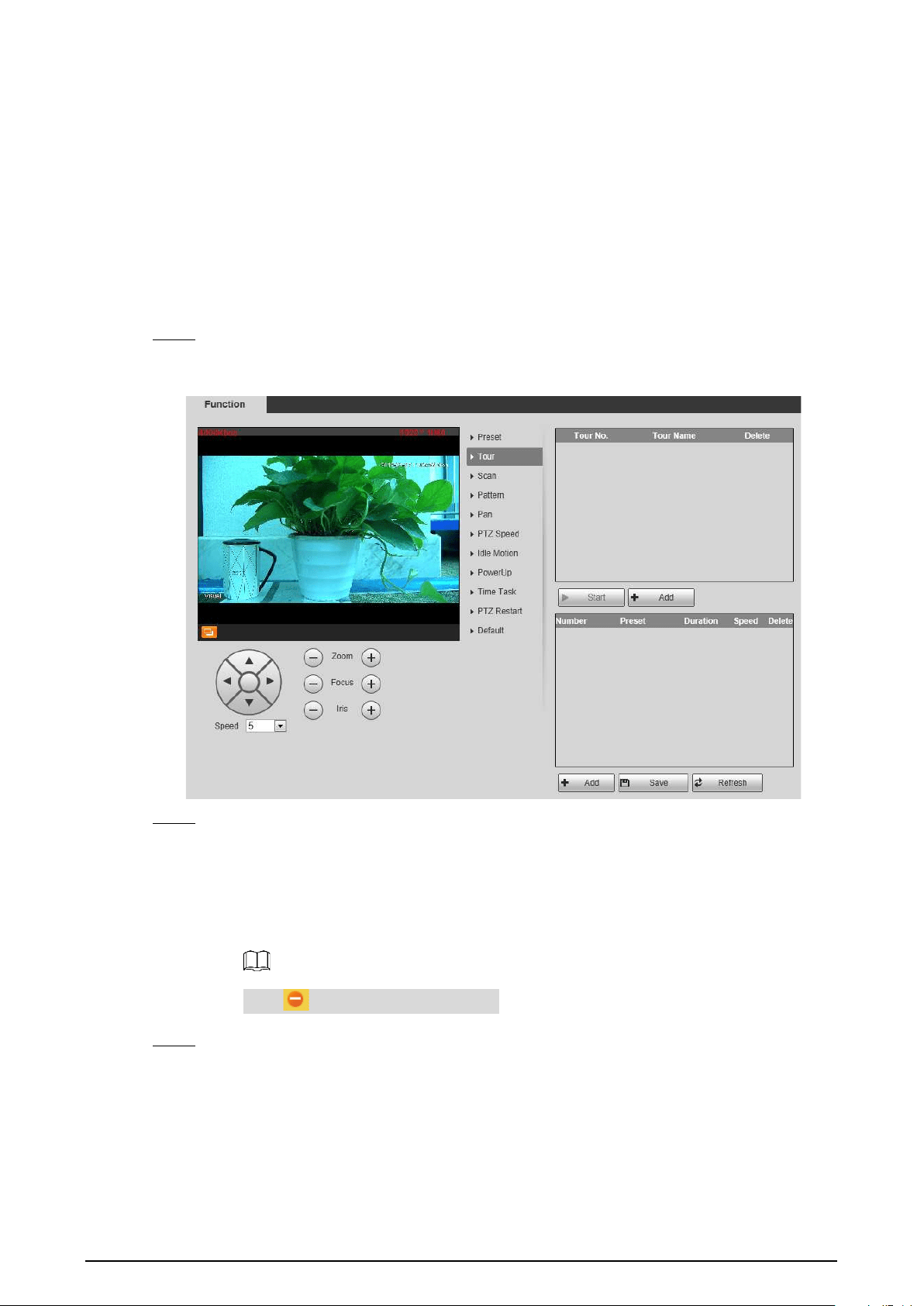

3.2.2.2.2 Configuring Tour
By configuring tour, you can put the presets to the auto tour group to make the camera move back
and forward quickly and automatically according to the presets.
Preparation
You have set several presets.
Procedure
Select Setting > PTZ > Function > To u r. Step 1
The To ur interface is displayed. See Figure 3-16.
The tour interface Figure 3-16
Configure tour. Step 2
1) Click Add to add a tour.
2) Click Add to add a preset.
Click repeatedly to add several presets.
3) Double-click to select a preset. And double-click to configure the lasting time.
4) Double-click the touring name that you have added to modify it. Click Save.
Click to delete a tour or a preset.
Select a tour and click Start to start camera tour. Step 3
Click Stop to stop the tour.
3.2.2.2.3 Configuring Scan
You can configure an arc and horizontal area for your camera PTZ’s rotation. Then by giving your PTZ
a fixed rotation speed, you can get your camera scan from left to right (and from right to left) at a
fixed speed.
26
Select Setting > PTZ > Function > Scan. Step 1
The Scan interface is displayed. See Figure 3-17.
The scan interface Figure 3-17
Configure scan. Step 2
1) Select a Scan No. and set its Speed.
2) Click Setup.
Buttons of Set Left Limit and Set Right Limit are displayed.
3) Operate the PTZ control panel and move the camera to a left border you want and click
Set Left Limit; move the camera to a right border you want and click Set Right Limit.
Select a Scan No. and click Start to start scan. Step 3
Click Stop to stop the scan.
3.2.2.2.4 Configuring Pattern
The function of "pattern" can record continuously the user’s manual operation to the PTZ and record
the moving tracking of the camera’s lens. The camera will make the location where the recording
begins as the beginning point, and move back and forward automatically following the preset
movement pattern.
Select Setting > PTZ > Function > Pattern. Step 1
The Pattern interface is displayed. See Figure 3-18.
27
The pattern interface Figure 3-18
Configure pattern. Step 2
1) Select a Pattern No.
2) Click Setup.
Buttons of Start Rec and Stop Rec are displayed.
3) Click Start Rec.
4) Operate the PTZ control panel and adjust you camera’s direction, zoom and focus.
5) Click Stop Rec.
Select a Pattern No. and click Start to start pattern. Step 3
Click Stop to stop the pattern.
3.2.2.2.5 Configuring Pan
Pan function makes your camera rotate horizontally at a speed. When you do not have enough
cameras to cooperate for a wide view (a 360° view of a square, for example) or you want to learn the
general situation of an area with only one camera, use the Camera pan function.
Select Setting > PTZ > Function > Pan. Step 1
The Pan interface is displayed. See Figure 3-19.
The pan interface Figure 3-19
Set a Pan Speed. Click Start to start pan. Step 2
28
Click Stop to stop the pan.
3.2.2.2.6 Configuring PTZ Speed
PTZ speed is determined by two factors—firstly and basically, the speed level (low, middle and high,
marked by ① in Figure 3-20); secondly, the control panel’s speed value (1, 2, 3…8 marked by ② in
Figure 3-20). If you select Low as the PTZ Speed ①, then according to the maximum Low value, the
Speed② will be divided into 8 parts, and it’s the same for you to select Middle or High as the PTZ
Speed ①.
Select Setting > PTZ > Function > PTZ Speed. Step 1
The PTZ Speed interface is displayed. See Figure 3-20.
PTZ speed Figure 3-20
Select from Low, Middle and High. The configuration takes effect immediately. Step 2
3.2.2.2.7 Configuring Idle Motion
Enable this function. And when there is a time period when PTZ does not receive any instructions,
motions you have already set will be implemented.
Preparation
You have configured preset, tour, scan and pattern before configuring idle motion.
Procedure
Select Setting > PTZ > Function > Idle Motion. Step 1

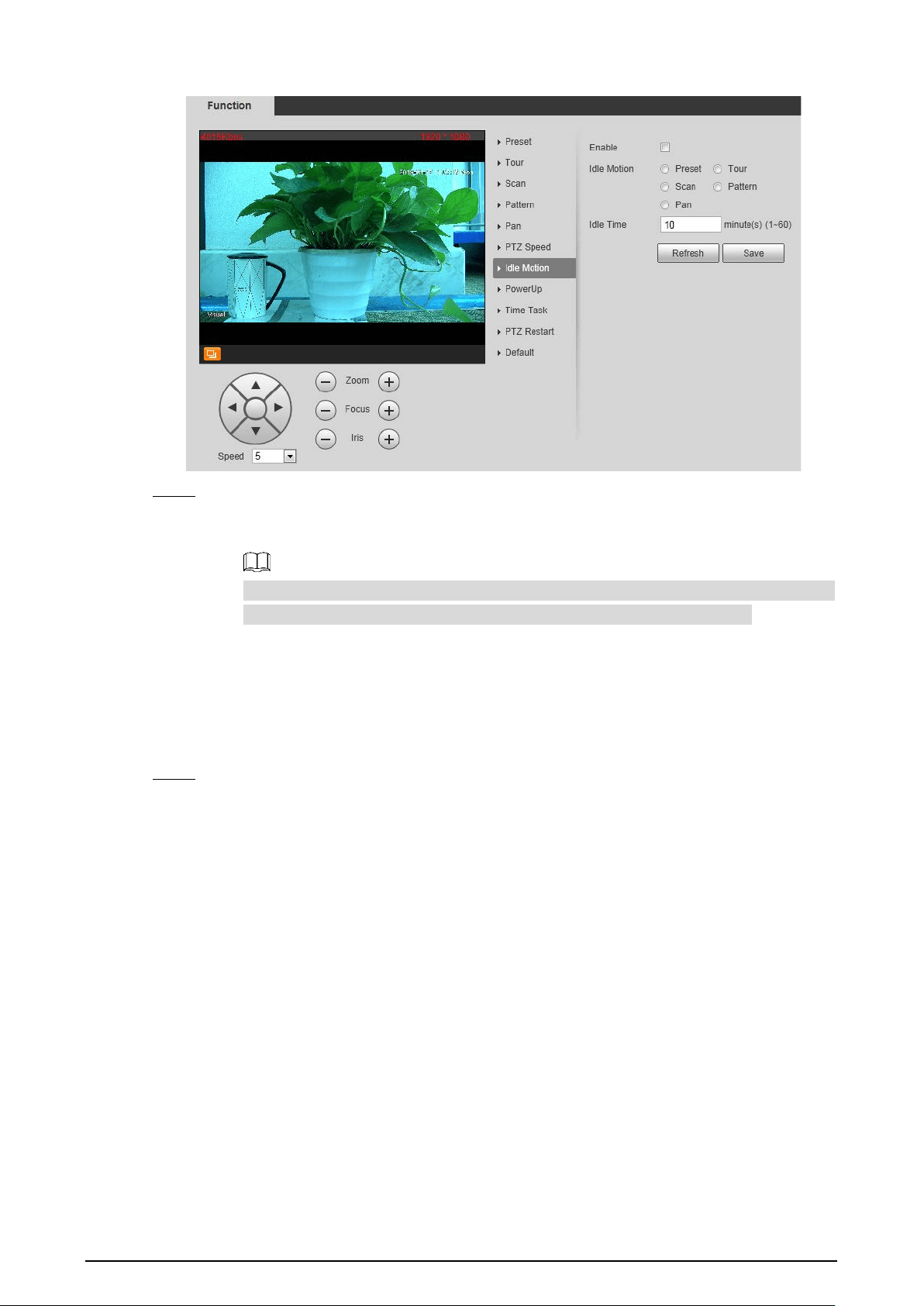

The Idle Motion interface is displayed. See Figure 3-21.
29
The idle motion interface Figure 3-21
Configure idle motion. Step 2
1) Select the Enable check box to enable this function.
2) Select an idle motion and set idle time.
After you have set a value of idle time, when the time when you do not operate the PTZ
is longer than that value, the idle motion will be implemented immediately.
3) Click Save.
3.2.2.2.8 Configuring Power Up
If you want the PTZ to implement certain actions after the camera is powered, configure this
function.
Select Setting > PTZ > Function > Power Up. Step 1
The Power Up interface is displayed. See Figure 3-22.
30
Power up Figure 3-22
Select the Enable check box. Step 2
Select the Power Up actions. Step 3
Select Auto and the PTZ will continue to implement the action before the power is off.
Click Save. Step 4
3.2.2.2.9 Configuring Time Tas k
You can configure a time task and let camera implement certain actions within the period you have
set.
Preparation
You have configured preset, tour, scan and pattern before configuring time task.
Procedure
Select Setting > PTZ > Function > Time Task. Step 1
The Time Task interface is displayed. See Figure 3-23.
31

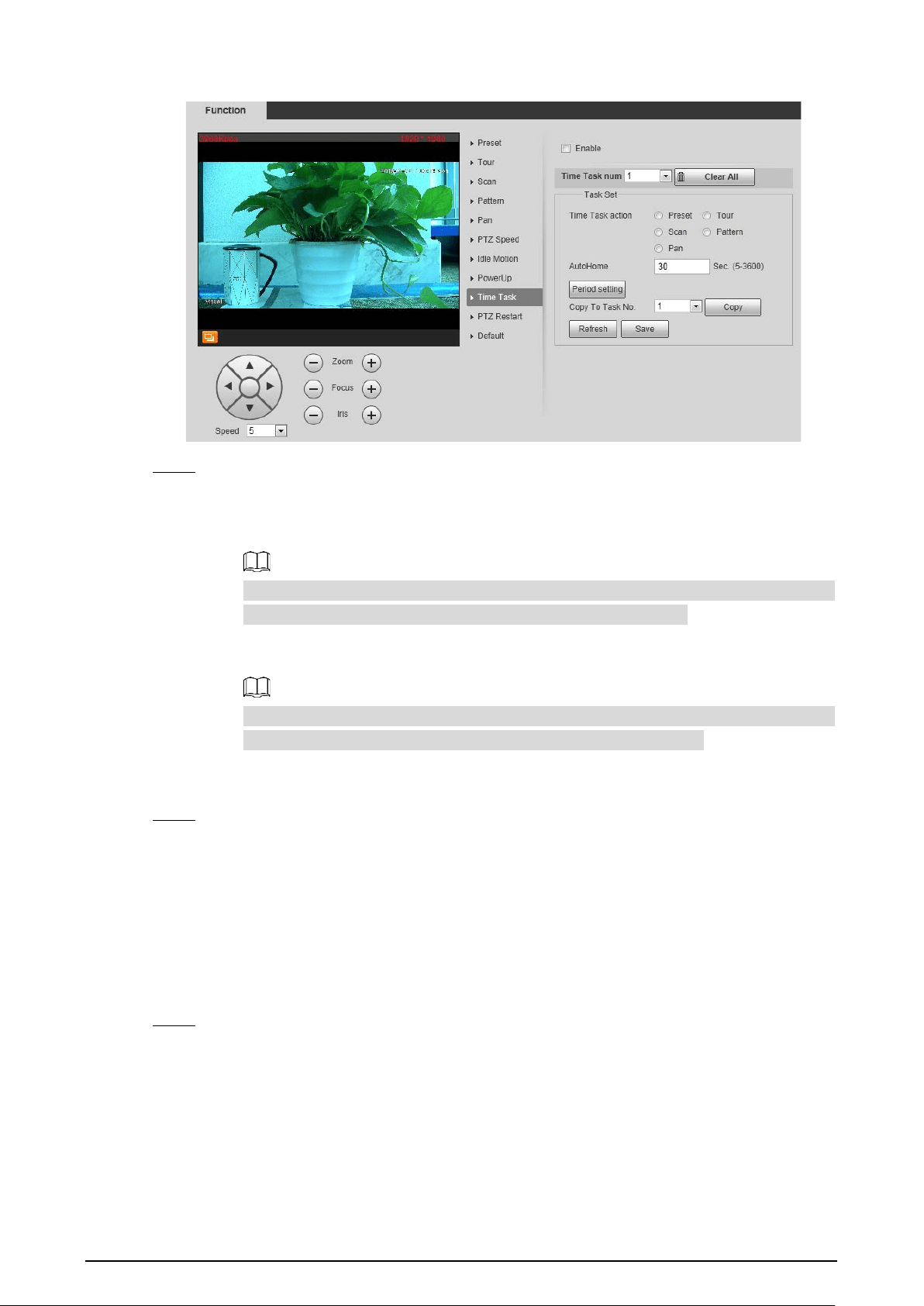

The time task interface Figure 3-23
Configure time task. Step 2
1) Select the Enable check box to enable this function.
2) Select a Time Task Num.
3) Select a Time Task Action from Preset, Tour , Scan and Pattern.
When you set Preset as Time Task Action, the Action Number selection box is
displayed. You can select the action number based on your needs.
4) In the Auto Home selection box, set the time for the camera to return to its previous
condition.
Auto home time: Time for your camera to return to its previous condition and continue
the time task when the time task is interrupted by human operation.

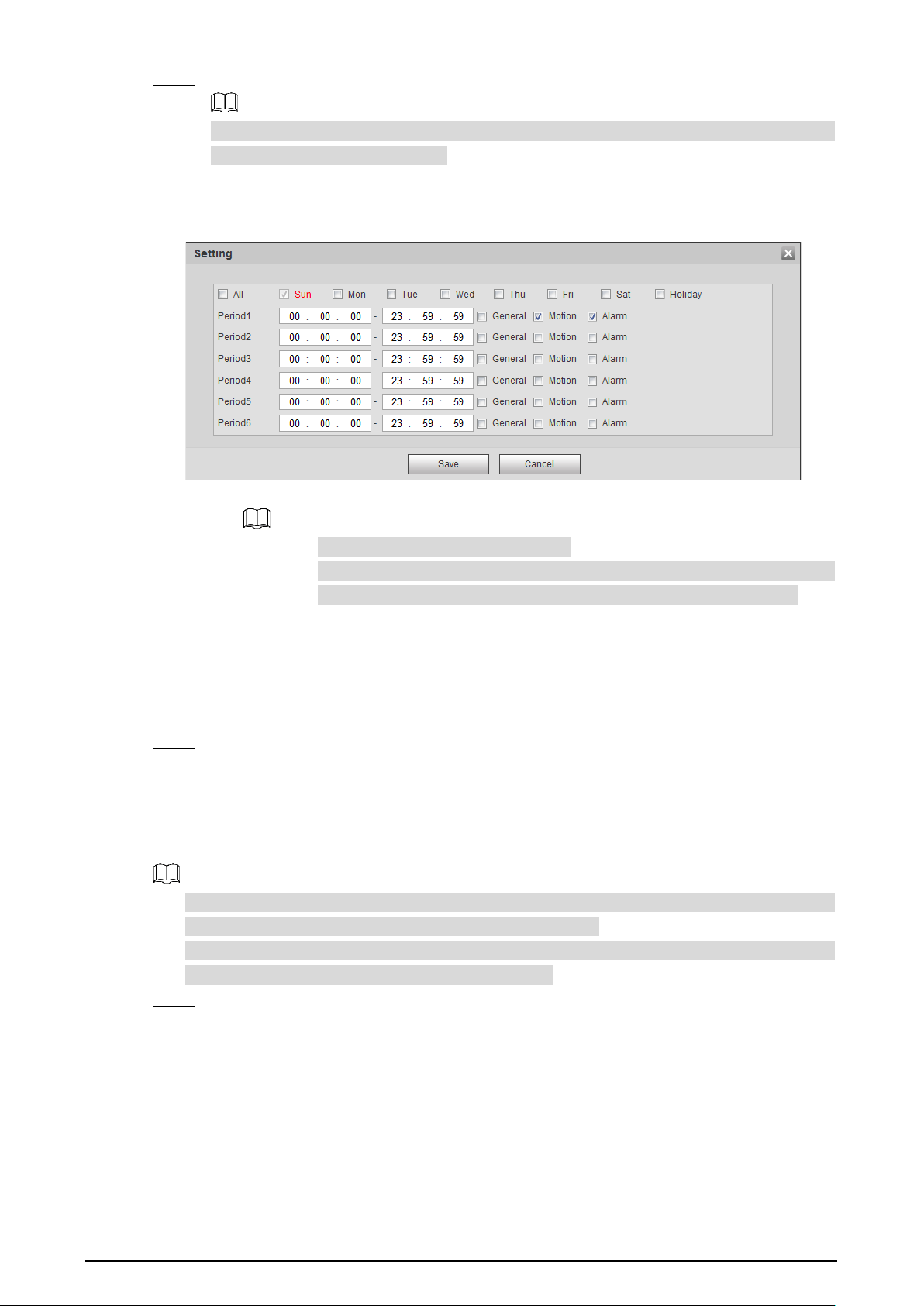

5) Click Period Setting to set the detailed period for a time task.
6) Click Save.
(Optional) Copy a time task. Step 3
Copy task information you have configured to other tasks.
1) Select a Time Task Num you have already configured.
2) In Copy To Task No., select a task number to be configured.
3) Click Copy.
4) Click Save to finish task copy.
3.2.2.2.10 Restarting PTZ Manually

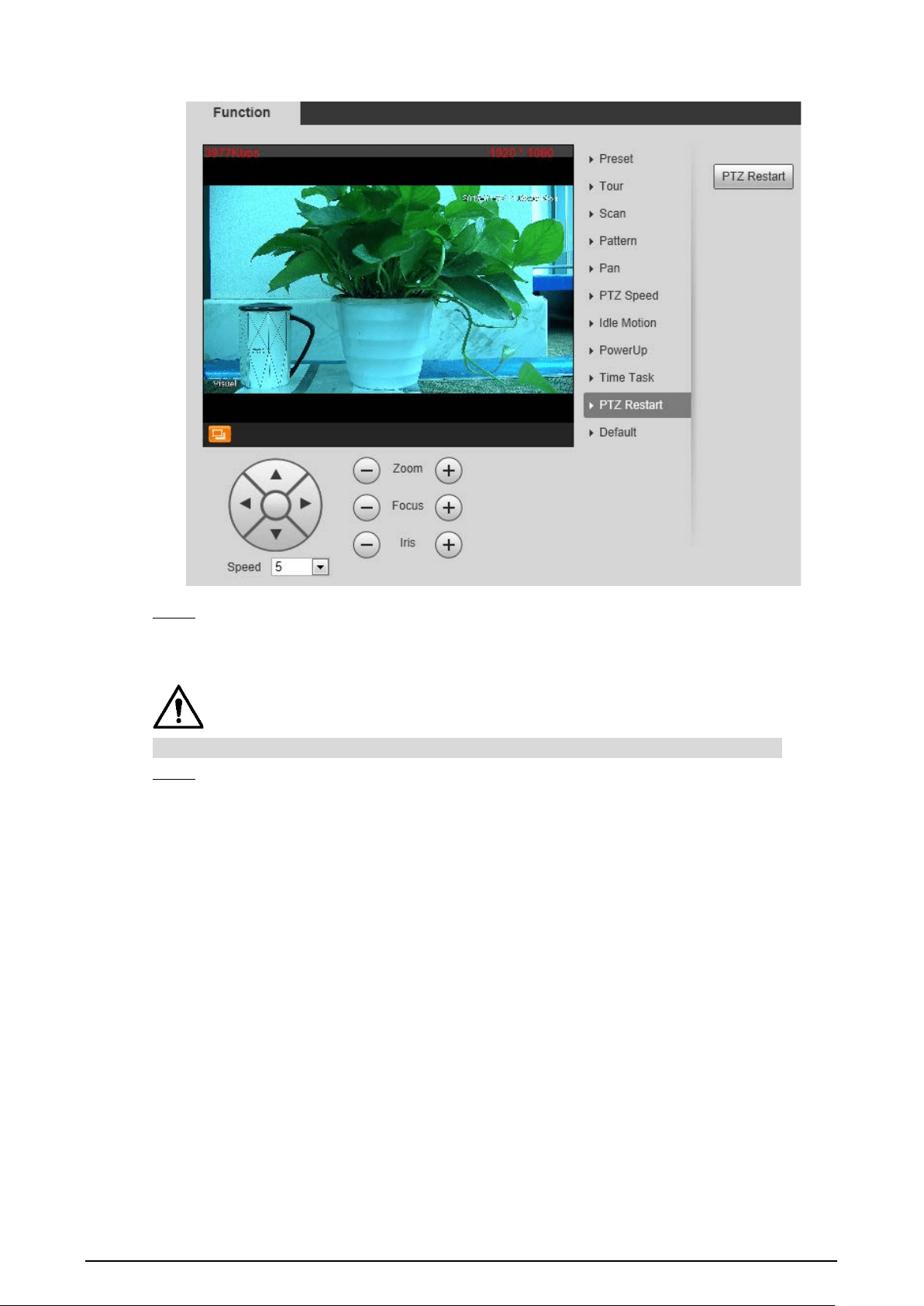

Select Setting > PTZ > Function > PTZ Restart. Step 1
The PTZ Restart interface is displayed. See Figure 3-24.
32
The PTZ restart interface Figure 3-24
Click PTZ Restart. PTZ restarts. Step 2
3.2.2.2.11 Restoring PTZ to the Default Settings
The operations below will delete all the PTZ settings you have configured. Please be cautious.
Select Setting > PTZ > Function > Default. Step 1
The Default interface is displayed. See Figure 3-25.
33

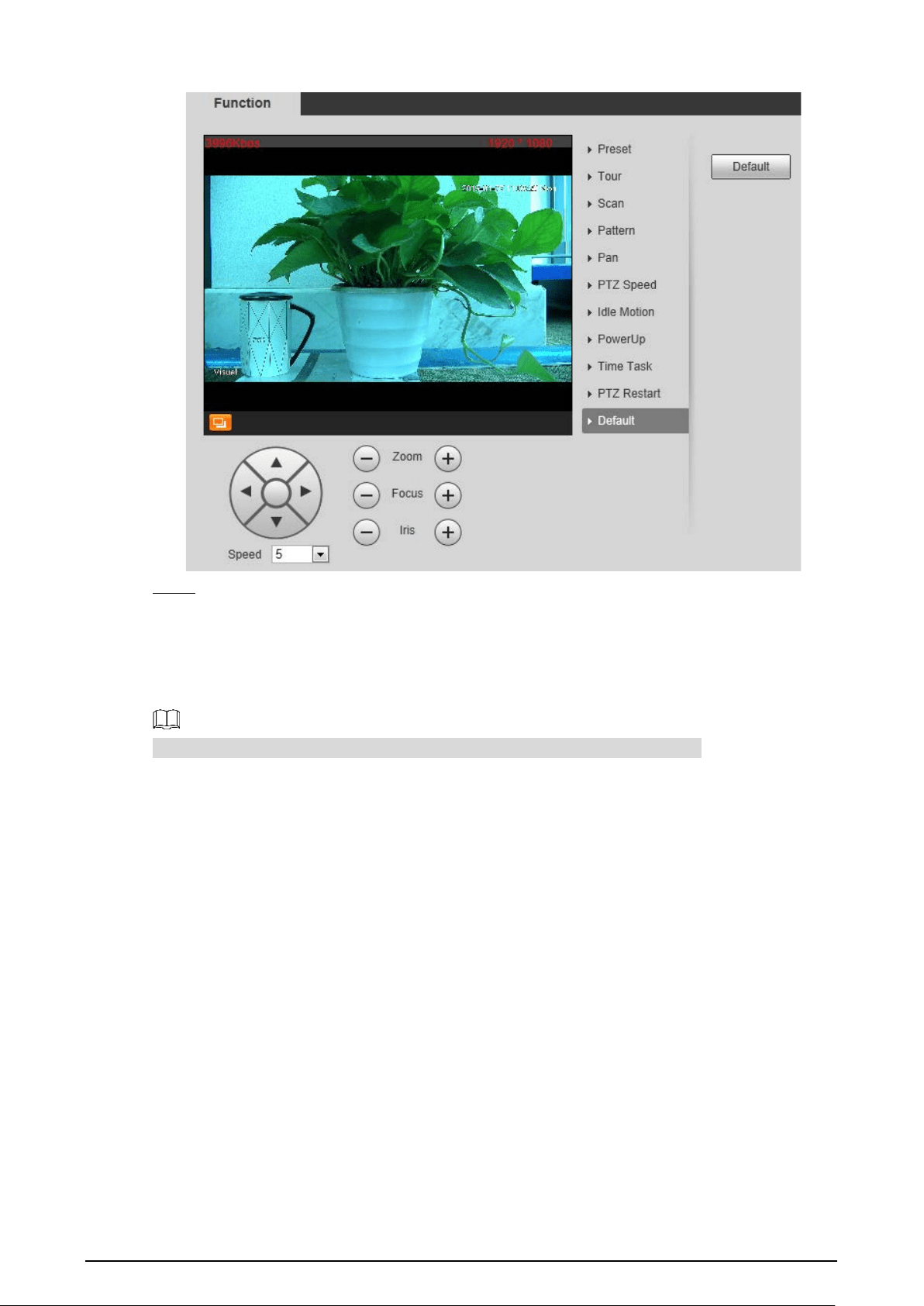

The default interface Figure 3-25
Click Default. Step 2
All your PTZ settings are restored to the default ones.
3.2.2.3 Operating PTZ
The corresponding protocol settings and function settings have been completed.
34
PTZ control panel Figure 3-26
Table 3-7 Parameter description
No. Function Description
1 Direction button
Eight directions are contained: up, down, left, right, upper left, upper
right, lower left, and lower right.
2 Speed
Controls the movement speed. The bigger the value is, the faster the
movement will be.
With this function, you can also change the speed of adjusting the
PTZ direction, zooming, changing the focal length and adjusting the
aperture.
3 Zoom, focus and iris
Click and the zoom, focus and iris’ value becomes bigger;
click and the zoom, focus and iris’ value becomes smaller.
4 PTZ function
For detailed operations of PTZ, see "3.2.1.2 Configuring PTZ
Functions."
3.2.2.4 Configuring Preset Backup
You can export presets you have set to back them up. When you need those presets, you can import
them to your Camera and restore them.
35
If you want to export or import presets, you have to obey the following steps.
Select Setting > PTZ > Preset Backup. Step 1
The Preset Backup interface is displayed.
Preset backup Figure 3-27
Export or import presets. Step 2
Click Export to export presets for backup.
Click Import to import presets you have already backed up
Playback 3.3
Playback of both videos and pictures is supported.
Functions of different Cameras might vary, and the actual product shall prevail.

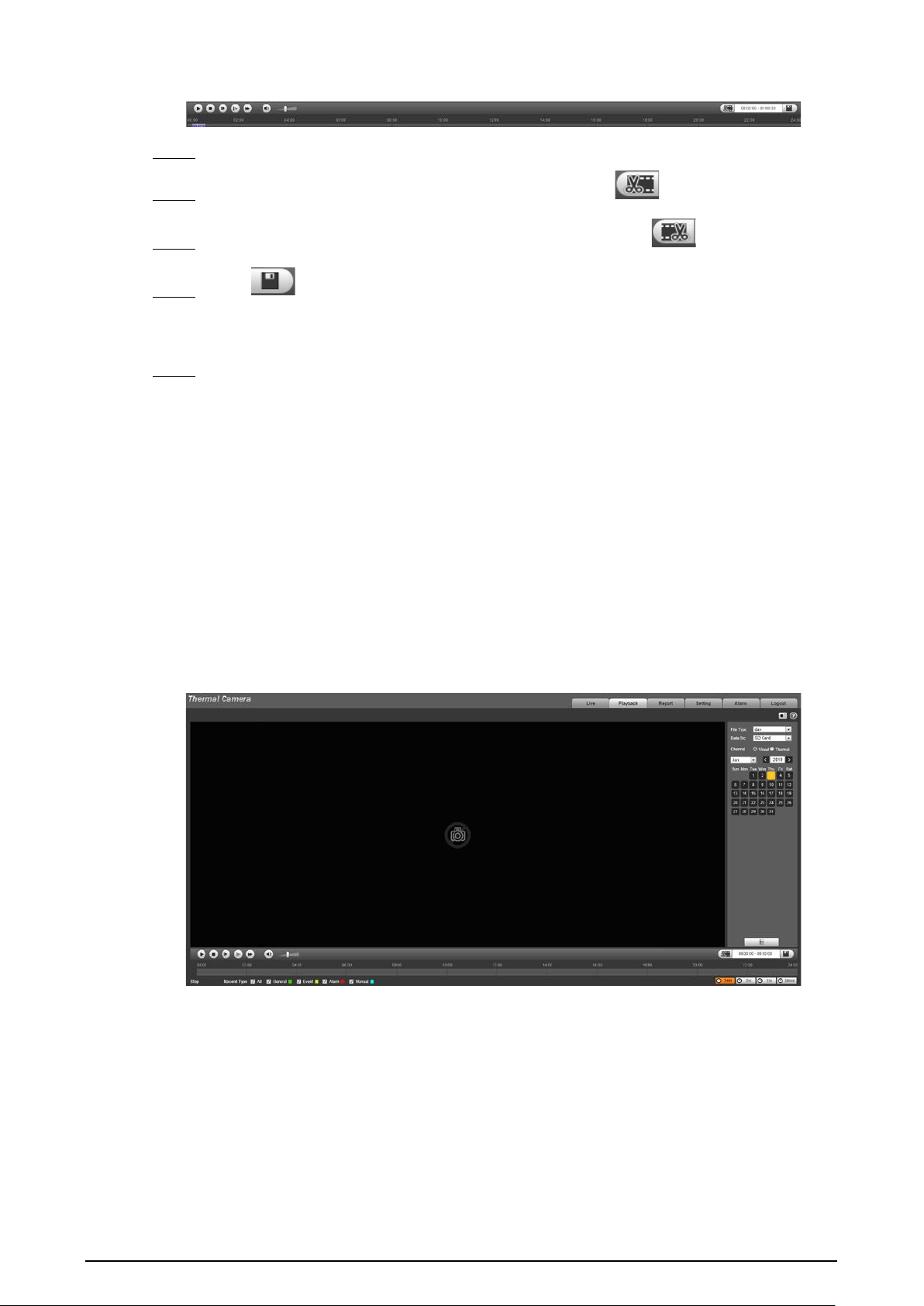

Click the Playback tab, and the Playback interface is displayed. See Figure 3-28.
Playback Figure 3-28
3.3.1 Video Playback
3.3.1.1 Interface Layout
Select dav in the File Type list, and the video playback interface is displayed. See Figure 3-29. On the
Playback interface, there are seven function bars. See Table 3-8.
36
Video playback Figure 3-29
Table 3-8 Function bar description
No. Functions Description
1
Playback control
bar
For detailed information about control buttons, see "3.3.1.2 Operate
Control Bar."
2
Volume
adjustment
Controls playback volume.
muted.
muted, and the volume can be adjusted.
3 Record type
Record type includes All, General, Event, Alarm, and Manual. You can
select according to your actual needs.
4 Time bar
Displays the record type and the time period.
Click any point in the colored area, and the playback starts from
this moment.
Each color represents a certain video type, and the corresponding
relationship is indicated in the record type selection area.
5 Time bar unit
There are four formats: , . , and
. Take for an example, the whole time bar has
24 hours.
6 Video clip
Clip and save certain video section. For detailed operations, see "3.3.1.4
Clipping Recorded Video."
7 Playback file list You can select file type, data source and record date.
8 Snapshot
Click the icon to capture a live image and save it under the path you
have set.
3.3.1.2 Operate Control Bar
See Table 3-9.
37
Table 3-9 Playback control bar
Icons Functions Description
Play Click this icon to play video.
Stop Click this icon to stop playback.
Play by
Frame
Click this icon to play the next frame.
You need to pause the playback before using play by frame.
Slow
playback
Click this icon to slow down the playback.
Fast
playback
Click this icon to speed up the playback.
3.3.1.3 Playing Back Videos
There are differences in operation of video playback according to the differences of data sources.
Data come from SD card or your local storage.
3.3.1.3.1 Playing Back Videos in SD Card
Select record type in the Data Src bar. See Figure 3-30. Step 1
Selecting record type Figure 3-30
In the File Type box, select .dav, and in the Data Src box, select SD Card. See Figure 3-31. Step 2
File type contains dav and jpg. "Dav" represents video playback and “jpg” represents picture
playback.
Setting files playback Figure 3-31
Those dates with blue color indicate there are recorded videos in those days. Select a date Step 3
with recorded video inside and its time bar is displayed.
38
Each color on the time bar represents a certain record type. See the matching relationship in
Figure 3-30.
Play video. Step 4
Click in the playback control bar.
The system plays the recorded video of the selected date (in time order).
Click any point in the colored area of the time bar. See Figure 3-32.
The playback starts from that point.
Time bar Figure 3-32
Click , and the video files of the selected date will be listed. Double-click a file
in the list. See Figure 3-33. The system plays the video and displays file size, start time
and end time.
For detailed operations, see Table 3-10.
List of playback files Figure 3-33
39

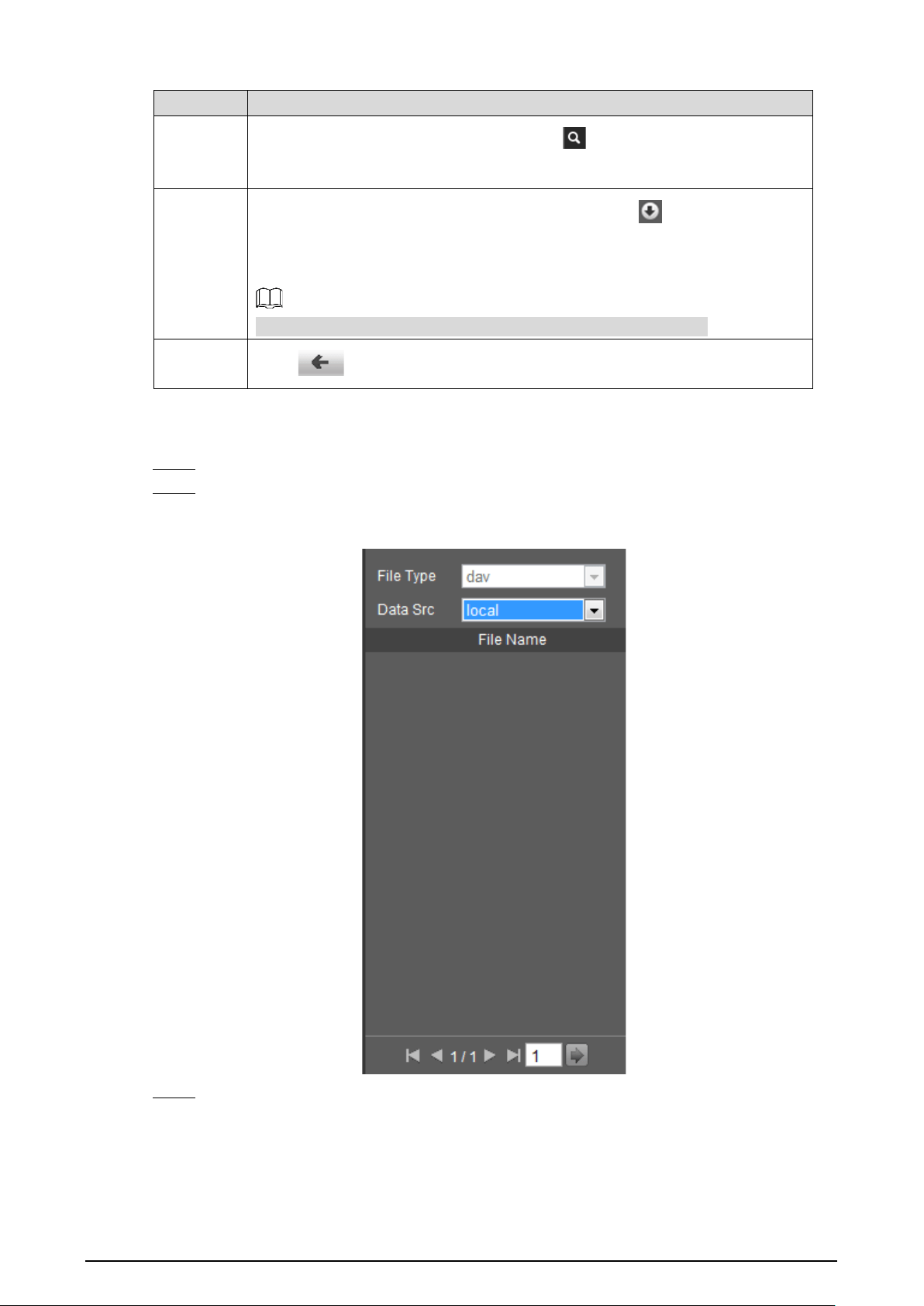

Table 3-10 Picture Playback file more operations
Operation Description
Search
Enter start time and end time, and then click to find out all the video files
between the entered start time and end time.
Download
Select dav or mp4 in the Download Format. Then click .
The file will be downloaded to the set storage path. For detailed operations of
setting the storage path, see "4.1.2.5 Configuring Storage Path."
Downloading and playing video at the same time is not supported.
Back
Click to go back to the calendar interface.
3.3.1.3.2 Playing Back Local Videos
In the Data Src box, select video type. See Figure 3-30. Step 1
Select dav in File Type, and Local in Data Src. Step 2
List of playback files is displayed. See Figure 3-34.
List of playback files (2) Figure 3-34
Double-click a file and the file is displayed. Step 3
3.3.1.4 Clipping Recorded Videos
You can clip a part of recorded video and save it under the path you have set. See Figure 3-35.
40
Video clipping Figure 3-35
In Video Format, select dav or mp4. Step 1
Click on the time bar to select the start time, and then click to start. Step 2
Click again on the time bar to select the end time, and then click to finish. Step 3
Click . Step 4
The system prompts that you cannot play back and download a recorded video at the same
time.
Click Save. Step 5
The system stops playback and save the edited file under the storage path you have set. For
detailed operations of setting the storage path, see "4.1.2.5 Configuring Storage Path".
3.3.2 Picture Playback
The following content is about the introduction of the interface function bar and how to play back
pictures.
3.3.2.1 Interface Layout
Select "jpg" in "file type" list, and the Picture Playback interface is displayed. See Figure 3-36.
Image playback Figure 3-36
41
Table 3-11 Image playback
No. Function Description
1
Control button
for playing
pictures
Includes the following two types:
When this icon displays, the picture playback is paused or
not started. Click this icon to start picture playback.
When this icon displays, the picture playback is ongoing.
Click this icon to stop picture playback.
The two states above can be switched.
2
Snapshot type
selection
There are three types including General, Event and Alarm, and you
can select one of them according to actual needs.
3 Playback file list You can select file type and snapshot data.
3.3.2.2 Picture Playback
You can check and play a snapshot image based on your own needs.
Select a snapshot type in the selection bar of snapshot type. See Figure 3-37. Step 1
Snapshot type selection Figure 3-37
Select jpg in File Type. See Figure 3-38. Step 2
File type contains dav and jpg. "Dav" represents video playback and “jpg” represents image
playback.
Configuring playback files Figure 3-38
Those dates with blue color indicate there are snapshot images in those days. Select a date Step 3
with snapshot images inside.
Play images. Step 4
Click in the play control bar and the system plays the snapshots you have selected
(in time order).
Click which represents the file list, pictures which you have selected would be
displayed. Double-click a file in the list. See Figure 3-39. The file is displayed.
For detailed operations, see Table 3-12.
42

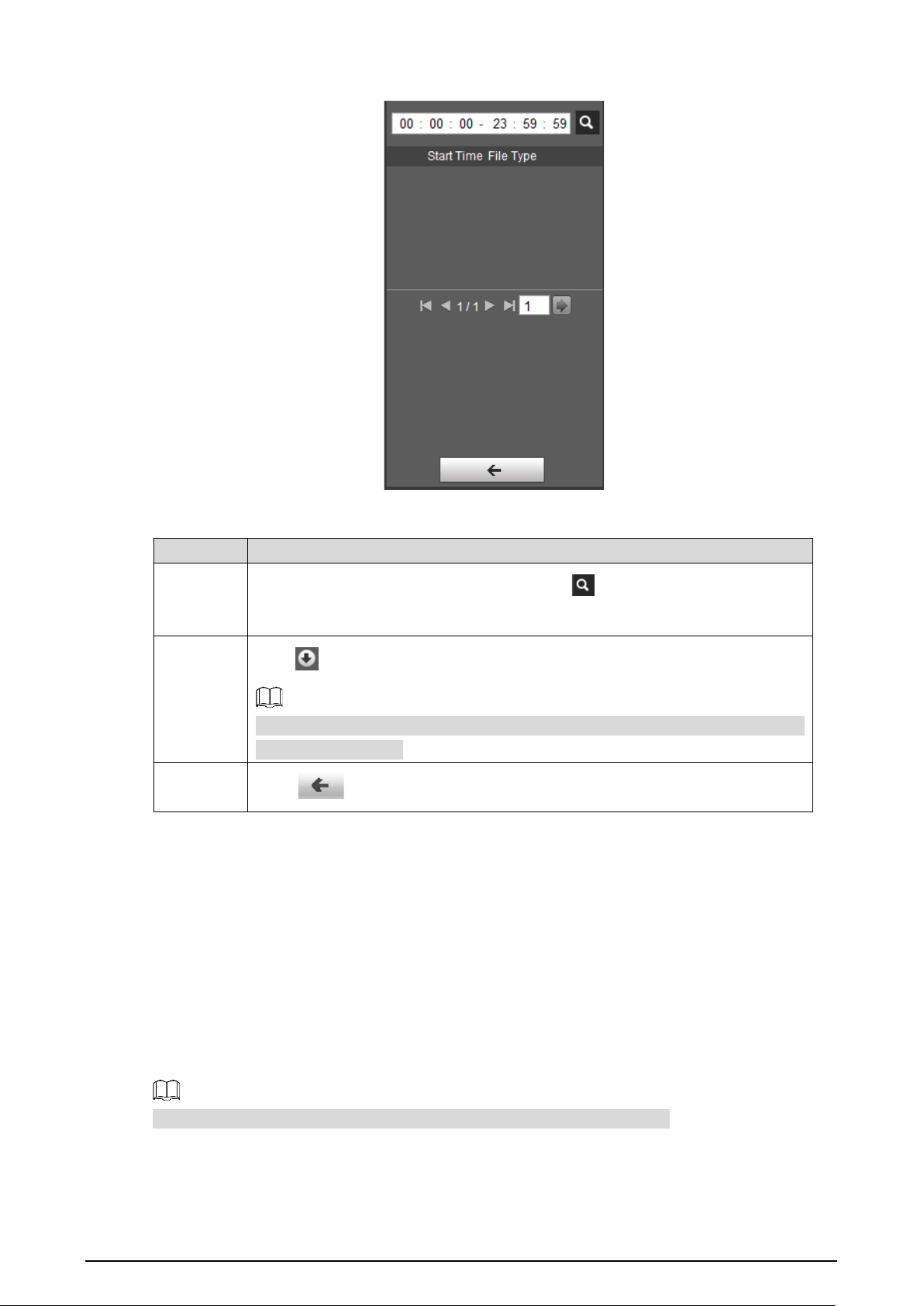

List of playback files Figure 3-39
Table 3-12 Picture Playback file more operations
Operation Description
Search
Enter starting time and ending time, and click .
Finds out all the picture files between the entered starting time and ending time.
Download
Click , and the file is downloaded to local host.
The download operation might vary with different browsers, and the actual
interface shall prevail.
Back
Click to go back to the calendar interface.
Reports 3.4
You can follow certain rules such as time sequence, and check history data of temperature saved in
the Camera Micro SD card.
Preparation
You have set the temperature measuring rules (spots, lines and area included). For detailed
operations, see "4.6.1.1 Configuring Temperature Measuring Rules".
You have inserted a SD card to the Camera.
Some Cameras do not support this function. The actual product shall prevail.
43
Procedure
Click the Report tab. Step 1
The Report interface is displayed. See Figure 3-40.

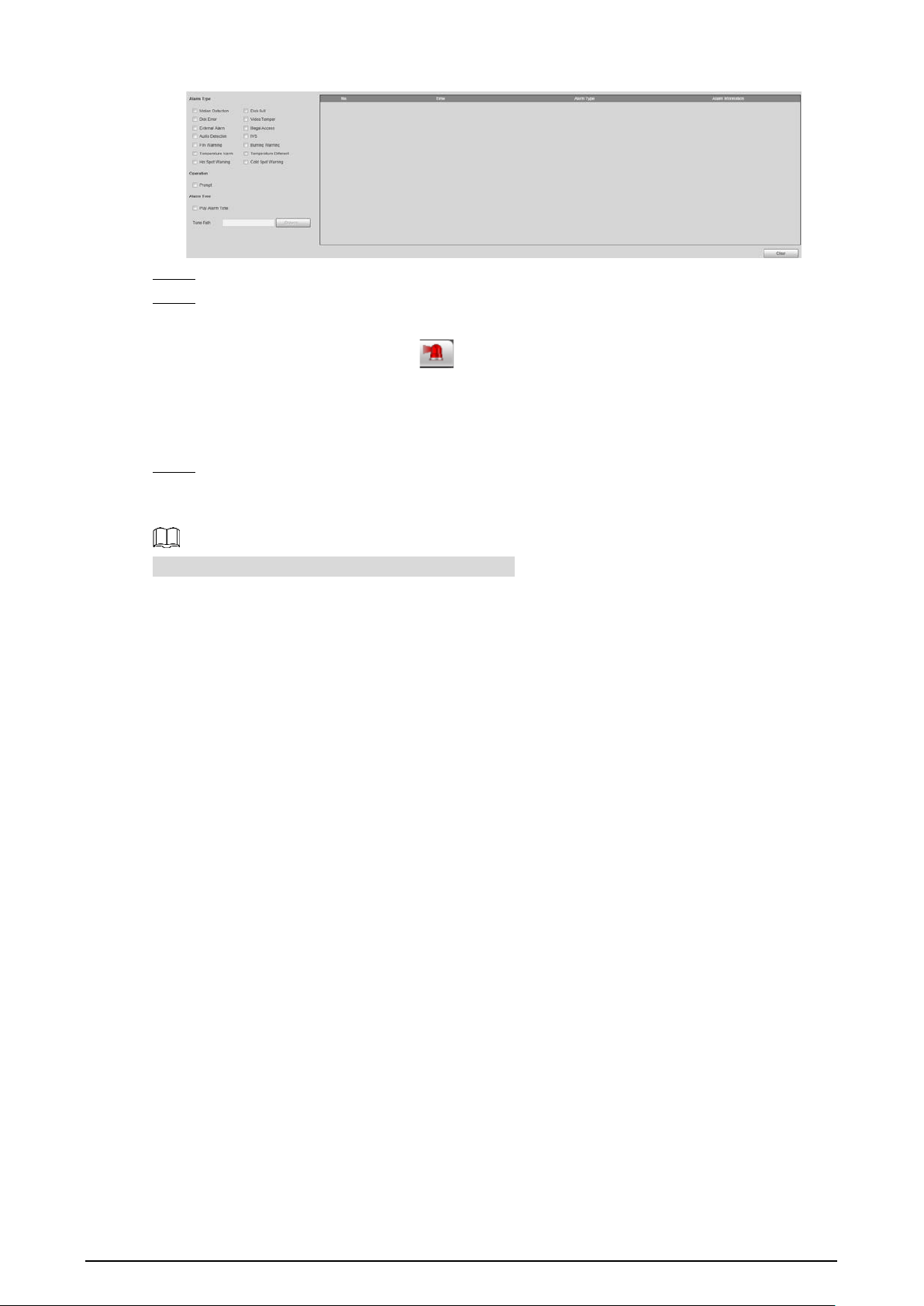

Report Figure 3-40
Set the conditions for searching and click Search. Step 2
Temperature data you have searched is displayed. See Figure 3-41.
Result of report searching Figure 3-41
Alarm 3.5
You can select alarm type as needed, when the selected alarms are triggered, the system would
record detailed alarm information at the right side of the interface.
Function of different Cameras might vary, and the actual product shall prevail.
3.5.1 Introduction to Alarm Types
For alarm types and conditions that trigger an alarm, see Table 3-13.
Table 3-13 Alarm type description
Alarm Type Description Condition
Motion
detection
The alarm is triggered
when moving objects are
detected.
You have enabled motion detection. For detailed
operations, see "4.5.1 Configuring Video
Detection."
44
Disk full
The alarm is triggered
when the free space in
the SD card is lower than
the set percentage.
You have enabled detection to lack of SD card
storage space. For detailed operations, see "4.5.5.1
Configuring SD Card Abnormality Parameters."
Disk error
The alarm is triggered
when there is SD card
error or abnormality.
You have enabled detection to SD card storage
space. For detailed operations, see "4.5.5.1
Configuring SD Card Abnormality Parameters."
External
alarm
The alarm is triggered
when there is alarm from
external Camera.
There is an alarm input port and the external
alarm is enabled. For detailed operations, see
"4.5.4 Configuring Alarm."
Illegal access
The alarm is triggered
when the login password
has been wrongly
entered for more than
the set times.
You have enabled detection to illegal access. For
detailed operations, see "4.5.5.3 Configuring
Illegal Access."
Audio
detection
Alarm is triggered when
there are audio input
errors.
You have enabled detection to audio errors. For
detailed operations, see "4.5.2 Configuring Audio
Detection."
IVS
Alarm is triggered when
the set smart plans are
triggered.
You have enabled detection to general behaviors.
For detailed operations, see "4.4.2 Configuring ."
Fire warning
Alarm is triggered when
fire is detected.
You have enabled fire alarm. For detailed
operation, see "4.4.6 Configuring Fire Warning."
Temperature
alarm
When temperature
satisfies alarm conditions
stipulated by
temperature testing
rules, alarm is triggered.
You have enabled temperature alarm. For detailed
operations, see "4.5.3 Configuring Temperature
Alarm."
Temperature
difference
alarm
When temperature
difference satisfies alarm
condition you have set,
alarm is triggered.
You have enabled temperature comparison alarm.
For detailed operations, see "4.5.3 Configuring
Temperature Alarm."
Hot spot
alarm
When temperature of a
hot spot satisfies alarm
condition you have set,
alarm is triggered.
You have enabled hot/cold spot tracing. For
detailed operations, see "4.4.7 Configuring Hot
Trace."
Cold spot
alarm
When temperature of a
cold spot satisfies alarm
condition you have set,
alarm is triggered.
3.5.2 Subscribing Alarm Information
You can enable alarm prompts and define alarm sound according to your preference.
Click the Alarm tab. Step 1
The Alarm interface is displayed. See Figure 3-42.
45
Alarm Figure 3-42
Select an alarm type. Step 2
Select Prompt, and the system prompts and records alarm information as needed. Step 3
If you are not in the Alarm interface when alarm events you have subscribed are
triggered, there will be a displayed on the Alarm tab and the alarm information
will be recorded. Click the Alarm tab, and the sign disappears.
If you are at the “Alarm” interface when the selected alarm is triggered, there will be
detailed alarm information displayed at the right side of the interface.
Select the check box of Play Alarm Tone, and select audio file. Step 4
System would play the audio file you have selected, when alarm events you have subscribed
are triggered.
Click Remove all to remove all the alarm information.
46
4 Setting
Functions of different Cameras might vary, and the actual product shall prevail.
Click Default, and the Camera is restored to default configuration. Click Refresh to view the
latest configuration.
Configuring Camera 4.1
Configure camera’s components such as lens, video and audio to ensure proper surveillance.
4.1.1 Configuring Lens
4.1.1.1 Configuring Visible Image
4.1.1.1.1 Configuring Picture Parameters
You can configure the picture parameters including brightness, contrast, saturation, Chroma CNT,
sharpness CNT and gamma.
Click the Picture tab. Step 1
The Picture interface is displayed. See Figure 4-1.
The picture interface Figure 4-1
Configure picture parameters. See Table 4-1. Step 2
Table 4-1 Description of picture parameters
Parameter Description
Style
Select display style of the video image, including Soft, Standard and Vivid.
47
Brightness
Changes the value to adjust the picture brightness. The bigger the value is, the
brighter the picture will be.
Contrast
Changes the contrast of the picture. The bigger the value is, the more the
contrast will be between bright and dark areas.
Saturation
Makes the color deeper or lighter. The bigger the value is, the deeper the color
will be. Saturation value doesn’t change image brightness.
Chroma CNT
Reduces the image color and prevents it from being too strong. The bigger the
value, the better the effect.
Sharpness
Changes the sharpness of picture edges. The bigger the value is, the clearer the
picture edges will be, and if the value is set too big, picture noises are more
likely to appear.
Sharpness CNT The bigger the value, the stronger the sharpness CNT.
Gamma
Changes the picture brightness and improves the picture dynamic range in a
non-linear way. The bigger the value is, the brighter the picture will be.
Flip
In the Flip list, select 180° and the video image will be turned upside down.
Select 0° and the video image returns to its primary condition.
EIS
Select the On check box to enable this function.
Corrects the Camera shaking with difference comparison algorithm and
improves the image clarity, effectively solves the picture shaking problem.
4.1.1.1.2 Configuring Exposure
Click the Exposure tab. Step 1
The Exposure interface is displayed. See Figure 4-2.
The exposure interface Figure 4-2
Configure exposure parameters. See Table 4-2. Step 2
Parameters and its description in Table 4-2 are based on the condition that you have
selected Standard as Profile.
48
Table 4-2 Description of exposure parameters
Parameter Description
Mode
Auto: Adjusts the image brightness according to the
actual condition
automatically.
Shutter priority: When the exposure range is normal, the system prefers the
configured shutter range when auto adjusting according to the ambient
lighting condition. If the image brightness is not enough and the shutter
value has reached upper or lower limit, the system
adjusts gain value
automatically to ensure the image at ideal brightness.
Iris priority: The iris value is set to a fixed value, and the Camera adjusts
shutter value then. If the image brightness is not enough and the shutter
value has reached upper or lower limit, the system
adjusts gain value
automatically to ensure the image at ideal brightness.
Manual: Configure gain and shutter value manually to adjust image
brightness.
Anti-flicker
50Hz: When the current is 50Hz, the system adjusts the exposure according
to ambient light automatically to ensure there is no stripe appears.
60Hz: When the current is 60Hz, the system adjusts the exposure according
to ambient light automatically to ensure there is no stripe appears.
Outdoor: You can select any exposure mode as needed.
Iris
Select Manual or Aperture Priority as the Mode. Then you can configure the
iris parameter.
Exposure Comp
Select Manual, Aperture Priority or Shutter Priority as the Mode. Then you
can configure the exposure compensation parameter.
AE (Auto
Exposure)
Recovery
Set a recovery time. After you adjust the shutter manually, the exposure mode
will be restored to the default one after the time you have set.
In the selection box of AE Recovery, you can select Off to turn off AE recovery.
Shutter
Set Manual or Shutter Priority as the Mode. Then you can configure the
parameter.
Adjust the camera’s shutter value.
2D NR
Select the On check box to enable this function. Aiming at single-frame image,
2D NR averages the pixel points (points that are with image noise) with other
common pixel points to decrease the image noise and achieve an acceptable
and good image display effect. The higher the grade, the better the noise
suppression effect.
3D NR
Select the On check box to enable this function. Aiming at multiple-frame
image, 3D NR handles information between two frames to reduce the image
noise. The higher the grade, the better the noise suppression effect.
4.1.1.1.3 Configuring Backlight
Backlight mode is divided into BLC, HLC and WDR. You can select one from the three options above
at one time.
When in BLC mode, the camera gets clearer image of the dark areas on the target when
shooting against light.
49
When in WDR mode, the camera constrains over bright areas and compensates dark areas to
improve the image clarity.
When in HLS mode, the camera dims strong light, and it is applicable to the exit of toll station or
parking lot. This mode works well for taking pictures of human face or car plate detail under
extreme low ambient light.

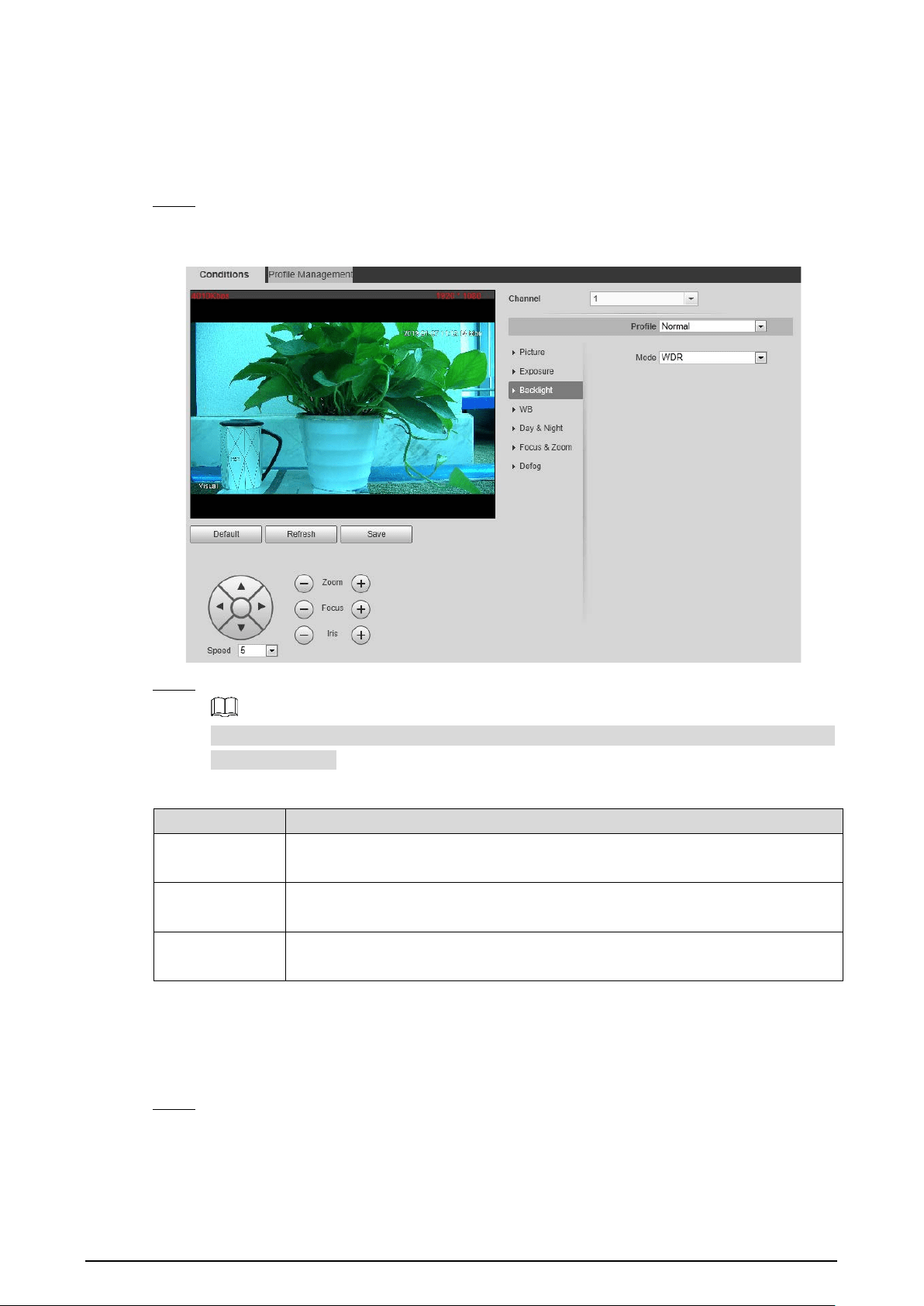

Click the Backlight tab. Step 1
The Backlight interface is displayed. See Figure 4-3.
The backlight interface Figure 4-3
Configure backlight parameters. See Table 4-3. Step 2
There might be a few seconds of video loss when the Camera is switching to WDR mode
from other modes.
Table 4-3 Backlight mode description
Backlight Mode Description
BLC
The system adjusts exposure according to ambient lighting condition
automatically to ensure the clarity of the darkest area.
WDR
The system dims bright areas and compensates dark areas to ensure the clarity
of all the area.
HLS
The system constrains bright areas and reduces halo size to dim the overall
brightness.
4.1.1.1.4 Configuring White Balance
With the white balance technology, you can make a white object display itself clearly on the video
image under all kinds of environment.
Click the WB tab. Step 1
The WB interface is displayed. See Figure 4-4.
50
The WB interface Figure 4-4
Configure white balance parameters. See Table 4-4. Step 2
Table 4-4 WB mode description
WB Mode Description
Auto
The system compensates WB according to light condition to ensure color
precision.
Outdoor
The system auto compensates WB to most outdoor environments with natural
or artificial light to ensure color precision.
Manual
Configure red and blue gain manually; the system auto compensates WB
according to color temperature.
Natural
The system auto compensates WB to environments without artificial light to
ensure color precision.
Street Lamp
The camera will implement white balance to ensure precision and clarity of the
video image.
4.1.1.1.5 Configuring Day & Night
You can configure this function to accomplish the switch of image display between color mode and
black/white mode.
Click the Day & Night tab. Step 1

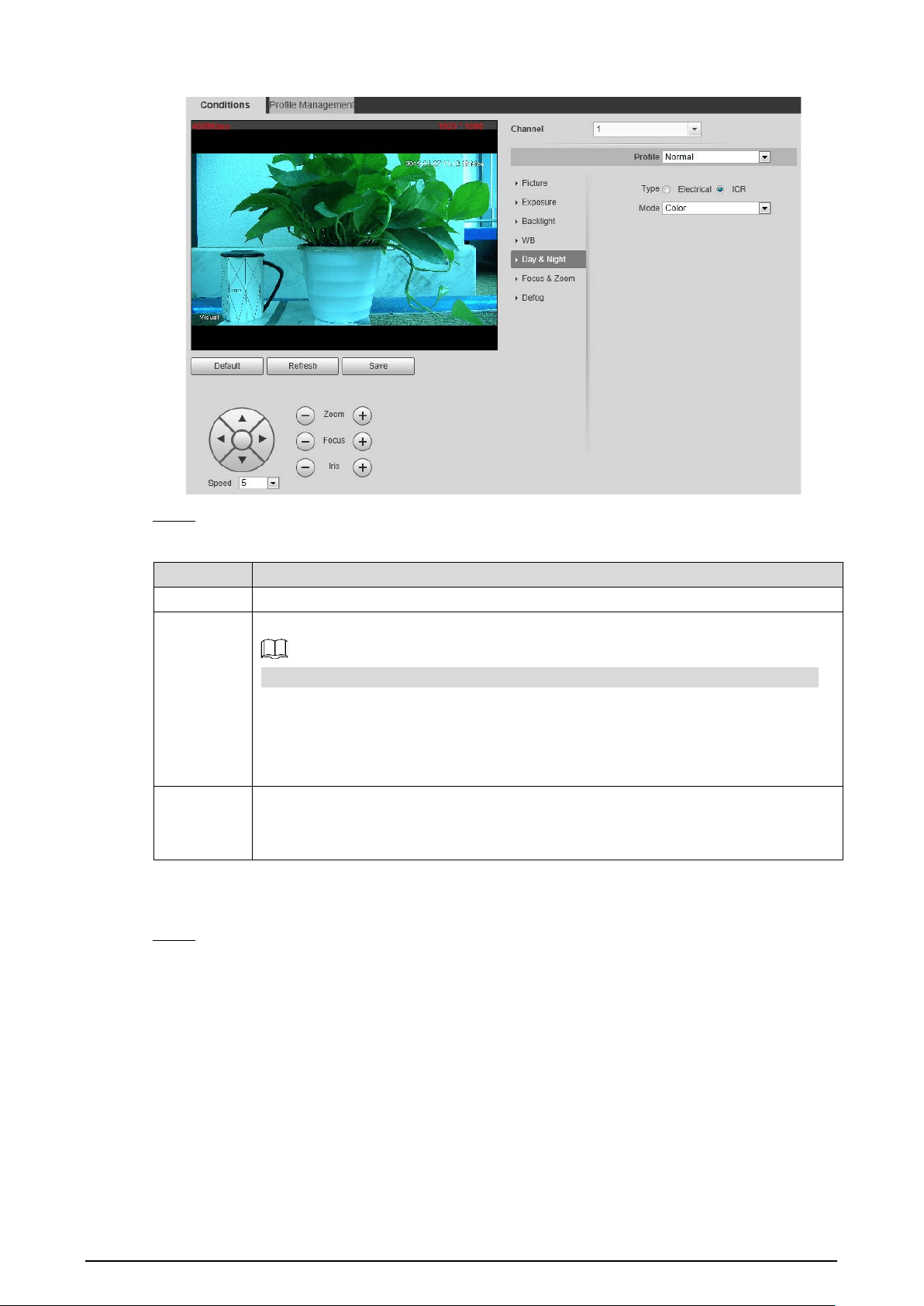

The Day & Night interface is displayed. See Figure 4-5.
51
The day & night interface Figure 4-5
Configure day & night parameters. See Table 4-5. Step 2
Table 4-5 Day & night mode description
Parameter Description
Type
Select Type from Electrical and ICR.
Mode
You can select Camera display mode from Color, Auto and B/W.
Day & night configuration is independent from profile management configuration.
Color: The system displays color image.
Auto: The system switches between color and black-and-white display according
to the actual condition.
B/W: The system displays black-and-white image.
Sensitivity
Select Auto as the Mode. Then You can configure this parameter.
You can configure camera sensitivity in switching between color and
black-and-white mode.
4.1.1.1.6 Configuring Focus & Zoom
Click the Focus & Zoom tab. Step 1
The Focus & Zoom interface is displayed. See Figure 4-6.
52
The focus & zoom interface Figure 4-6
Configure the focus & zoom parameters. See Table 4-6. Step 2
Table 4-6 Description of focus & zoom parameters
Parameter Description
Digital Zoom
Select the On check box to enable it.
You can use the digital zoom to continue the zooming operation even if the
optical zoom is at the maximum value.
Zoom Speed The larger the value, the faster the zooming operation.
Mode
The camera’s focusing mode.
Auto: Once there is any movement or change of an object on the video
image and the image turns blurry, the camera will focus again automatically.
Semi Auto: A user needs to prepare some conditions for the camera to focus
automatically. This is called “Semi Auto.” Pressing the focusing button,
implementing the zooming operation, enabling preset or three-dimensional
positioning, and PTZ’s rotation will all make the camera focus again
automatically.
Manual: You need to click or on the camera’s web to achieve the
focusing operation.
Focus Limit
The camera’s minimum focusing distance. If the focusing distance is too small, it
might get the camera focus on its dome.
Sensitivity
Select from High, Default and Low. When you select High, it will be easier for the
camera to focus.
PFA
Select the check box of On to enable the infrared correction.
Then when you implement the zooming or focusing operation under low lighting
condition, the camera will turn on the infrared light to aid you.
Lens Init
Click Lens Init to initialize the lens. The system will clear the zooming and
focusing data you have set.
53
4.1.1.1.7 Configuring Defog
The image quality will be compromised in foggy or hazy environment, and defog can be used then
to improve image clarity.
Click the Defog tab. Step 1
The Defog interface is displayed. See Figure 4-7.
The defog interface Figure 4-7
Configure the defogging settings. See Table 4-7. Step 2
Table 4-7 Defogging settings description
Defogging Settings Description
Auto The system adjusts image clarity according to the actual condition.
Manual Adjust image clarity manually.
Off Defogging function disabled.
4.1.1.1.8 Restoring Lens to the Default Settings
After you have modified lens parameters as mentioned above in 4.1.1.1, if you find situations such as
unclear images and abnormal colors, you can restore those parameters to the default settings—you
just need to click the Default button and click Save. See Figure 4-8.
54
Restoring lens to the default settings Figure 4-8
4.1.1.2 Configuring Thermal Image
To find and configure thermal image, you need to select Setting> Camera > Conditions >
Conditions first, and in the Channel box, select 2. See the following steps.
Configure a specific scenario where you use the camera, including indoor scenario, outdoor scenario,
and adaptive scenario. You can choose a scenario you need, and configure and check the scenario.
Select Setting> Camera > Conditions > Conditions. Step 1
The Conditions interface is displayed.
In the Channel box, select 2. Step 2
The thermal image interface is displayed. See Figure 4-9.
The thermal image interface might vary with different cameras, and the actual product shall
prevail.
55
The thermal image interface Figure 4-9
Configure lens parameters. See Table 4-8. Step 3
Table 4-8 Parameter description of lens
Classification Parameter Description
Profile
Profile
Normal, Day and Night can be selected.
Scene (marked by
① in Figure 4-9)
Select the duplicate frame and set the frequently used video
parameter as the user-defined scene. Or, you can select the
default scene and set the display of the thermal image.
Low Dynamic: Thermal images will be displayed based
on the configuration of low dynamic scene.
High Dynamic: Thermal images will be displayed based
on the configuration of high dynamic scene.
Auto: Thermal images will be displayed based on the
configuration of auto scene.
56
Basic Settings
Colorization
Add color to the thermal image and use color to indicate the
temperature. "White glow" is the default color.
White glow: Lighter when the temperature is higher in
gray image.
Black glow: Lighter when the temperature is lower in
gray image.
Fusion: Color is concentrated on the range of purple-
red-yellow. More purple when the temperature is lower
and more yellow when the temperature is higher.
Rainbow: Color is concentrated on the range of blue-
green-red-yellow. Bluer when the temperature is lower
and more yellow when the temperature is higher.
Golden autumn: Color is concentrated on the range of
red- yellow. Redder when the temperature is lower and
more yellow when the temperature is higher.
Midday: Color is concentrated on the range of blue-
green-red-yellow. Bluer when the temperature is lower
and more yellow when the temperature is higher.
Iron oxide red: Its color range is similar to that of
Midday, but its brightness is lower than Midday.
Amber: It’s mainly represented as brown. Brighter when
the temperature is higher.
Boulder: Color is concentrated on the range of purple -
red- yellow-green- blue. More purple
when the
temperature is lower and bluer when the temperature is
higher.
The setting sun: Color is concentrated on the range of
blue- red- yellow. Bluer when the temperature is lower
and more yellow when the temperature is higher.
Ice and fire: In color image, high temperature objects
show red and low temperature objects show blue. Ice
and fire is usually used to give a warning.
Oil painting: Color is concentrated on
the range of
purple-blue-green- yellow-red. More purple when the
temperature is lower and redder when the temperature
is higher.
Pomegranate: It’s mainly represented
as wine red.
Brighter when the temperature is higher.
Green jade: It’s mainly represented as aquamarine.
Brighter when the temperature is higher.
Brightness
Change the overall image brightness through linear mode.
The bigger the value is, the brighter the image will be, and
the smaller the darker.
Sharpness
Change the sharpness of image edges. The larger the value,
the more obvious the image edge.
Do not make the value too large to prevent image noise.
57
EZoom
Enlarge the thermal image according to the zoom time you
have set.
ROI Type
Select the district of strengthening video quality. The
brightness and clarity of the chosen district will be higher.
District consists of 25% central point, 50% central point, 75%
central point, full screen, bottom part, middle part, above
part and user-defined part.
When you set ROI Type to Custom, you need to press and
drag the left mouse button. Then, add the "ROI Type" box.
Mirror
Open the mirror image and the monitor image will reverse
from left to right.
Picture Freeze
When you are using the preset, the preset image that has
been used will be directly represented. The image during the
movement of PTZ will not be displayed.
Basic NR (Noise
Reduction)
Average the pixel of single frame image with other pixels to
reduce the image noise.
Select the copy frame, open the basic noise reduction and
configure the class of basic noise reduction. The higher the
class, the better the noise reduction, but the image will be
less clear.
Gain settings
Auto Gain The larger the gain value, the more unstable the image.
Balanced Gain The larger the district, the bigger the contrast.
Gain Mode
Low-temperature mode and high-temperature mode are
contained.
FFC Settings
FFC Mode
Method of correcting the shutter.
Auto: According to the switch period that you have
configured, the shutter will be corrected regularly.
Manual: Correct the shutter by yourself.
FFC Period
You can configure this parameter only when FFC Mode is set
to be Auto.
Adjust time gap of correcting the shutter automatically.
Do FFC
Click Do FFC to trigger the shutter correcting for this time.
Click Save. Step 4
Click Reset and the lens properties are restored to the primary state.
4.1.1.3 Configuring Profile Management
When configuring the profile management, you can select from Normal, Full Time and Schedule.
Select Setting > Camera > Conditions > Conditions > Profile Management. Step 1
The Profile Management interface is displayed.
Profile management configuration: Step 2
When Profile Management is set as Normal, the surveillance system works under
normal configuration.
58

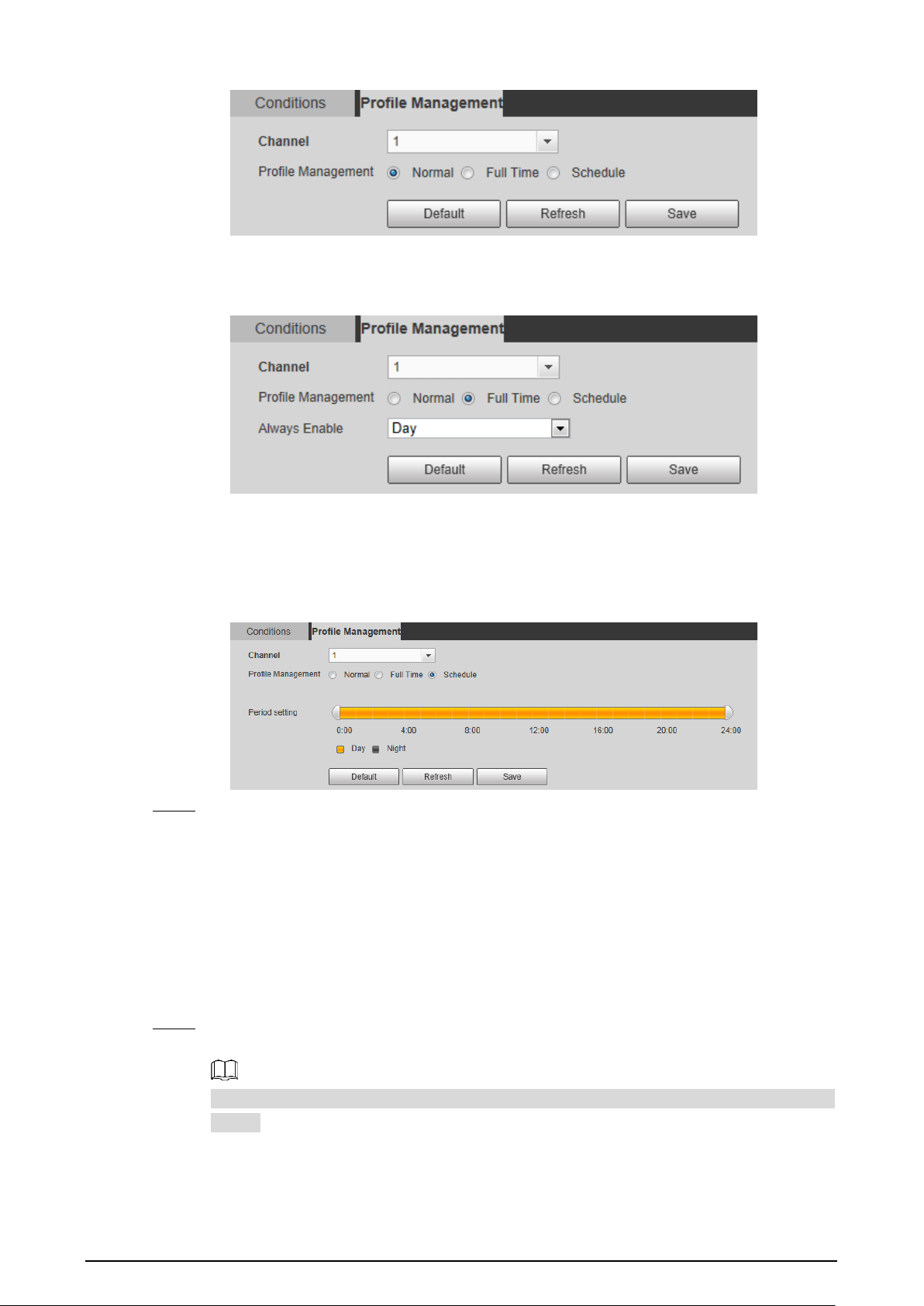

Common setting Figure 4-10
When Profile Management is set as Full Time, you can select Day or Night as Always
Enable, and the surveillance system works under Always Enable.
Full time setting Figure 4-11
When Profile Management is set as Schedule, you can drag the slide block to set
certain time as Day or Night. For example, set 8:00–5:00 PM as day, and 0:00–8:00
and18:00–24:00 as night. System works under corresponding configuration in different
time.
Switching based on time Figure 4-12
Click Save. Step 3
4.1.2 Configuring Video Parameters
4.1.2.1 Configuring Video Streaming
Configure video stream parameters, including stream type, encode mode, resolution, frame rate, bit
stream control, bit stream, I frame interval, SVC, and watermark.
Select Setting > Camera > Video > Video. Step 1
The Video interface is displayed. See Figure 4-13.
The default bit stream value of different Cameras might vary, and the actual product shall
prevail.
59
Video Figure 4-13
Configure video streaming. See Table 4-9. Step 2
Table 4-9 Parameter description
Parameter Description
Enable
Select the option box to enable sub stream (enabled by default).
Enabling sub stream 1 and sub stream 2 at the same time are supported.
Encode
Mode
Encode mode of video.
H.264: Main profile encode mode.
H.264H: High profile encode mode.
H.264B: Baseline profile encode mode.
MJPEG: Under this mode, the higher streaming value is required to ensure
the clarity of images. And, we suggest that you should use the maximum
streaming value we have offered.
Resolution
The resolution of the video The max resolution of different Cameras might vary,
and the actual product shall prevail.
Frame Rate
(FPS)
The number of frame in one second of video The higher the FPS is, the clearer
and smoother the video will be.
Bit rate
You can select bit rate type:
Fixed: the bit rate changes little and keeps close to the set bit rate value.
Changeable: the bit rate changes as monitoring scene changes.
Bit rate type can only be set as Fixed when Encode Mode is set as MJPEG.
quality
This parameter can be configured only when the bit rate type is set as
"Changeable."
Image quality can be classified as the six levels of "the best", "the better", "good",
"bad", "the worse", "the worst."
Reference
bit rate
value
According to resolution and frame rate you have set, we have offered you a
reference bit rate value, which is also the best value you can adopt.
Bit rate
This parameter can be configured only when the bit rate type is set as Fixed.
If you select the bit rate value according to “reference bit rate value”, the
streaming changes little and keeps close to the bit rate value you have selected.
Select Customized and you can configure bit rate value manually.
60
Maximum
bit rate
This parameter can be configured only when bit rate type is set as Changeable.
You can select the max value of the bit rate according to the reference bit rate
value, and the bit rate changes with monitoring scenes, but the max bit rate
keeps close to the value you set.
I Frame
Interval
The number of P frame between two I frames, and the I Frame Interval range
changes as FPS.
It is recommended to set I Frame Interval twice as big as FPS.
SVC
Scaled video coding, able to encode a high quality video bit stream that
contains one or more subset bit streams. The default value is 1, which means no
layered coding.
Watermark
Settings
Select the check box to enable watermark.
Then you can check if the video has been tampered by verifying the watermark.
Watermark
character
The default character is Digital CCTV.
You can configure at most 128 watermark characters which are composed of
number, letter, underline and dash.
Click Save. Step 3
4.1.2.2 Configuring Image Streaming
Configure parameters of image streaming which cover snapshot type/interval, image size/quality.
Select Setting > Camera > Video > Snapshot. Step 1
The Snapshot interface is displayed. See Figure 4-14.
Snapshot Figure 4-14
Configure snapshot streaming. See Table 4-10. Step 2
Table 4-10 Parameter description
Parameter Description
Snapshot type
You can select General or Event.
General means the system takes snapshot as scheduled
Event means snapshot functions when video\
audio detection,
event or alarm is triggered.
Image Size The same resolution with main stream.
Quality Snapshot quality. The bigger the value, the better the snapshot quality.
Snapshot interval
Snapshot frequency.
Select Customized to manually configure snapshot frequency.
61
Heat map in jpeg
Select the check box and snapshots of thermal images will carry the
temperature-measuring information.
Click Save. Step 3
4.1.2.3 Configuring Video Overlay
Configure Overlay which covers Privacy Masking, Channel Title, Time Title, Geography location,
Font, and Picture Overlay.
4.1.2.3.1 Configuring Privacy Masking
You can enable this function if you need to cover certain area in the video image.
This function is available only for bullet cameras.
Select Setting > Camera > Video > Overlay. Step 1
The Overlay interface is displayed.
Click Privacy Masking. Step 2
The Privacy Masking interface is displayed. See Figure 4-15.
Privacy masking interface Figure 4-15
Select Enable, and then drag the block to the area that you need to cover. Step 3
You can draw four area boxes at most.
Click Remove All to delete all the area boxes; you can also just select one box, and
click Delete or right-click to delete it.
Click Save. Step 4
4.1.2.3.2 Configuring Channel Title
You can enable this function if you need to display Channel title in the video image.
Select Setting > Camera > video > Overlay. Step 1
The Overlay interface is displayed.
62

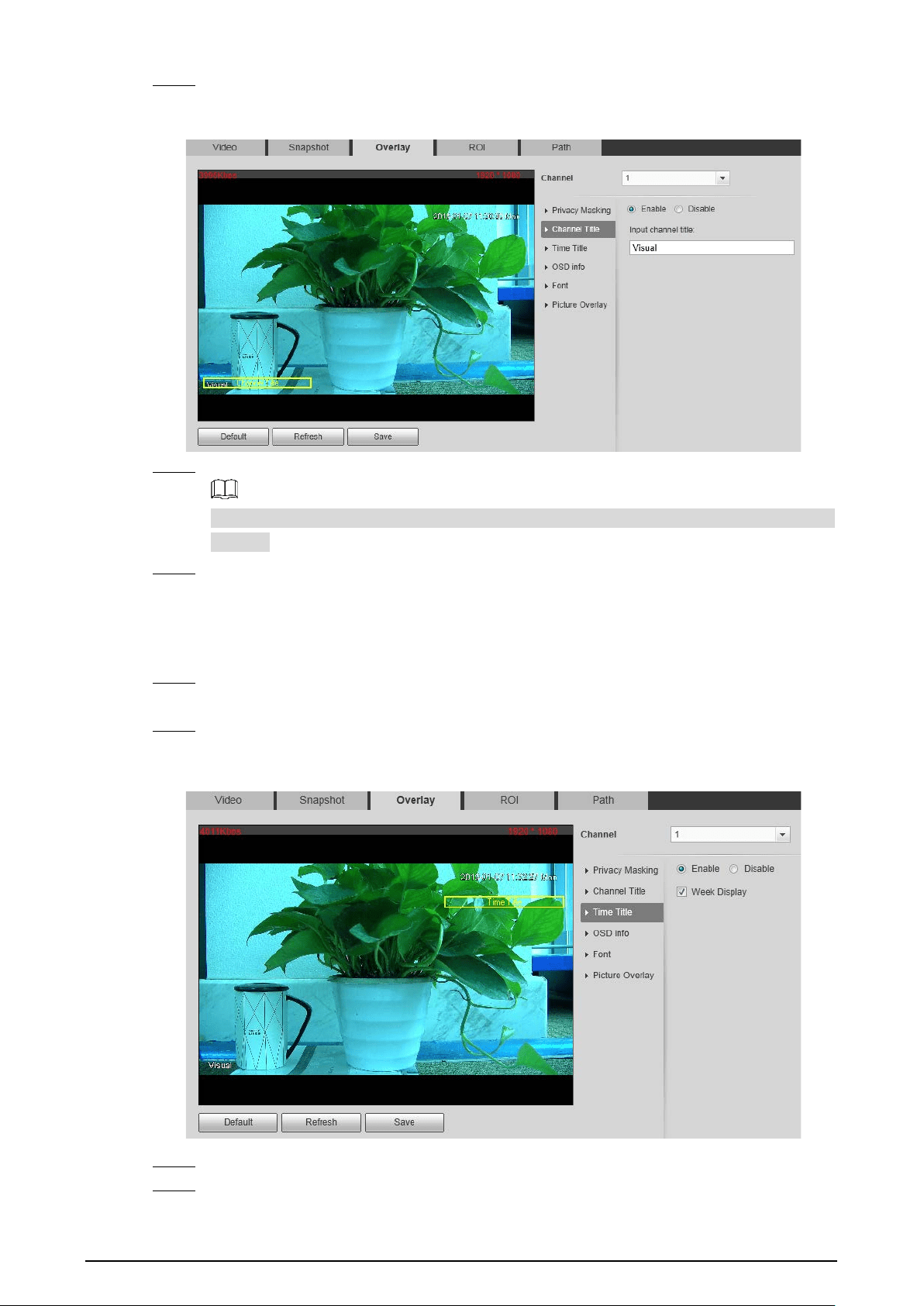

Click Channel Title. Step 2
The Channel Title interface is displayed. See Figure 4-16.
Channel title Figure 4-16
Select Enable and enter channel title, and then the title displays in the video image. Step 3
You can drag the "Channel Title" box in the video image with your mouse to adjust the box’s
location.
Click Save. Step 4
4.1.2.3.3 Configuring Time Title
You can enable this function if you need to display time on the video image.
Select Setting > Camera > Video > Overlay. Step 1
The Overlay interface is displayed.
Click Time Title. Step 2
The Time Title interface is displayed. See Figure 4-17.
Time title Figure 4-17
Select the Enable check box, and the time displays in the video image. Step 3
Click Week Display, and then the week information displays in the video image. Step 4
63
You can drag the "Time Title" box in the video image with your mouse to adjust the box’s
location.
Click Save. Step 5

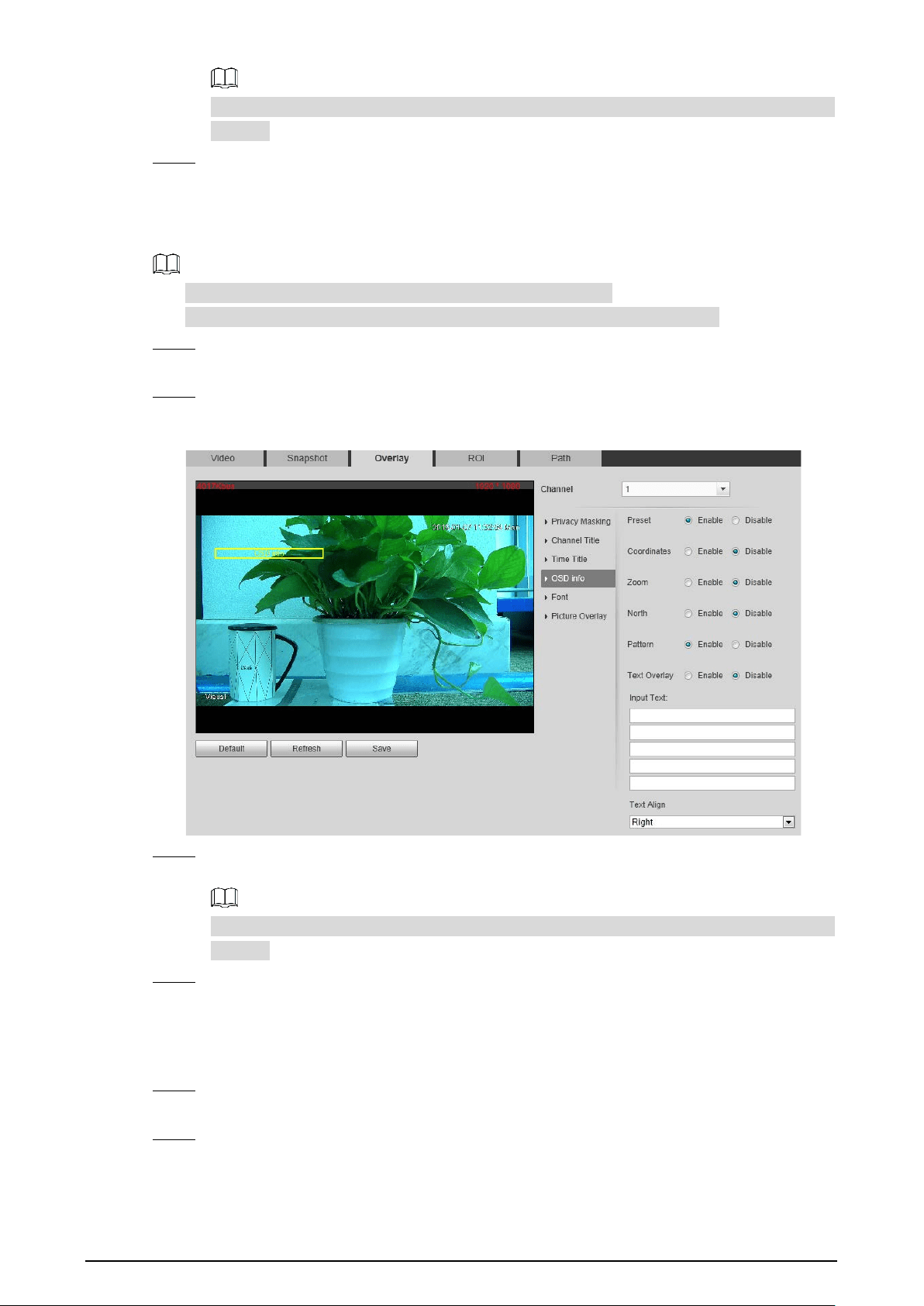

4.1.2.3.4 Configuring OSD Info
Enable this function if you want to display words on the video image.
Text Overlay and Picture Overlay can’t work at the same time.
This function is available on select models and the actual interface shall prevail.
Select Setting > Camera > Video > Overlay. Step 1
The Overlay interface is displayed.
Click OSD Info. Step 2
The OSD Info interface is displayed. See Figure 4-18.
OSD Info Figure 4-18
Select the Enable check box of Text Overlay, and enter text based on your own needs. Then, Step 3
select the text align method, and the OSD Info box is displayed on the video image.
You can drag the OSD Info box on the video image with your mouse to adjust the box’s
location.
Click Save. Step 4
4.1.2.3.5 Configuring Font
You can adjust size and color of the font in the video images based on your own needs.
Select Setting > Camera > video > Overlay. Step 1
The Overlay interface is displayed.
Click the Font tab. Step 2
The Font interface is displayed. See Figure 4-19.
64

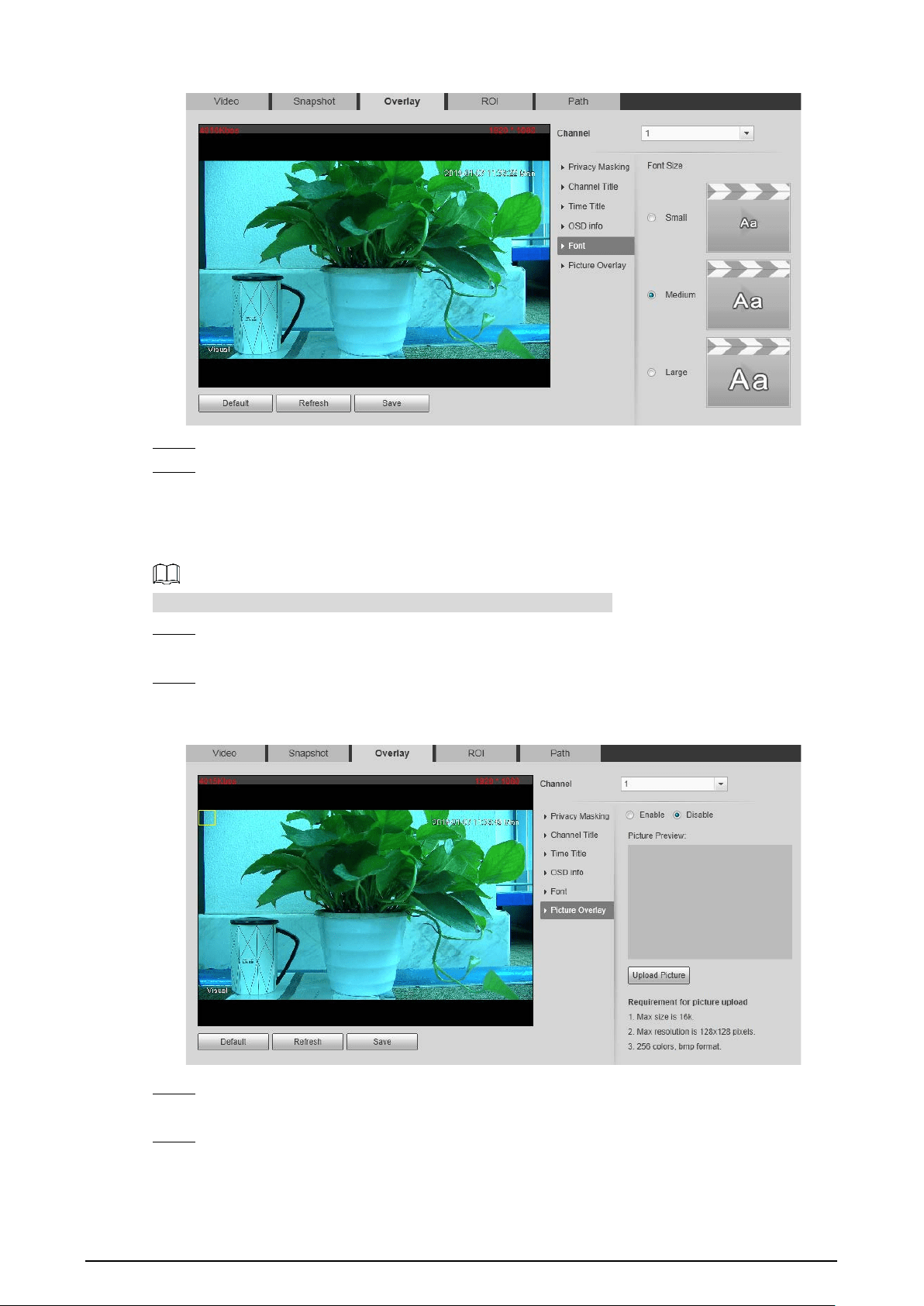

Font setting Figure 4-19
Select color and size of the font based on your own needs. Step 3
Click Save. Step 4
4.1.2.3.6 Configuring Picture Overlay
You can enable this function if you need to display picture information in the video image.
Geography location and Picture overlay can’t work at the same time.
Select Setting > Camera > video > Overlay. Step 1
The Overlay interface is displayed.
Click the Picture Overlay tab. Step 2
The Picture Overlay interface is displayed. See Figure 4-20.
Picture overlay interface Figure 4-20
Select the Enable check box. Step 3
You will be informed that OSD information is to be closed. Click Save.
Click Upload Picture, and select a picture. The picture is displayed in video images. Step 4
65
You can drag the "Picture Overlay" box in the video image with your mouse to adjust the
box’s location.
Click Save. Step 5

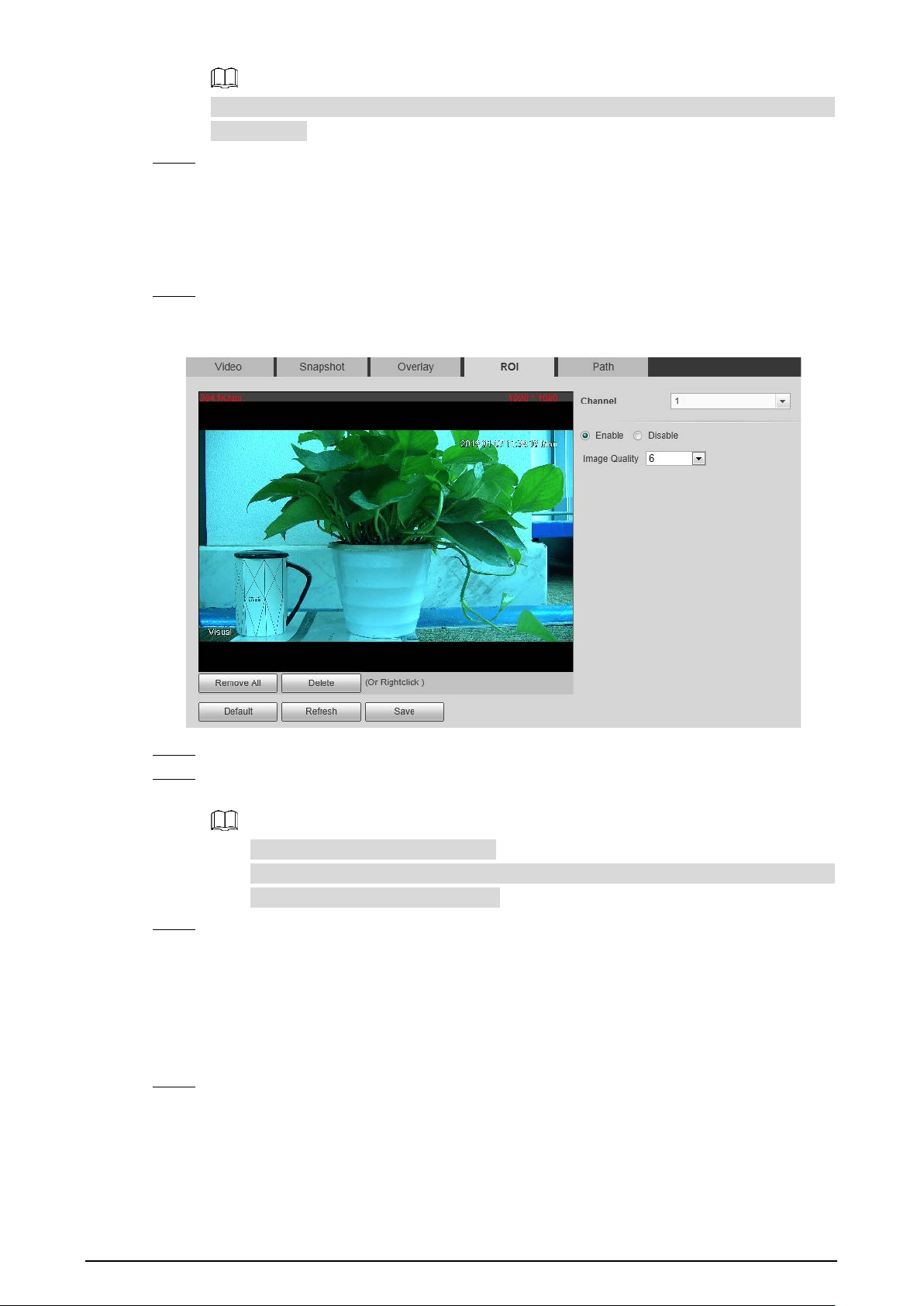

4.1.2.4 Configuring ROI
Select ROI in the image, and then the selected image would display with configured quality.
Select Setting > Camera > Video > ROI. Step 1
The ROI interface is displayed. See Figure 4-21.
ROI interface Figure 4-21
Select the Enable check box. Step 2
Hold the left mouse button to draw a ROI area on video images. You can also configure the Step 3
ROI’s display quality.
You can draw at most four ROI areas.
Click Remove All to delete all the area boxes; you can also just select one box, and
click Delete or right-click to delete it.
Click Save. Step 4
4.1.2.5 Configuring Storage Path
Configure storage paths covering Live Snapshot, Live Record, Playback Snapshot, Playback
Download, Video Clips, and Heat Map.
Select Setting > Camera > Video > Path. Step 1
The Path interface is displayed. See Figure 4-22.
66
Storage path interface Figure 4-22
Click Browse, and configure storage paths of live snapshot, live record, playback snapshot, Step 2
playback download, video clips, and heat map. See Table 4-11 for detailed description.
Table 4-11 Storage path description
Path Description
Live Snapshot
Live snapshot refers to the snapshot of live interface.
C:\Users\admin\WebDownload\LiveSnapshot is the default path.
Live Record
Live record refers to the recorded video of live interface.
C:\Users\admin\WebDownload\LiveSnapshot is the default path.
Playback
Snapshot
Playback snapshot refers to the snapshot of playback interface.
C:\Users\admin\WebDownload\LiveSnapshot is the default path.
Playback
Download
Playback download refers to the downloaded video of playback interface.
C:\Users\admin\WebDownload\LiveSnapshot is the default path.
Video Clips
Video clips refer to the clipped video of playback interface.
C:\Users\admin\WebDownload\LiveSnapshot is the default path.
Heat Map
Heat map comes from the location Setting > Temperature.
C:\Users\admin\WebDownload\LiveSnapshot is the default path.
Administrator in the default path is the user account.
Click Save. Step 3
4.1.3 Configuring Audio Parameters
Configure audio parameters covering Encode Mode, Sampling Frequency, Audio in Type, and
Noise Filter.
Functions of different Cameras might vary and the actual product shall prevail.
Select Setting > Camera > Audio. Step 1
The Audio interface is displayed. See Figure 4-23.
67

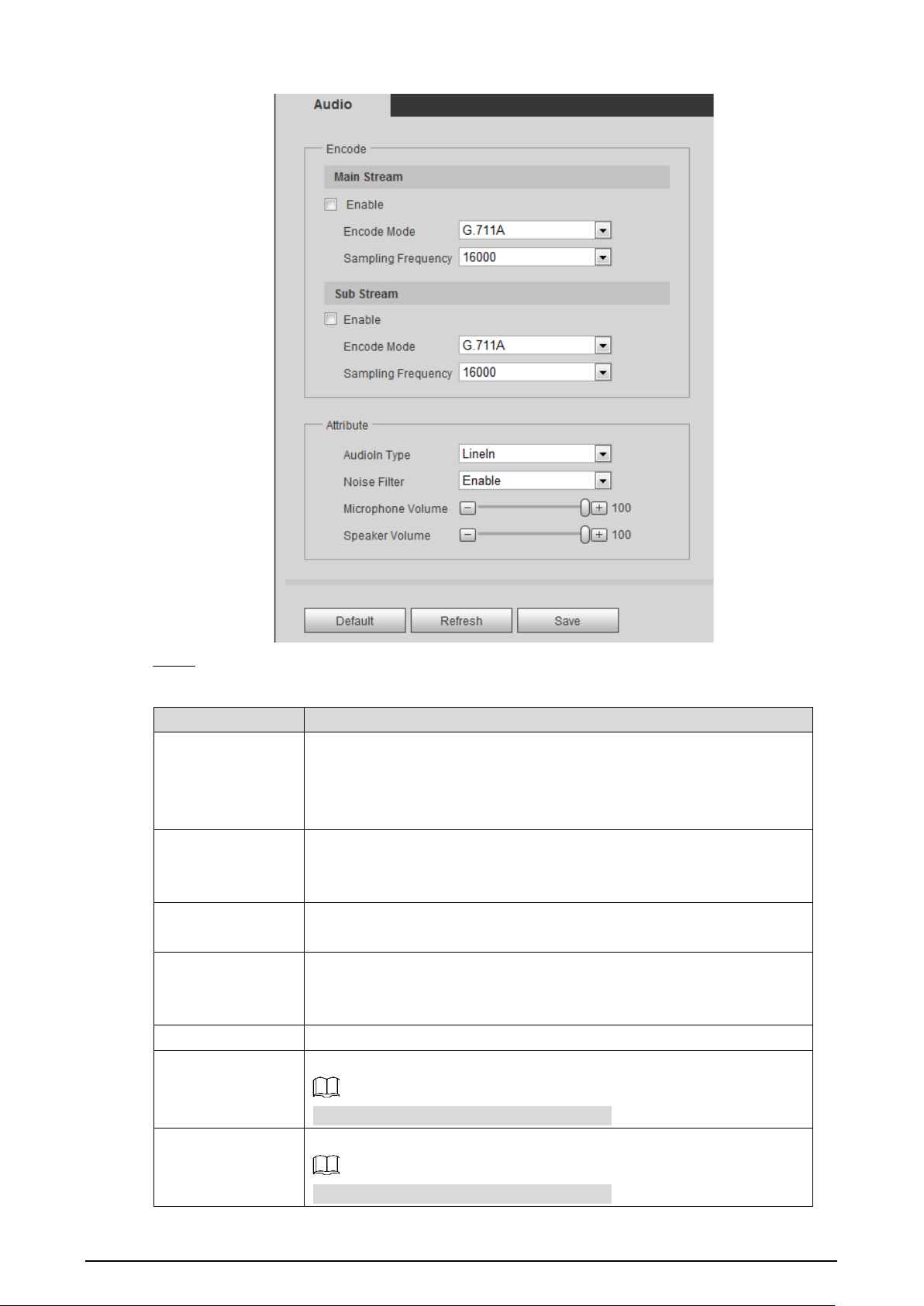

Audio Figure 4-23
Configure Audio parameters. See Table 4-12. Step 2
Table 4-12 Parameters
Parameters Description
Enable
Audio can be enabled only when video is enabled.
Enable Main Stream or Sub Stream, and the network stream is
composed of both audio and video streams. If you do not select Main
Stream or Sub Stream, then only video images are transmitted.
Encode Mode
You can select audio encode mode. G.711A, G.711Mu, and AAC are
included.
The configured audio encode mode applies to audio and intercom.
Sampling
Frequency
Audio’s sampling frequency. 8K and 16K are included.
Audio in Type
Two audio types are selectable.
Linein: External audio input source is required.
Mic: External audio input source is not required.
Noise Filter Enable this function, and the system auto filters ambient Noise.
Microphone
Volume
Adjusts microphone volume.
This function is not available for all Cameras.
Speaker Volume
Adjusts speaker volume.
This function is not available for all Cameras.
68
Click Save. Step 3
Configuring Network 4.2
4.2.1 Configuring TCP/IP
You need to configure the camera’s IP address and DNS server to connect the camera with other
Cameras in the network.
Preparation
You have connected the camera to network.
Procedure
Select Setting > Network > TCP/IP. Step 1
The TCP/IP interface is displayed. See Figure 4-24.
TCP/IP interface Figure 4-24
Configure TCP/IP parameters. See Table 4-13. Step 2
Table 4-13 TCP/IP parameters
Parameter Description
Host Name Enter host name, 15 characters at most.
Ethernet Card
Wire (Default) is set by default.
69
Mode
Static: You need to manually configure IP Address, Subnet Mask
and Default Gateway.
DHCP: Obtains IP address automatically. With DHCP enabled, IP
Address, Subnet Mask and Default Gateway cannot be configured.
You can check the current IP address whether the DHCP takes effect
or not.
MAC Address Host’s MAC address, cannot be modified.
IP Version Select IPv4 or IPv6.
IP Address
You can type IP address and subnet mask according to your own needs.
All the IPv6 addresses will be validated, so ensure IP address and subnet
mask are in the same network segment, which means the front parts of
the IP address and the default gateway are the same one.
Subnet Mask
Default Gateway
Configure as needed, the default gateway must
be in the same network segment with the IP
address.
There is no default
gateway for IPv6. Enter
128 digits in preferred
DNS and alternate DNS.
Preferred DNS IP address of the preferred DNS.
Alternate DNS IP address of the alternate DNS.
70
Enable ARP/Ping
to set IP address
service.
Select the check box, get the Camera MAC address, and then you can
modify and configure the Camera IP address with ARP/ping command.
This is enabled by default. During reboot, you will have no more than two
minutes to configure the Camera IP address with a ping packet which has
certain length. The server will be turned off in 2 minutes, or it will be
turned off immediately after IP address configuration. If this is not
enabled, the IP address cannot be configured with ping packet.

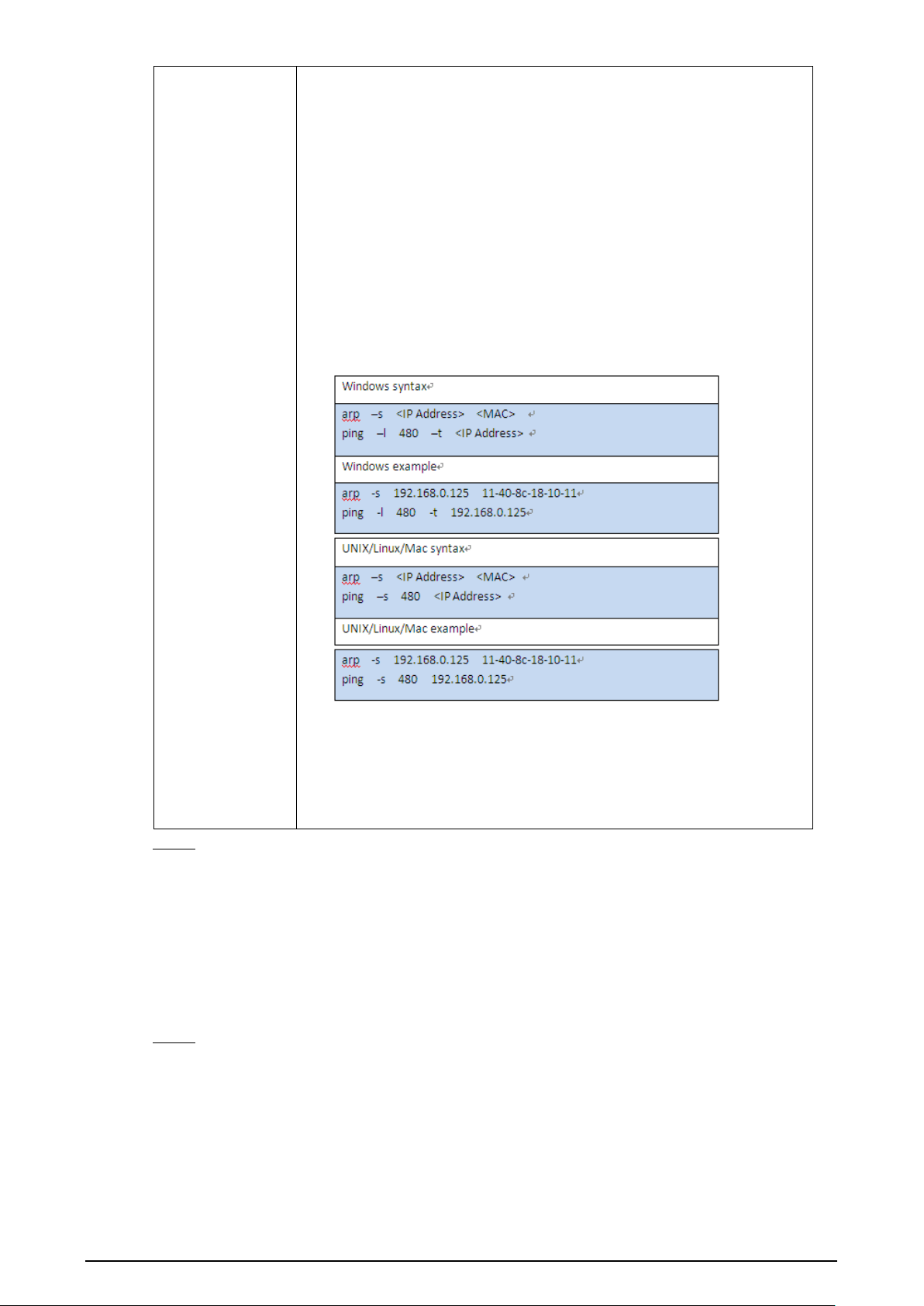

A demonstration of configuring IP address with ARP/Ping.
1. To obtain a free IP address, you need to ensure that the Camera and
your PC are in the same LAN.
2. Get MAC address from the Camera label.
3. Open command editor on your PC and enter the following command.
4. Reboot through power or network.
5. Check your PC command line. If there is information such as "Reply
from 192.168.0.125…", you have done configuration successfully. Turn
it off then.
6.
Enter http://(IP address) in the browser address bar to log in.
Click Save. Step 3
4.2.2 Configuring Port
4.2.2.1 Configuring Port Parameters
You can configure the maximum port number and each port value.
Select Setting > Network > Port > Port. Step 1
The Port interface is displayed. See Figure 4-25.
71
Port Figure 4-25
Configure parameters. See Table 4-14. Step 2
Configuration of Max Connection takes effect immediately and others after reboot.
0–1024, 37780, 37880, 1900, 3800, 5000, 5050, 9999, 37776, 39999 and 42323 are
occupied for specific uses.
It is not recommended to use the default value of other port during port
configuration.
Table 4-14 Port parameter description
Parameter Description
Max
Connection
The maximum number of users (web client, platform client or mobile phone
client) that can connect to the Camera simultaneously, the value is 10 by
default.
TCP Port Port of transmission control protocol. The value is 37777 by default.
UDP Port User datagram protocol port, the value is 37778 by default.
HTTP Port
HTTP communication port. The default value is 80. If you have modified the
default value, when logging in through a browser, you need to add the latest
port number to the end of IP address.
72
RTSP Port
554 is the default port number. If you play live view through Apple’s
QuickTime or VLC, the following format is available. This function is also
available for Blackberry.
When the URL forma
t requiring RTSP, you need to specify channel
number and bit stream type in the URL, and also user name and
password if needed.
When playing live view with Blackberry smart phone, you need to turn
off the audio, and then set the code mode to H.264B and resolution to
CIF.
URL format example:
rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0
Username: admin, for example.
password
IP: your Camera I P.
Port: leave it if the value is 554 by default.
Channel 1: Channel number, starts from 1. For example, if you are using
channel 2, then the channel=2.
Subtype refers to Bit stream type; 0 means main stream (Subtype=0) and
1 means sub stream (Subtype=1).
So, if you require the sub stream of channel 2 from a certain Camera, then the
URL should be:
rtsp://admin:[email protected]:554/cam/realmonitor?channel=2&subtype=1
If user name and password are not needed, then the URL can be:
rtsp://ip:port/cam/realmonitor?channel=1&subtype=0
Enable HTTPS
HTTPS: Control of communication service. After selecting the check box, you
can log in the Camera through https://ip:port. When there is a default port,
you can log in through https://ip.
HTTPS Port
HTTPS communication port whose value can be selected from 1025–65534
and 443 is the default value.
Click Save. Step 3
4.2.2.2 Configuring ONVIF Verification When Logging
With ONVIF port standard, network video products (video recording Camera and other recording
Cameras included) of different manufacturers can be connected to each other.
ONVIF is enabled by default.
When logging in through ONVIF, the default names of both “username” and “password” are
admin and the default port value is 80.
Select Setting > Network > Port > ONVIF. Step 1
The ONVIF interface is displayed. See Figure 4-26.
73
ONVIF Figure 4-26
Select the On check box in Authentication bar. Step 2
Click Save. Step 3
4.2.3 Configuring PPPoE
Point-to-Point Protocol over Ethernet, it is one of the protocols that Camera uses to connect to the
internet. Get the PPPoE user name and password from the Internet Service Provider, and then, set
network connection through PPPoE, the Camera will acquire a WAN dynamic IP address.
Disable UPnP while using PPPoE to avoid possible influence.
After making PPPoE connection, the Camera IP address cannot be modified through web
interface.
Select Setting > Network > PPPoE. Step 1
The PPPoE interface is displayed. See Figure 4-27.
PPPoE Figure 4-27
Select the Enable check box, and type user name and password. Step 2
Click Save. Step 3
The successful prompt displays, and then the real-time WAN IP address is displayed. You can
visit Camera through this IP address.
4.2.4 Configuring DDNS
When Camera’s IP address is frequently changed, you can enable DDNS to dynamically update the
relation between domain name and IP address (both of which are in the DNS server). By this, you can
log in the Camera through a domain name.
Preparation
Before making any changes, check if your Camera supports the DNS server.
If Quick DDNS is the DDNS’ type, you do not need to register a new domain name.
If Quick DDNS is not the DDNS’ type, you need to log in the domain name of website
registration provided by DDNS service provider.
74
Register and log in the DDNS website, and then you can view the information of all the connected
Cameras in your account.
Procedure
Select Setting > Network > DDNS. Step 1
The DDNS interface is displayed. See Figure 4-28.
DDNS setting interface Figure 4-28
Select Type and configure as needed. Step 2
Table 4-15 DDNS parameters
Parameter Description
Type
See the name and web site of DDNS service provides below:
"members.dyndns.org" is the IP address of Dyndns DDNS.
"dynupdate.no-ip.com" is the IP address of NO-IP DDNS.
"members.3322.org" is the IP address of CN99 DDNS.
Address
Domain name The domain name you registered on the DDNS website.
User name
Enter the user name and password you got from DDNS service provide. You
need to register an account (with user name and password) on the DDNS
service provides’ website.
Password
Update period
The update cycle of the connection between your Camera and the server. 10
minutes are set by default.
Click Save. Step 3
Open your browser, and type the domain name into address bar. Press Enter. If a web
interface is displayed, the configuration is finished successfully.
4.2.5 Configuring SMTP
Configure SMTP (Email). When alarm, video detection, abnormal event and intelligent are triggered,
SMTP alarms will be transmitted to the specific Emails you have configured.
Select Setting > Network > SMTP (Email). Step 1
The SMTP (Email) interface is displayed. See Figure 4-29.
75
SMTP (Email) Figure 4-29
Configure your SMTP server. Step 2
For SMTP (Email)’s other parameters to be configured, see Table 4-16. Step 3
Table 4-16 SMTP (Email) parameter description
Parameter Description
Anonymity
Enable Anonymity, and senders’ identities will not be displayed in Emails
transmitted to others.
Sender Sender’s email address
Encryption type Select Authentication type from None, SSL and TLS. TLS is set by default.
Attachment Select the check box to support attachment in the email.
Title
You can enter no more than 63 characters in Chinese, English, and Arabic
numerals.
Receiver Receiver’s mail address. Supports 3 addresses at most.
Interval
Time intervals of sending alarm Emails. "0" means there is no interval. Set a time
interval (normally >0s) as you want and when alarm, video detection, or event is
triggered, Emails will not be transmitted all the time but be transmitted in the
time interval you have set. This function is aimed at easing the pressure that is
put on the Email server when there are quite a lot of abnormal events.
Health Mail
The system sends test mail to check if the connection is successfully set. Select
Health Mail to configure Update Period. E-mail testing results will be
transmitted in time intervals you have set.
Test
Test the email sending and receiving function. If the configuration is correct, you
would receive test email. Save email configuration before running rest.
Click Save. Step 4
76
4.2.6 Configuring UPnP
Configure UPnP protocols to establish the reflection relation between intranet and external network.
A user can access IP address of external network to visit Cameras in the intranet.
Preparation
Ensure UPnP network service has been installed to your PC.
Log in the router, and configure WAN IP address to set internet connection.
Enable UPnP in the router.
Connect your Camera to the LAN port of the router.
Set IP address of your router as that of your Camera, or select DHCP to obtain IP address
automatically.
Procedure
Select Setting > Network > UPnP. Step 1

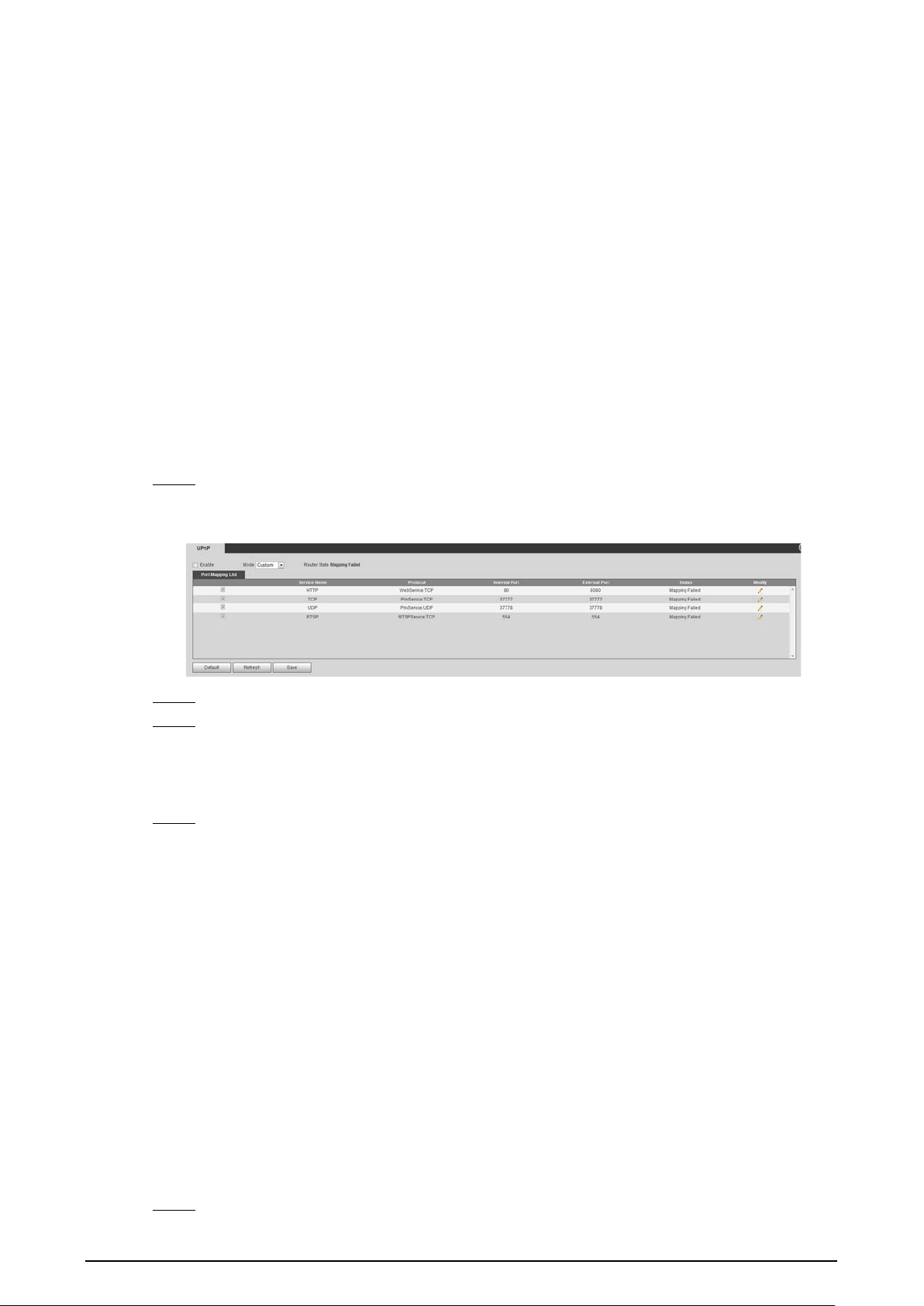

The UPnP interface is displayed. See Figure 4-30.
UPnP Figure 4-30
Select the Enable check box. Step 2
Select mode, and service name in the port mapping list. Step 3
UPnP can be classified as custom mode and default mode.
Under custom mode, you can change external ports.
Under default mode, you do not need to change ports and reflection relations.
Click Save. Step 4
Type "http:// (external network IP address): (external port number)" to access Cameras in
Intranet whose ports correspond to your router.
4.2.7 Configuring SNMP
SNMP (Simple Network Management Protocol) is a basic network management framework. You need
to install certain software to the Camera to obtain the Camera’s information.
Preparation
Install SNMP monitoring and managing tools such as MIB Builder and MG-SOFT MIB Browser.
You can contact technical support for the MIB file that matches the current version.
Procedure
Select Setting > Network > SNMP. Step 1
77
The SNMP interface is displayed. See Figure 4-31 and Figure 4-32.
SNMP (1) Figure 4-31
SNMP (2) Figure 4-32
Select the Version check box to enable SN M P. Step 2
Configure SNMP parameters. See Table 4-17. Step 3
In the Trap Address bar, enter the IP address of the PC that has MIB Builder and MG-SOFT
MIB Browser installed, other parameters leave to the default.
78
Table 4-17 SNMP parameter description
Parameter Description
SNMP Version
Select a version and its information will be displayed in the SNMP interface.
Select v1, and only v1’s information is displayed.
Select v2, and only v2’s information is displayed.
Select v3, and you can configure user name, password and authentication
type. It requires corresponding user name, password and authentication
type from the server to visit your Camera. V1 and v2 version are now
unavailable.
SNMP Port Refers to the listening port of the software agent in the Camera.
Community
A character string, acts as a clear text password which can manage network’s
process and agent process. It defines the relation concerning certification,
access, and escrow between agent and administrator. Camera and agent must
be consistent.
Read community,
write community
Refers to the read and w
rite community string that the software agent
supports.
You can enter number, letter, underline and dash to form the name.
Trap
SNMP trap is a SNMP agent which transmits information such as important
event or change of state to the administrator.
Trap address A destination address to which agent program sends trap information.
Trap Port
A destination port to which agent program sends trap information. 162 set by
default and range from 1–65535.
Read-only
username
The name is "public" by default.
You can enter number, letter, underline to form the name.
Read/Write
username
The name is "private" by default.
You can enter number, letter, underline to form the name.
Authentication
type
You can select from MD5 and SHA, the default type is MD5.
Authentication
password
It should be no less than 8 digits.
Encryption type The default is CBC-DES.
Encryption
Password
It should be no less than 8 digits.
Click Save. Step 4
View Camera information. Step 5
1) Run MIB Builder and MG-SOFT MIB Browser.
2) Compile the two MIB files with MIB Builder.
3) Load the generated modules with MG-SOFT MIB Browser.
4) Enter the IP address of the Camera you need to manage in the MG-SOFT MIB Browser,
and then select version to search.
79
5) Unfold all the tree lists displayed in the MG-SOFT MIB Browser, and then you can view
the configuration information, video channel amount, audio channel amount and
software version.
Use PC with Windows OS and disable SNMP Trap service. The MG-SOFT MIB Browser will
display prompt when alarm is triggered.
4.2.8 Configuring Bonjour
Bonjour is also called zero-configuration networking. With Bonjour built into Cameras such as your
phone, this thermal camera can be searched and accessed. Bonjour is a protocol of industry standard
which allows Cameras search and find each other. IP address or DNS server is not required during this
process.
Enable Bonjour in this thermal camera, and this camera will be automatically detected by your
client-side or web with Bonjour function. When this thermal camera is detected by Bonjour, server
name you have set will be displayed.
Bonjour is enabled by default.
Select Setting > Network > Bonjour. Step 1
The Bonjour interface is displayed. See Figure 4-33.
Bonjour Figure 4-33
Select the Enable check box, and then configure server name. Step 2
Click Save. Step 3
You can use Safari browser, and your client side or web with Bonjour function to access the thermal
camera’s web.
Click "Show All Bookmarks" in Safari. Step 1
Enable Bonjour, and then, in your LAN, all the network cameras in which the "Bonjour" is Step 2
enabled are displayed.
Click to visit the corresponding Web interface. Step 3
4.2.9 Configuring Multicast
The Camera has limit towards web visitors. If several people access this Camera’s web in the
meantime, video images may not be represented. To solve the problem, you can set the Camera’s
multicast IP and adopt multicast protocol.
Select Setting > Network > Multicast. Step 1

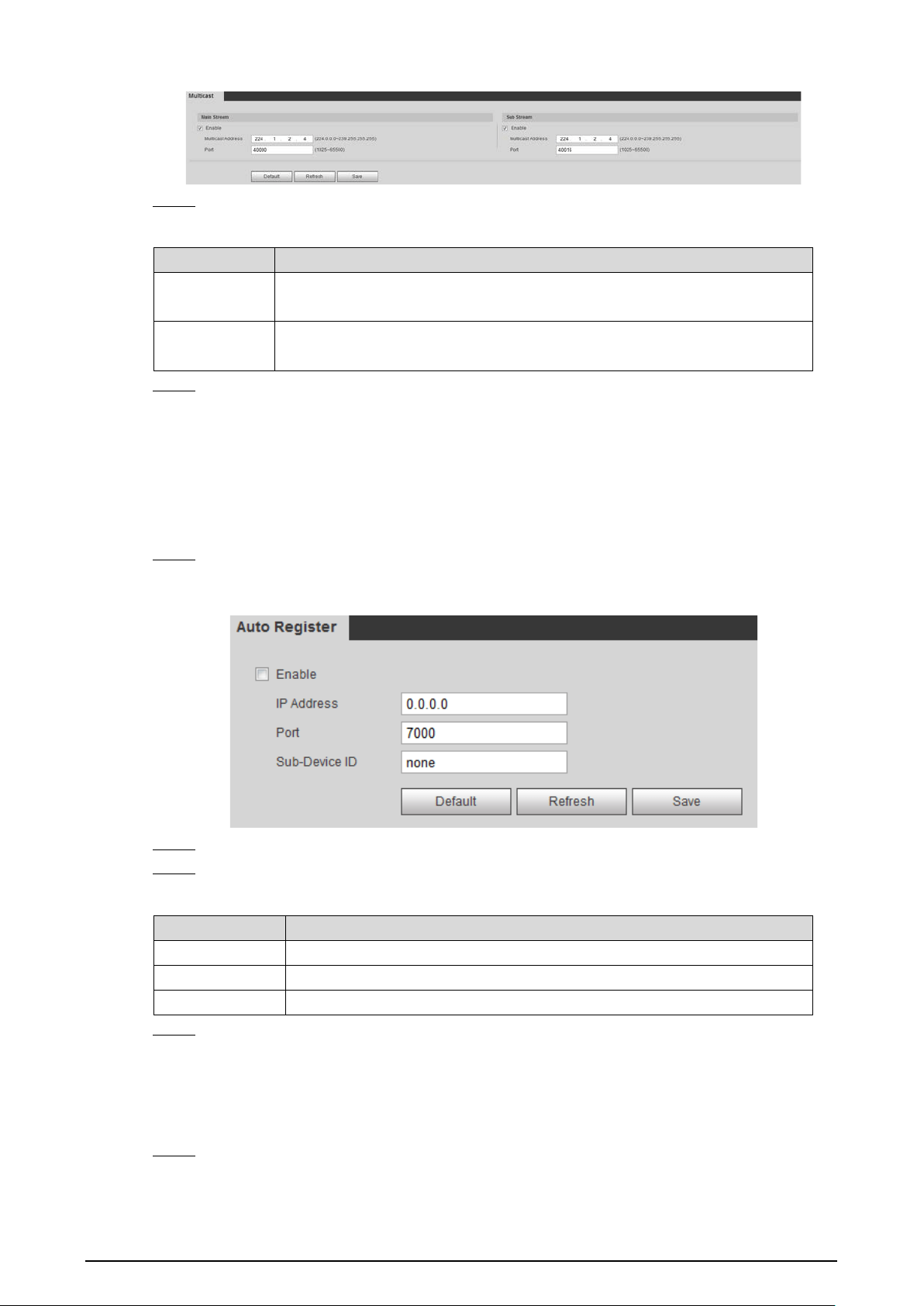

The Multicast interface is displayed. See Figure 4-34.
80
Multicast Figure 4-34
Select Enable and then enter IP address and port number. See Table 4-18. Step 2
Table 4-18 Multicast
Parameter Meaning
Description
The Multicast IP address of Main Stream/Sub Stream is 224.1.2.4 by default,
and the range is 224.0.0.0–239.255.255.255.
Port
See the multicast port of corresponding stream: Main Stream: 40000; Sub
Stream1: 40016; Sub Stream2: 40032, all the range is 1025–65500.
Click Save, and the login interface is displayed. The configuration finishes. Step 3
In the Live interface, set Protocol to Multicast, and then you can view the video image with
Multicast protocol.
4.2.10 Configuring Auto Registration
In the Auto Register interface, you can set an IP address to which the camera will report its location.
Select Setting > Network > Auto Register. Step 1
The Auto Register interface is displayed. See Figure 4-35.
Auto registration Figure 4-35
Select the Enable check box. Step 2
Set auto registration parameters. See Table 4-19. Step 3
Table 4-19 Auto registration parameter description
Parameter Description
IP Address IP address or domain name to which the camera transmits its location.
Port The port for auto registration.
Sub-Camera ID Your Camera ID given by the server.
Click Save. Step 4
4.2.11 Configuring 802.1X
802.1X can control the Camera’s access to LAN.
Select Setting > Network > 802.1x. Step 1

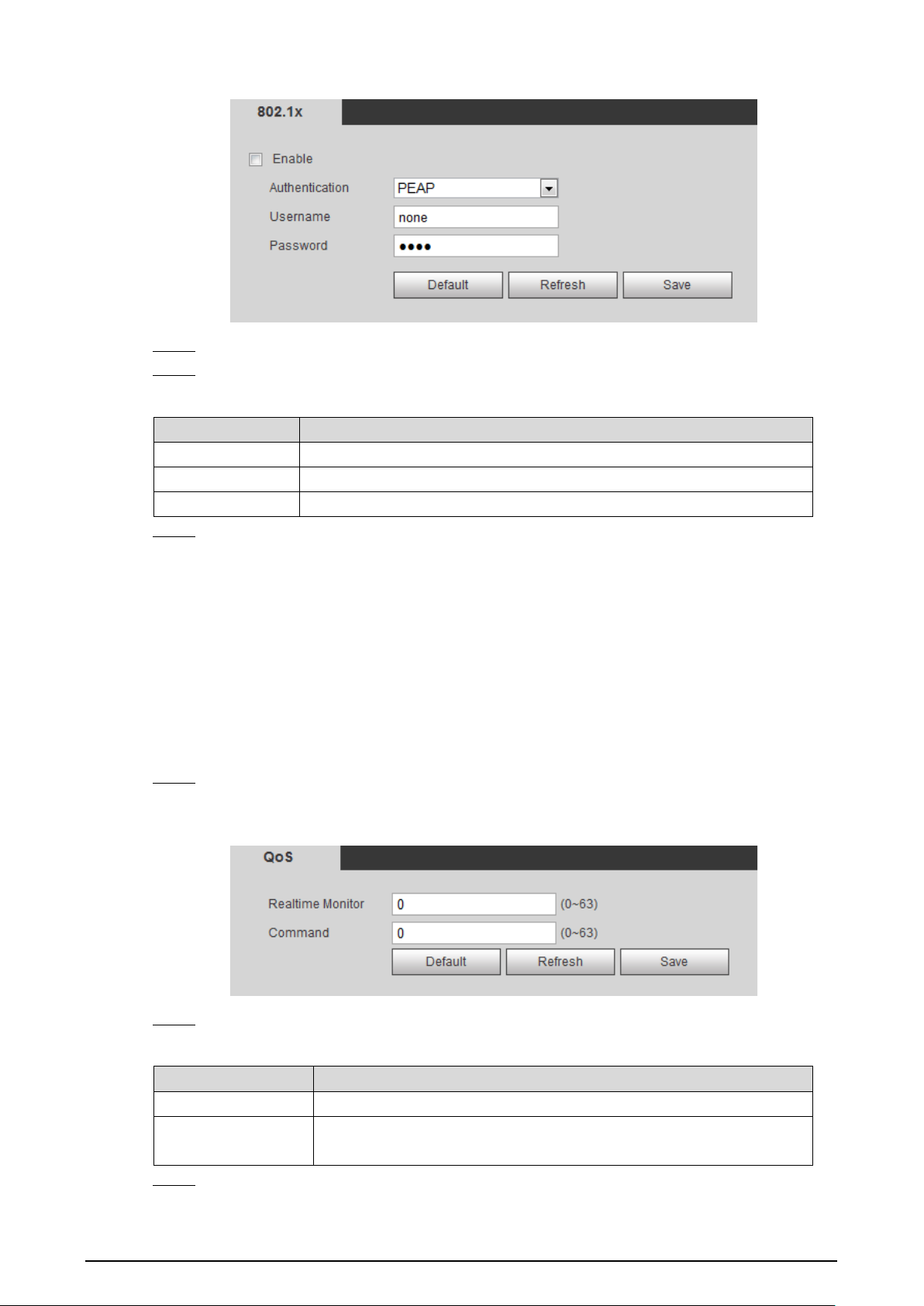

The 802.1x interface is displayed. See Figure 4-36.
81
802.1x Figure 4-36
Select the Enable check box. Step 2
Set 802.1x parameters. See Table 4-20. Step 3
Table 4-20 Parameters of 802.1x
Parameter Description
Authentication PEAP (protected EAP protocol).
Username The user name that was authenticated on the server.
Password Password of your username.
Click Save. Step 4
4.2.12 Configuring QoS
QoS can solve problems including network delay and congestion. It helps to assure bandwidth,
reduce transmission delay, packet loss rate and delay jitter to improve service quality.
For DSCP (Differentiated Services Code Point), there are 64 priority degrees (0-63) of data packets. 0
represents the lowest and 63 the highest. Based on those differences, the 64 priority degrees will be
classified as different groups. Each group occupies different bandwidth and will be abandoned
accordingly. The entire configuration is to improve video quality.
Select Setting > Network > QoS. Step 1
The QoS interface is displayed. See Figure 4-37.
QoS Figure 4-37
Set QoS parameters. See Table 4-21. Step 2
Table 4-21 QoS parameter description
Parameters Description
Real-time Monitor Priority of the data packets that are used for network surveillance.
Command
Priority degree used for the Camera’s configuration and check which do
not concern those surveillance data bags.
Click Save. Step 3
82
Peripheral 4.3
Manage the Camera’s components.
4.3.1 Configuring IR Light
Select Setting > Peripheral > IR Light. Step 1
The IR Light interface is displayed. See Figure 4-38.
IR light Figure 4-38
Configure IR light’s running mode. Step 2
Zoom Prio: When the camera zooms in or out the visible surveillance image, the IR
light’s brightness will be adjusted automatically.
Manual: Adjust the IR light’s brightness manually to realize the best image display
effect under night vision condition.
Click Save. Step 3
4.3.2 Configuring Wiper
Select Setting > Peripheral > Wiper. Step 1
The Wiper interface is displayed. See Figure 4-39.
Wiper Figure 4-39
Configure IR light’s running mode. Step 2
83
Timing: You can configure the Interval Time and Period.
1. Interval Time: Interval from the point when the wiper starts to the point when
the wiper stops.
2. Period: Time when the wiper works.
3. Click Save.
Manual: Turn on and off the wiper manually.
1. Interval Time: Interval from the point when the wiper starts to the point when
the wiper stops.
2. Click Start to get the wiper work in the interval time you have just set, and if you
think the wiper has done enough work, click Stop to end it; Click Once to get the
wiper work for one round.
4.3.3 Configuring Fan
Select Setting > Peripheral > Fan. Step 1
The Fan interface is displayed. See Figure 4-40.
Fan Figure 4-40
Configure fan’s running mode: Step 2
Auto: Fan works automatically. Click Save.
Manual: Start your fan manually. Select the Enable check box and click Save.
4.3.4 Configuring Heater
Select Setting > Peripheral > Heater. Step 1
The Heater interface is displayed. See Figure 4-41.
Heater Figure 4-41
Configure heater’s running mode: Step 2
Auto: Select Start Tem and Stop Tem as the temperature range for heater to start, and
click Save. When the sensor temperature is in the range, heater works automatically.
84
Manual: When you think it’s cold enough and you want to let the camera work in a
warm condition, you can select Manual as the Mode. Select the On check box, and
click Save.
Smart Thermal 4.4
Configure the Camera intelligent rules to help you detect objects that enter a specialized area
unexpectedly and the hidden danger (fire, calling and smoking behavior in a gas station). For the five
functions in Smart Thermal — Fire Warning, Smoking Detection, Call Detection, IVS and Boat
Detection, you can enable only one function at a time. And, after you configure the Camera
intelligent rules, you can set linked actions such as Relay-out, Send Email, PTZ, Record and Snapshot
to warn suspicious people & vehicles and inform you to take measures. For linked action settings, see
"4.4.10 Configure Linked Measures."
Pan & Tilt cameras and dome cameras have preset function. Bullet cameras don’t. So whether the
interface has preset function varies.
4.4.1 Configuring Smart Plan
You need to enable smart plan before intelligent rules function.
Select Setting > Event > Smart Plan. Step 1
The Smart Plan interface is displayed. See Figure 4-42.
Smart Plan Figure 4-42
Select a preset in Add Plan. Step 2
A solution corresponding to presets is displayed.
You need this step only when presets are supported in your Camera.
Click the icon in the Smart Plan interface. Step 3
The icon you have selected will be lighted.
Click the icon again to cancel the smart plan.
Click Save. Step 4
4.4.2 Configuring Intelligent Video Surveillance (IVS)
Configure intelligent rules to actively monitor objects that unexpectedly appear in the drawn area on
the video image and inform you to take measures. Or, configure intelligent rules to actively monitor
85
objects that are valuable to you, (your car, for example), and once the objects are missing from the
drawn area, linked actions, (an alarm to a thief, for example), will be triggered and you will be
informed to take measures.
4.4.2.1 Basic Scene-Selecting Requirements
The target should occupy no more than 10% of the whole image.
The pixel of the target should be no less than 10×10; the pixel of abandoned object should be
no less than 15×15 (CIF image); the width and height of the target should be no more than 1/3
that of the image; it is recommended that the height of the target should be set to 10% of the
image height.
The brightness difference of the target and the background should be no less than 10 gray
levels.
The target should be continuously present in the image for no less than 2 seconds, and the
moving distance should be larger its width and no less than 15 pixels (CIF image) at the same
time.
Try to reduce the scene complexity as much as condition allowed; it is not recommended to use
Intelligence Behavior Analysis in scenes with intensive targets, changing lighting conditions or
small difference between target temperature and scene temperature.
For thermal channel, try not to monitor scenes with glass. For visual channel, try not to monitor:
scenes with reflective surfaces such as glass, bright ground or water; scenes that disturbed by
tree branches, shadows or winged insects; scenes that against light or under direct light
exposure. Control image proportion of objects that are with high relative ambient temperature.
4.4.2.2 Configuring Intelligent Rules
See Table 4-22 for rules available for thermal and visual channels.
Table 4-22 Rules available
Channel Tripwire Intrusion Abandoned Object Missing Object
Thermal (channel 2) Yes Yes No No
Visual (channel 1) Yes Yes Yes Yes
Configure Smart Plan
Select a preset for which you can enable the intelligent rules (tripwire, intrusion, abandoned object
or missing object) first. Then you can configure detailed settings.
Go to the Live interface and select Preset in PTZ function box. Then select a preset number and
click to examine whether or not it’s the scene where you want to set intelligent
rules. See Figure 4-49. If not, go to Setting > PTZ > Function > Preset to add a new preset.
86
PTZ function Figure 4-43
Select Setting > Smart Thermal > Smart Plan. The Smart Plan interface is displayed. Step 1
Select 1 or 2 in Channel box and click Add Plan to select a preset. Step 2
You might see IVS icon is , which means IVS function is enabled. If IVS icon is , you Step 3
might need to click other icons, , for example, to disable other functions and click
to enable it.
Click Save. Step 4
Auto Tracking
For intelligent rules, you can set their linked measures such as Audio Linkage, White Light and
Relay-out. Auto Tracking is one of them. For example, when the rule tripwire detects an object, alarm
will be triggered.
4.4.2.2.1 Tripwire
Draw a line on the video image and set a moving direction in which an object is going to cross the
line. Then when the line is crossed, linked measures, (an alarm to the suspicious objects, for example),
will be triggered.
Procedure
Select Setting > Smart Thermal > IVS. Step 1
The Rule Config interface is displayed.
Intelligent rules are set separately for thermal channel and visual channel. Decide the Step 2
channel and select it in the Channel selection bar.
Select a preset. Step 3
The camera turns to the spot.
87
Set tripwire rules. Step 4
1) Click to add a rule. Tripwire is the default Rule Type. In the Name column,
double-click a name, Rule1, for example, to define it ("First-class guarding area" as the
new name, for example). See Figure 4-44.

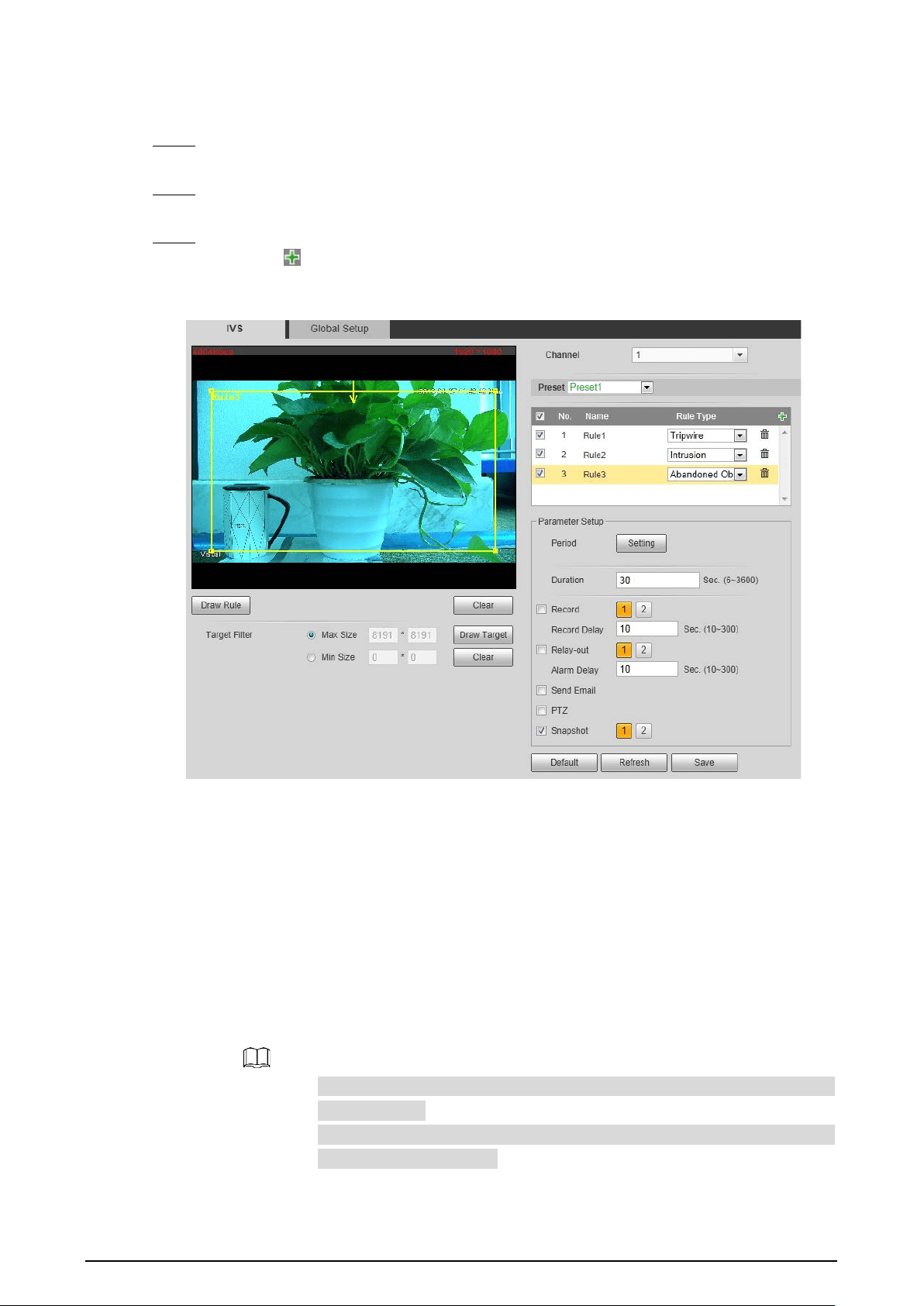

Tripwire Figure 4-44
2) There is a default yellow line on the video image which you can click and drag towards
the left or the right. However, for many cases, you might need to click Clear to clear the
default line and click Draw Rule to define lines:
Draw a line (or several connected lines) and decide its extending direction and length
based on the scene you want to monitor. For example, to monitor objects that are
going to cross the gate, draw a line that is several meters away from the gate and
parallel to the gate. And, for the rule tripwire to work out, it takes time for the Camera
to detect moving objects first. So, don’t draw a line near the shelters. Right-click to end
drawing.
3) Select Maximum Size or Minimum Size and click Draw Target. Then you can drag the
filter box’s corner to make the box larger or smaller.
88
An alarm is triggered only when size of the target that is crossing tripwire
lies between the two filter boxes.
When drawing a rule, you can select Maximum Size or Minimum Size and
click Clear to delete a relevant filter box.
4) For more tripwire settings, see the following table.
Table 4-23 More tripwire settings
Parameter Description
Direction
Configure the target moving direction for tripwire alarm, you can select A->B,
B->A and A<->B.
Alarm Track
Enable this function and when tripwire is triggered, the Camera will use
thermal lens or visual lens to track the object.
Track Time Time for the lens to track the object.
To set linked measures such as Audio Linkage and White Light when the tripwire rule Step 5
detects an object, see "4.4.10 Configure Linked Measures."
Click Save. Step 6
4.4.2.2.2 Intrusion
When a target is crossing or appears in the area you have set, an alarm is triggered.
Procedure
Select Setting > Smart Thermal > IVS. Step 1
The Rule Config interface is displayed.
Intelligent rules are set separately for thermal channel and visual channel. Decide the Step 2
channel and select it in the Channel selection bar.
Select a preset in Preset bar. Step 3
The camera turns to the position.
Set intrusion rules. Step 4
1) Click to add a rule. In the Rule Type column list, select Intrusion. In the Name
column, double-click a name, Rule2, for example, to define it. See Figure 4-45.
89
Intrusion Figure 4-45
2) There is a default yellow box on the video image which you can click and drag to the
wanted area. Also, you can click the box corners to adjust the box shape. However, for
many cases, you might need to click Clear to clear the default box and click Draw Rule
to define box:
Based on the scene you want to monitor (a pentagon area, for example), draw a
pentagon around the area. Draw a line (parallel to the pentagon area’s one edge) to
form the pentagon’s one edge. Then along another direction and draw the second line
to form the pentagon’s another edge… Continue until you have finished drawing the
pentagon. Right-click to end drawing. Note that for the rule tripwire to work out, it
takes time for the Camera to detect moving objects first. So, don’t draw a line near the
shelters.
3) Select Maximum Size or Minimum Size and click Draw Target. Then you can drag the
filter box’s corner to make the box larger or smaller.
An alarm is triggered only when size of target that is crossing your
monitoring area lies between the two filter boxes.
When drawing a rule, you can select Maximum Size or Minimum Size and
click Clear to delete a relevant filter box.
4) Set intrusion parameters. See Table 4-24.
90
Table 4-24 Intrusion parameters
Parameter Description
Period
Define a period during which the alarm settings are active.

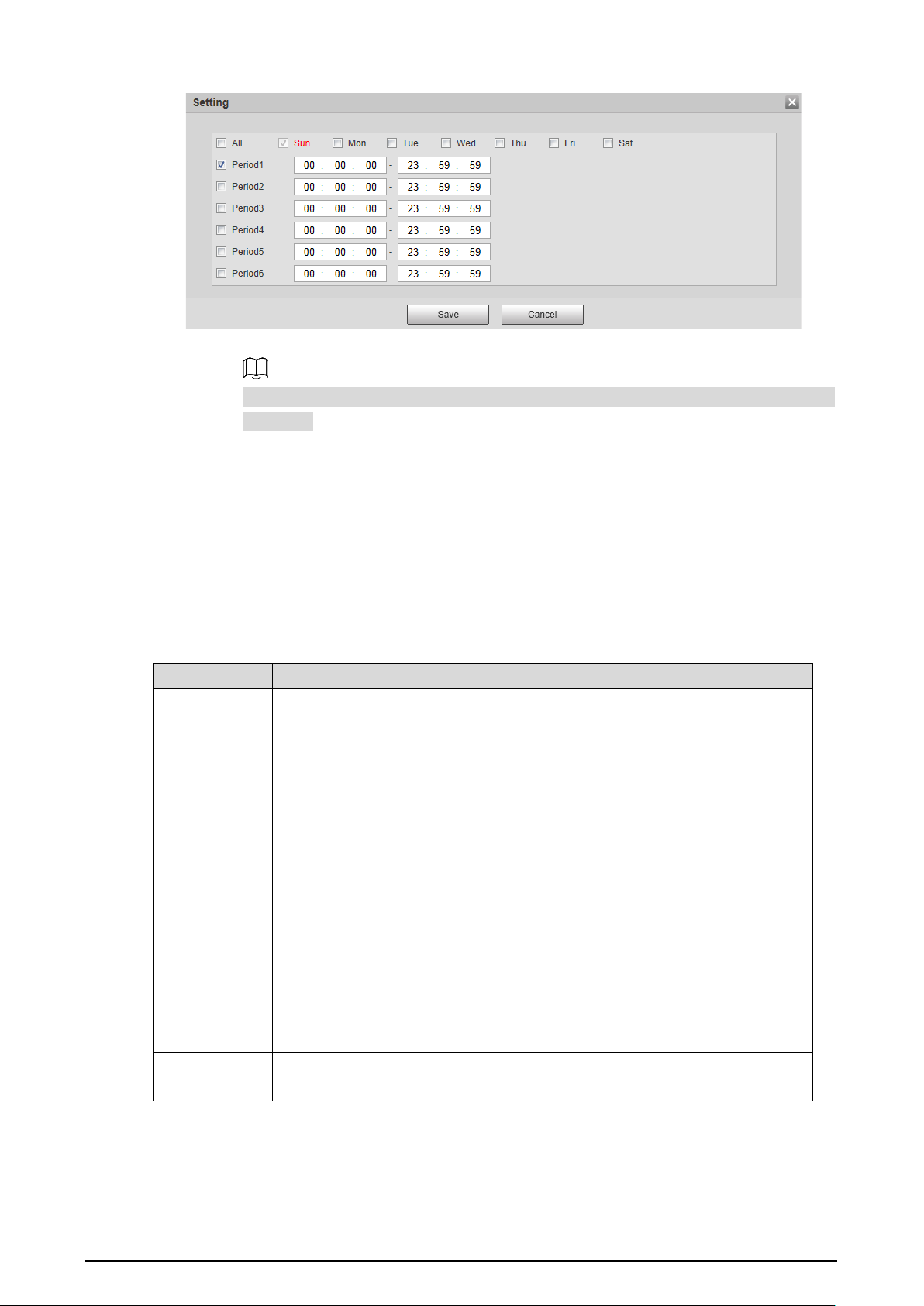

1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select a
period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Settings altoge
ther each of which
corresponds to a day in a week. Select a Setting you want and
there are six periods (period1-period6) below for you to pick up.
3. Click Save of period.
Duration
The shortest time from placing an object in the detection area to an alarm is
triggered.
Rule Type
Set area intrusion rules.
Cross：An alarm is triggered when an object is entering or leaving the
area.
Inside：An alarm is triggered when an object appears in the area.
Cross/Inside: An alarm is triggered when an object is entering, leaving or
appears in the area.
Direction
Set this parameter when you select Cross or Cross/Inside as your Rule Type.
You can select from Enters, Exits and Enters & Exits.
Max Target
Number
Set this parameter when you select Inside or Cross/Inside as your Rule
Type.
Set a maximum target number and when targets’ number in your area is
larger than the number you have set, an alarm is frozen and does Not
function.
Min Target
Number
Set this parameter when you select Inside or Cross/Inside as your Rule
Type.
Set a minimum target number and when targets’ number in your area is
smaller than the number you have set, an alarm is frozen and does Not
function.
Report Interval
Set this parameter when you select Inside or Cross/Inside as your Rule
Type.
Set the shortest time between a target appears and an alarm is triggered.
Alarm Track
Enable this function and when tripwire is triggered, the Camera will use
thermal lens or visual lens to track the object.
Track Time Time for the lens to track the object.
To set linked measures such as Audio Linkage and White Light when the rule box detects an Step 5
object, see "4.4.10 Configure Linked Measures."
Click Save. Step 6
4.4.2.2.3 Abandoned Object
When the object is placed in the detection area longer than the defined period, the system activates
alarms and links the configured actions.
91
Procedure
Select Setting > Smart Thermal > IVS. Step 1
The Rule Config interface is displayed.
Select a preset in Preset bar. Step 2
The camera turns to the position.
Configure rules. Step 3
1) Click to add a rule. In the Rule Type column list, select Abandoned Object. In the
Name column, double-click a name, Rule3, for example, to define it. See Figure 4-46.
Abandoned object Figure 4-46
1) There is a default yellow box on the video image which you can click and drag to the
wanted position. Also, you can click the box corners to adjust the box shape. However,
for many cases, you might need to click Clear to clear the default box and click Draw
Rule to define box:
Based on the scene you want to monitor (a pentagon area, for example), draw a
pentagon around the area. Draw a line (parallel to the pentagon area’s one edge) to
form the pentagon’s one edge. Then along another direction and draw the second line
to form the pentagon’s another edge… Continue until you have finished drawing the
pentagon. Right-click to end drawing.
2) Select Max Size or Min Size, then click Draw Target, and then drag the filter box’s
corner to adjust the box’s size to your requirement.
An alarm is triggered only when size of abandoned objects lies between the
two filter boxes.
When drawing a rule, you can select Max Size or Min Size and click Clear to
delete a relevant filter box.
3) Configure abandoned object parameters. See Table 4-25.
92
Table 4-25 Abandoned object parameters
Parameter Description
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Setting
s altogether each of which
corresponds to a day in a week. Select a Setting you want and
there are six periods (period1-period6) below for you to pick up.
3. Click Save of working period.
Duration
The shortest time from placing an object in the detection area to an alarm is
triggered.
Alarm Track
Enable this function and when tripwire is triggered, the Camera will use
thermal lens or visual lens to track the object.
Track Time Time for the lens to track the object.
To set linked measures such as Audio Linkage and White Light when the rule box detects an Step 4
object, see "4.4.10 Configure Linked Measures."
Click Save. Step 5
4.4.2.2.4 Missing Object
When an object is taken away from the detection area and the absent time of the object is longer
than the defined one, an alarm will be triggered and linked activities will be executed.
Procedure
Select Setting > Smart Thermal > IVS. Step 1
The Rule Config interface is displayed.
Select a preset in Preset bar. Step 2
The camera turns to the position.
Set rules about those missing objects. Step 3
1) Click to add a rule. In the Rule Type column list, select Abandoned Object. In the
Name column, double-click a name, Rule4, for example, to define it. See Figure 4-47.
93
Missing object Figure 4-47
2) There is a default yellow box on the video image which you can click and drag to the
wanted position. Also, you can click the box corners to adjust the box shape. However,
for many cases, you might need to click Clear to clear the default box and click Draw
Rule to define box:
Based on the scene you want to monitor (a pentagon area, for example), draw a
pentagon around the area. Draw a line (parallel to the pentagon area’s one edge) to
form the pentagon’s one edge. Then along another direction and draw the second line
to form the pentagon’s another edge… Continue until you have finished drawing the
pentagon. Right-click to end drawing.
3) Select Max Size or Min Size, then click Draw Target, and then drag the filter box’s
corner to adjust the box’s size to your requirement.
An alarm is triggered only when size of the missing object lies between the
two filter boxes.
When drawing a rule, you can select Max Size or Min Size and click Clear to
delete a relevant filter box.
4) Configure missing object parameters. See Table 4-26.
94
Table 4-26 Missing object parameters
Parameter Description
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Settings
altogether each of which
corresponds to a day in a week. Select a Setting you want and
there are six periods (period1-period6) below for you to pick.
3. Click Save of working period.
Duration
Time from when an object is taken away from the rule box to when linked
measures such as Audio Linkage, White Light and Relay-out are triggered.
Alarm Track
Select the check box and when the rule box detects a missing object, the
Camera will use thermal lens or visual lens to track it.
Track Time Time for the lens to track the object.
To set linked measures such as Audio Linkage and White Light when the rule box detects an Step 4
object, see "4.4.10 Configure Linked Measures."
Click Save. Step 5
4.4.2.3 Global Setup
Preparation
You have set smart plans of presets or channels. See "4.4.1 Configuring Smart Plan" for detailed
operations.
Procedure
Select Setting > Smart Thermal > IVS > Global Setup. Step 1

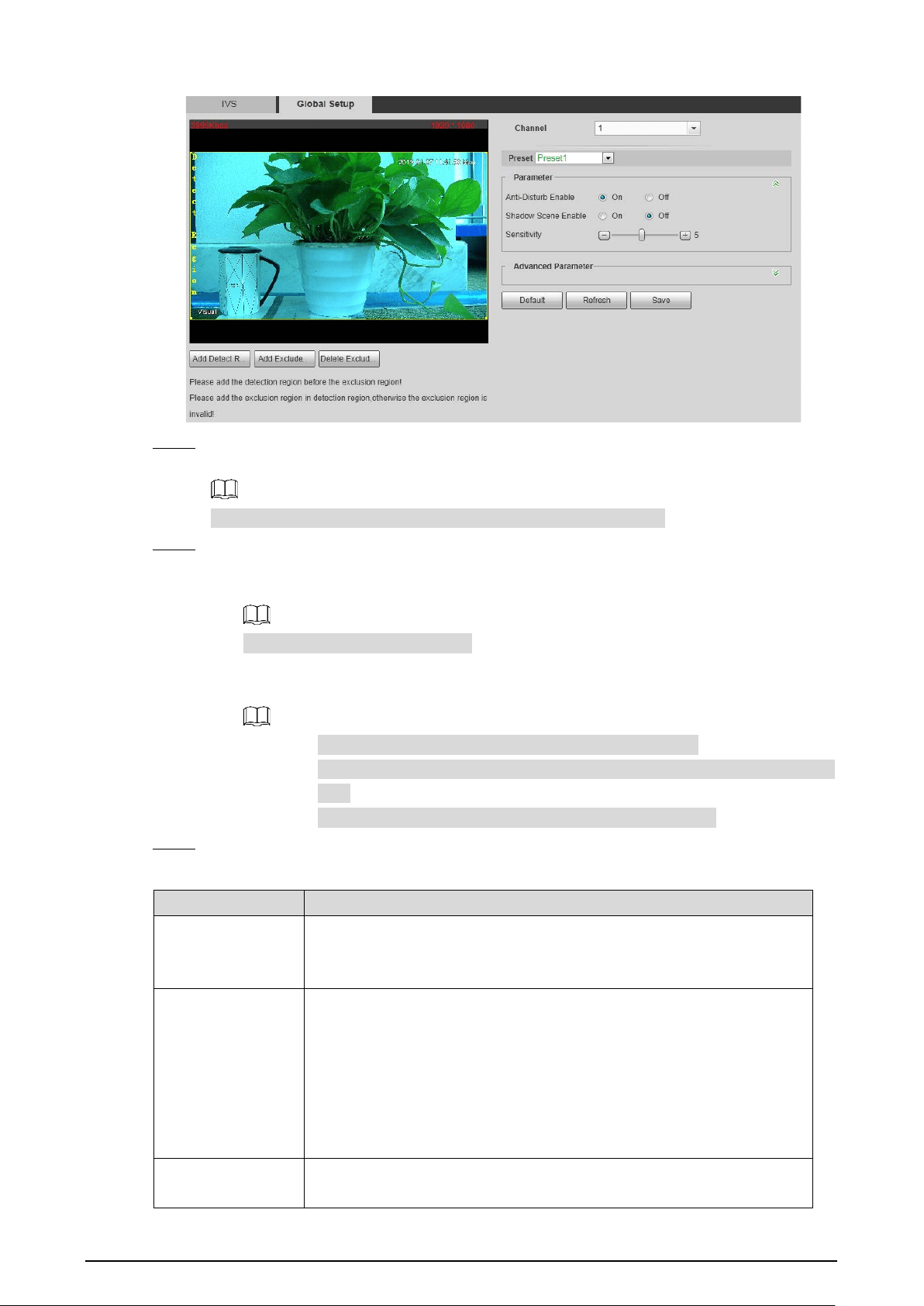

The Global Setup interface is displayed. See Figure 4-48.
95
Global setup Figure 4-48
Select a preset in Preset bar. Step 2
The camera turns to the position.
You need this step only when presets are supported in this Camera.
Add detected area and excluded area. Step 3
1) Click Add Detect Region to draw a detected area on surveillance image. Right-click to
end drawing.
Click Add Detect again to redraw.
2) Click Add Excluded Area to draw an excluded area on surveillance image. Right-click
to end drawing.
Click Delete Excluded Area to delete the excluded area.
An excluded area takes effect only when it has been drawn in the detected
area.
Multiple excluded areas can be drawn in the detected area.
Configure global setup parameters. See Table 4-27. Step 4
Table 4-27 Global setup parameters
Parameter Description
Anti-Disturb Enable
Select the On check box to enable this function.
This function is aimed at eliminating disturbance caused by shaking
leaves or waving water.
Shadow Screen
Enable
Select the On check box to enable this function.
This function is aimed at eliminating an object's shadow and
representing only the object itself in the object box; several objects with
their shadows partly overlaid can be told separately. So this function can
give user a precise clue of where the object really locates. However, if an
object’s part looks like the object’s shadow, it’s likely that this part will be
identified as a shadow and eliminated.
Sensitivity
The larger this value is, the easier an alarm will be to be triggered by
low-contrast or tiny objects.
96
Isotherm Filter
Select the On check box and set per Limit Threshold and Lower Limit
Threshold on your own needs.
This function is aimed at diminishing false alarms caused by waving
water.
Tracking Overlap
Rate
When overlap rate of an object at this moment and at earlier time is
smaller than the rate you have set, this object can be detected and an
alarm is triggered.
Valid Tracking
Distance
Only when an object’s moving distance is larger than valid tracking
distance you have set, this object can be detected and an alarm is
triggered.
Valid Tracking Time
Only when an object’s moving time is larger than valid tracking time you
have set, this object can be detected and an alarm is triggered.
Click Save. Step 5
4.4.3 Call Detection
Configure call detection to help you monitor the calling behavior at locations such as gas stations.
Once a calling is detected, alarm and email will be triggered to alert phone callers and inform you to
take actions.
4.4.3.1 Configure Smart Plan
Select a preset for which you can enable the Call Detection first. Then you can configure detailed
settings.
Go to the Live interface and select Preset in PTZ function box. Then select a preset number and
click to examine whether or not it’s the scene where you want to monitor
calling behavior. See Figure 4-49. If not, go to Setting > PTZ > Function > Preset to add a new
preset.
PTZ function Figure 4-49
Go to Setting > Smart Thermal > Smart Plan. The Smart Plan interface is displayed. Step 1
97
Select 1 in Channel box and click Add Plan to select a preset. Step 2
(You might need to firstly click to disable the corresponding IVS function.) Click Step 3
to enable Call Detection. The icon turns into .
Click Save. Step 4
4.4.3.2 Configure Call Detection
Select Setting > Smart Thermal > Call Detection. Step 1
The Call Detection interface is displayed.
98
In Preset box, select a preset (the blue font, , for example, means the Step 2
preset has already enabled Call Detection).
The whole surveillance image is set as the call detection area by default (as indicated by the Step 3
yellow box). If you want to form a specific area, a pentagon, for example, click Clear to clear
the yellow box. Then click Draw Rule and draw a polygon to form the area you want to
monitor.
If you want to define a specific period (4:00–23:59, for example) for the call detection to Step 4
work (this means perhaps you don’t need to pay attention to the scene at 00:00–4:00), click
Setting next to Period to define every day in a week.
If you want to set the lasting time of calling behavior beyond which the linked action such Step 5
as Relay-out, Send Email and Record will be triggered, fill in a value from 1 to 600 in the
Duration box (the default value is 5). For example, if you are at a gas station and pay much
attention to calling behavior, set Duration to 2 or a less value.
If you want to set the sensitivity, drag the sliding block next to Sensitivity. The larger the Step 6
value is, the more sensitive the call detection will be.
Select Enable to enable the preset’s call detection. Step 7
For linked action settings, see "4.4.10 Configure Linked Measures." Step 8
Click Save. Step 9
4.4.3.3 View Web Interface Alarm Records
After finishing settings in "4.4.3.1 Configure Smart Plan" and "4.4.3.2 Configure Call Detection", s el ect
Alarm tab and select IVS in Alarm Type to enable alarm notifications on the web interface.
Then view calling behavior records on the Alarm tab when an alarm is triggered.
4.4.4 Smoking Detection
4.4.4.1 Configure Smart Plan
Select a preset for which you can enable the Smoking Detection first. Then you can configure
detailed settings.
Go to the Live interface and select Preset in PTZ function box. Then select a preset number and
click to examine whether or not it’s the scene where you want to monitor
calling behavior. See Figure 4-49. If not, go to Setting > PTZ > Function > Preset to add a new
preset.
PTZ function Figure 4-50
Go to Setting > Smart Thermal > Smart Plan. The Smart Plan interface is displayed. Step 10
99
Select 1 in Channel box and click Add Plan to select a preset. Step 11
You might need to click and to get the two icons into and to Step 12
disable the corresponding IVS function and Call Detection function. Ensure the two
functions are disabled.
Click Save. Step 13
4.4.4.2 Configure Smoking Detection
Select Setting > Smart Thermal > Smoking Detection. Step 1
The Smoking Detection interface is displayed.
100
In Preset box, select a preset (the blue font, , for example, means the Step 2
preset has already enabled Smoking Detection).
The whole surveillance image is set as the smoking detection area by default (as indicated Step 3
by the yellow box). If you want to form a specific area, a pentagon, for example, click Clear
to clear the yellow box. Then click Draw Rule and draw a polygon to form the area you want
to monitor.
If you want to define a specific period (4:00–23:59, for example) for the smoking detection to Step 4
work (this means perhaps you don’t need to pay attention to the scene at 00:00–4:00), click
Setting next to Period to define every day in a week.
If you want to set the lasting time of smoking behavior beyond which the linked action such Step 5
as Relay-out, Send Email and Record will be triggered, fill in a value from 1 to 600 in the
Duration box (the default value is 5). For example, if you are at a gas station and pay much
attention to calling behavior, set Duration to 2 or a less value.
If you want to set the sensitivity, drag the sliding block next to Sensitivity. The larger the Step 6
value is, the more sensitive the call detection will be.
Select Enable to enable the preset’s call detection. Step 7
For linked action settings, see "4.4.10 Configure Linked Measures." Step 8
Click Save. Step 9
4.4.4.3 View Web Interface Alarm Records
After finishing settings in "4.4.4.1 Configure Smart Plan" and "4.4.4.2 Configure Smoking Detection",
select Alarm tab and select Smoking Detection in Alarm Type to enable alarm notifications on the
web interface.
Then view smoking behavior records on the Alarm tab when an alarm is triggered.
4.4.5 Boat Detection
Configure Boat Detection settings such as Tripwire (a boat enters the other side of the drawn line
unexpectedly) and Intrusion (a boat enters the drawn area, a rectangular, for example unexpectedly)
to help you monitor an area. When Tripwire or Intrusion are triggered, you will be informed to take
action.
4.4.5.1 Configure Smart Plan
Select a preset for which you can enable the Boat Detection first. Then you can configure detailed
settings.
Go to the Live interface and select Preset in PTZ function box. Then select a preset number and
click to examine whether or not it’s the scene that you want to monitor for
unexpected boats. See Figure 4-49. If not, go to Setting > PTZ > Function > Preset to add a new
preset.
101
PTZ function Figure 4-51
Go to Setting > Smart Thermal > Smart Plan. The Smart Plan interface is displayed. Step 1
Select 2 in Channel box and click Add Plan to select a preset. Step 2
(You might need to firstly click to disable the corresponding IVS function.) Click Step 3
to enable Call Detection. The icon turns into .
Click Save. Step 4
4.4.5.2 Configure Boat Detection
Configure tripwire and intrusion and the linked actions.
Select Setting > Smart Thermal > Boat Detection. Step 1
The Boat Detection interface is displayed.
Select a preset. Step 2
Add a detection rule. Step 3
102
For configuration of intelligent rules, see “4.4.2.2 Configuring Intelligent Rules.”
4.4.5.3 View Web Interface Alarm Records
After finishing settings in "4.4.5.1 Configure Smart Plan" and "4.4.5.2 Configure Boat Detection",
select Alarm tab and select IVS in Alarm Type to enable alarm notifications on the web interface.
Then view unexpected boats records on the Alarm tab when an alarm is triggered.
4.4.6 Configuring Fire Warning
The system will give out an alarm once a fire is detected.
Select Setting > Smart Thermal > Fire Warning. Step 1
The Fire Warning interface is displayed. See Figure 4-52.
Fire warning Figure 4-52
Select a preset. Step 2
The camera turns to the position.
This step is required only when preset is supported by your Camera.
Select the On check box. Step 3
Set rules of fire warning. Step 4
1) Select fire warning mode on your own needs.
High response mode is your only option when you want your camera to detect any a
hidden fire danger.
103
Anti-jamming: Your camera will only detect those objects that are newly with
high temperature and send off alarms. That means under Anti-jamming mode, a
constantly high-temperature object (a boiler, for example) is excluded.
High Response: Your camera will detect any a hidden fire danger and send off
alarms.
2) Select a color in . Each color represents a certain area which you can
draw with your left mouse button. You can also give a name to the area you have drawn
and set its sensitivity.
The larger the sensitivity is, the easier a fire will be triggered.
3) Set fire warning parameters. See Table 4-28.
Table 4-28 Fire warning parameters
Parameter Description
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Setting
s altogether each of which
corresponds to a day in a week. Select a Setting you want and
there are six periods (period1-period6) below for you to pick up.
3. Click Save of working period.
Duration
The shortest time from placing an object in the detection area to an alarm is
triggered.
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following two conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1
Configuring Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3 Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an
alarm is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check
box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
104
Send Email
Select the Send Email check box and an e-mail will be delivered to the
Camera user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, Tour, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will
execute the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ
" for detailed
operations.
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring
Storage Path."
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot
" for
detailed operations.
Click Save. Step 5
4.4.7 Configuring Hot Trace
You can enable Hot Trace to track spot with the highest temperature and spot with the lowest
temperature.
Select Setting > Smart Thermal > Hot Trace. Step 1
The Hot Trace interface is displayed. See Figure 4-53.
Hot trace Figure 4-53
Select the On check box. Step 2
Configure parameters of cold/hot spot tracking. See Table 4-29. Step 3
Table 4-29 Parameters of hot trace
Parameters Description
Color Mode
Select a color for cold and hot spots.
Auto: Select colors for the highest/
lowest temperature automatically
according to surveillance images.
Manual: Define colors for the highest/lowest temperature.
105
Alarm
Condition
Conditions under which an alarm is triggered.
Single
Select the Hot Spot temperature more than check box and when
the highest temperature is larger than the temperature you have
set, an alarm is triggered.
Select the Cold Spot temperature less than check box and when
the lowest temperature is smaller than the temperature you have
set, an alarm is triggered.
If you select both conditions above at one time, an alarm is
triggered once any one condition is satisfied.
Combination
Only when the highest temperature is larger and the lowest
temperature is smaller than the temperature you have set, an alarm is
triggered.
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Settings altoget
her each of which
corresponds to a day in a week. Select a Setting you want and
there are six periods (period1-period6) below for you to pick up.
3.
Click Save of working period.
Anti-Dither Only one motion detection event is recorded within the time you have set.
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following two conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1
Configuring Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3 Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an
alarm is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check
box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
106
Send Email
Select the Send Email check box and an e-mail will be delivered to the
Camera user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, Tour, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will
execute the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ"
for detailed
operations.
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring
Storage Path".
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot
" for
detailed operations.
Click Save. Step 4
Effect of hot trace is as shown in Figure 4-54.
The thermal camera can be classified as temperature-measuring model and observation
model according to whether it carries temperature-measuring function. Cold/Hot spot’s
temperature is not displayed on the Camera of observing model.

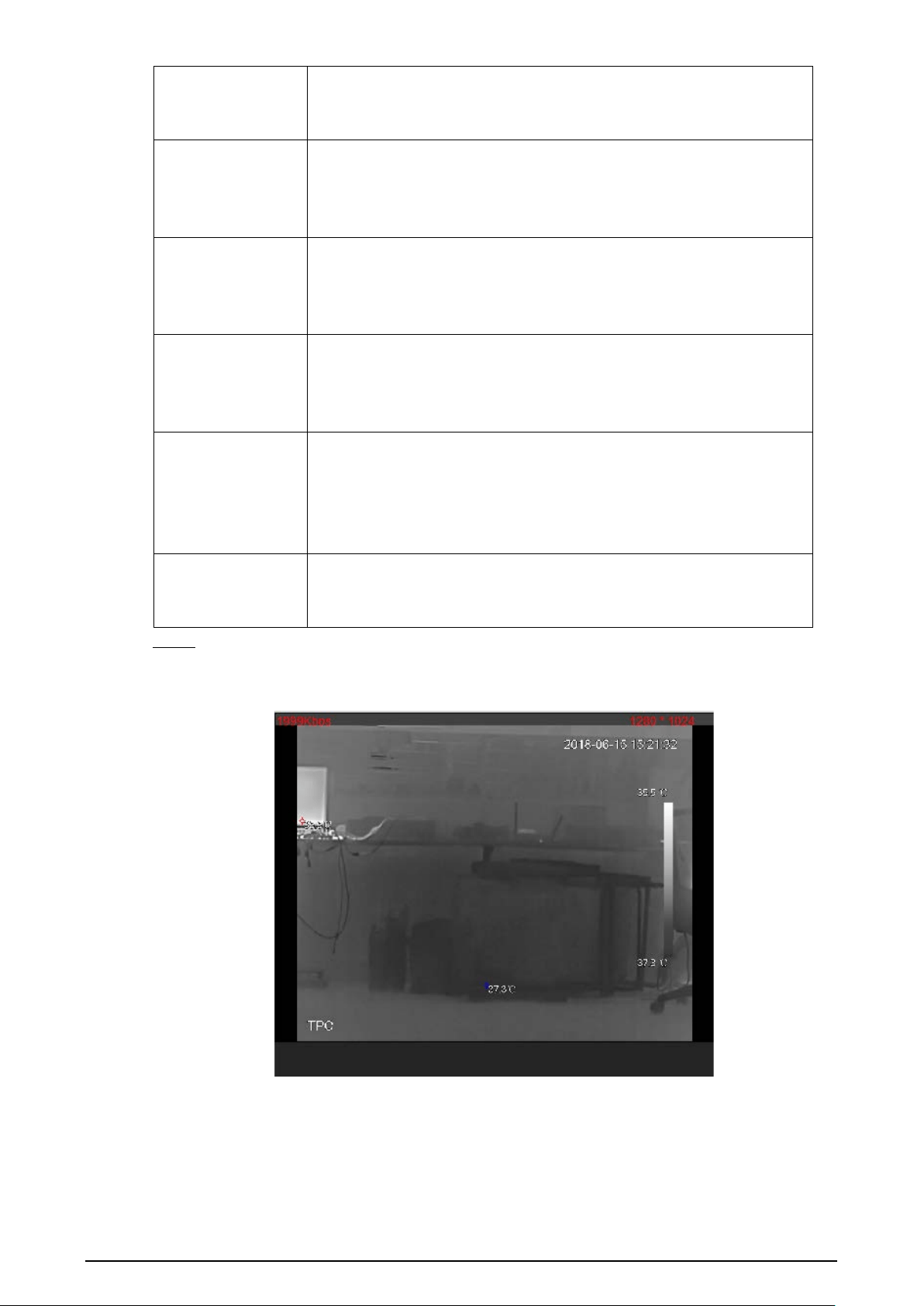

Effect of hot trace Figure 4-54
4.4.8 Configuring Pic in Pic
Put the thermal image that has shrunk on the visible image.
107
Select Setting > Smart Thermal > Pic in Pic. Step 1
The Pic in Pic interface is displayed. See Figure 4-55.
Pic in pic Figure 4-55
Select the Enable check box. Step 2
Drag the blue box’s corner to enlarge the box. Click in the box and drag your mouse to Step 3
adjust the box’s location.
Click Save. Step 4
4.4.9 Configuring Link Schedule
Select Setting > Smart Thermal > Link Schedule. Step 1
The Link Schedule interface is displayed. See Figure 4-56.
Link schedule Figure 4-56
Configure periods for each weekday. Step 2
In Figure 4-56, you can hold your mouse’s left button to directly drag a period bar for each
weekday.
1) In Figure 4-56, click Setting next to the green bar and the dialogue box of Setting is
displayed. See Figure 4-57.
108
Setting Figure 4-57
2) Select a weekday and a period. Then you can define the period.
When you select the check box of All, you’re doing period settings towards all
weekdays.
3) Click Save. You return to the Link Schedule interface.
Click Save. Step 3
4.4.10 Configure Linked Measures
After you configure the Camera intelligent rules, you can set linked actions such as Relay-out, Send
Email, PTZ, Record and Snapshot to warn suspicious people & vehicles and inform you to take
measures.
Table 4-30 Linked action settings
Item Description
Period
If you want to define a specific period (4:00–23:59, for example) for a function
( smoking detection, for example) to work (this means perhaps you don’t
need to pay attention to the scene at 00:00–4:00), click Setting next to
Period to define every day in a week.
1. Next to Period, click Setting, and the period setting
interface is
displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Setting
s altogether each of which
corresponds to a day in a week. Select a Setting you want and
there are six periods (period1-period6) below for you to pick up.
3. Click Save of working period.
Duration
The shortest time from placing an object in the detection area to an alarm is
triggered.
109
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following two conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1
Configuring Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3 Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an
alarm is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check
box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the
Camera user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, Tour, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will
execute the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ
" for detailed
operations.
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring
Storage Path."
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot
" for
detailed operations.
110
Event 4.5
4.5.1 Configuring Video Detection
4.5.1.1 Configuring Motion Detection
When an object appears and moves fast enough to reach the sensitivity value you have set, the
object will be detected and an alarm will be triggered.
Select Setting > Event > Video Detection > Motion Detection. Step 1
The Motion Detection interface is displayed. See Figure 4-58.
Motion detection setting Figure 4-58
Select the Enable check box. Step 2
Configure a motion detection area. Step 3
1) Next to Area, click Setting.
The Area interface is displayed. See Figure 4-59.
111
Area configuration Figure 4-59
2) Set area name and select motion detection areas as needed. You can configure the
sensitivity and mutation threshold. The threshold defines the allowed moving area for
certain objects. The motion detection will not be triggered as long as those objects stay
within the area.
The higher the sensitivity value is, the easier the motion detection will be
triggered; the lower the mutation threshold is, the smaller the allowed
moving area for certain objects is, hence the easier the motion detection will
be triggered.
Different colors represent different area. For each area, you can set different
sensitivity and mutation threshold.
In the wave diagram, red line represents motion detection is triggered, and
green line represents not.
3) Click Save.
Configure motion detection parameters. See Table 4-31. Step 4
Table 4-31 Motion detection parameters
Parameter Description
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method
1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click Setting
on the right side of Period. An interface is displayed. In this interface,
there are seven Settings altogether each of which corresponds to a
day in a week. Select a Setting you want and there are six periods
(period1-period6) below for you to pick up.
3. Click Save of working period.
Anti-Dither The system records only one motion detection event within the set time.
112
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following t
wo conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1 Configuring
Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3
Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an alarm
is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check box
to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the Camera
user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, Tour, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will execute
the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ" for detailed operations.
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring Storage
Path."
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot" for detailed
operations.
Click Save. Step 5
4.5.1.2 Configuring Video Temper
When your camera lenses are masked, an alarm will be triggered.
Select Setting > Event > Video Detection > Video Temper. Step 1
The Video Temper interface is displayed. See Figure 4-58.
113

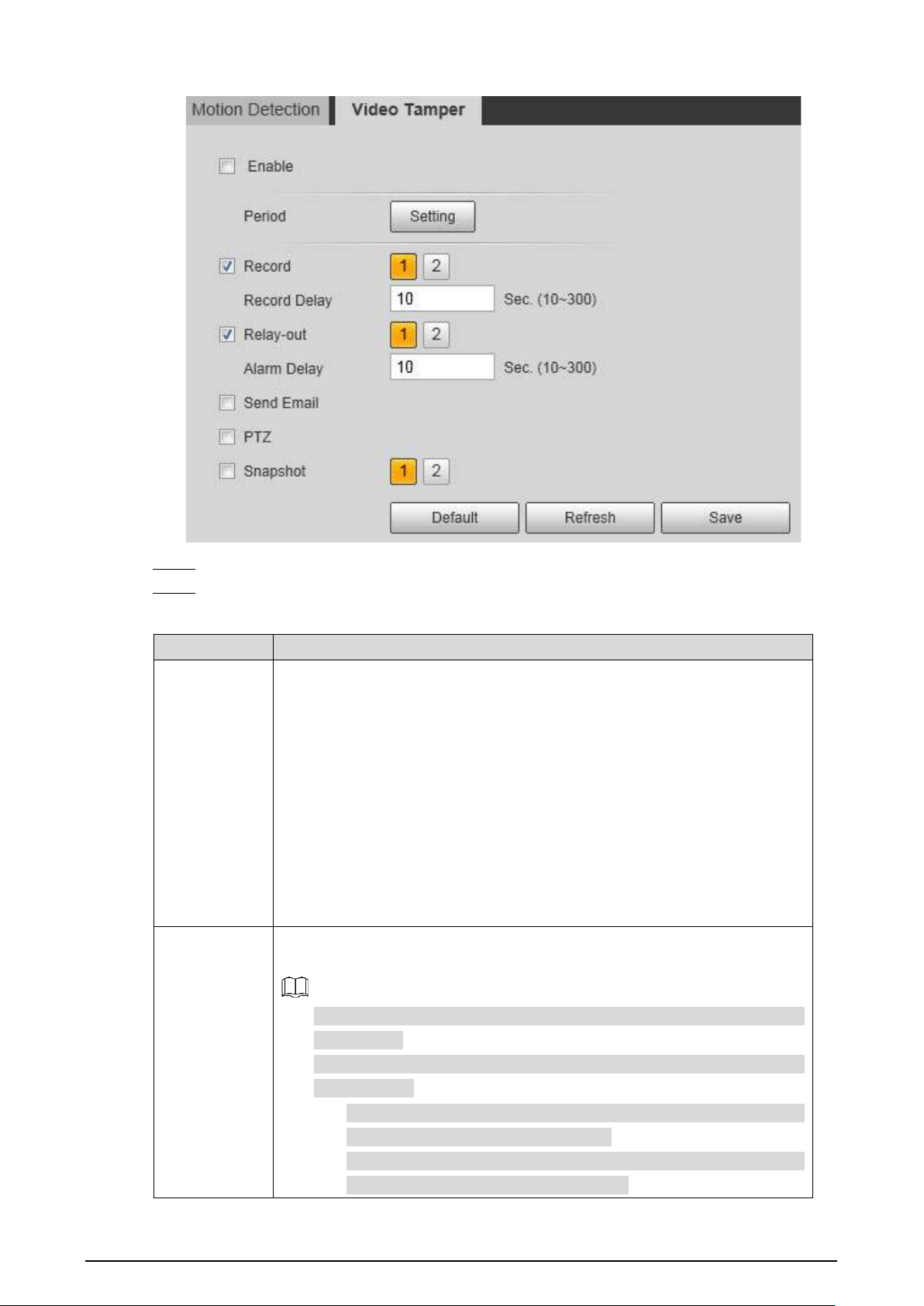

Video temper Figure 4-60
Select the Enable check box. Step 2
Configure video temper parameters. See Table 4-31. Step 3
Table 4-32 Parameters description
Parameter Description
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method
1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click Setting
on the right side of Period. An interface is displayed. In this interface,
there are seven Settings altogether each of which corresponds to a
day in a week. Select a Setting you want and there are six periods
(period1-period6) below for you to pick up.
3. Click Save of working period.
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following two conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1 Configuring
Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3
Configuring Record
Control Parameters" for detailed operations.
114
Record Delay
Set a length of time for the Camera to delay turning off recording after an alarm
is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check box
to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the Camera
user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, Tour, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will execute
the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ" for detailed operations.
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring Storage
Path."
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot" for detailed
operations.
Click Save. Step 4
4.5.2 Configuring Audio Detection
Select Setting > Event > Audio detection. Step 1
The Audio Detection interface is displayed. See Figure 4-61.
115
Audio detection settings Figure 4-61
Configure parameters of audio detection. See Table 4-33. Step 2
Table 4-33 Parameters of audio detection
Parameters Description
Input
Abnormal
Enable this function and an alarm will be triggered when there is abnormal
audio input.
Intensity
Change
Enable this function and an alarm will be triggered when the change of
sound intensity exceeds the threshold you have set.
Sensitivity
Volume change of input audio can be identified as audio abnormality only
when volume change of input audio is larger than the lasting environment
volume. You need to set the lasting environment volume on your own needs.
Threshold
Set the ambient sound intensity you need to filter. The louder the ambient
noise is, the bigger this value should be, you can Adjust and test this option
as needed.
116
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method 1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click
Setting on the right side of Period. An interface is displayed. In this
interface, there are seven Setting
s altogether each of which
corresponds to a day in a week. Select a Setting you want and there
are six periods (period1-period6) below for you to pick up.
3.
Click Save of working period.
Anti-Dither The system records only one audio detection event within the set time.
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following two conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1
Configuring Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3 Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an
alarm is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check
box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the
Camera user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, Tour, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will
execute the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ"
for detailed
operations.
117
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring
Storage Path".
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot
" for
detailed operations.
Click Save. Step 3
4.5.3 Configuring Temperature Alarm
You can set an alarm condition. When the temperature meets the defined alarm condition, an alarm
is triggered and the linked activity is executed.
This function is available on select models, and the actual interface shall prevail.
Preparation
You have set the temperature measuring rules. See "4.6.1 Configuring Rules" for detailed operation.
Procedure
Select Setting > Event > Temperature Alarm. Step 1
The Temperature Alarm interface is displayed. See Figure 4-62.
Temperature alarm settings Figure 4-62
Select the Enable check box. Step 2
Configure parameters of temperature alarm. See Table 4-34. Step 3
118
Table 4-34 Temperature alarm parameters
Parameter Description
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method
1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click Setting
on the right side of Period. An interface is displayed. In this interface,
there are seven Settings altogether each of which corresponds to a
day in a week. Select a Setting you want and there are six periods
(period1-period6) below for you to pick up.
3. Click Save of working period.
Anti-dither Only one temperature alarm event is recorded within the time you have set.
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following t
wo conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1 Configuring
Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3
Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an alarm
is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check box
to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the Camera
user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the check box of PTZ and select an item from None, Preset, To ur , and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will execute
the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ" for detailed operations.
119
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring Storage
Path".
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot" for detailed
operations.
Click Save. Step 4
4.5.4 Configuring Alarm
When there is an alarm from external Cameras, an alarm will be released and linked activities will be
executed.
Select Setting > Event > Alarm. Step 1
The Alarm interface is displayed. See Figure 4-63.
Alarm settings Figure 4-63
Select the Enable check box. Step 2
Configure Relay activation parameters. See Table 4-35. Step 3
Table 4-35 Alarm parameters
Parameters Description
Relay-in Select an external alarm Camera.
Period
Define a period during which the alarm settings are active.
1. Click Setting, and the period setting interface is displayed.
2. Configure period.
Method
1: Hold down and drag the left mouse button to select
working period you need.
Method 2: Select Setting > Event > Video Detection and click Setting
on the right side of Period. An interface is displayed. In this interface,
there are seven Settings altogether each of which corresponds to a
day in a week. Select a Setting you want and there are six periods
(period1-period6) below for you to pick up.
3. Click Save of working period.
Anti-dither Only one temperature alarm event is recorded within the time you have set.
Sensor type You can select from normally open (NO) and normally closed (NC).
120
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path."
The following t
wo conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1 Configuring
Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3 Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an alarm
is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check box
to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the Camera
user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
PTZ
Select the PTZ check box and select an item from None, Preset, Tou r, and
Pattern in the Activation bar. Once an alarm is triggered, your PTZ will execute
the item you have selected in the Activation bar.
Set PTZ first before enabling this function. See "3.2 PTZ" for detailed operations.
Snapshot
Select the Snapshot check box to take a snapshot when there is an alarm.
To view and set storage path of snapshots, see "4.1.2.5 Configuring Storage
Path".
To make the snapshot function take effect, you need to firstly enable
motion-detection snapshots. See "4.7.1.2 Configuring Snapshot" for detailed
operations.
Click Save. Step 4
4.5.5 Configuring Abnormality
Abnormality covers events of SD card, network and illegal access and burning warning.
The "No SD Card", " SD Card Error" and "Capacity Warning" events are available only on models that
support SD card.
121
4.5.5.1 Configuring SD Card Abnormality Parameters
When any abnormality happens to the SD card, an alarm will be triggered and linked activities will be
executed. SD card abnormality includes "No SD card", "SD Card Error" and "Capacity Warning."
Select Setting > Event > Abnormality > SD Card. Step 1
The SD Card interface is displayed. See Figure 4-64.
SD card Figure 4-64
Select an event type. Step 2
Select the Enable check box. Step 3
Configure SD card abnormality parameters. See Table 4-36. Step 4
Table 4-36 SD card parameter description
Parameters Description
Minimum storage
space in SD card
This parameter can be configured only when the event type is "capacity
warning."
Configure the free space percentage, and if the free space in the SD card
is lower than the set percentage, the alarm is triggered.
Relay-out
You can connect this relay-out port to alarm Cameras such as light and
siren. When an alarm is triggered, those alarm Cameras will work. Select
the check box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an
event is actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the
Camera user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
Click Save. Step 5
4.5.5.2 Configuring Network Abnormality Parameters
When any abnormality happens to network, an alarm will be triggered and linked activities will be
executed. Network abnormality includes "Disconnection" and "IP conflict."
Select Setting > Event > Abnormality > Network. Step 1
122
The Network interface is displayed. See Figure 4-65.

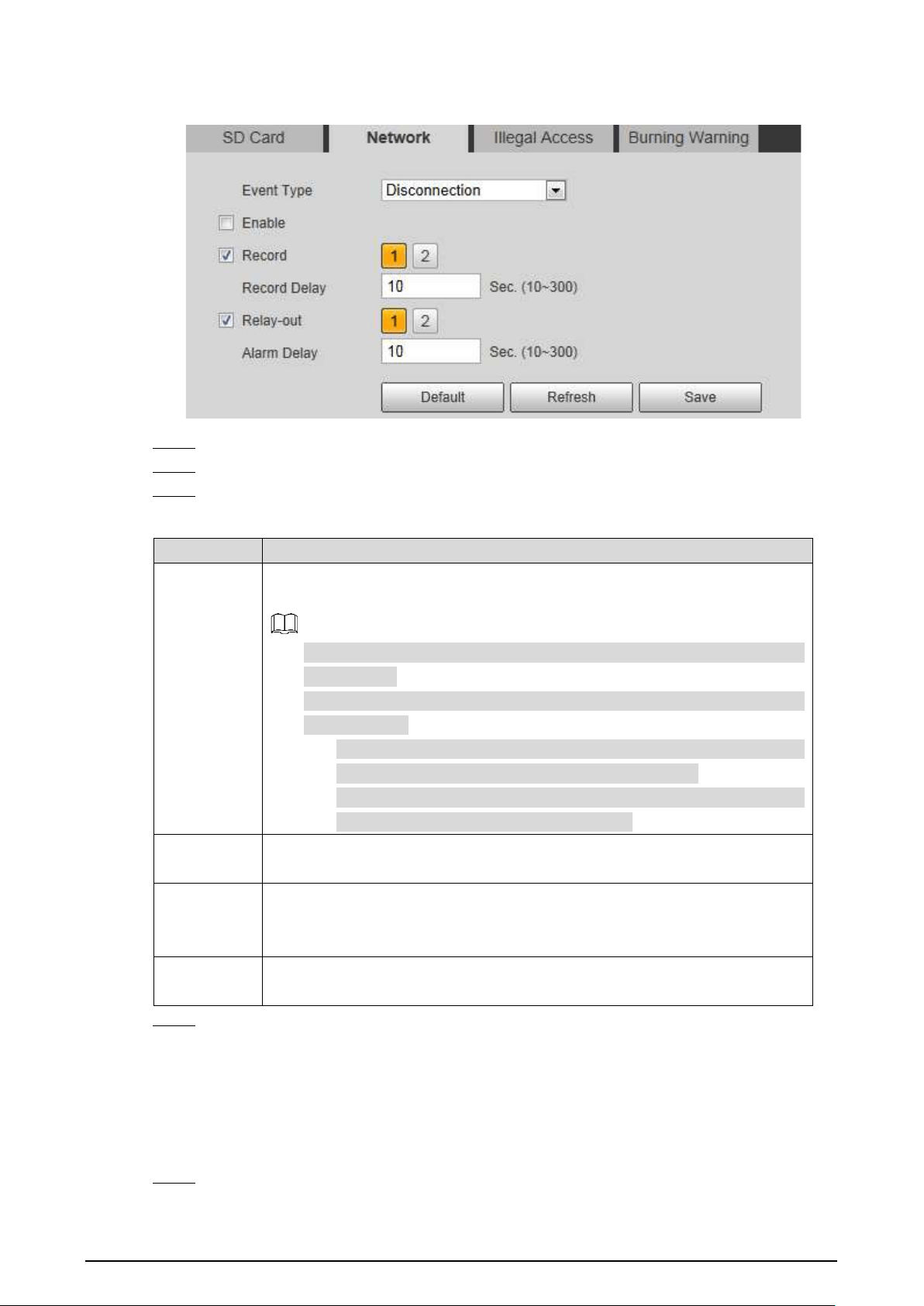

Network Figure 4-65
Select an event type. Step 2
Select the Enable check box. Step 3
Configure network abnormality parameters. See Table 4-37. Step 4
Table 4-37 Network parameter description
Parameter Description
Record
Enable this function and alarm recording will be triggered when there is an
alarm.
To view and set storage path of recorded videos, see "4.1.2.5 Configuring
Storage Path".
The following two conditions must be satisfied before alarm recording
function works:
You have enabled motion detection recording. See "4.7.1.1
Configuring Video Recording" for detailed operations.
You have enabled auto recording. See "4.7.3 Configuring Record
Control Parameters" for detailed operations.
Record Delay
Set a length of time for the Camera to delay turning off recording after an
alarm is ended.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and siren.
When an alarm is triggered, those alarm Cameras will work. Select the check
box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an event is
actually ended.
Click Save. Step 5
4.5.5.3 Configuring Illegal Access Parameters
If the password is continuously wrongly typed and the mistakes have reached the maximum you
have set, an alarm will be triggered and linked activities will be executed.
Select Setting > Event > Abnormality > Illegal Access. Step 1
The Illegal Access interface is displayed. See Figure 4-66.
123
Illegal access Figure 4-66
Select the Enable check box. Step 2
Configure illegal access parameters. See Table 4-38. Step 3
Table 4-38 Illegal access parameter description
Parameters Description
Login error
The number of times that the login password is allowed to be wrongly
entered for.
When the login password has been wrongly entered for more than the
set times, the account is locked. You need to wait 30 minutes before your
account is unlocked.
Relay-out
You can connect this relay-out port to such alarm Cameras as light and
siren. When an alarm is triggered, those alarm Cameras will work. Select
the check box to enable this function.
Alarm Delay
Set a length of time for the Camera to delay turning off alarm after an
event is actually ended.
Send Email
Select the Send Email check box and an e-mail will be delivered to the
Camera user once an alarm is triggered.
Set your e-mail first before enabling the Send Email function. See "4.2.5
Configuring SMTP" for detailed operations.
Click Save. Step 4
4.5.5.4 Configuring Lenses Anti-Burning
Configure the lenses’ anti-burning parameters and when the lenses are watching directly towards
the sun and face the potential burning, the camera will automatically turn to other positions to
avoid.
This function is supported on select models and the actual interface shall prevail.
Select Setting > Event > Abnormality > Burning Warning. Step 1
The Burning Warning interface is displayed. See Figure 4-67.
124
Burning warning Figure 4-67
Select the Enable check box. Step 2
Configure Sensitivity and Energy Threshold: Step 3
Sensitivity: Sensitivity for the camera to recognize whether the lenses are watching towards
the sun. The larger the value is, the easier the camera will be to recognize the sun.
Energy Threshold: The minimum energy value of the object watched by the lenses. Select
the energy threshold to filter the low-temperature objects and improve the identification
accuracy.
Click Save. Step 4
Temperature Measuring Settings 4.6
Temperature measuring is available on select models and the actual interface shall prevail.
4.6.1 Configuring Rules
Configure temperature measuring rules and when alarm conditions are met, an alarm will be
triggered.
4.6.1.1 Configuring Temperature Measuring Rules
Select Setting > Temperature > Rule > Parameter. Step 1
The Parameter interface is displayed. See Figure 4-68.
Parameter Figure 4-68
Configure temperature measuring rules and then parameters. Step 2
1) Click to add a rule.
125
See Figure 4-69.
Rule adding Figure 4-69
2) Double-click the rule you have just added to select measurement items and modify the
measurement name.
3) Draw your rules.
Select Measurement Items as Spot, and you can click a position on the
surveillance image and a spot is formed.
Select Measurement Items as Line, Rectangle or Ellipse, and you can hold the
left mouse button to draw rules you need on the surveillance image.
Select Measurement Items as Polygon, and you can hold the left mouse button
to draw rules you need on the surveillance image. Right-click to end your drawing.
Select a rule you have drawn and click Redraw Rule. Then you can delete the rule and
draw a new one.
4) Select the Open Local Config check box and configure parameters. See Table 4-39.
Table 4-39 Parameter description of local configuration
Parameters Description
Target Radiation
Coefficient
Radiation coefficient of targets that are shot by this Camera. Ranges
from 0.5 – 1.
Target Distance
Distance from the camera to targets that are shot. Ranges from 0m –
10000m.
Target Reflection
Temperature
Temperature of targets that are shot by this Camera. Ranges from
-50 °C to 327.7 °C.
5) Enable the Relay-out check box and configure its parameters. See Table 4-40.
126
Table 4-40 Parameter description of relay-out
Parameter Description
Alarm Results
Temperature’s display items.
Select Measurement Items as Spot, and average temperature and
temperature slope will be displayed.
Select Measurement Items as Line, Rectangle, Ellipse or Polygon,
and maximum/minimum/
average temperature, temperature slope
and temperature difference are displayed.
By temperature difference, we mean the difference between maximum
and minimum temperatures under rules you have set. By temperature
slope, we mean temperature’s varying rate under rules you have set.
Alarm Condition
Set alarm conditions, covering Below, Match and Above.
Alarm Threshold
Temperature
You can set this value when you select Alarm Results as Max, Min, Aver,
or Temperature Difference.
Ranges from -40 °C to 550 °C.
Temperature
Slope
You can set this value when you select Alarm Results as Slope.
By temperature slope, we mean the temperature difference in each
minute. Ranges from -600 °C/min – 600 °C/min.
Temperature Error
Set a temperature error value and if the alarm threshold temperature or
temperature slope is within the value you have set, linked alarms will still
be triggered. Ranges from -10 °C to 10 °C.
Duration of
Temperature
You can set a lasting time of abnormal temperature after which alarms
will be triggered. Ranges from 0 – 1000s.
Click Save. Step 3
You can watch temperature change under the rules you have set on surveillance images.
4.6.1.2 Configuring Temperature Contrast
You can compare temperature of spots, lines or area you have selected and display comparison
results on surveillance images.
Preparation
You have set at least two temperature testing rules. See "4.6.1.1Configuring Temperature Measuring
Rules" for detailed operations.
Procedure
Select Setting > Temperature > Rule > Temp Contrast. Step 1
The Temp Contrast interface is displayed. See Figure 4-70.
127
Temperature contrast Figure 4-70
Set temperature contrast rules Step 2
1) Click to add a temperature contrast rule.
See Figure 4-71.
Temperature contrast rules adding Figure 4-71
2) Double-click to add a temperature contrast rule.
3) Set alarm parameters. See Table 4-41.
Table 4-41 Parameters
Parameters Description
Alarm Results
You can select from the following three options to determine a
standard of triggering an alarm.
Average temperature: C
ompare average temperatures of two
rules.
Maximum temperature: Compare maximum temperatures of two
rules.
Minimum temperature: Compare minimum temperatures of two
rules.
When one of the two rules refers to a spot, both maximum temperature
and minimum temperature are actually average temperature.
Alarm Condition Contains "lower", "matched" and "higher."
Alarm Threshold
Temperature
Temperature of triggering an alarm. Ranges from 0 – 550 °C.
Click Save. Step 3
On the left-side live image, you can view temperature contrast results of the object you have
selected.
128
4.6.2 Configuring Global Setup
You can enable Temperature Switch, Isotherm and Color Code.
Temperature Switch: A switch with which you can enable or disable temperature testing rules.
Enable the Temperature Switch and the temperature testing rules you have set will be
displayed on surveillance images.
Isotherm: Used to highlight an object in images of high brightness. Isotherm is based on
median temperature, with highest temperature and lowest temperature as its range. The part of
an object whose temperature is higher than floor temperature will be represented in a bright
color and the part of an object whose temperature is lower than floor temperature will be
represented in a black/white color.
Color Code: Enable this function, and a color code is displayed on the right side of surveillance
images to show change of color between minimum temperature and maximum temperature.
Select Setting > Temperature > Global Setup. Step 1
The Global Setup interface is displayed. See Figure 4-72.
Global setup Figure 4-72
Configure the global setup parameters. See Table 4-42. Step 2
Table 4-42 Parameter description of global setup
Parameter Description
Temperature Switch Select the check box to enable this function.
Temperature Unit Includes °C and °F.
Relative Humidity Relative humidity of environment. Ranges from 0RH – 100 %RH.
Atmospheric
Temperature
Temperature of our environment. Ranges from -50 °C to 327.7 °C.
Target Radiation
Coefficient
Set Radiation coefficient of targets that are shot by this Camera. Ranges
from 0.5 – 1.
Target Distance
Distance from the camera to targets that are shot. Ranges from 0m –
10000m.
Target Reflection
Temperature
The temperature radiation of the objects around the target. It reflects to
the Camera through target surface to affect the test results.
129
Isotherm
Select the On check box.
You have to make sure that floor temperature <= median temperature
<= ceiling temperature <= saturation temperature.
Min Limit
Temperature
When gain mode is under low-temperature mode, value ranges
from -40 °C to 150 °C.
When gain mode is under high-temperature mode, value ranges
from -40 °C to 600 °C.
Medium
Temperature
When gain mode is under low-temperature mode, value ranges
from -40 °C to 160 °C.
When gain mode is under high-temperature mode, value ranges
from -40 °C to 600 °C.
Max Limit
Temperature
When gain mode is under low-temperature mode, value ranges
from -40 °C to 160 °C.
When gain mode is under high-temperature mode, value ranges
from -40 °C to 600 °C.
Saturation
Temperature
When gain mode is under low-temperature mode, value ranges
from -40°C to 160℃.
When gain mode is under high-temperature mode, value ranges
from -40 °C to 600 °C.
Color Code
Select On to enable color code.
A color code will be represented on the right side of surveillance
images.
Click Save. Step 3
Effect images are as shown in Figure 4-73, Figure 4-74, and Figure 4-75.
Temperature switch Figure 4-73
131
Click Export Heat Map. Step 2
Heat map files will be saved under the path you have set. For detailed operation of resetting
the storage path, see "4.1.2.5 Configuring Storage Path."
Storage Management 4.7
4.7.1 Configuring Schedule
You can set schedule of recording, snapshotting, holidays.
If the record mode is Off in Storage > Record Control > Record Control interface, the system would
not record video or snapshot as scheduled.
4.7.1.1 Configuring Video Recording
Set video recording, covering General, Motion and Alarm.
Select Setting > Storage > Schedule > Record. Step 1
The Record interface is displayed. See Figure 4-77.
Record Figure 4-77
Select recording type and configure time period. Step 2
Select recording type, and then you can also press and hold the left mouse button to select
the time period as needed in the chart.
1) Click the Setting for the day that you want to configure time period.
The Setting interface is displayed. See Figure 4-78.
132
Setting Figure 4-78
2) Select a day in a week and configure its period.
There are 6 periods for each day.
Select the All check box, and the entered time period will apply to the
whole week. Sunday is selected by default, and you can select other days as
needed.
3) Select the record type for the corresponding time period.
4) Click Save.
The system returns to the Record interface. Each color represents a video type. Green
represents general video recording schedule, yellow represents video recording
schedule under motion detection and red represents video recording schedule under
alarm conditions.
Click Save. Step 3
4.7.1.2 Configuring Snapshot
Set video snapshot schedule, covering General, Motion and Alarm.
Select Setting > Storage > Schedule > Snapshot. Step 1
The Snapshot interface is displayed. See Figure 4-79.
Snapshot Figure 4-79
133
Select snapshot type and configure time period. Step 2
Select snapshot type, and then you can also hold down the left mouse button to select the
time period in the chart as needed.
1) Click the Setting for the day that you need to configure time period.
The Setting interface is displayed. See Figure 4-80.
Settings Figure 4-80
2) Select a day in a week and configure its time period.
There are 6 time periods for each day.
Select All, and the entered time period would apply to the whole week.
Sunday is selected by default, and you can select other days as needed.
3) Select the snapshot type for the corresponding time period.
4) Click Save.
The system returns to the Snapshot interface. Each color matches with a certain
Snapshot type. Green means General Snapshot, yellow means motion detection
Snapshot and red means alarm Snapshot schedule.
Click Save. Step 3
4.7.1.3 Configuring Holiday Schedule
Select a day as your "holiday" and video recording/snapshots will be enabled at your "holiday."
To use holiday recording function, you need to configure holiday recording schedule. For
detailed operation, see "4.7.1.1 Configuring Video Recording."
To use holiday snapshot function, you need to configure holiday record/snapshot schedule. For
detailed operation, see "4.7.1.2 Configuring Snapshot."
Select Setting > Storage > Schedule > Holiday Schedule. Step 1
The Holiday Schedule interface is displayed. See Figure 4-81.
134

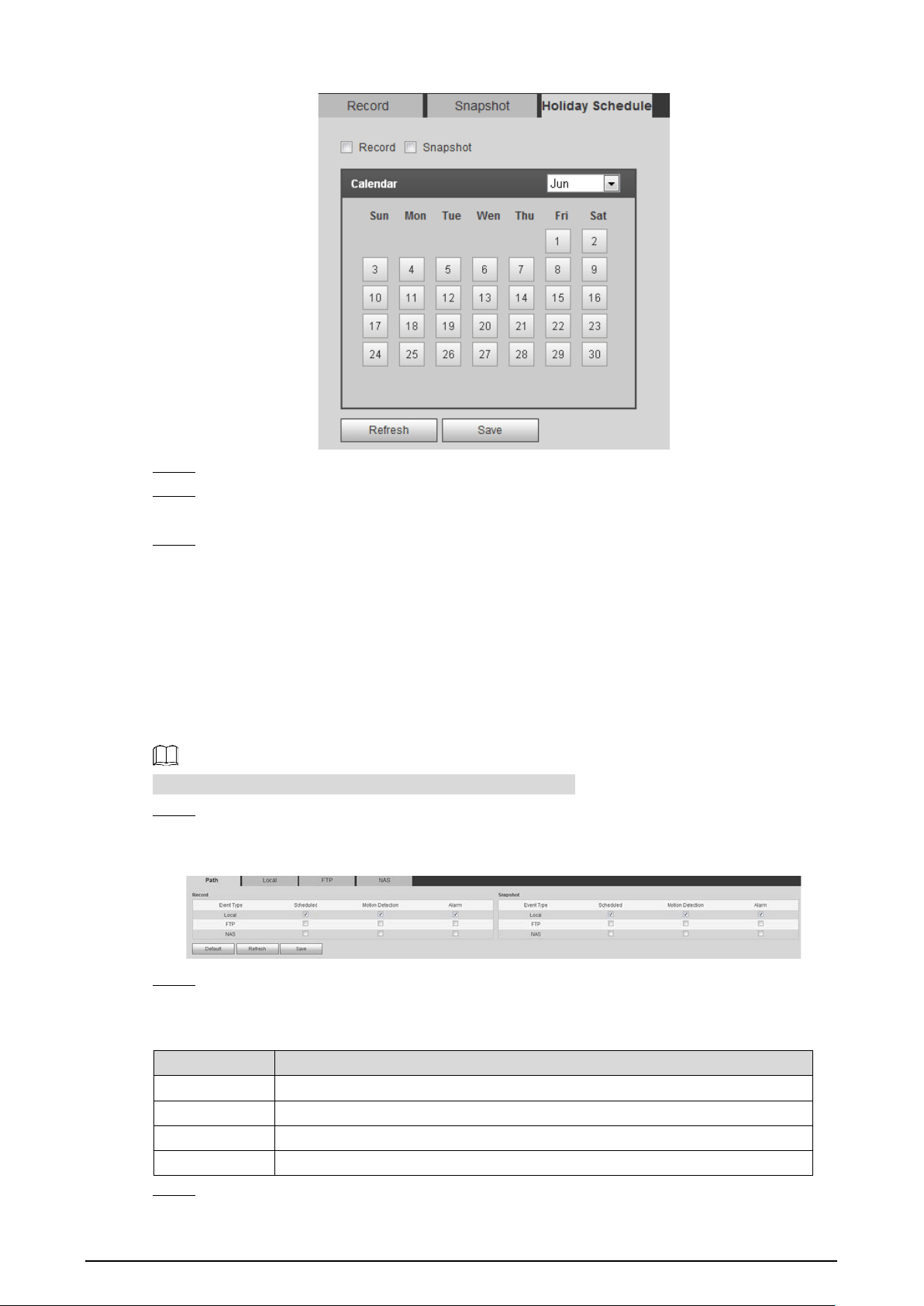

Holiday schedule Figure 4-81
Select from record and snapshot. Step 2
Select days you need to set as your "holiday." Step 3
Those days with yellow color indicates they were set as holidays.
Click Save. Step 4
4.7.2 Camera Storage
4.7.2.1 Configuring Storage Path
You can set video recording and snapshot’s storage methods according to event types. You can save
them in SD card, FTP or NAS.
Local storage is available only on models that support SD card.
Select Setting > Storage > Destination > Path. Step 1
The Path interface is displayed. See Figure 4-82.
Path Figure 4-82
Select different storage paths for the recorded videos and snapshots which belong to Step 2
different event types.
Table 4-43 Path parameters
Parameter Description
Event type
Select from Scheduled, Motion Detection and Alarm.
Local Save in the internal SD card.
FTP Save in the FTP server.
NAS Save in the NAS (network attached storage).
Click Save. Step 3
135
4.7.2.2 Configuring Local Storage
The system will display the internal SD card information. You can set it as Read Only or Read & Write;
you can also Hot Swap or Refresh it.
Select Setting > Storage > Destination > Local, and the Local interface is displayed. See Figure
4-83.
Select SD card you need to set and click Read Only. Then the SD card is set to read only.
Select SD card you need to set and click Read & Write. Then the SD card is set to read& write.
Select SD card you need to set and click Hot Swap. Then you can pull out the SD card.
Select SD card you need to set and click Refresh. Then the SD card will be formatted.
Local storage setting Figure 4-83
4.7.2.3 Configuring FTP Server
You can set FTP server only when FTP is selected as the storage method in Path. When the network
doesn’t work, you can save all the files to the local SD card for emergency.
Select Setting > Storage > Destination > FTP. Step 1
The FTP interface is displayed. See Figure 4-84.

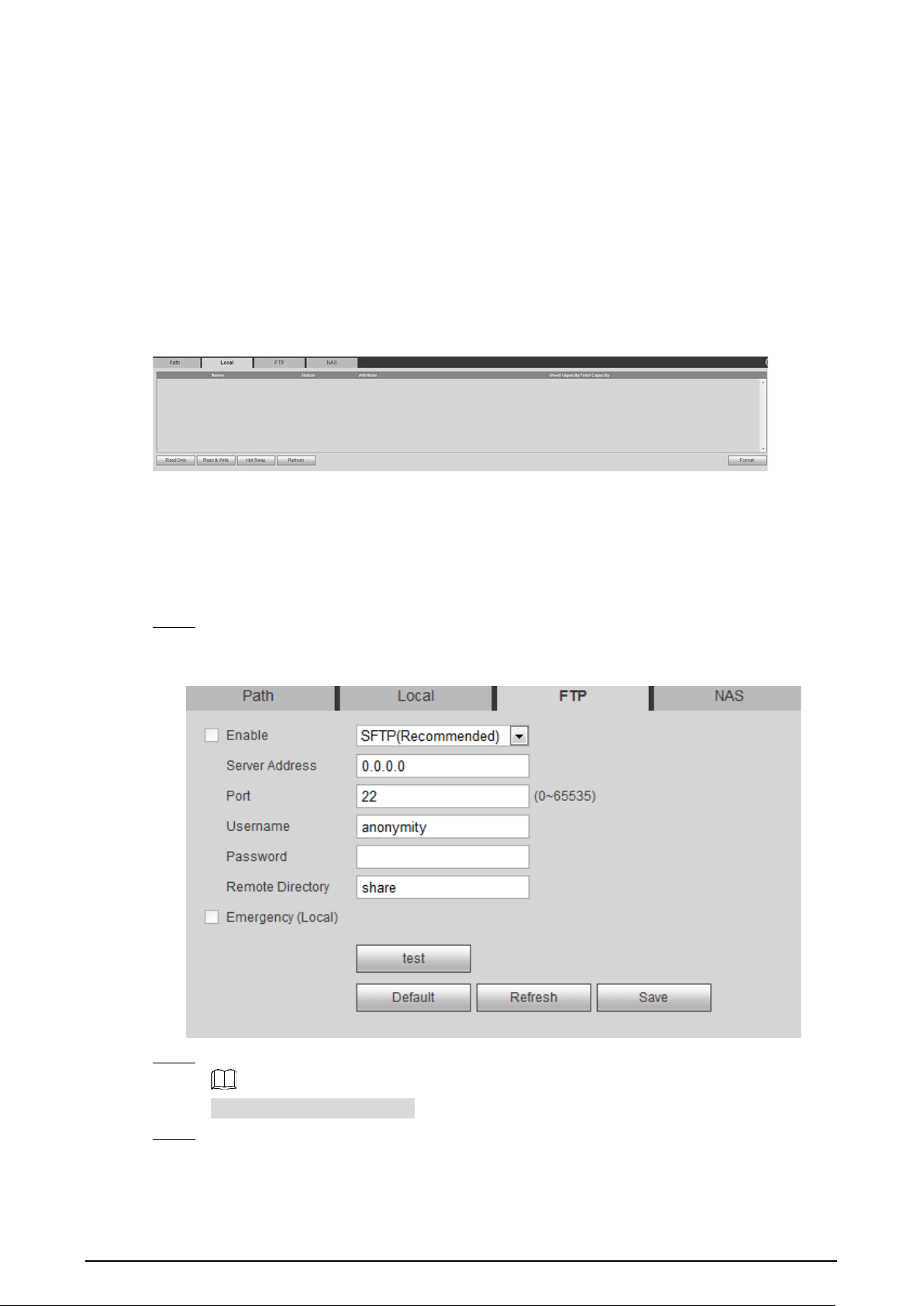

FTP settings Figure 4-84
Select the Enable check box, and then select the service type. Step 2
SFTP service is recommended.
Configure FTP parameters. See Table 4-44. Step 3
136
Table 4-44 FTP parameter description
Parameters Description
Server Address The IP address of the SFTP or FTP server.
Port The port of the SFTP or FTP server.
User name The user name to log in the server.
Password The password to log in the server.
Remote Directory The destination path in the server.
Emergency (Local)
Select the Emergency (Local) check box, and when the FTP server does
not work, all the files are saved to the internal SD card.
Click Save. Step 4
Click Test to check whether the server has been properly connected.
4.7.2.4 Configuring NAS Server
This function can be enabled only when NAS has been selected as destination path. Select NAS
interface and you can save files in NAS server.
Select Setting > Storage > Destination > NAS. Step 1
The NAS interface is displayed. See Figure 4-85.
NAS settings Figure 4-85
Select the Enable check box. Step 2
Configure NAS parameters. See Table 4-45. Step 3
Table 4-45 NAS parameters
Parameter Description
Server Address The IP address of the NAS server.
Remote Directory The destination path in the NAS server.
Click Save. Step 4
4.7.3 Configuring Record Control Parameters
This chapter introduces configurations including pack duration, pre-event record, disk full, record
mode and record stream.
Select Setting > Storage > Record Control. Step 1
The Record Control interface is displayed. See Figure 4-86.
137

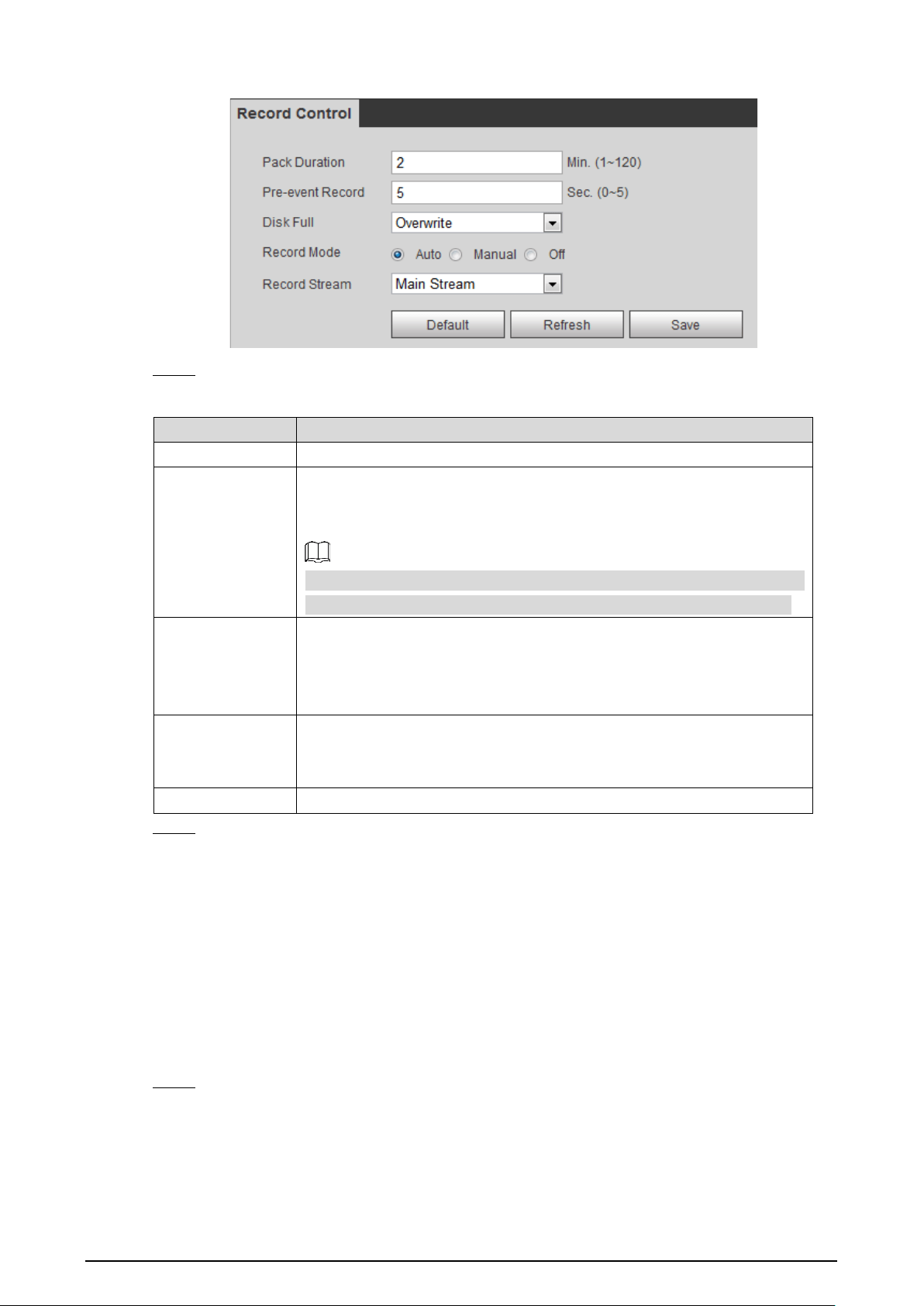

Record control settings Figure 4-86
Configure record control parameters. See Table 4-46. Step 2
Table 4-46 Record control parameter description
Parameters Description
Pack Duration The duration of each file pack.
Pre-event Record
The time period for which the system records video before alarm, if the
value is 5, then the system records video for 5 seconds before alarm starts
and save it.
If the Record Mode is Off and the record activity has been linked with
alarm or motion detection, the system will still save the pre-event video.
Disk Full
The recording strategy when the disk is full.
Stop: The system stops recording when the disk is full.
Overwrite: T
he system overwrites the oldest files and keep
recording when the disk is full.
Record Mode
At the record mode, if you select Manual, the system starts video
recording; if you select Auto, the system records video as time period
scheduled; if you select Off, video recording will not start.
Record Stream Includes main stream and sub stream.
Click Save. Step 3
System Management 4.8
4.8.1 General Settings
4.8.1.1 Configuring General Information
Configure Camera name, language and video standard.
Select Setting > System > General > General. Step 1
The General interface is displayed. See Figure 4-87.
138

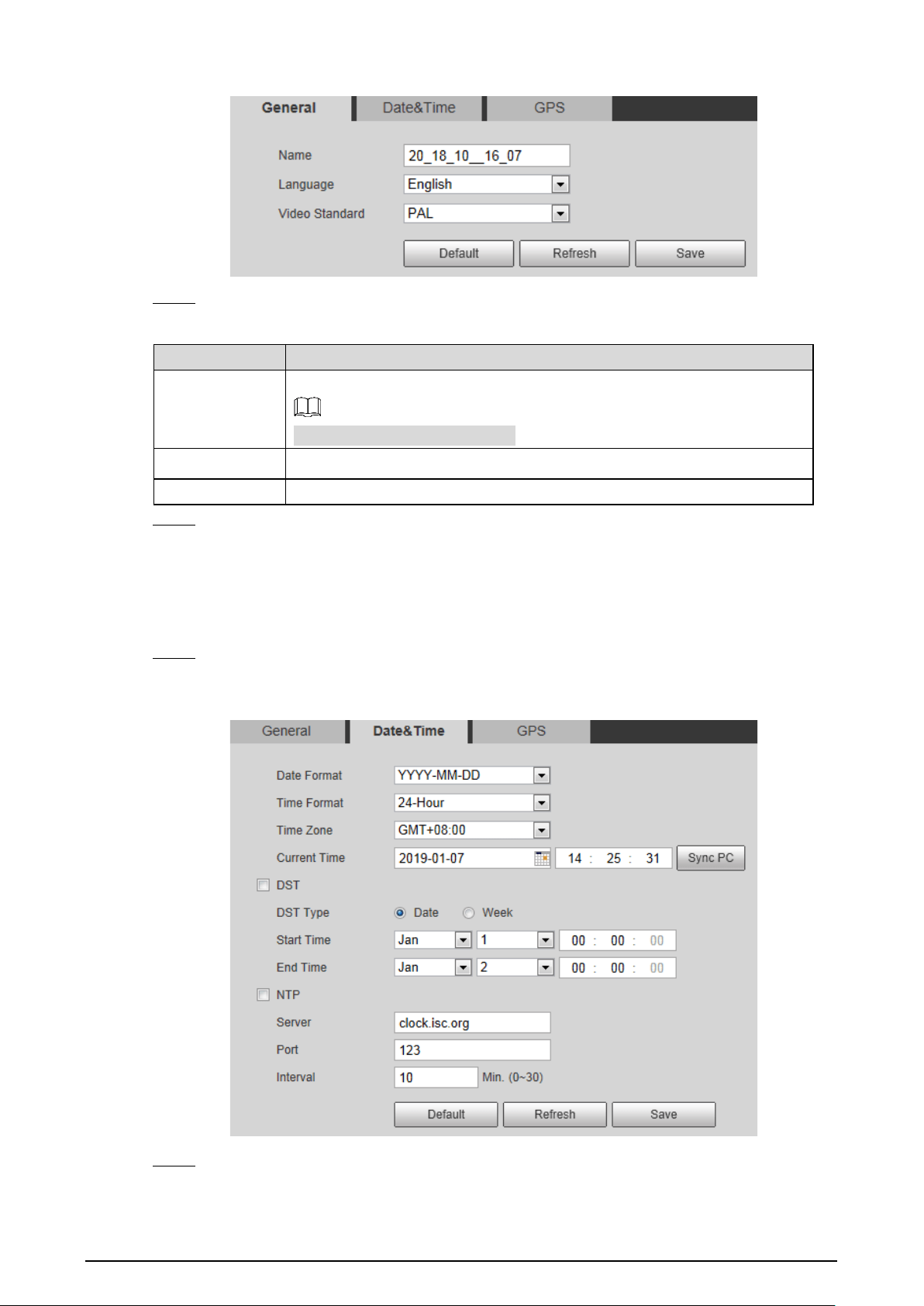

General Figure 4-87
Configure general parameters. See Table 4-47. Step 2
Table 4-47 General parameter description
Parameter Description
Camera name
The name of the Camera.
Each Camera has different name.
Language Select system language.
Video Standard Select video standard from PAL and NTSC.
Click Save. Step 3
4.8.1.2 Configuring Date & Time
You can set Date and Time format, Time zone, Current Time, DST (Daylight Saving Time) or NTP server.
Select Setting > System > General > Date & Time. Step 1
The Date & Time interface is displayed. See Figure 4-88.
Date & Time Figure 4-88
Configure Date & Time parameters. See Table 4-48. Step 2
139
Table 4-48 Date & Time parameters
Parameter Description
Date Format Date format.
Time Format Configure the Time format, you can select from 24-Hour or 12-Hour.
Time zone Configure the Time zone that the Camera is at.
Current Time
Configure system time.
Click "Sync PC", and the system time changes to the time on PC.
DST
Enable DST as needed.
Select the check box to enable daylight saving time. Select "DST", and then
configure start time and end time of DST with dates or days of the week.
NTP
When you need the Camera to transmit its time to NTP server, you can select
the NTP check box to enable it.
Server IP address or domain name of the NTP server.
Port Port number of the FTP server.
Interval Time gap of Camera’s transmission of its current time to NTP server.
Click Save. Step 3
4.8.1.3 Configuring GPS
Fill in the camera’s GPS information in the web to remind you where your camera locates.
Also, automatically sent to the management platform, the GPS information can be viewed on the
platform to help the platform operator track your camera.
This function is supported on select models and the actual interface shall prevail.
Select Setting > System > General > GPS. Step 1
The GPS interface is displayed. See Figure 4-89.

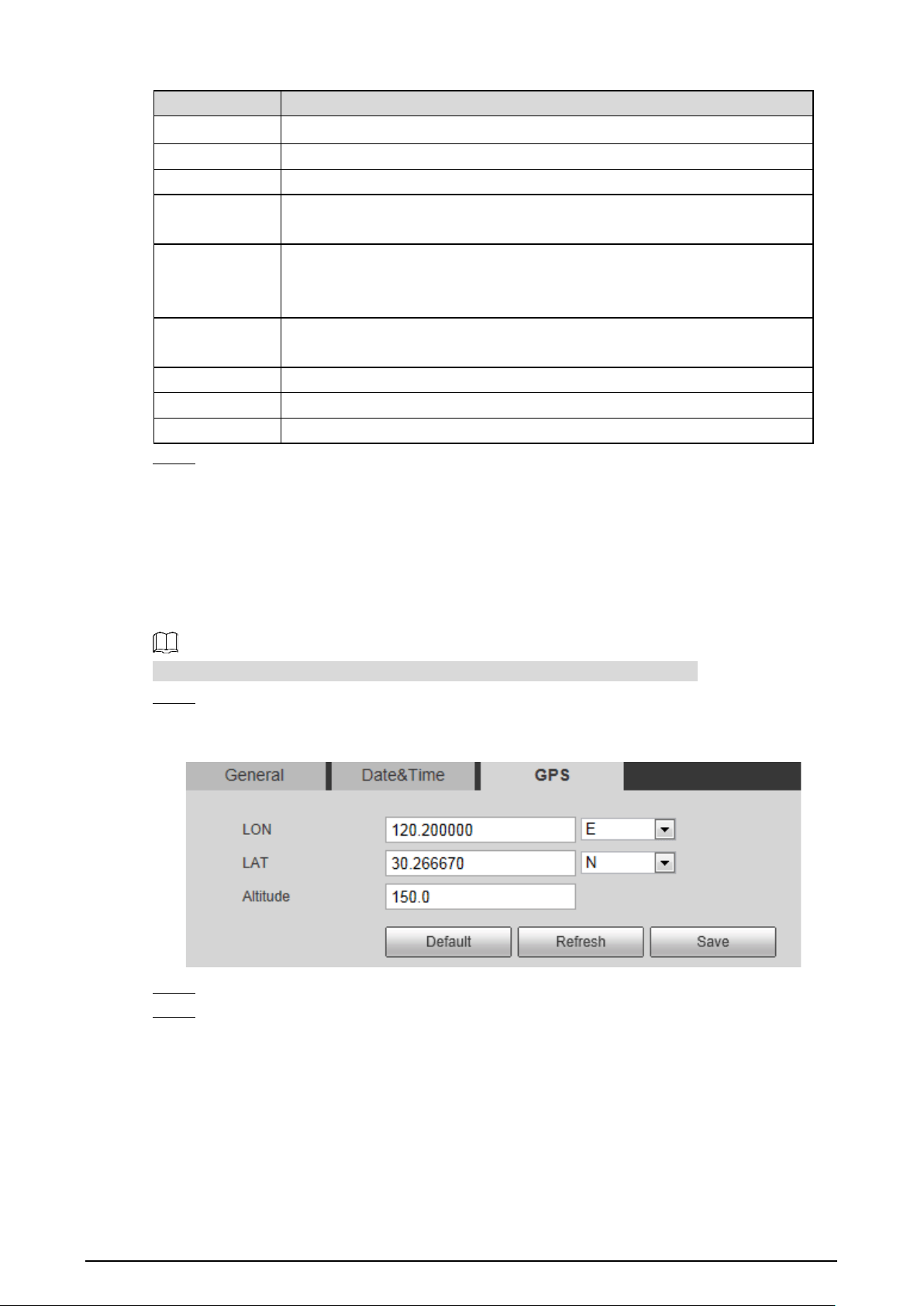

GPS Figure 4-89
Fill in your camera’s LON, LAT and Altitude information. Step 2
Click Save. Step 3
4.8.2 User Management
Managing users and groups are only available for administrator users.
The max length of the user or group name is 15 characters which can only be consisted of
letters, numbers and underlines.
The password must have 8 to 32 digits and at the same time have at least two forms (There are
four password forms altogether: capital letter, lowercase letter, number and special characters. “'”,
140
“"”, “;”, “:”, and “&” are not covered in special characters.) Administrator users can modify all the
uses’ password.
You can have 19 users and 8 groups at most.
You can manage users through single user or group, duplicate user names or group names are
not allowed. A user can be in one group at a time and the group users can own authorities
within group authority range.
Online users cannot modify their own authority.
There is one admin by default which has highest authority.
Select “Anonymous login”, and then log in with only IP address instead of user name and
password. Anonymous users only have preview authorities. During Anonymous login, Click
logout, and then you can log in with other username.
4.8.2.1 Adding a Group
You have two groups named admin and user by default, you can add new group, delete added
group or modify group authority and memo.
Select Setting > System > Account > Account > Group Name. Step 1
The Group Name interface is displayed. See Figure 4-90.
User group Figure 4-90
Click Add Group. Step 2
The Add Group interface is displayed. See Figure 4-91.
Add Group Figure 4-91
Enter Group name and memo. Then select Group authorities. Step 3
Click Save. Step 4
The newly added group displays in the group name list. See Figure 4-92.
141
After adding group, click to modify group memo or authorities; click to
delete the added group, admin group and user group cannot be deleted.
Click in the row of admin group or user group to modify group memo.

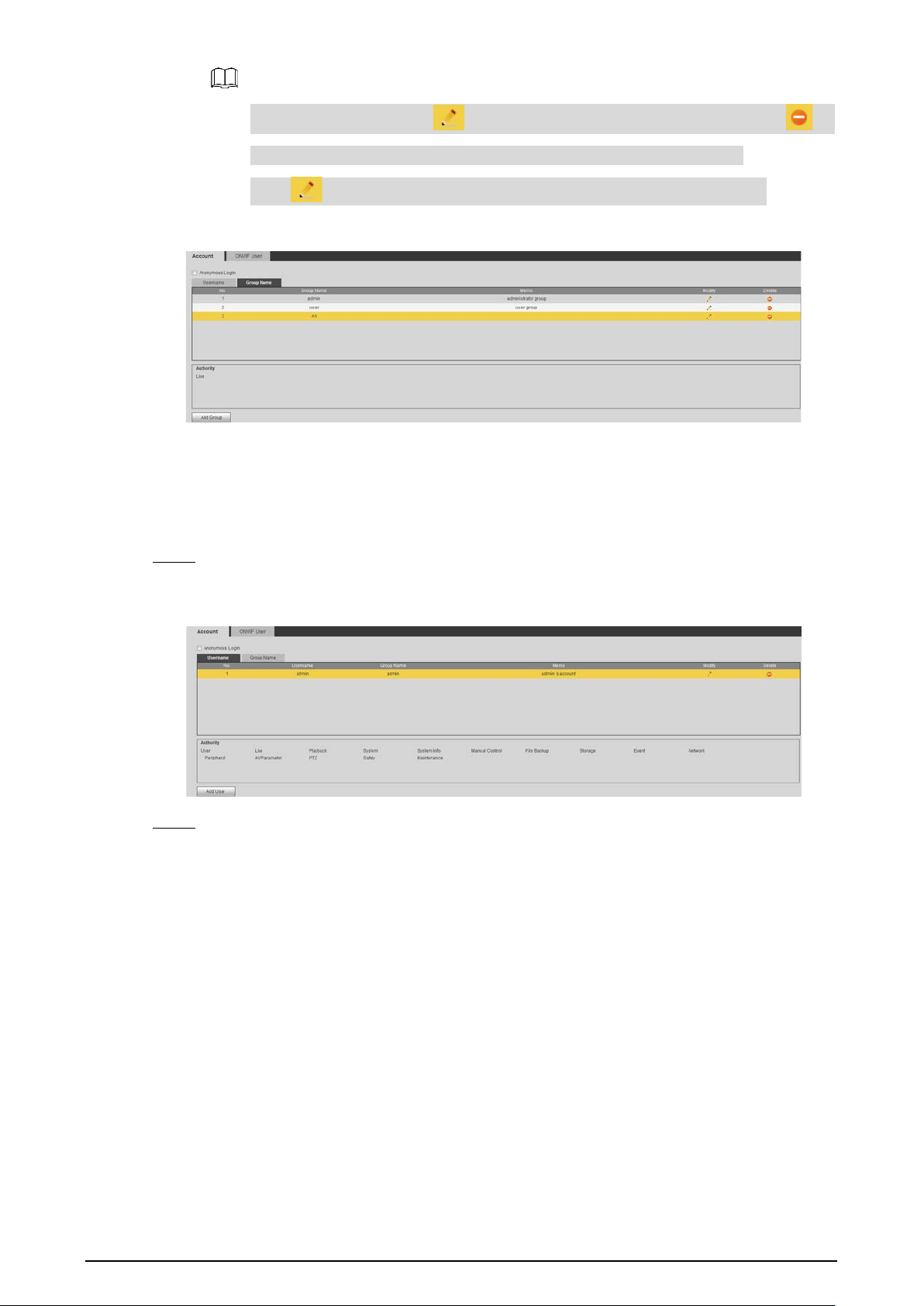

User group added. Figure 4-92
4.8.2.2 Adding a User
You are admin user by default, and you can add user, delete added users or modify their password.
Select Setting > System > Account > Account. Step 1
The Account interface is displayed. See Figure 4-93.
User settings Figure 4-93
Click Add User. Step 2
The Add User interface is displayed. See Figure 4-94.
142
Add user Figure 4-94
Configure parameters. See Table 4-49. Step 3
Table 4-49 User parameter description
Parameter Description
Username User’s unique identification You cannot use existing user name.
Password
Enter password and confirm it.
The two items must be the same.
Confirm Password
Group name The group that users belong to. Each group has different authorities.
Memo Describes the user.
Authority
Select authorities as needed.
It is recommended to give less authority to normal users than premium
users.
Click Save. Step 4
The newly added users are displayed in the user list.
After adding user, click to modify password, group, memo or authorities; click
to delete the added user, admin user cannot be deleted.
Click in the admin row to modify user name and email address.
4.8.2.3 Modifying User Password
For data security, it’s strongly recommended that you change the default password of the Camera
and modify it regularly. Also, it’s recommended that you adopt a complicated and strong password.
143
Select Setting > System > Account > Account > Username. Step 1
The Username interface is displayed. See Figure 4-95.
Username Figure 4-95
Click . Step 2
The Modify User interface is displayed. See Figure 4-96.
Modify user (1) Figure 4-96
Select the Modify Password check box. Step 3
More settings are displayed. See Figure 4-97.
144
Modify user (2) Figure 4-97
Type old password. Type new password and confirm it. Step 4
The password must have 8 to 32 digits and at the same time have at least two of the four types:
capital letter, lowercase letter, number and special characters.
Click Save to finish password modification. Step 5
4.8.3 Adding ONVIF User
Select Setting > System > Account > ONVIF User. Step 1
The ONVIF User interface is displayed. See Figure 4-98.
ONVIF user Figure 4-98
Click Add User. Step 2
The Add User interface is displayed. See Figure 4-99.
145
Add user Figure 4-99
Enter username, password and confirm the password. Then, select group name. Step 3
Click Save. Step 4
4.8.4 Safety Management
Set RTSP authentication, IP filter, system service and HTTPS to secure data transmission and prevent
data leakage.
4.8.4.1 Configuring RTSP Authentication
RTSP (Real Time Streaming Protocol) is to secure transmission of streaming media.
Select Setting > System > Security > RTSP Authentication. Step 1
The RTSP Authentication interface is displayed. See Figure 4-100.
RTSP authentication Figure 4-100
Select an authentication mode. Step 2
Click Save. Step 3
4.8.4.2 Configuring IP Filter
To secure the network environment and protect your data, you can use IP filter to set who can and
who cannot access your Camera.
White list: Only users whose IP/MAC are on the white list can access your Camera.
Black list: Only users whose IP/MAC are on the black list cannot access your Camera.
Only when IP addresses of both your Camera and your PC are located in the same LAN, can MAC
verification takes effect.
146
When accessing through WAN, you can only use MAC of your router to limit MAC verification.
You cannot enable white list and black list at the same time.
You cannot add your Camera IP/MAC to the white list.
Select Setting > System > Safety > IP Filter. Step 1
The IP Filter interface is displayed. See Figure 4-101.

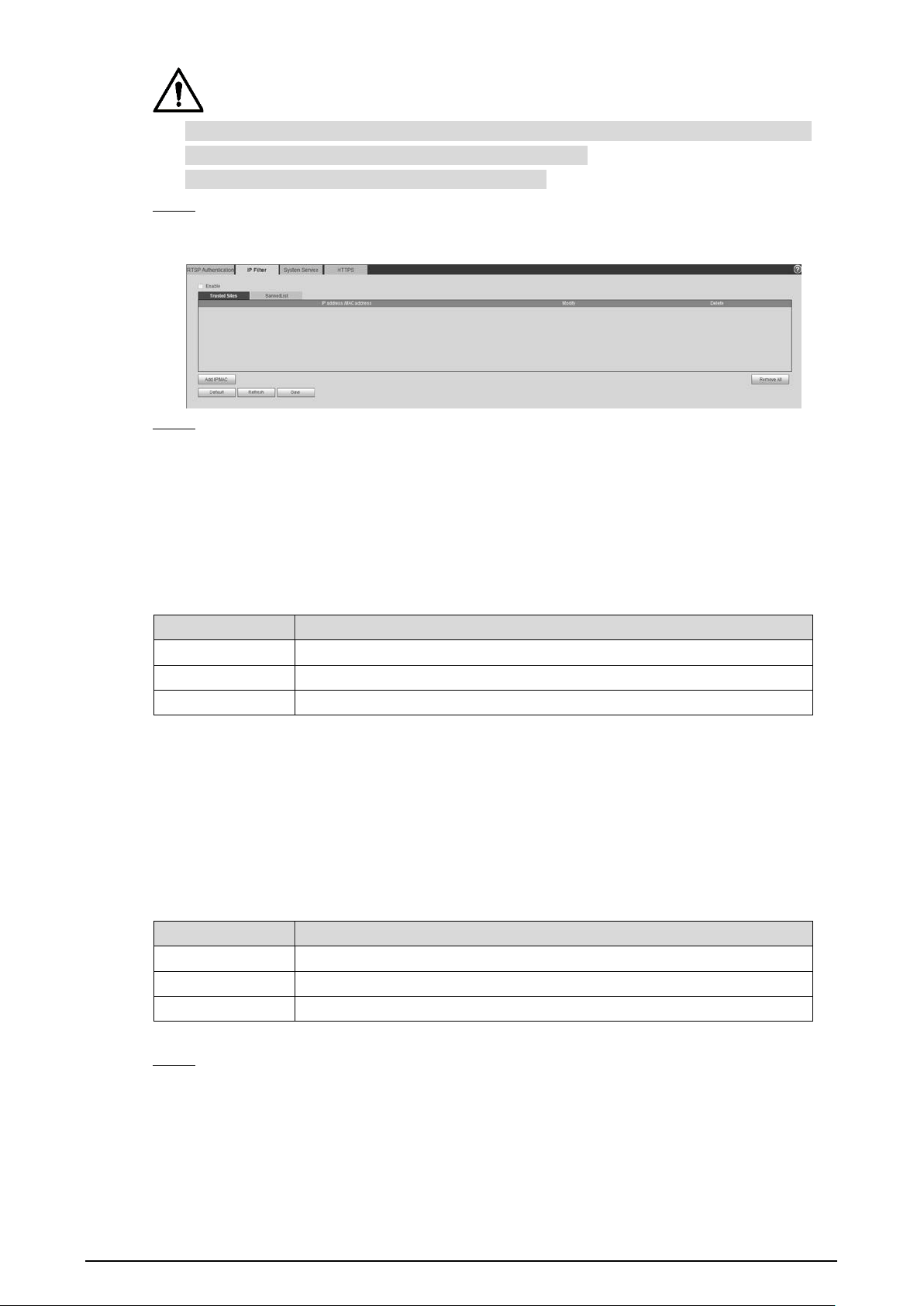

IP filter Figure 4-101
Select the check box of Enable. Step 2
Add an IP/Mac address to the white list.
1) Click the Trusted Sites tab.
The Trusted Sites interface is displayed.
2) Click Add IP/MAC.
The dialogue box of Add IP/MAC is displayed.
3) Set IP/MAC address. See Table 4-50.
Table 4-50 IP/MAC address parameters description (trusted sites)
Parameter Description
IP address IP address you are going to authorize.
IP segment Start address and end address of the IP segment.
MAC address MAC address you are going to authorize.
4) Click Save.
Add an IP/Mac address to the black list.
1) Click the Banned List tab.
The Banned List interface is displayed.
2) Click Add IP/MAC.
The dialogue box of Add IP/MAC is displayed.
3) Set IP/MAC address. See Table 4-51.
Table 4-51 IP/MAC address parameters description (banned list)
Parameter Description
IP address IP address you are going to prohibit.
IP segment Start address and end address of the IP segment.
MAC address MAC address you are going to prohibit.
4) Click Save.
Click Save. Step 3
4.8.4.3 Configuring System Service
You can set functions such as SSH, password reset, CGI service, Onvif service, genetec service, audio
and video transmission encryption and mobile push.
147
Select Setting > System > Safety > System Service. Step 1
The System Service interface is displayed. See Figure 4-102.

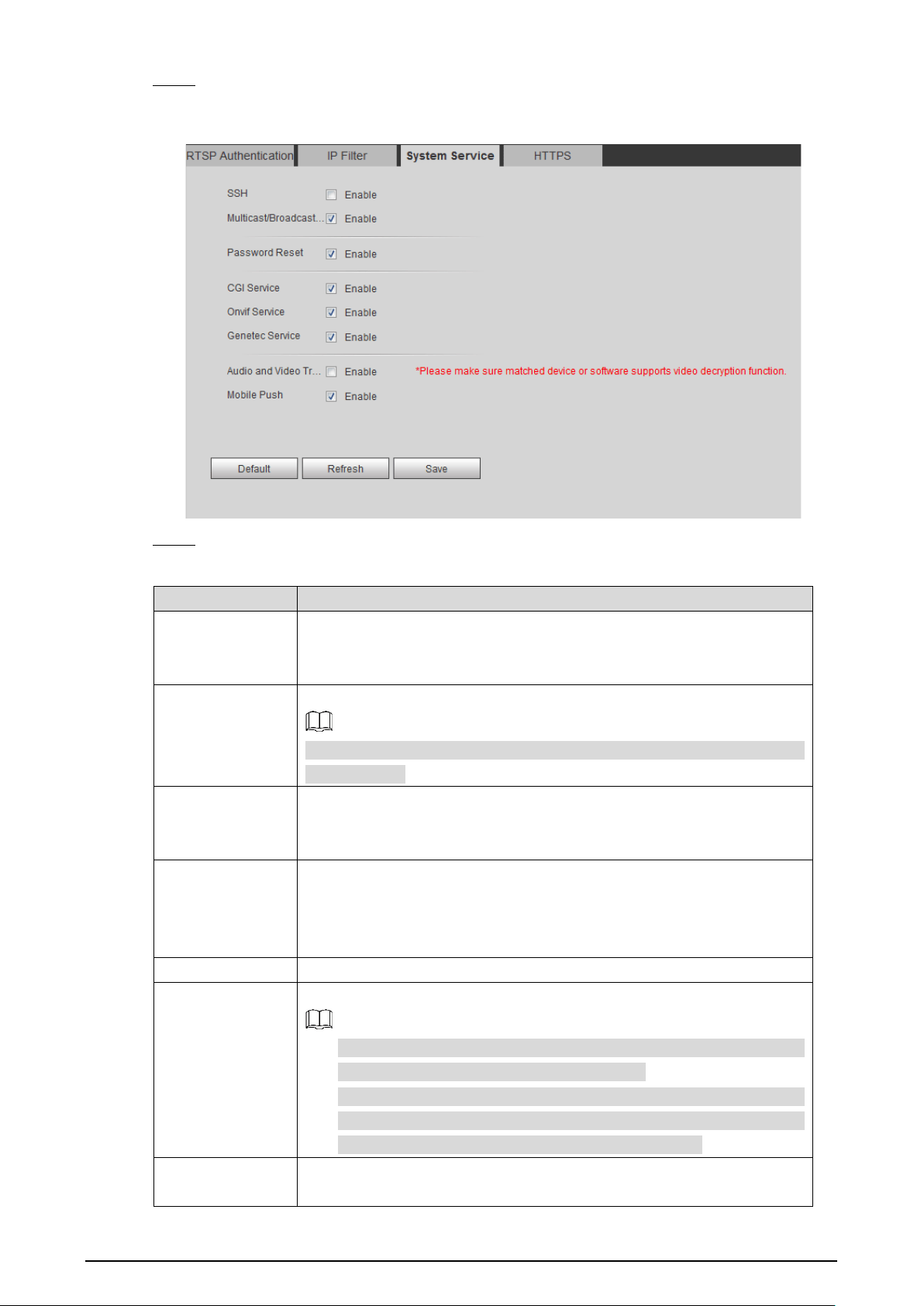

System service Figure 4-102
Enable functions on the System Service interface. See Table 4-52. Step 2
Table 4-52 System service parameters description
Parameter Description
SSH
Disabled by default.
SSH (Secure Shell) can encode your data for its transmission. By this way, data
leakage can be prevented when you manage your Camera remotely.
Password Reset
Enabled by default.
If you choose to disable this function, then you can only restore hardware to
reset password.
CGI Service
Enabled by default.
Enable CGI（Common Gateway Interface）and then you can use your browser
to get data from the server.
Onvif Service
Enabled by default.
Enable Onvif service to connect your Camera to network video products
(front ends of both vidicons and video recorders, and video recorders
included) by other manufacturers.
Genetec Service Enabled by default.
Audio and Video
Transmission
Encryption
Disabled by default.
If you enable this function, ensure the matching Cameras or software
can decode audio and video you have encoded.
Transmission of audio and video between your Camera
and the
third-
party platform cannot be encoded. So, for data security, we
recommend you to disable CGI service and Onvif service.
Mobile Push
Enabled by default. Snapshots under alarm condition can be delivered to
your phone.
148
Click Save. Step 3
4.8.4.4 Configuring HTTPS
With HTTPS, you can install customized certificates or signed certificates. You can also obtain and
install a root certificate.
After installing customized certificates or signed certificates to your Camera, you need to install a
root certificate to your PC. By this, your PC will log in the Camera normally through HTTPS and
guarantee your data security.
4.8.4.4.1 Creating and Installing Customized Certificates
Select Setup > Network > HTTPS. Step 1
The HTTPS interface is displayed. See Figure 4-103.
HTTPS Figure 4-103
Create a certificate. Step 2
1) Click Create.
The dialog box of HTTPS is displayed. See Figure 4-104.
149

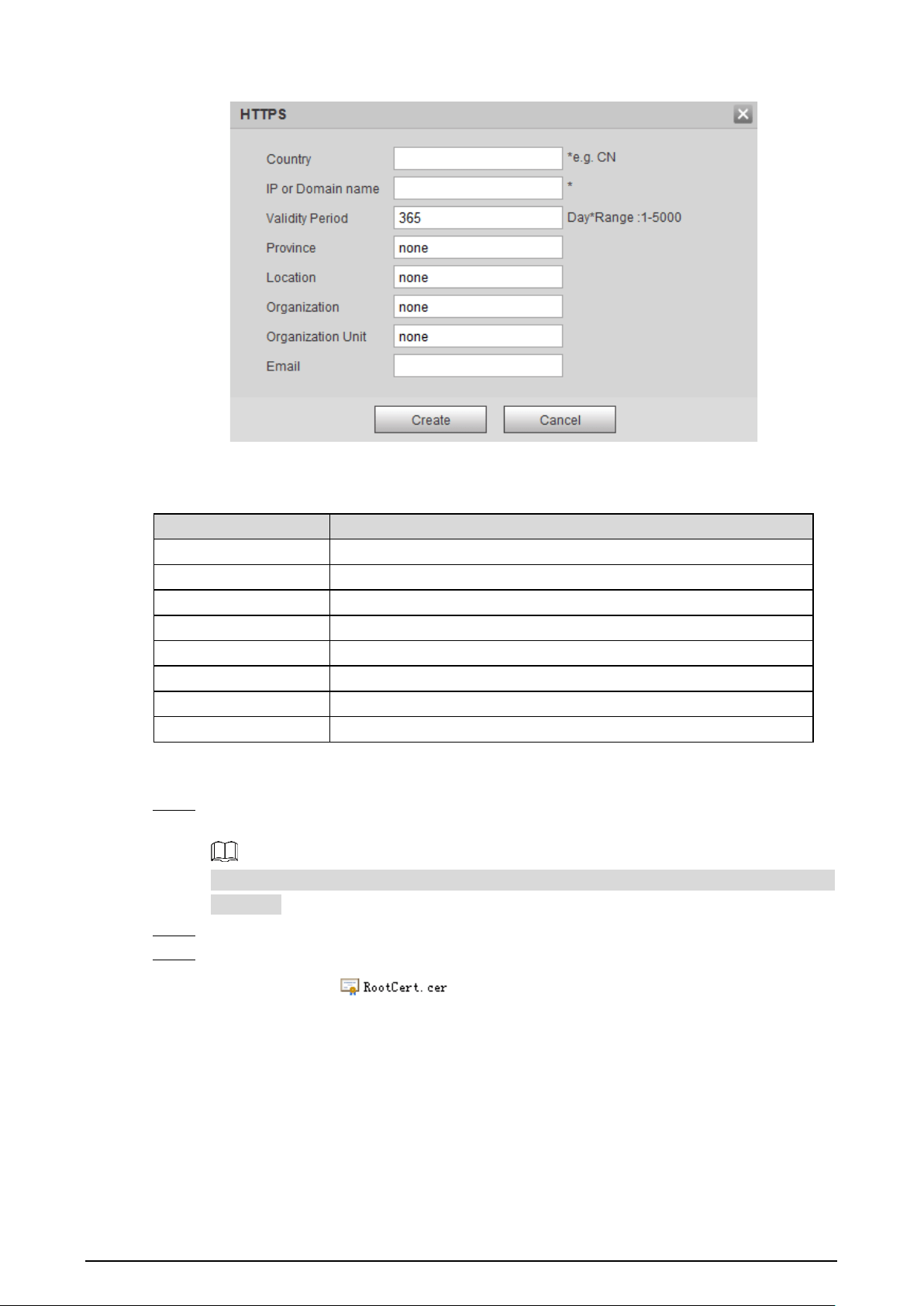

Certificate creating Figure 4-104
2) Configure HTTPS parameters. See Table 4-53.
Table 4-53 Parameters description
Parameter Description
Country Abbreviation of a country. Limited to 2 capital letters.
IP or Domain Name IP address or domain name of your Camera
Validity period Validity period of the certificate.
Province Province where you use this certificate.
Location Location where you use this certificate.
Organization Organization that uses this certificate.
Organization Unit Name of organization unit that uses this certificate.
Email Email of a person or a company who uses this certificate.
3) Click Create.
Requests created will be displayed.
Click Install to start installation. After that, certificate property will be displayed in the Step 3
Certificate Installed bar of the HTTPS interface.
Click Delete near the Certificate Installed bar of the HTTPS interface to delete an installed
certificate.
Click Save to store the root certificate. Step 4
Install the root certificate. Step 5
1) Double-click you have saved.

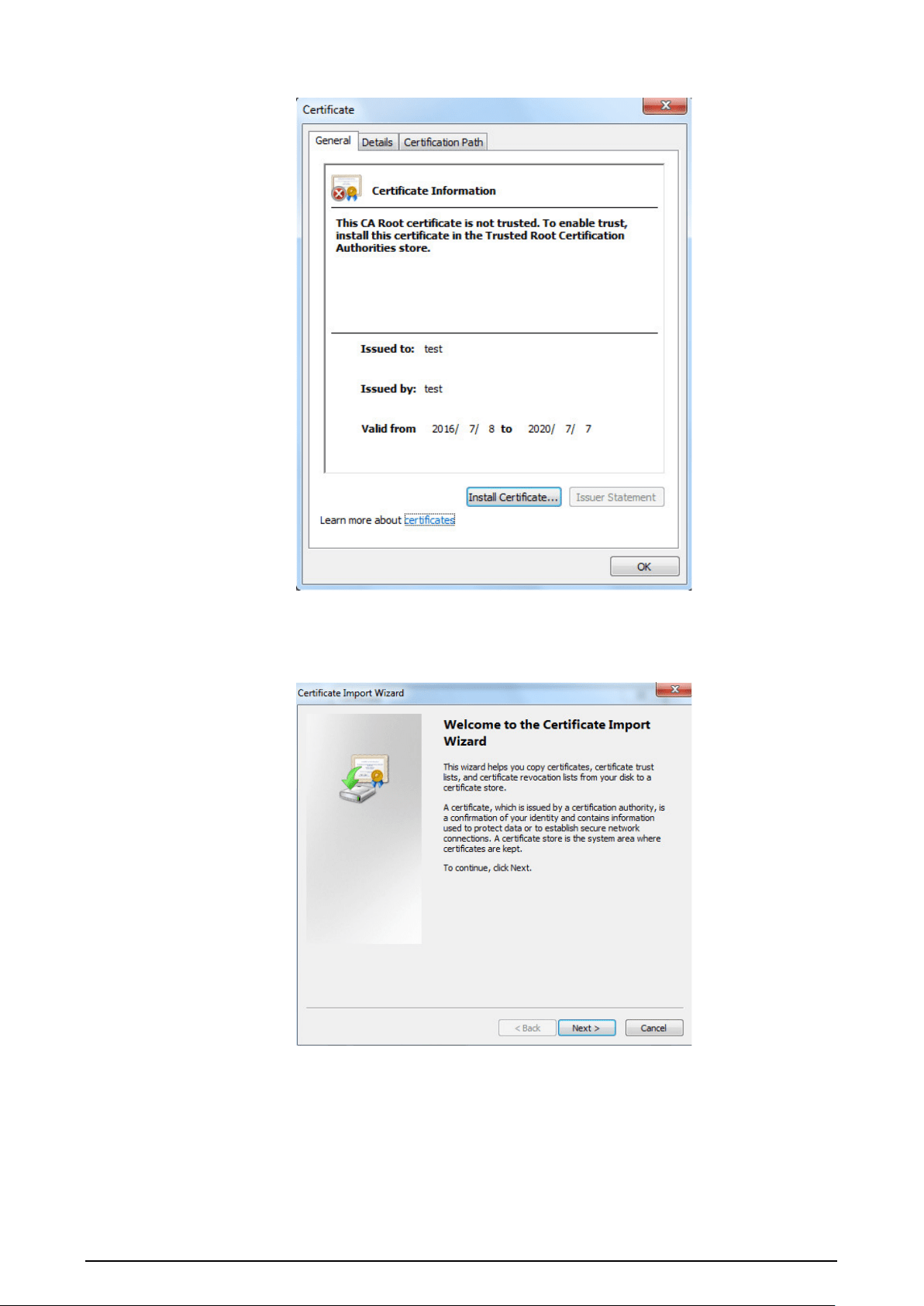

The dialog box of Certificate is displayed. See Figure 4-105.
151

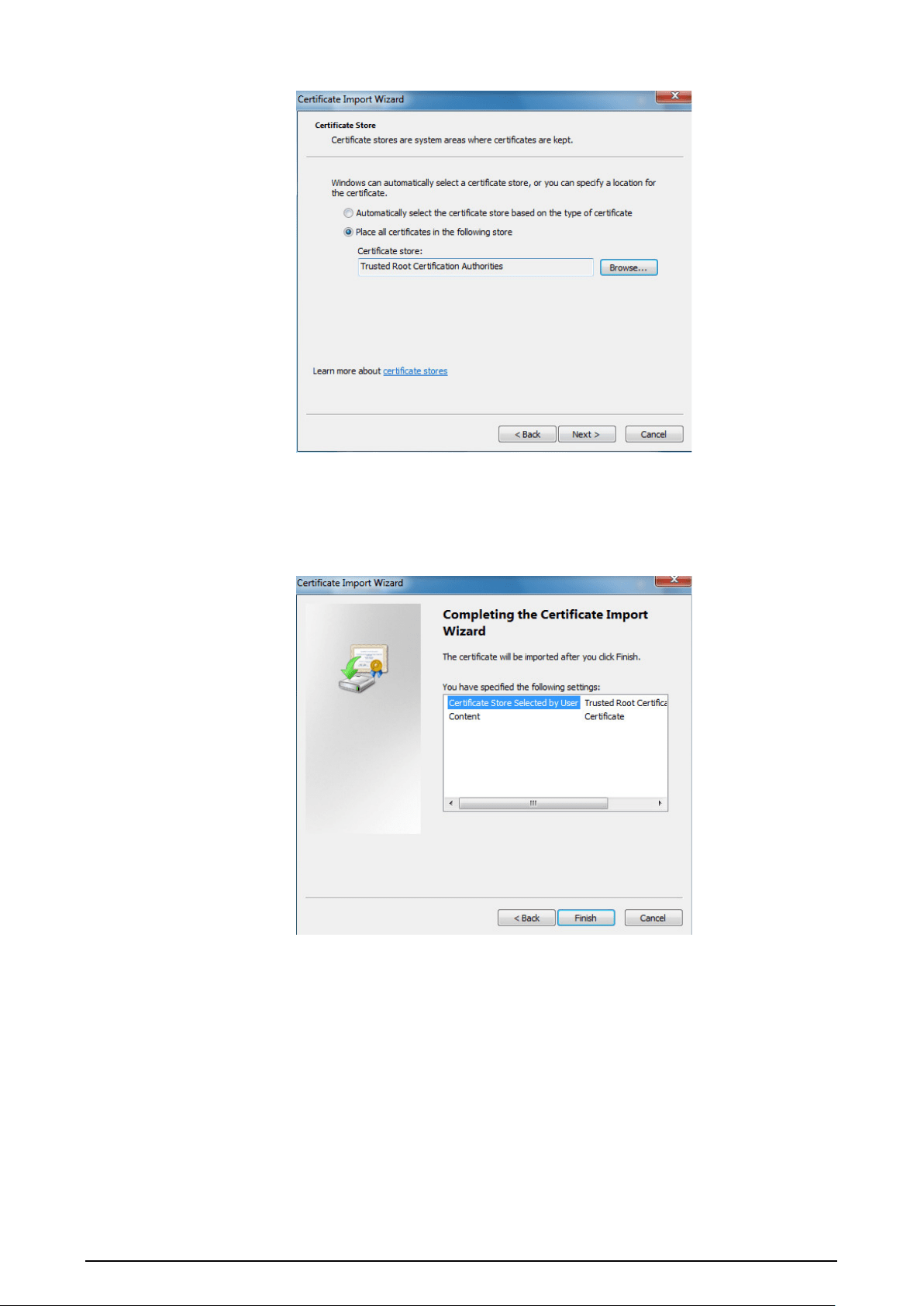

Certificate store Figure 4-107
4) Select "Place all certificates in the following store." Click Browse and set the "Trusted
Root Certification Authorities" as certificate store.
5) Click Next.
The certificate import completing wizard is displayed. See Figure 4-108.
Certificate import wizard completing Figure 4-108
6) Click Finish.
The security warning interface is displayed. See Figure 4-109.
152

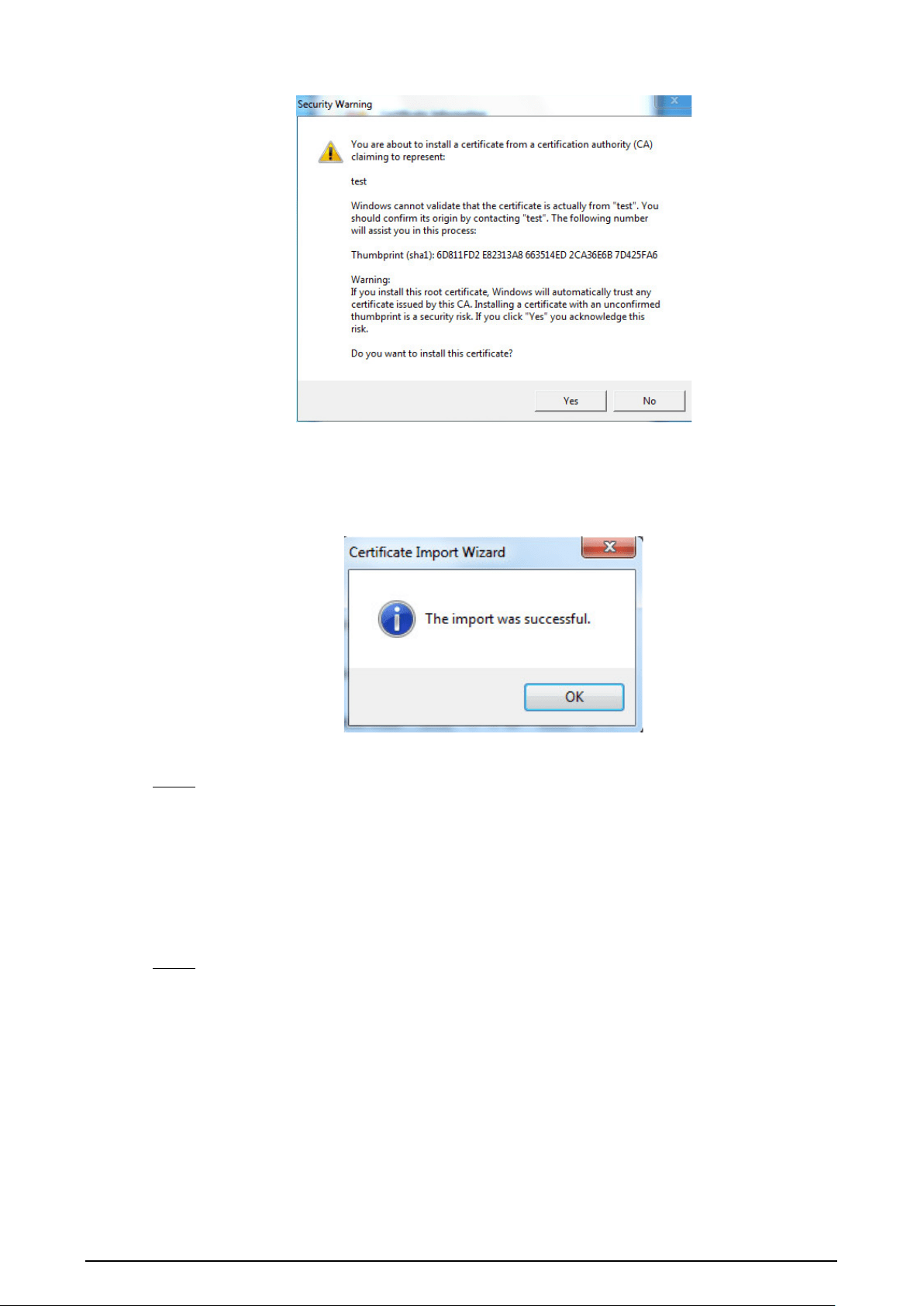

Security warning Figure 4-109
7) Click Ye s.
The system pops up a messaged that indicates the import was successful. See Click
Save to finish certificate importing.
Successful import prompt Figure 4-110
8) Click Save to finish installation of root certificate.
Enable HTTPS and a prompt that the Camera needs to be rebooted is displayed. Step 6
After your Camera reboots, type IP address of the Camera in your browser and access the
Camera through HTTPS protocol.
4.8.4.4.2 Installing Signed Certificate
Get a signed certificate and its password from the digital signature institute. And import the
certificate and its password to the Camera.
Select Setting > Network > HTTPS. Step 1
The HTTPS interface is displayed. See Figure 4-111.
153

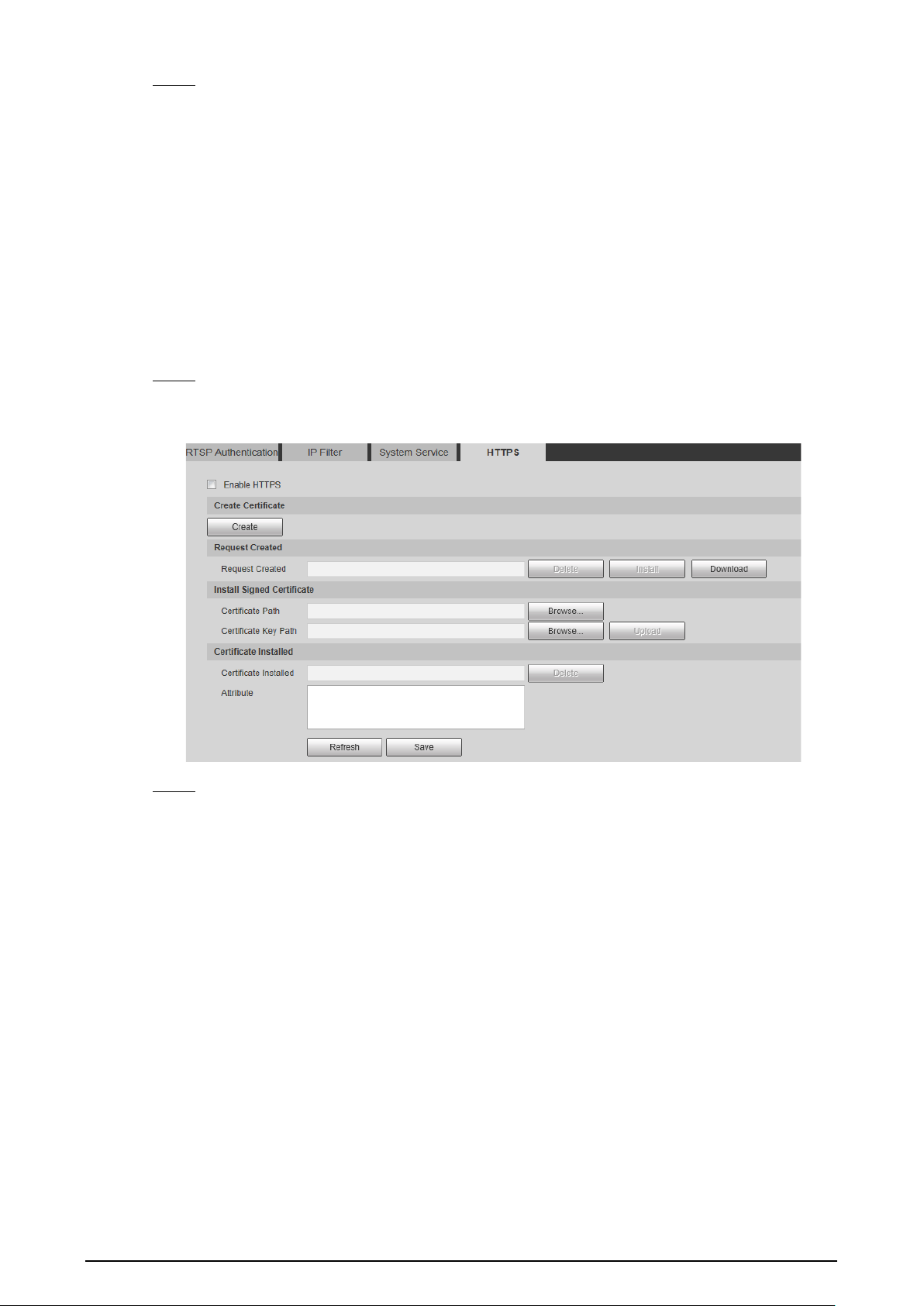

HTTPS Figure 4-111
Install a certificate that has been signed. Step 2
1) Click Browse on the right side of Certificate Path bar to select a certificate you are to
upload.
2) Click Browse on the right side of Certificate Key Path bar to select the certificate
password you are to upload.
Click Upload. Step 3
Installation begins. After that, certificate property will be displayed in the Certificate
Installed bar of the HTTPS interface.
Click Delete near the Certificate Installed bar of the HTTPS interface to delete a certificate
installed.
Click Save to store the root certificate. Step 4
Install the root certificate. Step 5
3) Click you have saved.
The dialog box of Certificate is displayed. See Figure 4-112.
155
Certificate store Figure 4-114
6) Select "Place all certificates in the following store." Click Browse and set the trusted root
certificate authority as certificate store.
7) Click Next.
The certificate import completing wizard is displayed. See Figure 4-115.
Certificate import wizard completing Figure 4-115
8) Click Finish.
The security warning interface is displayed. See Figure 4-116.
156
Security warning Figure 4-116
9) Click Ye s.
The system pops up a messaged that indicates the import was successful. See Figure
4-117. Click Save to finish certificate importing.
Successful import prompt Figure 4-117
10) Click Save to finish installation of root certificate.
Enable HTTPS and a prompt that the Camera needs to be rebooted is displayed. Step 6
After your Camera reboots, type IP address of the Camera in your browser and access the
Camera through HTTPS protocol.
157
5 System Maintenance
Maintenance Requirements 5.1
For the system’s good and safe running, it’s recommended to manage and maintain the system,
backup files with the following methods.
Check surveillance images regularly.
Clear regularly user and user group information that are not frequently used.
Modify your password every 3 months.
Check your system logbook regularly. Handle problems as soon as possible.
Backup your configuration of system regularly.
Regularly check your files and delete the old ones.
Upgrade firmware regularly.
Auto Maintenance 5.2
You can configure settings such as “time of when to self-reboot” “rebooting Camera manually” and
“deleting files automatically.”
5.2.1 Rebooting Camera
Select Setting > System > Auto Maintain. Step 1
The Auto Maintain interface is displayed. See Figure 5-1.
Auto maintain Figure 5-1
Reboot this Camera. Step 2
Auto reboot: Select Auto Reboot and set a reboot time you need. Then click Save.
Manual reboot: Click Manual Reboot and a dialogue box is displayed. Click Save in this
dialogue box and your Camera is rebooted at once.
5.2.2 Deleting Old Files
You can enable this function to delete recorded videos or images saved in SD card, FTP or NAS server
regularly according to the time gap you have set.
Select Setting > System > Auto Maintain. Step 1
The Auto Maintain interface is displayed. See Figure 5-2.
158
Auto maintain Figure 5-2
Enable Auto Delete Old Files and select on your own the time gap of deleting the old files. Step 2
Ranges from 1 to 31 day(s).
Click Save. Step 3
Backing Up and Restoring 5.3
5.3.1 Importing and Exporting
Files that are exported do not contain presets. To import and export presets, see "3.2.1.4 Configuring
Preset Backup" and "3.2.2.4 Configuring Preset Backup."
Select Setting > System > Import/Export. Step 1
The Import/Export interface is displayed. See Figure 5-3.
Import/Export Figure 5-3
Import/Export files. Step 2
Click Export and paths of backing up files are displayed.
Click Import to import files that you have exported and backed up.
5.3.2 Default Settings
Be careful when implementing operations such as “restored to default” and “restored to factory
default”. The operations will result in data loss.
Select Setting > System > Default. Step 1
The Default interface is displayed. See Figure 5-4.
Default setting Figure 5-4
159
Restore the Camera to default setting. Step 2
Click Default, and all the configurations except IP Address and Account are reset.
Click Factory Default, and all the configurations are reset.
Upgrading Firmware 5.4
If a wrong upgrade file has been used, please reboot the Camera, otherwise some functions
might not work properly.
When upgrading, do not cut off power/network, reboot or turn off the Camera.
Select Setting > System > Upgrade. Step 1
The Upgrade interface is displayed. See Figure 5-5.

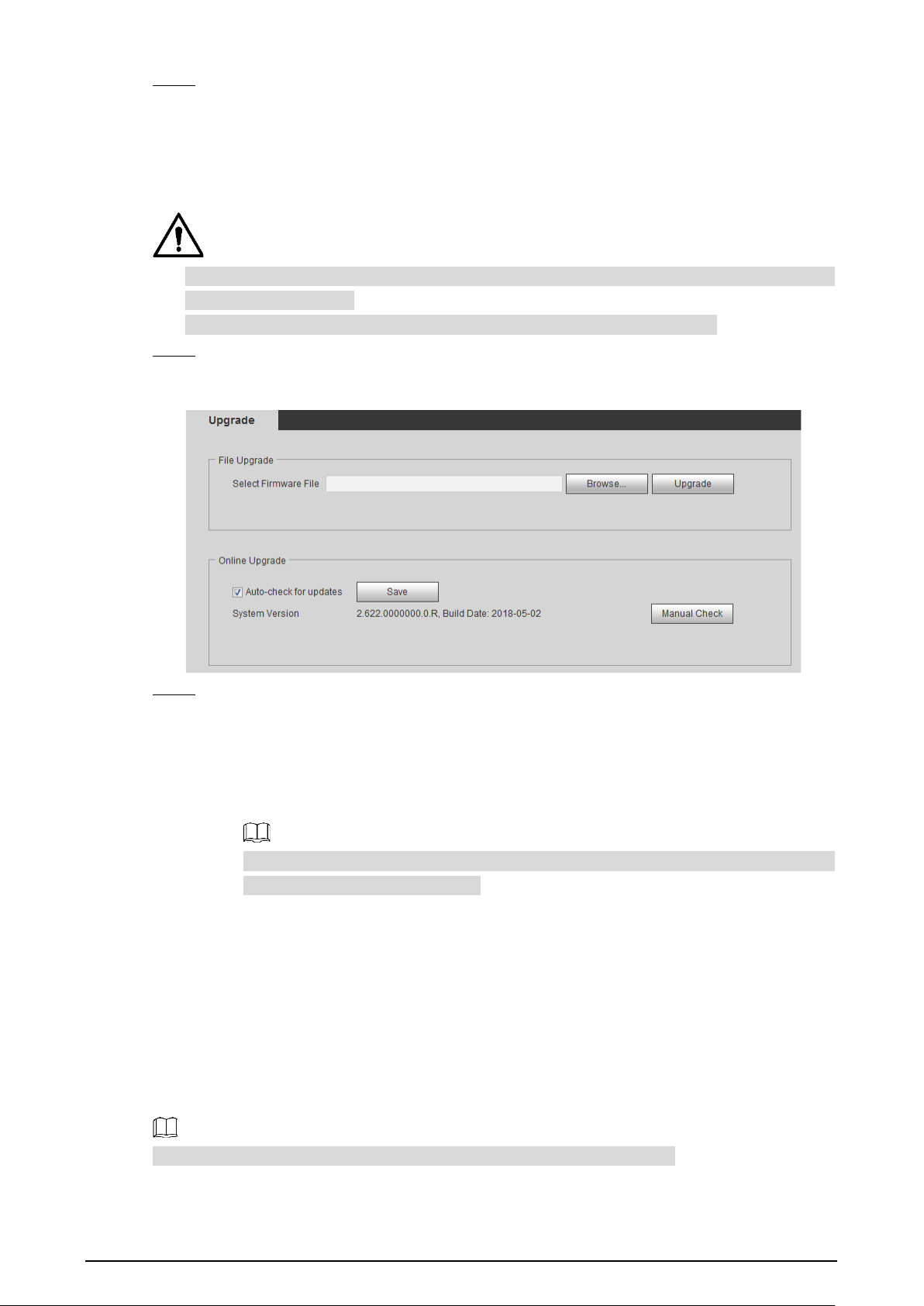

Upgrade Figure 5-5
Select an upgrading method you need and upgrade the system. Step 2
File Upgrade
1) Click Browse, and upload upgrade file.
The upgrade file should be a .bin file.
2) Click Upgrade to start the process.
Online Upgrade
Only when this thermal camera and your computer are both connected to network, can
online upgrading be implemented.
Detect your system version.
Auto detection: Select Auto-check for updates and click Save. The version is
detected automatically.
Manual detection: Select Manual Check and the system begins to check the
version information.
Version Information 5.5
View Camera hardware information, system version and web version.
Versions of different Cameras might vary, and the actual product shall prevail.
Select Setting > Information > Version, and the Version interface is displayed. See Figure 5-6.
160

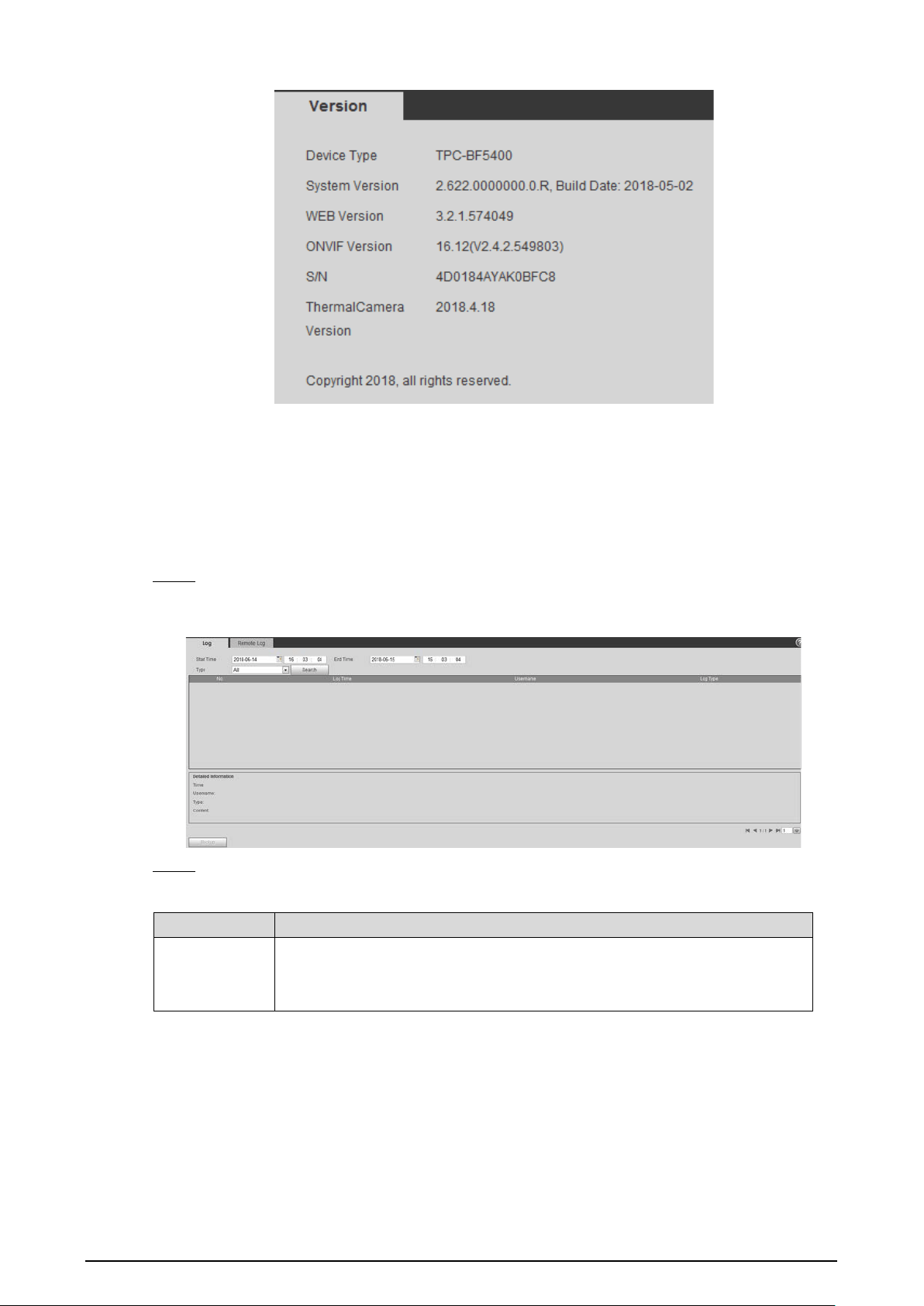

Version Figure 5-6
System Log 5.6
5.6.1 Searching System Logs
The log type includes "all, system, setting, data, event, record, account and safety."
Select Setting > Information > Log. Step 1
The Log interface is displayed. See Figure 5-7.
Log Figure 5-7
Set start time and end time, and then select log type. Step 2
Table 5-1 Parameter description of system log
Parameters Description
Start Time
End Time
Select a time period which you want to search.
The earliest start time is January 1, 2000, and the latest end time is December 31,
2037.
161
Type
The log type includes "all, system, setting, data, event, record, account and
safety."
All: All log information.
System: Includes program launch, force exit, exit, program reboot, Camera
turn off/reboot, system reboot and system upgrade.
Setting: Includes save configuration and delete configuration file.
Data: Includes configure disk type, erase data, hot swap, FTP state, NAS
state, record mode, SD card error and hard disk error.
Event (Records events such as video detection, smart
plan, alarm and
abnormality): Includes event start and event end.
Record: Includes file access, file access error and file search.
User Management: Includes log in, log out, add user, delete user, modify
user, add group, delete group and modify group.
Safety: Includes password reset and IP filter.
Click Search. Step 3
The needed logs are displayed. See Figure 5-8.
Click a log, and then you can view the detailed information in Detailed Information
area.
Click Backup, and then you can back up all the found logs to your PC.

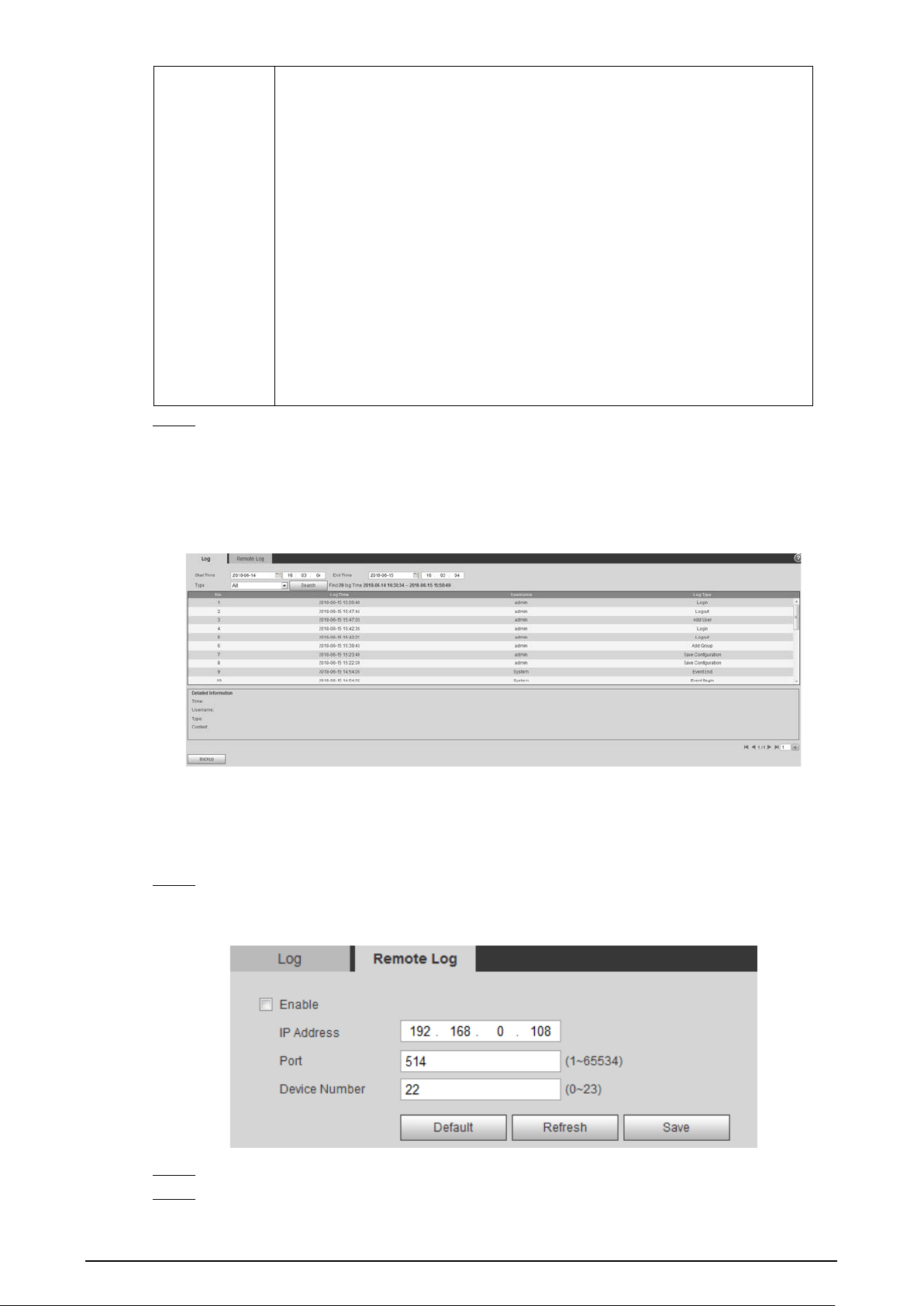

Log information Figure 5-8
5.6.2 Remote View
Enable this function to remotely check logs in your Camera.
Select Setting > Information > Log. Step 1
The Remote Log interface is displayed. See Figure 5-9.
Remote Log Figure 5-9
Select the Enable check box. Step 2
Set IP Address, Port and Camera Number. Then click Save. Step 3
163
6 Additional Accessing Methods
Accessing through NVR 6.1
Connect this camera to NVR (Network Video Recorder) through Wi-Fi or Ethernet. Then you can set
and manage this camera through the NVR’s web client.
Preparation
Your PC, NVR and your thermal camera are all connected to network.
You have enabled platform accessing function.
You have logged in the NVR’s web client.
Procedure
Select Setting > Camera > Registration. Step 1
The Remote Log interface is displayed. See Figure 6-1.
Registration Figure 6-1
Click Search. Step 2
After the search, the system displays Cameras that have been searched.
Select Cameras whose IP address needs to be modified and click Add. Step 3
The following list will display information of tunnel with Cameras. When you log in the
Camera successfully, the connection condition displays .
Web client of NVR recognizes by default that username and password for logging in the
Camera are both "admin." If you have modified your password, add your Camera manually.
164
Accessing through SmartPSS 6.2
You can set and manage this thermal camera through SmartPSS client.
Preparation
You PC (with SmartPSS installed) and your thermal camera have been both connected to
network.
You have installed and opened SmartPSS.
Procedure
Click Cameras in the homepage. Step 1
The Cameras interface is displayed. See Figure 6-2.
Camera list Figure 6-2
Type the network segment the Camera is in, and then click Search. Step 2
After the search, the system displays Cameras that have been searched.
Select Cameras whose IP address needs to be modified and click Add. Step 3
The following list will display Cameras that have been added. When you log in the Camera
successfully, the connection condition displays Online.
It’s set by default that username and password for logging in the client side of SmartPSS are
both "admin." If you have modified the password or Camera port, please add Camera
manually.
165
Cybersecurity Recommendations Appendix 1
Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is
connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps
toward protecting and strengthening networks and networked appliances will make them less
susceptible to attacks. Below are some tips and recommendations on how to create a more secured
security system.
Mandatory actions to be taken for basic equipment network security:
1. Use Strong Passwords
Please refer to the following suggestions to set passwords:
The length should not be less than 8 characters;
Include at least two types of characters; character types include upper and lower case
letters, numbers and symbols;
Do not contain the account name or the account name in reverse order;
Do not use continuous characters, such as 123, abc, etc.;
Do not use overlapped characters, such as 111, aaa, etc.;
2. Update Firmware and Client Software in Time
According to the standard procedure in Tech-industry, we recommend to keep your
equipment (such as NVR, DVR, IP camera, etc.) firmware up-to-date to ensure the system is
equipped with the latest security patches and fixes. When the equipment is connected to
the public network, it is recommended to enable the “auto-check for updates” function to
obtain timely information of firmware updates released by the manufacturer.
We suggest that you download and use the latest version of client software.
"Nice to have" recommendations to improve your equipment network security:
1. Physical Protection
We suggest that you perform physical protection to equipment, especially storage devices. For
example, place the equipment in a special computer room and cabinet, and implement
well-done access control permission and key management to prevent unauthorized personnel
from carrying out physical contacts such as damaging hardware, unauthorized connection of
removable equipment (such as USB flash disk, serial port), etc.
2. Change Passwords Regularly
We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.
3. Set and Update Passwords Reset Information Timely
The equipment supports password reset function. Please set up related information for
password reset in time, including the end user’s mailbox and password protection questions. If
the information changes, please modify it in time. When setting password protection questions,
it is suggested not to use those that can be easily guessed.
4. Enable Account Lock
The account lock feature is enabled by default, and we recommend you to keep it on to
guarantee the account security. If an attacker attempts to log in with the wrong password
several times, the corresponding account and the source IP address will be locked.
5. Change Default HTTP and Other Service Ports
We suggest you to change default HTTP and other service ports into any set of numbers
between 1024~65535, reducing the risk of outsiders being able to guess which ports you are
using.
166
6. Enable HTTPS
We suggest you to enable HTTPS, so that you visit Web service through a secure communication
channel.
7. Enable Whitelist
We suggest you to enable whitelist function to prevent everyone, except those with specified IP
addresses, from accessing the system. Therefore, please be sure to add your computer’s IP
address and the accompanying equipment’s IP address to the whitelist.
8. MAC Address Binding
We recommend you to bind the IP and MAC address of the gateway to the equipment, thus
reducing the risk of ARP spoofing.
9. Assign Accounts and Privileges Reasonably
According to business and management requirements, reasonably add users and assign a
minimum set of permissions to them.
10. Disable Unnecessary Services and Choose Secure Modes
If not needed, it is recommended to turn off some services such as SNMP, SMTP, UPnP, etc., to
reduce risks.
If necessary, it is highly recommended that you use safe modes, including but not limited to the
following services:
SNMP: Choose SNMP v3, and set up strong encryption passwords and authentication
passwords.
SMTP: Choose TLS to access mailbox server.
FTP: Choose SFTP, and set up strong passwords.
AP hotspot: Choose WPA2-PSK encryption mode, and set up strong passwords.
11. Audio and Video Encrypted Transmission
If your audio and video data contents are very important or sensitive, we recommend that you
use encrypted transmission function, to reduce the risk of audio and video data being stolen
during transmission.
Reminder: encrypted transmission will cause some loss in transmission efficiency.
12. Secure Auditing
Check online users: we suggest that you check online users regularly to see if the device is
logged in without authorization.
Check equipment log: By viewing the logs, you can know the IP addresses that were used
to log in to your devices and their key operations.
13. Network Log
Due to the limited storage capacity of the equipment, the stored log is limited. If you need to
save the log for a long time, it is recommended that you enable the network log function to
ensure that the critical logs are synchronized to the network log server for tracing.
14. Construct a Safe Network Environment
In order to better ensure the safety of equipment and reduce potential cyber risks, we
recommend:
Disable the port mapping function of the router to avoid direct access to the intranet
devices from external network.
The network should be partitioned and isolated according to the actual network needs. If
there are no communication requirements between two sub networks, it is suggested to
use VLAN, network GAP and other technologies to partition the network, so as to achieve
the network isolation effect.
167
Establish the 802.1x access authentication system to reduce the risk of unauthorized access
to private networks.
It is recommended that you enable your device's firewall or blacklist and whitelist feature
to reduce the risk that your device might be attacked.
