Network Camera Web 5.0
Operation Manual
ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.5
Operation Manual
I
Foreword
General
This manual introduces the functions, configuration, general operation, and system maintenance of
network camera. Read carefully before using the platform, and keep the manual safe for future
reference.
Safety Instructions
The following signal words might appear in the manual.
Signal Words Meaning
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
Indicates a potential risk which, if not avoided, could result in
property damage, data loss, reductions in performance, or
unpredictable results.
Provides methods to help you solve a problem or save time.
Provides additional information as a supplement to the text.
Revision History
Version Revision Content Release Date
V1.0.5
Added the description of splicing and
panoramic linkage.
September 2022
V1.0.4
Added the description of EPTZ, AI SSA and
AFSA.
April 2022
V1.0.3 Added parking space detection mode. November 2021
V1.0.2
●

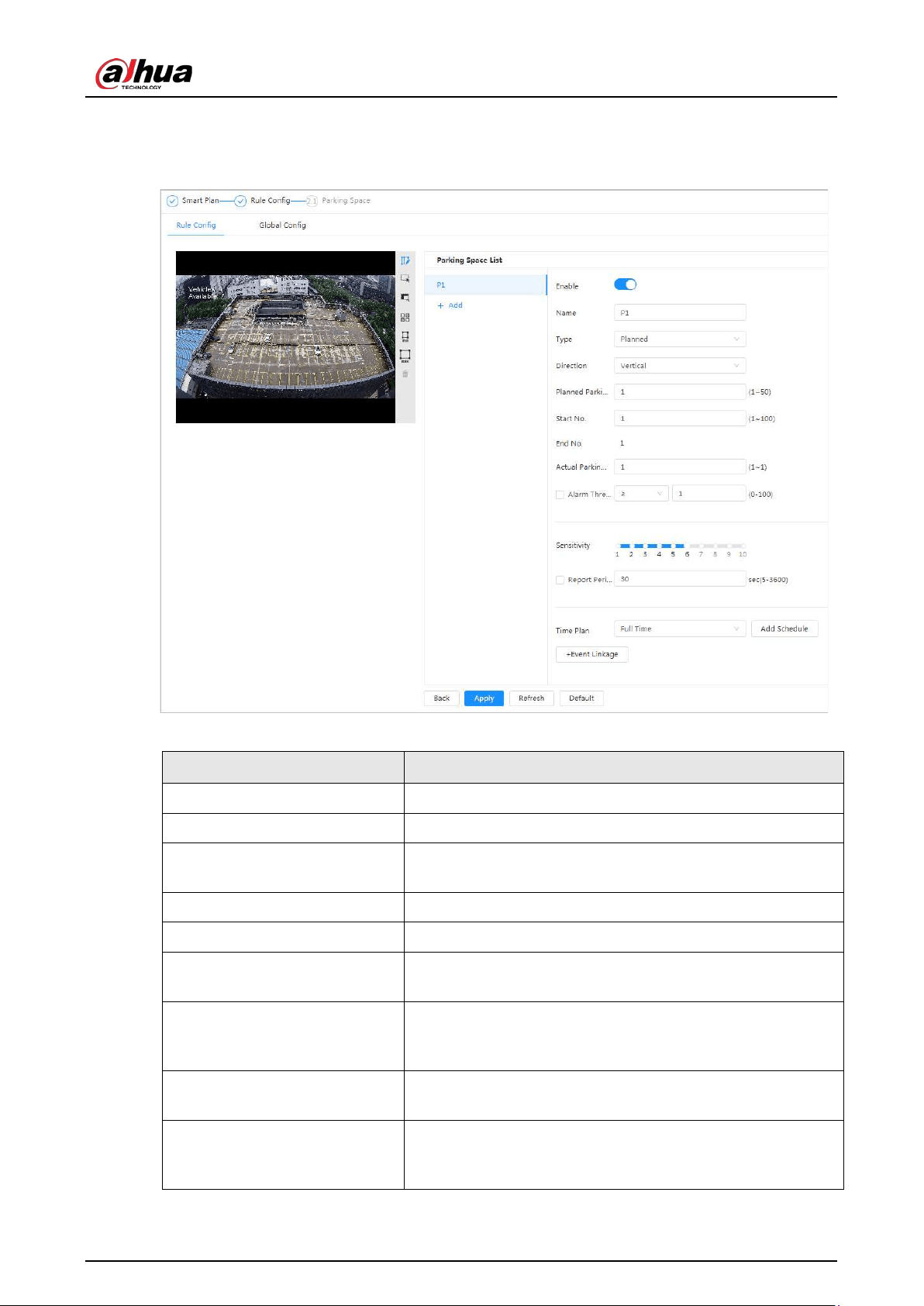

Added "6.2.2.2.14 Configuring Parking
Space".
●
Added "8.5 Setting Vehicle Density".
●
Added "8.6 Setting Parking Space".
●
Added "12.1.4 Crowd Distribution".
●
Added "12.1.5 Vehicle Density".
●
Updated "8.11 Setting ANPR".
July 2021
V1.0.1
●

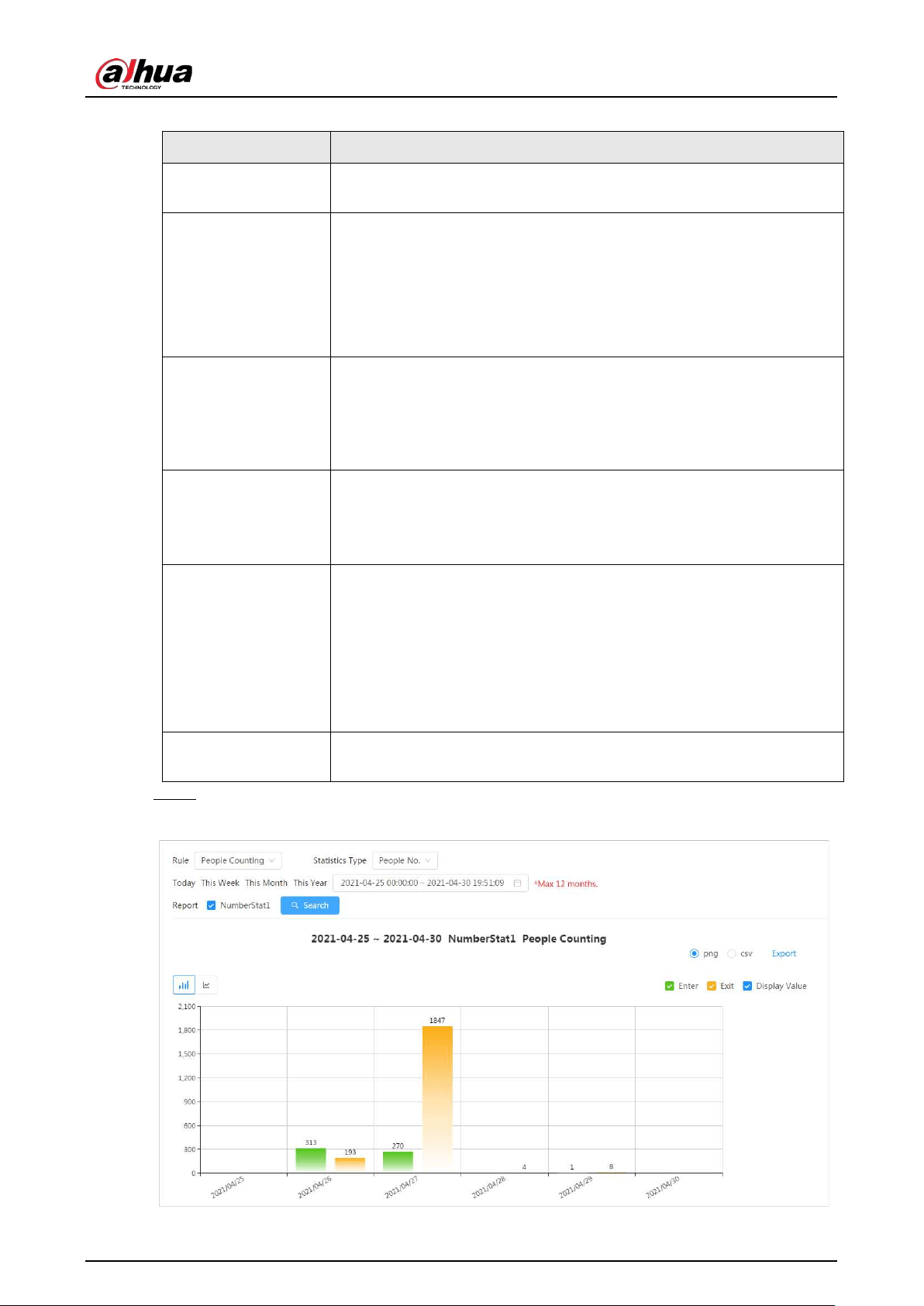

Added "8.8 Setting People Counting"
and "8.10 Setting Heat Map".
●
Added "6.2.1.11 Fisheye" and "7.4.4
Fisheye".
●
Updated "8.2 Setting Face
Recognition".
●
Updated "12 Report".
May 2021
V1.0.0 First release. September 2020
Operation Manual
II
Privacy Protection Notice
As the device user or data controller, you might collect the personal data of others such as their face,
fingerprints, and license plate number. You need to be in compliance with your local privacy
protection laws and regulations to protect the legitimate rights and interests of other people by
implementing measures which include but are not limited: Providing clear and visible identification
to inform people of the existence of the surveillance area and provide required contact information.
About the Manual
●
The manual is for reference only. Slight differences might be found between the manual and the
product.
●
We are not liable for losses incurred due to operating the product in ways that are not in
compliance with the manual.
●
The manual will be updated according to the latest laws and regulations of related jurisdictions.
For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit
our official website. The manual is for reference only. Slight differences might be found between
the electronic version and the paper version.
●
All designs and software are subject to change without prior written notice. Product updates
might result in some differences appearing between the actual product and the manual. Please
contact customer service for the latest program and supplementary documentation.
●
There might be errors in the print or deviations in the description of the functions, operations
and technical data. If there is any doubt or dispute, we reserve the right of final explanation.
●
Upgrade the reader software or try other mainstream reader software if the manual (in PDF
format) cannot be opened.
●
All trademarks, registered trademarks and company names in the manual are properties of their
respective owners.
●
Please visit our website, contact the supplier or customer service if any problems occur while
using the device.
●
If there is any uncertainty or controversy, we reserve the right of final explanation.
Operation Manual
III
Important Safeguards and Warnings
This section introduces content covering the proper handling of the device, hazard prevention, and
prevention of property damage. Read carefully before using the device, and comply with the
guidelines when using it.
Transportation Requirements
●
Transport the device under allowed humidity and temperature conditions.
●
Pack the device with packaging provided by its manufacturer or packaging of the same quality
before transporting it.
●
Do not place heavy stress on the device, violently vibrate or immerse it in liquid during
transportation.
Storage Requirements
●
Store the device under allowed humidity and temperature conditions.
●
Do not place the device in a humid, dusty, extremely hot or cold site that has strong
electromagnetic radiation or unstable illumination.
●
Do not place heavy stress on the device, violently vibrate or immerse it in liquid during storage.
Installation Requirements
●
Strictly comply with the local electrical safety code and standards, and check whether the power
supply is correct before operating the device.
●
Please follow the electrical requirements to power the device.
◇
When selecting the power adapter, the power supply must conform to the requirements of
ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply
requirements are subject to the device label.
◇
We recommend using the power adapter provided with the device.
●
Do not connect the device to two or more kinds of power supplies, unless otherwise specified, to
avoid damage to the device.
●
The device must be installed in a location that only professionals can access, to avoid the risk of
non-professionals becoming injured from accessing the area while the device is working.
Professionals must have full knowledge of the safeguards and warnings of using the device.
●
Do not place heavy stress on the device, violently vibrate or immerse it in liquid during
installation.
●
An emergency disconnect device must be installed during installation and wiring at a readily
accessible location for emergency power cut-off.
●
We recommend you use the device with a lightning protection device for stronger protection
Operation Manual
IV
against lightning. For outdoor scenarios, strictly comply with the lightning protection
regulations.
●
Ground the function earthing portion of the device to improve its reliability (certain models
are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that
the power supply of the device is connected to a power socket with protective earthing.
●
The dome cover is an optical component. Do not directly touch or wipe the surface of the cover
during installation.
Operation Requirements
●
The cover must not be opened while the device is powered on.
●
Do not touch the heat dissipation component of the device to avoid the risk of getting burnt.
●
Use the device under allowed humidity and temperature conditions.
●
Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing it,
to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and flickering.
●
When using a laser beam device, avoid exposing the device surface to laser beam radiation.
●
Prevent liquid from flowing into the device to avoid damage to its internal components.
●
Protect indoor devices from rain and dampness to avoid electric shocks and fires breaking out.
●
Do not block the ventilation opening near the device to avoid heat accumulation.
●
Protect the line cord and wires from being walked on or squeezed particularly at plugs, power
sockets, and the point where they exit from the device.
●
Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the
lens.
●
The dome cover is an optical component. Do not directly touch or wipe the surface of the cover
when using it.
●
There might be a risk of electrostatic discharge on the dome cover. Power off the device when
installing the cover after the camera finishes adjustment. Do not directly touch the cover and
make sure the cover is not exposed to other equipment or human bodies
●
Strengthen the protection of the network, device data and personal information. All necessary
safety measures to ensure the network security of the device must be taken, such as using strong
passwords, regularly changing your password, updating firmware to the latest version, and
isolating computer networks. For the IPC firmware of some previous versions, the ONVIF
password will not be automatically synchronized after the main password of the system has been
changed. You need to update the firmware or change the password manually.
Maintenance Requirements
●
Strictly follow the instructions to disassemble the device. Non-professionals dismantling the
device can result in it leaking water or producing poor quality images. For a device that is
required to be disassembled before use, make sure the seal ring is flat and in the seal groove
when putting the cover back on. When you find condensed water forming on the lens or the
desiccant becomes green after you disassembled the device, contact after-sales service to
replace the desiccant. Desiccants might not be provided depending on the actual model.
Operation Manual
V
●
Use the accessories suggested by the manufacturer. Installation and maintenance must be
performed by qualified professionals.
●
Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the
lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently
wipe away the dirt.
●
Clean the device body with a soft dry cloth. If there are any stubborn stains, clean them away
with a soft cloth dipped in a neutral detergent, and then wipe the surface dry. Do not use volatile
solvents such as ethyl alcohol, benzene, diluent, or abrasive detergents on the device to avoid
damaging the coating and degrading the performance of the device.
●
The dome cover is an optical component. When it is contaminated with dust, grease, or
fingerprints, use degreasing cotton moistened with a little ether or a clean soft cloth dipped in
water to gently wipe it clean. An air gun is useful for blowing dust away.
●
It is normal for a camera made of stainless steel to develop rust on its surface after being used in
a strong corrosive environment (such as the seaside, and chemical plants). Use an abrasive soft
cloth moistened with a little acid solution (vinegar is recommended) to gently wipe it away.
Afterwards, wipe it dry.
Operation Manual
VI
Table of Contents
Foreword
........................................................................................................................................................................................................I
Important Safeguards and Warnings
............................................................................................................................................ III
1 Overview
................................................................................................................................................................................................... 1
1.1 Introduction
................................................................................................................................................................................. 1

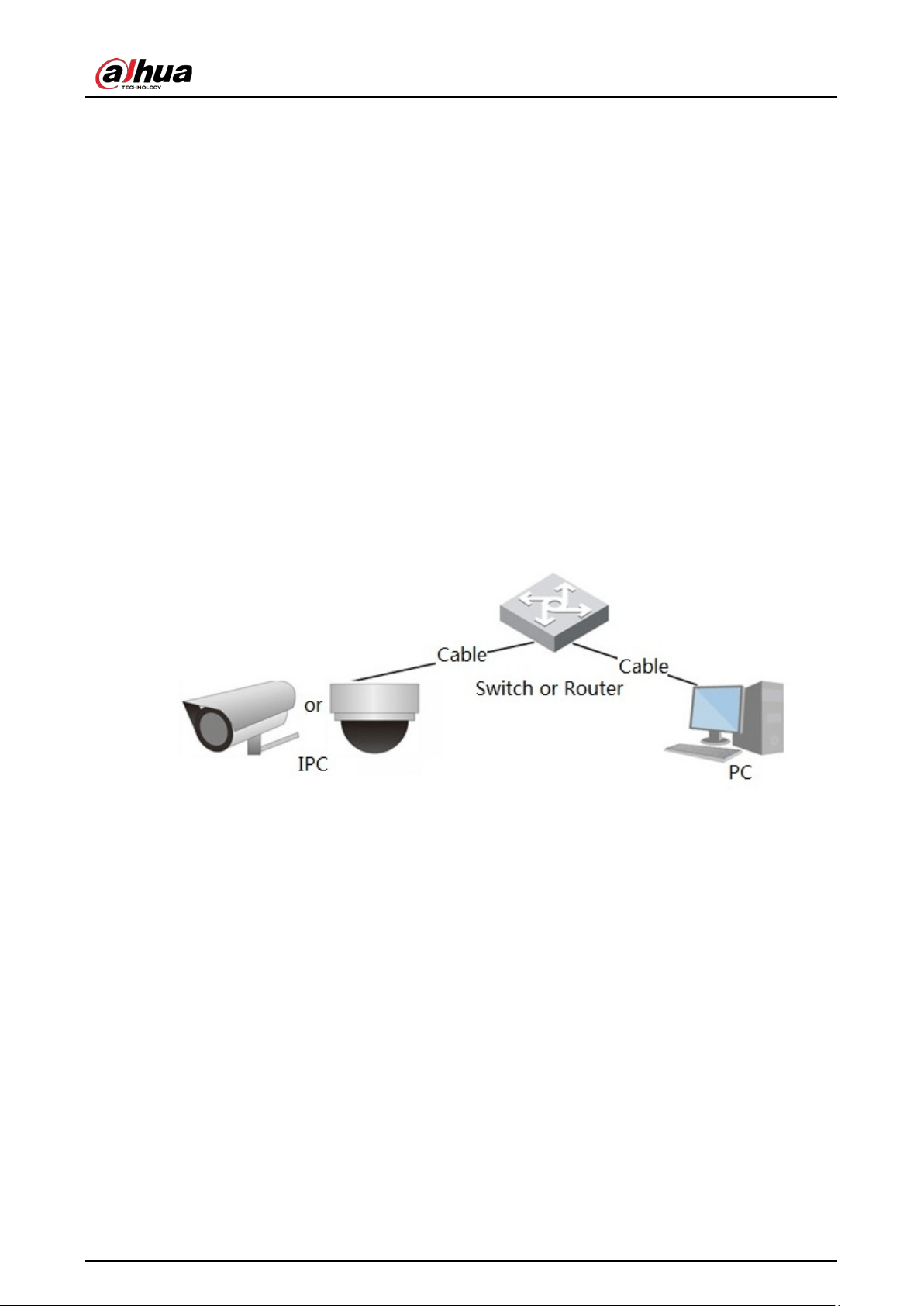

1.2 Network Connection
................................................................................................................................................................ 1
1.3 Functions
....................................................................................................................................................................................... 1
1.3.1 Basic Functions
................................................................................................................................................................ 1
1.3.2 AI Functions
....................................................................................................................................................................... 2

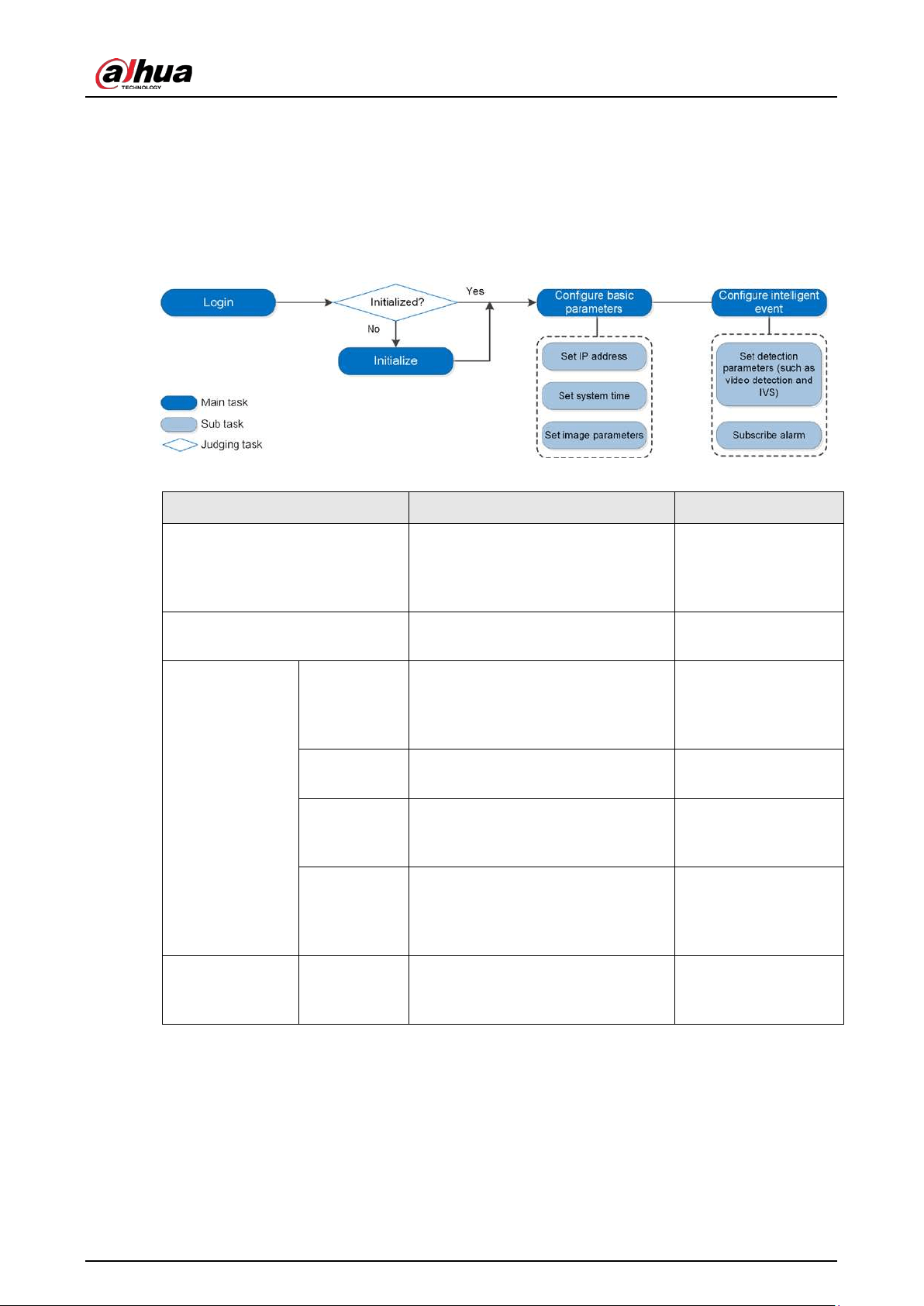

2 Configuration Flow
.............................................................................................................................................................................. 5

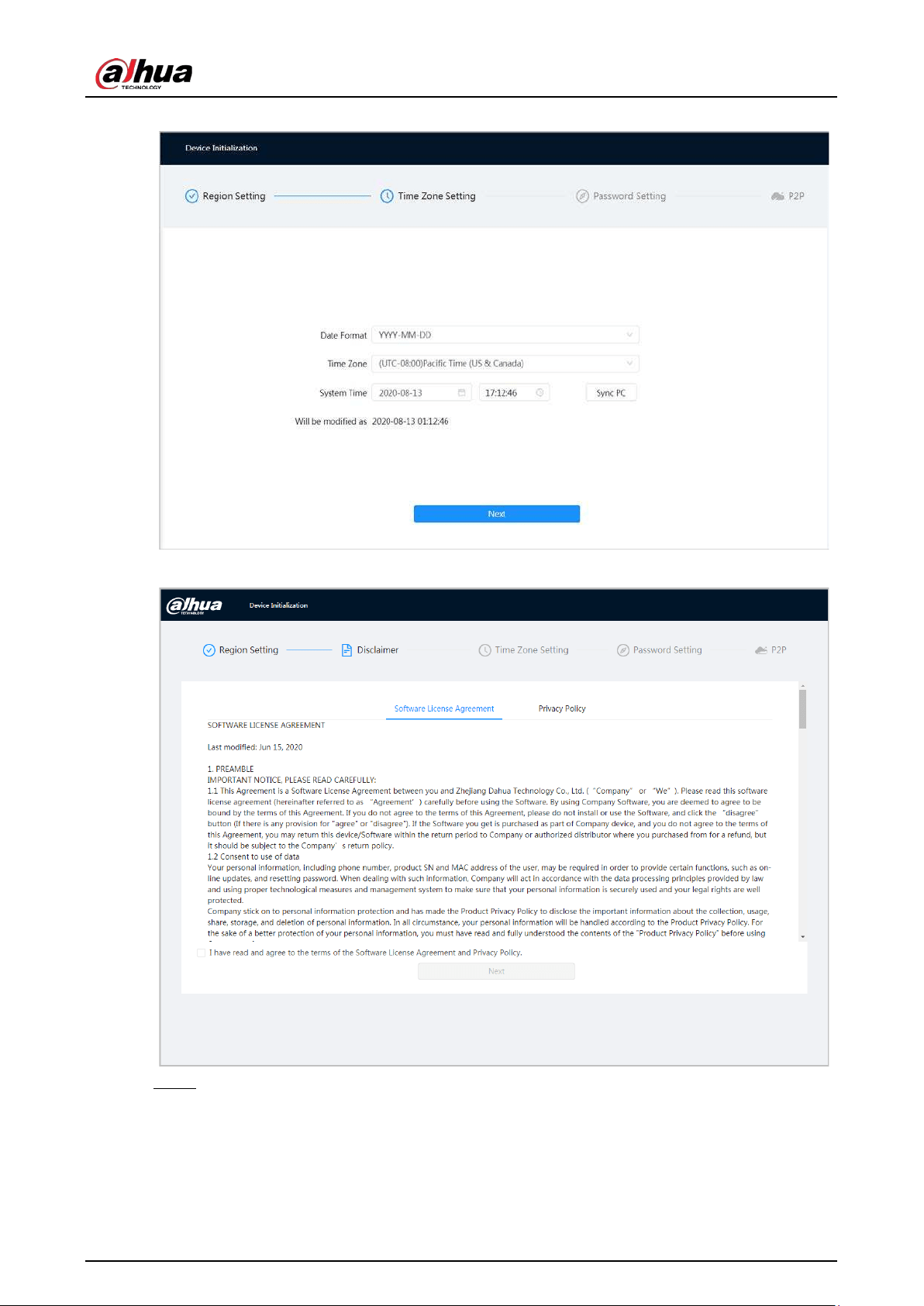

3 Device Initialization
............................................................................................................................................................................ 6
4 Login
......................................................................................................................................................................................................... 10

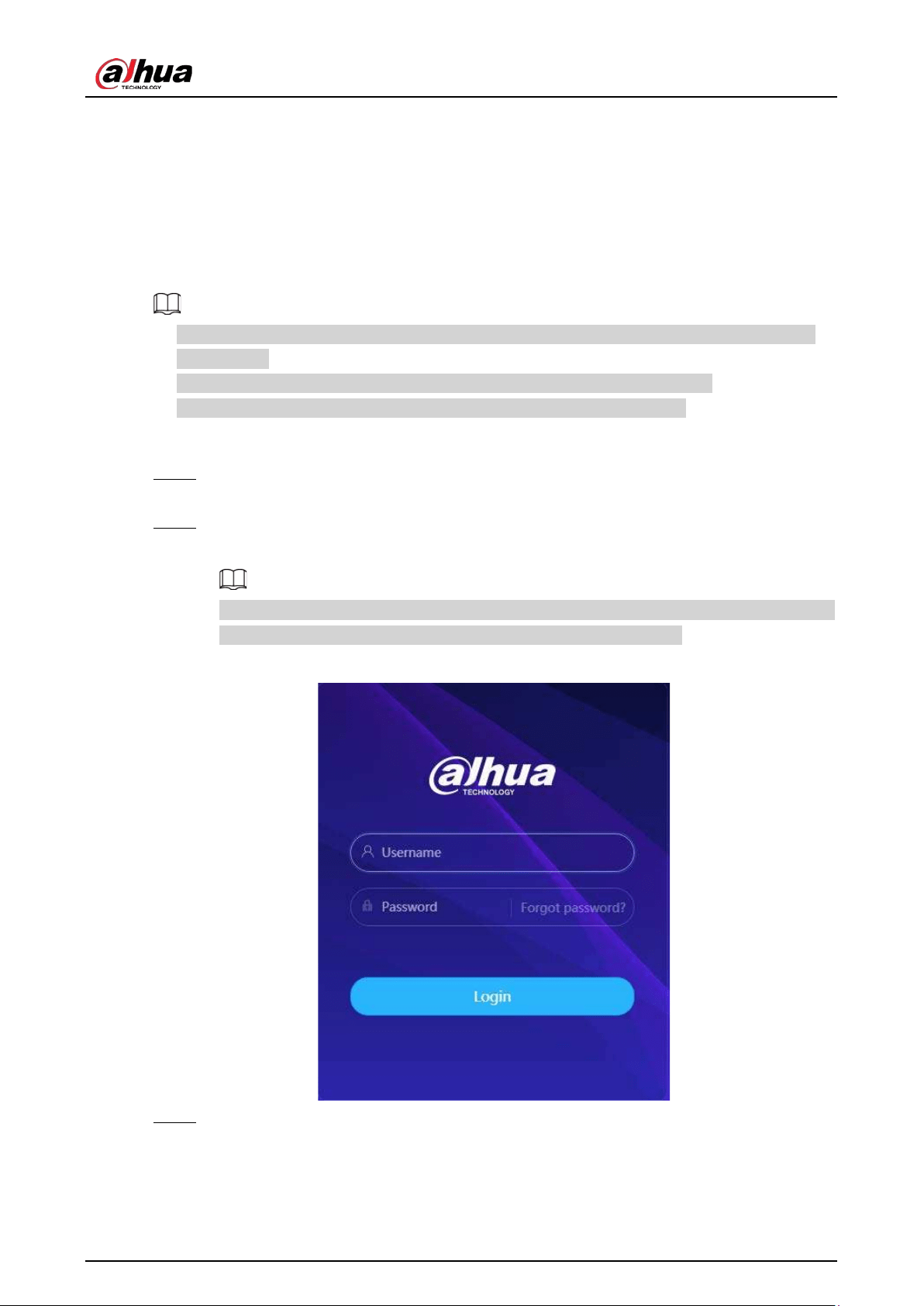

4.1 Device Login
............................................................................................................................................................................... 10
4.2 Resetting Password
................................................................................................................................................................ 11

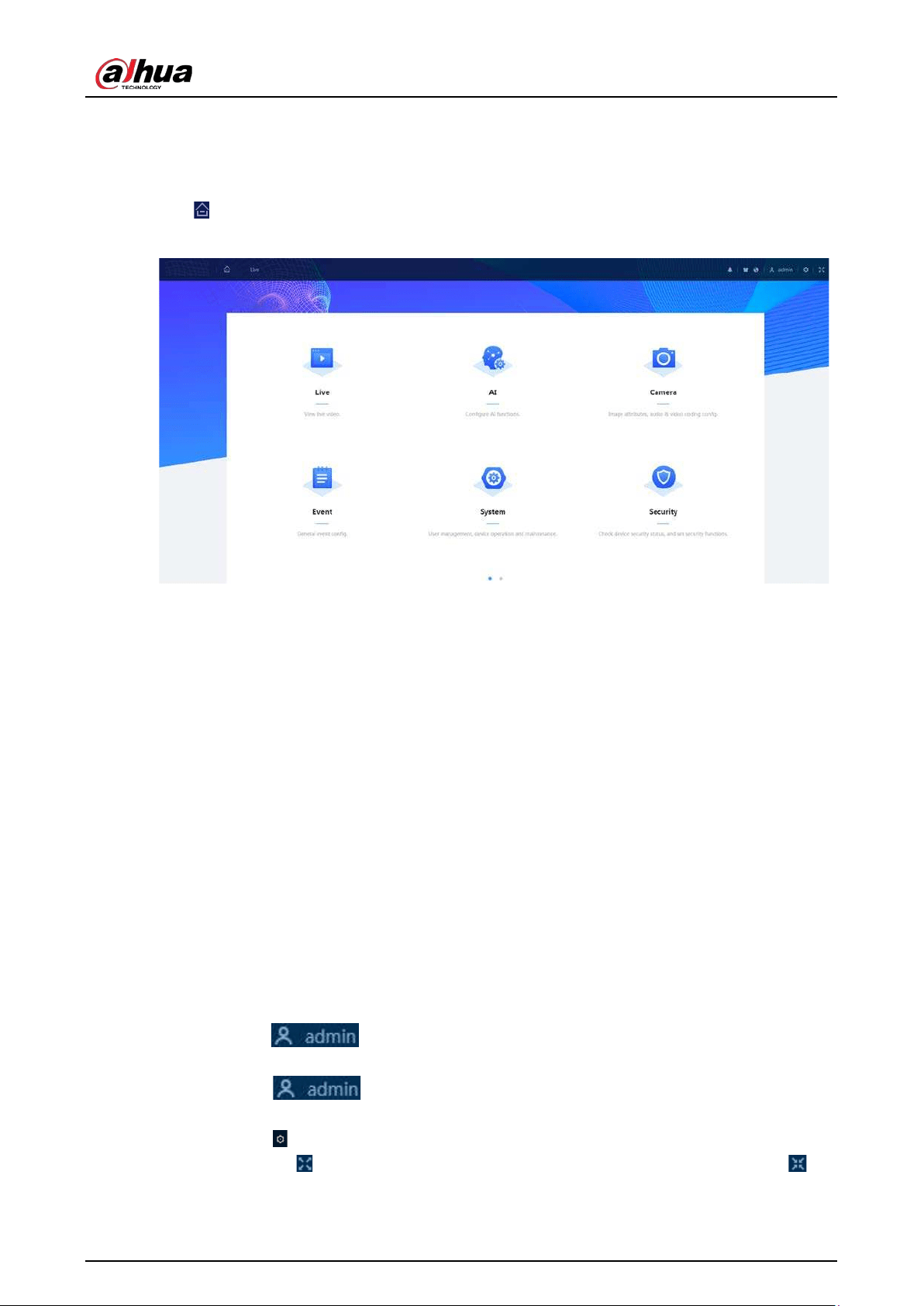

5 Home Page
............................................................................................................................................................................................. 13
6 Setting
...................................................................................................................................................................................................... 14
6.1 Local
............................................................................................................................................................................................... 14
6.2 Camera
.......................................................................................................................................................................................... 15
6.2.1 Setting Image Parameters
........................................................................................................................................ 15
6.2.1.1 Page Layout
.......................................................................................................................................................... 15
6.2.1.2 AI SSA
....................................................................................................................................................................... 17
6.2.1.3 Image
....................................................................................................................................................................... 17
6.2.1.4 Exposure
................................................................................................................................................................. 18
6.2.1.5 Backlight
................................................................................................................................................................ 20

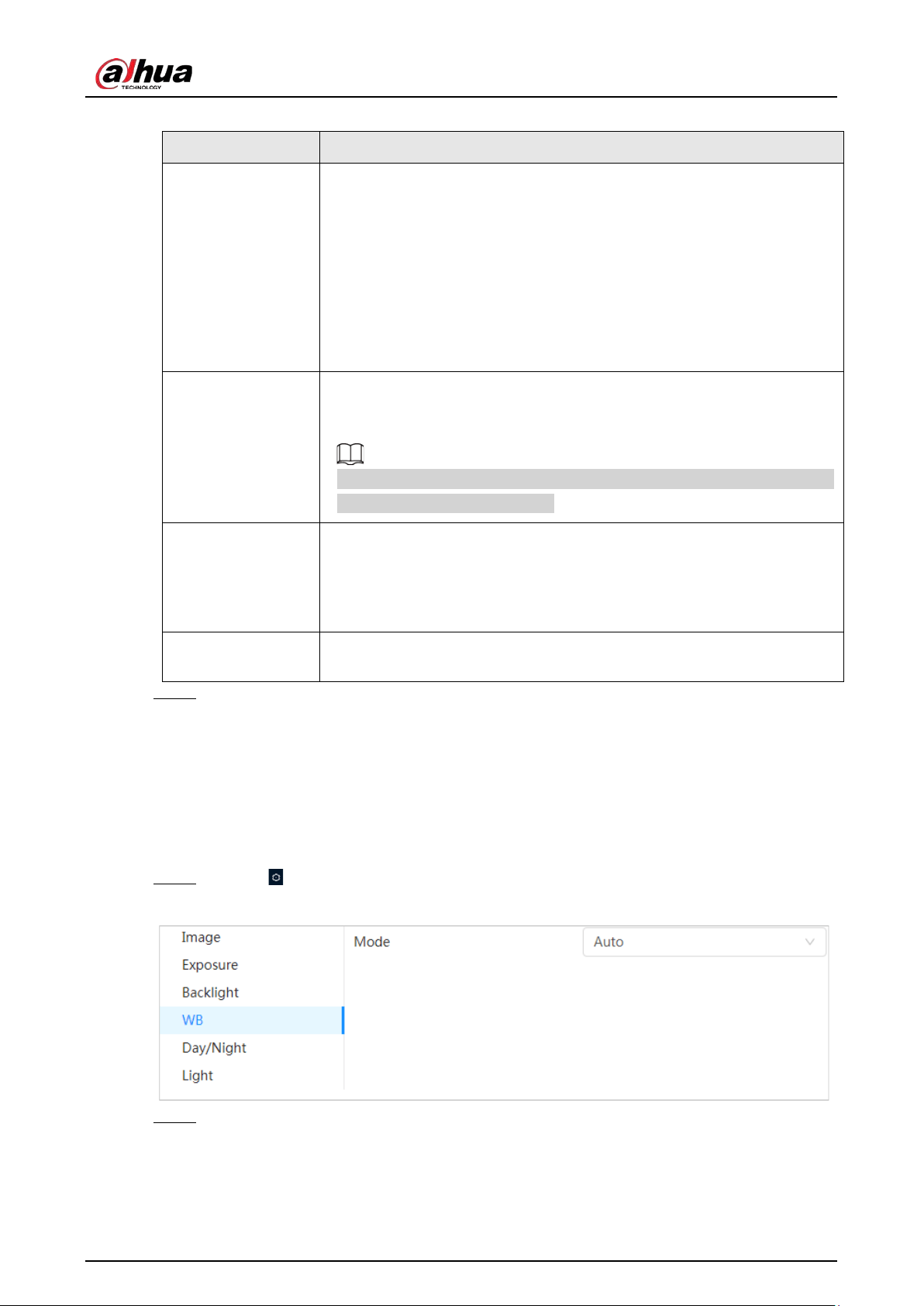

6.2.1.6 WB
.............................................................................................................................................................................. 21
6.2.1.7 Day/Night
............................................................................................................................................................... 22
6.2.1.8 Illuminator
............................................................................................................................................................. 23

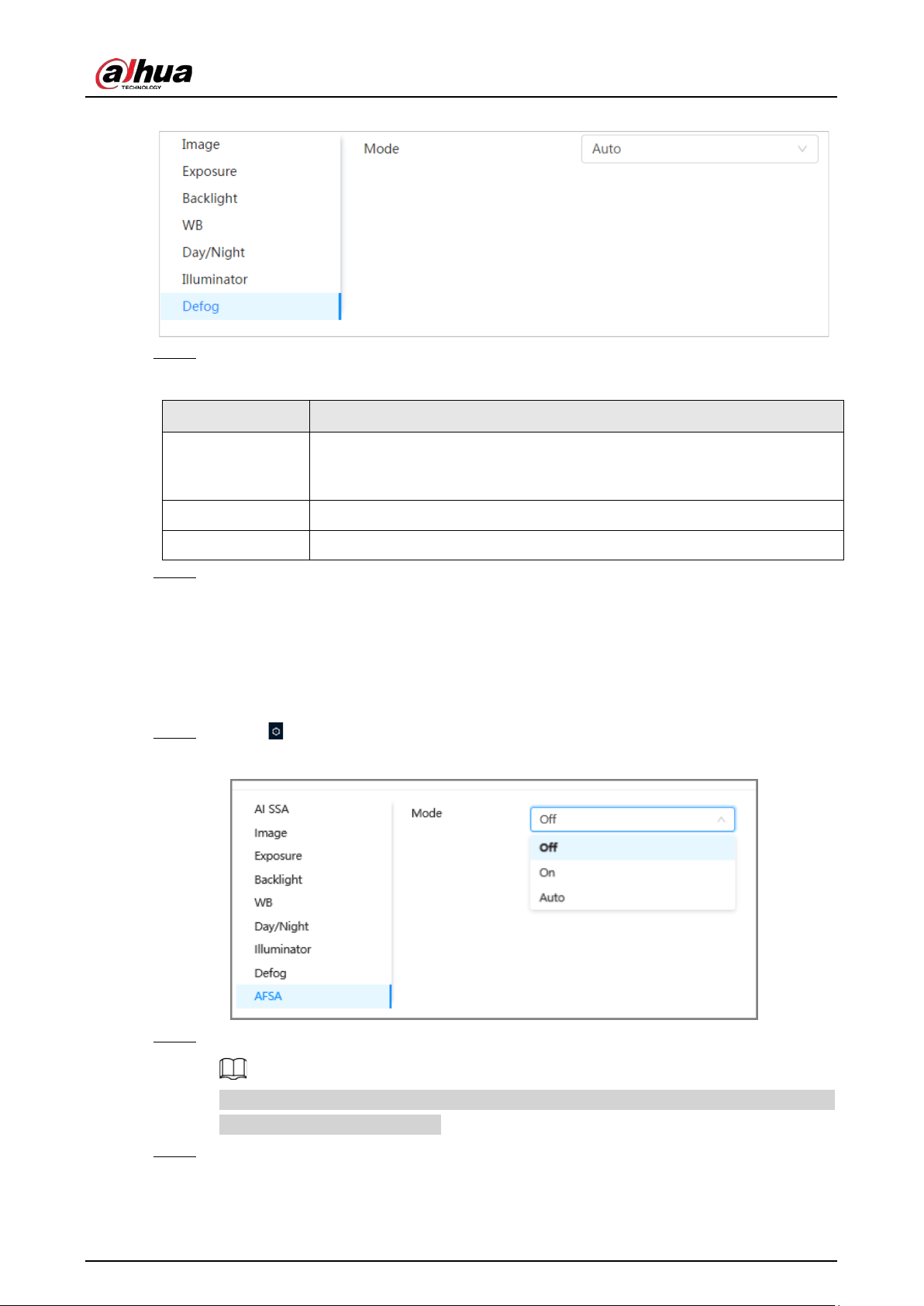

6.2.1.9 Defog
........................................................................................................................................................................ 24
6.2.1.10 AFSA
....................................................................................................................................................................... 25

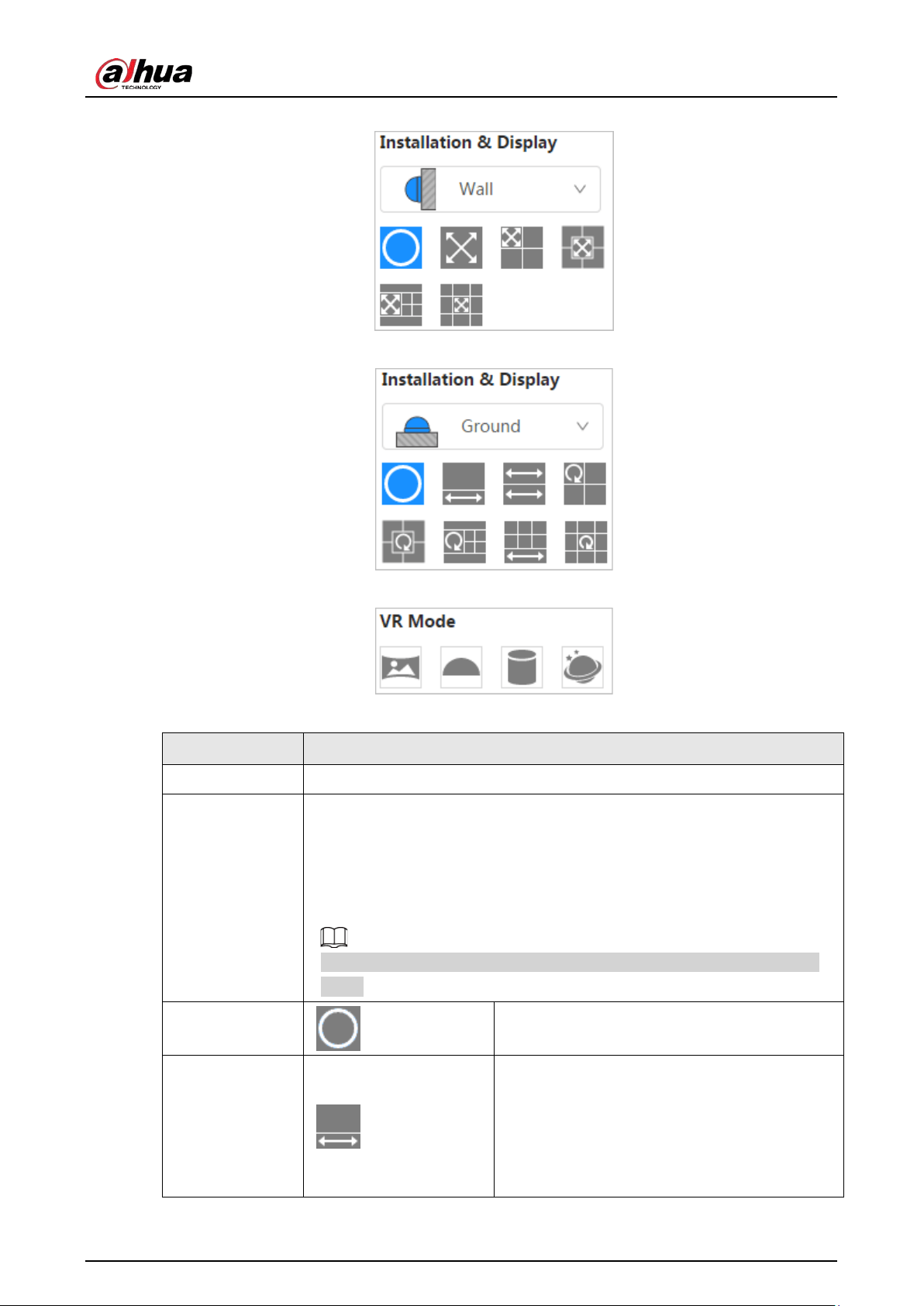

6.2.1.11 Fisheye
.................................................................................................................................................................. 26
6.2.2 Setting Encode Parameters
..................................................................................................................................... 26
6.2.2.1 Encode
..................................................................................................................................................................... 27
6.2.2.2 Overlay
.................................................................................................................................................................... 29

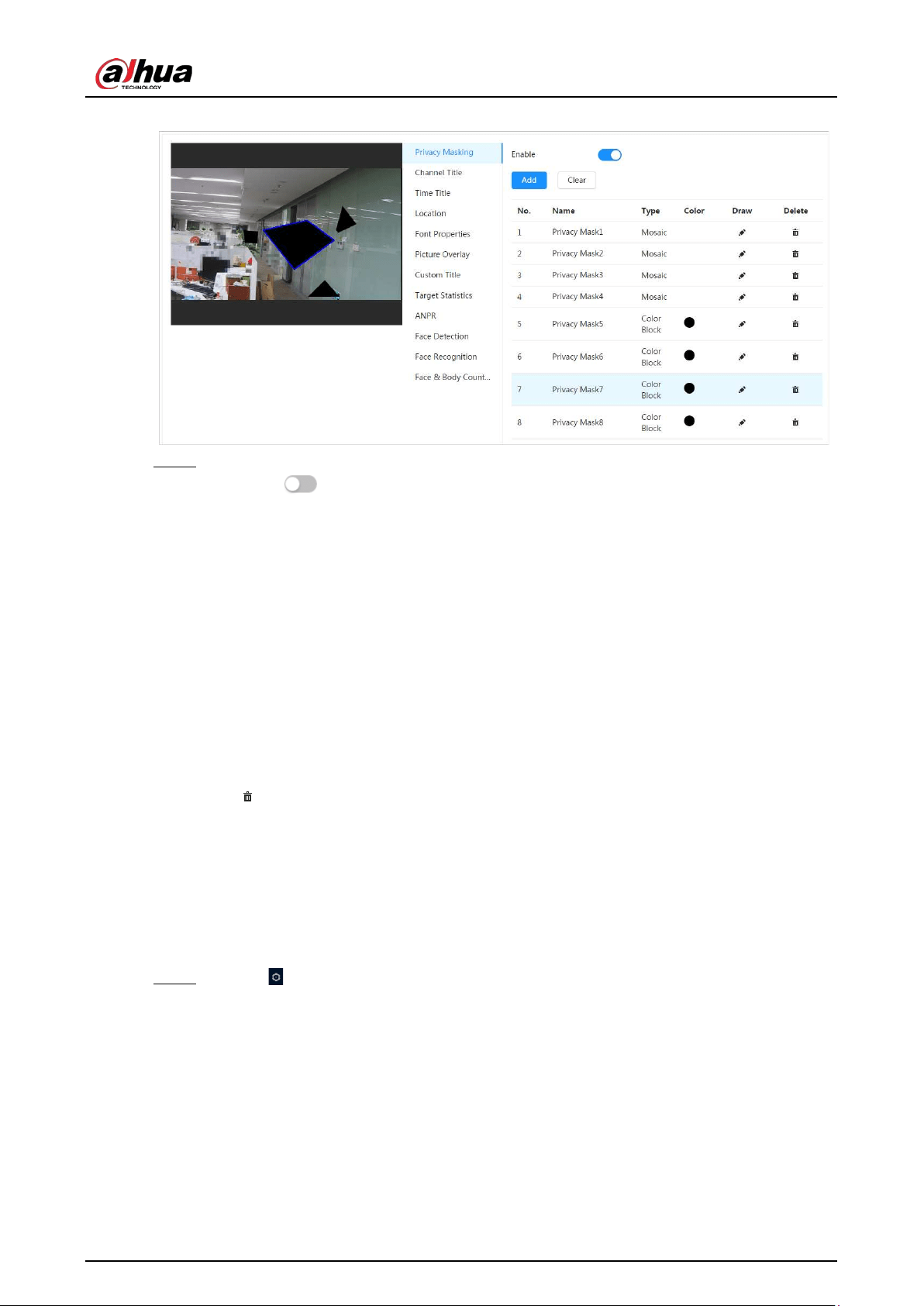

6.2.2.2.1 Configuring Privacy Masking
............................................................................................................ 29

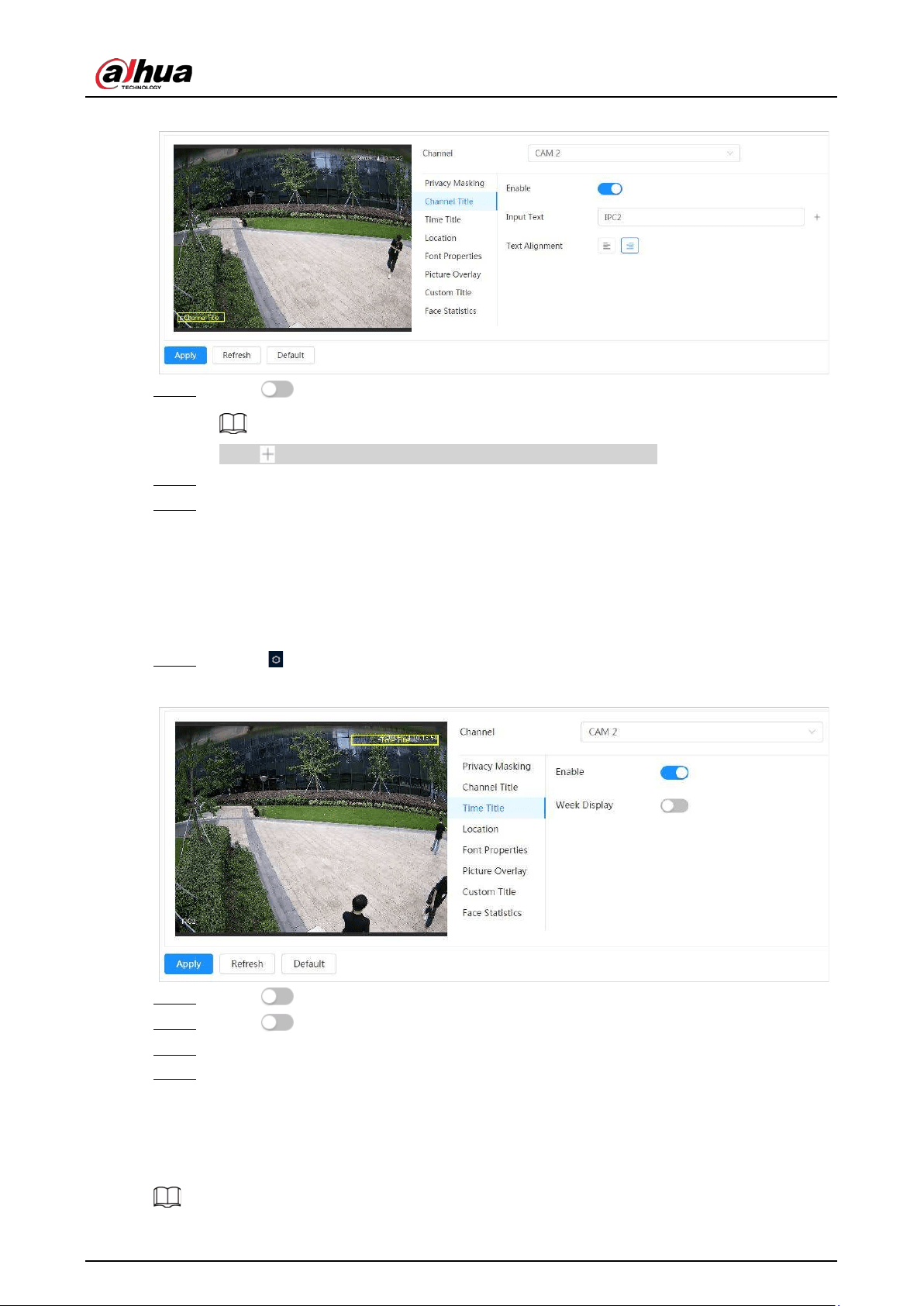

6.2.2.2.2 Configuring Channel Title
.................................................................................................................. 30
6.2.2.2.3 Configuring Time Title
.......................................................................................................................... 31
Operation Manual
VII

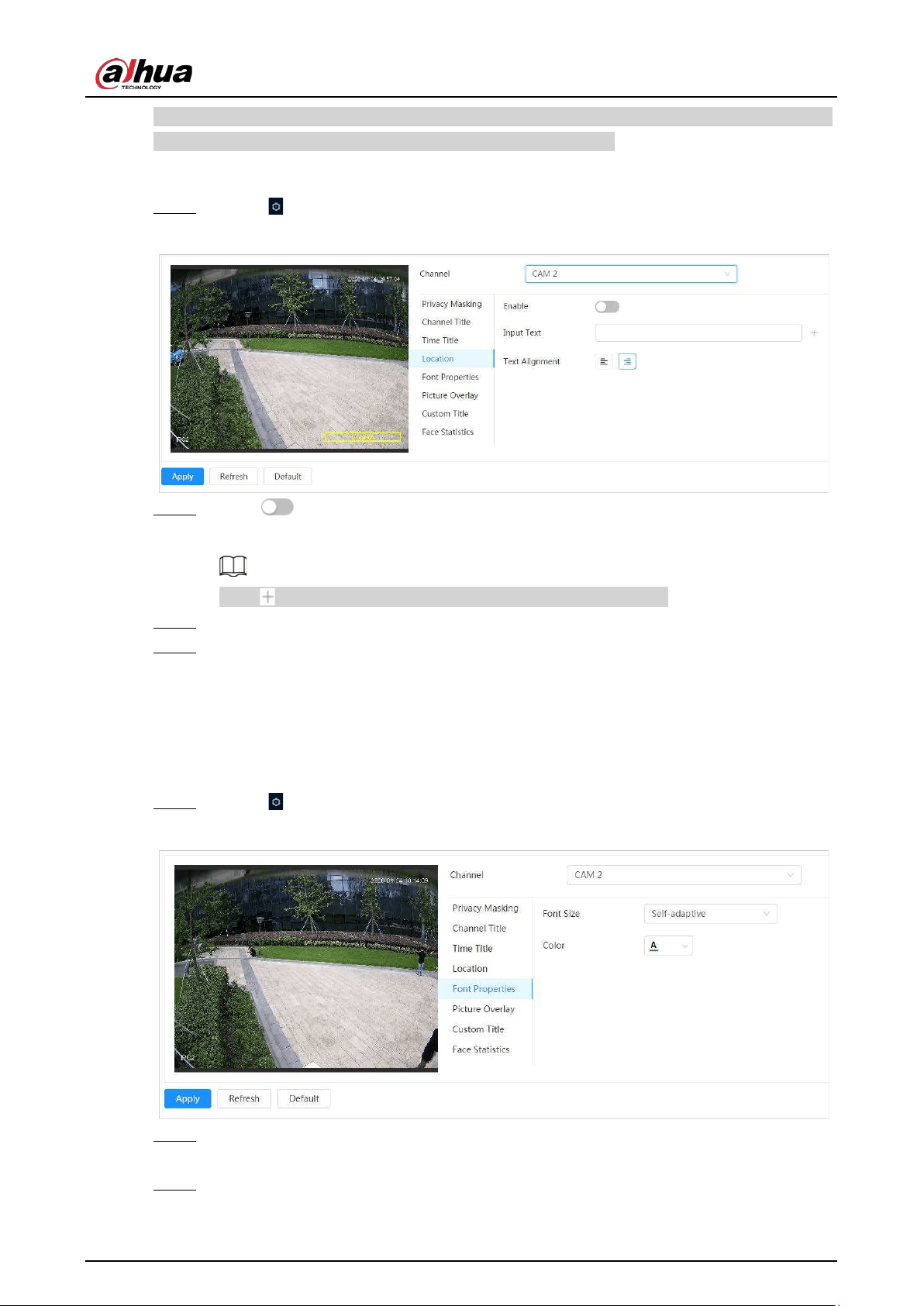

6.2.2.2.4 Configuring Location
............................................................................................................................ 31
6.2.2.2.5 Configuring Font Properties
............................................................................................................. 32

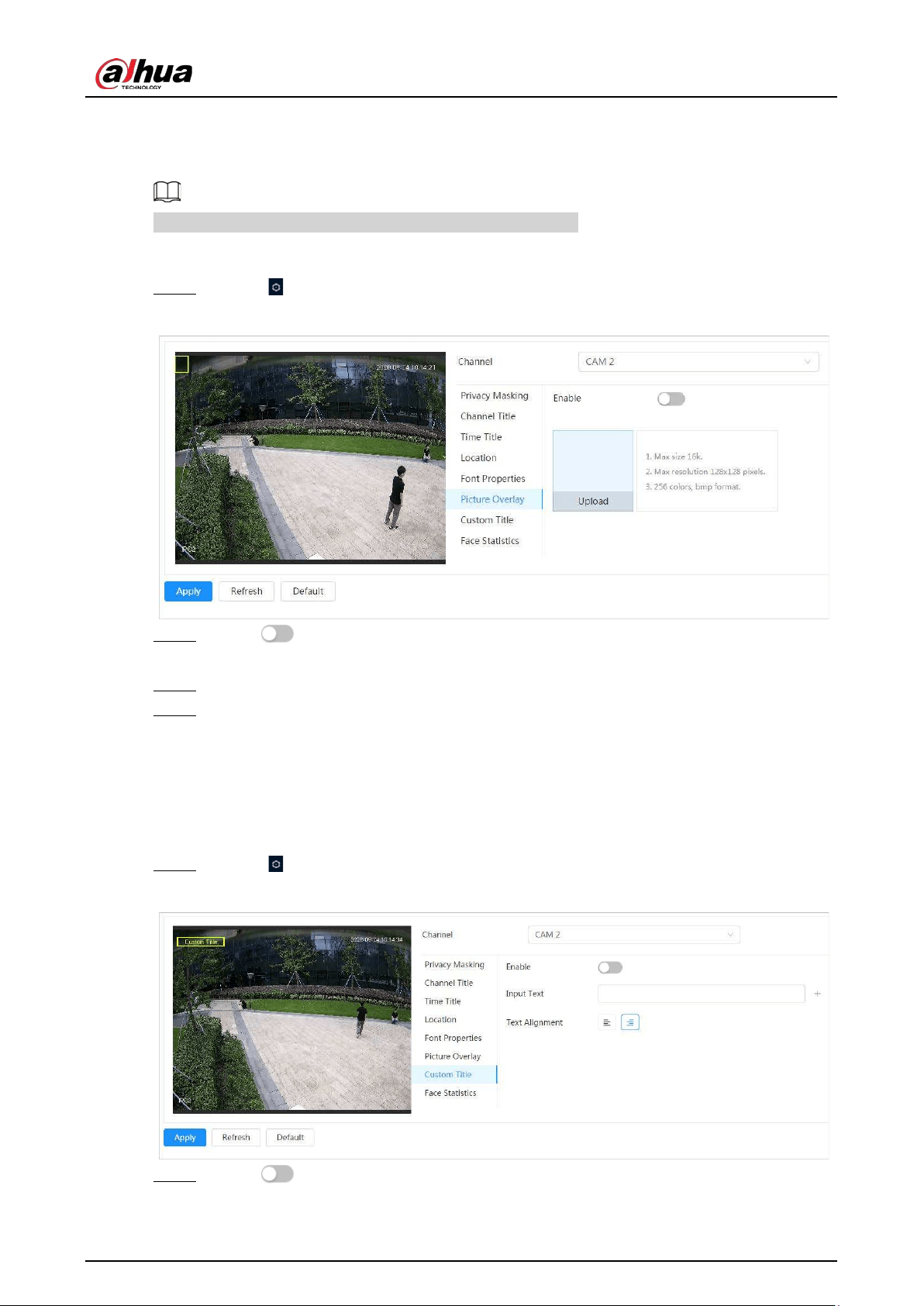

6.2.2.2.6 Configuring Picture Overlay
.............................................................................................................. 33
6.2.2.2.7 Configuring Custom Title
.................................................................................................................... 33

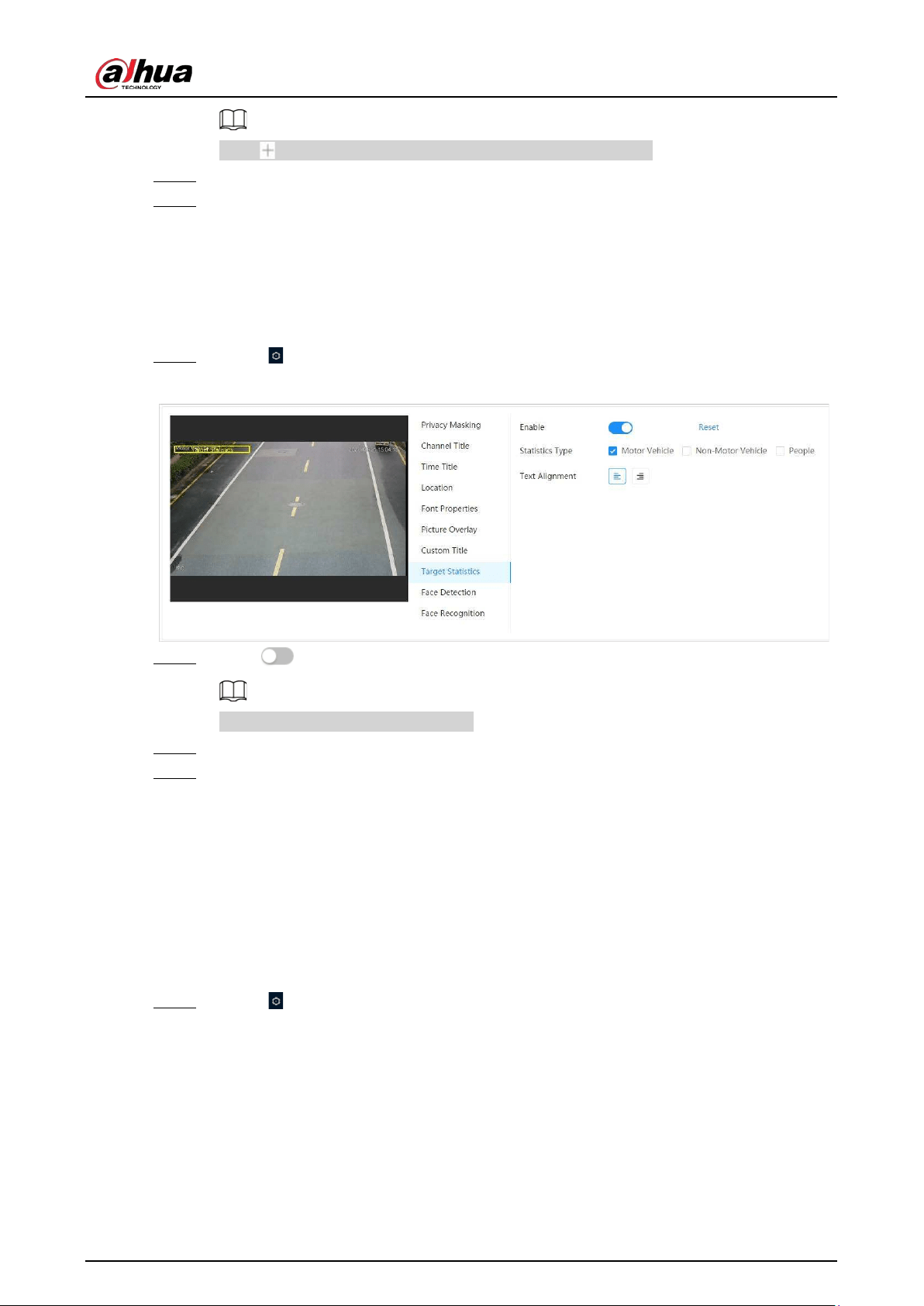

6.2.2.2.8 Configuring Target Statistics
............................................................................................................ 34

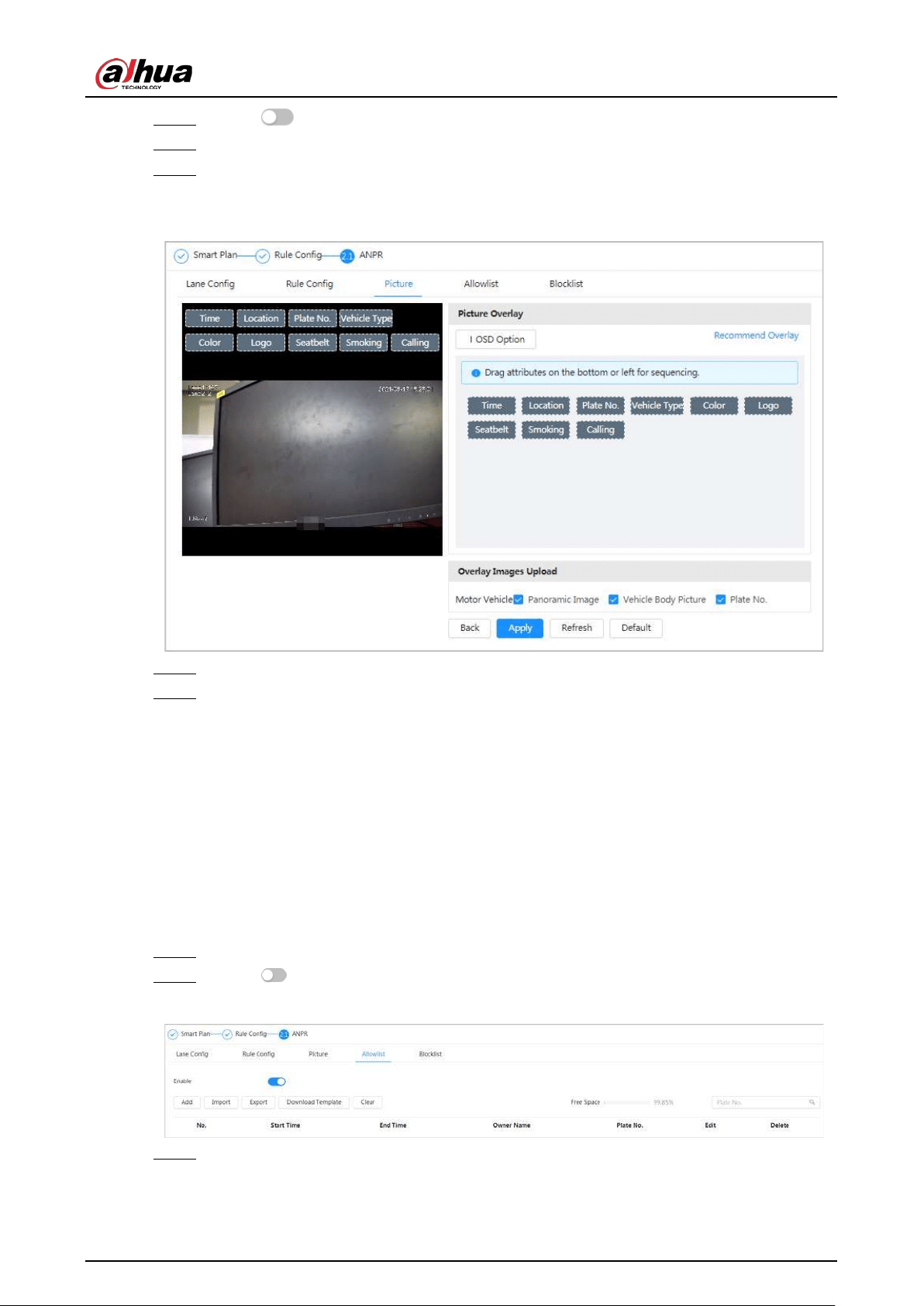

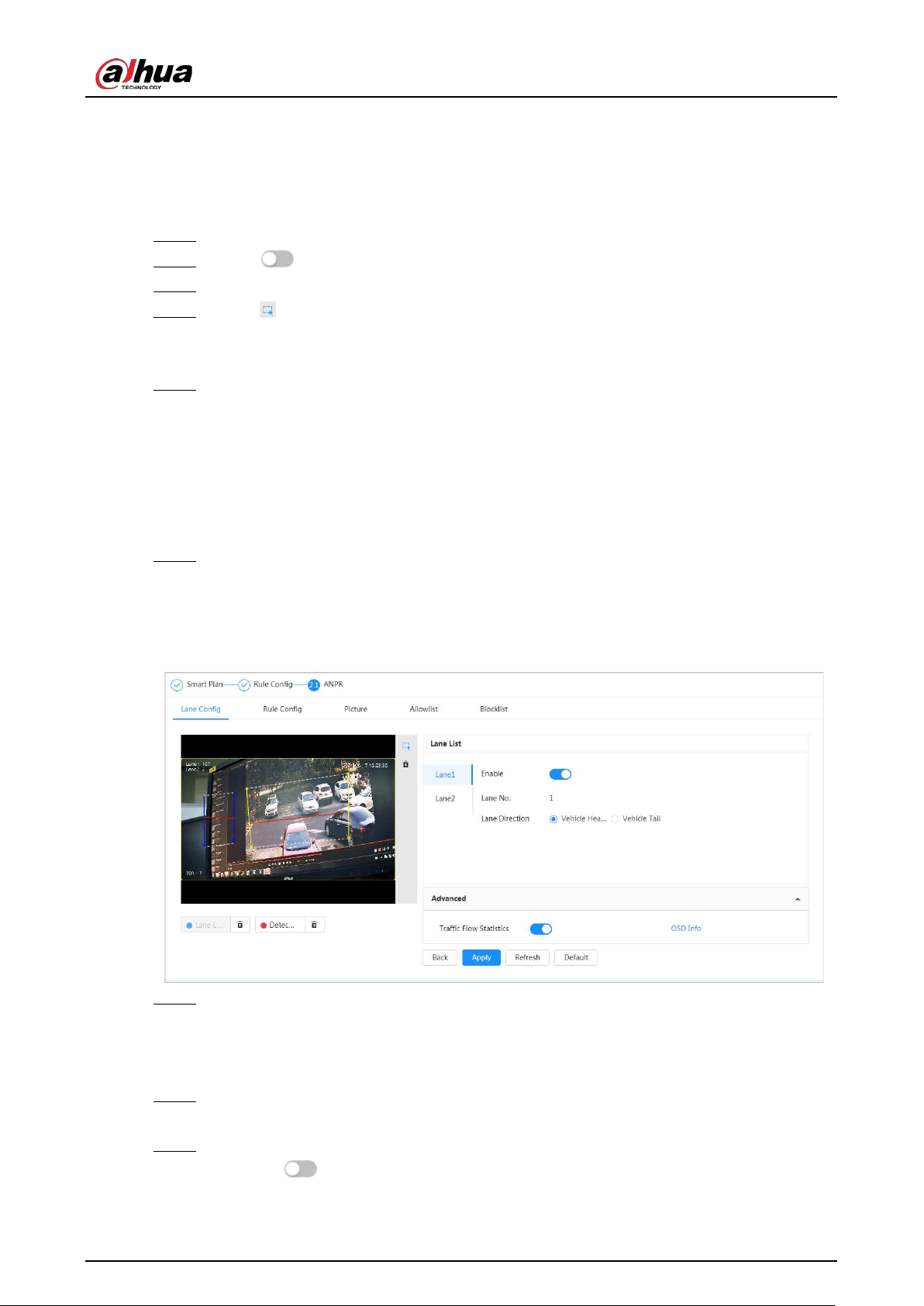

6.2.2.2.9 Configuring ANPR
................................................................................................................................... 34

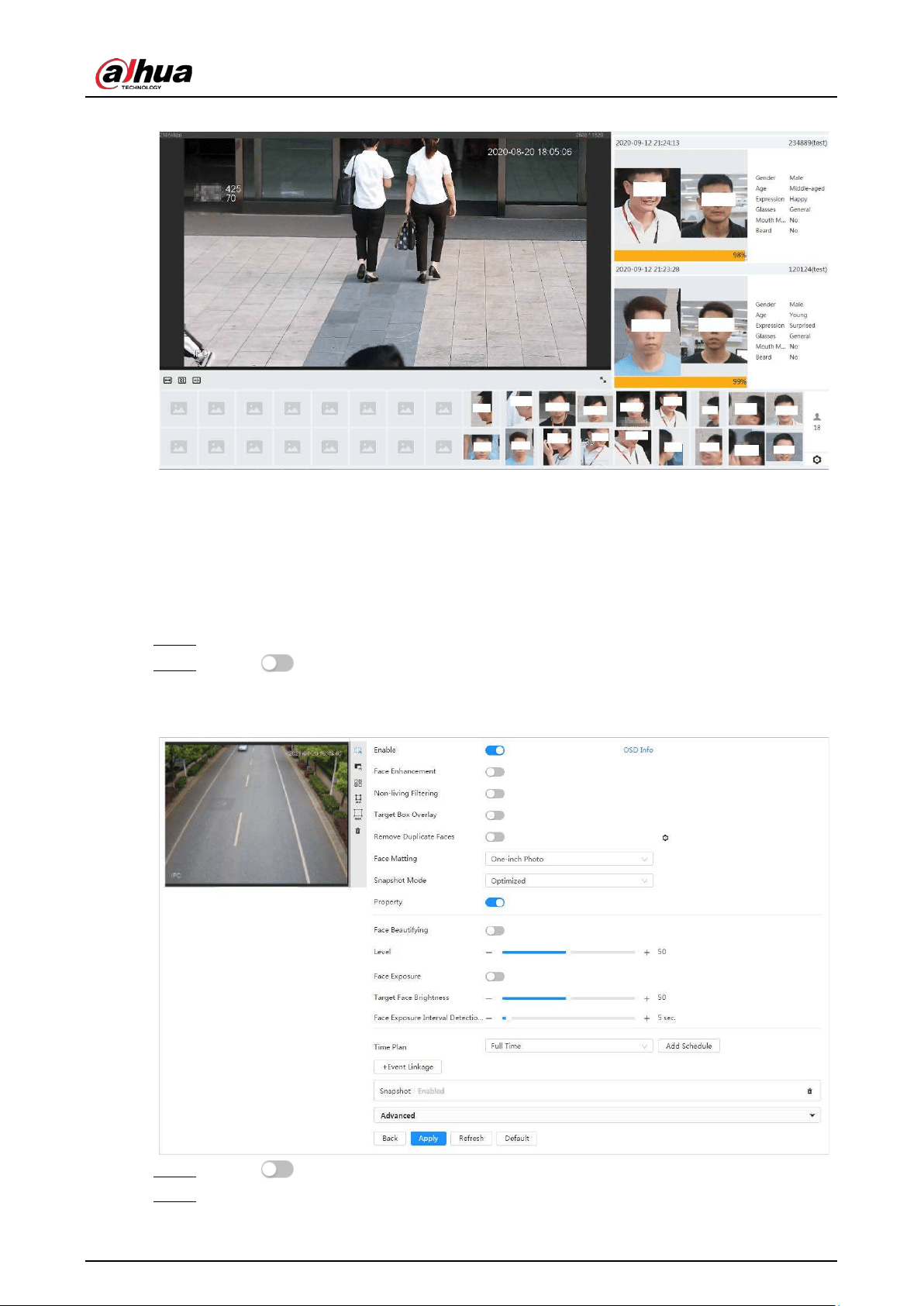

6.2.2.2.10 Configuring Face Detection
............................................................................................................ 35

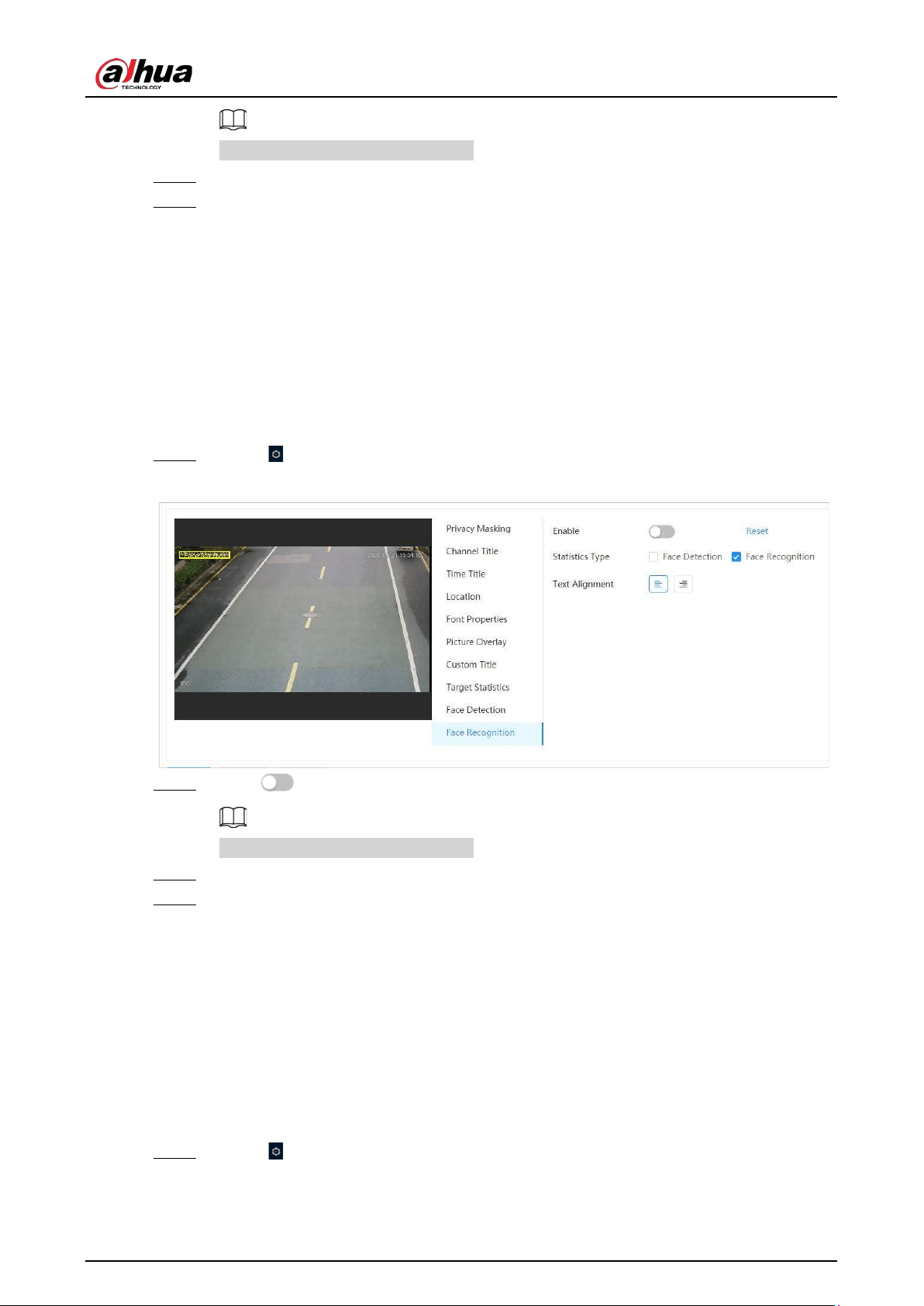

6.2.2.2.11 Configuring Face Recognition
....................................................................................................... 36
6.2.2.2.12 Configuring Face Statistics
.............................................................................................................. 36
6.2.2.2.13 Configure Face&Body Counting
................................................................................................... 37

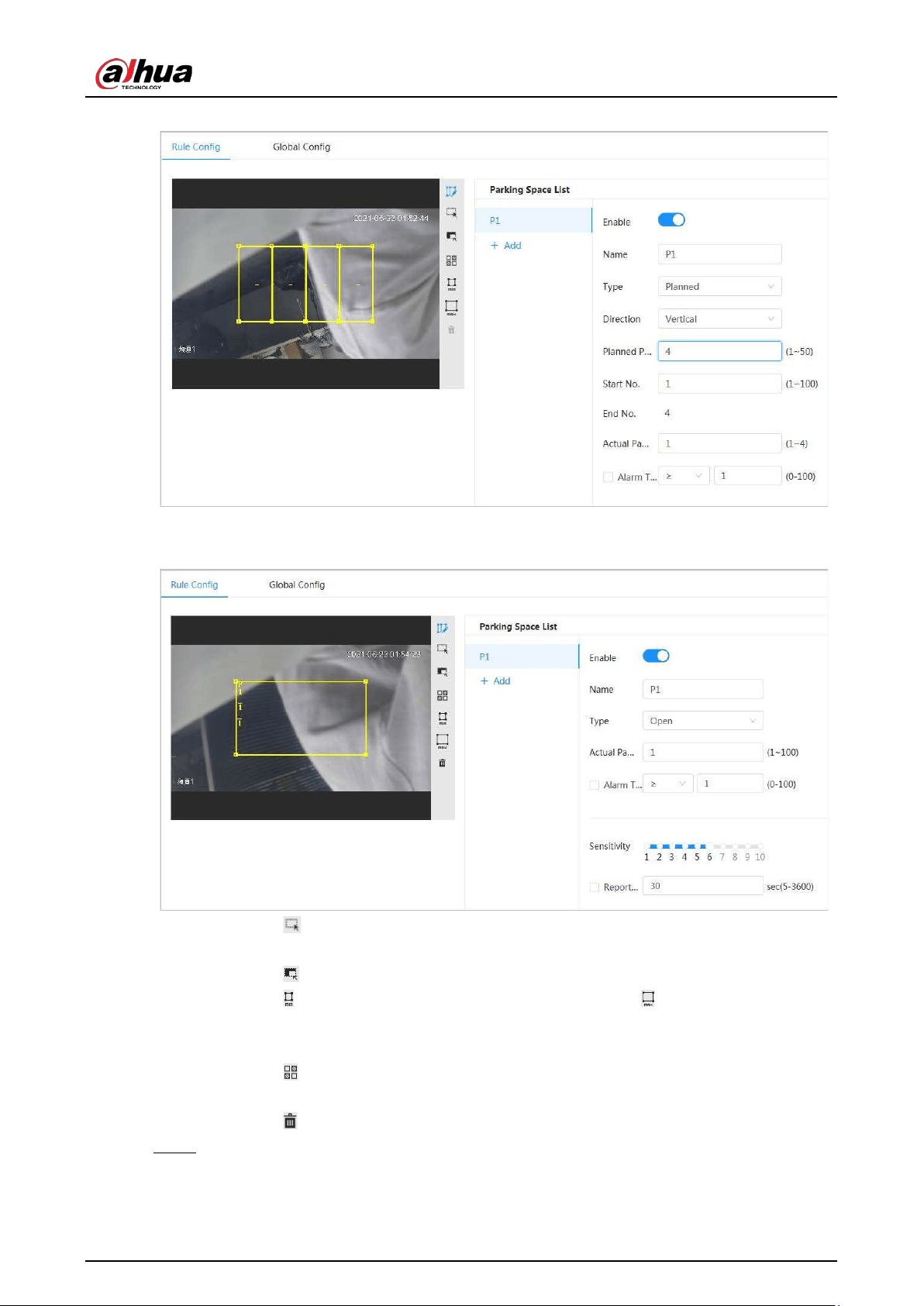

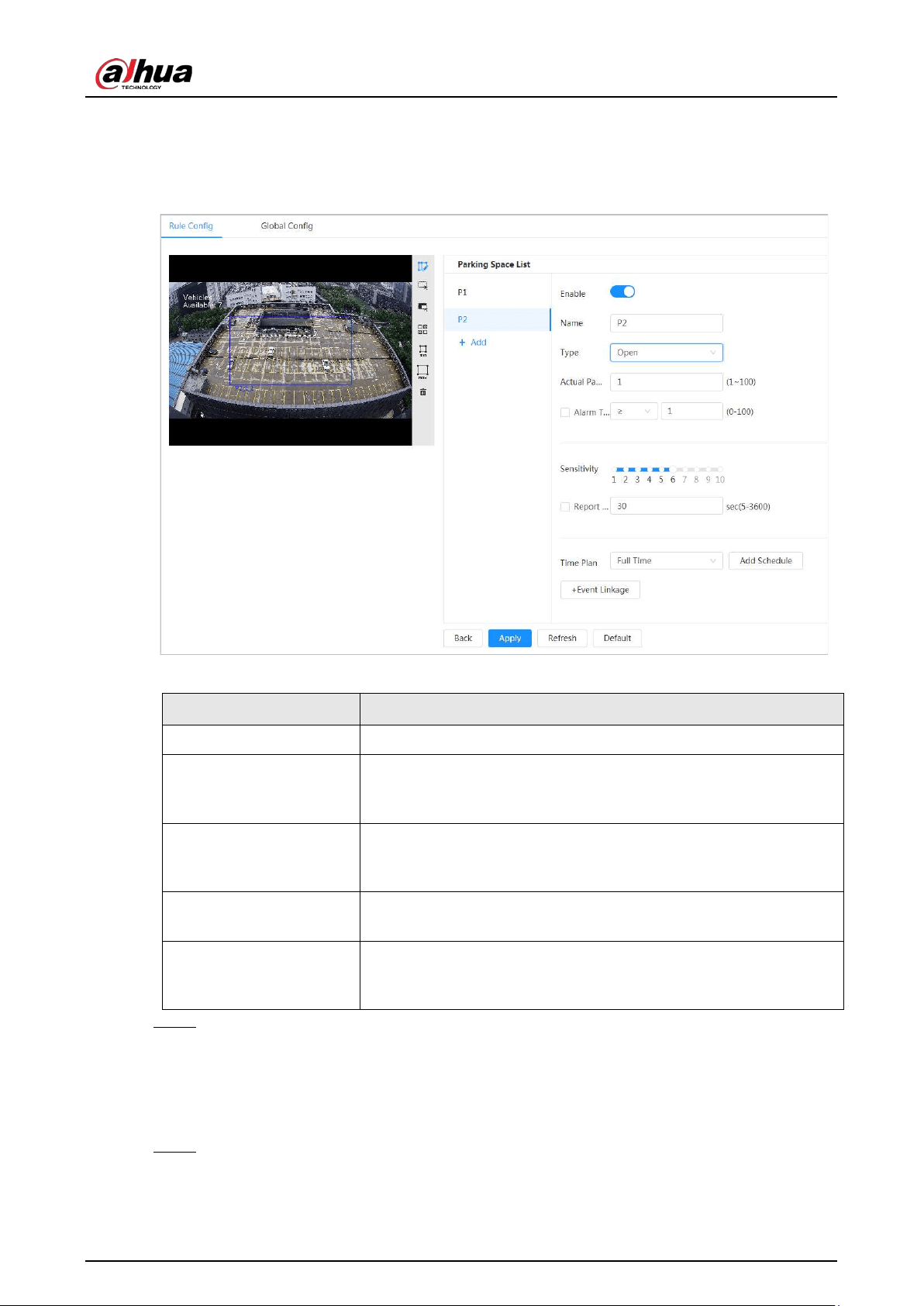

6.2.2.2.14 Configuring Parking Space
............................................................................................................. 38
6.2.2.3 ROI
............................................................................................................................................................................. 38
6.2.3 Splicing
.............................................................................................................................................................................. 39
6.2.4 Audio
................................................................................................................................................................................... 40

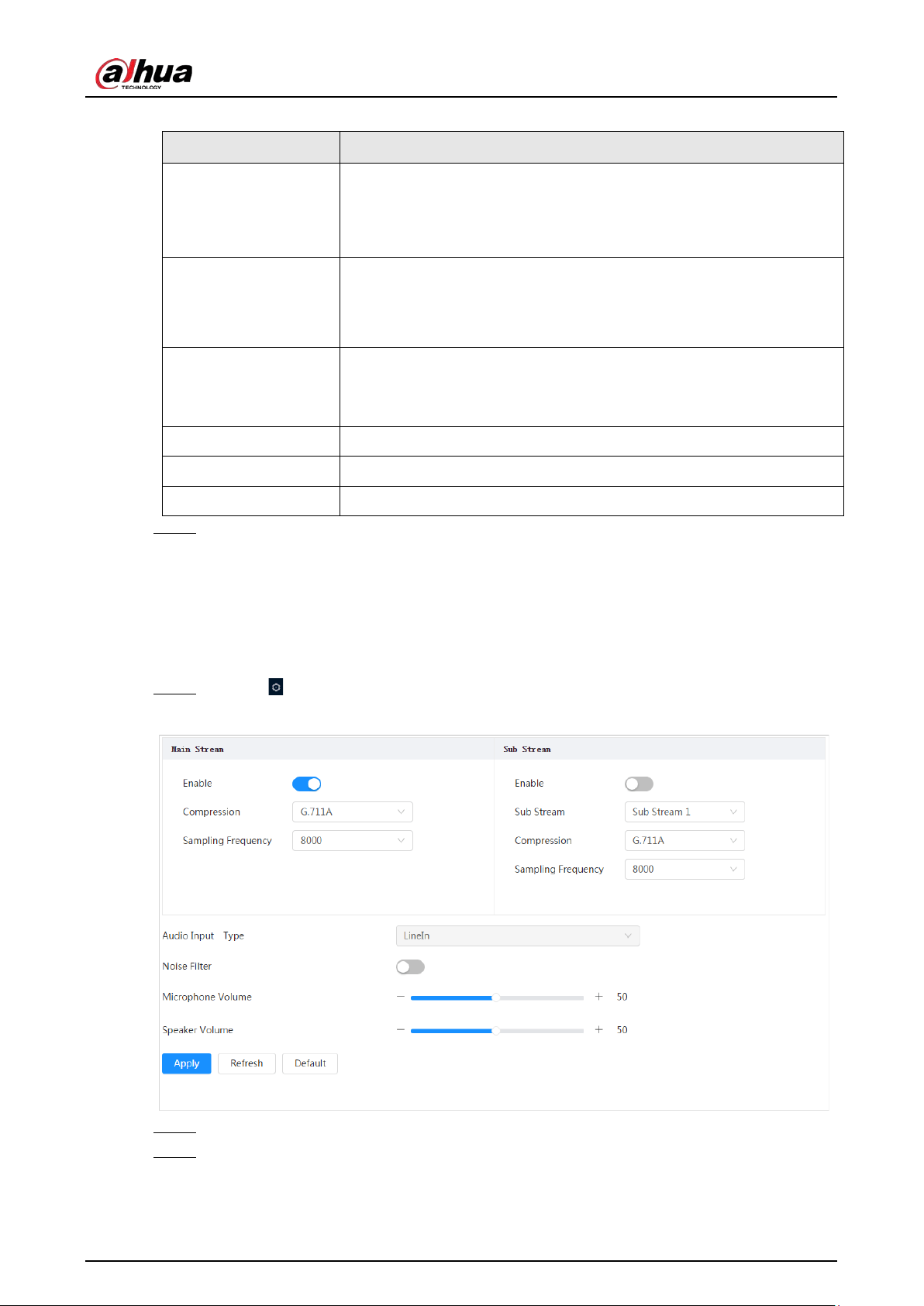

6.2.4.1 Setting Audio Parameters
............................................................................................................................. 40
6.2.4.2 Setting Alarm Tone
........................................................................................................................................... 41
6.3 Network
........................................................................................................................................................................................ 42

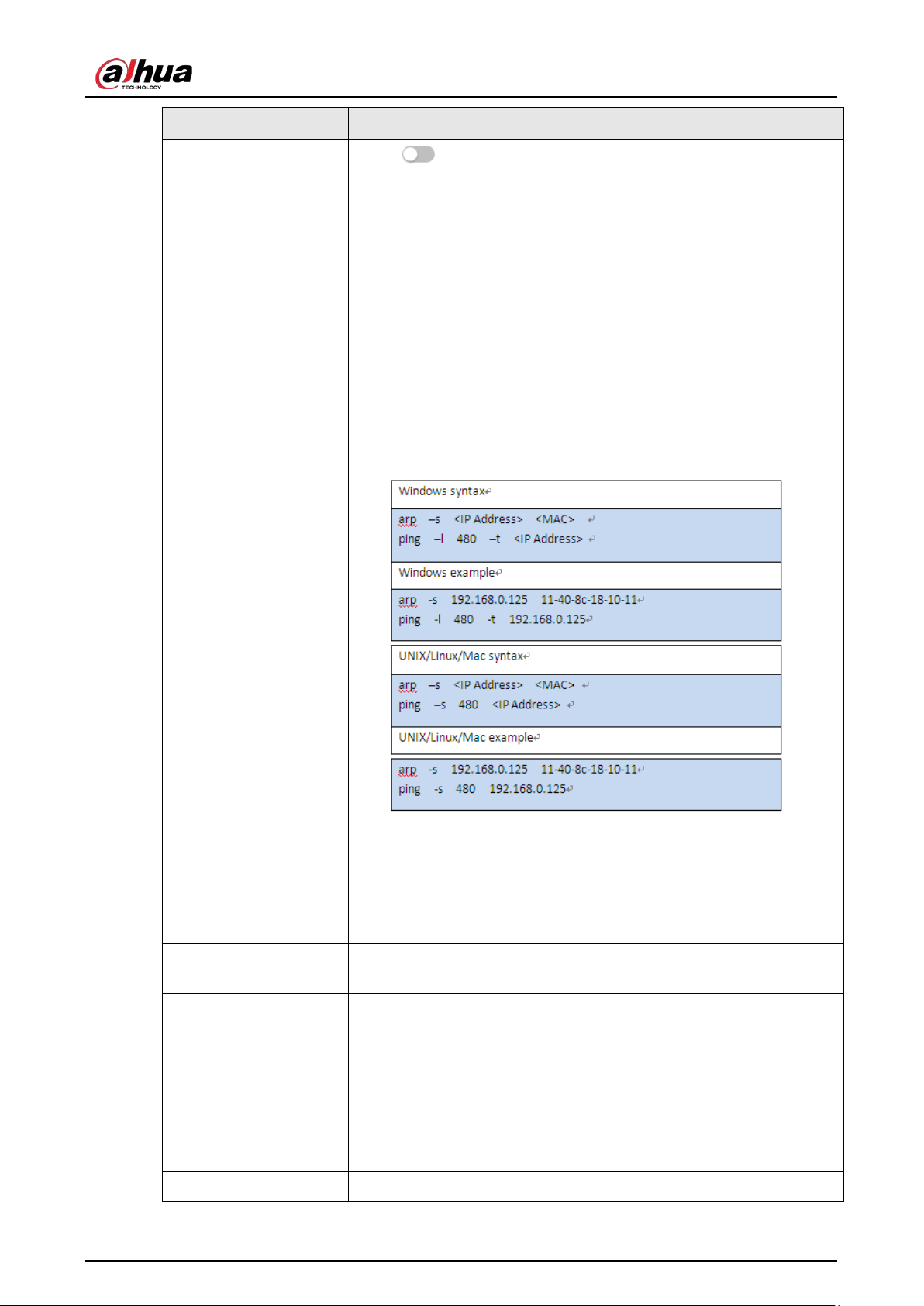

6.3.1 TCP/IP
.................................................................................................................................................................................. 42
6.3.2 Port
....................................................................................................................................................................................... 45
6.3.3 PPPoE
.................................................................................................................................................................................. 47
6.3.4 DDNS
................................................................................................................................................................................... 47

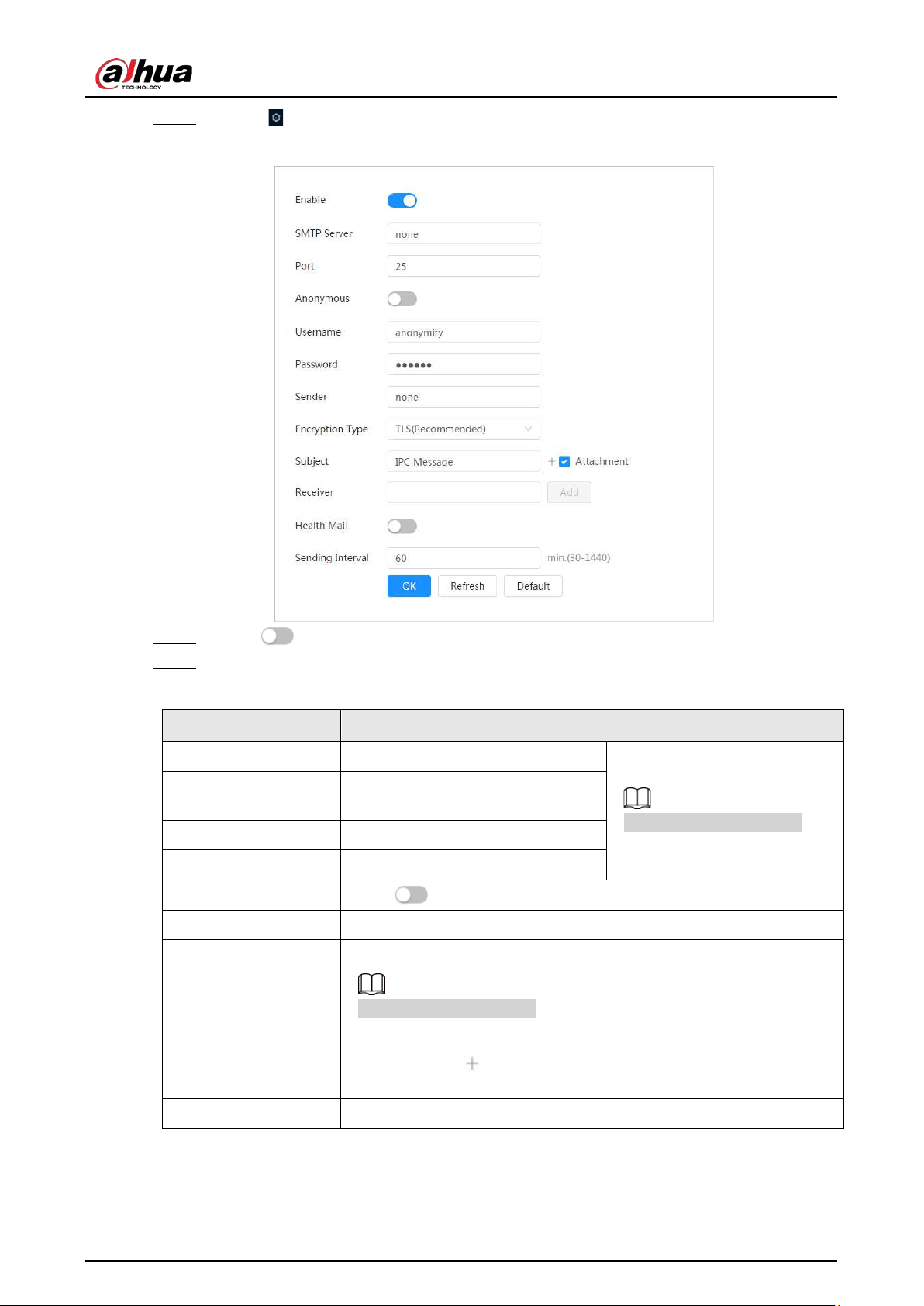

6.3.5 Email
.................................................................................................................................................................................... 48
6.3.6 UPnP
.................................................................................................................................................................................... 50

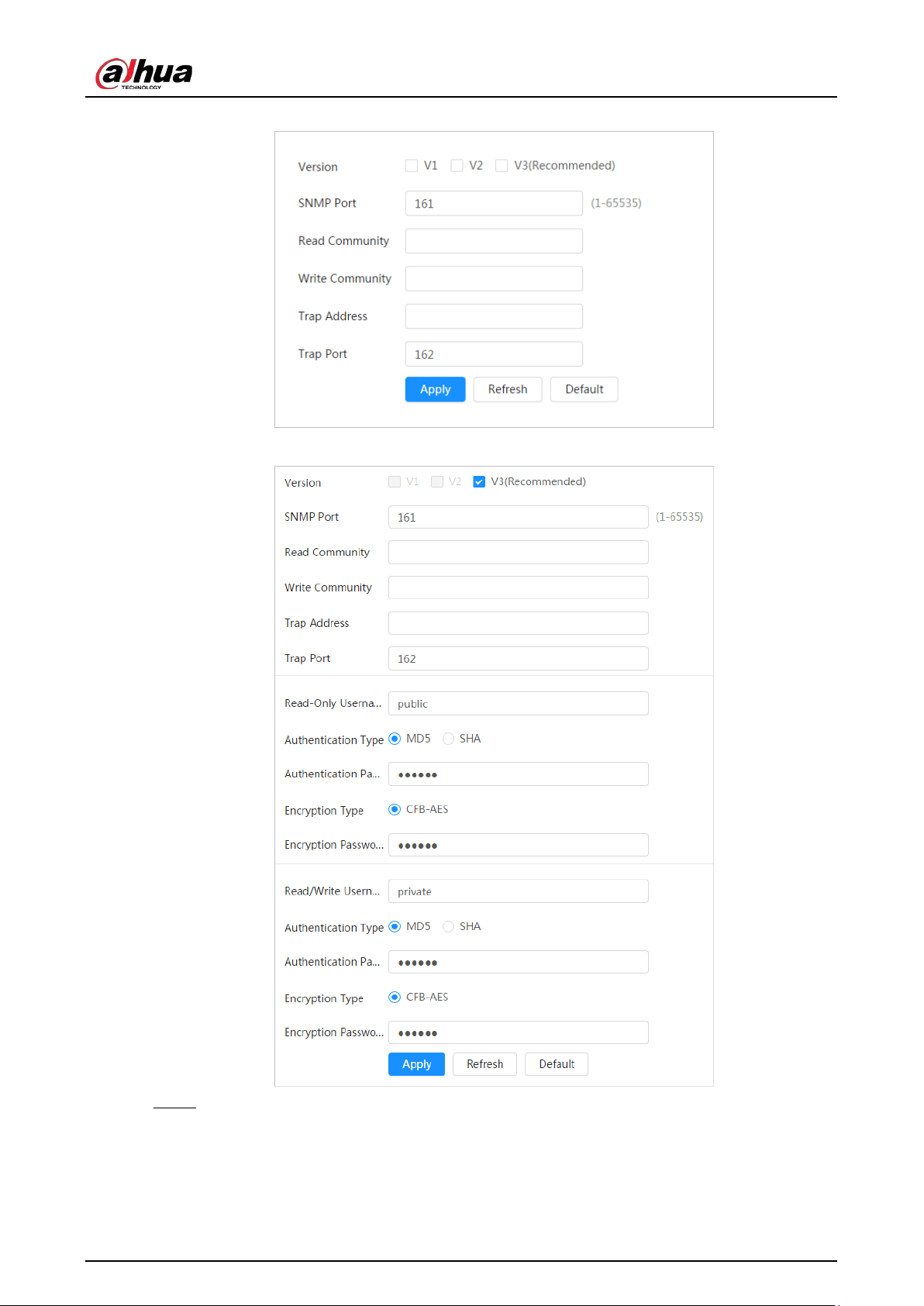

6.3.7 SNMP
................................................................................................................................................................................... 51
6.3.8 Bonjour
.............................................................................................................................................................................. 54

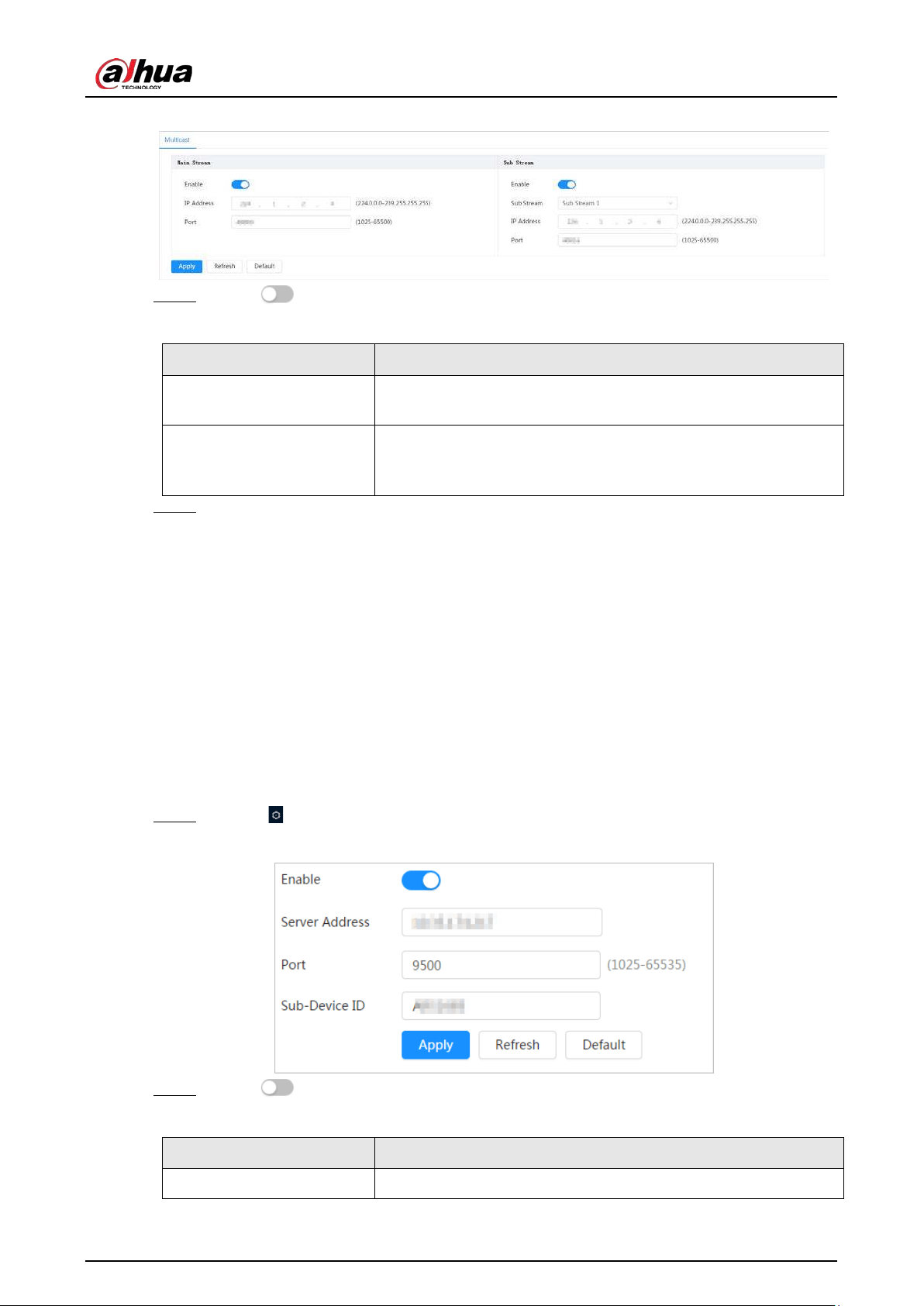

6.3.9 Multicast
............................................................................................................................................................................ 54
6.3.10 Register
........................................................................................................................................................................... 55
6.3.11 QoS
.................................................................................................................................................................................... 56
6.3.12 Platform Access
........................................................................................................................................................... 56

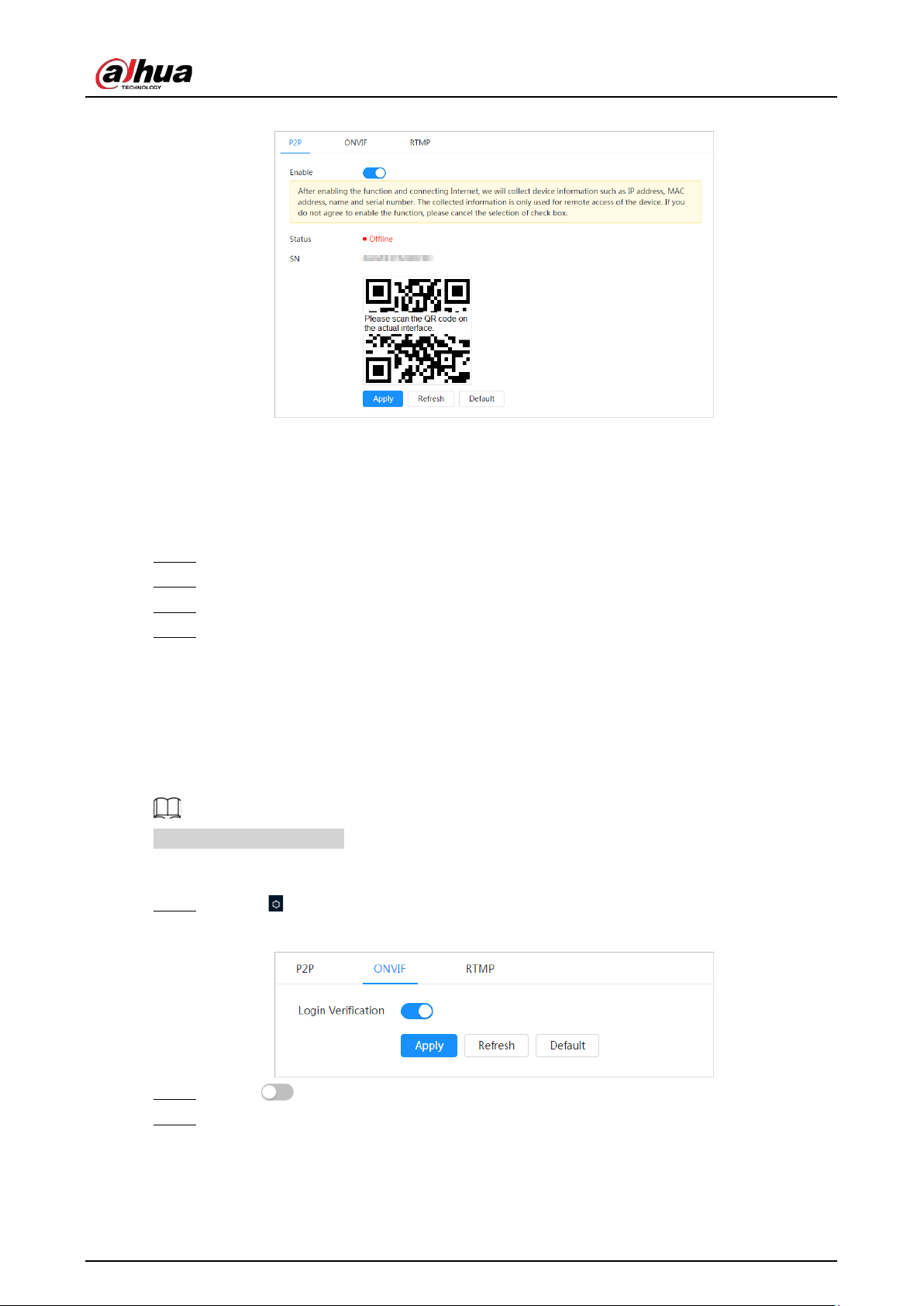

6.3.12.1 P2P
.......................................................................................................................................................................... 56
6.3.12.2 ONVIF
.................................................................................................................................................................... 57

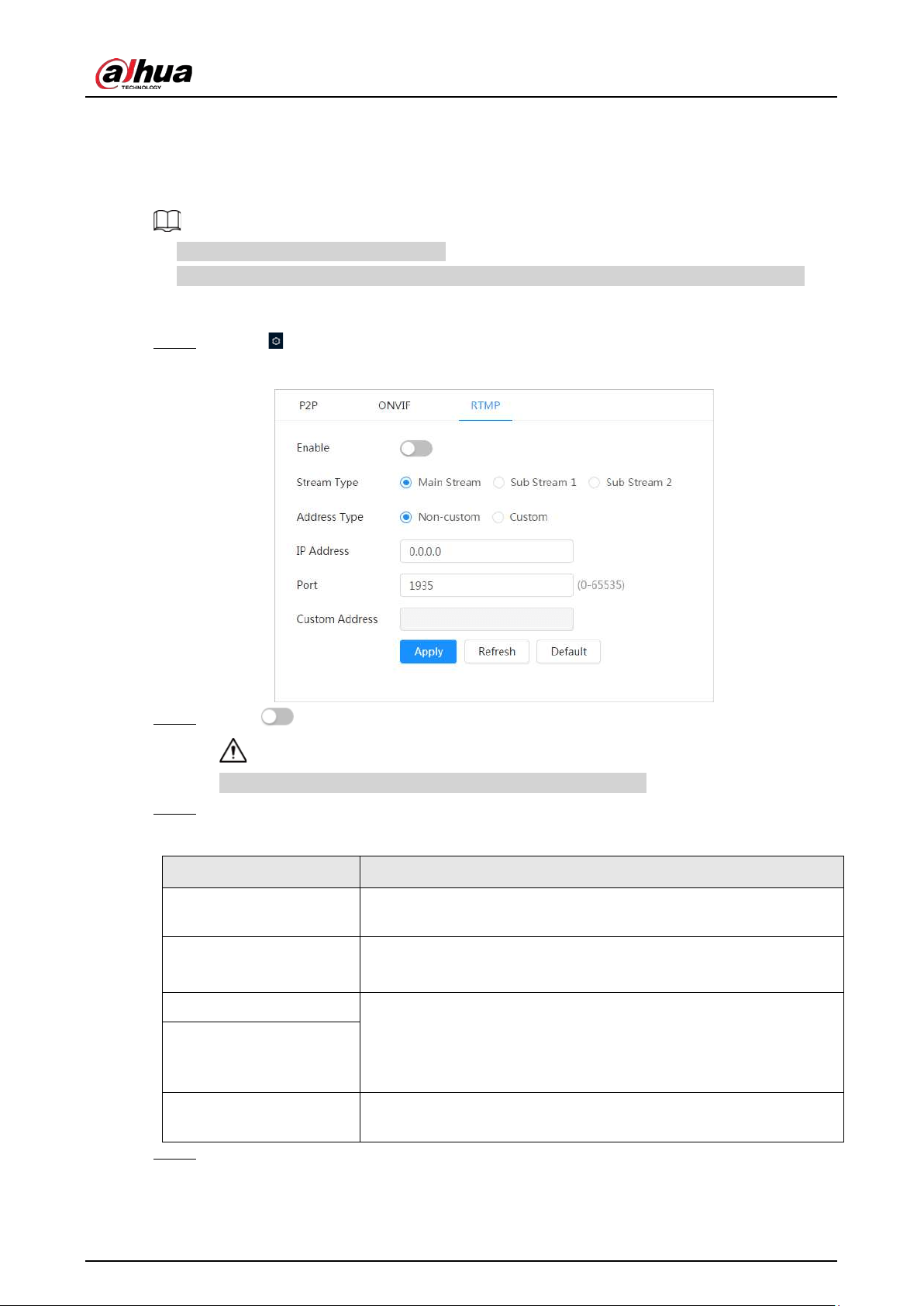

6.3.12.3 RTMP
...................................................................................................................................................................... 58
6.3.13 Basic Service
................................................................................................................................................................. 59
6.4 EPTZ
................................................................................................................................................................................................ 60
6.5 Event
.............................................................................................................................................................................................. 61
6.5.1 Setting Alarm Linkage
................................................................................................................................................ 61

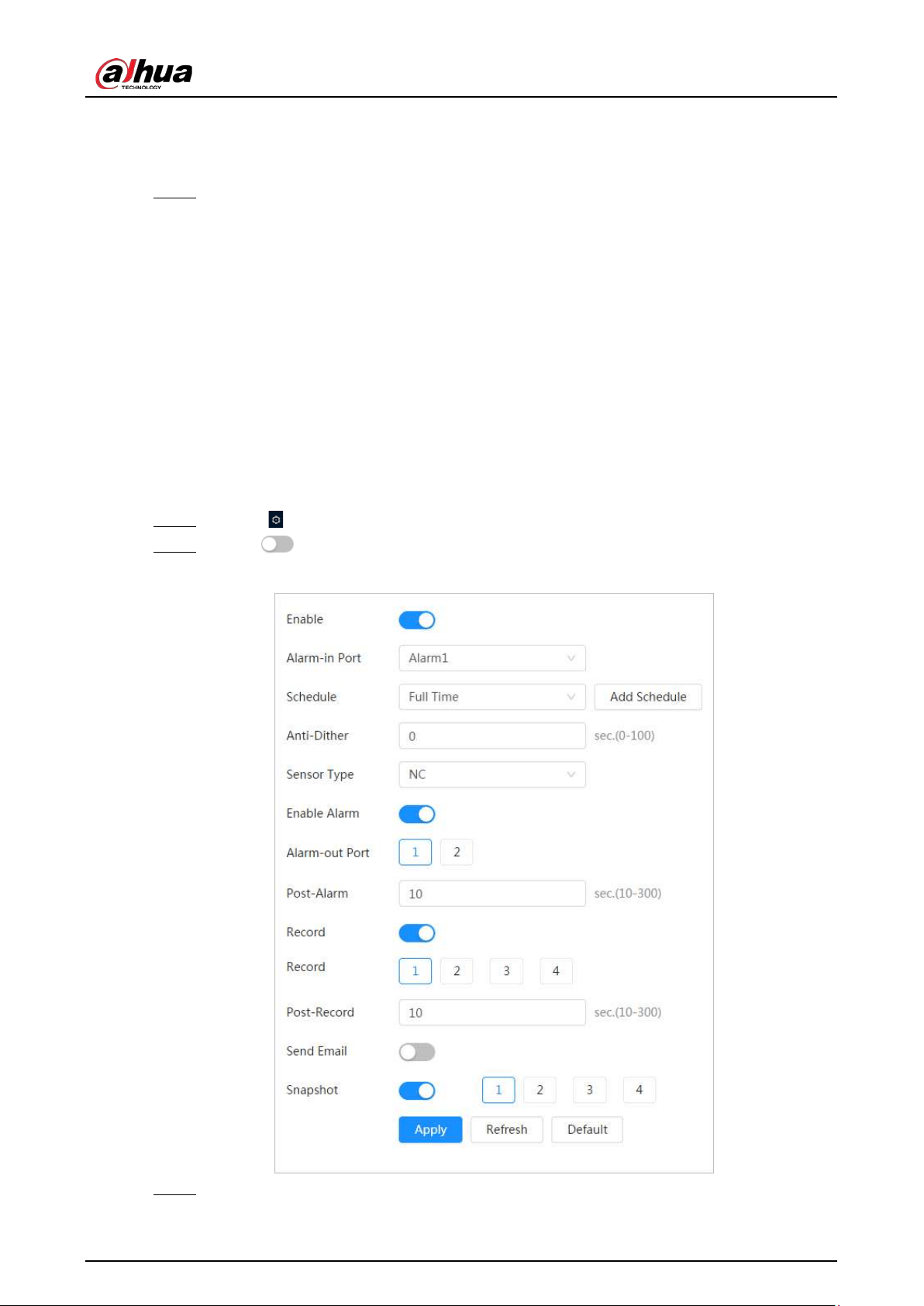

6.5.1.1 Setting Alarm-in
................................................................................................................................................. 61
Operation Manual
VIII
6.5.1.2 Alarm Linkage
...................................................................................................................................................... 62
6.5.1.2.1 Adding Schedule
..................................................................................................................................... 62
6.5.1.2.2 Record Linkage
......................................................................................................................................... 63
6.5.1.2.3 Snapshot Linkage
................................................................................................................................... 64
6.5.1.2.4 Alarm-out Linkage
.................................................................................................................................. 64
6.5.1.2.5 Email Linkage
............................................................................................................................................ 64
6.5.1.3 Subscribing Alarm
............................................................................................................................................. 65
6.5.1.3.1 Alarm Types
............................................................................................................................................... 65
6.5.1.3.2 Subscribing Alarm Information
....................................................................................................... 65
6.5.2 Setting Exception
......................................................................................................................................................... 66
6.5.2.1 Setting SD Card Exception
............................................................................................................................ 67

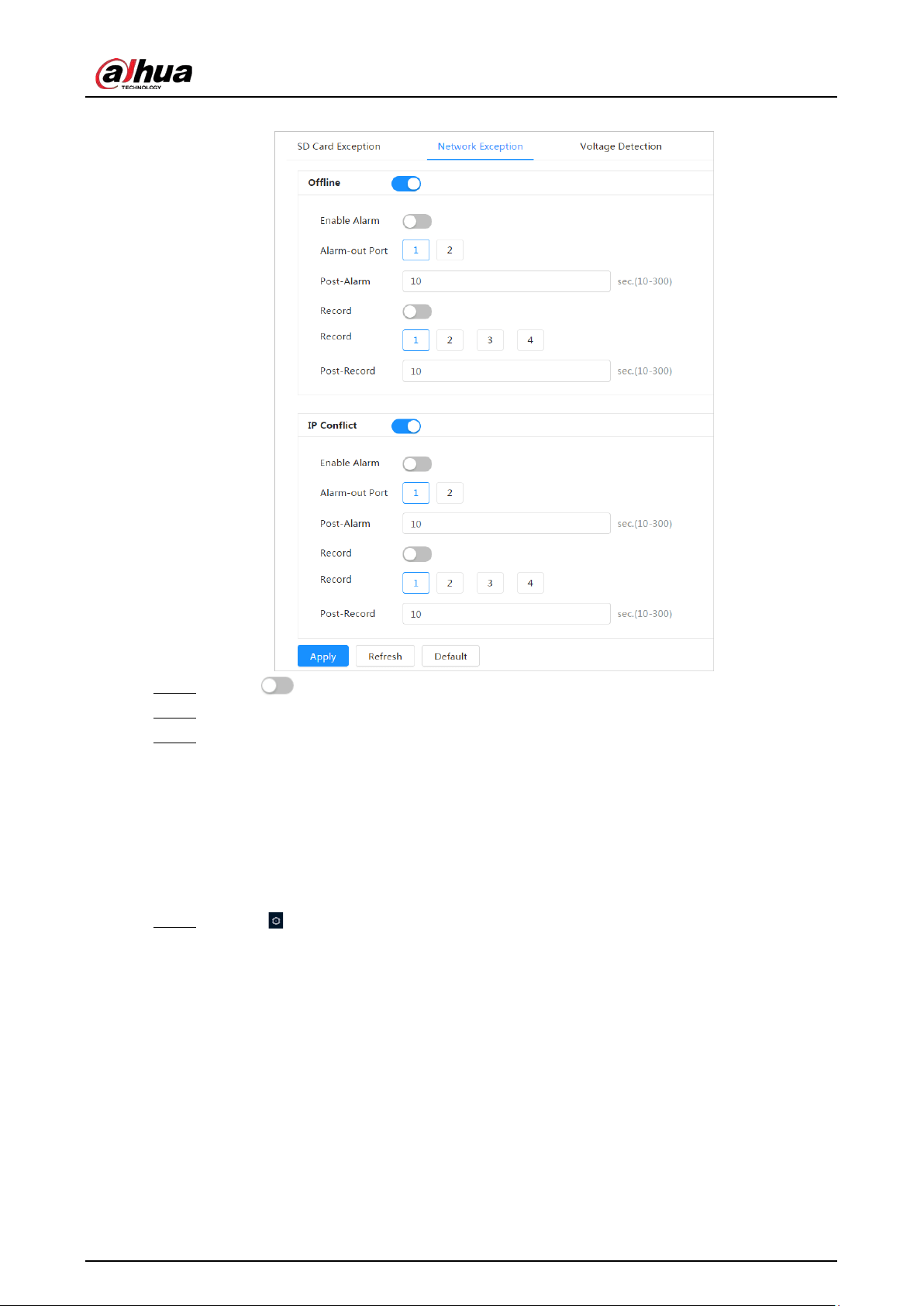

6.5.2.2 Setting Network Exception
........................................................................................................................... 67

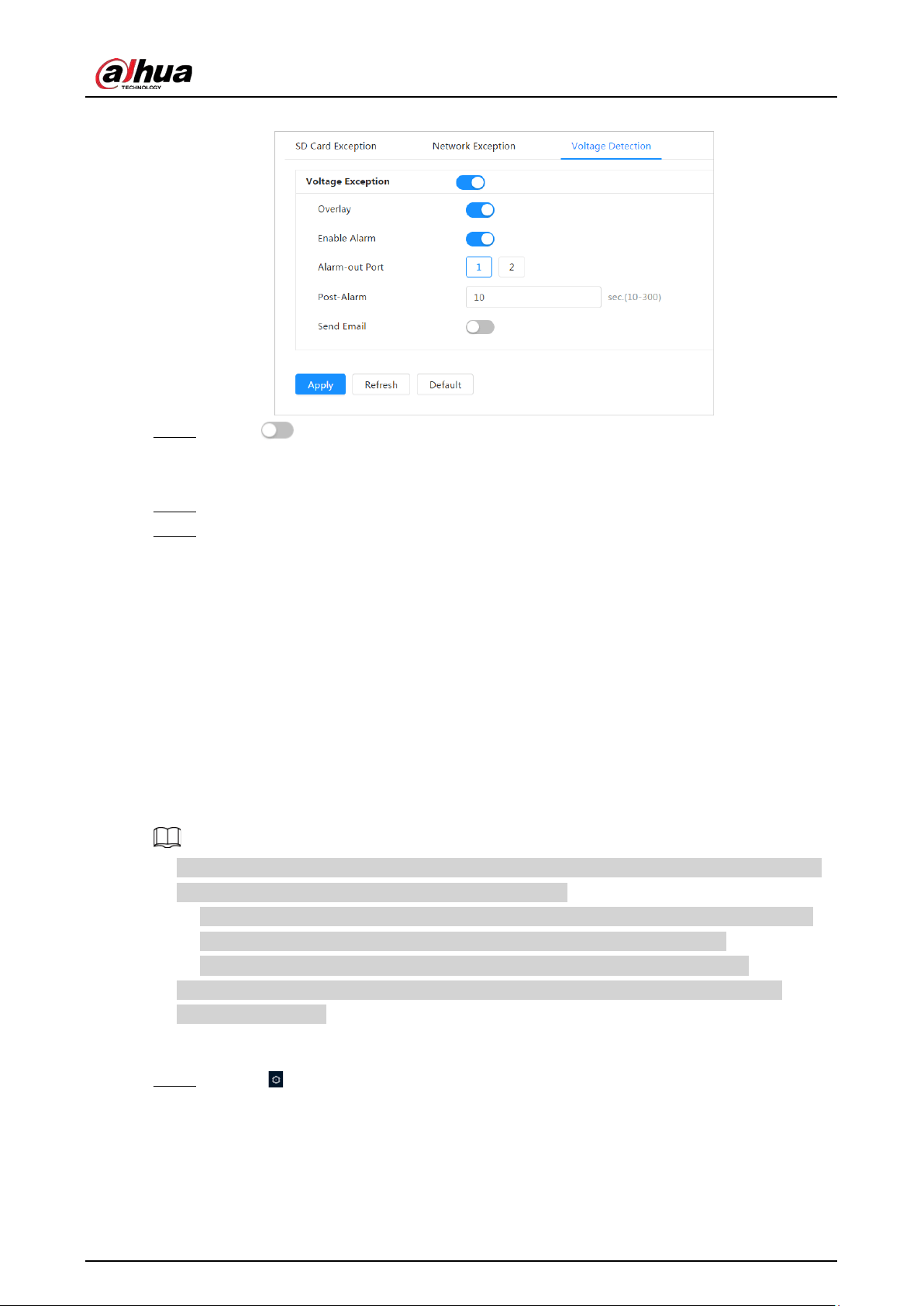

6.5.2.3 Setting Voltage Detection
............................................................................................................................. 68
6.5.3 Setting Video Detection
............................................................................................................................................ 69
6.5.3.1 Setting Motion Detection
.............................................................................................................................. 69
6.5.3.2 Setting Video Tampering
............................................................................................................................... 71
6.5.3.3 Setting Scene Changing
................................................................................................................................. 72
6.5.4 Setting Audio Detection
............................................................................................................................................ 72
6.6 Storage
.......................................................................................................................................................................................... 73
6.7 System
........................................................................................................................................................................................... 74
6.7.1 General
............................................................................................................................................................................... 74
6.7.1.1 Basic
.......................................................................................................................................................................... 74
6.7.1.2 Date & Time
........................................................................................................................................................... 75
6.7.2 Account
.............................................................................................................................................................................. 76
6.7.2.1 User
........................................................................................................................................................................... 76
6.7.2.1.1 Adding User
............................................................................................................................................... 76
6.7.2.1.2 Resetting Password
............................................................................................................................... 79

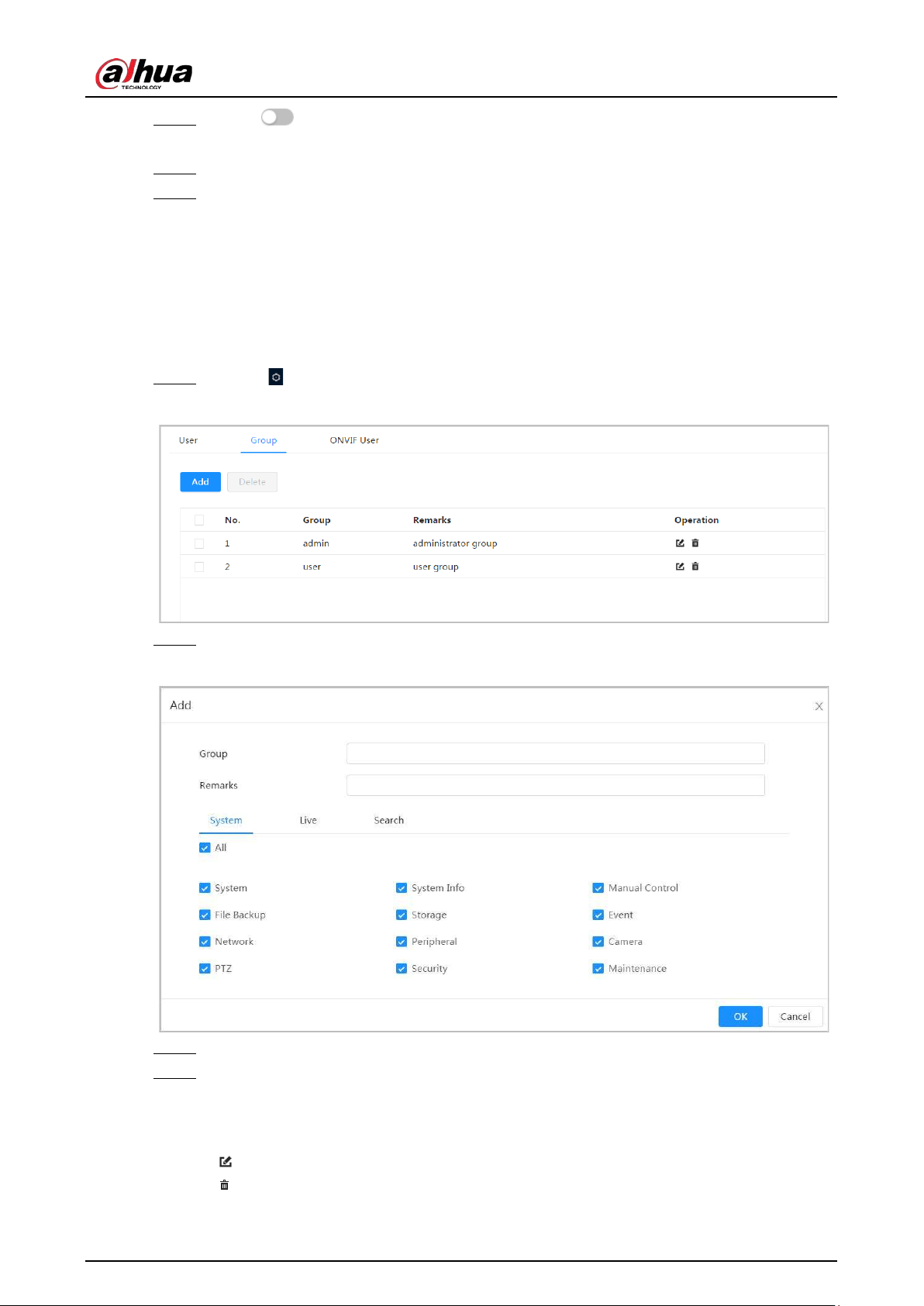

6.7.2.2 Adding User Group
........................................................................................................................................... 80

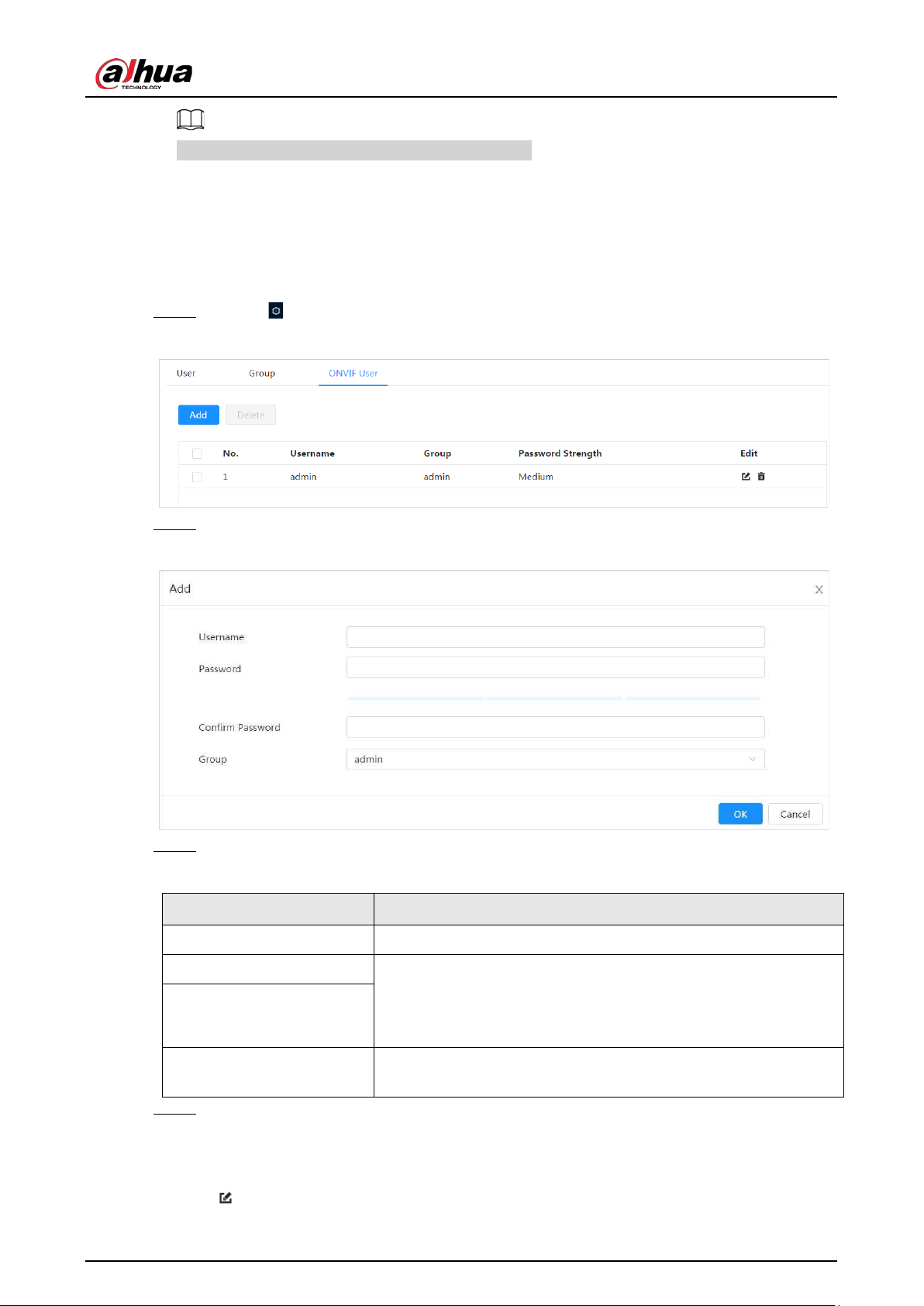

6.7.2.3 ONVIF User
............................................................................................................................................................ 81
6.7.3 Peripheral Management
........................................................................................................................................... 82

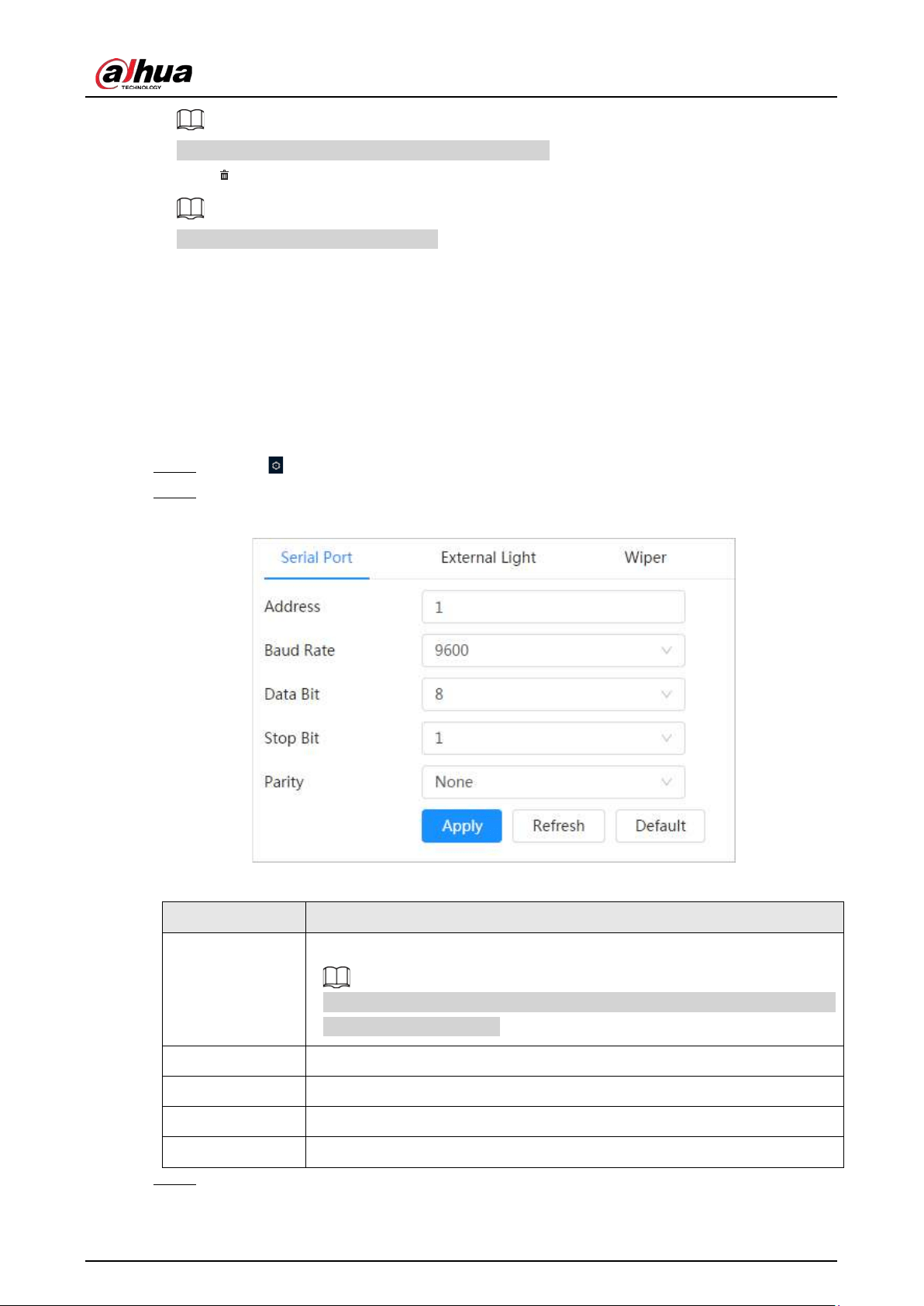

6.7.3.1 Configuring Serial Port
................................................................................................................................... 82
6.7.3.2 Configuring External Light
............................................................................................................................ 83
6.7.3.3 Configuring Wiper
............................................................................................................................................. 84
6.7.4 Manager
............................................................................................................................................................................ 84
6.7.4.1 Requirements
...................................................................................................................................................... 84
6.7.4.2 Maintenance
......................................................................................................................................................... 85

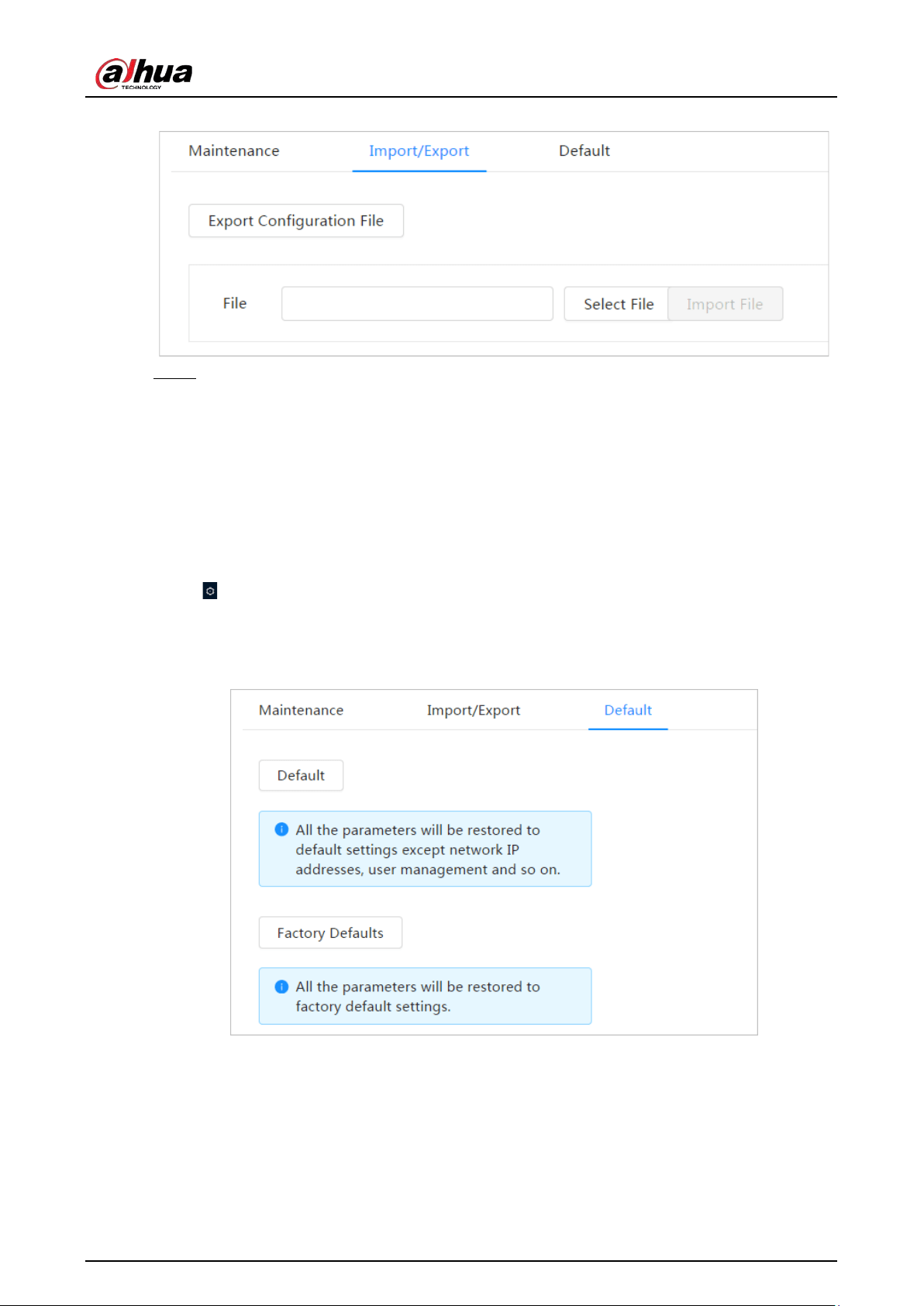

6.7.4.3 Import/Export
...................................................................................................................................................... 85
Operation Manual
IX
6.7.4.4 Default
..................................................................................................................................................................... 86
6.7.5 Upgrade
............................................................................................................................................................................. 86
6.8 System Information
................................................................................................................................................................ 87
6.8.1 Version
............................................................................................................................................................................... 87
6.8.2 Online User
....................................................................................................................................................................... 87
6.9 Setting Log
.................................................................................................................................................................................. 87
6.9.1 Log
........................................................................................................................................................................................ 87
6.9.2 Remote Log
...................................................................................................................................................................... 88
7 Live
............................................................................................................................................................................................................. 90

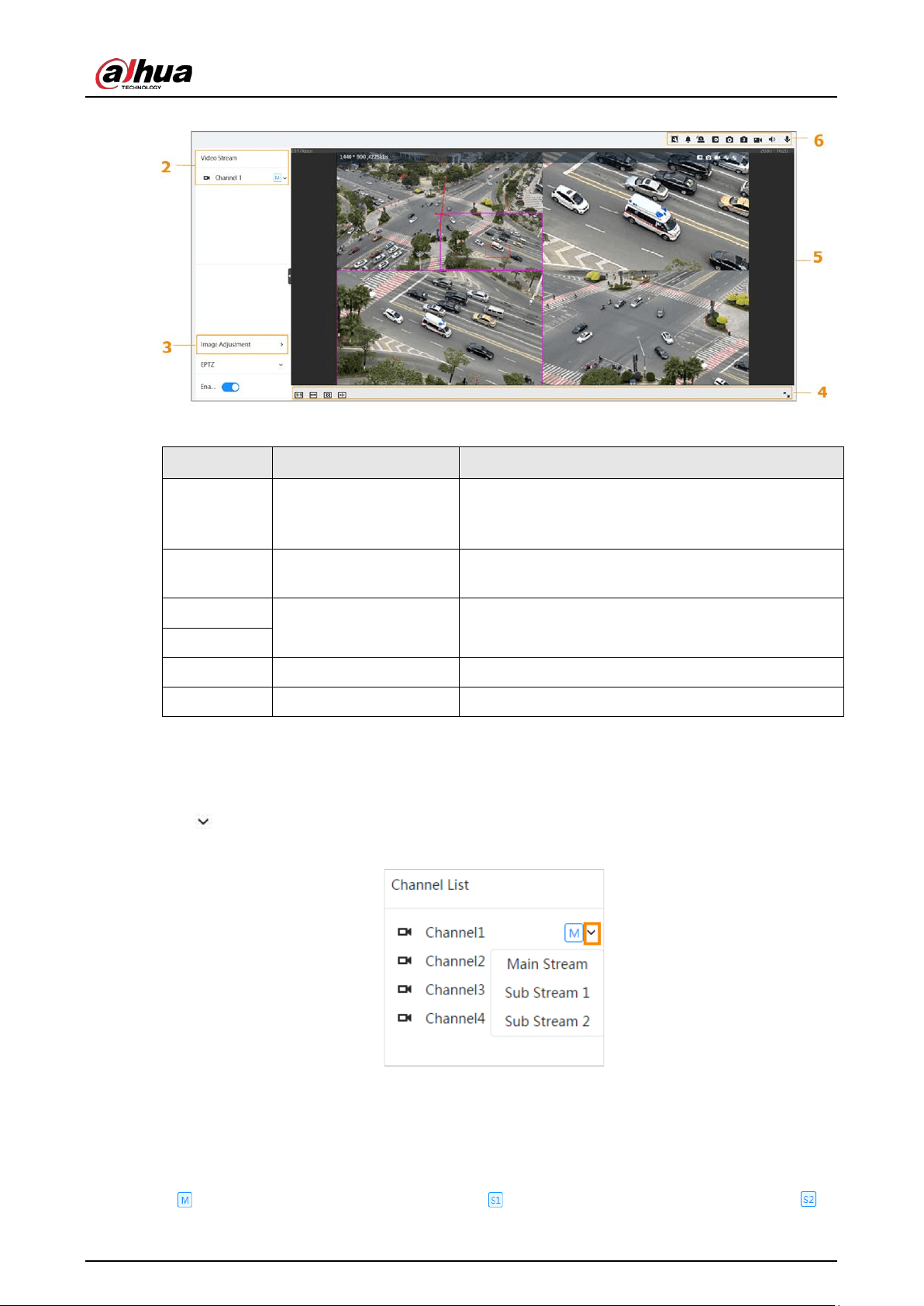

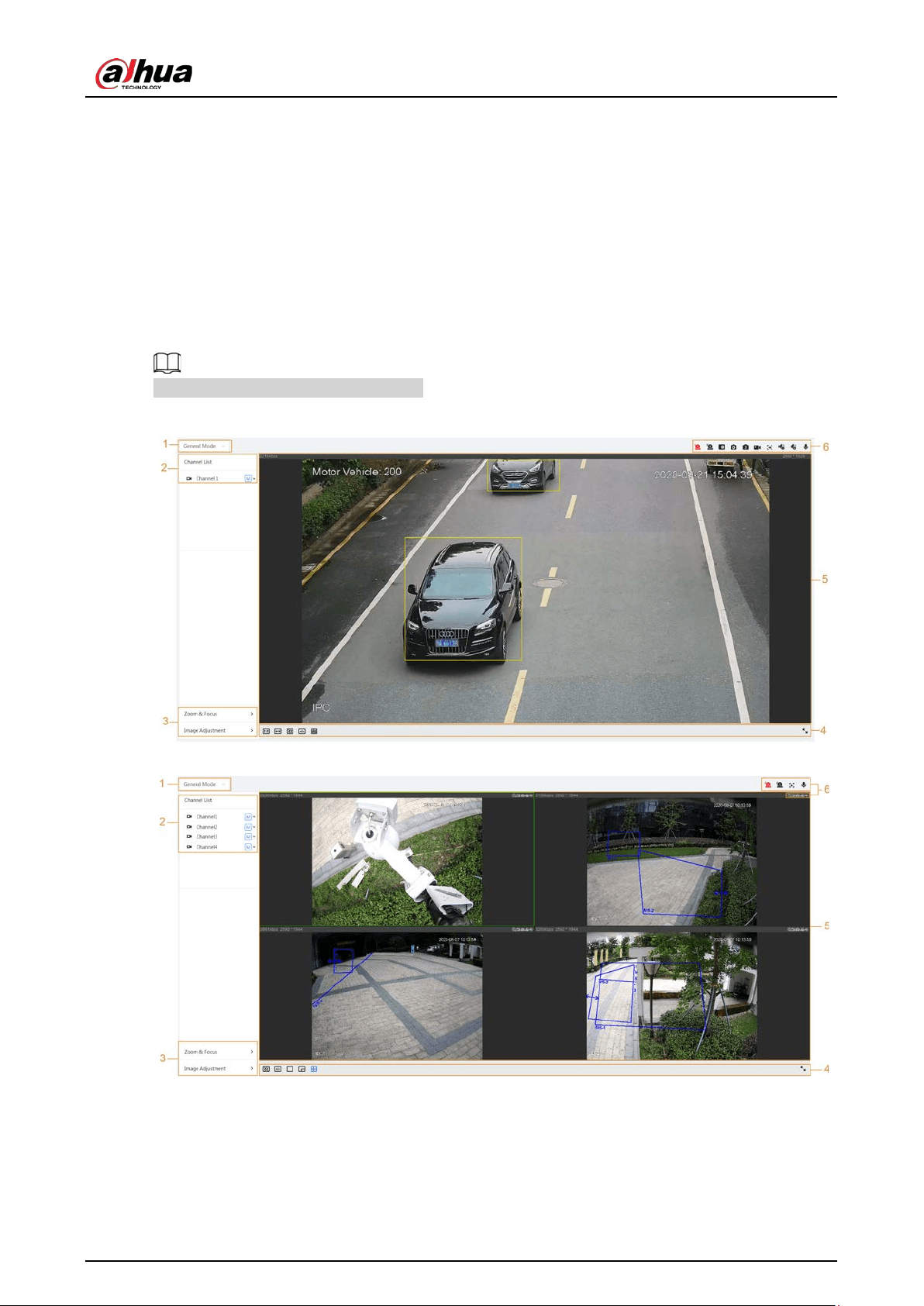

7.1 Live Page
...................................................................................................................................................................................... 90
7.2 Setting Encode
.......................................................................................................................................................................... 91
7.3 Live View Function Bar
.......................................................................................................................................................... 92
7.4 Window Adjustment Bar
...................................................................................................................................................... 93
7.4.1 Adjustment
...................................................................................................................................................................... 93

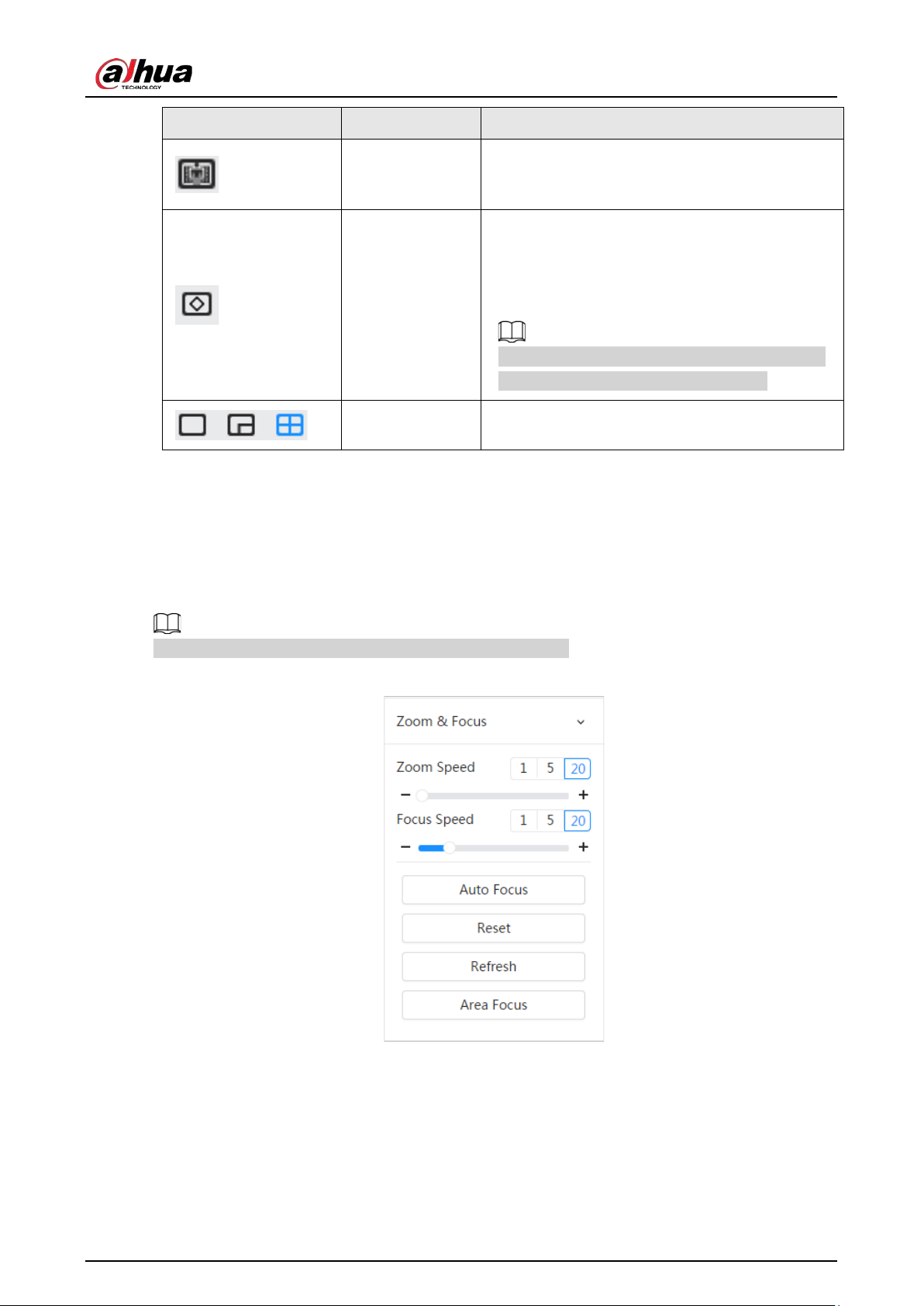

7.4.2 Zoom and Focus
............................................................................................................................................................ 94

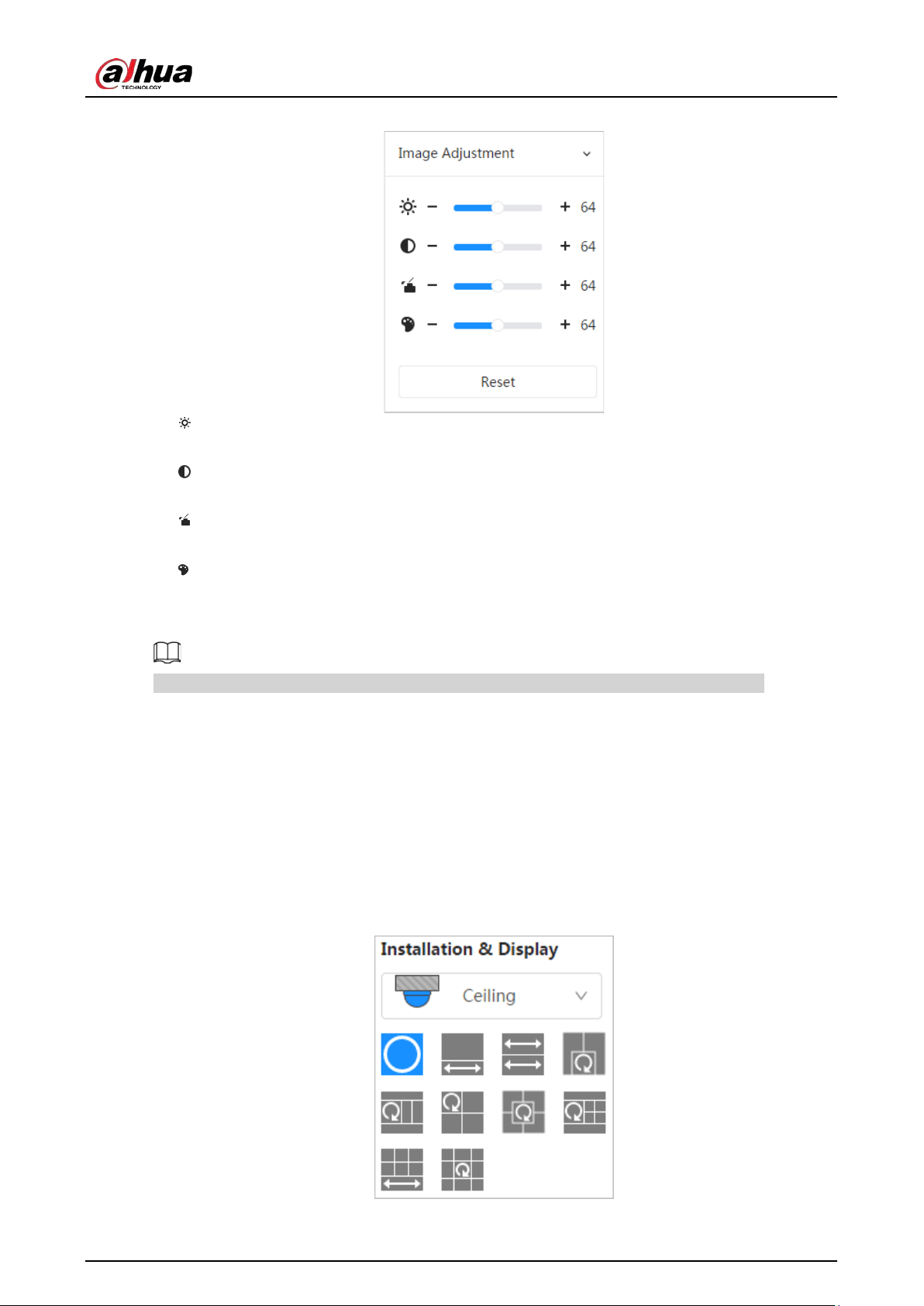

7.4.3 Image Adjustment
........................................................................................................................................................ 95
7.4.4 Fisheye
............................................................................................................................................................................... 96
7.5 Display Mode
.......................................................................................................................................................................... 100
8 AI
.............................................................................................................................................................................................................. 103

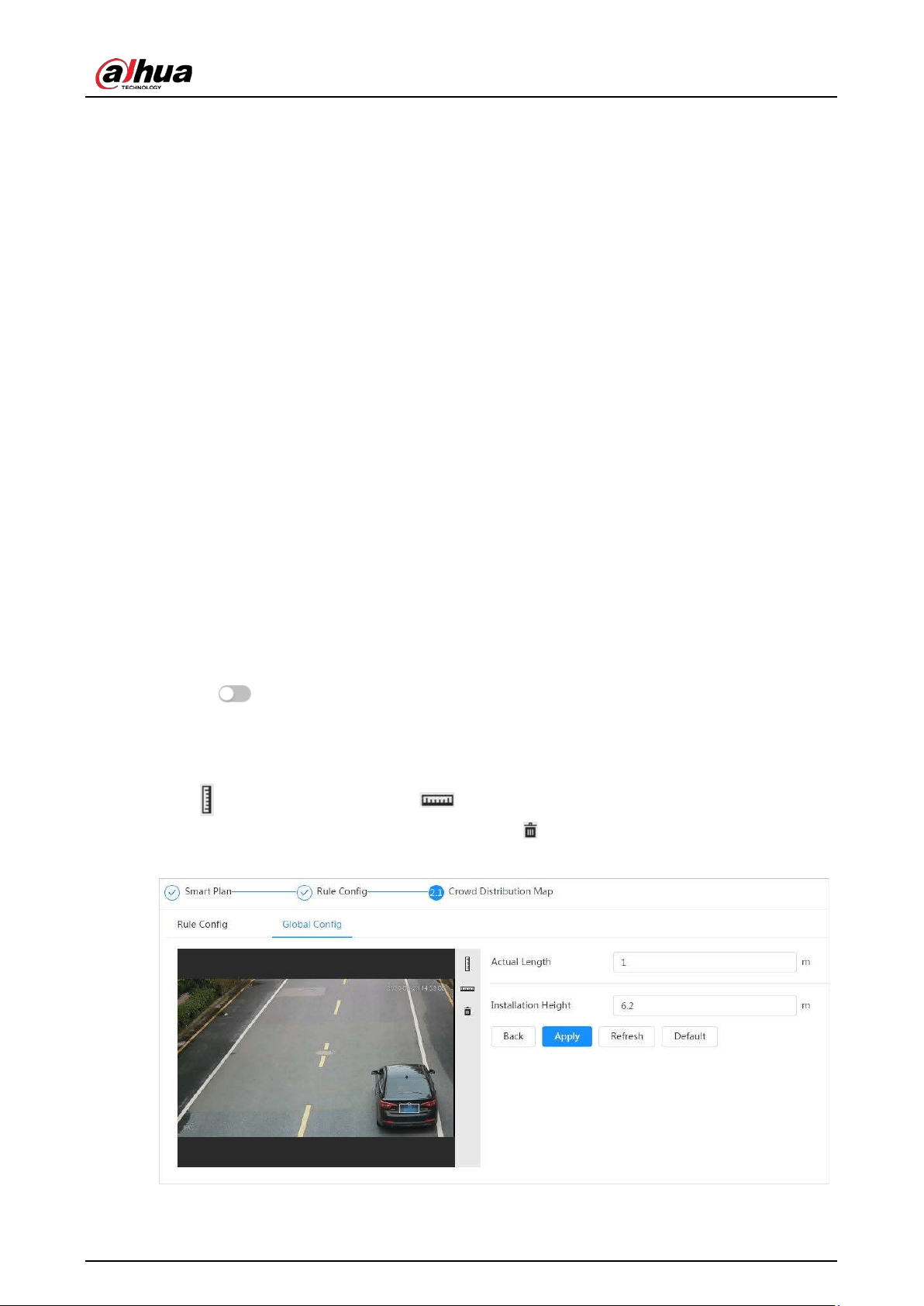

8.1 Setting Crowd Distribution Map
................................................................................................................................... 103
8.1.1 Global Configuration
............................................................................................................................................... 103
8.1.2 Rule Configuration
.................................................................................................................................................... 104
8.2 Setting Face Recognition
.................................................................................................................................................. 105
8.2.1 Enabling Face Recognition
................................................................................................................................... 106
8.2.2 Setting Face Database
............................................................................................................................................. 109
8.2.2.1 Creating Face Database
............................................................................................................................... 109
8.2.2.2 Adding Face Picture
....................................................................................................................................... 111
8.2.2.2.1 Single Adding
........................................................................................................................................ 111
8.2.2.2.2 Batch Importing
.................................................................................................................................... 113
8.2.2.3 Managing Face Picture
................................................................................................................................. 114
8.2.2.3.1 Editing Face Information
................................................................................................................. 114
8.2.2.3.2 Deleting Face Picture
......................................................................................................................... 115
8.2.2.4 Face Modeling
.................................................................................................................................................. 116
8.2.3 Setting Arm Alarm
..................................................................................................................................................... 116

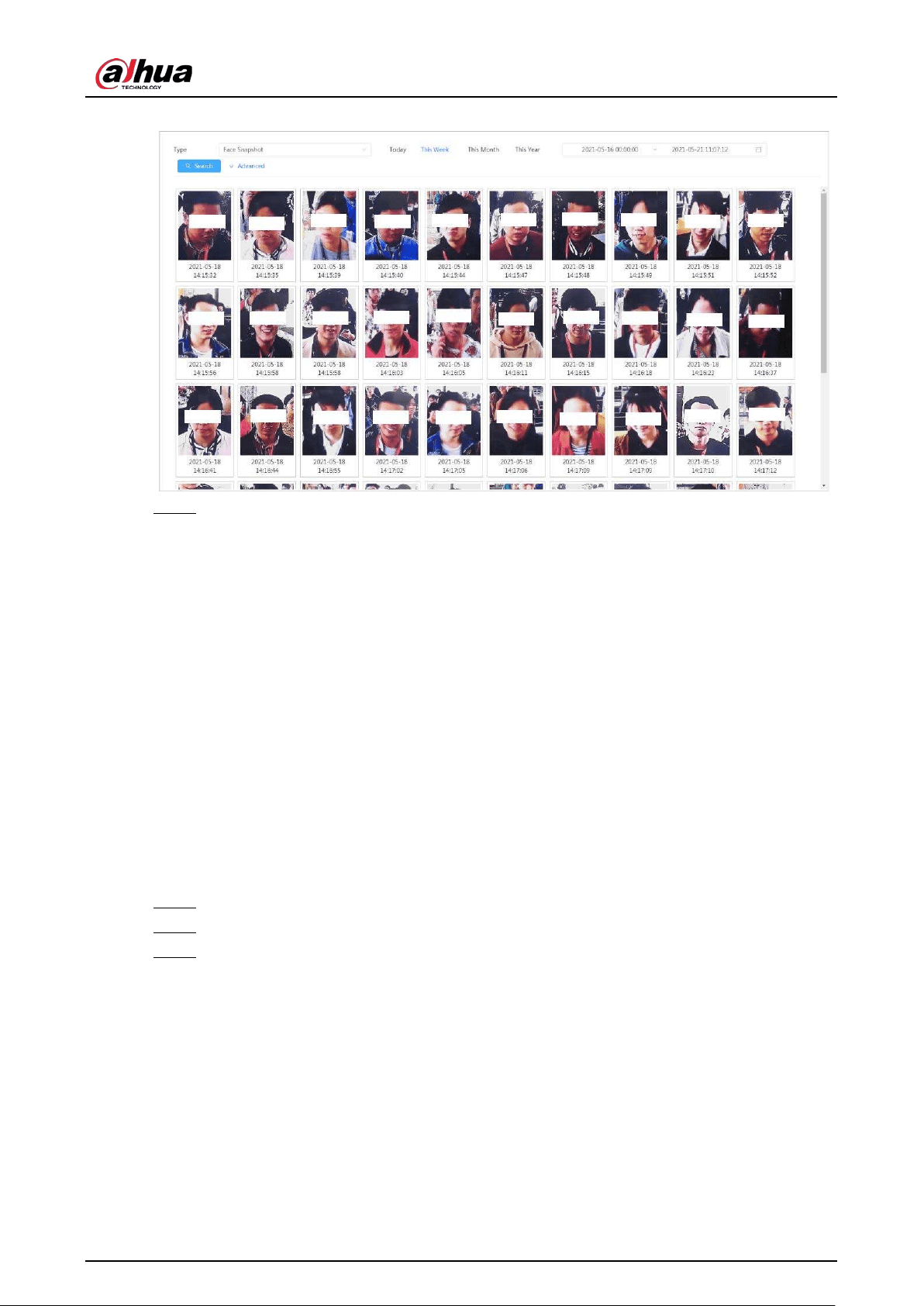

8.2.4 Viewing Face Recognition Result
....................................................................................................................... 119
8.3 Setting Face Detection
....................................................................................................................................................... 120
8.4 Setting IVS
................................................................................................................................................................................ 122
Operation Manual
X
8.4.1 Global Configuration
............................................................................................................................................... 123
8.4.2 Rule Configuration
.................................................................................................................................................... 124

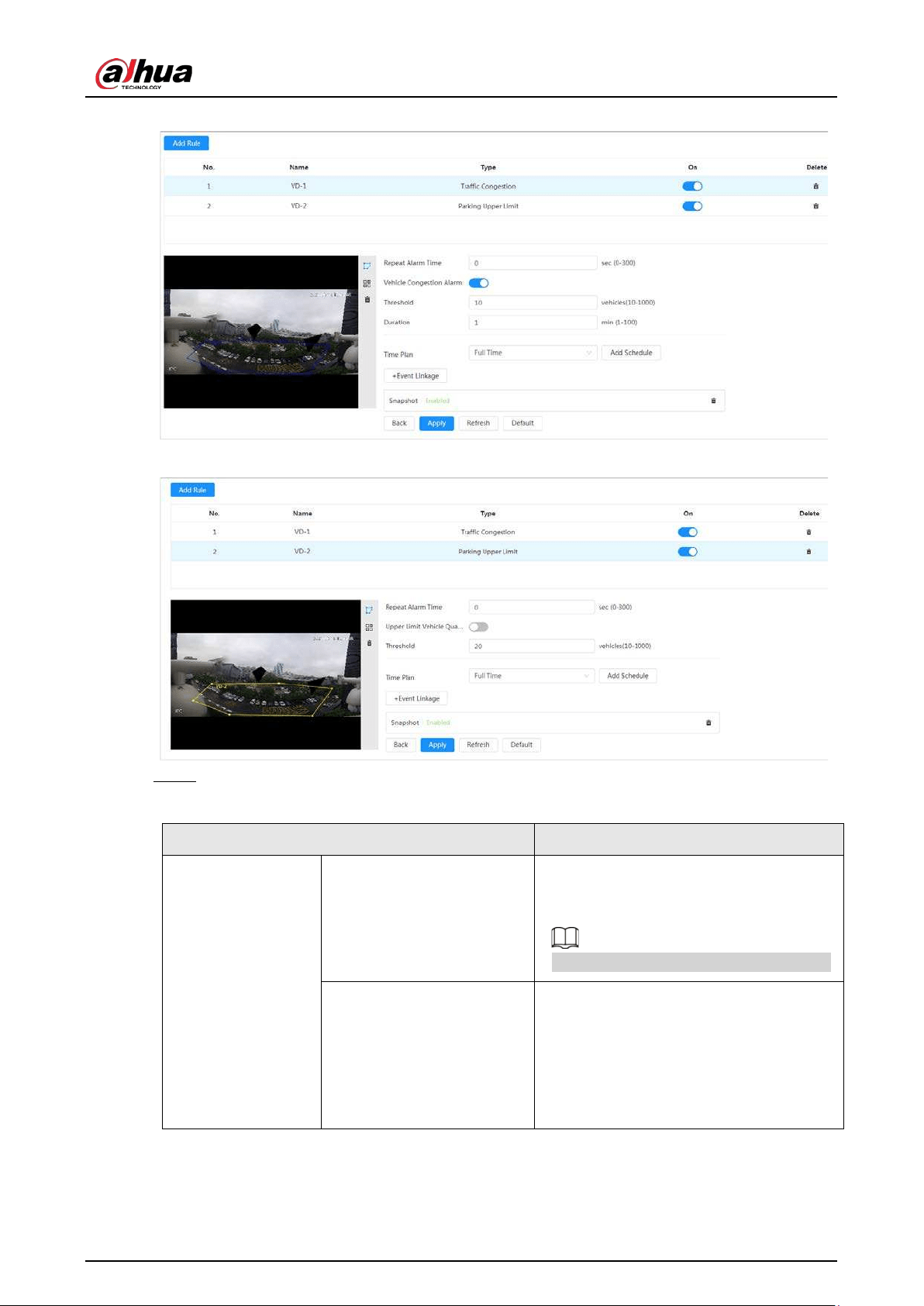

8.5 Setting Vehicle Density
..................................................................................................................................................... 128
8.6 Setting Parking Space
........................................................................................................................................................ 130
8.6.1 Rule Configuration
.................................................................................................................................................... 130
8.6.1.1 For Parking Space Detection Fisheye WizMind Network Camera
.......................................... 130
8.6.1.2 For Other Cameras
......................................................................................................................................... 132
8.6.2 Global Configuration
............................................................................................................................................... 136
8.7 Setting Video Metadata
.................................................................................................................................................... 136
8.7.1 Global Configuration
............................................................................................................................................... 136
8.7.2 Rule Configuration
.................................................................................................................................................... 138
8.7.3 Viewing Video Metadata Report
........................................................................................................................ 140
8.8 Setting People Counting
................................................................................................................................................... 140
8.8.1 People Counting
......................................................................................................................................................... 141

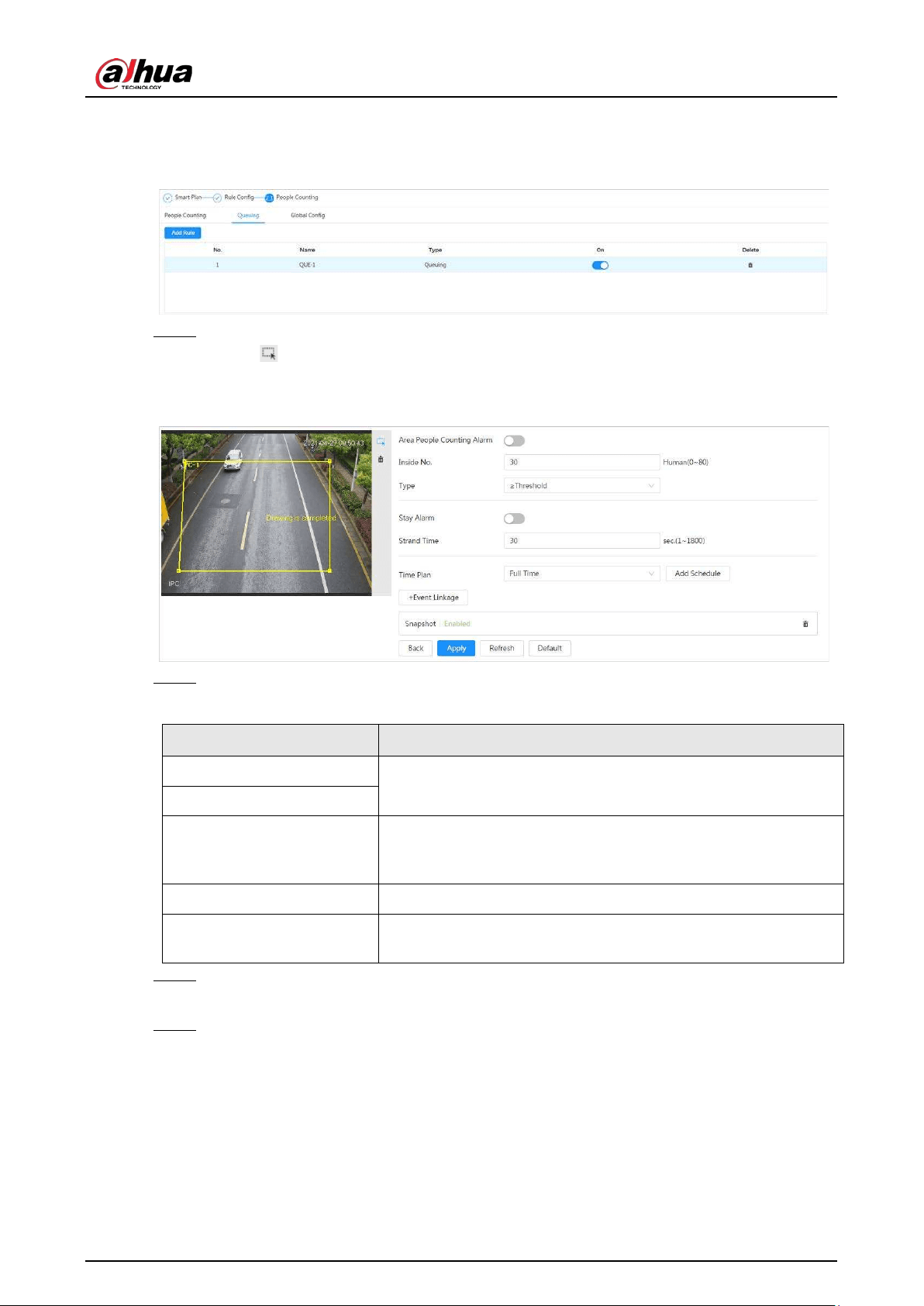

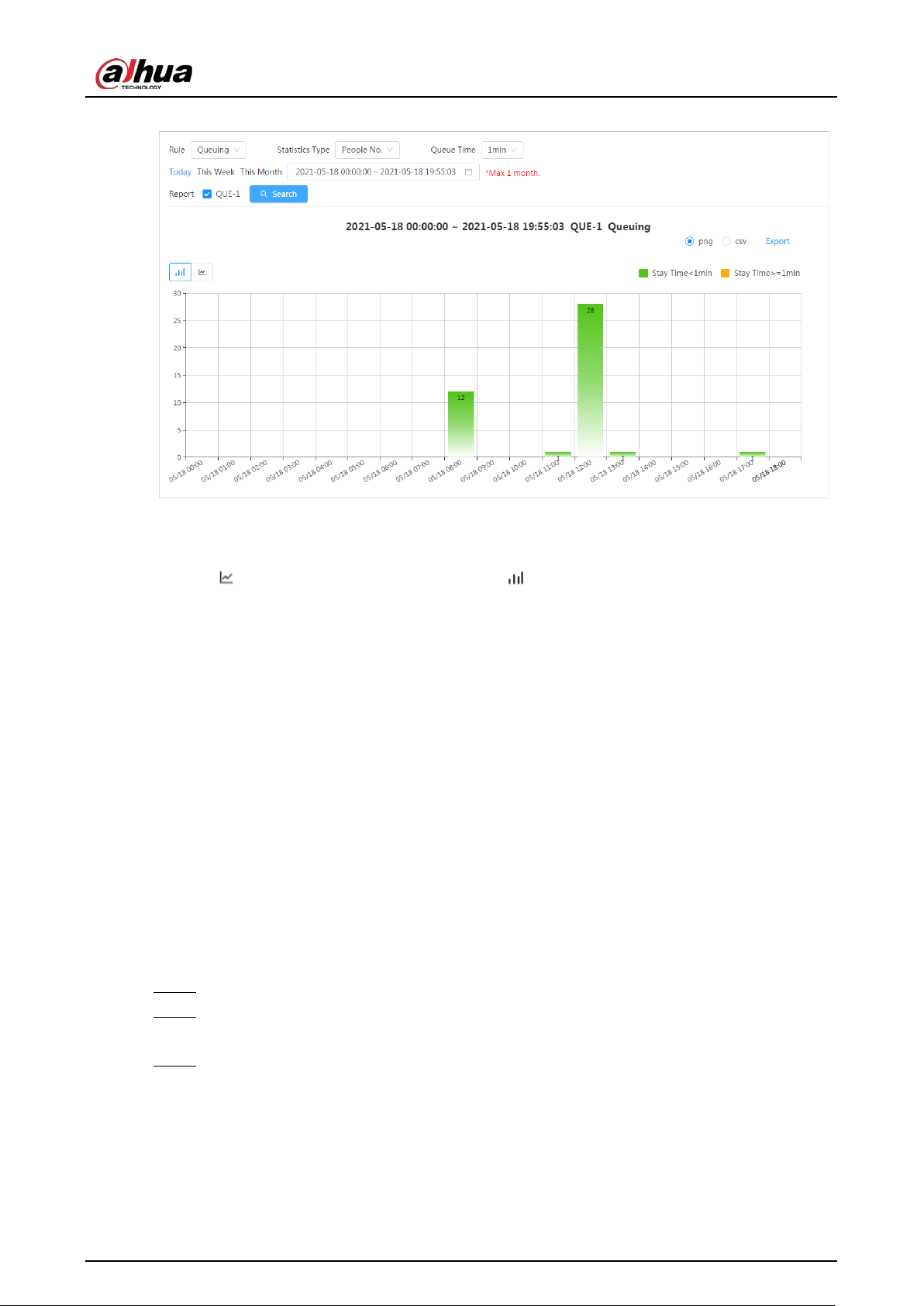

8.8.2 Queuing
.......................................................................................................................................................................... 143
8.8.3 Global Configuration
............................................................................................................................................... 145
8.9 Face & Body Detection
....................................................................................................................................................... 146
8.9.1 Global Configuration
............................................................................................................................................... 146
8.9.2 Rule Configuration
.................................................................................................................................................... 147
8.10 Setting Heat Map
............................................................................................................................................................... 149
8.11 Setting ANPR
........................................................................................................................................................................ 149
8.11.1 Lane Configuration
................................................................................................................................................ 150
8.11.2 Rule Configuration
................................................................................................................................................. 151

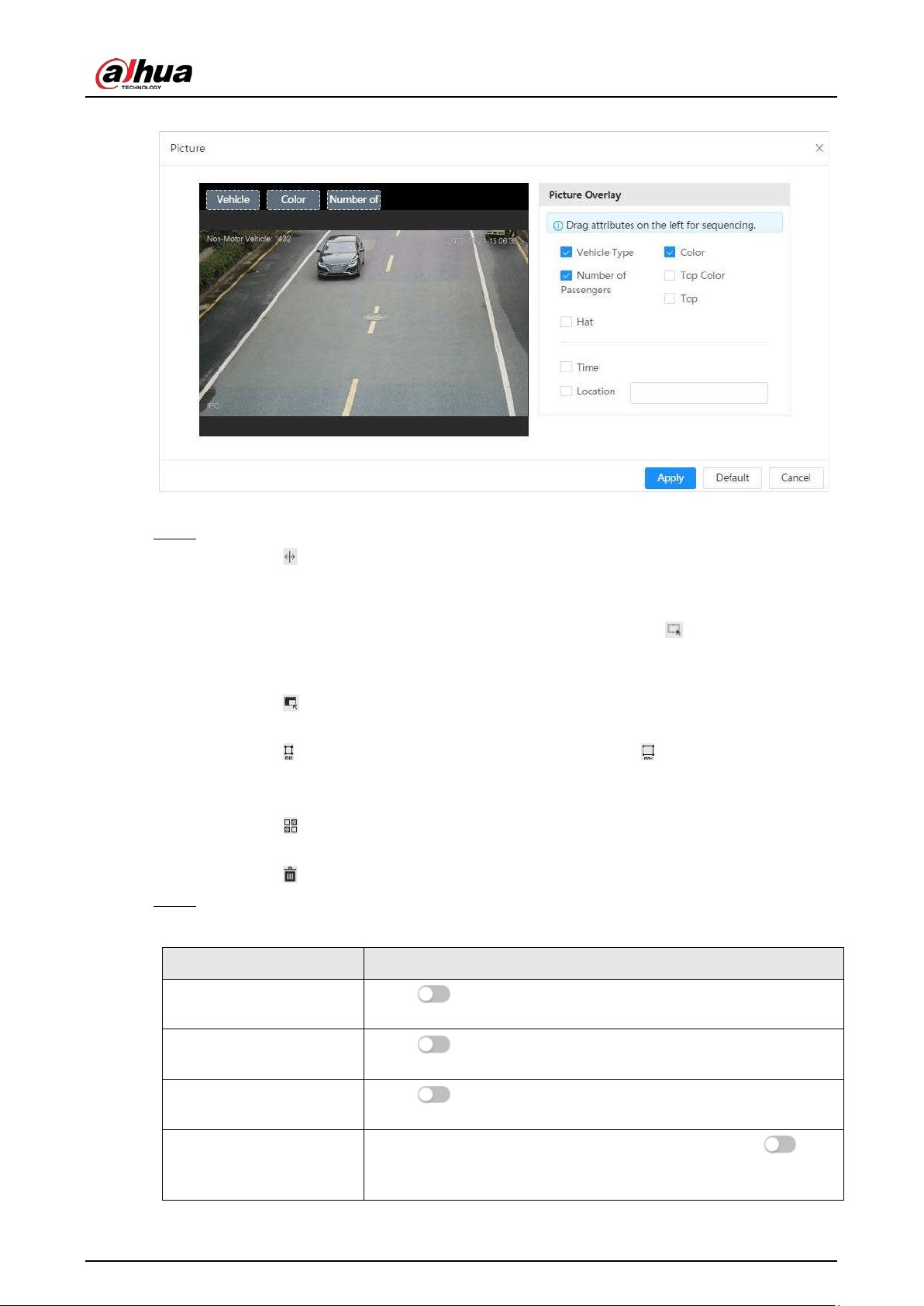

8.11.3 Picture
........................................................................................................................................................................... 152

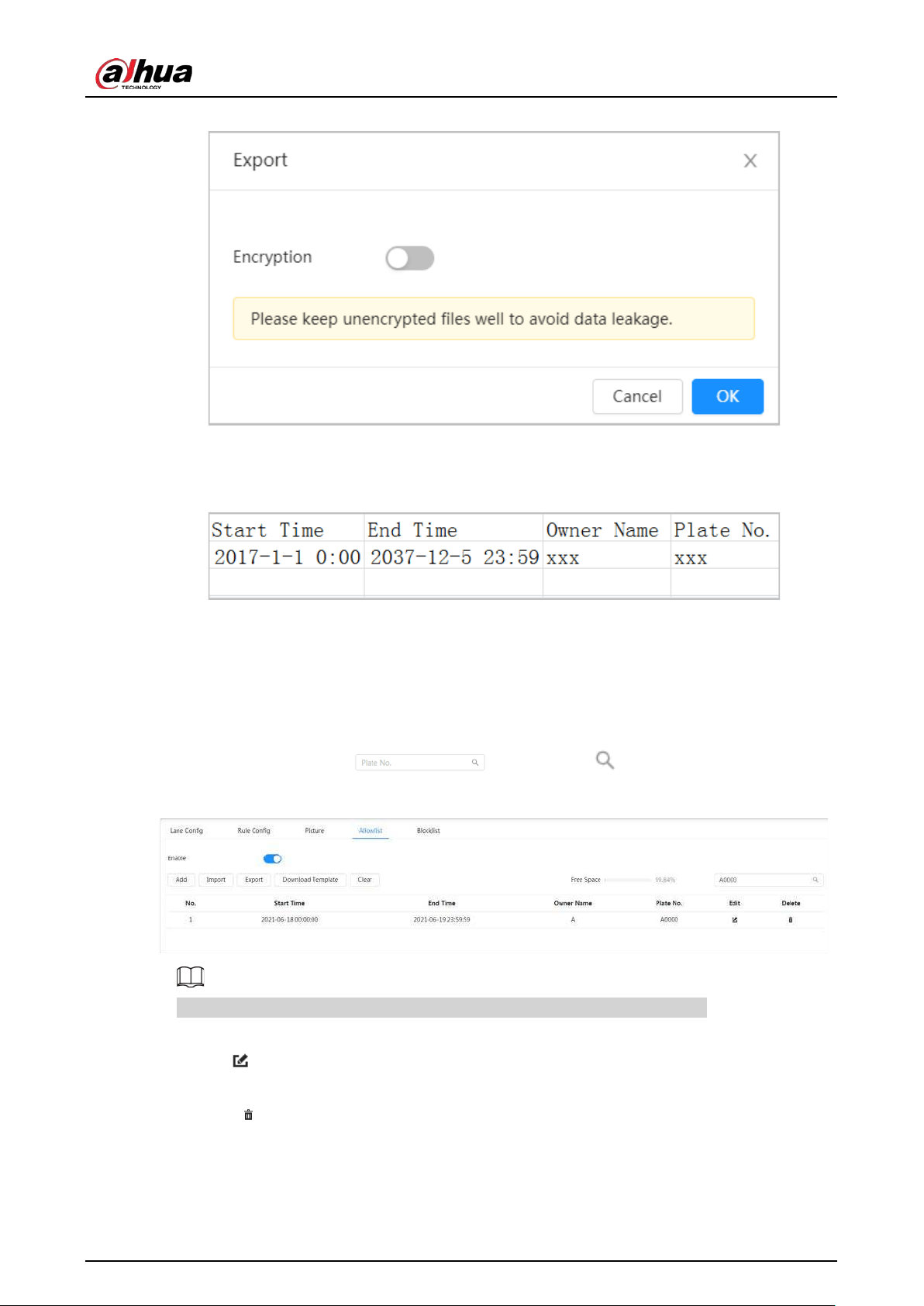

8.11.4 Allowlist
....................................................................................................................................................................... 153
8.11.5 Blocklist
........................................................................................................................................................................ 156
8.12 Setting Panoramic Linkage
........................................................................................................................................... 157
8.12.1 Enabling Linkage Track
........................................................................................................................................ 157
8.12.2 Configuring Calibration Parameter
............................................................................................................... 158
9 Security
................................................................................................................................................................................................. 160

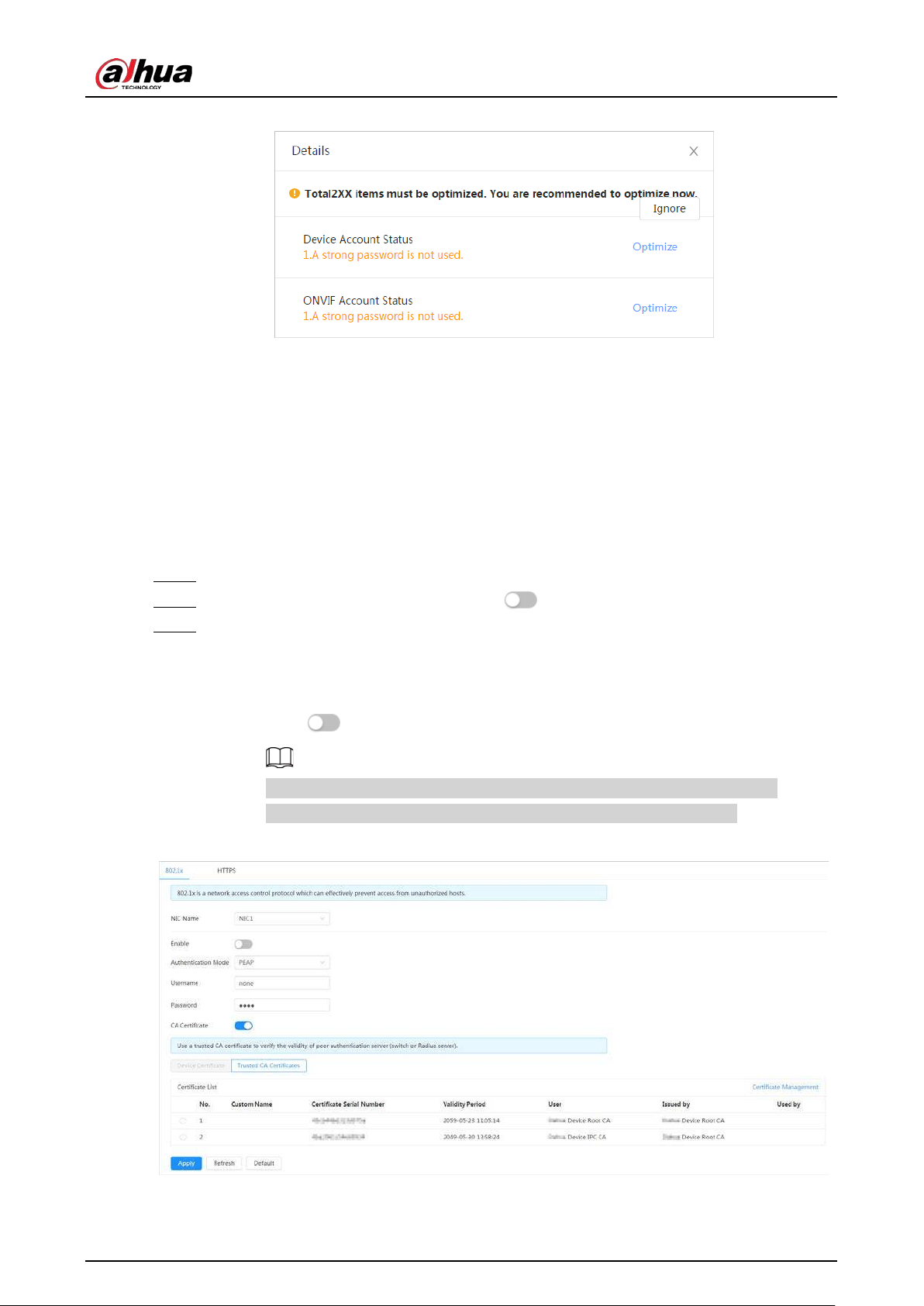

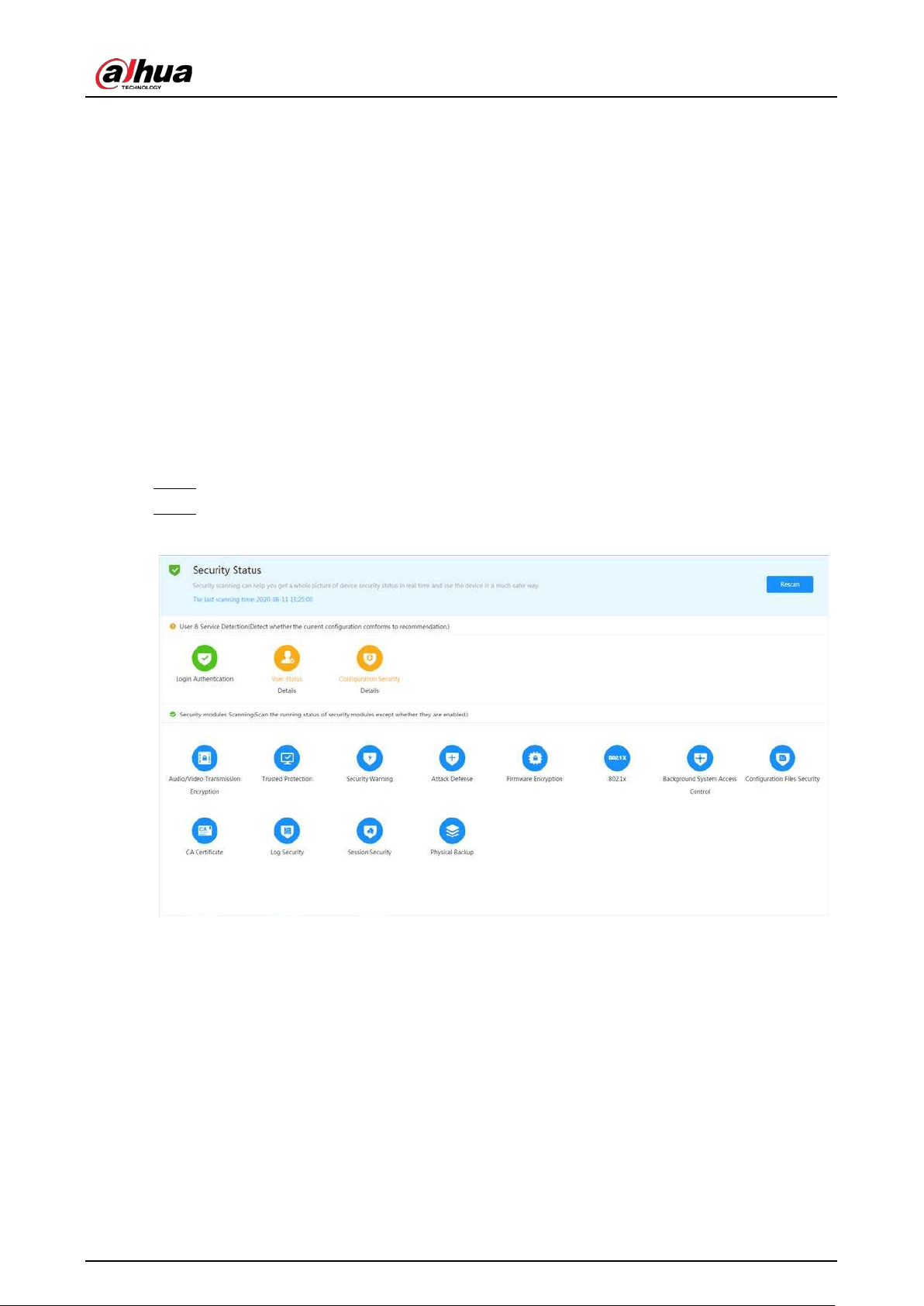

9.1 Security Status
....................................................................................................................................................................... 160
9.2 System Service
....................................................................................................................................................................... 161

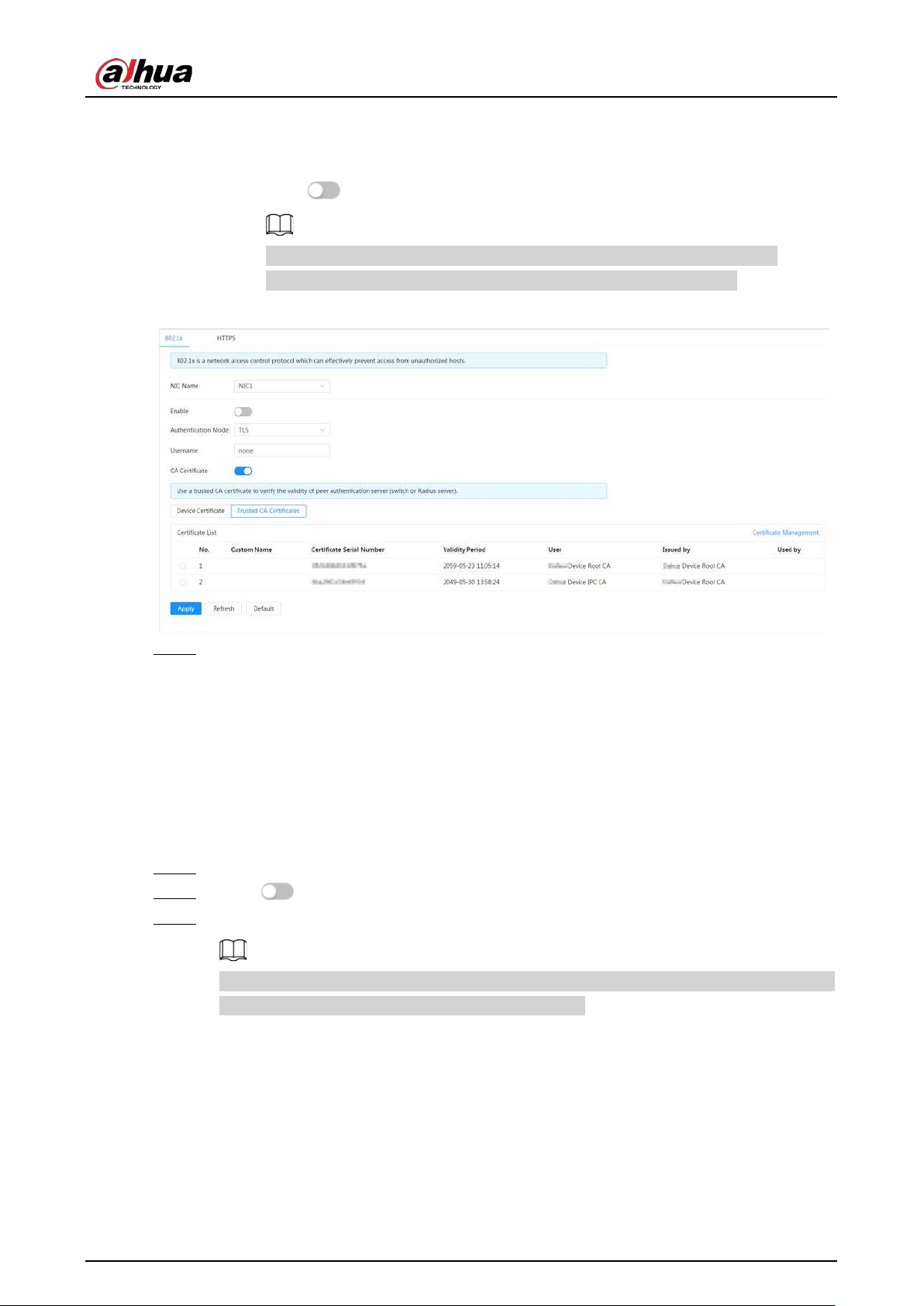

9.2.1 802.1x
.............................................................................................................................................................................. 161
9.2.2 HTTPS
............................................................................................................................................................................... 162
9.3 Attack Defense
....................................................................................................................................................................... 163
9.3.1 Firewall
............................................................................................................................................................................ 163

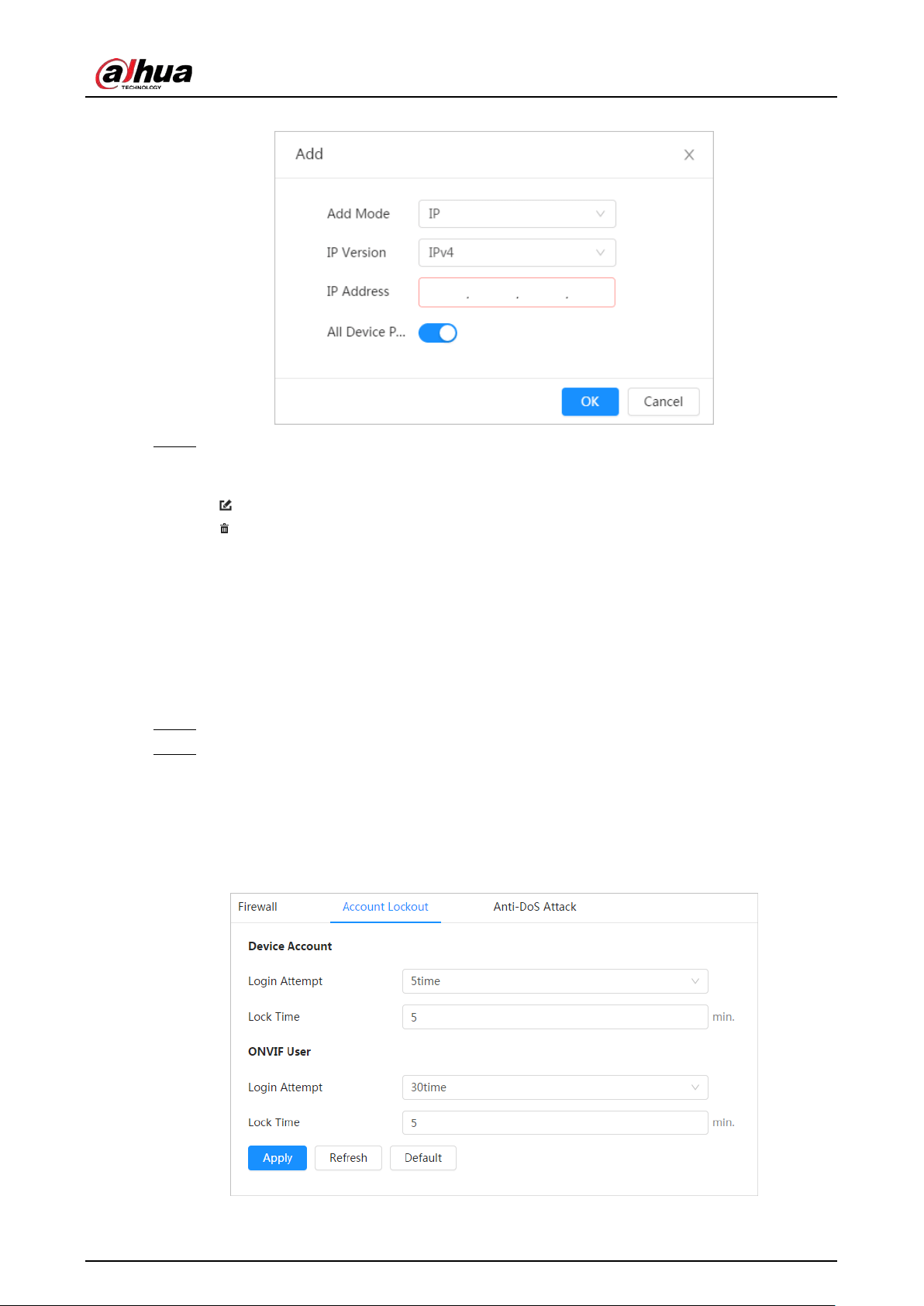

9.3.2 Account Lockout
........................................................................................................................................................ 164
Operation Manual
XI

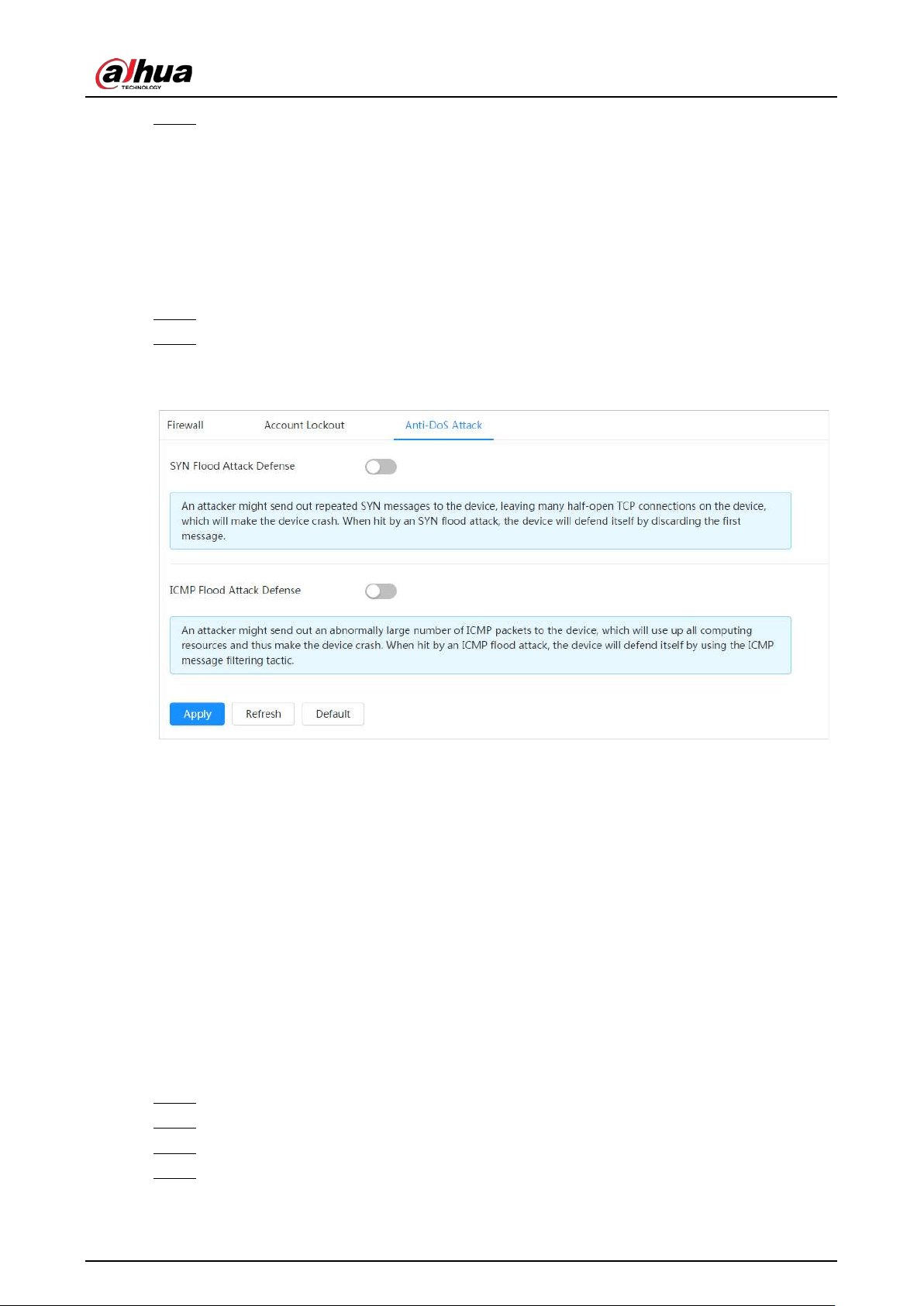

9.3.3 Anti-DoS Attack
.......................................................................................................................................................... 165
9.4 CA Certificate
.......................................................................................................................................................................... 165
9.4.1 Installing Device Certificate
................................................................................................................................. 165

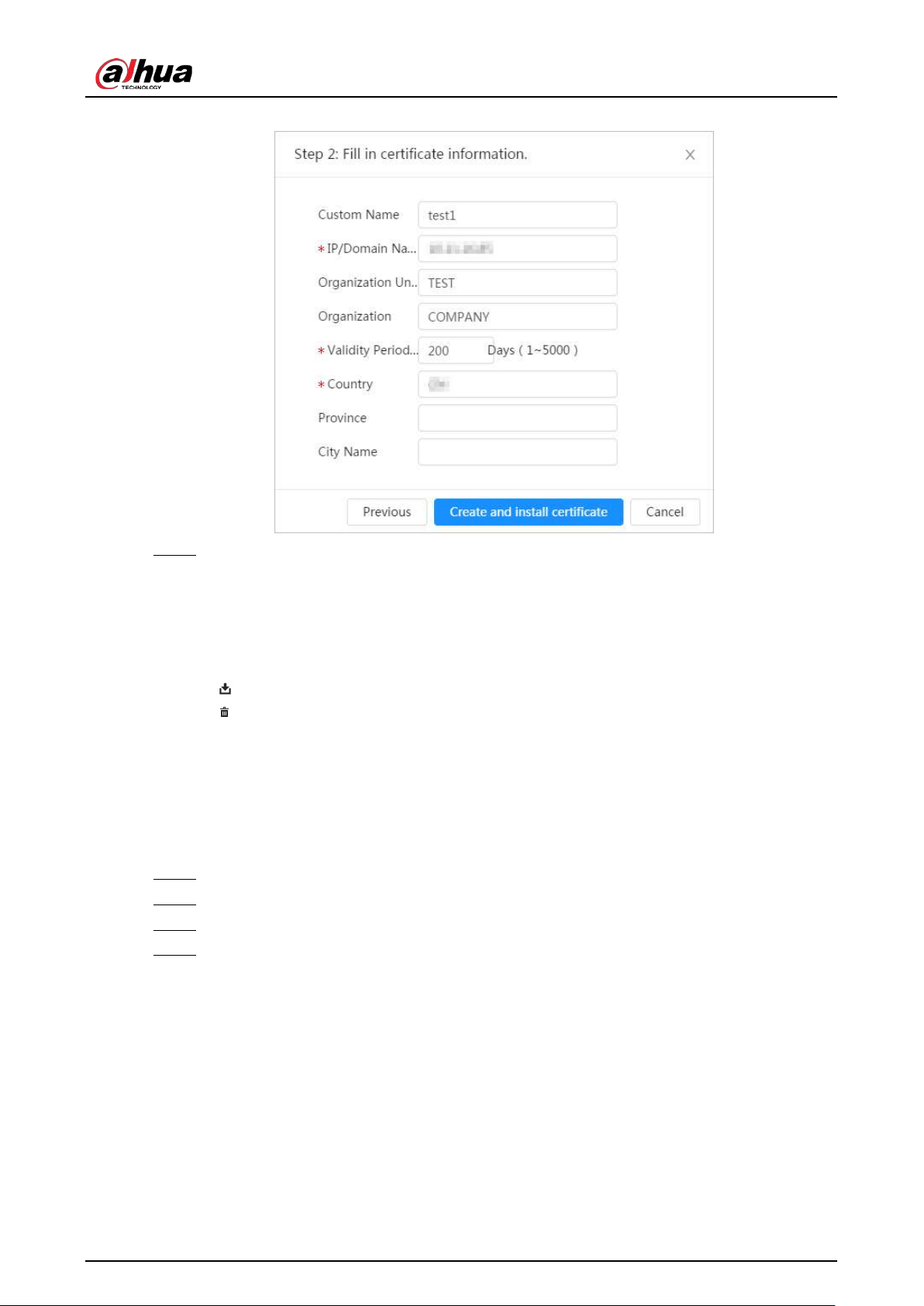

9.4.1.1 Creating Certificate
........................................................................................................................................ 165
9.4.1.2 Applying for and Importing CA Certificate
........................................................................................ 166

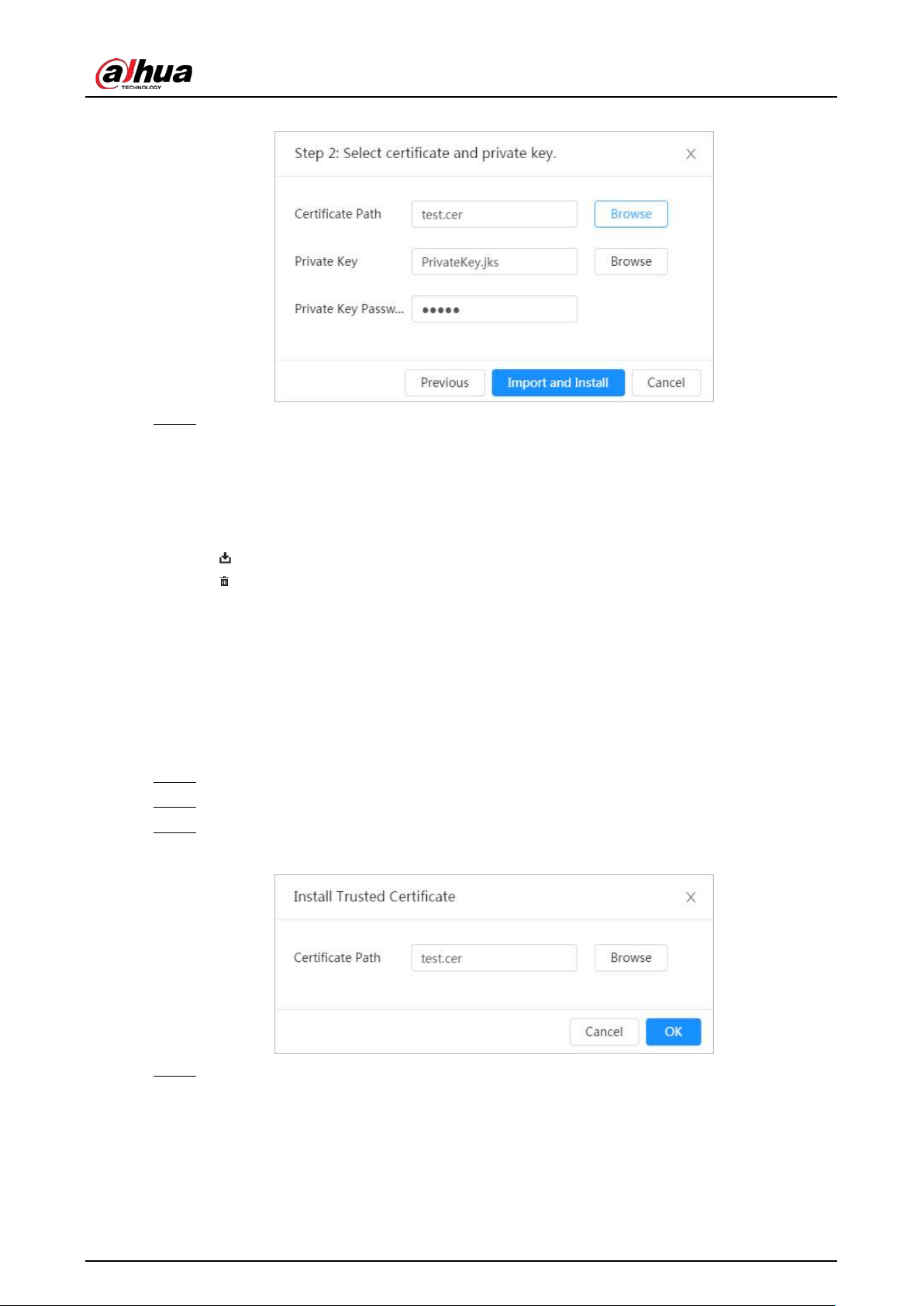

9.4.1.3 Installing Existing Certificate
.................................................................................................................... 167
9.4.2 Installing Trusted CA Certificate
........................................................................................................................ 168

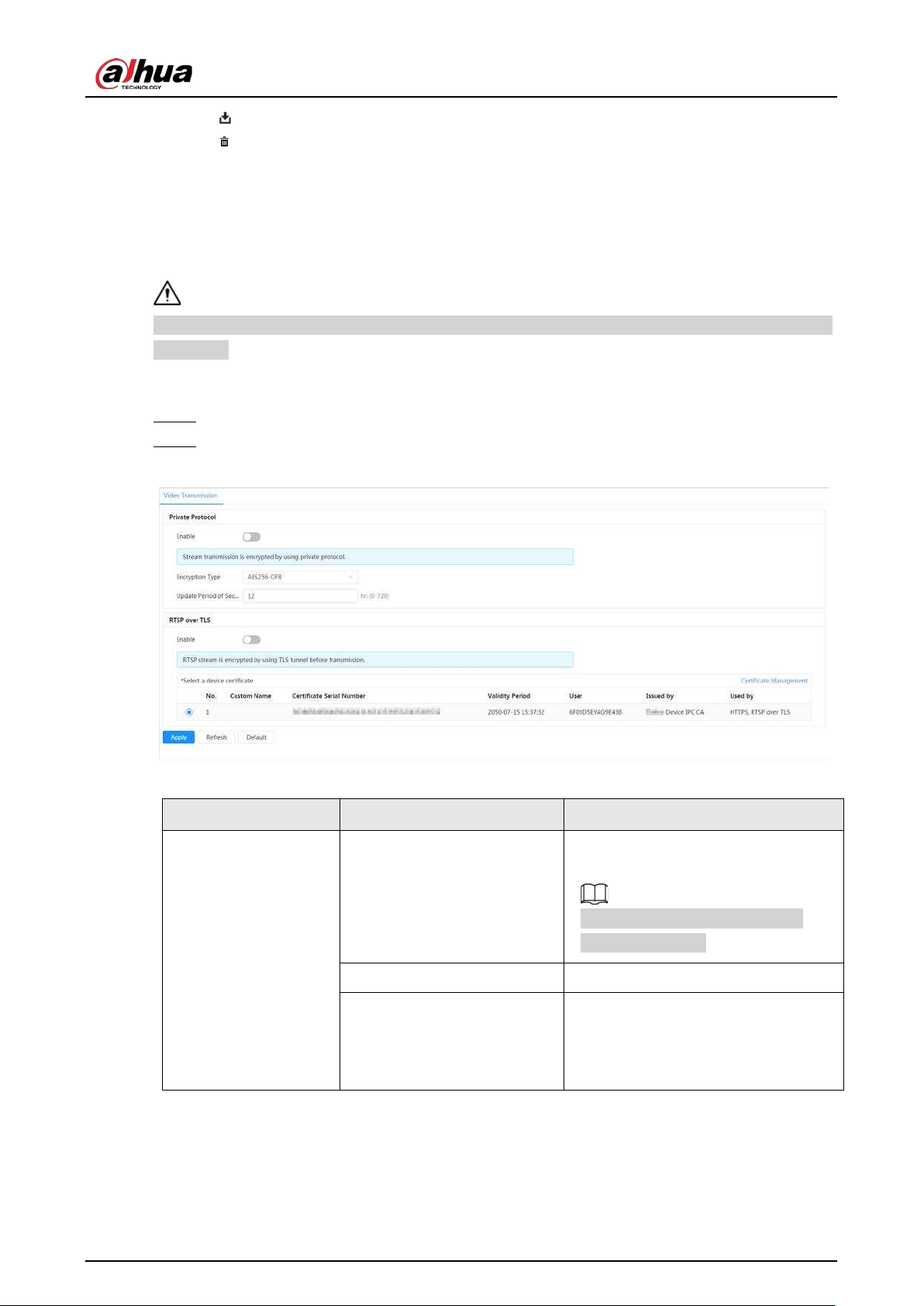

9.5 A/V Encryption
....................................................................................................................................................................... 169
9.6 Security Warning
.................................................................................................................................................................. 170
10 Record
................................................................................................................................................................................................. 171
10.1 Playback
................................................................................................................................................................................. 171
10.1.1 Playing Back Video
................................................................................................................................................. 171
10.1.2 Clipping Video
.......................................................................................................................................................... 173

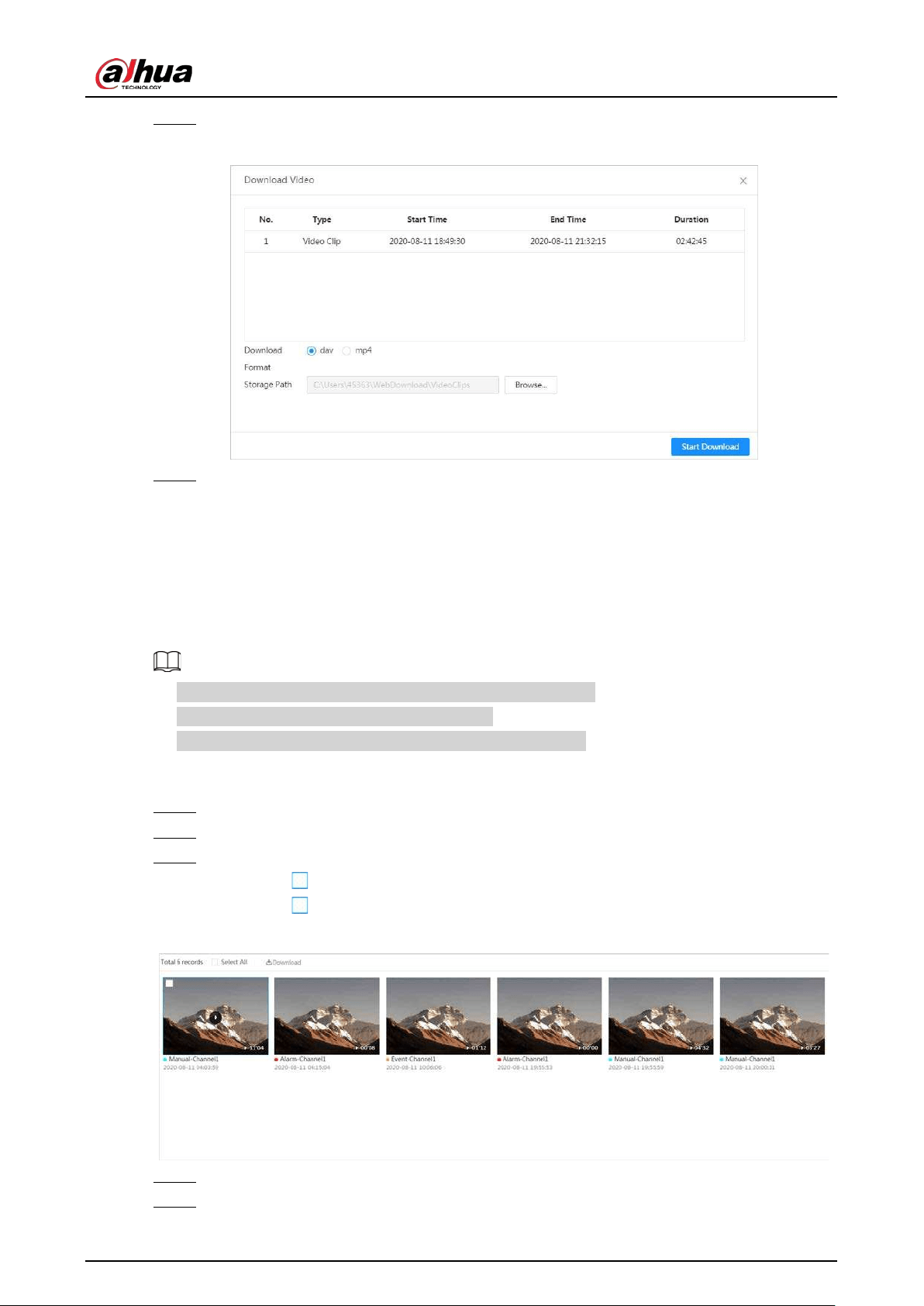

10.1.3 Downloading Video
............................................................................................................................................... 174
10.2 Setting Record Control
.................................................................................................................................................... 175

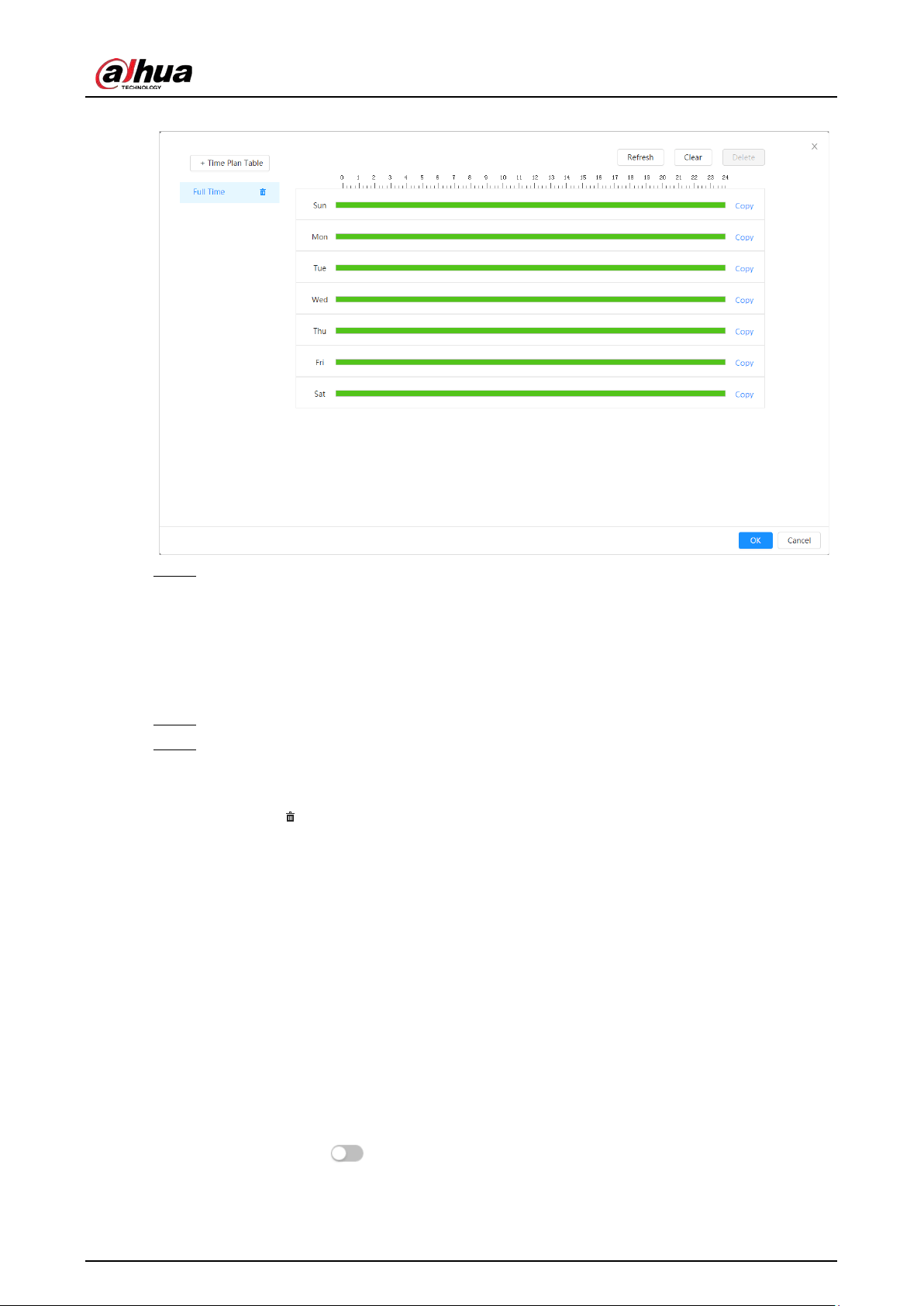

10.3 Setting Record Plan
........................................................................................................................................................... 176
10.4 Storage
.................................................................................................................................................................................... 177
10.4.1 Local Storage
............................................................................................................................................................. 178
10.4.2 Network Storage
..................................................................................................................................................... 179
10.4.2.1 FTP
....................................................................................................................................................................... 179
10.4.2.2 NAS
...................................................................................................................................................................... 181
11 Picture
................................................................................................................................................................................................. 183
11.1 Playback
................................................................................................................................................................................. 183

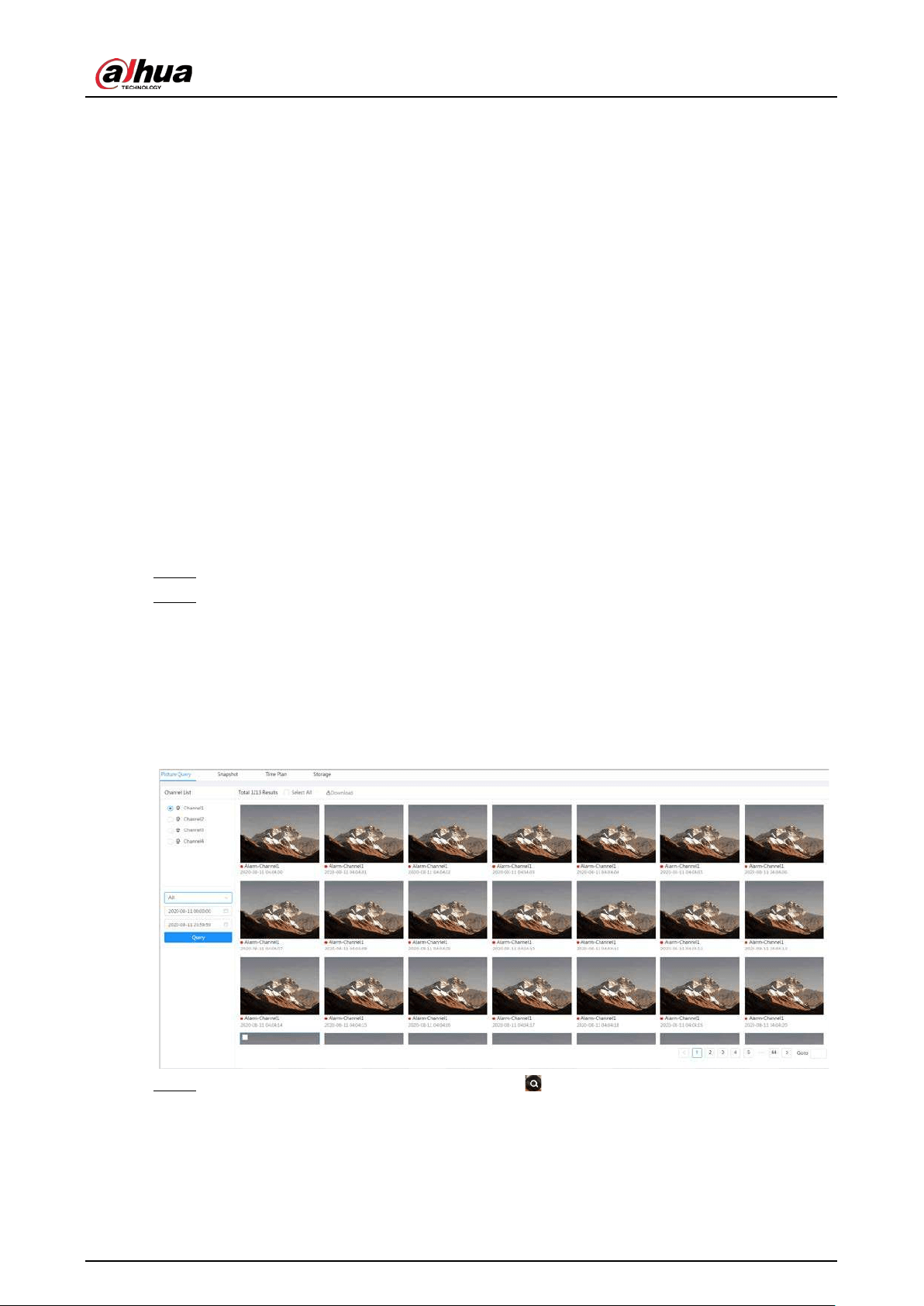

11.1.1 Playing Back Picture
.............................................................................................................................................. 183

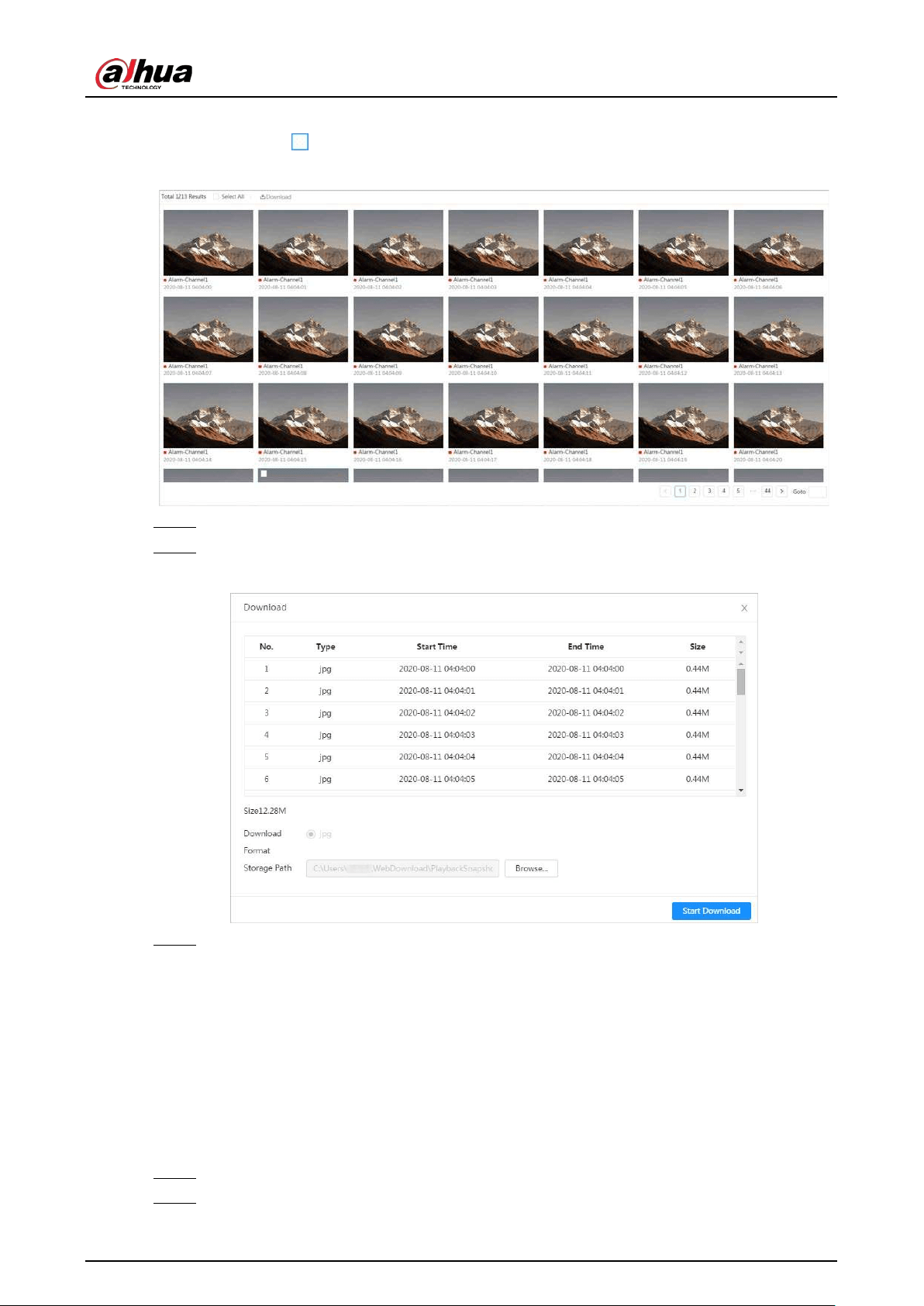

11.1.2 Downloading Picture
............................................................................................................................................ 184
11.2 Setting Snapshot Parameters
...................................................................................................................................... 185
11.3 Setting Snapshot Plan
..................................................................................................................................................... 186
11.4 Storage
.................................................................................................................................................................................... 186
11.5 Setting Upload Method
.................................................................................................................................................. 186
12 Report
................................................................................................................................................................................................. 188
12.1 Viewing Report
.................................................................................................................................................................... 188

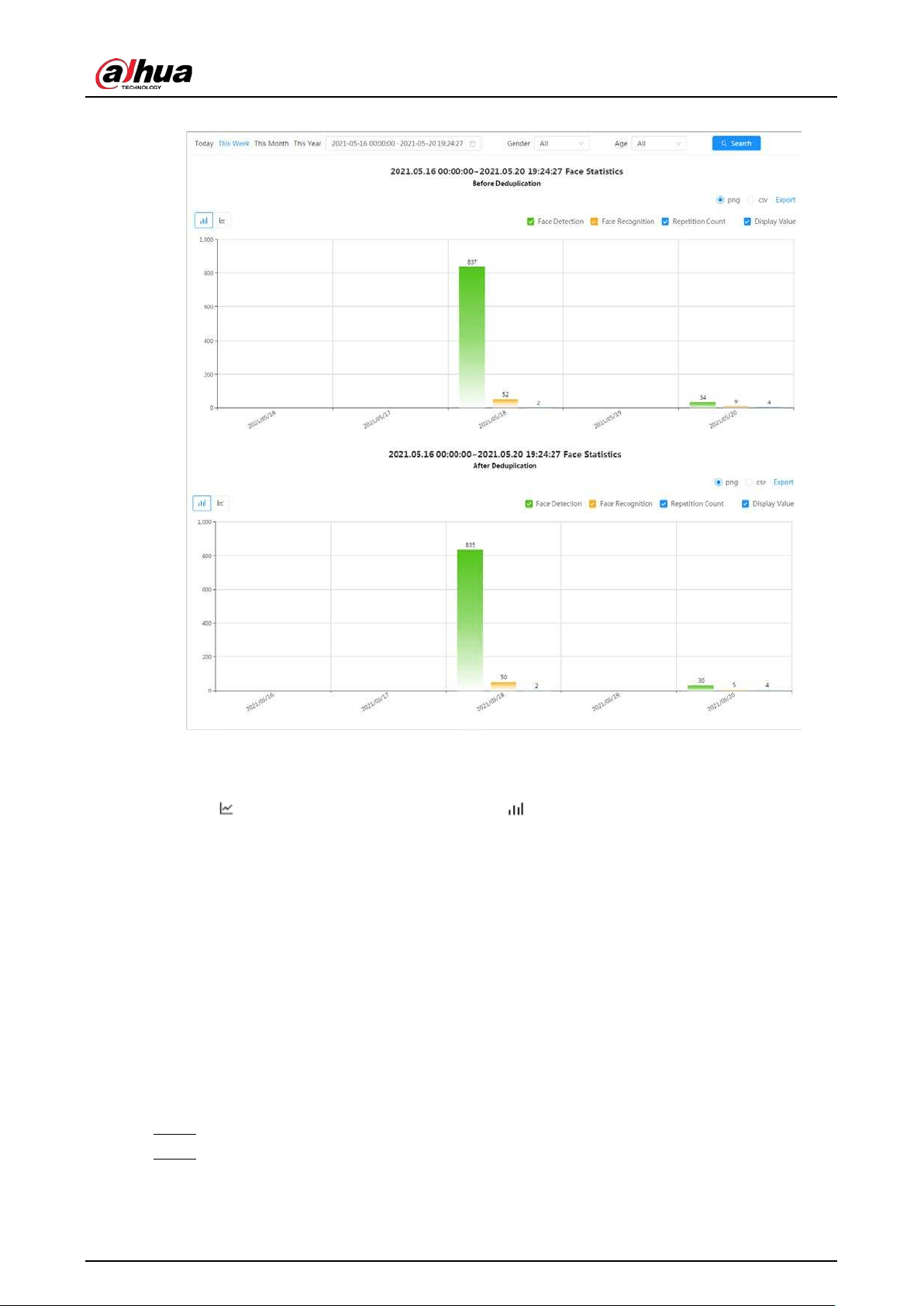

12.1.1 Face Recognition
..................................................................................................................................................... 188
12.1.2 Video Metadata
........................................................................................................................................................ 189

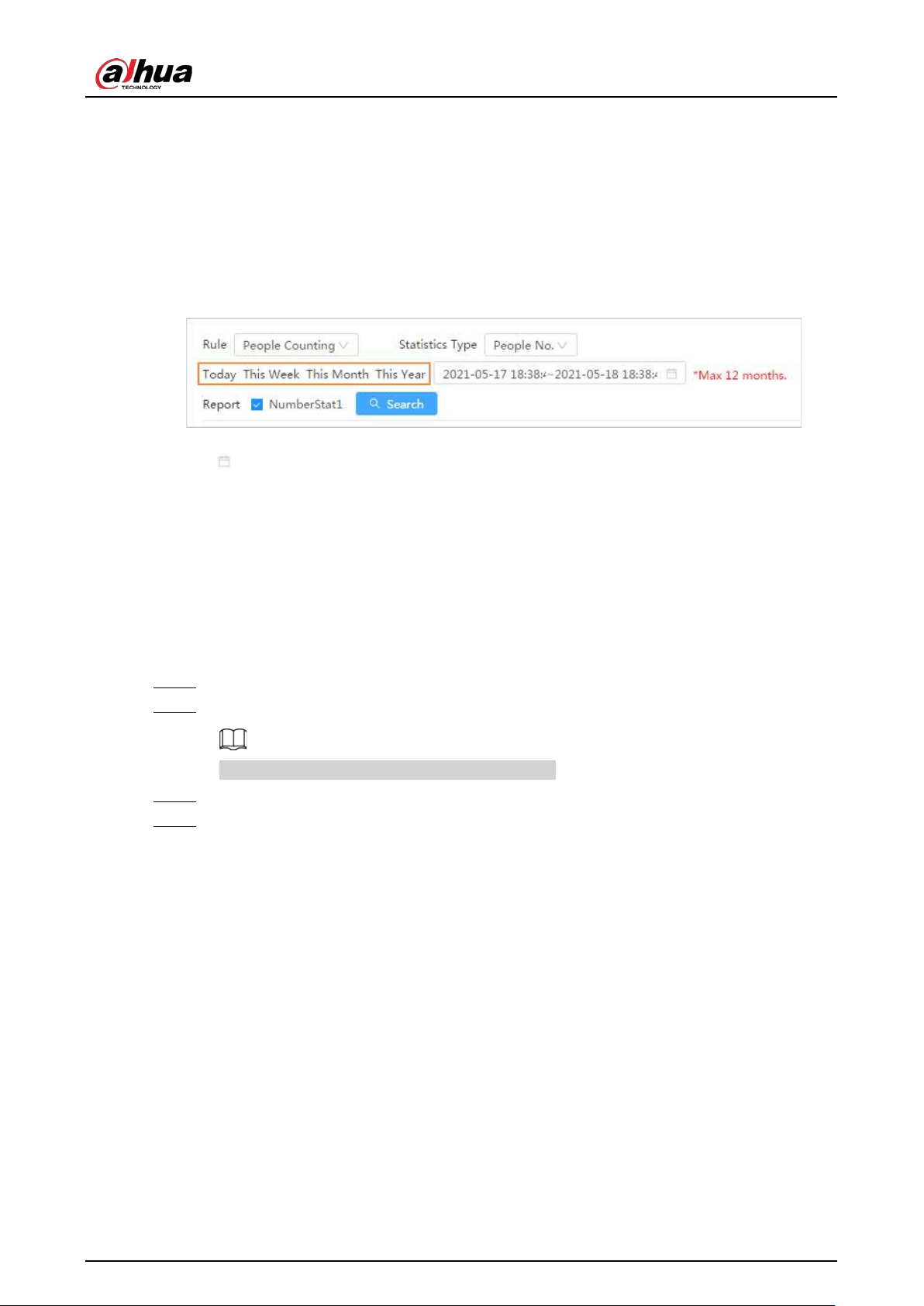

12.1.3 People Counting
...................................................................................................................................................... 190
12.1.4 Crowd Distribution
................................................................................................................................................. 193

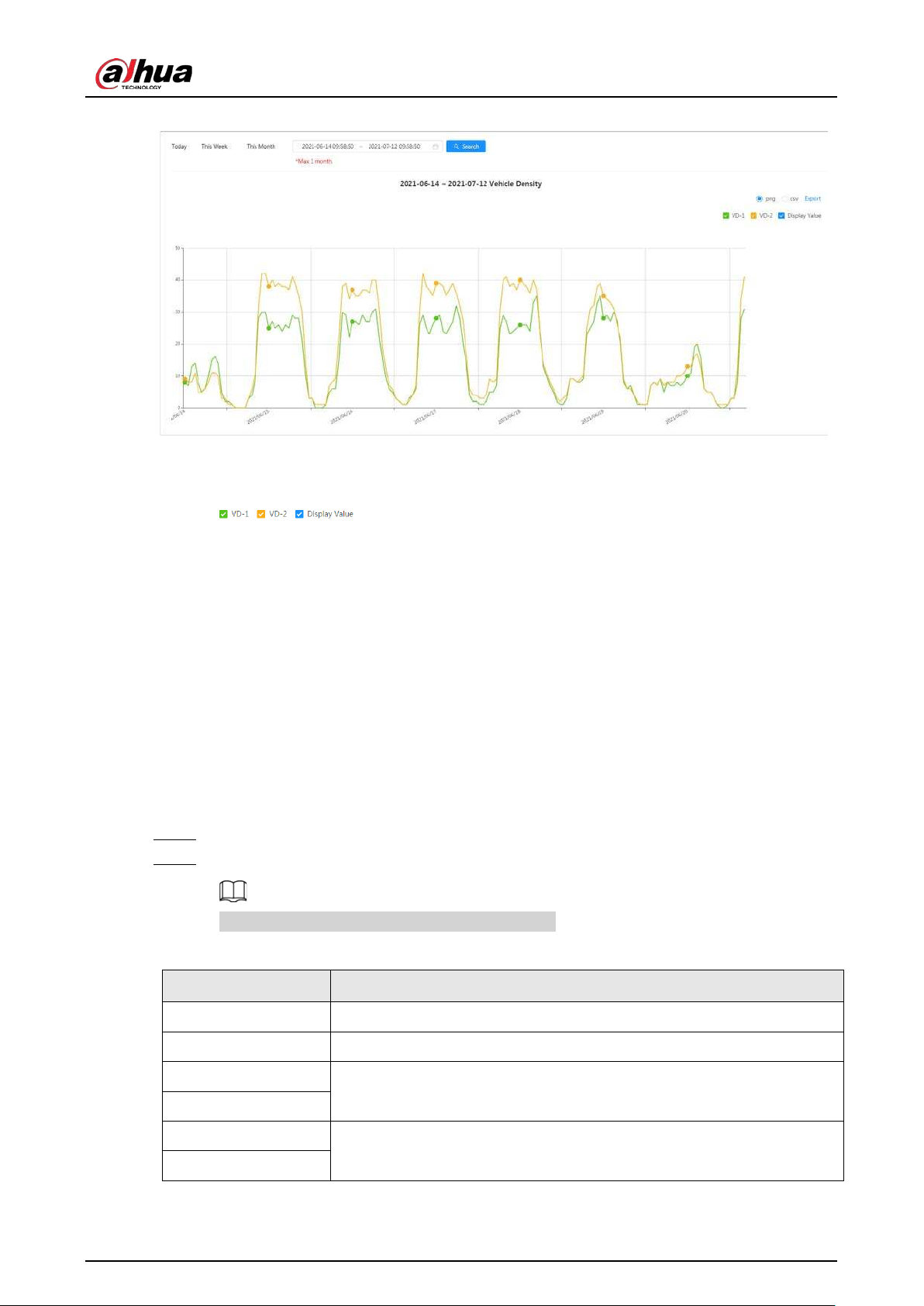

12.1.5 Vehicle Density
......................................................................................................................................................... 194
12.1.6 Heat Map
..................................................................................................................................................................... 195
Operation Manual
XII

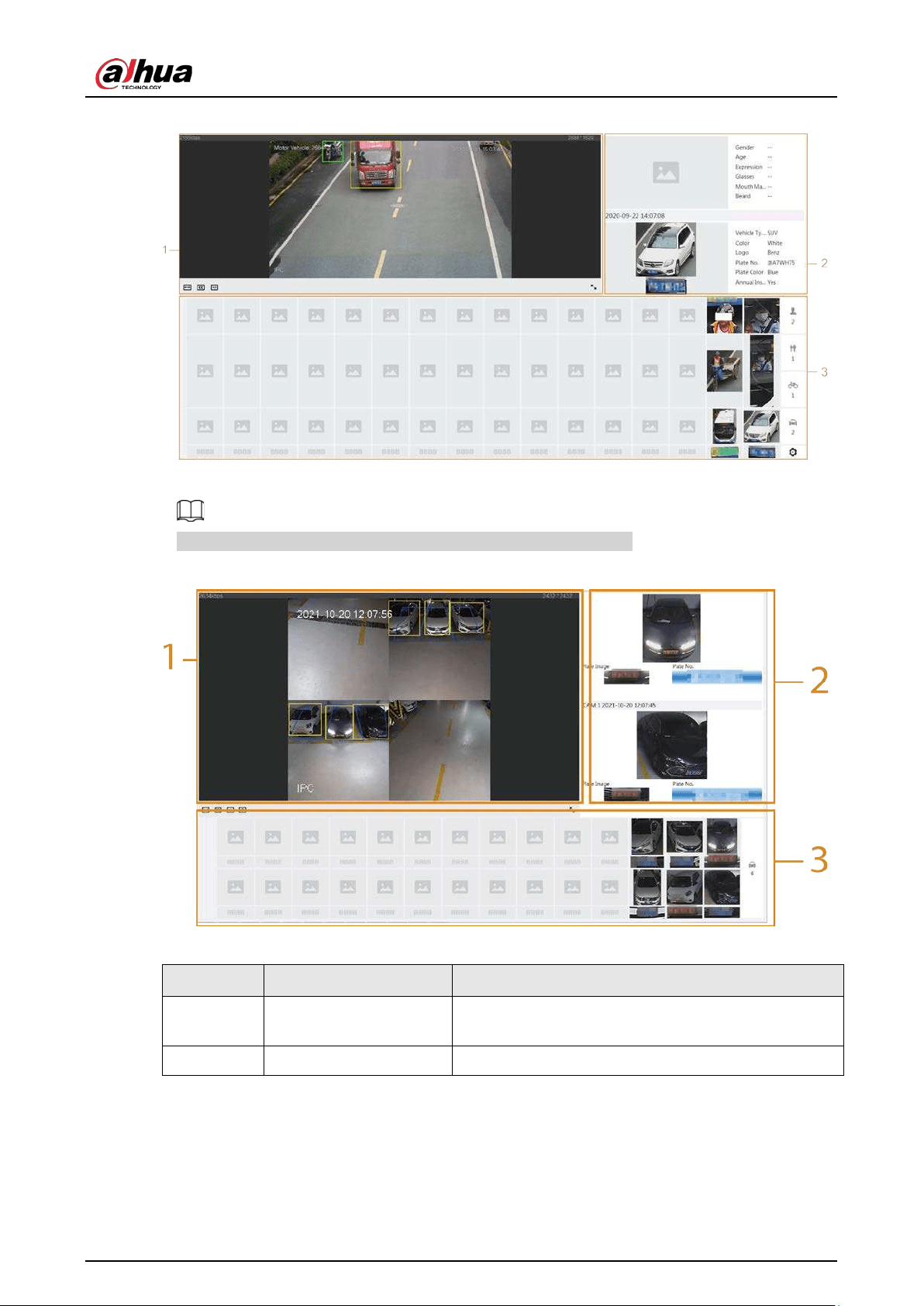

12.1.7 ANPR
.............................................................................................................................................................................. 197
12.2 Searching for Face Picture
............................................................................................................................................. 198

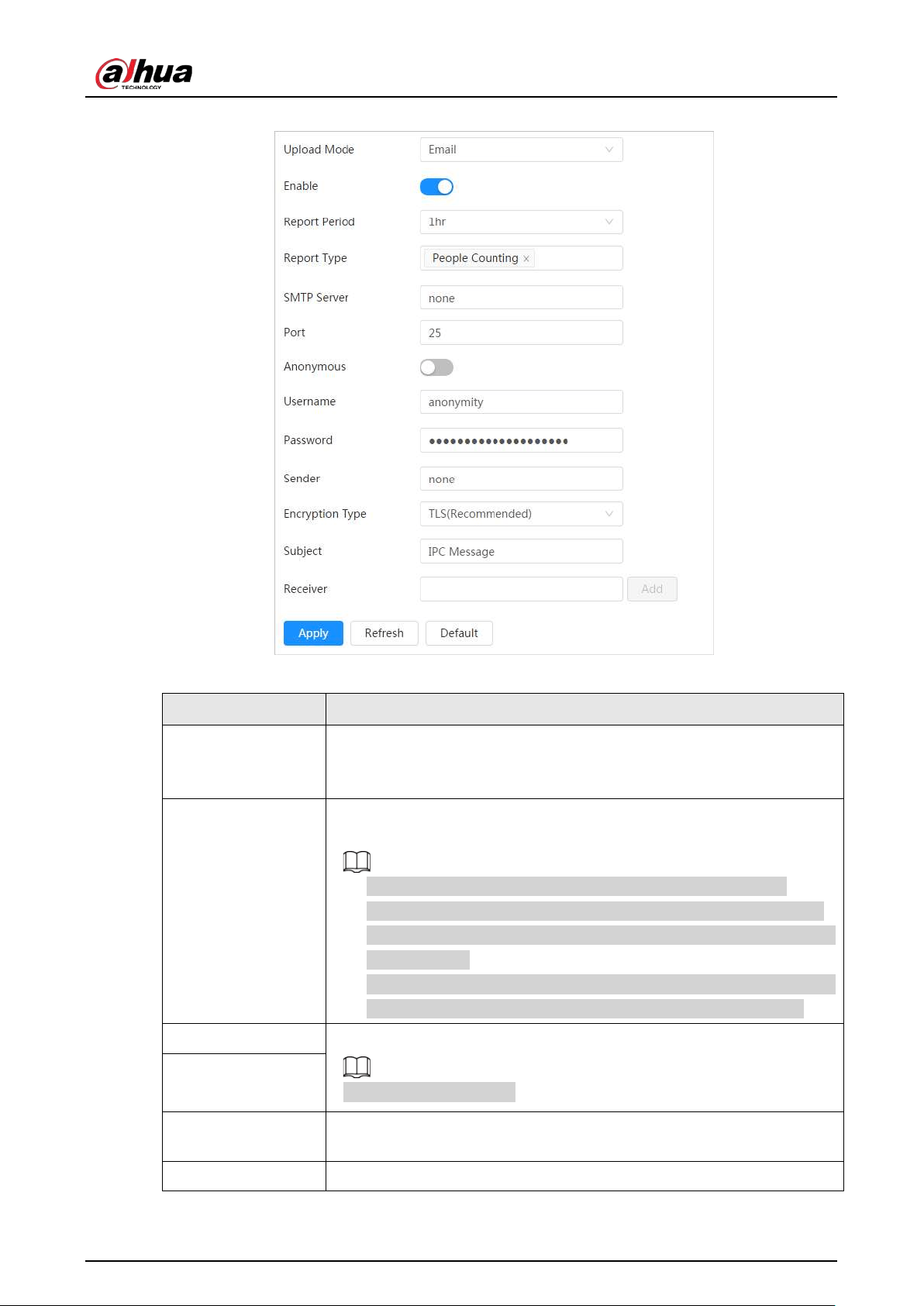

12.3 Auto Upload
.......................................................................................................................................................................... 199
Appendix 1 Cybersecurity Recommendations
..................................................................................................................... 204
Operation Manual
1
1 Overview
1.1 Introduction
IP camera (Internet Protocol camera), is a type of digital video camera that receives control data and
sends image data through internet. They are commonly used for surveillance, requiring no local
recording device, but only a local area network.
IP camera is divided into single-channel camera and multi-channel camera according to the channel
quantity. For multi-channel camera, you can set the parameters for each channel.
1.2 Network Connection
In the general IPC network topology, IPC is connected to PC through network switch or router.
Figure 1-1 General IPC network
Get IP address by searching on ConfigTool, and then you can start accessing IPC through network.
1.3 Functions
Functions might vary with different devices.
1.3.1 Basic Functions
Real-time Monitoring
●
Live view.
●
When live viewing the image, you can enable audio, voice talk and connect monitoring center for
quick processing on the abnormality.
●
Adjust the image to the proper position by PTZ.
●
Snapshot and triple snapshot abnormality of the monitoring image for subsequent view and
processing.
Operation Manual
2
●
Record abnormality of monitoring image for subsequent view and processing.
●

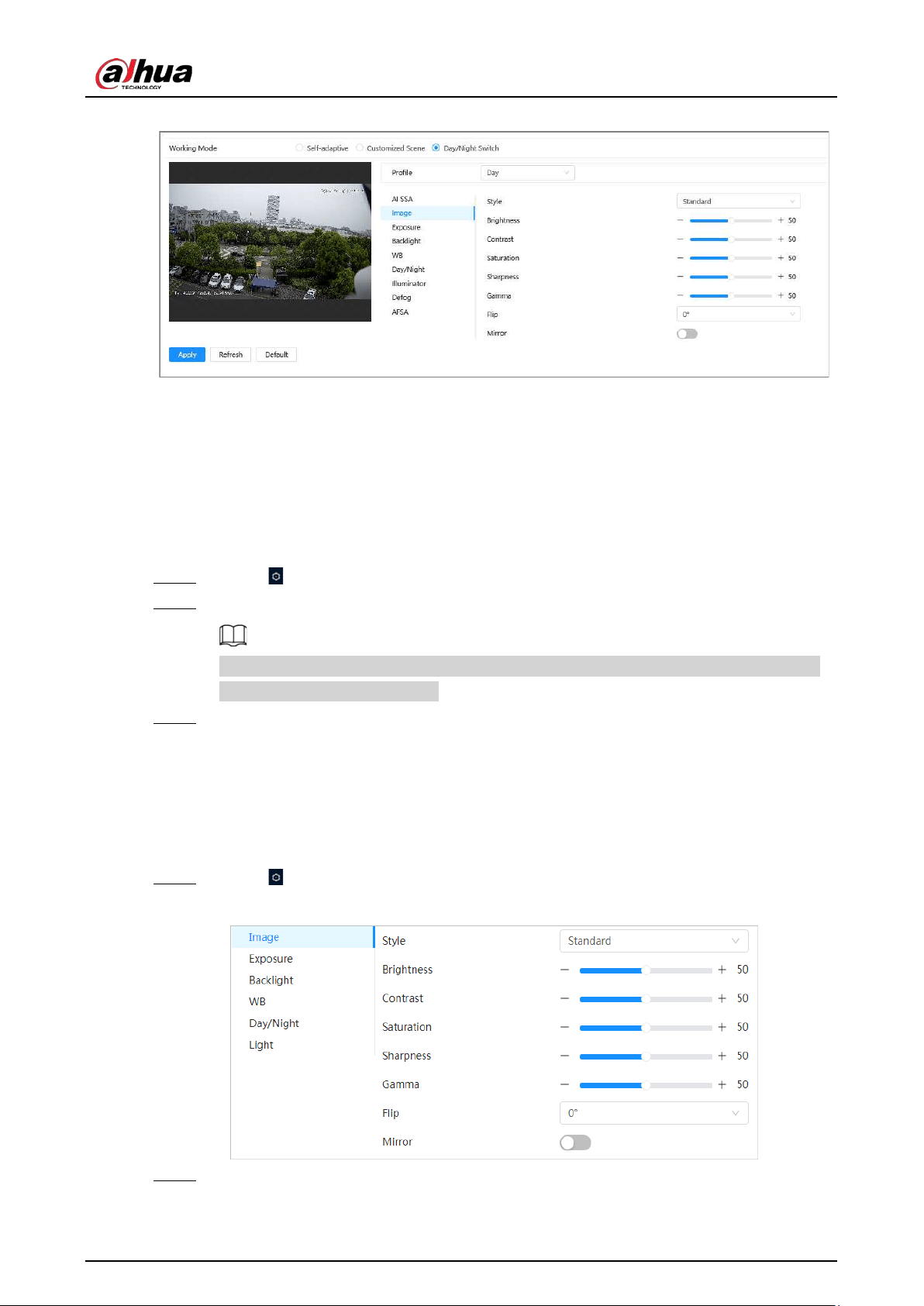

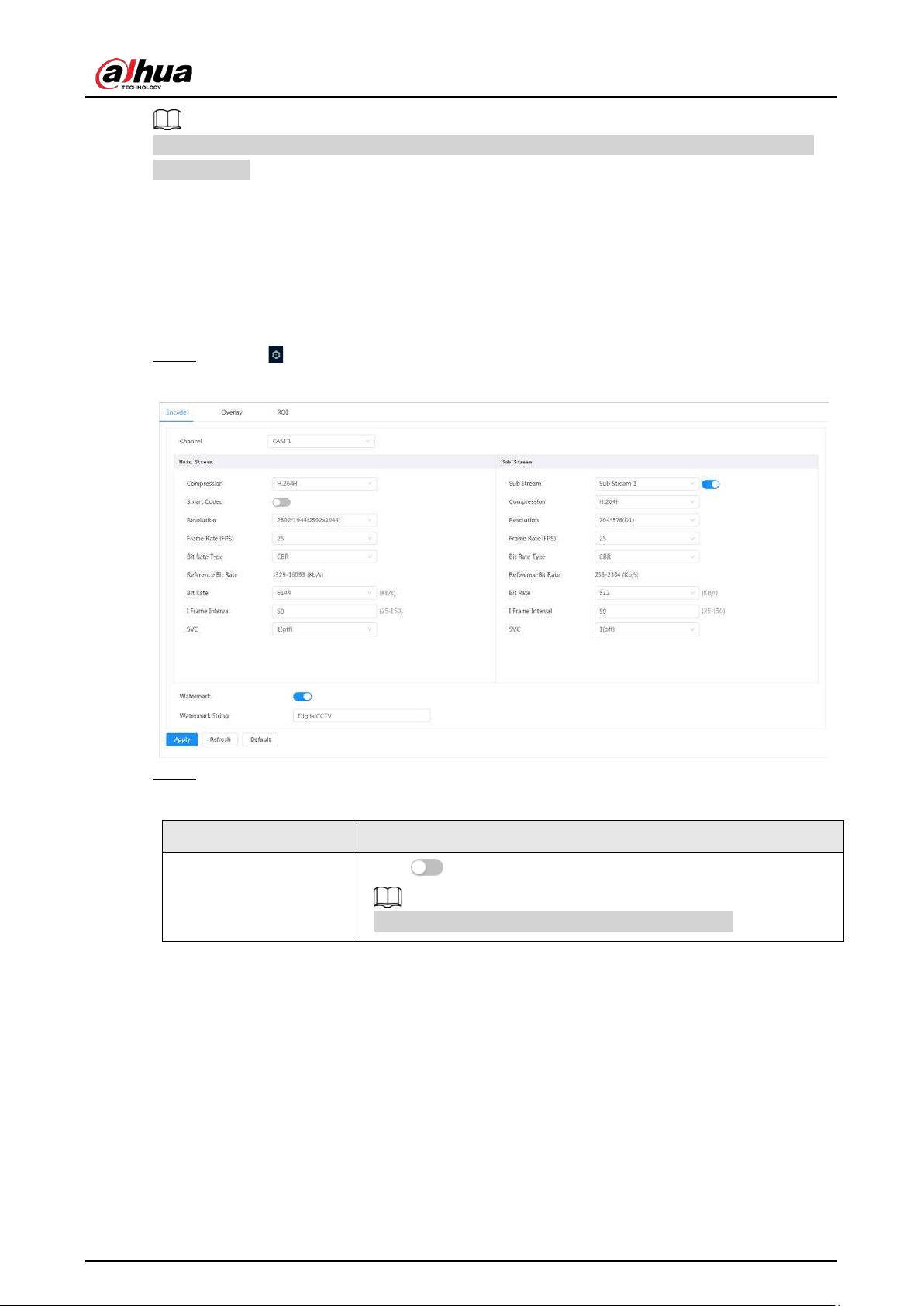

Configure coding parameters, and adjust live view image.
Alarm
●
Set alarm prompt mode and tone according to alarm type.
●
View alarm prompt message.
Exception
●

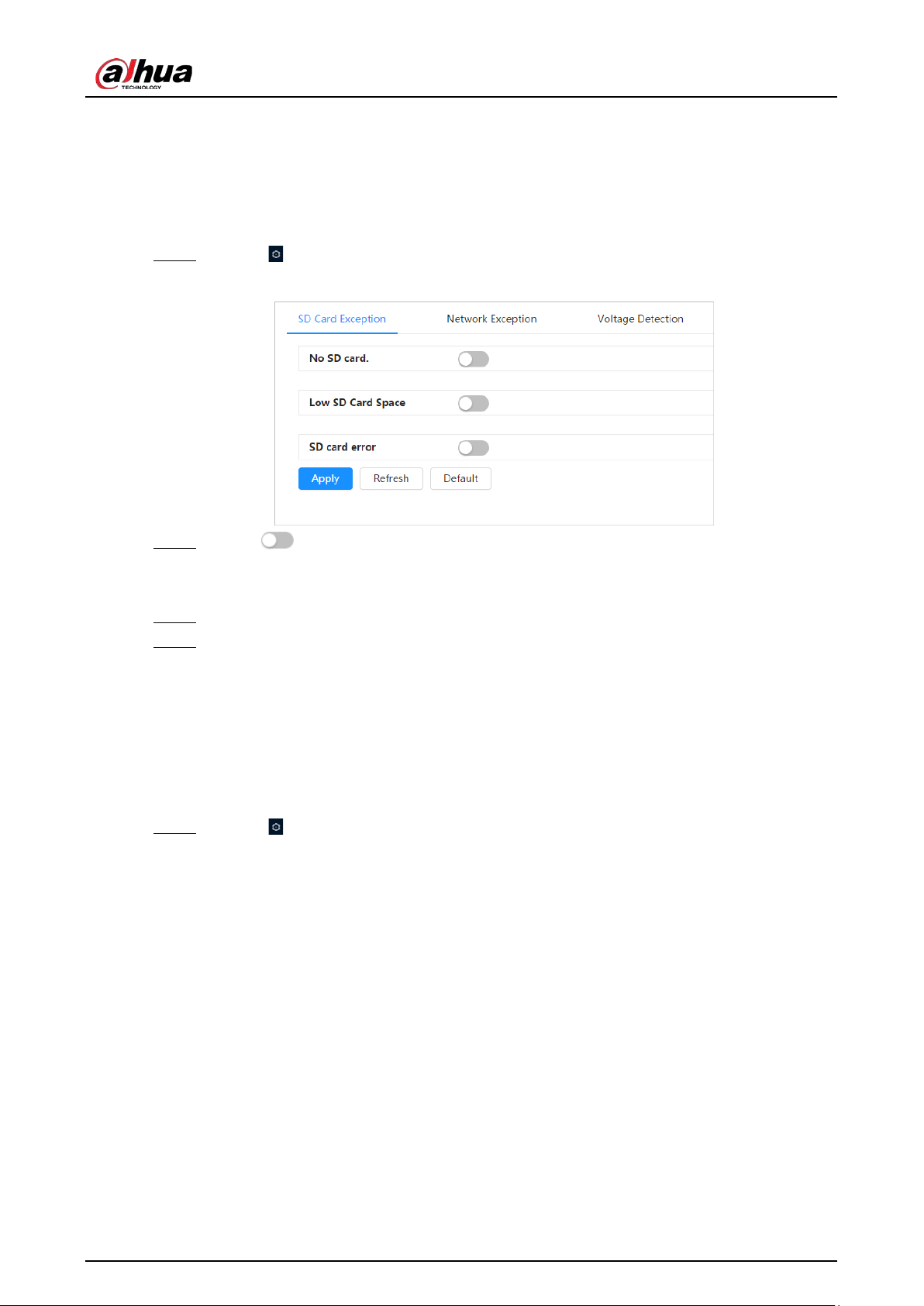

SD card error, network disconnection, illegal access, voltage detection and security exception.
●
When SD card error or illegal access is triggered, the system links alarm output and sending
email.
●
When network disconnection alarm is triggered, the system links recording and alarm output.
●
When the input voltage is more or less than the rated voltage, the alarm is triggered and the
system links sending email.

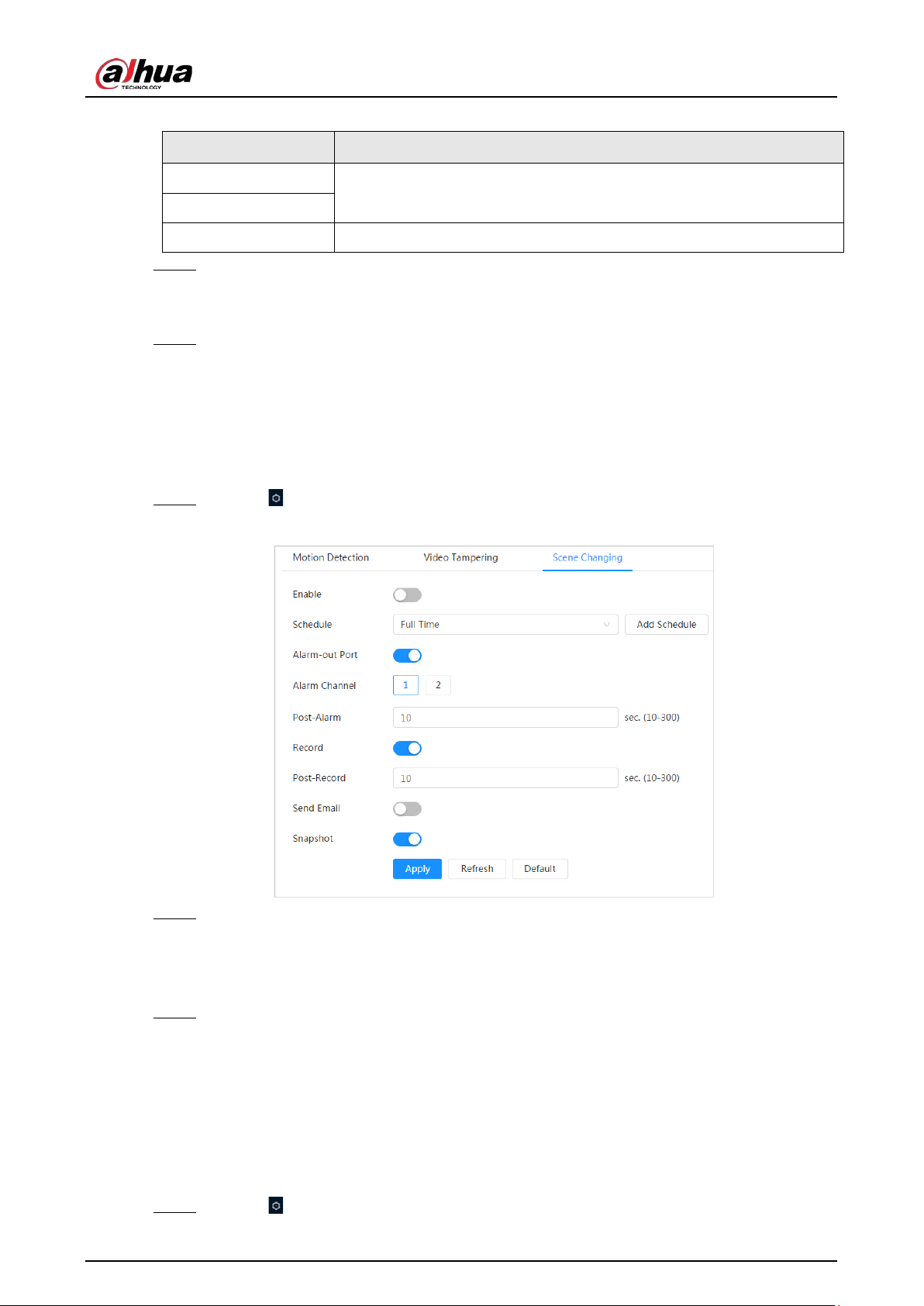

Video Detection
●
Motion detection, video tampering detection and scene changing detection.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, PTZ operation, and snapshot.

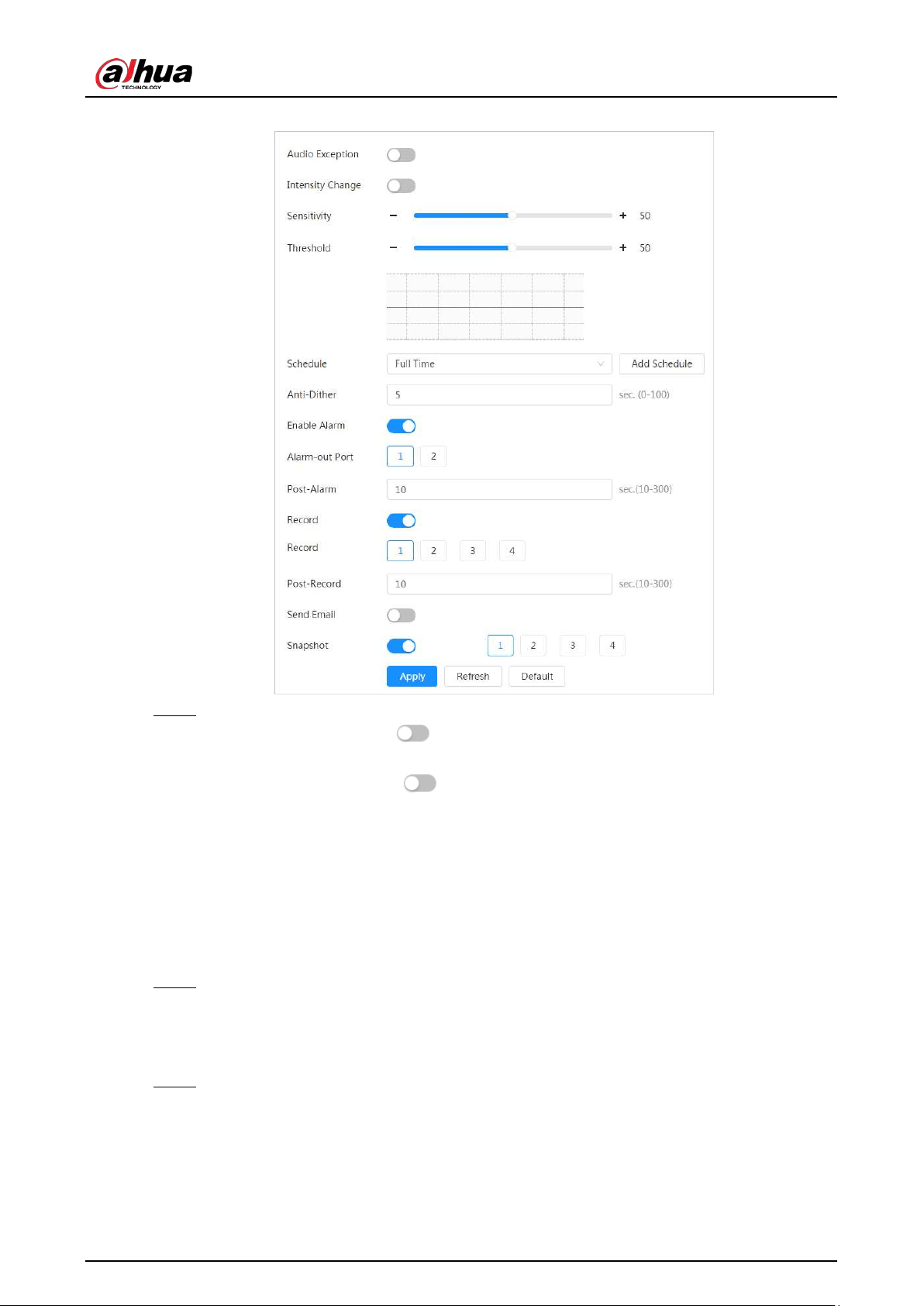

Audio Detection
●
Audio input abnormal detection and intensity change detection.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, PTZ operation, and snapshot.
Record
●
Auto record as schedule.
●

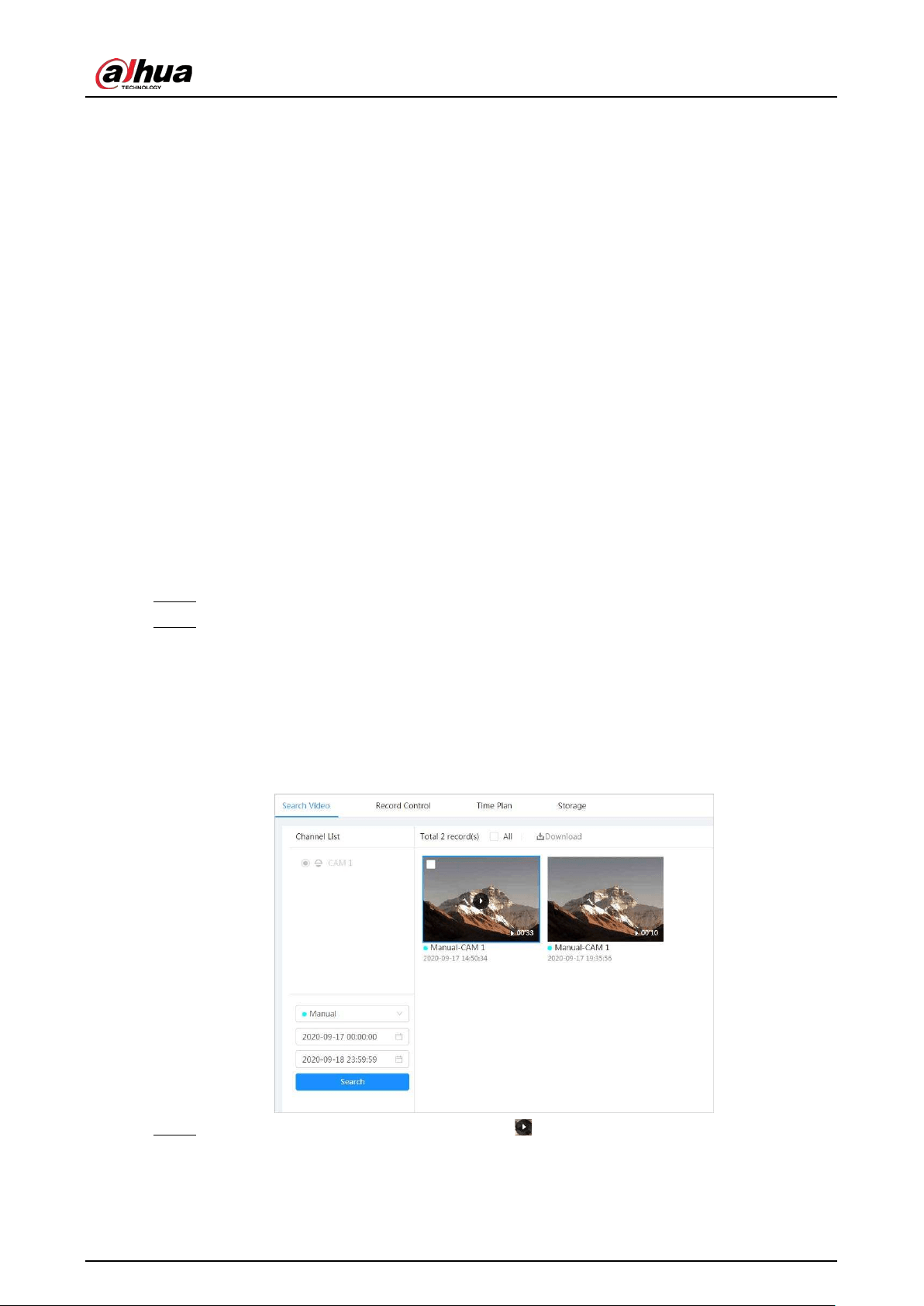

Play back recorded video and picture as needed.
●
Download recorded video and picture.
●
Alarm linked recording.
Account
●
Add, edit and delete user group, and manage user authorities according to user group.
●

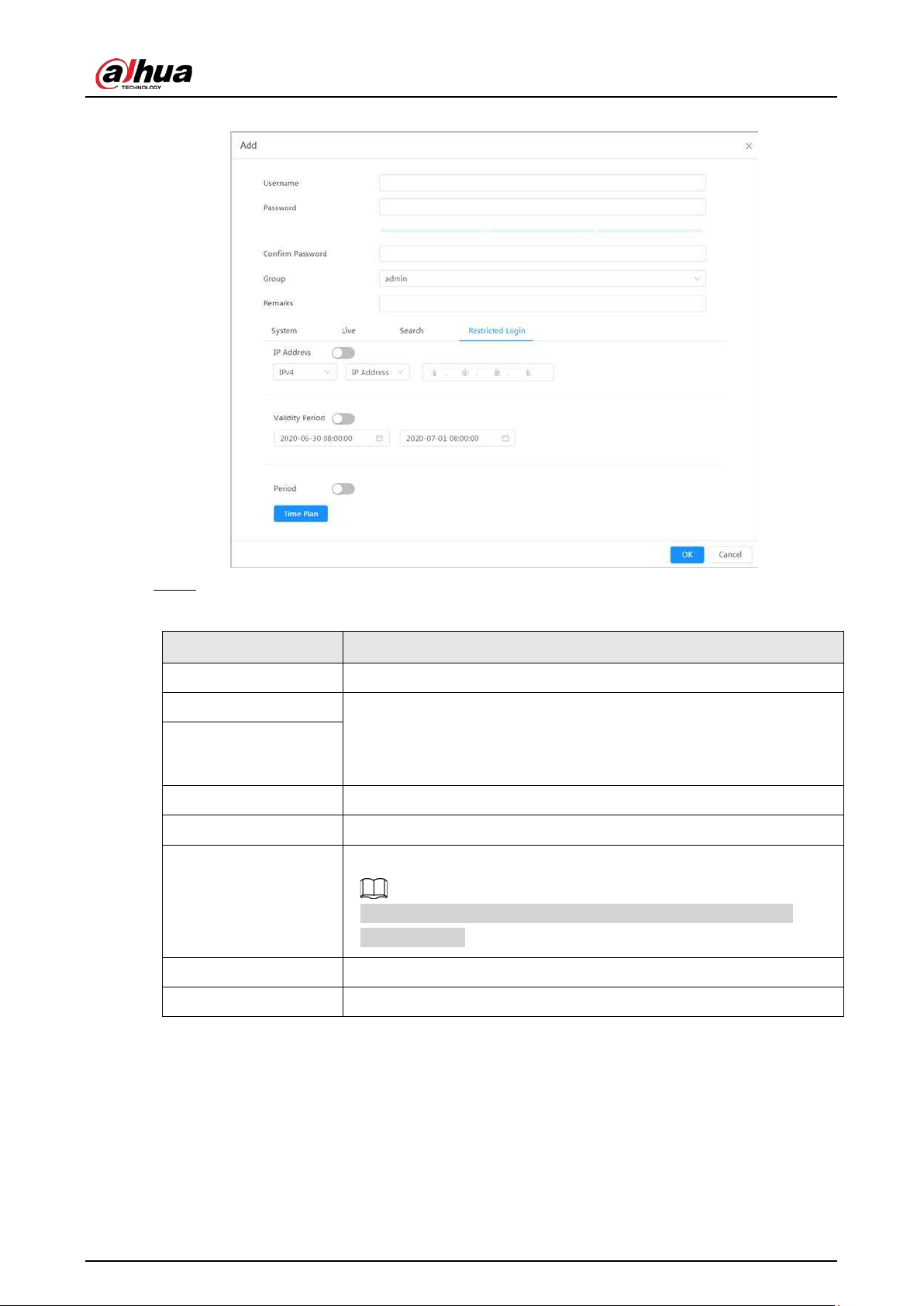

Add, edit and delete user, and configure user authorities.
●
Change user password.
1.3.2 AI Functions
IVS
●
Tripwire, intrusion, abandoned object, moving object, fast moving, parking detection, people
gathering, and loitering detection.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, and snapshot.
Operation Manual
3

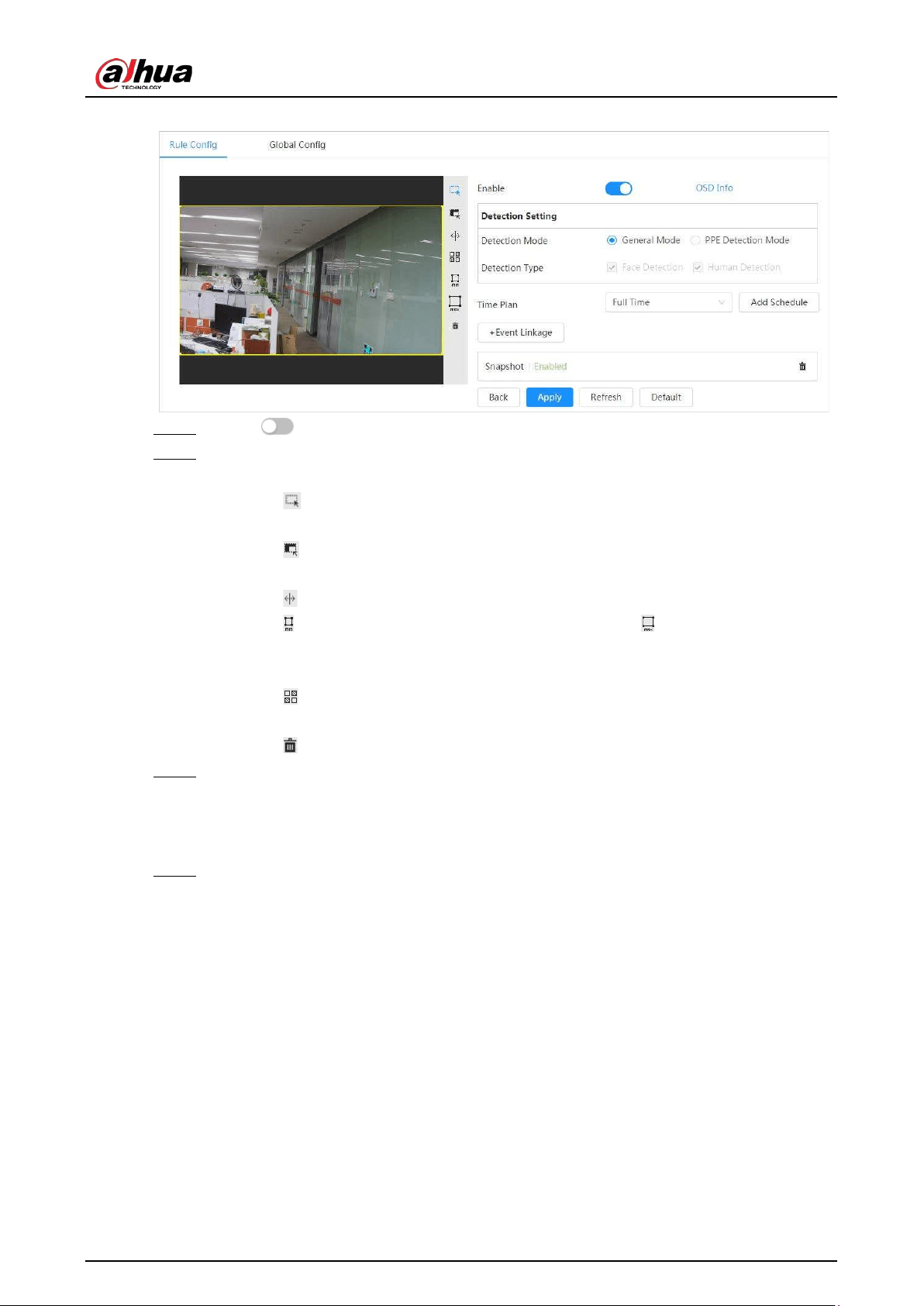

Face Detection
●
Detects face and display the related attributes on the live page.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, PTZ operation, and snapshot.

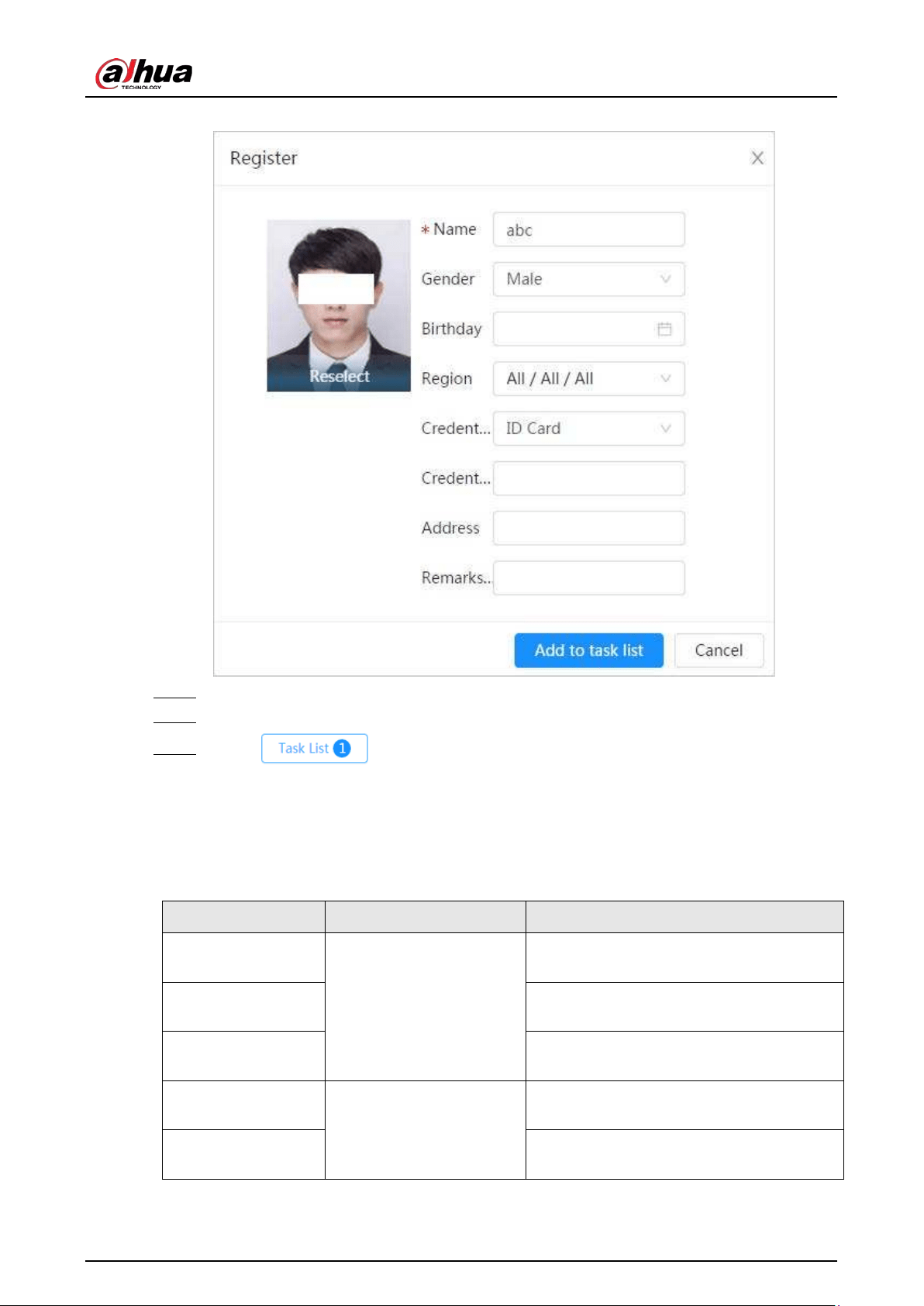

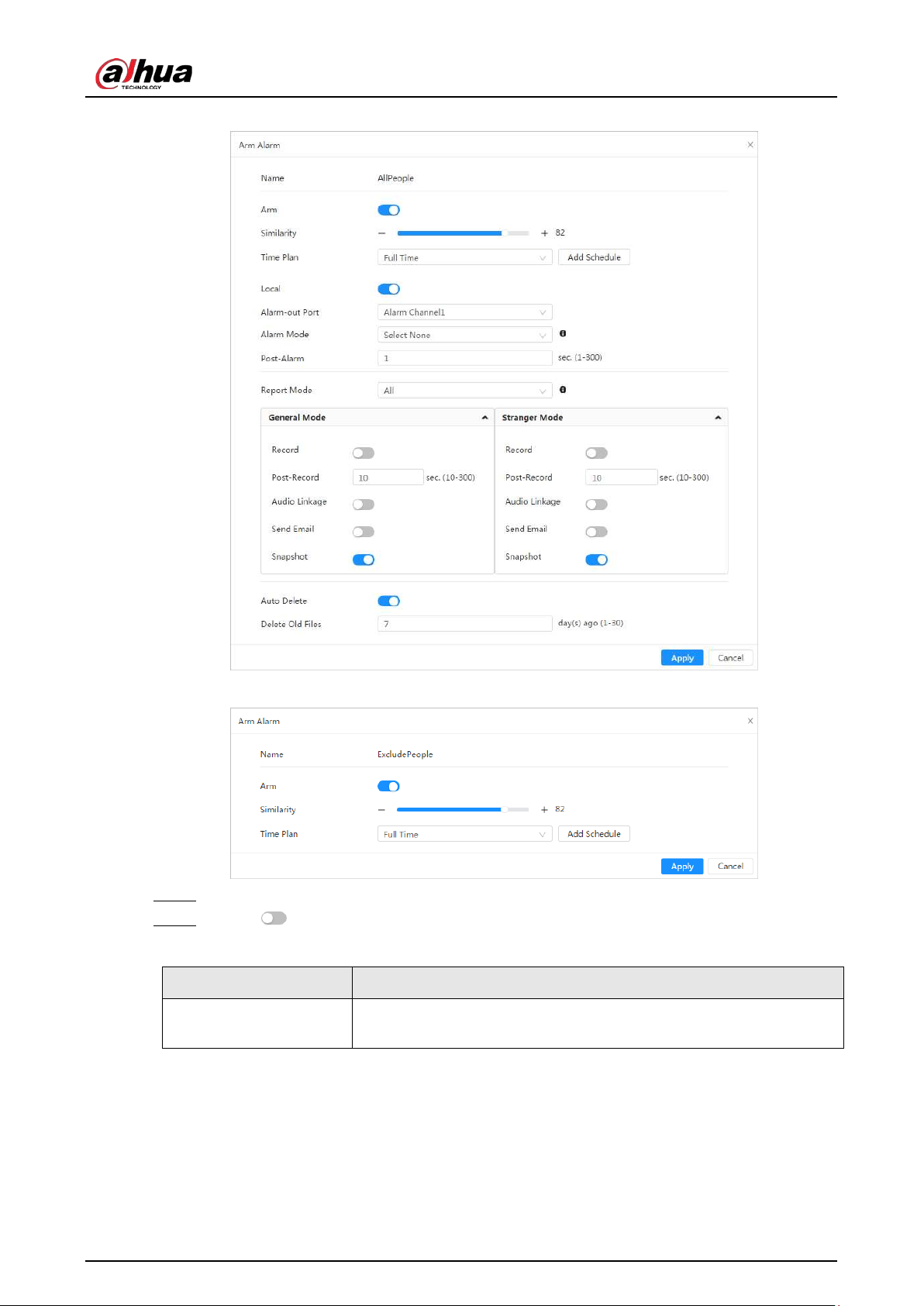

Face Recognition
●
Displays the recognition result on the live view page
●
In general mode, makes comparison between the detected face with the faces in face database
after detecting face. You can set the alarm mode and reporting mode for each face database
separately, and set linkages for each reporting mode.
●
In counting mode, does precise face counting after detecting face.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, PTZ operation, and snapshot.
Crowd Distribution Map
●
View crowd distribution in real time for the timely arm to avoid accidents such as stampede.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, PTZ operation, and snapshot.

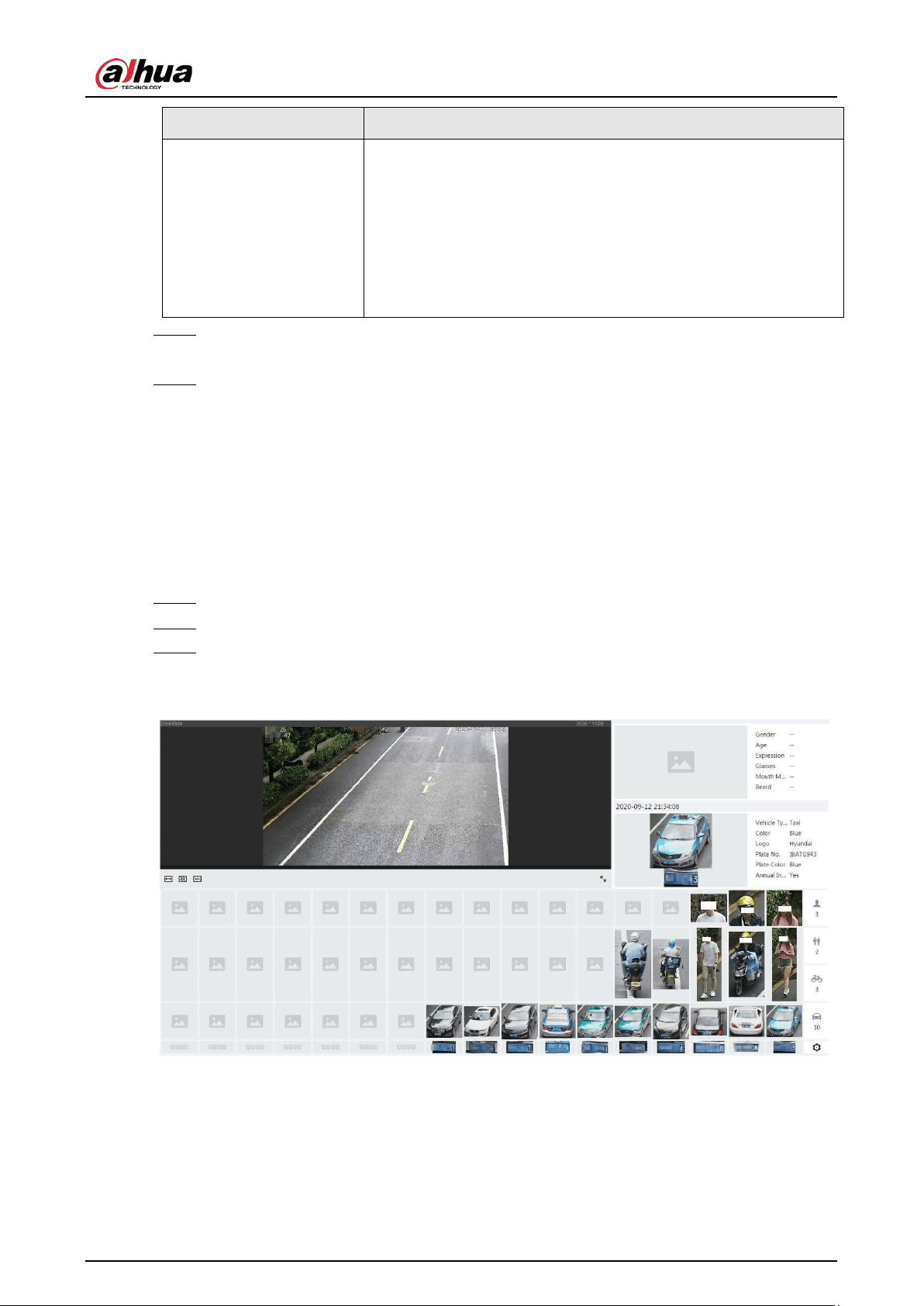

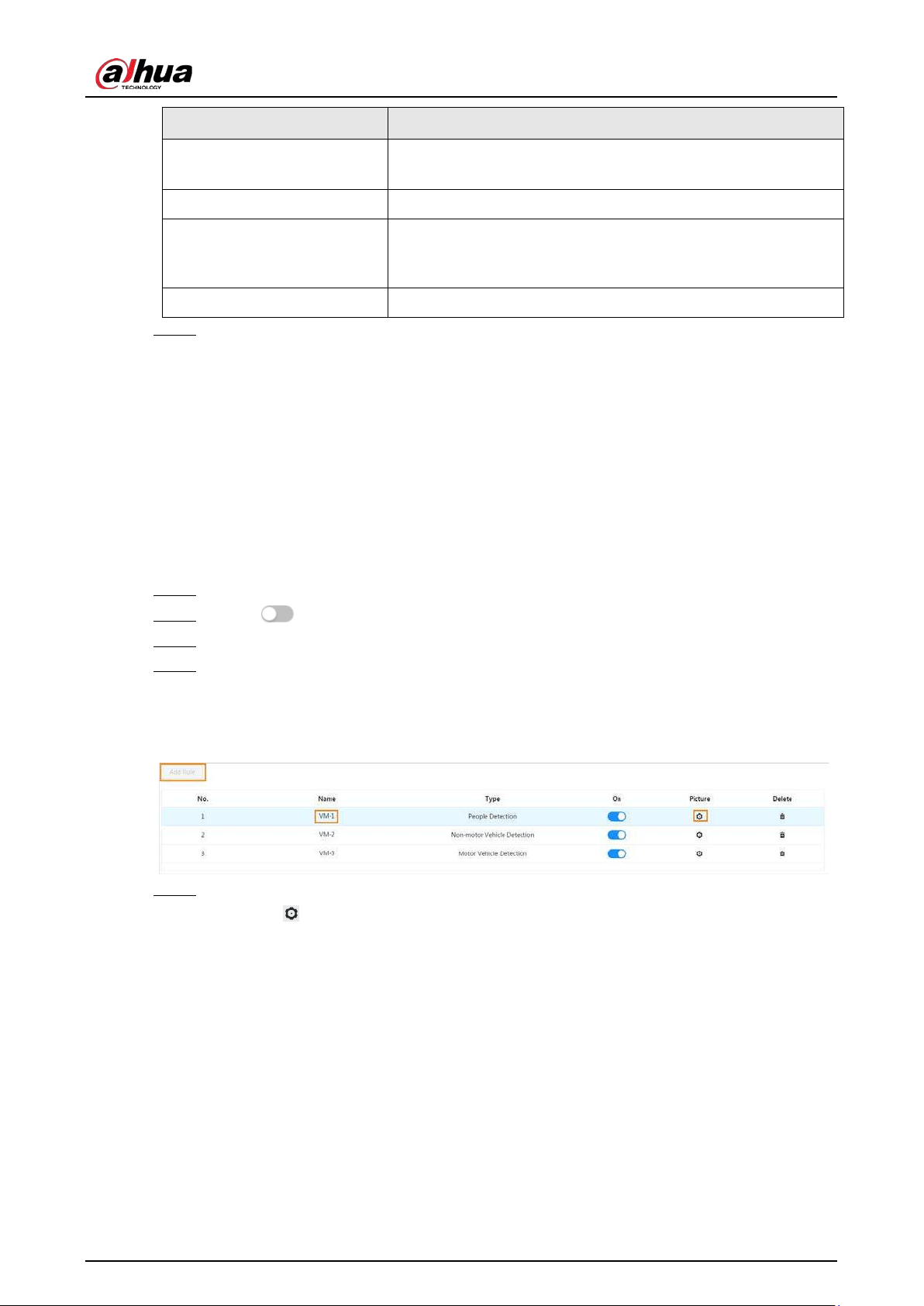

Video Metadata
●
Captures people, non-motor vehicle and vehicle, and displays the related information on the live
page.
●
When an alarm is triggered, the system links alarm output.

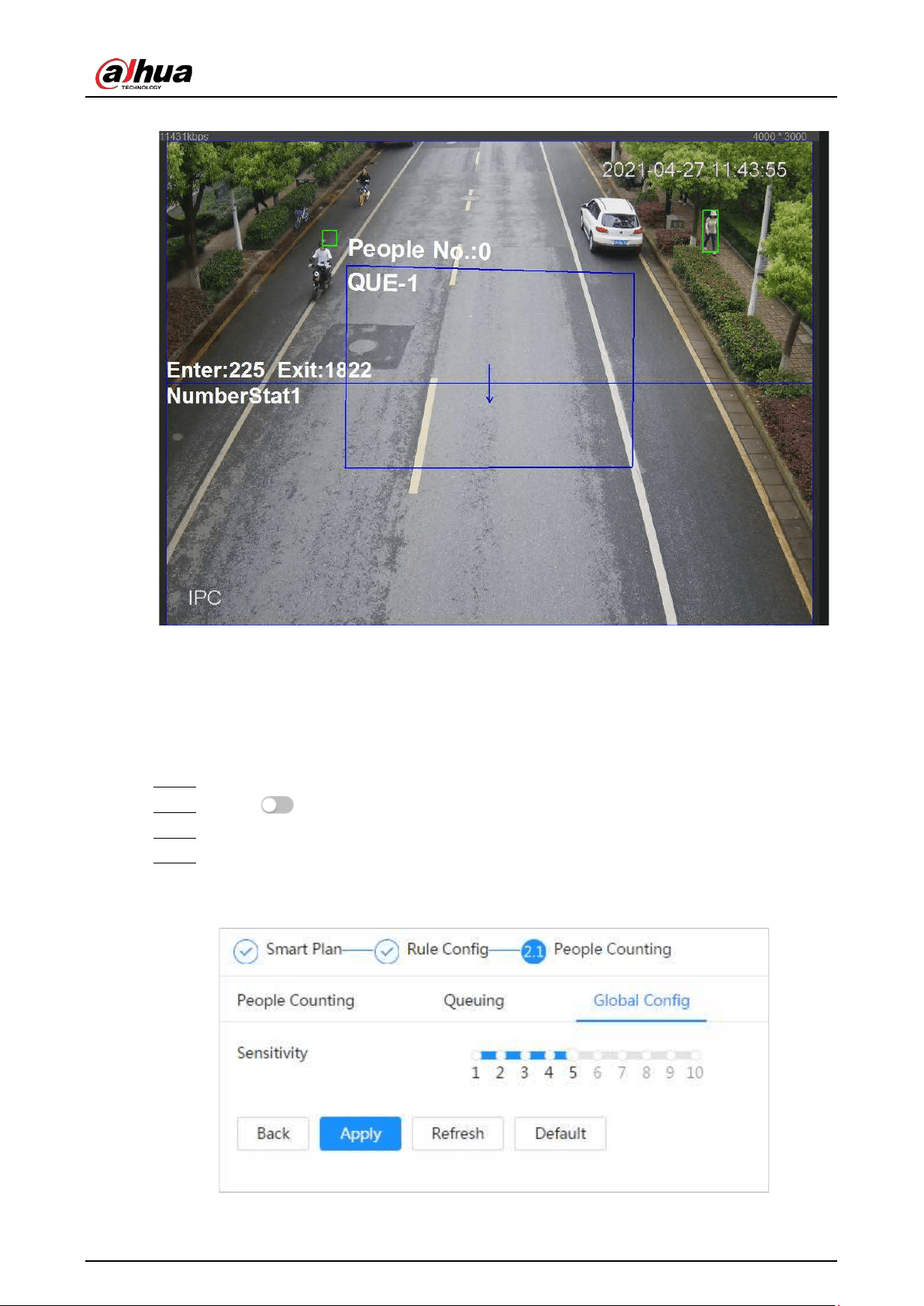

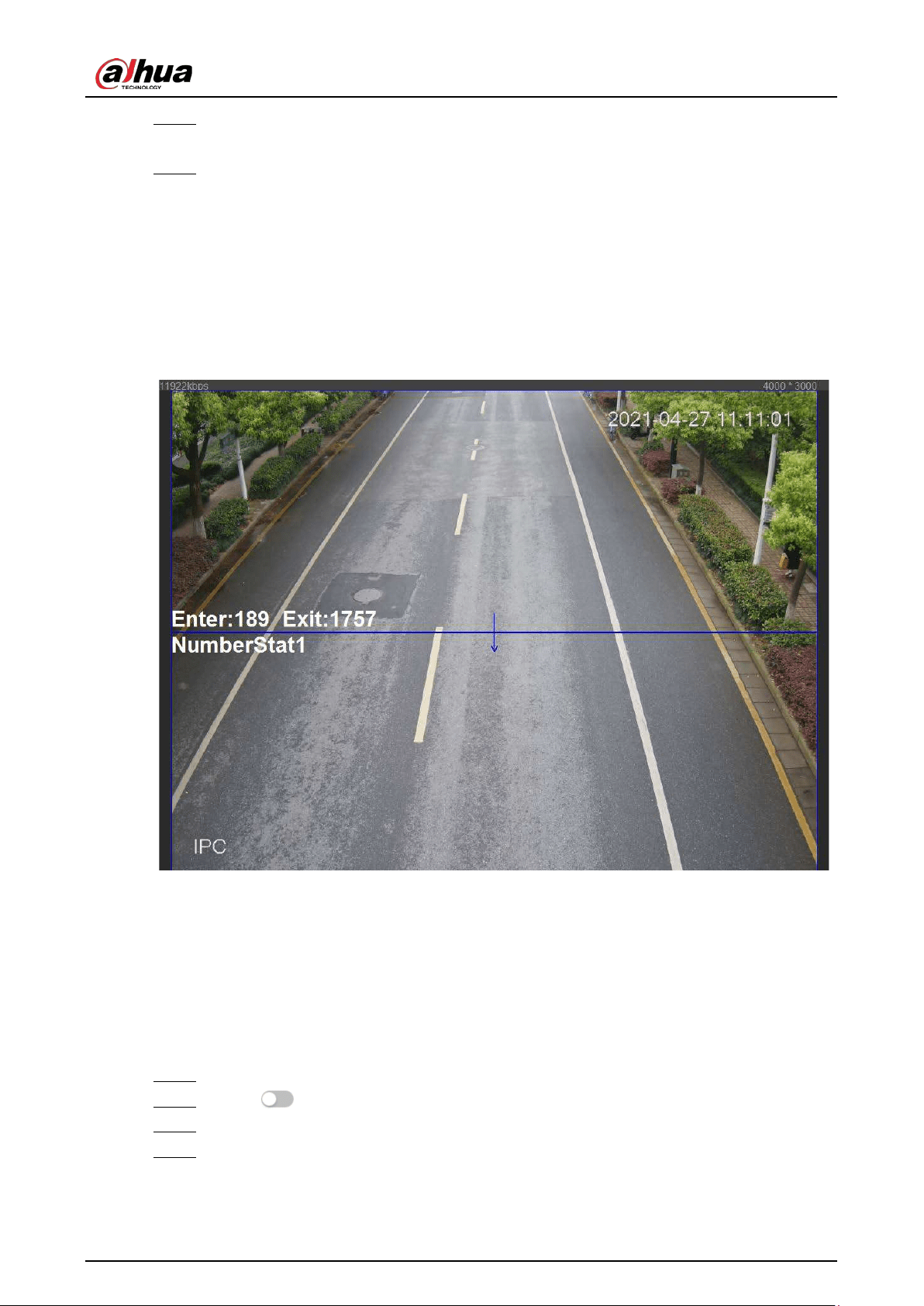

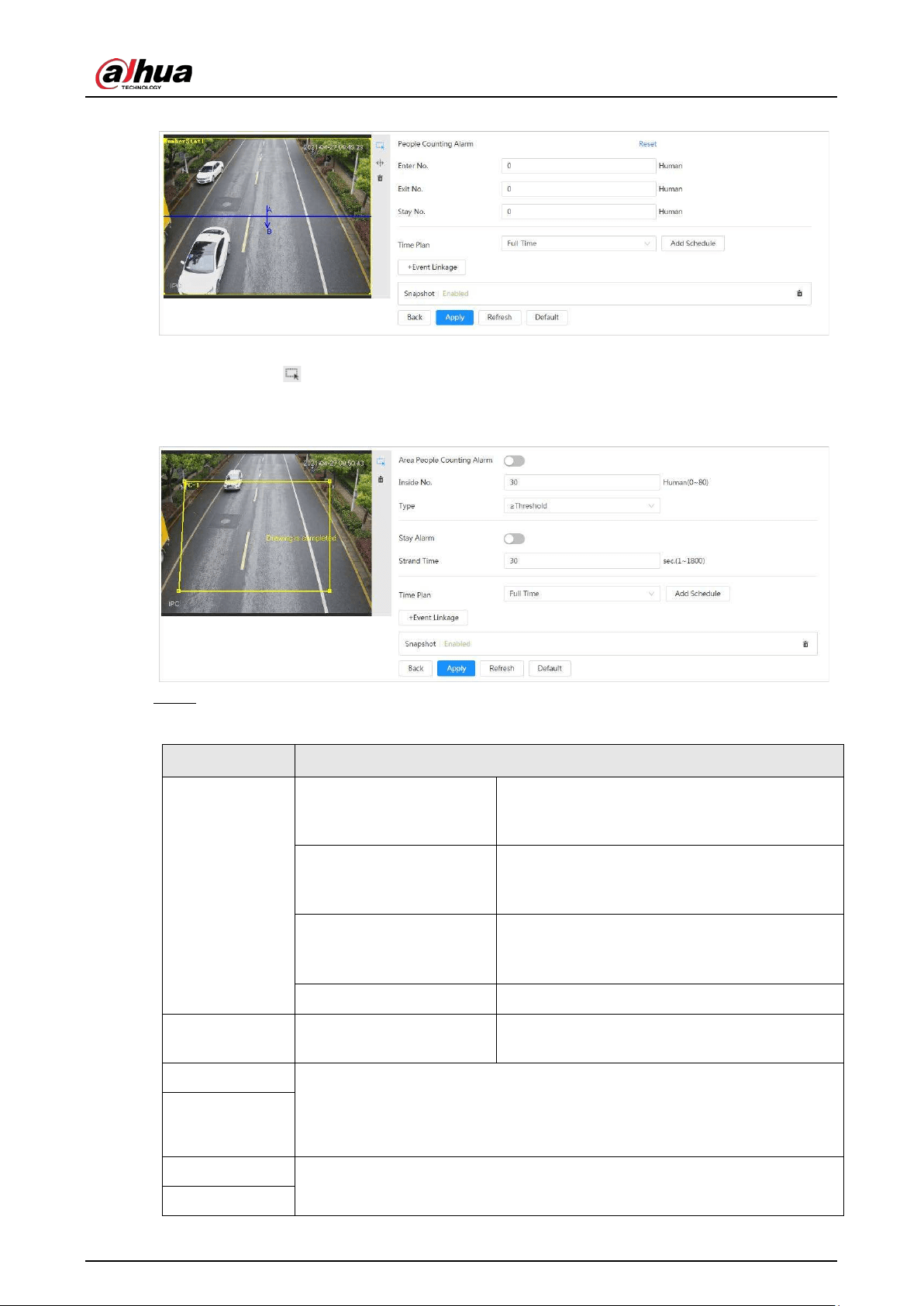

People Counting
●
Counts the people flow in/out the detection area, and generates report.
●
When the number of counted number of people in the detection area or the stay duration
exceeds the configured value, an alarm will be triggered.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, PTZ operation, and snapshot.

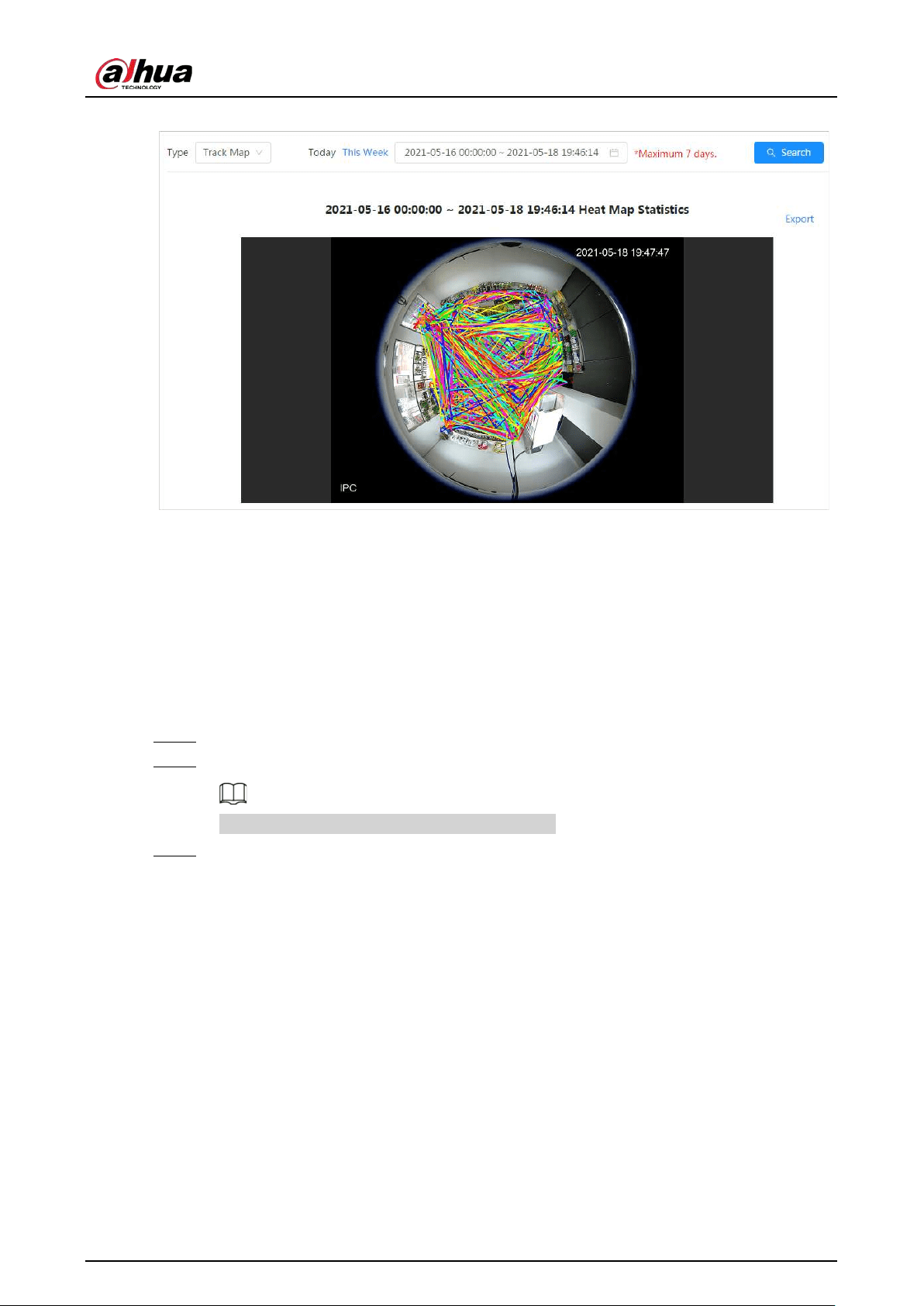

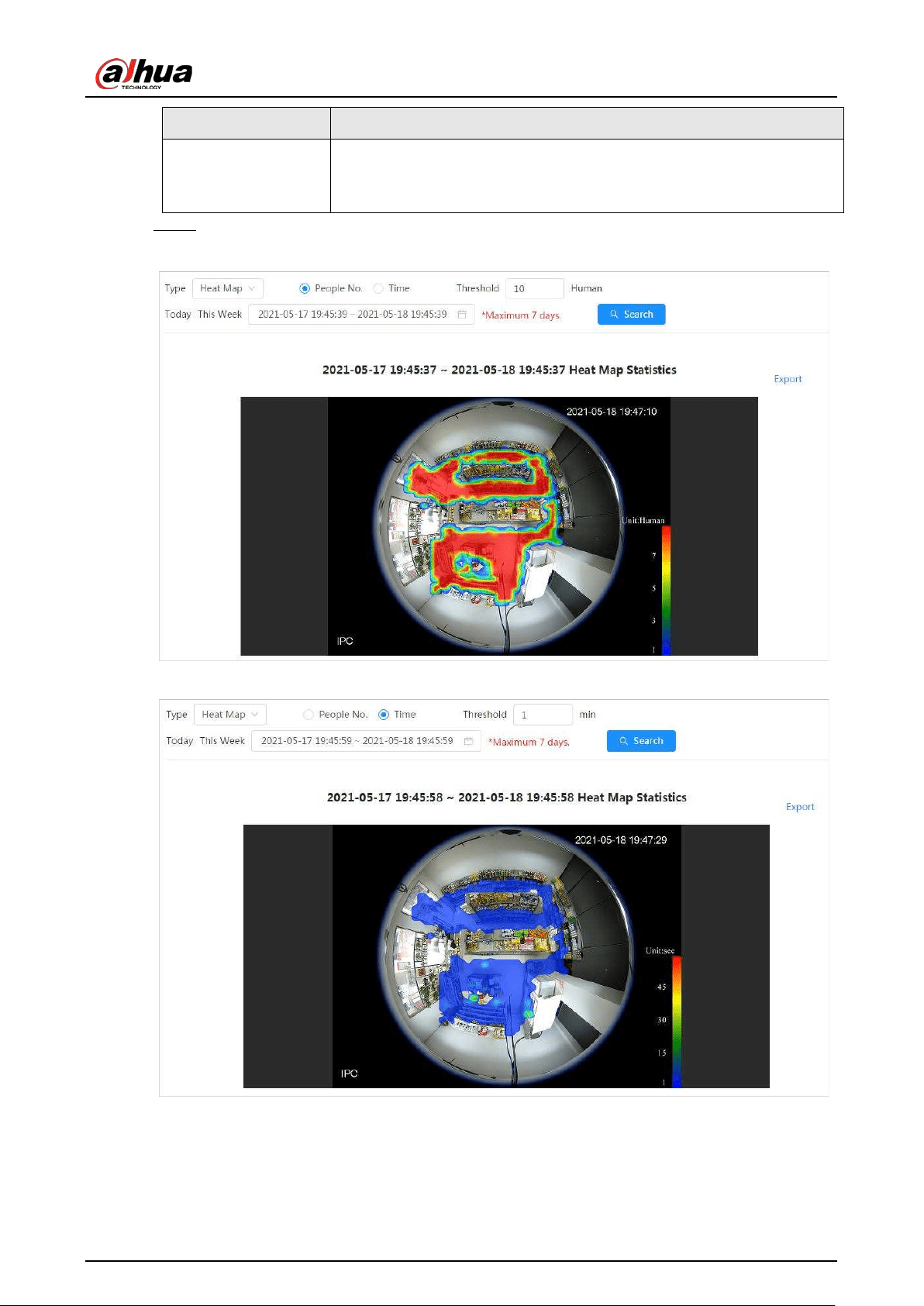

Heat Map
●
Counts cumulative density of moving objects, and displays the result in different colors.
●

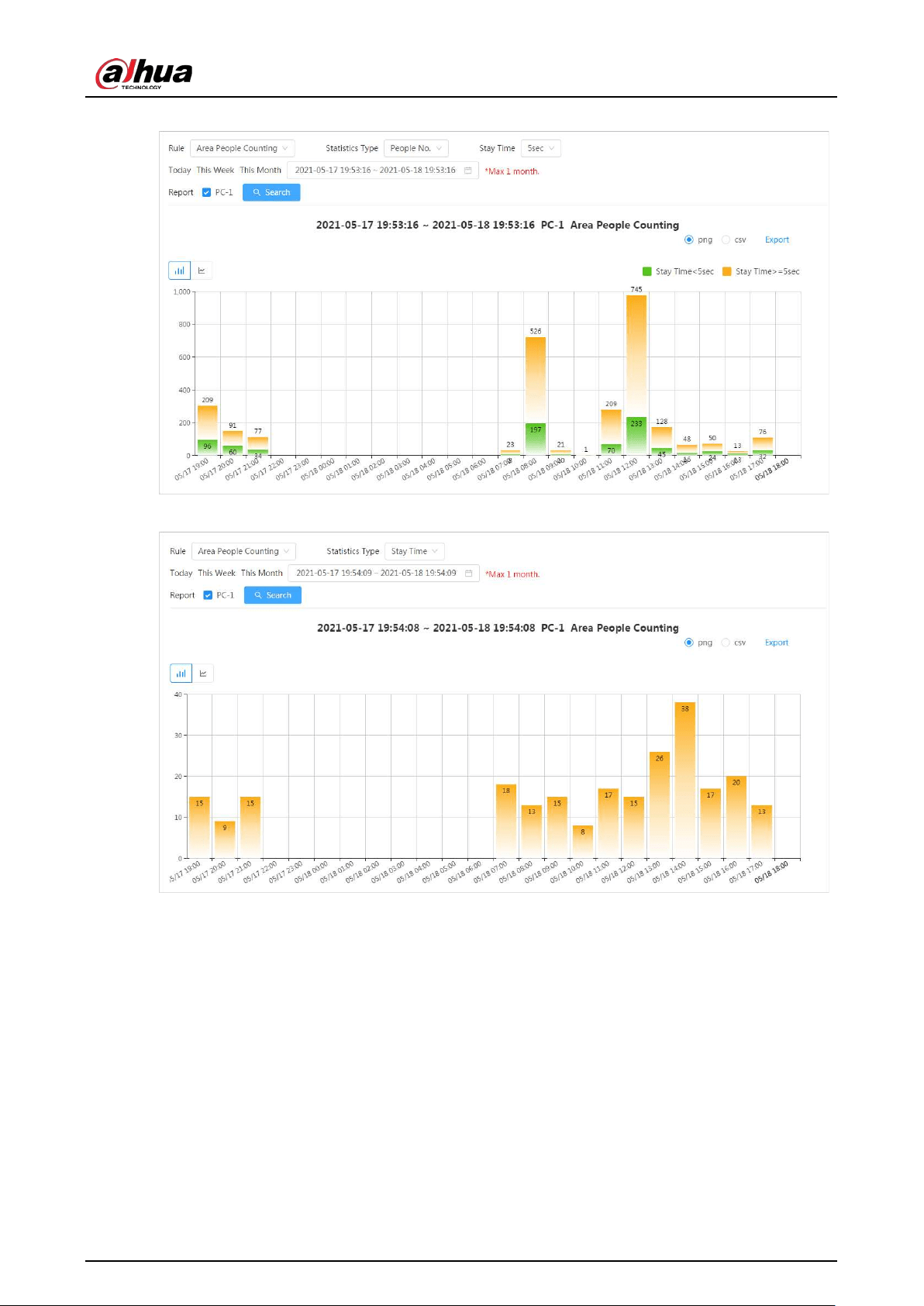

View report of heat map, which includes heat map and track map (track map is not available on
economic fisheye cameras).

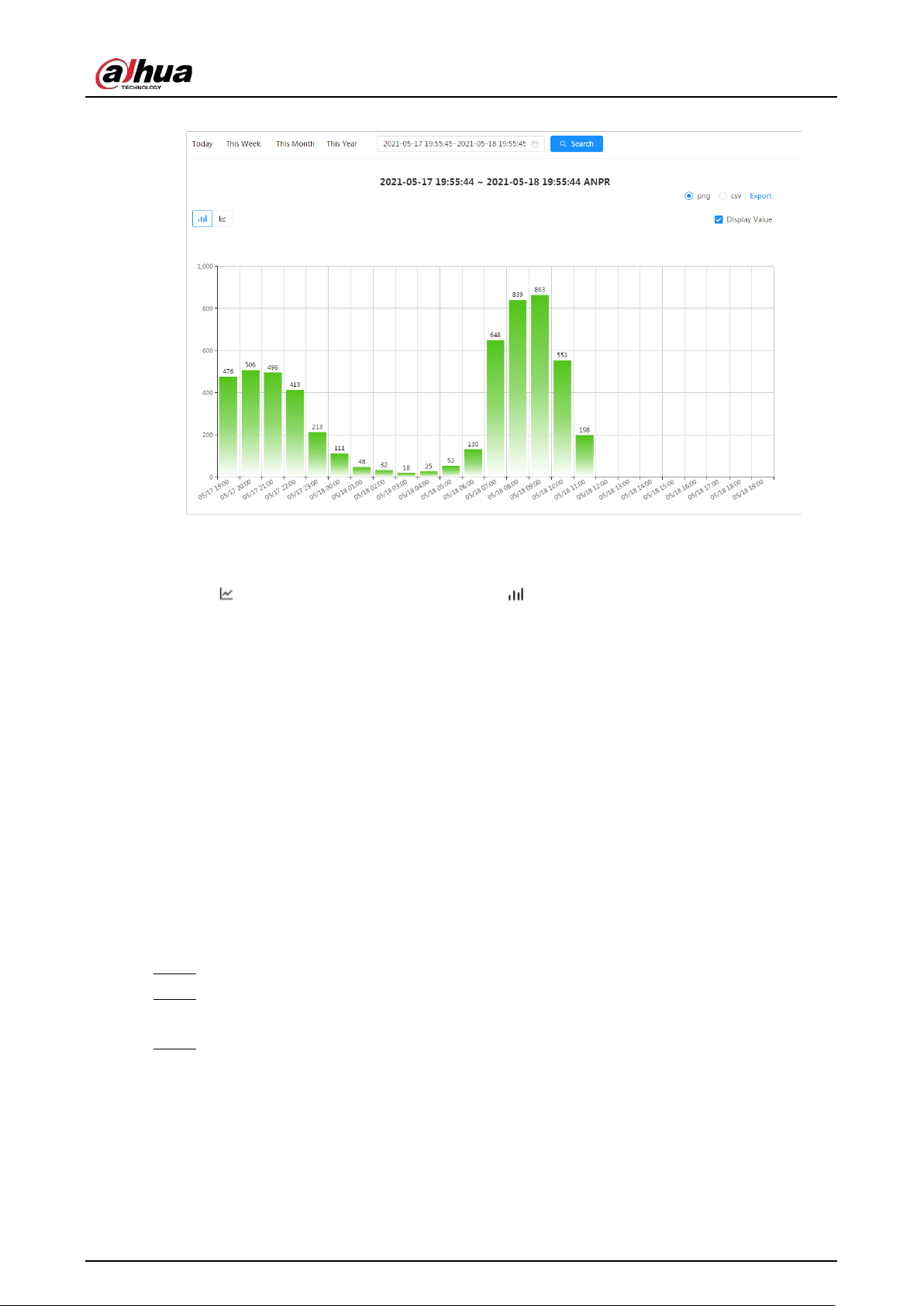

ANPR
●
Recognizes plate number in detection area, and displays the related information on live page.
●
When an alarm is triggered, the system links alarm output and snapshot.

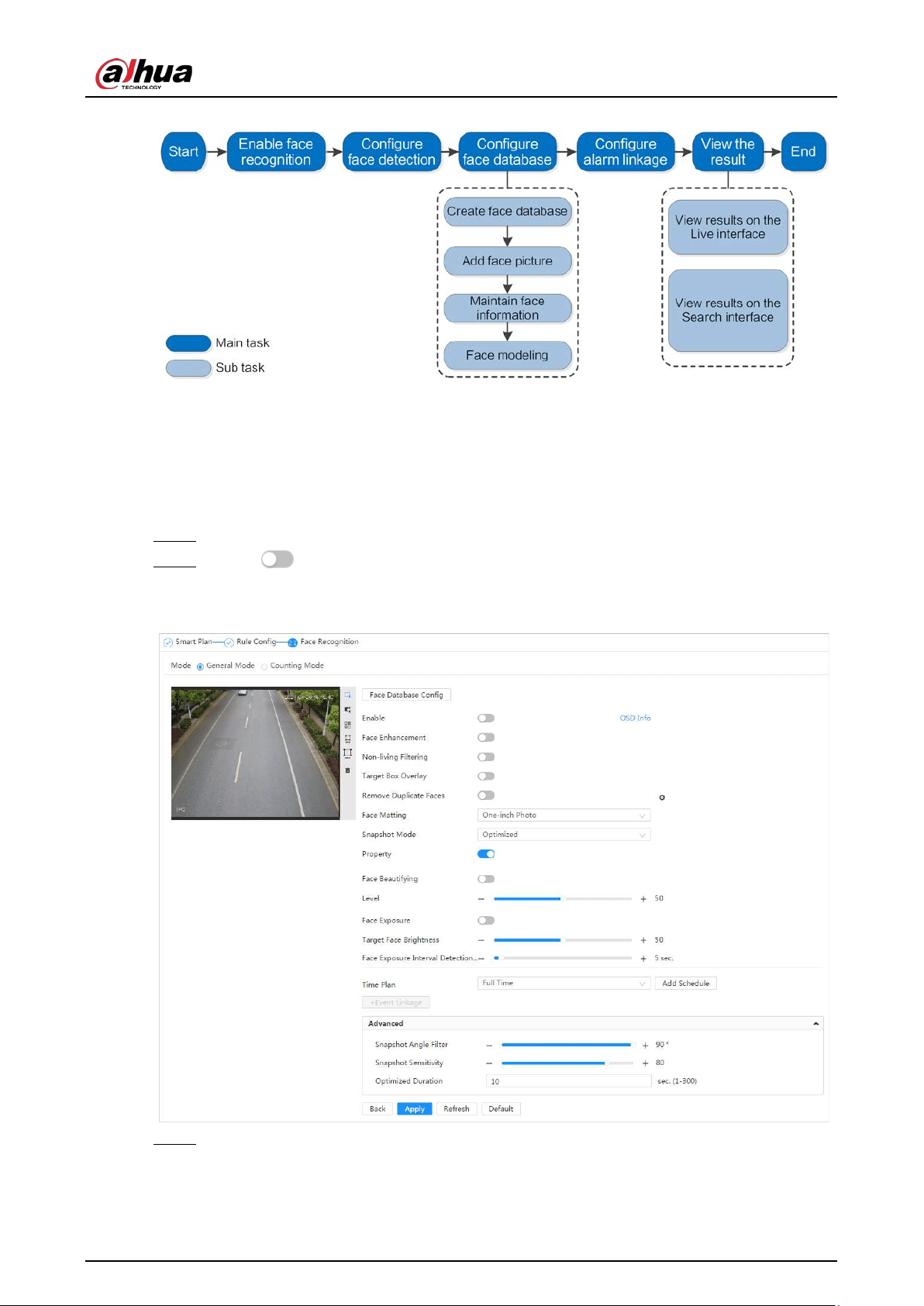

Face & Body Detection
●
Detects faces and human body separately, and then correlates the face and the body.
●
When select compliant mode, the camera can detect attributes including face masks, helmets,
glasses, safety vests, top color, and bottom color, and determine whether PPE requirements are
met. PPE compliance or non-compliance alarms can be triggered according to the alarm settings.
Operation Manual
4
●
When an alarm is triggered, the system links alarm output and snapshot.
Parking Space
●
Supports planned parking space and open parking space.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output,
sending email, and snapshot.

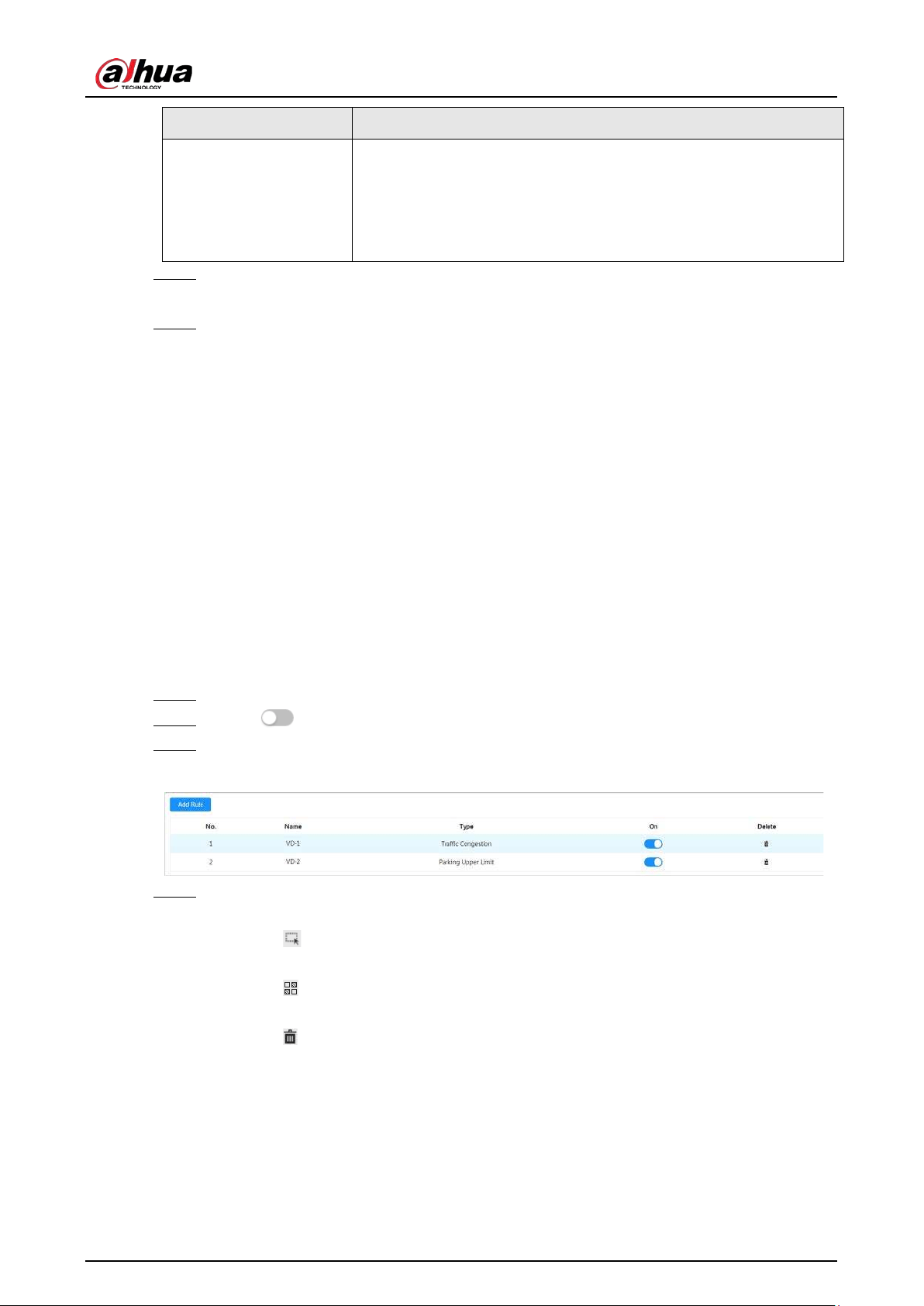

Vehicle Density
●
Includes road congestion and parking limit, and supports to view vehicle statistics through the
live page.
●
When the counted vehicle exceeds the configured vehicle number and the congestion time
exceeds the configured time, an alarm will be triggered.
●
When an alarm is triggered, the system performs linkages such as recording, alarm output and
sending email.
Operation Manual
5
2 Configuration Flow
For the device configuration flow, see Figure 2-1. For details, see Table 2-1. Configure the device
according to the actual situation.
Figure 2-1 Configuration flow
Table 2-1 Description of flow
Configuration Description Reference
Login
Open IE browser and enter IP
address to log in to the web page,
The camera IP address is
192.168.1.108 by default.
"4 Login"
Initialization
Initialize the camera when you use
it for the first time.
"3 Device
Initialization"
Basic parameters
Camera
parameters
Configure image parameters,
encoder parameters, and audio
parameters to ensure the image
quality.
"6.2 Camera"
Date & time
Set date and time to ensure the
recording time is correct.
"6.7.1.2 Date & Time"
IP address
Change IP address according to
network planning for the first use or
during network adjustment.
"6.3.1 TCP/IP"
Subscribe
alarm
Subscribe alarm event. When the
subscribed alarm is triggered, the
system will record the alarm on the
alarm tab.
"6.5.1.3 Subscribing
Alarm"
AI AI rules
Configure the necessary detection
rules, such as face detection and
IVS.
"8 AI"
Operation Manual
6
3 Device Initialization
Device initialization is required for the first-time use. This manual is based on the operation on the
web page. You can also initialize device through ConfigTool, NVR, or platform devices.
●
To ensure the device safety, keep the password properly after initialization and change the
password regularly.
●
When initializing device, keep the PC IP and device IP in the same network.
Procedure
Step 1 Open IE browser, enter the IP address of the device in the address bar, and then press the
Enter key.
The IP is 192.168.1.108 by default.

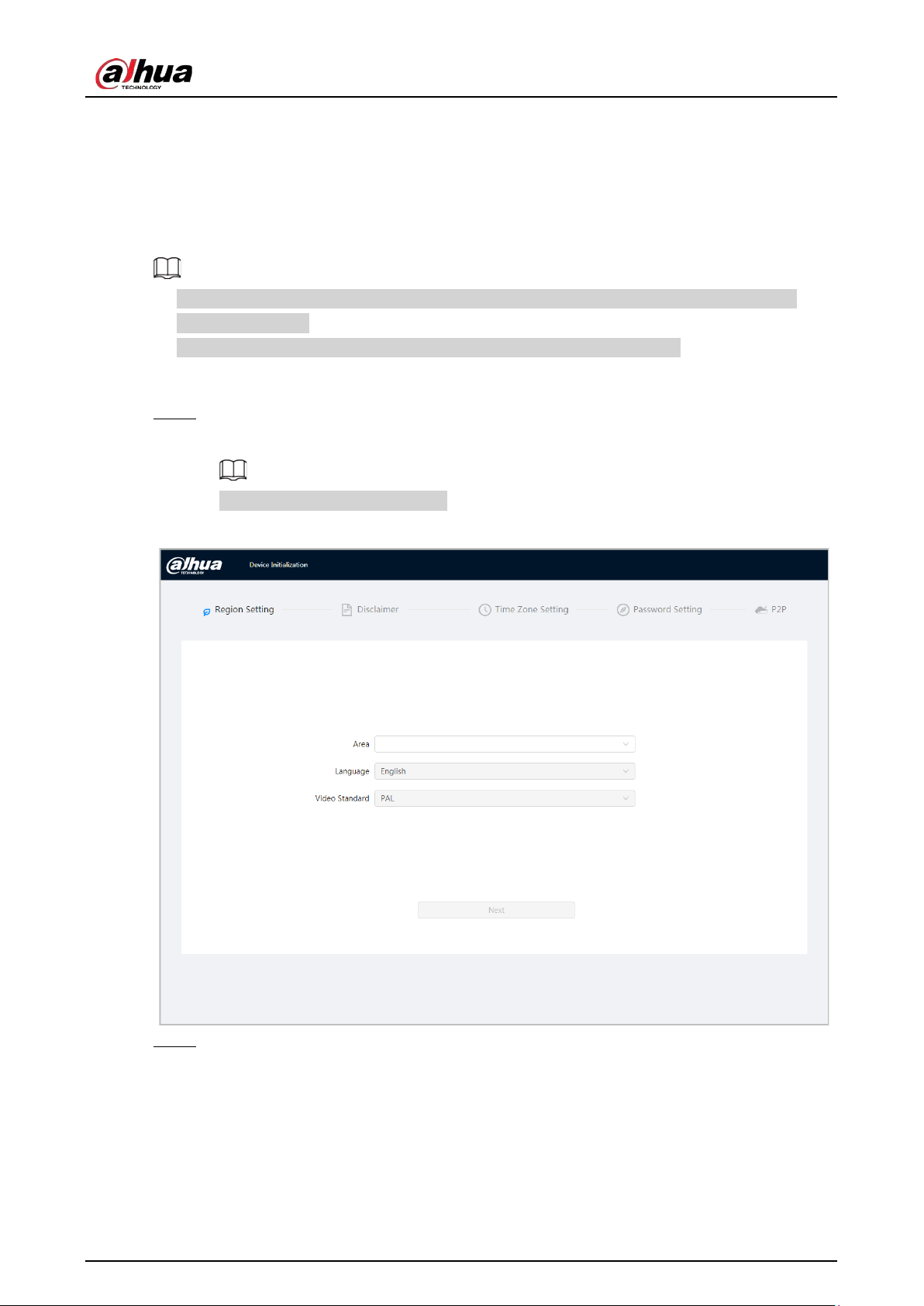

Figure 3-1 Region setting
Step 2 Select the area, language, and video standard according to the actual situation, and then
click
Next
.
Operation Manual
7
Figure 3-2 Time zone setting
Figure 3-3 Disclaimer
Step 3 Select the
I have read and agree to the terms of the Software License Agreement and
Privacy Policy
checkbox, and then click
Next
.
Operation Manual
8
Figure 3-4 Time zone setting
Step 4 Configure the time parameters, and then click
Next
.

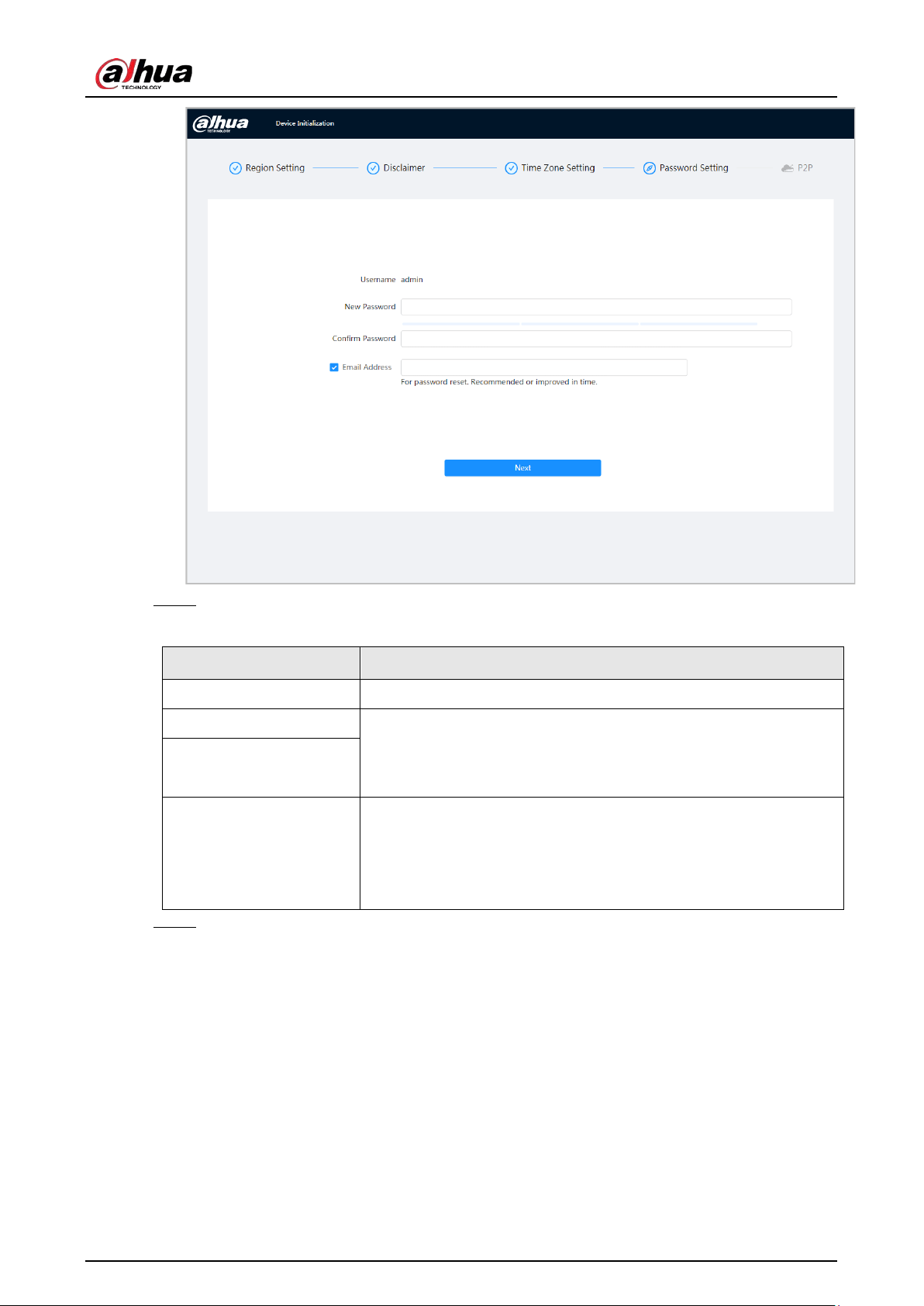

Figure 3-5 Password setting
Operation Manual
9
Step 5 Set the password for admin account.
Table 3-1 Description of password configuration
Parameter Description
Username The default username is admin.
Password The password must consist of 8 to 32 non-blank characters and
contain at least two types of characters among upper case, lower
case, number, and special character (excluding ' " ; : &). Set a high
security level password according to the password security notice.
Confirm password
Reserved email
Enter an email address for password resetting, and it is selected by
default.
When you need to reset the password of the admin account, a
security code for password resetting will be sent to the reserved
email address.
Step 6 Click
Next
, and then
P2P
page is displayed.
Operation Manual
10
4 Login
4.1 Device Login
This section introduces how to log in to the web page. This section takes Chrome as an example.
●
You need to initialize the camera before logging in to the web page. For details, see "3 Device
Initialization".
●
When initializing the camera, keep the PC IP and device IP in the same network.
●
Follow the instruction to download and install the plug-in for the first login.
Procedure
Step 1 Open IE browser, enter the IP address of the camera (192.168.1.108 by default) in the
address bar and press Enter.
Step 2 Enter the username and password.
The username is admin by default.
Click
Forget password?
, and you can reset the password through the email address that is
set during the initialization. For details, see "4.2 Resetting Password".

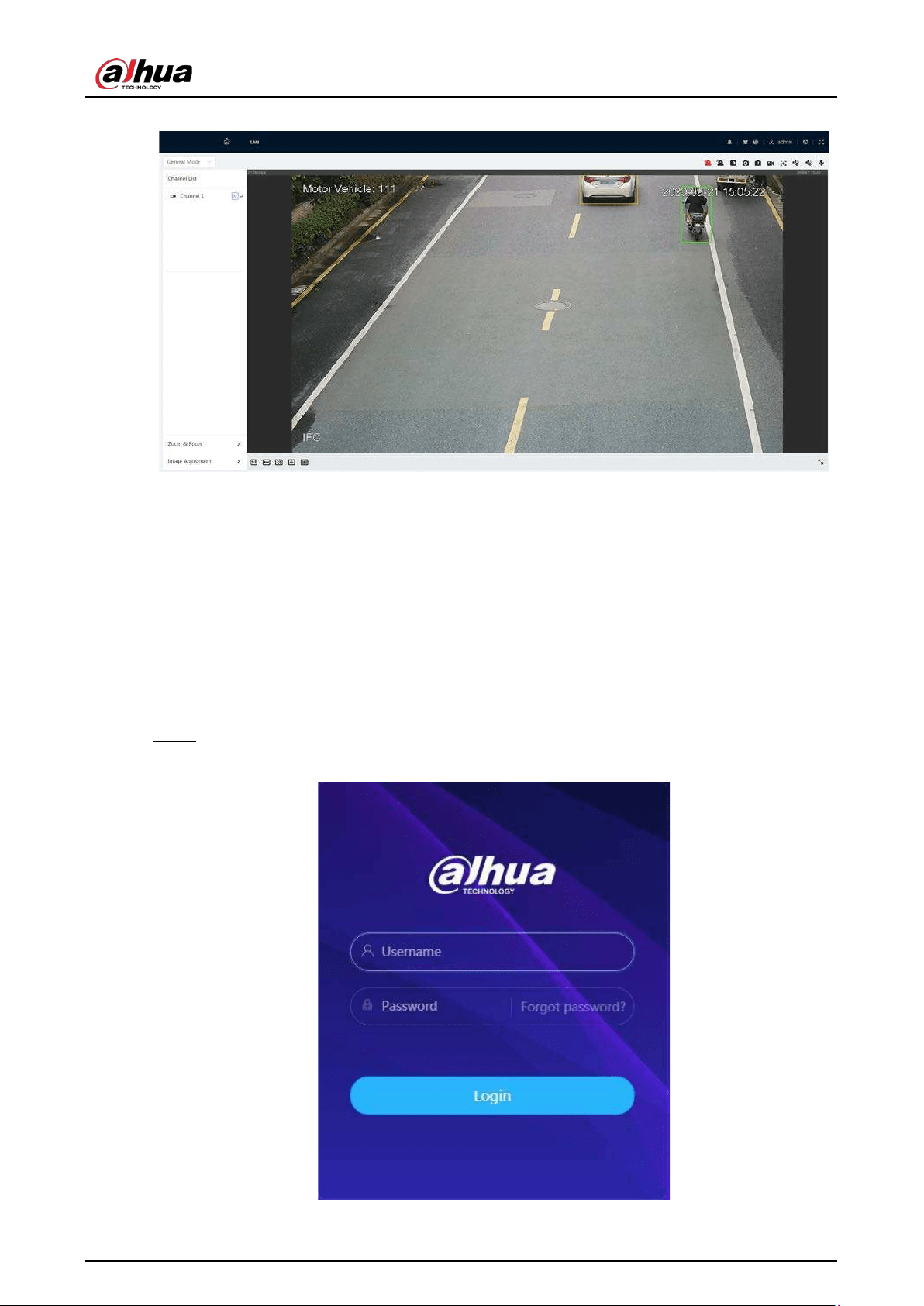

Figure 4-1 Login
Step 3 Click
Login
.
Operation Manual
11
Figure 4-2 Live page
4.2 Resetting Password
When you need to reset the password for the admin account, there will be a security code sent to
the entered email address which can be used to reset the password.
Prerequisites
You have enabled password resetting service. For details, see "6.7.2.1.2 Resetting Password".
Procedure
Step 1 Open IE browser, enter the IP address of the device in the address bar and press Enter.
Figure 4-3 Login
Operation Manual
12
Step 2 Click
Forget password?
, and you can reset the password through the email address that is
set during the initialization.

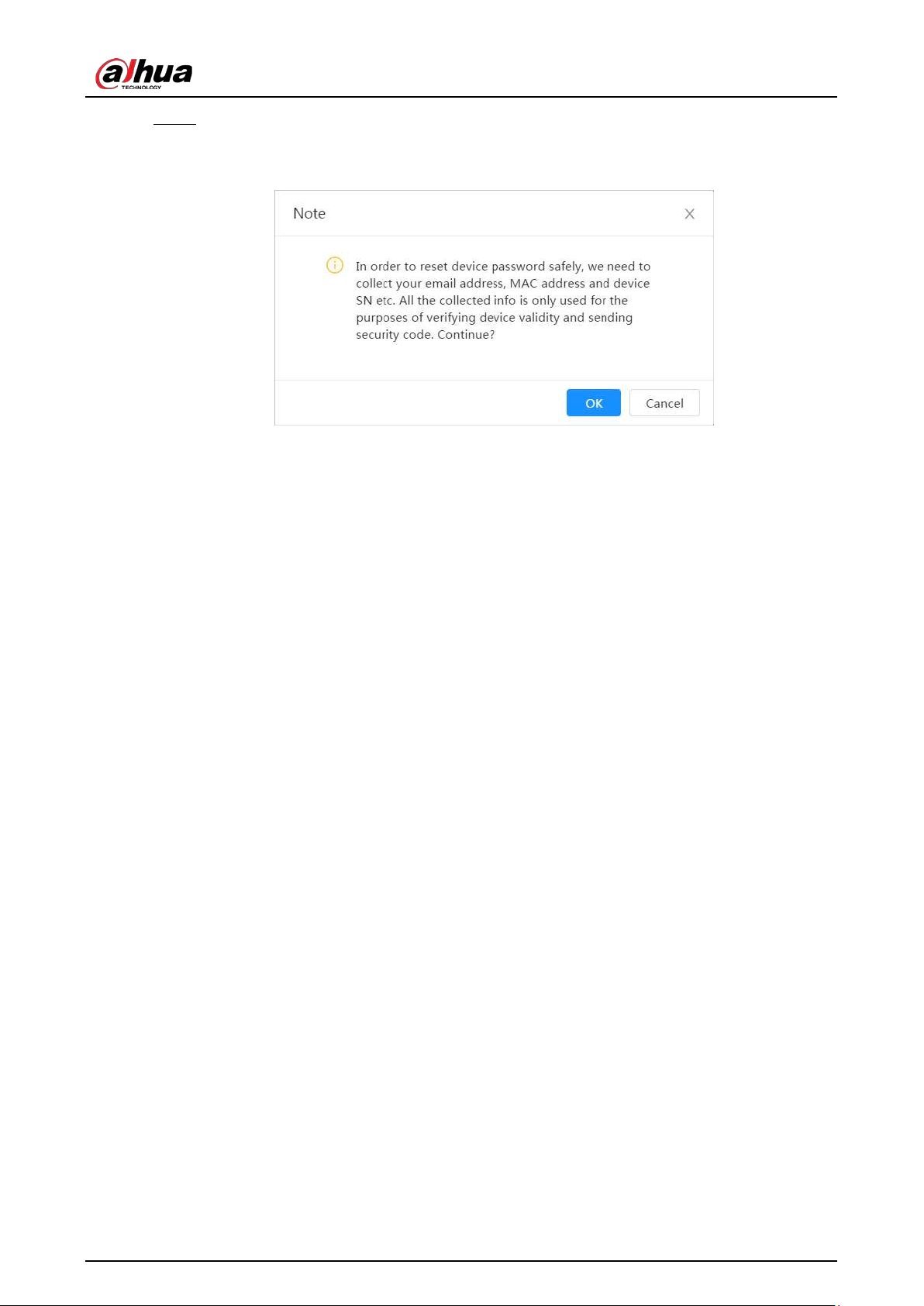

Figure 4-4 Login
Operation Manual
13
5 Home Page
Click at the upper-left corner of the page to display the home page.
Figure 5-1 Home page
●
Live: View the real-time monitoring image.
●
AI: Configure AI functions of the camera.
●
Camera: Configure camera parameters, including image parameters, encoder parameters, and
audio parameters.
●
PTZ: Configure PTZ settings.
●
Event: Configure general events, including alarm linkage exception, video detection, and audio
detection.
●
System: Configure system parameters, including general, date & time, account, safety, default,
import/export, remote, auto maintain and upgrade.
●
Security: Check the device security status and set security functions.
●
Record: Play back or download recorded video.
●
Picture: Play back or download image files.
●
For the camera with multiple channels, through selecting channel numbers, you can set the
parameters of the channels.
●
Report: Search the AI event report and system report.
●
Alarm subscription: Subscribe alarm.
●
Skin setting: Set the skin.
●
Language setting: Set the language.
●
Restart: Click at the upper-right corner of the page, select
Reboot
, and the camera
restarts.
●
Logout: Click at the upper-right corner of the page, select
Logout
to go to the
login page. The system will sleep automatically after idling for a period of time.
●
Setting: Click at the upper-right corner of the page to set the basic parameters.
●
Full screen: Click at the upper-right corner of the page to enter full screen mode; click to
exit full screen mode.
Operation Manual
14
6 Setting
This section introduces the basic setting of the camera, including the configuration of Local, Camera,
Network, Event, Storage, System, System Information and Log.
For
Camera
,
Event
and
System
, you can go to the configuration page through two methods. This
section takes method 1 as an example.
●
Method 1: Click , and then select the corresponding item.
●
Method 2: Click the corresponding icon on the home page.
6.1 Local
You can select protocol and configure the storage path for live snapshot, live record, playback
snapshot, playback download, and video clips.
Procedure
Step 1 Select >
Local
.

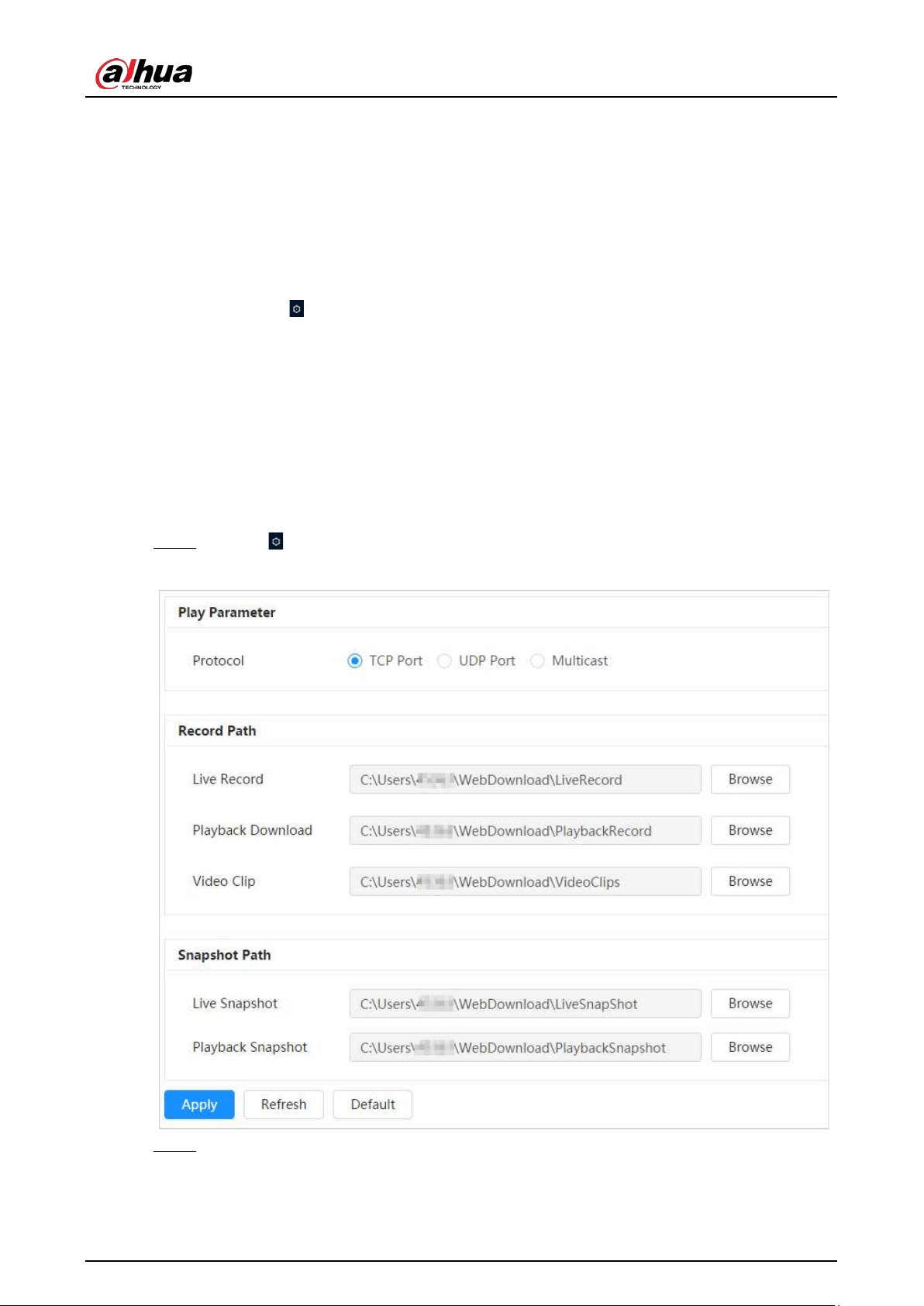

Figure 6-1 Local
Step 2 Click
Browse
to select the storage path for live snapshot, live record, playback snapshot,
playback download, and video clips.
Operation Manual
15
Table 6-1 Description of local parameter
Parameter Description
Protocol
You can select the network transmission protocol as needed, and the
options are
TCP
,
UDP
and
Multicast
.
Before selecting
Multicast
, make sure that you have set the
Multicast
parameters.
Live Record
The recorded video of live page.
The default path is
C:\Users\admin\WebDownload\LiveRecord.
Admin in the path
refers to the account
being used.
Playback
Download
The downloaded video of playback page.
The default path is
C:\Users\admin\WebDownload\PlaybackRecor
d.
Video Clips
The clipped video of playback page.
C:\Users\admin\WebDownload\VideoClips.
Live Snapshot
The snapshot of live page.
The default path is
C:\Users\admin\WebDownload\LiveSnapshot.
Playback Snapshot
The snapshot of playback page.
The default path is
C:\Users\admin\WebDownload\PlaybackSnaps
hot.
Step 3 Click
Apply
.
6.2 Camera
This section introduces the camera setting, including image parameters, encoder parameters, and
audio parameters.
Camera parameters of different devices might vary.
6.2.1 Setting Image Parameters
Configure image parameters according to the actual situation, including image, exposure, backlight,
white balance, Day/Night, and light.
6.2.1.1 Page Layout
Configure camera parameters to improve the scene clarity, and ensure that surveillance goes
properly.
You can select normal mode, day mode, or night mode to view the configuration and the effect of
the selected mode, such as picture, exposure, and backlight.
Operation Manual
16
Select the working mode as needed.
●
Self-adaptive: The camera will adjust the image according to the environment.

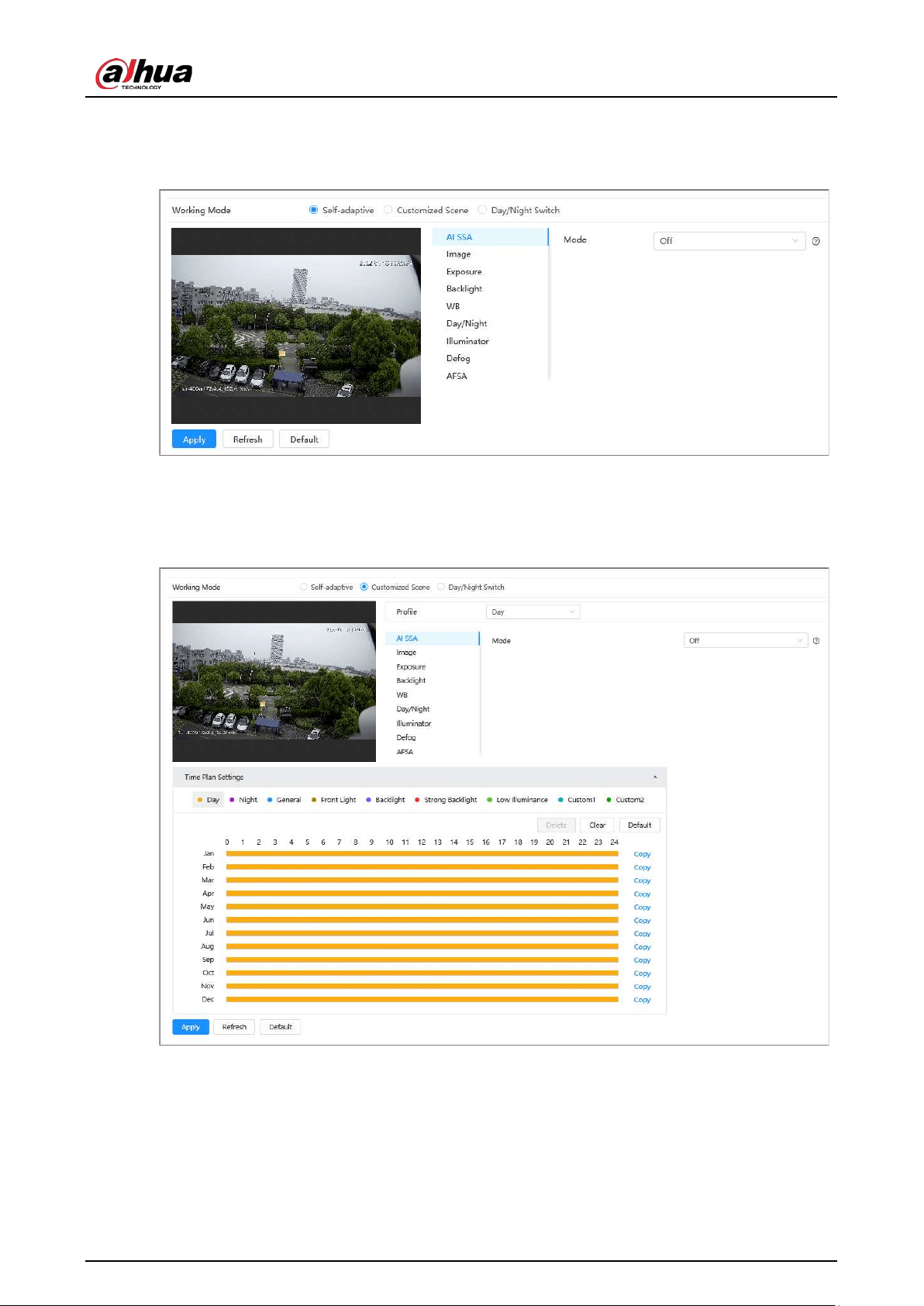

Figure 6-2 Page layout (self-adaptive)
●
Customized scene: You can select the profile as needed. Select the profile in
Time Plan Setting
and drag the slide block to set certain time as the selected profile. For example, set 8:00–18:00 as
day, and 0:00–8:00 and 18:00–24:00 as night
Figure 6-3 Page layout (customized scene)
●
Day/night switch: You can select
Day
or
night
in
Profile
and the surveillance system works under
Day/Night
.
Operation Manual
17
Figure 6-4 Page layout (day/night switch)
6.2.1.2 AI SSA
By enabling AI SSA (AI Scene Self-adaptation), the camera could detect environmental conditions,
such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the
conditions, ensuring that clear images are always produced.
Procedure
Step 1 Select >
Camera
>
>
AI SSA
.
Step 2 Select
On
in the dropdown list.
After you enable
AI SSA
, some other functions such as
exposure
,
backlight
,
defog
and
AFSA
will be disabled by default.
Step 3 Click
Apply
.
6.2.1.3 Image
You can configure picture parameters as needed.
Procedure
Step 1 Select >
Camera
>
>
.
Figure 6-5 Image
Step 2 Configure picture parameters.
Operation Manual
18
Table 6-2 Description of picture parameters
Parameter Description
Style
Select the picture style from soft, standard and vivid.
●
Soft: Default image style, displays the actual color of the image.
●
Standard: The hue of the image is weaker than the actual one, and
contrast is smaller.
●
Vivid: The image is more vivid than the actual one.
Brightness
Changes the value to adjust the picture brightness. The higher the
value is, the brighter the picture will be, and the smaller the darker.
The picture might be hazy if the value is configured too big.
Contrast
Changes the contrast of the picture. The higher the value is, the more
the contrast will be between bright and dark areas, and the smaller
the less. If the value is set too big, the dark area would be too dark and
bright area easier to get overexposed. The picture might be hazy if the
value is set too small.
Saturation
Makes the color deeper or lighter. The higher the value is, the deeper
the color will be, and the lower the lighter. Saturation value does not
change image brightness.
Sharpness
Changes the sharpness of picture edges. The higher the value is, the
clearer the picture edges will be, and if the value is set too big, picture
noises are more likely to appear.
Gamma
Changes the picture brightness and improves the picture dynamic
range in a non-linear way. The higher the value is, the brighter the
picture will be, and the smaller the darker.
Flip
Changes the display direction of the picture, see the options below.
●
0°: Normal display.
●
90°: The picture rotates 90° clockwise.
●
180°: The picture rotates 90° counterclockwise.
●
270°: The picture flips upside down.
For some models, please set the resolution to be 1080p or lower
when using 90° and 180°. For details, see "6.2.2 Setting Encode
Parameters".
Mirror
Click , and the picture will display with left and right side
reversed.
Step 3 Click
Apply
.
6.2.1.4 Exposure
Configure iris and shutter to improve image clarity.
Cameras with true WDR do not support long exposure when WDR is enabled in
Backlight
.
Procedure
Step 1 Select >
Camera
>
>
Exposure
.
Operation Manual
19

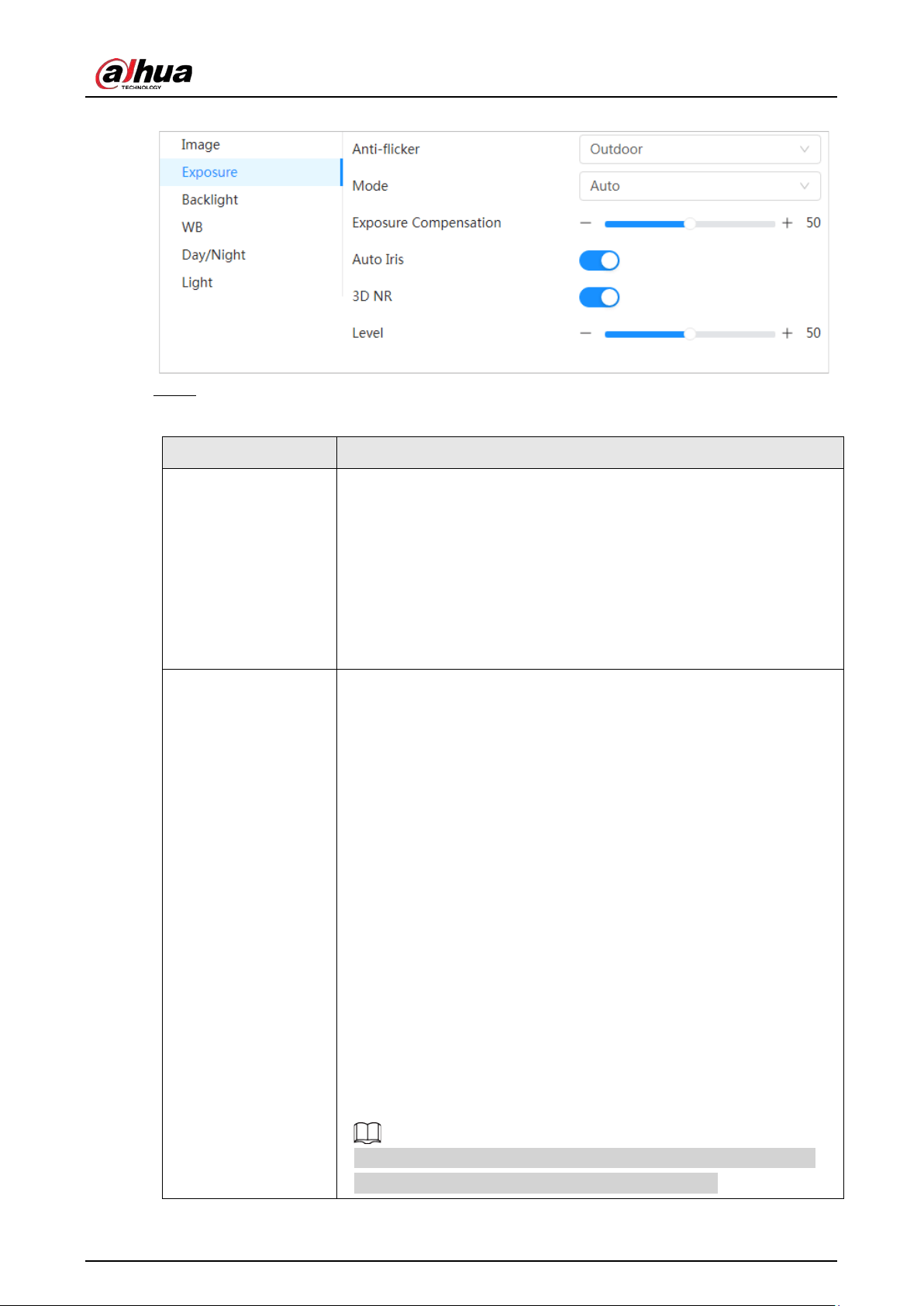

Figure 6-6 Exposure
Step 2 Configure exposure parameters.
Table 6-3 Description of exposure parameters
Parameter Description
Anti-flicker
You can select from 50 Hz, 60 Hz and Outdoor.
●
50 Hz: When the electric supply is 50 Hz, the system adjusts the
exposure according to ambient light automatically to ensure that
no stripe appears.
●
60 Hz: When the electric supply is 60 Hz, the system adjusts the
exposure according to ambient light automatically to ensure that
no stripe appears.
●
Outdoor: You can select any exposure mode as needed.
Mode
Device exposure modes.
●
Auto: Adjusts the image brightness according to the actual
condition automatically.
●
Gain Priority: When the exposure range is normal, the system
prefers the configured gain range when auto adjusting according
to the ambient lighting condition. If the image brightness is not
enough and the gain has reached upper or lower limit, the system
adjusts shutter value automatically to ensure the image at ideal
brightness. You can configure gain range to adjust gain level when
using gain priority mode.
●
Shutter priority: When the exposure range is normal, the system
prefers the configured shutter range when auto adjusting
according to the ambient lighting condition. If the image
brightness is not enough and the shutter value has reached upper
or lower limit, the system adjusts gain value automatically to
ensure the image at ideal brightness.
●
Manual: Configure gain and shutter value manually to adjust image
brightness.
When the
Anti-flicker
is set to
Outdoor
, you can select
Auto
,
Gain
priority
,
Shutter priority
or
Manual
in the
Mode
list.
Operation Manual
20
Parameter Description
Exposure
Compensation
Sets the value, and it ranges from 0 to 50. The higher the value is, the
brighter the image will be.
Shutter
Set the effective exposure time. The smaller the value, the shorter the
exposure time will be.
Gain
When selecting
Gain Priority
or
Manual
in
Mode
, you can set Gain.
With minimum illumination, the camera increases Gain automatically to
get clearer images.
Auto Iris
This configuration is available only when the camera is equipped with
auto-iris lens.
●
When auto iris is enabled, the iris size changes automatically
according to the ambient lighting condition, and the image
brightness changes accordingly.
●
When auto iris is disabled, the iris stays at full size and does not
change no matter how ambient lighting condition changes.
3D NR
Works with multi-frame (no less than 2 frames) images and reduces
noise by using the frame information between previous and latter
frames.
Level
This configuration is available only when the 3D NR is enabled.
The higher the level is, the better the result will be.
Step 3 Click
Apply
.
6.2.1.5 Backlight
You can select backlight mode from Auto, BLC, WDR, and HLC.
Procedure
Step 1 Select >
Camera
>
>
Backlight
.

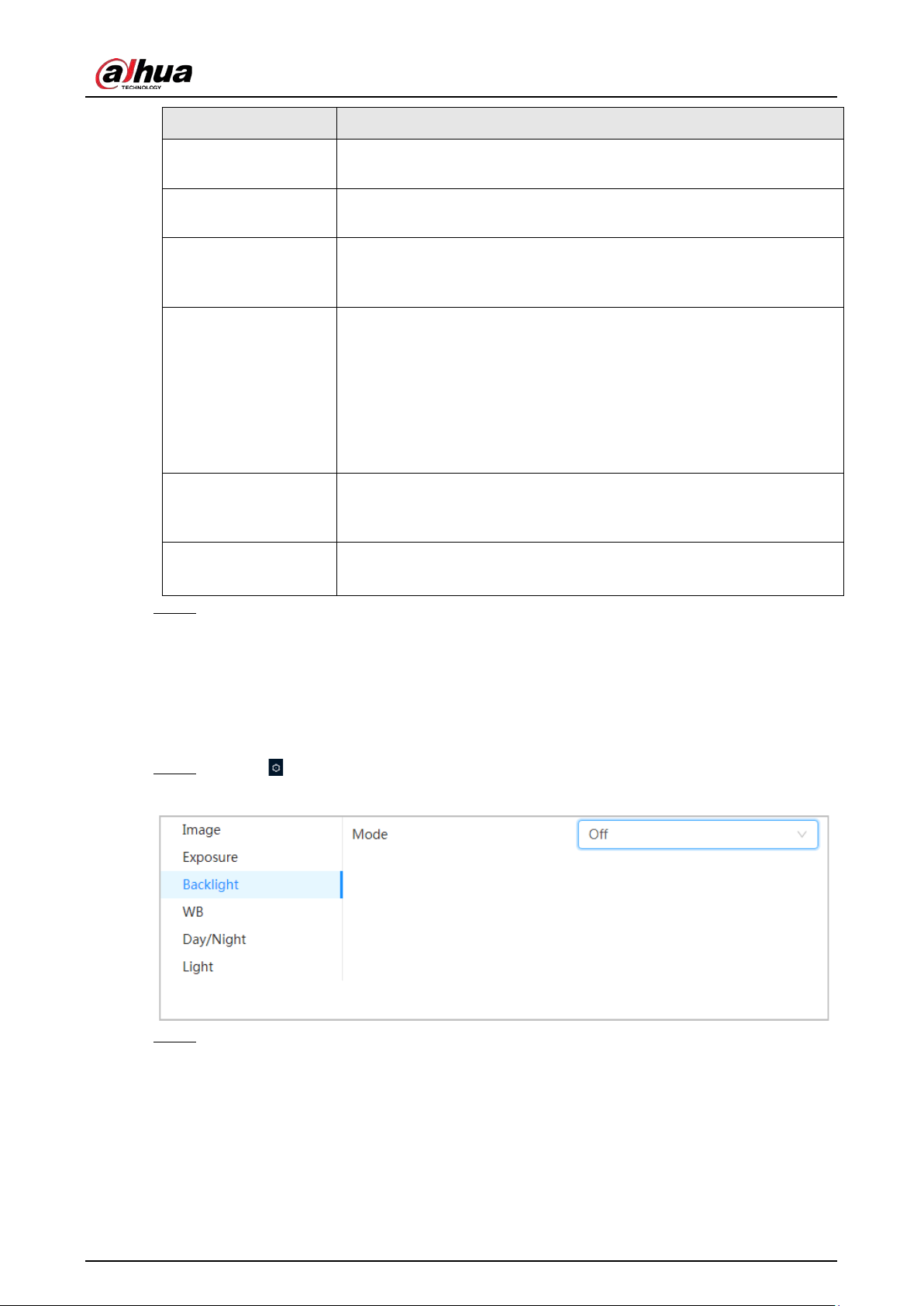

Figure 6-7 Backlight
Step 2 Configure backlight parameters.
Operation Manual
21
Table 6-4 Description of backlight parameters
Backlight mode Description
BLC
Enable
BLC
, the camera can get clearer image of the dark areas on the
target when shooting against light. You can enable or disable
Customized
mode.
●
When you enable
Customized
mode, the system auto adjusts
exposure only to the set area according to ambient lighting condition
to ensure the image of the set area at ideal brightness.
●
When you disable
Default
mode, the system adjusts exposure
according to ambient lighting condition automatically to ensure the
clarity of the darkest area.
WDR
The system dims bright areas and compensates dark areas to ensure the
clarity of all the area. The higher the value is, the brighter the dark will be,
but the more the noise will be.
There might be a few seconds of video loss when the device is switching
to WDR mode from other mode.
HLC
Enable
HLC
when extreme strong light is in the environment (such as toll
station or parking lot), the camera will dim strong light, and reduce the
size of Halo zone to lower the brightness of the whole image, so that the
camera can capture human face or car plate detail clearly. The higher the
value is, the more obvious the HLC effect will be.
SSA
Enable
SSA
, the system automatically adjusts the image brightness
according to the environment to make the objects in the image clearer.
Step 3 Click
Apply
.
6.2.1.6 WB
WB function makes the image color display precisely as it is. When in WB mode, white objects would
always display white color in different environments.
Procedure
Step 1 Select >
Camera
>
>
WB
.
Figure 6-8 WB
Step 2 Configure WB parameters.
Operation Manual
22
Table 6-5 Description of WB parameters
WB Mode Description
Auto
The system compensates WB according to color temperature to
ensure color precision.
Natural
The system auto compensates WB to environments without artificial
light to ensure color precision.
Street Lamp
The system compensates WB to outdoor night scene to ensure color
precision.
Outdoor
The system auto compensates WB to most outdoor environments
with natural or artificial light to ensure color precision.
Manual
Configure red and blue gain manually; the system auto compensates
WB according to color temperature.
Custom Area
The system compensates WB only to the set area according to color
temperature to ensure color precision.
Step 3 Click
Apply
.
6.2.1.7 Day/Night
Configure the display mode of the image. The system switches between color and black-and-white
mode according to the actual condition.
Procedure
Step 1 Select >
Camera
>
>
WB
.

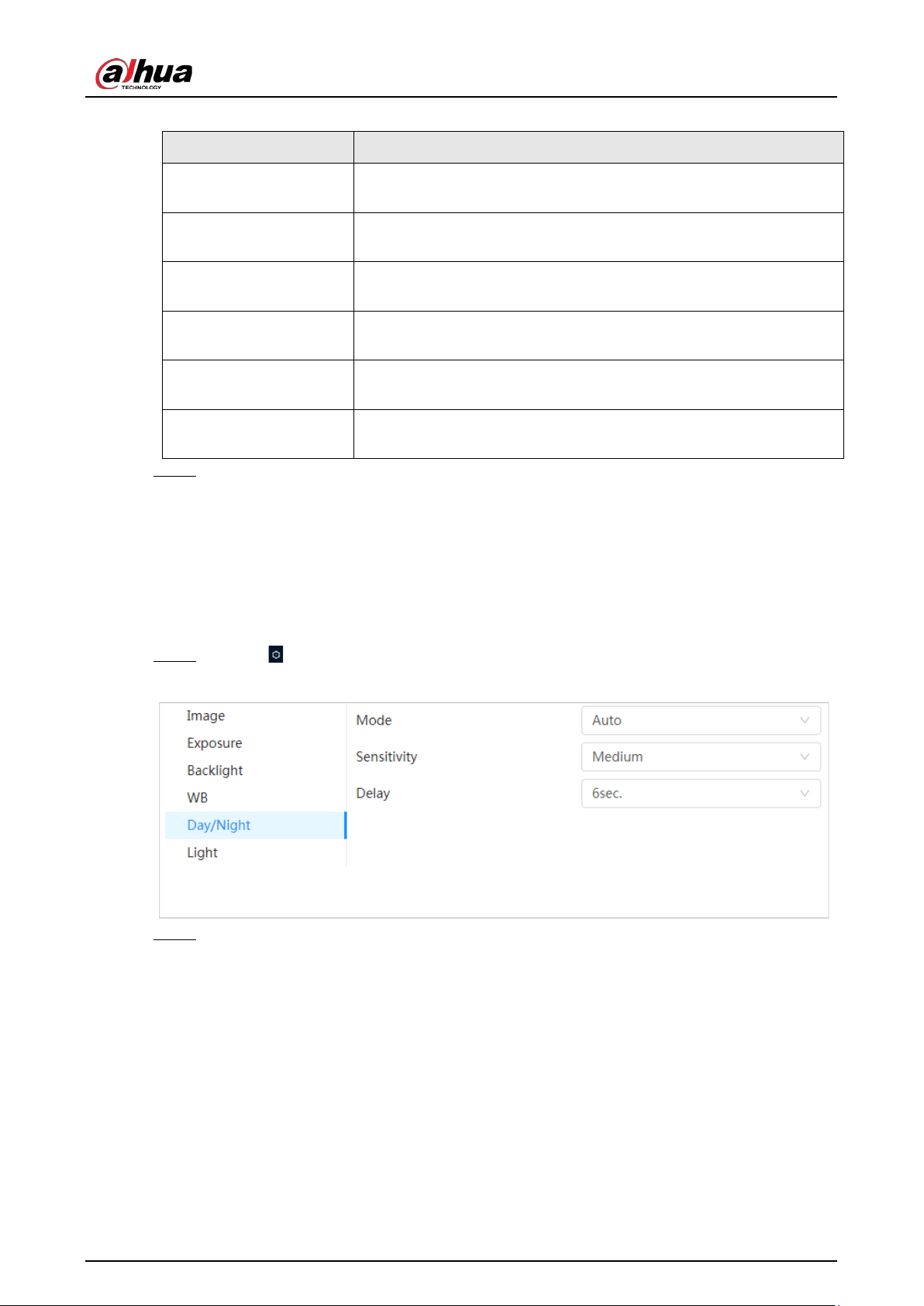

Figure 6-9 Day/night
Step 2 Configure day and night parameters.
Operation Manual
23
Table 6-6 Description of day and night parameters
Parameter Description
Mode
You can select device display mode from
Color
,
Auto
, and
B/W
.
Day/Night configuration is independent from profile management
configuration.
●
Color
: The system displays color image.
●
Auto
: The system switches between color and black-and-white
display according to the actual condition.
●
B/W
: The system displays black-and-white image.
Sensitivity
This configuration is available only when you set
Auto
in
Mode
.
You can configure camera sensitivity when switching between color
and black-and-white mode.
Delay
This configuration is available only when you set
Auto
in
Mode
.
You can configure the delay when camera switching between color and
black-and-white mode. The lower the value is, the faster the camera
switches between color and black-and-white mode.
Step 3 Click
Apply
.
6.2.1.8 Illuminator
This configuration is available only when the device is equipped with illuminator.
Procedure
Step 1 Select >
Camera
>
>
Illuminator
.

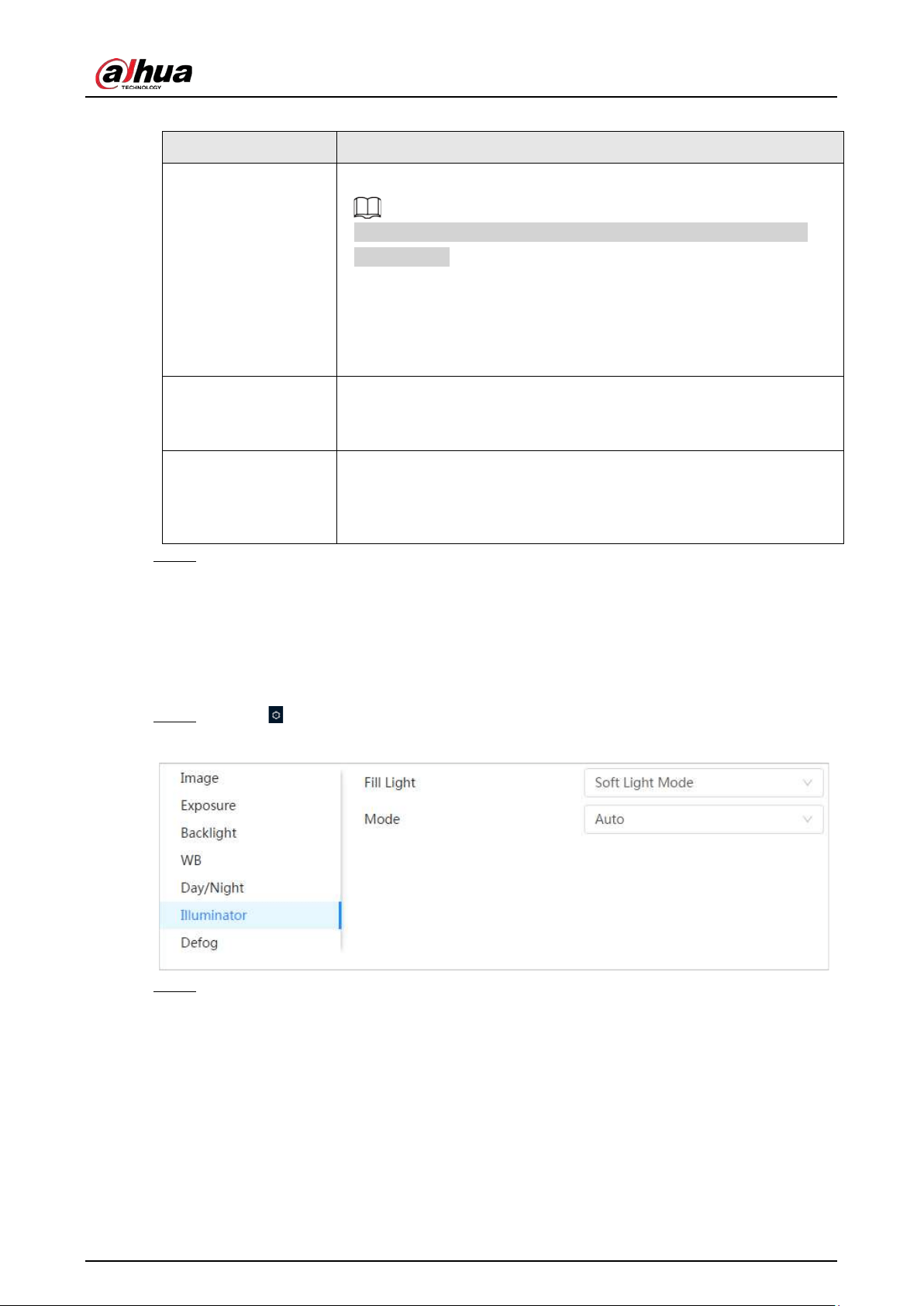

Figure 6-10 Light
Step 2 Configure illuminator parameters.
Operation Manual
24
Table 6-7 Description of illuminator parameters
Parameter Description
Fill Light
Set
Fill Light
for sound and siren cameras.
●
IR Mode: Enable the IR illuminator, and the white light is disabled. When
an alarm is triggered, the system will link white light.
●
White Light: Enable the white light, and the IR illuminator is disabled.
When an alarm is triggered, the system will link white light.
●
Soft Light Mode: Enable IR illuminator and white light at the same time,
and adjust the brightness of the two illuminators to get clear images.
Mode
Manual
Adjust the brightness of illuminator manually, and then
the system will supply illuminator to the image
accordingly.
Auto
The system adjusts the illuminator intensity according to
the ambient lighting condition.
Zoom Priority
The system adjusts the illuminator intensity automatically
according to the change of the ambient light.
●
When the ambient light turns darker, the system turns
on the low beam lights first, if the brightness is still
not enough, it turns on the high beam lights then.
●
When the ambient light turns brighter, the system
dims high beam lights until they are off, and then the
low beam lights.
●
When the focus reaches certain wide angle, the
system will not turn on high beam light in order to
avoid over-exposure in short distance. In the
meantime, you can configure light compensation
manually to fine-tune IR light intensity.
Off Illuminator is off.
Step 3 Click
Apply
.
6.2.1.9 Defog
The image quality is compromised in foggy or hazy environment, and defog can be used to improve
image clarity.
Procedure
Step 1 Select >
Camera
>
>
Defog
.
Operation Manual
25
Figure 6-11 Light
Step 2 Configure defog parameters.
Table 6-8 Description of defog parameters
Defog Description
Manual
Configure function intensity and atmospheric light mode manually, and
then the system adjusts image clarity accordingly. Atmospheric light mode
can be adjusted automatically or manually.
Auto The system adjusts image clarity according to the actual condition.
Off Defog function is disabled.
Step 3 Click
Apply
.
6.2.1.10 AFSA
You can enable AFSA (Anti-flicker Self-adaption) to prevent image flickering.
Procedure
Step 1 Select >
Camera
>
>
AFSA
.
Figure 6-12 AFSA
Step 2 Select
On
or
Auto
in the dropdown list.
When you select
Auto
, AFSA function will be enabled when the camera detects flicker and
disabled when there is no flicker.
Step 3 Click
Apply
.
Operation Manual
26
6.2.1.11 Fisheye
Select installation mode and record mode according to the actual installation scene. When the
camera accesses the platform with corrective stream, the platform displays the corrective image.
This function is only available on fisheye device.
Procedure
Step 1 Select >
Camera
>
>
Fisheye
.
Figure 6-13 Fisheye
Step 2 Set installation mode and record mode.
Table 6-9 Description of fisheye parameters
Parameter Description
installation Mode You can select
Ceiling
,
Wall
, or
Ground
.
Record Mode
●
1O: The original image before correction.
●
1P: 360°rectangular panoramic image.
●
2P: When the installation mode is
Ceiling
or
Ground
, you can set
this mode. Two associated 180° rectangular image screens; at any
time, the two screens form a 360° panoramic image.
●
1R: Original image screen + independent sub-screen. You can
zoom or drag the image in all the screens.
●
2R: Original image screen + two independent sub-screens. You
can zoom or drag the image in all the screens.
●
4R: Original image screen + four independent sub-screens. You
can zoom or drag the image in all the screens.
●
1O + 3R: Original image screen + three independent sub-screens.
You can zoom or drag the image in original image screen, and
move the image (upper and lower) in sub-screens to adjust the
vertical view.
Step 3 Click
Apply
.
6.2.2 Setting Encode Parameters
This section introduces video parameters, such as video, snapshot, overlay, ROI (region of interest),
and path.
Operation Manual
27
Click
Default
, and the device is restored to default configuration. Click
Refresh
to view the latest
configuration.
6.2.2.1 Encode
Configure video stream parameters, such as compression, resolution, frame rate, bit rate type, bit
rate, I frame interval, SVC, and watermark.
Procedure
Step 1 Select >
Camera
>
Encode
>
Encode
.
Figure 6-14 Encode
Step 2 Configure encode parameters.
Table 6-10 Description of encode parameters
Parameter Description
Sub Stream
Click to enable sub stream, it is enabled by default.
You can enable multiple sub streams simultaneously.
Operation Manual
28
Parameter Description
Compression
Select encode mode.
●
H.264
: Main profile encode mode. Compared with H.264B, it
requires smaller bandwidth.
●
H.264H
: High profile encode mode. Compared with H.264, it
requires smaller bandwidth.
●
H.264B
: Baseline profile encode mode. It requires smaller
bandwidth.
●
H.265
: Main profile encode mode. Compared with H.264, it
requires smaller bandwidth.
●
MJPEG
: When under this mode, the image requires high bit rate
value to ensure clarity, you are recommended to set the
Bit Rate
value to the biggest value in the
Reference Bit Rate
.
Smart Codec
Click to enable smart codec to improve video compressibility
and save storage space.
After smart codec is enabled, the device would stop supporting the
third bit stream, ROI, and smart event detection.
Output Mode
You can select from
Single Stream
or
Flex Stream
.
Resolution
The resolution of the video. The higher the value is, the clearer the
image will be, but the bigger the required bandwidth will be.
Frame Rate (FPS)
The number of frame in one second of video. The higher the value is,
the clearer and smoother the video will be.
Bit Rate Type
The bit rate control type during video data transmission. You can
select bit rate type from:
●
CBR
(Constant Bit Rate): The bit rate changes a little and keeps
close to the defined bit rate value.
●
VBR
(Variable Bit Rate): The bit rate changes as monitoring
scene changes.
The
Bit Rate Type
can only be set as
CBR
when
Encode Mode
is set
as
MJPEG
.
Quality
This parameter can be configured only when the
Bit Rate Type
is set
as
VBR
.
The better the quality is, but the bigger the required bandwidth will
be.
Reference Bit Rate
The most suitable bit rate value range recommended to user
according to the defined resolution and frame rate.
Max Bit Rate
This parameter can be configured only when the
Bit Rate Type
is set
as
VBR
.
You can select the value of the
Max Bit Rate
according to the
Reference Bit Rate
value. The bit rate then changes as monitoring
scene changes, but the max bit rate keeps close to the defined value.
Operation Manual
29
Parameter Description
Bit Rate
This parameter can be configured only when the
Bit Rate Type
is set
as
CBR
.
Select bit rate value in the list according to actual condition.
I Frame Interval
The number of P frames between two I frames, and the
I Frame
Interval
range changes as
FPS
changes.
It is recommended to set
I Frame Interval
twice as big as
FPS
.
SVC
Scaled video coding, is able to encode a high quality video bit
stream that contains one or more subset bit streams. When sending
stream, to improve fluency, the system will quit some data of related
lays according to the network status.
●
1: The default value, which means that there is no layered
coding.
●
2, 3 and 4: The lay number that the video stream is packed.
Watermark
You can verify the watermark to check if the video has been
tampered.
Watermark String
Step 3 Click
Apply
.
6.2.2.2 Overlay
Configure overlay information, and it will be displayed on the
Live
page.
6.2.2.2.1 Configuring Privacy Masking
You can enable this function when you need to protect the privacy of some area on the video image.
You can select the type of the masking from
Color Block
and
Mosaic
.
●
When selecting
Color Block
only, you can draw triangles and convex quadrilaterals as blocks.
You can drag 8 blocks at most, and the color is black.
●
When selecting
Mosaic
, you can draw rectangles as blocks with mosaic. You can draw 4 blocks at
most.
●
Color Block
+
Mosaic
: You can draw 8 blocks at most.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Privacy Masking
.
Operation Manual
30
Figure 6-15 Privacy masking
Step 2 Configure privacy masking.
1) Click next to
Enable
.
2) Click
Add
, and then drag the block to the area that you need to cover.
3) Adjust the size of the rectangle to protect the privacy.
4) Click
Apply
.
Related Operations
●
View and edit the block
Select the privacy masking rule to be edited in the list, then the rule is highlighted, and the block
frame is displayed in the image. You can edit the selected block as needed, including moving the
position, and adjusting the size.
●
Edit the block name
Double-click the name in
Name
to edit the block name.
●
Delete the block
◇
Click to delete blocks one by one.
◇
Click
Clear
to delete all blocks.
6.2.2.2.2 Configuring Channel Title
You can enable this function when you need to display channel title in the video image.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Channel Title
.
Operation Manual
31
Figure 6-16 Channel title
Step 2 Click next to
Enable
, enter the channel title, and select the text alignment.
Click to add the channel title, and you can add 1 line at most.
Step 3 Move the title box to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.3 Configuring Time Title
You can enable this function when you need to display time in the video image.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Time Title
.
Figure 6-17 Time title
Step 2 Click next to
Enable
.
Step 3 Click next to
Week Display
to display the day of week.
Step 4 Move the time box to the position that you want in the image.
Step 5 Click
Apply
.
6.2.2.2.4 Configuring Location
You can enable this function if you need to display text in the video image.
Operation Manual
32
Text overlay and picture overlay cannot work at the same time, and the IPC that connects to mobile
NVR with private protocol would display GPS information as priority.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Location
.
Figure 6-18 Location
Step 2 Click next to
Enable
, enter the location information, and then select alignment. The
text is displayed in the video image.
Click to add the text overlay, and you can add 13 lines at most.
Step 3 Move the text box to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.5 Configuring Font Properties
You can enable this function if you need to adjust the font size in the video image.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Font Properties
.
Figure 6-19 Font properties
Step 2 Select the font color and size.
You can set the RGB value to customize the font color.
Step 3 Click
Apply
.
Operation Manual
33
6.2.2.2.6 Configuring Picture Overlay
You can enable this function if you need to display picture information on the video image.
Text overlay and picture overlay cannot work at the same time.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Picture Overlay
.
Figure 6-20 Picture overlay
Step 2 Click next to
Enable
, click
Upload
, and then select the picture to be overlaid.
The picture is displayed on the video image.
Step 3 Move the overlaid picture to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.7 Configuring Custom Title
You can enable this function if you need to display custom information on the video image.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Custom Title
Figure 6-21 Custom title
Step 2 Click next to
Enable
, enter the text that you want to display, and then select the
text alignment.
Operation Manual
34
Click to add the text overlay, and you can add 1 line at most.
Step 3 Move the custom box to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.8 Configuring Target Statistics
After configuring the target statistics, the number of target statistics will be displayed on the image.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Target Statistics
.
Figure 6-22 Target statistics
Step 2 Click next to
Enable
, select the statistics type, and then select the text alignment.
Click
Reset
to clear the statistics data.
Step 3 Move the custom box to the position that you want in the image.
Step 4 Click
Apply
.
The overlaid information will be displayed after enabling video metadata function.
6.2.2.2.9 Configuring ANPR
After enabling this function, ANPR statistics information will be displayed on the image. When the
overlay function is enabled during intelligent rules configuration, this function is enabled
simultaneously.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
ANPR
.
Operation Manual
35
Figure 6-23 ANPR
Step 2 Select the
Enable
check box, select the statistics type, and then select text alignment.
Click
Reset
to clear the statistics data.
Step 3 Move the ANPR box to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.10 Configuring Face Detection
After enabling this function, face statistics information will be displayed on the image. When the
overlay function is enabled during intelligent rules configuration, this function is enabled
simultaneously.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Face Detection
.

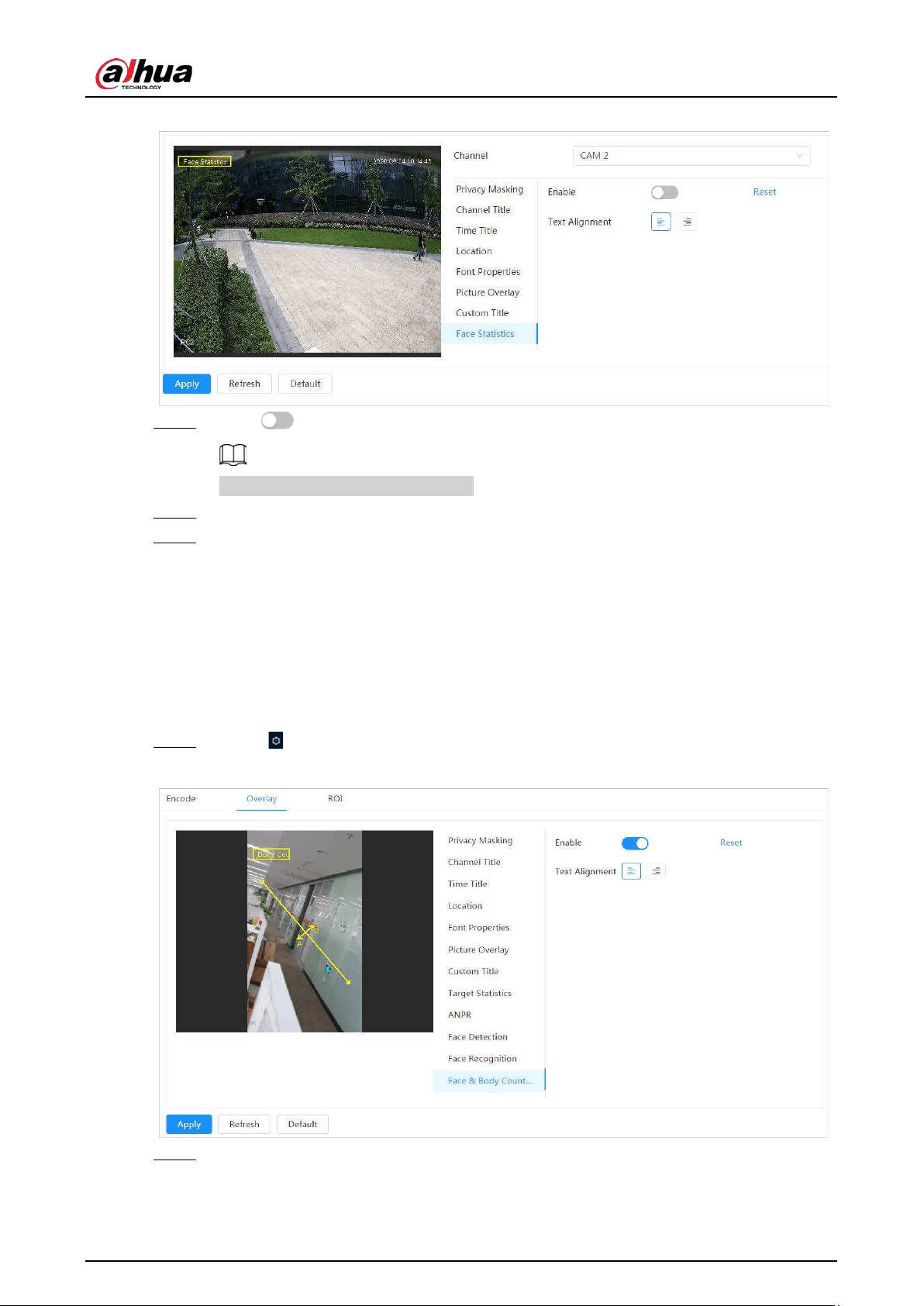

Figure 6-24 Face detection
Step 2 Click next to
Enable
, and select the text alignment.
Operation Manual
36
Click
Reset
to clear the statistics data.
Step 3 Move the statistics box to the position that you want in the image.
Step 4 Click
Apply
.
The information will be displayed on the image after the face detection function is
enabled.
6.2.2.2.11 Configuring Face Recognition
After enabling this function, face statistics information will be displayed on the image. When the
overlay function is enabled during intelligent rules configuration, this function is enabled
simultaneously.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Face Recognition
.
Figure 6-25 Face recognition
Step 2 Click next to
Enable
, select the statistics type, and then select the text alignment.
Click
Reset
to clear the statistics data.
Step 3 Move the statistics box to the position that you want in the image.
Step 4 Click
Apply
.
The information will be displayed on the image after the face recognition function is
enabled.
6.2.2.2.12 Configuring Face Statistics
After enabling this function, face statistics information will be displayed on the image. When the
overlay function is enabled during intelligent rules configuration, this function is enabled
simultaneously.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Face Statistics
.
Operation Manual
37
Figure 6-26 Face statistics
Step 2 Click next to
Enable
, and select the text alignment.
Click
Reset
to clear the statistics data.
Step 3 Move the statistics box to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.13 Configure Face&Body Counting
After enabling this function, face&body counting information will be displayed on the image. When
the overlay function is enabled during intelligent rules configuration, this function is enabled
simultaneously.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Face&Body Counting
.
Figure 6-27 Face&body counting
Step 2 Select the
Enable
check box, and then select text alignment.
Operation Manual
38
Click
Reset
to clear the statistics data.
Step 3 Move the face&body counting box to the position that you want in the image.
Step 4 Click
Apply
.
6.2.2.2.14 Configuring Parking Space
After enabling this function, parking space information will be displayed on the image. When the
overlay function is enabled during intelligent rules configuration, this function is enabled
simultaneously.
Procedure
Step 1 Select >
Camera
>
Encode
>
Overlay
>
Parking Space
.

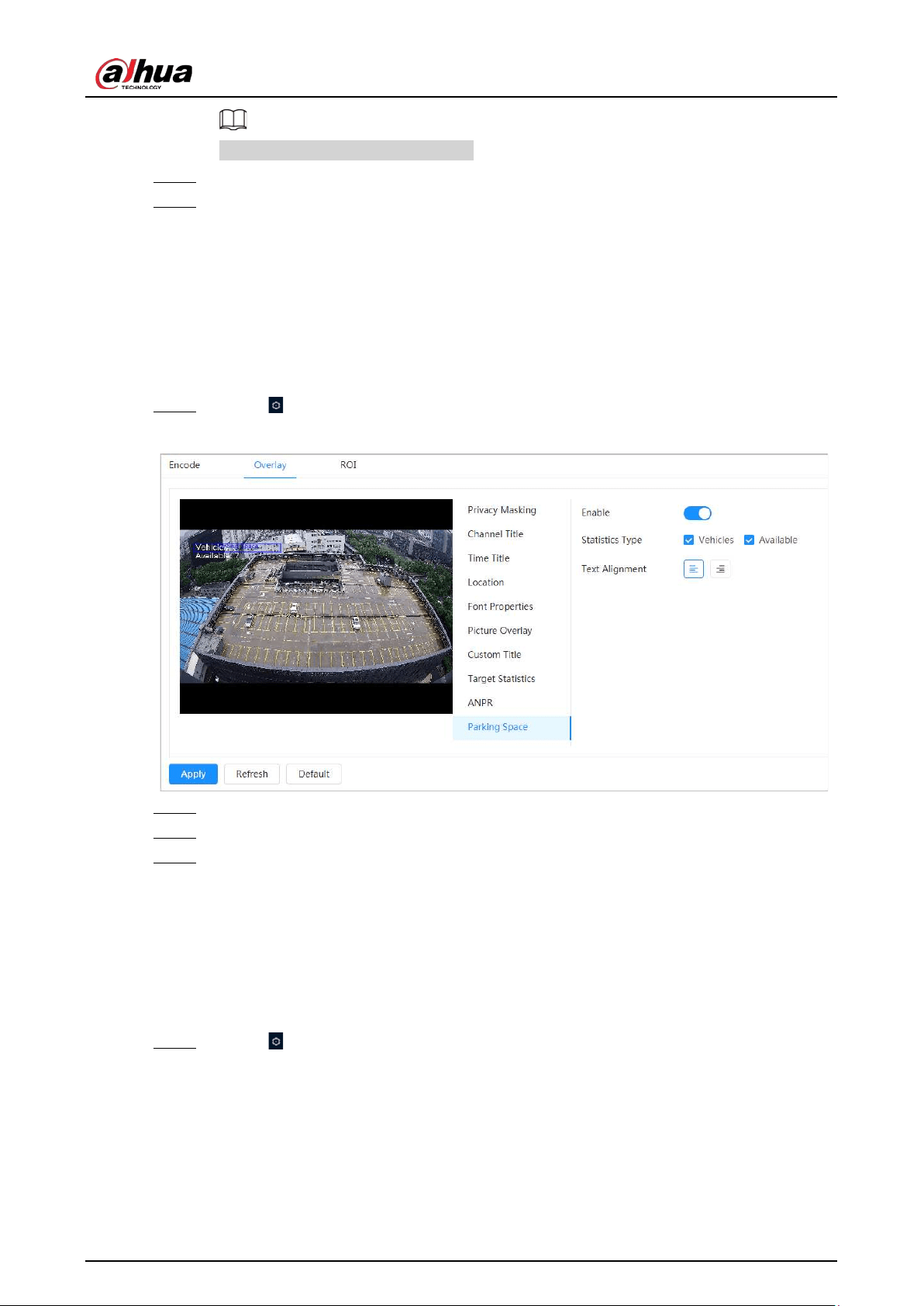

Figure 6-28 Parking space
Step 2 Select the
Enable
check box.
Step 3 Select statistic type and text alignment.
Step 4 Click
Apply
.
6.2.2.3 ROI
Select ROI (region of interest) on the image and configure the image quality of ROI, and then the
selected image is display at defined quality.
Procedure
Step 1 Select >
Camera
>
Encode
>
ROI
.
Operation Manual
39

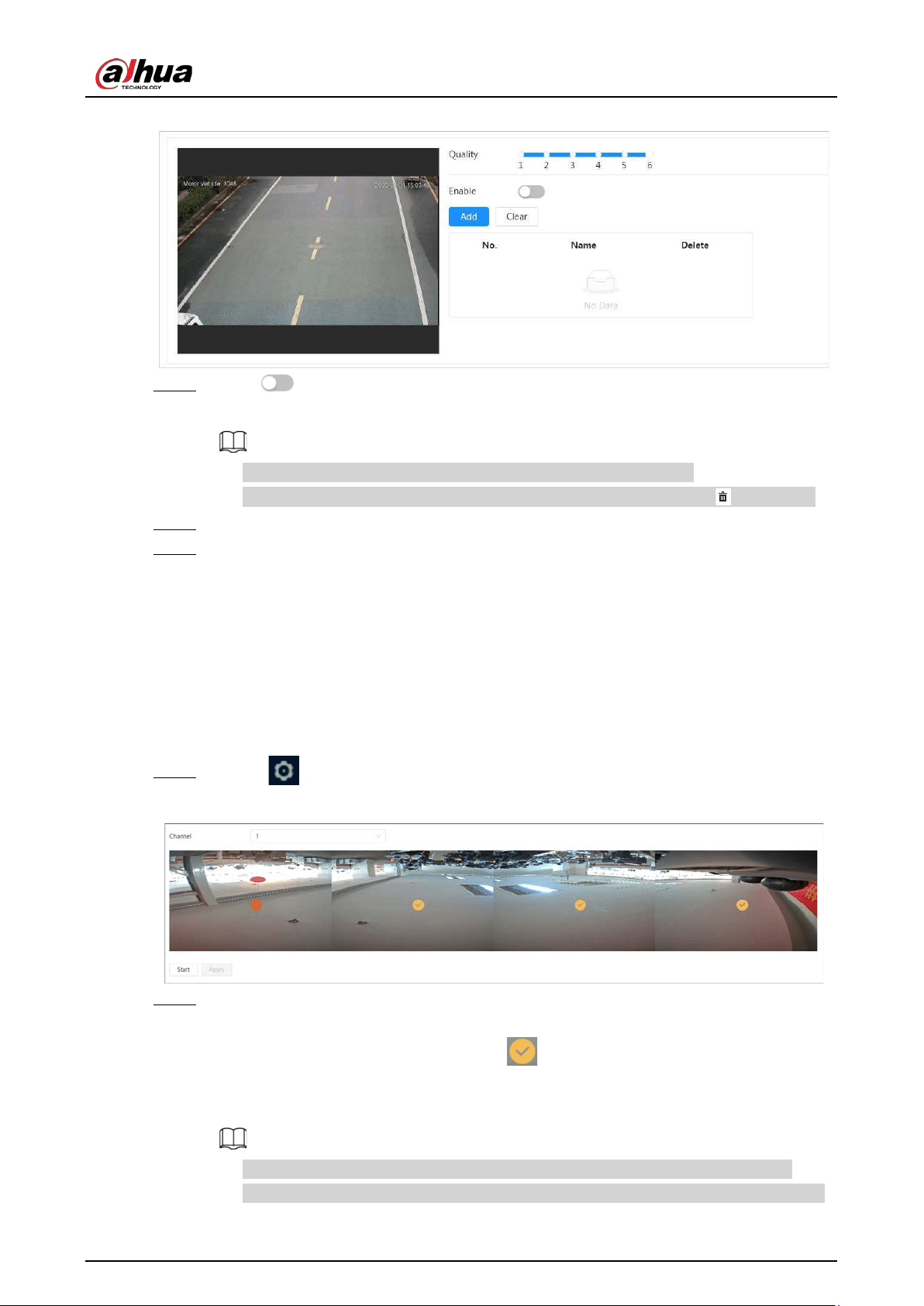

Figure 6-29 ROI
Step 2 Click next to
Enable
, draw an area on the image, and then configure the image
quality of ROI.
●
The higher the image quality value is, the better the quality will be.
●
Click
Clear
to delete all the area boxes; select one box, and then click to delete it.
Step 3 Click
Apply
.
Step 4 Click
Add
to add more ROI. You can draw 4 area boxes at most.
6.2.3 Splicing
When the panorama contains multiple images captured by different lenses, enable this function.
Before splicing, make sure that the surveillance scene is large and there are no objects blocking the
camera from taking a clear picture, otherwise, the splicing might fail.
Procedure
Step 1 Select >
Camera
>
Splicing
.
Figure 6-30 Splicing
Step 2 Select the lenses that need to be spliced.
When splicing the image through selecting lenses, you need to select the continuous
splicing screens. The screen with the icon (deeper color) is the first screen of the
splicing. You can select any screen as the first one, and then select the following screens
continuously. The system supports the splicing of 2 lenses to 8 lenses.
●
This function is available on select models. And it is all sensors splicing by default.
●
For Multi-Sensor Panoramic + PTZ Camera, the 4-sensor device supports 2 to 4 lenses
Operation Manual
40
splicing; the 6-sensor device supports 2 to 6 lenses splicing; the 8-sensor device
supports 2-8 lenses splicing.
Step 3 Click
Start
.
The system starts to splice the image.
●
Some cameras restart automatically after splicing is complete, you can view the results
of the splicing in the
Live
window.
●
Some cameras display splicing live window after splicing is complete. Click
OK
, and
then the default window appears. Click
OK
and the splicing will take effect.
6.2.4 Audio
You can configure audio parameters and alarm audio.
6.2.4.1 Setting Audio Parameters
This section introduces audio parameters, including encode mode, sampling frequency, audio in
type, and noise filter.
Procedure
Step 1 Select >
Camera
>
Audio
.

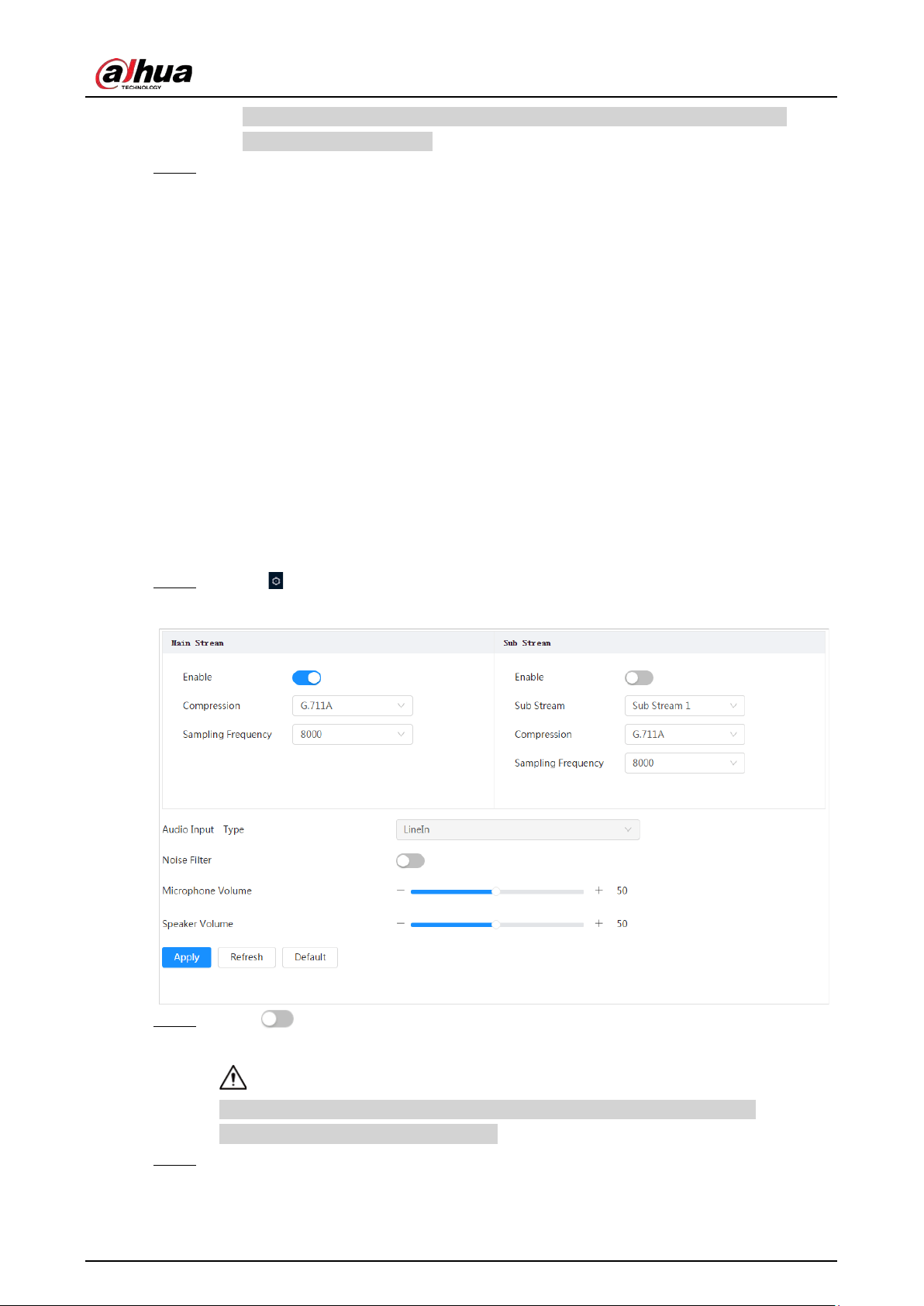

Figure 6-31 Audio
Step 2 Click next to
Enable
in
Main Stream
or
Sub Stream
.
For the camera with multiple channels, select the channel number.
Please carefully activate the audio acquisition function according to the actual
requirements of the application scenario.
Step 3 Configure audio parameters.
Operation Manual
41
Table 6-11 Description of audio parameters
Parameter Description
Compression
You can select audio
Encode Mode
from
PCM
,
G.711A
,
G.711Mu
,
G.726
,
AAC
,
G.723
.
The configured audio encode mode applies to both audio and
intercom. The default value is recommended.
Sampling Frequency
Sampling number per second. The higher the sampling frequency is,
the more the sample in a second will be, and the more accuracy the
restored signal will be. You can select audio
Sampling Frequency
from
8000
,
16000
,
32000
,
48000
,
64000
.
Audio Input Type
You can select audio input type from:
●
LineIn
: Requires external audio device.
●
Mic
: Not require external audio device.
Noise Filter Enable this function, and the system auto filters ambient noise.
Microphone Volume Adjusts microphone volume.
Speaker Volume Adjusts speaker volume.
Step 4 Click
Apply
.
6.2.4.2 Setting Alarm Tone
You can record or upload alarm audio file. The audio file will be played when the alarm is triggered.
Procedure
Step 1 Select >
Camera
>
Audio Tone
.
Figure 6-32 Audio tone
Step 2 Click
Add
.
Step 3 Configure the audio file.
●
Select
Record
, enter the audio name in the input box, and then click
Record
.
●
Select
Upload
, click
Browse
to select the audio file to be uploaded, and then click
Operation Manual
42
Upload
.
●
The camera supports recording audio file in .pcm format only. Recording is only
supported by select models.
●
You can upload audio files in .pcm, .wav2, .mp3, or .aac format.
Figure 6-33 Add alarm tone
Step 4 Select the file that you need.
Related Operations
●
Edit audio file
Click to edit the file name.
●
Delete audio file
Click to delete the file name.
●
Play audio file
Click to play the file name.
●
Download audio file
Click to download the file name.
6.3 Network
This section introduces network configuration.
6.3.1 TCP/IP
You can configure IP address and DNS (Domain Name System) server and so on according to
network planning.
Prerequisites
The camera has connected to the network.
Procedure
Step 1 Select >
Network
>
TCP/IP
.
Operation Manual
43

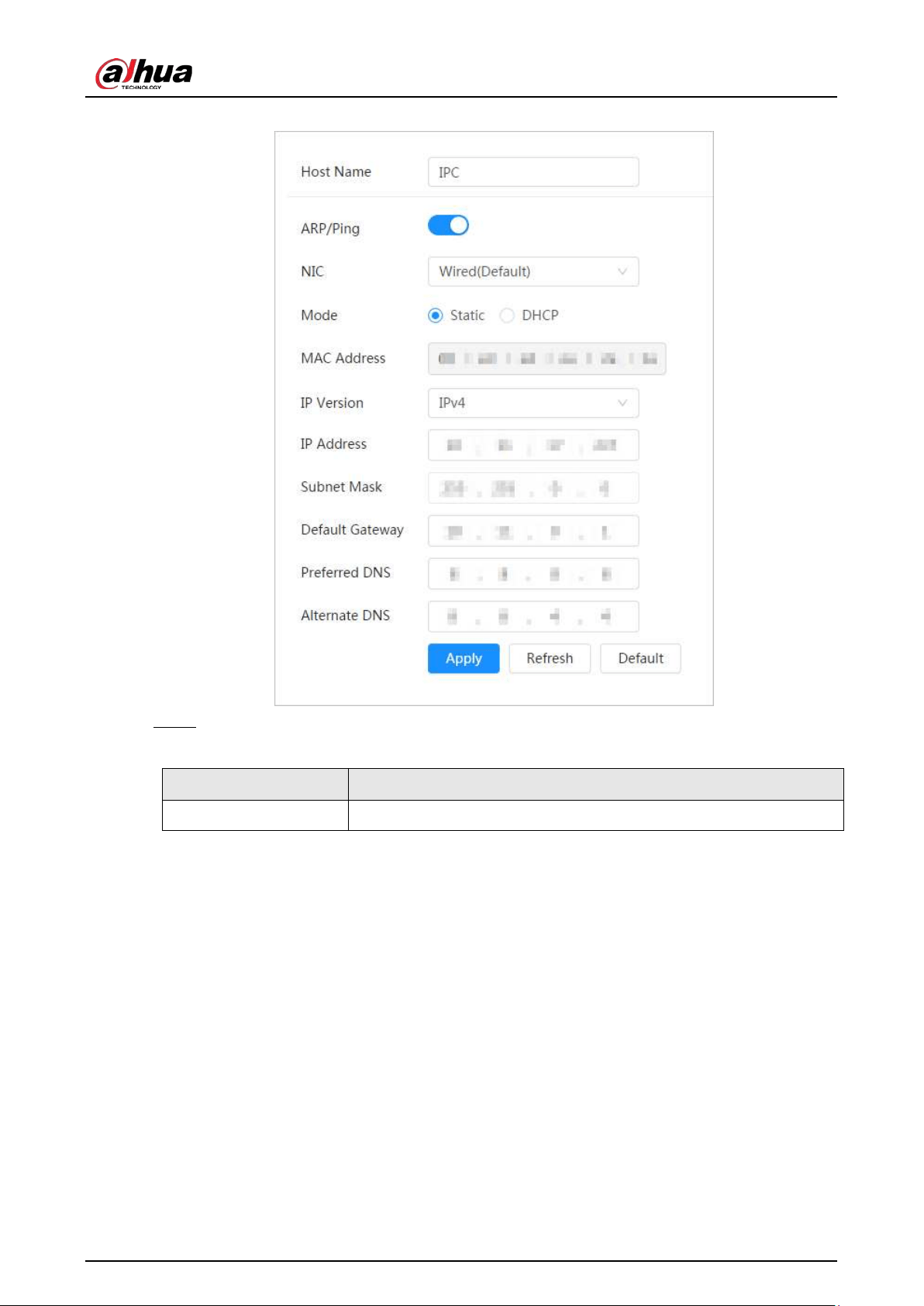

Figure 6-34 TCP/IP
Step 2 Configure TCP/IP parameters.
Table 6-12 Description of TCP/IP parameters
Parameter Description
Host Name Enter the host name, and the maximum length is 15 characters.
Operation Manual
44
Parameter Description
ARP/Ping
Click to enable ARP/Ping to set IP address service. Get the
camera MAC address, and then you can change and configure the
device IP address with ARP/ping command.
This is enabled by default. During restart, you will have no more than
2 minutes to configure the device IP address by a ping packet with
certain length, the server will be turned off in 2 minutes, or it will be
turned off immediately after the IP address is successfully configured.
If this is not enabled, the IP address cannot be configured with ping
packet.
A demonstration of configuring IP address with ARP/Ping.
1. Keep the camera that needs to be configured and the PC within
the same local network, and then get a usable IP address.
2. Get the MAC address of the camera from device label.
3. Open command editor on the PC and enter the following
command.
4. Restart the camera.
5. Check the PC command line, if information such as
Reply from
192.168.0.125…
is displayed, the configuration succeeds, and
you can turn it off then.
6. Enter http://(IP address) in the browser address bar to log in.
NIC
Select the Ethernet card that need to be configured, and the default
one is
Wire
.
Mode
The mode that the camera gets IP:
●
Static
: Configure
IP Address
,
Subnet Mask
, and
Default
Gateway
manually, and then click
Save
, the login page with the
configured IP address is displayed.
●
DHCP
: When there is DHCP server in the network, select
DHCP
,
and the camera acquires IP address automatically.
MAC Address Displays host MAC address.
IP Version Select
IPv4
or
IPv6
.
Operation Manual
45
Parameter Description
IP Address
When you select
Static
in
Mode
, enter the IP address and subnet
mask that you need.
●
IPv6 does not have subnet mask.
●
The default gateway must be in the same network segment with
the IP address.
Subnet Mask
Default Gateway
Preferred DNS IP address of the preferred DNS.
Alternate DNS IP address of the alternate DNS.
Step 3 Click
Apply
.
6.3.2 Port
Configure the port numbers and the maximum number of users (includes web, platform client, and
mobile phone client) that can connect to the device simultaneously.
Procedure
Step 1 Select >
Network
>
TCP/IP
.

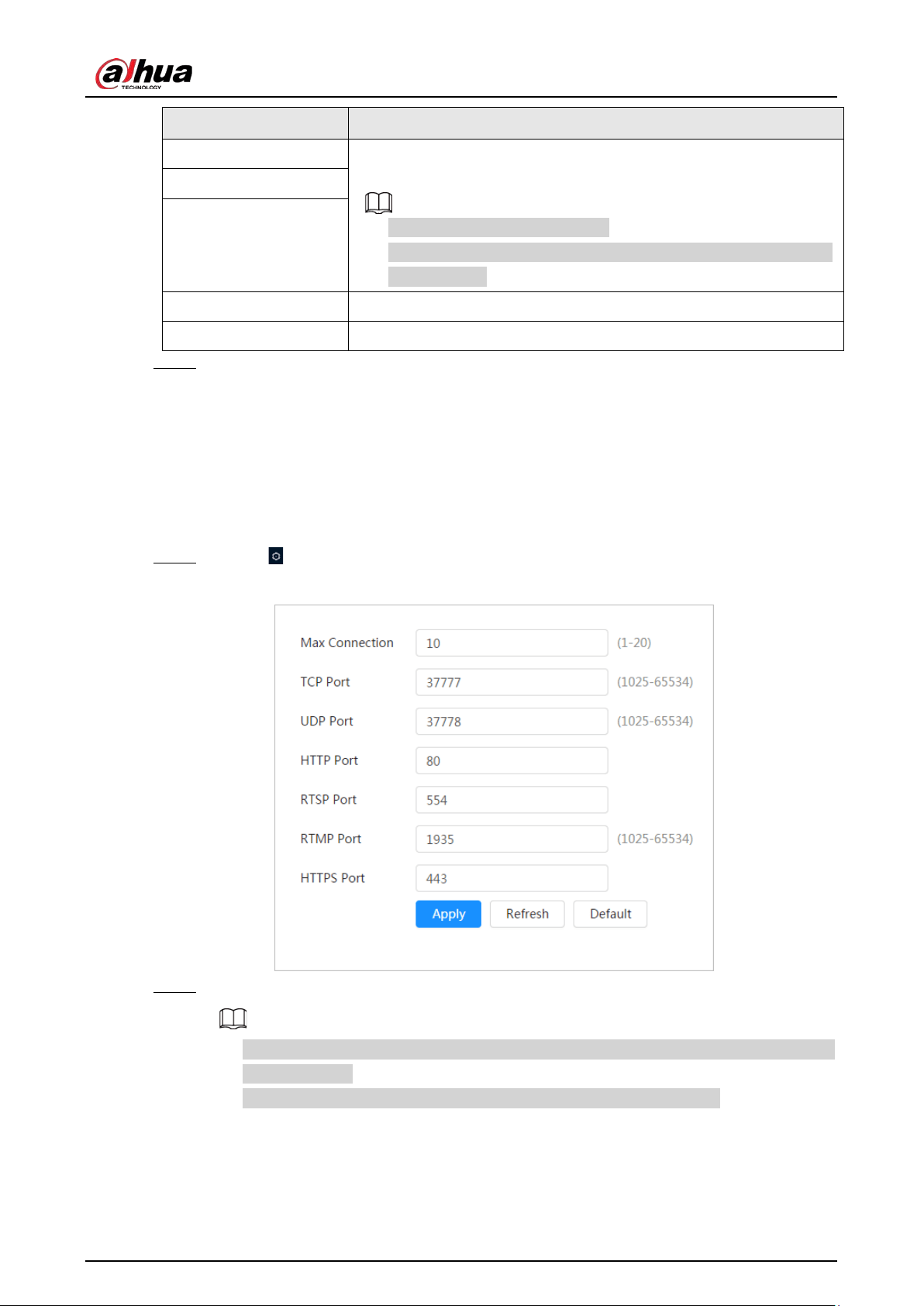

Figure 6-35 Port
Step 2 Configure port parameters.
●
0–1024, 1900, 3800, 5000, 5050, 9999, 37776, 37780–37880, 39999, 42323 are occupied
for specific uses.
●
Do not use the same value of any other port during port configuration.
Operation Manual
46
Table 6-13 Description of port parameters
Parameter Description
Max Connection
The max number of users (web client, platform client or mobile
phone client) that can connect to the device simultaneously. The
value is 10 by default.
TCP Port Transmission control protocol port. The value is 37777 by default.
UDP Port User datagram protocol port. The value is 37778 by default.
HTTP Port Hyper text transfer protocol port. The value is 80 by default.
RTSP Port
●
Real time streaming protocol port, and the value is 554 by
default. If you play live view with QuickTime, VLC or Blackberry
smart phone, the following URL format is available.
●
When the URL format requiring RTSP, you need to specify
channel number and bit stream type in the URL, and also
username and password if needed.
●
When playing live view with Blackberry smart phone, you need to
turn off the audio, and then set the codec mode to H.264B and
resolution to CIF.
URL format example:
rtsp://username:password@ip:port/cam/realmonitor?channel=1&sub
type=0
Among that:
●
Username: The username, such as admin.
●
Password: The password, such as admin.
●
IP: The device IP, such as 192.168.1.112.
●
Port: Leave it if the value is 554 by default.
●
Channel: The channel number, which starts from 1. For example,
if you are using channel 2, then the channel=2.
●
Subtype: The bit stream type; 0 means main stream (Subtype=0)
and 1 means sub stream (Subtype=1).
Example: If you require the sub stream of channel 2 from a certain
device, then the URL should be:
rtsp://admin:[email protected]:554/cam/realmonitor?channel=2&su
btype=1
If username and password are not needed, then the URL can be:
rtsp://ip:port/cam/realmonitor?channel=1&subtype=0
RTMP Port
Real Time Messaging Protocol. The port that RTMP provides service. It
is 1935 by default.
HTTPS Port HTTPS communication port. It is 443 by default.
Step 3 Click
Apply
.
The configuration of
Max Connection
takes effect immediately, and others will take effect
after reboot.
Operation Manual
47
6.3.3 PPPoE
Point-to-Point Protocol over Ethernet, is one of the protocols that device uses to connect to the
internet. Get the PPPoE username and password from the internet service provider, and then set up
network connection through PPPoE, the camera will acquire a WAN dynamic IP address.
Prerequisites
●
The camera has connected to the network.
●
You have gotten the account and password from Internet Service Provider.
Procedure
Step 1 Select >
Network
>
PPPoE
.

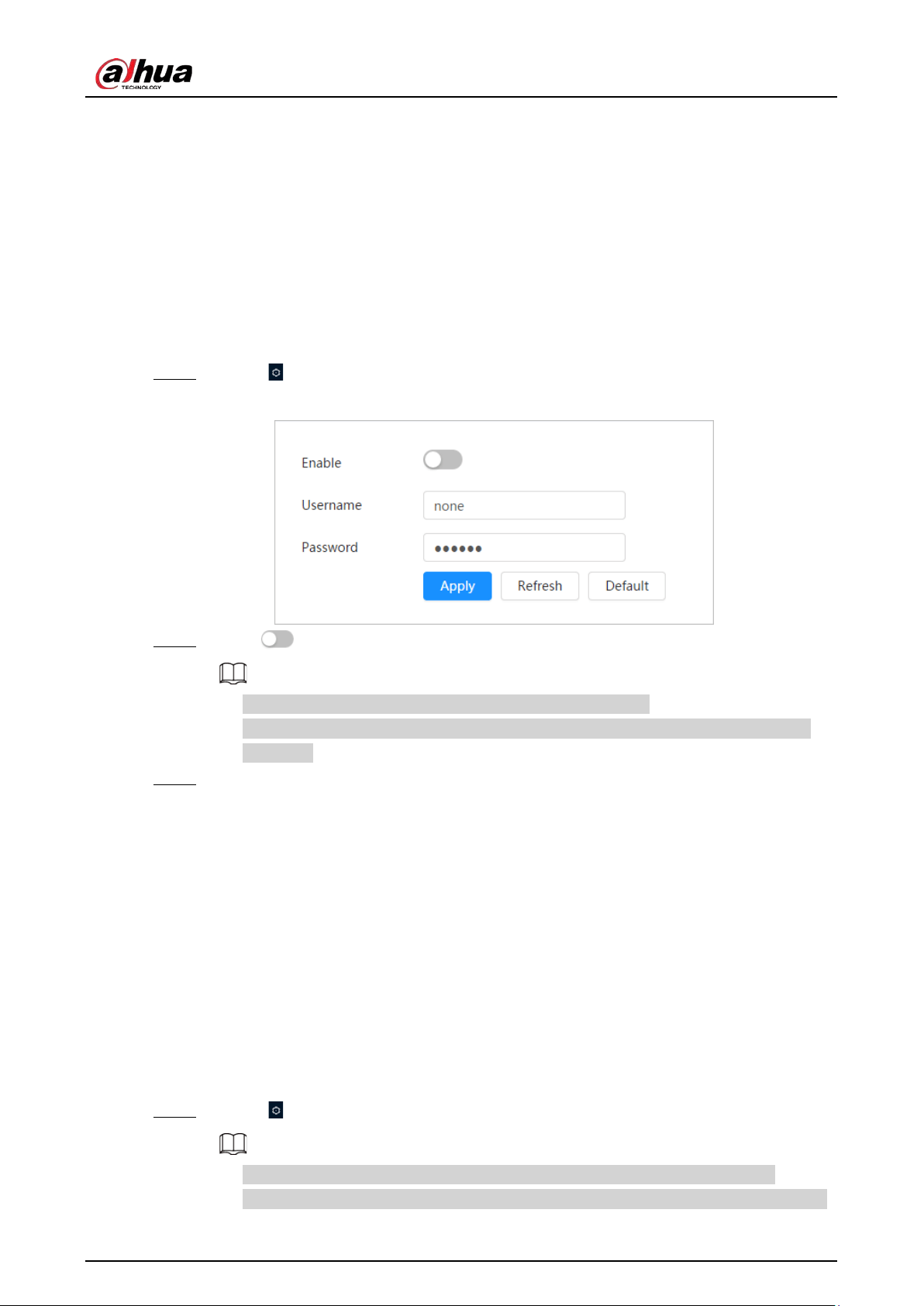

Figure 6-36 PPPoE
Step 2 Click , and then enter username and password.
●
Disable UPnP while using PPPoE to avoid possible influence.
●
After making PPPoE connection, the device IP address cannot be modified through
web page.
Step 3 Click
Apply
.
The success prompt box is displayed, and then the real-time WAN IP address is displayed.
You can access camera through the IP address.
6.3.4 DDNS
Properly configure DDNS, and then the domain name on the DNS server matches your IP address
and the matching relation refreshes in real time. You can always visit the camera with the same
domain name no matter how the IP address changes.
Prerequisites
Check the type of DNS server supported by the camera.
Procedure
Step 1 Select >
Network
>
DDNS
.
●
Third party server might collect your device information after DDNS is enabled.
●
Register and log in to the DDNS website, and then you can view the information of all
Operation Manual
48
the connected devices in your account.
Figure 6-37 DDNS
Step 2 Click to enable the function.
Step 3 Configure DDNS parameters.
Table 6-14 Description of DDNS parameters
Parameter Description
Type The name and web address of the DDNS service provider, see the
matching relationship below:
●
CN99 DDNS web address: www.3322.org
●
NO-IP DDNS web address: dynupdate.no-ip.com
●
Dyndns DDNS web address: members.dyndns.org
Server Address
Domain Name The domain name you registered on the DDNS website.
Test
Only when selecting
NO-IP DDNS
type, you can click
Test
to check
whether the domain name registration is successful.
Username Enter the username and password that you got from the DDNS server
provider. You need to register an account (includes username and
password) on the DDNS server provider's website.
Password
Interval
The update cycle of the connection between the device and the server,
and the time is 10 minutes by default.
Step 4 Click
Apply
.
Result
Open the browser on PC, then enter domain name at the address bar and press
Enter
, the login
page is displayed.
6.3.5 Email
Configure email parameter and enable email linkage. The system sends email to the defined address
when the corresponding alarm is triggered.
Procedure
Operation Manual
49
Step 1 Select >
Network
>
Email
.
Figure 6-38 Email
Step 2 Click to enable the function.
Step 3 Configure email parameters.
Table 6-15 Description of email parameters
Parameter Description
SMTP Server SMTP server address
For details, see Table 6-16.
Port
The port number of the SMTP
server.
Username The account of SMTP server.
Password The password of SMTP server.
Anonymous
Click , and the sender's information is not displayed in the email.
Sender Sender’s email address.
Encryption Type
Select from
None
,
SSL
and
TLS
.
For details, see Table 6-16.
Subject
Enter maximum 63 characters in Chinese, English, and Arabic
numerals. Click to select title type, including
Device Name
,
Device
ID
, and
Event Type
, and you can set maximum 2 titles.
Attachment Select the check box to support attachment in the email.
Operation Manual
50
Parameter Description
Receiver
●
Receiver’s email address. Supports 3 addresses at most.
●
After entering the receiver's email address, the
Test
button is
display. Click
Test
to test whether the emails can be sent and
received successfully.
Health Mail
The system sends test mail to check if the connection is successfully
configured. Click and configure the
Sending Interval
, and then
the system sends test mail as the set interval.
Table 6-16 Description of major mailbox configuration
Mailbox SMTP server Authentication Port Description
Gmail
smtp.gmail.c
om
SSL 465
You need to enable SMTP service
in your mailbox.
TLS 587
Step 4 Click
Apply
.
6.3.6 UPnP
UPnP (Universal Plug and Play) is a protocol that establishes mapping relation between local area
and wide area networks. This function enables you to access local area device through wide area IP
address.
Prerequisites
●
Make sure the UPnP service is installed in the system.
●
Log in the router, and configure WAN IP address to set up internet connection.
●
Enable UPnP in the router.
●
Connect your device to the LAN port of the router.
●
Select >
Network
>
TCP/IP
, in
IP Address
, enter the local area IP address of the router or
select
DHCP
and acquires IP address automatically.
Procedure
Step 1 Select >
Network
>
UPnP
.
Operation Manual
51

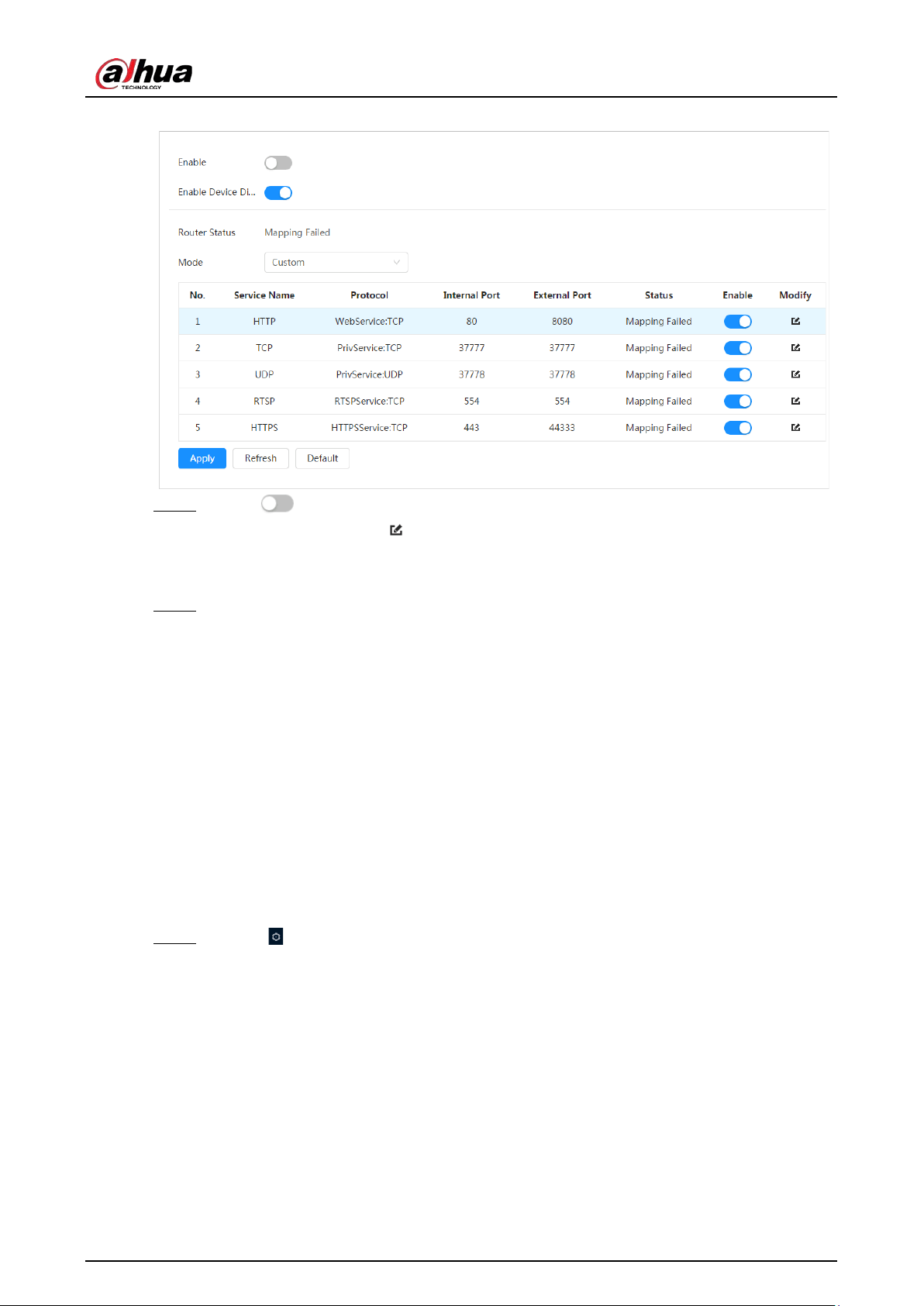

Figure 6-39 UPnP
Step 2 Click next to
Enable
, and there are two mapping modes:
Custom
and
Default
.
●
Select
Custom
, click and then you can change external port as needed.
●
Select
Default
, and then the system finishes mapping with unoccupied port
automatically, and you cannot edit mapping relation.
Step 3 Click
Apply
.
Open web browser on PC, enter http://
wide area IP address: external port number
, and
then you can visit the local area device with corresponding port.
6.3.7 SNMP
SNMP (Simple Network Management Protocol), which can be used to enable software such as MIB
Builder and MG-SOFT MIB Browser to connect to the camera and manage and monitor the camera.
Prerequisites
●
Install SNMP monitoring and managing tools such as MIB Builder and MG-SOFT MIB Browser.
●
Get the MIB file of the matched version from technical support.
Procedure
Step 1 Select >
Network
>
SNMP
.
Operation Manual
52
Figure 6-40 SNMP (1)
Figure 6-41 SNMP (2)
Step 2 Select SNMP version to enable SNMP.
●
Select
V1
, and the system can only process information of V1 version.
●
Select
V2
, and the system can only process information of V2 version.
●
Select
V3
, and then
V1
and
V2
become unavailable. You can configure username,
password and authentication type. It requires corresponding username, password and
Operation Manual
53
authentication type to visit your device from the server.
Using
V1
and
V2
might cause data leakage, and
V3
is recommended.
Step 3 In
Trap Address
, enter the IP address of the PC that has MIB Builder and MG-SOFT MIB
Browser installed, and leave other parameters to the default.
Table 6-17 Description of SNMP parameters
Parameter Description
SNMP Port The listening port of the software agent in the device.
Read Community, Write
Community
The read and write community string that the software agent
supports.
You can enter number, letter, underline and dash to form the
name.
Trap Address
The target address of the Trap information sent by the software
agent in the device.
Trap Port
The target port of the Trap information sent by the software agent
in the device.
Read-only Username
Set the read-only username accessing device, and it is
public
by
default.
You can enter number, letter, and underline to form the name.
Read/Write Username
Set the read/write username access device, and it is
private
by
default.
You can enter number, letter, and underline to form the name.
Authentication Type
You can select from
MD5
and
SHA
. The default type is
MD5
.
Authentication Password It should be no less than 8 digits.
Encryption Type The default is CBC-DES.
Encryption Password It should be no less than 8 digits.
Step 4 Click
Apply
.
Result
View device configuration through MIB Builder or MG-SOFT MIB Browser.
1. Run MIB Builder and MG-SOFT MIB Browser.
2. Compile the two MIB files with MIB Builder.
3. Load the generated modules with MG-SOFT MIB Browser.
4. Enter the IP address of the device you need to manage in the MG-SOFT MIB Browser, and then
select version to search.
5. Unfold all the tree lists displayed in the MG-SOFT MIB Browser, and then you can view the
configuration information, video channel amount, audio channel amount, and software version.
Operation Manual
54
Use PC with Windows and disable SNMP Trap service. The MG-SOFT MIB Browser will display prompt
when alarm is triggered.
6.3.8 Bonjour
Enable this function, and the OS and clients that support Bonjour would find the camera
automatically. You can have quick visit to the camera with Safari browser.
Bonjour is enabled by default.
Procedure
Step 1 Select >
Network
>
Bonjour
.

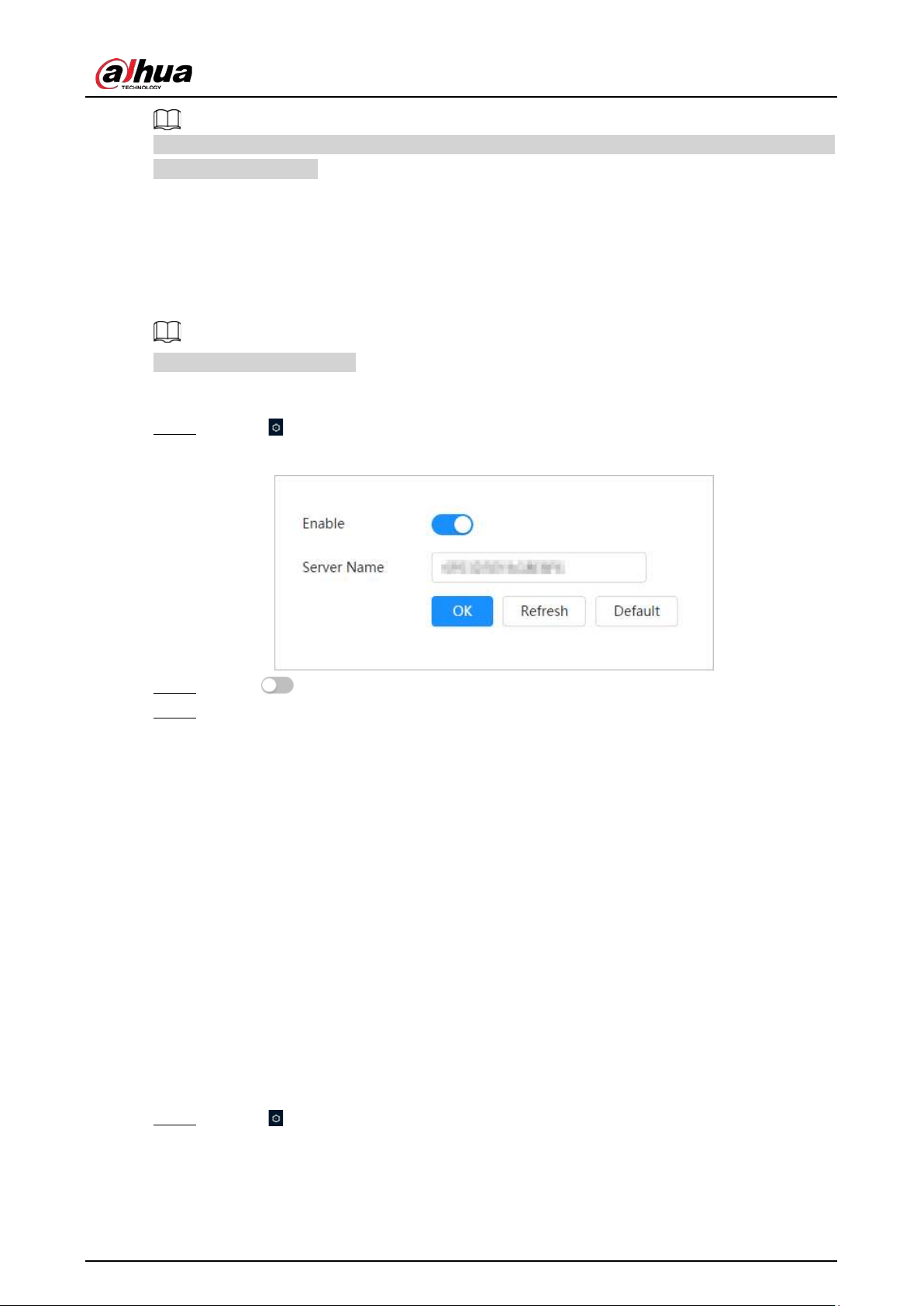

Figure 6-42 Bonjour
Step 2 Click , and then configure server name.
Step 3 Click
Apply
.
Result
In the OS and clients that support Bonjour, follow the steps below to visit the network camera with
Safari browser.
1. Click
Show All Bookmarks
in Safari.
2. Enable
Bonjour
. The OS or client automatically detects the network cameras with Bonjour
enabled in the LAN.
3. Click the camera to visit the corresponding web page.
6.3.9 Multicast
When multiple users are viewing the device video image simultaneously through network, it might
fail due to limited bandwidth. You can solve this problem by setting up a multicast IP (224.0.1.0–
238.255.255.255) for the camera and adopt the multicast protocol.
Procedure
Step 1 Select >
Network
>
Multicast
.
Operation Manual
55
Figure 6-43 Multicast
Step 2 Click , and enter IP address and port number.
Table 6-18 Description of multicast parameters
Parameter Description
Multicast Address
The multicast IP address of
Main Stream
/
Sub Stream
is 224.1.2.4
by default, and the range is 224.0.0.0–239.255.255.255.
Port
The multicast port of corresponding stream:
Main Stream
: 40000;
Sub Stream1
: 40016;
Sub Stream2
: 40032, and all the range is
1025–65500.
Step 3 Click
Apply
.
Result
On the
Live
page, select
RTSP
in
Multicast
, and then you can view the video image with multicast
protocol.
6.3.10 Register
After you enable this function, when the camera is connected into Internet, it will report the current
location to the specified server which acts as the transit to make it easier for the client software to
access the camera.
Procedure
Step 1 Select >
Network
>
Register
.
Figure 6-44 Register
Step 2 Click , and then configure server name.
Table 6-19 Description of register parameters
Parameter Description
Server Address The IP address or domain name of the server to be registered.
Operation Manual
56
Parameter Description
Port The port for registration.
Sub-Device ID The custom ID for the camera.
Step 3 Click
Apply
.
6.3.11 QoS
You can solve problems such as network delay and congestion with this function. It helps to assure
bandwidth, reduce transmission delay, packet loss rate, and delay jitter to improve experience.
0–63 means 64 degrees of priority; 0 for the lowest and 63 the highest.
Procedure
Step 1 Select >
Network
>
QoS
.

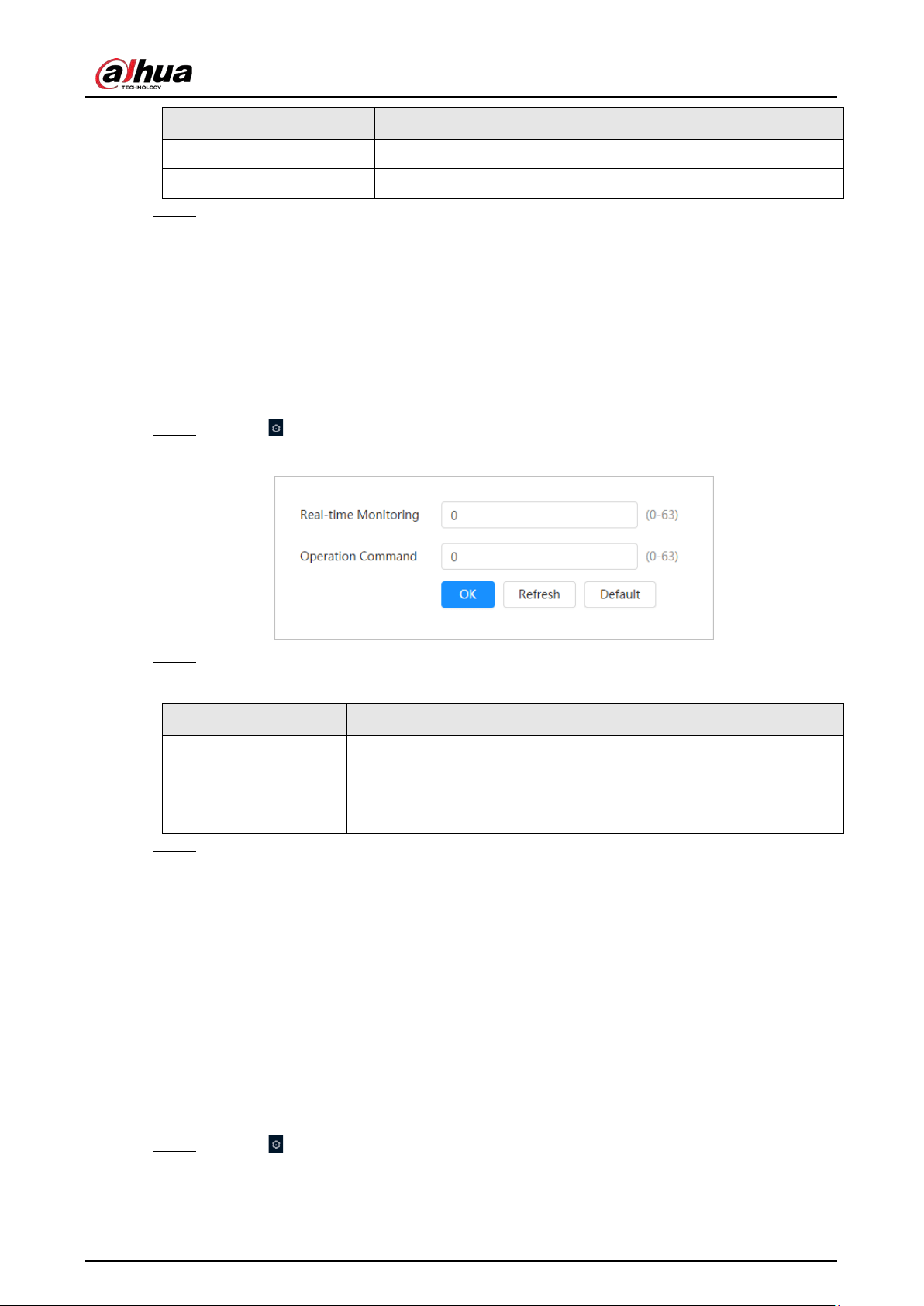

Figure 6-45 QoS
Step 2 Configure QoS parameters.
Table 6-20 Description of QoS parameters
Parameter Description
Realtime Monitor
Configure the priority of the data packets that used for network
surveillance. 0 for the lowest and 63 the highest.
Command
Configure the priority of the data packets that used for configure or
checking.
Step 3 Click
Save
.
6.3.12 Platform Access
6.3.12.1 P2P
P2P (peer-to-peer) technology enables users to manage devices easily without requiring DDNS, port
mapping or transit server.
Scan the QR code with your smartphone, and then you can add and manage more devices on the
mobile phone client.
Procedure
Step 1 Select >
Network
>
Platform Access
>
P2P
.
Operation Manual
57
Figure 6-46 P2P
●
When P2P is enabled, remote management on device is supported.
●
When P2P is enabled and the device accesses to the network, the status shows online.
The information of the IP address, MAC address, device name, and device SN will be
collected. The collected information is for remote access only. You can cancel
Enable
selection to reject the collection.
Step 2 Log in to mobile phone client and tap
Device management
.
Step 3 Tap
+
at the upper-right corner.
Step 4 Scan the QR code on the
P2P
page.
Step 5 Follow the instructions to finish the settings.
6.3.12.2 ONVIF
The ONVIF verification is enabled by default, which allows the network video products (including
video recording device and other recording devices) from other manufacturers to connect to your
device.
ONVIF is enabled by default.
Procedure
Step 1 Select >
Network
>
Platform Access
>
ONVIF
.
Figure 6-47 ONVIF
Step 2 Click next to
ONVIF Verification
.
Step 3 Click
Apply
.
Operation Manual
58
6.3.12.3 RTMP
Through RTMP, you can access a third-party platform (such as Ali and YouTube) to realize video live
view.
●
RTMP can be configured by admin only.
●
RTMP supports the H.264, H.264 B and H.264H video formats, and the AAC audio format only.
Procedure
Step 1 Select >
Network
>
Platform Access
>
RTMP
.
Figure 6-48 RTMP
Step 2 Click .
Make sure that the IP address is trustable when enabling RTMP.
Step 3 Configure RTMP parameters.
Table 6-21 Description of RTMP parameters
Parameter Description
Stream Type
The stream for live view. Make sure that the video format is H.264,
H.264 B and H.264H, and the audio format is AAC.
Address Type
●
Non-custom
: Enter the server IP and domain name.
●
Custom
: Enter the path allocated by the server.
IP Address
When selecting
Non-custom
, you need to enter server IP address
and port.
●
IP address
: Support IPv4 or domain name.
●
Port
: Keep the default value.
Port
Custom Address
When selecting
Custom
, you need to enter the path allocated by
the server.
Step 4 Click
Apply
.
Operation Manual
59
6.3.13 Basic Service
Configure the IP hosts (devices with IP address) that are allowed to visit the device. Only the hosts in
the trusted sites list can log in to the web page. This is to enhance network and data security.
Procedure
Step 1 Select >
Network
>
Basic Service
.

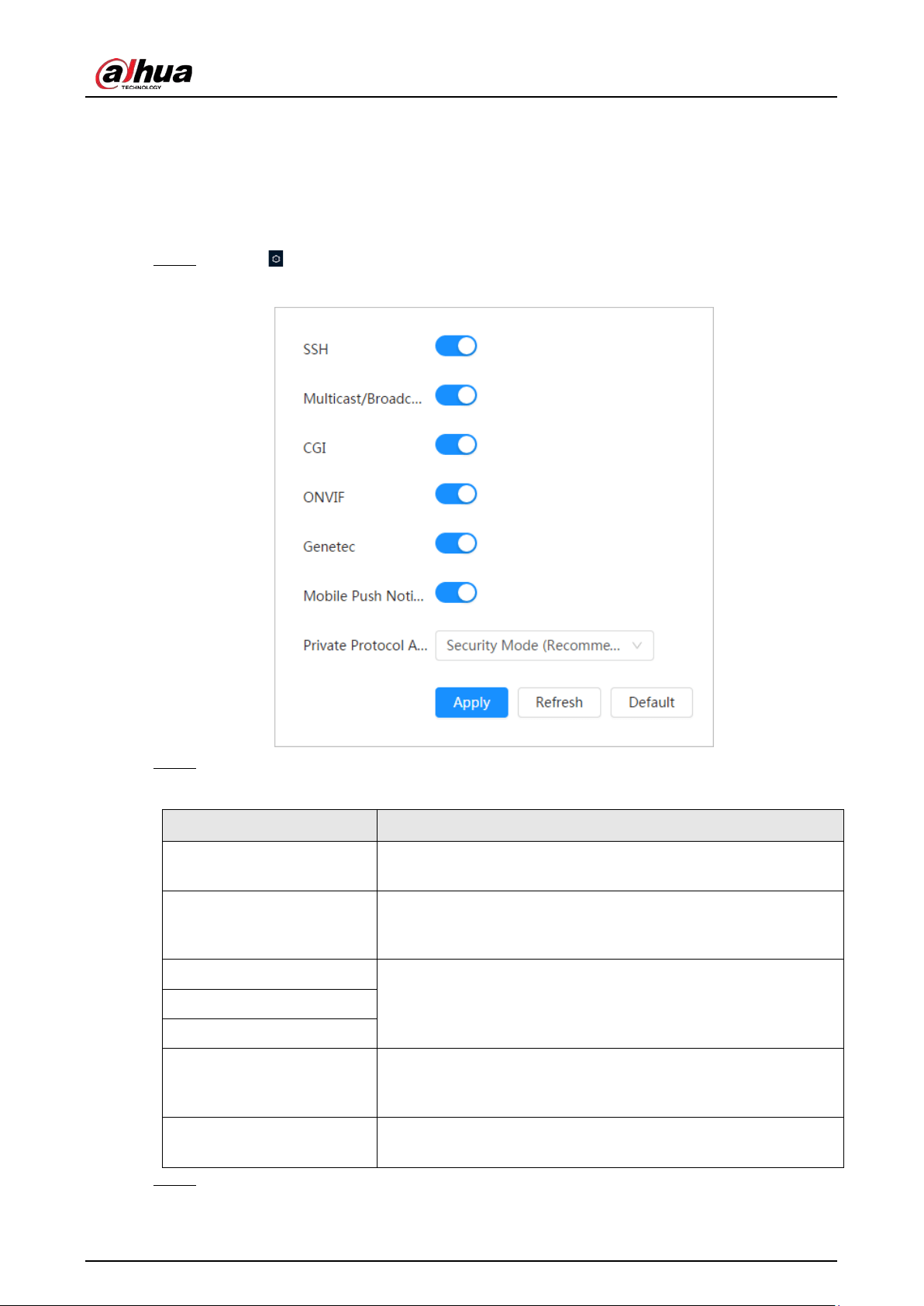

Figure 6-49 Basic service
Step 2 Enable the basic service according to the actual needs.
Table 6-22 Description of basic service parameters
Function Description
SSH
You can enable SSH authentication to perform safety
management.
Multicast/Broadcast Search
Enable this function, and then when multiple users are viewing
the device video image simultaneously through network, they
can find your device with multicast/broadcast protocol.
CGI
Enable the function, and then other devices can access through
this service. The function is enabled by default.
Onvif
Genetec
Mobile Push Notification
Enable this function, and then the system will send the snapshot
that was taken when alarm is triggered to your phone, this is
enabled by default.
Private Protocol
Authentication Mode
Select the authentication mode from
Security Mode
and
Compatible Mode
. Security mode is recommended.
Step 3 Click
Apply
.
Operation Manual
60

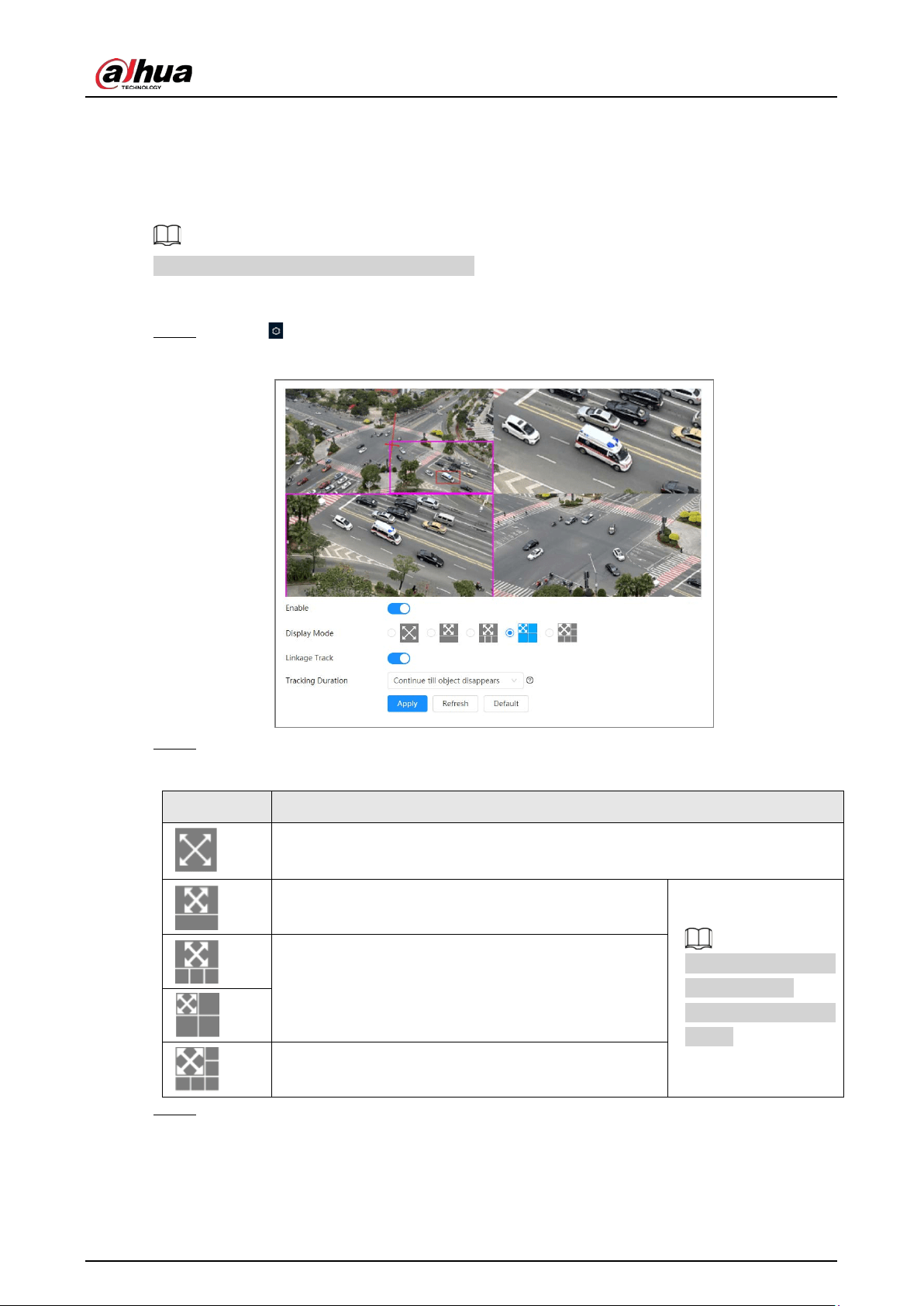

6.4 EPTZ
EPTZ function can simultaneously zoom in and track multiple humans and vehicles that trigger
alarms. It provides rich details and a panoramic view at the same time.
This function is only available on select devices.
Procedure
Step 1 Select >
PTZ
>
EPTZ Linkage
.
Figure 6-50 EPTZ
Step 2 Enable this function and select the display mode.
Table 6-23 Description of display modes
Mode Description
Displays the original screen.
Displays the original image screen + 1 sub-screen.
You can zoom or drag
the sub-screen
images in the original
screen.
Displays the original image screen + 3 sub-screens.
Displays the original image screen + 5 sub-screens.
Step 3 (Optional) Enable the
Linkage Track
checkbox and select tracking duration mode from
the dropdown list.
●
Custom: Select the tracking duration time manually. For example, if you set from 30 s to
60 s, after tracking object A for 30 seconds, if object B appears, the camera will start
tracking object B; if no other object appears in the process of tracking A, the camera will
Operation Manual
61
stop tracking object A after 60 seconds.
●
Continue till object disappears: The camera will stop tracking when the detected object
disappears in the image.
Step 4 Click
Apply
.
6.5 Event
6.5.1 Setting Alarm Linkage
6.5.1.1 Setting Alarm-in
When an alarm is triggered by the device connected to the alarm-in port, the system performs the
defined alarm linkage.
Procedure
Step 1 Select >
Event
>
Alarm
.
Step 2 Click next to
Enable
to enable alarm linkage.
Figure 6-51 Alarm linkage
Step 3 Select an alarm-in port and a sensor type.
Operation Manual
62
●
Sensor Type: NO or NC.
●
Anti-Dither: Only record one alarm event during the anti-dither period.
Step 4 Select the schedule and arming periods and alarm linkage action. If the schedules cannot
meet the scene requirement, you can click
Add Schedule
to add new schedule. For details,
see "6.5.1.2.1 Adding Schedule".
Step 5 Click
Apply
.
6.5.1.2 Alarm Linkage
When configuring alarm events, select alarm linkages (such as record, snapshot). When the
corresponding alarm is triggered in the configured arming period, the system will alarm.
Select >
Event
>
Alarm
, and then click next to
Enable
to enable alarm linkage.
Figure 6-52 Alarm linkage
6.5.1.2.1 Adding Schedule
Set arming periods. The system only performs corresponding linkage action in the configured
period.
Procedure
Step 1 Click
Add Schedule
next to
Schedule
.
Operation Manual
63
Figure 6-53 Schedule
Step 2 Press and drag the left mouse button on the timeline to set arming periods. Alarms will be
triggered in the period in green on the timeline.
●
Click
Copy
next to a day, and select the days that you want to copy to in the prompt
page, you can copy the configuration to the selected days. Select the
Select All
check
box to select all days to copy the configuration.
●
You can set 6 periods per day.
Step 3 Click
Apply
.
Step 4 (Optional) Click
Time Plan Table
to add a new time plan table.
You can:
●
Double-click the table name to edit it.
●
Click to delete the table as needed.
6.5.1.2.2 Record Linkage
The system can link record channel when an alarm event occurs. After alarm, the system stops
recording after an extended period according to the
Post-Record
setting.
Prerequisites
●
After the corresponding alarm type (
Normal
,
Motion
, or
Alarm
) is enabled, the record channel
links recording. For details, see "10.3 Setting Record Plan".
●
Enable auto record mode, the record linkage will take effect. For details, see "10.2 Setting Record
Control".
Setting Record Linkage
On the
Alarm
page, click to enable record linkage, select the channel as needed, and set
Post-Record
to set alarm linkage and record delay.
After
Post-Record
is configured, alarm recording continues for an extended period after the alarm
Operation Manual
64
ends.
Figure 6-54 Record linkage
6.5.1.2.3 Snapshot Linkage
After snapshot linkage is configured, the system can automatically alarm and take snapshots when
an alarm is triggered.
Prerequisites
After the corresponding alarm type (
Normal
,
Motion
, or
Alarm
) is enabled, the snapshot channel
links capturing picture. For details, see "10.3 Setting Record Plan".
Setting Record Linkage
On the
Alarm
page, click to enable snapshot linkage, and select the channel as needed.
Figure 6-55 Snapshot linkage
6.5.1.2.4 Alarm-out Linkage
When an alarm is triggered, the system can automatically link with alarm-out device.
On the
Alarm
page, click to enable alarm-out linkage, select the channel as needed, and then
configure
Post alarm
.
When alarm delay is configured, alarm continues for an extended period after the alarm ends.
Figure 6-56 Alarm-out linkage
6.5.1.2.5 Email Linkage
When an alarm is triggered, the system will automatically send an email to users.
Email linkage takes effect only when SMTP is configured. For details, see "6.3.5 Email".
Figure 6-57 Email linkage
Operation Manual
65
6.5.1.3 Subscribing Alarm
6.5.1.3.1 Alarm Types
Table 6-24 Description of alarm types
Alarm Type Description Preparation
Motion Detection
The alarm is triggered when
moving object is detected.
Motion detection is enabled. For
details, see "6.5.3.1 Setting Motion
Detection".
Disk Full
The alarm is triggered when the
free space of SD card is less than
the configured value.
The SD card no space function is
enabled. For details, see "6.5.2.1
Setting SD Card Exception".
Disk Error
The alarm is triggered when
there is failure or malfunction in
the SD card.
SD card failure detection is enabled.
For details, see "6.5.2.1 Setting SD
Card Exception".
Video Tampering
The alarm is triggered when the
camera lens is covered or there is
defocus in video images.
Video tampering is enabled. For
details, see "6.5.3.2 Setting Video
Tampering".
External Alarm
The alarm is triggered when
there is external alarm input.
The device has alarm input port
and external alarm function is
enabled. For details, see "6.5.1.1
Setting Alarm-in".
Audio Detection
The alarm is triggered when
there is audio connection
problem.
Abnormal audio detection is
enabled. For details, see "6.5.4
Setting Audio Detection".
IVS
The alarm is triggered when
intelligent rule is triggered.
Enable IVS, crowd map, face
detection or people counting, and
other intelligent functions.
Scene Changing
The alarm is triggered when the
device monitoring scene
changes.
Scene changing detection is
enabled. For details, see "6.5.3.3
Setting Scene Changing".
Voltage Detection
The alarm is triggered when the
device detects abnormal voltage
input.
Voltage detection is enabled. For
details, see "6.5.2.3 Setting Voltage
Detection".
Security Exception
The alarm is triggered when the
device detects malicious attack.
Security exception is enabled. For
details, see "9.1 Security Status".
6.5.1.3.2 Subscribing Alarm Information
Background Information
You can subscribe alarm event. When a subscribed alarm event is triggered, the system records
detailed alarm information at the right side of the page.
Functions of different devices might vary.
Procedure
Operation Manual
66
Step 1 Click at the right-upper corner of the main page.

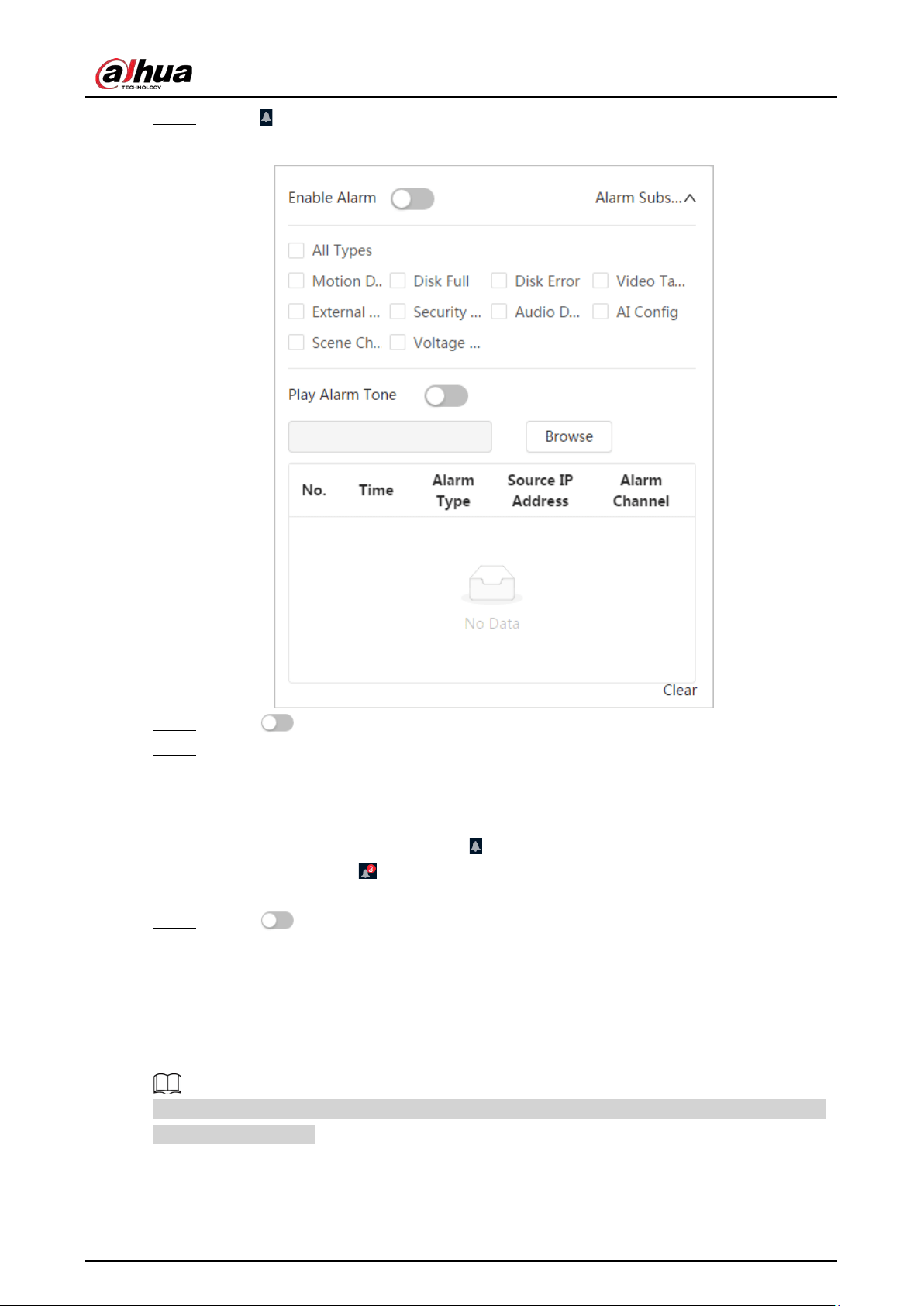

Figure 6-58 Alarm (subscription)
Step 2 Click next to
Enable Alarm
.
Step 3 Select alarm type according to the actual need. For details, see "6.5.1.3.2 Subscribing Alarm
Information".
The system prompts and records alarm information according to actual conditions.
When the subscribed alarm event is triggered and the alarm subscription page is not
displayed, a number is displayed on , and the alarm information is recorded
automatically. Click to view the details in the alarm list. You can click
Clear
to clear the
record.
Step 4 Click next to
Play Alarm Tone
, and select the tone path.
The system will play the selected audio file when the selected alarm is triggered.
6.5.2 Setting Exception
Abnormality includes SD card, network, illegal access, voltage detection, and security exception.
Only the device with SD card has the abnormality functions, including
No SD Card
,
SD Card Error
,
and
Capacity Warning
.
Operation Manual
67
6.5.2.1 Setting SD Card Exception
In case of SD card exception, the system performs alarm linkage. The event types include
No SD
Card
,
Low SD Card Space
, and
SD Card Error
. Functions might vary with different models.
Procedure
Step 1 Select >
Event
>
Exception
>
SD Card Exception
.
Figure 6-59 SD card exception
Step 2 Click to enable the SD card detection functions.
When enabling
Low SD Card Space
, set
Capacity Limit
. When the remaining space of SD
card is less than this value, the alarm is triggered.
Step 3 Set alarm linkage actions. For details, see "6.5.1.2 Alarm Linkage".
Step 4 Click
Apply
.
6.5.2.2 Setting Network Exception
In case of network abnormality, the system performs alarm linkage. The event types include
Offline
and
IP Conflict
.
Procedure
Step 1 Select >
Event
>
Exception
>
Network Exception
.
Operation Manual
68
Figure 6-60 Network exception
Step 2 Click to enable the network detection function.
Step 3 Set alarm linkage actions. For details, see "6.5.1.2 Alarm Linkage".
Step 4 Click
Apply
.
6.5.2.3 Setting Voltage Detection
When the input voltage is higher than or lower than the rated value of the device, the system
performs alarm linkage.
Procedure
Step 1 Select >
Event
>
Exception
>
Voltage Detection
.
Operation Manual
69
Figure 6-61 Voltage detection
Step 2 Click to enable the voltage detection function.
When enabling
Overlay
, the alarm icon is displayed by overlapping when the alarm is
triggered.
Step 3 Set alarm linkage actions. For details, see "6.5.1.2 Alarm Linkage".
Step 4 Click
Apply
.
6.5.3 Setting Video Detection
Check whether there are considerable changes on the video by analyzing video images. In case of
any considerable change on the video (such as moving object and fuzzy image), the system
performs an alarm linkage.
6.5.3.1 Setting Motion Detection
The system performs an alarm linkage when a moving object appears in the image and its moving
speed reaches the configured sensitivity.
●
If you enable motion detection and smart motion detection simultaneously, and configure the
linked activities, the linked activities take effect as follows:
◇
When motion detection is triggered, the camera will record and take snapshots, but other
configured linkages such as sending emails, PTZ operation will not take effect.
◇
When smart motion detection is triggered, all the configured linkages take effect.
●
If you only enable motion detection, all the configured linkages take effect when motion
detection is triggered.
Procedure
Step 1 Select >
Event
>
Video Detection
>
Motion Detection
.
Operation Manual
70
Figure 6-62 Motion detection
Step 2 Click to enable the motion detection function.
Step 3 Set the area for motion detection.
1) Click
Setting
next to
Area
.
Figure 6-63 Area
2) Select a color and set the region name. Select an effective area for motion detection in
the image and set
Sensitivity
and
Threshold
.
●
Select a color on to set different detection parameters for each
region.
●
Sensitivity: Sensitive degree of outside changes. It is easier to trigger the alarm with
higher sensitivity.
●
Threshold: Effective area threshold for motion detection. The smaller the threshold
is, the easier the alarm is triggered.
●
The whole video image is the effective area for motion detection by default.
●
The red line in the waveform indicates that the motion detection is triggered, and
Operation Manual
71
the green one indicates that there is no motion detection. Adjust sensitivity and
threshold according to the waveform.
3) Click
OK
.
Step 4 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
If the exiting schedules cannot meet the scene requirement, you can click
Add Schedule
to add a new schedule. For details, see "6.5.1.2.1 Adding Schedule".
Anti-dither: After the
Anti-dither
time is set, the system only records one motion detection
event in the period.
Step 5 Click
Apply
.
6.5.3.2 Setting Video Tampering
The system performs alarm linkage when the lens is covered or video output is mono-color screen
caused by light and other reasons.
Procedure
Step 1 Select >
Event
>
Video Detection
>
Video Tampering
.
Step 2 Select the event type.
●
Video Tampering
: When the percentage of the tampered image and the duration
exceed the configured values, an alarm will be triggered.
●
Defocus Detection
: When the image is blurred, an alarm will be triggered. This
function is available on select models.
Figure 6-64 Video tampering
Operation Manual
72
Table 6-25 Description of video temper parameter
Parameter Description
Covered Area
When the percentage of the tampered image and the duration exceed
the configured values, an alarm will be triggered.
Duration
Anti-Dither Only record one alarm event during the anti-dither period.
Step 3 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
If the exiting schedules cannot meet the scene requirement, you can click
Add Schedule
to add a new schedule. For details, see "6.5.1.2.1 Adding Schedule".
Step 4 Click
Apply
.
6.5.3.3 Setting Scene Changing
The system performs alarm linkage when the image switches from the current scene to another one.
Procedure
Step 1 Select >
Event
>
Video Detection
>
Scene Changing
.
Figure 6-65 Scene changing
Step 2 Select the schedule and arming periods and alarm linkage action. For details, see "6.5.1.2
Alarm Linkage".
If the exiting schedules cannot meet the scene requirement, you can click
Add Schedule
to add a new schedule. For details, see "6.5.1.2.1 Adding Schedule".
Step 3 Click
Apply
.
6.5.4 Setting Audio Detection
The system performs alarm linkage when vague voice, tone change, or rapid change of sound
intensity is detected.
Procedure
Step 1 Select >
Event
>
Video Detection
>
Audio Detection
.
Operation Manual
73
Figure 6-66 Audio detection
Step 2 Set parameters.
●
Input abnormal: Click next to
Audio Abnormal
, and the alarm is triggered when
the system detects abnormal sound input.
●
Intensity change: Click next to
Intensity Change
, and then set
Sensitivity
and
Threshold
. The alarm is triggered when the system detects that the sound intensity
exceeds the configured threshold.
◇
It is easier to trigger the alarm with higher sensitivity or smaller threshold. Set a high
threshold for noisy environment.
◇
The red line in the waveform indicates audio detection is triggered, and the green
one indicates no audio detection. Adjust sensitivity and threshold according to the
waveform.
Step 3 Select the schedule and arming periods and alarm linkage action. For details, see "6.5.1.2
Alarm Linkage".
If the exiting schedules cannot meet the scene requirement, you can click
Add Schedule
to add a new schedule. For details, see "6.5.1.2.1 Adding Schedule".
Step 4 Click
Apply
.
6.6 Storage
Displays the information of the local SD card. You can set it as read only or read & write; you can also
Operation Manual
74
hot swap and format SD card.
Functions might vary with different models.
Select >
Storage
.
●
Click
Read-Only
, and then the SD card is set to read only.
●
Click
Read & Write
, and then the SD card is set to read & write.
●
Click
Hot Swap
, and then you can pull out the SD card.
●
Click
Format
, and you can format the SD card.
When reading SD card on PC, if the SD card capacity is much less than the nominal capacity, you
need to format the SD card. Then the data in SD card will be cleared, and the SD card is formatted
to be private file system. The private file system can greatly improve SD card multimedia file
read/write performance. Download Diskmanager from Toolbox to read the SD card. For details,
contact after-sales technicians.
Figure 6-67 Local
6.7 System
This section introduces system configurations, including general, date & time, account, safety, PTZ
settings, default, import/export, remote, auto maintain and upgrade.
6.7.1 General
6.7.1.1 Basic
You can configure device name, language and video standard.
Procedure
Step 1 Select >
System
>
General
>
Basic
.

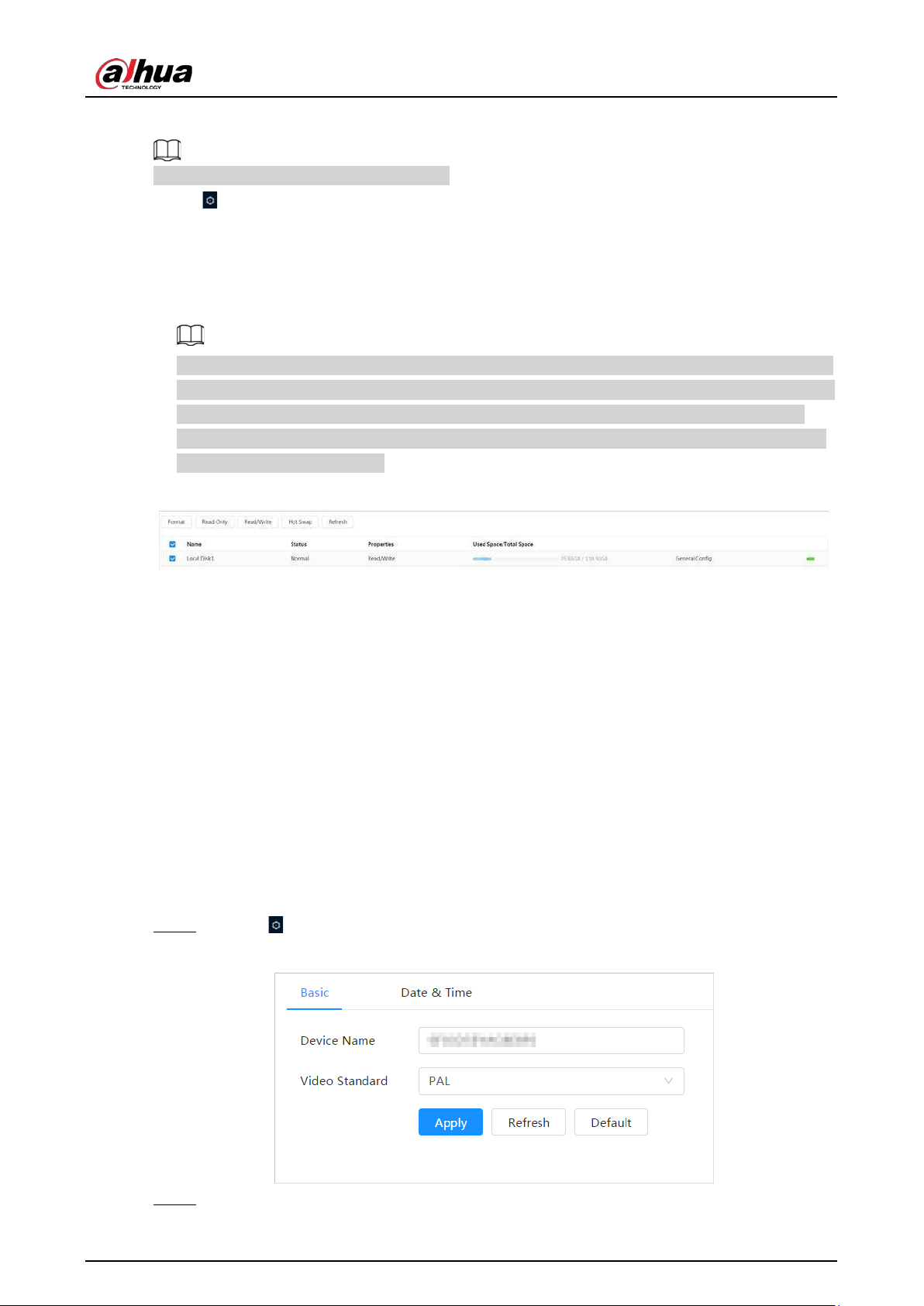

Figure 6-68 Basic
Step 2 Configure general parameters.
Operation Manual
75
Table 6-26 Description of general parameters
Parameter Description
Name Enter the device name.
Video Standard Select video standard from
PAL
and
NTSC
.
Step 3 Click
Apply
.
6.7.1.2 Date & Time
You can configure date and time format, time zone, current time, DST (Daylight Saving Time) or NTP
server.
Procedure
Step 1 Select >
System
>
General
>
Date & Time
.

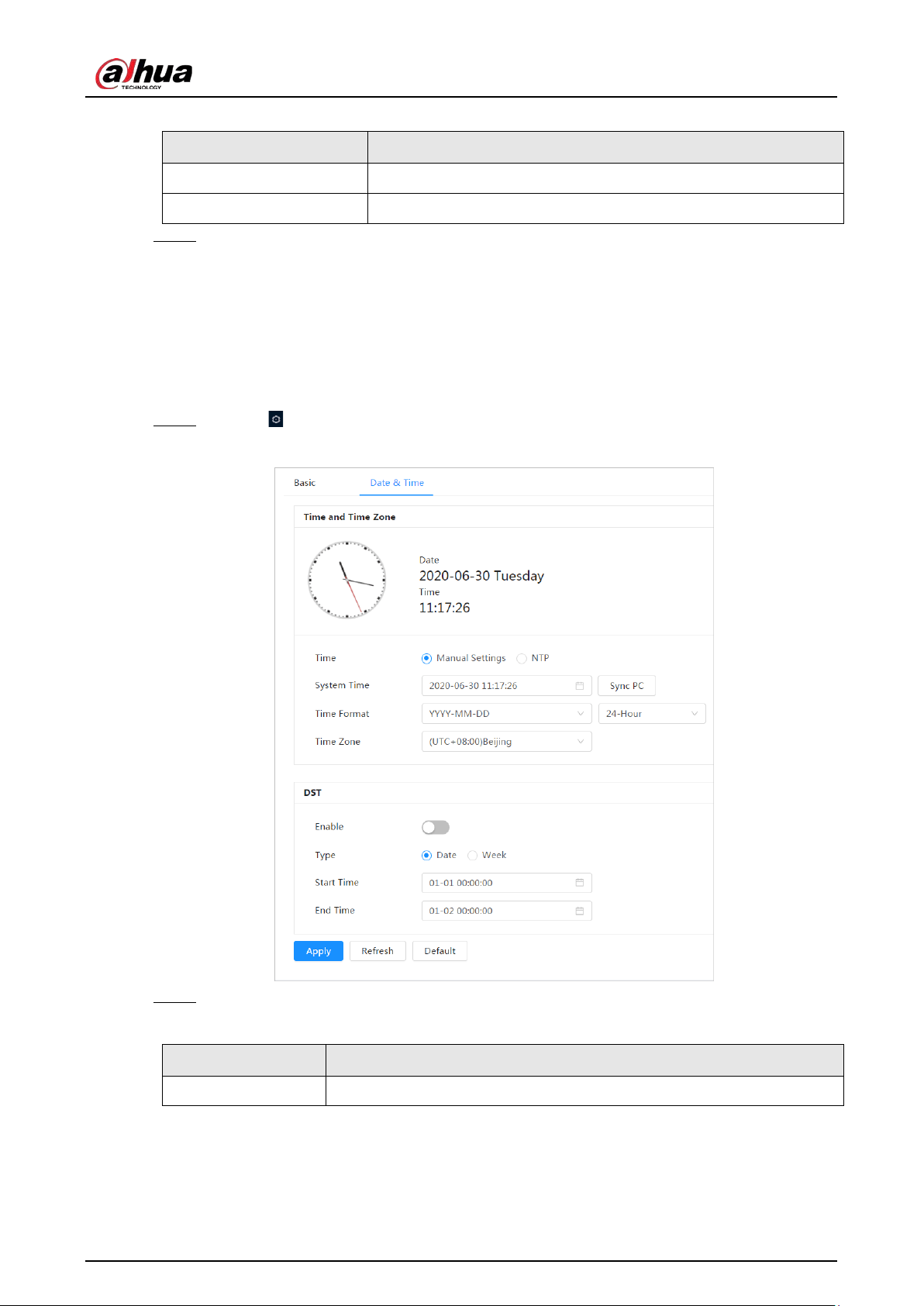

Figure 6-69 Date and time
Step 2 Configure date and time parameters.
Table 6-27 Description of date and time parameters
Parameter Description
Date Format Configure the date format.
Operation Manual
76
Parameter Description
Time
●
Manually Setting
: Configure the parameters manually.
●
NTP
: When selecting NTP, the system then syncs time with the
internet server in real time.
You can also enter the IP address, time zone, port, and interval of a
PC which installed NTP server to use NTP.
Time Format Configure the time format. You can select from
12-Hour
or
24-Hour
.
Time Zone Configure the time zone that the camera is at.
Current Time
Configure system time.
Click
Sync PC
, and the system time changes to the PC time.
DST
Enable DST as needed.
Click , and configure start time and end time of DST with
Date
or
Week
.
Step 3 Click
Apply
.
6.7.2 Account
You can manage users, such as add, delete, or edit them. Users include admin, added users and
ONVIF users.
Managing users and groups are only available for administrator users.
●
The max length of the user or group name is 31 characters which consists of number, letter,
underline, dash, dot and @.
●
The password must consist of 8 to 32 non-blank characters and contain at least two types of
characters among upper case, lower case, number, and special character (excluding ' " ; : &).
●
You can have 18 users and 8 groups at most.
●
You can manage users through single user or group, and duplicate usernames or group names
are not allowed. A user can only be in one group at a time, and the group users can own
authorities within group authority range.
●
Online users cannot edit their own authority.
●
There is one admin by default which has highest authority.
●
Select
Anonymous Login
, and then log in with only IP address instead of username and
password. Anonymous users only have preview authorities. During anonymous login, click
Logout
, and then you can log in with other username.
6.7.2.1 User
6.7.2.1.1 Adding User
You are admin user by default. You can add users, and configure different permissions.
Procedure
Step 1 Select >
System
>
Account
>
User
.
Operation Manual
77
Figure 6-70 User
Step 2 Click
Add
.
Figure 6-71 Add user (system)
Operation Manual
78
Figure 6-72 Add user (restricted login)
Step 3 Configure user parameters.
Table 6-28 Description of user parameters
Parameter Description
Username User’s unique identification. You cannot use existed username.
Password Enter password and confirm it again.
The password must consist of 8 to 32 non-blank characters and
contain at least two types of characters among upper case, lower case,
number, and special character (excluding ' " ; : &).
Confirm Password
Group The group that users belong to. Each group has different authorities.
Remark Describe the user.
System
Select authorities as needed.
We recommend giving fewer permissions to normal users than
premium users.
Live Select the live view authority for the user to be added.
Search Select the search authority for the user to be added.
Operation Manual
79
Parameter Description
Restricted Login
Set the PC address that allows the defined user to log in to the camera
and the validity period and time range. You can log in to the web page
with the defined IP in the defined time range of validity period.
●
IP address: You can log in to web through the PC with the set IP.
●
Validity period: You can log in to web in the set validity period.
●
Time range: You can log in to web in the set time range.
Set as follows
1. IP address: Enter the IP address of the host to be added.
2. IP segment: Enter the start address and end address of the host
to be added.
Step 4 Click
Apply
.
The newly added user is displayed in the username list.
Related Operations
●
click to edit password, group, memo or authorities.
For admin account, you can only edit the password.
●
Click to delete the added users. Admin user cannot be deleted.
The admin account cannot be deleted.
6.7.2.1.2 Resetting Password
Enable the function, and you can reset password by clicking
Forget password?
on the login page.
For details, see "4.2 Resetting Password".
Procedure
Step 1 Select >
System
>
Account
>
User
.

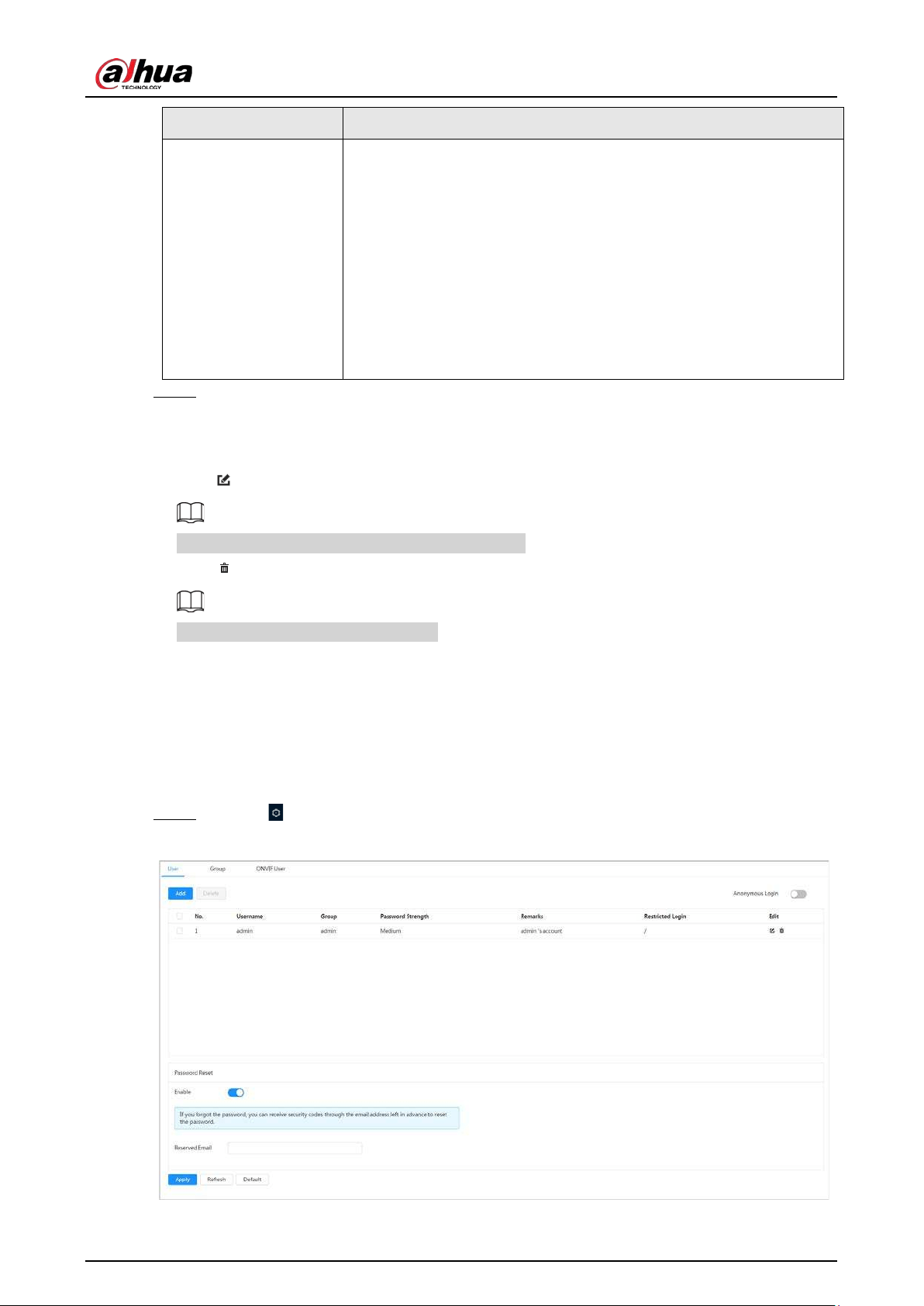

Figure 6-73 User
Operation Manual
80
Step 2 Click next to
Enable
in
Password Reset
.
If the function is not enabled, you can only reset the password by resetting the camera.
Step 3 Enter the reserved email address.
Step 4 Click
Apply
.
6.7.2.2 Adding User Group
You have two groups named admin and user by default, and you can add new group, delete added
group or edit group authority and memo.
Procedure
Step 1 Select >
System
>
Account
>
Group
.
Figure 6-74 Group name
Step 2 Click
Add
.
Figure 6-75 Add group
Step 3 Enter the group name and memo, and then select group authorities.
Step 4 Click
OK
to finish configuration.
The newly added group displays in the group name list.
Related Operations
●
Click to edit password, group, memo or authorities.
●
Click to delete the added users. Admin user cannot be deleted.
Operation Manual
81
The admin group and user group cannot be deleted.
6.7.2.3 ONVIF User
You can add, delete ONVIF user, and change their passwords.
Procedure
Step 1 Select >
System
>
Account
>
ONVIF User
.
Figure 6-76 ONVIF user
Step 2 Click
Add
.
Figure 6-77 Add ONVIF user
Step 3 Configure user parameters.
Table 6-29 Description of ONVIF user parameters
Parameter Description
Username User’s unique identification. You cannot use existed username.
Password Enter password and confirm it again.
The password must consist of 8 to 32 non-blank characters and
contain at least two types of characters among upper case, lower
case, number, and special character (excluding ' " ; : &).
Confirm Password
Group Name
The group that users belong to. Each group has different
authorities.
Step 4 Click
OK
.
The newly added user displays in the username list.
Related Operations
●
Click to edit password, group, memo or authorities.
Operation Manual
82
For admin account, you can only change the password.
●
Click to delete the added users.
The admin account cannot be deleted.
6.7.3 Peripheral Management
6.7.3.1 Configuring Serial Port
Set the serial port of the external device.
Procedure
Step 1 Select >
System
>
Peripheral
>
Serial Port
.
Step 2 Configure parameters.
Figure 6-78 Serial port settings
Table 6-30 Description of serial port settings parameters
Parameter Description
IP Address
Enter the corresponding device address. It is
1
by default.
Make sure that the address is the same as the device address; otherwise you
cannot control the device.
Baud Rate
Configure device baud rate. It is
9600
by default.
Data Bits It is
8
by default.
Stop Bits
It is
1
by default.
Parity
It is
None
by default.
Step 3 Click
Apply
.
Operation Manual
83
6.7.3.2 Configuring External Light
You need to configure external light mode when the external light is used.
Prerequisites
●
Connect external light with RS-485 port.
●
You have configured serial port parameters. For details, see "6.7.3.1 Configuring Serial Port".
Procedure
Step 1 >
System
>
Peripheral
>
External Light
.
Step 2 Select working mode as needed.

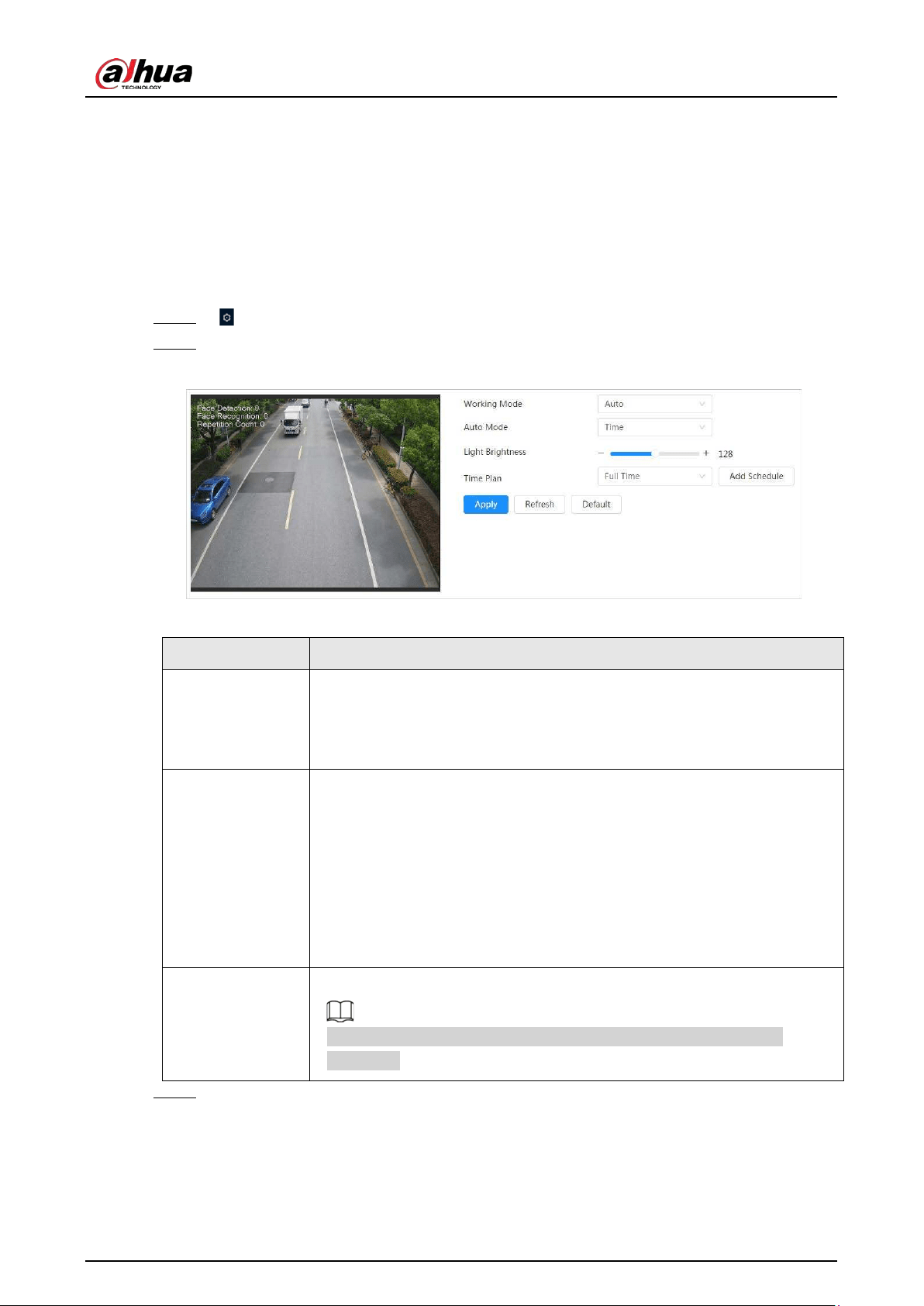

Figure 6-79 External light
Table 6-31 Lamp parameters
Parameter Description
Work Mode
●
Off
: The external light is disabled.
●
Manual
: Set the light brightness manually.
●
Auto
: The camera turns on or turns off the light according to the light
time and photoresister automatically.
Auto Mode
●
Time
: When selecting
Time
in
Auto Mode
, set the arming period.
During the arming period, the external light is on.
Select the added time plan table in the
Time Plan
list. Click
Add
Schedule
to add new time plan table. For details, see "6.5.1.2 Alarm
Linkage".
●
Photoresister
: When you select
Photoresister
in
Auto Mode
, the
camera turns on the external light according to the brightness
automatically.
Light Brightness
Set the brightness of the external light.
For some models, you can set the brightness of each external light
separately.
Step 3 Click
Apply
.
Operation Manual
84
6.7.3.3 Configuring Wiper
Procedure
Step 1
Select
> >
System
>
Peripheral
>
Wiper
.
Step 2 Configure working mode of wipers.
Figure 6-80 Wiper
Table 6-32 Wiper parameter description
Parameter Description
Interval
The interval between stop mode and start mode. For example, set the time
to 10 s, and the wiper will work every 10 s.
Start, Stop, Once
Configure working mode of the wiper.
●
Click
Start
, and the wiper works as the set interval time.
●
Click
Stop
, and the wiper stops working.
●
Click
Once
, and the wiper works once.
Wash
Select the
Schedule
check box and set the time, and then the wiper will
work as the configured time. Click
Once
, and the wiper works once. It can
be used to check whether the wiper works normally.
Step 3 Click
Apply
.
6.7.4 Manager
6.7.4.1 Requirements
To make sure the system runs normally, maintain it as the following requirements:
●
Check surveillance images regularly.
●
Clear regularly user and user group information that are not frequently used.
●
Change the password every three months. For details, see "6.7.2 Account".
●
View system logs and analyze them, and process the abnormity in time.
●
Back up the system configuration regularly.
●
Restart the device and delete the old files regularly.
●
Upgrade firmware in time.
Operation Manual
85
6.7.4.2 Maintenance
You can restart the system manually, and set the time of auto reboot and auto deleting old files. This
function is disabled by default.
Procedure
Step 1 Select >
System
>
Manager
>
Maintenance
.

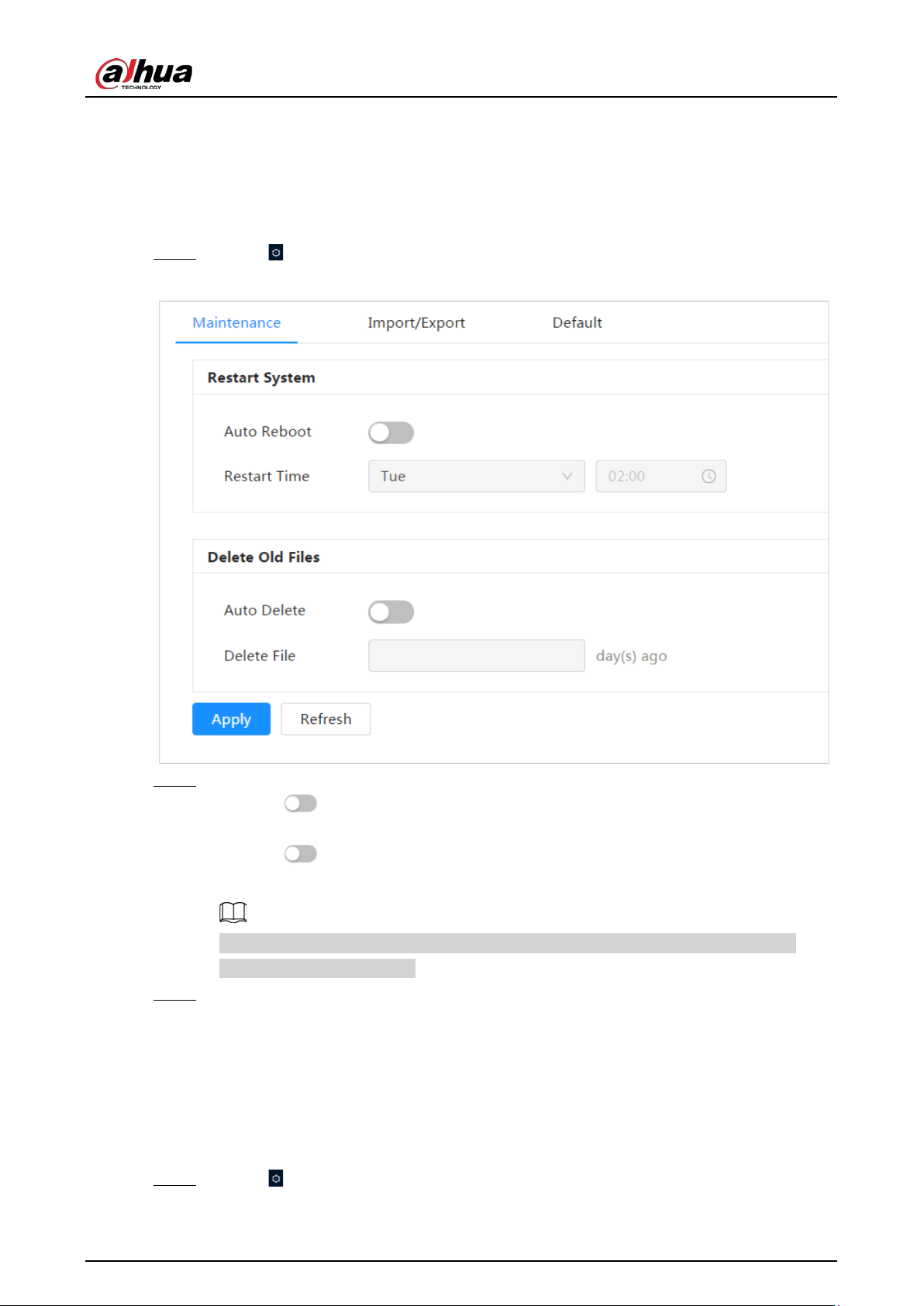

Figure 6-81 Maintenance
Step 2 Configure auto maintain parameters.
●
Click next to
Auto Reboot
in
Restart System
, and set the reboot time, then the
system will automatically restarts at the set time every week.
●
Click next to
Auto Delete
in
Delete Old Files
, and set the time, then the system
will automatically deletes old files at the set time. The time range is 1 to 31 days.
When you enable and confirm the
Auto Delete
function, the deleted files cannot be
restored. Operate it carefully.
Step 3 Click
Apply
.
6.7.4.3 Import/Export
●
Export the system configuration file to back up the system configuration.
●
Import system configuration file to make quick configuration or recover system configuration.
Procedure
Step 1 Select >
System
>
Manager
>
Import/Export
.
Operation Manual
86
Figure 6-82 Import/Export
Step 2 Import or export the file.
●
Import: Select local configuration file, and click
Import File
to import the local system
configuration file to the system.
●

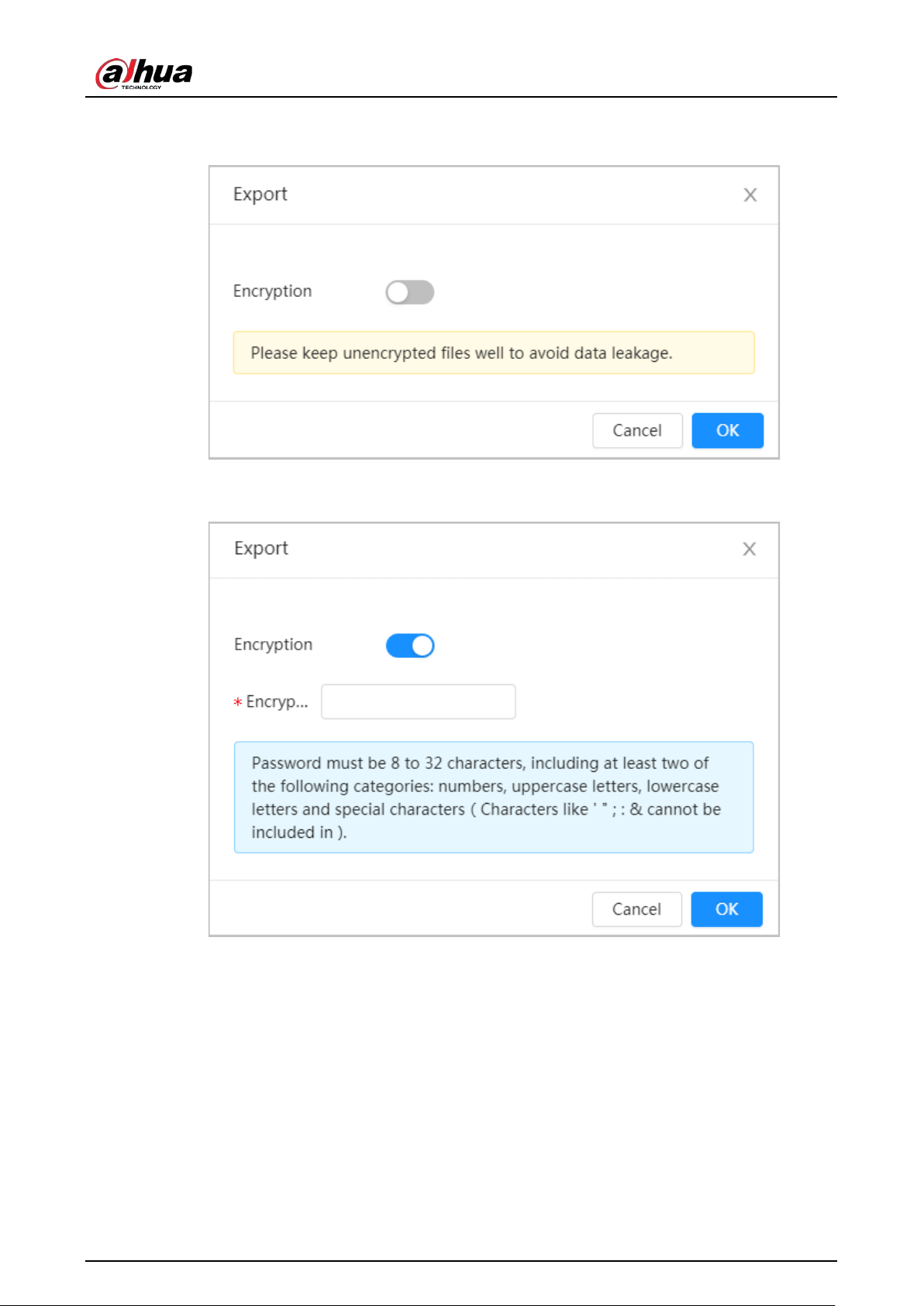

Export: Click
Export Configuration file
to export the system configuration file to local
storage.
6.7.4.4 Default
Restore the device to default configuration or factory settings.
Select >
System
>
Manager
>
Default
.
●
Click
Default
, and then all the configurations except IP address and account are reset to default.
●
Click
Factory Default
, and all the configurations are reset to factory settings.
Figure 6-83 Default
6.7.5 Upgrade
Upgrading to the latest system can refine camera functions and improve stability.
If wrong upgrade file has been used, restart the device; otherwise some functions might not work
properly.
Operation Manual
87
Procedure
Step 1 Select >
System
>
Upgrade
.

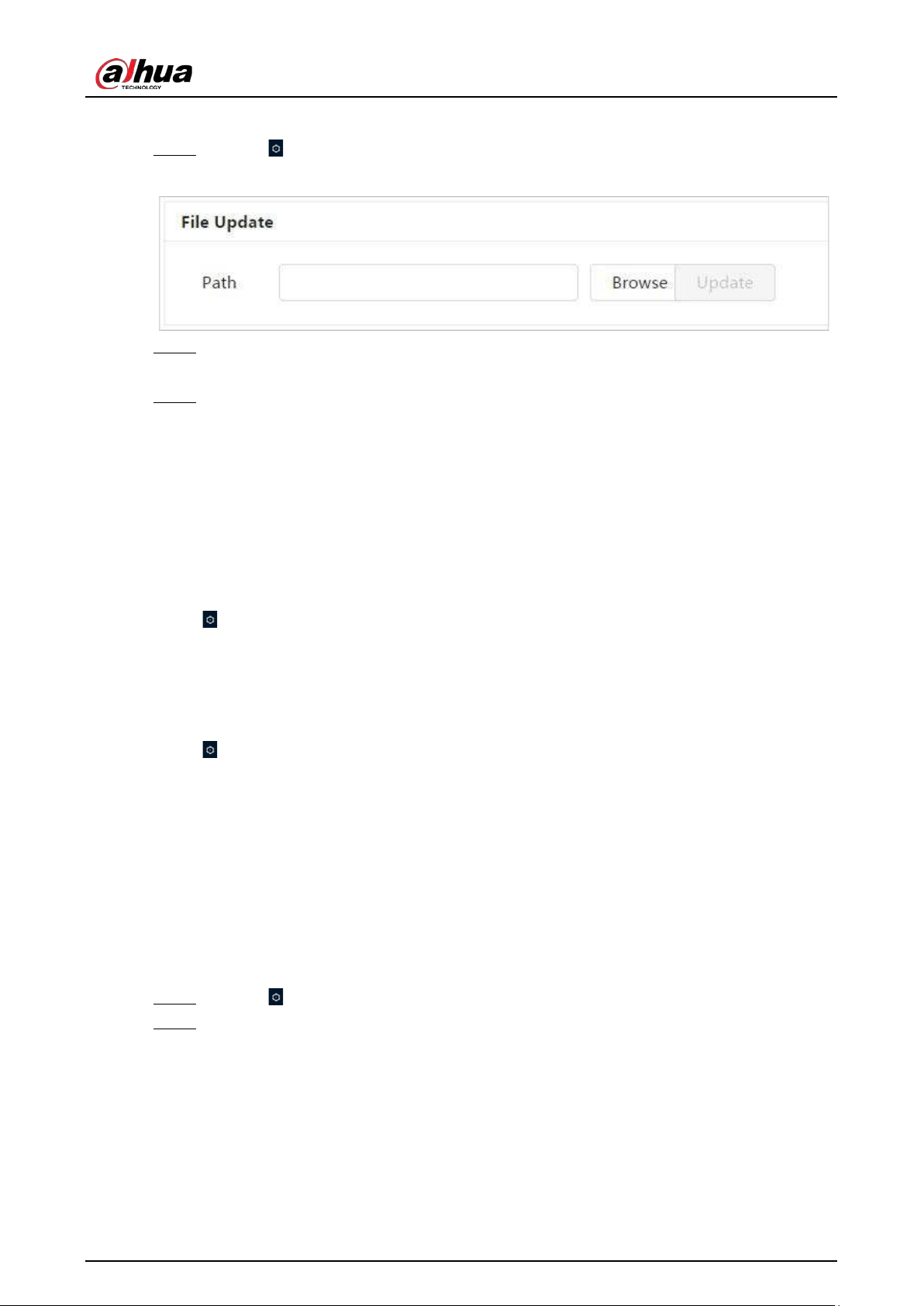

Figure 6-84 Upgrade
Step 2 Click
Browse
, and then upload upgrade file.
The upgrade file should be a .bin file.
Step 3 Click
Update
.
6.8 System Information
You can view the information, including version, log and online user, and back up or clear log.
6.8.1 Version
Select >
System Info
>
Version
to view device information such as hardware, system version,
and web version.
6.8.2 Online User
Select >
System Info
>
Online User
to view all the online users logging in to web.

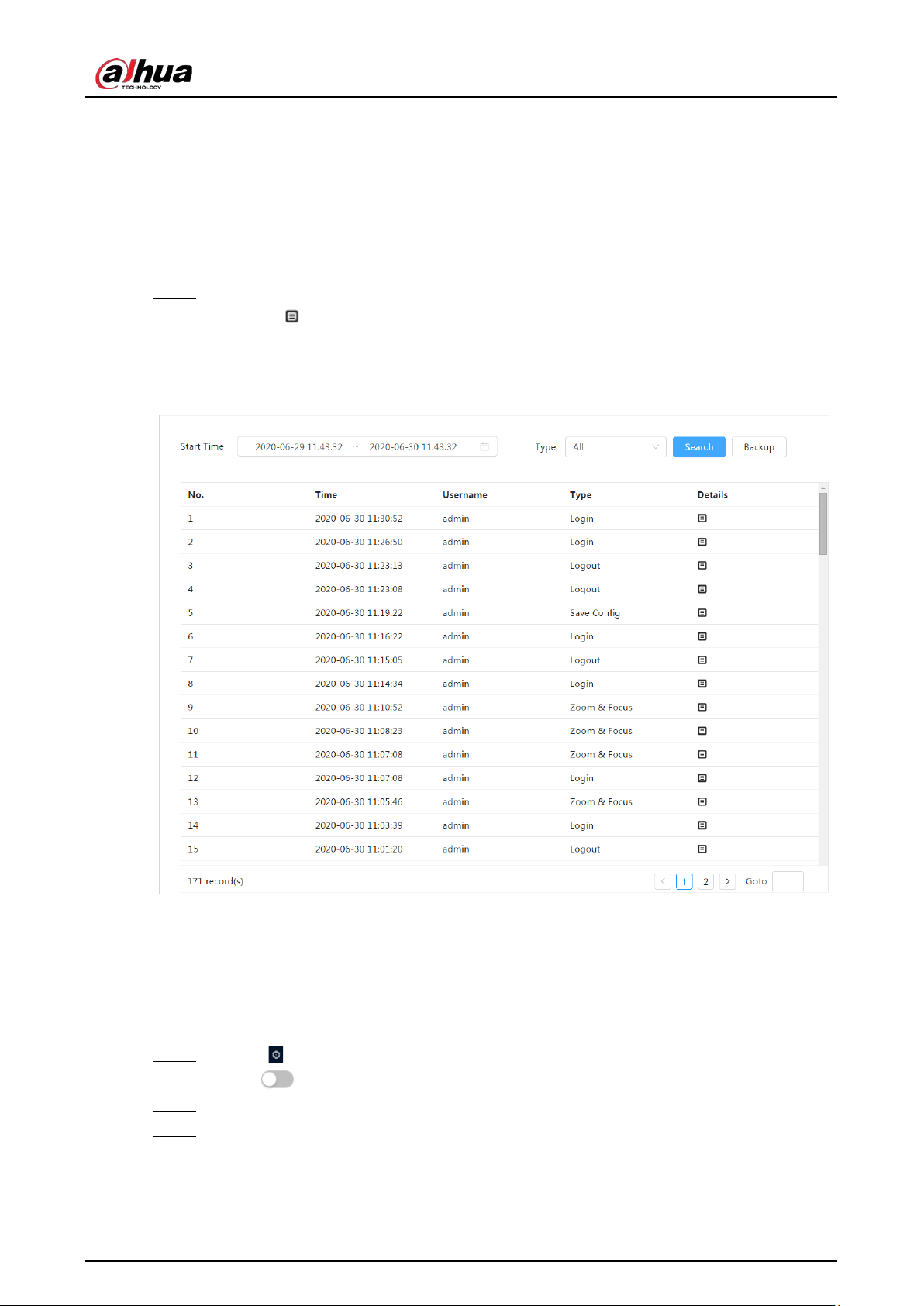

6.9 Setting Log
6.9.1 Log
You can view and back up logs.
Procedure
Step 1 Select >
Log
>
Log
.
Step 2 Configure
Start Time
and
End Time
, and then select the log type.
The start time should be later than January 1, 2000, and the end time should be earlier
than December 31, 2037.
The log type includes All, System, Setting, Data, Event, Record, Account, and Security.
●
System
: Includes program start, abnormal close, close, program reboot, device
closedown, device reboot, system reboot, and system upgrade.
●
Setting
: Includes saving configuration and deleting configuration file.
●
Data
: Includes configuring disk type, clearing data, hot swap, FTP state, and record
Operation Manual
88
mode.
●
Event
(records events such as video detection, smart plan, alarm and abnormality):
includes event start and event end.
●
Record
: Includes file access, file access error, and file search.
●
Account
: Includes login, logout, adding user, deleting user, editing user, adding group,
deleting group, and editing group.
●
Security
: Includes password resetting and IP filter.
Step 3 Click
Search
.
●
Click or click a certain log, and then you can view the detailed information in
Details
area.
●
Click
Backup
, and then you can back up all found logs to local PC.
Figure 6-85 Log
6.9.2 Remote Log
Configure remote log, and you can get the related log by accessing the set address.
Procedure
Step 1 Select >
Log
>
Remote Log
.
Step 2 Click to enable remote log function.
Step 3 Set address, port and device number.
Step 4 Click
Apply
.
Operation Manual
89

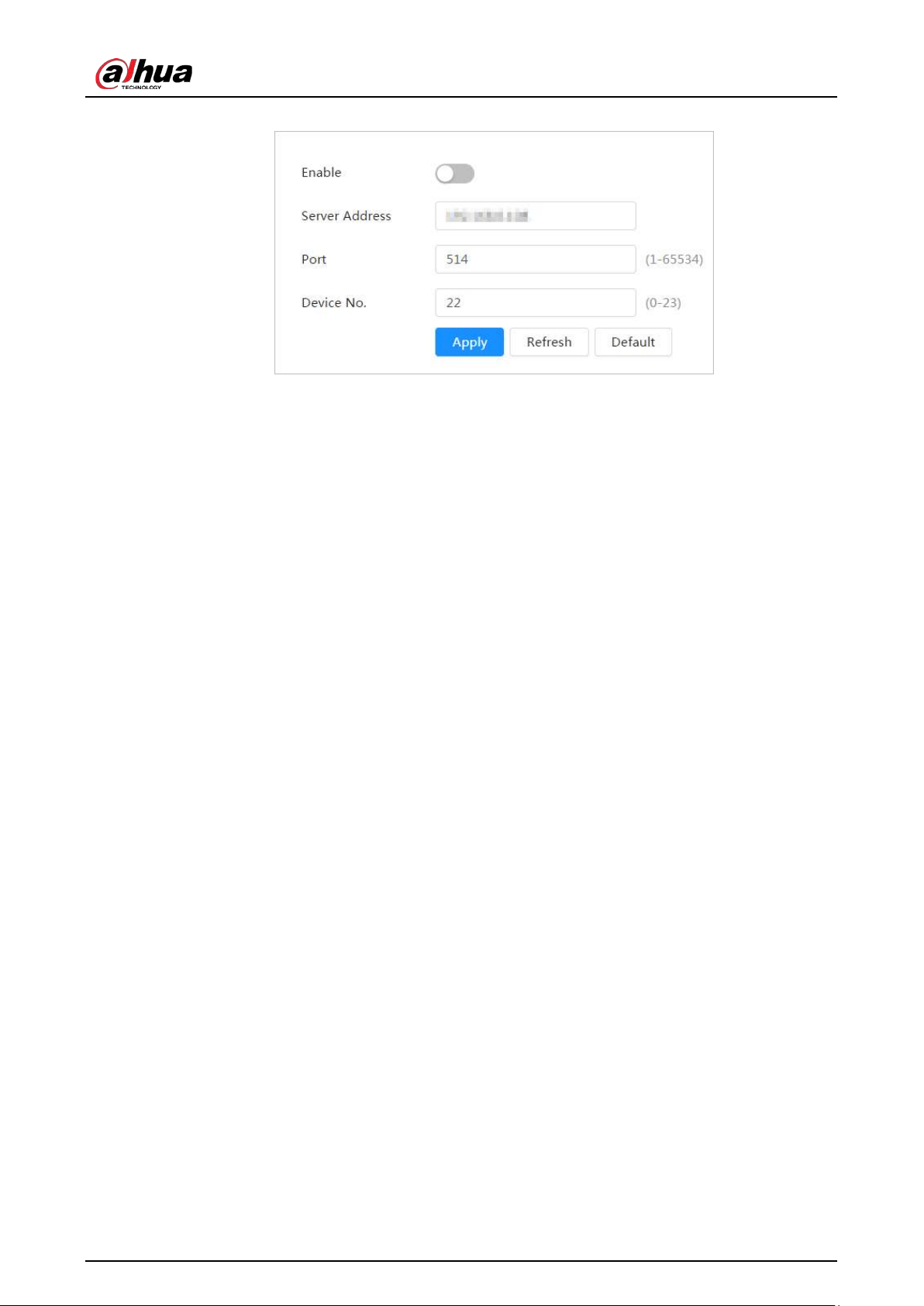

Figure 6-86 Remote log
Operation Manual
90
7 Live
This chapter introduces the layout of the page and function configuration.
7.1 Live Page
Log in and click the
Live
tab.
Pages might vary with different models.
Figure 7-1 Live (single channel)
Figure 7-2 Live (multiple channels)
Operation Manual
91
Figure 7-3 Live (EPTZ)
Table 7-1 Description of function bar
No. Function Description
1 Display mode
You can select the display mode from
General Mode
,
Face Mode
,
Metadata Mode
,
ANPR
and
Face &
Body Detection
. For details, see "7.5 Display Mode".
2 Channel list
Displays all channels. You can select the channel as
needed and set the stream type.
3
Image adjustment Adjustment operations in live viewing.
4
5 Live view Displays the real-time monitoring image.
6 Live view function bar Functions and operations in live viewing.
7.2 Setting Encode
Click , and then select the stream as needed.
Figure 7-4 Encode bar
●
Main Stream
: It has large bit stream value and image with high resolution, but also requires large
bandwidth. This option can be used for storage and monitoring. For details, see "6.2.2.1 Encode".
●
Sub Stream
: It has small bit stream value and smooth image, and requires less bandwidth. This
option is normally used to replace main stream when bandwidth is not enough. For details, see
"6.2.2.1 Encode".
●
means the current stream is main stream; means the current stream is sub stream 1;
Operation Manual
92
means the current stream is sub stream 1.

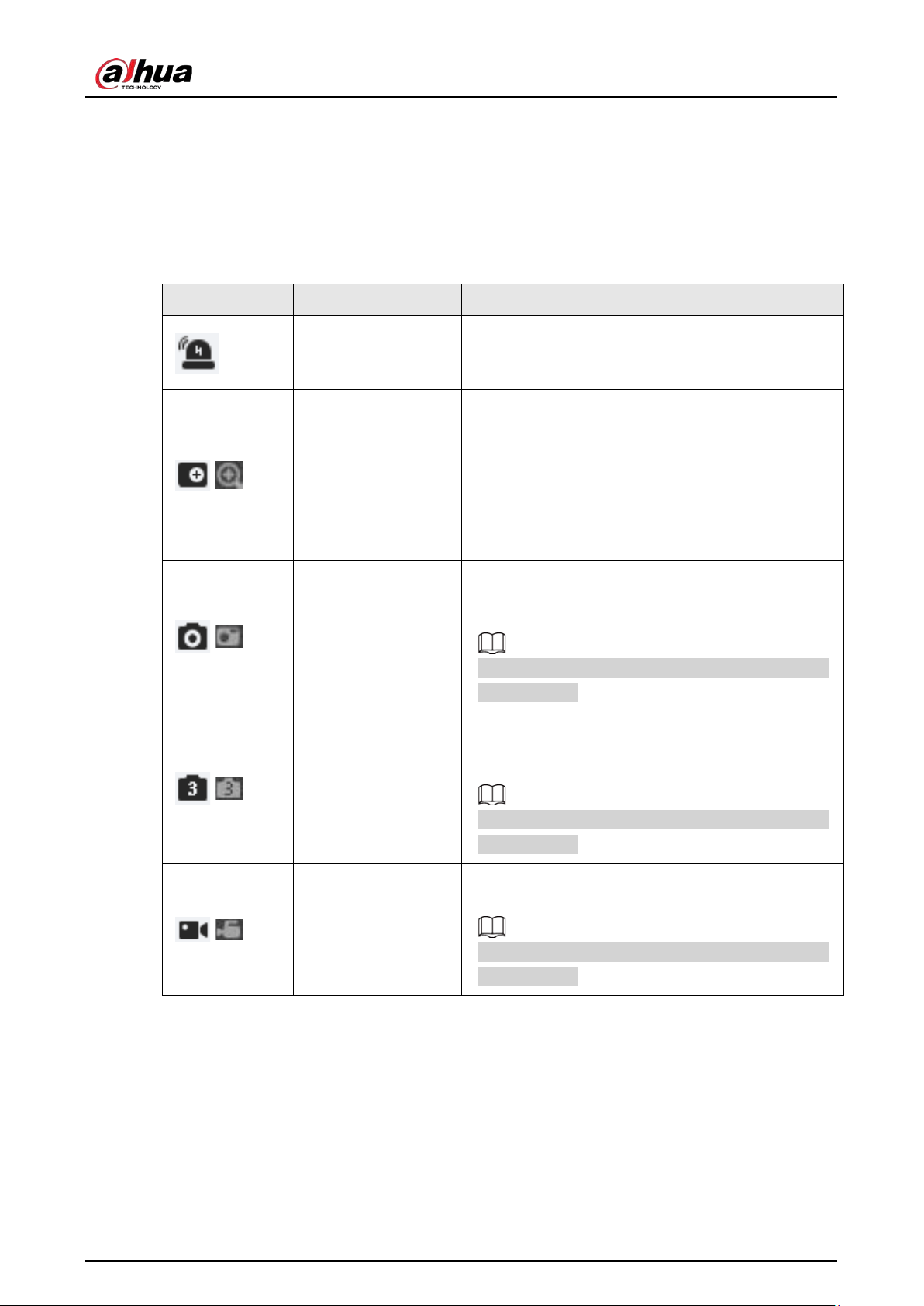

7.3 Live View Function Bar
For the live view function bar, see Table 7-2.
Table 7-2 Description of live view function bar
Icon Function Description
Force Alarm
Display the status of alarm sound.
Click the icon to enable or disable the alarm sound
forcibly.
/ Digital Zoom
You can zoom video image through two operations.
●
Click the icon, and then select an area in the
video image to zoom in; right-click on the image
to resume the original size. In zoom in state, drag
the image to check other area.
●
Click the icon, and then scroll the mouse wheel
in the video image to zoom in or out.
/
Snapshot
Click the icon to capture one picture of the current
image, and it will be saved to the configured storage
path.
For details on viewing or configuring storage path,
see "6.1 Local".
/ Triple Snapshot
Click the icon to capture three pictures of the current
image, and they will be saved to the configured
storage path.
For details on viewing or configuring storage path,
see "6.1 Local".
/ Record
Click the icon to record video, and it will be saved to
the configured storage path.
For details on viewing or configuring storage path,
see "6.1 Local".
Operation Manual
93
Icon Function Description
Aux Focus
Click the icon, the
AF Peak
(focus eigenvalue) and
AF
Max
(max focus eigenvalue) are displayed on the
video image.
●
AF Peak
: The eigenvalue of image definition, it
displays during focus.
●
AF Max
: The best eigenvalue of image definition.
●
The smaller the difference between AF peak
value and the AF max value, the better the focus
is.
Aux focus closes automatically after five minutes.
/
Audio Click the icon to enable or disable audio output.
Talk Click the icon to enable or disable the audio talk.

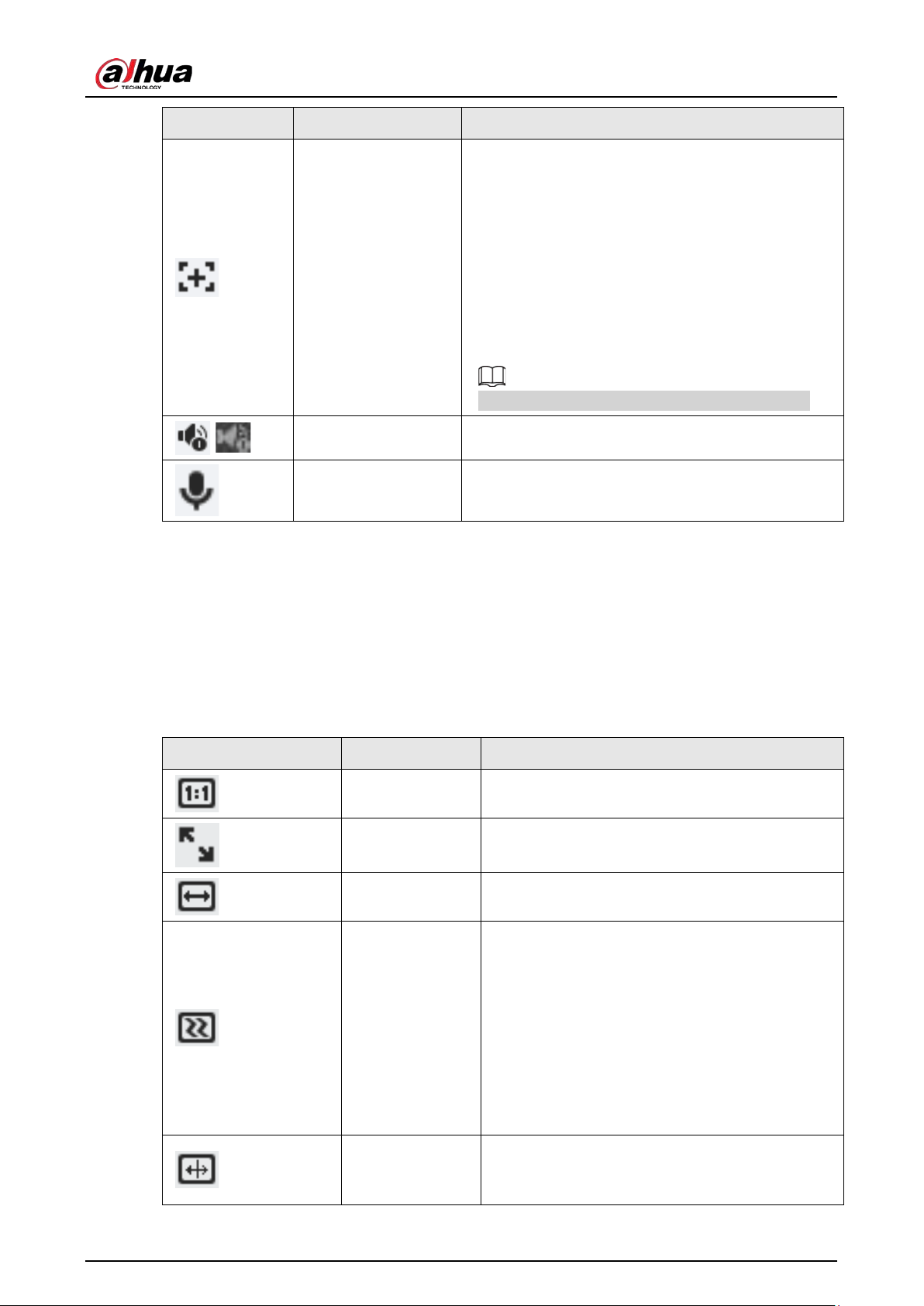

7.4 Window Adjustment Bar
7.4.1 Adjustment
This section introduces the adjustment of image.
Table 7-3 Description of adjustment bar
Icon Function Description
Original Size
Click the icon, and then the video displays with
original size.
Full Screen
Click the icon to enter full screen mode; double-
click or press Esc to exit.
W:H
Click the icon to resume original ratio or change
ratio.
Fluency
Adjustment
Click the icon to select the fluency from
Realtime
,
General
and
Fluent
.
●
Realtime
: Guarantees the real time of the
image. When the bandwidth is not enough,
the image might not be smooth.
●
General
: It is between
Realtime
and
Fluent
.
●
Fluent
: Guarantees the fluency of the image.
There might be delay between live view
image and real-time image.
AI Rule
Click the icon, and then select
Enable
to display AI
rules and detection box; select
Disable
to stop
the display. It is enabled by default.
Operation Manual
94
Icon Function Description
Crowd
Distribution Map
Click the icon and select
Enable
. The
Crowd
Distribution Map
page is displayed. For details,
see "8.1 Setting Crowd Distribution Map".
Adjust View
Click the icon and select
Enable
. When moving
the mouse printer to the center of live page, a
floating box is displayed. Click and drag the four
angles in the box to adjust the views. This
function is closed by default.
Only Parking Space Detection Fisheye WizMind
Network Camera supports this function.
Window Layout
When viewing multi-channel image, you can
select display layout.
7.4.2 Zoom and Focus
Click
Zoom and Focus
at the lower-left corner of
Live
page to adjust focal length to zoom in or out
video image; by adjusting focus manually, automatically or within a certain area, you can change
image clarity or correct adjusting errors.
The focus would adjust automatically after zooming in or out.
Figure 7-5 Zoom and focus
Operation Manual
95
Table 7-4 Description of zoom and focus parameter
Parameter Description
Zoom Speed
Changes the focal length of the camera to zoom in or out the image.
1. Set the speed value. The
Zoom Speed
is the adjustment range in
one click. The larger the value is, the more the image would zoom
in or out in one click.
2. Click or hold
+
or
–
button, or drag the slider to adjust zoom.
Focus Speed
Adjusts the optical back focal length to make the image clearer.
1. Set the speed value. The
Focus Speed
is the adjustment range in
one click. The larger the value is, the more the adjustment in one
click.
2. Click or hold
+
or
–
button, or drag the slider to adjust focus.
Auto Focus
Adjusts image clarity automatically.
Do not make any other operation during auto focus process.
Reset
Restores focus to default value and corrects errors.
You can restore the focus if the image has poor clarity or has been
zoomed too frequently.
Refresh Get the latest zoom setting of the camera.
Area Focus
Focus on the subject of a selected area.
Click
Area Focus
, and then select an area in the image, the camera
performs auto focus in that area.
7.4.3 Image Adjustment
Click
Image Adjustment
at the lower-left corner of
Live
page, and click
+
or
–
button, or drag the
slider to adjust image parameters, including brightness, contrast, hue, and saturation.
The adjustment is only available on the web page, and it does not adjust the camera parameters.
Operation Manual
96
Figure 7-6 Image adjustment
●
(Brightness adjustment): Adjusts the overall image brightness, and changes the value when
the image is too bright or too dark. The bright and dark areas will have equal changes.
●
(Contrast adjustment): Changes the value when the image brightness is proper but contrast is
not enough.
●
(Saturation adjustment): Adjusts the image saturation, this value does not change image
brightness.
●
(Hue adjustment): Makes the color deeper or lighter. The default value is made by the light
sensor, and it is recommended.
Click
Reset
to restore focus to default value.
You can restore the zoom if the image has poor clarity or has been zoomed too frequently.
7.4.4 Fisheye
You can select the installation mode, display mode and VR mode of fisheye devices as needed. For
details, see Table 7-5.
●
Install Mode
: Select the installation mode according to the actual situation.
●
Display Mode
: Select the display mode of live view.
●
VR Mode
: Select VR mode to display images in stereo mode.
Figure 7-7 Fisheye-ceiling mount
Operation Manual
97
Figure 7-8 Fisheye-wall mount
Figure 7-9 Fisheye-ground mount
Figure 7-10 Fisheye-VR mode
Table 7-5 Description of fisheye configuration
Parameter Description
Installation mode Includes ceiling mount, wall mount, and ground mount.
Display mode
The display model of the current image. There are different display modes
for each installation mode.
●
Ceiling
: 1P+1, 2P, 1+2, 1+3, 1+4, 1P+6, 1+8.
●
Wall
: 1P, 1P+3, 1P+4, 1P+8.
●
Ground
: 1P+1, 2P, 1+3, 1+4, 1P+6, 1+8.
The image will be the original size by default when switching installation
mode.
Ceiling/Wall/Gro
und mount
Original image The original image before correction.
Ceiling/Ground
mount
1P+1
360° rectangular panoramic image screen +
independent sub-screens.
●
You can zoom or drag the image in all the
screens.
●
You can move the start point (left and right)
on rectangular panoramic image screen.
Operation Manual

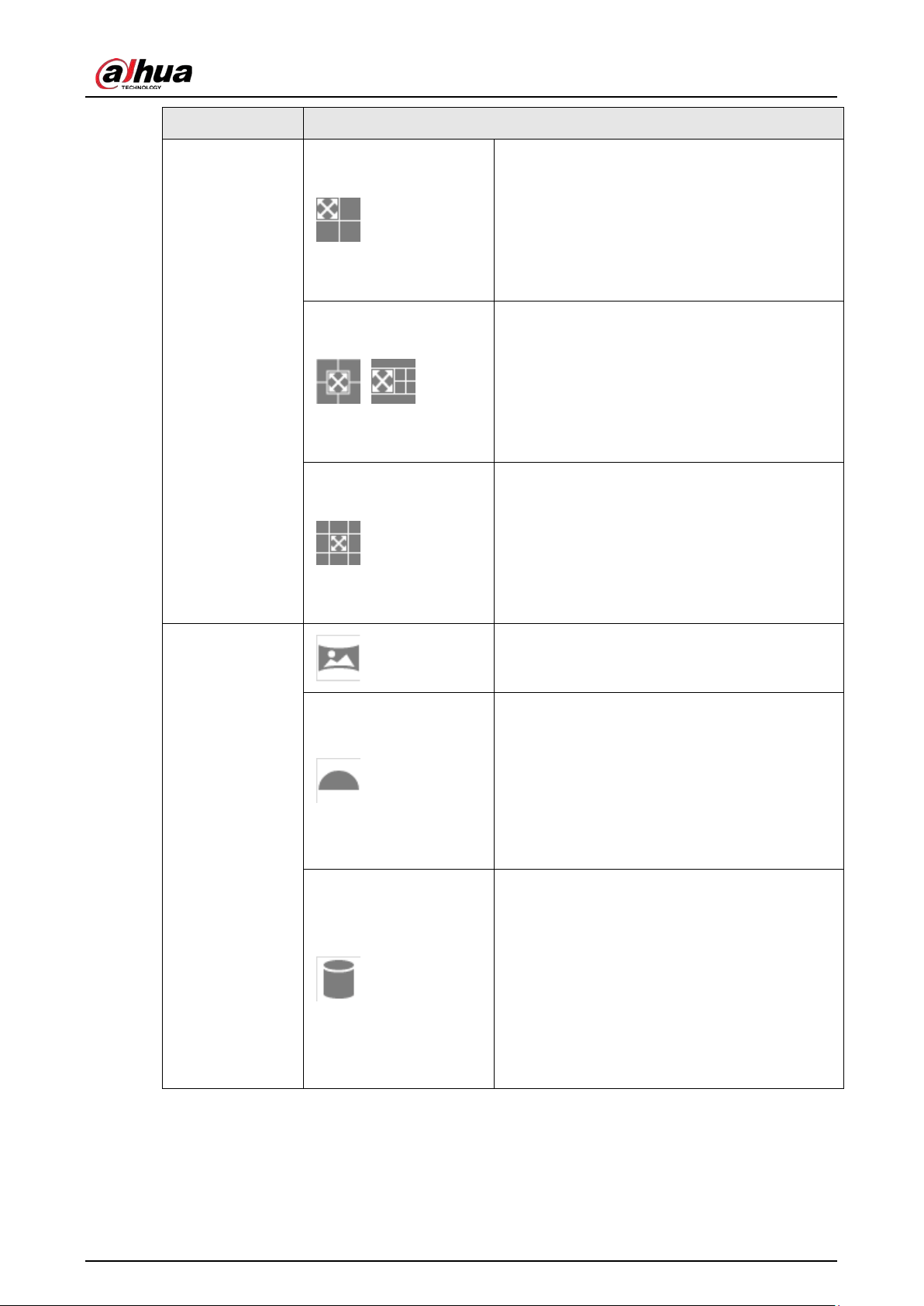

98
Parameter Description
2P
Two associated 180° rectangular image screens;
at any time, the two screens form a 360°
panoramic image. It is also called dual-
panoramic image.
You can move the start point (left and right) on
the two rectangular panoramic image screens,
and the two screens link each other.
, 1+2
Original image screen + two independent sub-
screens. Ground mount does not support this
display mode.
●
You can zoom or drag the image in all the
screens.
●
You can rotate the image on the original
image screen to change the start point.
1+3
Original image screen + three independent sub-
screens.
●
You can zoom or drag the image in all the
screens.
●
You can rotate the image on the original
image screen to change the start point.
, 1+4
Original image screen + four independent sub-
screens.
●
You can zoom or drag the image in all the
screens.
●
You can rotate the image on the original
image screen to change the start point.
1P+6
360° rectangular panoramic screen + six
independent sub-screens.
●
You can zoom or drag the image in all the
screens.
●
You can move the start point (left and right)
on rectangular panoramic image screen.
1P+8
Original image screen + eight independent sub-
screens.
●
You can zoom or drag the image in all the
screens.
●
You can rotate the image on the original
image screen to change the start point.
Wall mount 1P
180° rectangular panoramic image screen (from
left to right).
You can drag the image in all the screens (up
and down) to adjust the vertical view.
Operation Manual
99
Parameter Description
1P+3
180° rectangular panoramic image screen +
three independent sub-screens.
●
You can zoom or drag the image in all the
screens.
●
You can drag the image in all the screens
(upper and lower) to adjust the vertical
view.
, 1P+4
180° rectangular panoramic image screen + four
independent sub-screens.
●
You can zoom or drag the image in all the
screens.
●
You can drag the image in all the screens
(upper and lower) to adjust the vertical
view.
1P+8
180° rectangular panoramic image screen +
eight independent sub-screens.
●
You can zoom or drag the image in all the
screens.
●
You can drag the image in all the screens
(upper and lower) to adjust the vertical
view.
VR mode
Panorama
Drag or cross the screen 360° to unfold the
distortion panorama, and you can drag the
image in left/right direction.
Semi-circle
●
You can drag the image in
upper/lower/left/right direction. Press I to
display the panorama, and press O to
resume the original size.
●
Press S to rotate the image in anticlockwise
direction, and press E to stop the rotation.
●
Scroll the mouse wheel to zoom the image.
Cylinder
Display the distortion panorama in 360°
circularity.
●
You can drag the image in
upper/lower/left/right direction. Press I to
display the panorama, and press O to return
to the original size.
●
Press S to rotate the image in anticlockwise
direction, and press E to stop the rotation.
●
Scroll the mouse wheel to zoom the image.
Operation Manual
100
Parameter Description
Asteroid
●
You can drag the image in
upper/lower/left/right direction. Press I to
display the panorama, and press O to return
to the original size.
●
Press the left mouse-button to slide down
to display the image on the plane surface.
●
Scroll the mouse wheel to zoom the image.
7.5 Display Mode
You can select the display mode from
General Mode
,
Face Mode
,
Metadata Mode
,
ANPR
,
Parking
Space Detection
and
Face & Body Detection
. For general mode, see Figure 7-2. This section mainly
introduces
Face Mode
,
Metadata Mode
and
Parking Space Detection
.
Pages might vary with different models.
●
Select
Face Mode
from the display mode drop-down list.
Make sure that you have enabled face detection function.

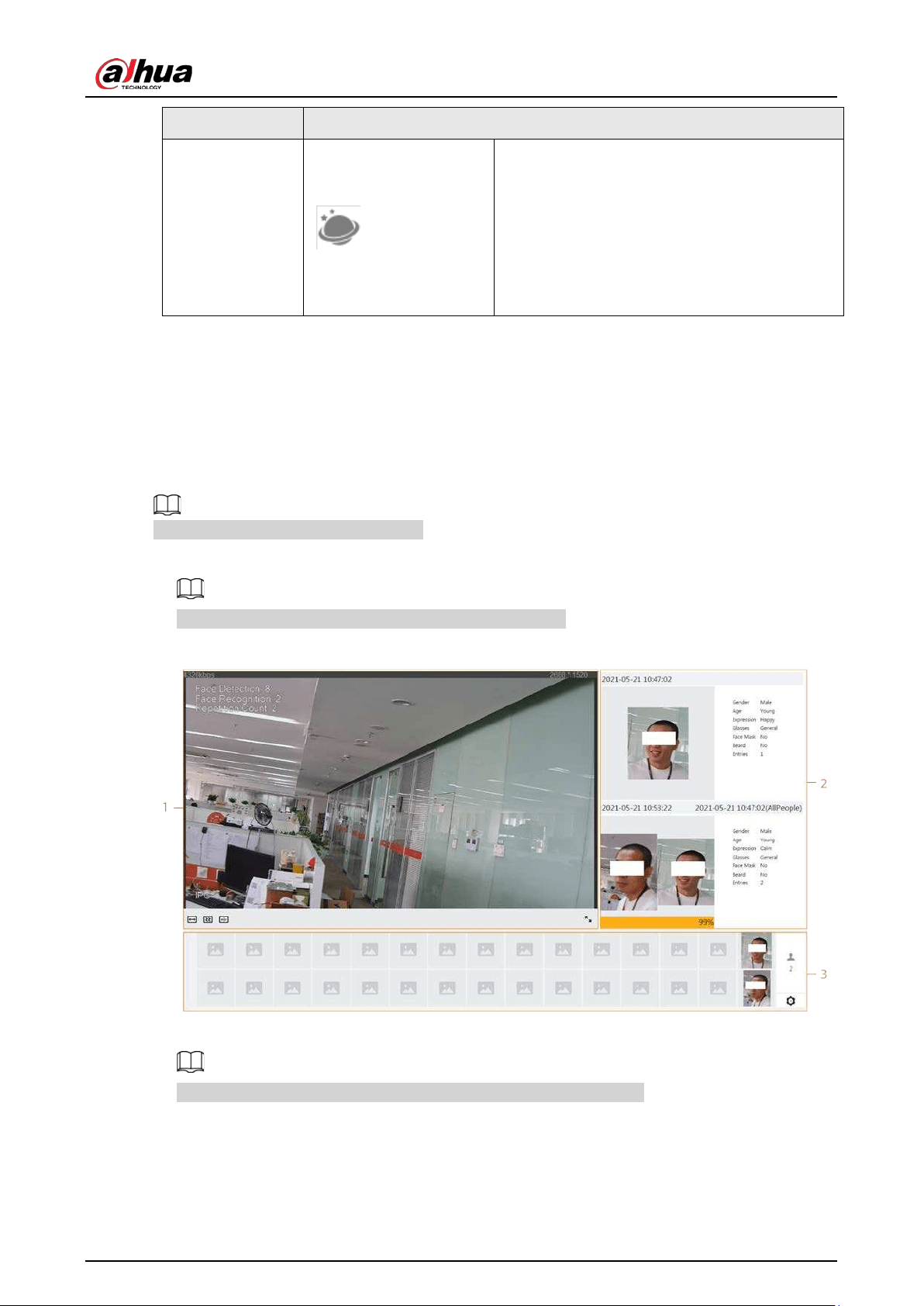

Figure 7-11 Face mode
●
Select
Metadata Mode
from the display mode drop-down list.
Make sure that you have enabled video metadata detection function.
Operation Manual
101
Figure 7-12 Metadata mode
●
Select
Parking Space Detection
from the display mode drop-down list.
Make sure that you have enabled parking space detection function.
Figure 7-13 Parking space detection
Table 7-6 Description of layout (face mode and metadata mode)
No. Function Description
1 Live view
Displays the real-time monitoring image. For details,
see "7.4.1 Adjustment".
2 Details Displays the captured image and details.
Operation Manual
102
No. Function Description
3 Captured image
Displays the captured images.
●
Click a snapshot in the area, and the details of the
snapshot are displayed.
●
Click to set the attributes displayed.
This attribute is not available for parking space
mode.
Table 7-7 Description of layout (parking space mode)
No. Function Description
1 Live view
Displays the real-time monitoring image. For details,
see "7.4.1 Adjustment".
2 Captured image Displays the latest two events captured.
3 Details Displays the captured images and details.
Operation Manual
103
8 AI
8.1 Setting Crowd Distribution Map
You can view crowd distribution on the map in real time for timely arming, to prevent stampede and
other accidents.
8.1.1 Global Configuration
Set the calibration parameters of panoramic cameras.
Calibration Purpose
Determine corresponding relationship between 2D image captured by the camera and 3D actual
object according to one horizontal ruler and three vertical rulers calibrated by the user and the
corresponding actual distance.
Notes
When drawing calibration ruler, keep the ruler length consistent with the actual length of the object.
Procedure
1. Select
AI
>
Smart Plan
.
2. Click next to
Crowd Distribution Map
to enable crowd distribution map of the
corresponding channel, and then click
Next
.
3. Click the
Global Config
tab.
4. Click the rule icon to draw one horizontal ruler and three vertical rulers on the image.
●
is the vertical ruler icon, and is the vertical horizontal icon.
●
Select the added rulers on the image, and click to delete them.

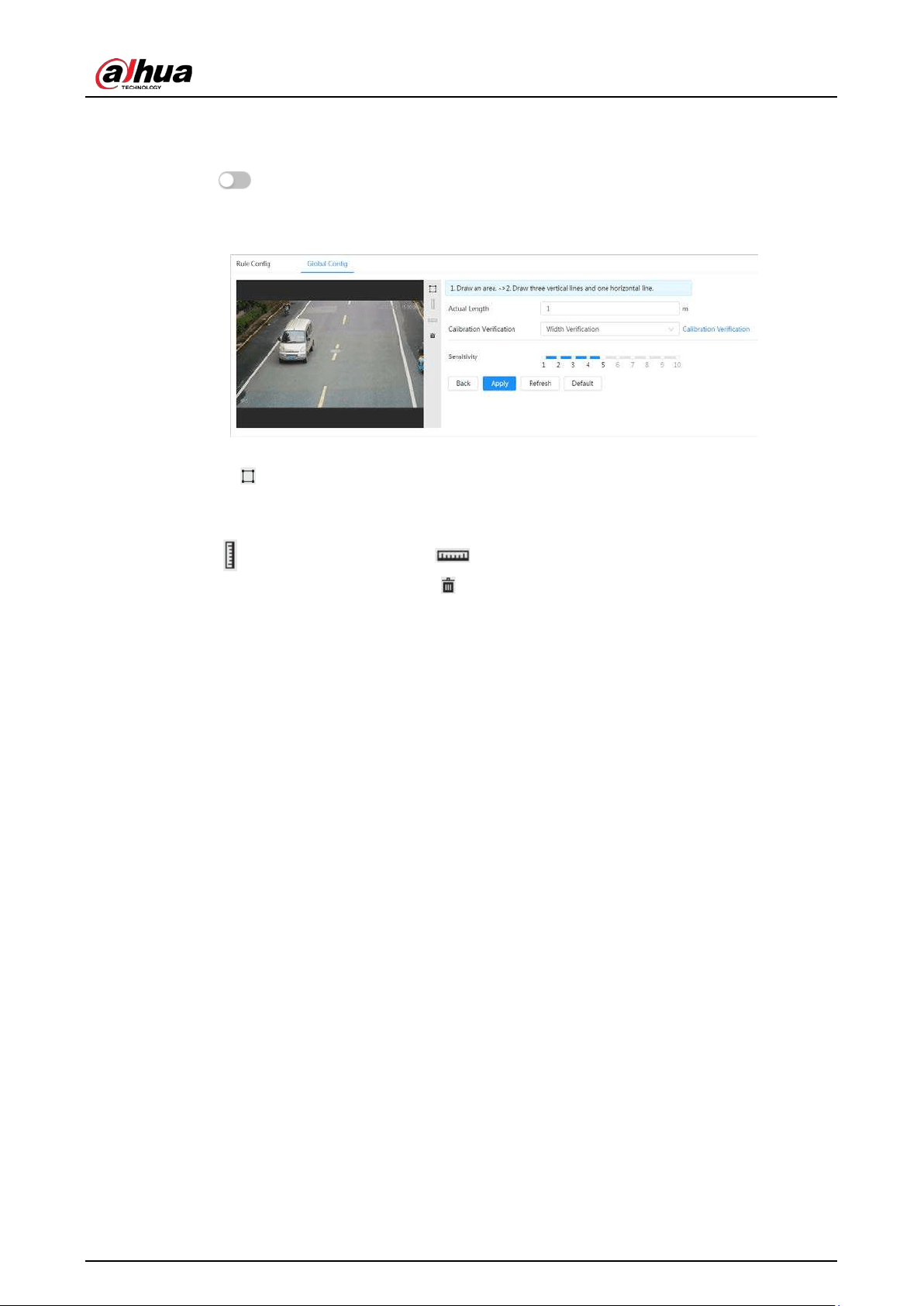

Figure 8-1 Global configuration of crowd distribution map
5. Select a calibration type and enter the actual length, and then click
Add Rulers
.
Operation Manual
104
6. Click
Apply
.
8.1.2 Rule Configuration
When the number of people or the crowd density in the detection area exceeds the configured
threshold, the system performs alarm linkages.
Prerequisites
●
Select
AI
>
Smart Plan
, and enable
Crowd Distribution Map
.
●
You have configured the parameters on the
Global Config
page.
Procedure
Step 1 Select
AI
>
Smart Plan
Step 2 Click next to
Crowd Distribution Map
, and then click
Next
.
Step 3 Click the
Rule Config
tab.

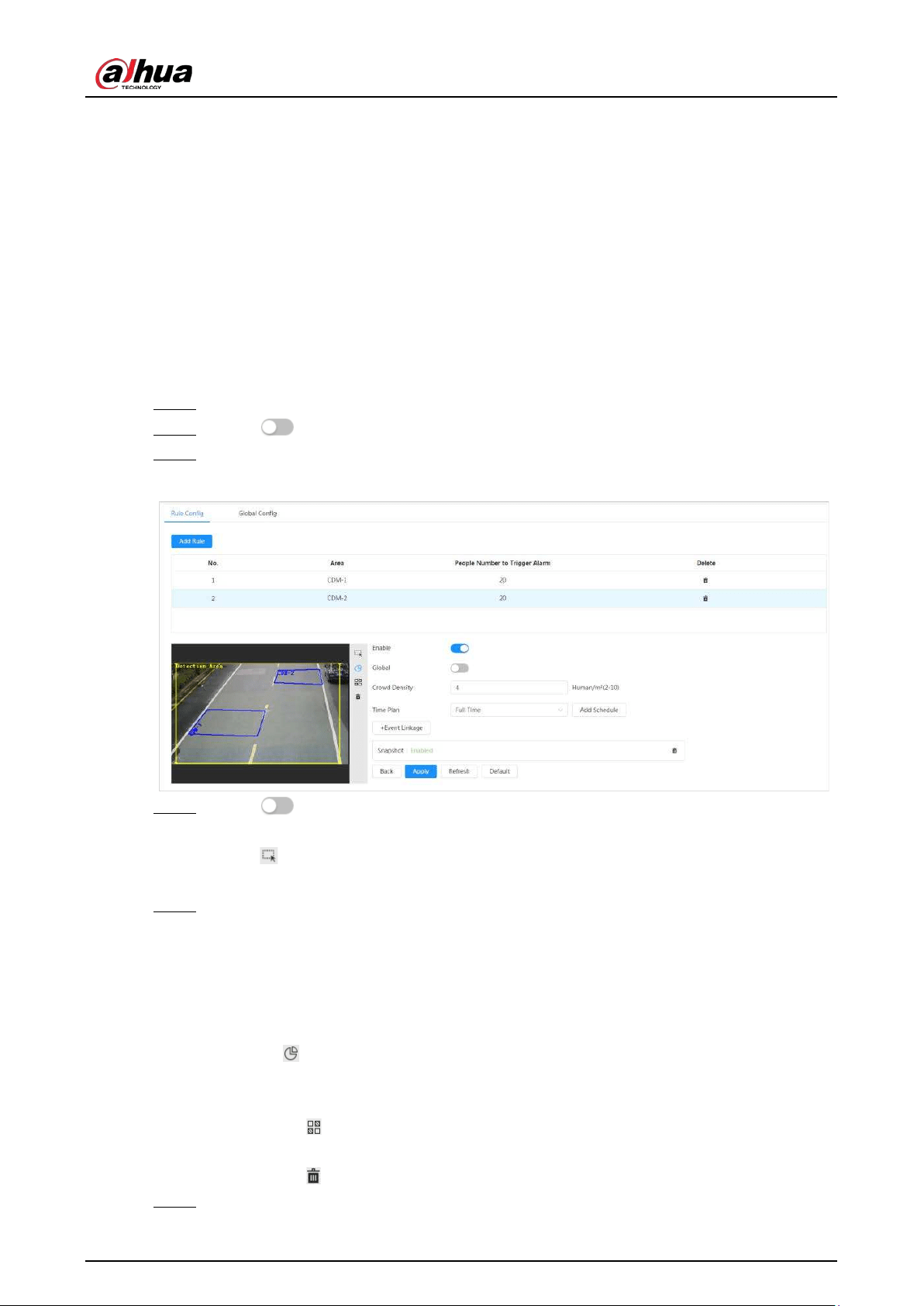

Figure 8-2 Rule configuration
Step 4 Click next to
Enable
, and then the crowd map function is enabled, and the
detection area box is displayed on the image.
Click , and you can drag any corner of the box to adjust the size of the area, and press
the left mouse button and move the box to adjust the position.
Step 5 Draw multiple people counting areas in
Detection Area
as needed.
1) Click
Add Rule
to add statistical areas.
2) Set the name of
Area
and
People Number to Trigger Alarm
.
When the number of the people in the area exceeds the configured threshold, the
alarm will be triggered, and the system will perform the linkage actions. The people
number to trigger alarm is 20 by default.
3) Click at the right side of the image, draw people counting areas in the detection
area, and then right-click to finish the drawing.
4) Repeat the above steps to add more people counting areas.
●
Click , and then press and hold the left mouse button to draw a rectangle, and
then pixel size is displayed.
●
Click to delete the drawn detection or people counting areas.
Step 6 Configure parameters.
Operation Manual
105
Table 8-1 Description of crowd map parameters
Parameter Description
Global
Click next to
Global
and set the crowd density threshold. The
system detects crowd distribution in the global area. When the crowd
density exceeds the configured threshold, the system performs alarm
linkages.
Crowd Density
Step 7 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Click
+ Event Linkage
to set the linkage action.
Step 8 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
Result
Click on the
Live
page to view the crowd distribution map.

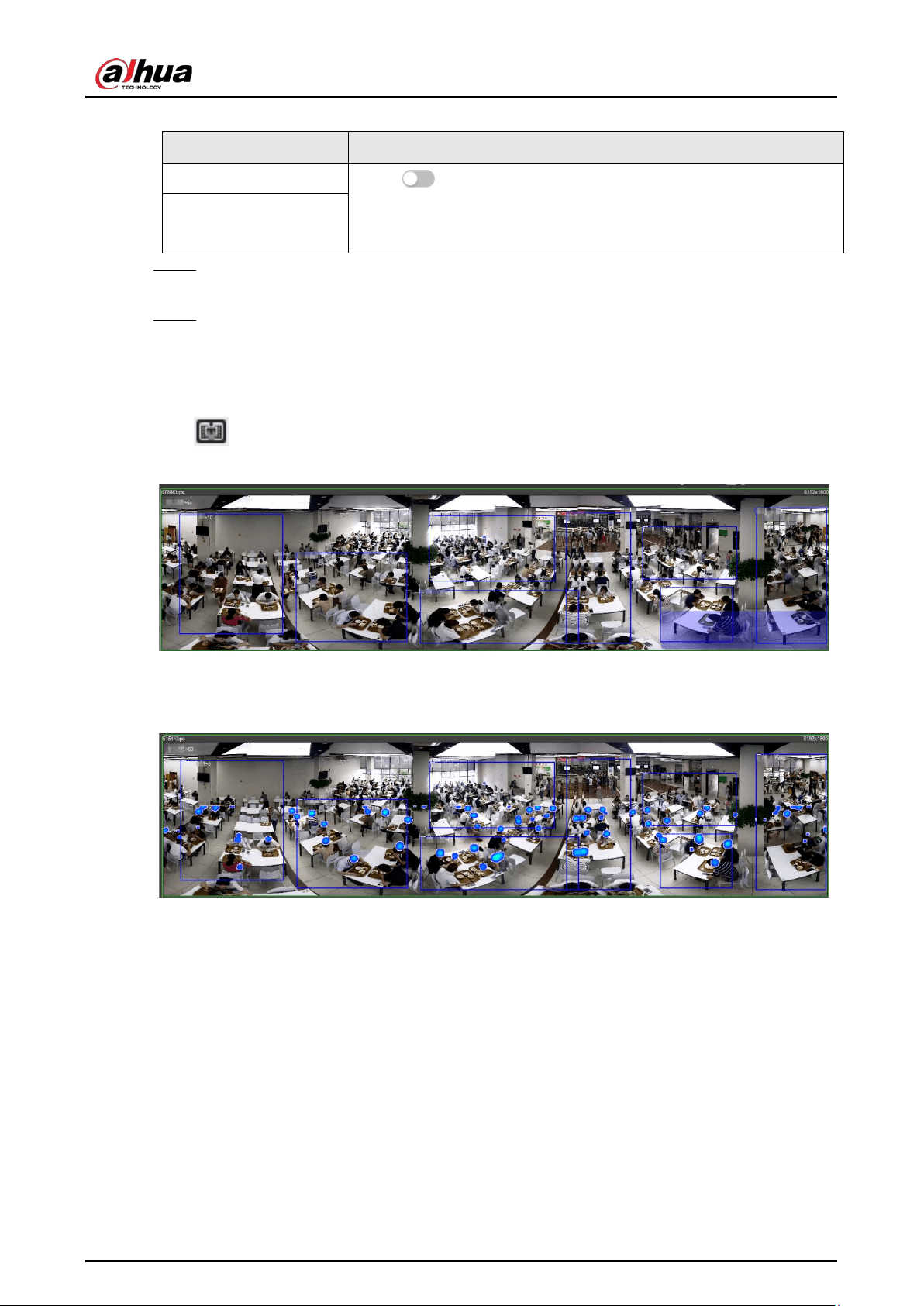

Figure 8-3 Crowd map (1)
Double-click the rendering area at the lower-right corner in the image to view crowd distribution in
the area.
Figure 8-4 Crowd map (2)
8.2 Setting Face Recognition
When a face is detected or recognized in the detection area, the system performs alarm linkage and
supports searching face detection and recognition results.
●
Face Detection: When a face is detected in the area, the system performs alarm linkage, such as
recording and sending emails.
●
Face Recognition: When a face is detected in the area, the system compares the captured face
image with the information in the face database, and links alarm according to the comparison
result.
Operation Manual
106
Figure 8-5 Face recognition flowchart
8.2.1 Enabling Face Recognition
When a face is recognized in the detection area, the system performs alarm linkage.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Face Recognition
to enable face recognition of the corresponding
channel, and then click
Next
.

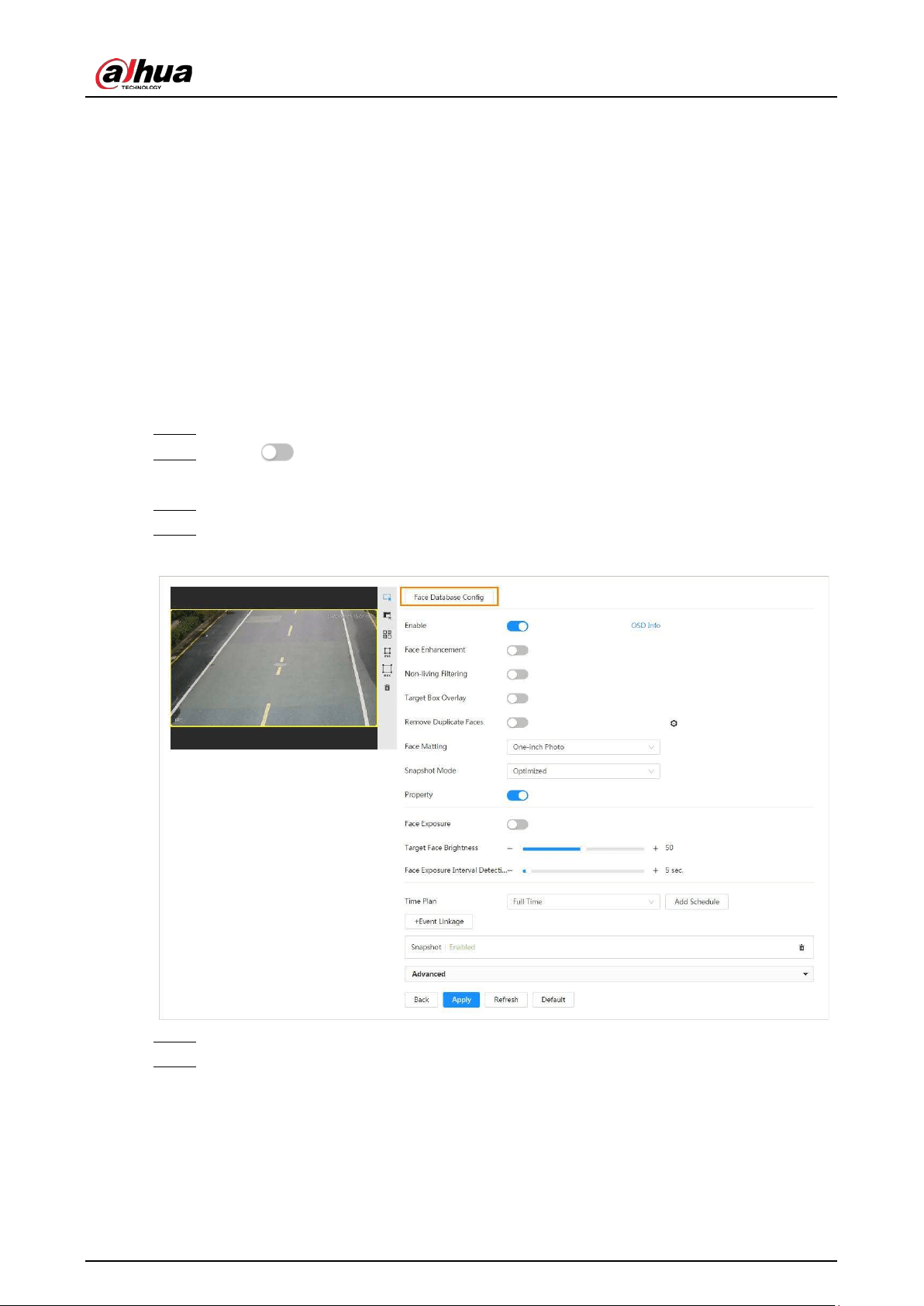

Figure 8-6 Face detection
Step 3 Select the detection mode.
●
General Mode
: When a face is detected in the detection area, the system performs
alarm linkage, such as recording and sending emails.
Operation Manual
107
●
Counting Mode
: You can do precise face counting with two default function databases
(all people database and exclude people database). The faces detected by the camera
will be uploaded to the all people database automatically; the face in the exclude
people database will not be counted. Add faces that you do not want to count (such as
repeating faces and loitering faces) into the exclude people database so that the
system will not count the faces after detecting them.
Step 4 Click next to
Enable
to enable the face detection function.
Step 5 (Optional) Click other icons at the right side of the image to draw detection area, exclusion
area, and filter targets in the image.
●
Click to draw rule line in the image.
When targets enter or leave the detection area along the direction line, their face
images will be uploaded to the all people database, and then the system will determine
whether to count it after comparing with that in the exclude database.
This icon is only available in counting mode.
●
Click to draw a face detection area in the image, and right-click to finish the
drawing.
●
Click to draw an exclusion area for face detection in the image, and right-click to
finish the drawing.
●
Click to draw the minimum size of the target, and click to draw the maximum
size of the target. Only when the target size is between the maximum size and the
minimum size, can the alarm be triggered.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Step 6 Set parameters.
Table 8-2 Description of face detection parameters
Parameter Description
OSD Info
Click
OSD Info
, and the
Overlay
page is displayed, and then enable the
face statistics function. The number of detected faces is displayed on the
Live
page. For details, see "6.2.2.2.12 Configuring Face Statistics".
Face Enhancement
Click to enable face enhancement, and it can preferably
guarantee clear face with low stream.
Non-living Filtering Filter non-living faces in the image, such as a face picture.
Target Box Overlay
Click to enable the function, and you can add a bounding box to
the face in the captured picture to highlight the face.
The captured face picture is saved in SD card or the configured storage
path. For the storage path, see "6.1 Local".
Remove Duplicate
Faces
During the configured period, the duplicate faces are displayed only
once, to avoid repeated counting.
Click to configure the parameter, and then click
Apply
.
●
Time
: During the configured time, the function is enabled.
●
Precision
: The larger the precision value, the higher the accuracy.
Operation Manual
108
Parameter Description
Face Matting
Set a range for the captured face image, including face, one-inch picture,
and custom.
When selecting
Custom
, click , configure the parameters on the
prompt page, and then click
Apply
.
●
Customized width: Set snapshot width; enter the times of the
original face width. It ranges from 1–5.
●
Customized face height: Set face height in snapshot; enter the times
of the original face height. It ranges from 1–2.
●
Customized body height: Set body height in snapshot; enter the
times of the original body height. It ranges from 0–4.
When the value is 0, it cuts out the face image only.
Snap Mode
●
General mode:
◇
Optimized Snapshot
: Capture the clearest picture within the
configured time after the camera detects face.
◇
Recognition Priority
: Repeatedly compare the captured face to
the faces in the armed face database, and capture the most
similar face image and send the event. We recommend you
using this mode in access control scene.
Click
Advanced
to set the optimized time.
●
Counting mode: The snapshot mode is tripwire by default, and you
cannot change it.
Property Click next to
Property
to enable the properties display.
Face Beautifying
Enable
Face Beautifying
to make face details clearer at night. After
enabling this function, you can adjust the level. The higher the level, the
higher the beautifying level.
Face Exposure
Enable
Face Exposure
. When a face is detected, the camera can
enhance brightness of the face to make the face image clear.
Face Target
Brightness
Set the face target brightness. It is 50 by default.
Face Exposure
Detection Interval
Set the face exposure detection interval to prevent image flickering
caused by constant adjustment of face exposure. It is 5 seconds by
default.
Advanced
●
Snapshot Angle Filter
: Set snapshot angle to be filtered during the
face detection.
●
Snapshot Sensitivity
: Set snapshot sensitivity during the face
detection. It is easier to detect face with higher sensitivity.
●
Optimized Time
: Set a period to capture the clearest picture after
the camera detects face.
Step 7 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Step 8 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
Operation Manual
109
8.2.2 Setting Face Database
By setting face database, the face database information can be used to compare with the face
detected.
Face database configuration includes creating face database, adding face picture, and face
modeling.
8.2.2.1 Creating Face Database
Face database includes face picture, face data and other information. It also provides comparison
data for the captured face pictures.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Face Recognition
to enable face recognition of the corresponding
channel, and then click
Next
.
Step 3 Select the detection mode.
Step 4 Click
Face Database Config
on the
Face Recognition
page.
Figure 8-7 Face database configuration
Step 5 Click
Add Face Database
.
Step 6 Set the name of the face database.
Operation Manual
110
Figure 8-8 Add face database
Step 7 Click
OK
.
●
General mode: You can add 5 databases at most as needed.
Figure 8-9 Face database successfully added (general mode)
●
Counting mode: Except two default function databases (all people database and
exclude people database), you can add 5 databases at most. Add faces that you do not
want to count (such as repeating faces and loitering faces) into the exclude people
database so that the system will not count the faces face after detecting them.
Figure 8-10 Face database successfully added (counting mode)
Related Operations
●
Edit the name of the face database
Click the text box under
Name
to edit the name of the face database.
◇
You cannot change the name of all people database and exclude database.
◇
Do not name the newly added database as
AllPeople
or
ExcludePeople
.
●
Arm alarm
Click to configure the parameters of arm alarm. For details, see "8.2.3 Setting Arm Alarm".
●
Manage face database
Click to manage the face database. You can search face, register, batch register, modeling all,
modeling, and delete faces.
The all people database only supports modeling all, modeling, and delete faces.
●
Delete face database
Click to delete the face database.
The all people database and exclude database cannot be deleted.
Operation Manual
111
8.2.2.2 Adding Face Picture
Add face picture to the created face database. Single adding and batch importing are supported.
Requirements on face pictures.
●
A single face picture size is 50K–150K in JPEG format. The resolution is less than 1080p.
●
Face size is 30%–60% of the whole picture. Pixel should be no less than 100 pixels between the
ears.
●
Taken in full-face view directly facing the camera without makeup, beautification, glasses, and
fringe. Eyebrow, mouth and other face features must be visible.
8.2.2.2.1 Single Adding
Add face pictures one by one. Select this way when you need to add a small number of face pictures.
Procedure
Step 1 On the
Face Database Config
page, click next to the face database to be configured.
Step 2 Click
Register
.
Step 3 Click
Upload
, select a face picture to be uploaded, and then click
Open
.
You can manually select the area for a face. After uploading picture, select a face and click
Confirm Screen
. When there are multiple faces in a photo, select the target face and click
Confirm Screen
to save face picture.
Operation Manual
112

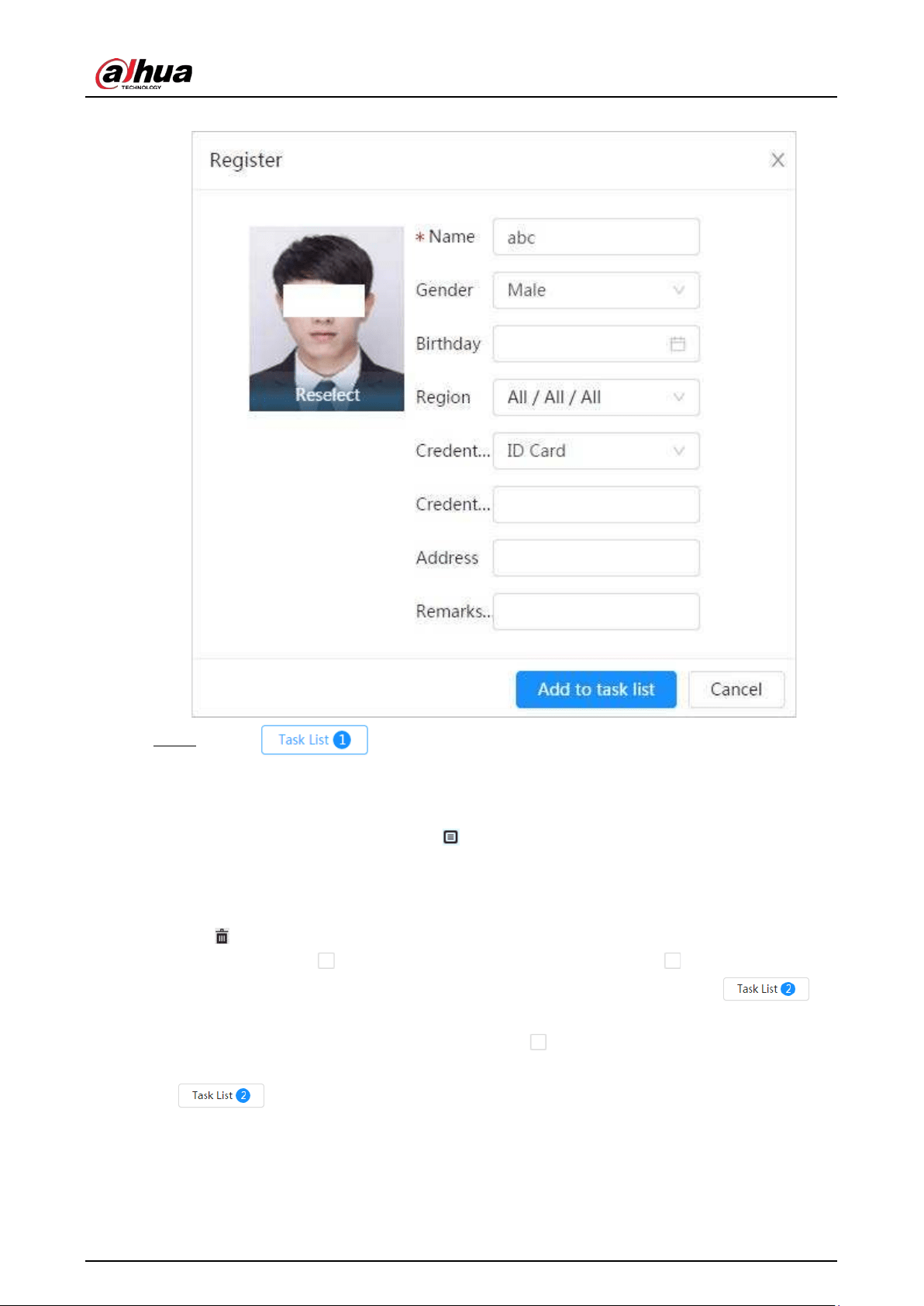

Figure 8-11 Register
Step 4 Enter the information about face picture according to the actual situation.
Step 5 Click
Add to task list
.
Step 6 Click , and then click
Operation
.
●
If the operation is successful, the system prompts that stored successfully, modeled
successfully.
●
If adding user fails, the error code is displayed on the page. For details, see Table 8-3.
For face modeling operation, see "8.2.2.4 Face Modeling".
Table 8-3 Description of error code
Parameter Error Description
0x1134000C
Picture importing error
The picture is too large, and the upper limit
is 150K.
0x1134000E
The quality of the added pictures is to the
upper limit.
0x11340019
The space of the face database exceeds the
upper limit.
1
Picture modeling error
The picture format is not correct. Import
the picture in JPG format.
2
No face in the picture or the face is not
clear. Change the picture.
Operation Manual
113
Parameter Error Description
3
Multiple faces in the picture. Change the
picture.
4
Failed to decode the picture. Change the
picture.
5
The picture is not suitable to be imported
to the face database. Change the picture.
6
The database error. Restart the camera and
model faces again.
7
Fails to get the picture. Import the picture
again.
8
System error. Restart the camera and model
faces again.
8.2.2.2.2 Batch Importing
Import face pictures in batches. Select this way when you need to add a large number of face
pictures.
Prerequisites
Before importing pictures in batches, name face pictures in a format of "Name#SGender#BDate of
Birth#NRegion#TCredentials Type#MID No.jpg" (for example, "John#S1#B1990-01-01#T1#M0000).
For naming rules, see Table 8-4.
●
The max. size of a single face picture is 150K, and the resolution is less than 1080p.
●
When naming pictures, name is required, and others are optional.
Table 8-4 Description of naming rules for batch import parameters
Parameter Description
Name Enter a name.
Gender "1" is male and "2" female.
Date of Birth Format: yyyy-mm-dd, such as 2020-10-23.
Credentials Type "1" is ID card and "2" passport.
ID number Enter ID No.
Procedure
Step 1 On the
Face Database Config
page, click next to the face database to be configured.
Step 2 Click
Batch Register
.
Step 3 Click
Select Picture
, and select storage path of the file.
Operation Manual
114
Figure 8-12 Task list
Step 4 Click
Import
to import the face pictures.
After the importing is completed, the result will be displayed.
●
If the picture is imported successfully, click
Next
to do modeling operation.
●
If the picture importing failed, click
Query
to view the details of the pictures and error
code. For details, see Table 8-3.Click
Export
to export the error details.
Step 5 Click
Next
to do modeling operation.
The modeling result is displayed. If modeling failed, click
Query
and the failure details will
be displayed in the list. Point to the modeling status to view the details. Then you can
change picture according to the failure reason. For modeling details, see "8.2.2.4 Face
Modeling".
8.2.2.3 Managing Face Picture
Add face pictures to face database, and then manage and maintain face pictures to ensure correct
information.
8.2.2.3.1 Editing Face Information
Procedure
Step 1 On the
Face Database Config
page, click next to the face database to be configured.
Step 2 Click
Query
, set the criteria as needed, and then click
Search
.
Step 3 Select the row where the face picture or the personnel information is located, and then
click .
Step 4 Edit face information according to the actual need. Click
Add to task list
.
Operation Manual
115
Figure 8-13 Face information modification
Step 5 Click , and then click
Operation
.
8.2.2.3.2 Deleting Face Picture
On the
Face Database Config
page, click next to the face database to be configured. Click
Query
, set the search criteria as needed, click
Search
, select the face information that needs to be
deleted and delete it.
●
Single delete: Select the row where the face picture or the personnel information is located, and
click to delete the face picture.
●
Batch delete: Select at the upper-right corner of the face picture or of the row where the
personnel information is located. Select the information, click
Delete
, then click ,
and then click
Operation
to delete the selected face pictures.
●
Delete all: When viewing face pictures in a list, click of the row where the serial number is
located; when viewing by thumbnail, select
All
to select all face pictures. Click
Delete
, then click
, and then click
Operation
to delete all face pictures.
Operation Manual
116
Face modeling extracts face picture information and imports the information to a database to
establish relevant face feature models. Through this function, the face recognition and other
intelligent detections can be realized.
●
The more the selected face pictures are, the longer time the face modeling takes. Please wait
patiently.
●
During modeling, some intelligent detection functions (such as face recognition) are not
available temporarily, and will be available after modeling.
Procedure
Step 1 On the
Face Database Config
page, click next to the face database to be configured.
Step 2 Start modeling.
●
Selective modeling.
If there are many face pictures in the face database, you can set search criteria to select
the pictures that need to be modeled.
1. Set the search criteria, and click
Search
.
2. Select the face pictures to be modeled.
3. Click
Modeling
.
●
All modeling.
Click
Modeling All
to complete modeling of all face pictures in the face database.
Step 3 View the modeling result.
When the modeling failed,
Query
will be displayed in the result page. Click
Query
to view
the details.
Figure 8-14 Failed modeling
Click to view the face picture in list format; click to view the face picture in
thumbnail format.
●
When the modeling status is
Valid
in the list or is displayed at the lower-left corner of
the thumbnail, it means the modeling succeeded.
●
When the modeling status is
Invalid
in the list or is displayed at the lower-left corner of
the thumbnail, it means the modeling failed. Point to the modeling status in the list to
view the details of the failure. Change the pictures according to the details.
8.2.3 Setting Arm Alarm
When face recognition succeeded or failed, the device links alarm out.
8.2.2.4 Face Modeling
Operation Manual
117
Step 1 On the
Face Database Config
page, click next to the face database to be configured.
Step 2 Arm face database.
1) Click next to
Arm
to enable the face database arming.
The snapshot will be compared to the pictures in the armed face database.
2) Set the similarity.
The detected face matches the face database only when the similarity between the
detected face and the face feature in face database reaches the configured similarity
threshold. After successful match, the comparison result is displayed on the
Live
page.
Figure 8-15 Arm alarm
Operation Manual
118
Figure 8-16 Arm alarm (all people)
Figure 8-17 Arm alarm (exclude people)
Step 3 Set arming periods.
Step 4 Click next to
Local
to enable local alarm output.
Table 8-5 Local alarm output
Parameter Description
Alarm-out Port
For the device with multiple alarm-out channels, select the channels
as needed.
Operation Manual
119
Parameter Description
Alarm Mode
●
All: No matter the comparison result of the detected face and
that in the face database, the camera links alarm out.
●
General: The camera links alarm out when the detected face
matches that in the face database, the camera links alarm out.
●
Stranger: The camera links alarm out when the detected face fails
to match that in the face database, the camera links alarm out.
●
Select none: the camera does not link alarm out no matter the
comparison result of the detected face and that in the face
database, the camera does not link alarm out.
Post-Alarm
When alarm delay is configured, alarm continues for the defined
period after the alarm ends.
Step 5 Select the report mode and alarm linkage action.
●
There are four report modes:
◇
All: The camera reports events no matter the comparison result of the detected face
and that in the face database, and then configure the linkage action in
General
Mode
and
Stranger Mode
.
◇
General: The camera reports events when the detected face matches that in the face
database, and then configure the linkage action in
General Mode
.
◇
Stranger: The camera reports events when the detected face fails to match that in
the face database, and then configure the linkage action in
Stranger Mode
.
◇
Select none: The camera does not report events no matter the comparison result of
the detected face and that in the face database. You do not need to configure any
linkage action.
●
Set alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Step 6 Enable
Auto Delete
, set the time.
When the database is full, the camera will delete the old files according to the configured
time, and it is 7 days by default.
This function is only available on the all people database.
Step 7 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
8.2.4 Viewing Face Recognition Result
Select
Face Mode
from the display mode drop-down list at the upper-right corner.
●
The live image is displayed at the left side, and the captured face pictures and attribute
information are displayed at the right side. When the recognition is successful, the captured face
pictures, pictures in the database and the similarity of the face pictures and pictures in the
database are displayed at the right side; the snapshot counting result and thumbnails are
displayed at the bottom of the live image.
●
Click to set the attributes. For details, see "7.5 Display Mode".
Operation Manual
120
Figure 8-18 Face recognition result
8.3 Setting Face Detection
When a face is detected in the detection area, the system performs an alarm linkage.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Face Detection
to enable face detection of the corresponding
channel, and then click
Next
.
Figure 8-19 Face detection
Step 3 Click next to
Enable
to enable the face detection function.
Step 4 (Optional) Click other icons at the right side of the image to draw detection area, exclusion
Operation Manual
121
area, and filter targets in the image.
●
Click to draw a face detection area in the image. The detection area is the whole
image by default.
●
Click to draw an exclusion area for face detection in the image.
●
Click to draw the minimum size of the target, and click to draw the maximum
size of the target. Only when the target size is between the maximum size and the
minimum size, can the alarm be triggered.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Step 5 Set parameters.
Table 8-6 Description of face detection parameters
Parameter Description
OSD Info
Click
OSD Info
, and the
Overlay
page is displayed, and then enable the
face statistics function. The number of detected faces is displayed on the
Live
page. For details, see "6.2.2.2.12 Configuring Face Statistics".
Face Enhancement
Click to enable face enhancement, and it can preferably
guarantee clear face with low stream.
Target Box Overlay
Click to enable the function, and you can add a bounding box to
the face in the captured picture to highlight the face.
The captured face picture is saved in SD card or the configured storage
path. For the storage path, see"6.1 Local".
Face Matting
During the configured period, the duplicate faces are displayed only
once, to avoid repeated counting.
When selecting
Custom
, click , configure the parameters on the
prompt page, and then click
Apply
.
●
Customized width: Set snapshot width; enter the times of the
original face width. It ranges from 1–5.
●
Customized face height: Set face height in snapshot; enter the times
of the original face height. It ranges from 1–2.
●
Customized body height: Set body height: in snapshot; enter the
times of the original body height. It ranges from 0–4.
When the value is 0, it means to cutout the face image only.
Snap Mode
●
Optimized Snapshot
: Capture the clearest picture within the
configured time after the camera detects face.
●
Recognition Priority
: Repeatedly compare the captured face to the
faces in the armed face database, and capture the most similar face
image and send the event. It is recommended to use this mode in
access control scene.
Click
Advanced
to set the optimized time.
Property
Click next to
Property
to enable the properties display.
Operation Manual
122
Parameter Description
Advanced
●
Snapshot Angle Filter
: Set snapshot angle to be filtered during the
face detection.
●
Snapshot Sensitivity
: Set snapshot sensitivity during the face
detection. It is easier to detect face with higher sensitivity.
●
Optimized Time
: Set a period to capture the clearest picture after
the camera detects face.
Face Exposure
Click next to
Face Exposure
. When a face is detected, the camera
can enhance brightness of the face to make the face image clear.
Face Target
Brightness
Set the face target brightness. It is 50 by default.
Face Exposure
Detection Interval
Set the face exposure detection interval to prevent image flickering
caused by constant adjustment of face exposure. It is five seconds by
default.
Step 6 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Step 7 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
Result
The face detection result is displayed on the live page.
●
The face pictures snapped in real time and their attribute information are displayed.
●
Click a face picture in the display area, and the details are displayed.

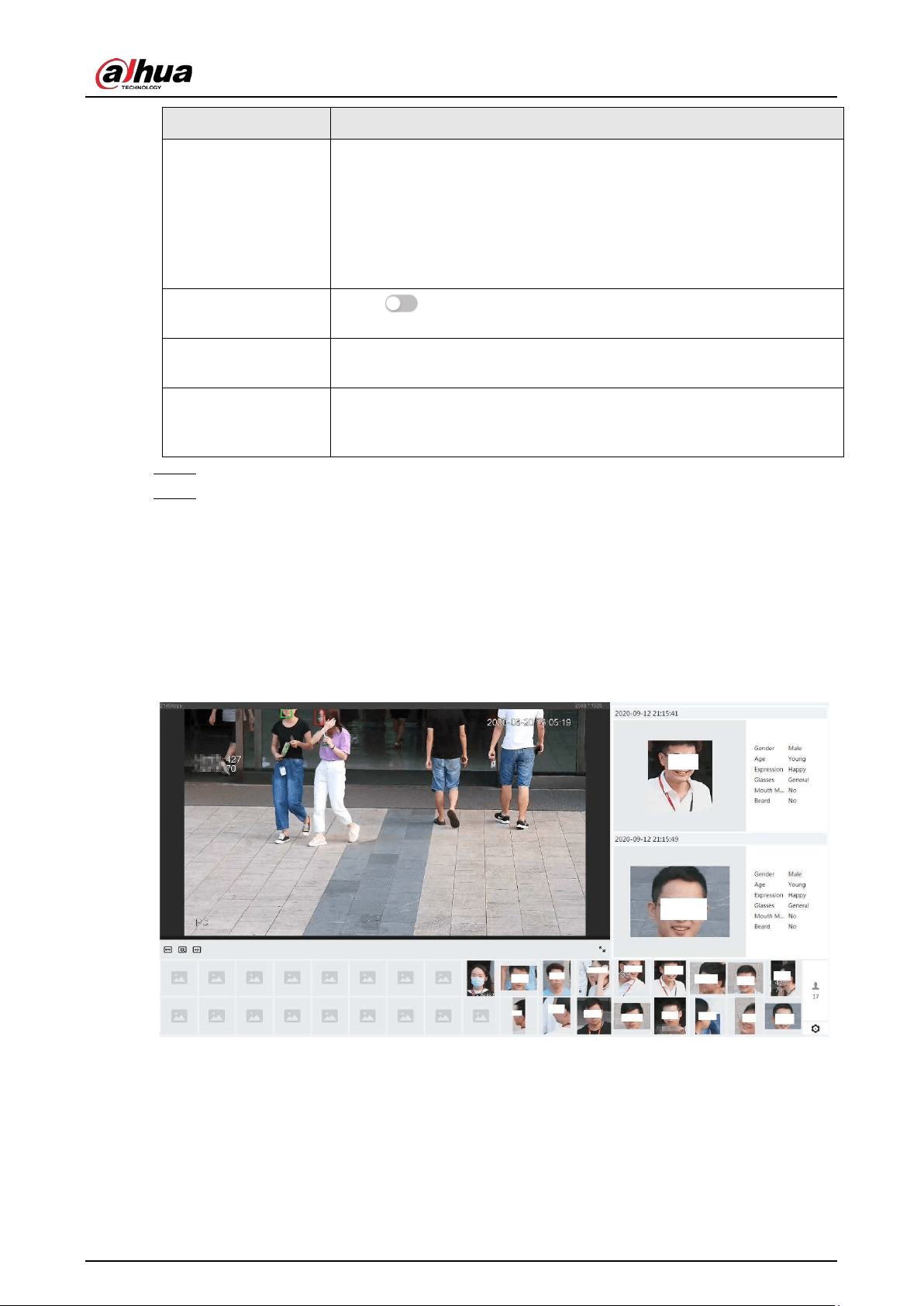

Figure 8-20 Face detection result
8.4 Setting IVS
This section introduces scene selection requirements, rule configuration, and global configuration
for IVS (intelligent video system).
Basic requirements on scene selection are as follows.
Operation Manual
123
●
The target should occupy no more than 10% of the whole image.
●
The target size in the image should be no more than 10 × 10 pixels. The size of abandoned object
in the image should be no less than 15 × 15 pixels (CIF image). The target height and width
should no more than a third of the image height and width. The recommended target height is
10% of the image height.
●
The brightness difference of the target and the background should be no less than 10 gray levels.
●
The target should be continuously present in the image for no less than two seconds, and the
moving distance of the target should be larger than its width and no less than 15 pixels (CIF
image) at the same time.
●
Reduce the complexity of surveillance scene as much as you can. Intelligent analysis functions
are not recommended to be used in scene with dense targets and frequent illumination change.
●
Avoid areas such as glass, reflective ground, water surface, and areas interfered by branch,
shadow and mosquito. Avoid backlight scene and direct light.
8.4.1 Global Configuration
Set global rules for IVS, including anti-disturb, depth of field calibration, and valid motion parameter
for targets.
Calibration Purpose
Determine corresponding relationship between 2D image captured by the camera and 3D actual
object according to one horizontal ruler and three vertical rulers calibrated by the user and the
corresponding actual distance.
Applicable Scene
●
Medium or distant view with installation height of more than three meters. Scenes with parallel
view or ceiling-mounted are not supported.
●
Calibrate horizontal plane, not vertical walls or sloping surfaces.
●
This function is not applicable to scenes with distorted view, such as the distorted views captured
by super wide-angle or fisheye camera.
Notes
●
Calibration Drawing
◇
Calibration area: The calibration area drawn should be on one horizontal plane.
◇
Vertical ruler: The bottom of three vertical rulers should be on the same horizontal plane.
Select three reference objects with fixed height in triangular distribution as vertical rulers,
such as vehicle parked at roadside or road lamp poles. Arrange three persons to draw at each
of the three positions in the monitoring scene.
◇
Horizontal ruler: Select reference object with known length on the ground, such as sign on
the road, or use a tape to measure the actual length.
●
Calibration VerificationAfter setting the ruler, draw a straight line on the image, check the
estimated value of the straight line, and then compare this value with the value measured in the
actual scene to verify calibration accuracy. In case of major difference between the estimated
value and the actual one, fine-tune or reset parameters until the error requirement is met.
Operation Manual
124
Procedure
1. Select
AI
>
Smart Plan
.
2. Click next to
IVS
to enable IVS of the corresponding channel, and then click
Next
.
3. Click the
Global Config
tab.
Figure 8-21 Global configuration of IVS
4. Set calibration area and ruler.
a. Click and draw a calibration area in the image, and right-click to finish the drawing.
b. Click the ruler icon to draw one horizontal ruler and three vertical rulers in the calibration
area.
●
indicates vertical ruler, and indicates horizontal ruler
●
Select an added ruler, and click to delete the ruler.
5. Set the sensitivity.Adjust the filter sensitivity. With higher value, it is easier to trigger an alarm
when low-contrast object and small object are captured, and the false detection rate is higher.
6. Click
Apply
.
Result
1. Select the verification type, and then click
Calibration Verification
.To verify vertical ruler and
horizontal ruler, respectively select
Height Verification
and
Width Verification
.
2. Draw a straight line in the image to verify whether the rulers are correctly set.In case of big
difference between the estimated value and the actual one, fine-tune or reset parameters until
the error requirement is met.
8.4.2 Rule Configuration
Set rules for IVS, including cross fence detection, tripwire, intrusion, abandoned object, moving
object, fast moving, parking detection, crowd gathering, and loitering detection.
Prerequisites
●
Select
AI
>
Smart Plan
, and enable
IVS
.
●
Select
AI
>
Smart Plan
>
Global Config
to finish global configuration.
For the functions and applications of the rules, see Table 8-7.
Operation Manual
125
Table 8-7 Description of IVS functions
Rule Description Applicable Scene
Tripwire
When the target crosses tripwire from
the defined motion direction, an
alarm is triggered, and then the
system performs configured alarm
linkages.
Scenes with sparse targets
and no occlusion among
targets, such as the perimeter
protection of unattended
area.
Intrusion
When the target enters, leaves, or
appears in the detection area, an
alarm is triggered, and the system
performs configured alarm linkages.
Abandoned object
When an object is abandoned in the
detection area over the configured
time, an alarm is triggered, and then
the system performs configured alarm
linkages.
Scenes with sparse targets
and without obvious and
frequent light change. Simple
scene in the detection area is
recommended.
●
Missed alarm might
increase in the scenes
with dense targets,
frequent occlusion, and
people staying.
●
In scenes with complex
foreground and
background, false alarm
might be triggered for
abandoned or missing
object.
Missing object
When an object is taken out of the
detection area over the defined time,
an alarm is triggered, and then the
system performs configured alarm
linkages.
Scenes with sparse targets
and without obvious and
frequent light change. Simple
scene in the detection area is
recommended.
●
Missed alarm might
increase in the scenes
with dense targets,
frequent occlusion, and
people staying.
●
In scenes with complex
foreground and
background, false alarm
might be triggered for
abandoned or missing
object.
Fast moving
When the motion speed is higher
than the configured speed, an alarm
is triggered, and then the system
performs configured alarm linkages.
Scene with sparse targets and
less occlusion. The camera
should be installed right
above the monitoring area.
The light direction should be
vertical to the motion
direction.
Operation Manual
126
Rule Description Applicable Scene
Parking detection
When the target stays over the
configured time, an alarm is triggered,
and then the system performs
configured alarm linkages.
Road monitoring and traffic
management.
Crowd gathering
When the crowd gathers or the crowd
density is large, an alarm is triggered,
and then the system performs
configured alarm linkages.
Scenes with medium or long
distance, such as outdoor
plaza, government entrance,
station entrance and exit. It is
not suitable for short-distance
view analysis.
Loitering detection
When the target loiters over the
shortest alarm time, an alarm is
triggered, and then the system
performs configured alarm linkages.
After alarm is triggered, if the target
stays in the area within the time
interval of alarm, then alarm will be
triggered again.
Scenes such as park and hall.
Configure IVS rules. This section takes tripwire as an example.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
IVS
to enable IVS of the corresponding channel, and then click
Next
.
Step 3 Click the
Rule Config
tab.
Step 4 Click
Add Rule
on the
Rule Config
page, and then select
Tripwire
from the drop-down
list.
Double-click the name, and you can edit the rule name; the rule is enabled by default.

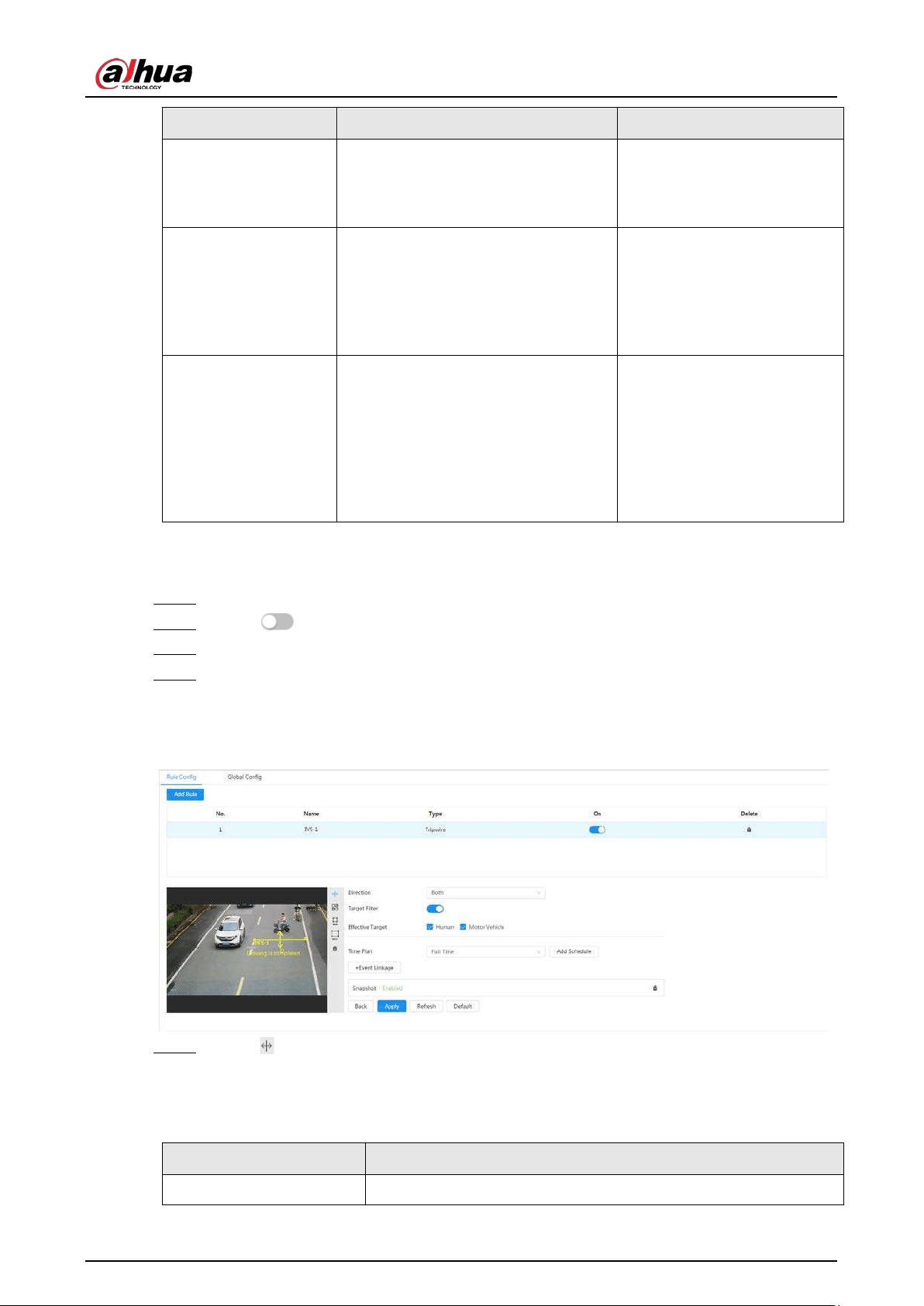

Figure 8-22 Tripwire
Step 5 Click to draw rule line in the image. Right-click to finish drawing.
For requirements of drawing rules, see Table 8-7. After drawing rules, drag corners of the
detection area to adjust the area range.
Table 8-8 Description of IVS analysis
Rule Description
Tripwire Draw a detection line.
Operation Manual
127
Rule Description
Intrusion Draw a detection area.
●
During the detection of abandoned object, the alarm is also
triggered if pedestrian or vehicle stays for a long time. If the
abandoned object is smaller than pedestrian and vehicle, set
the target size to filter pedestrian and vehicle or properly
extend the duration to avoid false alarm triggered by transient
staying of pedestrian.
●
During the detection of crowd gathering, false alarm might be
triggered by low installation height, large percentage of single
person in an image or obvious target occlusion, continuous
shaking of the camera, shaking of leaves and tree shade,
frequent opening or closing of retractable door, or dense traffic
or people flow.
Abandoned object
Missing object
Fast moving
Parking detection
Crowd gathering
Loitering detection
Step 6 (Optional) Click other icons at the right side of the image to filter targets in the image.
●
Click to draw the minimum size of the target, and click to draw the maximum
size of the target. Only when the target size is between the maximum size and the
minimum size, can the alarm be triggered.
●
When the rule of crowd gathering is configured, you do not need to set target filter, but
draw the minimum gathering area. Click to draw the minimum gathering area in
the scene. The alarm is triggered when the number of people in the detection area
exceeds the minimum area and the duration.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Step 7 Set rule parameters for IVS.
Table 8-9 Description of IVS parameters
Parameter Description
Direction
Set the direction of rule detection.
●
When setting tripwire, select
A->B
,
B->A
, or
A<->B
.
●
When setting intrusion, select
Enter
,
Exit
, or
Both
.
Action
When setting intrusion action, select
Appears
or
Cross
.
Target Filter
Click to enable this function.
●
When you select
Human
as the alarm target, an alarm will be
triggered when the system detects that persons trigger the rule.
●
When you select
Motor Vehicle
as the alarm target, alarm will be
triggered when the system detects that vehicle triggers the rule.
Duration
●
For abandoned object, the duration is the shortest time for
triggering an alarm after an object is abandoned.
●
For missing object, the duration is the shortest time for triggering
an alarm after an object is missing.
●
For parking detection, crowd gathering, or loitering detection,
the duration is the shortest time for triggering an alarm after an
object appears in the area.
Operation Manual
128
Parameter Description
Sensitivity
●
For fast moving, sensitivity is related to the triggering speed.
Lower sensitivity requires faster moving speed to trigger the
alarm.
●
For crowd gathering, sensitivity is related to the alarm triggering
time. It is easier to trigger the alarm with higher sensitivity.
Step 8 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Click
+ Event Linkage
to set the linkage action.
Step 9 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
8.5 Setting Vehicle Density
Configure rules for vehicle density, including road congestion and parking upper limit, and you can
view vehicle statistics through the live page.
Background Information
Configure rules for traffic congestion and parking upper limit. When the counted vehicle exceeds the
configured vehicle number and the congestion time exceeds the configured time, an alarm will be
triggered.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Vehicle Density
, and then click
Next
.
Step 3 Click
Add Rule
to select rules.
Figure 8-23 Add rules
Step 4 (Optional) Click other icons at the right side of the image to draw detection area on the
image.
●
Click to draw a detection area in the image. The detection area is the whole image
by default.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Repeat step 1-4 to add multiple statistical areas. You can add up to 9 rules at most.
Operation Manual
129
Figure 8-24 Vehicle density (traffic congestion)
Figure 8-25 Vehicle density (parking upper limit)
Step 5 Set parameters.
Table 8-10 Description of parameters
Parameter Description
Traffic Congestion
Repeat Alarm Time
When the alarm is triggered and this state
lasts for repetitive alarm time, the alarm
will be triggered again.
0 means repeat alarm function disabled.
Vehicle Congestion Alarm
Enable vehicle congestion alarm to set the
upper threshold and duration of vehicles
in the area. When the number of vehicles
exceeds the threshold and the congestion
time exceeds the configured continuous
congestion time, an alarm will be
triggered.
Operation Manual
130
Parameter Description
Parking Upper Limit
Repeat Alarm Time
When the alarm is triggered and this state
lasts for repetitive alarm time, the alarm
will be triggered again.
0 means Repeat Alarm function
disabled.
Upper Limit Vehicle
Quantity Alarm
Enable upper limit vehicle quantity alarm
to set the upper threshold and duration of
vehicles in the area. When the number of
vehicles exceeds the threshold and the
congestion time exceeds the configured
continuous congestion time, an alarm will
be triggered. The upper threshold of
vehicles that trigger an alarm is 20
vehicles by default.
Step 6 Select time plan and click
+ Event Linkage
.
●
If the added time plan cannot meet your requirements, click
Add Schedule
to add an
arming schedule. For details, see "6.5.1.2.1 Adding Schedule".
●
Click
Event Linkage
to add linked event and set linkage parameters. For details, see
"6.5.1.2 Alarm Linkage".
Step 7 Click
Apply
.
8.6 Setting Parking Space
This section introduces rule configuration and global configuration for parking space.
8.6.1 Rule Configuration
8.6.1.1 For Parking Space Detection Fisheye WizMind Network Camera
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Parking Space Management
, and then click
Next
.
Step 3 Select the mode.
●
12 parking spaces: Only supports parking space detection.
●
6 parking spaces: Supports both ANPR and parking space detection.
ANPR is available for customized devices.
Step 4 Draw rules.
●
Manual drawing: Click
Draw Rule
on the lower-right corner of the image. Click the left
mouse button on the image to draw a closed box, and then click the right mouse
button to complete the drawing.
Operation Manual
131
Click
Redraw Rule
to redraw the detection area as needed.
●
Auto drawing: Select the number from the drop-down list and then click
Draw
. The
added rules will be displayed in the list. Click the text box under
Name
to edit the rule
name. The rule is enabled by default.
The system automatically shows the number of parking space detection boxes on the
image. Click and drag the box according to the actual parking space.
Figure 8-26 Parking space
Step 5 Configure the parameters.
Figure 8-27 Parking space parameters
Operation Manual
132
Table 8-11 Description of parking space parameters
Parameter Description
Parking Space Status
Configure the status light for when parking space is available and
the parking lot is full. The colors available for both status are:
None, red, yellow, green, blue, cyan, pink and white.
Target Box Overlay
Overlay the target box on the captured pictures to mark the
change of parking space. It is enabled by default. Click
Overlay
to select the information displayed on the picture. The
captured picture is saved in the configured storage path. For the
storage path, see "10.4.1 Local Storage".
Sensitivity
Set the sensitivity of parking space detection. When the sensitivity
is high, detection becomes easier, but the number of false
detections increases. It is 50 by default.
Step 6 Select time plan and click
+ Event Linkage
.
●
If the added time plan does not meet your requirements, click
Add Schedule
to add an
arming schedule. For details, see "6.5.1.2.1 Adding Schedule".
●
Click
Event Linkage
to add linked events and to configure linkage parameters. For
details, see "6.5.1.2 Alarm Linkage".
Step 7 Click
Apply
.
8.6.1.2 For Other Cameras
Set planned or open type for parking space.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Parking Space
, and then click
Next
.
Step 3 Click the
Rule Config
tab.
Step 4 (Optional) Click other icons at the right side of the image to draw detection area, exclusion
area, and filter targets in the image.
●
Click to draw the rectangle area.
◇
If you select planned parking space, the rectangle area will be divided equally
according to the planned parking spaces number that you configured.
Operation Manual
133
Figure 8-28 Rule configuration (1)
◇
If you select open parking space, the rectangle area will not be divided.
Figure 8-29 Rule configuration (2)
●
Click to draw a parking space detection area in the image. The detection area is the
whole image by default.
●
Click to draw an exclusion area for parking space detection in the image.
●
Click to draw the minimum size of the target, and click to draw the maximum
size of the target. Only when the target size is between the maximum size and the
minimum size, can the alarm be triggered.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Step 5 Select
Planned/Open
in
Type
.
●
Planned Parking Space
It is used for parking management of planned parking lots (with clearly delineated
Operation Manual
134
parking spaces). When there is a car parked in the parking space, a red dot is drawn.
And a parking space without a car is drawn a green dot.
Figure 8-30 Planned parking space
Table 8-12 Description of planned parking space parameters
Parameter Description
Name Enter the name of the added parking space.
Direction You can select
Vertical
or
Horizontal
direction.
Planned Parking Space
It can be used to divide the initial quadrilateral equally, which
is convenient for you to draw the rule box
Start No. Associates with the name of parking spaces.
End No.
Associates with
Planned Parking Space
.
Actual Parking Space
It ranges from 1 to the configured value of planned parking
space.
Actual Parking Space
is 1 by default.
Alarm Threshold
You can set it from 0 through 100. When alarm is triggered,
the frame of related statistic area will flash red. And the
threshold number is 0 by default.
Sensitivity
Adjust the false alarm and miss alarm of the system. And the
sensitivity is 6 by default.
Report Period
The report period is 30 seconds by default. And you can set it
between 5 to 3600 seconds. It will only upload related data
but not pictures or videos.
●
Open Parking Space
Operation Manual
135
It is used for parking management of open parking lots in a large area. When there is a
car parked in the parking space, a red dot is drawn. And a parking space without a car
will not show any dot.
Figure 8-31 Open parking space parameters
Table 8-13 Description of open parking space parameters
Parameter Description
Name Enter the name of the added parking space.
Actual Parking Space
Actual Parking Space is 1 by default. When you change the planned
parking space, the input range would change into 1 - the number of
planned parking space.
Alarm Threshold
The threshold number is 0 by default. And you can set it between 0
to 100. When alarm is triggered, the frame of related statistic area
will flash in red.
Sensitivity
It is designed to adjust the false alarm and miss alarm of the system.
And the sensitivity is 6 by default.
Report Period
The report period is 30 seconds by default. And you can set it
between 5 to 3600 seconds. It will only upload related data but not
pictures or videos.
Step 6 Select time plan and click
+ Event Linkage
●
If the added time plan cannot meet your requirements, click
Add Schedule
to add an
arming schedule. For details, see "6.5.1.2.1 Adding Schedule".
●
Click
+Event Linkage
to add linked event and set linkage parameters. For details, see
"6.5.1.2 Alarm Linkage".
Step 7 Click
Apply
.
Operation Manual
136
8.6.2 Global Configuration
Procedure
Step 1 (Optional) Set OSD information.
Click
OSD Info
, and the
Overlay
page is displayed, and then enable the
Parking Space
function. The statistical result is displayed on the
Live
page For details, see "6.2.2.2.14
Configuring Parking Space".
Step 2 Adjust confidence level.
Confidence level is used for algorithm adjustment of false alarm and detection.
Step 3 Click
Apply
.
8.7 Setting Video Metadata
Classify people, non-motor vehicles and motor vehicles in the captured video, and display the
relevant attributes on the live page.
8.7.1 Global Configuration
Set the global configuration of video metadata, including face parameter and scene parameter.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Video Metadata
to enable video metadata of the corresponding
channel, and then click
Next
.
Step 3 Click the
Global Config
tab.
Step 4 Set parameters.
Operation Manual
137

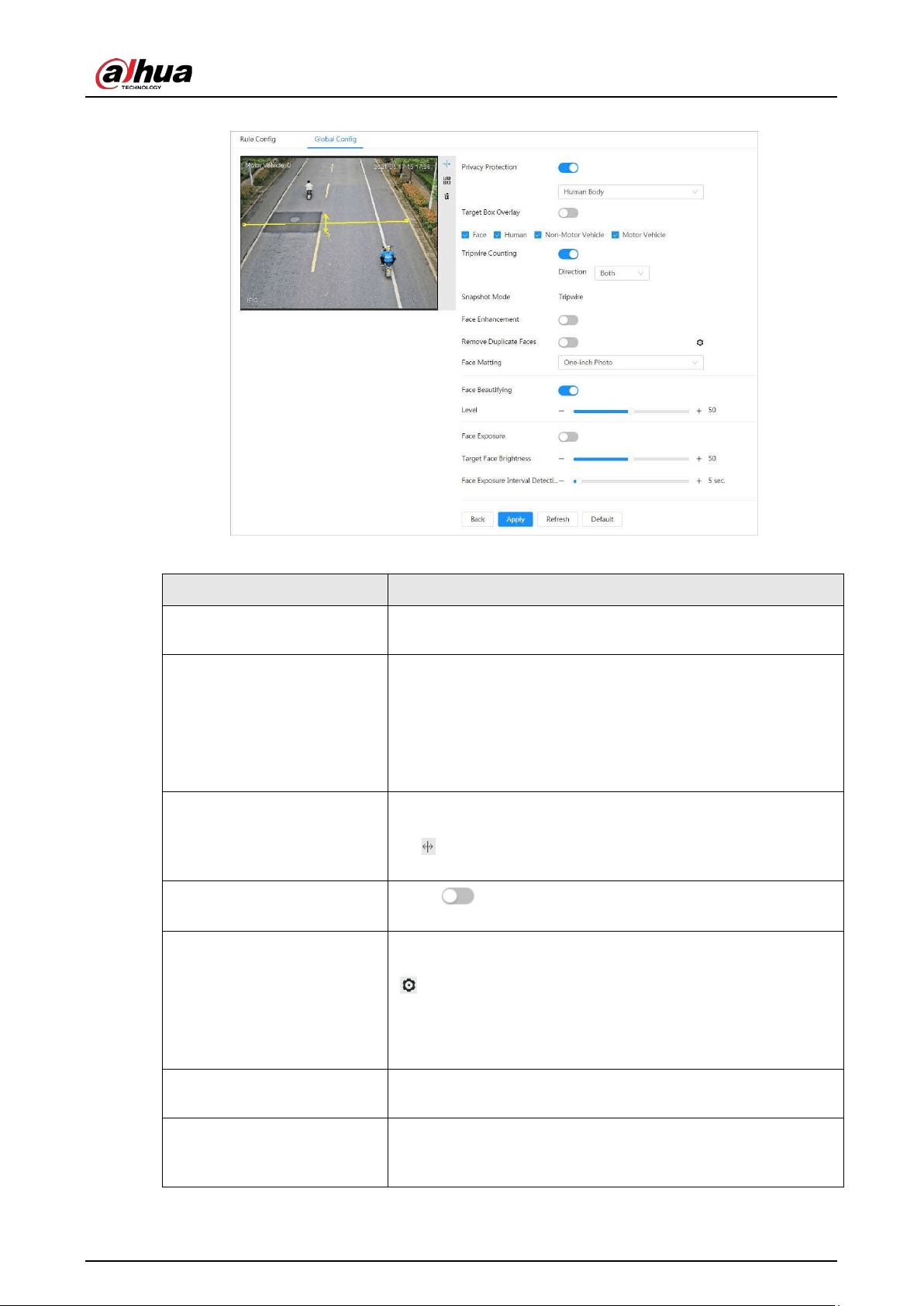

Figure 8-32 Global configuration of video metadata
Table 8-14 Description of scene set parameters (video metadata)
Parameter Description
Privacy Protection
Enable this function, and the faces and bodies will be blurred by
mosaic or color blocks when they are detected.
Target Box Overlay
Overlay target box on the captured pictures to mark the target
position.
Four types of target boxes are supported. Select the target box
as needed.
The captured pictures are stored in SD card or the configured
storage path. For details, see "6.1 Local".
Tripwire Counting
Enable this function, and set the tripwire direction. The
snapshot mode is
Tripwire
by default, and you cannot change
it. will be displayed beside the image on the
Rule Config
page. You can draw the rule as needed.
Face Enhancement
Click next to
Face Enhancement
to preferably
guarantee clear face with low stream.
Remove Duplicate Faces
During the configured period, the face that detected several
times is displayed only once, to avoid repeated counting. Click
to set the parameters, and then click
Apply
.
●
Time: The function is valid within the configured period.
●
Precision: The larger the value is, the higher the accuracy
will be.
Face Matting
Set a range for matting face image, including face picture and
one-inch picture.
Face Beautifying
Enable
Face Beautifying
to make face details clearer at night.
After enabling this function, you can adjust the level. The higher
the level, the higher the beautifying level.
Operation Manual
138
Parameter Description
Face Exposure
Enable
Face Exposure
to make face clearer by adjusting lens
aperture and shutter.
Target Face Brightness Set the face target brightness, and it is 50 by default.
Face Exposure Interval
Detection Time
Set the face exposure interval detection time to prevent image
flickering caused by constant adjustment of face exposure. It is
5 seconds by default.
Scene Set scene as
Distant View
or
Close View
.
Step 5 Click
Apply
.
8.7.2 Rule Configuration
Set the detection scene and rules, including people, non-motor vehicle, and motor vehicle.
Prerequisites
●
Select
AI
>
Smart Plan
, and enable
Video Metadata
.
●
You have configured the parameters on the
Clobal Config
page.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Video Metadata
, and then click
Next
.
Step 3 Click the
Rule Config
tab.
Step 4 Click
Add Rule
to select rules.
The added rules will be display in the list. Click the text box under
Name
to edit the rule
name. The rule is enabled by default.
Figure 8-33 Rule configure (video metadata)
Step 5 Configure
.
1) Click .
2) Set overlay of motor vehicle, non-motor vehicle and people and the box position.
This section takes the configuration of non-motor vehicle overlay as an example.
Operation Manual
139
Figure 8-34 Picture (non-motor vehicle)
3) Click
Apply
.
Step 6 (Optional) Click the icons at the right side of the image to filter targets in the image.
●
Click to draw rule line in the image.
When targets pass the tripwire along the configured direction line, they will be
counted.
●
After the rule is enabled, the detection area is displayed. Click , and you drag the any
corner of the box to adjust the size of the area, and press the left mouse button and
move the box to adjust the position.
●
Click to draw an area exclusion area for face detection in the image, and right-click
to finish the drawing..
●
Click to draw the minimum size of the target, and click to draw the maximum
size of the target. Only when the target size is between the maximum size and the
minimum size, can the alarm be triggered.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Step 7 Set parameters.
Table 8-15 Description of crowd map parameters
Parameter Description
People Flow Statistics
Click next to
People Flow Statistics
to count the number of
people in the detection area.
Flow Statistics (Non-motor
Vehicle)
Click next to
Flow Statistics (Non-motor Vehicle)
to count
the number of non-motor vehicles in the detection area.
Traffic Flow Stat
Click next to
Traffic Flow Statistics
to count the number of
motor vehicles in the detection area.
OSD
Click
OSD Info
, and the
Overlay
page is displayed. Click
next to
Enable
to enable the target statistics function. For details,
see "6.2.2.2.8 Configuring Target Statistics".
Operation Manual
140
Parameter Description
Snapshot Mode
●
Optimized: Capture the pictures until the vehicle disappears
from the image, and report the clearest picture.
●
Tripwire: Capture the pictures when the vehicle triggers
tripwire as the configured direction.
1. Select
Tripwire
.
2. Select the direction from
A to B
,
B to A
, and
Both
.
3. Adjust the position of rule line as needed.
Step 8 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Click
+ Event Linkage
to set the linkage action.
Step 9 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
8.7.3 Viewing Video Metadata Report
Generate data of video metadata recognition in report form.
Procedure
Step 1 Select
Setting
>
Event
>
Video Metadata
>
Report
.
Step 2 Select the report type, start time, end time, and other parameters.
Step 3 Click
Search
to complete the report.
The statistical results are displayed. Click
Export
to export the statistical report.
Figure 8-35 Video metadata report
8.8 Setting People Counting
People counting (including entry number, exit number and stay number in area), queuing number,
and view the people counting data in report form.
Operation Manual
141
8.8.1 People Counting
The system counts the people entering and leaving the detection area. When the number of
counted people exceeds the configured value, an alarm is triggered and the system performs an
alarm linkage.
Background Information
There are two types of people counting rules.
●
People Counting
: The system counts the people entering and leaving the detection area. When
the number of counted number of people who enter, leave, or stay in the area exceeds the
configured value, an alarm is triggered, and the system performs an alarm linkage.
●
Area People Counting
: The system counts the people in the detection area and the duration
that people stay in the area. When the number of counted number of people in the detection
area or the stay duration exceeds the configured value, an alarm is triggered, and the system
performs an alarm linkage. This function is available on some select models.
Procedure
Step 1 Select
AI
>
Smart Plan
Step 2 Click next to
People Counting
, and then click
Next
.
Step 3 Click the
People Counting
tab.
Step 4 Click
Add Rule
to select rules.
●
The added rules will be displayed in the list. Click the text box under
Name
to edit the
rule name. The rule is enabled by default.
●
For the models that support multiple counting rules, different detection areas can be
overlapped. It supports at most 4 people counting rules and 4 area people counting
rules.

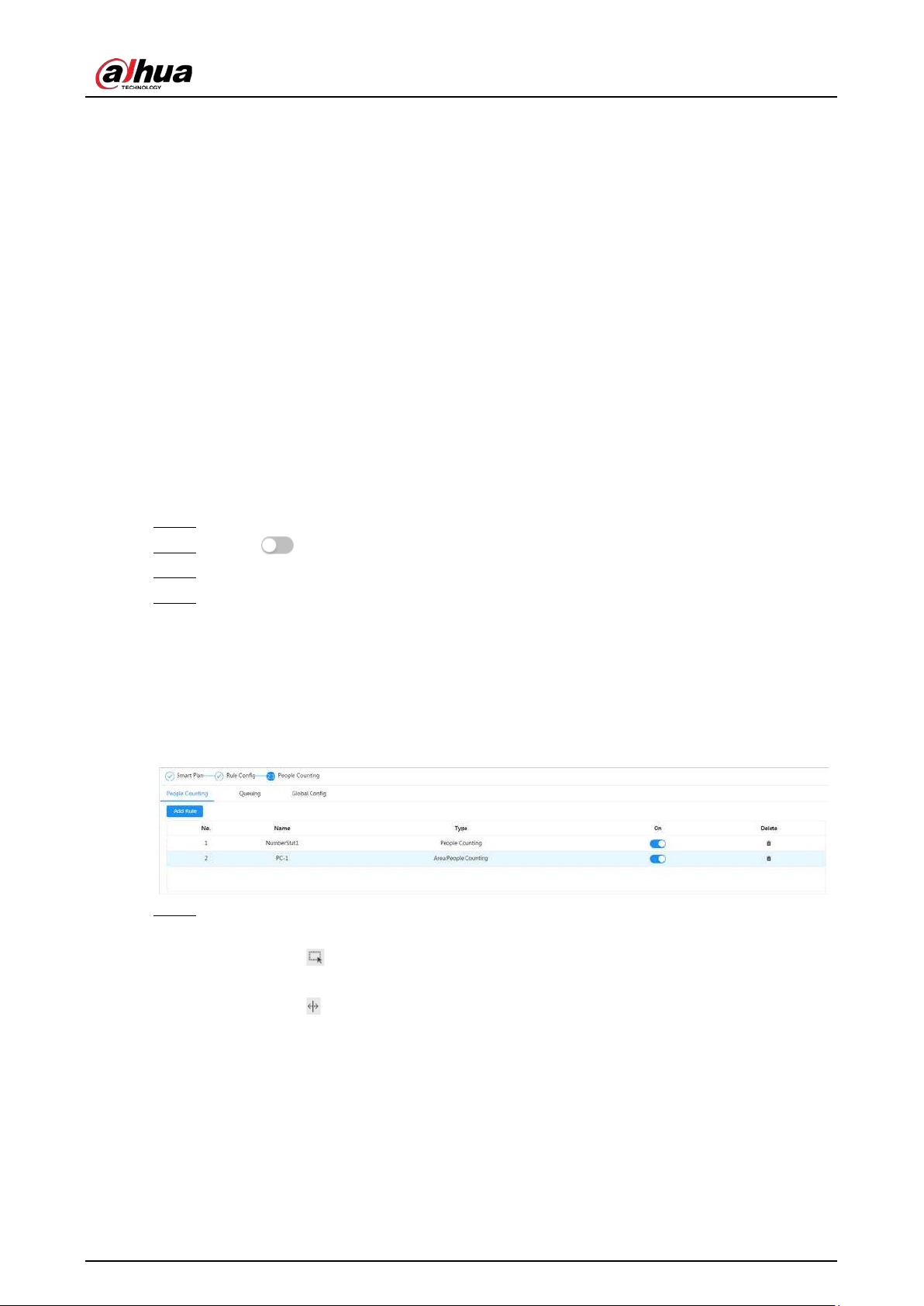

Figure 8-36 Add rule
Step 5 Draw a detection area in the image.
●
People counting
1. Click , and drag the any corner of the box to adjust the size of the area, and press
the right mouse button and move the box to adjust the position.
2. Click to draw rule line in the image.
When targets enter or leave the detection area along the direction line, they will be
counted.
Operation Manual
142
Figure 8-37 People counting (1)
●
Area people counting
Click , and drag the any corner of the box to adjust the size of the area, and press the
right mouse button and move the box to adjust the position.
Figure 8-38 People counting (2)
Step 6 Set parameters.
Table 8-16 Description of people counting parameters
Parameter Description
People
counting
Enter No.
Counts the number of people entering in the
direction A-->B. When the number exceeds the
configured value, an alarm will be triggered.
Exit No.
Counts the number of people entering in the
direction B-->A. When the number exceeds the
configured value, an alarm will be triggered.
Stay No.
It is the difference between the
Enter No.
and
Exit No.
. When the number exceeds the
configured value, an alarm will be triggered.
Clear Clears the counted number.
Area people
counting
Area people counting Enable the area people counting function.
Inside Number Set the number of people in the people counting region. When the people
count reaches the configured value, an alarm will be triggered.
When you set inside number to 0, and select
≥ Threshold
in
Type
, the system
will not perform the alarm linkage.
Type
Stay Alarm
Select the
Stay Alarm
check box, and then set the stay time, when the stay
duration exceeds the configured value, an alarm will be triggered.
Strand Time
Operation Manual
143
Step 7 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Click
+ Event Linkage
to set the linkage action.
Step 8 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
Result
You can view the counting results on the
Live
page.
●
For
People Counting
rule, the entry and exit numbers are displayed.
●
For
Area People Counting
rule, the inside number is displayed.
Figure 8-39 Counting result
8.8.2 Queuing
The system counts the queue people in the detection area. When the queue people number exceeds
the configured number or the queue time exceeds the configured time, an alarm will be triggered,
and the system performs an alarm linkage.
Procedure
Step 1 Select
AI
>
Smart Plan
Step 2 Click next to
People Counting
, and then click
Next
.
Step 3 Click the
Queuing
tab.
Step 4 Click
Add Rule
>
Queuing
to select rules.
●
The added rules will be display in the list. Click the text box under
Name
to edit the rule
name. The rule is enabled by default.
Operation Manual
144
●
For the models that support multiple counting rules, different detection areas can be
overlapped. It supports at most 4 queuing rules.
Figure 8-40 Add rule
Step 5 Draw a detection area in the image.
Click to draw the detection area, and press the right mouse button to complete the
drawing.
Figure 8-41 Queuing
Step 6 Set parameters.
Table 8-17 Description of queuing
Parameter Description
Queue People No. Alarm
Enable the queue people No. alarm function.
Queue People No.
Type
Set the queue people number for triggering the alarm and
counting type. When the queue people number reaches the
configured value, an alarm will be triggered.
Queue Time Alarm Enable the queue time alarm function.
Queue Time
Set the queue time. When the queue time reaches the configured
value, the alarm is triggered.
Step 7 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Click
+ Event Linkage
to set the linkage action.
Step 8 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
Result
You can view the queuing results on the
Live
page.
The queuing number and the stay time of each target are displayed on the page.
Operation Manual
145
Figure 8-42 Queuing result
8.8.3 Global Configuration
Set the sensitivity of each people counting rule.
Procedure
Step 1 Select
AI
>
Smart Plan
Step 2 Click next to
People Counting
, and then click
Next
.
Step 3 Click the
Global Config
tab.
Step 4 Set the sensitivity.
The higher the sensitivity, the easier the detection, but the more the false detections.
Figure 8-43 Global configuration
Operation Manual
146
Step 5 Click
Apply
.
8.9 Face & Body Detection
After enabling this function, the camera detects faces and human body separately, and then
correlates the face and the body. When selecting compliant mode, the camera can detect attributes
including face masks, helmets, glasses, safety vests, top color, and bottom color, and determine
whether PPE requirements are met. PPE compliance or non-compliance alarms can be triggered
according to the alarm settings.
8.9.1 Global Configuration
Set the global configuration of face & body detection, including face parameter and scene
parameter.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
Face & Body Detection
to enable face & body detection of the
corresponding channel, and then click
Next
.
Step 3 Click the
Global Config
tab.
Step 4 Set parameters.
Figure 8-44 Global configuration of face & body detection
Table 8-18 Description of scene set parameters (face & body detection)
Parameter Description
Target Box Overlay
Overlay target box on the captured pictures to mark the target
position.
Face & Body Image
Enhancement
Click next to
Face & Body Image Enhancement
to
preferably guarantee clear face and body with low stream.
Operation Manual
147
Parameter Description
Face Cutout
Set a range for matting face image, including face, one-inch
photo, and custom.
Detection Priority Select from
Face First
or
Human Body First
.
Snapshot Mode
●
Real-time
: Capture the image when the camera detects a
face.
●
Optimized
: Capture the clearest image within the
configured time after the camera detects face.
●
Quality Priority
: After detecting the face image quality is
higher than the quality threshold, the camera captures the
image.
●
Tripwire
: This snapshot is available in
PPE Detection
Mode
.
Click
Advanced
to set the optimized time and quality
threshold.
Property Click next to
Property
to enable the properties display.
Advance
●
Snapshot Angle Filter
: Set snapshot angle to be filtered
during the face detection.
●
Snapshot Sensitivity
: Set snapshot sensitivity during the
face detection. It is easier to detect face with higher
sensitivity.
●
Optimized Time
: Set a period to capture the clearest
picture after the camera detects face.
Face Exposure
Click next to
Face Exposure
to make face clearer by
adjusting lens aperture and shutter.
Target Face Brightness Set the face target brightness, and it is 50 by default.
Face Exposure Interval
Detection Time
Set the face exposure interval detection time to prevent image
flickering caused by constant adjustment of face exposure. It is
5 seconds by default.
Step 5 Click
Apply
.
8.9.2 Rule Configuration
Set the detection scene and rules, including people, non-motor vehicle, and motor vehicle.
Prerequisites
●
Select
AI
>
Smart Plan
, and enable
Face & Body Detection
.
●
You have configured the parameters on the
Global Config
page.
Procedure
Step 1 Select
AI
>
Smart Plan
Step 2 Click next to
Face & Body Detection
, and then click
Next
.
Step 3 Click the
Rule Config
tab.
Operation Manual
148
Figure 8-45 Rule configuration
Step 4 Click next to
Enable
to enable the face detection function.
Step 5 (Optional) Click other icons at the right side of the image to draw detection area, exclusion
area, and filter targets in the image.
●
Click to draw a face detection area in the image, and right-click to finish the
drawing.
●
Click to draw an exclusion area for face detection in the image, and right-click to
finish the drawing.
●
Click to draw rule line in the image.
●
Click to draw the minimum size of the target, and click to draw the maximum
size of the target. Only when the target size is between the maximum size and the
minimum size, can the alarm be triggered.
●
Click , and then press and hold the left mouse button to draw a rectangle, the pixel
size is displayed.
●
Click to delete the detection line.
Step 6 (Optional) Set OSD information.
Click
OSD Info
, and the
Overlay
page is displayed, and then enable the face & body
counting function. The number of detected faces and bodies is displayed on the
Live
page.
For details, see "6.2.2.2.12 Configuring Face Statistics".
Step 7 Select the detection mode.
●
General Mode
(selected by default): The system will perform an alarm linkage when
the camera detects a face or a person.
●
PPE Detection Mode
:
1. Click
+
next to
AI Attributes
.
2. Select AI attributes that you want to detect.
The AI attributes include mouth mask, vest, safety helmet, glasses, top color, and
bottom color. For glasses, you need to select the glass type; for safety helmet, top
color, and bottom color, you need to select colors.
3. Click
Apply
to go back to the
Rule Config
page.
4. Select the alarm mode.
◇
Match Attributes Alarm
: When the target's properties are compliant with the
configured properties, an alarm will be triggered, and the system performs an
alarm linkage.
Operation Manual
149
◇
Mismatch Attributes Alarm
: When the target's properties are not compliant
with the configured properties, an alarm will be triggered, and the system
performs an alarm linkage.
Step 8 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Step 9 Click
Apply
.
To view alarm information on the alarm subscription tab, you need to subscribe relevant
alarm event. For details, see "6.5.1.3.2 Subscribing Alarm Information".
8.10 Setting Heat Map
Detect the distribution of dynamically moving objects in the target area within a certain period and
displays the distribution on a heat map. Color varies from blue to red. The lowest heating value is in
blue, and the highest heating value is in red.
Background Information
When mirroring occurs on the camera or the viewing angle changes, original data on the heat map
will be cleared.
Procedure
Step 1 Select
AI
>
Smart Plan
Step 2 Click next to
Heat Map
, and then click
Next
.
Step 3 Select the
Enable
check box, and then the heat map function is enabled.
Figure 8-46 Heat Map
Step 4 Draw detection area and exclusion area.
●
Click to draw a detection area on the image. Right-click to finish drawing.
●
Click to draw an exclusion area on the image. Right-click to finish drawing.
●
Click to clear the existing detection area or exclusion area.
Step 5 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Step 6 Click
Apply
.
8.11 Setting ANPR
When a motor vehicle triggers the rule line in the detection area, it will capture the license plate and
report the attributes of the motor vehicle.
Operation Manual
150
8.11.1 Lane Configuration
Configure lane configuration including detection area, lane line, detection line and lane direction.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
ANPR
, and then click
Next
.
Step 3 Click the
Lane Config
tab.
Step 4 Click and draw the detection area.
Press the left mouse button to draw the detection area, and press the right mouse button
to finish.
Step 5 Configure lane line information.
●
One lane line is composed of two lane lines with an arrow, and the arrow represents the
direction of the lane.
●
The lane is enabled by default after drawing. If you do not select a lane, the track frame
will be displayed on the screen, but the event of license plate recognition will not be
reported.
●
The lane number of each lane is unique and unchangeable.
Step 6 Select the lane direction.
●
Vehicle Head
: The driving direction of the vehicle in the lane is from top to bottom
↓
.
●
Vehicle Tail
: The driving direction of the vehicle in the lane is from bottom to top
↑
.
Figure 8-47 ANPR
Step 7 Configure detection line information.
●
The detection line is displayed in red and it only available in the drawn lane line.
●
When a motor vehicle triggers the detection line, a snapshot will be taken. Also the
license plate and its vehicle attributes will be reported.
Step 8 (Optional) You can repeat step 4-7 to draw more lane lines and detection lines. You can
add two lane lines at most.
Step 9 (Optional) Click
Advanced
.
●
Click next to
Traffic Flow Statics
. The system only detects the number of motor
vehicle and generates report after you enable this function.
Operation Manual
151
●
Click
OSD Info
, and the
Overlay
page is displayed, and then enable the
Parking Space
function. The statistical result is displayed on the
Live
page. For details, see "6.2.2.2.9
Configuring ANPR".
Step 10 Click
Apply
.
8.11.2 Rule Configuration
When a motor vehicle trigger the lane line associated, the system performs the defined alarm
linkage.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Step 2 Click next to
ANPR
, and then click
Next
.
Step 3 Click the
Rule Config
tab.
Step 4 Click lane line to select the line that you configured. If no line is configured, click
Add Lane
Line.
Figure 8-48 Rule configuration (1)
Operation Manual
152
Figure 8-49 Rule configuration (2)
Step 5 Select time plan and click
+ Event Linkage
.
●
If the added time plan cannot meet your requirements, click
Add Schedule
to add an
arming schedule. For details, see "6.5.1.2.1 Adding Schedule".
●
Click
+Event Linkage
to add linked event, which support record, send email, snapshot,
alarm-out port and audio linkage.
Step 6 Set related alarm linkage.
Step 7 Set audio linkage. For more information, see "6.2.4.2 Setting Alarm Tone".
●
Set play count period.
●
Select the file needed.
Step 8 (Optical) Click to delete related linkage as needed.
Step 9 Click
Apply.
8.11.3 Picture
Set overlay information and image display position, such as plate number, time, vehicle type, and
vehicle logo.
Procedure
Step 1 Select
AI
>
Smart Plan
.
Operation Manual
153
Step 2 Click next to
ANPR
, and then click
Next
.
Step 3 Click the
tab.
Step 4 Click
+ OSD Option
to select the type of overlay information that needs to capture. You
can adjust the position of the information displayed.
Figure 8-50 Picture
Step 5 Select the overlay images upload type(s).
Step 6 Click
Apply
.
8.11.4 Allowlist
After enabling allowlist, the camera will upload allowlist event and trigger linkage alarm when it
detects the plate number in the allowlist.
Background Information
You can add 10,000 plate information in allowlist at most.
Procedure
Step 1 Select
AI
>
Smart Plan
>
Allowlist
.
Step 2 Click next to
Enable
to enable the allowlist function.
Figure 8-51 Enable allowlist
Step 3 Add allowlist.
●
Add allowlist one by one.
1. Click
Add
.
Operation Manual
154
2. Set plate information.
Figure 8-52 Add allowlist plate
Table 8-19 Description of parameters
Parameter Description
Plate No. Enter the complete plate number.
Start Time/End Time
Set the validity of allowlist for the plate number. After this time range,
the vehicle will not be detected even within allowlist.
Owner Name Enter the name of car owner.
3. Click
OK
.
Click
Add Continuously
to add more plate number.
●
Add allowlist in batches.
1. Refer to the steps "Add allowlist one by one".
2. Click
Export
.
3. Do not select
Encryption
and then click
OK
to export the unencrypted allowlist file.
Operation Manual
155
Figure 8-53 Encryption settings (1)
4. Add the license plate information according to the sample of the exported file, and
then save the table.
Figure 8-54 Template
5. Click
Import
to upload allowlist table.
◇
If the table is encrypted, you need to enter the password when uploading.
◇
If the table is unencrypted, you can upload directly.
Related Operations
●
Search plate number.
Enter the plate number in and then click . The search result is as below:
Figure 8-55 Search allowlist
If you do not enter anything, it will show all the allowlist plate numbers added.
●
Edit allowlist information.
Click to edit
Start Time/End Time
and
Owner Name
.
●
Delete allowlist.
◇
Click to delete specific allowlist number.
◇
Click
Clear
to delete all allowlist number.
●
Export allowlist.
Click
Export
. Enable encrypted or unencrypted file as needed and then export it to your PC.
Operation Manual
156
◇
Export the file in .csv format if not encrypted, and you can edit the file.
Figure 8-56 Encryption settings (2)
◇
Export the file in .backup format if encrypted, and you cannot edit the file.
Figure 8-57 Encryption settings (3)
8.11.5 Blocklist
After enabling blocklist, an alarm will be triggered when a plate number in blocklist is detected.
An alarm will be triggered when a plate number in the block list is detected.
You can add 10,000 plate information in blocklist at most.
The operation of blocklist is same as allowlist. For details, see "8.11.4 Allowlist".
Operation Manual
157
8.12 Setting Panoramic Linkage
8.12.1 Enabling Linkage Track
Linkage Track
is not enabled by default. Please enable it when necessary.
Procedure
Step 1 Select
AI
>
Panoramic Linkage
>
Linkage Track
.
Step 2 Click next to
Enable
to enable
Linkage Track
.
Figure 8-58 Linkage track
Step 3 Configure other parameters.
Table 8-20 Parameters of linkage track
Parameters Description
Tracking Duration
●
Continue till object disappears: When alarm is triggered, the camera
automatically links to the corresponding position and tracks the
object until the object exceeds the monitoring range.
●
Custom: Set the tracking duration for the camera.
Tracking Target Size
Ratio
Sets the ratio of the tracked object in the detail camera frame.
Idle Interval Set the idle interval and idle position. If the PTZ does not receive any
tracking command within the idle interval you set, the camera will
automatically turn to the idle position. For example, if the idle interval is
5 seconds and idle position is preset 1, when the PTZ does not receivce
any tracking command for 5 seconds, it will turn to preset 1
automatically.
You need to set presets in advance.
Idle Position
Step 4 Click
OK
.
Operation Manual
158
8.12.2 Configuring Calibration Parameter
Auto calibration mode is available on select models.
Procedure
Step 1 Select
AI
>
Panoramic Linkage
>
Main/Sub Calibration
.
Step 2 Configure calibration parameters.
●
Auto calibration
Select
Auto
in
Type
, and then click
Start Calibration
.
Figure 8-59 Auto calibration
●
Manual calibration
Select
Manual
in
Type
, select the scene, and then add calibration point for it in the live
image.
Web pages might vary with different models.
Figure 8-60 Manual calibration
1) Adjust the speed dome lens and turn it to the same view as the chosen lens, and then
click
Add
.
The calibration dots are displayed in both images.
2) Pair each dot in the two images, and keep the paired dots at the same spot of the live
view.
3) Click .
At least 4 pairs of calibration dots are needed to ensure the views of the PTZ camera
and the panoramic camera as similar as possible.
Operation Manual
159
Step 3 Click
Apply
.
Operation Manual
160
9 Security
9.1 Security Status
Detect the user and service, and scan the security modules to check the security status of the
camera, so that when abnormality appears, you can process it timely.
●
User and service detection: Detect login authentication, user status, and configuration security to
check whether the current configuration conforms to recommendation.
●
Security modules scanning: Scan the running status of security modules, such as audio/video
transmission, trusted protection, securing warning and attack defense, not detect whether they
are enabled.
Procedure
Step 1 Select
Security
>
Security Status
.
Step 2 Click
Rescan
to scan the security status of the camera.
Figure 9-1 Security Status
Related Operations
After scanning, different results will be displayed with different color. Yellow indicates that the
security modules are abnormal, and Green indicates that the security modules are normal.
1. Click
Details
to view the details of the scanning result.
2. Click
Ignore
to ignore the exception, and it will not be scanned in next scanning.Click
Joint
Detection
, and the exception will be scanned in next scanning.
3. Click
Optimize
, and the corresponding page is displayed, and you can edit the configuration to
clear the exception.
Operation Manual
161
Figure 9-2 Security Status
9.2 System Service
9.2.1 802.1x
Cameras can connect to LAN after passing 802.1x authentication.
Procedure
Step 1 Select
Security
>
System Service
>
802.1x
.
Step 2 Select the NIC name as needed, and click to enable it.
Step 3 Select the authentication mode, and then configure parameters.
●
PEAP: Protected EAP protocol.
1. Select PEAP as the authentication mode.
2. Enter the username and password that has been authenticated on the server.
3. Click next to CA certificate, and select the trusted CA certificate in list.
If there is no certificate in the list, click
Certificate Management
at the left
navigation bar. For details, see "9.4.2 Installing Trusted CA Certificate".
Figure 9-3 802.1x (PEAP)
●
TLS: Transport Layer Security. It is applied in two communication application programs
Operation Manual
162
to guarantee the security and integrity of the data.
1. Select TLS as the authentication mode.
2. Enter the username.
3. Click next to CA certificate, and select the trusted CA certificate in list.
If there is no certificate in the list, click
Certificate Management
at the left
navigation bar. For details, see "9.4.2 Installing Trusted CA Certificate".
Figure 9-4 802.1x (TLS)
Step 4 Click
Apply
.
9.2.2 HTTPS
Create a certificate or upload an authenticated certificate, and then you can log in through HTTPS
with your PC. The HTTPS can protect page authenticity on all types of websites, secure accounts, and
keep user communications, identity, and web browsing private.
Procedure
Step 1 Select
Security
>
System Service
>
HTTPS
.
Step 2 Click to enable it.
Step 3 Select the certificate.
If there is no certificate in the list, click
Certificate Management
at the left navigation bar.
For details, see "9.4.2 Installing Trusted CA Certificate".
Operation Manual
163
Figure 9-5 HTTPS
Step 4 Click
Apply
.
9.3 Attack Defense
9.3.1 Firewall
Configure firewall to limit access to the camera.
Procedure
Step 1 Select
Security
>
Attack Defense
>
Firewall
.
Step 2 Click to enable the firewall function.
Figure 9-6 Firewall
Step 3 Select the mode:
Allowlist
and
Blocklist
.
●
Allowlist
: Only when the IP/MAC of your PC in the allow list, can you access the camera.
Ports are the same.
●
Blocklist
: When the IP/MAC of your PC is in the block list, you cannot access the
camera. Ports are the same.
Step 4 Click
Add
to add the host IP/MAC address to
Allowlist
or
Blocklist
, and then click
OK
.
Operation Manual
164
Figure 9-7 Firewall
Step 5 Click
Apply
.
Related Operations
●
Click to edit the host information.
●
Click to delete the host information.
9.3.2 Account Lockout
If you consecutively enter a wrong password more than the configured value, the account will be
locked.
Procedure
Step 1 Select
Security
>
Attack Defense
>
Account Lockout
.
Step 2 Configure the login attempt and lock time for device account and ONVIF user.
●
Login attempt: Upper limit of login attempts. If you consecutively enter a wrong
password more than the configured value, the account will be locked.
●
Lock time: The period during which you cannot login after the login attempts reaches
upper limit.
Figure 9-8 Account lockout
Operation Manual
165
Step 3 Click
Apply
.
9.3.3 Anti-DoS Attack
You can enable
SYN Flood Attack Defense
and
ICMP Flood Attack Defense
to defend the device
against Dos attack.
Procedure
Step 1 Select
Security
>
Attack Defense
>
Anti-DoS Attack
.
Step 2 Select
SYN Flood Attack Defense
or
ICMP Flood Attack Defense
to defend the device
against Dos attack.
Figure 9-9 Anti-DoS attack
9.4 CA Certificate
9.4.1 Installing Device Certificate
Create a certificate or upload an authenticated certificate, and then you can log in through HTTPS
with your PC.
9.4.1.1 Creating Certificate
Creating certificate in the device.
Procedure
Step 1 Select
Security
>
CA Certificate
>
Device Certificate
.
Step 2 Select
Installing Device Certificate
.
Step 3 Select
Create Certificate
, and click
Next
.
Step 4 Enter the certificate information.
Operation Manual
166
Figure 9-10 Certificate information (1)
Step 5 Click
Create and install certificate
.
After the certificate is created successfully, you can view the created certificate on the
Device Certificate
page.
Related Operations
●
Click
Enter Edit Mode
, you can edit the custom name of the certificate.
●
Click to download the certificate.
●
Click to delete the certificate.
9.4.1.2 Applying for and Importing CA Certificate
Import the third-party CA certificate to the camera.
Procedure
Step 1 Select
Security
>
CA Certificate
>
Device Certificate
.
Step 2 Select
Installing Device Certificate
.
Step 3 Select
Apply for CA Certificate and Import (Recommended)
, and click
Next
.
Step 4 Enter the certificate information.
Operation Manual
167
Figure 9-11 Certificate information (2)
Step 5 Click
Create and Download
.
Save the request file to your PC.
Step 6 Apply the CA certificate from the third-party certificate authority.
Step 7 Import the signed CA certificate.
1) Save the CA certificate to the PC.
2) Do Step1 to Step3, and click
Browse
to select the signed CE certificate.
3) Click
Install and Import
.
After the certificate is created successfully, you can view the created certificate on the
Device Certificate
page.
●
Click
Recreate
to create the request file again.
●
Click
Import Later
to import the certificate next time.
Related Operations
●
Click
Enter Edit Mode
, you can edit the custom name of the certificate.
●
Click to download the certificate.
●
Click to delete the certificate.
9.4.1.3 Installing Existing Certificate
Import the existing third-party certificate to the camera. When apply for the third-party certificate,
you also need to apply for the private key file and private key password.
Procedure
Step 1 Select
Security
>
CA Certificate
>
Device Certificate
.
Step 2 Select
Installing Device Certificate
.
Step 3 Select
Install Existing Certificate
, and click
Next
.
Step 4 Click
Browse
to select the certificate and private key file, and enter the private key
password.
Operation Manual
168
Figure 9-12 Certificate and private key
Step 5 Click
Import and Install
.
After the certificate is created successfully, you can view the created certificate on the
Device Certificate
page.
Related Operations
●
Click
Enter Edit Mode
, you can edit the custom name of the certificate.
●
Click to download the certificate.
●
Click to delete the certificate.
9.4.2 Installing Trusted CA Certificate
CA certificate is a digital certificate for the legal identity of the camera. For example, when the
camera accesses the LAN through 802.1x, the CA certificate is required.
Procedure
Step 1 Select
Security
>
CA Certificate
>
Trusted CA Certificates
.
Step 2 Select
Installing Trusted Certificate
.
Step 3 Click
Browse
to select the certificate.
Figure 9-13 Installing trusted certificate
Step 4 Click
OK
.
After the certificate is created successfully, you can view the created certificate on the
Trusted CA Certificate
page.
Related Operations
●
Click
Enter Edit Mode
, you can edit the custom name of the certificate.
Operation Manual
169
●
Click to download the certificate.
●
Click to delete the certificate.
9.5 A/V Encryption
The device supports audio and video encryption during data transmission.
You are recommended to enable A/V Encryption function. There might be safety risk if this function
is disabled.
Procedure
Step 1 Select
Security
>
A/V Encryption
.
Step 2 Configure the parameters.
Figure 9-14 A/V encryption
Table 9-1 A/V encryption parameter
Area Parameter Description
Private Protocol
Enable
Enables stream frame encryption by
using private protocol.
There might be safety risk if this
service is disabled.
Encryption Type Use the default setting.
Update Period of Secret Key
Secret key update period.
Value range: 0–720 hours. 0 means
never update the secret key.
Default value: 12.
Operation Manual
170
Area Parameter Description
RTSP over TLS
Enable
Enables RTSP stream encryption by
using TLS.
There might be safety risk if this
service is disabled.
Select a device certificate
Select a device certificate for RTSP
over TLS.
Certificate Management
For details about certificate
management, see "9.4.1 Installing
Device Certificate".
Step 3 Click
Apply
.
9.6 Security Warning
When security exception event is detected, the camera sends a warning to remind you to process it
timely, to avoid security risk.
Procedure
Step 1 Select
Security
>
Security Warning
.
Step 2 Click next to
Enable
to enable security warning.
Step 3 Configure the parameters.
Figure 9-15 Security warning
Step 4 Set arming periods and alarm linkage action. For details, see "6.5.1.2 Alarm Linkage".
Click
+ Event Linkage
to set the linkage action.
Step 5 Click
Apply
.
Operation Manual
171
10 Record
This section introduces the functions and operations of video playback.
10.1 Playback
10.1.1 Playing Back Video
This section introduces the operation of video playback.
Prerequisites
●
This function is available on the camera with SD card.
●
Before playing back video, configure record time range, record storage method, record schedule
and record control. For details, see "10.2 Setting Record Control", "10.3 Setting Record Plan", and
"10.4 Storage".
Procedure
Step 1 Select
Record
>
Search Video
.
Step 2 Select the channel, the record type, and record time, and then click
Search
.
●
Click
All
, and select the record type from the drop-down list, you can select from
All
,
General
,
Event
,
Alarm
, and
Manual
.
When selecting
Event
as the record type, you can select the specific event types, such
as
Motion Detection
,
Video Tamper
and
Scene Changing
.
●
The dates with blue dots indicate there are videos recorded on those days.
Figure 10-1 Search video
Step 3 Point to the searched video, and then click to play back the selected video.
The video playback page is displayed.
Operation Manual
172
Figure 10-2 Video playback
Table 10-1 Description of video playback page
No Function Description
1 Recorded video list
Displays all searched recorded video files. Click any files
to play back it.
Click
Back
at the upper-left corner to go to the
Search
Video
page.
2
Digital Zoom
You can zoom video image of the selected area through
two operations.
●
Click the icon, and then select an area in the video
image to zoom in; right-click on the image to
resume the original size. In zoom in state, drag the
image to check other area.
●
Click the icon, and then scroll the mouse wheel in
the video image to zoom in or out.
AI Rule
Click , and then select
Enable
to display AI rules and
detection box; select
Disable
to stop the display. It is
enabled by default.
AI rules is valid only when you enabled the rule during
recording.
Operation Manual
173
No Function Description
Play control bar
Controls playback.
●
: Click the icon to play back the previous recorded
video in the recorded video list.
●
: Click the icon to slow down the playback.
●
: Click the icon to stop playing back recorded
videos.
The icon changes to , click the icon to play back
recorded videos.
●
: Click the icon to speed up the playback.
●
: Click the icon to play back the next recorded
video in the recorded video list.
●
: Click the icon to play the next frame.
Sound
Controls the sound during playback.
●
: Mute mode.
●
: Vocal state. You can adjust the sound.
Snapshot
Click to capture one picture of the current image,
and it will be saved to the configured storage path.
About viewing or configuring storage path, see "6.1
Local".
Video clip
Click , and clip a certain recorded video and save it.
For details, see "10.1.2 Clipping Video".
Full Screen
Click , and the image is displayed in full-screen
mode; double-click the image or press Esc button to exit
full-screen mode.
3 Progress bar
Displays the record type and the corresponding period.
●
Click any point in the colored area, and the system
will play back the recorded video from the selected
moment.
●
Each record type has its own color, and you can see
their relations in
Record Type
bar
10.1.2 Clipping Video
Procedure
Step 1 Click .
Step 2 Drag the clipping box on the progress bar to select the start time and end time of the
target video
Figure 10-3 Clipping video
Step 3 Click
OK
to download the video.
Operation Manual
174
Step 4 Select the download format and storage path.
Figure 10-4 Clipping video
Step 5 Click
Start Download
.
The playback stops and the clipped file is saved in the configured storage path. For details
of storage path, see "6.1 Local".
10.1.3 Downloading Video
Download videos to a defined path. You can download a single video, or download them in batches.
●
Playback and downloading at the same time is not supported.
●
Operations might vary with different browsers.
●
For details of viewing or setting storage path, see "6.1 Local".
Procedure
Step 1 Select
Record
>
Search Video
.
Step 2 Select the channel, the record type, and record time, and the click
Search
.
Step 3 Select the videos to be downloaded.
●
Select at the upper-right corner of each video file to select one or multiple videos.
●
Select next to
Select All
to select all searched videos.
Figure 10-5 Selecting video file
Step 4 Click
Download
.
Step 5 Select the download format and storage path.
Operation Manual
175
Figure 10-6 Downloading video
Step 6 Click
Start Download
.
The downloaded files are saved in the configured storage path. For details of storage path,
see "6.1 Local".
10.2 Setting Record Control
Set parameters such as pack duration, pre-event record, disk full, record mode, and record stream.
Procedure
Step 1 Click
Record
in the home page, and then click the
Record Control
tab.
Figure 10-7 Record control
Step 2 Set parameters.
Table 10-2 Description of record control parameters
Parameter Description
Max Duration The time for packing each video file.
Operation Manual
176
Parameter Description
Pre-Record
The time to record the video in advance of a triggered alarm event.
For example, if the pre-event record is set to be 5 s, the system
saves the recorded video 5 s before the alarm is triggered.
When an alarm or motion detection links recording, and the
recording is not enabled, the system saves the video data within
the pre-event record time to the video file.
Record Mode
When you select
Manual
, the system starts recording; when you
select
Auto
, the system starts recording in the configured period of
record plan.
Record Stream Select record stream, including
Main Stream
and
Sub Stream
.
Step 3 Click
Apply
.
10.3 Setting Record Plan
After the corresponding alarm type (
Normal
,
Motion
, and
Alarm
) is enabled, the record channel
links recording.
Set certain days as holiday, and when the
Record
is selected in the holiday schedule, the system
records video as holiday schedule defined.
Procedure
Step 1 Click
Record
on the home page, and then click the
Time Plan
tab.
Figure 10-8 Time plan
Step 2 Set record plan.
Green represents normal record plan (such as timing recording); yellow represents motion
record plan (such as recording triggered by intelligent events); red represents alarm record
Operation Manual
177
plan (such as recording triggered by alarm-in). Select a record type, such as
Normal
, and
directly press and drag the left mouse button to set the period for normal record on the
timeline.
●
Click
Copy
next to a day, and select the days that you want to copy to in the prompt
page, you can copy the configuration to the selected days. Select the
Select All
check
box to select all day to copy the configuration.
●
You can set 6 periods per day.
Step 3 Click
Apply
.
Step 4 Click
Holiday
to set holidays.
Figure 10-9 Time plan
Step 5 Click to enable the holiday configuration, and select the days that you need to set
as holiday.
Click
Clear
to cancel the selection.
When holiday schedule setting is not the same as the general setting, holiday schedule
setting is prior to the general setting. For example, with holiday schedule enabled, if the
day is holiday, the system snapshots or records as holiday schedule setting; otherwise, the
system snapshots or records as general setting.
Step 6 Click
OK
.
10.4 Storage
This section introduces the configuration of the storage method for the recorded videos.
Procedure
Step 1 Select
Record
>
Storage
.
Operation Manual
178
Figure 10-10 Live
Step 2 Select the storage method that you need for different types of recorded videos.
Table 10-3 Description of storage parameters
Parameter Description
Event Type Select from
Scheduled
,
Motion Detection
and
Alarm
.
Disk Full
Recording strategy when the disk is full.
●
Overwrite
: Cyclically overwrite the earliest video when the disk is
full.
●
Stop
: Stop recording when the disk is full.
Storage Method
Select from
Local storage
and
Network storage
●
Local storage
: Save the recorded videos in the internal SD
card.
Local storage
is displayed only on models that support SD card.
●
Network storage
: Save the recorded videos in the FTP server or
NAS.
Step 3 Click
Apply
.
10.4.1 Local Storage
Procedure
Step 1 Select
Record
>
Storage
.
Step 2 Select the recording strategy in
Disk Full
.
●
Overwrite
: Cyclically overwrite the earliest video when the disk is full.
●
Stop
: Stop recording when the disk is full.
Step 3 Select
Local storage
in
Storage Method
to save the recorded videos in the internal SD
card.
Figure 10-11 Local storage
Operation Manual
179
Step 4 Click
Apply
.
10.4.2 Network Storage
You can select from
FTP
and
NAS
.
When the network does not work, you can save all the files to the internal SD card for emergency.
10.4.2.1 FTP
Enable this function, and you can save all the files in the FTP server.
Procedure
Step 1 Select
Record
>
Storage
.
Step 2 Select the recording strategy in
Disk Full
.
●
Overwrite
: Cyclically overwrite the earliest video when the disk is full.
●
Stop
: Stop recording when the disk is full.
Step 3 Select
Network storage
in
Storage Method
, and select
FTP
to save the recorded videos in
FTP server.
You select
FTP
or
SFPT
from the drop-down list.
SFPT
is recommended to enhance
network security.
Step 4 Click next to
Enable
to enable the FTP function.
Operation Manual
180
Figure 10-12 FTP
Step 5 Configure FTP parameters.
Table 10-4 Description of FTP parameters
Parameter Description
Server IP The IP address of the FTP server.
Port The port number of the FTP server.
Username The username to log in to the FTP server.
Password The password to log in to the FTP server.
Storage Path The destination path in the FTP server.
Directory Structure
Set the directory structure, and you can select
Use Level 1
Directory
,
Use Level 2 Directory
, and
Use Level 3 Directory
Level 1 Directory
Set the Level 1 directory name, and you can select from
Device
name
,
Device IP
, and
Custom
.
When you select
Custom
, please enter the custom directory.
Level 2 Directory
Set the Level 2 directory name, and you can select from
File Type
,
Date
,
File Type_Channel Number
, and
Custom
.
When you select
Custom
, please enter the custom directory.
Level 3 Directory
Operation Manual
181
Parameter Description
Urgently store to local
Click , and when the FTP server does not work, all the files are
saved to the internal SD card.
Step 6 Click
Save
.
Step 7 Click
Test
to test whether FTP function works normally.
10.4.2.2 NAS
Enable this function, and you can save all the files in the NAS.
Procedure
Step 1 Select
Record
>
Storage
.
Step 2 Select the recording strategy in
Disk Full
.
●
Overwrite
: Cyclically overwrite the earliest video when the disk is full.
●
Stop
: Stop recording when the disk is full.
Step 3 Select
Network storage
in
Storage Method
, and select
NAS
to save the recorded videos
in NAS server.
Step 4 Select NAS protocol type.
●
NFS
(Network File System): A file system which enables computers in the same network
share files through TCP/IP.
●
SMB
(Server Message Block): Provides shared access for clients and the server.
Figure 10-13 FTP
Step 5 Configure NAS parameters.
Operation Manual
182
Table 10-5 Description of NAS parameters
Parameter Description
Server IP The IP address of the NAS server.
Storage Path The destination path in the NAS server.
Username
When selecting
SMB
protocol, you are required to enter
username and password. Enter them as needed.
Password
Step 6 Click
Apply
.
Operation Manual
183
11 Picture
This section introduces the related functions and operations of picture playback.
11.1 Playback
11.1.1 Playing Back Picture
This section introduces the operation of picture playback.
Prerequisites
●
This function is available on the camera with SD card.
●
Before playing back picture, configure snapshot time range, snapshot storage method, snapshot
plan. For details, see"11.3 Setting Snapshot Plan".
Procedure
Step 1 Select
Record
>
Picture Query
.
Step 2 Select the channel, the snapshot type, and snapshot time, and then click
Search
.
●
Click
All
, and select the record type from the drop-down list, you can select from
All
,
General
,
Event
, and
Alarm
.
When selecting
Event
as the snapshot type, you can select the specific event types,
such as
Motion Detection
,
Video Tamper
and
Scene Changing
.
●
The dates with blue dots indicate there are snapshots on those days.
Figure 11-1 Picture query
Step 3 Point to the searched picture, and then click to play back the selected picture.
The picture playback page is displayed.
Operation Manual
184
Figure 11-2 Picture playback
Table 11-1 Description of playback page
No. Function Description
1 Snapshot list
Displays all searched snapshots. Click any files to play back
it.
Click
Back
at the upper-left corner to go to the
Query
page.
2 Manual display
●
Click to display the previous snapshot in the
snapshot list.
●
Click to display the nest snapshot in the snapshot
list.
3 Slide show
Click to display the snapshots list one by one in
slide show mode.
4 Full screen
Click , and the snapshot is displayed in full-screen mode;
double-click the image or press Esc button to exit full-
screen mode.
11.1.2 Downloading Picture
Download pictures to a defined path. You can download a single picture, or download them in
batches.
●
Operations might vary with different browsers.
●
For details of viewing or setting storage path, see "6.1 Local".
Procedure
Step 1 Select
>
Picture Query
.
Step 2 Select the channel, the snapshot type, and snapshot time, and then click
Search
.
Step 3 Select the pictures to be downloaded.
●
Select at the upper-right corner of each picture file to select one or multiple
Operation Manual
185
pictures.
●
Select next to
Select All
to select all searched pictures.
Figure 11-3 Selecting picture file
Step 4 Click
Download
.
Step 5 Select the download format and storage path.
Figure 11-4 Downloading picture
Step 6 Click
Start Download
.
The downloaded pictures are saved in the configured storage path. For details of storage
path, see "6.1 Local".
11.2 Setting Snapshot Parameters
Set the snapshot parameters, including type, size, quality and Interval.
Procedure
Step 1 Select
>
Snapshot
.
Step 2 Select the channel and set the parameters.
Operation Manual
186
Figure 11-5 Snapshot
Table 11-2 Description of snapshot parameters
Parameter Description
Type
You can select from
Scheduled
and
Event
.
●
Scheduled
: Capture images in configured period.
●
Event
: Capture images when configured event is triggered, such as
Motion Detection
,
Video Tamper
and
Scene Changing
.
Make sure that you have enable the corresponding event detection and
the snapshot function.
Size It is same with the resolution of the main stream.
Quality Set the quality of the snapshot. The higher the value, the better the quality.
Interval
Set the frequency of snapshot. You can select
Custom
to set the frequency
as needed.
Step 3 Click
Apply
.
11.3 Setting Snapshot Plan
According to the configured snapshot plan, the system enables or disables snapshot at
corresponding time. For detailed operation, see "10.3 Setting Record Plan".
11.4 Storage
Set the storage method for the snapshot. For detailed operation, see "10.4 Storage".
11.5 Setting Upload Method
Automatically upload images to the defined server through HTTP protocol, and configure
parameters.
You do not need to set upload period. When an alarm is triggered, images will be automatically
Operation Manual
187
uploaded to the defined server.
Procedure
Step 1 On the web page, select
>
Auto Upload
.
Step 2 Enable the function.
Step 3 Click
Add
, and then configure parameters of HTTP upload method.
You can add two server information at most.
Figure 11-6 Image Upload
Table 11-3 Description of HTTP mode Parameter
Parameter Description
IP/Domain name
The IP address and port number of the server which the report will
be uploaded to.
Port
Path The storage path of the server for the report.
Event type
Select the event type form the drop-down list. You can select more
than one types at the same time.
The event types in the drop-down list are the same with that of
picture playback.
Test Test the network connection between the camera and the server.
Step 4 Click
Apply
.
Operation Manual
188
12 Report
12.1 Viewing Report
View the statistics results of AI functions in report form.
Figure 12-1 Report
●
The period for the report is the latest 24 hours by default.
●
Click to customize the period for the report.
●
Click
Today
,
This Week
,
This Month
, or
This Year
. The start time of the period is 0 o'clock of the
first day, and the end time is the current time.
12.1.1 Face Recognition
View the statistics result of face recognition in report form.
Procedure
Step 1 Select
Report
>
Report
>
Face Recognition
.
Step 2 Set the period for the report.
For multi-channel camera, select the channel first.
Step 3 Select the gender and age.
Step 4 Click
Search
.
Operation Manual
189
Figure 12-2 Face Recognition report
Related Operations
●
Select the report form
Click to display the report in line chart; click to display the report in bar chart.
●
Select the statistics type on the upper-right corner
The statistics result of unselected types will not be displayed.
●
Export reports
Select the file format, and then click
Export
.
◇
Select
png
: Displays the report in picture format.
◇
Select
csv
: Displays the report in list format.
12.1.2 Video Metadata
View the statistics result of video metadata in report form.
Procedure
Step 1 Select
Report
>
Report
>
Video Metadata
.
Step 2 Set the period for the report.
Operation Manual
190
For multi-channel camera, select the channel first.
Step 3 Select the tripwire direction.
Step 4 Click
Search
.
Figure 12-3 Video metadata report
Related Operations
●
Select the report form
Click to display the report in line chart; click to display the report in bar chart.
●
Select the statistics type on the upper-right corner
The statistics result of unselected types will not be displayed.
●
Export reports
Select the file format, and then click
Export
.
◇
Select
png
: Displays the report in picture format.
◇
Select
csv
: Displays the report in list format.
12.1.3 People Counting
Search for the counting results with different rules and counting methods.
Prerequisites
Make sure that you have configured the rule before searching for the report.
Procedure
Step 1 Select
Report
>
Report
>
People Counting
.
Step 2 Set search conditions.
For multi-channel camera, select the channel first.
Operation Manual
191
Table 12-1 Set search conditions
Parameter Description
Rule
Select the rule as needed, and then you need to select the statistics type
according to the select rule.
Statistics Type
The statistics type of the people counting report.
●
People No.
: Displays the report of the number of people that meet
the configured condition.
●
Strand Time
: Displays the report of the average stranding time in
the detection area during a certain period. It is available when the
rule of
Area People Counting
is selected.
Stay Time
When selecting rule to
Area People Counting
, and statistics type to
People No.
, you need to configure this parameter.
The report displays the number of people whose stay time is shorter
than the stay time threshold and is equal to or longer than the stay time
threshold.
Queue Time
When selecting rule to
Queuing
, and statistics type to
People No.
, you
need to configure this parameter.
The report displays the number of people whose stay time is shorter
than
Queuing Time
and is equal or longer than
Queuing Time
.
Period for the report
Set the period for the report.
●
When selecting rule to
People Counting
, you can view the daily,
weekly, monthly and yearly report, and you can also customize the
period.
●
When selecting rule to
Area People Counting
or
Queuing
, you can
view the daily, weekly, and monthly report, and you can also
customize the period.
Report
Select the rule name of the report that you want to search. You can
select multiple rule names at the same time.
Step 3 Click
Search
.
Figure 12-4 People counting
Operation Manual
192
Figure 12-5 Area people counting (number of people)
Figure 12-6 Area people counting (stay time)
Operation Manual
193
Figure 12-7 Queuing
Related Operations
●
Select the report form
Click to display the report in line chart; click to display the report in bar chart.
●
Select the statistics type on the upper-right corner
The statistics result of unselected types will not be displayed.
●
Export reports
Select the file format, and then click
Export
.
◇
Select
png
: Displays the report in picture format.
◇
Select
csv
: Displays the report in list format.
12.1.4 Crowd Distribution
You can search for the number of people at a certain moment and get daily/weekly/monthly reports.
Prerequisites
Confirm that crowd distribution map function has already set; otherwise the corresponding report
cannot be searched.
Procedure
Step 1 Select
Report
>
Report
>
Crowd Distribution Map
.
Step 2 Select the period for report statistics. You can view daily reports, weekly reports and
monthly reports, or customize the period.
Step 3 Click
Search
.
Operation Manual
194
Figure 12-8 Crowd distribution map
Related Operations
●
Select statistics type
Click and select the type needed.
●
Export statistic report
Select the exact format and click
Export
, the report will be saved to the storage path of your
browser.
◇
Select
png
: Displays the report in picture format.
◇
Select
csv
: Displays the report in list format.
12.1.5 Vehicle Density
Search for the number of cars at a certain moment in each statistical area.
Procedure
Step 1 Select
Report
>
Report
>
Vehicle Density
.
Step 2 Select the period for report statistics. You can view daily reports, weekly reports and
monthly reports, or customize the period.
Step 3 Click
Search
.
Operation Manual
195
Figure 12-9 Vehicle density map
Related Operations
●
Select statistics type
Click to select the type as needed.
●
Export statistic report
Select the exact format and click
Export
, the report will be saved to the save path of your
browser.
◇
Select
png
: Displays the report in picture format.
◇
Select
csv
: Displays the report in list format.
12.1.6 Heat Map
View heat map and track map. You can search the detection results by number of people and stay
time, and then generate the heat map. Heat map is not available on economic fisheye cameras.
Procedure
Step 1 Select
Report
>
Report
>
Heat Map.
Step 2 Set search conditions.
For multi-channel camera, select the channel first.
Table 12-2 Set search conditions
Parameter Description
Channel For multi-channel camera, select the channel first.
Type
You can select report type form
Heat Map
and
Track Map
.
People No.
When selecting type as
Heat Map
, select
People No.
, and then set the
threshold. The system will display the heat map for people density.
Threshold
Time
When selecting type as
Heat Map
, select
Time
and then set the
threshold. The system will display the heat map for stay time.
Threshold
Operation Manual
196
Parameter Description
Period for the report
Set the period for the report.
You can view the daily and weekly report, and you can also customize
the period.
Step 3 Click
Search
.
Figure 12-10 Heat map (people No.)
Figure 12-11 Heat map (time)
Operation Manual
197
Figure 12-12 Track map
Related Operations
Click
Export
, and select the storage path for the exported report in .bmp format.
12.1.7 ANPR
View the statistics result of ANPR in report form.
Procedure
Step 1 Select
Report
>
Report
>
ANPR
.
Step 2 Set the period for the report.
For multi-channel camera, select the channel first.
Step 3 Click
Search
.
Operation Manual
198
Figure 12-13 ANPR report
Related Operations
●
Select the report form
Click to display the report in line chart; click to display the report in bar chart.
●
Select the
Display Value
checkbox to display the value in the report
●
Export reports
Select the file format, and then click
Export
.
◇
Select
png
: Displays the report in picture format.
◇
Select
csv
: Displays the report in list format.
12.2 Searching for Face Picture
Search for the face recognition or snapshot results by pictures.
Prerequisites
Make sure that you have installed SD card.
Procedure
Step 1 Select
Report
>
Picture Query
>
Face
.
Step 2 Select the type and set the period for the report.
Click
Advance
to set face attributes for precise search.
Step 3 Click
Search
. The search result is displayed.
Operation Manual
199
Figure 12-14 Face report
Step 4 Click the picture, and then you can view the details.
12.3 Auto Upload
Select the upload mode, enable it, and configure the parameters. The camera will upload reports of
AI functions to a defined server periodically.
Background Information
There are three upload methods:
●
HTTP: Upload reports to a server through HTTP protocol.
●
FTP: Upload reports to a server through FTP protocol. You need to set the parameters, such as the
server IP, username, password, and storage path.
●
Email: Send reports to receivers through emails. You need to set the parameters, such as the
username, password, sender and receiver.
Procedure
Step 1 Select
Report
>
Auto Upload
.
Step 2 Select the upload method, and then enable it.
Step 3 Set parameters.
Parameters of different upload methods are different.
●
HTTP
Click
Add
, and then add the information of server. You can add two server information
at most.
Operation Manual
200
Figure 12-15 HTTP upload method
Table 12-3 Description of HTTP mode parameter
Parameter Description
Report Period
Select the report period from the drop-down list.
It is 1 hour by default, which indicates that upload the report every 1
hour.
IP/Domain name
The IP address and port number of the server which the report will
be uploaded to.
Port
Path The storage path of the server for the report.
Report type
Select the report type form the drop-down list. You can select more
than one types at the same time.
The report types in the drop-down list are the same with that
supported AI function. For example: If the camera supports people
counting, heat map, and video metadata, the 3 report types are
displayed in the drop-down list.
Test Test the network connection between the camera and the server.
●
FTP upload method
Operation Manual
201
Figure 12-16 FTP upload method
Table 12-4 Description of FTP mode parameter
Parameter Description
Report Period
Select the report period from the drop-down list.
It is 1 hour by default, which indicates that upload the report every 1
hour.
Report type
Select the report type form the drop-down list. You can select more
than one types at the same time.
The report types in the drop-down list are the same with that
supported AI function. For example: If the camera supports people
counting, heat map, and video metadata, the 3 report types are
displayed in the drop-down list,
Server IP
The IP address and port number of the FTP server which the report
will be uploaded to.
Port
Username
Username and password for logging in to FTP server.
Password
Storage Path Username and password for logging in to FTP server.
Test Test the network connection between the camera and the server.
●
Email upload method
Operation Manual
202
Figure 12-17 Email upload method
Table 12-5 Description of email mode parameter
Parameter Description
Report Period
Select the report period from the drop-down list.
It is 1 hour by default, which indicates that upload the report every 1
hour.
Report Type
Select the report type form the drop-down list. You can select more than
one types at the same time.
●
The report types in the drop-down list are the same with that
supported AI function. For example: If the camera supports people
counting, and video metadata the 2 report types are displayed in the
drop-down list,
●
Heat map report will not be uploaded when you select email upload
method, so heat map will not be displayed in the drop-down list.
SMTP server SMTP (Simple Mail Transfer Protocol) server IP address and port number.
See Table 12-6 for details.
Port
Anonymous
Select
Anonymous
, and the sender's information is not displayed in the
email.
Username Username and password used to log in server.
Operation Manual
203
Parameter Description
Password
See Table 12-6 for details.
Sender Sender's email address.
Encryption Type
Select the encryption type from None, SSL (Secure Sockets Layer) and TLS
(Transport Layer Security).
See Table 12-6 for details.
Subject
Email subject. You can enter up to 120 characters in Chinese, English, and
Arabic numerals.
Receiver
Email addresses of receivers. Click
add
to set more than one receivers.
Supports 3 addresses at most.
Table 12-6 Description of major mailbox configuration
Mailbox SMTP server Authentication Port Description
Gmail
smtp.gmail.c
om
SSL 465
You need to enable SMTP service
in your mailbox.
TLS 587
Step 4 Click
Apply
.
Operation Manual
204
Appendix 1 Cybersecurity Recommendations
Security Statement
●
If you connect the product to the Internet, you need to bear the risks, including but not limited to
the possibility of network attacks, hacker attacks, virus infections, etc., please strengthen the
protection of the network, platform data and personal information, and take the necessary
measures to ensure the cyber security of platform, including but not limited to use complex
passwords, regularly change passwords, and timely update platform products to the latest
version, etc. Dahua does not assume any responsibility for the product abnormality, information
leakage and other problems caused by this, but will provide product-related security
maintenance.
●
Where applicable laws are not expressly prohibited, for any profit, income, sales loss, data loss
caused by the use or inability to use this product or service, or the cost, property damage,
personal injury, service interruption, business information loss of purchasing alternative goods or
services, or any special, direct, indirect, incidental, economic, covering, punitive, special or
ancillary damage, regardless of the theory of liability (contract, tort, negligence, or other) , Dahua
and its employees, licensors or affiliates are not liable for compensation, even if they have been
notified of the possibility of such damage. Some jurisdictions do not allow limitation of liability
for personal injury, incidental or consequential damages, etc., so this limitation may not apply to
you.
●
Dahua's total liability for all your damages (except for the case of personal injury or death due to
the company's negligence, subject to applicable laws and regulations) shall not exceed the price
you paid for the products.
Security Recommendations
The necessary measures to ensure the basic cyber security of the platform:
1.
Use Strong Passwords
Please refer to the following suggestions to set passwords:
●
The length should not be less than 8 characters.
●
Include at least two types of characters; character types include upper and lower case letters,
numbers and symbols.
●
Do not contain the account name or the account name in reverse order.
●
Do not use continuous characters, such as 123, abc, etc.
●
Do not use overlapped characters, such as 111, aaa, etc.
2.
Customize the Answer to the Security Question
The security question setting should ensure the difference of answers, choose different questions
and customize different answers (all questions are prohibited from being set to the same answer)
to reduce the risk of security question being guessed or cracked.
Recommendation measures to enhance platform cyber security:
1.
Enable Account Binding IP/MAC
It is recommended to enable the account binding IP/MAC mechanism, and configure the IP/MAC
of the terminal where the commonly used client is located as an allowlist to further improve
access security.
Operation Manual
205
2.
Change Passwords Regularly
We suggest that you change passwords regularly to reduce the risk of being guessed or cracked.
3.
Turn On Account Lock Mechanism
The account lock function is enabled by default at the factory, and it is recommended to keep it
on to protect the security of your account. After the attacker has failed multiple password
attempts, the corresponding account and source IP will be locked.
4.
Reasonable Allocation of Accounts and Permissions
According to business and management needs, reasonably add new users, and reasonably
allocate a minimum set of permissions for them.
5.
Close Non-essential Services and Restrict the Open Form of Essential Services
If not needed, it is recommended to turn off NetBIOS (port 137, 138, 139), SMB (port 445), remote
desktop (port 3389) and other services under Windows, and Telnet (port 23) and SSH (port 22)
under Linux. At the same time, close the database port to the outside or only open to a specific IP
address, such as MySQL (port 3306), to reduce the risks faced by the platform.
6.
Patch the Operating System/Third Party Components
It is recommended to regularly detect security vulnerabilities in the operating system and third-
party components, and apply official patches in time.
7.
Security Audit
●
Check online users: It is recommended to check online users irregularly to identify whether
there are illegal users logging in.
●
View the platform log: By viewing the log, you can get the IP information of the attempt to
log in to the platform and the key operation information of the logged-in user.
8.
The Establishment of a secure Network Environment
In order to better protect the security of the platform and reduce cyber security risks, it is
recommended that:
●
Follow the principle of minimization, restrict the ports that the platform maps externally by
firewalls or routers, and only map ports that are necessary for services.
●
Based on actual network requirements, separate networks: if there is no communication
requirement between the two subnets, it is recommended to use VLAN, gatekeeper, etc. to
divide the network to achieve the effect of network isolation.
More information
Please visit Dahua official website security emergency response center for security announcements
and the latest security recommendations.
