L' YrAG
9-21

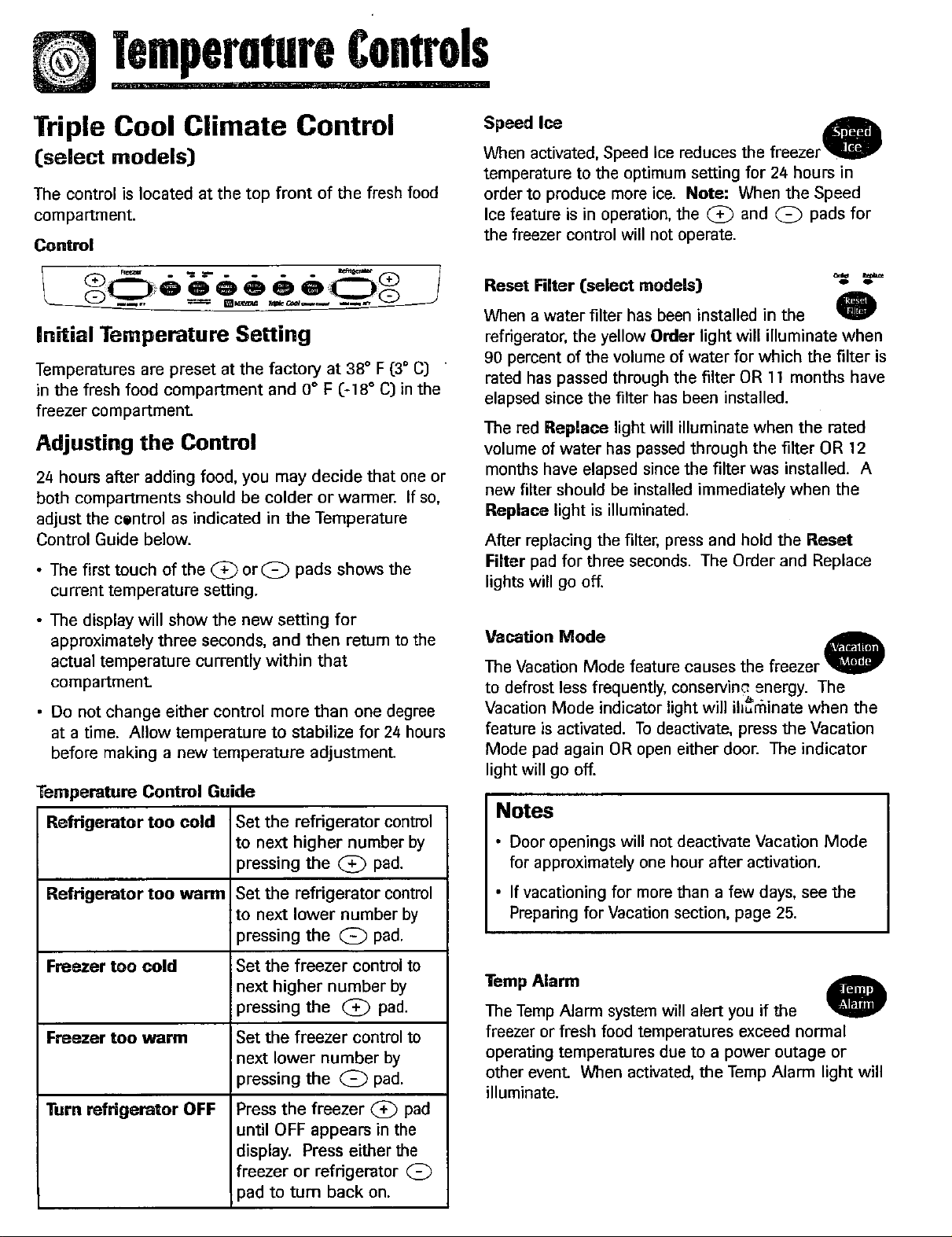

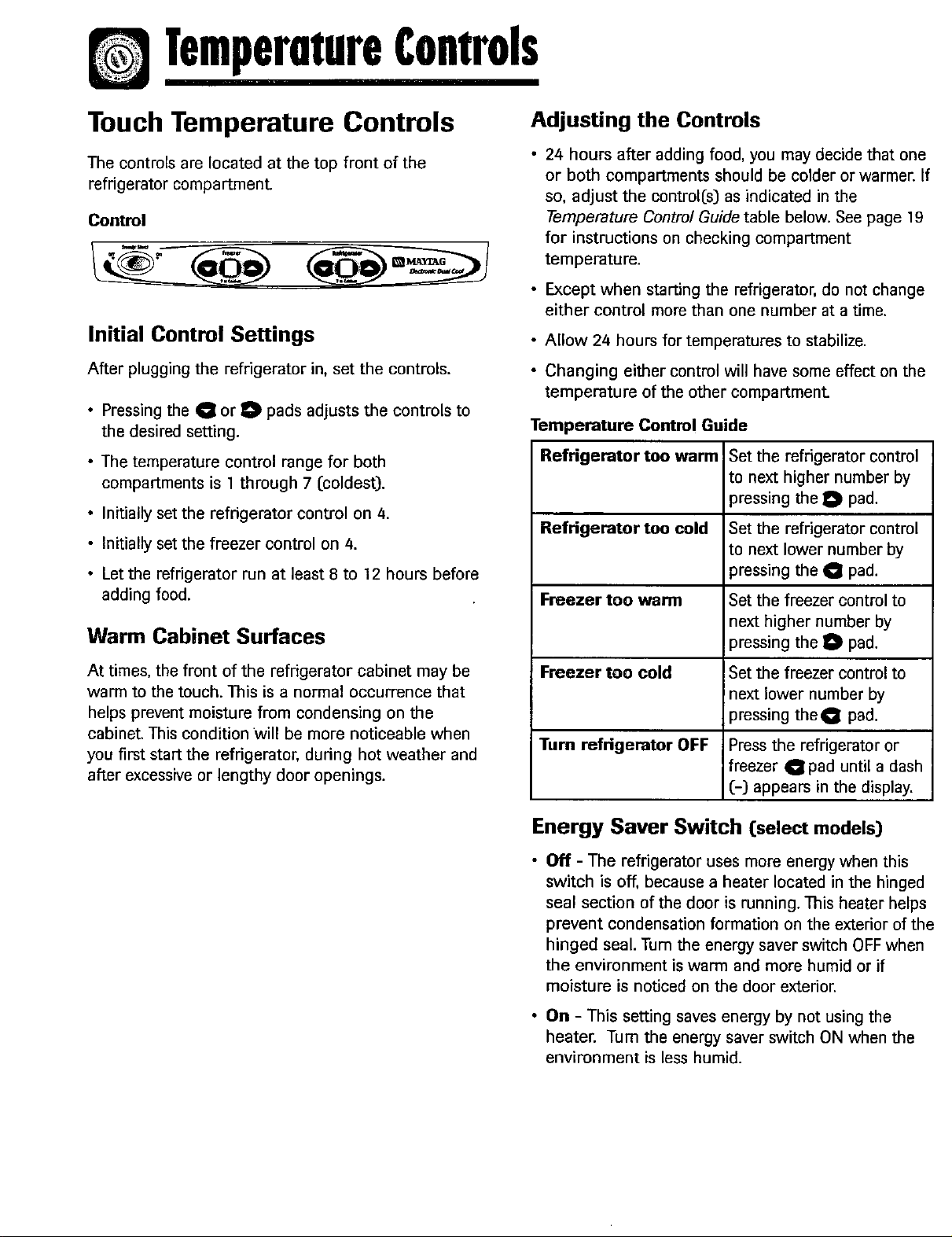

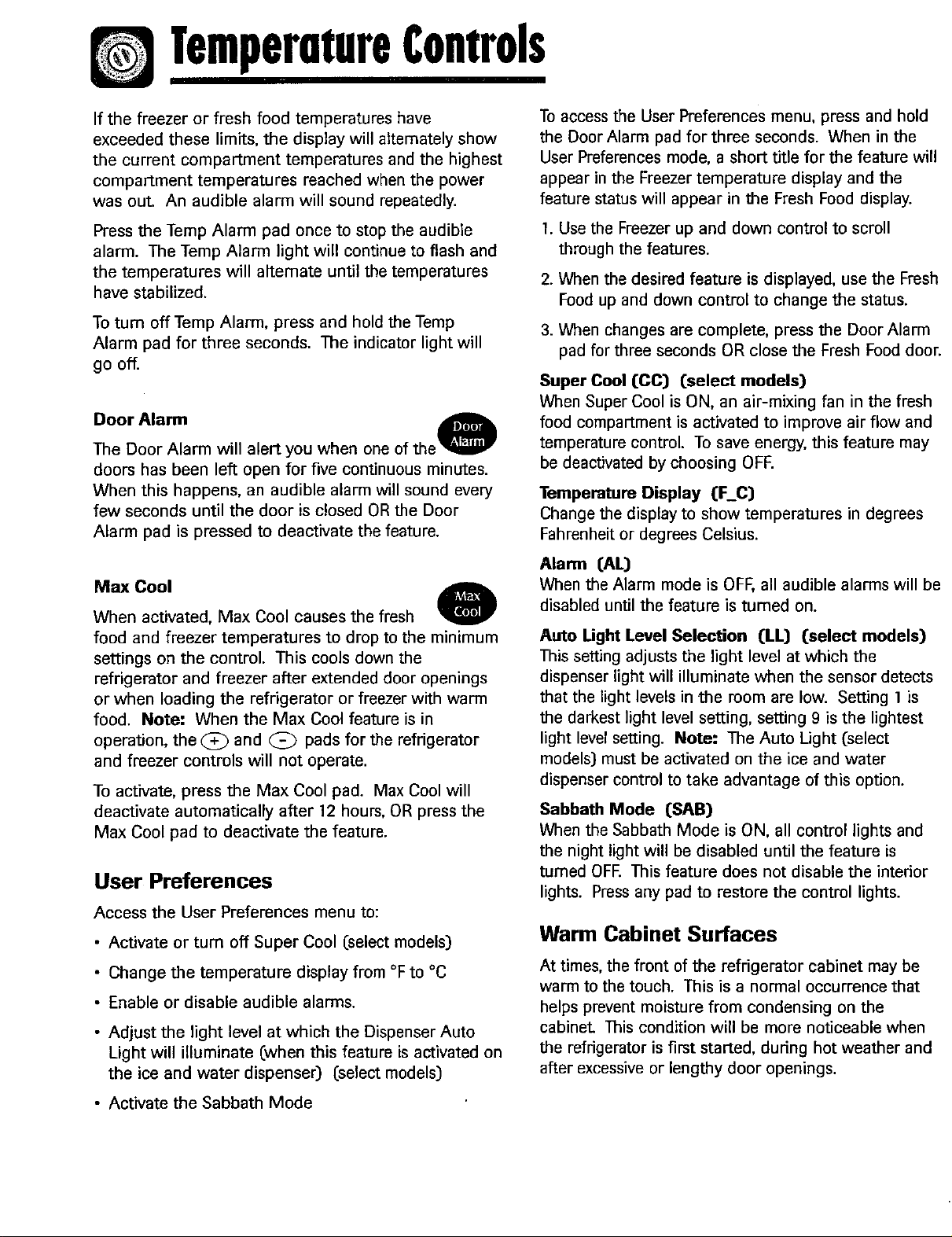

Temperature Controls.._._.. ..... 10-12

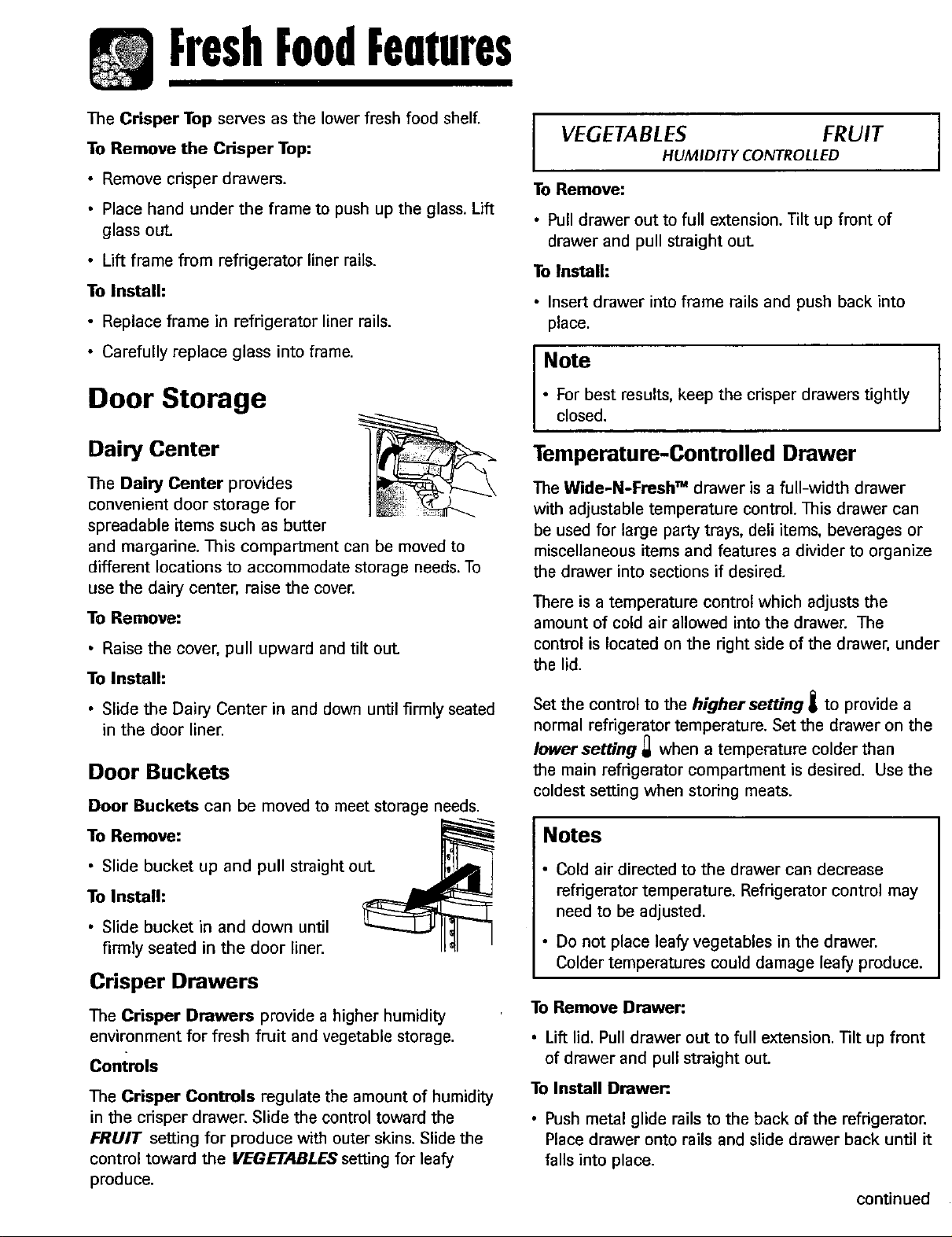

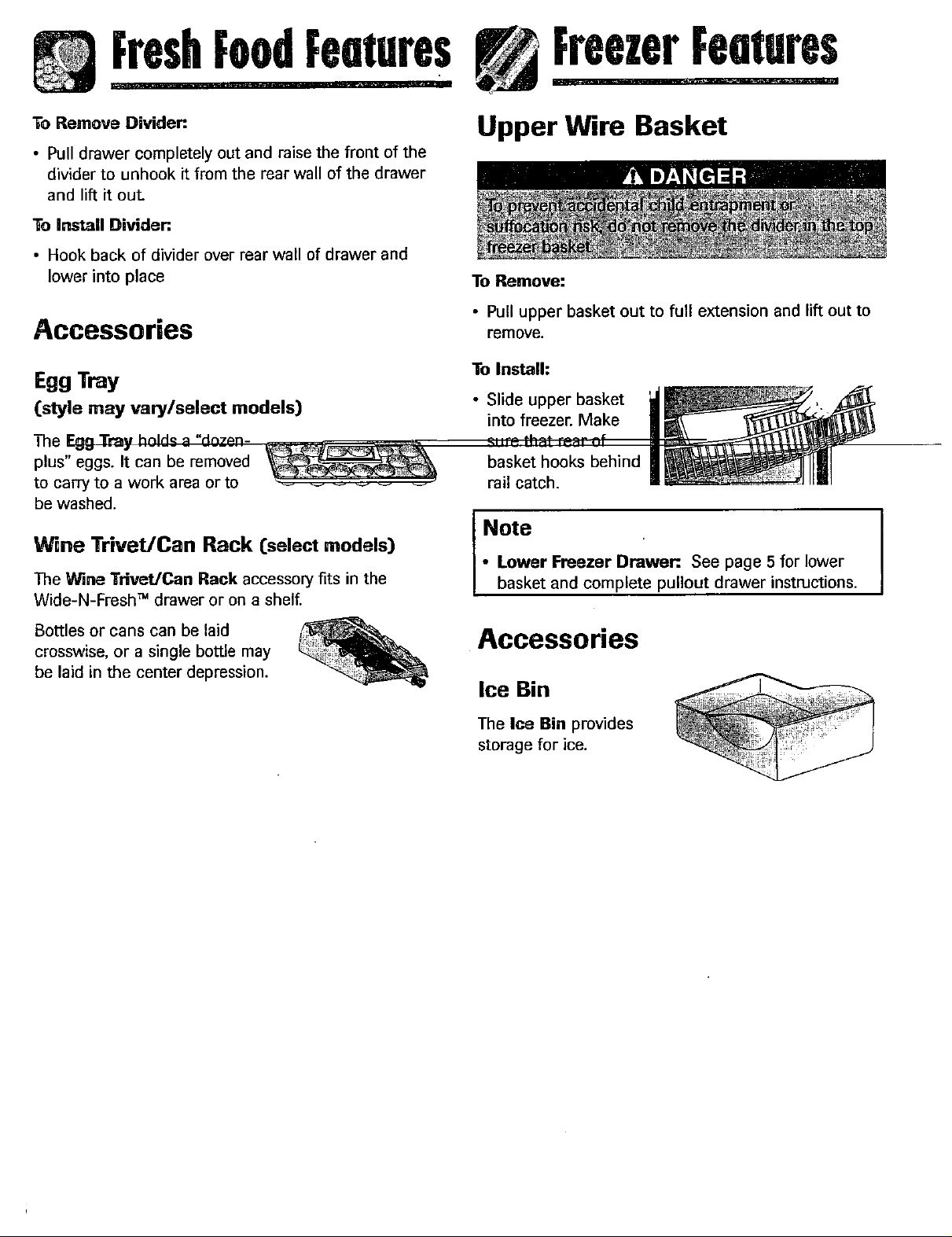

Fresh Food Features ................ 13-15
Freezer Features ............................. 15

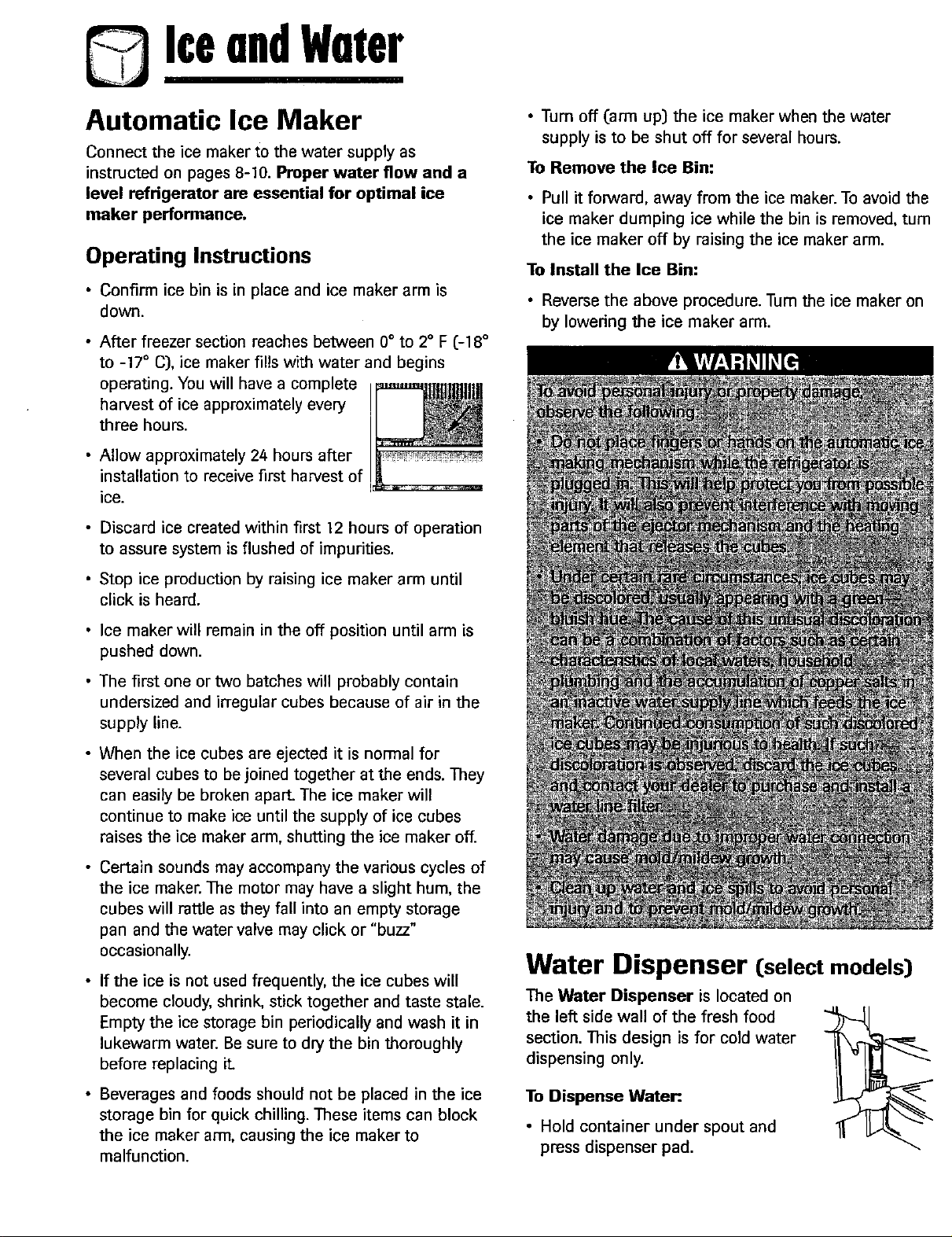

Ice And Water ................................... 16
_.22-25

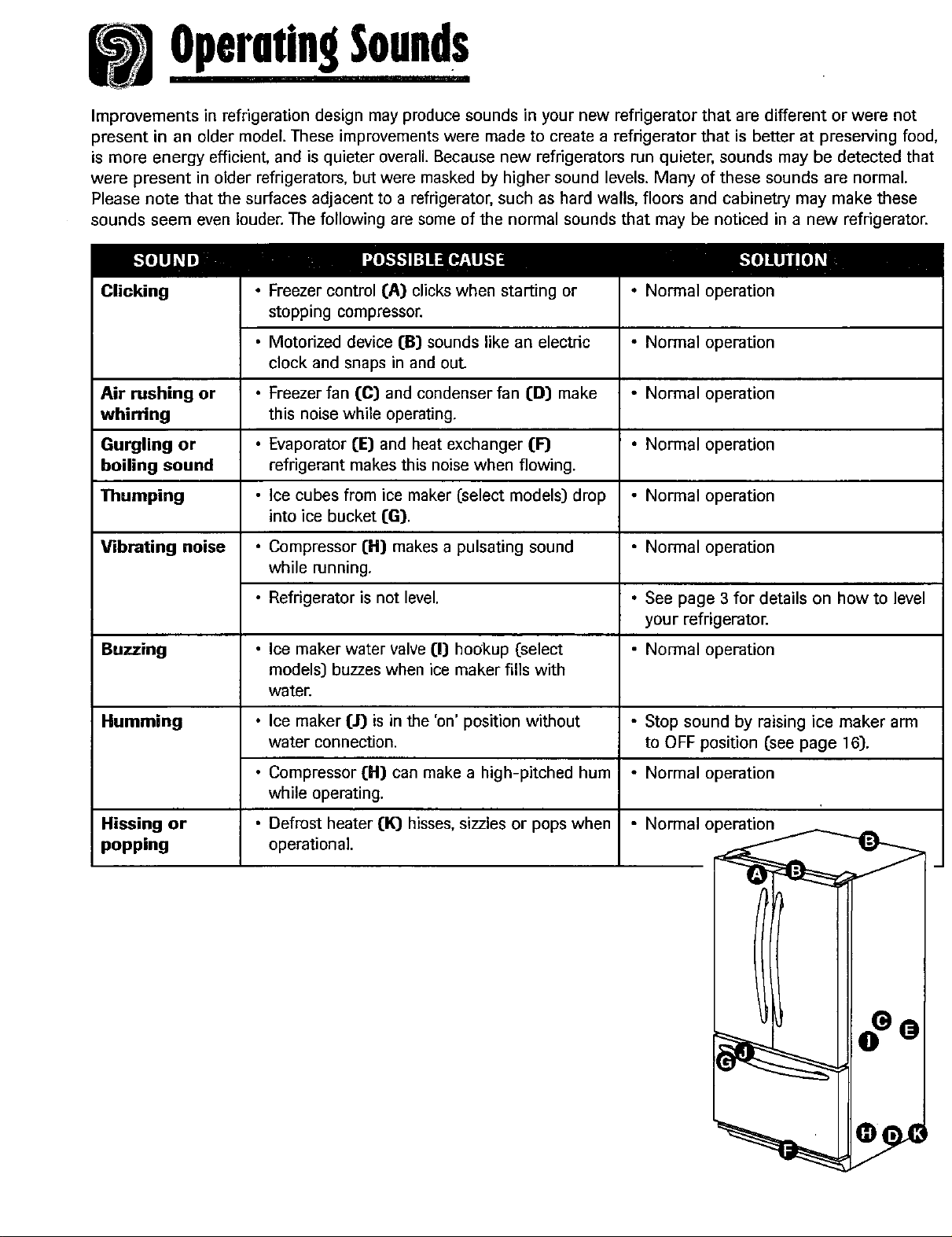

Operating Sounds .......................... 26

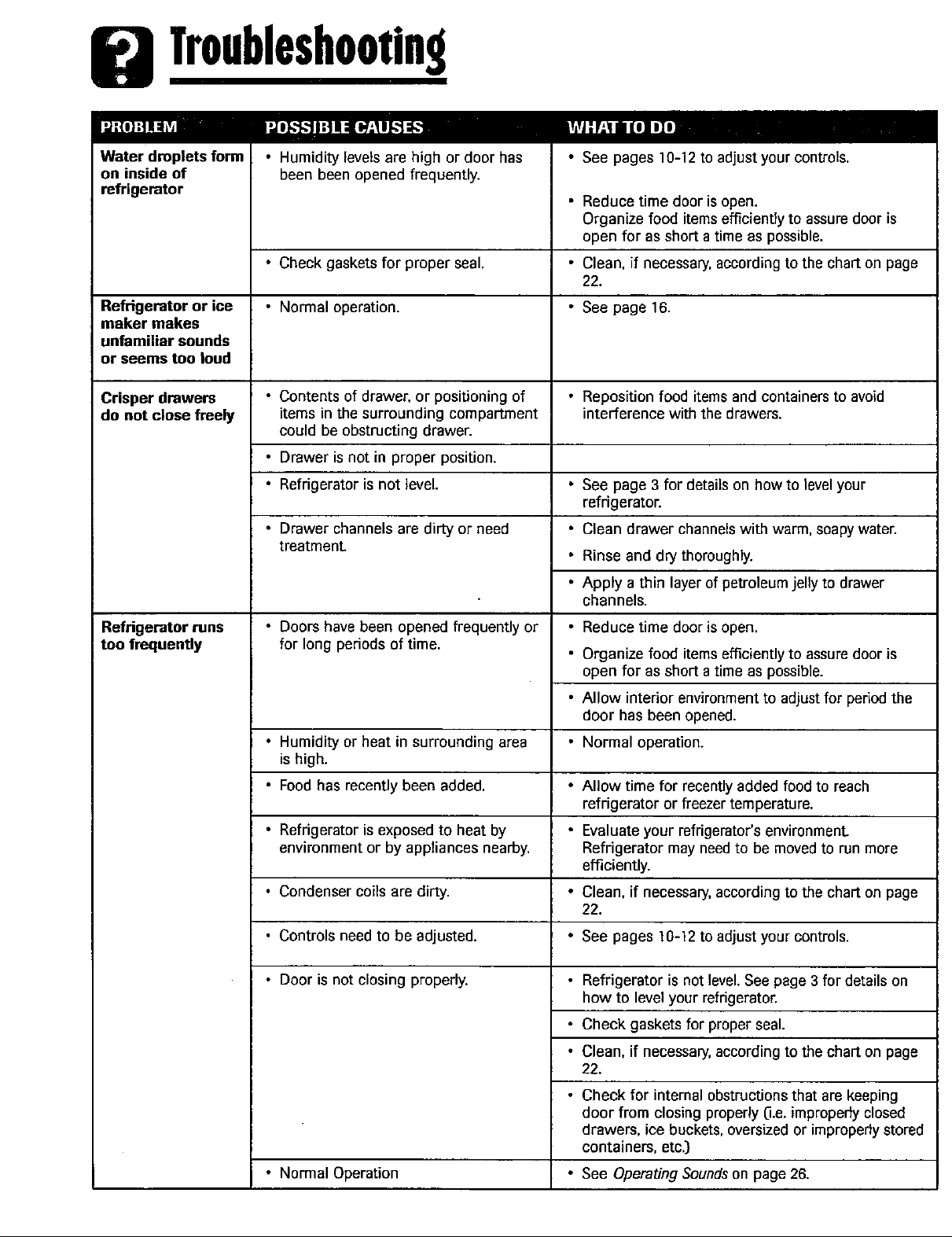

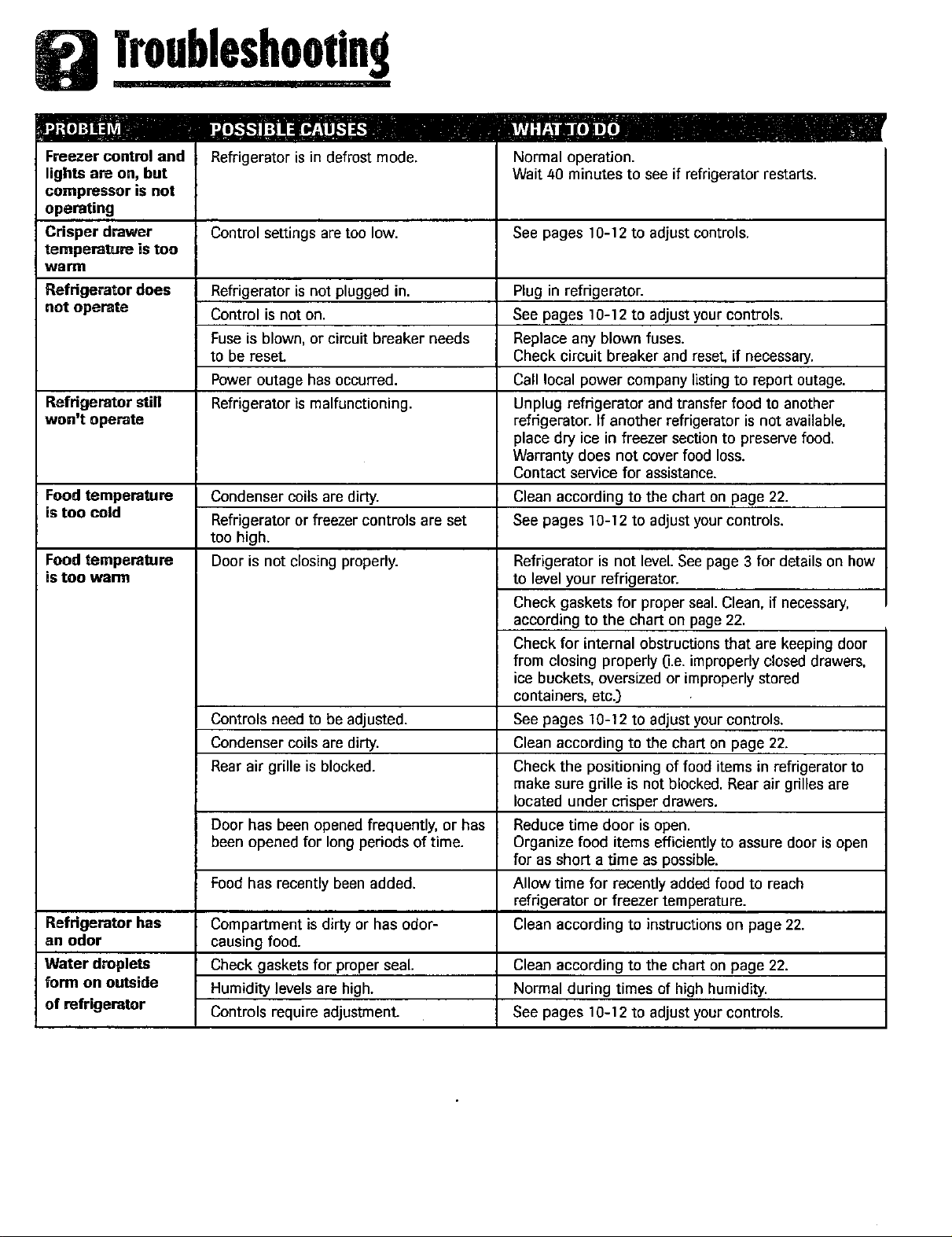

Troubleshooting ........................ 27-29

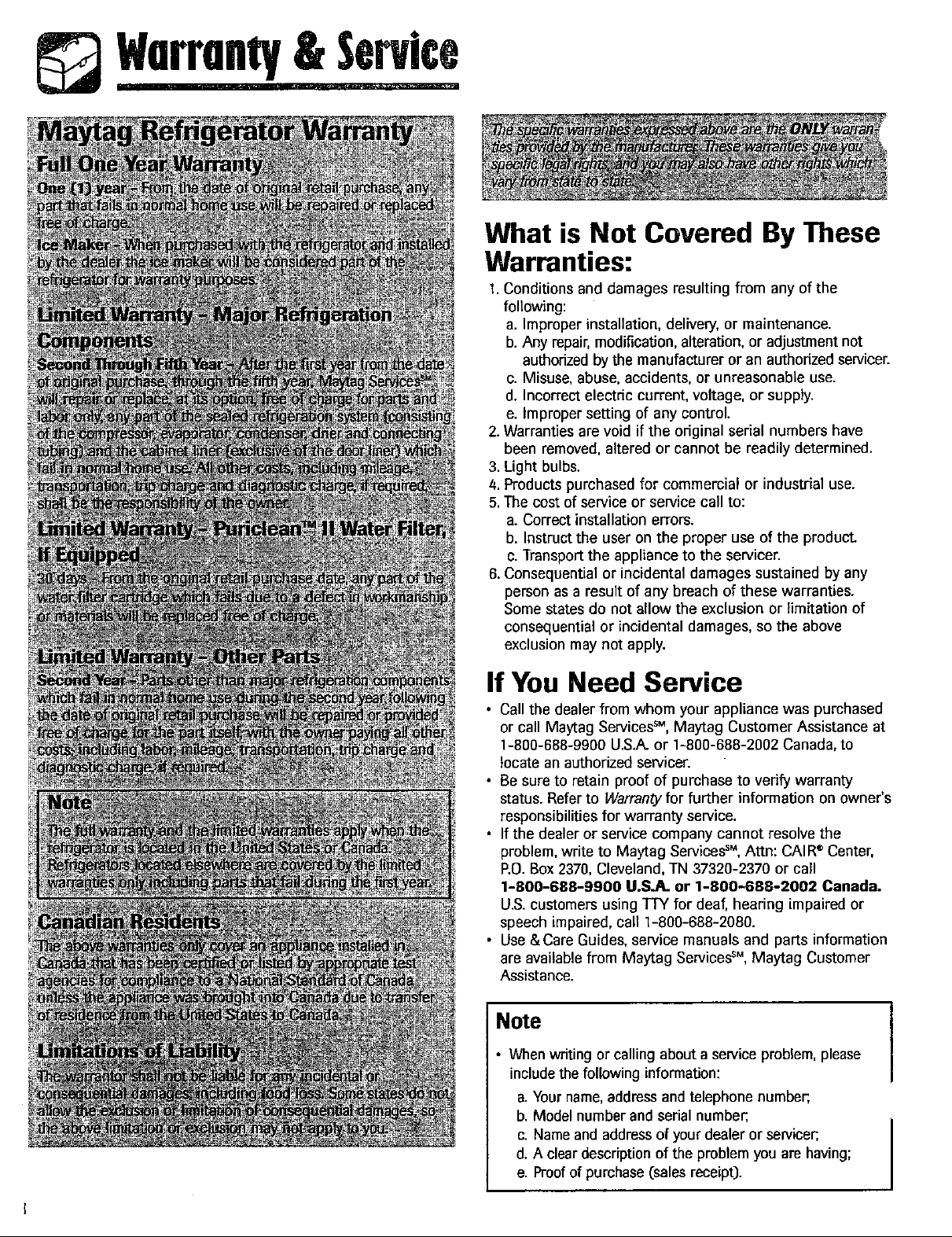

Warranty & Service ........................ 31
Form No, C/12/04 Part No. 12828121 _maytao.com _2004 Maytag Appliances Sales Co. Utho U.S_

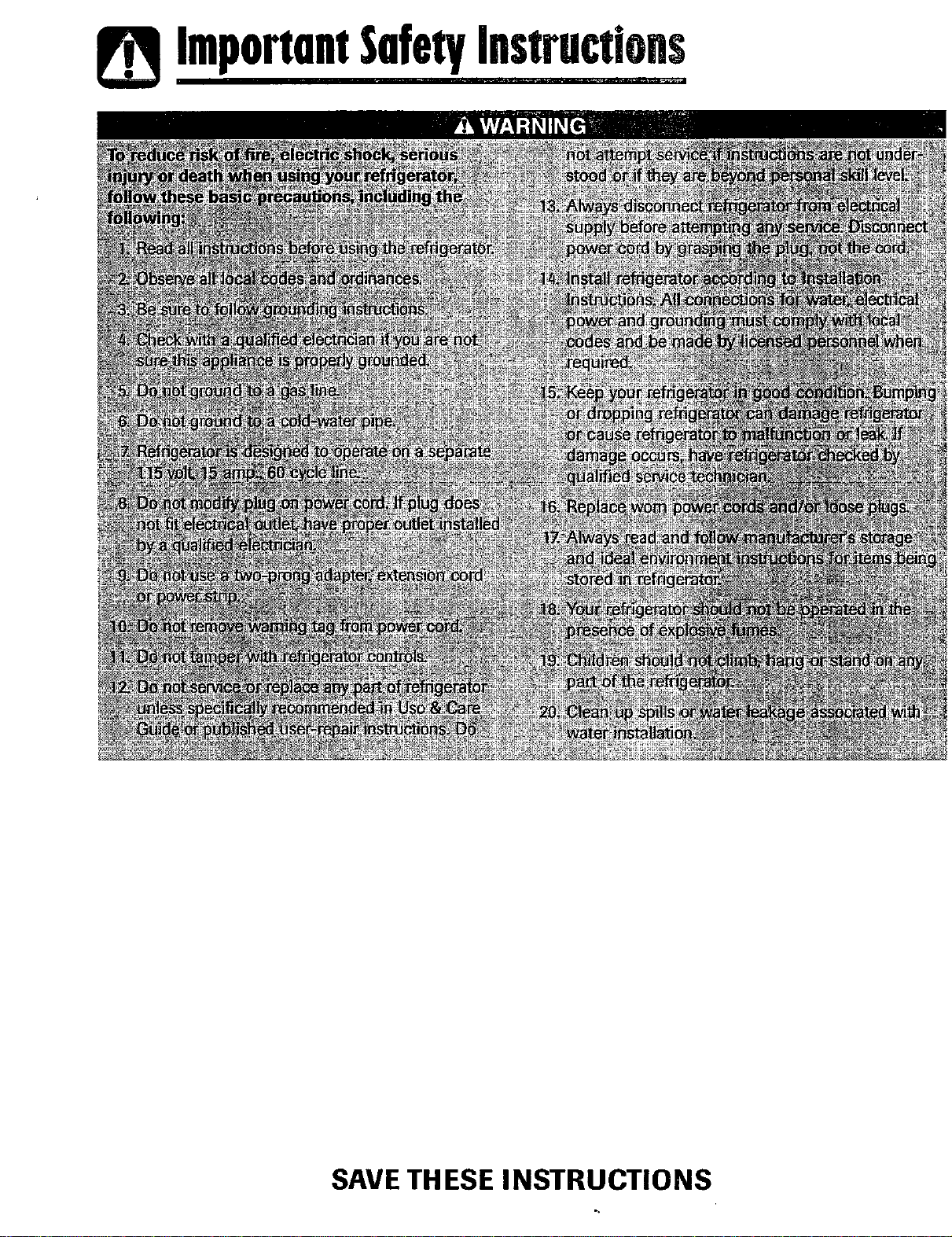

ImportontSofetyInstruczlons
SAVE THESE INSTRUCTIONS

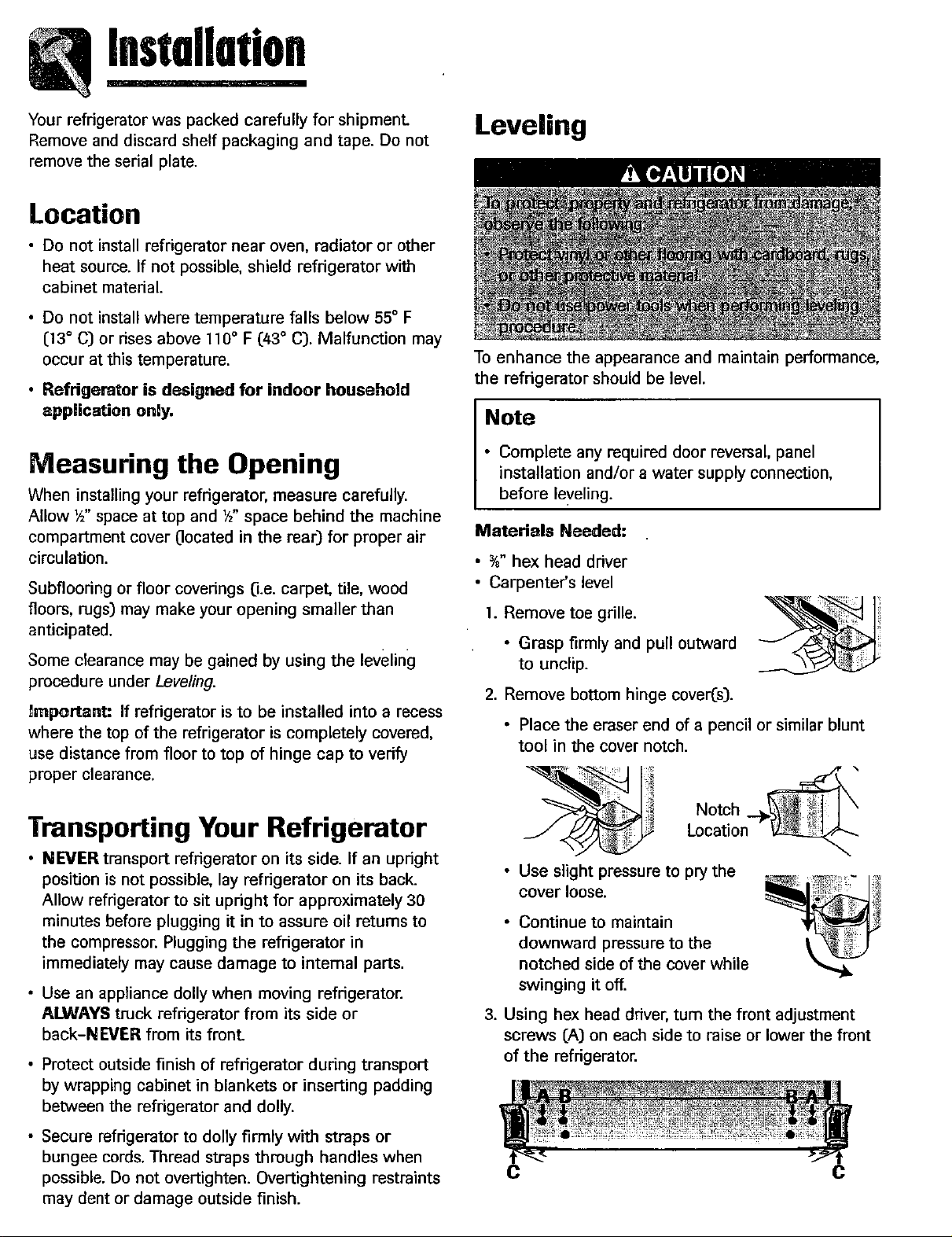

installation
Your refrigerator was packed carefully for shipment.
Remove and discard shelf packaging and tape. Do not
remove the serial plate.
Leveling
Location
• Do not install refrigerator near oven, radiator or other
heat source. If not possible, shield refrigerator with
cabinet material.
• Do not install where temperature falls below 55° F
03 ° C_)or rises above 110° F {43° C). Malfunction may
occur at this temperature,
• Refrigerator is designed for indoor household
application only.
Measuring the Opening
When installing your refrigerator, measure carefully.
Allow ½" space at top and Yz"space behind the machine
compartment cover (located in the rear} for proper air
circulation.
Subfloodng or floor coverings 0.e. carpet, tile, wood
floors, rugs) may make your opening smaller than
anticipated.
Some clearance may be gained by using the leveling
procedure under Leveling.
_mportant: If refrigerator is to be installed into a recess
where the top of the refrigerator is completely covered,
use distance from floor to top of hinge cap to verify
proper clearance.
Transporting Your Refrigerator
• NEVER transport refrigerator on its side. if an upright
position is not possible, lay refrigerator on its back.
Allow refrigerator to sit upright for approximately 30
minutes before plugging it in to assure oil returns to
the compressor. Plugging the refrigerator in
immediately may cause damage to internal parts.
• Use an appliance dolly when moving refrigerator.
P,I.WP,YS truck refrigerator from its side or
back-NEVER from its front.
• Protect outside finish of refrigerator during transport
by wrapping cabinet in blankets or inserting padding
between the refrigerator and dolly.
• Secure refrigerator to dolly firmly with straps or
bungee cords. Thread straps through handles when
possible. Do not overtighten. Overtightening restraints
may dent or damage outside finish.
To enhance the appearance and maintain performance,
the refrigerator should be level.
Note
• Complete any required door reversal, panel
installation and/or a water supply connection,
before leyeling.
Materials Needed:
• %"hex head driver
• Carpenter's level
1. Remove toe grille.
• Grasp firmly and pull outward
to unclip.
2. Remove bottom hinge cover{s).
.
• Place the eraser end of a pencil or similar blunt
tool in the cover notch.
!!_!_i¸¸_ i!_
Location
• Use slight pressure to pry the
cover loose.
• Continue to maintain
downward pressure to the
notched side of the cover while
swinging it off.
Using hex head driver, turn the front adjustment
screws CA}on each side to raise or lower the front
of the refrigerator.
C C
Installation

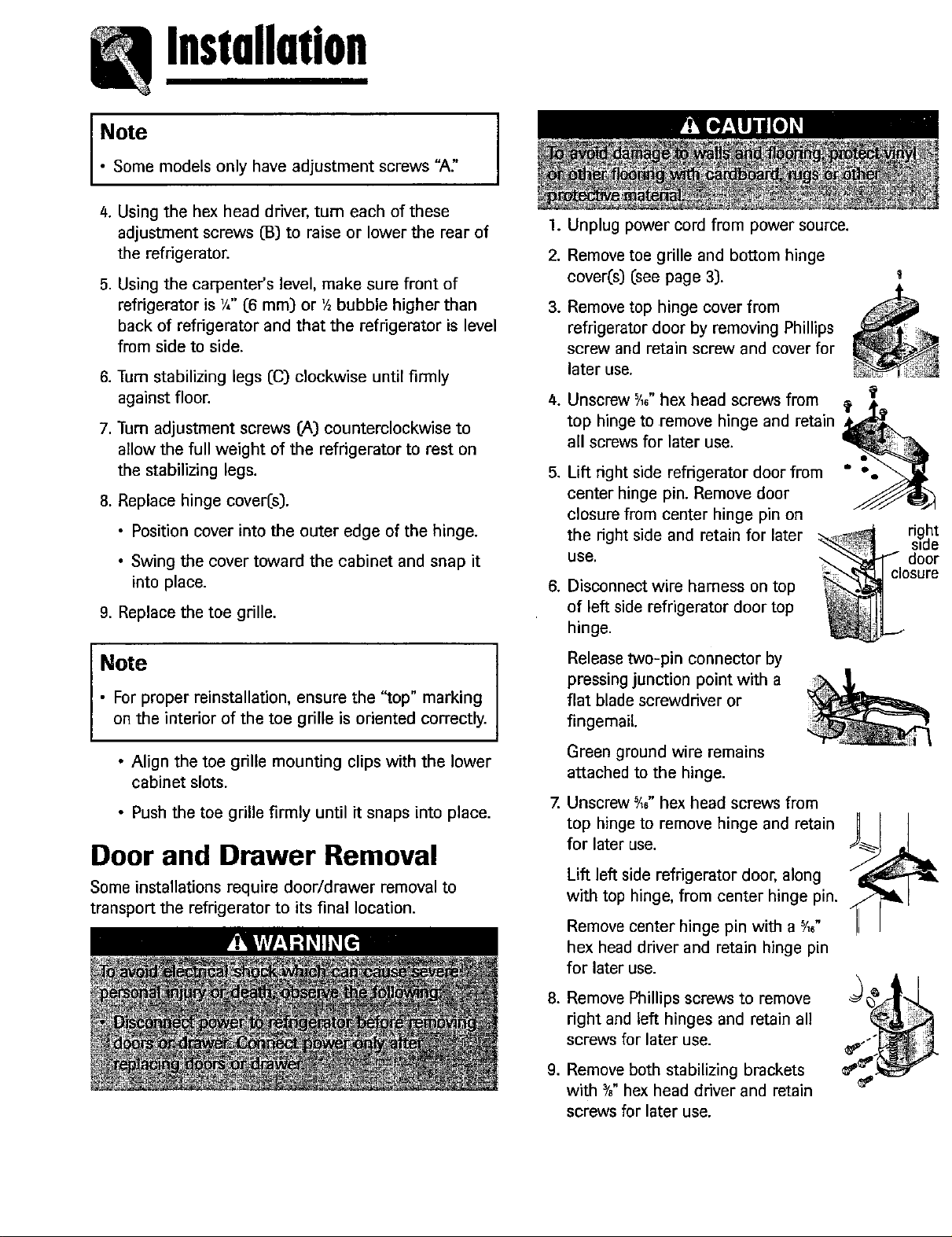

I Note I
• Some models only have adjustment screws "A"
4. Using the hex head driver, turn each of these
adjustment screws (B) to raise or lower the rear of
the refrigerator.
5. Using the carpenter's level, make sure front of
refrigerator is '/," (6 mm) or ½ bubble higher than
back of refrigerator and that the refrigerator is level
from side to side.
6. Turn stabilizing legs (C) clockwise until firmly
against floor.
7. (urn adjustment screws (A) counterclockwise to
allow the full weight of the refrigerator to rest on
the stabilizing legs.
8. Replace hinge cover(s).
• Position cover into the outer edge of the hinge.
• Swing the cover toward the cabinet and snap it
into place.
9. Replace the toe grille.
I Note
• For proper reinstallation, ensure the "top" marking
on the interior of the toe grille is oriented correctly.
• Align the toe grille mounting clips with the lower
cabinet slots.
• Push the toe grille firmly until it snaps into place.
Door and Drawer Removal
Some installations require door/drawer removal to
transport the refrigerator to its final location.
.
2.
.
4.
.
.
7.
.
.
Unplug power cord from power source.
Remove toe grille and bottom hinge
cover(s) (see page 3).
Remove top hinge cover from
refrigerator door by removing Phillips
screw and retain screw and cover for
later use.
Unscrew Y,," hex head screws from
top hinge to remove hinge and retain
all screws for later use.
Lift fight side refrigerator door from " ".
center hinge pin. Remove door
closure from center hinge pin on
the right side and retain for later
use.
Disconnect wire hamess on top
of left side refrigerator door top
hinge.
Release two-pin connector by
pressing junction point with a
flat blade screwdriver or
fingernail
Green ground wire remains
attached to the hinge.
Unscrew _8" hex head screws from
top hinge to remove hinge and retain
for later use.
Lift left side refrigerator door, along
with top hinge, from center hinge pin.
Remove center hinge pin with a '/,6"
hex head driver and retain hinge pin
for later use.
Remove Phillips screws to remove
right and left hinges and retain all
screws for later use.
Remove both stabilizing brackets
with %"hex head driver and retain
screws for later use.
_-_ right
s=de
door
closure
N
Installation

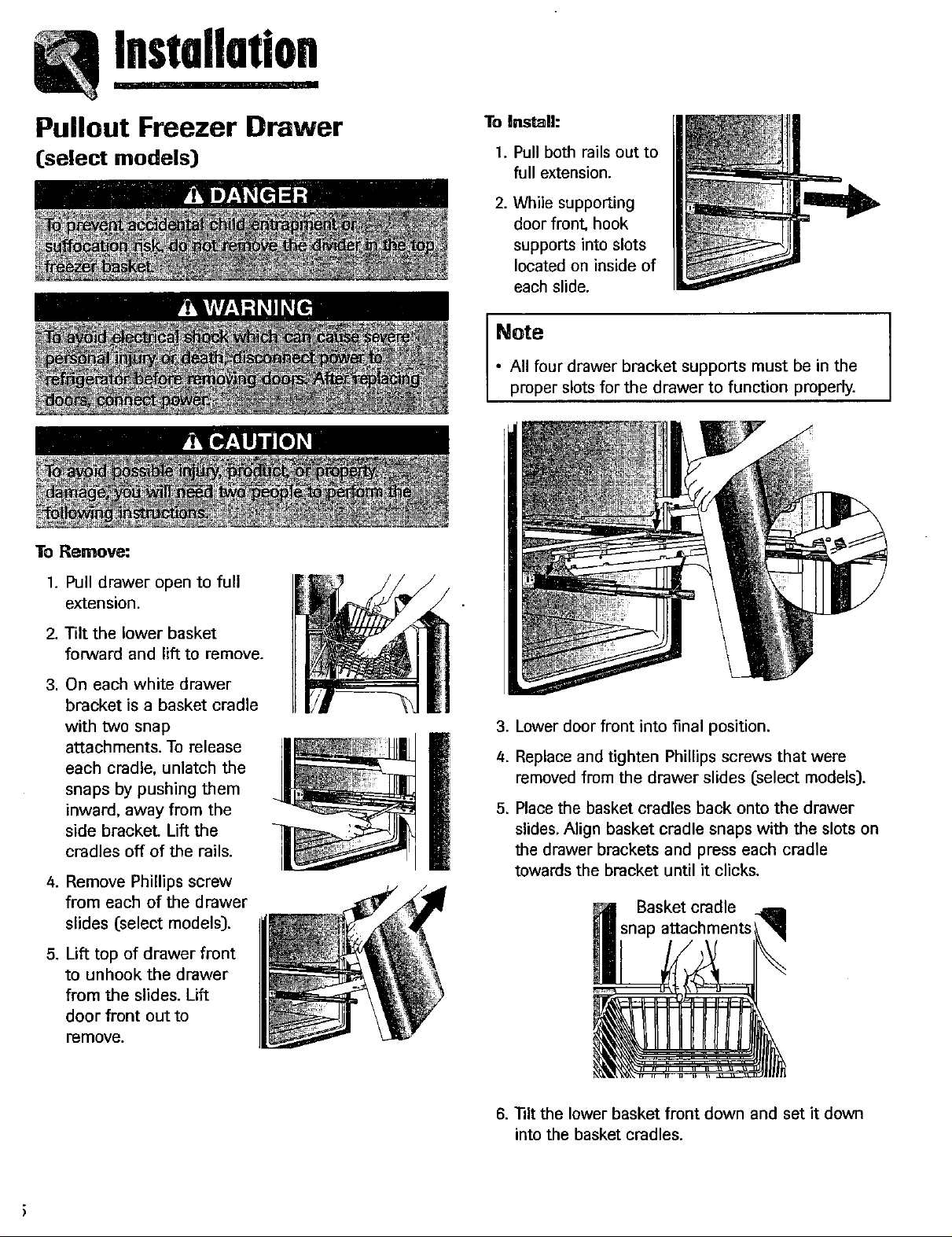

Pullout Freezer Drawer
(select models)
To Install:
1. Pull both rails out to
full extension.
2. While supporting
door front, hook
supports into slots
located on inside of
each slide.
Note
• All four drawer bracket supports must be in the
proper slots for the drawer to function properly.
To Remove:
1. Pull drawer open to full
extension.
2, Tilt the lower basket
forward and lift to remove.
3. On each white drawer
bracket is a basket cradle
with two snap
attachments. To release
each cradle, unlatch the
snaps by pushing them
inward, away from the
side bracket. Lift the
cradles off of the rails.
4. Remove Phillips screw
from each of the drawer
slides (:select models).
5. Lift top of drawer front
to unhook the drawer
from the slides. Lift
door front out to
remove.
i
3. Lower door front into final position.
4. Replace and tighten Phillips screws that were
removed from the drawer slides Cselect models).
5. Place the basket cradles back onto the drawer
slides. Align basket cradle snaps with the slots on
the drawer brackets and press each cradle
towards the bracket until it clicks.
Basket cradle
snap attachments
6. Tilt the lower basket front down and set it down
into the basket cradles.
Installation

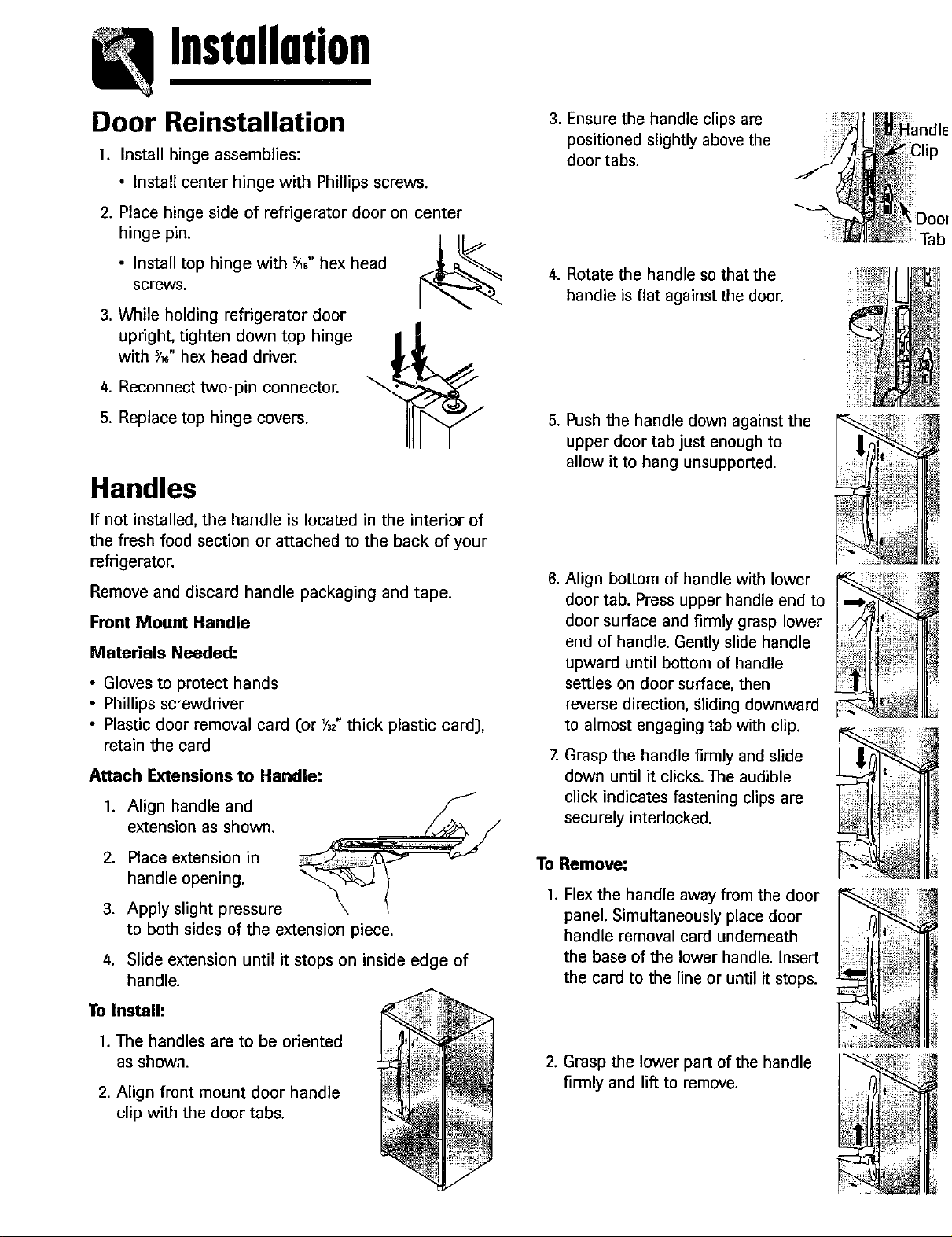

Door Reinstallation
1. Install hinge assemblies:
• Install center hinge with Phillips screws.
2. Place hinge side of refrigerator door on center
hinge pin.
• install top hinge with %," hex head
screws.
3. While holding refrigerator door
upright, tighten down top hinge
with _/,_"hex head driver.
4. Reconnect two-pin connector.
5. Replace top hinge covers.
Handles
If not installed, the handle is located in the interior of
the fresh food section or attached to the back of your
refrigerator.
Remove and discard handle packaging and tape.
Front Mount Handle
Materials Needed:
• Gloves to protect hands
• Phillips screwdriver
• Plastic door removal card [or '/_" thick plastic card),
retain the card
Attach Extensions to Handle:
1. Align handle and
extension as shown.
2. Place extension in
handle opening.
3. Apply slight pressure
to both sides of the extension piece.
4. Slide extension until it stops on inside edge of
handle.
To Install:
1. The handles are to be oriented
as shown.
2. A[ign front mount door handle
clip with the door tabs.
3. Ensure the handle clips are
positioned slightly above the
door tabs.
4. Rotate the handle so that the
handle is fiat against the door.
5. Push the handle down against the
upper door tab just enough to
allow it to hang unsupported.
6,
securely interlocked.
To Remove:
Align bottom of handle with lower _:
door tab. Press upper handle end to
door surface and firmly grasp lower
end of handle. Gently slide handle
upward until bottom of handle
settles on door surface, then
reverse direction, sliding downward
to almost engaging tab with clip.
Grasp the handle firmly and slide -_
down until it clicks. The audible
click indicates fastening clips are
1. Flex the handle away from the door
panel. Simultaneously place door
handle removal card underneath
the base of the lower handle. Insert
the card to the line or until it stops.
2. Grasp the lower part of the handle
firmly and lift to remove.
installation

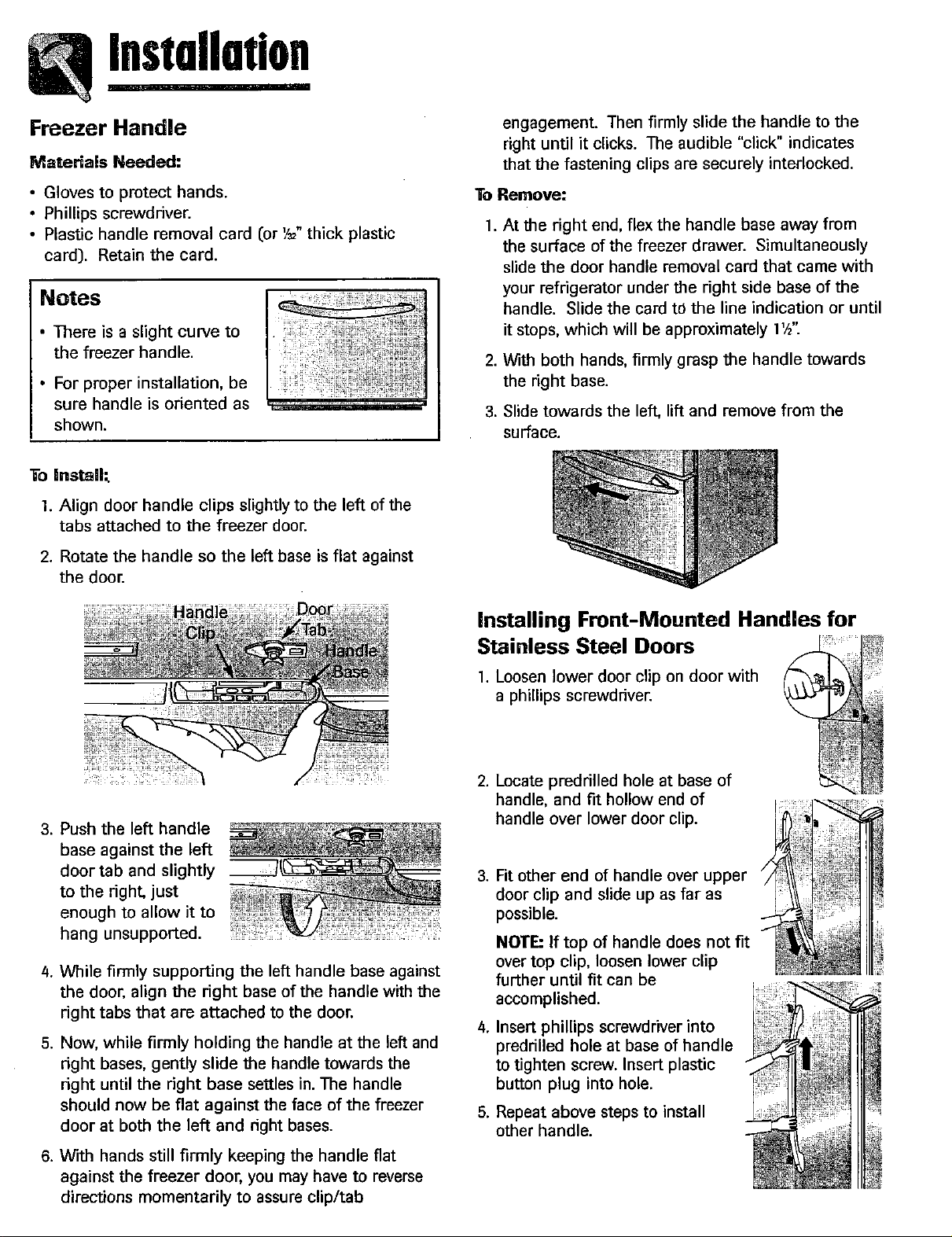

Freezer Handle
Nlaterials Needed:
• Gloves to protect hands.
• Phillips screwdriver.
• Plastic handle removal card Cor'/=" thick plastic
card). Retain the card.
Notes
• There is a slight curve to
the freezer handle.
• For proper installation, be
sure handle is oriented as
shown.
engagement. Then firmly slide the handle to the
right until it clicks. The audible "click" indicates
that the fastening clips are securely interlocked.
To Remove:
.
At the right end, flex the handle base away from
the surface of the freezer drawer. Simultaneously
slide the door handle removal card that came with
your refrigerator under the right side base of the
handle. Slide the card to the line indication or until
it stops, which will be approximately 1V2".
2. With both hands, firmly grasp the handle towards
the right base.
3. Slide towards the left, lift and remove from the
surface.
To Insl_Ol_
1. Align door handle clips slightly to the left of the
tabs attached to the freezer door.
2. Rotate the handle so the left base is flat against
the door.
installing Front-Mounted Handles for
Stainless Steel Doors
1. Loosen lower door clip on door with
a phillips screwdriver.
3. Push the left handle
base against the left
door tab and slightly
to the right just
enough to allow it to
hang unsupported.
4. While firmly supporting the left handle base against
the door, align the right base of the handle with the
right tabs that are attached to the door.
5. Now, while firmly holding the handle at the left and
right bases, gently slide the handle towards the
right until the right base settles in. The handle
should now be flat against the face of the freezer
door at both the left and right bases.
6. With hands still firmly keeping the handle flat
against the freezer door, you may have to reverse
directions momentarily to assure clip/tab
.
.
,
.
Locate predrilled hole at base of
handle, and fit hollow end of
handle over lower door clip.
Fit other end of handle over upper
door clip and slide up as far as
possible.
NOTE: if top of handle does not fit
over top clip, loosen lower clip
further until fit can be
accomplished.
Insert phillips screwdriver into
predrilled hole at base of handle
to tighten screw. Insert plastic
button plug into hole.
Repeat above steps to install
other handle.
Installation
Removing Front-Mounted Handles for
Stainless Steel Doors
1. Remove plastic button plug at base
of handle with a very small fiat-blade
screwd river.
Insert phillips screwdriver into
predrilled hole to remove screw.
2. Slide handle down and remove
from door clip.
3. Repeat above steps to remove
other handle.
Removing Front-Mounted Handles for
Stainless Steel Freezer Door
1. Remove right side plastic button __
plugs at each end of handle _,,_,,,
with a very small flat-blade
screwdriver.
• Insert phillips screwdriver _'_/
into predrilled hole to remove
screw.
2. Slide handle dght and
remove from door clip.
\
Installing Front-Mounted Handles for
Stainless Steel Freezer Door
]. Loosen lower door clip on door
with a phillips screwdriver
2. Locate predrilled hole at base of
handle, and fit hollow end of
handle over left door clip.
\
Connecting the Water Supply
3. Fit other end of handle over
left door clip and slide left as
far as possible.
NOTE: If end of handle does \
not fit over left clip, loosen
dght clip further until fit can
be accomplished.
4. Insert phillips screwdriver
into preddlled hole at end of
handle to tighten screw.
Insert plastic button plug into
hole.
Installation

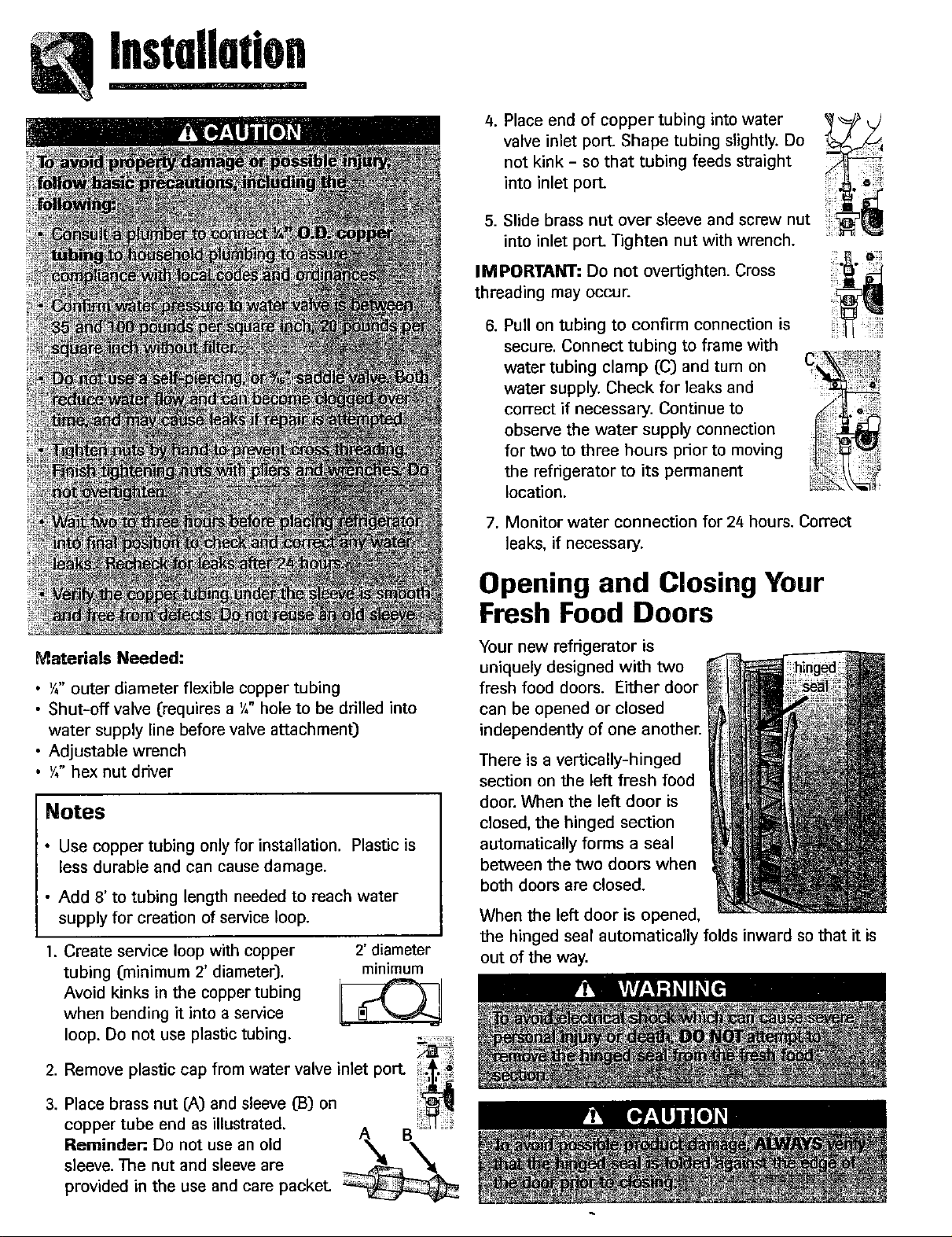

4. Place end of copper tubing into water
valve inlet port. Shape tubing slightly. Do
not kink - so that tubing feeds straight
into inlet port.
5. Slide brass nut over sleeve and screw nut
into inlet port. Tighten nut with wrench.
IMPORTANT; Do not overtighten. Cross
threading may occur.
.
Pull on tubing to confirm connection is
secure. Connect tubing to frame with
water tubing clamp (C_)and turn on
water supply. Check for leaks and
correct if necessary. Continue to
observe the water supply connection
for two to three hours prior to moving
the refdgerator to its permanent
location.
7. Monitor water connection for 24 hours. Correct
leaks, if necessary.
Materials Needed:
• '/4"outer diameter flexible copper tubing
• Shut-off valve (requires a '/4"hole to be drilled into
water supply line before valve attachment)
• Adjustable wrench
• Y," hex nut driver
Notes
Use copper tubing only for installation. Plastic is
less durable and can cause damage.
Add 8' to tubing length needed to reach water
supply for creation of service loop.
1. Create service loop with copper
tubing (minimum 2' diamete0.
Avoid kinks in the copper tubing
when bending it into a service
loop. Do not use plastic tubing.
2' diameter
minimum
Opening and Closing Your
Fresh Food Doors
Your new refrigerator is
uniquely desig I with two
fresh food doors.
can be opened or closed
independently of one another.
There is a vertically-hinged
section on the left fresh food
door. When the left door is
closed, the hinged section
automatically forms a seal
between the two doors when
both doors are closed.
When the left door is opened,
the hinged seal automatically folds inward so that it is
out of the way.
2. Remove plastic cap from water valve inlet port.
3. Place brass nut CA_)and sleeve L'BJon
copper tube end as illustrated.
Reminden Do not use an old _ B
sleeve. The nut and sleeve are --
provided in the use and care packet.
TemperatureControls
Touch Temperature Controls
The controls are located at the top front of the
refrigerator compartment.
Control
Initial Control Settings
After plugging the refrigerator in, set the controls.
• Pressing the {I or {_ pads adjusts the controls to
the desired setting.
• The temperature control range for both
compartments is 1 through 7 Ccoldest).
• Initially set the refrigerator control on 4.
• Initially set the freezer control on 4.
• Let the refrigerator run at least 8 to 12 hours before
adding food.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition Will be more noticeable when
you first start the refrigerator, during hot weather and
after excessive or lengthy door openings.
Adjusting the Controls
24 hours after adding food, you may decide that one
or both compartments should be colder or warmer. If
so, adjust the controlCs_}as indicated in the
Temperature Control Guide table below. See page 19
for instructions on checking compartment
temperature.
• Except when starting the refrigerator, do not change
either control more than one number at a time.
• Allow 24 hours for temperatures to stabilize.
• Changing either control will have some effect on the
temperature of the other compartment.
Temperature Control Guide
Refrigerator too warm Set the refrigerator control
to next higher number by
pressing the {_ pad.
Refrigerator too cold Set the refrigerator control
to next lower number by
pressing the {1 pad.
Freezer too warm Set the freezer control to
next higher number by
pressing the {_ pad.
Freezer too cold Set the freezer control to
next lower number by
pressing the_ pad.
Turn refrigerator OFF Press the refrigerator or
freezer {1 pad until a dash
C-) appears in the display.
Energy Saver Switch [select models)
Off - The refrigerator uses more energy when this
switch is off, because a heater located in the hinged
seal section of the door is running. This heater helps
prevent condensation formation on the exterior of the
hinged seal. Turn the energy saver switch OFF when
the environment is warm and more humid or if
moisture is noticed on the door exterior.
• On - This setting saves energy by not using the
heater. Turn the energy saver switch ON when the
environment is less humid.
.Temperoturecontrols
Triple Cool Climate Control
Cselect models)
The control is located at the top front of the fresh food
compartment.
Control
initial Temperature Setting
Temperatures are preset at the factory at 38° F (3° C)
in the fresh food compartment and 0° F C-18° C) in the
freezer compartment.
Adjusting the Control
24 hours after adding food, you may decide that one or
both compartments should be colder or warmer. If so,
adjust the csntrol as indicated in the Temperature
Control Guide below.
• The first touch of the (_ or(_ pads shows the
current temperature setting.
• The display will show the new setting for
approximately three seconds, and then return to the
actual temperature currently within that
compartment.
• Do not change either control more than one degree
at a time. Allow temperature to stabilize for 24 hours
before making a new temperature adjustment.
Temperature Control Guide
Refrigerator too cold
Refrigerator too warm
Freezer too cold
Freezer too warm
Turn refrigerator OFF
Set the refrigerator control
to next higher number by
)ressing the (_ pad.
Set the refrigerator control
to next lower number by
)ressing the (_ pad.
Set the freezer control to
Inext higher number by
pressing the (_ pad.
Set the freezer control to
next lower number by
)ressing the (_ pad.
Press the freezer _ pad
until OFF appears in the
display. Press either the
freezer or refrigerator (_
)ad to turn back on.
Speed Ice 0
When activated, Speed Ice reduces the freezer
temperature to the optJmurn setting for 24 hours in
order to produce more ice. Note: When the Speed
Ice feature is in operation, the _) and _ pads for
the freezer control will not operate.
Reset Filter (select models) 0"= _
When a water filter has been installed in the W
refrigerator, the yellow Order light will illuminate when
90 percent of the volume of water for which the filter is
rated has passed through the filter OR 1] months have
elapsed since the filter has been installed.
The red Replace light will illuminate when the rated
volume of water has passed through the filter OR 12
months have elapsed since the filter was installed. A
new filter should be installed immediately when the
Replace light is illuminated.
After replacing the filter, press and hold the Reset
Filter pad for three seconds. The Order and Replace
lights will go off.
Vacation Mode 0
The Vacation Mode feature causes the freezer
to defrost less frequently, conserving, energy. The
...... g_ 4,
Vacation Mode indicator hght will dluminete when the
feature is activated. To deactivate, press the Vacation
Mode pad again OR open either door. The indicator
light will go off.
Notes
• Door openings will not deactivate Vacation Mode
for approximately one hour after activation.
• If vacationing for more than a few days, see the
Preparing for Vacation section, page 25.
Temp Alarm O
The Temp Alarm system will alert you if the
freezer or fresh food temperatures exceed normal
operating temperatures due to a power outage or
other event. When activated, the Temp Alarm light will
illuminate.
TemperatureControls
If the freezer or fresh food temperatures have
exceeded these limits, the display will alternately show
the current compartment temperatures and the highest
compartment temperatures reached when the power
was out. An audible alarm will sound repeatedly.
Press the Temp Alarm pad once to stop the audible
alarm. The Temp Alarm light will continue to flash and
the temperatures will alternate until the temperatures
have stabilized.
To turn off Temp Alarm, press and hold the Temp
Alarm pad for three seconds. The indicator light will
go off.
Door Alarm O
The Door Alarm will alert you when one of the
doors has been left open for five continuous minutes.
When this happens, an audible alarm will sound every
few seconds until the door is closed OR the Door
Alarm pad is pressed to deactivate the feature.
Max Cool O
When activated, Max Cool causes the fresh
food and freezer temperatures to drop to the minimum
settings on the control. This cools down the
refrigerator and freezer after extended door openings
or when loading the refrigerator or freezer with warm
food. Note: When the Max Cool feature is in
operation, the _ and _ pads for the refrigerator
and freezer controls will not operate.
To activate, press the Max Cool pad. Max Cool will
deactivate automatically after 12 hours, OR press the
Max Cool pad to deactivate the feature.
User Preferences
Access the User Preferences menu to:
• Activate or turn off Super Cool (_selectmodels)
• Change the temperature display from °F to °C
• Enable or disable audible alarms.
• Adjust the light level at which the Dispenser Auto
Light will illuminate Cwhen this feature is activated on
the ice and water dispenser) Cselect models)
To access the User Preferences menu, press and hold
the Door Alarm pad for three seconds. When in the
User Preferences mode, a short title for the feature will
appear in the Freezer temperature display and the
feature status will appear in the Fresh Food display.
]. Use the Freezer up and down control to scroll
through the features.
2. When the desired feature is displayed, use the Fresh
Food up and down control to change the status.
3. When changes are complete, press the Door Alarm
pad for three seconds OR close the Fresh Food door.
Super Cool [CC) Cselect models)
When Super Cool is ON, an air-mixing fan in the fresh
food compartment is activated to improve air flow and
temperature control. To save energy, this feature may
be deactivated by choosing OFF.
Temperature Display {F_C)
Change the display to show temperatures in degrees
Fahrenheit or degrees Celsius.
Alarm (AL)
When the Alarm mode is OFF, all audible alarms will be
disabled until the feature is tumed on.
Auto Light Level Selection CLL) (select models)
This setting adjusts the light level at which the
dispenser light will illuminate when the sensor detects
that the light levels in -the room are low. Setting ] is
the darkest light level setting, setting 9 is the lightest
light level setting. Note: The Auto Light (_select
models) must be activated on the ice and water
dispenser control to take advantage of this option.
Sabbath Mode (SAB)
When the Sabbath Mode is ON, all control lights and
the night light will be disabled until the feature is
turned OFF. This feature does not disable the interior
lights. Press any pad to restore the control lights.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
the refrigerator is first started, during hot weather and
after excessive or lengthy door openings.
• Activate the Sabbath Mode
FreshFoodFemures
ii
Shelves
Your refrigerator has Spill-Catcher"* Glass Shelves.
The shelves have a spill retainer edge which allows for
easier clean up and some are equipped with a slide
out feature. To slide out, grasp the front of the shelf
and pull forward. Push in the shelf to return to the
original position.
To Remove a Shelf:
• Slightly tilt up the front and lift up
the rear of the shelf, then pull the
shelf straight out.
To Lock the Shelf Into Another
Position:
• Tilt up the front edge of the shelf.
• Insert the hook into the desired frame openings and
let the shelf settle into place.
• Be sure the shelf is securely locked at the rear.
Elevator" Shelf (select models)
The Elevator TM Shelf is equipped with a spilt-retaining
edge and the EasyGlide TM slide-out feature. It can be
adjusted up or down without unloading.
To Slide Out Elevator" Shelf:.
• Grasp the front of the shelf and pul! forward.
• Push the shelf in to return to odginal position.
To Adjust the Elevator" Shelf:
• Pull out the knob on the crank handle.
• Rotate the crank clockwise to raise the shelf, and
counterclockwise to lower the height of the shelf.
To Remove Elevator TM Shelf:
• Completely unload the shelf and pull the shelf
forward.
• Pull until the shelf stops.
• Press up on the tabs located underneath its outside
edges and continue pulling forward until the shelf is
clear of the frame.
To Replace Elevator TM Shelf:
• Align the shelf to the frame and push it all the way
back It is not necessary to press up on the tabs for
reinstallation.
in ordinary use, the Elevator TM Shelf frame assembly
does NOT require removal. Though unlikely, and not
recommended, the correct removal procedure is as
follows:
To Remove Frame Assembly;
•Unload the shelf completely.
• Slide the shelf forward about 2" and manually move
the two rear latches toward the shelf center.
•While supporting the entire shelf and frame from
underneath, lift slightly and rotate the assembly
approximately 30° to allow the rear mechanism to
clear the vertical rear side rails.
• The entire assembly can then be moved forward
and clear of the refrigerator compartment.
To Reinstall Frame Assembly:
•Reverse the removal procedure. Be sure the shelf
is in a level position. When the sliding shelf is
pushed to the rear, it will reposition the rear latches
to their correct operating position.
Cstyle may vary)
FrameAssembly
Slide OutShelf
FreshFoodFeatures
The Crisper Top serves as the lower fresh food shelf.
To Remove the Crisper Top:
• Remove crisper drawers.
• Place hand under the frame to push up the glass. Lift
glass out.
• Lift frame from refrigerator liner rails.
1"oInstall:
• Replace frame in refrigerator liner rails.
• Carefully replace glass into frame.
Door Storage
Dairy Center
The Dairy Center provides
convenient door storage for
spraadable items such as butter
and margarine. This compartment can be moved to
different locations to accommodate storage needs. To
use the dairy center, raise the cover.
To Remove:
• Raise the cover, pull upward and tilt out.
To Install:
• Slide the Dairy Center in and down until firmly seated
in the door liner.
Door Buckets
Door Buckets can be moved to meet storage needs.
To Remove:
• Slide bucket up and pull straight out.
To Install:
• Slide bucket in and down until
firmly seated in the door liner.
Crisper Drawers
The Crisper Drawers provide a higher humidity
environment for fresh fruit and vegetable storage.
Controls
The Crisper Controls regulate the amount of humidity
in the crisper drawer. Slide the control toward the
FRUIT setting for produce with outer skins. Slide the
control toward the VEGETABLES setting for leafy
produce.
VEGETABLES FRUIT
HUMIDITY CONTROLLED
To Remove:
• Pull drawer out to full extension. Tilt up front of
drawer and pull straight out.
To Install:
• Insert drawer into frame rails and push back into
place.
Note
• Forbest results, keep the crisper drawers tightly
cosed.
Temperature-Controlled Drawer
The Wide-N-Fresh TM drawer is a full-width drawer
with adjustable temperature control. This drawer can
be used for large party trays, dell items, beverages or
miscellaneous items and features a divider to organize
the drawer into sections if desired.
There is a temperature control which adjusts the
amount of cold air allowed into the drawer. The
control is located on the right side of the drawer, under
the lid.
Set the control to the higher setting _ to provide a
normal refrigerator temperature. Set the drawer on the
Iowersetting _ when a temperature colder than
the main refrigerator compartment is desired. Use the
coldest setting when storing meats.
Notes
Cold air directed to the drawer can decrease
reffigerstor temperature. Refrigerator control may
need to be adjusted.
Do not place leafy vegetables in the drawer.
Colder temperatures could damage leafy produce.
To Remove Drawer:
• Lift lid. Pull drawer out to full extension. Tilt up front
of drawer and pull straight out.
To Install Drawer:.
• Push metal glide rails to the back of the refdgerator.
Place drawer onto rails and slide drawer back until it
falls into place.
continued
FreshFoodFeatures Freezer_Feutures
To Remove Divider:.
• Pull drawer completely out and raise the front of the
divider to unhook it from the rear wail of the drawer
and lift it out.
To Install Divider:.
• Hook back of divider aver rear wail of drawer and
lower into place
Accessories
Upper Wire Basket
To Remove:
• Pull upper basket out to full extension and lift out to
remove.
Egg Tray
(style may vary/select models)
The E
plus" eggs. It can be removed
to carry to a work area or to
be washed.
W'me Trivet/Can Rack (select models)
The Wine Trivet/Can Rack accessory fits in the
Wide-N-Fresh TM drawer or on a shelf.
Bottles or cans can be laid
crosswise, or a single bottle may
be laid in the center depression.
To Install:
• Slide upper basket
into freezer. Make
basket hooks behind
rail catch.
Note
• Lower Freezer Drawer:. See page 5 for lower
basket and complete pullout drawer instructions.
Accessories
Ice Bin
The Ice Bin provides
storage for ice.
IceandWater
Automatic Ice Maker
Connect the ice maker to the water supply as
instructed on pages 8-10. Proper water flow and a
level refrigerator are essential for optimal ice
maker performance,
Operating Instructions
• Confirm ice bin is in place and ice maker arm is
down.
• After freezer section reaches between 0° to 2° F C-18°
to -17 ° C), ice maker fills with water and begins
operating. You will have a complete
harvest of ice approximately every
three hours.
• Allow approximately 24 hours after
installation to receive first harvest of
ice.
• Discard ice created within first 12 hours of operation
to assure system is flushed of impurities.
• Stop ice production by raising ice maker arm until
click is heard.
• Ice maker will remain in the off position until arm is
pushed down.
• The first one or two batches will probably contain
undersized and irregular cubes because of air in the
supply line.
• When the ice cubes are ejected it is normal for
several cubes to be joined together at the ends. They
can easily be broken apa_ The ice maker will
continue to make ice until the supply of ice cubes
raises the ice maker arm, shutting the ice maker off.
• Certain sounds may accompany the various cycles of
the ice maker. The motor may have a slight hum, the
cubes will rattle as they fall into an empty storage
pan and the water valve may click or "buzz"
occasionally.
• If the ice is not used frequently, the ice cubes will
become cloudy, shrink, stick together and taste stale.
Empty the ice storage bin periodically and wash it in
lukewarm water. Be sure to dry the bin thoroughly
before replacing it.
• Beverages and foods should not be placed in the ice
storage bin for quick chilling. These items can block
the ice maker arm, causing the ice maker to
malfunction.
• Turn off Carm up_ the ice maker when the water
supply is to be shut off for several hours.
To Remove the Ice Bin:
• Pull it forward, away from the ice maker. To avoid the
ice maker dumping ice while the bin is removed, turn
the ice maker off by raising the ice maker arm.
To Install the Ice Bin:
• Reverse the above procedure. Tum the ice maker on
by lowering the ice maker arm.
Water Dispenser (selectmodels)
The Water Dispenser is located on
the left side wall of the fresh food
section. This design is for cold water
dispensing only.
To Dispense Water:.
• Hold container under spout and
press dispenser pad.

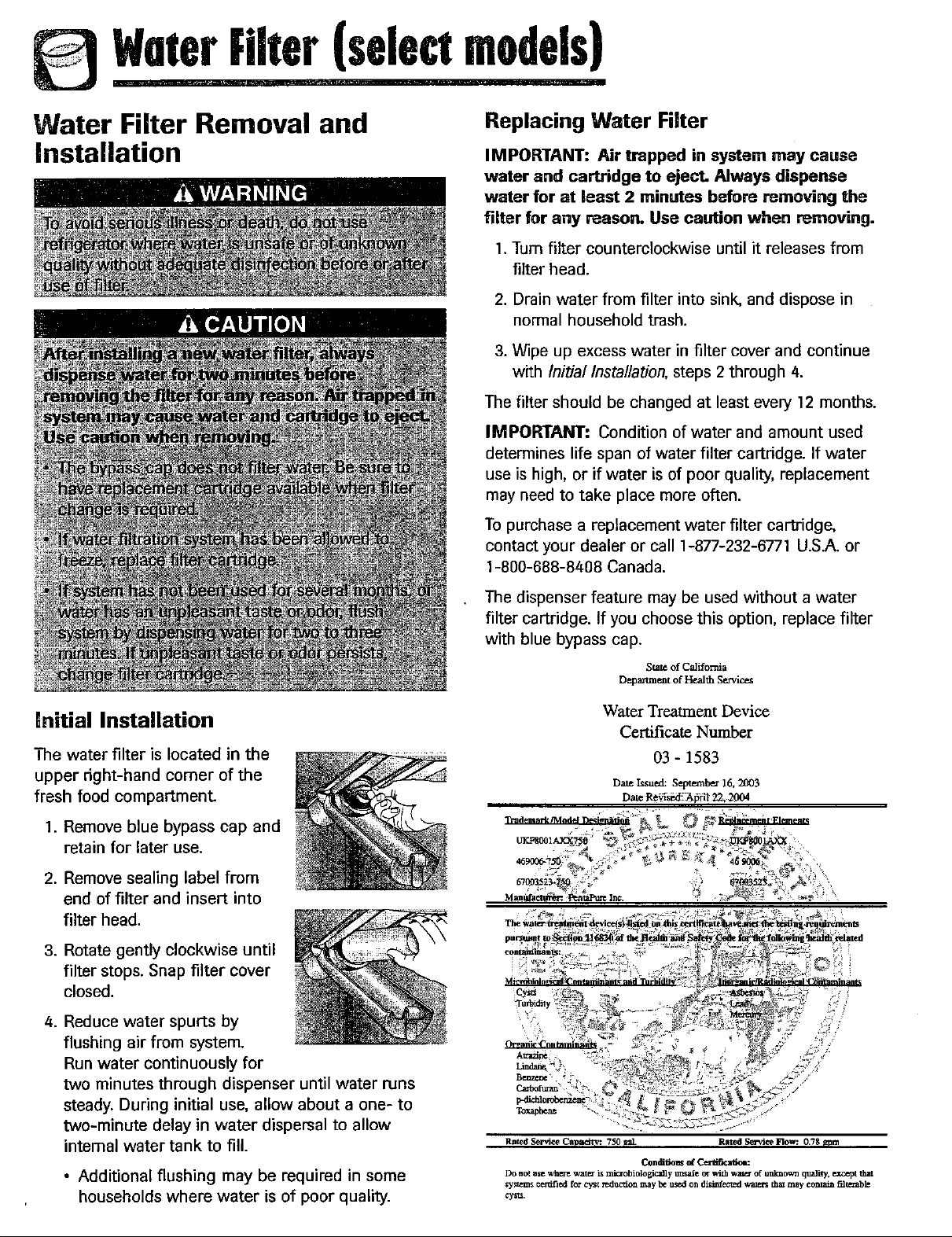

WaterFilter(selectmodels)
Water Filter Removal and
Installation
Replacing Water Filter
IMPORTANT: Air trapped in system =nay cause
water and cartridge to eject. Always dispense
water for at least 2 minutes before removing the
filter for any reason. Use caution when removing.
1. Turn filter counterclockwise until it releases from
filter head.
2. Drain water from filter into sink, and dispose in
normal household trash.
3. Wipe up excess water in filter cover and continue
with Initial Installation, steps 2 through 4.
The filter should be changed at least every ]2 months.
IMPORTANT: Condition of water and amount used
determines life span of water filter cartddge. If water
use is high, or if water is of poor quality, replacement
may need to take place more often.
To purchase a replacement water filter cartridge,
contact your dealer or call 1-877-232-6771 U.S.A. or
1-800-688-8408 Canada.
The dispenser feature may be used without a water
filter cartridge. If you choose this option, replace filter
with blue bypass cap.
State of California
Department of Health S=wic_s
initial Installation
The water filter is located in the
upper right-hand comer of the
fresh food compartment.
1. Remove blue bypass cap and
retain for later use.
2. Remove sealing label from
end of filter and insert into
filter head.
3. Rotate gently clockwise until
filter stops. Snap filter cover
closed.
4. Reduce water spurts by
flushing air from system.
Run water continuously for
two minutes through dispenser until water runs
steady. During initial use, allow about a one- to
two-minute delay in water dispersal to allow
internal water tank to fill.
• Additional flushing may be required in some
households where water is of poor quality.
Water Treatment Device
Certificate Number
03 - 1583
Date Issued: Septembe_ 16, 2003
DateRe,hs_.Apr |I 2.,3,2004
T_xapheae
RatedSet-bee Ca_tv: 750 gal. Rated Se_hce Flow: 0.78
Condifiom of Cerlificafiot:
Do not use wheze wat_- i_ mi_obiologically t_safe or with walez of tmk_own qtufl_ty,except that
systems cergi_ed fee cyst w.ductic_ may be nsed on di_infect_ wmett _ may contain fllterabM
cysts.
HaterFilter(selectmodels)
®g System Specification and Performance Data Sheet
Refrigerator Water Filter Cartridge Model UKF8001AXX
Specifications
Service Flow Rate 0Vlaximum) .............................................0.78 GPM [2.9 L/rain)
Rated Service Life UKF8001/0(X-750 LMaximum)......750 gallons/2838 liters
Maximum Operating Temperature .....................................100° F/38 ° (3
Minimum Pressure Requirement ........................................35 psi/241 kPA
Minimum Operating Temperature ......................................33° F/1 ° C
Maximum Operating Pressure .............................................120 psi/827 kPA
e
PentaPure
INCOR_OIATED
1000 Apollo Road
Eagan, Minnesota 55121-2240
651.450.4913
EPA EST #35917-MN-1
Performance Data
P_faiTleter
Chlorine
T&O
Particulate =_
100834/B
USEPA
MCL
Standard No. 42: Aesthetic BecL;
Influent
Challenge Concentration
2.0 mg/L ± 10%
at least 10.000 parbcles/ml
Influent
Avera_le
1.88 m_/L
Mirk Required
Reduction
Effluent
Avera_le Maximum
_0_5z36364rr_/L 0.06 rngiL
30.583 #/ml 69.000 #/m[
_b Reduction
Avera_te Minimum
>9Z26% 96.94%
99.52% 98.94%
50%
5,700,006 _/ml 05%
Parameter
Turbidity
/_sbestos
Lead at pH 6.5
Lead at pH 0.5
Mercury at pH 6.6
Memu_/at pH 8.5
Atrazine
Benzene
Carbofuran
>-Dichlorobenzene
Lindane
Toxaphene
USEPA
MCL
1 NTU'=
99.5% Reduction
99% Reduction
0.015 m_/L
0.015 rn_/L
0.002 mg/L
0.062 mg/L
0.003 mglL
6.905 rng/L
0.04 m,q/L
6.075 rnl_/L
0.0002 rng/L
0.903 mg/L
Standard NO. 53: Health Effects
Intiuent
Challenge Concentration
11± 1NTL P=
Minimum 50,000/L
10' 10' fibers/L; fibers >10 _crorneters in len_th
0.15 m_/L ÷ 10%
0.15 rn_/L + 10%
.006 mQ/L ± 10%
•906 mg/L ± 10_
0.009 mq/L + 10%
0.015 mA/L ± 10%
0.08 mg/L ± 10%
.226 mA/L ± 10%
0.002 mg/L + 19%
0.015 ± 10%
Influent
Average
10.7 N_J
166,500 #/L
155 MF/L
6.153 mAlL
0.150 m_IL
0.006 mg/L
0.606 mg/L
0.009 mq/L
0.014 m_/L
0.061 mA/L
0.208 mg/L
0.002 mA/L
6.015 mg/L
Effluent
Avera_le Maximum
021 NTU 349 NTU
<1 #P/L <1 #/L
<1 MF/L <1 MF/L
<.001 m_/L <.001 rng/L
<.001 rn_/L <,001 mg/L
0.0063 mg/L 9,0005 m_/L
0.0008 mg/L 0.0015 rn_/L
<0.002 mfT/L 0.002 mq/L
0.0000 mA/L 0.0011 m,q/L
<000 rng/L <0.001 rnA/L
<0,0005 mA/L <0.9005 mA/L
0.000 mg/L <0.0001 m,q/L
<0.001 mg/L <0.001 rng/L
% Red uc'don
Average Minimum
97.09% 95.20_
>99.99% >99.99_b
>99_99% >99.99%
>99.35% >9929%
>96.33% >99.29%
95.70% 90.91%
85.22% 75.93%
76.99% 78.31%
9531% 92.14%
98.74% 98.45%
99.76% 99.74%
98.72% 98.50%
92.97% 91.67%
Min. Required
Reduction
0.9 NTU
>99.95%
99%
0.10 mg/L
0.10 mg/L
0.002 rn_)/L
0.002 mg/L
0.003 mg/L
0.005 mA/L
0.0_ mg/L
0.075 rng/L
0.0002 mAlL
0,063 mg/L
Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of 75 + 0.5;temp. of
60 °+ 5° F {20° + 3= C_
" Measurement inParbcJes/mL Particles used were 0.5 - I microns
N_J - Nepbelometric Turbidity Units
Tested and ceri_ed by NSF International against ANSI/NSF _rds/,2 & 53
in models UKF8001AXX-750 for the reduction of:
Standand No, 42: Aesthetic rdfects
Taste and Odor Reduction
Chlorine Taste & Odor
Mechanical Filtration Unit
Particulate Reduction Class 1
Standard No. 53: Health Effects
Chemica[ Reduction Unit
Lead, A_azine_ Undane, Benzene,
CarBefuran. p-Dichlorobenzene, Memuej
& Toxaphene Reduction
Mechanical Filtration Unit
Cyst, Turbidityand _sbestos Reduction
General Use Conditions
Read this Performance Data Sheet and compare the
capabilities of this unit with your actual water
treatment needs.
DO NOT use this product where water is microbio-
logically unsafe or of unknown quality without
adequate disinfection before or after the system.
System certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
USE ONLY WITH COLD WATER SUPPLY. CHECK
FOR COMPLIANCE WITH THE STATE AND LOCAL
LAWS AND REGULATIONS.
The PuriClean ®II retractable water filtration system uses a
UKF8001AXX replacement ca_ddge. Timely replacement
of filter cartridge is essential for performance satisfaction
from this filtration system. Please refer to the applicable
section of your Use & Care Guide for general operation,
maintenance requirements and troubleshooting.
Suggested retail pdce of replacement water filter is $39.99.
This system has been tested according to ANSI/NSF 42 and
53 for reduction of the substance listed above. The
concentration of the indicated substances in water entering
the system was reduced to a concentration less than or
equal to the permissible limit for water leaving the system,
as specified in ANSI/NSF 42 and 53.

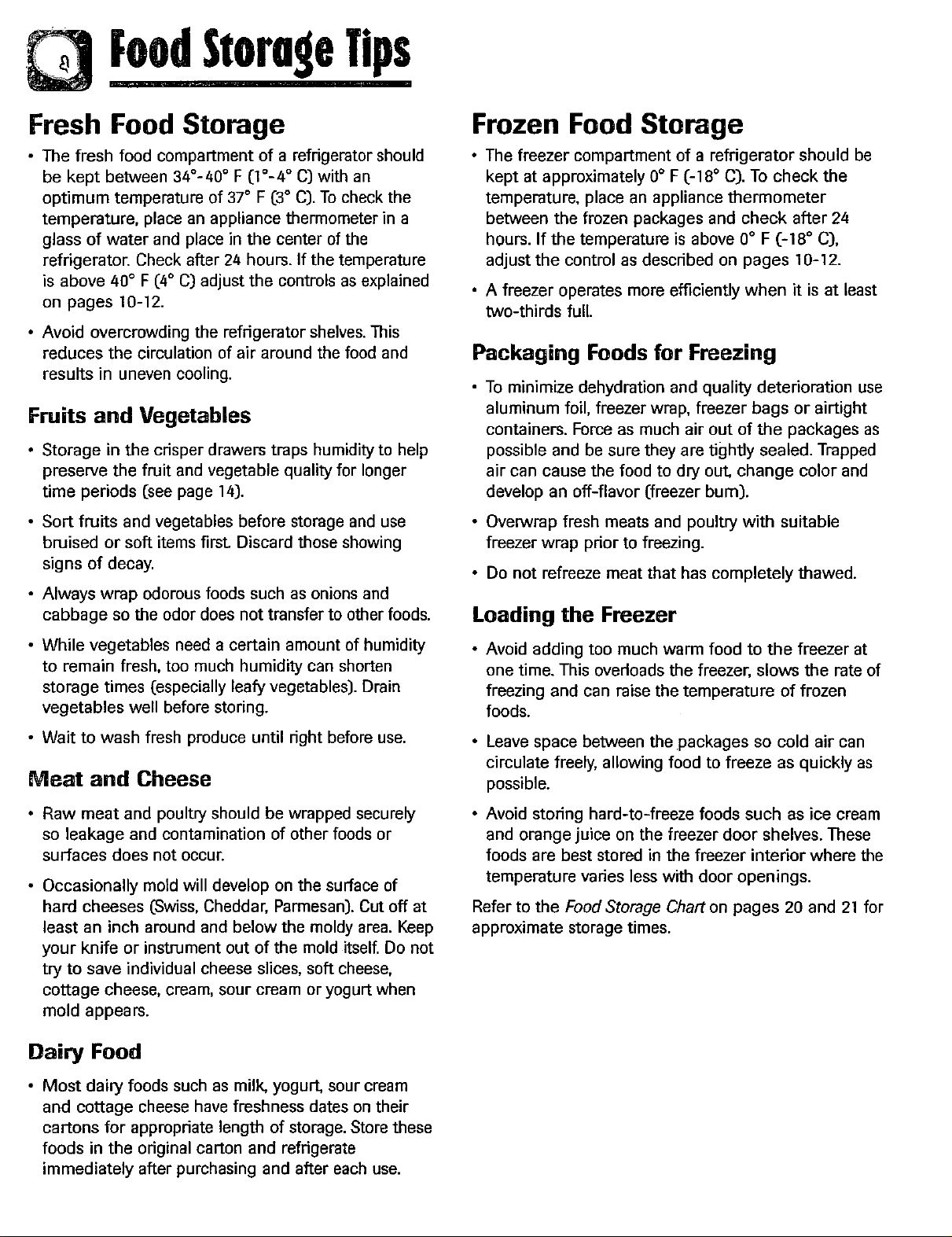

FoodStorugeTips
Fresh Food Storage
• The fresh food compartment of a refrigerator should
be kept between 340-40 ° F (_1°-4° C) with an
optimum temperature of 37° F (3° C). To check the
temperature, place an appliance thermometer in a
glass of water and place in the center of the
refrigerator. Check after 24 hours. If the temperature
is above 40° F (4° C) adjust the controls as explained
on pages 10-12.
• Avoid overcrowding the refrigerator shelves. This
reduces the circulation of air around the food and
results in uneven cooling.
Fruits and Vegetables
• Storage in the crisper drawers traps humidity to help
preserve the fruit and vegetable quality for longer
time periods Csee page 14).
• Sort fruits and vegetables before storage and use
bruised or soft items first. Discard those showing
signs of decay.
• Always wrap odorous foods such as onions and
cabbage so the odor does not transfer to other foods.
• While vegetables need a certain amount of humidity
to remain fresh, too much humidity can shorten
storage times (especially leafy vegetables). Drain
vegetables well before storing.
• Wait to wash fresh produce until right before use.
Moat and Cheese
• Raw meat and poultry should be wrapped securely
so leakage and contamination of other foods or
surfaces does not occur.
• Occasionally mold will develop on the surface of
hard cheeses (Swiss, Cheddar, Parraesanl}. Cut off at
least an inch around and below the moldy area. Keep
your knife or instrument out of the mold itself. Do not
try to save individual cheese slices, soft cheese,
cottage cheese, cream, sour cream or yogurt when
mold appears.
Frozen Food Storage
• The freezer compartment of a refrigerator should be
kept at approximately 0° F (-18 ° C). To check the
temperature, place an appliance thermometer
between the frozen packages and check after 24
hours. If the temperature is above 0° F (-18 ° C),
adjust the control as described on pages 10-12.
• A freezer operates more efficiently when it is at least
two-thirds full.
Packaging Foods for Freezing
• To minimize dehydration and quality detedoration use
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and be sure they are tightly sealed. Trapped
air can cause the food to dry out, change color and
develop an off-flavor (freezer bum).
• Overwrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the Freezer
• Avoid adding too much warm food to the freezer at
one time. This overloads the freezer, slows the rate of
freezing and can raise the temperature of frozen
foods.
• Leave space between the packages so cold air can
circulate freely, allowing food to freeze as quickly as
possible.
• Avoid storing hard-to-freeze foods such as ice cream
and orange juice on the freezer door shelves. These
foods are best stored in the freezer interior where the
temperature varies less with door openings.
Refer to the Food Storage Charton pages 20 and 21 for
approximate storage times.
Dairy Food
• Most dairy foods such as milk, yogurt, sour cream
and cottage cheese have freshness dates on their
cartons for appropriate length of storage. Store these
foods in the odginal carton and refdgerate
immediately after purchasing and after each use.
FoodStorogeTips

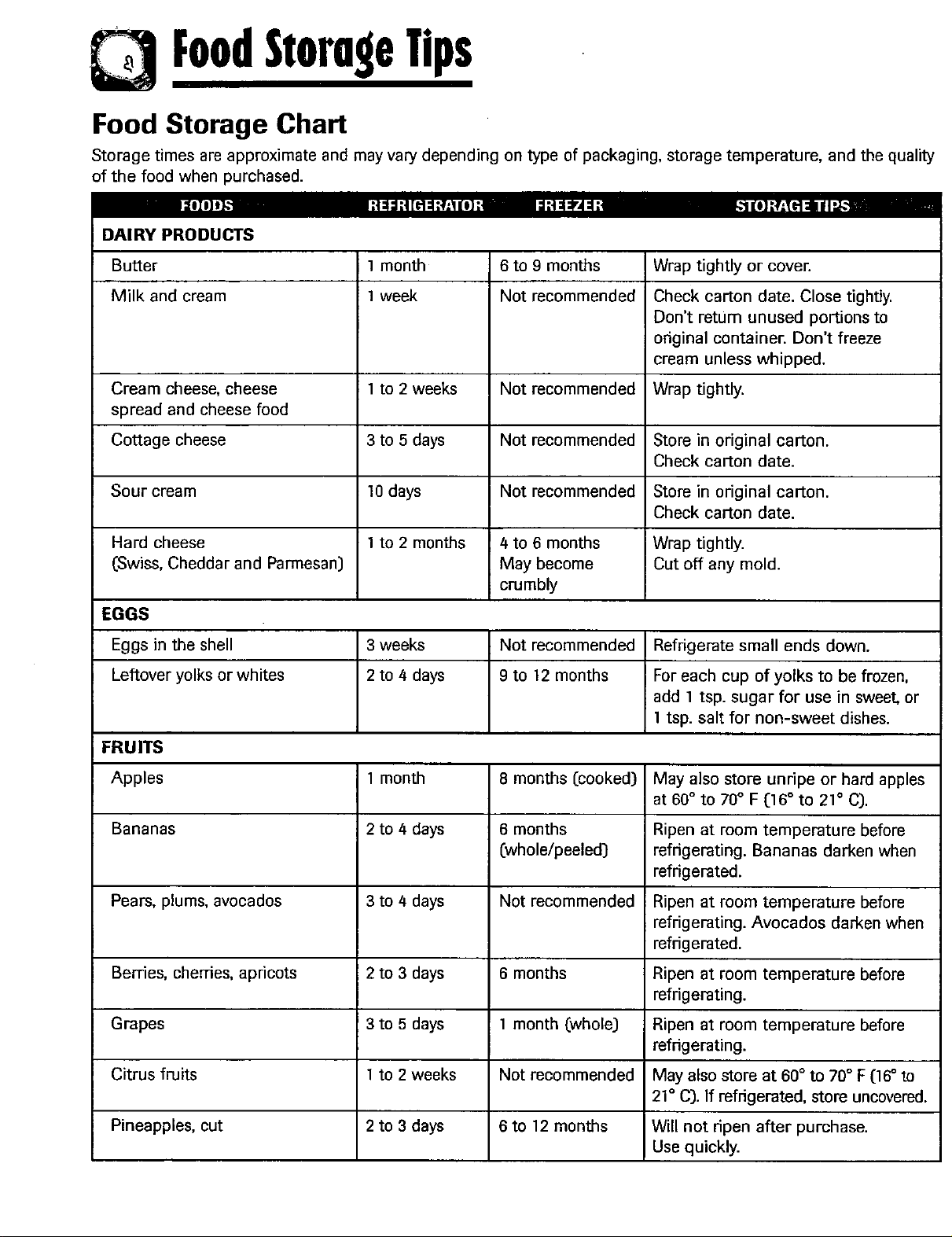

Food Storage Chart
Storage times are approximate and may vary depending on type of packaging, storage temperature, and the quality
of the food when purchased.
DAIRY PRODUCTS
Butter 1 month 6 to 9 months Wrap tightly or cover.
Milk and cream I week Not recommended Check carton date. Close tightly.
Don't return unused portions to
original container. Don't freeze
cream unless whipped.
Cream cheese, cheese 1 to 2 weeks Not recommended Wrap tightly.
spread and cheese food
Cottage cheese 3 to 5 days Not recommended Store in original carton.
Check carton date.
Sour cream 10 days Not recommended Store in original carton.
Check carton date.
Hard cheese 1 to 2 months 4 to 6 months Wrap tightly.
{Swiss, Cheddar and Parmesan} May become Cut oft any mold.
crumbly
EGGS
Eggs in the shell 3 weeks Not recommended Refrigerate small ends down.
Leftover yolks or whites 2 to 4 days 9 to 12 months For each cup of yolks to be frozen,
add I tsp. sugar for use in sweet, or
] tsp. salt for non-sweet dishes.
FRUITS
Apples 1 month 8 months {cooked) May also store unripe or hard apples
at 60° to 70° F {16 ° to 21 ° C}.
Bananas 2 to 4 days 6 months Ripen at room temperature before
{whole/peeled} refrigerating. Bananas darken when
refrigerated.
Pears, plums, avocados 3 to 4 days Not recommended Ripen at room temperature before
refrigerating. Avocados darken when
refrigerated.
Berries, cherries, apricots 2 to 3 days 6 months Ripen at room temperature before
refrigerating.
Grapes 3 to 5 days 1 month {whole} Ripen at room temperature before
refrigerating.
Citrus fruits 1 to 2 weeks Not recommended May also store at 60° to 70° F {16° to
21° C). If refrigerated, store uncovered.
PineappLes, cut 2 to 3 days 6 to 12 months Will not ripen after purchase.
Use quickly.
foodStoragelips
T- , tqTP
VEGETABLES
Asparagus 1 to 2 days 8 to 10 months Do not wash before refrigerating.
Store in crisper.
Brussels sprouts, broccoli, 3 to 5 days 8 to 10 months Wrap odorous foods.
cauliflower, green peas, Leave peas in pods.
lima beans, onions, peppers
Cabbage, celery 1 to 2 weeks Not recommended Wrap odorous foods and refrigerate
in crisper,
7 to l 0 days 8 to 10 months Remove tops. Wrap odorous foods
and refrigerate in the crisper.
7 to 10 days Not recommended
Carrots, parsnips, beets and
turnips
Lettuce
POULTRY and FISH
Chicken and Turkey, whole
Chicken and Turkey, pieces
Fish
I to 2 days
1 to 2 days
I to 2 days
12 months
9 months
2 to 6 months
Keep in original packaging for
refdgeration. Place in the meat and
cheese drawer. When freezing longer
than two weeks, overwrap with
freezer wrap.
MEATS
Bacon 7 days I month
Beef or lamb, ground 1 to 2 days 3 to 4 months Fresh meats can be kept in odginal
packaging for refrigeration.
Beef or lamb, roast and steak 3 to 5 days 6 to 9 months Place in the meat and cheese drawer.
When freezing longer than two
weeks, overwrap with freezer wrap.
Ham, fully cooked, whole 7 days I to 2 months
half 5 days 1 to 2 months
slices 3 days 1 to 2 months
Luncheon meat 3 to 5 days 1 to 2 months Unopened, vacuum-packed luncheon
meat may be kept up to two weeks
in the meat and cheese drawer.
Pork, roast 3 to 5 days 4 to 6 months
Pork, chops 3 to 5 days 4 months
Sausage, ground 1 to 2 days 1 to 2 months
Sausage, smoked 7 days 1 to 2 months
Veal 3 to 5 days 4 to 6 months
Frankfurters 7 days 1 month Processed meats should be tightly
wrapped and stored in the meat and
cheese drawer.
Sources: United States Department of Agriculture; Food Marketing Institute; Cooperative Extension Service, Iowa
State University
andCleaning
Refrigerator Cleaning Chart
Textured Doors and Extedor
(select models)
Cabinet Intedor
Stainless Steel Doors
and Extedor (select models)
IM PORTANT:
Damage to stainlesssteel
finish due to improper use
of cleaningproducts or
non-recommended products
is not covered under this
product's warrant.
Door Gaskets
Abrasive or harsh cleaners
Condenser Coil
Remove basegrille to access.
Condenser Fan Outlet Gdlle
See back of refrigerator.
i Accessories
Shelves,buckets,
drawers, etc.
Ammonia
Chlorine bleach
Concentrated detergents
or solvents
Metal or plastic-textured
scouring pads
Abrasive or harsh cleaners
Ammonia
Chlorine bleach
Concentrated detergents or
solvents
Metal or plastic-textured
scouring pads
Vinegar-based products
Citrus-based cleaners
Abrasive or harsh cleaners
Metal or plastic-textured
scouring pads
Anything other than a vaccuum
cleaner
A dishwasher
Use 4 tablespoons of baking soda dissolved in 1
quart (:1liter) warm soapy water.
Rinse surfaces with clean warm water and dry
immediately to avoid water spots.
Use warm, soapy water and a soft, clean cloth or
sponge.
Rinse surfaces with clean warm water and dry
immediately to avoid water spots.
To polish and help prevent finger prints, follow with
Stainless Steel Magic Spray I:part no. 20000008").
Use warm, soapy water and a soft, clean cloth or
sponge.
Use a vacuum cleaner hose nozzle.
Use a vacuum cleaner hose nozzle with brush
attachmenL
Follow removal and installation instructions from
appropriate feature section.
Allow items to adjust to room temperature.
Dilute mild detergent and use a soft clean cloth or
sponge for cleaning.
Use a plastic bristle brush to get into crevices. Rinse
surfaces with clean warm water.
Dry glass and clear items immediately to avoid spots.
To order, call 1-877-232-6771 U.SJ_. or 1-800-688-8408 Canada.
andCleanin9
Removing Odors From
Refrigerator
!. Remove all food and turn the refrigerator OFE
2. Disconnect power to the refrigerator.
3. Clean the walls, floor, ceiling of cabinet interior,
drawers, shelves and gaskets according to the
instructions on page 22.
4. Dilute mild detergent and brush solution into
crevices using a plastic bristle brush. Let stand for
5 minutes. Rinse surfaces with warm water. Dry
surfaces with a soft, clean cloth.
5. Wash and dry all bottles, containers and jars.
Discard spoiled or expired items.
6. Wrap or store odor-causing foods in tightly sealed
containers to prevent recurring odors.
7. Reconnect power to refrigerator and return food to
refrigerator.
8. Allow the refdgerator to cool.
9. After 24 hours, check if odor has been eliminated.
if odor is stiff present:.
1. Remove drawers and place on top shelf of
refrigerator.
2. Pack refrigerator and freezer sections - including
doors - with crumpled sheets of black and white
newspaper.
3. Place charcoal bdquettes randomly on crumpled
newspaper in both freezer and refrigerator
compartments.
4. Close doors and let stand 24 to 48 hours.
Energy Saving Tips
• Avoid overcrowding refrigerator shelves.
Overcrowding reduces air circulation around food
and causes refrigerator to run longer•
• Avoid adding too much warm food to refrigerator at
one time. This overloads compartments and slows
rate of cooling.
• Do not use aluminum foil, wax paper, or paper
toweling as shelf liners. This decreases air flow and
causes refrigerator to run less efficiently.
• A freezer that is two-thirds full runs most efficiently.
Locate refrigerator in coolest part of room. Avoid
areas of direct sunlight, or near heating ducts,
registers or other heat producing appliances. If this is
not possible, isolate exterior by using a section of
cabinet or an added layer of insulation.
• Clean door gaskets every three months according to
cleaning instructions. This will assure that door seals
properly and refrigerator runs efficiently•
• Take time to organize items in refrigerator to reduce
time that door is open.
• Be sure your doors are closing securely by leveling
refrigerator as instructed in your installation
instructions.
• Clean condenser coils as indicatea in the cleaning
instructions every three months. This will increase
energy efficiency and cooling performance.
andCleanin j
Replacing Light Bulbs
Fresh Food Section
(style of light shield varies)
1. Slide clear light shield
toward back of
compartment to release
from light assembly.
2. Remove light bulbs.
3. Replace with appliance
bulbs no greater than 40 watts.
4, Replace light bulb cover by inserting tabs on light
shield into liner holes on each side of light
assembly. Slide shield toward front of refrigerator
until it locks into place. Do not force shield beyond
locking poinL Doing so may damage light shield.
Freezer [style of light shield vades)
1. Reach behind the light
cover.
2. With firm pressure, press
forward on the notches at
the back of the cover and
pull down. The cover will
open from the back.
3. Remove the cover.
4. Remove light bulb.
5. Replace bulb with
appliance bulb no
greater than 40 watts.
6. Insert front tabs of light
cover into slots in freezer
liner and snap rear
portion over light
assembly until rear tab
engages.
ond eanin
Preparing for Vacation
For short vacations or absences [three months or
less):
1. Remove all perishables.
2. If no one will be checking in on the refdgerator
dudng your absence, remove all frozen items also.
3. If your refrigerator has an automatic ice makec
• Shut off the water supply to the ice maker at least
one day ahead of time.
• After the last load of ice drops, raise the wire shut
off arm to the OFF position.
• Empty the ice bin.
4. If the room temperature will drop below 55° F
03 ° C), follow the instructions for longer absences.
For long vacations, absences Cmore than three
months) OR if the room temperature will drop below
55 ° F C13° C):
1. Remove food.
2. If your refrigerator has an automatic ice make[:.
• Shut off the water supply to the ice maker at least
one day ahead of time.
• After the last load of ice drops, raise the wire shut
off arm to the OFF position.
• Empty the ice bin.
3. If your refrigerator has a dispenser system with water
filter, remove the water filter cartridge and install the
filter bypass. Dispose of the used cartridge.
4. Turn the freezer control to OFE
5. Unplug the refdgerator.
6. Thoroughly clean the interior of both compartments
with a baking soda solution and a clean soft cloth
(four tablespoons of baking soda in one quart of
warm water).
7. Dry thoroughly.
8. Leave the doors open to prevent the formation of
mold and mildew.
Upon your return
After a short vacation or absence:
For models with automatic ice makers or dispensers:
• Reconnect the water supply and turn on supply valve
(_seepages 8-9).
• Monitor water connection for 24 hours and correct
leaks if necessary.
• Run 10-15 glasses of water from the dispenser to
flush out the system.
• Restart the ice maker by lowering the ice maker arm.
• Discard at least the first three ice harvests.
After a long vacation or absence:
• Reconnect the water supply and turn on supply valve
(see pages 8-9).
• Plug the refrigerator back in and reset controls (see
pages 10-12).
• Monitor water connection for 24 hours and correct
leaks, if necessary.
For dispenser models, run water through the dispenser
for at least three minutes with the filter bypass in place,
then install water filter (see page 17).
• After installing the water filter, run water through the
dispenser continuously for at least two minutes, or
until water runs steady. Initially you may notice a
one to two minute delay in water dispersal as the
internal tanks fills.
• Restart the ice maker by lowering the ice maker arm.
• Discard ice produced within the first 12 hours Cat
least the first three harvests).
Preparing to move
• Follow the above instructions for long
vacations/absences, through step 7.
• Secure all loose items such as shelves and drawers
by taping them securely in place to prevent damage.
• Tape the doors shut.
• Use an appliance dolly when moving the refrigerator.
Always truck the refrigerator from its side or back
- never from its front.
• Be sure the refrigerator stays in an upright position
during moving.
Operotin9Sounds
Improvements in refrigeration design may produce sounds in your new refdgerator that are different or were not
present in an older model. These improvements were made to create a refrigerator that is better at preserving food,
is more energy efficient, and is quieter overall. Because new refrigerators run quieter, sounds may be detected that
were present in older refrigerators, but were masked by higher sound levels. Many of these sounds are normal.
Please note that the surfaces adjacent to a refdgerator, such as hard walls, floors and cabinetry may make these
sounds seem even louder. The following are some of the normal sounds that may be noticed in a new refrigerator.
Clicking
Air rushing or
whirring
Gurgling or
boiling sound
Thumping
Vibrating noise
Buzzing
Humming
Hissing or
popping
Freezer control CA} clicks when staking or
stopping compressor.
Motorized device CB) sounds like an electdc
clock and snaps in and out.
Freezer fan (C) and condenser fan CDJ make
this noise while operating.
Evaporator CE) and heat exchanger (F)
refrigerant makes this noise when flowing.
Ice cubes from ice maker Cselect models) drop
into ice bucket [G}.
Compressor [H_) makes a pulsating sound
while running.
Refrigerator is not level.
Ice maker water valve [I) hookup Cselect
models) buzzes when ice maker fills with
water.
Ice maker [J) is in the 'on' position without
water connection.
Compressor CH) can make a high-pitched hum
while operating.
Defrost heater CK) hisses, sizzles or pops when
operational.
• Normal operation
• Normal operation
• Normal operation
• Normal operation
• Normal operation
• Normal operation
• See page 3 for details on how to level
your refrigerator.
• Normal operation
• Stop sound by raising ice maker arm
to OFF position (see page 16).
• Normal operation
• Normal operation
Troubleshootin
Freezer control and
lights are on, but
compressor is not
operating
Crisper drawer
temperature is too
warm
Refrigerator does
not operate
Refrigerator is in defrost mode.
Food temperature
istoo warm
Normal operation.
Wait 40 minutes to see if refrigerator restarts.
Control settings are too low. See pages 10-12 to adjust controls.
Refrigerator is not plugged in. Plug in refrigerator.
Control is not on. See pages 10-12 to adjust your controls.
Fuse is blown, or circuit breaker needs Replace any blown fuses.
to be reseL Check circuit breaker and reset, if necessa_.
Power outage has occurred. Call local power company listing to report outage.
Refrigerator still Refrigerator is malfunctioning. Unplug refrigerator and transfer food to another
won't operate refrigerator. If another refrigerator is not available,
place dr/ice in freezer section to preserve food.
Warranty does not cover food loss.
Contact service for assistance.
Food temperature Condenser coils are dirty. Clean according to the chart on page 22.
is too cold Refrigerator or freezer controls are set See pages 10-12 to adjust your controls.
too high.
Door is not closing properly. Refrigerator is not level. See page 3 for details on how
to level your refrigerator.
Check gaskets for proper seal. Clean, if necessary,
according to the chart on page 22.
Check for internal obstructionsthat are keeping door
from closing properly 0.e. improperly closed drawers,
ice buckets, oversized or improperly stored
containers, etc._)
Controls need to be adjusted. See pages 10-12 to adjust your controls.
Condenser coils are dirty. Clean according to the chart on page 22.
Rear air grille is blocked. Check the positioning of food items in refrigerator to
make sure grille is not blocked. Rear air grilles are
located under crisper drawers.
Door has been opened frequently, or has Reduce time door is open.
been opened for long periods of time. Organize food items efficiently to assure door is open
for as short a time as possible.
Food has recently been added. Allow time for recently added food to reach
refrigerator or freezer temperature.
Refrigerator has Compartment isdirty or has odor- Clean according to instructions on page 22.
an odor causing food.
Water droplets Check gaskets for proper seal. Clean according to the chart on page 22.
form on outside Humiditylevels are high. Normal during times of high humidity.
of refrigerator Controls require adjustment. See pages 10-12 to adjust your controls.
Troubleshoottn
Water droplets form
on inside of
refrigerator
• Humiditylevels are high or door has
been been opened frequently.
• See pages 10-12 to adjust your controls.
• Reduce time door is open.
Organize food itemsefficiently to assure door is
open for as short a time as possible.
• Check gaskets for proper seal. • Clean, if necessary, according to the chart on page
22.
Refrigerator or ice • Normal operation. • See page 16.
maker makes
unfamiliar sounds
or seems too loud
Crisper drawers • Contents of drawer, or positioning of • Reposition food items and containers to avoid
do not close freely items in the surrounding compartment interference with the drawers.
could be obstructing drawer.
• Drawer is not in proper position.
• Refrigerator is not level.
• Drawer channels are dirty or need
treatmenL
• Doors have been opened frequently or
for long periods of time.
• See page 3 for details on how to level your
refrigerator.
• Clean drawer channels with warm, soapy water.
• Rinse and dry thoroughly.
• Apply a thin layer of petroleum jelly to drawer
channels
• Reduce time door is open.
• Organize food items efficiently to assure door is
open for as short a time as possible.
• Allow interior environment to adjust for pedod the
door has been opened.
• Normal operation.
Refrigerator runs
too frequently
• Humidity or heat in surrounding area
is high.
• Food has recently been added. • Allow time for recently added food to reach
refrigerator or freezer temperature.
• Refrigerator is exposed to heat by • Evaluate your refrigerator's environment.
environment or by appliances nearby. Refrigerator may need to be moved to run more
efficiently.
• Condenser coils are dirty • Clean, if necessary, according to the chart on page
22.
• Controls need to be adjusted. • See pages ]0-12 to adjust your controls
• Door is not closing properly. • Refrigerator is not level. See page 3 for details on
how to level your refrigerator.
• Check gaskets for proper seal.
• Clean, if necessary, according to the chart on page
22.
• Check for internal obstructions that are keeping
door from closing properly 0.e. improperlyclosed
drawers, ice buckets, oversized or improperly stored
containers, etc.)
• Normal Operation • See Operating Soundson page 26.
Troubleshooting
!ce and Water
Refrigerator is
leaking water
Ice forms in inlet
tube to ice maker
Water flow is
slower than normal
• Plastic tubing was used to complete
water connection.
• Improper water valve was installed.
• Water pressure is low.
• Freezer temperature istoo high.
• Water pressure is low.
• Improper water valve was installed.
• Copper tubing has kinks.
• Water filter is clogged or needsto be
changed.
The manufacturer recommends using copper tubing
for installation.Plasticis less durable and can cause
leakage.The manufacturer is not responsible for
property damage due to improper installation
or water connection.
Check water connection procedure (see pages 8-9_).
Self-piercing and _/,_"saddlevalvescause low water
pressure and may clog the line over time. The
manufacturer is not responsible for property
damage due to improper installation or water
connection.
Water pressure must be between 35 to 100 pounds
per square inch to function properly. A minimum
pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
Adjust freezer control (_seepage 10). Freezer is
recommendedto beapproximately 0° F(-18° C).
Water pressure must be between 35 to 100 pounds
per square inchto function properly. A minimum
pressure of 35 pounds per square inch is
recommended for refrigerators with water filters.
Check water connection procedure in your
InstallationInstructions. Self-piercing and _,6"
saddle valves cause low water p:_ure and may
clog the line over time.The manufacturer is not
responsible for property damage due to
improper installation or water connection.
Openwater valvecompletelyand checkfor leeks.
Turn off water supply and remove kinks. If kinks
cannot be removed, replace tubing.
Change water filter Cseepage ]7).
Hotes
Warrant&Service
What is Not Covered By These
Warranties:
1.Conditions and damages resulting from any of the
following:
a. Improper installation, delivery, or maintenance.
b. Any repair,modification, alteration, or adjustment not
authodzed by the manufacturer or an authorized servicer.
c. Misuse, abuse, accidents, or unreasonable use.
d. Incorrect electdc current, voltage, or supply.
e. Improper setting of any control.
2. Warranties are void if the odginal serial numbers have
been removed, altered or cannot be readily determined.
3. Light bulbs.
4. Products purchased for commercial or industrial use.
5.The cost of service or service call to:
a. Correct installation errors.
b. Instruct the user on the proper use of the product.
c. Transport the appliance to the servicer.
6.Consequential or incidental damages sustained by any
person as a result of any breach of these warranties.
Some states do not allow the exclusion or limitation of
consequential or incidental damages, so the above
exclusion may not apply.
If You Need Service
• Call the dealer from whom your appliance was purchased
or call Maytag ServicessM,Maytsg Customer Assistance at
1-800-688-9900 U.S.PLor 1-800-688-2002 Canada, to
locate an authorized servicer.
• Be sure to retain proof of purchase to verify warranty
status. Refer to Warranty for further information on owner's
responsibilities for warranty service.
• If the dealer or service company cannot resolve the
problem, write to Maytag ServicessM,Attn: CAIR®Center,
P.O.Box 2370, Cleveland, TN 37320-2370 or call
1-800-688-9900 U.S.A. or 1-800-688-2002 Canada.
U.S.customers using TTY for deaf, hearing impaired or
speech impaired, call 1-860-688-2080.
• Use & Care Guides, service manuals and parts information
are available from Maytag ServicessM,Maytag Customer
Assistance.
Note
• When wdting or calling about a service problem, please
include the following information:
a.Your name,address and telephone number,
b. Model number and serial number,
c. Name and address of your dealer or servicer,
d. A clear description of the problem you are having;
e. Proofof purchase (sales receip0.
