i
Trademarks
Autel
®
, MaxiSys
®
, MaxiDAS
®
, MaxiScan
®
, MaxiTPMS
®
, MaxiRecorder
®
, and MaxiCheck
®
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in China, the United
States and other countries. All other marks are trademarks or registered trademarks of their
respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any
form or by any means, electronic, mechanical, photocopying, recording, or otherwise without
the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications, and illustrations in this manual are based on the latest
information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While information of
this manual has been carefully checked for accuracy, no guarantee is given for the
completeness and correctness of the contents, including but not limited to the product
specifications, functions, and illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or any economic
consequential damages (including lost profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully, paying extra
attention to the safety warnings and precautions.
For Services and Support:
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
support@ autel. com
For details, please refer to theService Proceduresin this manual.
Safety Information
ii
For your own safety and the safety of others, and to prevent damage to the device and
vehicles upon which it is used, it is important that the safety instructions presented
throughout this manual be read and understood by all persons operating or coming into
contact with the device.
There are various procedures, techniques, tools, and parts for servicing vehicles, as well
as in the skill of the person doing the work. Because of the vast number of test
applications and variations in the products that can be tested with this equipment, we
cannot possibly anticipate or provide advice or safety messages to cover every
circumstance. It is the automotive technician's responsibility to be knowledgeable of the
system being tested. It is crucial to use proper service methods and test procedures. It
is essential to perform tests in an appropriate and acceptable manner that does not
endanger your safety, the safety of others in the work area, the device being used, or the
vehicle being tested.
Before using the device, always refer to and follow the safety messages and applicable
test procedures provided by the manufacturer of the vehicle or equipment being tested.
Use the device only as described in this manual. Read, understand, and follow all safety
messages and instructions in this manual.
Safety Messages
Safety messages are provided to help prevent personal injury and equipment damage.
All safety messages are introduced by a signal word indicating the hazard level.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury to the operator or to bystanders.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury to the operator or to bystanders.
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot know,
evaluate or advise you as to all of the possible hazards. You must be certain that any
condition or service procedure encountered does not jeopardize your personal safety.
iii
DANGER
When an engine is operating, keep the service area WELL VENTILATED or attach a
building exhaust removal system to the engine exhaust system. Engines produce carbon
monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to
serious personal injury or loss of life.
It is not advised to use headphones at a high volume
Listening at high volumes for long periods of time may result in loss of hearing.
Safety Warnings
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot
engine parts.
Operate the vehicle in a well-ventilated work area, for exhaust gases are poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL (for manual
transmission) and make sure the parking brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle unattended while
testing.
Be extra cautious when working around the ignition coil, distributor cap, ignition wires ,
and spark plugs. These components create hazardous voltages when the engine is
running.
Keep a fire extinguisher suitable for gasoline, chemical , and electrical fires nearby.
Do not connect or disconnect any test equipment while the ignition is on or the
engine is running.
Keep the test equipment dry, clean, free from oil, water or grease. Use a mild
detergent on a clean cloth to clean the outside of the equipment as necessary.
Do not drive the vehicle and operate the test equipment at the same time. Any
distraction may cause an accident.
Refer to the service manual for the vehicle being serviced and adhere to all
diagnostic procedures and precautions. Failure to do so may result in personal injury
or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make sure the
vehicle battery is fully charged and the connection to the vehicle DLC is clean and
secure.
Do not place the test equipment on the distributor of the vehicle. Strong electro-
magnetic interference can damage the equipment.
iv
CONTENTS
S
AFETY
I
NFORMATION ....................................................................................................................II
Safety Messages
....................................................................................................................
ii
S
AFETY
I
NSTRUCTIONS................................................................................................................... II
Safety Warnings..................................................................................................................... iii
1 USING THIS MANUAL
..............................................................................................................
1
C
ONVENTIONS.................................................................................................................................
1
Bold Text
..................................................................................................................................
1
Notes and Important Messages ........................................................................................... 1
Hyperlink
...................................................................................................................................
2
Illustrations............................................................................................................................... 2
Procedures .............................................................................................................................. 2
2 GENERAL INTRODUCTION ....................................................................................................3
MAXISYS TABLET .......................................................................................................................... 3
Function Description
..............................................................................................................
3
Power Sources
.......................................................................................................................
5
Technical Specifications
.......................................................................................................
6

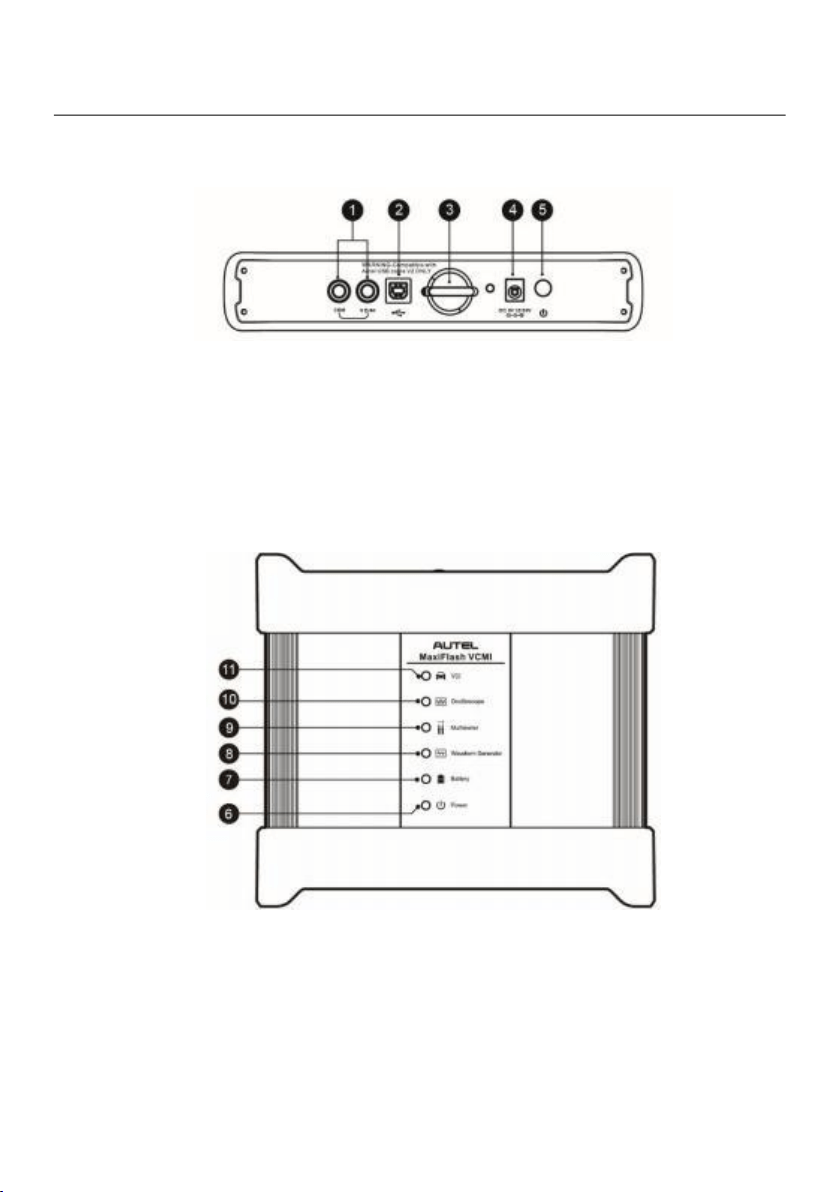

MAXIFLASH VCMI — VEHICLE COMMUNICATION AND MEASUREMENT INTERFACE...................... 8
Function Description .............................................................................................................. 8
Power Sources
.....................................................................................................................
11
Technical Specifications
.....................................................................................................
11
EVD
IAG
B
OX ...............................................................................................................................
12
Function Description
............................................................................................................
12
Power Source
.......................................................................................................................
13
Technical Specifications ..................................................................................................... 13
A
CCESSORIES
K
IT .......................................................................................................................
1 3
Main Cable V2.0
...................................................................................................................
13
Battery Pack Accessories ................................................................................................... 14
OBDI-Type Adapters............................................................................................................ 15
Other Accessories.................................................................................................................16
3 GETTING STARTED ............................................................................................................... 17
P
OWER
U
P ..................................................................................................................................
17
Application Buttons
..............................................................................................................
18
Locator and Navigation Buttons .........................................................................................19
System Status Icons ............................................................................................................21
v
P
OWER
D
OWN..............................................................................................................................
21
Reboot System
.....................................................................................................................
21
4 NEW ENERGY
.........................................................................................................................
22
ESTABLISH VEHICLE COMMUNICATION ........................................................................................2 2
Vehicle Connection .............................................................................................................. 22
G
ETTING
S
TARTED ......................................................................................................................
2 6
VEHICLE IDENTIFICATION .............................................................................................................2 9
NAVIGATION ................................................................................................................................. 34
New Energy Screen Layout
................................................................................................
34
Screen Messages ................................................................................................................ 39
Making Selections
.................................................................................................................
39
AUTO SCAN ................................................................................................................................. 39
Auto Scan Results
...............................................................................................................
40
CONTROL UNIT............................................................................................................................. 42
ECU Information
...................................................................................................................
43
Trouble Codes
......................................................................................................................
44
Live Data................................................................................................................................ 46
Active Test
.............................................................................................................................
53

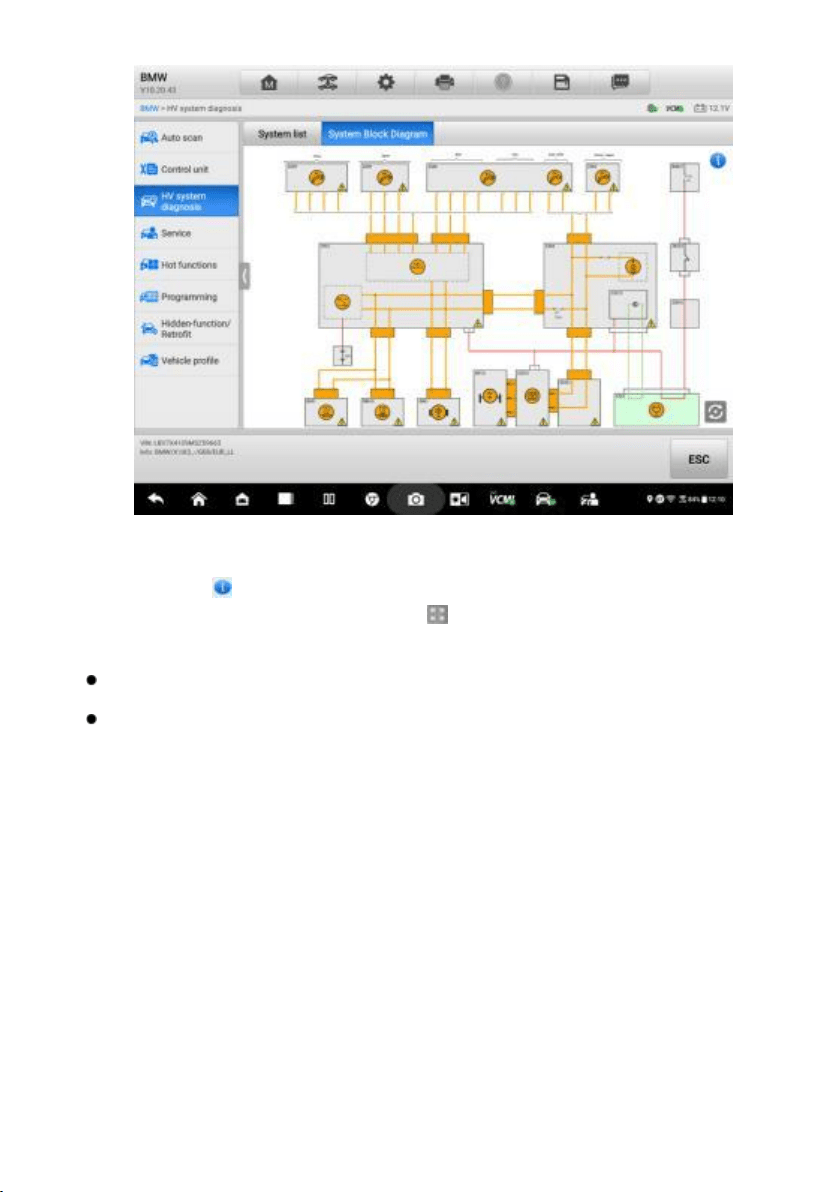

HV System Diagnostics ...................................................................................................... 54
Special Function ...................................................................................................................65
Programming ........................................................................................................................ 66
DIAGNOSTIC REPORT ...................................................................................................................68
Pre-Scan and Post-Scan
....................................................................................................
68
Diagnostic Report
................................................................................................................
69
Diagnostic Report Cloud Sharing....................................................................................... 72
E
XIT
N
EW
E
NERGY APPLICATION .................................................................................................
7 3
5 BATTERY PACK TEST ...........................................................................................................75
GETTING STARTED ......................................................................................................................7 5
V
EHICLE
M
ODE ............................................................................................................................
82
Battery Pack Information......................................................................................................82
6 DIAGNOSTICS ......................................................................................................................... 83
GENERIC OBDII OPERATIONS .................................................................................................... 83
General Procedure................................................................................................................84
Function Descriptions
..........................................................................................................
85
7 INTELLIGENT DIAGNOSTICS
..............................................................................................
88
vi
A
CCESSING
I
NTELLIGENT
D
IAGNOSTICS
F
UNCTION .....................................................................
8 8
Auto Scan ..............................................................................................................................88
Scan System Faults ............................................................................................................. 89
INTELLIGENT DIAGNOSTICS OPERATIONS ................................................................................... 9 4
Vehicle System and Detected DTC(s)
..............................................................................
95
Technical Service Bulletin (OEM Information)
................................................................
96
DTC Analysis
........................................................................................................................
97
Repair Assist
..........................................................................................................................
97
Repair Tips ......................................................................................................................... 100
Component Measurement ................................................................................................101
8 SERVICE
.................................................................................................................................
102
OIL RESET SERVICE ................................................................................................................. 102
ELECTRIC PARKING BRAKE (EPB) SERVICE ............................................................................ 103
EPB Safety
.........................................................................................................................
103
TIRE PRESSURE MONITORING SYSTEM ( TPMS) SERVICE ...................................................... 1 03
BATTERY MANAGEMENT SYSTEM (BMS) SERVICE .................................................................. 104
DIESEL PARTICLE FILTER (DPF) SERVICE................................................................................ 104
IMMOBILIZER (IMMO) SERVICE .................................................................................................105
STEERING ANGLE SENSOR (SAS) SERVICE ............................................................................ 106
9 MEASUREMENT
....................................................................................................................
107

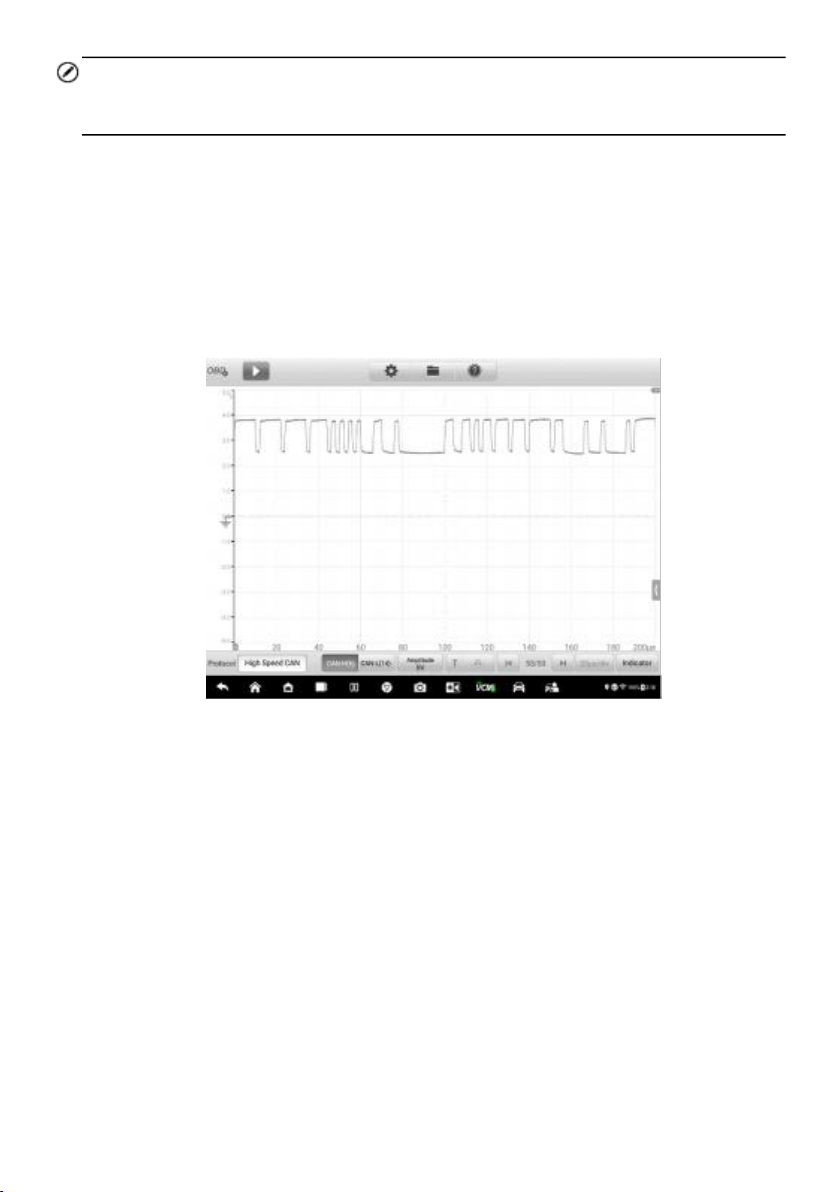

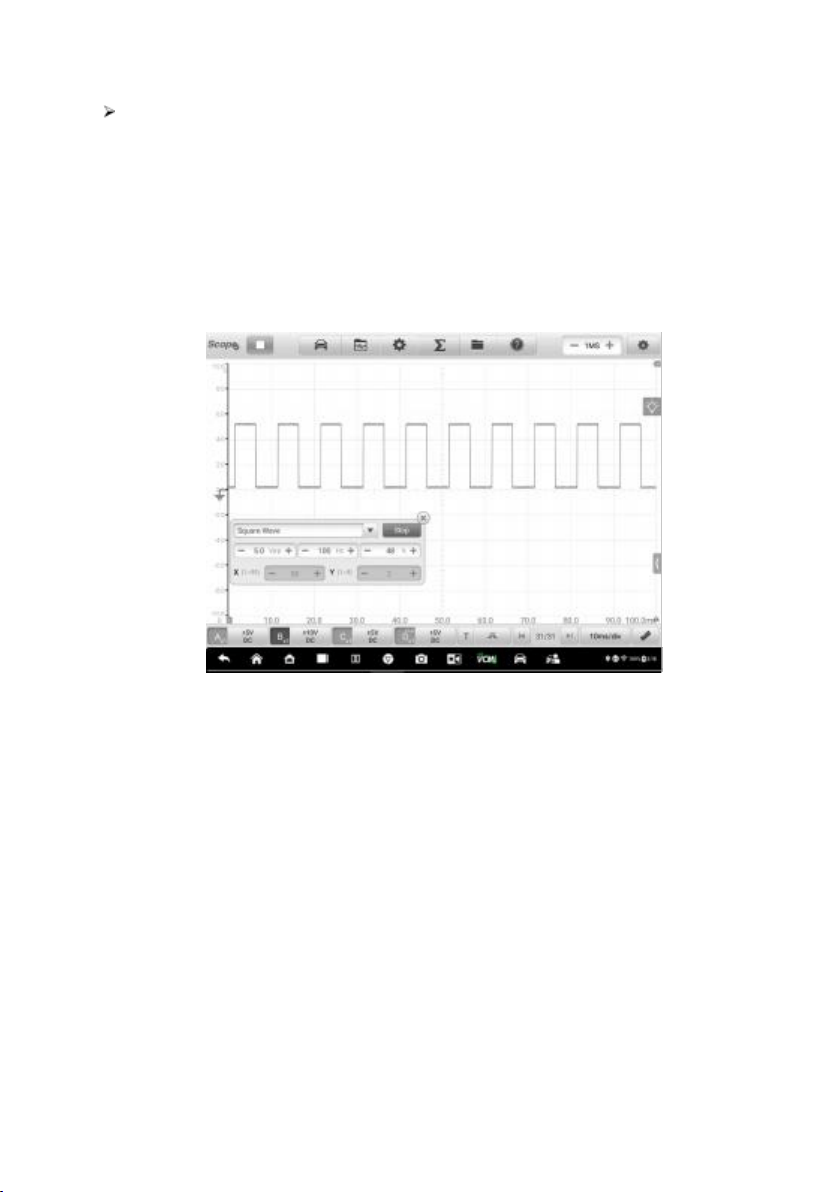

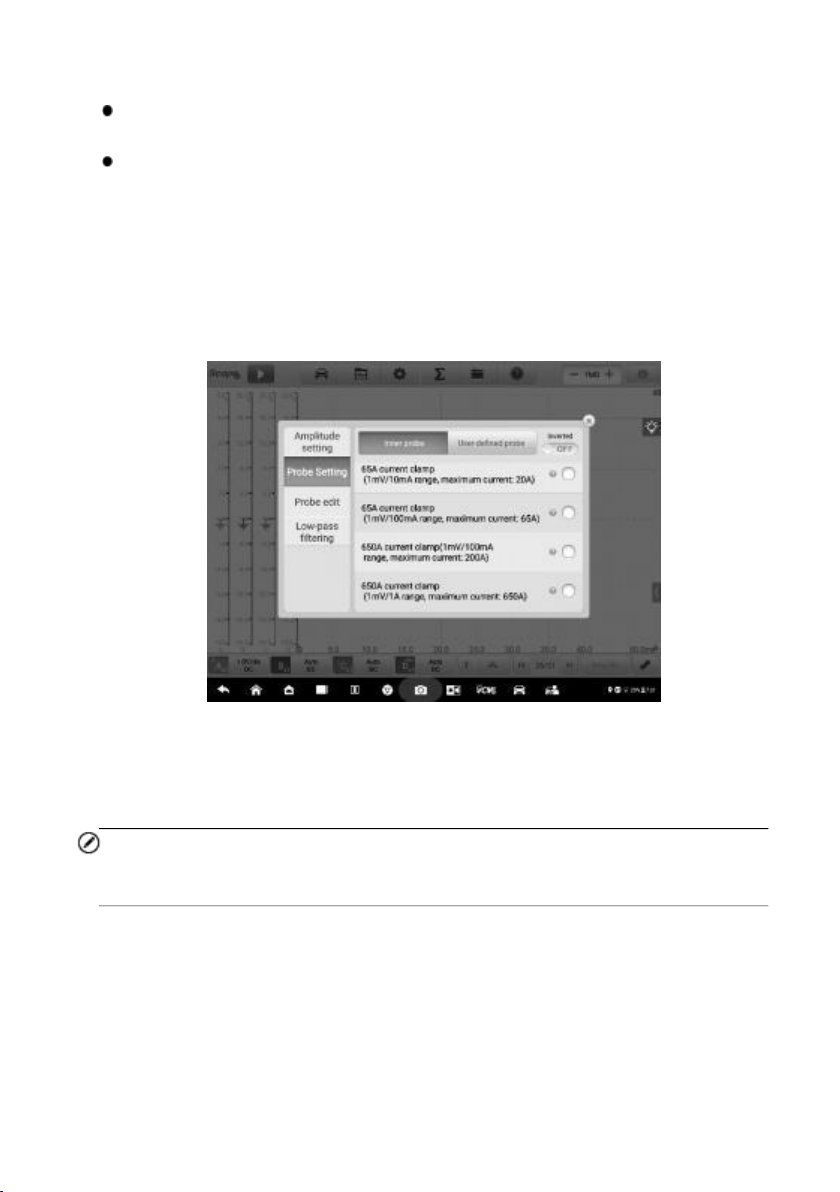

OSCILLOSCOPE ......................................................................................................................... 10 7
Safety Information...............................................................................................................107
General Introduction
..........................................................................................................
109
Getting Started.................................................................................................................... 114
Oscilloscope Update
..........................................................................................................
115
Screen Layout and Operations
........................................................................................
117
Troubleshooting ..................................................................................................................177
Glossary............................................................................................................................... 178

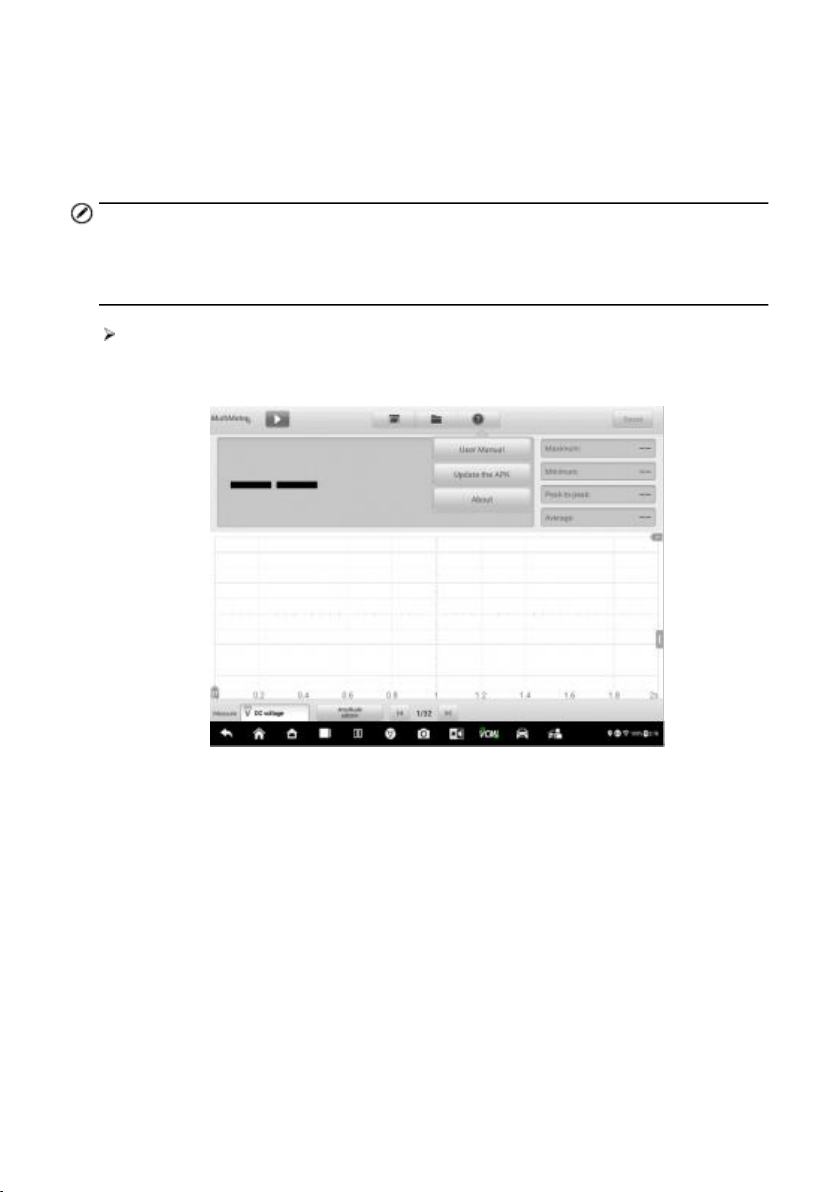

MULTIMETER ..............................................................................................................................180
Safety Information
...............................................................................................................
180
General Introduction ..........................................................................................................181
Getting Started.................................................................................................................... 184
Multimeter Update.............................................................................................................. 184
Screen Layout and Operations ........................................................................................185
Troubleshooting
..................................................................................................................
203
vii
Glossary............................................................................................................................... 204
WAVEFORM GENERATOR........................................................................................................... 2 0 5
Safety Information...............................................................................................................205
General Introduction
..........................................................................................................
206
Getting Started
....................................................................................................................
208
Waveform Generator Update............................................................................................209
Screen Layout and Operations
........................................................................................
211
Troubleshooting
..................................................................................................................
231
Glossary
...............................................................................................................................
231
BUS INSPECTION ....................................................................................................................... 233
Safety Information...............................................................................................................233
General Introduction ..........................................................................................................234
Getting Started.................................................................................................................... 234
Bus Inspection
....................................................................................................................
235
Screen Layout and Operations
........................................................................................
237
Troubleshooting ..................................................................................................................259
Glossary............................................................................................................................... 259
10 DATA MANAGER ...................................................................................................................261
VEHICLE HISTORY...................................................................................................................... 26 2
Historical Test Record
........................................................................................................
263
W
ORKSHOP
I
NFORMATION ........................................................................................................
2 6 4
CUSTOMER ................................................................................................................................ 265
I
MAGE ........................................................................................................................................
266
R
EPORT......................................................................................................................................
268
PDF FILES..................................................................................................................................269
R
EVIEW
D
ATA ............................................................................................................................
269
D
ATA
L
OGGING...........................................................................................................................
269
UNINSTALL APPS ....................................................................................................................... 269
11 SETTINGS................................................................................................................................270
O
PERATIONS ..............................................................................................................................
270
Unit .......................................................................................................................................270
Language
.............................................................................................................................
271
Printing Settings
..................................................................................................................
271
Report Settings ...................................................................................................................272
Push Notifications
..............................................................................................................
273
viii
Auto Update.........................................................................................................................273
ADAS Settings ....................................................................................................................274
Vehicle List
.........................................................................................................................
274
EVDiag Box Settings.......................................................................................................... 274
Country/ Region Code
......................................................................................................
275
System Settings
..................................................................................................................
276
About
...................................................................................................................................
276
12 UPDATE
..................................................................................................................................
277

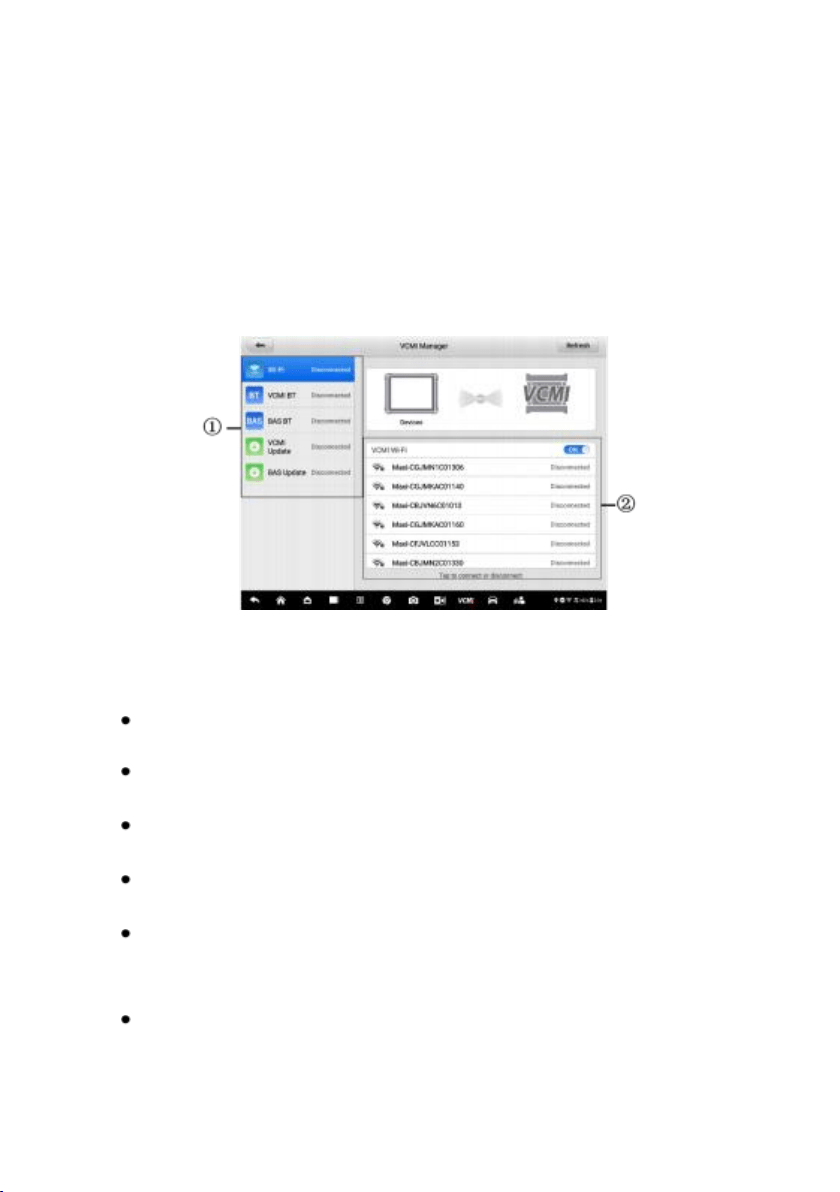

13 VCMI MANAGER.................................................................................................................... 279
WI-FI CONNECTION ...................................................................................................................280
BT PAIRING ...............................................................................................................................281
UPDATE ......................................................................................................................................282
14 ADAS ........................................................................................................................................284
15 SUPPORT
...............................................................................................................................
285
PRODUCT REGISTRATION ..........................................................................................................28 5
SUPPORT SCREEN LAYOUT........................................................................................................2 8 6
M
Y
A

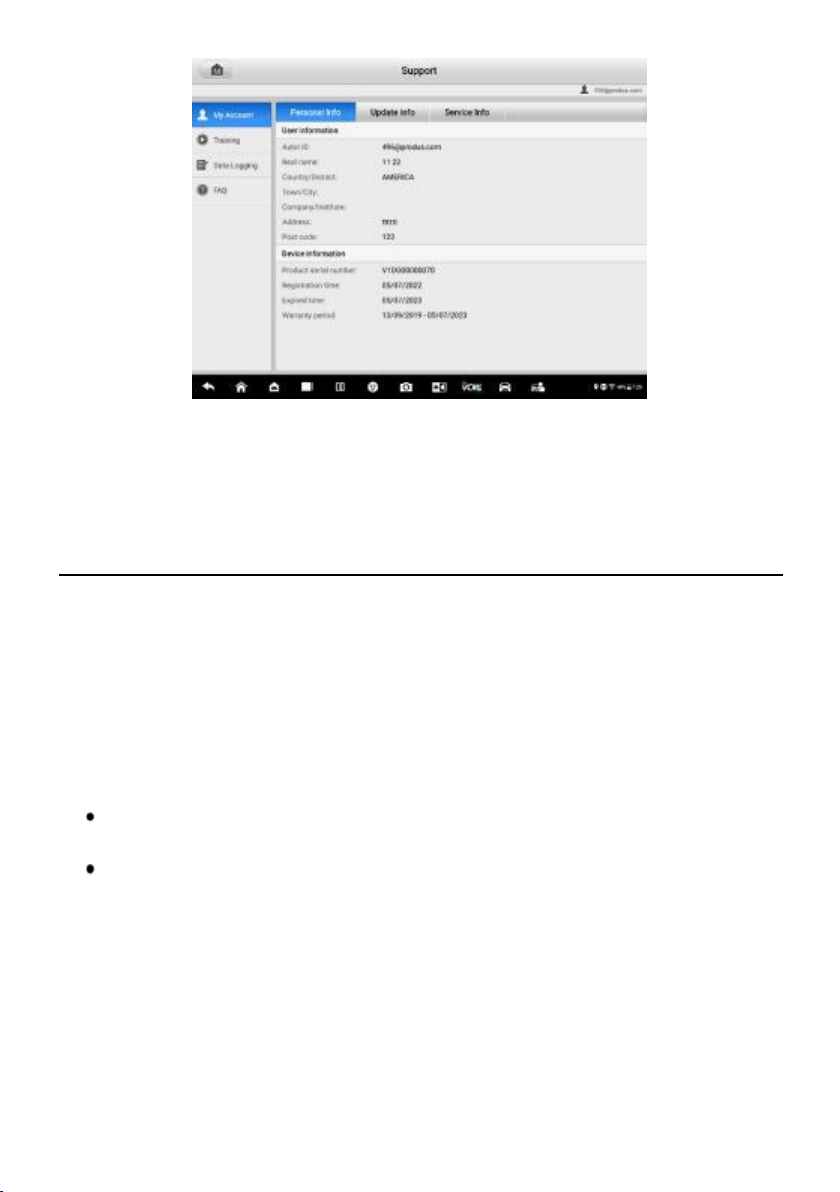

CCOUNT .............................................................................................................................
287
Personal Info
........................................................................................................................
287
Update Info ......................................................................................................................... 287
Service Info
..........................................................................................................................
288
TRAINING ................................................................................................................................... 288
DATA LOGGING...........................................................................................................................288
FAQ DATABASE ........................................................................................................................ 289
16 REMOTE DESKTOP .............................................................................................................290
OPERATIONS ..............................................................................................................................290
17 QUICK LINK ........................................................................................................................... 292
18 MAXIVIEWER
..........................................................................................................................
293
19 MAXIVIDEO............................................................................................................................. 295
20 BATTERY TEST .....................................................................................................................296
TEST PREPARATION ...................................................................................................................296
Inspect the Battery ............................................................................................................. 296
Connect the Battery Tester .............................................................................................. 297
I
N
-
VEHICLE
T
EST .......................................................................................................................
298
Battery Test ........................................................................................................................ 299
Starter Test
.........................................................................................................................
301
ix
Generator Test.................................................................................................................... 302
O
UT
-
VEHICLE
T
EST....................................................................................................................
303
Test Procedure ...................................................................................................................303
Test Results.........................................................................................................................305
21 OEM AUTHORIZATION
.......................................................................................................
306
22 USER FEEDBACK
................................................................................................................
307
23 MAINTENANCE AND SERVICE .........................................................................................308
MAINTENANCE INSTRUCTIONS ...................................................................................................3 0 8
T
ROUBLESHOOTING
C
HECKLIST ...............................................................................................
3 0 8
ABOUT BATTERY USAGE ...........................................................................................................30 9
SERVICE PROCEDURES ............................................................................................................. 31 0
Technical Support
..............................................................................................................
310
Repair Service ....................................................................................................................311
Other Services
....................................................................................................................
312
24 COMPLIANCE INFORMATION
...........................................................................................
313
25 WARRANTY ........................................................................................................................... 315
12-
MONTH
L
IMITED
W
ARRANTY.................................................................................................
315
1
1
Using This Manual
This manual contains usage instructions of devices.
Some illustrations shown in this manual may contain modules and optional equipment
that are not included in your system.
Conventions
The following conventions are used:
Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Tap OK.
Notes and Important Messages
Notes
A NOTE provides helpful information such as additional explanations, tips, and
comments.
Example:
NOTE
It is recommended to lock the screen when not in use to protect information in the system
and conserve the power.
Important
IMPORTANT indicates a situation which that if not avoided may result in damage to the
tablet or vehicle.
Example:
IMPORTANT
Do not charge the battery when the temperature is lower than 0 °C (32 °F) or higher than
45 °C (113 °F).
2
Hyperlink
Hyperlinks or links that take you to other related articles, procedures, and illustrations
are available in electronic documents. Blue italic text indicates a selectable hyperlink and
blue underlined text indicates a website link or an email address link.
Illustrations
Illustrations used in this manual are samples, and the actual testing screen may vary for
each vehicle being tested. Observe the menu titles and on-screen instructions to make
correct option selection.
Procedures
An arrow icon indicates a procedure.
Example:
To use the camera:
1. Tap the Camera button. The camera screen opens.
2. Focus the image to be captured in the viewfinder.
3. Tap the camera icon on the right side of the screen . The viewfinder now shows
the captured picture and auto-saves the taken photo.
4. Tap the thumbnail image on the top-right corner of the screen to view the stored
image.
5. Tap the Back or Home button to exit the camera application.
3
2
General Introduction
The MaxiSys Ultra EV (hereinafter referred as Ultra EV) is a new generation of intelligent
diagnostics system for electric, gas and diesel, and hybrid vehicles. It supports high-
voltage system testing and analysis, allowing you to quickly read detailed battery pack
data. Equipped with the new EVDiag Box, Ultra EV supports the testing of battery packs.
There are three main components to the MaxiSys system:
MaxiSys Tablet — the central processor and monitor for the system.
MaxiFlash VCMI — Vehicle Communication and Measurement Interface.
EVDiag Box — the battery pack communications interface.
This manual describes the construction and operation of these devices and how they
work together to deliver diagnostic solutions.
MaxiSys Tablet
Function Description
Figure 2-1 MaxiSys Tablet, Front View
1. 12.9" TFT-LCD Capacitive Touch Screen
2. Ambient Light Sensor — detects ambient brightness
3. Power LED
4. Front Camera
5. Microphone
4
Table 2-1 Power LED Description
LED
Color
Description
Power
Green
Lights green when the tablet is charging and the
battery level is equal to or more than 90% .
Lights green when the tablet is powered on and the
battery level is equal to or more than 15%.
Yellow
Lights yellow when the tablet is charging and the battery
level is below 90%.
Red
Lights red when the tablet is powered on and the battery is
below 15%.
Figure 2-2 MaxiSys Tablet, Back View
6. Docking Station Port
7. Collapsible Stand — extends from the back to allow hands-free viewing of the tablet
8. Speaker
9. Rear Camera
10. Camera Flash
Figure 2-3 MaxiSys Tablet, Top View
11. Mini USB Port — cannot be used with the USB Port simultaneously
12. USB Port
5
13. USB Port
14. Mini SD Card Slot
15. HDMI (High-Definition Multimedia Interface) Port
16. Headphone Jack
17. DC Power Supply Input Port
18. Power/Lock Button — long press to turn on or off the tablet, or short press to lock
the screen.
Figure 2-4 Docking Station
1. DC Power Port — connects to the AC/DC adapter for power supply
2 . Charging Dock — holds the MaxiSys tablet for optimum viewing and convenient
charging
3. Status Indicator Light
The indicator light displays differently in response to the tablet status described below:
A. Green light — the battery power of the tablet is sufficient (≥90%)
B. Yellow light — the battery level is above 14% but below 90%
C. Red light — the battery level is below 14%
NOTE
Ensure the docking station is clear of any small metal or other conductive parts to avoid
short circuit damage to the charger and the tablet.
Power Sources
The tablet can receive power from any of the following sources:
Internal Battery Pack
AC/DC Power Supply
Vehicle Power
6
IMPORTANT
Do not charge the battery when the temperature is lower than 0 °C (32 °F) or higher than
45 °C (113 °F).
Internal Battery Pack
The tablet can be powered with the internal rechargeable battery, which , if fully charged,
can provide sufficient power for about 8-hours continuous operation.
AC/ DC Power Supply — using AC/DC adapter or docking station
The tablet can be powered from an electrical outlet using the AC/ DC adapter or the
docking station. The AC/DC power supply also charges the internal battery pack.
Vehicle Power
The tablet can be powered from the auxiliary power outlet adapter or other DC power
port on the test vehicle through a direct cable connection. The vehicle power cable
connects to the DC power supply port on the top side of the tablet.
Technical Specifications
Table 2-2 Tablet Specifications
Item
Description
Operating System
Android 7.0
Processor
Samsung Exynos8895V octa-core Processor (2.3
GHz Quad-core Mongoose + 1.7 GHz Quad-core
A53)
Memory
4 GB RAM & 256 GB On-board Memory
Display
12.9-inch TFT-LCD with 2732 x 2048 resolution &
capacitive touch screen
Connectivity
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (Two USB HOST Type A, one
mini device)
HDMI 2.0
SD Card (Support up to 256 GB)
USB
Camera
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
7
Item
Description
Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio
Input / Output
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery
18000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the
temperature between 0 °C and 45 °C
Input Voltage
12 V/3 A Adapter
Operating Temp.
0 to 50 °C (32 to 122 °F)
Storage Temp.
-20 to 60 °C (-4 to 140 °F)
Dimensions (
WxHxD
)
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm
(1.34")
Weight
2.18 kg (4.81 lbs.)
Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-
14229 UDS, SAE-J2411 Single Wire Can (GMLAN),
ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),
TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler
SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H),
SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS),
Ford UBP, Nissan DDL UART with Clock, BMW DS2,
BMW DS1, SAE J2819 (VAG KW81), KW82, SAE
J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850
VPW (GM Class2)
Table 2-3 Docking Station Specifications
Item
Description
Input Voltage
DC/12 V/3 A
Operating Temperature
0 °C to 45 °C (32 to 113 °F) (ambient)
Storage Temperature
-20 °C to 60 °C (-4 to 140 °F) (ambient)
Dimensions (L x W x H)
396 mm (15.59") x 136 mm (5.35") x 54 mm
(2.13")
Weight
0.98 kg (2.1605 lbs.)
8
MaxiFlash VCMI — Vehicle Communication and
Measurement Interface
Function Description
Figure 2-5 VCMI, Top View
1. Multimeter Jacks
2. USB Port
3. Hook
4. DC Power Supply Input Port
5. Power Button
Figure 2-6 VCMI, Front View
6. Power LED — refer toTable 2-4 Power LED Descriptionfor details
7. Battery LED — refer toTable 2-5 Battery LED Descriptionfor details
8. Waveform Generator LED — lights green when operating in the waveform generator
mode
9. Multimeter LED — lights green when operating in the multimeter mode
9
10. Oscilloscope LED — flashes green when operating in the oscilloscope mode
11. Vehicle LED — refer toTable 2-6 Vehicle LED Descriptionfor details
IMPORTANT
Do not disconnect the programming device while the vehicle LED status light is on. If the
programming is interrupted while the vehicle's ECU is blank or only partially programmed,
the module may be unrecoverable.
Figure 2-7 VCMI, Bottom View
12. Ethernet Port
13. Vehicle Data Connector (DB26-Pin)
14. Input Channel A
15. Input Channel B
16. Input Channel C
17. Input Channel D
Table 2-4 Power LED Description
LED
Color
Description
Power
Yellow
Lights solid yellow automatically at power up when VCMI
is self-testing.
Green
Lights solid green when powered on.
Red
Lights solid red when a system failure occurs.
Flashes solid red when VCMI is upgrading.
Table 2-5 Battery LED Description
LED
Color
Description
Battery
Green
Flashes green when VCMI is charging.
Lights green when fully charged or the battery level
is above 50%.
Yellow
Lights yellow when the battery level is above 25 % but
below 50%.
10
LED
Color
Description
Red
Lights red when the battery level is above 10% but
below 25%.
Flashes red when the battery level is below 10%.
Table 2-6 Vehicle LED Description
LED
Color
Description
Vehicle
Green
Lights solid green when connected via USB cable .
Flashes solid green when communicating via
USB/Ethernet cable.
Blue
Lights solid blue when connected via Ethernet
cable/Bluetooth.
Flashes solid blue when communicating via
Bluetooth.
Cyan
Lights solid cyan when connected via Wi-Fi.
Flashes solid cyan when communicating via Wi-Fi.
NOTE
Sometimes the vehicle LED lights yellow when the VCMI device is connected by other
tablets. Please wait for 2 minutes to automatically disconnect them, or when the Wi-Fi
signal is weak, please try to reconnect the VCMI.
Communication Capability
The Vehicle Communication and Measurement Interface supports Bluetooth (BT), Wi-Fi
and USB communications. It can transmit vehicle data to the tablet with or without a cable
connection. In open areas, the working range of the transmitter through BT
communication is up to 328 feet (100 m). The working range of 5G Wi-Fi is up to 164 feet
(50 m). If the signal is lost due to being taken out of range, communication will be restored
once the tablet is within range.
Measurement Capability
The VCMI device is designed with the functions of multimeter, oscilloscope, waveform
generator, and bus inspection. The parameters such as voltage, resistance, current,
signal frequency, and voltage-time characteristic of the signal can be measured and the
results are displayed on the tablet.
Programming Capability
The VCMI device is a D-PDU, SAE J2534 & RP1210 compliant PassThru programming
interface device. Using the updated OEM software, it is capable of replacing the existing
software/firmware in the Electronic Control Units (ECU), programming new ECUs , and
fixing software-controlled drivability issues and emission issues.
11
Power Sources
The VCMI device can receive power from the following sources:
Vehicle Power
AC/DC Power Supply
Built-in rechargeable Battery Pack
Vehicle Power
The VCMI device operates on 12/24-Volt vehicle power, which receives power via the
vehicle data connection port. The device powers on whenever it is connected to an
OBDII/EOBD compliant Data Link Connector ( DLC). For non OBDII/ EOBD compliant
vehicles, the device can be powered from an auxiliary power outlet adapter on the test
vehicle using the auxiliary power cable.
AC/ DC Power Supply
The VCMI device can be powered from a wall socket using the AC/DC adapter.
Built- in Battery Pack
The VCMI device can also be powered with its built-in 3750 mAh battery pack.
Technical Specifications
Table 2-7 VCMI Specifications
Item
Description
Communications
BT V2.1 + EDR
USB 2.0
Wi-Fi 5G
Ethernet
Wireless Frequency
5 GHz
Power and Battery
3750 mAh lithium-polymer battery
Charging via 12 V DC power supply
Operating Temp.
0 to 50 °C (32 to 122 °F)
Storage Temp.
-20 to 60 °C (-4 to 140 °F)
Dimensions (L x W x H)
214 mm (8.43") x 192 mm (7.56") x 39 mm (1.54")
Weight
1.2 kg (2.64 lbs.)
12
NOTE
For additional information, please refer to the accompanied user manual for the VCMI
device.
EVDiag Box
Function Description

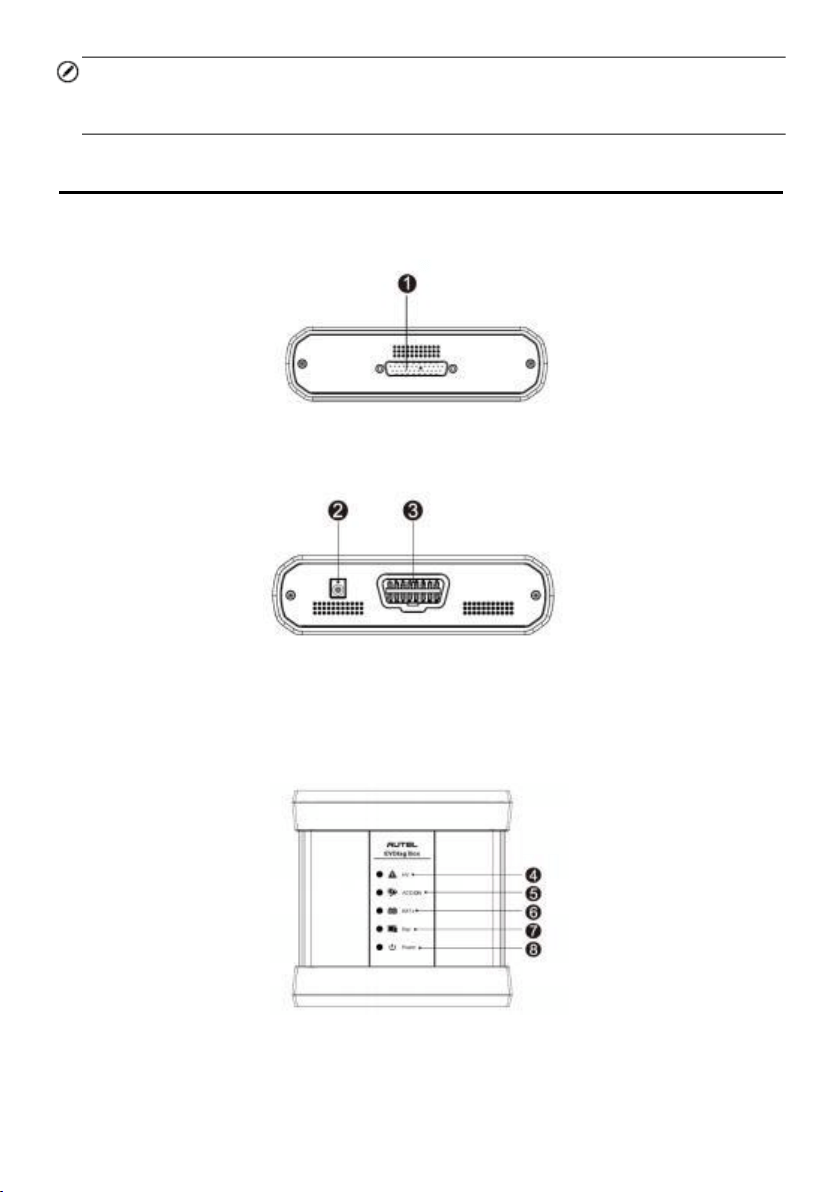

Figure 2-8 EVDiag Box, Top View
1. DB25 Connector
Figure 2-9 EVDiag Box, Bottom View
2. DC Power Supply Input Port
3. OBDII Connector
Figure 2-10 EVDiag Box, Front View
4. HV LED — flashes yellow when the device is connected to the battery pack during
high voltage output
13
5. ACC/ON LED — lights green when the ACC/ON ignition signal output is normal
6. BAT + LED — lights green when the power output is normal
7. Run LED — lights blue when communicating with the tablet
8. Power LED — refer toTable 2-8 Power LED Description for EVDiag Boxfor details
Table 2-8 Power LED Description for EVDiag Box
LED
Color
Description
Power
Green
Lights green when operating normally.
Red
Flashes red when upgrading.
Lights red when upgrade has failed.
Power Source
The EVDiag Box can be powered from a wall socket using the 12 V DC adapter.
Technical Specifications
Table 2-9 EVDiag Box Specifications
Item
Description
Input Voltage
12 V DC
Max. Input Current
3 A
Operating Temp.
0 to 50 °C (32 to 122 °F)
Storage Temp.
-20 to 60 °C (-4 to 140 °F)
Dimensions (L x W x H)
166 mm (6.54”) x 168.35 mm (6.63”) x
47.35 mm (1.86”)
Weight
0.648 kg (1.43 lbs.)
Accessories Kit
Main Cable V2.0
The VCMI device can be powered through the Autel Main Cable V2.0 (the V2.0 icon can
be seen on the cable) when connected to an OBDII/EOBD compliant vehicle. The Main
14
Cable V2.0 connects the VCMI device to the vehicle's data link connector (DLC), through
which the VCMI device can transmit vehicle data to the tablet.
Figure 2-11 Main Cable V2.0 – 1.5 m in Length
NOTE
The MaxiFlash VCMI can be connected by the Autel Main Cable V2.0 only. DO NOT use
other Autel main cables to connect the MaxiFlash VCMI.
Battery Pack Accessories
Cables, adapters, breakout leads, breakout lead extension cords or dual banana plugs
will be used to perform the battery pack test.
Table 2-10 Battery Pack Accessories List
Item
Qty
Ref. Pic.
EVDiag Box Main Cable
BPTC0001/01
1 pc
Adapter
BPTC0101/01
1 pc
Adapter
BPTC0102/01
1 pc
Adapter
BPTC0103/01
1 pc
Adapter
BPTC0201/01
1 pc
Adapter
BPTC0202/01
1 pc
Adapter
BPTC0203/01
1 pc
Adapter
BPTC0204/01
1 pc
Adapter
BPTC0205/01
1 pc
Adapter
BPTC1101/01
1 pc
15
Item
Qty
Ref. Pic.
Adapter
BPTC1102/01
1 pc
Breakout Lead 1
6 pcs
Breakout Lead 2
6 pcs
Breakout Lead 3
6 pcs
Breakout Lead 4
6 pcs
Breakout Lead Extension
Cord
3 pcs
DB25 Snake Cable
BPTJ0001/01
1 pc
Dual Banana Plug
4 pcs
OBDI-Type Adapters (optional)
The OBDI-type adapters are for Non-OBDII vehicles. The adapter used depends on the
type of vehicle being tested. The most common adapters are shown below (Adapters are
sold separately. Please contact your distributor for details).
Benz-14
Kia-20
Chrysler-16
Fiat-3
BMW-20
PSA-2
Nissan-14
Mazda-17
16
Volkswagen/Au
di-2+2
Benz-38
Mitsubishi/Hyun
dai-12+16
Other Accessories
USB 2.0 Cable V2
Connects the tablet to the VCMI unit.
AC/DC Adapter
Connects the tablet to the external DC power port for power
supply.
Auxiliary Power Outlet Adapter
Provides power to the tablet or the VCMI device through
connection to the vehicle's auxiliary power outlet adapter
receptacle, as some non-OBDII vehicles cannot provide power via
the DLC connection.
Clamp Cable
Provides power to the tablet or the VCMI device through
connection to the vehicle's battery.
Light Fuse
A safety device for the auxiliary power outlet adapter.
USB to Ethernet Adapter
Network connection function can be realized through this device.
17
3
Getting Started
Make sure the tablet has sufficient power or is connected to the external power supply
(seePower Sources).
Power Up
Long press the Power/Lock button on the top-right side of the tablet to switch the unit
on. The system boots up and shows the lock screen with 3 entry options:
1. MaxiSys Home — Swipes up the MaxiSys Home icon to enter the MaxiSys Job
Menu shown as below.
2. Unlock — Swipes up the Lock icon at the center to unlock the screen or enter the
MaxiSys Job Menu when booting up.
3. Camera — Swipes up the Camera icon to launch the camera.
Figure 3-1 MaxiSys Job Menu
1. Application Buttons
2. Locator and Navigation Buttons
3. Status Icons
18
NOTE
It is recommended to lock the screen when not in use to protect information in the system
and conserve the power.
Almost all operations on the tablet are controlled through the touchscreen. The
touchscreen navigation is menu-driven allowing you to access quickly test procedure or
data that you need through a series of questions and options . Detailed descriptions of
the menu structures are found in the following chapters for each application.
Application Buttons
The table below briefly describes each of the applications in the MaxiSys system .
Table 3-1 Applications
Name
Button
Description
New Energy
Accesses the diagnostics function for new
energy vehicles. SeeNew Energyfor details.
Battery Pack Test
Accesses the Battery Pack Test program.
SeeBattery Pack Testfor details.
Diagnostics
Accesses the diagnostics functions. See
Diagnosticsfor details.
Service
Accesses special functions menu. See Service
for details.
Measurement
Software tools that measure vehicle system
parameters such as voltage, resistance,
current, and monitor signal activities. See
Measurementfor details.
Data Manager
Accesses the saved repair shop, customer and
vehicle data including detail vehicle
diagnostics and test record history . SeeData
Managerfor details.
Settings
Accesses the system settings menu and
general tablet menu. SeeSettingsfor details.
Update
Accesses system software update menu. See
Updatefor details.
Battery Test
Accesses the battery test menu. See Battery
Testfor details.
19
Name
Button
Description
VCMI Manager
Accesses VCMI connection menu. SeeVCMI
Managerfor details.
ADAS
Accesses ADAS systems menu. SeeADASfor
details.
Support
Synchronizes Autel's online service database
with the MaxiSys tablet. SeeSupportfor
details.
OEM
Authorization
Provides an authorization to unlock safety
gateway of some vehicle models. See OEM
Authorizationfor details.
Remote Desktop
Configures your tablet to receive remote
support using the TeamViewer application.
SeeRemote Desktopfor details.
Quick Link
Provides associated website bookmarks to
allow quick access to product update, service,
support, and other information. SeeQuick Link
for details.
MaxiViewer
Provides a quick search for supported
functions and/ or vehicles. SeeMaxiViewerfor
details.
MaxiVideo
Configures the unit to operate as a video scope
device by connecting to an Imager head cable
for close vehicle inspections. See MaxiVideo
for details.
User Feedback
Allows you to submit problem feedbacks
related to this tablet. See User Feedback for
details.
Autel User
Center
Allows you to register an account, view, and
edit your personal profile and link your device.
Locator and Navigation Buttons
Operations of the Navigation buttons at the bottom of the screen are described in the
table below:
20
Table 3-2 Locator and Navigation Buttons
Name
Button
Description
Locator
Indicates the location of the screen. Swipe the
screen left or right to view the previous or next
screen.
Back
Returns to the previous screen.
MaxiSys Home
Enters to MaxiSys Job Menu.
Android Home
Returns to the Android system home screen.
Recent Apps
Displays a list of applications that are currently
running. Tap an app icon to launch. Remove an
app by swiping it to left or right.
Split Screen
Tap icon to display a split screen.
Browser
Launches the Chrome Internet browser.
Camera
Tap icon to open camera viewfinder. Press and
hold icon to capture screenshot of display
screen. The saved files are auto- stored in the
Data Manager application for later review. See
Data Managerfor details.
Display &
Sound
Adjusts the brightness of the screen and the
volume of the audio output.
VCMI Shortcut
Opens the VCMI Manager application. A green
badge (BT, Wi-Fi or USB icon) at the bottom-
right corner indicates the VCMI device is
connected, while a red X icon will display if the
connection fails. The battery status icon displays
the remaining VCMI power.
Diagnostics
Shortcut
Enters to the Diagnostics screen.
Service
Shortcut
Enters to the Service screen.
21
To use the camera
1. Tap the Camera button. The camera screen opens.
2. Focus the image to be captured in the viewfinder.
3. Tap the camera icon on the right side of the screen . The viewfinder now shows
the captured picture and auto-saves the taken photo.
4. Tap the thumbnail image on the top-right corner of the screen to view the stored
image.
5. Tap the Back or Home button to exit the camera application.
NOTE
After swiping the camera screen from left to right, the camera mode and video mode can
be switched by tapping the blue camera icon or video icon.
System Status Icons
Your MaxiSys tablet is a fully functional Android tablet with the standard Android
operation system status icons .
Power Down
All vehicle communications should be terminated before shutting down the tablet. A
warning message displays if a shutdown is attempted while the tablet is communicating
with the vehicle. Forcing a shut down while the tablet is communicating with the vehicle
may lead to ECU problems on some vehicles. Please exit the Diagnostics application
before shutting off the tablet.
To power down the MaxiSys tablet
1. Long press the Power/Lock button.
2. Tap Power Off option.
3. Tap OK. Then the tablet will be powered off in a few seconds.
Reboot System
In case of a system crash, long press the Power/Lock button and tap Reboot to restart
the system.
NOTE
Long press the Power/Lock button for 10 seconds will force the tablet power off and
reboot automatically.
22
4
New Energy
The MaxiSys Ultra EV can perform comprehensive diagnostics on new energy vehicles.
After establishing communication with the ECU on a new energy vehicle through the
VCMI device, the tablet is able to read or clear DTCs, read live data, perform active test,
programming, and intelligent diagnostics, and more. The tablet can perform diagnostics
on high voltage system of new energy vehicles through communication with their
electronic control system. Based on the diagnostic results, the tablet will provide
professional maintenance suggestions to the battery and offer targeted and high-efficient
solutions.
Establish Vehicle Communication
The New Energy diagnostics operation requires connecting the MaxiSys Ultra EV to the
test vehicle through the VCMI device using the main cable V2.0. (Use the applicable
OBDI-type adapter if needed). To establish a proper vehicle communication to the tablet,
you need to perform the following steps:
1. Connect the VCMI device to the vehicle's DLC for both communication and power
source.
2. Connect the VCMI device to the tablet via BT pairing, Wi-Fi or USB connection.
3 . When the above steps are completed, check the VCMI navigation button at the
bottom bar on the screen. If a green BT, Wi-Fi or USB icon displays at the lower-
right corner, the diagnostic platform of MaxiSys Ultra EV is ready to start vehicle
diagnosis.
Vehicle Connection
The method for connecting the VCMI device to a vehicle's DLC depends on the vehicle's
configuration as follows:
A vehicle equipped with an On-board Diagnostics Two (OBDII) management system
supplies both communication and 12-volt power through a standardized J-1962 DLC.
A vehicle not equipped with an OBDII management system supplies communication
through a DLC connection, and in some cases supplies 12-volt power through the
auxiliary power outlet adapter receptacle or a connection to the vehicle battery.
OBDII Vehicle Connection
This type of connection only requires the main cable without any additional adapter.
23
To connect to an OBDII vehicle
1. Connect the main cable's female adapter to the Vehicle Data Connector on the
VCMI device, and tighten the captive screws.
2. Connect the cable's 16-pin male adapter to the vehicle's DLC, which is generally
located under the vehicle dash.
NOTE
The vehicle's DLC is not always located under the dash. Refer to the user manual of the
test vehicle for additional connection information.
Non-OBDII Vehicle Connection
This Non-OBDII vehicle connection requires both the main cable and a required OBDI
adapter.
There are three possible conditions for Non-OBDII vehicle connection:
DLC connection supplies both communication and power.
DLC connection supplies communication and power is to be supplied via the
auxiliary power outlet adapter connection.
DLC connection supplies communication and power is to be supplied via connection
to the vehicle battery.
To connect to a Non-OBD II Vehicle
1. Connect the main cable's female adapter to the Vehicle Data Connector on the
VCMI device, and tighten the captive screws.
2 . Locate the required OBDI adapter and connect its 16- pin jack to the main
cable's male adapter.
3. Connect the attached OBDI adapter to the vehicle's DLC.
NOTE
Some vehicles may have more than one adapter or may have test leads instead of an
adapter. Make the proper connection to the vehicle's DLC as required.
To connect the auxiliary power outlet adapter
1. Plug the DC power connector of the auxiliary power outlet adapter into the DC
power supply input port on the device.
2. Connect the male connector of the auxiliary power outlet adapter into the
vehicle's auxiliary power outlet adapter receptacle.
24
To connect the clamp cable
1. Connect the tubular plug of the clamp cable to the male connector of the
auxiliary power outlet adapter.
Figure 4-1 Connection between Auxiliary Power Outlet Adapter and Clamp Cable
2. Plug the DC power connector of the auxiliary power outlet adapter into the DC
power supply input port of the VCMI device.
3. Connect the clamp cable to the vehicle's battery.
NOTE
After the VCMI device is successfully connected to the vehicle, the Power LED on the
device lights, and a beeping sound will be heard.
VCMI Connection
After the VCMI device is properly connected to the vehicle, the Power LED on the VCMI
device lights solid green, and is ready to establish communication with the tablet.
Coming with the MaxiSys Ultra EV tool kit, the VCMI device supports three
communication methods with the tablet: BT, Wi-Fi and USB.
Pairing Up via BT
In open areas, the working range for BT communication is about 328 feet (100 m), giving
technicians greater mobility to perform vehicle diagnosis from anywhere in the repair
shop.
To expedite multi-vehicle diagnostics, more than one VCMI can be used in busy repair
shops, enabling technicians to quickly pair their Ultra EV to each VCMI separately via BT
without the need to unplug the VCMI from one vehicle and then connect it to another
each time.
To pair the tablet with the VCMI device via BT
1. Power up the tablet.
2. Select the VCMI Manager application on the MaxiSys Job Menu.
3. When the VCMI Manager application is opened, select VCMI BT, and the
device automatically scans for available VCMI devices for BT pairing. The found
25
devices are listed in the Setting section on the right side of the screen.
NOTE
If no VCMI device is found, this may indicate that the signal strength is too weak to be
detected. Reposition the VCMI device, and remove all possible objects that may cause
signal interference. Tap the Scan button at the top-right corner to rescan for VCMI.
4. Typically, the VCMI device name displays as Maxi suffixed with a serial number.
Select the VCMI device for pairing. (If more than one VCMI is used in the shop,
ensure the correct VCMI is selected to pair.)
5. When pairing is successful, the connection status reads “Connected” and the
vehicle LED on the VCMI device lights solid blue .
6. The VCMI icon on the tablet Navigation bar at the bottom of the screen displays
a green BT icon when the tablet and the VCMI are connected .
Refer toBT Pairingfor additional information.
Wi-Fi Connection
The VCMI device supports 5GHz Wi-Fi connection. In open areas, the working range of
5G Wi-Fi communication is up to 164 feet (50 m).
To connect the tablet with the VCMI device via Wi-Fi
1. Power up the tablet.
2. Select the VCMI Manager application on the MaxiSys Job Menu.
3. When the VCMI Manager application is opened, select Wi-Fi and the tablet
automatically scans for available VCMI devices for Wi-Fi connection. Found
VCMI devices are listed in the Setting section on the right side of the screen.
4. Typically, the VCMI device name displays as Maxi suffixed with a serial number.
Select the required device for connection.
5. When pairing is successful, the connection status reads “Connected” and the
vehicle LED on the VCMI device lights solid cyan.
6. The VCMI icon on the tablet Navigation bar at the bottom of the screen displays
a green Wi-Fi icon when the tablet and the VCMI are connected .
Refer toWi-Fi Connection for additional information.
USB Cable Connection
After properly connecting the USB cable from the tablet to the VCMI device, the VCMI
navigation button at the bottom bar of the screen displays a green USB icon, and the
vehicle LED on the VCMI device lights solid green, indicating the connection between
the devices is successful.
The MaxiSys diagnostic platform is now ready to perform vehicle diagnosis.
26
NOTE
Because of its stable communication capabilities, a USB connection is the recommended
communication method between the tablet and VCMI when operating ECU programming
or coding. The USB communication method will take priority over other connected
communication methods.
No Communication Message
A. If the tablet is unable to connect to the VCMI, an "Error" message displays. An "Error"
message indicates the tablet is not communicating with the VCMI device.
Troubleshoot the error by performing the following steps:
Ensure the VCMI device is powered on.
When using the wireless connection, ensure the network is configured correctly
and the proper device has been connected .
If the tablet loses communication abruptly during the diagnosis, ensure no
objects are causing signal interruption.
Ensure the VCMI device is properly positioned with the VCMI front side up.
Move the tablet closer to the VCMI device. If using the wired connection, ensure
the cable is securely attached to the VCMI .
Ensure the VCMI communication mode is lit for the selected communication
type: BT, Wi-Fi or USB.
B. If the VCMI device is unable to establish a communication link, a message will
display troubleshooting instructions. Possible causes for the communication error
include:
The VCMI device is unable to establish a communication link with the vehicle.
A vehicle system has been selected for diagnoses that is not supported by the
vehicle.
There is a loose connection.
There is a blown vehicle fuse.
Wiring fault on the vehicle or the data cable.
There is a circuit fault in the data cable or adapter.
The vehicle identification is incorrectly entered .
Getting Started
Prior to first use of the New Energy application, ensure the VCMI device is properly
connected to and is communicating with the tablet . SeeVCMI Manager for further details.
27
New Energy Vehicle Menu Layout
When the VCMI device is properly connected to the vehicle via the main cable, and
paired to the tablet, the platform is ready to start new energy vehicles’ diagnosis. Tap on
the New Energy application on the MaxiSys Job Menu, the New Energy Vehicle Menu
displays on the screen.
Figure 4-2 New Energy Vehicle Menu Screen
1. Top Toolbar Buttons
2. Manufacturer Icons
Top Toolbar Buttons
The operations of the Toolbar buttons at the top of the screen are listed and described
in the table below:
28
Table 4-1 Top Toolbar Buttons
Name
Button
Description
Home
Returns to the MaxiSys Job Menu.
VID Scan
Tap this button to open a dropdown list. Tap
Auto Detect for auto VIN detection.
Manual Input to enter VIN code or license number
manually.
Tap Scan VIN/License to scan the VIN code/license
number by camera.
All
Displays all the vehicle makes in the vehicle menu.
Favorites
Displays user-selected favorite vehicle makes.
History
Displays the stored test vehicle history records. This option
provides direct access to the previously tested vehicle
recorded during previous tests. SeeVehicle History.
America
Displays the American vehicle menu.
Europe
Displays the European vehicle menu.
Asia
Displays the Asian vehicle menu.
China
Displays the Chinese vehicle menu.
Search
Tap inside the search field to display the virtual keyboard
and input the vehicle manufacturer to test.
Cancel
Tap this button to exit the search screen or cancel an
operation.
29
Manufacturer Icons
The Manufacturer Icons display the various vehicle brands. Select the manufacturer icon
after the VCMI device is properly connected to the test vehicle to start a diagnostic
session.
Vehicle Identification
The MaxiSys diagnostic system supports four methods of Vehicle Identification.
1. Auto Detect
2. Manual Input
3. Scan VIN/License
4. Manual Vehicle Selection
Auto Detect
The MaxiSys diagnostic system features the latest VIN-based Auto Detect function to
identify vehicles with just one tap, enabling the technician to quickly identify the exact
vehicle and scan its available systems for fault codes .
To perform Auto Detect
1. Tap the New Energy application on the MaxiSys Job Menu. The Vehicle Menu
displays.
2. Tap the VID Scan button on the top toolbar.
3. Select Auto Detect. The tablet starts VIN scanning on the vehicle's ECU. Once
the test vehicle is successfully identified, the system will guide you to the
diagnostic screen.
30
Figure 4-3 Auto Detect Screen
Depending on the vehicle, the Auto Detect function is still available after a vehicle brand
is selected.
Figure 4-4 Automatic Selection Screen
31
After selecting a vehicle brand on the New Energy Vehicle Menu Screen, select
Automatic Selection and the system will acquire VIN information automatically or allow
users to input the VIN manually.
Manual Input
For vehicles that do not support the Auto Detect function, the MaxiSys diagnostic system
allows you to enter the vehicle VIN or license number manually, or simply take a photo
of the VIN sticker or license plate for quick vehicle identification.
To perform Manual Input
1. Tap the New Energy application on the MaxiSys Job Menu. The Vehicle Menu
displays.
2. Tap the VID Scan button on the top toolbar.
3. Select Manual Input.
4. Tap the input box and enter the correct VIN code or license numbers. Or tap the
scan icon on the right side to scan VIN sticker or license plate.

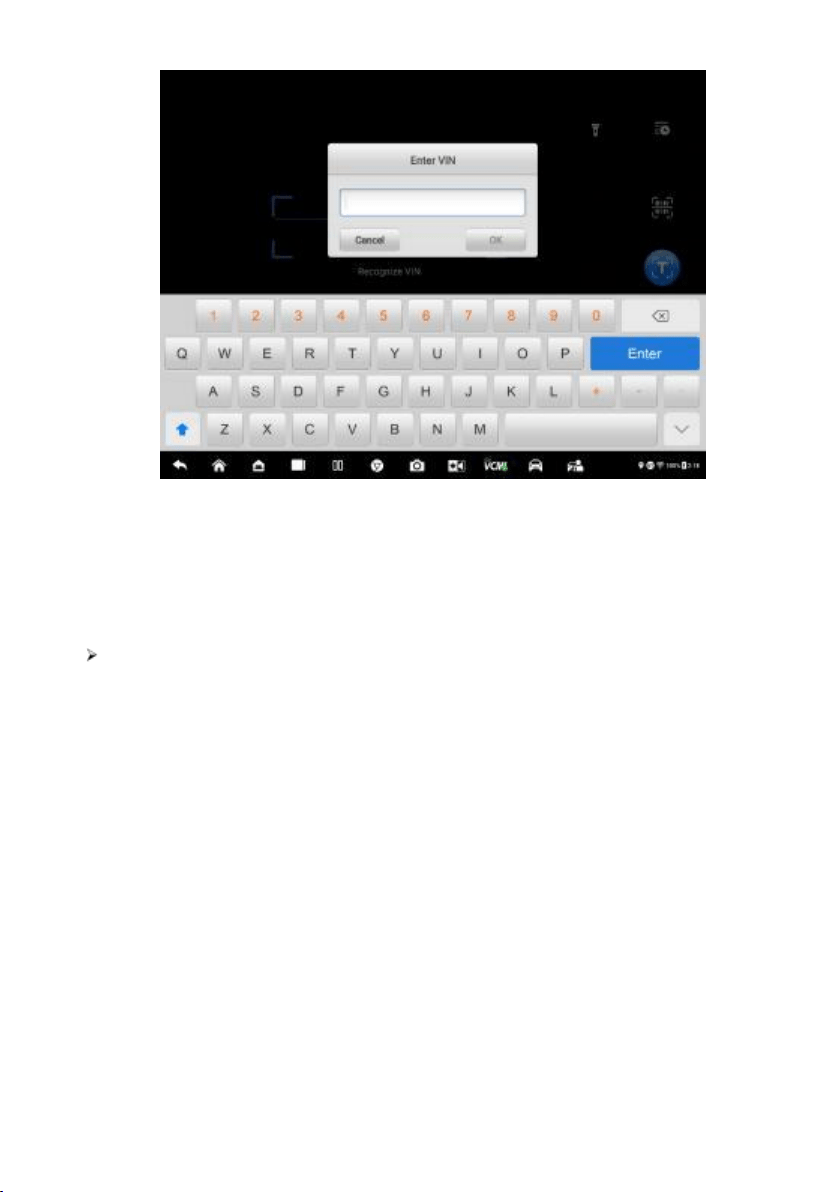

Figure 4-5 Manual Input Screen
5. Tap OK. The vehicle will be identified and matched to the vehicle database and
the New Energy Vehicle Diagnostics screen will display.
6. Tap the cross icon on the top-right corner to exit Manual Input.
32
Scan VIN/ License
Tap Scan VIN/License in the dropdown list (Figure 4-3), the camera will be opened. On
the right side of the screen, from top to bottom, three options are available: Scan
Barcode, Scan VIN, and Scan License.
NOTE
The method of Scan License is supported in some countries and areas. Please manually
input the license number if it is not available.
Select one of three options and position the tablet to align the VIN or license number
within the scanning window, the result displays in the Recognition result dialog box after
scanned. Tap OK to confirm the result, and then the vehicle information confirmation
screen will display on the tablet. If all the vehicle information is correct, tap the icon in the
middle of the screen to confirm the VIN of the vehicle being tested, tap OK to continue.
Figure 4-6 Scan VIN Code 1
If the VIN/ License number can't be scanned, please manually input the VIN/ License
numbers. Tap OK to continue. Manually input the license number and select a vehicle
brand on the vehicle information confirmation screen. Tap the icon in the middle of the
screen to confirm the VIN of the vehicle being tested, tap OK to continue.
33
Figure 4-7 Scan VIN Code 2
Manual Vehicle Selection
When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the
specific VIN is unknown, you can select the vehicle manually.
To perform Manual Vehicle Selection
1. Tap New Energy on the MaxiSys Job Menu. The Vehicle Menu displays.
2. Select a vehicle make on the Vehicle Menu.
3. Tap Manual Selection on the left column of the screen, then the screen will
display the vehicle information to be selected.
4. Select the vehicle information like brand, model, capacity, etc. After the vehicle
information is configured, tap OK to continue. Tap the Reset button to re-select
the vehicle information if needed.
34
Figure 4-8 Manual Vehicle Selection Screen
Navigation
New Energy Screen Layout
After vehicle information is confirmed, tap OK to enter the main diagnostic program. This
section describes common functions, including Auto Scan, Control Unit, HV System
Diagnosis, Service, and Programming. The available functions may vary among different
vehicles.
35
Figure 4-9 Vehicle Information Confirmation Screen
Figure 4-10 New Energy Main Screen
1. New Energy Toolbar
2. Current Directory Path
3. Status Information Bar
4. Navigation Bar
5. Main Section
6. Function Buttons
36
New Energy Toolbar
The New Energy Toolbar contains buttons that allow you to print or save the displayed
data and perform other operations. The table below provides a brief description for the
operations of the new energy toolbar buttons:
Table 4-2 New Energy Toolbar Buttons
Name
Button
Description
Home
Returns to the MaxiSys Job Menu.
Vehicle
Swap
Exits the diagnostic session and returns to the vehicle
menu screen to select another vehicle for testing.
Settings
Opens the setting screen. SeeSettings.
Print
Saves and prints a copy of the displayed data. See
Printing Settings.
Help
Provides instructions or tips for operations of various
diagnostic functions.
Save
There are 3 options to save data.
Tap Screenshot to save an image.
Tap Save All Data to save a PDF file (used this
save option when data displays on multiple
screens).
Tap Save Report to correlate the test vehicle
with the diagnostic data. After the report is saved
successfully, you can view it locally. If the report
is uploaded to cloud, cloud sharing is available.
These files are stored in Data Manager application for
later reviews. SeeData Manager.
Data
Logging
Use this function when encountering an error when
testing or diagnosing a vehicle. This function will
record the communication data and ECU information
of the test vehicle and send it to Autel's technical staff
to review and provide solution .
Go to the Support application to follow up the
processing progress. SeeData Logging.
37
To print data in New Energy
1. Tap the New Energy application on the MaxiSys Job Menu. The Print button
on the new energy toolbar is available throughout all New Energy operations.
2. Tap Print and a drop-down menu displays.
a) Print This Page — prints a screenshot copy of the current screen .
b) Print All Data — prints a PDF copy of all displayed data.
3. A temporary file will be created and sent via the computer to the printer.
4. When the file is sent, a confirmation message displays.
NOTE
Make sure the tablet and the printer are connected either by Wi-Fi or LAN before printing.
For more instructions on printing, seePrinting Settings for details.
To submit Data Logging reports in New Energy
1. Tap the New Energy application on the MaxiSys Job Menu. The Data Logging
button on the new energy toolbar is available throughout all New Energy
operations.
2. Tap the Data Logging button to display the error options. Select a specific error,
then tap OK, and a submission form will display to let you fill in the report
information.
3. Tap the Send button in the upper-right corner of the screen to submit the report
form via the Internet, and a confirmation message displays when sent
successfully.
Current Directory Path
The Current Directory Path shows all directory names to access the current page.
Status Information Bar
The Status Information Bar at the top of the Main Section displays the following items:
1. Cloud Server Icon — indicates the communication status between the tablet and the
Autel Cloud Server.
2. VCMI Icon — indicates the communication status between the tablet and the VCMI
device.
3. EVDB Icon — indicates the communication status between the EVDiag Box and the
battery (only for the Battery Pack Test function).
4. Battery Icon — indicates the battery status of the vehicle.
Navigation Bar
The Navigation Bar on the left side of the screen displays the main menu of the
diagnostics functions. The main menu varies by the vehicle being tested. The common
38
menu includes Auto Scan, Control Unit, HV System Diagnosis, Service, Hot Functions,
Vehicle Profile, and Programming.
Main Section
The Main Section varies depending on the stage of operations which shows vehicle
identification selections, the main menu, test data, messages, instructions , and other
diagnostic information.
Function Buttons
The type of Function Buttons displayed at the bottom of the screen vary by operation.
Function include navigation, reporting and code clearing. The functions of these buttons
will be described in the following sections when relevant.
The table below provides a brief description of the Function Buttons' operations:
Table 4-3 Function Buttons in New Energy Main Screen
Name
Description
Intelligent
Diagnostics
Directly accesses the Intelligent Diagnostics screen to view the
code-related information of ALL DTCs for the whole vehicle.
For detailed operation instructions, please refer to the
Intelligent Diagnosticsfor details.
Report
Displays the diagnostic data in the report form.
Quick Erase
Erases all fault information after scanning.
Fault Scan
Scans vehicle system modules.
Pause
Pauses the scanning process.
Continue
Continues the scanning process.
Enter System
Enters the ECU system.
ESC
Returns to the previous screen or exit New Energy screen.
Select one of the system modules from the Topology or List, and tap Enter System to
enter the specific system functions.
NOTE
The New Energy toolbar buttons will be active throughout the diagnostic session for such
tasks as printing and saving the displayed data, obtaining help information or performing
data logging.
39
Screen Messages
Messages display when additional input is needed before proceeding. There are mainly
three main types of on-screen messages: Confirmation, Warning, and Error.
Confirmation Messages
This type of messages usually displays as an "Information" screen, when you are about
to perform an action that cannot be reversed or when an action has been initiated and
your confirmation is needed to continue.
When a user-response is not required, the message displays briefly.
Warning Messages
This type of messages displays when completing the selected action may result in an
irreversible change or loss of data. An example of this message is the "Erase Codes"
message.
Error Messages
Error messages display when a systemic or procedural error has occurred. Possible
errors include cable disconnection and communication interruption.
Making Selections
The New Energy application is a menu-driven program that presents a series of options
one at a time. As you select from a menu, the next menu in the series displays. Each
selection narrows the focus and leads to the desired test. Use your fingertip or the stylus
pen to make menu selections.
Auto Scan
The Auto Scan function, which can be used to start auto scanning for all the available
systems on the vehicle, will be listed on the Navigation Bar when accessing diagnosis
function. The main section of Auto Scan screen displays a System List for most vehicles,
a topology map at the same time for some vehicles, including Volkswagen, Audi, BMW,
Ford, Land Rover, Jaguar, Chrysler, Fiat, Volvo, etc.
To perform Auto Scan function
Take topology for BMW as an example:
1. Tap the New Energy application on the MaxiSys Job Menu. Choose the
corresponding vehicle information and enter the vehicle diagnostic page.
2. The Topology tab page displays in the main section. Tap the Fault Scan button
at the bottom of the screen to scan the vehicle system modules.
40

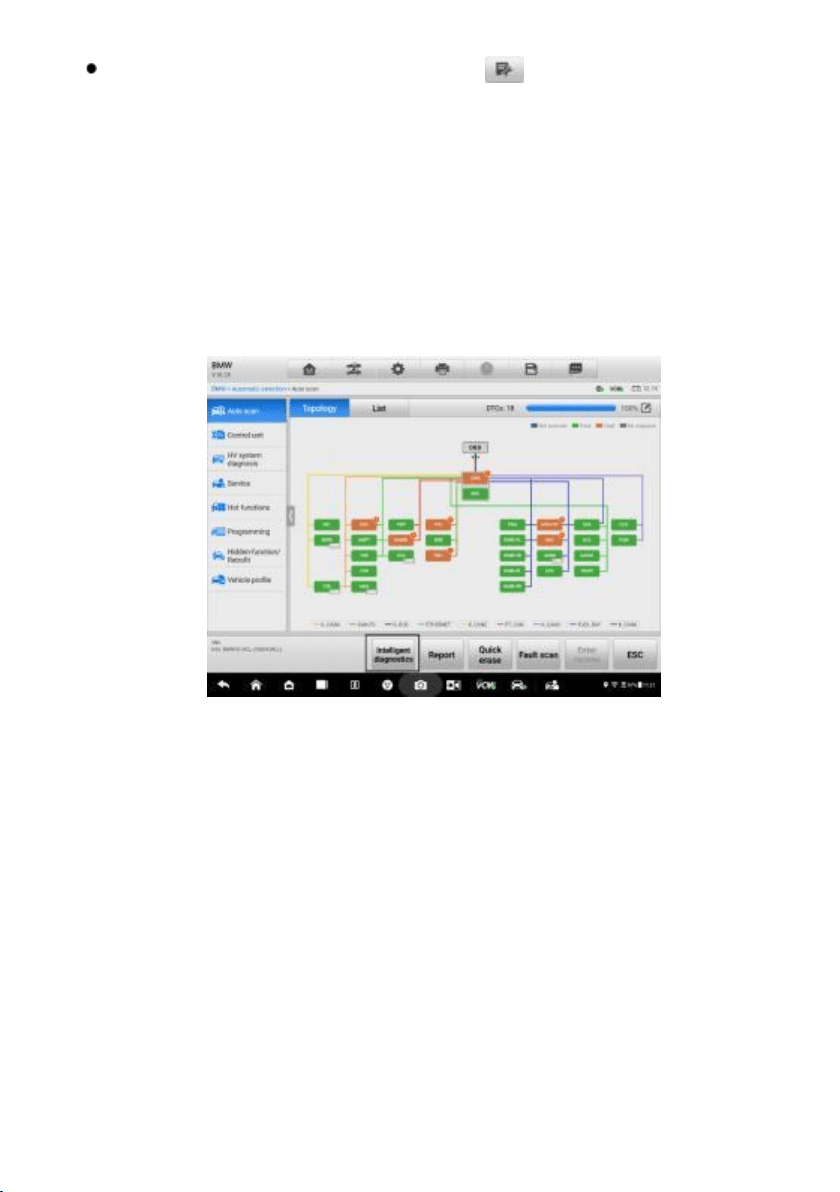

Figure 4-11 Auto Scan Screen
3. The auto scan results appears on the screen.
NOTE
On the Auto Scan screen, there is a Select System icon on the upper-right corner.
Scanning selective system (s) will save more time than scanning all systems.
Auto Scan Results
A Topology Tab Page
The Topology Tab Page displays a system distribution diagram of the vehicle control
modules. Auto scanning results will be displayed in different colors. The number of
total faults will appear on the upper-right corner.
Green: No faults detected.
Gray: No response.
Blue: Not scanned.
Orange: Faults detected.
41
Figure 4-12 Topology Tab Screen
B List Tab Page
Column 1 — displays the system numbers.
Column 2 — displays the scanned systems.
NOTE
The HV system/ADAS icon will appear on the right side of HV system/ADAS system.
Column 3 — displays the scan results.
-?-: Indicates that the vehicle control system has been detected, but the tester
cannot access it.
Fault | #: Indicates there is/are detected fault code(s) present; "#" indicates
the quantity of detected faults.
Pass | No Fault: Indicates the system was scanned and no fault has been
detected.
Not Scanned: Indicates the system has not been scanned.
No Response: Indicates the system has not received a response.
Column 4 — tap to enter this system and perform further test activities.
42
Figure 4-13 List Tab Screen
Control Unit
The Control Unit allows you to manually locate a required control system for testing
through a series of choices. Simply follow the menu-driven procedure, and make proper
selection each time; the program will guide you to the new energy function menu after a
few choices you've made.
Tap the Control Unit in the Navigation Bar on the left side of the New Energy Main
Screen (Figure 4-10) to enter the Control Unit screen.
43
Figure 4-14 Control Unit Screen
Available functions in the Control Unit screen may vary by vehicle. The function menu
may include:
ECU Information — displays detailed ECU information . Select to display
information screen.
Trouble Codes — contains Read Codes and Erase Codes. The former displays
detailed DTC information retrieved from the vehicle control module, the latter
facilitates you to erase DTCs and other data from the ECU.
Live Data — retrieves and displays live data and parameters from the vehicle's ECU.
Active Test — provides specific subsystem and component tests. This selection
may display as Actuators, Actuator Test or Function Tests. Available test vary by
vehicle.
ECU Information
This function retrieves and displays the specific information for the tested control unit,
including unit type and version numbers.
44
Figure 4-15 ECU Information Screen
1 . New Energy Toolbar Buttons — see Table 4-2 New Energy Toolbar Buttons for
detailed descriptions of the operations of each button.
2. Current Directory Path
3. Status Information Bar
4. Navigation Bar
5. Main Section — the left column displays the item names; the right column displays
the specifications or descriptions.
6. Function Button — in this case, only an ESC button is available; tap it to exit after
viewing.
Trouble Codes
Read Codes
This function retrieves and displays the DTCs from the vehicle control system. The Read
Codes screen varies for each vehicle being tested . For some vehicles, freeze frame data
can also be retrieved for viewing. A sample Read Codes screen displays as below:
45

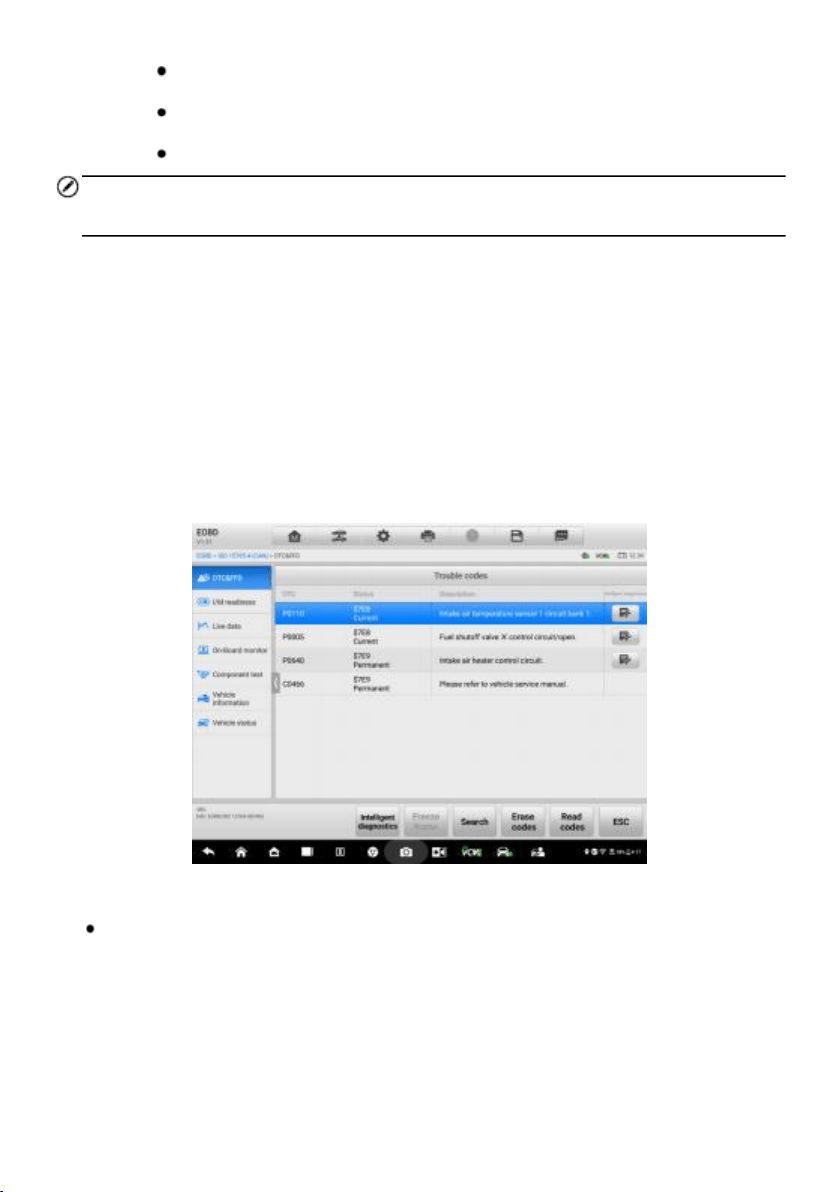

Figure 4-16 Read Codes Screen
1. New Energy Toolbar Buttons — see Table 4-2 New Energy Toolbar Buttons for
details.
2. Current Directory Path
3. Status Information Bar
4. Navigation Bar
5. Main Section
Column 1 — displays the retrieved codes from the vehicle.
Column 2 — indicates the status of the retrieved codes.
Column 3 — detailed descriptions for the retrieved codes.
Column 4 — provides access to the Intelligent Diagnostics screen.
6. Function Buttons
Intelligent Diagnostics — tap to enter the Intelligent Diagnostics screen to
check related repair cases and help information.
Freeze Frame — icon displays when freeze frame data is available for viewing;
Tap icon to display data screen. The Freeze Frame interface is similar to that of
the Read Codes interface and share similar operations.
Search — tap to search the selected DTC for additional information on the
Internet.
Erase Codes — tap to erase codes from the ECU. It is recommended that DTCs
are read and needed repairs are performed before erasing codes.
46
Read Codes — retrieves and displays the DTCs from the vehicle control system.
The Read Codes screen varies for each vehicle being tested.
ESC — tap it to return to the previous screen or exit the function.
Erase Codes
After reading the retrieved codes from the vehicle and certain repairs have been made,
you can erase the codes from the vehicle using this function. Before performing this
function, make sure the vehicle's ignition key is in the ON (RUN) position with the engine
off.
To erase codes
1. Tap Erase Codes on the Function Buttons.
2 . A warning message displays to inform you of data loss when this function is
applied.
a) Tap Yes to continue. A confirming screen displays when the operation is
successfully done.
b) Tap No to exit.
3. Tap ESC on the confirming screen to exit Erase Codes.
4. Check the Read Codes function again to ensure the operation is successful.
Live Data
When this function is selected, the screen displays the data list for the selected module.
The parameters display in the order that they are transmitted by the ECU, so expect
variation among vehicles.
Gesture scrolling allows you to quickly move through the data list. Touch the screen and
drag your finger up or down to reposition the parameters being displayed if the data
occupies more than one screen. The figure below displays a typical Live Data screen:
47
Figure 4-17 Live Data Screen
1. Main Section
Name Column — this column displays the parameter names.
a) Check Box — tap the check box to the left of a parameter name to select
the item. Tap the check box again to deselect it.
b) Drop-down Button — tap the drop-down button on the right side of the
parameter name to open a submenu that provides optional modes in which
to display the data.
Value Column — displays the values of the parameters.
Unit Column — displays the unit for the parameter values.
To change the Unit mode, tap the Settings button in the new energy toolbar
and select a required mode. SeeUnit.
Display Mode
There are four types of display modes available for data viewing, allowing you to view
various types of parameters in the mode best suited to represent the data .
Tap the drop-down button on the right side of the parameter name to open a submenu.
A total of 7 buttons will be displayed: The 4 buttons to the left represent different data
display modes, plus one Information button, active when additional information is
available, and one Unit Change button, for switching the unit of displayed data, and one
Trigger button, tap to open the "Trigger Settings" window.
Each parameter item displays the selected mode independently.
48
Analog Gauge Mode — displays the parameters in gauge charts.
Text Mode — the default mode that displays the parameters as a text list.
NOTE
Status parameters, such as a switch reading like ON, OFF, ACTIVE, and ABORT can
only be displayed in Text Mode. Value parameters, such as a sensor reading, can be
displayed in both text and graph modes.
Waveform Graph Mode — displays the parameters in waveform graphs . In this
mode, five control buttons will display on the right side of the parameter item,
allowing you to manipulate the display status.
Figure 4-18 Waveform Graph Mode Screen
1) Settings Button (SetY) — sets the minimum and maximum value of the Y axis.
2) Scale Button — changes the scale values. There are four scales available for
the X axis: x1, x2, x4 and x8. There are three scales available for the Y axis: x1,
x2, and x4.
3) Edit Button — edits the waveform color and the line thickness .
4) Zoom-in Button — tap once to display the selected data graph in full screen .
5) Exit Button — tap to exit the waveform graph mode.
Full Screen Display — this option is only available in the waveform graph mode,
and mostly used in Graph Merge status for data comparison. There are four control
buttons available on the top-right side of the screen under this mode.
Scale Button — tap to change the scale values below the waveform graph.
49
There are four scales available for the X axis: x1, x2, x4 and x8. There are three
scales available for the Y axis: x1, x2, and x4 .
Edit Button — tap to open an edit window, in which you can set the waveform
color and the line thickness displayed for the selected parameter item.
Zoom-out Button — tap to exit full screen display.
Exit Button — tap to exit the waveform graph mode.
To edit the waveform color and line thickness
1. Select parameter items to display in Waveform Graph mode.
2. Tap the Edit Button, and an edit window displays.
Figure 4-19 Waveform Edit Screen
3. The parameter item is selected automatically in the left column .
4. Select a color from the second column.
5. Select a line thickness from the right column.
6. Tap Done to save the setting and exit, or tap Cancel to exit without saving.
NOTE
In full screen display, please edit the waveform color and line thickness by tapping the
Edit Button on the top-right side of the screen.
Digital Gauge Mode — displays the parameters in the form of a digital gauge graph.
Trigger Settings
On the trigger settings screen, you can set a standard range by filling in a minimum value
and a maximum value. When exceeding this range, the trigger function will be executed
50
and the device will automatically record and save the generated data. You can check the
saved live data by tapping the Review button at the bottom of the screen.
Tap the drop-down button on the right side of the parameter name to open a submenu.
The Trigger button is the last one in the submenu. Tap to display the trigger setting
window.
Figure 4-20 Trigger Settings Screen
Two buttons and two input boxes are available in the Trigger Settings window.
a) Trigger On — switches the trigger on and off. The trigger is ON by default.
b) Buzzer Alarm — switches the alarm on and off. The alarm function makes a beep
sound as an alert when the data reading reaches the preset minimum or maximum
point. The buzzer alarm will only sound at the first trigger.
c) MIN — tap this input box to display a virtual keyboard to enter the required lower
limit value.
d) MAX — tap this input box to display a virtual keyboard to enter the required upper
limit value.
To set a trigger
1. Tap the drop-down button on the right side of the parameter name to open a
submenu.
2. Tap the Trigger button on the right side of the submenu to open the trigger
settings window.
3. Tap the MIN input box and enter the required minimum value.
51
4. Tap the MAX input box and enter the required maximum value.
5. Tap OK to save the setting and return to the Live Data screen; or tap Cancel to
exit without saving.
When the trigger is successfully set, a trigger mark displays in front of the parameter
name. The mark is gray when it is not triggered, and displays orange when triggered.
Moreover, two horizontal lines display on each of the data graphs ( when Waveform
Graph Mode is applied) to indicate the alarm point. The limit lines are shown in different
colors to differentiate them from the parameter waveforms.
2. Function Buttons
The operations of the available functional buttons on the Live Data screen are described
below:
Cancel All — Tap this button to cancel all selected parameter items. Up to 50
parameters can be selected at one time.
Show Selected/Show All — tap this button to switch between the two options; one
displays the selected parameter items, and the other displays all the available items.
Graph Merge — tap this button to merge selected data graphs (for Waveform Graph
Mode only). This function is very useful when comparing different parameters.
NOTE
This mode supports Graph Merge of 2 to 5 parameters that can be represented digitally.
Non-digital parameters are not supported .
To merge selected data graphs
1) Select parameter items to be merged.
2) Tap the Graph Merge button at the bottom of the Live Data screen.
a) This mode only supports parameters that can be represented digitally. If
non-digital parameters are selected, a message will display advising the
user that the selected parameters are not supported in this mode and to
select 2 to 5 digital parameters. Tap the Got It button to return to the
previous screen and select supported parameters.
b) If parameters are selected that are not supported in this mode, a message
will display advising the user to selected only parameters that are
supported. A message will also display if more than 5 parameters have
been selected. Please select 2 to 5 of the supported parameters and tap
the OK button to merge.
3) Tap the Cancel Merging button at the bottom of the Live Data screen to cancel
merge.
To Top — moves a selected data item to the top of the list.
52
Setting — tap this button to set recording duration.
To set live data record duration
1. Tap the Setting button at the bottom of the Live Data screen.
2. Tap the > button to the right of Recording time after trigger bar and select a
time length.
3. Tap OK to save the setting and return to the Live Data Setting screen; or tap
the X button at the upper-right corner to exit without saving.
4. Tap Done at the upper-right corner of the Live Data Setting screen to confirm
and save the setting, and return to the Live Data screen; or tap Cancel to exit
without saving.
Clear Data — tap this button to clear all cached live data.
Freeze — displays the retrieved data in freeze mode.
Previous Frame — moves to the previous frame of frozen data.
Next Frame — moves to the next frame of frozen data.
Play/Pause — tap to play/pause the frozen data.
Resume — tap to exit the freeze data mode and return to normal data display.
Record — starts recording the live data of the selected data items. Tap the Record
button at the bottom of the Live Data screen. A message will display prompting user
to select parameters to record. Tap the Got It button to confirm. Scroll down and
select data to record. Tap the Record button to start recording. Tap the Resume
button to stop recording. The recorded live data can be viewed in the Review section
at the bottom of the Live Data screen. The recorded data can also be reviewed in
the Data Manager application.
Resume — Tap this button to stop data recording and to return to normal data
display.
Flag — this button displays when the Record function is applied. Tap this button
to set flags to note points of interest when recording data. Notes can be added
during playback in Review or Data Manager. Select the preset flag to open a
popup window and display a virtual keyboard to input notes.
Review — review the recorded data. Tap the Review button to display a recording
list, and select one item to review.
NOTE
Only the data recorded during the current operation can be reviewed on the Live Data
screen. All the historical recorded data can be reviewed in "Review Data" in the Data
Manager application.
Previous Frame — switches to the previous frame of recorded data.
53
Next Frame — switches to the next frame of recorded data.
Play/Pause — tap to play/pause the recorded data.
Show Selected — display the selected parameter items .
Graph Merge — merges selected data graphs.
Back — exits the review, and returns to the Live Data screen.
Back — returns to the previous screen or exits the function.
Active Test
The Active Test function is used to access vehicle-specific subsystem and component
tests. Available tests vary by vehicle.
During an active test, the tablet sends commands to the ECU to activate the actuators.
This test determines the integrity of the system or part by reading ECU data, or by
monitoring the operation of the actuators . Such tests may include switching a solenoid,
relay, or switch, between two operating states.
Selecting Active Test displays a menu of test options. Available tests vary by vehicle .
Select test from menu options. Follow the instructions displayed on the screen to
complete test. Procedures and instructions vary by vehicle .
Figure 4-21 Active Test Screen
54
The function buttons in the lower-right corner of the Active Test screen manipulate the
test signals. The operational instructions are displayed in the main section of the test
screen. Follow the on-screen instructions and make appropriate selections to complete
the tests.
Tap the ESC functional button to exit the test when finished.
HV System Diagnostics
Ultra EV is able to perform diagnosis on high-voltage (HV) system of new energy vehicles.
Tap New Energy to enter the vehicle menu. The icon tagged on the vehicle makes
indicates that the HV system can be diagnosed.
In most cases, HV system list appears on the main screen of HV System Diagnostics.
Additionally, a System Block Diagram will be displayed for some new energy vehicles,
such as BMW, Tesla, BYD, GM, Audi, Toyota, etc.
Tap HV System Diagnosis on the Navigation Bar of the New Energy Main Screen to
enter the interface, which displays the System List and System Block Diagram.
A System List Page

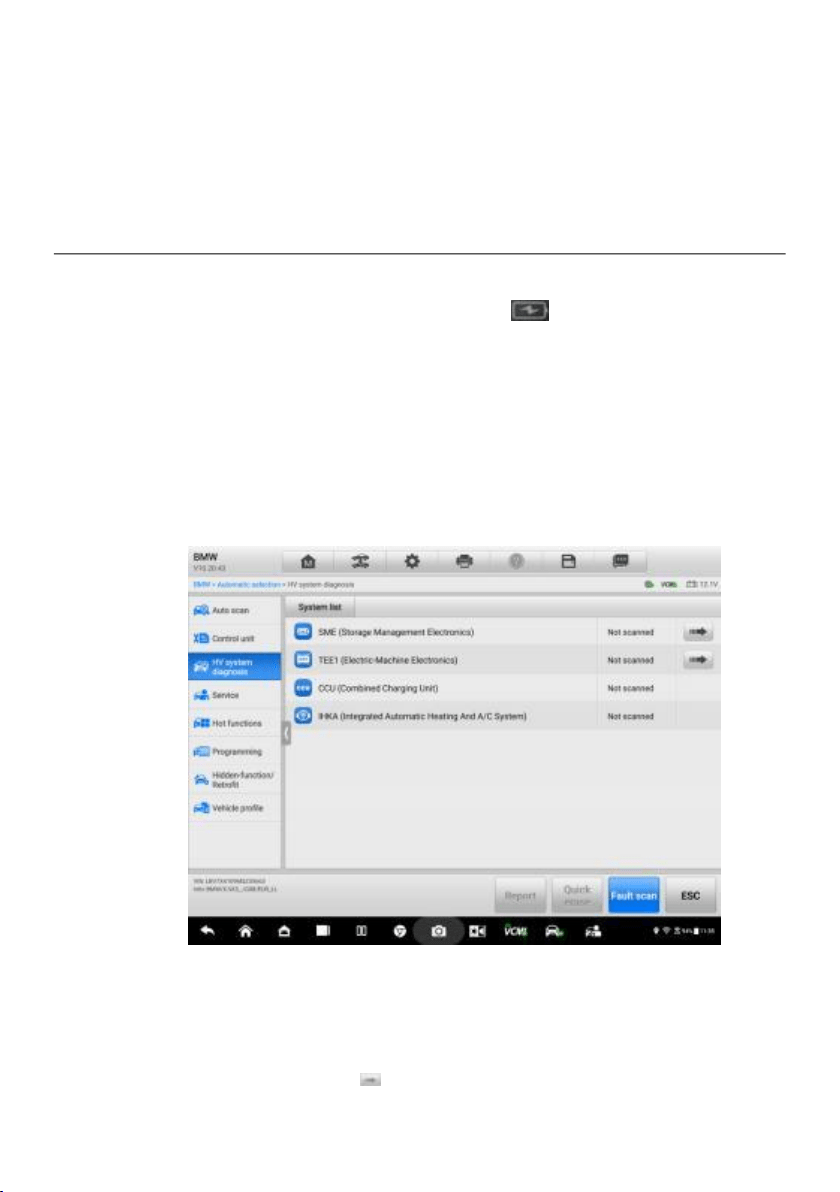

Figure 4-22 System List Screen
Column 1 — indicates system icons and names.
Column 2 — indicates scanning status.
Column 3 — tap the button to enter the system to perform further diagnostic
activities.
55
To scan HV systems and clear codes
1. Tap New Energy on the MaxiSys Job Menu. Select corresponding vehicle
information to enter the New Energy Main Screen.
2. Select HV System Diagnosis on the Navigation Bar.
3 . Tap Fault Scan on the bottom of the System List screen to scan the HV
system. The quantity of DTCs will show on the upper-right corner of the screen.
SeeAuto Scan Resultsfor details.

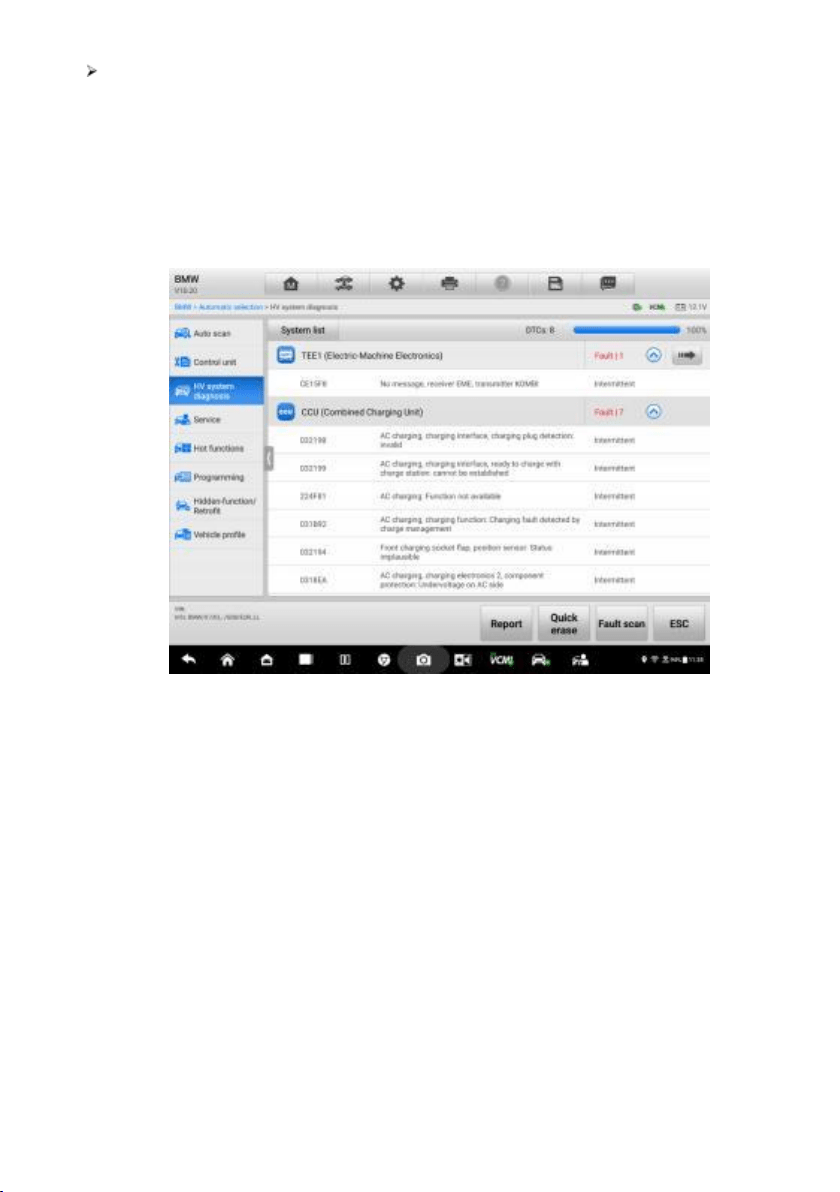

Figure 4-23 Scan Results of System List
4. Tap Quick Erase on the Function Button menu. A warning message appears
to inform you of potential data loss when this function is applied.
a) Tap Yes to continue. A confirmation screen appears when the operation
is successful.
b) Tap No to exit.
B System Block Diagram Page
The System Block Diagram Page shows the component layout of the vehicle’s HV
systems.
56
Figure 4-24 System Block Diagram Screen
System List >SME (Storage Management Electronics)
After scanning the HV systems, select SME, then tap the button to enter the SME
diagnostic program where you will be able to view battery pack information and perform
special functions. The available diagnostic functions will vary among different vehicles.
57
Figure 4-25 SME Screen
Battery Pack Information
A. Battery Pack Status
Tap Battery Pack Information on the SME screen to get access to the detailed
information of the battery pack, including SOC/SOH, total voltage, total current, pack
voltage delta, temperature, etc.
NOTE
The available functions displayed in the screen may vary among different battery packs.
58
Figure 4-26 Battery Pack Status Screen
1. Main Section
The first row displays the battery pack status:
SOC: State of Charge, reflecting the remaining volume of the battery. When
the battery is fully discharged, the value of SOC equals to 0; when the battery
is fully charged, the SOC value appears 100%.
SOH: State of Health, indicating functionality status of the battery. 100%
means the battery is new and sound and 0% represents the battery is scraped.
Total Current/Total Voltage: shows the total current and voltage inside of the
battery pack and checks whether there is something wrong for current or
voltage.
Pack Voltage Delta: shows voltage difference of cells. The voltage difference
of battery cells is one of the essential indicators to reflect battery performance.
The smaller the voltage difference is, the better the performance; the larger
the voltage difference is, the worse the performance.
Temperature: indicates temperature of the battery pack. The lifetime and
safety of battery pack is affected tremendously by temperature. If the
temperature is too high, it may cause safety issues. If it’s too low, it will reduce
the lifetime of the battery.
59
The second row displays maintenance recommendations and the quantity of
modules.
Maintenance Recommendations — monitors average voltage, differential
voltage, maximum and minimum value of modules, providing warnings and
maintenance suggestions.
Number — indicates the quantity of modules.
The third row shows the details of each module. Tap each module to view its
temperature, voltage difference, voltage of each cell, SOC, and more.
2. Function Buttons — in this screen only Module Location and ESC are available.
Tap Module Location to display the location so as to easily position the battery
module for troubleshooting. Tap ESC to exit the screen.
Figure 4-27 Module Location Screen
B. Battery Pack Information
The Battery Pack Information Screen displays parameter names (shown on left column)
and specifications (shown on right column).
61
Figure 4-29 Other Live Data Screen
System Block Diagram
The System Block Diagram screen displays various components and their relations to
HV system in the form of block diagram. Each box stands for an individual component of
HV system. A HV component or a LV component related to HV control is distinguished
by a HV symbol. The components are connected to each other by different lines, which
represent HV line circuits, LV line circuits for HV interlocks, power detection circuits, etc.
The System Block Diagram may vary among vehicles. This section uses BMW as an
example.
NOTE
Be careful when you work with HV components or LV components related to HV control.
62
Figure 4-30 System Block Diagram Screen
Tap the button on the upper-right corner on the System Block Diagram screen to
view detailed information. Tap the button on the bottom-right corner to enter full-
screen mode. Tap the button again to exit.
Description — describes the profile and terms for easy understanding and use.
Legend — contains Component Code and Component Description.
63
Figure 4-31 Description Screen
Figure 4-32 Legend Screen
Select a component to view its related information and operation guide, such as
Component, Wiring, and Connector. The functions may vary by vehicle. Follow the on-
screen guide to complete the operation.
64
Figure 4-33 Component Screen
Figure 4-34 Wiring Screen
65
Figure 4-35 Connector Screen
There are some buttons that appear when you enter the Component, Wiring, or
Connector screens. The following table will describe those buttons in brief.
Button
Description
Component: tap to open content, including Components,
Component Location, Function Description, and Notes.
Wiring: tap to view the component codes and descriptions and
search targeted components.
Tap to enter full screen display.
Exits full screen display.
Tap to hide irrelevant circuits. Tap again to unhide them.
Resets the device to factory default settings.
ESC
Exits the current screen.
Special Function
These functions perform various component adaptations, including the recalibration or
configuration of certain components after repairs or replacements have been completed .
The special functions may vary among different vehicles. Follow the on-screen
instructions to complete operation.
Programming
66
Since the introduction of OBDII and leading up to modern Hybrids and EVs, hardware
and software technologies in cars have been advancing at an exponential rate. Updating
software may be the only way to fix the following issues:
Drivability
Fuel Efficiency
Power Loss
Fault Codes
Durability of Mechanical Parts
The Programming function is used to re-flash the vehicle control modules, which allows
you to update the computer software of the vehicle to the latest version, as well as to
reprogram adaptive data of certain components after making repairs or replacements.
NOTE
The programming function applies only when the
device, which serves as a PassThru interface to
transfer data to the vehicle's ECU
vehicle is connected with a VCMI
establish communication with and
Available programming operations vary by test vehicle. Only the available operations
display in the tablet menu.
There are two general types of programming operations:
A. Coding — also known as Teach-in Program, or Component Adaptation, is used to
reprogram adaptive data for vehicle control modules after repairs or replacements
of vehicle parts.
B. Reprogramming — downloads the latest version of software from the online server
database through Internet access (this procedure is done automatically when the
tablet is connected to the Internet, so there is no need to check for software updates
yourself), and reprograms the newest version into the vehicle's ECU.
NOTE
Ensure that the tablet is connected to a stable internet access before applying the ECU
programming function, so that the tablet is able to obtain access to the vehicle
manufacturer's server for update service.
Selecting the Programming function opens a menu of operation options that varies by
vehicle make and model. Selecting a menu option either displays a programming
interface or opens another menu of additional choices. Follow all screen instructions
67
while performing the programming operations. How and what information is presented
on the screen vary by the type of operation being performed.
Coding
The main section of the Coding screen displays a list of vehicle components and the
coding information that mainly consists of two parts:
1. All available systems for coding are displayed on the left side, and the coding data
or value on the right side.
2 . The bottom of the main section displays the function buttons that enable you to
manipulate the operation.
Check the vehicle condition and the coding information carefully . Use the function button
to edit Codes for the corresponding components . Tap Send when you finish editing all
items. When the operation is completed, an execution status message such as
Completed, Finished or Successful, may display.
Tap the ESC button to exit the function.
Reprogramming
Before reprogramming begins
It is mandatory that Ultra EV tablet is connected to a stable Wi-Fi network.
The tablet must be connected to the VCMI device via USB cable.
The tablet battery must be fully charged during module programming. Connect the
tablet to a charger if needed.
Attach battery maintainer to vehicle battery to ensure a steady voltage is maintained
throughout programming. Voltage requirements differ by vehicle manufacturer.
Consult vehicle manufacturer recommendations prior to programming a module.
Do not quit the application during a module reprogramming as the process may fail
and may also result in permanent damage to the module.
Typical reprogramming operations require you to input and validate VIN number first.
Tap the input box and enter the correct number. The programming interface then displays.
The main section of the reprogramming interface offers information of the hardware, the
current software version and the newest software versions to be programmed into the
control units.
A series of on- screen operational instructions will display to guide you through the
programming procedure.
68
Carefully read the on-screen information and follow the instruction to execute the
programming procedure.
Re-flash Errors
IMPORATANT
When reprogramming onboard, always make sure the vehicle battery is fully charged
and in good working condition. During reprogramming, the operation may fail if voltage
falls below the proper operation voltage. Sometimes a failed operation can be recovered ,
but the failed reprogramming can also ruin the control module. We recommend
connecting an external battery maintainer to the vehicle to ensure a steady voltage is
maintained throughout programming . The required voltage differs by vehicle
manufacturer. Consult vehicle manufacturer for correct voltage to be maintained.
Occasionally a flash update procedure may not complete properly. Common causes of
flash errors include poor cable connections between the tablet, VCMI, and vehicle, the
vehicle ignition being switched off before the flash procedure is complete, or low vehicle
battery voltage.
If the process quits, recheck all the cable connections to assure good communications
and initialize the flash procedure. The programming procedure will automatically repeat
if the previous operation does not succeed.
Diagnostic Report
Pre-Scan and Post-Scan
To perform the pre-scan and post-scan functions
1. Auto Scan the Vehicle — the Auto VID function can automatically identify the
vehicle and its equipped systems. All available modules in all systems will be
scanned automatically. Then DTCs and code details will be listed.
2. Print Pre-scan Report — vehicle images can be taken with tablet and attached
to scan report. The report file can be generated and submitted. The report can
be customized with shop and vehicle information.
3. Repair Vehicle — creates efficient repair plan from the start.
4. Auto Scan Repaired Vehicle — ensures no new faults were created during
repair and no DTCs are present at completion.
5. Print Post-scan Report — proves all DTCs on Pre-scan report are fixed.
69
Diagnostic Report
Diagnostics reports can be reviewed, saved, and printed in multiple applications of the
Ultra EV platform.
a) Via the History function:
Tap New Energy on the MaxiSys Job Menu, and tap History in the Top
Toolbar.
Figure 4-36 History Screen
Select a history record, and tap the button in the upper-right corner to
view the PDF document, print, email or delete the historical test.
70
Figure 4-37 Historical Test Screen
b) Via the Auto Scan function:
Enter the Auto Scan page and tap Fault Scan in the Function Button Bar at
the bottom of the screen.
When the system scan is completed, tap Report in the Function Button Bar at
the bottom of the screen.
Tap the button in the New Energy Toolbar, and select Save All
Data/Save Report to save the PDF document or select Take a Screenshot
to save the screenshot of the current page.
71
Figure 4-38 Auto Scan Screen 1
Figure 4-39 PDF Document Screen
c) Via the functions on the New Energy Toolbar:
The diagnostic report can also be viewed from New Energy diagnostics
functions screen including Auto Scan, Read Codes, Live Data, and Active Test.
72
Tap the button on the New Energy Toolbar, and select Save All
Data/Save Report to save the PDF document or select Take a Screenshot
to save the screen shot of the current page.
Figure 4-40 Trouble Codes Screen
Diagnostic Report Cloud Sharing
There are three ways accessing Report Cloud Sharing function:
Via the History function;
Via the Auto Scan function;
Via the functions on the Navigation Bar.
Take Via the History function as an example.
1. Tap Get Report to save the report on the Historical Test screen (Figure 4-37).
2. Fill in the License plate and Odometer reading, then tap Save.
3. When the report is saved successfully, tap View Report to view the local report(s).
Alternatively, the stored reports can be accessed by tapping Report on the Data
Manager application.
4. Note that if the report displays , it means the report has been uploaded to cloud
successfully and can be shared with others. If the report displays , it means
the report has failed to upload to the cloud and cannot be shared. You can check
73
the status from the Report List screen by tapping Report on the Data Manager
application.
5. Tap on the report that displays , then select Report Cloud Sharing.
6. There are three ways to share report in the cloud: scan the QR code, send by email,
and send by SMS (via phone number).
Figure 4-41 Report Sharing Screen
NOTE
The figure is for reference only. The actual QR code for each report may be different.
Exit New Energy application
The New Energy application operates while communication with the vehicle is still active .
It is important to properly exit from the diagnostics operation interface to stop all
communications with the vehicle before closing the New Energy application.
NOTE
Damage to the vehicle electronic control module (ECM) may occur if communication is
disrupted. Ensure all forms of communication link such as data cable, USB cable, and
wireless network or LAN, are properly connected throughout the test. Exit all interfaces
before disconnecting the test cable and power supply.
74
To exit the New Energy application
1. On an active diagnostic screen, tap the Back or ESC functional button to exit a
diagnostic session; Or
2. Tap the Vehicle Swap button on the new energy toolbar to return to the Vehicle
Menu screen.
3. On the vehicle menu screen, tap the Home button in the top toolbar; or tap the
Back button on the navigation bar at the bottom of the screen. Or
4. Tap the Home button on the new energy toolbar to exit the application directly
and return to the MaxiSys Job Menu.
Now, the New Energy application is no longer communicating with the vehicle and it is
safe to open other MaxiSys applications, or exit the MaxiSys Diagnostic System and
return to the Android System's Home screen.
75
5 Battery Pack Test
Using the Autel EVDiag Box, Ultra EV is able to establish communication with the vehicle
batteries to perform the Battery Pack Test function.
The Battery Pack Test function has a vehicle mode, which enters diagnostic interface
through selecting vehicle information. The battery pack data, including SOC/SOH, total
voltage, total current, pack voltage delta, and temperature can be viewed on this mode.
Ultra EV supports the battery pack test of mainstream vehicles such as Tesla, BMW, GM,
Audi, BYD, Honda, Toyota, Lexus, etc. The actual function menu may vary among
different vehicles.
IMPORTANT
This product must be operated only in accordance with local regulations and by
properly qualified personnel. Only HV technicians and HV experts are allowed to
perform HV related operations.
Ensure that the battery pack has passed the insulation test. Before performing the
test function, be sure to wear proper protective equipment, such as a helmet,
protective suit, work shoes, and protective gloves.
Getting Started
To activate the Battery Pack Test function
1. Connect the main cable V2.0 to the Vehicle Data Connector on the VCMI and
tighten the thumb screws.
76
Figure 5-1 VCMI Connecting to Main Cable V2.0
2. Connect the cable’s 16-pin adapter to the OBDII connector of the EVDiag Box.
Figure 5-2 VCMI Connecting to EVDiag Box
3. Power up the tablet. Ensure that the tablet battery has sufficient power.
78
Figure 5-5 Tap Battery Pack Test
Figure 5-6 Vehicle Mode Screen
6. Select the vehicle manufacturer that you want to test. Next, check the
Technical Certification shown on the screen and tap OK to confirm.
79
Figure 5-7 Technical Certification Screen
NOTE
After the Technical Certification is confirmed, the Risk Warning and Disclaimer
will pop up. Please read it carefully and tap Accept to continue.
7. Read the Safety Precautions shown on the screen and tap OK to confirm.
80
Figure 5-8 Safety Precautions Screen
8. Select vehicle/battery information accordingly.
9. Connect the EVDiag Box with a battery pack as per the on-screen diagram.
Connection Diagram:
Figure 5-9 Adapter Connection Diagram
81
Figure 5-10 Breakout Lead Connection Diagram
NOTE
The required adapter or breakout leads may vary by vehicles. Please make
the correct connection according to your actual situation.
10. Power up the EVDiag Box. Ensure the EVDiag Box is connected to the DC
power supply. Tap OK on the tablet’s Connection Diagram screen to confirm
the connection. The Main Screen will appear once the link has been
established.
NOTE
After the EVDiag Box is powered up, a green check will appear at the bottom-
right corner of the EVDB icon.
Figure 5-11 Main Menu on Vehicle Mode
Vehicle Mode
82
Tap the Battery Pack Information button on the Main Screen, the detailed battery pack
data will be read and indicated automatically, such as SOC/SOH and modules location.
Besides, maintenance suggestions on the battery pack will be provided.
Battery Pack Information
To view the battery pack information
1. Tap Battery Pack Information on the Main Menu (Figure 5-11).
2. There are three items on the screen: Battery Pack Status, Battery Pack
Information and Other Live Data.
3. Tap one of them to view the corresponding information.
Figure 5-12 Battery Pack Information Screen
83
6
Diagnostics
The Diagnostics application can access the electronic control module of multiple vehicle
control systems, including but not limited to the engine, transmission, antilock brake
system (ABS), and airbag system (SRS).
Ultra EV can not only perform professional diagnosis to new energy vehicles, but to fuel
cars and hybrid vehicles. Before performing diagnostics function, refer to Establish
Vehicle Communication and Vehicle Identification. Connect the test vehicle with the
tablet through the VCMI device.
To perform Diagnostics function
1. Establish a vehicle communication through VCMI. See Establish Vehicle
Communicationfor more details.
2. Identify the test vehicle by any of the vehicle identification ways supported by
the tablet. SeeVehicle Identificationfor more details.
3. Enter test system from Auto Scan or Control Unit screen.
4. Perform diagnosis on the left Navigation Bar.
The functions in the left Navigation Bar, such as Auto Scan, Control Unit, Service, Hot
Functions, Programming, and Vehicle Profile, are similar with those of the New Energy
application. Refer toNew Energyfor detailed operations.
Generic OBDII Operations
The OBDII/EOBD vehicle diagnosis option offers a quick way to check for DTCs, isolate
the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior
to emissions certification testing, verify repairs, and perform other emissions- related
services. The OBDII direct access option is also used for testing OBDII/EOBD-compliant
vehicles that are not included in the Diagnostics database. Diagnostics toolbar buttons
at the top of the screen are available for specific vehicle diagnostics. SeeTable 4-2 New
Energy Toolbar Buttonsfor details.
84
General Procedure
To access the OBDII/EOBD diagnostics functions
1. Tap the Diagnostics application button on the MaxiSys Job Menu. The Vehicle
Menu displays.
2. Tap the EOBD button. There are two options to establish communication with
the vehicle.
Auto Scan — select it to establish communication using each protocol in
order to determine which one the vehicle is using.
Protocol — select it to open a submenu of various protocols. A
communication protocol is a standardized way of data communication
between an ECM and a diagnostic tool. Global OBD may use several
different communication protocols.
3. Select a specific protocol if the Protocol option is selected. Wait for the OBDII
Diagnostic Menu to appear.
Figure 6-1 OBDII Diagnostic Menu
4. Select a function option to continue.
DTC & FFD
I/M Readiness
Live Data
O2 Sensor Monitor
On-Board Monitor
85
Component Test
Vehicle Information
Vehicle Status
NOTE
Support functions may vary by vehicles.
Function Descriptions
This section describes the various functions of each diagnostic option:
DTC & FFD
When this function is selected, the screen displays a list of Stored Codes and Pending
Codes. When the Freeze Frame data of certain DTCs are available for viewing, a
snowflake button will display on the right side of the DTC item. The Erase Codes and
Read Codes functions can be applied by tapping the function buttons at the bottom of
the screen.
Figure 6-2 DTC & FFD Screen
Current Codes
Current codes are emission-related DTCs from the ECM of the vehicle. OBD
II/ EOBD Codes have a priority according to their emission severity, with higher-
priority codes overwriting lower-priority ones. The priority of the code determines the
illumination of the Malfunction Indicator Light (MIL) and the codes erase procedure.
Manufacturers rank codes differently, so DTCs may vary by vehicle.
86
Pending Codes
These are codes whose storing conditions have been met during the last drive cycle,
but need to be met on two or more consecutive drive cycles before the DTC stored.
The purpose of displaying pending codes is to assist the service technician after a
vehicle repair when diagnostic information is cleared, by reporting test results after
a single driving cycle.
b) If a test fails during the driving cycle, the DTC associated is reported. If the
pending fault does not occur again within 40 to 80 warm-up cycles, the fault is
automatically cleared from memory.
c) Test results reported do not necessarily indicate a faulty component or system.
If test results indicate another failure after additional driving, a DTC is stored to
indicate a faulty component or system.
Freeze Frame
In most cases the stored frame is the last DTC reported. Certain DTCs, those that
have a greater impact on vehicle emission, have a higher priority. In these cases,
DTC of the highest priority is the one for which the freeze frame records are retained.
Freeze frame data includes a "snapshot" of critical parameter values at the time the
DTC is stored.
Erase Codes
This option is used to clear all emission- related diagnostic data including DTCs,
freeze frame data and specific manufacturer-enhanced data from the vehicle ECM.
This option resets the I/M Readiness Monitor Status for all vehicle monitors to Not
Ready or Not Complete status.
A confirmation screen displays when the clear codes option is selected to prevent
accidental loss of data. Select Yes on the confirmation screen to continue, or No to
exit.
I/ M Readiness
This function is used to check the readiness of the monitoring system. It is an excellent
function to use prior to having a vehicle inspected for state emissions compliance.
Selecting I/M Readiness opens a submenu with two choices:
Since DTCs Cleared — displays the status of monitors since the last time the DTCs
are erased.
This Driving Cycle — displays the status of monitors since the beginning of the
current drive cycle.
87
Live Data
This function enables the display of real-time PID data from the ECU. Displayed data
includes analog and digital input and output, and system status information broadcast in
the vehicle data stream.
Live data can be displayed in various modes, seeLive Datafor detailed information.
O2 Sensor Monitor
This function allows retrieval and review of recent O2 sensor monitor test results stored
on the vehicle's on-board computer.
The O2 Sensor Monitor test function is not supported by vehicles that communicate using
a controller area network (CAN). For O2 Sensor Monitor tests results of CAN-equipped
vehicles, refer toOn-Board Monitor.
On- Board Monitor
This function allows you to view the results of On-Board Monitor tests. The tests are
useful after the service when a vehicle's control module memory is already erased.
Component Test
This function enables dual-directional control of the ECM so that the diagnostic tool can
transmit control commands to operate the vehicle systems. This function is useful in
determining how well the ECM responds to a command.
Vehicle Information
This function enables the display of the vehicle identification number (VIN), calibration
identification number, calibration verification number (CVN), and other information of the
test vehicle.
Vehicle Status
This function checks the current condition of the vehicle, such as the communication
protocols of OBDII modules, number of fault codes, and status of the Malfunction
Indicator Light (MIL).
88
7 Intelligent Diagnostics
Intelligent Diagnostics is a specific fault code analysis function, with which you
can
access the most comprehensive and the latest code-specific data, DTC analysis, repair
assist, repair tips, and relevant repair cases. It has been drawn from real world shop
repair orders and records and with input from experienced industry professionals .
Intelligent Diagnostics adopts the scientific data cloud computing technology to match
the specific fault code with the exact vehicle model. And the data has been thoroughly
verified by automotive maintenance professionals .
The following are main parts of the code data contained in Intelligent Diagnostics:
1. Vehicle System and Detected DTC(s)
2. Technical Service Bulletin (OEM Information)
3. DTC Analysis
4. Repair Assist
5. Repair Tips
6. Component Measurement
NOTE
Before performing the Intelligent Diagnostics function, please ensure the network is
connected successfully.
Accessing Intelligent Diagnostics Function
Auto Scan
Before starting Intelligent Diagnostics, please ensure that vehicle communication has
been established. Connect the MaxiSys Ultra Diagnostic tablet to the test vehicle through
the VCMI device. For detailed directions to establish vehicle communication with the
MaxiSys tablet, seeEstablish Vehicle Communication.
Once communication has been established, enter the New Energy/Diagnostics
application and select the vehicle model. From the left Navigation Bar, select Auto Scan.
The System List screen will display. For detailed instructions on using the Auto scan
function, seeAuto Scan.
89
Figure 7-1 System List Screen
For a number of vehicle brands , including Volkswagen, Audi, BMW, Ford, Land Rover,
Jaguar, Chrysler, Fiat, Volvo and more, a topology map is available to display the
relationship between vehicle systems.
Figure 7-2 Topology Display Screen
Scan System Faults
Once the vehicle system list or Topology mapping has been completed , tap the Fault
Scan button at the bottom of the Topology or List screen to detect the faults in the
vehicle systems.
1 ) On the List screen, tap the Fault Scan button at the bottom. After scanning, a
system with identified faults will display in red, with the number of faults displayed
90
on the right. The number of total faults will appear at the top.
Figure 7-3 Fault Scan on List Screen
2) On the Topology screen, a system with identified faults will display in orange, with
the number of faults displayed in the upper-right corner of the system icon. The
number of total faults will display on the top. If the system appears Green, it means
this system is sound and healthy; if the system appears Blue, it means the system
hasn’t been scanned; and if the system appears Gray, it means the system has no
response.
Figure 7-4 Fault Scan on Topology Screen
After scanning system faults, there are two methods to access the Intelligent Diagnostics
screen:
Access via the Intelligent Diagnostics button
information of all DTCs for the whole vehicle .
to view code- related
91
Access via the Intelligent Diagnostics icon
of a specific DTC.
Access via Intelligent Diagnostics Button
to view code- related information
After all the faults of the vehicle systems are scanned, tap the Intelligent Diagnostics
button on the lower-right corner of the screen to directly enter the Intelligent Diagnostics
screen.
Entering the Intelligent Diagnostics screen, you can find the TSB, DTC analysis, repair
assist and repair tips information of All DTCs for all the systems that have been scanned.
For detailed operation instructions, please refer toIntelligent Diagnostics Operationsfor
details.
Figure 7-5 Intelligent Diagnostics Button Screen
Access via Intelligent Diagnostics Icon
You can also use the Intelligent Diagnostics icon to enter the Intelligent Diagnostics
function to get detailed fault repair instructions of a specific DTC.
The details of the detected fault(s), including the fault code, fault description and status,
will be displayed right under the system name or module. If the Intelligent Diagnostics
function is available for this vehicle, the Intelligent Diagnostics icon will display on the
right.
On the List screen, tap the Intelligent Diagnostics icon on the right side to enter the
Intelligent Diagnostics screen directly.
92
Figure 7-6 Intelligent Diagnostics Icon Screen 1
Or on the Topology screen, once the system scan is complete, tap a system icon
( displays in orange if faults are detected) to display complete system name with the
Intelligent Diagnostics icon shown below. Tap the Intelligent Diagnostics icon to enter
the Intelligent Diagnostics screen directly.
Figure 7-7 Intelligent Diagnostics Icon Screen 2
When entering a specific system by tapping the arrow-shaped icon , you can also
access the Intelligent Diagnostic screen if the Intelligent Diagnostics function is available
for this vehicle.
93
To access the Intelligent Diagnostics screen after entering a specific system
1. On the Topology or List screen, tap the arrow icon to enter a system, the
Function menu will display. Available functions vary by vehicle.
Figure 7-8 Entering System Icon Screen (List)
Figure 7-9 Entering System Icon Screen (Topology)
2. Select Trouble Codes from the Navigation Bar on the left side and the trouble
codes screen will display.
94
Figure 7-10 Function Menu Screen
3. Tap the Intelligent Diagnostics icon to the right of the DTC description .
Or select a specific DTC from the DTC list, and then tap the Intelligent
Diagnostics button at the bottom of the screen.
Figure 7-11 Trouble Codes Screen
Intelligent Diagnostics Operations
Intelligent Diagnostics is an important and powerful function of MaxiSys Ultra EV. It
provides substantial information for intelligent diagnosis of the faults detected, offering
Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, and Component
Measurement to help you repair detected faults. It also provides relevant case
information for viewing.
95
Figure 7-12 Intelligent Diagnostics Layout
The Intelligent Diagnostics function consists of the following sections:
1. Vehicle System and Detected DTC(s) — displays the name of the vehicle
system(s) and the detected DTC(s).
2. Technical Service Bulletin — contains DTC-related recalls, TSB, and OEM
campaigns.
3. DTC Analysis — provides repair assistance information related to the fault code.
4 . Repair Assist — intelligently prioritizes DTCs and leads the user to the proper
repair.
5. Repair Tips — details the steps for determining and clearing faults.
6. Component Measurement — provides detailed information and instructional
guides on using the oscilloscope to test components for faults .
Vehicle System and Detected DTC(s)
This section displays the scanned vehicle systems that contain faults. Tap the drop-down
menu to view comprehensive information of ALL systems or switch to different fault codes
for details.
Tap the arrow button on the right to display a drop-down list of all systems along with
specific DTCs. Use your finger to touch and slide upward or downward on the screen to
review all codes in the list. Select ALL systems or select a DTC to view the corresponding
Intelligent Diagnostics information.
96
Figure 7-13 Vehicle System and Detected DTC(s) Screen
Technical Service Bulletin (OEM Information)
The Technical Service Bulletin ( TSB) function matches the selected fault code with
relevant vehicle manufacturer TSBs . All TSBs that relate to the selected DTC are listed
in the TSB display window. Select a TSB to open the TSB page and view the TSB in
details.
Figure 7-14 TSB Screen
97
DTC Analysis
On the Intelligent Diagnostics screen, the DTC Analysis contains repair assistance and
information related to the fault codes, including the fault description, condition, and
possible solution. The repair assistance information may vary by vehicle.
Figure 7-15 DTC Analysis Screen
Repair Assist
The Repair Assist displays a list of items and their descriptions, completion status, and
priorities. The higher the priority number is (1 is the highest), the earlier the related items
should be tested.
To perform Repair Assist
1. Tap Repair Assist button on the Intelligent Diagnostics screen to open the
page.
98
Figure 7-16 Repair Assist Screen 1
2. Tap the Run icon on the right to perform the selected item. Simply follow
the screen prompts and make a series of choices.
Figure 7-17 Repair Assist Screen 2
99
Table 7-1 Completion Status in Repair Assist
Name
Icon
Description
Completed
This indicates that all
branches of the procedure
are completed.
Uncompleted
This indicates that certain
branches of the procedure
is uncompleted.
Not Running
This indicates that no
branch of the procedure
has run.
3. Select a branch, then tap the Continue button to go to the next step.
Figure 7-18 Repair Assist Screen 3
4. In some cases, it is necessary to check the circuits. Tap the legend button
in the upper-right corner, and you will be able to locate the components,
connectors, wiring, and ground electrodes by tapping the names in the list
when necessary.
100
Figure 7-19 Repair Assist Screen 4
5. Some vehicles are not only supported to check the circuits, but locations of
components. Tap the Location button, the components’ location on the vehicle
will be shown.
Figure 7-20 Repair Assist Screen 5
Repair Tips
The Repair Tips function displays a range of diagnostic and repair steps, including the
information needed in order to clear the faults.
101
Figure 7-21 Repair Tips Description
Component Measurement
The component measurement section provides a general troubleshooting overview, and
guides to connect and use the oscilloscope to test components for faults. This section
may include relevant circuit or wiring diagrams, vehicle structures analysis, waveform
analysis, related DTCs, and detailed notation to aid the technician in diagnostics and
repairs.
102
8 Service
The Service section is specially designed to provide quick access to the vehicle systems
for various scheduled service and maintenance tasks. The typical service operation
screen is a series of menu-driven executive commands. Follow on-screen instructions to
select appropriate execution options, enter correct values or data, and perform
necessary actions. The application will display detailed instructions to complete selected
service operations.
Figure 8-1 Service Menu
Several most commonly used services are described in this chapter.
Oil Reset Service
Perform reset for the Engine Oil Life system, which calculates an optimal oil life change
interval depending on the vehicle driving conditions and climate. The Oil Life Reminder
must be reset each time the oil is changed, so the system can calculate when the next
oil change is required.
103
NOTE
1. Always reset the engine oil life to 100% after every oil change.
2. All required work must be carried out before the service indicators are reset. Failure
to do so may result in incorrect service values and cause DTCs to be stored by the
relevant control module.
3 . For some vehicles, the scan tool can reset additional service lights such as
maintenance cycle and service interval. On BMW vehicles for example, service
resets include engine oil, spark plugs, front/ rear brakes, coolant, particle filter, brake
fluid, micro filter, vehicle inspection, exhaust emission inspection and vehicle checks.
Electric Parking Brake (EPB) Service
This function has a multitude of usages to maintain the electronic braking system safely
and effectively. The applications include deactivating and activating the brake control
system, assisting with brake fluid control, opening and closing brake pads, and setting
brakes after disc or pad replacement.
EPB Safety
It can be dangerous to perform Electric Parking Brake (EPB) system maintenance, so
before you begin the service work, please keep these rules in mind.
Ensure that you are fully familiar with the braking system and its operation before
commencing any work.
The EPB control system may be required to be deactivated before carrying out any
maintenance/diagnostic work on the brake system. This can be done from the tool
menu.
Only perform maintenance work when the vehicle is stationary and on level ground.
Ensure that the EPB control system is reactivated after the maintenance work has
been completed.
NOTE
Autel accepts no responsibility for any accident or injury arising from the maintenance of
the Electric Parking Brake system.
Tire Pressure Monitoring System (TPMS) Service
This function allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as
well as to perform TPMS replacement and reset procedures after tire sensors are
replaced.
Battery Management System (BMS) Service
104
The Battery Management System (BMS) allows the tool to evaluate the battery charge
state, monitor the close-circuit current, register the battery replacement, activate the rest
state of the vehicle, and charge the battery via the diagnostic socket.
NOTE
1. This function is not supported by all vehicles.
2. The sub functions and actual test screens of the BMS may vary by vehicle, please
follow the on-screen instructions to make correct option selection.
The vehicle may use either a sealed lead-acid battery or an AGM (Absorbed Glass Mat)
battery. Lead acid battery contains liquid sulphuric acid and can spill when overturned.
AGM battery (known as VRLA battery, valve regulated lead acid) also contains sulphuric
acid, but the acid is contained in glass mats between terminal plates.
It is recommended that the replacement aftermarket battery has the same specifications,
such as capacity and type, as the exiting battery. If the original battery is replaced with a
different type of battery (e.g. a lead-acid battery is replaced with an AGM battery) or a
battery with a different capacity (mAh), the vehicle may require reprogramming of the
new battery type, in addition to, performing the battery reset. Consult the vehicle manual
for additional vehicle-specific information.
Diesel Particle Filter (DPF) Service
The Diesel Particle Filter (DPF) function manages DPF regeneration, DPF component
replacement teach-in and DPF teach-in after replacing the engine control unit.
The ECM monitors driving style and selects a suitable time to employ regeneration. Cars
driven a lot at idling speed and low load will attempt to regenerate earlier than cars driven
more with higher load and speed. In order for regeneration to take place, a prolonged
high exhaust temperature must be obtained.
In the event of the car being driven in such a way that regeneration is not possible, i.e.,
frequent short journeys, a diagnostic trouble code will eventually be registered in addition
to the DPF light and "Check Engine" indicators displaying. A service regeneration can be
requested in the workshop using the diagnostic tool.
Before performing a forced DPF regeneration using the tool, check the following items:
The fuel light is not on.
No DPF-relevant faults are stored in system.
The vehicle has the specified engine oil.
The oil for diesel is not contaminated.
105
IMPORTANT
Before diagnosing a problem vehicle and attempting to perform an emergency
regeneration, it is important to obtain a full diagnostic log and read out relevant measured
value blocks.
NOTE
1. The DPF will not regenerate if the engine management light is on, or there is a faulty
EGR valve.
2. The ECU must be re-adapted when replacing the DPF and when topping up the fuel
additive Eolys.
3. If the vehicle needs to be driven in order to perform a DPF service, a second person
is needed for the function. One person should drive the vehicle while the other
person observes the screen on the Tool. Do not attempt to drive and observe the
scan tool at the same time. This is dangerous and puts your life and the lives of other
motors and pedestrians at risk.
Immobilizer (IMMO) Service
An immobilizer is an anti-theft mechanism that prevents an automobile's engine from
starting unless the correct ignition key or other device is present. This device prevents
thieves from starting the car by a method known as hot wiring. Most new vehicles have
an immobilizer as standard equipment. An important advantage of this system is that it
doesn't require the car owner to activate it; it operates automatically. An immobilizer is
considered as providing much more effective anti-theft protection than an audible alarm
alone; many auto insurance companies offer lower rates for vehicles that are equipped
with an immobilizer.
As an anti-theft device, an immobilizer disables one of the systems needed to start a
car' s engine, usually the fuel supply or the ignition. This is accomplished by radio
frequency identification between a transponder in the ignition key and a device called a
radio frequency reader in thesteering column. When the key is placed in the ignition, the
transponder sends a signal with a unique identification code to the reader, which relays
it to a receiver in the vehicle' s computer control module. If the code is correct, the
computer allows the fuel supply and ignition systems to operate and start the car. If the
code is incorrect or absent, the computer disables the system, and the car will be unable
to start until the correct key is placed in the ignition.
The IMMO service can disable a lost vehicle key and program the replacement key fob.
One or more replacement key fobs can be programmed.
Steering Angle Sensor (SAS) Service
106
Steering Angle Sensor Calibration permanently stores the current steering wheel position
as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front
wheels and the steering wheel must be set exactly to the straight-ahead position before
calibration. In addition, the vehicle identification number ( VIN) is also read from the
instrument cluster and stored permanently in the steering angle sensor EEPROM. On
successful completion of calibration, the steering angle sensor fault memory is
automatically cleared.
Calibration must always be carried out after the following operations:
Steering wheel replacement
Steering angle sensor replacement
Any maintenance that involves opening the connector hub from the steering angle
sensor to the column
Any maintenance or repair work on the steering linkage, steering gear or other
related mechanism
Wheel alignment or wheel track adjustment
Accident repairs where damage to the steering angle sensor or assembly, or any
part of the steering system may have occurred
NOTE
1. Autel accepts no responsibility for any accident or injury arising from servicing the
SAS system. When interpreting DTCs retrieved from the vehicle, always follow the
manufacturer's recommendation for repair.
2. All software screens shown in this manual are examples, actual test screens may
vary by test vehicle. Pay attention to the menu titles and onscreen instructions to
make correct option selections.
3. Before starting procedure, make sure vehicle has an ESC button. Look for button on
dash.
107
9
Measurement
The Measurement application can provide all the features needed for performing
electrical and electronic circuit tests as well as monitoring signal activities on today's
vehicles.
After properly connecting with a test vehicle and communicating with MaxiSys Ultra
EV, the VCMI (Vehicle Communication and Measurement Interface) is used as an
integrated device that functions as an oscilloscope, a waveform generator, a
multimeter and a bus inspection.
Oscilloscope
An oscilloscope is a measuring instrument that shows how a signal varies with time
in a graphical way. Various signal activities can be displayed and monitored on a
two-dimensional grid. The graphical form created by a signal is called a waveform.
The voltage-time characteristic of the signal or waveform is drawn as a visual line
called the trace.
Safety Information
Follow these instructions below to reduce the risk of injury from electric shock and
prevent equipment damage.
A. Maximum input ranges
Observe all terminal ratings and warnings marked on the product.
DANGER
To prevent electric shock, take all necessary safety precautions when working
on equipment where voltages beyond the specified input range may exists.
Contact with voltages outside of the specified measuring range presents a risk
of electric shock.
To prevent injury or death, the oscilloscope must not be directly connected to
the battery. To measure battery voltages, use a differential isolating probe
specifically rated for battery use.
108
WARNING
Operation outside of the safe input range is likely to cause permanent damage to the
oscilloscope and other connected equipment.
B. Grounding
DANGER:
The scope's ground connection through the USB cable is for measurement
purposes only. The oscilloscope does not have a protective safety ground.
Do not connect the ground input (chassis) to any electrical power source. To
prevent personal injury or death, use a voltmeter to check that there is no
significant AC or DC voltage between the oscilloscope ground and the point to
which you intend to connect the ground input.
WARNING
Applying a voltage to the ground input is likely to cause permanent damage to
the oscilloscope, the attached computer, and other equipment.
To prevent measurement errors caused by poor grounding, always use the
high-quality USB cable supplied with the oscilloscope or Wi-Fi connection.
C. External connections
DANGER
To prevent injury or death, use only the power cord and adaptor supplied with the
product.
D. Environment
DANGER
To prevent injury or death, do not use the product in wet or damp conditions, or
around explosive gas or vapor.
WARNING
To prevent any damage, always use and store your oscilloscope in appropriate
environment.
109
E. Product Maintenance
The product contains no user- repairable parts. Repair, servicing, and calibration
require specialized test equipment and must be performed by Autel Tech Support or
an approved service provider.
DANGER
To prevent injury or death, do not use the product if it appears to be damaged in any
way. Stop using the product when any abnormal operations occur .
WARNING
Do not tamper with or disassemble the oscilloscope, connectors or accessories.
Internal damage will affect performance .
Do not block any of the instrument's air vents to avoid damage caused by
overheating.
When cleaning the oscilloscope, use wet soft cloth with mild detergent in water.
Do not allow water to enter the oscilloscope casing .
General Introduction
Component Locations
The input channels are located at the bottom of the VCMI device and are compatible
with many test leads and probes.
Figure 9-1 VCMI Bottom View
1. Ethernet Connector — Connects to RJ45 Network Cable
2. Vehicle Data Connector — Connects to the vehicle DLC using the provided Main
Cable.
3. Input Channel A
110
4. Input Channel B
5. Input Channel C
6. Input Channel D
The oscilloscope LED is located on the front panel of the VCMI device. When the
VCMI is properly connected and powered on, the oscilloscope LED flashes green
when operating in the oscilloscope mode.
Figure 9-2 VCMI Front View
1. Power LED
2. Battery LED
3. Waveform Generator LED
4. Multimeter LED
5. Oscilloscope LED
6. Vehicle LED
Technical Specifications
Table 9-1 Technical Specifications
Item
Description
Channels
4
Bandwidth
20 MHz
111
Item
Description
Maximum Sample Rate
1 or 2 channels: 80 MS/s*
3 or 4 channels: 20 MS/s*
* MS/s = mega samples per second
1) Select arbitrary one channel, the
maximum sample rate is 80 MS/s.
2) Select two channels (AC, BC, AD, or BD),
the maximum sample rate is also 80MS/s .
3) Select two channels (AB/CD) or more
than three channels, the maximum sample
rate is 20MS/s.
Input Ranges (Full Scale)
±50 mV to ±200V
Sensitivity
10 mV/div to 40V/div
Input Coupling
AC/DC
Input Impedance
1 MΩ in parallel with 25 pF
Vertical Resolution
12 bits
Buffer Memory
32M samples shared among active
channels
Time Base Ranges
100ns/div to 1000s/div
Connection
USB 2.0
Wi-Fi
Max. Wi-Fi Transmission
Distance
Up to 98 ft.
DC Accuracy
±1 % of full scale
Storage Humidity Range
5 to 95 % RH, non-condensing
Accessories
Autel USB Cable V2 (the V2 icon can be seen on the cable)
(SA001)
Connects the oscilloscope to the tablet to ensure reliable
112
signal transmission.
Secondary Ignition Pickup (SA273)
The BNC connector is connected to the oscilloscope to
measure the secondary ignition voltage of conventional
ignition systems and most HEI (High Energy Ignition) and DIS
(Distributorless Ignition) systems.
Scope Test Lead
(Red: SA005, Green: SA006, Blue: SA007, Yellow: SA008)
The BNC connector is connected to the oscilloscope, and the
4mm banana plug is connected to various probes .
Breakout Lead (SA151)
Enables easy access to existing automotive wiring harness
connectors for obtaining signals of various sensors. Four sizes
are available: 0.6 mm, 1.5 mm, 2.3 mm and 2.8 mm.
Flexible Back-pinning Probe (Red: SA053, Black: SA054)
Designed for back-probing under the insulation of multi-plug
terminals to detect the signal of the test component. The
flexible part can be bent and access to difficult areas. The
probe tip is not replaceable.
Back-pinning Probe Set (SA051)
Designed for back-probing under the insulation of plugs to pick
up the signal of the test component. The probe tip is
replaceable.
Multimeter Probe (Red: SA055, Black: SA056)
Designed for connecting exposed wires or terminals.
113
Small Crocodile Clips (Red: SA057, Black: SA058)
Used to connect exposed wires or terminals. SA059 (red) and
SA060 (black) for larger terminals.
Large Dolphin Clips (Red: SA059, Black: SA060)
Used to connect exposed wires or terminals, including battery
terminals. SA057 (red) and SA058 (black) for smaller
terminals.
Attenuators 20:1 (SA020)
Passive 20:1 attenuator, can output 1V when inputting a 20V
signal.
Battery Clip (Optional) (Red: SA061, Black: SA062)
Dedicated to connecting car battery terminals.
65A AC/DC Current Clamp (Optional) (SA253)
Used to measure AC or DC currents up to 65A. Two scales
are available: 1mV/10mA for 10mA to 20A, 1mV/100mA for
10mA to 65A.
650A AC/DC Current Clamp (Optional) (SA256)
Used to measure AC or DC currents up to 650A. Two scales
are available: 1mV/100mA for 100mA to 200A, 1mV/1A for
100mA to 650A.
Coil On Plug (COP) Probe (Optional) (SA271)
Used with the oscilloscope to measure the secondary ignition
voltage of COP.
114
HT Extension Lead (Optional) (SA275)
Fit the HT extension leads between the coil pack and the plugs
of the independent ignition system (COP), and then place the
(SA273) secondary ignition pickup on each lead to obtain the
secondary ignition voltage.
Getting Started
Before opening the Oscilloscope application, the VCMI device must be connected to
the tablet via the provided USB cable or Wi-Fi network. For more information, see
Establish Vehicle Communication.
Figure 9-3 Connection Diagram
To open the oscilloscope application
1. Insert the applicable test lead or probe terminal ends into the input
channel(s) to complete the connection (refer to Figure 9-3).
2. Tap the Measurement icon on the Ultra EV Job Menu. The Measurement
screen opens.
3. Tap the Oscilloscope icon to open the oscilloscope menu.
4. Select a desired testing option to continue.
115
NOTE
Please check the oscilloscope LED status indicator on the front panel of VCMI device.
The oscilloscope LED flashes green when operating in the oscilloscope mode .
Message Prompt
A message showing "Are you sure to open the waveform of Demo mode?" displays
after tapping the Oscilloscope icon and opening the oscilloscope menu . Please tap
OK to enter the demo mode or tap Cancel to exit.
A message showing "Are you sure to open the waveform data?" also displays after
the tablet and the VCMI connect successfully. Please tap OK to display the actual
waveform or tap Cancel to exit.
Oscilloscope Update
The operating software of the oscilloscope is continually optimized. Tap the Help
button in the upper toolbar and then tap the Update the APK button in the dropdown
list to update the software.
Before update the oscilloscope's software, please make sure the tablet has a stable
Internet connection.
APK Update
NOTE
The acronym APK (Android Package Kit) is used on the tablet and in this manual.
This file contains all the assets of a particular app. To update the APK , is to install
the latest version of the app on your tablet .
To update the APK
1. Tap the Help button on the upper toolbar of the screen. A dropdown menu
displays.
116
Figure 9-4 Help Screen
2. Tap the Update the APK in the dropdown menu. A confirmation message
displays.
3. Tap OK to update the software or tap Cancel to exit.
Firmware Update
To update the firmware
1. Tap the Help button on the upper toolbar of the screen. A dropdown menu
displays. (Figure 9-4)
2. Tap Update Firmware in the dropdown list. The screen will switch to the
Update section in the VCMI Management application.
NOTE
Please DISCONNECT the MaxiScope from VCMI before updating. A message
displays and tap OK to confirm that you have disconnected MaxiScope from VCMI .
117
Figure 9-5 Firmware Update Screen
3. If the current version is not the latest one. The current version and the
latest version of the OS, firmware, and scope firmware will display. Tap
Update Now to update. Please do not leave the update page during
upgrading. It takes about 5-15 minutes for the whole process.
Screen Layout and Operations
The Oscilloscope application measures changing voltages of an electrical system
over a period of time. This signal is depicted as a shape. The grid on the screen
shows divisions of voltage and time to enable measurements to be made .
Tap the Measurement icon on the MaxiSys Job Menu screen then select
Oscilloscope in the menu, the oscilloscope page displays. The screen typically
includes the following sections.
118
Figure 9-6 Oscilloscope Menu Screen
1. Upper Toolbar — seeUpper Toolbarfor details.
2. Main View Section — seeMain View Sectionfor details.
3. Lower Toolbar — seeLower Toolbarfor details.
Upper Toolbar
The upper toolbar is used for configurations of various settings and operations. The
following table provides brief descriptions of each button.
Table 9-2 Upper Toolbar
Name
Button
Description
Scope
Icon
Indicates the oscilloscope connection status. See
Scope Iconfor more information.
Start/Stop
Start or stop the oscilloscope device. See
Start/Stop Buttonfor more information.
Presets
Access preset guide. Select preset to correctly
configure oscilloscope to capture a waveform of the
specified type. See Presets Menu for more
information.
119
Name
Button
Description
Waveform
Library
Search, upload, share, open, load as reference
waveform, and follow the waveforms in the
waveform library. SeeWaveform Libraryfor more
information.
Settings
Configurations of mode setting, math channels,
waveform generator, decoding setting, startup
setting and demo setting . See Settings Menu for
more information.
Math
Channel
Tap to select math channel to display on the
screen. SeeMath Channelfor more information.
File
Print, open, save, delete the waveform data or
upload the waveform to waveform library.
Moreover, save, import the configuration and open
the recent documents . See File Menu for more
information.
Help
View the user manual, update the APK
( oscilloscope software) and firmware. See Help
Menufor more information.
Number of
Samples
Set the maximum number of samples that will be
captured on each channel. See Number of
Samplesfor more information.
Auto Scale
Set the appropriate amplitude range to display the
signal correctly. See Auto Scale for more
information.
Scope Icon
This Scope icon displays the oscilloscope connection status. A green check mark
means the tablet and oscilloscope are connected successfully; a red X means the
tablet and the scope are not connected.
Start/Stop Button
Tap the Start/Stop Button icon to start or stop the oscilloscope device .
120
Name
Button
Description
Start
Tap to start the oscilloscope and initiate sampling.
Stop
Tap to stop the oscilloscope and terminate sampling.
Presets Menu
Tap the vehicle icon button in the top navigation bar to enter the Presets Menu. This
menu offers a wide variety of preset guided information for you to view.
The frequently used test components and options are listed in the presets menu:
Actuators — Test the common car actuators such as injectors, fuel pumps,
and canister purge solenoids.
Battery Charging — Test the functions related to car charging, including
current and voltage idle test.
Combination Test — Combined test of the vehicle's sensors or actuators, such
as the crankshaft position sensor and camshaft position sensor test; the
primary ignition and crankshaft position test; the throttle position sensor and
front oxygen sensor test.
Data Communication — Test the vehicle communication buses including
CAN-bus, LIN-bus, and K-Line.
Engine Starting — Test the functions related to car starting, including starting
current and voltage test.
Ignition Systems — Test the ignition process of the vehicle, including the
voltage and current test of the primary and secondary ignition .
Sensors — Test the common car sensors such as oxygen sensors, camshaft
sensors, and crankshaft sensors.
NOTE
Do not connect to HV control signal such as the ignition control wire . It may cause
the damage to the product. The measured voltage value during the actuator test may
be different from the actual value.
121
To use the Presets menu
1. Tap the Presets button in the upper toolbar. A submenu opens.
2. Tap the desired test component or option in the left column.
Figure 9-7 Presets Menu Screen 1
3. Tap an option you need from the submenu, and if there is no preset case
or the version of the preset case is too low, tap the button to download
the new preset case you need. If the current preset case is already a new
version, the download button will not be displayed.
122

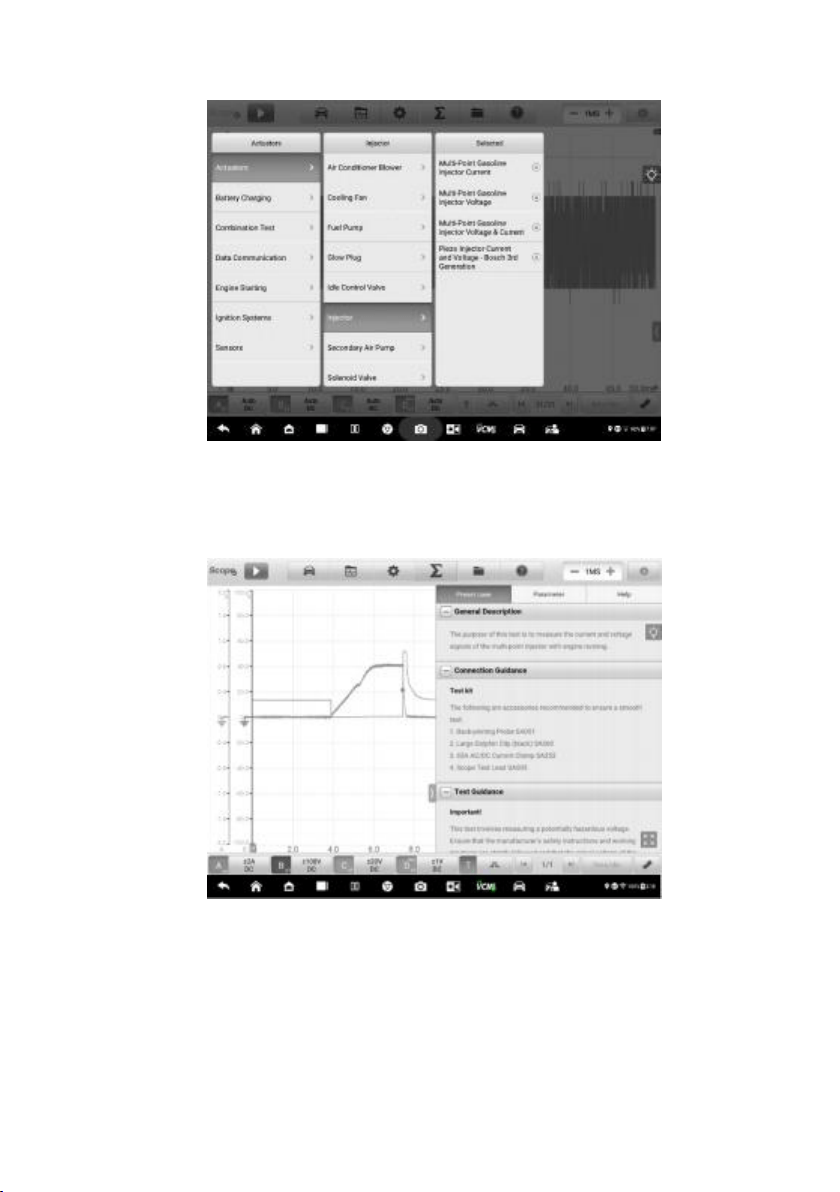

Figure 9-8 Presets Menu Screen 2
4. View the preset guided information. A reference signal waveform displays
(an injector selection is used here as an example) on the Main Screen and
the preset guided information on the right side of the screen.
Figure 9-9 Presets Display Screen
5. Tap the arrow button to hide the preset guided information and display the
waveform.
123
Figure 9-10 Reference Signal Waveform Display
NOTE
Parameter values such as the ranges of voltage and time divisions are automatically
set for presets.
6.
Tap the four-directional arrow icon in the lower right corner to display the
preset guided information, including the general description, connection
guidance, connection diagram, test guidance, real vehicle connection,
waveform analysis and related DTCs in full screen. Tap again to exit full
screen.
NOTE
Images in the preset guided information can be displayed in a full screen for viewing
in details.
124
Figure 9-11 Image Display (Full Screen)
7. Tap the Start/Stop button. The oscilloscope will perform waveform
acquisition according to the preset parameters.
Waveform Library
Tap the waveform icon on the upper toolbar to open the Waveform Library Page.
The waveform library includes online waveform library and local waveform library.
Online Waveform Library
The waveforms in the online waveform library are picked and uploaded by Autel
users during repair and test process using an oscilloscope. It allows you to search
for the waveforms from the vehicle and component you want to test, or upload and
share your own waveforms.
The search result displays the information such as the waveform picture, waveform
ID, VIN code, vehicle code, etc. The waveform in the online library can also be
loaded as reference waveform for better waveform analysis.
There are two methods to search for waveforms: Condition-based search and
keyword-based search.
Condition-based Search
On the condition-based search page, the waveform(s) can be accurately searched
after selecting the corresponding conditions, such as the vehicle model, test
125
category, status, etc. Once you have searched a waveform, you can open, share the
waveform ID to others, and follow as your favorite.
Figure 9-12 Conditional-based Search Screen
(1) Model
Tap the input field or the arrow icon on the right to select the vehicle model.
The manufacture and model should be selected from the column that displays.
(2) Screening conditions
Three screening conditions are available: Test category, test item , and status.
Tap the dropdown menu to select the test category such as the actuators,
battery charging, engine starting, or no selection.
Tap the dropdown menu to select the condition status: no selection, good or
bad.
(3) Search result
The search result will automatically display in the lower section of the page
after selecting the model and conditions, showing the image of waveform,
waveform ID, VIN or the screening conditions .
Tap the corresponding buttons on the lower right side to share, follow or open
the waveform. Tap the Load As Ref. Waveform to load the waveform as a
reference waveform for better waveform analysis.
126
Name
Button
Description
Share
Tap to display a waveform ID and you can
share it through Twitter or Facebook to
anyone you want.
Follow
Tap to follow the waveform as your favorite.
Open
Tap to open the waveform.
Keyword-based Search
On the keyword-based search page, please input the waveform ID, VIN, vehicle
code, or screening conditions and then tap the "Search" button to roughly search the
waveform(s) you want. You can also scan the waveform code or VIN by tapping the
Scan icon in the input field to search the waveform.
Figure 9-13 Keyword-based Search Screen
My Upload
Your own waveforms can be saved and uploaded to the online server. The uploaded
waveforms can be searched from "My Upload" tab.
Please input the waveform code, VIN, vehicle code, or screening conditions and then
tap the Search button to search the waveform(s) you have uploaded. The waveform
can be opened, shared, followed, reviewed, and loaded as a reference waveform
once you have found it.
127
My Favorites
All the waveforms you have searched in the Condition- based Search, Keyword-
based Search or My Upload tab can be followed as My Favorites by tapping the five-
point start button. The waveform can also be opened, shared, followed and loaded
as a reference waveform .
Local Waveform Library
The waveforms in the local waveform library are the ones saved in the tablet.
Input the waveform code, VIN, vehicle code, or screening conditions and then tap
the Search button to search the waveform(s) saved in the local library. The found
result displays the picture of waveform, waveform ID, screening conditions, vehicle
model, etc. The waveforms can be opened, loaded as reference waveforms, shared
waveform codes, uploaded or batch uploaded.

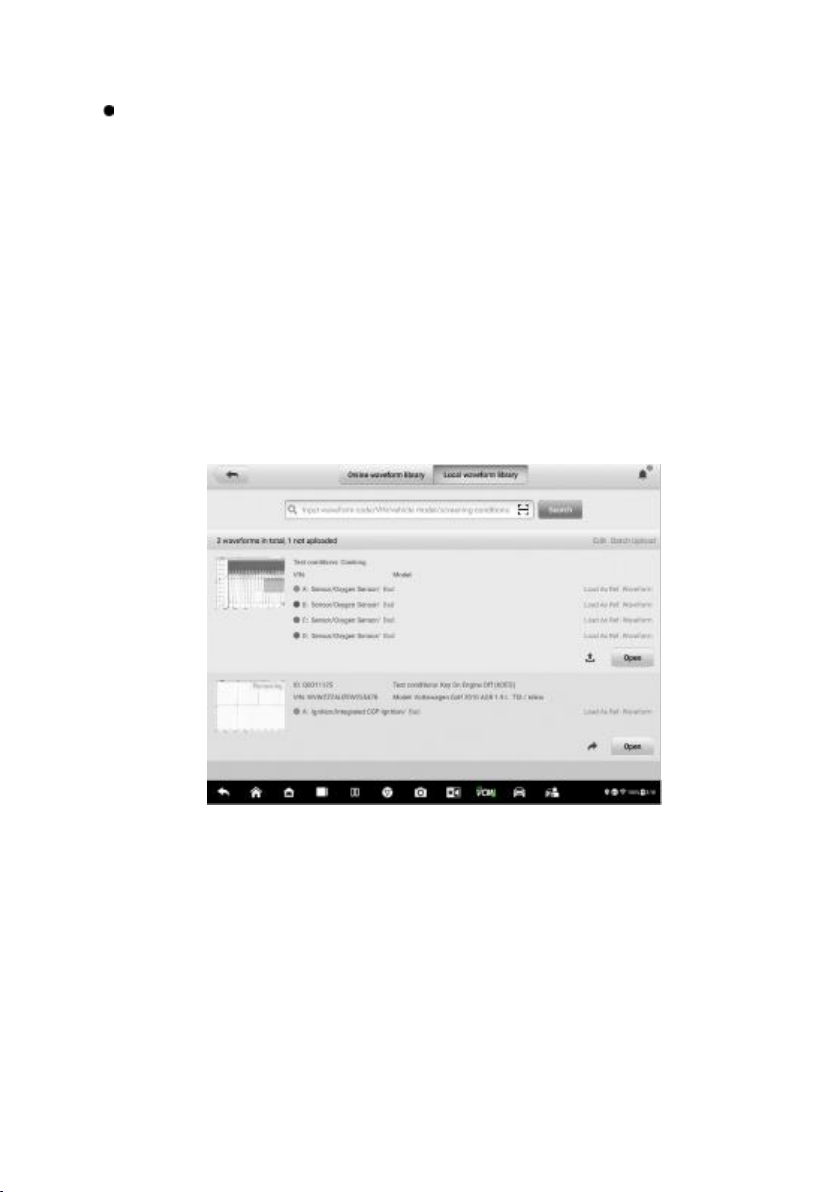

Figure 9-14 Local Waveform Library Screen
Settings Menu
Tap the gear icon button in the upper toolbar to open the Settings Menu. The Mode,
Window Function, Waveform Generator, Decoding Settings, and Startup
Setting can be manually configured in the menu.
128
Mode
Four display views are available: oscilloscope view, record view, XY view, and
spectrum view.

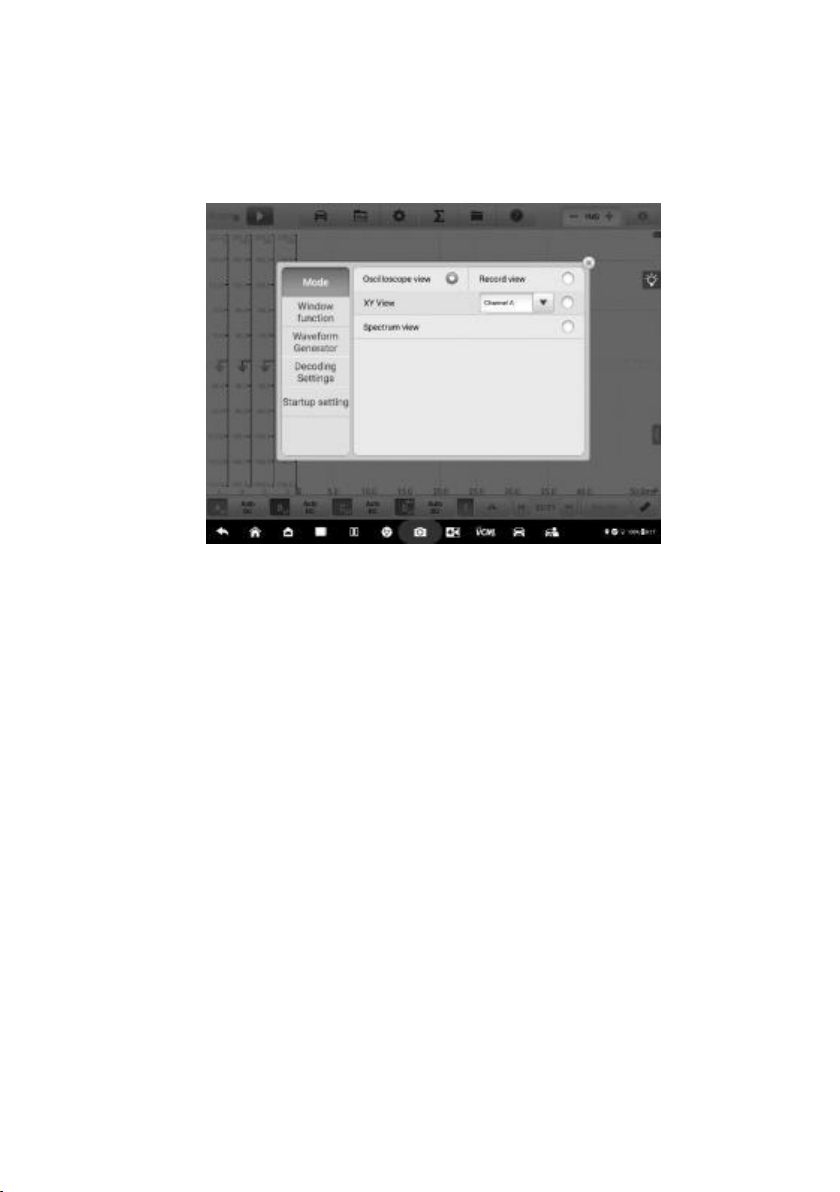

Figure 9-15 Mode Setting Screen
In the Oscilloscope View, the waveform shows how a signal varies with time in a
graphical way.
In the Record View, the waveform records signal and shows signal record.
In the XY View, the waveform shows the relationships between periodic signals,
displaying a graph of one channel against another.
129
Figure 9-16 XY View Setting Screen
In the Spectrum View, the waveform shows the signal level on a vertical axis against
frequency on the horizontal axis in a graphical way. One or more spectra with a
common frequency axis can be displayed in the spectrum view.
NOTE
The Wi-Fi connection does not support the XY View and Spectrum View. Please use
the USB cable to connect the device, instead of the Wi-Fi connection.
The spectrum-related analysis options display after selecting the spectrum view in
the Mode setting screen. Select the desired spectrum bins and window functions for
better spectrum analysis.
The amplitude over-range of Y-axis can be adjusted by the amplitude level. When
the sampling frequency is low, the current frequency can also be adjusted. The
maximum frequency supports 20 M.
130
Figure 9-17
Sdao}Anm Viaw Sa}}in6 SoAaan p
Spectrum Bins: It allows you to set the number of frequency bins into which
the spectrum is divided.
Window function: It allows you to select one of the standard window functions
to reduce the impact of running on a time-limited waveform.
Table 9-3
Winpow」nno}ion TeqIa
Window
Main peak
width
(bins @ -
3dB)
Highest
side lobe
(dB)
Side lobe
roll-off
(dB/octave)
Description
Rectangle
0.89
-13.2
6
No fading; maximal
sharpness; used for
short transients
Blackman
1.68
-58
18
Often used for audio
work
Blackman-
Harris
1.90
-92
6
Used for general
purpose
Flattop
2.94
-44
6
Negligible pass-band
ripple; mainly used for
calibration
131
Window
Main peak
width
(bins @ -
3dB)
Highest
side lobe
(dB)
Side lobe
roll-off
(dB/octave)
Description
Gauss
1.33 to 1.79
-42 to -69
6
Gives minimal time and
frequency errors
Hann
1.20 to 1.86
-23 to -47
12 to 30
Used for audio and
vibration work
Hamming
1.30
-41.9
6
Also called raised sine-
squared; used for
speech analysis
Triangle
1.28
-27
12
Also called Bartlett
window
Display mode: The Magnitude Mode displays the frequency spectrum of the
last waveform.
Scale: the scaling of the vertical axis.
Logarithm: the vertical axis is scaled in decibels.
Linear: the axis is scaled in equal intervals from DC to the frequency.
Logarithmic unit: the reference quantity used for the logarithm scale.
Table 9-4 Logarithm Unit Specifications
Logarithmic Unit
Description
dBV
Reference level is 1V.
dBu
Reference level is 1mW with a load resistance of 600Ω .
dBm
Reference level is 1mW into the specified load impedance.
Any dB
Reference level is an arbitrary voltage.
X Scale: the scale of the frequency axis.
Linear: the axis is scaled in equal intervals from DC to the frequency.
To set the Spectrum View
1. Tap the Settings button on the upper toolbar. A dialog box opens.
2. Select the Mode option in the dialog box, and then tap to select Spectrum
View.
132
3. Tap the input field or the dropdown arrow icon to select the desired options
from the column. Tap OK to confirm.
Figure 9-18
Sdoo}】nm Viow So}}in6 So】oon Z
Window Function
A display window with grid displays the data captured by the oscilloscope. By default,
a single trace is displayed. Additional traces can be added via the window display
menu.
Display Mode
The Window Function menu allows you to configure up to four traces.
Single Window — displays a single trace.
133
Figure 9-19 Single Window Screen
Double Window — displays two separate traces horizontally, one below the other.
Figure 9-20 Double Window Screen
Triple Window — displays three separate traces horizontally, one below the other.
134
Figure 9-21 Triple Window Screen
Quadruple Window — displays four separate traces, two horizontally, two vertically.
Figure 9-22 Quadruple Windows Screen
To set the display mode
1. Tap the Setting button in upper toolbar. A dialog box opens.
2. Select the Window Function in the dialog box.
3. Tap the appropriate number icon to display the corresponding number of
135
traces onscreen.
Figure 9-23 Display Mode Selection Screen
4. Close the dialog box. The window is displayed as selected.
Channel Setting
The Channel Setting allow you to arrange the display position of the activated
channels. Select which channels are visible in the display window. The display status
is set to ON, the input channels are enabled, otherwise, the input channels (set to
OFF status) are not available for viewing.
To set the channel setting
1. Tap the Setting button in upper toolbar. A dialog box opens.
2. Select the Window Function in the dialog box, then select Channel
Setting.
3. Swipe the display status icon to ON. Select the position for each channel
from the dropdown menu.
136
Figure 9-24 Channel Setting Screen
4. Close the dialog box and the activated channel is displayed in the selected
window.
Waveform Generator
The Waveform Generator operates simultaneously with the oscilloscope. Use the
waveform generator to simulate the DC voltage, square wave, square wave (X+Y),
triangle wave, and actuators drive.
Figure 9-25 Waveform Generator Screen
137
To set the waveform generator
1. Tap the Settings button in the upper toolbar. A dialog box opens.
2. Select the Waveform Generator option in the dialog box.
3. Swipe the OFF to ON to enable the waveform generator. Select a desired
option from the dropdown menu. Tap the "+" or "-" buttons to adjust the
voltage, frequency and duty cycle values.
4. Close the dialog box. The waveform generator settings are displayed on
the screen.

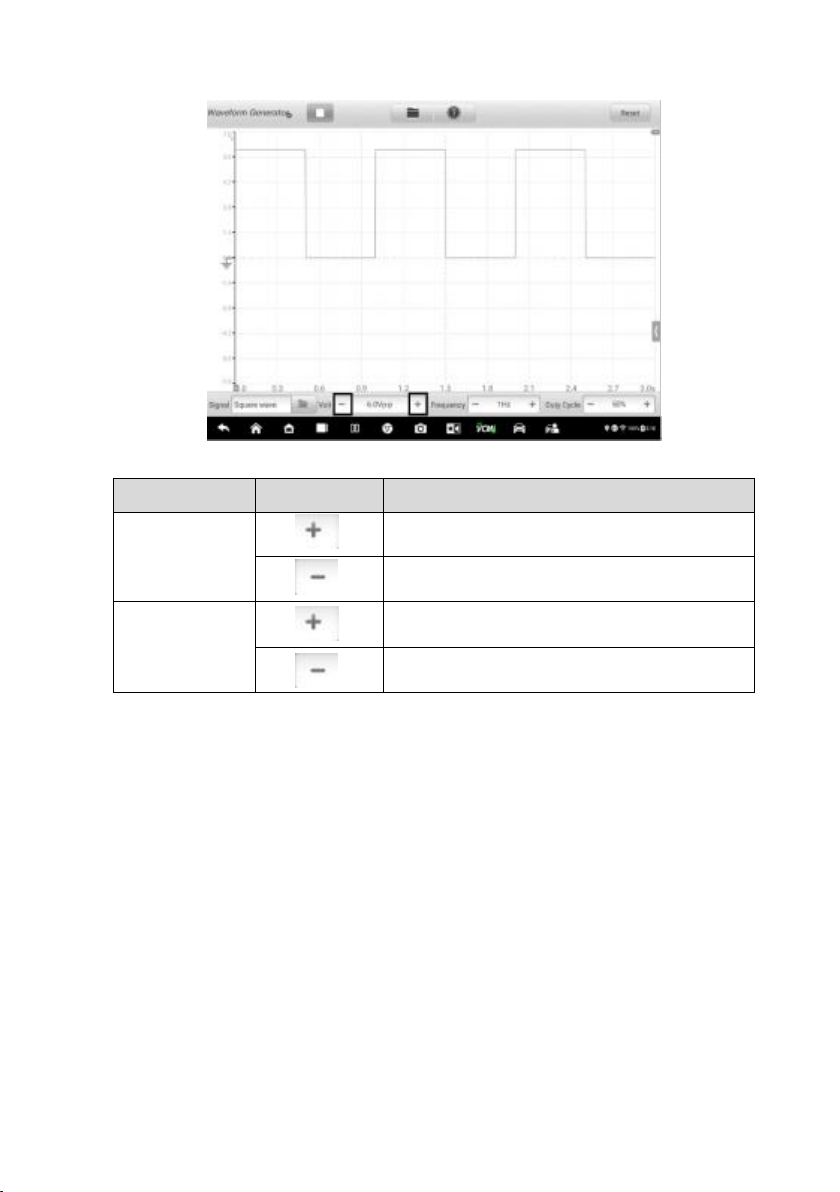

Figure 9-26 Waveform generator Display Screen
Decoding Settings
When the oscilloscope mode is selected, the decoding settings are available.
138
Figure 9-27 Decoding Settings Screen 1
9 protocols are available: CAN High, CAN Low, LIN, FlexRay, RS232/UART, I2S,
I2C, USB (1.0/1.1), and CAN FD. The detailed setting options vary according to each
protocol.
CAN High / CAN Low: Controller Area Network (CAN) is a serial protocol used
in automotive to allow microcontrollers to communicate with each other. It
typically uses differential signaling ( with signals named CAN High and CAN
Low) to increase noise immunity.
LIN: Local Interconnect Network (LIN) is a serial protocol used in automotive
electronics to allow microcontrollers to communicate with low-speed
peripherals.
FlexRay: It is an automotive network communications protocol for high-speed
data.
RS232/UART: Universal Asynchronous Receiver/Transmitter (UART) is the
communication interface found in the serial or COM ports once commonly
found on computers. Each channel of data is transmitted on a single wire pair
using an electrical standard such as RS232.
139
I2S: Inter-IC Sound (I2S) is a serial protocol used in digital audio devices for
communications between circuits such as CD transports and audio DACs.
I2C: Inter-Integrated Circuit (I2C) is a way to connect peripheral chips in
consumer electronics products and is widely used in embedded systems.
USB (1.0/1.1): Universal Serial Bus (USB) is widely used in personal
computers and tablets for communication.
CAN FD: The CAN FD serial protocol is an extended version of the Controller
Area Network (CAN), which allows electronic controllers to receive sensor
messages and transmits control messages faster than traditional CAN
communication.
Baud Rate: The baud rate will display a default value, which needs to be manually
set according to the actual signal to get the correct decoding result.
Threshold: The voltage that defines the transition in either direction between high
logic state and low logic state.
Name: The name of the protocol that you have selected above. The channel and the
corresponding protocol name will display in the scope view after selection.
Display Setting: You can also choose a display mode for the decoded data: Hex or
Binary.
To make the decoding settings
Using CAN High as an example.
1. Tap the Settings button in the upper toolbar. A dialog box opens.
2. Select the Mode option in the dialog box and tap the Oscilloscope Mode.
3. Select the Decoding Settings in the dialog box.
4. Select the channel(s) that you want to set, and then select the CAN High
protocol from the dropdown list.
5 . For the baud rate and threshold, you can keep the displayed values or
140
manually enter a value according to the actual signal .
6. Select the Hex or Binary display mode from the dropdown list.
7. Tap OK to confirm. The decoding settings are displayed on the screen.
Figure 9-28 Decoding Settings Screen 2
Startup Setting
This function allows the user to choose the startup configuration when launch the
oscilloscope application.
On the Startup Setting screen, there are three options: Load user default
configuration at startup, Load last session configuration at startup, and Load
factory configuration at startup. Select one option according to the specific need.
141

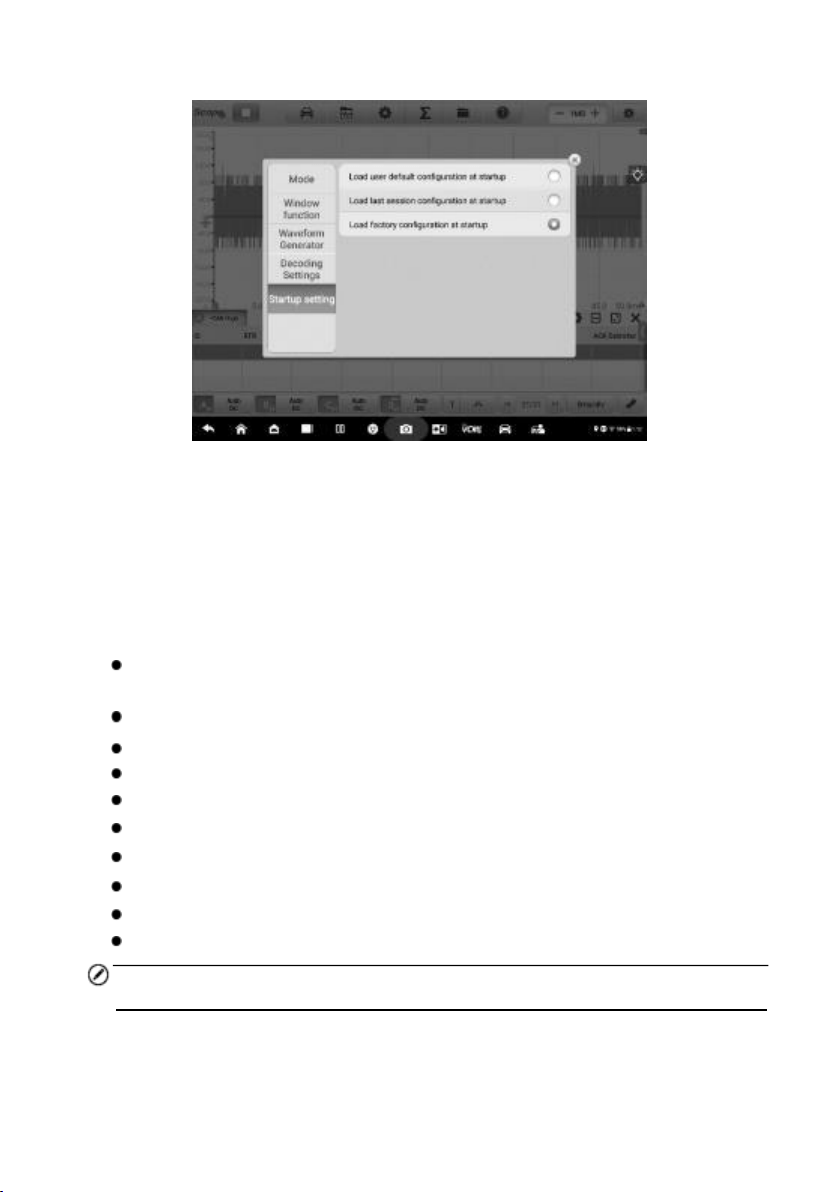

Figure 9-29 Startup Settings Screen
Math Channel
A math channel is a virtual channel generated by a mathematical function of the input
channel. It can be displayed in an oscilloscope in the same way as an input signal,
and like an input signal it has its own measure axis, scale and color.
The oscilloscope has a set of built-in math channels:
Turnover: reverses the signal polarity to turn the waveform upside down on
the screen
A+B: channel A plus channel B
A-B: channel A minus channel B
A*B: multiply channel A by channel B
A/B: channel A divided by channel B
Frequency: the frequency of the signal
Pulse Width (+): the positive pulse width
Pulse Width (-): the negative pulse width
Duty Cycle (+): the positive duty cycle
Duty Cycle (-): the negative duty cycle
NOTE
When connecting via Wi-Fi, it only supports Turnover, A+B, A-B, A*B and A/B.
142
To set the math channel
Using Invert A as an example.
1. Tap the Math Channels icon in the upper toolbar. A dialog box opens.
2. Select Existing in the dialog box.
3. Select the Invert A, and tap OK to continue.
Figure 9-30 Math Channel Setting Screen 1
4. The waveforms are displayed on the screen.
Figure 9-31 Math Channel Setting Screen 2
143
File Menu
The File Menu allows you to print, open, save, and delete the waveform data. The
File Menu supports the following functions.
Figure 9-32 File Menu Screen
Print — Tap to create and print a temporary PNG picture of the current
waveforms.
NOTE
1. Make sure the tablet is properly setup to print and is connected to the printer.
2. Make sure the network is available.
Waveform Operation
This section allows you to save and open the waveforms.
Save waveform — Tap to save the waveform on the current screen. Three types of
file saving are available in the dropdown list: Oscilloscope data file, Text file, and
Excel file. Select one of the file saving ranges from save current page, save last
5 pages and save all pages. Finally tap the Save button to save the waveform.
Select the Text File option to save the current waveform data to a text file. Use the
ES File Explorer app on the Android home screen to review file: Home > ES File
Explorer > Local > Internal Storage > Scan > Data > Scope > txt.
144
Open waveform — Tap to retrieve the saved waveforms.
Configuration Operation
The configurations can be saved and imported, or set to default.
Save the configuration — Tap to save the configuration values of waveforms on
the current screen including the amplitude, the time base, the number of samples,
etc.
Import the configuration — Tap to import the saved configuration values of
waveforms. Tap the System Default Configuration option to cancel the current
setting values and refresh the screen to retrieve the default setting values.
Recent documents
—
Tap to open the recent documents in order to view the
waveforms currently opened in the waveform library.
Help Menu
The Help Menu displays the user manual, update the APK and firmware, and view
version numbers of the installed APK and firmware.
Figure 9-33 Help Menu Screen
User Manual — displays instruction for the prosper use of the oscilloscope.
Update the APK — connects to the Autel server and to get the latest application
software version.
145
Update Firmware
—
connects to the Autel server and to get the latest firmware
version.
About — displays the model number and the installed versions of the software and
firmware.
Number of Samples
This button allows you to set the maximum number of samples that will be captured
by each channel. The sampling rate of current time base can be adjusted by
changing the number of samples . Review the sampling interval, sampling rate, and
sample size in theParameter and Helpsheet.
Tap the minus or plus icon to adjust the number of samples.
Auto Scale
Use the Auto Scale button to trigger the device to automatically analyze the signal
of the opened channel, and automatically set the appropriate amplitude and time
base range to display the signal correctly. In auto scale setting, the time base is only
valid for periodic signals.
Main View Section
Up to four traces, along with digital readouts of current signal values, signal status
and triggering conditions, can be displayed simultaneously on the main view section
screen.
Each trace has two control features , X-axis and Y-axis, which enable you to adjust
the oscilloscope settings to suit the particular test measurement. If multiple traces
are displayed at the same time, the Y-axis for each trace is adjusted separately while
the X-axis is the same for all traces.
Y-axis — the voltage level is recorded on the vertical. It displays on the left side of
the screen.
X-axis — time is presented on the horizontal line. It is shown along the bottom of
the screen.
Measurement Overrange Indicator
When the amplitude exceeds the measurement input range, a red overrange
indicator with the message "overrange" is displayed in the top left corner of the
146
screen. Exceeding the common-mode input range may result in inaccurate
measurements and can lead to severe signal distortion.
Figure 9-34 Overrange Indicator Screen
Select an appropriate scale setting for the signal being sampled to avoid an
overrange condition.
IMPORTANT
To prevent electric shock, do not exceed voltage limits between inputs .
Channel Selection
In the main view section, a channel has two conditions: selected and unselected . A
channel must be selected in order for the waveform to be movement, to use the
zoom-in or to add measurement rulers.
Tap the zero baseline marker or the Y-axis (the line thickens when selected) . After
the channel is selected, the waveform can be zoomed. Tap the counterclockwise
arrow button at the right corner to recover after zoomed.
147
Figure 9-35 Channel Selection 1 (Selected)
Tap the zero baseline marker or the Y-axis again to exit the channel selection.
Figure 9-36 Channel Selection 1 (Unselected)
Waveform Zooming
The zooming function allows you to change the size and position of a signal during
or after capturing a waveform to examine it in greater details. It does not change the
stored data, but the way it displays.
148
The X-axis and Y-axis can be zoomed using your fingertips. The waveform can be
zoomed during or after capturing the signal.
Measurement Rulers
The coordinate Rulers allow the amplitude and time duration of a waveform to be
measured precisely. They are useful when determining signal characteristics such
as amplitude at specific points, the cycle time (duration) and frequency.
There are three types of measurement rulers: the vertical Time Ruler, the horizontal
Signal Ruler, and the vertical Angle Ruler.
Tap the Ruler Activator in the lower left corner of the grid and drag it across the
screen to the desired position. A Time Ruler is generated.
Tap the Ruler Activator in the lower right corner of the grid and drag it across the
screen to the desired position. An Angle Ruler is generated.
The two angle rulers are positioned to mark the start and end of a cycle. By default,
the start and end angle values are 0°and 720°, which can be configured in the Phase
Setting box.
The Signal Ruler can be generated in the similar way by tapping the Ruler
Activator in the upper right corner and dragging it downwards.
When dragging the Measurement Rulers, a Ruler Table showing time and voltage
values for the corresponding channels will be displayed. The Delta icon refers to the
absolute difference between the values of the rulers, which can be locked by tapping
the Lock icon. Tap the X button in the upper right corner of the ruler table to delete
all rulers.
149

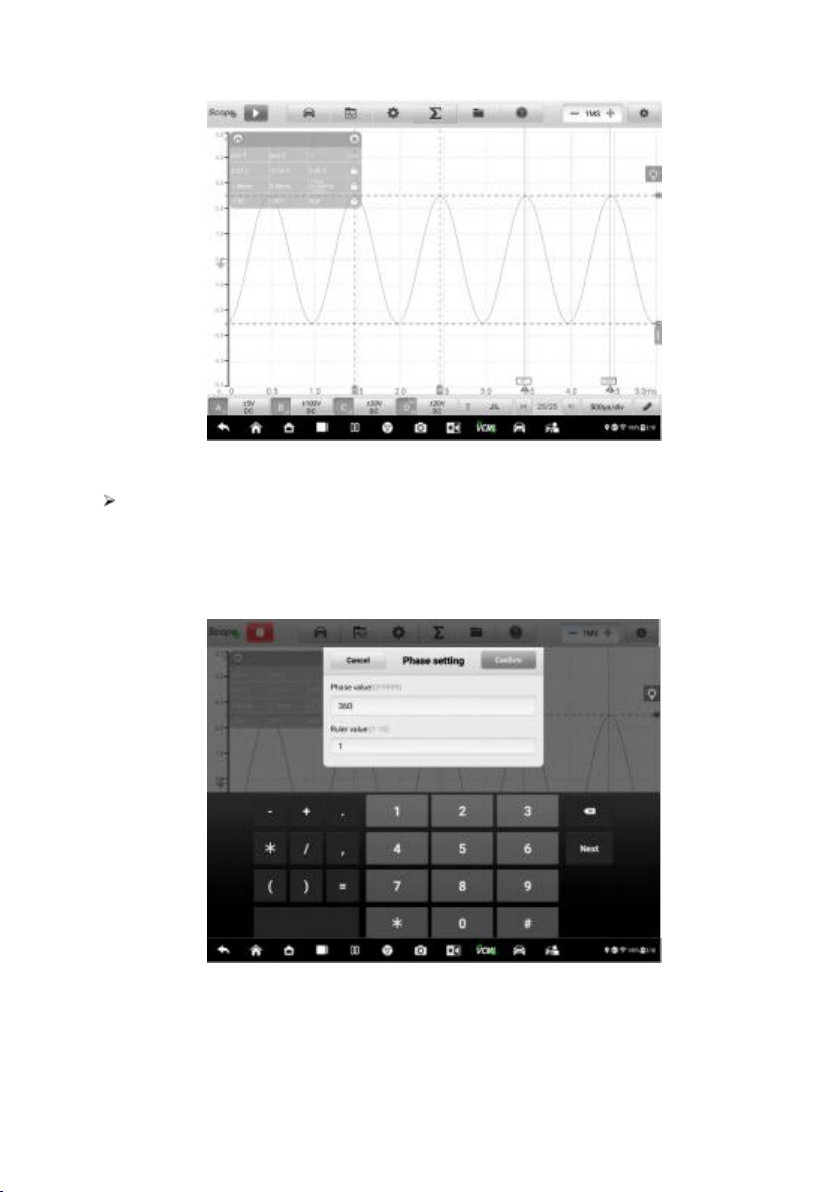

Figure 9-37 Rulers Display Screen
To configure angle settings
1. Drag Angle Activator to generate the angle rulers.
2. Tap the start or end angle value to open the Phase Setting box.
3. Input the desired phase value and the ruler value in the field.
Figure 9-38 Phase Setting Screen
4. Tap Confirm in the upper-right corner to save the settings, or tap Cancel
to exit without saving.
150
Zero Baseline
The zero baseline is marked the 0 value in the Y-axis, showing the ground level of
each channel waveform.
After the channel is selected, the Zero Baseline can be adjusted by dragging the
zero baseline marker up/down along the Y-axis, or dragging the waveform up/down,
or moving the screen up/down in the grid.
Figure 9-39 Dragging Zero Baseline Marker Screen
Figure 9-40 Dragging Waveform or Moving Screen
151
NOTE
To reposition waveform or to move the screen, tap the zero baseline marker to select.
The line will display thicker when selected.
Parameter and Help
Tap the arrow button in the lower-right corner of the screen to open the Parameter
and Help windows.
The Parameter function allows you to view the values of parameters including
sampling interval, sampling rate, sample size, channel, range, and coupling mode.
The Help function displays the user manual of the oscilloscope. The Help page also
displays when selecting the Help and User Manual buttons on the upper toolbar. The
help information can be full-page shown by tapping the four-directional arrow icon in
the lower right corner.
Figure 9-41 Parameter Screen
To open or close the parameter and help window
1. Tap the arrow button on the right-hand side of the screen.
152
Figure 9-42 Arrow Button Position Screen
2. The parameter and help window appear.
3. To close, tap the arrow button again or tap any space outside of the window.
NOTE
The preset guided information is also displayed on the right side of the screen when
the specific options and test components have been selected from the Presets menu.
Real-time Help
The real-time help button is a bulb-shaped button that can be dragged and moved
on the screen.
Tap this real-time help button to directly switch to display all the relevant introduction
and test procedure information after you tap any function on the oscilloscope screen,
for better understanding the selected function.
To view the real-time help information
Take the Presets function as an example.
1. Tap the Presets button on the upper toolbar to open the preset menu.
2. Tap the bulb-shaped real-time help button. All the information about the
presets menu is displayed on right side of the screen.
3. View the information by dragging it up and down using your fingertips.
153
The real-time help information can be displayed in a full screen by tapping the four-
directional arrow icon in the lower right corner. Tap it again to recover the half-screen
display.
Figure 9-43 Real-time Help Screen (Full Screen)
Lower Toolbar
The buttons in the lower toolbar include the channel control buttons, trigger setting
buttons, buffer button, time base button and measurement button. The following
table provides brief description of each button.
Table 9-5 Lower Toolbar
Name
Button
Description
Channel
Control
Tap to configure the settings of each channel.
Active channel icons display in color; inactive
icons display in gray. See Channel Control for
more information.
Trigger
Tap to open the trigger setting menu. SeeTrigger
for more information.
Buffer
Tap the Back or Next button to scroll to the
previous or the next frame in the waveform. See
Bufferfor more information.
154
Name
Button
Description
Time Base
Tap to select an appropriate time per division.
SeeTime Basefor more information.
Measurement
Tap to select an appropriate measurement. See
Measurementfor more information.
Channel Control
There are four input channels: input channel A, input channel B, input channel
C, and input channel D. The four channel buttons display on the lower left side of
the screen. Set the input channel( s) through the corresponding channel control
button(s).
Each Channel Control button includes Amplitude Setting, Probe Setting, Probe Edit,
and Low-pass Filtering. The probe name is displayed in the lower-right corner of the
left column of the channel control button. The amplitude is displayed in the right
column of the channel control button.
To activate and close the channel
1. Tap the left column of the channel control button to activate the channel.
The button color changes from gray to the corresponding color of the
channel.
2. Tap the right column of the channel control button to open the settings
dialog box.
155
Figure 9-44 Activate Channel Screen
3. Tap the left column of channel control button again to close the channel.
The closed channel button displays gray.
Channel Color
Identify each channel waveform by color.
Table 9-6 Channel Color Table
Input Channel
Color
A
Red
B
Green
C
Blue
D
Yellow
Amplitude Setting
The amplitude, probe, and low-pass filtering settings can be configured in the
Channel control dialog box.
The amplitude setting allow you to set up the oscilloscope to capture signals with the
specified range. If the input signal exceeds the selected range, an over-range
156
indicator will be displayed. Select Auto to enable the device to adjust the vertical
scale automatically.
The vertical scale will be changed, while the horizontal scale will not be changed.
AC and DC voltage can be toggled to set up the input circuitry.
NOTE
The vertical scale is ALWAYS divided into 10 major divisions, and all scale settings
reflect in these 10 divisions. The division set of 10 cannot be changed.
There are two modes available to set the amplitude value.
Mode 1: For example, selecting DC 5V sets the channel amplitude to ±5 DC
(displayed on the right side of the channel control button), the vertical scale range is
from -5V to +5V. The vertical scale is divided into 10 segments, each segment
increases by 1V.
Figure 9-45 Amplitude Setting Screen (DC 5V)
157
Figure 9-46 Amplitude Setting Screen (DC 5V)
Mode 2: Select the ## /div button to adjust value incremented by each division. For
example, selecting DC 1.0V/div, sets the channel amplitude to 1.0V/div DC (seen at
the right side of the channel control button). Each segment increases by 1V. As the
vertical scale is divided into 10 segments, the entire vertical scale range is from -5V
to +5V.
Figure 9-47 Amplitude Setting Screen (DC 1.0V/div)
158
Figure 9-48 Amplitude Setting Screen (DC 1.0V/div)
Probe Setting
A probe is an accessory that connects to your oscilloscope and to detect signals to
be measured.
This oscilloscope has built-in definitions of standard probes. By default, the probe is
set to be x1, which means 1V signal at the input to the probe will display as 1V.
The inner probes (built-in probes) include:
X1: no attenuation
10 1 Attenuator: select when using a 10-fold attenuation probe
20 1 Attenuator: select when using a 20-fold attenuation probe (SA020)
X1000: select when using a 1,000-fold attenuation probe
65A Current Clamp (1mV/10mA mode, Max: 20A): 1mV/10mA mode on 65A
current clamp, the max. current is 20A
65A Current Clamp (1mV/100mA mode, Max: 65A): 1mV/100mA mode on
65A current clamp, the max. current is 65A
650A Current Clamp (1mV/100mA mode, Max: 200A): 1mV/100mA mode on
650A current clamp, the max. current is 200A
650A Current Clamp (1mV/1A mode, Max: 650A): 1mV/1A mode on 650A
current clamp, the max. current is 650A
Coil-On-Plug Ignition Probe [COP]: select when using the COP ignition probe
(SA271)
159
Secondary Ignition Probe [ignition]: select when using the secondary ignition
probe (SA273)
Secondary Ignition Probe (inverted) [R_ignition]: select when using the
secondary ignition probe (SA273) and inverting the secondary ignition signal
You can select the inner standard probes in the probe settings. After selecting a
correct probe, the settings can be seen in the lower right corner of the left column of
the channel control button, indicating the probe is in use.
Tap the question mark icon to view the image of the corresponding current clamp in
full screen.
Figure 9-49 Inner Probe Setting Screen
Probe Edit
Add custom probes not included in the built-in standard probe menu.
NOTE
Please refer to the probe's instruction manual or consult the corresponding
manufacturer for the linear equation (y=mx+c).
160
Figure 9-50 Probe Edit Screen
To add custom probes
Add a 20 ∶ 1 Attenuator as an example:
1. Tap the right column of the channel control button at the bottom of the
screen to open the setting dialog box.
2. Select the Probe Edit option in the left column of the dialog box.
3. Tap each field to open the virtual keyboard and input the required
information.
4. Tap Add to save the settings, or tap Clear to exit without saving.
5. The added probe will be listed in the Probe Setting window.
161
Figure 9-51 Probe Setting Screen (User-defined Probe)
LPF (Low-pass Filtering)
The Low-pass Filtering (LPF) is an independent digital low-pass filter for each input
channel used to remove noise from the signal.
This function is used to filter the high frequency signal of the selected input channel
for more accurate measurements. Take the two screenshots below as an example
to show the comparison with or without setting the low-pass filtering. The following
screenshots how the difference between waveforms with the low-pass filtering and
waveforms without the low-pass filtering.
162
Figure 9-52 Before Setting Low-pass Filtering Screen
Figure 9-53 After Setting Low-pass Filtering Screen
To configure the low-pass filtering settings
1. Tap the right column of the channel control button to open the setting dialog
box.
2. Select the Low-pass Filtering option from the left column of the dialog
box.
3. Tap the checkbox of the appropriate channel and adjust frequency by
163
tapping the minus or plus. The unit can be switched to Hz, KHz or MHz
from the dropdown list.
Figure 9-54 Low-pass Filtering Screen
4. Close the dialog box directly to exit without saving.
Trigger
The trigger feature is used to filter and capture specified waveform data.
According to the trigger setting condition, the trigger waveform will be captured when
the signal meets the trigger condition. When capturing waveforms, you can manually
set the trigger conditions.
When the oscilloscope is capturing the signal, tap the left column of the Trigger
button to activate the trigger function. A trigger point will be shown as a blue point.
164
Figure 9-55 Trigger Point Screen
When the oscilloscope is capturing the signal, tap the icon to open the trigger
settings dialog box.
Edge Triggering
The edge trigger is one of the most common trigger modes and is activated when
voltage rises above or falls below a preset threshold. This trigger type allows you to
configure the trigger mode, threshold, trigger channel and pulse direction settings.
Tap OK to save the settings or tap Cancel to exit without saving.
NOTE
The oscilloscope switches to the continuous mode if the time base is set to more
than or equal to 200ms/div. The Edge Triggering is supported in the continuous mode.
Trigger Mode
Four trigger modes are available: None, Auto, Repeat, and Single.
165
Figure 9-56 Trigger Mode Screen
The table below offers brief descriptions for each trigger mode.
Table 9-7 Trigger Mode Table
Trigger Mode
Description
None
In this trigger mode, the oscilloscope can continuously capture
data, without waiting for a trigger event.
Auto
In this trigger mode, the oscilloscope will wait for a trigger before
capturing data. It can automatically update after a short period,
even if the signal does not across the trigger point.
Repeat
In this trigger mode, the oscilloscope waits until a trigger event
occurs. If there is no trigger event, nothing will be displayed on
the screen.
Single
In this trigger mode, the oscilloscope stops capturing data once
a trigger event occurs.
Channel
Select the applicable trigger channel from the dropdown menu. The selected channel
is the one that the oscilloscope monitors for the trigger condition.
Pulse Direction
Two pulse direction settings are available: Rise and Fall.
166
Rise Edge Trigger — Indicates trigger is turned on to start the trace on the
rising edge of the waveform.
Fall Edge Trigger — Indicates trigger is turned on to start the trace on the
falling edge of the waveform
Threshold
The Threshold allows you to set the voltage threshold for the trigger.
To precisely position the trigger point, input the value in the Threshold field in
the trigger settings dialog box.
To roughly position the trigger point, drag the trigger point to a desired position.
To configure the trigger settings
1 . Tap the right column of the Trigger button to open the trigger settings
dialog box.
2. Select the trigger mode, trigger channel , and pulse direction in the
dropdown list.
3. Input the value in the Threshold field in the trigger settings dialog box.
4. Tap OK to save settings or tap Cancel to exit without saving.
Advanced Edge
This trigger type includes all the functions of the edge trigger type, plus two additional
options: the Rising or Falling option and the hysteresis option.
Rising or Falling option in the dropdown menu of the pulse direction: Dual edges
of a waveform can be triggered . This mode is especially useful for monitoring pulses
of both polarities at once.
Hysteresis option: It is used to reduce false triggering on noisy signals. When
hysteresis is enabled, a second trigger threshold voltage is used in addition to the
main trigger threshold. The trigger fires only when the signal crosses the two
thresholds in the correct order. The first threshold arms the trigger, and the second
causes it to fire.
167
Figure 9-57 Advanced Edge Settings Screen
Window
This trigger type is used to monitor when the signal enters or exits a specified voltage
window.
Three options are available for the pulse direction: Entering, Exiting, Entering or
Exiting. The Threshold 1 and Threshold 2 are the upper and lower voltage limits
of the window.
Figure 9-58 Window Settings Screen
168
Pulse Width
This trigger type allows you to monitor pulses of a specified width.
Figure 9-59 Pulse Width Settings Screen
To set the pulse width (+)
1. Tap the Trigger button at the bottom of the screen to open the Trigger
Settings dialog box.
2. Select the Pulse Width (+) in the left column of the dialog box.
3. Select the desired trigger mode and channel mode.
4. Set the pulse direction to either Positive pulse or Negative pulse according
to the polarity of the pulse.
5. Select one of the four Conditions:
More than: triggers on pulses wider than the specified time.
Less than: triggers on pulses narrower than the specified time.
In the time range: triggers on pulses wider than Time 1 and narrower
than Time 2.
Out of the time range: triggers on pulses narrower than Time 1 or
wider than Time 2.
6. Set the trigger Threshold and Hysteresis.
7. Set the Time 1 or Time 2 in minutes (if available) to define the pulse width.
169
8. Tap OK to save settings or tap Cancel to exit without saving.
Interval
This trigger type allows you to search for two consecutive edges of the same polarity
separated by a specified time interval .
For the setting operation, please refer to the operation steps of Pulse Width, but the
pulse direction with Rise or Fall selection instead of Positive or Negative.
Window Pulse Width
This trigger type combines with the window trigger and the pulse width trigger. It
detects when a signal enters or exits an input range and stays for a specified period
of time. Two Region options can be selected: In range and Out of range.
Horizontal Distortion
This trigger type can be monitored when the signal goes high or low for longer than
the specified time.
Window Distortion
This trigger type monitors when a signal enters a specified voltage range and stays
within that range for a specified period of time.
Underthrow
This trigger type monitors a pulse that exceeds one threshold and then drops below
the threshold without exceeding the second threshold. This type of trigger is typically
used to find pulses that do not reach a valid logic level.
Buffer
The buffer is used to store the captured waveform data for real-time and playback
display.
The oscilloscope can capture and store waveforms. Select a waveform from the
waveform buffer by tapping the Previous or Next button.
The waveform buffer displays the current waveform number and the total number of
stored waveforms.
170

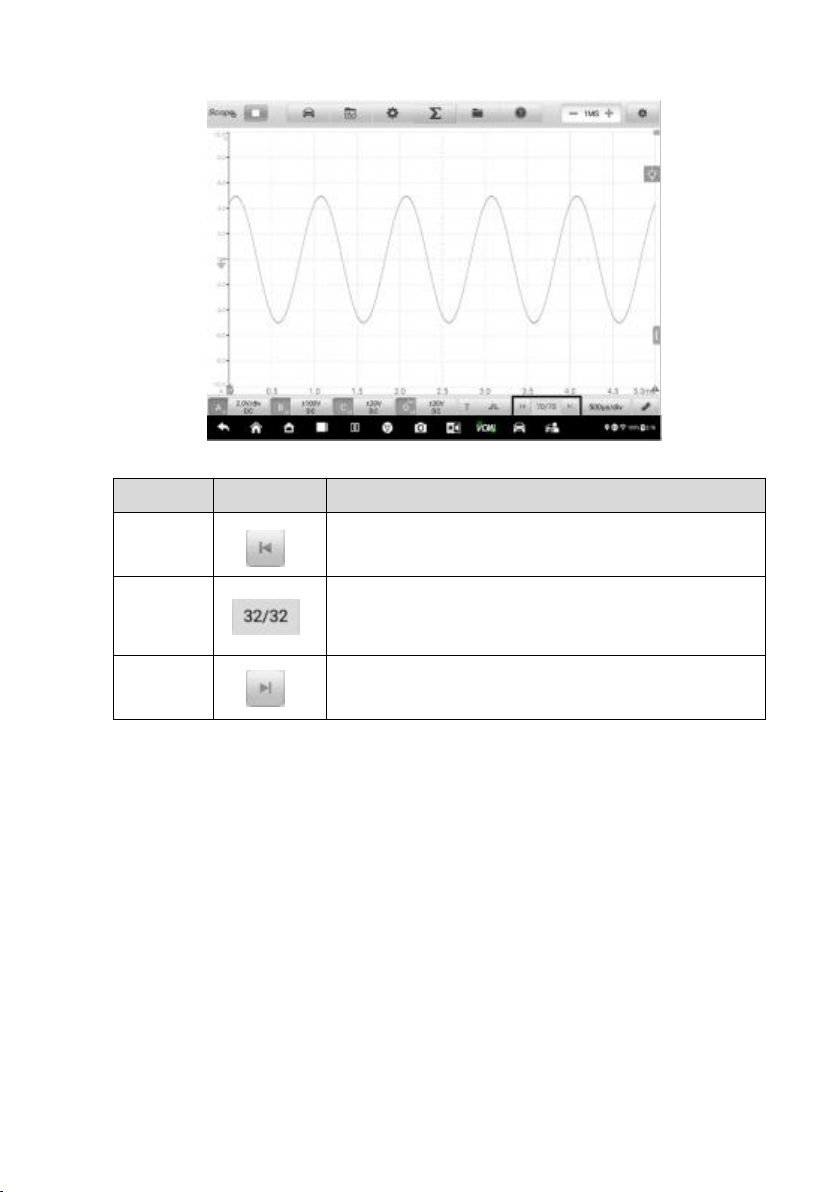

Figure 9-60 Buffer Screen
Name
Button
Description
Previous
Tap to display the previous waveform in the buffer.
Buffer
Index
Displays the number of the waveform currently
displayed onscreen out of the total number of
buffered waveforms.
Next
Tap to display the next waveform in the buffer.
Time Base
The Time Base controls the oscilloscope data sampling display time . Tap the Time
Base button at the bottom to open the setting dialog box.
171
Figure 9-61 Time Base Screen 1 (Normal Mode)
Continuous Mode: if the time base is set to more than or equal to 200ms/div, the
oscilloscope switches to the continuous mode. In this mode, the oscilloscope
updates the trace continuously as each capture progresses, rather than waiting for
a complete capture before updating the trace.
Figure 9-62 Time Base Screen 2 (Continuous Mode)
Measurement
The available measurements for each channel are (from left to right):
172
Figure 9-63 Measurement Screen 1
Maximum — the highest level that the signal reaches
Minimum — the lowest level that the signal reaches
Peak To Peak — the difference between maximum and minimum
Amplitude — the top value minus the bottom value
Period — the duration of one cycle in a repeated pattern in the waveform
Frequency — the number of signal occurrences per second
Positive Duty Ratio — the ratio of positive pulse width to period width
Negative Duty Ratio — the ratio of negative pulse width to period width
Positive Pulse Width — the amount of time that the signal spends above its
average value
Negative Pulse Width — the amount of time that the signal spends below its
average value
AC RMS — the root mean square (RMS) value of the waveform minus the DC
Average
True RMS — the root mean square (RMS) value of the waveform, including
the DC component
DC Average — the average value of the waveform
Rising Rate — the rate at which the signal level rises
Falling Rate — the rate at which the signal level falls
Rise Time — the time the signal takes to rise from the lower threshold to the
173
upper threshold
Fall Time — the time the signal takes to fall from the upper threshold to the
lower threshold
X@Max — the corresponding value of X axis when the amplitude is the
maximum
X@ Min — the corresponding value of X axis when the amplitude is the
minimum
Positive Acreage — the waveform acreage measured above the zero
baseline
Negative Acreage — the waveform acreage measured below the zero
baseline
Full Acreage — the positive acreage plus negative acreage
Top Value — 90% of the waveform maximum value
Bottom Value — 10% of the waveform minimum value
Positive Overshoot — the ratio of the difference between the maximum value
and the top value and the amplitude
Negative Overshoot — the ratio of the difference between the bottom value
and the minimum value and the amplitude
Positive Pre-shoot — the ratio of the difference between the bottom value
and the minimum value and the amplitude
Negative Pre-shoot —the ratio of the difference between the maximum value
and the top value and the amplitude
NOTE
When connecting via Wi-Fi ，it only supports Maximum, Minimum, Peak To Peak,
Amplitude, Period, Frequency, Positive Duty Ratio, Negative Duty Ratio, Positive
Pulse Width, Negative Pulse Width, AC RMS, True RMS, DC Average, X@Max,
X@Min, Top Value and Bottom Value.
In the Spectrum View, the available measurements are as follows.
174
Figure 9-64 Measurement Screen 2 (Spectrum View)
Frequency Peak Value — the frequency of the peak signal value
Amplitude Peak Value — the amplitude of the peak signal value
Average Amplitude Peak Value — the amplitude of the peak signal value
captured over multiple times
Total Power — the power of the entire signal captured in the spectrum view
Total Harmonic Distortion Percentage ( THD) — the ratio of the sum of
harmonic powers to the power of fundamental frequency
√V
2
1
+ V
2
2
+ V
2
3
+ V
2
4
+ V
2
5
Vf
Total Harmonic Distortion (THD) dB: the ratio of the sum of harmonic
powers to the power of fundamental frequency
√V
2
1
+ V
2
2
+ V
2
3
+ V
2
4
+ V
2
5
( )
Total Harmonic Distortion and Noise (THD + N) — the ratio of the harmonic
power plus noise to the fundamental power
THD = 10log
10
THD =
Vf
175
THD + N = 10log
10
( )
Spurious-free Dynamic Range (SFDR) - the ratio of the amplitude of the
highest peak in the spectrum to that of the second highest peak
SINAD — signal to noise and distortion ratio. The ratio (in decibels) of the
signal-plus-noise-plus-distortion to noise-plus-distortion
SINAD = 10log
10
( )
Signal Noise Ratio (SNR) — the ratio (in decibels) of average signal power
to average noise power
SINAD = 10log
10
(
Inter-modulation Distortion (IMD) — a measure of distortion due to non-
linear mixing of two tones
F
2
3
+ F
2
4
F
2
1
+ F
2
2
To set the measurement
1. Tap the Measurement button at the bottom of the screen to open the
measurement dialog box.
2. Select the channel to be measured.
IMD = √
)
176
Figure 9-65 Measurement Setting Screen
3. Close the dialog box, and the corresponding measurement readings are
displayed on the lower side of the screen. The Whole Track and Ruler
Track can be toggled by tapping the reading. Adjust the whole track or ruler
track on the displayed screen, or tap Delete to delete the measurement.
To set the measurements in Spectrum View
1. Tap the Settings button in the upper toolbar. A dialog box opens. Select
the Mode option in the dialog box, and then tap to select Spectrum View.
2. Tap the Measurement button at the bottom of the screen to open the
measurement dialog box.
3. Select the channel to be measured.
4. Select the appropriate measurement options .
177
Figure 9-66 Measurement Setting Screen (Spectrum View)
5. Close the dialog box, and the corresponding measurement readings are
displayed on the lower side of the screen. Tap Delete to delete the
measurement.
Troubleshooting
A. If the oscilloscope cannot communicate with the MaxiSys Tablet:
Ensure the VCMI device is properly connected to the MaxiSys Tablet via BT,
Wi-Fi or with the supplied USB cable.
Restart the MaxiSys Tablet and reconnect the VCMI device if communication
between the two continues to fail .
B. If unwanted signals are displayed or signals are distorted:
Use only the supplied test leads or probes to connect with the input channels.
Check the test leads or probes for damage.
Ensure the polarity of the test leads connections are correct.
Ensure the signal and ground connections are clean and secure.
Ensure the ground lead is providing a direct ground from the circuit to the input
channel.
Isolate the test leads from other components, leads, or systems that may induct
unwanted noise into the signal being tested including the electric motors,
178
secondary ignition components, relays, alternators .
Glossary
AC/ DC Control
Each channel can be set to either AC coupling or DC coupling. With DC coupling,
the voltage displayed onscreen is equal to the true voltage of the signal with respect
to ground. With AC coupling, any DC component of the signal is filtered out, leaving
only the variations in the signal for the AC component.
Aliasing
When the signal frequency gets higher than half the scope's maximum sampling rate
and exceeds the limit, a distorted waveform displays. This distortion is called aliasing.
Amplitude
The maximum voltage generated from the zero volts line of the oscilloscope.
Analog Bandwidth
The frequency at which a displayed sine wave has half the power of the input sine
wave (about 71% of the amplitude).
Buffer Size/ Cache Size
The size of the oscilloscope's buffer memory. The buffer memory is used by the
oscilloscope to temporarily store data. This helps to compensate for the differences
in data transfer rate from one device to another.
Frequency
The number of signal occurrences per second. Frequency is measured in Hz (hertz).
Peak to peak voltage
The difference in voltage between the minimum and maximum voltages occurring in
the waveform.
Time Base
The time interval across the scope display.
179
Voltage Range
The range between the maximum and minimum voltages that can be accurately
captured by the oscilloscope.
Sampling Rate
The number of samples per second captured by the oscilloscope. The faster the
sampling rate of the scope, the more frequently it measures the signal voltage, and
so the more detailed will be the trace that appears on the scope screen.
Multimeter
180
The multimeter is a multi-function and multi-range measuring instrument. When the
VCMI (Vehicle Communication and Measurement Interface) device is connected
with MaxiSys Ultra EV Tablet, you can open the Multimeter application by tapping
the Measurement icon on the Job Menu of the tablet and then tapping the Multimeter
icon, and perform the multimeter-related functions, such as measuring voltage,
current, resistance, frequency, diode, duty cycle, pulse width, and continuity test.
Safety Information
Follow the instructions below to reduce the risk of injury from electric shock and
prevent equipment damage.
Use the multimeter only as specified in this manual.
Do not apply more than the rated voltage between connectors or between any
connector and earth ground.
Do not input a value beyond the range when measuring. Remember that the
limit value range of this multimeter is 200V.
To prevent injury or death, do not use the multimeter if it appears to be damaged
in any way, and stop use immediately if you are concerned with any abnormal
operations.
To prevent injury or death, never ground yourself when taking electrical
measurements. Isolate yourself from ground by using dry rubber insulating
mats to cover all exposed/grounded metal. Ensure all clothing including gloves
are dry. Stand on rubber mats when using tool.
Use the test leads or probes supplied with the product, or proper and applicable
terminals. Inspect the test leads or probes for damage before use.
When using probes, keep fingers behind the finger guards on the probes.
Use the supplied replacement fuses or specified replacement parts.
Always consider electrical and electronic equipment to be energized ( live).
Never assume any equipment is de-energized.
When making electrical connections, connect the common test lead before
connecting the live test lead; when disconnecting, disconnect the live test lead
before disconnecting the common test lead.
When measuring current, turn off circuit power before connecting the
multimeter to the circuit. Remember to place the multimeter in series with the
circuit.
181
After current measurement is finished, turn off the power to the circuit before
removing the test leads and before reconnecting any disconnected wires or
devices.
Do not add voltage to the input terminal when measuring resistance.
To avoid electric shock, turn off the power to the component before connecting.
To prevent damage, always use and store your multimeter in appropriate
environments.
Do not use in wet or damp conditions, or around explosive gas or vapor.
Do not tamper with or disassemble the multimeter, connectors or accessories.
Internal damage will affect performance .
Before carrying out maintenance and cleaning of the multimeter, make sure the
unit is NOT connected to a power source, vehicle or computer.
When cleaning the multimeter, use a damp, soft cloth with mild detergent. Do
not allow water to enter the multimeter casing.
General Introduction
Component Locations
The multimeter jacks are located on the top of the VCMI device while the input
channels are located at the bottom.
Figure 9-67 VCMI Top View
1. Multimeter Jacks — for ground and signal cables
2. USB Port
3. Hook
4. DC Power Supply Input Port
5. Power Button
182
IMPORTANT
When using the multimeter function, please insert the supplied multimeter probes to
the multimeter probe jacks. When measuring the current, use a current clamp to
connect to the input channel A on the top of the VCMI device .
The multimeter LED is located on the front panel of the VCMI device. When the VCMI
is properly connected and powered on, the multimeter LED lights green when
operating in the multimeter mode.
Figure 9-68 VCMI Front View
1. Power LED
2. Battery LED
3. Waveform Generator LED
4. Multimeter LED
5. Oscilloscope LED
6. Vehicle LED
Technical Specifications
Item
Description
Voltage Range
VDC 200 V
VAC 200 V RMS
Resistance Range
1 Q to 10 MQ
Diode
2 V
183
Item
Description
Frequency Range
1 Hz to 1 MHz
Duty Cycle Range
1% to 99 %
Pulse Width Range
1 us to 1000 ms
Current Range
0 to 65 A (65 A current clamp)
0 to 650 A (650 A current clamp)
Accessories
The following accessories are compatible with the
Please refer toAccessories for details.
multimeter and oscilloscope.
65A current
clamp
Multimeter
Probe
650A current
clamp
Back-pinning
Probe
Large Dolphin
Clip
Flexible Back-
pinning Probe
Small Crocodile
Clip
Breakout Lead
Battery Clip
The two multimeter test leads (Red: SA015 / Black: SA016) are standard for the
multimeter and waveform generator.
Multimeter Test Lead
Used to connect the multimeter and multimeter probe.
184
Getting Started
Before opening the Multimeter application, ensure the VCMI device is connected to
the tablet via BT, Wi-Fi or with the supplied USB cable. For more information, see
Establish Vehicle Communication.
Figure 9-69 Connection Diagram
To open the multimeter application
1. Insert the applicable test leads or probe terminal ends into the multimeter
jacks to complete the connection (refer toFigure 9-70).
2. Tap the Measurement icon on the MaxiSys Job Menu. The Measurement
screen opens.
3. Tap the Multimeter icon to open the Multimeter Menu.
4. Select a test to continue.
NOTE
Please check the multimeter LED status indicator on the front panel of VCMI device.
The multimeter LED lights green when operating in the multimeter mode .
Multimeter Update
The operating software of the multimeter is continually optimized. Tap the Help
button in the upper toolbar and then tap the Update the APK button in the dropdown
list to update the software.
185
Before update the multimeter's software, please ensure the tablet has a stable
Internet connection.
APK Update
NOTE
The acronym APK (Android Package Kit) is used on the tablet and in this manual.
This file contains all the assets of a particular app. To update the APK , is to install
the latest version of the app on your tablet .
To update the APK
1. Tap the Help button on the upper half of the screen. A dropdown menu
displays.
Figure 9-70 Help Screen
2. Tap the Update the APK in the dropdown menu. If the current APK is not
the latest version, a confirmation message will appear: An APK update is
available. Do you want to update? Restart the App after update .
3. Tap OK to update the software or tap Cancel to exit.
Screen Layout and Operations
Tap the Measurement icon on the Job Menu, then tap the Multimeter icon in the
menu, the multimeter page displays. The screen typically includes the following
button sections.
186
NOTE
The Multimeter application can also be opened via the Android home screen. Tap
the Measurement icon at the top of the Android home screen. Tap Multimeter icon.
Figure 9-71 Multimeter Menu Screen
1. Upper Toolbar
—
seeUpper Toolbarfor details.
2. Main View Section — seeMain View Sectionfor details.
3. Lower Toolbar — seeLower Toolbarfor details.
Upper Toolbar
The upper toolbar is used for configurations of various settings and operations. The
following table provides brief descriptions of each button:
Table 9-8 Upper Toolbar
Name
Button
Description
Multimeter
Icon
Displays the multimeter connection status. See
Multimeter Iconfor more information.
Start/Stop
Button
Start or stop the multimeter device. SeeStart/Stop
Buttonfor more information.
187
Name
Button
Description
Show
Mode
Set the display mode. See Show Mode Menu for
more information.
File
Print, open and save the waveform data. SeeFile
Menufor more information.
Help
View the user manual, and update the APK. See
Help Menufor more information.
Reset
Reset the digital readouts displayed in the figure
mode.
Multimeter Icon
This Multimeter status button displays the multimeter connection status. A green
check mark means the tablet and the Multimeter are connected; a red X means the
device and the tablet are not connected.
Start/Stop Button
Press this Start/Stop Button icon to start and stop the multimeter device.
Name
Button
Description
Start
Tap to start the multimeter.
Stop
Tap to stop the multimeter.
Show Mode Menu
The position of the digital readouts and waveform in the main view section can be
selected in the Show Mode Menu.
To set the show mode
1. Tap the Show Mode button in the upper toolbar. A submenu opens.
188

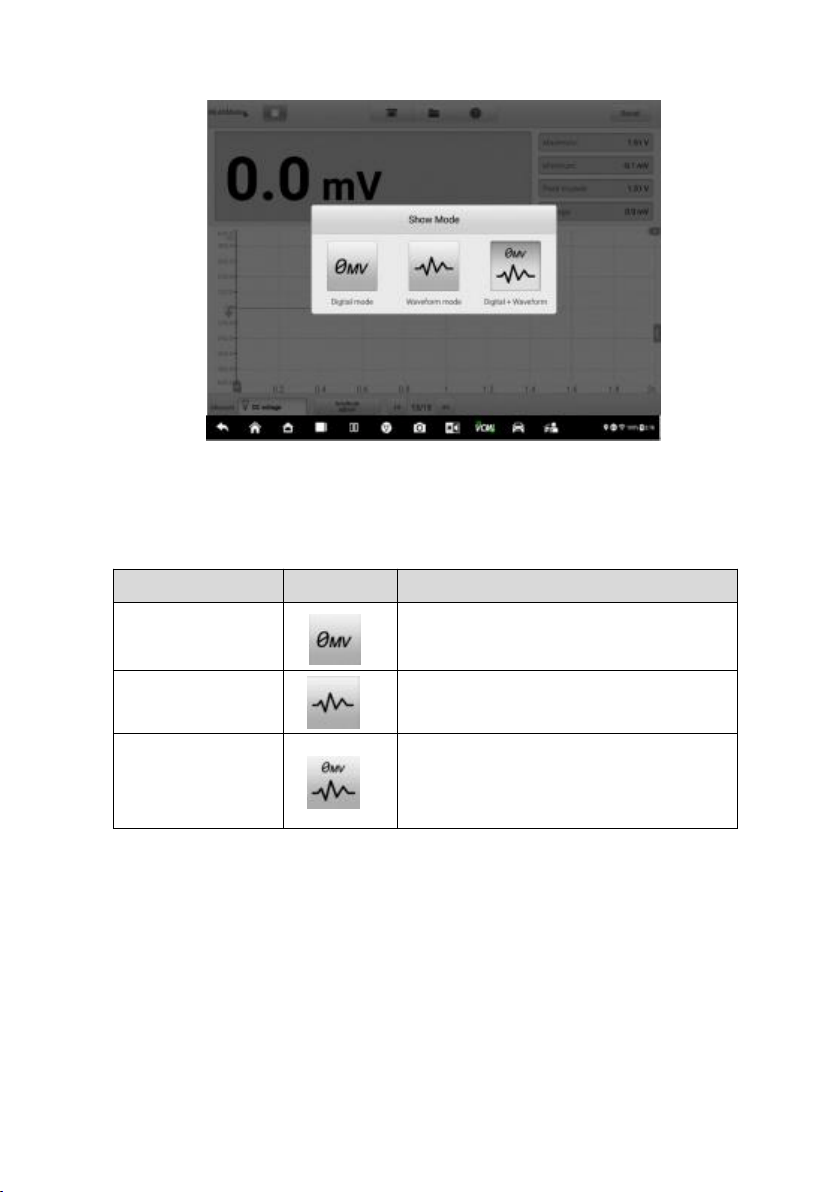

Figure 9-72 Show Mode Menu Screen
2. Select one of the three display modes.
3. The corresponding display mode will be shown on the screen.
Table 9-9 Show Mode Table
Mode
Icon
Description
Digital Mode
Displays the digital readouts only.
Waveform Mode
Displays the waveform only.
Digital +
Waveform Mode
Displays both the digital readouts and
waveform.
File Menu
The File Menu supports the following functions.
189

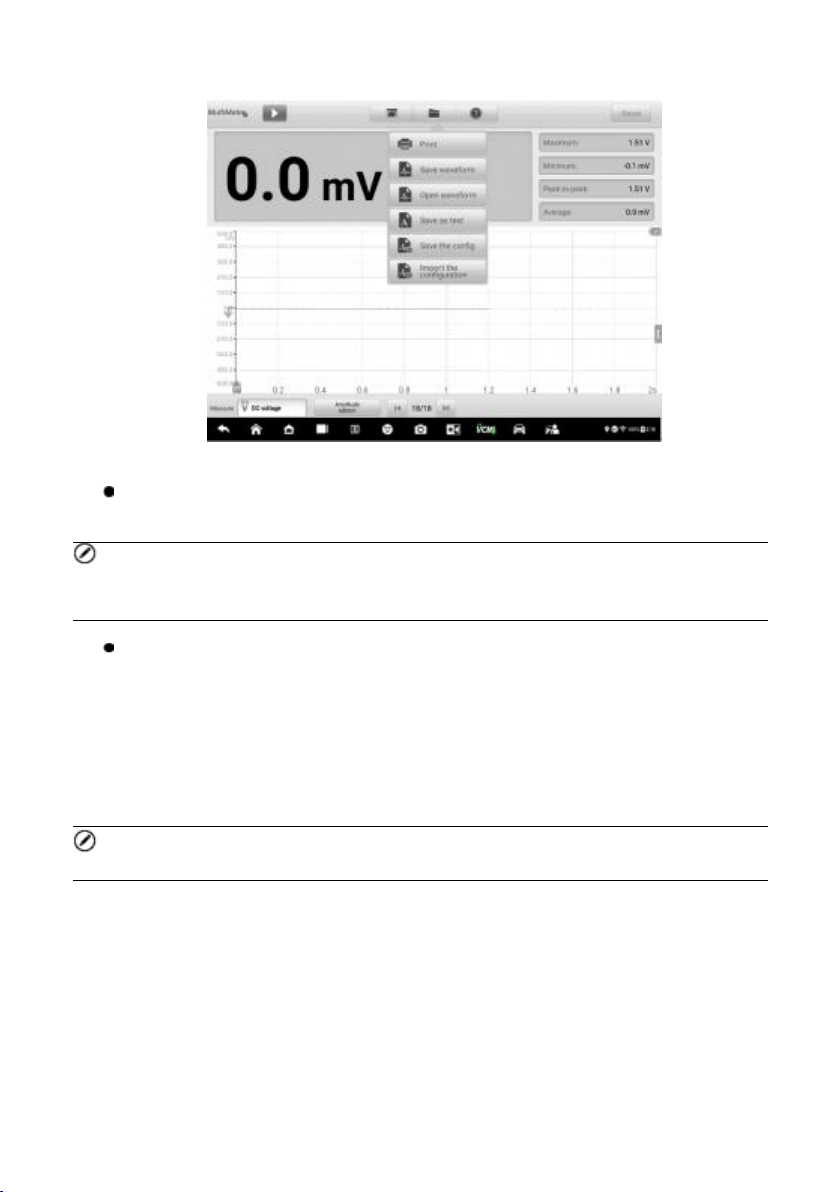

Figure 9-73 File Menu Screen
Print — Tap to create and print a temporary PNG picture of the current
waveforms.
NOTE
Ensure the tablet is configure to print (see Printer setup instructions) and is
connected to the printer. Ensure the tablet and printer share the same network.
Waveform File Operation
Save and open the waveform files in this section. Only Waveform mode and Digital
+ Waveform mode support this operation.
Save Waveform — Tap to capture and save the current waveforms. On the Save
File screen, tap each item to input the corresponding information and then tap Save
or Save Default to finish.
NOTE
The file name is required when saving waveforms .
Open Waveform — Tap to retrieve the saved waveforms. Tap the Edit button in the
upper right corner of the screen to select and delete the saved waveform .
Save as text — Tap to save the current waveform data to a text file. Use the ES File
Explorer app on the Android home screen to review file: Home > ES File Explorer >
Local > Internal Storage > Scan > Data > Multimeter > txt.
190
Configuration Operation
The configurations can be saved and imported.
Save the Configuration — Tap to save the configuration settings (i.e., the amplitude,
the time base) of waveforms on the current screen.
Import the Configuration — Tap to import the saved configuration settings for
waveforms.
Help Menu
The Help Menu allows you to view the user manual, update the software, and view
versions of the device.
Figure 9-74 Help Menu Screen
User Manual — displays instruction for the prosper use of the multimeter.
Update the APK — connects to the Autel server to get the latest application software
version.
About — displays the model number and version numbers of the installed software.
Main View Section
The main view section displays differently depending on the selected mode .
191
Digital Mode
The main view section in the digital mode displays only the digital readouts such as
values of voltage measurement, maximum measurement, minimum measurement,
peak to peak measurement and average measurement.
Figure 9-75 Main View Section Screen (Digital Mode)
Current Value: the current value can be the AC voltage, DC voltage, resistance,
frequency, or duty cycle
Maximum: the recorded maximum value of the measurement
Minimum: the recorded minimum value of the measurement
Peak to Peak: the difference between the maximum and minimum values
Average: the average value of the measurements
Waveform Mode
The main view section in the scope mode only displays the waveform.
192
Figure 9-76 Main View Section Screen (Waveform Mode)
The main view section features a coordinate grid with the X-axis representing the
time duration and the Y-axis representing the amplitude level. The amplitude level
on the Y-axis can be configured in the Amplitude Settings .
Channel Selection
In the main view section, a channel has two conditions: selected and unselected. A
channel must be selected in order for the waveform to be movement, to use the
zoom-in or to add measurement rulers.
To select and unselect the channel
1. Tap the zero baseline marker or the Y-axis (the line thickens when
selected).
2. Tap the zero baseline marker or the Y-axis again to exit the channel
selection.
Waveform Zooming
The zooming function allows you to change the size and position of a signal during
or after capturing a waveform to examine it in greater details. It does not change the
stored data, but the way it displays.
The X-axis and Y-axis can be zoomed using your fingertips. The waveform can be
zoomed during or after capturing the signal.
193
Measurement Rulers
In the coordinate grid, there are two kinds of measurement rulers, which allow the
amplitude and time duration of a waveform to be measured precisely. They are
useful when determining signal characteristics such as amplitude at specific points,
the cycle time (duration) and frequency.
The vertical Time Ruler
—
Tap the Ruler Activator in the bottom left corner of the
grid and drag it across the screen to the desired position. A Time Ruler is generated.
The horizontal Signal Ruler — The Signal Ruler can be generated in the similar
way by tapping the Ruler Activator in the upper right corner and dragging it
downwards.
NOTE
The horizontal signal ruler varies according to the settings of the voltage, current,
frequency, duty cycle, etc.
When dragging the Measurement Rulers, a Ruler Table showing time and amplitude
values for the corresponding channels will be displayed. The Delta icon refers to the
absolute difference between the values of the rulers, which can be locked by tapping
the Lock icon. Tap the X button in the upper right corner of the ruler table to delete
all rulers.
Figure 9-77 Measurement Rulers Screen
194
Zero Baseline
The zero baseline is marked the 0 value in the Y-axis, showing the ground level of
each channel waveform. After the channel is selected, the zero baseline can be
adjusted by dragging the baseline marker up/down along the Y-axis, or dragging the
waveform up/down or moving the screen up/down in the grid.
NOTE
Tap the baseline marker to make the vertical scale line thicker. In this case, the
channel is selected. Tap the baseline marker again to unselect and the waveform
cannot be dragged.
Figure 9-78 Zero Baseline Screen
Wiring Diagram and Help
Tap the arrow button in the lower- right corner of the screen to open the Wiring
Diagram and Help window.
The Wiring Diagram function provides the connection diagram, operation steps and
operation notes.
The Help function provides the user manual, displaying information relevant to the
procedure, operation or instructions.
195
Figure 9-79 Wiring Diagram and Help Screen
To open and close the Wiring Diagram and Help window
1. Tap the arrow button on the right-hand side of the screen.
Figure 9-80 Arrow Button Position Screen
2. The Wiring Diagram and Help window displays.
3. Tap the arrow button again or tap any space outside of the window.
196
Digital + Waveform Mode
In this mode, the main view section displays the digital readouts on the top and the
waveform in the grid.
Figure 9-81 Main View Section Screen (Digital + Waveform Mode)
Lower Toolbar
The measurement, buffer and amplitude can be configured in the lower toolbar.
Table 9-10 Lower Toolbar
Name
Button
Description
Measurement
Tap to select an appropriate measurement.
See Measurement Setting for more
information.
Amplitude
Tap to select an appropriate amplitude value.
SeeAmplitude Settingfor more information.
Buffer
Tap the Previous or Next button to switch to
the previous or the next waveform. See
Bufferfor more information.
197
Measurement Setting
This multimeter can be used to measure AC voltage, DC voltage, resistance, AC
electricity, DC electricity, diode, frequency, duty cycle, pulse width, continuity and
period.
The measurement types include:
AC/DC voltage: measures the voltage in the electrical circuit
Resistance: measures the resistance of the electrical circuit or the component
AC/DC current: measures current amperage through the input channel A by
using the optional current clamp
NOTE
The type of current clamp can be selected in the dropdown list.
Diode: conducts the diode test of the electrical circuit
Frequency: measures the frequency of the input signal
Duty Cycle (+)/(-): measures the (+) and (-) duty of the input signal
Connectivity: determines whether a low impedance exists two points in the
electrical circuit. If the impedance is less than 100 ohms, the circuit is "closed",
otherwise, the circuit is "open".
Period: measures the amount the time that one complete cycle of the input
signal endures
Pulse Width (+)/(-): measures the pulse width of the input signal
To set the measurement setting
1. Tap the Measurement Setting button in the lower-left corner of the screen.
A dialog box appears.
198
Figure 9-82 Measurement Setting Position Screen
2. Select the measurement type you want to measure or test in the right
column of the dialog box. The blue color indicates the option is selected.
Figure 9-83 Measurement Setting Screen
3. Close the dialog box, the measurement type you set displays on the screen.
Amplitude Setting
Amplitude value can be configured for the selected measurement type excluding
resistance measurement.
199
The amplitude settings allow you to set up the multimeter to capture signals within
the specified range. If the input signal exceeds the selected range, an over-range
indicator will be displayed. Select Auto to enable the device to adjust the vertical
scale automatically.
There are two modes available to set the amplitude value.
Mode 1: For example, selecting DC voltage in Measurement setting screen sets the
measurement type to DC voltage, selecting 10V in Amplitude setting screen sets the
amplitude to Amplitude 10V (displays on the lower left corner of the screen). The
vertical scale range is from -10V to +10V. As the vertical scale is divided into 10
segments, each segment increases by 2V.
Figure 9-84 Amplitude Setting Screen (DC 10V)
Mode 2: Select the ## /div button to adjust the value increments of each division.
For example, selecting DC voltage in Measurement setting screen, sets the
measurement type to DC voltage . Selecting 2.0V/div in Amplitude setting screen,
sets the amplitude to Amplitude 2.0 V/div (displays on the lower left corner of the
screen) . Each segment increases by 2V. As the vertical scale is divided into 10
segments, the entire vertical scale range is from -10V to +10V.
200
Figure 9-85 Amplitude Setting Screen (DC 2.0V/div)
Testing Procedures
The following section describes how to use the multimeter. The testing procedures
are the same for each measurement type.
The following directions are for measuring AC voltage.
To measure AC voltage
1. Tap the Measurement Setting button in the lower-left corner of the screen
to open the setting dialog box. Select AC voltage in the dialog box.
2 . Set the proper amplitude value in the Amplitude Setting menu in the
same dialog box.
3. Connect the supplied multimeter test lead to the VCMI multimeter jacks.
Insert the multimeter probe into the test lead.
4. Hold the probes to the correct points of the circuit.
5. Tap the Start button on the upper-left corner of the screen to start the
multimeter. The voltage displays onscreen.
NOTE
Use the optional current clamp connected to the input channel A when measuring
currents. Use the supplied multimeter probes to connect with the multimeter jacks
for other measurement types .
201
Probe Edit
Use the probe edit menu to add the not included probes into the probe menu.
Figure 9-86 Probe Edit Screen 1
To add custom probes
1. Tap the Measurement Setting button in the lower left corner of the screen
to open the setting dialog box.
2. Select the Probe Edit option in the left column of the dialog box.
3. Tap each field to open the virtual keyboard and input the required
information.
202
Figure 9-87 Probe Edit Screen 2
4. Tap Add to save the settings, or tap Clean to exit without saving.
5. The added probe will be listed in the Measurement Settings window. Tap
the X button in the upper right corner to close the dialog box.
6. After selecting the custom probe, connect a matching probe in the input
channel A. The probe is connected to the signal position to be measured
for measurement. At this time, the current measurement is displayed on
the screen.
Figure 9-88 Probe Edit Screen 3
203
Buffer
The waveform buffer displays the current waveform number and the total number of
stored waveforms.
The multimeter can capture and store up to 32 waveforms. Tap the Previous or Next
button to review waveforms.
Figure 9-89 Buffer Screen
Table 9-11 Buffer Button Specification
Name
Button
Description
Previous
Tap to display the previous waveform in the buffer.
Buffer Index
Displays the number of the waveform currently
displayed onscreen out of the total number of
buffered waveforms.
Next
Tap to display the next waveform in the buffer.
Troubleshooting
If the multimeter cannot communicate with the tablet:
Check if the VCMI device is properly connected to the tablet via Wi-Fi, BT or
the supplied USB cable.
204
If the communication between the VCMI device and the tablet still fails, restart
the tablet and reconnect the VCMI device.
Glossary
AC
Alternating Current - electrical current that switches polarity at regular intervals.
DC
Direct Current - electrical current that flows in one direction only.
Amperage
The strength of an electric current, expressed in amperes.
Amplitude
The maximum voltage generated from the zero volts line of the multimeter.
Frequency
The number of signal occurrences per second. Frequency is measured in Hz (hertz).
Duty Cycle
The length of a signals on time. Specified as a percentage (ratio), of the total cycle
time.
Peak to Peak
The difference between maximum and minimum value .
Diode
Diode is an electronic device made of semiconductor materials, with a single
conductivity.
Grid
A network of horizontal and vertical scales displayed on the screen that aids in the
measuring of signal characteristics .
Waveform Generator
205
The signal generator is an instrument that simulates the signals of automotive
electronic components. When the VCMI (Vehicle Communication and Measurement
Interface) device is connected with MaxiSys Ultra EV Tablet, you can open the
Waveform Generator application by taping the Measurement icon on the Home
screen of the tablet and then tapping the waveform generator icon, and perform the
waveform generator-related functions, including simulating automotive sensor
signals and actuator signals.
Safety Information
Follow the instructions below to reduce the risk of injury from electric shock and
prevent equipment damage.
Use the waveform generator only as specified in this manual.
Do not apply more than the rated voltage between connectors or between any
connector and earth ground.
To minimize shock hazard, please connect the device ground input (chassis) to
an electrical ground.
Do not alter the ground connection. Without the protective ground connection,
all accessible conductive parts can render an electric shock.
To avoid electric shock hazard, disconnect power cable before removing covers.
To prevent injury or death, do not use the waveform generator if it appears to
be damaged in any way, and stop use immediately if you are concerned any
abnormal operations.
Inspect the test leads or probes for damage before use.
Use the accessories supplied with the product.
Use the supplied replacement fuses or specified replacement parts.
To prevent damage, always use and store your waveform generator in
appropriate environments.
Do not place the waveform generator in an area that is directly exposed to
sunlight or under high humidity.
Do not tamper with or disassemble the waveform generator, connectors or
accessories. Internal damage will affect performance .
Disconnect waveform generator from power source, vehicle and tablet before
cleaning.
When cleaning the waveform generator, use a damp, soft cloth with mild
206
detergent. Do not allow water to enter the waveform generator casing
General Introduction
Component Locations
The multimeter jacks are used when operating the waveform generator. The two
multimeter jacks are located on the top of the VCMI device.
Figure 9-90 VCMI Top View
1. Multimeter Jacks — for ground and signal cables
2. USB Port
3. Hook
4. DC Power Supply Input Port
5. Power Button
The waveform generator LED is located on the front panel of the VCMI device. When
the VCMI is properly connected and powered on, the waveform generator LED lights
green when operating in the waveform generator mode.
207
Figure 9-91 VCMI Front View
1. Power LED
2. Battery LED
3. Waveform Generator LED
4. Multimeter LED
5. Oscilloscope LED
6. Vehicle LED
Technical Specifications
Item
Description
Voltage Range
0.1 to 12 V
Frequency Output
1 Hz to 30 KHz
Duty Cycle Range
1 % to 99 % (1 Hz to 30 KHz)
Accessories
The following accessories are compatible with the waveform generator and
oscilloscope. Please refer toAccessoriesfor details.
208
Large Dolphin
Clip
Flexible Back-
pinning Probe
Small Crocodile
Clip
Breakout Lead
Multimeter
Probe
Battery Clip
Back-pinning
Probe
The multimeter test leads (Red: SA015 / Black: SA016) are standard for the
waveform generator and multimeter.
Multimeter Test Lead
Used to connect the waveform generator and the probe.
Getting Started
Before opening the waveform generator application, the VCMI device must be
connected to the Tablet via the provided USB cable or Wi- Fi network. For more
information, seeEstablish Vehicle Communication.
209
Figure 9-92 Connection Diagram
To open the waveform generator application
1. Insert the multimeter test lead ends into the multimeter jacks on the top of
the VCMI device to compete the connection.
2. Tap the Measurement icon on the Home screen of the MaxiSys Ultra Tablet.
The Measurement screen displays.
3. Tap the Waveform generator icon to open the waveform generator Menu.
4. Select a test to continue.
NOTE
Please check the waveform generator LED status indicator on the front panel of
VCMI device. The waveform generator LED lights green when operating in the
waveform generator mode.
Waveform Generator Update
The operating software of the waveform generator is continually optimized. Tap the
Help button in the top toolbar and then tap the Update the APK button in the
dropdown list to update the software .
Before update the waveform generator's software, please make sure the tablet has
a stable Internet connection.
210
APK Update
NOTE
The acronym APK (Android Package Kit) is used on the tablet and in this manual.
This file contains all the assets of a particular app. To update the APK , is to install
the latest version of the app on your tablet .
To update the APK
1. Tap the Help button on the upper half of the screen. A dropdown menu
displays.
Figure 9-93 Help Screen
2. Tap the Update the APK in the dropdown menu. A confirmation message
displays.
211
Figure 9-94 Update Confirmation Screen
3. Tap OK to update the software or tap Cancel to exit.
Screen Layout and Operations
Tap the Measurement icon on the Job Menu and select Waveform generator from
the menu, the waveform generator page displays. The screen typically includes the
following button sections.
NOTE
The Waveform Generator application can also be opened via the Android home
screen. Tap the Measurement icon at the top of the Android home screen. Tap
Waveform Generator icon.
212
Figure 9-95 Waveform Generator Menu Screen
1. Upper Toolbar
—
seeUpper Toolbar for details.
2. Main View Section — seeMain View Sectionfor details.
3. Lower Toolbar — seeLower Toolbarfor details.
Upper Toolbar
The upper toolbar is used to configure settings and operations. The following table
provides brief descriptions of each button .
Table 9-12 Upper Toolbar
Name
Button
Description
Waveform
generator
Icon
Displays the waveform generator connection
status. See Waveform generator Buttonfor more
information.
Start/Stop
Start and stop the waveform generator device. See
Start/Stop Buttonfor more information.
File
Print, open and save the waveform data. SeeFile
for more information.
Help
View the user manual, and update the software.
SeeHelpfor more information.
213
Name
Button
Description
Reset
Reset the configurations and refresh the screen.
Waveform Generator Icon
This Waveform Generator Icon displays the waveform generator connection status.
A green check mark means the tablet and the waveform generator are connected;
a red X means the device and the tablet are not connected.
Start/Stop Button
You can tap the Start/Stop Button icon to start or stop the waveform generator
device.
Name
Button
Description
Start
Tap to start the waveform generator.
Stop
Tap to stop the waveform generator.
File Menu
The file menu supports the following functions.
214
Figure 9-96 File Menu Screen
Print — Tap to create and print a temporary PNG picture of the current
waveforms.
NOTE
Ensure the tablet is configure to print (see Printer setup instructions) and is
connected to the printer. Ensure the tablet and printer share the same network.
Save Waveform — Tap to capture and save the current waveform. On the
Save File screen, tap each item to input the corresponding information and then
tap Save or Save Default to finish.
NOTE
You must name the file to save the waveform .
Open Waveform — Tap to retrieve the saved waveforms. Tap the Edit button
in the upper right corner of the screen to select and delete the saved waveform.
Save as text — Tap to save the current waveform data to a text file. Use the
ES File Explorer app on the Android home screen to review file: Home > ES
File Explorer > Local > Internal Storage > Scan > Data > Signal > txt.
Help Menu
The Help Menu allows you to view the user manual, update the software, and view
versions of the device.
215
Figure 9-97 Help Menu Screen
User Manual — displays instruction for the prosper use of the waveform generator.
Update the APK — connects to the Autel server and get the latest application
software version.
About — displays the model numbers and the installed versions of the software .
Main View Section
The main view section screen displays as a coordinate grid with X-axis and Y-axis,
representing the duration and amplitude level respectively.
Channel Selection
In the main view section, a channel has two conditions: selected and unselected. A
channel must be selected in order for the waveform to be movement, to use the
zoom-in or to add measurement rulers.
To select and unselect the channel
1. Tap the zero baseline marker or the Y-axis (the line thickens when
selected).
2 . Tap the zero baseline marker or the Y-axis again to exit the channel
selection.
216
Waveform Zooming
The zooming function allows you to change the size and position of a signal during
or after capturing a waveform to examine it in greater details. It does not change the
stored data, only the way it displays .
The X-axis and Y-axis can be zoomed using your fingertips. The waveform can be
zoomed during or after capturing the signal.
Measurement Ruler
In the coordinate grid, there are two types of measurement rulers, which allow the
amplitude and duration of a waveform to be measured precisely. They are useful
when determining signal characteristics such as amplitude at specific points, and the
cycle time (duration).
The vertical Time Ruler - Tap the Ruler Activator in the lower left corner of the grid
and drag it across the screen to the desired position. A Time Ruler is generated.
The horizontal Signal Ruler - The Signal Ruler can be generated in the similar way
by clicking the Ruler Activator in the upper right corner and dragging it downwards.
When dragging the Measurement Rulers, a Ruler Table showing time and voltage
values will be displayed. The Delta icon refers to the absolute difference between
the values of the rulers, which can be locked by tapping the Lock icon. Tap the X
button in the upper right corner of the ruler table to delete all rulers.
Figure 9-98 Measurement Rulers Screen
217
Zero Baseline
The zero baseline is marked as the 0 value in the Y-axis, showing the ground level
of each channel waveform. After the channel is selected, the Zero Baseline can be
adjusted by dragging the zero baseline marker up/down along the Y-axis.
Wiring Diagram and Help
Tap the arrow button in the lower right corner of the screen to open the Wiring
Diagram and Help window.
The Wiring Diagram function provides the connection diagram, operation steps and
operation notes.
The Help function provides the content-sensitive help, displaying information
relevant to the procedure, operation or instructions.
Figure 9-99 Wiring Diagram and Help Screen
To open and close the Wiring Diagram and Help window
1. Tap the arrow button on the right-hand side of the screen.
218
Figure 9-100 Arrow Button Position Screen
2. The Wiring Diagram and Help window displays.
3. Tap the arrow button again or tap any space outside of the window.
Lower Toolbar
The signal mode, voltage, frequency and duty cycle can be configured via the lower
toolbar.
Table 9-13 Lower Toolbar
Name
Button
Description
Signal Mode
Setting
Tap to select an appropriate signal mode.
See Signal Mode Setting for more
information.
Voltage
Setting
Tap to select an appropriate voltage value.
SeeVoltage Settingfor more information.
Frequency
Setting
Tap to select an appropriate frequency value.
SeeFrequency Settingfor more information.
Duty Cycle
Setting
Tap to select an appropriate duty cycle value.
SeeDuty Cycle Settingfor more information.
219
Signal Mode Setting
The waveform generator supports numerous signal modes including the DC voltage,
square wave, square wave (X+Y), triangle wave, and actuators drive , and arbitrary
waveform.
Figure 9-101 Signal Mode Setting Screen
DC Voltage
Figure 9-102 DC Voltage Connection Diagram
220
Set the DC voltage in the waveform generator interface. The waveform generator
can simulate the signals of numerous sensors including the water temperature
sensor, oil pressure sensor, and position sensor and then feed back to the engine
ECU.
Actuator Drive
Figure 9-103 Actuator Drive Connection Diagram
This function can drive 2-wire solenoid valve, solenoid coil , and low-power motor,
including the canister solenoid valve, injector solenoid valve, transmission hydraulic
valve, hydraulic control valve, ignition coil, idle motor, and throttle motor.
It can change the operation speed and working time of the actuator by setting the
frequency and duty cycle. The higher the frequency, the faster the speed, and the
higher the duty cycle, the longer the working time, and vice versa .
NOTE
To avoid damaging the actuator, do not actuate it for a long time, and do not set too
high a frequency.
This function needs to be tested on the car. If the actuator is removed, it cannot be
driven individually.
221
NOTE
The maximum current supported by Actuator Drive cannot exceed 1.9A.
Square Wave
Figure 9-104 Square Wave Connection Diagram
Once the voltage and frequency are set in the waveform generator interface, the
square wave signals simulate the signals of various Hall sensors.
Square Wave (X+Y)
Figure 9-105 Square Wave (X+Y) Connection Diagram
222
This function is mainly used to simulate the missing tooth signals of Hall-type
crankshafts and camshafts . The X value represents the normal tooth signal and the
Y represents the missing tooth signal. The default setting is 58+2, which can be
adjusted as needed.
Triangle Waveform
Figure 9-106 Triangle Waveform Connection Diagram
This is a symmetrical triangular waveform, which is mainly used to simulate the
triangle wave signals. The amplitude and frequency can be configured in this
waveform.
223
Arbitrary Waveform
Figure 9-107 Arbitrary Waveform Connection Diagram
Any type of the mentioned waveforms can be loaded again after the waveform and
parameter settings are saved.
Voltage Setting
After you select the waveform mode, you can also set the amplitude value for that
mode.
There are three methods to adjust the voltage value:
Method 1: Tap the "+" and "-" buttons at the bottom of the screen in the Voltage
Setting.
224
Figure 9-108 Voltage Setting Screen 1
Range
Button
Description
0.1V to 0.9V
Raises the voltage by 0.1V
Lowers the voltage by 0.1V
1V to 12V
Raises the voltage by 1V
Lowers the voltage by 1V
Method 2: Tap the Voltage Setting button at the bottom of the screen to open a
dialog box. Adjust the voltage value by tapping the positive or negative value at
the bottom of the dialog box. Then tap OK to confirm or Cancel to exit without saving.
225
Figure 9-109 Voltage Setting Screen 2
Value
Description
+0.1V
Raises the voltage by 0.1V
-0.1V
Lowers the voltage by 0.1V
+1.0V
Raises the voltage by 1V
-1.0V
Lowers the voltage by 1V
Method 3: Input the voltage value using the virtual keyboard. Tap the voltage field
to clear the current value and input the new value. Tap OK to confirm or Cancel to
exit without saving.
226
Figure 9-110 Voltage Setting Screen 3
Frequency Setting
When the waveform mode is selected and the waveform generator is operating, you
can also set the frequency value for that mode.
There are also three methods to adjust the frequency value:
Method 1: Tap the "+" and "-" buttons at the bottom of the screen in the Frequency
Setting.
Figure 9-111 Frequency Setting Screen 1
227
Range
Button
Description
1Hz to 10Hz
Raises the frequency by 1Hz
Lowers the frequency by 1Hz
10Hz to 100Hz
Raises the frequency by 10Hz
Lowers the frequency by 10Hz
100Hz to 1000Hz
Raises the frequency by 100Hz
Lowers the frequency by 100Hz
1.0KHz to 30.0KHz
Raises the frequency by 1KHz
Lowers the frequency by 1KHz
Method 2: Tap the Frequency Setting button at the bottom of the screen to open a
dialog box. Adjust the frequency value by tapping the positive or negative value at
the bottom of the dialog box. The unit of the frequency can be switched Hz to KHz.
Tap OK to confirm or Cancel to exit without saving.
Figure 9-112 Frequency Setting Screen 2
228
Value
Description
+1.0Hz
Raises the frequency by 1Hz
-1.0Hz
Lowers the frequency by 1Hz
+10.0Hz
Raises the frequency by 10Hz
-10.0Hz
Lowers the frequency by 10Hz
+1.0KHz
Raises the frequency by 1KHz
-1.0KHz
Lowers the frequency by 1KHz
Method 3: Input the frequency value using the virtual keyboard. Tap the frequency
field to clear the current value and input the new value. Tap OK to confirm or Cancel
to exit without saving.
Figure 9-113 Frequency Setting Screen 3
Duty Cycle Setting
When the waveform mode is set, you can also set the duty cycle ratio for that mode.
There are three methods to adjust the duty cycle ratio:
229
Method 1: Tap the "+" and "-" buttons at the bottom of the screen in the Duty Cycle
Setting.
Figure 9-114 Duty Cycle Setting Screen 1
Range
Button
Description
1% to 99%
Raises the duty cycle ratio by 1%
Lowers the duty cycle ratio by 1%
Method 2: Tap the Duty Cycle Setting button at the bottom of the screen to open
a dialog box. Adjust the duty cycle by tapping the positive or negative ratio at the
bottom of the dialog box. Tap OK to confirm or Cancel to exit without saving.
230
Figure 9-115 Duty Cycle Setting Screen 2
Value
Description
+1.0%
Raises the duty cycle ratio by 1.0%
-1.0%
Lowers the duty cycle ratio by 1.0%
+10.0%
Raises the duty cycle ratio by 10%
-10.0%
Lowers the duty cycle ratio by 10%
Method 3: Input the duty cycle ratio using the virtual keyboard. Tap the duty cycle
field to clear the current value and input the new value. Tap OK to confirm or Cancel
to exit without saving.
231
Figure 9-116 Duty Cycle Setting Screen 3
Troubleshooting
If the waveform generator cannot communicate with the tablet:
Check if the VCMI device is properly connected to the tablet through the
supplied USB cable.
If the communication between the VCMI device and the tablet still fails, restart
the tablet and reconnect the VCMI device.
IMPORTANT
To avoid damaging the vehicle and the equipment, all vehicle communications must
be terminated before resetting the connection. The Internet connection may be
aborted during resetting.
Glossary
Waveform
Type
Description
Sample Waveform
DC Voltage
A waveform with constant
voltage
232
Waveform
Type
Description
Sample Waveform
Square
Wave
The voltage waveform is a
rectangular periodic signal
Square
Wave (X+Y)
A waveform signal of
automobile crankshaft
Triangle
Wave
Periodic signal with triangular
voltage waveform
Bus Inspection
233
Bus Inspection is an instrument that detects the communication status of CAN Bus. When
the VCMI (Vehicle Communication and Measurement Interface) device is connected with
MaxiSys Ultra Tablet, you can open the Bus Inspection application by taping the
Measurement icon on the Home screen of the tablet and then tapping the OBD icon, and
perform the OBD- related functions including the signal detection. The indicator light
flashes if the signals are detected. The indicator light displays in gray if no signal is
detected.
Generally, the vehicle' s electronic control systems are designed to comply with the
specific communication protocols. The control units in the electronic control systems
communicate with the Tablet through the OBDII (DLC) adapter.
With the Bus Inspection function, you can check whether the control units in vehicle's
electronic control systems work properly or not with the indicator light according to the
condition of sending out the communication signals.
Safety Information
Follow the instructions below to ensure proper CAN Bus check performance.
Different preconditions for different functions. Before check, please read the
inspection guides carefully.
The pin number for OBDII varies by vehicle modes. Please check and confirm for
correct pin number and then proceed inspection.
Select OBDII connector's signal pins manually if the test vehicle's actual
communication signal pins are assigned differently.
Ensure the DLC main cable is connected to the vehicle before inspection.
Ensure the ignition key is in ON position when testing the vehicle's communication
line.
If the inspection fails due to no signal input, consult vehicle circuit diagram to ensure
correct communications are being tested.
Do not use in wet or damp conditions, or around explosive gas or vapor.
Do not tamper with or disassemble the product, connectors or accessories. Internal
damage will affect performance.
Disconnect the product from power source, vehicle and tablet before cleaning.
When cleaning the product, use a damp, soft cloth with mild detergent. Do not allow
water to enter the product casing, as this will cause damage to the electronics inside .
234
General Introduction
Component Locations
The main connectors are located at the bottom of the VCMI device.
Figure 9-117 VCMI Top View
1. Ethernet Connector
2. Vehicle Data Connector
3. Input Channel A
4. Input Channel B
5. Input Channel C
6. Input Channel D
Getting Started
Before opening the OBDII CAN Bus Check application, you have to complete three steps
below:
1 ) Connect the VCMI device to the tablet via Wi- Fi, BT or the supplied USB, see
Establish Vehicle Communication.
2) Connect the VCMI device to the vehicle's OBDII connector.
3) Place the ignition in the key on position .
235
Figure 9-118 Connection Diagram
To open the Bus Inspection application
1. Please refer toFigure 9-118 Connection Diagramto complete the connection.
Place the ignition in the key on position.
2. Tap the Measurement icon on the Job Menu of the MaxiSys Ultra EV Tablet.
The Measurement screen opens.
3. Tap the OBD icon to open the Bus Inspection Menu.
4. Select a communication protocol to test.
Bus Inspection
The operating software of the device is continually optimized. Tap the Help button in the
top toolbar and then tap the Update the APK button in the dropdown list to update the
software.
Before update the device's software, please make sure the tablet has a stable Internet
connection.
APK Update
NOTE
The acronym APK (Android Package Kit) is used on the tablet and in this manual. This
file contains all the assets of a particular app. To update the APK , is to install the latest
version of the app on your tablet .
236
To update the APK
1. Tap the Help button on the upper half of the screen. A dropdown menu displays.
Figure 9-119 Help Screen
2. Tap Update the APK in the dropdown menu. A confirmation message displays.
Figure 9-120 Update Confirmation Screen
3. Tap OK to update the software or tap Cancel to exit.
237
Screen Layout and Operations
The Bus Inspection application allows you to select the communication protocols, the
signal pins and voltage value for testing.
Tap the Measurement icon on the Job Menu and select OBD in the menu, the Bus
Inspection window displays. The screen typically includes the following button sections.
NOTE
The Bus Inspection application can also be opened via the Android home screen. Tap
the Measurement icon at the top of the Android home screen. Tap the OBD app icon.
Figure 9-121 Bus Inspection Screen
1. Upper Toolbar — seeUpper Toolbarfor details.
2. Main View Section — seeMain View Section and Lower Toolbarfor details.
3. Lower Toolbar— seeMain View Section and Lower Toolbarfor details.
Upper Toolbar
The upper toolbar is used for configurations of various settings and operations. The
following table provides brief descriptions of each button.
238
Table 9-14 Upper Toolbar
Name
Button
Description
OBD Icon
Displays the device connection status. See OBD
Buttonfor more information.
Start/Stop
Starts or stops the device. See Start/Stop Button
for more information.
Settings
Sets the communication protocol pins manually.
SeeSettings Menufor more information.
File
Prints, opens and saves the waveform data. See
File Menufor more information.
Help
Views the user manual and update the software.
SeeHelp Menufor more information.
OBD Icon
This OBD button indicates the OBD device connection status. A green check mark
means the VCMI and the tablet are connected; a red X means no connection has been
established.
Start/Stop Button
You can tap the Start/Stop Button icon to start or stop the device.
Name
Button
Description
Start
Tap to start the device.
Stop
Tap to stop the device.
Settings Menu
Tap the gear-shaped icon in the top navigation bar to enter the Settings Menu.
The pin number for OBDII may be different for different vehicle modes. In Settings Menu,
you can select OBDII connector's signal pins manually if the test vehicle's actual
communication signal pins are assigned differently.
239
Figure 9-122 Settings Menu Screen 1
At the bottom of the settings menu screen, the Protocol, Reset, Save, and Close
buttons are displayed. The protocol varies according to the protocol you set.
Take CAN protocol as an example.
CAN-H: select the pin assigned for high speed CAN-bus communication line
CAN-L: select the pin assigned for low speed CAN-bus communication line
Reset: restore the default settings
Save: save the changes when custom pin assignment is set
Close: exit the settings menu screen
To select the signal pins manually
1. Tap the gear-shaped icon in the upper toolbar to enter the Settings Menu.
2. Tap CAN-H or CAN-L to select the communication protocol pins.
240
Figure 9-123 Settings Menu Screen 2
3. Tap the correct pin number in the OBDII Connector Assignment image to match
the test vehicle's actual communication signal pins.
Figure 9-124 Settings Menu Screen 3
4. Tap Save to save changes or tap Close to exit.
File Menu
The File Menu allows you to print, open and save the waveform data. The File Menu is
enabled in the Waveform Mode and supports the following functions.
241
Figure 9-125 File Menu Screen
Print — Tap to create and print a temporary PNG picture of the current waveforms.
NOTE
Ensure the tablet is configure to print (see Printer setup instructions) and is connected to
the printer. Ensure the tablet and printer share the same network.
Save Waveform — Tap to capture and save the current waveforms. On the Save
File screen, tap each item to input the corresponding information and then tap Save
or Save Default to finish.
NOTE
A file name is required to save the waveform.
Open Waveform — Tap to retrieve the saved waveforms. To select and delete the
saved waveform, tap the Edit button in the upper right corner of the screen.
Save as text — Tap to save the current waveform data to a text file. Use the ES
File Explorer app on the Android home screen to review file: Home > ES File
Explorer > Local > Internal Storage > Scan > Data > OBD > txt.
Help Menu
The Help Menu allows you to view the user manual, update the software, and view
versions of the device.
242
Figure 9-126 Help Menu Screen
User Manual — displays instruction for the prosper use of the OBDII CAN Bus Check
application and the Ultra tablet.
Update the APK — connects to the Autel server and get the latest application software
version.
About — displays the model number and the installed versions of the software.
Main View Section and Lower Toolbar
Two modes are available in the OBD communication line inspection function: Indicator
Mode and Waveform Mode.
Indicator Mode
This mode is designed to show the condition of voltage fluctuation in vehicle's
communication lines. In this mode, the indicator light of a selected pin flashes when the
electronic control units are sending signals properly.
The Indicator Mode displays by default.
243
Figure 9-127 Indicator Mode Screen
Main View Section
The CAN-High line is assigned to Pin 6 and the CAN-Low line is assigned to Pin 14 of
the OBDII adapter by default according to the CAN-Bus standard protocol.
If the test vehicle's actual communication signal pins are assigned differently, you can
select OBDII connector's signal pins manually in theSettings Menu.
When the electronic control units send out signals properly, the left and right indicator
lights will flash consecutively on the screen.
NOTE
The flashing indicator lights serve to confirm only that communication signals have been
detected.
Lower Toolbar
Protocol Button
In the left-lower corner of the screen, you can select the protocol you want to test.
244
Figure 9-128 Protocol Button Screen
The following protocols are included:
High Speed CAN — offers baud rates from 40 Kbit/s to 1 Mbit/sec, depending on
cable length. This is the most popular standard for the physical layer, since it allows
for simple cable connection between devices. High speed CAN networks are
terminated with 120 ohm resistors on each end of the network.
Low Speed CAN — offers baud rates from 40 Kbit/s to 125 Kbits/sec. This standard
allows CAN bus communication to continue in case of a wiring failure on the CAN
bus lines. In low speed CAN networks, each device has its own termination.
Single CAN — offers baud rates up to 33.3 Kbit/s (up to 88.3 Kbit/s for high-speed
mode)
J1939 CAN — is used in the commercial vehicle area for communication
throughout the vehicle with the physical layer defined in ISO 11898. Under J1939/11
and J1939/15, the data rate is specified as 250 Kbit/s, with J1939/14 specifying 500
Kbit/s.
J1850 (PWM) — SAE J1850 pulse-width modulation offers baud rates up to 41.6
Kbit/s, standard of the Ford Motor Company
J1850 (VPW) — SAE J1850 variable pulse width offers baud rates up to 10.4 Kbit/s,
standard of the General Motors
J1708 (SAE) — the standard defines a double-wire 18-gauge cable that can run up
to 130 feet (40 m) and operates at 9600 bit/s
245
View Waveform Button
In the right-lower corner of the screen, you can enter to the Waveform Mode by tapping
the View Waveform button.
Figure 9-129 View Waveform Button Screen
Test Procedure
The test procedure is the same for all the protocols.
To test the communication line
Using High speed CAN-bus line as an example.
1. Make sure the VCMI is connected to the vehicle's OBDII connector. The VCMI
is connected with tablet successfully. Please refer to theConnection Diagram.
2. Place the ignition in the key ON position.
3. Tap the Measurement icon on the Job Menu of the MaxiSys Ultra EV Tablet.
The Measurement screen opens. Tap the OBD icon to open the OBD menu
screen. Select the High Speed CAN protocol in the lower corner of the screen.
4. Tap the Start button on the upper left corner of the screen to start the device.
The OBDII connector pin number that the signals are using is indicated, and
the indicator light flashes if the signals are detected . Otherwise, the indicator
light displays in gray.
246
NOTE
If the indicator light is not flashing, ensure the ignition is in the key ON position and that
signal pin assignment is correct.
Waveform Mode
This mode allows you to view the test result in a waveform form . This mode offers greater
details and offers a larger number of configuration options .
The screen is displayed in the Indicator mode by default.
Tap the View Waveform button in the lower corner of the Indicator Mode screen to
switch to the Waveform Mode. The screen is shown as below.
Figure 9-130 Waveform Mode Screen
Main View Section
The main view section features as a coordinate grid with X-axis and Y-axis, representing
the time duration and amplitude level respectively. The amplitude level can be configured
in the Amplitude Settings and the time duration can be set in the Time Base Settings.
Channel Selection
Each channel has two conditions: selected and unselected. Some operations depend on
the selected condition of the channel, such as measurement rulers, waveform
movements and waveform zooming.
247
To select and unselect the channel
1. Tap the zero baseline marker or the Y-axis (the line thickens when selected) .
2. Tap the zero baseline marker or the Y-axis again to exit the channel selection.
Waveform Zooming
The zooming function allows you to change the size and position of a signal during or
after capturing a waveform to examine. It does not change the stored data, only the way
it displays.
The X- axis and Y- axis can be zoomed using your fingertips. The waveform can be
zoomed during or after capturing the signal.
Measurement Rulers
In the coordinate grid, there are two types of measurement rulers, which allow the
amplitude and time duration of a waveform to be measured precisely. They are useful
when determining signal characteristics such as amplitude at specific points, the cycle
time (duration) and frequency.
The vertical Time Ruler — Tap the Ruler Activator in the bottom left corner of the grid
and drag it across the screen to the desired position. A Time Ruler is generated.
The horizontal Signal Ruler — The Signal Ruler can be generated in the similar way by
clicking the Ruler Activator in the top right corner and dragging it downwards.
When dragging the Measurement Rulers, a Ruler Table showing time and voltage
values for the corresponding channels will be displayed. The Delta icon refers to the
absolute difference between the values of the rulers, which can be locked by tapping the
Lock icon. Tap the X button in the upper right corner of the ruler table to delete all rulers.
248
Figure 9-131 Measurement Rulers Screen
Zero Baseline
The zero baseline is marked as the 0 value in the Y-axis, showing the base level of each
channel waveform. After the channel is selected, the zero baseline can be adjusted by
dragging the baseline marker up/ down along the Y- axis, or dragging the waveform
up/down or moving the screen up/down in the grid.
NOTE
Tap the baseline marker to make the vertical scale line thicker. In this case, the channel
is selected. Tap the baseline marker again to unselect and the waveform cannot be
dragged.
249
Figure 9-132 Zero Baseline Screen
Lower Toolbar
The protocol, buffer and time base can be configured at the lower toolbar.
Table 9-15 Lower Toolbar
Name
Button
Description
Protocol
Tap to select an appropriate protocol. See
Protocol Settingfor more information.
Communication
Line
Tap to select the appropriate
communication line. See Communication
Linefor more information.
Amplitude
Tap to select an appropriate amplitude
value. See Amplitude Setting for more
information.
Trigger
Tap to open the trigger setting menu. See
Trigger for more information.
Buffer
Tap the Previous or Next button to switch to
the previous or the next waveform . See
Bufferfor more information.
250
Name
Button
Description
Time Base
Tap to select an appropriate time per
division. See Time Base for more
information.
Indicator
Tap to switch to the Indicator mode.
Protocol Setting
Seven types of communication protocols are available: High Speed CAN, Low Speed
CAN, Single CAN, J1939 CAN, J1850 (PWM), J1850 (VPW), and J1708 (SAE).
To select a protocol
1. Tap the Protocol in the lower-left corner of the screen. A dialog box opens.
Figure 9-133 Protocol Type Button Screen
2. Select the desired Protocol type in the dialog box.
251
Figure 9-134 Protocol Setting Screen
3. Tap the X icon to close the dialog box.
Communication Line
The communication line selection varies according to the protocol selected. Tap the
appropriate communication line at the bottom of the screen.
Figure 9-135 Communication Line Button Screen
Amplitude Setting
After selecting the protocol type, you can also set the amplitude value for that type.
252
To set the amplitude
1. Tap the Amplitude button at the bottom of the screen. A dialog box displays.
Figure 9-136 Amplitude Button Screen
2. Select the appropriate amplitude for the protocol.
Figure 9-137 Amplitude Setting Screen
3. Tap the X icon to close the dialog box.
Trigger
The trigger feature is used to filter and capture specified waveform data .
253
According to the trigger setting condition, the trigger waveform will be captured when the
signal meets the trigger condition. When capturing waveforms, you can manually set the
trigger conditions. When the device is capturing the signal, tap the left column of the
Trigger button to activate the trigger function. A trigger point displays as a blue point .
Figure 9-138 Trigger Button Screen
The edge trigger is one of the most common trigger modes and is activated when voltage
rises above or falls below a preset threshold. This trigger type allows you to configure
the trigger mode, threshold, trigger channel and pulse direction settings. Tap Done to
save the settings or tap Cancel to exit without saving.
When the device is capturing the signal, tap the right column of the Trigger button to
open the trigger settings dialog box.
254
Figure 9-139 Trigger Settings Screen
Trigger Mode
Three trigger modes are available: None, Auto, and Repeat.
Figure 9-140 Trigger Mode Screen
The table below offers brief description of each trigger mode.
255
Table 9-16 Trigger Mode Table
Trigger Mode
Description
None
In this trigger mode, the oscilloscope can continuously capture
data, without waiting for a trigger event.
Auto
In this trigger mode, the oscilloscope will wait for a trigger before
capturing data. It can automatically update after a short period,
even if the signal does not across the trigger point.
Repeat
trigger
In this trigger mode, the oscilloscope waits until a trigger event
occurs. If there is no trigger event, nothing will be displayed on
the screen.
Channel
Select the applicable trigger channel from the dropdown menu. The selected channel is
the communication line that the device monitors for the trigger condition.
Pulse Direction
Two pulse direction settings are available: Rise and Fall.
Figure 9-141 Pulse Direction Screen
Rising Edge Trigger — Indicates trigger is turned on to start the trace on the rising
edge of the waveform.
Falling Edge Trigger — Indicates trigger is turned on to start the trace on the falling
edge of the waveform.
256
Threshold
The Threshold allows you to set the voltage threshold for the trigger.
To precisely position the trigger point, input the value in the Threshold field in the
trigger settings dialog box.
To roughly position the trigger point, drag the trigger point to a desired position.
To configure the trigger settings
1. Tap the right column of the Trigger button to open the trigger settings dialog
box.
2. Select the trigger mode, trigger channel and pulse direction in the dropdown
list.
3. Input the value in the Threshold field in the trigger settings dialog box.
4. Tap Done to save settings or tap Cancel to exit without saving.
Buffer
The waveform buffer shows which signal waveform is displayed on the current screen
and how many signal waveforms are captured and stored in the buffer memory.
Figure 9-142 Buffer Screen
The device can capture and store waveforms. You can select a waveform from the
waveform buffer by tapping the Previous or Next button.
257
Name
Button
Description
Previous
Tap to display the previous waveform in the buffer.
Buffer Index
Shows which waveform is currently being
displayed and how many waveforms are in the
buffer.
Next
Tap to display the next waveform in the buffer.
Time Base
The time base controls the time interval across the device display. Tap the Time Base
button at the bottom to open the setting dialog box.
Figure 9-143 Time Base Screen 1
258
Figure 9-144 Time Base Screen 2
Continuous Mode: if the time base is set to more than or equal to 200ms/div, the device
switches to the continuous mode. In this mode, the device updates the trace continuously
as each capture progresses, rather than waiting for a complete capture before updating
the trace.
Indicator Button
In the lower corner of the screen, you can enter the Indicator Mode by tapping the
Indicator button.
Figure 9-145 Indicator Button Screen
259
Troubleshooting
If the VCMI device cannot communicate with the MaxiSys Tablet:
Ensure the VCMI device is properly connected to the MaxiSys Tablet via Wi-Fi or
with the supplied USB cable.
Ensure the pin number is set properly.
Ensure the ignition is in the Key ON position.
Restart tablet and reconnect the VCMI if communication continues to fail .
Glossary
Vehicle Bus
A vehicle bus is a specialized internal communications network that interconnects
components inside a vehicle (e.g., automobile, bus, train, industrial or agricultural vehicle,
ship, or aircraft). Protocols include Controller Area Network (CAN), Local Interconnect
Network (LIN) and others.
CAN Bus
A Controller Area Network (CAN bus) is a robust vehicle bus standard designed to allow
microcontrollers and devices to communicate with each other in applications without a
host computer.
SAE International
Initially established as the Society of Automotive Engineers, is a U.S.-based, globally
active professional association and standards developing organization for engineering
professionals in various industries. Principal emphasis is placed on transport industries
such as automotive, aerospace, and commercial vehicles.
SAE J1708
SAE J1708 is a standard used for serial communications between ECUs on a heavy duty
vehicle and also between a computer and the vehicle. With respect to Open System
Interconnection model (OSI), J1708 defines the physical layer. Common higher layer
protocols that operate on top of J1708 are SAE J1587 and SAE J1922. The protocol is
maintained by SAE International.
SAE J1939
Society of Automotive Engineers standard SAE J1939 is the vehicle bus recommended
practice used for communication and diagnostics among vehicle components. It is used
260
in the commercial vehicle area for communication throughout the vehicle, with the
physical layer defined in ISO 11898.
J1850
Defines a serial data protocol. There are two variants- 10.4 Kbit/s (single wire, VPW) and
4 1.6 Kbit/s (two wire, PWM). Mainly used by US manufacturers, also known as PCI
(Chrysler, 10.4 Kbit/s), Class 2 (GM, 10.4 Kbit/s), and SCP (Ford, 41.6 Kbit/s).
OBD
On-board diagnostics (OBD) is an automotive term referring to a vehicle's self-diagnostic
and reporting capability. OBD systems give the vehicle owner or repair technician access
to the status of the various vehicle engine systems.
OBD- II diagnostic connector
The OBD-II DLC (post-1996 vehicles) is usually located under the instrument panel on
the driver side, though there are several exceptions. The SAE J196 2 specification
provides for two standardized hardware interfaces, called type A and type B. Both are
female, 9-pin (2x8), D-shaped connectors, and both have a groove between the two rows
of pins.
DLC
The data link connector (DLC) is the multi-pin diagnostic connection port for automobiles,
trucks, and motorcycles used to interface a scan tool with the control modules of a given
vehicle and access on-board diagnostics and live data streams.
261
10
Data Manager
The Data Manager application allows you to store, print, and review the saved files,
manage the workshop information, customer information records and keep test vehicle
history records.
Selecting the Data Manager application opens the file system menu. There are nine main
functions available.
Figure 10-1 Data Manager Main Screen
The table below briefly describes each of the function buttons in the Data Manager
application.
Table 10-1 Buttons in Data Manager
Name
Button
Description
Vehicle History
Tap to review the diagnostic history record.
Workshop
Information
Tap to edit the information of workshops.
262
Name
Button
Description
Customer
Tap to create a new customer account file.
Tap to review the screenshots
Report
Views the local reports on your tablet or scan a QR
code to view and share the reports via your
smartphone browser.
PDF
Tap to review the diagnostic reports.
Review Data
Tap to review the recorded data.
Data Logging
Tap to review the communication data and ECU
information of the test vehicle. The saved data can
be reported and sent to the technical center via the
internet.
Uninstall Apps
Tap to uninstall applications.
Vehicle History
This function stores records of test vehicle history, including vehicle information and the
retrieved DTCs from previous diagnostic sessions . Test information is summarized and
displayed in an easy-to-read table listing. The Vehicle History also provides direct access
to the previously tested vehicle and allows you to directly restart a diagnostic session
without needing to perform auto or manual vehicle selection .
263
Figure 10-2 Vehicle History Screen
1. Top Toolbar Buttons — navigation and application controls.
2. Main Section — displays all the vehicle history records.
To activate a test session for the recorded vehicle
1. Tap Data Manager on the MaxiSys Job Menu.
2. Select Vehicle History to open the screen. Tap any one of the middle buttons
of the top toolbar buttons. For example, tap New Energy to select diagnostic
test records.
3 . Tap the New Energy icon at the bottom of the thumbnail of a vehicle record
item.
4. The New Energy screen appears and a new diagnostic session is activated, see
New Energyfor detailed instructions on vehicle diagnostic operations. Or,
5 . Select a vehicle thumbnail to select a record. A Historical Test record sheet
appears. Review the recorded information of the test vehicle, and tap New
Energy on the upper-right corner to continue diagnostics.
Historical Test Record
The Historical Test is a detailed data form of the tested vehicle, which includes general
vehicle information, service record, customer information, and the diagnostic trouble
codes retrieved from the previous test sessions. Technician Notes will also display if
present.
264
NOTE
The MaxiSys tablet must establish connection to the VCMI device to restart test sessions
on the previously tested vehicles.
To
edit the Historical Test record
1.
2.
3.
Tap Data Manager on the MaxiSys Job Menu.
Select Vehicle History.
Select the specific vehicle history record thumbnail from the
Historical Test record will display.
main section. The
4.
5.
Tap Edit (a pen icon) to start editing.
Tap each item to input information or attach files or images.
NOTE
The vehicle VIN, license number, and customer account information are correlated by
default. Vehicle records will automatically be correlated using this vehicle and customer
identification.
6. Tap Add to Customer to correlate the Historical Test record sheet to an existing
customer account, or add a new associated account to be correlated with the
test vehicle record. SeeCustomerfor more information.
7. Tap Done to save the updated record, or tap Cancel to exit without saving.
Workshop Information
The Workshop Information form allows you to input, edit, and save the detailed workshop
information, such as shop name, address, phone number, and other remarks, which,
when printing vehicle diagnostic reports and other associated test file, will display as the
header of the printed documents .
265
Figure 10-3 Workshop Information Sheet
To edit the Workshop Information sheet
1. Tap the Data Manager application on the MaxiSys Job Menu.
2. Select Workshop Information.
3. Tap on each field to input the appropriate information.
4. Tap Done to save the updated workshop information record, or tap Cancel to
exit without saving.
Customer
The Customer function allows you to create and edit customer accounts. It helps you to
save and organize all customer information accounts that are correlated with the
associated test vehicle history records .
To create a customer account
1. Tap the Data Manager application on the MaxiSys Job Menu.
2. Select Customer.
3. Tap the Add a Customer button. An empty information form displays, tap each
field to input the appropriate information.
NOTE
Fields marked with an asterisk (*) are mandatory.
266
4. Some customers may have more than one vehicle for service; you can always
add new vehicle information to the account. Tap Add New Vehicle Information,
and then fill in the vehicle information. Tap the button to cancel.
5. Tap OK to save the account, or tap Cancel to exit without saving.
To edit a customer account
1. Tap Data Manager on the MaxiSys Job Menu.
2. Select Customer.
3. Select a customer account by tapping the corresponding name card. A
Customer Information record displays.
4. Tap Edit on the top toolbar to start editing.
5. Tap on the input field to edit or amend information, and enter updated
information.
6. Tap Complete to save the updated information, or tap Cancel to exit without
saving.
To delete a customer account
1. Tap Data Manager on the MaxiSys Job Menu.
2. Select Customer.
3. There are two ways to delete:
> >> Select a customer account by tapping the corresponding name card. A
Customer Information record displays. Tap Edit on the top toolbar to start editing.
Tap Delete button on the top of the screen . A reminder message displays.
>>> Tap Delete (garbage icon) on the right of the screen. A reminder message
displays.
4. Tap OK to confirm the command, and the account is deleted. Tap Cancel to
cancel the request.
The Image section is a PNG database containing all captured screenshots.
267
Figure 10-4 Image Screen
1. Toolbar Buttons — used to edit, print, and delete the image files. See Table 8-2
Toolbar Buttons in PNG Databasefor detailed information.
2. Main Section — displays the stored images.
Table 8-2 Toolbar Buttons in PNG Database
Name
Button
Description
Back
Return to the previous screen .
Enter Search
Tap to enter the search page.
Enter Edit
Tap to display the editing toolbar to select,
delete, print, or email the image(s).
Cancel
Tap to close the editing toolbar or cancels file
search.
Search
Quickly searches the image by entering the
time of the screenshot.
Print
Tap to print the selected image.
Delete
Tap to delete the selected image.
Email
Tap to send the selected image to an email.
268
To edit/delete image(s)
1. Select Data Manager from the MaxiSys Job Menu.
2. Select Image to access the PNG database.
3. Tap Edit on the top-right corner of the window. The editing screen displays.
4. Select the image(s) you want to edit by tapping the check box at the bottom
right corner of the image.
5. Tap Delete icon to delete the selected images or delete all images. Tap Print
icon to print the selected image(s). Tap Email icon to send the selected image(s)
to an email.
Report
This section stores and displays all diagnostic reports. The reports stored in the report
will be uploaded automatically when you set ON to the Report upload to Cloud on Scan
Report. Tap one of the reports to view it or share it to the cloud. Select View local reports
to open it. Tap Report Cloud Sharing to share.
Figure 10-5 Report Screen
To share a report
1. Tap the Data Manager application on the MaxiSys Job Menu.
2. Tap Report to access the Report List screen.
269
3. Tap a report record to display the Record Sharing dialog box.
4. Tap Report Cloud Sharing.
5. Scan the QR code or tap Send Email or Send SMS to share the report.
PDF Files
The PDF section stores and displays all PDF files of saved data. After entering the PDF
database, select a PDF file to view the stored information .
This section uses the standard Adobe Reader application for file viewing and editing.
Please refer to the associated Adobe Reader manual for more detailed instructions.
Review Data
The Review Data section allows you to play back the recorded data frames of live data
streams.
On the Review Data main screen, select a record file to play back.
Data Logging
The Data Logging section allows you to launch Support platform directly to view all
records of all feedback or not feedback (saved) data loggings on the diagnostic system.
For more details, please refer toData Logging.
Uninstall Apps
This section allows you to manage the firmware applications installed on the MaxiSys
Diagnostics System. Selecting this section opens a managing screen, on which you can
check all the available vehicle diagnostic applications.
Select the vehicle firmware you want to delete by tapping on the car brand icon, the
selected item will display a blue check mark at the upper right corner. Tap the Delete
button on the top bar to delete the firmware from the system database.
270
11
Settings
Access the Settings menu to adjust default setting and view information about the
MaxiSys system. The following options are available for the MaxiSys system settings:
Unit
Language
Printing Settings
Report Settings
Push Notifications
Auto Update
ADAS Settings
Vehicle List
EVDiag Box Settings
Country/Region Code
System Settings
About
Operations
This section describes the operation procedures for the settings.
Unit
This option allows you to adjust the measurement unit for the diagnostic system.
To adjust the unit setting
1. Tap the Settings application on the MaxiSys Job Menu.
2. Tap the Unit option on the left column.
3. Select the appropriate measurement unit, Metric or Imperial Unit. A check mark
will appear to the right of the active selection.
4. Tap the Home button on the top-left corner to return to the MaxiSys Job Menu.
Or select another setting option for the system setup.
271
Language
This option allows you to adjust the display language for the MaxiSys system.
To adjust the language setting
1. Tap the Settings application on the MaxiSys Job Menu.
2. Tap the Language option on the left column.
3. Select the appropriate language. A check mark will display to the right of the
selected language.
4. Tap the Home button on the top left corner to return to the MaxiSys Job Menu.
Or select another setting option for the system setup.
Printing Settings
Printing Setting
This option allows you to print from the tablet to a network printer via a computer.
To setup the printer connection
1. Tap Settings on the MaxiSys Job Menu.
2. Tap Printing Settings on the left column.
3. Tap Print via PC Link or Print via Wi-Fi to activate the printing function, which
enables the device to send files to the printer through the PC or Wi-Fi.
4. Tap Home on the top-left corner to return to the MaxiSys Job Menu. Or select
another setting option for the system setup.
Printing Operations
To install the MaxiSys Printer driver program
1. Download Maxi PC Suite fromwww.autel.com > Support > Downloads > Autel
Update Tools, and install to your windows-based computer.
2. Double click on Setup.exe item.
3. Select the installation language and the wizard will load.
4. Follow the instructions on the screen and Click Next to continue.
5. Click Install and the printer driver program will be installed onto the computer.
6. Click Finish to complete the installation.
272
NOTE
The MaxiSys Printer runs automatically after the installation.
This section describes how to receive file from the MaxiSys tablet and perform printing
through the computer:
To perform printing through the computer
1. Make sure the tablet is connected to the computer network, either via Wi-Fi or
LAN, before printing.
2. Run the PC Link program on the computer.
3. Click Test Print to make sure the printer is working successfully.
4. Tap the Print button on the toolbar of the tablet. A test document will be sent to
the computer.
If the Auto Print option in the MaxiSys Printer is selected, the MaxiSys
Printer will print the received document automatically.
If the Auto Print option is not selected, click Open PDF File button to view
files. Select the file(s) to print and click Print.
NOTE
Make sure the computer installed with the Printing Services program is connected to a
printer.
Report Settings
Two options are available in this section: Scan Report and Report Upload to Cloud.
1) Scan Report
Toggle the ON/OFF button to enable/disable Repair Diagnostics Report function.
The Repair Diagnostics Report function includes the diagnosis reports before and
after the diagnosis. Once the Repair Diagnostics Report function is enabled, you can
enter the service order number in the Select Test Type box after tapping on a vehicle
manufacturer to build a repair task, then perform the diagnostic scan. After the scan
is finished, you can select additional pictures (up to 5) to generate the diagnosis
history before repair ( the diagnostic scan before repair can only be done once).
When the repair is completed, enter the maintenance order number or tap the
diagnosis history after repair. After the scan is finished, you can also select additional
pictures (up to 5) to generate the diagnosis history after repair (the diagnostic scan
after repair can be performed multiple times). The Repair Diagnosis Report function
273
will automatically incorporate the diagnostic details before repair into the diagnosis
history after repair, to form a Repair Diagnosis Report.
2) Report Upload to Cloud
Toggle the ON/ OFF button to enable/disable Report Upload to Cloud function. If the
button displays blue, it indicates the Report Upload to Cloud function is enabled. If the
button displays gray, it indicates the Report Upload to Cloud function is disabled.
Push Notifications
This option allows you to manage notifications. The Notification Preference is turned on
by default and cannot be turned off by users so that certain system notifications such as
system security warnings won’t be blocked. Internet access is required for receiving on-
line messages.
To manage other notifications
1. Tap Settings on the MaxiSys Job Menu.
2. Tap Push Notifications on the left column.
3. Tap on the right to open a drop-down list.
4. There are four options: Enable all notifications, Limit to 3 notifications or
less per week, Limit to 1 notification per week, and Disable all notifications.
Select whichever you want.
5. Tap Home on the top-left corner to return to the MaxiSys Job Menu. Or select
another setting option for the system setup.
Notification message will display on the MaxiSys Lock Screen. Press on the message
bar and drag it down, and the received messages are shown in the list, slide the list up
or down to view all if the message list covers more than one screen.
Tapping a specific message launches the corresponding application. For example, if you
tap on an Update notification message, the Update application will be launched.
Auto Update
This option allows you to set the specific time for updating software automatically. There
are three update options: OS Update, MaxiSys Update and Vehicle Update.
Tap ON/OFF to enable Auto Update. The button displays blue if Auto Update is enabled
and displays gray if the Auto Update is disabled. Set the time of the day for updating. If
274
a specific time is set, the selected software will be automatically updated at this specific
time.
ADAS Settings
To activate the MaxiSys ADAS Calibration
1. Confirm the registered MaxiSys has availble updates.
2. Select Settings on the MaxiSys Job Menu.
3. Tap on ADAS Settings.
4. Scan the QR code on the ADAS frame to bind, or manually input frame serial
number when QR code is not available.
5. Enter the validation code from the ADAS Calibration Card.
6. The system will be reset and the main screen will display once registration has
been completed.
Vehicle List
This option allows you to sort the vehicles either by alphabetic order or by frequency of
use.
To adjust the vehicle list setting
1. Tap the Settings application on the MaxiSys Job Menu.
2. Tap Vehicle List on the left column.
3 . Select the required sort type. A check mark will display to the right of the
selected language.
4. Tap the Home button in the top-left corner to return to the MaxiSys Job Menu.
Or select another setting option for system setup.
EVDiag Box Settings
This function allows you to check the connection status of the EVDiag Box device and
check its firmware for available updates.
NOTE
Before updating the firmware, ensure that the EVDiag Box device is connected properly.
While updating, do not disconnect the device or exit the update screen.
275
To connect the EVDiag Box device
1. Tap Settings on the MaxiSys Job Menu.
2. Select EVDiag Box Settings.
3. Tap View Connection Diagram to open the diagram.
Connect VCMI and EVDiag Box with the Main Cable V2.0
Establish a communication between VCMI and EVDiag Box via BT, Wi-Fi
or USB cable.
4. After a successful connection, the current version of the EVDiag Box device
will be shown on the screen.
To update EVDiag Box firmware
1. Tap Settings on the MaxiSys Job Menu.
2. Select EVDiag Box Settings.
3. Select Check for Update on the right.
4. Tap Update Now if there is an available update.
5. After the update succeeds, tap the Home button in the top-left corner to return
to the MaxiSys Job Menu. Or select another setting option for system setup.
Country/ Region Code
This function provides Wi- Fi channel options for different country regions to ensure
reliable and stable Wi-Fi communication. Please connect the tablet with VCMI device
before making adjustment.
To adjust the country code setting
1. Tap the Settings application on the MaxiSys Job Menu.
2. Tap the Country/Region Code option on the left column.
3. Select the appropriate country/region region. A confirmation message will
display.
4. Tap the Home button on the top-left corner to return to the MaxiSys Job Menu.
Or select another setting option for the system setup.
NOTE
If the tablet can NOT find the VCMI device via Wi-Fi connection after setting the country
code, please use the USB or Bluetooth connection to retry.
276
System Settings
This function provides you with direct access to the Android system setting interface,
where you can adjust various system settings for the Android system platform, regarding
wireless and networks settings, various device settings such as sound and display, as
well as system security settings, and check related information about the Android system.
Refer to Android documentation for additional information .
About
The About function provides information of the MaxiSys diagnostic device including the
product name, version, hardware, and serial number.
To check the MaxiSys product information in About
1. Tap the Settings application on the MaxiSys Job Menu.
2. Tap the About option on the left column. The product information screen
displays on the right.
3. Tap the Home button on the top-left corner to return to the MaxiSys Job Menu,
or select another setting option for the system setup, after viewing.
277
12 Update
The internal programming of the MaxiSys Diagnostic System, known as the firmware,
can be updated using the Update application. Firmware updates increase the MaxiSys
applications' capabilities, typically by adding new tests, new vehicle models, or enhanced
applications.
The display device automatically searches for available updates for all of the MaxiSys
components when it is connected to the Internet. Any updates that are found can be
downloaded and installed on the device. This section describes installing an update to
the MaxiSys Diagnostic System firmware.
Figure 12-1 Update Screen
1. Navigation and Controls
Home Button — returns to the MaxiSys Job Menu .
Renew Button — Tap to extend subscription.
Search Bar — searches specific update item by inputting the file name, for
example: a specific vehicle manufacturer.
2. Function Buttons
Name (A – Z) — changes the display sequence of available updates. There are
five options: Date (Old to New), Date (New to Old), Frequency, Name (A – Z),
and Name (Z – A).
278
Bulk Update — allows you to select one or more or all items to update at once.
3. Main Section
Left Column — displays vehicle logos.
Middle Column — displays a brief introduction about the new changes to the
software operation or capabilities. Tap button to display an information
screen to view more details, and tap the dim area around to close the window.
Right Column — according to the operation status of each software item, the
button displays differently.
a) Get — tap to update the selected item.
b) Pause — means the updating procedure stops. Tap it to resume the
updating procedure.
c) Continue — means the selected item is updating. Tap it to stop the
updating procedure.
To update the software
1. Power up the tablet, and ensure that it is connected to a power source and
has a steady Internet connection.
2. Tap the Update application button on the MaxiSys Job Menu; or tap the update
notification message when received; or tap the Update icon on Vehicle Menu in
New Energy/Diagnostics application. The Update application screen displays.
3. Check all available updates:
If you decide to update all the items, tap Bulk Update > Select All, then
tap Update to upgrade all items.
If you only want to update some individual items, tap the Get button on the
right column of the specific item. This option is highly recommended to
ensure updates are performed correctly, especially if unsure of the speed
and stability of your shops Internet connection .
4. Tap Downloading to suspend the updating process. Tap Pause to resume the
update and the process will continue from the pause point.
5. When the updating process is completed, the software will be installed
automatically. The new version will replace the previous version.
279
13
VCMI Manager
VCMI Manager is for connecting the MaxiSys Ultra EV with a VCMI device through Wi-
Fi, Bluetooth or USB cable. This application allows you to pair the tablet with the VCMI
device and to check its communication status. You can either build the connection via
the Bluetooth or Wi-Fi or USB cable, of which the latter is more stable and faster in speed
for module operation.
Figure 13-1 VCMI Manager Screen
1. Connection Mode — three connection modes are available. The connection status
displays adjacent to each mode.
Wi-Fi Connection — when connected to the tablet via Wi-Fi, the connection
status displays Connected; otherwise it displays Disconnected.
VCMI BT — when paired to the tablet via BT, the connection status displays
Connected; otherwise it displays Disconnected.
BAS BT — when a battery tester is connected to the tablet via BT, the
connection status reads Connected; otherwise, it reads Disconnected.
VCMI Update — updates VCMI software via Internet through the MaxiSys tablet
networking via BT, Wi-Fi, or USB connection.
BAS Update — updates BAS software via Internet through the MaxiSys tablet
networking via BT or USB connection.
2. Connection Settings — this section allows you to manage wireless pairing.
Wi-Fi Settings — searches and displays the name of all devices available for
280
Wi-Fi connection.
BT Settings — searches and displays the name of all devices available for
pairing. Tap a device to start pairing. The BT status icon displays the received
signal strength for the device.
Wi-Fi Connection
Wi- Fi Connection is an advanced function for quick linkage with VCMI. Since Wi- Fi
connection supports 5G, the MaxiSys Ultra EV tablet and VCMI share a faster and more
stable connection when using this communication method. The tablet can be operated
up to 50 meters away from the VCMI device when connected to the vehicle.
The Wi- Fi connection is an ideal communication mode when using the oscilloscope
measurement function, SeeOscilloscopefor details.
Figure 13-2 Wi-Fi Connection Screen
To connect the VCMI device with the tablet via Wi-Fi connection
1. Power on the tablet.
2 . Connect the 26-pin end of the Main Cable V2.0 to the VCMI's vehicle data
connector.
3 . Connect the 16- pin end of the data cable to the vehicle data link connector
(DLC).
4. Tap VCMI Manager on the MaxiSys Job Menu of the tablet.
5. Select Wi-Fi from the connection mode list.
281
6. Swipe the Wi-Fi toggle to turn it ON. Tap Refresh at the top-right corner. The
device will start to search for available units.
7. Depending on the VCMI type you use, the device name may display as Maxi
suffixed with a serial number. Select the appropriate device for connection.
8. When connection is established, the connection status displays as Connected.
9. The VCMI button on the system Navigation bar at the bottom of the screen
displays a green Wi- Fi icon, indicating the tablet is connected to the VCMI
device.
10. To disconnect the device, tap the connected device listing again.
11. Tap Back at the bottom of the screen to return to the MaxiSys Job Menu.
NOTE
To ensure quick connection, please perform this operation in a steady network
environment.
BT Pairing
BT Paring is the basic way for wireless connection. The VCMI device needs to be either
connected to a vehicle or to an available power source, so that it is powered up during
the synchronization procedure. Make sure the tablet has a charged battery or is
connected to an AC/DC power supply.
Figure 13-3 VCMI BT Screen
282
To pair the VCMI device with the tablet via BT
1. Power on the tablet.
2. Connect the 26-pin end of the data cable to the VCMI's vehicle data connector.
3 . Connect the 16- pin end of the data cable to the vehicle data link connector
(DLC).
4. Tap VCMI Manager on the MaxiSys Job Menu of the tablet.
5. Select BT, short for Bluetooth, from the connection mode list.
6. Swipe the Bluetooth toggle to turn it ON. Tap Scan at the top-right corner. Now
the device starts searching for available pairing units.
7. Depending on the VCMI type you use, the device name may display as Maxi
suffixed with a serial number. Select the required device for pairing.
8. When paired successfully, the connection status displays as Connected.
9. Wait a few seconds, and the VCMI button on the system Navigation bar at the
bottom of the screen displays a green BT mark, indicating the tablet is
connected to the VCMI device.
10. To disconnect the device, tap the connected device listing again.
11. Tap Back at the bottom of the screen to return to the MaxiSys Job Menu.
NOTE
A VCMI device can be paired to only one tablet at a time, and once it's been paired, the
device will not be discoverable by any other unit.
Update
The Update module provides the latest update for the MaxiSys Ultra EV tablet. Before
updating the VCMI or BAS software, please make sure the tablet network connection is
stable.
283
Figure 13-4 VCMI Update Screen
To update the VCMI device firmware
1. Power on the tablet.
2. Connect the VCMI device to the tablet via BT, Wi-Fi, or USB.
3. Tap VCMI Manager on the MaxiSys Job Menu of the tablet.
4. Select VCMI Update from the connection mode list.
5 . If the current version is not the latest one, the screen will show the current
version and the latest version of the firmware. Tap Update Now to update the
VCMI firmware.
To update the BAS device firmware
1. Power on the tablet and the battery tester.
2. Connect the battery tester to the tablet via BT or USB cable.
3. Tap VCMI Manager on the MaxiSys Job Menu of the tablet.
4. Select BAS Update on the connection mode list.
5 . If the current version is not the latest one, the screen will show the current
version and the latest version of the battery tester firmware. Tap Update Now
to update the battery tester firmware if available.
NOTE
Do not leave the BAS Update page during upgrade.
284
14
ADAS
Advanced Driver Assistance Systems (ADAS) is an array of vehicle systems that aid the
driver either through passive alerts or by active control of the vehicle to drive safer and
with greater awareness and precision.
Cameras, sensors, ultrasound, radar and LIDAR are some of the systems used to
capture the driving environment data, including travelling or static vehicles position,
pedestrian location, road sign, driving lane and intersection detection, road (curves) and
driving conditions (poor visibility or evening driving), use that information to instruct the
vehicle to take its predetermined action. Cameras, sensors and sensing systems are
typically located in front and rear bumpers, windshield, front grill and side and rear view
mirrors.
Autel ADAS Calibration Tool provides comprehensive and precise ADAS calibration.
1. Covers many vehicle makes, including Benz, BMW, Audi, Volkswagen, Porsche,
Infiniti, Lexus, GM, Ford, Volvo, Toyota, Nissan, Honda, Hyundai, and Kia.
2 . Supports the calibration of multiple driver assistant systems, including Adaptive.
Cruise Control (ACC), Night Vision System (NVS), Lane Departure Warning (LDW),
Blind Spot Detection (BSD), Around View Monitoring (AVM), Rear Collision Warning
(RCW) and Heads-up Displays (HUD).
3. Supplies graphic illustrations and step-by-step instructions.
4. Provides demos to guide the technician through the calibration.
Figure 14-1 ADAS Introduction Screen
285
15
Support
This application launches the Support platform which synchronizes Autel's online service
base station with the MaxiSys tablet. In order to synchronize the device to your online
account, you need to register the product through the Internet when you use it for the
first time. The Support application is connected to Autel's service channel and online
communities that provides the quickest way for problem solutions, allowing you to submit
complaints or send help requests to obtain direct service and support.
Product Registration
In order to get access to the Support platform and obtain update and other services from
Autel, you are required to register the MaxiSys tablet the first time you use it. There are
two ways for registration:
Option One:
To register and link the MaxiSys tablet
1. Tap Autel User Center on the MaxiSys Job Menu.
2. If you have an Autel account, input your email or mobile number and password
to log in or log in with verification code.
3. If you are a new member to Autel, click Register to create your Autel ID.
4. Enter your personal information. Fields marked with an asterisk (*) are
mandatory.
5 . Read the Autel User Service Agreement and Autel Privacy Policy, then
check the box to accept the terms.
6. After all the mandatory information is entered, click Register.
7. Once your account is successfully registered, your account will be logged in
automatically.
8. Tap Device Management to link your device.
9. Tap Link Device on the upper-right corner of the screen.
10. The serial number and password of the device will be shown on the screen. Tap
Link to complete the operation.
286
Option Two:
To register and link the MaxiSys tablet
1. Visit the website:http://pro.autel.com.
2. If you have an Autel account, log in and skip to Step 7.
3. If you are a new member to Autel, click Register to create your Autel ID.
4. Enter your personal information. Fields marked with an asterisk (*) are
mandatory.
5. After all the mandatory information is entered, read the Autel User Service
Agreement and Autel Privacy Policy, then check the box to accept the terms
and click Register.
6 . Once your account is successfully registered, you will be redirected to the
Product Registration screen. If not, click the button on the screen.
7. Your product serial number and password are required to enter. To find your
serial number and password on the tablet: go to Settings＞About.
8. Enter your tablet’s serial number and password.
9. Enter the CAPTCHA code and click Submit to complete your product
registration.
Support Screen Layout
The Support application interface is navigated by the Home Button on the top navigation
bar.
Home Button — returns to the MaxiSys Job Menu.
287
Figure 15-1 Support Screen
The main section of the Support screen is divided into two sections. The narrow column
on the left is the main menu; selecting one subject from the main menu displays the
corresponding functional interface on the right.
My Account
The My Account screen displays the comprehensive information of the user and the
product, which is synchronized with the online registered account, including Personal
Info, Update Info, and Service Info.
Personal Info
The User Information and Device Information are both included under the Personal Info
section.
User Info — displays detailed information of your registered online Autel account,
such as your Autel ID, Name, Address and other contact information.
Device Info — displays the registered product information, including the Serial
Number, Registration Date, Expire Date, and Warranty Period.
Update Info
The Update Info section displays a detailed list of the product's software update history,
including the product serial number, software version or name, and the update time.
288
Service Info
The Service Info section displays a detailed record list of the device's service history
information. Every time the device has been sent back to Autel for repair, the device's
serial number and the detailed repair information, such as the fault type, changed
components, or system reinstallation will be recorded and updated to the associated
online product account that will be synchronized to the Service Info section.
Training
The Training section provides quick links to Autel's online video accounts. Select a video
channel by language to see all available Autel online tutorial videos on such topics as
product usage techniques and vehicle diagnostics practices.
Data Logging
The Data Logging section keeps records of all Feedback (submitted), Not Feedback
(but saved) or History (up to the latest 20 test records) data loggings on the diagnostic
system. The support personnel will receive and process the submitted reports through
the Support platform. The solution will be sent back within 48 hours. You may continue
to correspond with Support until the issue is resolved.
Figure 15-2 Data Logging Screen
289
To make a reply in a Data Logging session
1. Tap on the Feedback tag to view the list of submitted data loggings.
2. Select the latest message from Support.
3. Tap on the input field at the bottom of the screen, and enter your reply. Or tap
the Audio button to record a voice message, or tap the camera button to take a
screenshot.
4. Tap Send to deliver your message to Support.
FAQ Database
The FAQ section provides comprehensive references for all questions frequently asked
and answered about the use of Autel's online member account, shopping and payment
procedures.
Account — displays questions and answers about the use of Autel's online user
account.
Shopping — displays questions and answers about online product purchase
methods or procedures.
Payment — displays questions and answers about online product payment methods
or procedures.
290
16
Remote Desktop
The Remote Desktop application launches the TeamViewer Quick Support program,
which is a simple, fast and secure remote control interface. You can use the application
to receive ad-hoc remote support from Autel's support center, colleagues, or friends, by
allowing them to control your MaxiSys tablet on their PC via the TeamViewer software.
Operations
If you think of a TeamViewer connection as a phone call, the TeamViewer ID would be
the phone number under which all TeamViewer Clients can be reached separately.
Computers and mobile devices that run TeamViewer are identified by a globally unique
ID. The first time the Remote Desktop application is started, this ID is generated
automatically based on the hardware characteristics and will not change.
Make sure the tablet is connected to the Internet before launching the Remote Desktop
application, so that the tablet is able to receive remote support from the third party.
Figure 16-1 Remote Desktop Screen
To receive remote support from a partner
1. Power on the tablet.
2. Tap the Remote Desktop application on the MaxiSys Job Menu. The
291
TeamViewer interface displays and the device ID is generated and shown.
3. Your partner must install the Remote Control software to his/her computer by
downloading the TeamViewer full version program online
( http://www.teamviewer.com). Start the software on his/her computer at the
same time, in order to provide support and take control of the tablet remotely.
4. Provide your ID to the partner, and wait for him/her to send you a remote control
request.
5. A message displays to ask for your confirmation to allow remote control on your
device.
6. Tap Allow to accept, or tap Deny to reject.
Refer to the associated TeamViewer documents for additional information.
292
17Quick Link
The Quick Link application provides you with convenient access to Autel's official website
and many other well- known sites in automotive service, which offers you abundant
information and resources, such as technical help, knowledge bases, forums, training
and expert consultations.
Figure 17-1 Quick Link Screen
To open a quick link
1. Tap Quick Link on the MaxiSys Job Menu. The Quick Link application screen
displays.
2. Select a website thumbnail from the main section. The Chrome browser is
launched and the selected website is opened.
3. Now you can start exploring the website.
293
18 MaxiViewer
The MaxiViewer allows you to search the functions supported by our tools and the
version information. There are two ways of searching, either by searching the tool and
the vehicle or searching the functions.
To search by the vehicle
1. Tap the MaxiViewer application on the MaxiSys Job Menu. The MaxiViewer
application screen displays.
2. Tap the tool name on the top left to drop down the tool list, tap the one you want
to search.
3. Tap the vehicle brand, model, and year you want to search.
Figure 18- 1 MaxiViewer Screen 1
4. All the functions supported by the selected tool for the selected vehicle display
within three columns, function, sub function, and version.
294
Figure 18-2 MaxiViewer Screen 2
To search by the functions
1. Tap the MaxiViewer application on the MaxiSys Job Menu. The MaxiViewer
application screen displays.
2. Tap the tool name on the top left to drop down the tool list, tap the one you want
to search.
3. Enter the function you want to search in the top right search box. The screen
will display all vehicles that support this function, along with information such as
the vehicles' year, system, capacity, type, function, sub-function, and version.
NOTE
Fuzzy search is supported, type in some part of the function-related keywords to find all
the available information.
295
19 MaxiVideo
The MaxiVideo application configures the MaxiSys Diagnostic Device to operate as a
digital video scope by simply connecting the tablet to a MaxiVideo Camera. This function
allows you to examine difficult-to-reach areas normally hidden from sight, with the ability
to record digital still images and videos, which offers you an economical solution to
inspect machinery, facilities, and infrastructure in a safe and quick way. The MaxiVideo
Camera and its fittings are the additional accessories for the user to purchase separately.
Refer to the Quick Reference Guide of MaxiVideo for detailed operational instructions.
296
20
Battery Test
The Battery Test application allows user to perform in-vehicle battery test and out-vehicle
battery test functions when the BT506 battery tester is connected to the MaxiSys Ultra
EV tablet and a battery. The BT506 battery tester enables technicians to view the health
status of the vehicle's battery and electrical system.
NOTE
The BT506 battery tester is sold separately
Figure 20-1 Battery Test Screen
Test Preparation
Inspect the Battery
Before starting a test, inspect the battery for:
Cracking, buckling or leaking. If you see any of these defects, replace the battery.
Corroded, loose or damaged cables and connections. Repair or replace as needed.
Corrosion on the battery terminals, and dirt or acid on the case top. Clean the case
and terminals using a wire brush and a mixture of water and baking soda.
297
Connect the Battery Tester
To pair with the MaxiSys Ultra EV tablet
1. Turn on both the MaxiSys Ultra EV tablet and the BT506 battery tester.
Ensure that the units are sufficiently charged before you begin.
2. Enable BT on the tablet by tapping VCMI Manager > BAS BT. The device will
automatically start to search for available pairing units.
3. Depending on the type of battery tester, the device name may display as
"Maxi" suffixed with a serial number. Select the appropriate device for pairing.
4. When paired successfully, the connection status will read “Connected.”
Figure 20-2 Battery Tester Connection Example 1
To connect to a battery
1. Connect the red clamp to the positive (+) terminal of the battery.
2. Connect the black clamp to the negative (−) terminal of the battery.
Figure 20-3 Battery Tester Connection Example 2
In-vehicle Test
298
The In-vehicle Test is used for testing batteries that are installed in a vehicle. An in-
vehicle test includes the Battery Test, Starter Test, and Generator Test. These tests help
determine the health of the battery, the starter, and the generator.
IMPORTANT
A disclaimer will appear when first accessing any function on the Home screen. Please
read the end-user agreement and tap Accept to continue. If you tap Decline, you will
not be able to use the features properly.
Prior to testing any battery, ensure that the battery tester is paired with the tablet via
Bluetooth and connected properly to a battery.
To start the in-vehicle test
1. Tap Battery Test on the MaxiSys Job Menu. Select In-vehicle Test.
2. Confirm the vehicle information on the left side of the screen. Make sure the
VIN is entered.
3. Confirm your battery information, including voltage, type, standard, and capacity.
Tap Next to continue in-vehicle test functions.
Figure 20-4 Battery information Screen
Please refer to the table below for a list of buttons and icons that may appear when
accessing the functions:
299
Table 20-1 Buttons and Icons
Buttons
and Icons
Name
Description
Battery
Connection
The value on the icon indicates the real-time
voltage of the tested battery. In the battery test,
the button will turn green if the battery is good;
otherwise, it will turn red.
Next
Tap to proceed.
Home
Returns to the battery test main screen.
Back
Returns to the previous screen.
Exit
Returns to the main screen.
Battery Test
1 . Follow the on-screen instructions. Check the boxes once all required tasks are
completed, and tap Start Testing.
300
Figure 20-5 Battery Screen
2. Wait until the test is completed. The test results will be displayed on the tool.
Figure 20-6 Battery Test Results Screen
Battery Test Results
The battery test results include a color-coded results summary, a list of test data, and
repair tips.
301
Table 20-2 Test Results
Result
Repair Tip
Good Battery
Battery is good.
Good &
Recharge
Battery is good but insufficiently charged. Recharge the battery.
Charge & Retest
Battery requires charge to determine its condition.
Bad Cell
Replace the battery.
Replace Battery
Replace the battery.
NOTE
Please always complete the battery test before you proceed to the starter and generator
tests.
Starter Test
Follow the on-screen instructions to complete the test. Start the engine and let it idle. The
test results will appear as follows:
Figure 20-7 Starter Test Result Screen
302
Table 20-3 Starter Test Results
Result
Description
Cranking Normal
The starter is good.
Current Too Low
Low momentary discharge capacity.
Voltage Too Low
Low battery storage capacity.
Not Started
The starter is not detected for starting.
Generator Test
Follow the on-screen instructions to complete the test. The test results will appear as
follows:
Figure 20-8 Generator Test Results Screen
303
Table 20-4 Generator Test Results
Result
Description
Charging Normal
The generator is functioning normally.
Output Too Low
The belt linking the starter and the generator is
loose;
The cable linking the starter and battery is loose
or corroded.
Output Too High
The generator is not properly connected to the
ground;
The voltage adjuster is broken and needs
replacement.
Ripple Too Large
The commutation diode is broken.
No Output
The cable is loose;
Some vehicles with power management
systems do not provide path for charging due to
the sufficient load capacity of the battery;
The generator or the voltage adjuster is broken
and needs replacement.
NOTE
To measure the current, connect the current clamp. Tap the Settings button on the main
menu to enter the application. Swipe the Current Clamp toggle to turn it ON.
Out-vehicle Test
Out- vehicle Test is used to test the condition of batteries that are not connected to a
vehicle. This function aims to check the health status of the battery only.
Test Procedure
To start the Out-vehicle test
1. Connect the tester clamps to the battery terminals.
2. Select the appropriate battery type, rating standard, and CCA value. Tap Start
Testing to start the test.
304
Figure 20-9 Out-vehicle Test Screen
3. The test results will display in a few seconds.
Figure 20-10 Out-vehicle Test Results Screen
305
Results
Table 20-5 Out-Vehicle Test Results
Result
Description
Good Battery
Battery meets required standards.
Good & Recharge
Battery is good, but low on charge. Fully charge
the battery. Check for causes of low charge.
Charge & Retest
Battery requires charge to determine its condition.
Replace Battery
Battery fails to meet industry-accepted standards.
Bad Cell
Battery fails to meet industry-accepted standards.
Test
306
21
OEM Authorization
The OEM Authorization application allows you to unlock the gateway ECU (CGW) for
some vehicles to perform advanced diagnostics tests.
NOTE
Make sure the tablet is connected to a stable network before launching the OEM
Authorization application.
To unlock the gateway ECU (CGW)
1 . Connect the MaxiSys tablet to the vehicle through the VCMI device. See
Establish Vehicle Communicationfor details.
2. Tap New Energy or Diagnostics on the MaxiSys Job Menu.
3 . Tap Renault, select the vehicle type and tap OK to confirm the vehicle
information.
4. Tap Unlock on the Information screen.
5. On the Purchase, tap OK. Select the purchase method and pay to unlock the
gateway. On the Purchase Successfully screen, tap OK.
6. Exit the New Energy or Diagnostics application. Tap OEM Authorization on
the MaxiSys Job Menu. On the OEM Authorization screen, tap Renew. The
Unlocking Information screen appears, on which you can view the remaining
service sessions.
307
22
User Feedback
The User Feedback application allows you to submit the questions related to this product.
To send new user feedback
1 . Tap User Feedback on the MaxiSys Job Menu. The device information is
automatically synchronized.
2. Set Telephone/Email, Feedback type, Theme, and Problem description. You
can also attach voice recordings, photos, videos, or PDF files to the form. To
help us resolve the issue more efficiently, we recommend you complete the
form with as much information as possible.
3. Tap Submit to send the completed form to Autel's online service center. The
submitted feedback will be carefully read and handled by our service personnel.
Figure 22-1 User Feedback Screen
308
23 Maintenance and Service
To ensure that the tablet and the combined VCMI unit perform at their optimum level, we
advise that the product maintenance instructions in this section are strictly followed .
Maintenance Instructions
The following shows how to maintain your devices, together with precautions to take.
Use a soft cloth and alcohol or a mild window cleaner to clean the touch screen of
the tablet.
Do not use any abrasive cleansers, detergent, or automotive chemicals to the tablet.
Keep the devices in dry conditions and within specified operating temperatures .
Dry your hands before using the tablet. The touch screen of the tablet may not work
if the touch screen is moist, or if you tap the touch screen with wet hands.
Do not store the devices in humid, dusty or dirty areas.
Check the housing, wiring, and connectors for dirt and damage before and after each
use.
Do not attempt to disassemble your tablet or the VCMI unit.
Do not drop or cause severe impact to the devices.
Use only authorized battery chargers and accessories. Any malfunction or damage
caused by the use of unauthorized battery charger and accessories will void the
limited product warranty.
Ensure that the battery charger does not come in contact with conductive objects.
Do not use the tablet beside microwave ovens, cordless phones and some medical
or scientific instruments to prevent signal interference.
Troubleshooting Checklist
A. When the tablet does not work properly:
Make sure the tablet has been registered online.
Make sure the system software and diagnostic application software are properly
updated.
Make sure the tablet is connected to the Internet.
309
Check all cables, connections, and indicators to see if the signal is being
received.
B. When battery life is shorter than usual:
This may happen when you are in an area with low signal strength. Turn off your
device if is not in use.
C. When you cannot turn on the tablet:
Make sure the tablet is connected to a power source or the battery is charged.
D. When you are unable to charge the tablet:
Your charger maybe out of order. Contact your nearest dealer.
You may be attempting to use the device in an overly hot/cold temperature.
Charge the device in a cooler or warmer area.
Your device may have not been connected to the charger properly. Check the
connector.
NOTE
If the problems persist, please contact Autel's technical support personnel or your local
selling agent.
About Battery Usage
Your tablet is powered by a built-in lithium-ion polymer battery, which enables you to
recharge your battery when there is electricity left .
DANGER
The built-in Lithium-ion Polymer battery is factory replaceable only; incorrect replacement
or tampering with the battery pack may cause an explosion.
Do not use a damaged battery charger.
Do not disassemble or open crush, bend, deform, puncture or shred.
Do not modify, remanufacture or attempt to insert foreign objects into the battery, or
expose the battery to fire, explosion or another hazards.
Only use the specified charger and USB cables. Failure to use Autel-authorized
charger and/or USB cables, may result in device malfunction or failure.
Use of an unqualified battery or charger may present a risk of fire, explosion, leakage,
or another hazards.
Avoid dropping the tablet. If the tablet is dropped, especially on a hard surface, and
you suspect damage, take the tablet to a service center for inspection.
310
Try to keep closer to your wireless router to reduce battery usage .
The time needed to recharge the battery varies depending on the remaining battery
capacity.
Battery life inevitably shortens over time.
Unplug the charger once the tablet is fully charged since overcharging may shorten
battery life.
Keep the battery in temperate environments. Do not place it inside a car when it is
too hot or too cold, which may reduce the capacity and life of the battery .
Service Procedures
This section introduces information for technical support, repair service, and application
for replacement or optional parts.
Technical Support
If you have any question or problem on the operation of the product, please contact us.
North America
Phone: 1-855-AUTEL-US (288-3587) (Monday-Friday, 9AM-9PM Eastern Time)
Fax: (631) 357-3304
Email:
Tech Support:ussupport@autel.com;
Sales:sales@autel.com;
Careers:careers@autel.com
Address: 36 Harbor Park Drive, Port Washington, New York, USA 11050
Web:www.autel.com
Europe
Phone: +49(0)89 540299608 (Monday-Friday, 9:00AM-6:00PM Berlin Time)
Email:support.eu@autel.com
Address: Landsberger Str. 408, 4. OG, 81241 München, Germany
Web:www.autel.eu
China Headquarters
Phone: 0086-755-2267-2493 (Monday-Friday, 9:00AM-6:00PM Beijing Time)
311
Email: sales@auteltech.net;support@autel.com
Address: 7th, 8th and 10th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili,
Nanshan, Shenzhen, 518055, China
Fax: 0086-755-8614-7758
Web: www.auteltech.cn
Autel Latin America
Email:sales.latin@autel.com;latsupport02@autel.com
Address: Avenida Americas 1905, 6B, Colonia Aldrete, Guadalajara, Jalisco,
Mexico
Web:www.autel.com
Autel APAC
Phone: +045 5948465
Email:sa[email protected]om; support.[email protected]om
Address: 719, Nissou Building, 3-7-18, Shinyokohama, Kouhoku, Yokohama,
Kanagawa, Japan 222-0033
Web:www.autel.com/jp/
Autel IMEA DMCC
Phone: +971 585 002709
Email:sales.imea@autel.com; imea-[email protected]om
Address: 906-17, Preatoni Tower (Cluster L) , Jumeirah Lakes Tower, DMCC,
Dubai, UAE
Web:www.autel.com
For technical assistance in other markets, please contact your local selling agent.
Repair Service
If it becomes necessary to return your device for repair, please download the repair
service form fromwww.autel.com, and fill in the form. The following information must be
included:
Contact name
Return address
Telephone number
312
Product name
Complete description of the problem
Proof-of-purchase for warranty repairs
Preferred method of payment for non-warranty repairs
NOTE
For non-warranty repairs, payment can be made with Visa, Master Card, or with
approved credit terms.
Send the device to your local agent, or to the below address:
7-8th, 10th Floor, Building B1, Zhiyuan,
Xueyuan Road, Xili, Nanshan,
Shenzhen, 518055, China
Other Services
You can purchase the optional accessories directly from Autel's authorized tool suppliers,
and/or your local distributor or agent.
Your purchase order should include the following information:
Contact information
Product or part name
Item description
Purchase quantity
313
24
Compliance Information
FCC Compliance FCC ID: WQ8MAXISYSULTRA
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
SAR
The radiated output power of this device is below the FCC radio frequency exposure
limits. Nevertheless, the device should be used in such a manner that the potential for
human contact is minimized during normal operation.
The exposure standard for wireless devices employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests
for SAR are conducted using standard operating positions accepted by the FCC with the
314
device transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level
of the device while operating can be well below the maximum value. This is because the
device is designed to operate at multiple power levels so as to use only the power
required to reach the network. To avoid the possibility of exceeding the FCC radio
frequency exposure limits, human proximity to antenna should be minimized.
315
25
Warranty
12-month Limited Warranty
Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail
purchaser of this MaxiSys Diagnostic Device that should this product or any part thereof
during normal usage and under normal conditions be proven defective in material or
workmanship that results in product failure within twelve months period from the date of
purchase, such defect(s) will be repaired, or replaced (with new or rebuilt parts) with
Proof of Purchase, at the Company's option, without charge for parts or labor directly
related to the defect(s).
The Company shall not be liable for any incidental or consequential damages arising
from the use, misuse, or mounting of the device. Some states do not allow limitation on
how long an implied warranty lasts, so the above limitations may not apply to you.
This warranty does not apply to:
a) Products subjected to abnormal use or conditions, accident, mishandling, neglect,
unauthorized alteration, misuse, improper installation or repair or improper storage;
b) Products whose mechanical serial number or electronic serial number has been
removed, altered or defaced;
c) Damage from exposure to excessive temperatures or extreme environmental
conditions;
d) Damage resulting from connection to, or use of any accessory or other product not
approved or authorized by the Company;
e) Defects in appearance, cosmetic, decorative or structural items such as framing and
non-operative parts.
f) Products damaged from external causes such as fire, dirt, sand, battery leakage,
blown fuse, theft or improper usage of any electrical source.
IMPORTANT
All contents of the product may be deleted during the process of repair. You should create
a back-up copy of any contents of your product before delivering the product for warranty
service.
