Quick Start Guide
Installation
1
3
2
4
Cat5/5e/6/6a 110-Type UTP Patch Panels
Models: N052-024, N052-048, N252-024, N252-024-6A, N252-024-6A-OF, N252-048
Español 3 • Français 5 • Русский 7
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
22-24 AWG
Avoid gaps
Wrap strap
around cables.
Figure 1: T568A/B Wiring Scheme

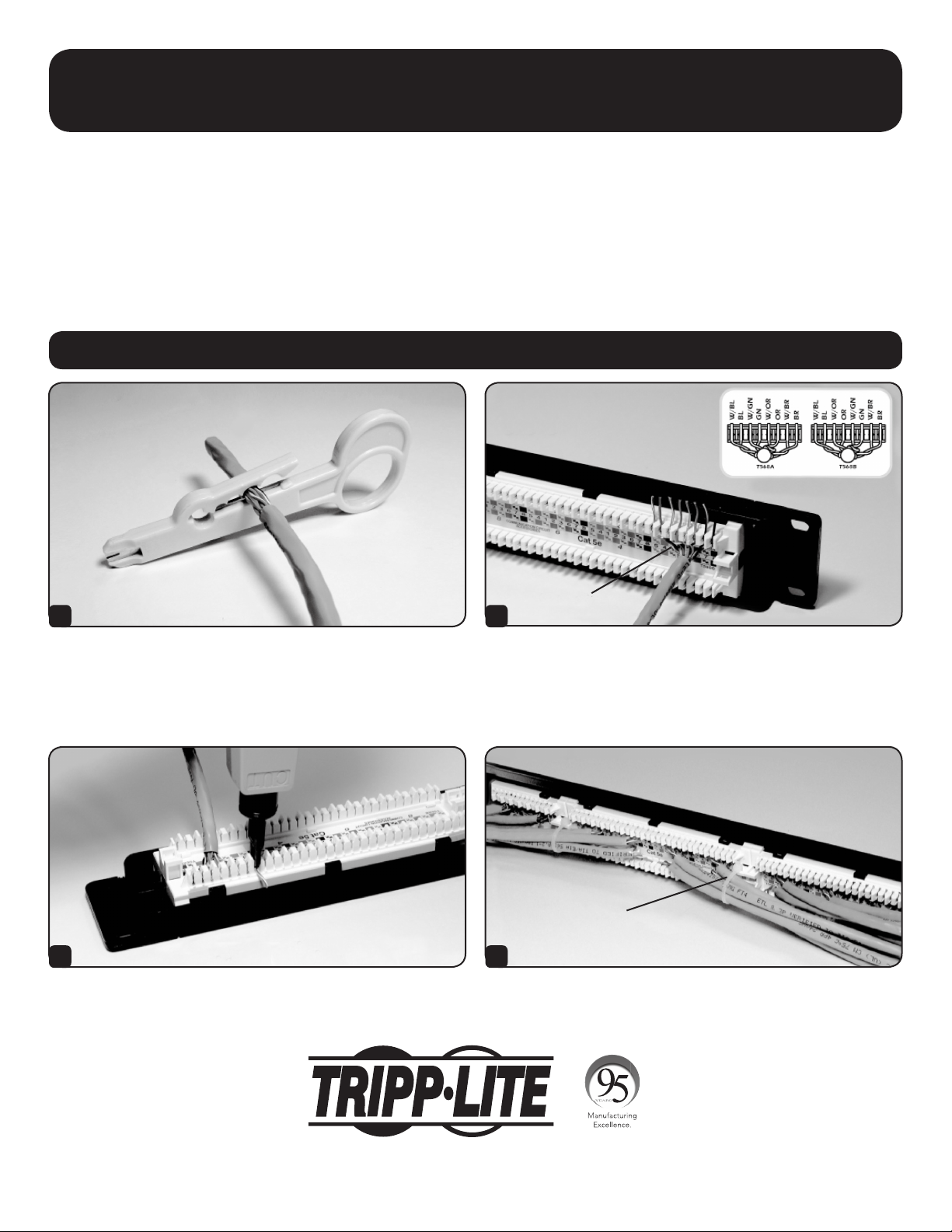

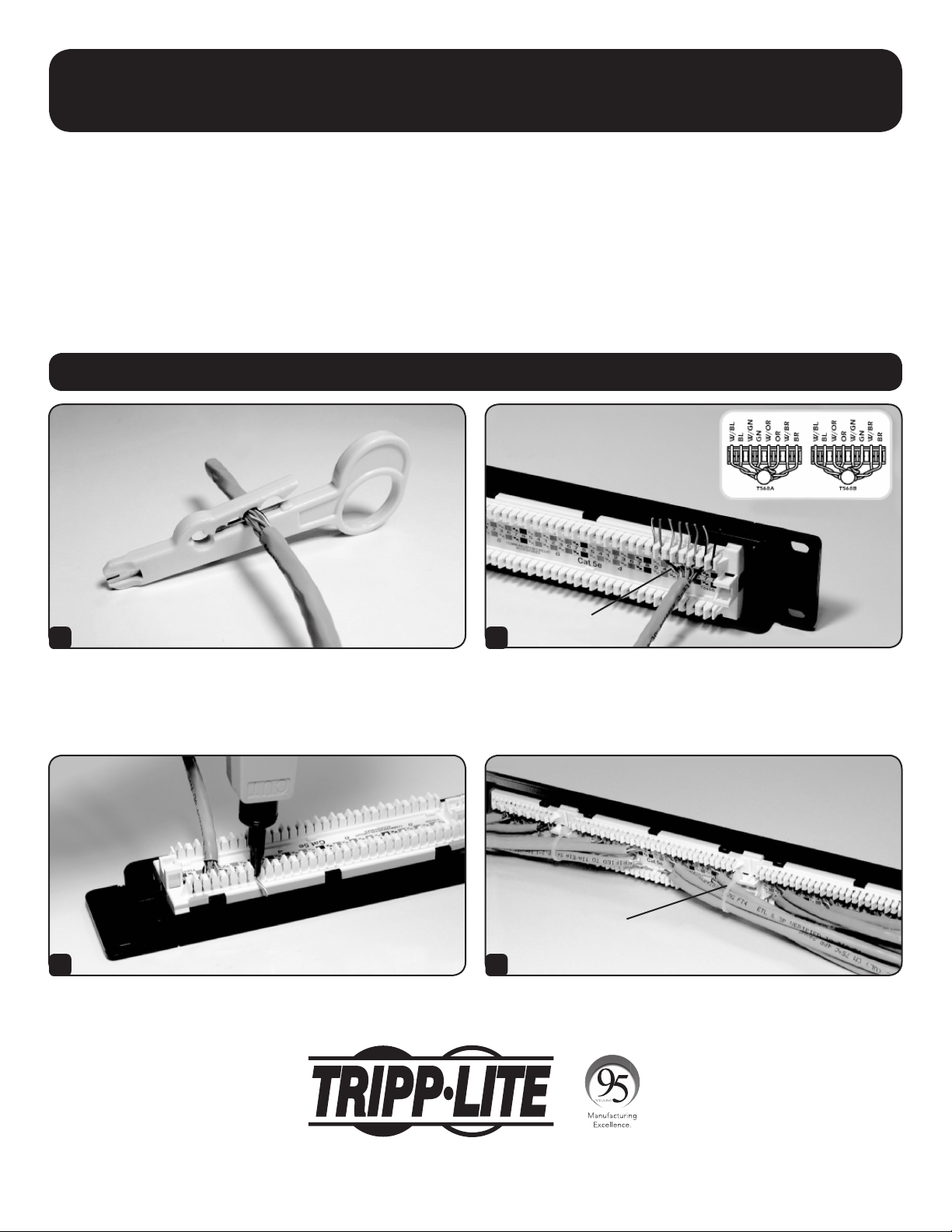

Strip the cable jacket approximately 1.25 in. (30 mm).
Use a 110 impact tool for termination.
Note: Set the tool to the “Low Impact” setting.
Seat each wire according to the wiring scheme shown in Figure 1.
Ensure the untwisted length is as short as possible. Avoid overlapping
one pair over the others.
Note: 110 punchdown orientation may vary by model.
In order to maintain stable performance, ensure the cable bundles
are secured with the attached straps.
