The following documents are available:
Installatio
Instructi

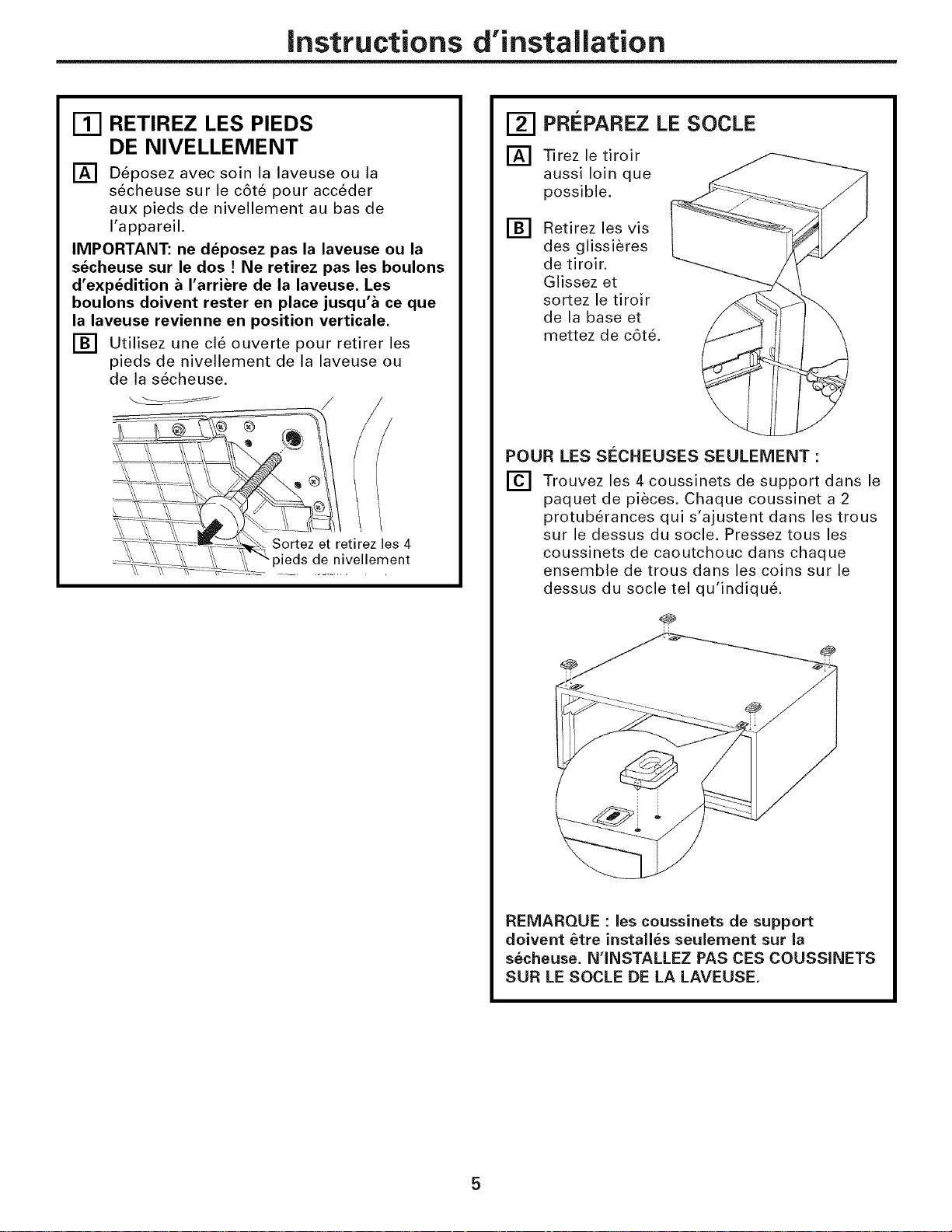

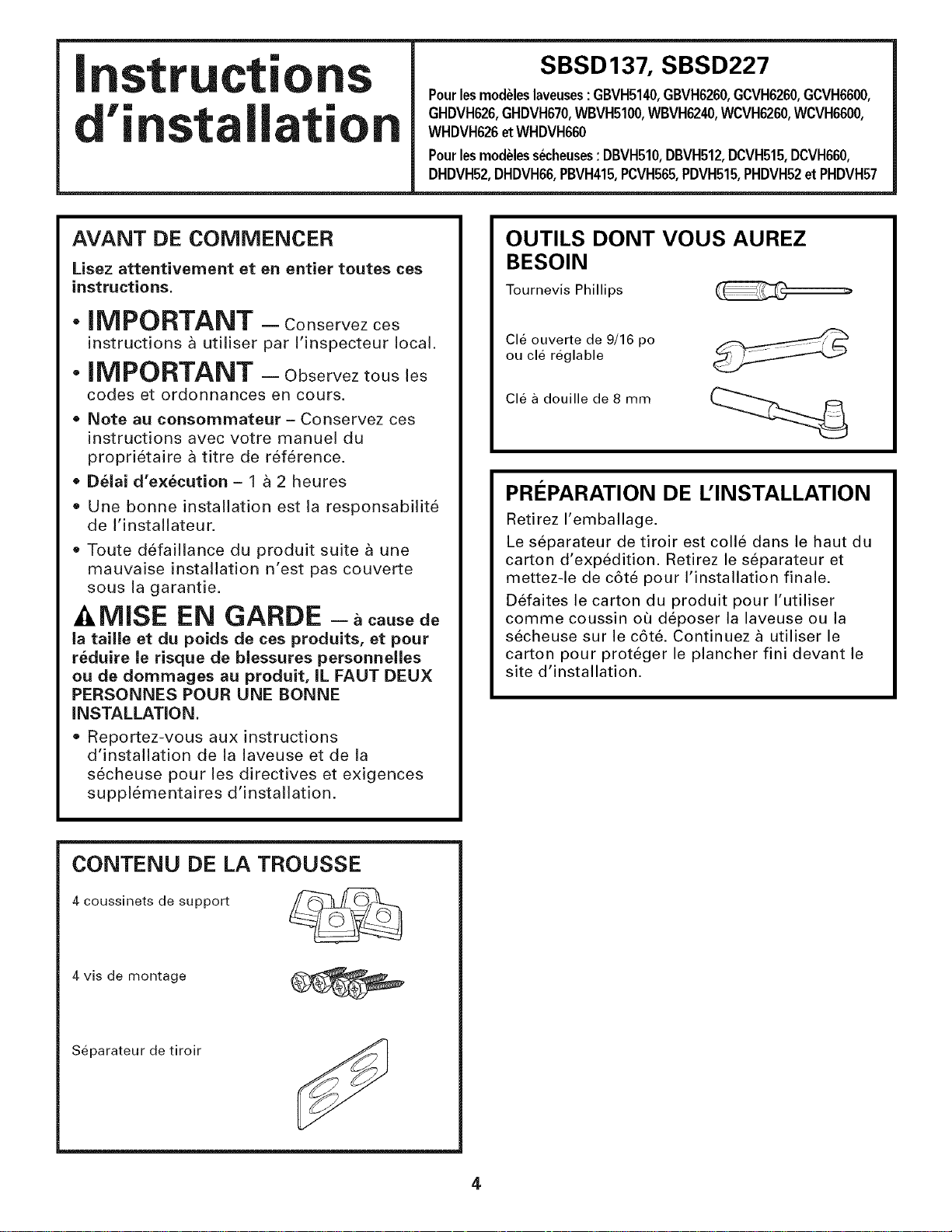

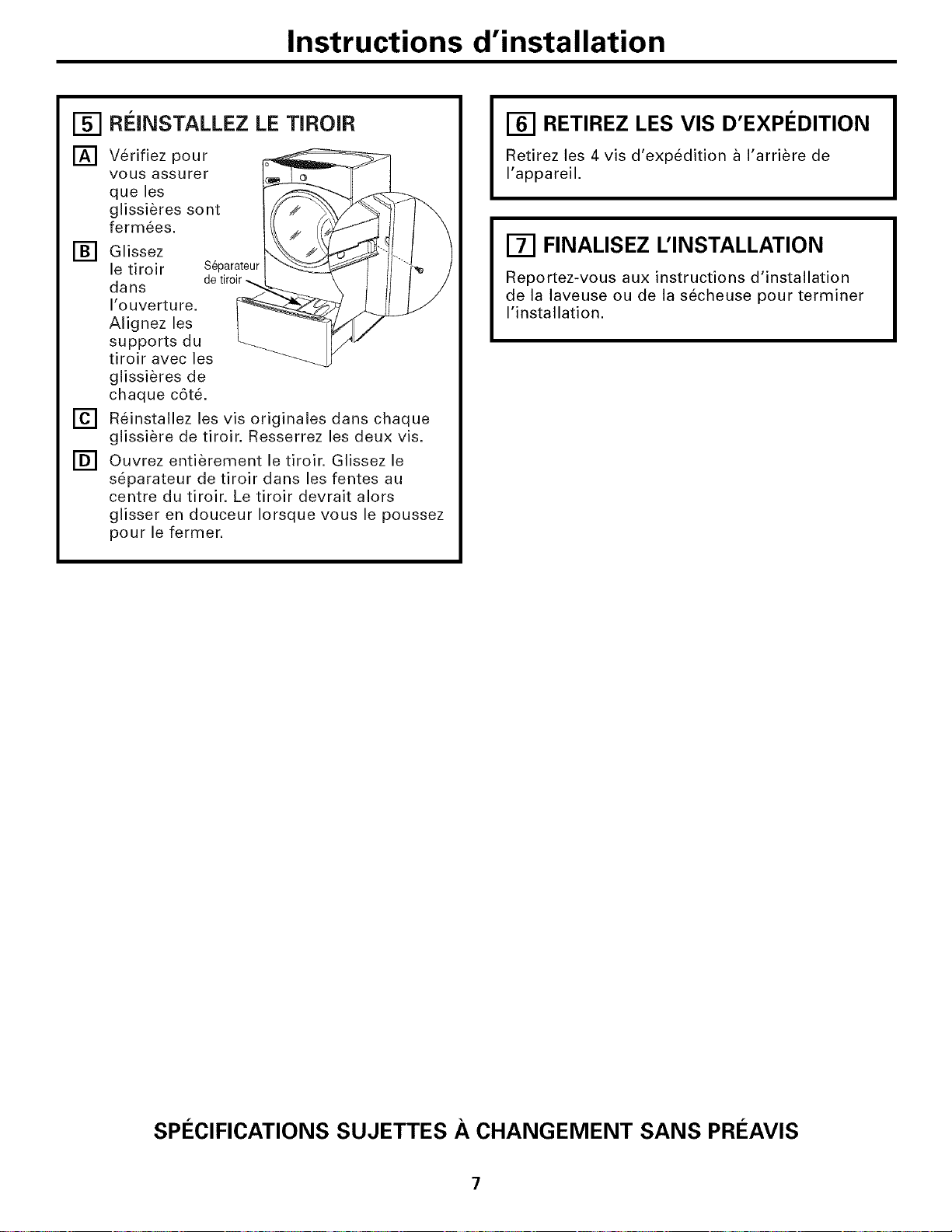

Instructions en fran_ais : ............ 4
Instrucciones en espa_ol: ........... 8
SBSD13_ SBSD227
ForWasherModels:GBVH5140,GBVH6260,GCVH6260,GCVH6600,GHDVH626,
GHDVH6700WBVH5100,WBVH6240,WCVH6260,WCVH6600,WHDVH626
andWHDVH660
ForDryerModels:DBVH510,DBVH512,DCVH5150DCVH660,DHDVH52,
DHDVH66,PBVH415,PCVH565,PDVH515,PHDVH52andPHDVH57

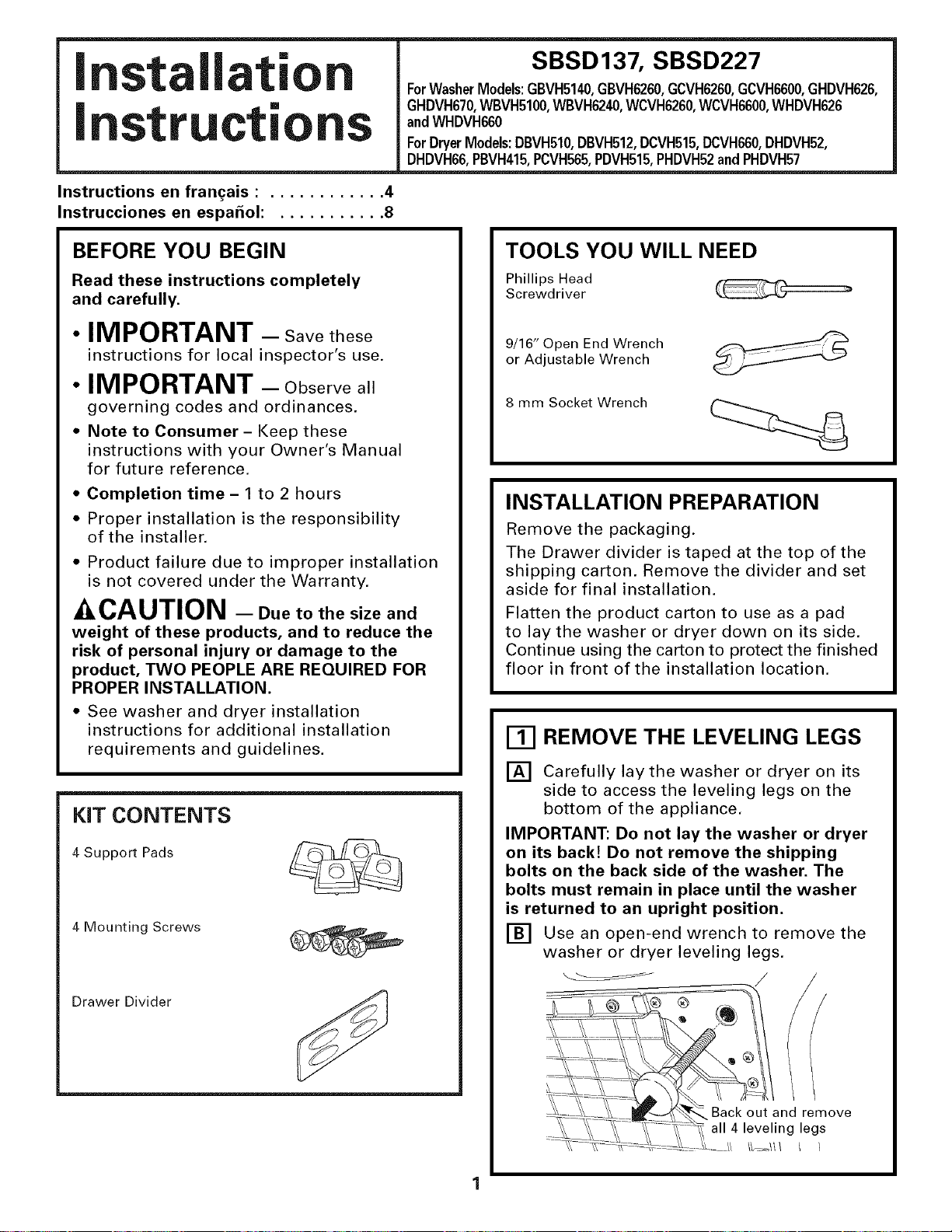

BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT - Savethese
instructions for local inspector's use.
IMPORTANT - Observeall
governing codes and ordinances.
Note to Consumer - Keep these
instructions with your Owner's Manual
for future reference.
Completion time - 1 to 2 hours
Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under the Warranty.
CAUTION - Due to the size and
weight of these products, and to reduce the
risk of personal injury or damage to the
product, TWO PEOPLE ARE REQUIRED FOR
PROPER INSTALLATION.
See washer and dryer installation
instructions for additional installation
requirements and guidelines.
KiT CONTENTS
4 Support Pads
4 Mounting Screws
Drawer Divider
TOOLS YOU WILL NEED
Phillips Head
Screwdriver
9/16" Open End Wrench
or Adjustable Wrench
8 mm Socket Wrench
INSTALLATION PREPARATION
Remove the packaging.
The Drawer divider is taped at the top of the
shipping carton. Remove the divider and set
aside for final installation.
Flatten the product carton to use as a pad
to lay the washer or dryer down on its side.
Continue using the carton to protect the finished
floor in front of the installation location.
_-I REMOVE THE LEVELING LEGS
[] Carefully lay the washer or dryer on its
side to access the leveling legs on the
bottom of the appliance.
IMPORTANT: Do not lay the washer or dryer
on its back! Do not remove the shipping
bolts on the back side of the washer. The
bolts must remain in place until the washer
is returned to an upright position.
[] Use an open-end wrench to remove the
washer or dryer leveling legs.
