Model No. WESY5773.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-877-992-5999
Mon.-Fri., 6 a.m.-6 p.m. MST
ON THE WEB:
www.weiderservice.com
1
by
5ooX
_, CAUTION
Read all precautions and instruc-
tions in this manual before
using this equipment. Save this
manual for future reference.
E 'S A AL
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
WARNING DECAL PLACEMENT ............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
ADJUSTMENTS .......................................................................... 13
CABLE DIAGRAM ......................................................................... 16
EXERCISE GUIDELINES .................................................................. 17

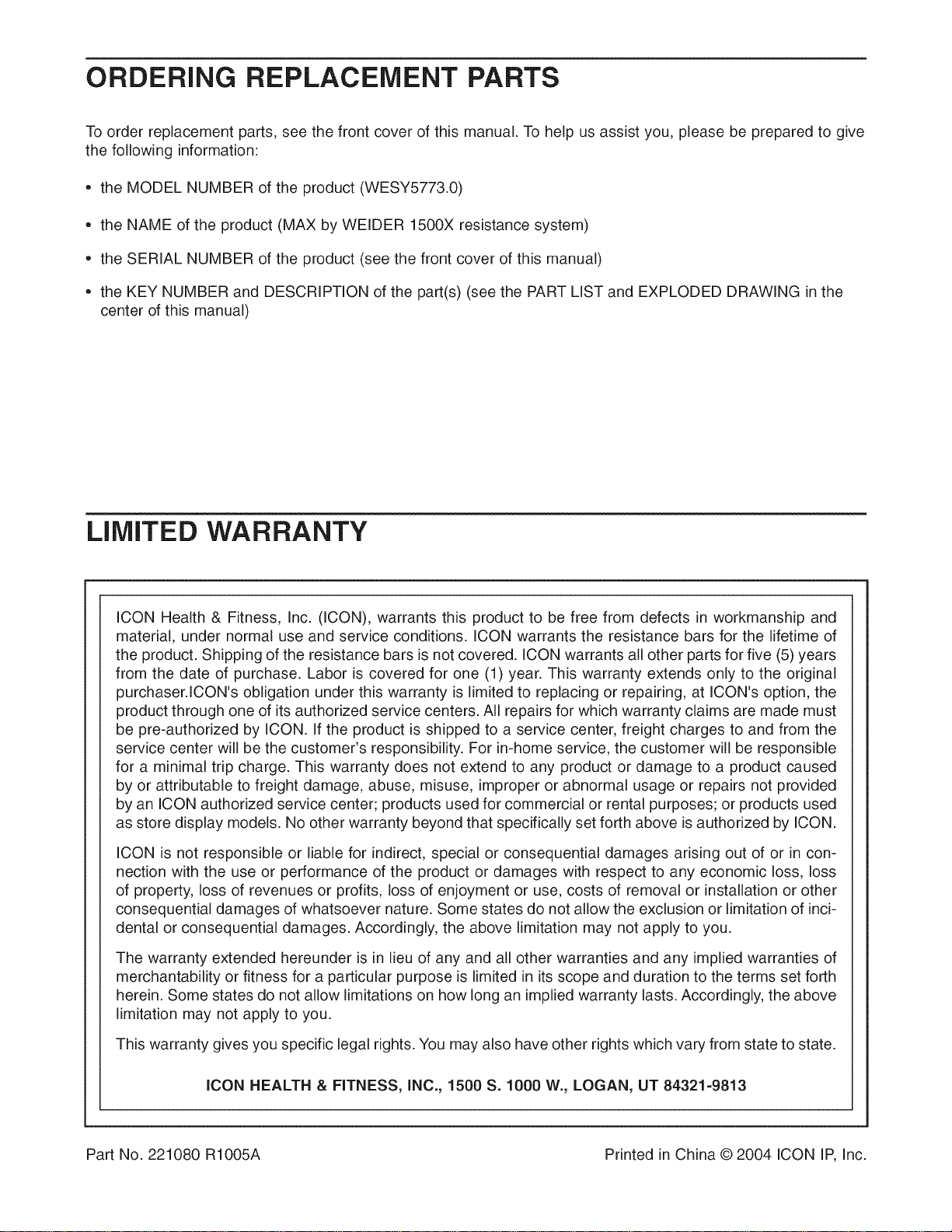

ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover

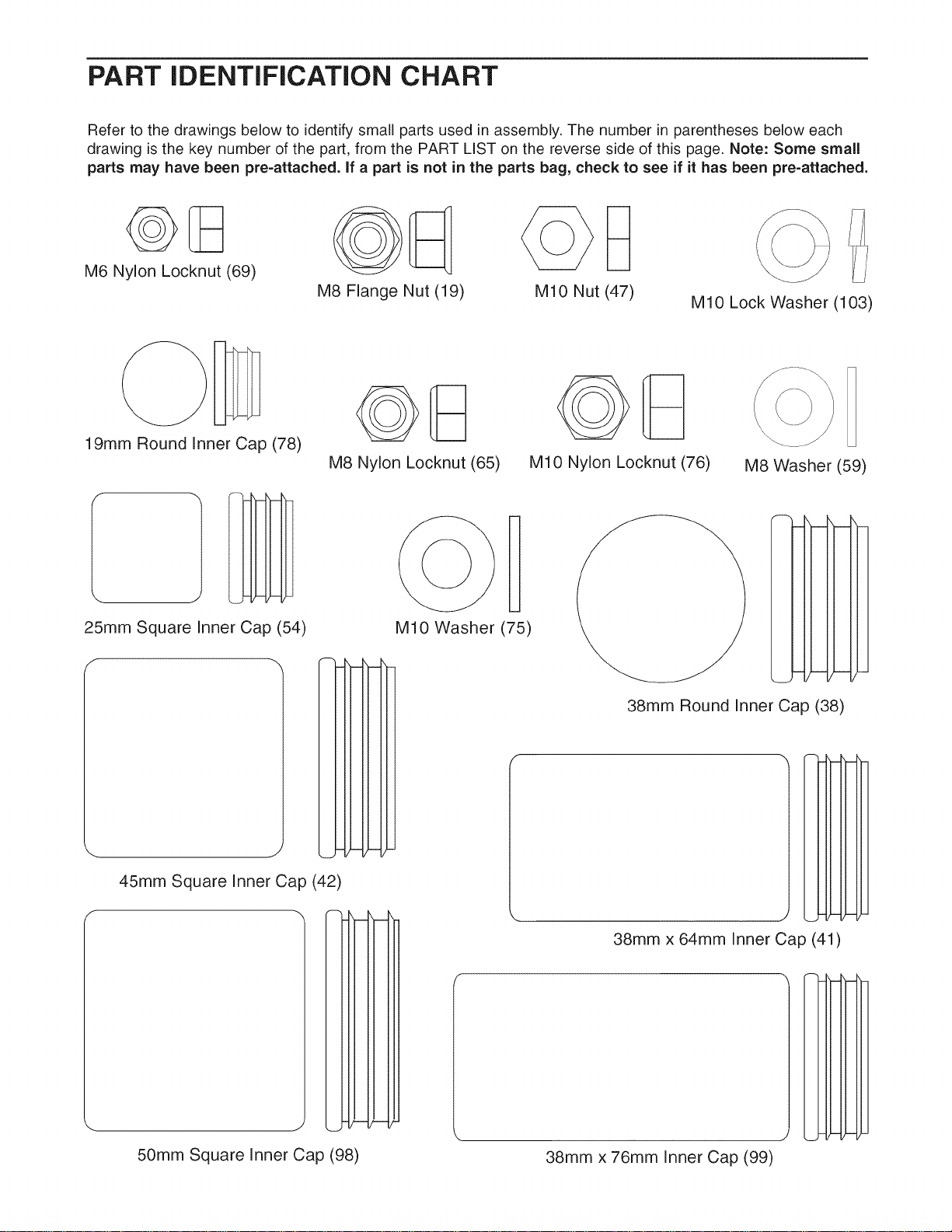

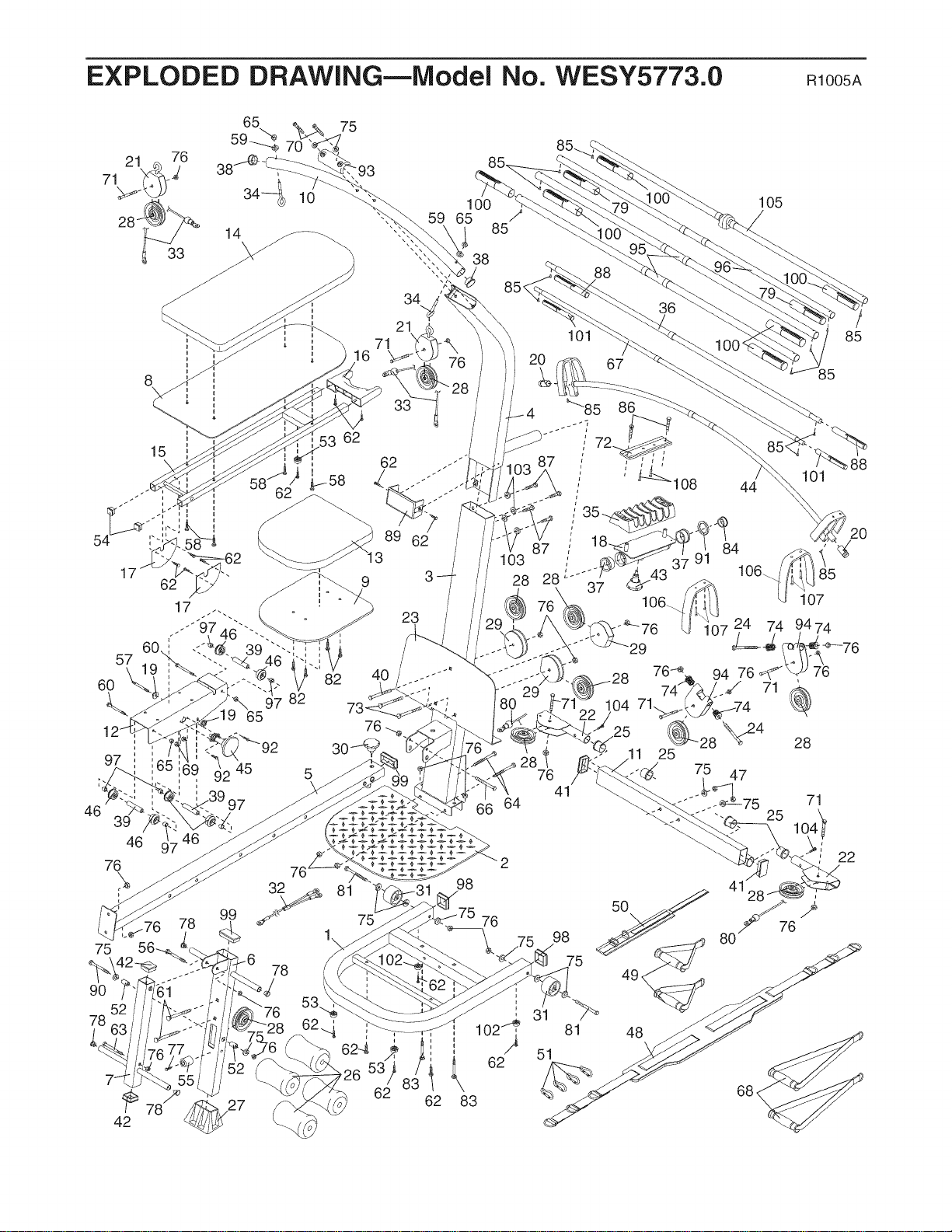

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-
ning assembly.

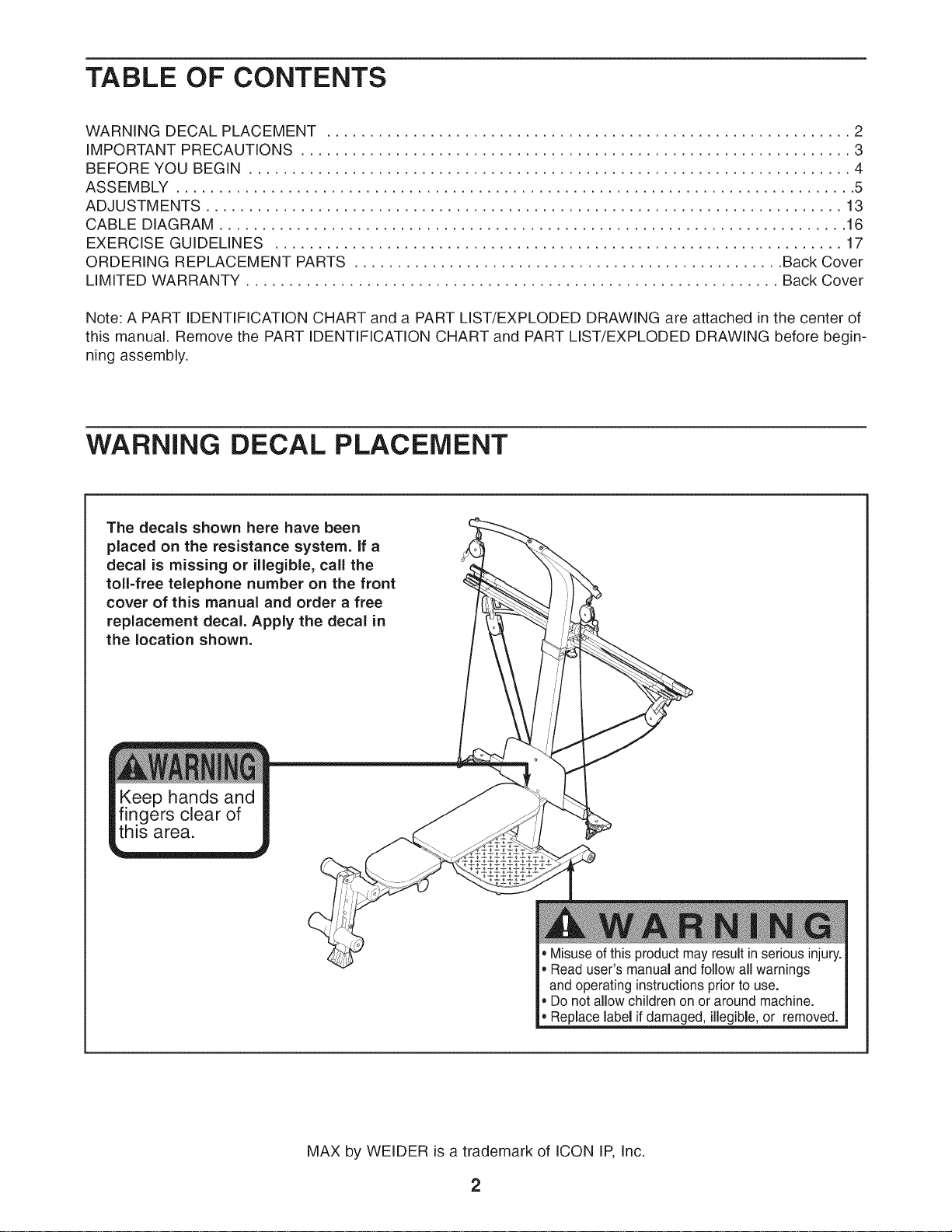

WARNING DECAL PLACEMENT
The decals shown here have been
placed on the resistance system. If a
decal is missing or illegible, call the
toll=free telephone number on the front
cover of this manual and order a free
replacement decal. Apply the decal in
the location shown.
hands and
ngers clear of
area.
I isuse of this product may result in serious injury. I
Read user's manual and follow all warnings
and operating instructions prior to use.
Do not allow children on or around machine.
Replace label if damaged, illegible, or removed. J
MAX by WELDER is a trademark of ICON IP, Inc.
2

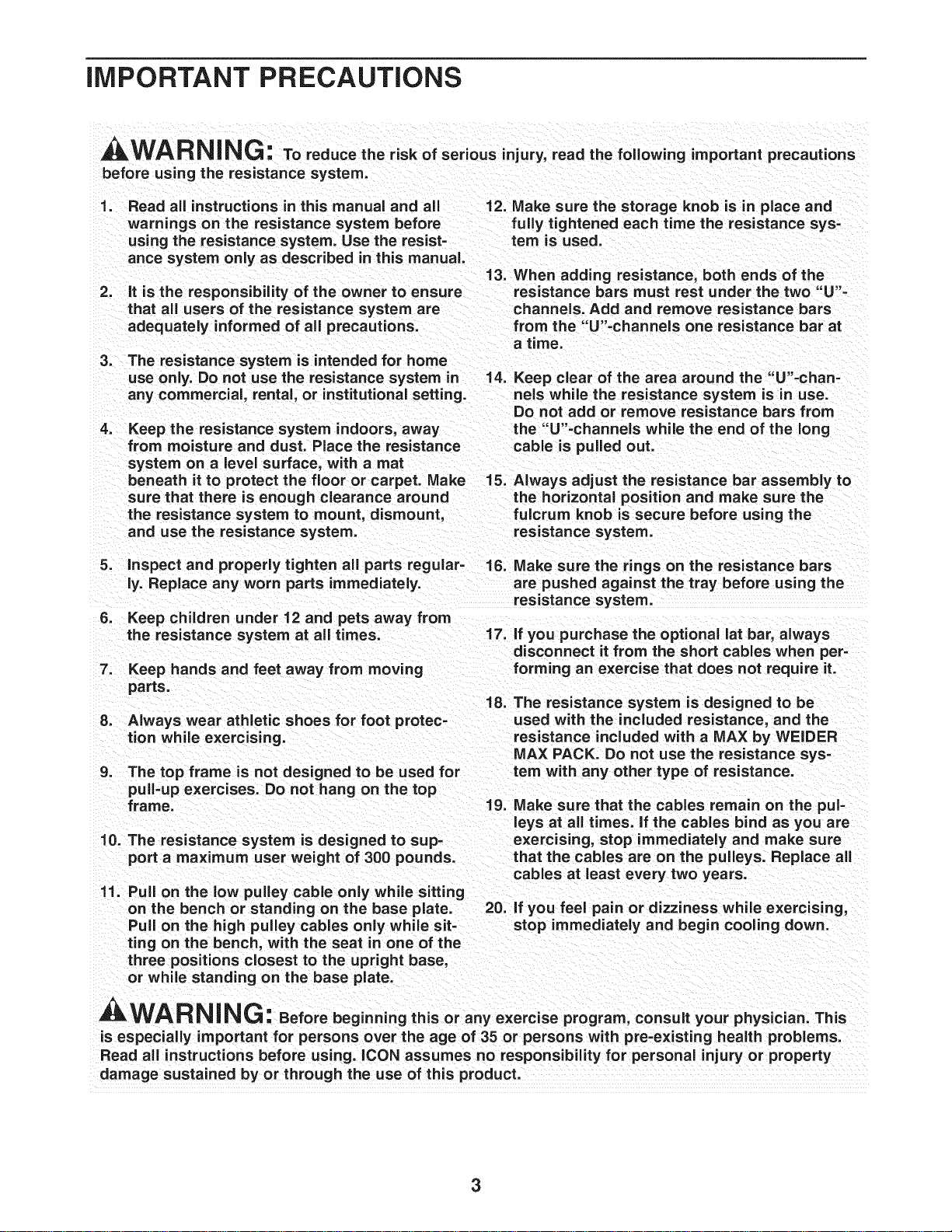

iMPORTANT PRECAUTIONS
[] .......
AWARNING. Toreducether,skofser,ous,njury.readthefo,ow,ngimportant precautions
before using the resistance system.
1. Read all instructions in this manual and all 12. Make sure the storage knob is in place and
warnings on the resistance system before fully tightened each time the resistance sys-
using the resistance system. Use the resist- tern is used.
ante system only as described in this manual.
13. When adding resistance, both ends of the
2. It is the responsibility of the owner to ensure resistance bars must rest under the two "U"-
that all users of the resistance system are channels. Add and remove resistance bars
adequately informed of all precautions, from the "U"-channels one resistance bar at
a time.
3. The resistance system is intended for home
use only. Do not use the resistance system in 14. Keep clear of the area around the "U'-chan-
any commercial, rental, or institutional setting, nels while the resistance system is in use.
Do not add or remove resistance bars from
4. Keep the resistance system indoors, away the "U'-channels while the end of the long
from moisture and dust. Place the resistance cable is pulled out.
system on a level surface, with a mat
beneath it to protect the floor or carpet. Make 15. Always adjust the resistance bar assembly to
sure that there is enough clearance around the horizontal position and make sure the
the resistance system to mount, dismount, fulcrum knob is secure before using the
and use the resistance system .... resistance system.
5. inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the resistance system at all times.
7. Keep hands and feet away from moving
parts.
8. Always wear athletic shoes for foot protec-
tion while exercising.
9. The top frame is not designed to be used for
puIFup exercises. Do not hang on the top
frame.
16. Make sure the rings on the resistance bars
are pushed against the tray before using the
resistance syste m.
17. if you purchase the optional lat bar, always
disconnect it from the short cables when per-
forming an exercise that does not require it.
18. The resistance system is designed to be
used with the included resistance, and the
resistance included with a MAX by WELDER
MAX PACK. Do not use the resistance sys-
tem with any other type of resistance.
19. Make sure that the cables remain on the pul-
leys at all times, if the cables bind as you are
10. The resistance system is designed to sup- exercising, stop immediately and make sure
port a maximum user weight of 300 pounds, that the cables are on the pulleys. Replace all
cables at least every two years.
11. Pull on the low pulley cable only while sitting
on the bench or standing on the base plate. 20. if you feel pain or dizziness while exercising,
Pull on the high pulley cables only while sit- stop immediately and begin cooling down.
ring on the bench, with the seat in one of the
three positions closest to the upright base,
or while standing on the base plate.
A kWARNING: Beforebeginningthisoranyexerciseprogram,consu,yourphysician.This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the innovative MAX by
WELDER _1500X resistance system. The resistance
system offers a selection of stations designed to devel-
op every major muscle group of the body. Whether your
goal is to tone your body, build dramatic muscle size
and strength, or improve your cardiovascular system,
the resistance system will help you to achieve the spe-
cific results you want.
For your benefit, read this manual carefully before
using the resistance system. If you have questions
after reading this manual, see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before calling. The
model number is WESY5773.0. The serial number can
be found on a decal attached to the resistance system
(see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the resistance
system at www.weiderservice.com/registration.

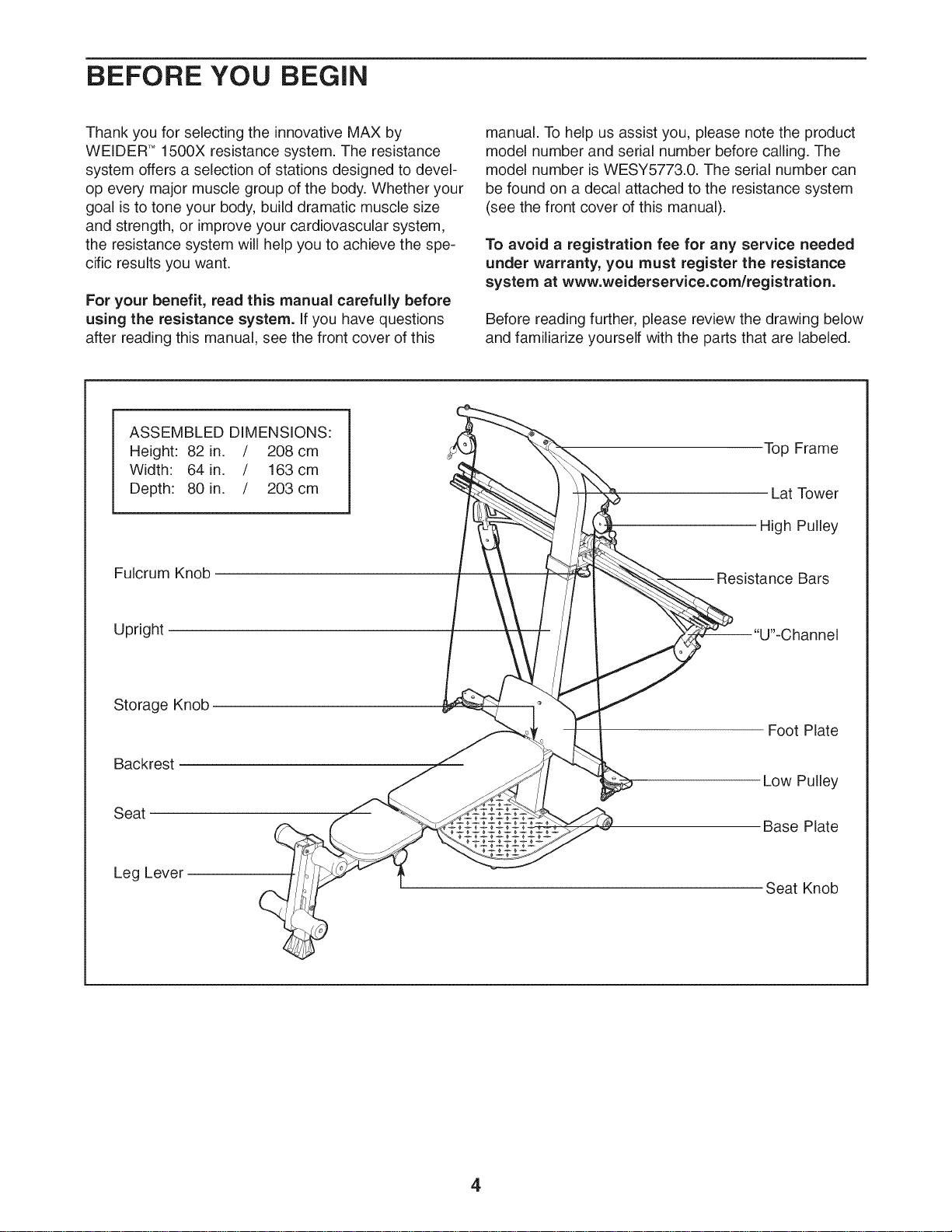

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED DIMENSIONS:
Height: 82 in. / 208 cm
Width: 64 in. / 163cm
Depth: 80 in. / 203 cm
.Top Frame
Lat Tower
High Pulley
Fulcrum Knob
-- Resistance Bars
Upright
U"-Channel
Storage Knob
Backrest
Seat
Foot Plate
Low Pulley
Base Plate
Leg Lever
Seat Knob
4

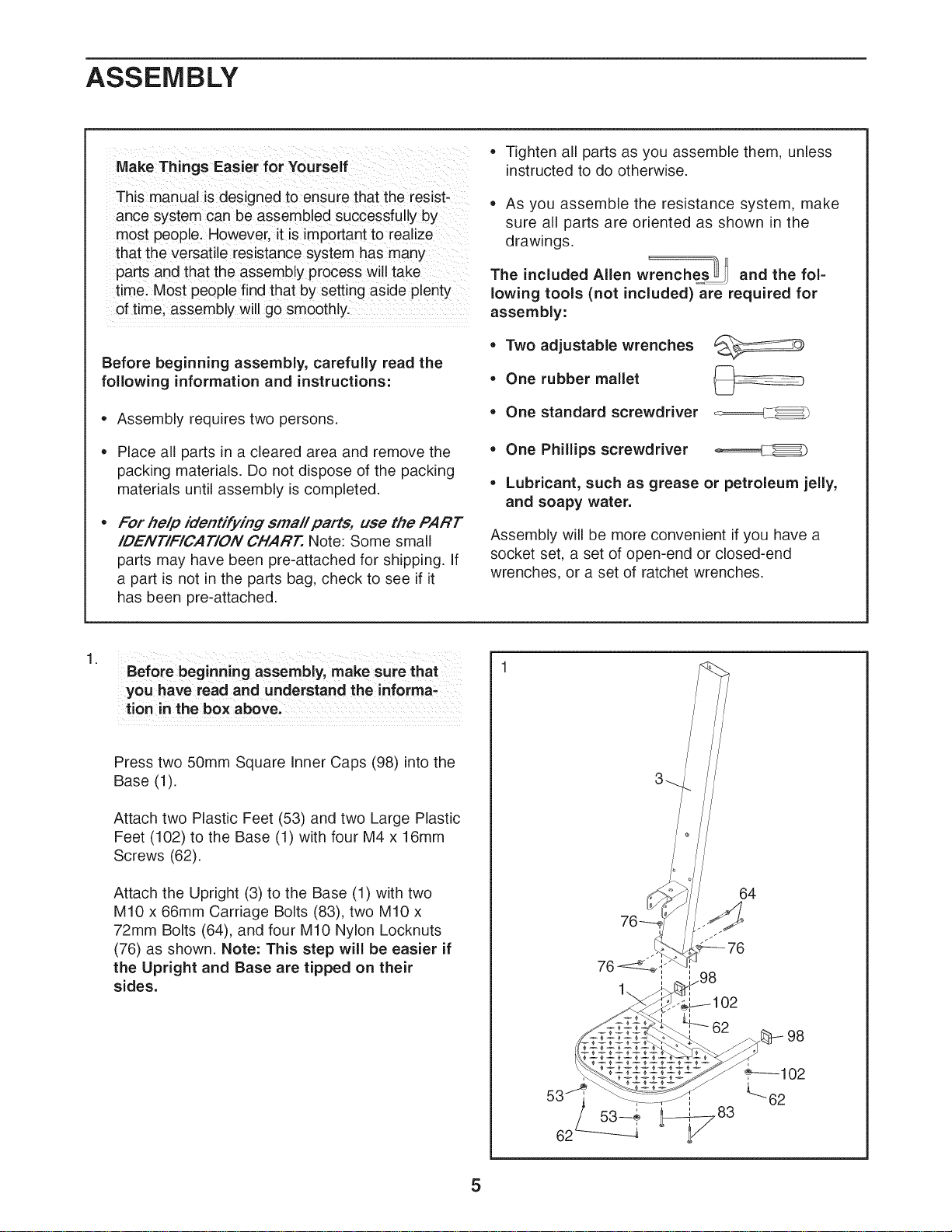

ASSEMBLY
Make Things Easier for Yourself
This manual is designed to ensure that the resist-
ance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
o Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.

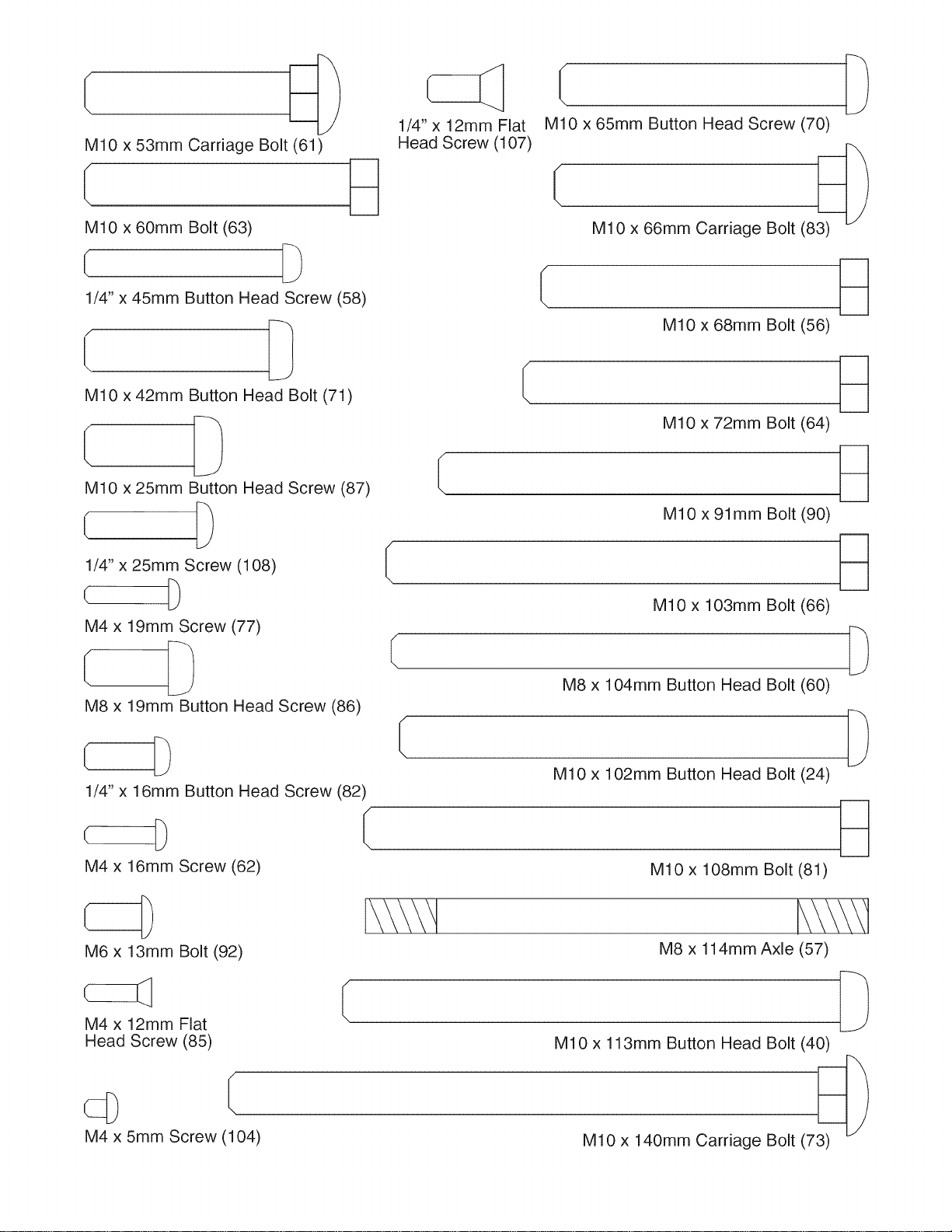

For help identifying small parts, use the PART
IDENTiFICATiON CHART. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
, As you assemble the resistance system, make
sure all parts are oriented as shown in the
drawings.
The included Allen wrenche_ and the fol-
lowing tools (not included) are required for
assembly:
Two adjustable wrenches
One rubber mallet
One standard screwdriver
, One Phillips screwdriver _===_
Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
.
Beforebeg nn ogassembly,makesurethat
you have read and understand the informa-
tion in the box above. ..........................................
Press two 50mm Square Inner Caps (98) into the
Base (1).
Attach two Plastic Feet (53) and two Large Plastic
Feet (102) to the Base (1) with four M4 x 16mm
Screws (62).
Attach the Upright (3) to the Base (1) with two
M10 x 66mm Carriage Bolts (83), two M10 x
72mm Bolts (64), and four M10 Nylon Locknuts
(76) as shown. Note: This step will be easier if
the Upright and Base are tipped on their
sides.
62
64
5
2. 2
.
.
.

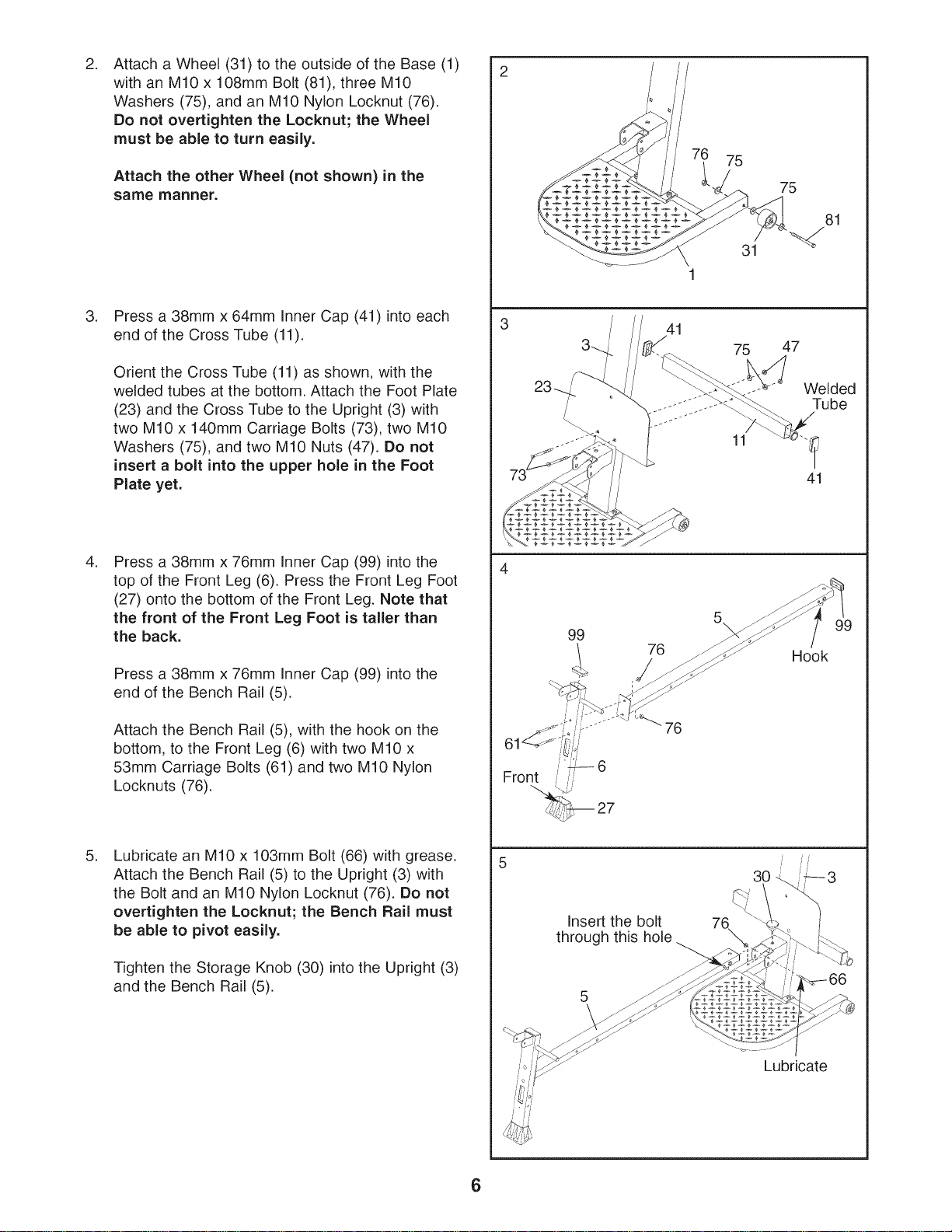

Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 108mm Bolt (81), three M10
Washers (75), and an M10 Nylon Locknut (76).
Do not overtighten the Locknut; the Wheel
must be able to turn easily.
Attach the other Wheel (not shown) in the
same manner.
Press a 38mm x 64mm Inner Cap (41) into each
end of the Cross Tube (11).
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Foot Plate
(23) and the Cross Tube to the Upright (3) with
two M10 x 140mm Carriage Bolts (73), two M10
Washers (75), and two M10 Nuts (47). Do not
insert a bolt into the upper hole in the Foot
Plate yet.
Press a 38mm x 76mm Inner Cap (99) into the
top of the Front Leg (6). Press the Front Leg Foot
(27) onto the bottom of the Front Leg. Note that
the front of the Front Leg Foot is taller than
the back.
Press a 38mm x 76mm Inner Cap (99) into the
end of the Bench Rail (5).
Attach the Bench Rail (5), with the hook on the
bottom, to the Front Leg (6) with two M10 x
53mm Carriage Bolts (61) and two M10 Nylon
Locknuts (76).
Lubricate an M10 x 103mm Bolt (66) with grease.
Attach the Bench Rail (5) to the Upright (3) with
the Bolt and an M10 Nylon Locknut (76). Do not
overtighten the Locknut; the Bench Rail must
be able to pivot easily.
Tighten the Storage Knob (30) into the Upright (3)
and the Bench Rail (5).
75
31
75
81
-_/
3
41
75
11
47
Welded
Tube
41
99
76
5\
Hook
6
Front
__27
Insert the bolt
through this hole
TZT±TZT±T±T±
Lubricate
6
6. 6
.
.

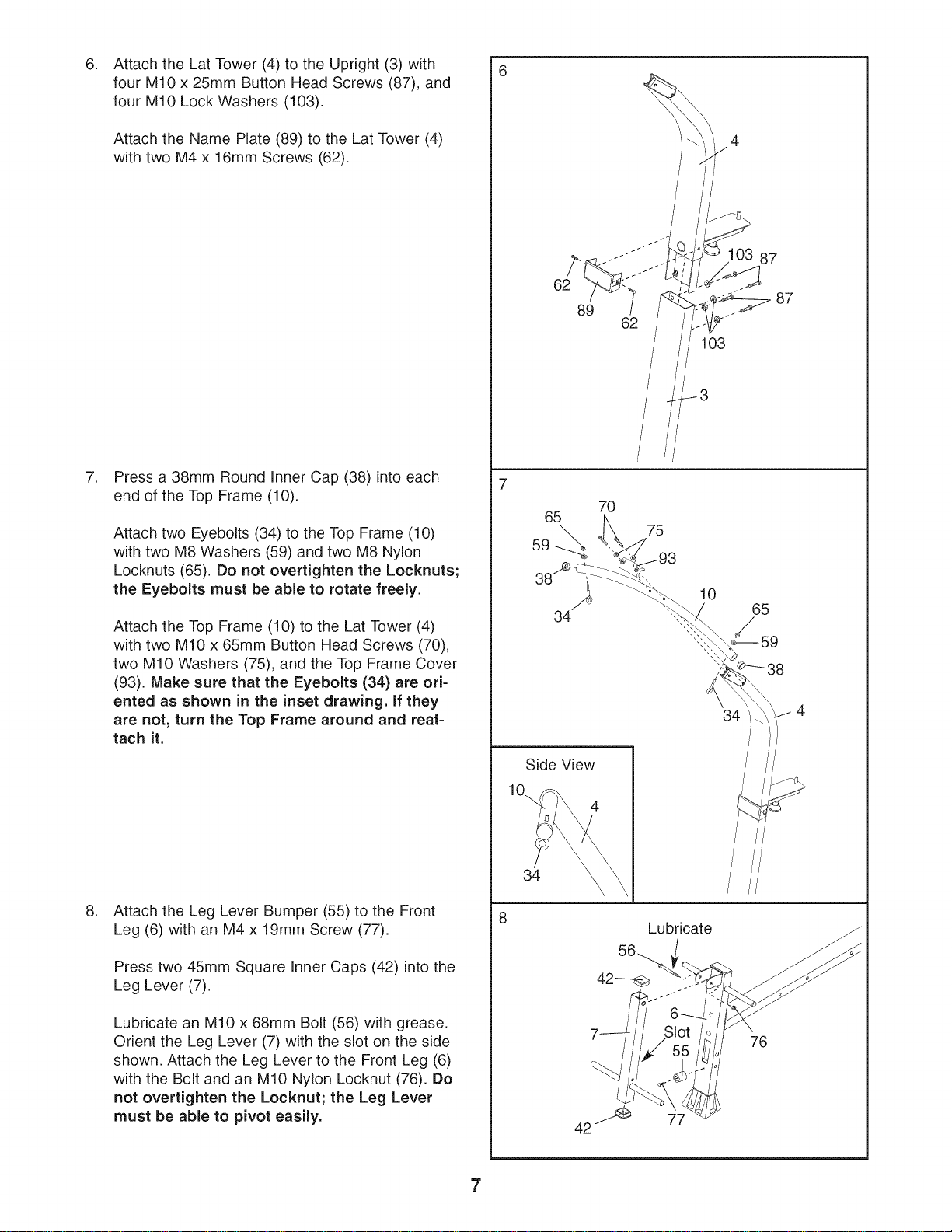

Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Head Screws (87), and
four M10 Lock Washers (103).
Attach the Name Plate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
Press a 38mm Round Inner Cap (38) into each
end of the Top Frame (10).
Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Head Screws (70),
two M10 Washers (75), and the Top Frame Cover
(93). Make sure that the Eyebolts (34} are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.
Attach the Leg Lever Bumper (55) to the Front
Leg (6) with an M4 x 19mm Screw (77).
Press two 45mm Square Inner Caps (42) into the
Leg Lever (7).
Lubricate an M10 x 68mm Bolt (56) with grease.
Orient the Leg Lever (7) with the slot on the side
shown. Attach the Leg Lever to the Front Leg (6)
with the Bolt and an M10 Nylon Locknut (76). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
4
)"
62
89
62
103
103 87
87
70
65
59 L'_ 75
34
10
65
/ -59
34 4
34
Lubricate
76
77
42"
7
9. 9

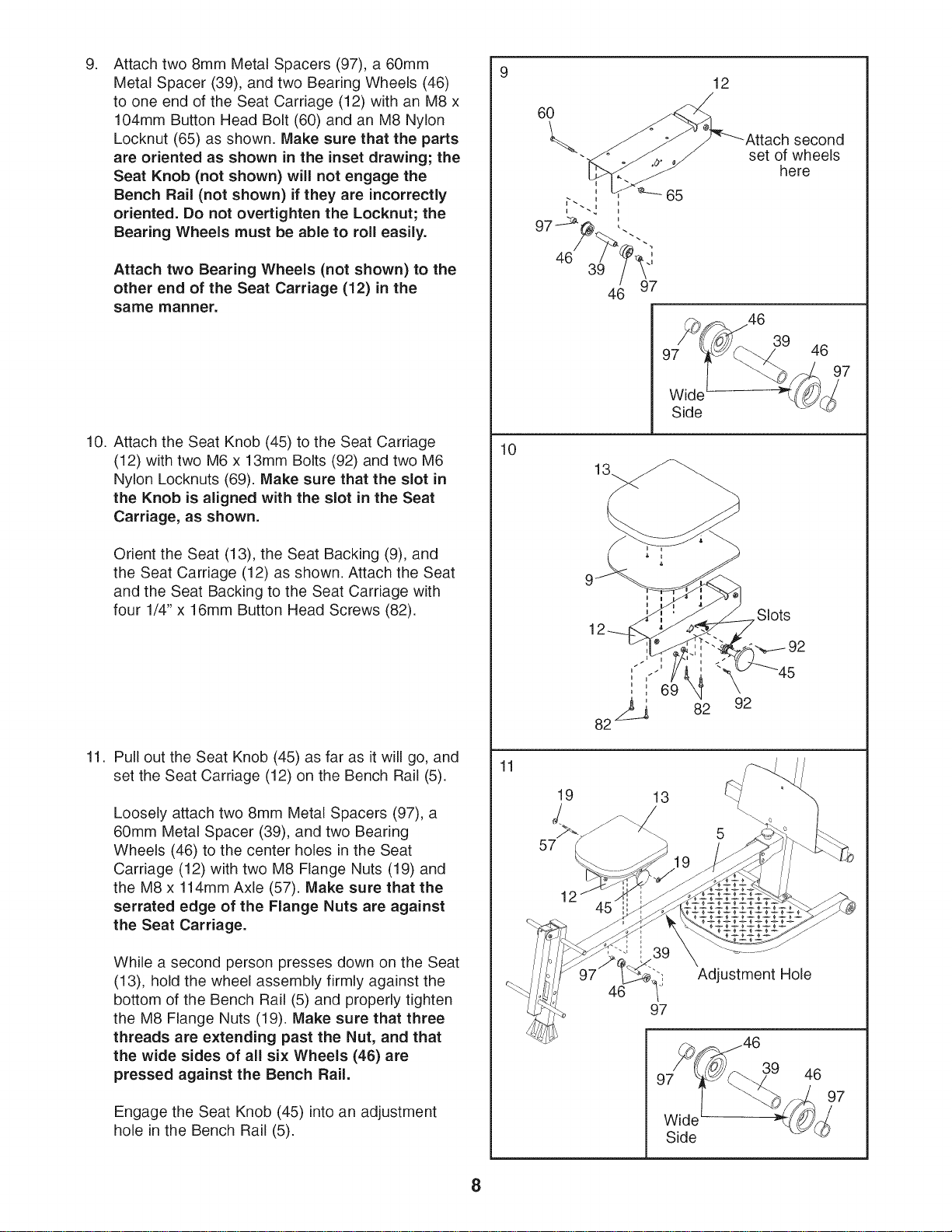

Attach two 8mm Metal Spacers (97), a 60mm
Metal Spacer (39), and two Bearing Wheels (46)
to one end of the Seat Carriage (12) with an M8 x
104mm Button Head Bolt (60) and an M8 Nylon
Locknut (65) as shown. Make sure that the parts
are oriented as shown in the inset drawing; the
Seat Knob (not shown) will not engage the
Bench Rail (not shown) if they are incorrectly
oriented. Do not overtighten the Locknut; the
Bearing Wheels must be able to roll easily.
Attach two Bearing Wheels (not shown) to the
other end of the Seat Carriage (12) in the
same manner.
10. Attach the Seat Knob (45) to the Seat Carriage
(12) with two M6 x 13mm Bolts (92) and two M6
Nylon Locknuts (69). Make sure that the slot in
the Knob is aligned with the slot in the Seat
Carriage, as shown.
Orient the Seat (13), the Seat Backing (9), and
the Seat Carriage (12) as shown. Attach the Seat
and the Seat Backing to the Seat Carriage with
four 1/4" x 16mm Button Head Screws (82).
11.
Pull out the Seat Knob (45) as far as it will go, and
set the Seat Carriage (12) on the Bench Rail (5).
Loosely attach two 8mm Metal Spacers (97), a
60mm Metal Spacer (39), and two Bearing
Wheels (46) to the center holes in the Seat
Carriage (12) with two M8 Flange Nuts (19) and
the M8 x 114mm Axle (57). Make sure that the
serrated edge of the Flange Nuts are against
the Seat Carriage.
While a second person presses down on the Seat
(13), hold the wheel assembly firmly against the
bottom of the Bench Rail (5) and properly tighten
the M8 Flange Nuts (19). Make sure that three
threads are extending past the Nut, and that
the wide sides of all six Wheels (46) are
pressed against the Bench Rail.
Engage the Seat Knob (45) into an adjustment
hole in the Bench Rail (5).
10
11
60
\
12
second
set of wheels
here
Wide
Side
82 92
Slots
92
19 13
57
12
i 39
97
Adjustment Hole
39 46
Side
8

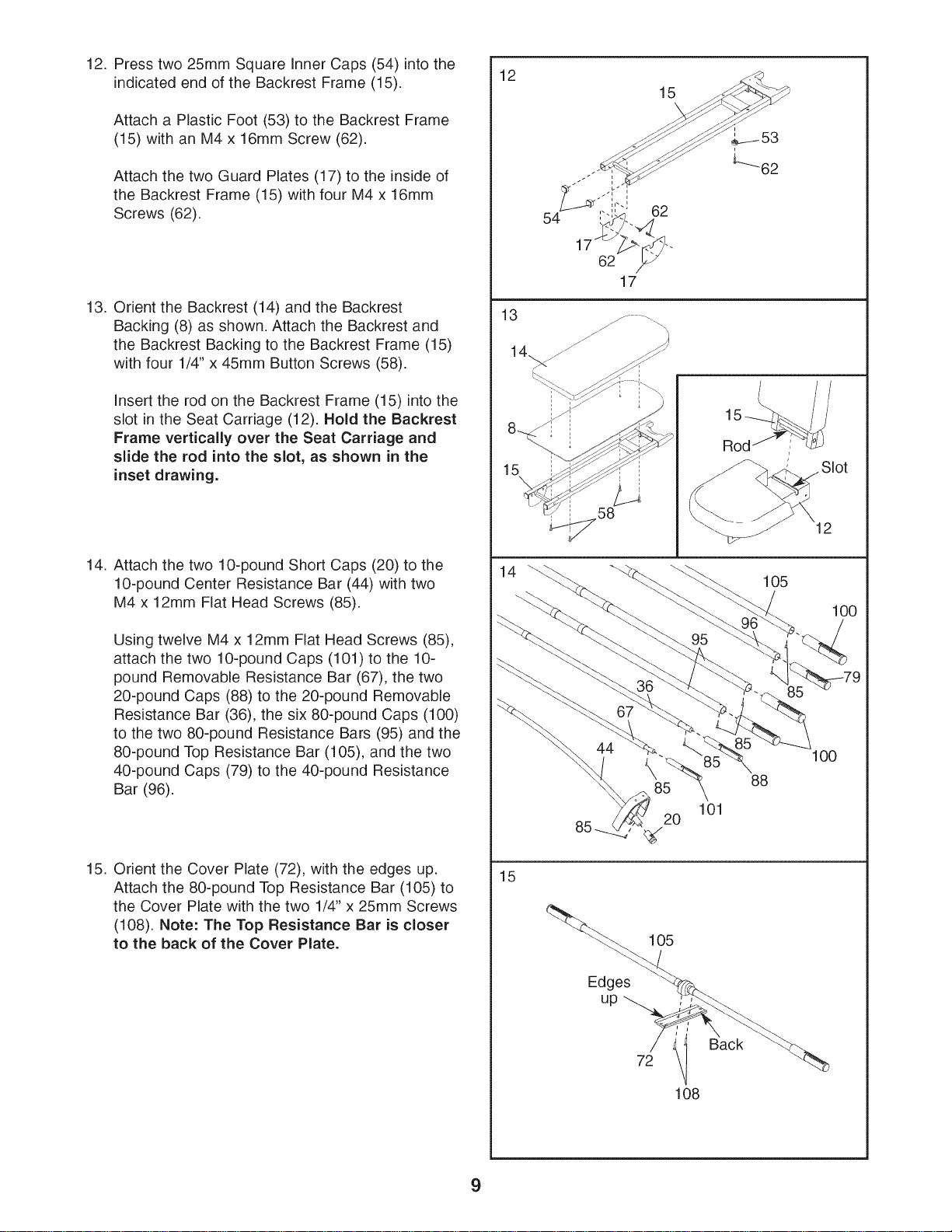

12. Press two 25mm Square Inner Caps (54) into the
indicated end of the Backrest Frame (15).
Attach a Plastic Foot (53) to the Backrest Frame
(15) with an M4 x 16mm Screw (62).
Attach the two Guard Plates (17) to the inside of
the Backrest Frame (15) with four M4 x 16mm
Screws (62).
13. Orient the Backrest (14) and the Backrest
Backing (8) as shown. Attach the Backrest and
the Backrest Backing to the Backrest Frame (15)
with four 1/4" x 45mm Button Screws (58).
Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
14. Attach the two 10-pound Short Caps (20) to the
10-pound Center Resistance Bar (44) with two
M4 x 12mm Flat Head Screws (85).
Using twelve M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Caps (101) to the 10-
pound Removable Resistance Bar (67), the two
20-pound Caps (88) to the 20-pound Removable
Resistance Bar (36), the six 80-pound Caps (100)
to the two 80-pound Resistance Bars (95) and the
80-pound Top Resistance Bar (105), and the two
40-pound Caps (79) to the 40-pound Resistance
Bar (96).
15. Orient the Cover Plate (72), with the edges up.
Attach the 80-pound Top Resistance Bar (105) to
the Cover Plate with the two 1/4" x 25mm Screws
(108). Note: The Top Resistance Bar is closer
to the back of the Cover Plate.
12
54
14
15
15
17
62
17
62
Slot
105
IO0
85
85
85
101
20
88
100
1O5
Edges
up
Back
72
108
9

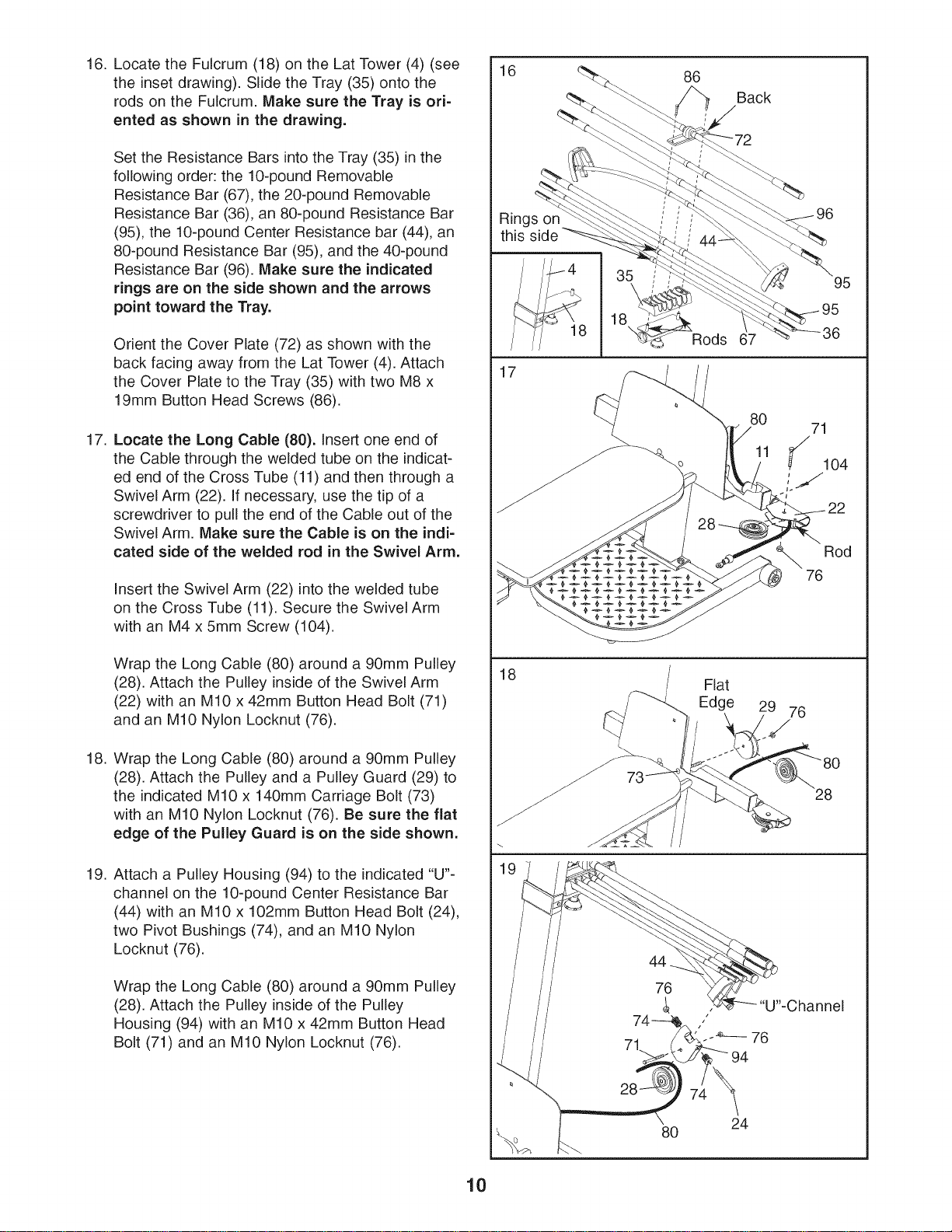

16. Locate the Fulcrum (18) on the Lat Tower (4) (see
the inset drawing). Slide the Tray (35) onto the
rods on the Fulcrum. Make sure the Tray is ori=
ented as shown in the drawing.
Set the Resistance Bars into the Tray (35) in the
following order: the 10-pound Removable
Resistance Bar (67), the 20-pound Removable
Resistance Bar (36), an 80-pound Resistance Bar
(95), the 10-pound Center Resistance bar (44), an
80-pound Resistance Bar (95), and the 40-pound
Resistance Bar (96). Make sure the indicated
rings are on the side shown and the arrows
point toward the Tray.
Orient the Cover Plate (72) as shown with the
back facing away from the Lat Tower (4). Attach
the Cover Plate to the Tray (35) with two M8 x
19mm Button Head Screws (86).
17. Locate the Long Cable (80). Insert one end of
the Cable through the welded tube on the indicat-
ed end of the Cross Tube (11) and then through a
Swivel Arm (22). If necessary, use the tip of a
screwdriver to pull the end of the Cable out of the
Swivel Arm. Make sure the Cable is on the indi-
cated side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (104).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).
18. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut (76). Be sure the flat
edge of the Pulley Guard is on the side shown.
19. Attach a Pulley Housing (94) to the indicated "U"-
channel on the 10-pound Center Resistance Bar
(44) with an M10 x 102mm Button Head Bolt (24),
two Pivot Bushings (74), and an M10 Nylon
Locknut (76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut (76).
16
86
Back
Rings on
this side
17
95
1
Rods 67
Rod
76
18
Flat
Edge
29 76
/
28
44
10

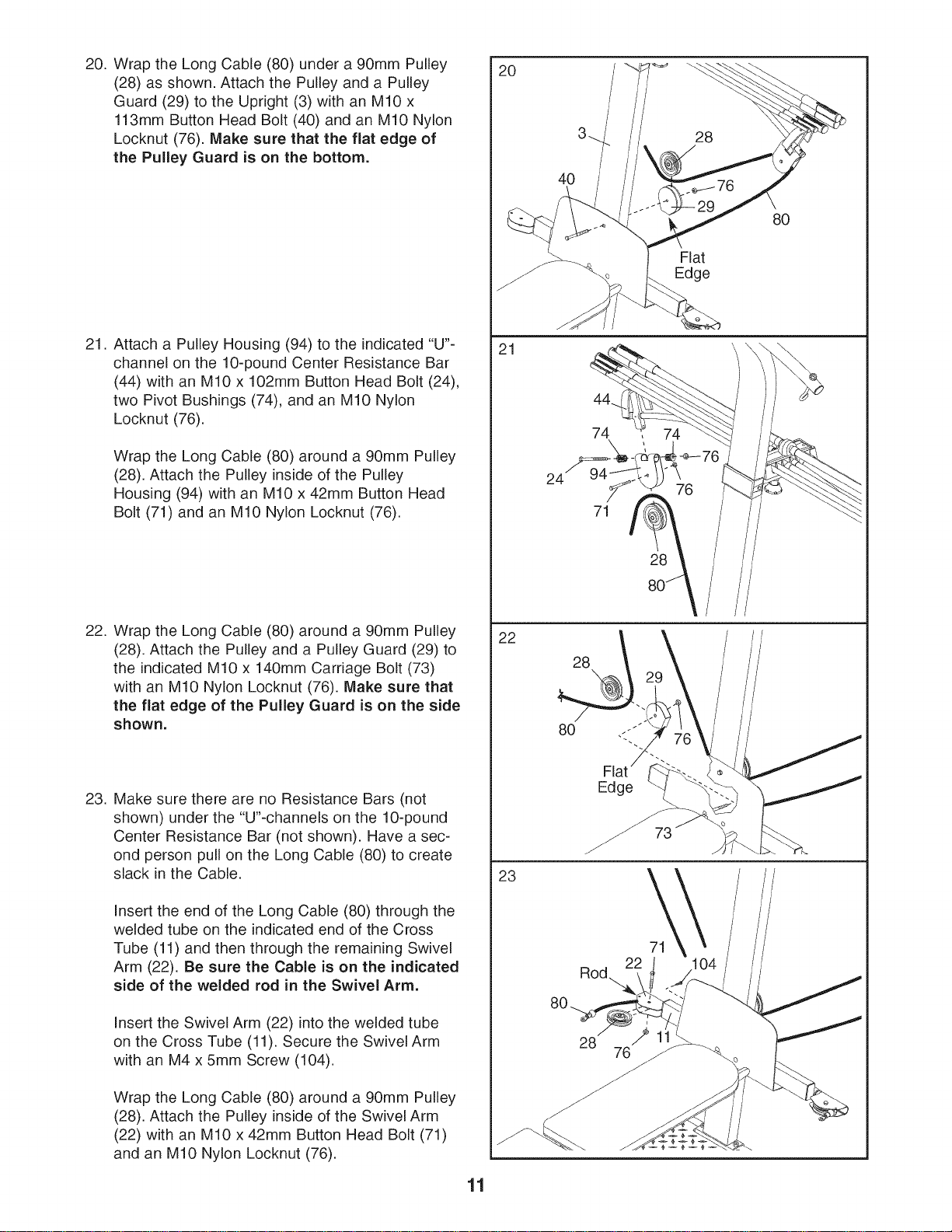

20. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley and a Pulley
Guard (29) to the Upright (3) with an M10 x
113mm Button Head Bolt (40) and an M10 Nylon
Locknut (76). Make sure that the flat edge of
the Pulley Guard is on the bottom.
21. Attach a Pulley Housing (94) to the indicated "U"-
channel on the 10-pound Center Resistance Bar
(44) with an M10 x 102mm Button Head Bolt (24),
two Pivot Bushings (74), and an M10 Nylon
Locknut (76).
Wrap the Long Cable (80) around a 90ram Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut (76).
22. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut (76). Make sure that
the flat edge of the Pulley Guard is on the side
shown.
23. Make sure there are no Resistance Bars (not
shown) under the "U"-channels on the 10-pound
Center Resistance Bar (not shown). Have a sec-
ond person pull on the Long Cable (80) to create
slack in the Cable.
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
Tube (11) and then through the remaining Swivel
Arm (22). Be sure the Cable is on the indicated
side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (104).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).
11
20
21
22
23
4O
44
74
24
71
Flat
Edge
8O
28
28
\
80 ..<[
Flat
Edge
71
Rod
28
76

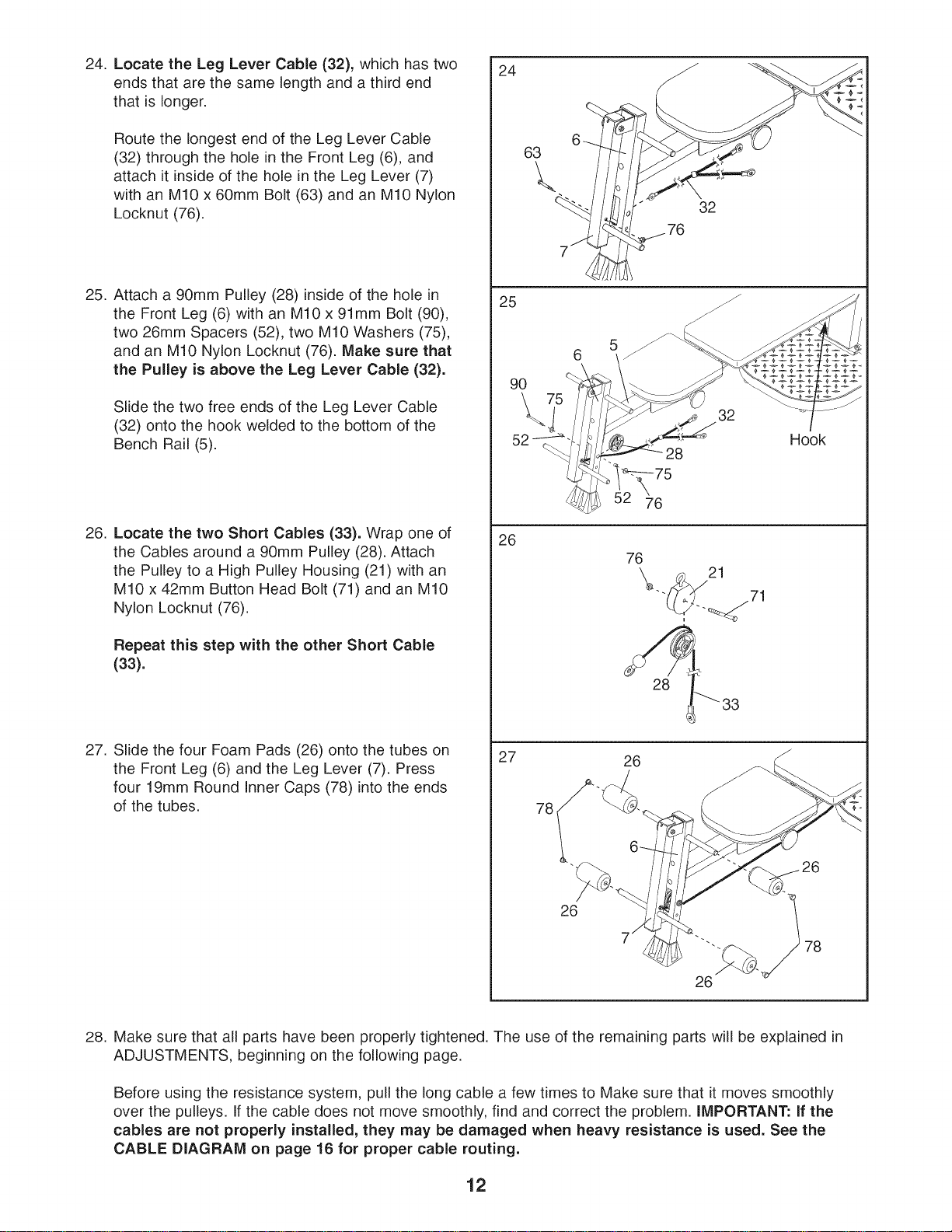

24.Locate the Leg Lever Cable (32), which has two
ends that are the same length and a third end
that is longer.
Route the longest end of the Leg Lever Cable
(32) through the hole in the Front Leg (6), and
attach it inside of the hole in the Leg Lever (7)
with an M10 x 60mm Bolt (63) and an M10 Nylon
Locknut (76).
25. Attach a 90mm Pulley (28) inside of the hole in
the Front Leg (6) with an M10 x 91mm Bolt (90),
two 26mm Spacers (52), two M10 Washers (75),
and an M10 Nylon Locknut (76). Make sure that
the Pulley is above the Leg Lever Cable (32).
Slide the two free ends of the Leg Lever Cable
(32) onto the hook welded to the bottom of the
Bench Rail (5).
26. Locate the two Short Cables (33). Wrap one of
the Cables around a 90mm Pulley (28). Attach
the Pulley to a High Pulley Housing (21) with an
M10 x 42mm Button Head Bolt (71) and an M10
Nylon Locknut (76).
Repeat this step with the other Short Cable
(33).
27. Slide the four Foam Pads (26) onto the tubes on
the Front Leg (6) and the Leg Lever (7). Press
four 19mm Round Inner Caps (78) into the ends
of the tubes.
24
25
9O
52
26
63
32
28
76
Hook
76
28
27 26 J
78
26
"i
26
78
28. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the resistance system, pull the long cable a few times to Make sure that it moves smoothly
over the pulleys. If the cable does not move smoothly, find and correct the problem. IMPORTANT." If the
cables are not properly installed, they may be damaged when heavy resistance is used. See the
CABLE DIAGRAM on page 16 for proper cable routing.
12
ADJUSTMENTS
This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 17 for
important information about how to get the most benefit from your exercise program. Also, refer to the accompa-
nying exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time the resistance system is used. Replace worn parts immedi-
ately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents. The resistance bars can be cleaned with a vinyl and rubber protectant, available at an automotive or
department store.

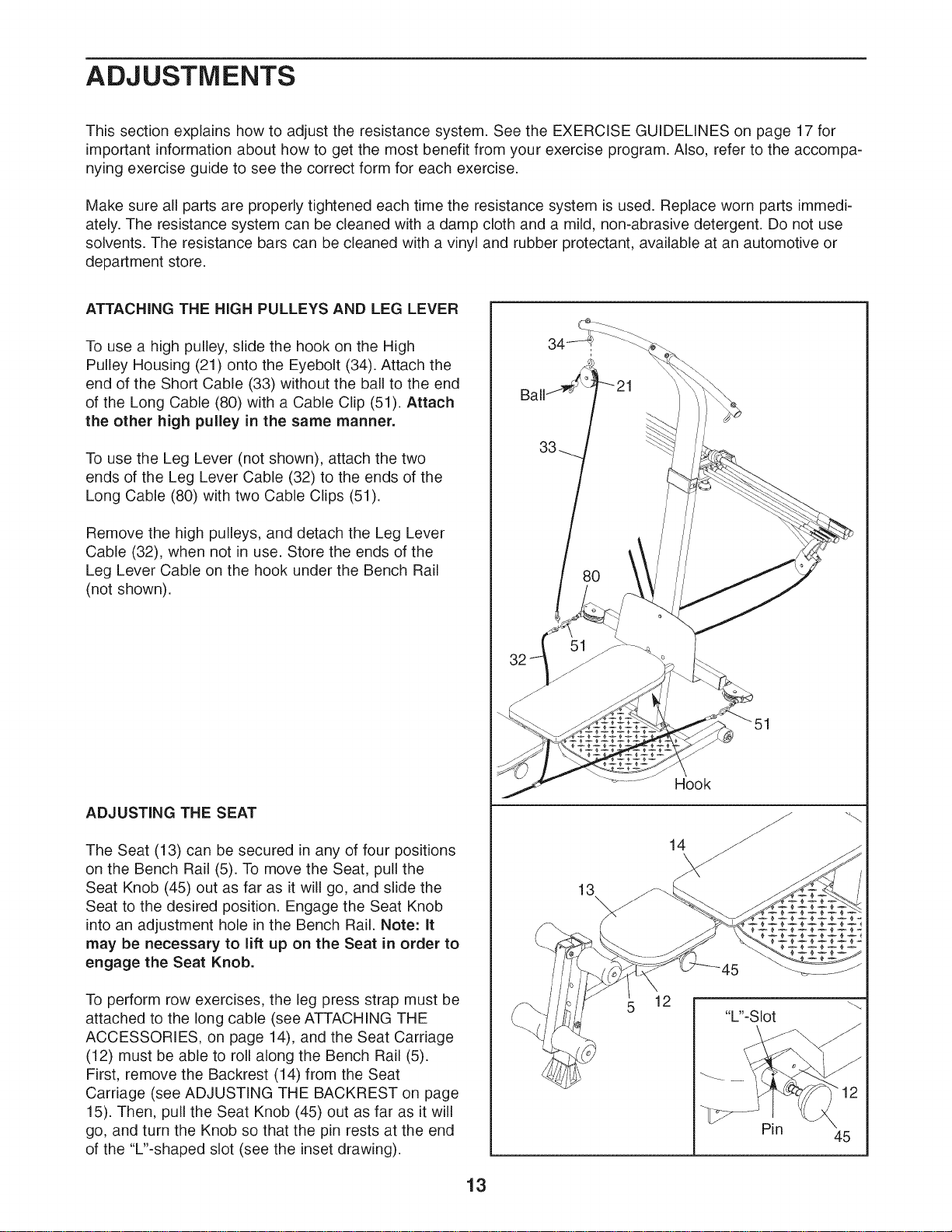

ATTACHING THE HIGH PULLEYS AND LEG LEVER
To use a high pulley, slide the hook on the High
Pulley Housing (21) onto the Eyebolt (34). Attach the
end of the Short Cable (33) without the ball to the end
of the Long Cable (80) with a Cable Clip (51). Attach
the other high pulley in the same manner.
To use the Leg Lever (not shown), attach the two
ends of the Leg Lever Cable (32) to the ends of the
Long Cable (80) with two Cable Clips (51).
Remove the high pulleys, and detach the Leg Lever
Cable (32), when not in use. Store the ends of the
Leg Lever Cable on the hook under the Bench Rail
(not shown).
ADJUSTING THE SEAT
The Seat (13) can be secured in any of four positions
on the Bench Rail (5). To move the Seat, pull the
Seat Knob (45) out as far as it will go, and slide the
Seat to the desired position. Engage the Seat Knob
into an adjustment hole in the Bench Rail. Note: It
may be necessary to lift up on the Seat in order to
engage the Seat Knob.
To perform row exercises, the leg press strap must be
attached to the long cable (see ATTACHING THE
ACCESSORIES, on page 14), and the Seat Carriage
(12) must be able to roll along the Bench Rail (5).
First, remove the Backrest (14) from the Seat
Carriage (see ADJUSTING THE BACKREST on page
15). Then, pull the Seat Knob (45) out as far as it will
go, and turn the Knob so that the pin rests at the end
of the "L"-shaped slot (see the inset drawing).
34
13
Hook
14
5 12
45
/
Pin
45
13

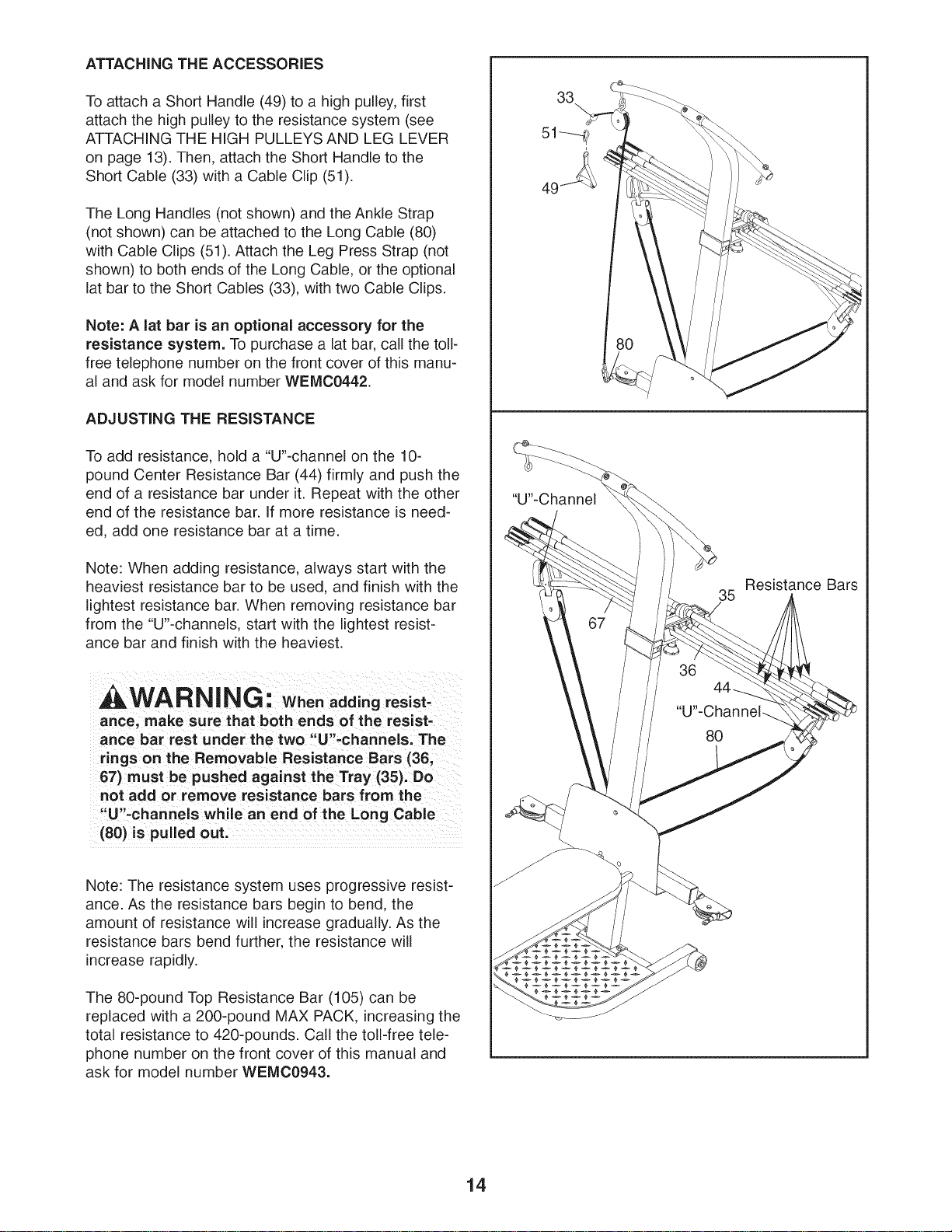

ATTACHING THE ACCESSORIES
To attach a Short Handle (49) to a high pulley, first
attach the high pulley to the resistance system (see
ATTACHING THE HIGH PULLEYS AND LEG LEVER
on page 13). Then, attach the Short Handle to the
Short Cable (33) with a Cable Clip (51).
The Long Handles (not shown) and the Ankle Strap
(not shown) can be attached to the Long Cable (80)
with Cable Clips (51). Attach the Leg Press Strap (not
shown) to both ends of the Long Cable, or the optional
lat bar to the Short Cables (33), with two Cable Clips.
Note: A lat bar is an optional accessory for the
resistance system. To purchase a lat bar, call the toll-
free telephone number on the front cover of this manu-
al and ask for model number WEMC0442.
ADJUSTING THE RESISTANCE
To add resistance, hold a "U"-channel on the 10-
pound Center Resistance Bar (44) firmly and push the
end of a resistance bar under it. Repeat with the other
end of the resistance bar. If more resistance is need-
ed, add one resistance bar at a time.
Note: When adding resistance, always start with the
heaviest resistance bar to be used, and finish with the
lightest resistance bar. When removing resistance bar
from the "U"-channels, start with the lightest resist-
ance bar and finish with the heaviest.
Whe°addingresist-
ance, make sure that both ends of the resist-
ance bar rest under the two "U'-channels. The
rings on the Removable Resistance Bars (36,
87) must be pushed against the Tray (35). Do
not add or remove resistance bars from the
"U"-channels while an end of the Long Cable
(80) is pulled out.
Note: The resistance system uses progressive resist-
ance. As the resistance bars begin to bend, the
amount of resistance will increase gradually. As the
resistance bars bend further, the resistance will
increase rapidly.
The 80-pound Top Resistance Bar (105) can be
replaced with a 200-pound MAX PACK, increasing the
total resistance to 420-pounds. Call the toll-free tele-
phone number on the front cover of this manual and
ask for model number WEMC0943.
67
35
Resistance Bars
8O
14

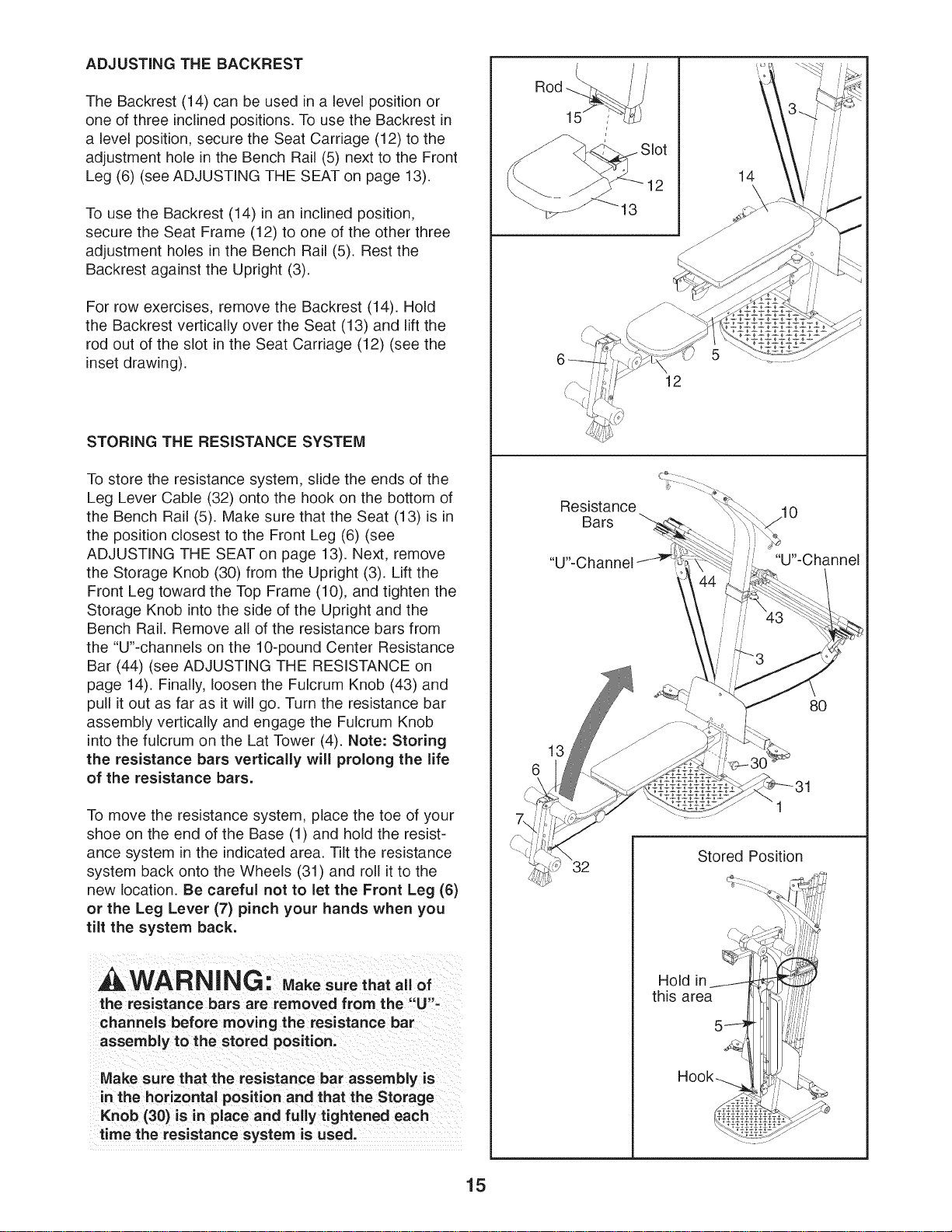

ADJUSTING THE BACKREST
The Backrest (14) can be used in a level position or
one of three inclined positions. To use the Backrest in
a level position, secure the Seat Carriage (12) to the
adjustment hole in the Bench Rail (5) next to the Front
Leg (6) (see ADJUSTING THE SEAT on page 13).
To use the Backrest (14) in an inclined position,
secure the Seat Frame (12) to one of the other three
adjustment holes in the Bench Rail (5). Rest the
Backrest against the Upright (3).
For row exercises, remove the Backrest (14). Hold
the Backrest vertically over the Seat (13) and lift the
rod out of the slot in the Seat Carriage (12) (see the
inset drawing).
STORING THE RESISTANCE SYSTEM
To store the resistance system, slide the ends of the
Leg Lever Cable (32) onto the hook on the bottom of
the Bench Rail (5). Make sure that the Seat (13) is in
the position closest to the Front Leg (6) (see
ADJUSTING THE SEAT on page 13). Next, remove
the Storage Knob (30) from the Upright (3). Lift the
Front Leg toward the Top Frame (10), and tighten the
Storage Knob into the side of the Upright and the
Bench Rail. Remove all of the resistance bars from
the "U"-channels on the 10-pound Center Resistance
Bar (44) (see ADJUSTING THE RESISTANCE on
page 14). Finally, loosen the Fulcrum Knob (43) and
pull it out as far as it will go. Turn the resistance bar
assembly vertically and engage the Fulcrum Knob
into the fulcrum on the Lat Tower (4). Note: Storing
the resistance bars vertically will prolong the life
of the resistance bars.
To move the resistance system, place the toe of your
shoe on the end of the Base (1) and hold the resist-
ance system in the indicated area. Tilt the resistance
system back onto the Wheels (31) and roll itto the
new location. Be careful not to let the Front Leg (6)
or the Leg Lever (7) pinch your hands when you
tilt the system back.
AWARNING: Ma.esurethata.of
the resistance bars are removed from the "U'-
channeJs before moving the resistance bar
assembly to the stored position.
Make sure that the resistance bar assembly is
in the horizontal position and that the Storage
Knob (30) is in place and fully tightened each
time the resistance system is used.
15
14
6
12
Resistance
Bars
8O
13
Stored Position
Hold in
this area
Hook_

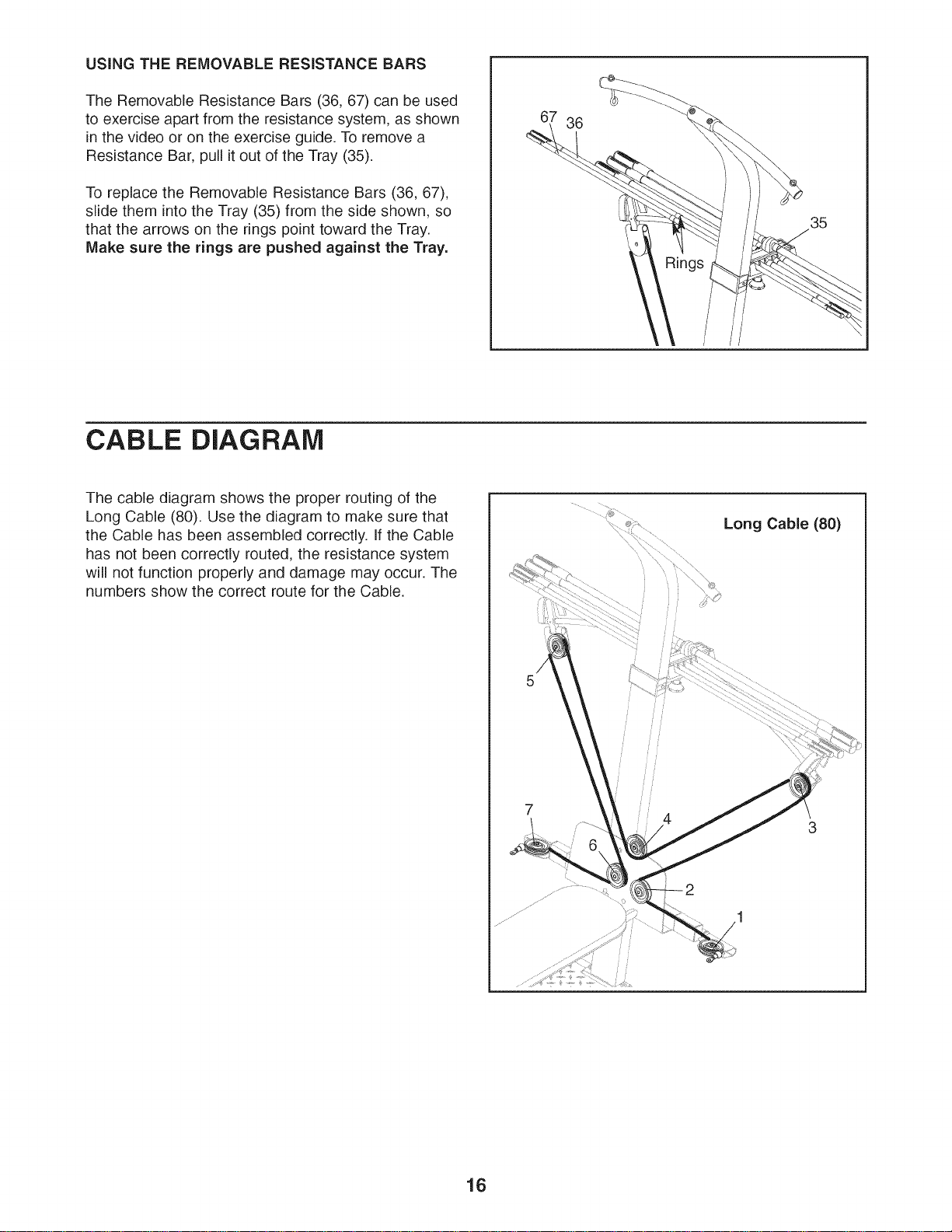

USINGTHE REMOVABLE RESISTANCE BARS
The Removable Resistance Bars (36, 67) can be used
to exercise apart from the resistance system, as shown
in the video or on the exercise guide. To remove a
Resistance Bar, pull it out of the Tray (35).
To replace the Removable Resistance Bars (36, 67),
slide them into the Tray (35) from the side shown, so
that the arrows on the rings point toward the Tray.
Make sure the rings are pushed against the Tray.
67 36
tngs
\\
35
CABLE DIAGRAM
The cable diagram shows the proper routing of the
Long Cable (80). Use the diagram to make sure that
the Cable has been assembled correctly. If the Cable
has not been correctly routed, the resistance system
will not function properly and damage may occur. The
numbers show the correct route for the Cable.
7
Long Cable (80)
3
16

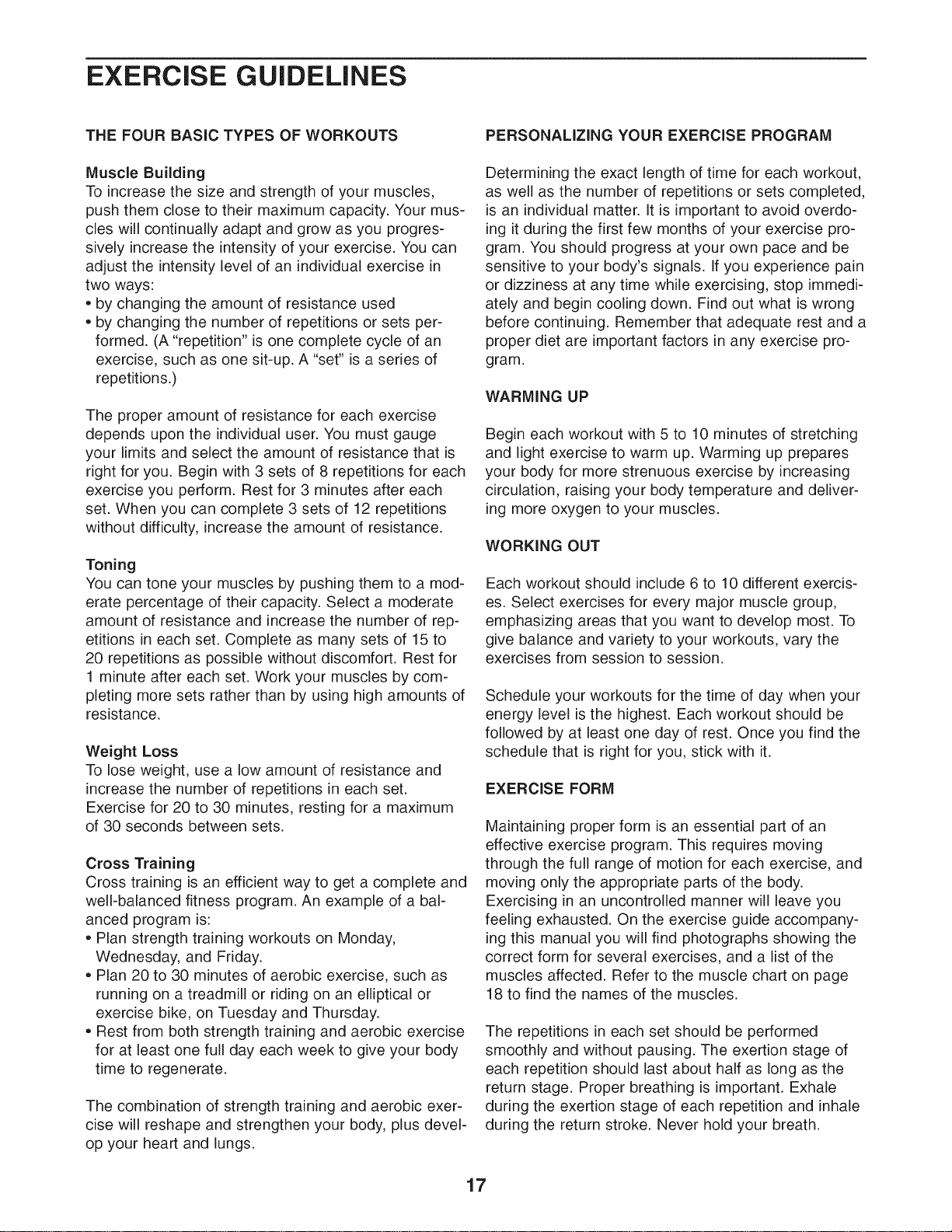

EXERCISE GUiDELiNES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your mus-
cles will continually adapt and grow as you progres-
sively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
- by changing the amount of resistance used
- by changing the number of repetitions or sets per-
formed. (A "repetition" is one complete cycle of an
exercise, such as one sit-up. A "set" is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a mod-
erate percentage of their capacity. Select a moderate
amount of resistance and increase the number of rep-
etitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by com-
pleting more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a bal-
anced program is:
- Plan strength training workouts on Monday,
Wednesday, and Friday.
- Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
- Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer-
cise will reshape and strengthen your body, plus devel-
op your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdo-
ing it during the first few months of your exercise pro-
gram. You should progress at your own pace and be
sensitive to your body's signals. If you experience pain
or dizziness at any time while exercising, stop immedi-
ately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise pro-
gram.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and deliver-
ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis-
es. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany-
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on page
18 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
17
Rest for a short period of time after each set. The
ideal resting periods are:
- Rest for three minutes after each set for a muscle
building workout.
- Rest for one minute after each set for a toning work-
out.
- Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise,
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs, Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED

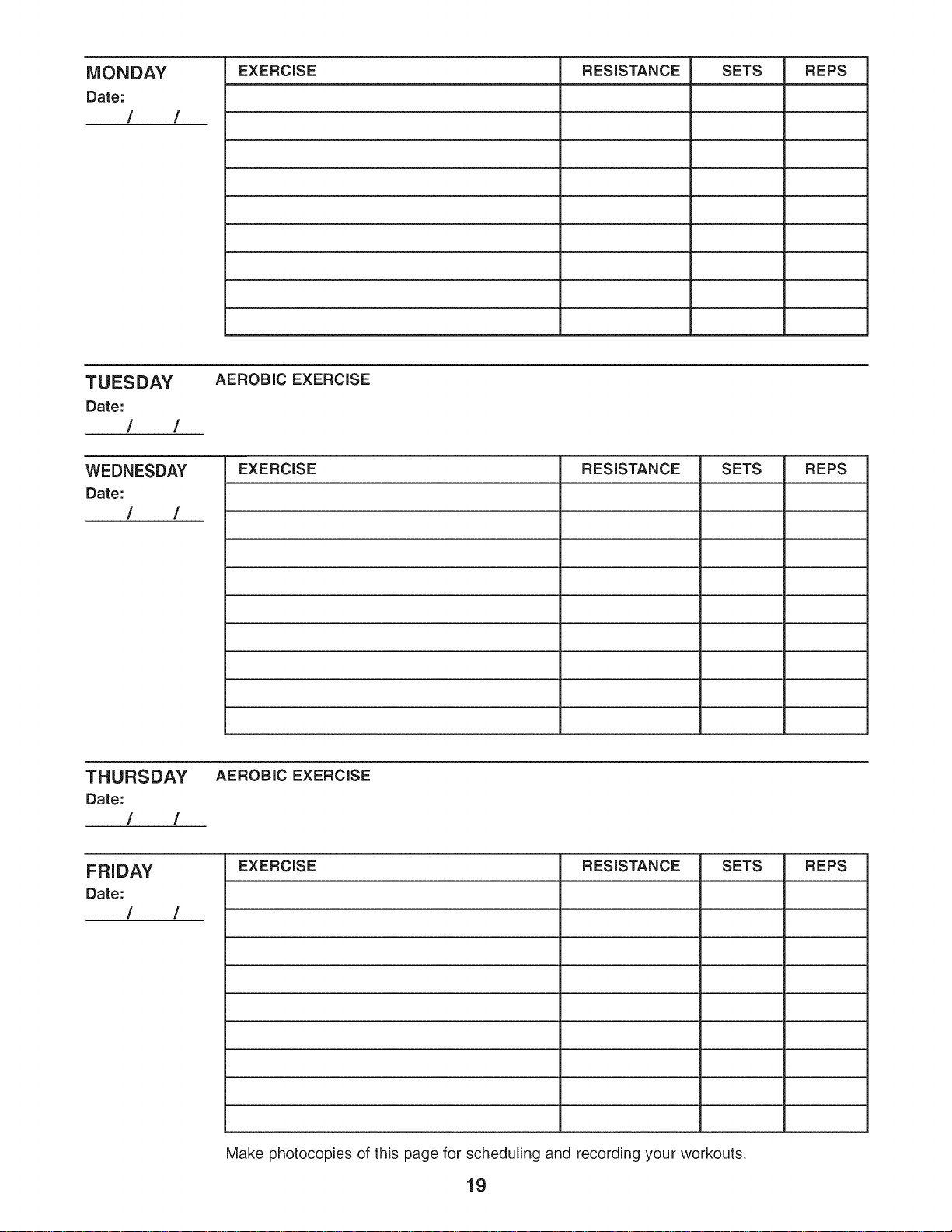

For motivation, keep a record of each workout. The
chart on page 19 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions com-
pleted. Record your weight and key body measure-
ments at the end of every month. Remember, the key
to achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.

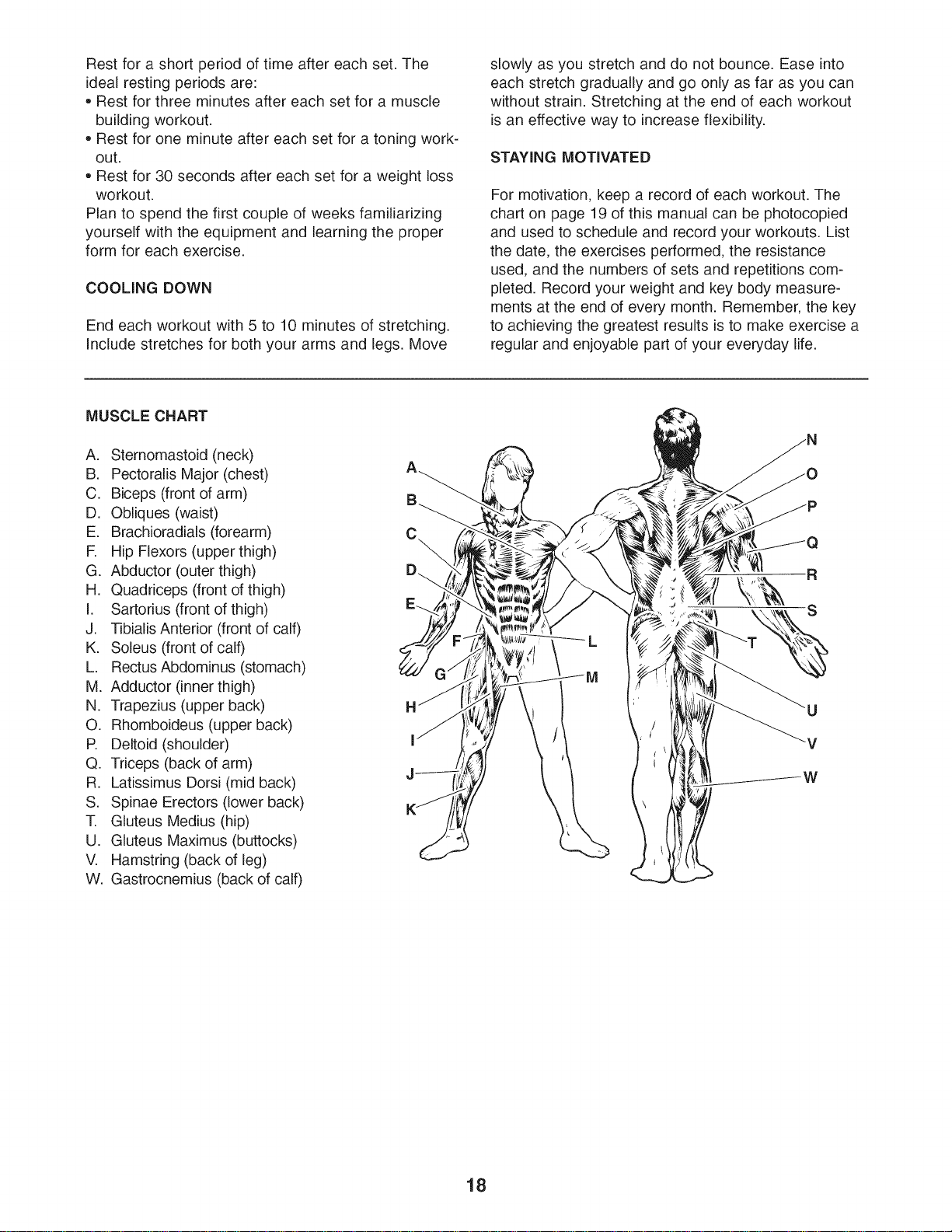

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
R Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartodus (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
R Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
c\
R
S
18
MONDAY
Date:
/ /
EXERCISE RESISTANCE SETS REPS
TUESDAY
Date:
/ /
AEROBIC EXERCISE
WEDNESDAY EXERCISE RESISTANCE SETS REPS
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
FRIDAY EXERCISE RESISTANCE SETS REPS
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
19
PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on the reverse side of this page. Note: Some smaJJ
parts may have been pre=attached. If a part is not in the parts bag, check to see if it has been pre=attached.
M6 Nylon Locknut (69)
M8 Flange Nut (19) M10 Nut (47)
M10 Lock Washer (103)
19mm Round Inner Cap (78)
M8 Nylon Locknut (65) M10 Nylon Locknut (76)
M8 Washer (59)
25mm Square Inner Cap (54)
45mm Square Inner Cap (42)
m
m
50mm Square Inner Cap (98)
H
M10 Washer (75)
-- \
f
\
38mm Round Inner Cap (38)
J __
38mm x 64mm Inner Cap (41)
38mm x 76mm Inner Cap (99)
_j,
-1/
-1/
MIO x 53mm Carriage Bolt (61)
MIO x 60ram Bolt (63)
1/4" x 45ram Button Head Screw (58)
1/4" x 12mm Flat
Head Screw (107)
MIO x 65mm Button Head Screw (70)
M10 x 66mm Carriage Bolt (83)
MIO x 68mm Bolt (56)
MIO x 42mm Button Head Bolt (71)
(
MIO x 25mm Button Head Screw (87)
1/4" x 25ram Screw (108)
M4 x 19ram Screw (77)
M8 x 19ram Button Head Screw (86)
1/4" x 16mm Button Head Screw (82)
M4 x 16ram Screw (62)
\
MIO x 72mm Bolt (64)
MIO x 91mm Bolt (90)
MIO x 103mm Bolt (66)
M8 x 104mm Button Head Bolt (60)
(
MIO x 102ram Button Head Bolt (24)
M10 x 108mm Bolt (81)
L\\\\I
M8 x 114mm Axle (57)
M6 x 13mm Bolt (92)
M4 x 12mm Flat
Head Screw (85)
M4 x 5mm Screw (104)
MIO x 113mm Button Head Bolt (40)
M10 x 140mm Carriage Bolt (73_

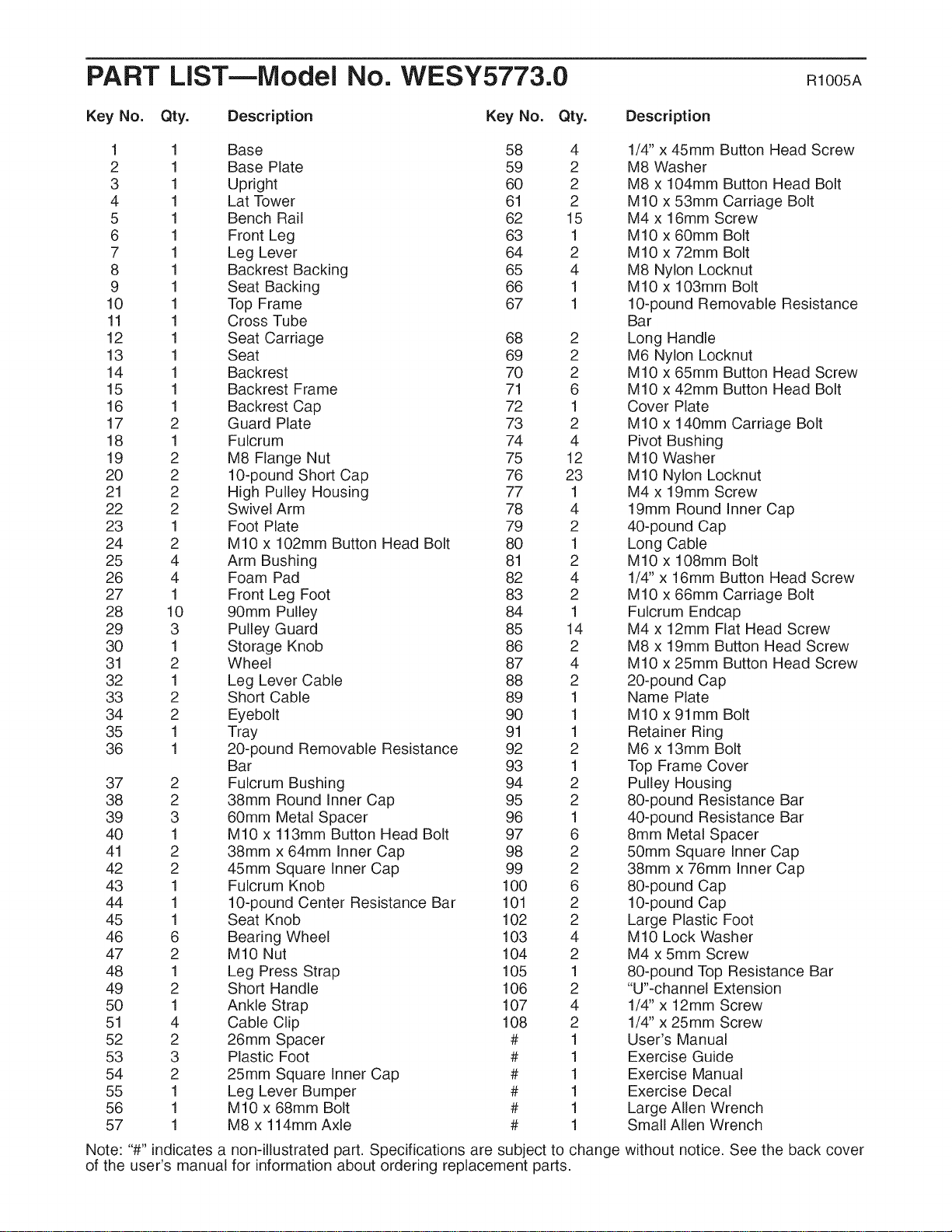

PART LIST--IVlodel No. WESY5773.0 R1005A
Key No. Qty. Description Key No. Qty.
1 1
2 1
3 1
4 1
5 1
6 1
7 1
8 1
9 1
10 1
11 1
12 1
13 1
14 1
15 1
16 1
17 2
18 1
19 2
20 2
21 2
22 2
23 1
24 2
25 4
26 4
27 1
28 10
29 3
3O 1
31 2
32 1
33 2
34 2
35 1
36 1
37
38
39
4O
41
42
43
44
45
46
47
48
49
5O
51
52
53
54
55
56
57
Note:
of the
2
2
3
1
2
2
1
1
1
6
2
1
2
1
4
2
3
2
1
1
1
Base 58 4
Base Plate 59 2
Upright 60 2
Lat Tower 61 2
Bench Rail 62 15
Front Leg 63 1
Leg Lever 64 2
Backrest Backing 65 4
Seat Backing 66 1
Top Frame 67 1
Cross Tube
Seat Carriage 68 2
Seat 69 2
Backrest 70 2
Backrest Frame 71 6
Backrest Cap 72 1
Guard Plate 73 2
Fulcrum 74 4
M8 Flange Nut 75 12
10-pound Short Cap 76 23
High Pulley Housing 77 1
Swivel Arm 78 4
Foot Plate 79 2
M10 x 102mm Button Head Bolt 80 1
Arm Bushing 81 2
Foam Pad 82 4
Front Leg Foot 83 2
90mm Pulley 84 1
Pulley Guard 85 14
Storage Knob 86 2
Wheel 87 4
Leg Lever Cable 88 2
Short Cable 89 1
Eyebolt 90 1
Tray 91 1
20-pound Removable Resistance 92 2
Bar 93 1
Fulcrum Bushing 94 2
38ram Round Inner Cap 95 2
60mm Metal Spacer 96 1
M10 x 113mm Button Head Bolt 97 6
38ram x 64mm Inner Cap 98 2
45ram Square Inner Cap 99 2
Fulcrum Knob 100 6
10-pound Center Resistance Bar 101 2
Seat Knob 102 2
Bearing Wheel 103 4
M10 Nut 104 2
Leg Press Strap 105 1
Short Handle 106 2
Ankle Strap 107 4
Cable Clip 108 2
26mm Spacer # 1
Plastic Foot # 1
25mm Square Inner Cap # 1
Leg Lever Bumper # 1
M10 x 68mm Bolt # 1
M8 x 114mm Axle # 1
"#" indicates a non-illustrated part. Specifications are subject to change
user's manual for information about ordering replacement parts,
Description
1/4" x 45mm Button Head Screw
M8 Washer
M8 x 104mm Button Head Bolt
M10 x 53mm Carriage Bolt
M4 x 16mm Screw
M10 x 60mm Bolt
M10 x 72mm Bolt
M8 Nylon Locknut
M10 x 103mm Bolt
10-pound Removable Resistance
Bar
Long Handle
M6 Nylon Locknut
M10 x 65mm Button Head Screw
M10 x 42mm Button Head Bolt
Cover Plate
M10 x 140mm Carriage Bolt
Pivot Bushing
M10 Washer
M10 Nylon Locknut
M4 x 19mm Screw
19mm Round Inner Cap
40-pound Cap
Long Cable
M10 x 108ram Bolt
1/4" x 16mm Button Head Screw
M10 x 66mm Carriage Bolt
Fulcrum Endcap
M4 x 12mm Flat Head Screw
M8 x 19mm Button Head Screw
M10 x 25mm Button Head Screw
20-pound Cap
Name Plate
M10 x 91mm Bolt
Retainer Ring
M6 x 13mm Bolt
Top Frame Cover
Pulley Housing
80-pound Resistance Bar
40-pound Resistance Bar
8mm Metal Spacer
50mm Square Inner Cap
38mm x 76mm Inner Cap
80-pound Cap
10-pound Cap
Large Plastic Foot
M10 Lock Washer
M4 x 5mm Screw
80-pound Top Resistance Bar
"U"-channel Extension
1/4" x 12mm Screw
1/4" x 25mm Screw
User's Manual
Exercise Guide
Exercise Manual
Exercise Decal
Large Allen Wrench
Small Allen Wrench
without notice. See the back cover
EXPLODED DRAWING--Model No. WESY5773.0 m005A
105
34
8
\
71
6
21
15
60
76
78
82 4 ......
_782 ;,-;
78
76
75
62
101 85
67
85
3
28
98
-75
76
98
75
48
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information:
- the MODEL NUMBER of the product (WESY5773.0)
- the NAME of the product (MAX by WELDER 1500X resistance system)
- the SERIAL NUMBER of the product (see the front cover of this manual)
- the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
LiMiTED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. ICON warrants the resistance bars for the lifetime of
the product. Shipping of the resistance bars is not covered. ICON warrants all other parts for five (5) years
from the date of purchase. Labor is covered for one (1) year. This warranty extends only to the original
purchaser.ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the
product through one of its authorized service centers. All repairs for which warranty claims are made must
be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the
service center will be the customer's responsibility. For in-home service, the customer will be responsible
for a minimal trip charge. This warranty does not extend to any product or damage to a product caused
by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided
by an ICON authorized service center; products used for commercial or rental purposes; or products used
as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321=9813
Part No. 221080 R1005A Printed in China © 2004 ICON IP, Inc.
