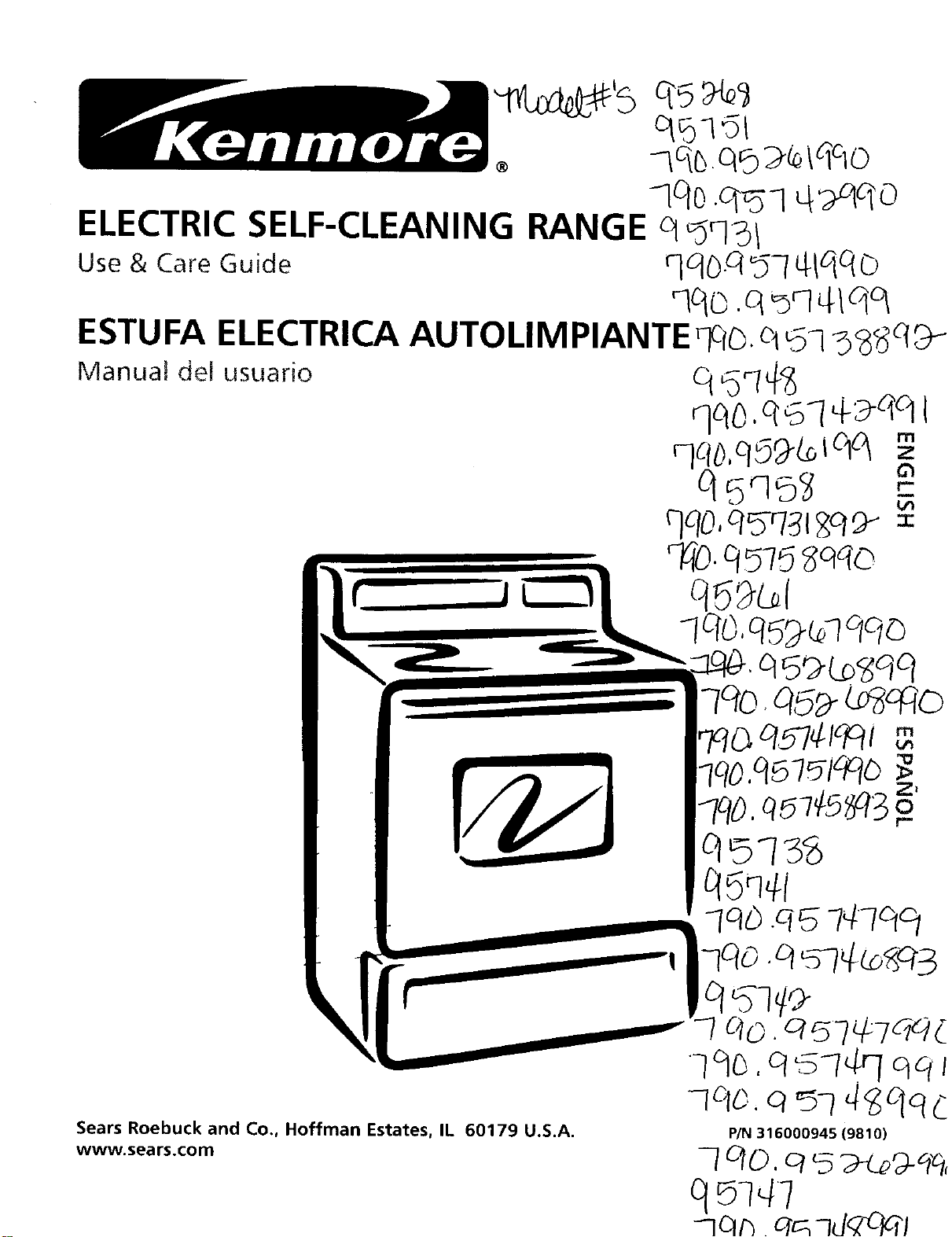

ELECTRIC SELF-CLEANING
Use & Care Guide
q_qsI
q% .q_q q-m]_o
RANGE q _q5/
qqo.q_-I q4qqo
qqo .q_q4/qq
ESTUFA ELECTRICA AUTOLIMPIANTE _IO. q _q
f
Manual del usuado
Sears Roebuck and Co,, Hoffman Estates, IL 60179 U.S.A.
www.sears.com

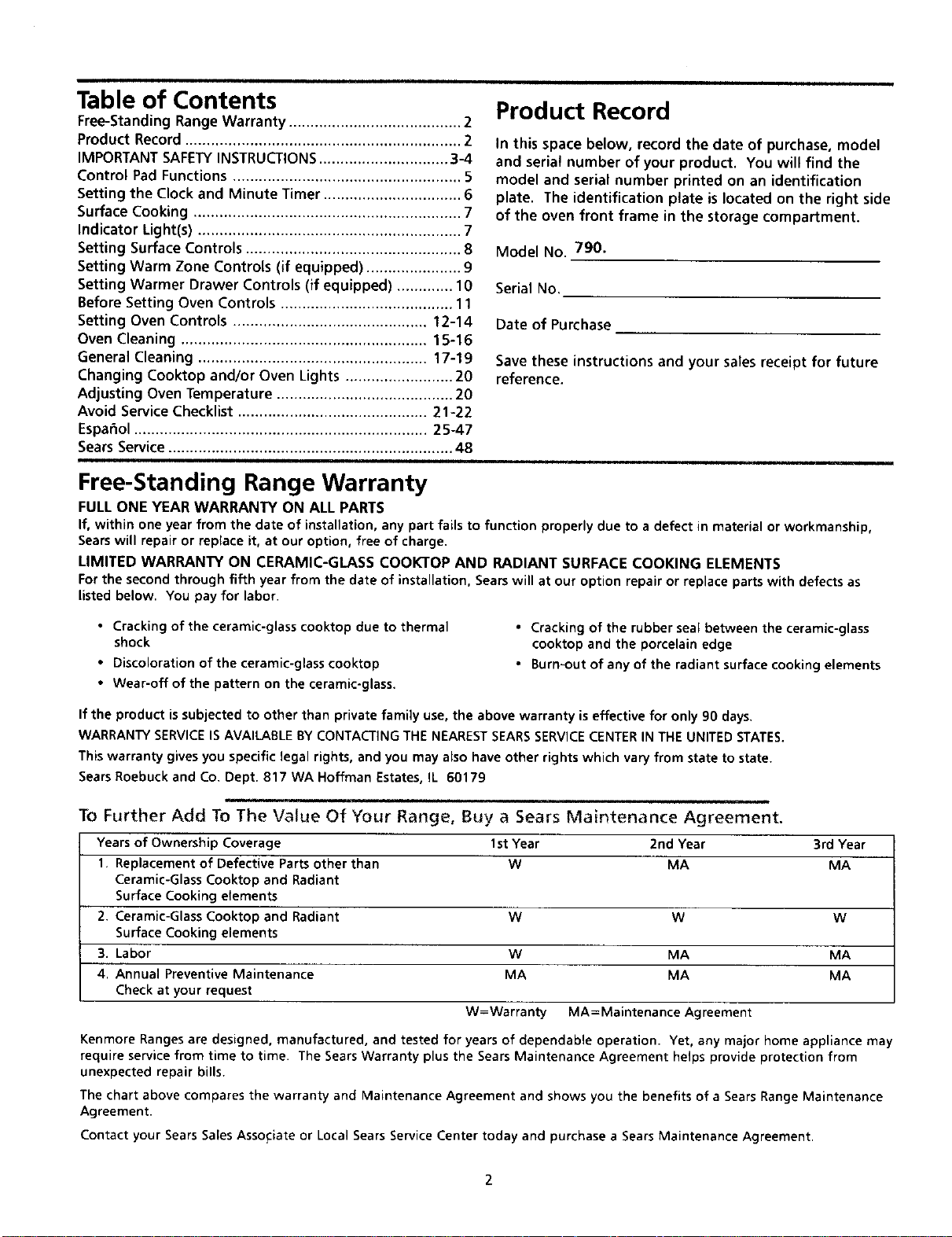

Table of Contents
Free-Standing Range Warranty ........................................ 2
Product Record ................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS .............................. 3-4

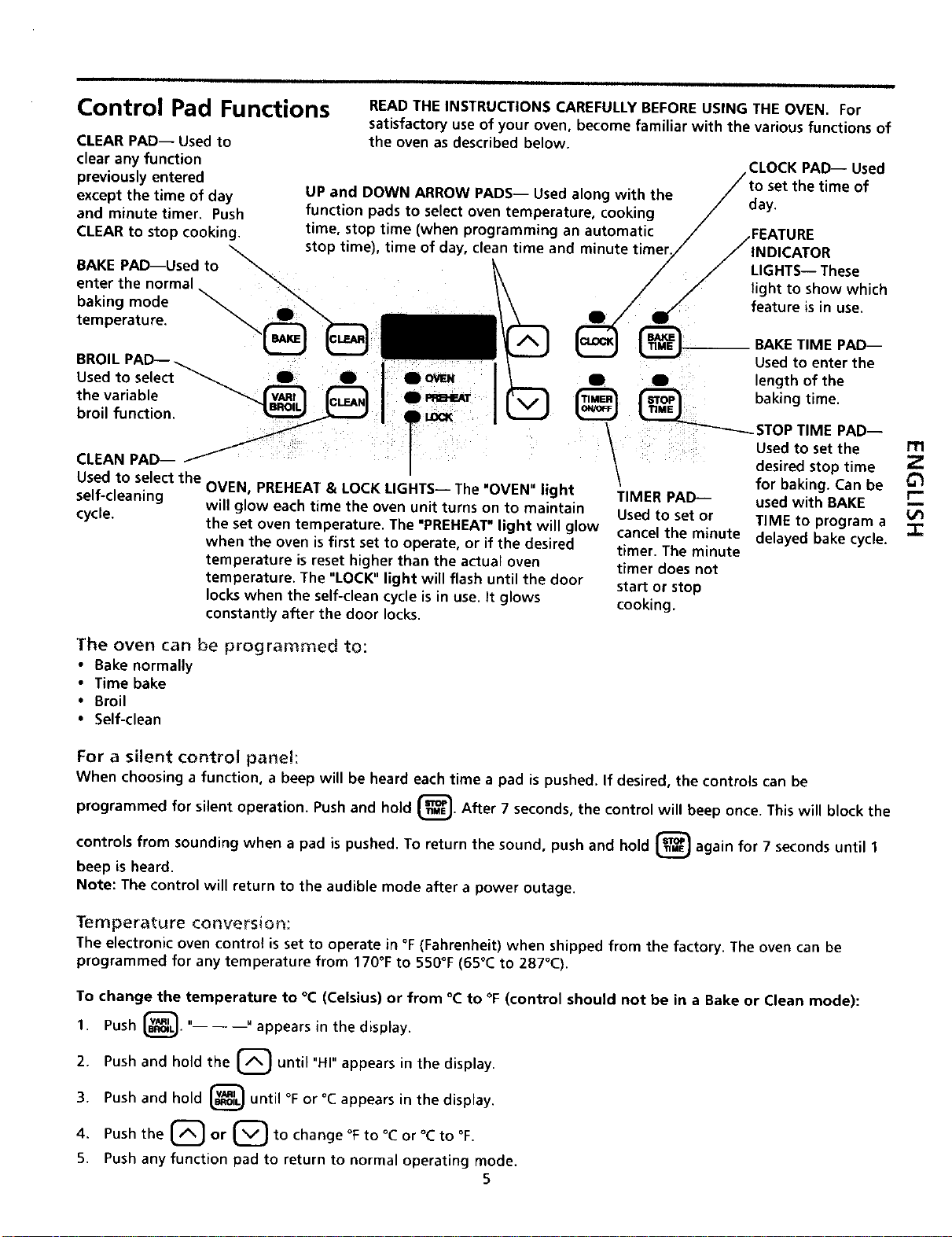

Control Pad Functions ..................................................... 5

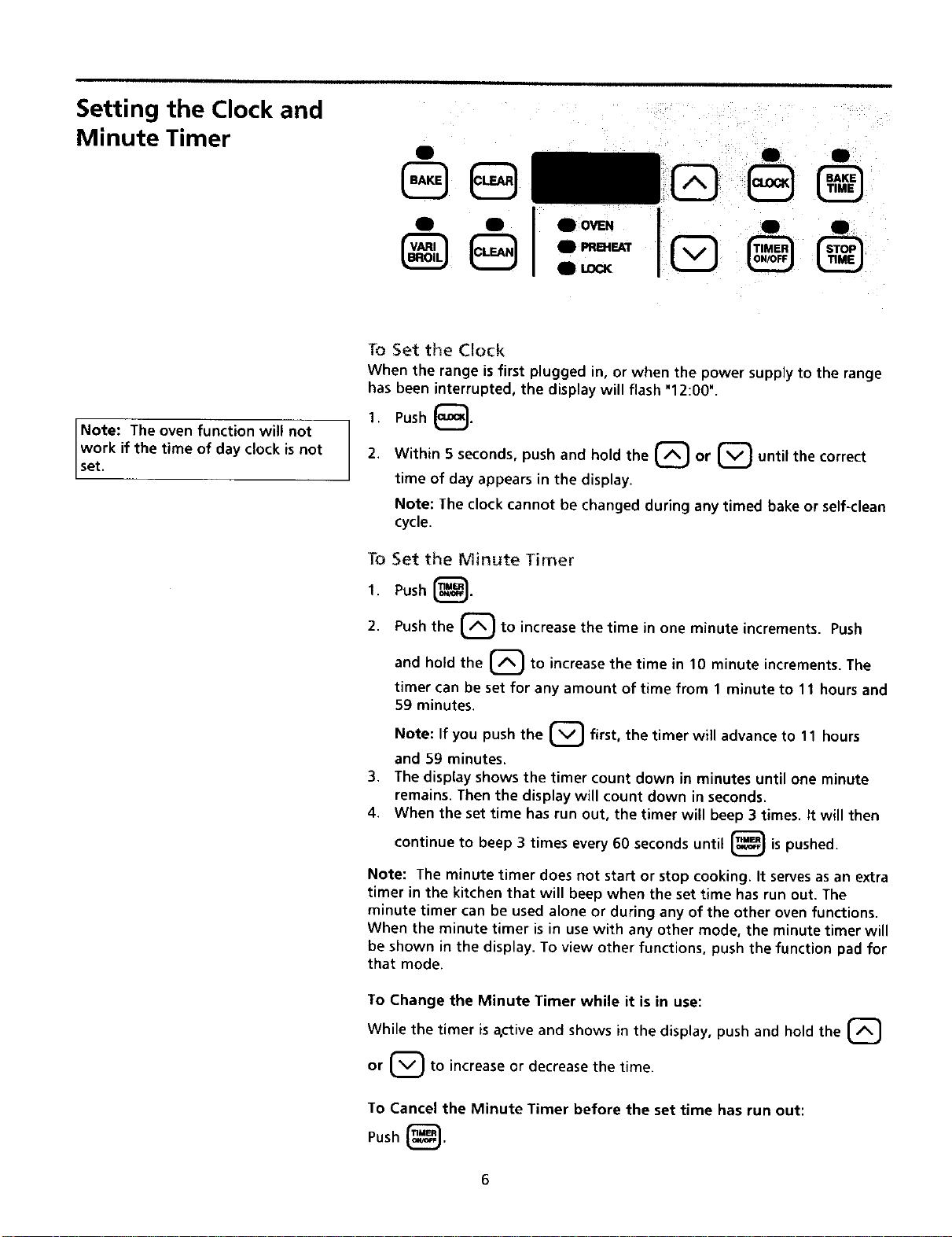

Setting the Clock and Minute Timer ................................ 6

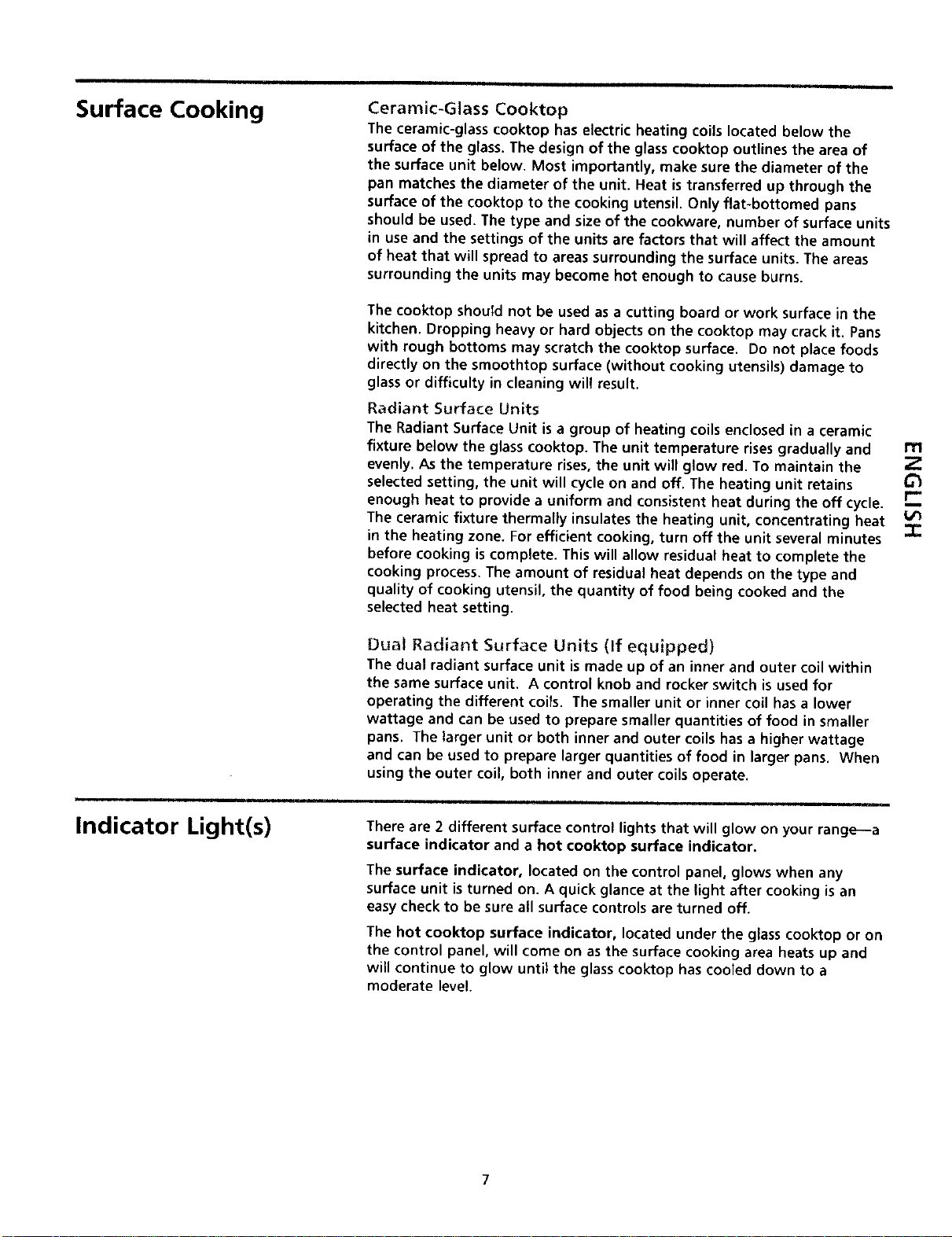

Surface Cooking .............................................................. 7
Indicator Light(s) ............................................................. 7

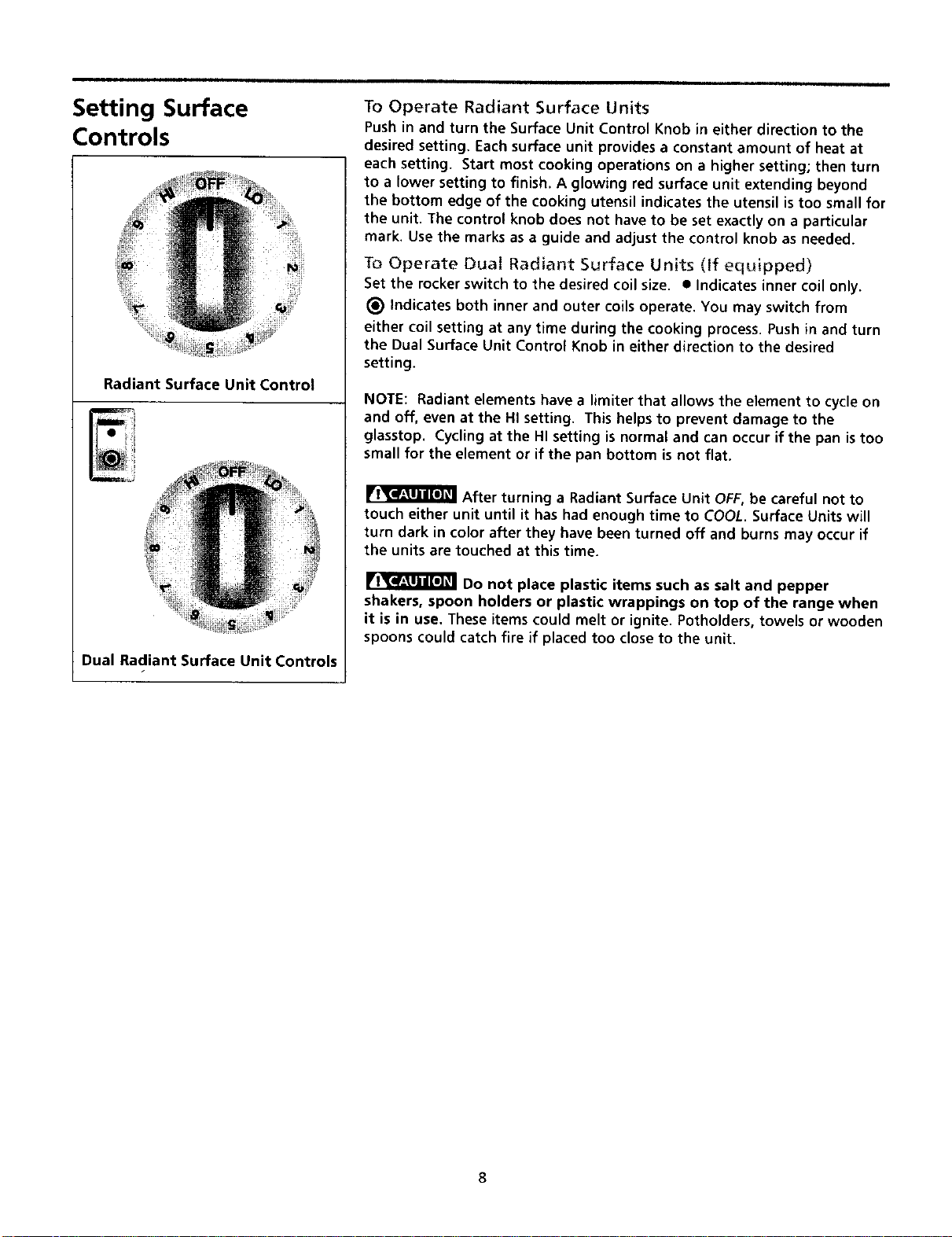

Setting Surface Controls .................................................. 8

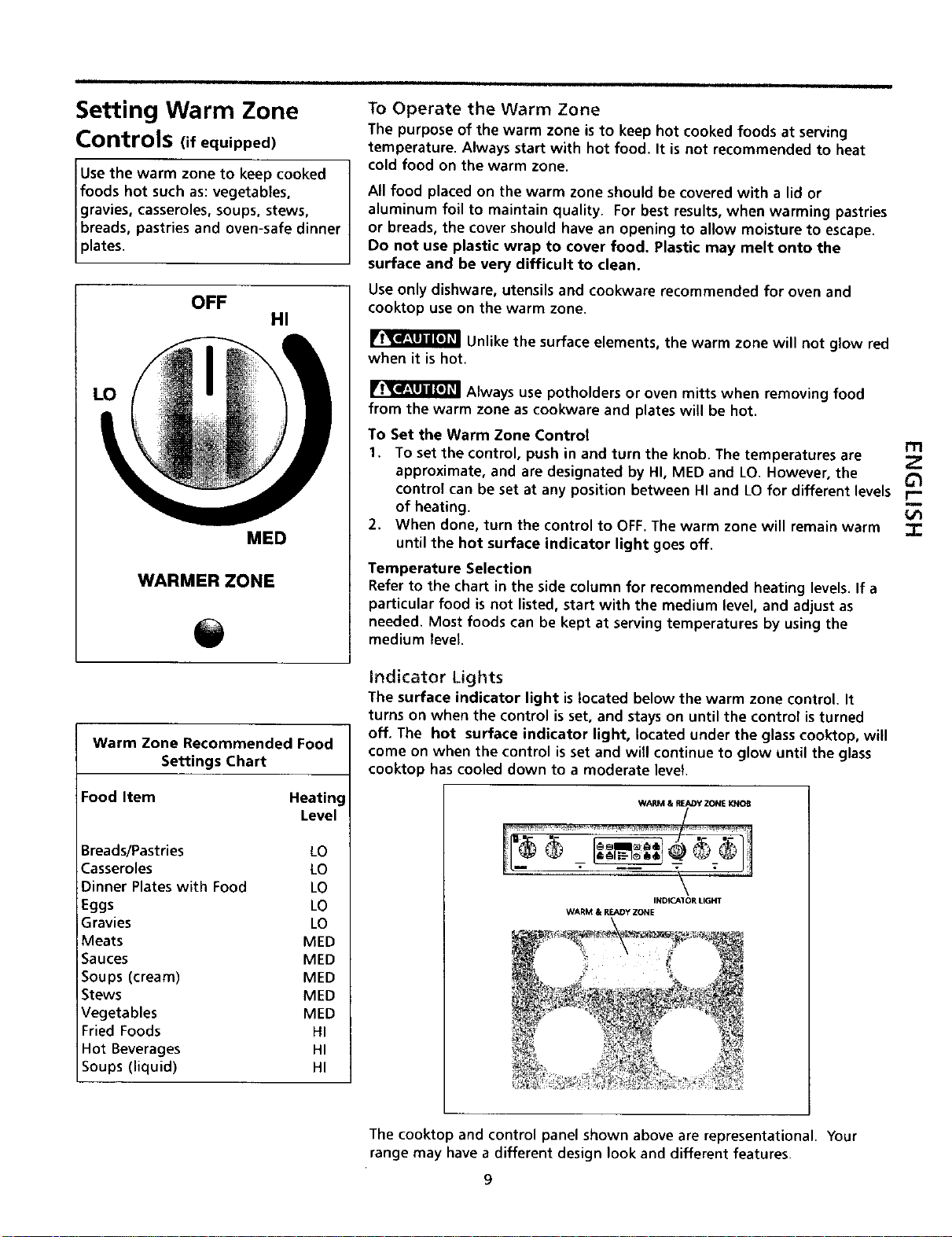

Setting Warm Zone Controls (if equipped) ...................... 9

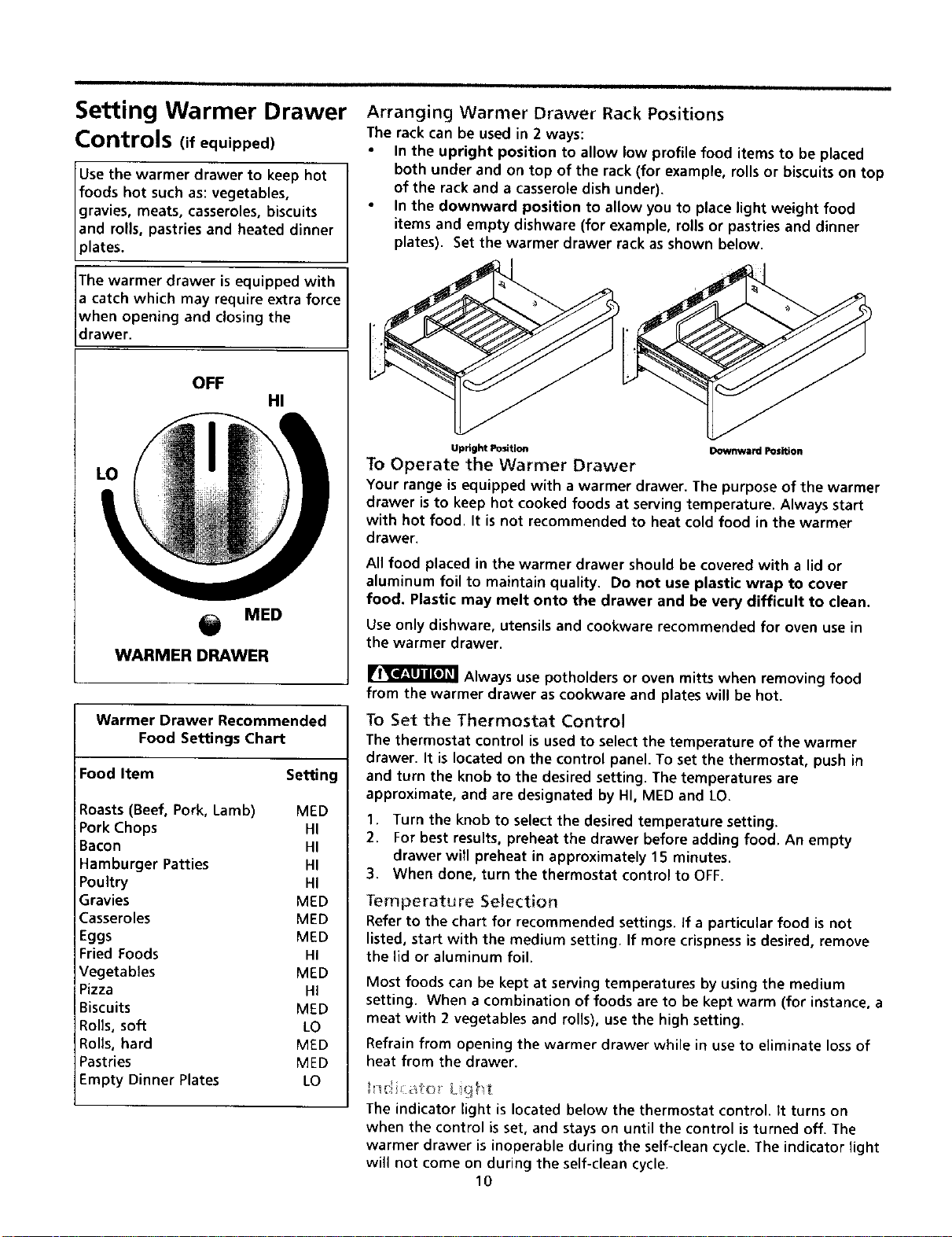

Setting Warmer Drawer Controls (if equipped) ............. 10

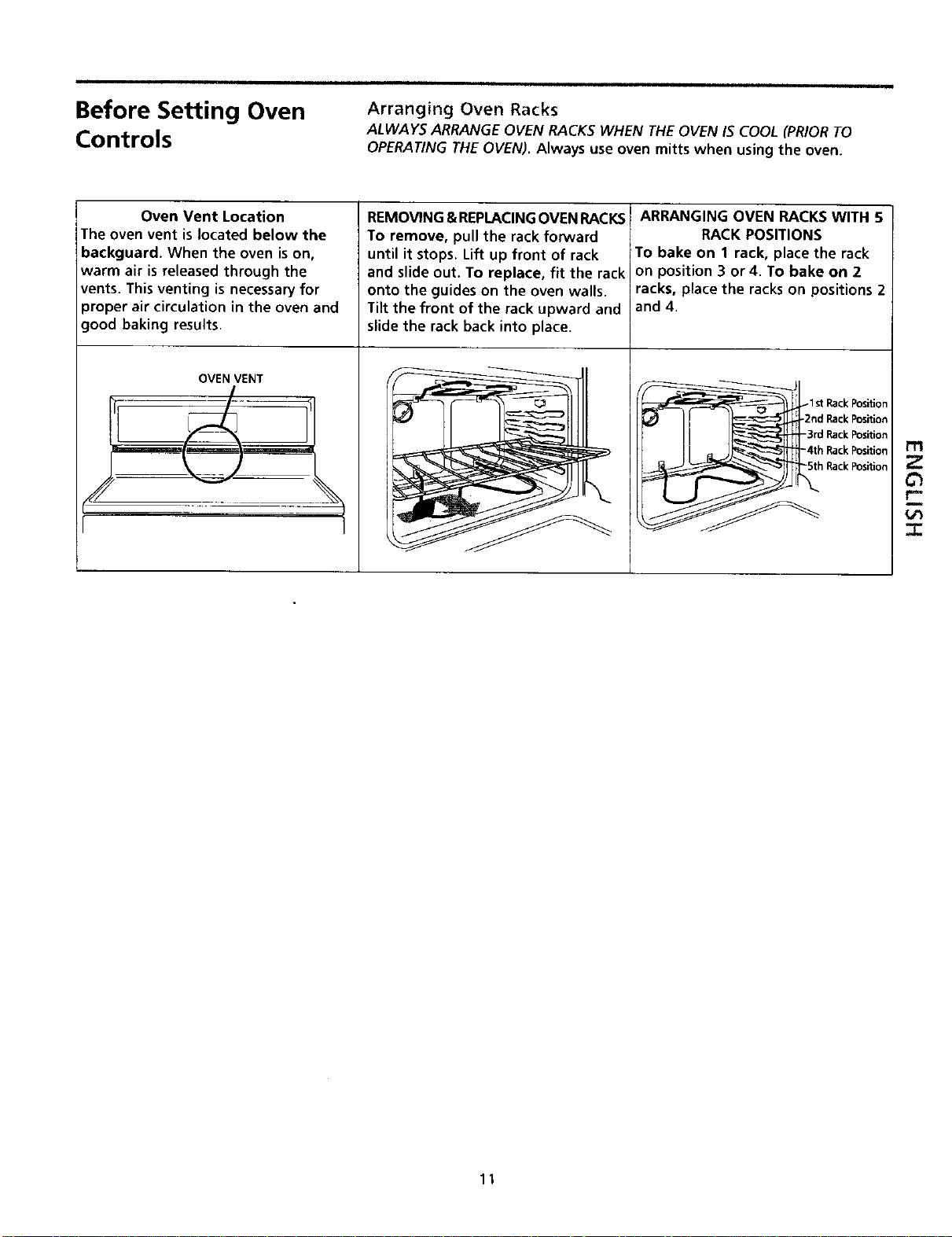

Before Setting Oven Controls ........................................ 11

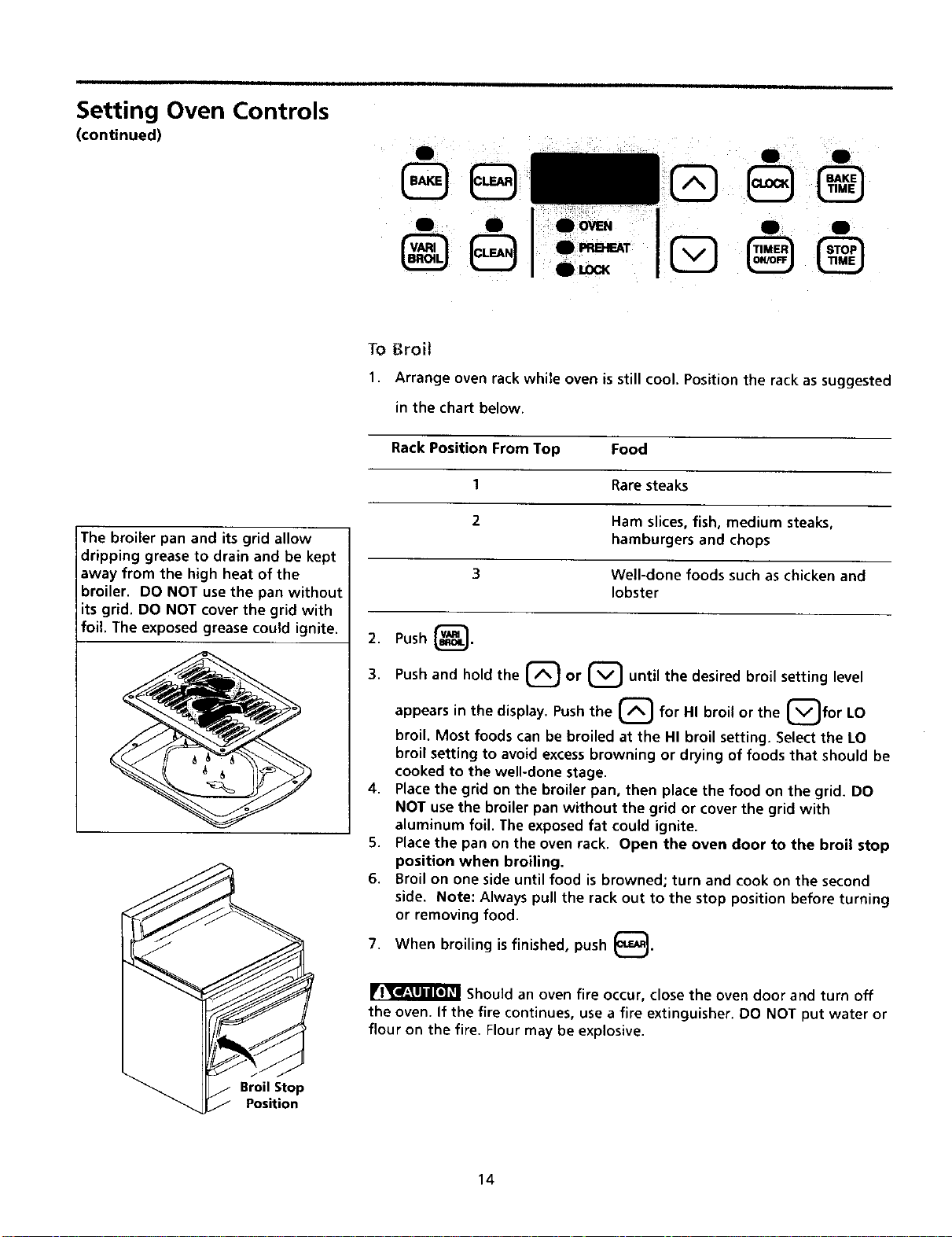

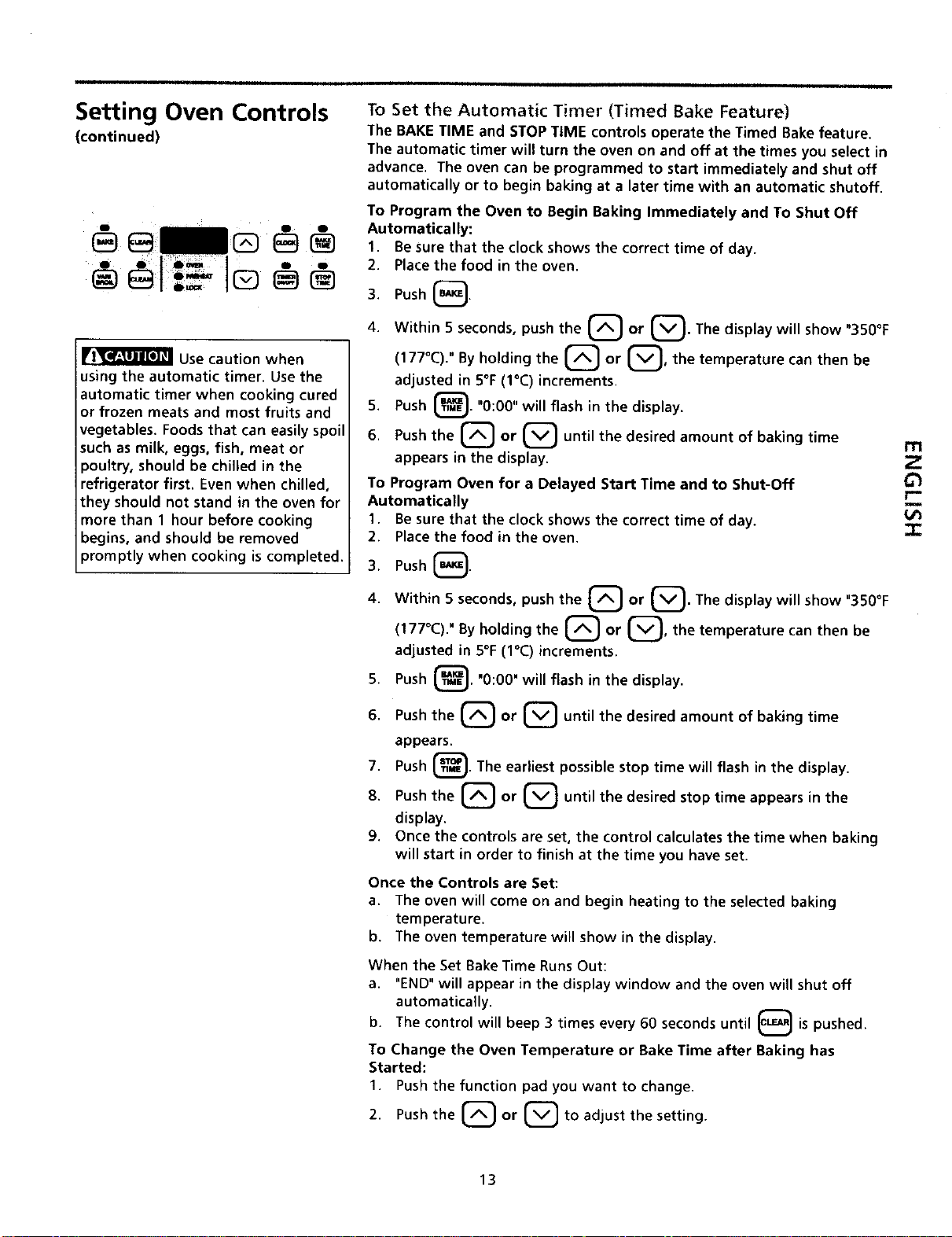

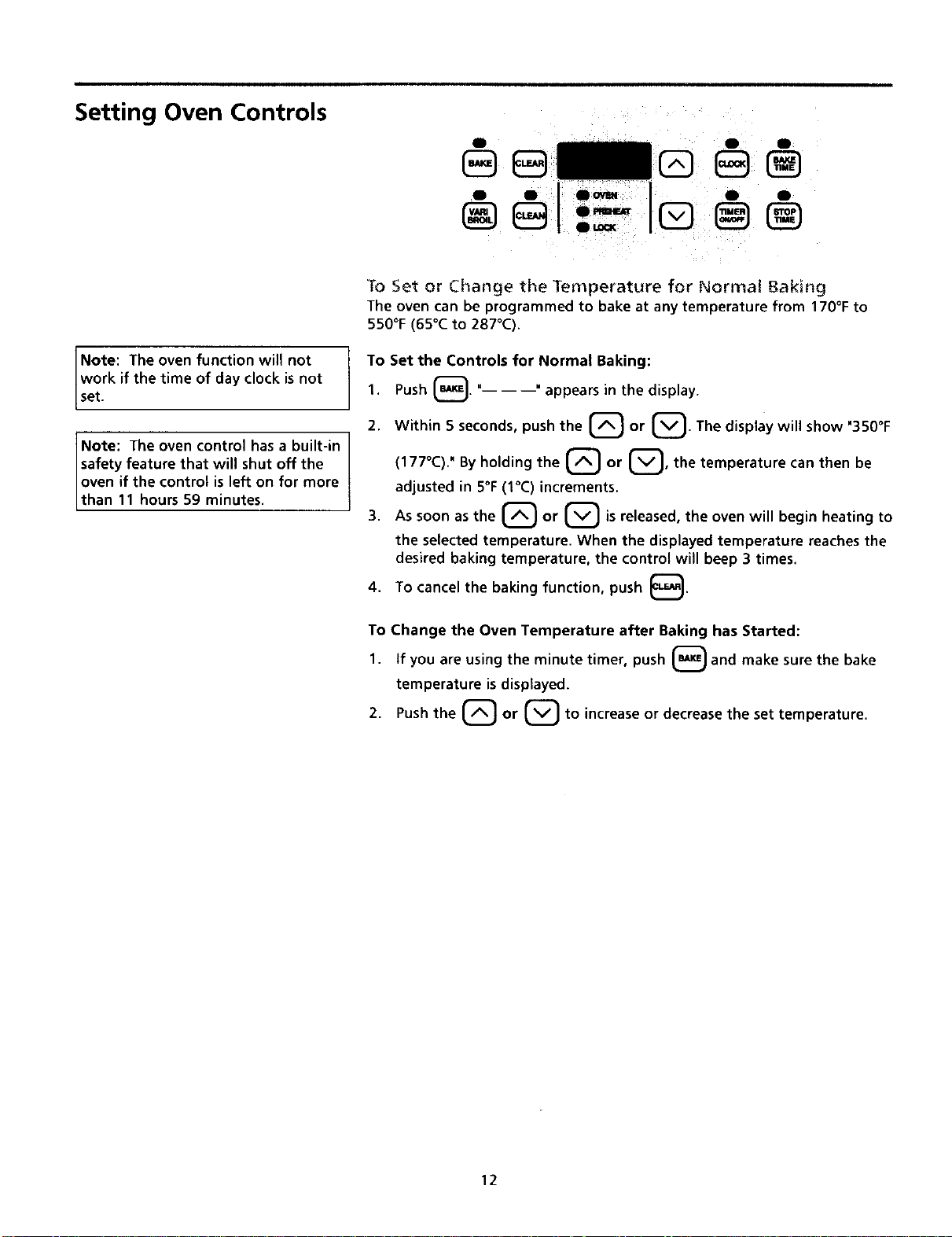

Setting Oven Controls ............................................. 12-14

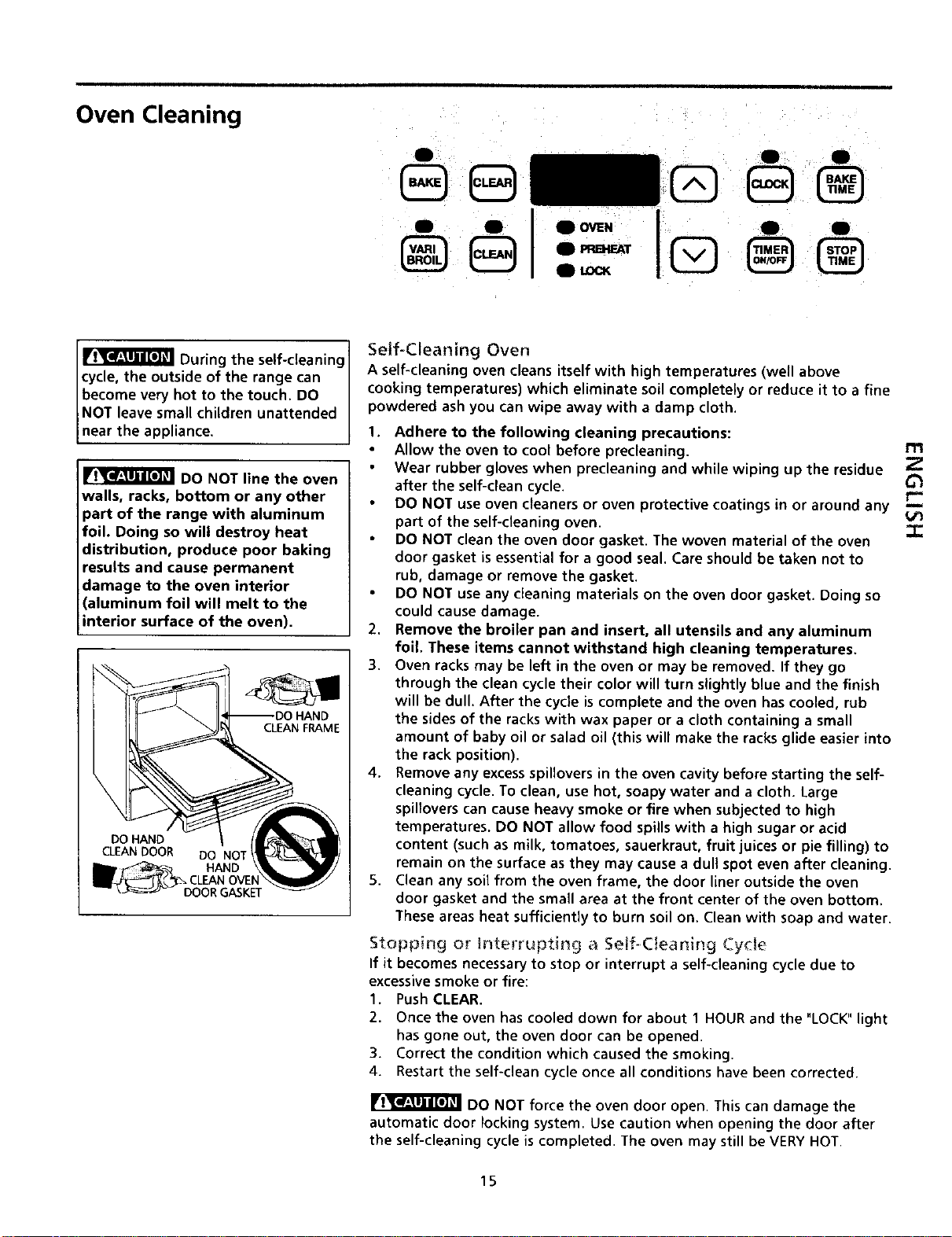

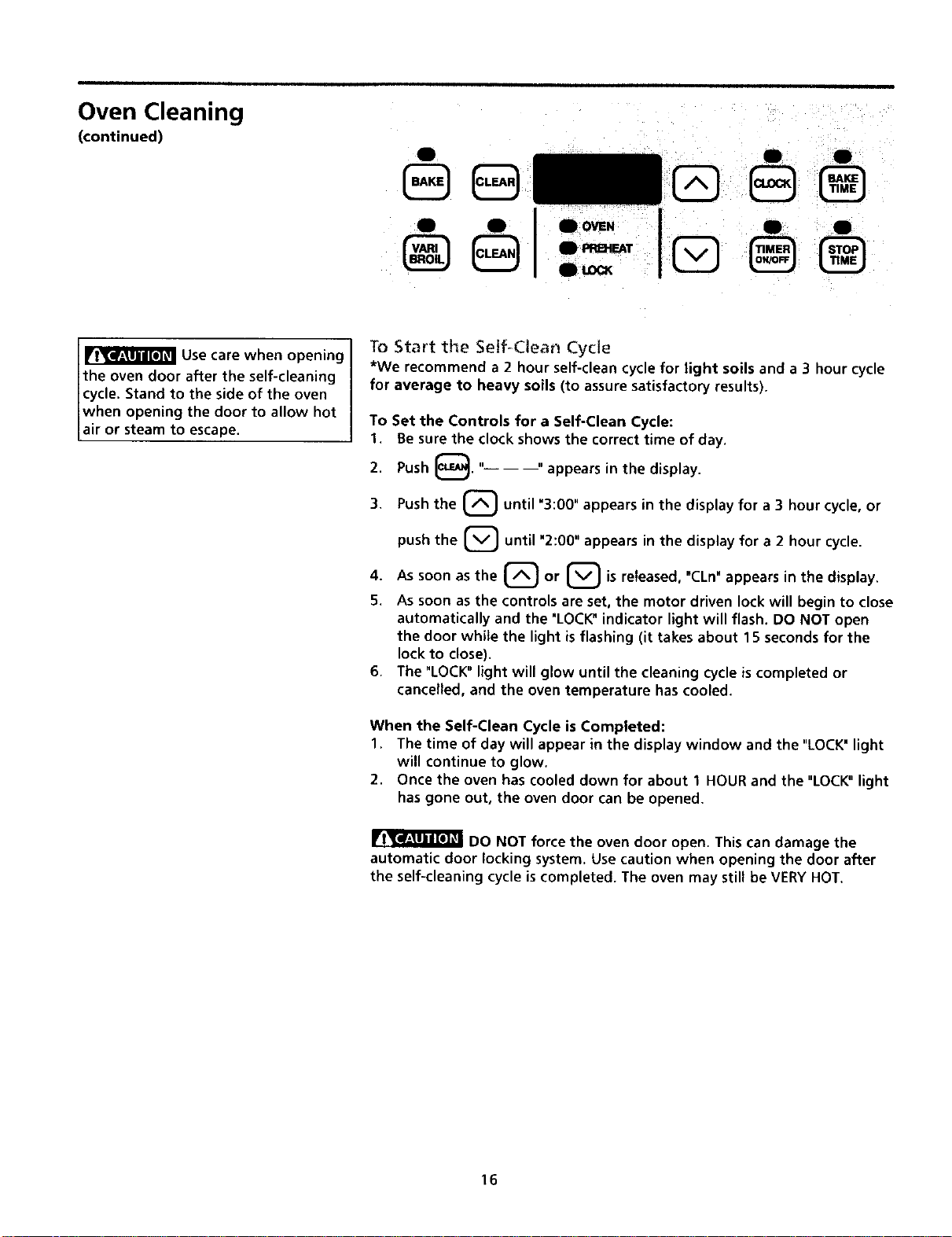

Oven Cleaning ......................................................... 15-16

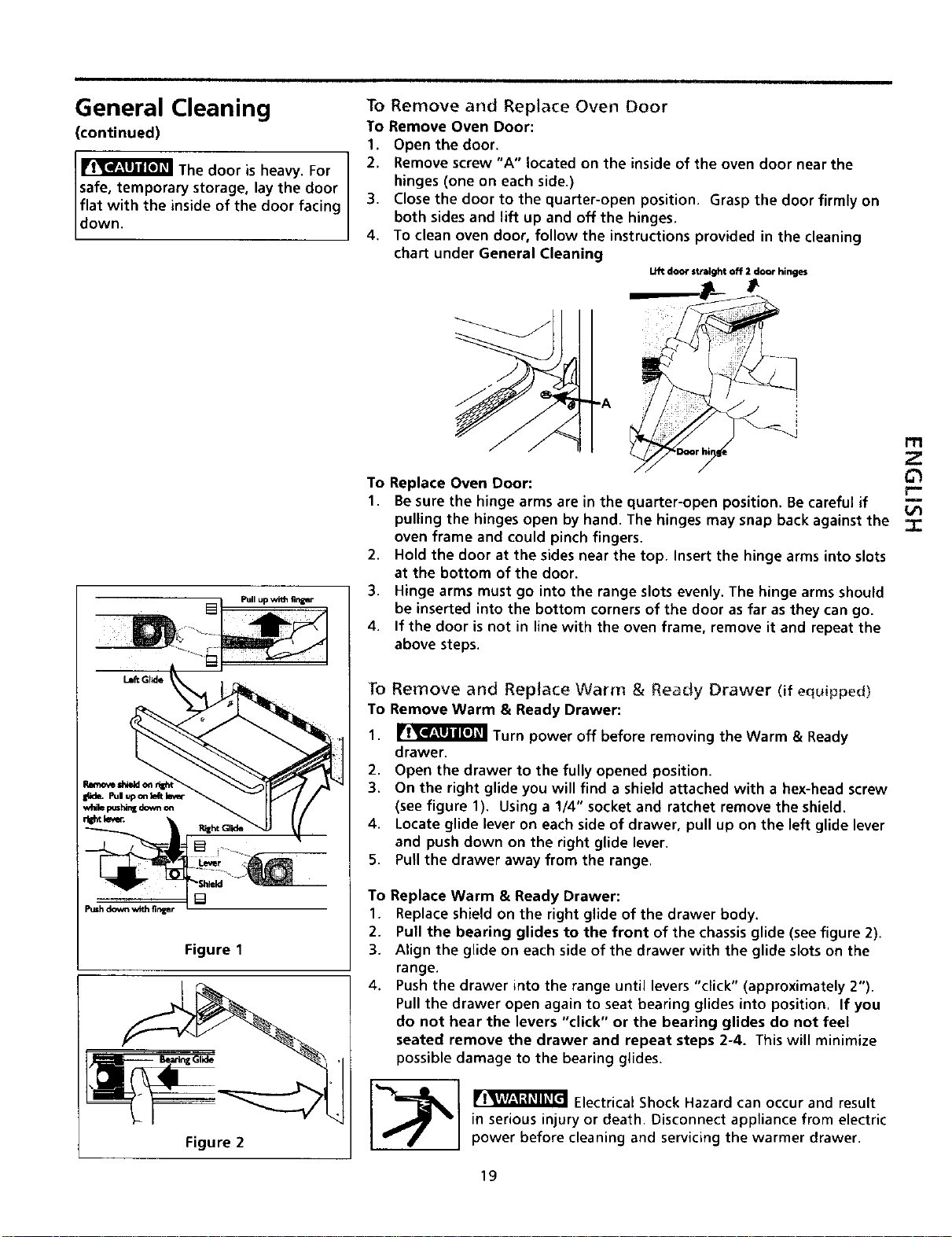

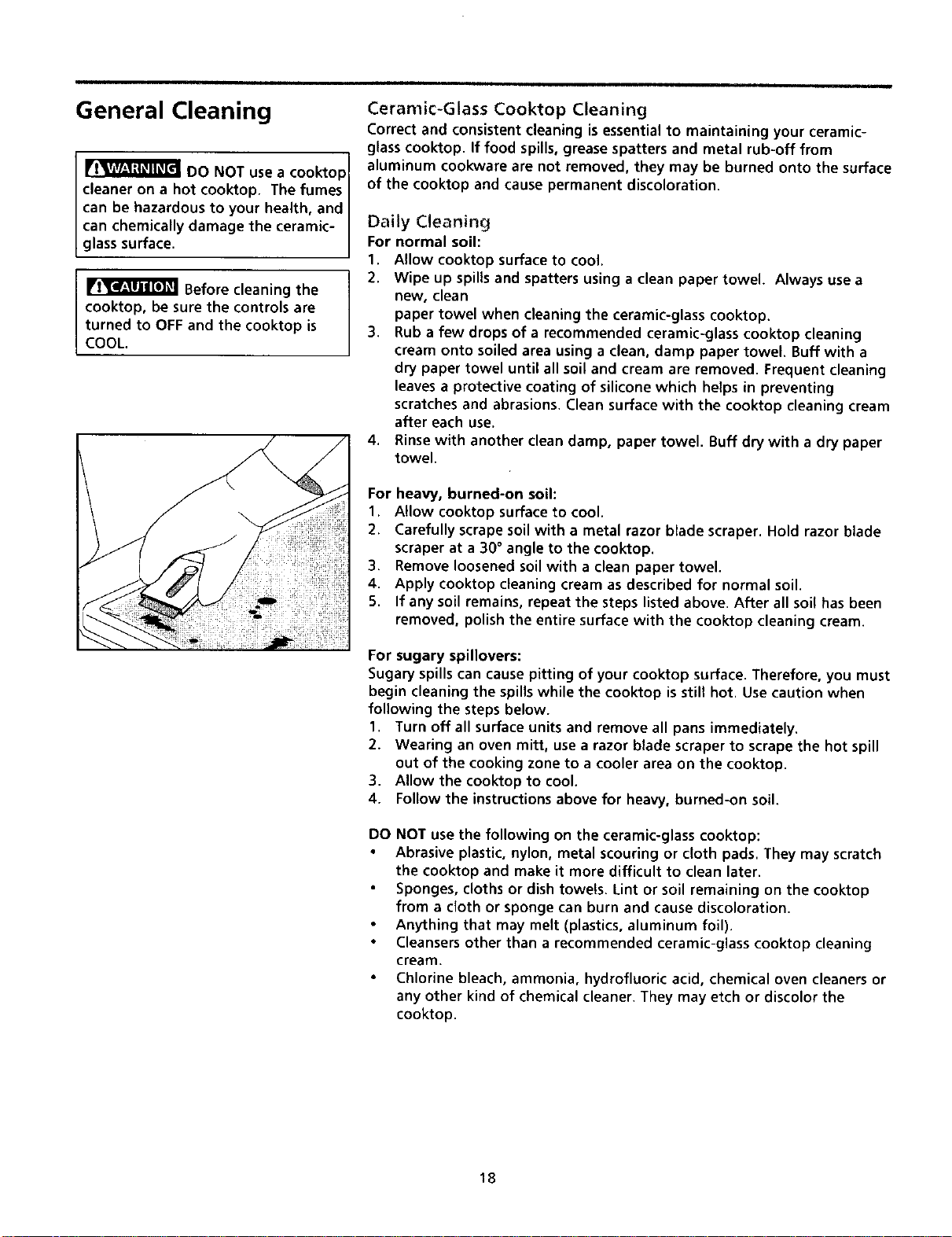

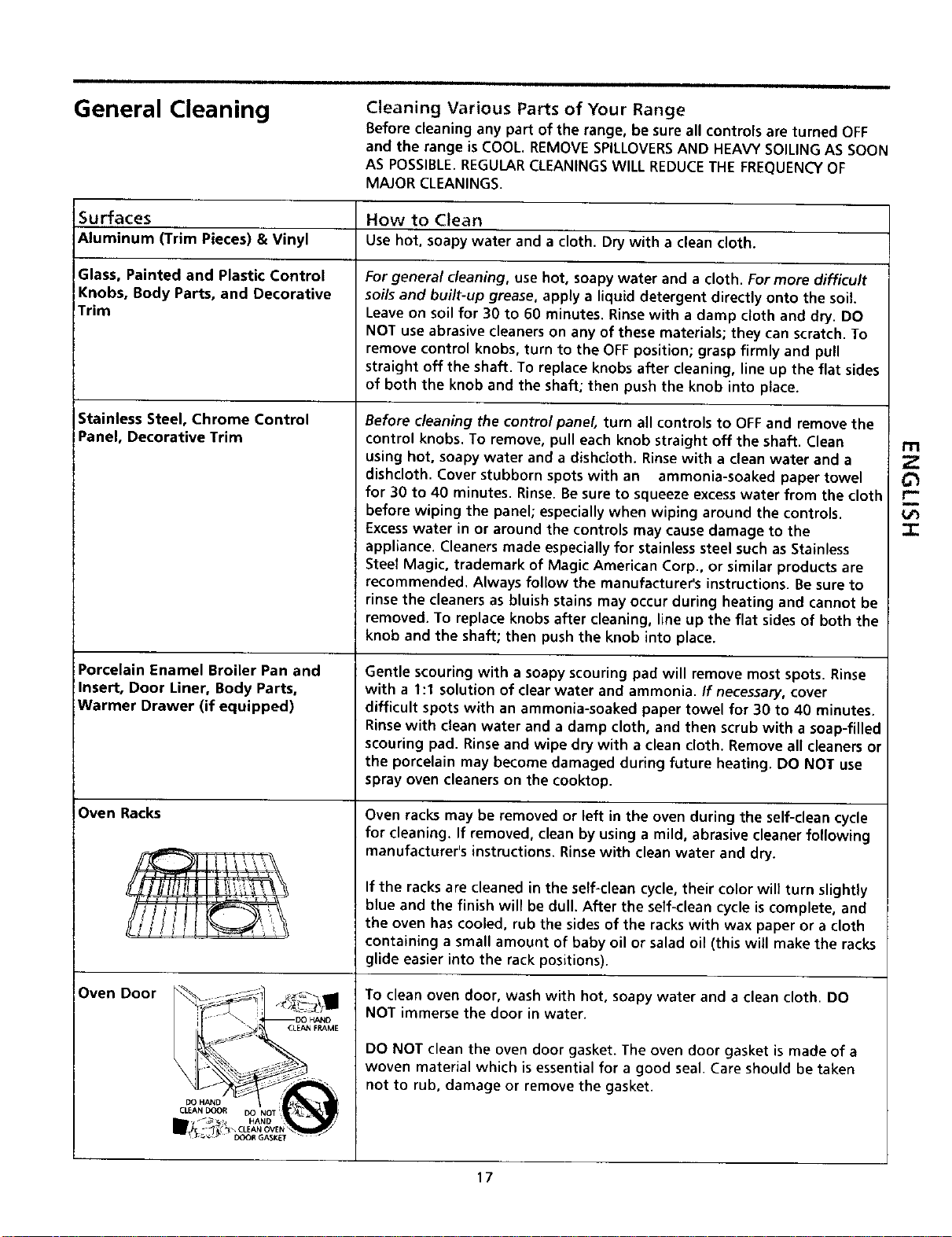

General Cleaning ..................................................... 17-19

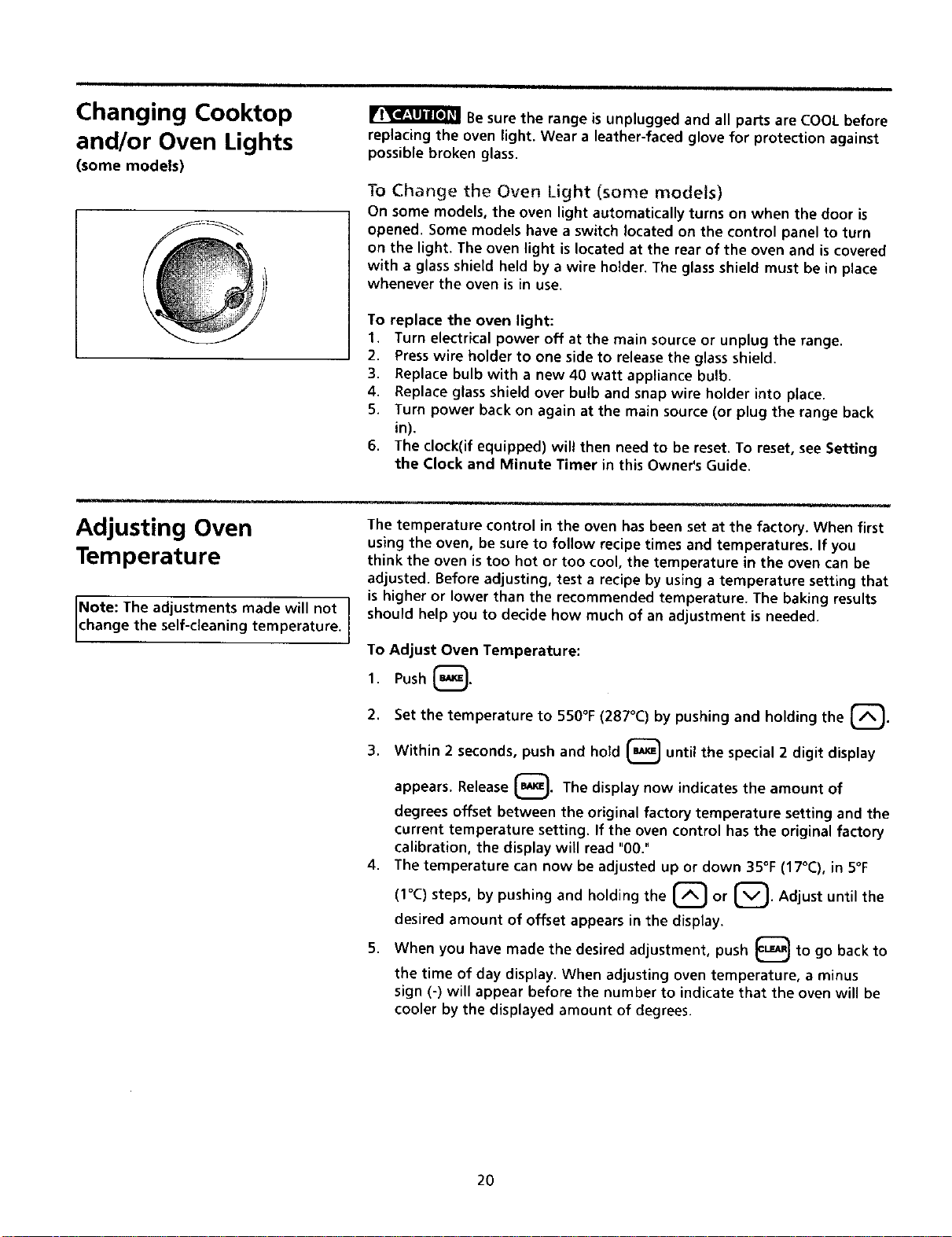

Changing Cooktop and/or Oven Lights ......................... 20
Adjusting Oven Temperature ......................................... 20

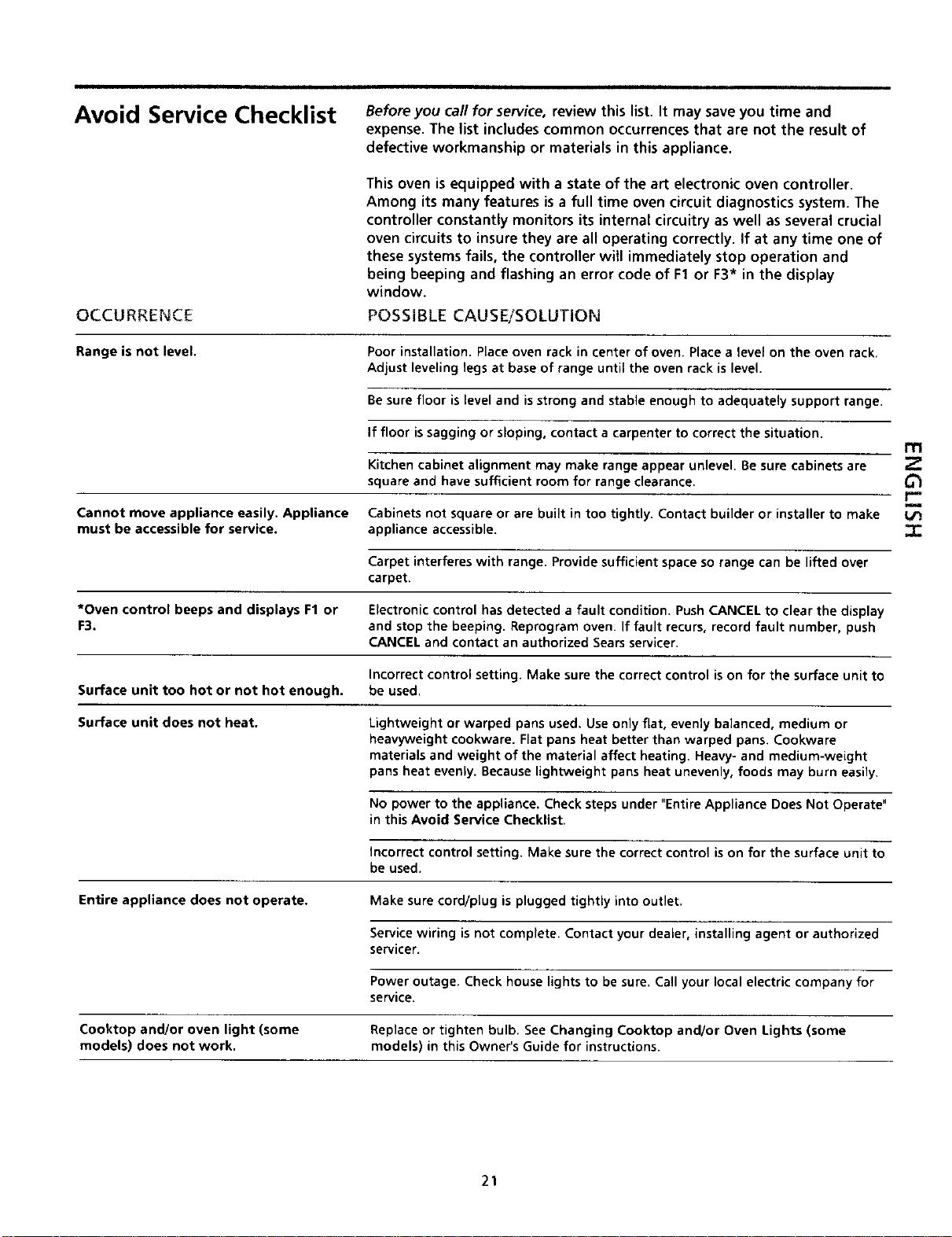

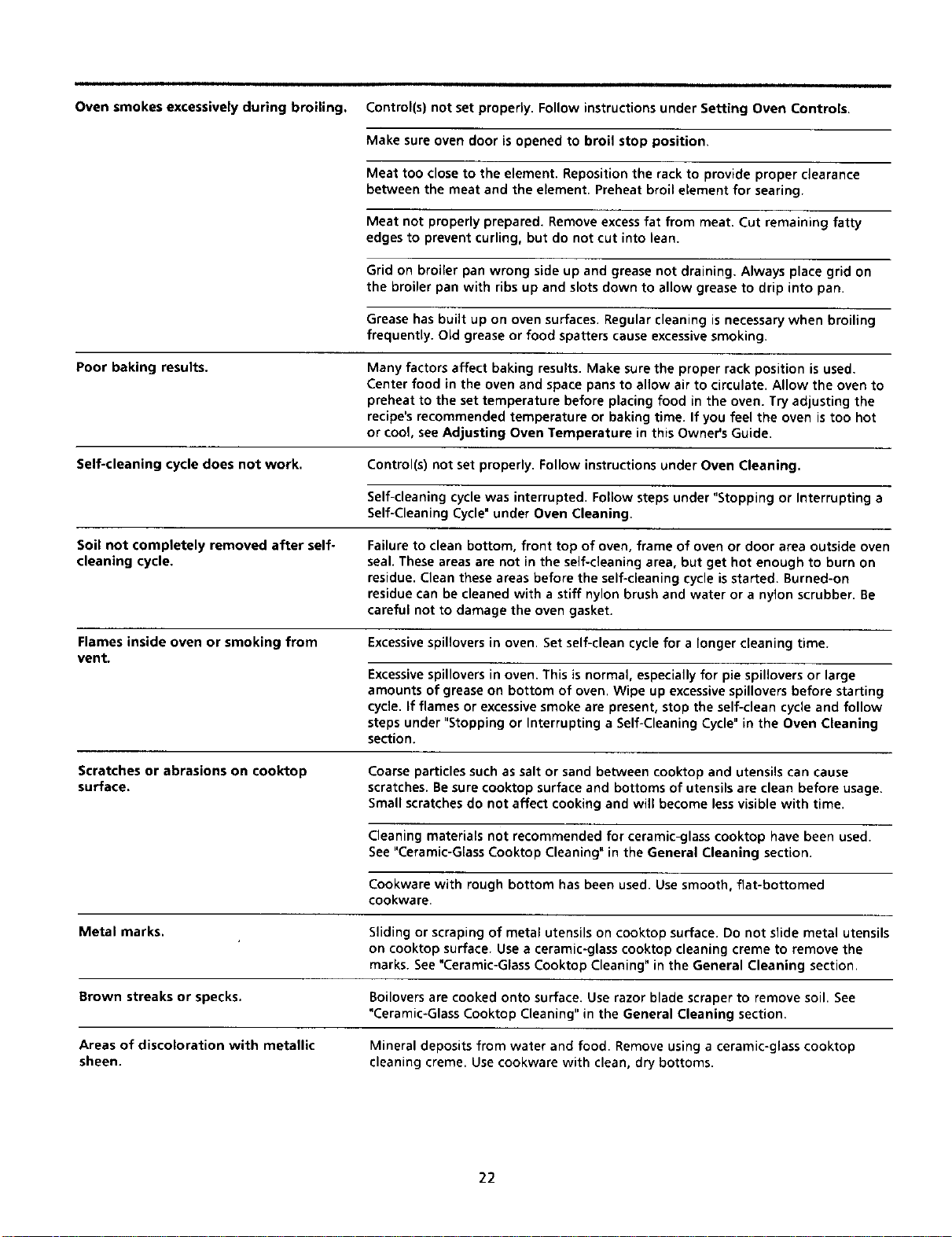

Avoid Service Checklist ............................................ 21-22
Espa_ol .................................................................... 25-47
Sears Service .................................................................. 48
Product Record
In this space below, record the date of purchase, model
and serial number of your product. You will find the
model and serial number printed on an identification
plate. The identification plate is located on the right side
of the oven front frame in the storage compartment.
Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future
reference.
Free-Standing Range Warranty
FULL ONE YEAR WARRANTY ON ALL PARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in material or workmanship,
Searswill repair or replace it, at our option, free of charge.
LIMITED WARRANTY ON CERAMIC-GLASS COOKTOP AND RADIANT SURFACE COOKING ELEMENTS
Forthe second through fifth year from the date of installation, Searswill at our option repair or replace parts with defects as
listed below. You pay for labor.
• Cracking of the ceramic-glass cooktop due to thermal
shock
• Discoloration of the ceramic-glass cooktop
• Wear-off of the pattern on the ceramic-glass.
• Cracking of the rubber seal between the ceramic-glass
cooktop and the porcelain edge
• Burn-out of any of the radiant surface cooking elements
If the product issubjected to other than private family use, the above warranty is effective for only 90 days.
WARRANTY SERVICEISAVAILABLEBYCONTACTING THE NEARESTSEARSSERVICECENTERIN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co. Dept. 817 WA Hoffman Estates, IL 60179
,,r,,,,., ,,,i ,
To Further Add To The Value Of Your Range, Buy a Sears Maintenance Agreement,
Years of Ownership Coverage 1stYear 2nd Year 3rd Year
1. Replacement of Defective Parts other than W MA MA
Ceramic-Glass Cooktop and Radiant
Surface Cooking elements
2. Ceramic-Glass Cooktop and Radiant W W W
Surface Cooking elements
3. Labor W MA MA
4. Annual Preventive Maintenance MA MA MA
Check at your request
W=Warranty MA=Maintenance Agreement
Kenmore Ranges are designed, manufactured, and tested for years of dependable operation. Yet, any major home appliance may
require service from time to time. The Sears Warranty plus the Sears Maintenance Agreement helps provide protection from
unexpected repair bills.
The chart above compares the warranty and Maintenance Agreement and shows you the benefits of a Sears Range Maintenance
Agreement.
Contact your Sears Sales Asso_:iate or Local Sears Service Center today and purchase a Sears Maintenance Agreement.

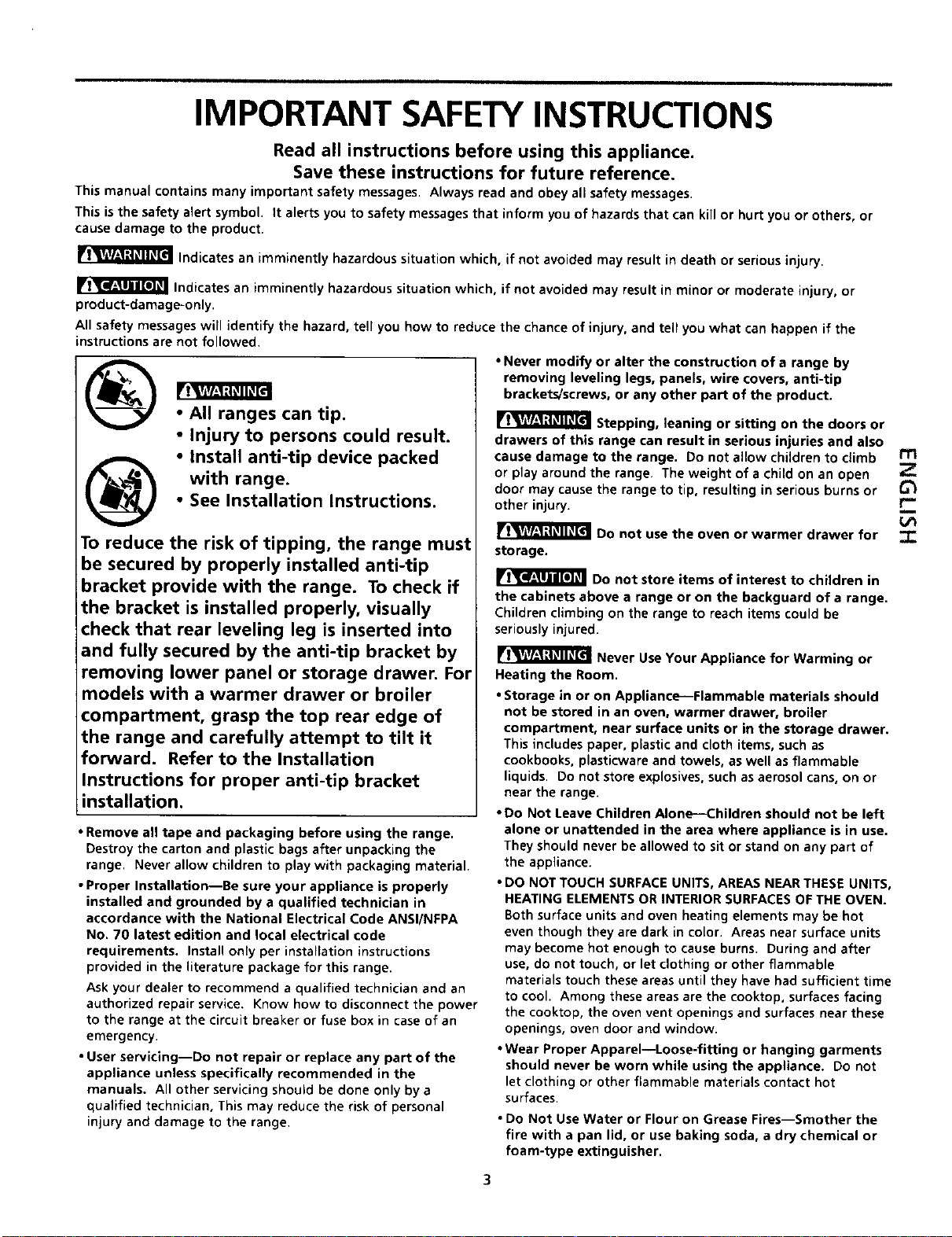

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol, it alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or
cause damage to the product.
Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or
product-damage-only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
®
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed
with range.
• See Installation Instructions.
To reduce the risk of tipping, the range must
be secured by properly installed anti-tip
bracket provide with the range. To check if
the bracket is installed properly, visually
check that rear leveling leg is inserted into
and fully secured by the anti-tip bracket by
removing lower panel or storage drawer. For
models with a warmer drawer or broiler
compartment, grasp the top rear edge of
the range and carefully attempt to tilt it
forward. Refer to the Installation
Instructions for proper anti-tip bracket
installation.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
• Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/NFPA
No. 70 latest edition and local electrical code
requirements. Install only per installation instructions
provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician, This may reduce the risk of personal
injury and damage to the range,
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
rl,w_,l:t_ll_[q Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb
or play around the range. The weight of a child on an open
door may cause the range to tip, resulting in serious burns or
other injury.
_Do not use the oven or warmer drawer for
storage.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
[|Vgl_,i:l_ll_[Cll Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on Appliance--Flammable materials should
not be stored in an oven, warmer drawer, broiler
compartment, near surface units or in the storage drawer.
This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or
near the range.
• Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of
the appliance.
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR THESE UNITS,
HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN.
Both surface units and oven heating elements may be hot
even though they are dark in color. Areas near surface units
may become hot enough to cause burns. During and after
use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sufficient time
to cool. Among these areas are the cooktop, surfaces facing
the cooktop, the oven vent openings and surfaces near these
openings, oven door and window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not
let clothing or other flammable materials contact hot
surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the
fire with a pan lid, or use baking soda, a dry chemical or
foam-type extinguisher.
3
n'l
Z
G3
r--
I
U_
-r

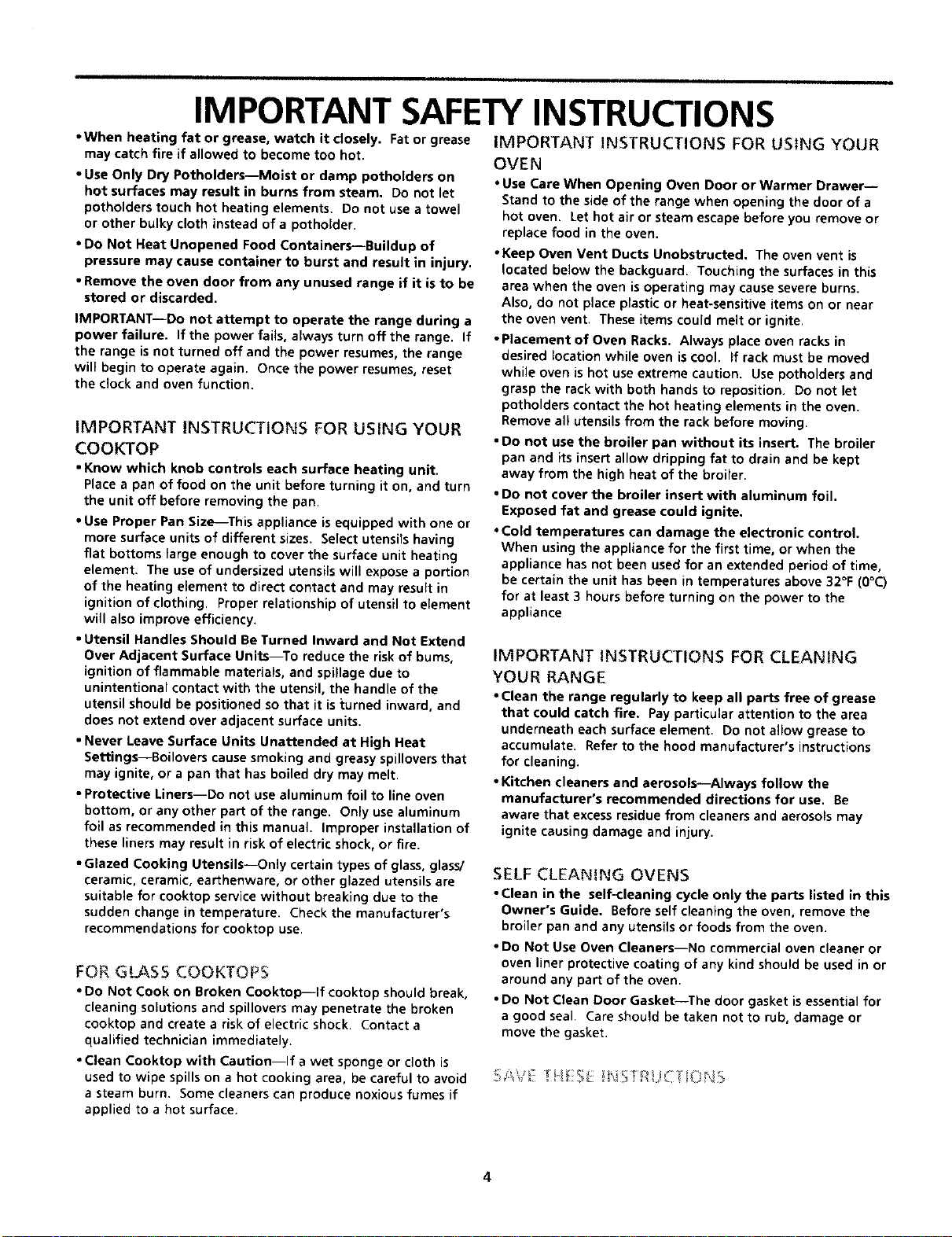

IMPORTANT SAFETY INSTRUCTIONS
• When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholders touch hot heating elements. Do not use a towel
or other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildup of
pressure may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--Do not attempt to operate the range during a
power failure. If the power fails, always turn off the range. If
the range isnot turned off and the power resumes, the range
will begin to operate again. Once the power resumes, reset
the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface heating unit.
Place a pan of food on the unit before turning it on, and turn
the unit off before removing the pan.
• Use Proper Pan Size_This appliance is equipped with one or
more surface units of different sizes. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion
of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to element
will also improve efficiency.
• Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units--To reduce the risk of bums,
ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of the
utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
• Never Leave Surface Units Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners--Do not use aluminum foil to line oven
bottom, or any other part of the range. Only use aluminum
foil as recommended in this manual. Improper installation of
these liners may result in risk of electric shock, or fire.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for cooktop use,
FOR GLASS COOKTOPS
• DO Not Cook on Broken Cooktop--lf cooktop should break,
cleaning solutions and spillovers may penetrate the broken
cooktop and create a risk of electric shock. Contact a
qualified technician immediately.
• Clean Cooktop with Caution If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to avoid
a steam burn. Some cleaners can produce noxious fumes if
applied to a hot surface.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Use Care When Opening Oven Door or Warmer Drawer--
Stand to the side of the range when opening the door of a
hot oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is
located below the backguard. Touching the surfaces in this
area when the oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items on or near
the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
• Do not use the broiler pan without its insert. The broiler
pan and its insert allow dripping fat to drain and be kept
away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
• Cold temperatures can damage the electronic control.
When using the appliance for the first time, or when the
appliance has not been used for an extended period of time,
be certain the unit has been in temperatures above 32°F (0°C)
for at least 3 hours before turning on the power to the
appliance
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area
underneath each surface element. Do not allow grease to
accumulate. Refer to the hood manufacturer's instructions
for cleaning.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be
aware that excess residue from cleaners and aerosols may
ignite causing damage and injury.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Owner's Guide. Before self cleaning the oven, remove the
broiler pan and any utensls or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for
a good seal. Care should be taken not to rub, damage or
move the gasket.
!_ /E !i-!15[ !IU!AIiJC)_O_QS
4
Control Pad Functions
CLEAR PAD-- Used to
clear any function
previously entered
except the time of day
and minute timer. Push
CLEAR to stop cooking.
BAKE PAD Used to
enter the normal \
baking mode _ _'-
""B
temperature. \\_
BROIL PAD-- ,,_
Used to select__ _
the variable
broil function.
CLEAN PAD _
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For
satisfactory use of your oven, become familiar with the various functions of
the oven as described below.
UP and DOWN ARROW PADS-- Used along with the
function pads to select oven temperature, cooking
time, stop time (when programming an automatic
stop time), time of day, clean time and minute timer
CLOCK PAD-- Used
e of
day.
Used to select the OVEN, PREHEAT
self-cleaning & LOCK LIGHTS-- The "OVEN" light
cycle, will glow each time the oven unit turns on to maintain
the set oven temperature. The "PREHEAT" light will glow
when the oven is first set to operate, or if the desired
temperature is reset higher than the actual oven
temperature. The "LOCK" light will flash until the door
locks when the self-clean cycle is in use. It glows
constantly after the door locks.
LIGHTS-- These
light to show which
feature is in use.
BAKE TIME PAD--
Used to enter the
S S length of the
_baking time.
STOP TIME PAD--
Used to set the
desired stop time
for baking. Can be
TIMER PAD-- used with BAKE
Used to set or TIME to program a
cancel the minute delayed bake cycle.
timer. The minute
timer does not
start or stop
cooking.
The oven can be programmed to:
• Bake normally
• Time bake
• Broil
• Self-clean
r_
Z
r--
i
For a silent control panel:
When choosing a function, a beep will be heard each time a pad is pushed. If desired, the controls can be
programmed for silent operation. Push and hold _. After 7 seconds, the control will beep once. Thiswill block the
controls from sounding when a pad is pushed. To return the sound, push and hold [_J
again
for 7 seconds until 1
beep is heard.
Note: The control will return to the audible mode after a power outage.
Temperature conversion:
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F (65°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Push _. " -" appears in the display.
2. Push and hold the [_ until "HI" appears in the display.
3. Push and hold _ until °F or °C appears in the display.
4. Push the [_ or _ to change °F to °C or °C to °F.
5. Push any function pad to return to normal operating mode.
5
Setting the Clock and
Minute Timer
• OVEN
• PREHEAT
•mcK
Note: The oven function will not
work if the time of day clock is not
set.
TO Set the Clock
When the range is first plugged in, or when the power supply to the range
has been interrupted, the display will flash "12:00".
1. Push [_.
2. Within 5 seconds, push and hold the _ or
until the
correct
time of day appears in the display.
Note: The clock cannot be changed during any timed bake or self-clean
cycle.
£o Set the Minute Timer
1. Push _.
2. Push the [_ to increase the time in one minute increments. Push
and hold the
to increase the time in 10 minute increments. The
timer can be set for any amount of time from 1 minute to 11 hours and
59 minutes.
3,
4.
Note: If
you push the _ first, the timer will advance to 11 hours
and 59 minutes.
The display shows the timer count down in minutes until one minute
remains. Then the display will count down in seconds.
When the set time has run out, the timer will beep 3 times. It will then
continue to beep 3 times every 60 seconds until is
pushed.
Note: The minute timer does not start or stop cooking. It serves as an extra
timer in the kitchen that will beep when the set time has run out. The
minute timer can be used alone or during any of the other oven functions.
When the minute timer is in use with any other mode, the minute timer will
be shown in the display. To view other functions, push the function pad for
that mode.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, push and hold the (_
or [_ to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out:
Push _.
Surface Cooking
Ceramic-Glass Cooktop
The ceramic-glass cooktop has electric heating coils located below the
surface of the glass. The design of the glass cooktop outlines the area of
the surface unit below. Most importantly, make sure the diameter of the
pan matches the diameter of the unit. Heat istransferred up through the
surface of the cooktop to the cooking utensil. Only fiat-bottomed pans
should be used. The type and size of the cookware, number of surface units
in use and the settings of the units are factors that will affect the amount
of heat that will spread to areas surrounding the surface units. The areas
surrounding the units may become hot enough to cause burns.
The cooktop should not be used as a cutting board or work surface in the
kitchen. Dropping heavy or hard objects on the cooktop may crack it. Pans
with rough bottoms may scratch the cooktop surface. Do not place foods
directly on the smoothtop surface (without cooking utensils) damage to
glass or difficulty in cleaning will result.
Radiant Surface Units
The Radiant Surface Unit is a group of heating coils enclosed in a ceramic
fixture below the glass cooktop. The unit temperature rises gradually and t'tl
evenly. As the temperature rises, the unit will glow red. To maintain the Z
selected setting, the unit will cycle on and off. The heating unit retains _'_
enough heat to provide a uniform and consistent heat during the off cycle, r-
The ceramic fixture thermally insulates the heating unit, concentrating heat
in the heating zone. For efficient cooking, turn off the unit several minutes I
before cooking is complete. This will allow residual heat to complete the
cooking process. The amount of residual heat depends on the type and
quality of cooking utensil, the quantity of food being cooked and the
selected heat setting.
Dual Radiant Surface Units (if equipped)
The dual radiant surface unit is made up of an inner and outer coil within
the same surface unit. A control knob and rocker switch is used for
operating the different coils. The smaller unit or inner coil has a lower
wattage and can be used to prepare smaller quantities of food in smaller
pans. The larger unit or both inner and outer coils has a higher wattage
and can be used to prepare larger quantities of food in larger pans. When
using the outer coil, both inner and outer coils operate.
Indicator Light(s) There are 2 different surface control lights that will glow on your range--a
surface indicator and a hot cooktop surface indicator.
The surface indicator, located on the control panel, glows when any
surface unit is turned on. A quick glance at the light after cooking is an
easy check to be sure all surface controls are turned off.
The hot cooktop surface indicator, located under the glass cooktop or on
the control panel, will come on as the surface cooking area heats up and
will continue to glow until the glass cooktop has cooled down to a
moderate level.
Setting Surface
Controls
Radiant Surface Unit Control
Dual Radiant Surface Unit Controls
To Operate Radiant Surface Units
Push in and turn the Surface Unit Control Knob in either direction to the
desired setting, Each surface unit provides a constant amount of heat at
each setting, Start most cooking operations on a higher setting; then turn
to a lower setting to finish. A glowing red surface unit extending beyond
the bottom edge of the cooking utensil indicates the utensil is too small for
the unit. The control knob does not have to be set exactly on a particular
mark. Use the marks as a guide and adjust the control knob as needed,
To Operate Dual Radiant Surface Units (if equipped)
Set the rocker switch to the desired coil size. • Indicates inner coil only.
(_) Indicates both inner and outer coils operate. You may switch from
either coil setting at any time during the cooking process. Push in and turn
the Dual Surface Unit Control Knob in either direction to the desired
setting.
NOTE: Radiant elements have a limiter that allows the element to cycle on
and off, even at the HI setting. This helps to prevent damage to the
glasstop. Cycling at the HI setting is normal and can occur if the pan is too
small for the element or if the pan bottom is not flat.
After turning a Radiant Surface Unit OFF, be careful not to
touch either unit until it has had enough time to COOL. Surface Units will
turn dark in color after they have been turned off and burns may occur if
the units are touched at this time.
Do not place plastic items such as salt and pepper
shakers, spoon holders or plastic wrappings on top of the range when
it is in use. These items could melt or ignite. Potholders, towels or wooden
spoons could catch fire if placed too close to the unit.
8
Setting Warm Zone
Controls (if equipped)
Use the warm zone to keep cooked
foods hot such as: vegetables,
gravies, casseroles, soups, stews,
breads, pastries and oven-safe dinner
pates.
OFF
HI
MED
WARMERZONE
Warm Zone Recommended Food
Settings Chart
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
:Dinner Plates with Food LO
Eggs LO
iGravies LO
iMeats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
Soups (liquid) HI
To Operate the Warm Zone
The purpose of the warm zone is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat
cold food on the warm zone.
All food placed on the warm zone should be covered with a lid or
aluminum foil to maintain quality. For best results, when warming pastries
or breads, the cover should have an opening to allow moisture to escape.
Do not use plastic wrap to cover food. Plastic may melt onto the
surface and be very difficult to clean.
Useonly dishware, utensilsand cookware recommended for oven and
cooktop use on the warm zone.
Unlike the surface elements, the warm zone will not glow red
when it is hot.
Always use potholders or oven mitts when removing food
from the warm zone as cookware and plates will be hot.
To Set the Warm Zone Control
rn
1. To set the control, push in and turn the knob. The temperatures are Z
approximate, and are designated by HI, MED and LO. However, the
control can be set at any position between HI and LO for different levels r_
of heating.
2. When done, turn the control to OFF. The warm zone will remain warm "t"
until the hot surface indicator light goes off.
Temperature Selection
Refer to the chart in the side column for recommended heating levels. If a
particular food is not listed, start with the medium level, and adjust as
needed. Most foods can be kept at serving temperatures by using the
medium level.
Indicator Lights
The surface indicator light is located below the warm zone control. It
turns on when the control is set, and stays on until the control is turned
off. The hot surface indicator light, located under the glass cooktop, will
come on when the control is set and will continue to glow until the glass
cooktop has cooled down to a moderate level.
WARM & READy ZONE KNOB
\
INDICAIOR LIGHT
WARM & READy ZONE
The cooktop and control panel shown above are representational. Your
range may have a different design look and different features.
9
Setting Warmer Drawer
Controls (ifequipped)
Use the warmer drawer to keep hot
foods hot such as: vegetables,
gravies, meats, casseroles, biscuits
and rolls, pastries and heated dinner
pates.
The warmer drawer is equipped with
a catch which may require extra force
when opening and closing the
drawer.
OFF
HI
MED
WARMER DRAWER
Warmer Drawer Recommended
Food Settings Chart
Food Item Setting
Roasts (Beef, Pork, Lamb) MED
Pork Chops HI
Bacon HI
Hamburger Patties HI
Poultry HI
Gravies MED
Casseroles MED
Eggs MED
Fried Foods HI
Vegetables MED
Pizza Hi
Biscuits MED
Rolls, soft LO
Rolls, hard MED
Pastries MED
Empty Dinner Plates LO
Arranging Warmer Drawer Rack Positions
The rack can be used in 2 ways:
In the upright position to allow low profile food items to be placed
both under and on top of the rack (for example, rolls or biscuits on top
of the rack and a casserole dish under).
In the downward position to allow you to place light weight food
items and empty dishware (for example, roils or pastries and dinner
plates). Set the warmer drawer rack as shown below.
Upright Position Downward Position
To Operate the Warmer Drawer
Your range is equipped with a warmer drawer. The purpose of the warmer
drawer is to keep hot cooked foods at serving temperature. Always start
with hot food. It is not recommended to heat cold food in the warmer
drawer.
All food placed in the warmer drawer should be covered with a lid or
aluminum foil to maintain quality. Do not use plastic wrap to cover
food. Plastic may melt onto the drawer and be very difficult to clean.
Use only dishware, utensilsand cookware recommended for oven use in
the warmer drawer.
Always use potholders or oven mitts when removing food
from the warmer drawer as cookware and plates will be hot.
To Set the Thermostat Control
The thermostat control is used to select the temperature of the warmer
drawer. It is located on the control panel. To set the thermostat, push in
and turn the knob to the desired setting. The temperatures are
approximate, and are designated by HI, MED and LO.
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty
drawer will preheat in approximately 15 minutes.
3. When done, turn the thermostat control to OFF.
Temperature Selection
Refer to the chart for recommended settings. If a particular food is not
listed, start with the medium setting. If more crispness is desired, remove
the lid or aluminum foil.
Most foods can be kept at serving temperatures by using the medium
setting. When a combination of foods are to be kept warm (for instance, a
meat with 2 vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use to eliminate loss of
heat from the drawer.
The indicator light is located below the thermostat control. It turns on
when the control isset, and stays on until the control isturned off. The
warmer drawer is inoperable during the self-clean cycle. The indicator light
will not come on during the self-clean cycle.
10
Before Setting Oven
Controls
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKSWHEN THEOVEN IS COOL(PRIORTO
OPERATINGTHE OVEN). Always use oven mitts when using the oven.
Oven Vent Location
The oven vent is located below the
backguard. When the oven is on,
warm air is released through the
vents. This venting is necessary for
proper air circulation in the oven and
good baking results.
OVEN VENT
REMOVING &REPLACING OVEN RACKS
To remove, pull the rack forward
until it stops. Lift up front of rack
and slide out. To replace, fit the rack
onto the guides on the oven walls.
Tilt the front of the rack upward and
slide the rack back into place.
ARRANGING OVEN RACKS WITH 5
RACK POSITIONS
To bake on 1 rack, place the rack
on position 3 or 4. To bake on 2
racks, place the racks on positions 2
and 4.
_ _ 1st Rack Position
_ .2nd Rack Position
r _ _ i-3rd Rack Position
I _-_ _ "4th Rack Position
_-=;;_'__ i _-_.h Rack PositiOn
m
Z
r-
i
11
Setting Oven Controls
[]
@
Note: The oven function will not
work if the time of day clock is not
set.
Note: The oven control has a built-in
safety feature that will shut off the
oven if the control is left on for more
than 11 hours 59 minutes.
To Set or Change the lemperature for Normal Baking
The oven can be programmed to bake at any temperature from 170°F to
550°F (65°C to 287°C).
To Set the Controls for Normal Baking:
1. Push []. " .' appears in the display.
2. Within 5 seconds, push the [] or []. The display will show '350°F
(177°C)." By holding the C_ or [], the temperature can then be
adjusted in 5°F (1°C) increments.
3. As soon as the [] or [] is released, the oven will begin heating to
the selected temperature. When the displayed temperature reaches the
desired baking temperature, the control will beep 3 times.
4. To cancel the baking function, push [].
To Change the Oven Temperature after Baking has Started:
you are using the minute timer, push _ and make sure the bake
1. if
temperature is displayed.
the [] or [] to increase or decrease the set temperature.
2. Push
12
Setting Oven Controls
(continued)
Use caution when
using the automatic timer. Use the
automatic timer when cooking cured
or frozen meats and most fruits and
vegetables. Foods that can easily spoil
such as milk, eggs, fish, meat or
poultry, should be chilled in the
refrigerator first. Even when chilled,
they should not stand in the oven for
more than 1 hour before cooking
begins, and should be removed
promptly when cooking is completed.
To Set the Automatic Timer (Timed Bake Feature)
The BAKE TIME and STOPTIME controls operate the Timed Bake feature.
The automatic timer will turn the oven on and off at the times you select in
advance, The oven can be programmed to start immediately and shut off
automatically or to begin baking at a later time with an automatic shutoff.
To Program the Oven to Begin Baking Immediately and To Shut Off
Automatically:
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Push _.
4. Within 5 seconds, push the [] or _. The display will show "350°F
(177°C)." By holding the C_ or C_' the temperature can then be
adjusted in 5°F (1°C) increments.
5, Push 8" "0:00" will flash in the display.
6. Push the [] or _ until the desired amount of baking time
appears in the display.
To Program Oven for a Delayed Start Time and to Shut-Off
Automatically
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Push _).
4. Within 5 seconds, push the [] or (_. The display will show "350°F
(177°C)." By holding the [] or _, the temperature can then be
adjusted in 5°F (1°C) increments.
5. Push 8' '0:00' will flash in the display.
6. Push the [] or _ until the desired amount of baking time
appears.
7. Push _. The earliest possible stop time will flash in the display.
(_ or _ until the desired stop time appears in the
8. Push the
display.
9. Once the controls are set, the control calculates the time when baking
will start in order to finish at the time you have set.
Once the Controls are Set:
a. The oven will come on and begin heating to the selected baking
temperature.
b. The oven temperature will show in the display.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven will shut off
automatically.
b. The control will
beep 3 times every 60 seconds until _ is pushed.
To Change the Oven Temperature or Bake Time after Baking has
Started:
1. Push the function pad you want to change.
2. Push the [] or _ to adjust the setting.
rtl
Z
r_
m
13
Setting Oven Controls
(continued)
Q
BB
Q OVEN
D PR_EAT
DmcK
To Broil
1. Arrange oven rack whi]e oven is still cool. Position the rack as suggested
in the chart below.
The broiler pan and its grid allow
dripping grease to drain and be kept
away from the high heat of the
broiler. DO NOT use the pan withoul
its grid. DO NOT cover the grid with
foil. The exposed grease could ignite.
2.
3.
Broil Stop
Position
Rack Position From Top Food
1 Rare steaks
2 Ham slices, fish, medium steaks,
hamburgers and chops
3 Well-done foods such as chicken and
lobster
Push_.
Push and hold the _ or _ until the desired broil setting level
appears in the display. Push the L_J for HI broil or the LvJfor LO
broil. Most foods can be broiled at the HI broil setting. Select the LO
broil setting to avoid excess browning or drying of foods that should be
cooked to the well-done stage.
4. Place the grid on the broiler pan, then place the food on the grid. DO
NOT use the broiler pan without the grid or cover the grid with
aluminum foil. The exposed fat could ignite.
5. Place the pan on the oven rack. Open the oven door to the broil stop
position when broiling.
6. Broil on one side until food is browned; turn and cook on the second
side. Note: Always pull the rack out to the stop position before turning
or removing food.
broiling is finished, push _.
7. When
Should an oven fire occur, close the oven door and turn off
the oven. If the fire continues, use a fire extinguisher. DO NOT put water or
flour on the fire. Flour may be explosive.
14
Oven Cleaning
Q
BB
During the self-cleaning
cycle, the outside of the range can
become very hot to the touch. DO
NOT leave small children unattended
near the app lance.
DO NOT line the oven
walls, racks, bottom or any other
part of the range with aluminum
foil. Doing so will destroy heat
distribution, produce poor baking
results and cause permanent
damage to the oven interior
(aluminum foil will melt to the
interior surface of the oven).
CLEAN FRAME
DO HAND
CLEAN DOOR DO NOT
DOOR GASKET
Self-Cleaning Oven
A self-cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soil completely or reduce it to a fine
powdered ash you can wipe away with a clamp cloth.
1. Adhere to the following cleaning precautions:
Allow the oven to cool before precleaning. I"1"1
Wear rubber gloves when precleaning and while wiping up the residue Z
after the self-clean cycle.
DO NOT use oven cleaners or oven protective coatings in or around any
part of the self-cleaning oven. I
DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to
rub, damage or remove the gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
2. Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
3. Oven racks may be left in the oven or may be removed. If they go
through the clean cycle their color will turn slightly blue and the finish
will be dull. After the cycle is complete and the oven has cooled, rub
the sides of the racks with wax paper or a cloth containing a small
amount of baby oil or salad oil (this will make the racks glide easier into
the rack position).
4. Remove any excess spillovers in the oven cavity before starting the self-
cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may cause a dull spot even after cleaning.
5. Clean any soil from the oven frame, the door liner outside the oven
door gasket and the small area at the front center of the oven bottom.
These areas heat sufficiently to burn soil on. Clean with soap and water.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-cleaning cycle due to
excessive smoke or fire:
1. Push CLEAR.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light
has gone out, the oven door can be opened.
3. Correct the condition which caused the smoking.
4. Restart the self-clean cycle once all conditions have been corrected.
DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when opening the door after
the self-cleaning cycle is completed. The oven may still be VERY HOT.
15
Oven Cleaning
(continued)
D
BB
S OVEN
_T
Su_I
®@@
Q@@
I _i_'_r_iT_l_ Use care when opening
the oven door after the self-cleaning
cycle. Stand to the side of the oven
when opening the door to allow hot
air or steam to escape.
To Start the Self-Clean Cycle
*we recommend a 2 hour self-clean cycle for light soils and a 3 hour cycle
for average to heavy soils (to assure satisfactory results).
To Set the Controls for a Self-Clean Cycle:
1. Be sure the clock shows the correct time of day.
2. Push _. " " appears in the display.
3. Push the (_ until "3:00" appears in the display for a 3 hour cycle, or
push the (_ until '2:00" appears in the display for a 2 hour cycle.
soon as the _L_ or IX)is released, "CLn" appears in the display.
4. As
5. As soon as the controls are set, the motor driven lock will begin to close
automatically and the 'LOCK' indicator light will flash. DO NOT open
the door white the light is flashing (it takes about 15 seconds for the
lock to close).
6. The 'LOCK" light will glow until the cleaning cycle is completed or
cancelled, and the oven temperature has cooled.
When the Self-Clean Cycle is Completed:
1. The time of day will appear in the display window and the "LOCK' light
will continue to glow.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light
has gone out, the oven door can be opened.
DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when opening the door after
the self-cleaning cycle is completed. The oven may still be VERY HOT.
16
General Cleaning Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sureall controls are turned OFF
and the range isCOOL. REMOVESPILLOVERSAND HEAVY SOILINGASSOON
AS POSSIBLE.REGULARCLEANINGSWILL REDUCETHEFREQUENCYOF
MAJOR CLEANINGS.
Surfaces How to Clean
Aluminum (Trim Pieces) & Vinyl Use hot. soapy water and a cloth. Dry with a clean cloth.
Glass, Painted and Plastic Control
Knobs, Body Parts, and Decorative
Trim
Stainless Steel, Chrome Control
Panel, Decorative Trim
Porcelain Enamel Broiler Pan and
Insert, Door Liner, Body Parts,
Warmer Drawer (if equipped)
Oven Racks
Oven Door
_'_ CLEANFRAME
Do._ _ I 'E_lr_'_k=_-_
CLEAN DOOR DO NOT N_(
.r -%_ i HAND
i_ ==_C _\ CLEAN OVE
, _; ; _ DOOR GASKET -
For general cleaning, use hot, soapy water and a cloth. For more difficult
soils and built-up grease, apply a liquid detergent directly onto the soil.
Leave on soil for 30 to 60 minutes. Rinse with a damp cloth and dry. DO
NOT use abrasive cleaners on any of these materials; they can scratch. To
remove control knobs, turn to the OFF position; grasp firmly and pull
straight off the shaft. To replace knobs after cleaning, line up the flat sides
of both the knob and the shaft; then push the knob into place.
Before cleaning the control panel, turn all controls to OFF and remove the
control knobs. To remove, pull each knob straight off the shaft. Clean
using hot, soapy water and a dishcloth. Rinse with a clean water and a
dishcloth. Cover stubborn spots with an ammonia-soaked paper towel
for 30 to 40 minutes. Rinse. Be sure to squeeze excess water from the cloth
before wiping the panel; especially when wiping around the controls.
Excess water in or around the controls may cause damage to the
appliance. Cleaners made especially for stainless steel such as Stainless
Steel Magic, trademark of Magic American Corp., or similar products are
recommended. Always follow the manufacturer's instructions. Be sure to
rinse the cleaners as bluish stains may occur during heating and cannot be
removed. To replace knobs after cleaning, line up the flat sides of both the
knob and the shaft; then push the knob into place.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse
with a 1:1 solution of clear water and ammonia. If necessary, cover
difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes.
Rinse with clean water and a damp cloth, and then scrub with a soap-filled
scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or
the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
Oven racks may be removed or left in the oven during the self-clean cycle
for cleaning. If removed, clean by using a mild, abrasive cleaner following
manufacturer's instructions. Rinse with clean water and dry.
If the racksare cleaned in the self-clean cycle, their color will turn slightly
blue and the finish will be dull. After the self-clean cycle is complete, and
the oven has cooled, rub the sides of the racks with wax paper or a cloth
containing a small amount of baby oil or salad oil (this will make the racks
glide easier into the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO
NOT immerse the door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a
woven material which is essential for a good seal. Care should be taken
not to rub, damage or remove the gasket.
rT1
Z
r_
m
I
17
General Cleaning
DO NOT use a cooktop
cleaner on a hot cooktop. The fumes I
can be hazardous to your health, and I
can chemically damage the ceramic-
g ass surface.
Before cleaning the
cooktop, be sure the controls are
turned to OFFand the cooktop is
COOL.
Ceramic-Glass Cooktop Cleaning
Correct and consistent cleaning is essential to maintaining your ceramic-
glass cooktop. If food spills, grease spatters and metal rub-off from
aluminum cookware are not removed, they may be burned onto the surface
of the cooktop and cause permanent discoloration.
Daily Cleaning
For normal soil:
1. Allow cooktop surface to cool.
2. Wipe up spills and spatters using a clean paper towel. Always use a
new, clean
paper towel when cleaning the ceramic-glass cooktop.
3. Rub a few drops of a recommended ceramic-glass cooktop cleaning
cream onto soiled area using a clean, damp paper towel. Buff with a
dry paper towel until all soil and cream are removed. Frequent cleaning
leaves a protective coating of silicone which helps in preventing
scratches and abrasions. Clean surface with the cooktop cleaning cream
after each use.
4. Rinse with another clean damp, paper towel. Buff dry with a dry paper
towel.
For heavy, burned-on soil:
1. Allow cooktop surface to cool.
2. Carefully scrape soil with a metal razor blade scraper. Hold razor blade
scraper at a 30 ° angle to the cooktop.
3. Remove loosened soil with a clean paper towel.
4. Apply cooktop cleaning cream as described for normal soil.
5. If any soil remains, repeat the steps listed above. After all soil has been
removed, polish the entire surface with the cooktop cleaning cream.
For sugary spillovers:
Sugary spills can cause pitting of your cooktop surface. Therefore, you must
begin cleaning the spills while the cooktop is still hot, Use caution when
following the steps below.
1. Turn off all surface units and remove all pans immediately.
2. Wearing an oven mitt, use a razor blade scraper to scrape the hot spill
out of the cooking zone to a cooler area on the cooktop.
3. Allow the cooktop to cool.
4. Follow the instructions above for heavy, burned-on soil.
DO NOT use the following on the ceramic-glass cooktop:
Abrasive plastic, nylon, metal scouring or cloth pads, They may scratch
the cooktop and make it more difficult to clean later.
Sponges, cloths or dish towels. Lint or soil remaining on the cooktop
from a cloth or sponge can burn and cause discoloration.
Anything that may melt (plastics, aluminum foil).
Cleansers other than a recommended ceramic-glass cooktop cleaning
cream.
Chlorine bleach, ammonia, hydrofluoric acid, chemical oven cleaners or
any other kind of chemical cleaner. They may etch or discolor the
cooktop.
18
General Cleaning
continued)
The door is heavy. For
safe, temporary storage, lay the door
flat with the inside of the door facing
down.
To Remove and Replace Oven Door
To Remove Oven Door:
1. Open the door.
2. Remove screw "A" located on the inside of the oven door near the
hinges (one on each side,)
3. Closethe door to the quarter-open position. Grasp the door firmly on
both sides and lift up and off the hinges.
4, To clean oven door, follow the instructions provided in the cleaning
chart under General Cleaning
Lift door straight off 2 door hinges
Pull upwith finer
Figure 1
-A
m
Z
m
To Replace Oven Door:
1. Besure the hinge arms are in the quarter-open position, Becareful if
pulling the hinges open by hand. The hinges may snap backagainst the I
oven frame and could pinch fingers.
2. Hold the door at the sides near the top. Insert the hinge arms into slots
at the bottom of the door.
3. Hinge arms must go into the range slots evenly. The hinge arms should
be inserted into the bottom corners of the door as far as they can go.
4. If the door is not in line with the oven frame, remove it and repeat the
above steps.
To Remove and Replace Warm & Ready Drawer (if equipped)
To Remove Warm & Ready Drawer:
1. _ Turn power off before removing the Warm & Ready
drawer.
2. Open the drawer to the fully opened position.
3. On the right glide you will find a shield attached with a hex-head screw
(see figure 1). Using a 1/4" socket and ratchet remove the shield.
4. Locate glide lever on each side of drawer, pull up on the left glide lever
and push down on the right glide lever.
5. Pull the drawer away from the range.
To Replace Warm & Ready Drawer:
1. Replaceshield on the right glide of the drawer body.
2. Pull the bearing glides to the front of the chassisglide (see figure 2).
3. Align the glide on each side of the drawer with the glide slotson the
range.
4. Push the drawer into the range until levers"click" (approximately 2").
Pull the drawer open again to seat bearing glides into position, If you
do not hear the levers "click" or the bearing glides do not feel
seated remove the drawer and repeat steps 2-4. Thiswill minimize
possible damage to the bearing glides.
_1 _lli,AV.,l;l_ll_[el Electrical Shock Hazard can occur and result
in serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
19
Changing Cooktop
and/or Oven Lights
(some models)
Be sure the range is unplugged and all parts are COOL before
replacing the oven light. Wear a leather-faced glove for protection against
possible broken glass.
To Change the Oven Light (some models)
On some models, the oven light automatically turns on when the door is
opened. Some models have a switch located on the control panel to turn
on the light. The oven light is located at the rear of the oven and is covered
with a glass shield held by a wire holder. The glass shield must be in place
whenever the oven is in use.
To replace the oven light:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back
in),
6. The clock(if equipped) will then need to be reset. $o reset, see Setting
the Clock and Minute Timer in this Owner's Guide.
Adjusting Oven
Temperature
Note: The adjustments made will not
change the se f-c eaning temperature.
The temperature control in the oven has been set at the factory. When first
using the oven, be sure to follow recipe times and temperatures. If you
think the oven is too hot or too cool, the temperature in the oven can be
adjusted. Before adjusting, test a recipe by using a temperature setting that
is higher or lower than the recommended temperature. The baking results
should help you to decide how much of an adjustment is needed.
To Adjust Oven Temperature:
1. Push (_.
temperature to 550°F (287°C) by pushing and holding the _).
2. Set the
seconds, push and hold (_ until the special 2 digit display
3.
Within
2
appears. Release _. The display now indicates the amount of
degrees offset between the original factory temperature setting and the
current temperature setting. If the oven control has the original factory
calibration, the display will read "00. _
4. The temperature can now be adjusted up or down 35°F (17°C), in 5°F
(1°C) steps, by pushing and holding the _ or _. Adjust until the
desired amount of offset appears in the display.
you have made the desired adjustment, push _ to go back to
5. When
the time of day display. When adjusting oven temperature, a minus
sign (-) will appear before the number to indicate that the oven will be
cooler by the displayed amount of degrees.
20
Avoid Service Checklist Before you call for service, review this list. It may save you time and
expense. The list includes common occurrences that are not the result of
defective workmanship or materials in this appliance.
OCCURRENCE
This oven is equipped with a state of the art electronic oven controller,
Among its many features is a full time oven circuit diagnostics system. The
controller constantly monitors its internal circuitry aswell as several crucial
oven circuits to insure they are all operating correctly. If at any time one of
these systems fails, the controller will immediately stop operation and
being beeping and flashing an error code of F1 or F3* in the display
window.
POSSIBLE CAUSE/SOLUTION
Range is not level.
Poor installation. Place oven rack in center of oven. Place a level on the oven rack,
Adjust leveling legs at base of range until the oven rack is level.
Besure floor is level and isstrong and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Kitchen cabinet alignment may make range appear unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move appliance easily. Appliance Cabinets not square or are built in too tightly. Contact builder or installer to make
must be accessible for service, appliance accessible.
Carpet interferes with range. Provide sufficient space so range can be lifted over
carpet.
*Oven control beeps and displays F1 or Electronic control has detected a fault condition. Push CANCEL to clear the display
F3. and stop the beeping. Reprogram oven. If fault recurs, record fault number, push
CANCEL and contact an authorized Sears servicer.
Incorrect control setting. Make sure the correct control is on for the surface unit to
Surface unit too hot or not hot enough, be used.
Surface unit does not heat. Lightweight or warped pans used. Use only flat, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans. Cookware
materials and weight of the material affect heating. Heavy- and medium-weight
pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.
No power to the appliance, Check steps under "Entire Appliance Does Not Operate"
in this Avoid Service Checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to
be used.
Entire appliance does not operate. Make sure cord/plug isplugged tightly into outlet.
Service wiring is not complete. Contact your dealer, installing agent or authorized
servicer.
Power outage. Check house lights to be sure. Call your local electric company for
service.
Cooktop and/or oven light (some Replace or tighten bulb. See Changing Cooktop and/or Oven Lights (some
models) does not work. models) in this Owner's Guide for instructions.
rtl
Z
i
21
Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under Setting Oven Controls.
Make sure oven door isopened to broil stop position.
Meat too close to the element. Reposition the rack to provide proper clearance
between the meat and the element. Preheat broil element for searing.
Meat not properly prepared. Remove excessfat from meat. Cut remaining fatty
edges to prevent curling, but do not cut into lean.
Grid on broiler pan wrong side up and grease not draining. Always place grid on
the broiler pan with ribsup and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning isnecessary when broiling
frequently. O_d grease or food spatters cause excessivesmoking.
Poor baking results.
Many factors affect baking results.Make sure the proper rack position is used.
Center food in the oven and space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven. Try adjusting the
recipe's recommended temperature or baking time. If you feel the oven is too hot
or cool, see Adjusting Oven Temperature in this Owner's Guide.
Self-cleaning cycle does not work. Control(s) not set properly. Follow instructions under Oven Cleaning.
Self-cleaning cycle was interrupted. Follow steps under "Stopping or Interrupting a
Self-Cleaning Cycle" under Oven Cleaning.
Soil not completely removed after self-
cleaning cycle,
Failure to clean bottom, front top of oven, frame of oven or door area outside oven
seal. These areas are not in the self-cleaning area, but get hot enough to burn on
residue. Clean these areas before the self-cleaning cycle is started. Burned-on
residue can be cleaned with a stiff nylon brush and water or a nylon scrubber. Be
careful not to damage the oven gasket.
Flames inside oven or smoking from
vent.
Excessivespillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especiallyfor pie spillovers or large
amounts of grease on bottom of oven. Wipe up excessive spillovers before starting
cycle. If flames or excessive smoke are present, stop the self-clean cycle and follow
steps under "Stopping or Interrupting a Self-Cleaning Cycle" in the Oven Cleaning
section.
Scratches or abrasions on cooktop
surface.
Coarse particles such as salt or sand between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage.
Small scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used.
See "Ceramic-GlassCooktop Cleaning" in the General Cleaning section.
Cookware with rough bottom has been used. Use smooth, fiat-bottomed
cookware.
Metal marks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils
on cooktop surface. Use a ceramic-glass cooktop cleaning creme to remove the
marks. See "Ceramic-Glass Cooktop Cleaning" in the General Cleaning section.
Brown streaks or specks. Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See
"Ceramic-Glass Cooktop Cleaning" in the General Cleaning section.
Areas of discoloration with metallic Mineral deposits from water and food. Remove using a ceramic-glass cooktop
sheen, cleaning creme. Use cookware with clean, dry bottoms.
22
23
24
