Operating and installation
instructions
Gas cooktops
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 07 143 630
2
This appliance can be used in countries other than those specified on the
appliance and in these operating and installation instructions. It is, however, set
up for connection to the gas and electricity supplies in the countries specified.
For trouble-free operation of the appliance, it is best to use it in the countries
specified for use.
For use in other countries, please contact Miele in your country.
Contents
3
Warning and Safety instructions...................................................................... 5
Caring for the environment .............................................................................. 15
Overview............................................................................................................. 16
Cooktop............................................................................................................... 16
Control knobs...................................................................................................... 17
Burner.................................................................................................................. 18
Accessories supplied .......................................................................................... 19
Before using for the first time .......................................................................... 20
Cleaning the cooktop for the first time................................................................ 20
Switching on the cooktop for the first time ......................................................... 20
Suitable cookware............................................................................................. 21
Tips on saving energy ...................................................................................... 23
Operation............................................................................................................ 24
Switching on........................................................................................................ 24
Adjusting the flame.............................................................................................. 25
Switching off........................................................................................................ 25
Safety features................................................................................................... 26
Thermo-electric flame failure device ................................................................... 26
Cleaning and care ............................................................................................. 27
Stainless steel surfaces....................................................................................... 28
Pan supports ....................................................................................................... 28
Control knobs...................................................................................................... 28
Burner.................................................................................................................. 29
Problem solving guide ...................................................................................... 31
Optional accessories ........................................................................................ 33
Service................................................................................................................ 34
Contact in case of fault ....................................................................................... 34
Data plate ............................................................................................................ 34
Warranty .............................................................................................................. 34
Installation.......................................................................................................... 35
Safety instructions for installation ....................................................................... 35
Safety distances.................................................................................................. 36
Detailed dimensions............................................................................................ 39
Installation notes ................................................................................................. 40
Contents
4
Installation dimensions........................................................................................ 41
Installation ........................................................................................................... 42
Gas connection ................................................................................................... 44
Burner ratings...................................................................................................... 47
Electrical connection ........................................................................................... 48
Conversion to another type of gas .................................................................. 49
Jet table............................................................................................................... 49
Changing the jets ................................................................................................ 50
Changing the main jets................................................................................... 50
Changing the small jets.................................................................................. 51
Checking operation ............................................................................................. 51
Warning and Safety instructions
5
This cooktop complies with all relevant local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Read the operating and installation instructions carefully before
using the cooktop. They contain important information on safety,
installation, use and maintenance of the appliance. This prevents
both personal injury and damage to the cooktop.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation”, as well as in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
6
Correct application
This cooktop is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This cooktop is not suitable for outdoor use.
It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
This cooktop is not intended for use by people (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
and instruction concerning its use by a person responsible for their
safety. They may only use the cooktop unsupervised if they have
been shown how to use it in a safe way. They must be able to
recognise and understand the potential dangers of improper use.
Warning and Safety instructions
7
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance if its operation has
been clearly explained to them and they are able to use it safely.
They must be aware of the potential dangers caused by incorrect
operation.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the cooktop and do not
let them play with it.
The cooktop gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the cooktop
until it has cooled down and there is no danger of burning.
Danger of burning! Do not store anything which might arouse a
child's interest in storage areas above or behind the cooktop.
Otherwise children could be tempted to climb onto the cooktop with
the risk of burning themselves.
Danger of burning and scalding! Turn the handles of pots and
pans on the cooktop to the side or the rear so that children cannot
pull them down and burn themselves.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Warning and Safety instructions
8
Technical safety
Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
Damage to the cooktop can compromise your safety. Check the
appliance for visible signs of damage. Do not use the cooktop if it is
damaged.
Reliable and safe operation of this cooktop can only be assured if
it has been connected to the mains electricity supply.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
Before connecting the appliance to the mains electricity supply,
ensure that the connection data on the data plate (voltage and
frequency) matches the mains electricity supply. This data must
correspond in order to avoid the risk of damage to the appliance.
Do not connect the cooktop to the mains electricity supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
For safety reasons, this cooktop may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Never open the casing of the cooktop.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
Warning and Safety instructions
9
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The cooktop is not intended for use with an external timer switch
or a remote control system.
The connection to the gas supply must be carried out by a
suitably qualified and competent gas fitter in accordance with
current local and national safety regulations (see “Installation – Gas
connection”). In Australia and New Zealand, gas installations must
be in accordance with AS/NZS 5601. If the plug has been removed
or the connection cable is not supplied with a plug, the cooktop
must be connected to the mains electricity supply by a suitably
qualified electrician (see “Installation – Electrical connection”).
If the mains connection cable is damaged, it must be replaced
with a special mains connection cable by a qualified and competent
electrician in order to avoid a hazard (see “Installation - Electrical
connection”).
During installation, maintenance and repair work, the appliance
must be completely disconnected from the mains electricity supply.
The gas supply must also be turned off. It is only completely isolated
from the gas and electricity supply when:
- the mains circuit breaker is switched off, or
- it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
- the gas inlet valve is closed.
Warning and Safety instructions
10
Danger of electric shock!
Do not use the cooktop if it is faulty. Switch it off immediately.
Disconnect it from the mains electricity and gas supply. Call Miele.
If the cooktop is installed behind a furniture door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door. This can result in damage to the cooktop,
the housing unit and the floor. Leave the furniture door open until the
cooktop has cooled down completely.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
DO NOT MODIFY THIS APPLIANCE.
This cooktop is not suitable for installation and operation with
aftermarket lids or covers fitted.
Warning and Safety instructions
11
Correct use
The appliance gets hot when in use and remains hot for some
time after being switched off. Do not touch the appliance if there is a
possibility that it could still be hot.
DO NOT USE THIS APPLIANCE AS A SPACE HEATER.
Oil and fat can overheat and catch fire. Do not leave the cooktop
unattended when cooking with oil and fat. If it does ignite, do not
attempt to put the flames out with water.
Switch off the cooktop and use a suitable fire blanket, saucepan lid,
damp towel or similar to smother the flames.
The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE
APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE.
CUTLERY INSERTS MUST BE HEAT-RESISTANT.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the cooktop, as pressure can build up in the containers, causing
them to explode.
Do not cover the cooktop, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
cooktop is switched on by mistake or if residual heat is still present.
Warning and Safety instructions
12
When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items placed on the cooktop (e.g. cutlery) heating up.
Depending on the material, other items left on the appliance could
also melt or catch fire. Do not use the appliance as a resting place
for anything else.
You could burn yourself on the hot appliance. Protect your hands
with heat-resistant pot holders or gloves when handling hot pots and
pans. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself on steam. Be sure to keep all textiles away from the
gas flames. Do not use oversized cloths, tea towels or other similar
materials.
When using an electrical appliance, e.g. a hand-held food mixer,
near the cooktop, ensure that the cable of the electrical appliance
cannot come into contact with the hot cooktop. The insulation on the
cable could become damaged.
Plastic and aluminium foil containers melt at high temperatures.
Do not use plastic or aluminium foil containers on the cooktop.
When a control knob is pressed down, a spark is generated on the
ignitor. Do not press down the control knob while you are cleaning or
touching the cooktop or a burner in the vicinity of an ignitor.
If a rangehood is installed above the cooktop, ensure that the
burners are always covered with a pan when in use. Otherwise
flames could reach the rangehood, parts of which could then be
damaged or even set on fire.
Switch the burner off when a pan is removed, even for a short
time.
Make sure all the components of the gas burner have been
correctly assembled before switching on.
Warning and Safety instructions
13
Pans must be the correct size for the burner they are used on (see
“Suitable cookware”). A pan which is too small will be unstable on
the pan support. If the pan diameter is too large, flames can spread
out to the sides and damage or burn the worktop, wall claddings or
surrounding units and also parts of the cooktop. Miele cannot be
held liable for this type of damage.
Ensure that the flames from the burner do not spread out beyond
the base and up the sides of the pan.
Do not use pans with very thin bases on this cooktop, and never
heat up empty pans as they could get damaged. This could also
damage the appliance.
The pan supports supplied with the appliance must always be
used. Never place a pan on the burner itself.
Replace the pan supports carefully to avoid scratching the surface
of the cooktop.
Remove all grease spatters and other combustible (food) residues
from the cooktop as soon as possible. They are a fire hazard.
Avoid allowing liquids or foods containing salt to spill onto the
cooktop. If salty foods or liquids do get on the cooktop, they should
be removed as soon as possible to avoid the risk of corrosion.
The use of the gas cooktop creates heat, moisture and
combustion products in the room where it is installed. Make sure
that the appliance is installed in a location with sufficient ventilation.
Natural ventilation openings should not be blocked. Alternatively, a
mechanical ventilation device (e.g. a rangehood) can be installed.
If the cooktop is used for very long periods of time, additional
ventilation of the room may be necessary, e.g. by opening windows
or doors, or running the rangehood on the highest setting.
Do not use roasting dishes, pans or grilling stones that are large
enough to cover more than one burner. The resulting build-up of
heat could damage the appliance.
Warning and Safety instructions
14
If the appliance has not been used for a long period of time it
should be thoroughly cleaned before it is used again. It is also
advisable to have the appliance tested by a qualified person for
safety.
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach the electrical components and cause a short
circuit.
Caring for the environment
15
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Overview
16
Cooktop
a
Wok burner
b
Auxiliary burner
c
Normal burner
d
Normal burner
Controls knobs for the cooking zones:
e
Front right
f
Rear right
g
Rear left
h
Front left
Overview
17
Control knobs
Symbol Description
Burner off, the gas supply is turned off
Strongest flame
Weakest flame
Overview
18
Burner
Wok burner
Auxiliary, normal and fast burners
a
Burner ring (wok burner)
b
Burner cap
c
Burner head
d
Burner base
e
Ignition safety device
f
Ignitor
Overview
19
Accessories supplied
The accessories supplied with your
appliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).
Wok ring
The wok ring supplied gives additional
stability to the wok, especially to woks
with a rounded base.
Before using for the first time
20
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers (except the data plate).
Cleaning the cooktop for the
first time
Before using for the first time, clean
the cooktop with a damp cloth only
and then wipe dry.
Clean all removable parts of the
burner(s) with a solution of warm
water and a small amount of
washing-up liquid applied with a soft
sponge. Dry all parts thoroughly after
cleaning and then reassemble the
burners (see “Cleaning and care -
Burners”).
Switching on the cooktop for
the first time
The metal components have a
protective coating which when heated
for the first time will give off a slight
smell and possibly some vapours.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
Suitable cookware
21
Minimum pan base diameter
Burner Øcm
Auxiliary burner 10
Normal burner 12
Fast burner 14
Wok burner 14
Maximum diameter at top of pot/
pan
Burner Øcm
Auxiliary burner 22
Normal burner 22
Fast burner 24
Wok burner 24
- Select cookware that fits the size of
the burner:
large diameter = large burner
small diameter = small burner
- Refer to the chart above and ensure
that the pan diameter falls within the
minimum and maximum diameters
given for the burner you are using.
Using cookware that is too large can
cause the flames to spread out and
damage or burn the worktop, wall
claddings or surrounding units and
also parts of the cooktop or other
appliances. Using pans of the correct
size improves efficiency.
Any cookware that has a diameter
smaller than the pan supports or that
does not rest safely (without
wobbling) on the pan supports is
dangerous and should not be used.
- Unlike pans that are used on an
electric cooktop, the bottom of pans
used on a gas cooktop do not have
to be flat to deliver good cooking
results.
- Remember when purchasing new
pans that manufacturers usually refer
to the diameter at the top of the pan
in their documentation.
- Any heat-resistant cookware can be
used on a gas burner.
- Cookware with a thick base is
preferable, as it distributes heat more
evenly. Cookware with a thin base
may cause food to overheat in some
places. To avoid this, stir the food
frequently.
- Always place cookware on the pan
supports supplied with the appliance.
Never place it directly on the burners.
- Position the cookware centrally on
the pan support so that it sits
securely and cannot tip. There might
still be slight movement, which is not
a cause for concern.
- Do not use pots or pans with base
supports.
Suitable cookware
22
Wok ring
Use the wok ring supplied to give
additional stability to pans, especially
to woks with a rounded base.
Place the wok ring on the pan
support so that it sits securely in
position and cannot move (see
diagram).
The wok is unique among cookware in
that it has a small base diameter and a
large rim diameter (usually 35-40cm).
Woks are ideal for use on the wok
burner.
Tips on saving energy
23
- Use a pan lid whenever possible to
minimise heat loss.
- Wide, shallow pans are preferable to
tall, narrow ones. They will heat up
faster.
- Cook with as little water as possible.
- Reduce the power setting once the
water has come to the boil or the oil
is hot enough to fry in.
- Use a pressure cooker to reduce
cooking times.
Operation
24
Risk of fire with overheated food!
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
whilst it is being used.
Switching on
Press in the relevant control knob and
turn it anti-clockwise to the large
flame symbol. The ignition electrode
will “click” and ignite the gas.
When a control knob is activated, a
spark is automatically generated on all
burners. This is normal and does not
indicate a fault.
When a flame is visible, keep the
control knob pressed in for 5–
10seconds, and then let it go.
If the burner has not ignited or goes
out, turn the control knob to the
position. Aerate the room or wait for
at least oneminute before trying
again. Try keeping the control knob
pressed in for a little longer the next
time.
If the burner does not ignite the
second time, turn the control back to
the position and see “Problem
solving guide”.
Switching on during a power outage
If there is an interruption to the
electricity supply, the gas can be
ignited manually, e.g. with a match.
Press down the relevant control knob
and turn it anti-clockwise to the large
flame symbol.
Hold the control knob pressed down
and light the gas at the burner with a
match.
Keep the control knob pressed down
for a further 5-10seconds and then
release it.
Operation
25
Adjusting the flame
The burners can be regulated at any
level between the strongest and
weakest flame.
As the outer part of the flame is much
hotter than the centre, the tips of the
flames should stay beneath the pan
base. Flame tips which extend beyond
the sides of the pan merely warm up
the air in the room and can also
damage pan handles and increase the
danger of injury.
Adjust the flame so that it does not
spread out beyond the sides of the
pan.
Switching off
Turn the control knob clockwise to
the position.
This stops the flow of gas and
extinguishes the flame.
Safety features
26
Thermo-electric flame failure
device
Your cooktop is equipped with a
thermo-electric flame failure device. If
the gas flame is extinguished, e.g. by
food boiling over or by a draught, the
gas supply is switched off. This
prevents the release of gas. If you turn
the control knob to the position, the
burner is ready for use again.
The thermo-electric flame failure
device operates independently from
the electricity supply. This means that
it will still work if the cooktop is used
during a power cut.
Cleaning and care
27
Risk of burning due to hot
surfaces.
The cooktop surface, pan supports
and burners will be hot after use.
Allow the cooktop to cool down
before cleaning it.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning
appliance could reach live electrical
components and cause a short
circuit.
Do not use a steam cleaner to clean
the cooktop.
All surfaces could be discoloured or
damaged if unsuitable cleaning
agents are used. All surfaces are
susceptible to scratching.
Remove all cleaning agent residues
immediately.
Never use abrasive sponges or
cleaning agents.
Food boiling over on a hot cooktop
can cause discoloration of the burner
components.
Remove any soiling and salt and
sugar splashes immediately.
When a control knob is pressed
down, a spark is generated on the
ignitor. Do not press down the
control knob while you are cleaning
or touching the cooktop or a burner
in the vicinity of an ignitor.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
- cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides
- cleaning agents containing descaling
agents
- stain and rust removers
- abrasive cleaning agents, e.g.
powder cleaners and cream cleaners
- solvent-based cleaning agents
- dishwasher cleaner
- oven sprays
- grill and oven cleaners
- glass cleaning agents
- hard, abrasive brushes or sponges
(e.g. pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents
- dirt erasers
Cleaning and care
28
The entire cooktop should be cleaned
after each use.
Stubborn soiling should be soaked
first.
Dry the cooktop after using water to
clean it. This helps prevent limescale
deposits.
Stainless steel surfaces
Risk of damage by pointed
objects.
The seal between the cooktop and
the worktop could be damaged.
Do not use pointed objects for
cleaning.
Damage caused by soiling.
Soiling, particularly salty food or
liquid and olive oil, can cause
damage if left on the printed surfaces
for a long time.
Remove such soiling immediately.
Damage caused by incorrect
cleaning.
Stainless steel cleaning agents rub
off the printed symbols.
Do not use stainless steel cleaning
agents on printed symbols.
Clean stainless steel surfaces using a
solution of warm water and a little
dishwashing liquid applied with a soft
sponge. Stubborn soiling should be
soaked first. If necessary, the rough
side of a non-scouring sponge can
be used.
Finally, dry with a clean soft cloth.
Pan supports
Remove the pan supports.
Clean the pan supports in the
dishwasher or with a solution of warm
water and a little washing-up liquid
applied with a soft sponge. Stubborn
soiling should be soaked first.
After cleaning, dry the pan supports
thoroughly with a clean cloth.
Control knobs
The control knobs are not
dishwasher safe.
The control knobs should only be
cleaned by hand.
The control knobs may become
discoloured if they are not cleaned
regularly.
Clean the control knobs after each
use.
Clean the controls using a solution of
warm water and a little washing-up
liquid applied with a soft sponge.
Cleaning and care
29
Burner
Do not clean any parts of the burners
in a dishwasher.
The surface of the burner caps will
become more matt over time. This is
normal and does not indicate damage
to the burner caps. Nor will it affect
the operation of the cooktop.
The burner should be dismantled and
then cleaned by hand using a
solution of warm water and a little
dishwashing liquid applied with a soft
sponge.
Clean any soiling from the flame
openings.
Danger of explosion!
Blocked flame openings can cause a
dangerous build-up of gas in the
base of the cooktop which could
ignite and cause an explosion. This
can lead to damage to the appliance
and injury.
Ensure the flame openings are kept
clean at all times.
Parts of the burner that cannot be
removed should be wiped clean with
a damp cloth only.
The ignitor and the flame failure
device should be very carefully wiped
clean using a well wrung out cloth.
Do not let the ignitor get wet. If it gets
wet, it will not spark.
Finally dry everything thoroughly with
a clean cloth. Make sure that the
flame openings are completely dry.
The surface of the burner caps will
become more matt over time. This is
normal and does not indicate damage
to the burner caps. Nor will it affect
the operation of the cooktop.
The burner cap has a PerfectClean
treated surface with excellent non-
stick properties which make cleaning
easier.
Cleaning and care
30

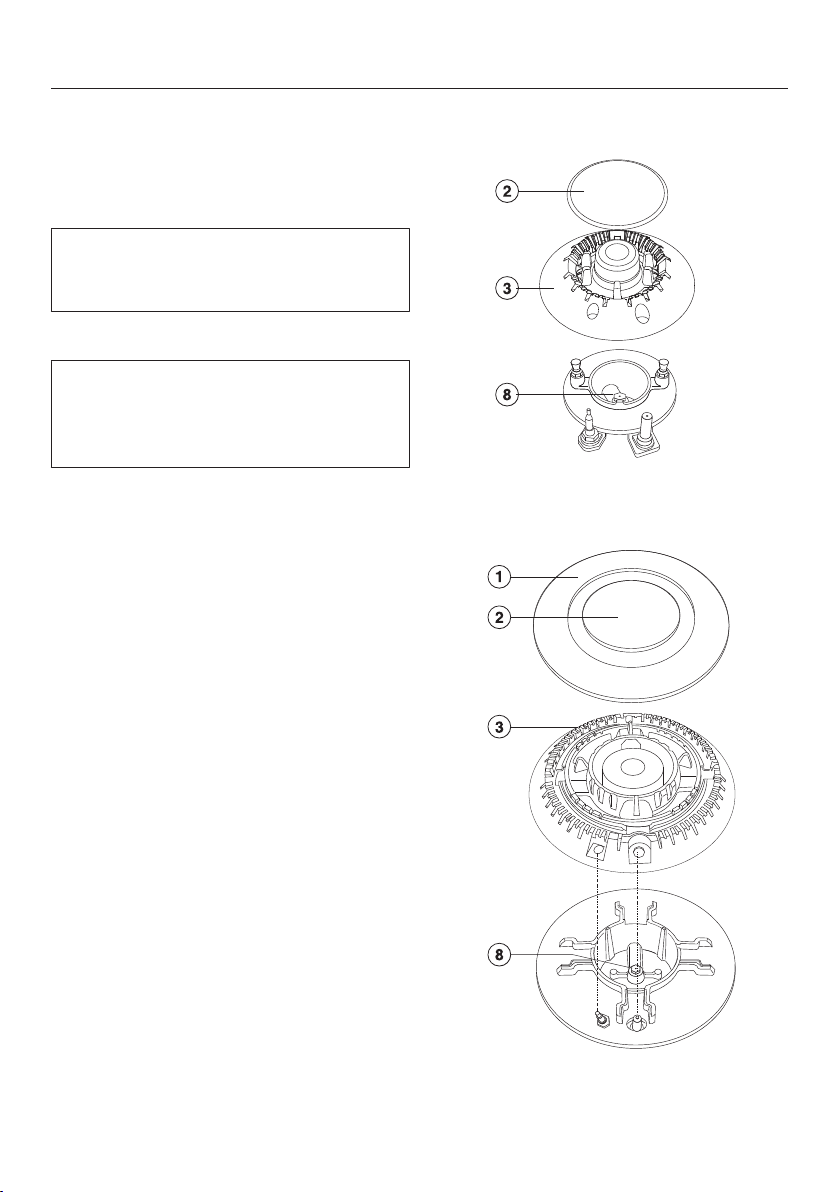

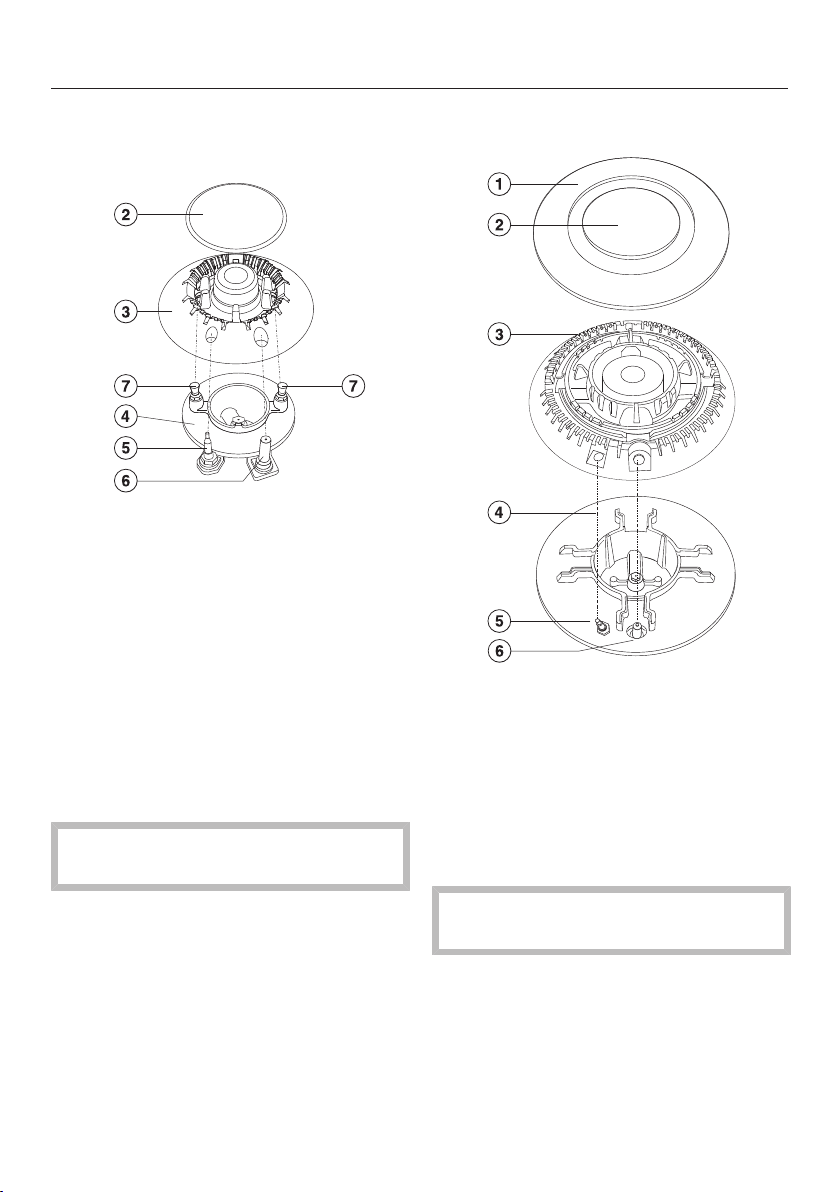

Assembling the auxiliary, normal and
fast burners
Place the burner head onto the
burner base so that the ignition
safety device, the ignitor and
the retaining pins fit into their
respective holes in the burner head.
Position the burner cap onto the
burner head so that the retaining
pins fit into their respective recesses.
Gently twist the burner cap clockwise
or anti-clockwise until it locks into
position. When correctly positioned,
the burner cap will not slide about.
Ensure parts are reassembled in the
correct order after cleaning.

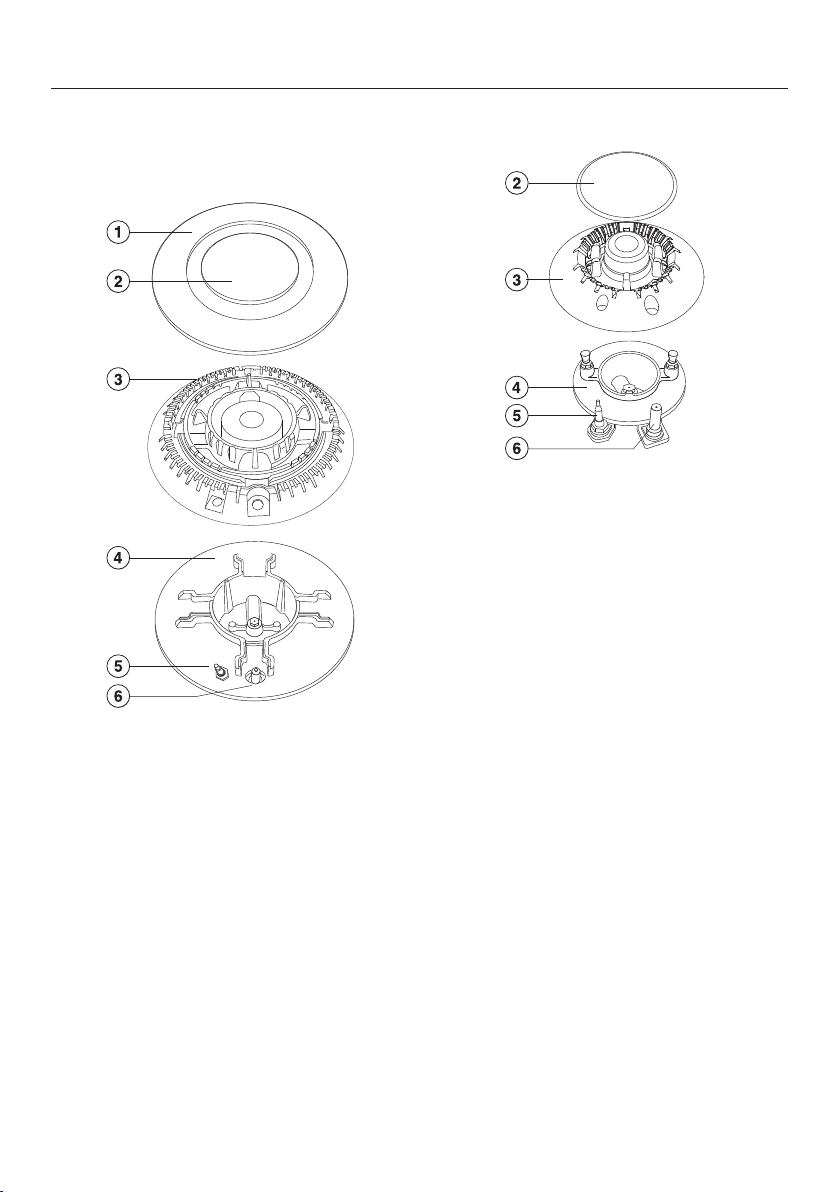

Assembling the wok burner
Place the burner head on to the
burner base so that the ignition
safety device and the ignitor
extend through their respective holes
in the burner head.
Replace the burner ring.
Replace the burner cap.
Ensure parts are reassembled in the
correct order after cleaning.
Problem solving guide
31
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Problem Possible cause and remedy
The burner does not
ignite when the cooktop
is being used for the
first time or after it has
not been used for a
longer period.
There could be an air lock in the gas pipe.
You may need to make several attempts before the
burner ignites successfully.
The burner does not
light after several
attempts.
There is a fault.
Turn all of the control knobs clockwise to the
position and interrupt the power supply to the
cooktop for a few seconds.
The burner is not correctly assembled.
Assemble the burner correctly.
The gas shut-off valve is closed.
Open the gas shut-off valve.
The burner is wet and/or dirty.
Clean and dry the burner.
The flame openings are blocked and/or wet.
Clean and dry the flame openings.
The gas flame goes out
after being lit.
The flames do not touch the flame failure device and
the burner does not get hot enough:
The burner parts are not positioned correctly.
Position the burner parts correctly.
The flame failure device is dirty.
Remove any soiling.
The flame suddenly
looks different.
The burner parts are not positioned correctly.
Position the burner parts correctly.
The burner head or the holes in the burner cap are
dirty.
Remove any soiling.
Problem solving guide
32
Problem Possible cause and remedy
The gas flame goes out
during operation.
The burner parts are not positioned correctly.
Position the burner parts correctly.
The ignitor on the
burner does not spark.
The mains circuit breaker has tripped.
If it has, contact a qualified electrician or Miele.
There is food residue stuck between the ignitor and
the burner cap.
The flame failure device is dirty.
Remove any soiling (See “Cleaning and care”).
Optional accessories
33
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Original Miele ceramic and
stainless steel cleaner 250ml
Removes heavy soiling, limescale
deposits and aluminium residues.
Original Miele all purpose
microfibre cloth
Removes finger marks and light soiling.
Service
34
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
You can book a Miele customer service call-out online at www.miele.com.au/
service or www.miele.co.nz/service.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of these
operating and installation instructions.
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
Installation
*INSTALLATION*
35
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
A gas cooktop must not be installed directly next to a deep fat
fryer as the gas flames could ignite the fat in the fryer. It is essential
to maintain a distance of at least 300mm between these two
appliances.
When installing the cooktop, make sure that the gas hose and
electrical connection cable cannot come into contact with hot
appliance parts.
The electrical cable and any flexible gas connection pipes must be
installed in such a way so that they do not come into contact with
any moving kitchen parts (e.g. a drawer), and cannot become
trapped.
Carefully observe the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
36
Safety distances
Safety distance above the cooktop
A minimum safety distance must be
maintained between the cooktop and
the rangehood above it. See the
rangehood manufacturer's operating
and installation instructions for details.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance as per AS/
NZS 5601.1 must be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, you should observe the
greatest safety distance.
Installation
*INSTALLATION*
37
Safety distances to the sides and
back of the appliance
Ideally the appliance should be installed
with plenty of space on either side.
There may be a wall at the rear and a
tall unit or wall on one side (right or left).
On the other side, however, no tall unit
or wall should stand higher than the
appliance. Before installing the
appliance, check that the location
provides the required clearances from
combustible material and, if necessary,
provide protection to adjacent surfaces
as required by regulations.
Not allowed
Recommended
Not recommended
Not recommended
Installation
*INSTALLATION*
38
A gas appliance shall be installed such
that the surface temperature of any
nearby combustible surface* will not
exceed 65°C above ambient.
The minimum clearance from a
combustible surface shall be a 200mm
horizontal distance from the periphery
of any gas burner (AS/NZS 5601.1).
If that horizontal clearance is less than
200mm, that vertical surface must be
protected by a non-combustible
material for 150mm above the top of
the edge of the nearest burner for the
full dimension of the cooktop (depth,
width).
X Height from worktop surface to the
top of the edge of the burner
The shown area indicates the protected
surface, which may be ceramic tiles or
other approved material.
*Combustible surface:
A material which will ignite and burn,
and includes material which has been
flameproofed.
Clearance underneath the appliance
A minimum safety clearance of 30mm
must be provided underneath the
appliance.
Please note that clearance must also be
provided for the installation of the
flexible gas connection hose and mains
electrical cable if the appliance is to be
installed above a closed surface (e.g.
an oven).
Installation
*INSTALLATION*
39

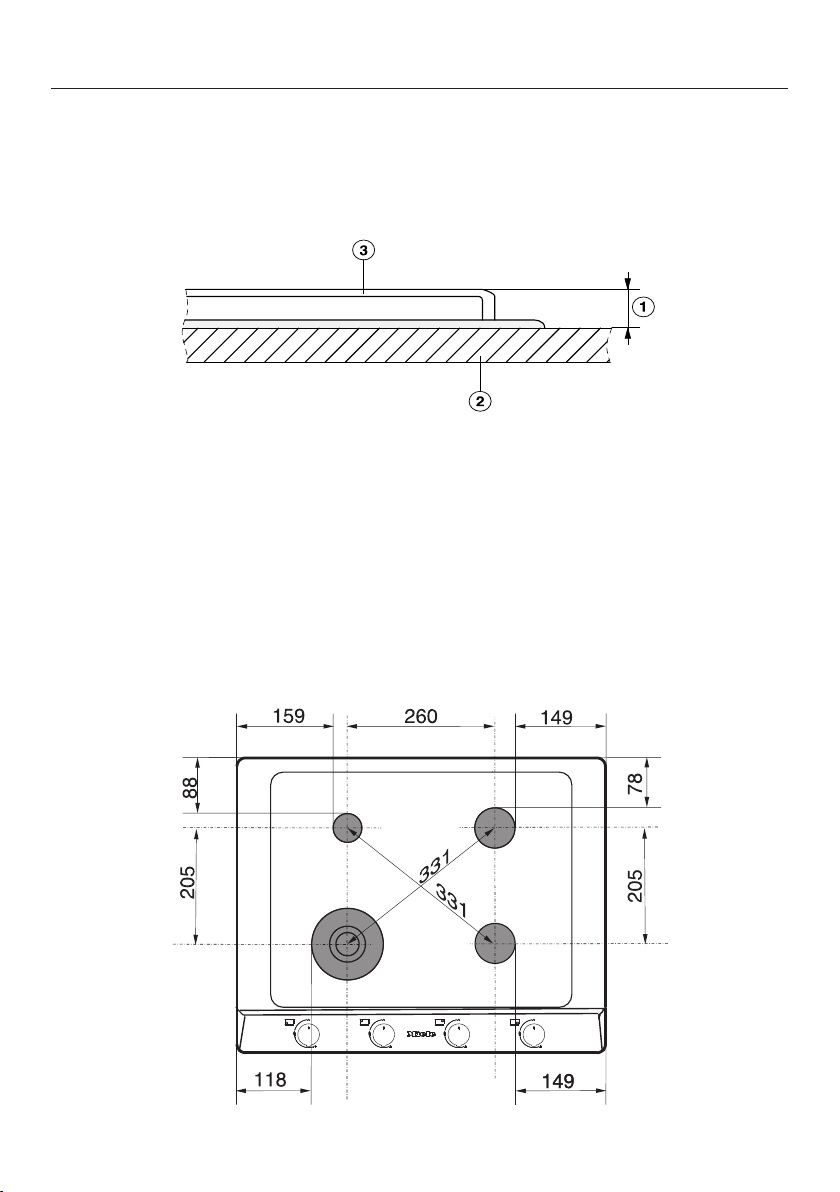

Detailed dimensions
Height of pan supports above the worktop surface
a
Vertical distance
b
Worktop surface
c
Pan support
The vertical distance from the top of the pan supports to the surface of the
worktop is 53mm.
Distances from burner to the edge of the appliance
Installation
*INSTALLATION*
40
Installation notes

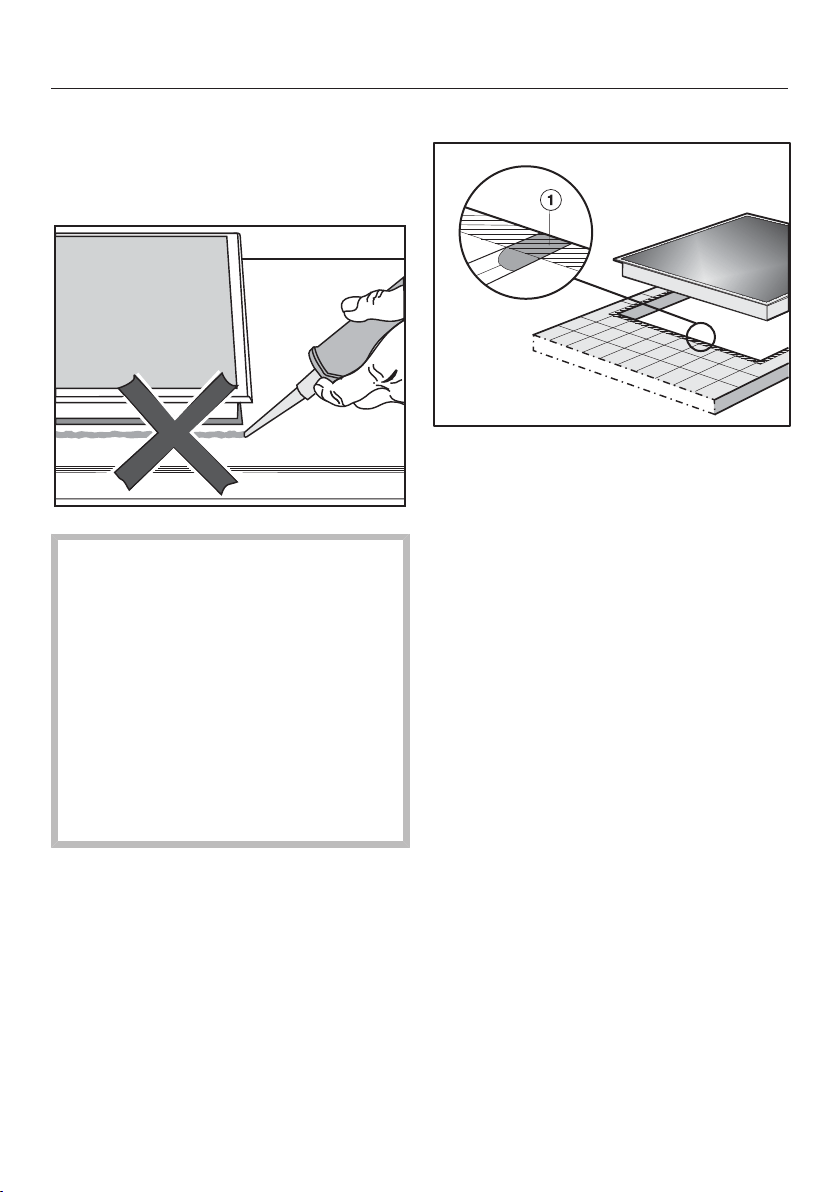

Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
Installation
*INSTALLATION*
41
Installation dimensions
All dimensions in this instruction booklet are given in mm.
a
Front
b
Building-in depth
c
Gas connection R½ - ISO7-1
d
Mains connection box with mains connection cable, L = 2000mm
Installation
*INSTALLATION*
42
Installation
Preparing the worktop
Create the worktop cut-out as shown
in the cooktop diagram. Remember
to maintain the minimum safety
distances (see “Installation – Safety
distances”).
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
The sealing strip ensures that the
cooktop will sit securely in the cut-out
without slipping. Any gap between the
frame and worktop will become
smaller over time.
Installing the cooktop
Attach the sealing strip provided
underneath the edge of the cooktop.
Feed the mains connection cable
down through the worktop cut-out.
Place the cooktop centrally in the
cut-out. When doing this make sure
that the seal of the appliance sits
flush with the worktop on all sides.
This is important to ensure an
effective seal with the worktop.
If the seal does not meet the worktop
correctly on the corners, the corner
radii (≤R4) can be carefully scribed to
suit.
Do not use any additional sealant
(e.g. silicone).
Connect the cooktop to the electricity
supply (see “Installation – Electrical
connection”).
Connect the cooktop to the gas
supply (see “Installation – Gas
connection”).
Installation
*INSTALLATION*
43
Securing the cooktop
Secure the cooktop using the
brackets supplied.
Checking operation
After installing the cooktop, ignite all
burners to check that they are
operating correctly:
- The flame must not go out on the
lowest setting, or when the control is
turned quickly from the highest to the
lowest setting.
- On the highest setting, the flame
must have a distinctive and visible
core.
Installation
*INSTALLATION*
44
Gas connection
Risk of explosion due to an
incorrect gas connection.
If the gas connection is carried out
incorrectly, it may result in gas
leakage.
Connection to the gas supply must
only be undertaken by an authorised
and registered gas installer in strict
accordance with current local and
national safety and building
regulations. The installer is
responsible for ensuring that the
appliance functions correctly when
installed.
Risk of explosion due to an
incorrect conversion.
If the conversion to another type of
gas is carried out incorrectly, it may
result in gas leakage.
Conversion from one type of gas to
another must only be undertaken by
an approved and registered gas
installer in strict accordance with
current local and national safety and
building regulations. The installer is
responsible for ensuring that the
appliance functions correctly when
installed.
The gas connection must be
installed so that connection can be
made either from inside or outside
the kitchen furniture unit. Every
appliance must have its own
isolating valve. The isolating valve
must be easily accessible and visible
(by opening the cabinet door if
necessary).
Check with your local gas supplier
about the type of gas supplied and
compare this information with the
type of gas quoted on the
appliance's data plate.
The cooktop is not connected to an
exhaust flue.
When installing and connecting the
appliance, please observe the
relevant regulations and ensure it has
adequate ventilation once installed.
The gas connection must be made in
accordance with national and local
regulations.
Special provisions of the local gas
supplier as well as building
regulations must also be observed.
Risk of heat damage.
Gas connections, gas hoses or pipes
and mains connection cables can be
damaged if exposed to heat from the
cooktop.
After installation make sure that
neither the gas hose/pipe nor the
mains cable can come into contact
with hot parts of the appliance and
that the gas hose/pipe and
connections on the cooktop cannot
come into contact with hot exhaust
fumes.
Installation
*INSTALLATION*
45
Risk of explosion due to
damaged gas hoses and pipes.
Gas can leak from damaged flexible
gas hoses.
Attach flexible gas hoses in such a
way that the hose assembly is not
exposed to high temperatures
exceeding the maximum
recommended by the hose
manufacturer, subjected to strain,
kinking, permanent deformation or
damage by vermin.
Connect the cooktop to the gas
supply in accordance with national
and local regulations. Check the gas
connection for any leaks.
The gas pressure must be set by an
approved gas fitter and a full
operational test and a test for
possible leakages must be carried
out by the gas fitter after installation.
Depending on country of destination,
this appliance is set up for connection
to natural gas or ULPG. See adhesive
label on the appliance:
- G = NG (natural gas)
- LP = ULPG (Propane/Butane)
Depending on country of destination,
jets are supplied for conversion to a
different type of gas. If the appropriate
jets have not been supplied with the
appliance, you will need to contact
Miele. Conversion to another type of
gas is described in the section
“Conversion to another type of gas”.
Connecting the cooktop
The cooktop is supplied with a ¹/₂"
threaded gas connection. There are two
connection options:
- Fixed connection.
- Flexible hose class B or D which
complies with AS/NZS1869 and
must be certified. The minimum inner
diameter(Ø) must be 10mm and the
maximum length 1200mm.
Risk of explosion due to gas
leakage.
Unsuitable sealant will not ensure the
required leak protection for
connections.
Ensure that a suitable sealant is
used.
Installation
*INSTALLATION*
46
Setting the gas pressure
The gas pressure must be set by the
authorised gas fitter as shown on the
data plate:
Natural gas 1.0 kPa
ULPG (Propane/Butane) 2.75 kPa
The gas pressure must be set with the
largest burner operating at maximum
setting.

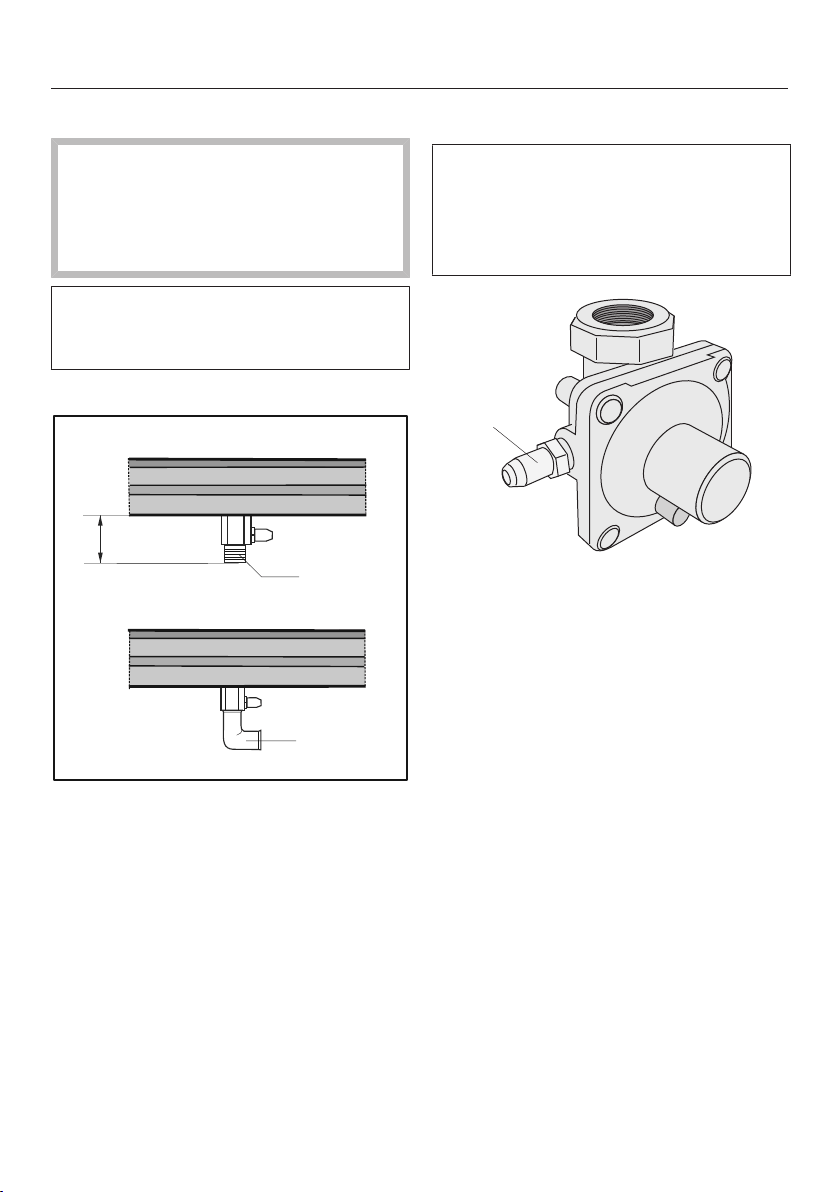

For ULPG models
a
b
~ 60
a
Connection R¹/₂" with test point
b
Connection R¹/₂" with test point and
90° angle
When using a 90° angle the building-
in depth will increase to the depth of
the elbow used.
For natural gas models
The gas regulator is only included with
appliances which are set up for
connection to natural gas. The
regulator must be connected directly
to the appliance.
a
a
Pressure Test Point
Loosen the screw in the test point
until it is free in its housing. The
screw is retained in this position.
Connect the hose from the pressure
gauge.
Reassemble one of the large burners,
turn on the gas and manually light the
burners.
Disconnect the hose from the
pressure gauge and screw in the test
point screw.
For natural gas models: Connect the
gas regulator directly to the
appliance.
Installation
*INSTALLATION*
47
Burner ratings
Nominal ratings
Burner Gas type Highest setting Lowest setting
MJ/h MJ/h
Auxiliary burner NG
ULPG
4.1
3.6
1.14
1.02
Normal burner NG
ULPG
7.0
6.5
1.64
1.93
Wok burner NG
ULPG
14.5
12.5
5.00
4.53
Total NG
ULPG
32.6
29.1
Installation
*INSTALLATION*
48
Electrical connection
All electrical work must be carried out
by a suitably qualified and competent
person in strict accordance with current
local and national safety regulations.
Connection must be made via a
switched socket. This will make it easier
for service technicians should the
appliance need to be repaired. The
electrical socket must be easily
accessible after installation.
Danger of injury!
Miele cannot be held liable for
unauthorised installation,
maintenance and repair work as this
can be dangerous to users.
Miele cannot be held liable for
damage or injury caused by incorrect
installation, maintenance or repair
work, or by an inadequate or faulty
earthing system (e.g. electric shock).
If the plug has been removed or the
connection cable is not supplied with
a plug, the cooktop must be
connected to the mains supply by a
suitably qualified electrician.
If the appliance is to be hard-wired,
an additional means of
disconnection must be provided for
all poles in accordance with the
wiring rules. When switched off,
there must be an all-pole contact
gap of at least 3mm in the switch
(including switch, fuses and relays).
Connection data is shown on the
data plate. It must match the mains
electrical supply.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is given on the
data plate. Please ensure this
information matches the household
mains supply.
Residual current device
For extra safety, it is advisable to
protect the appliance with a suitable
residual current device (RCD) with a trip
range of 30 mA.
Replacing the mains connection
cable
Danger of electric shock!
Incorrect connection to the electricity
supply may result in an electric
shock.
The mains connection cable must
only be replaced in accordance with
current local and national safety
regulations.
When replacing the mains connection
cable, it must be replaced with cable
type H05VV-F by a Miele authorised
service technician or a suitably qualified
and competent electrician in order to
avoid a hazard. These cables are
available from Miele.
Conversion to another type of gas
*INSTALLATION*
49
Risk of explosion due to an
incorrect conversion.
If the conversion to another type of
gas is carried out incorrectly, it may
result in gas leakage.
Conversion from one type of gas to
another must only be undertaken by
an authorised and registered gas
installer in strict accordance with
current local and national safety and
building regulations. The installer is
responsible for ensuring that the
appliance functions correctly when
installed. Disconnect the cooktop
from the electricity supply and turn
off the gas supply.
Jet table
The jet markings refer to a ¹/₁₀₀mm
bore diameter.
Burner
Main jet Small jet
NG
Auxiliary 0.90 0.52
Normal 1.18 0.52
Fast - -
Wok burner 1.75 1.10
ULPG
Auxiliary 0.53 0.32
Normal 0.70 0.42
Fast - -
Wok burner 1.00 0.65
Conversion to another type of gas
*INSTALLATION*
50
Changing the jets
Disconnect the cooktop from the
electricity supply and turn off the gas
supply.
When converting to another type of
gas, both the main and small jets
need to be changed.
Changing the main jets
Auxiliary, normal and large burners
The burner cap is locked on these
burners. You must turn it clockwise or
anti-clockwise to remove it.
Remove pan support, burner cap,
burner ring (wok) and burner
head.
Using an M7 socket spanner,
unscrew the main jet.
Fit the correct jets securely (see jet
table).
Secure the jets against inadvertent
loosening with sealing wax.
Auxiliary, normal and fast burners
Wok burner
Conversion to another type of gas
*INSTALLATION*
51
Changing the small jets
To change the jets, the burner fixing
screws must first be loosened and the
upper section of the appliance
removed.
Pull the control knobs off.
Remove the burner components.
Undo the screws.
Lift the top of the appliance off.

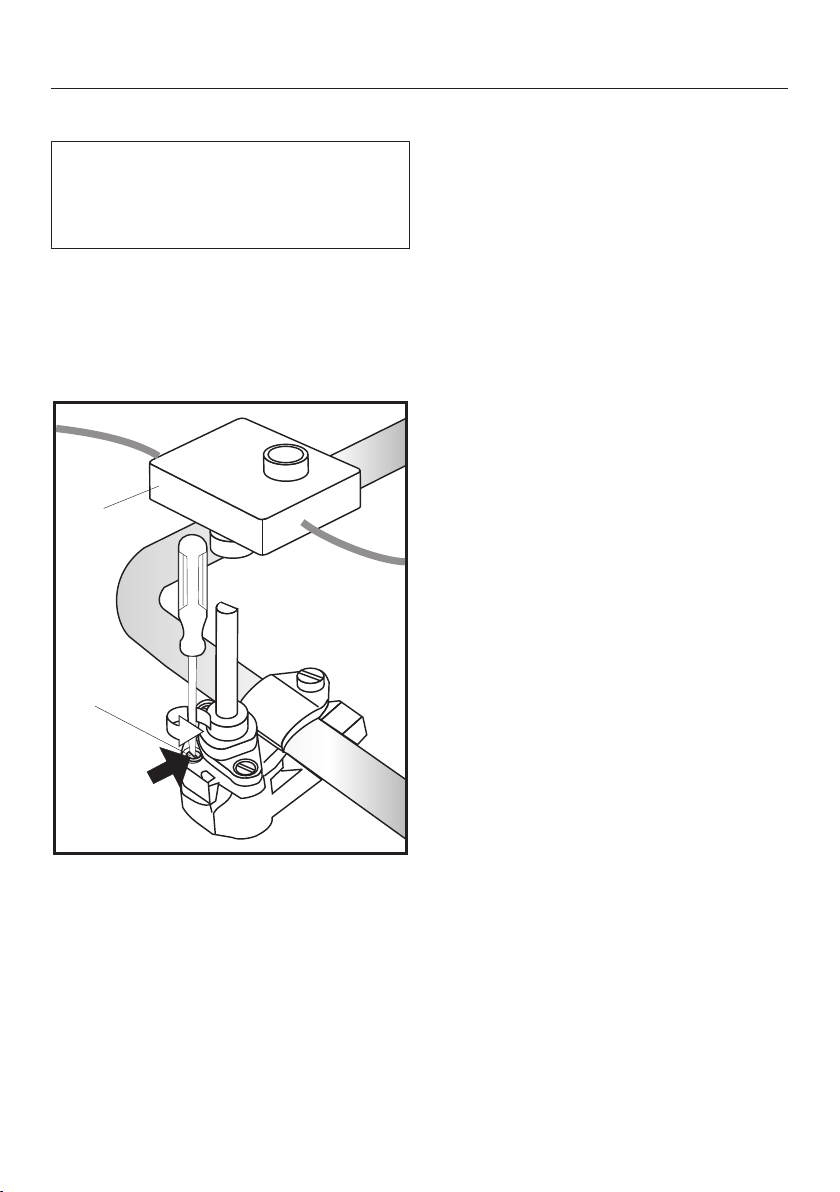

a
b
Remove the ignition switch.
Using a small screwdriver, unscrew
the small jet in the gas fitting.
Pull out the jet with a pair of pliers.
Fit the correct jets securely (see jet
table).
Secure the jets against inadvertent
loosening with sealing wax.
Checking operation
Check all gas fittings for leaks.
Reassemble the cooktop.
Ignite all burners to check that they
are operating correctly.
- The flame must not go out on the
lowest setting, or when the control is
turned quickly from the highest to the
lowest setting.
- On the highest setting, the flame
must have a distinctive and visible
core.
Adhere the label supplied with the
jets over the old label stating the type
of gas being used.
Miele Head Office Melbourne:
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
and Head Office Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
Miele Experience Centre Doncaster:
1136/7 Doncaster Shopping Centre
619 Doncaster Rd, Doncaster, VIC 3108
M.-Nr. 07 143 630 / 11
en-AU, NZ
KM 2012
