INSTRUCTION MANUAL
LED WATERPROOF FITTING
LINKABLE & QUICK CONNECT
INTRODUCTION & WARRANTY
TECHNICAL DATA
WARNING
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product. The products
are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This
product is warranted for manufacturing defects only.
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable, when the light source
reaches its end of life the whole luminaire should be replaced.
4. If the external flexible cable or cord of this luminaire is damaged, it shall
be exclusively replaced by the manufacturer or his service agent or a
similar qualified person in order to avoid a hazard.
MODEL SKU WATTS LUMENS CRI DF
BEAM
ANGLE
LIFE
SPAN
[Hours]
ON/OFF
CYCLE
INPUT POWER MATERIAL DIMENSION
MAX
CONNECTABLE
UNITS
VT-80060
23087
23088
18W 1900Lm ≥80 ≥0.7 120° 25,000 >15,000
AC:220-240V
50/60 Hz
PC 600x59x47mm 20 pcs
VT-80120
23083
23084
36W 3900Lm ≥80 ≥0.9 120° 25,000 >15,000
AC:220-240V
50/60 Hz
PC 1200x59x47mm 10pcs
VT-80150
23085
23086
48W 5200Lm ≥80 ≥0.9 120° 25,000 >15,000
AC:220-240V
50/60 Hz
PC 1500x59x47mm 8pcs
This marking indicates that this product
should not be disposed of with other
household wastes.
Caution, risk of electric shock.

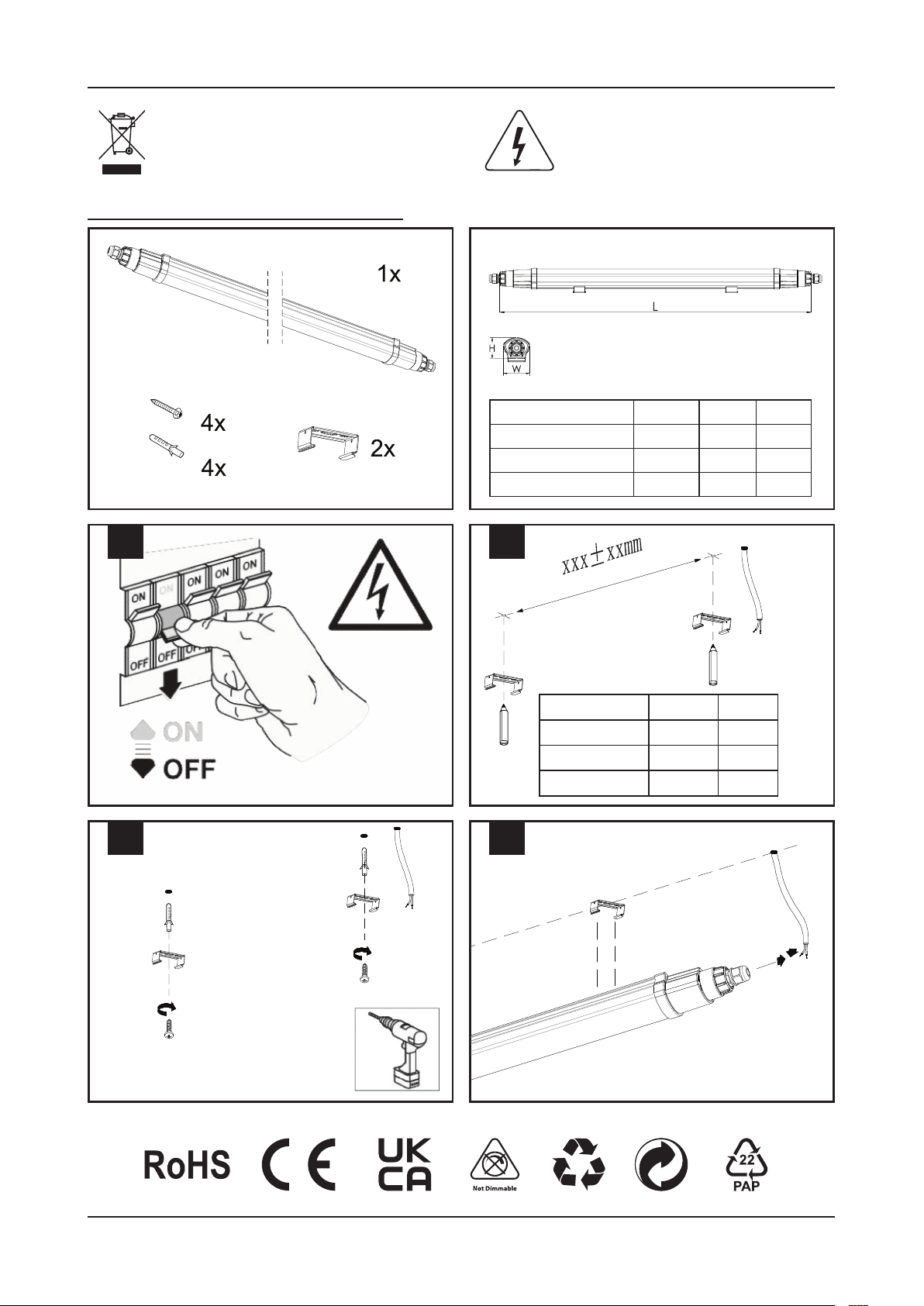

INSTALLATION INSTRUCTION
3
MODEL L W H
VT-80060
600 59 47
VT-80120
1200 59 47
VT-80150
1500 59 47
MODEL XXX XX
VT-80060
250 ±20
VT-80120
800 ±20
VT-80150
1100 ±20
1 2
4

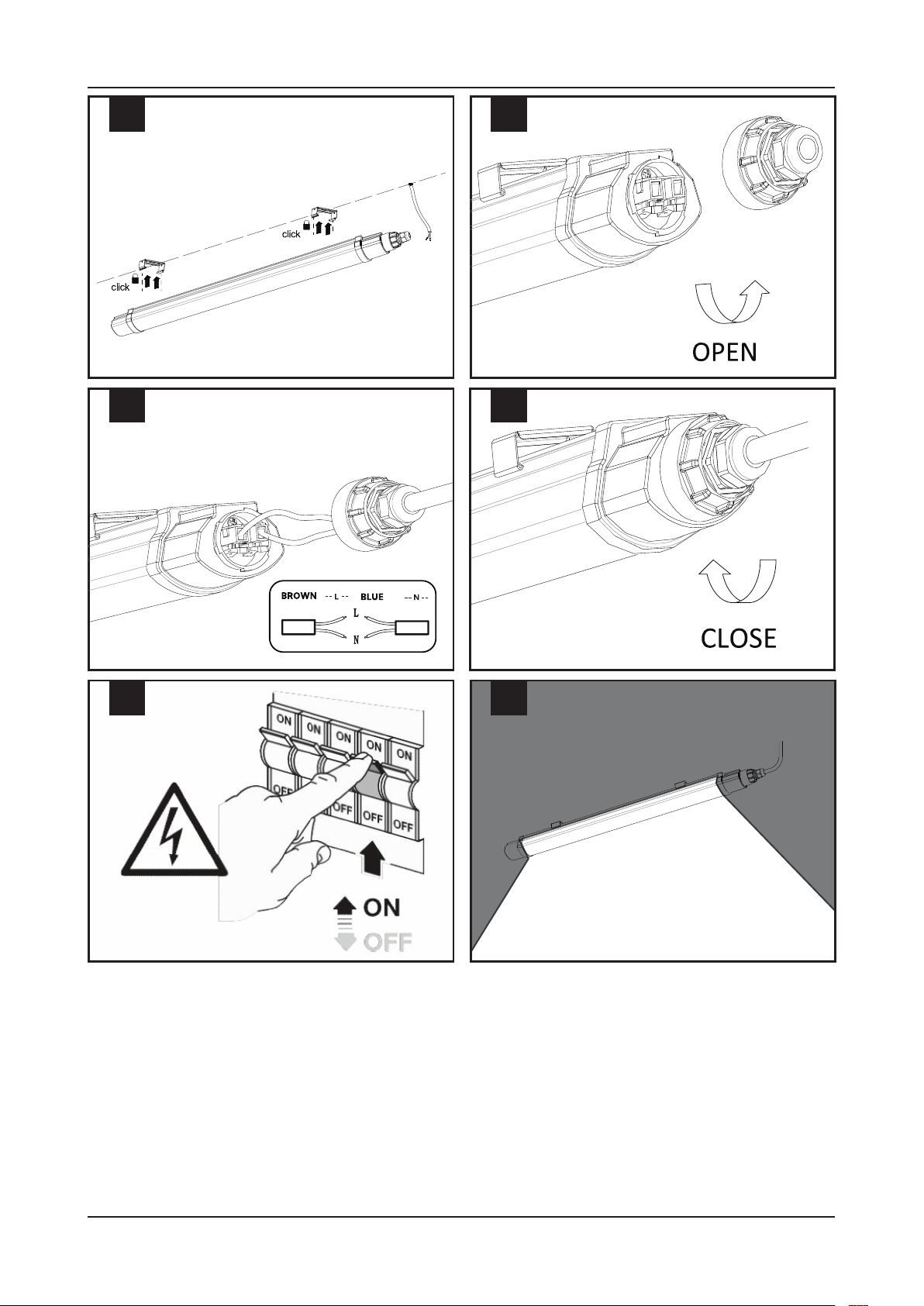

1. Turn o the the power.
2. Mark the proper drilling point as per the chart.
3. Fix the brackets onto the ceiling by oered screws. Open junction box cover of the body with
screwdriver.
4. Make sure the cable length is appropriate.
5. Install the lamp to the ceiling clips.
6. Open the right side lid to connect wires.
7. Insert cable through the waterproof connector and wire it into terminal block. Make sure L
and N are wired to correct holes. (LIVE = BROWN; NEUTRAL = BLUE)
8. Close the right lid.
9. Turn on the power and test.
5 6
87
109
