To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
https://www.MyLumens.com/support
VC-TA50
Auto Tracking Camera
(PTZ Video Camera)
User Manual - English
Version VCAR106
[Important]
English -1
Table of Contents
Chapter 1 Package Contents .....................................................................................2
Chapter 2 Product Overview and Interface ..............................................................3
2.1 I/O functions Introduction ..............................................................................3
2.2 Description of LED indicator ..........................................................................4
Chapter 3 Instruction for installation ........................................................................5
3.1 Scenario ...........................................................................................................5
3.2 Camera Size .....................................................................................................5
3.3 Preparation before installation ......................................................................6
3.4 Instruction for installation ..............................................................................6
Chapter 4 Introduction of Remote Control and Setting Menu .............................. 14
4.1 Remote Control ............................................................................................. 14
4.2 Setting Menu .................................................................................................. 15
Chapter 5 Network Function Settings Description ................................................ 19
5.1 Connecting Camera to Network ................................................................... 19
5.2 Web Page Menu Function Description ........................................................ 21
Chapter 6 DIP Switch Setting .................................................................................. 35
6.1 OUTPUT Switch ............................................................................................. 35
6.2 IR SELECT ..................................................................................................... 35
6.3 Camera Address Selector ............................................................................ 35
6.4 System Switch ............................................................................................... 35
Chapter 7 Troubleshooting ..................................................................................... 36
Chapter 8 Safety Instructions ................................................................................. 37
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information ..... 38
Copyright Information ................................................................................................... 39
English -2

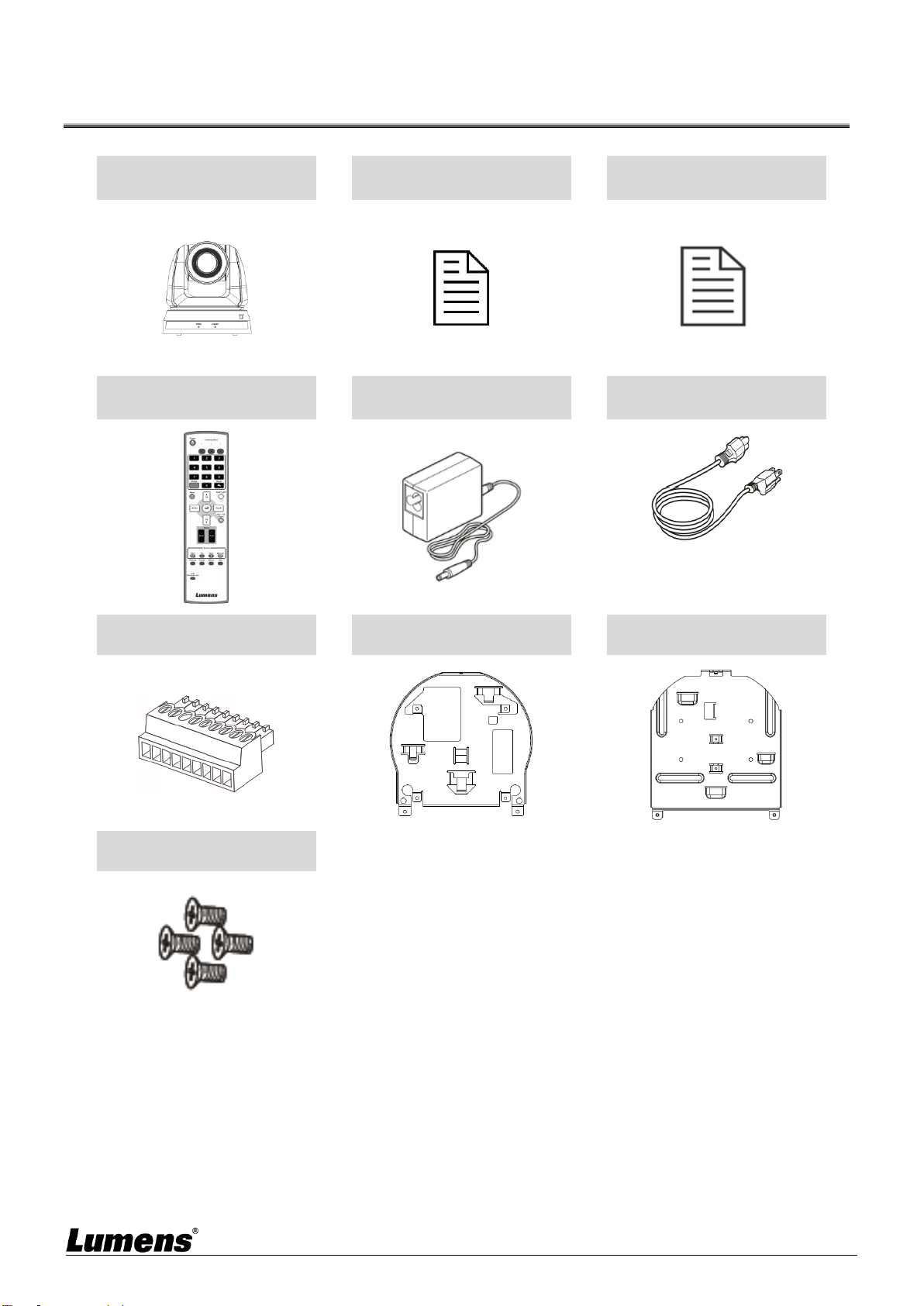

Chapter 1 Package Contents
Camera
Quick Installation Guide
RS-232/RS-422
Connection Instruction
Remote Control
Power Adapter
Power Cord
Appearance may vary
depending on
country/region
RS-422 Connector
Metal Plate A
Metal Plate B
M3 Screws
Silver x 8 / Black x 2
English -3
Chapter 2 Product Overview and Interface

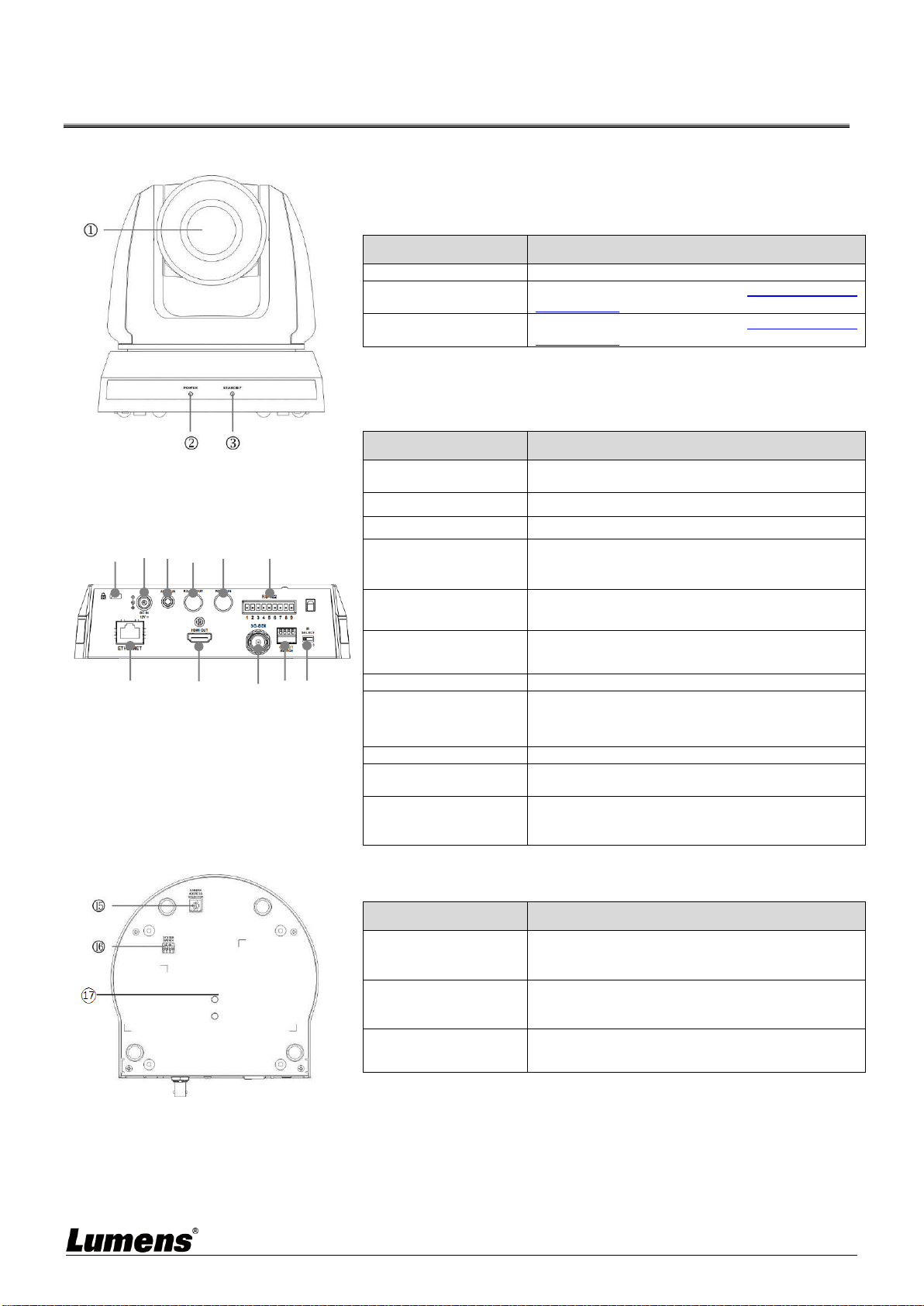

2.1 I/O functions Introduction
Item
Function Descriptions
1. Camera lens
HD camera lens
2. Power LED
Display the status, please refer to 2.2 Description of
LED indicator
3. Standby LED
Display the status, please refer to 2.2 Description of
LED indicator
Item
Function Descriptions
4. Kensington lock
hole
Safety lock slot
5. Power input
AC power supply connecting port
6. Audio In
Support Line In/Mic In
7. RS-232 output
RS-232 output port, at most 7 cameras can be
connected in a serial connection
8. RS-232 input
RS-232 input port, at most 7 cameras can be
connected in a serial connection
9. RS-422 connecting
RS-422 connecting port, at most 7 cameras can be
connected in a serial connection
10. Network port
Support IEEE 802.3at PoE + power supply
11. HDMI output
HDMI output (support Audio output)
12. 3G-SDI
3G-SDI output
13. OUTPUT Switch
Adjust the resolution setting. The default is 1920 x
1080/60p
14. IR SELECT
Remote control ID setting
It can be controlled only when it corresponds to the
Camera Select on the remote control
Item
Function Descriptions
15. Camera Address
Selectors
Camera ID Setting
16. SYSTEM Switch
System DIP Setting
17. Tripod lock hole
The camera is mounted on a (specification) 1/4” -
-20 UNC tripod
⑪
⑫
⑬
⑭
English -4
2.2 Description of LED indicator
Status
Standby
Power
Startup in progress
Green light
Orange light
In use
Green light
No indicator
In standby mode
No indicator
Orange light
Tally mode 1
Red light
Red light
Tally mode 2
Green light
Red light
Tracking Mode
Flickering green light
No indicator
<Remark> The Tally mode can be enabled via RS-232 command control. Please download the file for RS-232
Command Set from the Lumens website
English -5
Chapter 3 Instruction for installation

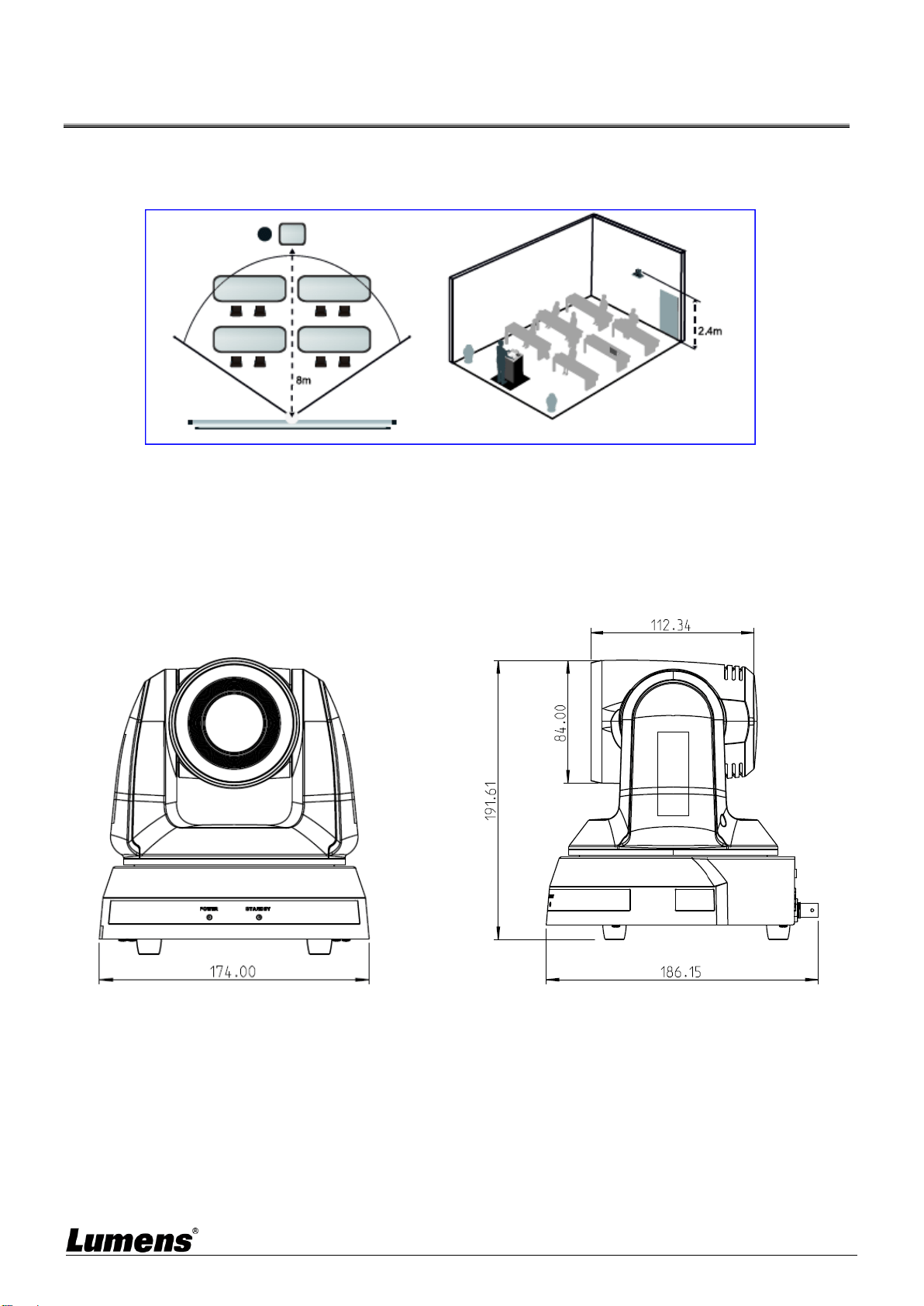

3.1 Scenario
3.1.1 Applicable distance range of VC-TA50: 4 - 15 m, best tracking target distance recommended:
8 m
3.1.2 Mounting height: 2 - 3 m, best height recommended: 2.4 m
<Note> For maintaining the best tracking results, avoid images of people on posters, screens, monitors, TVs in the
background
3.2 Camera Size
Length x Width x Height: 174 x 187 x 192 mm
Weight: 2.0 Kg
English -6

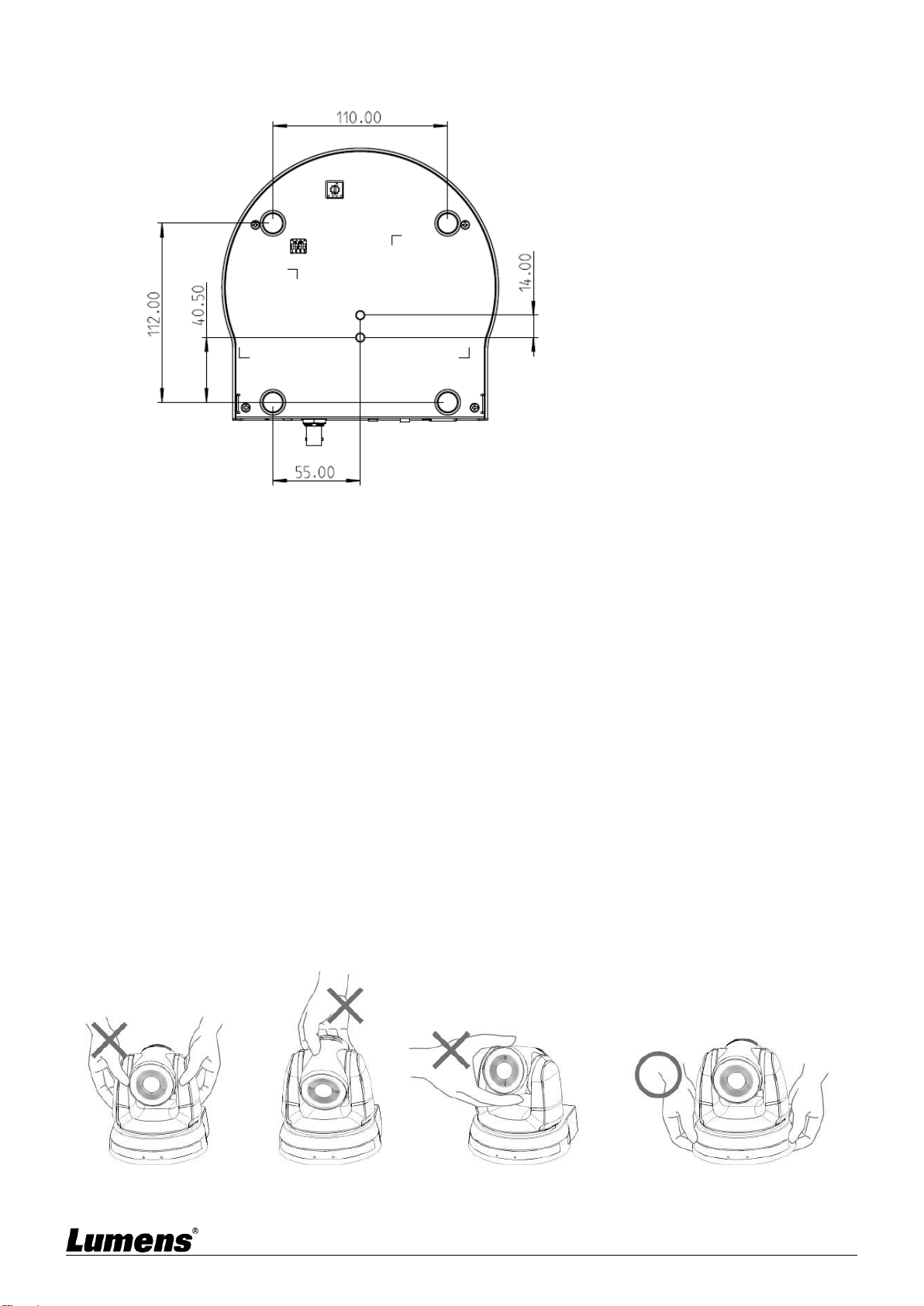

3.2.1 Dimensions of the bottom of the machine
The camera can be mounted on a 1/4”-20 UNC PTZ tripod deck by using the lock holes on the bottom for the tripod
3.3 Preparation before installation
Installation and connection of HD camera requires special skills. To install by yourself, please
follow necessary steps, ensure steady and tight installation of the device, and pay attention to your
safety to avoid any accident.
Ensure the safety of the installation environment. Please do not install the device on unstable
ceiling or in a place where the device is in danger of falling to avoid any accident.
Please check whether accessories in the box are complete or not. Please contact the supplier
for any shortage, and make sure to keep the accessories in the box intact.
Please choose a proper place for installation of camera in advance. Please determine an
installation place according to the following requirements
Confirm the position for the object to be captured.
Confirm whether the camera is set at a proper distance from other light sources.
3.4 Instruction for installation
3.4.1 I would like to install camera on the desk
3.4.1.1 Precautions for installation
Please install the machine on a flat desk
Do not grab the camera head by hand when handling the device
Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera
English -7

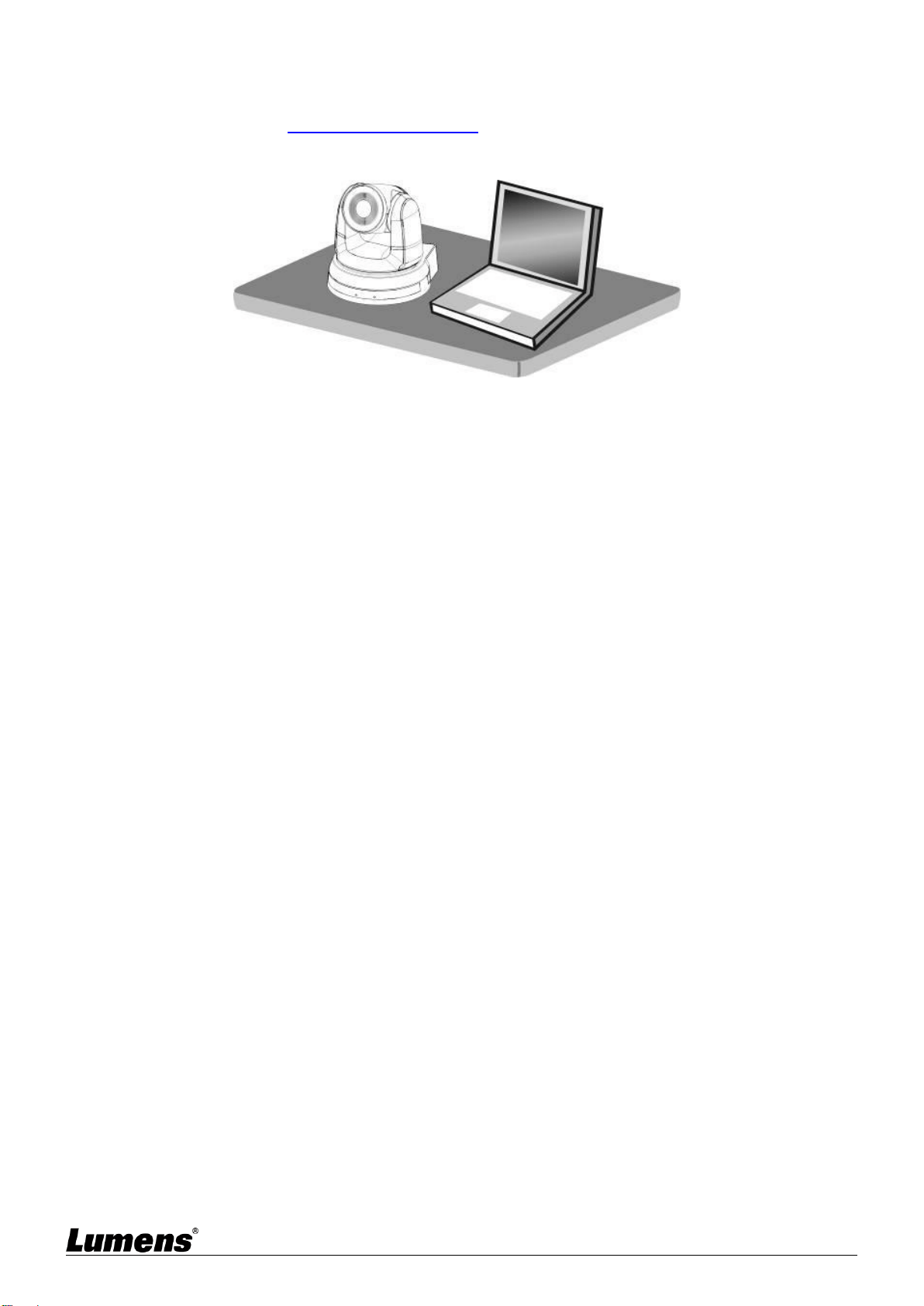

3.4.1.2 Installation steps
1. Please adjust DIP switch at first prior to installation
Please refer to Chapter 6 DIP Switch Setting for the relevant descriptions on DIP switch.
2. Place the camera on a flat desk directly to ensure the normal vertical and horizontal operation of the machine
3.4.2 I would like to install the camera on the ceiling
3.4.2.1 Prepare for the parts and equipment required during the installation
Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
Screw for locking on ceiling mounted hanger x 4
Drilling machine, screw driver, ladder
English -8

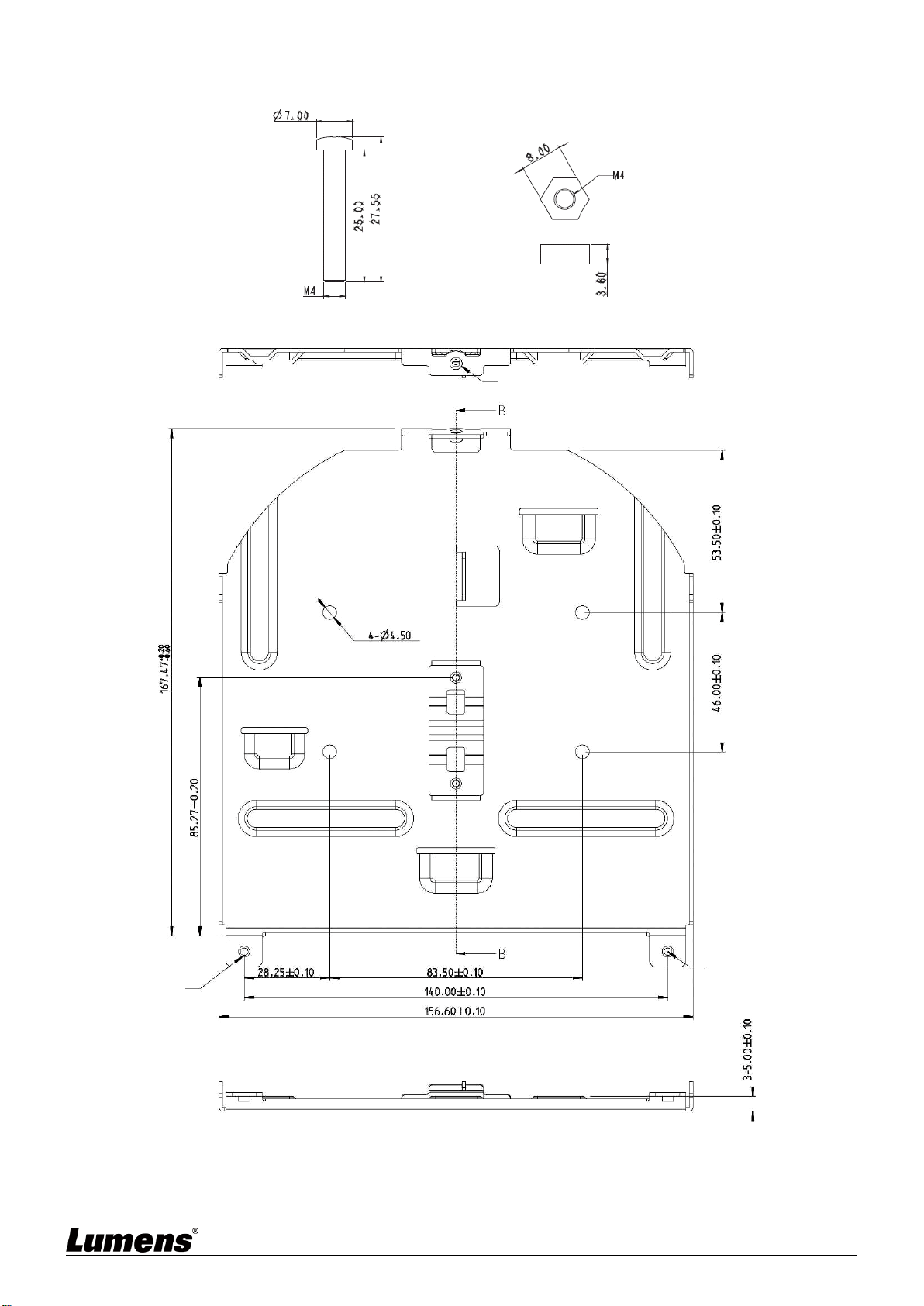

3.4.2.2 Metal Plate size diagram
Metal plate A - machine side
Metal plate A - machine side
Metal plate A locking screw
English -9
Metal plate B - ceiling side
Metal plate B - ceiling side
M3 threaded hole
M3 threaded hole
M3 threaded hole
Metal plate B locking screw
Metal plate B locking bolt
English -10
3.4.2.3 Precautions for installation
Before installation, please confirm the orientation of the machine relative to the object to be captured
It is recommended that the machine should be set at a distance of more than 1.5 meter away from the object to
be captured. Please adjust for a best distance according to the magnification of the lens
The machine (including metal plates) is weighed at about 2.5 kg. If it is to be installed on the ceiling, please use
the hanger that has obtained UL security approval to prevent the machine from falling down
Please check whether the camera is installed securely on a regular basis
3.4.2.4 Installation steps
1. Please adjust resolution on DIP switch at first
<Remark> Please refer to Chapter 6 DIP Switch Setting for the relevant descriptions on DIP switch
2. Fix the metal plate A on the machine base with 4 M3 silver screws
3. Lock the metal plate B on ceiling mounted hanger
<Note> (1) Please use the hanger that has obtained UL security approval
(2) Please reserve the hole for the connecting wires of the camera
4. Combine the metal plate A and the metal plate B
(1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B
(2) And then secure with 2 M3 silver screws and 1 M3 black screw
1.5 meter↑
Projector
Computer
English -11
3.4.2.5 How to remove
1. Remove the connecting wires from the camera
2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push
to the left to remove the machine
3. Then remove the screws on the hanger and the machine
3.4.3 Connecting devices
black screw
Anti-theft lock
slot
Audio In
RS-232 output
RS-232/RS-422 input
Computer / Control keyboard / Environment control equipment
Camera (serial connection)
Microphone
Power Supply
LAN port
HDMI/3G-SDI Output
Remote Control
Settings
Resolution
Settings
Router / Hub
Monitor
English -12
3.4.4 RS-232 connection (at most 7 Lumens cameras can be connected)
<Note> Only one of RS-422/RS-232 can be selected for control, please refer to 6.4 System Switch, DIP1
setting
RS-232 pins definition instructions
English -13

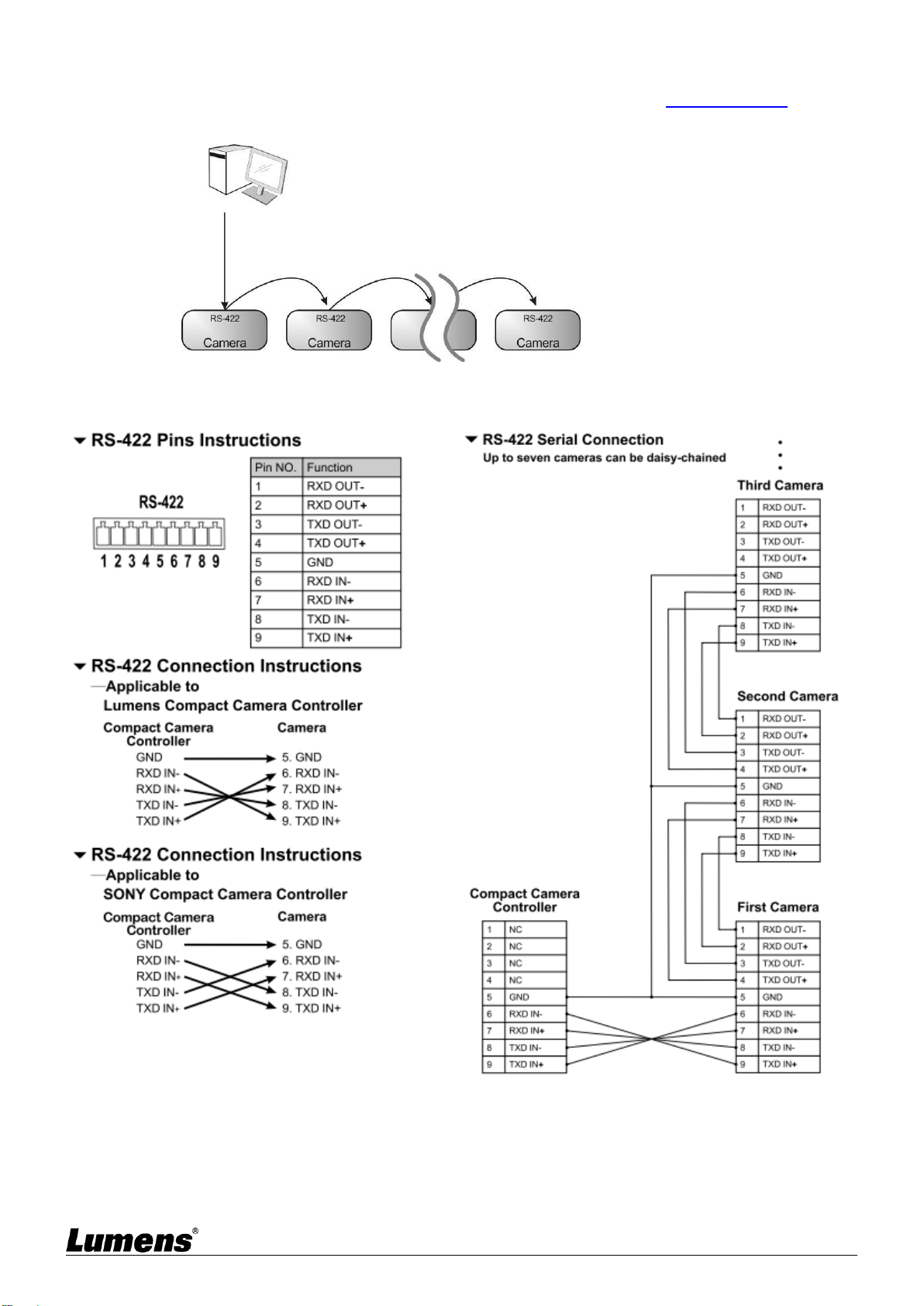

3.4.5 RS-422 connection (at most 7 Lumens cameras can be connected)
<Note> Only one of RS-422/RS-232 can be selected for control, please refer to 6.4 System Switch, DIP1
setting
RS-422 pins definition instructions
English -14
Chapter 4 Introduction of Remote Control and Setting
Menu

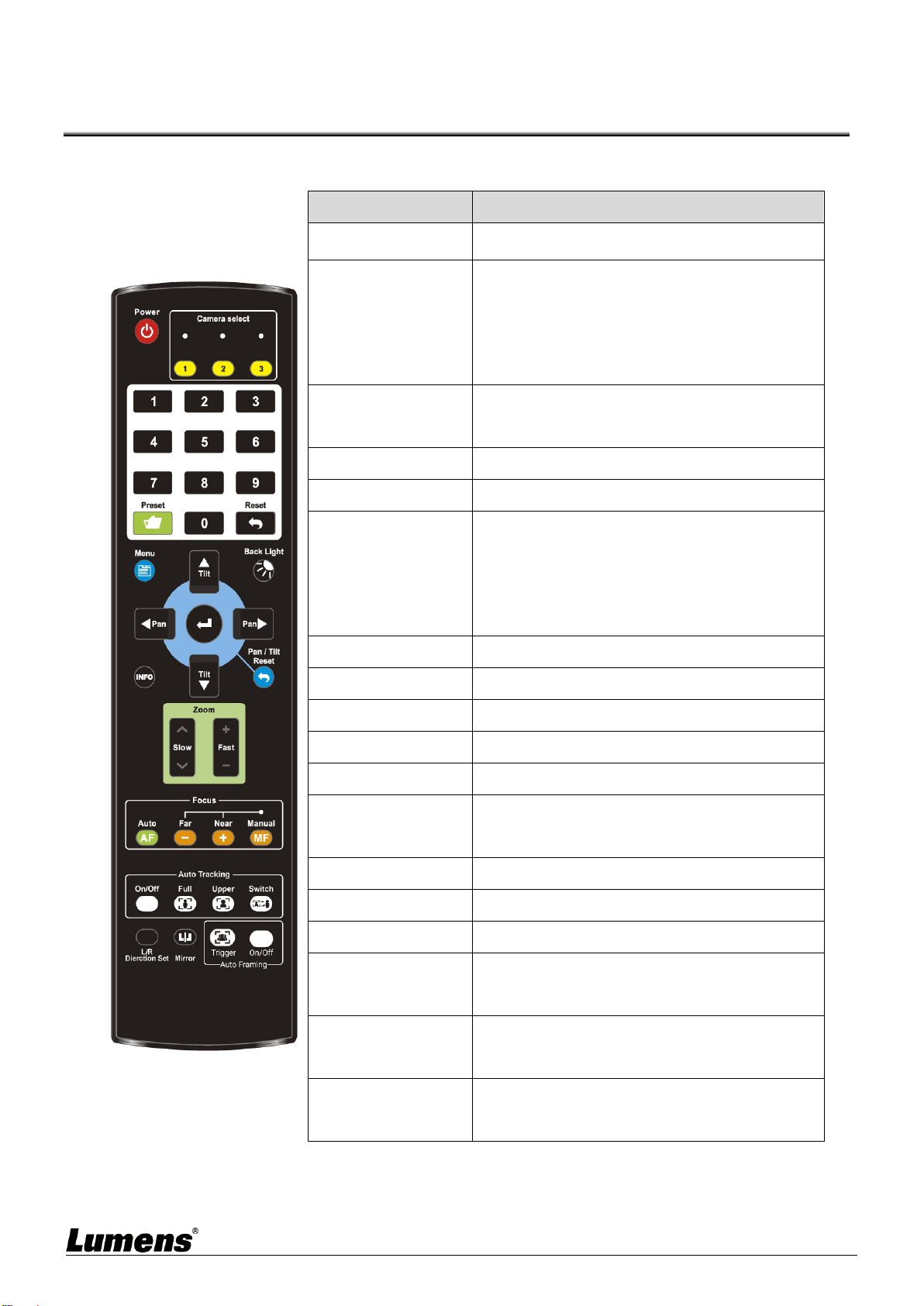

4.1 Remote Control
The below functions are listed alphabetically
Item
Description
,,,
Move the lens
Auto Tracking
On/Off: Enable/Disable Auto Tracking
Full: Full body tracking
Upper: Half body tracking
Switch: Switch tracking object
Auto Framing
On/Off: Enable/Disable Auto Framing
Trigger: Manual framing correction
Back Light
Turn on/off back light compensation
Camera select
Choose camera ID 1 ~ 3
Focus
Auto: Auto focus
Manual: Enable Manual Focus
Far/Near: Adjust the focal length in
Manual
Freeze
Freeze the screen
Home-Enter
Go back to the main page / Execute
Info
Status information
L/R Direction Set
L/R Direction / Normal
Menu
Display OSD menu
Mirror
Rotate the image (OFF / Mirror / Flip /
Rotate)
Pan/Tilt Reset
Clear the Pan/Tilt setting
Switch image effect (OFF / Neg / B&W)
Power
Power Switch
Preset
Appoint an ID (0 ~ 9) to save the current
position data
Reset
Appoint an ID (0 ~ 9) to delete the current
position data
Zoom-Fast
Fast: Adjust image size
Slow: Fine-tune image size
English -15
4.2 Setting Menu
<Remark> Press [Menu] on the remote control to enter the setting menu; the bold underlined values in the
following table are defaults.
1
st
Level
Major Items
2
nd
Level Minor Items
3
rd
Level Adjustment Values
Function Descriptions
Exposure
Mode
Full Auto / Shutter Pri / Iris Pri /
Manual
Exposure mode setting
Exposure Comp.
On / Off
Turn on/off Exposure Comp.
Exposure Comp.
Level
-6~C~5
The value can be adjusted after Exposure
Comp. is activated
Shutter Pri
60/ 30 mode
50/ 25 mode
Adjustable when the Exposure mode is set
to Shutter Pri
1/10000~1/1
Iris Pri
F1.6~F6.3
Adjustable when the Exposure mode is set
to Iris Pri
Manual Gain
0~45dB
Adjustable when the Exposure mode is set
to Manual Pri
Manual Speed
60/30 mode
50/25 mode
Manually set the shutter
1/10000~1/1
Manual Iris
F1.6~F6.3
Manually set the iris
Gain Limit
9~C~45dB
Max. limit value of electron gain
Iris Limit
F1.6~C~F6.3
Max. limit value of iris
WDR
Off / 1 / 2 / 3 / 4
WDR settings
White
Balance
Mode
1. Auto
2. Indoor
3. Outdoor
4. One Push WB
5. ATW
6. Manual
7. Sodium Lamp
8. 3000K
9. 4300K
10. 5000K
11. 6500K
12. 8000K
13. WideAuto
Select the color temperature mode
1. 4000k ~ 7000k
2. 3200k
3. 5800k
4. 1700k ~ 10000k
5. 1700k ~ 10000k
6. Custom
7. 2800k
One Push Trigger
ENTER
One push trigger
Manual Red
0~ C~128
Adjustable when the white balance mode is
set to Manual
Manual Blue
0~ C~128
Adjustable when the white balance mode is
set to Manual
English -16
1
st
Level
Major Items
2
nd
Level Minor Items
3
rd
Level Adjustment Values
Function Descriptions
Tracking
Type
Auto Tracking / Auto Framing
Picture Effect
OFF / Neg / B&W
Sharpness
0~A~15
2D NR
Off / Auto / 1 / 2 / 3 / 4 / 5
3D NR
Off / Low / Standard / Highest
Image Mode
Mode 1 ~ 6 / Self-defined
The user may customize his/her desired
image mode
Image Mode Load
Mode 1 ~ 6
Adjustable when the Image mode is set to
Custom. After selected, the corresponding
Image mode parameters will be read and
applied to Custom
Brightness
0~ C ~25
Adjustable when the Image mode is set to
Custom
Contrast
0~ C ~25
Adjustable when the Image mode is set to
Custom
Saturation
0~ C ~25
Adjustable when the Image mode is set to
Custom
Black Level
Type 1 ~ 5 / Off
Adjustable when the Image mode is set to
Custom
Gamma
0~ C ~3
Adjustable when the Image mode is set to
Custom
Skin Tone
0~ C ~5
Pan Tilt
Zoom
Pan/Tilt Limit
On / Off
Turn on/off the angle limit setting
Pan Right Limit
0~170
Limit the right angle
Pan Left Limit
-170~0
Limit the left angle
Tilt UP Limit
0~90
Limit the upward angle
Tilt Down Limit
-30~0
Limit the downward angle
Pan Flip
On / Off
After it is activated, the Pan command will be
reverse
Tilt Flip
On / Off
After it is activated, the Tilt command will be
reverse
Preset Speed
5 - C - 300 deg/sec
Set the PTZ rotation speed when Preset is
performed
PTZ Speed Comp
On / Off
Set the Pan/Tilt moving speed to vary from
the zoom position
Zoom Limit
x1~x20
Set the D-zoom limit
D-Effect
Mirror
OFF / Mirror / Flip / Mirror + Flip
Set the mode at which the image is turned
Auto Focus
AF Sensitivity
Low / Mid / High
For AF triggering speed, the higher the
speed is, the faster AF is triggered
AF Frame
Center Area / All Area
AF frame setting, when Central Area was
set as AF frame, focusing will be on the
center of the screen. When Full Frame was
set as AF frame, focusing will be calculated
based on the full screen
Zoom tracking
On / Off
This function can be set in the Manual Focus
(MF) mode
In Manual Focus mode, check whether focus
is enabled during lens zooming
English -17
1
st
Level
Major Items
2
nd
Level Minor Items
3
rd
Level Adjustment Values
Function Descriptions
PTZ Assist
On / Off
This function can only be enabled in the
Manual Focus (MF) mode
When PTZ Assist is enabled and PTZ
control is in operation, the focus will be
triggered. The focus will not be triggered
when the scene changes
SMART AF
On / Off
Turn on this function and AF will mainly
focus on the face
Ethernet
DHCP
On / Off
Enable/Disable the dynamic host
configuration
IP Address
192.168.100.150
Press [ENTER] to be in modify mode; select
the item to be modified using the up and
down keys, and modify the value using the
left and right keys or the numeric keys.
Subnet mask
255.255.255.0
Gateway
192.168.100.254
Audio
Audio In
Line In/ Mic In
Set Audio In
Audio Enable
On / Off
Turn on/off audio output
Audio Volume
0~C~10
Audio Volume Setting
Audio Delay
On / Off
When the audio is not synchronized with the
video, enable this function to set the audio
delay time
Audio Delay Time
(ms)
-1~-500ms
Set audio delay time
Encode Sample Rate
1. 48 KHz(AAC)
2. 44.1 KHz(AAC)
3. 16 KHz(AAC)
4. 16 KHz(G.711)
5. 8 KHz(G.711)
Set the encode type and sample rate
<Remark> SDI supports the audio output of
48 KHz only
System
Prompt
On / Off
Turn on/off the prompt information on the
display
IR Receive
On / Off
Turn on/off the infrared reception
When it is Off, the remote control will not be
able to control the camera. At this moment,
turn off and then turn on the power to restore
control of the remote control.
Motionless Preset
On / Off
When the function is enabled, the screen will
Freeze when Preset is executed. Freeze will
be released after Preset is completed
Tally Lamp
On / Off
Select Off and it will not be triggered by
commands to turn on or off
Language
English / Chinese
Initial Position
Last MEM / 1st Preset
Select the camera lens to return to the Last
MEM or the 1st Preset after POWER ON
<Remark> 1st Preset = Preset 0

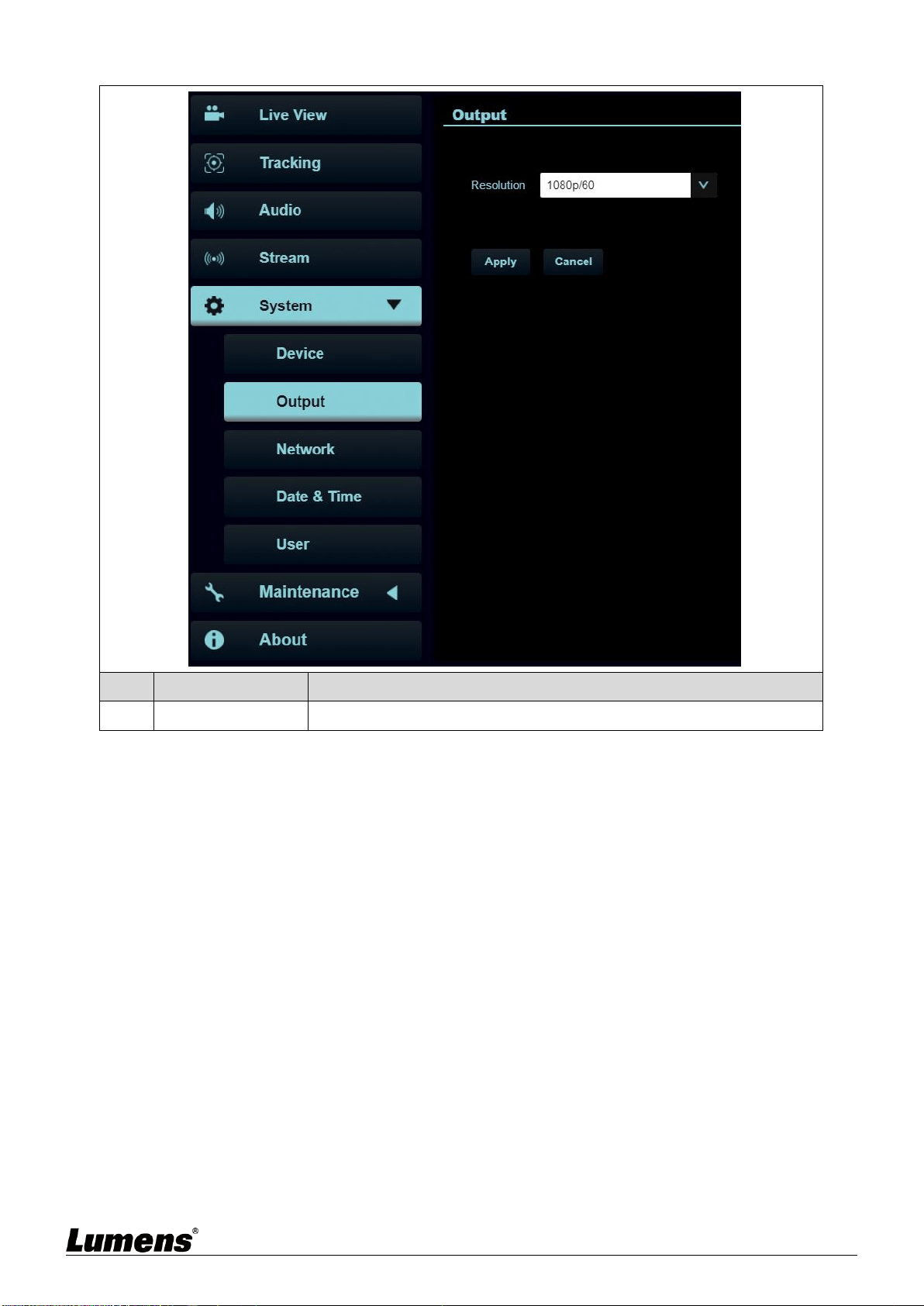

Output Mode
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Choose the output resolution
Control Device
Encoder / Controller
Control Device setting,
Controller: for joystick
Encoder: for tracking system
Protocol
Protocol V/ Pelco D
Protocol V=VISCA
English -18
1
st
Level
Major Items
2
nd
Level Minor Items
3
rd
Level Adjustment Values
Function Descriptions
Pelco D Address
1 ~255
The Protocol set to Pelco D allows the
camera ID address to be assigned
Factory Reset
On / Off
Resume the factory default setting
Status
Display the current setting status
English -19
Chapter 5 Network Function Settings Description
5.1 Connecting Camera to Network
5.1.1 Connecting to Internet
Two common connection methods are shown below
1. Connecting via switch or router
2. To connect directly through network cable, the IP address of the computer should be changed so that it is on
the same network segment as the camera
E.g.: The factory-preset default IP address of the camera is 192.168.100.150. The computer IP address must
be set with the same network segment, such as 192.168.100.101, so that the computer can be connected
correctly with the camera
Change network settings
5.1.2 Using the Browser to View the Images
Open the browser, and enter the IP address of the camera in the address bar
E.g.: http://192.168.100.150 (default IP address)
Enter administrator’s account and password
<Remark> For the first-time login, please refer to 5.2.9 System Settings - User to change the default password
Lumens Network Camera
Account: admin
Password: 9999 (Default)
Switch or router
Network cable
Network cable
Camera
Computer
Camera
Computer
Network cable
English -20
5.1.3 Using RTSP Player to View the Images
RTSP connections can be made using free software, e.g.: VLC, Quick Time, PotPlayer, etc.
RTSP connection address formats are as follows:
RTSP main stream (h264)=>rtsp://VC IP Address:8557/h264
RTSP second stream (h264) =>rtsp://VC IP Address:8556/h264
RTSP second stream (MJPEG) or single stream in MJPEG=>rtsp://VC IP
Address:8555/mjpeg
If password authentication is enabled, the RTSP connection address is as follows:
rtsp://Username:Password@VC IP address:port/hevc
rtsp://Username:Password@VC IP address:port/mjpeg
<Remark> To enable password authentication function, please refer to 5.2.5 Setting - Streaming

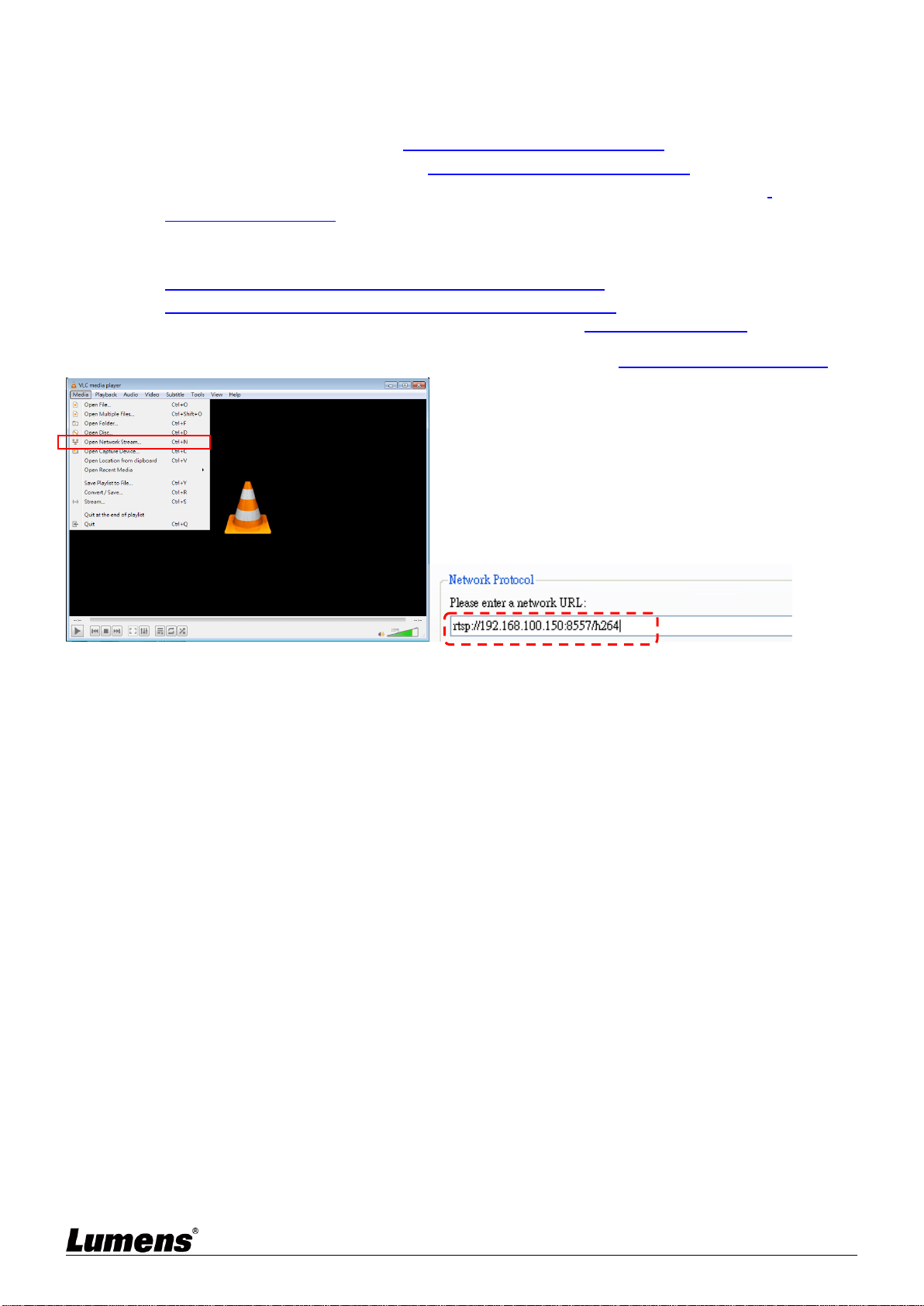

Example:
Open the VLC software, click [Open Network Streaming], and enter the URL: rtsp://192.168.100.150:8557/h264
English -21

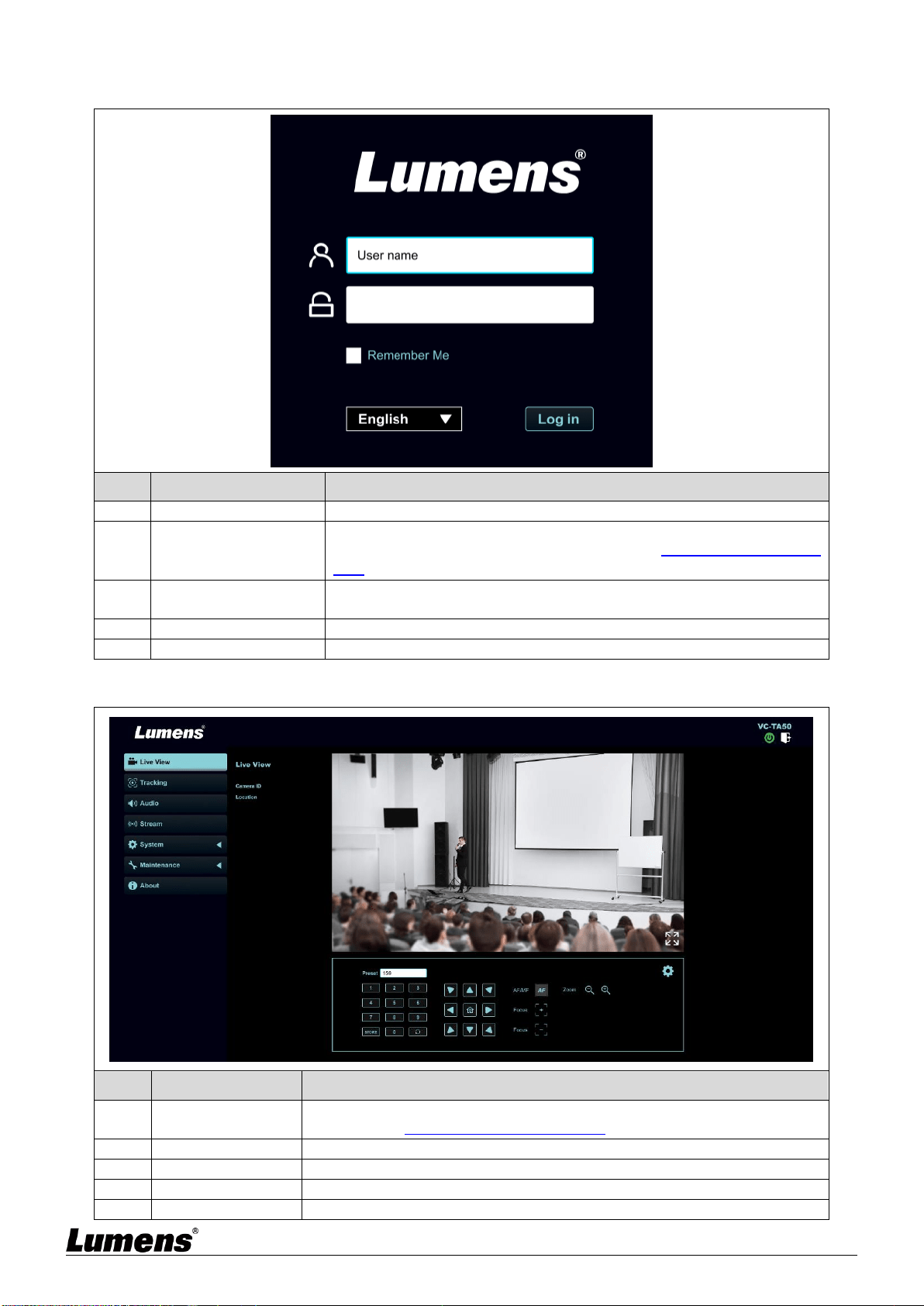

5.2 Web Page Menu Function Description
5.2.1 Login Screen
No
Item
Function Descriptions
1
User Login Account
Enter user login account (default: admin)
2
User Password
Enter user password (default: 9999)
<Remark> For the first-time login, please refer to 5.2.9 System Settings -
User to change the default password
3
Remember user account
and password
Save user login account and password to the browser. When you log in next
time, there is no need to re-enter them
4
Language
Supporting English/ Traditional Chinese/ Simplified Chinese
5
Login
Log into the administrator screen on the website
5.2.2 Live Video - PTZ Control
No
Item
Function Descriptions
1
Camera ID/location
Display camera ID/location
Please refer to 5.2.6 System Settings - Device
2
Preview window
Display the screen currently captured by the camera
3
Preset setting
Select the number first and then select SAVE or LOAD
4
Pan/Tilt setting
Adjust the Pan/ Tilt position of the camera screen
5
Zoom
Zoom In/ Zoom Out ratio
○
1
○
2
○
3
○
4
○
5
○
1
○
2
○
3
○
4
○
6
○
7
○
5
○
8
○
6
English -22
6
AF/MF
Switch AF/MF
7
Camera Setting
Please refer to 5.2.2.1 Camera Setting
8
Enlarge the preview
window
Zooming in/ out the preview image
5.2.2.1 Camera Setting
No
Item
Function Descriptions
1
Exposure
Mode: Select exposure mode (Full Auto / Shutter Pri / Iris Pri / Manual)
Gain Level: Adjust the gain level (adjustable only under the “Manual”)
Exposure Comp. Level: Select exposure compensation level
WDR: Set the level of wide dynamic range (WDR) in order to obtain better
images
Iris Level: Adjust the size of aperture (adjustable only under the “Manual” or
“Aperture Priority”
Shutter Speed: Adjust the shutter speed (adjustable only under the “Manual” or
“Shutter Priority”
2
White Balance
Mode: Select the color temperature mode
One Push WB: Single color temperature execution adjustment (adjustable only
under the “One Push WB”
Manual Red/ Blue: Manually adjust blue/red color temperature
3
Focus
AF Sensitivity: Set automatic focus sensitivity
AF Frame: Set automatic focus range
Zoom Tracking: Check whether focus is enabled during lens zooming (can be
set in Manual)
PTZ Assist: Check whether auto focus is enabled if there is any changes of PTZ
(can be set in Manual)
<Remark> When PTZ Assist is enabled and PTZ control is in operation, the
focus will be triggered. The focus will not be triggered when the scene changes
Smart AF: AF will mainly focus on the face
4
Mirror
Mirror: Set image mirroring
Flip: Set the mirror/flip mode
○
1
○
2
○
3
○
4
○
5
○
6
English -23
5
Image Effect: Set picture effect, Off/Neg/Black and White
Image Mode: The user may customize his/her desired image mode
Image Mode Load: Adjustable when the Image mode is set to Custom. After
selected, the corresponding Image mode parameters will be read and applied to
Custom
2D noise reduction: 2D noise reduction settings
3D noise reduction: 3D noise reduction settings
Gamma: Gamma Level adjustment (Adjustable when the image mode is set to
Custom)
Black Level: Black Level adjustment (Adjustable when the image mode is set to
Custom)
Skin Tone: Skin Tone adjustment (Adjustable when the image mode is set to
Custom)
Brightness: Brightness adjustment of the image (Adjustable when the image
mode is set to Custom)
Contrast: Contrast adjustment (Adjustable when the image mode is set to
Custom)
Saturation: Saturation adjustment of the image (Adjustable when the image
mode is set to Custom)
Sharpness: Adjust the sharpness of the image
6
PTZ Control
Go back to PTZ Control page

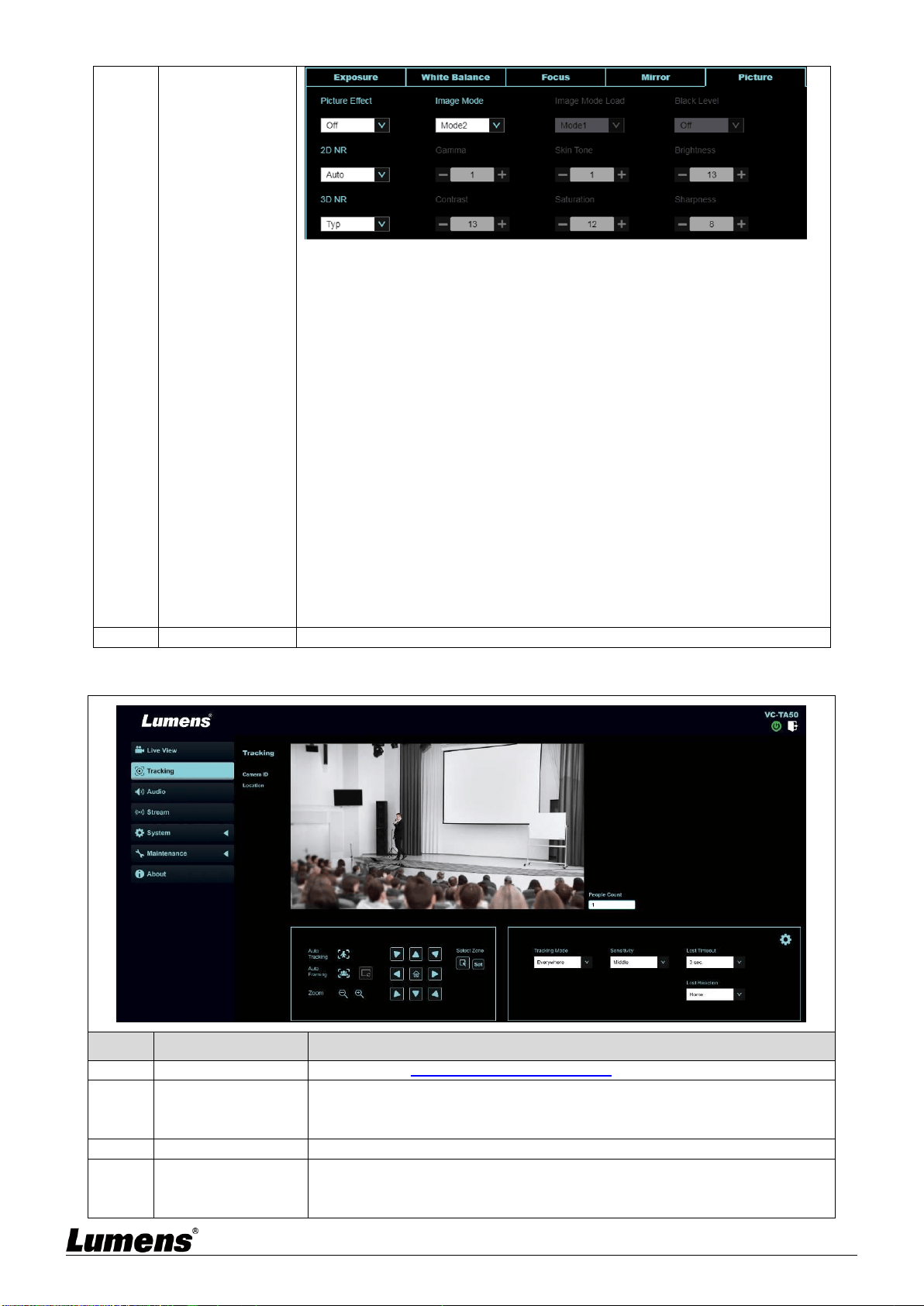

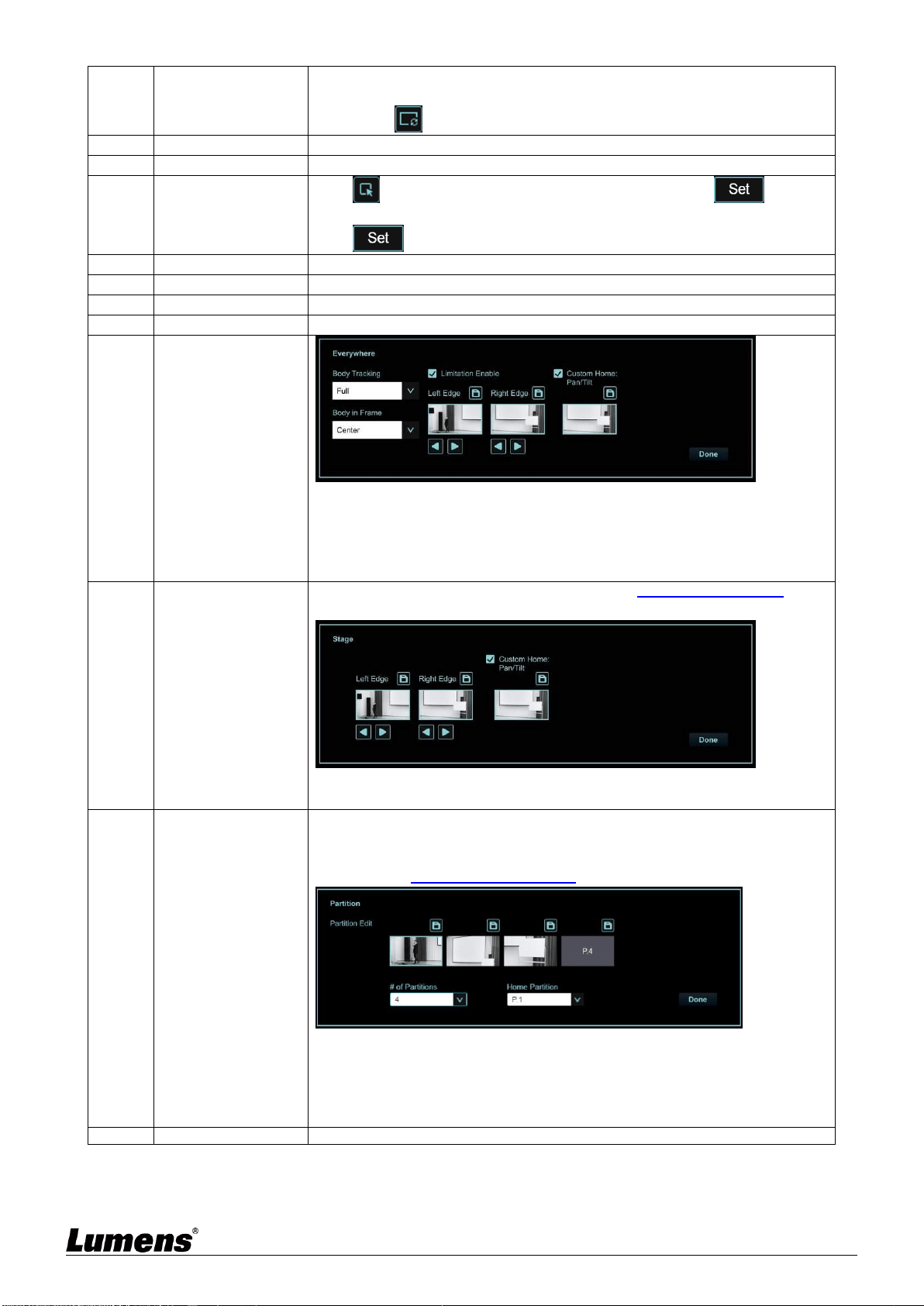

5.2.3 Tracking
No
Item
Function Descriptions
1
Camera ID/ location
Please refer to 5.2.6 System Settings - Device to display camera ID/ location
2
Preview window
Display the screen currently captured by the camera
<Remark> Left-click the detected person in the screen to switch the tracking
object. The tracking object is depicted with a green bounding box
3
Auto Tracking
Start/ Stop Auto Tracking
4
Auto Framing
Start/ Stop Auto Framing
The camera will automatically detect the locations of people, and automatically
adjust the zoom to the most appropriate size to accommodate all the participants
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
○
11
○
12
○
13
English -24
according to change of the number of people in conference
<Remark> If the image is not zoomed according to the actual number of people,
please click to perform framing correction.
5
Zoom ratio
Zoom In/ Zoom Out ratio
6
Pan/Tilt setting
Adjust the Pan/ Tilt position of the camera screen
7
Select Zone
Click and drag the mouse to select an area and then click , the
screen will be enlarged to the selected zone
Click again to cancel enlarging the selected zone
8
Tracking Mode
Set the Tracking Mode (Everywhere/ Stage/ Partition/ Framing)
9
Sensitivity
Set tracking sensitivity
10
Lost Timeout
Set a delay for taking action after a tracking object is lost
11
Lost Reaction
Set the action after a tracking object is lost
12.1
Settings - Everywhere
tracking
Border Limitation Enable:
Everywhere Body Tracking: Set Full/Half Body
Body in Frame: Set the position of the person in the screen (Center/Left/Right)
Custom Home: When “Lost Reaction” is set as “Return”, you can customize the
return position (only Pan/Tilt is memorized)
12.2
Settings - Stage
Tracking
Set the left/right border of the stage. Please refer to 5.2.3.1 Stage Tracking for the
setting steps
Custom Home: When “Lost Reaction” is set as “Return”, you can customize the
return position (only Pan/Tilt is memorized)
12.3
Settings - Partition
Tracking
Set Partition Tracking. Up to 4 zones can be set.
When a person enters the zone of a partition, the camera switches to the partition.
Tracking is not performed in the zone, but everywhere outside the partition
Please refer to 5.2.3.2 Partition Tracking for the setting steps
Partition Settings: Edit, save partition positions and preview the partition image.
Click to enlarge the partition image, and then click the enlarge icon to cancel the
preview.
Number of Partitions: Set the number of partitions
Home Partition: Set the initiate partition position
13
People Count
Display the number of people in the screen automatically calculated by the system
English -25

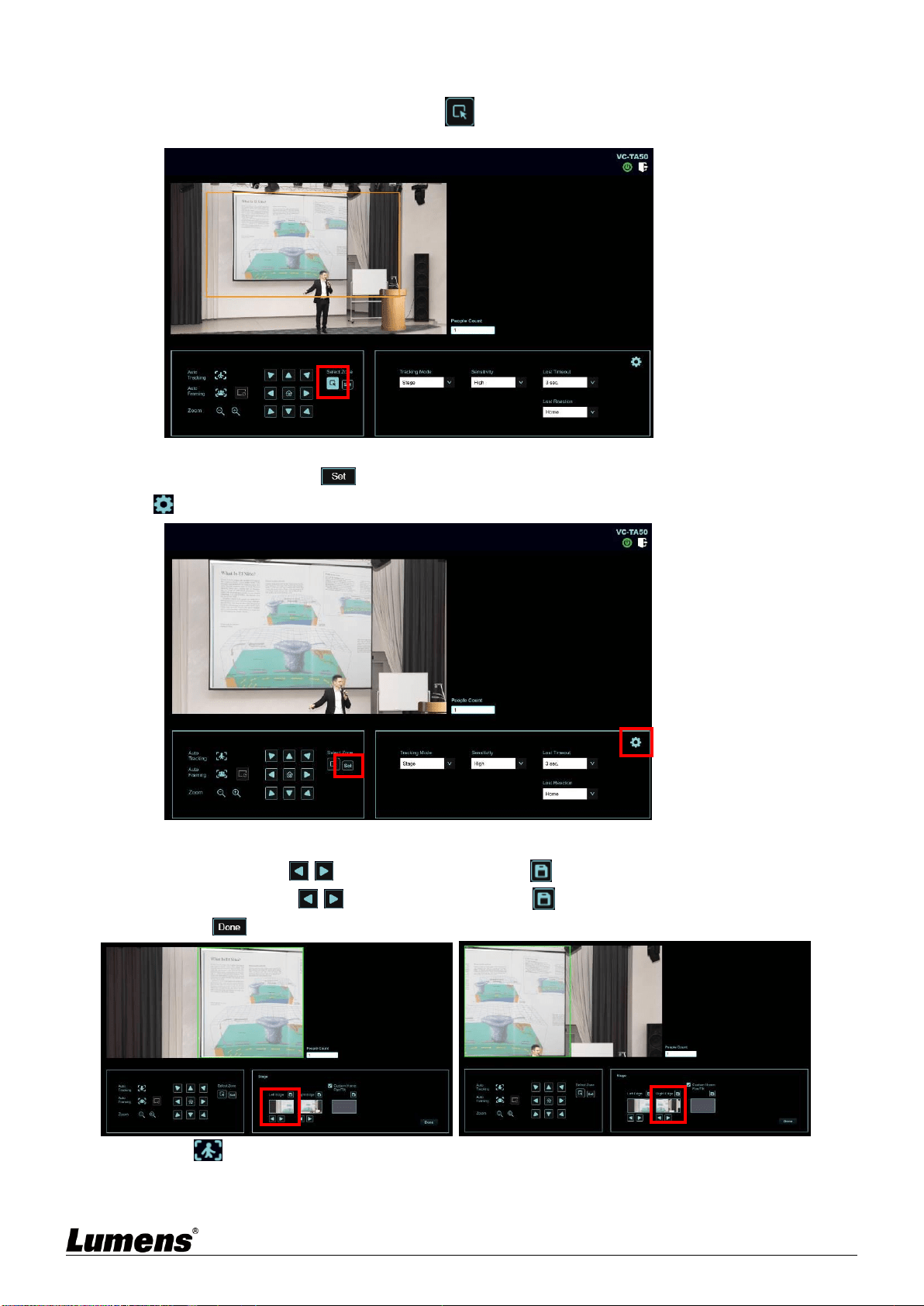

5.2.3.1 Stage
1. Select [Stage] for Tracking Mode, and click box to select an area (orange box)
2. After the selection, click to set, and the preview screen will display the selected area, then click
to access the settings
3. Set the Left/Right Border
Left Border: Click to move the position and click when finished
Right Border: Click to move the position and click when finished
Click to complete the settings after setting the left/right border
4. Click to enable the Stage feature
English -26

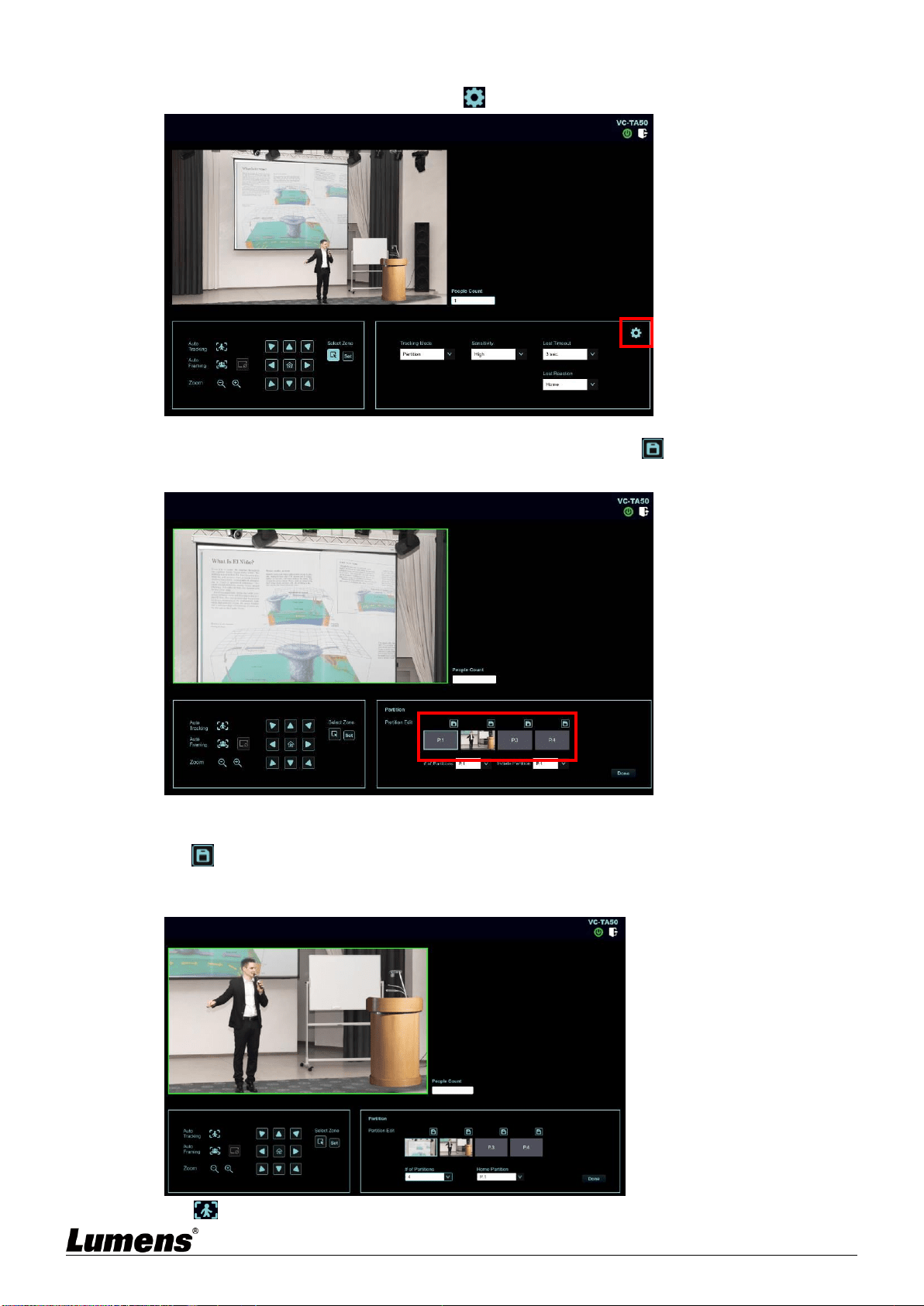

5.2.3.2 Partition
1. Select [Partition] for Tracking Mode, and click to access the settings
2. Use PTZ function to adjust to the screen to be partitioned, and then click to save. The partition icon
below will be changed to the saved position
3. If you need to set other partitions, please continue using PTZ function to adjust the screen, and then
click to save
<Remark> If a red box is displayed when adjusting the screen, it means that the position overlaps with that of other
partitions. Please adjust the screen again and save it when a green box is displayed
<Remark> Overlapping partition positions may cause abnormal tracking behavior
4. Click to enable the Partition feature
English -27

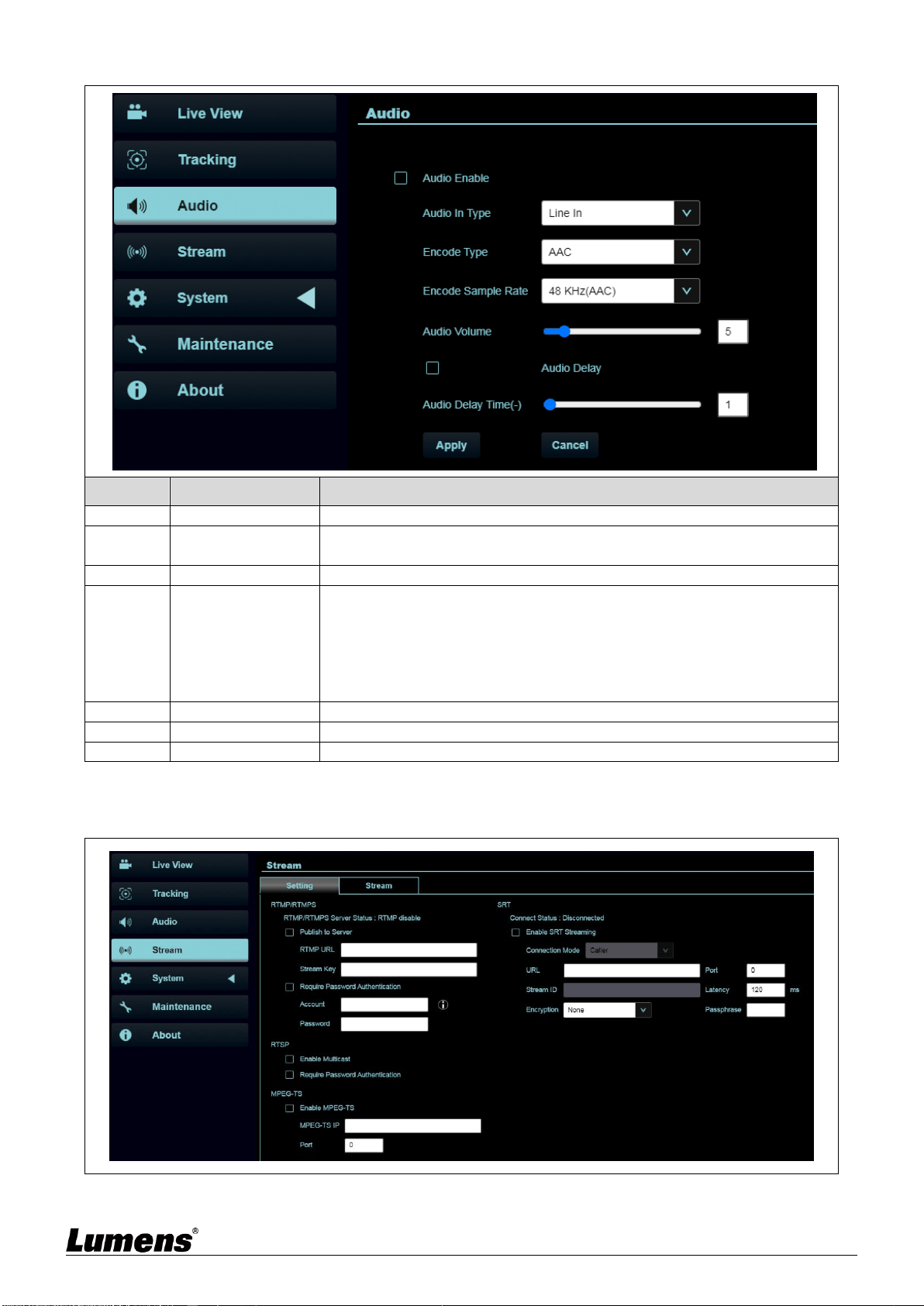

5.2.4 Audio
No
Item
Function Descriptions
1
Audio Enable
Turn on/ off sound
2
Soundtrack effect
setting
Set MIC In/ Line In
3
Encode Type
AAC / G.711
4
Encode sample rate
Set Encode sample rate
48 KHz (AAC)
44.1 KHz (AAC)
16 KHz (G.711)
8 KHz (G.711)
<Remark> SDI supports the audio output of 48 KHz (AAC) only
5
Audio Volume
Adjust Audio Volume
6
Audio Delay
Turn on/ off audio delay
7
Audio Delay Time
Set the audio signal delay time (-1 ~ -500 ms)
5.2.5 Streaming
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
1
○
2
○
3
○
5
○
4
English -28
No
Item
Function Descriptions
1
RTMP/RTMPS Setting
Copy the RTMP web address provided by the RTMP service platform and paste it
to the RTMP connection address to publish the camera images on the RTMP
service platform
To upload to YouTube for live streaming, please refer to 5.2.4 Settings - Audio to
turn on the audio function
2
RTSP Setting
Enable/Disable Multicast
It is suggested to enable Multicast when the number of users online watching the
image simultaneously is more than 4
Enable/Disable Password Authentication
RTSP connection format can be found in 5.1.4 Using RTSP Player to View
the Images
The username/password is the same as the web login password of the
camera, please refer to 5.2.9 System Settings - User to add/modify
account information
3
MPEG-TS Setting
Set MPEG-TS format
<Remark> Port must be set above 1024
<Remark> The following port has been used by the camera. Setting of the port
may not connect correctly
8554, 8556, 8557, 8080, 80, 81, 9090, 23
4
SRT Setting
1. Set the field of SRT and then check the item to open SRT streaming
After the SRT streaming is opened, it will be connected automatically upon startup
2. The port number must be set above 1024
<Remark> The following port has been used by the camera. Setting of the port
may not connect correctly
8554, 8556, 8557, 8080, 9090, 1935
3. Delay time is for 20 to 8000 microseconds. The default value is 120
microseconds
5
Streaming Setting
Streaming Mode: Choose from Single/Dual stream
Encode: Set encode format as MJPEG (Single)/ H.264+H.264(Dual)/
H.264+MJPEG(Dual)
Resolution: Set Resolution
Rate Control: Setting according to the supported resolution
Bit rate:
Streaming 1: Support 64 ~ 20,000 kbps
Streaming 2: Support 64 ~ 8,000 kbps
Rate Control: CBR/ VBR
5.2.5.1 SVC description:
Link Address rtsp://VC IP Address:Port/h264
60Frame: rtsp://VC IP Address:8557/h264, E.g.: rtsp://192.168.100.150:8557/h264
30Frame: rtsp://VC IP Address:8601/h264, E.g.: rtsp://192.168.100.150:8601/h264
15Frame: rtsp://VC IP Address:8602/h264, E.g.: rtsp://192.168.100.150:8602/h264
7Frame: rtsp://VC IP Address:8603/h264, E.g.: rtsp://192.168.100.150:8603/h264
3Frame: rtsp://VC IP Address:8604/h264, E.g.: rtsp://192.168.100.150:8604/h264
English -29

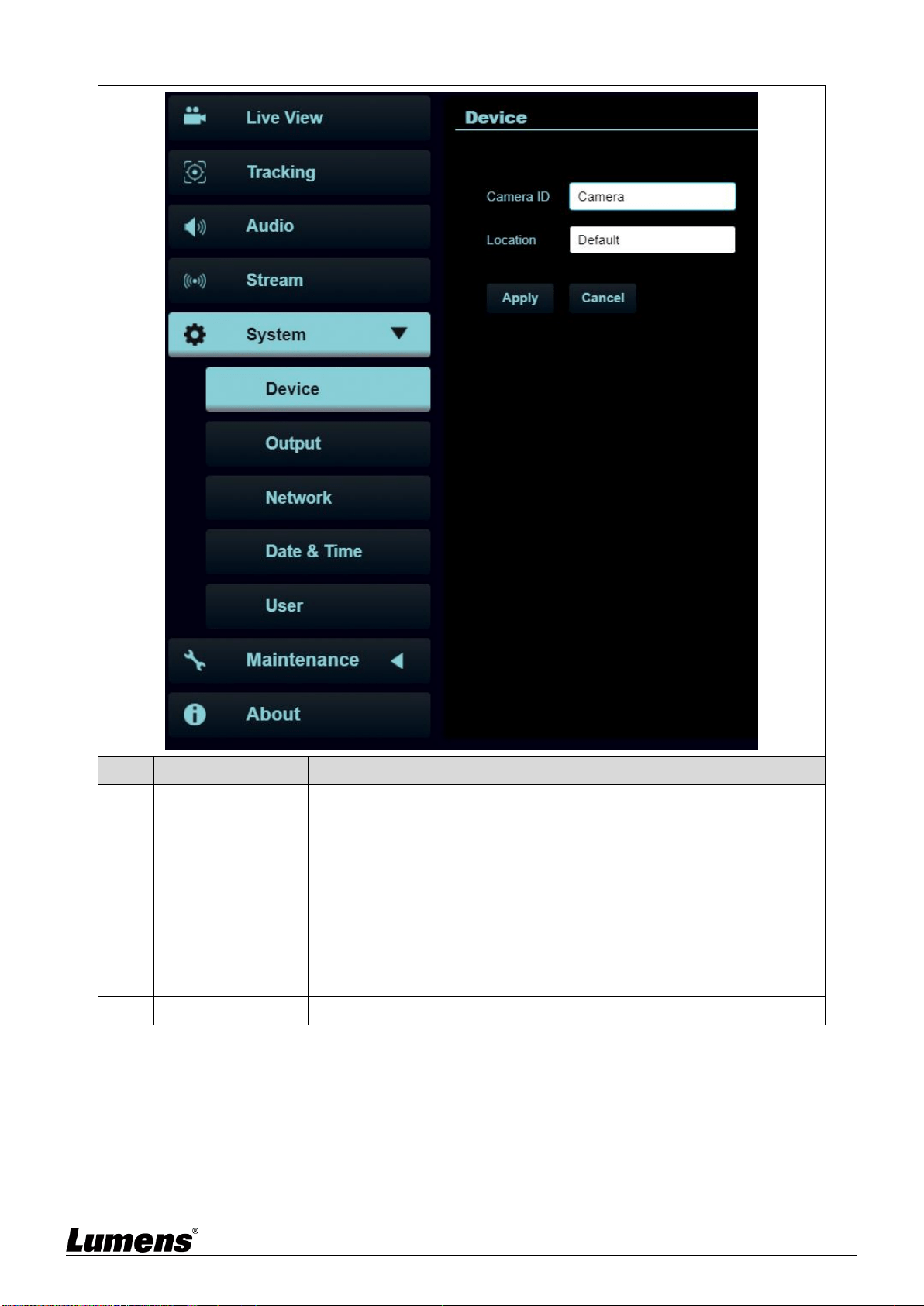

5.2.6 System Settings - Device
No
Item
Function Descriptions
1
Camera ID
Change camera ID here
Supporting 1 - 30 characters for the camera ID
Please mix uppercase and lowercase letters or numbers for characters.
Special symbols such as “/” and “space” cannot be used
<Remark> Modifying this field will modify the Onvif device name synchronously
2
Location
Modify the location of the camera, such as Room 1
Supporting 1 - 30 characters for the camera location
Please mix uppercase and lowercase letters or numbers for characters.
Special symbols such as “/” and “space” cannot be used
<Remark> Modifying this field will modify the Onvif device name synchronously
3
Apply/Cancel
After the setting has been modified, select this button to apply the setting
○
1
○
2
○
3
English -30
5.2.7 System Settings – Output
No
Item
Function Descriptions
1
Resolution
Set output resolution
○
1
English -31
5.2.8 System Settings – Network
No
Item
Function Descriptions
1
DHCP
Network setting of camera. Change of setting is available when DHCP function is
closed
2
HTTP port
Set HTTP port. The default Port value is 80
3
HTTPS port
Set HTTPS port. The default Port value is 81
4
Tracking Data Output
When enabled, PTZ position information can be reported when the camera
moves
1. Serial Output: Please set the protocol to VISCA and the baud rate to 38400
2. IP output: Set the destination IP address and port
<Remark> When Tracking Data Output is enabled, the camera performance may
be affected.
○
1
○
2
○
3
○
4
English -32

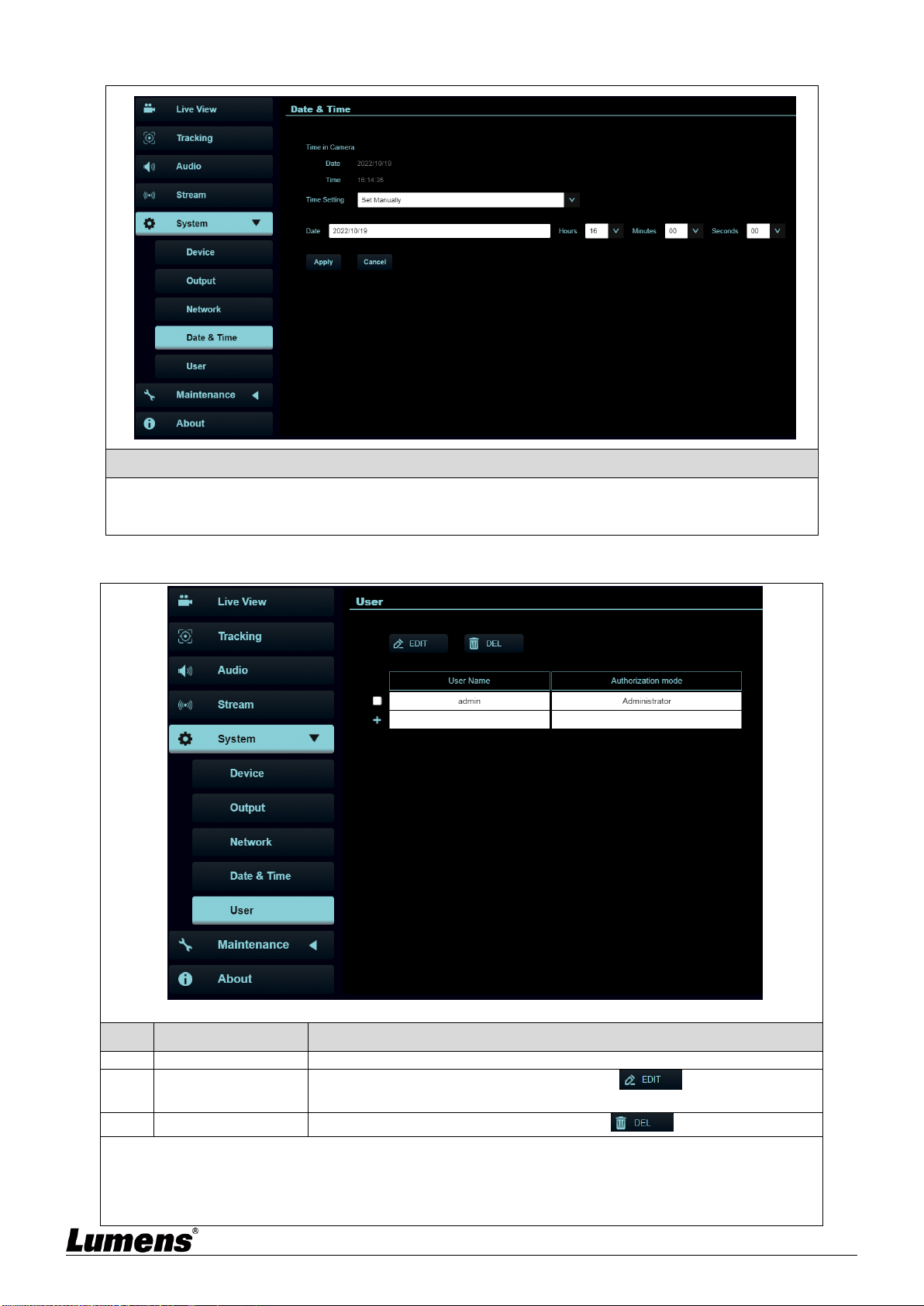

5.2.9 System Settings - Date & Time
Function Descriptions
Display date and time of the current camera/PC. You may set the synchronization method and modify date and
time
5.2.10 System Settings - User
No
Item
Function Descriptions
1
Add
Enter a user name and password to add a new user
2
Edit
Select the user account to be modified and click to edit the password
and authorization mode
3
Delete
Select the user account to be deleted and click to delete the account
Enter a user name and password to add a new user
Supporting 4 - 32 characters for user name and password
Please mix uppercase and lowercase letters or numbers for characters. Special symbols or the underlined
cannot be used
Support up to 16 groups of user accounts
○
1
○
2
○
3
○
2
English -33
Authentication Mode: Set the new account management permissions
User Type
Admin
Operator
Viewer
View images
V
V
V
Settings
V
V
X
Account
management
V
X
X
<Remark> When Factory Reset is executed, it will clear the user’s data
5.2.11 Maintenance-Service
No
Item
Function Descriptions
1
Firmware Upgrade
Select the firmware file, and click [Upgrade] to update the firmware
<Remark> Update takes about 1 - 2 minutes
<Note> Please do not operate or turn off the power of the device during the update
to avoid firmware update failure
2
Factory Reset
Restore the factory default setting
3
Setting Profile
Save setup parameters as a Profile, and users can download and upload camera
setup parameters
4
Error Log
If the machine operates abnormally, the error log can be exported for reference of
Lumens technicians
<Remark> When an error code appears, please try to clear it to make sure
whether the issue has occurred repetitively
○
1
○
2
○
3
○
4
English -34

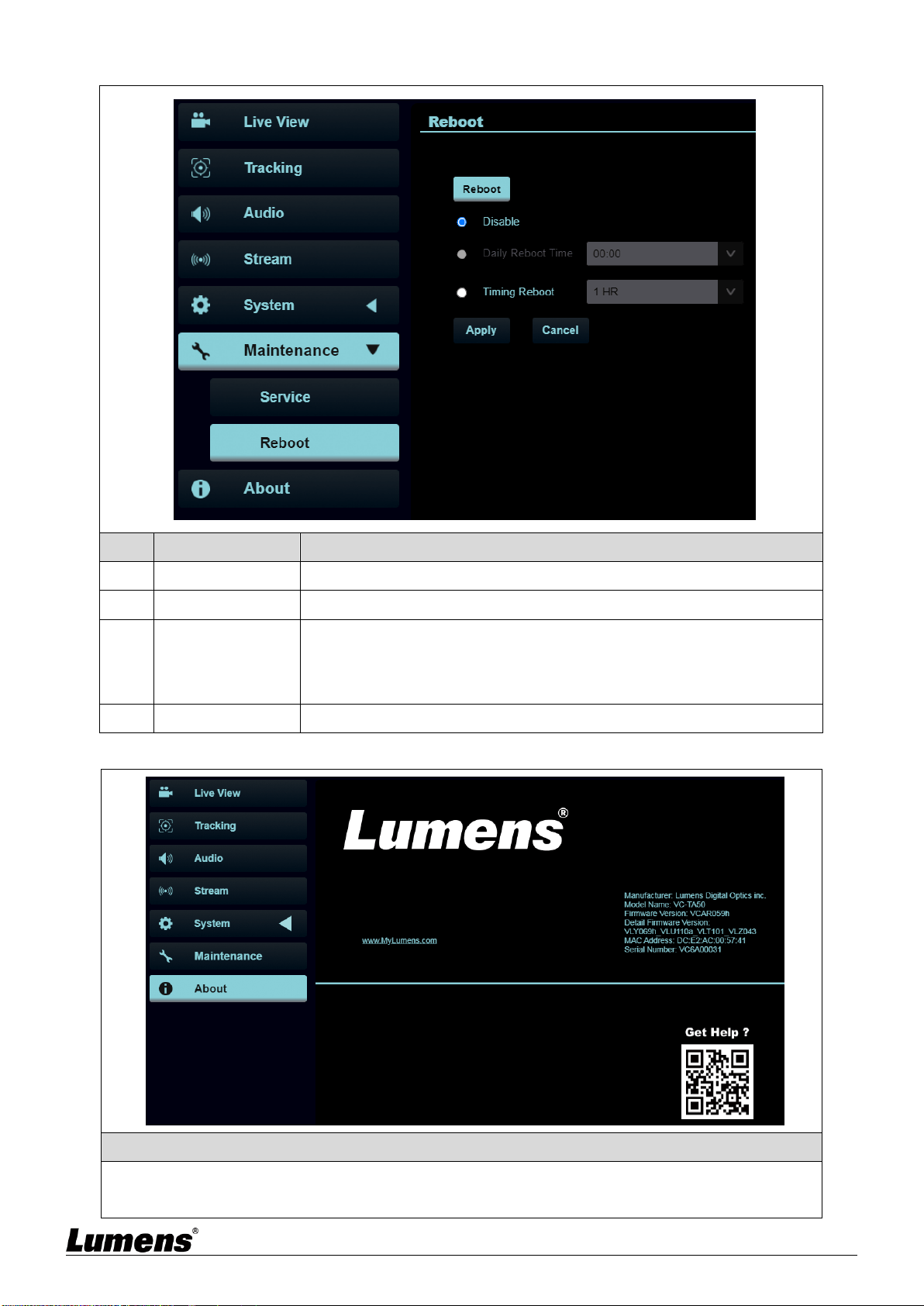

5.2.12 Maintenance-Reboot
No
Item
Function Descriptions
1
Reboot
Reboot immediately
2
Disable
Disable the reboot settings
3
Daily reboot
Set the daily reboot time
<Note> Please go to Settings - Time to complete the SNTP server
synchronization to set daily reboot
4
Timing Reboot
Set the timing reboot time
5.2.13 About
Function Descriptions
Display the firmware version, serial number, running time and other related information of the camera
For technical support, please scan the QR code at the bottom right
○
1
○
2
○
3
○
4
English -35
Chapter 6 DIP Switch Setting
6.1 OUTPUT Switch
Output Mode
Setting
Output Mode
Setting
1920x1080/60p
1920x1080/50p
1920x1080/30p
1920x1080/25p
1920x1080/60i
1920x1080/50i
1280x720/60p
1280x720/50p
1080/59.94p
1080/59.94i
1080/29.97p
720/59.94p
6.2 IR SELECT
ID
Setting
1
2
3
6.3 Camera Address Selector
Setting
Function
Descriptions
0~7
ID 0~7
8~9
Reserved
6.4 System Switch
Setting
功能說明
DIP 1
RS-232/RS-422 Communication Control
OFF: RS-232 / ON: RS-422
DIP 2
IR signal output
OFF: Off / ON: On
DIP 3
Communication baud rate
OFF: 9600 / ON : 38400
DIP 4
Reserved
English -36
Chapter 7 Troubleshooting
This chapter describes problems you may encounter while using VC-TA50. If you have questions,
please refer to related chapters and follow all the suggested solutions. If the problem still occurred,
please contact your distributors or the service center.
No.
Problems
Solutions
1.
Boot without power signal
1. Make sure you have plugged in the power cord.
2. When using a PoE connection, ensure that the power
supply supports POE+ (IEEE 802.3at) hubs.
2.
There is no image output
from camera
1. Check the power supply or PoE supply functions.
2. Confirm the output signals are in streaming output.
3. Confirm whether the camera resolution can be used
together with the monitor equipment.
4. Replace the cables and make sure they are not faulty.
3.
Camera image is severely
delayed
Please use 1080p or 720p 60/ 50 fps rather than 25/ 30 fps
signals.
4.
RS-232 cannot be
controlled
1. Confirm the connection is correct (RS-232 In/Out).
2. Please make sure the Baud rate setting is the same as
the control equipment.
5.
Whether the Internet can be
used for operation
Please refer to Chapter 5 Network Function Setting
Description for the Internet usage
6.
The ONVIF software cannot
find the machine
Please make sure that [Setting] > [Video] > [Camera ID] /
[Location] in the web page uses only English letters or
numbers. The ONVIF software cannot find the machine if
you use special characters and space.
7.
Tally lamp is not working
when applying RS232
setting
Please make sure if the Tally lamp function is enabled from
the setting menu or web page.
Setting Menu: [System] > [Tally Lamp]
8.
The camera does not save
the relevant parameters
(PTZ, AWB …) after reboot
Please make sure if the Initial Position is set to Last
Operated Position from the setting menu or web page
Setting Menu: [System] > [Initial Position]
9.
When tracking, the person
moves out of the frame and
is lost
Confirm that the person tracking is set to half body or full
body tracking. Because the number of samples for half body
tracking is small, the full body tracking is more accurate than
the half body tracking.
Walking speed may affect the tracking performance. The
normal walking speed has better tracking performance.
Make sure if the walking speed is too fast to be tracked.
10.
How to log in the portal
when you forget your
account password
Please contact your Lumens distributor or service center.
11.
The tracking person
suddenly squats down and
the camera stops tracking
When the person squats down and stands up again, there is
a chance that the camera will stop tracking. The lens will
zoom out first, and then zoom in after recognizing the target.
This is a normal behavior
English -37
Chapter 8 Safety Instructions
Always follow these safety instructions when setting up and using this product:
1 Operation
1.1 Please use the product in the recommended operating environment, away from water or source of heat.
1.2 Do not place the product on a tilted or unstable trolley, stand or table.
1.3 Please clean the dust on the power plug prior to usage. Do not insert the product’s power plug into a multiplug to
prevent sparks or a fire.
1.4 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the product from
overheating.
1.5 Do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards. Refer all
servicing to licensed service personnel.
1.6 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following situations
happen:
If the power cords are damaged or frayed.
If liquid is spilled into the product or the product has been exposed to rain or water.
2 Installation
2.1 For security considerations, please make sure the standard mount you use is in line with UL or CE safety approbations
and installed by technician personnel approved by agents.
3 Storage
3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the
plug.
3.2 Unplug this product during thunderstorms or if it is not going to be used for an extended period.
3.3 Do not place this product or accessories on top of vibrating equipment or heated objects.
4 Cleaning
4.1 Disconnect all the cables prior to cleaning and wipe the surface with a dry cloth. Do not use alcohol or volatile solvents
for cleaning.
5 Batteries (for products or accessories with batteries)
5.1 When replacing batteries, please only use similar or the same type of batteries.
5.2 When disposing of batteries or products, please adhere to the relevant instructions in your country or region for
disposing of batteries or products.
Precautions
This symbol indicates that this equipment may
contain dangerous voltage which could cause
electric shock. Do not remove the cover (or back).
No user-serviceable parts inside. Refer servicing to
licensed service personnel.
This symbol indicates that there are
important operating and maintenance
instructions in this User Manual with this
unit.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
Notice :
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment..
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
IC Warning
This digital apparatus does not exceed the Class A limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled "Digital Apparatus," ICES-003 of Industry Canada.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de Classe A
prescrites dans la norme sur le material brouilleur: "Appareils Numeriques," NMB-003 edictee par l'Industrie.
EN55032 CE Warning
Operation of this equipment in a residential environment could cause radio interference.
Warning: Operation of this equipment in a residential environment may cause radio interference
English -38
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Manufacturer：Lumens Digital Optics Inc.
Product Name：VC-TA50
Model Number：PTZ Video Camera
Responsible Party – U.S. Contact Information
Supplier：Lumens Integration, Inc.
4116 Clipper Court, Fremont, CA 94538, United States
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
English -39
Copyright Information
Copyrights © Lumens Digital Optics Inc. All rights reserved.
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.
Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless
copying this file is for the purpose of backup after purchasing this product.
In order to keep improving the product, the information in this file is subject to change without prior notice.
To fully explain or describe how this product should be used, this manual may refer to names of other products or companies
without any intention of infringement.
Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological, editorial errors or
omissions, nor responsible for any incidental or related damages arising from providing this file, using, or operating this
product.
