MICROWAVE OVEN - OPERATION MANUAL
800 W (IEC 60705)
R-2235H(R)/(G)
OPERATION MANUAL
This operation manual contains important information which you should read
carefully before using your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified
so that it operates with the door open.
If you require any advice or assistance regarding your
Sharp product, please visit our website:
http ://
For service enquiries you may telephone our toll free number (during office hours)
.sharpsgs /
CALL CENTER:64195 222(Mon-Fri 8:45am-5:15pm)
SPECIFICATIONS
CONTENTS
Model name:
AC Line Voltage
Distribution line fuse/circuit breaker : 10 A
AC Power required: Microwave : 1250 W
Output power: Microwave : 750 800 W
O
Mode (Energy Save Mode) : less than 1.0 W
Microwave Frequency : 2450 MHz*
Outside Dimensions (W) x (H) x (D) mm : 487 x 305 x 400
Cavity Dimensions (W) x (H) x (D)** mm : 314 x 221 x 347
Oven Capacity : 24 litres**
Turntable : ø 270 mm
Weight : approx.13.1 kg
Oven lamp : 25 W/240 V
: 230 240 V, 50 Hz single phase
CONTENTS ........................................................................................................................................................................................... 2
SPECIFICATIONS ................................................................................................................................................................................2
OVEN AND ACCESSORIES .............................................................................................................................................................. 3
CONTROL PANEL ............................................................................................................................................................................... 4
IMPORTANT SAFETY INSTRUCTIONS .....................................................................................................................................5-7
INSTALLATION .................................................................................................................................................................................... 7
BEFORE OPERATION ........................................................................................................................................................................7
QUICK MICROWAVE COOKING .....................................................................................................................................................
MICROWAVE COOKING ...................................................................................................................................................................
PLUS AND LESS FUNCTION ...........................................................................................................................................................
LOCK-OUT FUNCTION FOR CHILDREN ......................................................................................................................................
AUTO MENU OPERATION ...............................................................................................................................................................
SUITABLE OVENWARE ...................................................................................................................................................................
CARE AND CLEANING ....................................................................................................................................................................
8
8
8
8
9
10
11
Operation manual
R-2235H(R)/(G)
EN-2
ENGLISH
~
~
OVEN AND ACCESSORIES
ACCESSORIES:
Check to make sure the following accessories are
provided:
(1 1 1
Place the turntable support in the centre of the oven
floor so that it can freely rotate around the coupling.
Then place the turntable on to the turntable support
so that it locates firmly into the coupling.
To avoid turntable damage, ensure dishes and con-
tainers are lifted clear of the turntable rim when
removing them from the oven.
NOTE: When you order accessories, please mention
two items: part name and model name to your deal-
NOTES:
• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not
damaged.
• Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough,
even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage to the
oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the
oven. This does not affect cooking performance.
14. Turntable
(glass)
1 . Coupling
er or SHARP authorised service centre.

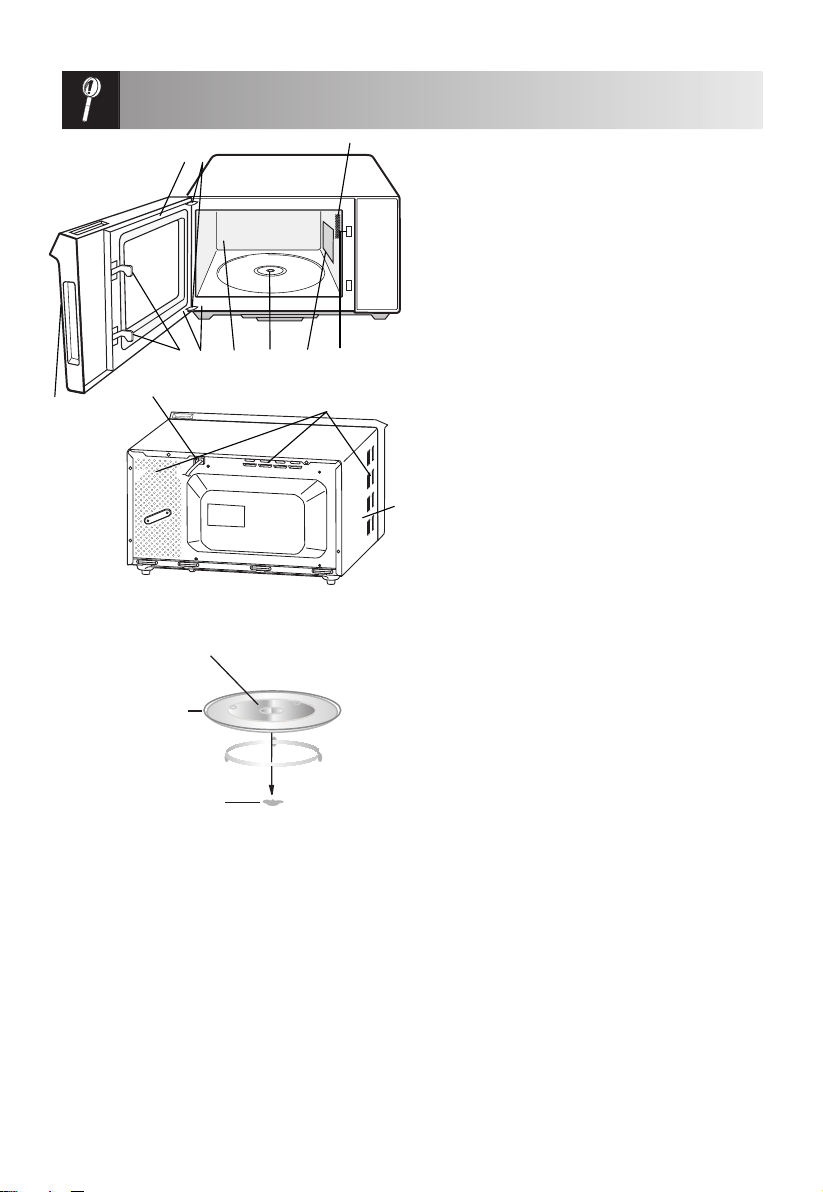

OVEN
1. Door
2. Door hinges
3. Oven lamp
4. Waveguide cover (DO NOT REMOVE)
5.
6.
Coupling
7.
Door latches
8.
Oven cavity
9.
Door seals and sealing surfaces
10.
Door safety latches
11.
Ventilation openings
12.
Outer cabinet
13.
Power supply cord
Door handle
12
3
13
11
10
12
EN-3
5 4 6
9 8 7
6
4) Turntable ( 5) Turntable support ( 6) Coupling
15.Hub (inside)
CONTROL PANEL
视窗半透金5%
1
2
4
5
6
3
9
7
10
8
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
11
DIGITAL DISPLAY
DEFROST key
11.
INSTANT NOODLES
VEGETABLES
RICE
BEVERAGE
POWER LEVEL key:
Press to select microwave power level.
TIME keys
Press to enter time
Press to increase/decrease /time,and
keep pressing to continuously increase/decrease
time.
Press to select weight defrost.
PLUS/LESS
ySTART ke
.
STOP/CLEAR key
EN-4
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
See the corresponding hints in the operation manual.
To avoid the possibility of injury
WARNING:
Do not operate the oven if it is damaged or
malfunctioning. Check the following before use:
a) The door; make sure the door closes properly
and ensure it is not misaligned or warped.
b) The hinges and safety door latches; check to
make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that
they have not been damaged.
d) Inside the oven cavity or on the door; make
sure there are no dents.
e) The power supply cord and plug; ensure that
they are not damaged.
If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a
competent person.
Never adjust, repair or modify the oven yourself.
It is hazardous for anyone other than a competent
person to carry out any service or repair operation
which involves the removal of a cover which gives
protection against exposure to microwave energy.
Do not operate the oven with the door open or alter
the door safety latches in any way. Do not operate the
oven if there is an object between the door seals and
sealing surfaces.
Do not allow grease or dirt to build up on the
door seals and adjacent parts. Clean the oven at
regular intervals and remove any food deposits.
Follow the instructions for "Care and Cleaning"
on page -11. Failure to maintain the oven in a
clean condition could lead to a deterioration of
the surface that could adversely a ect the life of
the appliance and possibly result in a hazardous
situation.
Individuals with PACEMAKERS should check with their
doctor or the manufacturer of the pacemaker for
precautions regarding microwave ovens.
To avoid the possibility of electric shock
Under no circumstances should you remove the outer
cabinet.
Never spill or insert any objects into the door lock
openings or ventilation openings. In the event of a
spill, turn o and unplug the oven immediately, and
call an authorised SHARP service agent.
Do not immerse the power supply cord or plug in
water or any other liquid.
Do not let the power supply cord hang over the edge
of a table or work surface.
Keep the power supply cord away from heated
surfaces, including the rear of the oven.
Keep the appliance and its cord out of reach of
children less than 8 years.
To avoid the danger of fire.
The microwave oven should not be left unattended
during operation. Power levels that are too high,
or cooking times that are too long, may overheat
foods resulting in a re.
This oven is designed to be used on a countertop
only. It is not designed to be built into a kitchen unit.
Do not place the oven in a cabinet.
The electrical outlet must be readily accessible so that
the unit can be unplugged easily in an emergency.
The AC power supply must be 230-240 V, 50 Hz, with a
minimum 10 A distribution line fuse, or a minimum
10 A distribution circuit breaker.
A separate circuit serving only this appliance should
be provided.
Do not place the oven in areas where heat is generated.
For example, close to a conventional oven.
Do not install the oven in an area of high humidity or
where moisture may collect.
Do not store or use the oven outdoors.
If smoke is observed, switch off or unplug the
oven and keep the door closed in order to sti e
any ames.
Use only microwave-safe containers and utensils.
See Page -1 . Utensils should be checked
to ensure that they are suitable for use in
microwave ovens.
When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of
ignition.
Clean the waveguide cover, the oven cavity,
the turntable and turntable support after use.
These must be dry and free from grease. Built-
up grease may overheat and begin to smoke or
catch re.
Do not place flammable materials near the oven or
ventilation openings.
Do not block the ventilation openings.
Remove all metallic seals, wire twists, etc., from food
and food packages. Arcing on metallic surfaces may
cause a re.
Do not use the microwave oven to heat oil for deep
frying. The temperature cannot be controlled and the
oil may catch re.
To make popcorn, use only special microwave
popcorn makers.
Do not store food or any other items inside the oven.
Check the settings after you start the oven to ensure
the oven is operating as desired.
To avoid overheating and fire, special care must be
taken when cooking or reheating foods with a high
sugar or fat content, for example, Sausage rolls, Pies
or Christmas pudding.
IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
EN-5
EN
EN 0
IMPORTANT SAFETY INSTRUCTIONS
hot during use. Young children should be kept away.
Temperature of the container is not a true indication
of the temperature of the food or drink; always check
the food temperature.
Always stand back from the oven door when opening
it to avoid burns from escaping steam and heat.
Slice stuffed baked foods after heating to release
steam and avoid burns.
Keep children away from the door to prevent them
burning themselves.
To avoid misuse by children
WARNING: Only allow children aged from 8 years
and above to use the oven without supervision
when adequate instructions have been given
so that the child is able to use the oven in a safe
way and understands the hazards of improper
use. When the appliance is operated in the
GRILL, MIX GRILL and AUTO MENU operation,
children should only use the oven under adult
supervision due to the temperature generated.
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
Do not lean or swing on the oven door. Do not play
with the oven or use it as a toy.
Children should be taught all important safety
instructions: use of pot holders, careful removal of
food coverings; paying special attention to packaging
(e.g. self-heating materials) designed to make food
crisp, as they may be extra hot.
Other warnings
Never modify the oven in any way.
Do not move the oven while it is in operation.
This appliance is intended to be used in household
and similar applications such as:
• staff kitchen areas in shops, offices and other
working environments;
• farm houses;
• by clients in hotels, motels and other residential
environments;
• bed and breakfast type environments.
This oven is for home food preparation only and may
only be used for cooking food. It is not suitable for
commercial or laboratory use.
To promote trouble-free use of your oven and
avoid damage.
Never operate the oven when it is empty. When using
a browning dish or self-heating material, always place
a heat-resistant insulator such as a porcelain plate
under it to prevent damage to the turntable and
turntable support due to heat stress. The preheating
time speci ed in the dishes instructions must not be
exceeded.
Do not attempt to replace the oven lamp yourself or
allow anyone who is not an electrician authorised by
SHARP to do so. If the oven lamp fails, please consult
your dealer or an authorised SHARP service agent.
If the power supply cord of this appliance is damaged,
it must be replaced with a special cord.
The exchange must be made by an authorised SHARP
service agent.
To avoid the possibility of explosion and sudden
boiling:
WARNING: Liquids and other foods must not be
heated in sealed containers since they are liable
to explode.
Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be
taken when handling the container.
Never use sealed containers. Remove seals and lids
before use. Sealed containers can explode due to a
build up of pressure even after the oven has been
turned o .
Take care when microwaving liquids. Use a wide
mouthed container to allow bubbles to escape.
Never heat liquids in narrow necked containers
such as baby bottles, as this may result in the
contents erupting from the container when
heated and cause burns.
To prevent sudden eruption of boiling liquid and
possible scalding:
1. Do not use excessive amount of time.
2. Stir liquid prior to heating/reheating.
3. It is advisable to insert a glass rod or similar utensil
(not metal) into the liquid whilst reheating.
4. Let liquid stand for at least 20 seconds in the oven
at the end of cooking time to prevent delayed
eruptive boiling.
Do not cook eggs in their shells, and whole hard
boiled eggs should not be heated in microwave
ovens since they may explode even after
microwave cooking has ended. To cook or reheat
eggs which have not been scrambled or mixed,
pierce the yolks and the whites, or the eggs may
explode. Shell and slice hard boiled eggs before
reheating them in the microwave oven.
Pierce the skin of such foods as potatoes, sausages
and fruit before cooking, or they may explode.
To avoid the possibility of burns
WARNING: The contents of feeding bottles and
baby food jars must be stirred or shaken and the
temperature checked before consumption, in
order to avoid burns.
Use pot holders or oven gloves when removing
food from the oven to prevent burns.
Always open containers, popcorn makers, oven
cooking bags, etc., away from the face and hands to
avoid steam burns and eruption of boiling.
To avoid burns, always test food temperature and
stir before serving and pay special attention to the
temperature of food and drink given to babies,
children or the elderly. Accessible parts may become
EN-6
ENGLISH
INSTALLATION
IMPORTANT SAFETY INSTRUCTIONS
BEFORE OPERATION
NOTE:
Do not use plastic containers for microwaving if the
oven is still hot from using the GRILL and MIX GRILL
operation because they may melt.
Plastic containers must not be used during above
modes unless the container manufacturer says they
are suitable.
If you are unsure how to connect your oven, please
consult an authorised, quali ed electrician.
Neither the manufacturer nor the dealer can accept
any liability for damage to the oven or personal injury
resulting from failure to observe the correct electrical
connection procedure.
Water vapour or drops may occasionally form on
the oven walls or around the door seals and sealing
surfaces. This is a normal occurrence and is not an
indication of microwave leakage or a malfunction.
Do not use metal utensils, which re ect microwaves
and may cause electrical arcing. Do not put cans in
the oven.
Use only the turntable and the turntable support
designed for this oven. Do not operate the oven
without the turntable.
To prevent the turntable from breaking:
(a) Before cleaning the turntable with water, leave
the turntable to cool.
(b) Do not put hot foods or hot utensils on a cold
turntable.
(c) Do not put cold foods or cold utensils on a hot
turntable.
Do not place anything on the outer cabinet during
operation.
5. Securely connect the plug of the oven to a standard
earthed (grounded) household electrical outlet.
WARNING: Do not place the oven where heat,
moisture or high humidity are generated, (for
example, near or above a conventional oven) or near
combustible materials (for example, curtains).
Do not block or obstruct air vent openings.
Do not place objects on top of the oven.
1. Remove all packing materials from the inside of
the oven cavity and remove any protective film
found on the microwave oven cabinet surface.
2. Check the oven carefully for any signs of damage.
3. Place the oven on a secure, level surface, strong
enough to take the oven weight, plus the heaviest
item likely to be cooked in the oven. Do not place
the oven in a cabinet.
4. Select a level surface that provide enough open
space for the intake and/or outlet vents.
The rear surface of appliance shall be placed
against a wall.
• The minimum installation height is 85 cm.
• A minimum space of 20 cm is required between
the oven and any adjacent walls.
• Leave a minimum space of 30 cm above the oven.
• Do not remove the feet from the bottom of the
oven.
• Blocking the intake and/or outlet openings can
damage the oven.
• Place the oven as far away from radios and TV
as possible. Operation of microwave oven may
cause interference to your radio or TV reception.

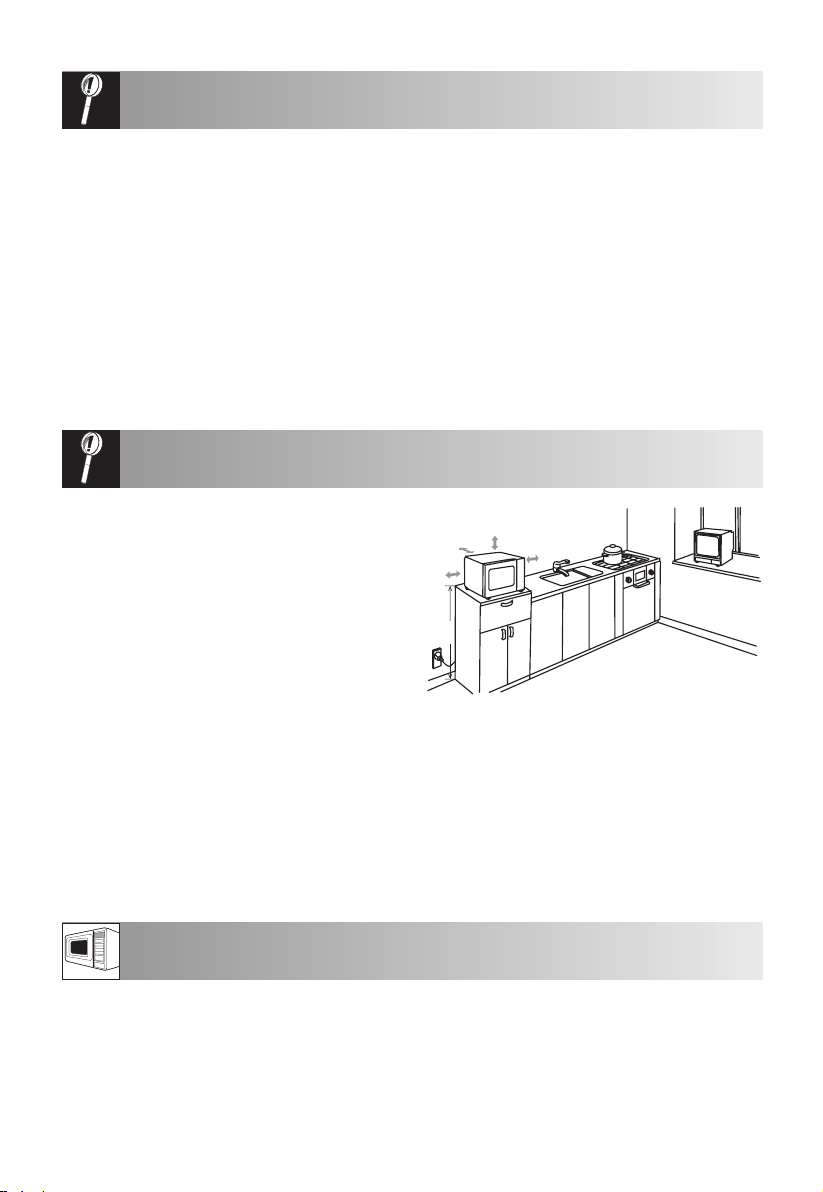

20 cm
30 cm
20 cm
cm
min
85 cm
When the microwave oven is electrified, the screen will display "0", buzzer will ring once.
Note: If no operation is performed within 3 minutes and the door is closed , the screen is
turn off. When open the door again, display "0" or set the state or cooking time.
EN-7
20
QUICK MICROWAVE COOKING
1. In standby state, press " START ", buzzer will ring once and start cooking the screen
will display " -, --, ---, ---- ".
2. When the time is reached, The buzzer will ring 4 times.
Note:
After cooking , if you do not open the door to take out the food ,every 1 mimute
buzzer, open the door to immediately cancel the buzzer. Finish cooking and return to
standby mode.
MICROWAVE COOKING
1. In standby state, press " POWER LEVEL", the screen will display "800", continue to
press " " the screen will display "700 , 500 , 200 "
2. Adjust the time by pressing " 5min" , "1min ", "10sec" the oven time increase.
3. Press " START " buzzer w ill ring once.
4. When the cooking time is reached, The buzzer will ring 4 times.
Note:
In states of microwave cooking,press " VV " the current power will be
displayed for 3 seconds. After 3 seconds, the oven will turn back to the forme
state;
PLUS AND LESS FUNCTION
1. The microwave start working within 30 seconds, press " PLUS/LESS " once, the
screen will display " PLUS ".
2. Press " PLUS/LESS " twice, the screen will display " LESS " .
3. Press " PLUS/LESS " three times, the screen will display "bASE ", the corresponding
time was previously displayed.
LOCK-OUT FUNCTION FOR CHILDREN
1. Long press " STOP/CLEAR " buzzer will ring once and the screen display "SAFE ".
2. In locked state, Long press " STOP/CLEAR " buzzer will ring once and the screen
display "0 " .
POWER LEVEL
POWER LEVEL
Y can't adjust the time by pressing "PLUS/LESS " .
You
EN-8
ENGLISH
INSTANT NOODLES
1. In standby state, press " INSTANT NOODLES ", the screen will display " -, --, ---, ---- "
the menu can't adjust time.
2. When the time is reached, buzzer will ring once and the screen display "0.50".
3. When the cooking time is reached, The buzzer will ring 4 times.
Rice
1. In standby state, press " RICE ", the screen will display " -, --, ---, ---- " the menu
can't adjust time.
2. When the time is reached, buzzer will ring once and the screen display "15.00"
3. When the cooking time is reached, The buzzer will ring 4 times.
Defrost
1. In standby state, press once " DEFROST ", the screen will display " 100 " .
continue to press " DEFROST " the screen will display "200 , 300 , 400 , 500 "
2. Press " START " buzzer will ri ng once .
3. Adjust the time by pressing " PLUS/LESS " within 30 seconds.
4. When the cooking time is reached, The buzzer will ring 4 times.
Vegetables
1. In standby state, press " VEGETABLE
the menu can't adjust time.
2. When the time is reached, buzzer will ring once and the screen display "1.00".
3. When the cooking time is reached, The buzzer will ring 4 times.
Beverages
1. In standby state, press once " BEVERAGES ", the screen will display " 1 " .
continue to press " BEVERAGES " the screen will display "2 , 3 , 4 "
2. Press " " buzzer will ring once and the screen will display " 1.00 " .
3. When the cooking time is reached, The buzzer will ring 4 times.
Note:
Press " BEVERAGES ", all buttons except "START ", " STOP/CLEAR " are invalid .
START ", you can adjust the time by pressing " PLUS/LESS " in 30 seconds.
AUTO MENU OPERATION
START
After press "
S ", the screen will display " -, --, ---, ---- "
EN-9
SUITABLE OVENWARE
To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to
penetrate the food. Therefore it is important to choose suitable cookware.
Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety
of cookware can be used as listed below.
Cookware Microwave
Safe
Comments
Aluminium foil
Foil Containers
✔
/
✘
Small pieces of aluminium foil can be used to shield food from
overheating. Keep foil at least 2cm from the oven walls, as arcing
may occur.
Foil containers are not recommended unless speci ed by the man-
ufacturer, e.g. Microfoil ®, follow instructions carefully.
Browning dishes
✔
Always follow the manufacturers instructions.
Do not exceed heating times given. Be very careful as these dishes
become very hot.
China and ceramics
✔
/
✘
Porcelain, pottery, glazed earthenware and bone china are usually
suitable, except for those with metallic decoration.
Glassware e.g. Pyrex ®
✔
Care should be taken if using ne glassware as it can break or crack
if heated suddenly.
Metal
✘
It is not recommended to use metal cookware as it will arc, which
can lead to re.
Plastic/Polystyrene e.g fast
food containers
✔
Care must be taken as some containers warp, melt or discolour at
high temperatures.
Cling lm
✔
It should not touch the food and must be pierced to let the steam
escape.
Freezer/Roasting bags
✔
Must be pierced to let steam escape. Ensure bags are suitable for
microwave use.
Paper - Plates, cups and
kitchen paper
✔
Do not use plastic or metal ties, as they may melt or catch re due
to the metal ‘arcing’.
Straw and wooden
Containers
✔
Only use for warming or to absorb moisture.
Care must be taken as overheating may cause re.
Recycled paper and
newspaper
✘
Always attend the oven when using these materials as overheating
may cause re.
May contain extracts of metal which will cause ‘arcing’ and may lead
to re.
WARNING:
When heating food in plastic or paper containers, monitor the oven due to the possibility of
ignition.
EN-10
ENGLISH
CARE AND CLEANING
CAUTION: DO NOT USE COMMERCIAL OVEN
CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH
CLEANERS, ANY THAT CONTAIN SODIUM HYDROX-
IDE OR SCOURING PADS ON ANY PART OF YOUR
MICROWAVE OVEN.
CLEAN THE OVEN AT REGULAR INTERVALS AND RE-
MOVE ANY FOOD DEPOSITS - Keep the oven clean,
or the oven could lead to a deterioration of the
surface. This could adversely a ect the life of the
appliance and possibly result in a hazardous situa-
tion.
Oven exterior
The outside of your oven can be cleaned easily with
mild soap and water. Make sure the soap is wiped o
with a moist cloth, and dry the exterior with a soft
towel.
Control panel
Open the door before cleaning to de-activate the con-
trol panel. Care should be taken in cleaning the con-
trol panel. Using a cloth dampened with water only,
gently wipe the panel until it becomes clean.
Avoid using excessive amounts of water. Do not use
any sort of chemical or abrasive cleaner.
Oven Interior
1. For cleaning, wipe any splatters or spills with a soft
damp cloth or sponge after each use while the oven is
still warm. For heavier spills, use a mild soap and wipe
several times with a damp cloth until all residues are
removed. Do not remove the waveguide cover.
2. Make sure that mild soap or water does not pen-
etrate the small vents in the walls which may cause
damage to the oven.
3. Do not use spray type cleaners on the oven interior.
Keep the waveguide cover clean at all times.
The waveguide cover is constructed from a fragile
material and should be cleaned with care (follow the
cleaning instructions above).
NOTE: Excessive soaking may cause disintegration of
the waveguide cover.
The waveguide cover is a consumable part and with-
out regular cleaning, will need to be replaced.
Turntable and Turntable support
Remove the turntable and turntable support from the
oven.
Wash the turntable and turntable support in mild
soapy water. Dry with a soft cloth. Both the turntable
and the turntable support are dishwasher safe.
Door
To remove all trace of dirt, regularly clean both sides
of the door, the door seals and adjacent parts with a
soft, damp cloth. Do not use abrasive cleaner.
NOTE: A steam cleaner should not be used.
Cleaning tip - For easier cleaning of your oven:
Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% for 10 -12 minutes.
Wipe the oven clean using a soft, dry cloth.
EN-11
Printed in China
