TABLE OF CONTENTS
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use & Care
of your Refrigerator
Important Safety Instructions .................................2
Features at a Glance ..............................................4
Installation ...........................................................5
Door Removal Instructions .....................................7
Connecting Water Supply .......................................8
Controls ................................................................9

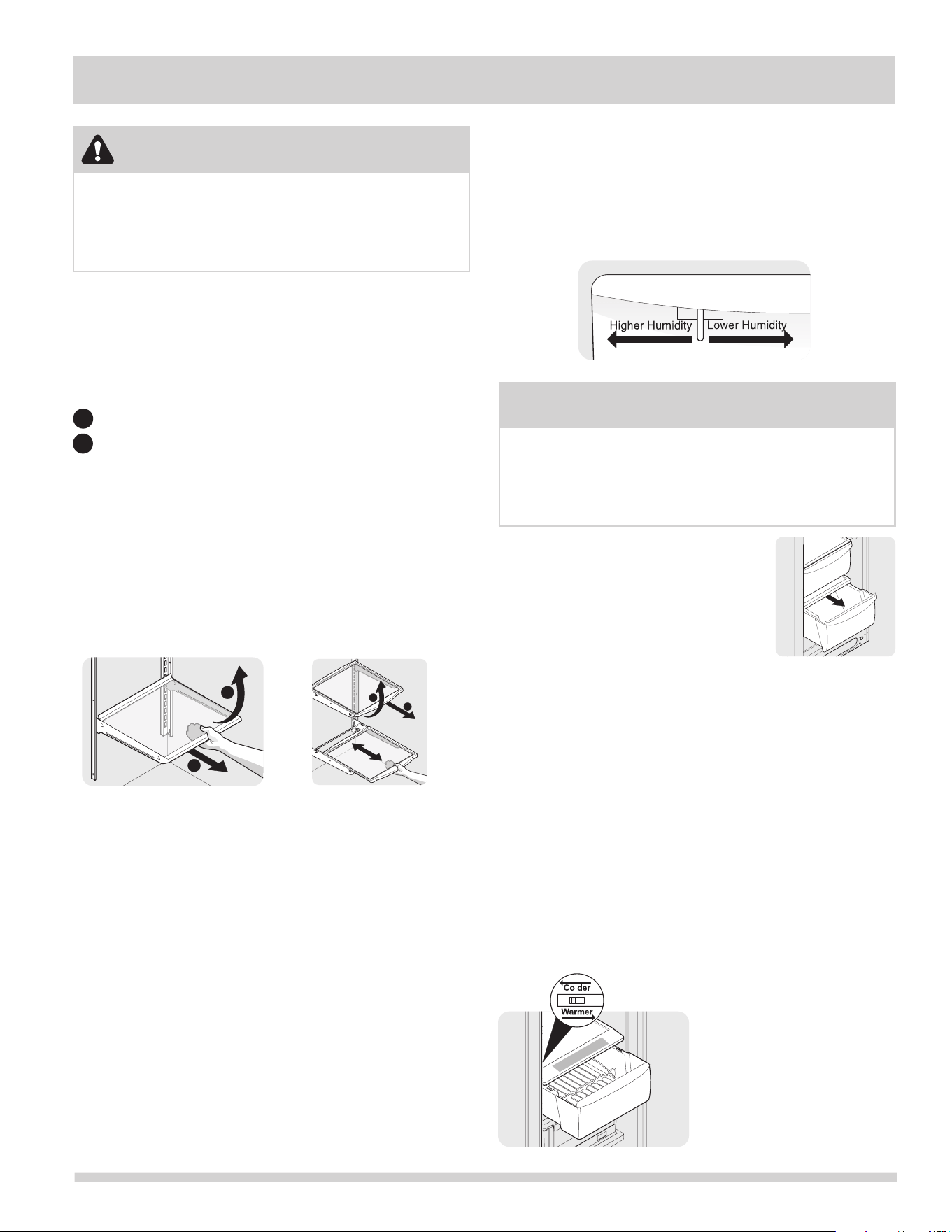

Storage Features .................................................11
241979200 (February 2009)
Automatic Ice & Water Dispenser .........................12

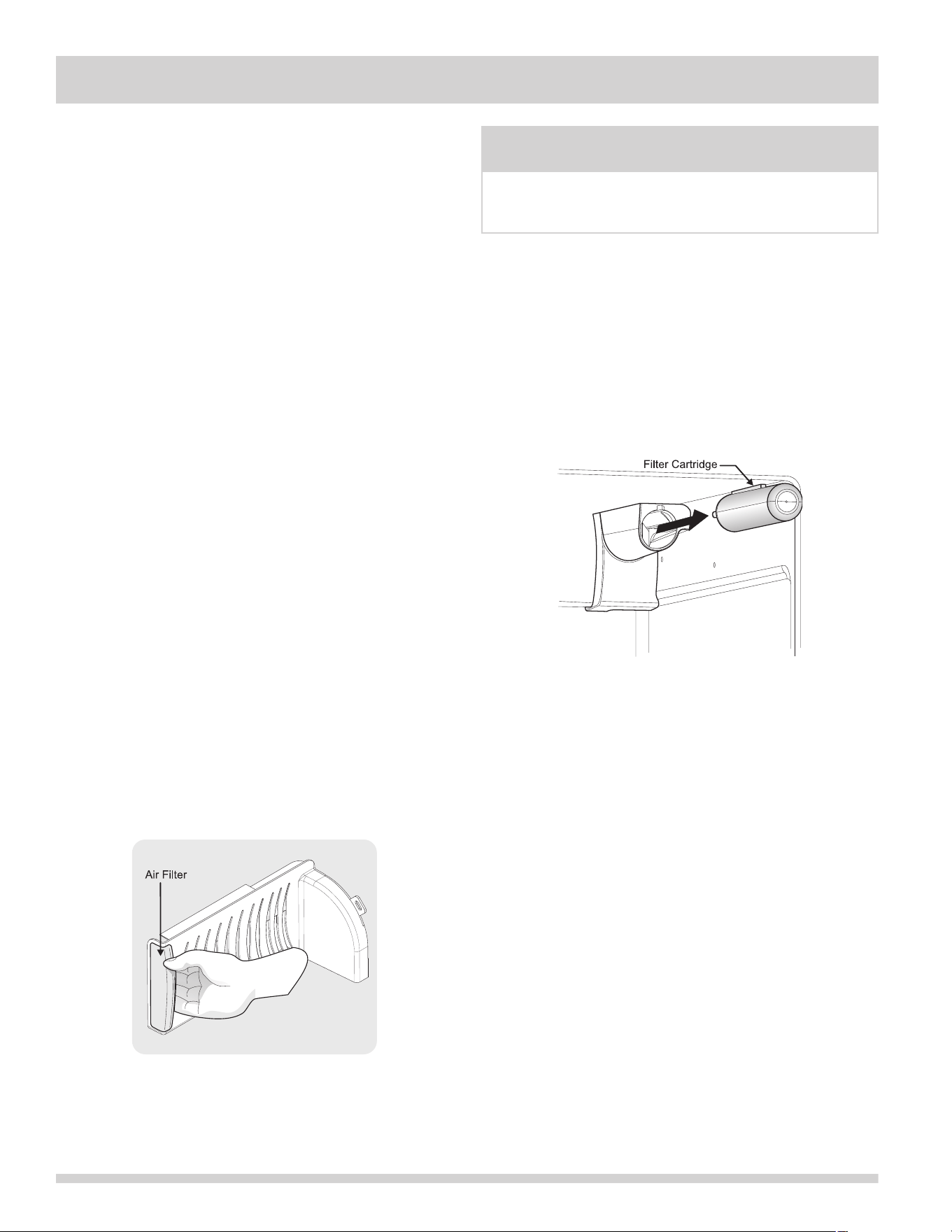

Changing the Filter ..............................................14

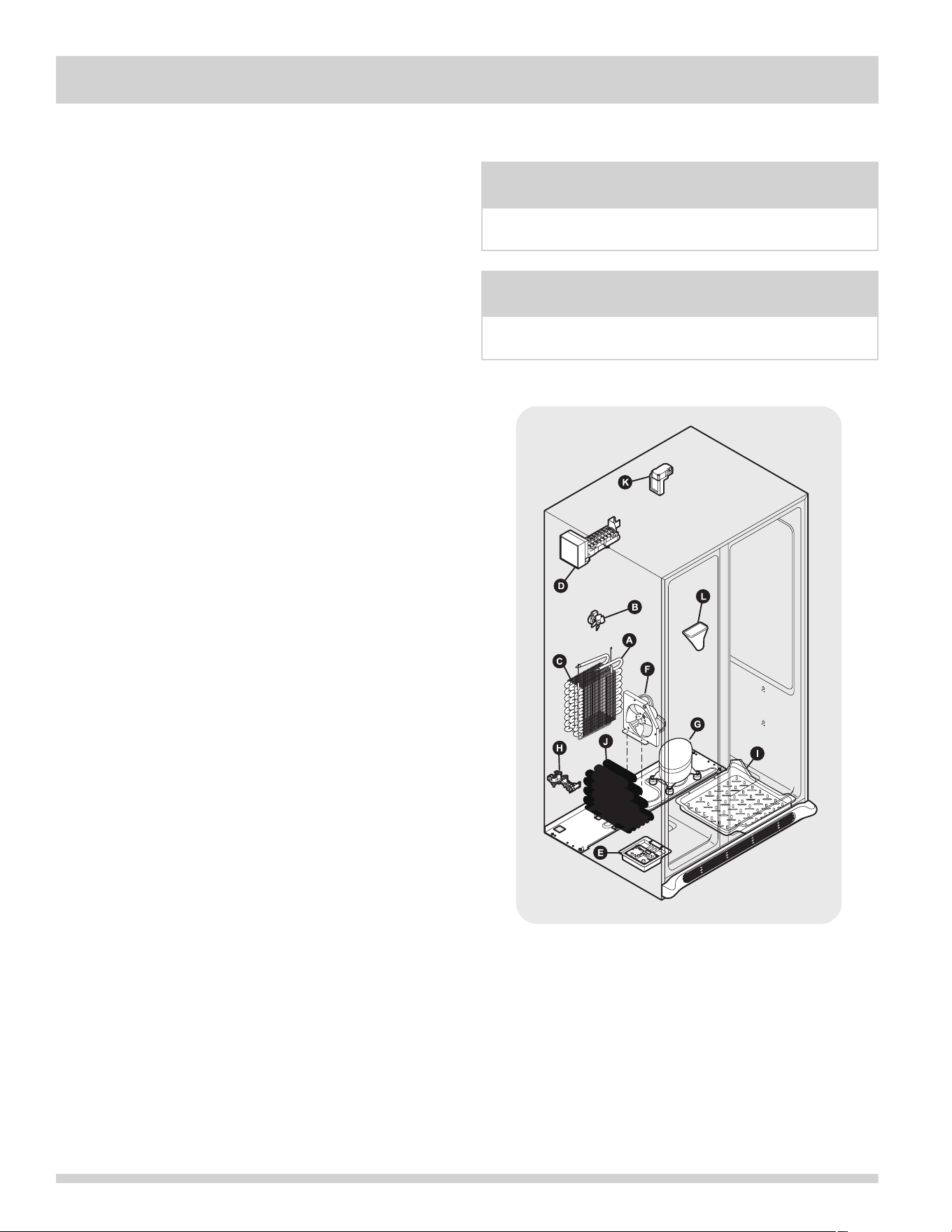

Normal Operating Sounds and Sights ....................16
Care and Cleaning ...............................................17
Before you Call ....................................................18
Major Appliance Warranty ....................................20
2
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
Denitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Freezer door is level across the top
Leveling
Refrigerator is level, side-to-side and tilted
1/4” (6mm) front-to-back
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to refrigerator
No water leaks present at all connections -
recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Frontltermustbeushwithlterhousing
(select models)
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
IMPOrTANT SAFETy INSTrUCTIONS
For your Safety
• DONOTstoreorusegasoline,orotherammable
liquids in the vicinity of this or any other appliance.
Read product labels for warnings regarding
ammabilityandotherhazards.
• DONOToperatetherefrigeratorinthepresenceof
explosive fumes.
• Avoidcontactwithanymovingpartsofautomatic
ice maker.
• Removeallstaplesfromthecarton.Staplescan
causeseverecuts,andalsodestroynishesifthey
come in contact with other appliances or furniture.
WARNING
Please read all instructions before using this
refrigerator.
3
IMPOrTANT SAFETy INSTrUCTIONS

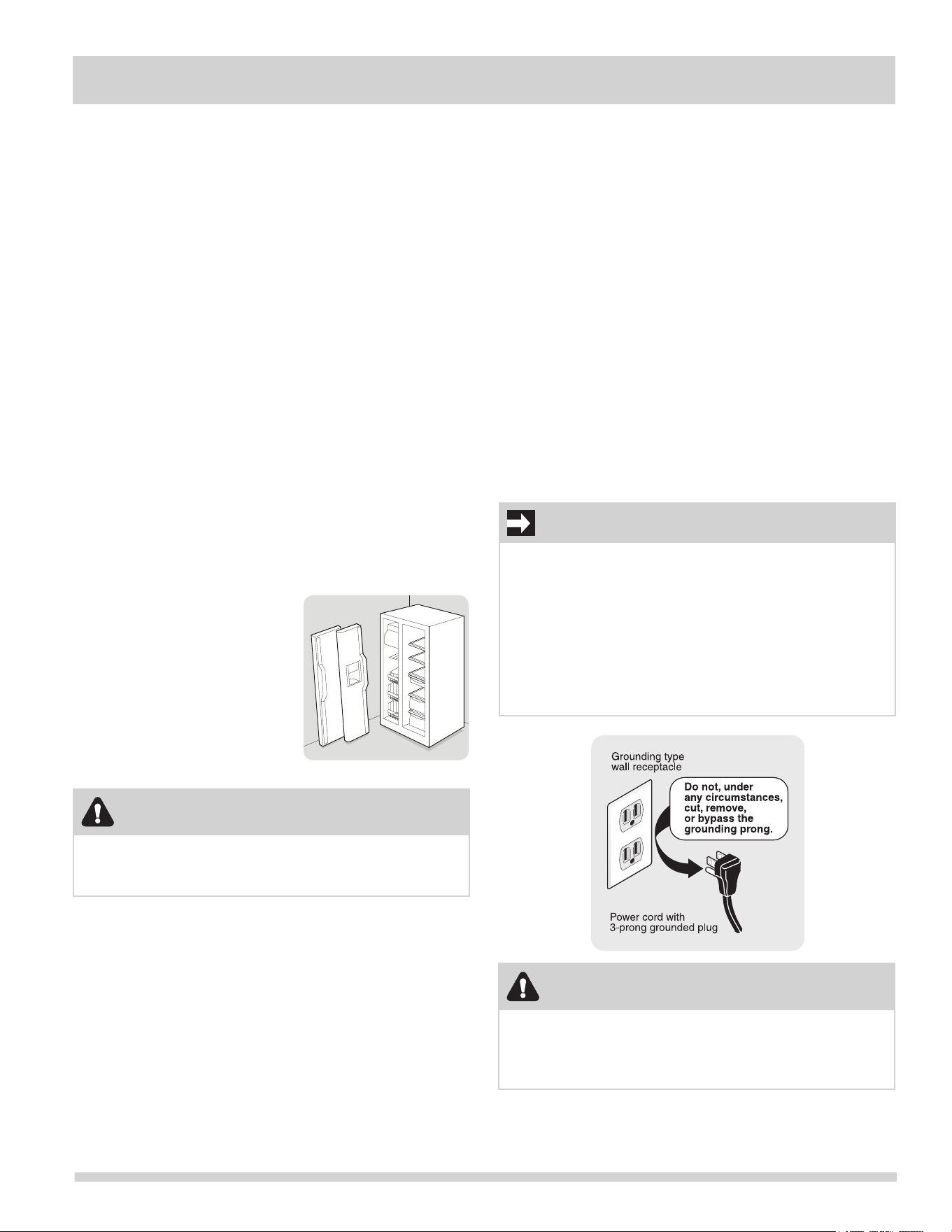

Electrical information
• The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power cord of the
appliance is equipped with a three-prong grounding
plug for your protection against electrical shock
hazards. It must be plugged directly into a properly
grounded three prong receptacle. The receptacle
must be installed in accordance with local codes
andordinances.Consultaqualiedelectrician.
Avoid connecting refrigerator to a Ground
WARNING
These guidelines must be followed to ensure that
safety mechanisms in this refrigerator will operate
properly.
IMPORTANT
Pressing and holding the On/Off button for 3 seconds,
located on the left side of the temperature control
panel (Electronic controls), or turning the Freezer and
Fresh Food controls to “0” (Mechanical controls) will
disable your refrigerator’s cooling system, but does
not disconnect the power to the light bulb and other
electrical components. To turn off power to your
refrigerator you must unplug the power cord from the
electrical outlet.
CAUTION
To avoid personal injury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change.
Child Safety
Destroy or recycle the carton, plastic bags, and any
exterior wrapping material immediately after the
refrigerator is unpacked. Children should NEVEr
use these items to play. Cartons covered with rugs,
bedspreads, plastic sheets or stretch wrap may become
airtight chambers, and can quickly cause suffocation.
Proper Disposal of your refrigerator or
Freezer
risk of child entrapment
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators or freezers are
still dangerous – even if they will sit for “just a few days”.
If you are getting rid of your old refrigerator or freezer,
please follow the instructions below to help prevent
accidents.
Proper Disposal of refrigerators/Freezers
We strongly encourage responsible appliance recycling/
disposal methods. Check with your utility company or
visit www.recyclemyoldfridge.com for more information
on recycling your old refrigerator.
Before you throw away
your old refrigerator/
freezer:
• Removedoors.
• Leaveshelvesinplace
so children may not
easily climb inside.
• Haverefrigerant
removedbyaqualied
service technician.
Fault Interrupter (GFI) circuit. Do not use an
extension cord or adapter plug.
• Ifthepowercordisdamaged,itshouldbereplaced
by an authorized service technician to prevent any
risk.
• Neverunplugtherefrigeratorbypullingonthe
powercord.Alwaysgriptheplugrmly,and
pull straight out from the receptacle to prevent
damaging the power cord.
• Unplugtherefrigeratorbeforecleaningandbefore
replacing a light bulb to avoid electrical shock.
• Performancemaybeaffectedifthevoltagevaries
by 10% or more. Operating the refrigerator with
insufcientpowercandamagethecompressor.
Such damage is not covered under your warranty.
• Donotplugtheunitintoanelectricaloutlet
controlled by a wall switch or pull cord to prevent
the refrigerator from being turned off accidentally.
4

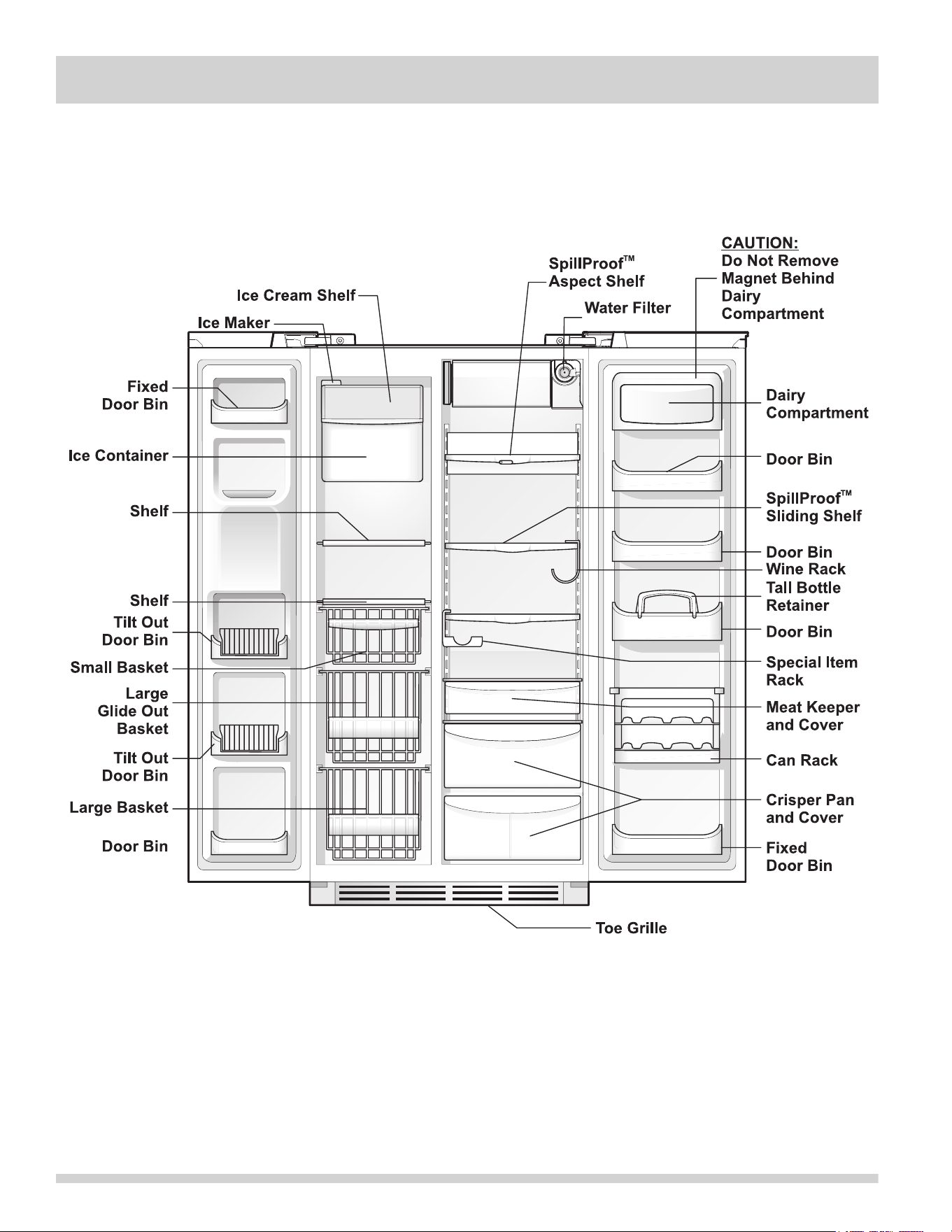

FEATUrES AT A GLANCE
Features may vary according to model
5
NOTE
If your refrigerator is placed with the door hinge side
against a wall, you may have to allow additional space
so the door can be opened wider.
INSTALLATION
CAUTION
Do Not install the refrigerator where the temperature
will drop below 55°F (13°C) or rise above 110°F
(43°C). The compressor will not be able to maintain
proper temperatures inside the refrigerator.
Do Not block the toe grille on the lower front of your
refrigerator.Sufcientaircirculationisessentialforthe
proper operation of your refrigerator.
This Use & Care Guide provides general operating
instructions for your model. Use the refrigerator only as
instructed in this Use & Care Guide. Before starting the
refrigerator, follow these important rst steps.
Location
• Chooseaplacethatisnearagroundedelectrical
outlet. Do Not use an extension cord or an
adapter plug.
• Ifpossible,placetherefrigeratoroutofdirect
sunlight and away from the range, dishwasher or
other heat sources.
• Therefrigeratormustbeinstalledonaoorthatis
level and strong enough to support a fully loaded
refrigerator.
• Considerwatersupplyavailabilityformodels
equipped with an automatic ice maker. If you do
not hook up water to the refrigerator, remember to
turn the ice maker off.
Installation
Installation clearances
• Allowthefollowingclearancesforeaseof
installation, proper air circulation, and plumbing
and electrical connections:
Sides & Top
3
/
8
inch
Back 1 inch

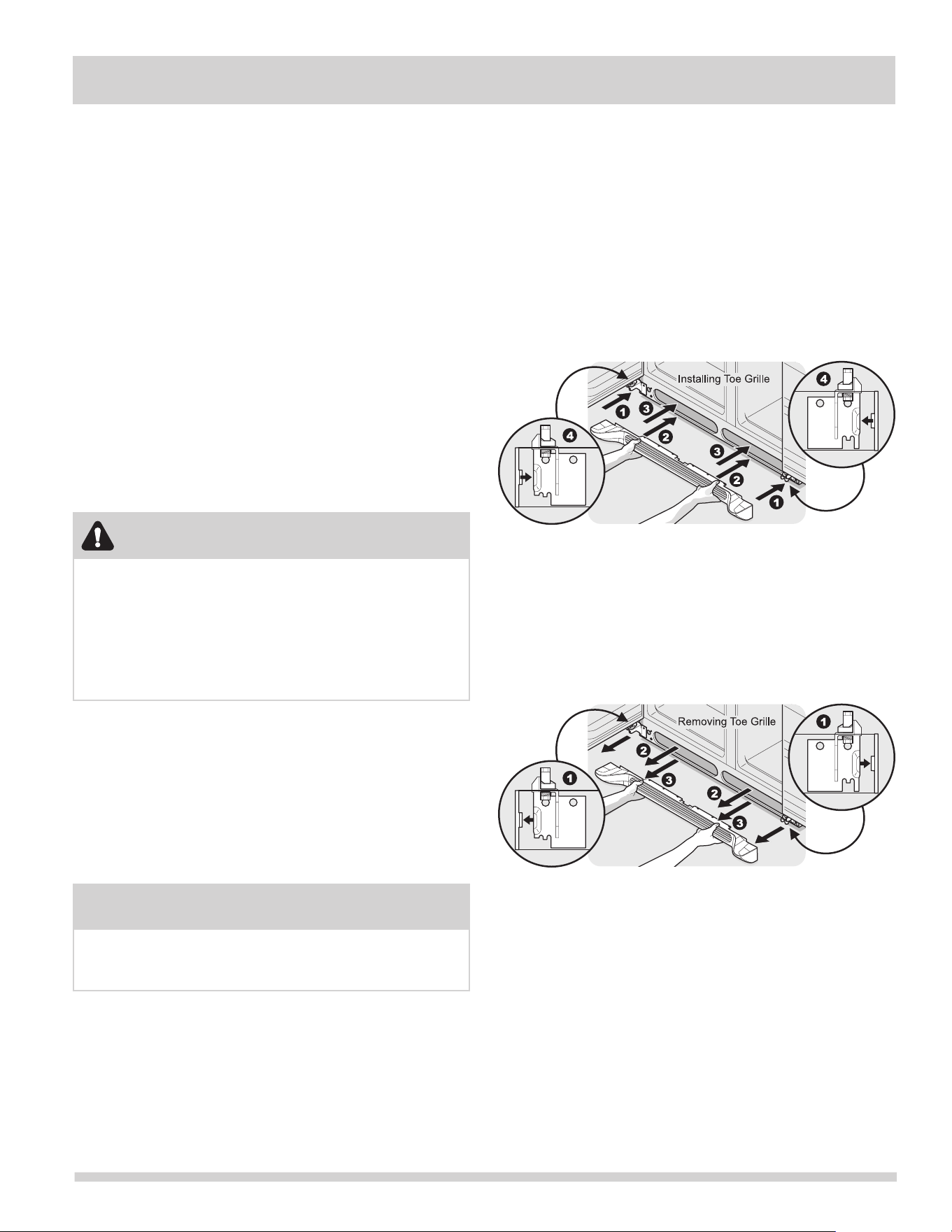

Toe Grille Installation and removal
To install toe grille
1 Open both doors. Slide left and right sides of toe
grille over lower hinges of refrigerator.
2 Whilepushingtoegrillermlyagainstcabinet,
fasten bottom clips of toe grille to cabinet.
3 Fasten top clips to cabinet.
4 Close the doors. Fasten right and left side clips
into groove of bottom hinge.
To remove toe grille
1 With both doors closed, unfasten right and left side
clips of toe grille from bottom hinge groove.
2 Openbothdoors.Pressrmlyontopoftoegrille
until top of toe grille pops off.
3 Pull toe grille outward toward your body and off of
lower hinges.
6
INSTALLATION
NOTE
The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
6 Replacethetoegrillebyttingitintoplace
(see “Toe Grille Installation and Removal” in the
“Installation” section).

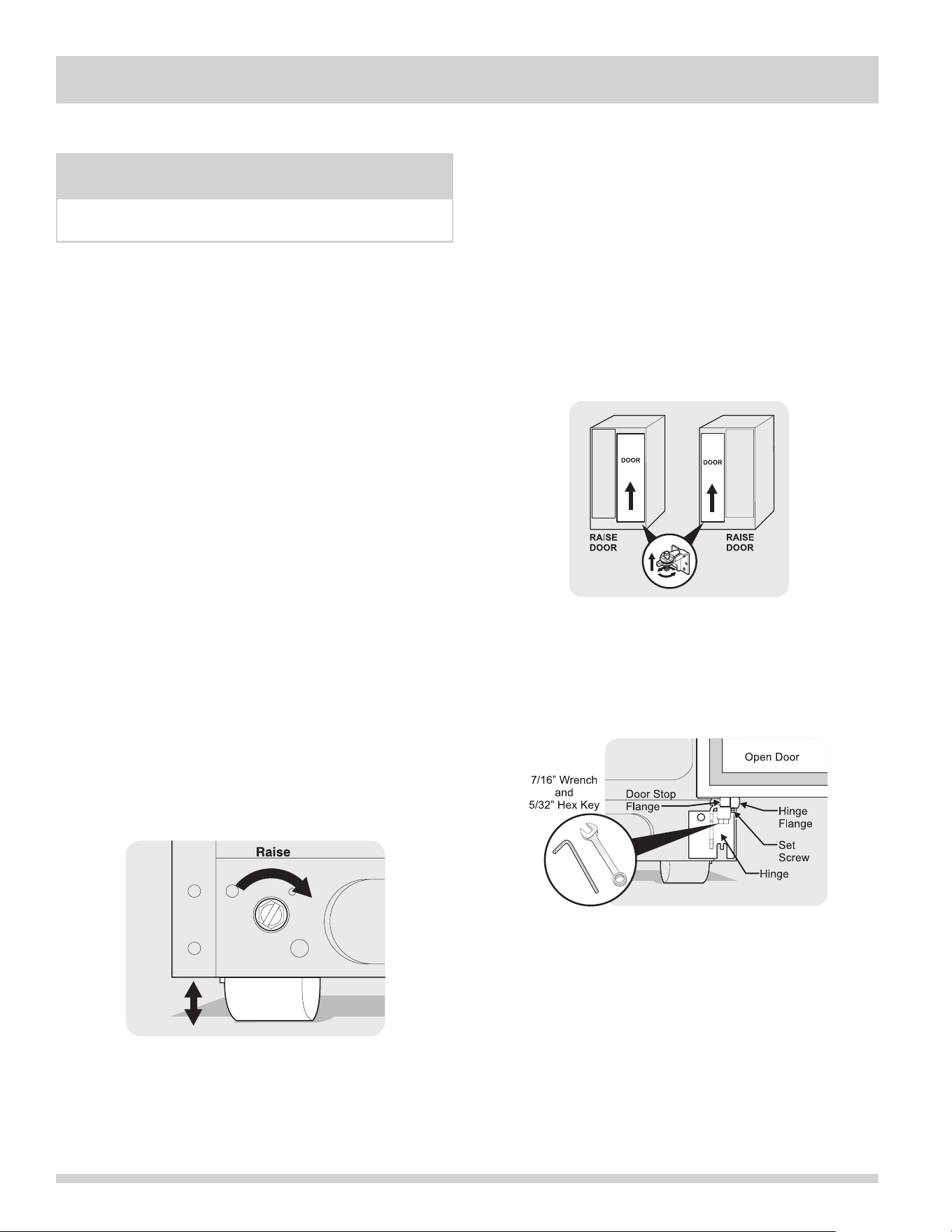

To level the doors using the adjustable lower
hinge (some models):
1 Before leveling either door, remove set screw that
locks door height into position. (The door cannot
be adjusted without set screw removed).
2 If the refrigerator door is lower than the freezer
door, raise the refrigerator door by turning the
adjustment screw clockwise using a
7
/
16
inch
wrench. (See illustration.)
3 If the freezer door is lower than the refrigerator
door, raise the freezer door by turning the
adjustment screw clockwise using a
7
/
16
inch
wrench. (See illustration.)
4 After leveling, verify door stop contacts lower hinge
and top of door does not contact upper hinge
through full movement of door (from fully closed to
fully open).
5 Reinstall set screw, locking the door height.
Door Opening
Your refrigerator should be positioned to allow easy
access to a counter or table when removing food. For
best use of drawers and freezer baskets, the refrigerator
should be in a position where both the refrigerator and
freezer doors can be fully opened.
Guidelines for nal positioning of your
refrigerator:
• Allfourcornersofthecabinetmustrestrmlyon
theoor.
• Thecabinetshouldbelevelatthefrontandrear.
• Thesidesshouldtilt¼inch(6mm)fromfrontto
back (to ensure that doors close and seal properly).
• Doorsshouldalignwitheachotherandbelevel.
All of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front rollers:
1 Open both doors and remove the toe grille (see
“Toe Grille Installation and removal” in the
“Installation” section).
2 Closethedoorsanduseaat-bladescrewdriveror
3
/
8
inch socket wrench to raise or lower the front
rollers.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides.
7

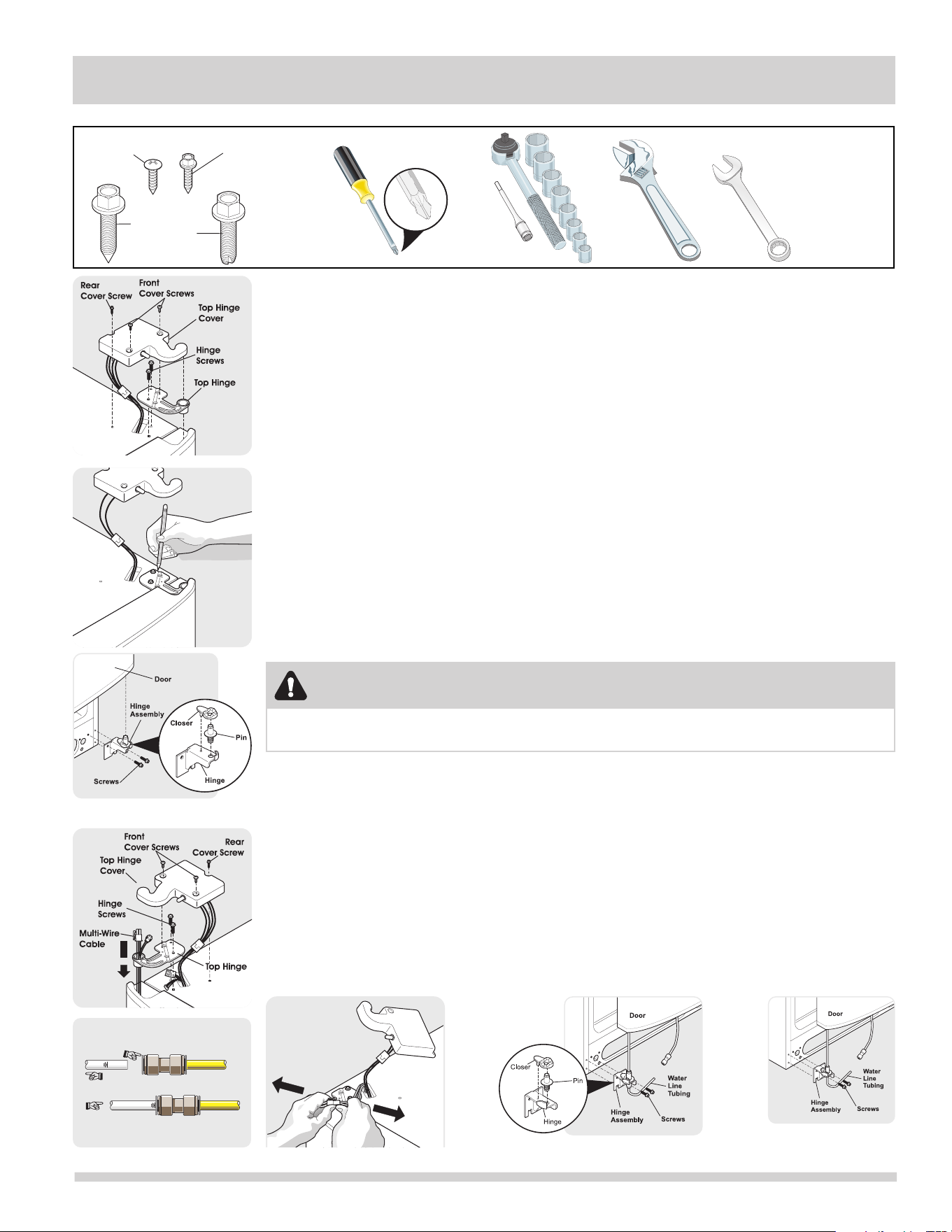

DOOr rEMOVAL INSTrUCTIONS
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged from the wall outlet.
2 Open both doors and remove the toe grille (as explained in the Installation Instructions
that came with your appliance).
3 Remove any food from the door shelves.
4 Close the doors.
To remove the refrigerator top hinge cover:
1 Remove the three screws from each cover over the top door hinges.
2 Lift hinge cover straight up and off.
To remove the refrigerator door:
1 Trace lightly around the door’s top hinge with a pencil. This makes reinstallation easier.
2 Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it aside.
3 Remove the two bottom hinge screws and hinge if necessary.
To reinstall the refrigerator door, reverse the above steps.
To remove the freezer top hinge cover:
1 Remove the two screws from each cover over the top door hinges.
2 Lift hinge cover straight up and off.
Adjustable
Wrench
Socket
Wrench Set
OR
Phillips Head
™
Tools Necessary:
3/8” Fixed
Wrench
AND
OR
To p Hinge
Cover Rear
Screw
To p Hinge
Cover Front
Screw
Bottom
Hinge
Screw
To p
Hinge
Screw
Adjustable Hinge
CAUTION
Be sure doors are set aside in a secure position where they cannot fall and cause
personal injury.
Non-Adjusting Hinge
(some models)
Adjustable Hinge (some models)
To remove the freezer door:
1 Detach the multi-wire cable connector located above the top hinge. Grasp both sides of
theconnectorrmlyandpullapart.
2 Trace lightly around the hinge with a pencil. This makes reinstallation easier.
3 Detach the water tube from the connector located below the freezer door. The connector
releases when you press its outer sleeve inward.
4 Remove the screws from the top hinge and pull the multi-wire cable through it. Lift the
door off of the bottom hinge.
5 Remove the two bottom hinge screws and hinge if necessary.
6 Lay the door on its side to avoid damage to the water tube extending from the bottom hinge.
To reinstall the freezer door, reverse the above steps.
TO DISCONNECT
1. Press outer ring against face
of fitting
2. Pull to
remove tube
TO CONNECT
Insert tube and
push until mark touches face of fitting
8
CAUTION
To avoid property damage:
• Usecoppertubingforthewatersupplyline(plastic
tubing is more likely to leak). Manufacturer is not
responsible for any damage if plastic tubing is used
for supply line.
• Ensurewatersupplyandinstallationcomplywith
state and local laws and regulations.
• Forproperdispenseroperation,recommendedwater
supply pressure should fall between 30 psi and 100 psi.
Excessivepressuremaycausewaterltertomalfunction.
NOTE
A kit is available from your dealer that provides all
materials for a water supply installation, including 25
feet of copper tubing and full instructions.
NOTE
After connecting the water supply, refer to “How to Prime
the Water Supply System” for important information about
priming an empty water supply system.
Your refrigerator’s water supply system includes several
tubinglines,awaterlter,awatervalveandawater
tank. To ensure that your water dispenser works
properly,thissystemmustbecompletelylledwith
waterwhenyourrefrigeratorisrstconnectedtothe
household water supply line.
CONNECTING THE WATEr SUPPLy
About your refrigerator’s Water Supply
The automatic ice & water dispenser on your refrigerator requires a permanent water supply to function correctly.
During installation, you (or a service professional) establish this water supply by connecting a copper tube from your
household water system to a valve at the rear of the refrigerator.
You may have already followed the directions in the Installation Instructions to connect the water supply. This
information is repeated here for future reference if you need to relocate your refrigerator.
What you will need:
• Acoldwaterlinewithpressureof30-100psi.
(System is to be supplied with cold water only.)
• Coppertubingwith¼inch(6.4mm)Outside
Diameter (OD). Length for this tubing is the distance
from the rear of the refrigerator to your household
water supply line plus seven feet (2.1 meters).
• Ashut-offvalvefortheconnectionbetweenyour
household water line and the refrigerator supply line.
Do not use a self-piercing shut-off valve.
• Acompressionnutandferrule(sleeve)forthewater
supply connection at the rear of your refrigerator.

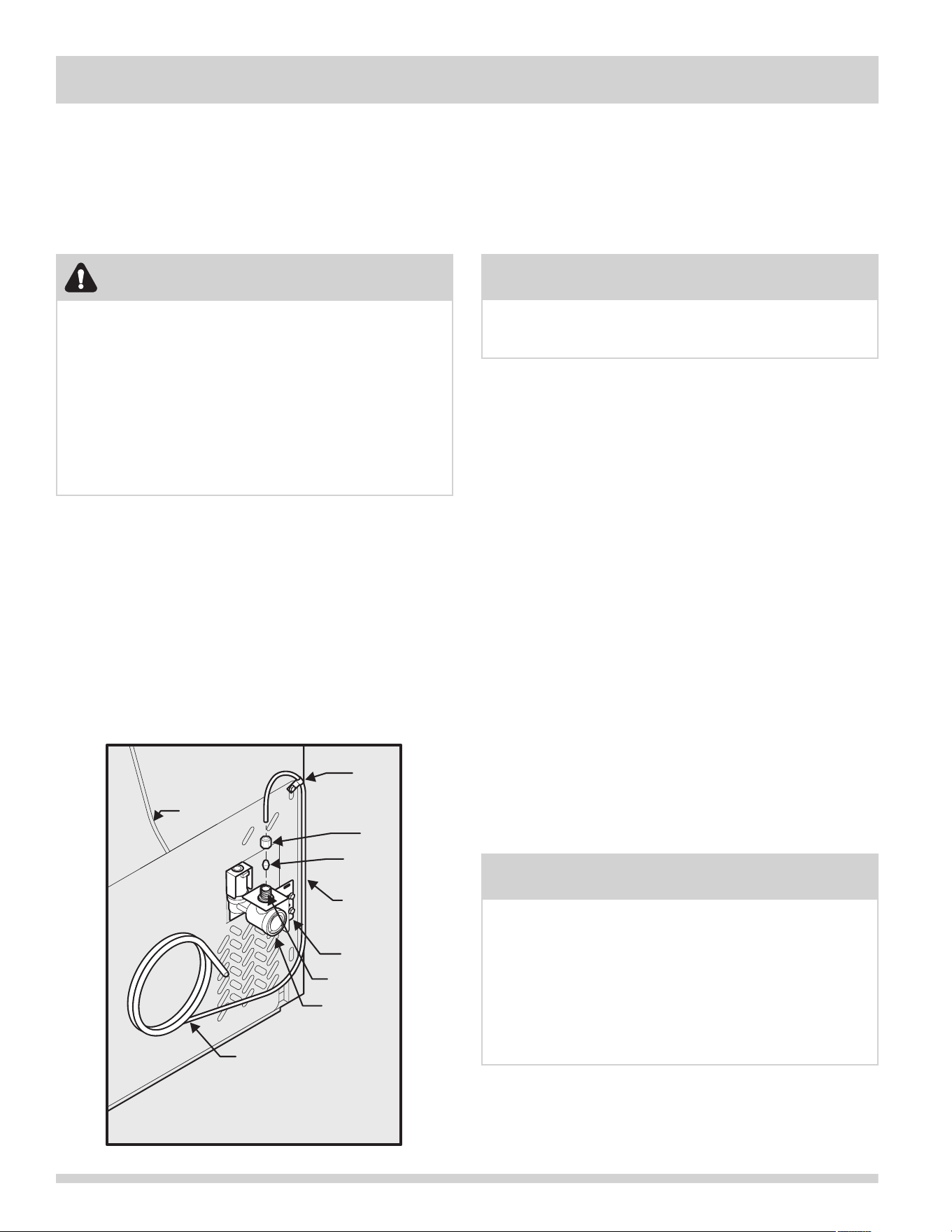

Copper water line
from household water supply
(Includeenough tubing in loop to allow
moving refrigerator out for cleaning.)
Ferrule
(Sleeve)
Copper
water line
WaterValve
Valve Inlet
Water Valve
Bracket
Steel
Clamp
Plastic Water Tubing
to Ice Maker
Fill Tube
Brass
Compression
Nut
To connect the water supply to the rear of
your refrigerator:
1 Ensure that the refrigerator is not plugged in.
2 Flush the supply line until water is clear by placing
the end of the copper tube in a sink or bucket and
opening the shut-off valve.
3 Remove the plastic cap from the water valve inlet
at the rear of your refrigerator. Discard the cap.
4 Slide the brass compression nut, then the ferrule
(sleeve) onto copper tube.
5 Push the copper tube into the water valve inlet as
farasitwillgo(¼inch).
6 Slidetheferrule(sleeve)intothevalveandnger-
tighten the compression nut onto valve. Tighten
another half turn with a wrench. Do not over-
tighten.
7 Secure the copper tube to your refrigerator’s rear
panel with a steel clamp and screw (see illustration).
8 Coil the excess copper tubing (about 2½ turns)
behind your refrigerator as shown. Arrange coiled
tubing to avoid vibration or wear against other
surfaces.
9 Open water supply shut-off valve and tighten any
connections that leak.
9
CONTrOLS

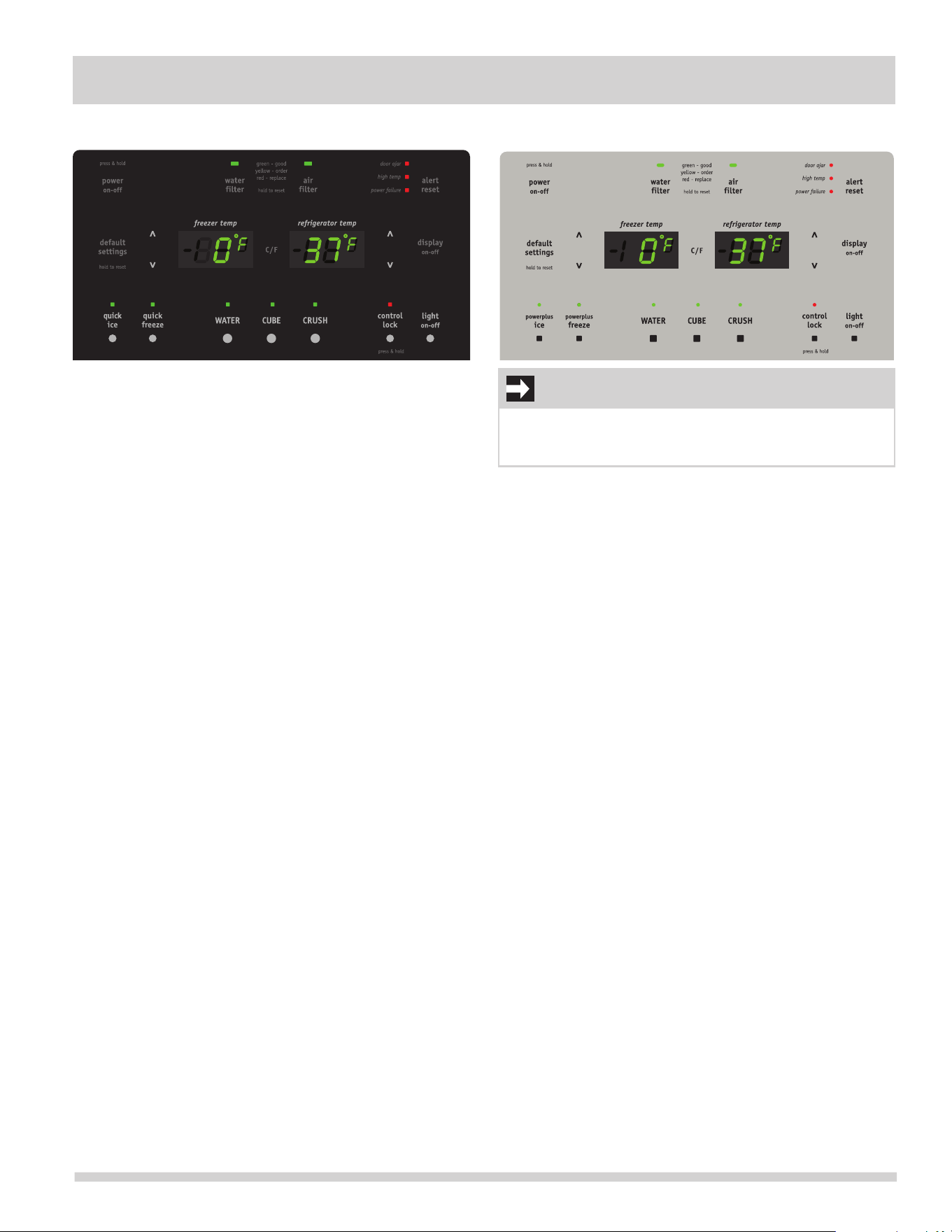

Frigidaire Gallery Frigidaire Pro
User Interface
Your refrigerator is equipped with a user interface display.
It is only necessary to touch the glass. There is no need
to press with force.
Touch an icon to activate the desired dispenser mode.
The active dispenser mode is more brightly illuminated.
quick ice Increases the production of ice
(Gallery only)
quick freeze Activates a faster rate for freezing
(Gallery only) food
power plus ice Increases the production of ice
(Pro only)
power plus freeze Activates a faster rate for freezing
(Pro only) food
light on-off On / Off
control lock Press and hold for three seconds
to activate and deactivate. This
restricts undesired changes to the
refrigerators settings and prevents
use of the ice and water dispenser.
User Variable Options
Touching the options icon displays the following options:
water lter Touchtodisplaylterconditionstatus.
Press and hold for three seconds to reset.
air lter Touchtodisplaylterstatus.Pressand
hold for three seconds to reset.
display on-off When active, it allows the display of
the freezer and fridge temps.
C/F Touch to toggle display from Fahren-
heit to Celsius.
default settings Resets all refrigerator settings such as
temp, temp display, and alarm tones to
their factory default settings.
power on-off Press and hold for three seconds to
turn off the cooling system to clean
the refrigerator. It also turns off all
dispenser functions. The temperature
display will read OFF.
IMPORTANT
Pressing the power off icon does not turn off power to
your refrigerator. You must unplug the power cord from
the wall outlet.
Setting Cooling Temperatures
Press the ∧ or ∨ indicator to adjust the temperature to
the desired setting.
Thetemperaturedisplaywillbegintoblinkwiththerst
touch.Afterve(5)secondsofinactivity,thedisplaywill
beep to accept the new temperature.
Alarms
Door Ajar If the door has been left open for an
extended period of time greater than
5 minutes, an alarm will sound and
the door ajar indicator will display in
the middle. The alarm is turned off by
closing the door. The alarm off key will
illuminate to prompt the reset of any
pending alarms. Press this key to reset
any system Alarms.
High Temp In the event of a high temperature
condition, the temperature display will
display “HI”. After 20 minutes, the
high temp alert will be displayed and
the alarm off icon will illuminate until
pressed, acknowledging the alarm, at
which time the highest temperature
reached will be displayed and the
refrigerator will resume normal opera-
tion. All other modes are turned off
until the alarm is acknowledged.
Power Fail In the event of a power failure, the
power fail alert will be displayed and the
alarm off key will be illuminated and you
will hear an audible alarm until the alarm
off icon is pressed, acknowledging the
alarm. Other modes may be turned off
until the alarm is acknowledged. When
the power fail alert is turned off, the
refrigerator will resume normal opera-
tion. The high temp alarm may also be
illuminated until a safe operating range
temperature has been reached.
10
CONTrOLS
Sabbath Mode
The Sabbath Mode is a feature that disables portions
of the refrigerator and its controls in accordance with
observance of the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing and
holding "∨" on freezer temp and "∧" on refrigerator
temp forveseconds.Thedisplayshows“Sb”whilein
Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active
for health reasons. If a high temperature alarm is
activated during this time, for example due to a door
left ajar, the alarm will sound intermittently for about
10 minutes. The alarm will then silence on its own and
a red high temperature icon will display. The high temp
icon will continue to display, even if the door is closed,
until the Sabbath mode is exited and the icon reset. The
refrigerator will function normally once the door is closed,
without any violation of the Sabbath/Holidays.
For further assistance, guidelines for proper
usage and a complete list of models with
the Sabbath feature, please visit the web at
http:\\www.star-k.org.
NOTE
Although you have entered the Sabbath mode, the ice
maker will complete the cycle it had already initiated.
The ice cube compartment will remain cold and new ice
cubes can be made with standard trays.
11
CAUTION
To avoid personal injury or property damage, handle
tempered glass shelves carefully. Shelves may break
suddenly if nicked, scratched, or exposed to sudden
temperature change. See “Glass Shelves” in Care &
Cleaning Chart.
STOrAGE FEATUrES
Cantilever Sliding Glass Shelf
1
2
Cantilever Glass Shelf
1
2
Cantilever Shelf Adjustment
Refrigerator shelves are easily adjusted to suit individual
needs. Before adjusting the shelves, remove all food.
Cantilever shelves are supported at the back of the
refrigerator.
To adjust cantilever shelves:
1 Lift front edge up.
2 Pull shelf out.
Replace the shelf by inserting the hooks at rear of the
shelf into the wall bracket. Lower the shelf into the
desired slots and lock into position.
SpillSafe
TM
glass shelves (some models) catch and hold
accidental spills. In some models, the SpillSafe
TM
shelves
slide out for easy access to food and for fast cleaning.
The shelves slide out independently of their mounting
brackets. Just pull the front of the shelf forward. Shelves
can be extended as far as the stopper will allow but are
not removable from their mounting brackets.
Door storage
Door bins and shelves are provided for convenient
storage of jars, bottles, and cans. Frequently used items
can be quickly selected.
Some models have door bins that can accommodate
gallon-sized plastic drink containers and economy-
sized jars and containers. Some bins are adjustable for
maximum storage capacity.
The dairy compartment, which is warmer than the
general food storage section, is intended for short term
storage of cheese, spreads, or butter.
Fresh Drawers with Humidity Control
(some models)
The fresh drawers, located under the bottom refrigerator
shelf, are designed for storing fruits, vegetables, and other
Crisper Drawer
Crisper Humidity Control
Cool Drawer (some models)
Some models are equipped with a Cool Drawer for
storage of luncheon meats, spreads, cheeses, and
other deli items. This drawer does not have a separate
temperature control
Chill Drawer (some models)
Some models are equipped with a Chill Drawer. Chill
Drawer temperatures can be adjusted by sliding the Chill
Drawer Temperature Control in either direction. Use this
pan for short term storage of bulk meat items. If meats
are to be kept longer than one or two days, they should
befrozen.TheChillDrawerisxedandcannotbemoved
up or down. If fruits or vegetables are to be stored in the
Chill Drawer, set the Chill Drawer Temperature Control to
a warmer setting to prevent freezing.
NOTE
Leafy vegetables keep best when stored with the
humidity control set on Higher Humidity, or in a
drawer without a Humidity Control. This keeps incoming
air to a minimum and maintains maximum moisture
content.
Crispers
Crispersallowyoutheexibilityto
store any manner of items including
fruits, vegetables, nuts, etc.
Crispers do not feature humidity
controls.
Chill Drawer
with Temperature Control
fresh produce. The fresh drawers feature humidity control
which allows you to adjust the humidity within the
drawer. This can extend the life of fresh vegetables that
keep best in high humidity. Wash items in clear water and
remove excess water before placing them in the crispers.
Items with strong odors or high moisture content should be
wrapped before storing.
12
IMPORTANT
Your ice maker is turned on at the factory so it can
work as soon as you install your refrigerator. If you
cannot connect a water supply, turn the ice maker’s
On/Off switch to Off. Otherwise, the ice maker’s
llvalvemaymakealoudchatteringnoisewhenit
attempts to operate without water.
IMPORTANT
Small ice cubes or ice chips jamming in the ice maker
maybeasignthatyourwaterlterneedschanging.
If you have a side mounted ice maker you may also
experience hollow cubes partially frozen cubes with
water inside. When these cubes are harvested, they
break open and spill water over the other ice cubes in
the ice container, forming a solid mass of ice. As the
waterlternearstheendofitsusefullifeandbecomes
clogged with particles, less water is delivered to the ice
makerduringeachcycle.Theicemakercan’tllevery
cube in the ice maker mold, leading to small cubes
or chips that can get caught between the ice ejector
blades and the stripper. Remember, if your ice maker
is jamming with small ice cubes or it’s been six months
orlongersinceyoulastchangedyourwaterlter
replacethewaterlterwithanewone.Poorquality
householdwatermayrequiretheltertobechanged
more frequently.
AUTOMATIC ICE & WATEr DISPENSEr
Priming the Water Supply System
Your refrigerator’s water supply system includes several
tubinglines,anadvancedwaterlter,adistributionvalve
bank, and a reserve tank to ensure ample supply to the
ice and water dispenser at all times. This system needs
tobecompletelylledwithwaterwhenrstconnectedto
an external supply line.
To prime the water supply system:
1 Beginllingthetankbypressingandholdinga
drinking glass against the water dispenser paddle.
2 Keep the glass in this position until water comes
out of the dispenser. It may take about 1½
minutes.
3 Continue dispensing water for about three minutes
toushthesystemandplumbingconnectionsof
any impurities (stopping to empty the glass as
necessary).
Ice Maker Operation & Care
The ice maker, ice bin, and dispenser feeding mechanism
are located in the top of the freezer compartment. After
the refrigerator is installed properly and has cooled for
several hours, the ice maker can produce ice within 24
hours.Itcancompletelyllanicebininabouttwodays.
The ice maker produces four to six pounds of ice every
24 hours depending on usage conditions. Ice is produced
at a rate of eight cubes every 75 to 90 minutes.
Using the Ice Maker after Installation
Beforemakingiceforthersttime,besuretoprimethe
water supply system. Air in new plumbing lines can result
in two or three empty ice maker cycles. Furthermore,
ifthesystemisnotushed,thersticecubesmaybe
discoloredorhaveanoddavor.
OFF
ON
Wire
Signal Arm

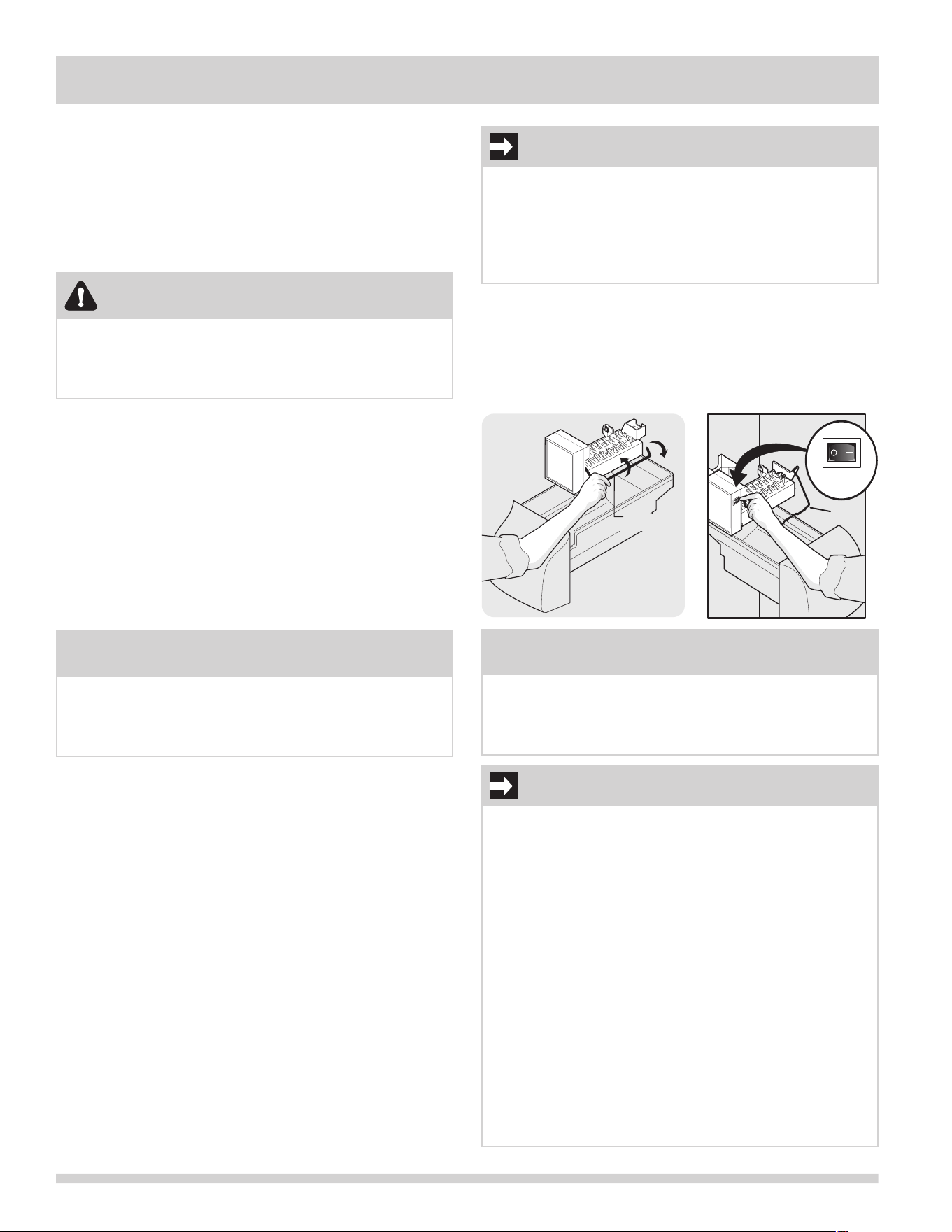

Turning the Ice Maker On and Off
Ice production is controlled by the ice maker’s On/Off
power switch. To gain access to the ice maker, pull the
extra shelf out (some models). Press the switch to the
“O” position to turn it Off and press to the “I” position to
turn it On.
NOTE
The water dispenser has a built-in device that shuts
offthewaterowafterthreeminutesofcontinuous
use. To reset this shutoff device, simply release the
dispenser paddle.
NOTE
The ice maker also has a built-in wire signal arm, that
automatically stops ice production when the ice bin is
full. This signal arm should not be used to manually
stop the ice maker.
CAUTION
For proper dispenser operation, recommended water
supply pressure should fall between 30 psi and 100
psi.Excessivepressuremaycausewaterlterto
malfunction.
ON
OFF
Wire
Signal Arm
13
CAUTION
Chemicals from a malfunctioning water softener
can damage the ice maker. If the water supply to
your refrigerator is softened, be sure the softener is
maintained to work properly.
CAUTION
NEVER use an ice pick or similar sharp instrument to
break up the ice. This could damage the ice storage bin
and dispenser mechanism.

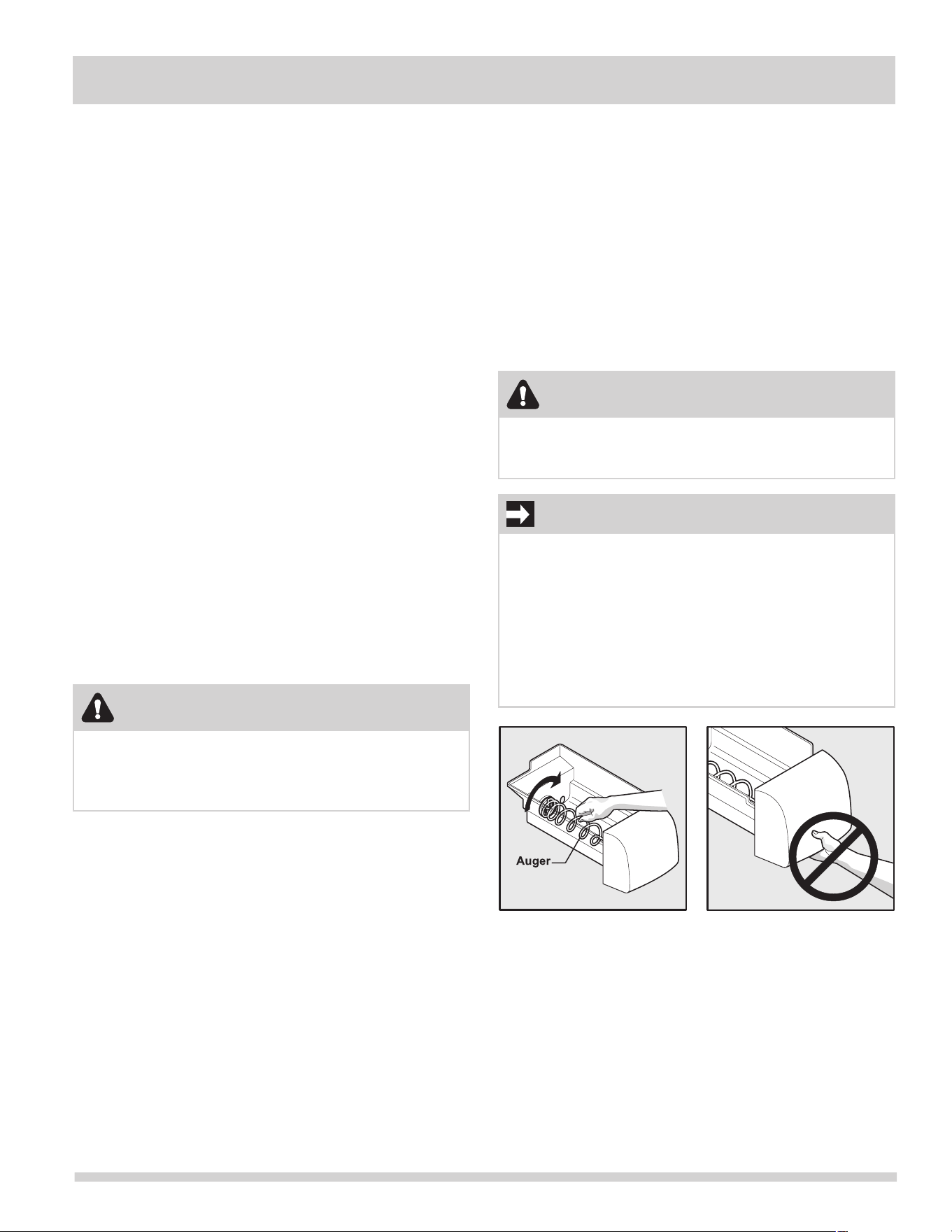

IMPORTANT
When removing or replacing the ice bin, DO NOT rotate
the auger in the ice bin. If the auger is accidentally
rotated, you must realign the auger by turning it in
90degreeturns(seebelow)untiltheicebintsinto
place with the drive mechanism. If the auger is
not properly aligned when replacing the ice bin, the
refrigerator will only dispense Crushed Ice. The freezer
door may also not close properly causing warm air to
leak into the freezer.
AUTOMATIC ICE & WATEr DISPENSEr (CONTINUED)
Ice Maker/Dispenser Tips
• Icecubesstoredtoolongmaydevelopanodd
avor.Emptytheicecontainerasexplainedbelow.
• Occasionallyshaketheicecontainertokeepice
separated.
• Ifyourrefrigeratorisnotconnectedtoawater
supply or the water supply is turned off, turn off
the ice maker by pressing the On/Off switch.
• Ifyouneedalargequantityoficeatonetime,itis
best to get cubes directly from the ice container.
• Thefollowingsoundsarenormalwhentheice
maker is operating:
- Motor running
- Ice dropping into ice container
- Water valve opening or closing
- Ice loosening from tray
- Running water
• Whendispensingice,youwillhearasnapping
or clicking sound when the ice chute opens and
closes.
• Turnofftheicemakerwhencleaningthefreezer
and during vacations.
- If you turn off the ice maker for a long period of
time, you should also turn off the water supply
valve.
Cleaning the Ice Maker
Clean the ice maker and ice bin at regular intervals,
particularly before you take a vacation or move.
To clean the ice maker:
1 Turn off ice production by pressing the ice maker’s
Off/On switch.
2 Remove the ice bin by lifting up and out.
3 Empty and carefully clean the ice bin with mild
detergent. Rinse with clear water. Do not use harsh
or abrasive cleaners.
4 Allow the ice bin to dry completely before replacing
in the freezer.
5 Remove ice chips and clean the ice bin shelf and
the freezer door chute.
6 Replace the ice bin. Press the ice maker’s Off/On
switch to resume ice production.
remove and empty the ice storage bin if:
• Anextendedpowerfailure(onehourorlonger)
causes ice cubes in the ice storage bin to melt and
freeze together, jamming the dispenser mechanism.
• Youdonotusetheicedispenserfrequently.Ice
cubes will freeze together in the bin, jamming the
dispenser mechanism.
Remove the ice storage bin and shake to loosen the
cubes or clean as explained above.
14
CHANGING THE FILTEr
Locating the Filters
Your refrigerator is equipped with separate water and
airlteringsystems.Thewaterltersystemltersall
dispensed drinking water, as well as the water used
toproduceice.Theairlterreducesodorsfromthe
refrigerator compartment.
Water Filter
Thewaterlterislocatedatthetoprightsideofthe
fresh food compartment.
Air Filter
Theairlterislocatedatthetopofthefreshfood
compartmentnexttothewaterlter.
replacing the Air Filter
Ingeneral,youshouldchangetheairltereverysix
months(thelterstatuslightonthecontrolpanel
promptsyoutoreplacethelteraftersixmonths)
toensureoptimallteringofrefrigeratorodors.You
may want to adjust this time period depending on the
types and amounts of food you typically store in your
refrigerator. To replace your PureSource Ultra
TM
air
lter:
1 Pulltheairlterhousingstraightout.
2 Removetheoldlteranddiscardit.
3 Unpackthenewlterandplaceitinsidethe
housing.
4 Slide the housing back into position.
5 Press and hold the Air Filter reset button on the
electronic control panel for three seconds. When
the display changes from “replace” to “Good,”
the status has been reset.
6 The Air Filter reset will turn itself off after a few
seconds.
Ordering replacement Filters
Ordernewltersbycallingtoll-free,877/808-4195,
visiting www.frigidaire.com store, or seeing the
dealer where you bought your refrigerator. Electrolux
recommendsthatyouorderextralterswhenyourst
installyourrefrigerator,andthatyoureplaceyourlters
at least once every six months.
Here is the product number to request when ordering:
PureSource Ultra
TM
Water Filter and Air Filter
Part #ULTrAWF
replacing the Water Filter
Ingeneral,youshouldchangethewaterltereverysix
months to ensure the highest possible water quality. The
Water Filter Status light on the Touch Panel prompts
youtoreplacethelterafterastandardamountofwater
(200 gallons/757 liters for PureSource Ultra
TM
)
has
owedthroughthesystem.
If your refrigerator has not been used for a period of time
(duringmovingforexample),changethelterbefore
reinstalling the refrigerator.
NOTE
The control panel, located on the freezer door, includes
controlstomonitorthestatusofyourairlter.Seethe
Controls section for more information.
15
CHANGING THE FILTEr
More about your Advanced Water Filter
The PureSource Ultra
TM
ice and water
ltersystemistestedandcertiedbyNSF
International, the nationally respected,
not-for-protcerticationorganizationfor
public health safety. The PureSource
Ultra
TM
iceandwaterltersystemistestedand
certiedtoANSI/NSFStandards42and53forthe
reductionofclaimsspeciedontheperformancedata
sheet.
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection
beforeorafterthesystem.Systemscertiedforcyst
reduction may be used on disinfected waters that may
containlterablecysts.
Test & certication results:
• RatedCapacity-200gallons/757litersfor
PureSource Ultra
TM
iceandwaterlter
• Ratedserviceow-.50gallonsperminute
• OperatingTemp.:Min.33°F,Max.100°F
• MaximumRatedPressure-100poundsper
square inch
• RecommendedMinimumOperatingPressure:30
pounds per square inch
7 Afterllingoneglassofwater,continueushing
the system for about three minutes.
8 Turn On the ice maker.
9 Press and hold the Filter Status button on the Ice
& Water Dispenser control panel for three seconds.
When the display changes from “replace” to
“Good,” the status has been reset.
To replace your PureSource Ultra
TM
water
lter:
It is not necessary to turn the water supply off to change
thelter.Bereadytowipeupanysmallamountsof
waterreleasedduringthelterreplacement.
1 Turn Off the ice maker power switch.
2 Removethelterbypushingontheend/faceof
thelter.
3 Slidetheoldwaterltercartridgestraightoutof
the housing and discard it.
4 Unpackagethenewltercartridge.Usingthe
alignmentguide,slideitgentlyintothelter
housing until it stops against the snap-in connector
at the back of the housing.
5 Push rmly until the cartridge snaps
into place (you should hear a click as the
cartridge engages the snap-in connector).
6 Press a drinking glass against the water dispenser
whilecheckingforanyleaksatthelterhousing.
Any spurts and sputters that occur as the system
purges air out of the dispenser system are normal.
16
NOTE
Energyefcientfoaminyourrefrigeratorisnotasound
insulator.
Understanding the Sounds you may Hear
Yournew,high-efciencyrefrigeratormayintroduce
unfamiliar sounds. These sounds normally indicate
your refrigerator is operating correctly. Some surfaces
onoors,walls,andkitchencabinetsmaymakethese
sounds more noticeable.
Following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the evaporator
may create a boiling or gurgling sound.
B Evaporator fan You may hear air being forced
through the refrigerator by the evaporator fan.
C Defrost heater During defrost cycles, water
dripping onto the defrost heater may cause a
hissing or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice has been
produced, you will hear ice cubes falling into the
ice bin.
E Electronic control & automatic defrost
control These parts can produce a snapping or
clicking sound when turning the cooling system on
and off.
F Condenser fan You may hear air being forced
through the condenser.
G CompressorModern,high-efciencycompressors
run much faster than in the past. The compressor
may have a high-pitched hum or pulsating sound.
H Water valve Makes a buzzing sound each time it
openstolltheicemaker.
I Drain pan (not removable) You may hear water
dripping into the drain pan during the defrost cycle.
J Condenser May create minimal sounds from
forced air.
K Motorized damper May produce a light
humming during operation.
L Ice dispensing paddle When dispensing ice, you
will hear a snapping or clicking sound when the
solenoid opens and closes the ice chute.
NOTE
During automatic defrost cycle, a red glow in the back
wall vents of your freezer compartment is normal.
NOrMAL OPErATING SOUNDS AND SIGHTS
17
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so
could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.
CAUTION
• Pulltherefrigeratorstraightouttomoveit.Shiftingitfromsidetosidemaydamageooring.Becarefulnottomovethe
refrigerator beyond the plumbing connections.
• Dampobjectssticktocoldmetalsurfaces.Donottouchrefrigeratedsurfaceswithwetordamphands.
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you
unplug the power cord from the wall outlet.
Protecting your investment
Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the
freezer and fresh food compartments at least twice a year. When cleaning, take the following precautions:
• NeveruseCHLORIDEorcleanerswithbleachtocleanstainlesssteel.
• Donotwashanyremovablepartsinadishwasher.
• Alwaysunplugtheelectricalpowercordfromthewalloutletbeforecleaning.
• Removeadhesivelabelsbyhand.Donotuserazorbladesorothersharpinstrumentswhichcanscratchtheappliancesurface.
• Donotremovetheserialplate.
Donotuseabrasivecleanerssuchaswindowsprays,scouringcleansers,brushes,ammableuids,cleaningwaxes,concentrated
detergents, bleaches or cleansers containing petroleum products on plastic parts, interior doors, gaskets or cabinet liners. Do not
use paper towels, metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.
CArE & CLEANING
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior & Door
Liners
Soap and water•
Baking soda and water•
Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to
wring excess water out of sponge or cloth before cleaning around
controls, light bulb or any electrical part.
Door Gaskets Soap and water• Wipe gaskets with a clean soft cloth.
Drawers & Bins Soap and water• Use a soft cloth to clean drawer runners and tracks.
Glass Shelves Soap and water•
Glass cleaner•
Mild liquid sprays•
Allow glass to warm to room temperature before immersing in warm water.
Toe Grille Soap and water•
Mild liquid sprays•
Vacuum attachment•
Vacuum dust from front of toe grille. Remove toe grille (see Installation
Instructions). Vacuum backside, wipe with sudsy cloth or sponge. Rinse
and dry.
Exterior &
Handles
Soap and water•
Non Abrasive Glass Cleaner•
Do not use commercial household cleaners containing ammonia, bleach or
alcohol to clean handles. Use a soft cloth to clean smooth handles. DO
NOT use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless Steel
Models Only)
Soap and water•
Stainless Steel Cleaners•
Never use CHLOrIDE or cleaners with bleach to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy water and
a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive
stainless steel cleaner. These cleaners can be purchased at most home im-
provement or major department stores. Always follow manufacturer’s in-
structions. Do not use household cleaners containing ammonia or bleach.
NOTE: Always clean, wipe and dry with the grain to prevent
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
replacing Light
Bulbs
Unplug refrigerator•
Wear gloves •
Remove light cover•
Replace old bulb •
Replace light cover•
Plug in the refrigerator•
CAUTION: Wear gloves when replacing light bulbs to avoid get-
ting cut.
Use same wattage when replacing bulb
18
BEFOrE yOU CALL
Visit our web site at
www.frigidaire.com.
1-800-944-9044 (United States)
1-800-265-8352 (Canada)
PROBLEM CAUSE COrrECTION
AUTOMATIC ICE MAKEr
Ice maker is not mak-
ing any ice.
Ice maker wire signal arm is in •
the “up” or OFF position.
Ice maker power switch is Off.•
Ice maker has small cube •
caught in mechanism.
Saddle valve on cold water •
pipe is clogged or restricted by
foreign material.
Move wire signal arm to the “down” or • ON position. (side
mounted)
Turn power switch to On (“• I”) position. (rear mounted)
Remove small cube from ice maker. The ice and water •
ltercartridgemaybeclogged.Replaceltercartridge.
Turn off household water line valve. Remove valve. En-•
sure that valve is not a self-piercing saddle valve. Clean
valve. Replace valve if necessary.
Ice maker is not mak-
ing enough ice.
Ice maker is producing less ice •
than you expect.
Check to see if water dispenser •
is dispensing slower than normal.
Side mounted ice maker should produce 4 to 4.5 pounds •
(approximately 4 quarts) of ice every 24 hours. A rear
mounted ice maker should produce 3 to 4 pounds (ap-
proximately 3½ quarts) of ice every 24 hours. Quick Ice
option should produce up to 50% more ice every 24 hours.
Ifitis,replacetheiceandwaterltercartridge.•
Ice maker will not stop
making ice.
Ice maker wire signal arm is •
being held down by some item
in the freezer.
Move item and release wire signal arm. Remove any ice •
cubes that are frozen together over the wire signal arm.
Ice cubes are freezing
together.
Ice cubes are not being used •
frequently enough.
Ice cubes are hollow (partially •
frozen cubes with water inside).
Freezer control is set too warm.•
Remove ice container and discard ice from container. Ice •
maker will produce fresh supply.
Theiceandwaterltercartridgemaybeclogged.Replace•
ltercartridge.
Set freezer control to colder setting. Allow 24 hours for •
temperature to stabilize.
ICE DISPENSEr
Dispenser will not dis-
pense ice.
Ice storage container is empty.•
Freezer temperature is set too •
warm.
Household water line valve is •
not open.
Ice dispensing arm has been held •
in for more than 4-5 minutes.
Whentherstsupplyoficeisdroppedintothecontainer,•
the dispenser should operate.
Turn freezer control to a higher setting so that ice cubes •
willbemade.Whenrstsupplyoficeismade,dispenser
should operate.
Openhouseholdwaterlinevalve.Allowsufcienttime•
for the ice to be made. When ice is made, the dispenser
should operate.
Motor is overloaded. Motor over load protector will reset in •
approximately 3 minutes. Ice can then be dispensed.
Ice dispenser is
jammed.
Ice has melted and frozen •
around auger due to infrequent
use,temperatureuctuations,
and/or power outages.
Ice cubes are jammed between •
ice maker and back of ice
container.
Remove ice container, thaw, and empty the contents. •
Clean container, wipe dry, and replace in proper position.
When new ice is made, dispenser should operate.
Remove ice cubes that are jamming the dispenser.•
OPENING/CLOSING OF DOOrS/DrAWErS
Door(s) will not close. Door was closed too hard, caus-•
ing other door to open slightly.
Refrigerator is not level. It •
rocksontheoorwhenmoved
slightly.
Refrigerator is touching a wall •
or cabinet.
Close both doors gently.•
Ensureoorislevelandsolid,andcanadequatelysupport•
the refrigerator. Contact a carpenter to correct a sagging
orslopingoor.
Ensureoorislevelandsolid,andcanadequatelysupport•
the refrigerator. Contact a carpenter to correct a sagging
orslopingoor.
Drawers are difcult to
move.
Food is touching shelf on top of •
drawer.
Track that drawers slide on is •
dirty.
Remove top layer of items in drawer.•
Ensure drawer is properly installed on track.•
Clean drawer, rollers, and track. See • Care & Cleaning.
19
BEFOrE yOU CALL (CONTINUED)
PROBLEM CAUSE COrrECTION
rUNNING OF rEFrIGErATOr
Compressor does not
run.
Freezer control is set to “OF” •
or “0”.
Refrigerator is in defrost cycle.•
Plug at electrical outlet is dis-•
connected.
House fuse blown or tripped •
circuit breaker.
Power outage.•
Set freezer control. •
This is normal for a fully automatic defrost refrigerator. •
The defrost cycle occurs periodically, lasting about 30
minutes.
Ensure plug is tightly pushed into outlet.•
Check/replace fuse with a 15 amp time-delay fuse. Reset •
circuit breaker.
Check house lights. Call local electric company.•
refrigerator runs too
much or too long.
Room or outside weather is •
hot.
Doors are opened too frequent-•
ly or too long.
Fresh Food/freezer door may •
be slightly open.
Freezer control is set too cold.•
Fresh Food/freezer gasket is •
dirty, worn, cracked, or poorly
tted.
Condenser is dirty.•
It’s normal for the refrigerator to work longer under these •
conditions.
Warm air entering the refrigerator causes it to run more. •
Open doors less often.
Ensure refrigerator is level. Keep food and contains from •
blocking door. See PROBLEM column OPENING/CLOSING
OF DOORS/DRAWERS.
Set Fresh Food control to warmer setting until refrigerator •
temperature is satisfactory. Allow 24 hours for tempera-
ture to stabilize.
Clean or change gasket. Leaks in door seal will cause •
refrigerator to run longer in order to maintain desired
temperatures.
Clean condenser. See Care & Cleaning.•
Compressor goes off
and on frequently.
Thermostat keeps the refrigera-•
tor at a constant temperature.
This is normal. Refrigerator goes on and off to keep tem-•
perature constant.
DIGITAL TEMPErATUrE DISPLAy
Digital temperature
displays are ashing.
Electronic control system has •
detected a performance prob-
lem.
Call your Frigidaire service representative, who can inter-•
pretanymessagesornumbercodesashingonthedigital
displays.
WATEr DISPENSEr
Dispenser will not dis-
pense water.
Household water line valve is •
not open.
Iceandwaterltercartridgeis•
clogged.
Filter not fully installed.•
Open household water line valve. See • PROBLEM column
AUTOMATIC ICE MAKEr.
Replaceltercartridge.•
Pushlterinuntilyouheara“click”.•
Water has an odd taste
and/or odor.
Water has been in the tank for •
a period of time.
Unit not properly connected to •
cold water line.
Draw and discard 10-12 glasses of water to freshen the •
supply and completely rinse out the tank.
Connect unit to cold water line that supplies water to the •
kitchen faucet.
Water pressure is ex-
tremely low.
Cut-off and cut-on pressures •
are too low (well systems only).
Reverse osmosis system is in •
regenerative phase.
Have someone turn up the cut-off and cut-on pressure on •
the water pump system (well systems only).
It is normal for a reverse osmosis system to be below 20 •
psi during the regenerative phase.
WATEr/MOISTUrE/FrOST INSIDE rEFrIGErATOr
Moisture collects on
inside of refrigerator
walls.
Weather is hot and humid.•
Door is slightly open.•
The rate of frost buildup and internal sweating increases.•
See • PROBLEM column OPENING/CLOSING OF
DOOrS/DrAWErS.
Water collects on bot-
tom side of drawer
cover.
Vegetables contain and give off •
moisture.
It is not unusual to have moisture on the bottom side of •
the cover.
Move humidity control (some models) to lower setting.•
Water collects in bot-
tom of drawer.
Washed vegetables and fruit •
drain while in the drawer.
Dry items before putting them in the drawer. Water col-•
lecting in bottom of drawer is normal.
WATEr/MOISTUrE/FrOST OUTSIDE rEFrIGErATOr
Moisture collects on
outside of refrigerator
or between doors.
Weather is humid.•
Door is slightly open, causing •
cold air from inside refrigerator
to meet warm air from outside.
This is normal in humid weather. When humidity is lower, •
the moisture should disappear.
See • PROBLEM column OPENING/CLOSING OF
DOOrS/DrAWErS.
20
MAjOr APPLIANCE WArrANTy
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Servicecallstorepairorreplaceappliancelightbulbs,airlters,waterlters,otherconsumables,or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12.Damagestothenishofapplianceorhomeincurredduringinstallation,includingbutnotlimitedtooors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
externalcausessuchasabuse,misuse,inadequatepowersupply,accidents,res,oractsofGod.
DISCLAIMEr OF IMPLIED WArrANTIES; LIMITATION OF rEMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT
BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
Exclusions
If you Need
Service
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
thiswarrantymustbeperformedbyElectroluxoranauthorizedservicecompany.Productfeaturesorspecicationsasdescribed
or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
Major Appliance Warranty Information
