Instructions for use
Protecting the environment 4
Important safety instructions 5
Before using the warming drawer 6
Fitting the appliance (depending on the model) 6
Electrical connection 9
Maintenance and cleaning 10
Troubleshooting guide 11
After-Sales Service 11
4
Protecting the environment
Disposal of packing
• The packing material is 100% recyclable and is
marked with the recycle symbol
.
• Therefore the various parts of the packing must
not be dispersed in the environment, but
disposed of in compliance with the local
regulations.
Disposal of old electrical appliances
• This appliance is marked in conformity with
European Directive 2012/19/UE on Waste
Electrical and Electronic Equipment (WEEE)
and with the Waste Electrical and Electronic
Equipment regulations 2013 (as amended).
By ensuring that this product is properly disposed
of, the user can help prevent potentially harmful
consequences for the environment and human
health.
The symbol
on the appliance or accompanying
documentation indicates that this product should
not be treated as household waste but must be
taken to a suitable collection point for the recycling
of WEEE.
For further information on the treatment, recovery
and recycling of this appliance, contact the
competent local authority, the household waste
collection service or the shop where the product
was purchased.
5
Important safety instructions
YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT.
This manual and the appliance itself provide important safety messages, to be read and observed at all
times.
This is the safety alert symbol, warning of potential risks for the user and for others.
All safety messages will be preceded by the alert symbol and the following words:
DANGER
Indicates a hazardous situation which, if not avoided, will cause
serious injury.
ATTENTION
Indicates a hazardous situation which, if not avoided, could cause
serious injury.
All safety messages specify the potential hazard/warning to which they refer and indicate how to reduce
the risk of injury, damage and electric shocks resulting from incorrect use of the appliance. Make sure to
comply with the following indications:
ATTENTION
• The warming drawer must not be used by
children or inrm persons without supervision.
• Make sure children do not play with the
appliance, as they could accidentally press the
On button, thereby activating the dish
warming drawer: danger of scalding.
• Accessible parts of the warming drawer can
become hot during use, therefore keep
children away from the appliance.
• Do not use abrasive materials or substances to
clean the GLASS.
• The warming drawer is designed exclusively for
household use to warm dishes. No other use is
allowed. The Manufacturer declines any liability
for uses dierent from those specied or for
incorrect setting of the controls.
• Any repairs or maintenance must only be
carried out by a qualied technician.
• Make sure the appliance is properly xed to the
cabinet with the appropriate screws supplied.
• Avoid exposure of the warming drawer to
atmospheric agents.
• Do not lean or sit on the open drawer,
otherwise the telescopic carriage will become
damaged.
• The max. load capacity of the drawer is 25 kg.
• Do not cover the bottom of the warming
drawer with aluminum foil or other materials.
• Do not pour water directly into the warming
drawer.
• Dragging dishes in the warming drawer can
scratch the bottom.
• If the tempered glass surface breaks or cracks
due to a violent impact (falling objects, etc.), do
not use it: contact the After-Sales Service
immediately.
• Residual condensate could eventually damage
the warming drawer and surrounding cabinets.
It is advisable to:
- dry the wet parts when the warming drawer is
cool.
• Do not touch the warming drawer with wet
parts of the body and do not use it when
barefoot.
• Do not pull the power cable to unplug it.
• Keep children away from the product and the
packing materials, to avoid interaction with
them, if not properly supervised.
• Make sure the electrical cables of other
appliances used near the warming drawer do
not ome into contact with its hot parts.
• Do not store plastic or ammable objects in the
warming drawer. When operating the
appliance, such objects can melt or catch re.
• To remove the dishes, use suitable gloves.
• Never insert anything (e.g. screwdrivers,
pointed objects, paper, etc.) through the
openings of the eating element and fan
protection grilles.
• This appliance must not be used by people
(including children) with reduced physical,
sensory or mental capabilities, or by
inexperienced users, unless they have been
adequately trained in this regard by a person
responsible for their safety.
6
To open and close the drawer, push the middle of the panel as shown in the gure.
At rst use, clean the appliance as follows:
- clean the surface with a damp cloth and then
dry.
- Preheat the empty drawer for at least two
hours:
turn the temperature knob to maximum or
select the maximum temperature, to eliminate
any residuals of fat, oil or manufacturing resins that can create unpleasant odors during the warming
of dishes. Air the room.
- After completing these operations, the appliance is ready for rst use.
• Before use, remove:
- stickers placed on the front and door of the warming drawer, except the rating plate;
- all the cardboard protection or plastic lm from all aesthetic and other parts, on the outside and inside
the appliance;
- any stickers from accessories when present.
Before using the warming drawer
Safety instructions for tting the drawer
IMPORTANT: The drawer (applicable for both models) must be immediately xed to the cabinet,
complying with the following instructions. The coupled appliance cannot be installed before xing
the drawer to the cabinet.
This appliance must only be tted and installed by qualied personnel who ensure conditions for
its safe use.
Fix the drawer as shown in the gure (depending on the model)
Before electrically connecting the appliance, make sure the
rating plate data matches the mains power supply, otherwise
the appliance could become damaged.
Make sure the connection to the power supply is easily
accessible after the appliance has been tted.
The dish warmer can only be tted in combination with other
appliances not weighing more than 60 kg and provided with
adequate cooling ventilation.
To install the appliance that can be combined with the dish
warmer, follow the instructions given in the relevant use and
installation handbook.
Important: The coee maker or combi microwave oven of the
same brand and sized as shown on the following page, can be
installed above the dish warmer.
For installation, carefully follow the directions given in the instruction handbooks supplied with the coee
maker and the combi microwave oven.

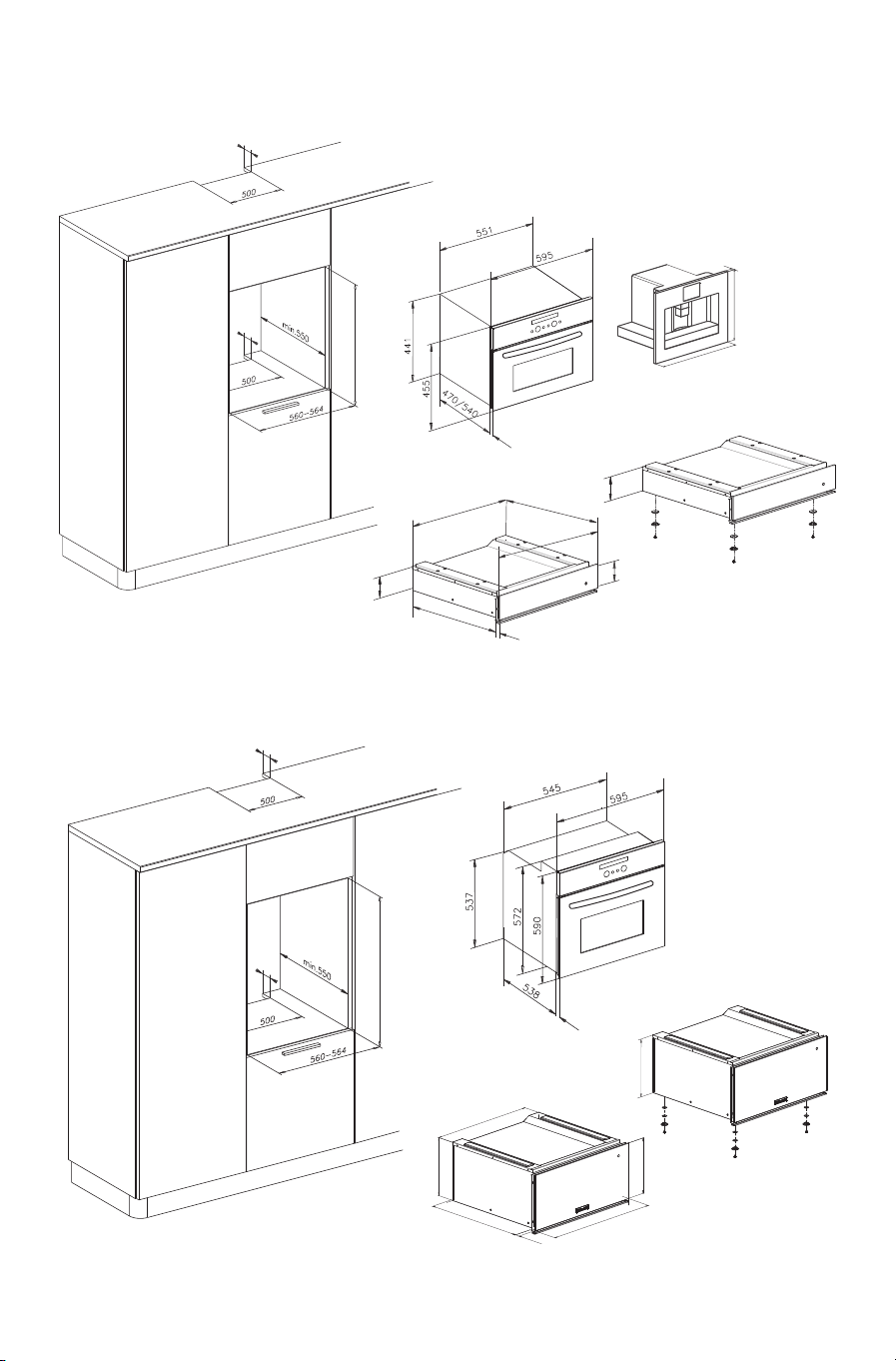

Fitting dimensions
The size of the recess is obtained from the size of the dish warmer plus the size of the appliance combined
with it. All measurements are in mm.
Fitting the appliance (depending on the model)
7
Height 140 mm
134,5
116
24
526
550
554
595
141,5
24
30
30
589 (*)
24
455
595
Fitting the appliance (depending on the model)
Height 290 mm
30
30
24
289
554
266
595
24
525
880 (*)
296
8
4 mm

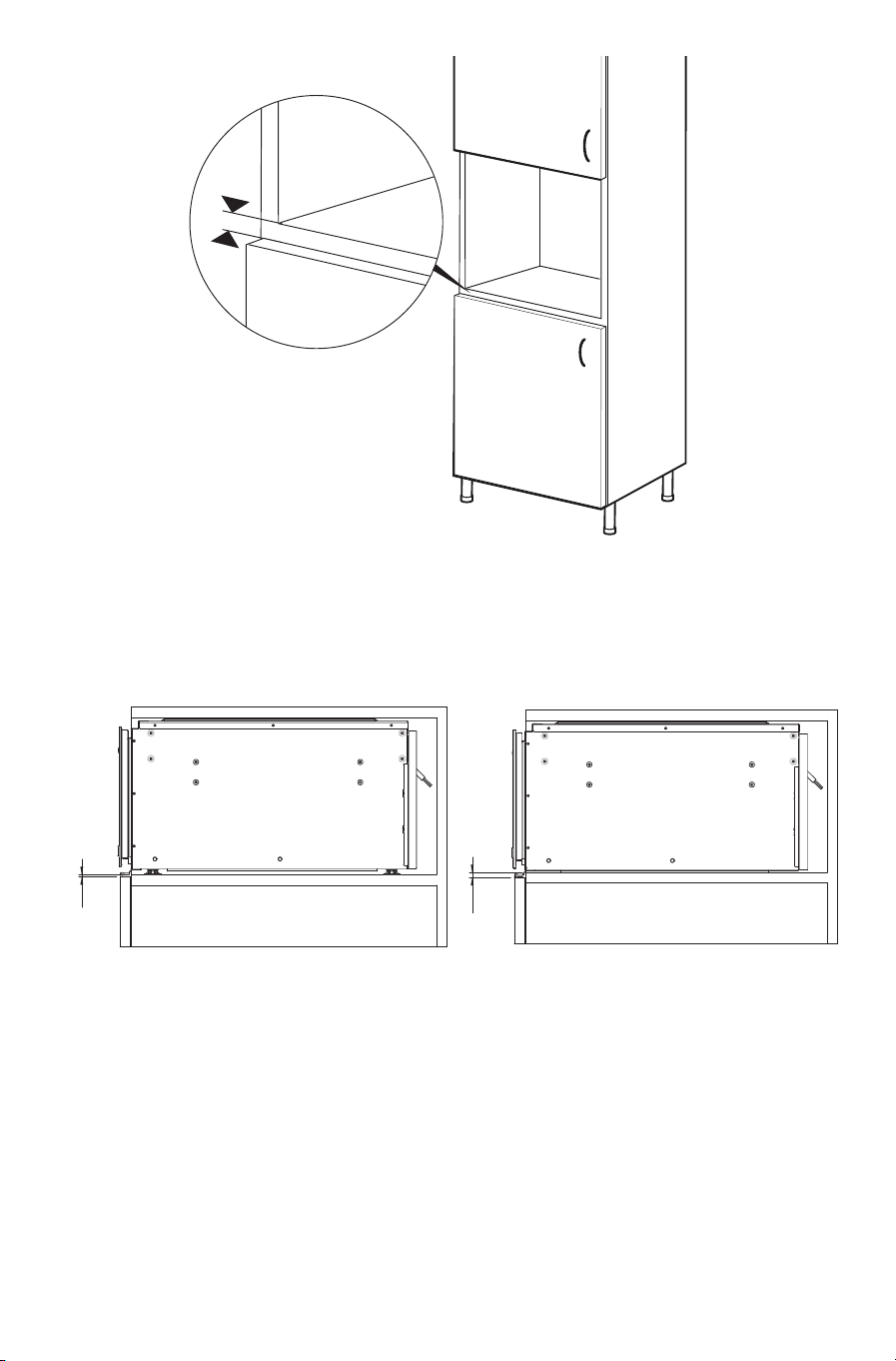

(*) If the cabinet has a door at minimum distance of 4mm from the support surface, add the feet and
relative 1mm washers, supplied in the packaging, on the bottom.
4
10
9
Contact a qualied technician to carry out the
appliance electrical connection.
ATTENTION
before connecting the warming drawer to the
household electrical system to check its operation,
always make sure the drawer power cable is
correctly tted and that it is NOT pinched or caught
under or behind the drawer or any coupled
appliance.
ATTENTION
power cable replacement must be done by the
After-Sales Service or a qualied technician, with a
cable having the same characteristics as the one
provided by the manufacturer (H05RR-F 3x0.75
mm2 or higher).
Before electrically connecting the appliance, make
sure the mains power supply matches the rating
plate data.
If in doubt, contact a qualied technician.
Contact a qualied technician familiar with the
local regulations and the additional regulations
issued by the local utility company, and that the
work is carried out in compliance with the same.
Important: Make sure the appliance is connected
to an approved ground wire, to ensure electrical
safety. If necessary, have the system checked by a
specialized technician. The manufacturer declines
any liability in case of injury or damage resulting
from the lack of or disconnection of the ground
wire.
ATTENTION
The ground connection is compulsory by law.
The appliance is designed to be used only when
correctly tted.
Never open the appliance enclosure. In case of
contact with live wires or if the electrical and
mechanical structure is changed, malfunctioning
of the appliance may occur when in use.
If installation, maintenance or repairs are not
carried out correctly, there can be risks for the user.
The manufacturer declines any liability for such
damage or injury.
During the warranty period, repairs must only be
carried out by the authorized technical service,
otherwise the warranty right is lost.
Installation, repair work and cleaning should be
done only after making sure the appliance is
disconnected from the power supply.
The appliance is disconnected from the power
supply in the following cases:
- operating the main electrical system omnipolar
switch.
- operating the main electrical system safety
switch.
For connection to the power supply, a separation
device for each pole must be arranged by the
installer.
Separation devices are switches with contact gap
of at least 3 mm.
The data necessary for the connection is given on
the rating plate. This data must match that of the
power supply.
The manufacturer declines any liability in case
of injury or damage resulting from incorrect
installation, improper or incorrect use of the
appliance.
The manufacturer also declines any liability for
damage (e.g. electric shock) caused by the lack
of or disconnection of the ground wire.
The following cables can be used with this type of
appliance:
TYPES AND MINIMUM DIAMETER OF CABLES
SASO
H05RR-F 3x0.75 mm²
H05VV-F 3x0.75 mm²
H05RN-F 3x0.75 mm²
H05V2V2-F 3x0.75 mm²
H05RR-F 3x1.5 mm²
H05VV-F 3x1.5 mm²
H05RN-F 3x1.5 mm²
H05V2V2-F 3x1.5 mm²
Electrical connection
10
ATTENTION
never using steam cleaners.
Important: Do not use detergents containing
soda, acids or chlorides, abrasive detergents
(powder or cream), abrasive sponges (e.g. scouring
pads) or sponges containing residuals of abrasive
detergents, detergents that dissolve scale,
dishwasher detergents, oven sprays.
Warming drawer exterior
• Clean with a damp cloth. If very dirty, add a few
drops of washing up liquid to the water. Dry
with a dry cloth.
• Do not use corrosive or abrasive detergents,
otherwise dull areas will form. If one of these
products accidentally comes into contact with
the warming drawer, clean it immediately with
a damp cloth.
• Slight dierences in color on the front of the
appliance are due to the use of dierent
materials, such as glass, plastic and metal.
Tempered glass drawer base
It is advisable to clean the bottom of the drawer
after each use, making sure to let it cool. This will
prevent the build-up of dirt and make cleaning
easier.
• Use a clean cloth, paper towels and washing up
liquid, or specic products for cleaning the
tempered glass.
• Do not use abrasive products, bleach, oven
cleaner spray or metallic scouring pads.
Maintenance and cleaning
11
If the dishes are not warm enough, check that:
• the appliance is switched on
• the right temperature has been set
• ventilation openings are not covered by plates
or large bowls
• the dishes were not heated long enough.
• the mains switch has not been turned o.
Dierent factors aect the warming time, for
example:
- material and thickness of the dishes, the load
and its arrangement, temperature setting.
- The optimum times for warming dishes vary,
therefore it is advisable to do tests to establish
them according to needs.
Troubleshooting guide
Before contacting the After-Sales Service:
1. See if you can solve the problem yourself with
the help of the “Troubleshooting guide”.
2. Switch the appliance o and then on again to
see if the problem has been eliminated.
For the following problems, contact a qualied
technician or the After-Sales Service:
If the dishes do not get warm:
• the electrical power cable could be
disconnected or damaged.
If the dishes get too hot:
• the temperature controller could be faulty.
The On/O switch does not activate when the
appliance is turned on:
• the switch control indicator is faulty.
If the problem persists after the above checks,
contact the nearest After-Sales Service. For a list
of authorized Service Centers, contact our call
center free of charge at the number: 00800-
3810-4026.
Always specify:
• a brief description of the fault;
• the warming drawer type and exact model;
• the Service number (the number after the word
Service on the data plate), located on the outer
right edge of the drawer runner. The Service
number is also given in the warranty booklet;
• your full address;
• your telephone number.
If any repairs are required, contact an authorized
After-Sales Technical Service (to guarantee the
use of original spare parts and correct repair).
Failure to comply with these instructions can
compromise the safety and quality of the
product.
ECO DESIGN DECLARATION
This appliance meets the eco design
requirements of European regulations n.
65/2014 and n. 66/2014 in conformity to the
European standard EN 60350-1.
After-Sales Service
12
Printed in Italy
03/20
400011585169
EN
