Household Appliances
aus Instructions for Use
aus
Index
Safety instructions 4. . . . . . . . .
Getting to know your appliance 6
Before using your appliance
for the first time 7. . . . . . . . . . . .
Filling with salt 8. . . . . . . . . . . .
Setting up the water softener 9
Filling the rinse-aid container 10
Unsuitable dishes 11. . . . . . . . .
Arranging crockery, glasses,
etc. in the dishwasher 12. . . . . .
Detergents 15. . . . . . . . . . . . . . .
Opening and closing the door 17
Adjusting the appliance 17. . . . .
Programme overview 18. . . . . .
Selecting options/ standard settings 19
Information about programme
sequence 24. . . . . . . . . . . . . . . .
Maintenance and care 26. . . . . .
Fault finding 28. . . . . . . . . . . . . .
Customer Service 30. . . . . . . . .
Notes 31. . . . . . . . . . . . . . . . . . . .
Installation 32. . . . . . . . . . . . . . . .
aus
4
4
Safety instructions
Delivery
Immediately check the packaging and
dishwasher for any damage which may
have been caused in transit. Do not use
a damaged appliance, but consult your
supplier.
Please dispose of packaging material
properly.
The corrugated cardboard consists
mainly of waste paper.
The polystyrene moulded parts have
been foamed without any CFCs.
The polyethylene film (PE) consists
partly of secondary raw material.
The wooden frames (if fitted) are made
of residual wood and are untreated.
The hoops (if fitted) consist of
polypropylene (PP).
Installation
Install and connect the appliance
according to the installation and
assembly instructions.
The dishwasher must NOT be
connected to the power supply during
installation.
Ensure that the protective conductor
system of the domestic electricity
supply has been installed correctly.
Electrical connection conditions must
correspond with the specifications on
the rating plate of the dishwasher.
Built-under and built-in appliances
should always be installed under a
continuous work surface which is
attached to the adjacent cupboards, in
order to ensure that the appliance is
entirely stable.
After the appliance has been installed,
the mains plug should still be easily
accessible.
Not on all models:
The plastic housing on the water input
contains an electrically operated valve.
The connecting wires are inside the
inlet hose. Do not cut through this hose
and do not immerse the plastic housing
in water.
Warning
For safety reasons, if the appliance is not
fitted in a recess, thereby making a side
wall accessible, the door hinge area
should be covered at the side.
(Risk of injury)
Covers are available as optional
accessories from customer services or
specialist stores.
aus
5
During normal use
Warning
Knives and other utensils with sharp points
must be loaded in the basket with their
points down or in a horizontal position.
Use the dishwasher solely in a
domestic environment and for its
designated purpose: washing
household tableware and other utensils.
Do not place any heavy objects or
stand on the door when it is open. The
appliance could tip forward.
The water inside the dishwasher is not
suitable for drinking.
Do not use solvents of any kind inside
your dishwasher. They could cause an
explosion.
Open the door very carefully if the
dishwasher is operating. There is a risk
of water squirting out.
If your family includes children
Do not permit small children to play with
or operate the dishwasher.
Keep children away from detergents
and rinse-aids.
Keep small children away from the
open door of the dishwasher. There
could still be some detergent left inside.
If a fault occurs
Repairs or other work on the
dishwasher should only be carried out
by a qualified specialist.
The dishwasher must be disconnected
from the electricity supply before any
repairs or other work are started. Pull
the mains plug out of the wall socket or
switch off at the fuse box. Grasp the
plug to remove it from the socket; do
not tug on the cable. Turn the water off
at the tap.
When disposing of old
appliances
Appliances that have reached the end
of their service life should be rendered
inoperable in order to exclude the
possibility of subsequent accidents. Pull
the mains plug out of the wall socket,
cut through the connecting cable and
disable the door lock.
Take the appliance to a designated
waste disposal centre.
Warning
Children could get locked in the appliance
(risk of suffocation) or get stuck in other
positions.
Therefore: Remove the mains plug, cut the
mains wire and set aside. Damage the
door lock so that the door can no longer
be closed.
aus
6
6
Getting to know your
appliance

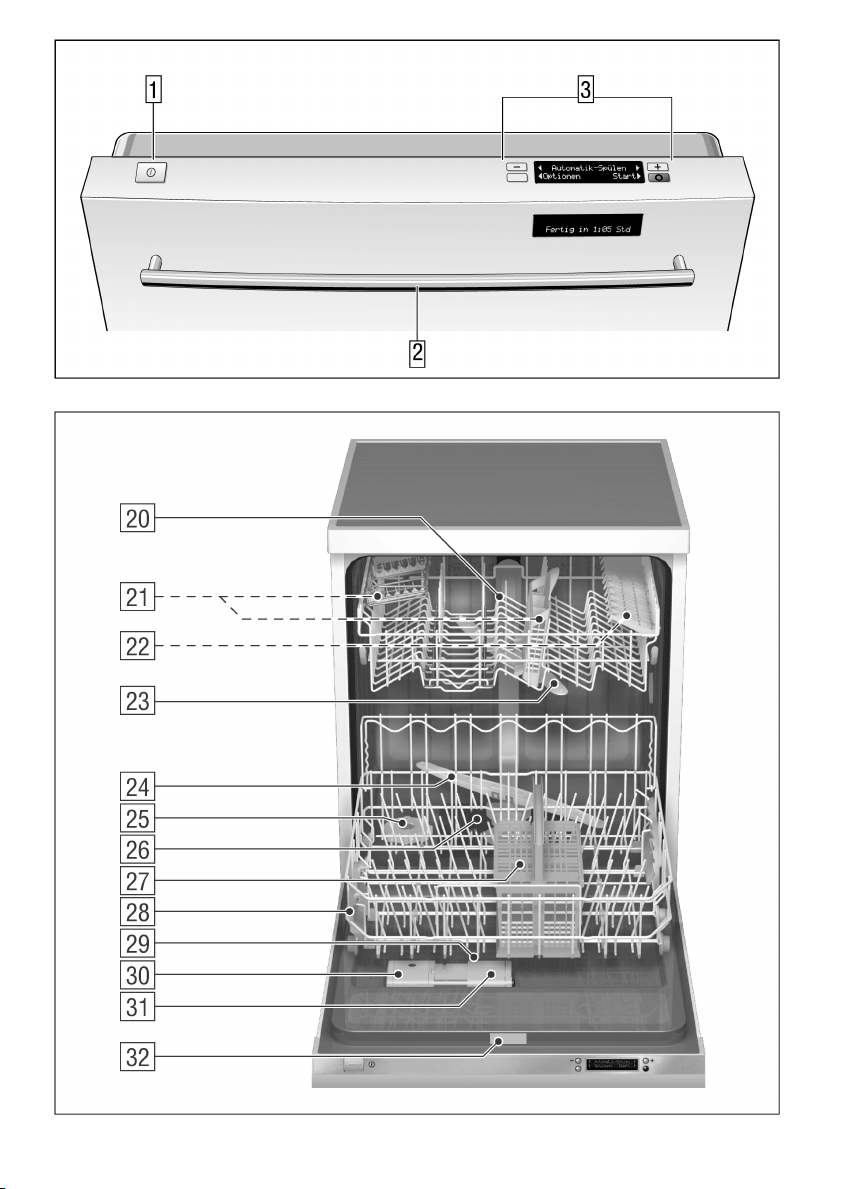

Diagrams of the control panel and the
interior of the appliance can be found
in the envelope at the front.
Individual positions are referred to in
the text.
Control panel
1
Main switch
2
Door opener
3
Display with buttons (see chapter
“Operating principle, display with
buttons”)
Appliance interior
20
Top basket
21
Additional cutlery basket * for the top
basket
22
Additional cup rack *
23
Upper spray arm
24
Lower spray arm
25
Salt dispenser
26
Filters
27
Cutlery basket
28
Bottom basket
29
Lock
30
Rinse-aid dispenser with refill
indicator
31
Detergent dispenser
32
Rating plate
* some models
Operating principle, display
with buttons
Auto Wash
Options Start
The display indicates in clear text the
programmes, options and settings which
are to be selected as well as the
executable operations.
The illuminated arrows identify the buttons
which you can press.
If a button is pressed which is not
indicated by an arrow, a buzzer is emitted.
You can select programmes and settings
by pressing the
and buttons.
You can execute operations which are
displayed in clear text next to the buttons
by pressing the
and buttons, i.e.
Press the button: Select options,
Press the button: Start the
selected programme or acknowledge
the selected setting.
aus
7
Before using your appliance
for the first time
Before you can use your appliance for the
first time, you must select the language.
When the appliance has been switched
on, the following display is output:
DE EN FR NL IT EL
Deutsch Ok
“Deutsch” is displayed and the
language code DE flashes. If you would
like to select another language, depress
repeatedly or until the code
of the desired language flashes.
Acknowledge the selected language
with “ok”
.
All subsequent clear text displays will now
be displayed in the selected language.
Incorrect language set
Return to language selection:
1. Switch off the appliance.
2. Switch on the appliance, holding
down the main switch until the display
is lit.
3. Select the language and acknowledge.
Providing operating materials
To operate the dishwasher you will require
salt (only for appropriate water
hardness, see chapter “Adjusting
the softening system”),
rinse aid,
detergent.
Only use products which are suitable
for the dishwasher.
Before using the appliance for the first time
and after selecting the language, fill with
salt (if required) and rinse aid and adjust
the softening system. Proceed as
described in the chapters “Filling with salt”,
“Filling with rinse aid” and “Adjusting the
softening system”.
aus
8
8
Filling with salt
Note
If the degree of hardness of your
tap water corresponds with value
on the appliance (see chapter
“Adjusting the softening
system”), it is not necessary to fill
the dispenser with salt, as salt is
not used during operation of the
dishwasher. Salt is required for
values
to .
During the washing process the salt is
automatically washed into the softener
and dissolves the calcification.
The calcareous solution is pumped out of
the dishwasher. The softening system is
then reset to standby.
This regeneration sequence does not
function until the salt has dissolved in the
water.
When the appliance is switched on,
low salt is indicated by “Refill salt”. (This
display is no longer indicated as soon as
you have set the value for the softening
system to
).

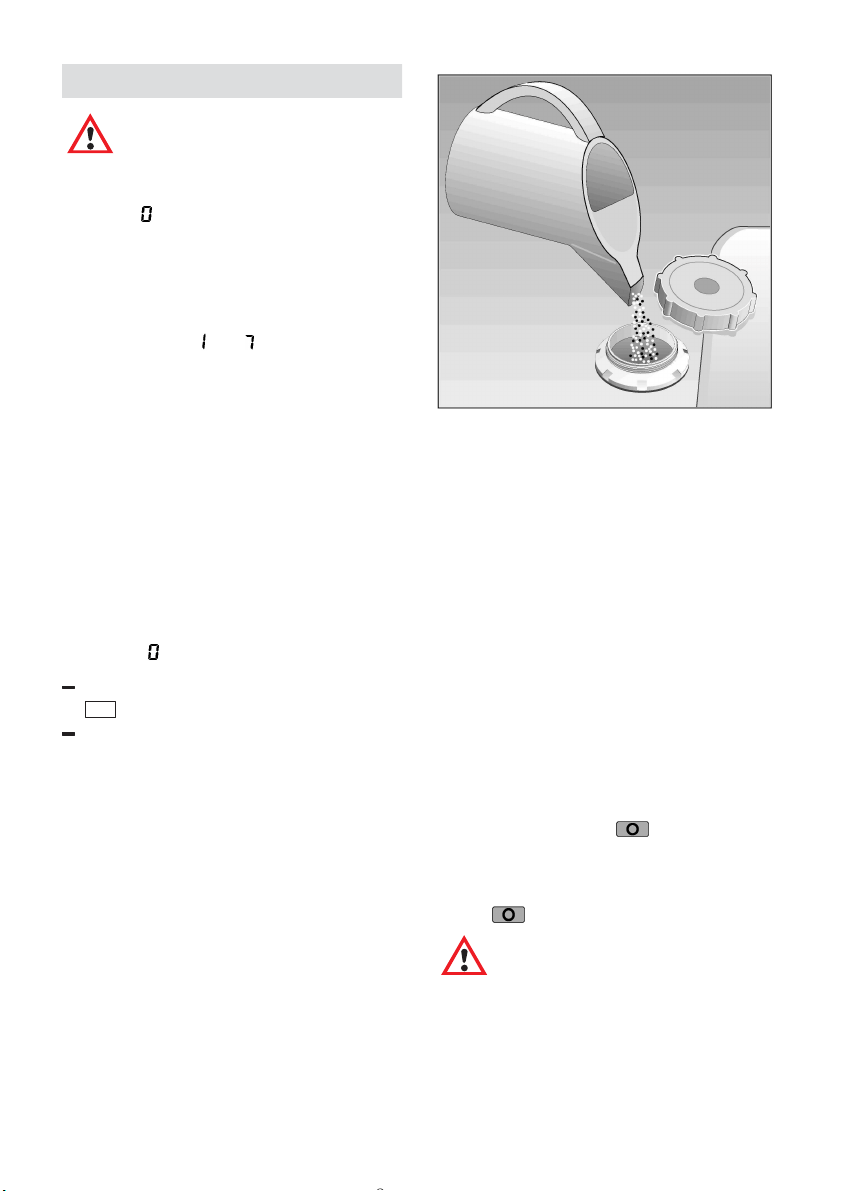

Open the screw cap on the dispenser
25 .
Before switching on the appliance for
the first time, pour approx. 1 litre of
water into the salt dispenser.
Use the enclosed salt filler.
Use the enclosed salt filler.
Refill with salt (do not use edible salt)
until the salt dispenser is full (max. 1.5 kg).
When the salt dispenser is being refilled,
water is displaced and drains away.
Therefore always refill the salt dispenser
immediately before switching on the
dishwasher (to prevent corrosion). As a
result, the overflowing salt solution will be
immediately diluted and rinsed out. Then
remove salt residue from the filler area and
screw on the dispenser cover, ensuring
that it is not fitted askew.
As soon as the salt concentration is
adequately high, the “Refill salt” display
goes out.
If you do not want to wait for the display
to go out before washing, acknowledge
that salt has been added by pressing the
“Acknowledge” button
.
If you do not want to add any salt at the
moment, you can skip the “Refill salt”
display by pressing the “Acknowledge”
button
.
Do not pour detergent into the
container for special salt. This
would destroy the water
softener.
aus
9
Setting up the water
softener
In order to provide satisfactory rinsing
results, the dishwasher requires soft water,
i.e., containing little or no lime, otherwise
water stains will be left behind on the
dishes and interior containers.
If the tap water exceeds a certain level of
hardness, it must be softened, i.e.,
decalcified, so that it can be used in the
dishwasher.
This is achieved by adding a special salt
to the water softener inside the
dishwasher.
The water softener, that is the required
amount of salt, is set up according to how
hard the tap water is.
The softening system must be adjusted
before the appliance is used for the first
time or if the water hardness changes.

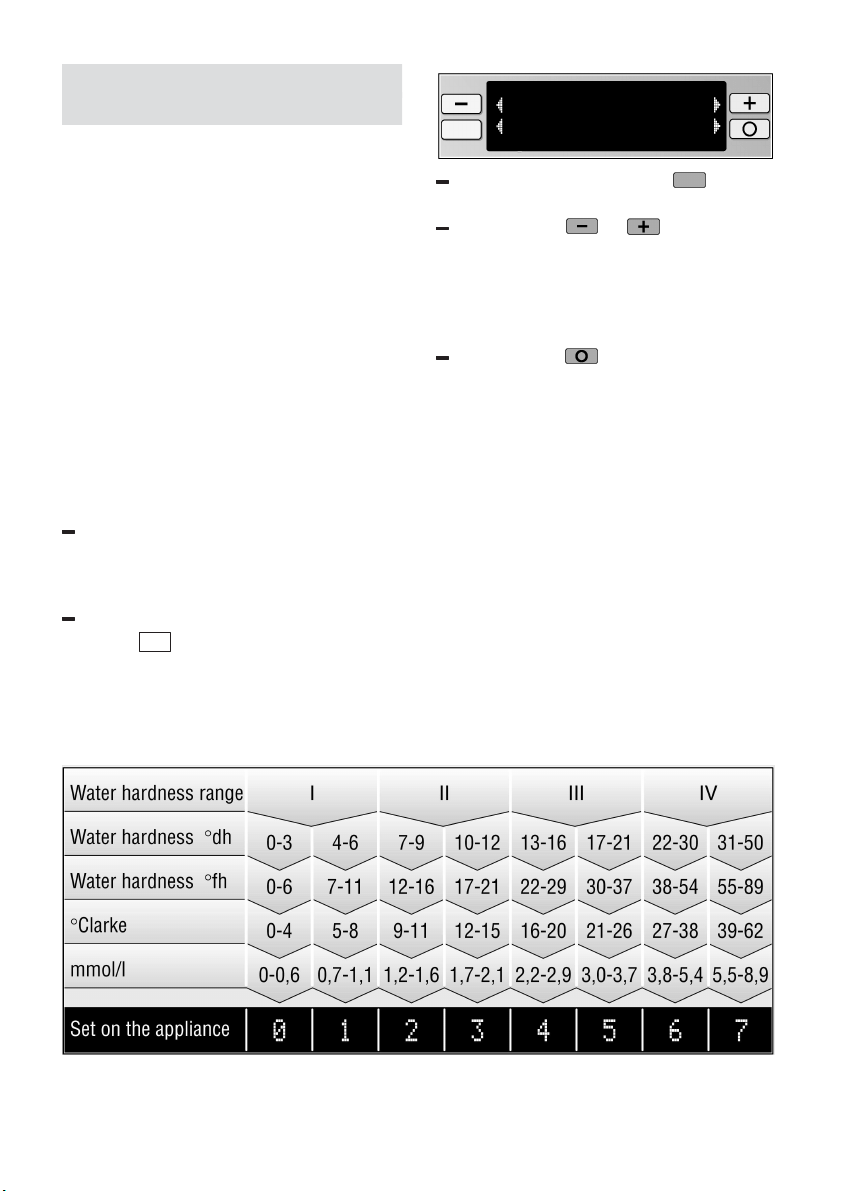

Determine the degree of hardness
of your tap water. Your water utilities
company or customer service will
advise you.
Switch on the appliance with the main
switch 1 . The main menu is
displayed (if switching on the appliance
for the first time, only when a language
has been selected and dispensers
have been filled with salt (if required)
and rinse aid).
Auto Wash
Options Start
Press the “Options” button until the
word ”Hardness” is displayed.
Using button or , select
a value between 0 and 7 which
corresponds with the degree of
hardness of your tap water in the
following table. A value of 4 has been
set at the factory.
Press button . The value has now
been stored and you are returned to the
main menu.
aus
10
10
Filling the rinse-aid
container
The purpose of a rinse-aid is to prevent
the formation of water marks on tableware
and utensils, and to ensure that glasses
are clean and sparkling. The rinse-aid is
consumed during the washing process.

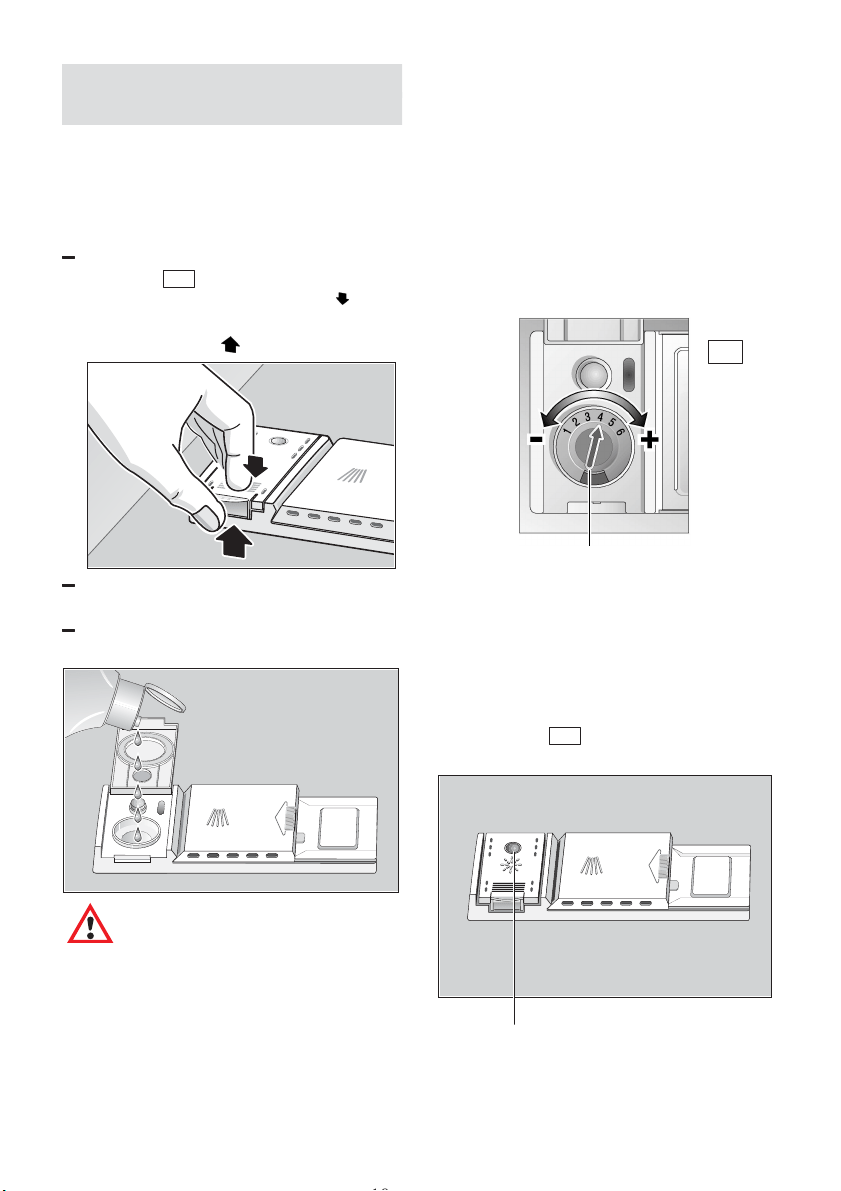

Fold back the lid on the rinse-aid
container
30 .
To open the lid, press the mark on
the rinse-aid lid and simultaneously lift
the lid off the lug .
Pour the rinse-aid into the filler hole
until the level indicator turns dark.
Close the lid, ensuring that you hear it
snap closed.
Note
Use only rinse aid for domestic
dishwashers. Spilt rinse aid
may result in excessive foam
formation in the next rinse
cycle. Therefore, remove any
spilt rinse aid with a cloth.
Adjusting the amount of
rinse-aid
The amount of rinse-aid added to the
water can be varied by adjusting the
stepless control. The rinse-aid control has
been set to ”4” in the factory.
Do not alter the setting of the rinse-aid
control unless streaks (turn knob towards
”–”) or water marks (turn knob towards ”+”)
are left on the dishes.
30
rinse–aid control
Rinse-aid refill indicator
When the appliance is switched on, low
rinse-aid is indicated by the message
”Refill rinse-aid”.
As long as the rinse-aid refill indicator on
the dispenser 30 is blank, the rinse-aid
level is adequate.
LOW RINSE-AID indicator
aus
11
Unsuitable dishes
You should not clean the
following items in your
dishwasher:
Cutlery and dishes made of wood. They
will leach out and become unsightly; the
utilised adhesives are also not suitable
for the dishwasher temperatures.
Delicate décor glasses, craft dishes and
vases, special antique or irreplaceable
dishes. These décor items are not
dishwasher-safe.
Plastic parts, copper and tin dishes
sensitive to hot water are not suitable
either. Overglazed patterns, aluminium
and silver parts tend to become
discoloured and fade during the rinsing
cycle. Even some types of glass (e.g.
crystal glass objects) may become cloudy
after many rinse cycles. Completely
absorbent materials, such as sponges and
cloths must not be cleaned in the
dishwasher either.
Recommendation:
In future buy only dishes which are
identified as dishwasher-safe.
Note
Dishes which are soiled with
ash, wax, lubricating grease or
ink must not be cleaned in the
dishwasher.
Damage to glassware and other
dishes
Possible causes:
type of glass or manufacturing process
chemical composition of detergent
water temperature and duration of
dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that
have been marked ’dishwasher–proof’
by the manufacturer.
Use a mild detergent that is described
as ’kind to dishes’. If necessary, seek
further information from detergent
manufacturers.
Select a programme with as low a
temperature and as short a duration as
possible.
To prevent damage, take glass and
cutlery out of the dishwasher as soon
as possible after the programme has
ended.
aus
12
12

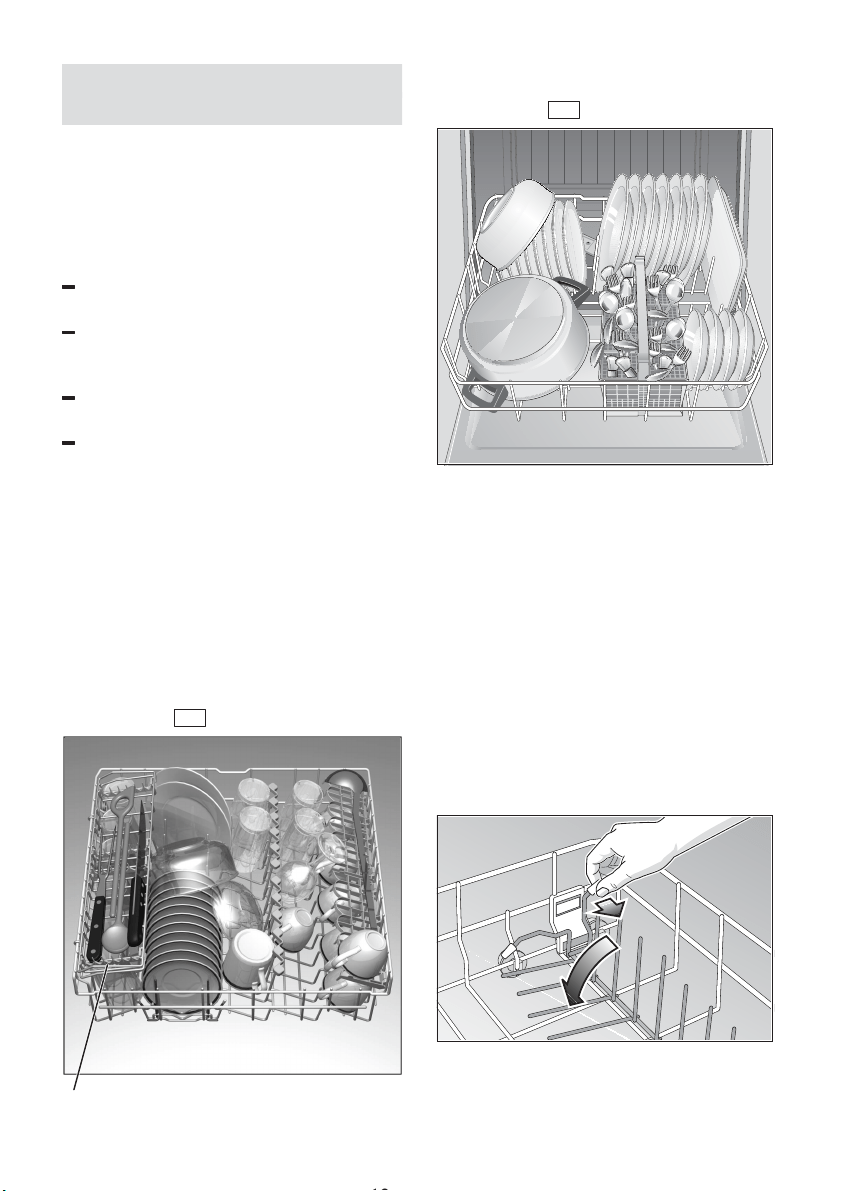

Arranging crockery, glasses,
etc. in the dishwasher
Loading the dishwasher
Scrape off any large amounts of left-over
food. It is not necessary to rinse the dishes
under running water.
Place objects in the dishwasher in such a
way that
items such as cups, glasses, pots/pans,
etc. are stood upside down,
curved items, or those with recesses,
should be at a slant so that water can
run off,
they are stacked securely and cannot
tip over,
they do not prevent the spray arms from
rotating while washing takes place.
Very small items should not be washed in
the dishwasher as they could easily fall out
of the baskets.
Removing the dishes
To prevent water dripping from the top
basket onto the dishes in the lower basket,
we recommend that you empty the lower
basket first and then the top basket.
Cups and glasses
Upper basket
20
* on applicable models
Pots and pans
Lower basket
28
Cutlery
Cutlery should always be inserted in
random order with the handles pointing
downwards (take care with knife blades!).
This enables the jet of water to reach the
individual items more easily.
To prevent the risk of injury, place long and
pointed implements and knives on the
shelf (some models) or knife shelf
(available as an accessory).
Folding spikes *
* on applicable models
To improve stacking of pots and pans, the
spikes can be folded down.
aus
13
Spray head for baking sheets *
* on applicable models
Please refer to the drawings enclosed in
the envelope
Large baking sheets or grids can be
cleaned with the aid of the special spray
head. Remove the top basket and attach
the spray head as shown in the drawing.
Arrange the baking sheets as illustrated,
so that the jet of water can reach all parts
of them (max. 4 baking sheets and
2 grids).
Knife rack *
* on applicable models
Shelf *
* not on all models
Lean tall glasses and those with long
stems against the shelf – not against other
items to be washed.
Note: When adjusting the upper rack to its
lower position please, remove
the special cup shelf to prevent the racks
interfering with each other.
Long items, serving cutlery, salad servers
or knives should be placed on the shelf so
that they do not obstruct the rotation of the
spray arms. The shelf can be folded back
when not required for use.
aus
14
14
Adjusting position of basket *
* not on all models
86cm
81cm
Ø max.
30/*25cm
Ø max.
20/*25cm
Ø max.
34/*29cm
Ø max.
20/*25cm
If required, the height of the top basket can
be adjusted in order to create more space
for large utensils either in the top or bottom
basket.
Select one of the two following procedures
according to the design of the top basket
for your appliance model:
Top basket with upper
and lower roller pairs

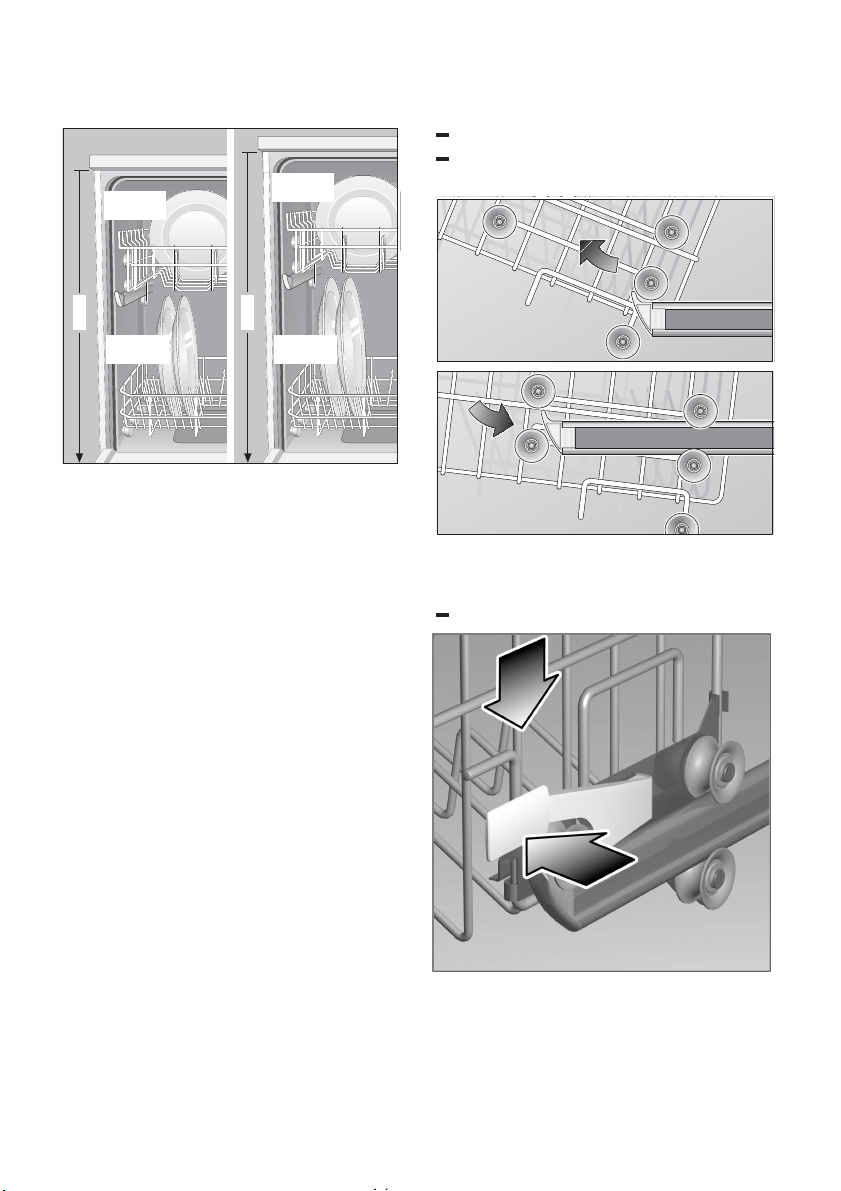

Pull out the top basket.
Remove the top basket and re-attach it
to the upper or lower rollers.
Top basket with side levers
(Rackmatic)
Pull out the top basket.
aus
15
To lower the basket, press in
succession the two levers on the left
and right sides of the basket. Always
take hold of the side of the basket on
the upper edge, otherwise the basket
will not drop smoothly (and may
damage the utensils).

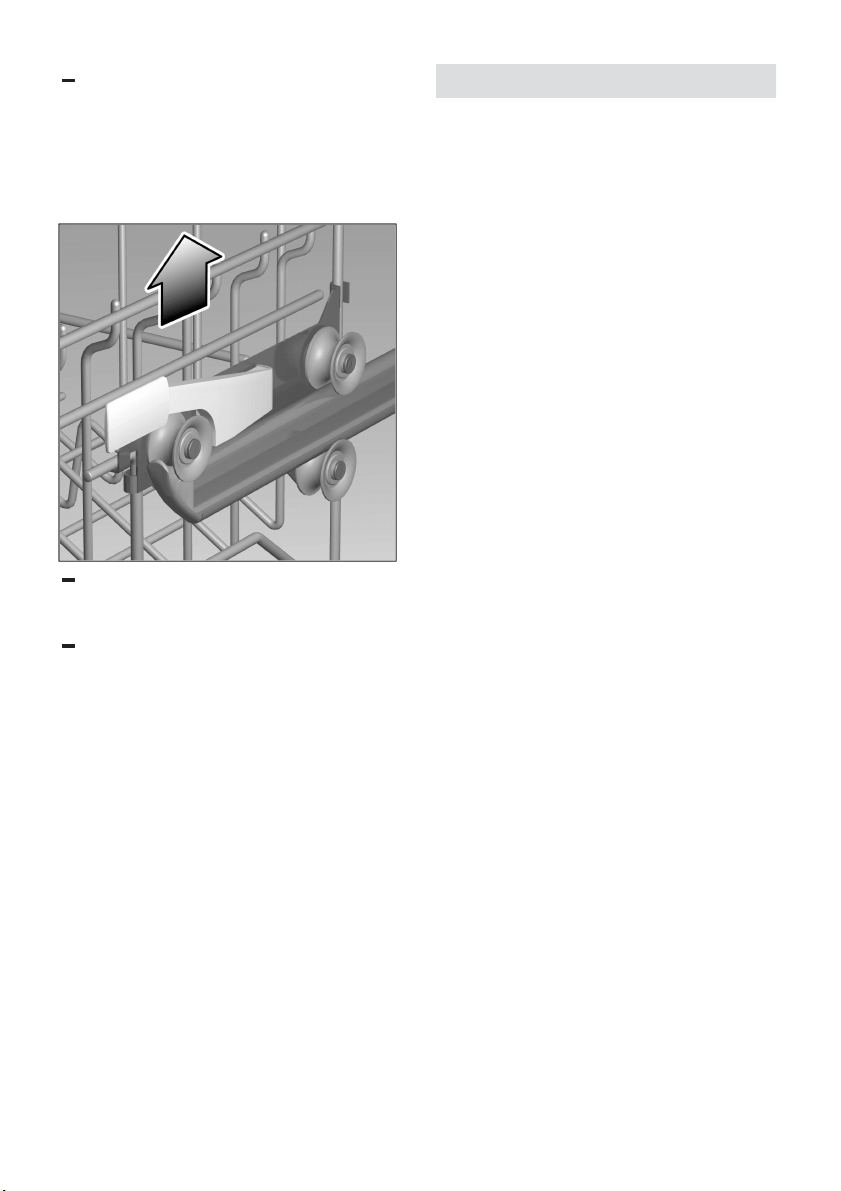

To raise the basket, take hold of the
basket on the upper edge and pull
upwards.
Before you re-insert the basket, ensure
that it is at the same height on both
sides. Otherwise, the appliance door
cannot be closed and the upper spray
arm will not connect to the water circuit.
Detergents
Notes on detergents
You may use any brand of liquid or powder
detergent, as well as tablets, that have
been specifically designed for use in
domestic dishwashers (do not use normal
washing-up liquid!).
Nowadays there are three types of
dishwasher detergent available:
1. Those containing phosphates
and chlorine.
2. Those containing phosphates
but no chlorine.
3. Those containing neither phosphates
nor chlorine.
When a phosphate-free detergent is used
in conjunction with hard water, there is
a greater possibility that white marks will
be left behind on the dishes and glasses,
etc.
These can be prevented by pouring an
increased amount of detergent into the
dispenser.
Chlorine-free detergents have a reduced
bleaching effect. This may mean that tea
stains are not completely removed or
plastic items become discoloured.
This can be resolved by:
– using the “Auto Super Wash”
programme
– increasing the amount of detergent
– using a detergent that contains chloride
Check the label on the packaging to
determine whether a particular product is
suitable for use with silverware.
If you have any further questions, we
recommend that you contact the customer
advice departments of the respective
detergent manufacturer.
aus
16
16
CAUTION
IMPORTANT NOTE
ON THE USE OF
COMBINED CLEANING
PRODUCTS
Please note the following when using
”combined cleaning products” which
eliminate the need for a rinsing agent or
salt, for example:
Some products with a built-in rinsing
agent are only used to their full effect in
certain programmes.
This type of product does not generally
produce the desired effect with
automatic programmes.
Products which eliminate the need for
regeneration salt can only be used
within a certain water hardness range.
If you wish to use these combined
products, please read the instructions
carefully and heed any notes on the
packaging.
Contact the manufacturer of the cleaning
agent if you have any questions,
particularly if:
the crockery is very wet once the
programme has finished.
limescale deposits are formed.
Any problems which arise as a direct
result of the use of these products are not
covered by our warranty.
Detergent compartment with
measuring marks
The side of the detergent compartment is
marked with lines to help you determine
how much powder to add.
The capacity of the detergent container is
15 ml up to the bottom line and 25 ml up to
the middle line. When the compartment is
full it contains 40 ml.
40 ml
25 ml
15 ml
Important
If the lid on the detergent com-
partment is closed, press the
release lever to open the flap.
Adding detergent
Tip detergent powder into the
corresponding compartment
31 .
Please observe the manufacturer’s
instructions printed on the detergent
packaging when determining the
correct dosage.
Due to the different solvency properties
of the detergent tablets supplied by
various manufacturers, the cleaning
efficiency of the detergent may not be
fully utilised by short programmes. It is
recommended to use washing powder
for these programmes.
For the “Auto Super Wash” function,
pour an additional 10–15 ml of
detergent onto the inside of the
appliance door.
aus
17
Reduce costs!
If your dishes are only
moderately dirty, you may be
able to use less detergent than
recommended.
Close the lid on the detergent
compartment.
Press down the lid (1) until it clicks
shut (2).
If you are using detergent in tablet form,
read the manufacturer’s
recommendations on the packaging in
order to
determine where the tablets should be
placed inside the dishwasher (e.g. in
cutlery basket, detergent compartment,
etc.).
Make sure that the lid on the detergent
compartment is closed, even if you are
using tablets.
Opening and closing
the door
To open the door, pull the door handle.
To close the door, press the door shut
until it “clicks” into position.
The door can be easily opened before
the wash programme starts and when the
programme ends.
Adjusting the appliance
Switching on the appliance
Turn on the tap fully.
Switch on the appliance with the main
switch 1 and, if required, top up with
salt and rinse aid (see chapters “Filling
with salt”, “Filling with rinse aid”). The
main menu is then displayed.
Auto Wash
Options Start
When the appliance has been switched
on, the “Auto Wash” programme is always
displayed in the main menu.
Selecting a programme
The following programmes can be
selected in turn from the “Auto Wash”
programme in the main menu:
Auto Super Wash – Auto Wash –
Auto Delicate Wash – Quick Wash –
Prerinse only.
Select the desired programme with
button
or .
The programme sequence of the
automatic programmes “Auto Super
Wash”, “Auto Wash” and “Auto Delicate
Wash” is automatically adjusted to the
amount and degree of soiling of the
utensils. As a result, the energy and water
consumption is kept as low as possible.
You can use the following programme
overview to select a suitable programme
for type of utensils as well as for quantity
and/or condition of food remains.
aus
18
18
Programme overview
Soups,
soufflés,
sauces,
potatoes,
pastries,
rice, eggs,
fried food
Soups,
potatoes,
pastries,
rice, eggs,
fried food
Coffee,
cake, milk,
sausage, cold
drinks,
salads
Rinse if the
utensils have
been left for
several days
prior to wash-
ing in the dish
washer
Large -> small
60° - 70° 45° - 55° 35° - 45° 35°
AUTO
SUPER
WASH
AUTO
DELICATE
WASH
QUICK
WASH
PRERINSE
ONLY
AUTO WASH
Type of utensil
e.g. porcelain,
pans,
cutlery,
glasses,
etc.
Hard-
wearing
Mixed
Fragile
Mixed
Type of food
remains
e.g.
Amount of
food remains
Condition of
food remains
Wash
programme
Programme
progress
Very
small
Very
adhesive
Slightly adhesive
The programme progress is
optimised and adjusted
according to the appliance
load and degree of soiling
on the utensils.
Drying
Prerinse
Clean
Intermedi-
ate wash
Final wash
aus
19
Programme data
The programme data (duration, energy
and water consumption) can be found in
the summary of instructions and refers to
standard conditions. Greater deviations
may be caused by:
different quantities of utensils
inlet temperature of the water
water pressure
ambient temperature
mains voltage tolerances
and appliance-specific tolerances
(e.g. temperature, water flow rate, etc.)
Only ranges can be indicated for the
automatic programmes.
The water consumption values refer
to water hardness value 4.
Selecting options/
standard settings
Operating principle
Auto Wash
Options Start
The following options / standard
settings can be selected in turn from the
main menu by repeatedly pressing the
“Options” button
:
Timer programming
Reduce time
Degree of dryness
Buzzer volume
Water hardness
Language
Standard programmes
One option / standard setting contains
several settings which can be selected
with the
or buttons.
The selected setting is saved by
jumping to the next option / standard
setting (button ) (exception:
standard programmes) or by returning
to the main menu (button
).
aus
20
20
Timer programming
You can delay the start of the programme
by up to 24 hours in ½ hour steps.
If the Timer programming option is
selected, “Delay start 0:00 hrs” is
displayed.
Select the desired time.
Return to the main menu and start the
selected programme.
Close the door. The time begins to
count down.
To interrupt or check the countdown,
open the door.
When the set time has elapsed, the
programme starts automatically.
Until the programme starts you can
change the set time and selected
programme. Return to the main menu
by pressing the “Back” button and
change the settings. Finally, restart
the programme.
To delete Timer programming, reset
the time to 0:00.
Reduce time
You can reduce the running time of
automatic programmes. An optimum
cleaning result is still obtained as both
the water and energy consumption is
increased.
If the Reduce time option is selected,
“Reduce time: Off” (factory setting) is
displayed.
Select “Reduce time: On”.
Return to the main menu and start the
selected programme.
If you do not want to use Reduce time
the next time you use the dishwasher,
you must switch off the option again.
Degree of drying
If the “Degree of drying” option is
selected, “Normal drying” is displayed
(factory setting).
Alternatively, you can select “No drying”
or “Extra drying”.
The temperature of the final rinse is
increased in all programmes for “Extra
drying”. (Note the higher temperature
may not be suitable for fragile utensils.)
Buzzer volume
You can vary the volume of the buzzer or
switch it off completely.
If the Buzzer volume option is selected,
“Buzzer 4” is displayed (factory setting).
You can select value 0 (buzzer
switched off) or values from 1 (quiet)
to 6 (loud). Buzzer is emitted briefly,
indicating the volume which
corresponds to the value just selected.
Water hardness
Before using the appliance for the first
time or if the water hardness changes,
the dishwasher softening system must be
adjusted to the degree of hardness of your
tap water. Proceed as described in the
chapter “Adjusting the softening system”.
aus
21
Language
Before using the appliance for the first
time, you can change the selected
language (see chapter “Before using the
appliance for the first time”).
If the Language option is selected,
several language codes are displayed.
The code of the currently selected
language flashes. A total of 17 codes
or languages can be selected.
If selecting a language code, the clear
text is displayed on the lower line in the
corresponding language.
Standard programmes
In addition to the wash programmes which
can be selected from the main menu, the
following standard programmes can be
selected in turn from the “Normal”
programme:
Normal Extra – Normal Eco –
Normal – Normal Plus.
Select the desired programme and
return to the main menu.
If you do not want to select any of the
displayed standard programmes, return
to the “Standard programmes” display
and then to the main menu by pressing
the “Back” button
.
If you would like to cancel the selection
of a standard programme, select the
Standard programmes option. Then
simultaneously press the “Main menu”
button
and button or button
. The selected standard
programme is then deleted. The main
menu and ”Auto Wash” programme are
displayed.
Type of utensil
Normal Extra Normal Eco Normal Normal Plus
Mixed utensils
Amount of food
remains
Condition of food
remains
Small to large
Slightly adhesive
The associated programme data (duration, energy and water consumption) can be found
in the summary of instructions.
We strongly recommend that you use the automatic programmes as the energy and water
consumption is kept as low as possible on account of the variable programme sequence.
However, the programme sequence of the standard programmes is fixed.
aus
22
22
Aqua sensor *
* on applicable models
The Aqua sensor is an optical measuring
device which measures the turbidity of the
rinsing water. A light barrier can detect
dissolved food remnants in the water, e.g.
egg, fat and oats.
The Aqua sensor is used according to
the programme. When the Aqua sensor
is active, ”clean” rinsing water may be
transferred into the next rinsing bath
and/or the temperature adjusted. If the
turbidity is greater, the water is drained
and is replaced with fresh water. In this
way the water consumption is reduced by
approx. 4 litres for utensils which are ”less”
dirty.
Starting the programme
Before starting the appliance, check
again that the spray arms can rotate
freely.
In the main menu press the “Start”
button
.
“Close door” is displayed alternating with
the expected programme duration. This
time is only an approximate value. At the
start of the programme this time
corresponds to the running time which the
selected programme required last time.
While the programme is running, the
remaining running time is corrected based
on the water inlet temperature as well as
on the amount and degree of soiling of the
utensils.
If you have preselected a time for the start
of the programme, “Close door” is
displayed alternating with the preselected
time when the programme has started.
Close the door.
The programme or the preselected time
starts.
The programme and other settings can
still be changed for as long as the door is
open after the “Start” button
. has
been pressed. Return to the main menu by
pressing the “Back” button and change the
settings. Finally, restart the programme.
If the door is closed after the “Start” button
has been pressed and the programme has
already started, the programme must be
terminated if settings are to be changed
(see “Terminating the programme”).
aus
23
Interrupting the programme
To interrupt the programme, open
the door. Open the door only slightly
to prevent water from spraying out of
the appliance.
“Terminate programme” is displayed
alternating with “Close door”, the
remaining programme time, the
selected programme and the current
programme phase.
To interrupt the programme, NEVER press
the “Terminate programme” button
,
otherwise the programme cannot be
continued!
To continue the programme, close
the door. The programme continues
running automatically.
If there is a warm-water connection or
if the appliance has already been
heated, leave the door slightly open
for several minutes before closing it.
Otherwise, the door may spring open
again due to the hot air enclosed inside
the appliance.
Terminating the programme
Open the door. Open the door only
slightly to prevent water from spraying
out of the appliance.
“Terminate programme” is displayed
alternating with “Close door”, the
remaining programme time, the
selected programme and the current
programme phase.
To terminate the programme, press
the “Terminate programme” button
.
“Close door to drain” is displayed and
“Close door” flashes.
Close the door. The water in the
appliance is drained.
As soon as the water has been drained,
the buzzer is emitted 5 times.
When the door has been opened,
“Finished” is briefly displayed, then
the main menu is displayed.
You can now restart or switch off the
appliance.
End of programme
As soon as the programme has ended,
the buzzer is emitted 5 times.
Open the door. “Finished” is briefly
displayed, then the main menu is
displayed.
Remove the utensils when they have
cooled down.
When the programme has ended, you can
either switch off or restart the appliance.
Note
To ensure that the utensils are optimally
dried, wait approx. 15 minutes after the
end of the programme before you open
the door and remove the utensils. During
this time any remaining water on the
utensils can evaporate and condense on
the walls inside the appliance.
Switching off the appliance
When the buzzer is emitted 5 times
and “Finished” is displayed, switch off
the appliance with the main switch 1
.
Turn off the tap (not applicable if
Aqua Stop fitted).
Note
If the power supply is cut while the
appliance is running, e.g. if the appliance
is switched off or a power failure occurs, all
settings are saved. As soon as the power
supply is restored, operation is
automatically continued.
aus
24
24
Information about programme sequence
Recalculating time remaining
The expected programme duration is
recalculated depending on the amount and
degree of soiling of the dishes.
Finished in x.xx hours
Displays the remaining running time of the
programme.
Automatic washing
The currently selected programme is
displayed.
Pre-rinsing
The dishes are rinsed in this step of the
programme without detergent.
When the appliance has started, the following displays are indicated.
Recalculating time
Finished in x.xx hrs
Prerinse
Auto Wash
aus
25
Information about programme sequence
Wash
The dishes are optimally washed with
detergent and heated water.
Rinsing with rinse-aid
To prevent water marks on the dishes,
rinse-aid is automatically added.
Drying
The dishes are now dried.
End
The programme has ended. The dishes
can now be removed.
Wash
Rinse
End
Drying
aus
26
26
Maintenance and care
You can help prevent faults by checking
and maintaining your appliance regularly.
This will save time and reduce problems.
Therefore you should occasionally
examine the inside of your dishwasher.
Overall condition of the
appliance
Check the rinsing compartment for grease
and limescale deposits.
If you find any deposits:
Fill the detergent dispenser with
detergent. Start the empty appliance
with the programme which has the
highest rinsing temperature.
Clean the door seal:
Wipe the door seal regularly with
a damp cloth and remove any deposits.
Special Salt
When the salt level is low, your
dishwasher displays a message in the
window.
Rinse aid
When the rinse aid level is low, your
dishwasher displays a message in the
window.
Filters
The filters
26 prevent larger remnants of
food or other objects from getting inside
the pump. This residue can occasionally
clog up the filters.
The filter system consists of a filter
cylinder, a flat fine filter and, depending on
the model, a microfilter (*).
Inspect the filters for obstructions every
time the dishwasher has been used.
By unscrewing the filter cylinder, you
can remove the filter system. Remove
any food remnants and clean the filters
under running water.
Reassembly:
Insert the filter system and screw down
with the filter cylinder.
aus
27
Spray arms
Lime and remnants of food in the washing
water can block the nozzles in the spray
arms
23 and 24 and the arm
mountings .
Inspect the nozzles in the spray arms
for blocked holes due to remnants of
food.
If necessary, pull the lower arm 24
upwards and lift it off.
Unscrew the upper spray arm 23 .
Clean both spray arms under running
water.
Refit the spray arms. Ensure that the
lower arm has locked into place and the
upper one is screwed tight.
0
1
2
3
Spray arms
Pump
Larger remnants of food that have not
been trapped by the filters and have been
left in the water can cause a blockage in
the pump. The water is no longer pumped
out of the dishwasher and it can be seen
covering the filter.
Proceed as follows:
Ladle out as much water as possible.
Remove the filters 26 .
Undo the screw in the cover (Torx T 20)
and remove the cover.
Inspect the inside and remove any
obstructions that you find.
Re-insert the cover and screw down.
Re-insert the filters and screw down.
Tor x T20
2
1
aus
28
28
Fault finding
Resolving minor problems
yourself
Experience has shown that you can
resolve most problems that arise during
normal daily usage yourself, without
having to call out a service engineer. Not
only does this save costs, but it also
means that the appliance is available for
use again that much sooner. The following
list of common occurrences and their
remedies should help you identify the
causes of most problems.
Problems ...
... when the appliance is
switched on
Incorrect language set.
Return to language selection
1. Switch off the appliance.
2. Switch on the appliance, holding
down the main switch until the
display is lit.
3. Select the language and
acknowledge with “ok”.
The appliance does not start.
The mains fuse has tripped.
The appliance plug has not been
inserted.
The appliance door has not been
shut properly.
The appliance door was closed
without starting the programme
first.
Some time after the programme
has started, a continuous buzzer
is emitted.
The appliance is not being filled with
water. When the appliance door is
opened, “Check water supply!” is
indicated.
Tap not turned on.
Turn on the tap fully and press
the “Continue” button
on the appliance. Then close the
appliance door to continue the
programme.
The filter on the water supply hose
is blocked.
Switch off the appliance and pull
out the mains plug. Turn off the
tap. Then clean the filter which is
situated at the connection of the
Aqua Stop or supply hose. Finally,
restore the power, turn on the tap,
switch on the appliance and close
the door to continue the
programme.
Warning
Remember:
The appliance may be repaired
by a technician only. Improper
repairs may cause
considerable damage and/or
injure the user.
... with the appliance itself
Lower spray arm rotates with
difficulty
Spray arm is blocked by small
items or food remains.
aus
29
Lid in detergent compartment
cannot be closed
Detergent compartment has been
overfilled.
Mechanism is clogged with
remnants of detergent.
Indicator lamps do not extinguish
after washing has finished.
Remnants of detergent stuck inside
dispenser
Compartment was damp when it
was filled up with detergent.
Compartment must be dry before
detergent is added.
At the end of the programme there
is still water in the appliance.
The waste water hose is blocked
or kinked.
The waste water pump is blocked.
The filters are blocked.
The programme has not yet
ended. Wait until the programme
ends or terminate the programme.
... during washing
Unusual amount of foam is created
Normal washing up liquid has
been poured into the rinse-aid
container.
Remove any spilled rinse aid with
a cloth as it could otherwise lead
to excessive foaming during the
next washing cycle.
Appliance stops suddenly while
washing is taking place
Cut in electricity supply to
appliance.
Water supply has been
interrupted.
Knocking sound can be heard
while washing is taking place
A spray arm is knocking against
the dishes inside the appliance.
Rattling sound can be heard while
washing is taking place
Crockery has not been stacked
properly inside the appliance.
Knocking sound coming from inlet
valves
This is caused by the way the
water pipes have been laid and it
has no effect upon the way the
appliance functions. There is no
remedy for this.
... with the dishes, cutlery, etc.
Remnants of food are stuck to the
dishes, cutlery, etc.
Dishwasher was not loaded
properly. Jets of water could not
reach all parts of the dishes, etc.
Too many items in the rack.
Items in the rack were touching
each other.
Not enough detergent was added
to dispenser.
Selected wash programme was
not intensive enough.
Rotation of spray arm was
obstructed by dish, etc.
Nozzles in spray arm are blocked
by remnants of food.
Filters are blocked.
Filters have been incorrectly fitted.
Waste-water pump is jammed.
Plastic items are discoloured
Not enough detergent was added
to dispenser.
White stains are left on crockery,
glasses have a milky appearance
Not enough detergent was added
to input compartment.
Amount of rinse-aid was set too
low.
Although water is quite hard, no
salt has been put in appliance.
aus
30
30
Water softener was set too low.
Lid on salt container is not
screwed tight.
If you used a phosphate-free
detergent, try a detergent
containing phosphates and
compare results.
Dishes, cutlery, etc. have not been
dried
Selected programme did not
include drying function.
Amount of rinse-aid was set too
low.
Items were removed from
dishwasher too soon.
Glasses have a dull appearance
Amount of rinse-aid was set too
low.
Tea stains or traces of lipstick have
not been completely removed
Detergent does not have a
sufficient bleaching effect.
Washing temperature was set too
low.
Traces of rust on cutlery
Cutlery is not sufficiently rustproof.
Salt content in washing water is
too high.
Lid on salt container is not
screwed tight.
Too much salt was spilt while
filling container.
Glasses become clouded and
discoloured; coating cannot be
wiped off
Unsuitable detergent was used.
Glasses are not dishwasher-proof.
Smears left behind on glasses and
cutlery; glasses have acquired a
metallic appearance
Amount of rinse-aid set too high.
Customer Service
Please call your local service agent, if you
are not able to resolve any problem
yourself. The name of your nearest service
agent is shown in the Customer Service
address list. When you call, please provide
details of the model number (1) and the
production (FD) number (2) which are
shown on the nameplate on the appliance
door.
FD
2
1
Warning
Please note that a visit by the
customer service technician in
the event of a fault or one of
the problems previously
discussed is not free of charge
even during the warranty
period.
aus
31
Notes
Disposal of your old appliance
Old appliances are not worthless rubbish.
Valuable raw materials can be reclaimed
by recycling old appliances.
Pull out the mains plug of the redundant
appliance. Cut off the power cord and
discard with mains plug.
To prevent children from locking
themselves in the appliance and
suffocating, destroy the door lock
and childproof lock (if fitted).
You received your new appliance in
a protective shipping carton. All packaging
materials are environmentally friendly and
recyclable. Please contribute to a better
environment by disposing of packaging
materials in an environmentally-friendly
manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
Keep children away from the shipping
carton and packaging components.
Danger of suffocation from folding cartons
and plastic film.
Notes on comparison tests
You will find details of the conditions for
the comparison tests on the additional
”Notes on comparison tests” sheet. The
consumption values for the relevant
programmes are given in the introduction.
General
Built-under and integrated appliances
which are subsequently installed as
free-standing appliances must be
secured to prevent them from falling
over, e.g. by screwing them to the wall
or by installing them under a continuous
worktop which is screwed to the
adjoining units.
For Swiss version only:
The appliance can be installed without
difficulty between wooden and plastic
walls in a kitchen range. If the appliance
is not connected via a plug, the
installation side must feature an all-pole
disconnector with a contact gap of at
least 3 mm in order to satisfy the
relevant safety regulations.
aus
32
32
Installation
The dishwasher must be connected by
a qualified technician to ensure correct
operation. The specifications for supply,
drainage and connected load must fulfil
the required criteria as stated in the
following paragraphs or in the installation
instructions.
Install the appliance in the following
sequence:
– Check the delivery
– Install the appliance
– Connect the waste water
– Connect the fresh water
– Connect the power supply
Delivery
Your dishwasher was checked at the
factory to ensure that it was in perfect
working order. This may have left some
small water stains in the dishwasher.
These will disappear after the first rinse
cycle.
Installation
The required installation dimensions can
be found in the installation instructions.
Using the height-adjustable feet, adjust the
appliance until it is level. Ensure that the
appliance is standing firmly.
Waste water connection
See the installation instructions for the
required connection steps. If required,
attach a siphon with drainage spigot.
Using the enclosed parts, connect the
waste water hose to the drainage spigot
of the siphon.
Ensure that the drainage hose is not
kinked, crushed or twisted (ensure that
there is no sealing cover which prevents
the waster water from flowing away!).
Fresh water connection
Using the enclosed parts, connect the
fresh water connection to the tap
according to the installation instructions.
Ensure that the fresh water connection is
not kinked, crushed or twisted.
When replacing the appliance, always
connect a new water supply hose to the
water supply. The old supply hose must
not be re-used.
Ensure that the fresh water connection is
not kinked, crushed or twisted.
Water pressure:
Minimum 0,5 bar – maximum 10 bar.
If the water pressure is higher, install a
pressure reducing valve.
Flow rate:
Minimum of 10 litres per minute.
Water temperature:
We recommend cold water connection
only.
Electrical connection
This appliance should only be connected
to a 230/240 V AC source via a properly
installed earthed socket. See nameplate
32 for size of required fuse.
The socket must be installed close to the
dishwasher.
If the domestic wiring includes a residual-
current-operated (FI) circuit-breaker, make
sure that it bears the
mark, as only
this type conforms to the latest regulations
Disconnecting the dishwasher
Here too, it is important that tasks are
carried out in the correct sequence:
always unplug the appliance from the
mains electricity first of all.
Pull plug out of wall socket.
Turn off water supply.
Disconnect drain and water input hoses.
Remove screws in underside of work
surface. Detach base board, if fitted.
Pull out appliance and carefully withdraw
hoses at same time.
aus
33
Transportation
Empty the dishwasher according to
the following steps:
Turn on the tap.
Switch on the appliance.
Start any automatic programme
and close the appliance door.
Wait until approx. 4 minutes have
elapsed.
Then open the door, terminate
the programme and close the door
to drain the appliance.
Wait until the buzzer is emitted 5 times,
i.e. all the water has been drained.
Switch off the appliance.
Turn off the tap.
Secure loose parts prior to transportation.
Transport the appliance upright only.
Otherwise, residual water may penetrate
the control and damage the appliance.
Protection from freezing
temperatures
If the appliance is installed in a location
where there is a risk of freezing
temperatures (e.g. in a holiday home), all
water must be completely drained out of
the interior (see “Transporting the
dishwasher”).
Turn OFF the tap, disconnect the supply
hose and allow to drain.
Bosch Info–Team:
DE Tel. 0180 / 5 30 40 50
AT Tel. 0660 / 59 95
Internet:
http://www.bosch–hausgeraete.de
5 600 053 949 aus (8212)
635D_AU
