Renogy MTS-CB
Corner Bracket Mount
2775 E Philadelphia St, Ontario, CA 91761
1-800-330-8678
Version: 1.0
2
Important Safety Instructions
Please save these instructions.
WARNING: Indicates a potentially dangerous condition. Use extreme caution when
performing this task.
CAUTION: Indicates a critical procedure for safe and proper operation of the system.
NOTE: Indicates a procedure or function that is important to the safe and proper operation
of the system.
General Safety Information
Read all of the instructions and cautions in the manual before beginning the installation.
Installation should be completed by a professional contractor to avoid damages that may
be incurred due to improper sealing.
Do NOT substitute parts from other manufacture ring sources, doing so may void the
warranty and/or result in an unstable system
This system is NOT possess any compliance with residential structural codes and should
not be used in place of a system that is, if so required by local regulations
Installer Responsibilities
Installation compliance with any applicable codes which are in force at the installation site
Installation compliance and compatibility with all system components and the environment
including but not limited to roofing, system components, etc.
Verification that all project information is accurate
3
Table of Contents
General Information ................................................................................................................................................4
Identification of Components ..........................................................................................................................4
Installation .....................................................................................................................................................................5
Technical Specifications .................................................................................................................................. 10
Compatibility ............................................................................................................................................................. 10
Dimensions ................................................................................................................................................................ 10
4
General Information
The Renogy Corner Bracket Mount (MTS-CB) can be used with virtually any aluminum framed
solar panels to provide drill-free and secure mounting to flat surfaces. The MTS-CB raises the
solar panel to an optimum height that establishes an air gap that improves panel output
performance. Additionally, the mounts act as a wind deflector while maintaining the air gap. With
the MTS-CB, installation is cleaner and more flexible on most motorhomes, caravans, or boats.
Key Features
Non-corrosive, long lasting, and high quality ABS plastic construction
100% recyclable and UV resistant
Drill-free mounting
Designated for virtually any aluminum framed solar panels
Best suitable for flat roofs of smooth aluminum, wood, or GRP material
Easier and more flexible installation
Compatible with all Renogy solar panels
Identification of Components
Part
Quantity
Corner Bracket
4
Side Bracket
2
5

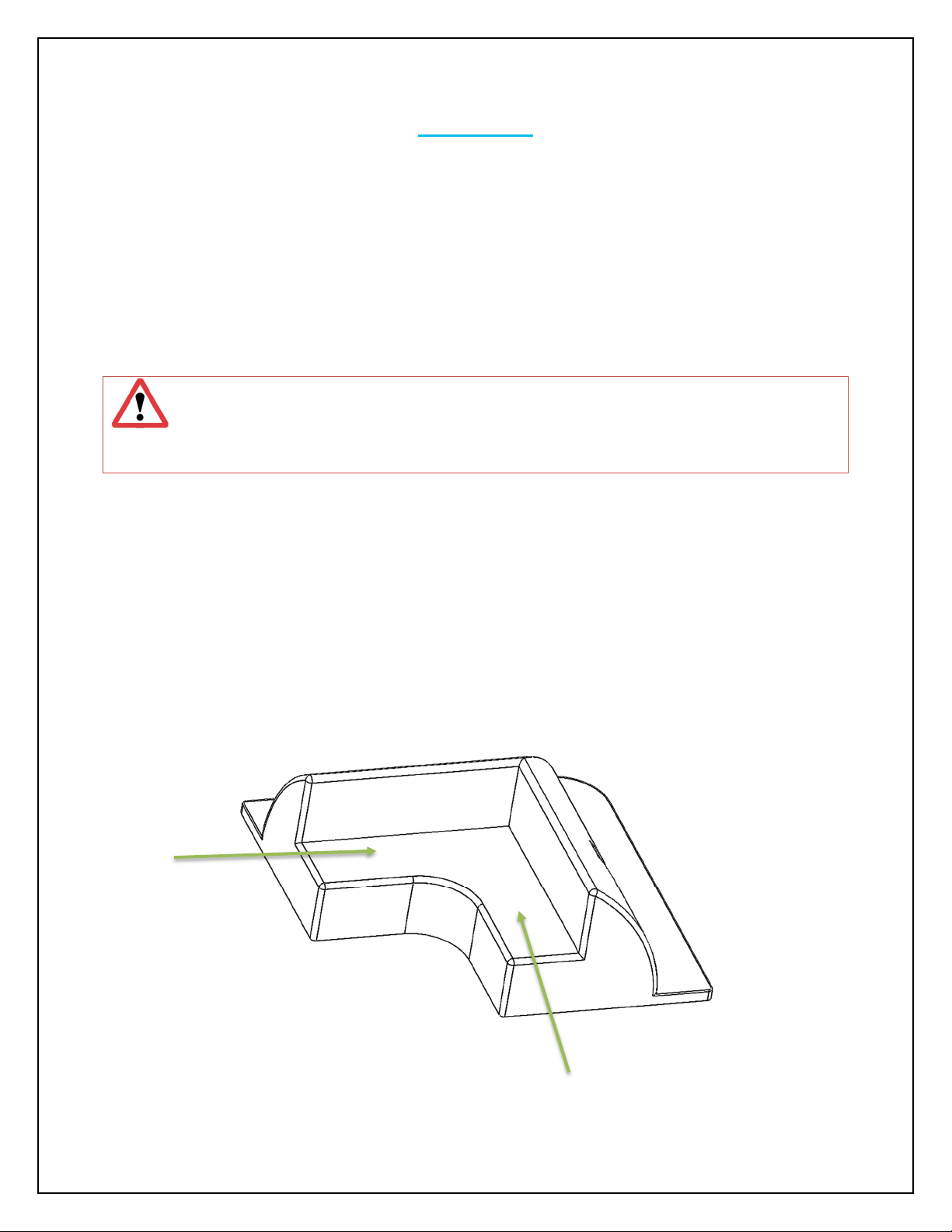

Installation
NOTE: These instructions are to serve as a simple guideline for installing the corner
bracket mounts. Actual installations may vary with adhesive type or roof type. Consult
your adhesive manufacturer for proper instructions of ABS plastic to a user defined roof
material.
Recommended tools to have before installation:
Assembly Adhesive (Sikaflex-252)
Caulking gun
Masking Tape
Hand Pads (Scotchbrite Pads)
Spirit Level
Tape Measure
WARNING: Assembly adhesives contain hazardous chemicals that can be
detrimental to one’s health. Make sure to abide by the manufacturer’s handling and care
when using assembly adhesives.

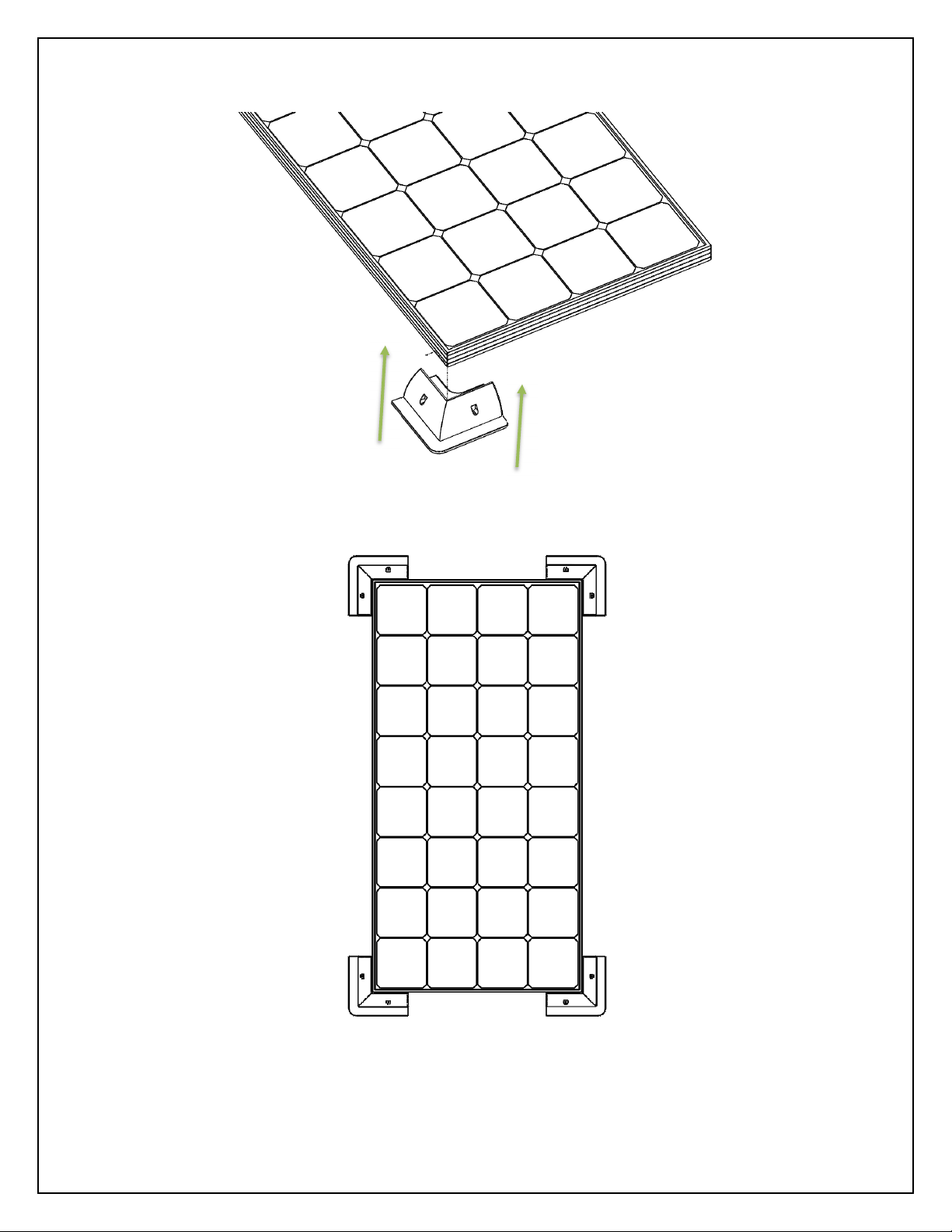

1. Mate Corner Brackets to Solar Panel
a. Apply adhesive to the top side of the corner bracket of where the panel will be
installed
b. Match corner bracket to solar panel corner
c. Apply pressure to ensure proper contact
d. Repeat for the other 3 corner brackets
NOTE: Adhere to adhesive manufacturer specifications for application and time to dry
6
7

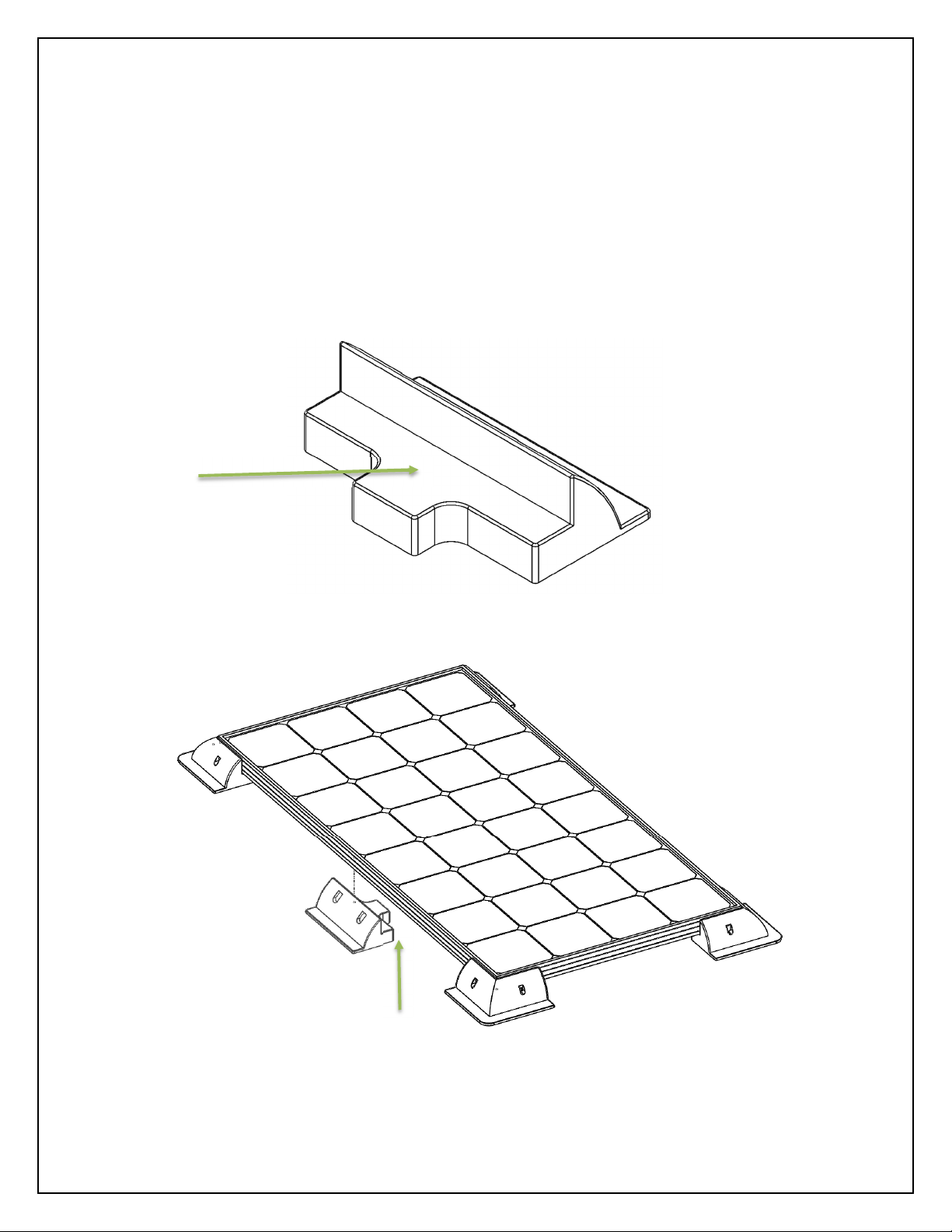

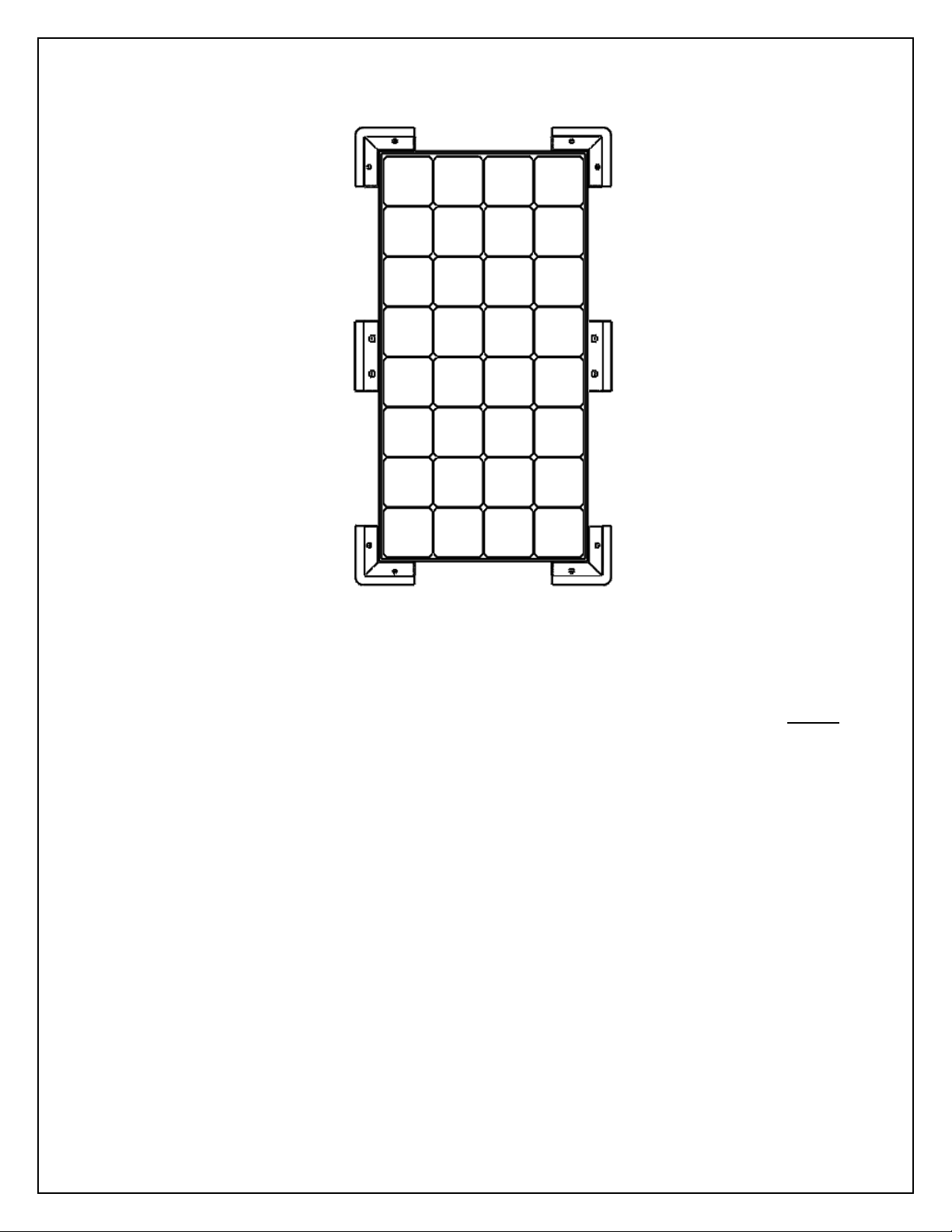

2. Mate Side Bracket to Solar Panel
a. Apply adhesive to the top side of the side bracket of where the panel will be
installed
b. Place side bracket to solar panel side. Adjust for symmetry as needed.
c. Apply pressure to ensure proper contact
d. Repeat for the other side
NOTE: Adhere to adhesive manufacturer specifications for application and time to dry
8

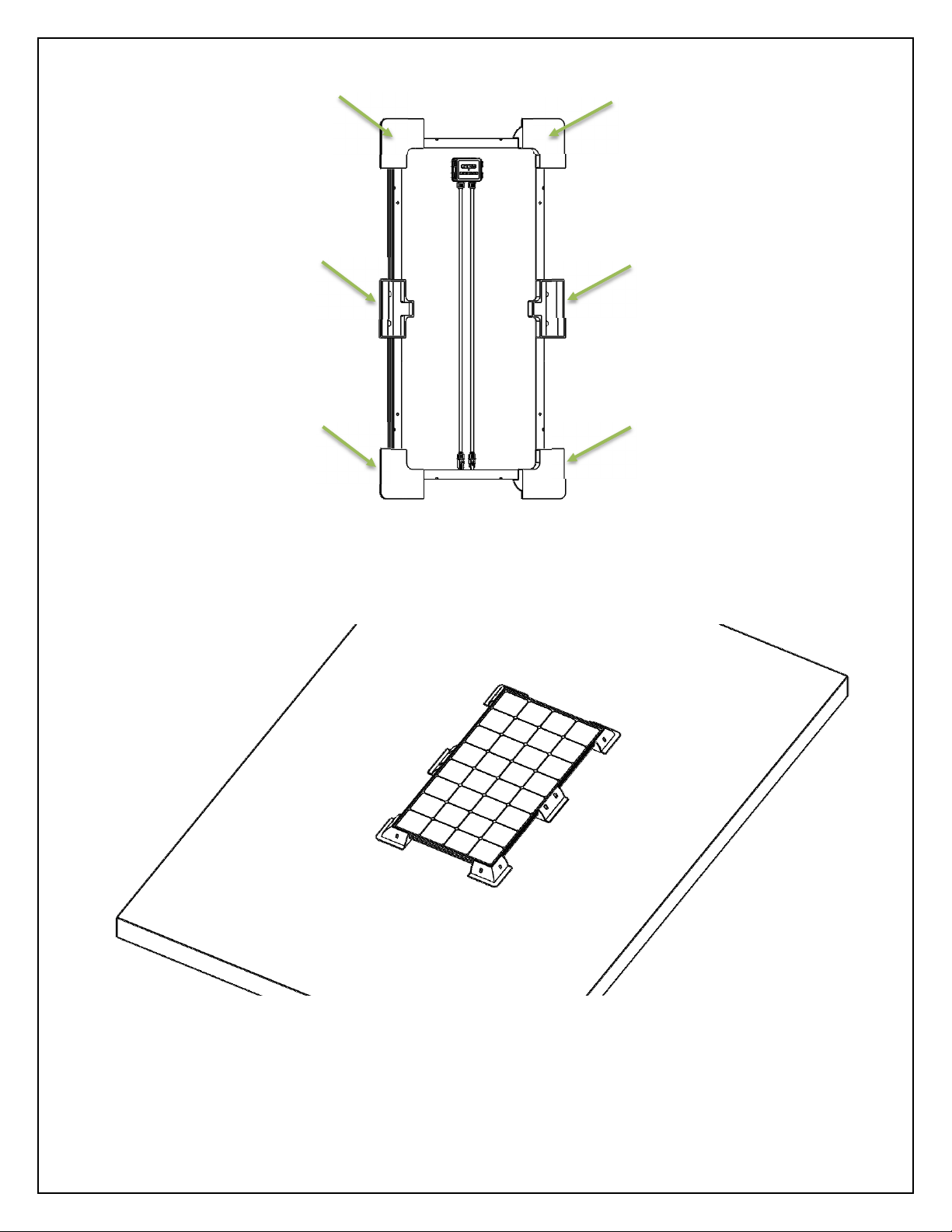

3. Apply Adhesive to the brackets and install on flat surface
NOTE: Always mark out where the solar panel will be located on the flat surface before
proceeding to apply adhesive
NOTE: Ensure the proper solar panel orientation so that the wires are coming out of the
user desired side
a. Clean the surface of the brackets and of the flat surface to ensure maximum bonding
potential
b. Apply adhesive to the bottom side of all the brackets where they will make contact with
the flat mounting surface
c. Apply pressure to ensure proper contact
NOTE: Adhere to adhesive manufacturer specifications for application and time to dry
9
10

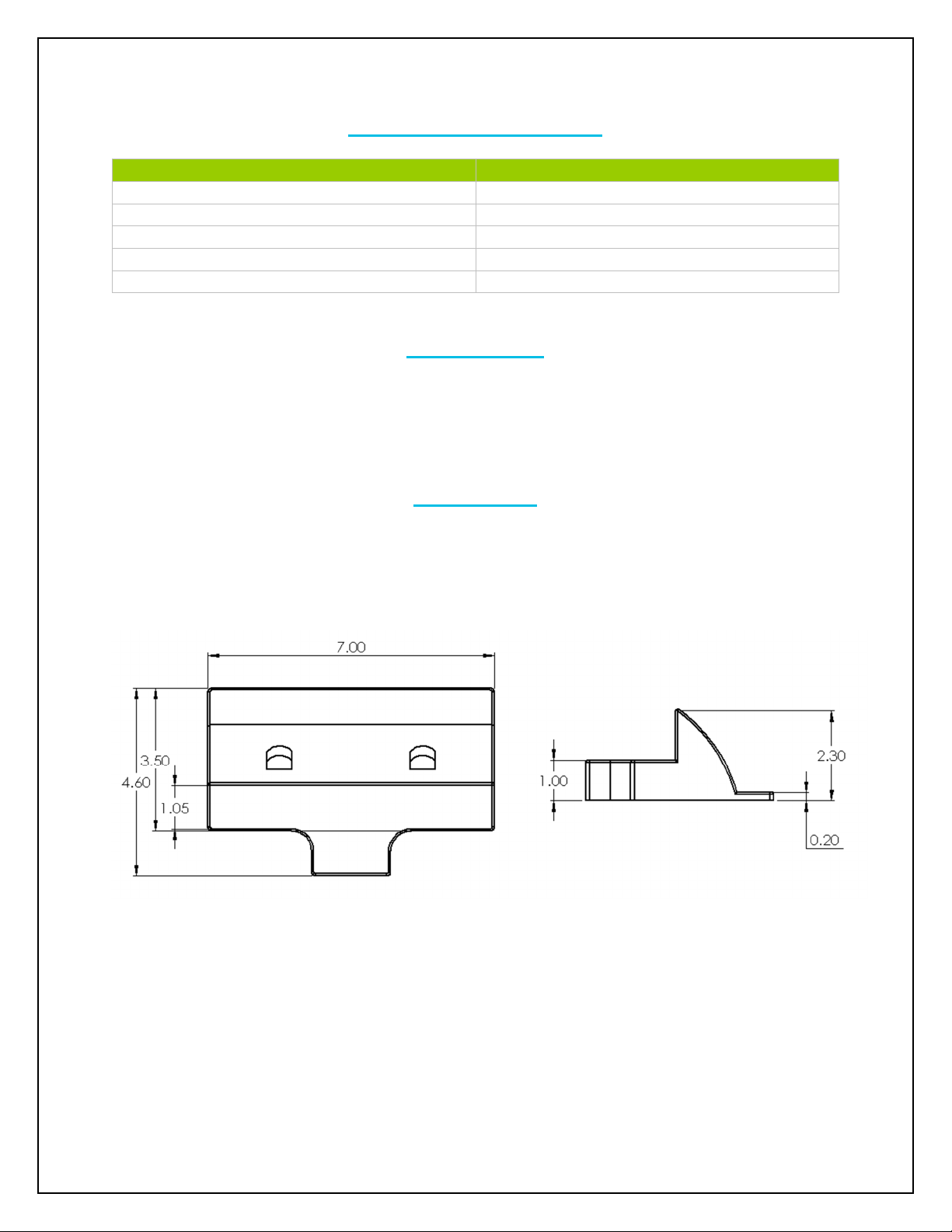

Technical Specifications
Parameter
Specification
Material UV-resistant ABS Plastic
Weight
(each component)
7.2
oz.
Side Bracket Dimensions (l x w x h)
7.0 x 4.6 x 2.3
in
Corner Bracket Dimensions (l x w x h) 5.9 x 5.9 x 2.3 in
Recommended Adhesive
Sikaflex 252 or alike
Compatibility
The MTS-CB mounts are compatible with all Renogy solar panels excluding the solar suitcase
models.
Dimensions
Note: The following drawings utilize inches as their dimension units.
Side Bracket
11

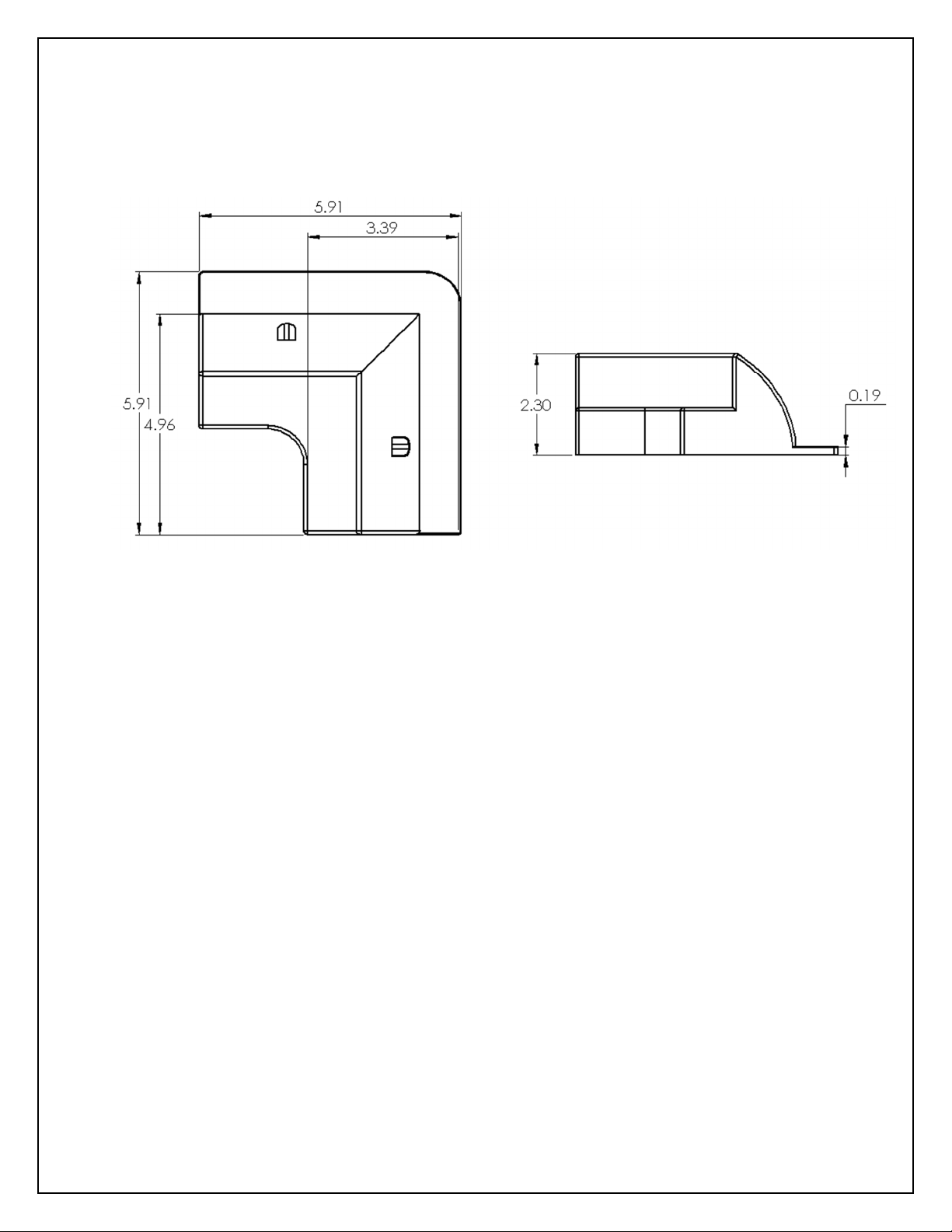

Corner Bracket
Renogy reserves the right to change the contents of this manual without notice.
Revision: 9/13/2017
