Use and Care Manual

This is the main product document for model PB-9010H.

The file format is pdf, 52 pages, you can download this manual here .

background
X7501200700
© 08/20 ECHO Incorporated
Operator’s
Manual
PB-9010 H/T
Power Blower
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
This product complies with CAN ICES-2/NMB-2.
background
TABLE OF CONTENTS PB-9010 H/T
2 X7501200700
© 08/20 ECHO Incorporated
TABLE OF CONTENTS
Table of Contents ........................................................................................ 2
Introduction ................................................................................................. 3
Servicing Information .................................................................................. 3
Parts/Serial Number............................................................................. 3
Service................................................................................................. 4
ECHO Consumer Product Support...................................................... 4
Product Registration ............................................................................ 4
Additional Literature............................................................................. 4
Safety.......................................................................................................... 5
Manual Safety Symbols and Important Information............................. 5
International Symbols .......................................................................... 6
Personal Condition and Safety Equipment .......................................... 7
Equipment.......................................................................................... 12
Emission Control (Exhaust & Evaporative) .............................................. 13
CARB And EPA Emissions Control Information ................................. 13
Description ................................................................................................ 14
Contents.................................................................................................... 18
Assembly................................................................................................... 19

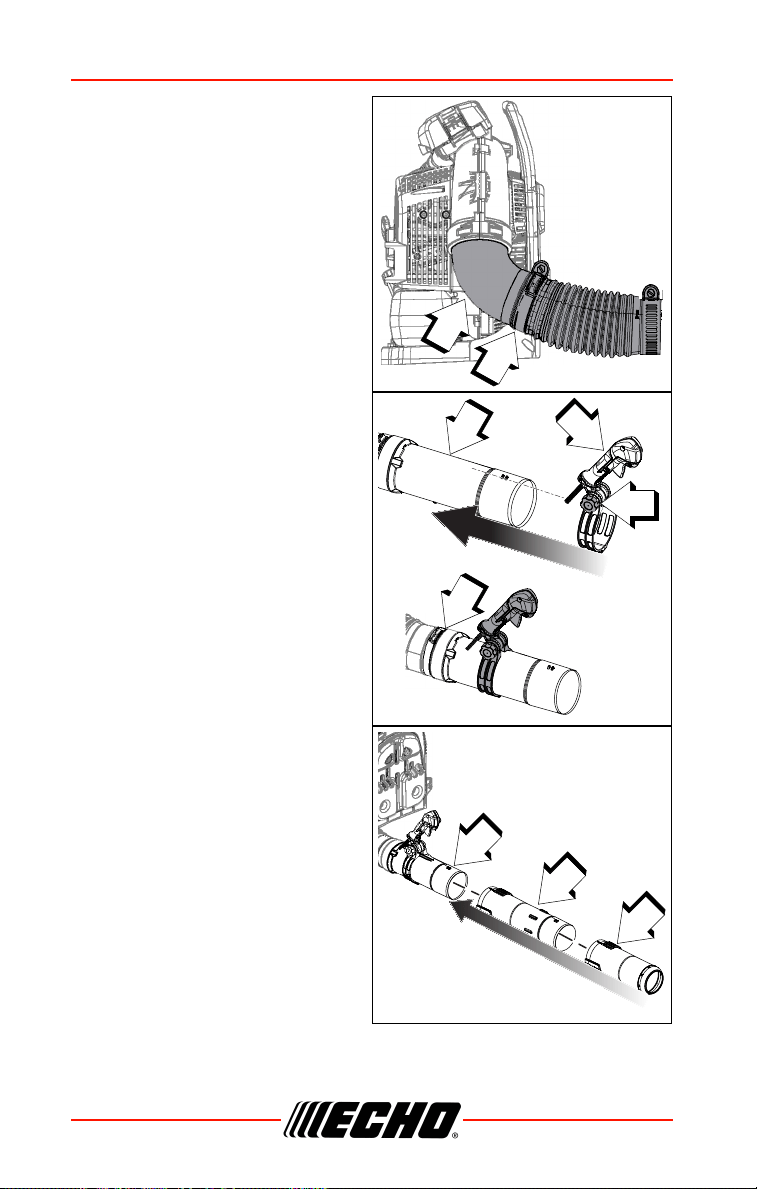

Install Blower Pipes and Stick Handle ............................................... 19
Install Blower Pipes............................................................................ 21
Operation .................................................................................................. 23
Fuel.................................................................................................... 24
Starting Cold Engine.......................................................................... 27
Starting Warm Engine........................................................................ 29
Stopping Engine ................................................................................ 30
Operating Blower ............................................................................... 30
Maintenance ............................................................................................. 35
Skill Levels ......................................................................................... 35
Maintenance Intervals........................................................................ 36

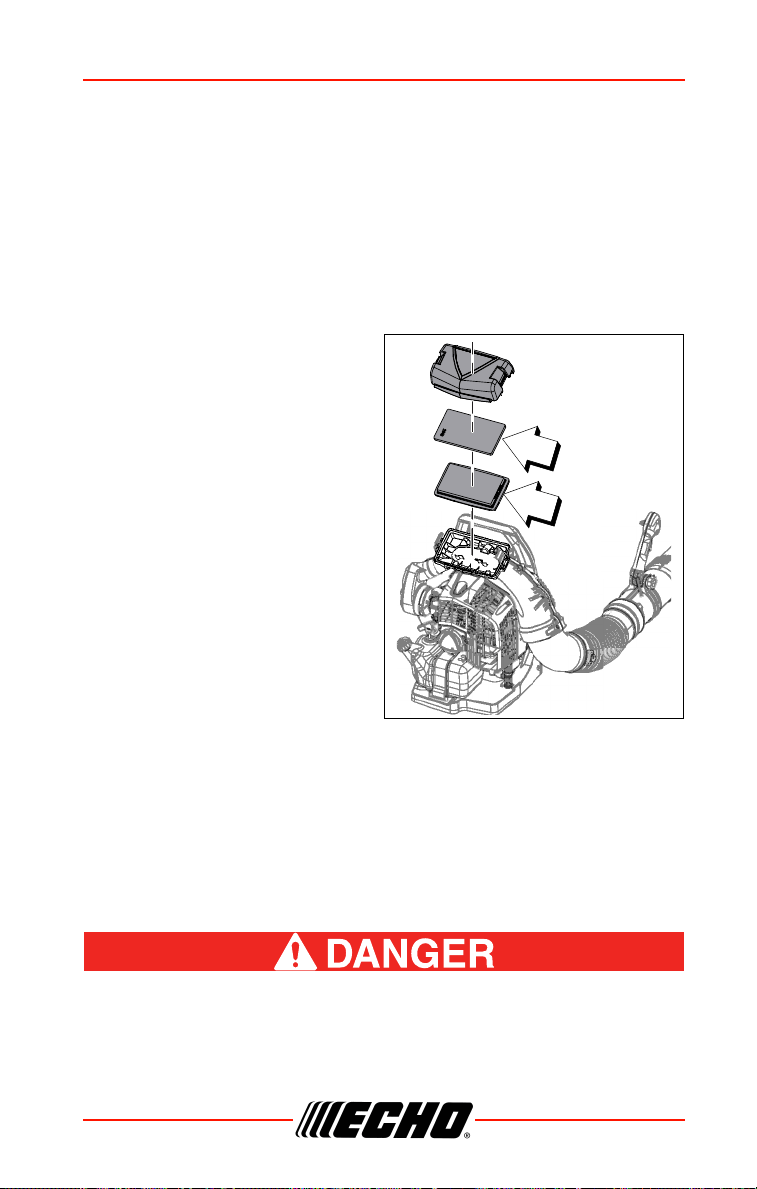

Air Filter ............................................................................................. 37
Fuel Filter........................................................................................... 37
Spark Plug ......................................................................................... 38
Cooling System.................................................................................. 40
Exhaust System................................................................................. 41
Carburetor Adjustment....................................................................... 43
Throttle Cable Adjustment (PB-9010 T, EB910RT only) .................... 45
Troubleshooting ........................................................................................ 46
Storage ..................................................................................................... 47
Long Term Storage (Over 30 Days)................................................... 47
Specifications............................................................................................ 49
Product Registration ..................................................................................50
background
PB-9010 H/T INTRODUCTION
X7501200700 3
© 08/20 ECHO Incorporated
INTRODUCTION
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.

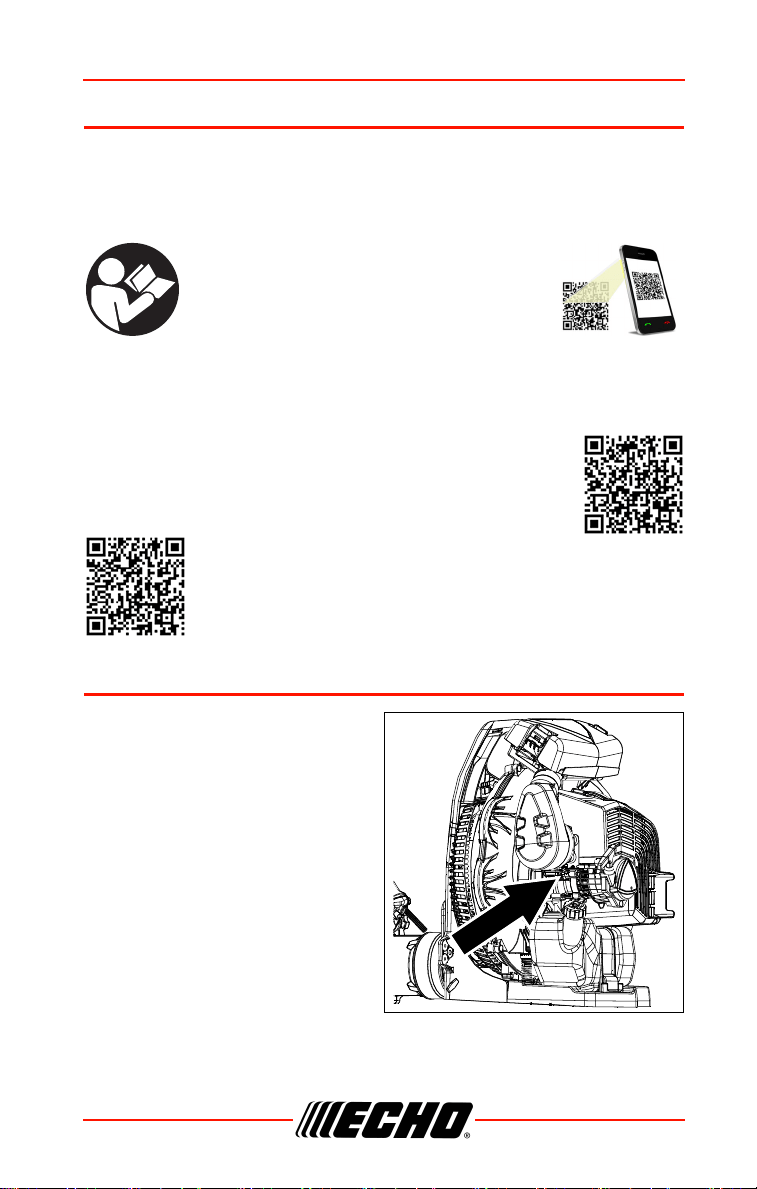

Read and understand all provided literature.
Literature contains specifications and
information for safety, operation,
maintenance, storage, and assembly
specific to this product. Scan QR codes for
more information.
For additional literature, including safety manuals where applicable, or
questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals
OR
https://www.shindaiwa-usa.com/manuals
SERVICING INFORMATION
Parts/Serial Number
Genuine ECHO Parts and
Assemblies for your ECHO products
are available only from an
Authorized ECHO Dealer. When
you do need to buy parts always
have the Model Number and Serial
Number of the unit with you. For
future reference write them in the
space provided below.
Model No. _______________
Serial No. _______________
background
SERVICING INFORMATION PB-9010 H/T
4 X7501200700
© 08/20 ECHO Incorporated
Service
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
ECHO Consumer Product Support
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-432-ECHO (3246) from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Product Registration
Register your ECHO equipment on-line at www.echo-usa.com or by filling
out the product registration sheet included in this manual. Registering your
product confirms warranty coverage and provides a direct link to ECHO if
we find it necessary to contact you.
Additional Literature
In addition to finding information online, information is available from your
Authorized ECHO Service Dealer, or by contacting ECHO Incorporated
400 Oakwood Road, Lake Zurich, IL 60047 1-800-432-ECHO (3246).
background
PB-9010 H/T SAFETY
X7501200700 5
© 08/20 ECHO Incorporated
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which might lead to minor
or moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
background
SAFETY PB-9010 H/T
6 X7501200700
© 08/20 ECHO Incorporated

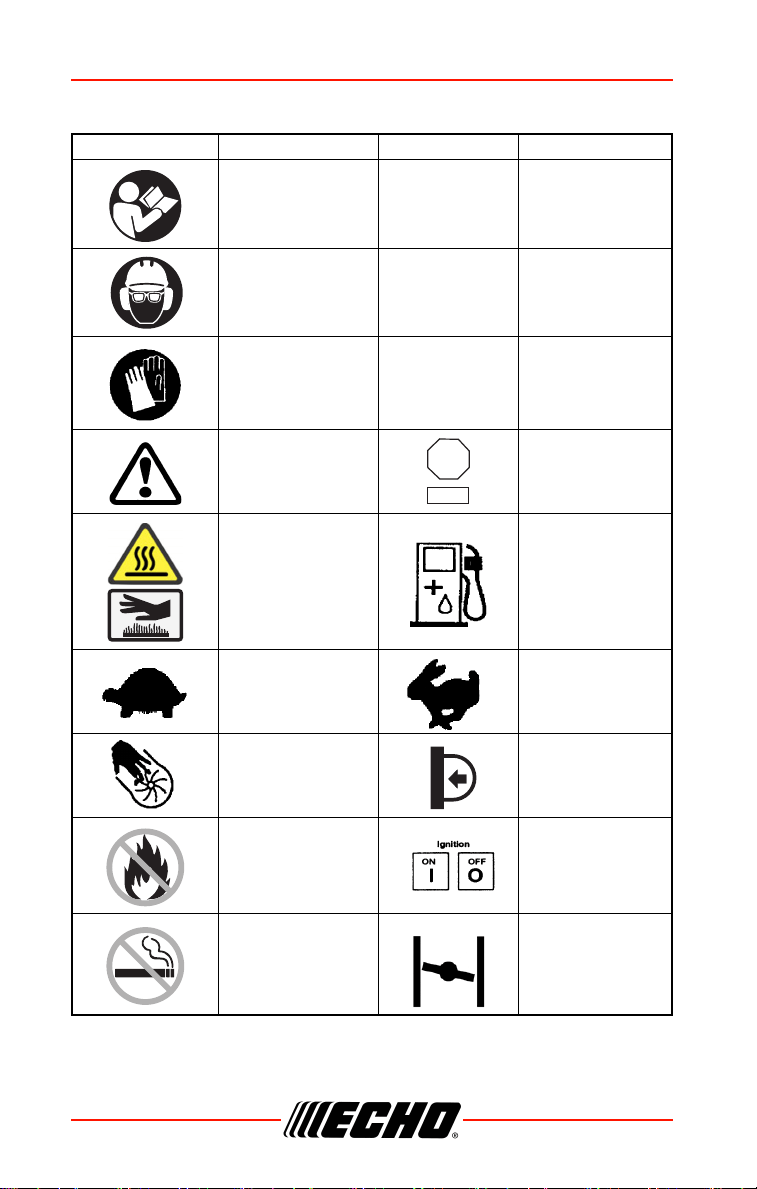

International Symbols
Symbol Description Symbol Description
Read and
Understand the
Operator’s Manual
Carburetor
Adjustment - High
Speed Mixture
Wear Eye, Ear and
Head Protection
Carburetor
Adjustment - Idle
Speed
Wear Hand
Protection
Carburetor
Adjustment - Low
Speed Mixture
Safety/Alert Stop Switch
Hot Surface
Fuel and Oil
Mixture
Idle speed Fast speed
Finger severing Purge Bulb
DO NOT Allow
Flames or Sparks
Near Fuel
Ignition
ON / OFF
DO NOT Smoke
Near Fuel
Choke Control
“COLD START”
Position (Choke
Closed)
H
T
L
STOP
STOP
background
PB-9010 H/T SAFETY
X7501200700 7
© 08/20 ECHO Incorporated

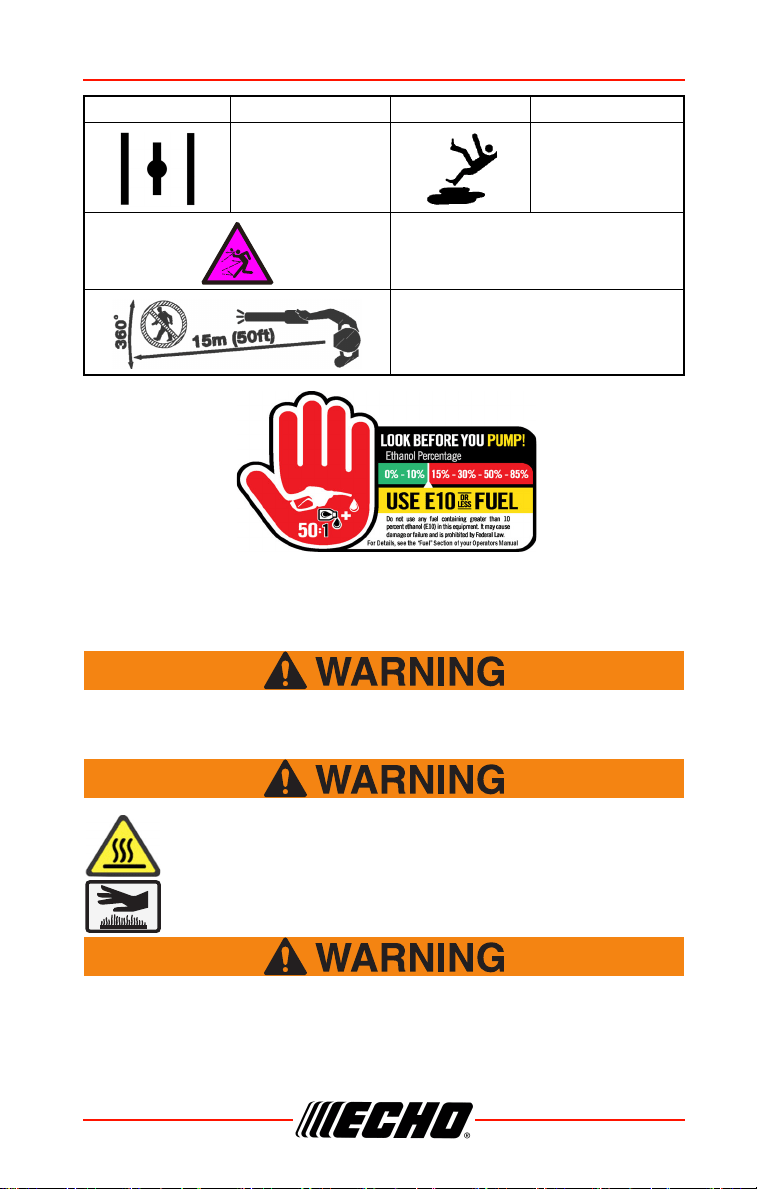

Note: Not all symbols will appear on your unit.
Personal Condition and Safety Equipment
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
The muffler or catalytic muffler and surrounding cover
may become extremely hot. Always keep clear of
exhaust and muffler area, otherwise serious personal
injury might occur.
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not
followed. Proper clothing and safety gear must be worn when
operating unit.
Choke Control
“RUN” Position
(Choke Open)
Wear Slip
Resistant
Footwear
Beware of thrown objects
Keep Bystanders and Helpers
Away 15 m (50 ft.).
Symbol Description Symbol Description
background
SAFETY PB-9010 H/T
8 X7501200700
© 08/20 ECHO Incorporated
Physical Condition
Your judgment and physical dexterity may not be good:
If you are tired or sick
If you are taking medication
If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well.
Eye Protection
Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
For additional safety, a full-face shield can be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the
handles. Gloves also provide protection against cuts and scratches, cold
environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing personal protective equipment whenever unit
is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
Pants should have long legs, shirts should have long sleeves.
DO NOT WEAR SHORTS.
background
PB-9010 H/T SAFETY
X7501200700 9
© 08/20 ECHO Incorporated
DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or
surrounding growth.
Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles.
DO NOT WEAR OPEN TOED SHOES.
DO NOT OPERATE UNIT WITH BARE FEET.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.
The components of this machine generate an electromagnetic
field during operation, which can interfere with some
pacemakers. To reduce the risk of serious or fatal injury,
persons with pacemakers should consult with their physician
and the pacemaker manufacturer before operating this
machine. In the absence of such information, ECHO does not
recommend the use of this machine by anyone who has a
pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration can result in injury.
Read and follow all safety and operation instructions to
minimize risk of injury. Failure to follow instructions can result
in painful wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the
minimum exposure, which might trigger the ailment, is unknown.
Keep your body warm, especially the head, neck, feet, ankles, hands, and
wrists.
background
SAFETY PB-9010 H/T
10 X7501200700
© 08/20 ECHO Incorporated
Maintain good blood circulation by performing vigorous arm exercises
during frequent work breaks, and also by not smoking.
Limit the hours of operation. Try to fill each day with jobs where operating
the unit or other hand-held power equipment is not required.
If you experience discomfort, redness, and swelling of the fingers
followed by whitening and loss of feeling, consult your physician before
further exposing yourself to cold and vibration.
Repetitive Stress Injuries (RSI)
It is believed that overusing the muscles and tendons of the fingers, hands,
arms, and shoulders may cause soreness, swelling, numbness, weakness,
and extreme pain in those areas. Certain repetitive hand activities may put
you at a high risk for developing a Repetitive Stress Injury (RSI). An
extreme RSI condition is Carpal Tunnel Syndrome (CTS), which could occur
when your wrist swells and squeezes a vital nerve that runs through the
area. Some believe that prolonged exposure to vibration may contribute to
CTS. CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do
the following:
Avoid using your wrist in a bent,
extended, or twisted position.
Instead try to maintain a straight
wrist position. Also, when
grasping, use your whole hand,
not just the thumb and index
finger.
Take periodic breaks to minimize
repetition and rest your hands.
Reduce the speed and force with
which you do the repetitive
movement.
Do exercises to strengthen the hand and arm muscles.
Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and
muscle damage can be prevented.
background
PB-9010 H/T SAFETY
X7501200700 11
© 08/20 ECHO Incorporated
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not
insulated against electrical current. Never touch wires directly
or indirectly, otherwise serious injury or death can result.
Do not operate this product indoors or in inadequately
ventilated areas. Engine exhaust contains poisonous emissions
and can cause serious injury or death.
Read the Manual
Provide all users of this equipment with literature for instructions on safe
operation.
Clear the Work Area
Clear the area of children, bystanders, and pets. At a minimum, keep all
children, bystanders, and pets outside a 15 m (50 ft.) radius; outside the
15 m (50 ft.) zone, there is still a risk of injury from thrown objects.
Bystanders should be encouraged to wear eye protection. If you are
approached, stop the engine.
Avoid blowing debris towards people, pets, open windows, or vehicles
when using unit.
Review area to be cleared. Look for potential hazards such as stones or
metal objects.
Keep a Firm Grip
To prevent from dropping the unit, hold the handle in one hand, with
thumb and fingers encircling the handle.
Keep a Solid Stance
Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders.
Do not over reach.
Avoid Hot Surfaces
Keep exhaust area clear of flammable debris.
Avoid contact during and immediately after
operation.
background
SAFETY PB-9010 H/T
12 X7501200700
© 08/20 ECHO Incorporated
Equipment
Use only approved attachments. Serious injury can result from
the use of a non-approved attachment combination. ECHO,
INCORPORATED will not be responsible for the failure of cutting
devices, attachments or accessories which have not been
tested and approved by ECHO. Read and comply with all safety
instructions listed in this manual.
Do not attempt to modify this product. Serious injury can
re
sult from the use of any modified product.
Check unit for loose/missing nuts, bolts, and screws.
T
ighten and/or replace as needed.
Do not use blower if any part is missing or damaged.
Have repairs done only by an authorized service dealer.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
ALWAYS stop engine, disconnect spark plug, and make
s
ure all moving parts have come to a complete stop befo
re
re
moving obstructions, clearing debris, or servicing unit.
DO NOT start or operate unit unless all guards and
p
rotective covers are properly assembled to unit.
NEVER reach into any opening while the engine is running.
Mo
ving parts might not be visible through openings.
Periodically check fuel system (fuel lines, vent, grommet, fuel
tank, and fuel cap) for leaks especially if the unit is dropped. If
damage or leaks are found, do not use unit, otherwise serious
personal injury or property damage may occur. Have unit
repaired by an authorized servicing dealer before using.
background
PB-9010 H/T EMISSION CONTROL
X7501200700 13
© 08/20 ECHO Incorporated
EMISSION CONTROL (EXHAUST &
EVAPORATIVE)
CARB And EPA Emissions Control Information
The emission control system for
the engine is EM (engine
modification) and, if the second to
last character of the Engine Family
on the Emission Control
Information label (sample below) is
“B”, “C”, “K”, or “T”, the emission
control system is EM and TWC (3-
way catalyst). The fuel tank/fuel
line emission control system is EVAP (evaporative emissions). Evaporative
emissions for California models are only applicable to fuel tanks and fuel
feed lines.

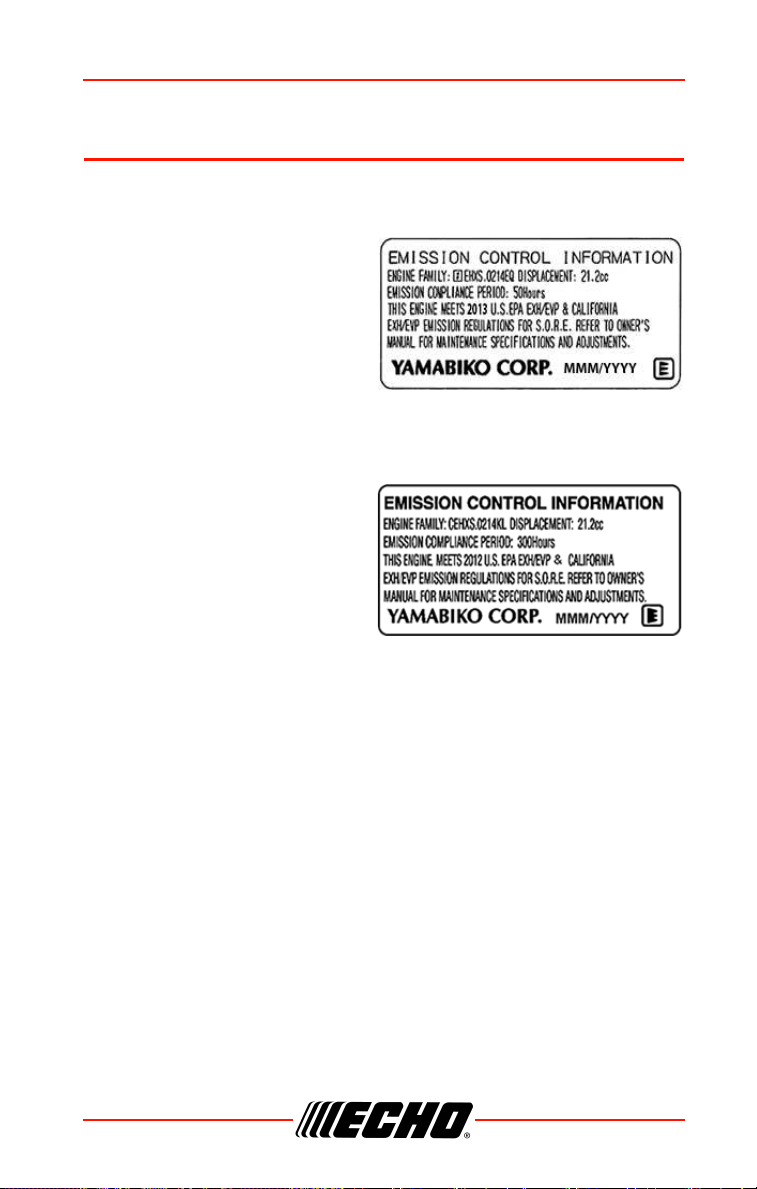

An Emission Control Label is
located on the engine. (This is an
EXAMPLE ONLY, information on
label varies by engine FAMILY).
Product Emission Durability
(Emission Compliance
Period)
The 50 or 300 hour emission compliance period is the time span selected by
the manufacturer certifying the engine emissions output meets applicable
emissions regulations, provided that approved maintenance procedures are
followed as listed in the Maintenance Section of this manual.
background
DESCRIPTION PB-9010 H/T
14 X7501200700
© 08/20 ECHO Incorporated

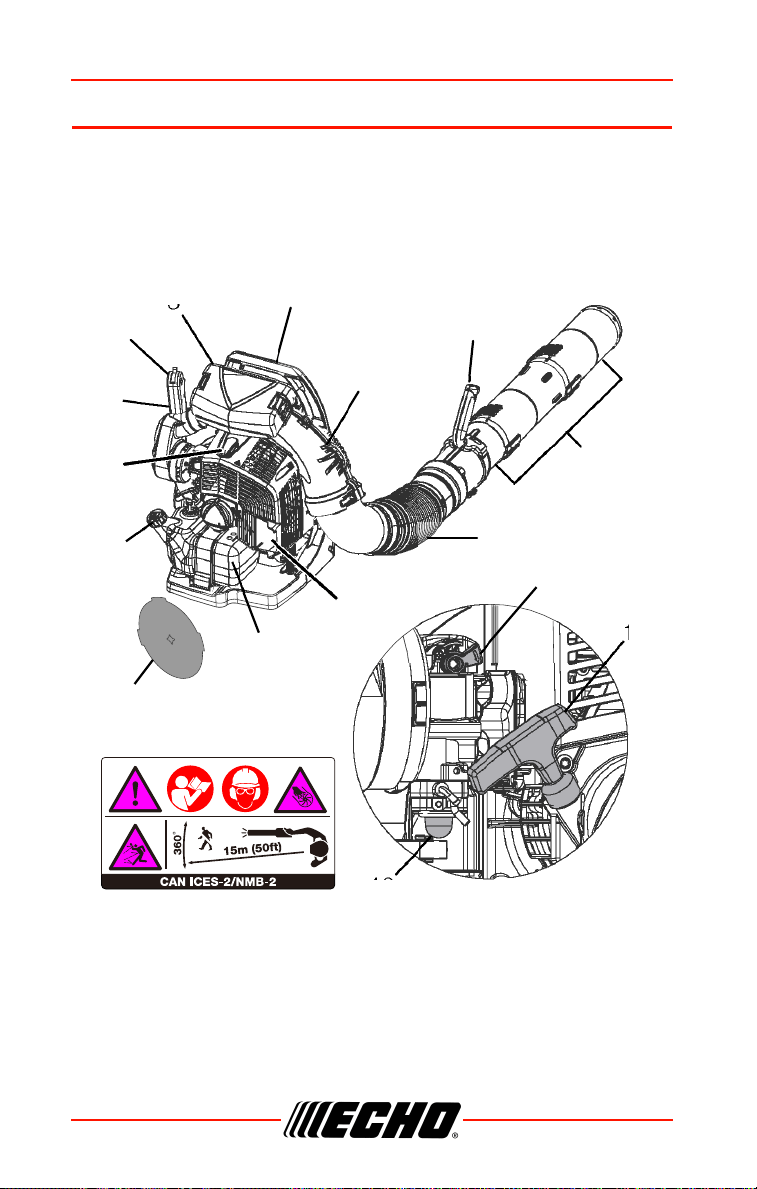

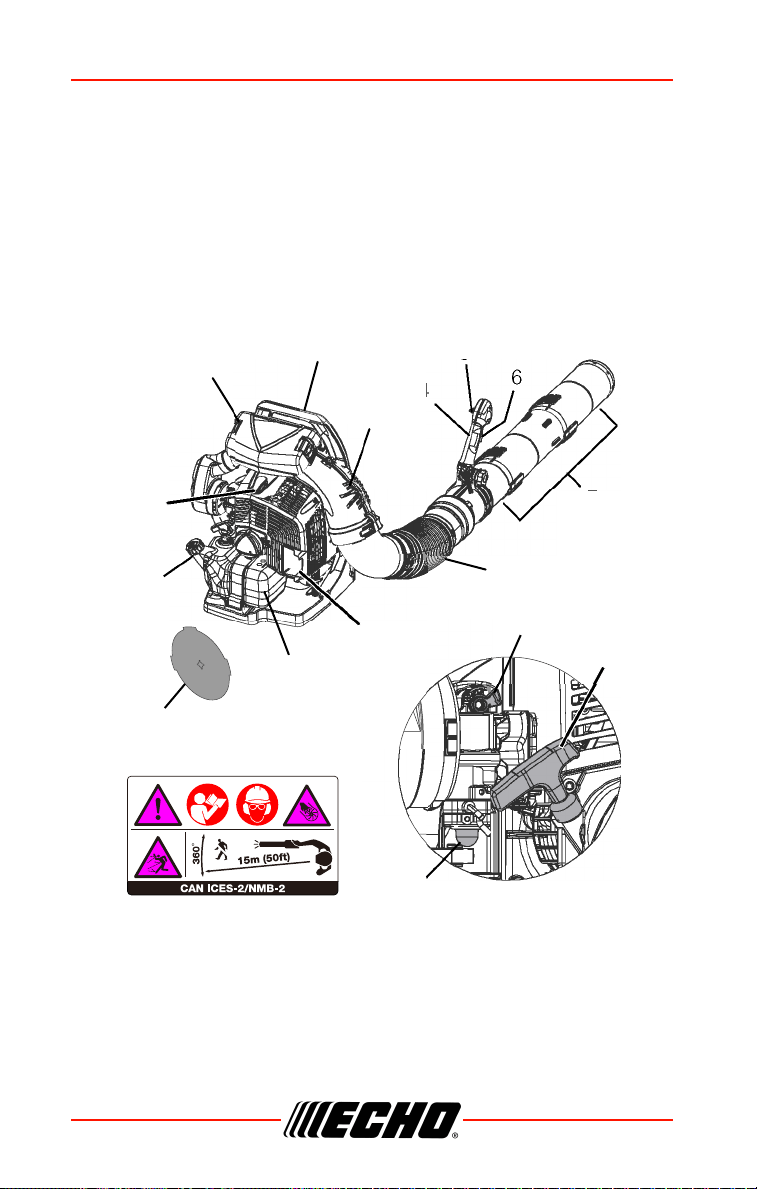

DESCRIPTION
PB-9010 H
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible
and that you understand and follow the instructions on it. If a decal cannot
be read, a new one can be ordered from your dealer. The safety decal is for
example only. Your label may appear slightly different.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
background
PB-9010 H/T DESCRIPTION
X7501200700 15
© 08/20 ECHO Incorporated
PB-9010 H
1. Handle
2. Throttle Position Lever / Stop Switch
3. Air Cleaner
4. Shoulder Harness
5. Safety Decal
6. Stick Handle
7. Blower Pipes
8. Flexible Pipe
9. Spark Arrestor Muffler (with or without Catalyst)
10. Fuel Tank
11. Cold Weather Insert
12. Fuel Tank Cap
13. Spark Plug
14. Choke
15. Recoil Starter Handle
16. Purge Bulb
background
DESCRIPTION PB-9010 H/T
16 X7501200700
© 08/20 ECHO Incorporated
PB-9010 T
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible
and that you understand and follow the instructions on it. If a decal cannot
be read, a new one can be ordered from your dealer. The safety decal is for
example only. Your label may appear slightly different.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
background
PB-9010 H/T DESCRIPTION
X7501200700 17
© 08/20 ECHO Incorporated
PB-9010 T
1. Air Cleaner
2. Shoulder Harness
3. Safety Decal
4. Handle
5. Throttle Position Lever
6. Throttle Trigger
7. Blower Pipes
8. Flexible Pipe
9. Spark Arrestor Muffler (with or without Catalyst)
10. Fuel Tank
11. Cold Weather Insert
12. Fuel Tank Cap
13. Spark Plug
14. Choke
15. Recoil Starter Handle
16. Purge Bulb
background
CONTENTS PB-9010 H/T
18 X7501200700
© 08/20 ECHO Incorporated
CONTENTS
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
PB-9010 H
PB-9010 T
1 Power Head
1Flex Pipe
1 Swivel Pipe
1 Straight Pipe
1End Pipe
1 Quick Start Guide
2 Clamps (with screws)
1 Warranty Statement
1 Stick Handle
1 Cold Weather Insert
1 Power Head
1Flex Pipe
1 Swivel Pipe
1 Straight Pipe
1End Pipe
1 Quick Start Guide
2 Clamps (with screws)
1 Warranty Statement
1 Cold Weather Insert
background
PB-9010 H/T ASSEMBLY
X7501200700 19
© 08/20 ECHO Incorporated

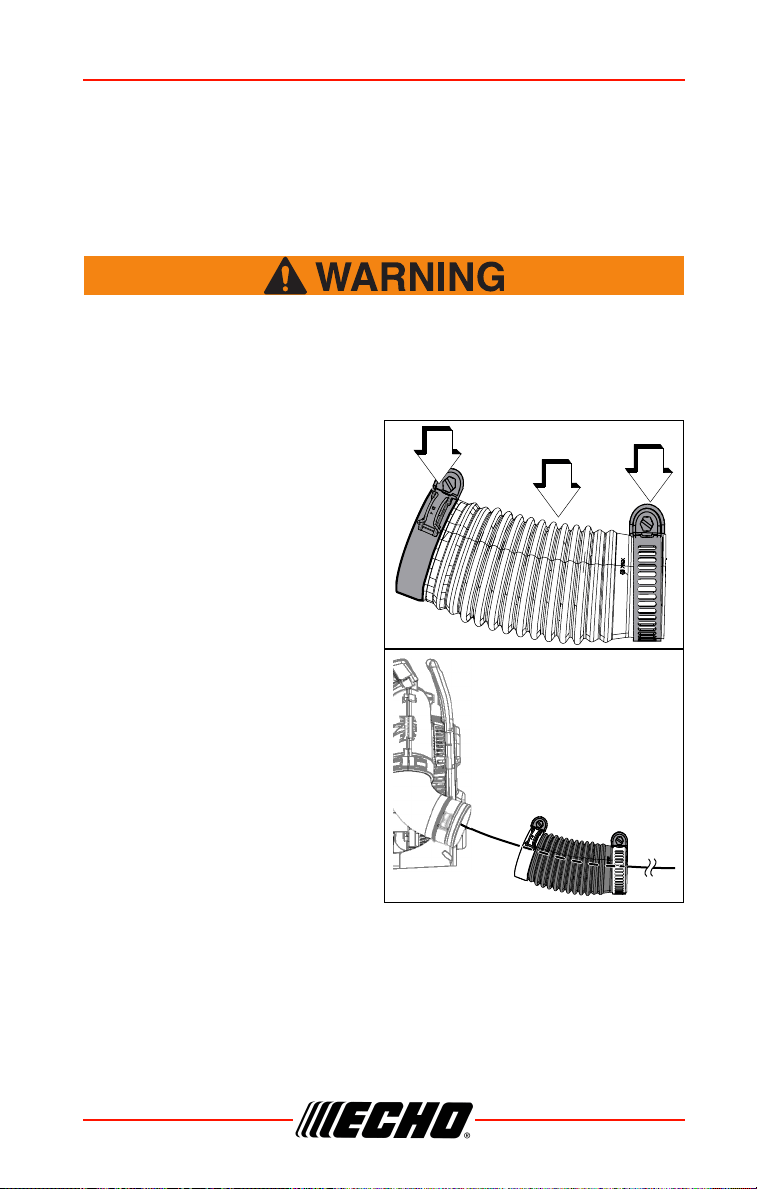

ASSEMBLY
PB-9010 H
Never perform maintenance or assembly procedures with
engine running or serious personal injury can result.
Install Blower Pipes and Stick Handle

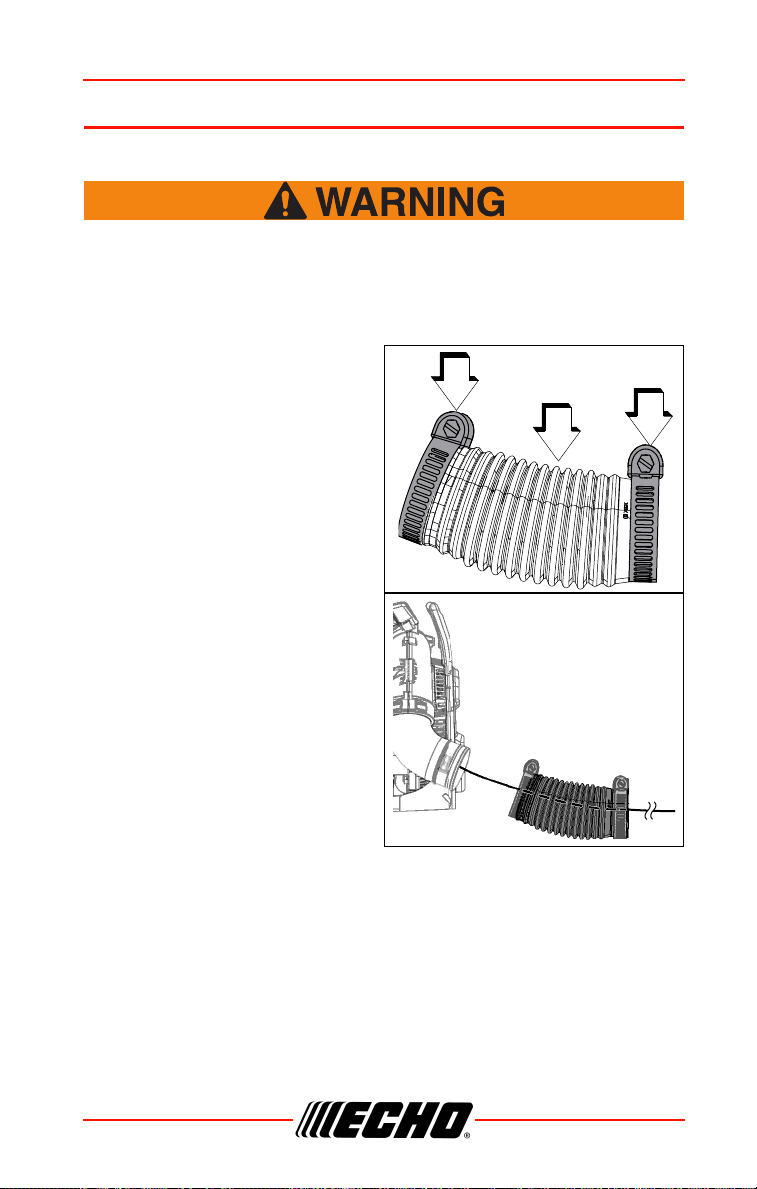

1. Assemble clamps (A) onto both
ends of flexible pipe (B).
2. Insert anti-static wire through
flex tube, into swivel pipe.
A
B
A
background
ASSEMBLY PB-9010 H/T
20 X7501200700
© 08/20 ECHO Incorporated

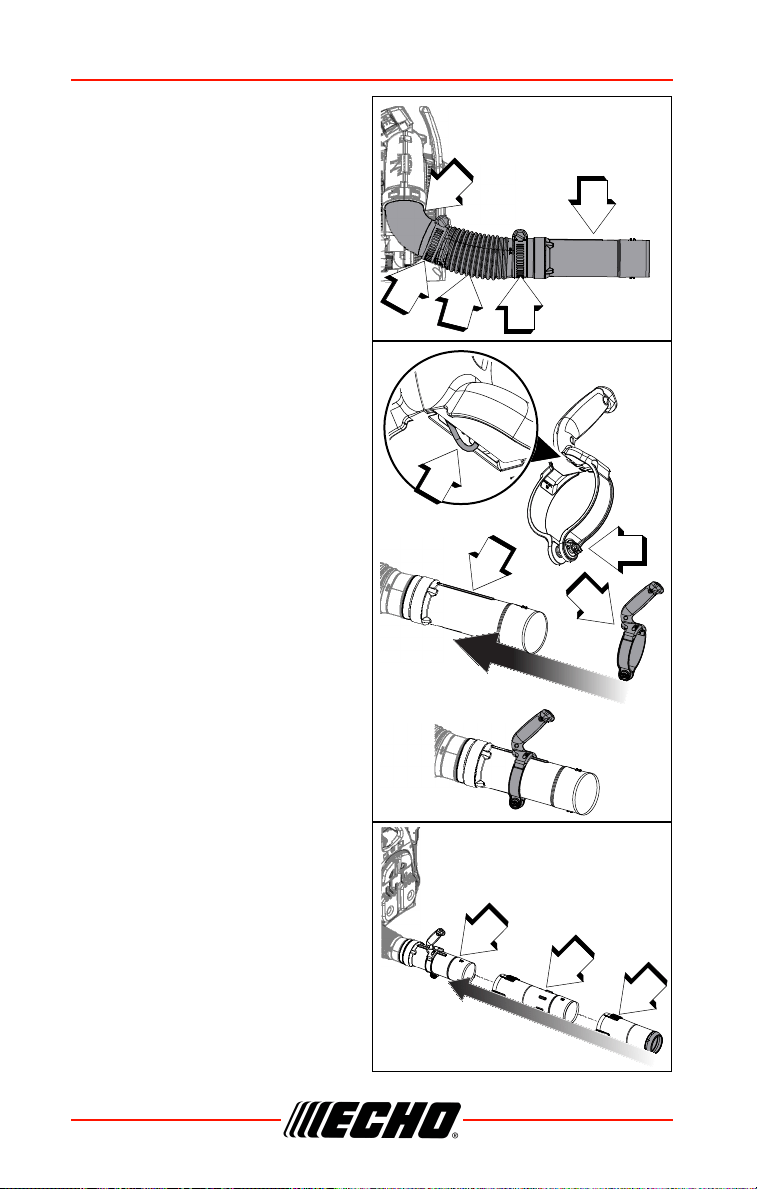

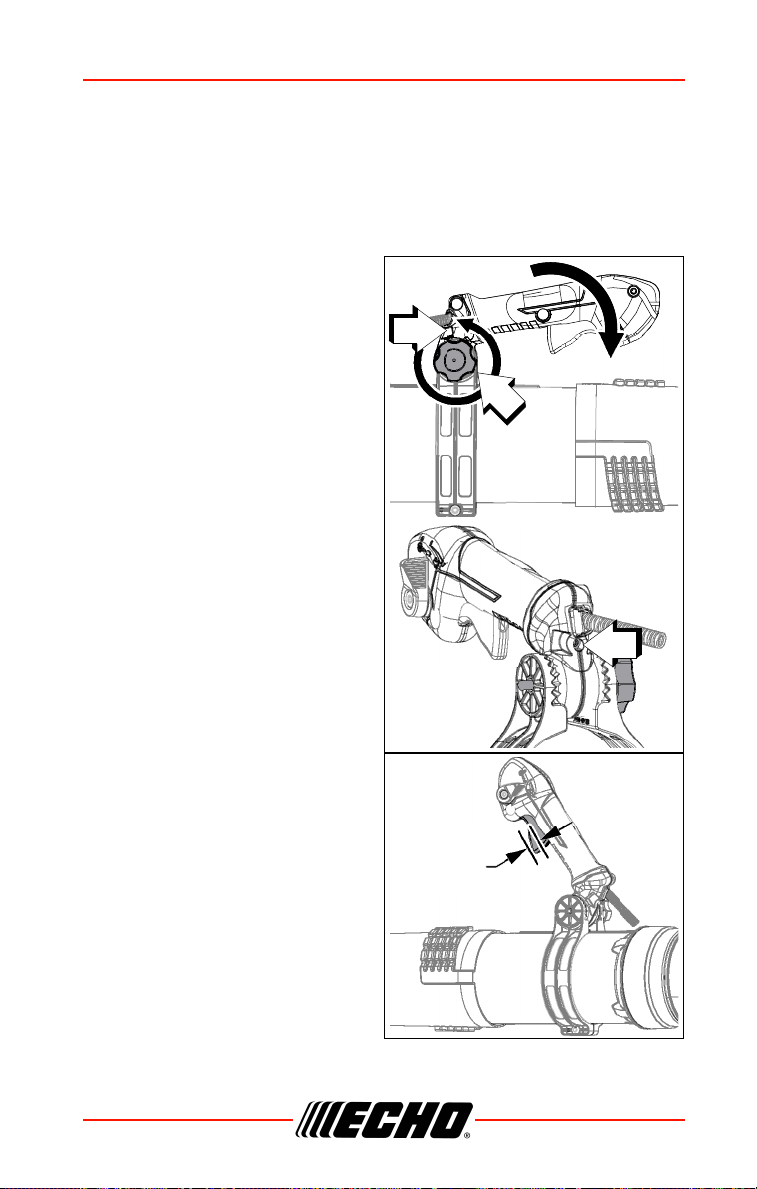

3. Assemble swivel pipe (C) into
flexible pipe (B).
4. Assemble flexible pipe (B) to
elbow (D) on blower and tighten
clamps (A).
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
5. Loosen knob (E) completely
and expand stick handle clamp.
Align wire (G) in handle with
grounding strip on swivel pipe
(C).
6. Slide stick handle onto swivel
pipe (C). Stick handle (F)
should be angled away from
operator.
7. Position stick handle (F) for
comfortable operation. Tighten
knob (E).
8. Assemble straight pipe (J) onto
swivel pipe (C), until you feel
light resistance. Hold swivel
pipe and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not force
connection.
9. Assemble end pipe (K) to
straight pipe (J) the same as in
step 8.
C
C
D
A
A
B
E
G
C
F
J
C
K
background
PB-9010 H/T ASSEMBLY
X7501200700 21
© 08/20 ECHO Incorporated
Note: Blower use will eventually loosen pipe connections. Exclusive
positive locking system allows pipes to be tightened. If
loosening occurs, remove two pipes and install according to
steps 8 and 9.
PB-9010 T
Never perform maintenance or assembly procedures with
engine running or serious personal injury may result.
Install Blower Pipes
1. Assemble clamps (A) and (G)
onto both ends of flexible pipe
(B).
Note: Clamp with cable guide
loop (G) fits elbow end of
flexible pipe.
2. Insert anti-static wire through
flex tube.
Note: A light lubricant may be
used to ease assembly of
flexible pipe to blower
elbow.
A
B
G
background
ASSEMBLY PB-9010 H/T
22 X7501200700
© 08/20 ECHO Incorporated
3. Assemble flexible pipe to elbow
(D) on blower. Position clamp
with cable guide loop (G) on
outside of flexible pipe and
tighten clamp.
Note: Hang handle freely from
blower to assure throttle
cable is not twisted
before installing handle
(E).
4. Position throttle cable along the
outside of elbow. Loosen knob
(H) on handle (E). Install onto
swivel pipe (C).
5. Insert anti-static wire into swivel
pipe.
6. Assemble swivel pipe into
flexible pipe and tighten clamp
(A).
7. Clip throttle cable into throttle
cable guide loop.
8. Move handle (E) to desired
position. Tighten knob (H).
9. Assemble straight pipe (J) onto
swivel pipe, until you feel light
resistance. Hold swivel pipe
and turn straight pipe
clockwise, engaging positive
locking channels, until
connection is firm. Do not force
connection.
10. Assemble end pipe (K) to
straight pipe as in step 9.
Note: Blower use will eventually
loosen pipe connections.
Exclusive positive locking
system allows pipes to be
tightened. If loosening
occurs, remove two straight pipes and install according to
steps 9 and 10.
C
G
D
H
C
E
A
J
C
K
background
PB-9010 H/T OPERATION
X7501200700 23
© 08/20 ECHO Incorporated
OPERATION
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Blower housing
might contain shredder blades and other sharp edges that can
cause serious injuries if touched, even if engine is off and
blades are not moving. Wear gloves to protect hands from sharp
edges and hot surfaces.
Operation of this equipment might create sparks that can start
fires around dry vegetation. This unit is equipped with a spark
arrestor to prevent discharge of hot particles from the engine.
Contact local fire authorities for laws or regulations regarding
fire prevention requirements.
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a
poison gas. Breathing CO can cause unconsciousness, serious
injury, or death. Exhaust can cause serious burns. ALWAYS
position unit so that exhaust is directed away from your face
and body.
This blower should be used for clearing leaves, grass,
de
bris, and dust in yards, gardens, driveways, and parking
lots only.
Always maintain a direct, clear line of site to the unit and
the work being performed.
Always be alert for changes in operation of unit.
Always shut engine off before transporting unit to new
location.
Always secure the unit during transportation to prevent
t
urnover, fuel spillage, and damage to the unit.
background
OPERATION PB-9010 H/T
24 X7501200700
© 08/20 ECHO Incorporated
Fuel
Diesel fuels and alternative fuels, such as E-15 (15% ethanol),
E-85 (85% ethanol) or any fuels not meeting ECHO requirements
are NOT approved for use in ECHO 2-stroke gasoline engine
s.
Use
of diesel or alternative fuels can cause performance
problems, loss of power, overheating, fuel vapor lock, a
nd
unintended machine operation, including, but not limited to,
improp
er clutch engagement. Diesel or alternative fuels can
also cause premature deterioration of fuel lines, gasket
s,
c
arburetors and other engine components.
Fuel Requirements
Gasoline - Use fresh (purchased within the last 30 days from the pump) 89
Octane [R+M/2] (mid grade or higher) gasoline known to be good quality.
Gasoline may contain up to 10% Ethanol (grain alcohol) or 15% MTBE
(methyl tertiary-butyl ether). Gasoline containing methanol (wood alcohol) is
NOT approved. Use of ECHO branded fuel is recommended to extend
engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines.
Two Stroke Oil - A two-stroke engine oil, such as ECHO branded 2-stroke
oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must
be used. ECHO branded 2-stroke oils meet these standards. Engine
problems due to inadequate lubrication caused by failure to use an ISO-L-
EGD (ISO/CD 13738) and J.A.S.O. M345-FD certified oil will void the two-
stroke engine warranty.
2-Stroke engine oil contains petroleum distillates and other
a
dditives that may be harmful if swallowed. Heated oil
can
re
lease vapors that can cause flash fire, or ignite with explosiv
e
f
orce. Read and follow the oil manufacturer’s instructions, an
d
ob
serve all safety warnings and precautions for handling
flammable liquids. For more detailed safety and first aid
information, visit www.echo-usa.com for a copy of the Mate
rial
Sa
fety Data Sheet.
KEEP OUT OF REACH OF CHILDREN.
If swallowed, do not induce vomiting. CALL PHYSICIAN OR
A
POISON CONTROL CENTER IMMEDIATELY.
WEAR SAFETY GLASSES when mixing or handling.
background
PB-9010 H/T OPERATION
X7501200700 25
© 08/20 ECHO Incorporated
AVOID repeated or prolonged skin contact.
AVOID inhaling oil mists or vapors.
ECHO branded 2-stroke oils may be mixed at 50:1 ratio for
application in all ECHO engines sold in the past regardless of ratio
specified in those manuals.
Handling Fuel
Fuel is VERY flammable. Use extreme care when mixing, storing
or handling, or serious personal injury will result.
Use an approved fuel container. Mark fuel containers as
containing 2-stroke mixture fu
el.
DO NOT smoke near fuel.
DO NOT allow flames or sparks near fuel.
Fuel tanks/cans may be under pressure. Always loosen
f
uel caps slowly allowing pressure to equalize.
NEVER refuel a unit when the engine is HOT or RUNNING!
DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks
ou
tdoors over bare ground.
DO NOT overfill fuel tank. Wipe up spills immediately.
Securely tighten fuel tank cap and close fuel container
after refueling.
Inspect for fuel leakage. If fuel leakage is found, do not
start or operate unit until leakage is repaired.
Move at least 3 m (10 ft.) from refueling location before
starting the engine.
Gasoline vapor is heavier than air, and can travel along the
ground to nearby sources of ignition such as electrical motors,
pilot lights, and hot or running engines. Vapors ignited by an
ignition source can flash back to the fuel container, resulting in
an explosion, fire, serious or fatal injuries, and extensive
property damage.
background
OPERATION PB-9010 H/T
26 X7501200700
© 08/20 ECHO Incorporated
Mixing Instructions
Stored fuel ages. Do not mix more fuel than you expect to use in 30
days, 90 days when a fuel stabilizer is added.
1. Fill an approved fuel container
with half of the required
amount of gasoline.
2. Add the proper amount of
2-stroke oil to gasoline.
3. Close container and shake to
mix oil with gasoline.
4. Add remaining gasoline, close
fuel container, and remix.
Spilled fuel is a leading cause of hydrocarbon emissions. Some
locations may require the use of automatic fuel shut-off containers to
reduce fuel spillage.
Storage - Fuel storage laws vary by locality. Contact your local government
for the laws affecting your area. As a precaution, store fuel in an approved,
airtight container. Store in a well-ventilated, unoccupied building, away from
sparks and flames.
Empty the fuel tank prior to storing the unit. Return unused fuel to an
approved fuel storage container.
Stored two-stroke fuel can separate. ALWAYS shake fuel container
thoroughly before each use.
Used oil and gasoline, and soiled towels are hazardous waste
materials. Disposal laws vary by locality.
Fuel to Oil Mix – 50:1 Ratio
US Metric
Gas Oil Gas Oil
gal. fl.oz. L cc
12.65100
2 5.2 10 200
51325500
background
PB-9010 H/T OPERATION
X7501200700 27
© 08/20 ECHO Incorporated

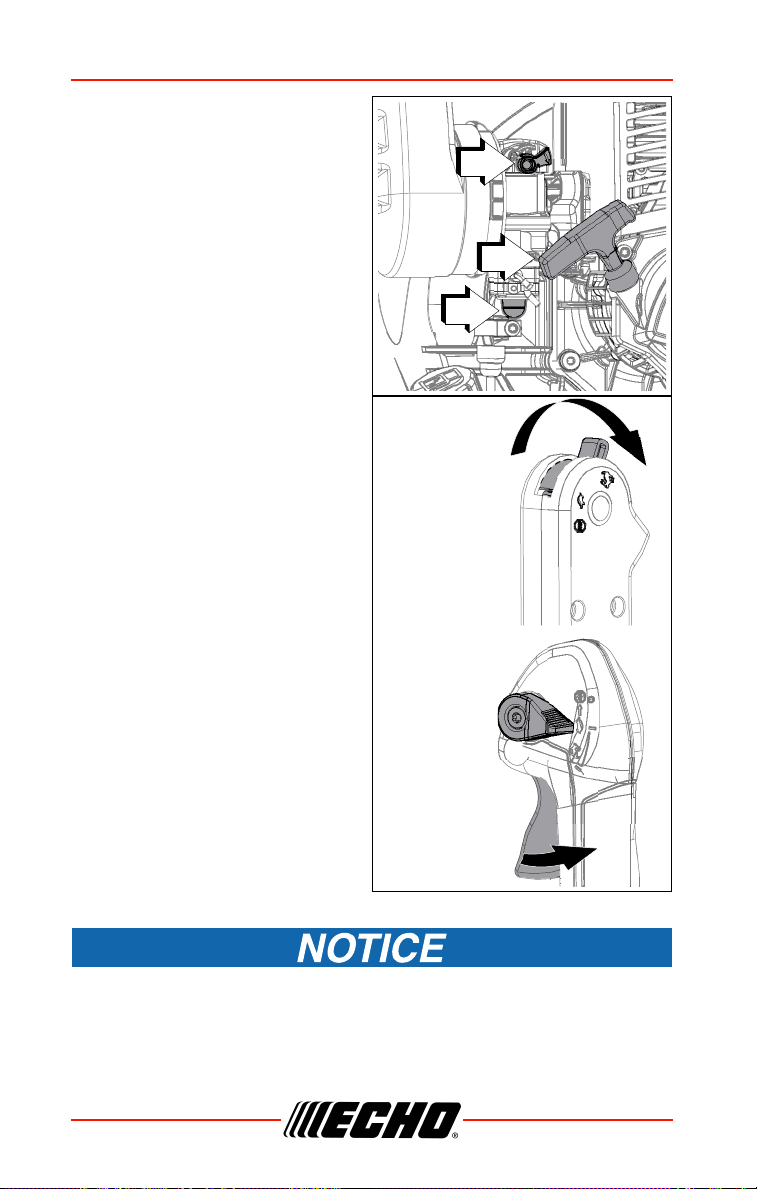

Starting Cold Engine
PB-9010 H only:
Rotate spring loaded throttle arm downward to a comfortable operating
position.
PB-9010 H/T:
Recoil starter: Use short pulls - only 1/2- 2/3 of rope length for starting. Do
not allow the rope to snap back in. Always hold the unit firmly.
1. Throttle Lever
Move throttle lever (A) to IDLE
position.
2. Choke
Rotate choke (B) to COLD
START position.
3. Purge Bulb
Pump purge bulb (C) until fuel is
visible. Pump bulb an additional
4 or 5 times.
PB-9010 H
A
PB-9010T
A
background
OPERATION PB-9010 H/T
28 X7501200700
© 08/20 ECHO Incorporated
4. Recoil Starter
Pull recoil starter handle (D) until
engine fires, or a maximum of 5
pulls.
5. If engine fires and remains
running, pull throttle trigger (T
model) or advance throttle lever
(H model) to automatically
return choke to run position,
then proceed to engine warm
up. If engine fires and dies,
proceed to step 6.
6. Choke
After engine fires (or 5 pulls),
move choke lever back to RUN
position, then pull starter handle/
rope until engine starts and runs.
Allow unit to warm up at idle for
several minutes.
Note: If engine does not start
with choke in “RUN”
position after 5 pulls,
move choke to COLD
START position, and
repeat steps 3- 6.
Allow engine to warm up for several minutes before use.
7. Throttle Lever
After engine warm-up, move throttle lever gradually to increase engine
RPM to desired operating speed.
C
D
B
PB-9010H
PB-9010 T
background
PB-9010 H/T OPERATION
X7501200700 29
© 08/20 ECHO Incorporated

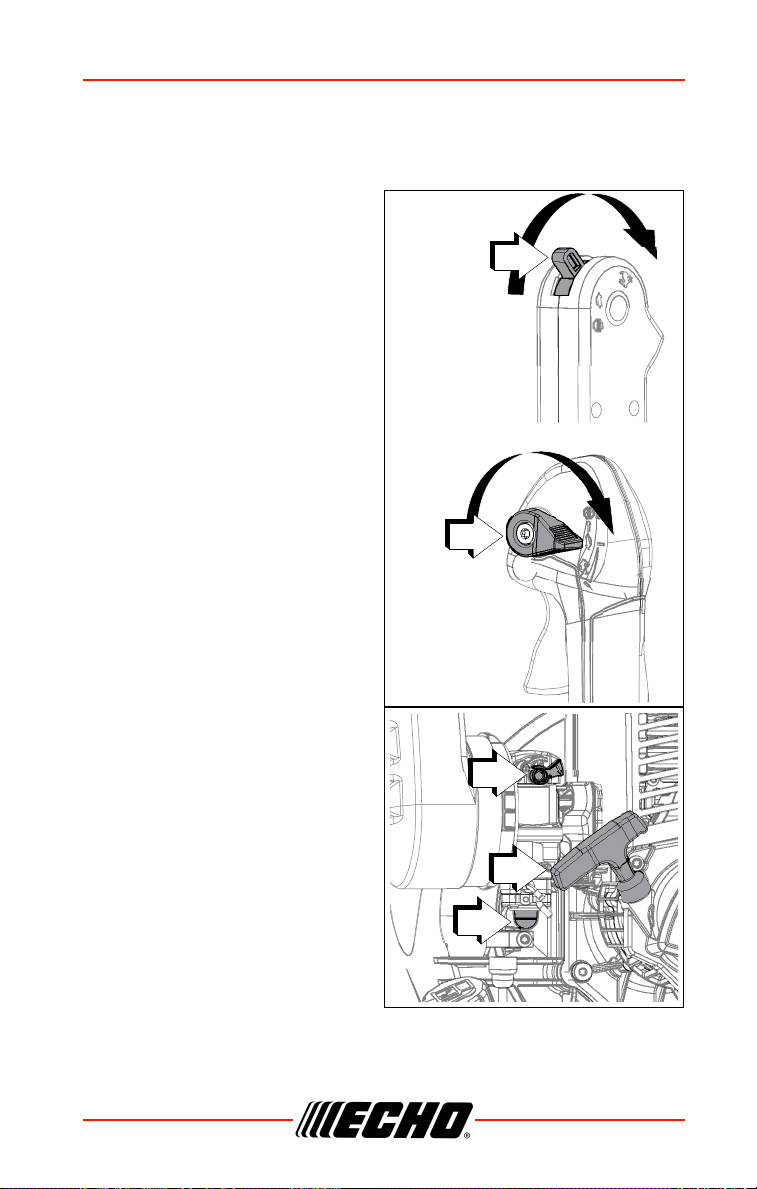

Starting Warm Engine
The starting procedure is the same as Cold Start except DO NOT close the
choke.
1. Throttle Lever
Move throttle lever (A) to IDLE
position.
2. Purge Bulb
Pump purge bulb (C) until fuel is
visible. Pump bulb an additional
4 or 5 times.
3. Recoil Starter
Pull recoil starter handle (D) and
engine should start. Do not use
choke (B).
Note: If engine does not start
after 5 pulls, use cold
start procedures.
PB-9010 H
A
PB-9010T
A
D
B
C
background
OPERATION PB-9010 H/T
30 X7501200700
© 08/20 ECHO Incorporated

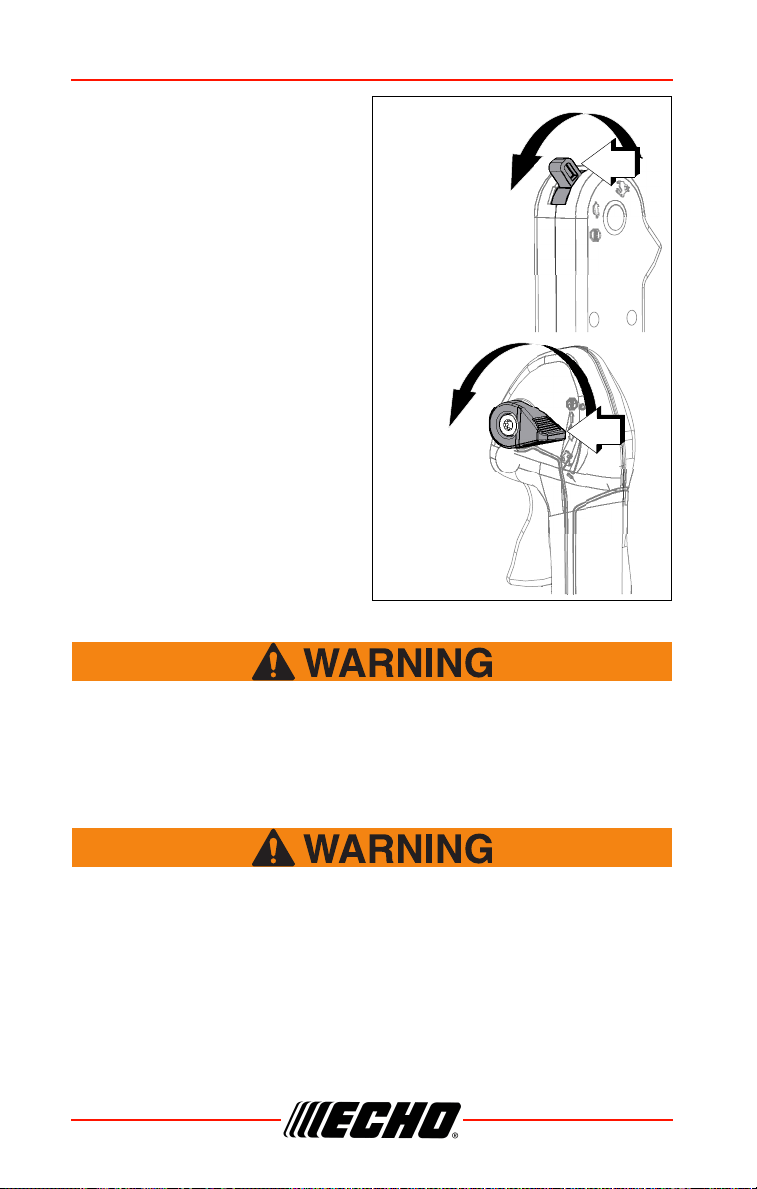

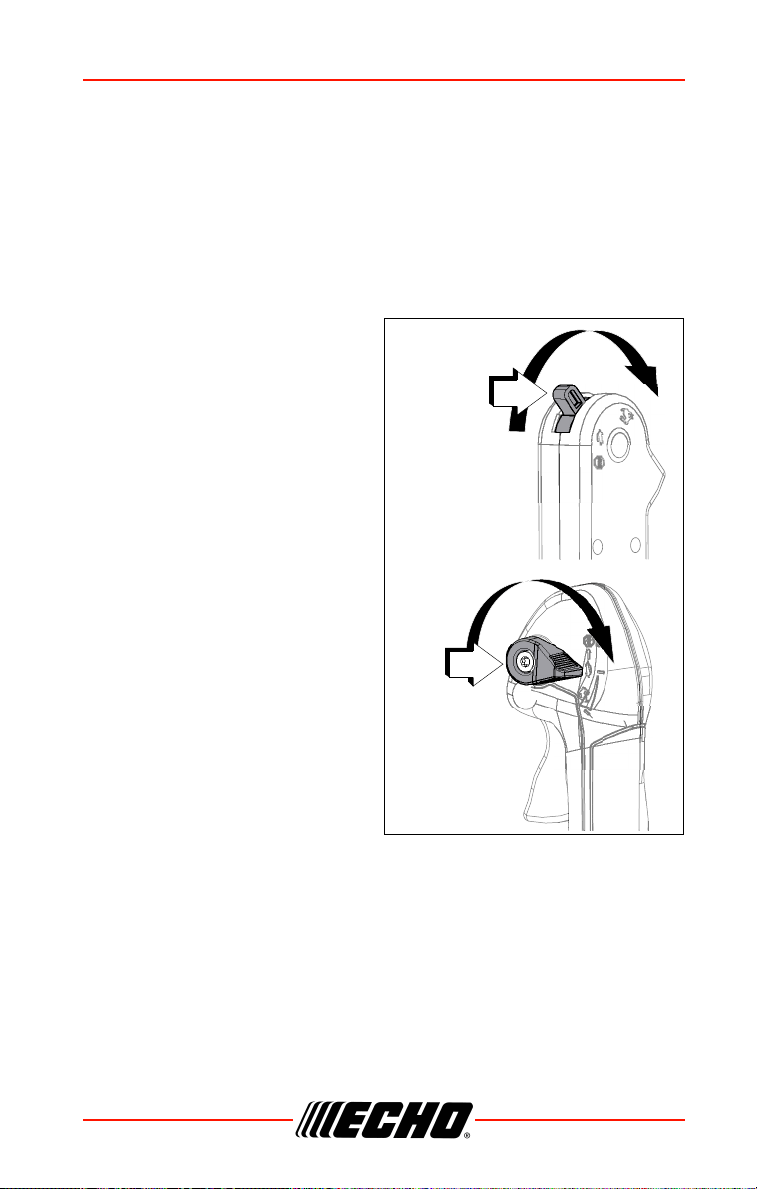

Stopping Engine
PB-9010 H
1. Throttle Lever
Move throttle lever (A) to IDLE
position and allow engine to
return to idle before shutting off
engine.
2. Throttle Lever
Move throttle lever (A) to
(STOP) position.
PB-9010 T
1. Throttle Lever
Release throttle trigger. Move
Throttle Lever (A) forward to idle
position and allow engine to
return to idle before shutting off
engine.
2. Throttle Lever
Move Throttle Lever (A) all the
way forward to STOP position.
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your dealer repair stop switch before using unit again.
Operating Blower
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a
poison gas. Breathing CO can cause unconsciousness, serious
injury, or death. Exhaust can cause serious burns. ALWAYS
position unit so that exhaust is directed away from your face
and body.
PB-9010 H
A
PB-9010T
A
background
PB-9010 H/T OPERATION
X7501200700 31
© 08/20 ECHO Incorporated
Always wear safety glasses, hearing protection and a face filter
mask or serious personal injury may result. Do not point the
blower pipe in the direction of people or pets.
Use reduced speed only when performing light-duty tasks or to
comply with local noise regulations. Continuous low speed operation
may allow fuel/oil residue to build-up on the piston and cause rapid
build-up of carbon on the spark arrestor screen, resulting in
overheating and engine damage. To reduce harmful build-up, run
engine at wide open throttle for at least 5 minutes every hour, and
inspect/clean the spark arrestor screen after approximately 40 hours
of operation.
Read the Safety Section carefully.
To avoid engine damage due to over-revving, do not block blower
pipe.
1. Use only during appropriate hours. Contact your local government for
the ordinances affecting your area.
2. To reduce sound levels, limit the number of pieces of equipment used
at any one time.
3. Allow the engine to warm up at a fast idle for a few minutes.
background
OPERATION PB-9010 H/T
32 X7501200700
© 08/20 ECHO Incorporated

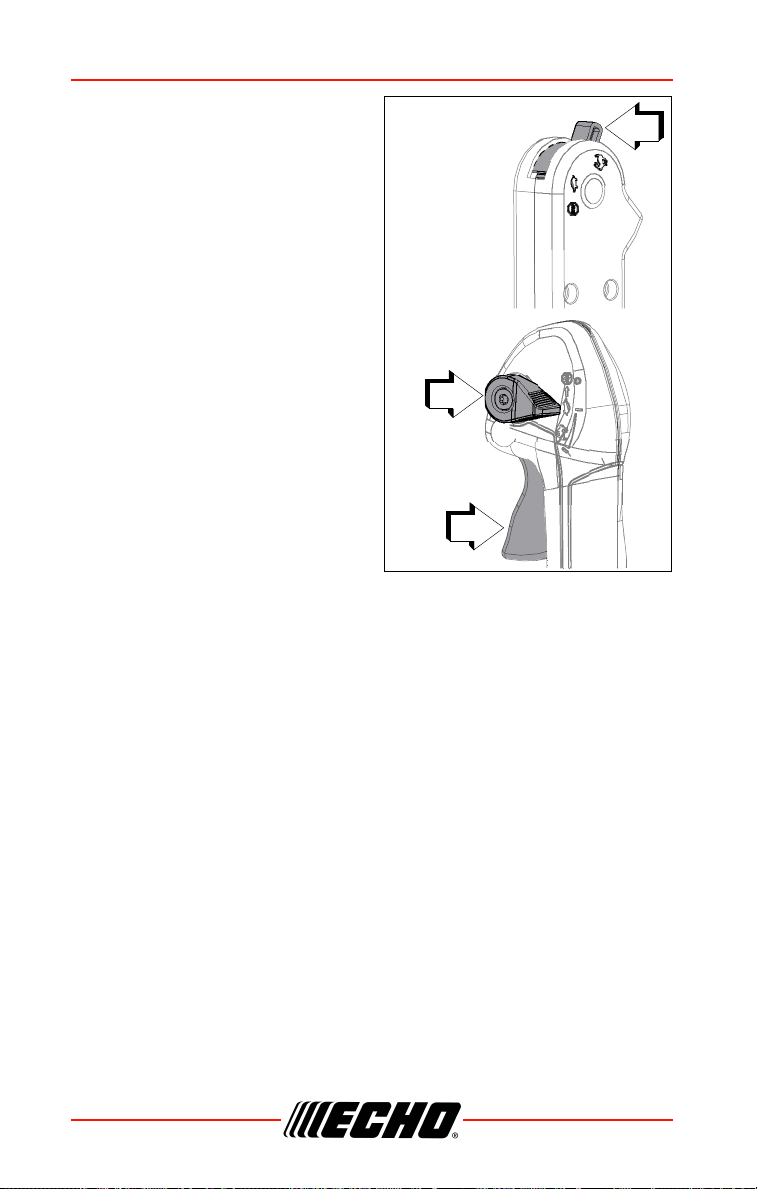

4. PB-9010 H
Set engine speed with throttle
position lever (A).
PB-9010 T
Control engine speed with throttle
trigger (B), or for continuous use,
set engine speed with throttle
position lever (A).
5. Use lower speed to blow dry
leaves from walks, patios and
drives. Use rakes and brooms to
loosen debris before blowing.
6. Additional speed may be
necessary to clean grass and
leaves from a lawn or flower bed.
7. Higher speed may be necessary
to move gravel, dirt, snow,
bottles or cans from a driveway,
street, parking lot or stadium.
8. Always stop unit using stop
engine procedure.
Note: Never use a higher speed setting than necessary to perform a
task. Remember, the higher the engine speed, the louder the
blower noise.
A
B
A
PB-9010 H
PB-9010T
background
PB-9010 H/T OPERATION
X7501200700 33
© 08/20 ECHO Incorporated

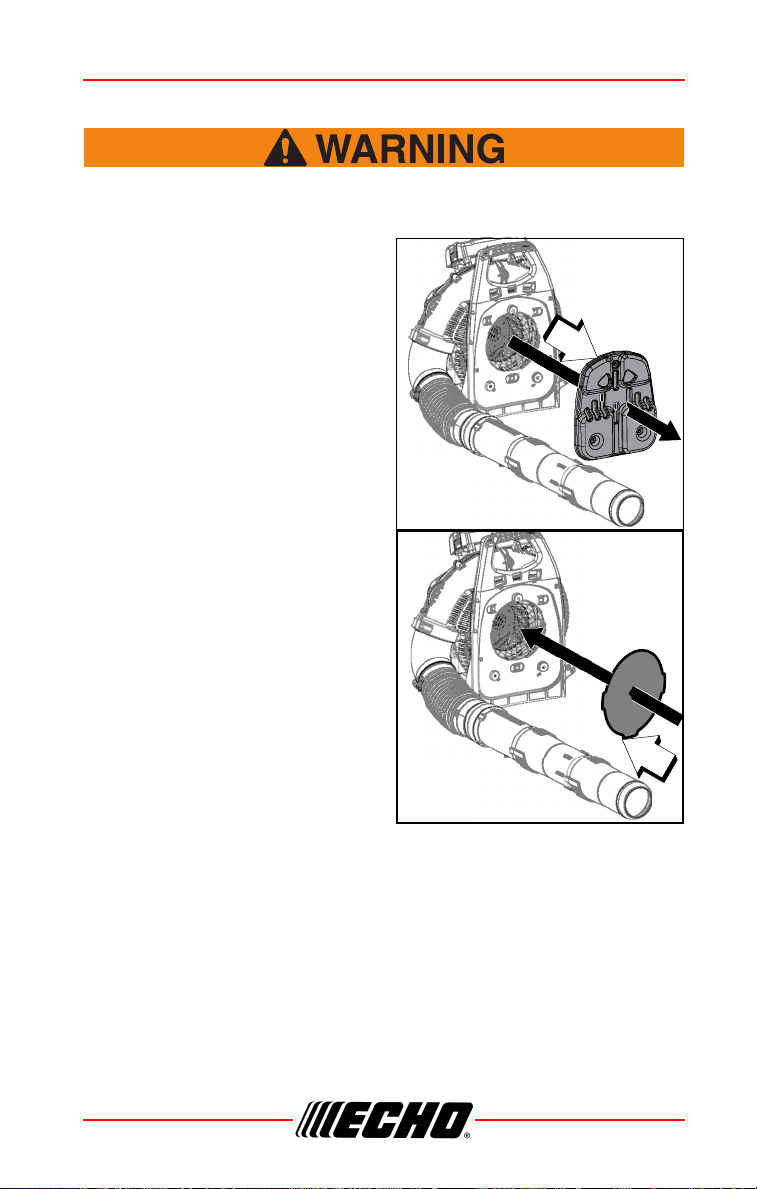

For Operator Comfort in Cold Weather Operation:
This product should not be used in temperatures below
15° F (-9° C) otherwise damage to the fuel lines may occur.
1. Remove clips from back cushion.
Remove back cushion (A) from
frame.
2. Install cold weather insert (B) on
frame over air intake.
3. Install back cushion (A) to frame
over cold weather insert.
Note: Blower performance may
be reduced slightly.
A
B
background
OPERATION PB-9010 H/T
34 X7501200700
© 08/20 ECHO Incorporated

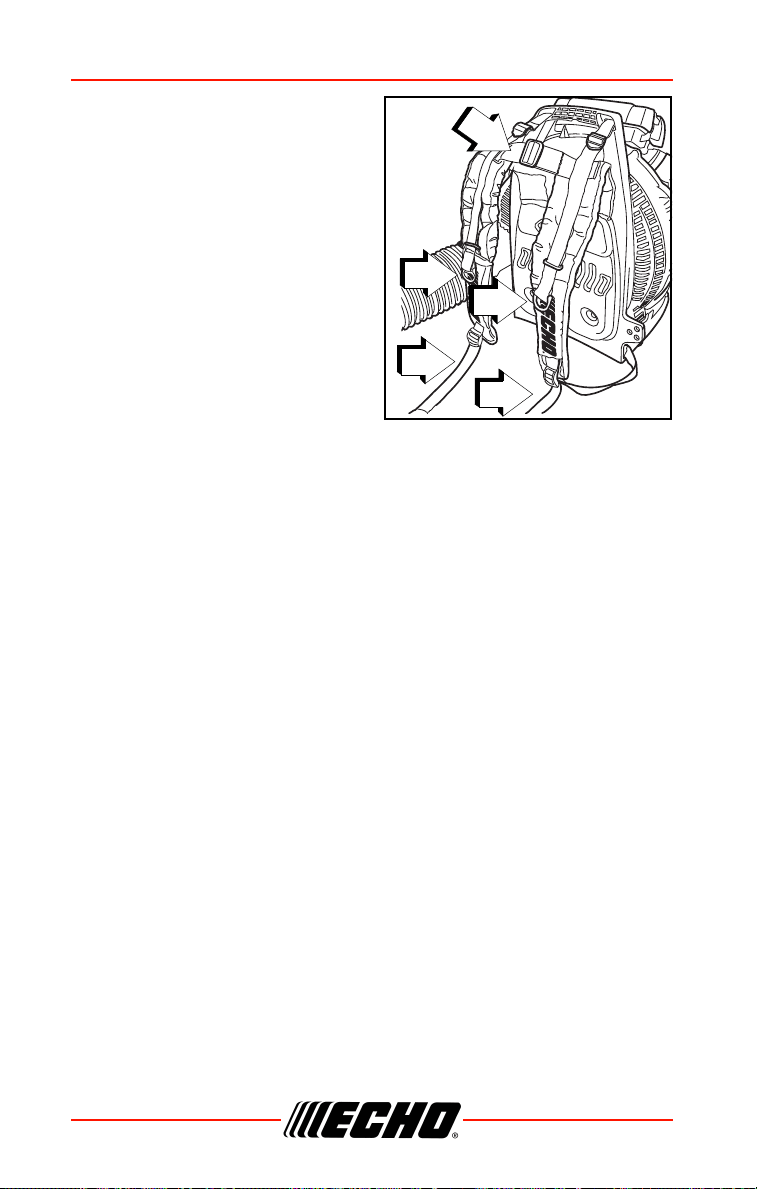

Adjust harness
1. Pull straps (C) downward to
adjust shoulder harness.
2. Adjust harness limiter strap (D)
for comfortable operation.
C
C
D
C
C
background
PB-9010 H/T MAINTENANCE
35
© 08/20 ECHO Incorporated
MAINTENANCE
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service. Wear gloves to protect hands
from sharp edges and hot surfaces.
Operating a poorly maintained unit can result in serious injuries
to operator or bystanders. Always follow all maintenance
instructions as written, otherwise serious personal injury can
result.
Your unit is designed to provide many hours of trouble free service. Regular
scheduled maintenance will help your unit achieve that goal. If you are
unsure or are not equipped with the necessary tools, we recommend that
you take your unit to a Servicing Dealer for maintenance. To help you
decide whether you want to DO-IT-YOURSELF or have the Dealer do it,
each maintenance task has been graded. If the task is not listed, see your
Dealer for repairs.
The use of emission control components other than those specifically
designed for this unit is a violation of federal law.
Skill Levels
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = See your dealer.
Click HERE or go to http://www.echo-usa.com/products/maintenance-kit
or
HERE https://www.shindaiwa-usa.com/you-can.aspx
For information about maintenance kits.
X7501200700
background
MAINTENANCE PB-9010 H/T
36 X7501200700
© 08/20 ECHO Incorporated
Maintenance Intervals
IMPORTANT NOTE - Time intervals shown are maximum. Actual use and
your experience will determine the frequency of required maintenance.
MAINTENANCE PROCEDURE NOTES:
1. Replacement is recommended based on the finding of damage or wear
during inspection.
COMPONENT/SYSTEM MAINTENANCE PROCEDURE
SKILL
LEVEL
Daily or Before Use
Air Filter
Inspect/Clean
1
1
Choke Shutter
Fuel System
Inspect
Cooling System
Inspect/Clean 2
Recoil Starter Rope
Inspect/Clean
1
1
Screws/Nuts/Bolts
Inspect/Tighten/Replace
1
Every Refuel
Fuel System
Inspect
1
1
Cooling System Inspect/Clean 2
3 Months
Air Filter
Replace
1
1
Fuel Filter
Inspect
1
Fuel Cap Gasket
Spark Plug
Inspect/Clean/Replace
1
Muffler Spark Arrestor
2
Cylinder Exhaust Port
Inspect/Clean/De-carbon
Yearly
Fuel Filter
Inspect/Replace
1
1
Fuel Cap Gasket
Replace
1
background
PB-9010 H/T MAINTENANCE
X7501200700 37
© 08/20 ECHO Incorporated
Air Filter
Level 1.
1. Close choke (COLD START position). This prevents dirt from entering
the carburetor throat when the air filter is removed. Brush accumulated
dirt from air cleaner area.
2. Remove air filter cover, foam pre-filter, and air filter. Brush dirt from
inside cover.
Foam Pre-Filter:
Clean foam pre- filter (A) in
water/detergent solution and
rinse with clean water.
Wrap the foam pre-filter in a
clean, dry cloth and squeeze
(do not wring) dry. Allow to dry
completely before reuse. Do
not oil.
Air Filter:
Lightly brush debris from air
filter (B).
Replace filter if it is damaged,
very dirty, or the rubber
sealing edges are deformed.
If filter can be reused, be
certain it fits tightly in the air
filter cavity, and is installed with the original side out.
3. Assemble components in reverse order.
Fuel Filter
Level 1.
Fuel is VERY flammable. Use extreme care when mixing,
storing or handling, or serious personal injury can result.
Parts Required: TUNE UP KIT.
Parts Required: TUNE UP KIT.
B
A
background
MAINTENANCE PB-9010 H/T
38 X7501200700
© 08/20 ECHO Incorporated

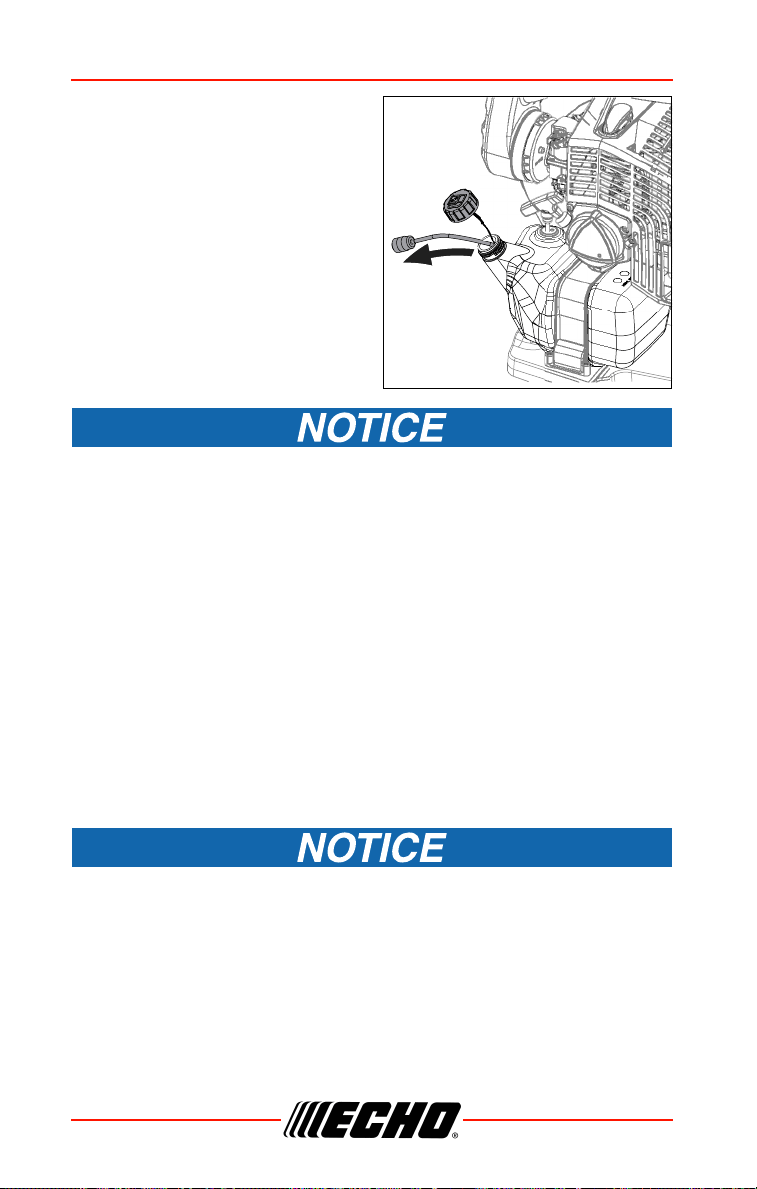

1. Use a clean rag to remove loose
dirt from around fuel cap and
empty fuel tank.
2. Pull the fuel filter from the tank.
Do not damage fuel line while removing fuel filter from tank.
3. Remove the filter from the line and install the new filter.
Note: Federal EPA regulations require all model year 2012 and later
gasoline powered engines produced for sale in the United
States to be equipped with a special low permeation fuel
supply hose between the carburetor and fuel tank. When
servicing model year 2012 and later equipment, only fuel
supply hoses certified by EPA can be used to replace the
original equipment supply hose. Fines up to $37,500 may be
enforced for using an un-certified replacement part.
Spark Plug
Level 2.
Use only NGK CMR7H spark plug otherwise severe engine damage
can occur.
Parts Required: TUNE-UP KIT
background
PB-9010 H/T MAINTENANCE
X7501200700 39
© 08/20 ECHO Incorporated
1. Remove spark plug and check
for fouling, worn and rounded
center electrode.
2. Clean the plug or replace with a
new one. DO NOT sand blast to
clean. Remaining sand will
damage engine.
3. Adjust spark plug gap by
bending outer electrode.
4. Tighten spark plug to 102-153 kgf • cm (86-133 in • lbf).
0.65 mm (0.026 in.)
background
MAINTENANCE PB-9010 H/T
40 X7501200700
© 08/20 ECHO Incorporated

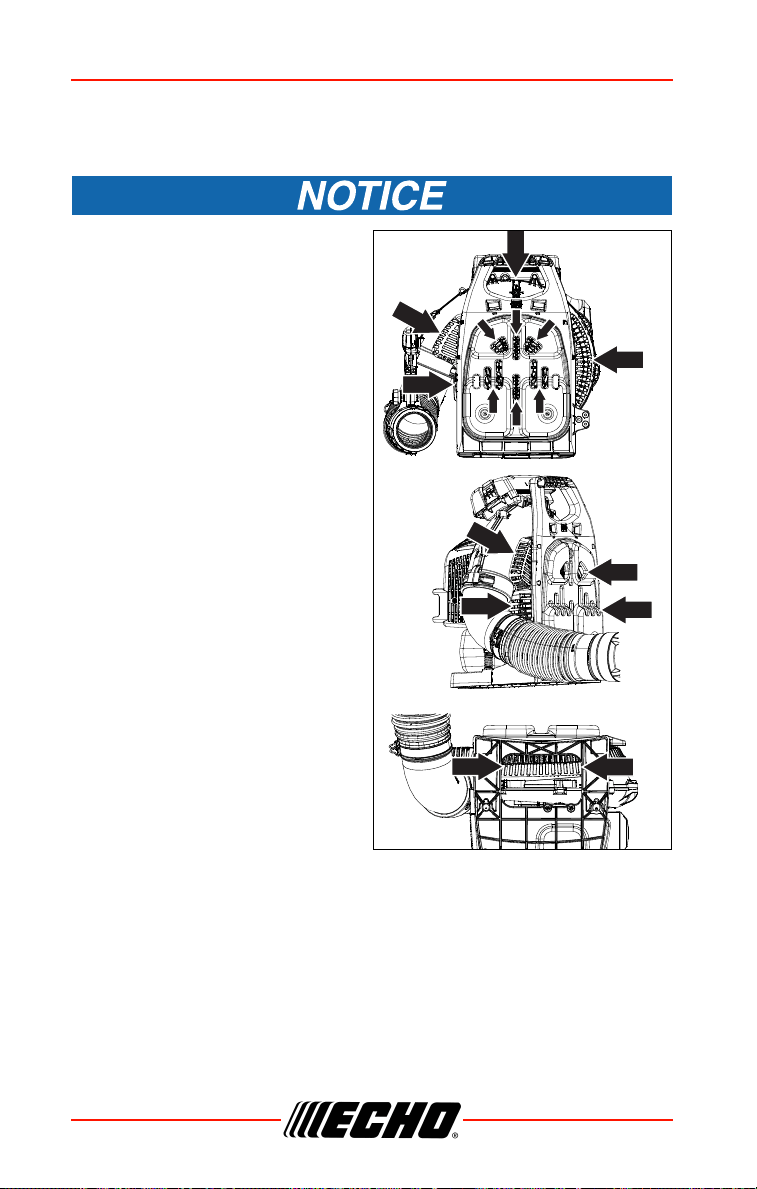

Cooling System
Level 2.
To maintain proper engine
operating temperatures, cooling
air must pass freely through the
cylinder fin area. This flow of air
carries combustion heat away
from the engine.
Overheating and engine seizure can
occur when:
Air intakes are blocked,
preventing cooling air from
reaching the cylinder.
Dust and grass build up on the
outside of the cylinder. This build
up insulates the engine and
prevents the heat from leaving.
Removal of cooling passage
blockages or cleaning of cooling fins
is considered “Normal
Maintenance.” Any failure attributed
to lack of maintenance is not
warranted.
background
PB-9010 H/T MAINTENANCE
X7501200700 41
© 08/20 ECHO Incorporated

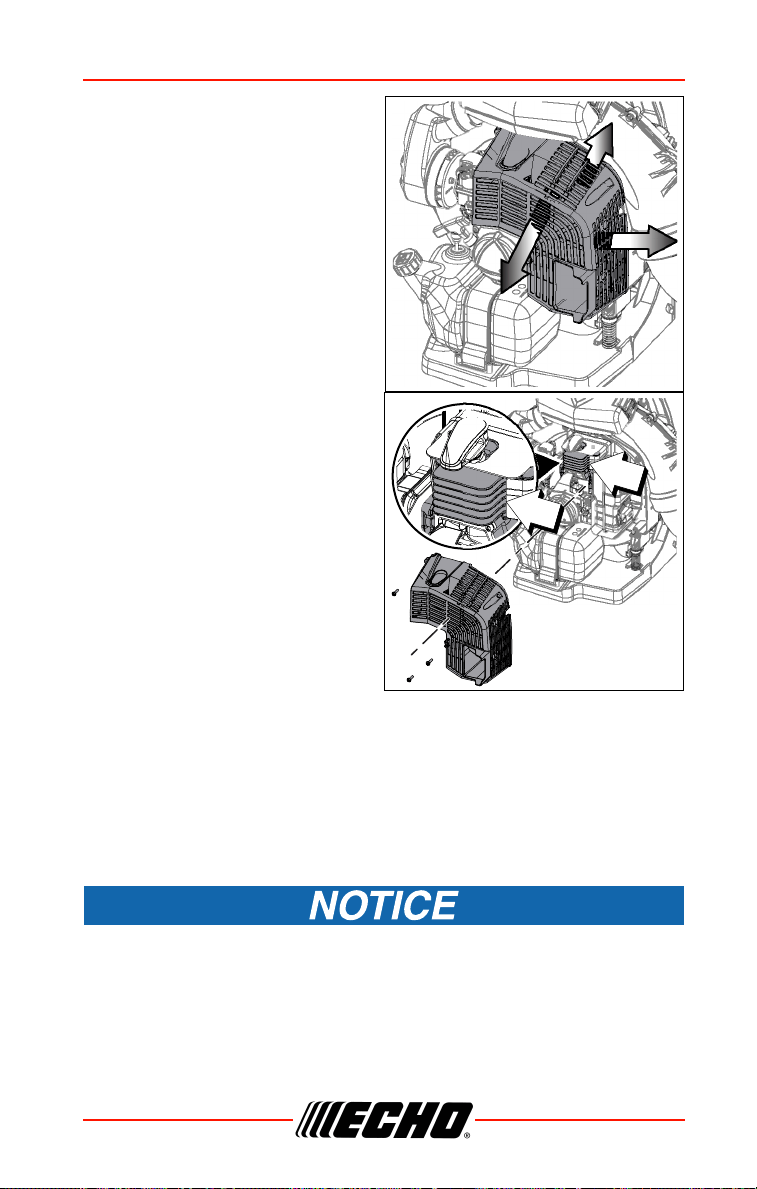

Clear Debris
1. Brush accumulated debris from
intake grill and other cooling
passages.
Cleaning Cylinder Fins

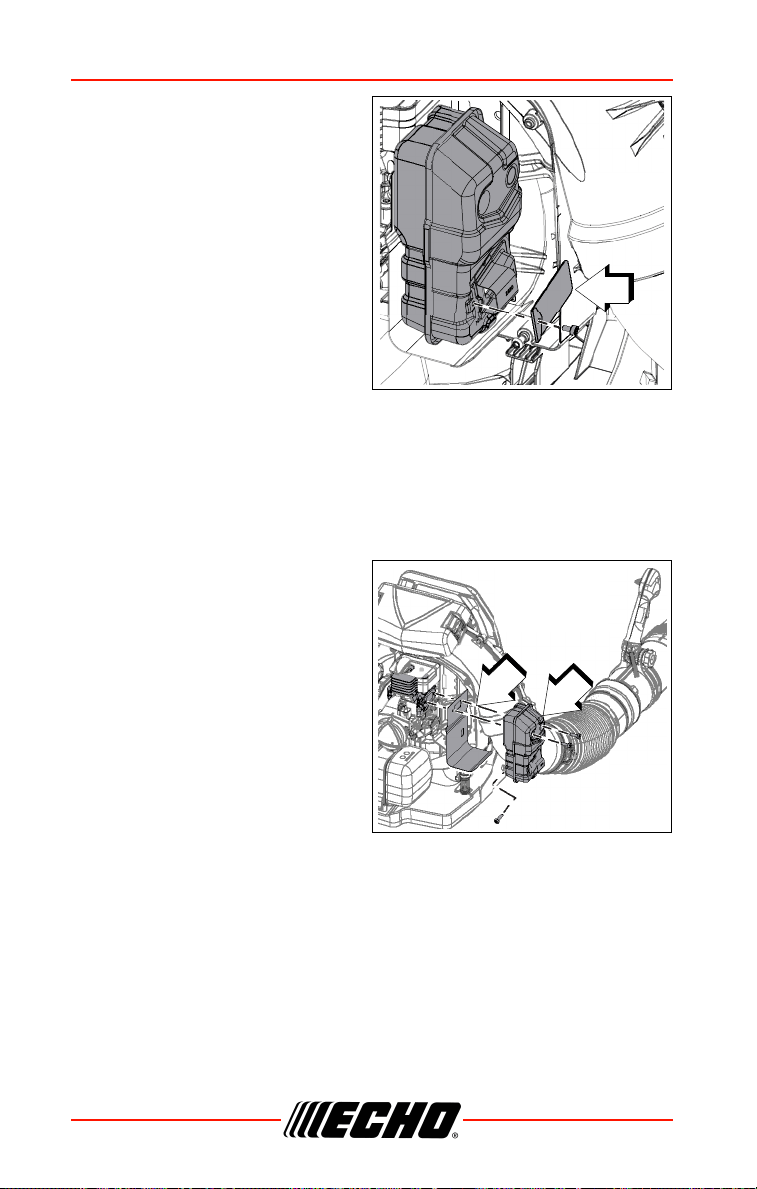

1. Disconnect spark plug lead
from spark plug.
2. Remove engine cover.
3. Clean cylinder fins (A) to allow
cooling air to pass freely.
4. Install engine cover.
5. Connect spark plug lead.
Exhaust System
Spark Arrestor Screen
Level 2.
Carbon deposits in muffler will cause a drop in engine output and
overheating. Spark arrestor screen must be checked periodically.
Parts Required: Spark Arrestor Screen
A
A
background
MAINTENANCE PB-9010 H/T
42 X7501200700
© 08/20 ECHO Incorporated
1. Disconnect spark plug lead
from spark plug.
2. Remove engine cover.
3. Remove spark arrestor screen
(C) from muffler. Replace
screen if plugged with carbon
deposits.
Note: When cleaning carbon
deposits, be careful not to
damage the catalytic
element inside muffler.
4. Install spark arrestor screen.
5. Install engine cover.
6. Connect spark plug lead.

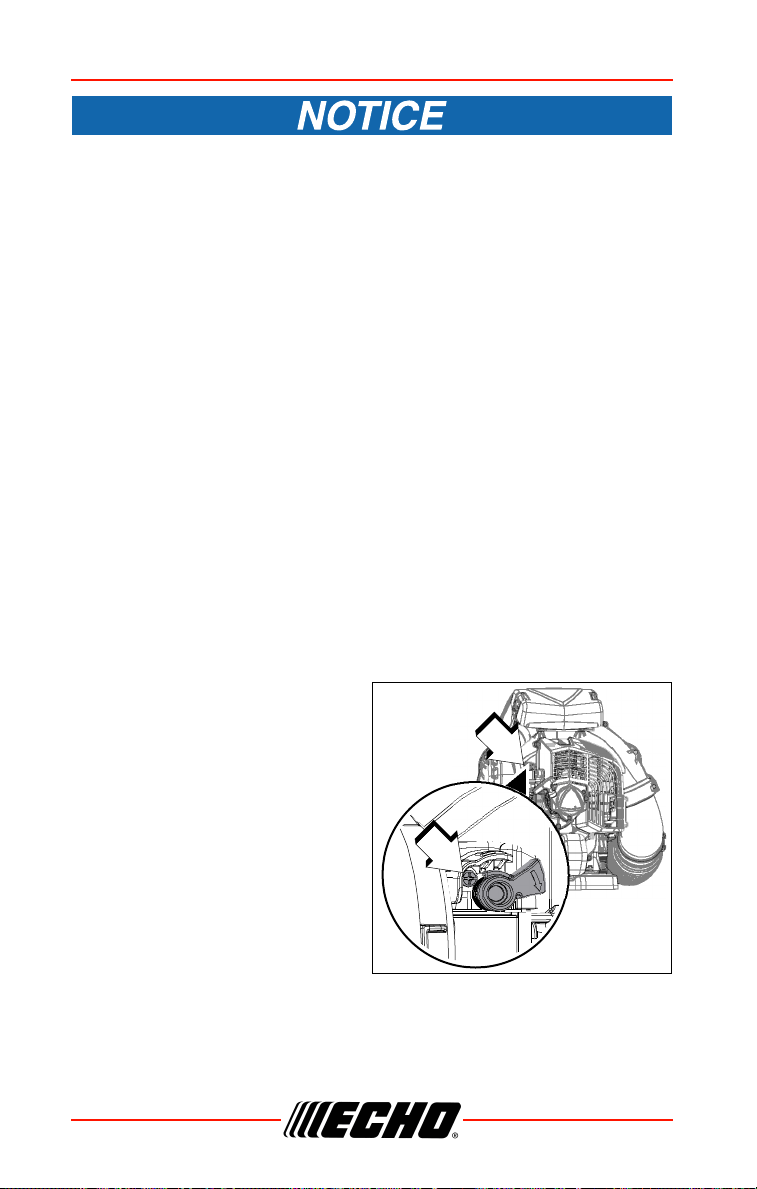

Exhaust Port Cleaning
Level 2.
1. Remove spark plug lead from
spark plug, and remove engine
cover.
2. Place piston at top dead center.
Remove muffler (A) and muffler
gasket (B).
Parts Required: As needed: Muffler Gasket
C
A
B
background
PB-9010 H/T MAINTENANCE
X7501200700 43
© 08/20 ECHO Incorporated

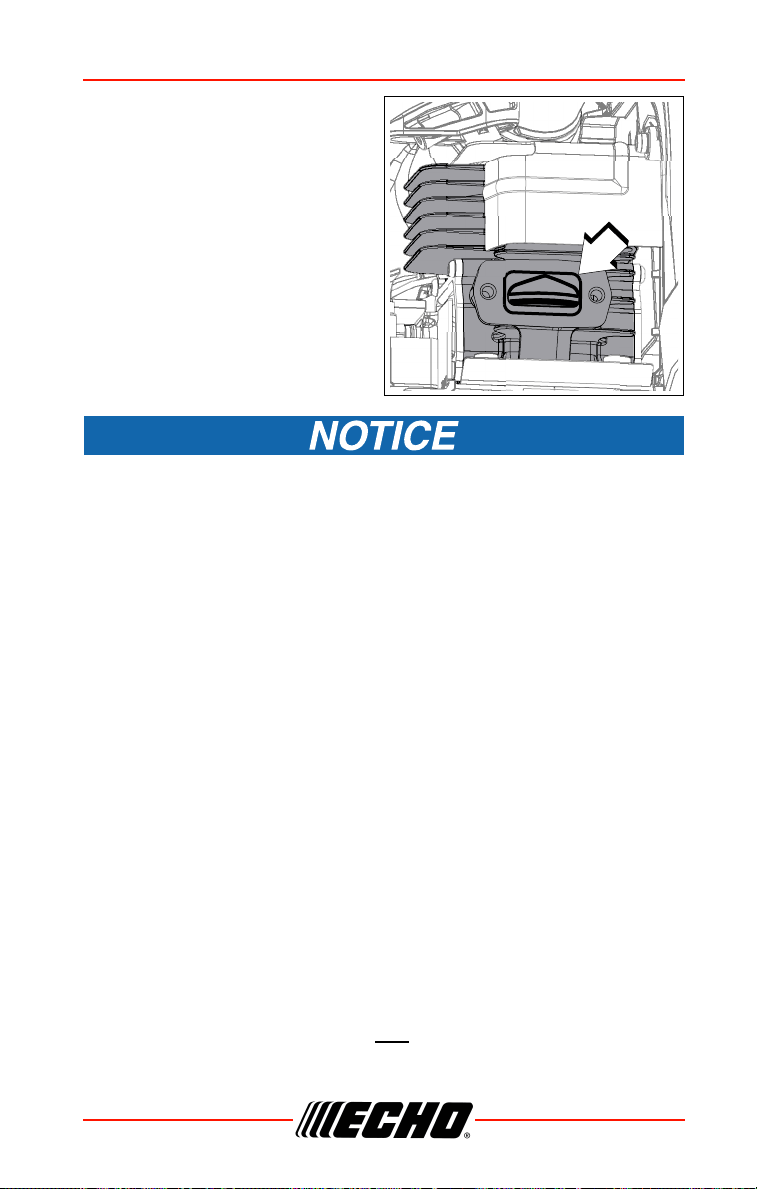

3. Use a wood or plastic scraping
tool to clean deposits from
cylinder exhaust port.
Never use a metal tool to scrape carbon from the exhaust port. Do
not scratch the cylinder or piston when cleaning the exhaust port. Do
not allow carbon particles to enter the cylinder.
4. Inspect muffler gasket, and replace if damaged.
5. Install muffler gasket and muffler.
6. Tighten muffler mounting bolts (or nuts) to 110-150 kgf•cm
(95-130 in•lbf).
7. Install engine cover and attach spark plug lead.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications.
Carburetor Adjustment
Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Operation
This engine has been factory adjusted to maintain satisfactory starting,
emission, and durability performance up to 1,100 ft. (335 m) above sea
level. To maintain proper engine operation and emission compliance above
1,100 ft. (335 m) ASL the carburetor may
need to be adjusted by an
authorized ECHO service dealer.
background
MAINTENANCE PB-9010 H/T
44 X7501200700
© 08/20 ECHO Incorporated
If the engine is adjusted for operation above 1,100 feet (335 m)
above sea level, the carburetor must be re-adjusted when operating
the engine below 1,100 ft. (335 m) above sea level, otherwise severe
engine damage may result.
Level 2.
Note: Every unit is run at the factory and the carburetor is set in
compliance with emission regulations. Carburetor
adjustments, other than idle speed, must be performed by an
authorized ECHO dealer.
Idle Adjustment
Before adjustment make sure that:
Air filter is clean and properly installed.
Spark arrestor screen and muffler are free of carbon.
Blower pipes are installed.
1. Start engine, run at idle for one minute.
2. Complete warm up by running at full throttle for 5 minutes, operating
choke twice to clear air from carburetor chambers.
3. Check idle speed and reset if
necessary. If a tachometer is
available, idle speed screw (A)
should be set to the
specifications found on
“Specifications” Page of this
manual. Turn idle screw (A)
clockwise to increase idle
speed; counter clockwise to
decrease idle speed.
Parts Required: None
A
A
background
PB-9010 H/T MAINTENANCE
X7501200700 45
© 08/20 ECHO Incorporated
Throttle Cable Adjustment (PB-9010 T, EB910RT
only)
Level 1
If engine idle speed changes when blower pipe is moved, or engine will not
reach full wide open throttle speed, adjust throttle cable.
1. Loosen handle adjustment
knob (C) and tilt Tube Throttle
handle forward to expose
Adjustment Screw (D).
2. Turn Adjustment Screw until
Throttle Trigger free play is
4 - 6 mm (3/16-1/4 in.).
3. After adjustment, squeeze and
release Throttle Trigger several
times to verify Carburetor
Throttle Shaft has full range of
movement from idle to wide
open throttle positions.
D
C
D
3/16 - 1/4 in.
(4 - 6 mm)
background
TROUBLESHOOTING PB-9010 H/T
46 X7501200700
© 08/20 ECHO Incorporated
TROUBLESHOOTING
Fuel vapors are extremely flammable and may cause fire and/or
explosion. Never test for ignition spark by grounding spark plug
near cylinder plug hole, otherwise serious personal injury may
result.
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
Engine
starts
hard or
Engine
does not
start
Fuel at
carburetor
No fuel at
carburetor
Fuel strainer or
fuel line
obstructed
Clean or replace
See your dealer
Fuel at
cylinder
No fuel at
cylinder
Carburetor See your dealer
Muffler wet
with fuel
Fuel mixture
too rich
OPEN choke
Clean or replace
air filter
Adjust carburetor
See your dealer
Engine
starts
hard or
Engine
does not
start
Spark at
end of plug
wire
No spark
Ignition at
STOP position
Electrical
problem
Interlock switch
Move ignition
away from STOP
position.
See your dealer
Spark at
plug
Incorrect gap -
Covered with
carbon -
Fouled with
fuel - Plug
defective
Adjust to
0.65 mm
(0.026 in.)
Clean or replace
plug
background
PB-9010 H/T STORAGE
X7501200700 47
© 08/20 ECHO Incorporated
STORAGE
During operation the muffler or catalytic muffler and
surrounding cover become hot. Always keep exhaust area clear
of flammable debris during transportation or when storing,
otherwise serious property damage or personal injury may
result.
Long Term Storage (Over 30 Days)
Do not store in enclosure where fuel fumes may accumulate or
reach an open flame or spark.
Do not store your unit for a prolonged period of time (30 days or longer)
without performing protective storage maintenance which includes the
following:
Engine
runs, but
dies
or
Engine
does not
acceler-
ate
properly
Air filter Air filter dirty Normal wear Clean or replace
Fuel filter
Fuel filter
dirty
Contaminants
or residue in
fuel
Replace filter or
replace fuel
Fuel vent
Fuel vent
plugged
Contaminated
fuel
Clean or replace
Spark plug
Plug dirty or
worn
Normal wear
Clean and adjust
or replace
Carburetor
Improper
adjustment
Vibration Adjust
Cooling
system
Cooling
system dirty
or plugged
Extended oper-
ation in dirty or
dusty locations
Clean
Spark
arrestor
screen
Spark arres-
tor screen
plugged
Normal wear Replace
Engine
does not
crank
N/A
Internal engine
problem
See your dealer
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
background
STORAGE PB-9010 H/T
48 X7501200700
© 08/20 ECHO Incorporated
1. Store unit in a dry, dust free place, out of the reach of children.
2. Place the stop switch or lever in the “OFF” position.
3. Remove accumulation of grease, oil, dirt and debris from exterior of
unit.
4. Perform all periodic lubrication and services that are required.
5. Tighten all the screws and nuts.
6. Drain fuel tank completely. Press purge bulb 6 -7 times to remove
remaining fuel from carburetor then drain the tank again. Close choke,
start and run the engine until it stops due to lack of fuel.
7. Allow engine to cool. Remove the spark plug lead from the spark plug.
Remove the spark plug. Pour 7 cc (0.25 oz.) of fresh, clean, two-stroke
engine oil into the cylinder through the spark plug hole.
8. Pull the recoil starter handle 2-3 times to distribute the oil inside the
engine.
9. Observe the piston location through the spark plug hole. Pull the recoil
handle slowly until the piston reaches the top of its travel and leave it
there.
10. Install the spark plug. Connect the spark plug lead to the spark plug.
11. Remove blower pipe assembly from unit.
background
PB-9010 H/T SPECIFICATIONS
X7501200700 49
© 08/20 ECHO Incorporated
SPECIFICATIONS
MODEL PB-9010H PB-9010T
Length (with pipes) 1564 mm (61.6 in. )
Width (with pipes) 630 mm (24.8 in.) 603 mm (23.7 in.)
Height (with pipes) 544 mm (21.4 in.)
Weight (full tank) (w th pipes) 13.2 kg (29.1 lb.) 13.1 kg (28.8 lb.)
Engine Type
Air cooled, two-stroke, single cylinder gasoline
engine
Bore 53 mm (2.1 in.)
Stroke 36.2 mm (1.4 in.)
Displacement 79.9 cc (4.9 cu
3
)
Exhaust
Spark arrestor muffler or spark arrestor muffler with
catalyst
Carburetor Diaphragm with purge pump
Ignition System Flywheel magneto, capacitor discharge ignition type
Spark Plug NGK CMR7H – Gap 0.65 mm (0.026 in.)
Fuel Mixed (Gasoline and Two-stroke Oil)
Gasoline/Oil Ratio 50 : 1
Gasoline
Use 89 Octane unleaded. Do not use fuel containing
methyl alcohol, more than 10% ethyl alcohol or 15%
MTBE. Do not use alternative fuels such as E-15 or
E-85.
Oil
ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345-
FD
, two-stroke, air-cooled engine oil.
Fuel Tank Capacity 2.48 L (83.8 US fl. oz.)
Starter System Automatic Recoil Starter, centrifugal type
Idle Speed 2,500 RPM
Wide Open Throttle Speed 7,800 RPM
Maximum Air Speed with
pipes
94.5 m/sec (211 mph)
Air Volume 30.3 m
3
/min. (1071 ft.
3
/min.)
Sound Level at 15.25 m
(50 ft.) dB(A) scale per ANSI
B175.2
79.3 dB(A)
background
PRODUCT REGISTRATION PB-9010 H/T
50 X7501200700
© 08/20 ECHO Incorporated
PRODUCT REGISTRATION
Thank you for choosing ECHO Power Equipment
Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO
to
register your new product on-line. It's FAST and EASY! NOTE: your
information will never be sold or misused by ECHO, Incorporated.
Registering your purchase enables us to contact you in the unlikely event of
a service update or product recall, and verifies your ownership for warranty
consideration.
If you do not have access to the Internet, you can complete the form below
and mail to:
ECHO Incorporated, Product Registration, PO Box 1139, Lake Zurich
IL 60047.
background
PB-9010 H/T PRODUCT REGISTRATION
X7501200700 51
© 08/20 ECHO Incorporated
background
ECHO INCORPORATED
400 Oakwood Road
Lake Zurich, IL 60047
www.echo-usa.com
(H)P53315001001 - P53315999999
(T)P53415001001 - P53415999999

Specifications

Indexed Terms: Backpack Blower

ECHO PB-9010H Questions and Answers
