Enbrighten 58087 Seasons WiFi LED Flex Light, 16ft., Color User Manual

LED Wi-Fi

Flex Light

Model – 58085, 58087, 58088

Your Enbrighten LED Wi-Fi Flex Light

transforms your space with vibrant

colors and dynamic customization — all

using the free Enbrighten Wi-Fi app.

Note: Read all instructions before

installing. Please read all the warning

statements included in these instructions.

Stake mounting

1. Insert the top of a stake into a clip’s

keyhole slot, sliding it forward until it

clicks into place.

INSTALLATION

This ﬂexible LED strand can be planted

in the ground with stakes, installed to

surfaces with clips or simply laid out in

a line or around corners. Select a clean,

sturdy location that is within reach of

an outlet. The maximum distance to the

receptacle is determined by the length

of cord provided.

Power supply

The power supply features a push

button that serves both as a means

of pairing with the app and manual

operation. Mount it using the keyholes

on the back or the tabs on the side.

IMPORTANT: Do not lay power supply

on the ground or where water may

accumulate.

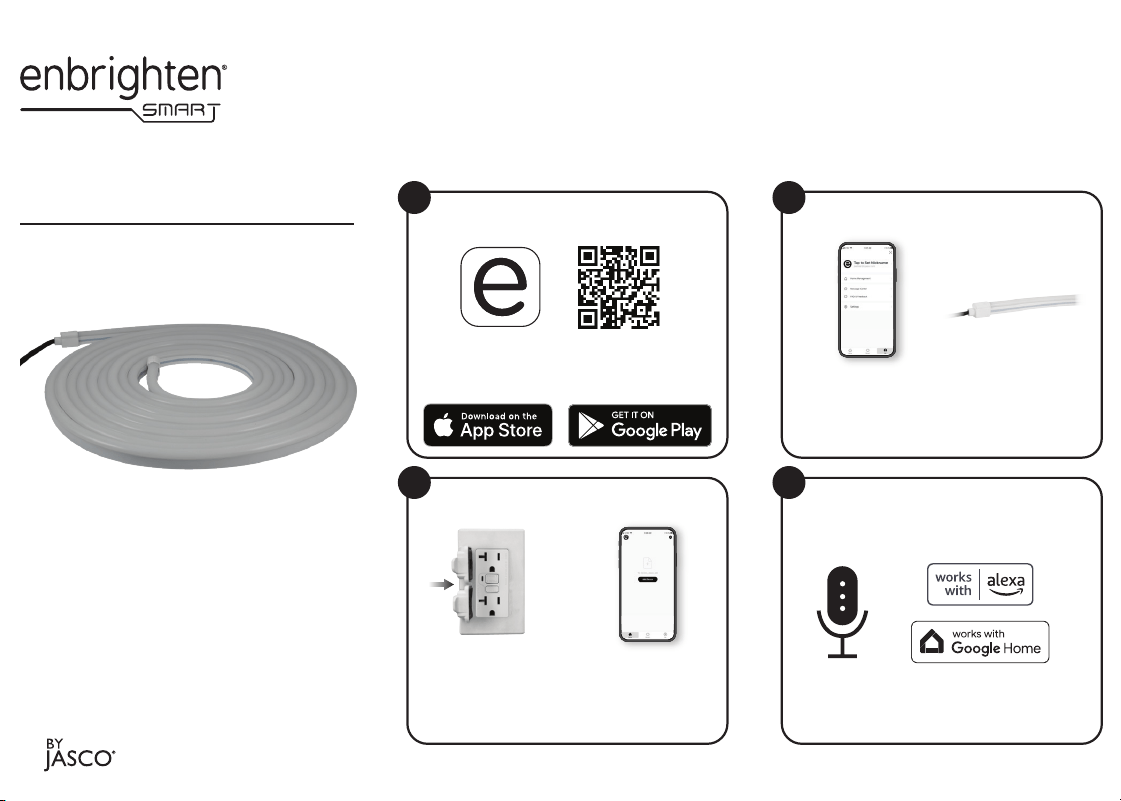

Scan the QR code above or search

Enbrighten on the Apple App Store or

on Google Play

Download the app

Add devices, control

the smart ﬂex lights

from anywhere and

create schedules

Setup and installation

Plug ﬂex light into

GFCI-protected outlet

Install ﬂex light

Setup and installation

Create an account in

the Enbrighten app

Compatible with Amazon Alexa or

Google Assistant-enabled devices

Select "Support" in the Enbrighten app

or follow the steps in the Amazon Alexa

or Google Home app to connect your

Enbrighten account

Voice control

1 2

Remotely operate your smart ﬂex lights with the easy-to-

use Enbrighten app. Follow the available instructions and

resources to set up your smart device.

NOTE: For best results, pair your lights near your router prior to installation.

Requires 2.4GHz Wi-Fi connection

Keyholes

Ear-tabs

2 3/8in./60.3mm

7 1/2in./191mm

Do not pull cord tight, leave

slack in loop to prevent strain

on power supply.

Manual

control

button

2. Carefully thread the ﬂex light through

each clip.

3. Firmly plant the stakes into soil or

garden bedding.

Note: If it requires more than a ﬁrm

push, loosen the soil or remove debris.

4. Place the clips over the screws —

tightening the screws as needed.

5. Carefully thread the ﬂex light through

the installed clips.

Connect to power

After installing, plug the power cord

into a 120VAC, 60Hz outlet.

Clip mounting

1. Mark the locations for each clip with

a pencil, leaving about 1.5ft. of space

between each.

2. Drill pilot holes on each marking

using a 1/16in. drill bit.

3. Insert the included screws into

the pilot holes with a Phillips-head

screwdriver, leaving about 1/8in. of

remaining space.

Ground mounting

1. Place strand directly onto ground or

garden bedding.

Slide forward

Clicks into place

Locked

in place

Mounting clips

Flex light

MADE IN VIETNAM

Distributed by Jasco Products Company LLC,

10 E. Memorial Rd., Oklahoma City, OK 73114.

This Jasco product comes with a 3-year limited warranty.

Visit www.byjasco.com for warranty details.

Questions? Contact our U.S.-based Consumer Care at

1-800-654-8483 between 7AM-8PM, M-F, Central Time.

Receive exclusive deals and

Scan code or visit

byjasco.com/deals.

Read instructions or watch

easy-to-follow video.

Scan code or visit

byjasco.com/58085i.

Instructions

made easy

Like our product?

Leave a review

on your favorite

retailer website or

amazon.com.

Having problems?

Let us know how

we can help. Call

1-800-654-8483

between 7AM-8PM,

M-F, Central Time.

Home automation

is in your palm with

Wi-Fi smart devices

and accessories at

www.enbrightenwiﬁ.com.

Thank you for your purchase!

product

All brand names shown are trademarks of their respective

owners App Store is a service mark of Apple Inc. Google,

Google Play and Google Home are trademarks of Google

LLC. Amazon, Alexa and all related logos are trademarks

of Amazon.com, Inc. or its aliates.

05/04/2022 v1

WARNING

RISK OF ELECTRIC SHOCK

• OUTLETS USED FOR POWERING FLEX LIGHTS SHALL COMPLY

WITH ALL NATIONAL AND LOCAL ELECTRICAL CODES. CONSULT

LOCAL ELECTRICIAN IF UNSURE OF COMPLIANCE REQUIREMENTS.

• FOR USE ONLY ON GFCI PROTECTED CIRCUITS.

• DO NOT SUBMERGE.

• DO NOT USE AROUND AQUARIUMS.

• FLEX LIGHTS ARE A WET LOCATION PRODUCT AND HAVE NO

SERVICEABLE PARTS.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE.

• KEEP LAMPS AT LEAST 16FT. FROM POOLS AND SPAS.

• KEEP PLUGS AND RECEPTACLES DRY.

• AVOID DAMAGE TO THE CORDS AND LAMP ASSEMBLIES DURING

INSTALLATION. PERIODICALLY INSPECT THE FLEX LIGHTS FOR

PHYSICAL DAMAGE OR OTHER DAMAGE CAUSED BY OUTDOOR

EXPOSURE TO THE ELEMENTS.

• REPLACE ANY DAMAGED FLEX LIGHTS.

• DO NOT INSTALL IN LOCATIONS WHERE FLEX LIGHTS CAN BE

STEPPED ON.

• ENSURE FLEX LIGHTS ARE UNPLUGGED FROM POWER DURING

INSTALLATION.

• CHILDREN SHOULD NOT BE ALLOWED TO PLAY WITH FLEX

LIGHTS.

• NOT SUITABLE FOR FIELD CUTTING OR SPLICING.

• UL RECOMMENDS TESTING GFCI CIRCUITS AND RECEPTACLES

EVERY MONTH TO ENSURE PROPER OPERATION.

• DO NOT MOUNT OR SUPPORT FLEXIBLE LIGHT IN A MANNER THAT

CAN DAMAGE THE OUTER JACKET OR CORD INSULATION.

• MATERIAL MAY BECOME BRITTLE WHEN COLD. DO NOT INSTALL

WHERE IT MAY BE STEPPED ON OR SUBJECT TO PHYSICAL

DAMAGE.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE. FOR USE ONLY ON GFCI PROTECTED

CIRCUITS.

RISK OF FIRE

• NOT INTENDED FOR INSTALLATION IN CEILINGS, SOFFITS,

CABINETS, ATTICS, OR OTHER ENCLOSED SPACES.

• DO NOT INSTALL NEAR FLAMMABLE LIQUIDS.

• DO NOT COVER FLEXIBLE LIGHT AS THE COVERING MAY CAUSE

THE FLEXIBLE LIGHT TO OVERHEAT AND MELT OR IGNITE.

• TO PREVENT OVERHEATING, DO NOT ALLOW CONTACT BETWEEN

FLEXIBLE LIGHT CABLES OR PARTS OF THE FLEXIBLE LIGHT

CABLE. MAINTAIN AT LEAST 12MM (0.47IN.) SPACING BETWEEN

LIGHT CABLE OR LIGHT CABLE PARTS.

• UNCOIL FLEXIBLE LIGHT PRIOR TO PLUGGING IN.

Refer to the manual or visit www.byjasco.com for limitations and restrictions

on warranties and the product registration information.

WARNING: When using outdoors use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electrical

shock, and personal injury, including the following:

Ground fault circuit interrupter (GFCI) protection is to be provided on the

circuit(s) or outlet(s) to be used for the wet location portable luminaire.

Receptacles are available having built-in GFCI protection and are able to be

used for this measure of safety. The maximum distance to the receptacle is

determined by the length of cord provided.

WARNING: Keep these bags away from babies and children. Do not use in

cribs, beds, carriages, or playpens. The thin ﬁlm may cling to nose and mouth

and prevent breathing.

WARRANTY INFORMATION: This Jasco product is warrantied for three

years with a limited-lifetime replacement warranty on Enbrighten LED light

source only.

READ ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

MANUAL OPERATION

Press the button on the power

supply to cycle through each of the

following color settings:

1. White, 100% brightness

2. White, 50% brightness

3. White, 25% brightness

4. Color fade

5. Red

6. Green

7. Blue

8. Yellow

9. Purple

10. Pink

11. Orange

12. Teal

13. Holiday

14. July 4th

15. Rainbow

16. Twinkle

17. OFF

WARNING: When using outdoor use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electric shock,

and personal injury, including the following:

a) Use only three-wire outdoor extension cords that have three-prong

grounding plugs and grounding receptacles that accept the

appliance’s plug.

b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on

the circuit(s) or outlet(s) to be used for the wet location portable

luminaire. Receptacles are available having built-in GFCI protection and

are able to be used for this measure of safety.

c) Use only with an extension cord for outdoor use, such as an extension

cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW,

STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW,

or SJTOOW.

WARNING!

Input Amps, Max. Location Use

Wet

Model No.

58085

58087

0.25A

0.47A

58088

0.70A

Electrical Ratings

Suppliers Declaration of Conformity |

Model #: 58085, 58087, 58088 |

Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114,

www.byjasco.com This device complies with Part 15 of the FCC

and Industry Canada license exempt RSS standards. Operation

is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

FCC NOTE: The manufacturer is not responsible for any radio

or TV interference caused by unauthorized modiﬁcations

to this equipment. Such modiﬁcations could void the user’s

authority to operate the equipment. This equipment complies

with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated

with a 8in minimum distance between the radiator & your body.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent

from which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

IMPORTANT

SAFETY

INSTRUCTIONS

This portable luminaire has a polarized plug (one blade is wider than the

other) as a feature to reduce the risk of electric shock. This plug will ﬁt in a

polarized outlet only one way. If the plug does not ﬁt fully in the outlet, reverse

the plug. If it still does not ﬁt, contact a qualiﬁed electrician. Never use with an

extension cord unless plug can be fully inserted. Do not alter the plug.

Input: 120V, 60Hz

WARNING!

4.72in

Bending diameter

To prevent failure, do not bend more than 4.72in.

LED Wi-Fi

Flex Light

Model – 58085, 58087, 58088

Your Enbrighten LED Wi-Fi Flex Light

transforms your space with vibrant

colors and dynamic customization — all

using the free Enbrighten Wi-Fi app.

Note: Read all instructions before

installing. Please read all the warning

statements included in these instructions.

Stake mounting

1. Insert the top of a stake into a clip’s

keyhole slot, sliding it forward until it

clicks into place.

INSTALLATION

This ﬂexible LED strand can be planted

in the ground with stakes, installed to

surfaces with clips or simply laid out in

a line or around corners. Select a clean,

sturdy location that is within reach of

an outlet. The maximum distance to the

receptacle is determined by the length

of cord provided.

Power supply

The power supply features a push

button that serves both as a means

of pairing with the app and manual

operation. Mount it using the keyholes

on the back or the tabs on the side.

IMPORTANT: Do not lay power supply

on the ground or where water may

accumulate.

Scan the QR code above or search

Enbrighten on the Apple App Store or

on Google Play

Download the app

Add devices, control

the smart ﬂex lights

from anywhere and

create schedules

Setup and installation

Plug ﬂex light into

GFCI-protected outlet

Install ﬂex light

Setup and installation

Create an account in

the Enbrighten app

Compatible with Amazon Alexa or

Google Assistant-enabled devices

Select "Support" in the Enbrighten app

or follow the steps in the Amazon Alexa

or Google Home app to connect your

Enbrighten account

Voice control

1 2

Remotely operate your smart ﬂex lights with the easy-to-

use Enbrighten app. Follow the available instructions and

resources to set up your smart device.

NOTE: For best results, pair your lights near your router prior to installation.

Requires 2.4GHz Wi-Fi connection

Keyholes

Ear-tabs

2 3/8in./60.3mm

7 1/2in./191mm

Do not pull cord tight, leave

slack in loop to prevent strain

on power supply.

Manual

control

button

2. Carefully thread the ﬂex light through

each clip.

3. Firmly plant the stakes into soil or

garden bedding.

Note: If it requires more than a ﬁrm

push, loosen the soil or remove debris.

4. Place the clips over the screws —

tightening the screws as needed.

5. Carefully thread the ﬂex light through

the installed clips.

Connect to power

After installing, plug the power cord

into a 120VAC, 60Hz outlet.

Clip mounting

1. Mark the locations for each clip with

a pencil, leaving about 1.5ft. of space

between each.

2. Drill pilot holes on each marking

using a 1/16in. drill bit.

3. Insert the included screws into

the pilot holes with a Phillips-head

screwdriver, leaving about 1/8in. of

remaining space.

Ground mounting

1. Place strand directly onto ground or

garden bedding.

Slide forward

Clicks into place

Locked

in place

Mounting clips

Flex light

MADE IN VIETNAM

Distributed by Jasco Products Company LLC,

10 E. Memorial Rd., Oklahoma City, OK 73114.

This Jasco product comes with a 3-year limited warranty.

Visit www.byjasco.com for warranty details.

Questions? Contact our U.S.-based Consumer Care at

1-800-654-8483 between 7AM-8PM, M-F, Central Time.

Receive exclusive deals and

Scan code or visit

byjasco.com/deals.

Read instructions or watch

easy-to-follow video.

Scan code or visit

byjasco.com/58085i.

Instructions

made easy

Like our product?

Leave a review

on your favorite

retailer website or

amazon.com.

Having problems?

Let us know how

we can help. Call

1-800-654-8483

between 7AM-8PM,

M-F, Central Time.

Home automation

is in your palm with

Wi-Fi smart devices

and accessories at

www.enbrightenwiﬁ.com.

Thank you for your purchase!

product

All brand names shown are trademarks of their respective

owners App Store is a service mark of Apple Inc. Google,

Google Play and Google Home are trademarks of Google

LLC. Amazon, Alexa and all related logos are trademarks

of Amazon.com, Inc. or its aliates.

05/04/2022 v1

WARNING

RISK OF ELECTRIC SHOCK

• OUTLETS USED FOR POWERING FLEX LIGHTS SHALL COMPLY

WITH ALL NATIONAL AND LOCAL ELECTRICAL CODES. CONSULT

LOCAL ELECTRICIAN IF UNSURE OF COMPLIANCE REQUIREMENTS.

• FOR USE ONLY ON GFCI PROTECTED CIRCUITS.

• DO NOT SUBMERGE.

• DO NOT USE AROUND AQUARIUMS.

• FLEX LIGHTS ARE A WET LOCATION PRODUCT AND HAVE NO

SERVICEABLE PARTS.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE.

• KEEP LAMPS AT LEAST 16FT. FROM POOLS AND SPAS.

• KEEP PLUGS AND RECEPTACLES DRY.

• AVOID DAMAGE TO THE CORDS AND LAMP ASSEMBLIES DURING

INSTALLATION. PERIODICALLY INSPECT THE FLEX LIGHTS FOR

PHYSICAL DAMAGE OR OTHER DAMAGE CAUSED BY OUTDOOR

EXPOSURE TO THE ELEMENTS.

• REPLACE ANY DAMAGED FLEX LIGHTS.

• DO NOT INSTALL IN LOCATIONS WHERE FLEX LIGHTS CAN BE

STEPPED ON.

• ENSURE FLEX LIGHTS ARE UNPLUGGED FROM POWER DURING

INSTALLATION.

• CHILDREN SHOULD NOT BE ALLOWED TO PLAY WITH FLEX

LIGHTS.

• NOT SUITABLE FOR FIELD CUTTING OR SPLICING.

• UL RECOMMENDS TESTING GFCI CIRCUITS AND RECEPTACLES

EVERY MONTH TO ENSURE PROPER OPERATION.

• DO NOT MOUNT OR SUPPORT FLEXIBLE LIGHT IN A MANNER THAT

CAN DAMAGE THE OUTER JACKET OR CORD INSULATION.

• MATERIAL MAY BECOME BRITTLE WHEN COLD. DO NOT INSTALL

WHERE IT MAY BE STEPPED ON OR SUBJECT TO PHYSICAL

DAMAGE.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE. FOR USE ONLY ON GFCI PROTECTED

CIRCUITS.

RISK OF FIRE

• NOT INTENDED FOR INSTALLATION IN CEILINGS, SOFFITS,

CABINETS, ATTICS, OR OTHER ENCLOSED SPACES.

• DO NOT INSTALL NEAR FLAMMABLE LIQUIDS.

• DO NOT COVER FLEXIBLE LIGHT AS THE COVERING MAY CAUSE

THE FLEXIBLE LIGHT TO OVERHEAT AND MELT OR IGNITE.

• TO PREVENT OVERHEATING, DO NOT ALLOW CONTACT BETWEEN

FLEXIBLE LIGHT CABLES OR PARTS OF THE FLEXIBLE LIGHT

CABLE. MAINTAIN AT LEAST 12MM (0.47IN.) SPACING BETWEEN

LIGHT CABLE OR LIGHT CABLE PARTS.

• UNCOIL FLEXIBLE LIGHT PRIOR TO PLUGGING IN.

Refer to the manual or visit www.byjasco.com for limitations and restrictions

on warranties and the product registration information.

WARNING: When using outdoors use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electrical

shock, and personal injury, including the following:

Ground fault circuit interrupter (GFCI) protection is to be provided on the

circuit(s) or outlet(s) to be used for the wet location portable luminaire.

Receptacles are available having built-in GFCI protection and are able to be

used for this measure of safety. The maximum distance to the receptacle is

determined by the length of cord provided.

WARNING: Keep these bags away from babies and children. Do not use in

cribs, beds, carriages, or playpens. The thin ﬁlm may cling to nose and mouth

and prevent breathing.

WARRANTY INFORMATION: This Jasco product is warrantied for three

years with a limited-lifetime replacement warranty on Enbrighten LED light

source only.

READ ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

MANUAL OPERATION

Press the button on the power

supply to cycle through each of the

following color settings:

1. White, 100% brightness

2. White, 50% brightness

3. White, 25% brightness

4. Color fade

5. Red

6. Green

7. Blue

8. Yellow

9. Purple

10. Pink

11. Orange

12. Teal

13. Holiday

14. July 4th

15. Rainbow

16. Twinkle

17. OFF

WARNING: When using outdoor use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electric shock,

and personal injury, including the following:

a) Use only three-wire outdoor extension cords that have three-prong

grounding plugs and grounding receptacles that accept the

appliance’s plug.

b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on

the circuit(s) or outlet(s) to be used for the wet location portable

luminaire. Receptacles are available having built-in GFCI protection and

are able to be used for this measure of safety.

c) Use only with an extension cord for outdoor use, such as an extension

cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW,

STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW,

or SJTOOW.

WARNING!

Input Amps, Max. Location Use

Wet

Model No.

58085

58087

0.25A

0.47A

58088

0.70A

Electrical Ratings

Suppliers Declaration of Conformity |

Model #: 58085, 58087, 58088 |

Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114,

www.byjasco.com This device complies with Part 15 of the FCC

and Industry Canada license exempt RSS standards. Operation

is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

FCC NOTE: The manufacturer is not responsible for any radio

or TV interference caused by unauthorized modiﬁcations

to this equipment. Such modiﬁcations could void the user’s

authority to operate the equipment. This equipment complies

with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated

with a 8in minimum distance between the radiator & your body.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent

from which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

IMPORTANT

SAFETY

INSTRUCTIONS

This portable luminaire has a polarized plug (one blade is wider than the

other) as a feature to reduce the risk of electric shock. This plug will ﬁt in a

polarized outlet only one way. If the plug does not ﬁt fully in the outlet, reverse

the plug. If it still does not ﬁt, contact a qualiﬁed electrician. Never use with an

extension cord unless plug can be fully inserted. Do not alter the plug.

Input: 120V, 60Hz

WARNING!

4.72in

Bending diameter

To prevent failure, do not bend more than 4.72in.

LED Wi-Fi

Flex Light

Model – 58085, 58087, 58088

Your Enbrighten LED Wi-Fi Flex Light

transforms your space with vibrant

colors and dynamic customization — all

using the free Enbrighten Wi-Fi app.

Note: Read all instructions before

installing. Please read all the warning

statements included in these instructions.

Stake mounting

1. Insert the top of a stake into a clip’s

keyhole slot, sliding it forward until it

clicks into place.

INSTALLATION

This ﬂexible LED strand can be planted

in the ground with stakes, installed to

surfaces with clips or simply laid out in

a line or around corners. Select a clean,

sturdy location that is within reach of

an outlet. The maximum distance to the

receptacle is determined by the length

of cord provided.

Power supply

The power supply features a push

button that serves both as a means

of pairing with the app and manual

operation. Mount it using the keyholes

on the back or the tabs on the side.

IMPORTANT: Do not lay power supply

on the ground or where water may

accumulate.

Scan the QR code above or search

Enbrighten on the Apple App Store or

on Google Play

Download the app

Add devices, control

the smart ﬂex lights

from anywhere and

create schedules

Setup and installation

Plug ﬂex light into

GFCI-protected outlet

Install ﬂex light

Setup and installation

Create an account in

the Enbrighten app

Compatible with Amazon Alexa or

Google Assistant-enabled devices

Select "Support" in the Enbrighten app

or follow the steps in the Amazon Alexa

or Google Home app to connect your

Enbrighten account

Voice control

1 2

Remotely operate your smart ﬂex lights with the easy-to-

use Enbrighten app. Follow the available instructions and

resources to set up your smart device.

NOTE: For best results, pair your lights near your router prior to installation.

Requires 2.4GHz Wi-Fi connection

Keyholes

Ear-tabs

2 3/8in./60.3mm

7 1/2in./191mm

Do not pull cord tight, leave

slack in loop to prevent strain

on power supply.

Manual

control

button

2. Carefully thread the ﬂex light through

each clip.

3. Firmly plant the stakes into soil or

garden bedding.

Note: If it requires more than a ﬁrm

push, loosen the soil or remove debris.

4. Place the clips over the screws —

tightening the screws as needed.

5. Carefully thread the ﬂex light through

the installed clips.

Connect to power

After installing, plug the power cord

into a 120VAC, 60Hz outlet.

Clip mounting

1. Mark the locations for each clip with

a pencil, leaving about 1.5ft. of space

between each.

2. Drill pilot holes on each marking

using a 1/16in. drill bit.

3. Insert the included screws into

the pilot holes with a Phillips-head

screwdriver, leaving about 1/8in. of

remaining space.

Ground mounting

1. Place strand directly onto ground or

garden bedding.

Slide forward

Clicks into place

Locked

in place

Mounting clips

Flex light

MADE IN VIETNAM

Distributed by Jasco Products Company LLC,

10 E. Memorial Rd., Oklahoma City, OK 73114.

This Jasco product comes with a 3-year limited warranty.

Visit www.byjasco.com for warranty details.

Questions? Contact our U.S.-based Consumer Care at

1-800-654-8483 between 7AM-8PM, M-F, Central Time.

Receive exclusive deals and

Scan code or visit

byjasco.com/deals.

Read instructions or watch

easy-to-follow video.

Scan code or visit

byjasco.com/58085i.

Instructions

made easy

Like our product?

Leave a review

on your favorite

retailer website or

amazon.com.

Having problems?

Let us know how

we can help. Call

1-800-654-8483

between 7AM-8PM,

M-F, Central Time.

Home automation

is in your palm with

Wi-Fi smart devices

and accessories at

www.enbrightenwiﬁ.com.

Thank you for your purchase!

product

All brand names shown are trademarks of their respective

owners App Store is a service mark of Apple Inc. Google,

Google Play and Google Home are trademarks of Google

LLC. Amazon, Alexa and all related logos are trademarks

of Amazon.com, Inc. or its aliates.

05/04/2022 v1

WARNING

RISK OF ELECTRIC SHOCK

• OUTLETS USED FOR POWERING FLEX LIGHTS SHALL COMPLY

WITH ALL NATIONAL AND LOCAL ELECTRICAL CODES. CONSULT

LOCAL ELECTRICIAN IF UNSURE OF COMPLIANCE REQUIREMENTS.

• FOR USE ONLY ON GFCI PROTECTED CIRCUITS.

• DO NOT SUBMERGE.

• DO NOT USE AROUND AQUARIUMS.

• FLEX LIGHTS ARE A WET LOCATION PRODUCT AND HAVE NO

SERVICEABLE PARTS.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE.

• KEEP LAMPS AT LEAST 16FT. FROM POOLS AND SPAS.

• KEEP PLUGS AND RECEPTACLES DRY.

• AVOID DAMAGE TO THE CORDS AND LAMP ASSEMBLIES DURING

INSTALLATION. PERIODICALLY INSPECT THE FLEX LIGHTS FOR

PHYSICAL DAMAGE OR OTHER DAMAGE CAUSED BY OUTDOOR

EXPOSURE TO THE ELEMENTS.

• REPLACE ANY DAMAGED FLEX LIGHTS.

• DO NOT INSTALL IN LOCATIONS WHERE FLEX LIGHTS CAN BE

STEPPED ON.

• ENSURE FLEX LIGHTS ARE UNPLUGGED FROM POWER DURING

INSTALLATION.

• CHILDREN SHOULD NOT BE ALLOWED TO PLAY WITH FLEX

LIGHTS.

• NOT SUITABLE FOR FIELD CUTTING OR SPLICING.

• UL RECOMMENDS TESTING GFCI CIRCUITS AND RECEPTACLES

EVERY MONTH TO ENSURE PROPER OPERATION.

• DO NOT MOUNT OR SUPPORT FLEXIBLE LIGHT IN A MANNER THAT

CAN DAMAGE THE OUTER JACKET OR CORD INSULATION.

• MATERIAL MAY BECOME BRITTLE WHEN COLD. DO NOT INSTALL

WHERE IT MAY BE STEPPED ON OR SUBJECT TO PHYSICAL

DAMAGE.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE. FOR USE ONLY ON GFCI PROTECTED

CIRCUITS.

RISK OF FIRE

• NOT INTENDED FOR INSTALLATION IN CEILINGS, SOFFITS,

CABINETS, ATTICS, OR OTHER ENCLOSED SPACES.

• DO NOT INSTALL NEAR FLAMMABLE LIQUIDS.

• DO NOT COVER FLEXIBLE LIGHT AS THE COVERING MAY CAUSE

THE FLEXIBLE LIGHT TO OVERHEAT AND MELT OR IGNITE.

• TO PREVENT OVERHEATING, DO NOT ALLOW CONTACT BETWEEN

FLEXIBLE LIGHT CABLES OR PARTS OF THE FLEXIBLE LIGHT

CABLE. MAINTAIN AT LEAST 12MM (0.47IN.) SPACING BETWEEN

LIGHT CABLE OR LIGHT CABLE PARTS.

• UNCOIL FLEXIBLE LIGHT PRIOR TO PLUGGING IN.

Refer to the manual or visit www.byjasco.com for limitations and restrictions

on warranties and the product registration information.

WARNING: When using outdoors use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electrical

shock, and personal injury, including the following:

Ground fault circuit interrupter (GFCI) protection is to be provided on the

circuit(s) or outlet(s) to be used for the wet location portable luminaire.

Receptacles are available having built-in GFCI protection and are able to be

used for this measure of safety. The maximum distance to the receptacle is

determined by the length of cord provided.

WARNING: Keep these bags away from babies and children. Do not use in

cribs, beds, carriages, or playpens. The thin ﬁlm may cling to nose and mouth

and prevent breathing.

WARRANTY INFORMATION: This Jasco product is warrantied for three

years with a limited-lifetime replacement warranty on Enbrighten LED light

source only.

READ ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

MANUAL OPERATION

Press the button on the power

supply to cycle through each of the

following color settings:

1. White, 100% brightness

2. White, 50% brightness

3. White, 25% brightness

4. Color fade

5. Red

6. Green

7. Blue

8. Yellow

9. Purple

10. Pink

11. Orange

12. Teal

13. Holiday

14. July 4th

15. Rainbow

16. Twinkle

17. OFF

WARNING: When using outdoor use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electric shock,

and personal injury, including the following:

a) Use only three-wire outdoor extension cords that have three-prong

grounding plugs and grounding receptacles that accept the

appliance’s plug.

b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on

the circuit(s) or outlet(s) to be used for the wet location portable

luminaire. Receptacles are available having built-in GFCI protection and

are able to be used for this measure of safety.

c) Use only with an extension cord for outdoor use, such as an extension

cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW,

STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW,

or SJTOOW.

WARNING!

Input Amps, Max. Location Use

Wet

Model No.

58085

58087

0.25A

0.47A

58088

0.70A

Electrical Ratings

Suppliers Declaration of Conformity |

Model #: 58085, 58087, 58088 |

Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114,

www.byjasco.com This device complies with Part 15 of the FCC

and Industry Canada license exempt RSS standards. Operation

is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

FCC NOTE: The manufacturer is not responsible for any radio

or TV interference caused by unauthorized modiﬁcations

to this equipment. Such modiﬁcations could void the user’s

authority to operate the equipment. This equipment complies

with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated

with a 8in minimum distance between the radiator & your body.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent

from which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

IMPORTANT

SAFETY

INSTRUCTIONS

This portable luminaire has a polarized plug (one blade is wider than the

other) as a feature to reduce the risk of electric shock. This plug will ﬁt in a

polarized outlet only one way. If the plug does not ﬁt fully in the outlet, reverse

the plug. If it still does not ﬁt, contact a qualiﬁed electrician. Never use with an

extension cord unless plug can be fully inserted. Do not alter the plug.

Input: 120V, 60Hz

WARNING!

4.72in

Bending diameter

To prevent failure, do not bend more than 4.72in.

LED Wi-Fi

Flex Light

Model – 58085, 58087, 58088

Your Enbrighten LED Wi-Fi Flex Light

transforms your space with vibrant

colors and dynamic customization — all

using the free Enbrighten Wi-Fi app.

Note: Read all instructions before

installing. Please read all the warning

statements included in these instructions.

Stake mounting

1. Insert the top of a stake into a clip’s

keyhole slot, sliding it forward until it

clicks into place.

INSTALLATION

This ﬂexible LED strand can be planted

in the ground with stakes, installed to

surfaces with clips or simply laid out in

a line or around corners. Select a clean,

sturdy location that is within reach of

an outlet. The maximum distance to the

receptacle is determined by the length

of cord provided.

Power supply

The power supply features a push

button that serves both as a means

of pairing with the app and manual

operation. Mount it using the keyholes

on the back or the tabs on the side.

IMPORTANT: Do not lay power supply

on the ground or where water may

accumulate.

Scan the QR code above or search

Enbrighten on the Apple App Store or

on Google Play

Download the app

Add devices, control

the smart ﬂex lights

from anywhere and

create schedules

Setup and installation

Plug ﬂex light into

GFCI-protected outlet

Install ﬂex light

Setup and installation

Create an account in

the Enbrighten app

Compatible with Amazon Alexa or

Google Assistant-enabled devices

Select "Support" in the Enbrighten app

or follow the steps in the Amazon Alexa

or Google Home app to connect your

Enbrighten account

Voice control

1 2

Remotely operate your smart ﬂex lights with the easy-to-

use Enbrighten app. Follow the available instructions and

resources to set up your smart device.

NOTE: For best results, pair your lights near your router prior to installation.

Requires 2.4GHz Wi-Fi connection

Keyholes

Ear-tabs

2 3/8in./60.3mm

7 1/2in./191mm

Do not pull cord tight, leave

slack in loop to prevent strain

on power supply.

Manual

control

button

2. Carefully thread the ﬂex light through

each clip.

3. Firmly plant the stakes into soil or

garden bedding.

Note: If it requires more than a ﬁrm

push, loosen the soil or remove debris.

4. Place the clips over the screws —

tightening the screws as needed.

5. Carefully thread the ﬂex light through

the installed clips.

Connect to power

After installing, plug the power cord

into a 120VAC, 60Hz outlet.

Clip mounting

1. Mark the locations for each clip with

a pencil, leaving about 1.5ft. of space

between each.

2. Drill pilot holes on each marking

using a 1/16in. drill bit.

3. Insert the included screws into

the pilot holes with a Phillips-head

screwdriver, leaving about 1/8in. of

remaining space.

Ground mounting

1. Place strand directly onto ground or

garden bedding.

Slide forward

Clicks into place

Locked

in place

Mounting clips

Flex light

MADE IN VIETNAM

Distributed by Jasco Products Company LLC,

10 E. Memorial Rd., Oklahoma City, OK 73114.

This Jasco product comes with a 3-year limited warranty.

Visit www.byjasco.com for warranty details.

Questions? Contact our U.S.-based Consumer Care at

1-800-654-8483 between 7AM-8PM, M-F, Central Time.

Receive exclusive deals and

Scan code or visit

byjasco.com/deals.

Read instructions or watch

easy-to-follow video.

Scan code or visit

byjasco.com/58085i.

Instructions

made easy

Like our product?

Leave a review

on your favorite

retailer website or

amazon.com.

Having problems?

Let us know how

we can help. Call

1-800-654-8483

between 7AM-8PM,

M-F, Central Time.

Home automation

is in your palm with

Wi-Fi smart devices

and accessories at

www.enbrightenwiﬁ.com.

Thank you for your purchase!

product

All brand names shown are trademarks of their respective

owners App Store is a service mark of Apple Inc. Google,

Google Play and Google Home are trademarks of Google

LLC. Amazon, Alexa and all related logos are trademarks

of Amazon.com, Inc. or its aliates.

05/04/2022 v1

WARNING

RISK OF ELECTRIC SHOCK

• OUTLETS USED FOR POWERING FLEX LIGHTS SHALL COMPLY

WITH ALL NATIONAL AND LOCAL ELECTRICAL CODES. CONSULT

LOCAL ELECTRICIAN IF UNSURE OF COMPLIANCE REQUIREMENTS.

• FOR USE ONLY ON GFCI PROTECTED CIRCUITS.

• DO NOT SUBMERGE.

• DO NOT USE AROUND AQUARIUMS.

• FLEX LIGHTS ARE A WET LOCATION PRODUCT AND HAVE NO

SERVICEABLE PARTS.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE.

• KEEP LAMPS AT LEAST 16FT. FROM POOLS AND SPAS.

• KEEP PLUGS AND RECEPTACLES DRY.

• AVOID DAMAGE TO THE CORDS AND LAMP ASSEMBLIES DURING

INSTALLATION. PERIODICALLY INSPECT THE FLEX LIGHTS FOR

PHYSICAL DAMAGE OR OTHER DAMAGE CAUSED BY OUTDOOR

EXPOSURE TO THE ELEMENTS.

• REPLACE ANY DAMAGED FLEX LIGHTS.

• DO NOT INSTALL IN LOCATIONS WHERE FLEX LIGHTS CAN BE

STEPPED ON.

• ENSURE FLEX LIGHTS ARE UNPLUGGED FROM POWER DURING

INSTALLATION.

• CHILDREN SHOULD NOT BE ALLOWED TO PLAY WITH FLEX

LIGHTS.

• NOT SUITABLE FOR FIELD CUTTING OR SPLICING.

• UL RECOMMENDS TESTING GFCI CIRCUITS AND RECEPTACLES

EVERY MONTH TO ENSURE PROPER OPERATION.

• DO NOT MOUNT OR SUPPORT FLEXIBLE LIGHT IN A MANNER THAT

CAN DAMAGE THE OUTER JACKET OR CORD INSULATION.

• MATERIAL MAY BECOME BRITTLE WHEN COLD. DO NOT INSTALL

WHERE IT MAY BE STEPPED ON OR SUBJECT TO PHYSICAL

DAMAGE.

• DO NOT USE WITH EXTENSION CORD NEAR WATER OR WHERE

WATER MAY ACCUMULATE. FOR USE ONLY ON GFCI PROTECTED

CIRCUITS.

RISK OF FIRE

• NOT INTENDED FOR INSTALLATION IN CEILINGS, SOFFITS,

CABINETS, ATTICS, OR OTHER ENCLOSED SPACES.

• DO NOT INSTALL NEAR FLAMMABLE LIQUIDS.

• DO NOT COVER FLEXIBLE LIGHT AS THE COVERING MAY CAUSE

THE FLEXIBLE LIGHT TO OVERHEAT AND MELT OR IGNITE.

• TO PREVENT OVERHEATING, DO NOT ALLOW CONTACT BETWEEN

FLEXIBLE LIGHT CABLES OR PARTS OF THE FLEXIBLE LIGHT

CABLE. MAINTAIN AT LEAST 12MM (0.47IN.) SPACING BETWEEN

LIGHT CABLE OR LIGHT CABLE PARTS.

• UNCOIL FLEXIBLE LIGHT PRIOR TO PLUGGING IN.

Refer to the manual or visit www.byjasco.com for limitations and restrictions

on warranties and the product registration information.

WARNING: When using outdoors use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electrical

shock, and personal injury, including the following:

Ground fault circuit interrupter (GFCI) protection is to be provided on the

circuit(s) or outlet(s) to be used for the wet location portable luminaire.

Receptacles are available having built-in GFCI protection and are able to be

used for this measure of safety. The maximum distance to the receptacle is

determined by the length of cord provided.

WARNING: Keep these bags away from babies and children. Do not use in

cribs, beds, carriages, or playpens. The thin ﬁlm may cling to nose and mouth

and prevent breathing.

WARRANTY INFORMATION: This Jasco product is warrantied for three

years with a limited-lifetime replacement warranty on Enbrighten LED light

source only.

READ ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

MANUAL OPERATION

Press the button on the power

supply to cycle through each of the

following color settings:

1. White, 100% brightness

2. White, 50% brightness

3. White, 25% brightness

4. Color fade

5. Red

6. Green

7. Blue

8. Yellow

9. Purple

10. Pink

11. Orange

12. Teal

13. Holiday

14. July 4th

15. Rainbow

16. Twinkle

17. OFF

WARNING: When using outdoor use portable luminaires, basic safety

precautions should always be followed to reduce the risk of ﬁre, electric shock,

and personal injury, including the following:

a) Use only three-wire outdoor extension cords that have three-prong

grounding plugs and grounding receptacles that accept the

appliance’s plug.

b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on

the circuit(s) or outlet(s) to be used for the wet location portable

luminaire. Receptacles are available having built-in GFCI protection and

are able to be used for this measure of safety.

c) Use only with an extension cord for outdoor use, such as an extension

cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW,

STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW,

or SJTOOW.

WARNING!

Input Amps, Max. Location Use

Wet

Model No.

58085

58087

0.25A

0.47A

58088

0.70A

Electrical Ratings

Suppliers Declaration of Conformity |

Model #: 58085, 58087, 58088 |

Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114,

www.byjasco.com This device complies with Part 15 of the FCC

and Industry Canada license exempt RSS standards. Operation

is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

FCC NOTE: The manufacturer is not responsible for any radio

or TV interference caused by unauthorized modiﬁcations

to this equipment. Such modiﬁcations could void the user’s

authority to operate the equipment. This equipment complies

with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated

with a 8in minimum distance between the radiator & your body.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent

from which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

IMPORTANT

SAFETY

INSTRUCTIONS

This portable luminaire has a polarized plug (one blade is wider than the

other) as a feature to reduce the risk of electric shock. This plug will ﬁt in a

polarized outlet only one way. If the plug does not ﬁt fully in the outlet, reverse

the plug. If it still does not ﬁt, contact a qualiﬁed electrician. Never use with an

extension cord unless plug can be fully inserted. Do not alter the plug.

Input: 120V, 60Hz

WARNING!

4.72in

Bending diameter

To prevent failure, do not bend more than 4.72in.

LED Wi-Fi

Luz ﬂexible

Modelo – 58085, 58087, 58088

Oriﬁcios

Pestañas de montaje

perforadas

2 3/8in./60.3mm

7 1/2in./191mm

No tense el cordón. Deje cordón

ﬂojo en espiral para evitar que

el fuente de alimentación se

esfuerce.

Botón de

control

manual

Escanee el código QR anterior o

busque Enbrighten en App Store de

Apple o en Google Play

Descargue la app

Agregue dispositivos,

controle las luces

ﬂexibles inteligentes

desde cualquier lugar

y cree horarios

Conﬁguración e instalación

Enchufe la luz ﬂexible

en el tomacorriente

protegido por GFCI

Conﬁguración e instalación

1. 2.

Instalar luz ﬂexibleCree una cuenta en

la app Enbrighten

Compatible con Amazon Alexa o Asistente

de Google-dispositivos habilitados

Seleccione “Soporte” en la aplicación

Enbrighten o siga los pasos en la

aplicación Amazon Alexa o Google Home

para conectar su cuenta Enbrighten

Control por voz

1 2

Opere de forma remota sus luces ﬂexibles con la app

Enbrighten fácil de usar. Siga las instrucciones y los recursos

disponibles para conﬁgurar su dispositivo inteligente.

NOTA: Para obtener los mejores resultados, empareje sus luces cerca de su

enrutador antes de la instalación. Requiere conexión wiﬁ de 2.4GHz.

NOTA: Lea todas las instrucciones antes

de instalar. Lea todas las declaraciones

de advertencia incluidas en estas

instrucciones.

Su Enbrighten LED Wi-Fi Flex Light

transforma su espacio con colores

vibrantes y personalización dinámica, todo

usando la aplicación gratuita Enbrighten

Wi-Fi.

INSTALACIÓN

Esta tira de LED ﬂexible se puede plantar

en el suelo con estacas, instalarse en

superﬁcies con clips o simplemente

colocarse en línea o alrededor de las

esquinas. Seleccione un lugar limpio y

resistente que esté al alcance de una

toma de corriente. La distancia máxima

al receptáculo está determinada por la

longitud del cable proporcionado.

Fuente de alimentación

La fuente de alimentación cuenta con un

botón pulsador que sirve como medio

de emparejamiento con la aplicación

y operación manual. Móntelo usando

los agujeros de cerradura en la parte

posterior o las pestañas en el costado.

IMPORTANTE: No coloque la fuente de

alimentación en el suelo o donde se pueda

acumular agua.

Montaje en tierra

1. Coloque el hilo directamente sobre el

suelo o la ropa de cama del jardín

Montaje de estaca

1. Inserte la parte superior de una estaca

en la ranura del ojo de la cerradura de

un clip, deslizándola hacia adelante

hasta que encaje en su lugar.

2. Pase con cuidado la luz ﬂexible a través

de cada clip.

3. Plante ﬁrmemente las estacas en el

suelo o en la ropa de cama del jardín.

NOTA: Si requiere algo más que un

empujón ﬁrme, aﬂoje la tierra o elimine

los escombros.

Clip de montaje

1. Marque las ubicaciones de cada clip

con un lápiz, dejando unos 1.5 pies. de

espacio entre cada uno.

2. Taladre oriﬁcios piloto en cada marca

con una broca de 1/16 pulg. broca.

3. Inserte los tornillos incluidosen los

oriﬁcios guía con un destornilladorde

cabeza Phillips, dejando

aproximadamente 1/8 pulg. del

espacio restante.

Deslizar hacia adelante

Deslizar hacia

adelante

Hace clic en su lugar

Hace clic en

su lugar

4. Coloque los clips sobre los tornillos,

apretando los tornillos según

seanecesario.

5. Pase con cuidado la luz ﬂexible a través

de los clips instalados.

Conectar a la energía

Después de la instalación, enchufe el cable

de alimentación en un tomacorriente de

120VCA, 60Hz.

Clips de montaje

Luz ﬂexible

Recibe ofertas exclusivas

y registra tu producto.

Escanee el código o visite

byjasco.com/deals.

Lea las instrucciones o mire el video

con el paso a paso.

Escanee el código o visite

byjasco.com/58085i.

Instrucciones

fáciles

La domótica está al

alcance de su mano con

los dispositivos y

accesorios inteligentes

con wiﬁ en

www.enbrightenwiﬁ.com.

Le gusta nuestro

producto?

Deje una reseña en el

sitio web de su

comercio favorito o

en amazon.com.

¿Tiene algún

problema?

Díganos cómo

podemos ayudar.

Llame al

1-800-654-8483,

entre las 7 a. m. y las

8 p. m., hora estándar

del centro.

¡Gracias por su compra!

Registre su

producto

ADVERTENCIA

RIESGO DE DESCARGA ELÉCTRICA

• LOS TOMACORRIENTES QUE SE UTILICEN PARA ALIMENTAR LA LUCES DEBEN

CUMPLIRCON LOS CÓDIGOS ELÉCTRICOS LOCALES Y NACIONALES. CONSULTE

CONUN ELECTRICISTA LOCAL SI NO ESTÁ SEGURO SOBRE LOS REQUISITOS

NORMATIVOS.

• SOLO SE DEBE UTILIZAR CON CIRCUITOS PROTEGIDOS MEDIANTE GFCI.

• NO SUMERGIR.

• NO USAR CERCA DE ACUARIOS.

• LA LUCES ES UN PRODUCTO APTO PARA LUGARES HÚMEDOS Y NO CONTIENE

PIEZASQUE PUEDAN SER REPARADAS POR EL USUARIO.

• NO USAR CON CABLES DE EXTENSIÓN, CERCA DEL AGUA O EN ÁREAS EN LAS

QUE PUEDA ACUMULARSE AGUA.

• MANTENER LAS BOMBILLAS A UNA DISTANCIA MÍNIMA DE 4,8M (16 PIES) DE

PISCINASYSPAS.

• MANTENGA SECOS LOS ENCHUFES Y LOS TOMACORRIENTES.

• EVITE DAÑAR LOS CABLES Y LAS BOMBILLAS DURANTE LA INSTALACIÓN.

REVISE PERIÓDICAMENTE LA LUCES A FIN DE DETECTAR DAÑOS FÍSICOS U

OTROS DAÑOS PROVOCADOS POR LA EXPOSICIÓN A LA INTEMPERIE.

• REEMPLACE LA LUCES QUE ESTÉN DAÑADAS.

• NO INSTALE LA LUCES EN LUGARES EN QUE SEA PROBABLE PISARLA.

• ASEGÚRESE DE QUE LAS LUCES ESTÉN DESENCHUFADAS DURANTE LA

INSTALACIÓN.

• LA INSTALACIÓN DE LA LUCES SE DEBE REALIZAR LEJOS DEL ALCANCE DE

LOS NIÑOSO SIN PERMITIR QUE LOS NIÑOS JUEGUEN CON ELLA.

• NO INSTALE NI SOSTENGA LA TIRA DE LUCES FLEXIBLE DE UNA MANERA QUE

PUEDADAÑAR EL REVESTIMIENTO EXTERIOR O AISLAMIENTO DEL CABLE.

• DE ACUERDO CON LA NORMA UL, SE RECOMIENDA PROBAR LOS

TOMACORRIENTESYLOS CIRCUITOS GFCI TODOS LOS MESES PARA

GARANTIZAR SUCORRECTO FUNCIONAMIENTO.

• EL MATERIAL PUEDE VOLVERSE FRÁGIL CUANDO ESTÁ FRÍO. NO INSTALE EL

PRODUCTO EN ÁREAS EN LAS QUE SEA PROBABLE PISARLO O ESTÉ SUJETO

ADAÑOFÍSICO.

• NO APTO PARA CORTE O EMPALME IN SITU.

• NO LA USE CON UN CABLE DE EXTENSIÓN CERCA DEL AGUA O DONDE PUEDA

ACUMULARSE AGUA. SOLO SE DEBE UTILIZAR CON CIRCUITOS PROTEGIDOS

MEDIANTE GFCI.

RIESGO DE INCENDIO

• NO INSTALAR EN TECHOS, SOFITOS, ARMARIOS, DESVANES U OTROS LUGARES

CERRADOS.

• NO INSTALAR CERCA DE LÍQUIDOS INFLAMABLES.

• NO CUBRA LA TIRA DE LUCES FLEXIBLE PORQUE PODRÍA PROVOCAR QUE

ESTA SE SOBRECALIENTE Y SE DERRITA O SE INCENDIE.

• PARA PREVENIR EL SOBRECALENTAMIENTO, NO PERMITA EL CONTACTO ENTRE

CABLES DE TIRAS DE LUCES FLEXIBLES O PARTES DEL CABLE DE LA TIRA DE

LUCESFLEXIBLE. MANTENGA UN ESPACIO DE 12MM (0.47IN.) COMO MÍNIMO

ENTRE ELCABLE O PARTES DEL CABLE DE LA TIRA DE LUCES.

• DESENROLLE LA TIRA DE LUCES FLEXIBLE ANTES DE ENCHUFARLA

limitaciones y restricciones de la garantía y la información para registrar el producto.

ADVERTENCIA: Cuando utilice luminarias portátiles para exterior, siempre respete

las precauciones básicas para reducir el riesgo de incendio, descargas eléctricas y

lesiones a personas, incluidas las siguientes:

Proteja los circuitos o los tomacorrientes que utilizará para alimentar las luminarias

portátiles en lugares húmedos mediante un interruptor de circuito de falla de

puesta atierra (GFCI). Es posible conseguir tomacorrientes con protección GFCI

incorporada para cumplir con esta medida de seguridad. La distancia máxima al

receptáculo está determinada por la longitud del cable provisto.

ADVERTENCIA: Mantenga las bolsas lejos del alcance de bebés y niños. No use en

cunas, camas, cochecitos ni corralitos para bebés. Su capa ﬁna puede pegarse a la

nariz y la boca, lo que impide la respiración.

INFORMACIÓN SOBRE LA GARANTÍA: Este producto de Jasco tiene una garantía

detres años y una garantía limitada de por vida únicamente para los repuestos de

la fuente de luz LED Enbrighten.

LEA TODAS LAS INSTRUCCIONES

OPERACIÓN MANUAL

Presione el botón pulsador en la fuente

de alimentación para activar una de las

siguientes conﬁguraciones de colores:

1. Blanco, 100% brillo

2. Blanco, 50% brillo

3. Blanco, 25% brillo

4. Desvanecimiento del color

5. Rojo

6. Verde

7. Azul

8. Amarillo

9. Morado

10. Rosa

11. Naranja

12. Verde azulado

13. Fiesta

14. 4 de Julio

15. Arcoíris

16. Centelleo

17. APAGADO

Todos los nombres de marcas son marcas comerciales de

sus respectivos propietarios. App Store es una marca de

servicio de Apple Inc. Google, Google Play y Google Home

son marcas de Google LLC. Amazon, Alexa y todos los

logotipos relacionados son marcas registradas de Amazon.

com, Inc. o sus ﬁliales.

HECHO EN VIETNAM

Distribuido por Jasco Products Company LLC,

10EMemorial Rd., Oklahoma City, Oklahoma 73114.

Este producto de Jasco tiene una garantía limitada

de3años. Visite www.byjasco.com para conocer los

detalles de la garantía.

¿Preguntas? Comuníquese al 1-800-654-8483 entre las

7AM y las 8PM hora estándar del centro

GUARDE ESTAS INSTRUCCIONES.

ADVERTENCIA: Cuando utilice luminarias portátiles para uso en

exteriores, siempre se deben seguir las precauciones básicas de

seguridad para reducir el riesgo de incendio, descarga eléctrica y lesiones

personales, incluidas las siguientes:

a) Utilice únicamente cables de extensión para exteriores de tres

hilos quetengan tres clavijas. enchufes con conexión a tierra y

receptáculos con conexión a tierra que acepten enchufe del aparato.

b) La protección del interruptor de circuito de falla a tierra (GFCI) debe

proporcionarse en el(los) circuito(s) o la(s) salida(s) que se usará(n)

para el lugar húmedo portátil luminaria. Los receptáculos están

disponibles con protección GFCI incorporada y se pueden utilizar

para esta medida de seguridad.

c) Úselo solo con un cable de extensión para uso en exteriores, como

unaextensión cable de cable tipo SEW, SEOW, SEOOW, SOW, SOOW,

STW, STOW, STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW,

SJTW, SJTOW, or SJTOOW.

¡ADVERTENCIA!

Amperios máximos

de entrada

Lugar de uso

Húmedo

Modelo n.º

58085

58087

0.25A

0.47A

58088

0.70A

Especiﬁcaciones eléctricas

Declaración de conformidad de proveedores |

Modelo n.º: 58085, 58087, 58088 |

Jasco Products Co., 10 E. Memorial Rd., Oklahoma City, OK 73114,

www.byjasco.com Este dispositivo cumple con las normas RSS de

exención de licencia de la Parte 15 de la FCC y de Industry Canada.

Su funcionamiento está sujeto a las siguientes dos condiciones:

(1) este dispositivo no podrá causar interferencias perjudiciales, y

(2) este dispositivo debe aceptar cualquier interferencia recibida,

incluidas las interferencias que puedan causar un funcionamiento

no deseado.

NOTA DE LA FCC: El fabricante no se responsabiliza por ninguna

interferencia de radio o TV causada por modiﬁcaciones no

autorizadas a este equipo. Tales modiﬁcaciones podrían anular

el derecho del usuario a hacer uso del equipo. Este equipo debe

instalarse y operarse con una distancia mínima de 8in entre el

radiador y su cuerpo.

NOTA: Este equipo se sometió a pruebas y cumple con los límites

establecidos para un dispositivo digital Clase B de acuerdo con la

Parte 15 de las Normas de la FCC. Dichos límites están diseñados

para proporcionar una protección razonable contra la interferencia

perjudicial en una instalación residencial. Este equipo genera,usay

puede irradiar energía de radiofrecuencia. Si no se instala y usa

de acuerdo con estas instrucciones, podrá causar interferencia

perjudicial a las radiocomunicaciones. Por otro lado, tampoco es

posible garantizar que no ocurrirán interferencias en una instalación

en particular. Si este equipo causa interferencias perjudiciales en

la recepción de radio o televisión, las cuales pueden comprobarse

encendiendo y apagando el equipo, se recomienda al usuario

queintente corregir la interferencia adoptando una o más de las

siguientes medidas:

• Cambiar la orientación o ubicación de la antena receptora.

• Aumentar la distancia entre el equipo y el receptor.

• Conectar el equipo a la salida de un circuito diferente al cual

está conectado el receptor.

• Consultar al distribuidor o a un técnico de radio o TV experi

mentado para obtener ayuda.

INSTRUCCIONES

DE SEGURIDAD

IMPORTANTES

Esta luminaria portátil tiene un enchufe polarizado (una clavija es más ancha

quelaotra) como característica para reducir el riesgo de descarga eléctrica.

Esteenchufe encajará en un tomacorriente polarizado de una sola manera.

Sielenchufe no encaja completamente en el tomacorriente, invierta el

enchufe.Siaún no encaja, comuníquese con un electricista caliﬁcado. Nunca

lousecon un cable de extensión a menos que el enchufe se pueda insertar

completamente. No altere el enchufe..

Entrada: 120 V, 60Hz

¡ADVERTENCIA!

4.72in

diámetro de ﬂexión

Para evitar fallas, no doble más de 4.72 pulg
