Gaming Monitor User Guide
Copyright
© 2022 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their
respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the
property of GIGABYTE.
Changes to the specications and features in this manual may be made
by GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated,
transmitted, or published in any form or by any means without
GIGABYTE’s prior written permission.
• In order to assist in the use of this monitor, carefully read the User
Guide.
• For more information, check on our website at:
https://www.gigabyte.com
The terms HDMI, HDMI High-Denition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other countries.
- 3 -
Gaming Monitor User Guide
Safety Precautions
Read through the following Safety Precautions before using the monitor.
• Only use the accessories that are provided with the monitor or that
which are recommended by the manufacturer.
• Keep the plastic packaging bag for the product in a place that
cannot be reached by children.
• Before connecting the monitor to the power outlet, make sure that
the voltage rating of the power cable is compatible with the power
specication in the country where you are located.
• The power cord plug must be connected to a properly wired and
grounded power outlet.
• Do not touch the plug with wet hands, otherwise easily cause
electric shock.
• Place the monitor in a stable and well-ventilated place.
• Do not place the monitor near any heat sources such as electric
radiators or direct sunlight.
• The holes or openings on the monitor are for ventilation. Do not
cover or block the ventilation holes with any objects.
• Do not use the monitor near water, drinks, or all types of liquids.
Failure to do so may result in electric shock or damage to the
monitor.
• Make sure to unplug the monitor from the power outlet before
cleaning.
• As the screen surface is easy to be scratched, avoid touching the
surface with any hard or sharp object.
• Use a soft lint-free cloth instead of a tissue to wipe the screen. You
may use a glass cleaner to clean the monitor if required. However,
never spray the cleaner directly onto the screen.
• Disconnect the power cable if the monitor is not being used for a
long period of time.
• Do not attempt to disassemble or repair the monitor yourself.
- 4 -
Gaming Monitor User Guide
Stability Hazard Precautions
The product may fall, causing serious personal injury or death. To
prevent injury, this product must be securely attached to the oor/wall in
accordance with the installation instructions.
Many injuries, particularly to children, can be avoided by taking simple
precautions such as:
• ALWAYS use stands or installation methods recommended by the
manufacturer of the product set.
• ALWAYS use furniture that can safely support the product.
• ALWAYS ensure the product is not overhanging the edge of the
supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture
to reach the product or its controls.
• ALWAYS route cords and cables connected to your product so they
cannot be tripped over, pulled or grabbed.
• NEVER place a product in an unstable location.
• NEVER place the product on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the product to
a suitable support.
• NEVER place the product on cloth or other materials that may be
located between the product and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys
and remote controls, on the top of the product or furniture on which
the product is placed.
• If the existing product is going to be retained and relocated, the
same considerations as above should be applied.
• To prevent personal injury or damage to the product caused by
tipping over due to earthquakes or other shocks, make sure to install
the product in a stable location and take measures to prevent falling.
- 5 -
Gaming Monitor User Guide
CONTENTS
Safety Precautions ............................................................................................................3
Stability Hazard Precautions .........................................................................................4
Introduction .................................................................................................................................6
Unpacking ...........................................................................................................................6
Package Contents .............................................................................................................8
Product Overview .............................................................................................................9
Getting Started.........................................................................................................................11
Installing the Monitor Arm .........................................................................................11
Adjusting the Viewing Angle .....................................................................................14
Installing a Wall-Mount Bracket (Optional) ..........................................................21
Making Connections .................................................................................................... 22
Using the Device ......................................................................................................................23
Turning the Power On/O .......................................................................................... 23
User Comfort Recommendations ............................................................................ 24
Selecting the Input Source .........................................................................................24
Operations .................................................................................................................................25
Quick Menu ......................................................................................................................25
Congure the Device Settings ..................................................................................33
Appendices ................................................................................................................................43
Specications .................................................................................................................. 43
Supported Timing List .................................................................................................. 44
Troubleshooting .............................................................................................................45
Basic Care ..........................................................................................................................46
Notes on USB Charging ...............................................................................................46
GIGABYTE Service Information ................................................................................. 46
Safety Information ..................................................................................................................47
Regulatory Notices ........................................................................................................47
- 6 -
Gaming Monitor User Guide
INTRODUCTION
Unpacking

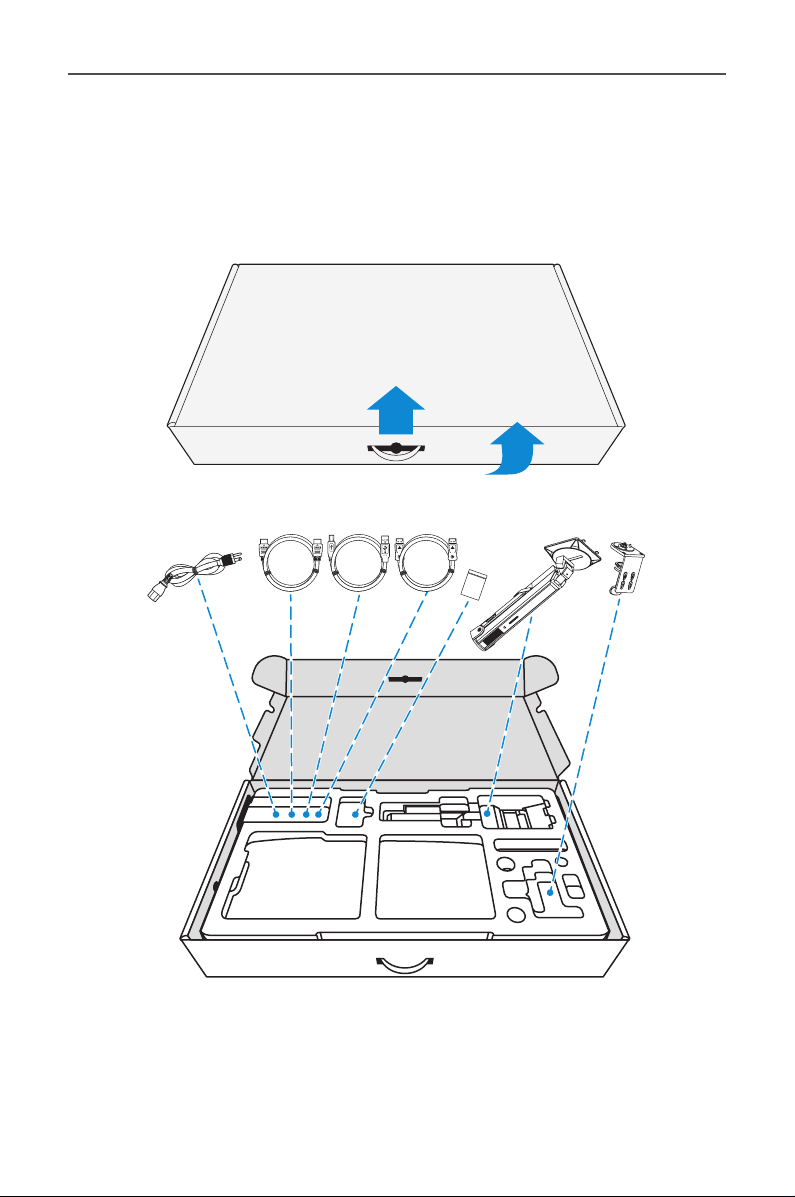

1. Making sure the box is in the correct orientation, carefully lay the
box on the stable surface. Then open the cover.
UP

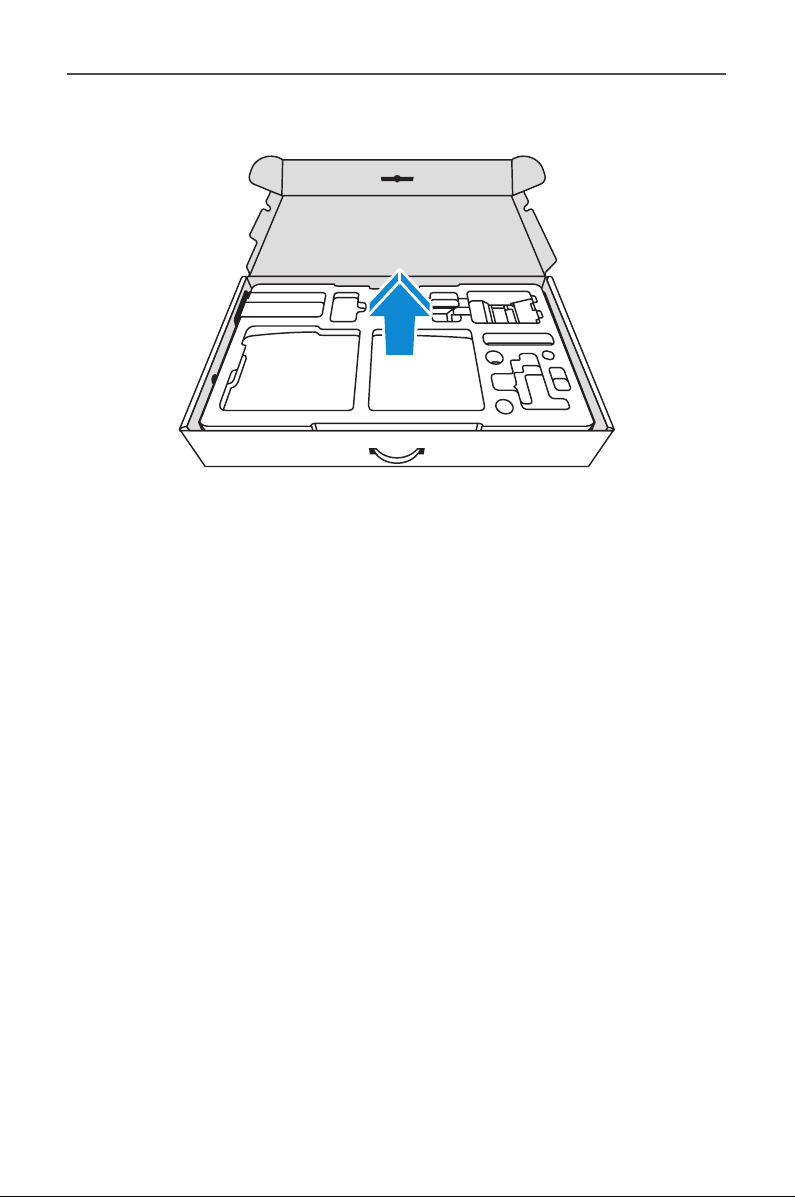

2. Remove the items from the upper EPS foam.
- 7 -
Gaming Monitor User Guide
3. Remove the upper EPS foam from the box. Then you can remove the
monitor from the lower EPS foam.
- 8 -
Gaming Monitor User Guide
Package Contents

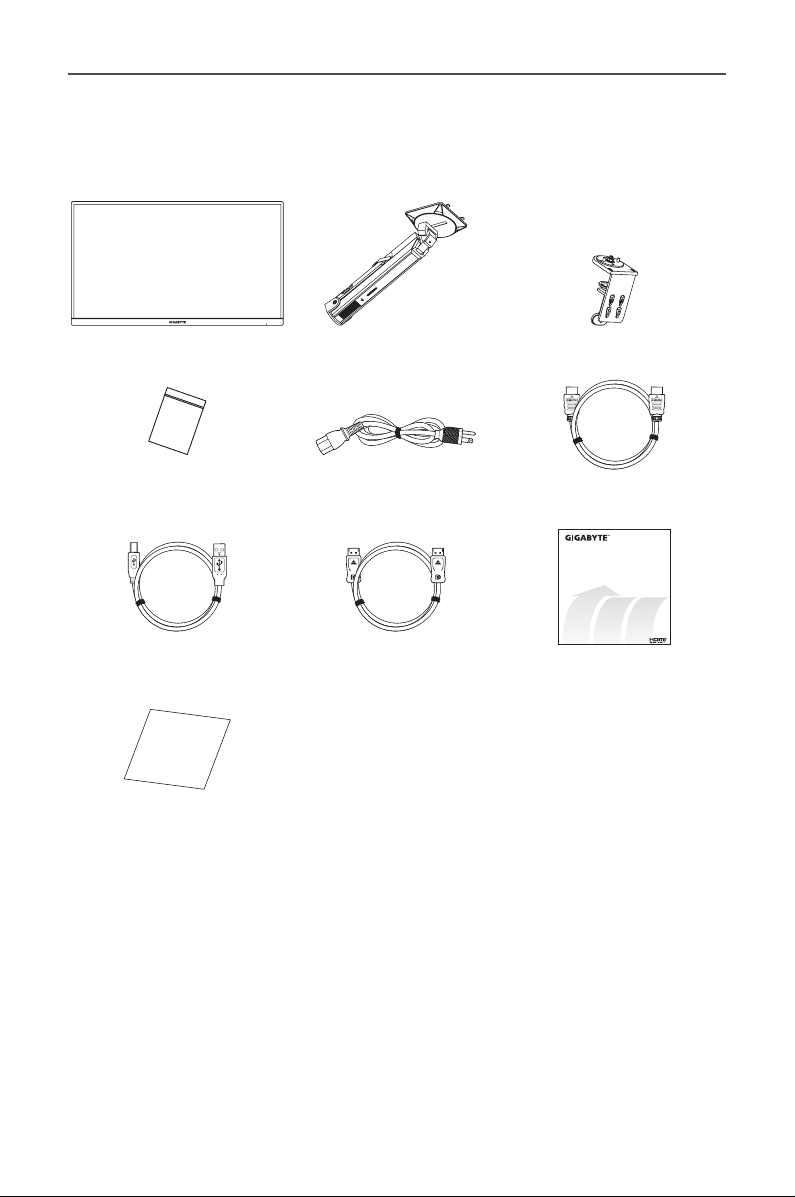

The following items come with your packaging box. If any of them is
missing, please contact your local dealer.
Monitor Arm Clamp
Screws Pack Power Cable HDMI Cable
Multilingual
Installation
Guide
M28U Arm Edition
USB Cable DP Cable Quick Start Guide
Warranty Card
Warranty Card
Note: Please keep the packaging box and packing materials for future
transportation of the monitor.
- 9 -
Gaming Monitor User Guide
Product Overview
Front View
GAMING
1
1 Power LED
- 10 -
Gaming Monitor User Guide

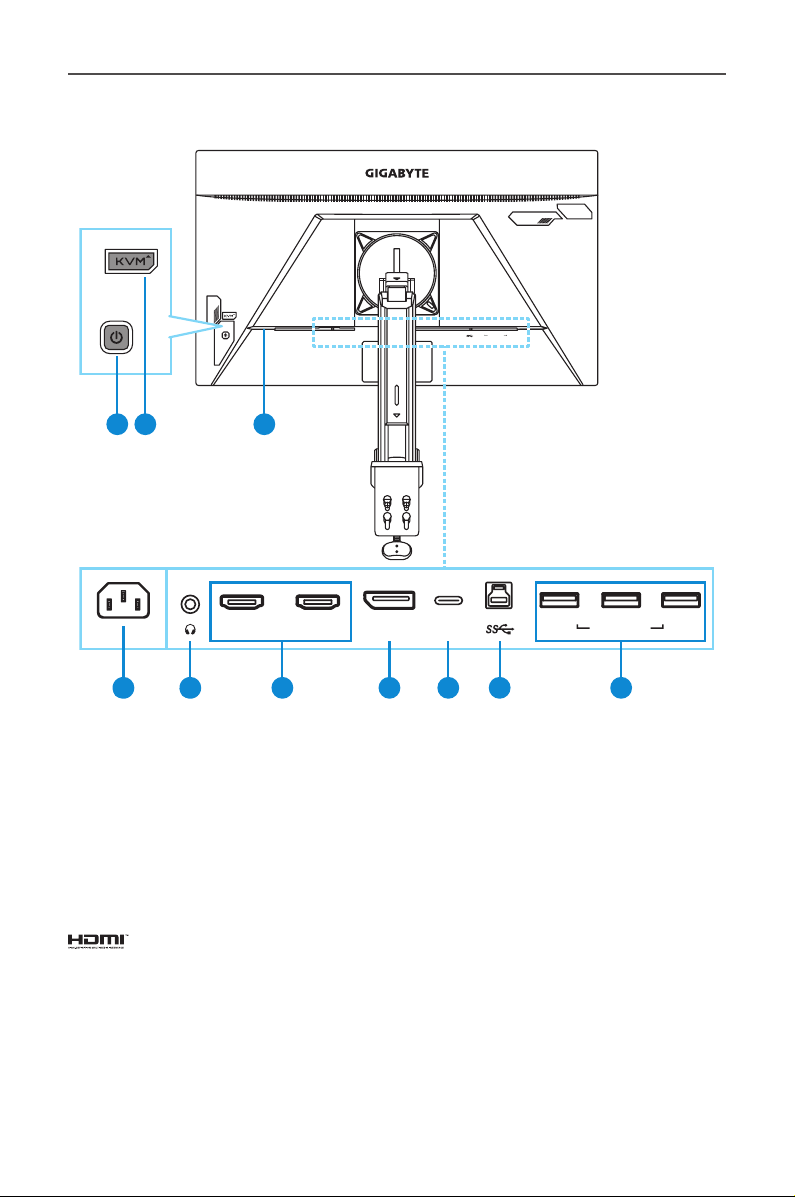

Rear View
DPHDMI-2TYPE-C USB 3.0
HDMI-1
DP TYPE-CHDMI-1 HDMI-2 USB 3.0
6 8 954 107
1 2 3
1 Control button
2 KVM button
3 Kensington lock
4 AC IN jack
5 Headphone jack
6 HDMI ports (x2)
7 DisplayPort
8 USB Type-C port
9 USB upstream port
10 USB 3.0 ports (x3)
Note:
HDMI, the HDMI logo and High-Denition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
- 11 -
Gaming Monitor User Guide
GETTING STARTED
Installing the Monitor Arm

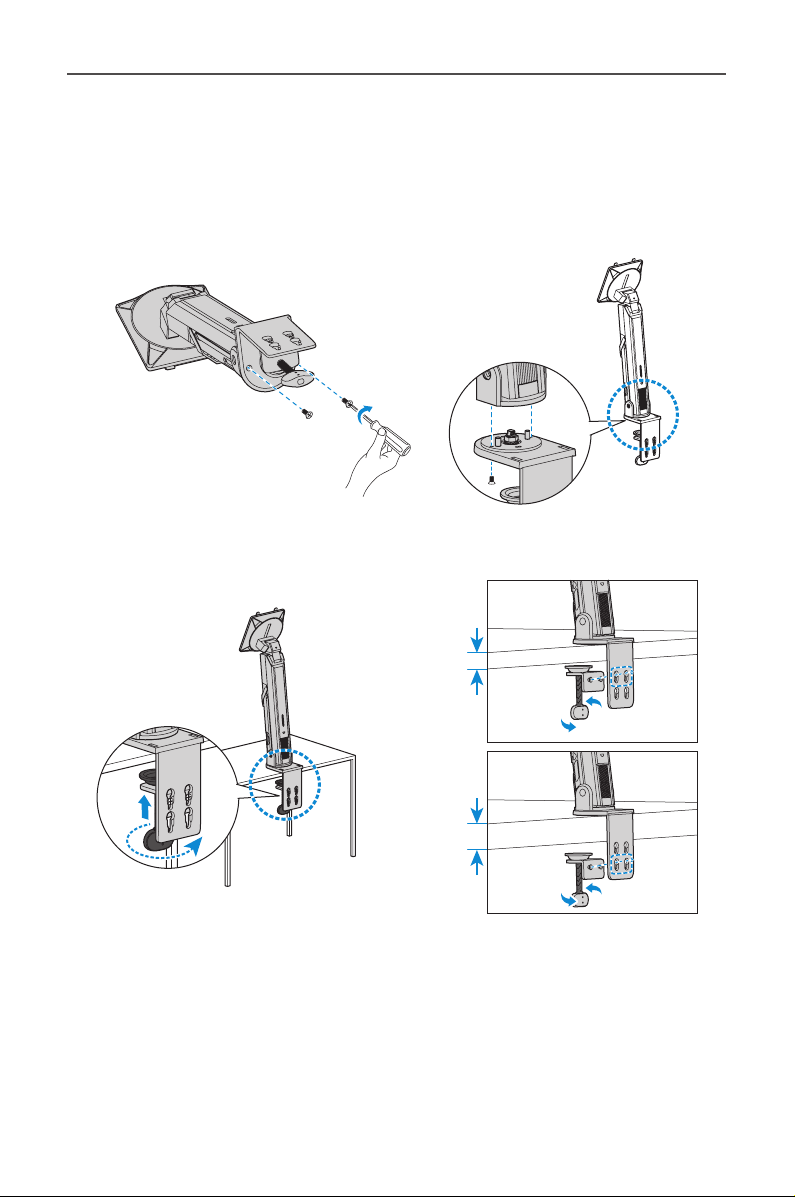

1. Align and install the bottom of the arm onto the clamp. Then secure
them with the screws.
2. Place the clamp to the table. Then tighten the knob to secure the
arm assembly.
15~30mm
30~70mm
- 12 -
Gaming Monitor User Guide
The Desk Mount kit attaches the monitor to surfaces up to 70mm
thick. Before starting, make sure you have enough room to t the
entire clamp and the surface is sturdy and at.
15~70mm

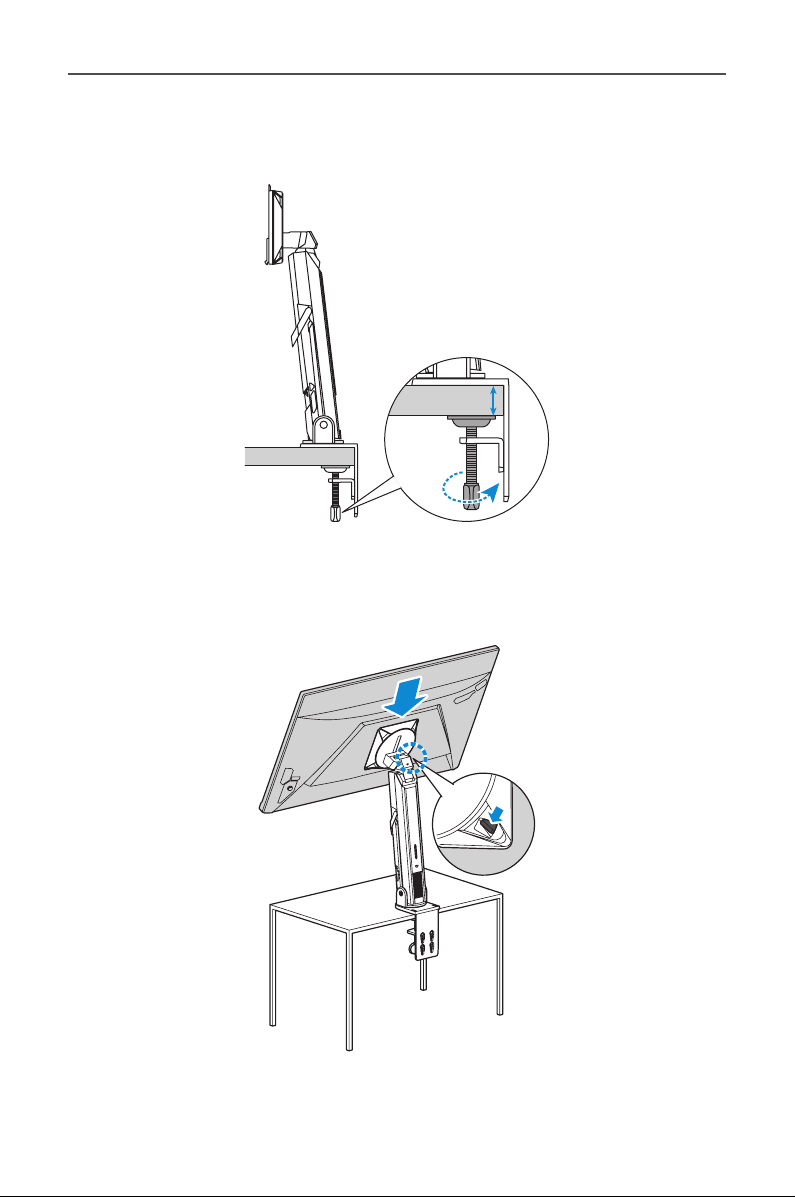

3. Align and slide the upper hooks on the arm into the mounting slots
on the rear of the monitor. Push the locking latch and then release
to secure the lower hooks on the arm into the mounting slots on the
rear of the monitor.
- 13 -
Gaming Monitor User Guide
CAUTION!
The C-clamp accessory is designed to be used with this monitor only.
Using this accessory with any other product may result in damage and/
or injury.
Make sure the mounting surface is at and strong enough to handle the
monitor. Do not install on glass surfaces.
Improper installation may cause property damage and/or personal
injury.
- 14 -
Gaming Monitor User Guide
Adjusting the Viewing Angle
Adjusting the Arm Tilt Angle

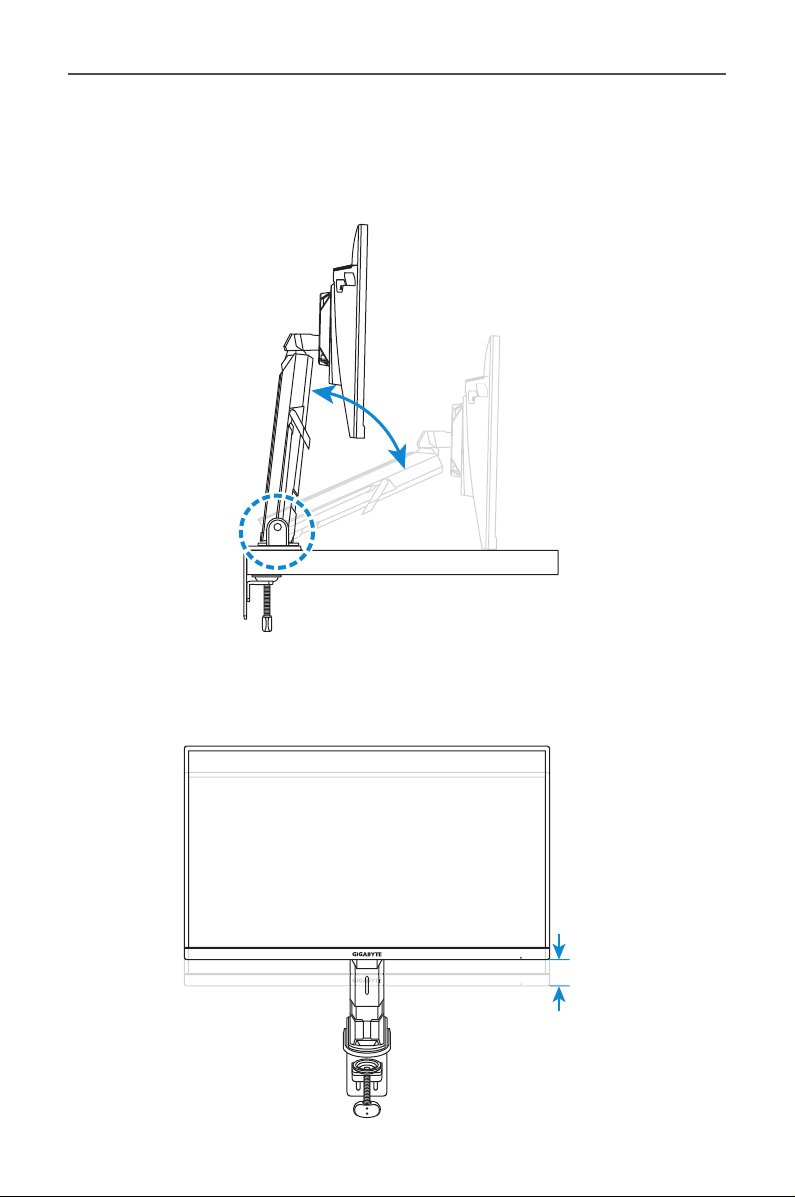

Tilt the arm forward or backward to the desired viewing angle (60˚).
60°
Adjusting the Screen Height
Lower or raise the screen to the desired height (0 to 50mm).
GAMING
50m
m
- 15 -
Gaming Monitor User Guide
Adjusting the Tilt Angle

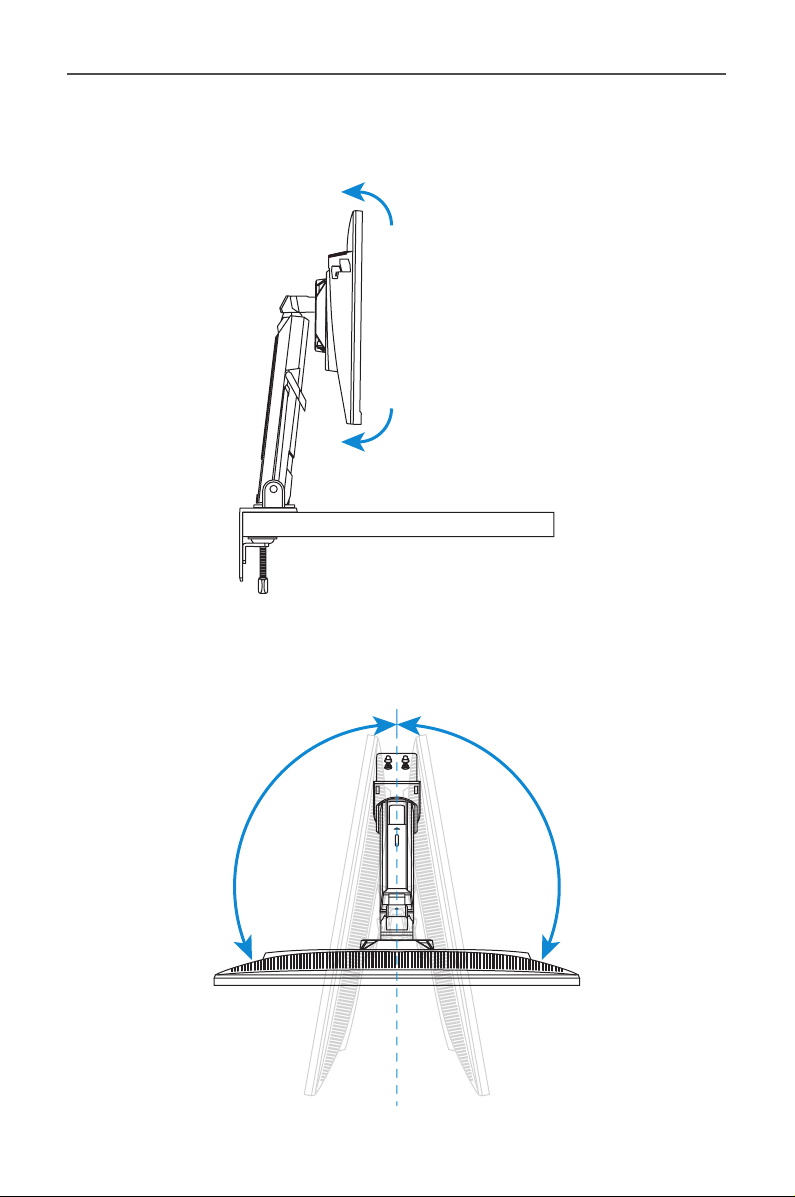

Tilt the screen forward or backward to the desired viewing angle
(-5˚ to 25˚).
25°
-5°
Adjusting the Swivel Angle
Swivel the screen to the left or right for the desired viewing angle (100˚).
100°100°
- 16 -
Gaming Monitor User Guide
Swivel the stand to the left or right for the desired viewing angle
(±170˚).
±170°
- 17 -
Gaming Monitor User Guide
Changing the Screen Orientation
You can do one of the following:

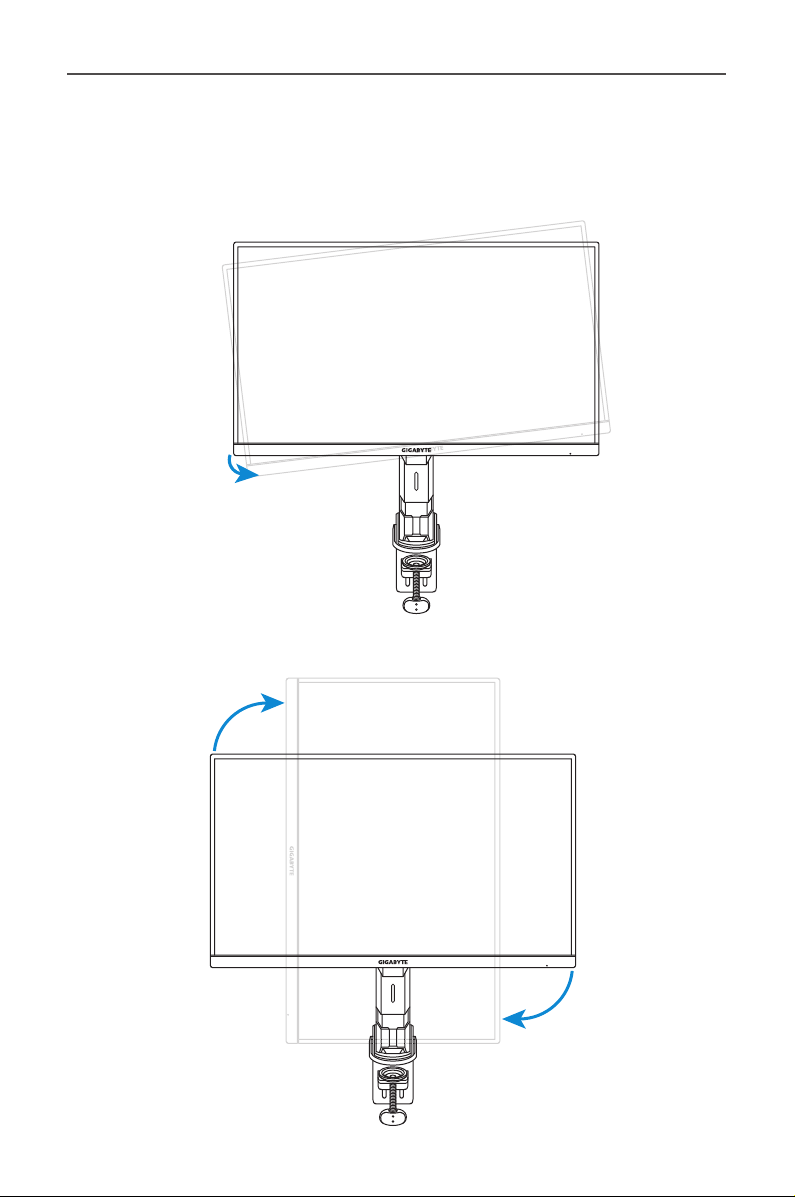

• Rotate the monitor (0˚ to 5˚ counter-clockwise) to portrait
orientation.
GAMING
0°~5°
• Rotate the monitor (90˚ clockwise) to portrait orientation.
GAMING
90°
90°
- 18 -
Gaming Monitor User Guide
When placing the device, ensure that there is sucient space for
ventilation. The increasing internal temperature can lead to re and
damage the device.
A: Above 100mm
A
A
A

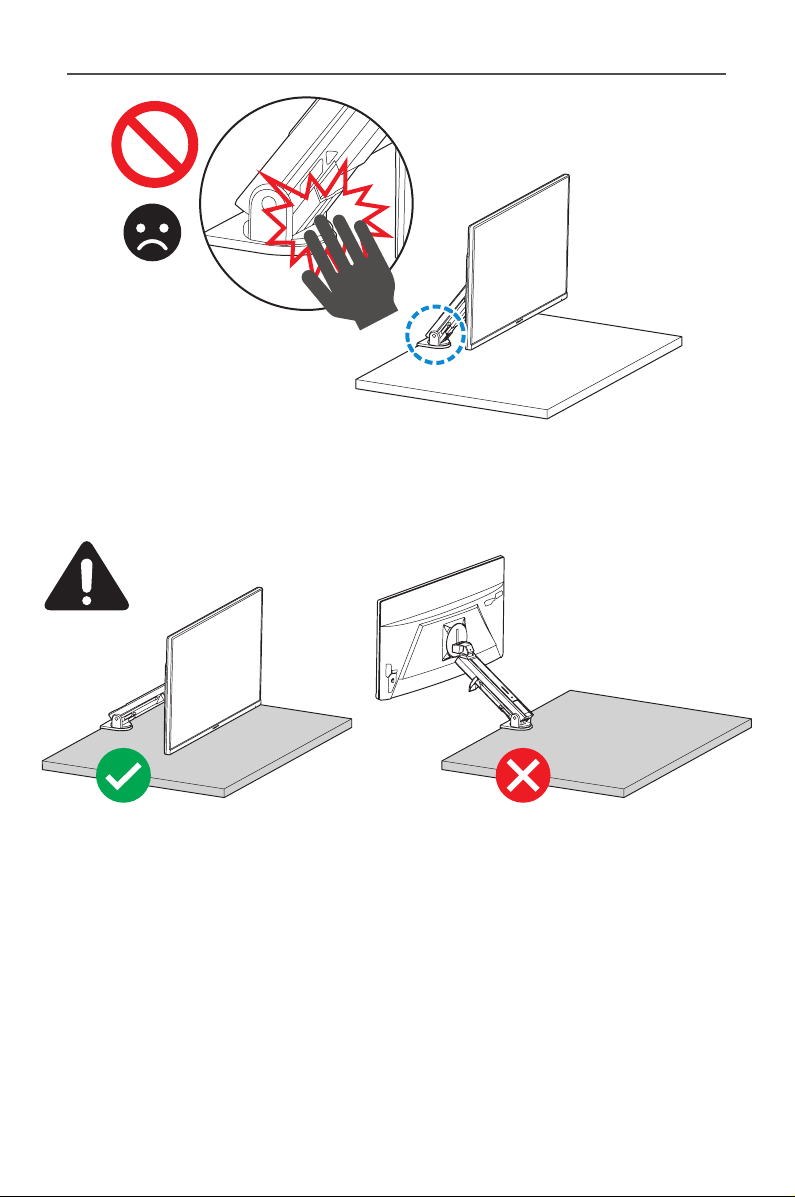

When adjusting the stand, please be careful not to put your hands/
thumb on the joints or moving parts of the stand.
- 19 -
Gaming Monitor User Guide
When adjusting the stand, please be careful not to turn the monitor
away from the desktop to avoid safety hazards.
- 20 -
Gaming Monitor User Guide

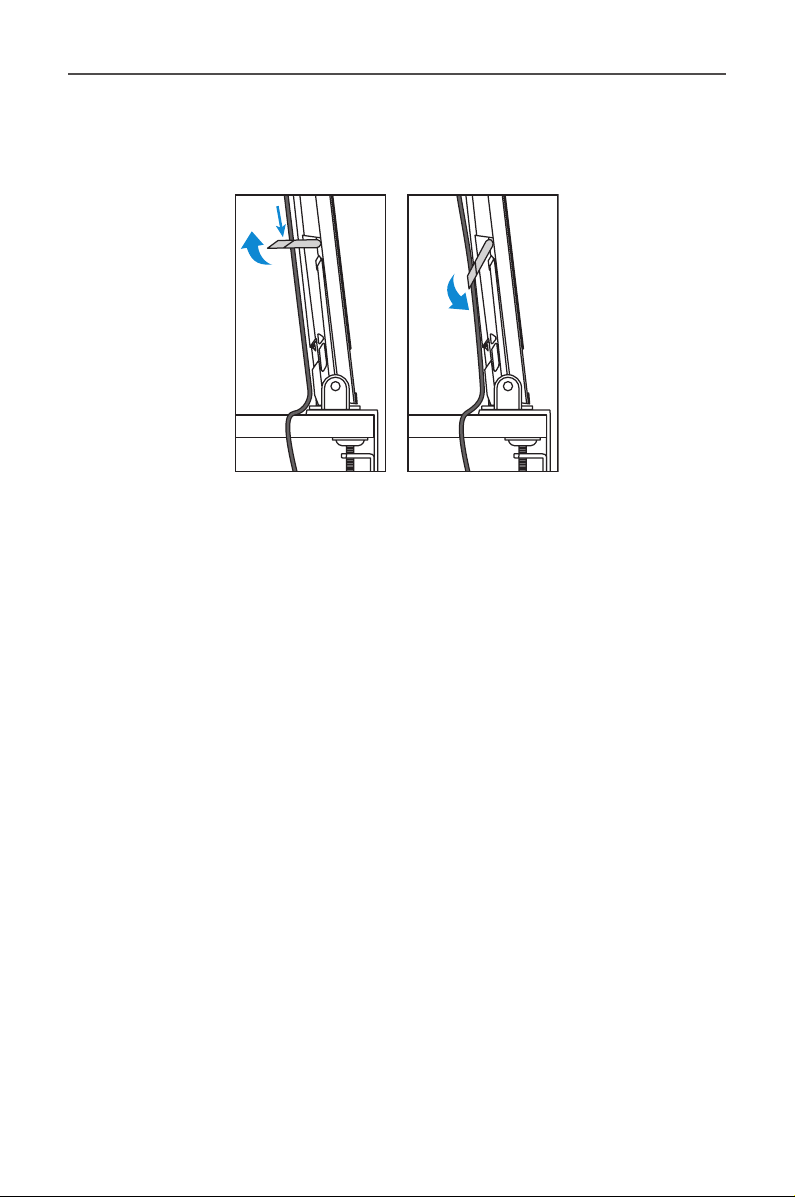

Using the cable management ring:
1. Release the cable management ring and route the cables.
2. Lock the cable management ring to secure the cables in place.
- 21 -
Gaming Monitor User Guide
Installing a Wall-Mount Bracket (Optional)
Use only the 100 x 100 mm wall mount kit recommended by the
manufacturer.

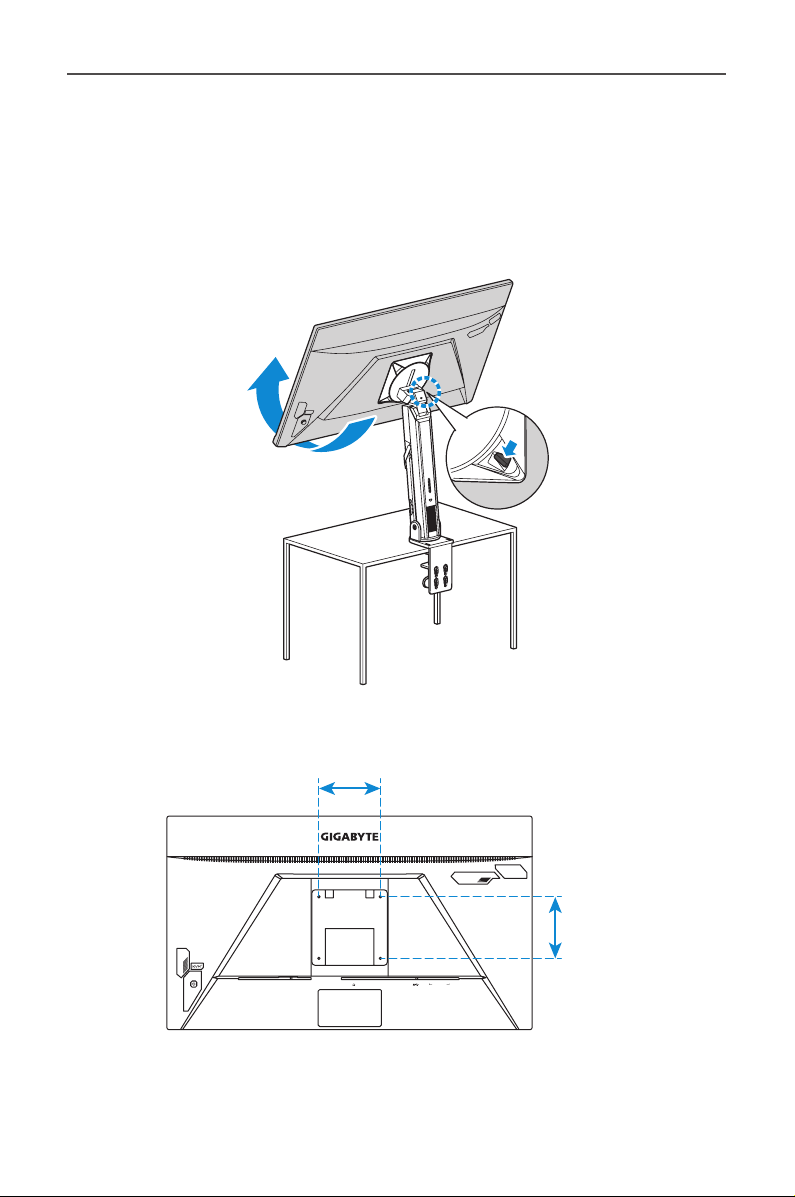

1. Push the locking latch to release the lower hooks on the arm from
the mounting slots on the rear of the monitor. Then lift the monitor
to release it from the upper hooks on the arm. Remove the monitor.
2. Attach the mounting bracket to the mounting holes at the rear of
the monitor. Then use the screws to secure the bracket in place.
DPHDMI-2TYPE-C USB 3.0
HDMI-1
100 mm
100 mm
Note: To mount the monitor on the wall, refer to the installation guide that is
included in the wall-mount bracket kit.
- 22 -
Gaming Monitor User Guide
Making Connections
DP TYPE-CHDMI-1 HDMI-2 USB 3.0
21 3 654 7
1 Power cable
2 Headphone cable
3 HDMI cable
4 DisplayPort cable
5 USB Type-C cable
6 USB (A-Male to B-Male) cable
7 USB cable
- 23 -
Gaming Monitor User Guide
USING THE DEVICE
Turning the Power On/O
Power On
1. Connect one end of the power cable to the AC IN jack at the rear of
the monitor.
2. Connect other end of the the power cable to a power outlet.
3. Press the Control button to turn on the monitor. The Power LED will
light in white, indicating the monitor is ready to use.
GAMING
Note: If no signal, the monitor will show No Signal notication for a while.
Then, the monitor will go to power saving mode and the Power LED lights
white and starts blinking with a period of one second.
Power O
Press the Control button for 2 seconds to turn o the monitor.
Note: When the Main menu appears on the screen, you can also turn o the
monitor by moving the
Control button down ( ). Refer to page 27.
- 24 -
Gaming Monitor User Guide
User Comfort Recommendations
The monitor adopts Flicker-Free technology which clears the eye visible
monitor icker and prevents users from suering eye strain and fatigue.
The following are some tips for comfortable viewing of your monitor:
• Optimal viewing distances for monitors range from approximately
510 mm to 760 mm (20 in to 30 in).
• A general guideline is to position the monitor such that the top
of the screen is at or slightly below your eye-height when you are
comfortably seated.
• Use adequate lighting for the type of work you are performing.
• Take regular and frequent breaks (at least for 10 minutes) every 30
minutes.
• Be sure to periodically look away from your monitor screen and focus
on a far object for at least 20 seconds during the breaks.
• Eye exercise can help reduce eye strain. Repeat these exercises
frequently: (1) look up and down (2) slowly roll your eye (3) move
your eyes diagonally.
Selecting the Input Source
1. Move the Control button right
( ) to enter the Input menu.
2. Move the Control button up/
down ( ) to select the desired
input source. Then press the
Control button to conrm.
Input
HDMI 1
HDMI2
DisplayPort
Type-C
Select
Exit
- 25 -
Gaming Monitor User Guide
OPERATIONS
Quick Menu
Hot Key
By default, the
Control button has been assigned with the specic
function.
Note: To change the preset hot key function, refer to the “Quick Switch” section
on page 40.
To access the hot key function, do the following:
• Move the
Control button up ( ) to enter the Black Equalizer
menu.
Move the
Control button
up/down ( ) to adjust
the setting and press the
Control button to conrm.
Adjust Exit
Black Equalizer
10
- 26 -
Gaming Monitor User Guide
• Move the Control button down ( ) to enter the Picture Mode
menu.
Move the
Control button
up/down ( ) to select the
desired option and press the
Control button to conrm.
• Move the Control button left ( ) to enter the Volume menu.
Move the
Control button
up/down ( ) to adjust
the headphone volume
level and press the Control
button to conrm.
• Move the
Control button right ( ) to enter the the Input menu.
Refer to the “Selecting the Input Source” section.
Note: To close the menu, move the
Control button left ( ).
Select Exit
Picture Mode
Standard
FPS
RTS/RPG
Movie
Reader
sRGB
Adjust Exit
Volume
10
- 27 -
Gaming Monitor User Guide
Function Key Guide
Press the Control button to display the Main menu.
EXIT
SETTING
POWER OFF
GAME ASSISTMULTI TASK
Game Assist
Settings
Power O
KVM
(Multi Task)
Exit
Then use the Control button to select the desired function and
congure the related settings.
KVM

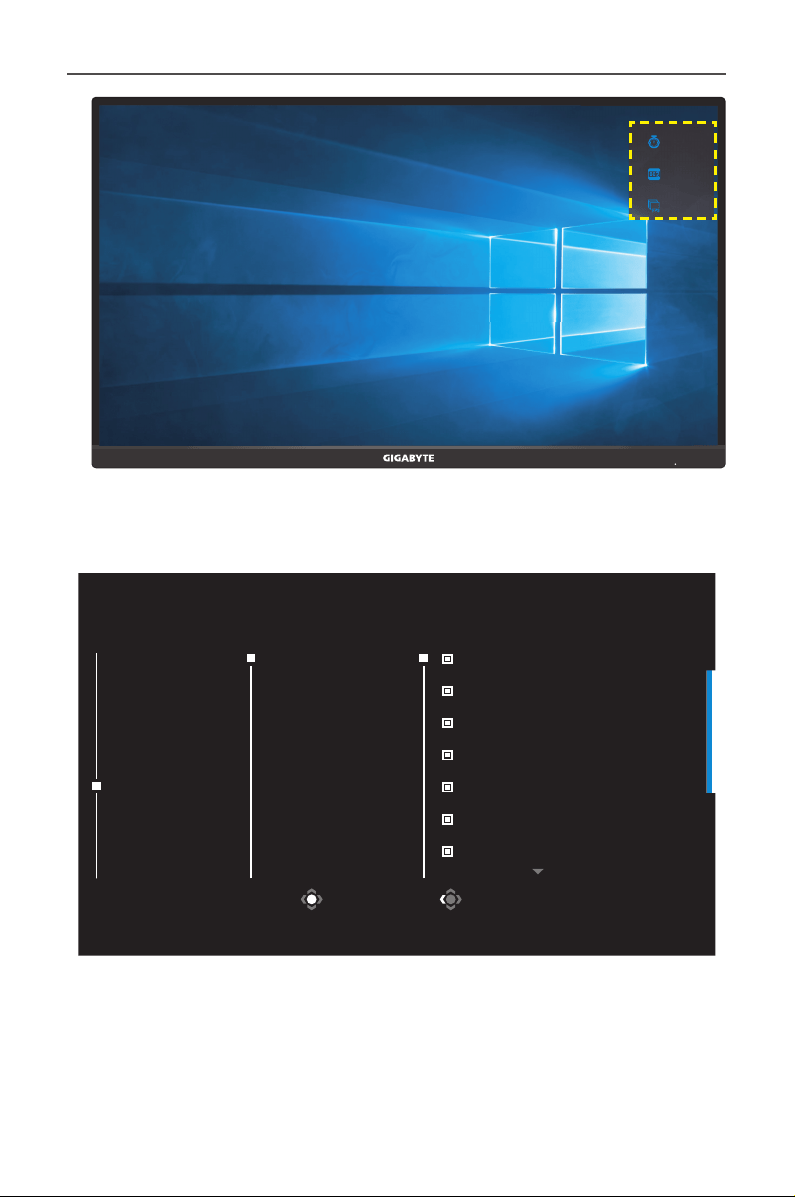

When the Main menu appears on the screen, move the
Control button
left ( ) to enter the KVM menu.
Select Exit
KVM
KVM Switch
KVM Wizard
KVM ON
KVM Reset
KVM Status
USB-B : HDMI 1
Type-C : Type-C
• KVM Switch: Switch the input source that has been assigned to
USB-B or Type-C connection in the KVM Wizard settings.
When there are several input signals connected to the device, a
message box will appear on the screen once the system detected
USB Type-C input signal.
- 28 -
Gaming Monitor User Guide
KVM
Press to switch device.
To switch to USB Type-C input source, simply press the KVM button
or the Control button.
However, when there is no input signal from currently selected
input source, the system will return to the previous connected input
source.
Note: This option will be disabled if the KVM button function is disabled
(KVM OFF).
• KVM Wizard: Congure the KVM related settings.
Set the input source to be bound with USB Type-B connection rst,
and then following with USB Type-C connection.
Select USB-B Display
HDMI 1
HDMI2
DisplayPort
Type-C
Select Enter
Select TYPE-C Display
HDMI 1
HDMI2
DisplayPort
Type-C
Select Enter
USB-B Display Selection TYPE-C Display Selection
- 29 -
Gaming Monitor User Guide
• KVM ON/OFF: Enable/Disable the KVM button function.
√ Select ON to enable the KVM button function. Once the system
detected USB Type-C input signal, a message box will appear on
the screen.
KVM
Press to switch device.
Press the KVM button or the Control button to switch to USB
Type-C input source.
Note: When the KVM button function is enabled, the KVM ON will be
displayed on the left panel.
√ Select OFF to disable the KVM button function.
Note: When the KVM button function is disabled, the KVM OFF will be
displayed on the left panel.
• KVM Reset: Restore the KVM default settings.
√ HDMI 1 input source is bound with USB Type-B connection.
√ USB Type-C input source is bound with USB Type-C connection.
√ The KVM ON/OFF function is set to ON.
- 30 -
Gaming Monitor User Guide
Game Assist
When the Main menu appears on the screen, move the
Control button
right ( ) to enter the Game Assist menu.
Select Exit
GameAssist
GAME INFO
Display
Alignment
Crosshair
Dashboard
Gaming Timer
Gaming Counter
Refresh Rate
Info Location
OFF
Count Up
Count Down
• GAME INFO: Congure the FPS (First Person Shooting) game related
settings.
√ Select Gaming Timer to select countdown timer mode. To
disable this function, set the setting to OFF.
√ Select Gaming Counter or Refresh Rate to enable/disable the
gaming counter or real-time refresh rate setting.
√ Select Info Location to specify the location of the information to
be shown on the screen.
- 31 -
Gaming Monitor User Guide
00:00
00
60
• Crosshair: Select the desired crosshair type to suit your gaming
environment. It makes aiming much easier.
• Dashboard: Congure the dashboard settings.
Select Exit
GameAssist
CPU Temperature
CPU Frequency
CPU Fan Speed
CPU Usage Rate
GPU Temperature
GPU Frequency
GPU Fan Speed
GAME INFO
Display
Alignment
Crosshair
Dashboard
ON
OFF
Dashboard Location
√ ON: Enable the function. Then select the desired option(s) to be
shown on the screen.
√ OFF: Disable the function.
- 32 -
Gaming Monitor User Guide
√ Dashboard Location: Specify the location of the Dashboard
information to be shown on the screen. Once the Dashboard
conguration is complete, it will transfer the system data to the
SOC through the USB port and display the value of the selected
function(s) on the screen.
CPU Temperature
CPU Frequency
CPU Fan Speed
CPU Usage Rate
GPU Temperature
GPU Frequency
GPU Fan Speed
GPU Usage Rate
AORUS Mouse DPI
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Note: Make sure the USB cable is properly connected to the USB upstream
port of the monitor and the USB port of your computer.
• Display Alignment: When the function is enabled, it displays the
alignment lines on the four sides of the screen, providing handy tool
for you to line up multiple monitors perfectly.
- 33 -
Gaming Monitor User Guide
Congure the Device Settings
When the Main menu appears on the screen, move the
Control button
up ( ) to enter the Settings menu.
Note: Use the
Control button to navigate through the menu and make
adjustments.
Exit
Move/Adjust
Enter/Confirm
Button Guide
Gaming
Congure the game related settings.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Aim Stabilizer Sync
Black Equalizer
Super Resolution
Display Mode
Overdrive
AMD FreeSync Premium Pro
Picture Mode Standard
Resolution
3840X2160
Black Equalizer
10
Aim Stabilizer
OFF
Overdrive
Smart OD
Refresh Rate
60 HZ
AMD FreeSync
Premium Pro
OFF
10
Item Description
Aim Stabilizer
Sync
When this function is enabled, it reduces the motion
blur in a fast moving games.
Note: This function is not available under the following
conditions:
- when the frequency setting is lower than 100Hz.
- when the current source is HDR.
Black Equalizer Adjust the brightness of the black areas.
- 34 -
Gaming Monitor User Guide
Item Description
Super
Resolution
Sharpen the low resolution images.
Display Mode Select the aspect ratio of the screen.
• Full: Scale the input image to ll the screen. Ideal
for 16:9 aspect images.
• Aspect: Display the input image without
geometric distortion lling as much of the screen
as possible.
• 1:1: Display the input image in its native resolution
without scaling.
• 22”W(16:10): Display the input image as if on a
22”W monitor of 16:10 aspect ratio.
• 23”W(16:9): Display the input image as if on a
23”W monitor of 16:9 aspect ratio.
• 23.6”W(16:9): Display the input image as if on a
23.6”W monitor of 16:9 aspect ratio.
• 24”W(16:9): Display the input image as if on a
24”W monitor of 16:9 aspect ratio.
• 27”W(16:9): Display the input image as if on a
27”W monitor of 16:9 aspect ratio.
Note: 1:1, 22”W(16:10), 23”W(16:9), 23.6W”(16:9),
24”W(16:9), and 27”W(16:9) options will be disabled when
the AMD FreeSync Premium Pro function is activated.
Overdrive Improve the response time of the LCD monitor.
AMD
FreeSync
Premium Pro
When this function is enabled, it eliminates the screen
lag and tearing while playing games.
- 35 -
Gaming Monitor User Guide
Congure the image related settings.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Standard
FPS
RTS/RPG
Movie
Reader
sRGB
Custom 1
Picture Mode Standard
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
Brightness
Contrast
6 axis Color
Color Vibrance
Sharpness
Gamma
Color Temperature
85
Select the one of the preset picture mode.
• Standard: For editing documents or browsing websites.
• FPS: For playing FPS (First Person Shooting) games.
• RTS/RPG: For playing RTS (Real-Time Strategy) or RPG (Role-Playing
Game) games.
• Movie: For watching movies.
• Reader: For viewing documents.
• sRGB: For viewing photos and graphics on the computer.
• Custom 1: Customized picture mode settings.
• Custom 2: Customized picture mode settings.
• Custom 3: Customized picture mode settings.
• Green: For saving the power consumption of the monitor.
Then you can congure the following image settings.
Item Description
Brightness Adjust the brightness of the image.
Contrast Adjust the contrast of the image.
6-axis Color An advanced color adjustment that user can
individually customize hue and saturation for each
axis color.
Color Vibrance Adjust the intensity of the more muted colors.
Sharpness Adjust the sharpness of the image.
- 36 -
Gaming Monitor User Guide
Item Description
Gamma Adjust the middle level of luminance.
Color
Temperature
Select the color temperature.
Note: Select User Dene to customize the color
temperature by adjusting the red (R), green (G), or blue (B)
level according to your preference.
DCR Adjust the black level of the image to achieve the
optimum contrast.
Senseye Demo Split the screen in half (2 windows).
The image of the selected mode with its default
settings will appear on the left window and the
adjusted image with the new settings will appear on
the right window.
Local
Dimming
Improve the blackness of images displayed on the
monitor.
Reset Picture Reset all Picture settings to the default settings.
- 37 -
Gaming Monitor User Guide
Display
Congure the display screen related settings.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Input
RGB Range
Overscan
Picture Mode Standard
HDMI 1
HDMI 2
DisplayPort
Type-C
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
Item Description
Input Select the input source.
RGB Range Select an appropriate RGB range setting or let the
monitor to detect it automatically.
Overscan When this function is enabled, it slightly enlarges
the input image to hide the outermost edges of the
image.
Note: This option is only available for HDMI input.
- 38 -
Gaming Monitor User Guide
PIP/PBP
Congure the multi-picture related settings.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
OFF
PIP
PBP
Picture Mode Standard
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
Item Description
OFF Disable the PIP/PBP function.
PIP Split the screen into 2 parts (main window and inset
window).
• Source: Change the input source for the inset
window.
• PIP Size: Adjust the inset window size.
• Location: Move the inset window position.
• Display Switch: Swap the two windows.
• Audio Switch: Select which audio source you want
to hear the sound from.
PBP Display 1x1 split screen (left and right windows).
• Source: Change the input source for the right
window.
• PBP Size: Adjust the window size.
• Display Switch: Swap the two windows.
• Audio Switch: Select which audio source you want
to hear the sound from.
Note: PIP/PBP is not compatible with HDR and AMD FreeSync Premium Pro
functions.
- 39 -
Gaming Monitor User Guide
System
Congure the system related settings.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Audio
OSD Settings
Quick Switch
Other Settings
Picture Mode Standard
Volume
Mute
10
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
Item Description
Audio Congure the audio settings.
• Volume: Adjust the volume level.
• Mute: Enable/Disable the mute function.
OSD Settings Congure the on-screen display (OSD) menu related
settings.
• Display Time: Set the length of time the OSD
menu remains on the screen.
• OSD Transparency: Adjust the OSD menu
transparency.
• OSD Lock: When this function is enabled, no OSD
adjustment is allowed.
Note: To disable the OSD lock function, press the
Control key. When the message appears on the screen,
select Ye s to conrm.
The button is locked
confirm to unlock OSD
YesNo
• OSD Size: Enable or disable adjusting the OSD
menu window.
• OSD Pivot: Set the OSD menu orientation.
- 40 -
Gaming Monitor User Guide
Item Description
Quick Switch Assign the function of the hot keys.
Available options: Aim Stabilizer Sync, Black
Equalizer, Volume, Input, Contrast, Brightness, and
Picture Mode.
The default setting of the hot keys as below:
D Up (
): Black Equalizer
D Down (
): Picture Mode
D Right (
): Input
D Left (
): Volume
Note: The Monitor uses low blue light panel and
compliance with TÜV Rheinland Low Blue Light Hardware
Solution at factory reset/default setting mode (Brightness:
55%, Contrast: 50%, CCT: Normal, Preset mode: Standard).
Other Settings • Resolution Notice: When this function is enabled,
the recommended resolution message will appear
on the screen when the monitor switches to
another input source.
• Input Auto Switch: When this function is enabled,
it automatically switches to an available input
source.
• Auto Power OFF: When this function is enabled,
the monitor will automatically turn o after a
certain amount of time.
• LED Indicator: By default, the LED indicator is set
to Always ON.
D Always ON: The Power LED lights white during
operation and lights interval every 1 sec. in
standby mode.
D Always OFF: Turn o the Power LED.
D Standby ON: The Power LED turns o during
operation and lights interval every 1 sec. in
standby mode.
D When the power supply is switched o, the
Power LED will remain o.
- 41 -
Gaming Monitor User Guide
Item Description
Other Settings
(continue)
• Type-C Compatibility: Turn this option on to
improve mobile devices compatibility.
• HDMI Version: Select the HDMI version.
Language
Select an available language for the OSD menu.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Picture Mode Standard
English
互Ṿ
䯑Ṿ
Deutsch
Русский
Français
㘶㝽嫯
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
Save Settings
Set the personalized OSD congurations for Setting1, Setting2, or
Setting3.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Settings 1
Settings 2
Settings 3
Picture Mode Standard
Save
Load
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
Item Description
Save Save the customized settings.
Load Load the saved settings.
- 42 -
Gaming Monitor User Guide
Reset all
Restore the monitor to its factory default settings.
Exit
Move/Adjust
Enter/Confirm
Gaming
Display
PIP/PBP
System
Language
Save Settings
Reset all
Picture Mode Standard
SDR Brightness
85
Contrast
50
Sharpness
5
Gamma
2.2
Color Temperature
Normal
- 43 -
Gaming Monitor User Guide
APPENDICES
Specications
Item Specications
Panel Size 28-inch
Aspect Ratio 16:9
Resolution 3840 x 2160
LED Life 30,000 hours
Pixel Pitch 0.16 x 0.16
Brightness 300nits (typ.)
Contrast Ratio 1000:1 (typ.)
Color Depth 16.7M
Active Display Area 631.928 (H) x 359.78 (V)
Viewing Angle 178°(H) / 178°(V)
Input/Output Terminals • 2x HDMI 2.1
• 1x DP1.4
• 1x Headphone
• 1x USB upstream
• 3x USB 3.0
(downstream,
5V/1.5A)
• 1x USB Type-C
(5V/3A, 9V/2A,
12V/1.5A, 15V/1A)
Power Supply AC 100~240V at 50/60Hz
Power Consumptions • On: 39W
• Standby: < 0.5W
• O: < 0.3W
Note: The test condition follows CEC standards.
Dimensions (W x H x D) 636.5 x 534.2 x 193.6 mm
Weight • 8.6 ±0.5 kgs (with stand)
• 5.3 ±0.5 kgs (without stand)
Temperature Range
(operation)
0°C to 40°C
Note: Specications subject to change without notice.
- 44 -
Gaming Monitor User Guide
Supported Timing List
Timing List HDMI DP (Type-C)
640x480@60Hz
V V
640x480@75Hz
V V
720x480@60Hz
V V
800x600@60Hz
V V
800x600@75Hz
V V
1024x768@60Hz
V V
1024x768@75Hz
V V
1280x720@60Hz
V V
1280x720@120Hz
V V
1920x1080@24Hz
V V
1920x1080@60Hz
V V
1920x1080@120Hz
V V
1920x1080@144Hz
V V
2560x1440@60Hz
V V
2560x1440@120Hz
V V
2560x1440@144Hz
V V
3840x2160@24Hz
V V
3840x2160@30Hz
V X
3840x2160@60Hz
V V
3840x2160@120Hz
V V
3840x2160@144Hz
V V
- 45 -
Gaming Monitor User Guide
Troubleshooting
Problem Possible Solution(s)
No power • Make sure the power cable is properly
connected to the power source and the
monitor.
• Check the cable and plug to make sure they
are not broken.
• Make sure the monitor is turned on.
No image appears
on the screen
• Make sure the monitor and the computer
are properly connected and both devices are
turned on.
• Make sure you have selected the correct
input source. Refer to page 24 or 37.
• Adjust the Brightness and Contrast settings.
Refer to page 35.
The image does
not ll the entire
screen
• Try dierent Display Mode (aspect ratio)
setting. Refer to page 34.
The colors are
distorted
• Make sure the input signal cable is properly
connected.
• Congure the image related settings. Refer to
the “Picture” section.
No sound or
volume is low
• Make sure the headphone cable is properly
connected.
• Adjust the volume level. Refer to page 26
or 39.
• Adjust your computer sound related settings.
Note: If the problem persists, please contact our customer service for further
assistance.
- 46 -
Gaming Monitor User Guide
Basic Care
When the screen becomes dirty, do the following to clean the screen:
• Wipe the screen with your soft, lint-free cloth to remove any residual
dust.
• Spray or apply the cleaning uid onto a soft cloth. Then wipe the
screen gently with the damp cloth.
Note:
• Make sure that the cloth is damp, but not wet.
• When wiping, avoid applying excessive pressure on the screen.
• Acidic or abrasive cleaners can damage the screen.
Notes on USB Charging
The following devices are not compatible with BC 1.2 of CDP mode.
When the Hub is connected to a PC, these devices cannot be charged
using the USB cable.
Vendor Device PID/VID
Apple iPad PID_129A/VID_05AC
Samsung GALAXY Tab2 10.1 PID_6860/VID_04E8
Samsung GALAXY TabPro PID_6860/VID_04E8
GIGABYTE Service Information
More service information, please visit GIGABYTE ocial website:
https://www.gigabyte.com/
- 47 -
Gaming Monitor User Guide
SAFETY INFORMATION
Regulatory Notices
United States of America, Federal Communications
Commission Statement
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Product Name: LCD monitor
Trade Name: GIGABYTE
Model Number: M28U AE
Responsible Party – U.S. Contact Information: G.B.T. Inc.
Address: 17358 Railroad street, City Of Industry, CA91748
Tel.: 1-626-854-9338
Internet contact information: https://www.gigabyte.com
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules, Subpart B,
Unintentional Radiators.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
- 48 -
Gaming Monitor User Guide
• Connect the equipment to an outlet on a circuit dierent from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications. This class
B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
European Union (EU) CE Declaration of Conformity
This device complies with the following directives: Electromagnetic
Compatibility Directive 2014/30/EU, Low-voltage Directive 2014/35/
EU, ErP Directive 2009/125/EC, RoHS directive (recast) 2011/65/EU & the
2015/863 Statement.
This product has been tested and found to comply with all essential
requirements of the Directives.
European Union (EU) RoHS (recast) Directive 2011/65/EU &
the European Commission Delegated Directive (EU) 2015/863
Statement
GIGABYTE products have not intended to add and safe from hazardous
substances (Cd, Pb, Hg, Cr
+6
, PBDE, PBB, DEHP, BBP, DBP and DIBP). The
parts and components have been carefully selected to meet RoHS
requirement. Moreover, we at GIGABYTE are continuing our eorts
to develop products that do not use internationally banned toxic
chemicals.
European Union (EU) Community Waste Electrical & Electronic
Equipment (WEEE) Directive Statement
GIGABYTE will fulll the national laws as interpreted from the 2012/19/
EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive.
The WEEE Directive species the treatment, collection, recycling and
disposal of electric and electronic devices and their components. Under
the Directive, used equipment must be marked, collected separately,
and disposed of properly.
- 49 -
Gaming Monitor User Guide
WEEE Symbol Statement
The symbol shown below is on the product or on its
packaging, which indicates that this product must not be
disposed of with other waste. Instead, the device should be
taken to the waste collection centers for activation of the
treatment, collection, recycling and disposal procedure.
For more information about where you can drop o your waste
equipment for recycling, please contact your local government oce,
your household waste disposal service or where you purchased the
product for details of environmentally safe recycling.
End of Life Directives-Recycling
The symbol shown below is on the product or on its
packaging, which indicates that this product must not be
disposed of with other waste. Instead, the device should be
taken to the waste collection centers for activation of the
treatment, collection, recycling and disposal procedure.
Déclaration de Conformité aux Directives de l’Union
européenne (UE)
Cet appareil portant la marque CE est conforme aux directives de l’UE
suivantes: directive Compatibilité Electromagnétique 2014/30/UE,
directive Basse Tension 2014/35/UE, directive 2009/125/CE en matière
d’écoconception, la directive RoHS II 2011/65/UE & la déclaration
2015/863.
La conformité à ces directives est évaluée sur la base des normes
européennes harmonisées applicables.
European Union (EU) CE-Konformitätserklärung
Dieses Produkte mit CE-Kennzeichnung erfüllen folgenden EU-
Richtlinien: EMV-Richtlinie 2014/30/EU, Niederspannungsrichtlinie
2014/30/EU, Ökodesign-Richtlinie 2009/125/EC, RoHS-Richtlinie
2011/65/EU erfüllt und die 2015/863 Erklärung.
Die Konformität mit diesen Richtlinien wird unter Verwendung der
entsprechenden Standards zurEuropäischen Normierung beurteilt.
- 50 -
Gaming Monitor User Guide
CE declaração de conformidade
Este produto com a marcação CE estão em conformidade com das
seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM
2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP
2011/65/UE e a declaração 2015/863.
A conformidade com estas diretivas é verificada utilizando as normas
europeias harmonizadas.
CE Declaración de conformidad
Este producto que llevan la marca CE cumplen con las siguientes
Directivas de la Unión Europea: Directiva EMC 2014/30/EU, Directiva de
bajo voltaje 2014/35/EU, Directiva de Ecodiseño 2009/125/EC, Directiva
RoHS 2011/65/EU y la Declaración 2015/863.
El cumplimiento de estas directivas se evalúa mediante las normas
europeas armonizadas.
CE Dichiarazione di conformità
I prodotti con il marchio CE sono conformi con una o più delle seguenti
Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva
sulla bassa tensione 2014/35/UE, Direttiva Ecodesign EMC 2009/125/EC,
Direttiva RoHS 2011/65/EU e Dichiarazione 2015/863.
La conformità con tali direttive viene valutata utilizzando gli Standard
europei armonizzati applicabili.
Deklaracja zgodności UE Unii Europejskiej
Urządzenie jest zgodne z następującymi dyrektywami: Dyrektywa
kompatybilności elektromagnetycznej 2014/30/UE, Dyrektywa
niskonapięciowej 2014/35/UE, Dyrektywa ErP 2009/125/WE, Dyrektywa
RoHS 2011/65/UE i dyrektywa2015/863.
Niniejsze urządzenie zostało poddane testom i stwierdzono jego
zgodność z wymaganiami dyrektywy.
ES Prohlášení o shodě
Toto zařízení splňuje požadavky Směrnice o Elektromagnetické
kompatibilitě 2014/30/EU, Směrnice o Nízkém napětí 2014/35/EU,
Směrnice ErP 2009/125/ES, Směrnice RoHS 2011/65/EU a 2015/863.
Tento produkt byl testován a bylo shledáno, že splňuje všechny základní
požadavky směrnic.
- 51 -
Gaming Monitor User Guide
EK megfelelőségi nyilatkozata
A termék megfelelnek az alábbi irányelvek és szabványok
követelményeinek, azok a kiállításidőpontjában érvényes, aktuális
változatában: EMC irányelv 2014/30/EU, Kisfeszültségű villamos
berendezésekre vonatkozó irányelv2014/35/EU, Környezetbarát
tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és
2015/863.
Δήλωση συμμόρφωσης ΕΕ
Είναι σε συμμόρφωση με τις διατάξεις των παρακάτω Οδηγιών
της Ευρωπαϊκής Κοινότητας: Οδηγία 2014/30/ΕΕ σχετικά με την
ηλεκτρομαγνητική συμβατότητα, Οοδηγία χαμηλή τάση 2014/35/EU,
Οδηγία 2009/125/ΕΚ σχετικά με τον οικολογικό σχεδιασμό, Οδηγία
RoHS 2011/65/ΕΕ και 2015/863.
Η συμμόρφωση με αυτές τις οδηγίες αξιολογείται χρησιμοποιώντας τα
ισχύοντα εναρμονισμένα ευρωπαϊκά πρότυπα.
Japan Class 01 Equipment Statement
安全にご使用いただくために
接地接続は必ず電源プラグを電源につなぐ前に行って下さい。
また、接地接続を外す場合は、必ず電源プラグを電源から切り離してか
ら行って下さい。
Japan VCCI Class B Statement
クラスB VCCI 基準について
この装置は、クラスB情報技術装置です。この装置は、家庭環境で使
用することを目的としていますが、この装置がラジオやテレビジョン
受信機に近接して使用されると、受信障害を引き起こすことがありま
す。
取扱説明書に従って正しい取り扱いをして下さい。
VCCI-B
- 52 -
Gaming Monitor User Guide
China RoHS Compliance Statement
中国《废弃电器电子产品回收处理管理条例》提示性说明
为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，
请遵守国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有
国家认可的回收处理资质的厂商进行回收处理。
环保使用期限
Environment-friendly Use Period
此标识指期限（十年），电子电气产品中含有的有害物质不会
发生外泄或突变、电子电气产品用户正常使用该电子电气产品
不会对环境造成严重 污染或对其人身、财产造成严重损害的
期限。
ٛ൰፩ࣷ႘፣ܿಚڅঽࣽĻ
ȡɐɐɐ
ɐɐ
ؠಚڅ
ࣷ႘፣
ල˄őţ˅ࢢ˄ʼnŨ˅Ლ˄ńť˅
২ࢊ
ĩńųĬķĪ
ᢢ׀
˄őŃŃ˅
ᢢߗ׀
˄őŃŅņ˅
ሠ༱ݢ௸֊
ঽඝݢᏊᏠ
ȡɐɐɐ
ɐɐ
ᇛಅ֊
ိ૮
ɐɐɐɐ
ɐɐ
ȡ
ɐɐɐɐɐ
ိؠᄪஏ
ဂঽღإ
ׁװࢆᇡદġŔŋİŕġIJIJĴķĵġܿࣙށף፟ȃ
ɐĻġġװࡘࣷ႘፣ࡘؠྈૂ፣إல፩ܿࣽૂġňŃİŕġijķĶĸijġࣙށܿქᇋชᇵȃ
ȡĻġġװࡘࣷ႘፣ፚຬࡘؠܿರᇜૂ፣إல፩ܿࣽ٫ڵġňŃİŕġijķĶĸijġࣙށܿქᇋชȃ
- 53 -
Gaming Monitor User Guide
◯◯ ◯◯
◯◯
◯◯ ◯◯
◯◯
◯◯ ◯◯ ◯
◯◯ ◯◯ ◯
◯◯ ◯◯
◯◯
◯◯ ◯◯ ◯
◯◯ ◯◯ ◯
╖
Unit
旸䓐䈑岒⍲℞⊾⬠䫎嘇
Restricted substances and its chemical symbols
⟹㕁⢾㟮
⼴㭤
㵚㘞朊㜧
暣嶗㜧䳬ẞ
⸽⹏
暣㸸䶂
℞Ṿ䶂㛸
⁁侫1.˶崭↢0.1 wt %˷⍲˶崭↢0.01 wt %˷Ὢ㊯旸䓐䈑岒䘦↮㭼⏓慷崭↢䘦↮㭼⏓慷➢㸾ῤˤ
Note 1;˶Exceeding 0.1 wt %˷ and˶exceeding 0.01 wt %˷indicate that the percentage content of the
restricted substance exceeds the reference percentage value of presence condion.
⁁侫2.˶◯˷Ὢ㊯娚枭旸䓐䈑岒䘦↮㭼⏓慷㛒崭↢䘦↮㭼⏓慷➢㸾ῤˤ
Note 2;˶
◯
˷indicates that the percentage content of the restricted substance does not exceed the
percentage of reference value of presence.
⁁侫3.˶炼˷Ὢ㊯娚枭旸䓐䈑岒䁢㌺昌枭䚖ˤ
Note 3;The˶炼˷indicates that the restricted substance corresponds to the exempon.
Equipment name Type designaon (Type)
戃
Lead
(Pb)
㰆
Mercury
(Hg)
捀
Cadmium
(Cd)
ℕ₡戣
Hexavalent
chromium
(Cr
+6
)
⣂㹜倗劗
Polybrominated
biphenyls
(PBB)
⣂㹜Ḵ劗慂
Polybrominated
diphenyls ethers
(PBDE)
攎䏦䄧宨⋩㗇⾃㭿㣗䟸估㓌㖶
Declaration of the Presence Condition of the Restricted Substances Marking
姕⁁⎵䧙烉㵚㘞栗䣢☐炻✳嘇炷✳⺷炸烉ġġM28U AE
