Quick Start
Thank you for purchasing a new motherboard from MSI®. This Quick Start section
provides demonstration diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the URL to watch it
with the web browser on your phone or tablet. You may have even link to the URL by
scanning the QR code.

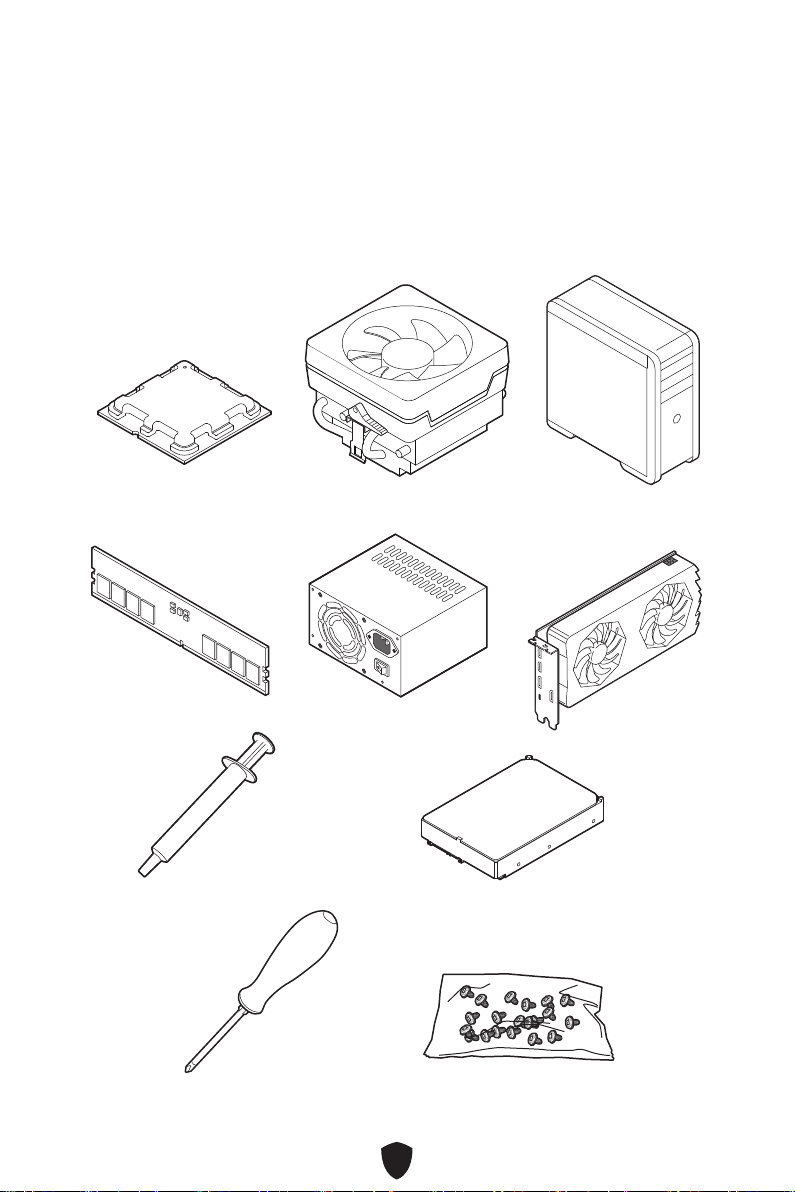

Preparing Tools and Components
AMD AM5 CPU
AM5 CPU Fan
DDR5 Memory
Graphics Card
SATA Hard Disk Drive
Phillips Screwdriver
Chassis
Power Supply Unit
A Package of Screws
Thermal Paste
4
Safety Information
∙ The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙ Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙ Hold the motherboard by the edges to avoid touching sensitive components.
∙ It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
∙ Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
∙ Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙ Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙ If you need help during any installation step, please consult a certified computer
technician.
∙ Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙ Keep this user guide for future reference.
∙ Keep this motherboard away from humidity.
∙ Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙ Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙ All cautions and warnings on the motherboard should be noted.
∙ If any of the following situations arises, get the motherboard checked by service
personnel:
• Liquid has penetrated into the computer.
• The motherboard has been exposed to moisture.
• The motherboard does not work well or you can not get it work according to user
guide.
• The motherboard has been dropped and damaged.
• The motherboard has obvious sign of breakage.
∙ Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.
5

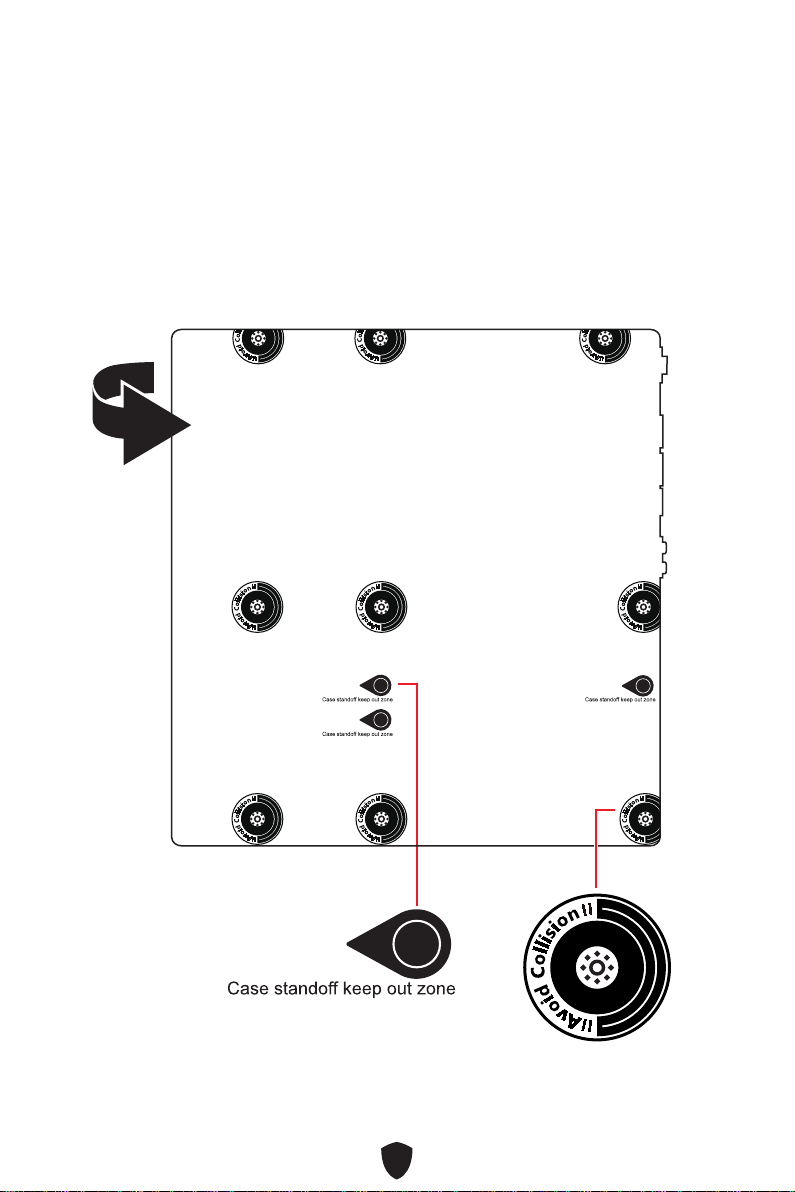

Case stand-off notification
To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.
6

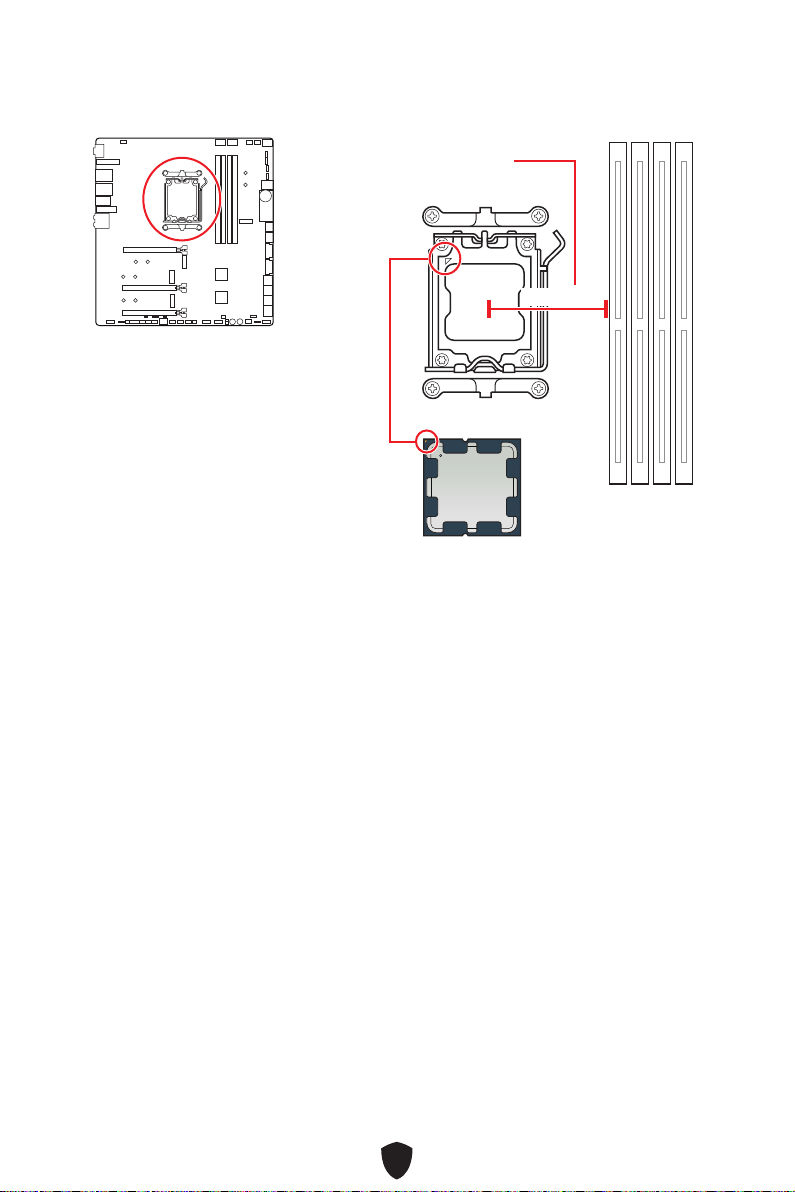

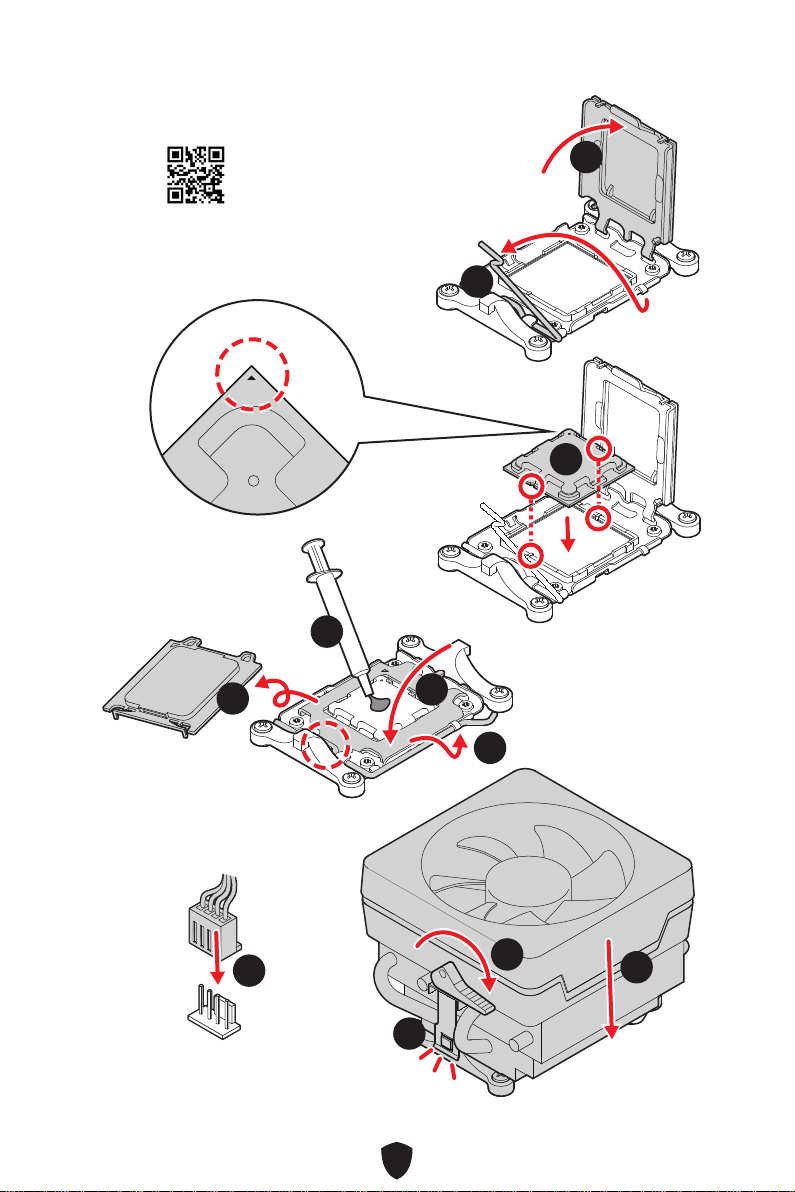

Installing a Processor
11
22
33
66
44
55
77
88
1111
99
1010
⚽
∙ https://youtu.be/cltgIYiGtWY
7
⚠
Important

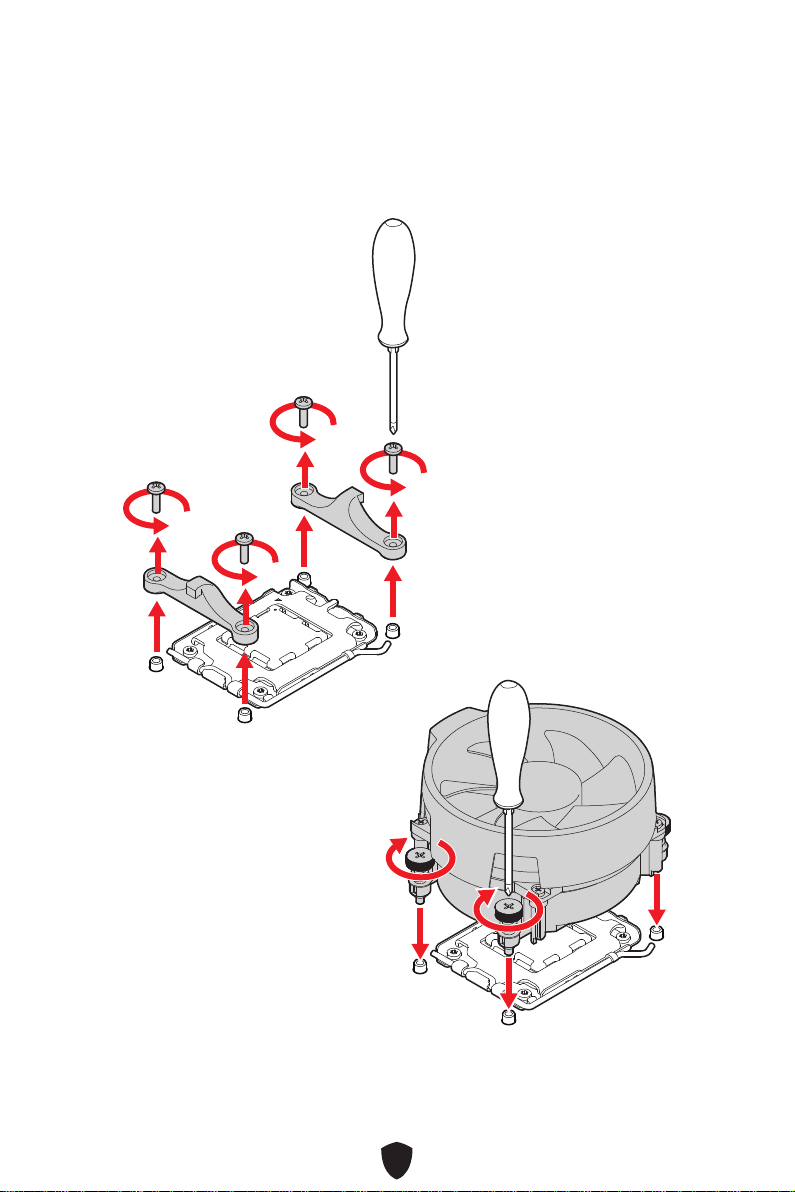

If you are installing the screw-type CPU heatsink, please follow the figure below to
remove the retention module first and then install the heatsink.
8

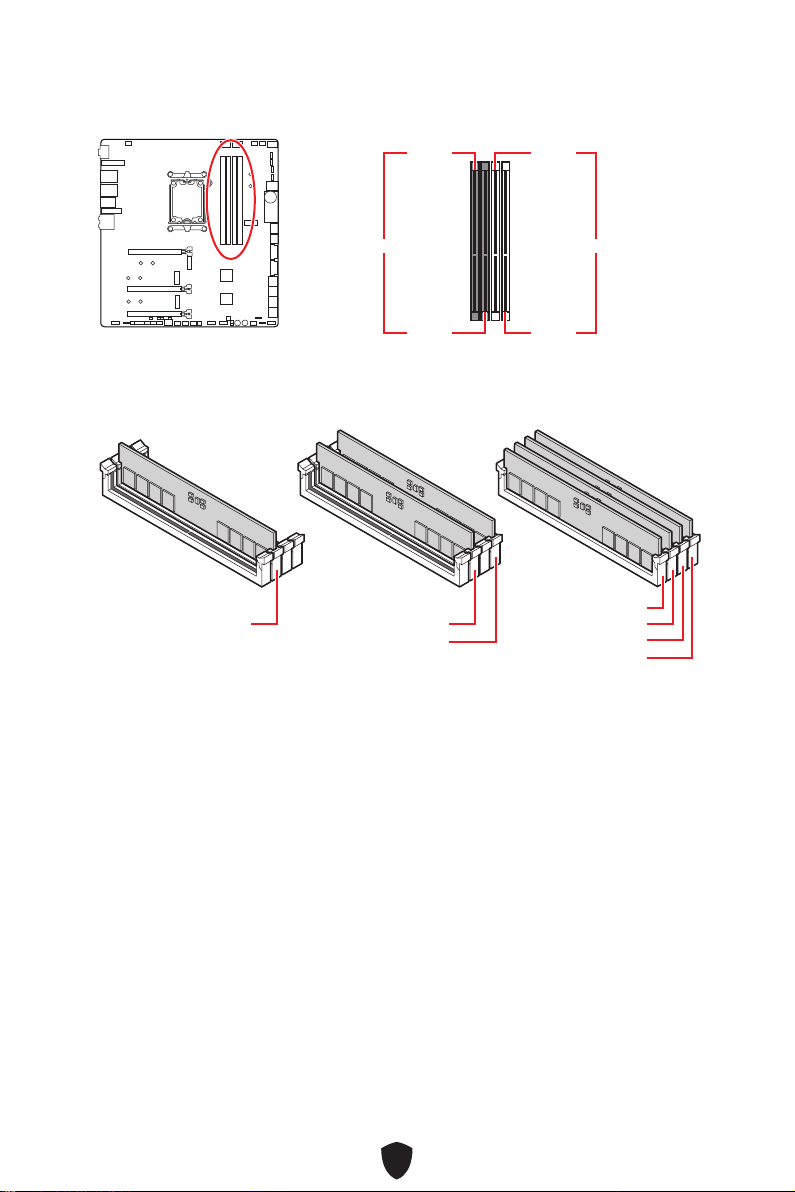

Installing DDR5 memory
∙
https://youtu.be/XiNmkDNZcZk
⚽
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2
9
HDD LED
RESET SW

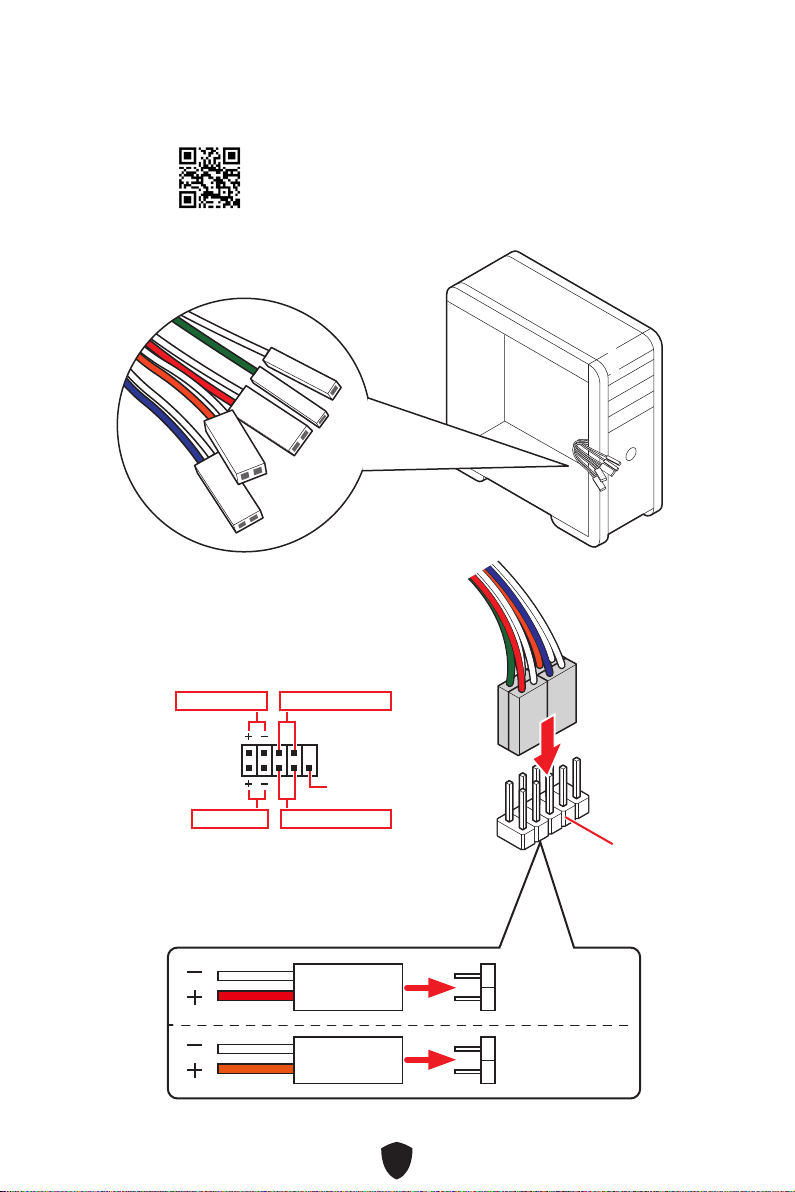

Connecting the Front Panel Header
∙ http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
⚽
1
2 10
9
Power LED
Reserved
Power Switch
JFP1
Reset SwitchHDD LED
10

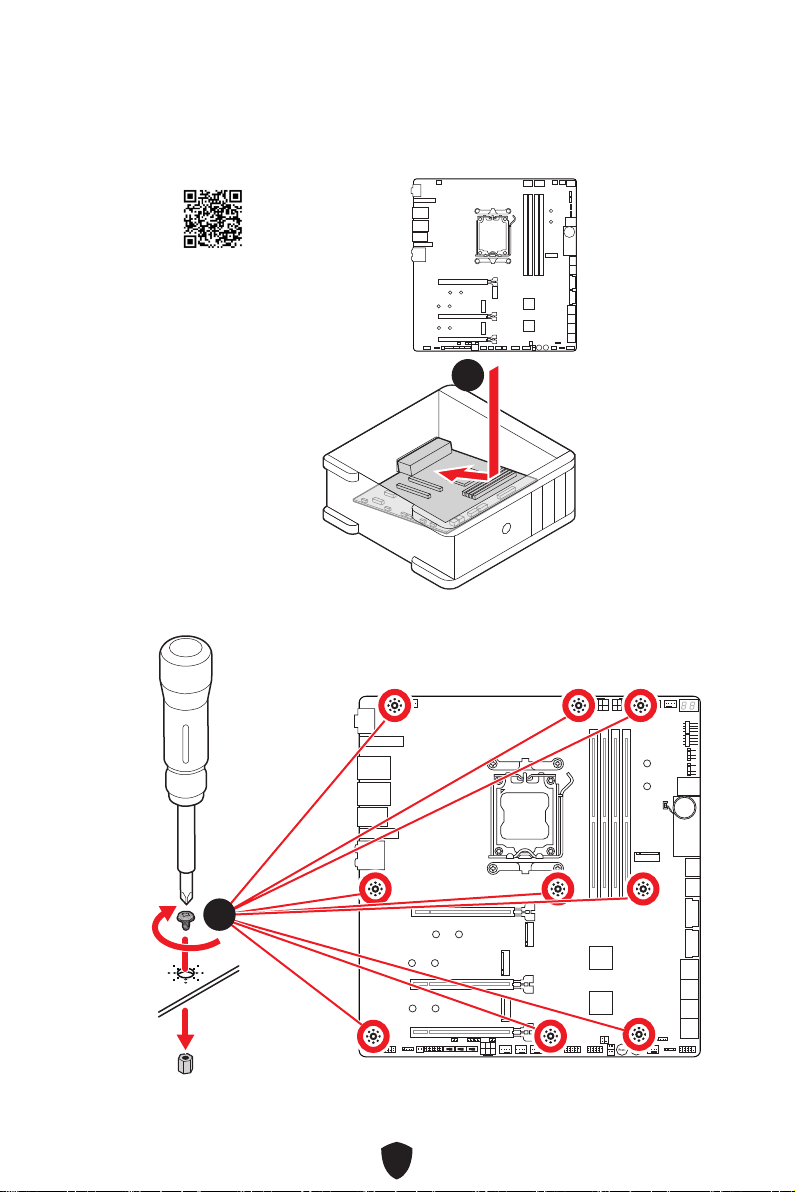

Installing the Motherboard
∙ https://youtu.be/wWI6Qt51Wnc
⚽
BAT1
11
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in
22
11

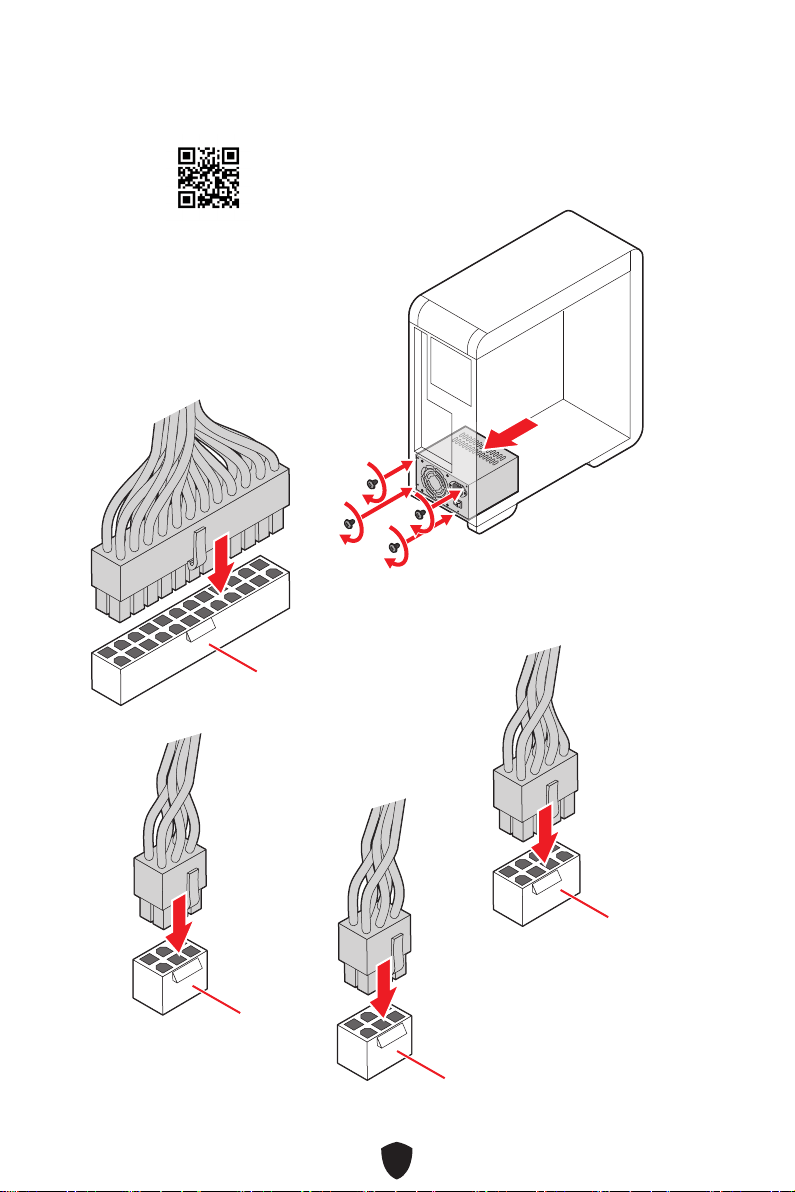

Connecting the Power Connectors
∙ http://youtu.be/gkDYyR_83I4
ATX_PWR1
CPU_PWR1~2
⚽
PCIE_PWR1
PD_PWR1
12
Installing SATA Drives
∙
http://youtu.be/RZsMpqxythc
11
22
33
44
55
⚽
13

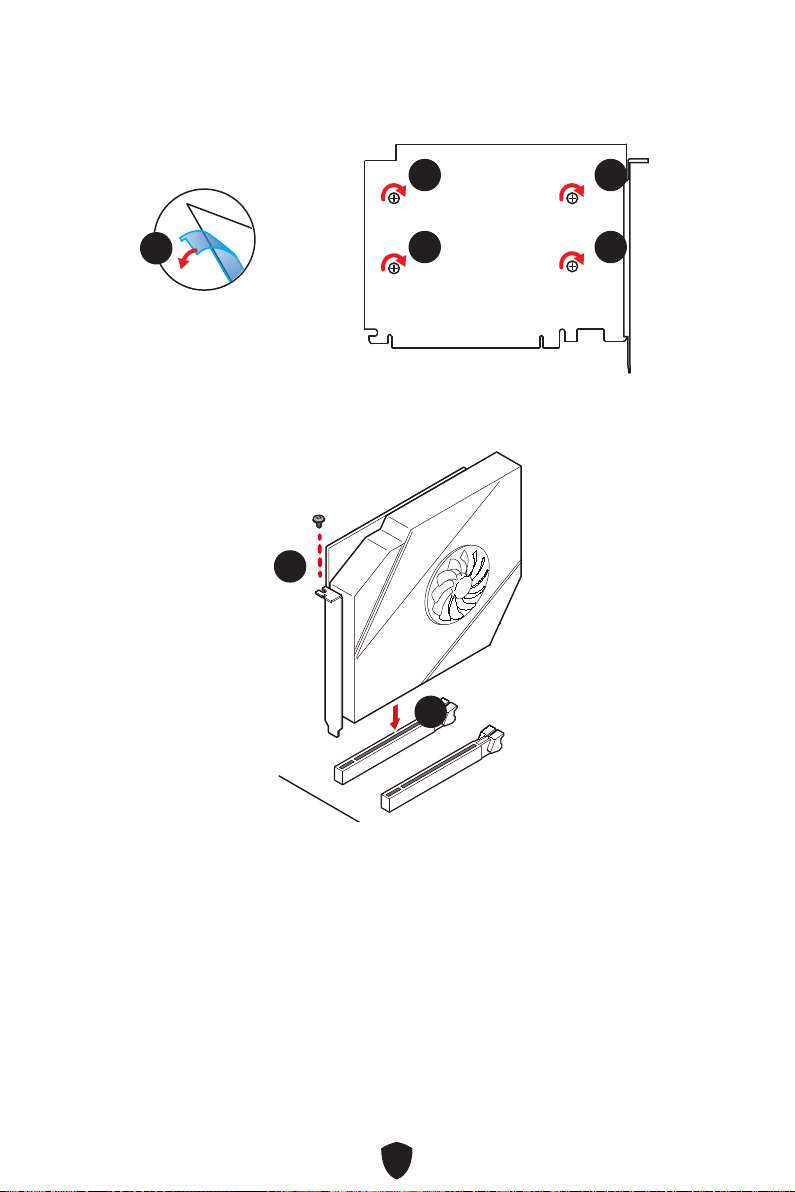

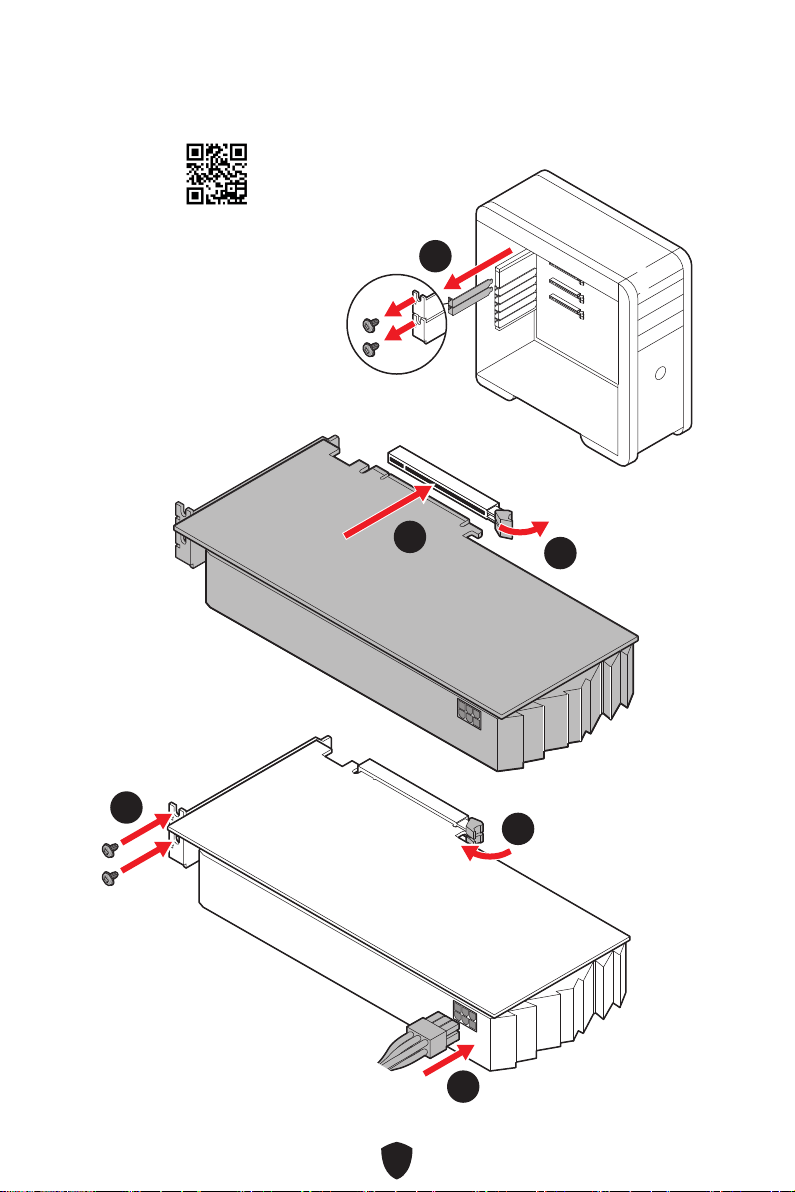

Installing a Graphics Card
∙
http://youtu.be/mG0GZpr9w_A
⚽
11
22
33
44
55
66
14

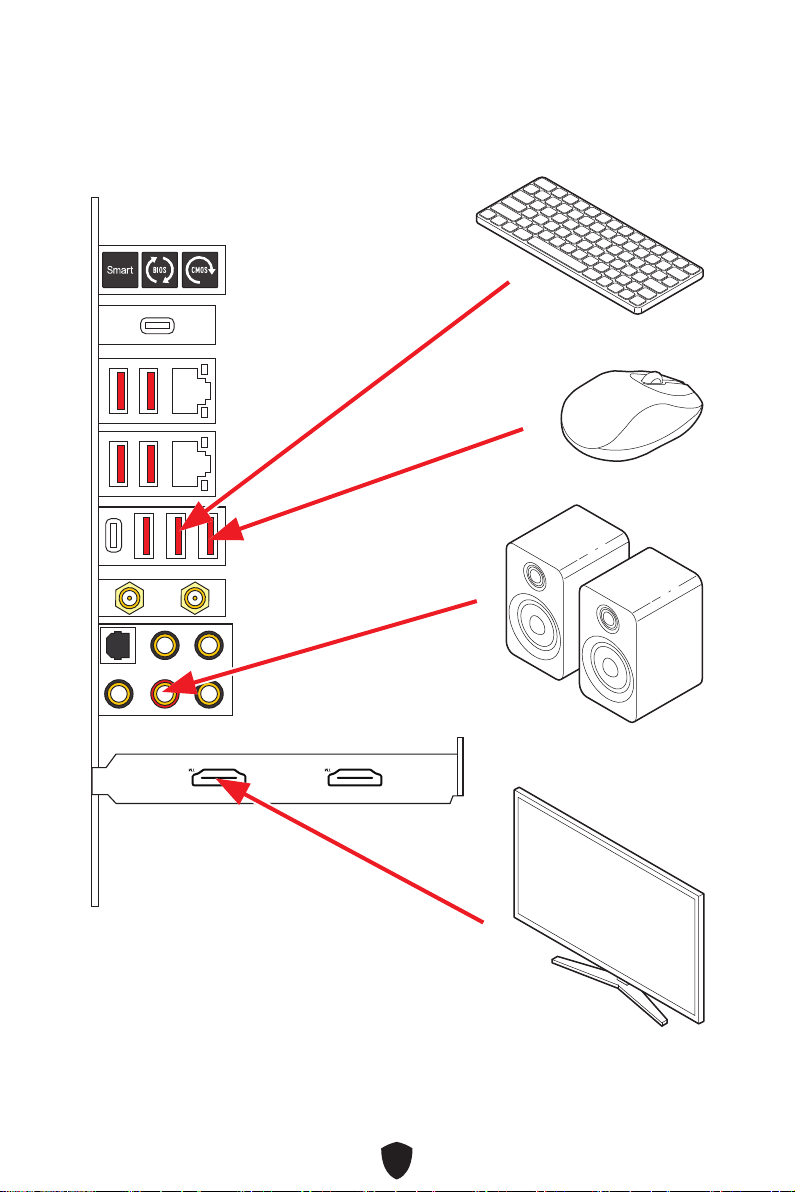

Connecting Peripheral Devices
15

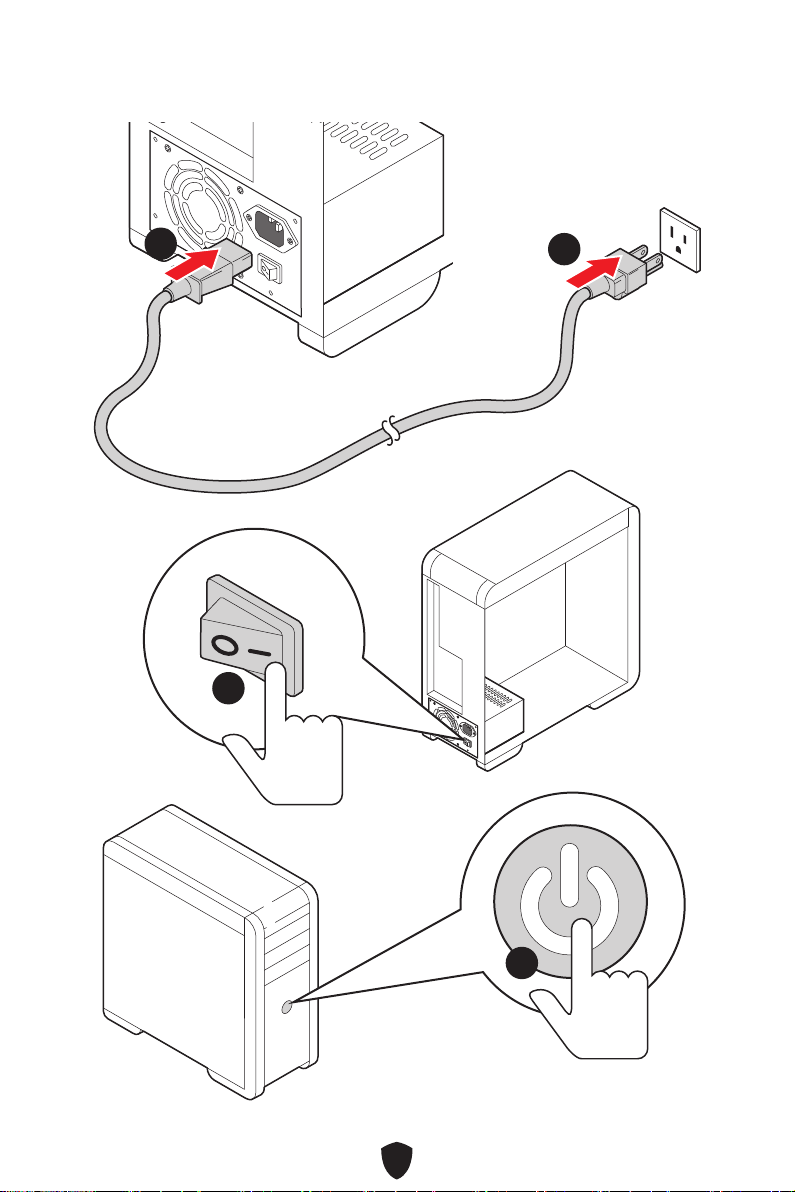

Power On
44
33
11
22
16
Specifications
CPU
∙ Supports AMD Ryzen™ 7000 Series Desktop Processor*
∙ Processor socket AM5
* Please go to www.msi.com to get the newest support status as new processors
are released.
Chipset AMD X670 Chipset
Memory
4x DDR5 memory slots, supporting up to 128GB*
∙ Supports 1R 4800 MHz by JEDEC
∙ Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6666+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• 2DPC 1R Max. speed up to 6400+ MHz
• 2DPC 2R Max. speed up to 4000+ MHz
∙ Supports Dual-Channel mode
∙ Supports non-ECC, un-buffered memory
∙ Supports AMD EXPO
* Please refer to www.msi.com for more information on compatible memory.
Expansion Slots
∙ 3x PCIe x16 slots (From CPU)
∙ Supports x16/x0/x4, x8/x8/x4
• PCI_E1 supports up to PCIe 5.0 x16
• PCI_E2 supports up to PCIe 5.0 x8
• PCI_E3 Supports up to PCIe 5.0 x4
Multi-GPU
∙ Supports NVIDIA® SLI™ Technology
∙ Supports AMD Multi-GPU
SATA Ports
∙ 8x SATA 6Gb/s ports
• SATA_P3_P4 (From X670 Chipset)
• SATA_A1_A2 (From ASM1061)
• SATA_B1_B2 & SATA_B3_B4 (From ASM1064)
Continued on next column
17
Continued from previous column
M.2 SSD Slots
∙ 4x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4
• Supports 2280 storage devices
• M2_2, M2_3 and M2_4 slots (From X670 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/ 2280 storage devices
RAID
∙ Supports RAID 0 and RAID 1 for SATA storage devices*
∙ Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices
* SATA_A1_A2, SATA_B1_B2, and SATA_B3_B4 do not support RAID function.
Audio
Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
∙ 7.1-Channel USB High Performance Audio
∙ Supports up to 32-bit/384kHz playback on front panel
∙ Supports S/PDIF output
LAN
∙ 1x Intel® I225V 2.5Gbps LAN controller
∙ 1x Marvell® AQC113CS-B1-C 10Gbps LAN controller
Wi-Fi & Bluetooth®
AMD Wi-Fi 6E
∙ The Wireless module is pre-installed in the M.2 (Key-E)
slot
∙ Supports MU-MIMO TX/RX
∙ Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in
2.4GHz/ 5GHz or 6GHz* bands
∙ Supports 802.11 a/ b/ g/ n/ ac/ ax
∙ Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in
Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Power Connectors
∙ 1x 24-pin ATX main power connector
∙ 2x 8-pin +12V power connectors
∙ 1x 6-pin PCIe power connector
∙ 1x 6-pin PD power connector*
* To achieve USB PD 60W charging for JUSB2, PD_PWR1 connector needs to be
connected to the power supply unit.
Continued on next column
18
Continued from previous column
Internal USB
Connectors
∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C front panel connector*
(From X670 chipset)
• Supports USB PD 60W fast charging**
∙ 1x USB 3.2 Gen 2 10Gbps Type-C front panel connector
(From X670 chipset)
∙ 2x USB 3.2 Gen 1 5Gbps connectors (From X670 chipset)
• Supports additional 4 USB 3.2 Gen 1 5Gbps ports
∙ 2x USB 2.0 Type-A connectors (From X670 chipset)
• Supports additional 4 USB 2.0 ports
* JUSB2 doesn’t support USB 2.0 device.
** To achieve USB PD 60W charging for JUSB2, PD_PWR1 connector needs to be
connected to the power supply unit.
Fan Connectors
∙ 1x 4-pin CPU fan connector
∙ 2x 4-pin water-pump fan connectors
∙ 6x 4-pin system fan connectors
System Connectors
∙ 1x Front panel audio connector
∙ 2x System panel connectors
∙ 1x Chassis intrusion connector
∙ 1x 3-pin Water flow connector
∙ 2x 2-pin Thermal sensor connectors
∙ 1x Tuning controller connector
Button
∙ 1x Power button
∙ 1x Reset button
Switch
∙ 1x EZ LED Control switch
∙ 1x Multi-BIOS switch
∙ 1x M-VISION switch
Jumpers
∙ 1x Clear CMOS jumper
∙ 1x Low temperature booting jumper
∙ 1x OC safe boot jumper
LED Features
∙ 1x 4-pin RGB LED connector
∙ 3x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
∙ 4x EZ Debug LED
∙ 1x 2-Digit Debug Code LED
Continued on next column
19
Continued from previous column
Back Panel
Connectors
∙ 1x Smart button
∙ 1x Clear CMOS button
∙ 1x Flash BIOS button
∙ 1x 2.5G LAN (RJ45) port
∙ 1x 10G LAN (RJ45) port
∙ 4x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
∙ 3x USB 3.2 Gen 2 10Gbps Type-A ports (From X670
chipset)
∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From X670
chipset)
∙ 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From ASM3241)
∙ 2x Wi-Fi antenna connectors
∙ 5x OFC audio jacks
∙ 1x Optical S/PDIF Out connector
I/O Controller NUVOTON NCT6687R Controller Chip
Hardware Monitor
∙ CPU/ System/ Chipset temperature detection
∙ CPU/ System/ Pump fan speed detection
∙ CPU/ System/ Pump fan speed control
Form Factor
∙ E-ATX Form Factor
∙ 11.3 in. x 12 in. (288 mm x 305 mm)
Continued on next column
20
Continued from previous column
BIOS Features
∙ Dual BIOS
∙ 2x 256 Mb flash
∙ UEFI AMI BIOS
∙ ACPI 6.4, SMBIOS 3.5
∙ Multi-language
Software
∙ Drivers
∙ MSI Center
∙ Realtek Console
∙ MSI App Player (BlueStacks)
∙ CPU-Z MSI GAMING
∙ Norton 360 for Gamers
∙ AIDA64 Extreme - MSI Edition
∙ 7-ZIP
21
Special Features
MSI Center
• Gaming Mode
• Smart Priority
• Game Highlights
• Mystic Light
• Ambient Link
• Frozr AI Cooling
• User Scenario
• True Color
• Live Update
• Super Charger
• Devices Speed Up
• Smart Image Finder
• MSI Companion
• System Diagnosis
Thermal Features
• Wavy Fin Design
• Cross Heat-pipe
• MOSFET Baseplate
• M.2 Shield Frozr
• K7 MOSFET thermal pad / Extra
choke pad
• Fan headers (CPU + PUMP +SYSTEM)
Performance
• Core Boost
• VRM Power Design
• Dual CPU Power
• OC Engine
• Memory Boost
• Memory Force
• Lightning Gen 5 PCI-E / M.2 Slot
• Lightning Gen 4 M.2 Slot
• Multi GPU Support
• Front USB Type-C
• USB with PD
• Supplemental PCIe Power Connector
• Server Grade PCB
• 2oz Copper thickened PCB
DIY Friendly
• PCI-E Steel Armor
• Pre-installed I/O Shield
• Metal Backplate
• Screwless M.2 Shield Frozr
• EZ M.2 Clips
• M-Vision Dashboard
• EZ DEBUG LED
• EZ LED Control
• Smart Button
• System Saver
Audio
• Audio Boost 5 HD
RGB Support
• Mystic Light
• Mystic Light Extension (RGB)
• Mystic Light Extension (ARGB Gen2)
• Ambient Devices Support
BIOS
• Click BIOS 5
22
Package Contents
Please check the contents of your motherboard package. It should contain:
Board
• 1x Motherboard
Documentation
• 1x Quick installation guide
• 1x European Union regulatory notice
Application
• 1x USB drive with drivers & utilities
Cables
• 6x SATA 6Gb/s cables
• 1x JRGB extension cable (1 to 2)
• 1x JARGB extension cable
• 1x JARGB extension cable (1 to 3)
• 2x Thermistor cables
• 1x Front panel cable
Accessories
• 1x M.2 Xpander-Z Gen 5 Dual card
• 1x M-Vision Dashboard
• 1x Wi-Fi antenna set
• 4x EZ M.2 Clip packages (1 set/pack)
⚠
Important
∙
There is an ISO file in the supplied USB drive. Please do not delete it accidentally.
For more information on installing drivers, please refer to Installing OS, Drivers &
MSI Center chapter.
∙
If any of the above items are damaged or missing, please contact your retailer.
23

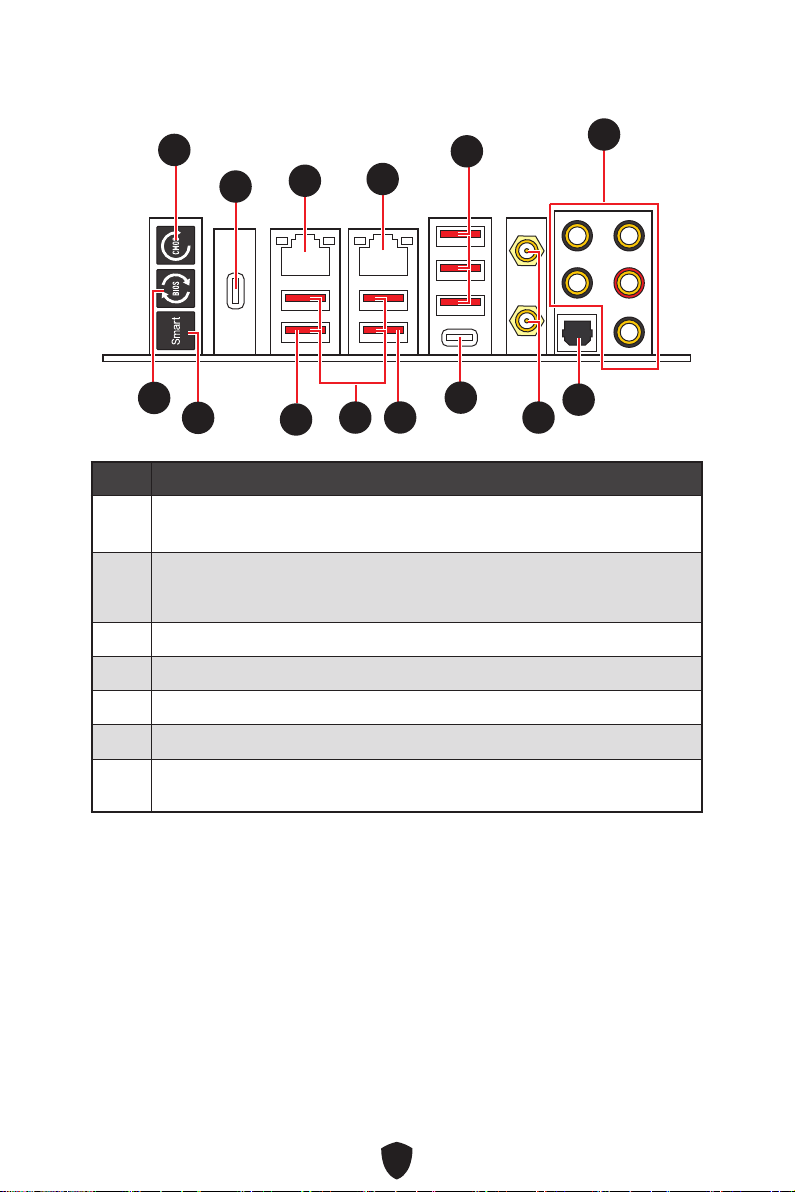

Back Panel Connectors
Item Description
1
Clear CMOS button - Power off your computer. Press and hold the Clear
CMOS button for about 5-10 seconds to reset BIOS to default values.
2
USB 3.2 Gen 2x2 20Gbps Type-C port* (From ASM3241)
* This USB Type-C port and PCI_E3 share the same bandwidth. When installing devices in PCI_E3,
the USB Type-C port would be disabled.
3 2.5 Gbps LAN port
4 10 Gbps LAN port
5 USB 3.2 Gen 2 10Gbps Type-A ports (From X670 chipset)
6 Audio ports
7
Flash BIOS button - Please refer to page 71 for details about updating BIOS
with Flash BIOS button.
11
99
1111
66
44
33
1010
55
22
88
1212
1313
1414
77
24
Item Description
8
Smart button - We provide 4 functions for the smart button to achieve.
Please refer to the BIOS manual for details about selecting the smart
button function.
∙ Reset (default) - press the smart button to reset the system.
∙ Mystic Light on/ off - press the smart button to turn on/ off all the
onboard LEDs. The Mystic Light on/ off function mode is unavailable
when the LED_SW1 (EZ LED Control) switch turns OFF.
∙ Safe Boot - press and hold the smart button and start the system
simultaneously to boot in Safe Boot mode. The system will boot with
default and lower the PCIe (from CPU) mode.
∙ Turbo Fan - press the smart button for all fans to operate full speed or
default speeds.
9

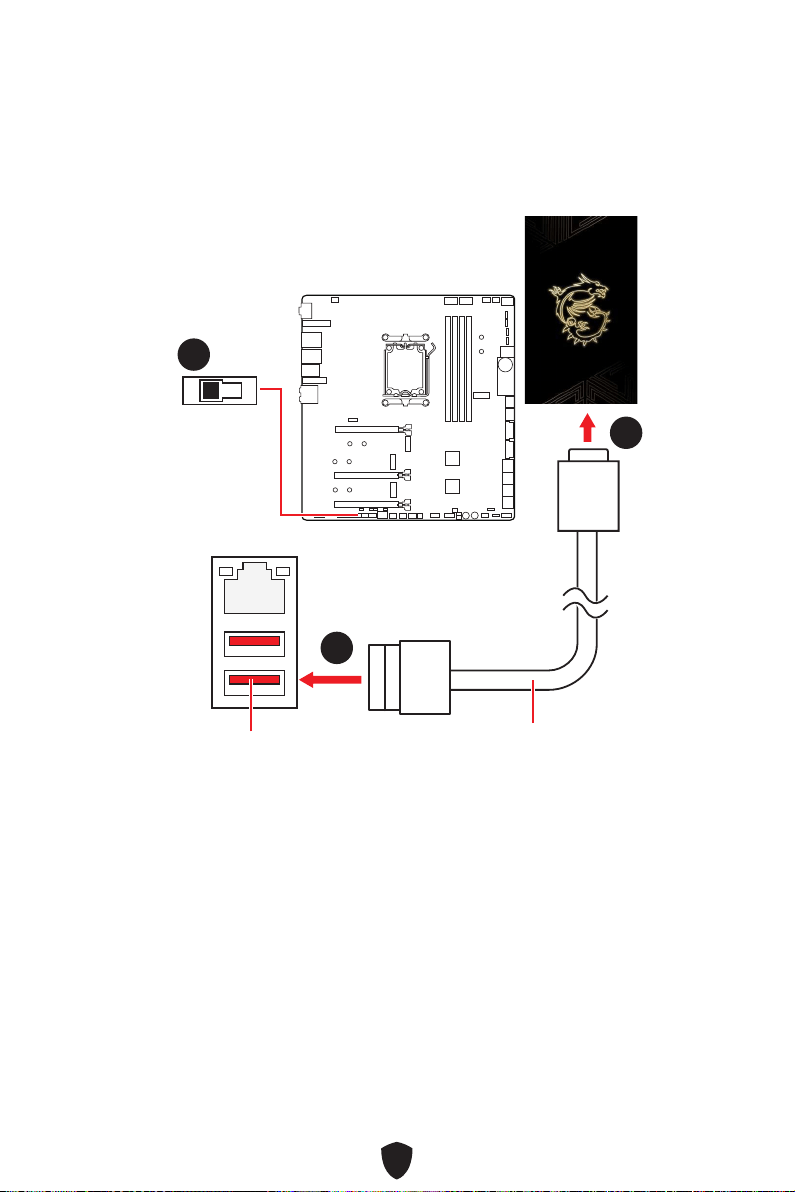

M-Vision Dashboard port - Please refer to page 59 for details about
connecting M-Vision Dashboard.
10 USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
11 Flash BIOS port
12 USB 3.2 Gen 2x2 20Gbps Type-C port (From X670 chipset)
13 Wi-Fi antenna connectors
14 Optical S/PDIF Out connector
25
2.5 Gbps LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Speed
Off 10 Mbps
Green 100 Mbps/ 1 Gbps
Orange 2.5 Gbps
10 Gbps LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Green Linked
Blinking Data activity
Speed LED
Status Speed
Off －
Green 100 Mbps / 1 Gbps / 2.5 Gbps
Yellow 10 Gbps
26

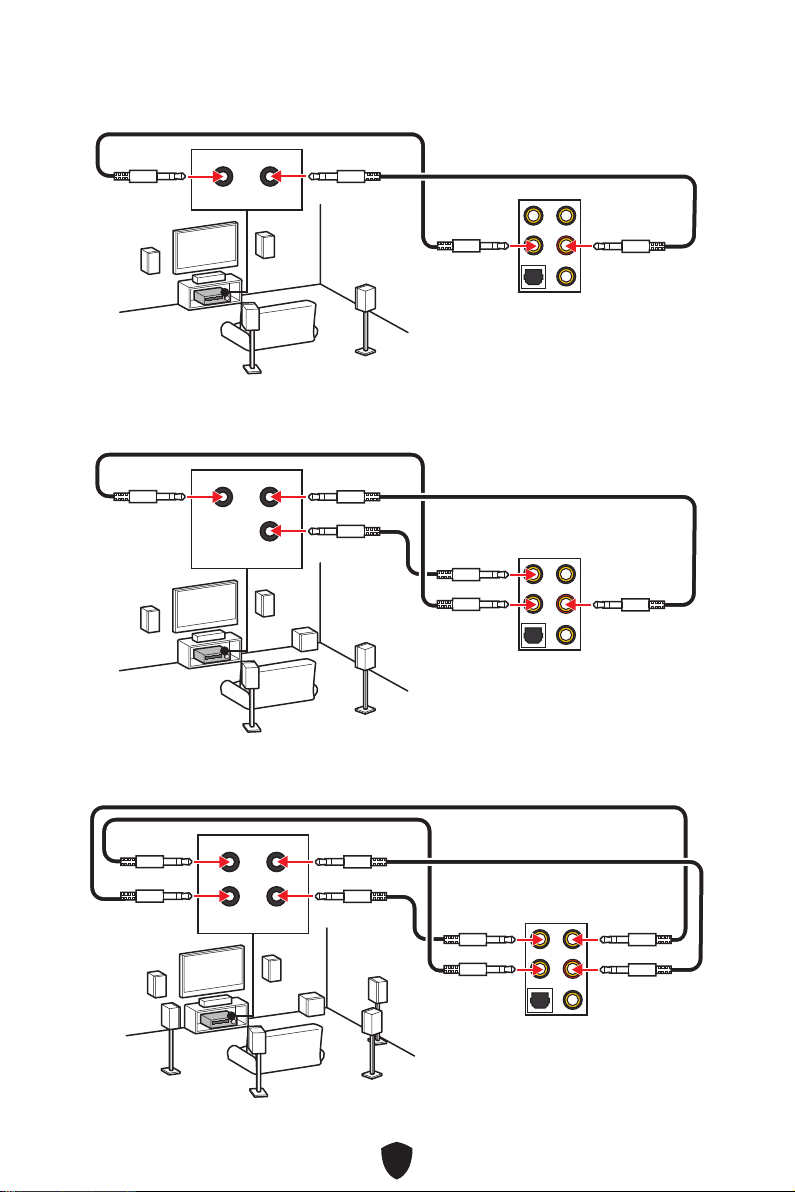

Audio Jacks Connection
Audio jacks to headphone and microphone diagram
Audio jacks to stereo speakers diagram
AUDIO INPUT
27
Audio jacks to 7.1-channel speakers diagram
Audio jacks to 4-channel speakers diagram
Audio jacks to 5.1-channel speakers diagram
AUDIO INPUT
Rear Front
AUDIO INPUT
Rear Front
Center/
Subwoofer
AUDIO INPUT
Rear Front
Side Center/
Subwoofer
28

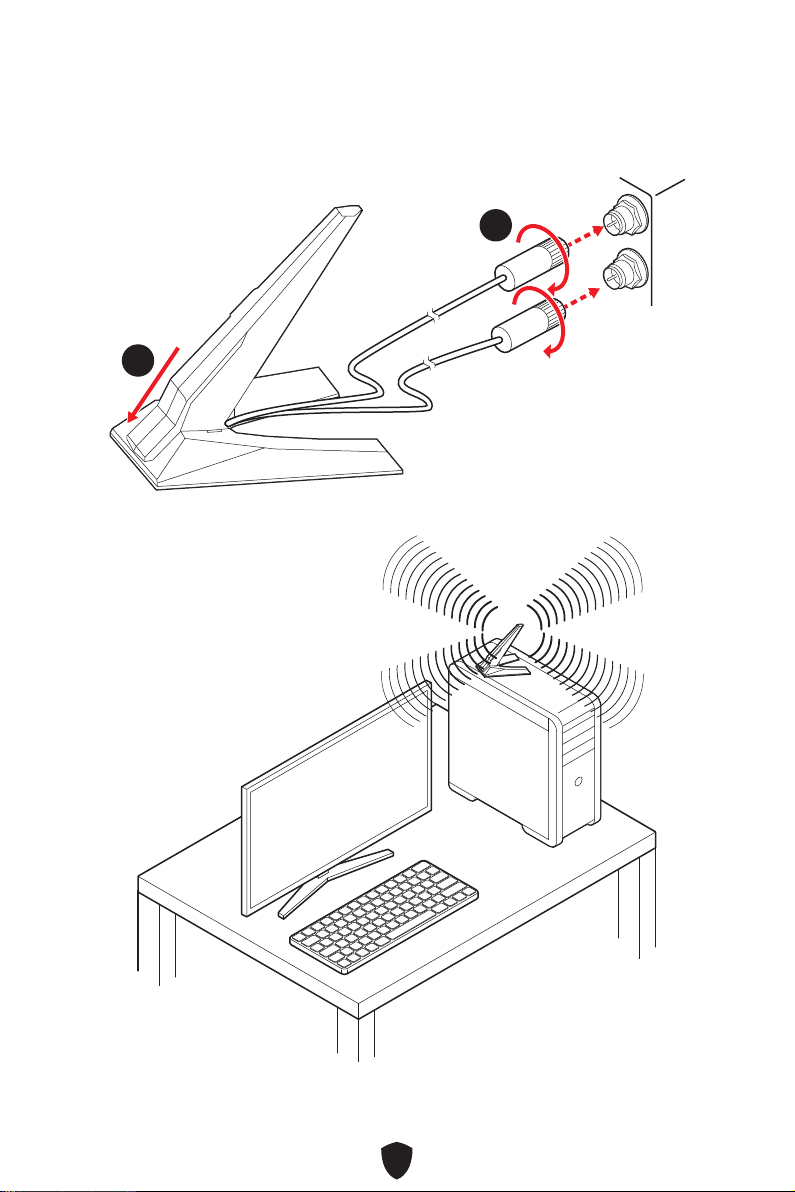

Installing Antennas
1. Combine the antenna with the base.
2. Screw two antenna cables tight to the Wi-Fi antenna connectors as shown.
11
22
3. Place the antenna as high as possible.
29
BAT1
Overview of Components
JUSB1
JUSB2
JUSB4
JUSB3
SATA▼_A1▲_A2
SATA▼_P3▲_P4
SATA▼_B1▲_B2
SATA▼_B3▲_B4
ATX_PWR1
PUMP_FAN2
CPU_FAN1
M2_1
PUMP_FAN1
JARGB_V2_2
SYS_FAN1
SYS_FAN2
JARGB_V2_3
DIMMB2
CPU_PWR1
CPU_PWR2
JFP2
JFP1
JUSB5
JUSB6
W_FLOW1
SYS_FAN4
SYS_FAN3
SYS_FAN6
POWER1
RESET1
SYS_FAN5
PCIE_PWR1
PD_PWR1
BIOS_SW1
LED_SW1
JDASH1
JPWRLED1
JRGB1
JARGB_V2_1
JAUD1
PCI_E1
PCI_E2
PCI_E3
M2_2
M2_3
M2_4
DIMMB1
DIMMA2
DIMMA1
Processor Socket
JOC_FS1
JBAT1
JCI1
JLN1
T_SEN2
T_SEN1
JSMB1
30
CPU Socket
⚠
Important
∙
When changing the processor, the system configuration could be cleared and reset
BIOS to default values, due to the AM5 processor’s architecture.
∙
Always unplug the power cord from the power outlet before installing or removing
the CPU.
∙
Please retain the CPU protective cap after installing the processor. MSI will deal
with Return Merchandise Authorization (RMA) requests if only the motherboard
comes with the protective cap on the CPU socket.
∙
When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
∙
Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
∙
Overheating can seriously damage the CPU and motherboard. Always make sure the
cooling fans work properly to protect the CPU from overheating. Be sure to apply an
even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.
∙
Whenever the CPU is not installed, always protect the CPU socket pins by covering
the socket with the plastic cap.
∙
If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
∙
This motherboard is designed to support overclocking. Before attempting to
overclock, please make sure that all other system components can tolerate
overclocking. Any attempt to operate beyond product specifications is not
recommended. MSI® does not guarantee the damages or risks caused by inadequate
operation beyond product specifications.
Distance from the center of the
CPU to the nearest DIMM slot.
53.74 mm
Introduction to the AM5 CPU
The surface of the AM5 CPU has two
notches and a golden triangle to
assist in correctly lining up the CPU for
motherboard placement. The golden
triangle is the Pin 1 indicator.
31
DIMM Slots
DIMMA1 DIMMB1
Channel A Channel B
DIMMA2 DIMMB2
Memory module installation recommendation
⚠
Important
∙
Always insert memory modules in the DIMMA2 slot first.
∙
To ensure system stability for Dual channel mode, memory modules must be of the
same type, number and density.
∙
Some memory modules may operate at a lower frequency than the marked value
when overclocking due to the memory frequency operates dependent on its Serial
Presence Detect (SPD). Go to BIOS and find the DRAM Frequency to set the memory
frequency if you want to operate the memory at the marked or at a higher frequency.
∙
It is recommended to use a more efficient memory cooling system for full DIMMs
installation or overclocking.
∙
The stability and compatibility of installed memory module depend on installed CPU
and devices when overclocking.
∙
Please refer to www.msi.com for more information on compatible memory.
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2
32
PCI_E1~3: PCIe Expansion Slots
PCI_E1: PCIe 5.0 x16 (From CPU)
PCI_E3: PCIe 5.0 x4 (From CPU)
PCI_E2: PCIe 5.0 x8 (From CPU)
x16
x8
x8
x8
x8
x4

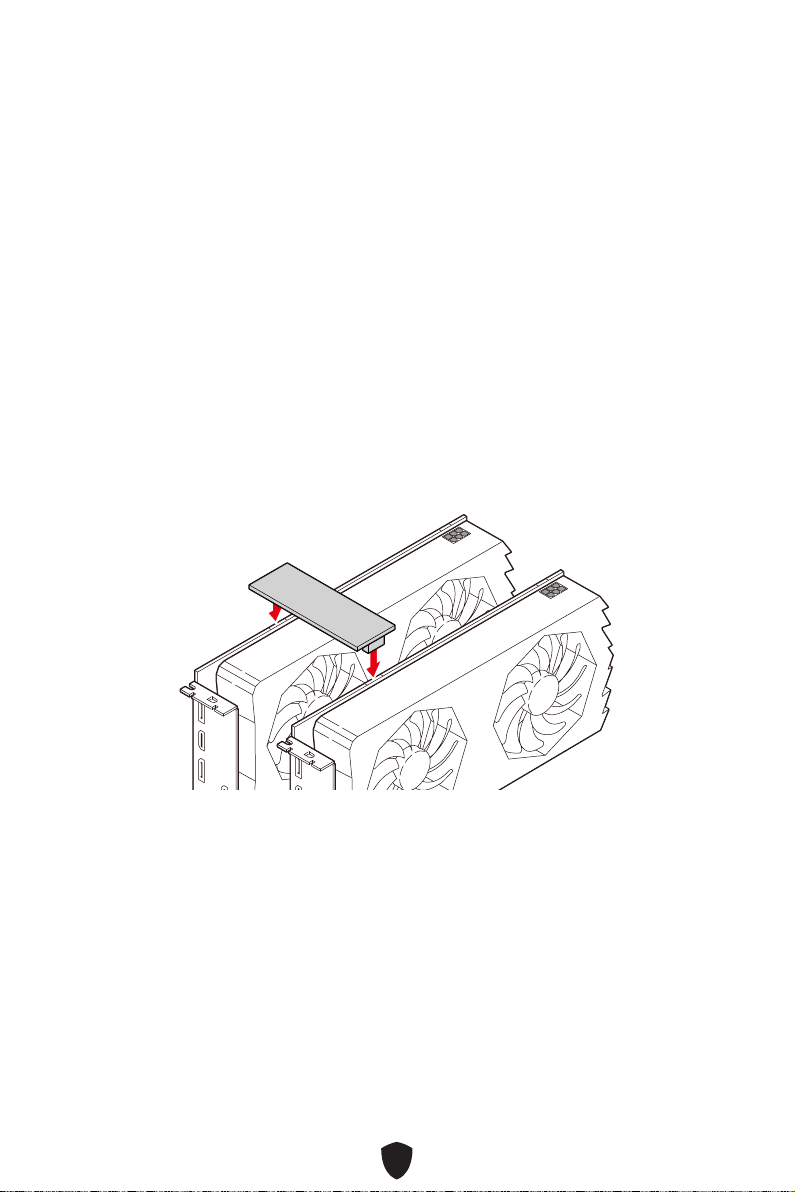

Multiple graphics cards installation recommendation
33
⚠
Important
∙
If you install a large and heavy graphics card, you need to use a tool such as MSI
Gaming Series Graphics Card Bolster to support its weight to prevent deformation of
the slot.
∙
For a single PCIe x16 expansion card installation with optimum performance, using
the PCI_E1 slot is recommended.
∙
When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
Installing SLI graphics cards
For power supply recommendations for SLI configurations, Please refer to the user
guide of your graphics card to make sure you meet all the system requirements.
To install SLI graphics cards:
1. Turn off your computer and disconnect the power cord, install two graphics cards
into the PCI_E1 and PCI_E2 slots.
2. Connect the two cards together using the SLI Bridge Connector.
3. Connect all PCIe power connectors of the graphics cards.
34
SATA_P3~4, SATA_A1~2, SATA_B1~2 & SATA_B3~4:
SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
⚠
Important
∙
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA_P3
SATA_A1
SATA_B1
SATA_B3
SATA_P4
SATA_A2
SATA_B2
SATA_B4
4. Reconnect the power cord, power up the computer and install the drivers and
software included in your graphics card package.
5. Right-click the Windows desktop and select NVIDIA Control Panel from the menu,
click on Configure SLI, Surround, PhysX in the left task pane and select Maximize
3D performance in the SLI configuration menu, and then click Apply.
35
M2_1~4: M.2 Slots (Key M)
Installing M.2 module into M2_1 slot
1.

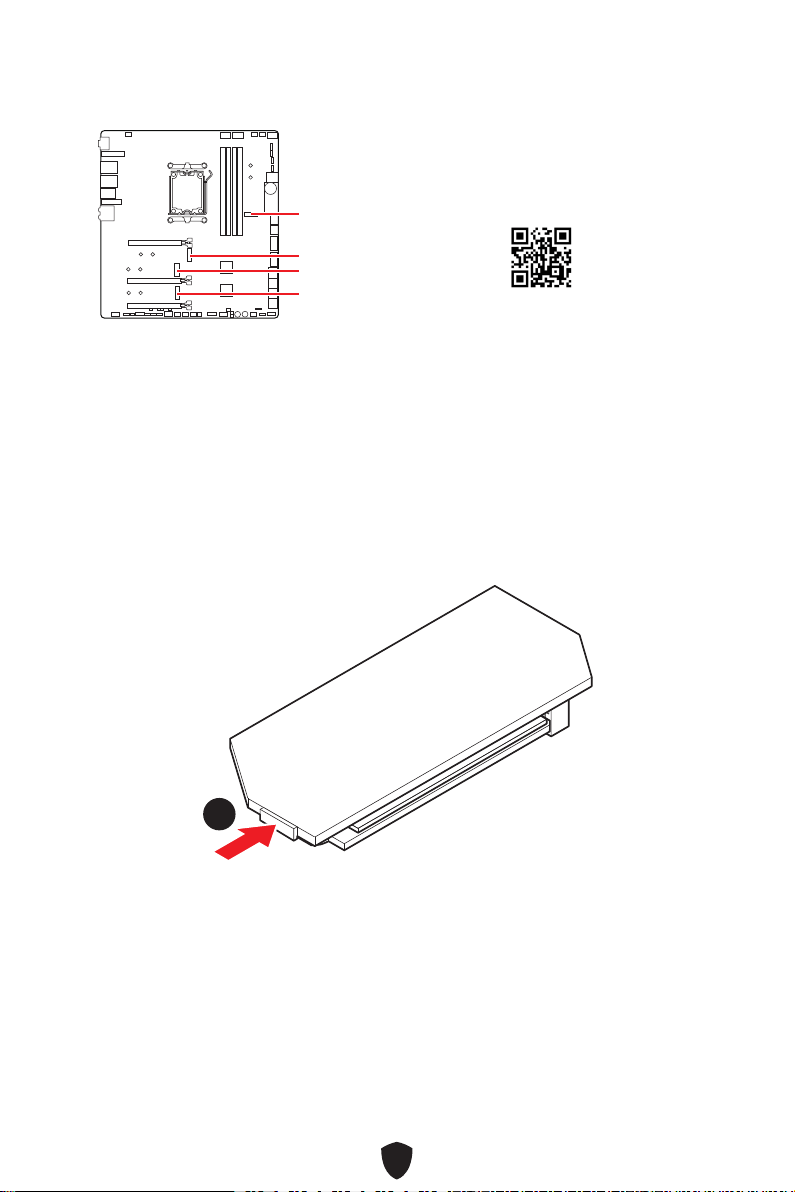

Press and hold the end button of Screwless M.2 Shield Frozr heatsink.
11
M2_1
M2_2
M2_4
M2_3
⚠
Important
∙
To make sure LEDs work properly, please keep JPIPE_LED connectors connected
with the heatsinks.
∙
If your M.2 SSD equips its own heatsink, please remove the M.2 plates or rubber
cubes in the M.2 slots before installing M.2 SSD. Do not re-install the heatsinks
supplied with your motherboard.
⚽
∙ https://youtu.be/J88vcXeLido
Watch the video to learn how to
Install M.2 SSD with Screwless
M.2 Shield Frozr heatsink.
36

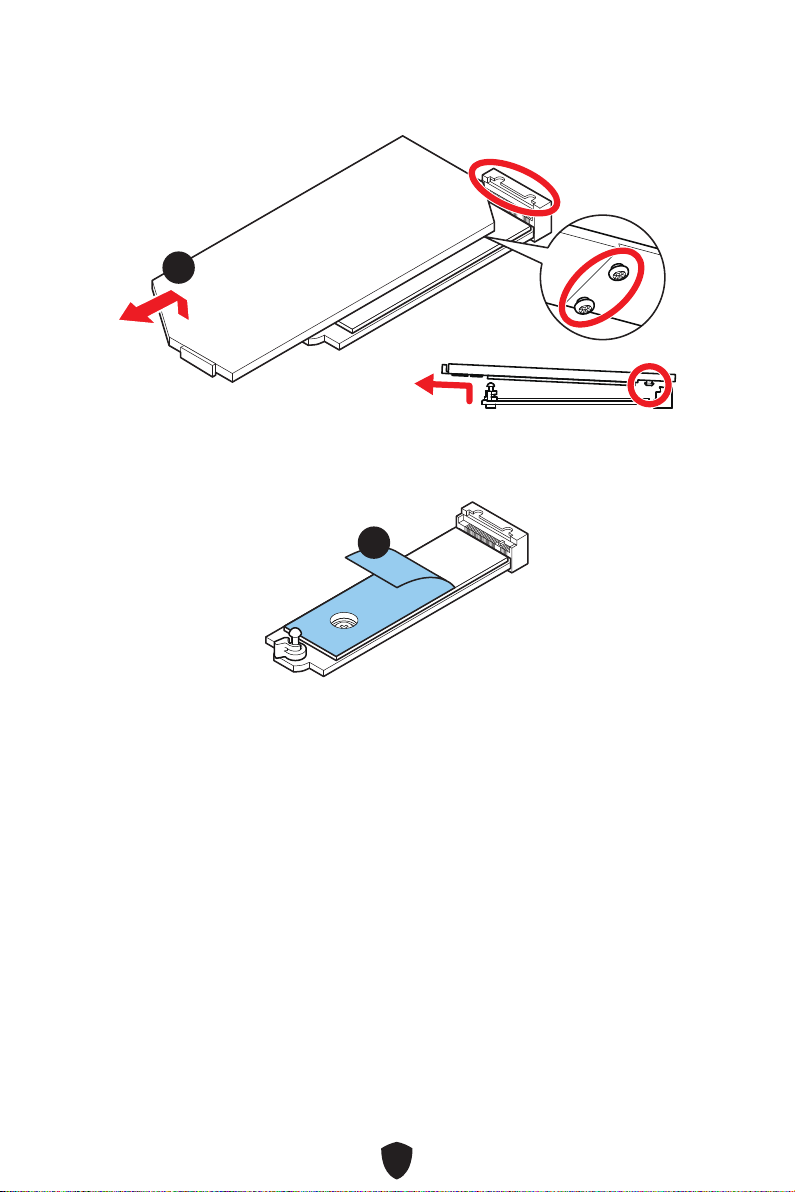

2. Slightly lift up the end part of Screwless M.2 Shield Frozr heatsink and move it
forward to uninstall the heatsink.
22

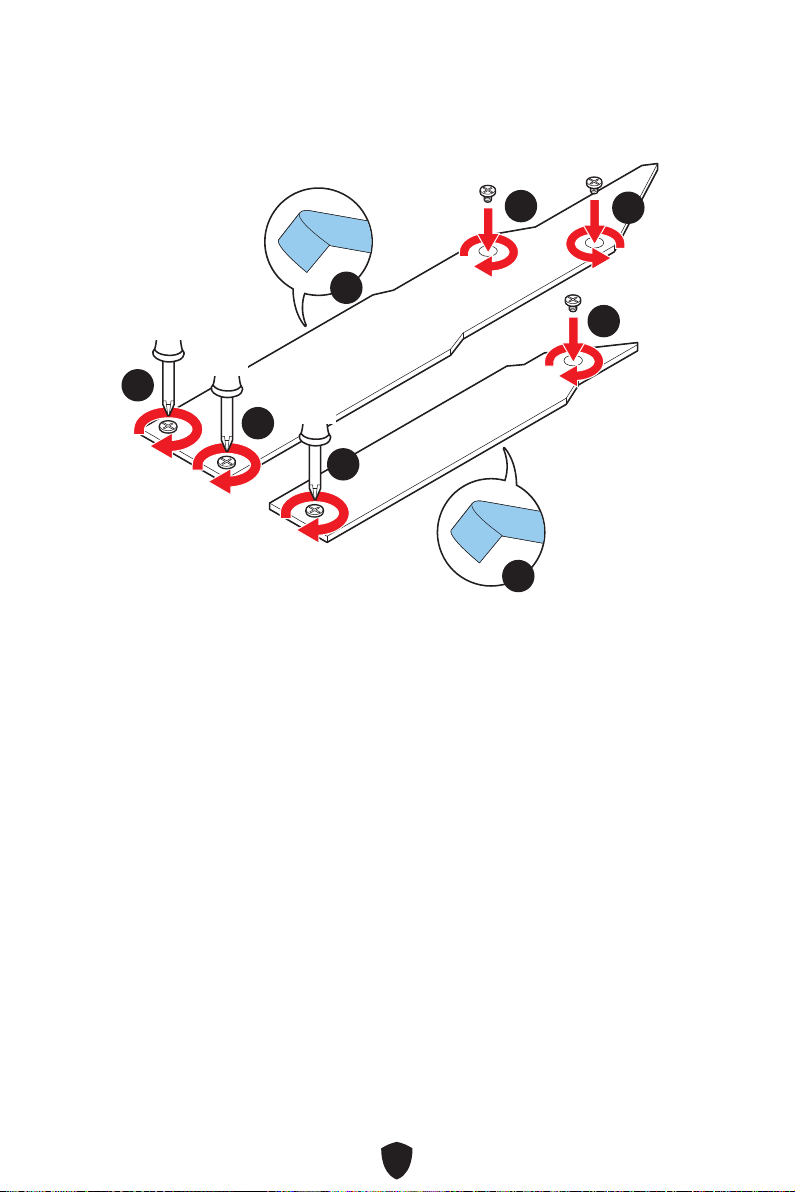

3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
33
4. If you install 2260 SSD, remove the screw from the M.2 plate and then install
supplied EZ M.2 Clip kit on the M.2 plate. Skip this step if you install 2280 SSD.
37
44
2260 SSD

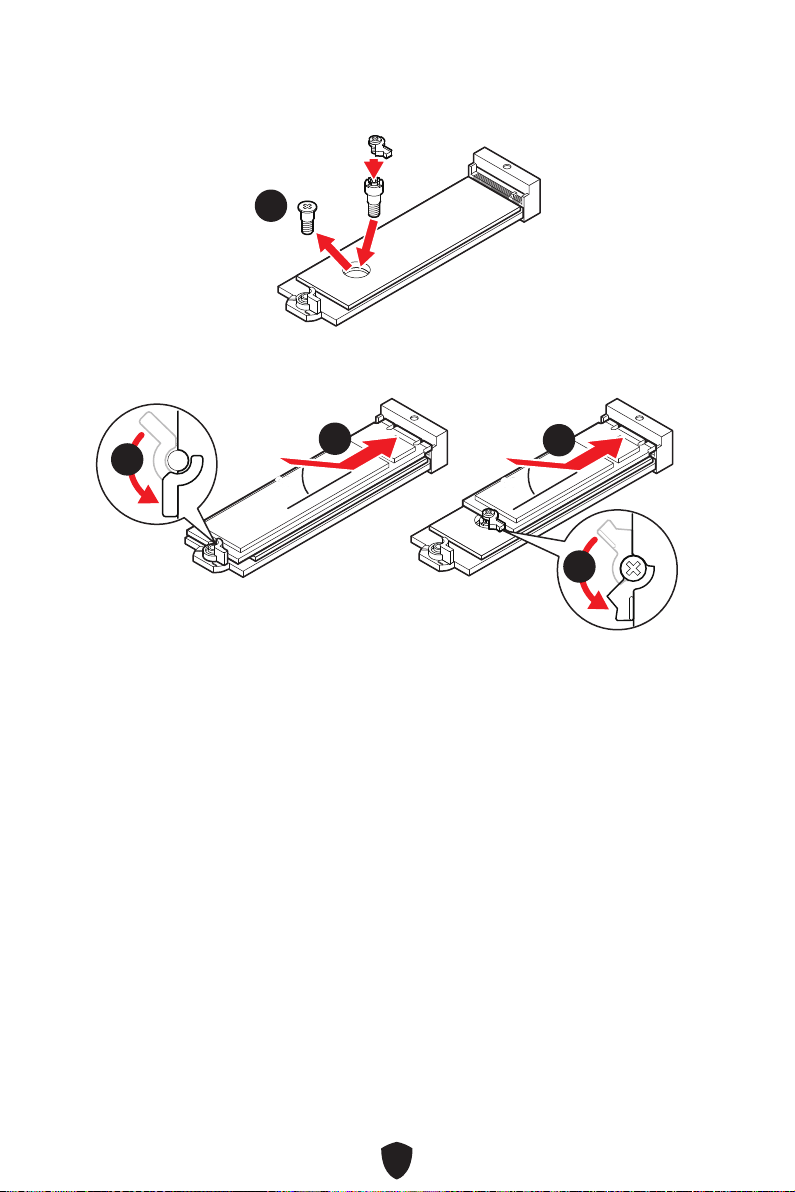

5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
2280 SSD
2260 SSD
66
66
55
55
7. Remove the protective films from the thermal pads under Screwless M.2 Shield
Frozr heatsink.

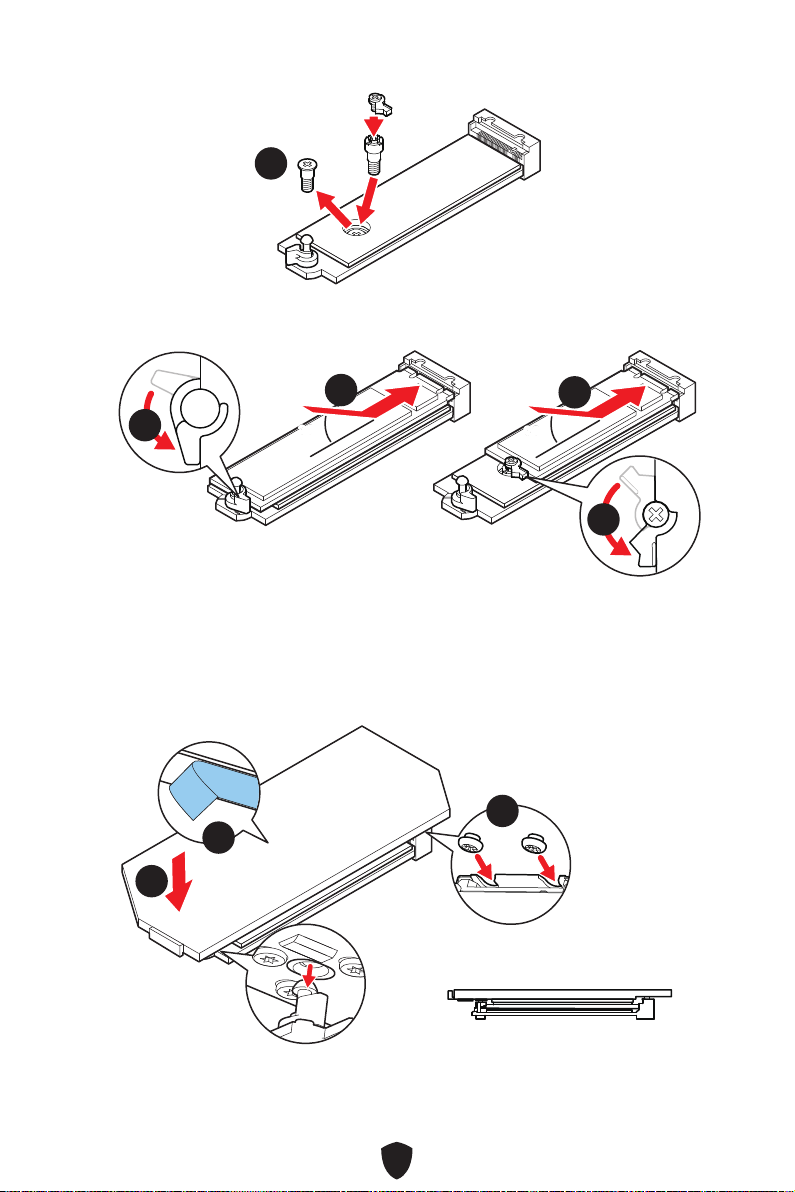

8. Align the tenons under Screwless M.2 Shield Frozr heatsink with the notches, and
then put the heatsink back in place.
9. Press the end side of Screwless M.2 Shield Frozr heatsink to lock it completely.
99
88
77
38
Installing M.2 module into M2_2~4 slots
1.

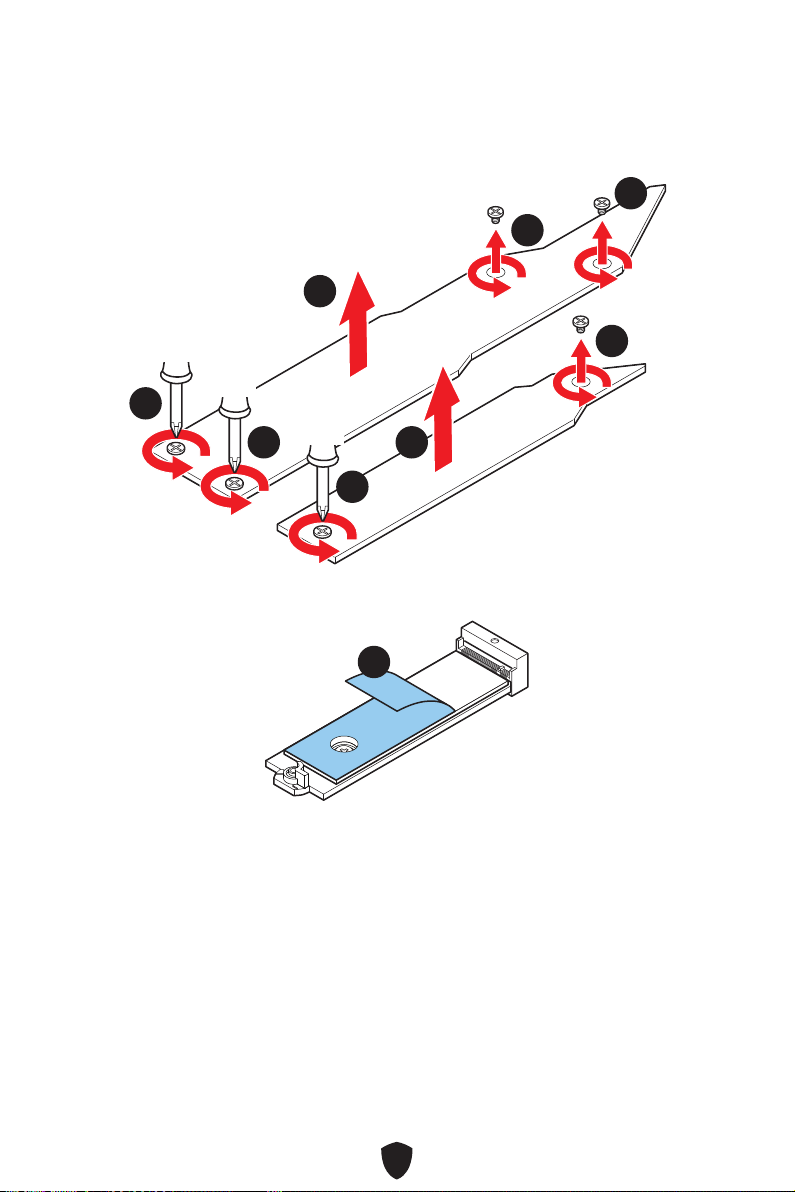

Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift the M.2 Shield Frozr heatsink up and remove it.
11
11
22
11
11
22
11
11
3. Remove the protective films from the M.2 thermal pads on the M.2 plate.
33
39
4. If you install 2260 SSD, remove the screw from the M.2 plate and then install
supplied EZ M.2 Clip kit on the M.2 plate. Skip this step if you install 2280 SSD.
44
2260 SSD
5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
2280 SSD
2260 SSD
66
55
55
66
40
7. Remove the protective films from the thermal pads under the M.2 Shield Frozr
heatsink.
8. Put the M.2 Shield Frozr heatsink back in place and secure it.
77
77
88
88
88
88
88
88
41
Installing M.2 Xpander-Z Gen 5 Dual card
Before installing the M.2 Xpander-Z Gen 5 Dual card, you need to install M.2 SSDs to
the M.2 Xpander-Z Gen 5 Dual card. And then install the M.2 Xpander-Z Gen 5 Dual
card to the motherboard, please follows the steps below for details.

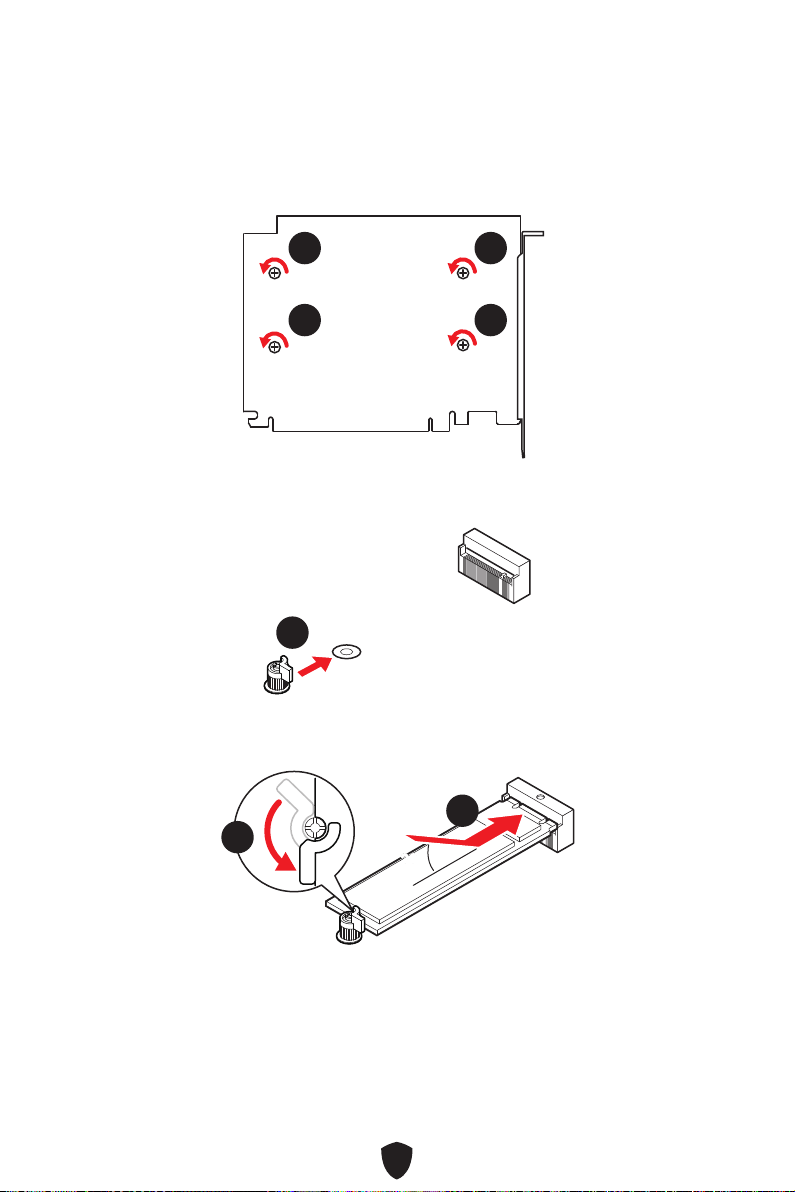

1. Loosen the heatsink screws on the back of the card, and then remove the heatsink.
11
11
11
11
2. Move the EZ M.2 Clip screw according to your M.2 SSD length. Skip this step if you
install 2280 M.2 SSD.
22
3. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
4. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
33
44
42
5. Remove the protective film from the thermal pad of the heatsink.
6. Put the heatsink back in place and secure it.
66
66
55
66
66
7. Insert the M.2 Xpander-Z Gen 5 Dual card into the PCI_E2 slot.
8. Use a screw to secure the card to the back side of the case.
88
77
43

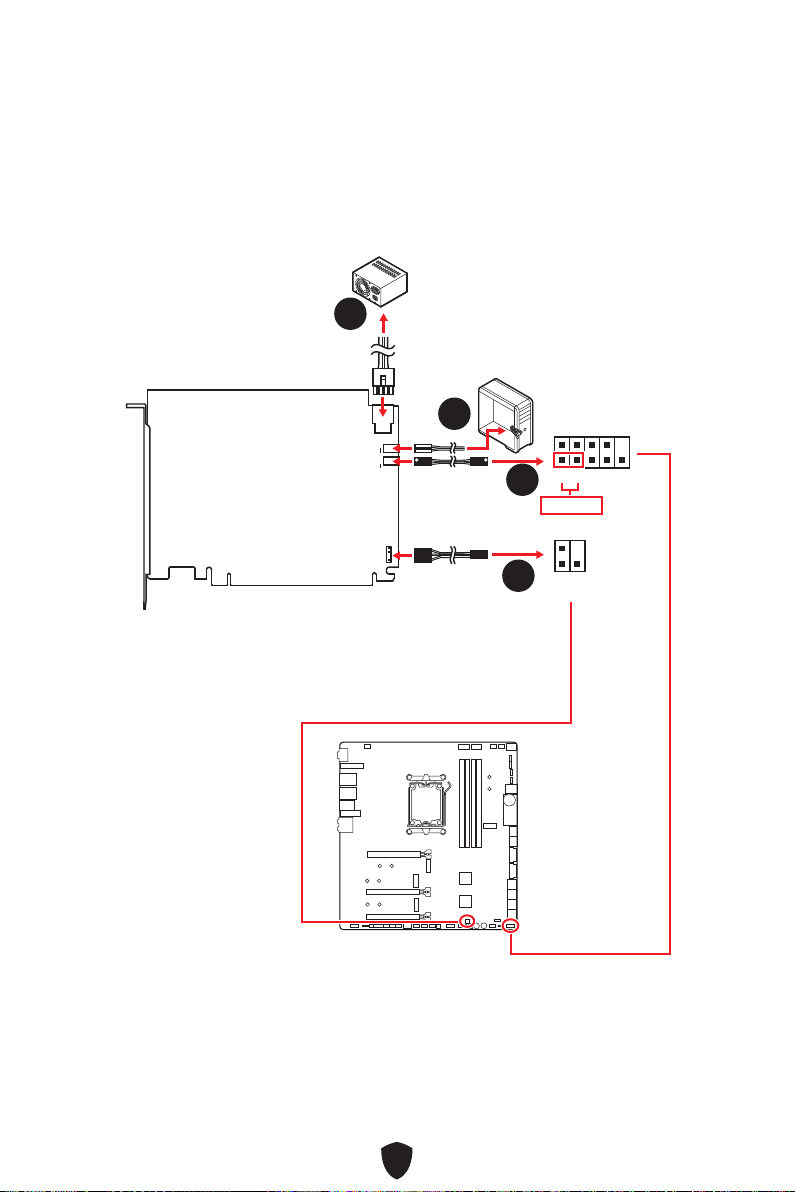

9. Connect the PCIE_PWR1 to the power supply.
10. Connect the HDD LED cable supplied with your case to the JCASE connector.
11. Use the HDD LED cable supplied with M.2 Xpander-Z Gen 5 Dual card to connect
the JMB connector and JFP1’s HDD pins (pin 1 & pin3).
12. Use the JSMB cable supplied with this card to connect the JSMB connector and
JSMB1 connector. And then you can set the fan duty cycle and the M.2 temperature
LED color in BIOS.
+
+
99
1010
1111
1212
PCIE_PWR1
JFP1
HDD LED
JSMB1
+ -
JCASE
JMB
JSMB
44
M.2 Xpander-Z Gen 5 Dual card LED Control
You can turn on/ off the LEDs by the switches.
+
+
M.2 LED switch
M.2 access LED
M.2 temperature LED
FAN LED
FAN LED switch
FAN LED switch
This switch is used to turn on/ off the FAN LED.
FAN LED
• On (white) - The heatsink fan is operating correctly.
• Off - The heatsink fan is off.
M.2 LED switch
This switch is used to turn on/ off the M.2 access LEDs and M.2 temperature LEDs.
M.2 access LED
These LEDs indicate the status of M.2 SSDs.
• On (blue) - Detect the M.2 SSDs.
• Flash (purple) - The M.2 SSDs are accessing data.
• Off - No M.2 SSD detected.
M.2 temperature LED
These LEDs indicate the temperature states of M.2 SSDs.
• Red light- 65℃ and up
• Orange light- 55 ~ 64℃
• Yellow light- 45 ~ 54℃
• Green light - 35 ~ 44℃
• Blue light - 25 ~ 34℃
⚠
Important
This card can support up to PCIe 5.0 specification, but the actual speeds depend on
the M.2 SSDs, processor, and chipset being used.
45
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
Pin Signal Name Pin Signal Name
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
JFP1, JFP2: Front Panel Connectors
The JFP1 connector controls the power on, power reset, and the LEDs on your PC
case/chassis. Power Switch/ Reset Switch headers allow you to connect power button/
reset button. Power LED header connects to LED light on the PC case, and HDD LED
header indicates the activity of the hard disk. The JFP2 connector is for Buzzer and
Speaker. To connect the cables from PC case to the right pins, please refer to the
following images below.
1
2 10
9
Power LED
Reserved
Power Switch
JFP1
Reset SwitchHDD LED
1
JFP2
Buzzer
Speaker
⚠
Important
Please note that Power LED and HDD LED have positive and negative connection,
you need to link up the cable to the corresponding positive and negative port on the
motherboard. Otherwise, LEDs won’t work properly.
46
⚠
Important
∙
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
∙
To achieve USB PD 60W fast charging for JUSB2, the PD_PWR1 connector needs to
be connected to the power supply unit.
CPU_PWR1~2, ATX_PWR1, PD_PWR1, PCIE_PWR1:
Power Connectors
These connectors allow you to connect an ATX power supply.
CPU_PWR1~2
Pin Signal Name Pin Signal Name
1 Ground 2 Ground
3 Ground 4 Ground
5 +12V 6 +12V
7 +12V 8 +12V
ATX_PWR1
Pin Signal Name Pin Signal Name
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 PWR OK
9 5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PS-ON#
17 Ground 18 Ground
19 Ground 20 Res
21 +5V 22 +5V
23 +5V 24 Ground
5
4 1
8
CPU_PWR1~2
24
131
12
ATX_PWR1
PCIE_PWR1/ PD_PWR1
Pin Signal Name Pin Signal Name
1 +12v 2 +12v
3 +12v 4 Ground
5 Ground 6 Ground
PCIE_PWR1/
PD_PWR1
1 4
3 6
47
⚠
Important
∙
To achieve USB PD 60W charging for JUSB2, PD_PWR1 connector needs to be
connected to the power supply unit.
∙
JUSB2 doesn’t support USB 2.0 device.

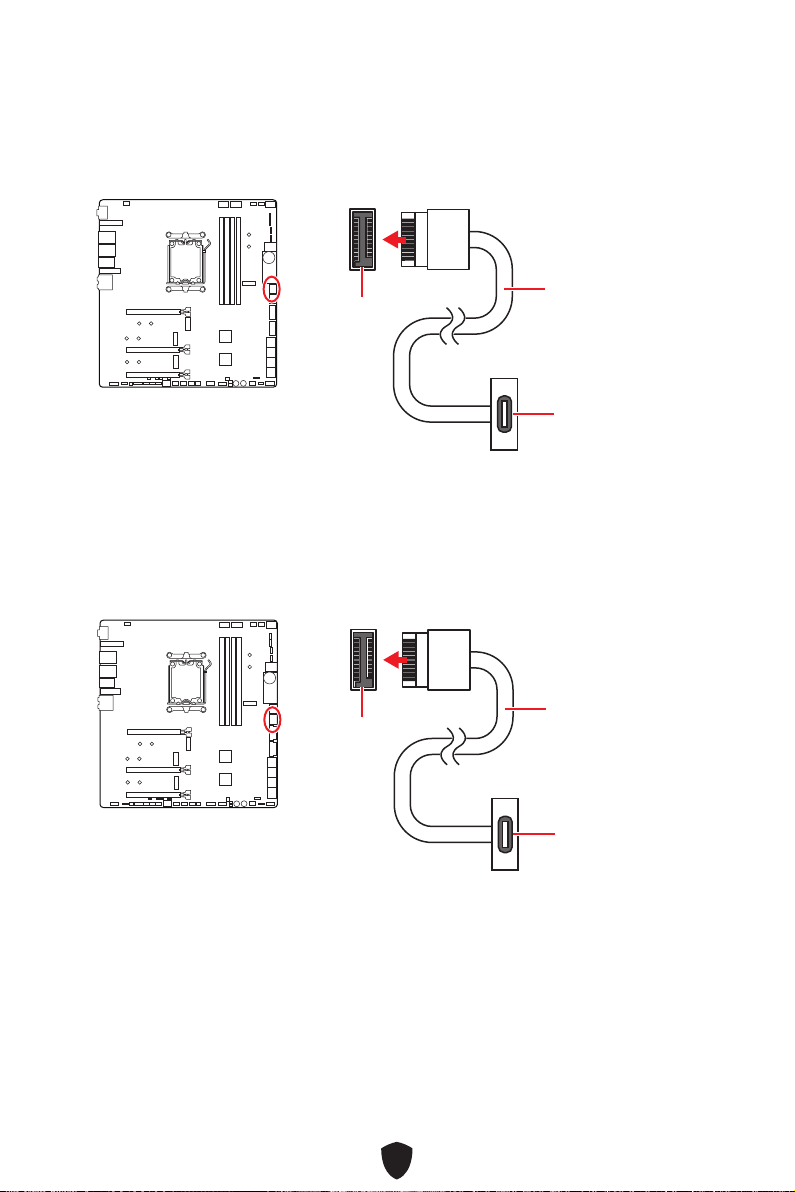

JUSB1: USB 3.2 Gen 2 Type-C Front Panel Connector
This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connectors on the
front panel. The connectors possess a foolproof design. When you connect the cable,
be sure to connect it with the corresponding orientation.
JUSB2: USB 3.2 Gen 2x2 Type-C Front Panel Connector
This connector allows you to connect USB 3.2 Gen 2x2 20Gbps Type-C connectors on
the front panel. The connectors possess a foolproof design. When you connect the
cable, be sure to connect it with the corresponding orientation.
JUSB1
JUSB2
USB Type-C Cable
USB Type-C Cable
USB Type-C port on
the front panel
USB Type-C port on
the front panel
48
JUSB5~6: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
⚠
Important
∙
Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
∙
In order to recharge your iPad, iPhone and iPod through USB ports, please install
MSI Center utility.
Pin Signal Name Pin Signal Name
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9
JUSB3~4: USB 3.2 Gen 1 Connectors
These connectors allow you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.
⚠
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
Pin Signal Name Pin Signal Name
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
1011
20
49

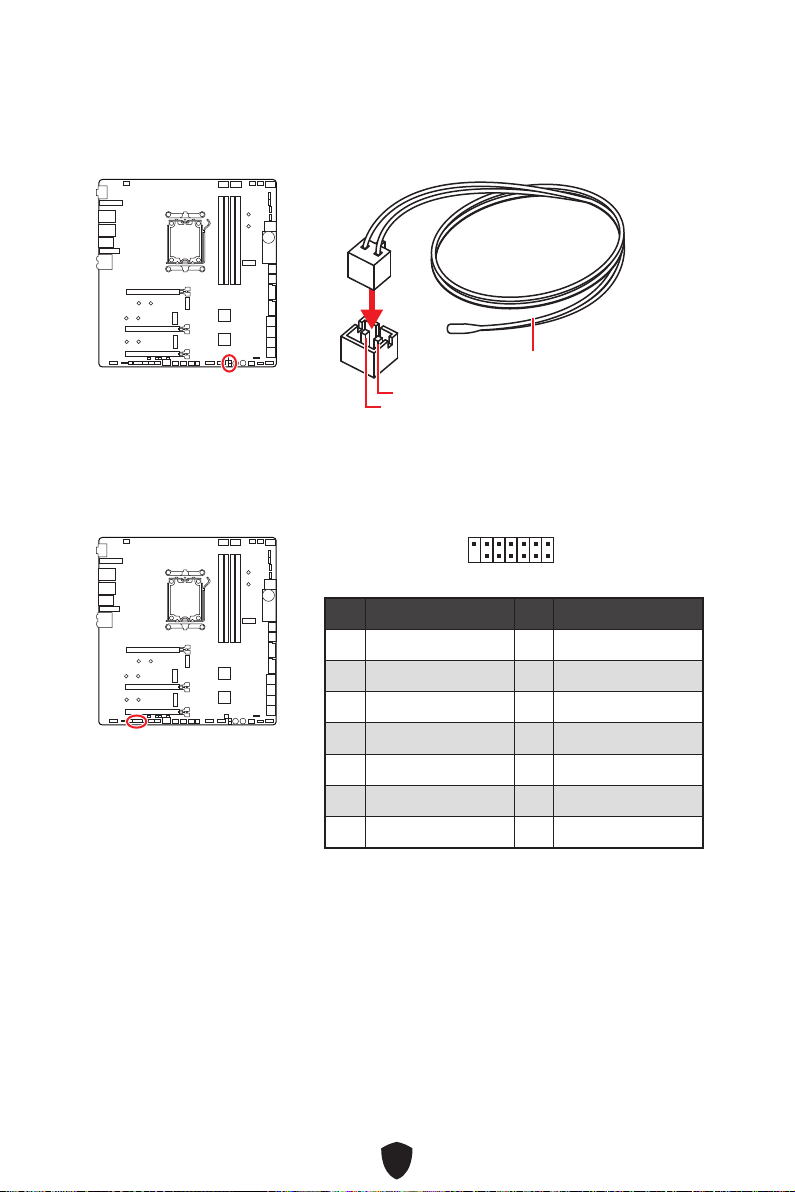

T_SEN1~2: Thermal Sensor Connectors
These connectors allow you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GND
Sense
JDASH1 : Tuning Controller connector
This connector is used to connect an optional Tuning Controller module.
1
2 14
13
Pin Signal Name Pin Signal Name
1 No Pin 2 NC
3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M
5 VCC5 6 Ground
7 PSIN#_R 8 FP_RST#_R
9 NC 10 OC_FS
11 BLK+ 12 BLK-
13 CLRCMOS_EN 14 NC
50
Pin Signal Name Pin Signal Name
1 Ground 2 WFLOW PWR
3 WFLOW IN
W_FLOW1: Water Flow Meter Connector
This connector allows you to connect a water flow meter to monitor the flow rate of
your liquid cooling system.
1
Enabled
(Please enable this jumper
during BIOS POST)
Normal
(Default)
⚠
Important
∙
Please note that overclocking at an extremely low temperature carries the risk of
system instability and may cause damages to the system.
∙
The overclocking results may vary depending on the CPU you use.
∙
Do not enable the jumper when the system is power off. Otherwise, the system will
be unbootable.
JLN1: Low Temperature Booting Jumper
This jumper allows liquid nitrogen cooling system to boot at an extremely low
temperature. Please try to enable the jumper to help the system boot successfully.
51
Normal
(default)
Boot with the saved
BIOS settings.
Enabled
Apply the BIOS default
settings and lower PCIe
(from CPU) mode for
Safe Boot
JOC_FS1: Safe Boot Jumper
This jumper is used for Safe Boot. When this jumper is enabled, the system will boot
with default settings and lower PCIe (from CPU) mode.
V-Check Points Lite
These voltage checkpoints are used to measure the current system voltages. A
multimeter (not included) will be required to check voltages. To measure voltage,
place test leads on the GND (or screw mounting hole) and a specific V-Check Point.
Please refer to the manual of your multimeter for more information.
DDR1: CPU VDDIO voltage
SOC1: SOC voltage
CORE1: Core voltage
GND: Ground
52
BIOS_SW1: Multi-BIOS Switch
This motherboard has two built-in BIOS ROMs. If one is crashed, you can shift to the
other for booting by sliding the switch.
⚠
Important
∙
Do not use the Multi-BIOS switch when system is booting up.
∙
You can also use the MSI Center or Flash BIOS Button to flash BIOS. Please refer to
BIOS section for details.
BIOS B
BIOS A
(Default)
Multi-BIOS LED
white: BIOS A
red: BIOS B
POWER1 & RESET1: Power Button, Reset Button
The Power/ Reset button allows you to power on/ reset the computer. We provide 4
functions (default: reset function) for reset button to achieve. Please refer to the BIOS
manual for details about selecting the reset button function.
Power button
Reset
Reset button
53
JCI1: Chassis Intrusion Connector
This connector allows you to connect the chassis intrusion switch cable.
Normal
(default)
Trigger the chassis
intrusion event
Using chassis intrusion detector
1.
Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
4. Set Chassis Intrusion to Enabled.
5. Press F10 to save and exit and then press the Enter key to select Yes.
6. Once the chassis cover is opened again, a warning message will be displayed on
screen when the computer is turned on.
Resetting the chassis intrusion warning
1.
Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
2. Set Chassis Intrusion to Reset.
3. Press F10 to save and exit and then press the Enter key to select Yes.
54
CPU_FAN1,
PUMP_FAN1~2, SYS_FAN1~6
: Fan
Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode.
PWM Mode fan connectors provide constant 12V output and adjust fan speed with
speed control signal. DC Mode fan connectors control fan speed by changing voltage.
The auto mode fan connectors can automatically detect PWM and DC mode.
You can control fans in BIOS> HARDWARE MONITOR panel. It allows you to set DC
or PWM to your fan type. Check the Smart Fan Mode, the fan speed will change
according to the CPU or system temperature. Uncheck the Smart Fan Mode, the fan
will spin at maximum speed.
⚠
Important
Make sure fans are working properly after switching the PWM/ DC mode.
CPU_FAN1
PUMP_FAN1
PUMP_FAN2
SYS_FAN3
SYS_FAN4
SYS_FAN5
SYS_FAN6
SYS_FAN1
SYS_FAN2
1
PWM Mode pin definition
Pin Signal Name Pin Signal Name
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
DC Mode pin definition
Pin Signal Name Pin Signal Name
1 Ground 2 Voltage Control
3 Sense 4 NC
Fan connector specifications
Connector Default fan mode Max. current Max. power
CPU_FAN1 Auto mode 2A 24W
PUMP_FAN1~2 PWM mode 3A 36W
SYS_FAN1~6 Auto mode 2A 12W
55

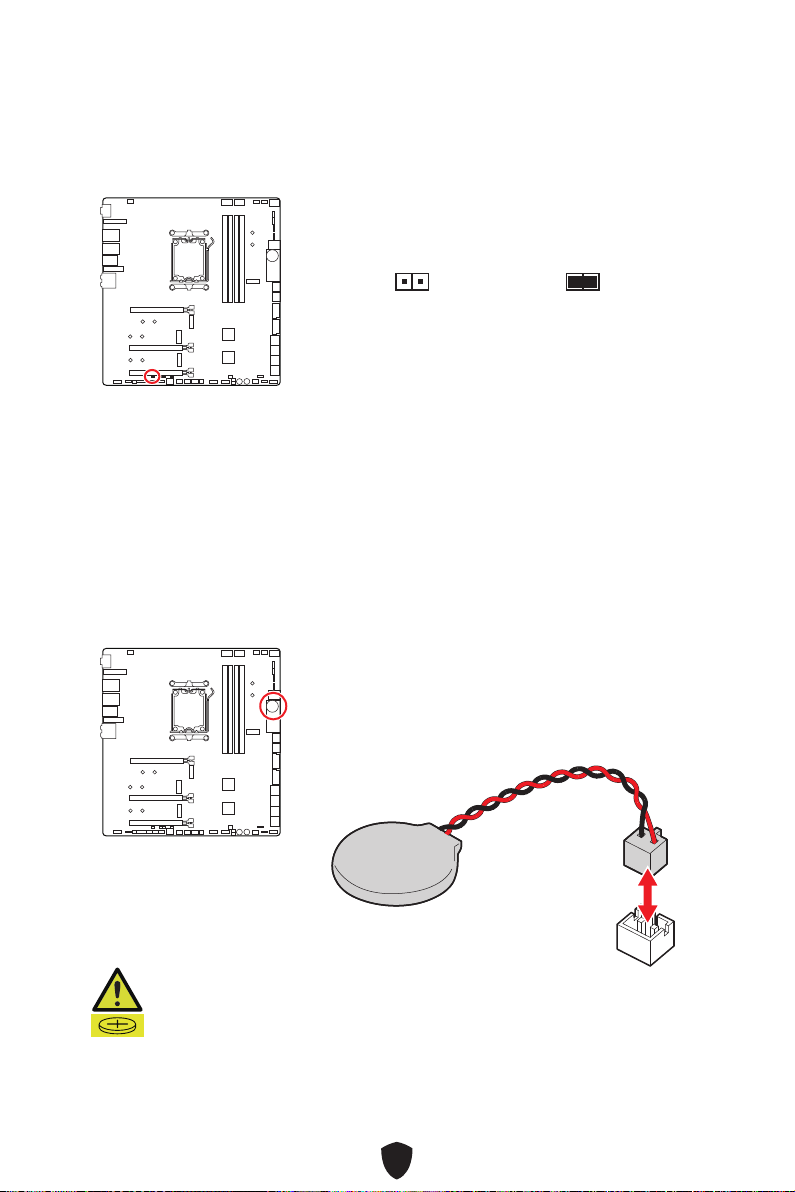

JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
BAT1: CMOS Battery
If the CMOS battery is out of charge, the time in the BIOS will be reset and the data of
system configuration will be lost. In this case, you need to replace the CMOS battery.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1.
Power off the computer and unplug the power cord.
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and Power on the computer.
Replacing CMOS battery
1.
Unplug the battery wire from the BAT1 connector and
remove the battery.
2. Connect the new CR2032 battery with wire to the
BAT1 connector.
WARNING
KEEP OUT OF REACH OF CHILDREN
∙
Swallowing can lead to chemical burns, perforation of soft tissue, can death.
∙
Severe burns can occur within 2 hours of ingestion.
∙
If you think batteries might have been swallowed or placed inside any part of
the body, seek immediate medical attention.
56
⚠
Important
∙
The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
∙
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
∙
Please use MSI’s software to control the extended LED strip.

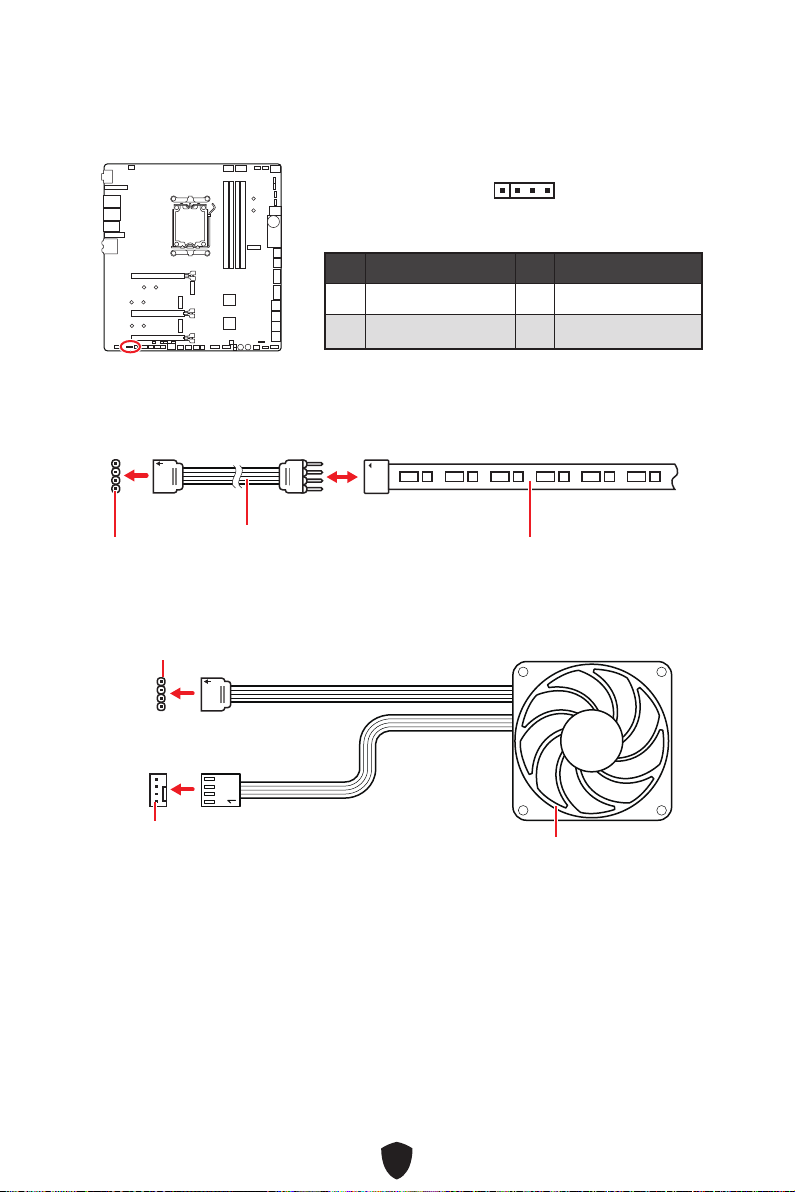

JRGB1: RGB LED Connector
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB connector
JRGB extension cable
5050 RGB LED strips 12V
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System fan connector
RGB LED Fan Connection
RGB LED fan
Pin Signal Name Pin Signal Name
1 +12V 2 G
3 R 4 B
1
57
JARGB_V2_1~3: A-RAINBOW V2 (ARGB Gen2) LED
Connectors
The JARGB_V2 connectors allow you to connect the ARGB Gen2 and the ARGB-based
LED strips. The JARGB_V2 connector supports up to 240 individually addressable RGB
LEDs with maximum power rating of 3A (5V).
Pin Signal Name Pin Signal Name
1 +5V 2 Data
3 No Pin 4 Ground
1
1
1
1
1
D
+5V
JARGB_V2 connector
JARGB_V2 connector
System Fan connector
JARGB_V2 extension cable
ARGB/ ARGB Gen2 LED strip
Addressable RGB LED Strip Connection
Addressable RGB LED Fan Connection
ARGB/ ARGB Gen2 LED Fan
58
⚠
CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JARGB_V2
connector provide different voltages, and connecting the ARGB 5V LED strip to the
JRGB connector will result in damage to the LED strip.
⚠
Important
∙
If you connect ARGB Gen1 and ARGB Gen2 LED strips into the same connector,
it may cause issues. Please do not mix ARGB Gen1 and ARGB Gen2 LED strips
together.
∙
It is recommended that you install LED strips with the same specification to achieve
the best effects.
∙
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the addressable RGB LED strip.
∙
Please use MSI’s software to control the extended LED strip.
59
M_SW1: M-Vision Switch
The M-Vision switch allows you to switch M-Vision Dashboard port between the
normal mode and the M-Vision mode .
Features on M-Vision Dashboard
∙
4.5 inch IPS LCD panel (resistive single touch)
∙ Full color display (480x 800)
∙ Touch control
∙ USB Type-C connection
∙ Speaker function
∙ Landscape/ portrait orientation
∙ Customizable with MSI Center
Normal mode
for USB device
M-Vision mode
for M-Vision Dashboard
(Default)
60
Connecting M-Vision Dashboard
Please follow the steps below to connect M-Vision Dashboard to the motherboard.
1. Use the supplied M-Vision cable to connect the M-Vision Dashboard and specified
USB port (M-Vision Dashboard port) on the back panel.
2. Switch the M-Vision switch (M_SW1) to the M-Vision mode.
11
11
22
M-Vision Dashboard port
M-Vision cable
2.5 Gbps LAN
⚠
Important
For more information on M-Vision Dashboard, please refer to https://download.msi.
com/archive/mnu_exe/mb/M-VISIONDASHBOARD.pdf for more details.
61
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected or fail.
Onboard LEDs
JPWRLED1: LED power input
This connector is used by retailers to demonstrate onboard LED lights.
JPWRLED1 - LED power input
LED_SW1: EZ LED Control
This switch is used to switch on/ off all the LEDs of motherboard.
LED_SW1
LED_OFF
LED_ON
(Default)
62
Debug Code LED
The Debug Code LED displays progress and error codes during and after POST. Refer
to the Debug Code LED table for details.
Boot Phases
Security (SEC) – initial low-level initialization
Pre-EFI Initialization (PEI) – memory initialization
Driver Execution Environment (DXE) – main hardware initialization
Boot Device Selection (BDS) – system setup, pre-OS user interface & selecting a
bootable device (CD/DVD, HDD, USB, Network, Shell, …)
Debug Code LED Table
SEC Progress Codes
01 Power on. Reset type detection (soft/hard)
02 AP initialization before microcode loading
03 System Agent initialization before microcode loading
04 PCH initialization before microcode loading
06 Microcode loading
07 AP initialization after microcode loading
08 System Agent initialization after microcode loading
09 PCH initialization after microcode loading
0B Cache initialization
SEC Error Codes
0C - 0D Reserved for future AMI SEC error codes
0E Microcode not found
0F Microcode not loaded
Hexadecimal Character Table
Hexadecimal 0 1 2 3 4 5 6 7
LED display
Hexadecimal 8 9 A B C D E F
LED display
63
PEI Progress Codes
10 PEI Core is started
11 Pre-memory CPU initialization is started
12 - 14 Pre-memory CPU initialization (CPU module specific)
15 Pre-memory System Agent initialization is started
16 - 18 Pre-Memory System Agent initialization (System Agent module specific)
19 Pre-memory PCH initialization is started
1A - 1C Pre-memory PCH initialization (PCH module specific)
2B Memory initialization. Serial Presence Detect (SPD) data reading
2C Memory initialization. Memory presence detection
2D Memory initialization. Programming memory timing information
2E Memory initialization. Configuring memory
2F Memory initialization (other)
31 Memory Installed
32 CPU post-memory initialization is started
33 CPU post-memory initialization. Cache initialization
34 CPU post-memory initialization. Application Processor(s) (AP) initialization
35 CPU post-memory initialization. Boot Strap Processor (BSP) selection
36
CPU post-memory initialization. System Management Mode (SMM)
initialization
37 Post-Memory System Agent initialization is started
38 - 3A Post-Memory System Agent initialization (System Agent module specific)
3B Post-Memory PCH initialization is started
3C - 3E Post-Memory PCH initialization (PCH module specific)
4F DXE IPL is started
PEI Error Codes
10 Memory not installed
DXE Progress Codes
60 DXE Core is started
61 NVRAM initialization
62 Installation of the PCH Runtime Services
63 CPU DXE initialization is started
64 - 67 CPU DXE initialization (CPU module specific)
68 PCI host bridge initialization
64
69 System Agent DXE initialization is started
6A System Agent DXE SMM initialization is started
6B - 6F System Agent DXE initialization (System Agent module specific)
70 PCH DXE initialization is started
71 PCH DXE SMM initialization is started
72 PCH devices initialization
73 - 77 PCH DXE Initialization (PCH module specific)
78 ACPI module initialization
79 CSM initialization
7A - 7F Reserved for future AMI DXE codes
90 Boot Device Selection (BDS) phase is started
91 Driver connecting is started
92 PCI Bus initialization is started
93 PCI Bus Hot Plug Controller Initialization
94 PCI Bus Enumeration 32
95 PCI Bus Request Resources
96 PCI Bus Assign Resources
97 Console Output devices connect
98 Console input devices connect
99 Super IO Initialization
9A USB initialization is started
9B USB Reset
9C USB Detect
9D USB Enable
9E -9F Reserved for future AMI codes
A0 IDE initialization is started
A1 IDE Reset
A2 IDE Detect
A3 IDE Enable
A4 SCSI initialization is started
A5 SCSI Reset
A6 SCSI Detect
A7 SCSI Enable
A8 Setup Verifying Password
65
A9 Start of Setup
AB Setup Input Wait
AD Ready To Boot event
AE Legacy Boot event
AF Exit Boot Services event
B0 Runtime Set Virtual Address MAP Begin
B1 Runtime Set Virtual Address MAP End
B2 Legacy Option ROM Initialization
B3 System Reset
B4 USB hot plug
B5 PCI bus hot plug
B6 Clean-up of NVRAM
B7 Configuration Reset (reset of NVRAM settings)
B8 - BF Reserved for future AMI codes
DXE Error Codes
D0 CPU initialization error
D1 System Agent initialization error
D2 PCH initialization error
D3 Some of the Architectural Protocols are not available
D4 PCI resource allocation error. Out of Resources
D5 No Space for Legacy Option ROM
D6 No Console Output Devices are found
D7 No Console Input Devices are found
D8 Invalid password
D9 Error loading Boot Option (LoadImage returned error)
DA Boot Option is failed (StartImage returned error)
DB Flash update is failed
DC Reset protocol is not available
S3 Resume Progress Codes
E0 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)
E1 S3 Boot Script execution
E2 Video repost
E3 OS S3 wake vector call
E4 - E7 Reserved for future AMI progress codes
S3 Resume Error Codes
66
E8 S3 Resume Failed
E9 S3 Resume PPI not Found
EA S3 Resume Boot Script Error
EB S3 OS Wake Error
EC - EF Reserved for future AMI error codes
Recovery Progress Codes
F0 Recovery condition triggered by firmware (Auto recovery)
F1 Recovery condition triggered by user (Forced recovery)
F2 Recovery process started
F3 Recovery firmware image is found
F4 Recovery firmware image is loaded
F5 - F7 Reserved for future AMI progress codes
Recovery Error Codes
F8 Recovery PPI is not available
F9 Recovery capsule is not found
FA Invalid recovery capsule
FB - FF Reserved for future AMI error codes
ACPI States Codes
The following codes appear after booting and the operating system into ACPI modes.
01 System is entering S1 sleep state
02 System is entering S2 sleep state
03 System is entering S3 sleep state
04 System is entering S4 sleep state
05 System is entering S5 sleep state
10 System is waking up from the S1 sleep state
20 System is waking up from the S2 sleep state
30 System is waking up from the S3 sleep state
40 System is waking up from the S4 sleep state
AC
System has transitioned into ACPI mode. Interrupt controller is in PIC
mode.
AA
System has transitioned into ACPI mode. Interrupt controller is in APIC
mode.
67
Installing OS, Drivers & MSI Center
Please download and update the latest utilities and drivers at www.msi.com
Installing Windows 10/ Windows 11
1. Power on the computer.
2. Insert the Windows 10/ Windows 11 installation disc/USB into your computer.
3. Press the Restart button on the computer case.
4. Press F11 key during the computer POST (Power-On Self Test) to get into Boot
Menu.
5. Select the Windows 10/ Windows 11 installation disc/USB from the Boot Menu.
6. Press any key if screen shows Press any key to boot from CD or DVD... message. If
not, please skip this step.
7. Follow the instructions on the screen to install Windows 10/ Windows 11.
Installing Drivers with MSI USB Drive
1. Start up your computer in Windows 10/ Windows 11.
2. Insert MSI USB Drive into the USB port.
3. You can see a Disc Image file which contains drivers and utilities in the USB drive.
Double-click the file to open it.
4. Execute an application file named DVDSetup.
5. The installer will find and list all necessary drivers in the Drivers/Software tab.
6. Click the Install button in the lower-right corner of the window.
7. The drivers installation will then be in progress, after it has finished it will prompt
you to restart.
8. Click OK button to finish.
9. Restart your computer.
MSI Center
MSI Center is an application that helps you easily optimize game settings and
smoothly use content creation softwares. It also allows you to control and synchronize
LED light effects on PCs and other MSI products. With MSI Center, you can customize
ideal modes, monitor system performance, and adjust fan speed.
MSI Center User Guide
If you would like to know more information about MSI Center, please refer to
http://download.msi.com/manual/mb/MSICENTER.pdf
or scan the QR code to access.
⚠
Important
Functions may vary depending on the product you have.
68
UEFI BIOS
MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface)
architecture. UEFI has many new functions and advantages that traditional BIOS
cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI
BIOS uses UEFI as the default boot mode to take full advantage of the new chipset
capabilities.
⚠
Important
The term BIOS in this user guide refers to UEFI BIOS unless otherwise noted.
UEFI advantages
∙
Fast booting - UEFI can directly boot the operating system and save the BIOS self-
test process. It can also eliminate the time to switch to CSM mode during POST.
∙ Supports for hard drive partitions larger than 2 TB.
∙ Supports more than 4 primary partitions with a GUID Partition Table (GPT).
∙ Supports unlimited number of partitions.
∙ Supports full capabilities of new devices - new devices may not provide backward
compatibility.
∙ Supports secure startup - UEFI can check the validity of the operating system to
ensure that no malware tampers with the startup process.
Incompatible UEFI cases
∙
32-bit Windows operating system - this motherboard supports only Windows 10/
Windows 11 64-bit operating system.
∙ Older graphics card - the system will detect your graphics card. If you use older
graphics cards, it may display a warning message There is no GOP (Graphics Output
protocol) support detected in this graphics card.
⚠
Important
We recommend that you replace it with a graphics card supporting GOP/UEFI or use
CPU with integrated graphics for having normal function.
How to check the BIOS mode?
1.
Power on your computer.
2. Press Delete key when the Press DEL key to enter Setup Menu, F11 to enter Boot
Menu message appears on the screen during the boot process.
3. After entering the BIOS, you can check the BIOS Mode at the top of the screen.
BIOS Mode: UEFI
69
BIOS Setup
The default settings offer the optimal performance for system stability in normal
conditions. You should always keep the default settings to avoid possible system
damage or failure booting unless you are familiar with BIOS.
⚠
Important
∙
BIOS items are regularly updated for better system performance. The items may
be slightly different from the latest BIOS; therefore, the description is for reference
only. You could also refer to the HELP information panel for BIOS item description.
∙
The BIOS screens, options and settings will vary depending on your system.
Entering BIOS Setup
Press Delete key when the Press DEL key to enter Setup Menu, F11 to enter Boot
Menu message appears on the screen during the boot process.
Function key
F1: General Help list
F2: Add/ Remove a favorite item
F3: Enter Favorites menu
F4: Enter CPU Specifications menu
F5: Enter Memory-Z menu
F6: Load optimized defaults
F7: Switch between Advanced mode and EZ mode
F8: Load Overclocking Profile
F9: Save Overclocking Profile
F10: Save Change and Reset*
F12: Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only).
Ctrl+F: Enter Search page
* When you press F10, a confirmation window appears and it provides the modification
information. Select between Yes or No to confirm your choice.
BIOS User Guide
If you’d like to know more instructions on setting up the BIOS, please
refer to https://download.msi.com/archive/mnu_exe/mb/AMDAM5BIOS.pdf
or scan the QR code to access.
⚠
Important
Functions may vary depending on the product you have.
70
Resetting BIOS
You might need to restore the default BIOS settings to solve certain problems. There
are several ways to reset BIOS:
∙ Go to BIOS and press F6 to load optimized defaults.
∙ Short the Clear CMOS jumper on the motherboard.
∙ Press the Clear CMOS button on the rear I/O panel.
⚠
Important
Be sure the computer is off before clearing CMOS data. Please refer to the Clear
CMOS jumper/
button
section for resetting BIOS.
Updating BIOS
Updating BIOS with M-FLASH
Before updating:
Please download the latest BIOS file that matches your motherboard model from MSI
website. And then save the BIOS file into the USB flash drive.
Updating BIOS:
1. Insert the USB flash drive that contains the update file into the USB port.
2. Please refer the following methods to enter flash mode.
• Reboot and press Ctrl + F5 key during POST and click on Yes to reboot the system.
Press <Ctrl+F5> to activate M-Flash for BIOS update.
• Reboot and press Del key during POST to enter BIOS. Click the M-FLASH button
and click on Yes to reboot the system.
3. Select a BIOS file to perform the BIOS update process.
4. When prompted click on Yes to start recovering BIOS.
5. After the flashing process is 100% completed, the system will reboot automatically.
71
Updating the BIOS with MSI Center
Before updating:
∙ Make sure the LAN driver is already installed and the internet connection is set up
properly.
∙ Please close all other application softwares before updating the BIOS.
To update BIOS:
1. Install and launch MSI Center and go to Support page.
2. Select Live Update and click on Advance button.
3. Select the BIOS file and click on Install button.
4. The installation reminder will appear, then click the Install button on it.
5. The system will automatically restart to update BIOS.
6. After the flashing process is 100% completed, the system will restart
automatically.
Updating BIOS with Flash BIOS Button
1.
Please download the latest BIOS file that matches your motherboard model from
the MSI® website.
2. Rename the BIOS file to MSI.ROM, and save it to the root of the USB storage device.
3. Connect the power supply to CPU_PWR1 and ATX_PWR1. (No need to install CPU
and memory.)
4. Plug the USB storage device that contains the MSI.ROM file into the Flash BIOS
Port on the rear I/O panel.
5. Press the Flash BIOS Button to flash BIOS, and the LED starts flashing.
6. The LED will be turned off when the process is completed.
i
Block Diagram
MEG X670E GODLIKE
CHIPSET_B
PCIe 5.0x16 PCI_E1
PCIe 5.0x8 PCI_E2
PCIe 5.0x4 PCI_E3
USB3.2 Gen2x2 20Gbps
(Type-C)
ASM3241
DDR5
DIMM A1/A2
DIMM B1/B2
GEN5 x4 M.2_1
(PCIe Only)
GEN4 x4 M.2_2
(PCIe Only)
GEN4 x4 M.2_2 / M.2_3
(PCIe Only)
USB3.2 Gen2x2 20Gbps
(Type-A)
USB3.2 Gen2x2 20Gbps
(Type-C)
USB3.2 Gen2 10Gbps
(Type-A)
Aquantia AQC113
10Gbps LAN
SATA_P3 , P4
USB2.0
(Front Type-A)
SATA_A1_A2
ASM1061
SATA_B1_B2
ASM1064
SATA_B3_B4
Intel I225V
2.5Gbps LAN
WiFi 6E
USB3.2 Gen2x2 20Gbps
(Front Type-C)
CHIPSET_A
HD Audio
ALC4082
USB3.2 Gen2 5Gbps
(Front Type-A)
USB3.2 Gen2 5Gbps
(Front Type-A)
CPU
PCIE x4
PCIE x4
ii
Regulatory Notices
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and radiates radio frequency energy, and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
∙ Reorient or relocate the receiving antenna.
∙ Increase the separation between the equipment and receiver.
∙ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
NOTE
∙ The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
∙ Shield interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
∙ This device may not cause harmful interference.
∙ This device must accept any interference received, including interference that may
cause undesired operation.
MSI Computer Corp.
901 Canada Court, City of Industry, CA 91748, USA
(626)913-0828
www.msi.com
iii
CE Conformity
Products bearing the CE marking comply with one or more of the
following EU Directives as may be applicable:
∙ RED 2014/53/EU
∙ Low Voltage Directive 2014/35/EU
∙ EMC Directive 2014/30/EU
∙ RoHS Directive 2011/65/EU
∙ ErP Directive 2009/125/EC
Compliance with these directives is assessed using applicable European Harmonized
Standards.
The point of contact for regulatory matters is MSI-Europe: Eindhoven 5706 5692 ER
Son.
Products with Radio Functionality (EMF)
This product incorporates a radio transmitting and receiving device. For computers
in normal use, a separation distance of 20 cm ensures that radio frequency exposure
levels comply with EU requirements. Products designed to be operated at closer
proximities, such as tablet computers, comply with applicable EU requirements in
typical operating positions. Products can be operated without maintaining a separation
distance unless otherwise indicated in instructions specific to the product.
Restrictions for Products with Radio Functionality
CAUTION: IEEE 802.11x wireless LAN with 5.15~5.35 GHz frequency
band is restricted for indoor use only in all European Union member
states, EFTA (Iceland, Norway, Liechtenstein), and most other European
countries (e.g., Switzerland, Turkey, Republic of Serbia). Using this WLAN
application outdoors might lead to interference issues with existing radio
services.
Radio frequency bands and maximum power levels
∙ Features: Wi-Fi 6E, BT
∙ Frequency Range: 2.4 GHz: 2400~2485MHz; 5 GHz: 5150~5350MHz,
5470~5725MHz, 5725~5850MHz; 6 GHz: 5955~6415MHz
∙ Max Power Level: 2.4 GHz: 20dBm; 5 GHz: 23dBm; 6 GHz: 23dBm
iv
Wireless Radio Use
This device is restricted to indoor use when operating in the 2.4GHz, 5GHz, 6GHz
frequency band.
Cet appareil doit être utilisé à l’intérieur.
당해 무선설비는 운용중 전파혼신 가능성이 있음.
この製品は、周波数帯域 2.4GHz, 5GHz, 6GHz で動作しているときは、屋内においてのみ使
用可能です。
NCC無線設備警告聲明
工作頻率2.4GHz, 5GHz, 6GHz該頻段限於室內使用。
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通
信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Compliance Statement of Innovation, Science and
Economic Development Canada (ISED)
This device complies with with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems.
CAN ICES-003(B)/NMB-003(B)
Australia and New Zealand notice
This equipment incorporates a radio transmitting and receiving device. In normal use,
a separation distance of 20 cm ensures that radio frequency exposure levels comply
with the Australian and New Zealand Standards.
クラスB情報技術装置
この装置は、クラスＢ情報技術装置です。この装置は、家庭環境で使用することを目的とし
ていますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を
引き起こすことがあります。取扱説明書に従って正しい取り扱いをして下さい。
VCCI-B
KC인증서
상호: (주)엠에스아이코리아
제품명: 메인보드
모델명: 10-7D68
제조년월: 2022년
제조자 및 제조국가: MSI/중국
R-R-MSI-10-7D68
v
Battery Information
European Union:
Batteries, battery packs, and accumulators should not be disposed of as
unsorted household waste. Please use the public collection system to
return, recycle, or treat them in compliance with the local regulations.
BSMI:
廢電池請回收
For better environmental protection, waste batteries should be collected
separately for recycling or special disposal.
California, USA:
The button cell battery may contain perchlorate material and requires
special handling when recycled or disposed of in California.
For further information please visit:
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
CAUTION: There is a risk of explosion, if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH
Regulation (Regulation EC No. 1907/2006 of the European Parliament and the
Council), MSI provides the information of chemical substances in products at:
https://csr.msi.com/global/index
Environmental Policy
∙ The product has been designed to enable proper reuse of parts and
recycling and should not be thrown away at its end of life.
∙ Users should contact the local authorized point of collection for recycling
and disposing of their end-of-life products.
∙ Visit the MSI website and locate a nearby distributor for further recycling
information.
∙ Users may also reach us at [email protected] for information regarding proper
Disposal, Take-back, Recycling, and Disassembly of MSI products.
WEEE (Waste Electrical and Electronic Equipment)
Statement
ENGLISH
To protect the global environment and as an environmentalist, MSI must
remind you that...
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2002/96/EC, which takes effect on August
13, 2005, products of “electrical and electronic equipment” cannot be
vi
discarded as municipal wastes anymore, and manufacturers of covered electronic
equipment will be obligated to take back such products at the end of their useful life.
MSI will comply with the product take back requirements at the end of life of MSI-
branded products that are sold into the EU. You can return these products to local
collection points.
DEUTSCH
Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt
Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen
Elektro- und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt
werden. MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen
beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende
seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum
gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer
Nähe.
FRANÇAIS
En tant qu’écologiste et afin de protéger l’environnement, MSI tient à rappeler ceci...
Au sujet de la directive européenne (EU) relative aux déchets des équipement
électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005,
que les produits électriques et électroniques ne peuvent être déposés dans les
décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements
seront obligés de récupérer certains produits en fin de vie. MSI prendra en compte
cette exigence relative au retour des produits en fin de vie au sein de la communauté
européenne. Par conséquent vous pouvez retourner localement ces matériels dans
les points de collecte.
РУССКИЙ
Компания MSI предпринимает активные действия по защите окружающей среды,
поэтому напоминаем вам, что....
В соответствии с директивой Европейского Союза (ЕС) по предотвращению
загрязнения окружающей среды использованным электрическим и электронным
оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005
года, изделия, относящиеся к электрическому и электронному оборудованию,
не могут рассматриваться как бытовой мусор, поэтому производители
вышеперечисленного электронного оборудования обязаны принимать его для
переработки по окончании срока службы. MSI обязуется соблюдать требования по
приему продукции, проданной под маркой MSI на территории EC, в переработку по
окончании срока службы. Вы можете вернуть эти изделия в специализированные
пункты приема.
ESPAÑOL
MSI como empresa comprometida con la protección del medio ambiente, recomienda:
Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o
equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos
clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en
los contenedores habituales de su municipio, los fabricantes de equipos electrónicos,
están obligados a hacerse cargo de dichos productos al termino de su período de vida.
MSI estará comprometido con los términos de recogida de sus productos vendidos en
vii
la Unión Europea al final de su periodo de vida. Usted debe depositar estos productos
en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una
empresa autorizada para la recogida de estos residuos.
NEDERLANDS
Om het milieu te beschermen, wil MSI u eraan herinneren dat….
De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische
en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen
niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten
worden verplicht om producten retour te nemen aan het eind van hun levenscyclus.
MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI
dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op
lokale inzamelingspunten.
SRPSKI
Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj
sredini, MSI mora da vas podesti da…
Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi,
Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju
pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i
proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog
uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda
kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove
proizvode možete vratiti na lokalnim mestima za prikupljanje.
POLSKI
Aby chronić nasze środowisko naturalne oraz jako firma dbająca o ekologię, MSI
przypomina, że...Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów
produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w
życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “
nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów
będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z
użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie
Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w
wyznaczonych punktach zbiorczych.
TÜRKÇE
Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır:
Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/
EC Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere,
elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu
elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri
geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin
kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde
olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.
ČESKY
Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje...
Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků
2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické
viii
výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které
se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení
jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI,
prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat
v místních sběrnách.
MAGYAR
Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve
az MSI emlékezteti Önt, hogy ...
Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és
elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az
elektromos és elektronikus berendezések többé nem kezelhetőek lakossági
hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az
ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja
a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az
EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen
termékeket a legközelebbi gyűjtőhelyre viheti.
ITALIANO
Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che….
In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali
Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti
appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più
essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati
a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva
ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione
Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto
di raccolta
日本JIS C 0950材質宣言
日本工業規格JIS C 0950により、2006年7月1日以降に販売される特定分野の電気および
電子機器について、製造者による含有物質の表示が義務付けられます。
https://csr.msi.com/tw/Japan-JIS-C-0950-Material-Declarations
India RoHS
This product complies with the “India E-waste (Management and Handling) Rule 2011”
and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01
weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Türkiye EEE yönetmeliği
Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur
Україна обмеження на наявність небезпечних речовин
Обладнання відповідає вимогам Технічного регламенту щодо обмеження
використання деяких небезпечних речовин в електричному та електронному
обладнані, затвердженого постановою Кабінету Міністрів України від 3 грудня 2008
№ 1057.
ix
Việt Nam RoHS
Kể từ ngày 01/12/2012, tất cả các sản phẩm do công ty MSI sản xuất tuân thủ Thông tư
số 30/2011/TT-BCT quy định tạm thời về giới hạn hàm lượng cho phép của một số hóa
chất độc hại có trong các sản phẩm điện, điện tử”
MS-7D68主板产品中有害物质的名称及含量
部件名称
有害物质
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板组件* ╳ ○ ○ ○ ○ ○
纽扣电池 ○ ○ ○ ○ ○ ○
外部信号连接头 ╳ ○ ○ ○ ○ ○
其他 (例: 线材等) ╳ ○ ○ ○ ○ ○
本表格依据 SJ/T 11364 的规定编制。
○: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要
求以下。
╳: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限
量要求，但所有部件都符合欧盟RoHS要求。
* 印刷电路板组件: 包括印刷电路板及其构成的零部件。
■ 上述有毒有害物质或元素清单会依型号之部件差异而有所增减。
■ 产品部件本体上如有环保使用期限标识，以本体标识为主。
限用物質含有情況標示聲明書
設備名稱：電腦主機板 型號(型式)：MS-7D68
單元
限用物質及其化學符號
鉛
(Pb)
汞
(Hg)
鎘
(Cd)
六價鉻
(Cr
+6
)
多溴聯苯
(PBB)
多溴二苯醚
(PBDE)
電路板 ○ ○ ○ ○ ○ ○
電子元件 ─ ○ ○ ○ ○ ○
金屬機構件 ─ ○ ○ ○ ○ ○
塑膠機構件 ○ ○ ○ ○ ○ ○
備考1. “超出0.1 wt %” 及 “超出0.01 wt %” 係指限用物質之百分比含量超出百分比含
量基準值。
備考2. “○” 係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3. “─” 係指該項限用物質為排除項目。
x
Copyright and Trademarks Notice
Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI
logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All
other marks and names mentioned may be trademarks of their respective owners. No
warranty as to accuracy or completeness is expressed or implied. MSI reserves the
right to make changes to this document without prior notice.
Technical Support
If a problem arises with your system and no solution can be obtained from the user
guide, please contact your place of purchase or local distributor. Alternatively, please
try the following help resources for further guidance.
∙ Visit the MSI website for technical guide, BIOS updates, driver updates, and other
information: http://www.msi.com
∙ Register your product at: http://register.msi.com
Revision History
∙ Version 1.0, 2022/09, First release.
