TO BE REMOVED BY THE CUSTOMERAFTER INSTALLATION IS COMPLETE. (TurntoothersideforSpanishversion.)
f[]
[]
[]
INSTALLATION CHECKOFF LIST
Doors
[] Handles are secure and tight
[] Door seals completely to cabinet on all sides
[] Doors are level across the top
Leveling
[] Refrigerator is level, side to side and tilted 1/4" (6mm) front to back
[] Toe grille is properly attached to refrigerator
[] Cabinet is setting solid on alt corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker

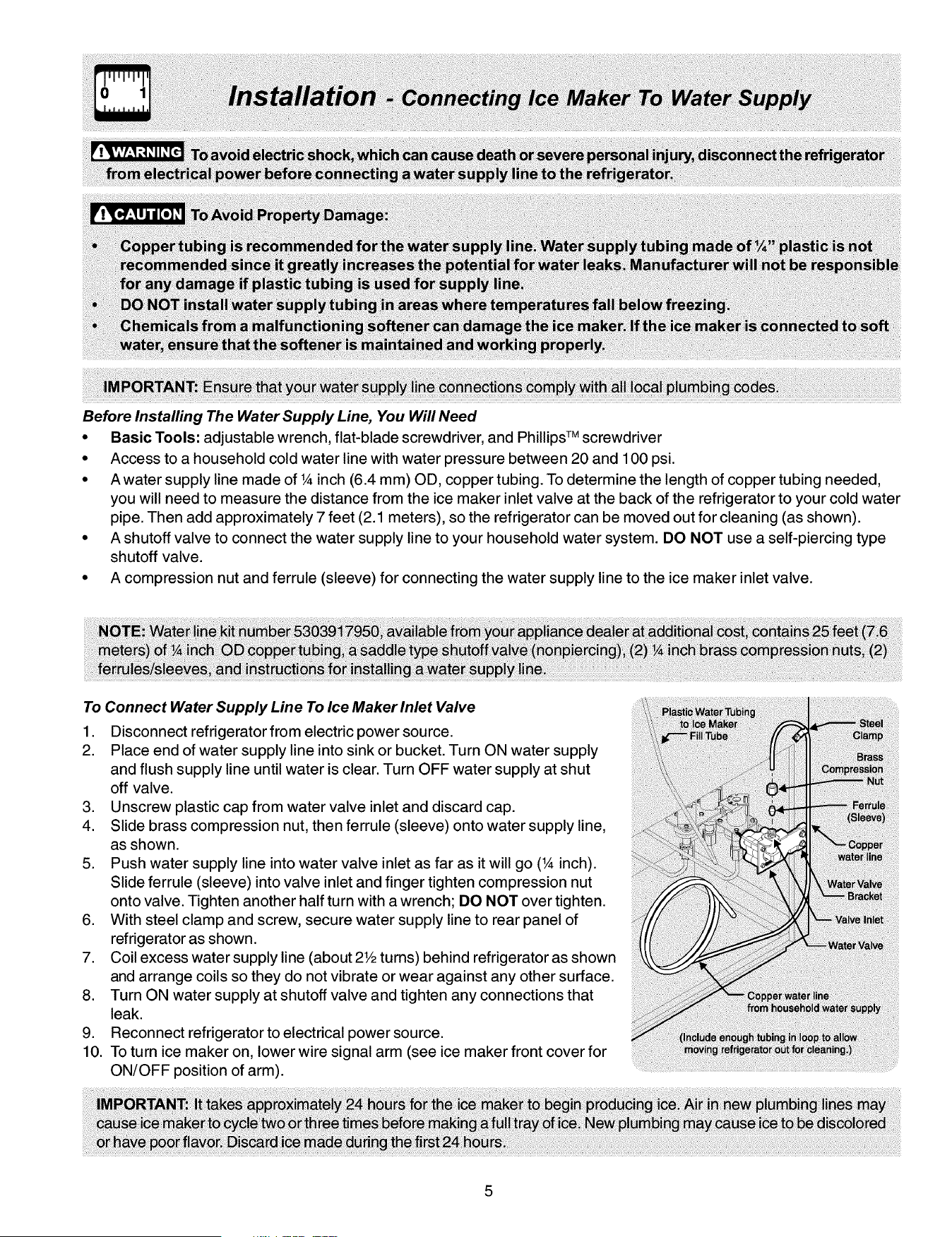

[] House water supply connected to refrigerator
[] Water & power couplings connected at door
[] No water leaks present at alt connections - recheck in 24 hours
[] Ice Maker is turned ON.
[] Ice & Water Dispenser operates correctly
[] Front filter must be flush with filter housing (some models)
Final Checks
[] Shipping material removed

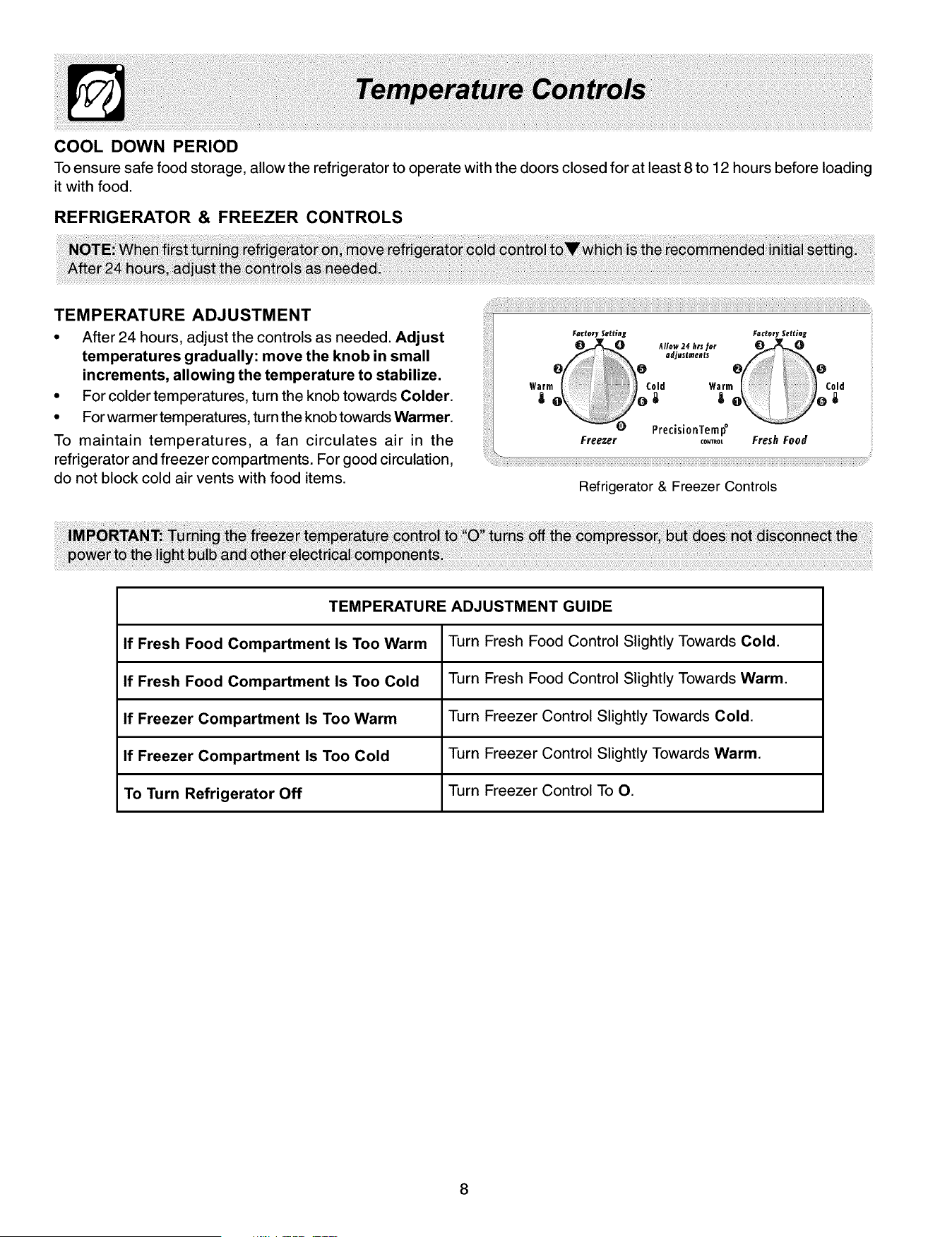

[] Fresh Food and Freezer controls set

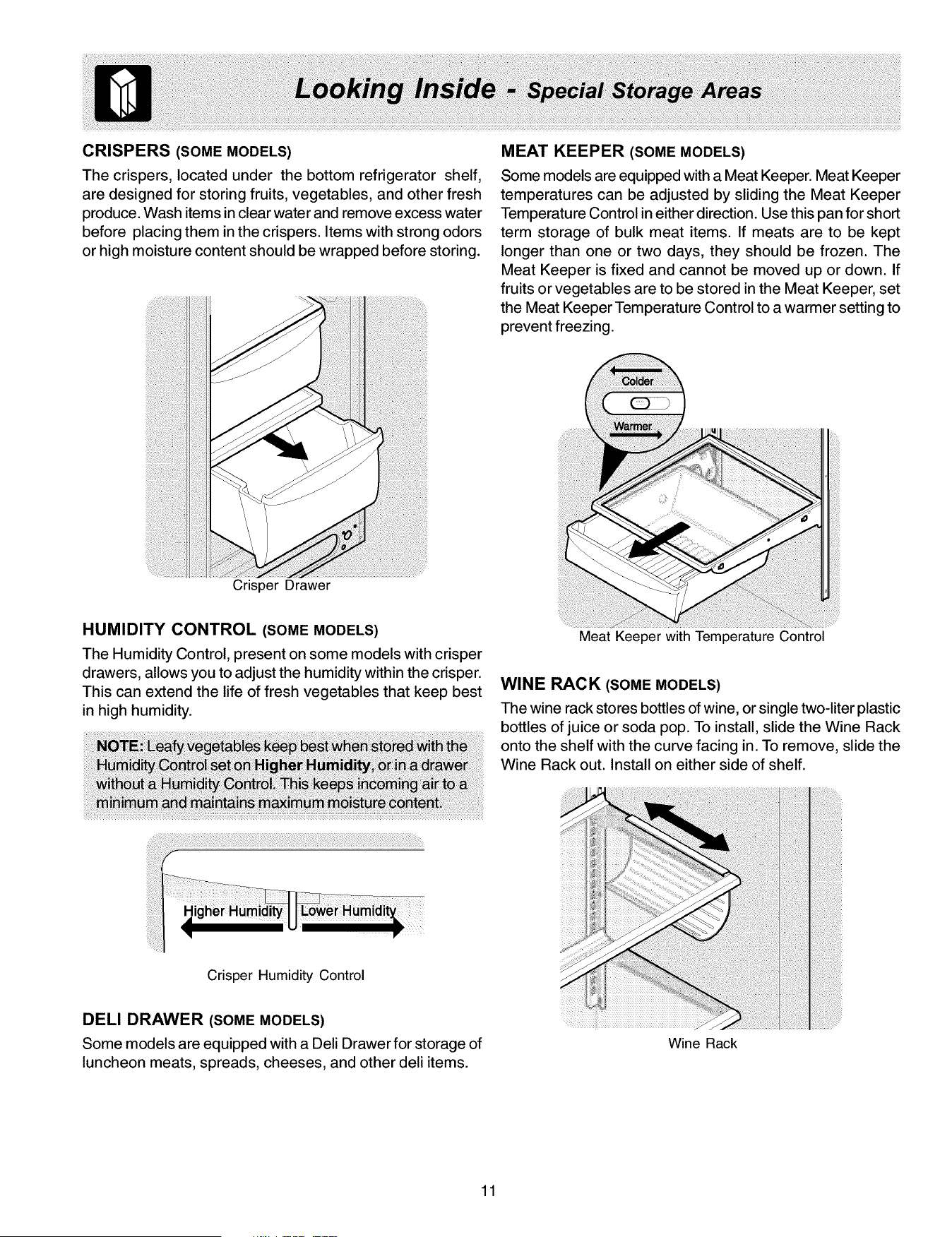

[] Crisper Humidity controls set
[] Registration Card sent in
fTools You Will Need:
OR
1HAND TRUCKING
•Load refrigerator from side of cabinel
only.
• Do not run retaining straps over
handles.
• Do not over-tighten retaining straps.
• Never use refrigerator handles to
move the refrigerator.
• Remove tape from doors only after
unit is in place.

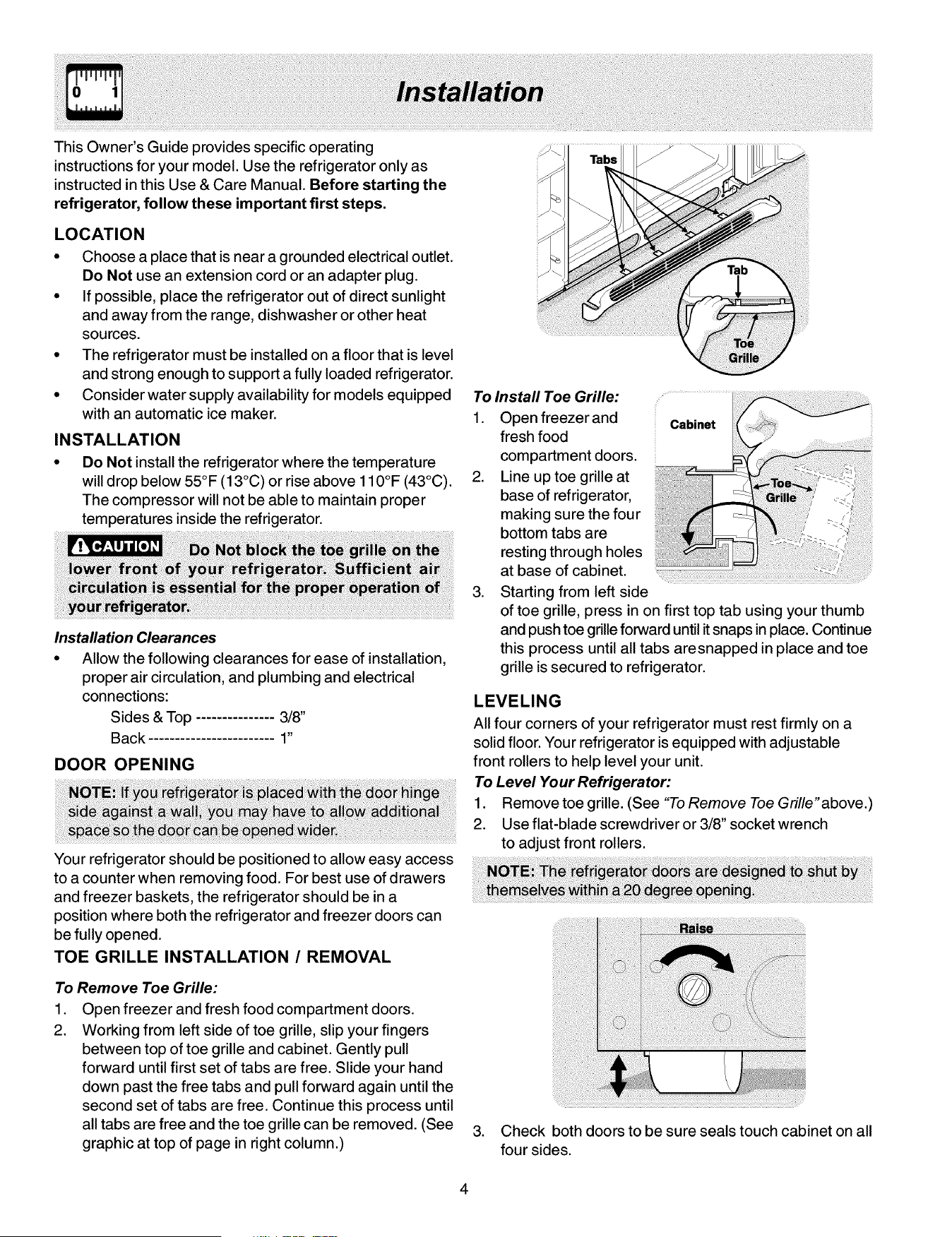

INSTALLATION CLEARANCES
Allow the following clearances for ease of installation
proper air circulation, and plumbing and electrica
connections:
Sides & Top.......... 3/8"
Back....................... 1"
NOTE: If you are installing your refrigerator beside a wall,
leave 1/2" minimum between hinges and walt to allow for
the door to swing open.
Ice Wate_r

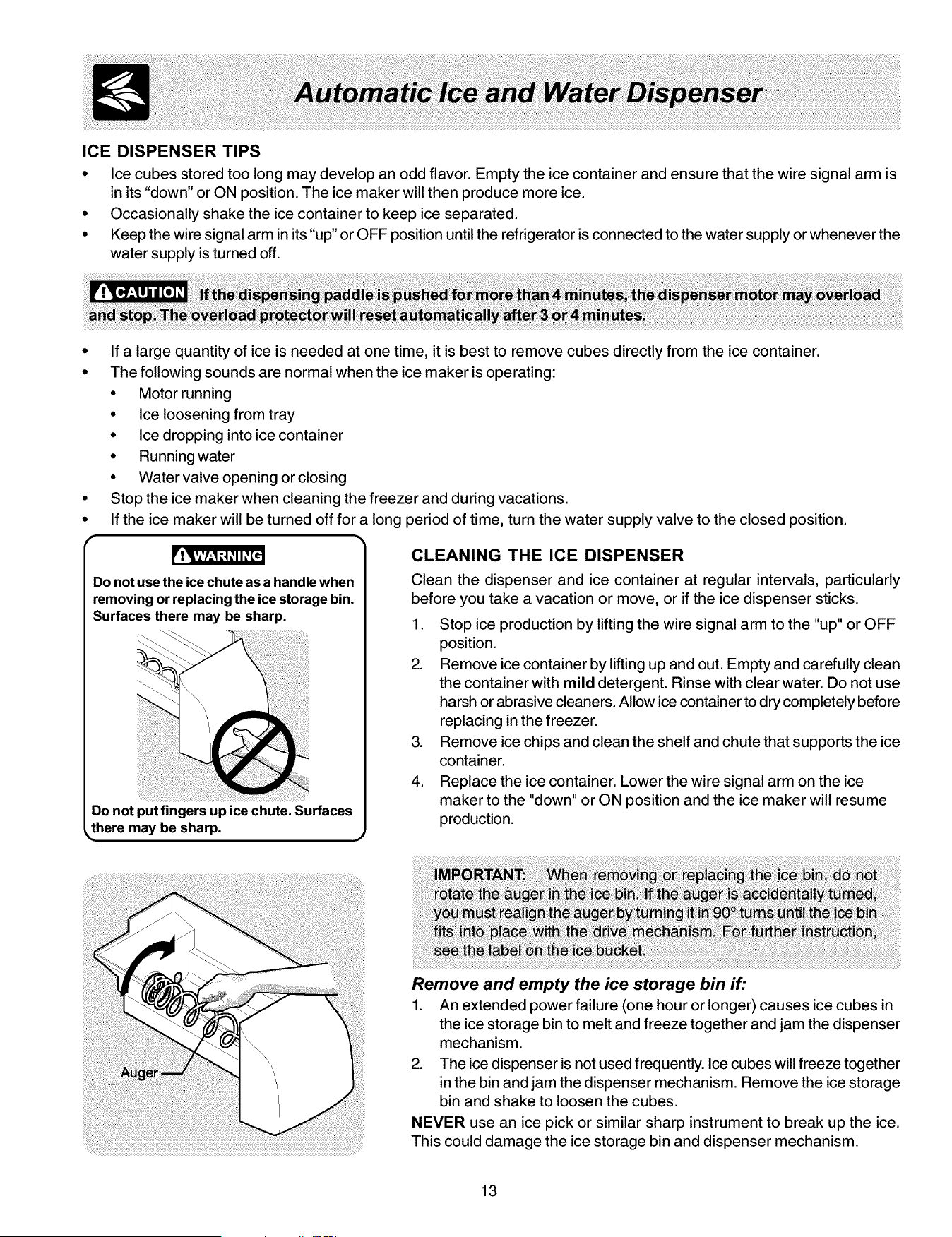

Ensure icemaker to turned ON, Check to see that the Ice & Water
Dispenser is operating correctly. (See Automatic Ice & Water
Dispenser Features in Use & Care Manual.) ,j
[2 1PIECEOFTAPE
1PIECEOFTAPE
1 PIECEOFTAPE
SHELFSPACERWITH TOE GRILLE
1 PIECEOFTAPE
3 PIECESOFTAPE
1 PIECEOFTAPE
1PIECE OF FOAM
OR CARDBOARD
2 WIRE TIES
{Allwire baskets
will have2 wire
_es)
SHIPPING MATERIAL
i!i!ili!i!iiiii!!!!@!i i
Remove Shipping material. (Features
LEVELING AND ADJUSTING
All four comers of refrigerator must restfirmly on a solid
floor.Yourrefrigeratorhas adjustablerollersto help level it
and to adjustthe doors.
To level cabinet or change door height:
1. Remove toe grille.
2. Usea screwdriver, 3/8"wrench,ornutddver to adjustthe
rollers.Toraisecabinet or door,turn screw clockwise. To
lower cabinet or door,turn screw counterclockwise.
may vary per model.)
3
%i_!%!_%__ •iii_!i_iiiii_ii_
€

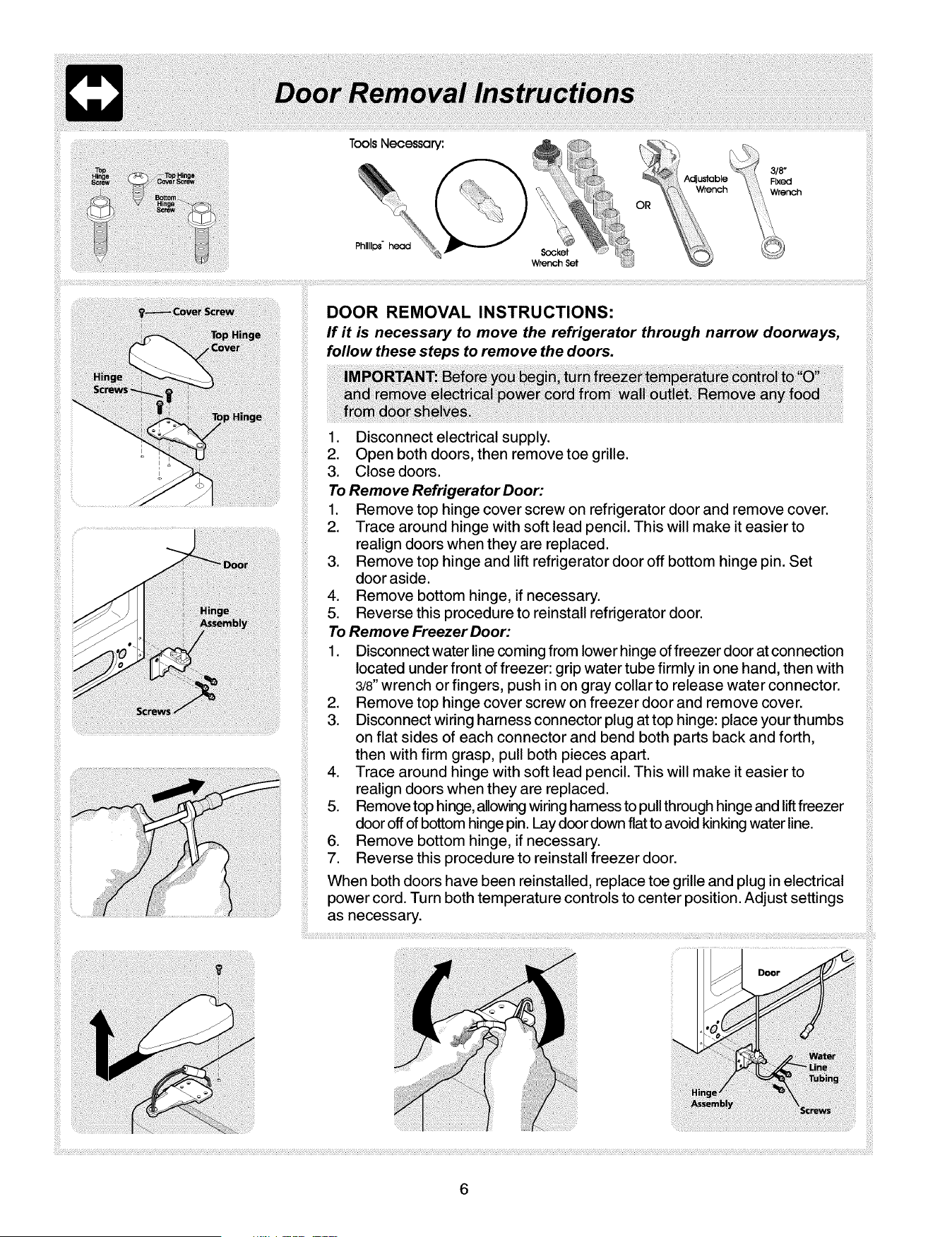

If you need to remove the doors to get your refrigerator in the house, please See
Door Removal Instructions in your Use & Care Manual.
6co. =s i iiii!i!i ili!iiii
o o
Wh_] changint_ wntrol _et_n_._,_vait24 hou_ b_,foremaking _i_]al a0_u_lflei_t_, ,,_

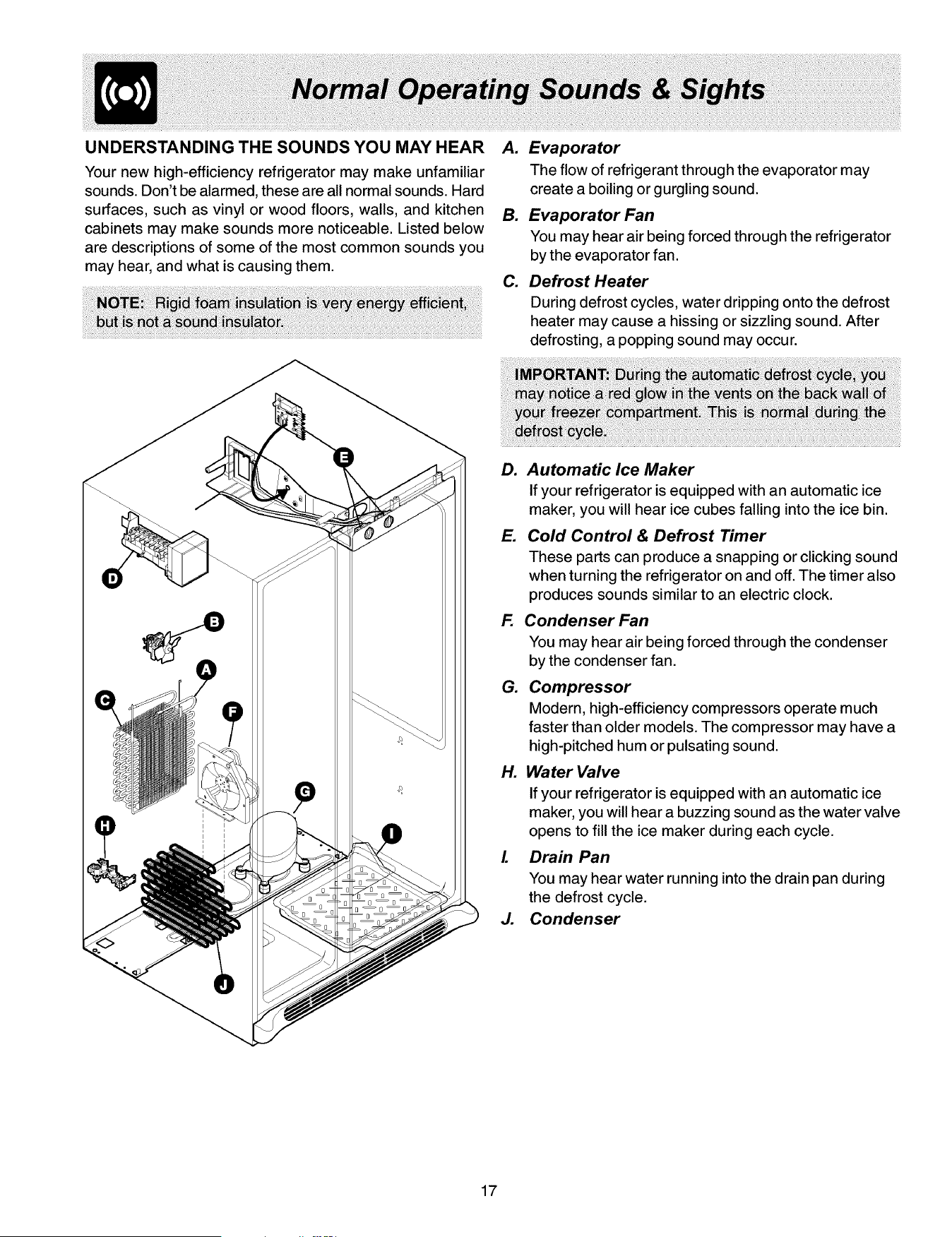

_/ See "Normal Operating Sights & Sounds" in the
Manual so you understand the sounds you may hear once
your refrigerator is running.
Please read entire Use &Care Manualto become aware of
important safety instructions and to become familiar with your
new refrigerator.
_/ Send in Registration card to register your refrigerator.
_/ Congratulations! You are ready to enjoy your new refrigerator.
IF YOU ARE DISSATISFIED WITH THE INSTALLATION OF YOUR REFRIGERATOR, PLEASE CALL THE STORE YOU PURCHASED IT FROM. P/N:240566400
