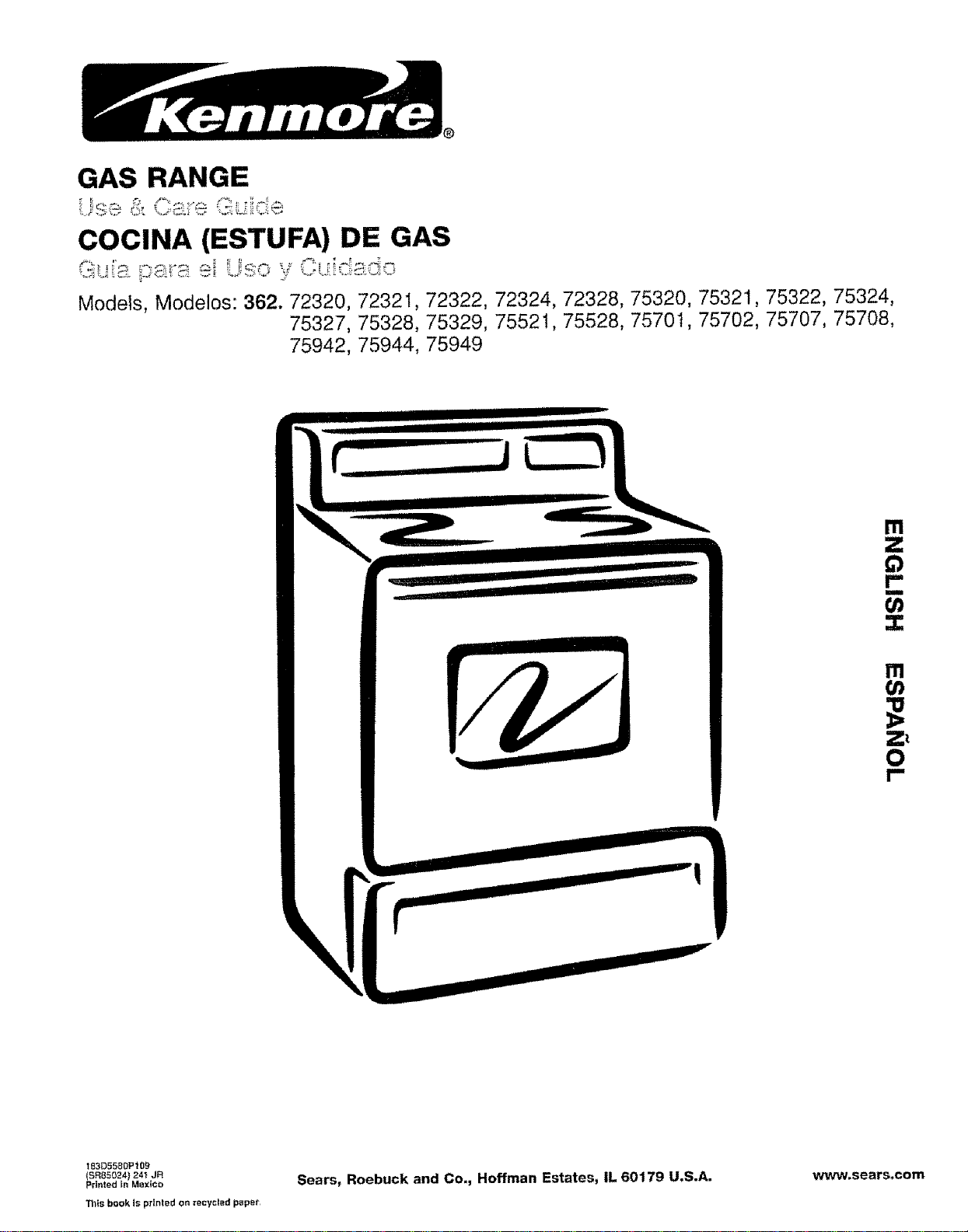

Kenmore 36272322100 gas range User Manual

GAS RANGE

COCINA (ESTUFA) DE GAS

Models, Modelos: 362, 72320, 72321, 72322, 72324, 72328, 75320, 75321,75322, 75324,

75327, 75328, 75329, 75521, 75528, 75701, 75702, 75707, 75708,

75942, 75944, 75949

183D558OPlO9

SRB5024} 241 JR

printed n Mexico

Thts book is printed on recycled paper,

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U,S.A. www.sears,com

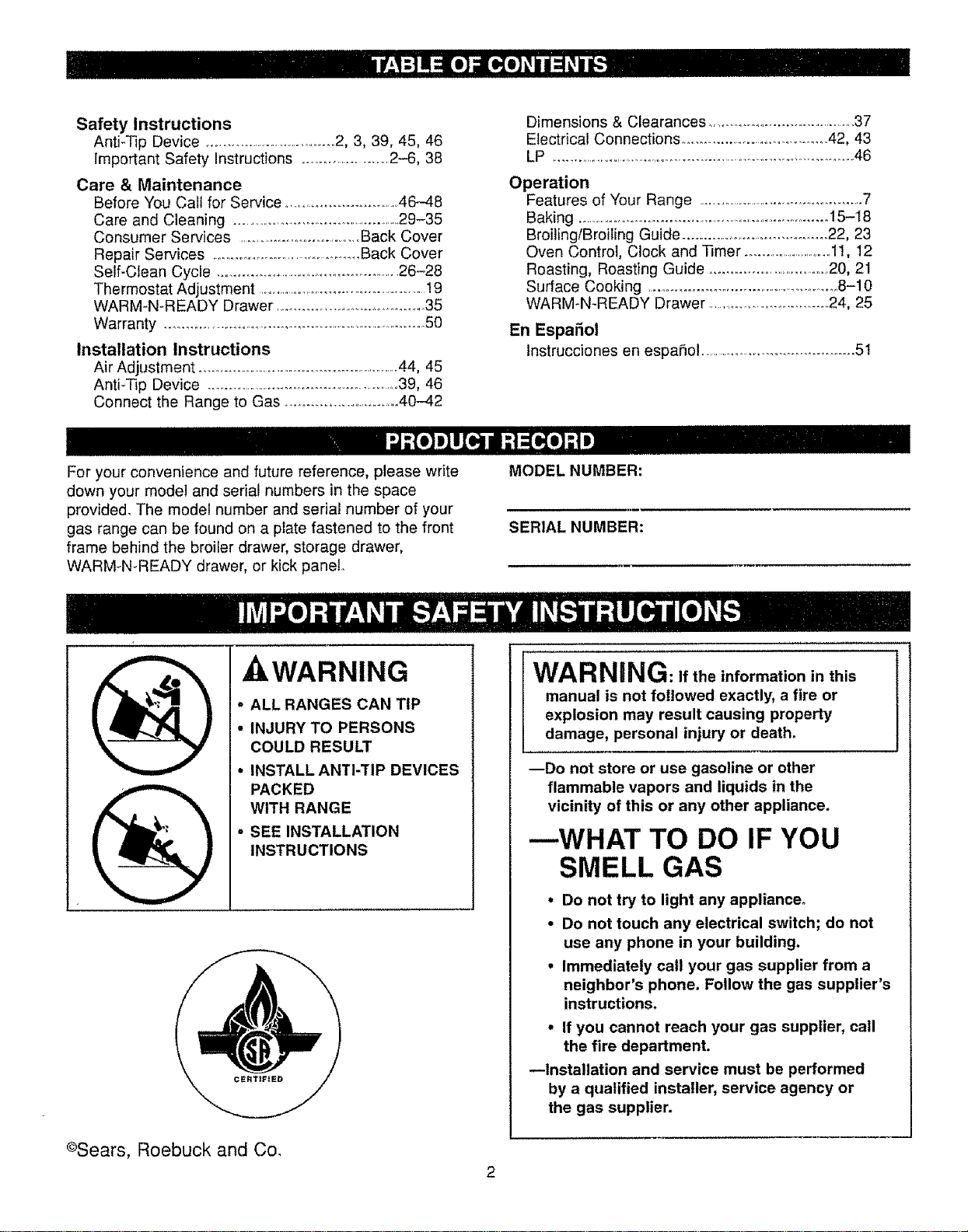

Safety Instructions

Anti-Tip Device ....................................2, 3, 39, 45, 46

Important Safety Instructions .......................2-6, 38

Care & Maintenance

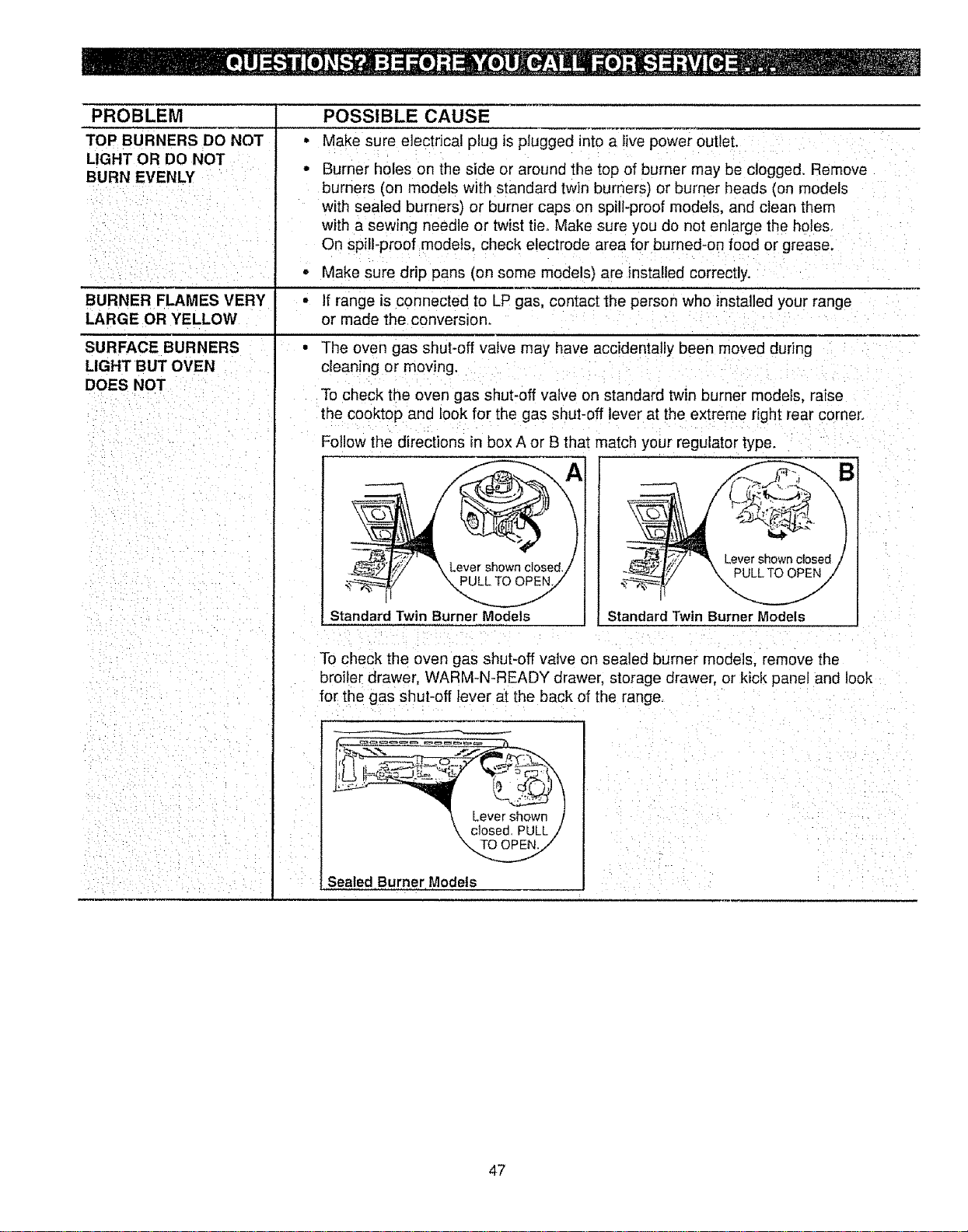

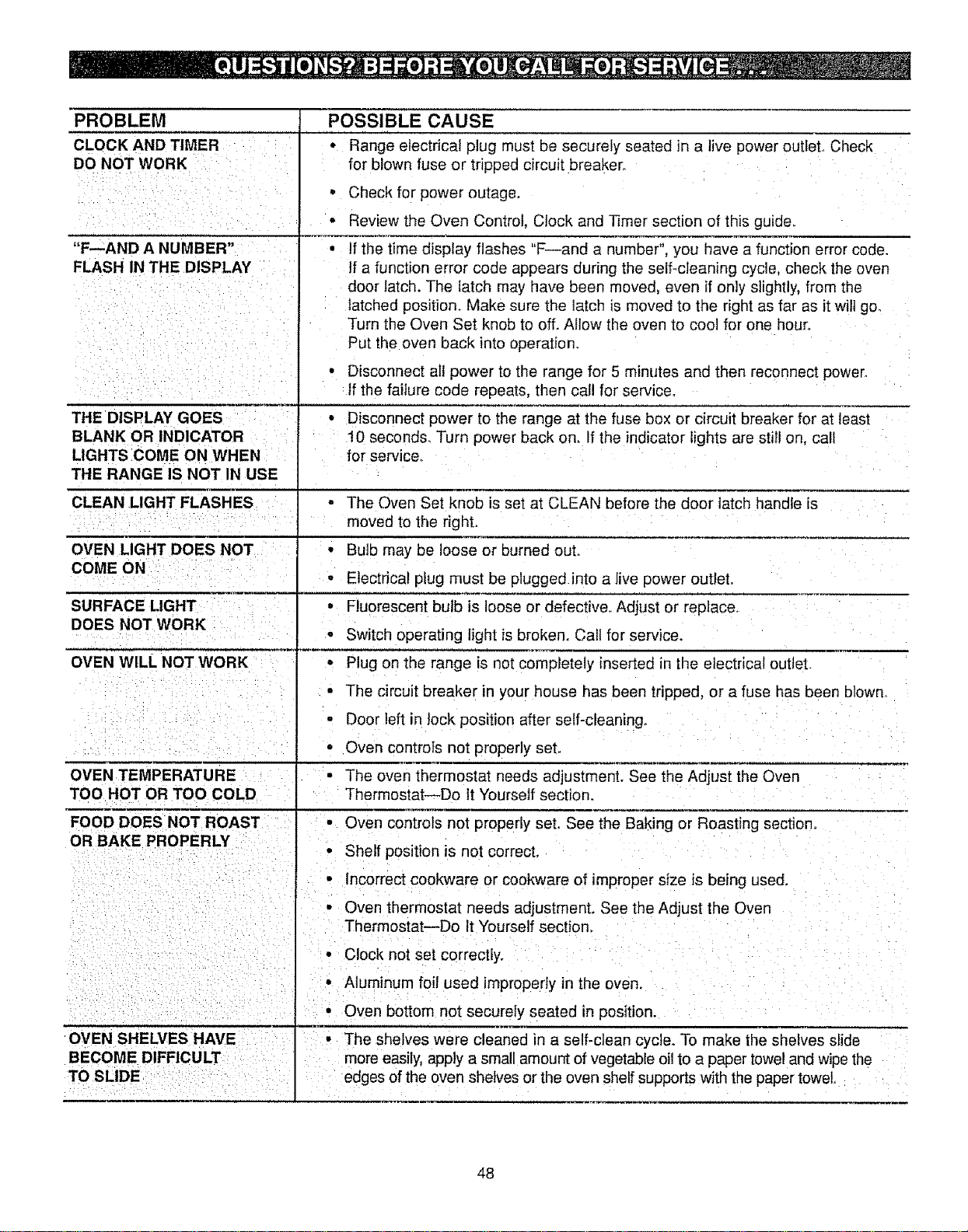

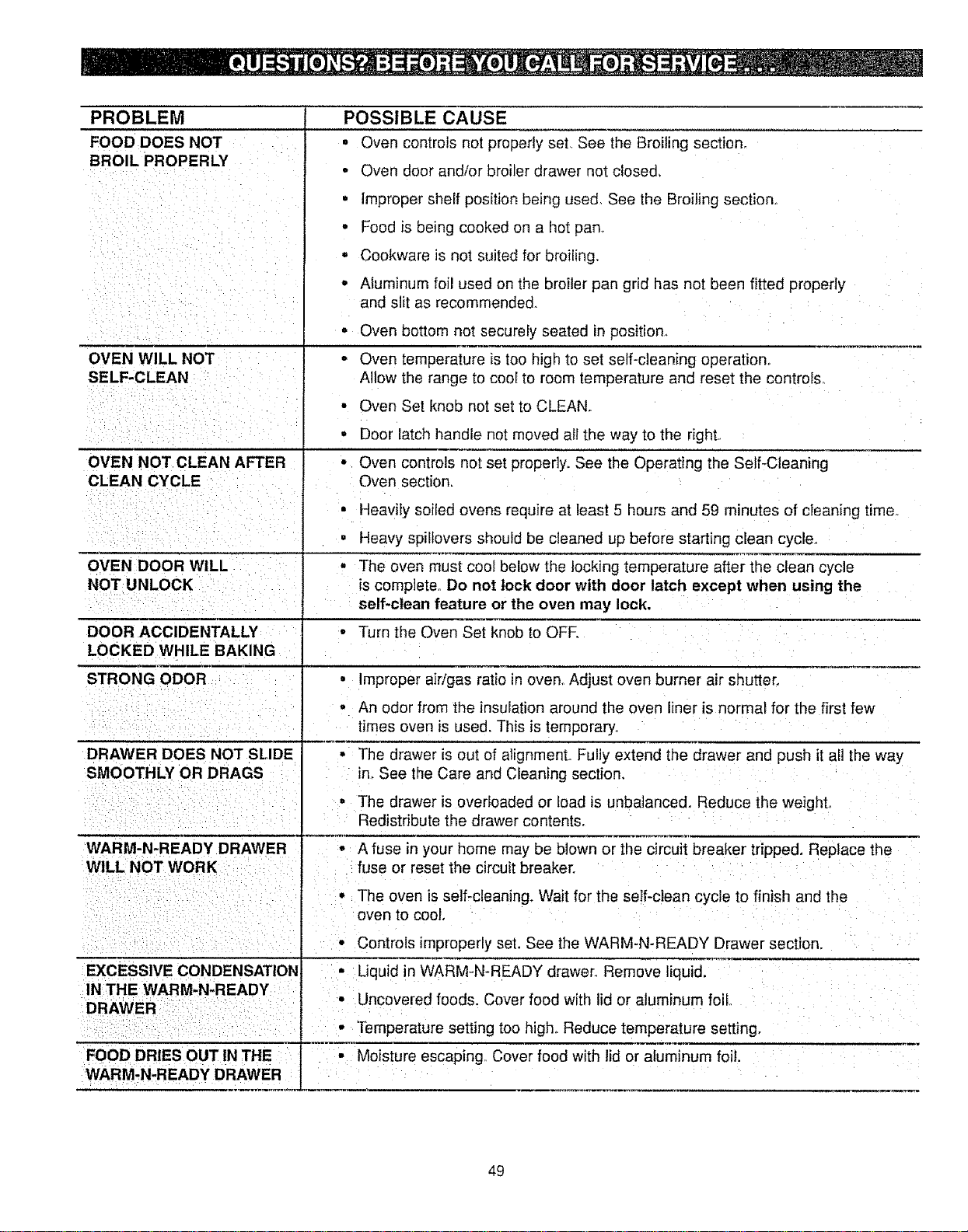

Before You Call for Service .................................46-48

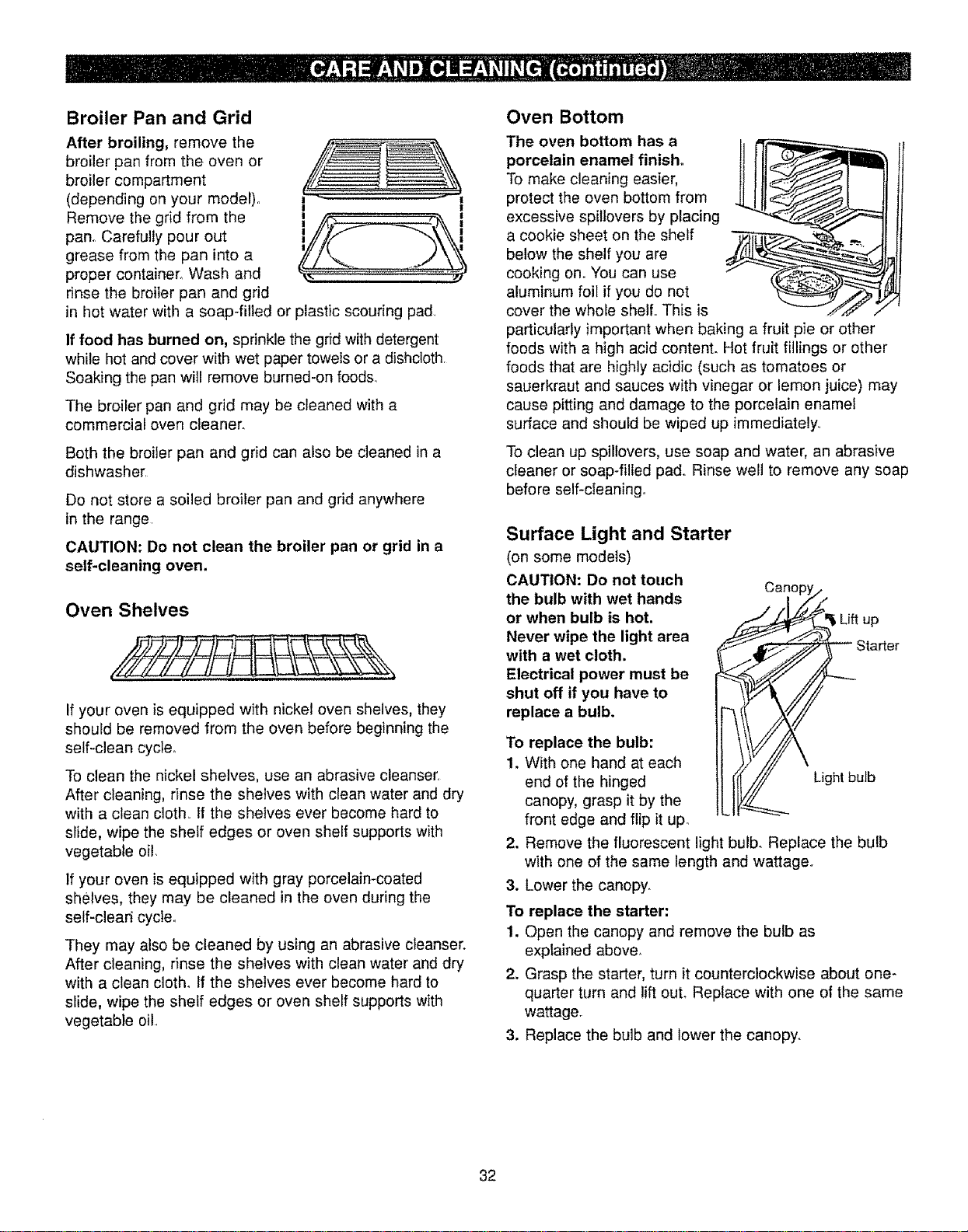

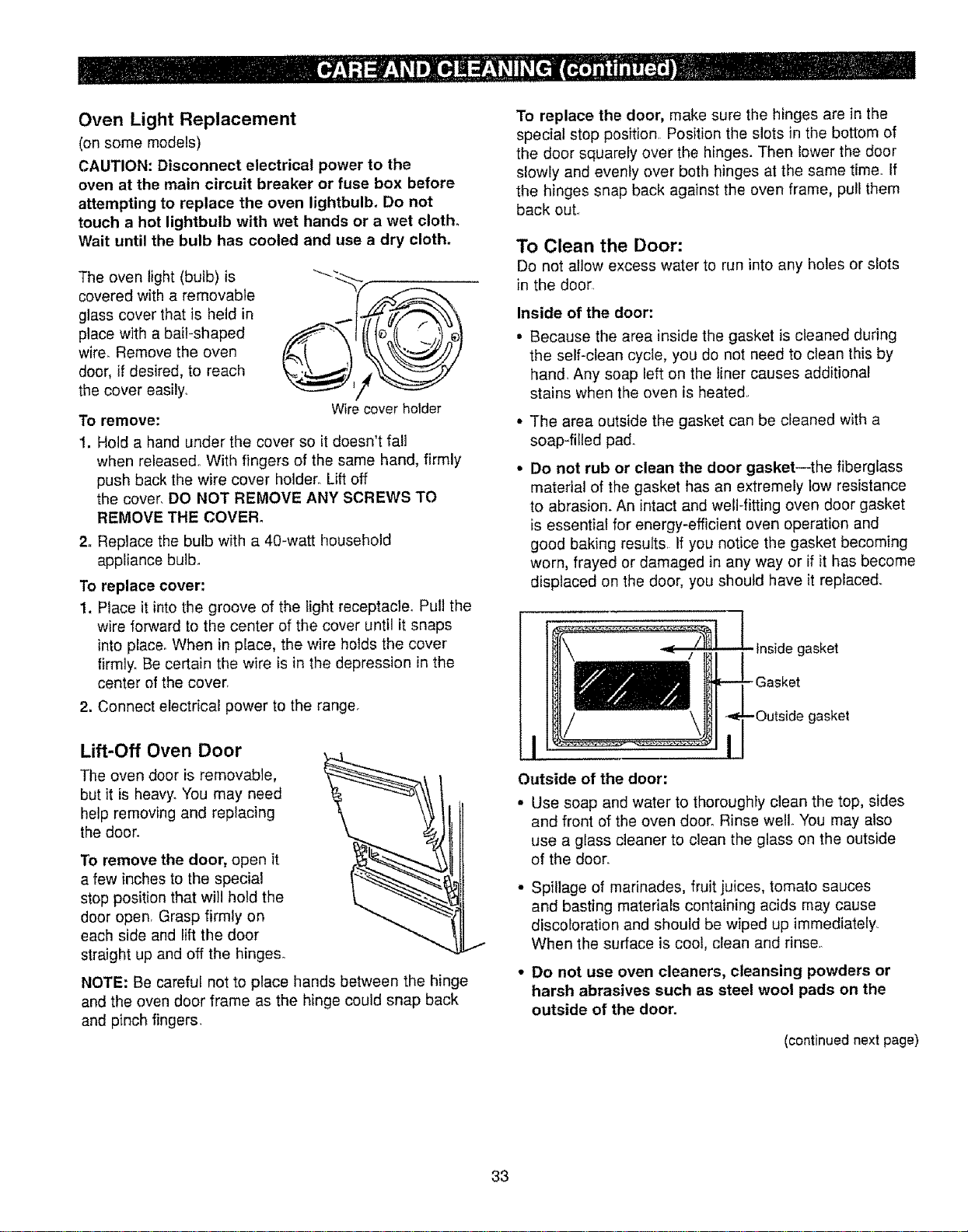

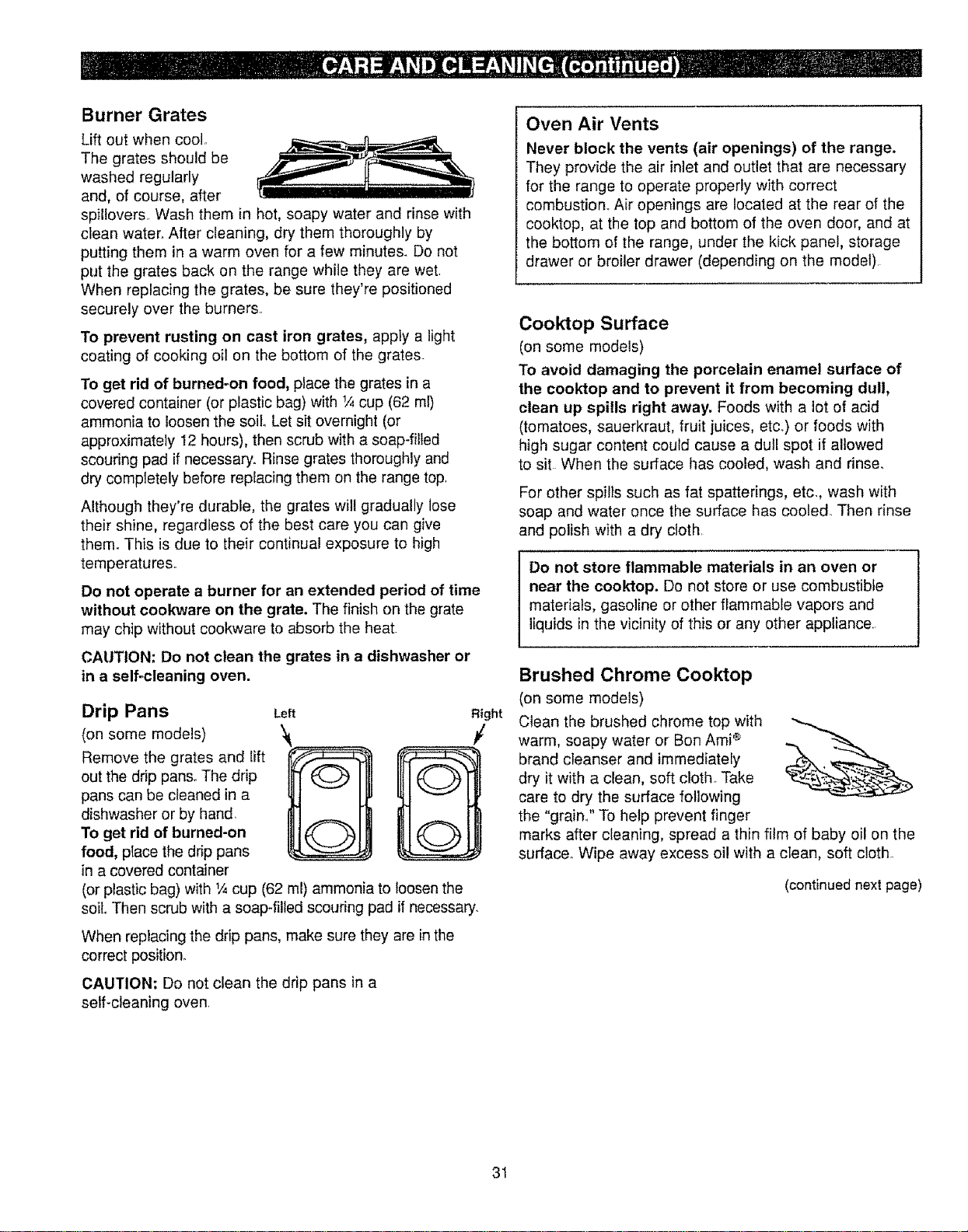

Care and Cleaning .....................................................29-35

Consumer Services ...................................Back Cover

Repair Services .............................................Back Cover

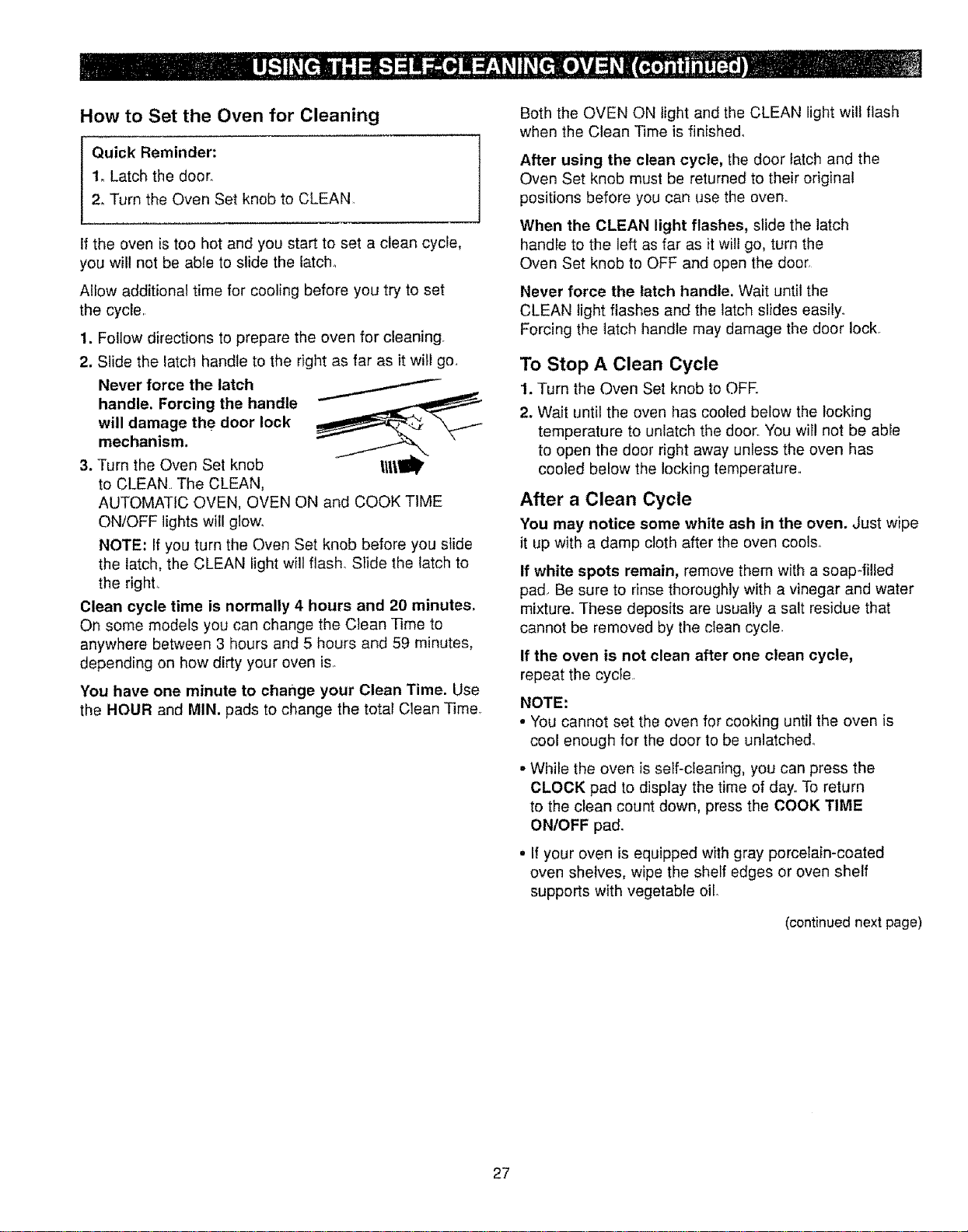

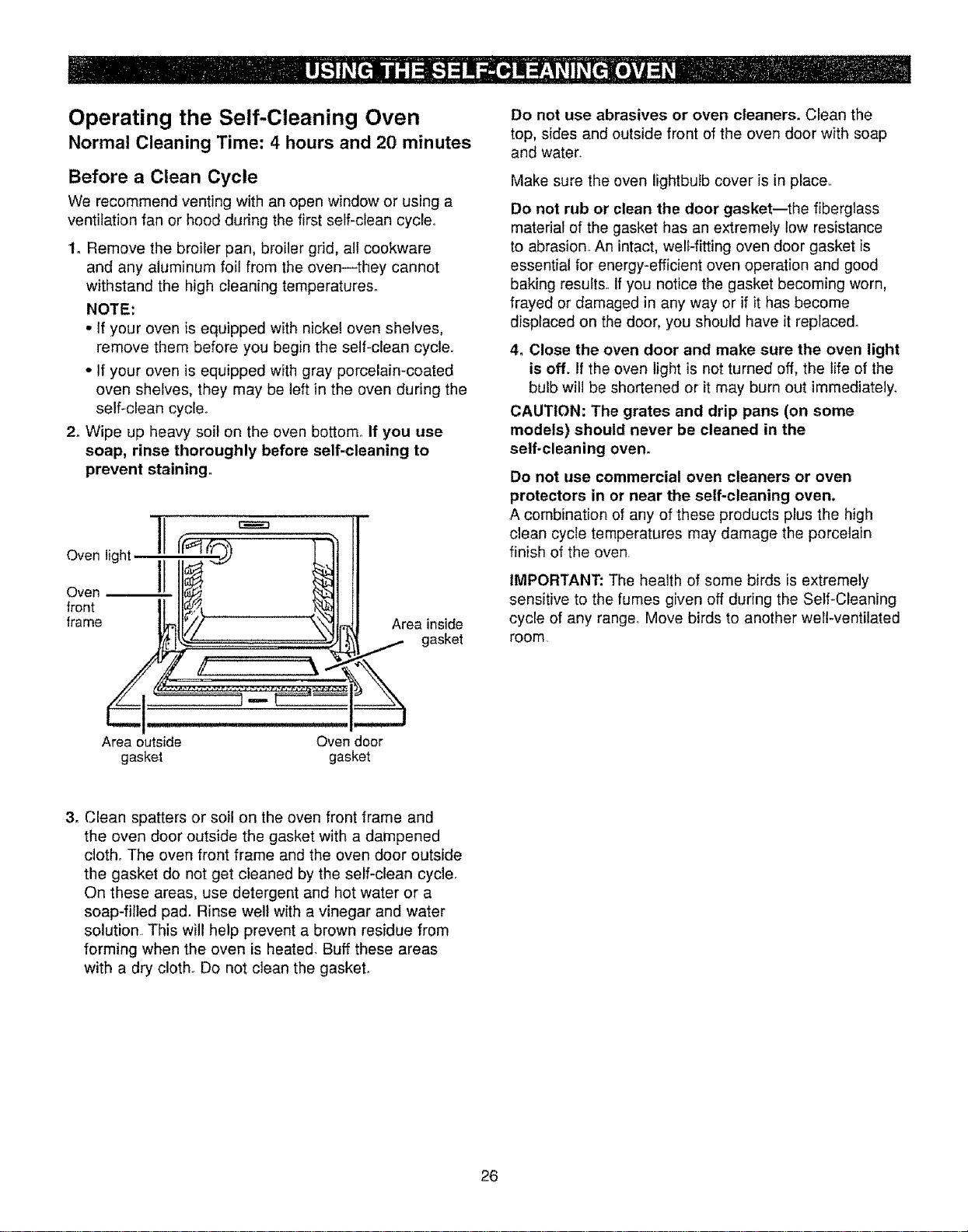

Self-Clean Cycle ..........................................................26-28

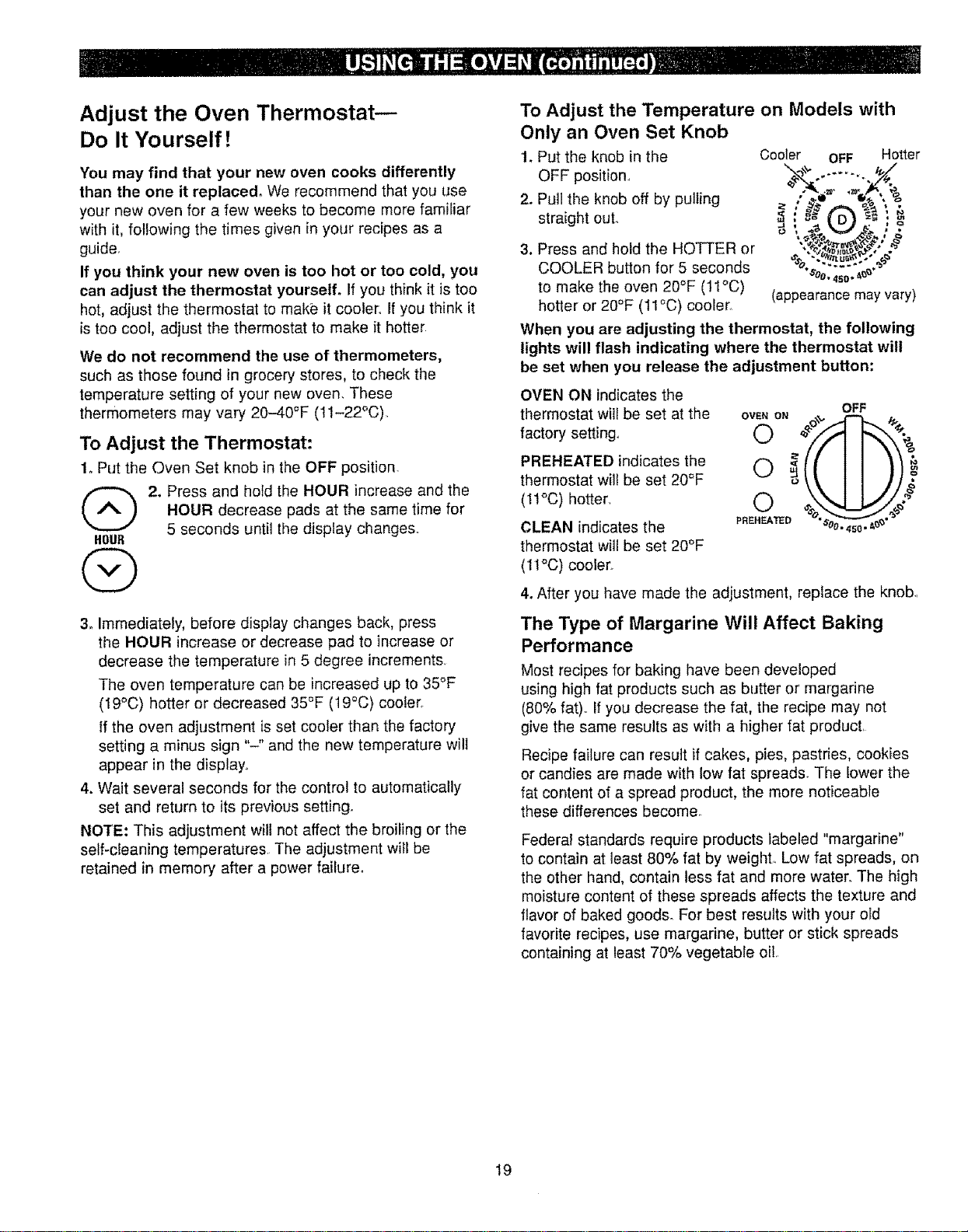

Thermostat Adjustment .........................................................19

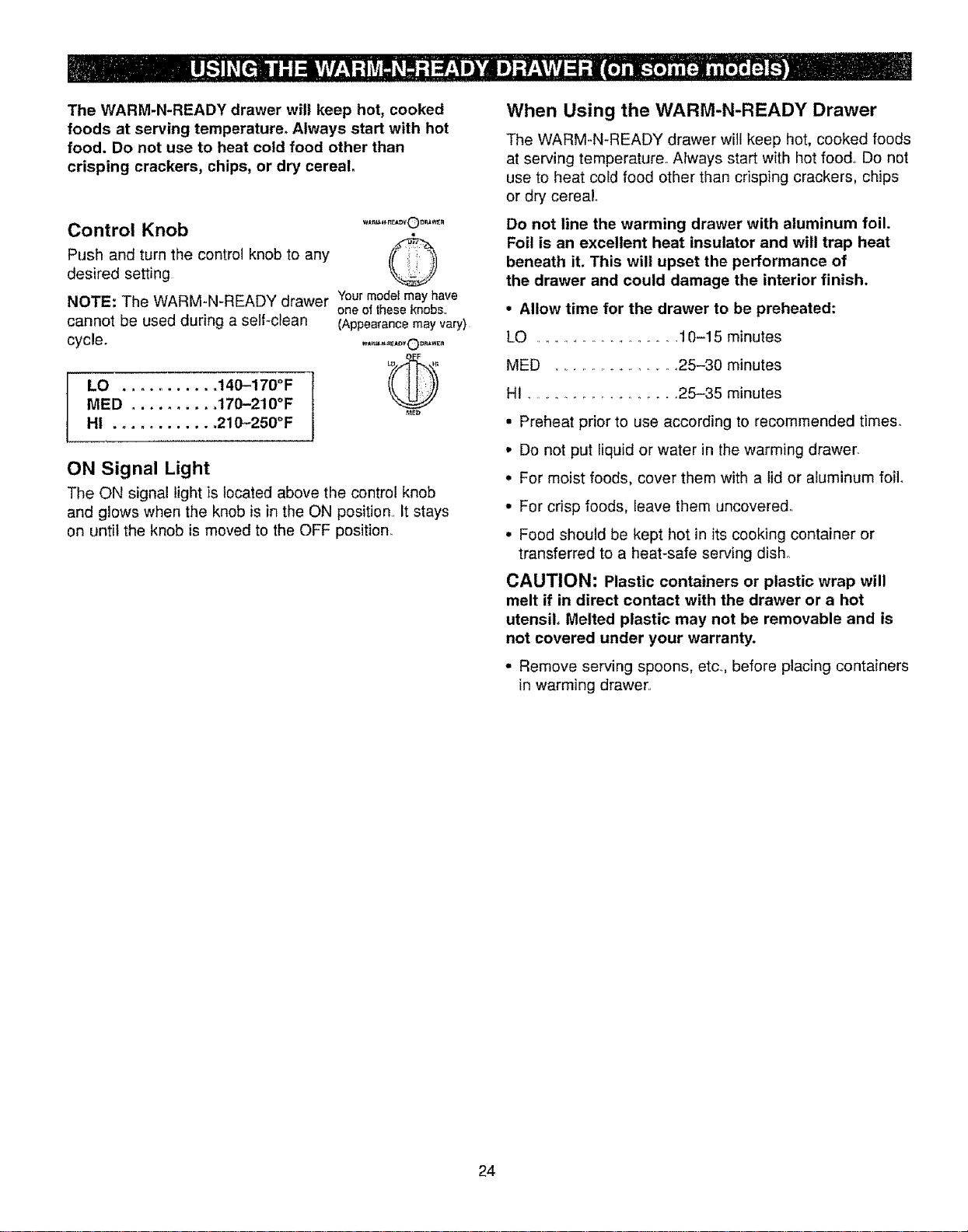

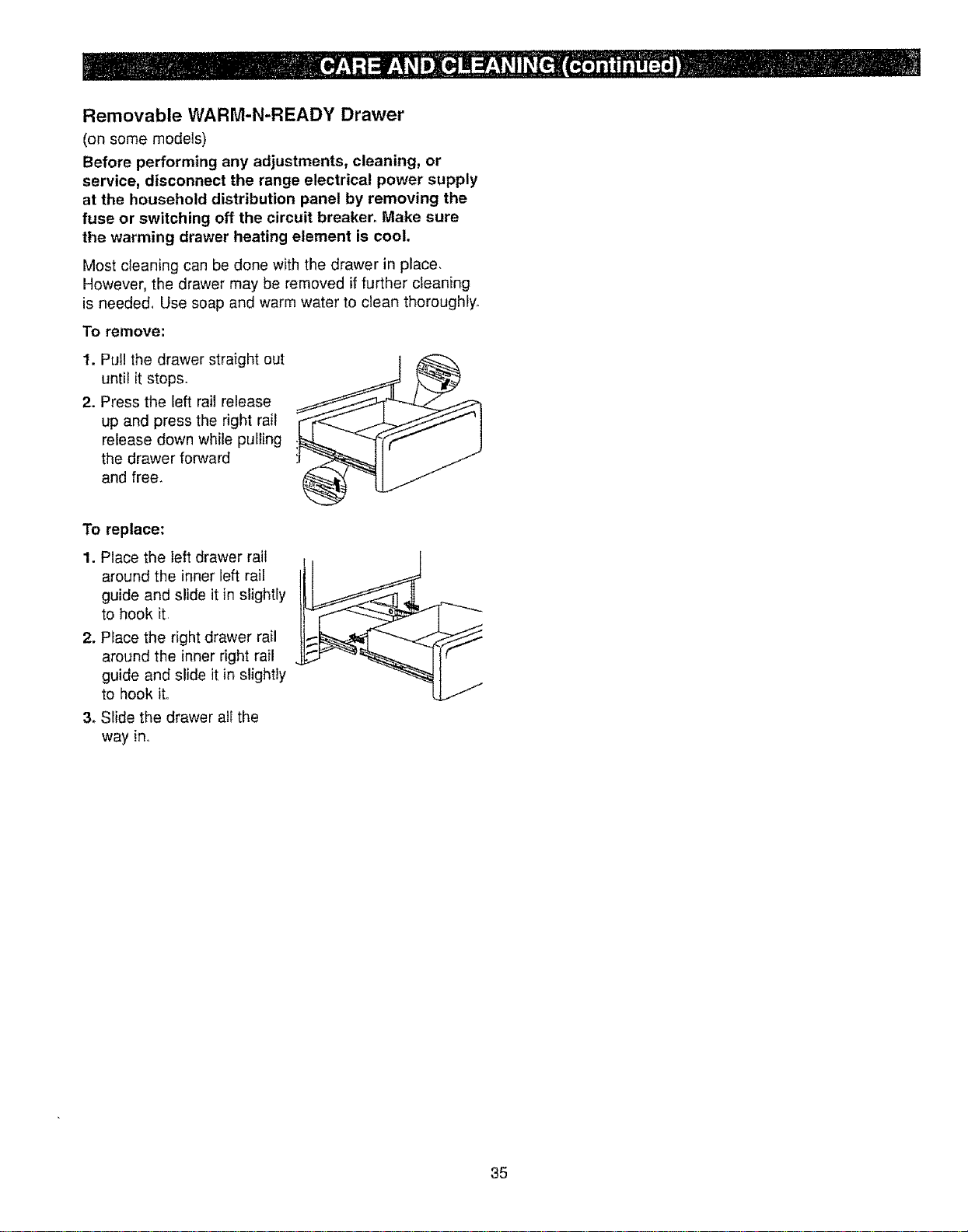

WARM-N-READY Drawer ..............................................35

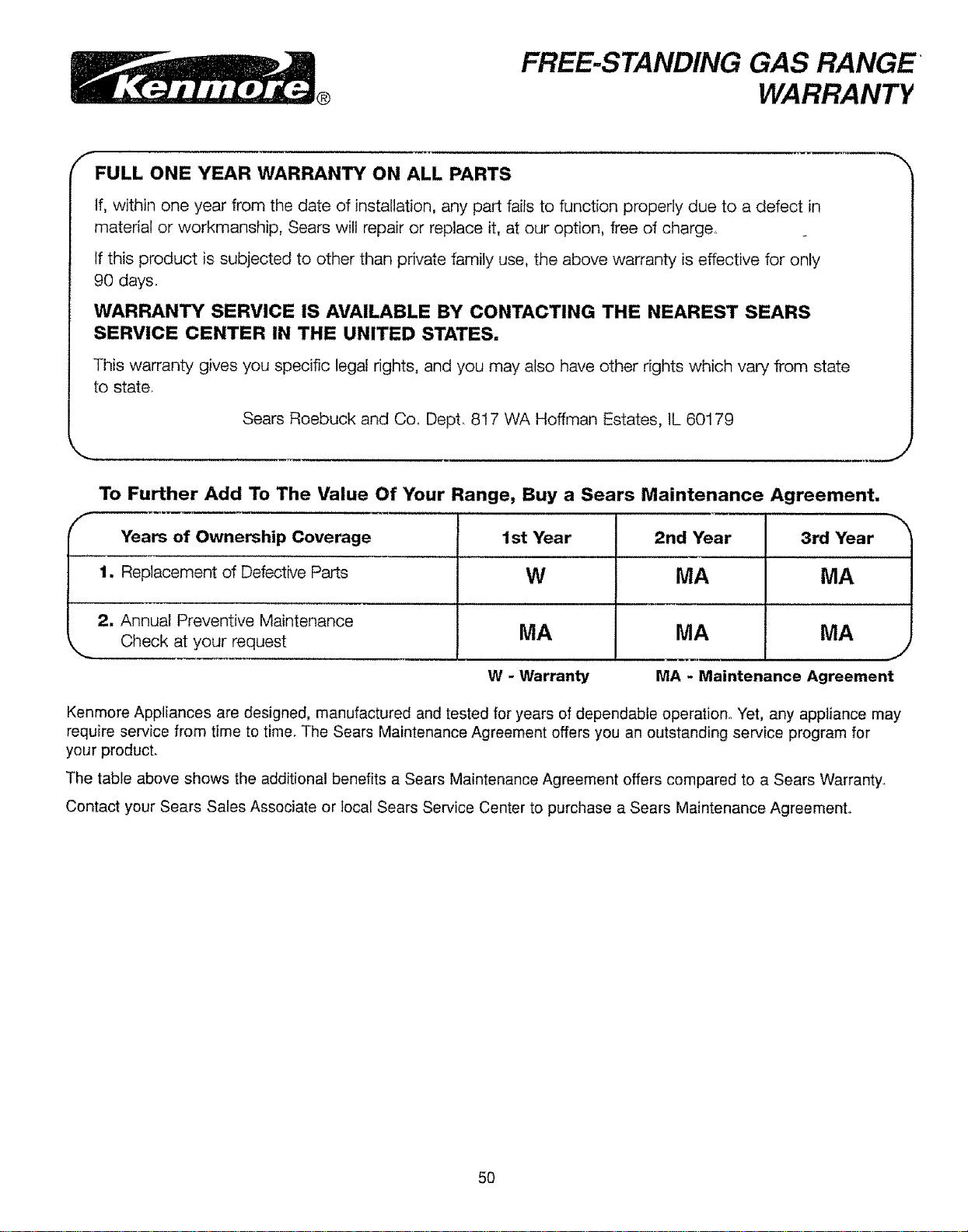

Warranty ..................................................................................50

Installation Instructions

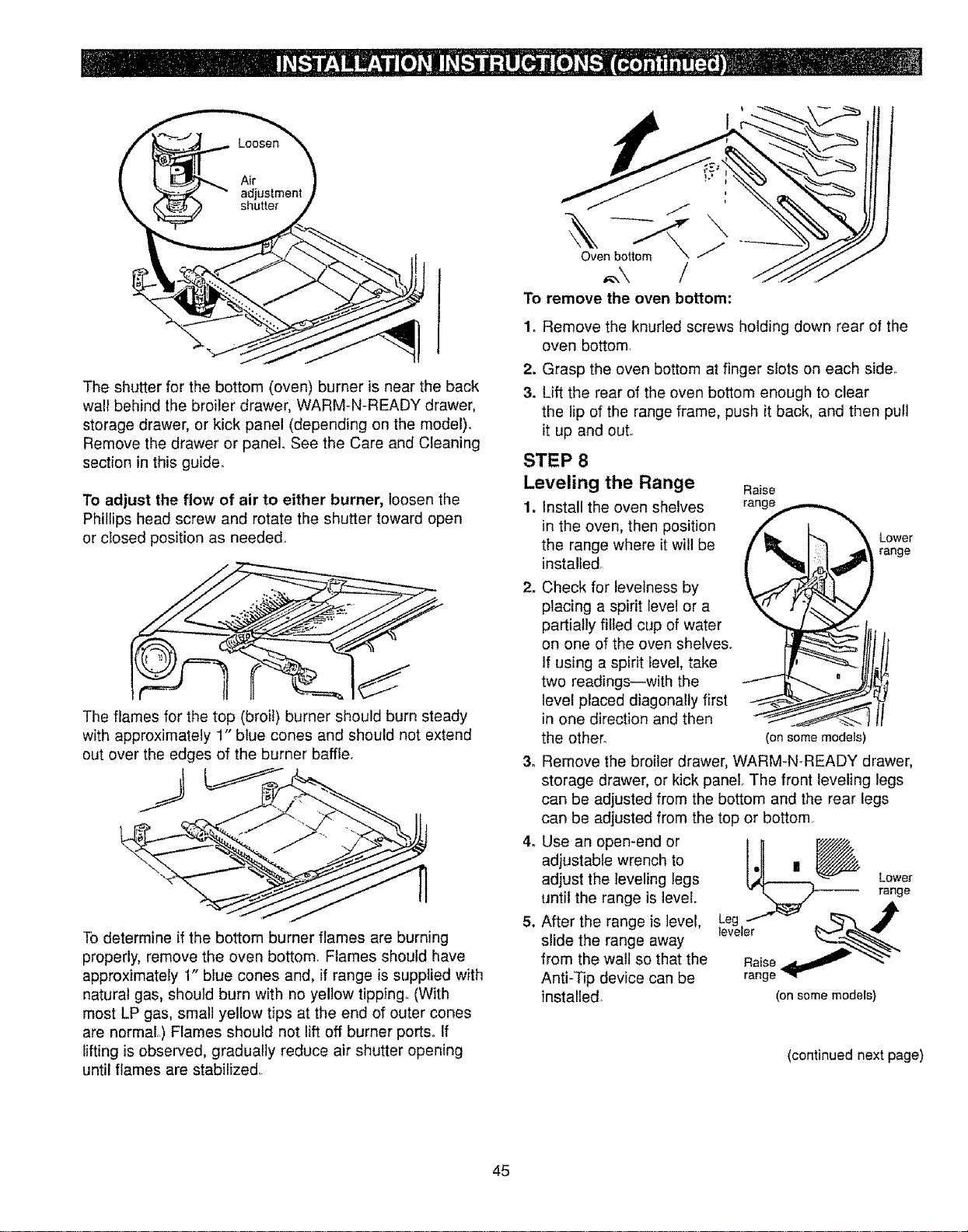

Air Adjustment ................................................................44, 45

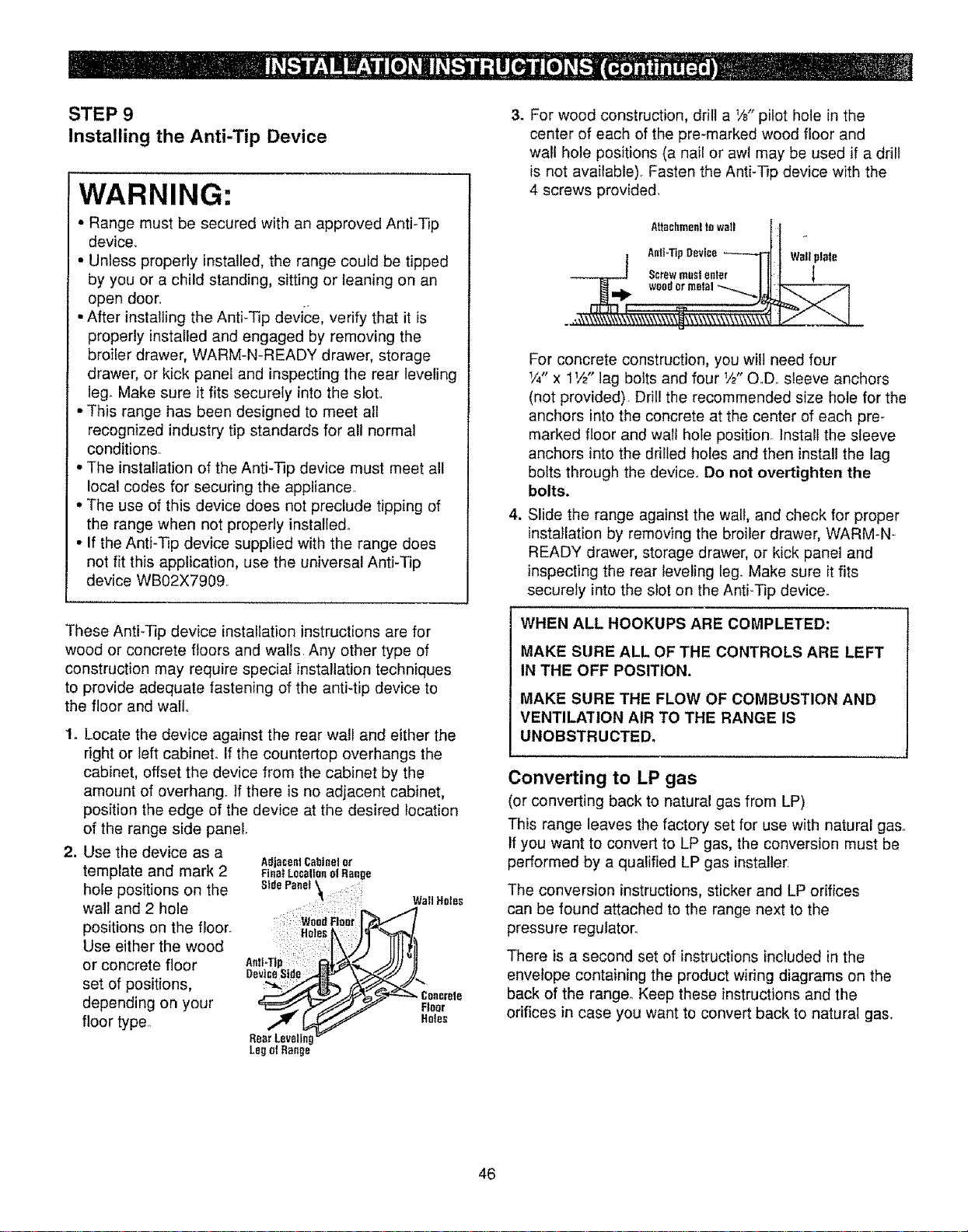

Anti-Tip Device .............................................................39, 46

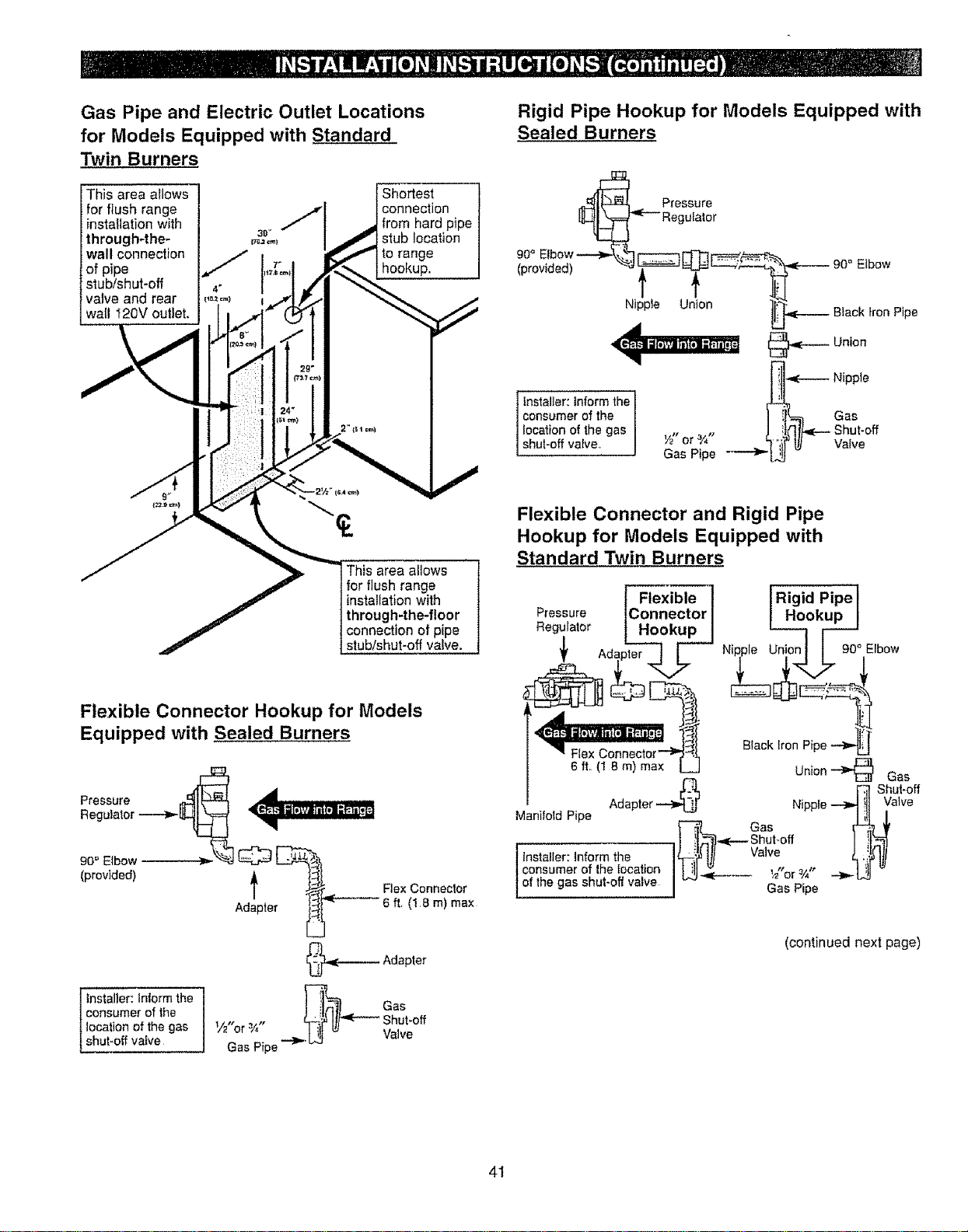

Connect the Range to Gas ......................................40-42

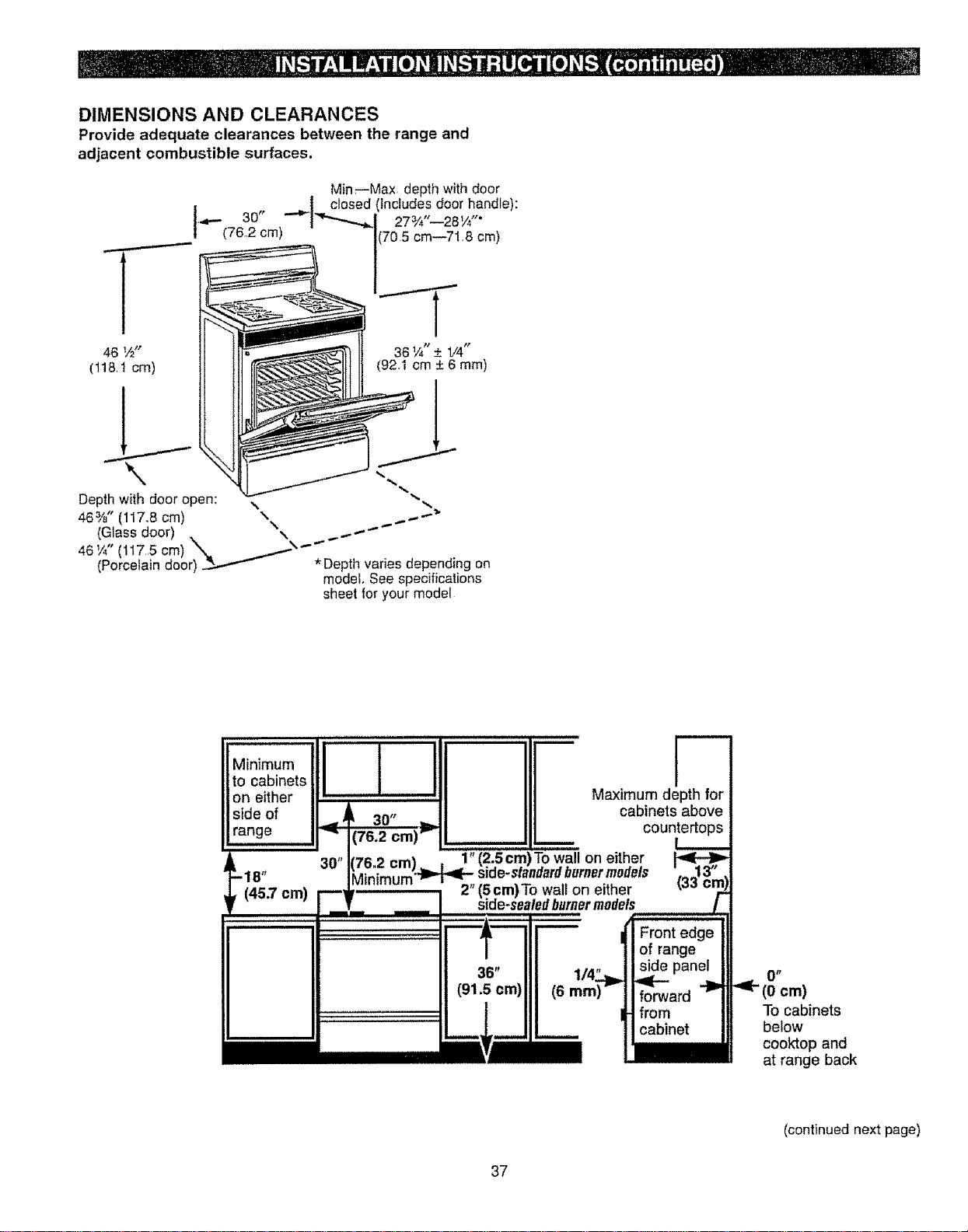

Dimensions & Clearances ............................................37

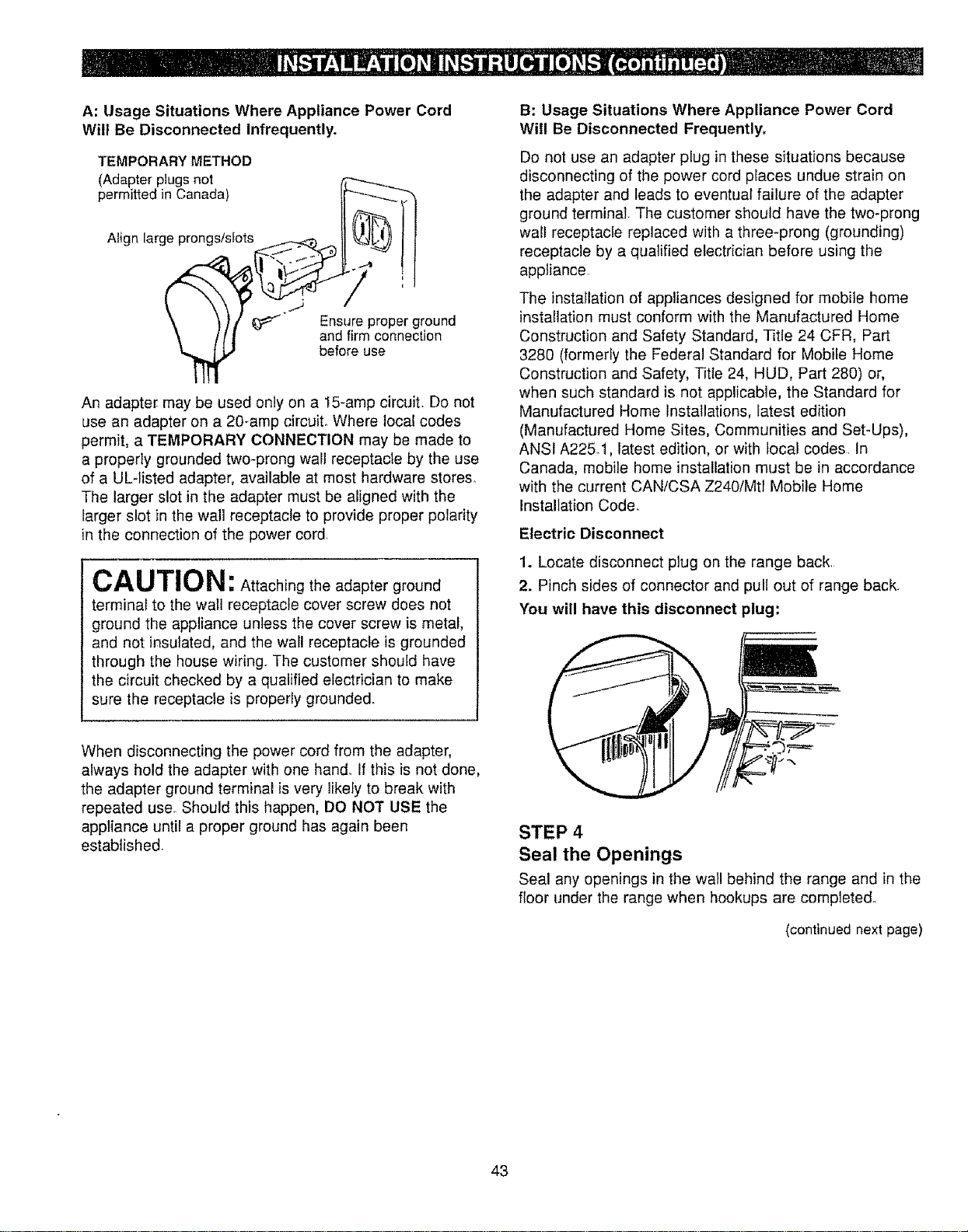

Electrical Connections ................................................42, 43

LP ...................... ....................................................................... 46

Operation

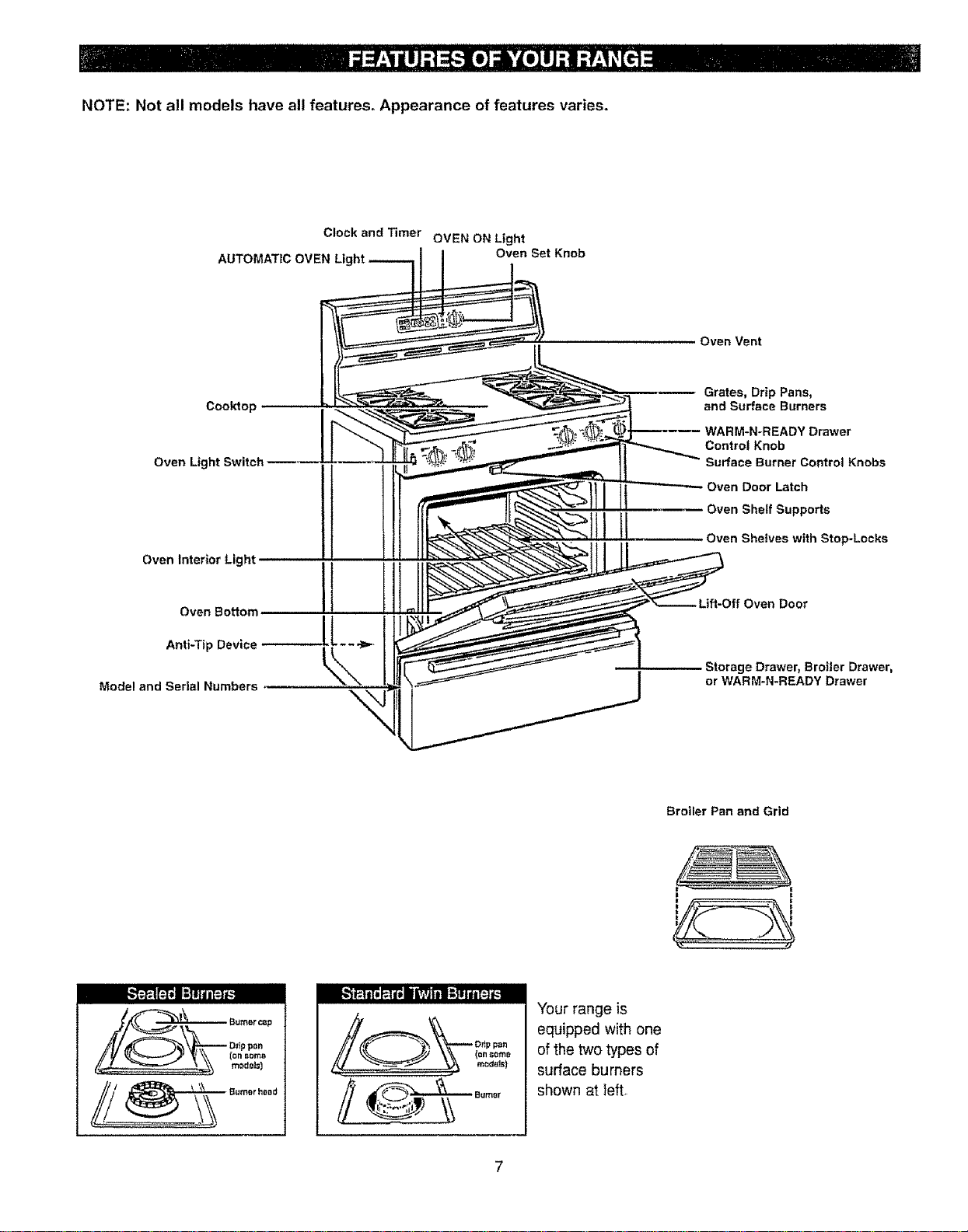

Features of Your Range .........................................................7

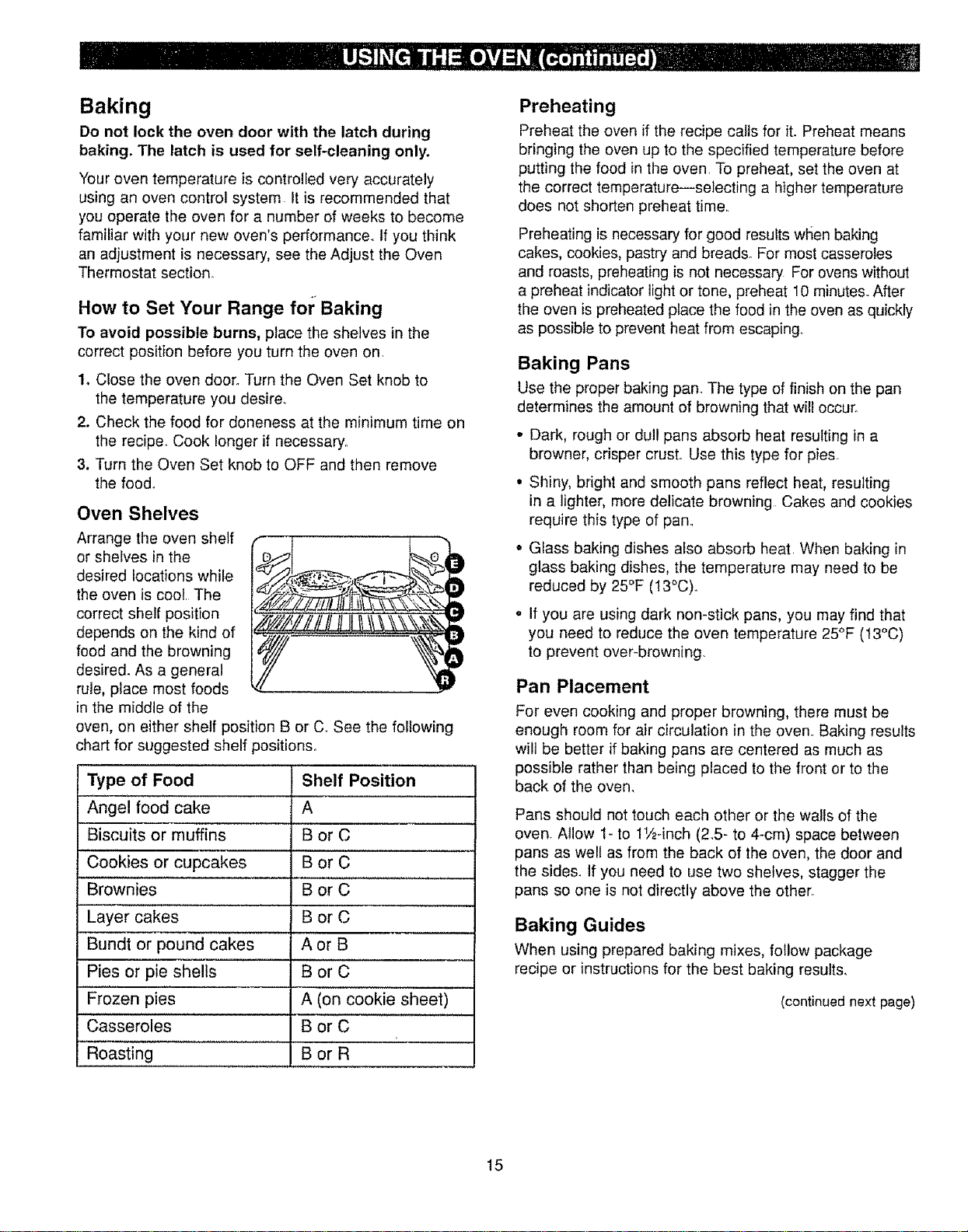

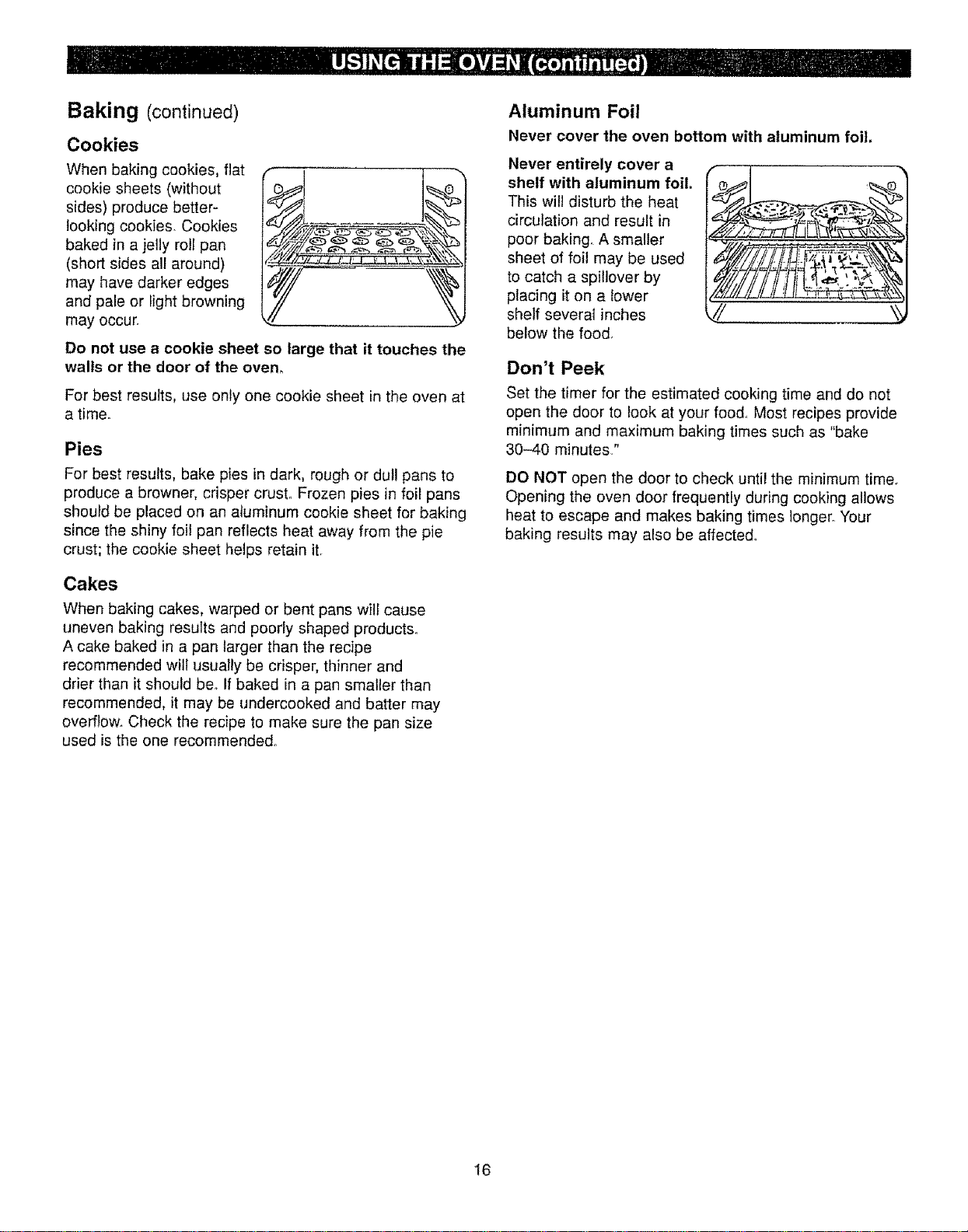

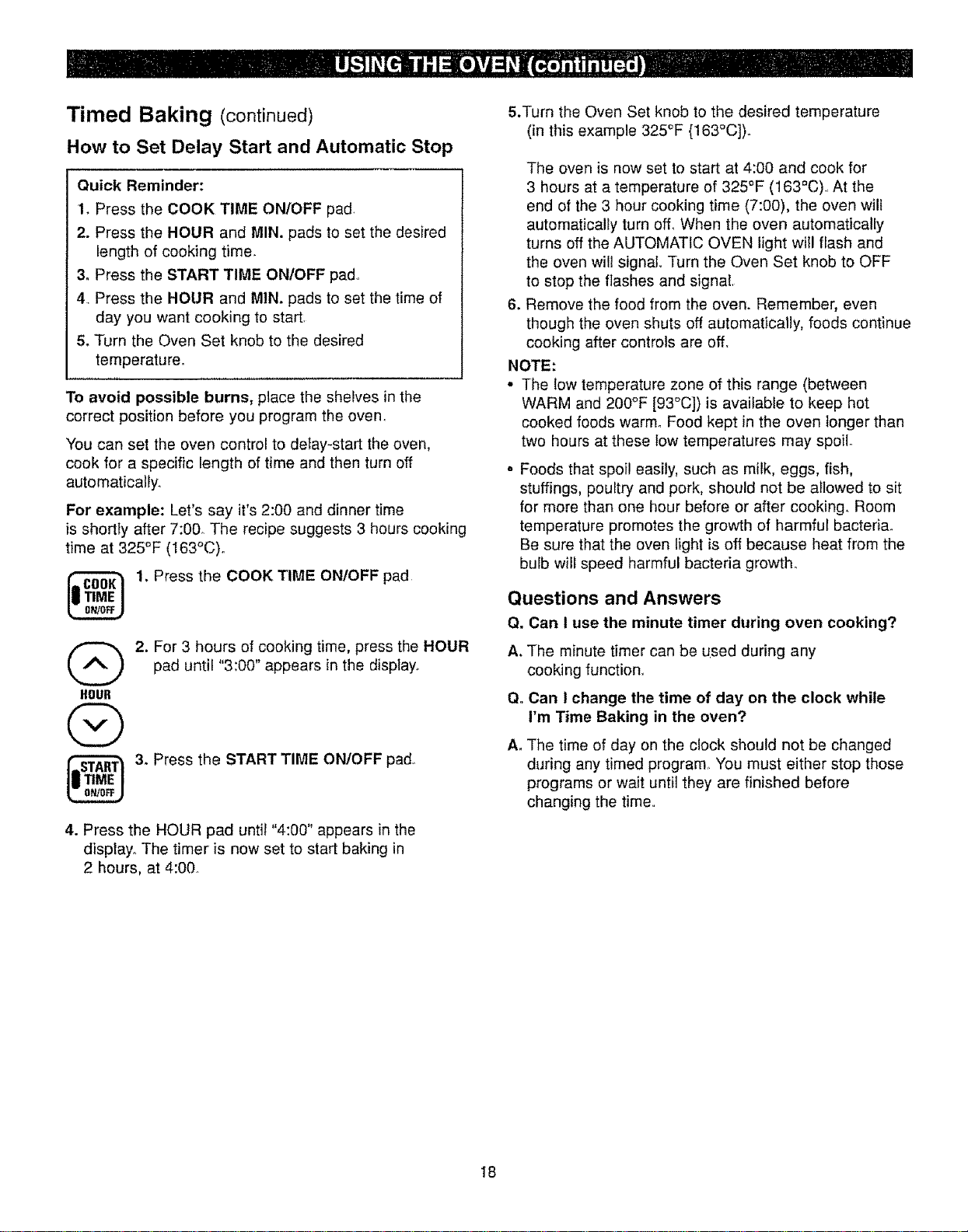

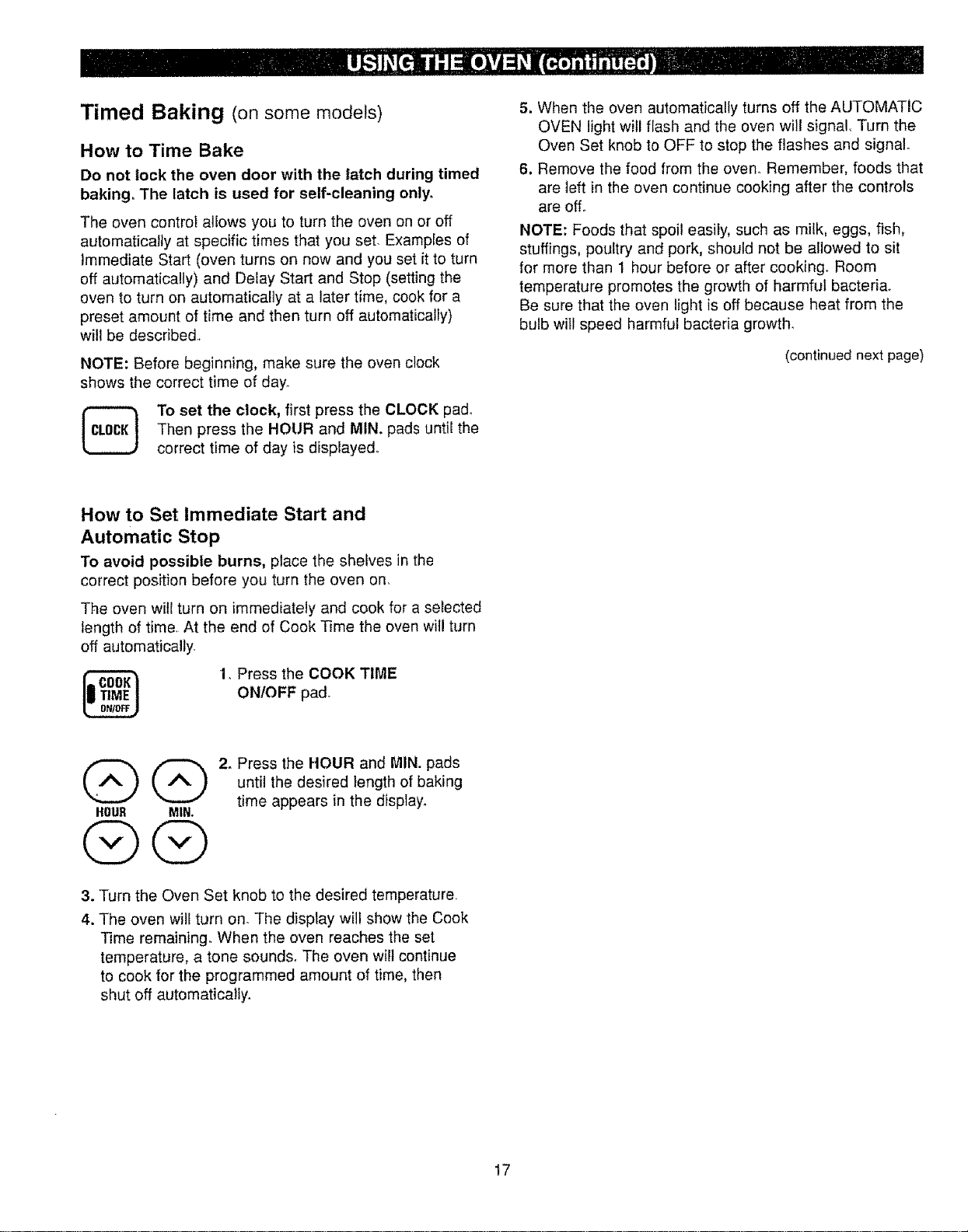

Baking ............................................................................15-18

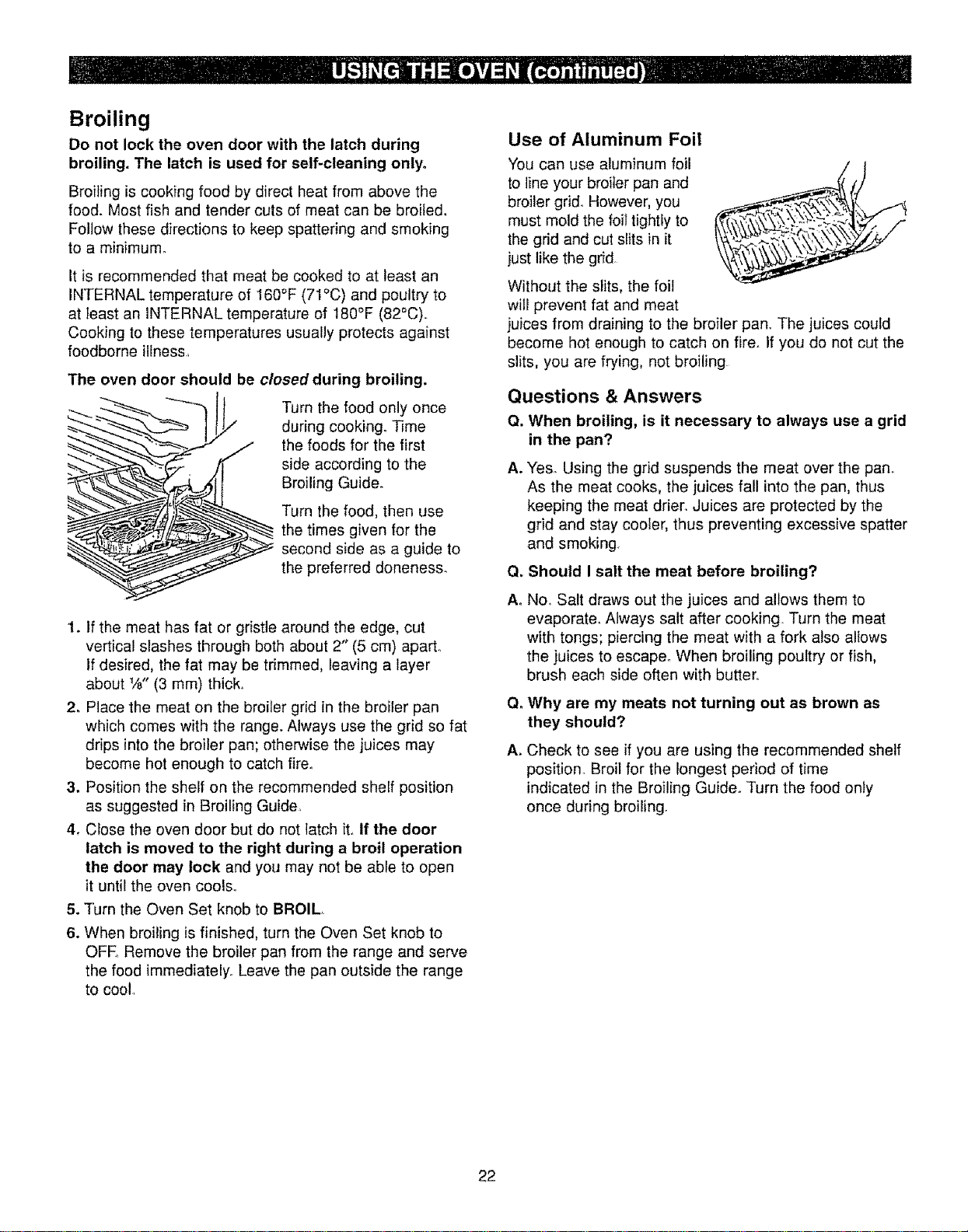

BroilinglBroiling Guide ............................................22, 23

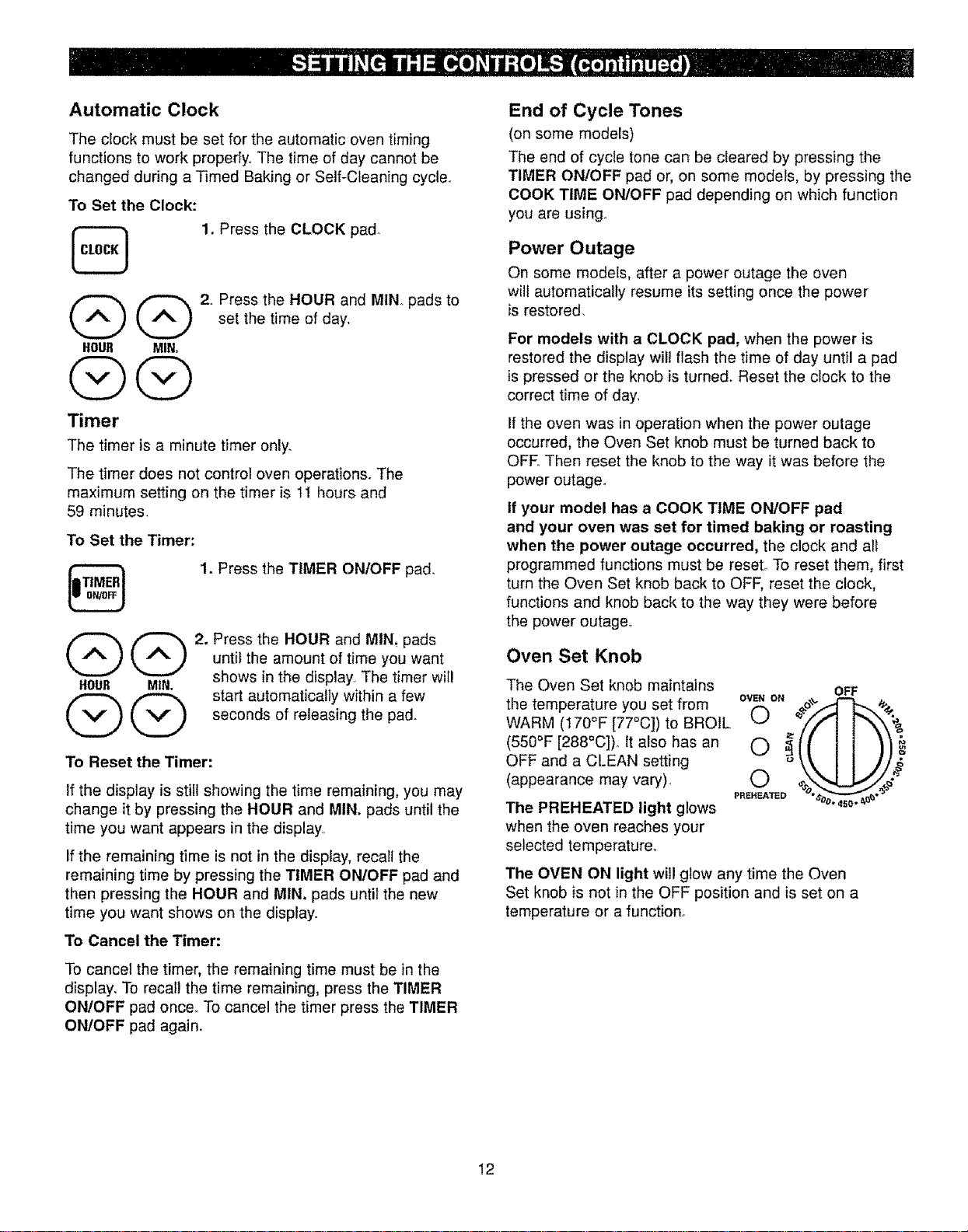

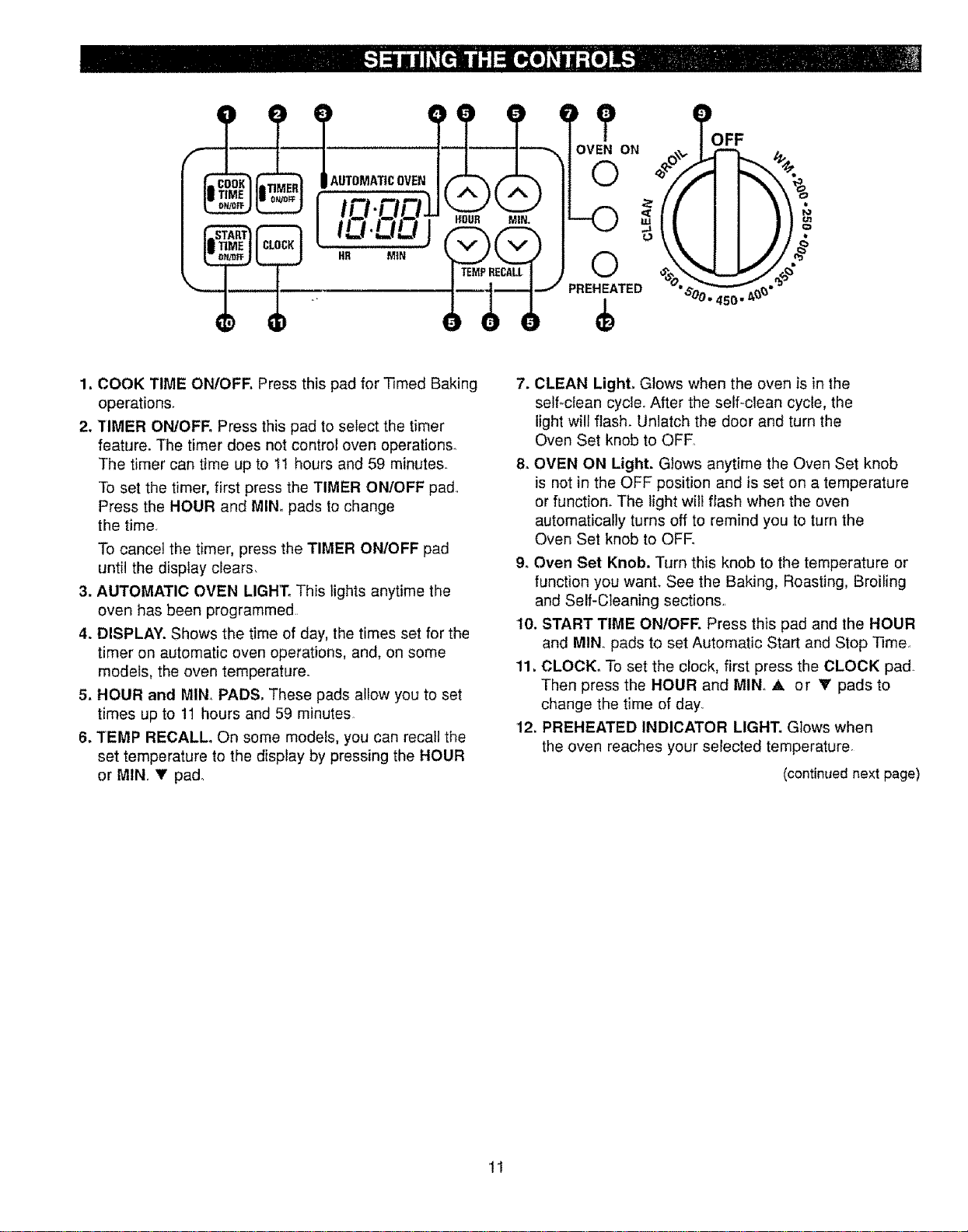

Oven Control, Clock and Timer .........................1!, 12

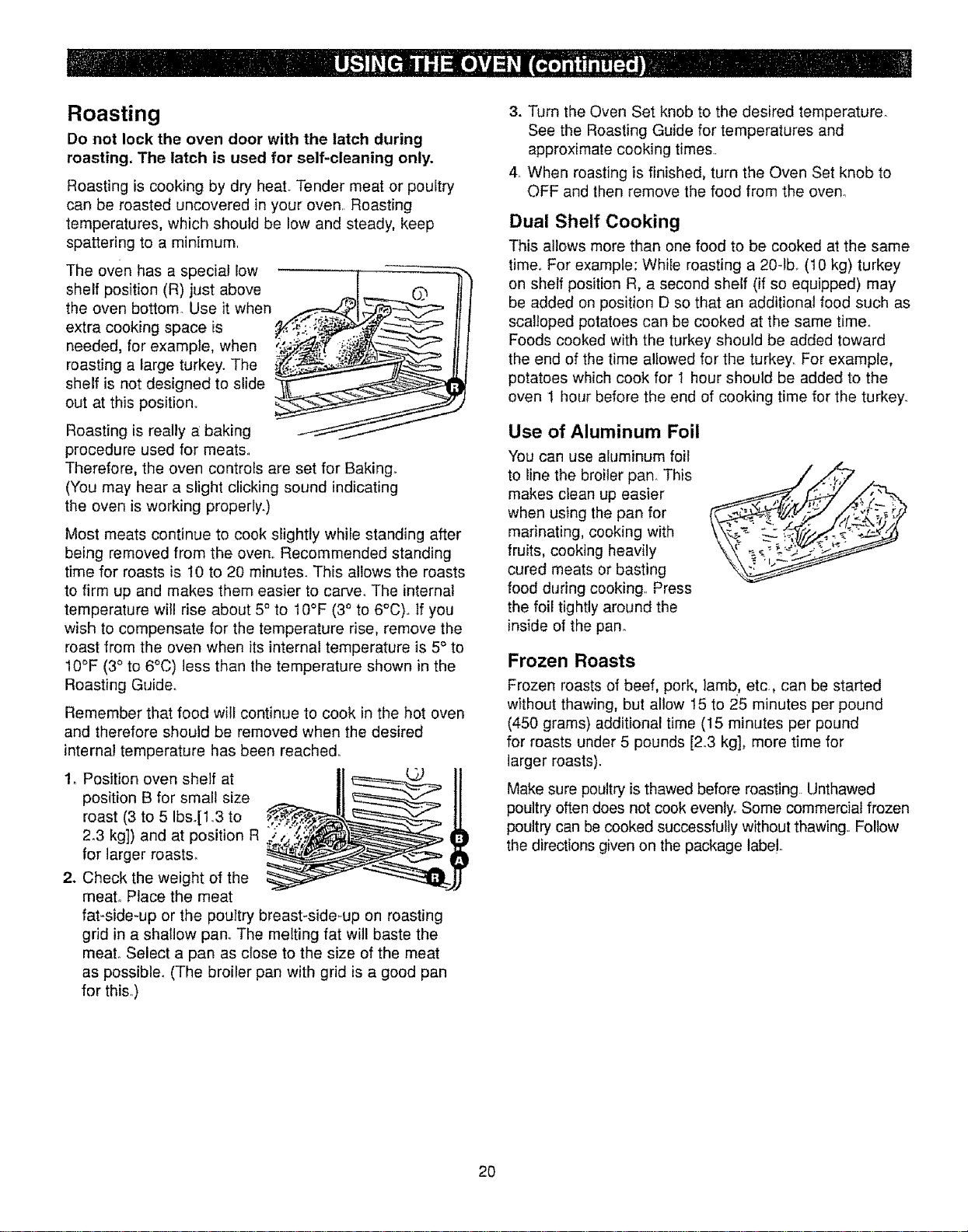

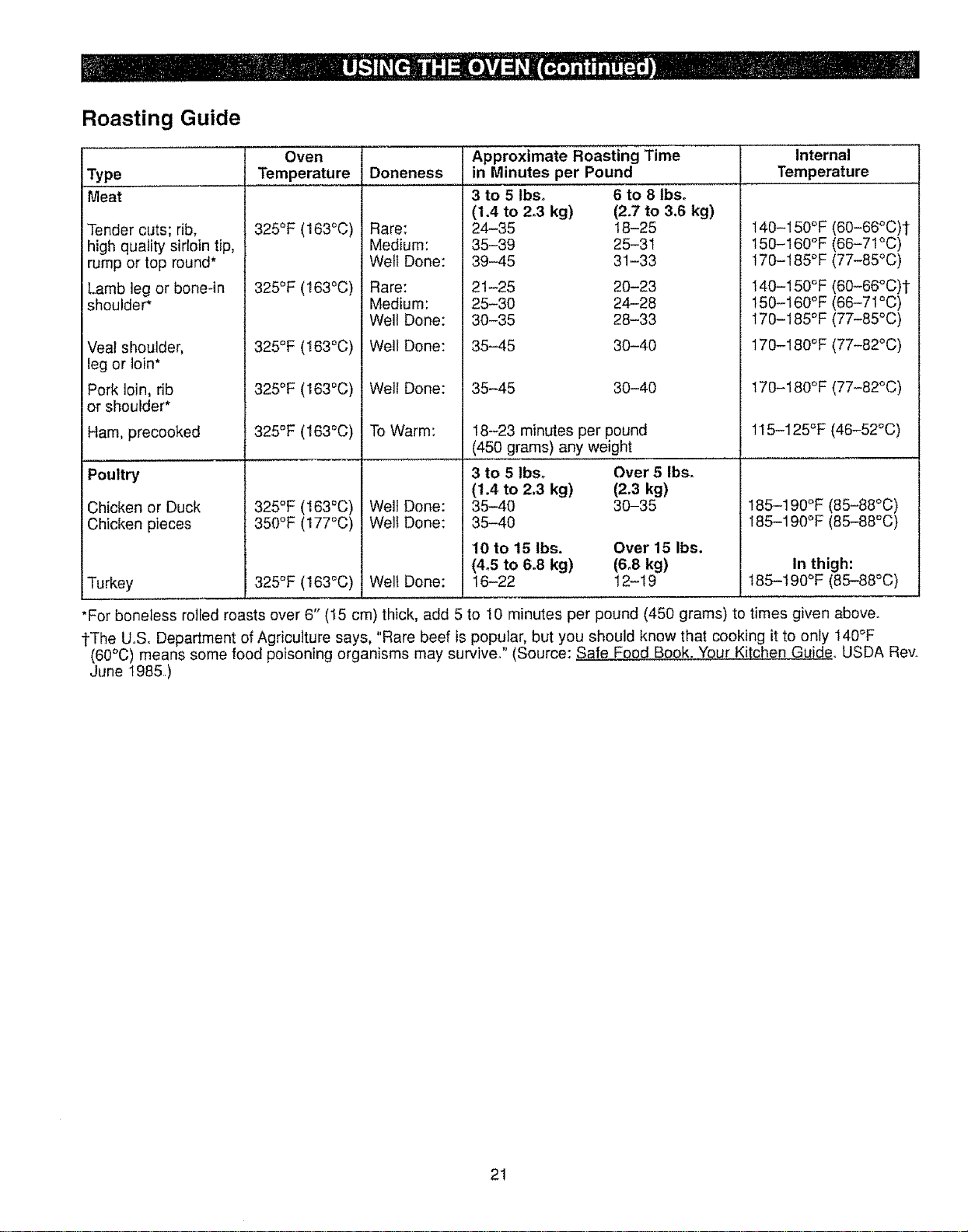

Roasting, Roasting Guide ......................................20, 21

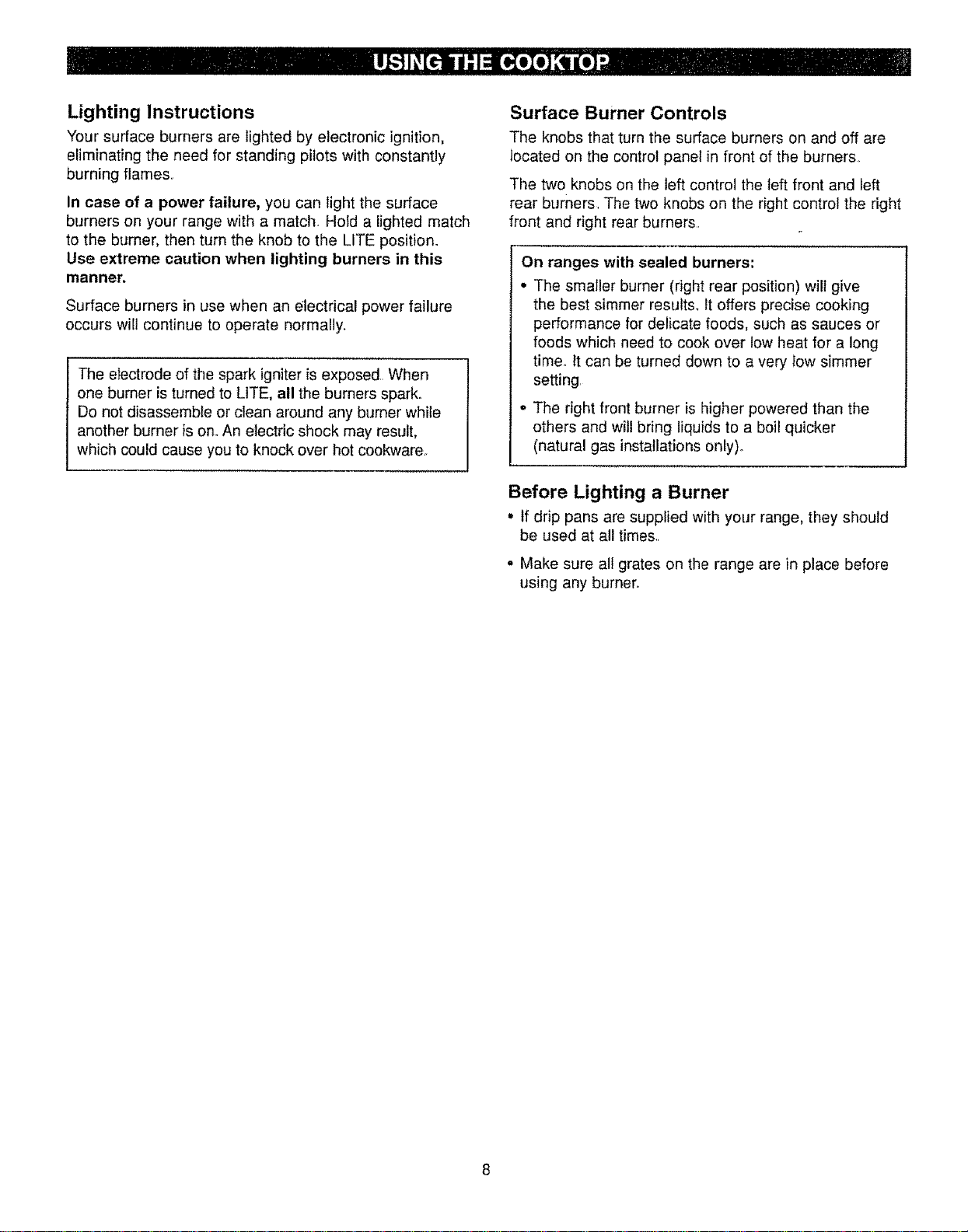

Surface Cooking .............................................................8-10

WARM-N-READY Drawer .................................24, 25

En Espa_ol

tnstrucciones en espafiol ........................................... 51

For your convenience and future reference, please write

down your model and serial numbers in the space

provided, The model number and serial number of your

gas range can be found on a plate fastened to the front

frame behind the broiler drawer, storage drawer,

WARM-N-READY drawer, or kick panel.

MODEL NUMBER:

SERIAL NUMBER:

WARNING: Iftheinformationinthis

manual is not followed exactly, a fire or

explosion may result causing property

damage, personal injury or death.

-&WARNING

- ALL RANGES CAN TIP

° INJURY TO PERSONS

COULD RESULT

• INSTALL ANTI:rIP DEVICES

PACKED

WITH RANGE

• SEE INSTALLATION

INSTRUCTIONS

©Sears, Roebuck and Co,

--Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

mWHAT TO DO IF YOU

SMELL GAS

• Do not try to light any appliance°

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supptier's

instructions.

• If you cannot reach your gas supplier, call

the fire department.

mlnstallation and service must be performed

by a qualified installer, service agency or

the gas supplier.

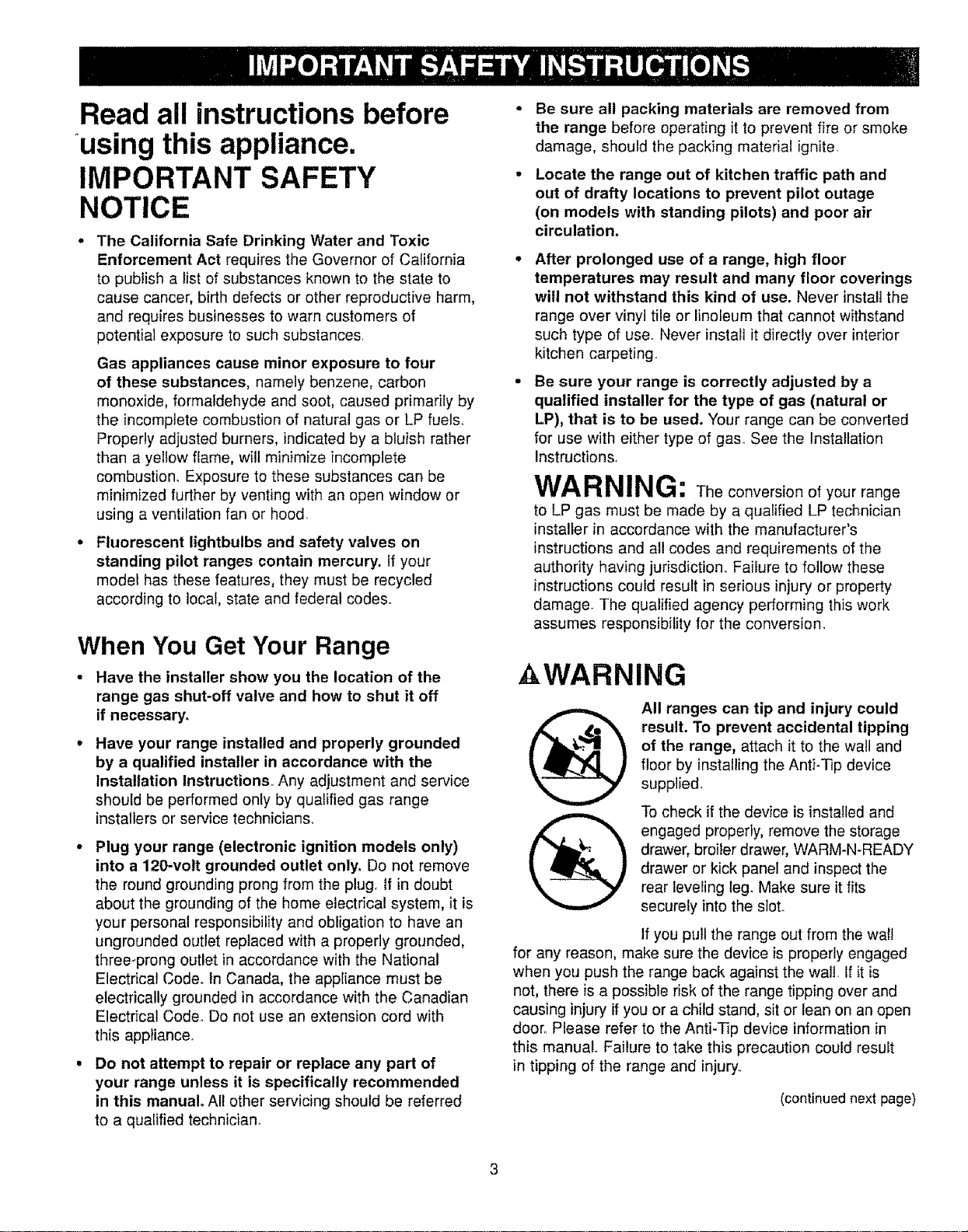

Read all instructions before

Using this appliance.

IMPORTANT SAFETY

NOTICE

• The California Safe Drinking Water and Toxic

Enforcement Act requires the Governor of California

to publish a list of substances known to the state to

cause cancer, birth defects or other reproductive harm,

and requires businesses to warn customers of

potential exposure to such substances

Gas appliances cause minor exposure to four

of these substances, namely benzene, carbon

monoxide, formaldehyde and soot, caused primarily by

the incomplete combustion of natural gas or LP fuels.

Properly adjusted burners, indicated by a bluish rather

than a yellow flame, will minimize incomplete

combustion. Exposure to these substances can be

minimized further by venting with an open window or

using a ventilation fan or hood.

• Fluorescent lightbulbs and safety valves on

standing pilot ranges contain mercury. If your

model has these features, they must be recycled

according to local, state and federal codes.

When You Get Your Range

- Have the installer show you the location of the

range gas shut-off valve and how to shut it off

if necessary°

• Have your range installed and properly grounded

by a qualified installer in accordance with the

Installation Instructions Any adjustment and service

should be performed only by qualified gas range

installers or service technicians.

• Plug your range (electronic ignition models only)

into a 120-volt grounded outlet only, Do not remove

the round grounding prong from the plug if in doubt

about the grounding of the home electrical system, it is

your personal responsibility and obligation to have an

ungrounded outlet replaced with a properly grounded,

three-prong outlet in accordance with the National

Electrical Code. In Canada, the appliance must be

electrically grounded in accordance with the Canadian

Electrical Code° Do not use an extension cord with

this appliance.

, Do not attempt to repair or replace any part of

your range unless it is specifically recommended

in this manual. All other servicing should be referred

to a qualified technician.

• Be sure all packing materials are removed from

the range before operating it to prevent fire or smoke

damage, should the packing material ignite

• Locate the range out of kitchen traffic path and

out of drafty locations to prevent pilot outage

(on models with standing pilots) and poor air

circulation,

After prolonged use of a range, high floor

temperatures may result and many floor coverings

will not withstand this kind of use. Never installthe

range over vinyl tile or linoleum that cannot withstand

such type of use. Never install it directly over interior

kitchen carpeting

Be sure your range is correctly adjusted by a

qualified installer for the type of gas (natural or

LP), that is to be used. Your range can be converted

for use with either type of gas See the Installation

Instructions,

WARNING: Theconversionofyourrange

to LP gas must be made by a qualified LP technician

installer in accordance with the manufacturer's

instructions and all codes and requirements of the

authority having jurisdiction. Failure to follow these

instructions could result in serious injury or property

damage. The qualified agency performing this work

assumes responsibility for the conversion.

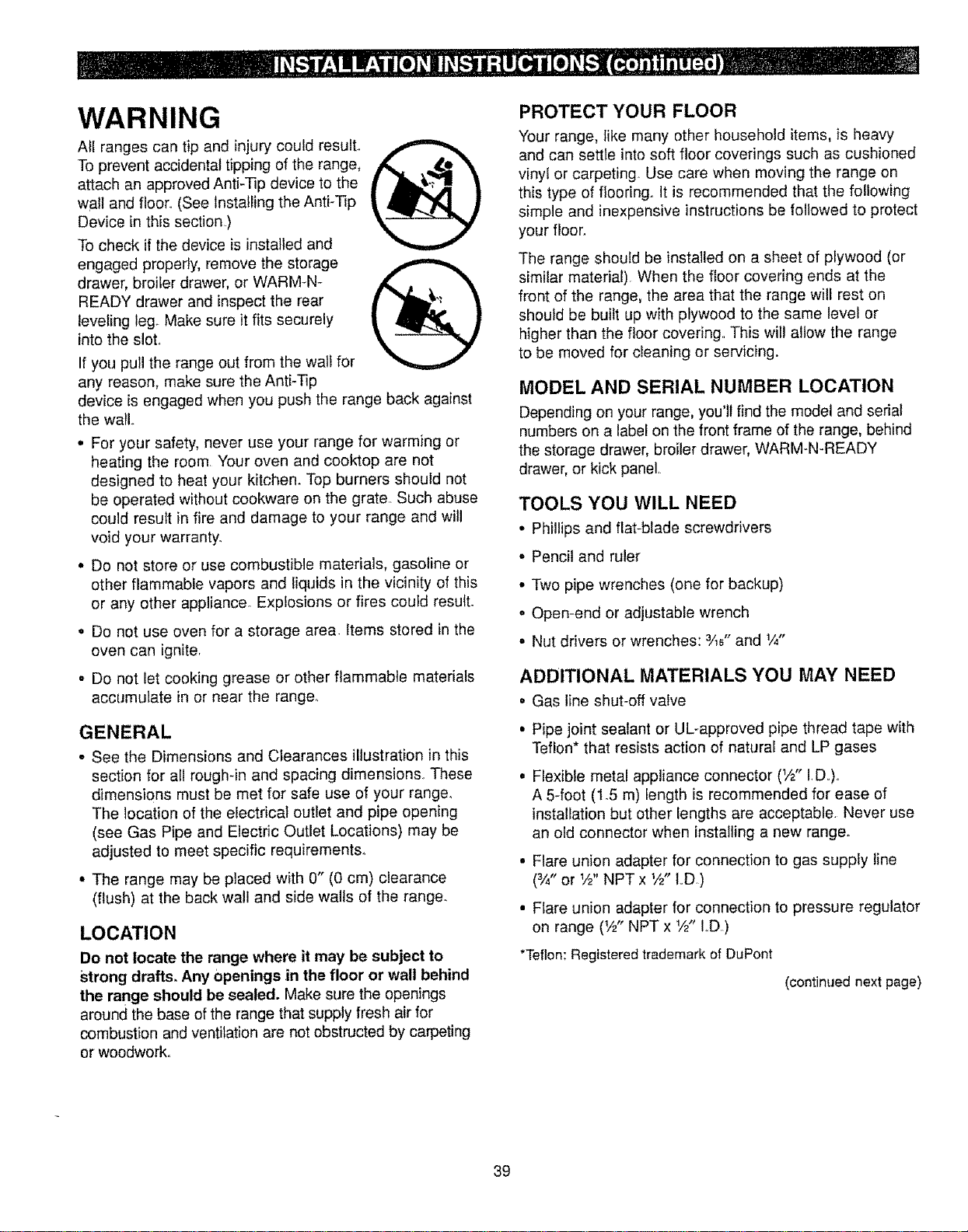

_WARNING

All ranges can tip and injury could

result. To prevent accidental tipping

of the range, attach it to the wall and

floor by installing the Anti-Tip device

supplied.

To check if the device is installed and

engaged properly, remove the storage

drawer, broiler drawer, WARM-N-READY

drawer or kick panel and inspect the

rear leveling leg. Make sure it fits

securely into the slot..

If you pull the range out from the walt

for any reason, make sure the device is properly engaged

when you push the range back against the wall. If it is

not, there is a possible risk of the range tipping over and

causing injury if you or a child stand, sit or lean on an open

door.. Please refer to the Anti-Tip device information in

this manual. Failure to take this precaution could result

in tipping of the range and injury..

(continued next page)

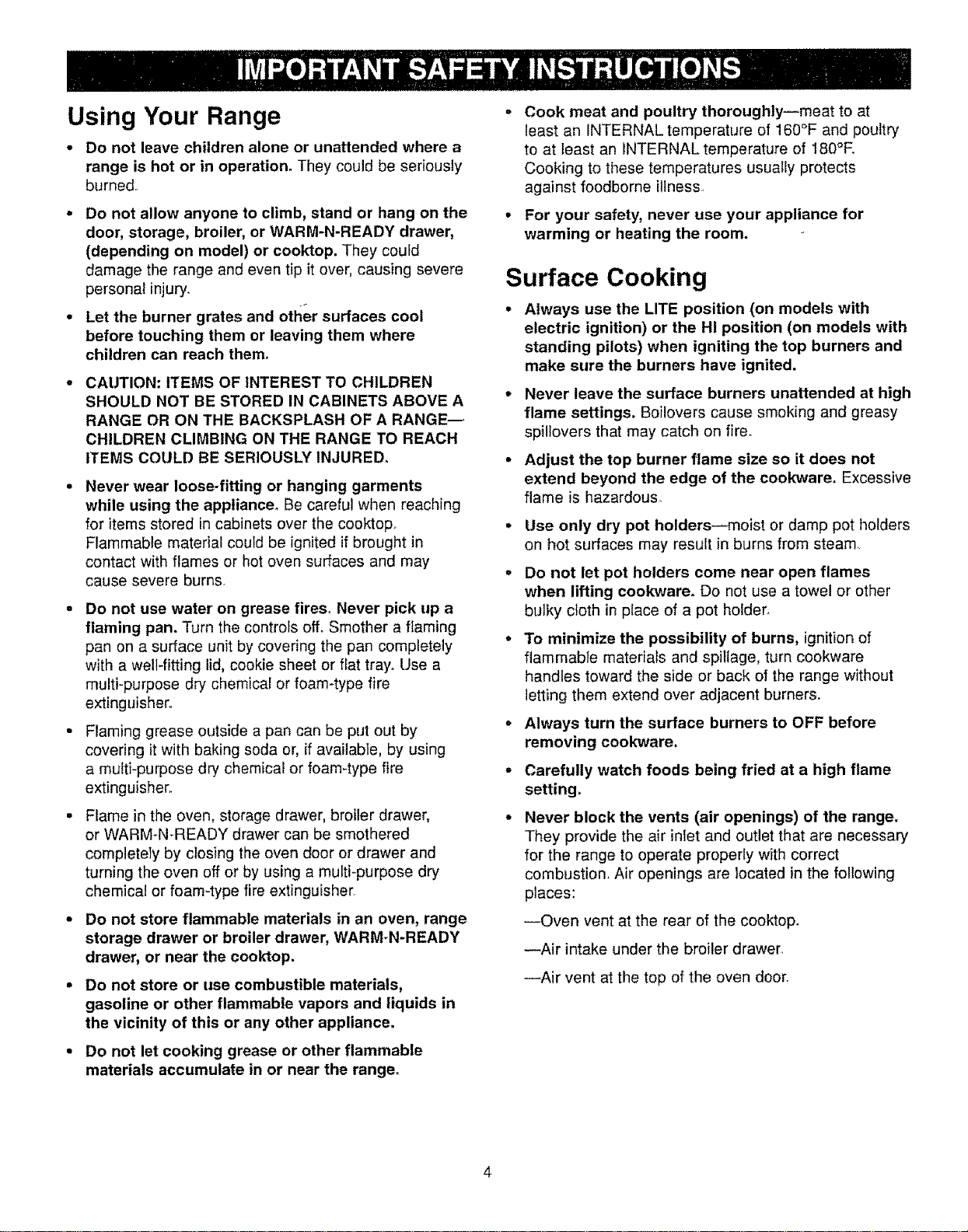

Using Your Range

- Do not leave children alone or unattended where a

range is hot or in operation. They could be seriously

burned.

• Do not allow anyone to climb, stand or hang on the

door, storage, broiler, or WARM-N-READY drawer,

(depending on model) or cooktop. They could

damage the range and even tip it over, causing severe

personal injury.

• Let the burner grates and otl_er surfaces cool

before touching them or leaving them where

children can reach them.

• CAUTION: ITEMS OF INTEREST TO CHILDREN

SHOULD NOT BE STORED IN CABINETS ABOVE A

RANGE OR ON THE BACKSPLASH OF A RANGE--

CHILDREN CLIMBING ON THE RANGE TO REACH

ITEMS COULD BE SERIOUSLY INJURED.

Never wear loose-fitting or hanging garments

while using the appliance+ Be careful when reaching

for items stored in cabinets over the cooktop.

Flammable material could be ignited if brought in

contact with flames or hot oven surfaces and may

cause severe burns

Do not use water on grease fires. Never pick up a

flaming pan. Turn the controls off+ Smother a flaming

pan on a surface unit by covering the pan completely

with a well-fitting lid, cookie sheet or flat tray+ Use a

multi-purpose dry chemical or foam-type fire

extinguisher..

Framing grease outside a pan can be put out by

covering it with baking soda or, if available, by using

a multi-purpose dry chemical or foam-type fire

extinguisher..

Flame in the oven, storage drawer, broiler drawer,

or WARM+N+READY drawer can be smothered

completely by closing the oven door or drawer and

turning the oven off or by using a multi-purpose dry

chemical or foam-type fire extinguisher

Do not store flammable materials in an oven, range

storage drawer or broiler drawer, WARM-N-READY

drawer, or near the cooktop.

Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

Do not let cooking grease or other flammable

materials accumulate in or near the range.

Cook meat and poultry thoroughly--meat to at

least an INTERNAL temperature of 160°F and poultry

to at least an INTERNAL temperature of 180°R

Cooking to these temperatures usually protects

against foodborne illness

For your safety, never use your appliance for

warming or heating the room.

Surface Cooking

• Always use the LITE position (on models with

electric ignition) or the HI position (on models with

standing pilots) when igniting the top burners and

make sure the burners have ignited.

• Never leave the surface burners unattended at high

flame settings. Boilovers cause smoking and greasy

spillovers that may catch on fire.

• Adjust the top burner flame size so it does not

extend beyond the edge of the cookware. Excessive

flame is hazardous

• Use only dry pot holders--moist or damp pot holders

on hot surfaces may result in burns from steam

• Do not let pot holders come near open flames

when lifting cookware+ Do not use a towel or other

bulky ctoth in place of a pot hoIder_

• To minimize the possibility of burns, ignition of

flammable materials and spillage, turn cookware

handles toward the side or back of the range without

letting them extend over adjacent burners+

o Always turn the surface burners to OFF before

removing cookware.

o Carefully watch foods being fried at a high flame

setting.

° Never block the vents (air openings) of the range.

They provide the air inlet and outlet that are necessary

for the range to operate properly with correct

combustion. Air openings are located in the following

places:

--Oven vent at the rear of the cooktop.

--Air intake under the broiler drawer°

--Air vent at the top of the oven door.

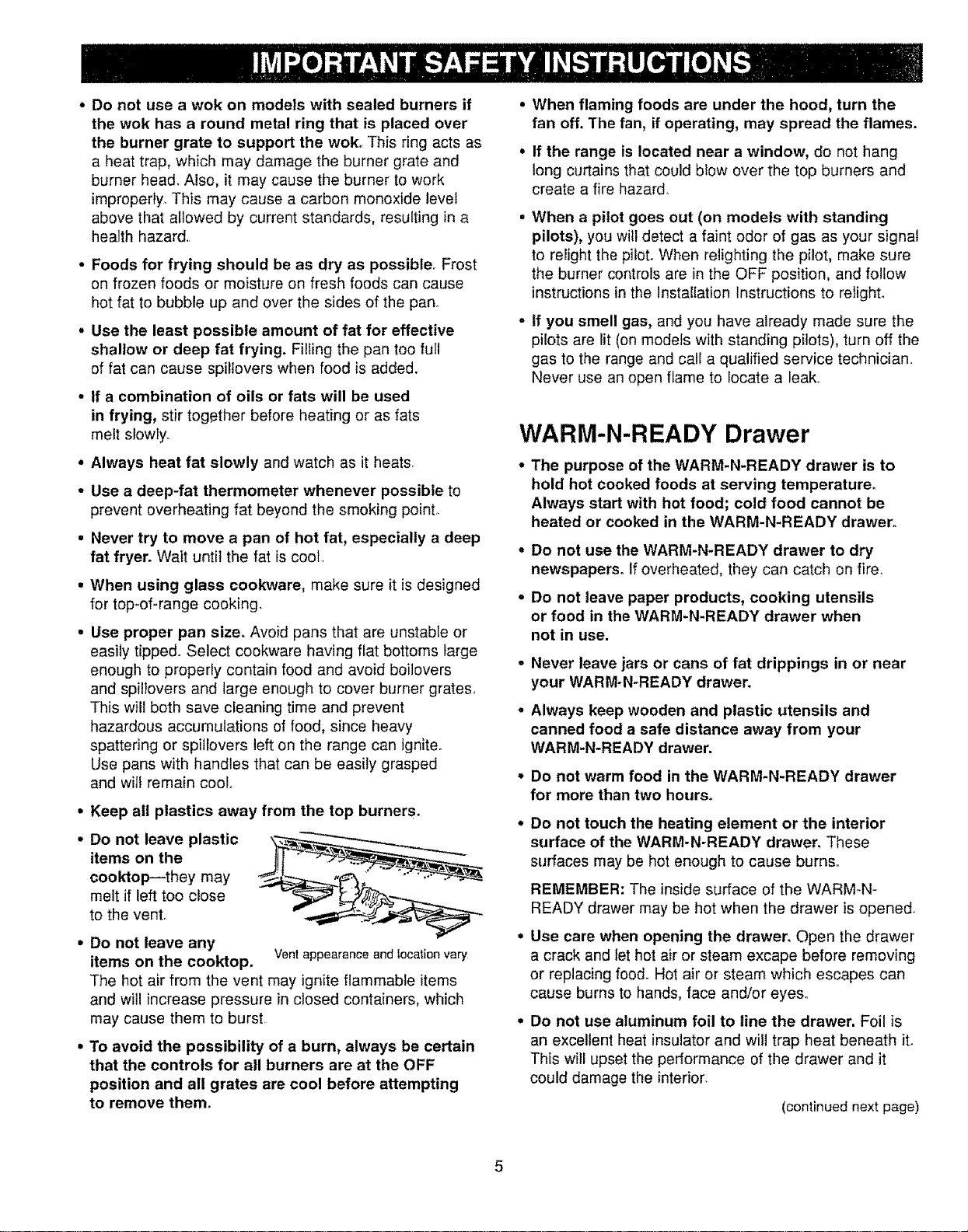

• Do not use a wok on models with sealed burners if

the wok has a round metal ring that is placed over

the burner grate to support the wok. This ring acts as

a heat trap, which may damage the burner grate and

burner head. Also, it may cause the burner to work

improperly_ This may cause a carbon monoxide level

above that allowed by current standards, resulting in a

health hazard

• Foods for frying should be as dry as possible. Frost

on frozen foods or moisture on fresh foods can cause

hot fat to bubble up and over the sides of the pan.

• Use the least possible amount of fat for effective

shallow or deep fat frying. Filiing the pan too full

of fat can cause spillovers when food is added.

• If a combination of oils or fats will be used

in frying, stir together before heating or as fats

melt slowly.

° Always heat fat slowly and watch as it heats.

° Use a deep-fat thermometer whenever possible to

prevent overheating fat beyond the smoking point.

• Never try to move a pan of hot fat, especially a deep

fat fryer. Wait until the fat is coo}

• When using glass cookware, make sure it is designed

for top-of-range cooking.

• Use proper pan size. Avoid pans that are unstable or

easily tipped,. Select cookware having flat bottoms large

enough to properly contain food and avoid boilovers

and spi!}overs and large enough to cover burner grates.

This will both save cleaning time and prevent

hazardous accumulations of food, since heavy

spattering or spillovers left on the range can ignite°

Use pans with handles that can be easily grasped

and will remain cool..

• Keep all plastics away from the top burners°

, Do not leave plastic

items on the

cooktop--they may

melt if left too close

to the vent

• Do not leave any

items on the cooktop, Ventappearanceandlocationvary

The hot air from the vent may ignite flammable items

and will increase pressure in closed containers, which

may cause them to burst

• To avoid the possibility of a burn, always be certain

that the controls for all burners are at the OFF

position and all grates are cool before attempting

to remove them.

• When flaming foods are under the hood, turn the

fan off. The fan, if operating, may spread the flames.

• If the range is located near a window, do not hang

long curtains that could blow over the top burners and

create a fire hazar&

• When a pilot goes out (on models with standing

pilots), you will detect a faint odor of gas as your signal

to relight the pilot. When re]ighting the pilot, make sure

the burner controls are in the OFF position, and follow

instructions in the Installation Instructions to re]ight.

o If you smell gas, and you have already made sure the

pilots are lit (on models with standing pilots), turn off the

gas to the range and call a qualified service technician.

Never use an open flame to locate a leak.

WARM-N-READY Drawer

The purpose of the WARM-N-READY drawer is to

hold hot cooked foods at serving temperature.

Always start with hot food; cold food cannot be

heated or cooked in the WARM-N-READY drawer.

• Do not use the WARM-N-READY drawer to dry

newspapers. If overheated, they can catch on fire.

o Do not leave paper products, cooking utensils

or food in the WARM-N-READY drawer when

not in use.

• Never leave jars or cans of fat drippings in or near

your WARM-N-READY drawer.

• Always keep wooden and plastic utensils and

canned food a safe distance away from your

WARM-N-READY drawer.

* Do not warm food in the WARM-N-READY drawer

for more than two hours.

* Do not touch the heating element or the interior

surface of the WARM-N-READY drawer. These

surfaces may be hot enough to cause burns,.

REMEMBER: The inside surface of the WARM-N-

READY drawer may be hot when the drawer is opened.

, Use care when opening the drawer. Open the drawer

a crack and fet hot air or steam excape before removing

or replacing food. Hot air or steam which escapes can

cause burns to hands, face and!or eyes°

. Do not use aluminum foil to line the drawer. Foil is

an excellent heat insulator and will trap heat beneath it.

This will upset the performance of the drawer and it

could damage the interior_

(continued next page)

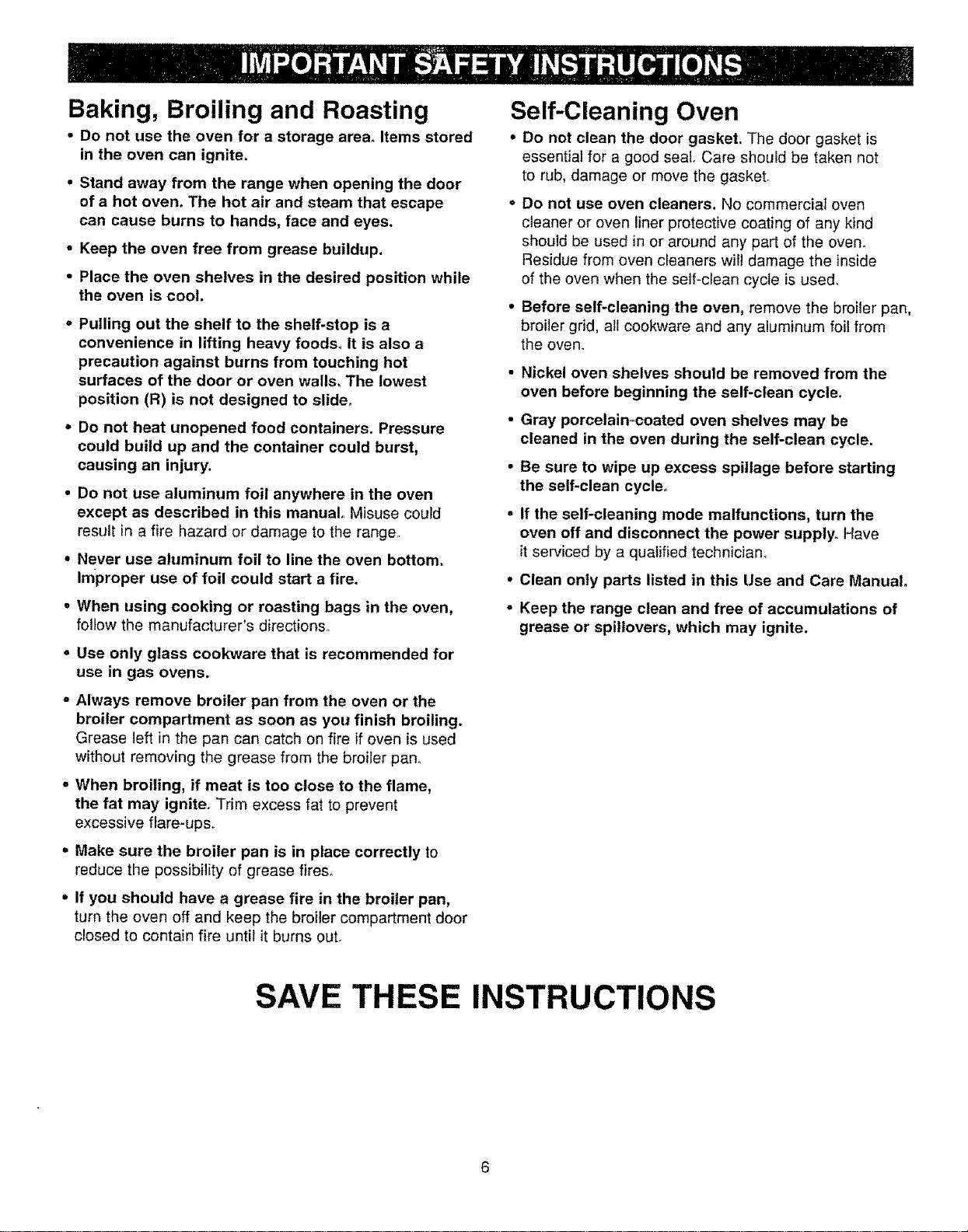

Baking, Broiling and Roasting

• Do not use the oven for a storage area_ Items stored

in the oven can ignite.

• Stand away from the range when opening the door

of a hot oven. The hot air and steam that escape

can cause burns to hands, face and eyes.

• Keep the oven free from grease buildup.

• Place the oven shelves in the desired position while

the oven is cool.

o Pulling out the shelf to the shelf-stop is a

convenience in lifting heavy foods. It is also a

precaution against burns from touching hot

surfaces of the door or oven walls_ The lowest

position (R) is not designed to slide.

• Do not heat unopened food containers. Pressure

could build up and the container could burst,

causing an injury.

• Do not use aluminum foil anywhere in the oven

except as described in this manual= Misuse c0urd

result in a fire hazard or damage to the range.

• Never use aluminum foil to line the oven bottom.

Improper use of foil could start a fire.

= When using cooking or roasting bags in the oven,

follow the manufacturer's directions_

• Use only glass cookware that is recommended for

use in gas ovens.

° Always remove broiler pan from the oven or the

broiler compartment as soon as you finish broiling.

Grease left in the pan can catch on fire if oven is used

without removing the grease from the broiler pan_

o When broiling, if meat is too close to the flame,

the fat may ignite. Trim excess fat to prevent

excessive flare-ups,.

• Make sure the broiler pan is in place correctly to

reduce the possibility of grease fires°

• If you should have a grease fire in the broiler pan,

turn the oven off and keep the broiler compartment door

closed to contain fire until it burns out.

Self-Cleaning Oven

• Do not clean the door gasket. The door gasket is

essential for a good seal. Care should be taken not

to rub, damage or move the gasket.

Do not use oven cleaners. No commercial oven

cleaner or oven liner protective coating of any kind

should be used in or around any part of the oven.

Residue from oven cleaners will damage the inside

of the oven when the self-clean cycle is used.

• Before self-cleaning the oven, remove the broiler pan,

broiler grid, all cookware and any aluminum foil from

the oven.

• Nickel oven shelves should be removed from the

oven before beginning the self-clean cycle,

• Gray porcelaimcoated oven shelves may be

cleaned in the oven during the self-clean cycle.

• Be sure to wipe up excess spillage before starting

the self-clean cycle.

• If the self-cleaning mode malfunctions, turn the

oven off and disconnect the power supply. Have

it serviced by a qualified technician_

• Clean only parts listed in this Use and Care Manual.

° Keep the range clean and free of accumulations of

grease or spitlovers, which may ignite.

SAVE THESE INSTRUCTIONS

NOTE: Not all models have all features° Appearance of features varies.

Clock and Timer OVEN ON Light

AUTOMATIC OVEN Oven Set Knob

Oven Vent

Cooktop

Oven Light Switch

Oven Interior Light

Oven Bottom

Anti-Tip Device

Model and Serial Numbers

Grates, Drip Pans,

and Surface Burners

WARM-N-READY Drawer

Control Knob

Surface Burner Control Knobs

Oven Door Latch

Oven Shelf Supports

Oven Shelves with Stop-Locks

Lift-Off Oven Door

Storage Drawer_ Broiler Drawer,

or WARM-N-READY Drawer

Broiler Pan and Grid

I l

[._ I=]ITiIF2_

/_ Burnerup

/__*._ S_p pan

(011 _;Ot_D

Your range is

equipped with one

of the two types of

surface burners

shown at ]eft,

Lighting Instructions

Your surface burners are lighted by electronic ignition,

eliminating the need for standing pilots with constantly

burning flames.

In case of a power failure, you can light the surface

burners on your range with a match+ Hold a lighted match

to the burner, then turn the knob to the LITE position.

Use extreme caution when lighting burners in this

manner.

Surface burners in use when an electrical power failure

occurs will continue to operate normally+

The electrode of the spark igniter is exposed.. When

one burner is turned to L1TE, all the burners spark.

Do not disassemble or clean around any burner while

another burner is on+An electric shock may result,

which could cause you to knock over hot cookware+

Surface Burner Controls

The knobs that turn the surface burners on and off are

located on the control panel in front of the burners.

The two knobs on the left control the left front and left

rear burners. The two knobs on the right control the right

front and right rear burners..

On ranges with sealed burners:

• The smaller burner (right rear position) will give

the best simmer resutts, tt offers precise cooking

performance for delicate foods, such as sauces or

foods which need to cook over low heat for a long

time. tt can be turned down to a very Iow simmer

setting.

o The right front burner is higher powered than the

others and will bring liquids to a boil quicker

(natural gas installations only).

Before Lighting a Burner

, If drip pans are supplied with your range, they should

be used at all times,,

, Make sure all grates on the range are in place before

using any burner+

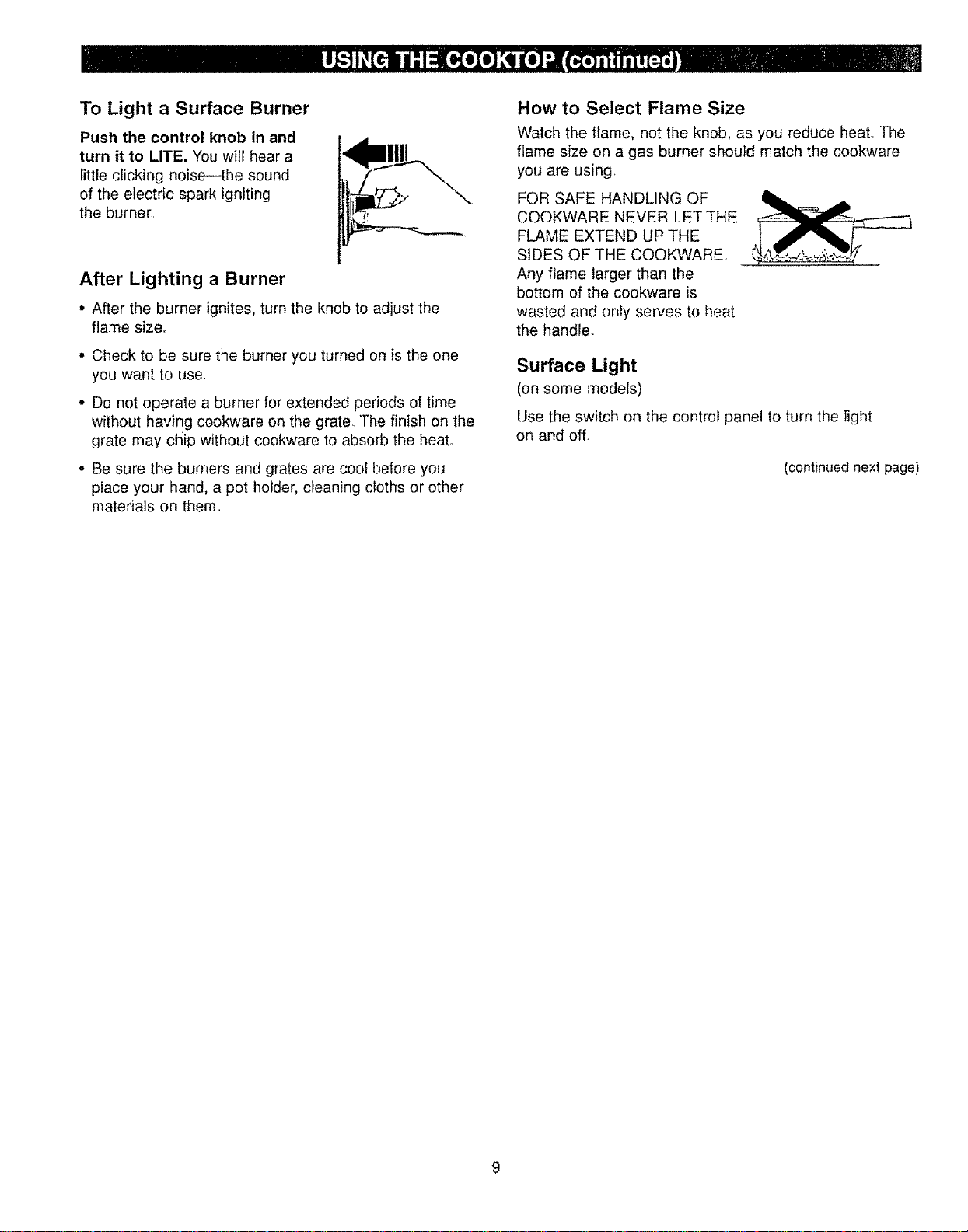

To Light a Surface Burner

Push the control knob in and

turn it to LITE. You will hear a

fittle cficking noise--the sound

of the electric spark igniting

the burner

After Lighting a Burner

° After the burner ignites, turn the knob to adjust the

flame size.

° Check to be sure the burner you turned on is the one

you want to use.

• Do not operate a burner for extended periods of time

without having ceokware on the grate The finish on the

grate may cl_ip without cookware to absorb the heat°

• Be sure the burners and grates are cool before you

place your hand, a pot holder, cleaning cloths or other

materials on them.

How to Select Flame Size

Watch the flame, not the knob, as you reduce heat_ The

flame size on a gas burner should match the cookware

you are using.

FOR SAFE HANDLING OF

COOKWARE NEVER LET THE

FLAME EXTEND UP THE

SIDES OF THE COOKWARE

Any flame larger than the

bottom of the cookware is

wasted and only serves to heat

the handle.

Surface Light

(on some models)

Use the switch on the control panel to turn the light

on and off.

(continued next page)

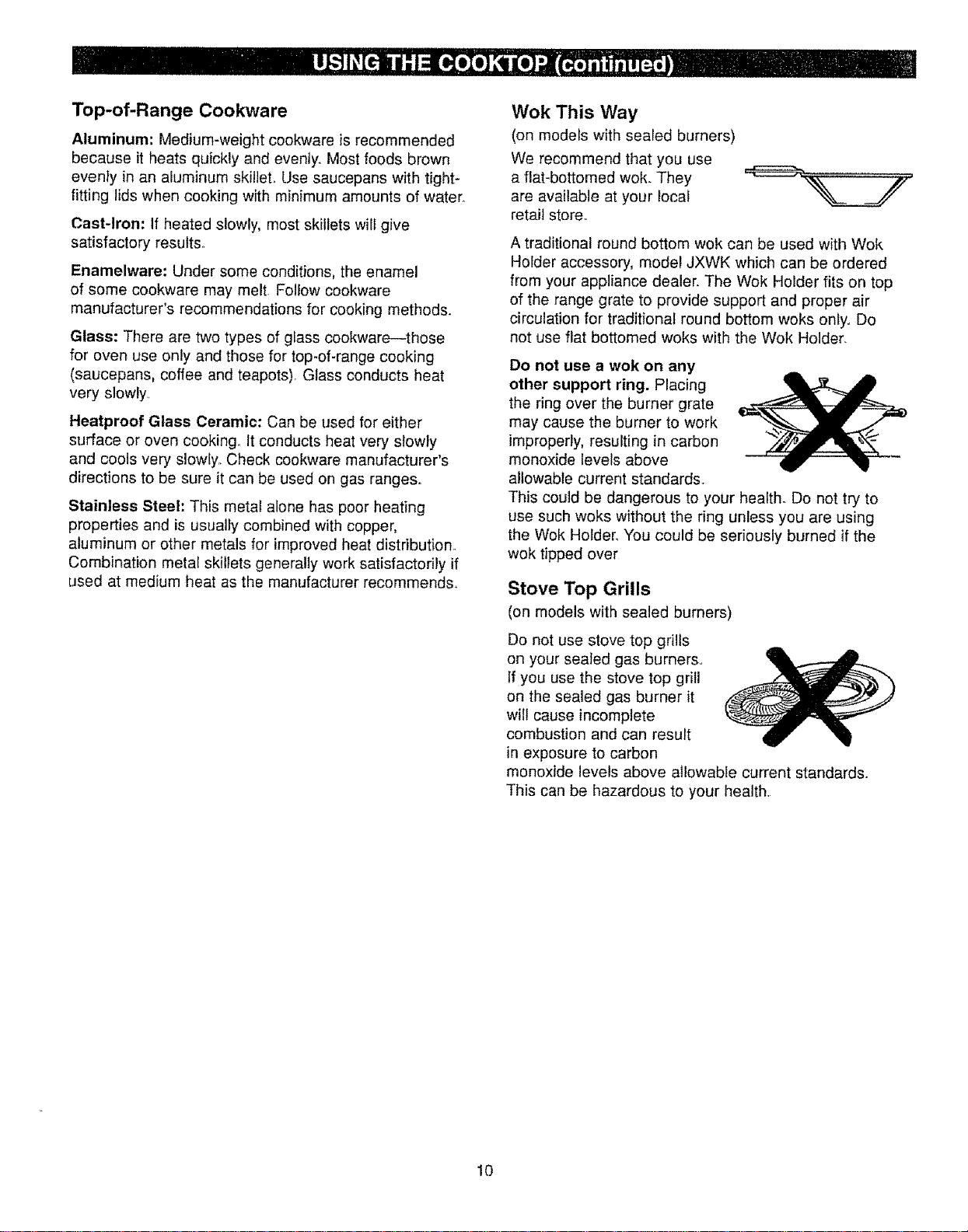

Top-of-Range Cookware

Aluminum: Medium-weight cookware is recommended

because it heats quickly and eventy, Most foods brown

evenly in an aluminum skillet,. Use saucepans with tight-

fitting lids when cooking with minimum amounts of water.

Cast-Iron: If heated slowly, most skillets will give

satisfactory results,,

Enamelware: Under some conditions, the enamel

of some cookware may melt, Follow cookware

manufacturer's recommendations for cooking methods.

Glass: There are two types of glass cookware--those

for oven use only and those for top-of-range cooking

(saucepans, coffee and teapots), Glass conducts heat

very slowly,

Heatproof Glass Ceramic: Can be used for either

surface or oven cooking° It conducts heat very slowly

and cools very slowly. Check cookware manufacturer's

directions to be sure it can be used on gas ranges.

Stainless Steel: This metal alone has poor heating

properties and is usually combined with copper,

aluminum or other metals for improved heat distribution°

Combination metal skillets generally work satisfactorily if

used at medium heat as the manufacturer recommends.

Wok This Way

(on models with sealed burners)

We recommend that you use

a flat-bottomed wok. They

are available at your local

retail store,.

A traditional round bottom wok can be used with Wok

Holder accessory, model JXWK which can be ordered

from your appliance dealer. The Wok Holder fits on top

of the range grate to provide support and proper air

circulation for traditional round bottom woks only, Do

not use flat bottomed woks with the Wok Holder.

Do not use a wok on any

other support ring. Placing

the ring over the burner grate

may cause the burner to work

improperly, resulting in carbon

monoxide levels above

allowable current standards.,

This could be dangerous to your health. Do not try to

use such woks without the ring unless you are using

the Wok Holder, You could be seriously burned if the

wok tipped over

Stove Top Grills

(on models with sealed burners)

Do not use stove top gdlls

on your sealed gas burners,,

If you use the stove top grill

on the sealed gas burner it

will cause incomplete

combustion and can result

in exposure to carbon

monoxide levels above allowable current standards.

This can be hazardous to your health,

?1'

iCi.CiD" i --.tj iI i i I

.,.,,.

1. COOK TIME ON/OFF. Press this pad for Timed Baking

operations.

2. TIMER ON/OFF. Press this pad to select the timer

feature. The timer does not control oven operations_

The timer can time up to 11 hours and 59 minutes..

To set the timer, first press the TIMER ON/OFF pad.

Press the HOUR and MIN. pads to change

the time_

To cancel the timer, press the TIMER ON/OFF pad

until the display clears,

3. AUTOMATIC OVEN LIGHT. This lights anytime the

oven has been programmed.

4. DISPLAY. Shows the time of day, the times set for the

timer on automatic oven operations, and, on some

models, the oven temperature.

5. HOUR and MIN PADS. These pads allow you to set

times up to 11 hours and 59 minutes,

6. TEMP RECALL. On some models, you can recall the

set temperature to the display by pressing the HOUR

or MIN V pad.

7. CLEAN Light. Glows when the oven is in the

selFclean cycle. After the self-clean cycle, the

light will flash. Unlatch the door and turn the

Oven Set knob to OFF,

8. OVEN ON Light. Glows anytime the Oven Set knob

is not in the OFF position and is set on a temperature

or function. The light wilt flash when the oven

automatically turns off to remind you to turn the

Oven Set knob to OFR

9. Oven Set Knob. Turn this knob to the temperature or

function you want. See the Baking, Roasting, Broiling

and Self-Cleaning sections.,

10. START TIME ON!OFF. Press this pad and the HOUR

and MIN pads to set Automatic Start and Stop Time

11. CLOCKs To set the clock, first press the CLOCK pad.

Then press the HOUR and MINo A or V pads to

change the time of day,

12. PREHEATED INDICATOR LIGHT. Glows when

the oven reaches your selected temperature.

(continued next page)

Automatic Clock

The clock must be set for the automatic oven timing

functions to work properly.. The time of day cannot be

changed during a Timed Baking or Self-Cleaning cycle..

To Set the Clock:

1, Press the CLOCK pad.

HOUR

2,. Press the HOUR and MINo pads to

set the time of day,

MIN,

Timer

The timer is a minute timer only.

The timer does not control oven operations. The

maximum setting on the timer is I1 hours and

59 minutes.

To Set the Timer:

1. Press the TIMER ON/OFF pad.

HOUR

(_2. Press the HOUR and MIN, pads

until the amount of time you want

M1N. shows in the display. The timer will

(_ start automatically within a few

seconds of releasing the pad.

To Reset the Timer:

If the display is still showing the time remaining, you may

change it by pressing the HOUR and MIN. pads until the

time you want appears in the display,

If the remaining time is not in the display, recall the

remaining time by pressing the TIMER ON/OFF pad and

then pressing the HOUR and MIN. pads until the new

time you want shows on the display,.

To Cancel the Timer:

To cancel the timer, the remaining time must be in the

display, To recall the time remaining, press the TIMER

ON/OFF pad once_ To cancel the timer press the TIMER

ON/OFF pad again°

End of Cycle Tones

(on some models)

The end of cycle tone can be cleared by pressing the

TIMER ON/OFF pad or, on some models, by pressing the

COOK TIME ON/OFF pad depending on which function

you are using..

Power Outage

On some models, after a power outage the oven

will automatically resume its setting once the power

is restored,

For models with a CLOCK pad, when the power is

restored the display will flash the time of day until a pad

is pressed or the knob is turned. Reset the clock to the

correct time of day.

If the oven was in operation when the power outage

occurred, the Oven Set knob must be turned back to

OFE Then reset the knob to the way it was before the

power outage_

If your model has a COOK TIME ON/OFF pad

and your oven was set for timed baking or roasting

when the power outage occurred, the clock and all

programmed functions must be reset° To reset them, first

turn the Oven Set knob back to OFF, reset the clock,

functions and knob back to the way they were before

the power outage,.

Oven Set Knob

The Oven Set knob maintains

the temperature you set from

WARM (170°F [77°C]) to BROIL

(550°F [288°C])o It also has an

OFF and a CLEAN setting

(appearance may vary)_

The PREHEATED light glows

when the oven reaches your

selected temperature.

OFF

OVEN ON __

The OVEN ON light will glow any time the Oven

Set knob is not in the OFF position and is set on a

temperature or a function.

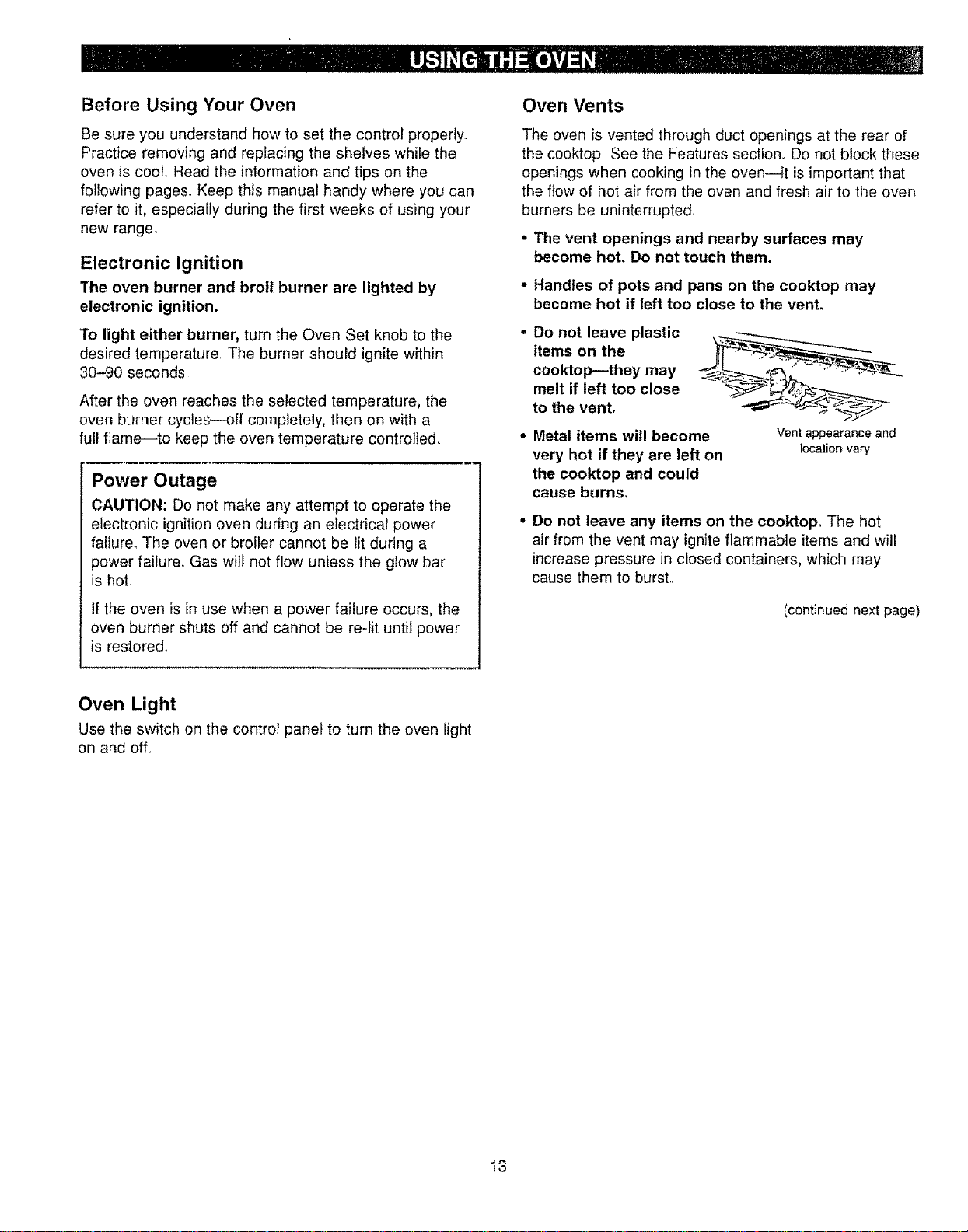

Before Using Your Oven

Be sure you understand how to set the control properly.

Practice removing and replacing the shelves while the

oven is cool. Read the information and tips on the

following pages° Keep this manual handy where you can

refer to it, especially during the first weeks of using your

new range

Electronic Ignition

The oven burner and broil burner are lighted by

electronic ignition.

To light either burner, turn the Oven Set knob to the

desired temperature The burner should ignite within

30-90 seconds,

After the oven reaches the selected temperature, the

oven burner cycles--off completely, then on with a

full flame---to keep the oven temperature controlled.

Power Outage

CAUTION: Do not make any attempt to operate the

electronic ignition oven during an electrical power

failure° The oven or broiler cannot be lit during a

power failure. Gas will not flow unless the glow bar

is hot.

If the oven is in use when a power failure occurs, the

oven burner shuts off and cannot be re-lit until power

is restored.

Oven Vents

The oven is vented through duct openings at the rear of

the cooktop See the Features section.. Do not block these

openings when cooking in the oven--it is important that

the flow of hot air from the oven and fresh air to the oven

burners be uninterrupted.

• The vent openings and nearby surfaces may

become hot. Do not touch them.

- Handles of pots and pans on the cooktop may

become hot if left too close to the vent,

° Do not leave plastic

items on the

cooktopwthey may

melt if left too close

to the vent.

• Metal items will become

very hot if they are left on

the cooktop and could

cause burns.

Vent appearance and

location vary

• Do not leave any items on the cooktop. The hot

air from the vent may ignite flammable items and will

increase pressure in dosed containers, which may

cause them to burst..

(continued next page)

Oven Light

Use the switch on the control panel to turn the oven light

on and off,

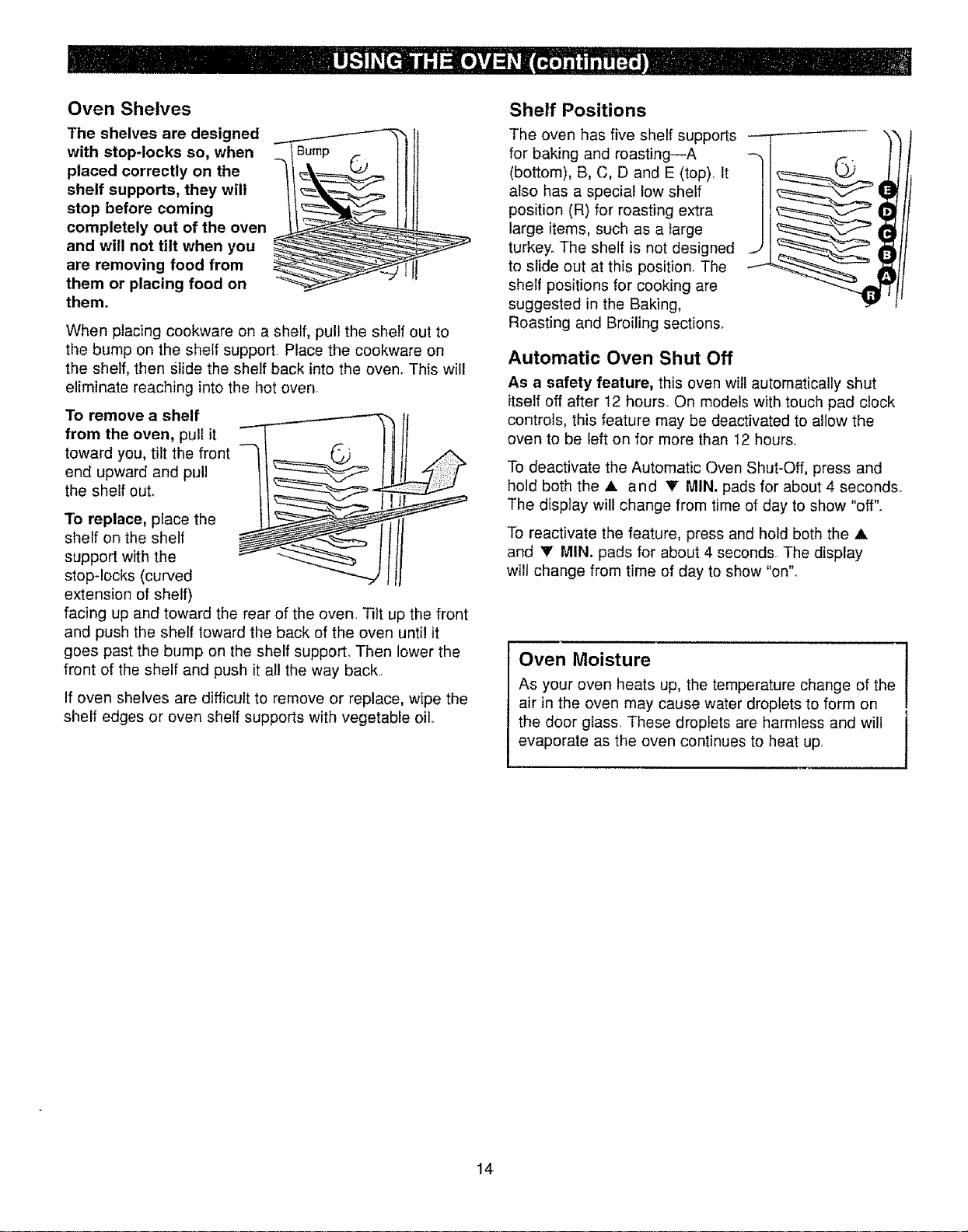

Oven Shelves

The shelves are designed

with stop-locks so, when

placed correctly on the

shelf supports, they will

stop before coming

completely out of the oven

and will not tilt when you

are removing food from

them or placing food on

them.

When placing cookware on a shelf, pull the shelf out to

the bump on the shelf support. Place the cookware on

the shelf, then Slide the shelf back into the oven° This will

eliminate reaching into the hot oven

To remove a shelf

from the oven, pull it

toward you, tilt the front

end upward and pull

the shelf out.

To replace, place the

shelf on the shelf

support with the

stop-locks (curved

extension of shelf)

facing up and toward the rear of the oven Tilt up the front

and push the shelf toward the back of the oven until it

goes past the bump on the shelf support. Then lower the

front of the shelf and push it all the way back.

If oven shelves are difficult to remove or replace, wipe the

shelf edges or oven shelf supports with vegetable oil,.

Shelf Positions

The oven has five shelf supports

for baking and roasting--A ..

(bottom), B, C, D and E (top), It ==r,j_

also has a special low shelf

position (R) for roasting extra

large items, such as a _arge

turkey° The shelf is net designed

to slide out at this position. The

shelf positions for cooking are

suggested in the Baking,

Roasting and Broiling sections,

Automatic Oven Shut Off

As a safety feature, this oven will automatically shut

itself off after 12 hours. On models with touch pad clock

controls, this feature may be deactivated to allow the

oven to be left on for more than t2 hours..

To deactivate the Automatic Oven Shut-Off, press and

hold both the A and V MIN, pads for about 4 seconds°

The display will change from time of day to show "off",.

To reactivate the feature, press and hold both the A

and V MIN. pads for about 4 seconds, The display

wilt change from time of day to show "on".

Oven Moisture

As your oven heats up, the temperature change of the

air in the oven may cause water droplets to form on

the door giass. These droplets are harmless and wilt

evaporate as the oven continues to heat up.

Baking

Do not lock the oven door with the latch during

baking. The latch is used for self-cleaning only.

Your oven temperature is controlled very accurately

using an oven control system it is recommended that

you operate the oven for a number of weeks to become

familiar with your new oven's performance, tf you think

an adjustment is necessary, see the Adjust the Oven

Thermostat section°

How to Set Your Range for Baking

To avoid possible burns, place the shelves in the

correct position before you turn the oven on.

1oClose the oven door. Turn the Oven Set knob to

the temperature you desire.

2. Check the food for aloneness at the minimum time on

the recipe.. Cook longer if necessary..

3, Turn the Oven Set knob to OFF and then remove

the food1

Oven Shelves

Arrange the oven shelf

or shelves in the

desired locations while

the oven is cool. The

correct shelf position

depends on the kind of

food and the browning

desired. As a general

rule, place most foods

in the middle of the

oven, on either shelf position B or C..See the following

chart for suggested shelf positions.

Type of Food

Angel food cake

Biscuits or muffins

Cookies or cupcakes

Brownies

Layer cakes

Bundt or pound cakes

Pies or pie shells

Frozen pies

Casseroles

Roasting

Shelf Position

BorC

B orC

BorC

Aor B

BorC

A (on cookie sheet)

BorC

BorR

Preheating

Preheat the oven if the recipe calls for it. Preheat means

bringing the oven up to the specified temperature before

putting the food in the oven. To preheat, set the oven at

the correct temperature--selecting a higher temperature

does not shorten preheat time.

Preheating is necessary for good results wl4en baking

cakes, cookies, pastry and breads. For most casseroles

and roasts, preheating is not necessary For ovens without

a preheat indicator lightor tone, preheat 10 minutes..After

the oven is preheated place the food in the oven as quickly

as possible to prevent heat from escaping.

Baking Pans

Use the proper baking pan, The type of finish on the pan

determines the amount of browning that will occur.

• Dark, rough or dull pans absorb heat resulting in a

browner, crisper crust.. Use this type for pies.

• Shiny, bright and smooth pans reflect heat, resulting

in a lighter, more delicate browning Cakes and cookies

require this type of pan..

• Glass baking dishes afso absorb heat. When baking in

glass baking dishes, the temperature may need to be

reduced by 25°F (13°C)o

, If you are using dark non-stick pans, you may find that

you need to reduce the oven temperature 25°F (13°C)

to prevent over-browning.

Pan Placement

For even cooking and proper browning, there must be

enough room for air circulation in the oven.. Baking results

wilt be better if baking pans are centered as much as

possible rather than being placed to the front or to the

back of the oven.

Pans should not touch each other or the walls of the

oven. Allow 1- to 11/_-inch(2.5- to 4-cm) space between

pans as well as from the back of the oven, the door and

the sides. If you need to use two shelves, stagger the

pans so one is not directly above the other.

Baking Guides

When using prepared baking mixes, follow package

recipe or instructions for the best baking results,

(continued next page)

Baking (continued)

When baking cookies, flat

cookie sheets (without

sides) produce better-

looking cookies. Cookies

baked in a jelly roll pan

(short sides all around)

may have darker edges

and pale or light browning

may occur.

Do not use a cookie sheet so large that it touches the

walls or the door of the ovem

For best results, use only one cookie sheet in the oven at

a time.

Pies

For best results, bake pies in dark, rough or dull pans to

produce a browner, crisper crust. Frozen pies in foil pans

should be placed on an aluminum cookie sheet for baking

since the shiny foil pan reflects heat away from the pie

crust; the cookie sheet helps retain it.

Cakes

When baking cakes, warped or bent pans will cause

uneven baking results and poorly shaped products..

A cake baked in a pan larger than the recipe

recommended will usually be crisper, thinner and

drier than itshould beo If baked in a pan smaller than

recommended, it may be undercooked and batter may

overflow. Check the recipe to make sure the pan size

used isthe one recommended°

Aluminum Foil

Never cover the oven bottom with aluminum foil,

Never entirely cover a

shelf with aluminum foil.

This will disturb the heat

circulation and result in

poor baking. A smaller

sheet of foil may be used

to catch a spitlover by

placing it on a Iower

shelf several inches

below the food.

Don't Peek

Set the timer for the estimated cooking time and do not

open the door to look at your food. Most recipes provide

minimum and maximum baking times such as "bake

30-40 minutes"

DO NOT open the door to check until the minimum time°

Opening the oven door frequently during cooking allows

heat to escape and makes baking times longer. Your

baking results may also be affected.

Timed Baking (on some models)

How to Time Bake

Do not lock the oven door with the latch during timed

baking. The latch is used for self-cleaning only,

The oven controt allows you to turn the oven on or off

automatically at specific times that you set. Examples of

Immediate Start (oven turns on now and you set it to turn

off automatically) and Delay Start and Stop (setting the

oven to turn on automatically at a later time, cook for a

preset amount of time and then turn off automatically)

will be described..

NOTE: Before beginning, make sure the oven clock

shows the correct time of day.

To set the clock, first press the CLOCK pad°

Then press the HOUR and MIN. pads until the

correct time of day is displayed,.

5, When the oven automatically turns off the AUTOMATIC

OVEN light will flash and the oven wil! signal Turn the

Oven Set knob to OFF to stop the flashes and signal.

6, Remove the food from the oven. Remember, foods that

are left in the oven continue cooking after the controls

are off.

NOTE: Foods that spoil easily, such as milk, eggs, fish,

stuffings, poultry and pork, should not be allowed to sit

for more than 1 hour before or after cooking. Room

temperature promotes the growth of harmful bacteria.

Be sure that the oven light is off because heat from the

bulb witl speed harmful bacteria growth.

(continued next page)

How to Set Immediate Start and

Automatic Stop

To avoid possible burns, place the shelves in the

correct position before you turn the oven on.

The oven will turn on immediately and cook for a selected

length of time At the end of Cook Time the oven wit! turn

off automatically.

1° Press the COOK TIME

ON/OFF pad,

HOUR MIN.

2. Press the HOUR and MIN. pads

until the desired length of baking

time appears in the display.

3. Turn the Oven Set knob to the desired temperature1

4. The oven will turn on. The display will show the Cook

Time remaining° When the oven reaches the set

temperature, a tone sounds. The oven wilt continue

to cook for the programmed amount of time, then

shut off automatically.

Timed Baking (continued)

How to Set Delay Start and Automatic Stop

Quick Reminder:

1. Press the COOK TIME ON/OFF pad,

2. Press the HOUR and MIN. pads to set the desired

length of cooking time.

3. Press the START TIME ON/OFF pad,,

4. Press the HOUR and MIN. pads to set the time of

day you want cooking to start,

5. Turn the Oven Set knob to the desired

temperature.

To avoid possible burns, place the shelves in the

correct position before you program the oven_

You can set the oven control to delay-start the oven,

cook for a specific length of time and then turn off

automatically_

For example: Let's say it's 2:00 and dinner time

is shortIy after 7:00. The recipe suggests 3 hours cooking

time at 325°F (163°C)o

1. Press the COOK TIME ON/OFF pad

2. For 3 hours of cooking time, press the HOUR

pad until "3:00" appears in the display.

XOUR

3_ Press the START TIME ON/OFF pad,

4. Press the HOUR pad until "4:00" appears in the

display. The timer is now set to start baking in

2 hours, at 4:00A

5.Turn the Oven Set knob to the desired temperature

(in this example 325°F {163°C]),.

The oven is now set to start at 4:00 and cook for

3 hours at a temperature of 325°F (163°C)., At the

end of the 3 hour cooking time (7:00), the oven wilt

automatically turn off. When the oven automatically

turns off the AUTOMATIC OVEN light will flash and

the oven will signal. Turn the Oven Set knob to OFF

to stop the flashes and signal,

6. Remove the food from the oven. Remember, even

though the oven shuts off automatically, foods continue

cooking after controls are off,

NOTE:

• The low temperature zone of this range (between

WARM and 200°F [93°C]) is available to keep hot

cooked foods warm. Food kept in the oven longer than

two hours at these low temperatures may spoil.

- Foods that spoil easily, such as milk, eggs, fish,

stuffings, poultry and pork, should not be allowed to sit

for more than one hour before or after cooking. Room

temperature promotes the growth of harmful bacteria.

Be sure that the oven light is off because heat from the

bulb will speed harmful bacteria growth.

Questions and Answers

Q, Can I use the minute timer during oven cooking?

A. The minute timer can be used during any

cooking function.

Q. Can ! change the time of day on the clock while

I'm Time Baking in the oven?

A. The time of day on the clock should not be changed

during any timed program,, You must either stop those

programs or wait until they are finished before

changing the time,,

Adjust the Oven Thermostat m

Do It Yourself !

You may find that your new oven cooks differently

than the one it replaced, We recommend that you use

your new oven for a few weeks to become more familiar

with it, following the times given in your recipes as a

guide.

If you think your new oven is too hot or too cold, you

can adjust the thermostat yourself. If you think it is too

hot, adjust the thermostat to make it cooler.. If you think it

is too cool, adjust the thermostat to make it hotter

We do not recommend the use of thermometers,

such as those found in grocery stores, to check the

temperature setting of your new oven. These

thermometers may vary 20-40°F (11-22°C)

To Adjust the Thermostat:

1o Put the Oven Set knob in the OFF position.

(_ 2. Press and hold the HOUR increase and the

HOUR decrease pads at the same time for

5 seconds until the display changes..

HOUR

3. Immediately, before display changes back, press

the HOUR increase or decrease pad to increase or

decrease the temperature in 5 degree increments.

The oven temperature can be increased up to 35°F

(19°C) hotter or decreased 35°F (19°C) cooler.

tf the oven adjustment is set cooler than the factory

setting a minus sign "-" and the new temperature will

appear in the display.

4. Wait several seconds for the control to automatically

set and return to its previous setting_

NOTE: This adjustment will not affect the broiiing or the

self-cleaning temperatures. The adjustment will be

retained in memory after a power faiiureo

To Adjust the Temperature on Models with

Only an Oven Set Knob

h Put the knob in the

OFF positiom

2. Pull the knob off by pulling

straight ouL

3. Press and hold the HOTTER or

COOLER button for 5 seconds

to make the oven 20°F (11°C)

hotter or 20°F (I1°C) cooler.

Cooler OFF Hotter

,J v • • _

$o0.450* t_

(appearance may vary)

When you are adjusting the thermostat, the following

lights will flash indicating where the thermostat will

be set when you release the adjustment button:

OVEN ON indicates the

thermostat will be set at the

factory setting.,

PREHEATED indicates the

thermostat wil! be set 20°F

(11°C) hotter.

CLEAN indicates the

thermostat will be set 20°F

(11°C) cooler.

OFF

OVEN ON

PREHEATED _0. _"_.__._ ,_

4. After you have made the adjustment, replace the knob.,

The Type of Margarine Will Affect Baking

Performance

Most recipes for baking have been developed

using high fat products such as butter or margarine

(80% fat),. If you decrease the fat, the recipe may not

give the same results as with a higher fat product,

Recipe failure can result if cakes, pies, pastries, cookies

or candies are made with low fat spreads_ The !ower the

fat content of a spread product, the more noticeable

these differences become_

Federal standards require products labeled "margarine"

to contain at least 80% fat by weight, Low fat spreads, on

the other hand, contain less fat and more water. The high

moisture content of these spreads affects the texture and

flavor of baked goods. For best results with your oFd

favorite recipes, use margarine, butter or stick spreads

containing at least 70% vegetable oil.

Roasting

Do not lock the oven door with the latch during

roasting. The latch is used for self-cleaning only.

Roasting is cooking by dry heat.. Tender meat or poultry

can be roasted uncovered in your oven.. Roasting

temperatures, which should be low and steady, keep

spattering to a minimum.

The oven has a special low

shelf position (R) just above

the oven bottom. Use it when

extra cooking space is

needed, for exampte, when

roasting a large turkey. The

shelf is not designed to slide

out at this position,.

Roasting is really a baking

procedure used for meats,.

Therefore, the oven controls are set for Baking.

(You may hear a slight clicking sound indicating

the oven is working properly.)

Most meats continue to cook slightly while standing after

being removed from the oven. Recommended standing

time for roasts is 10 to 20 minutes. This allows the roasts

to firm up and makes them easier to carve,. The internal

temperature will rise about 5° to 10°F (3° to 6°C)_ If you

wish to compensate for the temperature rise, remove the

roast from the oven when its internal temperature is 5° to

10°F (3° to 6°C) less than the temperature shown in the

Roasting Guide..

Remember that food will continue to cook in the hot oven

and therefore should be removed when the desired

internal temperature has been reached,

1, Position oven shelf at

position B for small size

roast (3 to 5 ibs.[t,3 to

2.3 kg]) and at position R

for larger roasts,

2. Check the weight of the

meat,. Place the meat

fat-side-up or the poultry breast-side-up on roasting

grid in a shallow pan,. The melting fat will baste the

meat.. Select a pan as close to the size of the meat

as possible. (The broiler pan with grid is a good pan

for this..)

3. Turn the Oven Set knob to the desired temperature°

See the Roasting Guide for temperatures and

approximate cooking times.

4, When roasting is finished, turn the Oven Set knob to

OFF and then remove the food from the oven.

Dual Shelf Cooking

This allows more than one food to be cooked at the same

time,, For example: While roasting a 20-tb,. (t0 kg) turkey

on shelf position R, a second shelf (if so equipped) may

be added on position D so that an additional food such as

scalloped potatoes can be cooked at the same time,,

Foods cooked with the turkey should be added toward

the end of the time allowed for the turkey,, For example,

potatoes which cook for t hour should be added to the

oven 1 hour before the end of cooking time for the turkey.

Use of Aluminum Foil

You can use aluminum foil

to line the broiler pan_ This

makes clean up easier

when using the pan for

marinating, cooking with

fruits, cooking heavily

cured meats or basting

food during cooking. Press

the foil tightly around the

inside of the pan.

J -r'l"

Frozen Roasts

Frozen roasts of beef, pork, lamb, etc, can be started

without thawing, but allow 15 to 25 minutes per pound

(450 grams) additional time (15 minutes per pound

for roasts under 5 pounds [2°3 kg], more time for

larger roasts).

Make sure poultry is thawed before roasting. Unthawed

poultry often does not cook evenly° Some commercial frozen

poultry can be cooked successfully without thawing,. Follow

the directions given on the package label.

Roasting Guide

Oven Approximate Roasting Time Internal

Type Temperature Doneness in Minutes per Pound Temperature

Meat

Tender cuts; rib,

high quality sirloin tip,

rump or top round*

Lamb leg or bone-in

shoulder*

Veal shoulder,

leg or loin*

Pork loin, rib

or shoulder*

Ham, precooked

Poultry

Chicken or Duck

Chicken pieces

Turkey

325°F (163°C)

325°F (163°O)

325°F (163°C)

Rare:

Medium:

Well Done:

Rare:

Medium:

Welt Done:

Well Done:

3 to 5 Ibso 6 to 8 Ibso

(1.4 to 2.3 kg) (2.7 to 3,6 kg)

24-35

35-39

39-45

18-25 I40-150°F

25-3t 150-160°F

31-33

21-25 20-23

25-30 24-28

30-35 28-33

35-45 30-40

35-45 30-4O

(60-66°C)-t

(66-71°C)

170-185°F (77-85°C)

I40-150°F (60-66°C)1 -

150-160°F (66-71°0)

I70-185°F (77-85°0)

170-180°F (77-82°0)

170-180°F(77-82°C)

325°F (163°C)

350°F (177°0)

325°F (163°C)

To Warm:

Welt Done:

Well Done:

18--23 minutes per pound

(450 grams) any weight

3 to 5 lbs, Over 5 Ibs,

(1.4 to 2.3 kg) (2.3 kg)

35-40 30-35

35-40

10 to 15 Ibs.

(4.5 to 6.8 kg)

16-22

Over 15 Ibs.

(6.8 kg)

12-19

115-125°F(46-52°C)

185-190°F (85-88°C)

185-190°F (85-88°0)

In thigh:

185-190°F (85-88°0)

*For boneless rolled roasts over 6" (15 cm) thick, add 5 to 10 minutes per pound (450 grams) to times given above.

¢The UoS. Department of Agriculture says, "Rare beef is popular, but you should know that cooking it to only 140°F

(60°C) means some food poisoning organisms may survive°" (Source: Safe Food Book. Your Kitchen Guide,. USDA Re,.(.

June t985.)

Broiling

Do not lock the oven door with the latch during

broiling. The latch is used for self-cleaning onlyo

Broiling is cooking food by direct heat from above the

food. Most fish and tender cuts of meat can be broiled.

Follow these directions to keep spattering and smoking

to a minimum.

It is recommended that meat be cooked to at least an

INTERNAL temperature of 160°F (71°C) and poultry to

at teast an INTERNAL temperature of 180°F (82°C),

Cooking to these temperatures usually protects against

foodborne illness.,

The oven door should be closed during broiling.

Turn the food only once

during cooking. ]]me

the foods for the first

side according to the

Broiling Guide.

Turn the food, then use

the times given for the

second side as a guide to

the preferred doneness.

1. If the meat has fat or gristle around the edge, cut

vertical slashes through both about 2" (5 cm) apart.

If desired, the fat may be trimmed, leaving a layer

about I/e" (3 mm) thick.

2. Place the meat on the broiler grid in the broiler pan

which comes with the range. Always use the grid so fat

drips into the broiler pan; otherwise the juices may

become hot enough to catch fire°

3. Position the shelf on the recommended shelf position

as suggested in Broiling Guide

4, Close the oven door but do not latch it. If the door

latch is moved to the right during a broil operation

the door may lock and you may not be able to open

it until the oven cools°

5. Turn the Oven Set knob to BROIL.

6. When broiling is finished, turn the Oven Set knob to

OFE Remove the broiler pan from the range and serve

the food immediately Leave the pan outside the range

to coo!,

Use of Aluminum Foil

You can use aluminum foil

to line your broiler pan and

broiler grid, However, you

must mold the foil tightly to

the grid and cut slits in it

just like the grid

Without the slits, the foil

will prevent fat and meat

juices from draining to the broiler pan, The juices could

become hot enough to catch on fire. If you do not cut the

slits, you are frying, not broiling

Questions & Answers

Q. When broiling, is it necessary to always use a grid

in the pan?

A. Yes, Using the grid suspends the meat over the pan

As the meat cooks, the juices fall into the pan, thus

keeping the meat drier, Juices are protected by the

grid and stay cooler, thus preventing excessive spatter

and smoking,

Q. Should I salt the meat before broiling?

Ao No, Salt draws out the juices and allows them to

evaporate. Always salt after cooking Turn the meat

with tongs; piercing the meat with a fork also allows

the juices to escape. When broiling poultry or fish,

brush each side often with butter.

Why are my meats not turning out as brown as

they should?

Check to see if you are using the recommended shelf

position. Broil for the longest period of time

indicated in the Broiling Guide. Turn the food only

once during broiling,

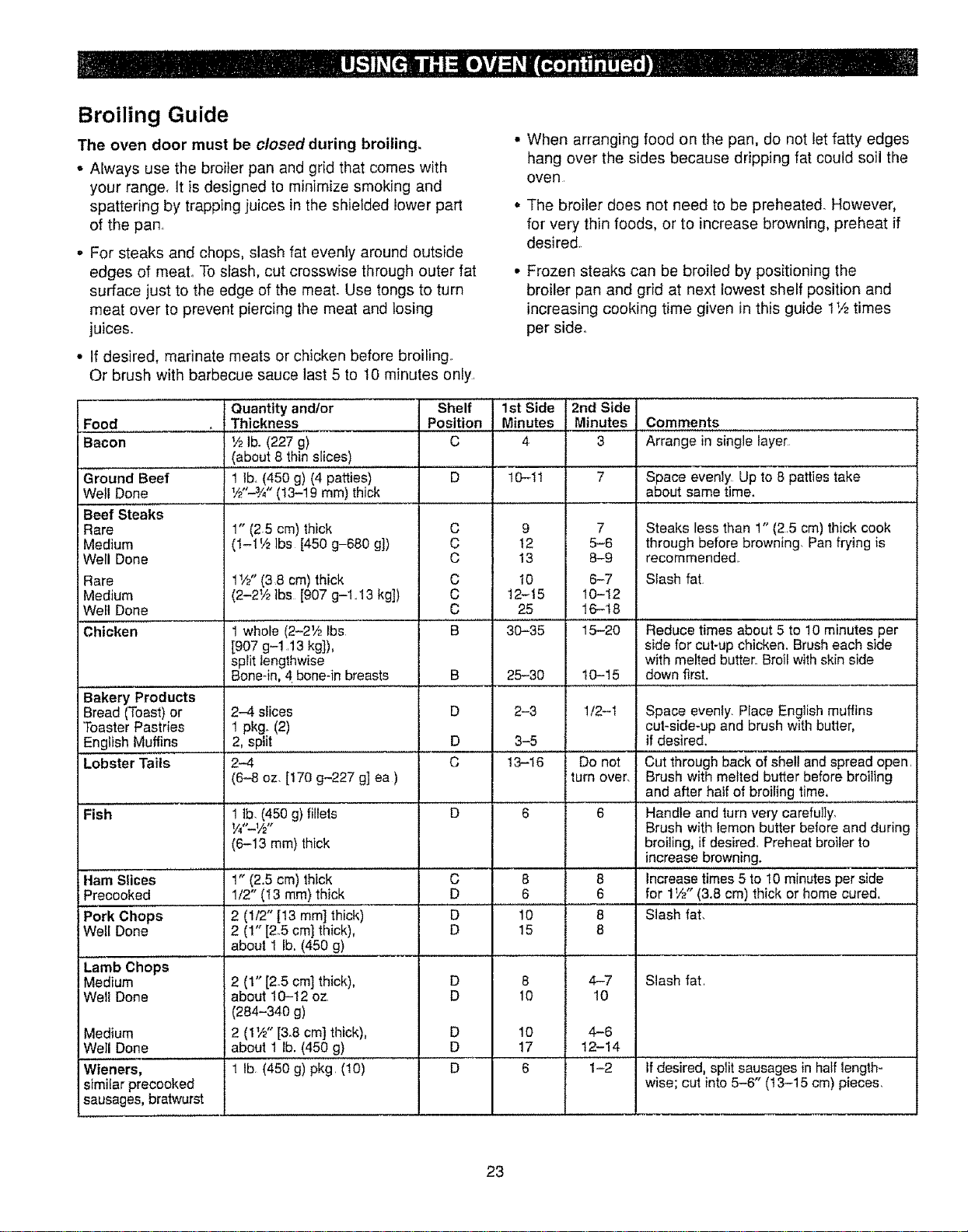

Broiling Guide

The oven door must be closed during broiling.

• Always use the broiler pan and grid that comes with

your range, It is designed to minimize smoking and

spattering by trapping juices in the shielded lower part

of the pan

° For steaks and chops, slash fat evenly around outside

edges of meat° To slash, cut crosswise through outer fat

surface just to the edge of the meat° Use tongs to turn

meat over to prevent piercing the meat and losing

juices,,

• If desired, marinate meats or chicken before broiling,

Or brush with barbecue sauce last 5 to 10 minutes only,

• When arranging food on the pan, do not let fatty edges

hang over the sides because dripping fat could soil the

oven

The broiler does not need to be preheated, However,

for very thin foods, or to increase browning, preheat if

desired.

• Frozen steaks can be broiled by positioning the

broiler pan and grid at next lowest shelf position and

increasing cooking time given in this guide 1_/_times

per sider

Shelf 1st Side 2nd Side

Food Position Minutes Minutes Comments

Bacon C 4 3 Arrange in single layer

Ground Beef

Well Done

Beef Steaks

Rare

Medium

Well Done

Rare

Medium

Wel! Done

Chicken

Quantity and/or

Thickness

'/2 lb. (227 g)

(about 8 thin slices)

1 lb. (450 g) (4 patties)

W'_/, " (t3-19 mm) thick

Lamb Chops

Medium

Well Done

1" (2.5 cm) thick

(t-1 V2Ibs [450 g_80 g])

11/2"(3,8 cm) thick

(2-2V2 lbs [907 g-1.,13 kg])

D 10-11 7 Space evenly Up to 8 patties take

about same time.

t2-t5

30-35

5-6

8-9

6-7

10-12

16-18

15-20

Steaks less than 1" (2.5 cm) thick cook

through before browning, Pan frying is

recommended.

Slash fat

1 whole (2-21/2 lbs Reduce times about 5 to 10 minutes per

1907g-1.13 kg]), side for cut-up chicken. Brush each side

split lengthwise with melted butter. Broil with skin side

Bone-in, ztbone-in breasts B 25-30 t0-15 down first.

Bakery Products

Bread (Toast) or 2-4 slices D 2-3 1/2-t Space evenly. PIace English muffins

Toaster Pastries 1 pkg. (2) cut-side-up and brush with butter,

English Muffins 2, split D 3-5 if desired.

Lobster Tails 2--4 C 13-16 Do not Cut through back of shell and spread open.

(6-8 oz. [170 g-227 g] ea ) turn over. Brush with melted butter before broiling

and after half of broiling time.

Fish 1 tb. (450 g) fillets D 6 6 Handle and turn very carefully,

W'J/2 " Brush with lemon butter before and during

(6-13 ram) thick broiling, if desired_ Preheat broiler to

increase browning.

tam Slices 1" (2.5 cm) thick C 8 8 Increase times 5 to 10 minutes per side

Precooked 1/2" (I3 ram) thick D 5 6 for 1W" (3.8 cm) thick or home cured.

Pork Chops 2 (1/2" [13 mm] thick) D 10 8 Slash fat,

Well Done 2 (1" [2.5 cm] thick), D 15 8

about 1 lb. (450 g)

Slash fat

2 (1" [2.5 cm] thick),

about 10-12 oz

(284-340 g)

2 (1W' [3.8 cm] thick),

about 1 lb. (450 g)

1 Ib (450 g) pkg, (!0)

4-7

Medium D 10 4-6

Well Done D 17 12-14

Wieners, D 6 1-2 If desired, split sausages in half length=

simiiar precooked wise; cut into 5-6" (t 3-15 cm) pieces

sausages, bratwurst

The WARM-N-READY drawer will keep hot, cooked

foods at serving temperature. Always start with hot

food. Do not use to heat cold food other than

crisping crackers, chips, or dry cereal.

Control Knob ..........o.....

Push and turn the control knob to any _'_;'i _

desired setting

NOTE: The WARM-N-READY drawer Yourmodelmayhave

one of these knobs,.

cannot be used during a self-clean

cycle.

LO ........... 140-170°F

MED .......... 170-210 °F

H! ............ 210-250°F

(Appearance may vary)

MED

ON Signal Light

The ON signal light is located above the control knob

and glows when the knob is in the ON position,, It stays

on until the knob is moved to the OFF position,,

When Using the WARM-N-READY Drawer

The WARM-N-READY drawer will keep hot, cooked foods

at serving temperature.. Always start with hot food.. Do not

use to heat cold food other than crisping crackers, chips

or dry cereal

Do not line the warming drawer with aluminum foil.

Foil is an excellent heat insulator and will trap heat

beneath it. This will upset the performance of

the drawer and could damage the interior finish.

• Allow time for the drawer to be preheated:

LO ................... 10-15 minutes

MED ......................... 25-30 minutes

HI ................... 25-35 minutes

• Preheat prior to use according to recommended times.

,, Do not put liquid or water in the warming drawer.

• For moist foods, cover them with a lid or aluminum foil.

• For crisp foods, leave them uncovered°

• Food should be kept hot in its cooking container or

transferred to a heat-safe serving dish°

CAUTION: Plastic containers or plastic wrap will

melt if in direct contact with the drawer or a hot

utensil. Melted plastic may not be removable and is

not covered under your warranty.

• Remove serving spoons, etco, before placing containers

in warming drawer..

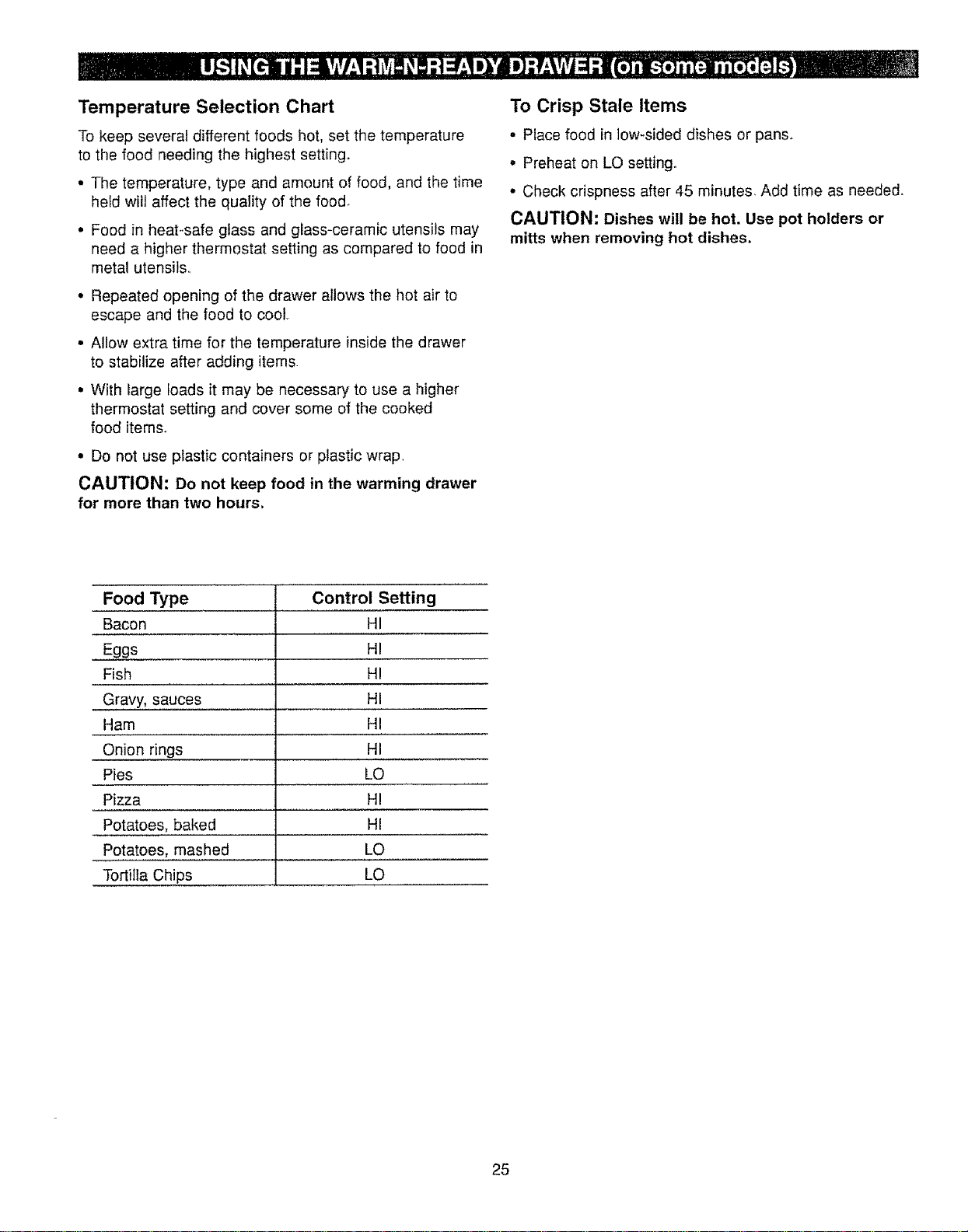

Temperature Selection Chart

To keep several different foods hot, set the temperature

to the food needing the highest setting.

• The temperature, type and amount of food, and the time

held will affect the quality of the food.

• Food in heat-safe giass and glass-ceramic utensils may

need a higher thermostat setting as compared to food in

metal utensils°

• Repeated opening of the drawer allows the hot air to

escape and the food to coot.

• Allow extra time for the temperature inside the drawer

to stabilize after adding items.

• With large foads it may be necessary to use a higher

thermostat setting and cover some of the cooked

food items.

• Do not use plastic containers or plastic wraF

CAUTION: Do not keep food in the warming drawer

for more than two hours.

To Crisp Stale Items

• Place food in low-sided dishes or pans,.

• Preheat on LO setting,,

° Check crispness after 45 minutes, Add time as needed.

CAUTION: Dishes will be hot. Use pot holders or

mitts when removing hot dishes.

Food Type

Bacon

Eggs

Fish

Gravy, sauces

Ham

Onion rings

Pies

Pizza

Potatoes, baked

Potatoes, mashed

Tortilla Chips

Control Setting

Operating the Self-Cleaning Oven

Normal Cleaning Time: 4 hours and 20 minutes

Before a Clean Cycle

We recommend venting with an open window or using a

ventilation fan or hood during the first self-clean cycle°

1. Remove the broiler pan, broiler grid, all cookware

and any aluminum foil from the oven--they cannot

withstand the high cleaning temperatures.

NOTE:

• If your oven is equipped with nickel oven shelves,

remove them before you begin the self-clean cycle.

• If your oven is equipped with gray porcelain-coated

oven shelves, they may be left in the oven during the

self-clean cycle.

2. Wipe up heavy soil on the oven bottom. If you use

soap, rinse thoroughly before self-cleaning to

prevent staining°

Ovenght] ]q

o eo__llj

,ram° yi

,,,,,,....

Area outside Oven door

gasket gasket

Area inside

gasket

Do not use abrasives or oven cleaners. Clean the

top, sides and outside front of the oven door with soap

and water.

Make sure the oven lightbulb cover is in place.

Do not rub or clean the door gasket--the fiberglass

material of the gasket has an extremely low resistance

to abrasion. An intact, welt-fitting oven door gasket is

essential for energy-efficient oven operation and good

baking results. If you notice the gasket becoming worn,

frayed or damaged in any way or if it has become

displaced on the door, you should have it replaced°

4. Close the oven door and make sure the oven light

is off. If the oven light is not turned off, the life of the

bulb wilt be shortened or it may burn out immediately.

CAUTION: The grates and drip pans (on some

models) should never be cleaned in the

self-cleaning oven.

Do not use commercial oven cleaners or oven

protectors in or near the self-cleaning oven.

A combination of any of these products plus the high

clean cycle temperatures may damage the porcelain

finish of the oven

IMPORTANT: The health of some birds is extremely

sensitive to the fumes given off during the Self-Cleaning

cycle of any range. Move birds to another welFventilated

room,

3. Clean spatters or soil on the oven front frame and

the oven door outside the gasket with a dampened

cloth. The oven front frame and the oven door outside

the gasket do not get cleaned by the self-clean cycle.

On these areas, use detergent and hot water or a

soap-filled pad. Rinse welt with a vinegar and water

solution. This will help prevent a brown residue from

forming when the oven is heated. Buff these areas

with a dry cloth. Do not clean the gasket.

How to Set the Oven for Cleaning

Quick Reminder:

1. Latch the door°

2, Turn the Oven Set knob to CLEAN

If the oven is too hot and you start to set a clean cycle,

you will not be able to slide the latch.

Allow additional time for cooling before you try to set

the cycle

1. Follow directions to prepare the oven for cleaning,

2. Slide the latch handle to the right as far as it will go,

Never force the latch

handle. Forcing the handle

will damage the door lock

mechanism.

3. Turn the Oven Set knob

to CLEAN, The CLEAN,

AUTOMATIC OVEN, OVEN ON and COOK TIME

ON/OFF lights will glow,

NOTE: If you turn the Oven Set knob before you slide

the latch, the CLEAN light will flash_ Slide the latch to

the right,

Clean cycle time is normally 4 hours and 20 minutes,

On some models you can change the Clean Time to

anywhere between 3 hours and 5 hours and 59 minutes,

depending on how dirty your oven is.

You have one minute to change your Clean Time. Use

the HOUR and MIN. pads to change the total Clean Time,

Both the OVEN ON light and the CLEAN light will flash

when the Clean Time is finished°

After using the clean cycle, the door latch and the

Oven Set knob must be returned to their original

positions before you can use the oven.

When the CLEAN light flashes, stide the latch

handle to the left as far as it will go, turn the

Oven Set knob to OFF and open the door,

Never force the latch handle. Wait until the

CLEAN light flashes and the latch slides easily..

Forcing the latch handle may damage the door lock,

To Stop A Clean Cycle

1. Turn the Oven Set knob to OFF.

2. Wait until the oven has cooled below the locking

temperature to unlatch the door,. You wil! not be abie

to open the door right away unless the oven has

cooled below the locking temperature.,

After a Clean Cycle

You may notice some white ash in the oven. Just wipe

it up with a damp cloth after the oven cools°

If white spots remain, remove them with a soap4illed

pad, Be sure to rinse thoroughly with a vinegar and water

mixture° These deposits are usually a salt residue that

cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle,

repeat the cycle

NOTE:

° You cannot set the oven for cooking until the oven is

cool enough for the door to be unlatched.

- While the oven is self-cleaning, you can press the

CLOCK pad to display the time of day.rTo return

to the clean count down, press the COOK TIME

ON/OFF pad.

• if your oven is equipped with gray porcelain-coated

oven shelves, wipe the shelf edges or oven shelf

supports with vegetable oil

(continued next page)

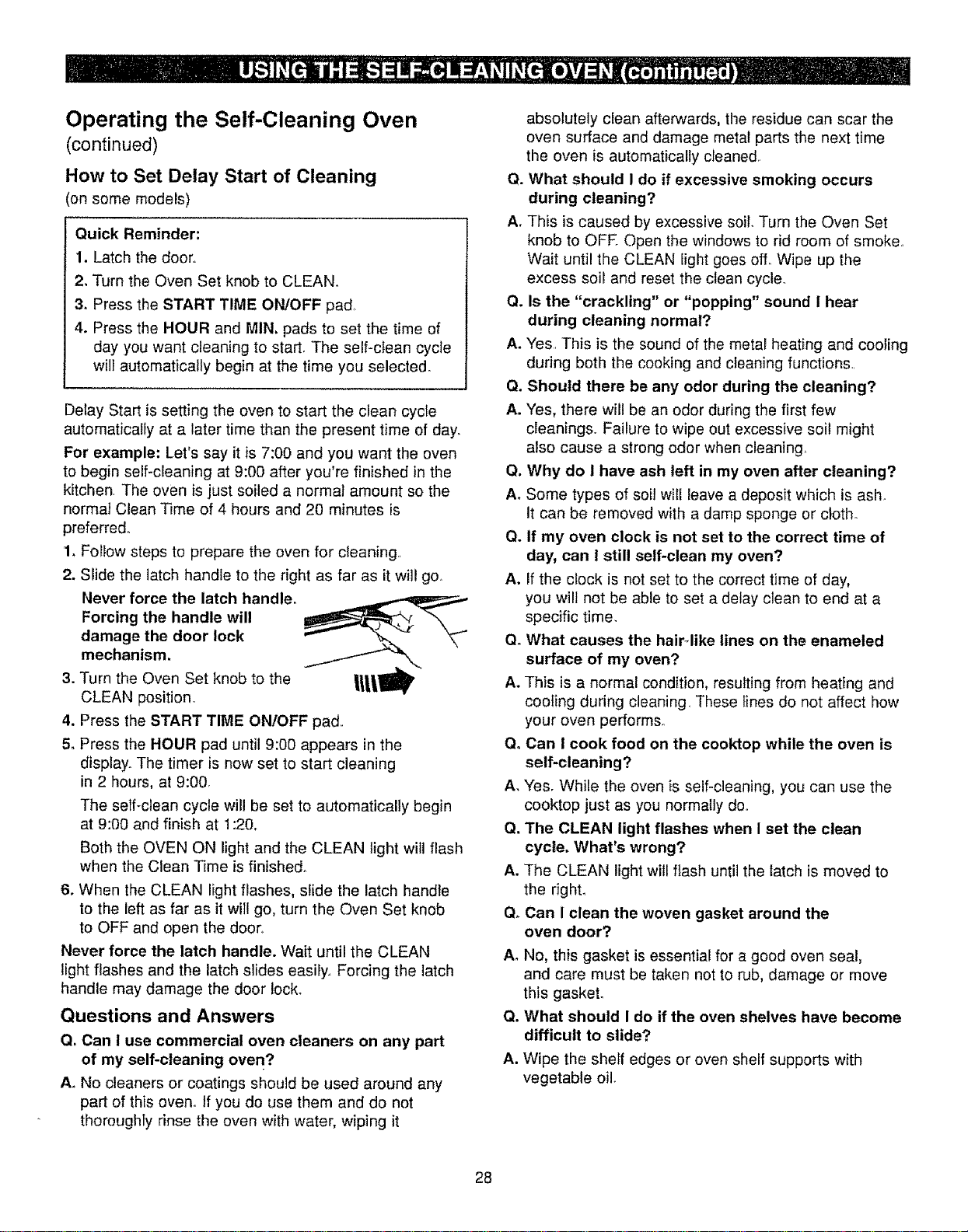

Operating the Self-Cleaning Oven

(continued)

How to Set Delay Start of Cleaning

on some models)

Quick Reminder:

1. Latch the door,,

2, Turn the Oven Set knob to CLEAN.

3. Press the START TIME ON/OFF pad,

4. Press the HOUR and MIN, pads to set the time of

day you want cleaning to start_ The self-clean cycle

will automatically begin at the time you selected°

Delay Start is setting the oven to start the clean cycle

automatically at a later time than the present time of day.

For example: Let's say it is 7:00 and you want the oven

to begin self-cleaning at 9:00 after you're finished in the

kitchen, The oven is just soiled a normal amount so the

normal Clean Time of 4 hours and 20 minutes is

preferred°

1. Follow steps to prepare the oven for cleaning,,

2. Slide the latch handle to the right as far as it will goo

Never force the latch handle.

Forcing the handle will

damage the door lock

mechanism,

3. Turn the Oven Set knob to the

CLEAN position.

4. Press the START TIME ON!OFF pad,,

5oPress the HOUR pad until 9:00 appears in the

display. The timer is now set to start cleaning

in 2 hours, at 9:00,

The self-clean cycle will be set to automatically begin

at 9:00 and finish at 1:20.

Both the OVEN ON light and the CLEAN light will flash

when the Clean Time is finished.

6. When the CLEAN light flashes, slide the latch handle

to the left as far as it will go, turn the Oven Set knob

to OFF and open the door.

Never force the latch handle. Wait until the CLEAN

light flashes and the latch slides easiiy., Forcing the latch

handle may damage the door lock.

Questions and Answers

Q_Can i use commercial oven cleaners on any part

of my self-cleaning oven?

Ao No cleaners or coatings should be used around any

part of this oven. If you do use them and do not

thoroughly rinse the oven with water, wiping it

absolutely clean afterwards, the residue can scar the

oven surface and damage metal parts the next time

the oven is automatically c_eaned,

Q. What should I do if excessive smoking occurs

during cleaning?

A. This is caused by excessive soil. Turn the Oven Set

knob to OFE Open the windows to rid room of smoke,,

Wait until the CLEAN light goes off,, Wipe up the

excess soil and reset the clean cycle.,

Q. Is the "crackling" or "popping" sound I hear

during cleaning normal?

A. Yes, This is the sound of the metal heating and cooling

during both the cooking and cleaning functions.

Q. Should there be any odor during the cleaning?

A. Yes, there will be an odor during the first few

cleanings, Failure to wipe out excessive soil might

atso cause a strong odor when cleaning.

Q, Why do 1have ash left in my oven after cleaning?

A. Some types of soil will leave a deposit which is ash.

It can be removed with a damp sponge or cloth.

Q. if my oven clock is not set to the correct time of

day, can I still self-clean my oven?

A. If the clock is not set to the correct time of day,

you wilt not be able to set a delay clean to end at a

specific time,

QoWhat causes the haiHike lines on the enameled

surface of my oven?

A. This is a normal condition, resulting from heating and

cooling during cleaning, These tines do not affect how

your oven performs°

Q° Can I cook food on the cooktop while the oven is

self-cleaning?

A. Yes. While the oven is self-cleaning, you can use the

cooktop just as you normally do,,

Q. The CLEAN light flashes when I set the clean

cycle. What's wrong?

A. The CLEAN light will flash until the latch is moved to

the righL

Q. Can I clean the woven gasket around the

oven door?

AmNo, this gasket is essential for a good oven seal,

and care must be taken not to rub, damage or move

this gaskeL

Q. What should I do if the oven shelves have become

difficult to slide?

A. Wipe the shelf edges or oven shelf supports with

vegetable oil

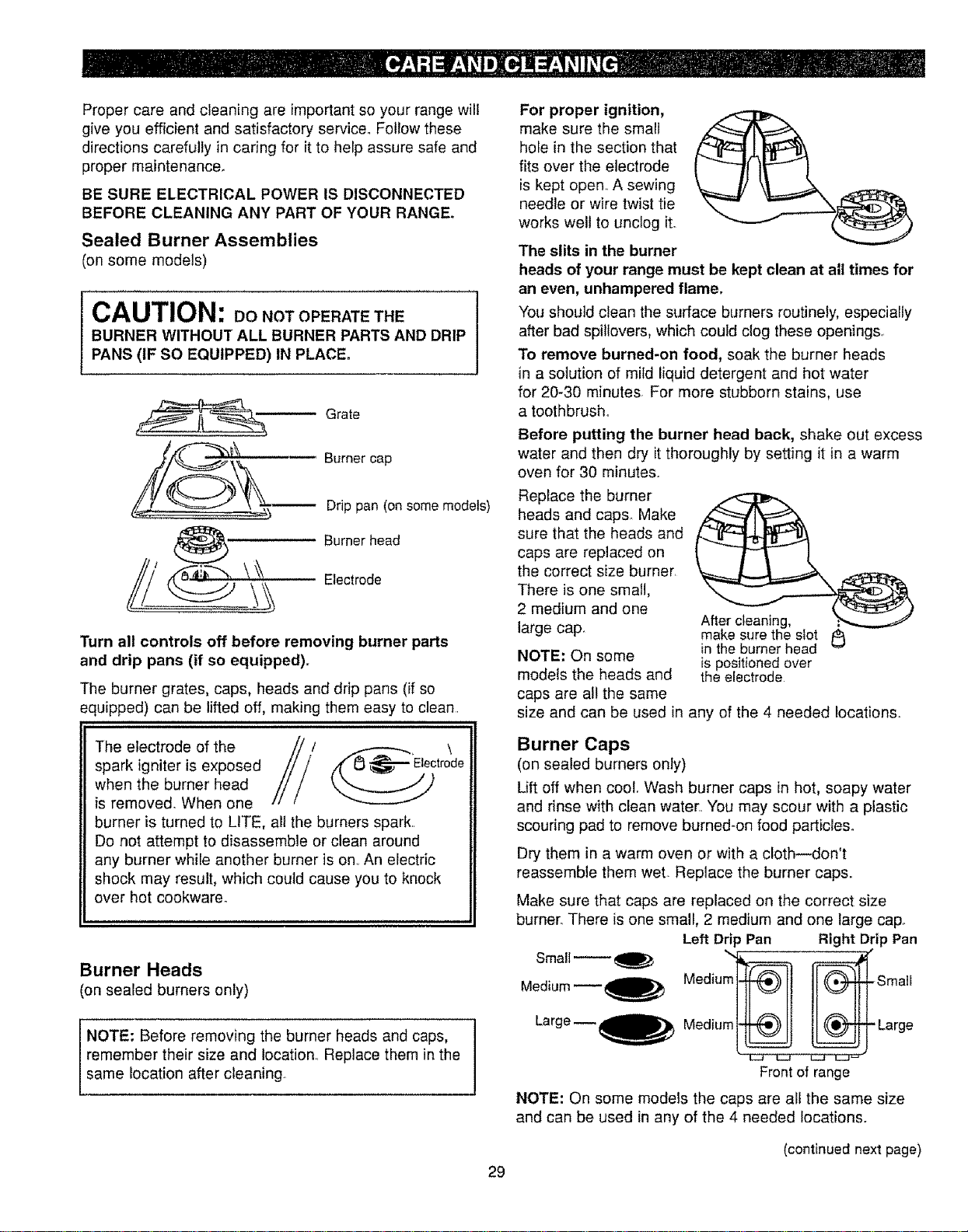

PropercareandcleaningareimportantsoyourrangewilI

giveyouefficientandsatisfactoryservice°Followthese

directionscarefullyincaringforittohelpassuresafeand

propermaintenance.

BE SURE ELECTRICAL POWER IS DISCONNECTED

BEFORE CLEANING ANY PART OF YOUR RANGE.

Sealed Burner Assemblies

(on some models)

CAUTION: Do NOT OPERATE THE

BURNER WITHOUT ALL BURNER PARTS AND DRIP

PANS (IF SO EQUIPPED) IN PLACE°

Grate

_t/_ _\ , Burner cap

..... . Drippan (on somemodels)

(_ Burner head

S_/ _ \._ Electrode

Turn all controls off before removing burner parts

and drip pans (if so equipped).

The burner grates, caps, heads and drip pans (if so

equipped) can be lifted off, making them easy to clean

For proper ignition,

make sure the small

hole in the section that

fits over the electrode

is kept open.. A sewing

needle or wire twist tie

works welt to uncfog it..

The slits in the burner

heads of your range must be kept clean at all times for

an even, unhampered frame,

You should clean the surface burners routinely, especially

after bad spillovers, which could clog these openings.

To remove burned-on food, soak the burner heads

in a solution of mild liquid detergent and hot water

for 20-30 minutes For more stubborn stains, use

a toothbrush_

Before putting the burner head back, shake out excess

water and then dry it thoroughly by setting it in a warm

oven for 30 minutes..

Replace the burner

heads and caps. Make

sure that the heads and

caps are replaced on

the correct size burner.

There is one small,

2 medium and one

After cleaning,

large cap. make sure the slot

NOTE; On some in the burner head

is positioned over

models the heads and the electrode

caps are all the same

size and can be used in any of the 4 needed locations.

The electrode of the

spark igniter is exposed

when the burner head

fs removed. When one

burner is turned to LITE, all the burners spark..

Do not attempt to disassemble or clean around

any burner while another burner is on..An electric

shock may result, which could cause you to knock

over hot cookware.

Burner Heads

(on sealed burners only)

NOTE: Before removing the burner heads and caps,

remember their size and location.. Replace them in the

same location after cleaning.

Burner Caps

(on sealed burners only)

Lift off when cool, Wash burner caps in hot, soapy water

and rinse with clean water. You may scour with a plastic

scouring pad to remove burned-on food particles_

Dry them in a warm oven or with a cloth--don't

reassemble them weL Replace the burner caps..

Make sure that caps are replaced on the correct size

burner. There is one small, 2 medium and one large cap.

Left Drip Pan Right Drip Pan

Medium __ Mediu Smali

Large-- Medium[_ _ Large

Front of range

NOTE: On some models the caps are all the same size

and can be used in any of the 4 needed locations.

(continued next page)

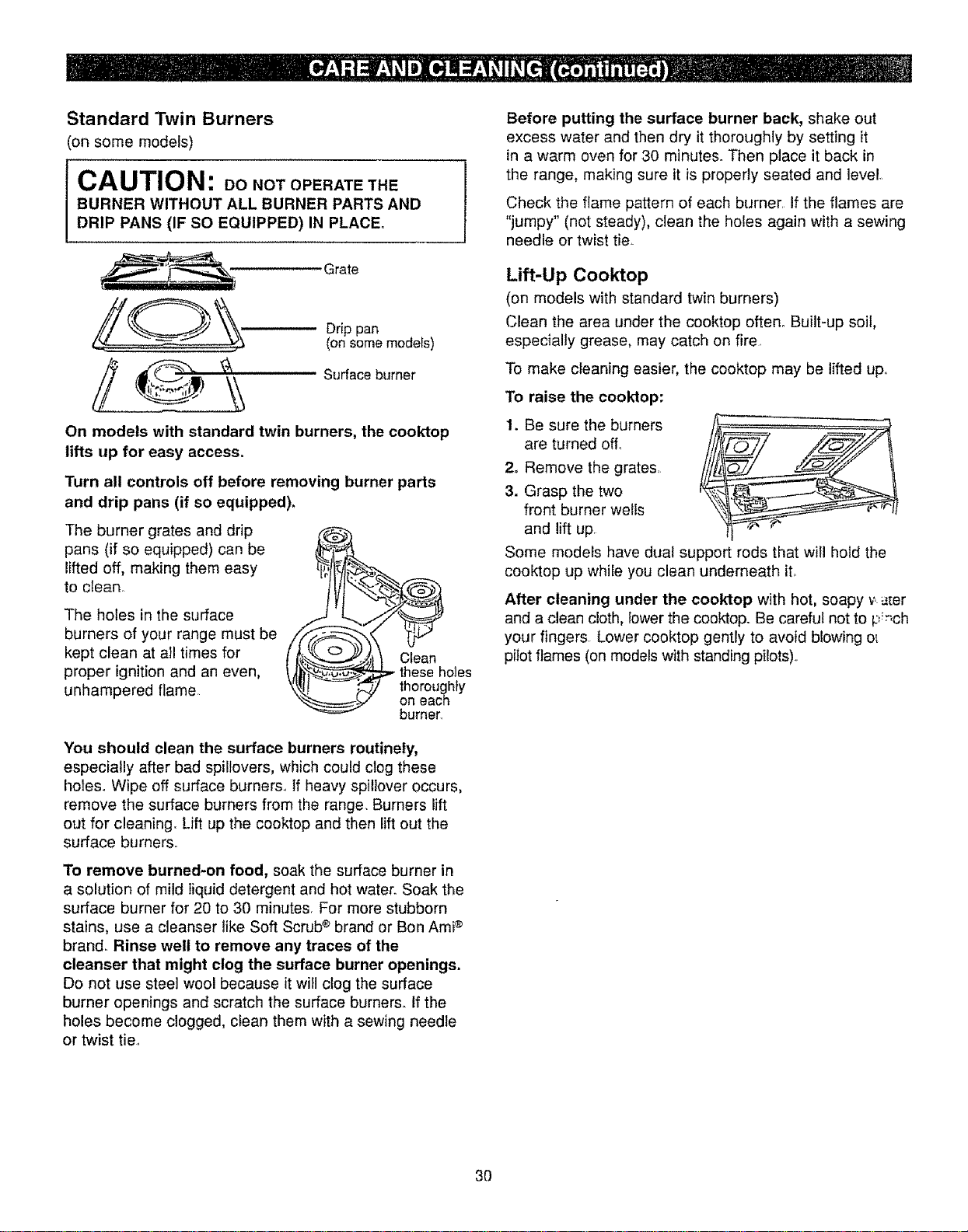

Standard Twin Burners

(on some models)

CAUTION: DO NOT OPERATE THE

BURNER WITHOUT ALL BURNER PARTS AND

DRIP PANS (IF SO EQUIPPED) IN PLACE.

Grate

Drip pan

(on same models)

C_) I Surface burner

On models with standard twin burners, the cooktop

lifts up for easy access.

Turn all controls off before removing burner parts

and drip pans (if so equipped),

The burner grates and drip

pans (if so equipped) can be

lifted off, making them easy

to clean,

The holes in the surface

burners of your range must be

kept clean at all times for

proper ignition and an even,

unhampered flame.

Clean

these holes

thoroughly

on each

burner.

You should clean the surface burners routinely,

especially after bad spillovers, which could clog these

holes. Wipe off surface burners.. If heavy spillover occurs,

remove the surface burners from the range. Burners lift

out for cleaning+ Lift up the cooktop and then lift out the

surface burners.

To remove burned-on food, soak the surface burner in

a solution of mild liquid detergent and hot water+ Soak the

surface burner for 20 to 30 minutes. For more stubborn

stains, use a cleanser like Soft Scrub + brand or Ban AmP

brand. Rinse well to remove any traces of the

cleanser that might clog the surface burner openings.

Do not use steel wool because it will clog the surface

burner openings and scratch the surface burners. If the

holes become clogged, clean them with a sewing needle

or twist tie.,

Before putting the surface burner back, shake out

excess water and then dry it thoroughly by setting it

in a warm oven for 30 minutes+ Then place it back in

the range, making sure it is properly seated and level,

Check the flame pattern of each burner, If the flames are

"jumpy" (not steady), clean the holes again with a sewing

needle or twist tie,

Lift-Up Cooktop

(on models with standard twin burners)

Clean the area under the cooktop often. Built-up soil,

especially grease, may catch on fire.

To make cleaning easier, the cooktop may be lifted up,,

To raise the cook-top:

1. Be sure the burners

are turned off.

2, Remove the grates.

3, Grasp the two

front burner wells

and lift up.

Some models have dual support rods that will hold the

cooktop up while you clean underneath it,

After cleaning under the cooktop with hot, soapy v,_[er

and a clean cloth, lower the cooktop. Be careful not to pr_ch

your fingers. Lower cooktop gently to avoid blowing o_

pilot flames (on models with standing pilots)..

Burner Grates

Lift out when cool.

The grates should be

washed regularly

and, of course, after

spillovers. Wash them in hot, soapy water and rinse with

clean water. After cleaning, dry them thoroughly by

putting them in a warm oven for a few minutes. Do not

put the grates back on the range while they are wet.

When replacing the grates, be sure they're positioned

securely over the burners..

To prevent rusting on cast iron grates, apply a light

coating of cooking oil on the bottom of the grates_

To get rid of burned-on food, place the grates in a

covered container (or plastic bag) with _Acup (62 ml)

ammonia to loosen the soil Let sit overnight (or

approximately 12 hours), then scrub with a soap-filled

scouring pad ifnecessary. Rinse grates thoroughly and

dry completely before replacing them on the range top.

Although they're durabfe, the grates wilt gradually lose

their shine, regardless of the best care you can give

them.. This is due to their continual exposure to high

temperatu res..

Do not operate a burner for an extended period of time

without cookware on the grate. The finish on the grate

may chip without cookware to absorb the heat

CAUTION: Do not clean the grates in a dishwasher or

in a self-cleaning oven.

Drip Pans

(on some models)

Remove the grates and lift

out the drip pans. The drip

pans can be cleaned in a

dishwasher or by hand,

To get rid of burned-on

food, p{ace the drip pans

in a covered container

Left

(or plastic bag) with 1,4cup (62 ml) ammonia to loosen the

soil..Then scrub with a soap-filled scoudng pad if necessary.

When replacing the drip pans, make sure they are in the

correct position.

CAUTION: Do not clean the drip pans in a

self-cleaning oven.

Right

Oven Air Vents

Never block the vents (air openings) of the range.

They provide the air inlet and outlet that are necessary

for the range to operate properly with correct

combustion_ Air openings are located at the rear of the

cooktop, at the top and bottom of the oven door, and at

the bottom of the range, under the kick panel, storage

drawer or broiler drawer (depending on the model).

Cooktop Surface

(on some models)

To avoid damaging the porcelain enamel surface of

the cool{top and to prevent it from becoming dull,

clean up spills right away. Foods with a lot of acid

(tomatoes, sauerkraut, fruit juices, etc.) or foods with

high sugar content could cause a dull spot if altowed

to sit When the surface has cooled, wash and rinse.

For other spil}s such as fat spatterings, etc., wash with

soap and water once the surface has cooled_ Then rinse

and polish with a dry cloth.

Do not store flammable materials in an oven or

near the cook'top. Do not store or use combustible

materials, gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

Brushed Chrome Cooktop

(on some models)

Clean the brushed chrome top with

warm, soapy water or Bon Ami ®

brand cleanser and immediately

dry it with a clean, soft cloth Take

care to dry the surface following

the "grain°" To help prevent finger

marks after cleaning, spread a thin film of baby oil on the

surface. Wipe away excess oi! with a cIean, soft cloth.

(continued next page)

Broiler Pan and Grid

After broiling, remove the

broiler pan from the oven or

broiler compartment

(depending on your moder)°

Remove the grid from the

pan° Carefully pour out

grease from the pan into a

proper container, Wash and

rinse the broiler pan and grid

I t

in hot water with a soap-filled or plastic scouring pad.

If food has burned on, sprinkle the grid with detergent

while hot and cover with wet paper towels or a dishcloth,

Soaking the pan will remove burned-on foods

The broiler pan and grid may be cleaned with a

commercial oven cleaner.

Both the broiler pan and grid can also be cleaned in a

dishwasher

Do not store a soiled broiler pan and grid anywhere

in the range,

CAUTION: Do not clean the broiler pan or grid in a

self-cleaning oven.

Oven Shelves

If your oven is equipped with nickel oven shelves, they

should be removed from the oven before beginning the

self-clean cycle°

To clean the nickel shelves, use an abrasive cleanser.

After cleaning, rinse the shelves with clean water and dry

with a clean cloth. If the shelves ever become hard to

slide, wipe the shelf edges or oven shelf supports with

vegetable oil,

if your oven is equipped with gray porcelain-coated

shelves, they may be cleaned in the oven during the

setf-cleari cycle,,

They may also be cleaned by using an abrasive cleanser.

After cleaning, rinse the shelves with clean water and dry

with a clean cloth, if the shelves ever become hard to

slide, wipe the shelf edges or oven shelf supports with

vegetable oil,

Oven Bottom

The oven bottom has a h_

porcelain enamel finish.

To make cleaning easier,

protect the oven bottom from

excessive spitlovers by placing

a cookie sheet on the shelf -"_'ii_-3

below the shelf you are

cooking on. You can use

aluminum foil if you do not

cover the whole shelf. This is

particularly important when baking a fruit pie or other

foods with a high acid content. Hot fruit fillings or other

foods that are highly acidic (such as tomatoes or

sauerkraut and sauces with vinegar or lemon juice) may

cause pitting and damage to the porcelain enamel

surface and should be wiped up immediately,

To clean up spillovers, use soap and water, an abrasive

cleaner or soap-filled pad, Rinse well to remove any soap

before self-cleaning.

Surface Light and Starter

(on some models)

CAUTION: Do not touch

the bulb with wet hands

or when bulb is hot.

Never wipe the light area

with a wet cloth.

Electrical power must be

shut off if you have to

replace a bulb.

To replace the bulb:

1. With one hand at each

end of the hinged Light bulb

canopy, grasp it by the

front edge and flip it up,,

2, Remove the fluorescent light bulbo Replace the bulb

with one of the same length and wattage.,

3. Lower the canopy.

To replace the starter:

1. Open the canopy and remove the bulb as

explained above.

2. Grasp the starter, turn it counterclockwise about one-

quarter turn and lift out. Replace with one of the same

wattage.

3. Replace the bulb and lower the canopy,,

Oven Light Replacement

(on some models)

CAUTION: Disconnect electrical power to the

oven at the main circuit breaker or fuse box before

attempting to replace the oven lightbulb, Do not

touch a hot lightbulb with wet hands or a wet cloth.

Wait until the bulb has cooled and use a dry cloth.

The oven light (bulb) is _-_

covered with a removable

glass cover that is held in

place with a bail-shaped _

wire. Remove the oven

door, if desired, to reach

the cover easily.

To remove:

Wire cover holder

1. Hold a hand under the cover so it doesn't fall

when released° With fingers of the same hand, firmly

push back the wire cover holder. Lift off

the cover, DO NOT REMOVE ANY SCREWS TO

REMOVE THE COVER.

2. Replace the bulb with a 40-watt household

appliance bulb.

To replace cover:

1. Place it into the groove of the light receptacle Pull the

wire forward to the center of the cover until it snaps

into place° When in place, the wire holds the cover

firmly. Be certain the wire is in the depression in the

center of the cover.

2, Connect electrical power to the range,

Lift-Off Oven Door

The oven door is removable,

but it is heavy_You may need

help removing and replacing

the door.

To remove the door, open it

a few inches to the special

stop position that will hold the

door open. Grasp firmly on

each side and lift the door

straight up and off the hinges_ .i

NOTE: Be careful not to place hands between the hinge

and the oven door frame as the hinge could snap back

and pinch finger&

To replace the door, make sure the hinges are in the

special stop position Position the slots in the bottom of

the door squarely over the hinges. Then lower the door

slowly and evenly over both hinges at the same time If

the hinges snap back against the oven frame, pull them

back oUt.r

To Clean the Door:

Do not allow excess water to run into any holes or slots

in the door.

Inside of the door:

• Because the area inside the gasket is cleaned during

the self-clean cycle, you do not need to clean this by

hand. Any soap left on the liner causes additional

stains when the oven is heated

The area outside the gasket can be cleaned with a

soap-filled pad.

Do not rub or clean the door gasket--the fiberglass

material of the gasket has an extremely low resistance

to abrasion. An intact and well-fitting oven door gasket

is essential for energy-efficient oven operation and

good baking results If you notice the gasket becoming

worn, frayed or damaged in any way or if it has become

displaced on the door, you should have it replaced

inside gasket

gasket

Outside of the door:

. Use soap and water to thoroughly clean the top, sides

and front of the oven door. Rinse well You may atso

use a glass cleaner to clean the glass on the outside

of the door.

Spillage of marinades, fruit juices, tomato sauces

and basting materials containing acids may cause

discoloration and should be wiped up immediately.

When the surface is cool, clean and rinse.

* Do not use oven cleaners, cleansing powders or

harsh abrasives such as steel wood pads on the

outside of the door.

(continued next page)

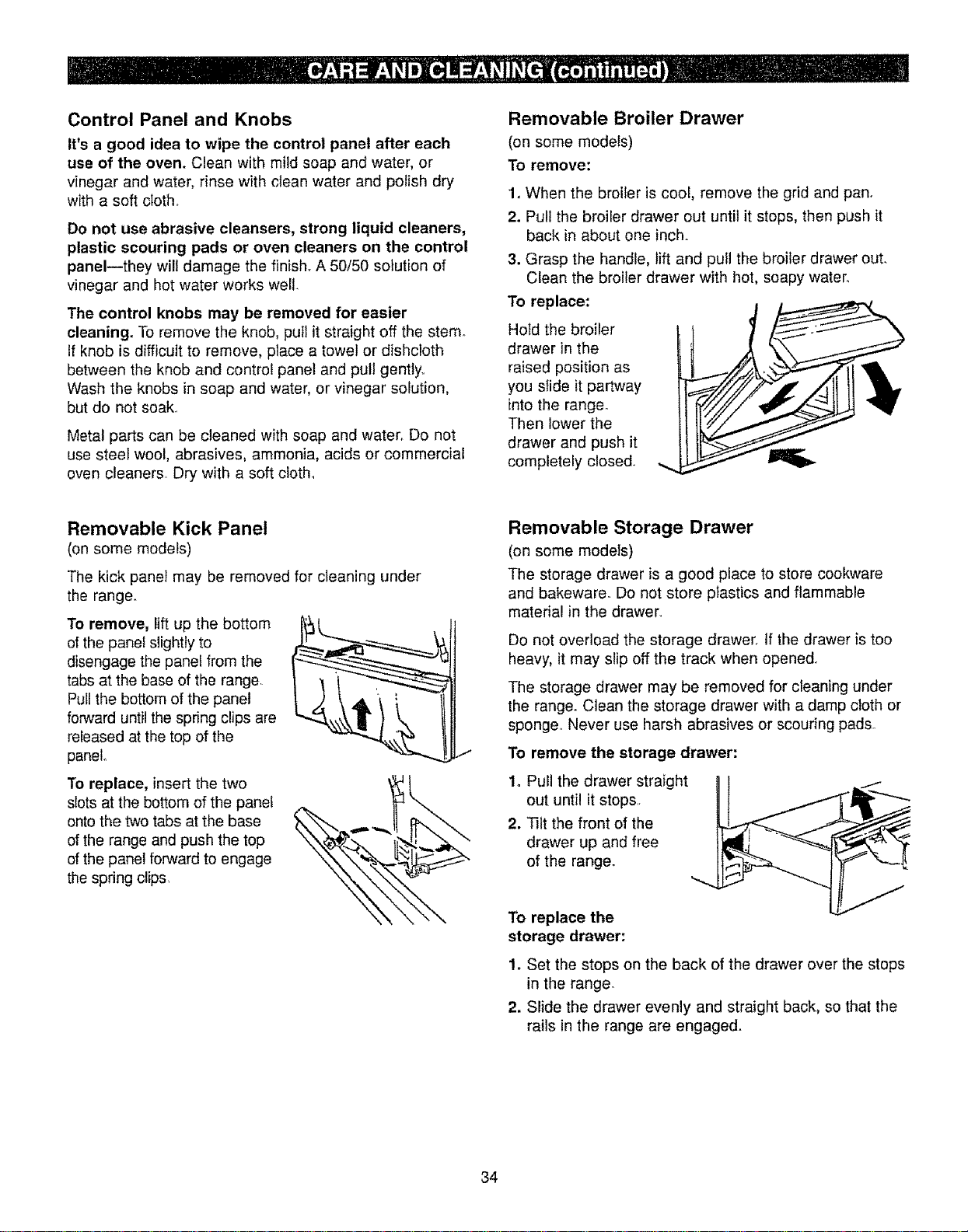

Control Panel and Knobs

It's a good idea to wipe the control panel after each

use of the oven. Clean with mild soap and water, or

vinegar and water, rinse with clean water and polish dry

with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners,

plastic scouring pads or oven cleaners on the control

panel--they will damage the finish_ A 50/50 solution of

vinegar and hot water works well.

The control knobs may be removed for easier

cleaning. To remove the knob, pull it straight off the stem..

If knob is difficult to remove, place a towel or dishcloth

between the knob and control panel and pull gently.

Wash the knobs in soap and water, or vinegar solution,

but do not soak.

Metal parts can be cleaned with soap and water_ Do not

use steel wool, abrasives, ammonia, acids or commercial

oven cleaners. Dry with a soft cioth_

Removable Broiler Drawer

(on some models)

To remove:

When the broiler is cool, remove the grid and pan.

Pull the broiler drawer out until it stops, then push it

back in about one inch..

Grasp the handle, lift and pull the broiler drawer out.

Clean the broiler drawer with hot, soapy water.

To replace:

Hold the broiler

drawer in the

raised position as

you slide it partway

into the range°

Then lower the

drawer and push it

completely closed.

Removable Kick Panel

(onsome models)

The kick panel may be removed for cleaning under

the range.

To remove, Iift up the bottom

of the panel slightly to

disengage the panel from the

tabs at the base of the range

Pull the bottom of the panel

forward until the spr_ng clips are

released at the top of the

panel

to replace, insert the two

slots at the bottom of the panel

onto the two tabs at the base

of the range and push the top

of the panel forward to engage

the spring clips,

Removable Storage Drawer

(on some models)

The storage drawer is a good place to store cookware

and bakewareo Do not store pIastics and flammable

material in the drawer.

Do not overload the storage drawer. If the drawer is too

heavy, it may slip off the track when opened.

The storage drawer may be removed for cleaning under

the range. Clean the storage drawer with a damp cloth or

sponge_ Never use harsh abrasives or scouring pads.

To remove the storage drawer:

1oPull the drawer straight

out until it stops.

2. Tilt the front of the

drawer up and free

of the range.

To replace the

storage drawer:

1. Set the stops on the back of the drawer over the stops

in the range.

2. Slide the drawer evenly and straight back, so that the

rails in the range are engaged.

Removable WARM-N-READY Drawer

(on some models)

Before performing any adjustments, cleaning, or

service, disconnect the range electrical power supply

at the household distribution panel by removing the

fuse or switching off the circuit breaker. Make sure

the warming drawer heating element is cool.

Most cleaning can be done with the drawer in place,

However, the drawer may be removed if further cleaning

is needed Use soap and warm water to clean thoroughly°

To remove:

1. Pull the drawer straight out

until it stops.

2. Press the left rail release

up and press the right rail

release down while pulling

the drawer forward

and free,

To replace:

1. Place the leftdrawer rail

around the inner left rail

guide and slide it in slightly

to hook it

2. Piace the right drawer rail

around the inner right rai!

guide and slide it in slightly

to hook it.

3o Slide the drawer all the

way in.

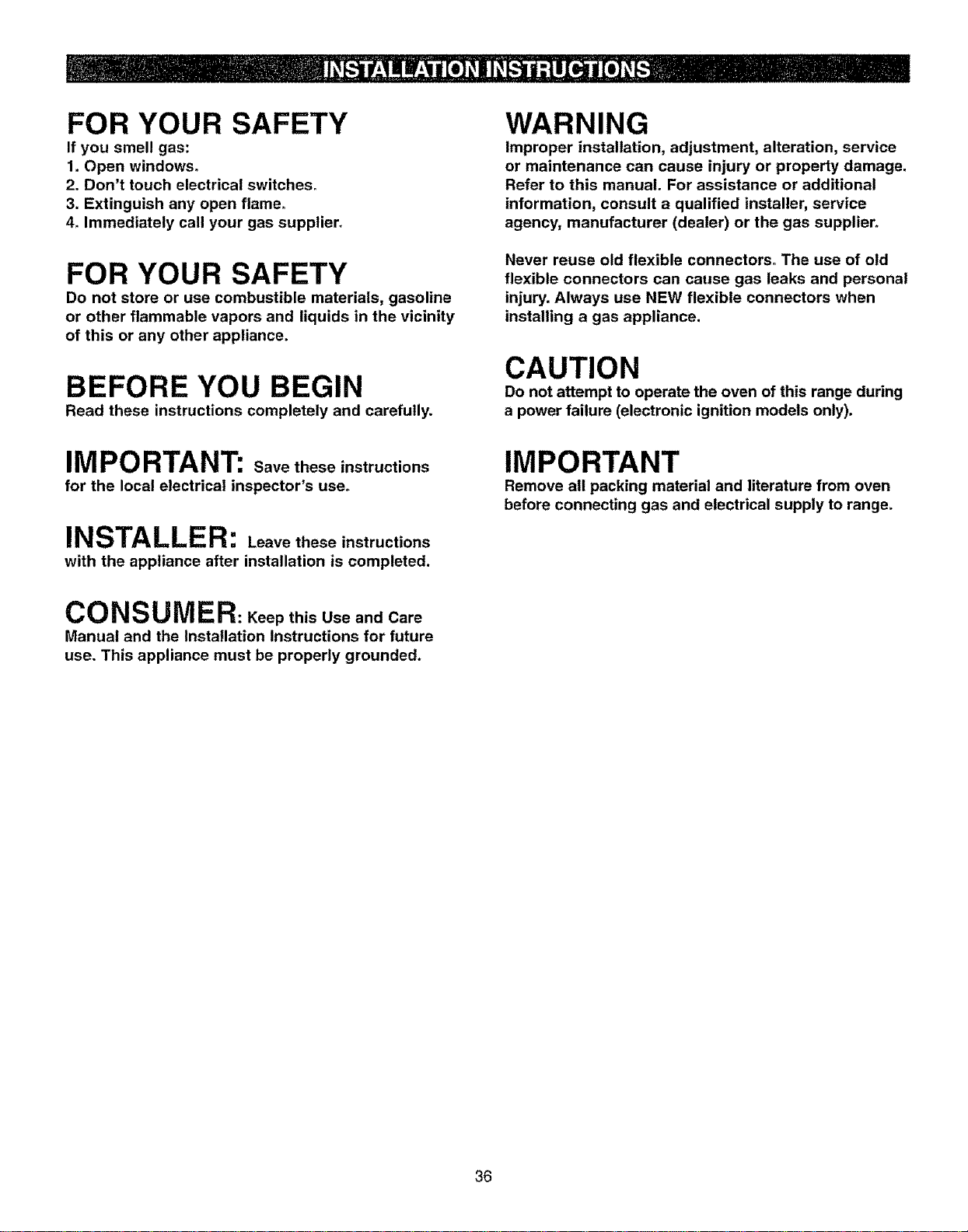

FOR YOUR SAFETY

If you smell gas:

1. Open windows°

2. Don't touch electrical switches.

3. Extinguish any open flame.

4, Immediately call your gas supplier.

FOR YOUR SAFETY

Do not store or use combustible materials, gasoline

or other flammable vapors and liquids in the vicinity

of this or any other appliance.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT: Savetheseinstructions

for the local electrical inspector's use°

INSTALLER: Leave these instructions

with the appliance after installation is completed.

CONSUM ER:Keep thisUseandCare

Manual and the Installation Instructions for future

use. This appliance must be properly grounded.

WARNING

Improper installation, adjustment, alteration, service

or maintenance can cause injury or property damage,

Refer to this manual. For assistance or additional

information, consult a qualified installer, service

agency, manufacturer (dealer) or the gas supplier.

Never reuse old flexible connectors. The use of old

flexible connectors can cause gas leaks and personal

injury. Always use NEW flexible connectors when

installing a gas appliance,

CAUTION

Do not attempt to operate the oven of this range during

a power failure (electronic ignition models only).

IMPORTANT

Remove all packing material and literature from oven

before connecting gas and electrical supply to range.

DIMENSIONS AND CLEARANCES

Provideadequateclearancesbetweentherangeand

adjacentcombustiblesurfaces.

Min_--Max,depth with door

I closed (includes doorhandle):

i---- 3o"

1 (76,.2cm) 1(705 cm--7l .8 cm)

46 1/2" 36 V4"+_1/4"

(1181 cm) (92,1 cm + 6 ram)

Depth with door open: ._ "-,_

46%" (117.8cm) \

(Glass door) . ,-. ...--

461A"(1175 cm) _ j..-_\ ""

(Porcelain door) _ *Depth varies depending on

model See specifications

sheet foryour model

Minimum

to cabinets

on either _

side of

..., J 30"

range _ (76.2 cm)"'-

L18"

_/,(45.7 cm)

F-

Maximum depth for

cabinets above

countertops

I____

n, ,7= 2 cm' i" (2.5cm, Towalt on either

U I,.....U_ J " r/_r € t ;J _t,

slde-sta_dardbuJ model., 13

w.nlmum ,, . (33 ¢ m'l

MI r_ 2 (5cm)l _ wallon either • ";"

' ._2_r side-sealedburnermodels I

36"

(91.5 cm)

.... ,,,,,,, ......... |

Front edge

of range

1/4'._ side panel

(6 ram) forward

from

cabinet

.,,-g"cm

( )

To cabinets

below

cooktop and

at range back

(continued next page)

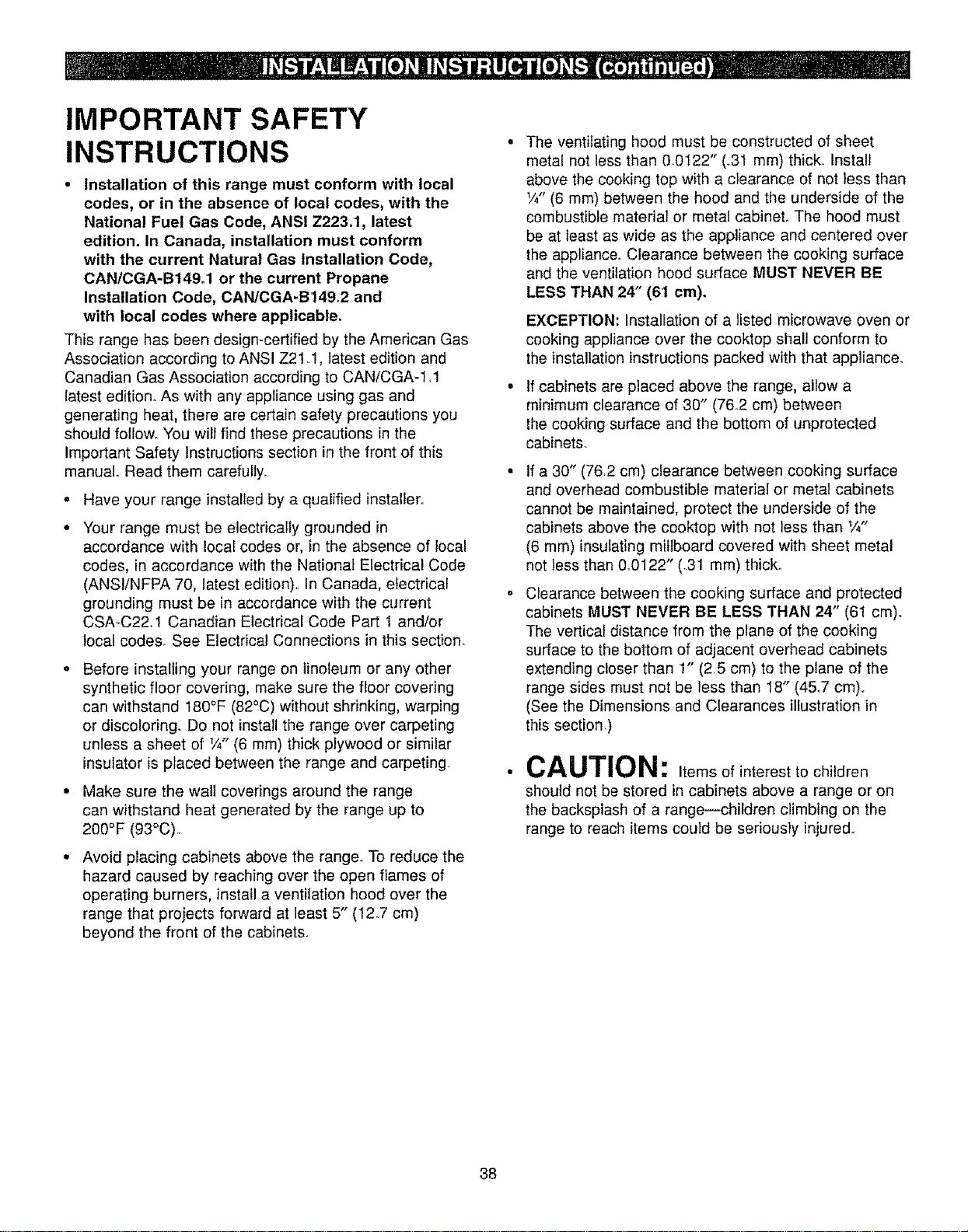

IMPORTANT SAFETY

INSTRUCTIONS

• Installation of this range must conform with local

codes, or in the absence of local codes, with the

National Fuel Gas Code, ANSI Z223.1, latest

edition. In Canada, installation must conform

with the current Natural Gas Installation Code,

CAN/CGA-B149ol or the current Propane

Installation Code, CAN/CGA-B149.2 and

with local codes where applicable.

This range has been design-certified by the American Gas

Association according to ANSI Z21.1, latest edition and

Canadian Gas Association according to CAN/CGA-I_I

latest edition. As with any appliance using gas and

generating heat, there are certain safety precautions you

should follow. You will find these precautions in the

Important Safety Instructions section in the front of this

manual Read them carefully_

• Have your range installed by a qualified installer.

• Your range must be electrically grounded in

accordance with local codes or, in the absence of local

codes, in accordance with the National Electrical Code

(ANSt/NFPA 70, latest edition)° In Canada, electrical

grounding must be in accordance with the current

CSA_C22o1 Canadian Electrical Code Part t and!or

local codes. See Electrical Connections in this section.

Before installing your range on linoleum or any other

synthetic floor covering, make sure the floor covering

can withstand 180°F (82°C) without shrinking, warping

or discoloring. Do net install the range over carpeting

unless a sheet of 1/4"(6 ram) thick plywood or similar

insulator is placed between the range and carpeting.

Make sure the wall coverings around the range

can withstand heat generated by the range up to

200°F (93°0)..

Avoid placing cabinets above the range° To reduce the

hazard caused by reaching over the open flames of

operating burners, install a ventilation hood over the

range that projects forward at least 5" (I2.7 cm)

beyond the front of the cabinets.

• The ventilating hood must be constructed of sheet

metal not less than 0.0122" (..3t ram) thick. Install

above the cooking top with a clearance of not less than

t/4"(6 mm) between the hood and the underside of the

combustible material or metal cabinet. The hood must

be at least as wide as the appliance and centered over

the appliance.. Clearance between the cooking surface

and the ventilation hood surface MUST NEVER BE

LESS THAN 24" (61 cm).

EXCEPTION: Installation of a listed microwave oven or

cooking appliance over the cooktop shalt conform to

the installation instructions packed with that appliance°

• If cabinets are placed above the range, allow a

minimum clearance of 30" (762 cm) between

the cooking surface and the bottom of unprotected

cabinets.

If a 30" (76,2 cm) clearance between cooking surface

and overhead combustible material or metal cabinets

cannot be maintained, protect the underside of the

cabinets above the cooktop with not less than V4"

(6 ram) insulating miflboard covered with sheet metal

not less than Q.0122" (.31 ram) thick.

Clearance between the cooking surface and protected

cabinets MUST NEVER BE LESS THAN 24" (6l cm)°

The vertical distance from the plane of the cooking

surface to the bottom of adjacent overhead cabinets

extending closer than 1" (2.5 cm) to the plane of the

range sides must not be tess than 18" (45.7 cm)..

(See the Dimensions and Clearances illustration in

this section.)

CAUTION: Items of interest to children

should not be stored in cabinets above a range or on

the backsplash of a range--children climbing on the

range to reach items could be seriously injured,

WARNING

All ranges can tip and injury could result.

To prevent accidental tipping of the range,

attach an approved Anti-Tip device to the

wall and floor.. (See Installing the Anti-Tip

Device in this section)

To check if the device is installed and

engaged properly, remove the storage

drawer, broiler drawer, or WARM-N-

READY drawer and inspect the rear

leveling leg. Make sure it fits securely

into the slot..

If you pull the range out from the wall for

any reason, make sure the Anti-T_p

device is engaged when you push the range back against

the wall

• For your safety, never use your range for warming or

heating the room. Your oven and cooktop are not

designed to heat your kitchen. Top burners should not

be operated without cookware on the grate. Such abuse

could result in fire and damage to your range and will

void your warranty.

• Do not store or use combustible materials, gasoline or

other flammable vapors and liquids in the vicinity of this

or any other appliance° Explosions or fires could result.

• Do not use oven for a storage area. Items stored in the

oven can ignite.

• Do not let cooking grease or other flammable materials

accumulate in or near the range.

GENERAL

• See the Dimensions and Clearances illustration in this

section for all rough-in and spacing dimensions. These

dimensions must be met for safe use of your range.

The location of the electrical outlet and pipe opening

(see Gas Pipe and Electric Outlet Locations) may be

adjusted to meet specific requirements,

• The range may be placed with 0" (0 cm) clearance

(flush) at the back wall and side walls of the range.

LOCATION

Do not locate the range where it may be subject to

Strong drafts, Any Openings in the floor or wall behind

the range should be sealed. Make sure the openings

around the base of the range that supply fresh air for

combustion and ventilation are not obstructed by carpeting

or woodwork.

PROTECT YOUR FLOOR

Your range, like many other household items, is heavy

and can settle into soft floor coverings such as cushioned

vinyl or carpeting Use care when moving the range on

this type of flooring. It is recommended that the following

simple and inexpensive instructions be followed to protect

your floor.

The range should be installed on a sheet of plywood (or

similar material) When the floor covering ends at the

front of the range, the area that the range will rest on

should be built up with plywood to the same level or

higher than the floor covering. This will allow the range

to be moved for cleaning or servicing.

MODEL AND SERIAL NUMBER LOCATION

Depending on your range, you'll find the model and serial

numbers on a label on the front frame of the range, behind

the storage drawer, broiler drawer, WARM-N-READY

drawer, or kick panel.

TOOLS YOU WILL NEED

• Phillips and flat-blade screwdrivers

o Pencil and ruler

• Two pipe wrenches (one for backup)

o Open-end or adjustable wrench

• Nut drivers or wrenches: 3/1_"and 1/4"

ADDITIONAL MATERIALS YOU MAY NEED

° Gas line shut_off valve

• Pipe joint sealant or UL-approved pipe thread tape with

Teflon* that resists action of natural and LP gases

• Flexible metal appliance connector (W" I.D..).

A 5-foot (1.5 m) length is recommended for ease of

installation but other lengths are acceptable. Never use

an old connector when installing a new range.

• Flare union adapter for connection to gas supply line

(3/4"or 1/2"NPT x 1A"1.D.)

• Flare union adapter for connection to pressure regulator

on range (W' NPT x 1/2"I.D)

•Teflon: Registeredtrademark of DuPont

(continued next page)

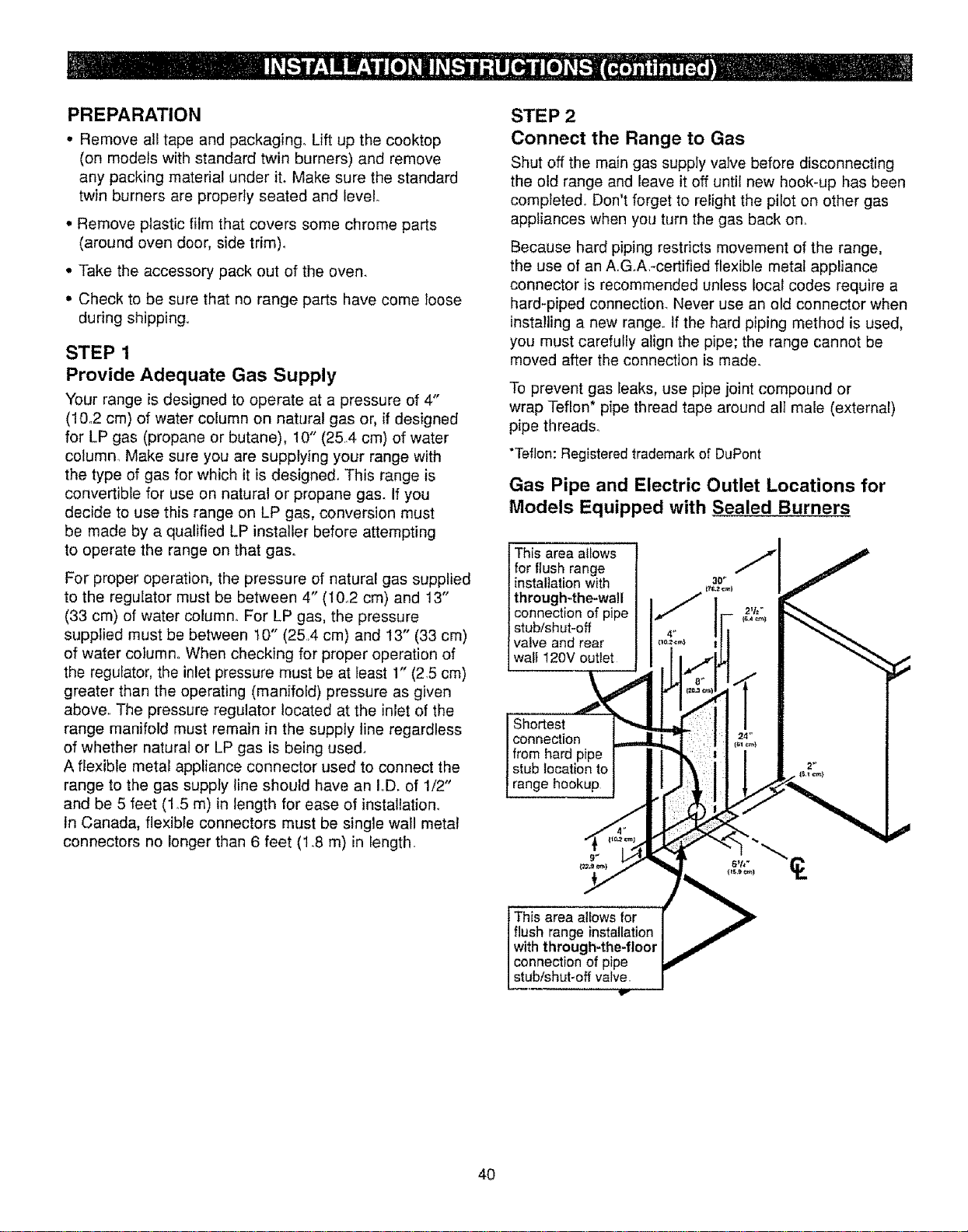

PREPARATION

• Remove al_tape and packaging° Lift up the cooktop

(on models with standard twin burners) and remove

any packing material under it, Make sure the standard

twin burners are proper_y seated and level

• Remove plastic film that covers some chrome parts

(around oven door, side trim)_

• Take the accessory pack out of the oven_

• Check to be sure that no range parts have come loose

during shipping..

STEP 1

Provide Adequate Gas Supply

Your range is designed to operate at a pressure of 4"

(10o2 cm) of water column on natural gas or, if designed

for LP gas (propane or butane), 10" (25.4 cm) of water

column. Make sure you are supplying your range with

the type of gas for which it is designed. This range is

convertible for use on natural or propane gas. If you

decide to use this range on LP gas, conversion must

be made by a qualified LP installer before attempting

to operate the range on that gas.

For proper operation, the pressure of natural gas supplied

to the regulator must be between 4" (10..2 cm) and 13"

(33 cm) of water column.. For LP gas, the pressure

supplied must be between 10" (25.4 cm) and 13" (33 cm)

of water column° When checking for proper operation of

the regufator, the inlet pressure must be at least 1" (2.5 cm)

greater than the operating (manifold) pressure as given

above. The pressure regulator located at the inlet of the

range manifold must remain in the supply line regardless

of whether natural or LP gas is being used°

A flexible metal appliance connector used to connect the

range to the gas supply line should have an I..D.of 1/2"

and be 5 feet (1.5 m) in length for ease of installation°

In Canada, flexible connectors must be single wall metal

connectors no longer than 6 feet (1.8 m) in length.

Connect the Range to Gas

Shut off the main gas supply valve before disconnecting

the old range and leave it off until new hook-up has been

completed° Don't forget to relight the pilot on other gas

appliances when you turn the gas back on..

Because hard piping restricts movement of the range,

the use of an A.GA.-certified flexible metal appliance

connector is recommended unless local codes require a

hard-piped connection. Never use an old connector when

installing a new range., tf the hard piping method is used,

you must carefully align the pipe; the range cannot be

moved after the connection is made.

To prevent gas leaks, use pipe joint compound or

wrap Teflon* pipe thread tape around all male (external)

pipe threads_

"Teflon: Registered trademark of DuPont

Gas Pipe and Electric Outlet Locations for

Models Equipped with Sealed Burners

This area allows

for flush range

installation with

through-,the-wa!l

connection of pipe

stub/shut-off

valve and rear

wall 120V outlet

Shortest

connection

from hard pipe

stub location to

range hookup

IThis area allowsfor

flush range installation

with through-the-floor

connection of pipe

stub/shut-off valveI

Gas Pipe and Electric Outlet Locations

for Models Equipped with Standard

Twin Burners

This area allows

for flush range

installation with

through-the-

wall connection

of pipe

stub!shut-off

valve and rear

wall I20V outlet,

Shortest

/f connection

from hard pipe

30"

_,o__ stub location

to range

hookup.

This area allows

for flush range

installation with

through-the-floor

connection of pipe

stub/shut-off valve.

Flexible Connector Hookup for Models

Equipped with Sealed Burners

Pressure r_ _._m_N-_i_

Adapter _ .... 6ft. (1 8 m) max

_ Adapter

Installer: Inlorm the _ , Gas

consumer of the t_..'f_ I_e_ Shut-off

location of the gas I/2"°r ¾" --._.L_ _ Valve

shut-off valve Gas Pipe

Rigid Pipe Hookup for Models Equipped with

Sealed Burners

Pressure

Regulator

90° Elbow _ _%.

(provided) _I_[}_, -- 90° Elbow

Ni!pla U_o. Black ire. Pipe

_--- Union

Nipple

Installer: Inform the I _'] -_-----

consumer of the I I [_ Gas

location of the gas I !t,(']lit_--- Shut-off

shut-off va re. GasY_"°r _A" -'_'[ ;__/Pipe Vafve

Flexible Connector and Rigid Pipe

Hookup for Models Equipped with

Standard Twin Burners

I Flexible ] IRigid PipeI

Pressure !Connector I [ Hookup J

Regulator _ Hookup I 1[

_t Adapter_ F L-J Nipple UnionU_ 90 Ibow

" Flex Connector_!,

6ff.(18m) max h_J Union

Gas

r_ L_,U_ Shut-Off

..... Adapter _]" Nipple _ !11 Valve

Mani,o,u _'ipe _ Gas ?L_

,------ -- -- _ I lj_7---')_----Shut-off J IL"_

Valve

IInsta,er:Informthe I_ l!l 4.t_Itl

IconsumerofthelecationI L_-_- '_"or¾" -4,,_L_"

I of the gas shut-off valve 1 Gas Pipe

(continued next page)

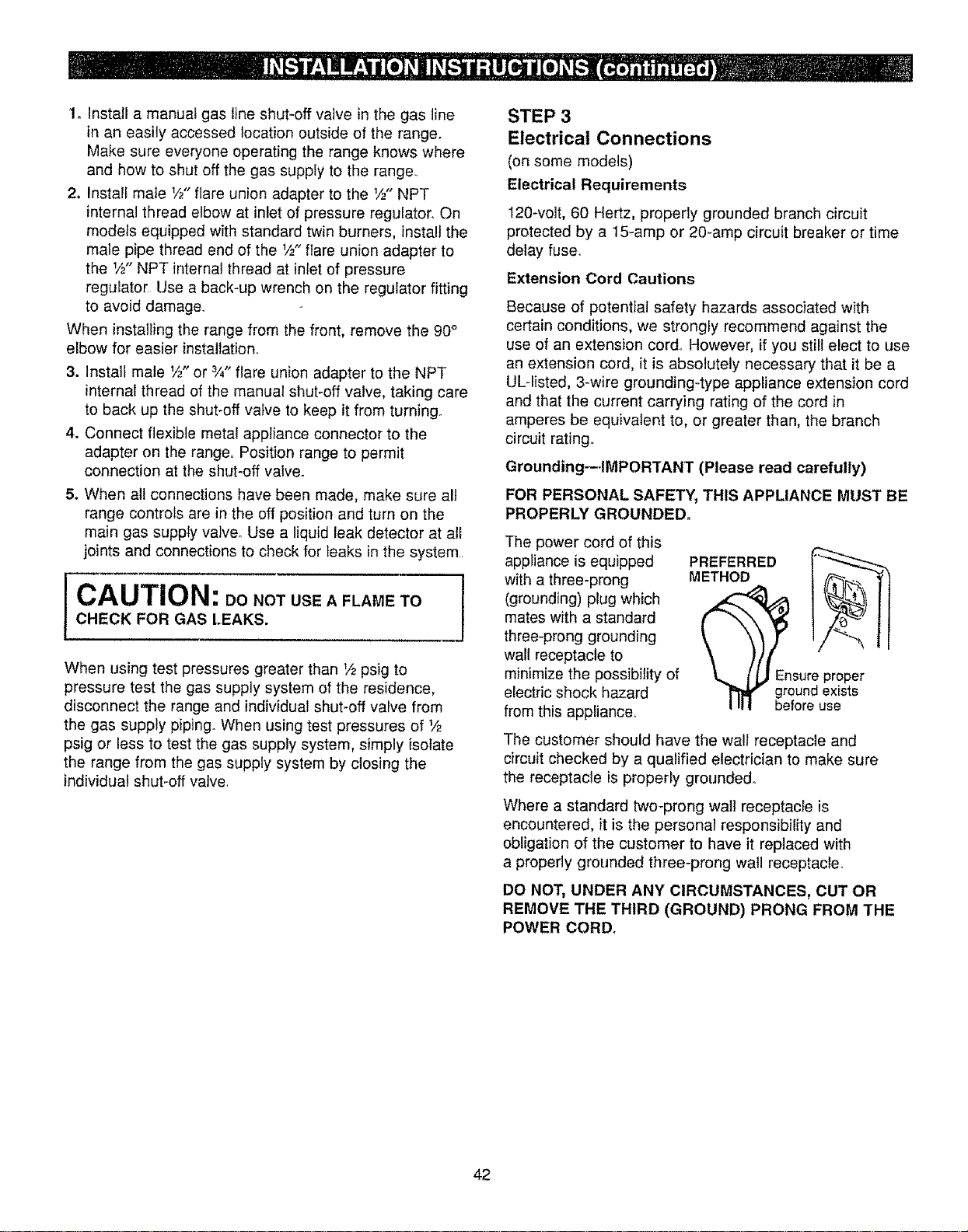

1. Install a manual gas line shut-off valve in the gas line

in an easily accessed location outside of the range.

Make sure everyone operating the range knows where

and how to shut off the gas supply to the range.

2. Install male W' flare union adapter to the W' NPT

internal thread elbow at inlet of pressure regulator. Qn

models equipped with standard twin burners, install the

male pipe thread end of the 1/2"flare union adapter to

the 1A" NPT internal thread at inlet of pressure

regulator. Use a back-up wrench on the regulator fitting

to avoid damage..

When installing the range from the front, remove the 90 °

elbow for easier installation_

3. Install male 1/2"or 3A"flare union adapter to the NPT

internal thread of the manual shut-off valve, taking care

to back up the shut-off valve to keep it from turning.

4. Connect flexible metal appliance connector to the

adapter on the range. Position range to permit

connection at the shut-off valve.

5. When all connections have been made, make sure all

range controls are in the off position and turn on the

main gas supply valve_ Use a liquid leak detector at all

joints and connections to check for leaks in the system..

CAUTION: DoNOTUSEAFLAMETo

CHECKFORGASLEAKS.

]

When using test pressures greater than 1/_psig to

pressure test the gas supply system of the residence,

disconnect the range and individual shut-off valve from

the gas supply piping. When using test pressures of _A

psig or less to test the gas supply system, simply isolate

the range from the gas supply system by closing the

individual shut-off valve.

STEP 3

Electrical Connections

(on some models)

Electrical Requirements

120-volt, 60 Hertz, properly grounded branch circuit

protected by a 15-amp or 20-amp circuit breaker or time

delay fuse..

Extension Cord Cautions

Because of potential safety hazards associated with

certain conditions, we strongly recommend against the

use of an extension cord.. However, if you still elect to use

an extension cord, it is absolutely necessary that it be a

UL-listed, 3-wire grounding-type appliance extension cord

and that the current carrying rating of the cord in

amperes be equivalent to, or greater than, the branch

circuit rating..

Grounding--.IMPORTANT (Please read carefully)

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED.

The power cord of this

appliance is equipped

with a three-prong

(grounding) plug which

mates with a standard

three-prong grounding

wall receptacle to

minimize the possibility of

electric shock hazard

from this appliance..

PREFERRED

METHOD

The customer should have the wall receptacle and

circuit checked by a qualified electrician to make sure

the receptacle is properly grounded°

Where a standard two-prong wall receptacle is

encountered, it is the personal responsibility and

obligation of the customer to have it replaced with

a properly grounded three-prong wall receptacle.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR

REMOVE THE THIRD (GROUND) PRONG FROM THE

POWER CORD.

A: Usage Situations Where Appliance Power Cord

Wilt Be Disconnected Infrequently,

TEMPORARYMETHOD

(Adapter plugs not

permitted in Canada) -_-.-._._,_',_

Aflgn largeprongs/sfots<._ _ I

\ t )/z _ Ensure proper ground

\ //| and firm connection

before use

An adapter may be used only on a 15-amp circuit. Do not

use an adapter on a 20-amp circuit. Where local codes

permit, a TEMPORARY CONNECTION may be made to

a properly grounded two-prong wal! receptacle by the use

of a UL-listed adapter, available at most hardware stores.

The larger slot in the adapter must be aligned with the

larger slot in the wall receptacle to provide proper polarity

in the connection of the power cord.

CAUTION: Attaching the adapter ground

terminal to the wail receptacle cover screw does not

ground the appliance unless the cover screw is metal,

and not insulated, and the wall receptacle is grounded

through the house wiring.. The customer should have

the circuit checked by a qualified electrician to make

sure the receptacle is properly grounded.

When disconnecting the power cord from the adapter,

always hold the adapter with one hand,, if this is not done,

the adapter ground terminal is very likely to break with

repeated use, Should this happen, DO NOT USE the

appliance until a proper ground has again been

established.

B: Usage Situations Where Appliance Power Cord

Will Be Disconnected Frequently.

Do not use an adapter plug in these situations because

disconnecting of the power cord places undue strain on

the adapter and leads to eventuat failure of the adapter

ground terminal, The customer should have the two-prong

wall receptacle replaced with a three-prong (grounding)

receptacle by a qualified electrician before using the

appliance.

The installation of appliances designed for mobile home

installation must conform with the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part

3280 (formerly the Federal Standard for Mobile Home

Construction and Safety, Title 24, HUD, Part 280) or,

when such standard is not applicable, the Standard for

Manufactured Home Installations, latest edition

(Manufactured Home Sites, Communities and Set-Ups),

ANSI A225ol, latest edition, or with local codes. In

Canada, mobile home installation must be in accordance

with the current CAN/CSA Z240/Mtl Mobile Home

Installation Code.

Electric Disconnect

1. Locate disconnect plug on the range back.

2. Pinch sides of connector and pull out of range back.

You will have this disconnect plug:

STEP 4

Seal the Openings

Seal any openings in the wall behind the range and in the

floor under the range when hookups are completed.

(continued next page)

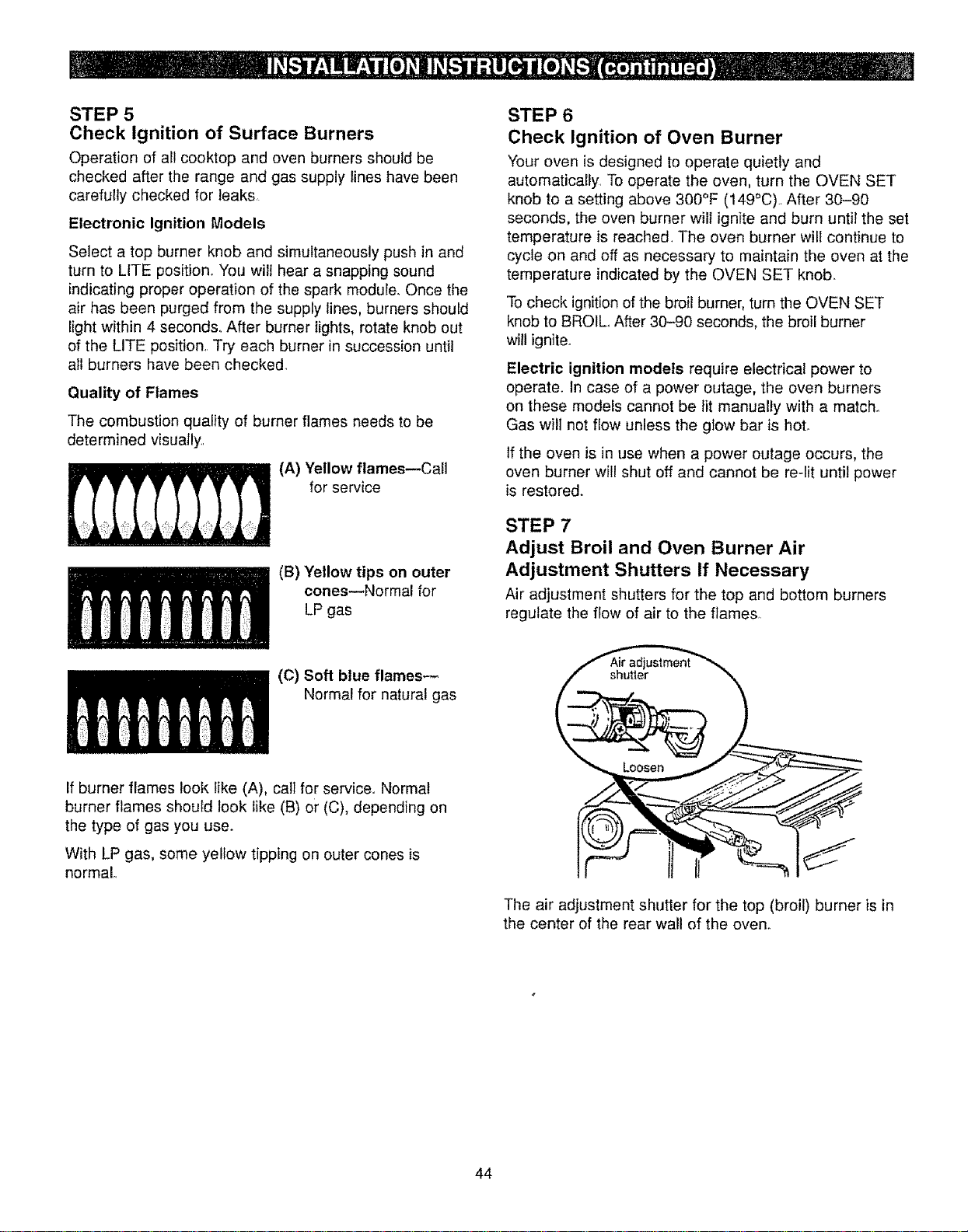

STEP 5

Check Ignition of Surface Burners

Operation of all cooktop and oven burners should be

checked after the range and gas supply lines have been

carefully checked for leaks

Electronic Ignition Models

Select a top burner knob and simultaneously push in and

turn to LITE positiono You will hear a snapping sound

indicating proper operation of the spark modufe. Once the

air has been purged from the supply lines, burners should

light within 4 seconds,. After burner lights, rotate knob out

of the LITE position, Try each burner in succession until

all burners have been checked.

Quality of Flames

The combustion quality of burner flames needs to be

determined visually,.

(A) Yellow flames--Call

for service

(B) Yellow tips on outer

cones--Normal for

LP gas

STEP 6

Check Ignition of Oven Burner

Your oven is designed to operate quietly and

automatically. To operate the oven, turn the OVEN SET

knob to a setting above 300°F (149°C)._After 30-90

seconds, the oven burner will ignite and burn until the set

temperature is reached, The oven burner will continue to

cycle on and off as necessary to maintain the oven at the

temperature indicated by the OVEN SET knob..

To check ignition of the broil burner, turn the OVEN SET

knob to BROIL,. After 30-90 seconds, the broil burner

will ignite.

Electric ignition models require electrical power to

operate. In case of a power outage, the oven burners

on these models cannot be lit manually with a match°

Gas will not flow unless the glow bar is hot.

If the oven is in use when a power outage occurs, the

oven burner will shut off and cannot be re-lit until power

is restored.

STEP 7

Adjust Broil and Oven Burner Air

Adjustment Shutters if Necessary

Air adjustment shutters for the top and bottom burners

regulate the flow of air to the flames,

Normal for natural gas

If burner flames look like (A), call for service° Normal

burner flames should look like (B) or (C), depending on

the type of gas you use.

With LP gas, some yellow tipping on outer cones is

normal..

The air adjustment shutter for the top (broil) burner is in

the center of the rear wall of the oven_

Theshutterforthebottom(oven)burnerisneartheback

wal_behindthebroilerdrawer,WARM-N-READYdrawer,

storagedrawer,orkickpanel(dependingonthemodel),

RemovethedrawerorpanelSeetheCareandCleaning

sectioninthisguide_

Toadjusttheflowofairto eitherburner,loosenthe

Phillipsheadscrewandrotatetheshuttertowardopen

orctosedpositionasneeded.

The flames for the top 3roil) burner should burn steady

with approximately 1" blue cones and should not extend

out over the edges of the burner baffle.

To determine if the bottom burner flames are burning

properly, remove the oven bottom_ Flames should have

approximately 1" blue cones and, if range is supplied with

natural gas, should burn with no yellow tipping.. (With

most LP gas, small yellow tips at the end of outer cones

are normal,) Flames should not lift off burner ports° If

lifting is observed, gradually reduce air shutter opening

until flames are stabilized.

To remove the oven bottom:

1. Remove the knuded screws holding down rear of the

oven bottom,

2. Grasp the oven bottom at finger slots on each side.

3. Lift the rear of the oven bottom enough to clear

the lip of the range frame, push it back, and then pull

it up and out,.

STEP 8

Leveling the Range

1. Install the oven shelves

in the oven, then position

the range where itwill be

installed,

2. Check for levelness by

placing a spirit level or a

partially fiiled cup of water

on one of the oven shelves.

If using a spirit level, take

two readings--with the

level placed diagonally first

in one direction and then

the other.

Raise

Lowe,

(on some models)

5, After the range is level,

slide the range away

from the wall so that the

Anti-Tip device can be

installed

Remove the broiler drawer, WARM-N-READY drawer,

storage drawer, or kick panel. The front leveling legs

can be adjusted from the bottom and the rear legs

can be adjusted from the top or bottom.

Use an open-end or i=_._

adjustable wrench to • |

adjust the leveling legs Lower

until the range is level. _ge

(on some models)

(continued next page)

STEP 9

Installing the Anti-Tip Device

WARNING:

• Range must be secured with an approved Anti-Tip

device..

• Unless properly installed, the range could be tipped

by you or a child standing, sitting or leaning on an

open door..

• After installing the Anti.Tip device, verify that it is

properly installed and engaged by removing the

broiler drawer, WARM-N-READY drawer, storage

drawer, or kick panel and inspecting the rear leveling

leg. Make sure it fits securely into the sbL.

• This range has been designed to meet alt

recognized industry tip standards for all normal

conditions.

• The installation of the Anti-Tip device must meet all

local codes for securing the appliance.

• The use of this device does not preclude tipping of

the range when not properly installed°

• If the Anti-Tip device supplied with the range does

not fit this application, use the universal Anti-Tip

device WBO2X7909.

These Anti-Tip device installation instructions are for

wood or concrete floors and walls. Any other type of

construction may require special installation techniques

to provide adequate fastening of the anti-tip device to

the floor and wallo

1. Locate the device against the rear wall and either the

right or left cabinet. If the countertep overhangs the

cabinet, offset the device from the cabinet by the

amount of overhang, if there is no adjacent cabinet,

position the edge of the device at the desired Iocation

of the range side panel

2. Use the device as a

AdjacenlCabinelor

template and mark 2 FinalLecalt0nof Range

hole positions on the Side Pane _1 WailHoles

wall and 2 hole _;wo0dn_Dr_

positions on the floor. :Hele_ I_l-'_.

Use either the wood

or concrete floor

set of positions, _!f'__ ceo_rete

depending on your % y_jJ Floor

floor type.. ,,_ _ Holes

RearLeveling-

LegelRange

3. For wood construction, drill a lie" pilot hole in the

center of each of the pre-marked wood floor and

wall hole positions (a nail or awl may be used if a drill

is not available). Fasten the Anti-Tip device with the

4 screws provided.

Attachmenttowotl I:I .

| Anti-TipDevice _ I Waltplate

Scr0w,.oe)ee,e,I1]1 I

For concrete construction, you wilt need four

V4"x 11/2" lag bolts and four 1/{, Q,D,, sleeve anchors

(not provided), Ddl) the recommended size hole for the

anchors into the concrete at the center of each pre-

marked floor and wall hole position, Install the sleeve

anchors into the drilled holes and then install the lag

bolts through the device. Do not overtighten the

bolts.

Slide the range against the wall, and check for proper

installation by removing the broiler drawer, WARM-N-

READY drawer, storage drawer, or kick panel and

inspecting the rear leveling leg. Make sure it fits

securely into the slot on the Anti-Tip device.

WHEN ALL HOOKUPS ARE COMPLETED:

MAKE SURE ALL OF THE CONTROLS ARE LEFT

IN THE OFF POSITION.

MAKE SURE THE FLOW OF COMBUSTION AND

VENTILATION AIR TO THE RANGE IS

UNOBSTRUCTED.

Converting to LP gas

(or converting back to natural gas from LP)

This range leaves the factory set for use with natural gas,,

If you want to convert to LP gas, the conversion must be

performed by a qualified LP gas installer,

The conversion instructions, sticker and LP orifices

can be found attached to the range next to the

pressure regulator.

There is a second set of instructions included in the

envelope containing the product wiring diagrams on the

back of the range,, Keep these instructions and the

orifices in case you want to convert back to natural gas.

PROBLEM

TOP BURNERS DO NOT

LIGHT OR DO NOT

BURN EVENLY

BURNER FLAMES VERY

LARGE OR YELLOW

SURFACE BURNERS

LIGHT BUT OVEN

DOES NOT

POSSIBLE CAUSE

Make sure electrical plug is plugged into a live power cutlet.

Burner holes on the side or around the top of burner may be clogged. Remove

burners (on models with standard twin burners) or burner heads (on models

with sealed burners) or burner caps on spill-proof models, and clean them

with a sewing needle or twist tie. Make sure you do not enlarge the holes,

On spill-proof models, check electrode area for burned-on food or grease.

Make sure drip pans (on some models) are installed correctly.

If range is connected to LP gas, contact the person who installed your range

or made the conversion.

The oven gas shut-off valve may have accidentally been moved during

cleaning or moving.

To check the oven gas shut-off valve on standard twin burner models, raise

the cooktop and look for the gas shut-off lever at the extreme right rear corner.

Follow the directions in box A or B that match your regulator type.

Lever shown closed.i/

Standard Twin Burner Models Standard Twin Burner Models

To check the oven gas shut-off valve on sealed burner models, remove the

broiler drawer, WARM-N-READY drawer, storage drawer, or kick panel and look

for the gas shut-off lever at the back of the range.

\ ;o;;;;;'J;'/

Sealed Burner Modets

PROBLEM

CLOCK AND TIMER

DO NOT WORK

"F--AND A NUMBER"

FLASH IN THE DISPLAY

THE DISPLAY GOES

BLANK OR INDICATOR

LIGHTS COME ON WHEN

THE RANGE IS NOT IN USE

CLEAN LIGHT FLASHES

OVEN LIGHT DOES NOT

COME ON

SURFACE LIGHT

DOES NOT WORK

OVEN WILL NOT WORK

OVEN TEMPERATURE

TOO HOT OR TOO COLD

FOOD DOES NOT ROAST

OR BAKE PROPERLY

OVEN SHELVES HAVE

BECOME DIFFICULT

TO SLIDE

POSSIBLE CAUSE

• Range electrical plug must be securely seated in a live power outlet,, Check

for blown fuse or tripped circuit breaker,

• Check for power outage_

• Review the Oven Control, Clock and Timer section of this guide

• If the time display flashes "F--and a number", you have a function error code.

tf a function error code appears during the self-cleaning cycle, check the oven

door latch. The latch may have been moved, even if only slightly, from the

latched position. Make sure the latch is moved to the right as far as it will go.

Turn the Oven Set knob to off. Allow the oven to cool for one hour,,

Put the oven back into operation.

• Disconnect all power to the range for 5 minutes and then reconnect power.

If the failure code repeats, then cal! for service_

• Disconnect power to the range at the fuse box or circuit breaker for at least

10 seconds. Turn power back on. if the indicator lights are still on, call

for service,,

• The Oven Set knob is set at CLEAN before the door latch handte is

moved to the rig hr.

• Bulb may be loose or burned out.

• Electrical plug must be plugged into a live power outlet.

° Fluorescent bulb is loose or defective. Adjust or replace.

• Switch operating light is broken. Call for service.

° Plug on the range is not completely inserted in the electrical outlet

• The circuit breaker in your house has been tripped, or a fuse has been blown,

- Door left in _ock position after self-cleaning.

• Oven controts not properly set.

• The oven thermostat needs adjustment. See the Adjust the Oven

Thermostat--Do It Yourself section.

- Oven controls not properly set. See the Baking or Roasting section.

• Shelf position is not correct.

• Incorrect cookware or cookware of improper size is being used.

• Oven thermostat needs adjustment. See the Adjust the Oven

Thermostat--Do It Yourself section,

• Clock not set correctly.

Aluminum foil used improperly in the oven,

Oven bottom not securely seated in position.

The shelves were clea_ed in a self-clean cycle° To make the shelves slide

more easily, apply a small amount of vegetable oil to a paper towel and wipe the

edges of the oven shelves or the oven shelf supports with the paper towel,,

PROBLEM

FOOD DOES NOT

BROIL PROPERLY

OVEN WILL NOT

SELF-CLEAN

OVEN NOT CLEAN AFTER

CLEAN CYCLE

OVEN DOOR WILL

NOT UNLOCK

DOOR ACCIDENTALLY

LOCKED WHILE BAKING

STRONG ODOR

DRAWER DOES NOT SLIDE

SMOOTHLY OR DRAGS

WARM-N-READY DRAWER

WILL NOT WORK

EXCESSIVE CONDENSATION

INTHE WARM-N-READY

DRAWER

FOOD DRIES OUT IN THE

WARM-N-READY DRAWER

POSSIBLE CAUSE

, Oven controls not properly set See the Broiling section.

• Oven door and/or broiler drawer motclosed.

• Improper shelf position being used See the Broiling section..

- Food is being cooked on a hot pan.

• Cookware is not suited for broiling.

- Aluminum foil used on the broiler pan grid has not been fitted properly

and slit as recommended.

- Oven bottom not securely seated in position.

• Oven temperature is too high to set self-cleaning operation.

Allow the range to cool to room temperature and reset the controls

• Oven Set knob not sel to CLEAN.

• Door latch handle not moved all the way to the right..

• Oven controls not set properly. See the Operating the Self-Cleaning

Oven section

• Heavily soiled ovens require at least 5 hours and 59 minutes of cleaning time

• Heavy spillovers should be cleaned up before starting clean cycle.

- The oven must cool below the locking temperature after the clean cycle

is complete.. Do not lock door with door latch except when using the

self-clean feature or the oven may lock.

• Turn the Oven Set knob to OFF,

• Improper air/gas ratio in oven_ Adjust oven burner air shutter.

° An odor from the insulation around the oven liner is normal for the first few

times oven is used. This is temporary.

• The drawer is out of alignment. Fully extend the drawer and push it all the way

in. See the Care and Cleaning section.

, The drawer is overloaded or toad is unbalanced. Reduce the weighL

Redistribute the drawer contents.

• A fuse in your home may be blown or the circuit breaker tripped. Replace the

fuse or reset the circuit breaker.

• The oven is self-cleaning. Wait for the self-clean cycle to finish and the

oven to cool.

• Controls improperly set. See the WARM-N-READY Drawer section.

• Liquid in WARM-N-READY drawer. Remove liquid.

• Uncovered foods. Cover food with lid or aluminum foil.

• "fi_mperature setting too high. Reduce temperature setting.

• Moisture escaping.. Cover food with lid or aluminum foil.

r____®

FREE-STANDING GAS RANGE

WARRANTY

/"-FULL ONE YEAR WARRANTY ON ALL PARTS

If, within one year from the date of installation, any part fails to function properly due to a defect in

material or workmanship, Sears wilt repair or replace it, at our option, free of charge..

If this product is subjected to other than private family use, the above warranty is effective for only

90 days.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS

SERVICE CENTER IN THE UNITED STATES,

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears Roebuck and Co_ Dept. 817 WA Hoffman Estates, IL 60179

To Further Add To The Value Of Your Range, Buy a Sears Maintenance Agreement,

Years of Ownership Coverage 1st Year 2nd Year 3rd Year

1. Replacement of Defective Parts W MA MA

2. Annual Preventive Maintenance

Check at your request MA MA MA

W - Warranty MA - Maintenance Agreement

Kenmore Appliances are designed, manufactured and tested for years of dependable operation° Yet, any appliance may

require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program for

your product.

The table above shows the additional benefits a Sears Maintenance Agreement offers compared to a Sears Warranty.

Contact your Sears Sales Associate or local Sears Service Center to purchase a Sears Maintenance Agreement.,

Kenmore 36272322100 gas range

Product's Documents

User Manual

Specifications

Kenmore 36272322100 Questions and Answers
