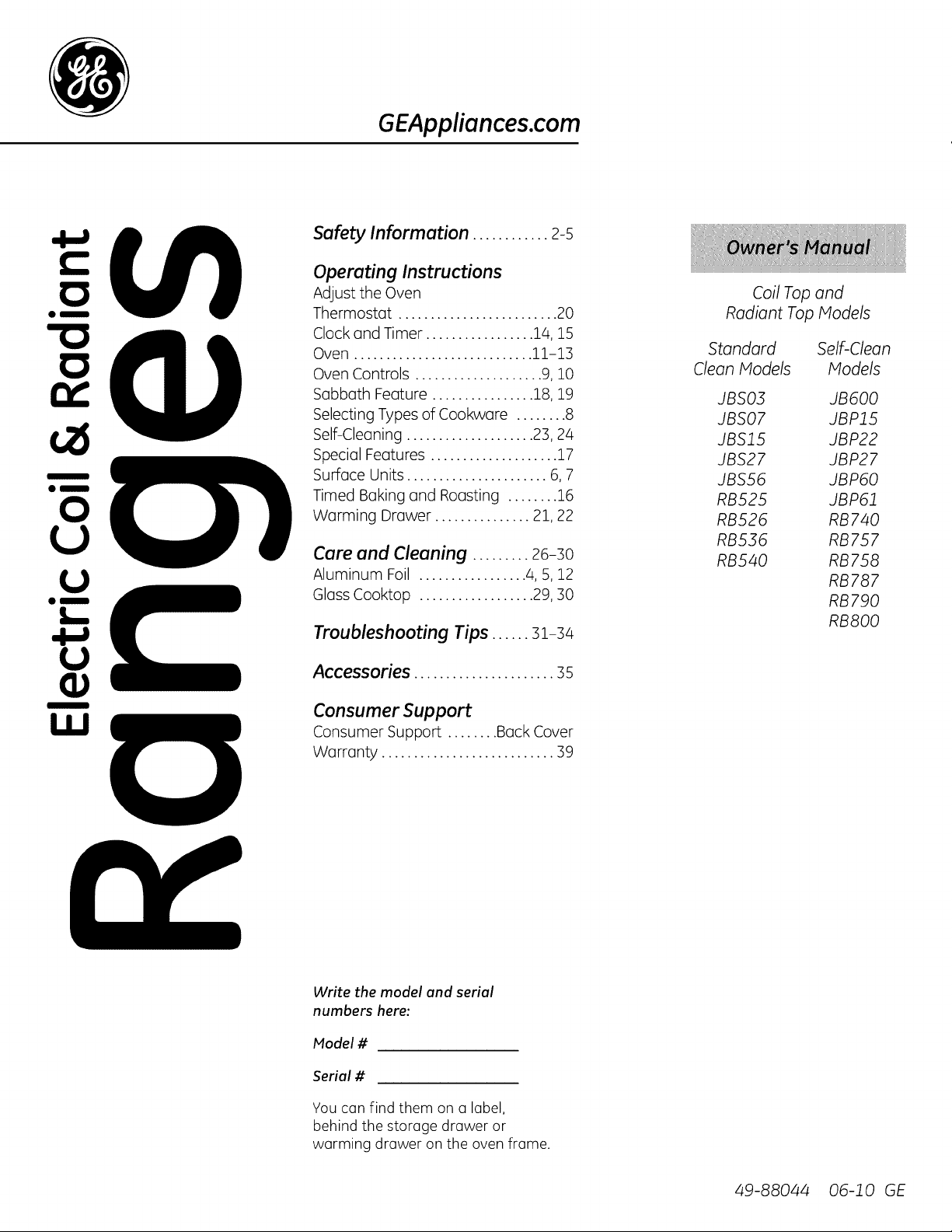

Hotpoint RB757BH6WH 30" Freestanding Electric Range User Manual

Coil Top and

Radiant Top Models

Standard

Clean Models

JBS03

JBS07

JBS15

JBS27

JBS56

RB525

RB526

RB536

RB540

Self-Clean

Models

JB600

JBP15

JBP22

JBP27

JBP60

JBP61

RB740

RB757

RB758

RB787

RB790

RB800

49-88044 06-10 GE

Safety Information . . . . . . . . . . . . 2-5

Operating Instructions

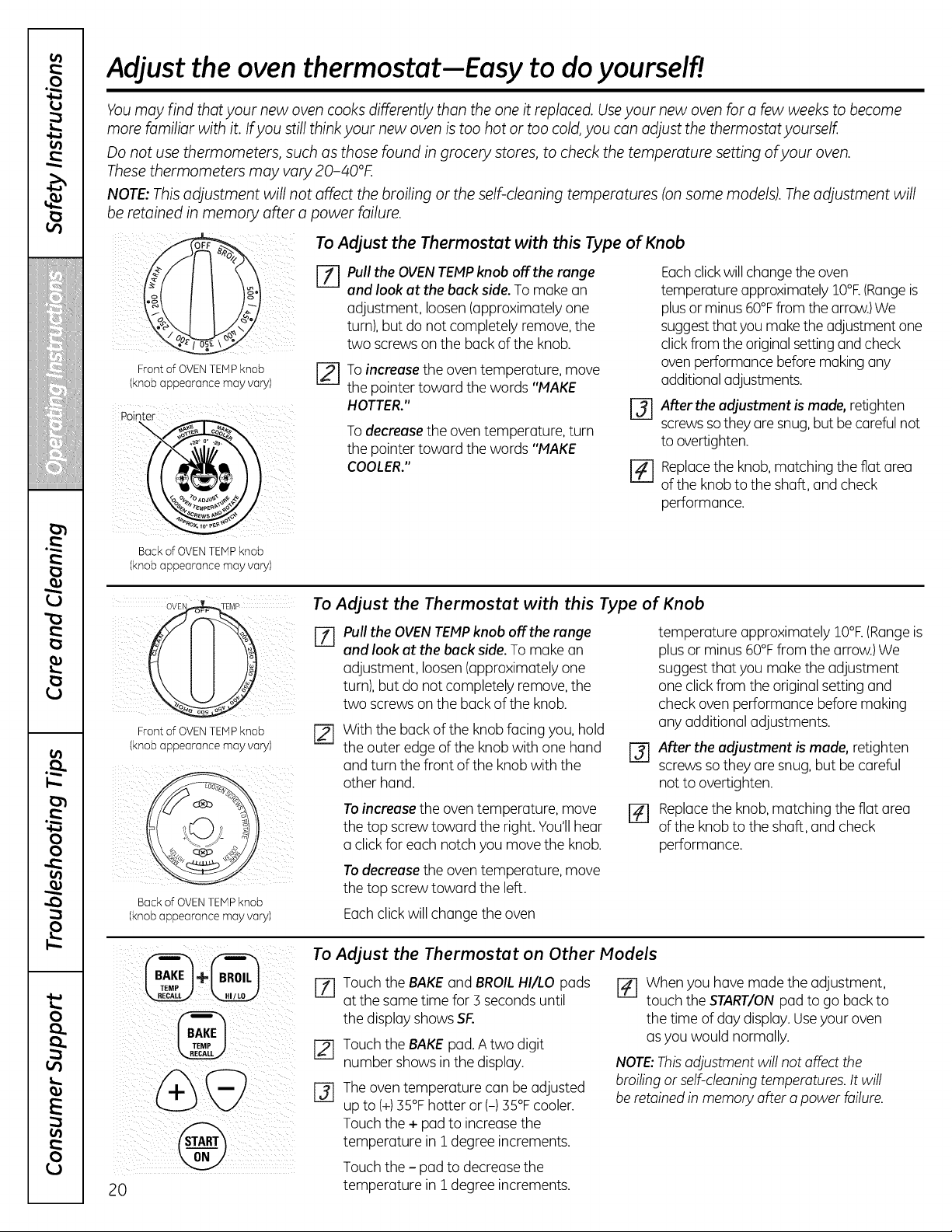

Adjust the Oven

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . .20

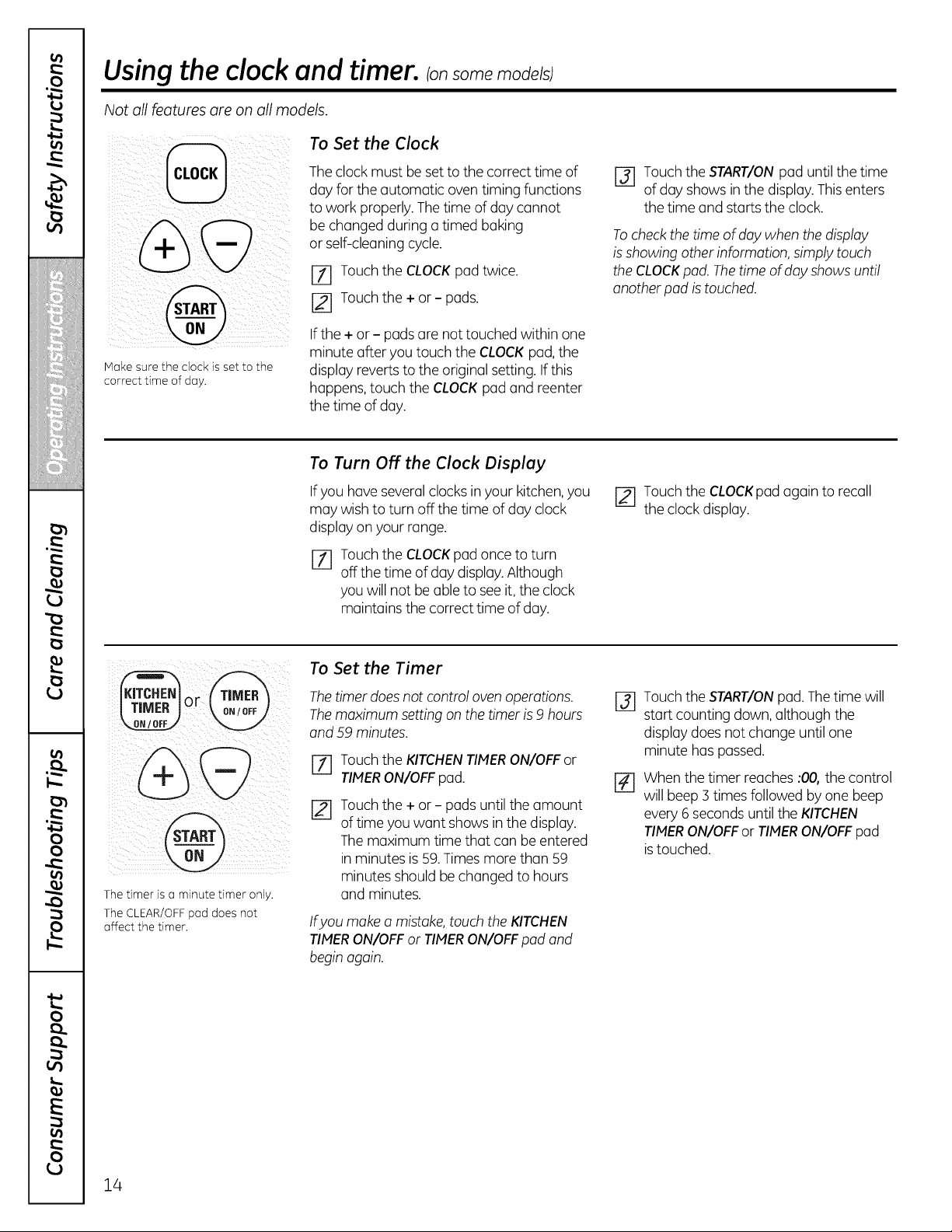

Clock and Timer . . . . . . . . . . . . . . . . .14, 15

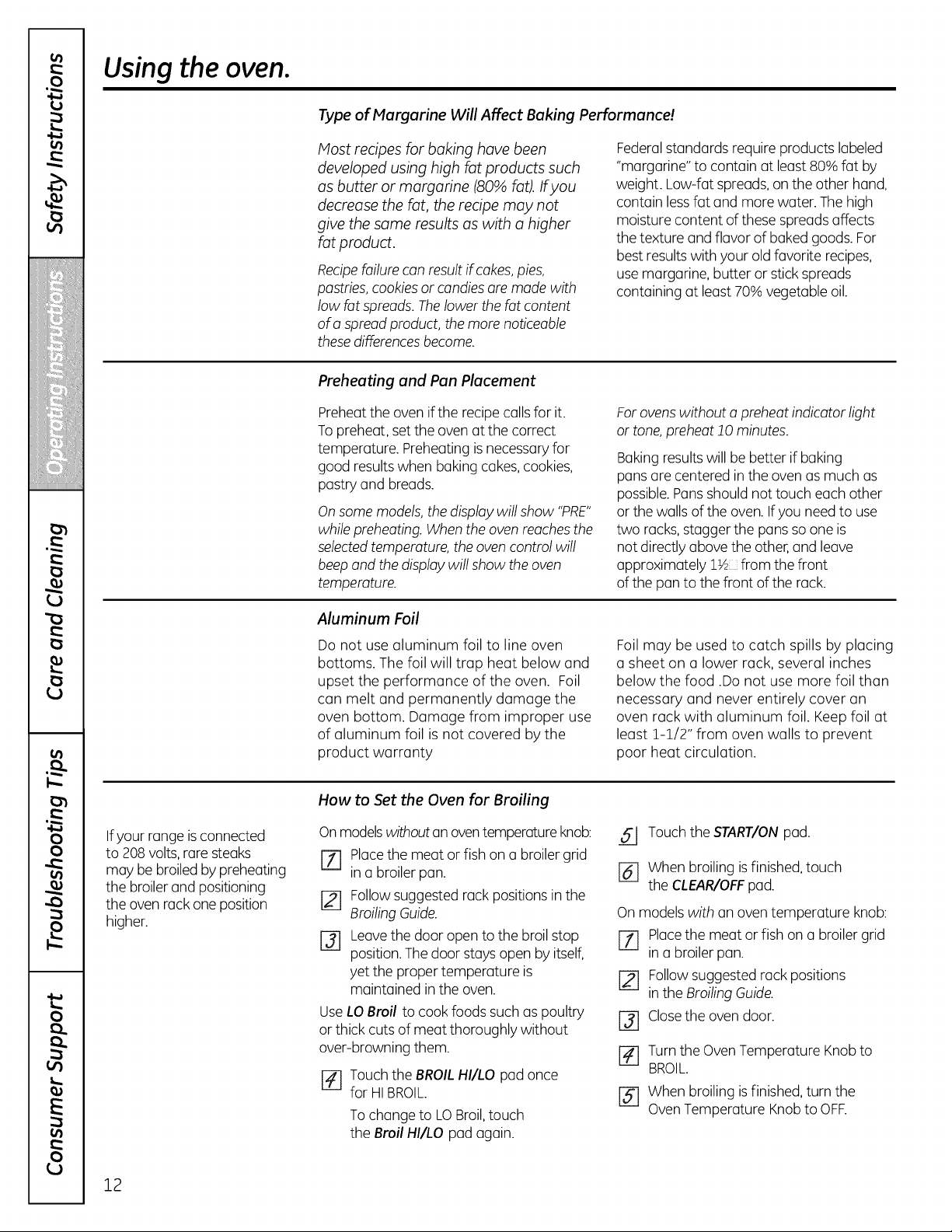

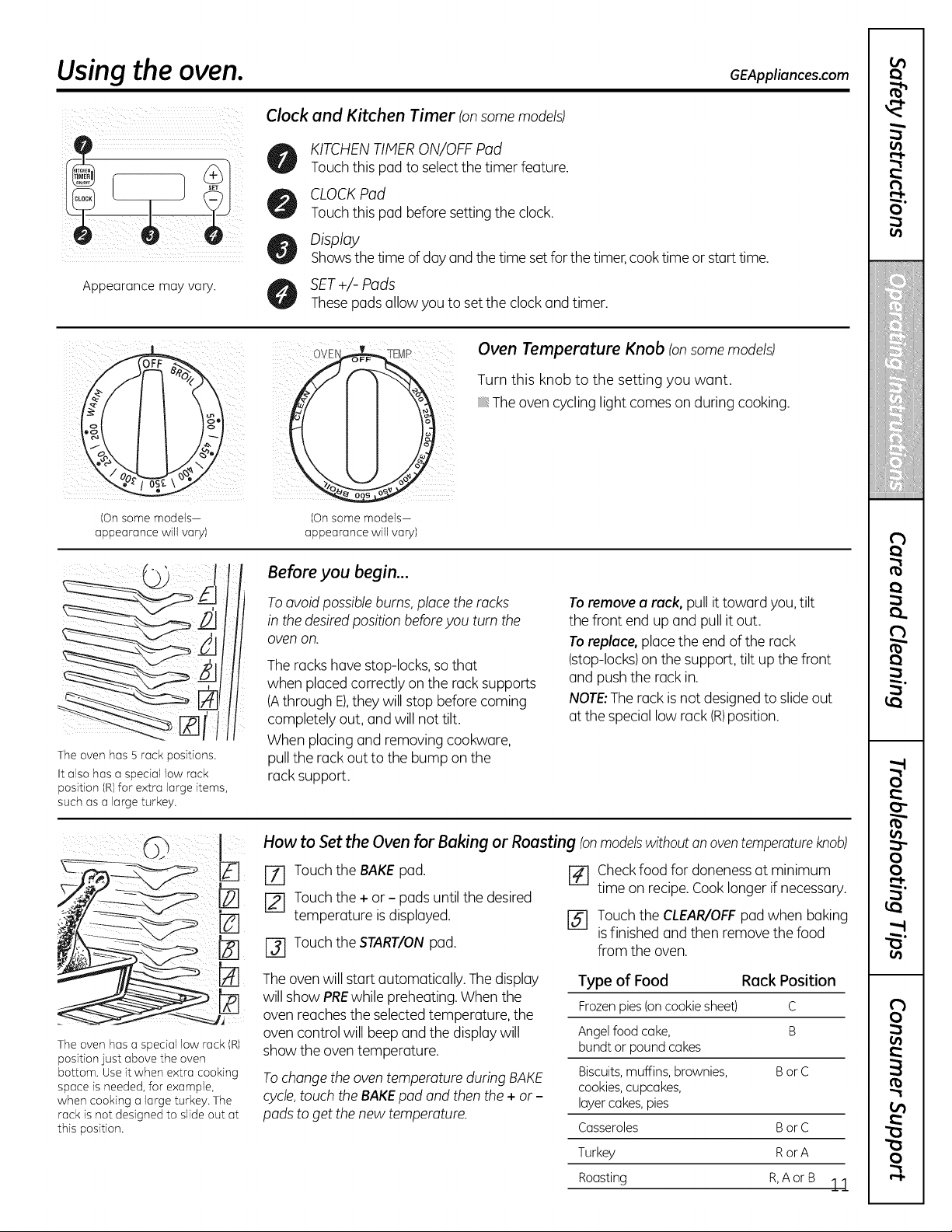

Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . .11–13

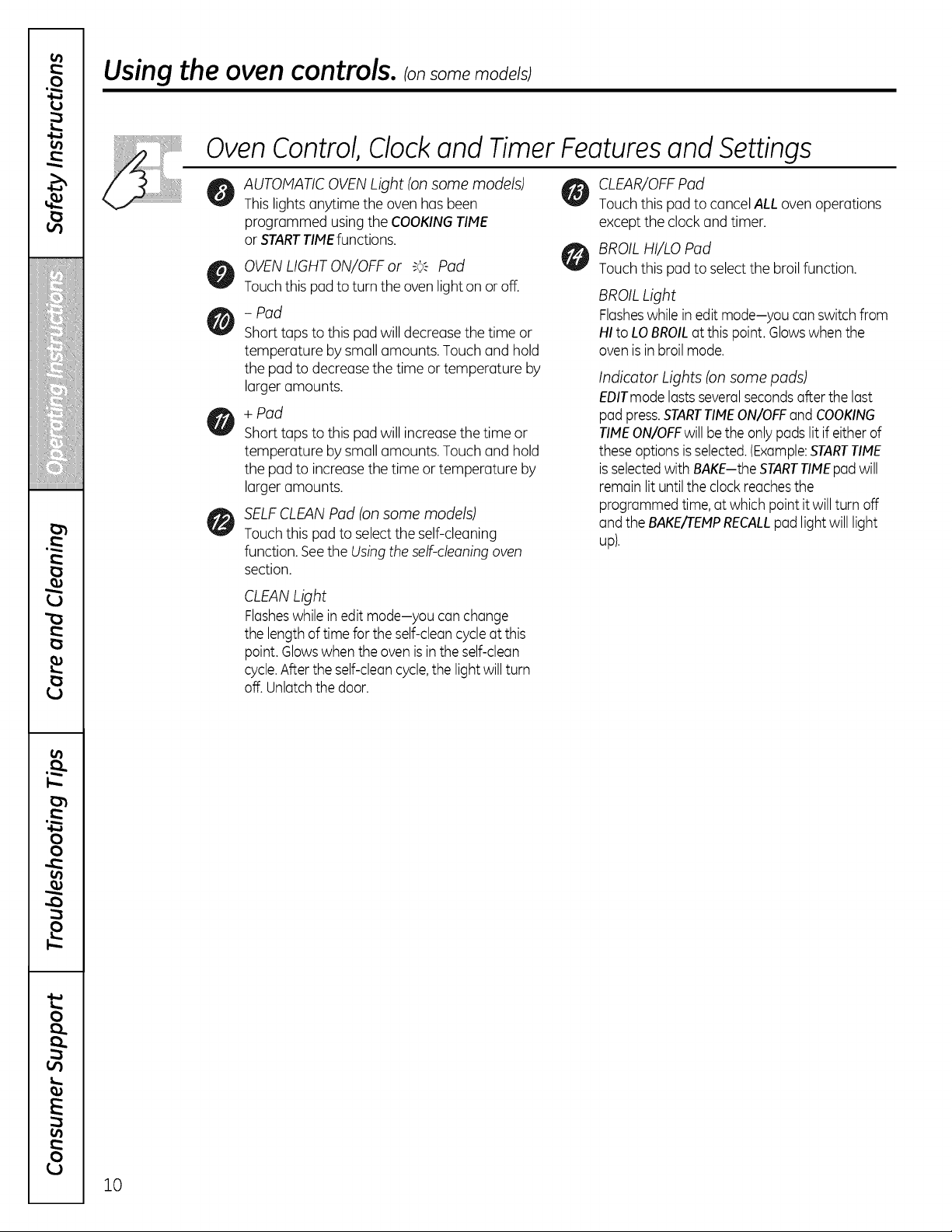

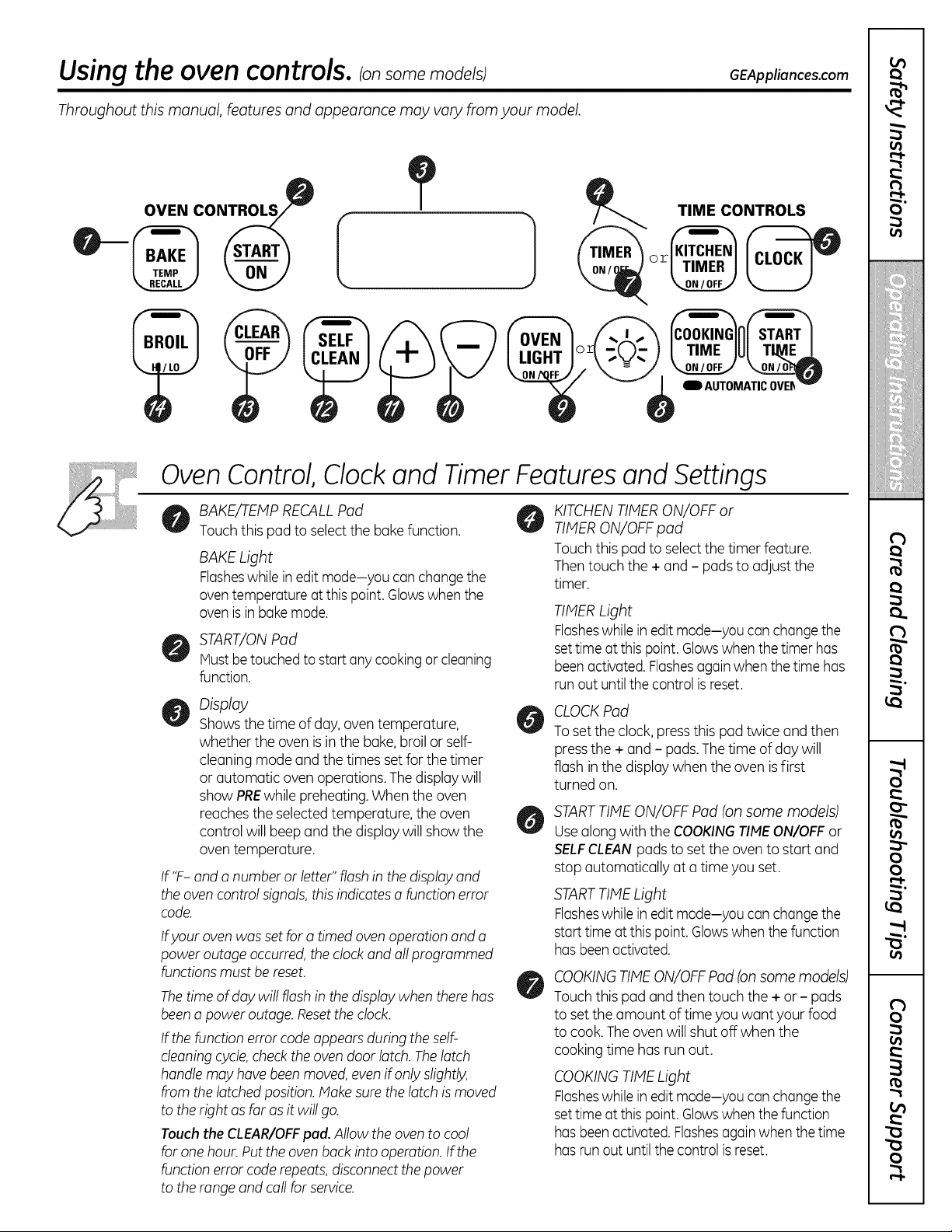

Oven Controls . . . . . . . . . . . . . . . . . . . .9, 10

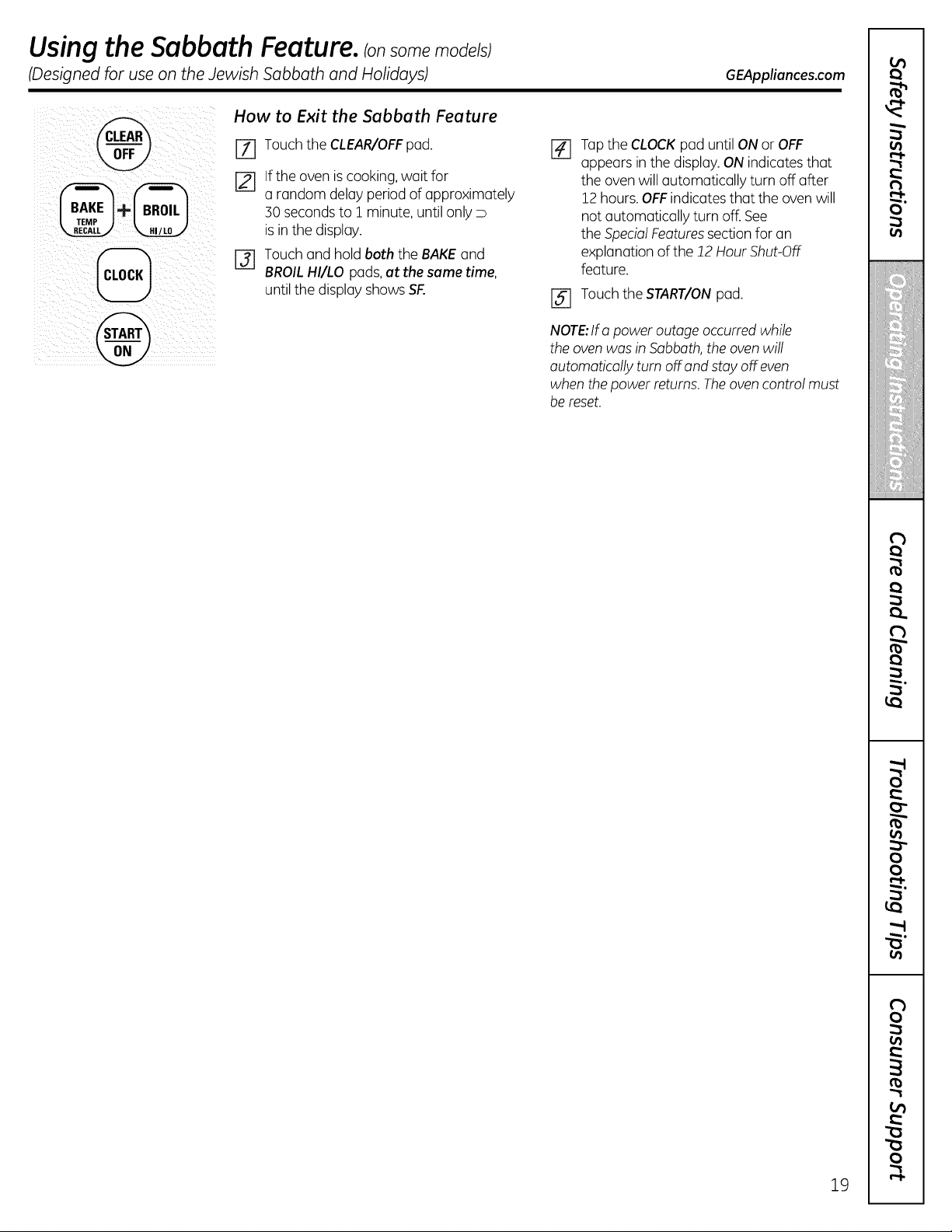

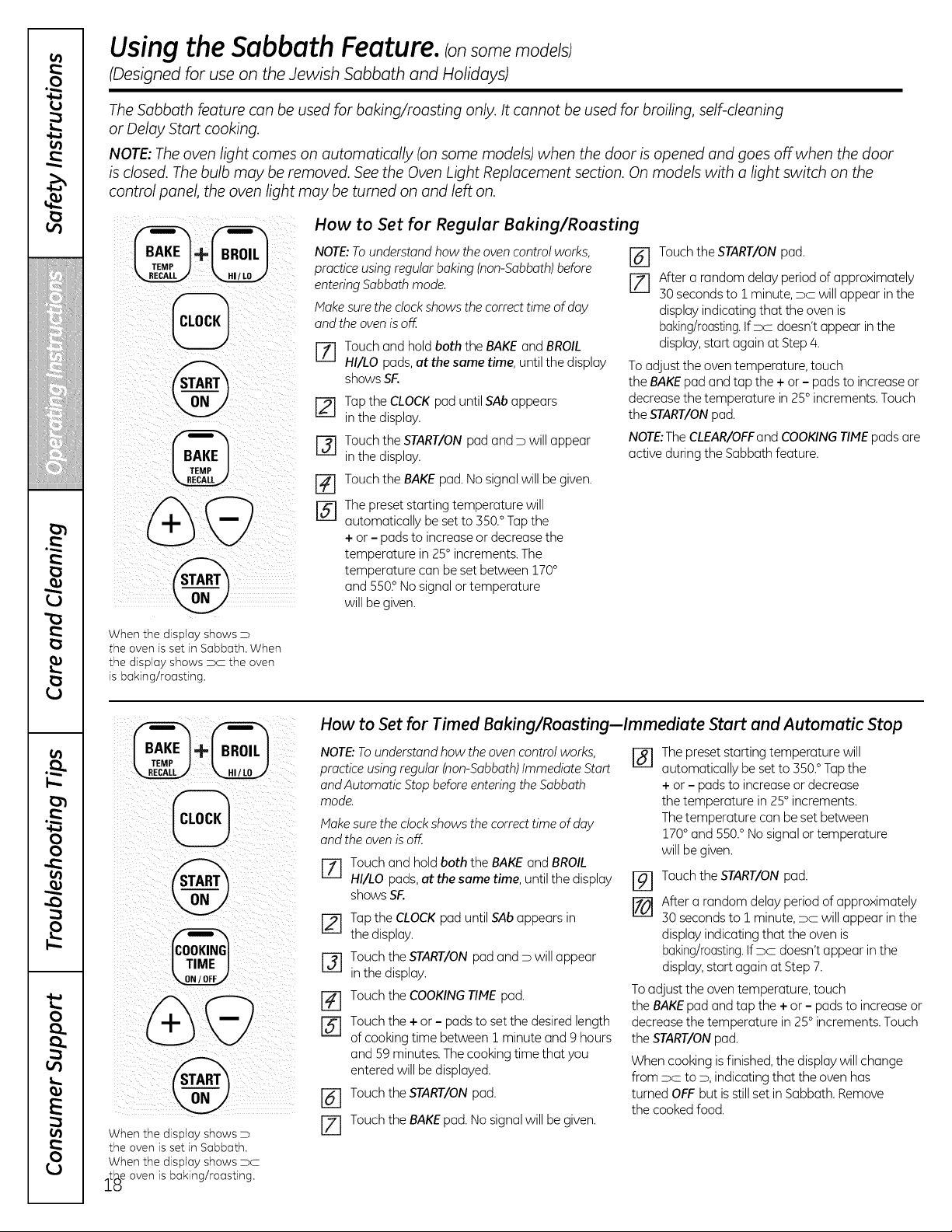

Sabbath Feature . . . . . . . . . . . . . . . .18, 19

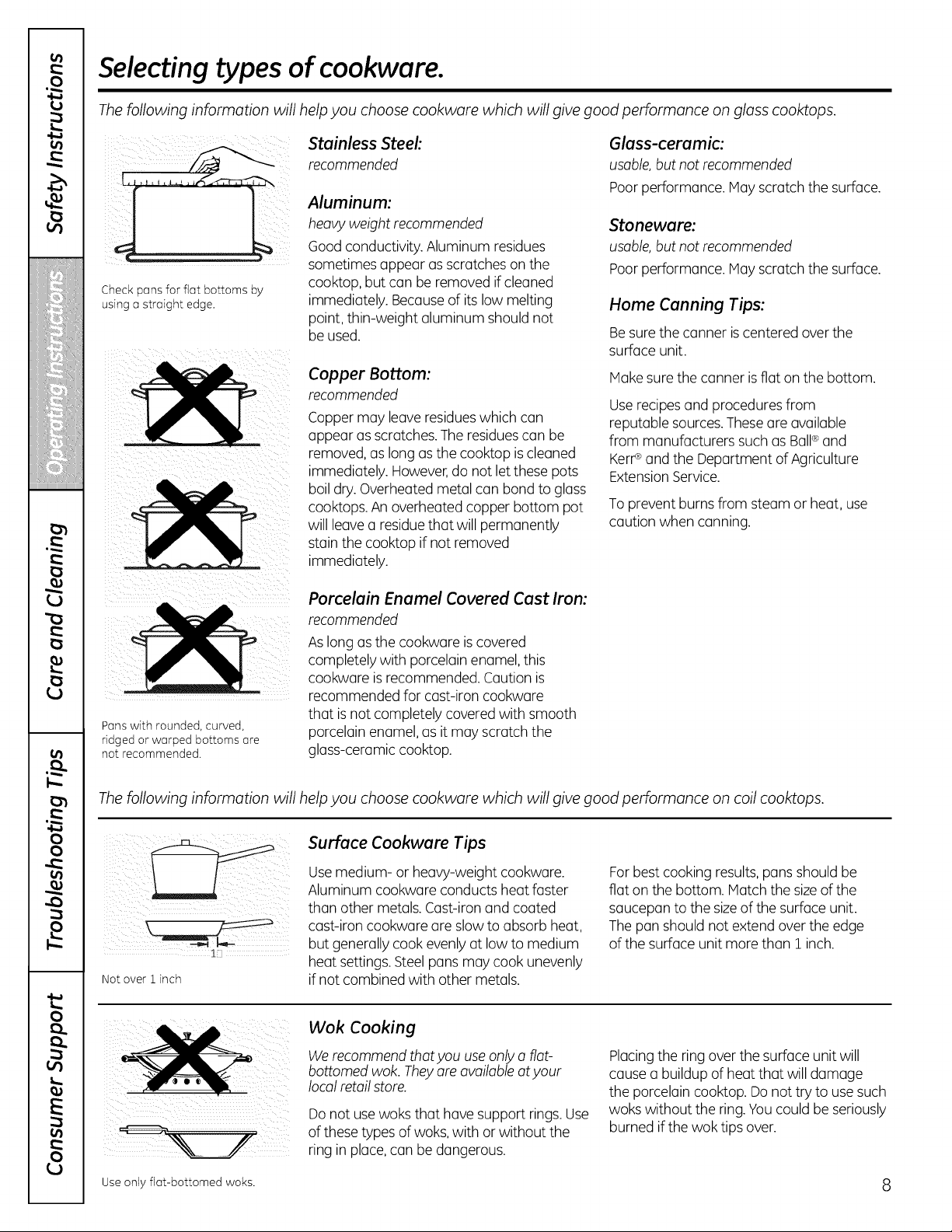

Selecting Types of Cookware . . . . . . . .8

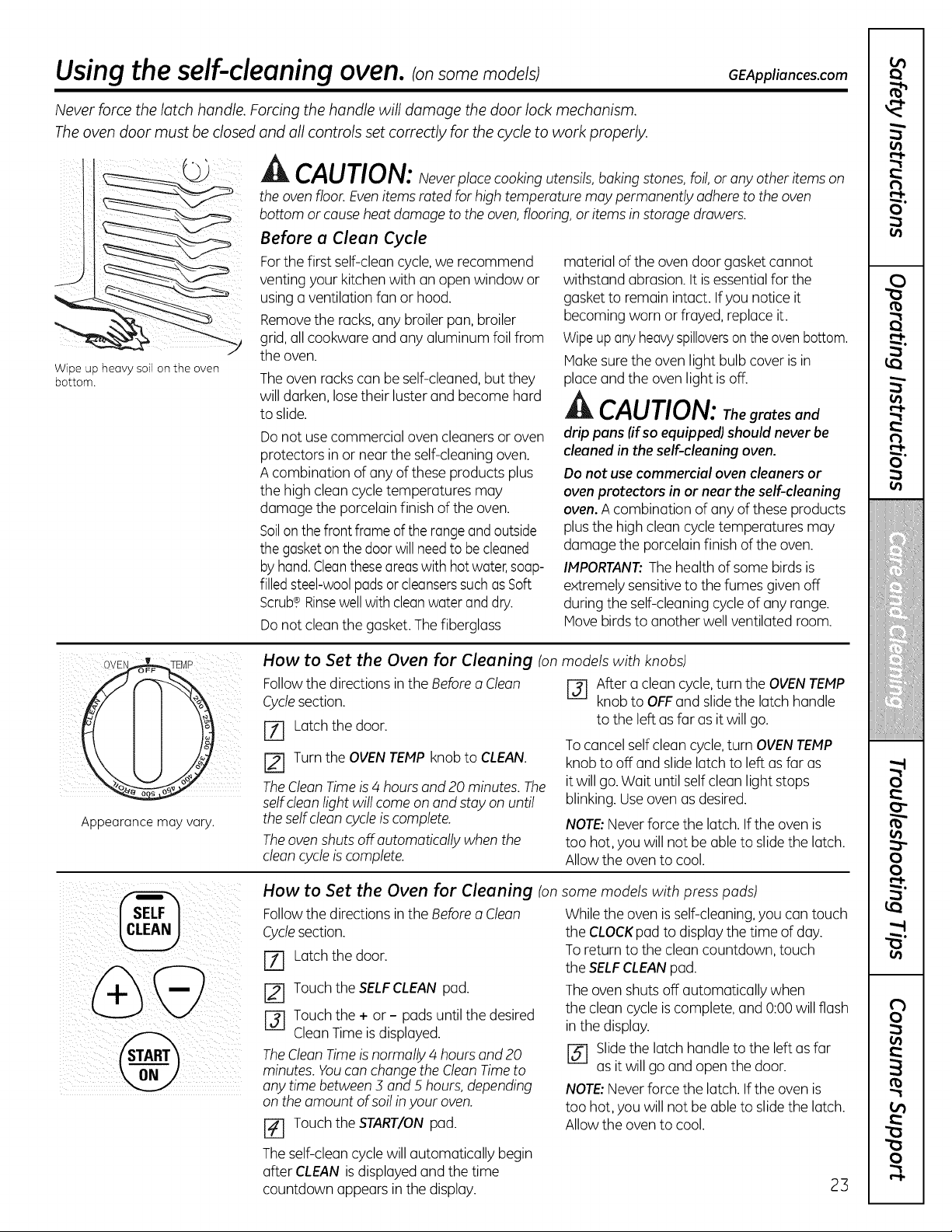

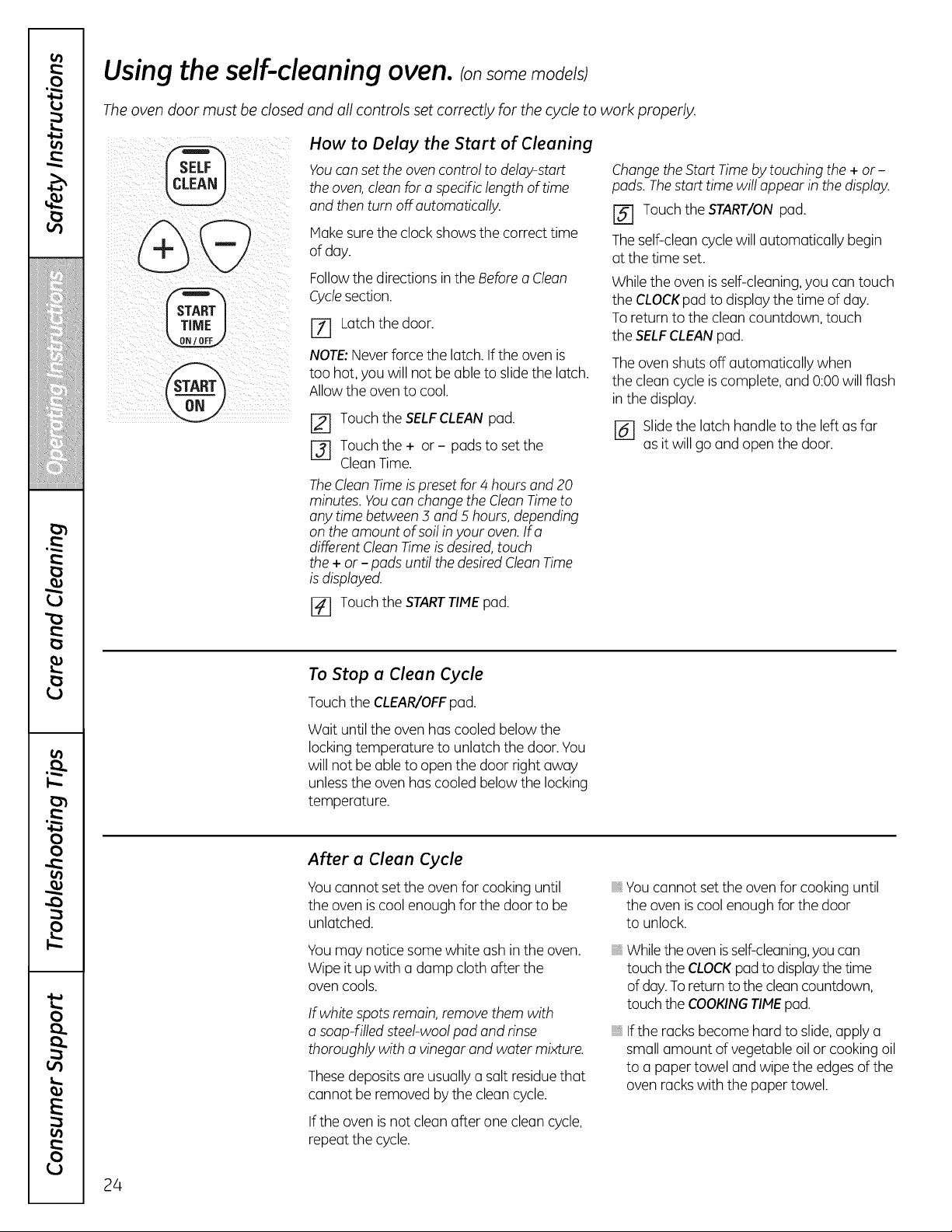

Self-Cleaning . . . . . . . . . . . . . . . . . . . .23, 24

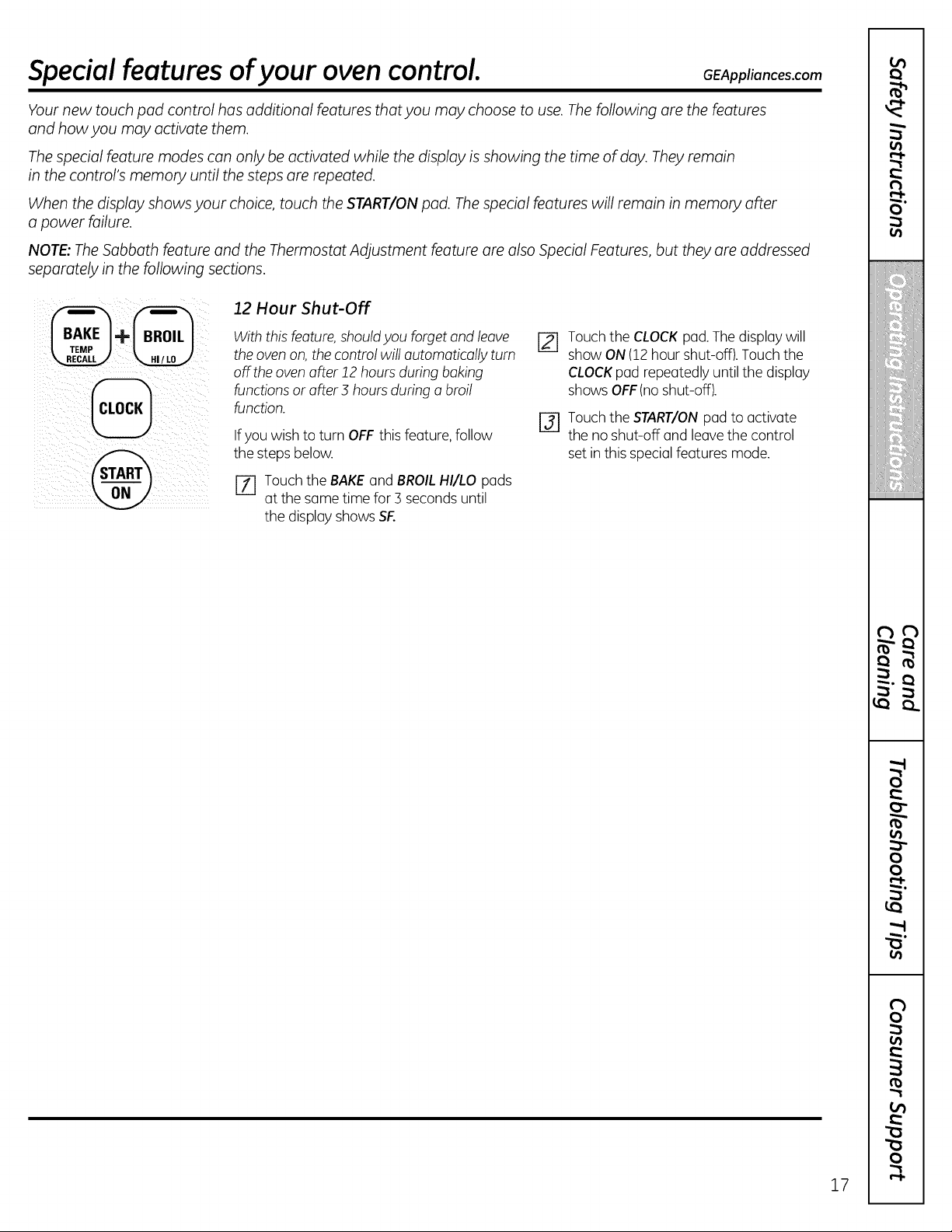

Special Features . . . . . . . . . . . . . . . . . . . .17

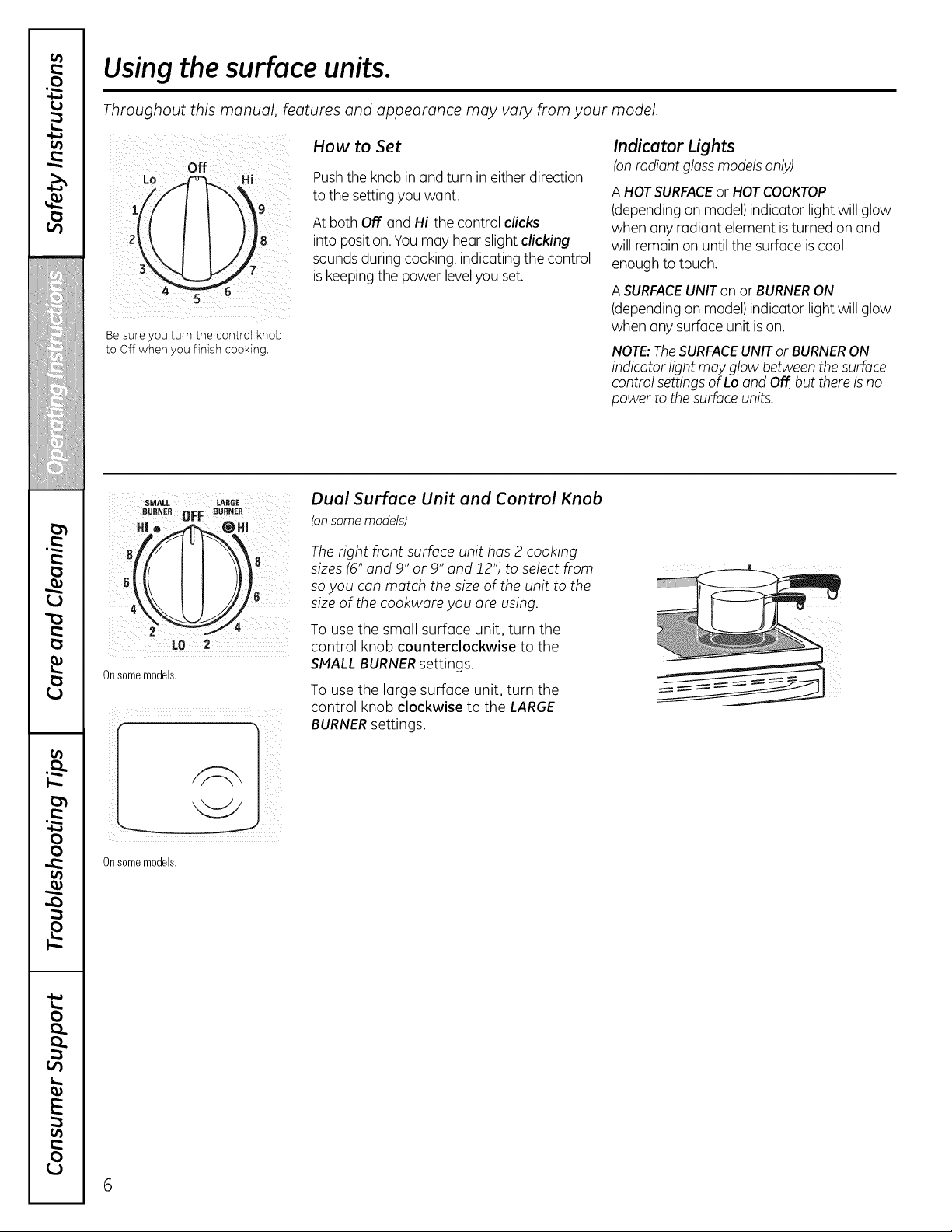

Surface Units . . . . . . . . . . . . . . . . . . . . . . 6, 7

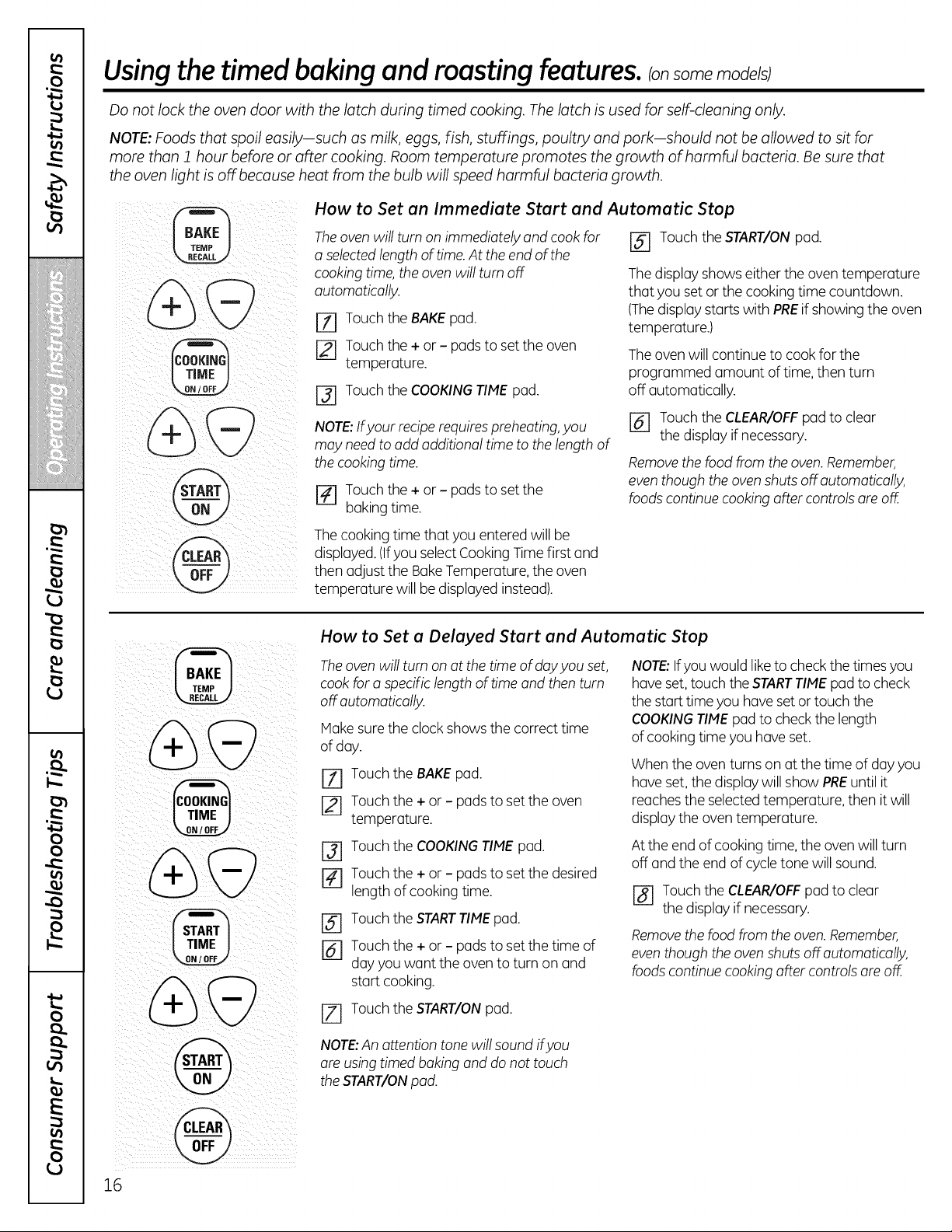

Timed Baking and Roasting . . . . . . . .16

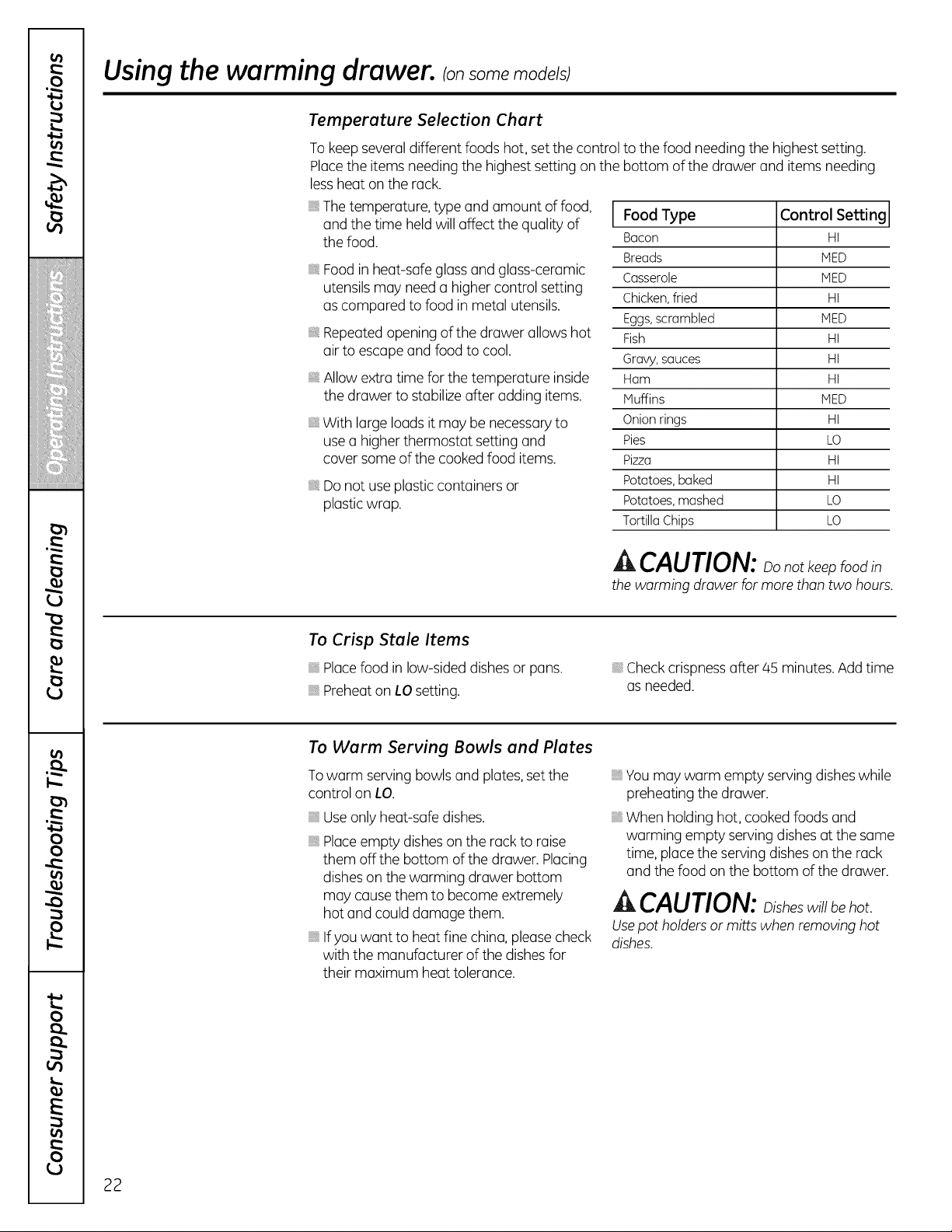

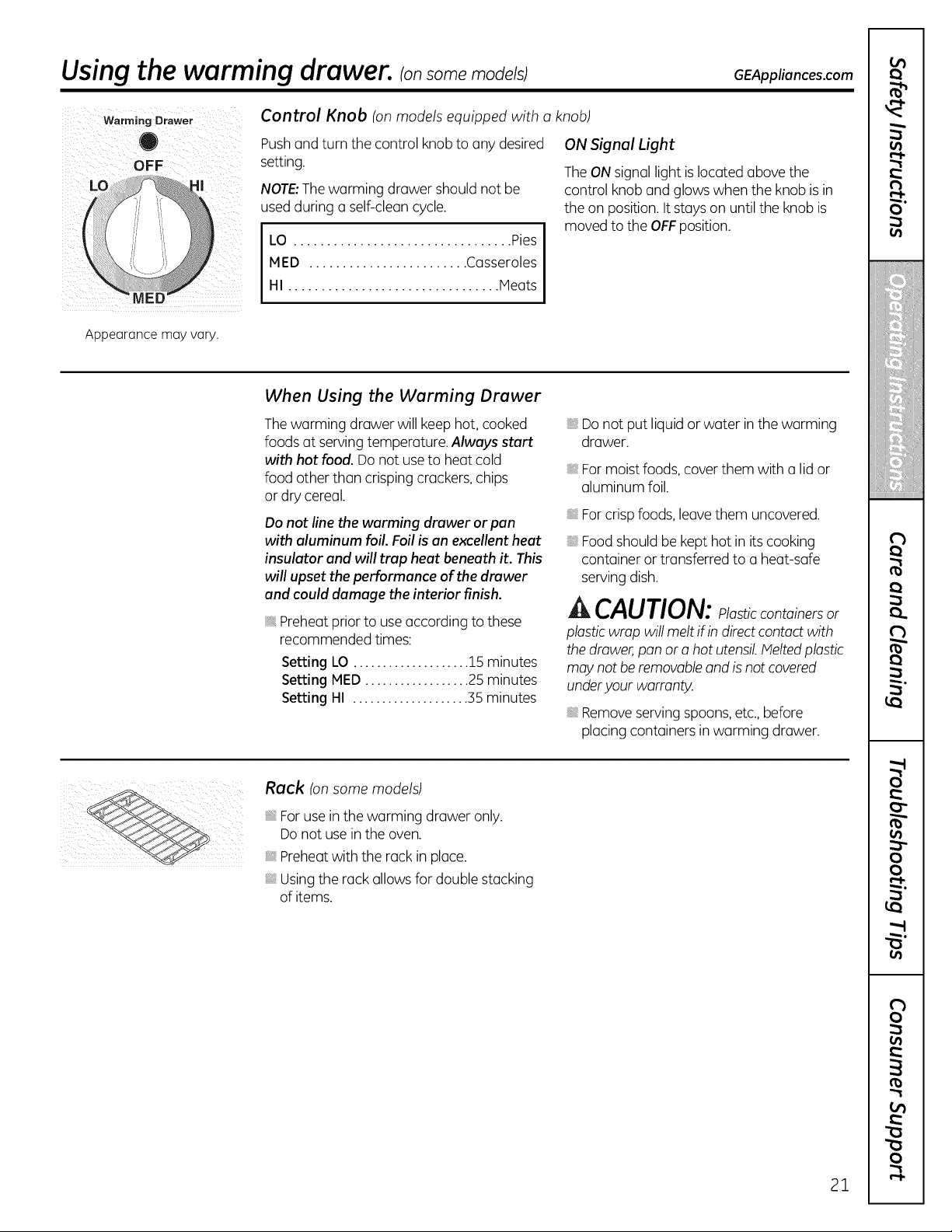

Warming Drawer . . . . . . . . . . . . . . . 21, 22

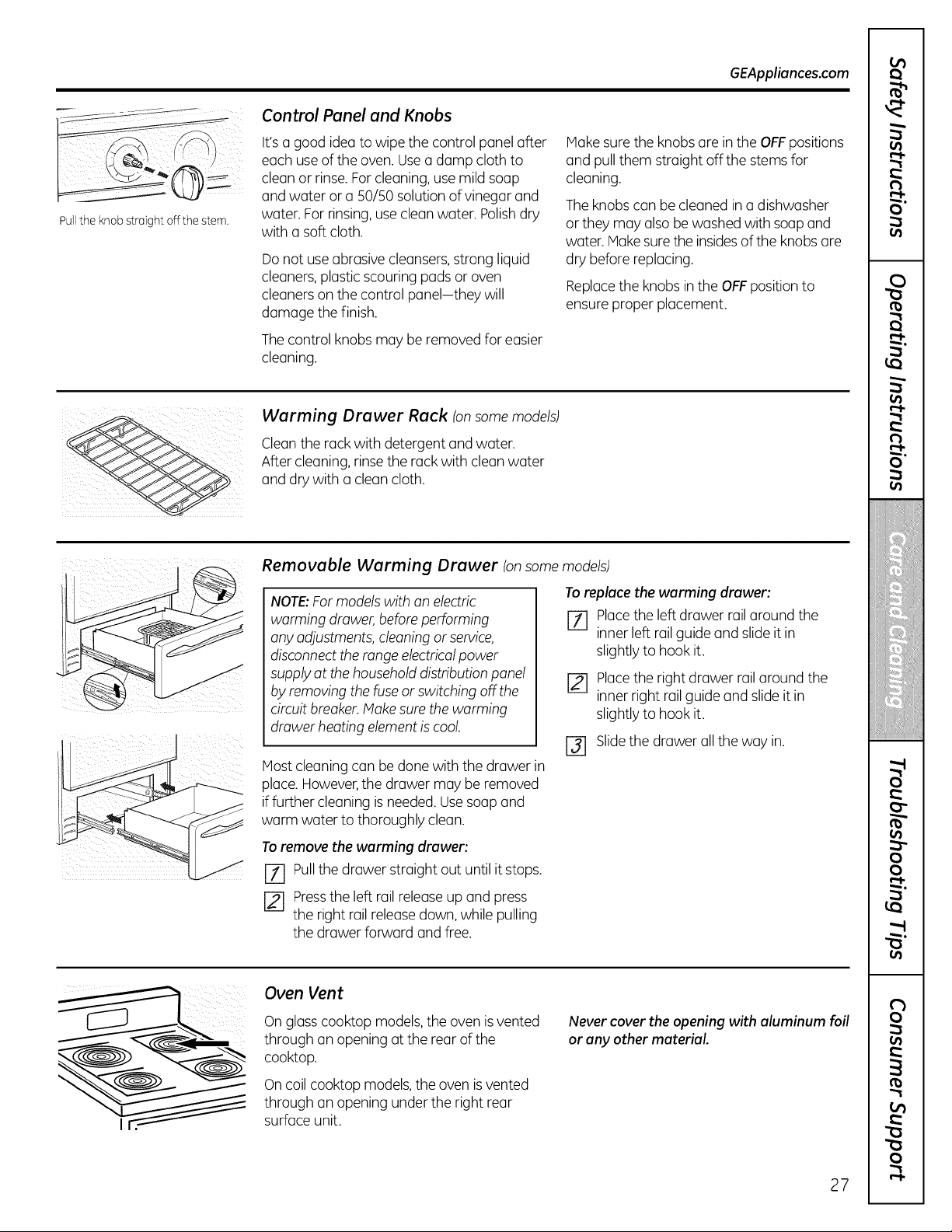

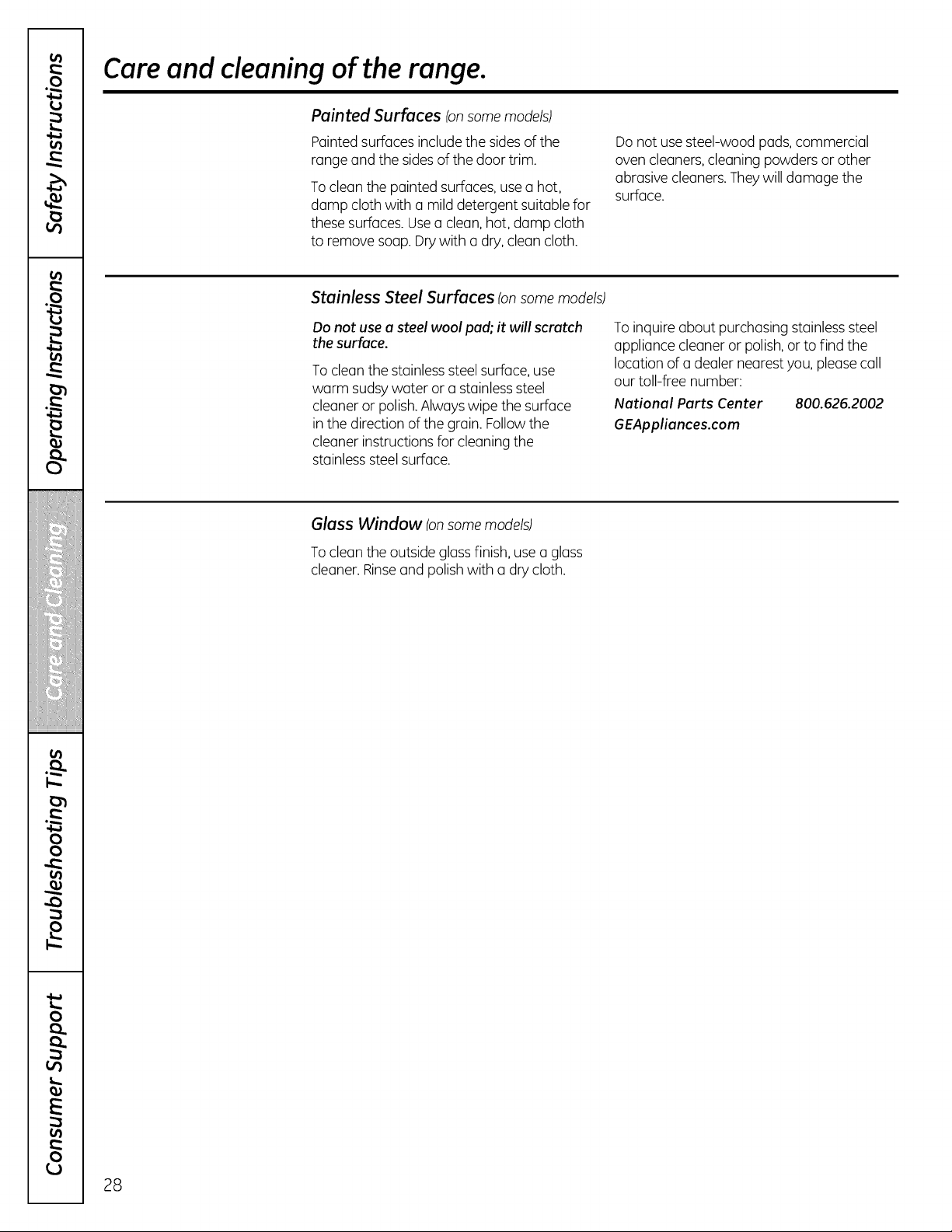

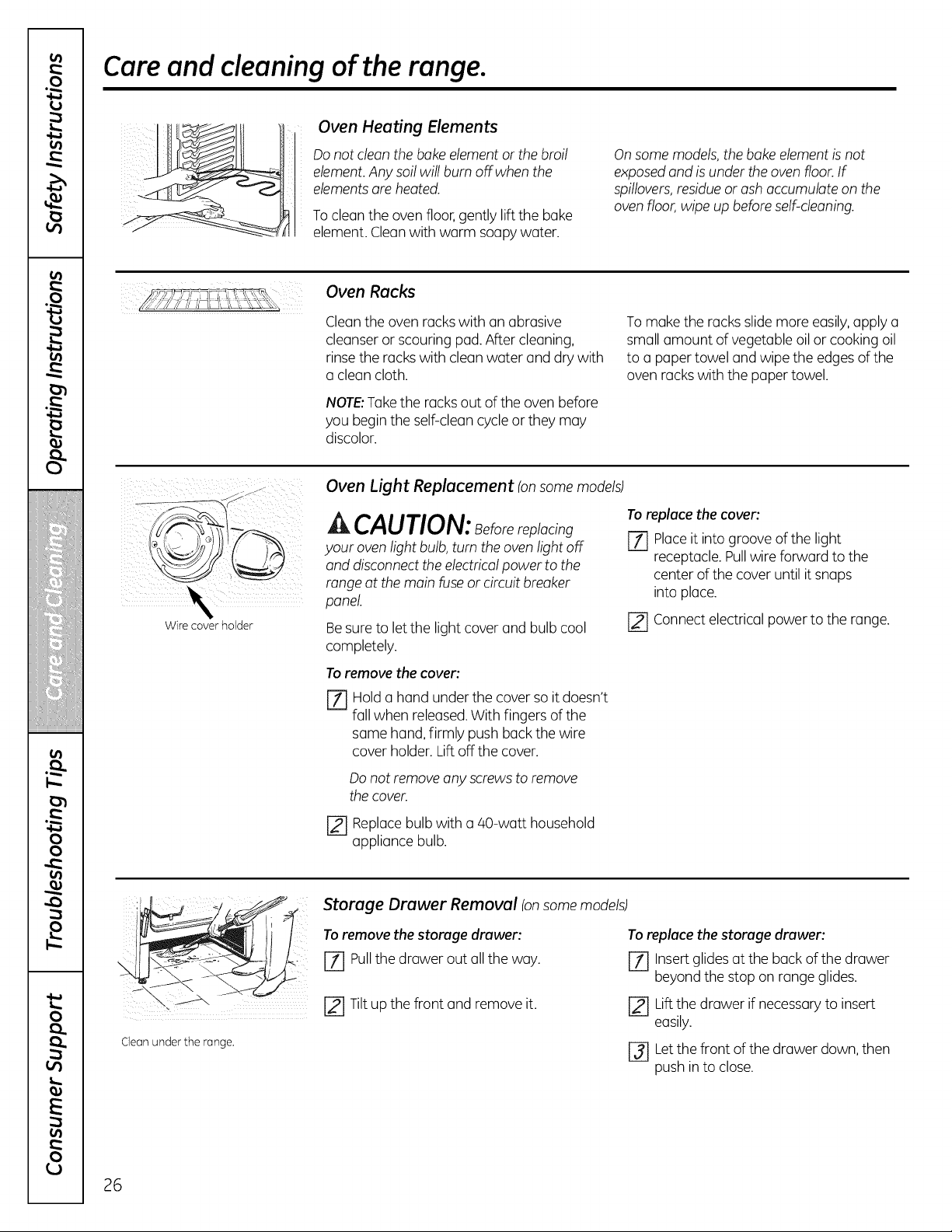

Care and Cleaning . . . . . . . . . 26–30

Aluminum Foil . . . . . . . . . . . . . . . . .4, 5, 12

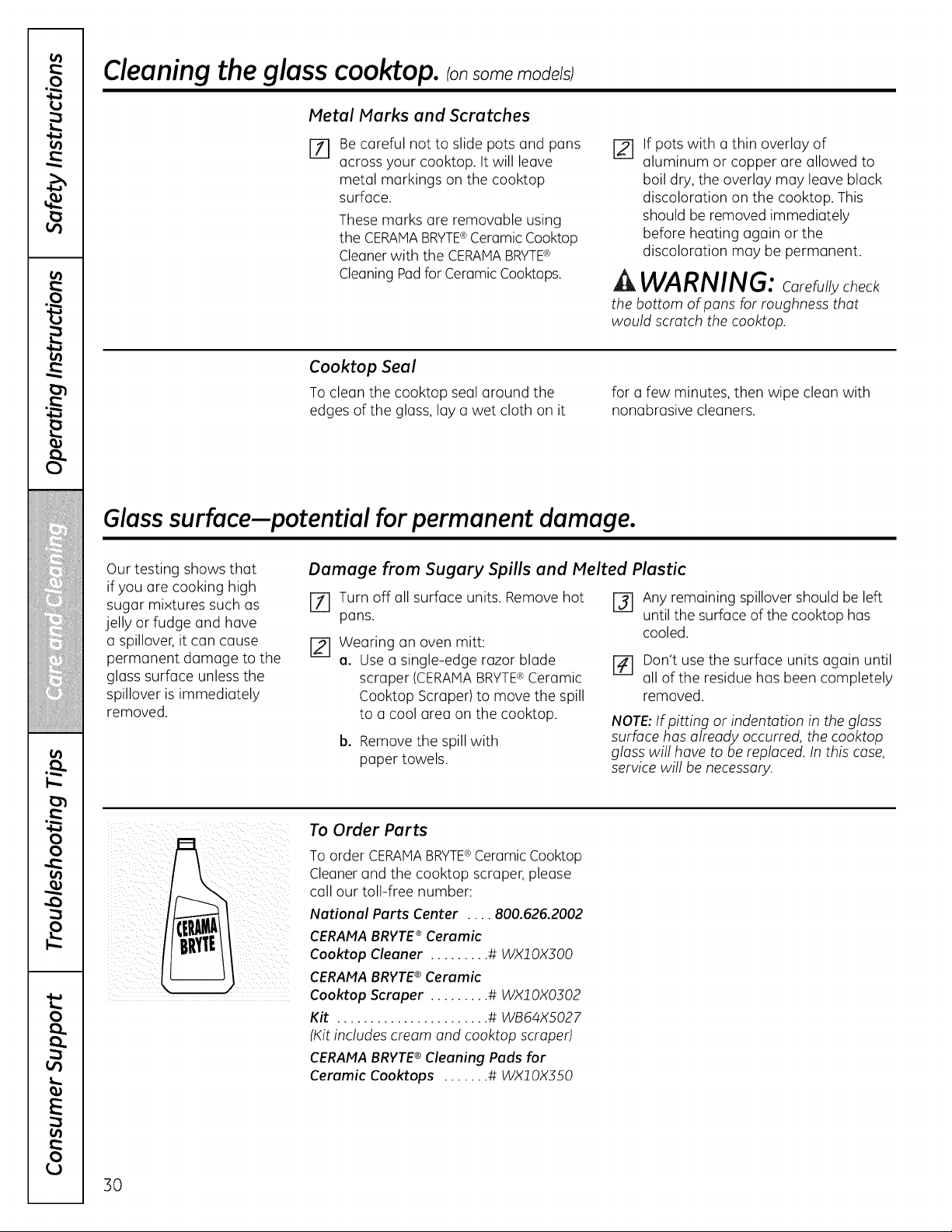

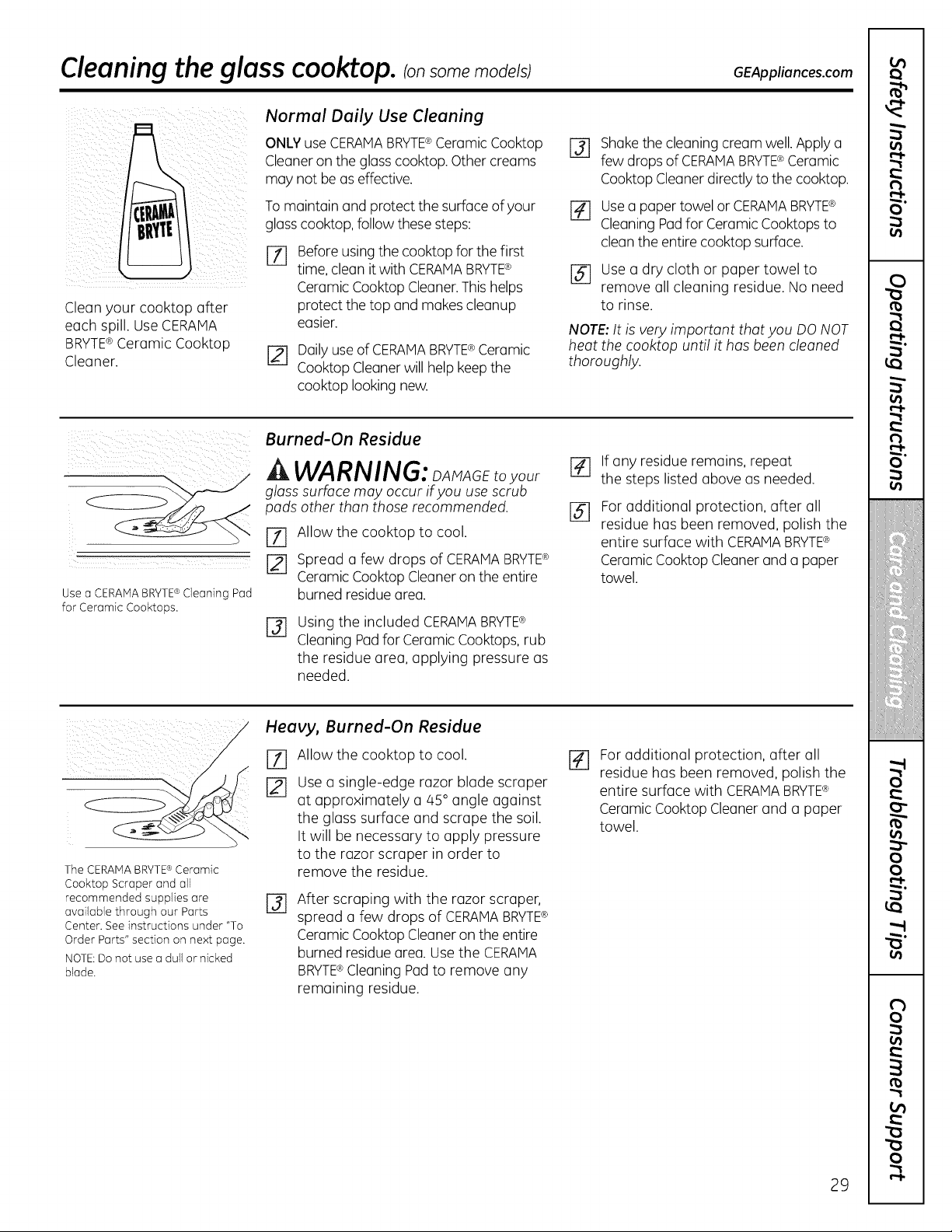

Glass Cooktop . . . . . . . . . . . . . . . . . .29, 30

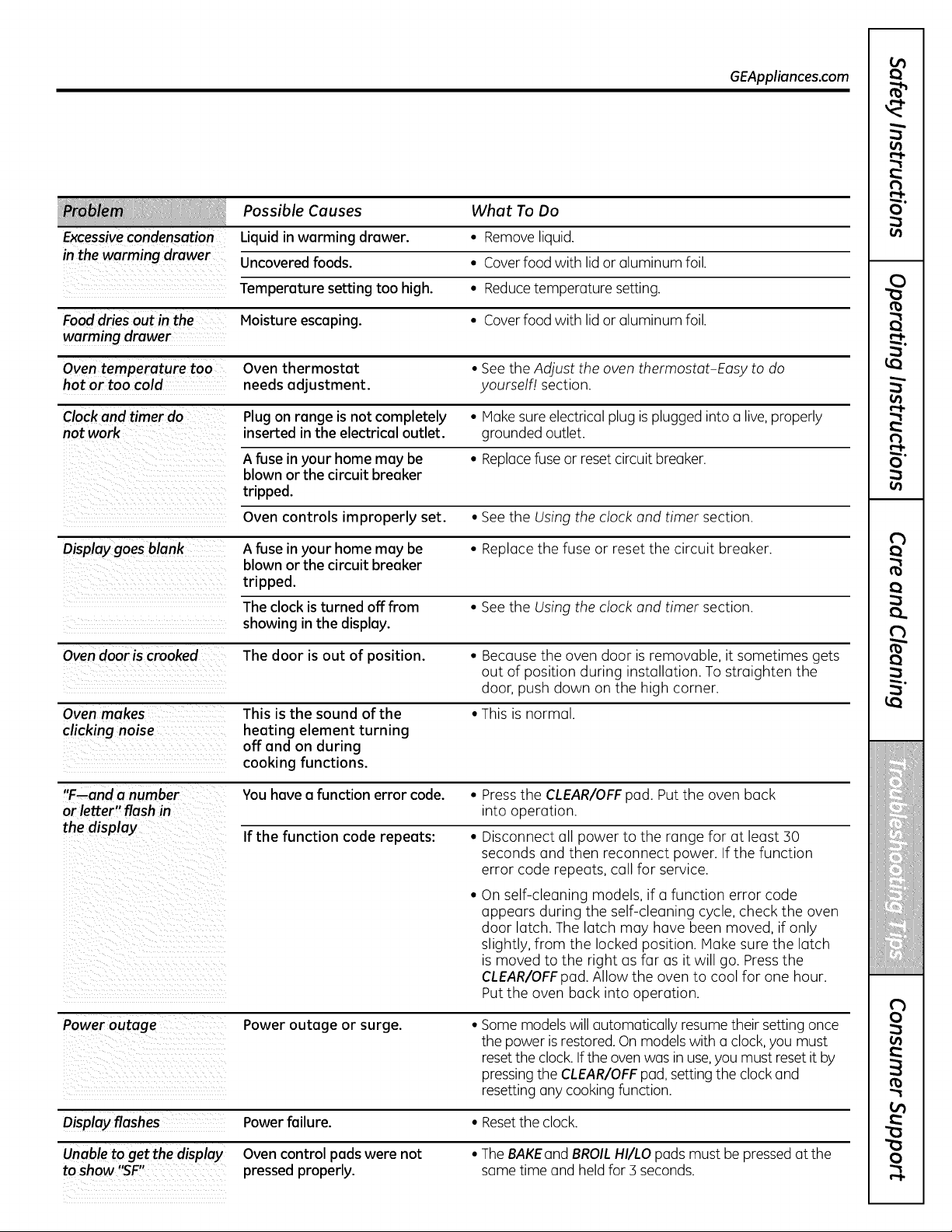

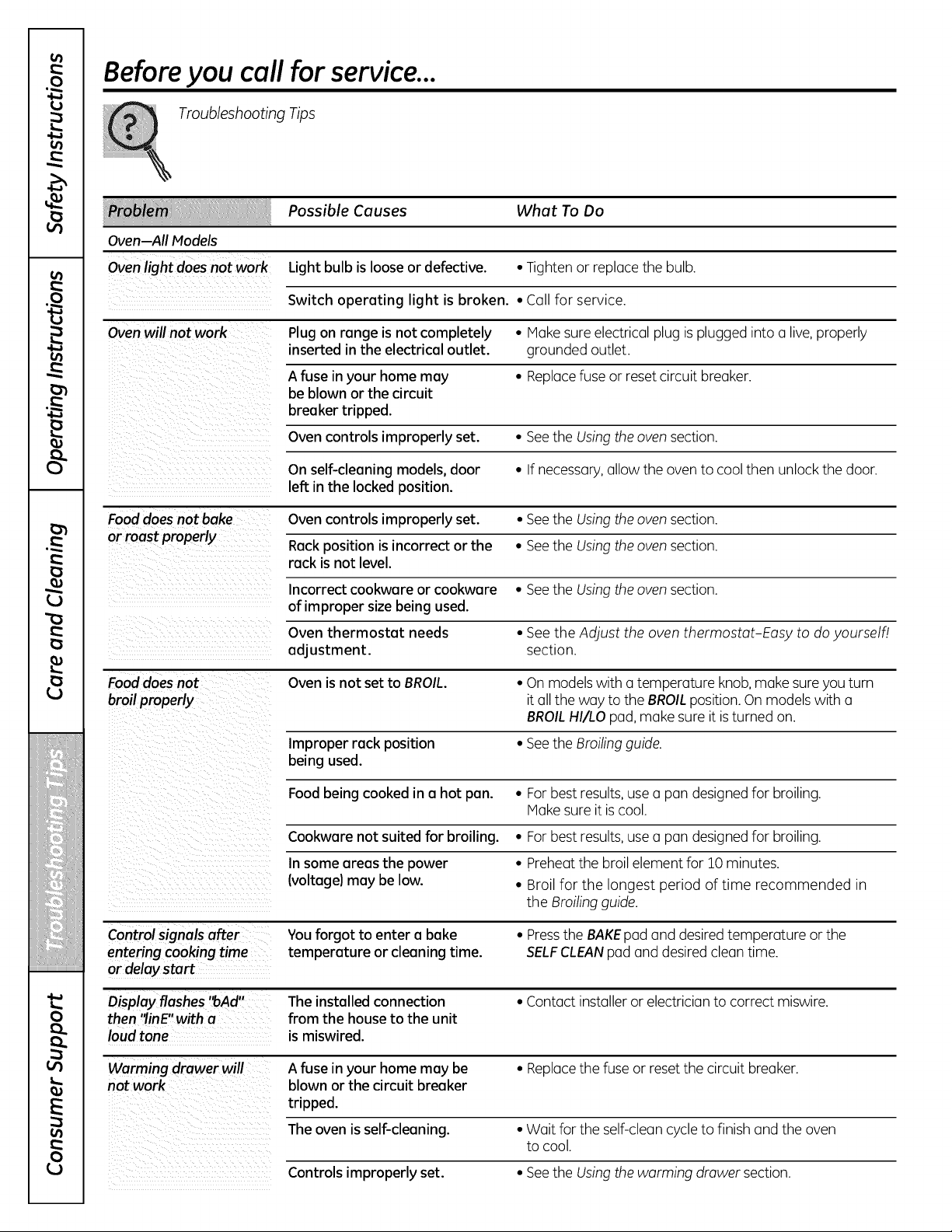

Troubleshooting Tips . . . . . . 31–34

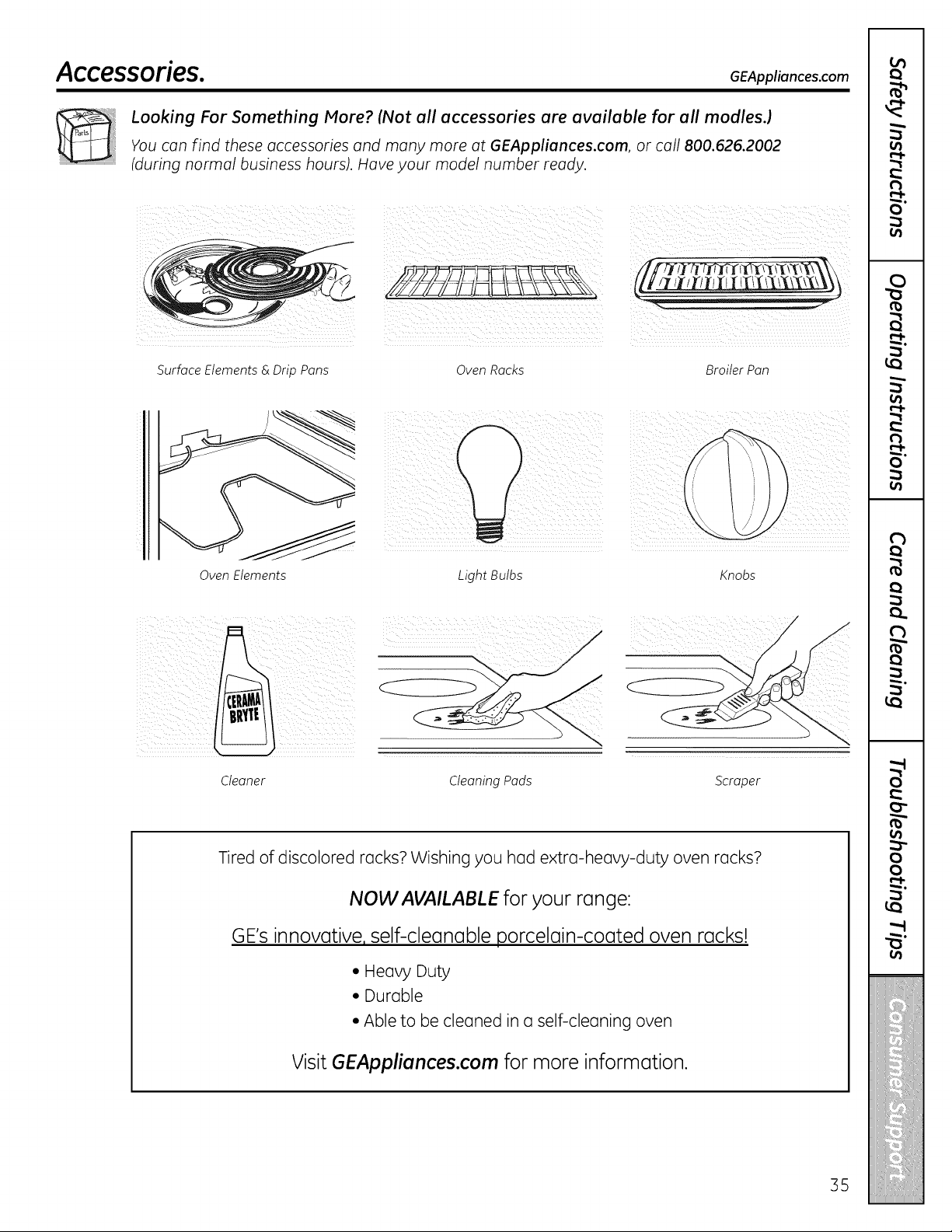

Accessories . . . . . . . . . . . . . . . . . . . . . . 35

Consumer Support

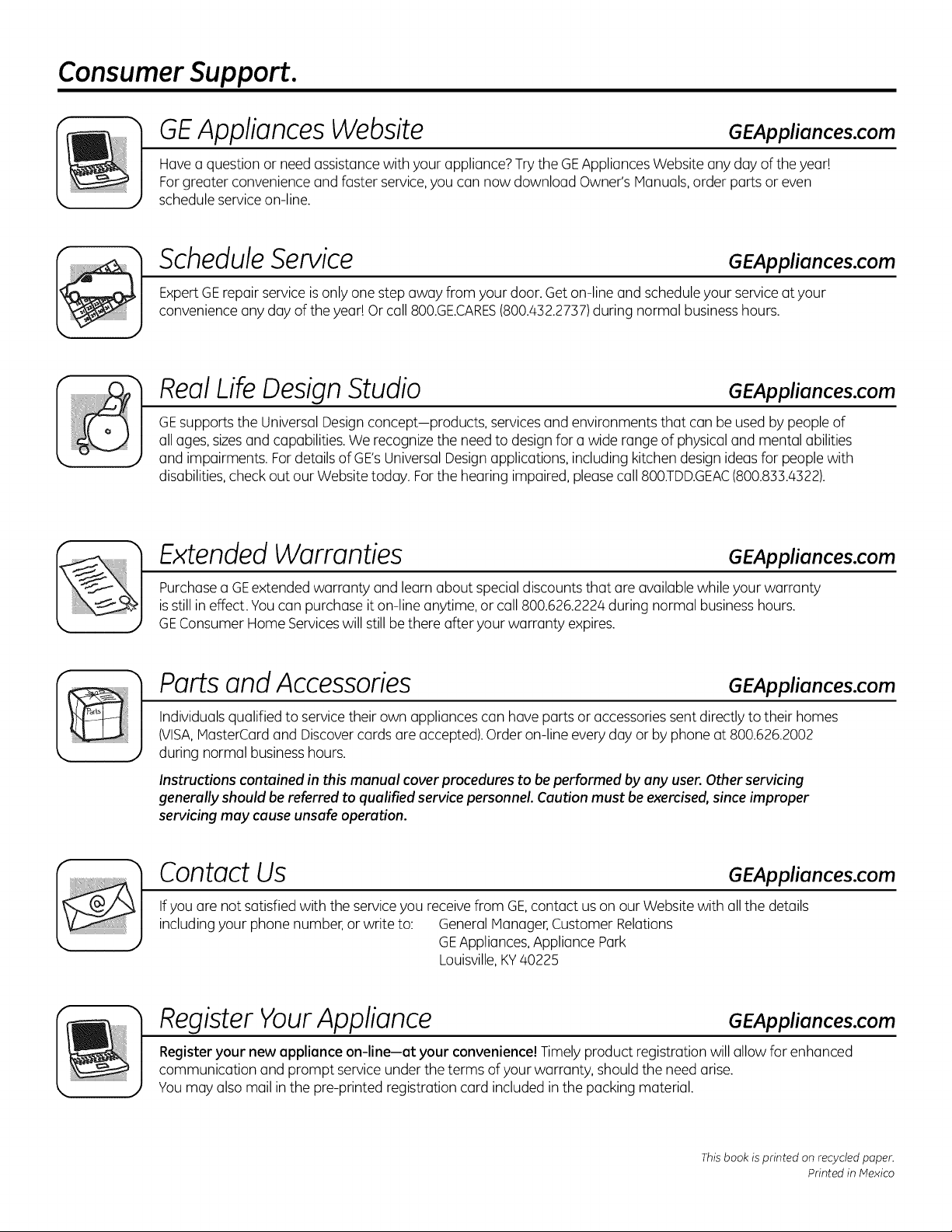

Consumer Support . . . . . . . .Back Cover

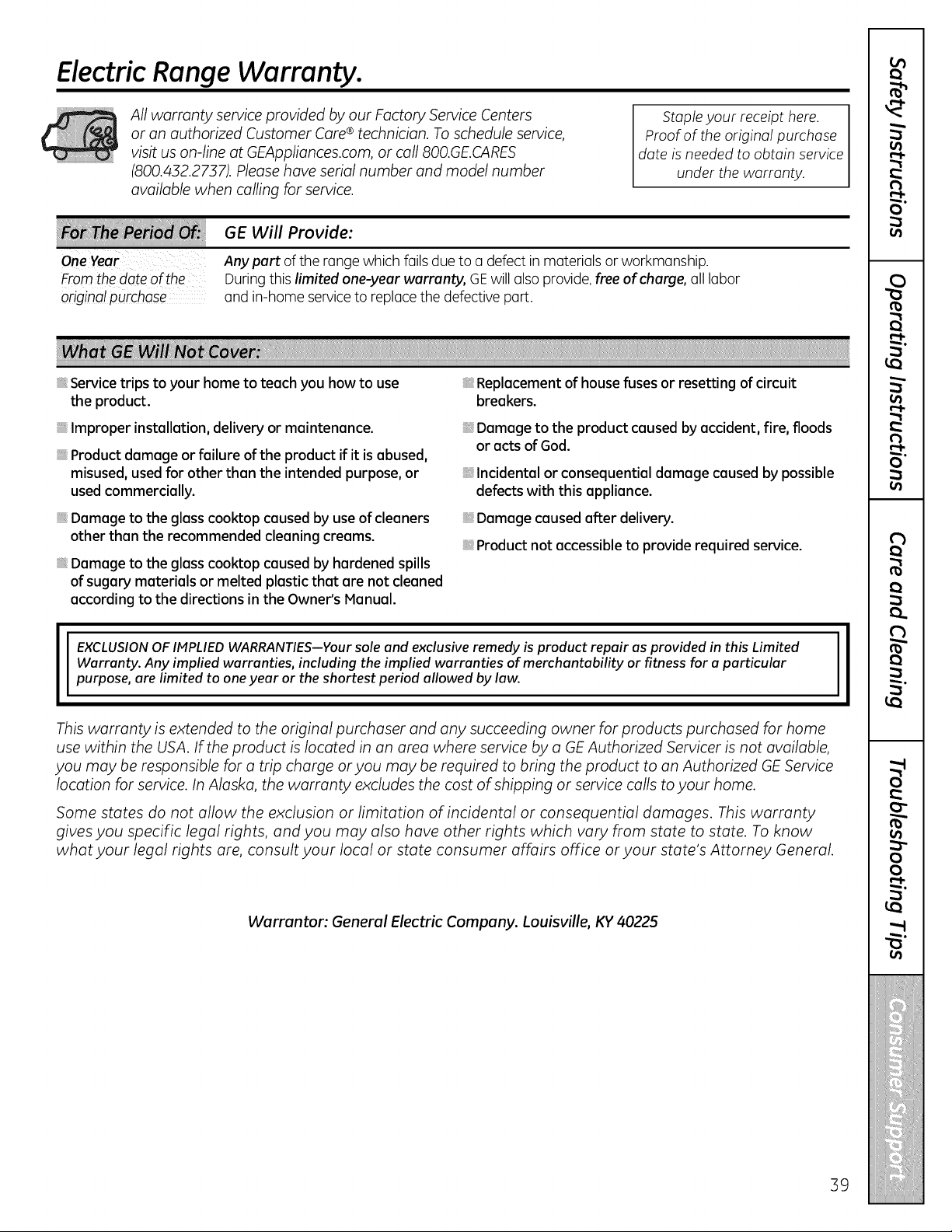

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

GEAppliances.com

Write the model and serial

numbers here:

Model # __________________

Serial # __________________

You can find them on a label,

behind the storage drawer or

warming drawer on the oven frame.

Owner’s Manual

Ranges

Electric Coil & Radiant

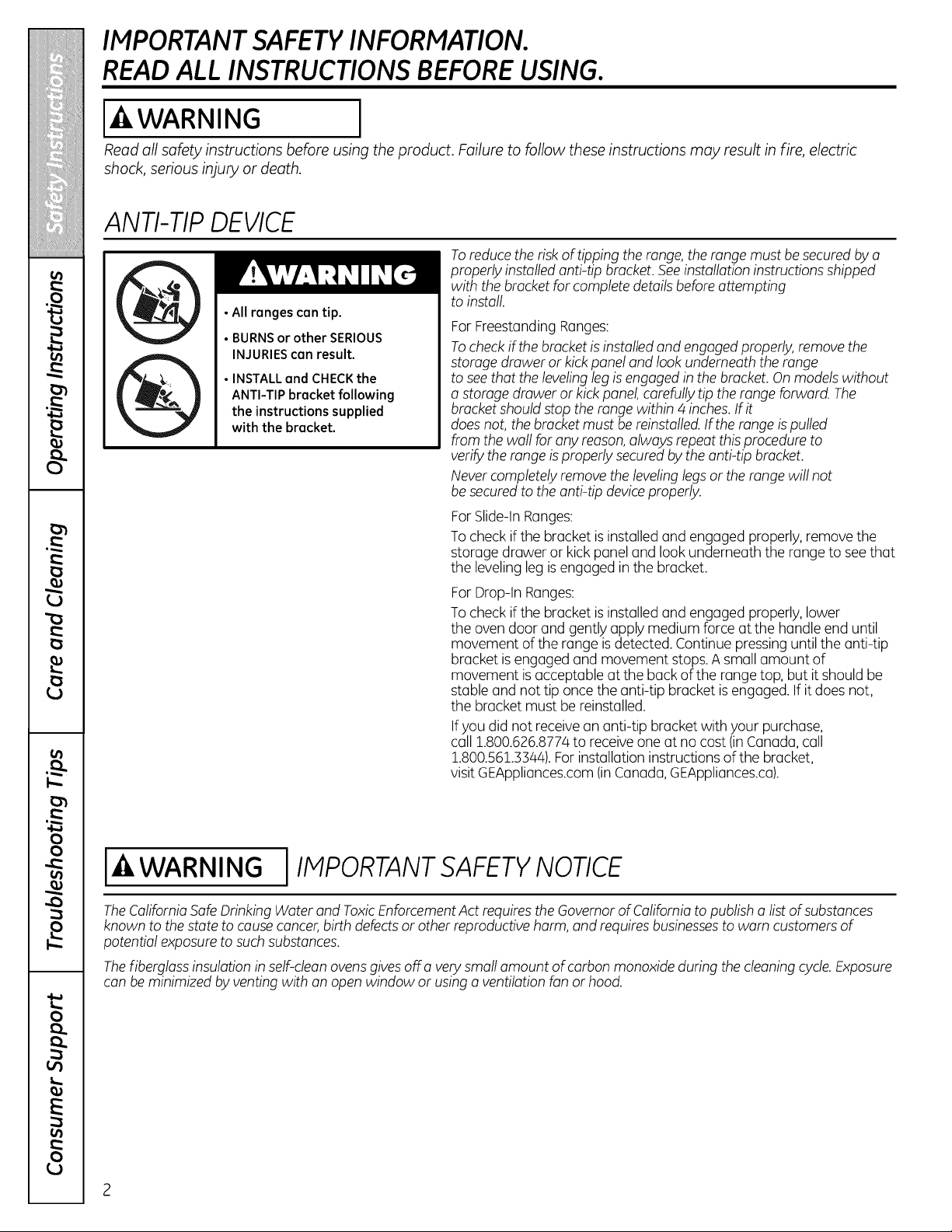

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

Consumer Support Troubleshooting Tips

Care and Cleaning Operating Instructions Safety Instructions

Read all safety instructions before using the product. Failure to follow these instructions may result in fire, electric

shock, serious injury or death.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances

known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of

potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure

can be minimized by venting with an open window or using a ventilation fan or hood.

To reduce the risk of tipping the range, the range must be secured by a

properly installed anti-tip bracket. See installation instructions shipped

with the bracket for complete details before attempting

to install.

For Freestanding Ranges:

To check if the bracket is installed and engaged properly, remove the

storage drawer or kick panel and look underneath the range

to see that the leveling leg is engaged in the bracket. On models without

a storage drawer or kick panel, carefully tip the range forward. The

bracket should stop the range within 4 inches. If it

does not, the bracket must be reinstalled. If the range is pulled

from the wall for any reason, always repeat this procedure to

verify the range is properly secured by the anti-tip bracket.

Never completely remove the leveling legs or the range will not

be secured to the anti-tip device properly.

For Slide-In Ranges:

To check if the bracket is installed and engaged properly, remove the

storage drawer or kick panel and look underneath the range to see that

the leveling leg is engaged in the bracket.

For Drop-In Ranges:

To check if the bracket is installed and engaged properly, lower

the oven door and gently apply medium force at the handle end until

movement of the range is detected. Continue pressing until the anti-tip

bracket is engaged and movement stops. A small amount of

movement is acceptable at the back of the range top, but it should be

stable and not tip once the anti-tip bracket is engaged. If it does not,

the bracket must be reinstalled.

If you did not receive an anti-tip bracket with your purchase,

call 1.800.626.8774 to receive one at no cost (in Canada, call

1.800.561.3344). For installation instructions of the bracket,

visit GEAppliances.com (in Canada, GEAppliances.ca).

ANTI-TIP DEVICE

WARNING

GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips

Consumer Support

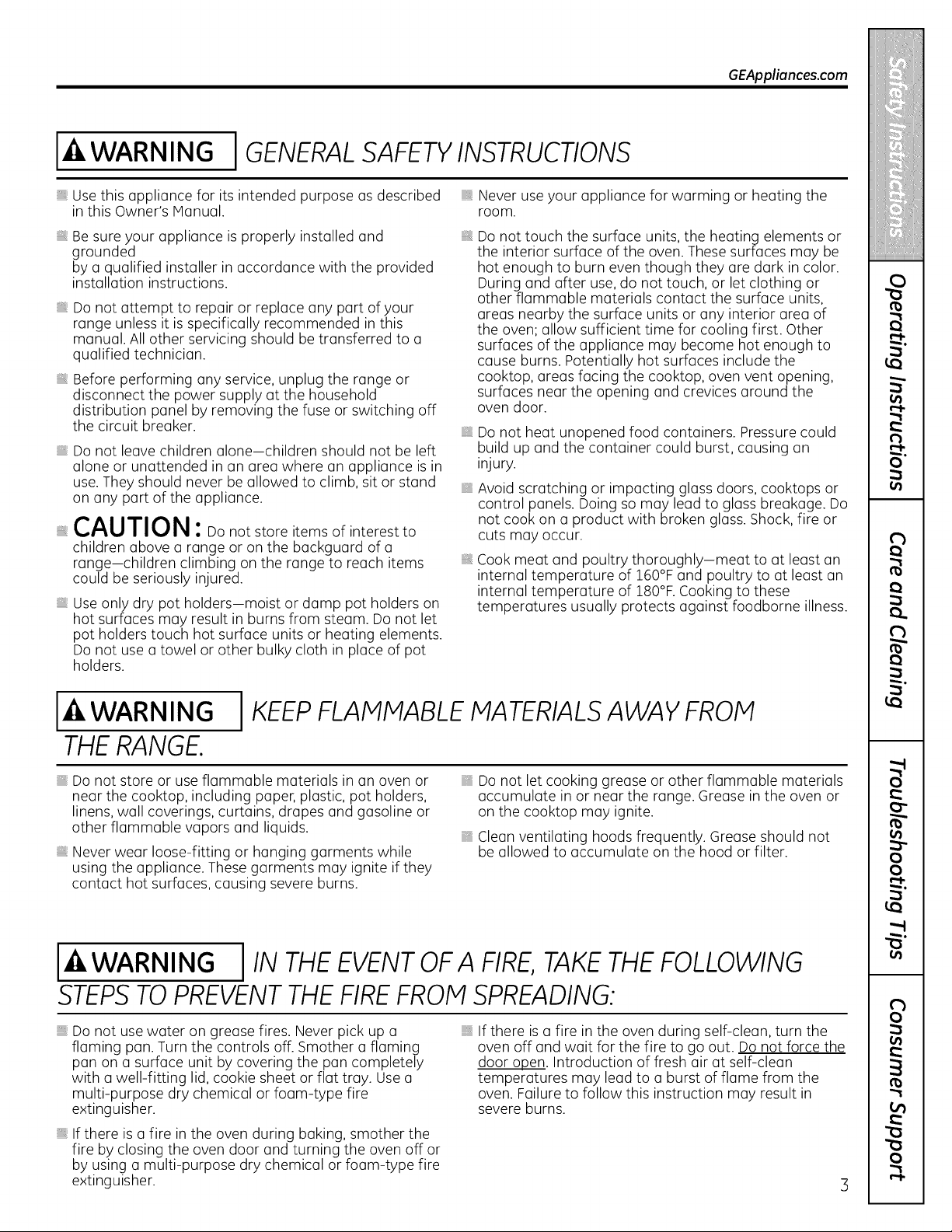

■ Use this appliance for its intended purpose as described

in this Owner’s Manual.

■ Be sure your appliance is properly installed and

grounded

by a qualified installer in accordance with the provided

installation instructions.

■ Do not attempt to repair or replace any part of your

range unless it is specifically recommended in this

manual. All other servicing should be transferred to a

qualified technician.

■ Before performing any service, unplug the range or

disconnect the power supply at the household

distribution panel by removing the fuse or switching off

the circuit breaker.

■ Do not leave children alone—children should not be left

alone or unattended in an area where an appliance is in

use. They should never be allowed to climb, sit or stand

on any part of the appliance.

■ CAUTION:Do not store items of interest to

children above a range or on the backguard of a

range—children climbing on the range to reach items

could be seriously injured.

■ Use only dry pot holders—moist or damp pot holders on

hot surfaces may result in burns from steam. Do not let

pot holders touch hot surface units or heating elements.

Do not use a towel or other bulky cloth in place of pot

holders.

■ Never use your appliance for warming or heating the

room.

■ Do not touch the surface units, the heating elements or

the interior surface of the oven. These surfaces may be

hot enough to burn even though they are dark in color.

During and after use, do not touch, or let clothing or

other flammable materials contact the surface units,

areas nearby the surface units or any interior area of

the oven; allow sufficient time for cooling first. Other

surfaces of the appliance may become hot enough to

cause burns. Potentially hot surfaces include the

cooktop, areas facing the cooktop, oven vent opening,

surfaces near the opening and crevices around the

oven door.

■ Do not heat unopened food containers. Pressure could

build up and the container could burst, causing an

injury.

■ Avoid scratching or impacting glass doors, cooktops or

control panels. Doing so may lead to glass breakage. Do

not cook on a product with broken glass. Shock, fire or

cuts may occur.

■ Cook meat and poultry thoroughly—meat to at least an

internal temperature of 160°F and poultry to at least an

internal temperature of 180°F. Cooking to these

temperatures usually protects against foodborne illness.

■ Do not store or use flammable materials in an oven or

near the cooktop, including paper, plastic, pot holders,

linens, wall coverings, curtains, drapes and gasoline or

other flammable vapors and liquids.

■ Never wear loose-fitting or hanging garments while

using the appliance. These garments may ignite if they

contact hot surfaces, causing severe burns.

■ Do not let cooking grease or other flammable materials

accumulate in or near the range. Grease in the oven or

on the cooktop may ignite.

■ Clean ventilating hoods frequently. Grease should not

be allowed to accumulate on the hood or filter.

■ Do not use water on grease fires. Never pick up a

flaming pan. Turn the controls off. Smother a flaming

pan on a surface unit by covering the pan completely

with a well-fitting lid, cookie sheet or flat tray. Use a

multi-purpose dry chemical or foam-type fire

extinguisher.

■ If there is a fire in the oven during baking, smother the

fire by closing the oven door and turning the oven off or

by using a multi-purpose dry chemical or foam-type fire

extinguisher.

■ If there is a fire in the oven during self-clean, turn the

oven off and wait for the fire to go out. Do not force the

door open. Introduction of fresh air at self-clean

temperatures may lead to a burst of flame from the

oven. Failure to follow this instruction may result in

severe burns.

GENERAl SAFETY INSTRuCTIONS

WARNING

kEEP FlAMMABlE MATERIAlS AWAY FROM

ThE RANGE.

WARNING

IN ThE EVENT OF A FIRE, TAkE ThE FOllOWING

STEPS TO PREVENT ThE FIRE FROM SPREADING:

WARNING

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

■

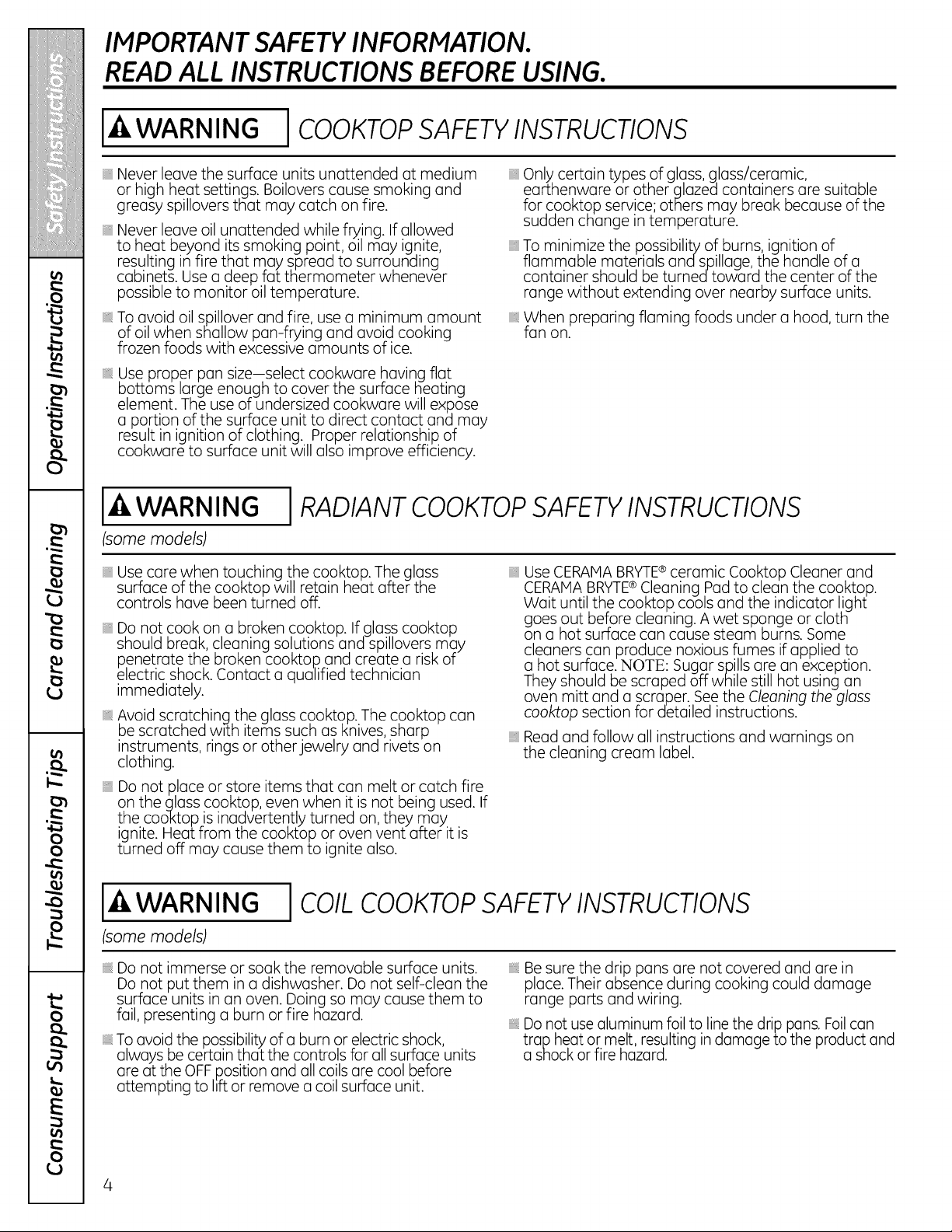

Never leave the surface units unattended at medium

or high heat settings. Boilovers cause smoking and

greasy spillovers that may catch on fire.

■

Never leave oil unattended while frying. If allowed

to heat beyond its smoking point, oil may ignite,

resulting in fire that may spread to surrounding

cabinets. Use a deep fat thermometer whenever

possible to monitor oil temperature.

■

To avoid oil spillover and fire, use a minimum amount

of oil when shallow pan-frying and avoid cooking

frozen foods with excessive amounts of ice.

■

Use proper pan size—select cookware having flat

bottoms large enough to cover the surface heating

element. The use of undersized cookware will expose

a portion of the surface unit to direct contact and may

result in ignition of clothing. Proper relationship of

cookware to surface unit will also improve efficiency.

■

Only certain types of glass, glass/ceramic,

earthenware or other glazed containers are suitable

for cooktop service; others may break because of the

sudden change in temperature.

■

To minimize the possibility of burns, ignition of

flammable materials and spillage, the handle of a

container should be turned toward the center of the

range without extending over nearby surface units.

■

When preparing flaming foods under a hood, turn the

fan on.

■

Use care when touching the cooktop. The glass

surface of the cooktop will retain heat after the

controls have been turned off.

■

Do not cook on a broken cooktop. If glass cooktop

should break, cleaning solutions and spillovers may

penetrate the broken cooktop and create a risk of

electric shock. Contact a qualified technician

immediately.

■

Avoid scratching the glass cooktop. The cooktop can

be scratched with items such as knives, sharp

instruments, rings or other jewelry and rivets on

clothing.

■

Do not place or store items that can melt or catch fire

on the glass cooktop, even when it is not being used. If

the cooktop is inadvertently turned on, they may

ignite. Heat from the cooktop or oven vent after it is

turned off may cause them to ignite also.

■

Use CERAMA BRYTE

ceramic Cooktop Cleaner and

CERAMA BRYTE

Cleaning Pad to clean the cooktop.

Wait until the cooktop cools and the indicator light

goes out before cleaning. A wet sponge or cloth

on a hot surface can cause steam burns. Some

cleaners can produce noxious fumes if applied to

a hot surface. Note: Sugar spills are an exception.

They should be scraped off while still hot using an

oven mitt and a scraper. See the Cleaning the glass

cooktop section for detailed instructions.

■

Read and follow all instructions and warnings on

the cleaning cream label.

■

Do not immerse or soak the removable surface units.

Do not put them in a dishwasher. Do not self-clean the

surface units in an oven. Doing so may cause them to

fail, presenting a burn or fire hazard.

■

To avoid the possibility of a burn or electric shock,

always be certain that the controls for all surface units

are at the OFF position and all coils are cool before

attempting to lift or remove a coil surface unit.

■

Be sure the drip pans are not covered and are in

place. Their absence during cooking could damage

range parts and wiring.

■ Do not use aluminum foil to line the drip pans. Foil can

trap heat or melt, resulting in damage to the product and

a shock or fire hazard.

COOkTOP SAFETY INSTRuCTIONS

WARNING

RADIANT COOkTOP SAFETY INSTRuCTIONS

(some models)

WARNING

COIl COOkTOP SAFETY INSTRuCTIONS

(some models)

WARNING

GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

■

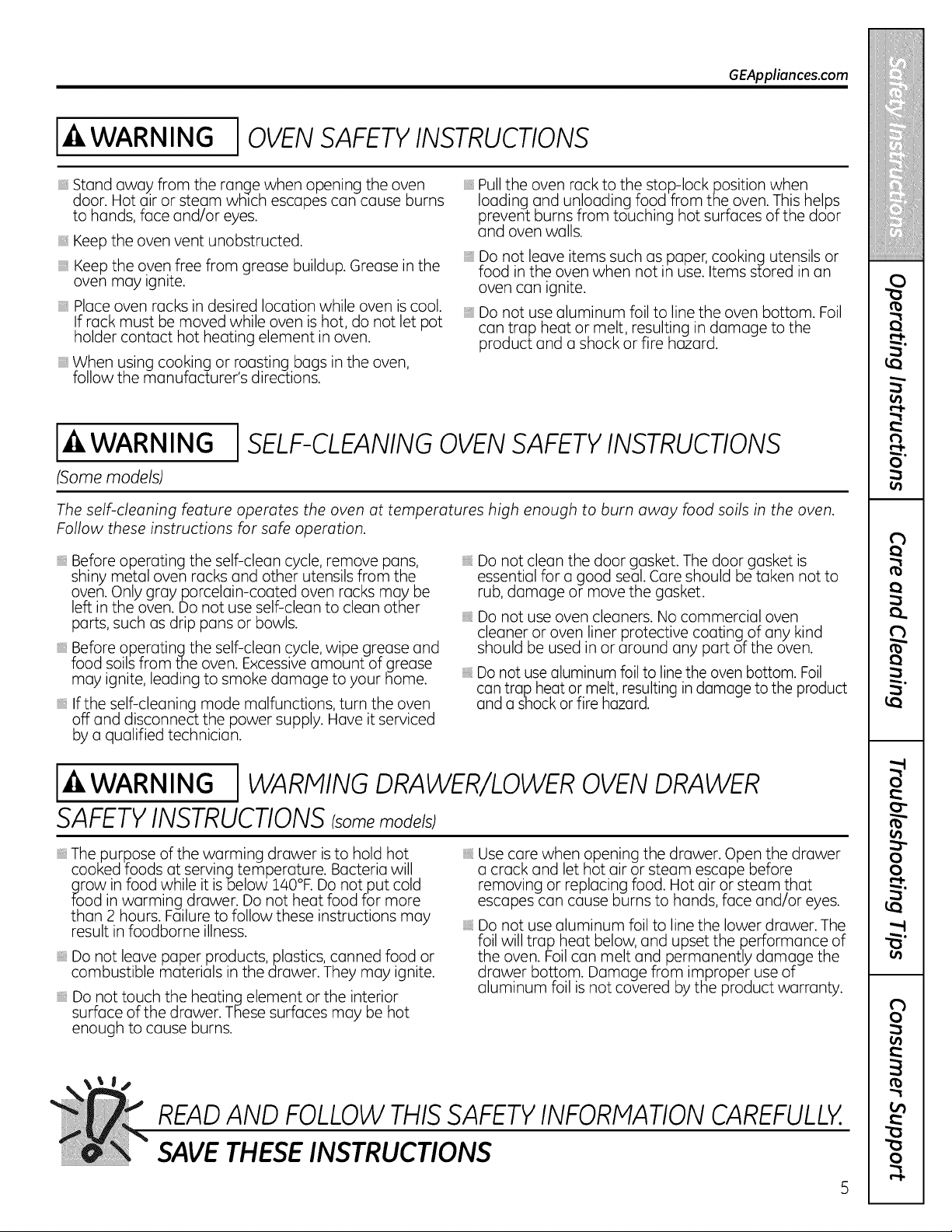

Stand away from the range when opening the oven

door. Hot air or steam which escapes can cause burns

to hands, face and/or eyes.

■

Keep the oven vent unobstructed.

■

Keep the oven free from grease buildup. Grease in the

oven may ignite.

■

Place oven racks in desired location while oven is cool.

If rack must be moved while oven is hot, do not let pot

holder contact hot heating element in oven.

■

When using cooking or roasting bags in the oven,

follow the manufacturer’s directions.

■

Pull the oven rack to the stop-lock position when

loading and unloading food from the oven. This helps

prevent burns from touching hot surfaces of the door

and oven walls.

■

Do not leave items such as paper, cooking utensils or

food in the oven when not in use. Items stored in an

oven can ignite.

■

Do not use aluminum foil to line the oven bottom. Foil

can trap heat or melt, resulting in damage to the

product and a shock or fire hazard.

The self-cleaning feature operates the oven at temperatures high enough to burn away food soils in the oven.

Follow these instructions for safe operation.

■

Before operating the self-clean cycle, remove pans,

shiny metal oven racks and other utensils from the

oven. Only gray porcelain-coated oven racks may be

left in the oven. Do not use self-clean to clean other

parts, such as drip pans or bowls.

■

Before operating the self-clean cycle, wipe grease and

food soils from the oven. Excessive amount of grease

may ignite, leading to smoke damage to your home.

■

If the self-cleaning mode malfunctions, turn the oven

off and disconnect the power supply. Have it serviced

by a qualified technician.

■

Do not clean the door gasket. The door gasket is

essential for a good seal. Care should be taken not to

rub, damage or move the gasket.

■

Do not use oven cleaners. No commercial oven

cleaner or oven liner protective coating of any kind

should be used in or around any part of the oven.

■ Do not use aluminum foil to line the oven bottom. Foil

can trap heat or melt, resulting in damage to the product

and a shock or fire hazard.

■

The purpose of the warming drawer is to hold hot

cooked foods at serving temperature. Bacteria will

grow in food while it is below 140°F. Do not put cold

food in warming drawer. Do not heat food for more

than 2 hours. Failure to follow these instructions may

result in foodborne illness.

■

Do not leave paper products, plastics, canned food or

combustible materials in the drawer. They may ignite.

■

Do not touch the heating element or the interior

surface of the drawer. These surfaces may be hot

enough to cause burns.

■

Use care when opening the drawer. Open the drawer

a crack and let hot air or steam escape before

removing or replacing food. Hot air or steam that

escapes can cause burns to hands, face and/or eyes.

■

Do not use aluminum foil to line the lower drawer. The

foil will trap heat below, and upset the performance of

the oven. Foil can melt and permanently damage the

drawer bottom. Damage from improper use of

aluminum foil is not covered by the product warranty.

OVEN SAFETY INSTRuCTIONS

WARNING

SElF-ClEANING OVEN SAFETY INSTRuCTIONS

(Some models)

WARNING

WARMING DRAWER/lOWER OVEN DRAWER

SAFETY INSTRuCTIONS

(some models)

WARNING

SAVE THESE INSTRUCTIONS

READ AND FOllOW ThIS SAFETY INFORMATION

CAREFullY.

Using the surface units.

Throughout this manual, features and appearance may vary from your model.

Be sure you turn the control knob

to Off when you finish cooking.

How to Set

Indicator Lights

(on radiant glass models only)

A HOT SURFACE or HOT COOKTOP

(depending on model) indicator light will glow

when any radiant element is turned on and

will remain on until the surface is cool

enough to touch.

A SURFACE UNIT on or BURNER ON

(depending on model) indicator light will glow

when any surface unit is on.

NOTE: The SURFACE UNIT or BURNER ON

indicator light may glow between the surface

control settings of Lo and Off, but there is no

power to the surface units.

Push the knob in and turn in either direction

to the setting you want.

At both Off and Hi the control clicks

into position. You may hear slight clicking

sounds during cooking, indicating the control

is keeping the power level you set.

Consumer Support Troubleshooting Tips

Care and Cleaning

Operating Instructions

Safety Instructions

Dual Surface Unit and Control Knob

(on some models)

The right front surface unit has 2 cooking

sizes (6” and 9” or 9” and 12”) to select from

so you can match the size of the unit to the

size of the cookware you are using.

To use the small surface unit, turn the

control knob counterclockwise to the

SMALL BURNER settings.

To use the large surface unit, turn the

control knob clockwise to the LARGE

BURNER settings.

On some models.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

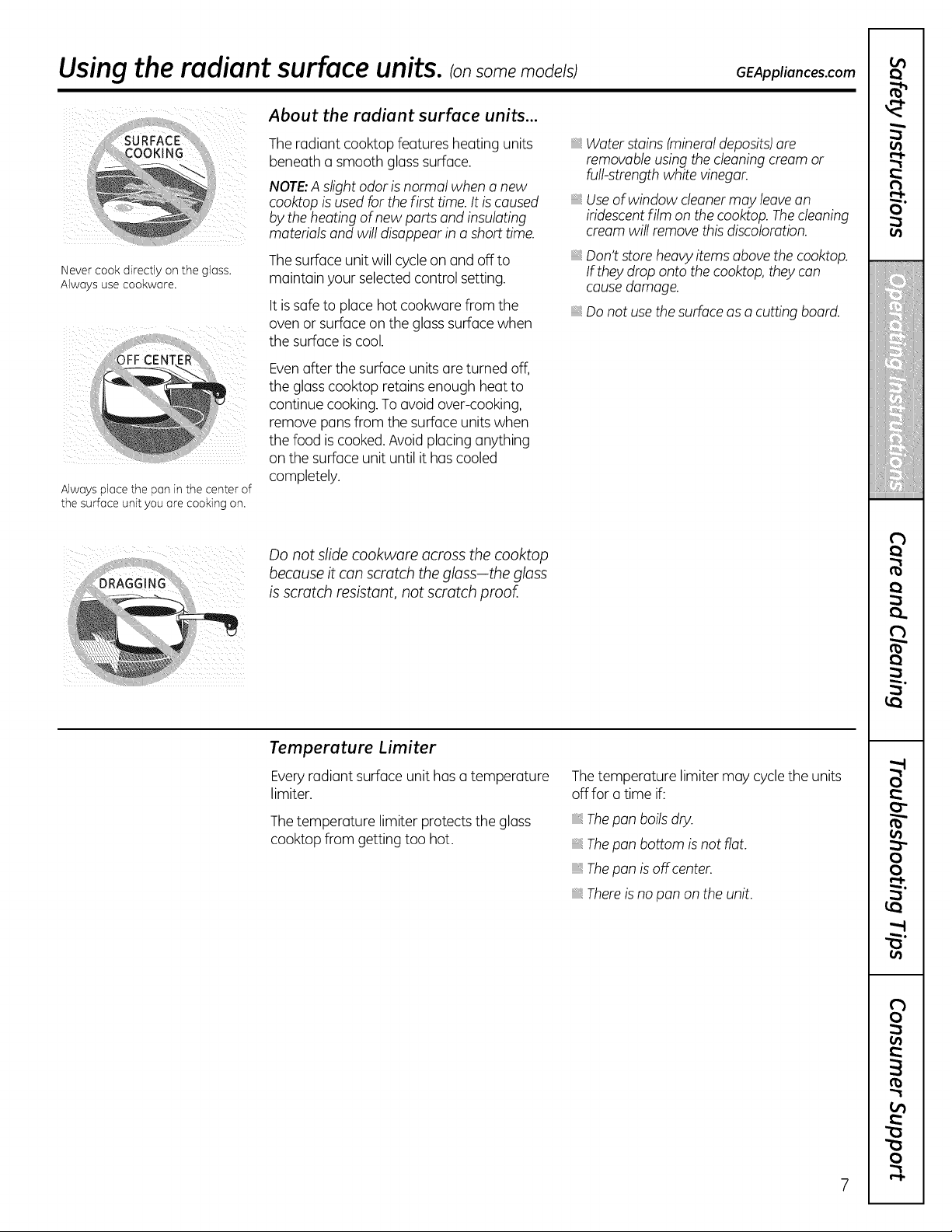

About the radiant surface units…

The radiant cooktop features heating units

beneath a smooth glass surface.

NOTE: A slight odor is normal when a new

cooktop is used for the first time. It is caused

by the heating of new parts and insulating

materials and will disappear in a short time.

The surface unit will cycle on and off to

maintain your selected control setting.

It is safe to place hot cookware from the

oven or surface on the glass surface when

the surface is cool.

Even after the surface units are turned off,

the glass cooktop retains enough heat to

continue cooking. To avoid over-cooking,

remove pans from the surface units when

the food is cooked. Avoid placing anything

on the surface unit until it has cooled

completely.

Do not slide cookware across the cooktop

because it can scratch the glass—the glass

is scratch resistant, not scratch proof.

■ Water stains (mineral deposits) are

removable using the cleaning cream or

full-strength white vinegar.

■ use of window cleaner may leave an

iridescent film on the cooktop. The cleaning

cream will remove this discoloration.

■ Don’t store heavy items above the cooktop.

If they drop onto the cooktop, they can

cause damage.

■ Do not use the surface as a cutting board.

Using the radiant surface units. (on some models) GEAppliances.com

SURFACE

COOKING

Never cook directly on the glass.

Always use cookware.

OFF CENTER

Always place the pan in the center of

the surface unit you are cooking on.

Every radiant surface unit has a temperature

limiter.

The temperature limiter protects the glass

cooktop from getting too hot.

The temperature limiter may cycle the units

off for a time if:

■ The pan boils dry.

■ The pan bottom is not flat.

■ The pan is off center.

■ There is no pan on the unit.

Temperature Limiter

DRAGGING

Selecting types of cookware.

The following information will help you choose cookware which will give good performance on glass cooktops.

Stainless Steel:

recommended

Aluminum:

heavy weight recommended

Good conductivity. Aluminum residues

sometimes appear as scratches on the

cooktop, but can be removed if cleaned

immediately. Because of its low melting

point, thin-weight aluminum should not

be used.

Copper Bottom:

recommended

Copper may leave residues which can

appear as scratches. The residues can be

removed, as long as the cooktop is cleaned

immediately. However, do not let these pots

boil dry. Overheated metal can bond to glass

cooktops. An overheated copper bottom pot

will leave a residue that will permanently

stain the cooktop if not removed

immediately.

Porcelain Enamel Covered Cast Iron:

recommended

As long as the cookware is covered

completely with porcelain enamel, this

cookware is recommended. Caution is

recommended for cast-iron cookware

that is not completely covered with smooth

porcelain enamel, as it may scratch the

glass-ceramic cooktop.

Glass-ceramic:

usable, but not recommended

Poor performance. May scratch the surface.

Stoneware:

usable, but not recommended

Poor performance. May scratch the surface.

Home Canning Tips:

Be sure the canner is centered over the

surface unit.

Make sure the canner is flat on the bottom.

Use recipes and procedures from

reputable sources. These are available

from manufacturers such as Ball

and

Kerr

and the Department of Agriculture

Extension Service.

To prevent burns from steam or heat, use

caution when canning.

Check pans for flat bottoms by

using a straight edge.

Pans with rounded, curved,

ridged or warped bottoms are

not recommended.

Wok Cooking

We recommend that you use only a flat-

bottomed wok. They are available at your

local retail store.

Do not use woks that have support rings. Use

of these types of woks, with or without the

ring in place, can be dangerous.

Placing the ring over the surface unit will

cause a buildup of heat that will damage

the porcelain cooktop. Do not try to use such

woks without the ring. You could be seriously

burned if the wok tips over.

Use only flat-bottomed woks.

Use medium- or heavy-weight cookware.

Aluminum cookware conducts heat faster

than other metals. Cast-iron and coated

cast-iron cookware are slow to absorb heat,

but generally cook evenly at low to medium

heat settings. Steel pans may cook unevenly

if not combined with other metals.

For best cooking results, pans should be

flat on the bottom. Match the size of the

saucepan to the size of the surface unit.

The pan should not extend over the edge

of the surface unit more than 1 inch.

Not over 1 inch

1″

The following information will help you choose cookware which will give good performance on coil cooktops.

Surface Cookware Tips

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Oven Control, Clock and Timer Features and Settings

BAkE/TEMP RECAll Pad

Touch this pad to select the bake function.

BAkE light

Flashes while in edit mode—you can change the

oven temperature at this point. Glows when the

oven is in bake mode.

START/ON Pad

Must be touched to start any cooking or cleaning

function.

Display

Shows the time of day, oven temperature,

whether the oven is in the bake, broil or self-

cleaning mode and the times set for the timer

or automatic oven operations. The display will

show PRE while preheating. When the oven

reaches the selected temperature, the oven

control will beep and the display will show the

oven temperature.

If “F– and a number or letter” flash in the display and

the oven control signals, this indicates a function error

code.

If your oven was set for a timed oven operation and a

power outage occurred, the clock and all programmed

functions must be reset.

The time of day will flash in the display when there has

been a power outage. Reset the clock.

If the function error code appears during the self-

cleaning cycle, check the oven door latch. The latch

handle may have been moved, even if only slightly,

from the latched position. Make sure the latch is moved

to the right as far as it will go.

Touch the CLEAR/OFF pad. Allow the oven to cool

for one hour. Put the oven back into operation. If the

function error code repeats, disconnect the power

to the range and call for service.

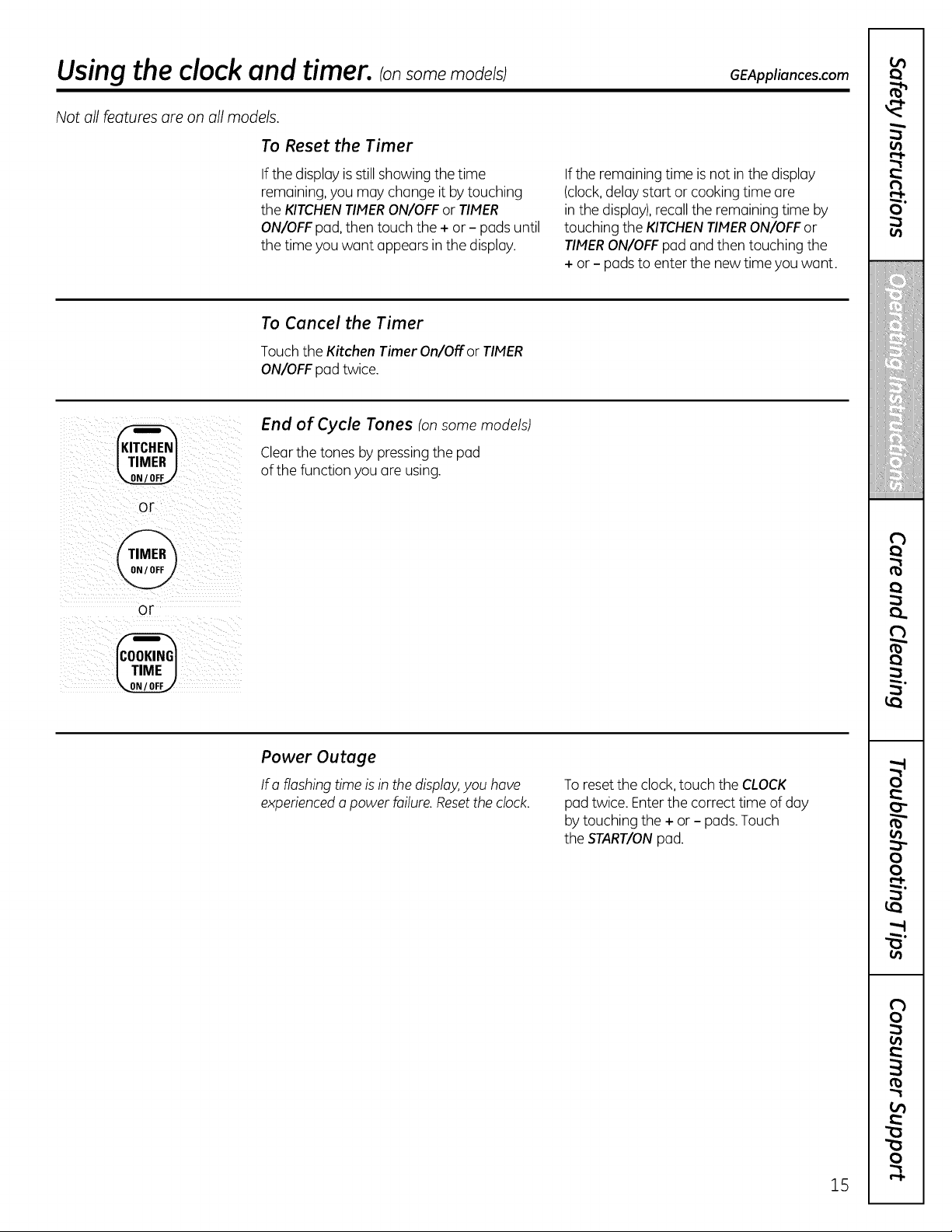

kITChEN TIMER ON/OFF or

TIMER ON/OFF pad

Touch this pad to select the timer feature.

Then touch the + and – pads to adjust the

timer.

TIMER light

Flashes while in edit mode—you can change the

set time at this point. Glows when the timer has

been activated. Flashes again when the time has

run out until the control is reset.

ClOCk Pad

To set the clock, press this pad twice and then

press the + and – pads. The time of day will

flash in the display when the oven is first

turned on.

START TIME ON/OFF Pad (on some models)

Use along with the COOKING TIME ON/OFF or

SELF CLEAN pads to set the oven to start and

stop automatically at a time you set.

START TIME light

Flashes while in edit mode—you can change the

start time at this point. Glows when the function

has been activated.

COOkING TIME ON/OFF Pad (on some models)

Touch this pad and then touch the + or – pads

to set the amount of time you want your food

to cook. The oven will shut off when the

cooking time has run out.

COOkING TIME light

Flashes while in edit mode—you can change the

set time at this point. Glows when the function

has been activated. Flashes again when the time

has run out until the control is reset.

Throughout this manual, features and appearance may vary from your model.

Using the oven controls. (on some models) GEAppliances.com

Using the oven controls. (on some models)

Oven Control, Clock and Timer Features and Settings

AuTOMATIC OVEN light (on some models)

This lights anytime the oven has been

programmed using the COOKING TIME

or START TIME functions.

OVEN lIGhT ON/OFF or Pad

Touch this pad to turn the oven light on or off.

– Pad

Short taps to this pad will decrease the time or

temperature by small amounts. Touch and hold

the pad to decrease the time or temperature by

larger amounts.

+ Pad

Short taps to this pad will increase the time or

temperature by small amounts. Touch and hold

the pad to increase the time or temperature by

larger amounts.

SElF ClEAN Pad (on some models)

Touch this pad to select the self-cleaning

function. See the using the self-cleaning oven

section.

ClEAN light

Flashes while in edit mode—you can change

the length of time for the self-clean cycle at this

point. Glows when the oven is in the self-clean

cycle. After the self-clean cycle, the light will turn

off. Unlatch the door.

ClEAR/OFF Pad

Touch this pad to cancel ALL oven operations

except the clock and timer.

BROIl hI/lO Pad

Touch this pad to select the broil function.

BROIl light

Flashes while in edit mode—you can switch from

HI to LO BROIL at this point. Glows when the

oven is in broil mode.

Indicator lights (on some pads)

EDIT mode lasts several seconds after the last

pad press. START TIME ON/OFF and COOKING

TIME ON/OFF will be the only pads lit if either of

these options is selected. (Example: START TIME

is selected with BAKE—the START TIME pad will

remain lit until the clock reaches the

programmed time, at which point it will turn off

and the BAKE/TEMP RECALL pad light will light

up).

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the oven. GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

To avoid possible burns, place the racks

in the desired position before you turn the

oven on.

The racks have stop-locks, so that

when placed correctly on the rack supports

(A through E), they will stop before coming

completely out, and will not tilt.

When placing and removing cookware,

pull the rack out to the bump on the

rack support.

To remove a rack, pull it toward you, tilt

the front end up and pull it out.

To replace, place the end of the rack

(stop-locks) on the support, tilt up the front

and push the rack in.

NOTE: The rack is not designed to slide out

at the special low rack (R) position.

Before you begin…

The oven has 5 rack positions.

It also has a special low rack

position (R) for extra large items,

such as a large turkey.

(On some models—

appearance will vary)

(On some models—

appearance will vary)

How to Set the Oven for Baking or Roasting (on models without an oven temperature knob)

Touch the BAKE pad.

Touch the + or – pads until the desired

temperature is displayed.

Touch the START/ON pad.

The oven will start automatically. The display

will show PRE while preheating. When the

oven reaches the selected temperature, the

oven control will beep and the display will

show the oven temperature.

To change the oven temperature during BAkE

cycle, touch the BAKE pad and then the + or –

pads to get the new temperature.

Check food for doneness at minimum

time on recipe. Cook longer if necessary.

Touch the CLEAR/OFF pad when baking

is finished and then remove the food

from the oven.

Type of Food Rack Position

Frozen pies (on cookie sheet) C

Angel food cake, B

bundt or pound cakes

Biscuits, muffins, brownies, B or C

cookies, cupcakes,

layer cakes, pies

Casseroles B or C

Turkey R or A

Roasting R, A or B

The oven has a special low rack (R)

position just above the oven

bottom. Use it when extra cooking

space is needed, for example,

when cooking a large turkey. The

rack is not designed to slide out at

this position.

OVEN TEMP

Oven Temperature Knob (on some models)

Turn this knob to the setting you want.

■ The oven cycling light comes on during cooking.

kITChEN TIMER ON/OFF Pad

Touch this pad to select the timer feature.

ClOCk Pad

Touch this pad before setting the clock.

Display

Shows the time of day and the time set for the timer, cook time or start time.

SET +/- Pads

These pads allow you to set the clock and timer.

Clock and Kitchen Timer (on some models)

Appearance may vary.

Preheat the oven if the recipe calls for it.

To preheat, set the oven at the correct

temperature. Preheating is necessary for

good results when baking cakes, cookies,

pastry and breads.

On some models, the display will show “PRE”

while preheating. When the oven reaches the

selected temperature, the oven control will

beep and the display will show the oven

temperature.

For ovens without a preheat indicator light

or tone, preheat 10 minutes.

Baking results will be better if baking

pans are centered in the oven as much as

possible. Pans should not touch each other

or the walls of the oven. If you need to use

two racks, stagger the pans so one is

not directly above the other, and leave

approximately 1

⁄2″ from the front

of the pan to the front of the rack.

On models without an oven temperature knob:

Place the meat or fish on a broiler grid

in a broiler pan.

Follow suggested rack positions in the

Broiling Guide.

Leave the door open to the broil stop

position. The door stays open by itself,

yet the proper temperature is

maintained in the oven.

Use LO Broil to cook foods such as poultry

or thick cuts of meat thoroughly without

over-browning them.

Touch the BROIL HI/LO pad once

for HI BROIL.

To change to LO Broil, touch

the Broil HI/LO pad again.

Touch the START/ON pad.

When broiling is finished, touch

the CLEAR/OFF pad.

On models with an oven temperature knob:

Place the meat or fish on a broiler grid

in a broiler pan.

Follow suggested rack positions

in the Broiling Guide.

Close the oven door.

Turn the Oven Temperature Knob to

BROIL.

When broiling is finished, turn the

Oven Temperature Knob to OFF.

Do not use aluminum foil to line oven

bottoms. The foil will trap heat below and

upset the performance of the oven. Foil

can melt and permanently damage the

oven bottom. Damage from improper use

of aluminum foil is not covered by the

product warranty

Foil may be used to catch spills by placing

a sheet on a lower rack, several inches

below the food .Do not use more foil than

necessary and never entirely cover an

oven rack with aluminum foil. Keep foil at

least 1-1/2” from oven walls to prevent

poor heat circulation.

Preheating and Pan Placement

Type of Margarine Will Affect Baking Performance!

Aluminum Foil

How to Set the Oven for Broiling

Using the oven.

Most recipes for baking have been

developed using high fat products such

as butter or margarine (80% fat). If you

decrease the fat, the recipe may not

give the same results as with a higher

fat product.

Recipe failure can result if cakes, pies,

pastries, cookies or candies are made with

low fat spreads. The lower the fat content

of a spread product, the more noticeable

these differences become.

Federal standards require products labeled

“margarine” to contain at least 80% fat by

weight. Low-fat spreads, on the other hand,

contain less fat and more water. The high

moisture content of these spreads affects

the texture and flavor of baked goods. For

best results with your old favorite recipes,

use margarine, butter or stick spreads

containing at least 70% vegetable oil.

If your range is connected

to 208 volts, rare steaks

may be broiled by preheating

the broiler and positioning

the oven rack one position

higher.

Consumer Support Troubleshooting Tips

Care and Cleaning

Operating Instructions Safety Instructions

GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

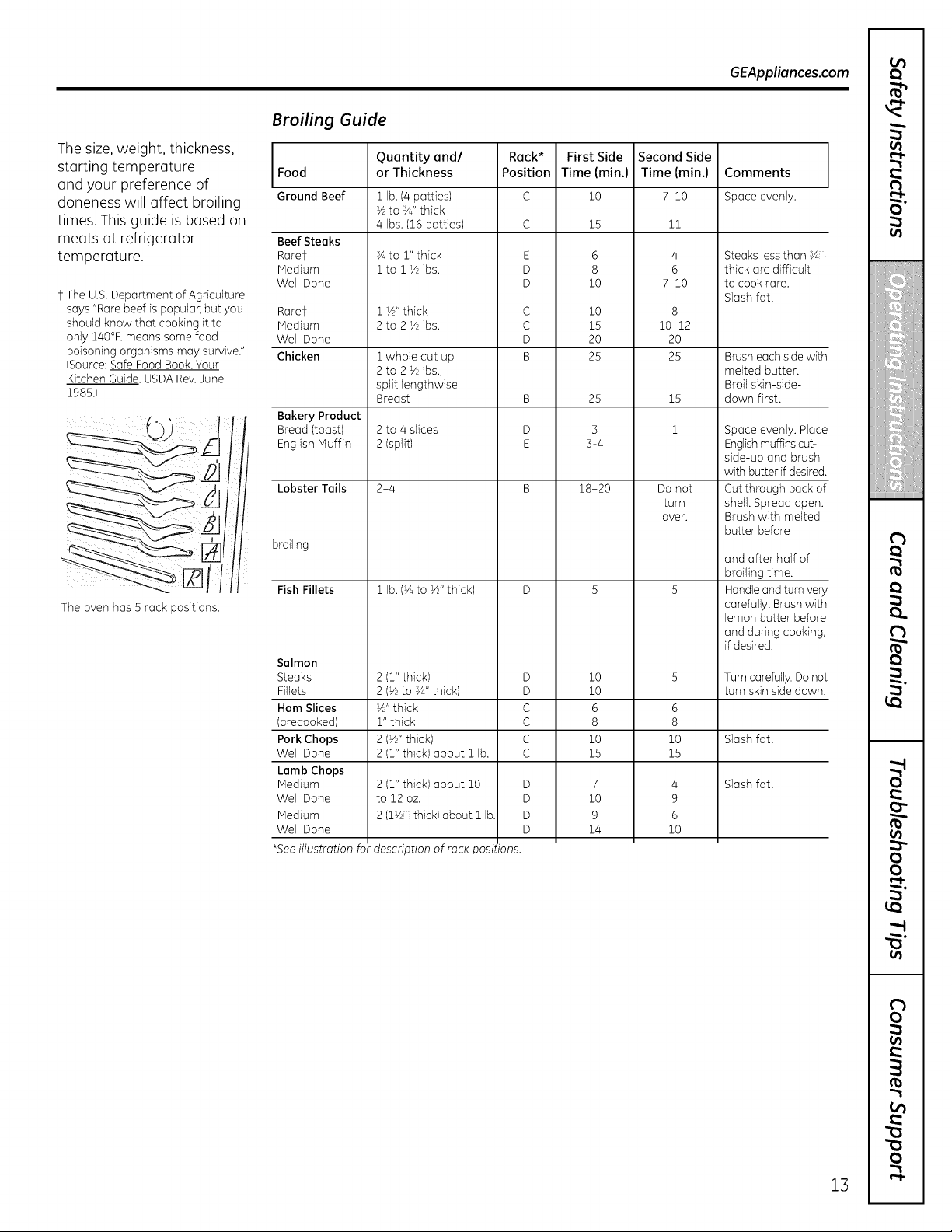

Quantity and/ Rack* First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) C 10 7–10 Space evenly.

⁄2 to

⁄4” thick

4 lbs. (16 patties) C 15 11

Beef Steaks

Rare†

⁄4 to 1” thick E6 4Steaks less than

⁄4″

Medium 1 to 1

⁄2 lbs. D8 6thick are difficult

Well Done D 10 7–10 to cook rare.

Slash fat.

Rare† 1

⁄2” thick C 10 8

Medium 2 to 2

⁄2 lbs. C 15 10–12

Well Done D 20 20

Chicken 1 whole cut up B 25 25 Brush each side with

2 to 2

⁄2 lbs., melted butter.

split lengthwise Broil skin-side-

Breast B 25 15 down first.

Bakery Product

Bread (toast) 2 to 4 slices D3 1Space evenly. Place

English Muffin 2 (split) E 3-4 English muffins cut-

side-up and brush

with butter if desired.

Lobster Tails 2–4 B 18–20 Do not Cut through back of

turn shell. Spread open.

over. Brush with melted

butter before

broiling

and after half of

broiling time.

Fish Fillets 1 lb. (

⁄4 to

⁄2” thick) D5 5

Handle and turn very

carefully. Brush with

lemon butter before

and during cooking,

if desired.

Salmon

Steaks 2 (1” thick) D 10 5 T

urn carefully. Do not

Fillets 2 (

⁄2 to

⁄4” thick) D 10 turn skin side down.

Ham Slices

⁄2” thick C6 6

(precooked) 1” thick C8 8

Pork Chops 2 (

⁄2” thick) C 10 10 Slash fat.

Well Done 2 (1” thick) about 1 lb. C 15 15

Lamb Chops

Medium 2 (1” thick) about 10 D7 4Slash fat.

Well Done to 12 oz. D 10 9

Medium 2 (1

⁄2″ thick) about 1 lb. D9 6

Well Done D 14 10

Broiling Guide

The size, weight, thickness,

starting temperature

and your preference of

doneness will affect broiling

times. This guide is based on

meats at refrigerator

temperature.

† The U.S. Department of Agriculture

says “Rare beef is popular, but you

should know that cooking it to

only 140°F. means some food

poisoning organisms may survive.”

(Source: Safe Food Book. Your

Kitchen Guide. USDA Rev. June

1985.)

The oven has 5 rack positions.

*See illustration for description of rack positions.

Using the clock and timer. (on some models)

Consumer Support Troubleshooting Tips

Care and Cleaning

Operating Instructions Safety Instructions

Not all features are on all models.

To Set the Timer

The timer does not control oven operations.

The maximum setting on the timer is 9 hours

and 59 minutes.

Touch the KITCHEN TIMER ON/OFF or

TIMER ON/OFF pad.

Touch the + or – pads until the amount

of time you want shows in the display.

The maximum time that can be entered

in minutes is 59. Times more than 59

minutes should be changed to hours

and minutes.

If you make a mistake, touch the KITCHEN

TIMER ON/OFF or TIMER ON/OFF pad and

begin again.

Touch the START/ON pad. The time will

start counting down, although the

display does not change until one

minute has passed.

When the timer reaches :00, the control

will beep 3 times followed by one beep

every 6 seconds until the KITCHEN

TIMER ON/OFF or TIMER ON/OFF pad

is touched.

The timer is a minute timer only.

The CLEAR/OFF pad does not

affect the timer.

To Set the Clock

The clock must be set to the correct time of

day for the automatic oven timing functions

to work properly. The time of day cannot

be changed during a timed baking

or self-cleaning cycle.

Touch the CLOCK pad twice.

Touch the + or – pads.

If the + or – pads are not touched within one

minute after you touch the CLOCK pad, the

display reverts to the original setting. If this

happens, touch the CLOCK pad and reenter

the time of day.

Touch the START/ON pad until the time

of day shows in the display. This enters

the time and starts the clock.

To check the time of day when the display

is showing other information, simply touch

the CLOCK pad. The time of day shows until

another pad is touched.

Make sure the clock is set to the

correct time of day.

To Turn Off the Clock Display

If you have several clocks in your kitchen, you

may wish to turn off the time of day clock

display on your range.

Touch the CLOCK pad once to turn

off the time of day display. Although

you will not be able to see it, the clock

maintains the correct time of day.

Touch the CLOCK pad again to recall

the clock display.

Using the clock and timer. (on some models) GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

Not all features are on all models.

To Reset the Timer

If the display is still showing the time

remaining, you may change it by touching

the KITCHEN TIMER ON/OFF or TIMER

ON/OFF pad, then touch the + or – pads until

the time you want appears in the display.

If the remaining time is not in the display

(clock, delay start or cooking time are

in the display), recall the remaining time by

touching the KITCHEN TIMER ON/OFF or

TIMER ON/OFF pad and then touching the

+ or – pads to enter the new time you want.

To Cancel the Timer

Touch the Kitchen Timer On/Off or TIMER

ON/OFF pad twice.

End of Cycle Tones (on some models)

Clear the tones by pressing the pad

of the function you are using.

Power Outage

If a flashing time is in the display, you have

experienced a power failure. Reset the clock.

To reset the clock, touch the CLOCK

pad twice. Enter the correct time of day

by touching the + or – pads. Touch

the START/ON pad.

Using the timed baking and roasting features. (on some models)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Do not lock the oven door with the latch during timed cooking. The latch is used for self-cleaning only.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for

more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that

the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for

a selected length of time. At the end of the

cooking time, the oven will turn off

automatically.

Touch the BAKE pad.

Touch the + or – pads to set the oven

temperature.

Touch the COOKING TIME pad.

NOTE: If your recipe requires preheating, you

may need to add additional time to the length of

the cooking time.

Touch the + or – pads to set the

baking time.

The cooking time that you entered will be

displayed. (If you select Cooking Time first and

then adjust the Bake Temperature, the oven

temperature will be displayed instead).

Touch the START/ON pad.

The display shows either the oven temperature

that you set or the cooking time countdown.

(The display starts with PRE if showing the oven

temperature.)

The oven will continue to cook for the

programmed amount of time, then turn

off automatically.

Touch the CLEAR/OFF pad to clear

the display if necessary.

Remove the food from the oven. Remember,

even though the oven shuts off automatically,

foods continue cooking after controls are off.

How to Set a Delayed Start and Automatic Stop

The oven will turn on at the time of day you set,

cook for a specific length of time and then turn

off automatically.

Make sure the clock shows the correct time

of day.

Touch the BAKE pad.

Touch the + or – pads to set the oven

temperature.

Touch the COOKING TIME pad.

Touch the + or – pads to set the desired

length of cooking time.

Touch the START TIME pad.

Touch the + or – pads to set the time of

day you want the oven to turn on and

start cooking.

Touch the START/ON pad.

NOTE: An attention tone will sound if you

are using timed baking and do not touch

the START/ON pad.

NOTE: If you would like to check the times you

have set, touch the START TIME pad to check

the start time you have set or touch the

COOKING TIME pad to check the length

of cooking time you have set.

When the oven turns on at the time of day you

have set, the display will show PRE until it

reaches the selected temperature, then it will

display the oven temperature.

At the end of cooking time, the oven will turn

off and the end of cycle tone will sound.

Touch the CLEAR/OFF pad to clear

the display if necessary.

Remove the food from the oven. Remember,

even though the oven shuts off automatically,

foods continue cooking after controls are off.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and

Cleaning

Troubleshooting Tips Consumer Support

Your new touch pad control has additional features that you may choose to use. The following are the features

and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain

in the control’s memory until the steps are repeated.

When the display shows your choice, touch the START/ON pad. The special features will remain in memory after

a power failure.

NOTE: The Sabbath feature and the Thermostat Adjustment feature are also Special Features, but they are addressed

separately in the following sections.

Special features of your oven control. GEAppliances.com

12 Hour Shut-Off

With this feature, should you forget and leave

the oven on, the control will automatically turn

off the oven after 12 hours during baking

functions or after 3 hours during a broil

function.

If you wish to turn OFF this feature, follow

the steps below.

Touch the BAKE and BROIL HI/LO pads

at the same time for 3 seconds until

the display shows SF.

Touch the CLOCK pad. The display will

show ON (12 hour shut-off). Touch the

CLOCK pad repeatedly until the display

shows OFF (no shut-off).

Touch the START/ON pad to activate

the no shut-off and leave the control

set in this special features mode.

The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning

or Delay Start cooking.

NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door

is closed. The bulb may be removed. See the Oven light Replacement section. On models with a light switch on the

control panel, the oven light may be turned on and left on.

How to Set for Timed Baking/Roasting—Immediate Start and Automatic

Stop

NOTE: To understand how the oven control works,

practice using regular (non-Sabbath) Immediate Start

and Automatic Stop before entering the Sabbath

mode.

Make sure the clock shows the correct time of day

and the oven is off.

Touch and hold both the BAKE and BROIL

HI/LO pads, at the same time, until the display

shows SF.

Tap the CLOCK pad until SAb appears in

the display.

Touch the START/ON pad and  will appear

in the display.

Touch the COOKING TIME pad.

Touch the + or – pads to set the desired length

of cooking time between 1 minute and 9 hours

and 59 minutes. The cooking time that you

entered will be displayed.

Touch the START/ON pad.

Touch the BAKE pad. No signal will be given.

The preset starting temperature will

automatically be set to 350.° Tap the

+ or – pads to increase or decrease

the temperature in 25° increments.

The temperature can be set between

170° and 550.° No signal or temperature

will be given.

Touch the START/ON pad.

After a random delay period of approximately

30 seconds to 1 minute,  will appear in the

display indicating that the oven is

baking/roasting.

If  doesn’t appear in the

display, start again at Step 7.

To adjust the oven temperature, touch

the BAKE pad and tap the + or – pads to increase or

decrease the temperature in 25° increments. Touch

the START/ON pad.

When cooking is finished, the display will change

from  to , indicating that the oven has

turned OFF but is still set in Sabbath. Remove

the cooked food.

Using the Sabbath Feature.

(on some models)

(Designed for use on the Jewish Sabbath and holidays)

How to Set for Regular Baking/Roasting

NOTE: To understand how the oven control works,

practice using regular baking (non-Sabbath) before

entering Sabbath mode.

Make sure the clock shows the correct time of day

and the oven is off.

Touch and hold both the BAKE and BROIL

HI/LO pads, at the same time, until the display

shows SF.

Tap the CLOCK pad until SAb appears

in the display.

Touch the START/ON pad and  will appear

in the display.

Touch the BAKE pad. No signal will be given.

The preset starting temperature will

automatically be set to 350.° Tap the

+ or – pads to increase or decrease the

temperature in 25° increments. The

temperature can be set between 170°

and 550.° No signal or temperature

will be given.

Touch the START/ON pad.

After a random delay period of approximately

30 seconds to 1 minute,  will appear in the

display indicating that the oven is

baking/roasting.

If  doesn’t appear in the

display, start again at Step 4.

To adjust the oven temperature, touch

the BAKE pad and tap the + or – pads to increase or

decrease the temperature in 25° increments. Touch

the START/ON pad.

NOTE: The CLEAR/OFF and COOKING TIME pads are

active during the Sabbath feature.

When the display shows 

the oven is set in Sabbath. When

the display shows  the oven

is baking/roasting.

When the display shows



the oven is set in Sabbath.

When the display shows 

the oven is baking/roasting.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Using the Sabbath Feature.

(on some models)

(Designed for use on the Jewish Sabbath and holidays)

GEAppliances.com

How to Exit the Sabbath Feature

Touch the CLEAR/OFF pad.

If the oven is cooking, wait for

a random delay period of approximately

30 seconds to 1 minute, until only 

is in the display.

Touch and hold both the BAKE and

BROIL HI/LO pads, at the same time,

until the display shows SF.

Tap the CLOCK pad until ON or OFF

appears in the display. ON indicates that

the oven will automatically turn off after

12 hours. OFF indicates that the oven will

not automatically turn off. See

the Special Features section for an

explanation of the 12 hour Shut-Off

feature.

Touch the START/ON pad.

NOTE: If a power outage occurred while

the oven was in Sabbath, the oven will

automatically turn off and stay off even

when the power returns. The oven control must

be reset.

You may find that your new oven cooks differently than the one it replaced. use your new oven for a few weeks to become

more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.

These thermometers may vary 20–40°F.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures (on some models). The adjustment will

be retained in memory after a power failure.

Adjust the oven thermostat—Easy to do yourself!

Pull the OVEN TEMP knob off the range

and look at the back side. To make an

adjustment, loosen (approximately one

turn), but do not completely remove, the

two screws on the back of the knob.

To increase the oven temperature, move

the pointer toward the words “MAKE

HOTTER.”

To decrease the oven temperature, turn

the pointer toward the words “MAKE

COOLER.”

Each click will change the oven

temperature approximately 10°F. (Range is

plus or minus 60°F from the arrow.) We

suggest that you make the adjustment one

click from the original setting and check

oven performance before making any

additional adjustments.

After the adjustment is made, retighten

screws so they are snug, but be careful not

to overtighten.

Replace the knob, matching the flat area

of the knob to the shaft, and check

performance.

To Adjust the Thermostat with this Type of Knob

Back of OVEN TEMP knob

(knob appearance may vary)

Pointer

Front of OVEN TEMP knob

(knob appearance may vary)

OVEN TEMP

Front of OVEN TEMP knob

(knob appearance may vary)

To Adjust the Thermostat on Other Models

Touch the BAKE and BROIL HI/LO pads

at the same time for 3 seconds until

the display shows SF.

Touch the BAKE pad. A two digit

number shows in the display.

The oven temperature can be adjusted

up to (+) 35°F hotter or (–) 35°F cooler.

Touch the + pad to increase the

temperature in 1 degree increments.

Touch the – pad to decrease the

temperature in 1 degree increments.

When you have made the adjustment,

touch the START/ON pad to go back to

the time of day display. Use your oven

as you would normally.

NOTE: This adjustment will not affect the

broiling or self-cleaning temperatures. It will

be retained in memory after a power failure.

To Adjust the Thermostat with this Type of Knob

Pull the OVEN TEMP knob off the range

and look at the back side. To make an

adjustment, loosen (approximately one

turn), but do not completely remove, the

two screws on the back of the knob.

With the back of the knob facing you, hold

the outer edge of the knob with one hand

and turn the front of the knob with the

other hand.

To increase the oven temperature, move

the top screw toward the right. You’ll hear

a click for each notch you move the knob.

To decrease the oven temperature, move

the top screw toward the left.

Each click will change the oven

temperature approximately 10°F. (Range is

plus or minus 60°F from the arrow.) We

suggest that you make the adjustment

one click from the original setting and

check oven performance before making

any additional adjustments.

After the adjustment is made, retighten

screws so they are snug, but be careful

not to overtighten.

Replace the knob, matching the flat area

of the knob to the shaft, and check

performance.

Back of OVEN TEMP knob

(knob appearance may vary)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Using the warming drawer. (on some models) GEAppliances.com

When Using the Warming Drawer

The warming drawer will keep hot, cooked

foods at serving temperature. Always start

with hot food. Do not use to heat cold

food other than crisping crackers, chips

or dry cereal.

Do not line the warming drawer or pan

with aluminum foil. Foil is an excellent heat

insulator and will trap heat beneath it. This

will upset the performance of the drawer

and could damage the interior finish.

■ Preheat prior to use according to these

recommended times:

Setting LO . . . . . . . . . . . . . . . . . . . .15 minutes

Setting MED . . . . . . . . . . . . . . . . . .25 minutes

Setting HI . . . . . . . . . . . . . . . . . . . .35 minutes

■ Do not put liquid or water in the warming

drawer.

■ For moist foods, cover them with a lid or

aluminum foil.

■ For crisp foods, leave them uncovered.

■ Food should be kept hot in its cooking

container or transferred to a heat-safe

serving dish.

CAUTION: Plastic containers or

plastic wrap will melt if in direct contact with

the drawer, pan or a hot utensil. Melted plastic

may not be removable and is not covered

under your warranty.

■ Remove serving spoons, etc., before

placing containers in warming drawer.

Control Knob (on models equipped with a knob)

Push and turn the control knob to any desired

setting.

NOTE: The warming drawer should not be

used during a self-clean cycle.

ON Signal Light

The ON signal light is located above the

control knob and glows when the knob is in

the on position. It stays on until the knob is

moved to the OFF position.

Warming Drawer

LO HI

MED

OFF

LO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pies

MED . . . . . . . . . . . . . . . . . . . . . . . .Casseroles

HI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Meats

Appearance may vary.

Rack (on some models)

■ For use in the warming drawer only.

Do not use in the oven.

■ Preheat with the rack in place.

■ Using the rack allows for double stacking

of items.

Temperature Selection Chart

■ The temperature, type and amount of food,

and the time held will affect the quality of

the food.

■ Food in heat-safe glass and glass-ceramic

utensils may need a higher control setting

as compared to food in metal utensils.

■ Repeated opening of the drawer allows hot

air to escape and food to cool.

■ Allow extra time for the temperature inside

the drawer to stabilize after adding items.

■ With large loads it may be necessary to

use a higher thermostat setting and

cover some of the cooked food items.

■ Do not use plastic containers or

plastic wrap.

CAUTION: Do not keep food in

the warming drawer for more than two hours.

To Crisp Stale Items

■ Place food in low-sided dishes or pans.

■ Preheat on LO setting.

■ Check crispness after 45 minutes. Add time

as needed.

To Warm Serving Bowls and Plates

To warm serving bowls and plates, set the

control on LO.

■ Use only heat-safe dishes.

■ Place empty dishes on the rack to raise

them off the bottom of the drawer. Placing

dishes on the warming drawer bottom

may cause them to become extremely

hot and could damage them.

■ If you want to heat fine china, please check

with the manufacturer of the dishes for

their maximum heat tolerance.

■ You may warm empty serving dishes while

preheating the drawer.

■ When holding hot, cooked foods and

warming empty serving dishes at the same

time, place the serving dishes on the rack

and the food on the bottom of the drawer.

CAUTION: Dishes will be hot.

use pot holders or mitts when removing hot

dishes.

Food Type Control Setting

Bacon HI

Breads MED

Casserole MED

Chicken, fried HI

Eggs, scrambled MED

Fish HI

Gravy, sauces HI

Ham HI

Muffins MED

Onion rings HI

Pies LO

Pizza HI

Potatoes, baked HI

Potatoes, mashed LO

Tortilla Chips LO

To keep several different foods hot, set the control to the food needing the highest setting.

Place the items needing the highest setting on the bottom of the drawer and items needing

less heat on the rack.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the warming drawer. (on some models)

Safety Instructions

Operating Instructions

Safety Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

For the first self-clean cycle, we recommend

venting your kitchen with an open window or

using a ventilation fan or hood.

Remove the racks, any broiler pan, broiler

grid, all cookware and any aluminum foil from

the oven.

The oven racks can be self-cleaned, but they

will darken, lose their luster and become hard

to slide.

Do not use commercial oven cleaners or oven

protectors in or near the self-cleaning oven.

A combination of any of these products plus

the high clean cycle temperatures may

damage the porcelain finish of the oven.

Soil on the front frame of the range and outside

the gasket on the door will need to be cleaned

by hand. Clean these areas with hot water, soap-

filled steel-wool pads or cleansers such as Soft

Scrub

. Rinse well with clean water and dry.

Do not clean the gasket. The fiberglass

material of the oven door gasket cannot

withstand abrasion. It is essential for the

gasket to remain intact. If you notice it

becoming worn or frayed, replace it.

Wipe up any heavy spillovers on the oven bottom.

Make sure the oven light bulb cover is in

place and the oven light is off.

CAUTION: The grates and

drip pans (if so equipped) should never be

cleaned in the self-cleaning oven.

Do not use commercial oven cleaners or

oven protectors in or near the self-cleaning

oven. A combination of any of these products

plus the high clean cycle temperatures may

damage the porcelain finish of the oven.

IMPORTANT: The health of some birds is

extremely sensitive to the fumes given off

during the self-cleaning cycle of any range.

Move birds to another well ventilated room.

Never force the latch handle. Forcing the handle will damage the door lock mechanism.

The oven door must be closed and all controls set correctly for the cycle to work properly.

Using the self-cleaning oven. (on some models) GEAppliances.com

Before a Clean Cycle

Wipe up heavy soil on the oven

bottom.

How to Set the Oven for Cleaning (on some models with press pads)

Follow the directions in the Before a Clean

Cycle section.

Latch the door.

Touch the SELF CLEAN pad.

Touch the + or – pads until the desired

Clean Time is displayed.

The Clean Time is normally 4 hours and 20

minutes. You can change the Clean Time to

any time between 3 and 5 hours, depending

on the amount of soil in your oven.

Touch the START/ON pad.

The self-clean cycle will automatically begin

after CLEAN is displayed and the time

countdown appears in the display.

While the oven is self-cleaning, you can touch

the CLOCK pad to display the time of day.

To return to the clean countdown, touch

the SELF CLEAN pad.

The oven shuts off automatically when

the clean cycle is complete, and 0:00 will flash

in the display.

Slide the latch handle to the left as far

as it will go and open the door.

NOTE: Never force the latch. If the oven is

too hot, you will not be able to slide the latch.

Allow the oven to cool.

How to Set the Oven for Cleaning (on models with knobs)

Follow the directions in the Before a Clean

Cycle section.

Latch the door.

Turn the OVEN TEMP knob to CLEAN.

The Clean Time is 4 hours and 20 minutes. The

self clean light will come on and stay on until

the self clean cycle is complete.

The oven shuts off automatically when the

clean cycle is complete.

After a clean cycle, turn the OVEN TEMP

knob to OFF and slide the latch handle

to the left as far as it will go.

To cancel self clean cycle, turn OVEN TEMP

knob to off and slide latch to left as far as

it will go. Wait until self clean light stops

blinking. Use oven as desired.

NOTE: Never force the latch. If the oven is

too hot, you will not be able to slide the latch.

Allow the oven to cool.

OVEN TEMP

Appearance may vary.

CAUTION: Never place cooking utensils, baking stones, foil, or any other items on

the oven floor. Even items rated for high temperature may permanently adhere to the oven

bottom or cause heat damage to the oven, flooring, or items in storage drawers.

The oven door must be closed and all controls set correctly for the cycle to work properly.

After a Clean Cycle

You cannot set the oven for cooking until

the oven is cool enough for the door to be

unlatched.

You may notice some white ash in the oven.

Wipe it up with a damp cloth after the

oven cools.

If white spots remain, remove them with

a soap-filled steel-wool pad and rinse

thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that

cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle,

repeat the cycle.

■ You cannot set the oven for cooking until

the oven is cool enough for the door

to unlock.

■ While the oven is self-cleaning, you can

touch the CLOCK pad to display the time

of day. To return to the clean countdown,

touch the COOKING TIME pad.

■ If the racks become hard to slide, apply a

small amount of vegetable oil or cooking oil

to a paper towel and wipe the edges of the

oven racks with the paper towel.

How to Delay the Start of Cleaning

You can set the oven control to delay-start

the oven, clean for a specific length of time

and then turn off automatically.

Make sure the clock shows the correct time

of day.

Follow the directions in the Before a Clean

Cycle section.

Latch the door.

NOTE: Never force the latch. If the oven is

too hot, you will not be able to slide the latch.

Allow the oven to cool.

Touch the SELF CLEAN pad.

Touch the + or – pads to set the

Clean Time.

The Clean Time is preset for 4 hours and 20

minutes. You can change the Clean Time to

any time between 3 and 5 hours, depending

on the amount of soil in your oven. If a

different Clean Time is desired, touch

the + or – pads until the desired Clean Time

is displayed.

Touch the START TIME pad.

Change the Start Time by touching the + or –

pads. The start time will appear in the display.

Touch the START/ON pad.

The self-clean cycle will automatically begin

at the time set.

While the oven is self-cleaning, you can touch

the CLOCK pad to display the time of day.

To return to the clean countdown, touch

the SELF CLEAN pad.

The oven shuts off automatically when

the clean cycle is complete, and 0:00 will flash

in the display.

Slide the latch handle to the left as far

as it will go and open the door.

To Stop a Clean Cycle

Touch the CLEAR/OFF pad.

Wait until the oven has cooled below the

locking temperature to unlatch the door. You

will not be able to open the door right away

unless the oven has cooled below the locking

temperature.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the self-cleaning oven. (on some models)

GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

The oven door is removable for cleaning.

Do not lift the door by the handle. Make sure

the oven is completely cool.

To remove the door, open it to the special

stop position. Grasp firmly on each side and

lift the door straight up and off the hinges.

Do not place hands between the hinge and

the oven door frame.

To replace the door, make sure the hinges

are in the special stop position. Position

the slots in the bottom of the door squarely

over the hinges and slowly lower it over

both hinges.

To clean the inside of the door:

■ Do not allow excess water to run into any

holes or slots in the door.

■ Soap and water will normally do the job.

Heavy spattering or spillovers may require

cleaning with a mild abrasive cleaner.

Soap-filled, steel-wool pads may also

be used.

Do not allow food spills with a high sugar or

acid content (such as milk, tomatoes,

sauerkraut, fruit juices or pie filling) to remain

on the surface. They may cause a dull spot

even after cleaning.

To clean the outside of the door:

■ Use soap and water to thoroughly clean

the top, sides and front of the oven door.

Rinse well. You may also use a glass

cleaner to clean the glass on the outside of

the door. Do not let water drip into the vent

openings.

■ Spillage of marinades, fruit juices, tomato

sauces and basting materials containing

acids may cause discoloration and should

be wiped up immediately. When surface is

cool, clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the

outside of the door.

Lift the door straight up and off the

hinges.

The gasket is designed with a gap

at the bottom to allow for proper

air circulation.

Because the area inside the gasket

is cleaned during the self-clean cycle,

you do not need to clean this by hand

on self-clean models.

The area outside the gasket and the

front frame can be cleaned with a

soap-filled steel-wool pad, hot water

and detergent. Rinse well with a

vinegar and water solution.

Do not rub or clean the door gasket—

it has an extremely low resistance to

abrasion.

If you notice the gasket becoming

worn, frayed or damaged in any way,

or if it has become displaced on the

door, you should have it replaced.

Lift-Off Oven Door

With proper care, the porcelain enamel

finish on the inside of the oven—top, bottom,

sides, back and inside of the door—will stay

new-looking for years.

Let the range cool before cleaning. We

recommend that you wear rubber gloves

when cleaning the range.

Soap and water will normally do the job.

Heavy spattering or spillovers may require

cleaning with a mild abrasive cleaner.

Soap-filled scouring pads may also be used.

Do not allow food spills with a high

sugar or acid content (such as milk,

tomatoes, sauerkraut, fruit juices or

pie filling) to remain on the surface. They may

cause a dull spot even after cleaning.

Household ammonia may make the cleaning

job easier. Place 1/2 cup in a shallow glass or

pottery container in a cold oven overnight.

The ammonia fumes will help loosen the

burned-on grease and food.

If necessary, you may use an oven cleaner.

Follow the package directions.

Do not spray oven cleaner on the electrical

controls and switches because it could cause

a short circuit and result in sparking or fire.

Do not allow a film from the cleaner to build

up on the temperature sensor–it could cause

the oven to heat improperly. (The sensor is

located at the top of the oven.) Carefully wipe

the sensor clean after each oven cleaning,

being careful not to move the sensor as a

change in its position could affect how the

oven bakes.

Do not spray any oven cleaner on the oven

door, handles or any exterior surface of the

oven, cabinets or painted surfaces. The cleaner

can damage these surfaces.

Oven Interior (non-self clean models)

WARNING: If your range is

removed for cleaning, servicing or any

reason, be sure the anti-tip device is

re-engaged properly when the range

is replaced. Failure to take this

precaution could result in tipping

of the range and cause injury.

Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.

CAUTION:Before replacing

your oven light bulb, turn the oven light off

and disconnect the electrical power to the

range at the main fuse or circuit breaker

panel.

Be sure to let the light cover and bulb cool

completely.

To remove the cover:

Hold a hand under the cover so it doesn’t

fall when released. With fingers of the

same hand, firmly push back the wire

cover holder. Lift off the cover.

Do not remove any screws to remove

the cover.

Replace bulb with a 40-watt household

appliance bulb.

To replace the cover:

Place it into groove of the light

receptacle. Pull wire forward to the

center of the cover until it snaps

into place.

Connect electrical power to the range.

Do not clean the bake element or the broil

element. Any soil will burn off when the

elements are heated.

To clean the oven floor, gently lift the bake

element. Clean with warm soapy water.

On some models, the bake element is not

exposed and is under the oven floor. If

spillovers, residue or ash accumulate on the

oven floor, wipe up before self-cleaning.

Clean the oven racks with an abrasive

cleanser or scouring pad. After cleaning,

rinse the racks with clean water and dry with

a clean cloth.

NOTE: Take the racks out of the oven before

you begin the self-clean cycle or they may

discolor.

To make the racks slide more easily, apply a

small amount of vegetable oil or cooking oil

to a paper towel and wipe the edges of the

oven racks with the paper towel.

Wire cover holder

Oven Heating Elements

Oven Racks

Oven Light Replacement (on some models)

Care and cleaning of the range.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions

Safety Instructions

To remove the storage drawer:

Pull the drawer out all the way.

Tilt up the front and remove it.

To replace the storage drawer:

Insert glides at the back of the drawer

beyond the stop on range glides.

Lift the drawer if necessary to insert

easily.

Let the front of the drawer down, then

push in to close.

Clean under the range.

Storage Drawer Removal (on some models)

GEAppliances.com

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

It’s a good idea to wipe the control panel after

each use of the oven. Use a damp cloth to

clean or rinse. For cleaning, use mild soap

and water or a 50/50 solution of vinegar and

water. For rinsing, use clean water. Polish dry

with a soft cloth.

Do not use abrasive cleansers, strong liquid

cleaners, plastic scouring pads or oven

cleaners on the control panel—they will

damage the finish.

The control knobs may be removed for easier

cleaning.

Make sure the knobs are in the OFF positions

and pull them straight off the stems for

cleaning.

The knobs can be cleaned in a dishwasher

or they may also be washed with soap and

water. Make sure the insides of the knobs are

dry before replacing.

Replace the knobs in the OFF position to

ensure proper placement.

Pull the knob straight off the stem.

Control Panel and Knobs

Warming Drawer Rack (on some models)

Clean the rack with detergent and water.

After cleaning, rinse the rack with clean water

and dry with a clean cloth.

Removable Warming Drawer (on some models)

Most cleaning can be done with the drawer in

place. However, the drawer may be removed

if further cleaning is needed. Use soap and

warm water to thoroughly clean.

To remove the warming drawer:

Pull the drawer straight out until it stops.

Press the left rail release up and press

the right rail release down, while pulling

the drawer forward and free.

To replace the warming drawer:

Place the left drawer rail around the

inner left rail guide and slide it in

slightly to hook it.

Place the right drawer rail around the

inner right rail guide and slide it in

slightly to hook it.

Slide the drawer all the way in.

NOTE: For models with an electric

warming drawer, before performing

any adjustments, cleaning or service,

disconnect the range electrical power

supply at the household distribution panel

by removing the fuse or switching off the

circuit breaker. Make sure the warming

drawer heating element is cool.

On glass cooktop models, the oven is vented

through an opening at the rear of the

cooktop.

On coil cooktop models, the oven is vented

through an opening under the right rear

surface unit.

Never cover the opening with aluminum foil

or any other material.

Oven Vent

Painted surfaces include the sides of the

range and the sides of the door trim.

To clean the painted surfaces, use a hot,

damp cloth with a mild detergent suitable for

these surfaces. Use a clean, hot, damp cloth

to remove soap. Dry with a dry, clean cloth.

Do not use steel-wood pads, commercial

oven cleaners, cleaning powders or other

abrasive cleaners. They will damage the

surface.

Painted Surfaces (on some models)

To clean the outside glass finish, use a glass

cleaner. Rinse and polish with a dry cloth.

Glass Window (on some models)

Stainless Steel Surfaces (on some models)

Do not use a steel wool pad; it will scratch

the surface.

To clean the stainless steel surface, use

warm sudsy water or a stainless steel

cleaner or polish. Always wipe the surface

in the direction of the grain. Follow the

cleaner instructions for cleaning the

stainless steel surface.

To inquire about purchasing stainless steel

appliance cleaner or polish, or to find the

location of a dealer nearest you, please call

our toll-free number:

National Parts Center 800.626.2002

GEAppliances.com

Care and cleaning of the range.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Cleaning the glass cooktop. (on some models) GEAppliances.com

Allow the cooktop to cool.

Use a single-edge razor blade scraper

at approximately a 45° angle against

the glass surface and scrape the soil.

It will be necessary to apply pressure

to the razor scraper in order to

remove the residue.

After scraping with the razor scraper,

spread a few drops of CERAMA BRYTE

Ceramic Cooktop Cleaner on the entire

burned residue area. Use the CERAMA

BRYTE

Cleaning Pad to remove any

remaining residue.

For additional protection, after all

residue has been removed, polish the

entire surface with CERAMA BRYTE

Ceramic Cooktop Cleaner and a paper

towel.

Burned-On Residue

WARNING: DAMAGE to your

glass surface may occur if you use scrub

pads other than those recommended.

Allow the cooktop to cool.

Spread a few drops of CERAMA BRYTE

Ceramic Cooktop Cleaner on the entire

burned residue area.

Using the included CERAMA BRYTE

Cleaning Pad for Ceramic Cooktops, rub

the residue area, applying pressure as

needed.

If any residue remains, repeat

the steps listed above as needed.

For additional protection, after all

residue has been removed, polish the

entire surface with CERAMA BRYTE

Ceramic Cooktop Cleaner and a paper

towel.

The CERAMA BRYTE

Ceramic

Cooktop Scraper and all

recommended supplies are

available through our Parts

Center. See instructions under “To

Order Parts” section on next page.

NOTE: Do not use a dull or nicked

blade.

Heavy, Burned-On Residue

Use a CERAMA BRYTE

Cleaning Pad

for Ceramic Cooktops.

Normal Daily Use Cleaning

ONLy use CERAMA BRYTE

Ceramic Cooktop

Cleaner on the glass cooktop. Other creams

may not be as effective.

To maintain and protect the surface of your

glass cooktop, follow these steps:

Before using the cooktop for the first

time, clean it with CERAMA BRYTE

Ceramic Cooktop Cleaner. This helps

protect the top and makes cleanup

easier.

Daily use of CERAMA BRYTE

Ceramic

Cooktop Cleaner will help keep the

cooktop looking new.

Shake the cleaning cream well. Apply a

few drops of CERAMA BRYTE

Ceramic

Cooktop Cleaner directly to the cooktop.

Use a paper towel or CERAMA BRYTE

Cleaning Pad for Ceramic Cooktops to

clean the entire cooktop surface.

Use a dry cloth or paper towel to

remove all cleaning residue. No need

to rinse.

NOTE: It is very important that you DO NOT

heat the cooktop until it has been cleaned

thoroughly.

Clean your cooktop after

each spill. Use CERAMA

BRYTE

Ceramic Cooktop

Cleaner.

To order CERAMA BRYTE

Ceramic Cooktop

Cleaner and the cooktop scraper, please

call our toll-free number:

National Parts Center . . . . 800.626.2002

CERAMA BRYTE

Ceramic

Cooktop Cleaner . . . . . . . . .# WX10X300

CERAMA BRYTE

Ceramic

Cooktop Scraper . . . . . . . . .# WX10X0302

Kit . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027

(kit includes cream and cooktop scraper)

CERAMA BRYTE

Cleaning Pads for

Ceramic Cooktops . . . . . . .# WX10X350

Turn off all surface units. Remove hot

pans.

Wearing an oven mitt:

a. Use a single-edge razor blade

scraper (CERAMA BRYTE

Ceramic

Cooktop Scraper) to move the spill

to a cool area on the cooktop.

b. Remove the spill with

paper towels.

Any remaining spillover should be left

until the surface of the cooktop has

cooled.

Don’t use the surface units again until

all of the residue has been completely

removed.

NOTE: If pitting or indentation in the glass

surface has already occurred, the cooktop

glass will have to be replaced. In this case,

service will be necessary.

Damage from Sugary Spills and Melted Plastic

Our testing shows that

if you are cooking high

sugar mixtures such as

jelly or fudge and have

a spillover, it can cause

permanent damage to the

glass surface unless the

spillover is immediately

removed.

Be careful not to slide pots and pans

across your cooktop. It will leave

metal markings on the cooktop

surface.

These marks are removable using

the CERAMA BRYTE

Ceramic Cooktop

Cleaner with the CERAMA BRYTE

Cleaning Pad for Ceramic Cooktops.

If pots with a thin overlay of

aluminum or copper are allowed to

boil dry, the overlay may leave black

discoloration on the cooktop. This

should be removed immediately

before heating again or the

discoloration may be permanent.

WARNING: Carefully check

the bottom of pans for roughness that

would scratch the cooktop.

Metal Marks and Scratches

To Order Parts

Glass surface—potential for permanent damage.

To clean the cooktop seal around the

edges of the glass, lay a wet cloth on it

for a few minutes, then wipe clean with

nonabrasive cleaners.

Cooktop Seal

Cleaning the glass cooktop. (on some models)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions

Safety Instructions

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

Before you call for service…

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Problem Possible Causes What To Do

Radiant Cooktops

Surface units will not Improper cookware • Use pans which are flat and match the diameter

maintain a rolling boil being used. of the surface unit selected.

or cooking is not

fast enough

Surface units do A fuse in your home may be • Replace the fuse or reset the circuit breaker.

not work properly blown or the circuit breaker

tripped.

Cooktop controls • Check to see the correct control is set for the surface

improperly set. unit you are using.

Scratches (may appear Incorrect cleaning methods • Scratches are not removable. Tiny scratches will become

as cracks) on cooktop being used. less visible in time as a result of cleaning.

glass surface

Cookware with rough bottoms • To avoid scratches, use the recommended cleaning

being used or coarse particles procedures. Make sure bottoms of cookware are clean

(salt or sand) were between before use, and use cookware with smooth bottoms.

the cookware and the surface

of the cooktop.

Cookware has been slid

across the cooktop surface.

Areas of discoloration Food spillovers not cleaned • See the Cleaning the glass cooktop section.

on the cooktop before next use.

Hot surface on a model • This is normal. The surface may appear discolored

with a light-colored glass when it is hot. This is temporary and will disappear

cooktop. as the glass cools.

Plastic melted to Hot cooktop came into • See the Glass surface—potential for permanent damage

the surface contact with plastic placed section in the Cleaning the glass cooktop section.

on the hot cooktop.

Pitting (or indentation) Hot sugar mixture spilled • Call a qualified technician for replacement.

of the cooktop on the cooktop.

Frequent cycling Improper cookware • Use only flat cookware to minimize cycling.

off and on of being used.

surface units

Coil Cooktops

Surface units The surface units are not • With the controls off, check to make sure the surface

not functioning plugged in solidly. unit is plugged completely into the receptacle.

properly

The surface unit controls • Check to see the correct control is set for the surface

improperly set. unit you are using.

The drip pans are not set securely • With the controls off, check to make sure the drip pan is

in the cooktop. in the recess in the cooktop and that the opening in the

pan lines up with the receptacle.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Problem Possible Causes What To Do

Oven—All Models

Oven light does not work Light bulb is loose or defective. • Tighten or replace the bulb.

Switch operating light is broken. • Call for service.

Oven will not work Plug on range is not completely • Make sure electrical plug is plugged into a live, properly

inserted in the electrical outlet. grounded outlet.

A fuse in your home may • Replace fuse or reset circuit breaker.

be blown or the circuit

breaker tripped.

Oven controls improperly set. • See the using the oven section.

On self-cleaning models, door • If necessary, allow the oven to cool then unlock the door.

left in the locked position.

Food does not bake Oven controls improperly set. • See the using the oven section.

or roast properly

Rack position is incorrect or the • See the using the oven section.

rack is not level.

Incorrect cookware or cookware • See the using the oven section.

of improper size being used.

Oven thermostat needs • See the Adjust the oven thermostat–Easy to do yourself!

adjustment. section.

Food does not Oven is not set to BROIL. • On models with a temperature knob, make sure you turn

broil properly it all the way to the BROIL position. On models with a

BROIL HI/LO pad, make sure it is turned on.

Improper rack position • See the Broiling guide.

being used.

Food being cooked in a hot pan. • For best results, use a pan designed for broiling.

Make sure it is cool.

Cookware not suited for broiling. • For best results, use a pan designed for broiling.

In some areas the power • Preheat the broil element for 10 minutes.

(voltage) may be low.

• Broil for the longest period of time recommended in

the Broiling guide.

Control signals after you forgot to enter a bake • Press the BAKE pad and desired temperature or the

entering cooking time temperature or cleaning time. SELF CLEAN pad and desired clean time.

or delay start

Display flashes "bAd" The installed connection • Contact installer or electrician to correct miswire.

then "linE" with a from the house to the unit

loud tone is miswired.

Warming drawer will A fuse in your home may be • Replace the fuse or reset the circuit breaker.

not work blown or the circuit breaker

tripped.

The oven is self-cleaning. • Wait for the self-clean cycle to finish and the oven

to cool.

Controls improperly set. • See the using the warming drawer section.

Troubleshooting Tips

Before you call for service…

GEAppliances.com

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Problem Possible Causes What To Do

Excessive condensation Liquid in warming drawer. • Remove liquid.

in the warming drawer

Uncovered foods. • Cover food with lid or aluminum foil.

Temperature setting too high. • Reduce temperature setting.

Food dries out in the Moisture escaping. • Cover food with lid or aluminum foil.

warming drawer

Oven temperature too Oven thermostat • See the Adjust the oven thermostat–Easy to do

hot or too cold needs adjustment. yourself! section.

Clock and timer do Plug on range is not completely • Make sure electrical plug is plugged into a live, properly

not work inserted in the electrical outlet. grounded outlet.

A fuse in your home may be • Replace fuse or reset circuit breaker.

blown or the circuit breaker

tripped.

Oven controls improperly set. • See the using the clock and timer section.

Display goes blank A fuse in your home may be • Replace the fuse or reset the circuit breaker.

blown or the circuit breaker

tripped.

The clock is turned off from • See the using the clock and timer section.

showing in the display.

Oven door is crooked The door is out of position. • Because the oven door is removable, it sometimes gets

out of position during installation. To straighten the

door, push down on the high corner.

Oven makes This is the sound of the • This is normal.

clicking noise heating element turning

off and on during

cooking functions.

“F—and a number you have a function error code. • Press the CLEAR/OFF pad. Put the oven back

or letter” flash in into operation.

the display

If the function code repeats: • Disconnect all power to the range for at least 30

seconds and then reconnect power. If the function

error code repeats, call for service.

• On self-cleaning models, if a function error code

appears during the self-cleaning cycle, check the oven

door latch. The latch may have been moved, if only

slightly, from the locked position. Make sure the latch

is moved to the right as far as it will go. Press the

CLEAR/OFF pad. Allow the oven to cool for one hour.

Put the oven back into operation.

Power outage Power outage or surge. • Some models will automatically resume their setting once

the power is restored. On models with a clock, you must

reset the clock. If the oven was in use, you must reset it by

pressing the CLEAR/OFF pad, setting the clock and

resetting any cooking function.

Display flashes Power failure. • Reset the clock.

Unable to get the display Oven control pads were not • The BAKE and BROIL HI/LO pads must be pressed at the

to show “SF” pressed properly. same time and held for 3 seconds.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Problem Possible Causes What To Do

“Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a

odor emitting from the and will disappear in time. minimum of 3 hours. See the using the self-cleaning

oven vent oven section.

Strong odor An odor from the insulation • This is temporary.

around the inside of the oven

is normal for the first few times

the oven is used.

Self-Cleaning Models

Oven will not self-clean The oven temperature is too • Allow the range to cool to room temperature and reset

high to set a self-clean operation. the controls.

Oven controls improperly set. • See the using the self-cleaning oven section.

Oven door is not in the locked • Make sure you move the door latch handle all the way to

position. the right.

Oven starts a self-clean Oven door locked during • Turn the Oven Temperature knob to OFF. Allow the

cycle when you wanted cooking. oven to cool. Never force the door latch handle.

to bake, roast or broil

“Crackling” or This is the sound of the metal • This is normal.

“popping” sound heating and cooling during both

the cooking and cleaning

functions.

Excessive smoking Excessive soil. • Press the CLEAR/OFF pad. Open the windows to rid

during a clean cycle the room of smoke. Wait until the light on the

SELF CLEAN pad goes off. Wipe up the excess soil

and reset the clean cycle.

Oven door will Oven too hot. • Allow the oven to cool below locking temperature.

not unlock

Oven not clean after a Oven controls not properly set. • See using the self-cleaning oven section.

clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean

again or for a longer period of time.

Self clean light blinks The OVEN TEMP knob has not • Set the OVEN TEMP knob to CLEAN. See the using the

when trying to set a been set to CLEAN when the self-cleaning oven section.

self clean cycle latch was moved to the right.

The latch was not moved to the • Move the latch to the right as far as it will go. See the

right when the OVEN TEMP knob using the self-cleaning oven section.

was set to CLEAN.

Self clean light blinks A power interruption occurred. • Turn the OVEN TEMP knob to OFF and move the latch

during self clean cycle to the left as far as it will go. Reset the range controls

to the desired settings. See the using the self-cleaning

oven section.

Troubleshooting Tips

Before you call for service…

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

Accessories. GEAppliances.com

Looking For Something More? (Not all accessories are available for all modles.)

You can find these accessories and many more at GEAppliances.com, or call 800.626.2002

(during normal business hours). have your model number ready.

Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?

NOW AVAILABLE for your range:

GE’s innovative, self-cleanable porcelain-coated oven racks!

• Heavy Duty

• Durable

• Able to be cleaned in a self-cleaning oven

Visit GEAppliances.com for more information.

Surface Elements & Drip Pans Oven Racks Broiler Pan

Oven Elements light Bulbs knobs

Cleaner Cleaning Pads Scraper

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Notes.

Notes. GEAppliances.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions

Care and Cleaning Troubleshooting Tips

Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Notes.

For The Period Of: GE Will Provide:

One Year Any part of the range which fails due to a defect in materials or workmanship.

From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor

original purchase and in-home service to replace the defective part.

Electric Range Warranty.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Product damage or failure of the product if it is abused,

misused, used for other than the intended purpose, or

used commercially.

■ Damage to the glass cooktop caused by use of cleaners

other than the recommended cleaning creams.

■ Damage to the glass cooktop caused by hardened spills

of sugary materials or melted plastic that are not cleaned

according to the directions in the Owner’s Manual.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home

use within the uSA. If the product is located in an area where service by a GE Authorized Servicer is not available,

you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service

location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty

gives you specific legal rights, and you may also have other rights which vary from state to state. To know

what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers

or an authorized Customer Care

technician. To schedule service,

visit us on-line at GEAppliances.com, or call 800.GE.CARES

(800.432.2737). Please have serial number and model number

available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular

purpose, are limited to one year or the shortest period allowed by law.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

This book is printed on recycled paper.

Printed in Mexico

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website any day of the year!

For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even

schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your

convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of

all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities

and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with

disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty

is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.

GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line every day or by phone at 800.626.2002

during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing

generally should be referred to qualified service personnel. Caution must be exercised, since improper

servicing may cause unsafe operation.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details

including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

communication and prompt service under the terms of your warranty, should the need arise.

You may also mail in the pre-printed registration card included in the packing material.

Hotpoint RB757BH6WH 30" Freestanding Electric Range

Product's Documents

Owner's Manual

Specifications

Hotpoint RB757BH6WH Questions and Answers

Related Products

Hotpoint RB780RH1SS 30" Freestanding Electric Range

Hotpoint RBS160DM2WW 30 Inch Freestanding Electric Range

Hotpoint RB720DHWW 30 Inch Freestanding Electric Range with 5.0 cu. ft. Capacity Oven

Hotpoint RBS360DMWW 30 Inch Freestanding Electric Range

Hotpoint RBS360DMBB 30 Inch Freestanding Electric Range
