Write the model and serial
numbers here:
Model # _________________
Serial # _________________
You can find them on a label
behind the door or drawer.
ESPAÑOL
Para consultar una version en
español de este manual de
instrucciones, visite nuestro sitio de
internet GEAppliances.com.
OWNER’S MANUAL
RANGES
Electric Free-Standing
49-80764 Rev. 5 01-20 GEA
SAFETY INFORMATION .......... 3
USING THE RANGE
Surface Units - Knob Models ............. 7
Surface Units - Knob-Free Models ......... 8
Surface Units - All Models ................ 9
Cookware for Radiant Glass Cooktop. . . . . .10

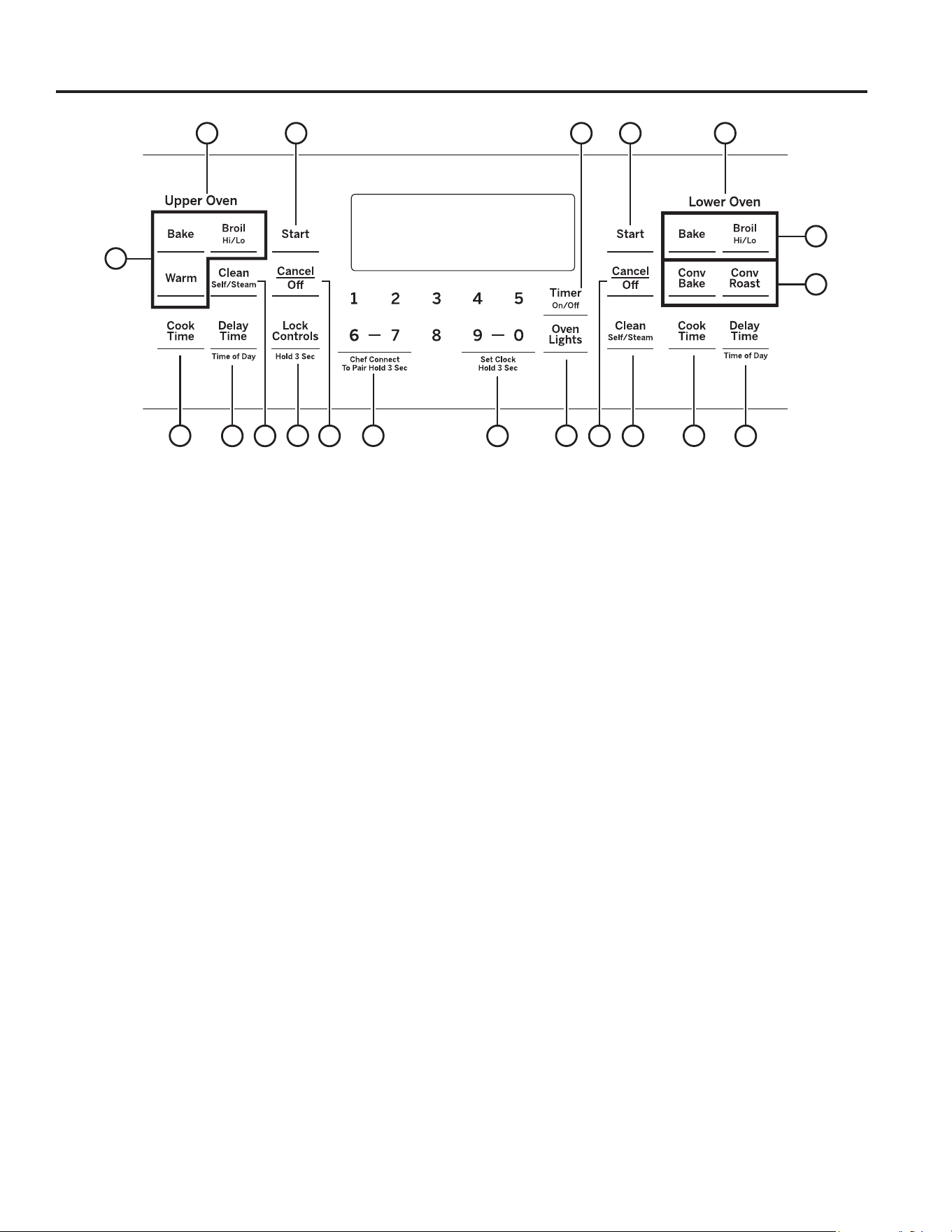

Double Oven Controls ...................11
Special Features ........................12
Sabbath Mode ..........................13

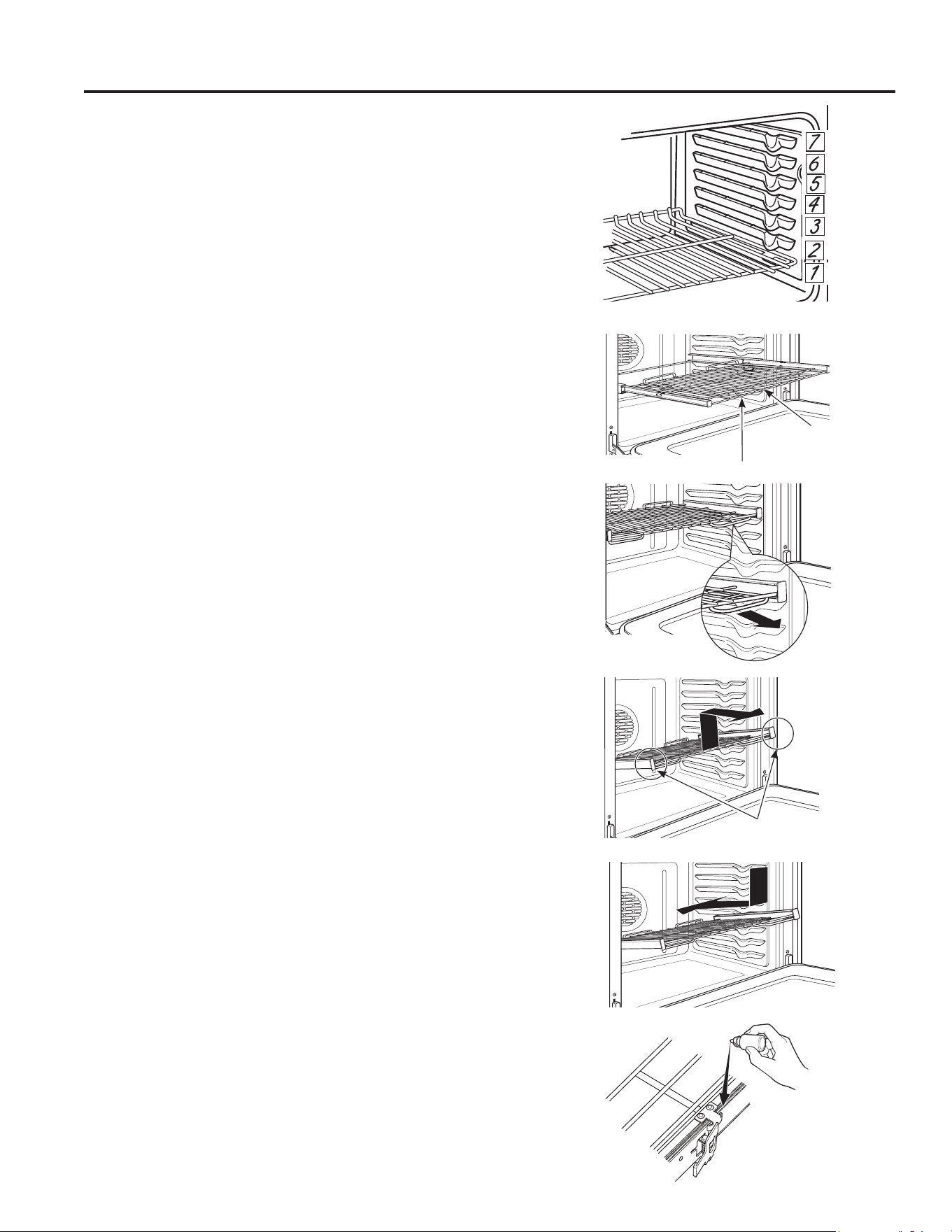

Oven Racks ............................14
Aluminum Foil and Oven Liners ...........15
Cookware ..............................15
Cooking Modes .........................16
Cooking Guide .........................17
CARE AND CLEANING
Cleaning the Range – Exterior ............19
Cleaning the Range – Interior ...........20
Cleaning the Glass Cooktop ..............21
Oven Light ............................ 23
Oven Door ............................24
TROUBLESHOOTING TIPS ....... 25
LIMITED WARRANTY ............30
ACCESSORIES .....................31
CONSUMER SUPPORT ........... 32
JB860
30" Free-Standing Double Oven
PB960
30" Free-Standing Double Oven
PB980
30" Free-Standing Double Oven
JBS86
30" Free-Standing Double Oven
GE is a trademark of the General Electric Company. Manufactured under trademark license.
2 49-80764 Rev. 5
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-80764 Rev. 5 3
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
ANTI-TIP DEVICE
To reduce the risk of tipping the range,
the range must be secured by a properly
installed anti-tip bracket. See installation
instructions shipped with the bracket for
complete details before attempting to install.
For Free-Standing and Slide-In Ranges
To check if the bracket is installed and
engaged properly, look underneath the
range to see that the rear leveling leg is
engaged in the bracket. On some models, the storage drawer or kick panel
can be removed for easy inspection. If visual inspection is not possible,
slide the range forward, confirm the anti-tip bracket is securely attached to
the floor or wall, and slide the range back so the rear leveling leg is under
the anti-tip bracket.
If the range is pulled from the wall for any reason, always repeat this
procedure to verify the range is properly secured by the anti-tip bracket.
Never completely remove the leveling legs or the range will not be secured
to the anti-tip device properly.
WARNING
Read all safety instructions before using the product. Failure to follow these instructions may result
in fire, electrical shock, serious injury or death.
• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
•
Engage the range to the anti-tip bracket by sliding th
e
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
Tip-Over Hazard
WARNING
Anti-Tip
Bracket
Leveling Leg
Free-Standing and Slide-In Ranges
WARNING
GENERAL SAFETY INSTRUCTIONS
Ŷ 8VHWKLVDSSOLDQFHRQO\IRULWVLQWHQGHGSXUSRVHDV
described in this Owner’s Manual.
Ŷ %HVXUH\RXUDSSOLDQFHLVSURSHUO\LQVWDOOHGDQG
grounded by a qualified installer in accordance with
the provided installation instructions.
Ŷ 'RQRWDWWHPSWWRUHSDLURUUHSODFHDQ\SDUWRI\RXU
range unless it is specifically recommended in this
manual. All other servicing should be transferred to
a qualified technician.
Ŷ %HIRUHSHUIRUPLQJDQ\VHUYLFHXQSOXJWKHUDQJH
or disconnect the power supply at the household
distribution panel by removing the fuse or switching
off the circuit breaker.
Ŷ 'RQRWOHDYHFKLOGUHQDORQH²FKLOGUHQVKRXOGQRW
be left alone or unattended in an area where an
appliance is in use. They should never be allowed
to climb, sit or stand on any part of the appliance.
Ŷ
CAUTION
'RQRWVWRUHLWHPVRILQWHUHVWWR
children above a range or on the backguard of a
UDQJH²FKLOGUHQFOLPELQJRQWKHUDQJHWRUHDFK
items could be seriously injured.
Ŷ 8VHRQO\GU\SRWKROGHUV²PRLVWRUGDPSSRW
holders on hot surfaces may result in burns from
VWHDP'RQRWOHWSRWKROGHUVWRXFKKRWVXUIDFH
XQLWVRUKHDWLQJHOHPHQWV'RQRWXVHDWRZHORU
other bulky cloth in place of pot holders.
Ŷ 1HYHUXVH\RXUDSSOLDQFHIRUZDUPLQJRUKHDWLQJ
the room.
Ŷ 'RQRWWRXFKWKHVXUIDFHXQLWVWKHKHDWLQJHOHPHQWV
or the interior surface of the oven. These surfaces
may be hot enough to burn even though they are
GDUNLQFRORU'XULQJDQGDIWHUXVHGRQRWWRXFK
or let clothing or other flammable materials contact
the surface units, areas nearby the surface units or
any interior area of the oven; allow sufficient time
for cooling first. Other surfaces of the appliance
may become hot enough to cause burns. Potentially
hot surfaces include the cooktop, areas facing the
cooktop, oven vent opening, surfaces near the
opening and crevices around the oven door.
Ŷ 'RQRWKHDWXQRSHQHGIRRGFRQWDLQHUV3UHVVXUH
could build up and the container could burst,
causing an injury.
4 49-80764 Rev. 5
WARNING
KEEP FLAMMABLE MATERIALS AWAY FROM THE RANGE
Failure to do so may result in fire or personal injury.
Ŷ 'RQRWVWRUHRUXVHIODPPDEOHPDWHULDOVLQDQRYHQ
or near the cooktop, including paper, plastic, pot
holders, linens, wall coverings, curtains, drapes and
gasoline or other flammable vapors and liquids.
Ŷ 1HYHUZHDUORRVHILWWLQJRUKDQJLQJJDUPHQWVZKLOH
using the appliance. These garments may ignite if
they contact hot surfaces causing severe burns.
Ŷ 'RQRWOHWFRRNLQJJUHDVHRURWKHUIODPPDEOH
materials accumulate in or near the range. Grease
in the oven or on the cooktop may ignite.
Ŷ &OHDQYHQWLODWLQJKRRGVIUHTXHQWO\*UHDVHVKRXOG
not be allowed to accumulate on the hood or filter.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
WARNING
IN THE EVENT OF A FIRE, TAKE THE FOLLOWING
STEPS TO PREVENT INJURY AND FIRE SPREADING
Ŷ 'RQRWXVHZDWHURQJUHDVHILUHV1HYHUSLFNXS
a flaming pan. Turn the controls off. Smother a
flaming pan on a surface unit by covering the pan
completely with a well-fitting lid, cookie sheet or flat
WUD\8VHDPXOWLSXUSRVHGU\FKHPLFDORUIRDPW\SH
fire extinguisher.
Ŷ ,IWKHUHLVDILUHLQWKHRYHQGXULQJEDNLQJVPRWKHU
the fire by closing the oven door and turning the
oven off or by using a multi-purpose dry chemical or
foam-type fire extinguisher.
Ŷ ,IWKHUHLVDILUHLQWKHRYHQGXULQJVHOIFOHDQWXUQ
the oven off and wait for the fire to go out. 'RQRW
force the door open. Introduction of fresh air at self-
clean temperatures may lead to a burst of flame
from the oven. Failure to follow this instruction may
result in severe burns.
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
COOKTOP SAFETY INSTRUCTIONS
Ŷ 1HYHUOHDYHWKHVXUIDFHXQLWVXQDWWHQGHGDWPHGLXP
or high heat settings. Boilovers cause smoking and
greasy spillovers that may catch on fire.
Ŷ 1HYHUOHDYHRLOXQDWWHQGHGZKLOHIU\LQJ,IDOORZHG
to heat beyond its smoking point, oil may ignite
resulting in fire that may spread to surrounding
FDELQHWV8VHDGHHSIDWWKHUPRPHWHUZKHQHYHU
possible to monitor oil temperature.
Ŷ 7RDYRLGRLOVSLOORYHUDQGILUHXVHDPLQLPXP
amount of oil when shallow pan-frying and avoid
cooking frozen foods with excessive amounts of ice.
Ŷ 8VHSURSHUSDQVL]H²VHOHFWFRRNZDUHKDYLQJ
flat bottoms large enough to cover the surface
heating element. The use of undersized cookware
will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper
relationship of cookware to surface unit will also
improve efficiency.
WARNING
GENERAL SAFETY INSTRUCTIONS (Cont.)
Ŷ 'RQRWXVHDQ\W\SHRIIRLORUOLQHUWRFRYHUWKH
oven bottom or anywhere in the oven, except as
described in this manual. Oven liners can trap heat
or melt, resulting in damage to the product and risk
of shock, smoke or fire.
Ŷ $YRLGVFUDWFKLQJRULPSDFWLQJJODVVGRRUVFRRN
WRSVRUFRQWUROSDQHOV'RLQJVRPD\OHDGWRJODVV
EUHDNDJH'RQRWFRRNRQDSURGXFWZLWKEURNHQ
glass. Shock, fire or cuts may occur.
Ŷ &RRNIRRGWKRURXJKO\WRKHOSSURWHFWDJDLQVW
foodborne illness. Minimum safe food temperature
recommendations can be found at
ZZZ,V,W'RQH<HWJRYDQGZZZIVLVXVGDJRY
8VHDIRRGWKHUPRPHWHUWRWDNHIRRGWHPSHUDWXUHV
and check several locations.
49-80764 Rev. 5 5
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
COOKTOP SAFETY INSTRUCTIONS (Cont.)
Ŷ 2QO\FHUWDLQW\SHVRIJODVVJODVVFHUDPLF
earthenware or other glazed containers are suitable
for cooktop service; others may break because of
the sudden change in temperature.
Ŷ 7RPLQLPL]HWKHSRVVLELOLW\RIEXUQVLJQLWLRQRI
flammable materials and spillage, the handle of a
container should be turned toward the center of the
range without extending over nearby surface units.
Ŷ :KHQSUHSDULQJIODPLQJIRRGVXQGHUDKRRGWXUQ
the fan on.
Ŷ ,ISRZHULVORVWWRDQHOHFWULFFRRNWRSZKLOHD
surface unit is ON, the surface unit will turn back on
as soon as power is restored. In the event of power
loss, failure to turn all surface unit knobs to the OFF
position may result in ignition of items on or near
the cooktop, leading to serious injury or death.
WARNING
RADIANT COOKTOP SAFETY INSTRUCTIONS
Ŷ 8VHFDUHZKHQWRXFKLQJWKHFRRNWRS7KHJODVV
surface of the cooktop will retain heat after the
controls have been turned off.
Ŷ 'RQRWFRRNRQDEURNHQFRRNWRS,IJODVVFRRNWRS
should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified technician
immediately.
Ŷ $YRLGVFUDWFKLQJWKHJODVVFRRNWRS7KHFRRNWRS
can be scratched with items such as knives, sharp
instruments, rings or other jewelry, and rivets on
clothing.
Ŷ 'RQRWSODFHRUVWRUHLWHPVWKDWFDQPHOWRUFDWFK
fire on the glass cooktop, even when it is not being
used. If the cooktop is inadvertently turned on, they
may ignite. Heat from the cooktop or oven vent after
it is turned off may cause them to ignite also.
Ŷ 8VHFHUDPLFFRRNWRSFOHDQHUDQGDQRQVFUDWFK
cleaning pad to clean the cooktop. Wait until the
cooktop cools and the indicator light goes out
before cleaning. A wet sponge or cloth on a hot
surface can cause steam burns. Some cleaners can
produce noxious fumes if applied to a hot surface.
NOTE: Sugar spills are an exception. They should
be scraped off while still hot using an oven mitt
and a scraper. See the Cleaning the glass cooktop
section for detailed instructions.
Ŷ 5HDGDQGIROORZDOOLQVWUXFWLRQVDQGZDUQLQJVRQWKH
cleaning cream label.
WARNING
OVEN SAFETY INSTRUCTIONS
Ŷ 6WDQGDZD\IURPWKHUDQJHZKHQRSHQLQJWKHRYHQ
door. Hot air or steam which escapes can cause
EXUQVWRKDQGVIDFHDQGRUH\HV
Ŷ 'RQRWXVHWKHRYHQLIDKHDWLQJHOHPHQWGHYHORSV
a glowing spot during use or shows other signs
of damage. A glowing spot indicates the heating
element may fail and present a potential burn, fire,
or shock hazard. Turn the oven off immediately and
have the heating element replaced by a qualified
service technician.
Ŷ .HHSWKHRYHQYHQWXQREVWUXFWHG
Ŷ .HHSWKHRYHQIUHHIURPJUHDVHEXLOGXS*UHDVHLQ
the oven may ignite.
Ŷ 3ODFHRYHQUDFNVLQGHVLUHGORFDWLRQZKLOHRYHQLV
cool. If rack must be moved while oven is hot, do not
let pot holder contact hot heating element in oven.
Ŷ :KHQXVLQJFRRNLQJRUURDVWLQJEDJVLQWKHRYHQ
follow the manufacturer’s directions.
Ŷ 3XOOWKHRYHQUDFNWRWKHVWRSORFNSRVLWLRQZKHQ
loading and unloading food from the oven. This
helps prevent burns from touching hot surfaces of
the door and oven walls.
Ŷ 'RQRWOHDYHLWHPVVXFKDVSDSHUFRRNLQJXWHQVLOV
or food in the oven when not in use. Items stored in
an oven can ignite.
Ŷ 1HYHUSODFHFRRNLQJXWHQVLOVSL]]DRUEDNLQJVWRQHV
or any type of foil or liner on the oven floor. These
items can trap heat or melt, resulting in damage to
the product and risk of shock, smoke or fire.
6 49-80764 Rev. 5
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film
with your fingers and slowly peel it from the appliance
VXUIDFH'RQRWXVHDQ\VKDUSLWHPVWRUHPRYHWKHILOP
Remove all of the film before using the appliance for the
first time.
To assure no damage is done to the finish of the
product, the safest way to remove the adhesive from
packaging tape on new appliances is an application of
a household liquid dishwashing detergent. Apply with a
soft cloth and allow to soak.
NOTE: The adhesive must be removed from all parts. It
cannot be removed if it is baked on.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
SELF-CLEANING OVEN SAFETY INSTRUCTIONS
The self-cleaning feature operates the oven at temperatures high enough to burn away food soils in the oven.
Follow these instructions for safe operation.
Ŷ 'RQRWWRXFKRYHQVXUIDFHVGXULQJVHOIFOHDQ
RSHUDWLRQ.HHSFKLOGUHQDZD\IURPWKHRYHQGXULQJ
self-cleaning. Failure to follow these instructions
may cause burns.
Ŷ %HIRUHRSHUDWLQJWKHVHOIFOHDQF\FOHUHPRYHSDQV
shiny metal oven racks and other utensils from the
oven. Only gray porcelain-coated oven racks may
EHOHIWLQWKHRYHQ'RQRWXVHVHOIFOHDQWRFOHDQ
other parts, such as drip pans or bowls.
Ŷ %HIRUHRSHUDWLQJWKHVHOIFOHDQF\FOHZLSHJUHDVH
and food soils from the oven. Excessive amount
of grease may ignite leading to smoke damage to
your home.
Ŷ ,IWKHVHOIFOHDQLQJPRGHPDOIXQFWLRQVWXUQWKH
oven off and disconnect the power supply. Have it
serviced by a qualified technician.
Ŷ 'RQRWFOHDQWKHGRRUJDVNHW7KHGRRUJDVNHWLV
essential for a good seal. Care should be taken not
to rub, damage or move the gasket.
Ŷ 'RQRWXVHRYHQFOHDQHUV1RFRPPHUFLDORYHQ
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
49-80764 Rev. 5 7
WARNING
FIRE HAZARD: Never leave the range unattended with the cooktop on medium or high settings.
.HHSIODPPDEOHLWHPVDZD\IURPWKHFRRNWRS7XUQRIIDOOFRQWUROVZKHQGRQHFRRNLQJ)DLOXUHWR
follow these instructions can result in fire, serious injury or death.
USING THE RANGE:6XUIDFH8QLWV.QRE0RGHOV
Surface Units - Knob Models
Throughout this manual, features and appearance may vary from your model.
How to Set
Push the knob in and turn in either direction to the
setting you want.
A surface ON indicator light will glow when any surface
unit is on
For glass cooktop surfaces:
A HOT COOKTOP indicator light will:
Ŷ FRPHRQZKHQWKHXQLWLVKRWWRWKHWRXFK
Ŷ VWD\RQHYHQDIWHUWKHXQLWLVWXUQHGRII
Ŷ VWD\RQXQWLOWKHXQLWLVFRROHGWR
approximately 150°F.
Dual and Triple Surface Units and Control Knobs (on some models)
The surface unit has 2 or 3 cooking sizes to select from so you can match the size of the unit to the size of the
cookware you are using.
At both OFF and HI the control clicks into
position. You may hear slight clicking
sounds during cooking, indicating the
control is maintaining your desired setting.
Be sure you turn the control knob to OFF
when you finish cooking.
0RGHOVZLWKD'XDO5LQJ
surface element only
Models with a Tri-Ring surface
element only.
Melt setting (on some models)
will melt chocolate or butter.
Using the Warming Zone (on some models)
WARNING
FOOD POISON HAZARD: Bacteria may grow in food at temperatures below 140°F.
Ŷ $OZD\VVWDUWZLWKKRWIRRG'RQRWXVHZDUPVHWWLQJWRKHDWFROGIRRG
Ŷ 'RQRWXVHZDUPVHWWLQJIRUPRUHWKDQKRXUV
The WARMING ZONE, located in the back center of
the glass surface, will keep hot, cooked food at serving
WHPSHUDWXUH$OZD\VVWDUWZLWKKRWIRRG'RQRWXVHWR
heat cold food. Placing uncooked or cold food on the
WARMING ZONE could result in foodborne illness.
Turn the control knob to the ON position.
For models using the touch pads for warming zone control,
VHHVHFWLRQRQ8VLQJWKH2YHQIRUDGGLWLRQDOGHWDLOV
For best results, all foods on the WARMING ZONE
should be covered with a lid or aluminum foil. When
warming pastries or breads, the cover should be vented
to allow moisture to escape.
The initial temperature, type and
amount of food, type of pan, and
the time held will affect the quality
of the food.
Always use pot holders or oven
mitts when removing food from the
WARMING ZONE, since cookware
and plates will be hot.
NOTE: The surface warmer will
not glow red like the cooking
elements.
8 49-80764 Rev. 5
USING THE RANGE:6XUIDFH8QLWV.QRE)UHH0RGHOV
Surface Units - Knob-Free Models
Radiant Glass Cooktop
The surface unit will cycle on and off to maintain your
selected control setting. This is normal.
For glass cooktop surfaces:
A HOT COOKTOP indicator light will:
Ŷ FRPHRQZKHQWKHXQLWLVKRWWRWKHWRXFK
Ŷ VWD\RQHYHQDIWHUWKHXQLWLVWXUQHGRII
Ŷ VWD\RQXQWLOWKHXQLWLVFRROHGWRDSSUR[LPDWHO\
150°F.
To Turn On a Surface Unit:
1. Touch the On/Off pad, then touch the + or - pad.
8VHWKH+ or - pad to choose the desired power setting.
3. For the dual and triple surface units, touch the
Burner Size pad to select the
desired burner size.
To Turn Off a Surface Unit:
Touch the On/Off pad.
Using the Warming Zone
WARNING
FOOD POISON HAZARD: Bacteria may grow in food at temperatures below 140°F.
Ŷ $OZD\VVWDUWZLWKKRWIRRG'RQRWXVHZDUPVHWWLQJWRKHDWFROGIRRG
Ŷ 'RQRWXVHZDUPVHWWLQJIRUPRUHWKDQKRXUV
To Use the Warming Zone:
1. Touch the Warming Zone On/Off pad.
8VHWKH+ or - pad to choose the desired
/R0HG+LVHWWLQJ
To Turn Off the Warming Zone:
Touch the Warming Zone On/Off pad.
Dual and Triple Surface Units (on some models)
The surface unit has 2 or 3 cooking sizes to select from
so you can match the size of the unit to the size of the
cookware you are using.
Sync Burner Feature
This feature allows you to synchronize the left rear and left
front burners to create one large cooking zone for griddle
cooking. To use this feature, press the Sync Burners pad.
You may then use either the left front or left rear +- pads
to adjust the power of both burners simultaneously. To
unsync, press either burner's On/Off pad.
Models with a Tri-Ring
surface element only.
NOTE: All protective packing must be removed from all parts. It cannot be removed if it is baked on.
49-80764 Rev. 5 9
Home Canning Tips
Be sure the canner is centered over the surface unit.
Make sure the canner is flat on the bottom.
To prevent burns from steam or heat, use caution when
canning.
8VHUHFLSHVDQGSURFHGXUHVIURPUHSXWDEOHVRXUFHV
These are available from manufacturers such as Ball
®
DQG.HUU
®
DQGWKH'HSDUWPHQWRI$JULFXOWXUH([WHQVLRQ
Service.
)ODWERWWRPHGFDQQHUVDUHUHFRPPHQGHG8VHRIZDWHU
bath canners with rippled bottoms may extend the time
required to bring the water to a boil.
Temperature Limiter on Radiant Glass Cooktops
Every radiant surface unit has a temperature limiter.
The temperature limiter protects the glass cooktop from
getting too hot.
The temperature limiter may cycle the surface units off
for a time if:
Ŷ WKHSDQERLOVGU\
Ŷ WKHSDQERWWRPLVQRWIODW
Ŷ WKHSDQLVRIIFHQWHU
Ŷ WKHUHLVQRSDQRQWKHXQLW
For Models With a Radiant Glass Cooktop
The radiant cooktop features heating units beneath a
smooth glass surface.
NOTE: A slight odor is normal when a new cooktop is
used for the first time. It is caused by the heating of new
parts and insulating materials and will disappear in a
short time.
NOTE: On models with light-colored glass cooktops, it is
normal for the cooking zones to change color when hot
or cooling down. This is temporary and will disappear as
the glass cools to room temperature.
The surface unit will cycle on and off to maintain your
selected control setting.
It is safe to place hot cookware on the glass surface
even when the cooktop is cool.
Even after the surface units are turned off, the glass
cooktop retains enough heat to continue cooking. To
avoid overcooking, remove pans from the surface units
when the food is cooked. Avoid placing anything on the
surface unit until it has cooled completely.
Ŷ :DWHUVWDLQVPLQHUDOGHSRVLWVDUHUHPRYDEOHXVLQJ
the cleaning cream or full-strength white vinegar.
Ŷ 8VHRIZLQGRZFOHDQHUPD\OHDYHDQLULGHVFHQWILOPRQ
the cooktop. The cleaning cream will remove this film.
Ŷ 'RQ¶WVWRUHKHDY\LWHPVDERYHWKHFRRNWRS,IWKH\
drop onto the cooktop, they can cause damage.
Ŷ 'RQRWXVHWKHVXUIDFHDVDFXWWLQJERDUG
USING THE RANGE:6XUIDFH8QLWV$OO0RGHOV
Surface Units - All Models
Never cook directly on the glass.
Always use cookware.
Always place the pan in the center of the
surface unit you are cooking on.
'RQRWVOLGHFRRNZDUHDFURVVWKHFRRNWRSEHFDXVH
LWFDQVFUDWFKWKHJODVV²WKHJODVVLVVFUDWFK
resistant, not scratch proof.
10 49-80764 Rev. 5
Cookware for Radiant Glass Cooktop
USING THE RANGE: Cookware for Radiant Glass Cooktop
The following information will help you choose cookware which will give good performance on glass cooktops.
NOTE: Follow all cookware manufacturer’s recommendations when using any type of cookware on the ceramic cooktop.
Recommended
Stainless Steel
Aluminum:
heavy weight recommended
Good conductivity. Aluminum residues
sometimes appear as scratches on the
cooktop but can be removed if cleaned
immediately. Because of its low melting
point, thin weight aluminum should not
be used.
Copper Bottom:
Copper may leave residues which can
appear as scratches. The residues can
be removed, as long as the cooktop
is cleaned immediately. However, do
not let these pots boil dry. Overheated
metal can bond to glass cooktops. An
overheated copper bottom pot will leave
a residue that will permanently stain the
cooktop if not removed immediately.
Enamel (painted) on Cast Iron:
recommended if bottom of pan is coated
Avoid/Not Recommended
Enamel (painted) on Steel:
Heating empty pans can cause
permanent damage to cooktop glass.
The enamel can melt and bond to the
ceramic cooktop.
Glass-ceramic:
Poor performance. Will scratch the
surface.
Stoneware:
Poor performance. May scratch the
surface.
Cast Iron:
QRWUHFRPPHQGHG²XQOHVVGHVLJQHG
specifically for glass cooktops
Poor conductivity and slow to absorb
heat. Will scratch the cooktop surface.
Check pans for flat bottoms by
using a straight edge.
Pans with rounded, curved,
ridged or warped bottoms are
not recommended.
For Best Results
Ŷ 3ODFHRQO\GU\SDQVRQWKHVXUIDFHHOHPHQWV'RQRW
place lids on the surface elements, particularly wet lids.
Wet pans and lids may stick to the surface when cool.
Ŷ 'RQRWXVHZRNVWKDWKDYHVXSSRUWULQJV7KLVW\SHRI
wok will not heat on glass surface elements.
Ŷ :HUHFRPPHQGWKDW\RXXVHRQO\DIODWERWWRPHG
wok. They are available at your local retail store. The
bottom of the wok should have the same diameter as
the surface element to ensure proper contact.
Ŷ 6RPHVSHFLDOFRRNLQJSURFHGXUHVUHTXLUHVSHFLILF
cookware such as pressure cookers or deep-fat
fryers. All cookware must have flat bottoms and be
the correct size.
'RQRWSODFHZHWSDQVRQWKHJODVVFRRNWRS
'RQRWXVHZRNVZLWKVXSSRUWULQJVRQWKHJODVVFRRNWRS
8VHIODWERWWRPHGZRNVRQWKHJODVVFRRNWRS
49-80764 Rev. 5 11
1. Upper Oven and Lower Oven: 'HVLJQDWHV
which oven the controls will operate.
2. Convection Cooking Modes: Convection
cooking modes use increased air circulation
to improve performance. The type of benefit
depends on the mode. Your oven has the following
convection cooking modes: Convection Bake and
Convection Roast. See the Cooking Modes section
for more information.
3. Traditional Cooking Modes: Your oven has
the following traditional cooking modes: Bake, Broil
+L/RDQG:DUP6HHWKH&RRNLQJ0RGHVVHFWLRQ
for more information.
4. Self/Steam Clean: See the Cleaning the Oven
section for important information about using this
mode.
5. Start: Must be pressed to start any cooking,
cleaning, or timed function.
6. Cancel/Off: Cancels ALL oven operations except
the clock and timer.
7. Clock: Sets the oven clock time. Press the Set
Clock or 9 and 0SDGVDQGKROGIRUVHFRQGV8VH
the number pads to program the clock. Press Start
to save the time.
8. Timer: Works as a countdown timer. Press the
Timer pad and the number pads to program the
time in hours and minutes. Press the Start pad.
If the oven is on, it will not turn off when the timer
countdown is complete. To turn the timer off press
the Timer pad.
9. Delay Time: 'HOD\VZKHQWKHRYHQZLOOWXUQ
RQ8VHWKLVWRVHWDWLPHZKHQ\RXZDQWWKHRYHQ
to start. Press the Delay Time pad and use the
number pads to program the time of day for the
oven to turn on then press Start. Press the desired
cooking mode and temperature then press Start.
A Cook Time may also be programmed if desired.
Follow the directions under Cook Time for setting
this feature. This can only be used with Bake,
Convection Bake, Convection Roast and Self-Clean.
NOTE: :KHQXVLQJWKH'HOD\7LPHIHDWXUH foods
WKDWVSRLOHDVLO\²VXFKDVPLONHJJVILVKVWXIILQJV
SRXOWU\DQGSRUN²VKRXOGQRWEHDOORZHGWRVLWIRU
more than 1 hour before or after cooking. Room
temperature promotes the growth of harmful bacteria.
Be sure that the oven light is off because heat from
the bulb will speed harmful bacteria growth.
10. Cook Time: Counts down cooking time and turns
off the oven when the cooking time is complete.
Press the Cook Time pad, use the number pads
to program a cooking time in hours and minutes,
then press Start. This can only be used with Bake,
Convection Bake, and Convection Roast.
11. Oven Light(s): Turns the oven light(s) on or off
in both ovens. Note that lights in both ovens will not
turn on if the door is opened while the other oven is
in a clean mode.
12. Lock Controls: Locks out the control so that
pressing the pads does not activate the controls.
Press and hold the Lock Controls pad for three
seconds to lock or unlock the control. Cancel/Off is
always active, even when the control is locked.
13. Chef Connect (on some models): Pairs
your range with compatible hood or over-the-range
microwave. To pair devices, hold the 6 and 7 pads
for 3 seconds. Bluetooth
®
icon will flash while
pairing and remain lit once paired. This feature will
synchronize clocks on both devices and turn on the
fan and lights whenever a burner is active. Press
again to disable feature.
USING THE RANGE:'RXEOH2YHQ&RQWUROV
Double Oven Controls
15 5 18
2
3
46 6
3
10 1011 12 13
9974
12 49-80764 Rev. 5
Special Features
USING THE RANGE: Special Features
There are several different special features on your range.
Ŷ 7RHQWHUWKH6SHFLDO)HDWXUHVPHQXSUHVVWKHBake and Broil pads at the same time and hold for three
seconds. "OFFSEt" will appear in the display.
Ŷ 6FUROOWKURXJK6SHFLDO)HDWXUHVPHQXXVLQJWKH8 pad for down and the 3 pad for up.
Ŷ 7RVHOHFWDIHDWXUHWRFKDQJHRUWRFRQILUPDFKDQJHSUHVVWKH0 pad.
Ŷ 7RFDQFHODFKDQJHDQGUHWXUQWRWKH6SHFLDO)HDWXUHVPHQXSUHVVWKH6 pad. To exit the Special Features
menu, press the 6 pad again.
Adjust the Oven Temperature (OFFSEt)
This feature allows the oven baking and convection
baking temperature to be adjusted up to 35ºF hotter
RUGRZQWR)FRROHU8VHWKLVIHDWXUHLI\RXEHOLHYH
your oven temperature is too hot or too cold and wish to
change it. This adjustment affects Bake and Convection
Bake modes. No other cooking modes are affected.
8VLQJWKHQXPEHUSDGVWRQDYLJDWHDVGHVFULEHGDERYH
select "OFFSEt". A number between positive and
QHJDWLYHZLOOGLVSOD\8VHWKH8 or 3 pads to increase
or decrease the offset value. Save and confirm by
pressing the 0 pad.
End of Timer Signals (End tonE)
This is the tone that signals the end of a timer. The tone
can be continuous (Con bEEP) or one repeating beep
(bEEP). A continuous setting will continue to sound a
tone until a button on the control is pressed.
Fahrenheit or Celsius Temperature
Display (dEg Unit)
The oven control is set to use Fahrenheit temperatures
(F), but you can change it to use Celsius temperatures (C).
Clock Configuration (Cloc cFg)
This feature specifies how the time of day will be
displayed. You can select a standard 12-hour clock
(12 H) or 24-hour military time (24 H).
Clock Display (Cloc diSP)
This feature specifies whether the clock appears in the
display. It may be On or Off.
Auto Recipe Conversion (Auto rEciPE)
When using Convection Bake cooking, Auto Recipe
Conversion will automatically convert the regular baking
temperatures entered to convection bake cooking
temperatures when turned on. Note that this option does
not convert convection bake cooking times, it only converts
temperatures. This feature may be turned On or Off.
Sound Volume (Sound)
This feature allows the oven tone volume to be adjusted
between high (Hi), medium (Reg), low (lo), and off (Off).
The control will sound the oven tone at the new volume
level each time the sound level is changed.
12-hour Shutoff (2H ShutoFF)
This feature shuts the oven down after 12 hours of
continuous operation. It may be enabled or disabled.
49-80764 Rev. 5 13
Sabbath Mode
7KH6DEEDWKPRGHIHDWXUHFRPSOLHVZLWKVWDQGDUGVVHWIRUWKE\6WDU.6RPHRIWKHVHVWDQGDUGVWKDWZLOOEHQRWLFHG
by the consumer include the disabling of tones, disabling of oven lights, and delays of about 30 seconds to one
minute on display changes. Only continuous baking or timed baking is allowed in the Sabbath mode. Cooking in the
Sabbath mode is a two-step process, first the Sabbath mode must be set and then the bake mode must be set.
Setting the Sabbath Mode
1. Press the Bake and Broil pads at the same time and
hold until the special features menu is displayed.
8VHWKH3 or 8 number pads to scroll through the
special features until “SAbbAth” is displayed and then
press 0. Refer to the graphic in the Special Features
section to see how the number keys are mapped.
8VHWKH3 or 8 number pads to scroll through the
options until “On” is shown in the display, then press
the 0 number pad to save the setting. Press 6 to exit
the Special Features menu. A single bracket “]” will
appear in the display indicating that the Sabbath mode
is set. The clock will not be displayed. Continuous
bake or timed bake can now be programmed.
Starting a Continuous Bake
1. Press the Bake pad.
2. If the desired temperature is 350F, press Start. If
a different cooking temperature is desired, use the
1 through 5 number pads or Timer pad to select a
preset cooking temperature, then press Start. Refer
to the graphic below to determine which pad sets the
desired cooking temperature.
After a delay, a second bracket “] [“ will appear in the
display indicating that the oven is baking.
Adjusting the Temperature
1. Press Bake, use the 1 through 5 number pads and
the Timer pad to select a different preset cooking
temperature, and press Start.
2. Since no feedback is given during temperature
change, an oven thermometer can be used to confirm
temperature changes.
Starting a Timed Bake
1. Press the Bake pad.
2. If the desired temperature is 350F, use the 6 through
0 number pads or the Lock Control pad to select
a cooking time. If a cooking temperature other
than 350F is desired, use the 1 through 5 number
pads or the Timer pad to select a preset cooking
temperature, then select the cooking time. Refer to
the graphic on this page to determine which pad sets
the desired cooking temperature and cooking time.
3. Press Start.
After a delay, a second bracket “] [“ will appear in the
display indicating that the oven is baking. When the cook
time expires, the display will change back to a single
bracket “]” indicating that the oven is no longer baking.
No tone will sound when the cook time is complete.
Exit the Sabbath Mode
Exiting the Sabbath mode should be done after the
Sabbath is over.
1. Press Cancel/Off to end any bake mode that may be
running.
2. Press Bake and Broil pads at the same time and
hold until the Special Features menu is displayed.
8VHWKH3 or 8 number pads to scroll through the
special features until “SAbbAth” is displayed, then
press 0.
8VHWKH3 or 8 number pads to scroll through the
options until “OFF” is displayed and press 0 to save
the setting. Press the 6 number pad to exit the
Special Features menu.
Sabbath Mode Power Outage Note
If a power outage occurs while the oven is in Sabbath
Mode, the unit will return to Sabbath Mode when power
LVUHVWRUHGKRZHYHUWKHRYHQZLOOUHWXUQWRWKHRႇVWDWH
even if it was in the middle of a bake cycle when the
power outage occurred.
USING THE OVEN: Sabbath Mode
1 = 170° F, 2 = 200° F, 3 = 250° F, 4 = 300° F, 5 = 325° F, Timer = 400° F
6 = 2 hours, 7 = 2.5 hours, 8 = 3 hours, 9 = 3.5 hours,
0 = 4 hours, Lock Controls = 6 hours
Temperature (°F) 400
Time (hours)
6h
170
2h
200
2.5h
250
3h
300
3.5h
325
4h
14 49-80764 Rev. 5
The number of rack positions may vary by model.
8SSHU)URQW
Rail
Fully Open Position
Grasp here
USING THE RANGE: Oven Racks
Oven Racks
Recommended rack positions for various types of
foods are provided in the Cooking Guide. Adjusting
rack position is one way to impact cooking results. For
example, if you would prefer darker tops on cakes,
muffins, or cookies, try moving food one rack position
higher. If you find foods are too brown on top try moving
them down next time.
When baking with multiple pans and on multiple racks,
ensure there is at least 1½" between pans to allow
sufficient space for air to flow.
<RXU2YHQPD\KDYHH[WHQVLRQUDFNVDQGRUWUDGLWLRQDO
flat racks.
To avoid possible burns, place the racks in the desired
position before you turn the oven on.
Extension Racks (on some models)
Always pull the rack out by its upper front rail to its fully
open position, when placing or removing cookware.
If extension racks are difficult to extend, lubricate the
racks with the graphite lubricant provided with your
oven. Remove the rack from the oven, remove debris in
the side tracks with a paper towel, shake the graphite
lubricant and place 4 small drops on the two bottom
tracks of the left and right sides. Open and close the
rack several times to distribute the lubricant.
To order additional graphite lubricant, see the
Accessories and Consumer Support sections at the end
of this manual.
To Remove An Extension Rack:
1. Make sure the rack is pushed all the way into the
oven so that side paddles on the rack disengage from
the oven support.
2. Slide the rack toward you to the bump (stop position)
on the rack support.
3. Firmly grasp both sides of the rack frame and the
sliding rack, tilt the front end up and pull it out.
To Replace An Extension Rack:
1. Firmly grasp both sides of the rack frame and the
sliding rack.
2. Place the curved end of the rack (stop-locks) onto the
oven supports, tilt up the front of the rack and push it
in as far as it will go.
If extension racks are difficult to replace or remove, wipe
WKHRYHQUDFNVXSSRUWVZLWKYHJHWDEOHRLO'RQRWZLSHRLO
on the rack slides.
NOTE: 8VLQJRWKHUFRRNLQJRLOVZLOOFDXVHDGLVFRORULQJ
or a rust like color residue on the racks and cavity sides.
To clean this residue, use a soap and water or a vinegar
and water solution. Rinse with clean water and dry with a
soft cloth.
To Lubricate the Paddle:
Shake lubricant and apply to the moving parts of the
paddle mechanisms as shown.
49-80764 Rev. 5 15
USING THE RANGE: Aluminum Foil and Oven Liners &RRNZDUH
Cookware
Cookware Guidelines
The material, finish, and size of cookware affect baking
performance.
'DUNFRDWHGDQGGXOOSDQVDEVRUEKHDWPRUHUHDGLO\
than light, shiny pans. Pans that absorb heat more
readily can result in a browner, crisper, and thicker crust.
If using dark and coated cookware check food earlier
than minimum cook time. If undesirable results are
obtained with this type of cookware consider reducing
oven temperature by 25º F next time.
Shiny pans can produce more evenly cooked baked
goods such as cakes and cookies.
Glass and ceramic pans heat slowly but retain heat well.
These types of pans work well for dishes such as pies
and custards.
Air insulated pans heat slowly and can reduce bottom
browning.
.HHSFRRNZDUHFOHDQWRSURPRWHHYHQKHDWLQJ
CAUTION
Do not use any type of foil or oven liner to cover the oven bottom. These items can trap heat
or melt, resulting in damage to the product and risk of shock, smoke or fire. Damage from improper use of
these items is not covered by the product warranty.
)RLOPD\EHXVHGWRFDWFKVSLOOVE\SODFLQJDVKHHWRQDORZHUUDFNVHYHUDOLQFKHVEHORZWKHIRRG'RQRWXVHPRUH
IRLOWKDQQHFHVVDU\DQGQHYHUHQWLUHO\FRYHUDQRYHQUDFNZLWKDOXPLQXPIRLO.HHSIRLODWOHDVW´IURPRYHQZDOOV
to prevent poor heat circulation.
Aluminum Foil and Oven Liners
16 49-80764 Rev. 5
Cooking Modes
USING THE RANGE: Cooking Modes
Your new oven has a variety of cooking modes to help you get the best results. These modes are described below.
Refer to the Cooking Guide section for recommendations for specific foods. Remember, your new oven may perform
differently than the oven it is replacing.
Baking and Roasting Modes
Select a mode for baking and roasting based on the
type and quantity of food you are preparing. When
preparing baked goods such as cakes, cookies, and
pastries always preheat the oven first. Follow recipe
recommendations for food placement. If no guidelines
are provided, center food in the oven.
Bake
The bake mode is intended for single rack cooking. This
mode uses heat primarily from the lower element but
also from the upper element to cook food. To use this
mode press the Bake pad, enter a temperature, and
then press Start. Preheating is generally recommended
when using this mode.
Convection Bake Multi Rack
The Convection Bake Multi Rack mode is intended for
baking on multiple racks at the same time. This mode
uses heat primarily from the rear element, when available,
but also heat from the upper and lower elements, along
with air movement from the convection fan to enhance
cooking evenness. Your oven is equipped with Auto
Recipe Conversion, so it is not necessary to convert the
temperature when using this mode. Baking time might
be slightly longer for multiple racks than what would be
expected for a single rack. To use this mode press the
Convection Bake pad, enter a temperature, and then
press Start. Always preheat when using this mode.
Convection Roast
The Convection Roast mode is intended for roasting
whole cuts of meat on a single rack. This mode uses
heat from the lower, upper, and rear elements, when
available, along with air movement from the convection
fan to improve browning and reduce cooking time. It is not
necessary to convert temperature. Check food earlier than
the recipe suggested time when using this mode or use
a meat probe. To use this mode press the Convection
Roast pad, enter a temperature, and then press Start. It
is not necessary to preheat when using this mode.
Broiling Modes
Broiling is available in both ovens. For better broiling,
the lower oven is recommended. When broiling in the
XSSHURYHQWKHGRRUVKRXOGUHPDLQ&/26(':KHQ
broiling in the lower oven, the door should remain OPEN.
0RQLWRUIRRGFORVHO\ZKLOHEURLOLQJ8VHFDXWLRQZKHQ
broiling on upper rack positions as placing food closer to
the broil element increases smoking, spattering, and the
possibility of fats igniting. For best performance center
food below the broil heating element.
Try broiling foods that you would normally grill. Adjust rack
positions to adjust the intensity of the heat to the food.
Place foods closer to the broil element when a seared
surface and rare interior is desired. Thicker foods and
foods that need to be cooked through should be broiled on
a rack position farther from the broiler or by using Broil Lo.
Broil Hi
The Broil Hi mode uses intense heat from the upper
HOHPHQWWRVHDUIRRGV8VH%URLO+LIRUWKLQQHUFXWVRIPHDW
DQGRUIRRGV\RXSUHIHUOHVVGRQHRQWKHLQWHULRU7RXVH
this mode press the Broil pad once and then press Start.
It is not necessary to preheat when using this mode.
Broil Lo
The Broil Lo mode uses less intense heat from the upper
element to cook food thoroughly while also producing
VXUIDFHEURZQLQJ8VH%URLO/RIRUWKLFNHUFXWVRIPHDW
DQGRUIRRGVWKDW\RXZRXOGOLNHFRRNHGDOOWKHZD\
through. To use this mode press the Broil pad twice and
then press Start. It is not necessary to preheat when
using this mode.
Warm
Warm mode is designed to keep hot food hot, it is not
intended to heat cold food. To use this mode, press the
Warm pad then press Start. Preheating is not required.
Cover foods that need to remain moist and do not cover
foods that should be crisp. It is recommended, for food
quality, that food not be kept warm for more than 2 hours.
49-80764 Rev. 5 17
Cooking Guide
USING THE RANGE: Cooking Guide
FOOD TYPE
RECOMMENDED
MODE(S)
RECOMMENDED
RACK POSITION(S) ADDITIONAL SUGGESTIONS
Baked Goods
Layer cakes, sheet cakes, bundt cakes,
muffins, quick breads on a Single Rack
Bake 4
8VHVKLQ\FRRNZDUH
JB860 and JBS86 only
Layer cakes* on Multiple Racks
Bake
Convection Bake
3 and 5
2 and 5
Ensure adequate airflow
(see illustration below).
PB960 and PB980 only
Layer cakes* on Multiple Racks
Bake
Convection Bake
3 and 5
Ensure adequate airflow
(see illustration on next page).
Chiffon cakes (angel food) Bake 1
8VHVKLQ\FRRNZDUH
Cookies, biscuits, scones on a Single Rack Bake 4 8VHVKLQ\FRRNZDUH
JB860 and JBS86 only
Cookies, biscuits, scones on Multiple Racks
Convection Bake 3 and 5 Ensure adequate airflow.
PB960 and PB980 only
Cookies, biscuits, scones on Multiple Racks
Convection Bake
3 and 5
2, 4 and 6
Ensure adequate airflow.
Beef & Pork
Hamburgers Broil Hi 6
8VHDEURLOSDQPRYHIRRGGRZQIRUPRUHGRQHQHVV
less searing. Watch food closely when broiling. For best
performance center food below the broil heating element.
Steaks & Chops Broil Hi 6
8VHDEURLOSDQPRYHIRRGGRZQIRUPRUHGRQHQHVV
less searing. Watch food closely when broiling. For best
performance center food below the broil heating element.
Roasts
Bake
Convection Roast
3 or 4
8VHDORZVLGHGSDQVXFKDVDEURLOSDQ
Preheating is not necessary.
Poultry
Whole chicken
Bake
Convection Roast
3 or 4
8VHDORZVLGHGSDQVXFKDVDEURLOSDQ
Bone-in chicken breasts, legs, thighs
Broil Hi 2
If breaded or coated in sauce avoid Broil Hi modes. Broil
skin side down first. Watch food closely when broiling. For
best performance when broiling, center food below the broil
heating element.
Broil Lo
Bake
2 or 3
Boneless chicken breasts
Broil Lo
Bake
2 or 3
0RYHIRRGGRZQIRUPRUHGRQHQHVVOHVVVHDULQJDQGXSIRU
JUHDWHUVHDULQJEURZQLQJZKHQEURLOLQJ)RUEHVWSHUIRUPDQFH
when broiling, center food below the broil heating element.
Whole turkey
Bake
Convection Roast
1 or 2
8VHDORZVLGHGSDQVXFKDVDEURLOSDQ
Turkey Breast
Bake
Convection Roast
2 or 3 8VHDORZVLGHGSDQVXFKDVDEURLOSDQ
Fish Broil Lo
LQFKWKLFNRUOHVV
!LQFK
Watch food closely when broiling. For best performance center
food below the broil heating element.
Casseroles Bake 3 or 4
Frozen Convenience Foods
Pizza, potato products, chicken nuggets,
appetizers on a Single Rack
Bake 3 or 4
8VHVKLQ\FRRNZDUH
Pizza, potato products, chicken nuggets,
appetizers on Multiple Racks
Convection Bake 3 and 5 8VHVKLQ\FRRNZDUH
Lower Oven for Double Oven Models
For JB860 and JBS86 only
*When baking four cake layers at a time with traditional
bake, use racks 3 and 5.
*When baking four cake layers at a time with convection
bake, use racks 2 and 5.
Cook food thoroughly to help protect against food
borne illness. Minimum safe food temperature
recommendations for food safety can be found at
www.IsItDoneYet.gov. Make sure to use a food
thermometer to take food temperatures.
Rack position for Traditional
Bake, cakes in front of rack 3
and back of rack 5
Rack position for Convection
Bake, cakes in center of racks
2 and 5
18 49-80764 Rev. 5
FOOD TYPE
RECOMMENDED
MODE(S)
RECOMMENDED
RACK POSITION(S) ADDITIONAL SUGGESTIONS
Baked Goods
Layer cakes, sheet cakes,
muffins, baked on Single Rack
Bake 1 8VHVKLQ\FRRNZDUH
Cookies, biscuits, scones on a
Single Rack
Bake 1 8VHVKLQ\FRRNZDUH
Beef & Pork
Hamburgers Broil Hi 1
8VHDEURLOSDQPRYHIRRGGRZQIRUPRUHGRQHQHVV
less searing. Watch food closely when broiling. For best
performance center food below the broil heating element.
Steaks & Chops Broil Hi 1
8VHDEURLOSDQPRYHIRRGGRZQIRUPRUHGRQHQHVV
less searing. Watch food closely when broiling. For best
performance center food below the broil heating element.
Poultry
Bone-in chicken breasts, legs,
thighs
Broil Lo
Bake
1
Broil skin side down first. Watch food closely when
broiling. For best performance when broiling, center food
below the broil heating element.
Boneless chicken breasts
Broil Lo
Bake
1
For best performance when broiling, center food below the
broil heating element.
Fish Broil Lo 1
Watch food closely when broiling. For best performance
center food below the broil heating element.
Frozen Convenience Foods
Pizza, potato products, chicken
nuggets, appetizers on a Single
Rack
Bake 1
8VHVKLQ\FRRNZDUH
Upper Oven for Double Oven Models
NOTE: For better broiling, the lower oven is recommended.
Rack position for Traditional
Bake, cakes in front of rack 3
and back of rack 5
Rack position for Convection
Bake, cakes in back of rack 3
and front of rack 5
Lower Oven for Double Oven Models (Cont.)
For PB960 and PB980 only
*When baking four cake layers at a time with traditional
bake, use racks 3 and 5.
*When baking four cake layers at a time with convection
bake, use racks 2 and 5.
Cook food thoroughly to help protect against food
borne illness. Minimum safe food temperature
recommendations for food safety can be found at
www.IsItDoneYet.gov. Make sure to use a food
thermometer to take food temperatures.
Cooking Guide (Cont.)
USING THE RANGE: Cooking Guide
49-80764 Rev. 5 19
Cleaning the Range – Exterior
CARE AND CLEANING: Cleaning the Range – Exterior
WARNING
If your range is removed for cleaning, servicing or any reason, be sure the
anti-tip device is reengaged properly when the range is replaced. Failure to
take this precaution could result in tipping of the range and can result in death
or serious burns to children or adults.
Be sure all controls are off and all surfaces are cool before cleaning any part of the range.
Control Knobs
The control knobs may be removed for easier cleaning.
Make sure the knobs are in the OFF positions and pull
them straight off the stems for cleaning.
The knobs can be washed with soap and water. Make
sure the inside of the knobs are dry before replacing.
Replace the knobs, in the OFF position to ensure proper
placement.
Control Lockout
If desired, the touch pads may be deactivated before
cleaning.
See Lock Controls in the Oven Controls section in this
manual.
Clean up splatters with a damp cloth.
You may also use a glass cleaner.
5HPRYHKHDYLHUVRLOZLWKZDUPVRDS\ZDWHU'RQRWXVH
abrasives of any kind.
Reactivate the touch pads after cleaning.
Control Panel
It’s a good idea to wipe the control panel after each use.
Clean with mild soap and water or vinegar and water,
rinse with clean water and polish dry with a soft cloth.
'RQRWXVHDEUDVLYHFOHDQVHUVVWURQJOLTXLGFOHDQVHUV
plastic scouring pads or oven cleaners on the control
SDQHO²WKH\ZLOOGDPDJHWKHILQLVK
Oven Exterior
'RQRWXVHRYHQFOHDQHUVDEUDVLYHFOHDQVHUVVWURQJ
liquid cleansers, steel wool, plastic scouring pads, or
cleaning powders on the interior or exterior of the oven.
Clean with a mild soap and water or vinegar and water
solution. Rinse with clean water and dry with a soft cloth.
When cleaning surfaces, make sure that they are at
room temperature and not in direct sunlight.
If stain on the door vent trim is persistent, use a mild
abrasive cleaner and a sponge-scrubber for best results.
Spillage of marinades, fruit juices, tomato sauces and
basting liquids containing acids may cause discoloration
and should be wiped up immediately. Let hot surfaces
cool, then clean and rinse.
Painted Surfaces
Painted surfaces include the sides of the range and the
door, top of control panel and the drawer front. Clean
these with soap and water or a vinegar and water solution.
'RQRWXVHFRPPHUFLDORYHQFOHDQHUVFOHDQLQJSRZGHUV
steel wool or harsh abrasives on any painted surface.
Stainless Steel Surfaces (on some models)
'RQRWXVHDVWHHOZRROSDGLWZLOOVFUDWFKWKHVXUIDFH
To clean the stainless steel surface, use warm sudsy
water or a stainless steel cleaner or polish. Always wipe
the surface in the direction of the grain. Follow the cleaner
instructions for cleaning the stainless steel surface.
&OHDQHUVZLWKR[DOLFDFLGVXFKDV%DU.HHSHUV)ULHQG6RIW
Cleanser™ will remove surface rust, tarnish and small
EOHPLVKHV8VHRQO\DOLTXLGFOHDQVHUIUHHRIJULWDQGUXELQ
the direction of the brush lines with a damp, soft sponge.
To inquire about purchasing cleaning products including
stainless steel appliance cleaner or polish, see the
Accessories and Consumer Support sections at the end
of this manual.
Porcelain Enamel Cooktop (on some models)
The porcelain enamel finish is sturdy but breakable if
misused. This finish is acid-resistant. However, any acidic
foods spilled (such as fruit juices, tomato or vinegar)
should not be permitted to remain on the finish.
If acids spill on the cooktop while it is hot, use a dry paper
towel or cloth to wipe it up right away. When the surface
has cooled, wash with soap and water. Rinse well.
For other spills such as fat spatterings, wash with soap
and water or cleansing powders after the surface has
cooled. Rinse well. Polish with a dry cloth.
20 49-80764 Rev. 5
CARE AND CLEANING: Cleaning the Range – Interior
Cleaning the Range – Interior
The interior of your new oven can be cleaned manually or by using Steam Clean or Self Clean modes.
Spillage of marinades, fruit juices, tomato sauces and basting liquids containing acids may cause discoloration and
should be wiped up immediately. Let hot surfaces cool, then clean and rinse.
Manual Cleaning
'RQRWXVHRYHQFOHDQHUVDEUDVLYHFOHDQHUVVWURQJ
liquid cleansers, steel wool, scouring pads, or cleaning
powders on the interior of the oven. Clean with a mild
soap and water or vinegar and water solution. Rinse with
clean water and dry with a soft cloth. When cleaning
surfaces, make sure that they are at room temperature.
Steam Clean Mode (on some models)
Steam clean is intended to clean small spills using water
and a lower cleaning temperature than Self-Clean.
To use the Steam Clean feature, wipe grease and soils
from the oven. Pour one cup of water into the bottom of
the oven. Close the door. Press the Steam Clean pad
and then press Start7KHRYHQGRRUZLOOORFN'RQRW
open the door during the 30 minute steam clean as this
will decrease the steam clean performance. At the end of
the steam clean cycle the door will unlock. Wipe out any
excess water and any remaining soil.
Self Clean Mode (on some models)
Read Self-Cleaning Oven Safety Instructions at the
beginning of this manual before using Self Clean Mode.
Self clean uses very high temperatures to clean the oven
interior. The oven door will lock when using this feature.
Before operating the self-clean cycle, wipe up grease
and soils from the oven. Remove all items from the oven
other than enameled (dark color) racks. Shiny or silver
racks, the meat probe, and any cookware or other items
should all be removed from the oven before initiating a
self-clean cycle. Close the door. Press the Self Clean
pad and a default self-clean time is displayed. The clean
time can be changed to any time between 3:00 and
5:00 hours by using the number pads to enter a different
time and pressing Start. For heavily soiled ovens, the
maximum 5 hour clean time is recommended. If you wish
to use the default time, press the Start pad immediately
after pressing the Clean pad. The oven will turn off
automatically when the self-clean cycle is complete. The
door will stay locked until the oven has cooled down. After
the oven has cooled down wipe any ash out of the oven.
We recommend venting your kitchen with an open window or
using a ventilation fan or hood during the first self-clean cycle.
Soil on the front frame of the range and outside the
gasket on the door will need to be cleaned by hand.
Clean these areas with hot water, soap-filled steel-wool
pads or cleansers such as Soft Scrub
®
. Rinse well with
clean water and dry.
'RQRWFOHDQWKHJDVNHW7KHILEHUJODVVPDWHULDORI
the oven door gasket cannot withstand abrasion. It is
essential for the gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Make sure the oven light bulb cover is in place and the
oven light is off.
IMPORTANT: The health of some birds is extremely
sensitive to the fumes given off during the self-cleaning
cycle of any range. Move birds to another well-
ventilated room.
On Some Models:
The surface units are automatically disabled during the
self-clean cycle. Make sure that all surface unit controls
are turned off at all times during the self-clean cycle.
Any surface unit that is set to an “on” position while the
self-clean cycle is operating will automatically come on
after the self-clean cycle is finished, and could result in
an “on” unattended surface unit. Wait until the self-clean
cycle is finished to set and use the surface units.
Racks
All racks can be washed with warm, soapy water.
Enameled (not shiny) racks can be left in the cavity
during self clean.
Racks may be more difficult to slide, especially after
a self-clean. Put some vegetable oil on a soft cloth or
paper towel and rub onto the left and right edges.
NOTE: 8VLQJRWKHUFRRNLQJRLOVZLOOFDXVHDGLVFRORULQJ
or a rust like color residue on the racks and cavity sides.
To clean this residue, use a soap and water or a vinegar
and water solution. Rinse with clean water and dry with a
soft cloth.
Oven Heating Elements
'RQRWFOHDQWKHEDNHHOHPHQWRUWKHEURLOHOHPHQW$Q\
soil will burn off when the elements are heated.
To clean the oven floor when the bake element is
exposed, gently lift the bake element. On some models,
the bake element is not exposed and is under the oven
floor. Clean the oven floor with warm, soapy water.
Wipe up heavy soil on the oven bottom.
Gently lift the bake element
49-80764 Rev. 5 21
Normal Daily Use Cleaning
To maintain and protect the surface of your glass cooktop,
follow these steps:
1. Before using the cooktop for the first time, clean it
with ceramic cooktop cleaner. This helps protect the
top and makes cleanup easier.
2. Regular use of ceramic cooktop cleaner will help keep
the cooktop looking new.
3. Shake the cleaning cream well. Apply a few drops of
ceramic cooktop cleaner directly to the cooktop.
8VHDSDSHUWRZHORUQRQVFUDWFKFOHDQLQJSDGIRU
ceramic cooktops to clean the entire cooktop surface.
8VHDGU\FORWKRUSDSHU
towel to remove all cleaning
residue. No need to rinse.
NOTE: It is very important that
\RX'2127KHDWWKHFRRNWRS
until it has been cleaned
thoroughly.
Burned-On Residue
NOTE:'$0$*(WR\RXUJODVVVXUIDFHPD\RFFXULI\RX
use scrub pads other than those recommended.
1. Allow the cooktop to cool.
2. Spread a few drops of ceramic cooktop cleaner on
the entire burned residue area.
8VLQJDQRQVFUDWFKFOHDQLQJSDGIRUFHUDPLF
cooktops, rub the residue area, applying pressure as
needed.
4. If any residue remains, repeat the steps listed above
as needed.
5. For additional protection, after all residue has been
removed, polish the entire surface with ceramic
cooktop cleaner and a paper towel.
Heavy, Burned-On Residue
1. Allow the cooktop to cool.
8VHDVLQJOHHGJHUD]RUEODGHVFUDSHUDWDSSUR[LPDWHO\
a 45° angle against the glass surface and scrape the
soil. It will be necessary to apply pressure to the razor
scraper in order to remove the residue.
3. After scraping with the razor scraper, spread a few drops
of ceramic cooktop cleaner on the entire burned residue
DUHD8VHDQRQVFUDWFKFOHDQLQJSDGWRUHPRYHDQ\
remaining residue.
4. For additional protection, after all residue has been
removed, polish the entire surface with ceramic
cooktop cleaner and a paper towel.
Clean your cooktop after each
VSLOO8VHFHUDPLFFRRNWRS
cleaner.
Ceramic
Cooktop
Cleaner
The ceramic cooktop scraper and all recommended supplies are
available through our Parts Center. See the Accessories and
Consumer Support sections at the end of this manual.
NOTE:'RQRWXVHDGXOORUQLFNHGEODGH
CARE AND CLEANING: Cleaning the Glass Cooktop
Cleaning the Glass Cooktop
8VHDFOHDQLQJSDGIRUFHUDPLF
cooktops.
22 49-80764 Rev. 5
Metal Marks and Scratches
1. Be careful not to slide pots and pans across your
cooktop. It will leave metal markings on the cooktop
surface.
These marks are removable using the ceramic
cooktop cleaner with a non-scratch cleaning pad for
ceramic cooktops.
2. If pots with a thin overlay of aluminum or copper
are allowed to boil dry, the overlay may leave black
discoloration on the cooktop.
This should be removed immediately before heating
again or the discoloration may be permanent.
NOTE: Carefully check the bottom of pans for roughness
that would scratch the cooktop.
Damage from Sugary Spills and Melted Plastic
Special care should be taken when removing hot substances to avoid permanent damage of the glass surface.
Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your
cooktop (not covered by the warranty) unless the spill is removed while still hot. Special care should be taken when
removing hot substances.
Be sure to use a new, sharp razor scraper.
'RQRWXVHDGXOORUQLFNHGEODGH
1. Turn off all surface units. Remove hot pans.
2. Wearing an oven mitt:
D 8VHDVLQJOHHGJHUD]RUEODGHVFUDSHUWRPRYH
the spill to a cool area on the cooktop.
b. Remove the spill with paper towels.
3. Any remaining spillover should be left until the surface
of the cooktop has cooled.
'RQ¶WXVHWKHVXUIDFHXQLWVDJDLQXQWLODOORIWKH
residue has been completely removed.
NOTE: If pitting or indentation in the glass surface has
already occurred, the cooktop glass will have to be
replaced. In this case, service will be necessary.
Cooktop Seal
To clean the cooktop seal around the edges of the glass,
lay a wet cloth on it for a few minutes, then wipe clean
with nonabrasive cleaners.
Cleaning the Glass Cooktop (Cont.)
CARE AND CLEANING: Cleaning the Glass Cooktop
49-80764 Rev. 5 23
WARNING
SHOCK OR BURN HAZARD: Before replacing oven light bulb, disconnect the electrical power to the
range at the main fuse or circuit breaker panel. Failure to do so may result in electric shock or burn.
CAUTION
BURN HAZARD: The glass cover and bulb should be removed when cool. Touching hot glass with
bare hands or a damp cloth can cause burns.
Oven Light Replacement (on some models)
To remove:
7XUQWKHJODVVFRYHUFRXQWHUFORFNZLVHWXUQXQWLO
the tabs of the glass cover clear the grooves of the
socket. Wearing latex gloves may offer a better grip.
8VLQJJORYHVRUDGU\FORWKUHPRYHWKHEXOEE\SXOOLQJ
it straight out.
To replace:
8VHDQHZYROWKDORJHQEXOEQRWWRH[FHHG
50 watts. Replace the bulb with the same type of bulb
that was removed. Be sure the replacement bulb is
rated 120 volts or 130 volts (NOT 12 volts).
8VLQJJORYHVRUDGU\FORWKUHPRYHWKHEXOEIURPLWV
SDFNDJLQJ'RQRWWRXFKWKHEXOEZLWKEDUHILQJHUV2LO
from skin will damage the bulb and shorten its life.
3. Push the bulb straight into the receptacle all the way.
4. Place the tabs of the glass cover into the grooves of
WKHVRFNHW7XUQWKHJODVVFRYHUFORFNZLVHWXUQ
For improved lighting inside the oven, clean the glass
cover frequently using a wet cloth. This should be
done when the oven is completely cool.
5. Reconnect electrical power to the oven.
Oven Light Replacement (on some models)
To remove:
7XUQWKHJODVVFRYHUFRXQWHUFORFNZLVHWXUQXQWLO
the tabs of the glass cover clear the grooves of the
socket. Wearing latex gloves may offer a better grip.
2. Remove the bulb by turning it counter-clockwise.
To replace:
1. Replace bulb with a new 40-watt appliance bulb.
Insert the bulb and turn it clockwise until it is tight.
2. Place the tabs of the glass cover into the grooves of
WKHVRFNHW7XUQWKHJODVVFRYHUFORFNZLVHWXUQ
For improved lighting inside the oven, clean the glass
cover frequently using a wet cloth. This should be
done when the oven is completely cool.
3. Reconnect electrical power to the oven.
CARE AND CLEANING: Oven Light
Oven Light
8VHJORYHV
or cloth
Receptacle
G9 Bulb
Socket
Tab
Glass cover
Receptacle
(on some models)
24 49-80764 Rev. 5
Lift-Off Upper Oven Door
To remove the door:
1. Fully open the door.
2. Lift up on the hinge lock toward the oven frame until
they stop.
3. Close the door to 45 degrees (you will feel the door
stop). The hinge lock will contact the oven frame.
4. On both sides of the door, press down on the release
buttons on each hinge.
5. Lift door up until it is clear of the hinge.
6. Pull on hinge arms slightly to relieve pressure on the
locking tabs.
7. Push the hinge locks down onto the hinge.
8. Push the hinges in toward the unit so they are closed.
To replace the door:
1. Pull the hinges down away from the oven frame to
the fully open position.
2. Lift up on the hinge locks toward the oven frame until
they stop.
3. The hinges will release to the 45-degree position. The
hinge locks will contact the oven frame.
4. Slide the door back onto the hinges. Make sure the
buttons pop back out.
5. Fully open the door.
6. Push the hinge locks down onto the hinge.
7. Close the oven door.
Oven
frame
'RRU
frame
Release
buttons
Pull down
Push in
Lift-Off Lower Oven Door
The door is very heavy. Be careful when removing and lifting the door.
'RQRWOLIWWKHGRRUE\WKHKDQGOH
To remove the door:
1. Fully open the door.
2. Pull the hinge locks down toward the door frame, to
the unlocked position. A tool, such as a small flat-
blade screwdriver, may be required.
3. Firmly grasp both sides of the door at the top.
4. Close door to the door removal position. The door
should be open approximately 3" with no obstruction
above the door.
5. Lift door up and out until both hinge arms are clear of
the slots.
To replace the door:
1. Firmly grasp both sides of the door at the top.
2. Starting on the left side, with the door at the same
angle as the removal position, seat the indentation of
the hinge arm into the bottom edge of the hinge slot.
The notch in the hinge arm must be fully seated into
the bottom of the slot. Repeat for right side.
3. Fully open the door. If the door will not fully open, the
indentation is not seated correctly in the bottom edge
of the slot.
4. Push the hinge locks up against the front frame of the
oven cavity, to the locked position.
5. Close the oven door.
Removal position
Hinge lock
Slot
Pull hinge locks down to unlock
Push hinge locks up to lock
Hinge
lock
Hinge
arm
Indentation
Bottom
edge of
slot
Hinge arm
Oven Door
CARE AND CLEANING: 2YHQ 'RRU
49-80764 Rev. 5 25
TROUBLESHOOTING TIPS
Troubleshooting Tips ... Before you call for service
Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Cause What To Do
Surface units will not
maintain a rolling boil
or cooking is not fast
enough
Improper cookware being used. 8VHSDQVZKLFKDUHIODWDQGPDWFKWKHGLDPHWHURIWKH
surface unit selected.
In some areas, the power (voltage)
may be low.
Cover pan with a lid until desired heat is obtained.
Surface units do not
work properly
A fuse in your home may be blown
or the circuit breaker tripped.
Replace the fuse or reset the circuit breaker.
Cooktop controls improperly set. Check to see the correct control is set for the surface unit
you are using.
Surface unit stops
glowing when turned to a
lower setting
The unit is still on and hot. This is normal.
Scratches (may appear
as cracks) on cooktop
glass surface
Incorrect cleaning methods being
used.
Scratches are not removable. Tiny scratches will become
less visible in time as a result of cleaning.
Cookware with rough bottoms being
used or coarse particles (salt or
sand) were between the cookware
and the surface of the cooktop.
Cookware has been slid across the
cooktop surface.
To avoid scratches, use the recommended cleaning
procedures. Make sure bottoms of cookware are clean
before use, and use cookware with smooth bottoms.
Areas of discoloration on
the cooktop
Food spillovers not cleaned before
next use.
See the Cleaning the glass cooktop section.
Hot surface on a model with a light-
colored cooktop.
This is normal. The surface may appear discolored when it is
hot. This is temporary and will disappear as the glass cools.
Plastic melted to the
surface
Hot cooktop came into contact with
plastic placed on the hot cooktop.
6HHWKH*ODVVVXUIDFH²SRWHQWLDOIRUSHUPDQHQWGDPDJH
section in the Cleaning the glass cooktop section.
Pitting (or indentation) of
the cooktop
Hot sugar mixture spilled on the
cooktop.
Call a qualified technician for replacement.
Frequent cycling off and
on of surface units
Improper cookware being used.
8VHRQO\IODWFRRNZDUHWRPLQLPL]HF\FOLQJ
My new oven doesn't
cook like my old one. Is
something wrong with
the temperature settings?
Your new oven has a different
cooking system from your old oven
and therefore may cook differently
than your old oven.
For the first few uses, follow your recipe times and
temperatures carefully. If you still think your new oven
is too hot or too cold, you can adjust the temperature
yourself to meet your specific cooking preference. See
the Special Features section. NOTE: This adjustment
affects Bake, and Convection Bake temperatures; it will
not affect Convection Roast, Broil or Clean.
Food does not bake
properly
Oven controls improperly set. See the Cooking Modes section.
Rack position is incorrect or rack is
not level.
See the Cooking Modes section and Cooking Guide.
Incorrect cookware or cookware of
improper size being used.
See the Cookware section.
Oven temperature needs adjustment.
See the Special Features section.
Ingredient substitution Substituting ingredients can change the recipe outcome.
26 49-80764 Rev. 5
TROUBLESHOOTING TIPS
Troubleshooting Tips ... Before you call for service
Problem Possible Cause What To Do
Food does not broil
properly
Oven controls improperly set. Make sure you select the appropriate broil mode.
Improper rack position being used. See Cooking Guide for rack location suggestions.
Food being cooked in a hot pan. Make sure cookware is cool.
Cookware not suited for broiling.
8VHDSDQVSHFLILFDOO\GHVLJQHGIRUEURLOLQJ
Aluminum foil used on the broiling
pan and grid has not been fitted
properly and slit as recommended.
If using aluminum foil conform to pan slits.
In some areas the power (voltage)
may be low.
Preheat the broil element for 10 minutes.
Oven temperature too hot
or too cold
Oven temperature needs
adjustment.
See the Special Features section.
Oven does not work or
appears not to work
A fuse in your home may be blown
or the circuit breaker tripped.
Replace the fuse or reset the circuit breaker.
Oven controls improperly set.
6HHWKH8VLQJWKH2YHQVHFWLRQ
Oven is in Sabbath Mode. Verify, that the oven is not in Sabbath Mode. See the
Special Features section.
“Crackling” or “popping”
sound
This is the sound of the metal
heating and cooling during both the
cooking and cleaning functions.
This is normal.
Why is my range making
a "clicking" noise when
using my oven?
Your range cycles the heating
elements by turning relays on
and off to maintain the oven
temperature.
This is normal.
Clock and timer do not
work
A fuse in your home may be blown
or the circuit breaker tripped.
Replace the fuse or reset the circuit breaker.
Plug on range is not completely
inserted in the electrical outlet.
Make sure electrical plug is plugged into a live, properly
grounded outlet.
Oven controls improperly set.
6HHWKH8VLQJWKHNLWFKHQWLPHUVHFWLRQ
Oven door is crooked The door is out of position. Because the oven door is removable, it sometimes gets
out of position during installation. To straighten the door,
UHLQVWDOOWKHGRRU6HHWKH/LIW2II2YHQ'RRULQVWUXFWLRQV
in the "Care and Cleaning" section.
Oven light does not work Light bulb is loose or defective. Tighten or replace bulb.
Pad operating light is broken. Call for service.
Oven will not self-clean
(on some models)
The temperature is too high to set
a self-clean operation.
Allow the oven to cool and reset the controls.
Oven controls improperly set. See the Cleaning the Oven section.
Excessive smoking
during clean cycle
Excessive soil or grease. Press the Cancel/Off pad. Open the windows to rid the
room of smoke. Wait until the LOCKED light goes off. Wipe
up the excess soil and reset the clean cycle.
Excessive smoking
during broiling
Food too close to burner element. Lower the rack position of the food.
Oven door will not open
after a clean cycle
Oven too hot. Allow the oven to cool below locking temperature.
Oven not clean after a
clean cycle
Oven controls improperly set. See the Cleaning the Oven section.
Oven was heavily soiled. Clean up heavy spillovers before starting the clean cycle.
Heavily soiled ovens may need to self-clean again or for a
longer period of time.
"LOCK DOOR" flashes in
the display
The self-clean cycle has been
selected but the door is not closed.
Close the oven door.
DOOR LOCK light is on
when you want to cook
The oven door is locked because
the temperature inside the oven
has not dropped below the locking
temperature.
Press the Cancel/Off pad. Allow the oven to cool.
49-80764 Rev. 5 27
TROUBLESHOOTING TIPS
Troubleshooting Tips ... Before you call for service
Problem Possible Cause What To Do
“F— and a number
or letter” flash in the
display
You have a function error code. Press the Cancel/Off pad. Allow the oven to cool for one
hour. Put the oven back into operation.
If the function code repeats.
'LVFRQQHFWDOOSRZHUWRWKHRYHQIRUDWOHDVWVHFRQGV
and then reconnect power. If the function error code
repeats, call for service.
Display goes blank A fuse in your home may be blown
or the circuit breaker tripped.
Replace the fuse or reset the circuit breaker.
The clock is turned off. See the Special features section.
Oven is in Sabbath Mode. Verify that the oven is not in Sabbath Mode. See the
Special Features section.
Power outage, clock
flashes
Power outage or surge Reset the clock. If the oven was in use, you must reset it by
pressing the Cancel/Off pad, setting the clock and resetting
any cooking function.
“Burning” or “oily” odor
emitting from the vent
This is normal in a new oven and
will disappear in time.
To speed the process, set a self-clean cycle for a minimum
of 3 hours. See the Cleaning the Oven section.
Strong odor An odor from the insulation around
the inside of the oven is normal for
the first few times the oven is used.
This is temporary and will go away after several uses or a
self-clean cycle.
Fan noise
(on some models)
A convection fan may automatically
turn on and off.
This is normal. The fan is designed to operate intermittently
to maximize cooking evenness. The convection fan will
operate during preheat of the bake cycle. The fan will turn
off after the oven is heated to the set temperature. This is
normal.
My oven door glass
appears to be "tinted"
or have a "rainbow"
color. Is this defective?
No. The inner oven glass is coated
with a heat barrier to reflect the heat
back into the oven to prevent heat
loss and keep the outer door cool
while baking.
7KLVLVQRUPDO8QGHUFHUWDLQOLJKWRUDQJOHV\RXPD\VHH
this tint or rainbow color.
Sometimes the oven
takes longer to
preheat to the same
temperature
Cookware or food in oven. The cookware or food in the oven will cause the oven to
take longer to preheat. Remove items to reduce preheat
time.
Number of racks in oven. Adding more racks to the oven will cause the oven to take
longer to preheat. Remove some racks.
Different cooking modes. The different cooking modes use different preheat methods
to heat the oven for the specific cooking mode. Some
modes will take longer than others (i.e. convection bake).
Display flashes Power failure. Reset the clock.
Unable to get the
display to show “SF”
Oven control pads were not touched
properly.
The Broil Hi/Lo and Bake pads must be touched at the
same time and held for 3 seconds.
Control signals after
entering cooking time
or start time
You forgot to enter a bake
temperature or cleaning time.
Touch the Bake pad and desired temperature or the SELF
Clean pad and desired clean time.
Oven racks are difficult
to slide
The shiny, silver-colored racks were
cleaned in a self-clean cycle.
Apply a small amount of vegetable oil to a paper towel and
ZLSHWKHHGJHVRIWKHRYHQUDFNVZLWKWKHSDSHUWRZHO'R
not spray with Pam
®
or other lubricant sprays.
Steam from the vent When using the ovens, it is normal
to see steam coming out of the
oven vents. As the number of racks
or amount of food being cooked
increases, the amount of visible
steam will increase.
This is normal.
28 49-80764 Rev. 5
Notes
49-80764 Rev. 5 29
Notes
30 49-80764 Rev. 5
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized Customer Care
®
technician. To schedule
service online, visit us at GEAppliances.com/service, or call GE Appliances at 800.GE.CARES (800.432.2737). Please
have your serial number and your model number available when calling for service.
Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory
service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its
products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be
sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.
What GE Appliances will not cover:
Ŷ Service trips to your home to teach you how to use
the product.
Ŷ ,PSURSHULQVWDOODWLRQGHOLYHU\RUPDLQWHQDQFH
Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHG
modified or used for other than the intended purpose
or used commercially.
Ŷ 'DPDJHWRWKHJODVVFRRNWRSFDXVHGE\XVHRI
cleaners other than the recommended cleaning
creams and pads.
Ŷ 'DPDJHWRWKHJODVVFRRNWRSFDXVHGE\KDUGHQHGVSLOOV
of sugary materials or melted plastic that are not cleaned
according to the directions in the Owner's Manual.
Ŷ 5HSODFHPHQWRIKRXVHIXVHVRUUHVHWWLQJRIFLUFXLW
breakers.
Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWILUH
floods or acts of God.
Ŷ 'DPDJHWRILQLVKVXFKDVVXUIDFHUXVWWDUQLVKRUVPDOO
blemishes not reported within 48 hours of delivery.
Ŷ ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\
possible defects with this appliance.
Ŷ 'DPDJHFDXVHGDIWHUGHOLYHU\
Ŷ 3URGXFWQRWDFFHVVLEOHWRSURYLGHUHTXLUHGVHUYLFH
Ŷ 6HUYLFHWRUHSDLURUUHSODFHOLJKWEXOEVH[FHSWIRU
/('ODPSV
LIMITED WARRANTY
GE Appliances Electric Range Limited Warranty
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties,
including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or
the shortest period allowed by law.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for
KRPHXVHZLWKLQWKH86$,IWKHSURGXFWLVORFDWHGLQDQDUHDZKHUHVHUYLFHE\D*($SSOLDQFHV$XWKRUL]HG6HUYLFHU
is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized
GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service
calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
/RXLVYLOOH.<
Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are
available while your warranty is still in effect. You can purchase it online anytime at
GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.
For the period of GE Appliances will replace
One year
From the date
of the original
purchase
Any partRIWKHUDQJHZKLFKIDLOVGXHWRDGHIHFWLQPDWHULDOVRUZRUNPDQVKLS'XULQJWKLV
limited one-year warranty, GE Appliances will provide, free of charge, all labor and in-home
service to replace the defective part.
49-80764 Rev. 5 31
ACCESSORIES
Looking For Something More?
GE Appliances offers a variety of accessories to
improve your cooking and maintenance experiences!
Refer to the Consumer Support page for phone numbers
and website information.
The following products and more are available:
Accessories
Accessories
Small Broiler Pan (8 ¾ ” x 1 ¼” x 13 ½ “)
Large* Broiler Pan (12 ¾ ” x 1 ¼” x 16 ½ “)
;/%URLOHU3DQ´[ó´[³
Parts
Oven racks
Oven elements
Light bulbs
Cleaning Supplies
CitruShine™ Stainless Steel Wipes
Stainless Steel Appliance Cleaner
Cleaning Pads for Ceramic Cooktops
Ceramic Cooktop Cleaner
Ceramic Cooktop Scraper
.LW.LWLQFOXGHVFUHDPDQGFRRNWRSVFUDSHU
7KHODUJHEURLOHUSDQGRHVQRWILWLQ´´UDQJHV
7KH;/EURLOHUSDQGRHVQRWILWLQ´ZDOORYHQV´GURSLQVRU´´UDQJH
NOTE: Go to GEAppliances.com to view recommended cleaners.
32 49-80764 Rev. 5
3ULQWHGLQWKH8QLWHG6WDWHV
Consumer Support
CONSUMER SUPPORT
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day
of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support
VHUYLFHVGHVLJQHGIRU\RXUFRQYHQLHQFH,QWKH86GEAppliances.com
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise. You may also mail in
WKHSUHSULQWHGUHJLVWUDWLRQFDUGLQFOXGHGLQWKHSDFNLQJPDWHULDO,QWKH86GEAppliances.com/register
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at
\RXUFRQYHQLHQFHDQ\GD\RIWKH\HDU,QWKH86GEAppliances.com/service
or call 800.432.2737 during normal business hours.
Extended Warranties
Purchase a GE Appliances extended warranty and learn about special discounts that are available while your
warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your
ZDUUDQW\H[SLUHV,QWKH86GEAppliances.com/extended-warranty
or call 800.626.2224 during normal business hours.
Remote Connectivity
For assistance with wireless network connectivity (for models with remote enable),
visit our website at GEAppliances.com/connect RUFDOOLQWKH86
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
9,6$0DVWHU&DUGDQG'LVFRYHUFDUGVDUHDFFHSWHG2UGHURQOLQHWRGD\KRXUVHYHU\GD\
,QWKH86GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the
details including your phone number, or write to:
,QWKH86*HQHUDO0DQDJHU&XVWRPHU5HODWLRQV_*($SSOLDQFHV$SSOLDQFH3DUN_/RXLVYLOOH.<
GEAppliances.com/contact
