Safety Precautions
Operating Instructions
Installation Instructions
Care and Cleaning
RAC-WK0511CMU
RAC-WK0611CRU
RAC-WK0811ESCWU
RAC-WK1011ESCWU
RAC-WK1211ESCWU
RAC-WK1511ESCRU
RAC-WK1821ESCRU
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference.
The design and specications are subject to
change without prior notice for product
improvement. Consult with your dealer or
the manufacturer for details.
version B - 10 - 2017
Sa
f
ety P
O
Op
eratin
st
al
la
t
Ins
Ca
Op
In
s
Window Type
Room Air Conditioner
USER MANUAL
Troubleshooting TipsTr
o
Remote Control Operating
Instructions
us.toshiba-lifestyle.com
Page 2 User Manual
Read This Manual
Inside you’ll nd many helpful hints on how to use and maintain your air conditioner properly. Just
a little preventive care on your part can save you a great deal of time and money over the life of
your air conditioner. You’ll nd many answers to common problems in the troubleshooting tips -
you should be able to x most of them quickly before calling service. These instructions may not
cover every possible condition of use, so common sense and attention to safety is required when
installing, operating and maintaining this product.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Contact the authorized service technician for repair or maintenance of this unit.
•
Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or people who cannot
operate the air conditioning independently without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• If the power cord needs to be replaced, please contact our consumer service and look
for an authorized technician.
• Electrical installation must be performed in accordance to national regulation standards
ed personnel only.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
• Appliances with electric heaters should be positioned at least 3 feet (1 m) away from
combustible materials.
Owner’s Manual
Safety Precautions ...................................................................................................... 3
Operating Instructions .............................................................................................. 7
Installation Instructions ......................................................................................... 12
Care and Cleaning ................................................................................................... 30
Troubleshooting Tips .............................................................................................. 31
Remote Control Operating Instructions .......................................................... 32
CAUTION
User Manual Page 3
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the instructions shown here must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk
is shown by the following indications.
• Plug in power cord plug properly.
Otherwise, it may cause electric shock or re due to excess heat generation.
• Do not modify power cord length or share the outlet with other appliances as it may
cause electric shock or re due to overheating.
• Always ensure e ective grounding.
Incorrect grounding may cause electric shock.
• Unplug the unit you notice unusual sounds or smells, or smoke comes from it.
A damaged product may cause re and electric shock.
• Keep rearms away from the unit.
• Ventilate room before operating the air conditioner if there is a gas leakage from
another appliance.
• Do not operate or stop the unit by inserting or pulling out the power cord plug.
• Do not operate with wet hands or in very humid enviroments.
It may cause electric shock.
• Do not allow water to come into contact with any electric parts.
It may cause failure or electric shock.
• Do not use the socket if it is loose or damaged.
It may cause re and electric shock.
• Do not use or keep the power cord close to heating appliances.
It may cause re and electric shock.
• Do not disassemble or modify unit.
It may cause failure and electric shock.
• Do not damage or use an alternate power cord.
It may cause re and electric shock.
If the power cord is damaged, it must be replaced by the manufacturer or an
authorized service center or a similarly quali ed person in order to avoid a hazard.
• Do not direct air ow straight into persons to avoid possible health hazard.
• Always install a circuit breaker and a dedicated power circuit.
Incorrect installation may cause re and electric shock.
WARNING
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
Safety
Precautions
Page 4 User Manual
• Do not open the unit during operation.
It may cause electric shock.
• Do not use the power cord near ammable gas or combustibles, such as gasoline,
benzene, thinner, etc.
It may cause an explosion or re.
• When the air lter is to be removed, do not touch the metal parts of the unit.
It may cause injury.
• When the unit needs cleaning, switch o , and turn o the circuit breaker.
Do not clean unit when power is on as it may cause re, electric shock or injury.
WARNING
• Stop operation and close the window during a storm or hurricane.
Operation with windows open may cause water leakage into the room.
• Do not place obstacles around air inlets or inside of air outlet.
It may cause failure or accident.
• Do not use strong detergents that contain wax or thinners as it may damage the
product. Clean with a soft clothe only.
• Use caution when unpacking and installing. Sharp edges could cause injury.
• Do not clean the air conditioner with water.
Water may enter the unit and degrade the insulation which could lead to electric shock.
• Do not put a pet or house plant where it will be exposed to direct air ow.
This could injure the pet or harm the plant.
• Hold the plug by the head of the power plug when taking it out.
Otherwise, it may cause electric shock and damage.
• Ensure that the installation is properly secured to prevent the product from
potentially falling.
• Do not place heavy objects on the power cord and ensure that the cord is not compressed.
Otherwise, there is danger of re or electric shock.
• If water enters the unit, turn off the unit and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a qualified service technician.
• When used near a stove or other gas burning device, be sure the room is properly
ventilated.
Otherwise an oxygen shortage may occur.
• Do not use for any purpose other than room comfort.
Do not use this air conditioner to preserve precision devices, food, pets, plants, and art
objects. It may cause deterioration.
• Disconnect the product from power if the unit is not to be used for an extended time.
• Always insert the lters securely. Clean lter once every two weeks.
Operation without lters may cause failure.
• Do not drink water drained from the air conditioner.
CAUTION
Safety
Precautions
User Manual Page 5

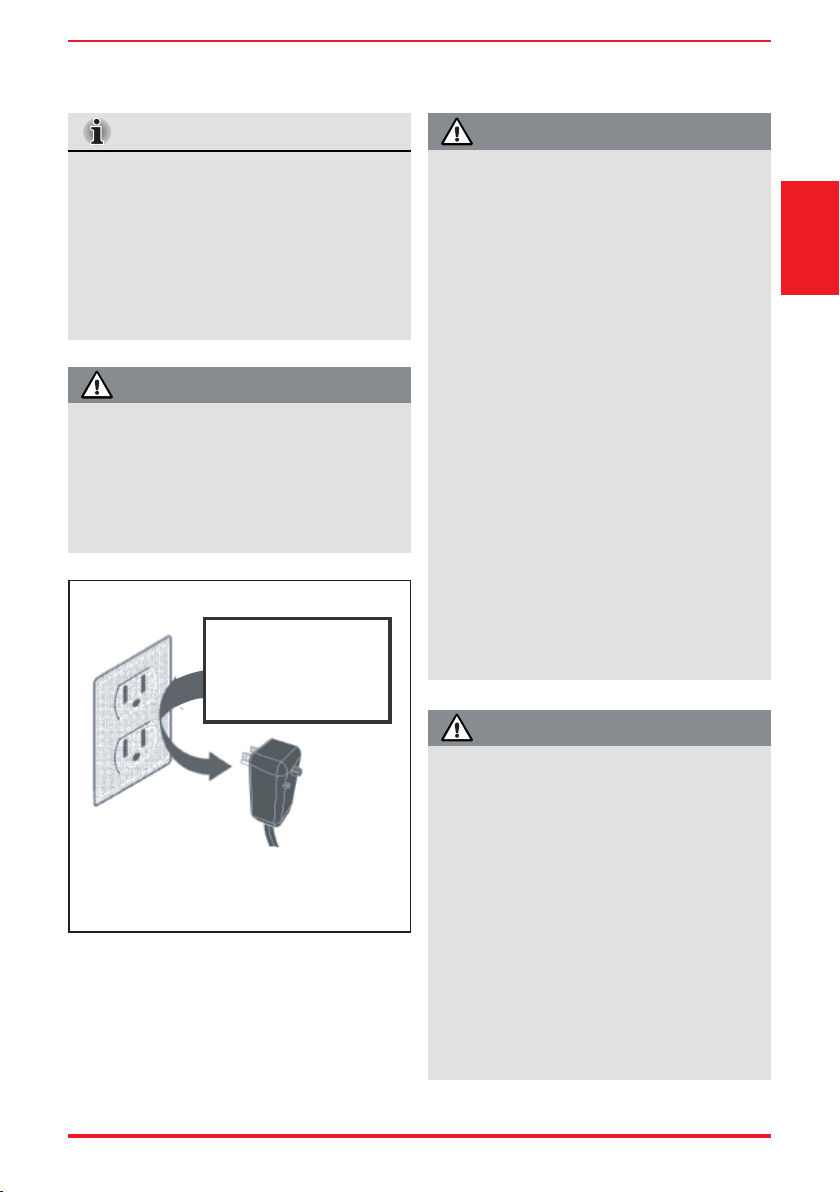

Power supply cord with 3-prong
grounding plug and current
detection device
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Grounding type wall receptacle
WARNING - For your safety
• Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
• Avoid re hazard or electric shock. Do not use
an extension cord or an adaptor plug. Do not
remove any prong from the power cord.
WARNING - Prevent Accidents
To reduce the risk of re, electrical shock,
or injury to persons when using your air
conditioner, follow basic precautions, including
the following:
• If the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass rst. If the window
is a triple-track type with a screen panel
included, remove the screen completely
before installation.
• Be sure the air conditioner has been securely
and correctly installed according to the
installation instructions in this manual.
Save this manual for possible future use in
removing or installing this unit.
The complete electrical rating of your new room
air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical
requirements.
• Be sure the air conditioner is properly
grounded. To minimize shock and fire
hazards, proper grounding is important.
The power cord is equipped with a three-
prong grounding plug for protection
against shock hazards.
• Your air conditioner must be used in a
properly grounded wall receptacle. If the
wall receptacle you intend to use is not
adequately grounded or protected by a time
delay fuse or circuit breaker, have a quali ed
electrician install the proper receptacle.
• Ensure the receptacle is accessible after the
unit installation.
• Do not run air conditioner without outside
protective cover in place. This could result
in mechanical damage within the air
conditioner.
• Do not use an extension cord or an adapter
plug.
WARNING - Electrical Information
NOTE
The power supply cord with this air conditioner
contains a current detection device designed to
reduce the risk of re.
Please refer to the section Operation of Current
Device for details.
In the event that the power supply cord is
damaged, it can not be repaired. It must be
replaced with a cord from the manufacturer.
Safety
Precautions
Page 6 User Manual
NOTES
The power supply cord contains a current device that senses damage to the power cord. Test your
power supply cord as follows:
1. Plug in the air conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will
notice a click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this is also
indicated by a light on the plug head.)
Operation of Current Device
• Do not use this device to turn the unit on or o .
• Always make sure the RESET button is pushed in for correct operation.
• The power supply must be replaced if it fails to reset when either the TEST button is pushed, or it
can not be reset. Please contact Customer Service.
• If power supply cord is damaged, it can not be repaired. It MUST be replaced with a new cord.
Please contact Customer Service.
Safety
Precautions
Normal Sounds
OPERATING INSTRUCTIONS
NOTE
All the pictures in this manual are for illustrative purposes only. The actual shape of the air conditioner
you purchased may be slightly di erent, but its operation and functions will be similar.
Operating
Instructions

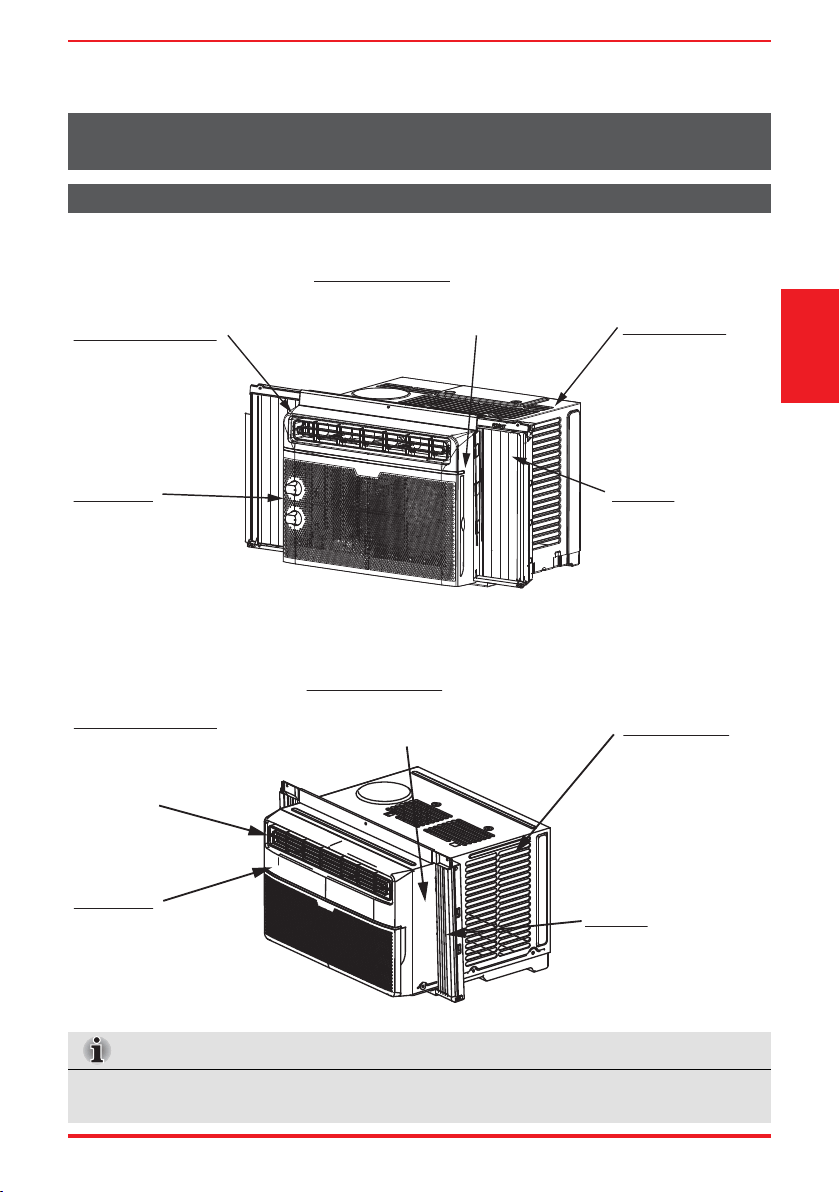

RAC-WK05 Models
RAC-WK06 / RAC-WK08 / RAC-WK10 / RAC-WK12 / RAC-WK15 / RAC-WK18 Models
Gurgle/Hiss
Gurgling or hissing
noises may be heard due
to refrigerant owing
through evaporator
during normal operation.
Sound of Rushing Air
In front of the unit, you
may hear the sound of
rushing air being moved
by the fan.
High Pitched Sound
High eciency compressors
may have a high pitched sound
during cooling cycle.
Vibration
Unit may vibrate and
make noise because
of poor wall or window
construction or
incorrect installation.
Trickling Sound
Droplets of water
hitting condenser
during normal
operation may cause
a trickling sound.
Gurgle/Hiss
Gurgling or hissing
noises may be heard due
to refrigerant owing
through evaporator
during normal operation.
Sound of Rushing Air
In front of the unit, you
may hear the sound of
rushing air being moved
by the fan.
Vibration
Unit may vibrate and make
noise because of poor wall
or window construction or
incorrect installation.
Trickling Sound
Droplets of water
hitting condenser
during normal
operation may cause
a trickling sound.
High Pitched Sound
High eciency compressors may
have a high pitched sound during
cooling cycle.
User Manual Page 7
Operating
Instructions
Air Conditioner Features (general)
Air Conditioner Features (RAC-WK05 only)
This air conditioner is designed to be operated under the following conditions:
Cooling Operation
Outdoor temp.: 64 ~ 109°F / 18 ~ 43°C
Indoor temp.: 62 ~ 90°F / 17 ~ 32°C
NOTES
• The relative humidity of room should be less than 80%. If the unit is used in a condition with a
relative humidity over 80%, there will be condensed water on the surface of the unit.
• Performance may be reduced outside of these operating temperatures.
WARNING
To reduce the risk of fire, electrical shock, or injury to people or property, read the
SAFETY PRECAUTIONS before operating this appliance.
To begin operating the air conditioner, follow these steps:
1. Set the thermostat to the highest number (coldest or cooler setting).
2. Set the selector control to the highest COOL setting.
3. Adjust the louver for comfortable air ow (see Air Directional Louvers).
4. Once the room feels cooled, adjust the thermostat to the setting you nd most comfortable.
5. Make sure that the air ow inside and outside are not obstructed by anything.
NOTE
Always wait 3 minutes when turning unit and then on again, or when changing from cool to fan and
back to cool. This prevents compressor from overheating and possible tripping.
Air Directional Louvers
Page 8 User Manual
Leve r
Air Direction
Air Directional Louvers
The louvers will allow you to direct the air ow Left or Right, or Up
and Down throughout the room as needed.
Move the Levers from side to side until the desired LEFT/RIGHT
direction is obtained.
You can also move the LEFT lever to adjust air ow UP/DOWN as
needed.
Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its
functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit
control alone or with the remote.

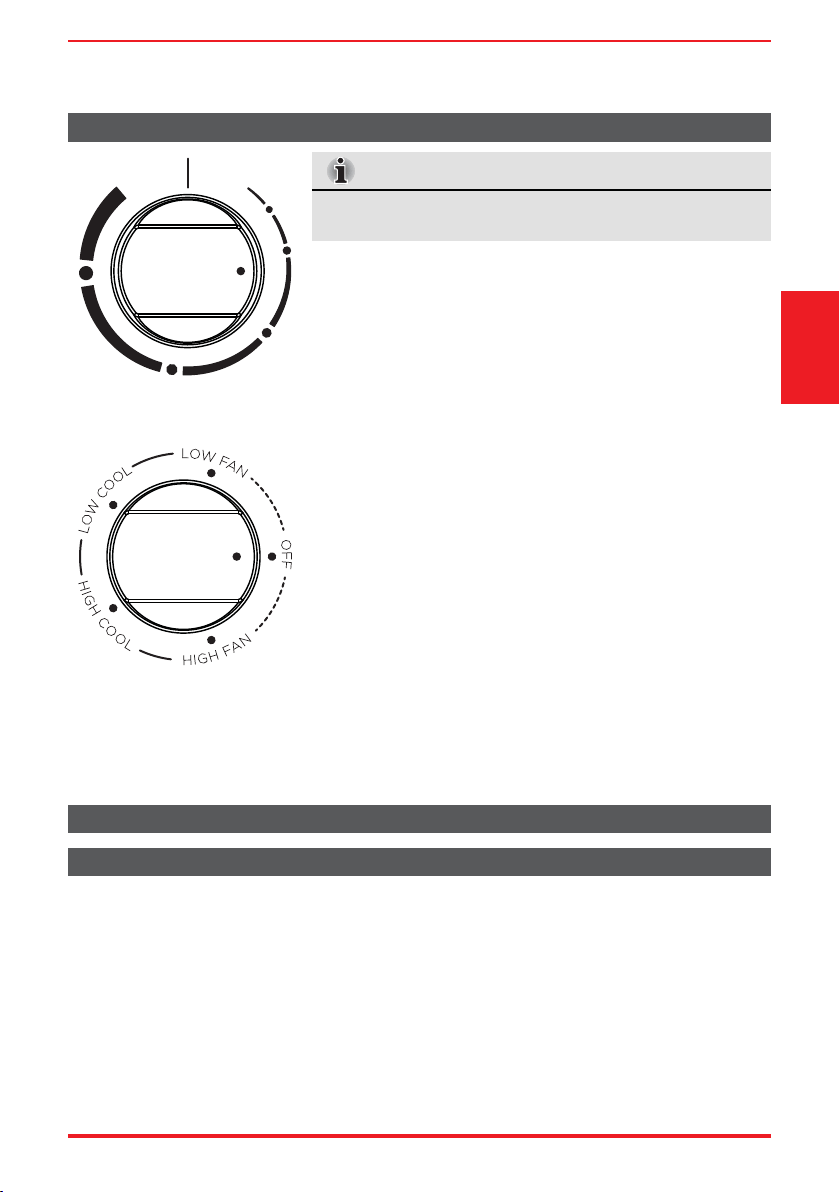

COOL MODE
The desired cool setting is selected by rotating the knob to the right
to the desired position.
HIGH COOL has maximum cooling e ect and air ow.
LOW COOL has minimum cooling e ect and air ow.
FAN MODE
Rotate the knob to the left to select your choice of fan speeds for air
circulation.
NOTE: When selecting a fan speed, the compressor will not run.
THERMOSTAT
The thermostat is used to set the desired room temperature when
the unit is being operated in the COOL MODE.
To set the desired room temperature, rotate the thermostat switch
to the desired setting. After the set temperature is achieved the
thermostat will automatically start and stop the compressor in
order to maintain the desired set temperature.
Rotate the thermostat selector clockwise for higher cool settings.
Higher cool settings will provide lower room temperature. Rotate
the thermostat selector counter clockwise for lower cool settings.
Lower cool settings will provide higher room temperature.
Electronic Control Operating Instructions
Operating
Instructions
Air Conditioner Features (RAC-WK05 only)
Air Conditioner Features (Models RAC-WK06 / 08 / 10 / 12 / 15 / 18)
NOTE
The controls featured in this manual are representative of many
available models. Your model may o er slightly di erent features.
MODE
TEMP
MIN
COOL
MAX
COOL
User Manual Page 9
TO TURN UNIT ON OR OFF:
Press ON/OFF button to turn unit on or o .
NOTE: The unit will automatically initiate the Energy
Saver function under Cool, Dry, Auto (only Auto-
Cooling and Auto-Fan) modes.
TO CHANGE TEMPERATURE SETTING:
Press UP/DOWN button to change temperature setting.
NOTE: Press or hold either UP (
) or DOWN ( ) button
until the desired temperature is seen on the display.
This temperature will be automatically maintained
anywhere between 62°F (17°C) and 86°F (30°C). If
you want to display the actual room temperature,
see To Operate on Fan Only section.
TO ADJUST FAN SPEEDS:
Press to select the Fan Speed in four steps - Auto,
Low, Med or High. Each time the button is pressed,
the fan speed mode is changed. On Dry mode, the
fan operates on Low speed automatically.
SLEEP FEATURE:
Press Sleep button to initiate the sleep mode.
In this mode the selected temperature will
increase by 2°F/ 1(or 2)°C 30 minutes after the
mode is selected.
The temperature will then increase by another
2°F/ 1(or 2)°C after an additional 30 minutes.
This new temperature will be maintained
for 6 hours before it returns to the originally
selected temperature. This ends the Sleep
Key Pad Features
Energy
Saver
LED
Display
Clean
Filter
Operating
Instructions
mode and the unit will continue to operate
as originally programmed. The Sleep mode
program can be cancelled at any time during
operation by pressing the Sleep button again.
CHECK FILTER FEATURE:
Press Check lter button to initiate this feature.
This feature is a reminder to clean the Air Filter
for more e cient operation. The LED (light) will
illuminate after 250 hours of operation. To reset
after cleaning the lter, press the Check Filter
button and the light will go o .
ENERGY SAVER FEATURE:
Press Energy Saver button to initiate this
function. This function is available on COOL,
DRY, AUTO (only AUTO-COOLING and AUTO-
FAN) modes. The fan will continue to run for
3 minutes after the compressor shuts off.
The fan then cycles on for 2 minutes at 10
minute intervals until the room temperature is
above the set temperature, at which time the
compressor turns back on and Cooling resumes.
TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.
Each time you press the button, a mode is
selected in a sequence that goes from Auto,
Cool, Dry and Fan. The indicator light adjacent
will be illuminate and remain on once the mode
is selected.
The unit will automatically initiate the Energy
Saver function under Cool, Dry, Auto (only Auto-
Cooling and Auto-Fan) modes.
Timer
Button
Power
Button
Sleep
Button
Fan
Button
Up (
) and Down ( )
Buttons
Mode
Button
Wi-Fi Indicator Light
(Wi-Fi models only)
Page 10 User Manual
CONNECT
To operate on Auto feature:
- When you set the air conditioner to AUTO mode,
it will automatically select cooling or fan only
operation depending on what temperature you
have selected and the current room temperature.
- The air conditioner will control room
temperature automatically according to
temperature you’ve set.
- In this mode, the fan speed cannot be adjusted
as it’s automatically controlled according to
temperature setting and room temperature.
To operate on Fan Only:
- Use this function only when cooling is not
desired, such as for room air circulation
or to exhaust stale air (on some models).
(Remember to open the vent during this
function, but keep it closed during cooling for
maximum cooling e ciency.) You can choose
any fan speed you prefer.
- During this function, the display will show
the actual room temperature, not the set
temperature as in the cooling mode.
- In Fan Only mode, the temperature is not
adjusted.
To operate on Dry mode:
- In this mode, the air conditioner will generally
function as a dehumidi er. Since the
conditioned space is a closed or sealed area,
some degree of cooling will occur.
TIMER: AUTO START/STOP FEATURE:
- When the unit is on or o , rst press the Timer
button. The TIMER ON indicator light illuminate
indicating the Auto Start program has initiated.
- When the time of TIMER ON is displayed,
press the Timer button again. The TIMER OFF
indicator light illuminates. It indicates the Auto
Stop program has initiated.
- Press or hold the UP or DOWN button to
change the Auto time by 0.5 hour increments,
up to 10 hours, then at 1 hour increments up to
24 hours. The control will count down the time
remaining until start.
- The selected time will register in 5 seconds,
and the system will automatically revert back
to display the previous temperature setting or
room temperature when the unit is on. (when
the unit is o , there is no display.)
- Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel
the Auto Start/Stop timed program.
Operating
Instructions
Displays
DISPLAYS:
Shows the set temperature in “°C” or “°F” and the
Auto-timer settings. While on Fan Only mode, it
shows the room temperature.
Error codes:
AS - Room temperature sensor error - Unplug the
unit and plug it back in. If error repeats, call
for service.
NOTE: In Fan Only mode, it will display “LO” or “HI.”
- Evaporator temperature sensor error -
Unplug the unit and plug it back in. If error
repeats, call for service.
NOTE: “
” is shown in the display area.
NOTE
If the unit shuts off unexpectedly due to the
power outage, it will restart with the previous
function setting automatically when the
power resumes.
DISPLAYS
User Manual Page 11
Page 12 User Manual

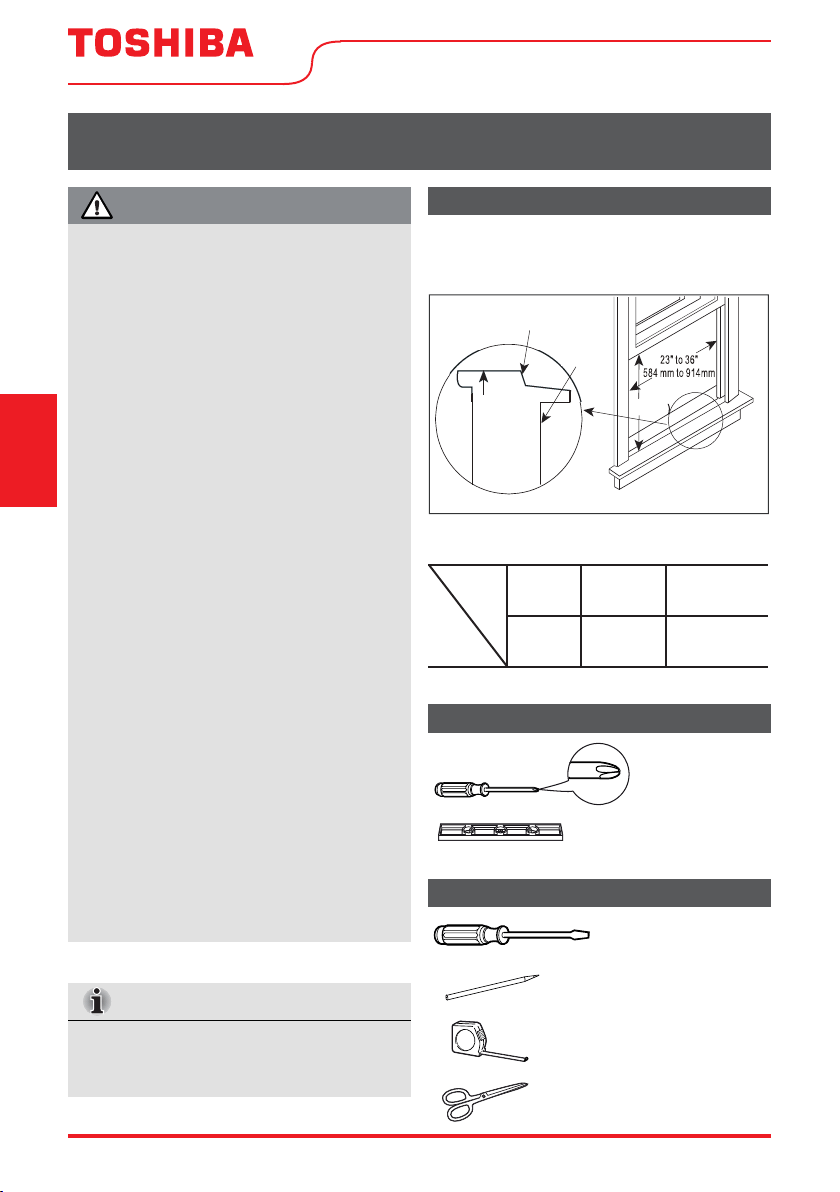

Window Requirements
Tools You Will Need
Tools You May Use
INSTALLATION INSTRUCTIONS
WARNING
-
Before You Begin
Read these instructions completely and
carefully.
• IMPORTANT - Save these instructions for
local inspector’s use.
• IMPORTANT - Observe all governing codes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the consumer.
• Note to Consumer - Keep these instructions
for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time - Approximately 1 hour.
We recommend that two people install this
product.
Proper installation is the responsibility of the
installer.
Product failure due to improper installation is
not covered under the Warranty.
You MUST use all supplied parts and use proper
installation procedures as described in these
instructions when installing this air conditioner.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not change the plug on the power cord of
the air conditioner.
Aluminum house wiring may present special
problems - consult a quali ed electrician.
When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum ns on
front and rear coils.
NOTE
Save Carton and these Installation Instructions
for future reference. The carton is the best way
to store unit during winter, or when not in use.
Installation
Instructions
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23” to 36” (584mm to 914mm).
Model 5000
BTU/h
6000~8000
BTU/h
10000~12000
BTU/h
H
13”
(330mm)
14”
(356mm)
15-1/2”
(394mm)
Table 1
H
Wooden Windows
INTERIOR
WALL
OFFSET
WINDOW
SILL
INNER
EXTERIOR
WALL
Fig. D
Phillips
Screwdriver
Level
Flathead
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
User Manual Page 13
1. Prepare the Window

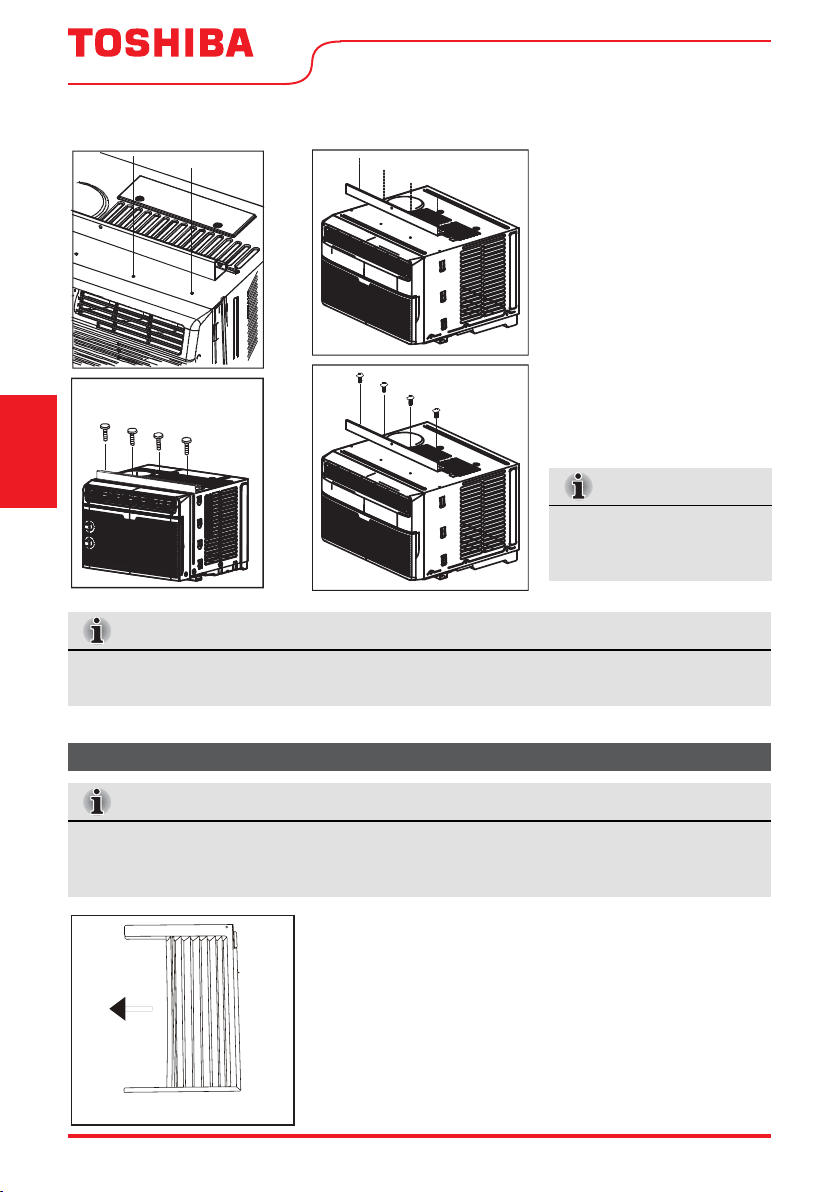

2. Prepare Air Conditioner
Installation
Instructions
Lower sash must open sufficiently to allow a clear vertical opening (see dimension H in Table 1).
Side louvers and the rear of the AC must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.

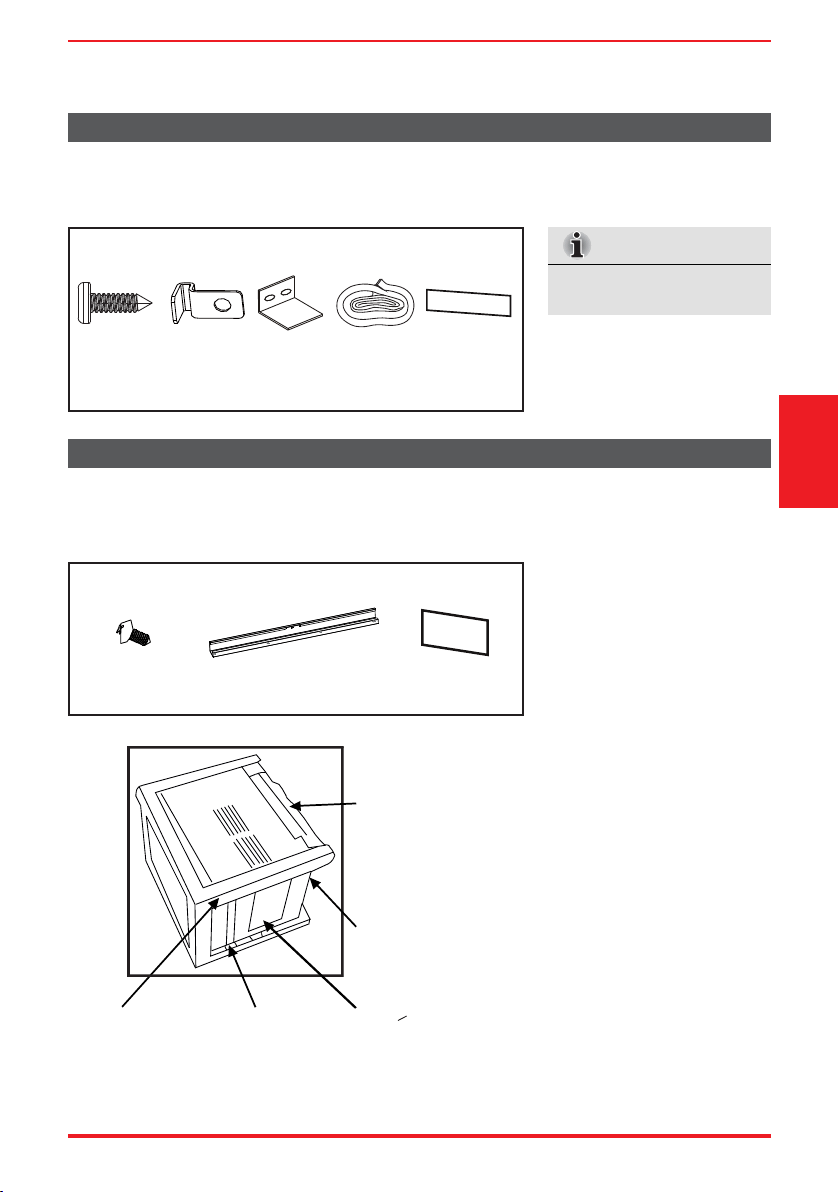

Mounting Hardware
3/4’’ (or 1/2”)
Screws
(7)
Lock Frame
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Weather
stripping
10”*3/4”*1/12”
(5)
A: Remove the air conditioner from the carton and place on a at surface.
B: Remove top rail and R1 hardware (R1 hardware for ENERGY STAR models only) from the packaging
material as shown in Fig. A.
3/8” Screws
(4)
Top Rail
(1)
R1 Hardware
(2)
Top Rail Hardware
NOTE
Weather stripping is only for
ENERGY STAR models only.
Packaging
Fig. A
Top Rail
Top Rail
R1 hardware
(for < 10000 Btu/h
models only)
R1 hardware
(for > 10000 Btu/h
models only)
Fig. A
Page 14 User Manual
Installation
Instructions
C. Align the hole in the top rail
with those in the top of the
unit as shown in Fig. B.
D. Secure the top rail to the
unit with the 3/8” Screws as
shown in Fig. C.
Fig. 1
A. Place unit on floor, a bench or a table. Hold the Accordion
Panel in one hand and gently pull back the center to free the
open end. See Fig. 1.
Fig.B
Fig.C
NOTE
For safety reasons, all four
(4) screws MUST be securely
fastened.
RAC-WK05 Models
RAC-WK06/08/10/12/15/18 Models
3. Install the Accordion Panels on Air Conditioner
NOTE
NOTE
The top rail hardware and the Fig. A, Fig. B and Fig. C are not applicable to the units with more than 10000 Btu/h.
Before installing unit, the top rail must be assembled on the unit (For < 10000 Btu/h models only).
Top rail and Sliding Panels at each side are o set to provide the proper pitch to the rear of (5/16”).
This is necessary for proper condensed water management and drainage. If you are not using the
Side Panels for any reason, this pitch to the rear must be maintained.
Fig. C
Fig. B
Fig. C
Fig. B
User Manual Page 15
NOTE
If storm window blocks AC, see Fig. 15.
Top Rail
Bottom Rail
Fig. 3
Fig. 3
“I” section
Fig 2

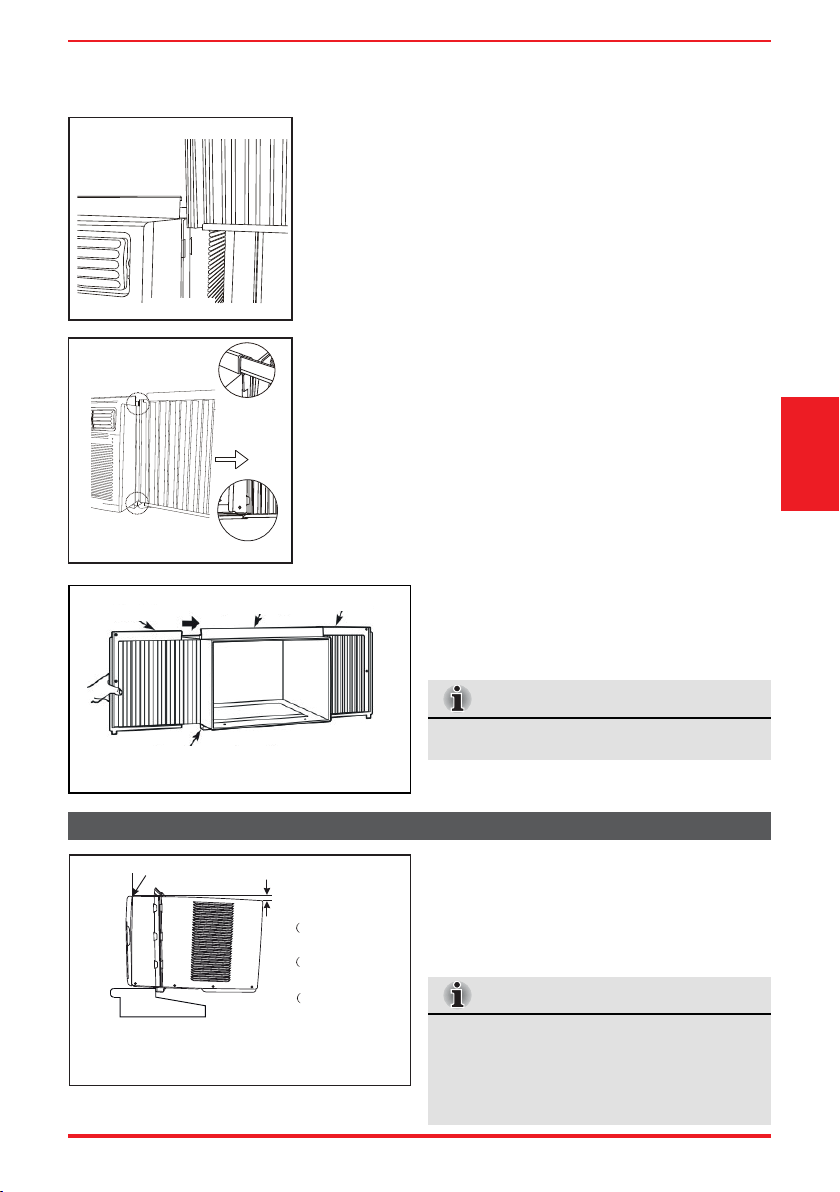

Fig. 2
B. Slide the free end “
I
“ section of the panel directly into the
cabinet as shown in Fig. 2. Slide the panel down. Be sure to
leave enough space to slip the top and bottom of the frame
into the rails on the cabinet.
C. Once the panel has been installed on the side of the cabinet,
make sure it sits securely inside the frame channel by making
slight adjustments.
Slide the top and bottom ends of the frame into the top and
bottom rails of the cabinet. Fig. 3.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
D. Slide the panel all the way in and repeat on
the other side.
4. Secure the Accordion Panels
NOTE
Check that air conditioner is tilted back per
dimension H (Fig. 5) (tilted about 3° to 4° downward
to the outside). After proper installation, condensate
should not drain from the over ow drain hole
during normal use. Adjust the slope if otherwise.
A. Keep a rm grip on the air conditioner, carefully
place the unit into the window opening so the
bottom of the air conditioner frame is against
the window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 6K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
for 10K to 12K)
8”
H
H:About 5/8” to 3/4”
for 5K)
Fig. 5
Installation
Instructions

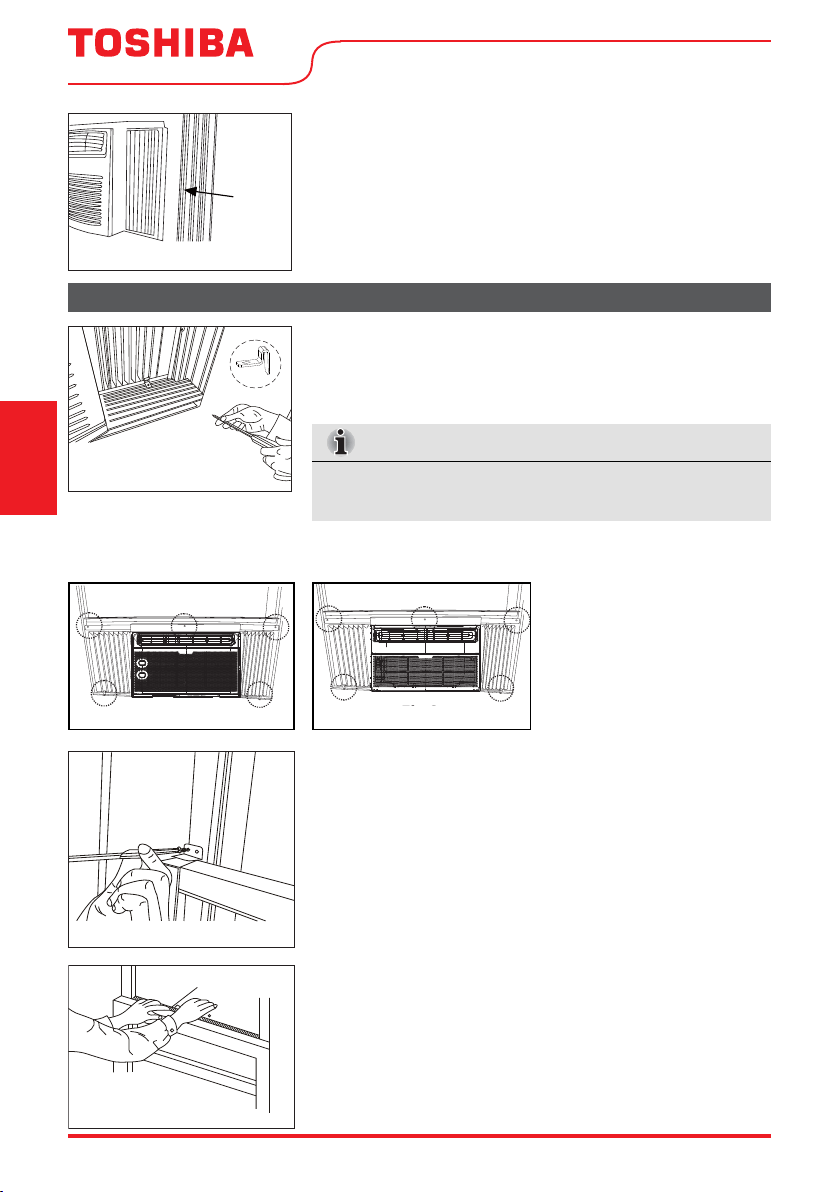

Page 16 User Manual
window
frame
Fig. 5
Fig. 6
Fig.6
Fig. 7
Fig. 8
Fig. 9
Fig. 9
FOAM SEAL
Fig. 10

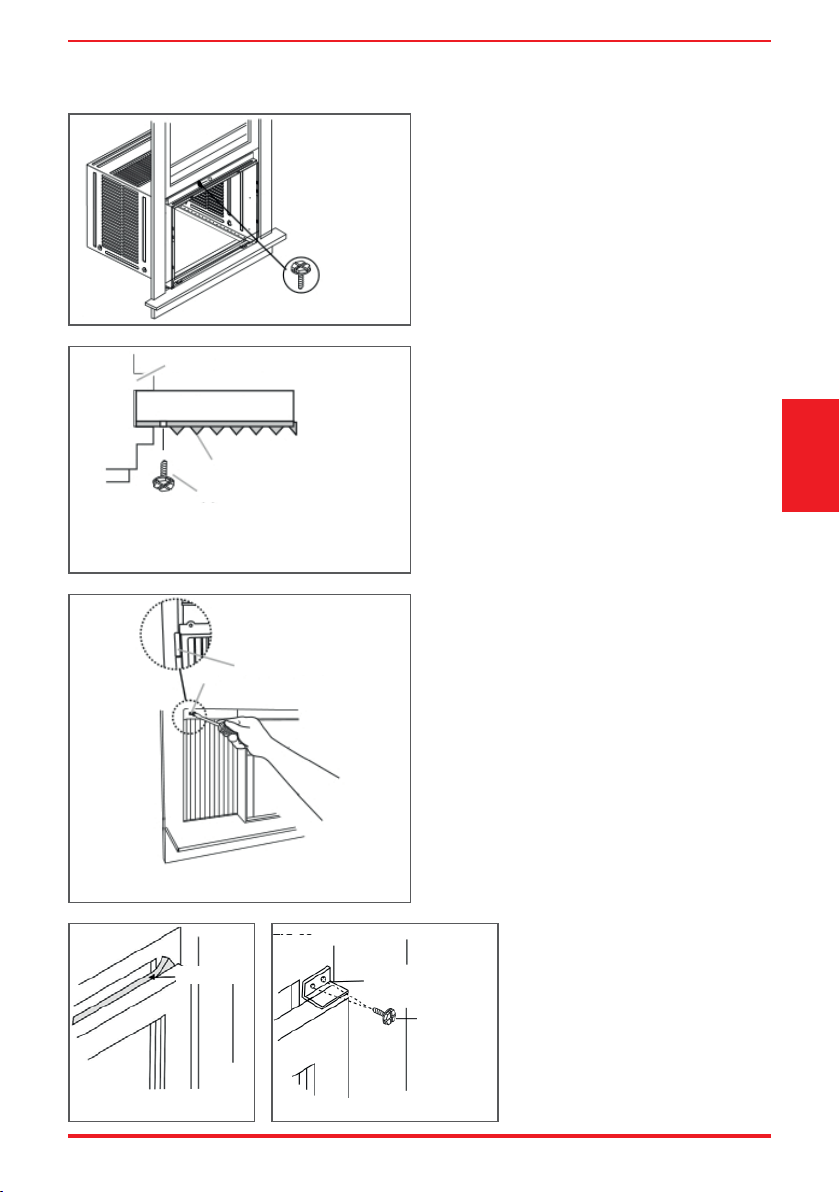

A. Place the frame lock between the frame extensions and the
window sill as shown (Fig. 7).
Drive 3/4” (19 mm) or 1/2” (12.7 mm) locking screws through
the frame lock and into the sill.
B. Drive 3/4” (19 mm) or 1/2”
(12.7 mm) locking screws
through frame holes into
window sash (Fig. 8).
C. To secure lower sash in place, attach right angle sash lock with
3/4” (19 mm) or 1/2” (12.7 mm) screw as shown (Fig. 9).
D. Cut Window sash seal foam and insert it in the space between
the upper and lower sashes (Fig. 10).
B. Extend the side panels out against the window frame (Fig. 6).
5. Install Support Bracket
NOTE
To prevent window sill from splitting, drill 1/8” (3 mm) pilot holes
before driving screws.
Fig.8
Fig. 8
Fig.8
Fig. 8
Installation
Instructions
RAC-WK05 only
Models RAC-WK06/08/10/12/15/18
User Manual Page 17

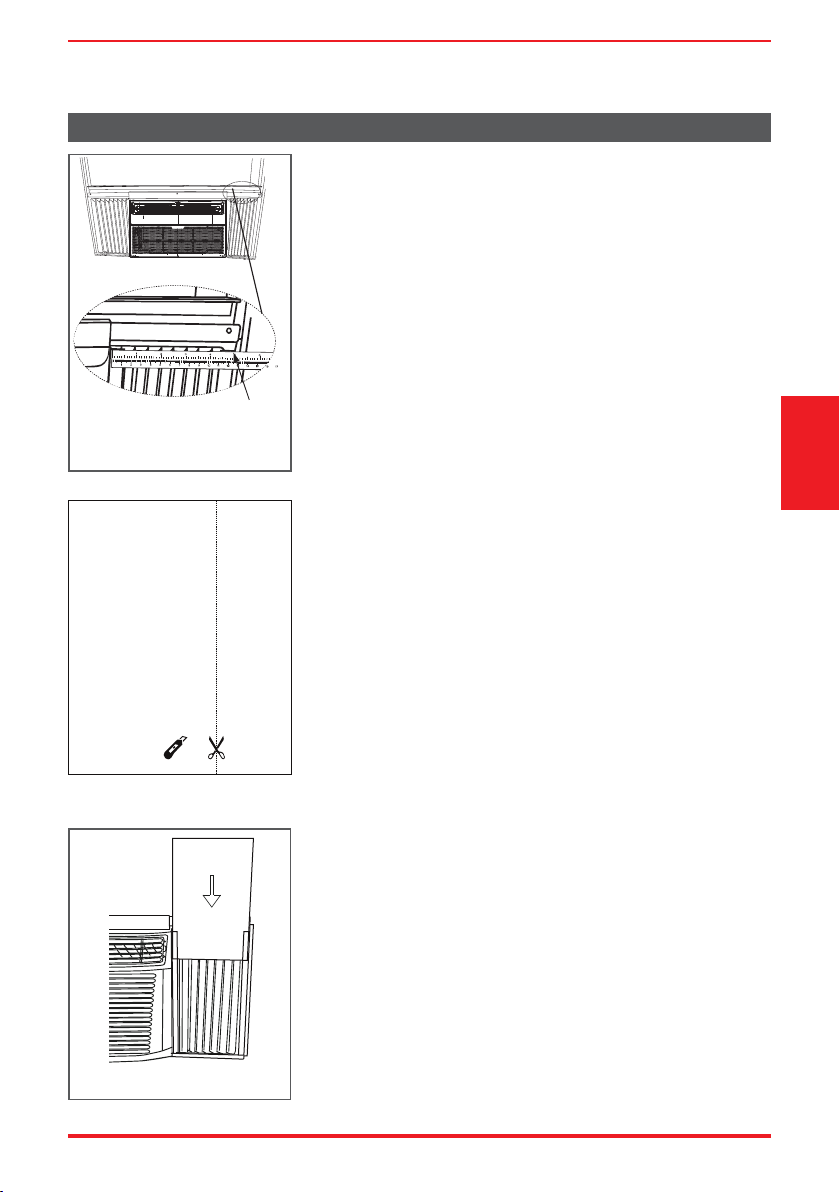

6. Install R1 Hardware (only by applicable to Energy Star models)
In order to minimize air leaks and ensure optimal insulation, it is
necessary to install the included R1 hardware to the side curtain.
Follow the instructions below.
Step 1.
After the unit is installed in the window, measure the inner width of
the side curtain as shown (Fig. 11).
Measure the inner width
of the sidecurtain
Fig.11
Fig. 11
Fig. 12
or
Fig. 13
Step 2.
Mark a line on the provided R1 insulation panel that is 1/8” (3 mm)
less than the measured width in step 1, then cut the R1 insulation
panel along the line (Fig. 12).
Step 3.
Slide the R1 insulation panel into the side curtain. The side with
the pattern should facing indoors. (Fig. 13).
Step 4.
Repeat on the other side.
Installation
Instructions
Page 18 User Manual

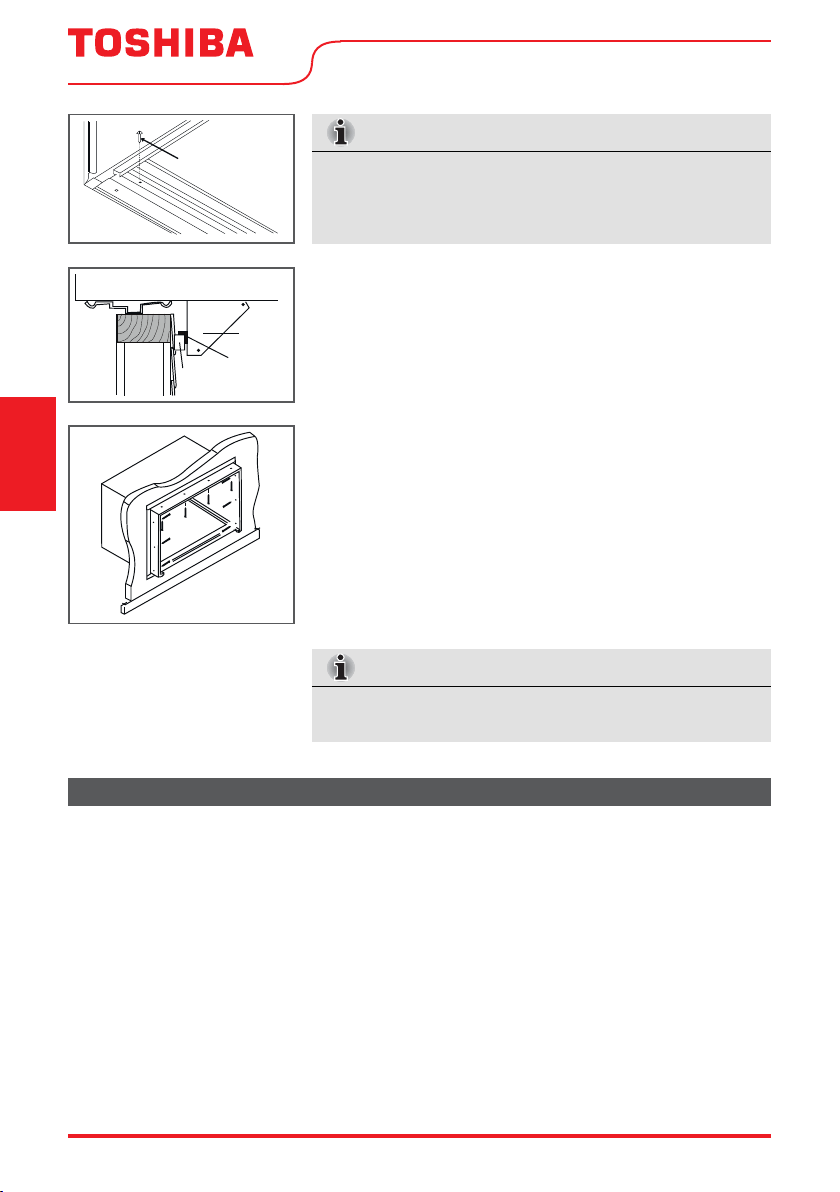

7. Install Weather Stripping (ENERGY STAR models only)
If AC is Blocked by Storm Window
Fig. 14
In order to minimize air leaks between the
room air conditoner and the window opening,
trim the weather stripping to the proper
length, peel off the protective backing and
plug any gaps if needed (Fig. 14).
SASH
1-1/2"min
(38 mm)
Board thickness
as required, for
proper pitch to rear,
along entire
sill. Fasten with nails
or screws.
Storm window
frame or other
obstruction.
Fig. 15
Add wood as shown in Fig. 15, or remove
storm window before air conditioner is
installed.
If storm window frame must remain, be sure
the drain holes or slots are not caulked or
painted shut. Accumulated rain water or
condensation must be allowed to drain out.
Installation
Instructions
Check your storm windows - if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood
as shown in Fig. 15A, or by removing storm
window while room air conditioner is being
installed.
Models RAC-WK05/06/08/10/12
Models RAC-WK15/18
SASH
19” MIN.
Storm Window Frame
or Other Obstruction
Board Thickness as
Required, Along
Entire Sill. Fasten With
Two Nails Or Screws.
1/2” MIN.
1/2” MIN.
Fig. 15A
User Manual Page 19
Installation
Instructions
Do the following before beginning installation.
See illustrations below. Check dimensions of your
unit to determine model type:
Unit Height: 17-5/8”
Unit Width: 23-5/8”
Min. Window Opening: 18-1/2”
Min. Window Width: 28”
Max. Window Width: 40-1/2”
Preliminary Instructions
WARNING
-
Before You Begin
Read these instructions completely and
carefully.
• IMPORTANT - Save these instructions for
local inspector’s use.
• IMPORTANT - Observe all governing codes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills.
• Completion time - Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of the
installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
CAUTION
• Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
• Do not change the plug on the power cord
of the air conditioner.
• Aluminum house wiring may present special
problems - consult a quali ed electrician.
• When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum ns
on front and rear coils.
NOTE
Save Carton and these Installation Instructions
for future reference. The carton is the best way
to store unit during winter, or when not in use.

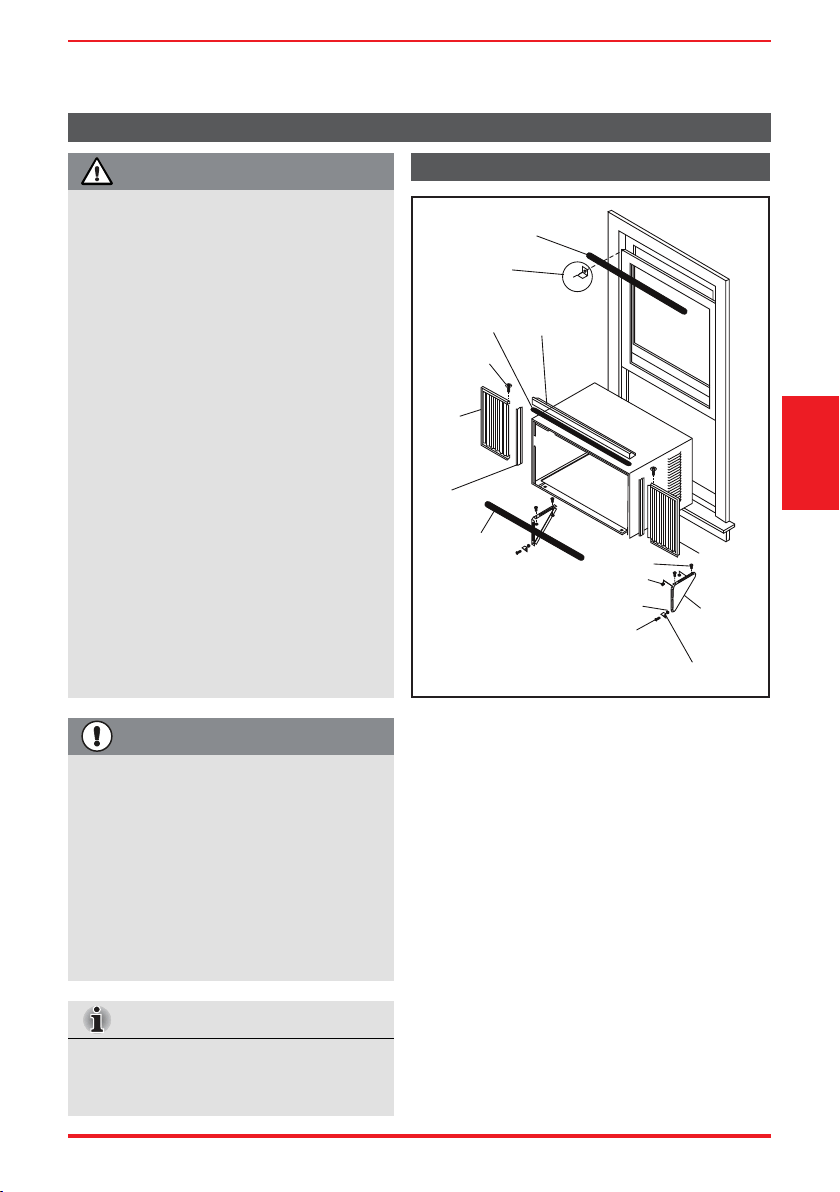

Window Sash Seal
Top RailFoam Gasket
3/4” Long Flat Head Bolt
Sill Angle Bracket
1 /2” Long
Screw and
Locknuts
Window
Support
Bracket
Frame
Assembly
(Right)
Side
Retainer
Washer Head
Locking
Screw
Bottom Rail
Seal to Unit
Frame
Assembly
(Left)
Safety Lock and
3/4” (or 1/2” ) Long
Hex Head Screw
Locknuts
Installation Instructions (WK15 / WK18 only)
Page 20 User Manual
Installation
Instructions
1. Check window opening size - the mounting parts furnished with
this air conditioner are made to install in a wooden sill double-
hung window. The standard parts are for window dimensions
listed above. Open sash to a minimum of 19” (483 mm). See Fig. D.
2. Check condition of window - all wood parts of window must be
in good shape and able to rmly hold the needed screws. If not,
make repairs before installing unit.
3. Check for anything that could block air ow - check area outside
of window for things such as shrubs, trees, or awnings. Inside, be
sure furniture, drapes, or blinds will not stop proper air ow.
4. Check the available electrical service - Power supply must be the
same as that shown on the unit serial nameplate. Power cord is 48
in long. Be sure you have an outlet nearby.
5. Carefully unpack air conditioner - Remove all packing material.
Protect oor or carpet from damage. Two people should be used
to move and install unit.
SASH
Storm Window Frame
or Other Obstruction
19” MIN.
1/2” MIN.
Fig. D
Preliminary Instructions (cont.)
Hardware (Packed with the unit)
7/16” Locking screw and Flat
washer for window
panels
2 ea.
3/4” (or 1/2”) Long
Hex-head Screw
7
Safety Lock 1
1/2” Long screw
and Locknut
4 ea.
3/4” Long Flathead Bolt
and Locknut
2 ea.
Sill Angle Bracket 2
Long hex-head locking screw
for top rail, side retainer
5/16” Length
10
Foam insert 2
Window sash seal foam 1
R1 hardware 2
Weather stripping
(10” *3/4” *1/12” )
5
NOTE
R1 hardware and weather stripping is for
ENERGY STAR models only.
Tools Required
A large athead screwdriver, Tape measure,
Adjustable wrench or pliers, Pencil, Level, Socket
wrenches, Phillips screwdriver
User Manual Page 21
Installation
Instructions

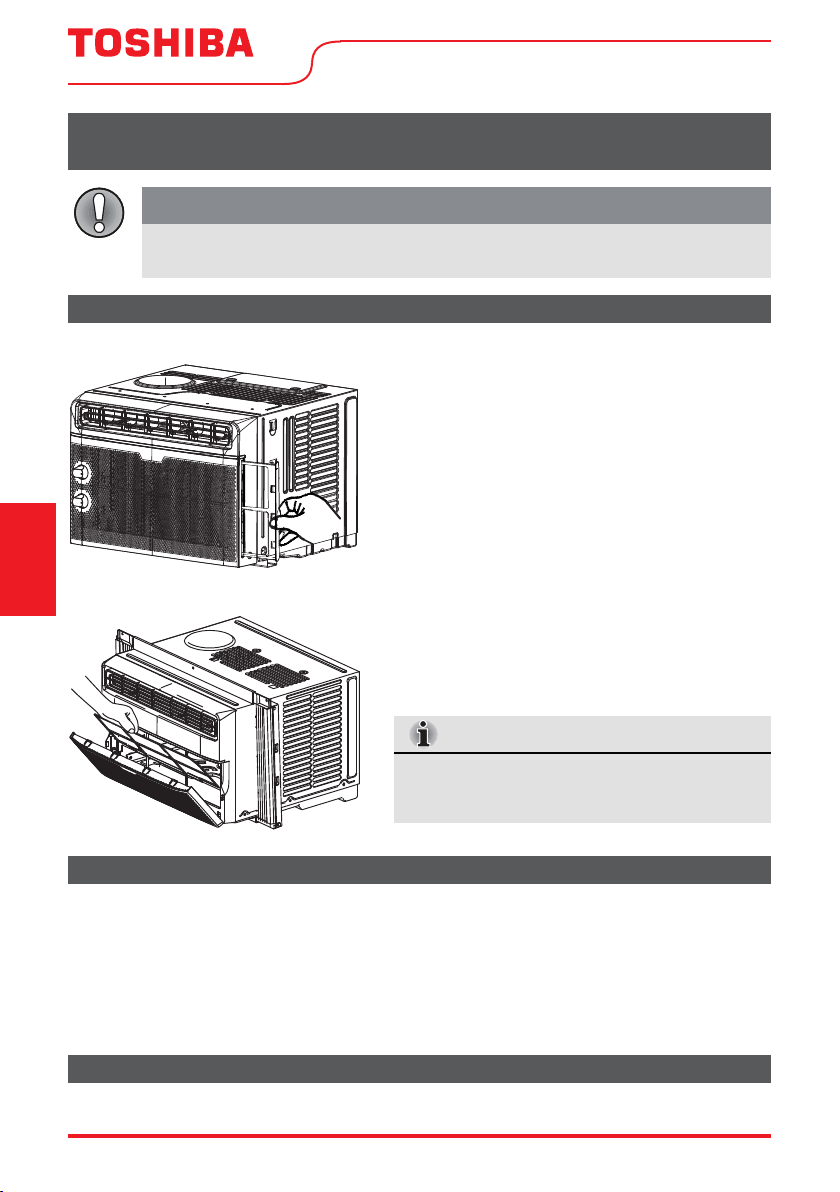

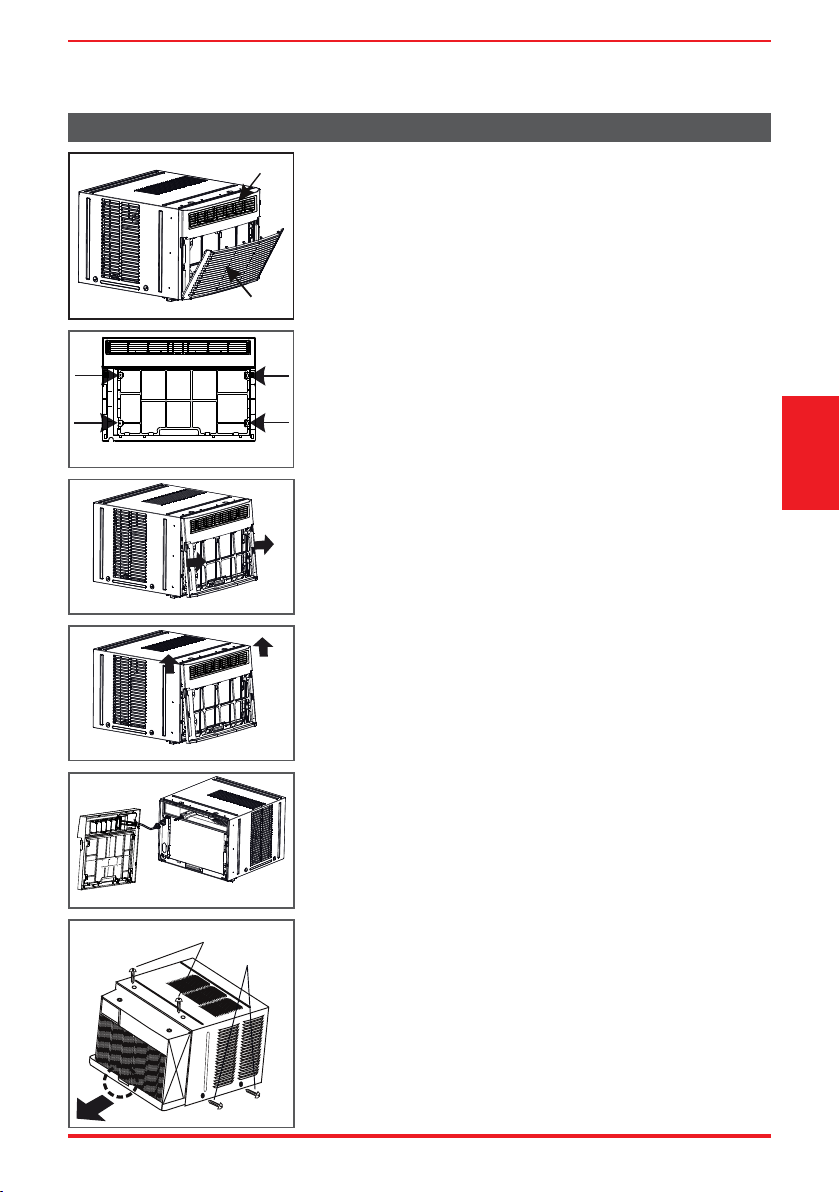

A. Window Mounting
1 Remove Chassis
1. Pull down front grille and remove lter. (See Fig. 1).
2. Lift front grille upwards and place to one side.
3. Locate the four front screws and remove. These screws will be
needed to re-install the front panel (see Fig. 2).
4. Push metal cabinet side to release plastic tabs on each side of
front panel (see Fig. 3).
5. Gently lift front panel o unit (see Fig. 3A).
6. Disconnect the connector plug of the display panel from the
unit and place front panel to one side (see Fig. 4).
7. Remove shipping screws from top of unit and also on the
side by the base if installed (see Fig. 5).
8. Hold the cabinet while pulling on the base pan handle, and
carefully remove the unit.
Fig. 2
Fig. 3
Fig. 4
Fig. 3A
Front Panel
Front Grille
Fig. 1
Shipping
Screws
Fig. 5
Page 22 User Manual
Installation
Instructions

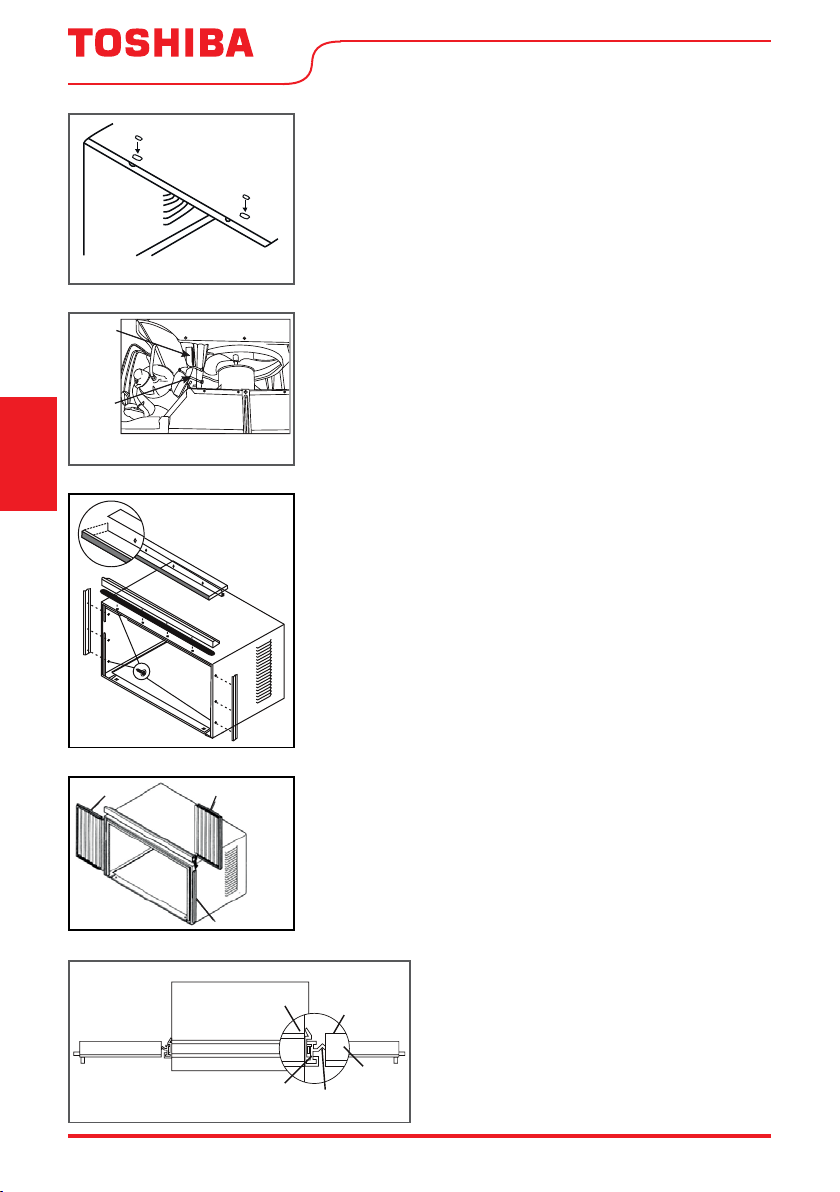

9. Add two foam inserts to holes in top of cabinet where shipping
screws were removed from (see Fig. 6).
10. Your unit may come with internal packaging. This packaging
must be removed prior to installing the air conditioner back
into the cabinet. (see Fig. 7).
Fig. 6
Fig. 7
Shipping
Packaging
Plastic
Tie
2 Install Top Rail and Side Bracket
1. Attach foam gasket to top rail above holes as shown in Fig. 6.
2. Install top rail and side retainers to cabinet as shown in Fig. 8
(10 screws).
Fig. 8
5/16” long
hex-head
Plastic Frame
Side Retainer
Window
Accordion
Panel
Fig. 9
3 Assemble Window Accordion Panels
1. Place cabinet on oor, a bench, or a table.
2. Slide I section of window accordion panel into side retainer on
the side of the cabinet (see Fig. 9 & Fig. 10). Do both sides.
3. Insert top and bottom legs of window accordion panel frame
into channel in the top rail and bottom rail. Do both sides.
4. Insert washer head locking 7/16” screws (2) into
holes in top leg of accordion panel frame (see
step 6). Do not completely tighten.
Allow leg to slide freely. Screws will be
tightened after section 6.
TOP VIEW
Air Conditioner
Cabinet
Plastic
Frame
Locking
Screw
Hole
Window
Accordion Panel
“I” Section
Fig. 10
User Manual Page 23
Installation
Instructions

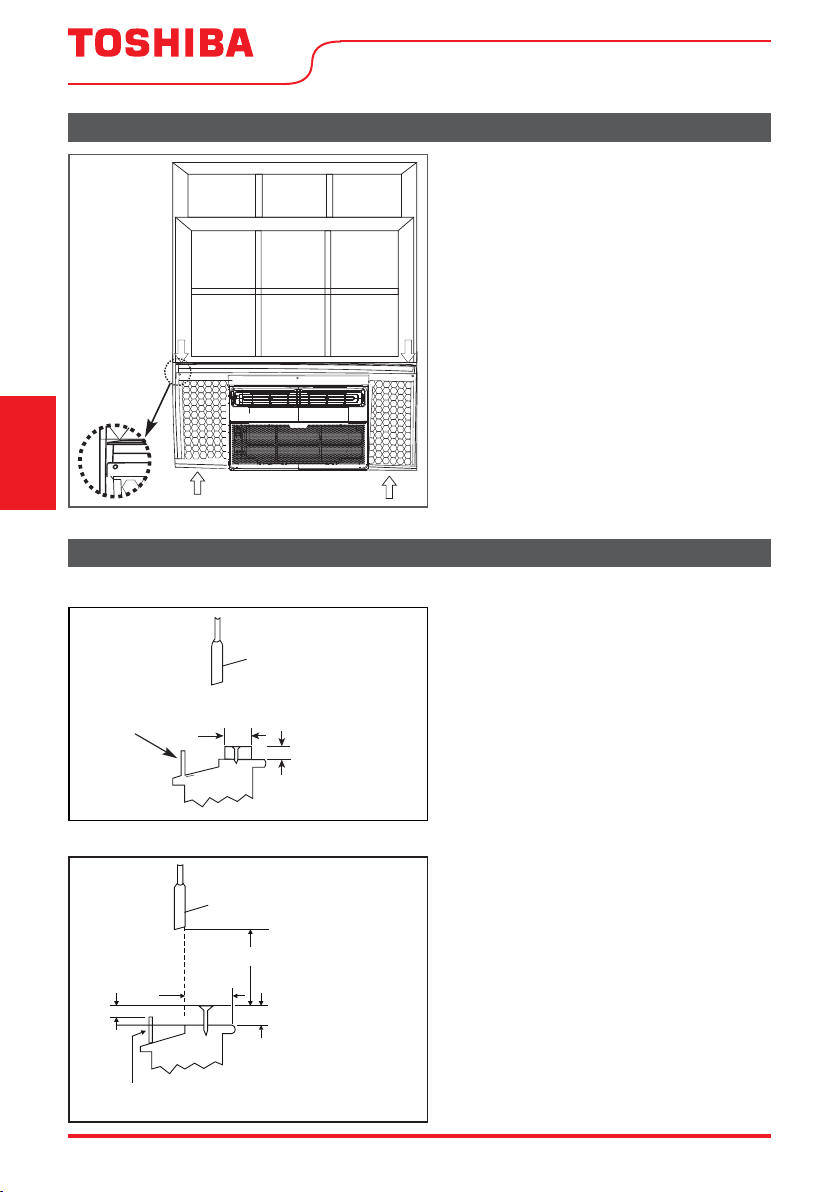

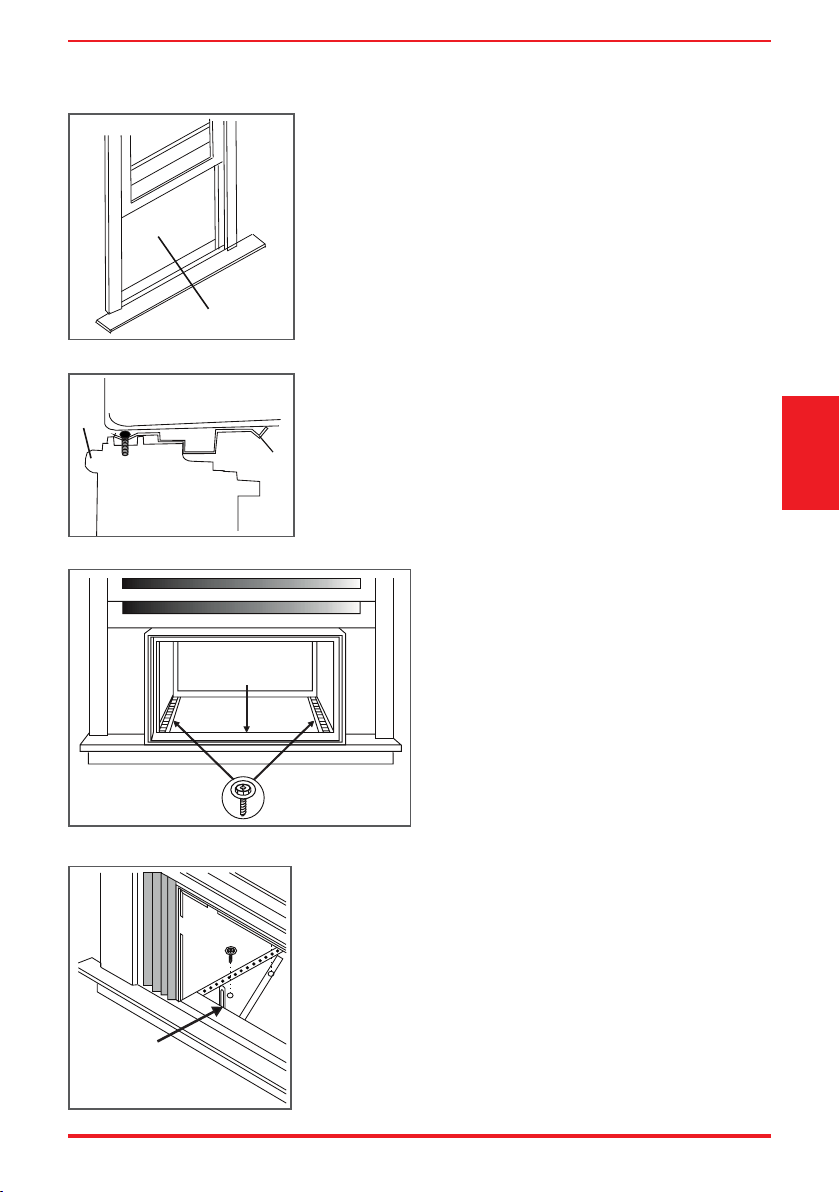

4 Place Cabinet in Window Opening
1. Open window and mark center of window sill as shown (Fig. 11).
2. Place cabinet in window with bottom sill angle rmly seated
over window sill as shown. Bring window down temporarily
behind top rail to hold cabinet in place (Fig. 12).
3. Shift cabinet left or right as needed to line up center of
cabinet on center line marked on sill.
4. Fasten cabinet to window sill with 2 screws into holes (You
may wish to pre-drill pilot holes).
5. Add bottom rail seal over screws to window
sill. (Fig. 13).
Fig. 11
Sill
Sill Angle
Fig. 12
Bottom
Rail Seal
3/4” (or 1/2”) Long
Hex-head Screw
Fig. 13
5 Install Support Bracket
1. Hold each support bracket ush against outside of sill, and tight
to bottom of cabinet as shown in Fig. 14A. Mark brackets at top
level of sill, and remove.
Mark
Fig. 14A
Page 24 User Manual
Installation
Instructions
NOTE
Check that air conditioner is tilted back
about 1-1/4 in to 1-5/8 in (tilted about 3° to
4° downward to the outside). After proper
installation, condensate should not drain from
the over ow drain hole during normal use.
Adjust the slope if otherwise (Fig.15).
Window Sash
About 1
1/4”
to 1
5/8”
Measure from
the cabinet
edge
Side
Louvers
Window Sill
Sill Angle
Bracket
Fig. 15
Fig. 14B
Right
Left
Locknut
Sill Angle
Bracket
Flathead Bolt
2 Each Required For
Each Support Bracket
1/2” Long Screws
and Locknuts

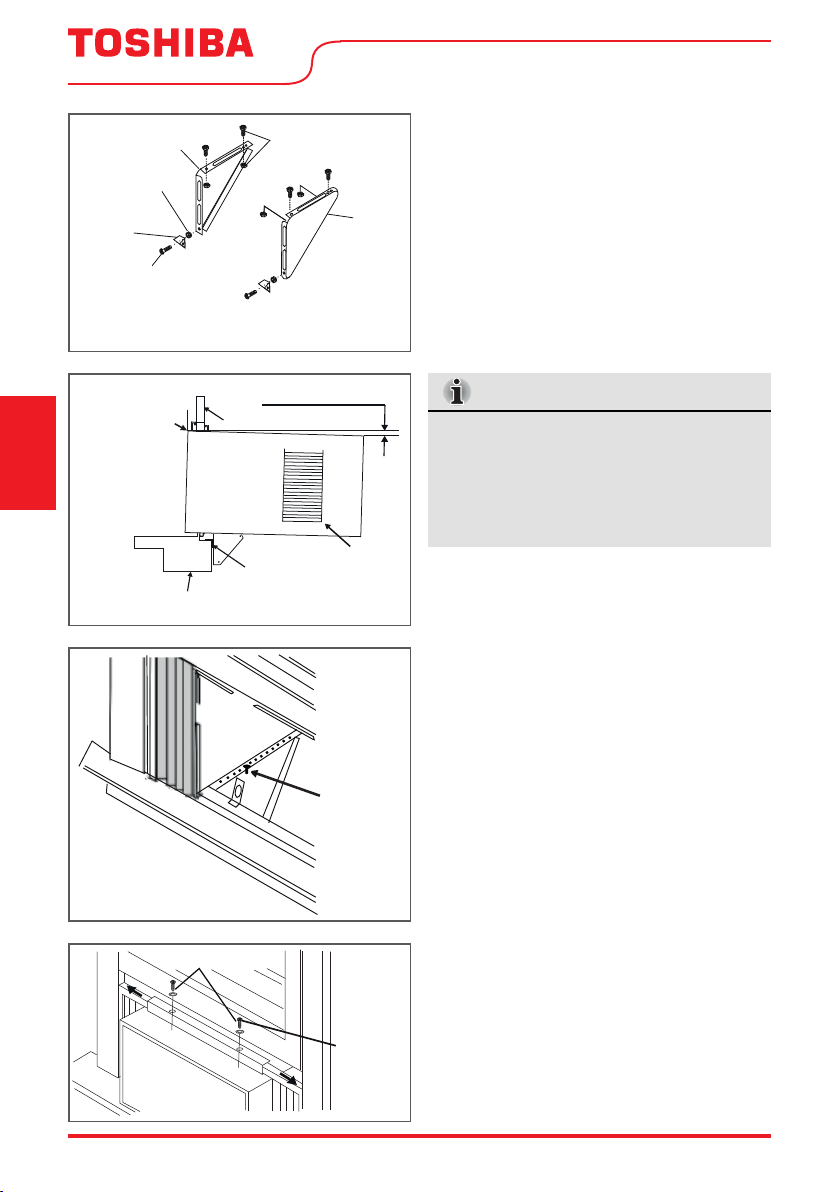

2. Assemble sill angle bracket to support brackets
at the marked position (Fig. 14B). Hand tighten
only so adjustments can be made later.
3. Install support brackets (with sill angle brackets
attached) to correct hole in bottom of cabinet
as shown in Fig. 16.
4. Tighten all 6 bolts securely.
6 Extend Window Filler Panels
1. Carefully raise window to expose ller panel
locking screws. Loosen screws so ller panels
slide easily.
2. Extend panels to fill window opening
completely. Tighten locking screws on top
(Fig. 17).
3. Close window behind top rail.
Fig. 16
1/2” Long
Screws and
Locknuts
Fig. 17
7/16”
Locking
Screw and
Washer
Locking Screw
User Manual Page 25
Installation
Instructions
3/4” (or 1/2” )
long Hex-head
screw
Fig. 17A
4. Attach the top rail to window frame: Use
a 3/32” drill bit to drill one hole through
the hole in the middle the top rail into the
window frame, and drive one 3/4” (or 1/2”)
HEX-HEAD locking screw through hole in the
middle the top rail into the window frame as
shown (Fig. 17A).
Fig. 18
A. 3/4” (or 1/2”) Long Hex Head Screw
B. Left-Hand Window Filler Panel Top Leg
C. Window Channel
Window Channel
A
B
C
Weather seals
A. 3/4” (or 1/2”) long hex head screw
A
Fig. 18A
7 Attach Window Filler Panels to Window Frame
1. Extend the window ller panels out against the
window frame.
2. Use a 1/8” drill bit to drill a starter hole
through the hole in the top leg of each
window filler panel and into the window
sash (Fig. 18 and Fig. 18A). Connect with one
3/4” (or 1/2”) long hex head screw.
Window Sash
Seal
Fig. 19
8 Install Window Sash Seal and
Safety Lock
1. Trim sash seal to fit window
width. Insert into space between
upper and lower sashes (Fig. 19).
2. Attach right angle safety lock
(Fig. 19A).
Safety Lock
3/4” (or 1/2” )
Long
Hex-head
Screws
Fig. 19A
Page 26 User Manual
Installation
Instructions
9 Install Chassis into Cabinet and Install Front to Unit
1. Lift air conditioner and carefully slide into cabinet leaving 6” protruding.
2. DO NOT press or apply pressure to controls or nned coils.
3. Be sure chassis is firmly seated towards rear of cabinet.
4. Installation of front is the reverse of removal outlined in Section 1.
1 Select Wall Location
The air conditioner has a slide-out chassis, so that it can be installed through an outside wall as
specified below:
Max. Wall thickness: 12” or 10”
IMPORTANT: Side louvers must never be blocked.
NOTE
Consult local building codes prior to Installation, or a qualified carpenter.
NOTE
All parts needed for Thru-The-Wall Installtion are provided, except a wood frame, shims, and 10 wood
screws (#10-1” long minimum).
Select a wall surface that:
1. Does not support major structural loads such as the frame construction at ends of windows, under
truss-bearing points, etc.
2. Does not have plumbing or wiring inside.
3. Is near existing electrical outlets, or where another outlet can be installed.
4. Faces, and is not cut o from the area to be cooled.
5. Allows unblocked air ow from rear sides and end (outside) of installed air conditioner.
B. Thru-the Wall Installation
3-3/8" MIN
(8.6 cm)
2 Prepare Wall
1. Prepare wall in frame construction (including brick and stucco
veneer). Working from inside the room, locate wall stud nearest
the center of area where air conditioner will be installed.
2. Cut or knock out a hole on each side of center stud.
3. Measure between inside edges of every other stud as shown
in Fig. 20.
Fig. 20
User Manual Page 27
Installation
Instructions
Fig. 21
Up to 8-1/2"
Inside
Frame
Height
Y
X
Inside
Frame
Widht
NAIL SPACERS
TO STUDS
LEVEL
Fig. 22

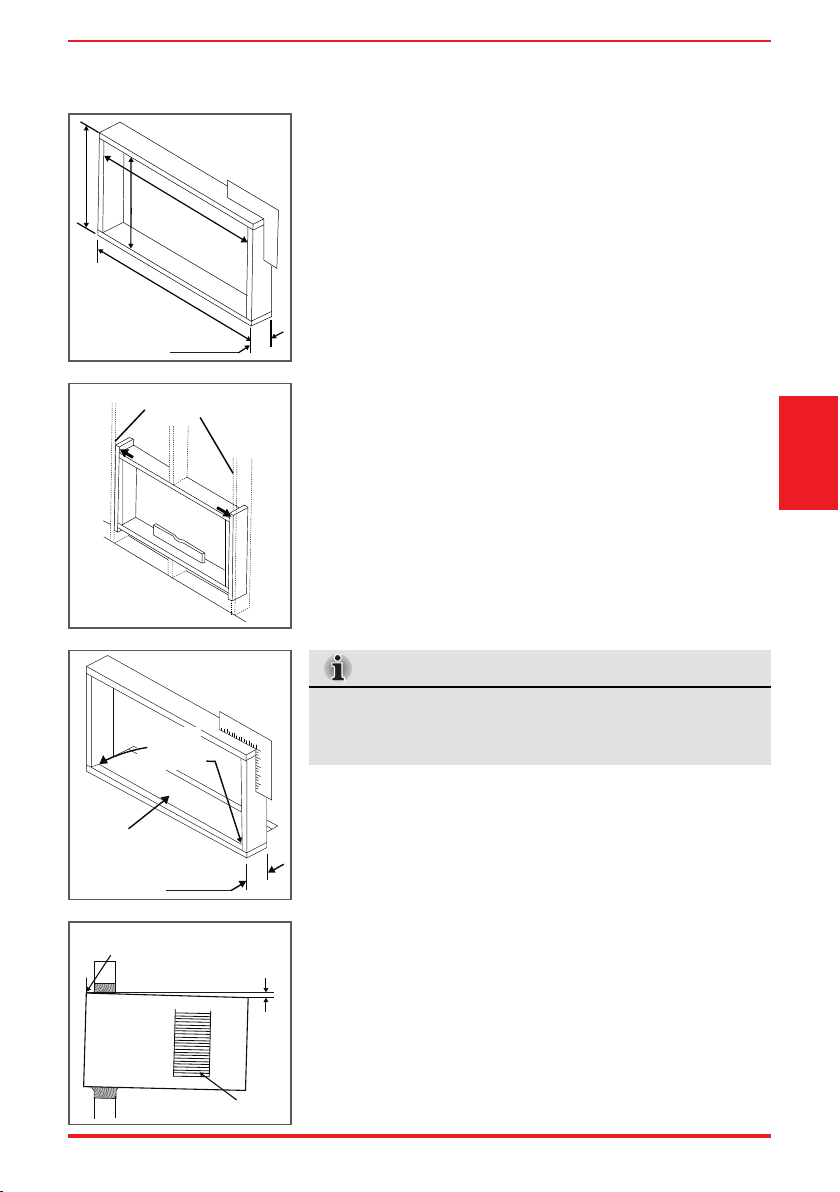

Carefully measure and cut an opening with the following dimensions
depending on your model.
See Fig. 20 and Fig. 21.
WIDTH X = inside model width plus twice the thickness of framing
material used.
HEIGHT Y = inside model height plus twice the thickness of framing
material used.
Inside Frame Height: 18-7/8” (47.9 cm) or 18” (45.7 cm)
Inside Frame Width: 26-3/4” (67.9 cm) or 23-7/8” (60.6 cm)
4. Build a wooden frame with the INSIDE dimensions of your model
listed above. (remember to measure twice). Frame depth should
be the same as wall thickness. Fill in the space from the opening
to the studs with wood spacers, as shown.
5. Nail frame to spacers with front ush to drywall.
NOTE
If wall thickness is 8-1/2” or more, add aluminum ashing over
bottom of frame opening to assure no water can enter area
between inner and outer wall.
3 Prepare and Install Cabinet
1. Slide chassis from cabinet. Refer back to Step one of Window
Mounting.
2. Place cabinet into opening with bottom rail resting rmly on
bottom board of wooden frame.
3. Position cabinet to achieve proper slope for water run off.
(See Fig. 24).
4. Secure bottom rail to wood frame with two large wood screws
1” (2.5 cm) long using the two holes in the bottom of the
channel resting on frame. (See Fig. 25).
Measure from
the cabinet edge
Side Louvers
About 1
1/4”
to 1
5/8”
Fig. 24
Caulk as
Required
Over 8-1/2”
Aluminum Flashing
Over Bottom Of Frame
Fig. 23
Page 28 User Manual
Installation
Instructions
NOTE
Check that air conditioner is tilted back about 1-1/4” to 1-5/8”
(tilted about 3° to 4° downward to the outside). After proper
installation, condensate should not drain from the over ow drain
hole during normal use. Adjust the slope if otherwise. (Fig. 15).
NOTE
See Step 5, Item 3 of Window Mounting Instructions for
bottom rail seal location.
1. Cut or build a wall opening in the masonry wall similar to the frame construction (refer to Step 2 of
Thru-the-wall Installation for a wall thickness greater than 8-1/2”).
2. Secure cabinet in place using masonry nails, or the right masonry anchor screws. (Another way to
do this is to build an in-between frame of 2x4s as shown in the Step 2 of Prepare Wall illustrations,
but make it double framed on either side, and install between masonry wall opening and cabinet.
Frame must be securely anchored to masonry wall opening). This method gives very good louver
clearance on either side of cabinet.
3. Install a lintel to support masonry wall above cabinet. Existing holes in cabinet can be used and/
or additional holes can be drilled to fasten cabinet at various positions. Be sure that side louver
clearance is in accordance with Step 1 above.
4. Install exterior cabinet support brackets as shown in Step 2 of Thru-the-wall installation. Caulk or
ash if needed, to provide a weathertight seal around top and sides of cabinet.
5. To complete installation, apply wood trim molding around room side projection of cabinet.
1” Long Wood
Screw
Fig. 25
Refer to Step 5 of Window Mounting for assembly of support
brackets. A wooden strip nailed to the outside wall should be used
in conjunction with sill support angle brackets.
5. Screw or nail cabinet wooden frame using shims if frame is
oversized, to minimize distortion. See Fig. 27. Remember to
maintain proper slop as described in Step 3.
6. Install chassis into slope cabinet by following all steps in Step 8
of Window Mounting.
OPTIONAL: Caulking and installation of trim on interior wall may
be done. You can buy wood from your local lumber or hardware
supply. On the outside, caulk openings around top and sides of
cabinet, and all sides of wood sleeve to the opening.
Support
bracket
Sill angle
bracket
Fig. 26
Fig. 27
C. Masonry Construction
User Manual Page 29
Installation
Instructions
Removing AC From Window
• Turn AC o , and disconnect power cord.
• Remove sash seal from between windows, and unscrew safety lock.
• Remove screws installed through frame and frame lock.
• Remove the R1 Panel (ENERGY STAR models only).
• Close (slide) side panels into frame.
• Keeping a rm grip on air conditioner, raise sash and carefully remove.
• Be careful not to spill any standing water while lifting unit form window. Store parts WITH air
conditioner.
Page 30 User Manual
Air Filter Cleaning
Cabinet Cleaning
Winter Storage
The air lter should be checked at least once a month to
see if cleaning is necessary. Trapped particles in the lter
can build up and cause an accumulation of frost on the
cooling coils.
• Remove the lter by sliding it out from the right-
hand side. (RAC-WK05 only
• Push the vent handle to the Vent Closed position
(where applicable).
• Open the front panel.
• Grasp the lter by the center and pull up and out.
• Wash the lter using liquid dishwashing detergent
and warm water. Rinse lter thoroughly.
• Gently shake excess water from the lter. Be sure the
lter is thoroughly dry before replacing.
• You may also vacuum the lter clean rather than
washing.
• Be sure to unplug the air conditioner to prevent shock or re hazard. The cabinet and front may be
dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild
liquid dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleansers, wax or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or
around the controls may cause damage to the air conditioner.
• Plug in air conditioner.
If you plan to store the air conditioner during the winter, remove it carefully from the window
according to the installation instructions. Cover it with plastic or return it to the original carton.
CARE AND CLEANING
NOTE
Never use hot water over 40°C (104°F) to clean the
air lter. Never attempt to operate the unit without
the air lter.
CAUTION
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit
before cleaning to prevent shock or re hazards.
Care and Cleaning
RAC-WK05 only
Models RAC-WK06 / 08 / 10 / 12 /15 / 18
User Manual Page 31
Before calling for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of defective workmanship or materials in this appliance.
Problem
Solution
Air conditioner
does not start
Wall plug disconnected. Push plug rmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset
circuit breaker.
Plug current device tripped. Press the RESET button.
Power is OFF. Turn power ON and set to desired setting.
Unit turned o and then on quickly. Turn unit o and wait 3 minutes before restarting.
Air from unit
does not feel cold
enough
Room temperature below 17°C (62°F). Cooling may not occur until room temperature
rises above 17°C (62°F).
Temperature sensing element touching cold coil, located behind air lter. Straighten tube
away from coil.
Reset to a lower temperature.
Compressor shut-o by changing modes. Wait approximately 3 minutes and listen for
compressor to restart when set in the COOL mode.
Air conditioner
cooling, but room is
too warm- ice forming
on cooling coil behind
decorative front.
Outdoor temperature below 18°C (64°F). To defrost the coil, set to FAN ONLY mode.
Air lter may be dirty. Clean lter. Refer to Care and Cleaning section. To defrost, set to
FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode.
Then, set temperature to a higher setting.
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front
Air lter may be dirty. Clean lter. Refer to Care and Cleaning section. To defrost, set
to FAN ONLY mode.
Temperature is set too high, set temperature to a lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution.
Clear obstruction in front of unit.
Doors, windows, registers, etc. open- cold air escapes. Close doors, windows, registers.
Unit recently turned on in hot room. Allow additional time to remove “stored heat” from
walls, ceiling, oor and furniture.
Air conditioner
turns on and o
rapidly
Dirty air lter- air restricted. Clean air lter.
Outside temperature extremely hot. Set FAN speed to a higher setting to bring air past
cooling coils more frequently.
Noise when unit is
cooling
This is normal. Air movement sound. If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with
installer.
Water dripping INSIDE
when unit is cooling
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
Water dripping
OUTSIDE when
unit is cooling
Unit removing large quantity of moisture from humid room. This is normal during
excessively humid days.
Remote sensing
deactivating
prematurely (some
models)
Remote control not located within range. Place remote control within 20 feet & 180°,
radius of the front of the unit.
Remote control signal obstructed. Remove obstruction.
Room too cold Temperature setting too low. Increase temperature setting.
TROUBLESHOOTING TIPS
Troubleshooting
Tips
Page 32 User Manual

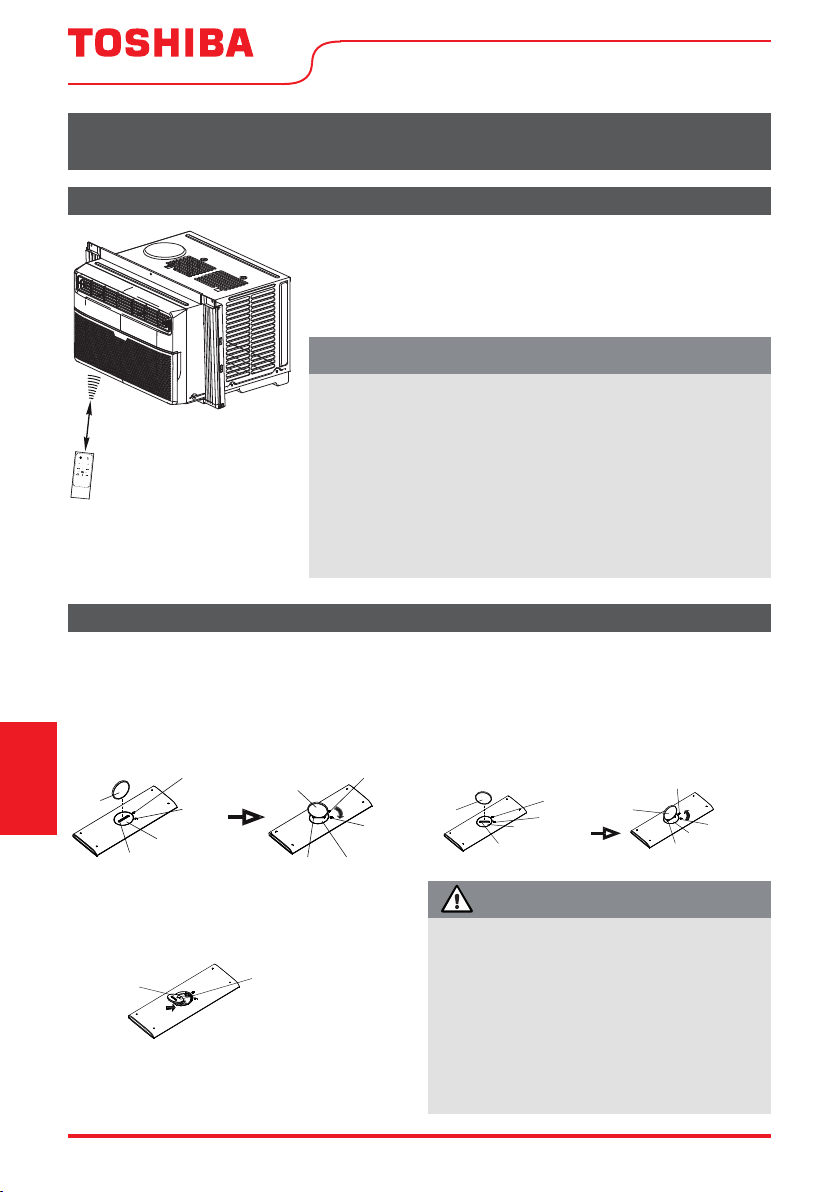

Handling the Remote Controller
Installing the Battery
REMOTE CONTROL OPERATING INSTRUCTIONS
Location of the remote controller
• Use the remote controller within a distance of 16.4 ft (5 meters)
from the air conditioner, pointing it towards the receiver.
Reception is con rmed by a beep.
• The air conditioner will not operate if curtains, doors or other
materials block the signals from the remote controller to the unit.
• Prevent any liquid from spilling onto the remote controller. Do
not expose the remote controller to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed
to direct sunlight, the air conditioner may not function
properly. Use curtains to prevent the sunlight from falling
on the receiver.
• If other electrical appliances react to the remote controller,
either move these appliances or consult your local dealer.
CAUTIONS
Step 1: Insert a coin vertically in the groove
on the battery cover, and turn 45º clockwise,
making sure that the groove is aligned with the
“unlock” sign as shown below and remove the
battery cover.
Step 3: Replace the battery cover, making sure the
battery cover groove is aligned with the “unlock”
sign. Insert a coin vertically in the groove and press
it gently, then rotate 45º counter clockwise, making
sure the groove is aligned with the “lock” sign as
shown below.
Step 2: Install battery inside the remote controller,
the positive (+) side up.
Coin
Battery
cover
Battery
cover
Groove
Lock
sign
Unlock
sign
Unlock
sign
Groove
Lock sign
Coin
Battery
Positive (+) side up
Coin
Groove
Battery cover
Unlock sign
Lock sign
Coin
Groove
Battery cover
Unlock sign
Lock sign
WARNING
1. Battery must be disposed of properly. Do not
short circuit or dispose of in a re.
2. Keep batteries out of the reach of children.
3. Do not ingest.
4. Non-rechargeable batteries are not to be
recharged.
5. Exhausted batteries are to be removed from
the product.
Operating
Instructions
(With Remote)
5m
16.4 ft (5 meters)
User Manual Page 33
Remote Control Specifi cations
Operating
Instructions
(With Remote)
Model RG15A(B)/E
Rated Voltage 3.0V (Lithium battery CR2025)
Lowest Voltage of CPU Emitting Signal 2.4 V
Signal Receiving Range 16.4 ft (5 m)
Environment 5 °C~60 °C (23°F~140°F
NOTE
• Button design is based on typical model and may vary slightly from the actual one you purchased.
• All the functions described are accomplished by the unit. If the is without no this feature, the unit
will not respond if the corresponding button on the remote is pressed.
• When there are signi cant di erences between features or operation implied by the remote
control illustration and the actual functions described in the USER’S MANUAL, the descriptions in
the USER’S MANUAL shall prevail.
R G15A(B )/E
Page 34 User Manual
Function Buttons
ON/OFF button
MODE button
TEMP UP button
FAN button
SLEEP button
ENERGY SAVER button
TEMP DOWN button
TIMER button
ONE TOUCH button
Operation starts when this
button is pressed and stops
when the button is pressed
again.
Press this button to select
the desired operation mode.
Push this button to increase
the temperature setting.
Used to select the desired
fan speed.
Press this button to activate
the Sleep mode. This
function is available on
COOL or AUTO mode only
and will maintain the most
comfortable temperature
for you and while saving
energy. For more details,
see “sleep operation” in
“USER’S MANUAL.”
Press this button to activate
the Energy saving mode.
Press it again to stop the
function (on some models).
Push this button to decrease
the indoor temperature
setting.
Push this button to activate
the “Auto Start” or “Auto
Stop” program.
Push this button and the
system will automatically
shift to COOL operation
with auto fan speed and
a temperature setting of
26°C/80°F. Any timer setting
program will be cancelled
(on some models).
NOTE: If the unit has ENERGY
SAVER function, it will
initiate automatically the
Energy Saver function under
Cool, Dry, and Auto (only
Auto-Cooling and Auto-Fan)
modes.
Operating
Instructions
(With Remote)
User Manual Page 35
Operating
Instructions
(With Remote)

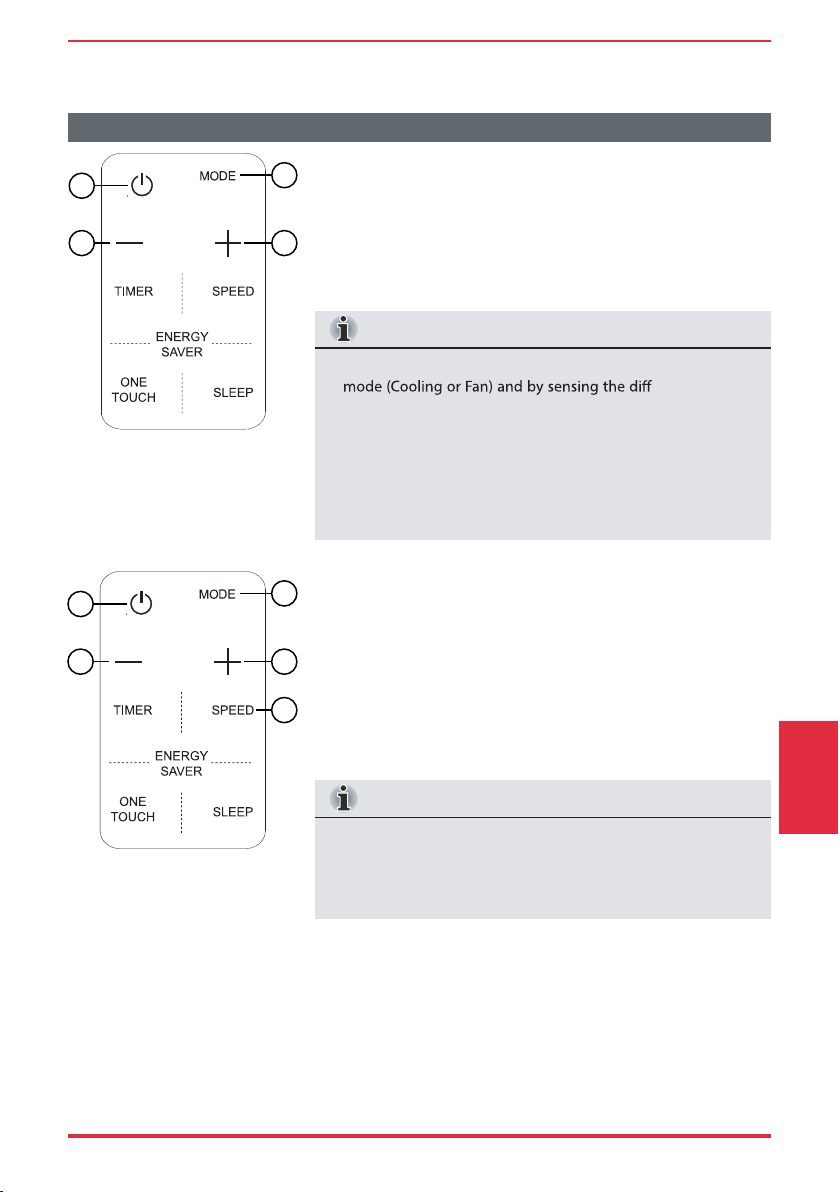

Auto operation
Ensure the unit is plugged in and power is available.
1. Press the ON/OFF button to start the air conditioner.
2. Press the MODE button to select Auto.
3. Press the TEMP UP/DOWN button to set the desired
temperature.
Cooling / Fan operation
Ensure the unit is plugged in and power is available.
1. Press the ON/OFF button to start the air conditioner.
2. Press the MODE button to select Cool or Fan mode.
3. Press the TEMP UP/DOWN button to set the desired
temperature.
4. Press the FAN button to select the fan speed.
1
2
3 3
1
2
3 3
4
How to Use the Buttons
NOTES
1. In the Auto mode, the air conditioner can logically choose the
erence between
the actual ambient room temperature and the set temperature
on the remote controller.
2. In Auto mode, you cannot adjust the fan speed. As it is
controlled automatically.
3. If the Auto mode is not comfortable for you, the desired mode
can be selected manually.
NOTE
No mattter in any model, the temperature setting is not
displayed on the remote controller and you are not able to
control room temperature. In this case, only steps 1, 2 and 4 may
be performed.
Page 36 User Manual

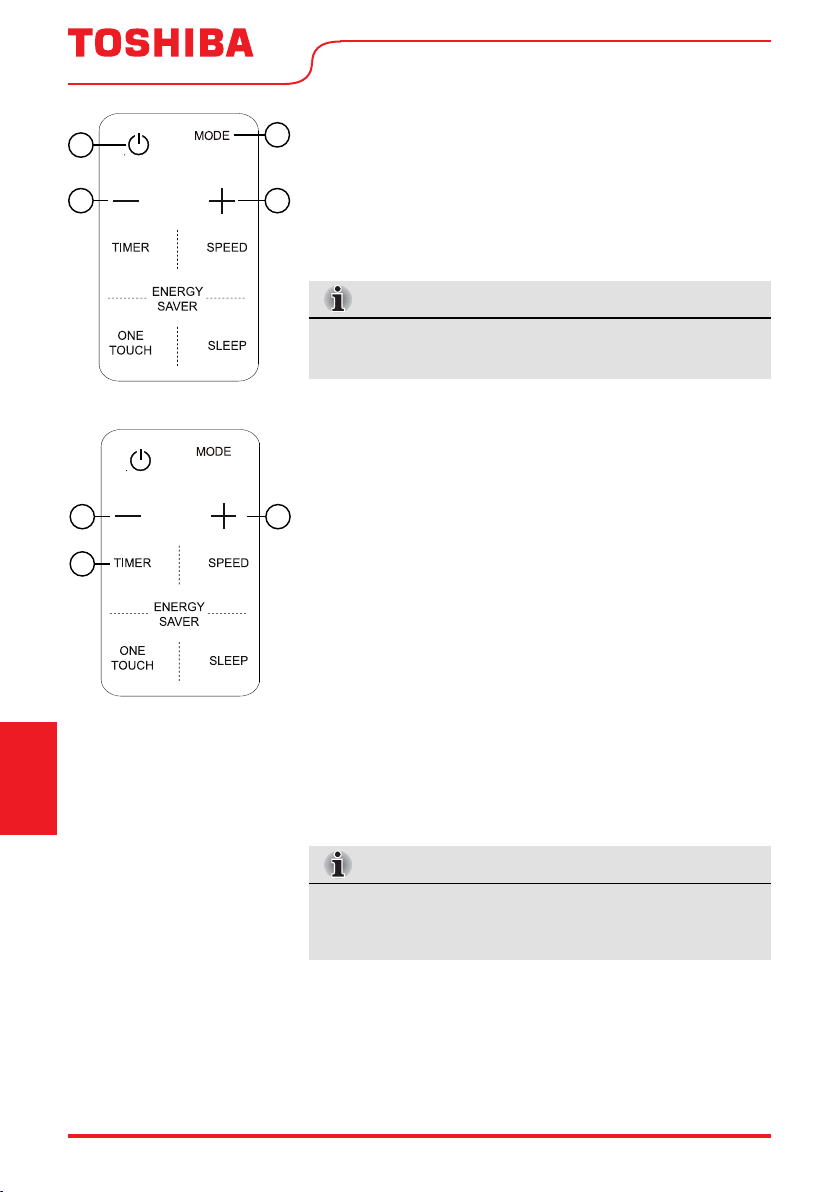

Dehumidifying operation
Ensure the unit is plugged in and power is available.
1. Press the ON/OFF button to start the air conditioner.
2. Press the MODE button to select Dry.
3. Press the TEMP UP/DOWN button to set the desired
temperature.
1
2
3 3
NOTE
In the Dehumidifying mode, you cannot adjust the fan speed. As it
is controlled automatically.
Timer operation
Press the TIMER button to initiate the Auto-start and Auto-stop
setting program of the unit.
To set the Auto-start/stop time.
1. Press the TIMER button, when the TIMER ON indicator is
displayed on the LED window of the air conditioner, it indicates
the Auto Start setting program is initiated. When the TIMER OFF
indicator is displayed on the LED window of the air conditioner,
it indicates the Auto Stop setting program is initiated.
2. Press or hold the Up (+) or Down (- ) to change the Auto time.
The control will count down the time remaining until start/stop.
3. The selected time will register in 5 seconds and the air
conditioner will automatically revert back to display the
previous temperature setting.
4. Turning the unit ON or OFF at any time will cancel the Auto
Start/stop function.
NOTE
To cancel the TIMER setting, push the TIMER button and press or
hold the Up (+) or Down ( - ) until 0 hour is displayed on the LCD
window of the air conditioner.
2 2
1
Operating
Instructions
(With Remote)
User Manual Page 37
Operating
Instructions
(With Remote)
COMBINED TIMER
(Setting both ON and OFF timers simultaneously)
AUTO STOP >AUTO START
(On > Stop > Start operation)
This feature is useful when you want to stop the air conditioner
after you go to bed, and start it again in the morning when you
wake up or when you return home.
Example:
To stop the air conditioner 2 hours after setting and start it again
10 hours after setting.
1. Press the TIMER button until the TIMER OFF indicator is
displayed on the LED display of the air conditioner.
2. Use the UP/DOWN button to display “2.0” on the LED display
of the air conditioner.
3. Press the TIMER button again to display the TIMER OFF on the
LED display of the unit.
4. Use the UP/DOWN button to display “10” on the LED display
of the unit.
5. Wait for 5 seconds until the previous display appears in LED
window.
AUTO START > AUTO STOP
(O > Start > Stop operation)
This feature is useful when you want to start the air conditioner
before you wake up and stop it after you leave the house.
Example:
To start the air conditioner 5 hours after setting, and stop it 8 hours
after setting.
1. Press the TIMER button until the TIMER ON indicator is
displayed on the LED display of the air conditioner.
2. Use the UP/DOWN button to display “5.0” on the LED display of
the air conditioner.
3. Press the TIMER button again to display the TIMER OFF on the
LED display of the unit.
4. Use the UP/DOWN button to display “8.0” on the LED display of
the unit.
5. Wait for 5 seconds until the previous display appears in LED
window.
2 2
1
Page 38 User Manual
Energy saver operation
In this mode, the fan will continue to run for 3 minutes after the
compressor shuts off. The fan then cycles on for 2 minutes at 10
minute intervals until the room temperature is above the set
temperature, at which time the compressor turns back on and
cooling resumes.
1
NOTE
• Button design is based on a typical model and may slightly vary from the actual one you purchased.
• All the functions described are accomplished by the unit. If the is without no this feature, the
unit will not respond if the corresponding button on the remote is pressed.
• When there are significant differences between features or operation implied by the remote
control illustration and the actual functions described in the USER’S MANUAL, the descriptions
in the USER’S MANUAL shall prevail.
• The device may comply with local national regulations. In Canada, it should comply with CAN
ICES-3(B)/NMB-3(B). In USA, this device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may
cause undesired operation.
• This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit di erent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modi cations not approved by the party responsible for compliance could void
users authority to operate the equipment.
Operating
Instructions
(With Remote)
WARNING: Chemical Burn Hazard. Keep batteries away from children.
This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed
or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely
secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove
the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
