[en] Instruction manual
PIZ9..N...
PIR...N...
Ú Table of contents[en] Instruction manual
: Safety precautions
Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.
Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not connect the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will los...
This appliance must be installed according to the installation instructions included.
This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.
Do not use covers. These can cause accidents, due to overheating, catching fire or materials shattering, for example.
Do not use inappropriate child safety shields or hob guards. These can cause accidents.
This appliance is not intended for operation with an external clock timer or a remote control.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
We advise that you exercise caution using or standing near an induction hob while it is in operation, if you wear a pacemaker or a similar medical device. Consult your doctor or the device manufacturer concenring its conformity or any possible incomp...
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
Risk of fire!
■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
Risk of fire!
■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
Risk of fire!
■ The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of burns!
■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.
Risk of burns!
■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of burns!
■ Metal objects on the hob quickly become very hot. Never place metal objects (such as knives, forks, spoons and lids) on the hob.
Risk of fire!!
■ After each use, always turn off the hob at the main switch. Do not wait until the hob turns off automatically after the pan is removed.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...
Risk of electric shock!
■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
Risk of electric shock!
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Risk of electric shock!
■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
Malfunction risk!
The hob is equipped with a fan in the lower section. If there is a drawer under the hob it should not be used to store small objects or paper, since they could damage the fan or interfere with the cooling if they are sucked into it.
There should be a minimum of 2 cm between the contents of the drawer and fan intake.
Risk of injury!
■ When cooking in a bain marie, the hob and cooking container could shatter due to overheating. The cooking container in the bain marie must not directly touch the bottom of the water-filled pot. Only use heat-resistant cookware.
Risk of injury!
■ Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.
Elements that may damage the appliance
Caution!
Overview

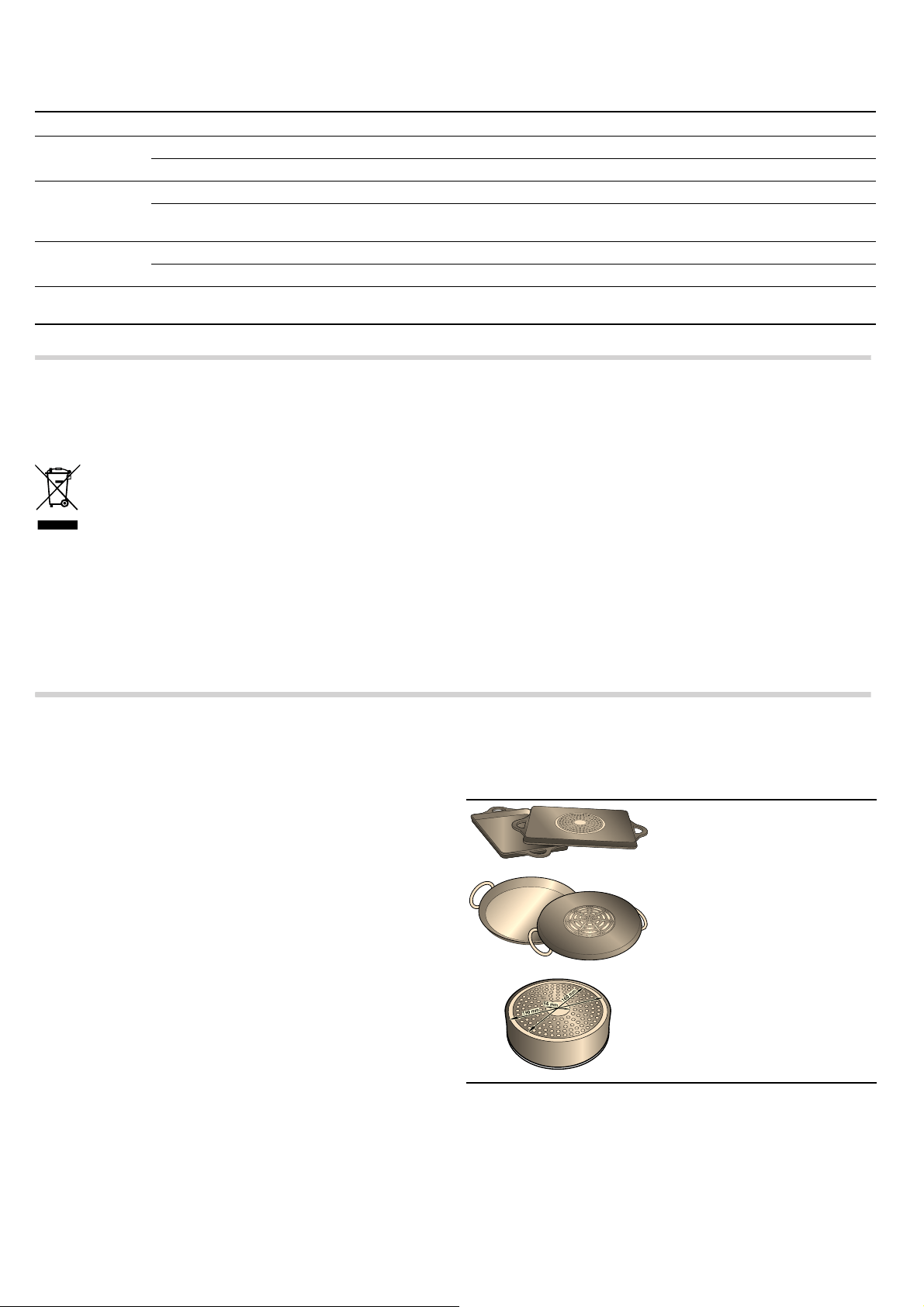

Protecting the environment
Environmentally-friendly disposal
Energy-saving advice
Induction cooking
Advantages of induction cooking
Cookware
To determine whether a pan is suitable, check to see if a magnet will stick to its base.
There are other types of cookware for induction whose base is not entirely ferromagnetic.
Unsuitable pans
Characteristics of the pan base
The characteristics of the pan base may affect the uniformity of the cooking results. Pans made from materials which help diffuse heat, such as stainless steel sandwich pans, distribute heat uniformly, saving time and energy.
Absence of pan or unsuitable size
If no pan is placed on the selected hotplate, or if it is made of unsuitable material or is not the correct size, the power level displayed on the hotplate indicator will flash. Place a suitable pan on the hotplate to stop the flashing. If this takes...
Empty pans or those with a thin base
Do not heat empty pans, nor use pans with a thin base. The hob is equipped with an internal safety system. However, an empty pan may heat up so quickly that the "automatic switch off" function may not have time to react and the pan may reach very hig...
Pan detection
Each hotplate has a minimum limit for detecting pans, which varies depending on the material of the pan being used. You should therefore use the hotplate that is most suitable for the diameter of your pan.
Automatic detection on double or triple hotplates
These hotplates can detect cookware of different sizes. Depending on the material and properties of the cookware, the hotplate will adapt automatically, switching on part or all of the hotplate and supplying sufficient power to obtain good cooking re...

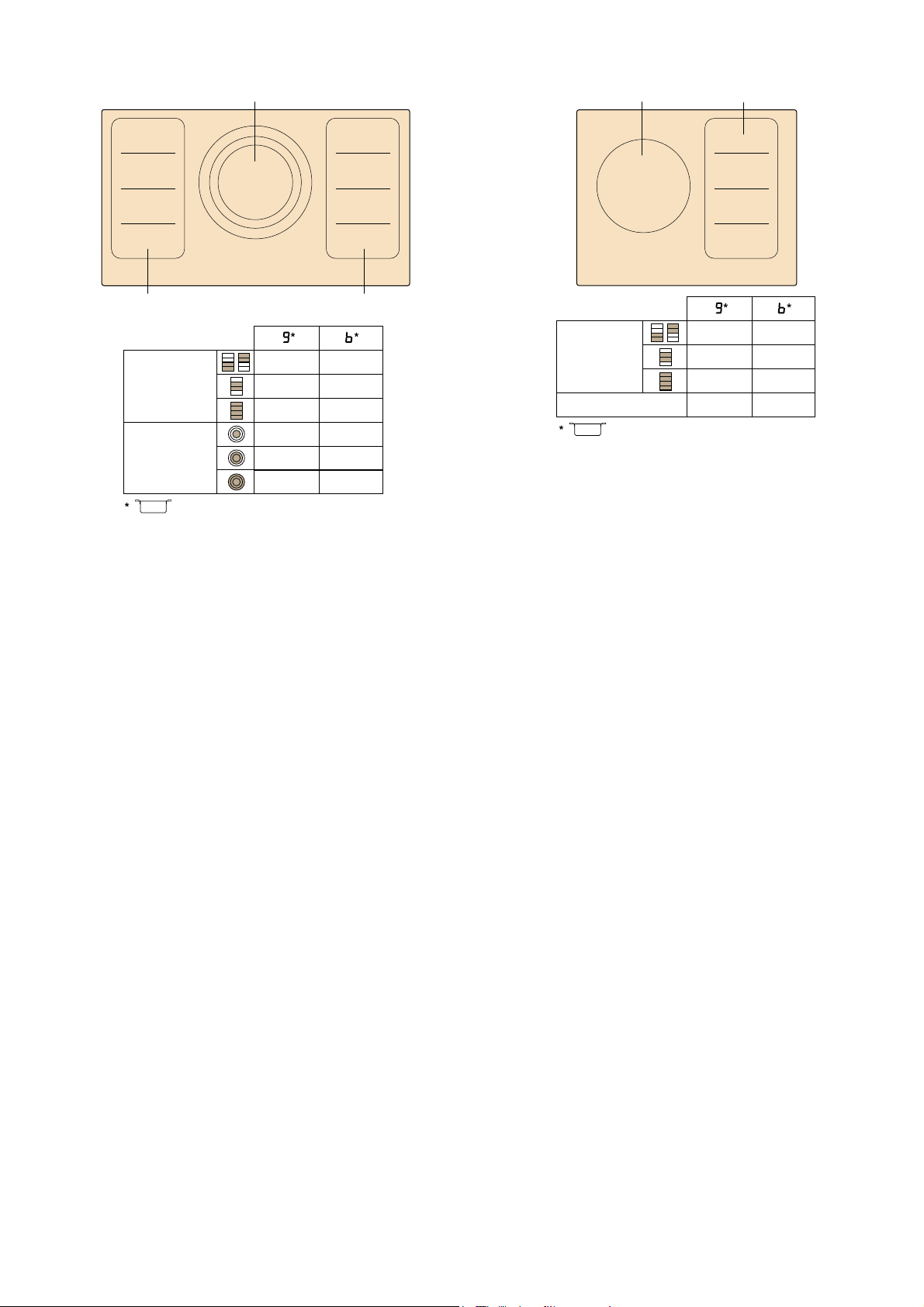

Getting to know your appliance
The instruction manual is the same for various different hobs. An overview of the models with their dimensions is given on page 2.
The control panel
Control panels
Note
The hotplates
Residual heat indicator
If the pan is removed before the hotplate is turned off, the indicator œ or • and the selected power level will appear alternately.
Programming the hob
This section will show you how to program the hotplates. The table contains power levels and cooking times for several dishes.
Turning the hob on and off
Note
Setting the hotplate
Each power level has an intermediate level. This level is marked with the Ú symbol in the programming zone.
Selecting the power level
1. Press the Á or $ symbol on the hotplate.
2. Then press the required power level symbol.
Changing the power level
Switch off the hotplate
Select the hotplate and then press the power level symbol 0.
Note
Cooking guidelines table
Flexible zone
It consists of 4 independently-controlled inductors. When the flexible zone is working, only the zone covered by the cookware is activated.
Advice on using cookware
Warnings
As one hotplate
The flexible zone is normally used as one single hotplate.
How to activate
1. Select the flexible zone with the Á or  symbol. The indicator ‹.‹ lights up.
2. Select the power level in the programming zone.
Changing the power level
Adding more cookware
Note
To deactivate
Select the hotplate and press the 0 symbol.
As two hotplates
The flexible zone can be used as two independent hotplates.
How to activate
1. Select the flexible zone then press the à symbol.
2. Select one of the hotplates in the flexible zone. The indicator ‹.‹ lights up.
3. Select the power level in the programming zone.
How to deactivate
Select the hotplate and press the 0 symbol. The hotplate switches off.
Note
Childproof lock
The hob can be protected against being accidentally turned on, to ensure that children do not switch on the hotplates.
Turning on and off the childproof lock.
Childproof lock
With this function, the childproof lock automatically activates when a hob is switched off.
Activating and deactivating
All of the relevant information on the automatic childproof lock connection can be found in the Basic settings chapter.
Powerboost function
The Powerboost function can be used to heat large amounts of water more quickly than the power level Š.
Use limitations
Note
How to activate
1. Select a hotplate.
2. Press the boost G symbol.
How to deactivate
1. Select a hotplate.
2. Press the boost G symbol.
Note
Time programming function
Turning off a hotplate automatically
How to program
1. Select the desired hotplate and power level.
2. Press the 0 symbol twice. ‹‹ y and __ lights up on the time program function indicator.
3. In the next 10 seconds, program the required time using symbols 1 to 9.
Note
Changing or cancelling the time
Once the time has elapsed
When the 0 symbol is pressed, the displays turn off and the beep goes off.
Notes
The timer
The timer can be set for periods of up to 99 minutes. It is independent of the other settings. This function does not automatically switch off a hotplate.
How to program
1. Press the 0 symbol. The indicator U lights up. ‹‹ lights up in the time program function display.
2. Set the required time using symbols 1 to 9.
Once the time has elapsed
Once the time has elapsed, a beep will sound. ‹‹ and Uare displayed in the time program function display. After pressing the 0 symbol, the indications turn off.
Changing or cancelling the time
Change the time using the 1 to 9 symbols or press 0 to cancel.
Cleaning lock function
Note
Automatic time limitation
Basic settings
Accessing the basic settings
1. Turn on the hob with the main switch.
2. In the next 10 seconds, hold down the 0 symbol for 4 seconds.
3. Press the 0 symbol until the indicator for the required function is displayed.
4. Next select the setting required with symbols 0 to 9.
5. Press the 0 symbol for 4 seconds.
Leaving the basic settings
Turn off the hob with the main switch.
Care and cleaning
The advice and warnings contained in this section aim to guide you in cleaning and maintaining the hob, so that it is kept in the best possible condition
Hob
Cleaning
Suitable glass scrapers can be obtained through the Technical Assistance Service or from our online shop.
Hob frame
Fixing malfunctions
Normal noise while the appliance is working
The noises described are normal, they are part of induction heating technology and not a sign of malfunction.
After-sales service
To book an engineer visit and product advice
Tested dishes
Ø 14.5 cm
