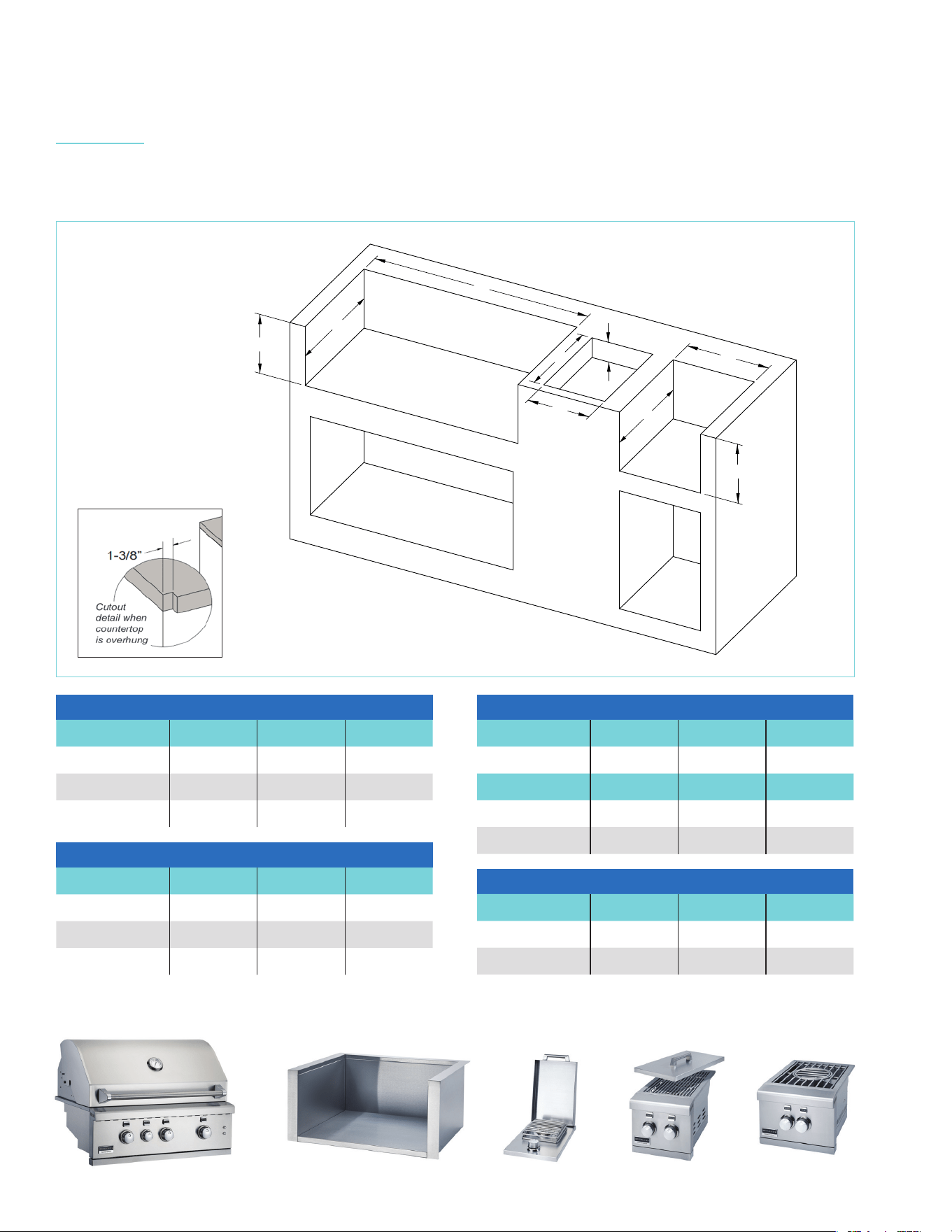

Stainless Grill DIMENSIONS.
BUILT IN GRILL HEADS & SIDE BURNERS
BUILT-IN GRILL HEAD DIMENSIONS (IN INCHES)
W1 H1 D1
BSG262N 23 1/2 11 3/4 21
BSG343N 31 1/2 11 3/4 21
BSG424N 39 1/2 11 3/4 21
SIDE BURNERS (IN INCHES)
W2 H2 D2
BSAF12D 11 1/4 3 18
W3 H3 D3
BSABF12 11 7/8 11 3/4 21
BSABW16 15 11 3/4 19
GRILL HEAD SLEEVES (IN INCHES)
W1 H1 D1
BSASL26 25 3/4 12 3/4 22 3/4
BSASL34 33 3/4 12 3/4 22 3/4
BSASL42 41 3/4 12 3/4 22 3/4
SIDE BURNER SLEEVES (IN INCHES)
W3 H3 D3
BSASL12 13 1/4 12 3/4 22
BSASL16 16 1/4 12 3/4 19 7/8

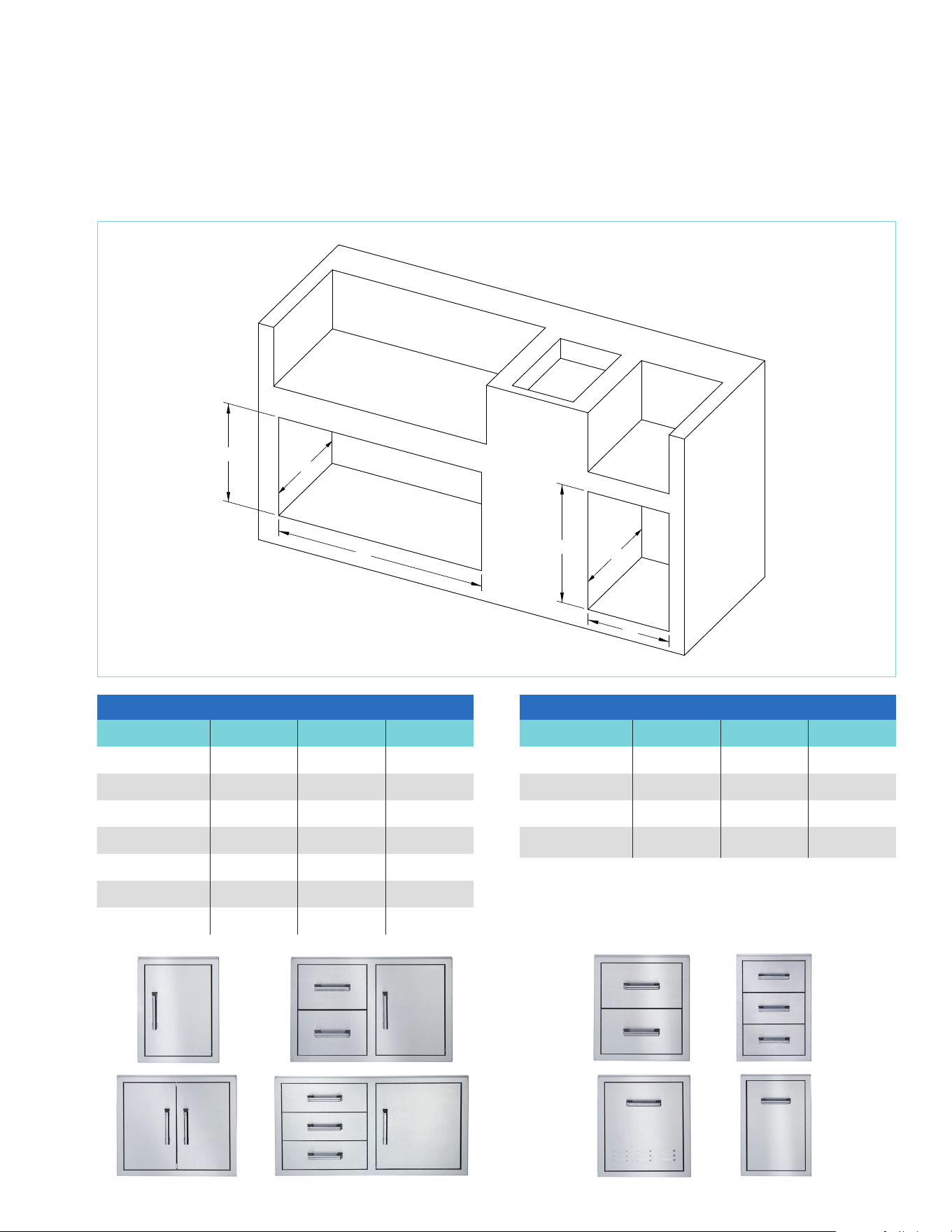

BUILT IN DOORS & DRAWERS
H4
W4
D4
H5
D5
W5
DOORS (IN INCHES)
W4 H4 D4
BSAD1722 14 1/4 19 1/4 2 min.
BSAD2422 21 1/4 19 1/4 2 min.
BSAD2622D 23 1/4 19 1/4 2 min.
BSAD3422D 31 1/4 19 1/4 2 min.
BSAD4222D 39 1/4 19 1/4 2 min.
BSAW3422SD 31 1/4 19 3/8 19 3/4
BSAW4222SD 39 1/4 19 3/8 19 3/4
DRAWERS (IN INCHES)
W5 H5 D5
BSAW2022D 17 3/8 19 1/4 19 3/4
BSAW1826T 15 1/8 23 1/4 19 3/4
BSAW2022 17 1/4 19 1/4 16
BSAW1826R 15 1/4 23 1/4 16 1/2
H1
D1
W1
14”
WARRANTY
LIMITED LIFETIME: Against rust-through on stainless steel grill housing, stainless steel cooking grids, and select
stainless steel components including carts, cast stainless steel Bow Tie Burners, stainless steel drip tray, side
burners, side burner housings, warming racks, built-in sleeves, access doors and drawers, and vent register kits.
LIMITED 5 YEAR: Against rust-through on are control vaporizers and heat zone dividers. 1 YEAR: Against rust-
through on valves, knobs, ignitors, labels, hoses, ttings, and all other parts and accessories – including those
made from stainless steel.
CARTS
Stainless Grill DIMENSIONS.

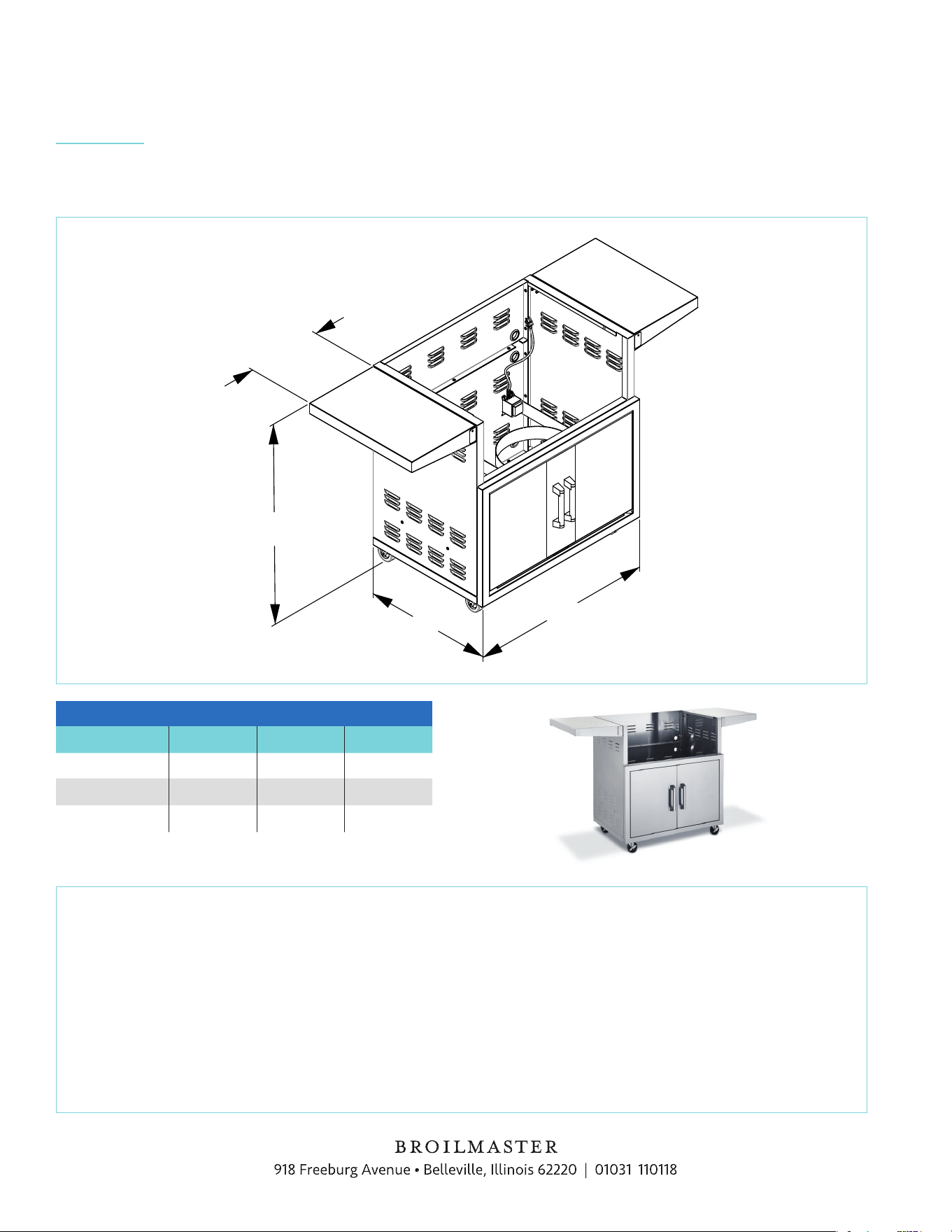

CART DIMENSIONS (IN INCHES)
W1 H1 D1
BSACT26 23 3/4 26 37 1/4
BSACT34 23 3/4
34
37 1/4
BSACT42 23 3/4
42
37 1/4
