Kenmore Elite®
Gas Range
Estufa de gas
* = color number, código de color
Use & Care Guide
Guía de uso y cuidada
English / Español
Model/Modelos: 790.7533*,7534,*
PN 807189901 Rev B
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Sears Canada Inc.,
Toronto, Ontario, Canada, M5B 2C3
www.sears.ca
All rights reserved. Printed in the USA.
2
Table of Contents
Kenmore Elite Limited Warranty ............................................................2
Before Setting Surface Controls.................................................................. 8
Setting Surface Burners.............................................................................. 11
Before Setting Oven Controls ................................................................... 13
Setting Oven Controls................................................................................. 14
Care and Cleaning ..................................................................................... 35
Cleaning Various Parts of Your Oven .................................................35
Replacing the oven light .........................................................................37
Removing and Replacing the Oven Door ............................................38
Before You Call ........................................................................................... 39
Oven Baking .............................................................................................39
Solutions to Common Problems ..............................................................40
Kenmore Elite Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions
supplied with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the
product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recom-
mended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limi-
tation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.*
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
* In Canada, in-home repair service is not available in all areas, nor will this warranty cover user or servicer travel and transporta-
tion expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not avail-
able.
Sears Canada Inc. warranty coverage for Kenmore Elite products may differ depending on model number. Call 1-800-4-MY-
HOME® for exact warranty details.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Save these instructions for future reference.
3
Important Safety Instructions
Read all instructions before using this appliance.
This manual contains important safety
symbols and instructions. Please pay attention
to these symbols and follow al instructions
given. Do not attempt to install or operate
your appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the risk type.
DEFINITIONS
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety message that follow this
symbol to avoid possible injury or death.
DO NOT LEAVE CHILDREN
ALONE - children should not be left alone or
unattended in the area where appliance is in
use. They should never be allowed to sit or
stand on any part of the appliance, including
the storage drawer, lower broiler drawer,
warmer drawer, or lower double oven.
Stepping, leaning or sitting on the
door or drawers of a range can result in
serious injuries and also cause damage to the
appliance. DO NOT allow children to climb
or play around the range. The weight of a
child on an open oven door, may cause the
range to tip, resulting in serious burns or other
injury.
NEVER cover any slots, holes, or
passages in the oven bottom or cover an
entire oven rack with materials such as
aluminum foil. Aluminum foil linings may trap
heat, causing a fire hazard.
Storage in or on appliance—
flammable materials should not be stored in
an over, near surface units, or in the storage
drawer, warmer drawer or lower oven. This
includes paper, plastic and cloth items, such
as cookbooks, plastic ware and towels, as
well as flammable liquids. Do not store explo-
sives, such as aerosol cans, on or near the
range.
Air curtain or other overhead
range hoods which operate that operate by
blowing a downward air flow onto a range,
shall not be used in conjunction with gas
ranges other than when the range and hood
have been designed, tested, and listed by an
independent test laboratory for use in combi-
nation with each other.
Never use this appliance as
space heater to heat or warm room. Doing so
may result in carbon monoxide poisoning.
Do not use the oven or warming
drawer for storage.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in death or serious injury.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Important: indicates installation, operation,
maintenance, or valuable information that is
not hazard related.
If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
personal injury or death.
FOR YOUR SAFETY:
• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
• Installation and service must be
performed by a qualified installer,
service technician or the gas supplier.
Save these instructions for future reference.
4
Important Safety Instructions
Read all instructions before using this appliance.
Do not store items of interest to
children in the cabinets above a range on the
backguard of the ranges. Children climbing
on the range to reach items could be
seriously injured.
Do not touch surface heating
units or surface cooking elements, areas near
these units or elements, or interior surface of
the oven. Surface heating areas and oven
heating elements may be hot even though
they appear cool. Areas near surface
cooking units may become hot enough to
cause burns. During and after use, do not
touch, or let clothing or other flammable
materials touch these areas until they are
cool. These areas may include the cooktop,
surfaces facing the cooktop, oven vent areas,
oven door, and oven window.
Do not heat unopened food
containers. Build-up of pressure may cause
container to burst and result in injury.
Wear proper apparel. Loose-
fitting or hanging garments should never be
worn while using this appliance. Do not let
clothing or other flammable materials come
into contact with hot surfaces.
When heating fat or grease,
watch it closely. Fat or grease may catch fire
if it becomes too hot.
Do not use water or flour on
grease fires. Cover the fire with a pan lid, use
baking soda, or use a dry chemical or foam
type extinguisher.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam. Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
Important: Read and follow these instructions
and precautions for unpacking, installing,
and servicing your appliance:
•Remove all tape and packaging before
using the range. Destroy the carton and
plastic bags after unpacking the range.
Never allow children to play with
packaging material.
•Proper Installation—Be sure your
appliance is properly installed and
grounded by a qualified technician in
accordance with the National Fuel Gas
Code ANSI Z223.- latest edition, or in
Canada CAN/CGA B149.1, and CAN/
CGA B149.2, and the National Electrical
Code ANSI/NFPA No.70-latest edition, or
in Canada CSA Standard C22.1,
Canadian Electrical Code, Part 1, and
local code requirements. Install only per
installation instructions provided in the
literature package for this range. Ask your
dealer to recommend a qualified techni-
cian and an authorized repair service.
Know how to disconnect the power to the
range at the circuit breaker or fuse box in
case of an emergency.

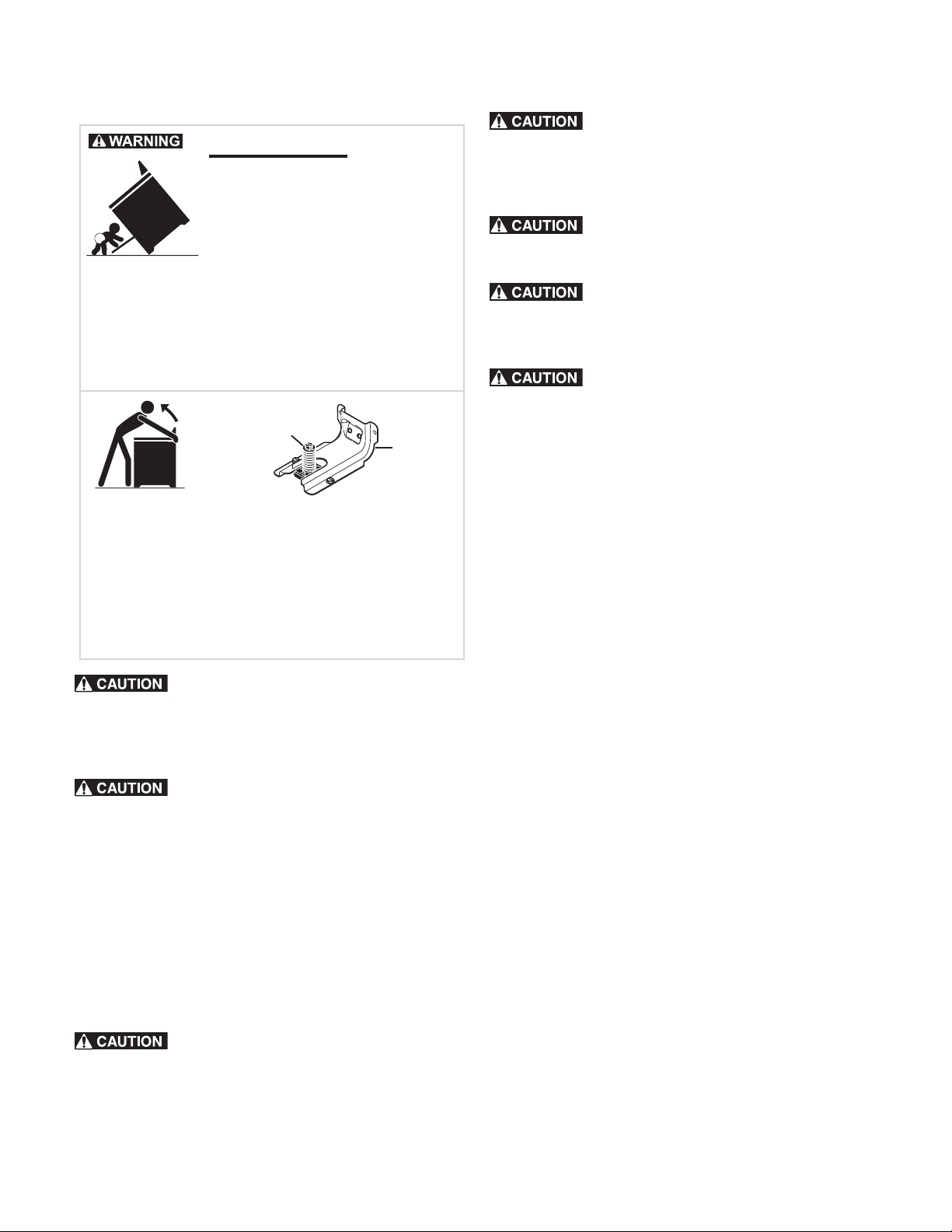

Tip Over Hazard
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of the
range back. Carefully attempt to title range
forward. When properly installaed, the range
should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Range
leveling leg Anti-tip
bracket
• A child or adult can tip the range
and be killed.
• Verify the anti-tip device has
been installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor or
wall when the range is moved.
• Do not operate the range without the anti-tip
device in place and engaged.
• Failure to follow these instructions can result in
death or serious burns to children and adults.
Save these instructions for future reference.
5
•User servicing—Do not repair or replace
any part of the appliance unless specifi-
cally recommended in the manuals. All
other servicing should be done only by a
qualified technician. This reduces the risk
of personal injury and damage to the
range. Ask your dealer to recommend a
qualified technician and an authorized
repair service. Know how to disconnect the
power to the range at the circuit breaker
or fuse box in case of an emergency.
•Remove the oven door from any unused
range if it is to be stored or discarded.
•Never modify or alter the construction of
a range by removing the leveling legs,
panels, wire covers, anti-tip brackets/
screws, or any other part of the range.
Important
•Do not operate range during a power
failure. If power fails, turn off range. If
range is not turned off and power resumes,
the range may begin to operate again.
Once the power resumes, reset the clock
and over function.
•Cold temperatures can damage the elec-
tronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32ºF (0ºC) for at least
3 hours before turning on the power to the
appliance.
•Remove the oven door from any unused
range if it is to be stored or discarded.
•Be sure to have an appropriate foam-type
fire extinguisher available, visible, and
easily accessible located near the appli-
ance.
Important: Important Safety Notice - The
California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances
known to cause cancer, birth defects or other
reproductive harms, and requires businesses
to warn customers of potential exposures to
such substances.
Important Instructions for Using your
Cooktop
Use Proper Flame Size — Adjust
flame size so it does not extend beyond the
edge of the utensil. The use of undersized
utensils will expose a portion of the burner
flame to direct contact and may result in
ignition of clothing. Proper relationship of
utensil to flame will also improve efficiency.
•Know which knob controls each surface
burner. Place a pan of food on the burner
before turning it on, and turn the burner
off before removing the pan.
•Always turn knob to the full Lite position
when igniting top burners. Visually check
that burner has lit. Then adjust the flame
so it does not extend beyond the edge of
the utensil.
•Utensil handles should be turned inward
and not extend over adjacent surface
burners — To reduce the risk of burns,
ignition of flammable materials, and
spillage due to unintentional contact with
the utensil, the handle of the utensil should
be positioned so that it is turned inward,
and does not extend over adjacent surface
burners.
•Never leave surface burners unattended
at high heat settings — Boil overs cause
smoking and greasy spills that may ignite,
or a pan that has boiled dry may melt.
•Glazed cooking utensils — Only certain
types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are
suitable for cook top service without
breaking due to the sudden change in
temperature. Check the manufacturer’s
recommendations for cook top use.
•When you are flaming foods under a
ventilating hood, turn the fan on.
Save these instructions for future reference.
6
Important Instructions for Using Your Oven
•Never use your appliance for warming or
heating the room. Doing so may result in
CARBON MONOXIDE poisoning.
•Use care when opening over door, lower
oven door, or warmer drawer (some
models). Stand to the side of the range
when opening the door of a hot oven. Let
hot air or steam escape before you
remove or replace food in the oven.
•Keep oven vent ducts clear. Touching
surfaces in this area when the oven is on
may cause severe burns. Do not place
plastic or heat-sensitive items on or near
the oven vent. These items can melt or
ignite.
•Always handle oven racks when the oven
is cool. Place oven racks in desired
positions while the oven is cool. if a rack
must be moved while the oven is hot, use
extreme caution. Use potholders and
grasp the rack with both hands to reposi-
tion. Do not let potholders contact the hot
heating elements in the oven. Remove all
cookware and utensils before moving the
rack.
•Do not use a broiler pan without its insert.
Broiler pans and inserts allow dripping fat
to drain away from the high heat of the
broiler. Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
•Do not use aluminum foil or other protec-
tive liners to line the oven bottom. Only
use aluminum foil as recommended in this
manual. Improper installation of these
liners may result in risk of electric shock or
fire.
•Do not cook food on the oven bottom.
Always cook in proper cookware and
always use the over racks.
Important Instructions for Cleaning Your
Range
Before manually cleaning any
part of the range, be sure all controls are
turned OFF and the range is cool. Cleaning a
hot range can cause burns
•Clean the range regularly to keep all parts
free of grease that could catch fire. Pay
particular attention to the area around
each burner element. Do not allow grease
to accumulate.
•On models with stainless steel cooktops,
clean with warm soapy water using a
clean sponge or cloth. Rinse with clean
water and dry with a soft clean cloth. Do
not use any store bought cleaners like
stainless steel cleaners or any other types
of cleaners containing any abrasive, chlo-
rides, chlorine, or ammonia. It is recom-
mended to use mild dish soap and water
or a 50/50 solution of water and vinegar.
•Always follow the manufacturer’s recom-
mended directions for use of kitchen
cleaners and aerosols. Be aware that
excess residue from cleaners and aerosols
may ignite causing damage and injury.
•Clean ventilating hoods frequently. Grease
should not be allowed to accumulate on
the hood or filter. Follow the manufac-
turer’s instructions for cleaning hoods.
Self-Cleaning Ovens
•Use the self-clean cycle to clean only the
parts listed in this manual. Before using
self-clean, remove the broiler pan, any
food, utensils, and cookware from the
oven. Remove oven racks unless otherwise
instructed.
•Do not use oven cleaners. No commercial
oven cleaner, oven liner, or protective
coating of any kind should be used in or
around any part of the oven.
•Do not clean the oven door gasket. The
door gasket is essential for a good seal.
Do not rub, damage, or move the gasket.
•Some birds are extremely sensitive to the
fumes given off during the self-clean cycle
of any range. Move birds to another well-
ventilated room.
Save these instructions for future reference.
7

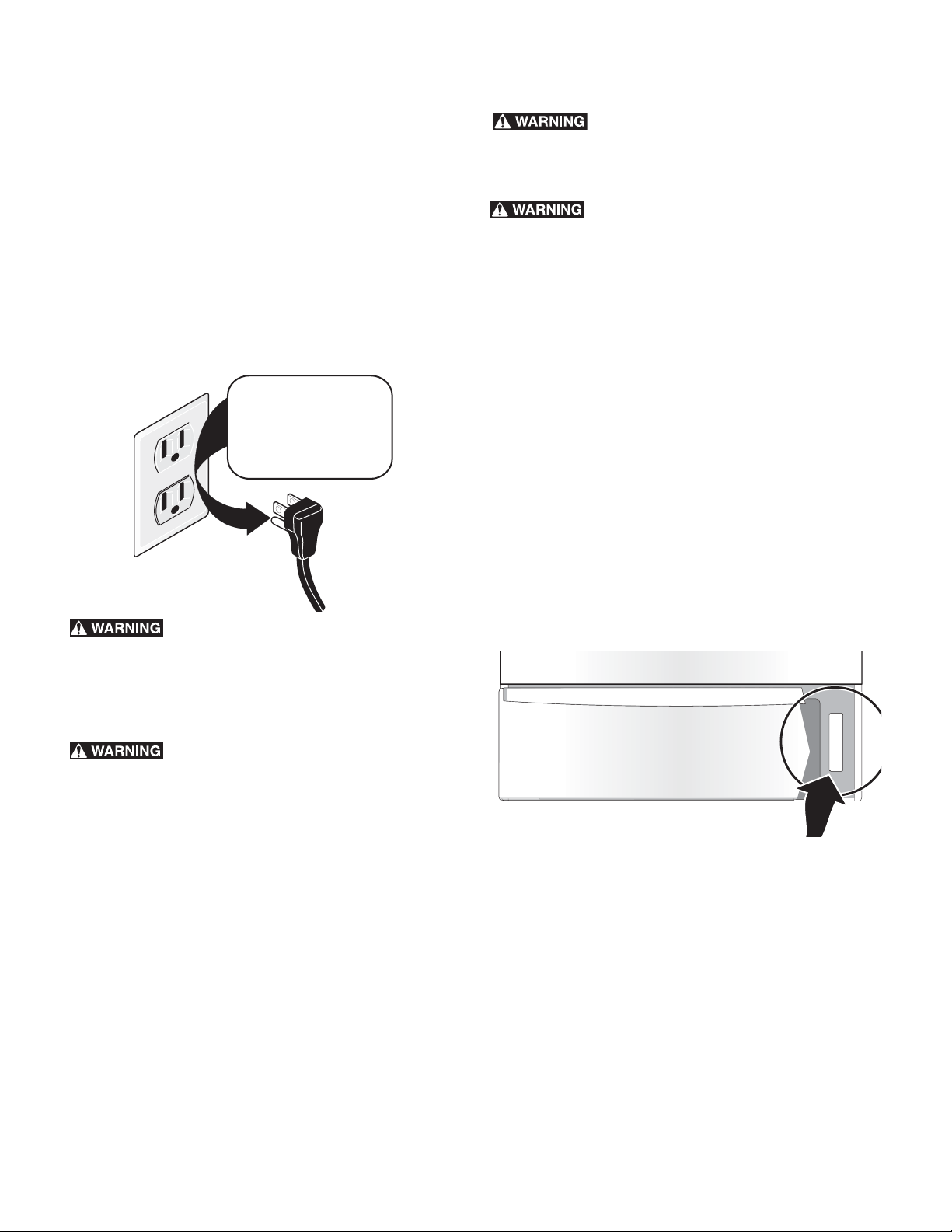

Grounding Instructions
For models factory-equipped with a power
cord:
For personal safety, this appliance must be
properly grounded. For maximum safety, the
power cord must be plugged into an elec-
trical outlet that is correctly polarized and
properly grounded. If a two-prong wall
receptacle is the only available outlet, it is the
personal responsibility of the consumer to
have it replaced with a properly grounded
three-prong wall receptacle installed by a
qualified electrician.
Avoid fire hazard or electrical
shock. Do not use an adapter plug, and
extension cord, or remove grounding prong
from the power cord. Failure to follow this
warning may cause serious injury, fire, or
death.
This appliance is equipped with a
three-prong grounding plug. For your protec-
tion against shock hazard, it should be
plugged directly into a properly grounded
receptacle. Do not cut or remove the
grounding prong from this plug.
See the installation instructions packaged
with this appliance for complete installation
and grounding instructions.
Important note:
This appliance allows for conversion to
Liquefied Petroleum (L.P.) Gas.
Conversion to L.P. Gas
Personal injury or death from
electrical shock may occur if the conversion
to L.P. gas is not made by a qualified
installer or electrician.
Any additions, changes or conver-
sions required in order for this appliance to
satisfactorily meet the application needs must
be made by a qualified technician.
If L.P. conversion is needed, contact your local
L.P. Gas provider for assistance. The L.P.
conversion kit is provided with this appliance
and is located on the lower REAR (back side)
panel of the range. Before installing the kit be
sure to read the L.P. Installation Instructions
and follow them carefully when making the
installation.Product Record
You may find the model and serial number
printed on an identification label. The label is
located on the lower right of the oven frame.
Open the drawer to see the serial label.
Serial Plate Location
To locate the serial plate open storage
drawer (some models) or warmer drawer
(some models). The serial plate is attached to
the lower right oven frame.
Record the date of purchase, model and serial
number of your product in the corresponding space
below..
Model
Number:_________________________________
Serial Number:
________________________________________
Date of Purchase:
________________________________________
Save your sales receipt for future reference.
Do not cut, remove, or
bypass the grounding
plug under any
circumstances.
Grounding type
wall receptacle
Power supply cord
with 3-prong
grounding plug
8
Before Setting Surface Controls
Check burner cap placement before operating the
surface burners
To prevent flare-ups and avoid creation of
harmful by-products, do not use the cooktop without all burner
caps properly installed to insure proper ignition and gas flame
size.
It is very important to be sure that all surface burner caps and
burner grates are properly installed and in the correct locations
BEFORE operating the cooktop burners.
Important:
•Always keep surface burner caps in place whenever using a
surface burner.
•When placing the burner caps, be sure that all burner caps
are seated firmly and rest level on top of burner heads.
•For proper flow of gas and ignition of burners DO NOT
allow spills, food, cleaning agents or any other material to
enter the gas orifice port opening.
•On round style burners, the burner cap lip (Figure 1) should
fit snug into the center of burner head and rest level. Refer
to Figure 2for correct and incorrect burner cap placement.
•Once in place, you may check the fit by gently sliding the
burner cap from side to side (Figure 3) to be sure it is
centered and firmly seated. When the burner cap lip makes
contact inside the center of the burner head you will be
able to hear the burner cap click.
•Please note that the burner cap should NOT move off the
center of the burner head when sliding from side to side.
Check and be sure that all oval style (some models) burner
caps are correctly in place on oval burner heads.

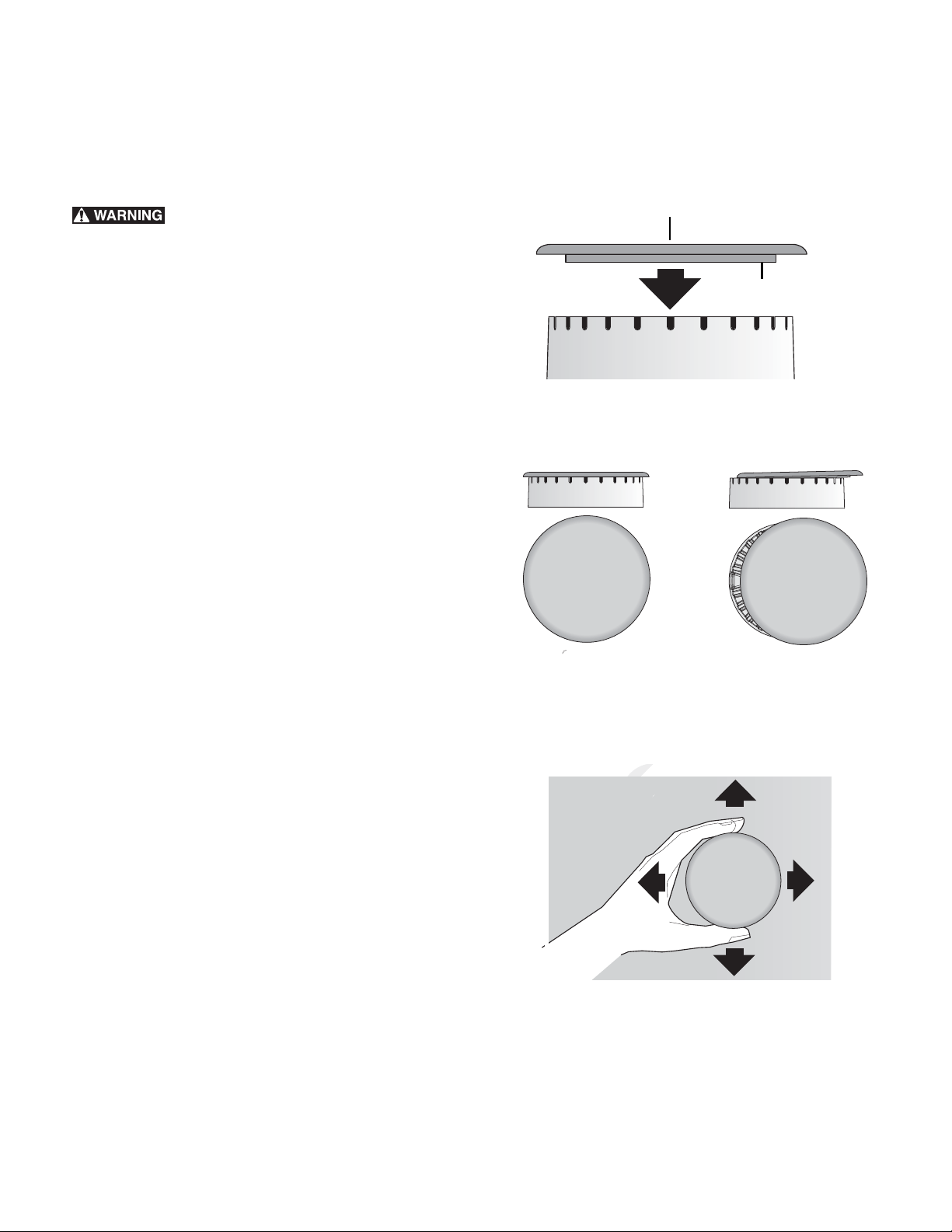

Figure 1: Burner cap on burner head
Figure 2: Correct placement (L) Incorrect placement (R)
Figure 3: Moving cap gently until seated properly
Burner cap lip
Burner cap
Burner head
Correct burner cap
placement
Incorrect burner cap
placement
9

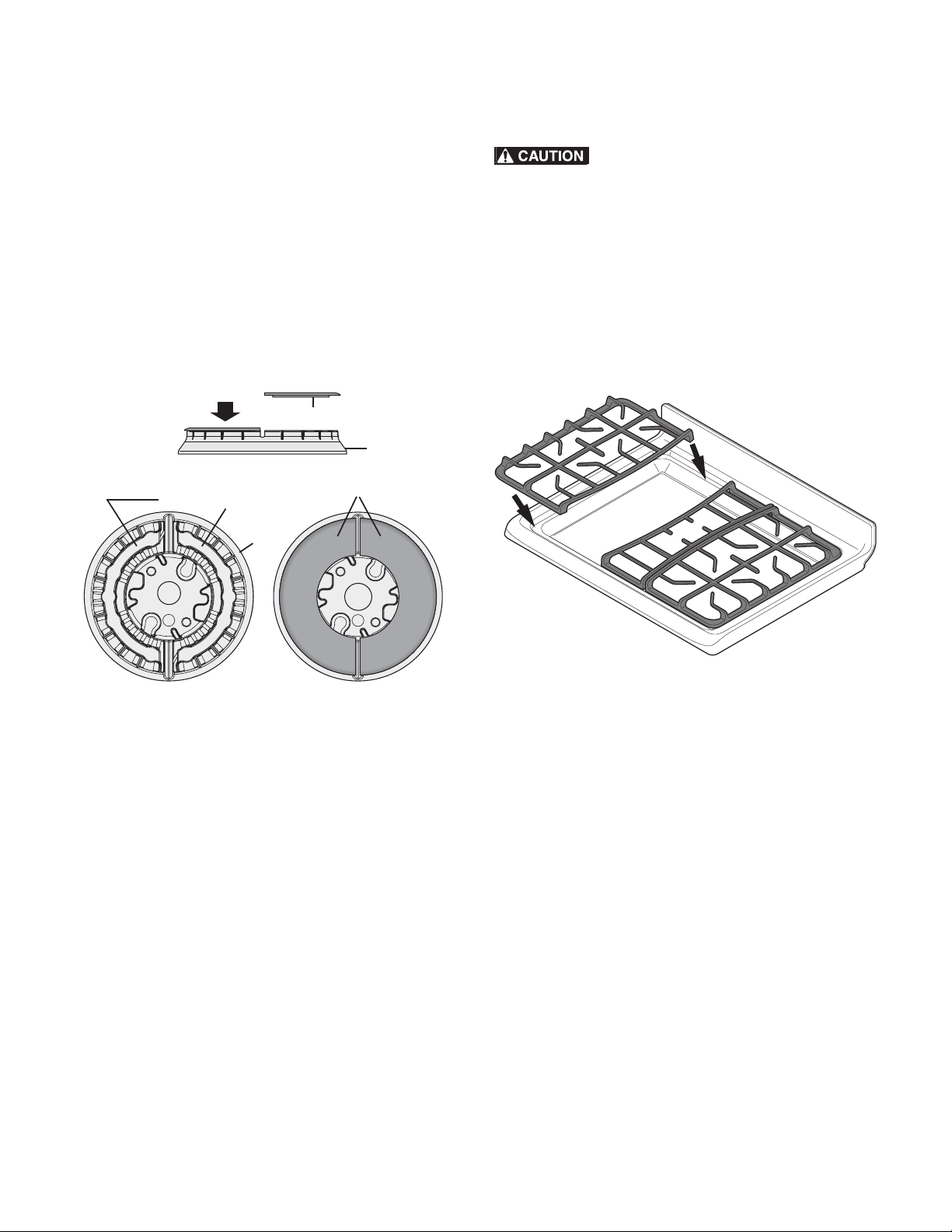

Before Setting Surface Controls
Double Ring style burners (some models)
The Double Ring burner only operates properly with two burner
caps in place. Be sure the burner cap lips are positioned facing
down towards the burner head and into the recessed areas
(Figure 4) on each side of the burner head. Be sure both burner
caps are seated firmly and rest level on the burner head before
operating.
Check the fit for each cap using the same method for the round
burner caps by gently sliding each cap from side to side. Please
note that the burner cap lips should NOT move out of recessed
areas of the burner head.
Installing burner grates
Do not use the surface burners without the
burner caps and burner grates properly installed. Missing pieces
or improper installation may lead to spills, burns, or damage to
your range and cookware.
Make sure the burner grates are properly placed on the cooktop
before using the surface burners. The grates are designed to rest
inside the recess on the cooktop.
To install burner grates, place grates flat-side down and align
into the cooktop recess. Grates should rest flush against each
other and against the sides of the recess.
Figure 4: Dual burner head using two burner caps
Burner cap lip
Burner head
Recessed areas
Dual burner head (some models)
Burner caps
Burner cap
Burner
head
Figure 5: Proper grate installation
10
Before Setting Surface Controls
Using proper cookware
DO NOT place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the range cooktop.
Important: DO NOT place aluminum foil, or ANY
material that can melt on the range cooktop. If these
items melt they may damage the cooktop.
For best cooking results, cookware should have flat bottoms that
rest level on the burner grate. Before using cookware, check for
flatness by rotating a ruler across the bottom of the cookware
(Figure 6).
Please note: The size and type of utensil used, and the amount
and type of food being cooked will influence the burner flame
setting needed for best cooking results.
Cookware material types
The most popular materials available are:
•Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware resists
staining & pitting).
• Copper - Excellent heat conductor but discolors easily.
•Stainless - Slow heat conductor with uneven cooking results.
Is durable, easy to clean and resists staining.
•Cast Iron - A slow heat conductor however will retain heat
very well. Cooks evenly once cooking temperature is
reached.
•Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.
•Glass - Slow heat conductor.
Setting proper burner flame size
Never extend the flame beyond the outer edge
of the cooking utensil. A higher flame wastes energy, and
increases your risk of being burned by the flame.
*These settings are based for medium-weight metal or
aluminum pans with lids. Settings may vary when using other
types of pans.
The color of the flame is the key to proper burner adjustment.
A good flame is clear, blue and hardly visible in a well-lighted
room. Each cone of flame should be steady and sharp. Adjust or
clean burner if flame is yellow-orange.
For most cooking; start on the highest setting and then turn to a
lower setting to complete the process. Use the recommendations
below as a guide for determining proper flame size for various
types of cooking.
For deep fat frying; use a thermometer and adjust the surface
knob accordingly. If the fat is too cool, the food will absorb the
fat and be greasy. If the fat is too hot, the food will brown so
quickly that the center will be under cooked. Do not attempt to
deep fat fry too much food at once as the food will neither
brown or cook properly. .

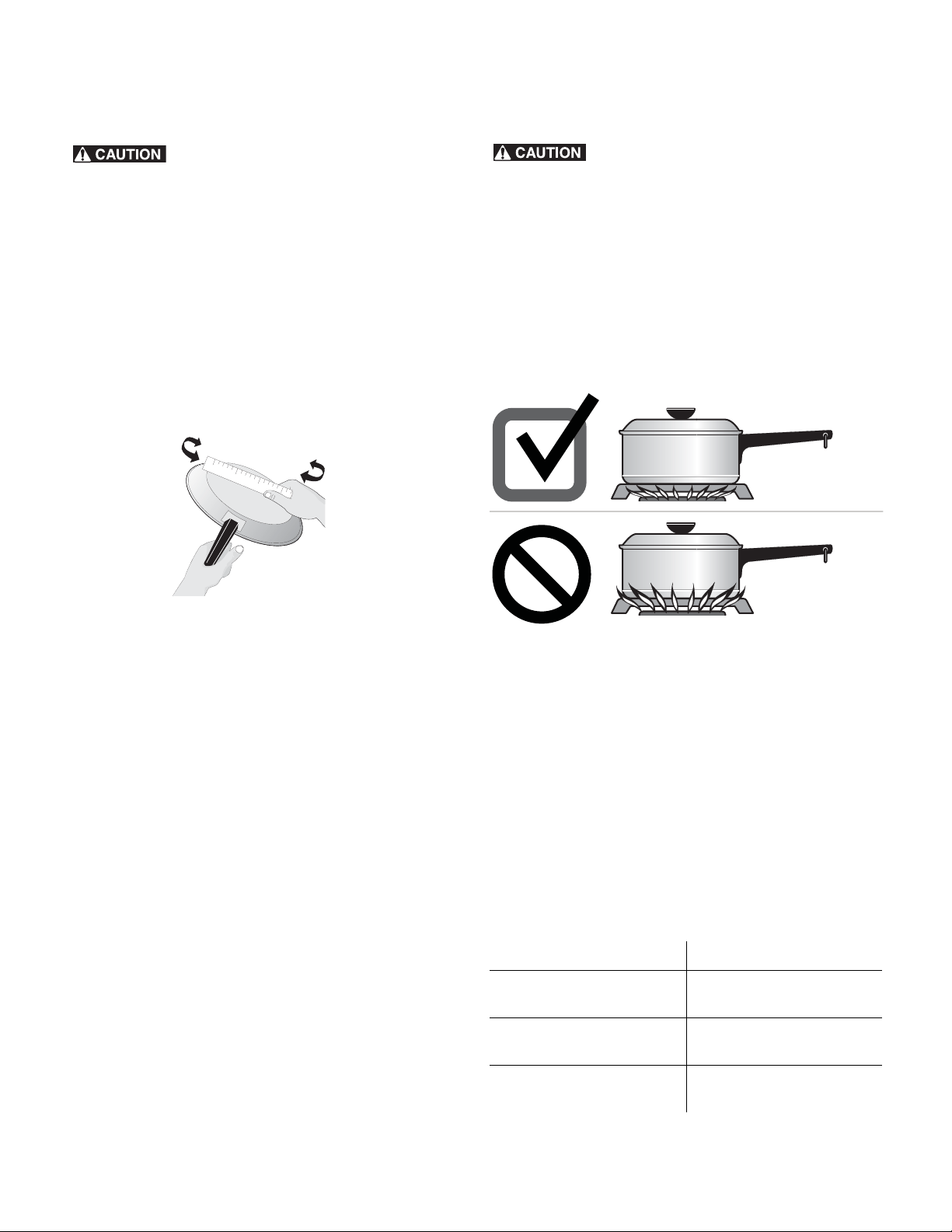

Figure 6: Check for flat bottom cookware
Figure 7: Proper flame size for efficient cooking
Flame size Type of cooking
High flame Start most foods, bring water
to a boil, pan broiling.
Medium flame Maintain a slow boil, thicken
sauces, gravies, steaming.
Low flame Keep foods cooking, poach-
ing, and stewing.
Correct
flame setting
Incorrect
flame setting
11
Setting Surface Burners
Your gas appliance may be equipped with different sized
surface burners. The ability to heat food quicker and in larger
volumes increases as the burner size increases. It is important to
select cookware that is suitable for the amount and type of food
being prepared.
•The smaller SIMMER burner (on some models) is best suited
for simmering delicate sauces, etc.
•The standard size burners may be used for most surface
cooking needs. Some models are equipped with a center
burner.
•The larger POWER burners (on some models) or TURBO
BOIL burner (on some models) are recommended for
bringing large quantities of liquid to temperature and when
preparing larger quantities of food.
To set surface burners:
1. Place cooking utensil on center of surface burner grate. Be
sure the cooking utensil sets stable on the burner grate.
2. Push the desired surface control knob in and turn counter-
clockwise out of the OFF position.
3. Release the surface control knob and rotate to the Lite
position. Visually check that the burner is lit.
4. Once the burner has a flame, push the control knob in and
turn counterclockwise to the desired flame size. Use the
control knob markings and adjust the flame as needed.
Important notes:
•DO NOT cook with the surface control knob left in the Lite
position. The electronic ignitor will continue to spark if the
control knob setting remains in the Lite position.
•When setting any surface control knob to the Lite position,
all electronic surface ignitors will spark at the same time.
However, only the surface burner you are setting will ignite.
•NEVER place or straddle a cooking utensil over 2 different
surface cooking areas at the same time. This can cause
uneven heating results.
•In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner, hold a
lit match to the burner head, then slowly turn the surface
control knob to Lite. After burner lights push in and turn
knob to desired setting.
•When operating the oven, it is possible for residual heat
from the oven to build-up and over time to eventually
transfer to the surface control knobs located directly above
the oven door.
Do not place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the range cooktop.
Do not place aluminum foil, or ANY material
that can melt on the range cooktop. If these items melt they may
permanently damage the cooktop surface.
Home Canning
Be sure to read and observe all the following points when home
canning with your appliance. Check with the USDA (United
States Department of Agriculture) website and be sure to read
all the information they have available as well as follow their
recommendations for home canning procedures.
•Use only quality flat bottom canners when home canning.
Use a straight-edge to check canner bottom.
•Use only a completely flat bottom canner.
•Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner.
•Start with hot tap water to bring water to boil more quickly.
•Use the highest heat setting when first bringing the water to
a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.

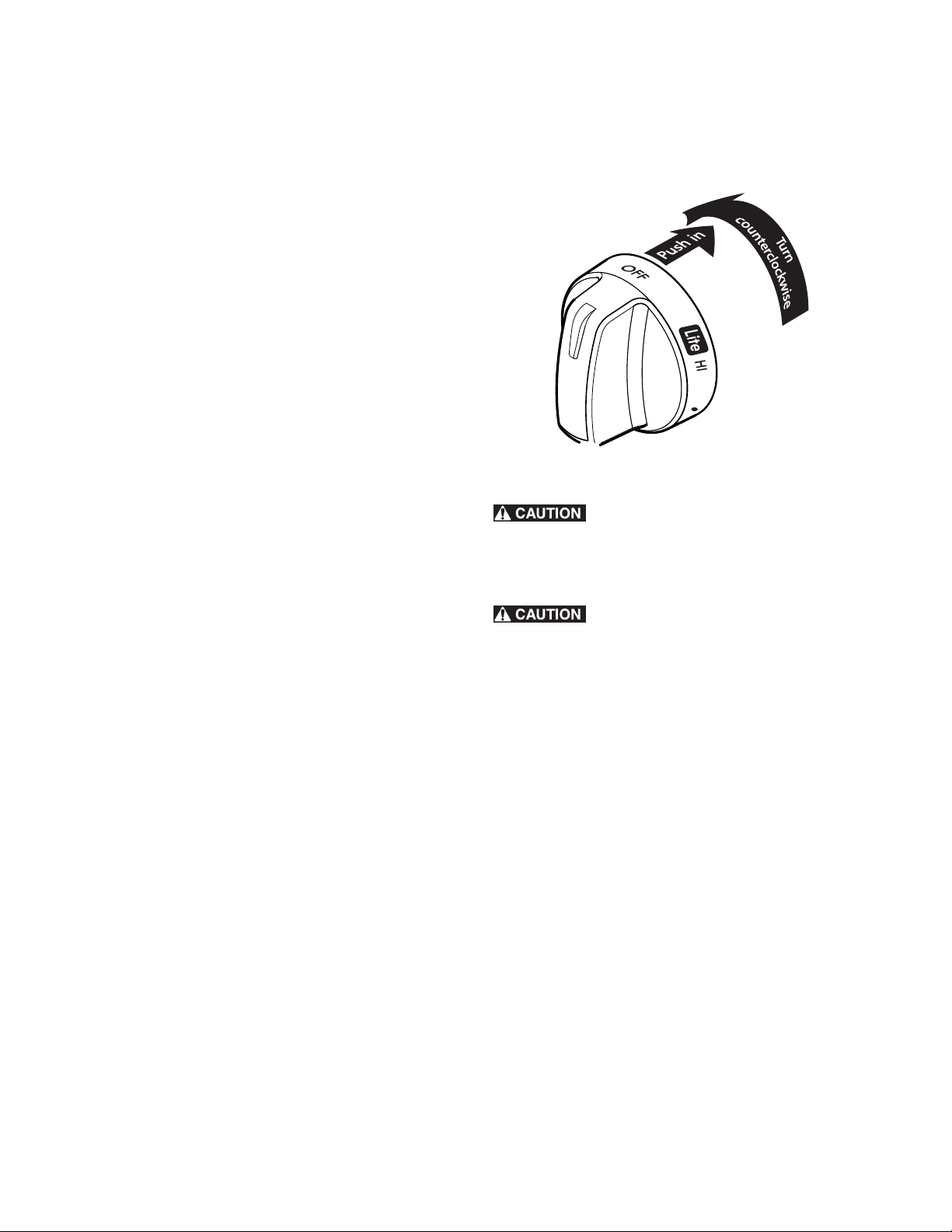

Figure 8: Proper way to set burners
12
Setting Surface Burners
Setting Double Ring Burner (some models)
The versatile Double Ring surface burner offers a complete
range of gas surface settings from the same burner position.
At the lowest setting, only the burner’s inner ring is active,
providing a smaller flame that is perfect for simmering. If
needed, the burner’s outer ring may be added and when set for
HI will provide a gas flame that may be used to bring a large
pan of liquid to boil quickly.
Operating the Double Ring Burner:
1. Push right front surface burner control knob in and turn
counterclockwise out of the OFF position.
2. Release the knob and rotate to the Lite position.
3. Visually check that both inner and outer rings for the
Double Ring burner are lit (Figure 11). Once lit, push in the
control knob and to turn counterclockwise out of the Lite
position and adjust to the desired flame size.
4. When adjusting for a low or simmer type flame setting,
continue to rotate the control knob counterclockwise from
MED setting towards LO (Figure 9). Between the MED and
LO setting the flame for the outer ring portion of the burner
will turn off leaving only the inner burner with a flame for
simmering (Figure 11). Make any further flame adjustments
as needed.
Do not place flammable items such as plastic
salt and pepper shakers, spoon holders or plastic wrappings on
the cooktop when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if placed
too close to the range cooktop.
Do not place aluminum foil, or ANY material
that can melt on the range cooktop. If these items melt they may
permanently damage the cooktop surface.
Important:
•DO NOT cook with the surface control knob left in the Lite
position. The electronic ignitor will continue to spark if the
control knob setting remains in the Lite position.
•When setting any surface control knob to the Lite position,
all electronic surface ignitors will spark at the same time.
However, only the surface burner you are setting will ignite.
•NEVER place or straddle a cooking utensil over two
different surface cooking areas at the same time. This can
cause uneven heating results.
•In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner, hold a
lit match to the burner head, then slowly turn the surface
control knob to Lite. After burner lights push in and turn
knob to desired setting.

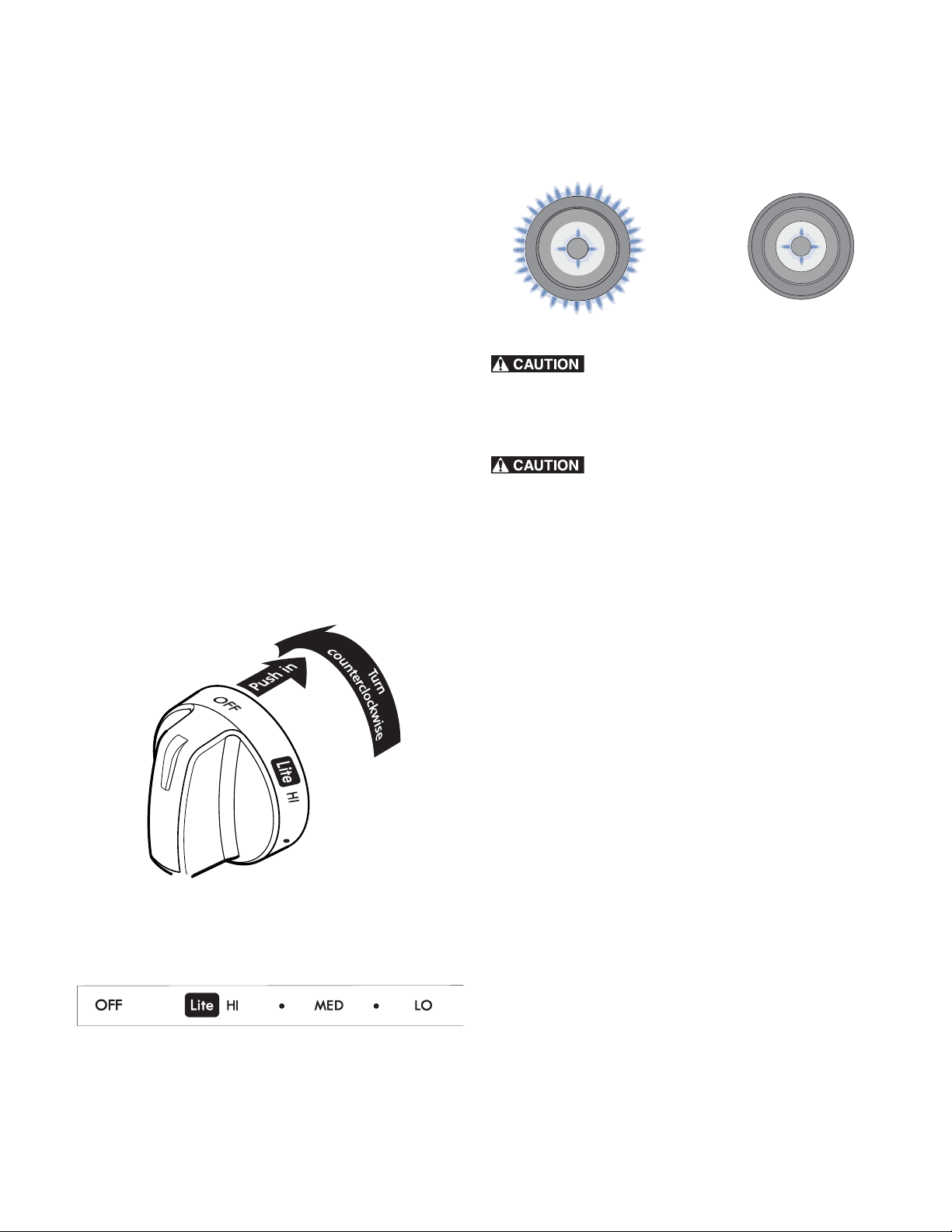

Figure 9: Setting the double ring burner
Figure 10: Burner levels
Figure 11: Burner at highest (L) setting and simmer (R)
13

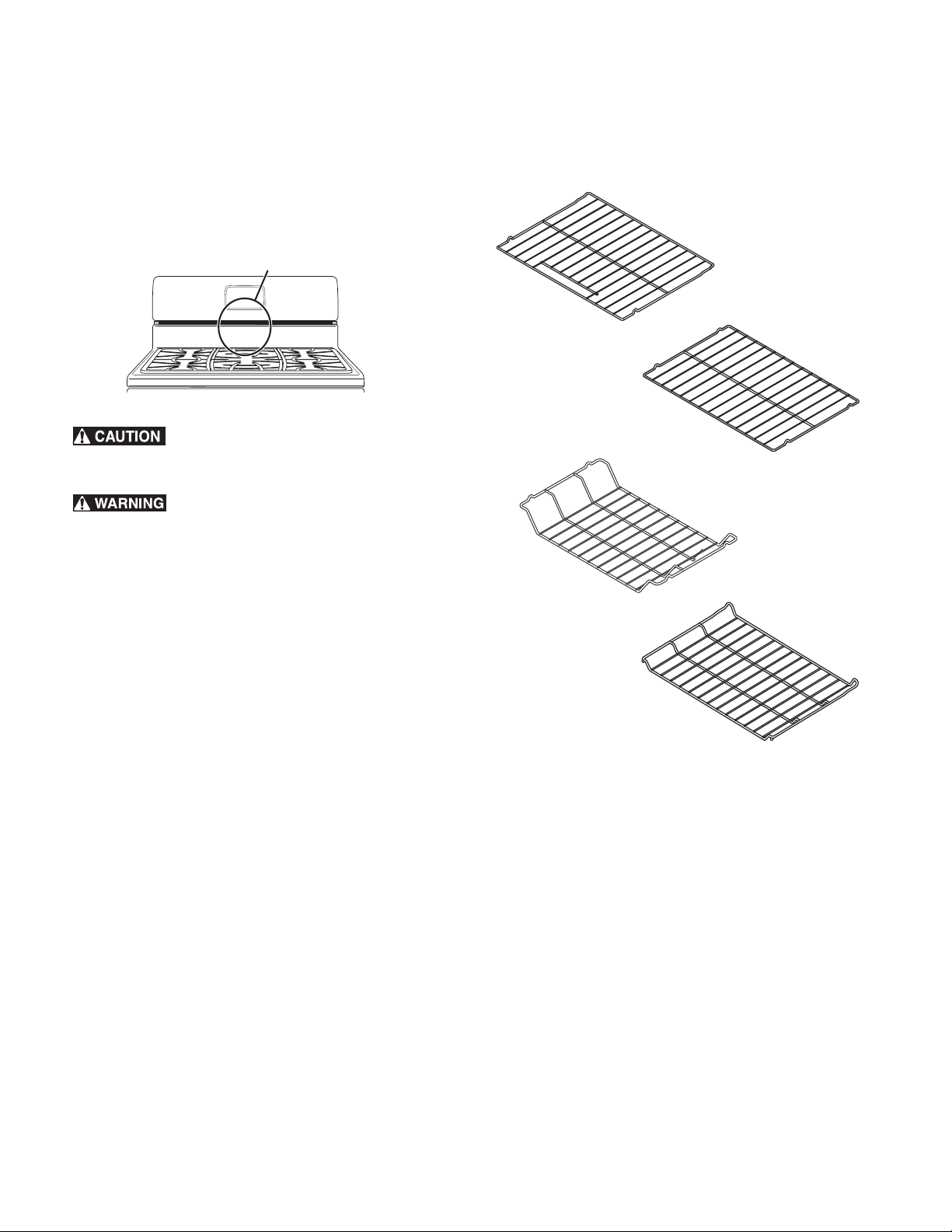

Before Setting Oven Controls
Oven vent location
The oven vent is located under the left side of the control panel.
When the oven is on, warm air passes through this vent. This
venting is necessary for proper air circulation in the oven and
good baking results. Do not block oven vent:
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior and exterior, oven
racks and cooktop will become very hot which can cause burns.
Protective Liners — DO NOT USE ALUMINUM
FOIL to line the oven bottom. Only use aluminum foil as recom-
mended in this manual. Improper installation of these liners may
result in risk of electric shock, or fire
Air circulation in the oven
For best baking results allow 2-4" (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or back
of the oven cavity. Hot air must be able to circulate around the
cookware in the oven for even heat to reach around the food.
Types of oven racks
The flat oven rack (some models) or flat handle oven rack (some
models) may be used for most cooking needs.
The offset oven rack (on some models) is designed to place the
base of the rack about 1/2 of a rack position lower than flat
oven racks. This design allows several additional positions
between the flat rack positions.
To maximize oven cooking space place the bottom oven rack
(on some models) in the lowest rack position for roasting large
cuts of meat.
Figure 12: Oven vent in rear of range top
oven vent
Figure 13: Variety of racks and their uses
oset
oven rack
bottom oven
rack
flat handle
oven rack
at
oven rack
14

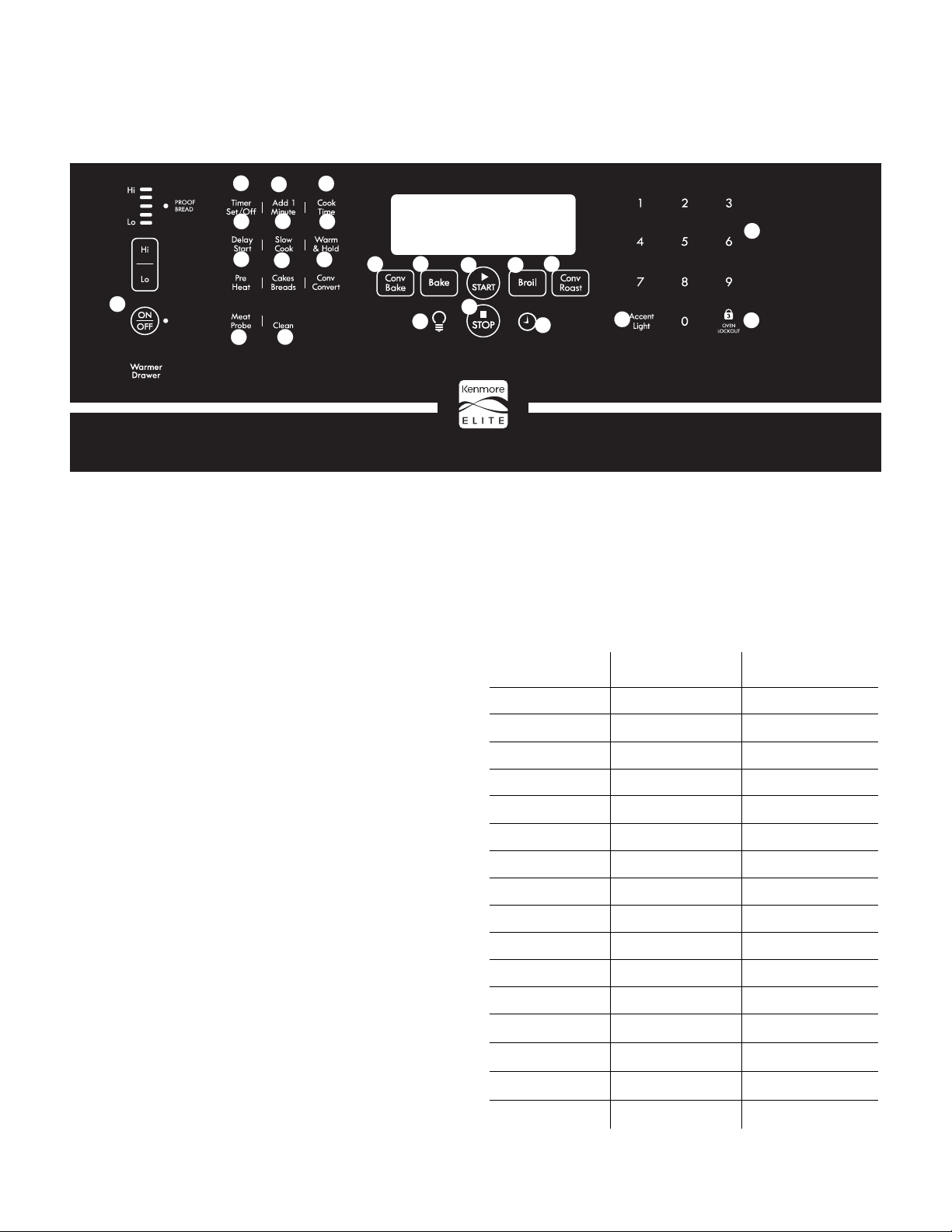

Setting Oven Controls
1. Warmer Drawer - Use to keep cooked foods warm.
2. Timer Set/Off - Use to set or cancel timer.
3. Add 1 Minute - Use to add additional minutes to timer.
4. Cook Time - Use to enter length of cooking time.
5. Delay Start - Use with Bake, Conv bake, Conv Convert and
Self Clean functions to program a delay start.
6. Slow Cook - Use to set Slow Cook function.
7. W a r m & H o l d - Use to select Warm & Hold.
8. Pre Heat - Use to precondition the oven temperature.
9. Cakes Breads - Use for baking cakes and breads.
10. Conv Convert - Use to select Conv Convert function.
11. Meat Probe - Use to set Meat Probe.
12. Self Clean - Use to set a 2 to 4 hour self clean cycle.
13. Conv Bake - Use to select Conv bake function.
14. Bake - Use for normal bake functions.
15. Light - Use to turn oven light On and Off.
16. START - Use to start all oven functions.
17. STOP - Use to cancel any oven function previously entered
except Clock and Timer.
18. Broil - use to set broil function.
19. Conv Roast - Use to select Conv Roast function.
20. Clock - Use to set time of day.
21. Accent Light - Use to turn on Accent Light feature.
22. Oven Lockout - Use to lockout oven functions and door.
23. Numeric Keypad - Use to enter temperatures and times.
Minimum & maximum control settings
All of the features listed have minimum and maximum time and
temperature settings that may be entered into the control. An
ENTRY acceptance beep will sound each time a key is touched
(the Oven Lockout key is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound if the entry of
the temperature or time is below the minimum or above the
maximum settings for the feature
Self
1
234
567
8910
11 12
13
15
16
17
18 19
20 21 22
23
14
Feature Min. Temp or Time Max. temp. or time
PreHeat 170°F / 77° C 550°F / 288°C
Bake 170°F / 77°C 550°F / 288°C
Broil 400°F / 205°C 550°F / 288°C
Timer 1 Min 11 Hrs. 59 Mins.
Self Clean 2 Hours 4 Hours
Conv Bake 300°F / 148° C 550°F / 288°C
Conv Convert 300°F / 148° C 550°F / 288°C
Conv Roast 300°F / 148° C 550°F / 288°C
Slow Cook Lo (225 °F / 108°C) Hi (275°F / 134°C)
Cook Time 1 Min. 11:59
Delay Time 12 Hr. 1:00 12:59
Delay Time 24 Hr. 0:00 23:59
Clock 12 Hr. 1:00 12:59
Clock 24 Hr. 0:00 23:59
Warm & Hold 170°F / 77°C 3:00
Warmer Drawer 150°F / 65°C 190°F / 88°C
15

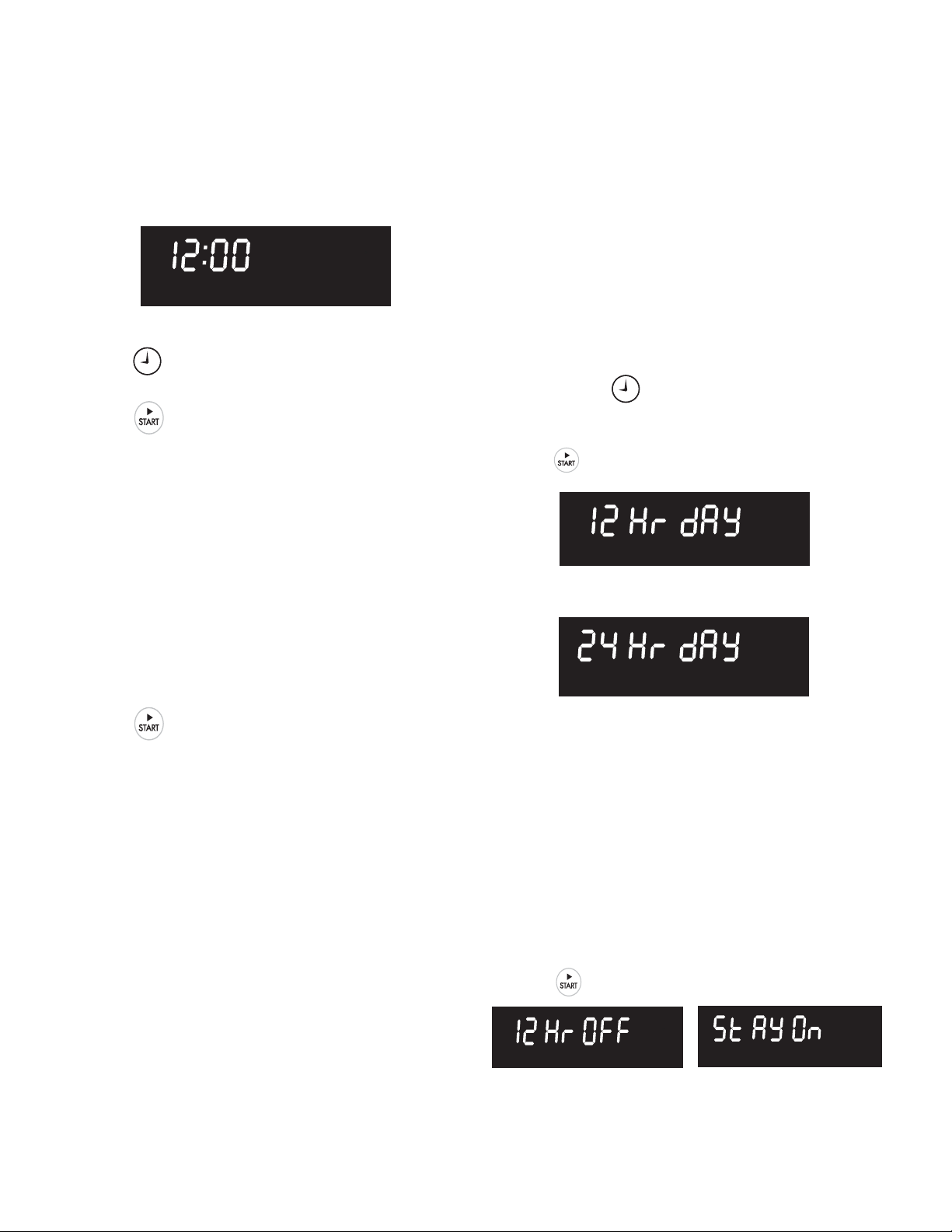

Setting Oven Controls
Setting the Clock
When the appliance is first powered up, 12:00 will flash in the
display (Figure 14). The time of day must first be set before
operating the oven.
1. Press .
2. Enter 1 3 0 using numeric keys.
3. Press
Important note:
The clock cannot be changed when a Cook Time, Self Clean,
Delay Start or cooking feature is active.
Setting Timer
The minute timer lets you to track your cooking times without
interfering with the cooking process. The timer may be set
between 1 minute and 11 hours and 59 minutes.
To set timer for 5 minutes:
1. Press Timer Set/Off.
2. Enter 5 using numeric keypad
3. Press to start timer.
To cancel the timer when active press Timer Set/Off again.
Important note:
•The timer does not start or stop the cooking process. It
serves as an extra minute timer in the kitchen that will beep
when the set time has run out. The timer may be used alone
or while using any of the other oven functions.
•The timer will display hours and minutes until 1 hour
remains. When less than 1 hour remains, the display will
count down in minutes and seconds. Once the timer has less
than 1 minute remaining only seconds will display.
•When the timer is active during a cooking process, the
minute timer will show in the display. To view the informa-
tion of any other active oven function, press the key once
for the other function to view the status.
Add 1 Minute
Use Add 1 Minute to set additional minutes to the timer. Each
press of the key will add 1 additional minute. If Add 1 Minute is
pressed when the timer is not active, the timer will activate and
begin counting down from 1 minute.
To add 2 minutes to the timer:
Press Add 1 Minute twice.
Setting 12 or 24 hour display mode
The clock display allows a choice between 12 or 24 hr modes.
The factory pre-set clock display mode is 12 hours.
To set 12 or 24 hour display mode:
1. Press and hold for 6 seconds.
2. Press Self Clean to toggle between 12 Hr day or 24 Hr day
display modes.
3. Press to accept choice.
Changing between continuous bake setting or 12-Hour
Energy Saving feature
The oven control has a factory preset built-in 12 Hour Energy
Saving feature that will turn off the oven if the oven is left on for
more than 12 hours. The control may be programmed to
override this feature to continuously bake. To change between
continuous bake or 12-Hour Energy Saving feature:
1. Press and hold Timer Set/Off for 6 seconds
2. Press Self Clean to toggle between 12 Hour OFF or Stay On
feature.
3. Press to accept choice
Figure 14: Display showing 12:00 when oven is first powered up
Figure 15: Clock set for 12 hour operation
Figure 16: Clock set for 24 hour operation
Figure 17: 12 Hour operation Figure 18: Continuous operation
16
Setting Oven Controls
Changing oven temperature display
The oven control is preset to display °F (Fahrenheit) when
shipped from the factory. The control can be changed to display
either Fahrenheit or Celsius.
To change the display to °C (Celsius) or °F (Fahrenheit):
1. Press and hold Broil for 6 seconds.
2. Press Self Clean to toggle between Fahrenheit (F) and
Celsius (C) temperature display modes.
3. Press to accept choice.
Important note:
The oven temperature display cannot be changed when cooking
or if Self Clean is active.
Setting silent or audible control mode
Silent mode allows the oven control to operate without audible
tones. The control may be programmed for silent operation and
later returned to operating with all the normal audible tones.
To set for silent or audible mode:
1. Press and hold Delay Start for 6 seconds.
2. Press Self Clean to toggle between bEEP On or bEEP OFF.
3. Press to accept choice.
Oven Lockout
The control may be programmed to lock the
oven door and lock the oven control keys.
To activate the oven lockout features:
1. Be sure oven door is completely closed.
2. Press and hold for 3 seconds. door Loc will appear in
the display (Figure 23). The motor driven door latch
mechanism will begin locking the oven door automatically.
Do not open the oven door. Allow about 15 seconds for the
oven door to completely lock. Once door is locked, the Loc
will appear in the display. (Figure 24)
Figure 19: Fahrenheit setting Figure 20: Celsius setting
Figure 21: Audible operation Figure 22: Silent operation
Figure 23: Door locking Figure 24: Door locked
To cancel the oven lockout feature:
1. Press and hold for 3 seconds. The motor door latch
will begin unlocking the oven door automatically. Do not
open the oven door. Allow about 15 seconds for the oven
door to completely unlock.
2. When the Loc message no longer displays, the oven door
may be opened and the oven control keys will be available
for use.
Important note:
•To avoid possible damage to the oven door latching mecha-
nism, do not attempt to open or close the oven door
whenever the door Loc message is displayed.
•If a control key is pressed when OVEN LOCKOUT is active,
the control may triple beep indicating the function is not
available when the OVEN LOCKOUT feature is active.
17
Setting Oven Controls
Setting Preheat
For best baking performance use the Preheat feature. The
Preheat feature will bring the oven up to the set cooking temper-
ature. A reminder tone will sound indicating when the set
temperature is reached and to place the food in the oven.
When the oven is finished preheating the preheat feature will
perform like the Bake feature and continue to maintain the oven
set temperature until cancelled.
Preheat may be set for any oven temperature between 170°F
(77°C) to 550°F (288°C).
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior, oven exterior, oven
racks and cooktop will become very hot which can cause burns.
To set Preheat with default oven temperature of 350°F:
1. Press PreHeat.
2. Press .
To cancel preheating at anytime press
1. Press PreHeat.
2. Press 4 5 0 using numeric keypad.
3. Press .
To cancel preheating at any time press .
Important note:
•When setting Bake or any cooking feature that preheats the
oven (except Broil), the Convection fan will turn on after 6
minutes and stay on until the oven reaches set temperature.
•Preheating is not necessary when roasting or cooking casse-
roles.
Setting Bake
Use the bake feature whenever the recipe calls for baking using
normal temperatures. A reminder tone will sound indicating
when the set bake temperature is reached and to place the food
in the oven.
Bake may be set for any oven temperature between 170°F
(77°C) to 550°F (288°C).
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior, oven exterior, oven
racks and cooktop will become very hot which can cause burns.
To set Bake with default temperature of 350°F:
1. Press Bake.
2. Press .
To cancel Bake at anytime press .
To set Bake for oven temperature of 425°F:
1. Press Bake.
2. Enter 4 2 5 using numeric keypad.
3. Press .
To cancel Bake at any time press .
Baking tips:
•Dark or dull pans and glass absorb more heat than shiny
bakeware resulting in dark or over browning of foods. To
prevent this it may be necessary to reduce the oven temper-
ature or cook time to prevent over browning of some foods.
Dark pans are recommended for pies. Shiny pans are
recommended for cakes, cookies and muffins.
•Do not open the oven door too often. Opening the door will
reduce the temperature in the oven.

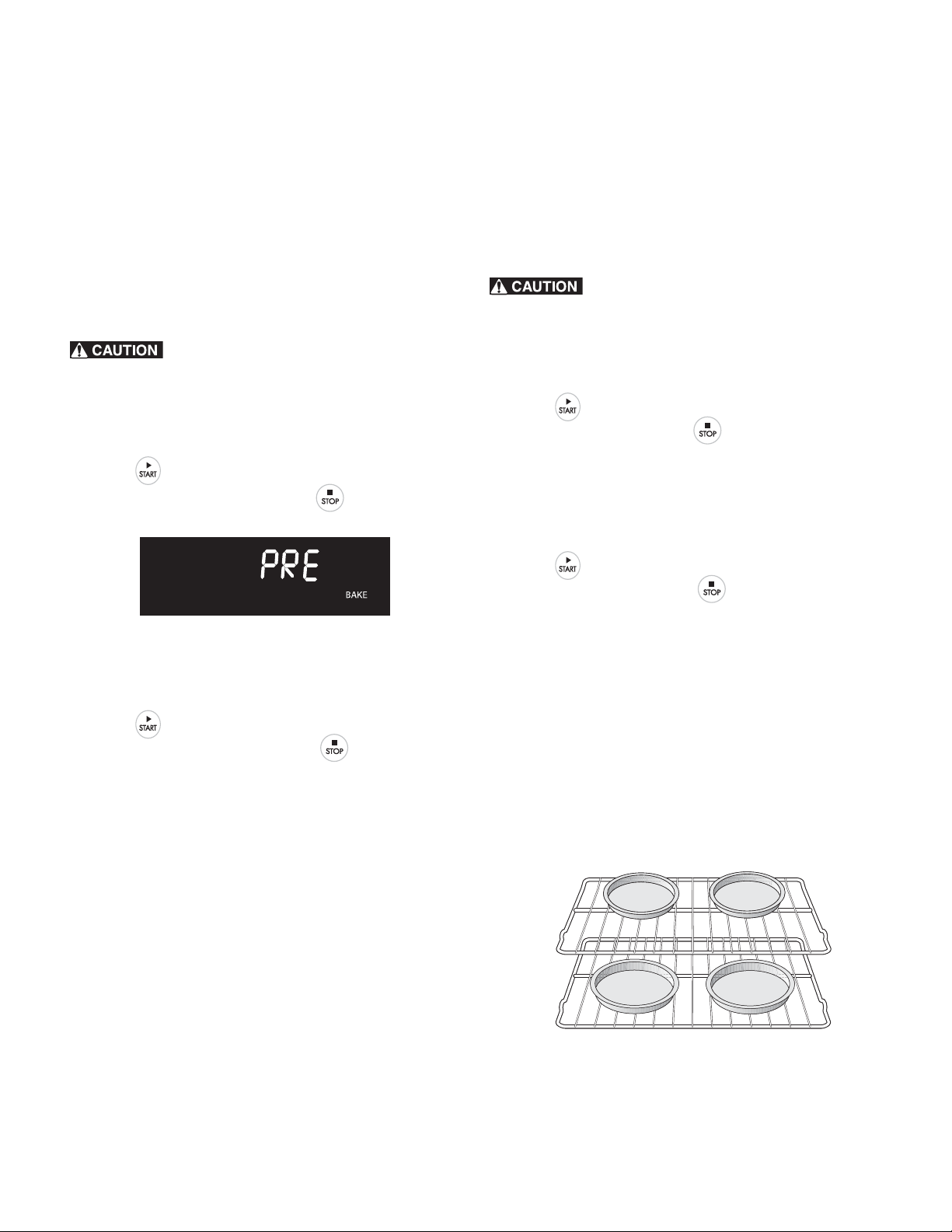

Figure 25: Oven in preheat mode for baking
Figure 26: Pans spaced for more even baking
18
Setting Oven Controls
Setting Cook Time
Use Cook Time to program the oven control to automatically
turn the oven function off after a desired length of time.
To program oven to Bake with oven default temperature of
350°F and to shut-off after 30 minutes:
1. Press Cook Time.
2. Enter 3 0 using numeric keys.
3. Press to accept.
4. Press Bake.
5. Press .
When the programmed cook time ends:
1. End will appear in the display window and the oven will
shut-off automatically.
2. The oven control will beep 3 times every 30 seconds as a
reminder until is pressed.
Important note:
•The Cook Time feature may be set with Bake, Conv Bake,
Conv Roast, Slow Cook and Preheat. Cook Time or Delay
Start will not operate with the Broil function.
•The maximum default Cook Time setting is 11 hours and 59
minutes.
•After the Cook Time feature is activated, press Cook Time to
display any cook time remaining.
•Dark or dull pans and glass absorb more heat than shiny
bakeware resulting in dark or over browning of foods. To
prevent this it may be necessary to reduce the oven temper-
ature or cook time to prevent over browning of some foods.
Dark pans are recommended for pies. Shiny pans are
recommended for cakes, cookies and muffins.
•Do not open the oven door too often. Opening the door will
reduce the temperature in the oven.
Setting Delay Start
Delay Start sets a delayed starting time to oven cooking or
cleaning functions. Prior to setting a delay start, be sure the time
of day is set correctly.
FOOD POISONING HAZARD. Do not let food
sit for more than one hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
To program oven for a Delay Start beginning at 5:30, to shut-off
automatically after 50 minutes and for baking at 375°F:
1. Press Cook Time.
2. Enter 5 0 using numeric keypad.
3. Press to accept.
4. Press Delay Start.
5. Enter 5 3 0 using numeric keys.
6. Press to accept.
7. Press Bake.
8. Enter 3 7 5 using numeric keys.
9. Press .
When the programmed cook time ends:
1. End will appear in the display window and the oven will
shut off automatically. (Figure 27)
2. The oven control will beep 3 times every 30 seconds as a
reminder until is pressed.
Important note:
•Delay Start may be set using a 24 hour clock. See “Setting
12 or 24 hour display mode” for more information.
•The Delay Start feature may be used with the Conv Bake,
Conv Roast, Conv Convert, Bake, Slow Cook and Preheat
functions and Self Clean. Delay Start or Cook Time will not
operate with the Broil function.
Figure 27: End of baking function
19
Setting Oven Controls
Setting Conv Bake
Benefits of the convection bake feature:
•Foods may cook up to 25 to 30% faster, saving time and
energy.
•Multiple rack baking.
Convection functions use a fan to circulate the oven heat
uniformly and continuously around the oven. This improved heat
distribution allows for fast, even cooking and browning results. It
also gives better baking results when using two oven racks at the
same time.
Heated air flows around the food from all sides, sealing in juices
and flavors. Breads and pastry brown more evenly.
Most food items will cook faster and more evenly with the
convection feature.
Conv Bake may be set for any oven temperature between 300°F
(148°C) to 550°F (288°C).
Suggestions for Convection baking:
•For optimum cooking results it is recommended to preheat
the oven when baking foods such as cookies, biscuits and
breads.
•Reduce oven temperature 25°F from recipe’s recommended
oven temperature. Follow the remainder of the recipe’s
instructions using the minimum recommended cook time.
•For best results when using a single oven rack, place rack in
position 3 or 4 (Figure 28). When using 2 oven racks, place
in positions 3 & 5. When using 3 oven racks place in
positions 2, 4, & 6 (use offset rack only in position 6).
To set Conv Bake with a default oven set temperature of 350°F:
1. Press Conv Bake.
2. Press .
To cancel Conv Bake at any time press .
•The convection fan will begin rotating 6 minutes after Conv
Bake, Conv Roast or Conv Convert has been activated.
•If the oven door is opened when any convection function is
active, the convection fan will stop rotating until the oven
door is closed.
•When using Conv Bake cook time reductions may vary
depending on the amount and type of food being cooked.
•Dark or dull pans and glass absorb more heat than shiny
bakeware resulting in dark or over browning of foods. To
prevent this it may be necessary to reduce the oven temper-
ature or cook time to prevent over browning of some foods.
Dark pans are recommended for pies. Shiny pans are
recommended for cakes, cookies and muffins.
•Do not open the oven door too often. Opening the door will
reduce the temperature in the oven.

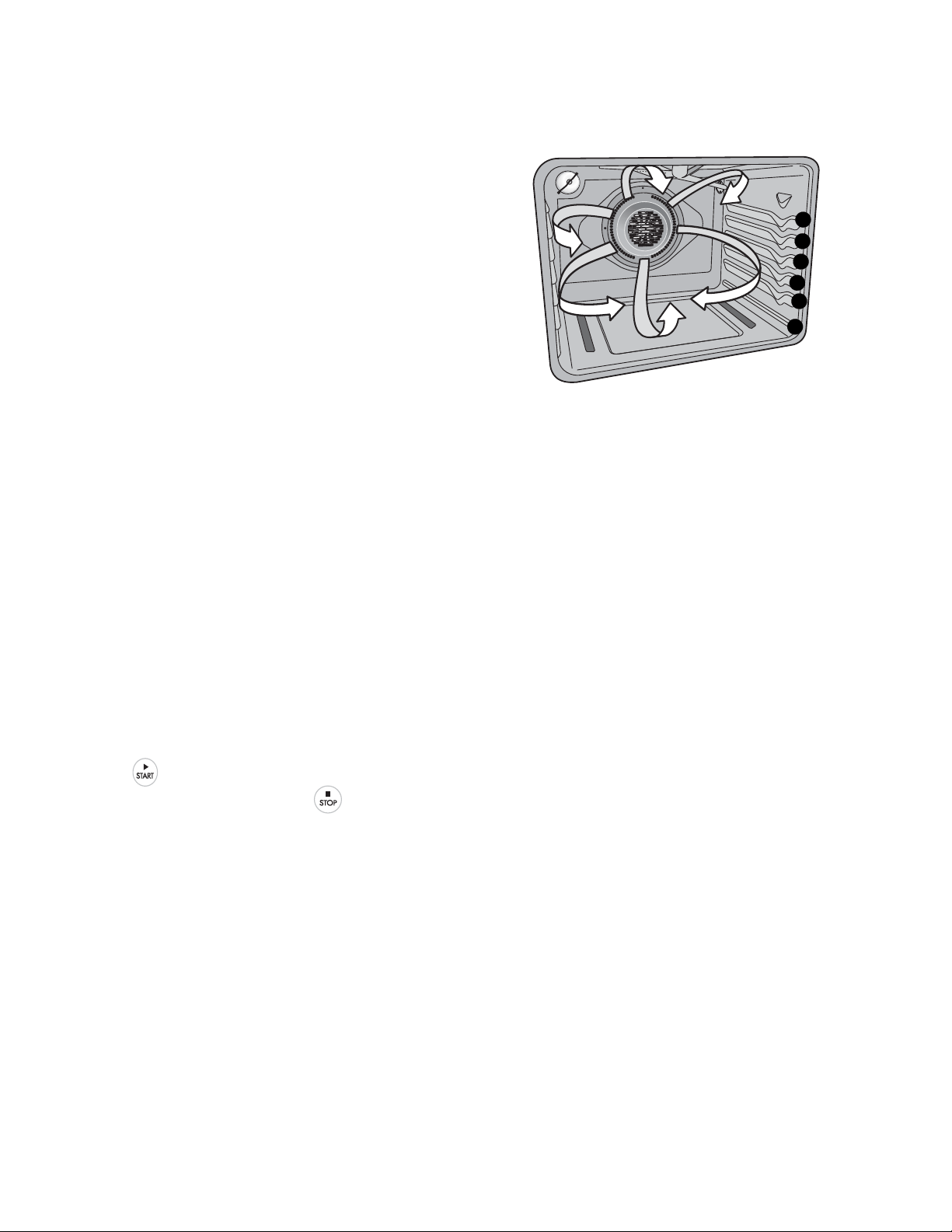

Figure 28: Oven rack positions and air circulation
1
2
3
4
5
6
20
Setting Oven Controls
Setting Conv Convert
The Conv Convert function makes it easy to convert any baking
recipe using the convection feature. The oven control uses the
normal recipe settings and adjusts to a lower temperature for
convection baking.
When Conv Convert is used with a Delay Start setting, the Conv
Convert function will display a CF message (Figure 29) as a
reminder to check food when the bake time is 75% complete. At
this time the oven control will sound 1 long beep at regular
intervals until the set cook time has finished.
3. Press Conv Convert.
To cancel Conv Convert at any time press .
To program oven for Conv Convert with oven default tempera-
ture of 350°F and to shut-off after 30 minutes:
1. Press Conv Bake.
2. Press to accept.
3. Press Cook Time.
4. Enter 3 0 using numeric keys.
5. Press to accept.
6. Press Conv Convert.
To cancel Conv Convert at any time press .
Important note:
•Conv Convert may only be used with the Conv Bake
function and with 20 minutes as the minimum amount of
Cook Time for using the Conv Convert function.
•When using Conv Convert function Cook Time reductions
may vary depending on the oven set temperature.
•The convection fan will begin rotating once Conv Bake,
Conv Roast or Conv Convert has been activated.
•If the oven door is opened when any convection function is
active, the convection fan will stop rotating until the oven
door is closed.
Setting Conv Roast
The Conv Roast function combines a cook cycle with the convec-
tion fan to roast meats and poultry. Meats cooked with Conv
Roast function will be juicer and poultry will be crisp on the
outside while staying tender and moist on the inside.
Conv Roast may be set for any oven temperature between
300°F (148°C) to 550°F (288°C).
Suggestions for Conv Roast:
•Preheating is not necessary when roasting foods using Conv
Roast.
•Since Conv Roast cooks food faster, reduce the cook time
by 25% from the recommended cook time of your recipe
(check the food at this time). If necessary, increase cook
time until the desired doneness is obtained.
•Do not cover foods when dry roasting - this will prevent the
meat from browning properly.
To set Conv Roast with a default oven set temperature of 350°F:
1. Press Conv Roast.
2. Press .
To cancel Conv Roast at any time press .
Important note:
•The convection fan will begin rotating 6 minutes after Conv
Bake, Conv Roast or Conv Convert has been activated.
•If the oven door is opened when any convection function is
active, the convection fan will stop rotating until the oven
door is closed.
Figure 29: Check food reminder
21
Setting Oven Controls

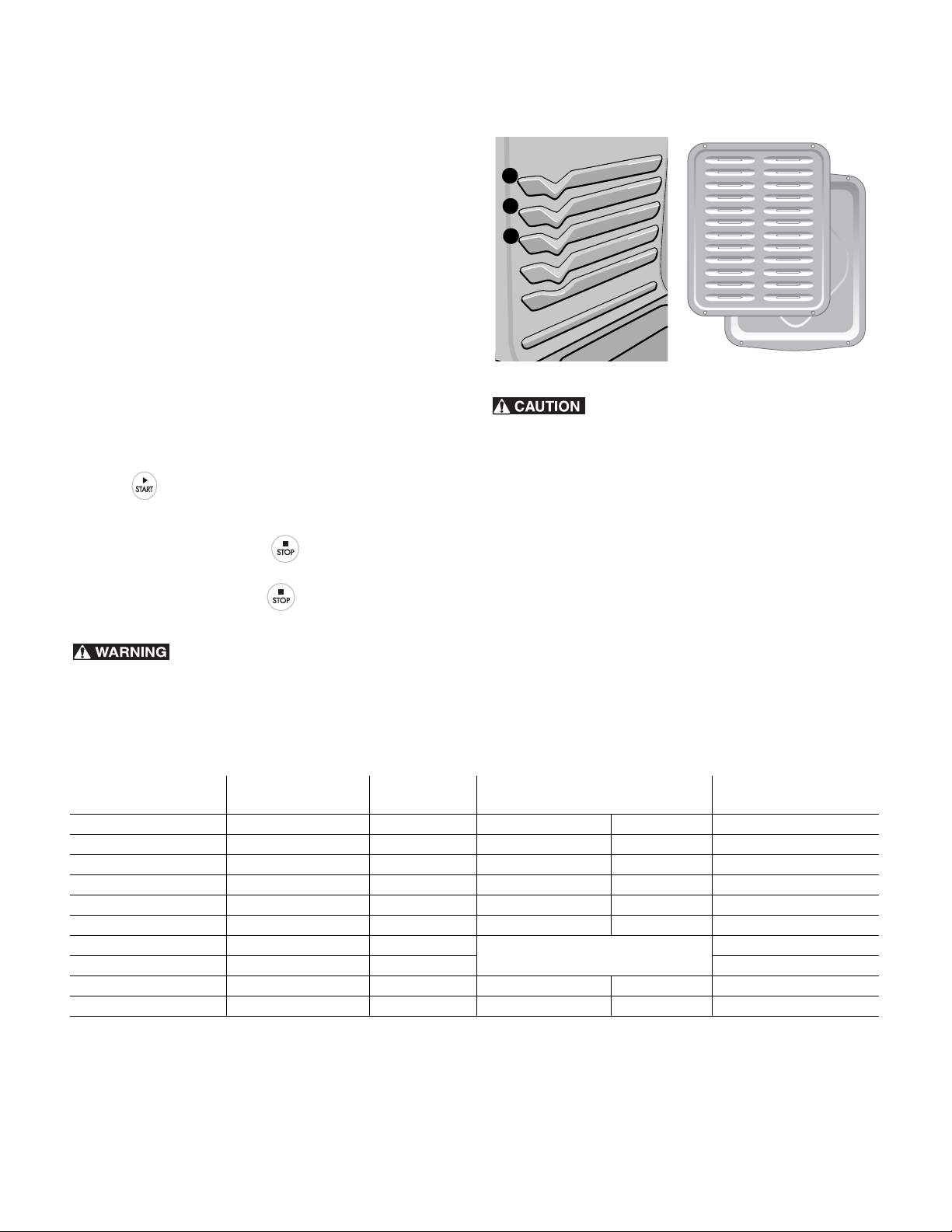

Setting Broil
Use the broil function to cook meats that require direct exposure
to radiant heat for optimum browning results. The Broil feature is
factory preset to broil at 550°F. The Broil function temperature
may be set at any temperature between 400°F (205°C) and
550°F (288°C).
Be aware that the suggested broil settings table (Table 1)
provide recommendations only. Increase or decrease broiling
times, or move to a different rack position to suit for doneness. If
the food you are broiling is not listed in the table, follow the
instructions provided in your cookbook and watch the item
closely.
To set Broil with the default broil oven temperature of 550°F:
1. Arrange the oven racks when cool. For optimum browning
results, preheat oven for 5 minutes before adding food.
2. Position cookware in oven. Close door before broiling.
3. Press Broil.
4. Press .
5. Broil on one side until food is browned; turn an broil other side
until done to your satisfaction.
6. When finished broiling press .
To cancel Broil at any time press .
Should an oven fire occur, close the oven door
and turn the oven OFF. If the fire continues, use a fire extin-
guisher. DO NOT put water or flour on the fire. Flour may be
explosive
Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior, exterior, oven
racks and cooktop will become very hot which can cause burns.
Important note:
•Always arrange oven racks when oven is cool.
•For best results when broiling, use quality broil pan along
with a broil pan insert. A broil pan is designed to drain the
fat from food, helping to reduce smoking and avoid
splatter.
•When broiling, always pull the oven rack out to the stop
position before turning or removing food.
•Cook Time or Delay Start will not operate with the Broil
function.
Figure 30: Broil rack positions (L) Broil pan and insert (R)
6
5
4
Table 1: Suggested broil settings
Food Rack Position Setting Cook Time in minutes
1st side 2nd side Doneness
Steak 1” thick 5th or 6th 550°F 64 Medium
Steak 1” thick 5th or 6th 550°F 7 5 Medium-well
Steak 1” thick 5th or 6th 550°F 87 Well
Pork chops 3/4” thick 5th 550°F 86 Well
Chicken (bone in) 4th 450°F 20 10 Well
Chicken (boneless) 5th 450°F 86 Well
Fish 5th 550°F - as directed -
- as directed -
Well
Shrimp 5th 550°F Well
Hamburger 1” thick 6th* 550°F 97 Medium
Hamburger 1” thick 5th 550°F 10 8 Well
* Use the off-set rack only in rack position 6.
22
Setting Oven Controls
Cakes Breads
The Cakes Breads functions are designed to give optimum
baking performance for Cakes or Breads. These functions work
well for baking cakes, brownies, pies (fresh or frozen), baked
custards, cheesecakes, breads, rolls, biscuits, muffins and corn-
bread.
The Cakes function provides a preheat with a gentle cycling of
heat giving cakes more volume and allowing delicate foods to
cook more evenly.
The Breads function adds a special preheat feature to the bake
cycle that thoroughly heats the oven from top to bottom to give
more evenly browned foods.
To set the Cakes or Breads features with a default temperature
of 350°F:
1. Arrange interior oven racks when cool. Preheat oven as
desired and place food in oven.
2. For Cakes, press the Cakes Breads until CAKES appears in
the oven control display.
For Breads, press the Cakes Breads until BREADS appears in the
oven control display
3. Press .
Important note:
•Dark or dull pans and glass absorb more heat than shiny
bakeware resulting in dark, over browned, or under cooked
foods. To prevent this it may be necessary to reduce the
oven temperature or cook time of some foods.
•Do not open the oven door too often. Opening the door will
reduce the temperature in the oven.
•Breads will have better results baking on a single oven rack.
•Layer cakes will have best results using the Cakes function.
Baking layer cakes with 1 or 2 oven racks
For best results when baking cakes or cookies using 2 oven
racks, place cookware on rack in positions 3 and 5 (6 if using
the offset oven rack). For best results when baking cakes or
cookies using a single oven rack, place offset oven rack in
positions 3 or 4.
Meat Probe
When cooking meat such as roasts, hams or poultry, use the
meat probe function to check the internal temperature without
any guesswork. For some foods, especially poultry and roasts,
testing the internal temperature is the best method to insure
properly cooked meats.
Important note:
•Use ONLY the meat probe supplied with appliance. Using
any other probe or device may result in damage to
appliance and the meat probe receptacle.
•Never leave or store meat probe inside oven.
•Handle the meat probe carefully when inserting and
removing from food or probe receptacle. Do not use tongs
to pull on meat probe cable when inserting or removing
from food or receptacle.
•Defrost food completely before inserting meat probe to
avoid damaging probe.
•To avoid possibility of burns, after cooking carefully unplug
meat probe using a pot holder to protect hands.
Proper meat probe placement:
Always insert meat probe so that the probe tip rests in the center
of the thickest part of meat. Do not allow meat probe to touch
bone, fat, gristle or cookware.
For bone-in ham or lamb, insert meat probe into the center of
lowest large muscle or joint. For dishes such as meat loaf or
casseroles, insert meat probe into center of food. When cooking
fish, insert meat probe just above the gill.
For whole poultry or turkey, insert meat probe into the thickest
part of inner thigh, below the leg (Figure 33).

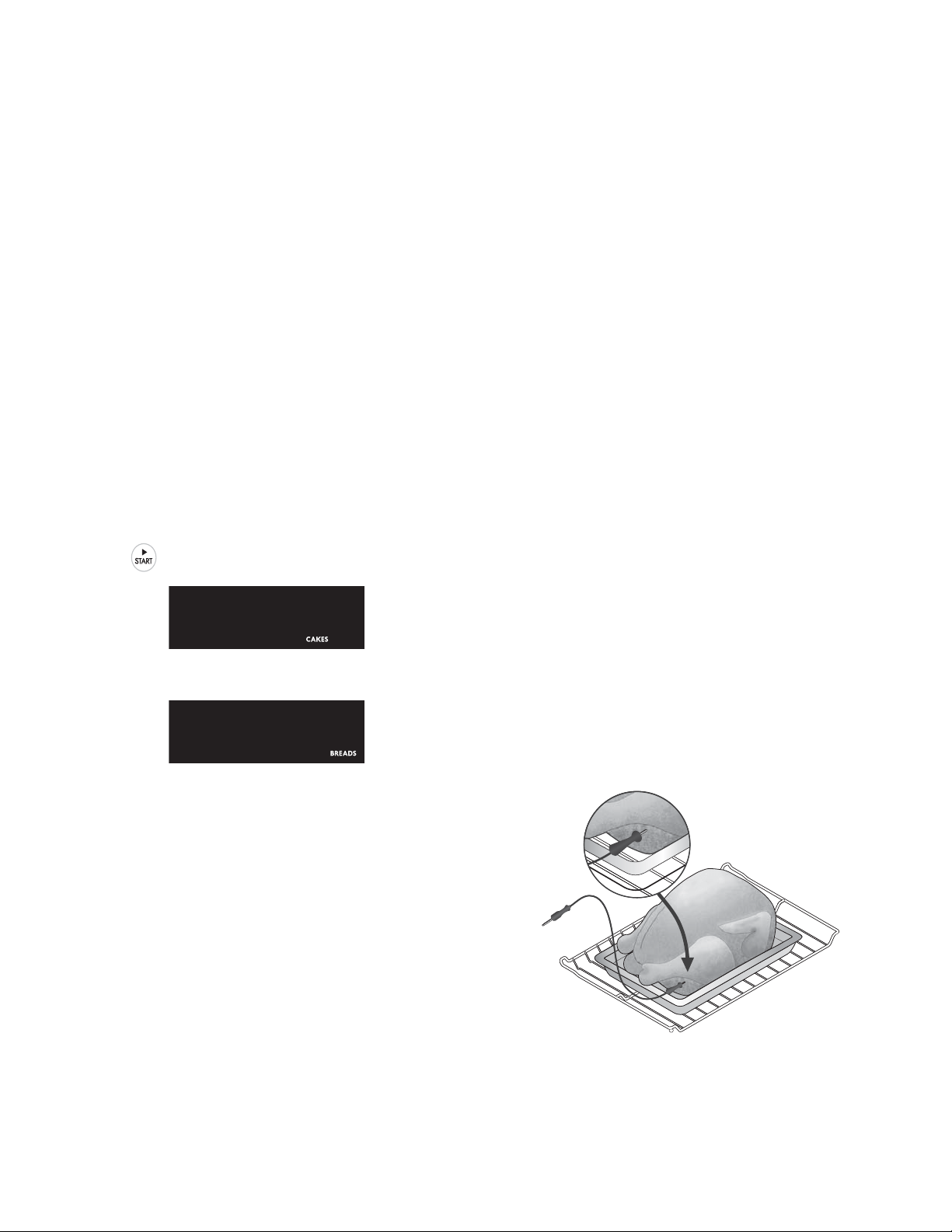

Figure 31: Oven set for Cake baking
Figure 32: Oven set for Bread baking
Figure 33: Probe into thickest part of thigh
23
Setting Oven Controls

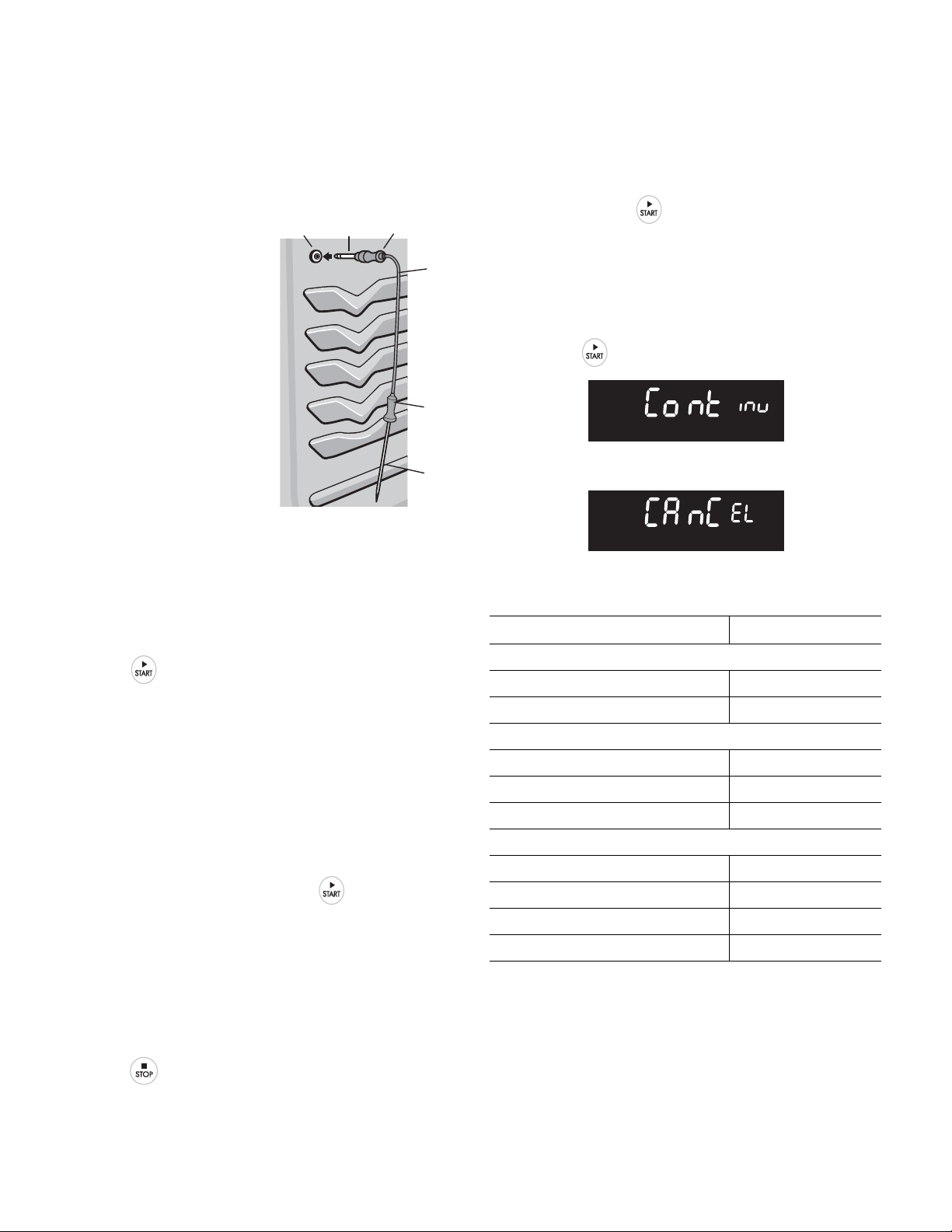

Meat Probe (cont’d)
Important note:
Changing how the oven reacts after reaching the target temper-
ature must be done before starting the cooking process.
To set meat probe:
1. Prepare the food and
properly insert the
temperature probe into
the food. DO NOT
preheat or start cooking
before properly inserting
the meat probe. Probe
should be inserted into
the food and receptacle
while the oven is still cool.
2. Place the prepared food
on the desired oven rack
position and slide into the
oven.
3. Plug the meat probe into the probe receptacle located on
the left front oven cavity side.
4. When the meat probe is correctly plugged in to receptacle,
the probe icon will illuminate in the oven control display.
5. To set the target temperature press Meat Probe once then
enter the desired target internal temperature using the
numeric key pads (default setting is 170ºF/ 77ºC).
Press to accept the meat probe target temperature.
Close the oven door.
6. Set the oven control for Bake, Conv Bake or Conv Roast and
the desired oven temperature. The meat probe cannot be
set with Broil or Self Clean.
7. During the cooking process the actual meat probe tempera-
ture will display by default. To view the target temperature
press the Meat Probe once. After 6 seconds the display will
show the actual meat probe temperature. If the target
temperature needs to be changed during the cooking
process, press Meat Probe once and use the numeric keys to
adjust the target temperature. Press to accept any
change.
8. The oven control will provide 3 beeps when the internal
target temperature is reached. By default the oven will
automatically change to a Warm & Hold setting. The
Warm & Hold function will maintain the oven temperature
at 170° F (77°C). Instructions for changing how the oven
reacts after reaching the internal target temperature may
be found later in this section.
9. Press to cancel cooking at any time.
To set the oven to continue cooking after reaching the probe
target temperature:
1. Press Meat Probe and hold for 6 seconds.
2. Press Self Clean and toggle until the Continu message
appears then press to accept.
To set the oven to cancel cooking and automatically start Warm
& Hold after reaching the probe target temperature:
1. Press Meat Probe and hold for 6 seconds.
2. Press Self Clean and toggle until CAnCEL message appears
then press to accept.
The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you
should know that cooking it to only 140°F/60°C means some food poisoning
organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA
Rev. June 1985.) The lowest temperature recommended by the USDA is 145°F/
63°C for medium rare fresh beef.
handle
probe
cable
probe
sensor
handle
receptacle
probe
connector
Figure 34: Probe set to continue cooking
Figure 35: Probe set to cancel cooking
Minimal Internal Cooking temperatures
Food type Internal temperature
Beef, veal, lamb-roasts, steak & chops
Medium 160°F (71°C)
Well done 170°F (77°C)
Fresh pork-roasts, steaks & chops
Medium 160°F (71°C)
Well done 170°F (77°C)
Ham 160°F (71°C)
Poultry
Whole chicken, turkey 165°F (74°C)
Poultry breasts, roasts 165°F (74°C)
Stuffing (cooked alone or in bird) 165°F (74°C)
Leftovers 165°F (74°C)
Information courtesy the U.S. Department of Agriculture Food
Safety and Inspection Service.
24
Setting Oven Controls
Setting Slow Cook
The Slow Cook function may be used to cook foods more slowly
and at lower oven temperatures. Slow Cook provides cooking
results much the same way as a Slow Cooker or Crock-Pot.
Slow Cook is ideal for roasting beef, pork & poultry. Slow
cooking meats may result in the exterior of meats becoming
dark but not burnt. This is normal.
For Slow Cook two settings are available, high (Hi) or low (Lo).
The high setting is best for cooking foods from a 4 to 5 hour
time period. The low setting is best for cooking foods from a 8
to 9 hour time period.
Some tips for best results when using Slow Cook:
•Completely thaw all frozen foods before cooking with the
Slow Cook.
•When using a single oven rack, place in oven rack position
2 or 3.
•Position multiple racks to accommodate size of cooking
utensils when cooking multiple food items.
•Do not open the oven door often or leave the door open
when checking foods. If the oven heat escapes often, the
Slow Cook time may need to extended.
•Cover the foods to keep them moist or use a loose or vented
type cover to allow foods to turn crisp or brown.
•Roasts may be left uncovered so browning can occur. Cook
times will vary; depending on the weight, fat content, bone
& the shape of the roast.
•Use the recipe’s recommended food temperature and a
food thermometer to determine when the food is done.
•Preheating the oven will not be necessary when using the
Slow Cook feature.
•Add any cream or cheese sauces during the last hour of
cooking.
FOOD POISONING HAZARD. Do not let food
sit for more than one hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
To set Slow Cook:
1. Position cookware in oven and close oven door.
2. Press Slow Cook. HI will appear in the display indicating the
default temperature setting is for high.
3. If a low setting is needed, press Slow Cook again to select
the low setting.
4. Press to activate Slow Cook.
To cancel Slow Cook at any time press .
Important note:
•Slow Cook may be used with additional settings of Cook
Time and Delay Start.
•The maximum cook time for Slow Cook function is 11 hours
and 59 minutes unless the control has been changed to the
continuous Bake mode.
25
Setting Oven Controls
Warm & Hold™
Warm & Hold will keep cooked foods warm for serving up to 3
hours after cooking has finished. After 3 hours the Warm & Hold
will shut-off automatically. Warm & Hold should only be used
with foods that are already at serving temperatures. Warm &
Hold will maintain the oven temperature at 170° F (77°C).
FOOD POISONING HAZARD. Do not let food
sit for more than one hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
To set Warm & Hold:
1. If needed, arrange oven racks and place cooked food in
oven.
2. Press Warm & Hold. HLd will appear in the display. If no
other keys are touched within 25 seconds the request for
Warm & Hold will clear.
3. Press . Warm & Hold will automatically turn off after 3
hours.
To turn Warm & Hold off at any time press .
To add Warm & Hold to automatically turn ON after baking 45
minutes with default oven set temperature of 350°F:
1. Press Cook Time.
2. Enter 4 5 using numeric keypad.
3. Press to accept.
4. Press Bake.
5. Press to accept.
6. Press Warm & Hold. Hld will appear in the display.
7. Press to accept. When the cook time is over, the
Warm & Hold will automatically turn ON. The Warm &
Hold function will automatically turn OFF after 3 hours.
Important note:
•Warm & Hold will maintain the oven temperature at 170° F
(77°C) for 3 hours.
•Warm & Hold may be set when finished cooking or
may be added to automatically turn on after cooking
using Cook Time. Delay Start may also be added.
Recipe Recall
Use the Recipe Recall feature to record and recall your favorite
baking recipe settings. This feature stores and recalls different
recipe settings using Bake, Conv Bake, and Conv Roast Recipe
Recall may be programmed for any baking temperature
between 170°F (77°C) to 550°F (288°C).
To store a Bake recipe. The recipe in this example is for a Bake
at 325°F with a cook time of 45 minutes:
1. Press Bake.
2. Press 3 2 5 using the numeric keys to enter oven tempera-
ture.
3. Press .
4. Press Cook Time.
5. Press 4 5 using numeric keys to enter cook time.
6. Press and hold until a tone sounds (about 3 seconds).
The tone indicates that the recipe setting has been recorded
for future recall.
7. Press .
Important note: The oven will automatically start heating with
the recorded recipe unless is pressed at this time.
To recall recipe stored in the example shown above. Recipe is
for bake at 325°F for 45 minutes:
1. Position cookware in oven and close door.
2. Press Bake. (If recipe was stored using another cooking
feature press that instead.).
3. Press . The oven will begin to cook with the
programmed recipe. If Cook Time was recorded this feature
will also recall the cooking time.
To cancel Recipe Recall at anytime press .
To erase a stored recipe:
1. Press the function where the recipe is stored.
2. Press .
3. Press Cook Time, enter 0 (zero) and hold start key for 3
seconds until you hear the acceptance tone.
Important note:
•The Recipe Recall stores Bake, Conv Bake, Conv Roast,
Slow Cook, Cakes Breads and Preheat settings. This
feature will not work with Delay Start settings.
•If a recalled recipe includes Cook Time the oven will auto-
matically shut-off when the Cook Time is finished.
26
Setting Oven Controls
Accent Light
Your appliance includes a decorative Accent light at the base of
the oven controls panel. The Accent light provides a theatre style
intensity feature that slowly increases brightness at turn on and
slowly fades when turning off.
When the Accent light is off, the light operates in automatic
mode. This means the Accent light will turn on automatically
when an oven, cooktop function or feature such as the Timer
have been activated. The Accent light will turn off automatically
when these functions or features are no longer active.
When the Accent light is OFF, it may be manually turned ON by
pressing Accent Light once. When the Accent light has been
manually turned on, it will remain on until manually turned off
by pressing Accent Light again. The Accent light brightness is
adjustable from 0 to 100 percent.
To adjust Accent light brightness:
1. Press and hold Accent Light until an acceptance tone
sounds (about 6 seconds).
2. The default brightness setting of 100 will appear in the
display (Figure 37).
3. Using the numeric keys, enter any digit from 0 to 100 to
change the brightness level. Entering 0 (Figure 38) will
effectively turn the Accent light OFF until the brightness
level is adjusted to a higher level.
4. Press to save the desired brightness setting.
Note: To check the brightness level after adjusting, press the
Accent Light key once. For further adjustment repeat steps 1, 3
and 4 above.
Operating oven lights
The interior oven lights will automatically turn ON when the
oven door is opened.
Press to turn the interior oven lights ON and OFF whenever
the oven door is closed. The oven light will not operate in Self
Clean.
The interior oven lights are located on the rear wall of the oven
interior and are covered with a glass shield. The glass shield
protects the bulb from high temperatures and should always be
in place whenever the oven is in use.
To replace the interior oven light, see Replacing oven lights in
the Care & Cleaning section.
Figure 36: Accent light feature located beneath oven controls
Figure 37: Accent light at highest intensity
Figure 38: Accent light at lowest setting
27
Setting Oven Controls
Adjusting oven temperatures
Your appliance has been factory calibrated and tested to ensure
an accurate baking temperature. For the first few uses, follow
your recipe times and temperature recommendations carefully.
If you think the oven is cooking too hot or too cool for your
recipe times, you may adjust the control so the oven cooks hotter
or cooler than the oven temperature displayed.
The oven temperature may be increased as much as +35°F
(+19°C) or decreased -35°F (-19°C) from the factory calibrated
settings.
To increase (+) or decrease (-) the oven temperature by 20°F:
1. Press and hold Bake until the control provides the 2 audible
tone (about 6 seconds).
2. Enter 2 0 using numeric keypad.
3. Press Self Clean to toggle between plus (+) if increasing
temperature or minus (-) if decreasing the temperature.
4. Press to accept change.
Important note:
•Oven temperature adjustments made will not change the
Broil or Self Clean function temperatures.
•If the temperature shows an adjustment of -20°F, and a
+20°F adjustment is needed, you can toggle between the
minus (-) or plus (+) in the display by pressing Self Clean.
•DO NOT USE oven thermometers such as those found in
grocery stores to check the temperature settings inside your
oven. These oven thermometers may vary as much as 20 to
40°F degrees from actual temperatures.
•The oven temperature adjustment may be made if your
oven control has been set to display °C (Celsius) tempera-
tures. Minimum and maximum settings for Celsius is plus (+)
or minus (-) 19°C.
Restoring factory default settings
When new, your appliance left the factory with predetermined
oven control settings. Over time, the user may make changes to
these default settings. The following options have user settings
that may be modified and may have been set with changes
since the appliance was new:
•12 or 24 hour display mode
•Continuous bake or 12-Hour Energy Savings mode
•Silent or audible control
•Oven temperature display (Fahrenheit or Celsius)
•Oven temperature adjustments
•Stored recipes
If you choose to restore to factory default
settings, ALL of the above user settings will be restored to
factory default settings, the oven temperature offset will reset
and any stored recipe information will be cleared.
To restore oven control to factory default settings:
1. Press and hold the 7 key until acceptance tone sounds
(about 6 seconds).
2. Press . The control has been reset with the default
settings.
28
Setting Oven Controls
Setting the Sabbath feature (for use on the Jewish
Sabbath and Holidays)
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please visit the web at
www.star-k.org.
The Cook Time and Delay Start keys are used to set the
Sabbath feature. The Sabbath feature may only be used after
the Bake function is active.
Once the oven is properly set using the Bake function and the
Sabbath mode is active, the oven will remain continuously ON
until the Sabbath feature is cancelled. The Sabbath feature will
override the factory preset 12-Hour Energy Saving feature and
start the continuous bake mode.
FOOD POISONING HAZARD. Do not let food
sit for more than one hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
To program oven to Bake with default oven temperature of
350°F and activate the Sabbath feature:
1. Be sure the clock is set with the correct time of day.
2. Arrange oven racks, place cookware in oven and close oven
door.
3. Press Bake.
4. Press .
5. If Cook Time or Delay Start are not needed, skip this step
and continue to step 6. If a Cook Time or Delay Start are
desired enter the times at this point. Refer to the Cook Time
and Delay Start sections for detailed instructions.
6. Press and hold both Cook Time and Delay Start keys simul-
taneously for about 3 seconds to set the Sabbath feature.
Once the feature is set, SAb (Figure 39) will appear in the
display indicating the oven is properly set for the Sabbath
feature.
Important note:
•It is not advised to attempt to activate any other oven
function except Bake while the Sabbath feature is active.
ONLY the following keys will function correctly when the
Sabbath feature is active: 0-9 number keys, Bake,
and . ALL OTHER KEYS should not be used once the
Sabbath feature is active.
•You may change the oven temperature once baking has
started. Press Bake, use the numeric keys to enter the oven
temperature change (170 to 550F°) and press (for
Jewish Holidays only). Remember that the oven control will
no longer provide audible tones or display any further
changes when the Sabbath feature is active.
•It is recommended that any oven temperature change with
the Sabbath feature active be followed with two presses of
the key. This will insure the oven remains ON even if
the attempt to set the oven temperature was lower or higher
than the oven control can accept. If the oven temperature is
set incorrectly, the oven temperature will default to 170°F or
550°F. Try to set the desired oven temperature again.
•If the oven light is needed during the Sabbath, press to
turn oven light on before activating the Sabbath feature.
Once the oven light is turned ON and the Sabbath feature
is active, the oven light will remain on until the Sabbath
feature is turned OFF. If the oven light needs to be off, be
sure to turn the oven light off before activating the Sabbath
feature.
•Remember the oven will shut-off automatically after
completing a Cook Time, Delay Start or Warm & Hold and
therefore may only be used once during the Sabbath/
Jewish Holidays.
•If a Delay Start time longer than the default 11 hours and 59
minutes is desired, set the oven control for the 24 hour day
display mode setting. For detailed instructions See “Setting
12 or 24 hour display mode”.
Figure 39: Oven showing Sabbath setting
29
Setting Oven Controls
Sabbath Feature (cont’d))
To turn the oven off and keep the Sabbath feature active:
Press .
To turn off the Sabbath feature:
Press and hold both Cook Time and Delay Start simultaneously
for at least 3 seconds to turn the Sabbath feature off. The
control will provide an acceptance tone and SAb will disappear
from the display. The oven is no longer programmed for the
Sabbath feature.
What to do during a power failure or power interruption after
the Sabbath feature was activated:
Should you experience a power failure or interruption, the oven
will shut-off. When power is restored the oven will not turn back
on automatically. The oven will remember that it is set for the
Sabbath and the oven display will show the message SF for
Sabbath failure (Figure 40).
The food may be safely removed from the oven while still in the
Sabbath feature, however the oven cannot be turned back on
until after the Sabbath/Holidays. After the Sabbath observance
turn OFF the Sabbath feature. Press and hold both Cook Time
and Delay Start keys for at least 3 seconds simultaneously to
turn the Sabbath feature off. SF will disappear from the display
and the oven may be used with all normal functions.
Proof Bread (Warmer Drawer)
The warmer drawer has a Proof Bread feature that may be used
to prepare bread dough. The recommended length of time to
keep fresh or thawed bread dough in the warmer drawer is
about 45-60 minutes. Times may vary depending on the dough.
Be sure however to follow the recipe’s recommended times.
Since the bread dough will nearly double in volume be sure to
place the prepared dough in a large bowl. Arrange the warmer
drawer rack in the downward position (Figure 41) and place the
bowl with dough on the warmer drawer rack.
To set Proof Bread using warmer drawer:
1. Arrange the warmer drawer rack in warmer drawer and
place bread dough in a large bowl on warmer drawer rack.
Close warmer drawer.
2. Press ON-OFF to turn ON warmer drawer.
3. Press Lo once set warmer drawer to Lo power setting.
4. Press Lo again to activate Proof Bread feature. The Proof
Bread indicator light will glow when the Proof Bread feature
is active (Figure 42).
5. When the bread dough is ready, press ON-OFF to turn the
warmer drawer off and remove bread dough from warmer
drawer.

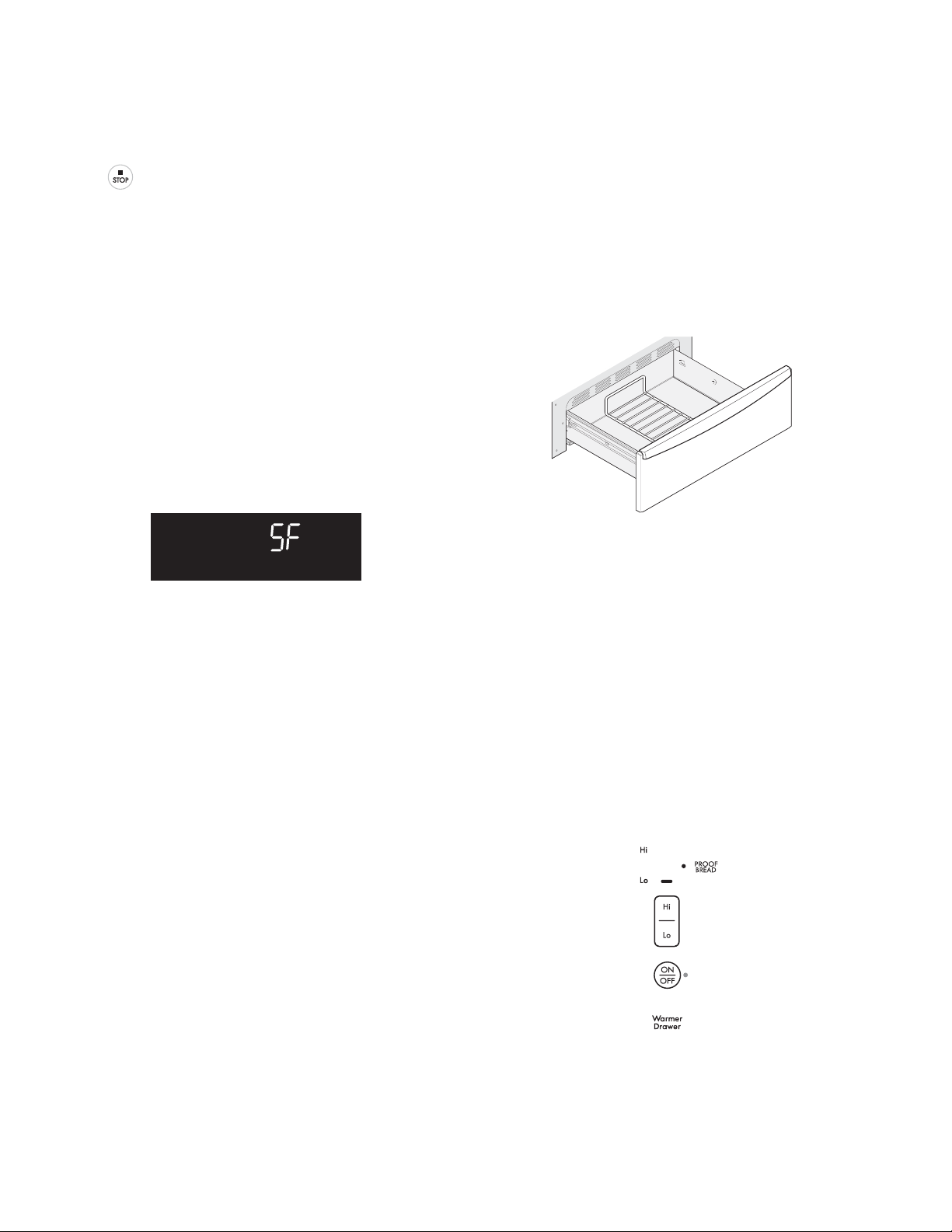

Figure 40: Display showing power failure in Sabbath mode
Figure 41: Warmer drawer rack down for proofing bread
Figure 42: Bread Proof indicator light
30
Setting Oven Controls
Warmer Drawer
The purpose of the warmer drawer is to keep hot cooked foods
at serving temperatures such as vegetables, gravies, meats,
casseroles, biscuits, rolls and pastries. It is not recommended to
heat cold food in the warmer drawer; always start with hot
food.
The warmer drawer may also be used to warm dinner plates. All
food placed in the warmer drawer should be covered with a lid
or aluminum foil to maintain quality.
FOOD POISONING HAZARD. Do not let food
sit for more than one hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
Storage in or on appliance—flammable
materials should not be stored in an oven, warmer drawer, near
surface units. This includes paper, plastic and cloth items, such
as cookbooks, plastic ware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol cans, on or near
the range.
DO NOT LEAVE CHILDREN ALONE —
children should not be left alone or unattended in the area
where appliance is in use. They should never be allowed to sit or
stand on any part of the appliance, including the warmer
drawer.
Always use pot holders or oven mitts when
removing food from the warmer drawer as cookware and plates
will be hot and you can be burned.
Important note:
The warmer drawer is equipped with a catch that may require
extra force to open and close the drawer.
Arranging warmer drawer rack positions
The keep warmer drawer rack may be used in 2 ways:
•In the upright position (Figure 43) to allow low profile food
items to be placed both under and on top of the rack (for
example, rolls or biscuits on top of the rack and a casserole
dish underneath).
•In the downward position (Figure 44) to allow for light
weight food items and empty cookware (for example, rolls
or pastries and dinner plates) on the rack.

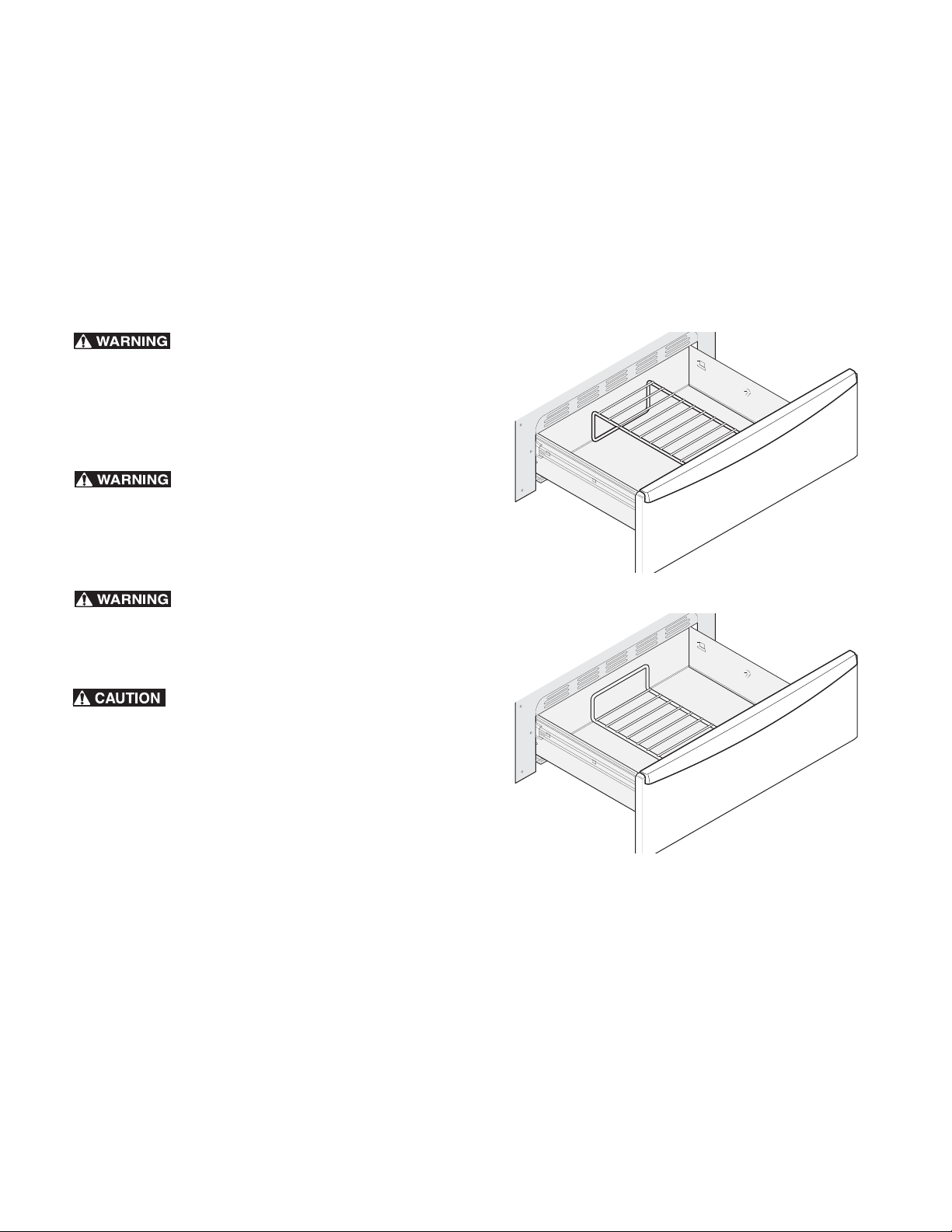

Figure 43: Warmer drawer rack in upright position
Figure 44: Warmer drawer rack in downward position
31
Setting Oven Controls
Warmer Drawer Controls
The warmer drawer control is located on the left side of the
control panel. Use the warmer drawer control key to turn ON
and OFF and make temperature adjustments. Available temper-
ature settings are approximate, and are designated by Lo, Med,
and Hi (Figure 46). If needed, refer to Warmer drawer recom-
mended food settings provided in this section.
Warmer drawer indicator light
The warmer drawer indicator light is located beside the ON-
OFF key (Figure 45). It glows when the warmer drawer is turned
ON, and remains on until the warmer drawer is turned OFF
To set warmer drawer:
1. Arrange the warmer drawer rack (if needed) in the warmer
drawer and place the cooked food or dishes in the warmer
drawer. Close warmer drawer.
2. Press .
3. Press Hi Lo key to toggle to the desired temperature setting.
Release when the desired temperature setting is displayed
by the indicator lights. (Figure 46).
4. Once warming is finished, press to turn OFF and
carefully remove items from warmer drawer.
Always use potholders or oven mitts when
removing food from the warmer drawer as cookware and plates
will be hot and you can be burned.
Warmer Drawer settings
The recommended warmer drawer food settings shown are
meant to be used as a recommendation only. If a particular
food item is not listed, start with the Med setting. If more
crispness is desired, remove the lid or aluminum foil from the
food.
Most foods may be maintained at serving temperatures on the
Med setting. When a combination of foods are to be kept warm
(for example, a meat with 2 vegetables and rolls) use the Hi
setting. To minimize heat loss, avoid opening the warmer drawer
frequently while in use.
Important note:
•Do not use plastic wrap to cover food. Plastic may melt
onto the drawer and be very difficult to clean up. Use only
utensils and cookware recommended by the manufacturer
for use a warmer drawer.
•Always start with hot food when using the warmer drawer.
DO NOT heat cold food in the warmer drawer.
•Self Clean can not be set when the warmer drawer is active.
Figure 45: Warmer drawer indicator light
Figure 46: Setting desired temperature in warmer drawer
Warmer
drawer
indicator
light
Warmer drawer recommended food settings
Food Item Setting
Bacon Hi
Hamburger patties Hi
Poultry Hi
Pork chops Hi
Fried food Hi
Pizza Hi
Gravies Med
Casseroles Med
Eggs Med
Roasts (beef, pork, or lamb) Med
Vegetables Med
Biscuits Med
Rolls (hard) Med
Pastries Med
Rolls (soft) Lo
Empty dinner plates Lo
32
Setting Oven Controls
Removing and replacing warmer drawer
Electrical shock hazard can occur and result in
serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
To remove the warmer drawer:
1. Turn power OFF to the appliance before removing the warmer
drawer.
2. Open the warmer drawer completely.
3. On left warmer drawer rail, locate black release lever and
press up with finger while pulling out slightly on the oven drawer
handle. On right warmer drawer rail, locate black release lever
and press down with finger while pulling out slightly on the
warmer drawer handle (Figure 47).
4. The warmer drawer should now be released from the rails.
Remove warmer oven drawer (using level & square motion)
completely out and away from the appliance.
To replace the warmer drawer:
1. Pull the bearing glides to the front of the outer compart-
ment glide channels until they snap into place (Figure 49).
2. Carefully line up both sides of the warmer drawer glide
rails to the outer compartment glide channels located inside
the empty warmer drawer compartment (Figure 48).
3. While holding the warmer drawer level and square using
the warmer drawer handle, push (do not force) the warmer
drawer all the way into the outer compartment glide
channels all the way into the range. Open the warmer
drawer again to verify the glides have seated.
4. If you do not hear the levers click into place or the bearing
glides do not feel seated remove the warmer drawer and
repeat steps 1 through 3. This will minimize possible damage
to the bearing glides.

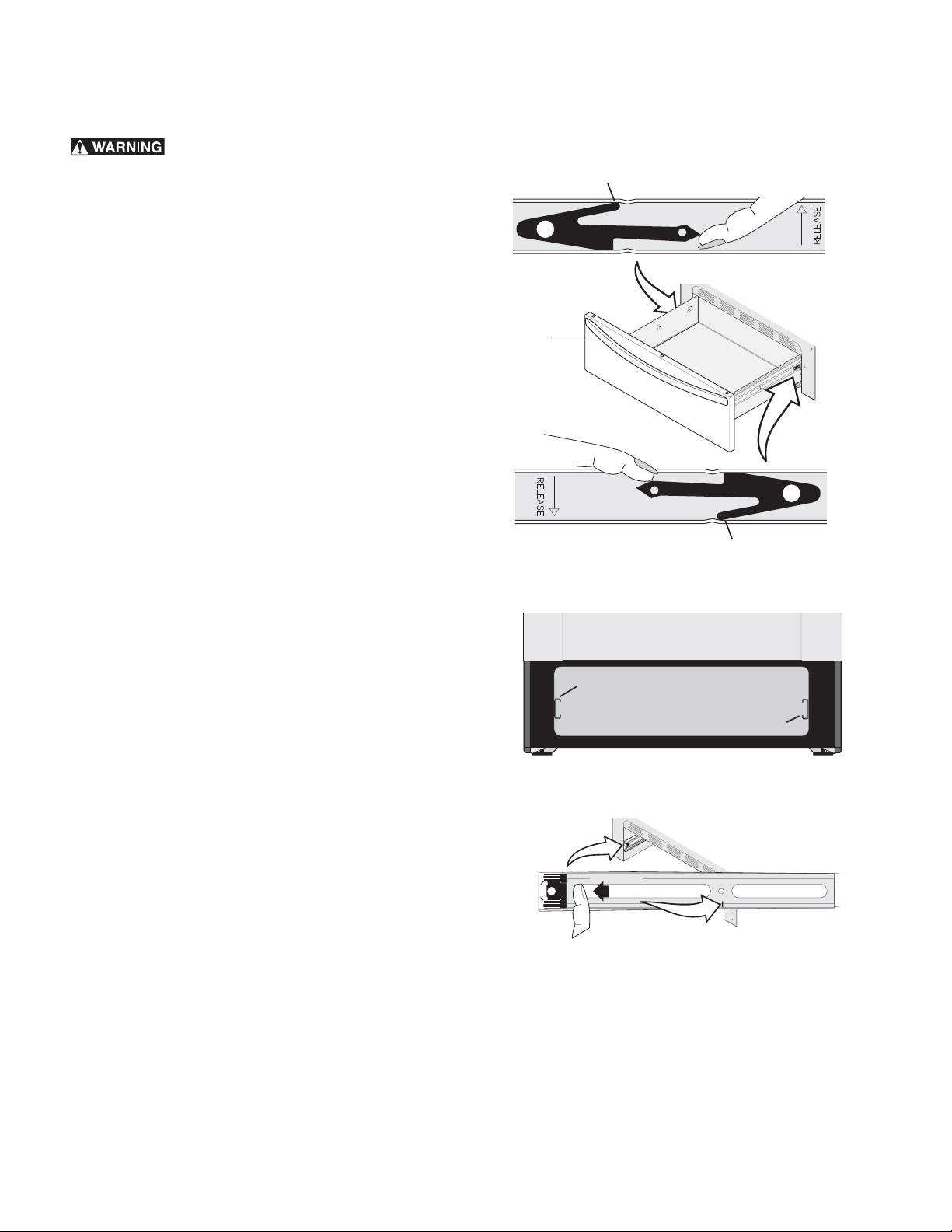

Figure 47: Warmer drawer releases
Figure 48: Warmer drawer channels
Figure 49: Warmer drawer glides
Left-hand rail and release
Right-hand rail and release
Warmer
drawer
handle
Left-hand channel
Right-hand channel
33
Setting Oven Controls
Self Clean
A self-cleaning oven cleans itself with high temperatures that
are well above normal cooking temperatures. The high cleaning
temperature eliminates soils completely or reduces them to a
fine powdered ash you can wipe away afterwards with a damp
cloth.
The Self Clean function allows you to set any amount of
cleaning time from 2 hours to 4 hours. A 3-hour cleaning time is
best used for normal cleaning; 2-hour time for light soils and a
4-hour clean time for heavier stubborn soils.
Read before starting Self Clean
Be sure to read all the following caution and important state-
ments BEFORE starting the self-cleaning cycle:
DO NOT leave small children unattended near
the appliance. During the self-cleaning cycle, the outside of the
range can become very hot to touch and can cause burns.
DO NOT line the oven walls, racks, bottom or
any other part of the range with aluminum foil. Doing so will
destroy heat distribution, produce poor baking results and cause
permanent damage to the oven interior. Aluminum foil will melt
to the interior of the oven.
The health of some birds is extremely sensitive
to the fumes given off during the self-cleaning cycle of any
range. Move birds to another well-ventilated room.
DO NOT force the oven door open. This can
damage the automatic door locking system.
Use caution when opening the oven door after
self-cleaning. The oven may still be VERY HOT and can cause
burns. To avoid possible burns stand to the side of the oven when
opening the oven door to allow hot air or steam to escape.
Important note:
Completely remove ALL OVEN RACKS and ANY ACCESSORIES
FROM OVEN CAVITY to avoid damage to oven racks. If the
oven racks are not removed they may discolor.
•Remove ALL items from the oven and cooktop including
cookware, utensils and ANY ALUMINUM FOIL. Aluminum
foil will not withstand high temperatures from a self-clean
cycle and will melt.
•This model comes with lubricated porcelain oven racks,
which can remain in the oven during the self-clean cycle.
Do not clean this vegetable oil lubrication off the racks. It is
important that the sides of the oven racks always have a
light coating of vegetable oil. To maintain optimal rack
performance, re-apply a thin layer of vegetable oil to the
sides of the rack after every self-clean cycle or when the
rack becomes difficult to slide.
•DO NOT use oven cleaners or oven protective coatings in or
around any part of the oven interior.
•Clean any soil from the oven frame, the door liner outside
the oven door gasket and the small area at the front center
of the oven bottom (Figure 50). These areas heat sufficiently
to burn soil on. Clean using soap and water prior to starting
Self Clean.
•Remove any excessive spill overs. Any spills on the oven
bottom should be wiped-up and removed before starting a
self-clean cycle. To clean, use hot, soapy water and a cloth.
Large spill overs can cause heavy smoke or fire when
subjected to high temperatures. DO NOT allow food spills
with a high sugar or acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain on the surface
as they may leave a dull spot even after cleaning.
•DO NOT clean the oven door gasket (Figure 50). The woven
material of the oven door gasket is essential for a good
seal. Care should be taken not to rub, damage or remove
the gasket. DO NOT use any cleaning materials on the oven
door gasket. Doing so could cause damage to the door
gasket.
1. Be sure the oven is empty and ALL oven racks are removed.
Remove all items from the cooktop. Be sure oven door is
completely closed.
2. Press Self Clean for a default 3-hour clean time. After
pressing Self Clean you may accept the default 3-hour
clean time by going to step 3. At this time you may choose
a different clean time. The amount of clean time must be
within 2 to 4 hours and entered using the numeric keys
pads. Enter 2 0 0 for a 2-hour time or enter 4 0 0 for a 4-
hour self-clean time. You may choose a 2 hour 15 minute
clean time by entering 2 1 5 (hours and minutes).
3. Press to activate Self Clean.

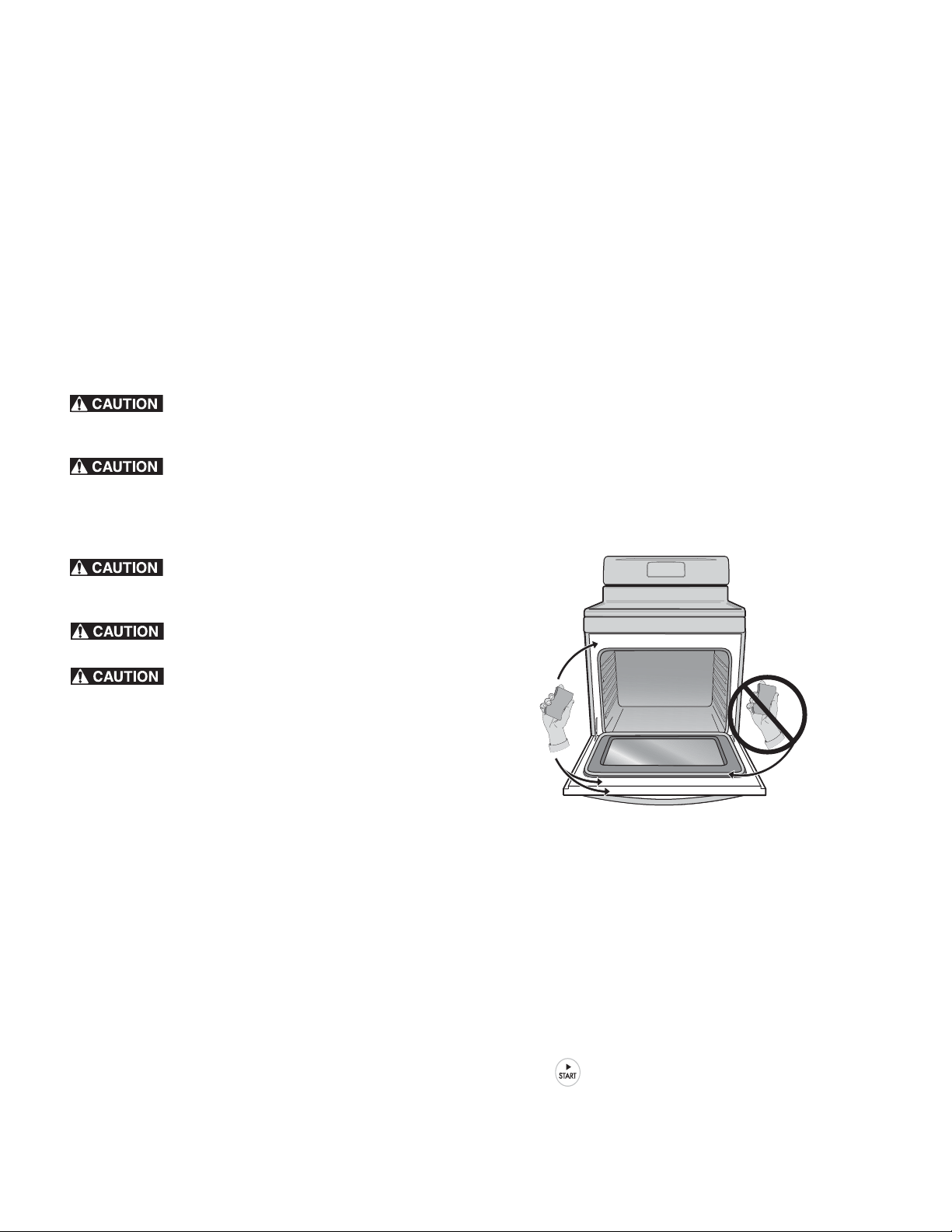

Figure 50: Areas to clean and to avoid
34
Setting Oven Controls
Setting Self Clean (cont’d.)
As soon as Self Clean becomes active, a motor driven lock
mechanism will begin locking the oven door automatically. door
Loc will appear in the display (Figure 51). DO NOT open the
oven door when door Loc is displayed (allow 15 seconds for the
lock mechanism to lock the oven).
Once the oven door has locked, CLn will appear in the display
indicating Self Clean has started (Figure 52).
When Self Clean is finished
1. Cln message will turn off and Hot will appear in display
window (Figure 53).
2. Once the oven has cooled down (about 1 hour) and Hot is
no longer displayed, the door Opn message will appear
(Figure 54). When this message turns off the oven door may
be opened.
Use caution when opening the oven door after
self-cleaning. The oven may still be VERY HOT and can cause
burns. To avoid possible burns stand to the side of the oven
when opening the oven door to allow hot air or steam to escape.
3. When the oven interior has completely cooled, wipe away
any residue or powdered ash with a damp cloth or paper
towel.
Important note:
•The kitchen area should be well ventilated using an open
window, ventilation fan or exhaust hood during the 1st self-
clean cycle to help eliminate the normal odors associated
with the 1st self-clean cycle.
•When the clean time finishes the oven door will remain
locked until the range has cooled sufficiently. In addition to
the clean time that was programmed, you must allow about
1 additional hour for the oven to cool before you will be
able to open the oven door.
•The Self Clean function will not operate whenever a radiant
surface element is ON or the oven lockout is active.
Setting Delay Start Self Clean
To start a delay Self Clean with default clean time of 3 hours
and a start time of 9:00 o’clock:
1. Be sure the clock is set with the correct time of day, the oven
is empty and ALL oven racks are removed. Be sure oven
door is completely closed.
2. Press Delay Start.
3. Using numeric keypad enter 9 0 0.
4. Press to accept.
5. Press Self Clean.
6. Press .
If it becomes necessary to stop Self Clean when active:
1. Press .
2. If Self Clean has heated the oven to a high temperature,
allow enough time for the oven to cool and the door Opn
message to appear (Figure 54). When this message turns
OFF the oven may be opened.
3. Before restarting Self Clean, be sure to read important
notes below.
Important note:
•When Self Clean function is active you may check the
amount of clean time remaining by pressing Self Clean
once.
•If your control is set with the default 12 hour display mode,
the Delay Self Clean can only be set to start up to 11 hours
and 59 minutes in advance. To set a Delay Start Self Clean
to begin 12 or more hours (maximum is 23 hours and 59
minutes) in advance, be sure to set the control for 24 hour
display mode.
•If Self Clean was active and then interrupted by a power
failure or cancelled before the oven was thoroughly
cleaned, it may be necessary to run another self-clean cycle
again. If the oven temperature was high enough when inter-
rupted your oven control may not allow another self-clean
cycle to be set for up to 4 hours after the interruption.
Figure 51: Door locking Figure 52: Oven in clean mode
Figure 53: Oven too hot for
door to unlock
Figure 54: Door opens when
oven has cooled
35
Care and Cleaning
Cleaning Various Parts of Your Oven
Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any heavy soiling as
soon as possible. Regular cleaning will reduce the difficulty of major cleaning later.
Surface Type Recommendation
Aluminum and Vinyl •Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted body parts
Painted decorative trims
•Use a soft cloth and clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first.
•Do not spray liquids directly on the oven control and display area. Do not use large
amounts of water on the control panel. Excess water on the control area may cause
damage to the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring
pads, or paper towels. They will damage the finish.
Easy Clean™ Stainless Steel •Your oven finish may be Easy Clean™ Stainless Steel (some models). Clean the stainless
with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry
with a soft clean cloth. Do not use any store bought cleaners like stainless steel cleaners
or any other types of cleaners containing any abrasive, chlorides, chlorine, or ammonia.
It is recommended to use mild dish soap and water or a 50/50 solution of water and
vinegar.
Porcelain coated oven racks •This model comes with lubricated porcelain oven racks, which can remain in the oven
during the self-clean cycle. Do not clean this vegetable oil lubrication off the racks. It is
important that the sides of the oven racks always have a light coating of vegetable oil.
To maintain optimal rack performance, re-apply a thin layer of vegetable oil to the sides
of the rack after every self-clean cycle or when the rack becomes difficult to slide.
Porcelain enamel broiler pan and
insert (available by mail order)
Door liner and body parts
•Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp
cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean
cloth. Remove all cleaners or the porcelain may become damaged during future heating.
Oven racks •Oven racks must be removed from oven cavity. Clean by using a mild, abrasive cleaner
following manufacturer’s instructions. Rinse with clean water and dry.
Oven door •Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the door. Do not immerse the
door in water. Do not spray or allow water or the glass cleaner to enter the door vents.
Do not use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on
the outside of the oven door.
•Do not clean the oven door gasket. On self-clean models, the oven door gasket is made
of a woven material which is essential for a good seal. Care should be taken not to rub,
damage, or remove this gasket.
36
Care and Cleaning
Cleaning the cooktop and surface burners
To avoid possible burns DO NOT attempt any
of the cleaning instructions provided below before turning OFF
all of the surface burners and allow them to cool.
Any additions, changes or conversions required
in order for this appliance to satisfactorily meet the application
needs must be made by an authorized qualified Agency.
Routinely clean the cooktop. Wipe with a clean, damp cloth and
wipe dry to avoid scratches. Keeping the surface burner head
ports and slots clean will prevent improper ignition and an
uneven flame. See the following sections for more instructions.
To clean recessed and contoured areas of cooktop
If a spill occurs on or in the recessed or contoured areas, blot up
spill with an absorbent cloth. Rinse with a clean, damp cloth and
wipe dry.
To clean burner grates
•Clean when the grates are cool.
•Use nonabrasive plastic scrubbing pad and mild abrasive
cleanser.
•Food soils containing acids may affect the finish. Clean
immediately after the grates are cool.
•Thoroughly dry grates immediately following cleaning.
To clean burner caps
•Remove caps from burner heads after they have cooled.
•Clean heavy soils with a plastic scrubbing pad and
absorbent cloth.
•Thoroughly dry burner caps immediately following cleaning
including the bottom and inside of cap.
•Do not use abrasive cleaners. They can scratch porcelain.
•Do not clean burner caps in the dishwasher.
•Do not operate surface burners without burner caps
properly in place. See IMPORTANT notes below.
To clean the surface burner heads
For proper gas flow it may be necessary to clean the burner
head and slots. To clean, first use a clean DAMP cloth to soak up
any spills. Remove any food from between the burner slots using
a small nonabrasive brush like a toothbrush and afterwards
wipe up using a damp cloth. For stubborn soils located in the
slots, use a small-gauge wire or needle to clean.
Any spill on or around the electrode must be carefully cleaned.
Take care not to hit the electrode with any thing hard or it could
be damaged.
To clean the burner head ignition ports
Each burner head has a small ignition port located as illus-
trated. Should you experience ignition problems it may be that
this port hole is partially blocked with soil. With the burner head
in place, use a small wire gauge needle or the end of a paper
clip to clear the ignition port (refer to Figure 55; round style
shown; oval models on some models not shown).
Important: Always keep the surface burner caps in place
whenever a surface burner is in use.
When replacing the burner caps, be sure the burner caps are
seated firmly on top of the burner heads.
The surface burner heads are secured to the cooktop and must
be cleaned in place on the cooktop. For proper flow of gas and
ignition of burners.
DO NOT allow spills, food, cleaning agents or any other
material to enter the gas orifice holder opening.

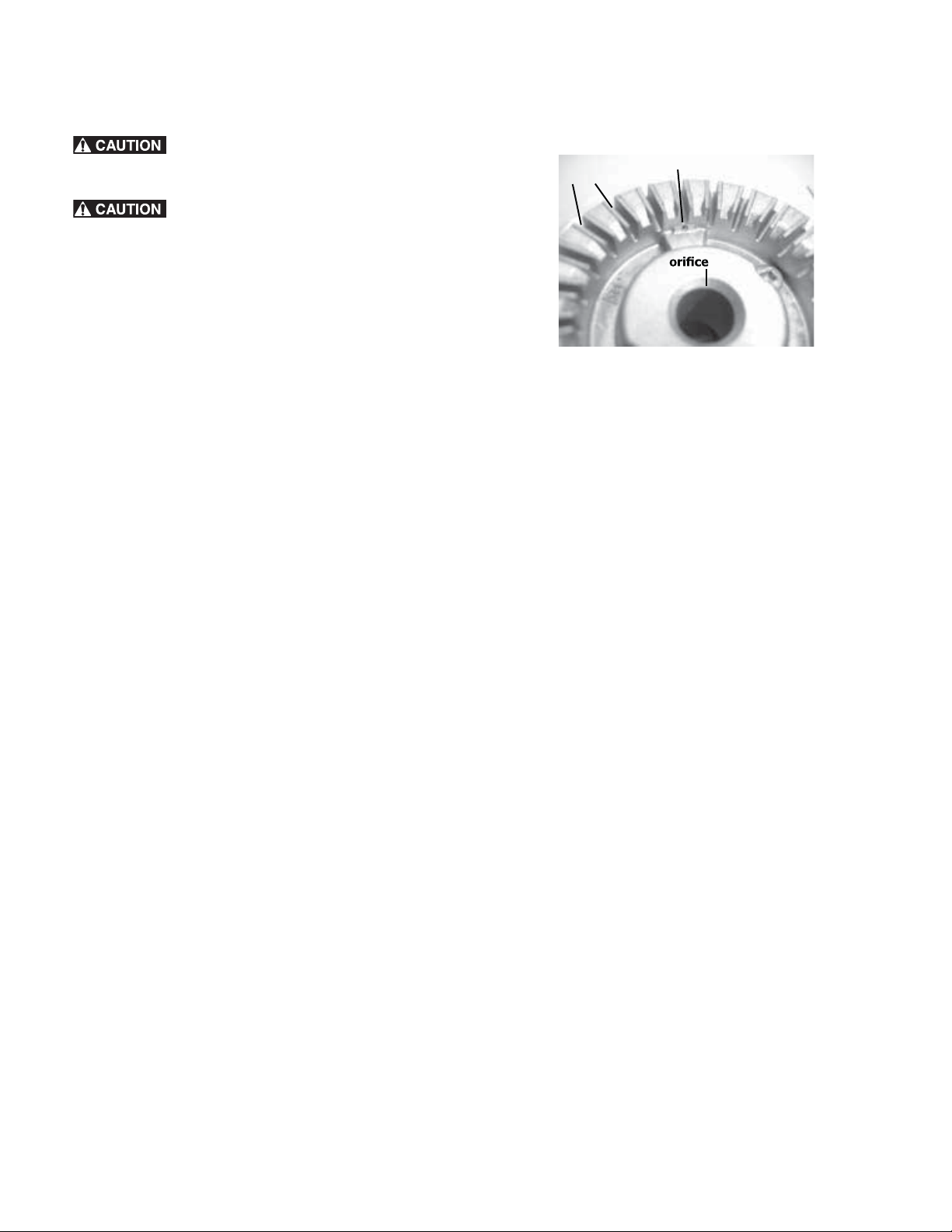

Figure 55: Cooktop burner head
ignition port
slots
port
37
Care and Cleaning
General Cleaning
Refer to the Cleaning recommendation information in the Care
and Cleaning section for more details about cleaning specific
parts of the range.
Before manually cleaning any part of the range,
be sure all controls are turned of and the range is cool. The
range may be hot and could cause burns.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
Aluminum foil and utensils
NEVER cover any slots, holes, or passages in
the oven bottom and never cover an entire oven rack with
materials such as aluminum foil.
Doing so blocks the air flow through the oven and may cause
CARBON MONOXIDE poisoning.
Aluminum foil linings may trap heat and cause a fire hazard.
Aluminum foil - Use of aluminum foil on a hot cooktop can
damage the cooktop.
•Do not use thin aluminum cooking utensils or allow
aluminum foil to touch the surface burners under ANY
circumstances.
Aluminum utensils - The melting point of aluminum is much lower
than that of other metals. Care must be taken when aluminum
pots or pans are sued on the cooktop.
•If aluminum pans are allowed to boil dry when using the
cooktop, the cookware may be damaged or destroyed.
Replacing the oven light
Be sure the oven is unplugged and all parts are
cool before replacing oven light.
The interior oven lights are located at the rear of the oven
cavity. (See Figure 56).
To replace the oven interior light bulbs:
Important note:
Use a paper towel or cotton glove while handling the new bulb
when installing.
1. Turn electrical power off at the main source or unplug the
appliance.
2. Replace bulb with a new Halogen bulb.
3. Turn power back on again at the main source (or plug the
appliance back in).
4. Be sure to reset the time of day on the clock.

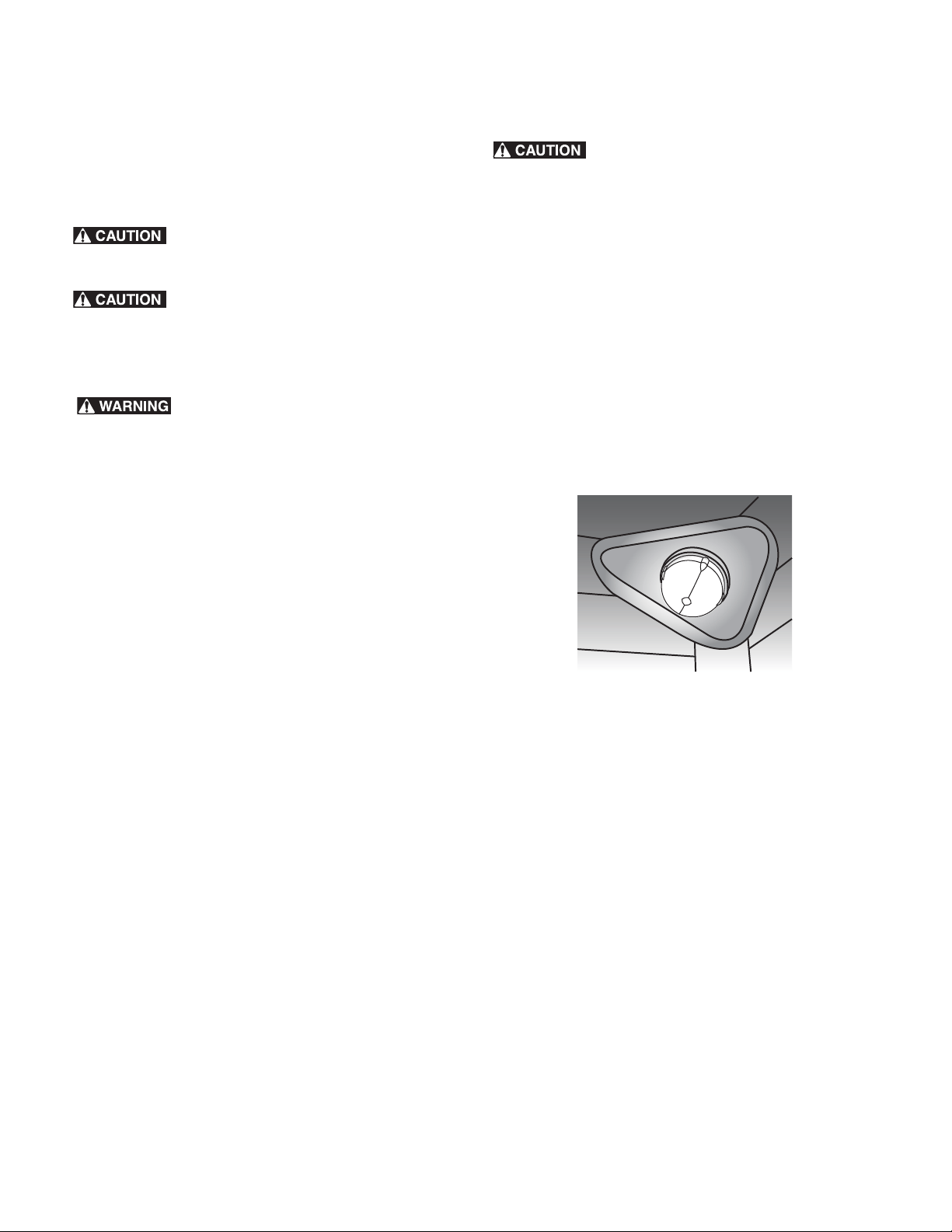

Figure 56: Replacing oven light
38
Care and Cleaning

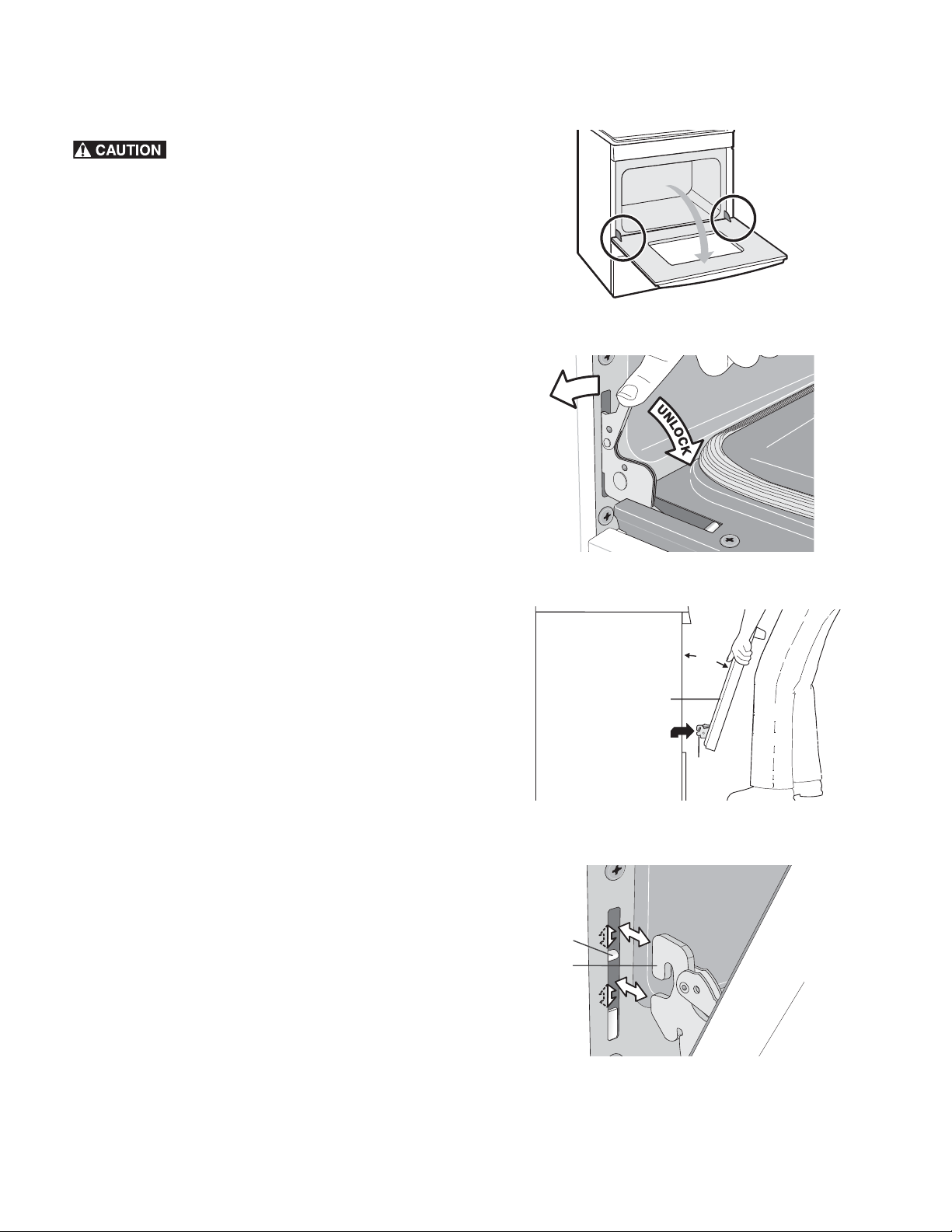

Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage,
lay the door flat with the inside of the door facing down.
To remove the oven door:
1. Open oven door completely, horizontal with floor (See
Figure 57).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely toward the oven
door (See Figure 58). A tool such as a small flat-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 59).
4. Close the door to approximately 10 degrees from the oven
door frame.
5. Lift the oven door hinge arms over the roller pins located on
each side of the oven frame (See Figure 59).
To replace oven door:
1. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (See Figure 59).
2. Holding the oven door at the same angle as the removal
position (See Figure 59), seat the hook of the hinge arm
over the roller pins located on each side of the oven door
frame (See Figure 60). The hook of the hinge arms must be
fully seated onto the roller pins.
3. Fully open the oven door, horizontal with floor (See
Figure 57).
4. Push the door hinge locks up toward and into the oven
frame on both left and right oven door hinges to the locked
position (Figure 58).
5. Close the oven door.
Important:
Special Door Care Instructions:
•Most oven doors contain glass that can break.
•Do not close the oven door until all the oven racks are fully
in place.
•Do not hit the glass with pots, pans, or any other object.
Scratching, hitting, jarring, or stressing the glass may
weaken its structure causing an increased risk of breakage
at a later time.
Figure 57: Door hinge location
Figure 58: Door hinge locks
Figure 59: Holding door for removal
Figure 60: Location of hinge arm and roller pin
Oven door
hinge
locations
L
O
C
K
about
10°
hinge
oven
door
roller
pin
hinge
arm
39
Before You Call
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the
oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.

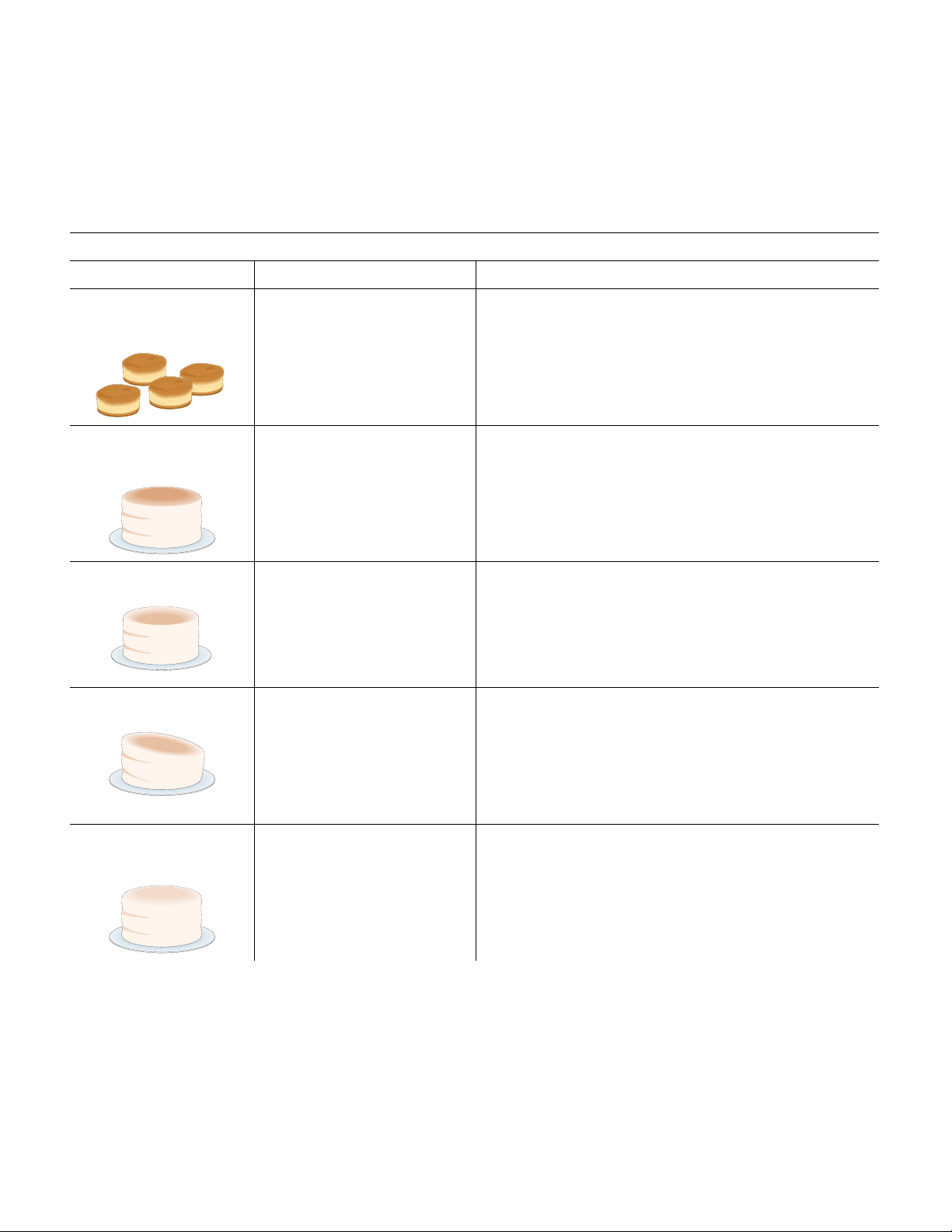

Baking Problems and Solutions
Baking Problems Causes Corrections
Cookies and biscuits burn
on the bottom.
•Cookies and biscuits put into
oven before the preheating
time is completed.
•Oven rack is overcrowded.
•Dark pans absorbs heat too
fast.
•Allow oven to preheat to desired temperature before
placing food in oven.
•Choose pan sizes that permit 2” to 4” of air space (5.1 cm
to 10.2 cm) on all sides when placed in the oven.
•Use a medium weight baking sheet.
Cakes too dark on top or
bottom
•Cakes put in oven before
preheating time is completed.
•Rack position too high or too
low.
•Oven too hot.
•Allow oven to preheat to the selected temperature before
placing food in the oven.
•Use proper rack position for baking needs.
•Set oven temperature 25°F/13°C lower than recommended.
Cakes not done in center •Oven too hot.
•Incorrect pan size.
•Pan not centered in oven.
•Set oven temperature 25°F/13°C lower than recommended.
•Use pan size suggested in recipe.
•Use proper rack position and place pan so there is 5.1 cm to
10.2 cm (2” to 4”) of space on all sides of pan.
Cakes not level. •Oven not level.
•Pan too close to oven wall or
rack overcrowded.
•Pan warped.
•Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven,
refer to the installation instructions for leveling the oven.
•Be sure to allow 5.1 cm to 10.2 cm (2” to 4”) of clearance
on all sides of each pan in the oven.
•Do not use pans that are dented or warped.
Foods not done when
cooking time is over.
•Oven too cool.
•Oven overcrowded.
•Oven door opened too
frequently.
•Set oven temperature 25°F/13°C higher than suggested
and bake for the recommended time.
•Be sure to remove all pans from the oven except the ones to
be used for baking.
•Open oven door only after shortest recommended baking
time.
40
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Poor baking results •Many factors effect baking results. Use proper oven rack position. Center food in the
oven and space pans to allow air to circulate. Preheat oven to the set temperature
before placing food in the oven. Try adjusting the recipe's recommended temperature or
baking time. See “Self Clean” on page 33 if you feel the oven is too hot or cold.
Oven does not operate. •The time of day is not set. The oven clock must first be set in order to operate the oven.
•Be sure oven controls are set properly. See “Setting the Clock” on page 15 and review
instructions for the desired cooking function in this manual.
•Service wiring is not complete.
Oven light does not work. •Be sure the oven light is secure in the socket. See “Replacing the oven light” on page 37.
Flames inside oven or smoking from
oven vent.
•Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe
up excessive spills before starting oven. If flames or excessive smoke are present when
using broil, see “Setting Broil” on page 21.
Self clean does not work. •Oven control not set properly. Review “Self Clean” on page 33.
Oven racks discolored or do not
slide easily.
•Oven racks left in oven cavity during self clean. Always remove oven racks from oven
cavity before starting a self-clean cycle. Clean using a mild abrasive cleaner following
manufacturer's instructions. Rinse with clean water, dry, and replace in oven.
Oven smokes excessively when
broiling.
•Incorrect setting. Follow broiling instructions in “Setting Broil” on page 21
•Meat too close to the broil element. Reposition broil rack to provide proper clearance
between the meat and broil element. Remove excess fat from meat. Cut remaining fatty
edges to prevent curling.
•Grease build up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Grease or food splatters will cause excessive smoking.
Oven control panel beeps and
displays any F or E code error.
•Oven control has detected a fault or error condition. Press STOP to clear the error code.
Try bake or broil function. If the F or E code error repeats, turn off power to appliance,
wait 5 minutes and then repower appliance. Set clock with correct time of day. Try bake
or broil function again. If fault recurs, press STOP to clear.
Soil not completely removed after
self clean.
•Self Clean was interrupted. Review instructions in “Self Clean” section on page 33.
•Excessive spills on oven bottom. Clean before starting self clean.
•Failure to clean soil from the oven frame, the door liner outside the oven door gasket,
and the small area at the front center of the oven bottom. These areas are not in the
self-cleaning area, but they get hot enough to burn on residue. Clean these areas before
starting the self-cleaning cycle. Burned-on residue can be cleaned with a stiff nylon
brush and water or a nylon scrubber. Be careful not to damage the oven gasket.
