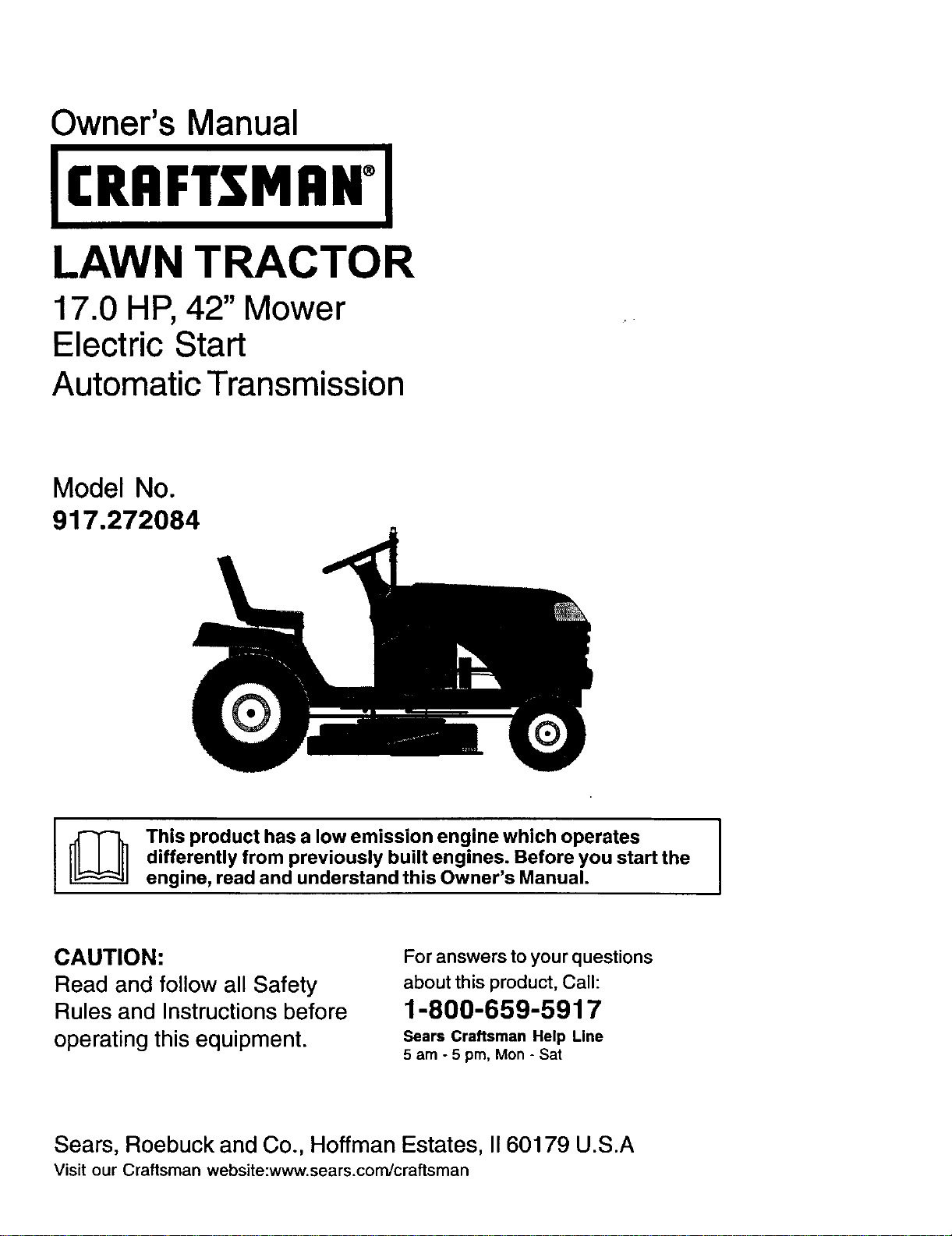

Craftsman 917272084 LAWN TRACTOR 17.0 HP, 42" Mower User Manual

Owner's Manual

JCRRFTSMIIH°I

LAWN TRACTOR

17.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.272084

I_] his product has a low emission engine which operates I

differently from previously built engines. Before you start the

Iengine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

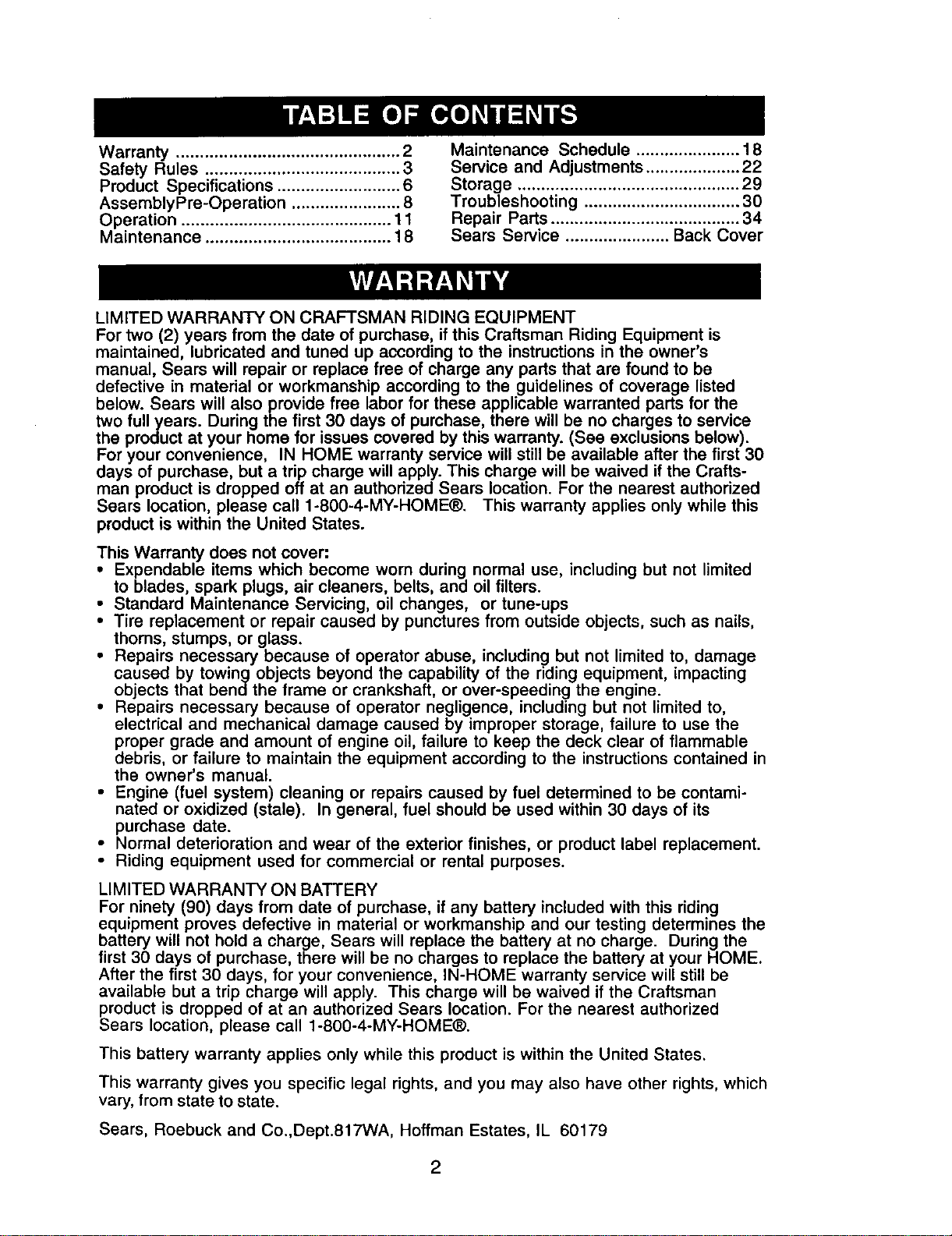

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

AssemblyPre-Operation ....................... 8

Operation ............................................ 11

Maintenance ....................................... 18

Maintenance Schedule ...................... 18

Service and Adjustments .................... 22

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in matedal or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two fullyears. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bendthe frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

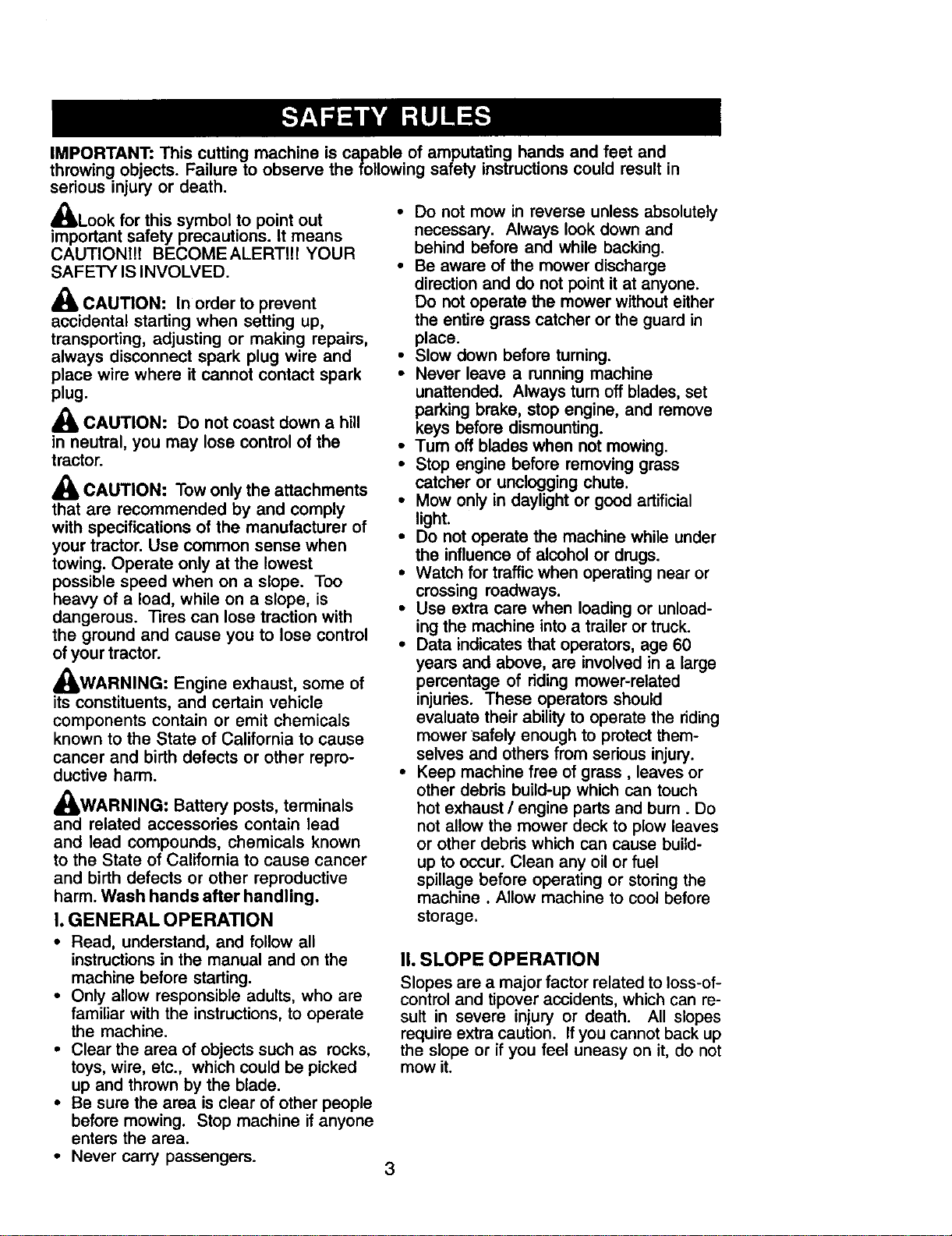

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!H YOUR

SAFETY IS INVOLVED. •

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_, CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

_, CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. -13rescan lose traction with

the ground and cause you to lose control

of your tractor.

&WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before tuming.

Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unload-

ing the machine into a trailer or truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and bum. Do

not allow the mower deck to plow leaves

or other debds which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or stodng the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

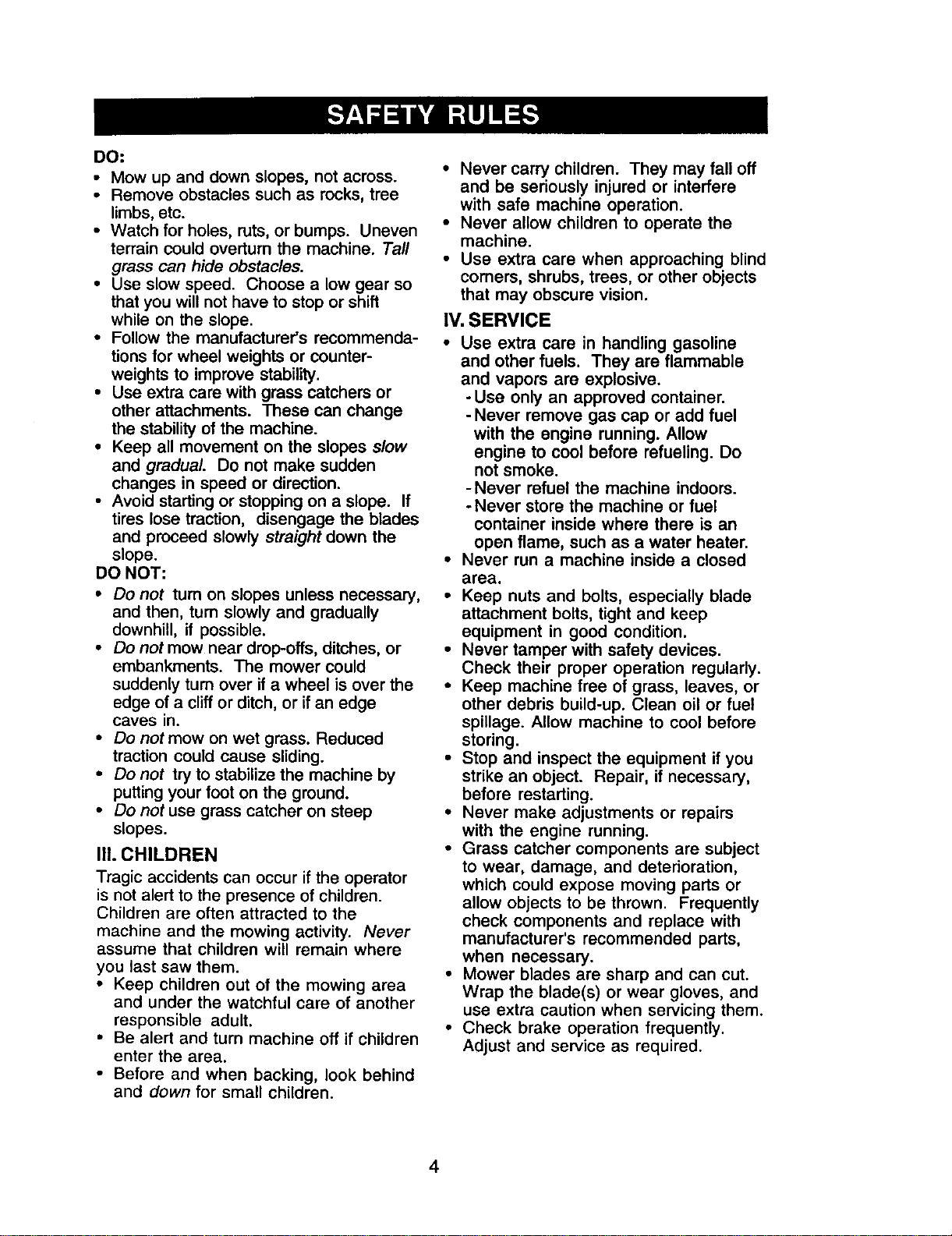

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine, Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, tum slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly tum over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out o! the mowing area

and under the watchful care of another

responsible adult,

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV.SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

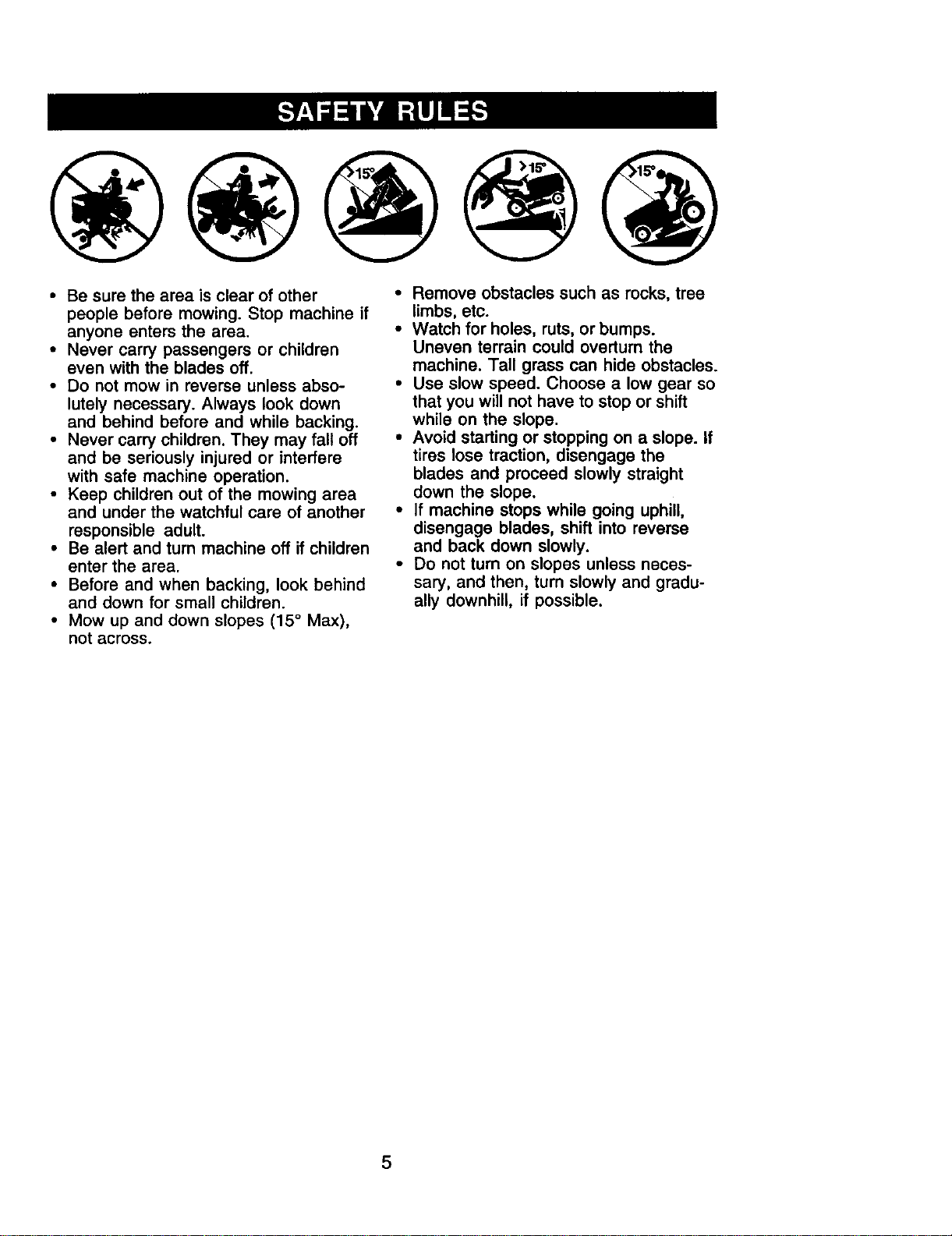

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always took down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

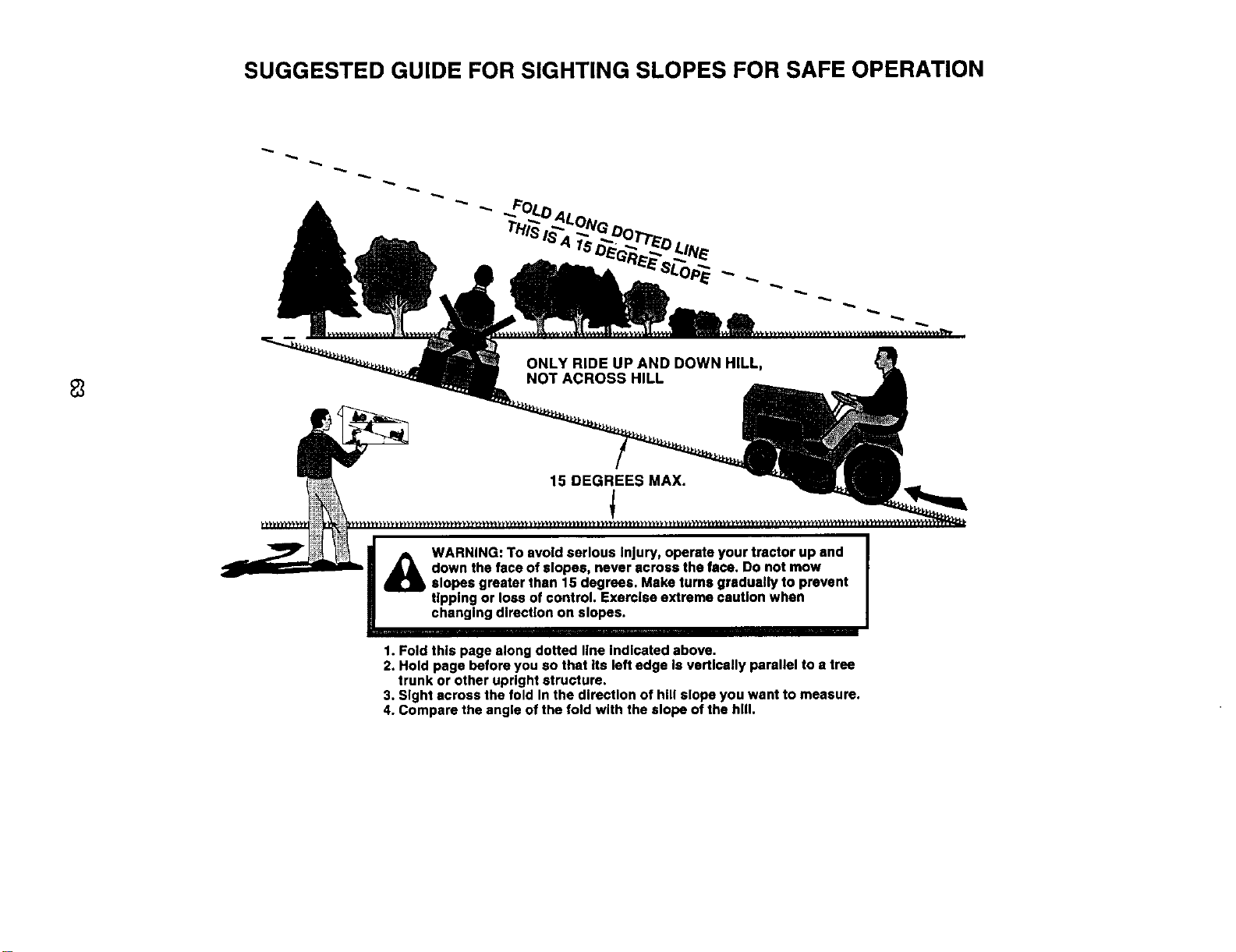

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

san], and then, turn slowly and gradu-

ally downhill, if possible.

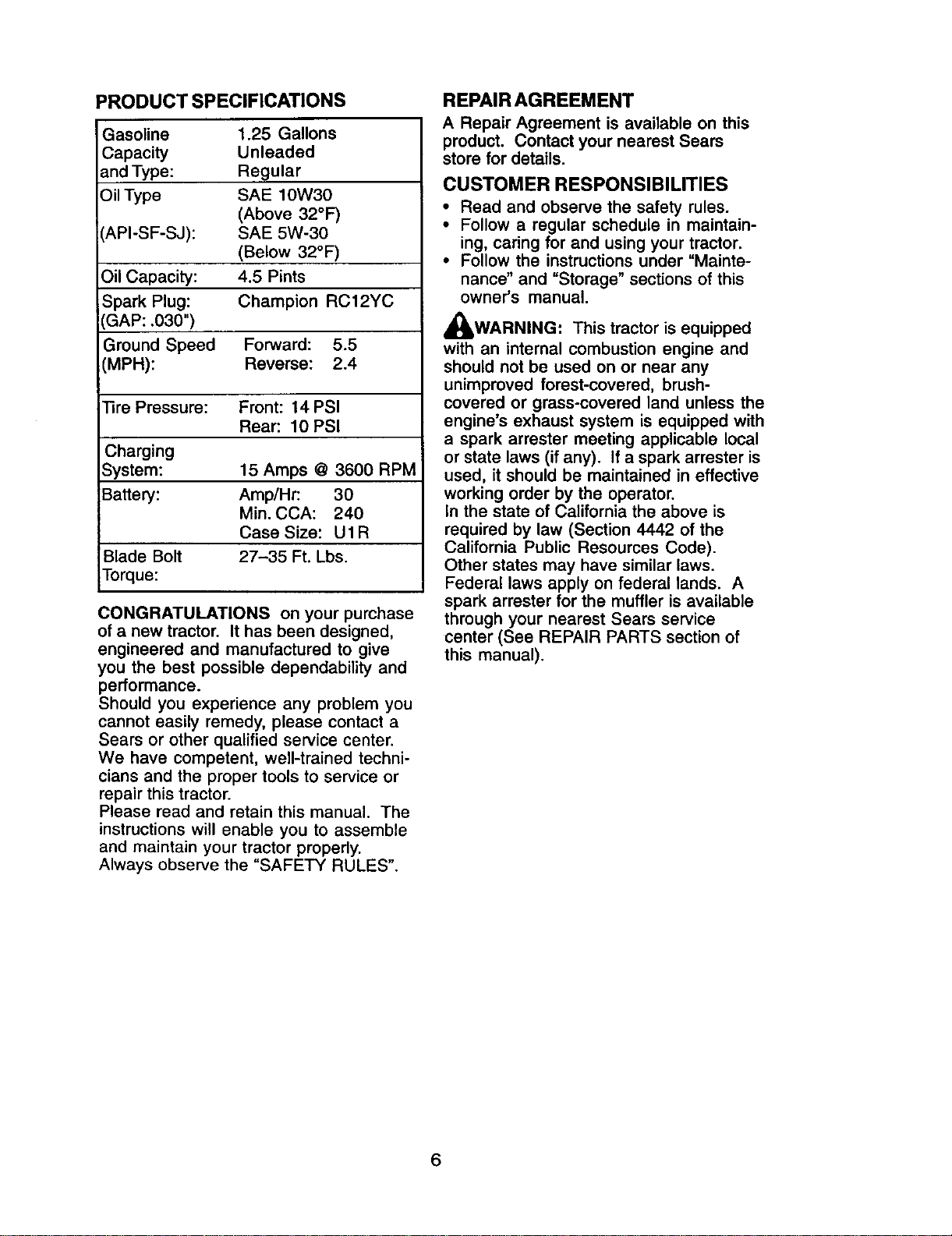

PRODUCT SPECIFICATIONS

Gasoline 1.25 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30

(Above 32°F)

API-SF-SJ): SAE 5W-30

(Below 32°F)

Oil Capacity: 4.5 Pints

Spark Plug: Champion RC12YC

GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 30

Min. CCA: 240

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

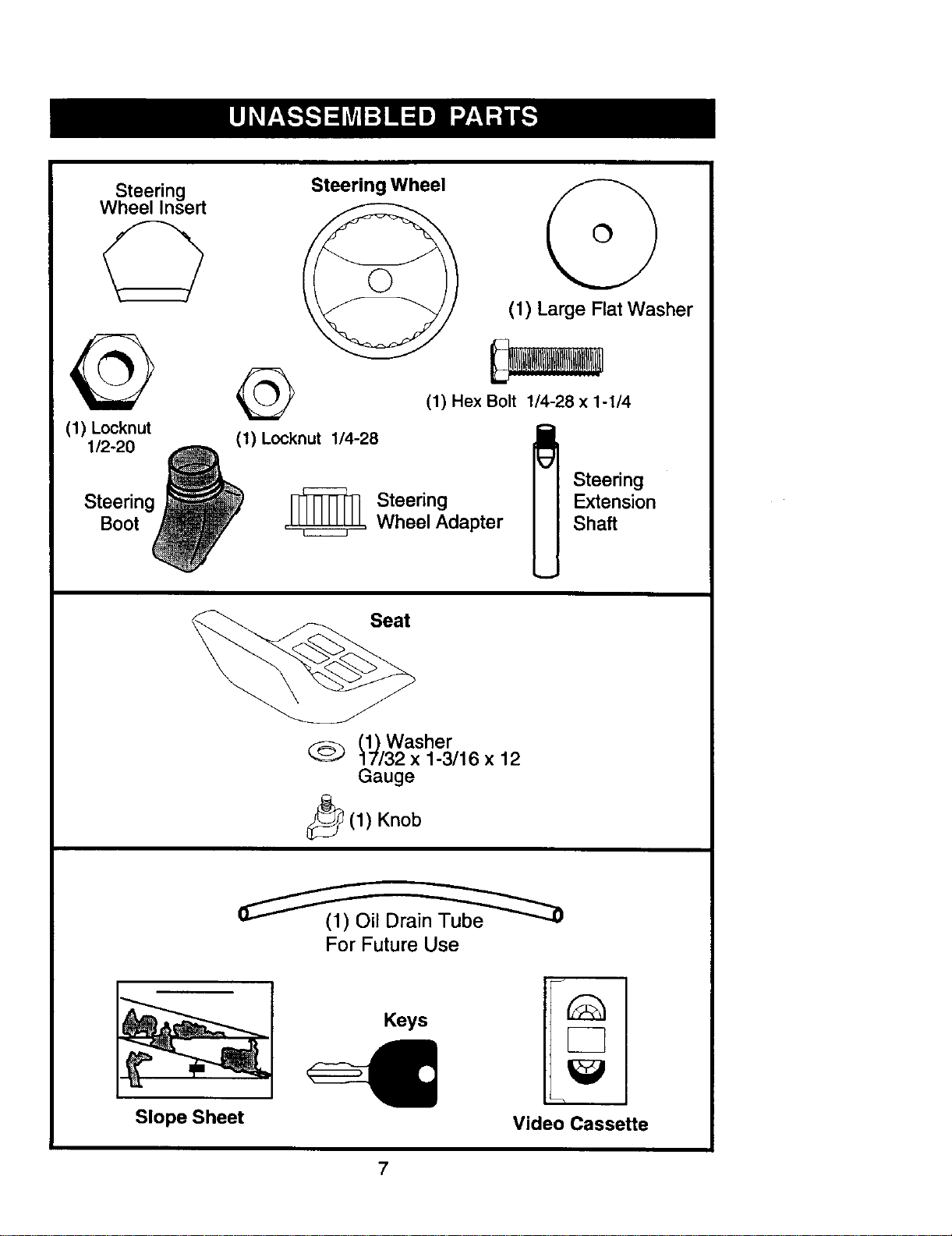

Steering

Wheel Insert

(1) Locknut

1/2-20

Steering

Boot

Steering Wheel

(1) Locknut 1/4-28

(1) Large Flat Washer

(1) Hex Bolt 1/4-28 x 1-1/4

_ Steering

Wheel Adapter

Steering

Extension

Shaft

(1) Washer

(_ 17/32x 1-3/16x 12

Gauge

_(1) Knob

Slope Sheet

For Future Use

Keys

Video Cassette

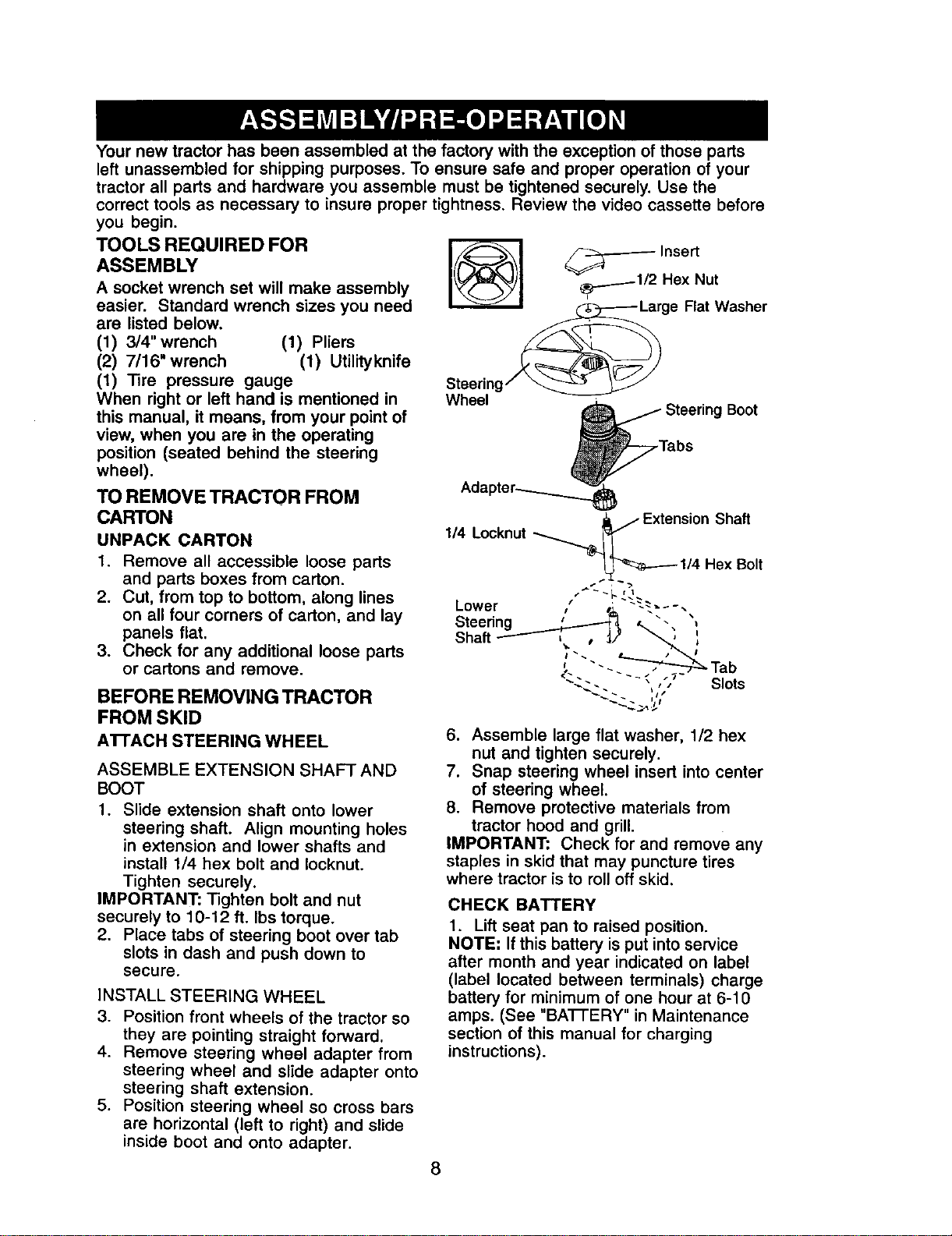

Your new tractor has been assembled at the factory with the exception of those parts

left unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utilityknife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

I_ _ Insert

_1/2 Hex Nut

ge Flat Washer

Steering /

Wheel

Boot

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines

on all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

A'n'ACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 1/4 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

1/4 Locknut __ Extension Shaft

,_-----1/4 Hex Bolt

Lower " _ """"

Steering _ _ ", ",

Shaft/_ , _2' _ ',

"_._-.. - "_,,"J Slots

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BAI-I-ERY" in Maintenance

section of this manual for charging

instructions).

_rminal

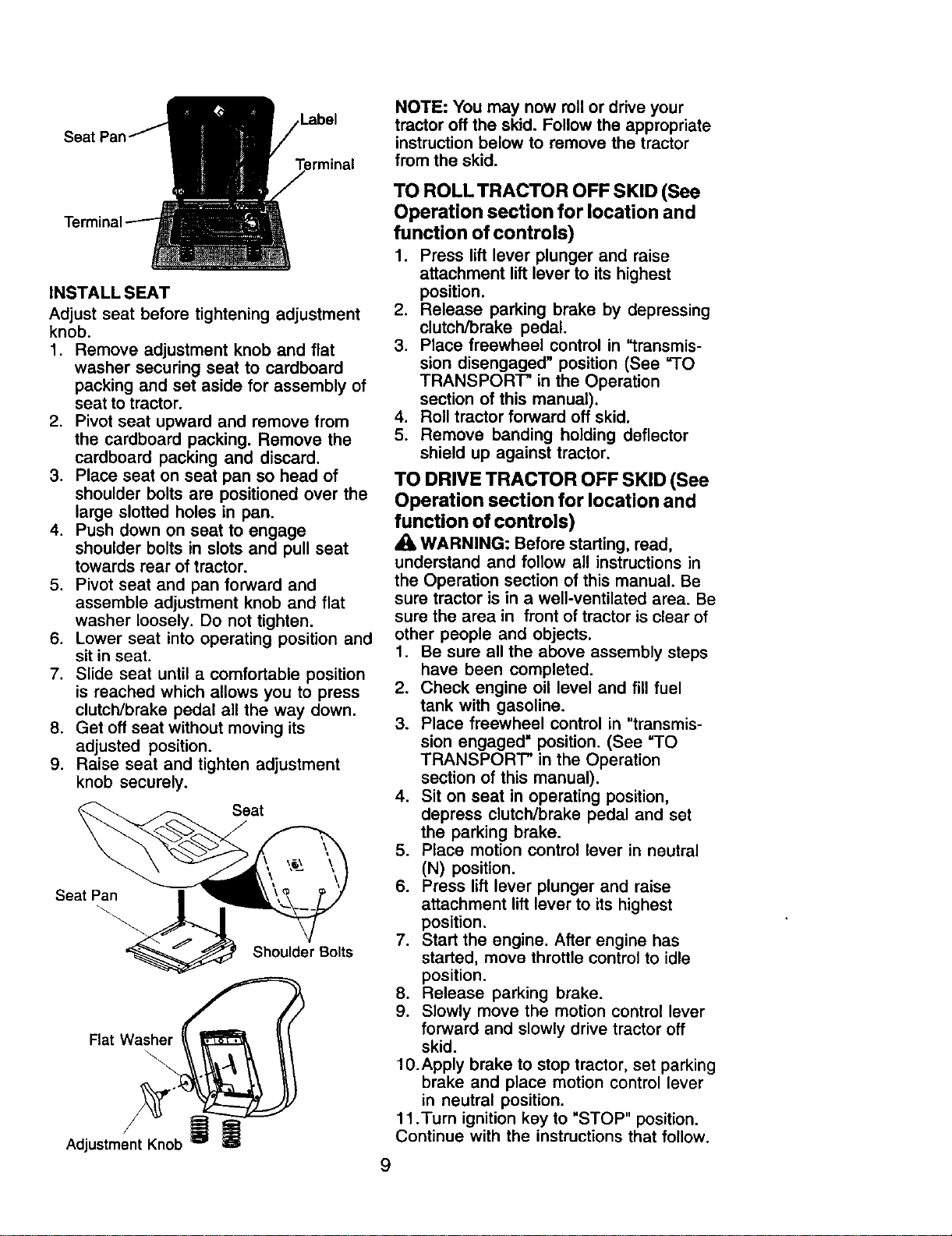

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Flat Washer

Adjustment Knob

Shoulder Bolts

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "transmis-

sion disengaged" position (See =TO

TRANSPORT" in the Operation

section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_1_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position. (See "TO

TRANSPORT" in the Operation

section of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

11 .Turn ignition key to "STOP" position.

Continue with the instructions that follow.

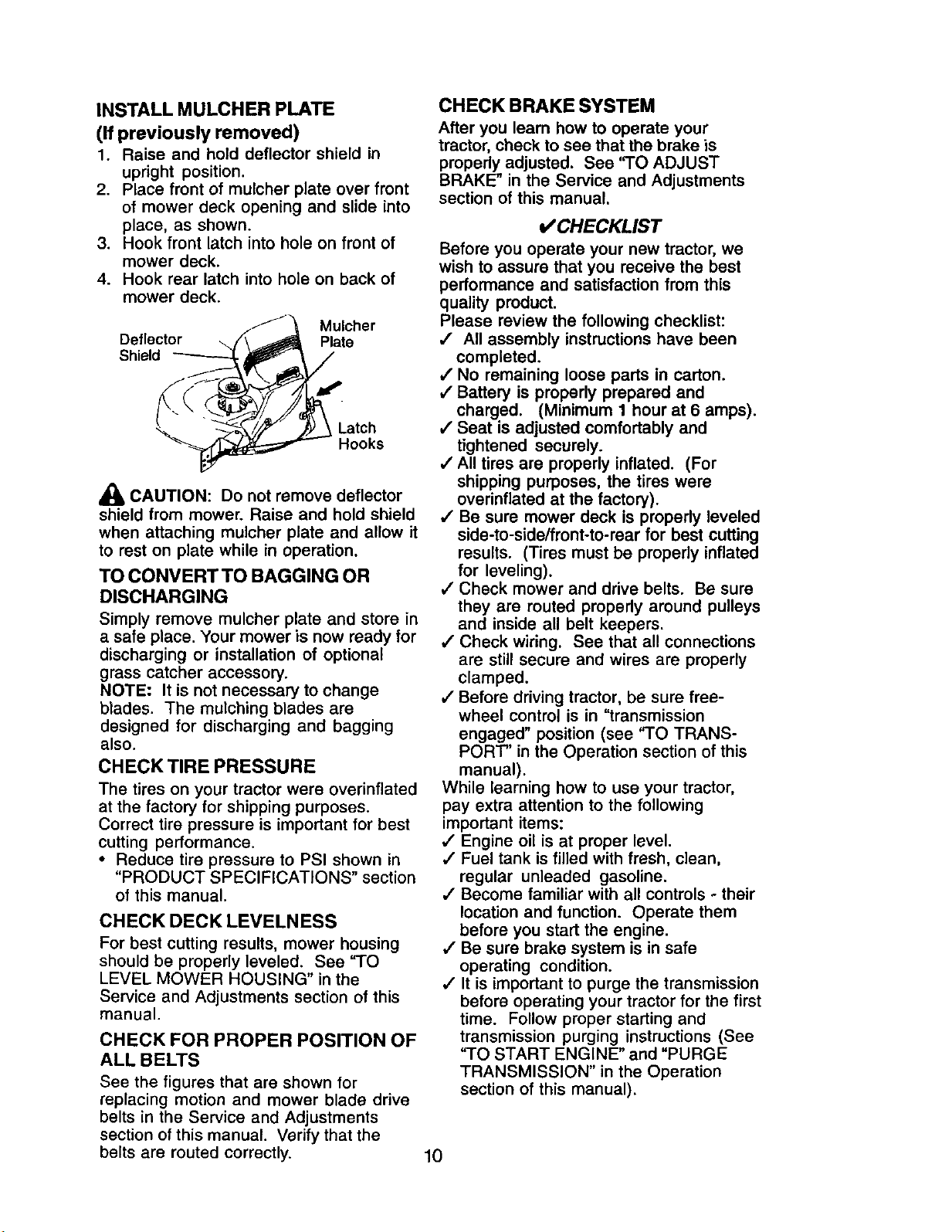

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulching blades are

designed for discharging and bagging

also.

CHECKTIREPRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKESYSTEM

After you learn how to operate your

tractor, check to see that the brake is

propedy adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

v"CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/" All assembly instructions have been

completed.

,I No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

•/ Be sure mower deck is propedy leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be propedy inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in "transmission

engaged" position (see "TO TRANS-

PORT' in the Operation section of this

manual).

While learning how to use your tractor,

pay extra attention to the following

important items:

,I Engine oil is at proper level.

,I Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

•/ It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

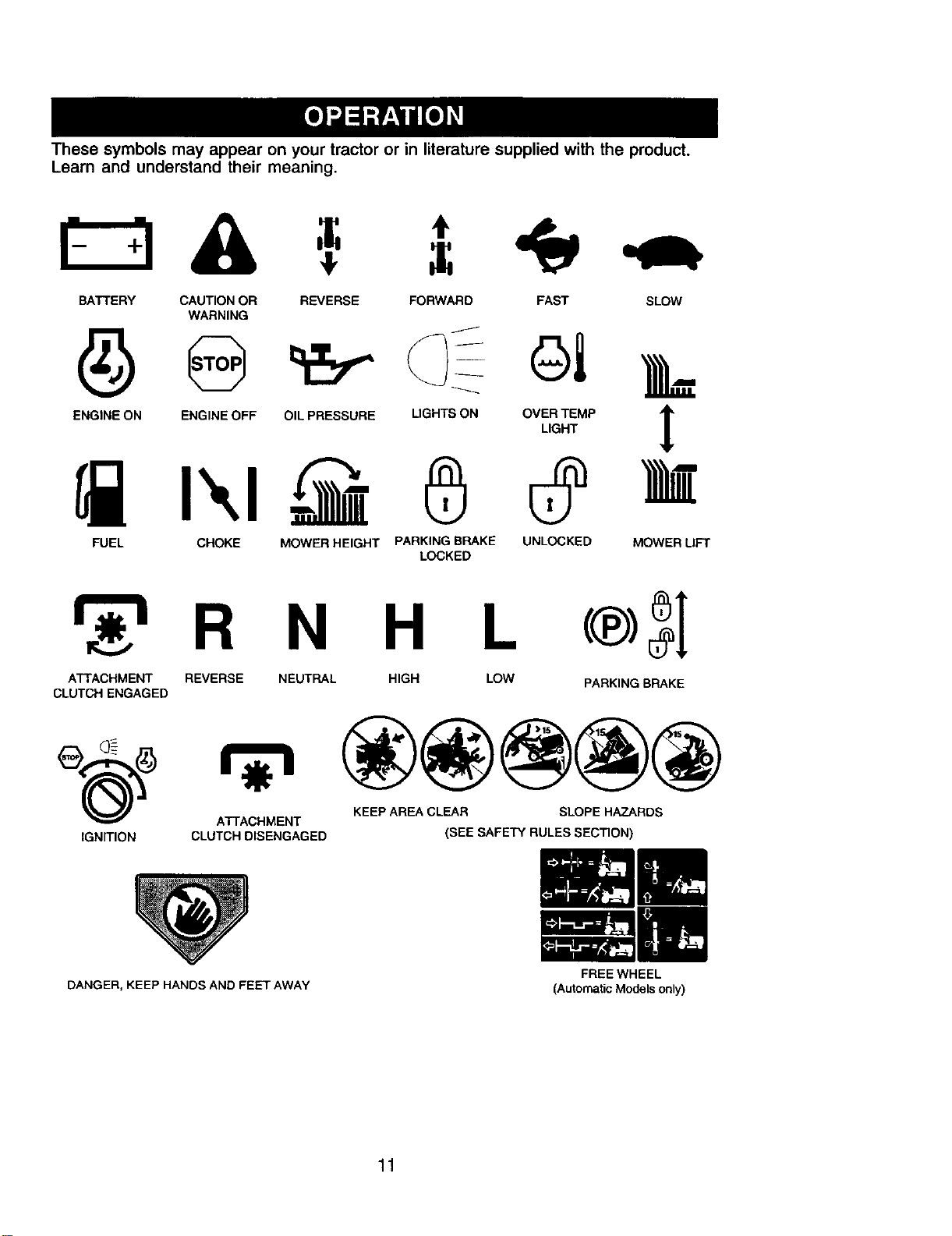

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

r:- A

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

KEEP AREA CLEAR

ATTACHMENT SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

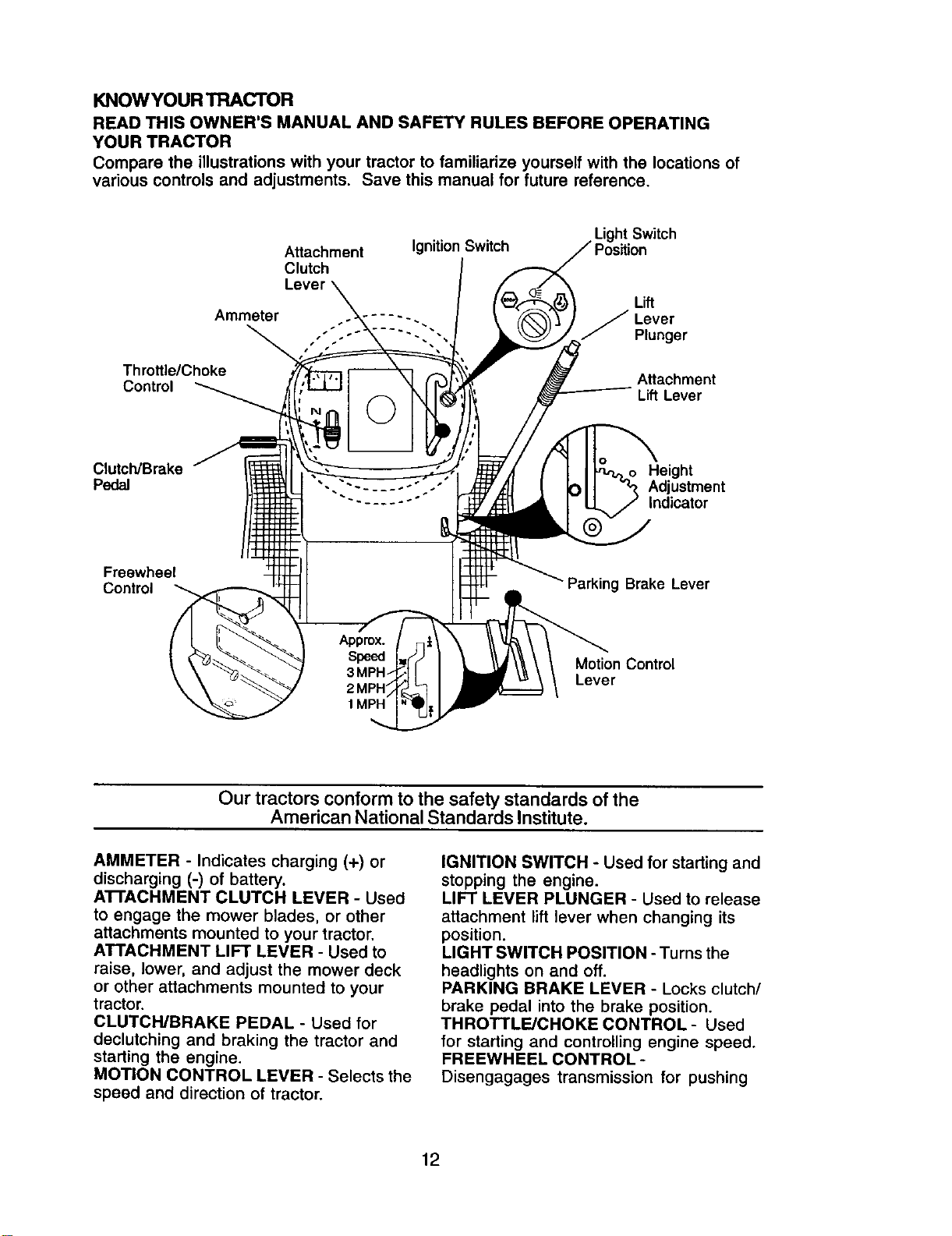

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Clutch

Ignition Switch

Light Switch

Lift

Ammeter J Lever

.... "-._-, Plunger

Throttle/Choke

Control Attachment

Lift Lever

Clutch/Brake Height

Pedal Adjustment

indicator

Freewheel

Control

Parking Brake Lever

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

A'n'ACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

FREEWHEEL CONTROL -

Disengagages transmission for pushing

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

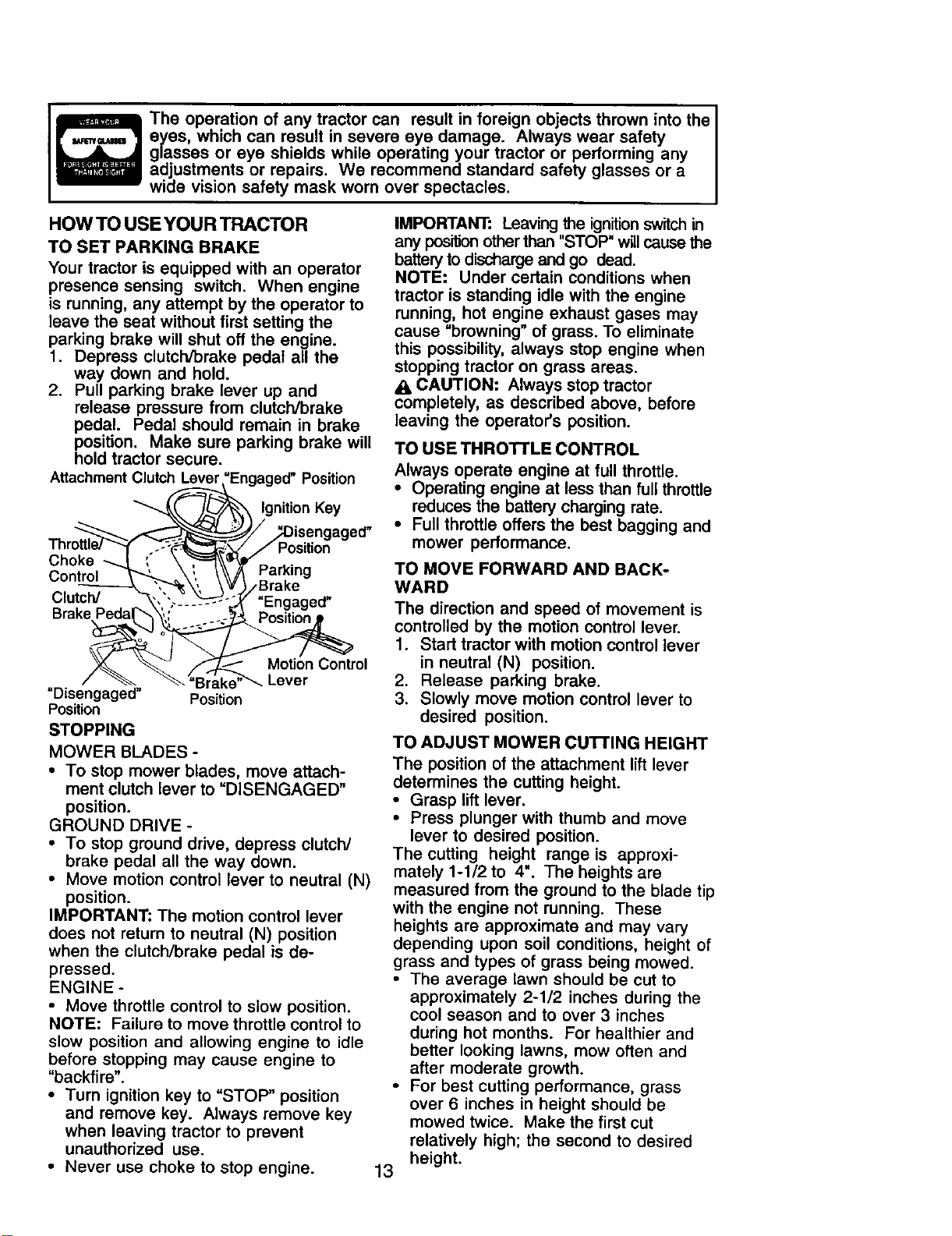

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever =Engaged" Position

_ Ignition Key

...___/_Disengaged"

Throttle/'_ ,,_--'_.,_/JPosition

Choke "_l : \ _\\_v" ..

Control _ .\:, \_ Parking

Clu_; _ '_-'_:_.-o_,,_/"Engaged

ur_Ke P'eoa Position

e_rol

/ _ _'-Brake--'.._ Lever

=Disengaged" Position

Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch in

any posilJonother than "STOP" willcause the

battery to discharge and go dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full throttle

reduces the battery chargingrate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACK-

WARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever

in neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER cu'n'ING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

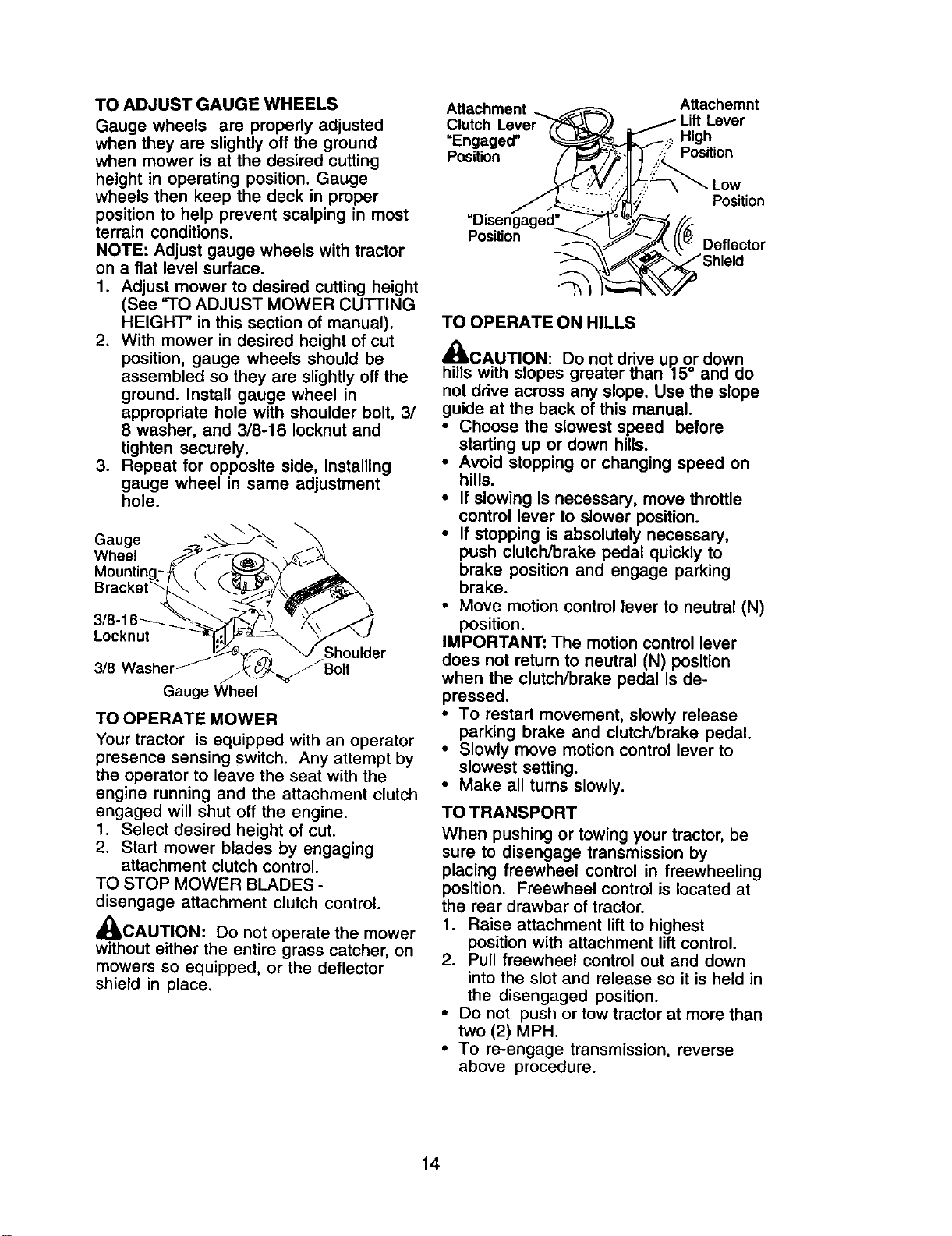

TOADJUSTGAUGEWHEELS

Gaugewheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT' in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment

hole.

Gauge

Wheel

Locknut

3houlder

3/8 _JJBolt

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

,I_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment ._. Attachemnt

Clutch Lever Lever

=Engaged" High

Position Position

Position

"Disengaged_

Position

Deflector

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Freewheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

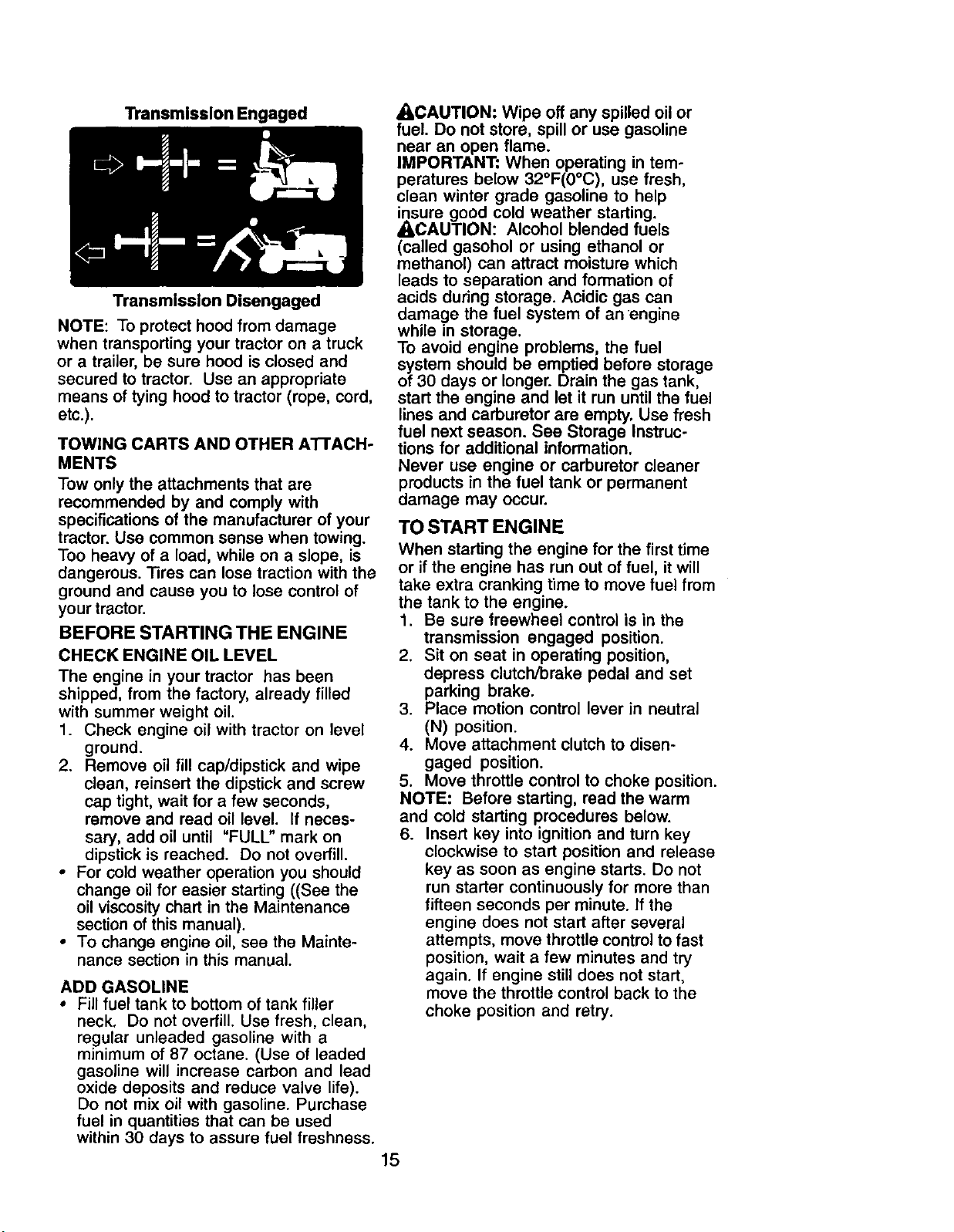

TransmlsslonEngaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER A'n'ACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with the

ground and cause you to lose control of

your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel freshness.

A, CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_I_CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

To avoid engine problems, the fuel

system should be emptied before storage

of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel

lines and carburetor are empty, Use fresh

fuel next season. See Storage Instruc-

tions for additional information,

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disen-

gaged position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

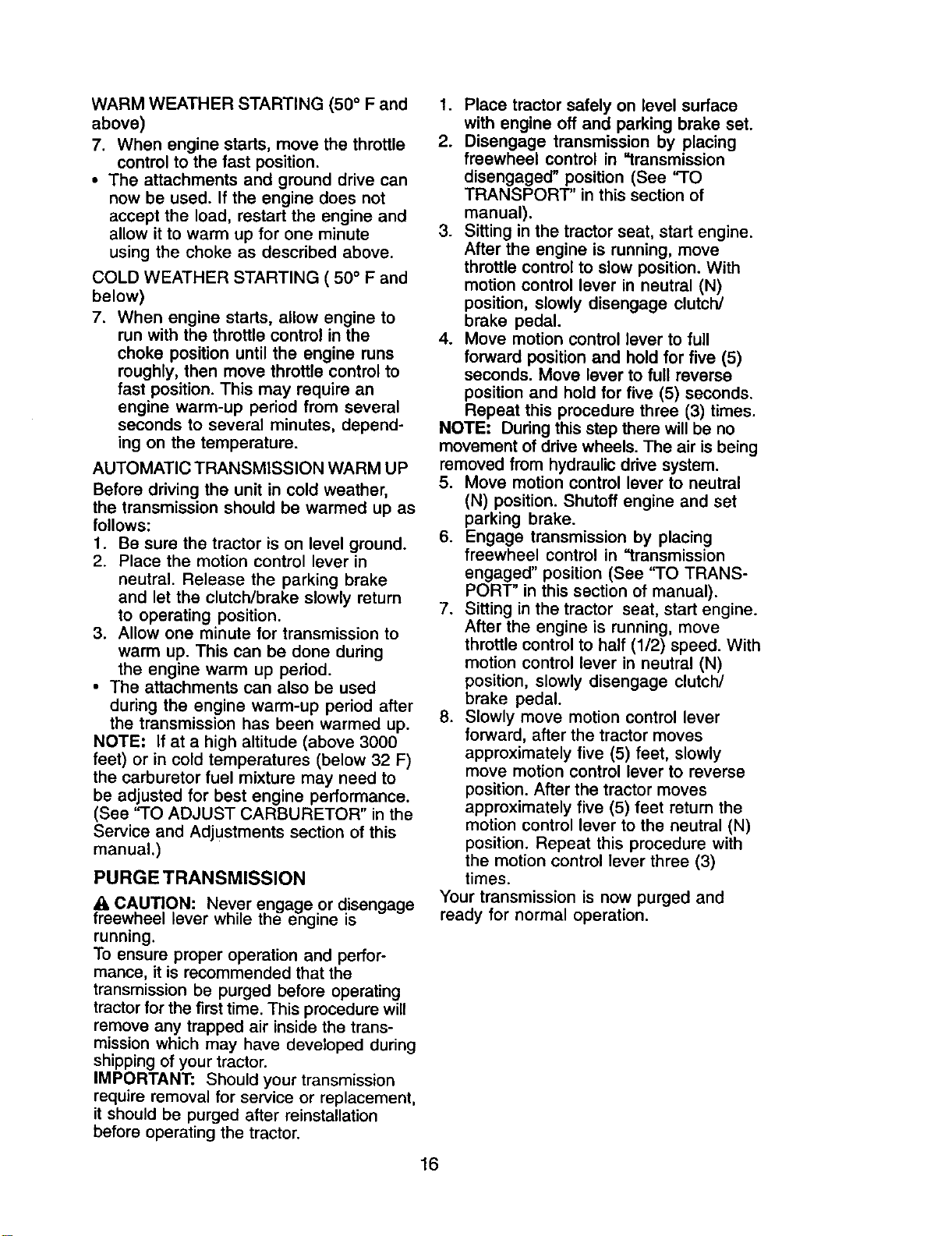

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, allow engine to

run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control to

fast position. This may require an

engine warm-up period from several

seconds to several minutes, depend-

ing on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used

during the engine warm-up period after

the transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

A CAUTION: Never engage or disengage

freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in "transmission

disengaged" position (See 'q'O

TRANSPORT" in this section of

manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of ddve wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing

freewheel control in "transmission

engaged" position (See "TO TRANS-

PORT in this section of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

8. Slowly move motion control lever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your transmission is now purged and

ready for normal operation.

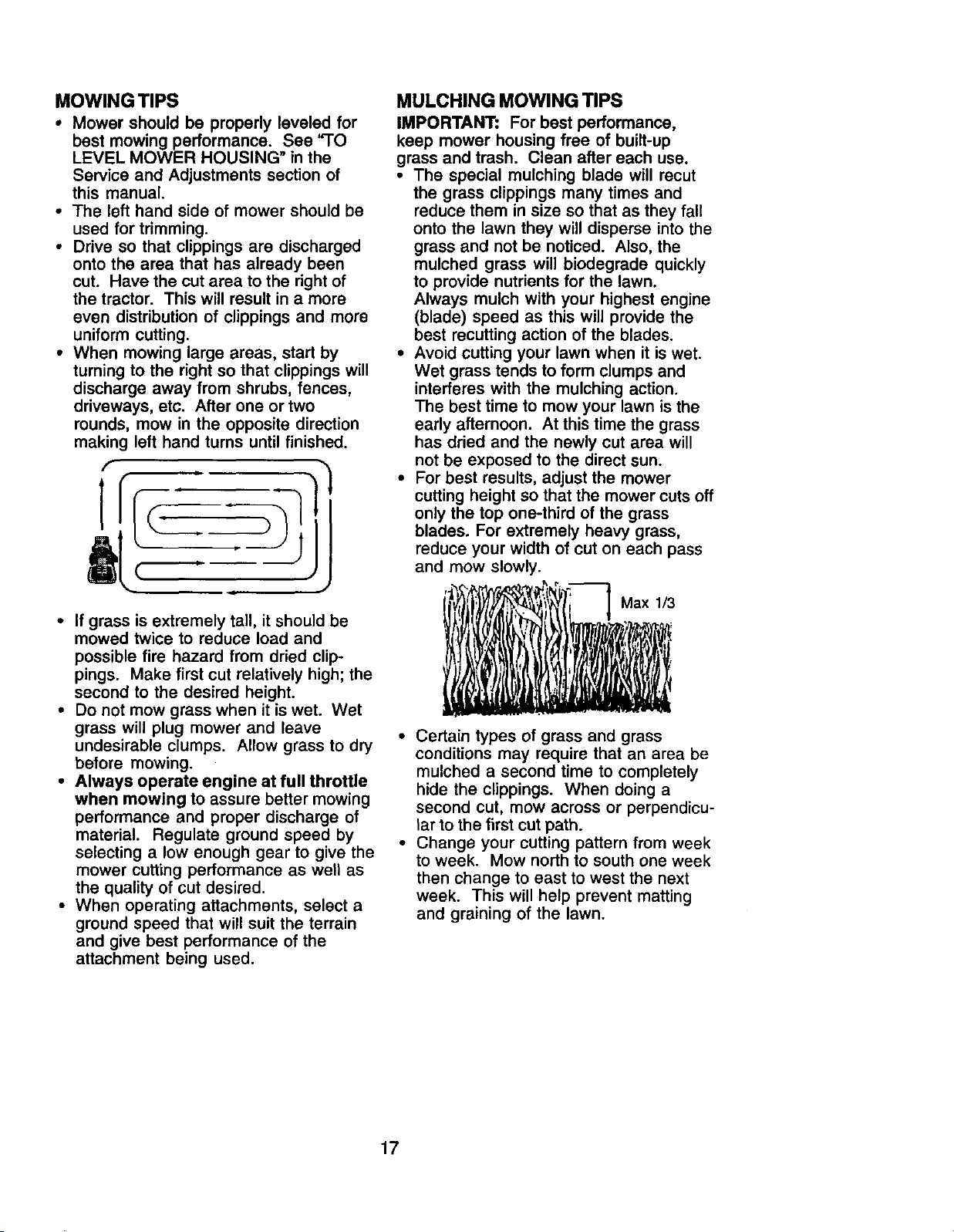

MOWINGTIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

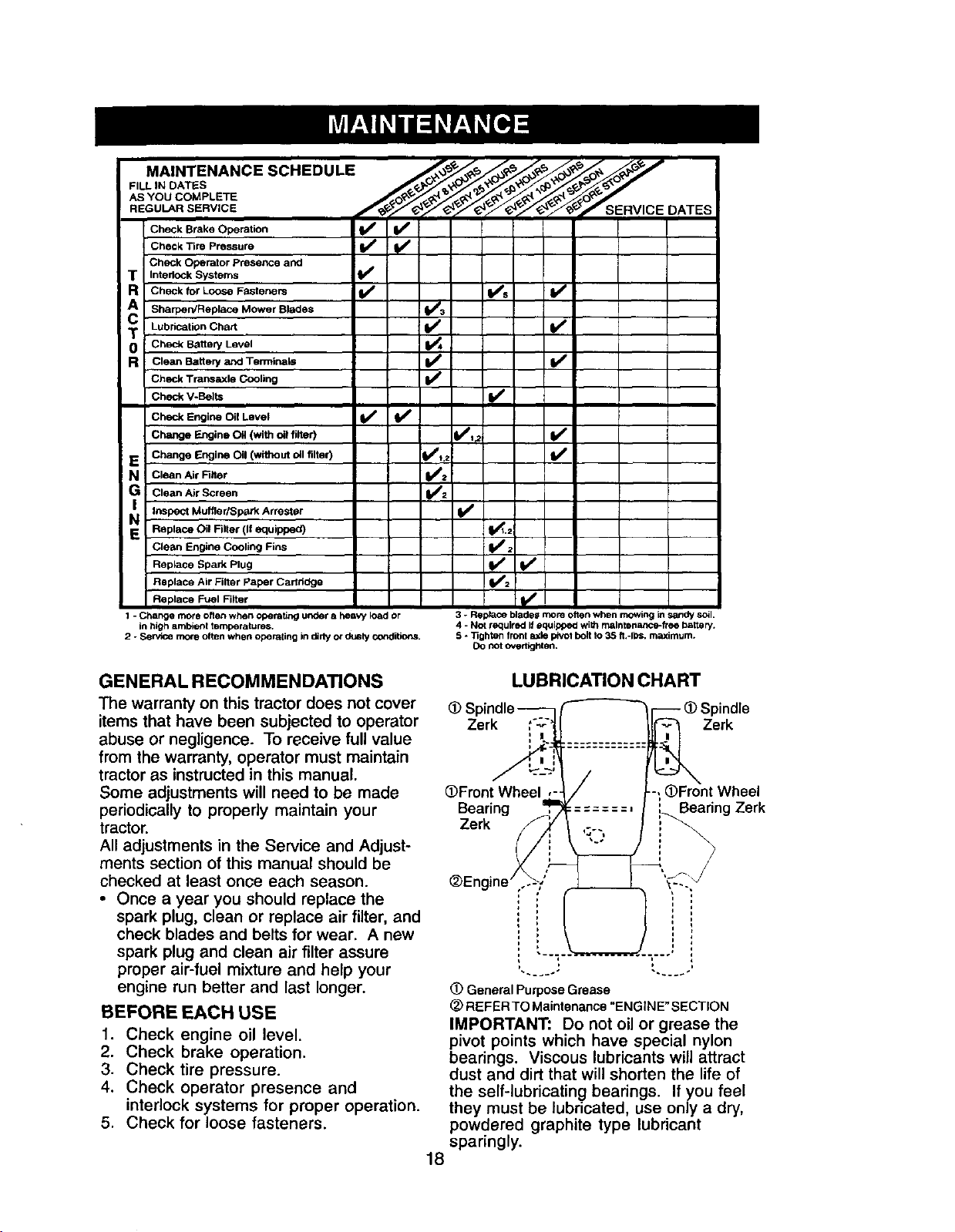

°'T S

Check Operator Presence and

T Interlock Systems V e

R Check for Loose Fastenem V* V_s V /

SharperdReplace Mower Blades _V43

T Lubrication Chart If

0 Check Battery Level

R Clean Battery and TerminaLs If

Check Transaxle Cooling V P

Check V-Belts V'

Check Engine Oil Level V _ V S

Change F=ngine Oil (with oil filter) I_,; If I

E Change Engine Oil (without o_1filter) ll_t,2 V /

N Clean Air Filter VP2

G Clean Air Screen

,/=

i_ Inspect MuffledSp_rk Arrestsr V /

E Replace Oil Filter (If equipped) V_.=

Clean Engine Cooling Fins V / ;

Replace Spark Plug _ Ik_

Replace Air Filter Paper Cartridge ! V'2

Replace Fuel Filter t_ I

3 - Replace blade_ more olten when mowing in sandy so_l,

4 - Not required if equipped with maintonanc_free battery.

5 - 33ghten front eJde pivot bolt to 35 flabs, maximum.

Oo not overtightml.

1 - Change more often when operating under a heavy load or

in high ambient temperatures,

2 - Service morn often when operating in didy or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to propedy maintain your

tractor.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

>indle

Zerk Zerk

(_Front Wheel

Bearing

Zerk

_)Engine /

ng Zerk

(_) General Purpose Grease

(._)REFER TO Maintenance "ENGINE"SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

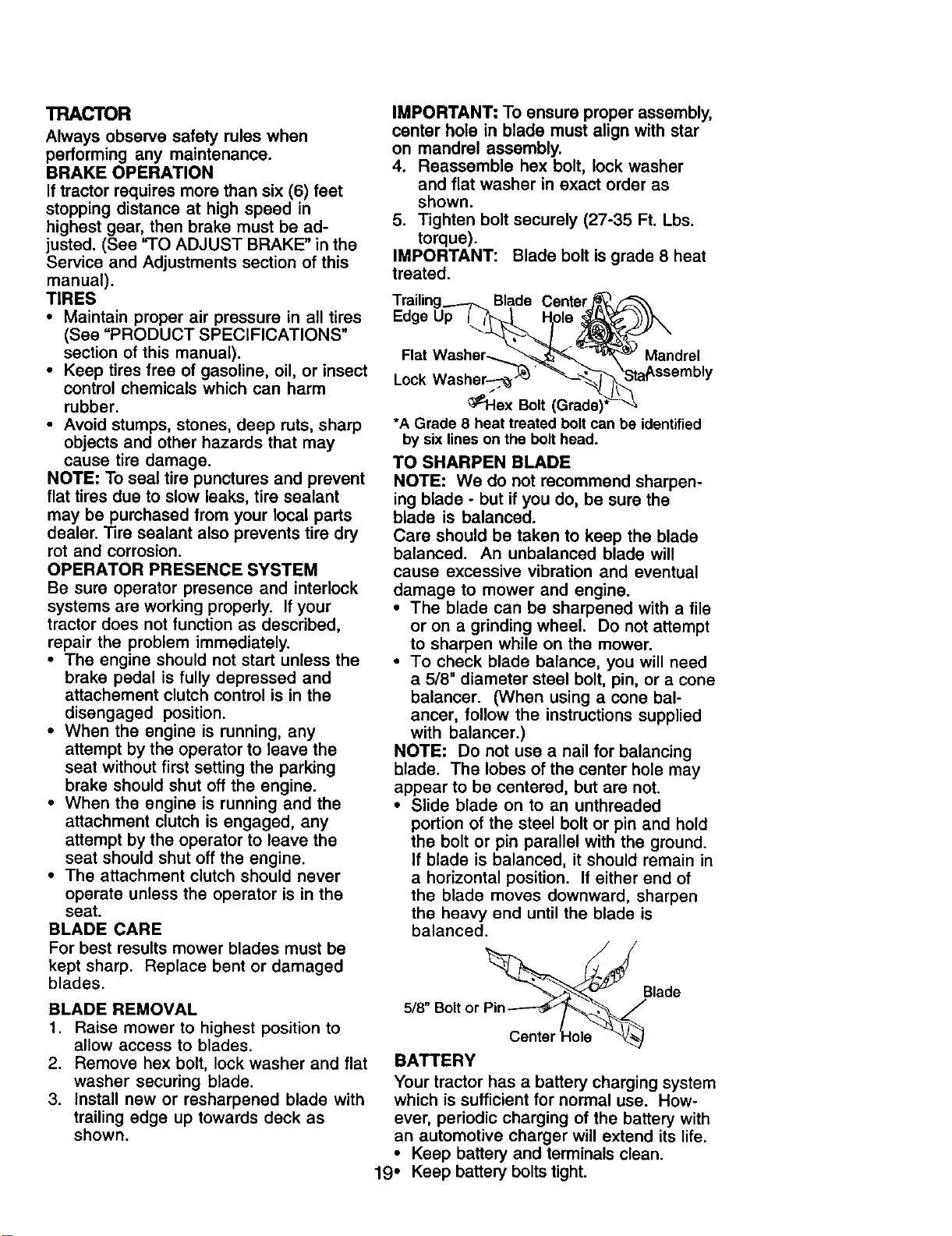

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Blade Center

Edge Up

Flat Mandrel

Lock

_--Hex Bolt (Grade)'

*A Grade 8 heat treated boltcan be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

Blade

Center

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

19 • Keep battery bolts tight.

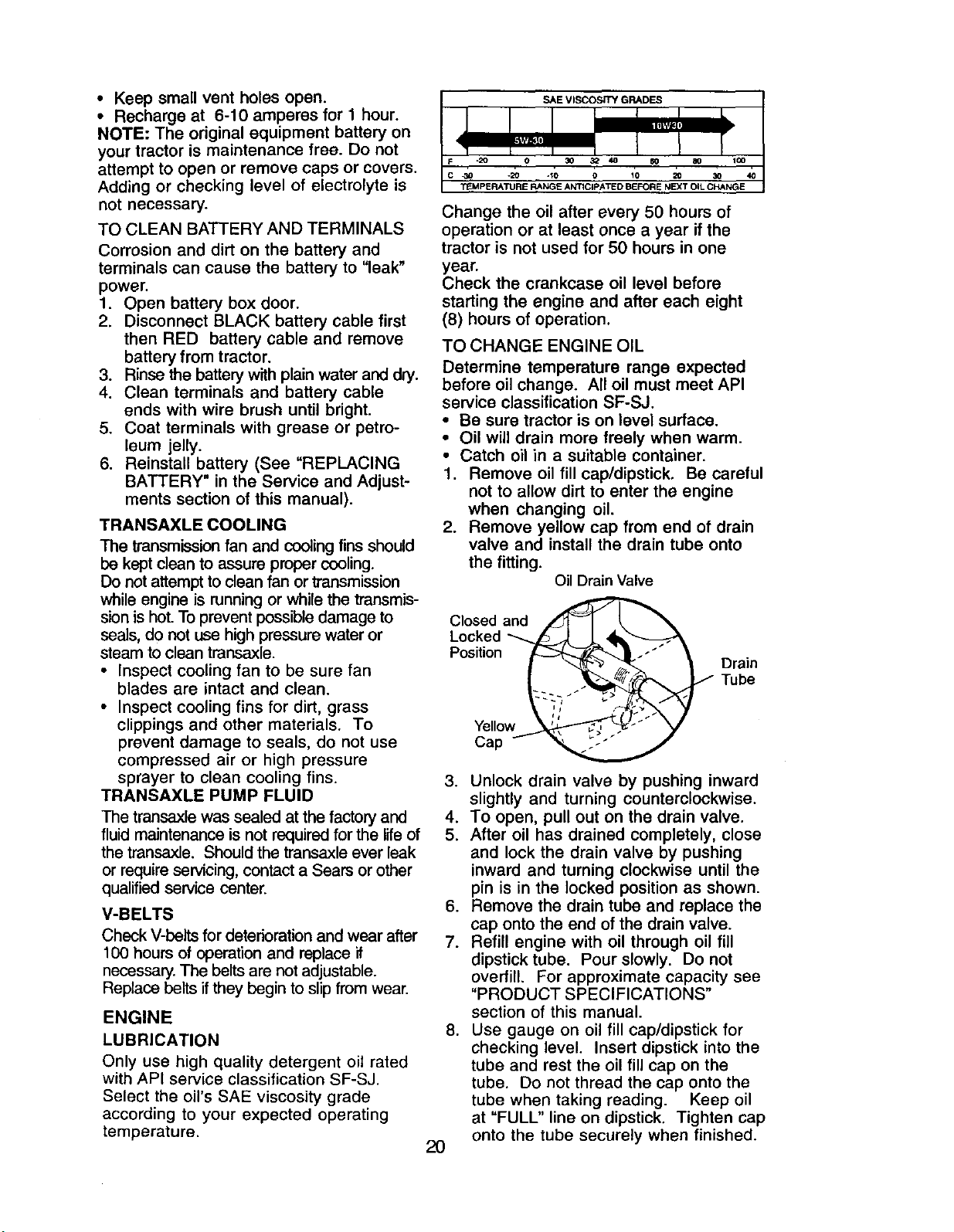

• Keepsmall vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Open battery box door.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the Service and Adjust-

ments section of this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins should

be kept clean to assure proper cooling.

Do not attempt to clean fan or transmission

while engine is running or while the transmis-

sion is hot. To prevent possible damage to

seals, do not use high pressure water or

steam to clean transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and

fluid maintenance is not required for the life of

the transaxle. Should the transaxle ever leak

or require servicing, contact a Sears or other

qualified service center.

V-BELTS

Check V-belts for deterioration and wear after

100 hours of operation and replace if

necessary. The belts are not adjustable.

Replace belts ifthey begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

o 3o

-2o -to o 10 20 30 40

TI_MPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANCIE

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Closed and

Yellow ',j._---""T.._""" y

Cap _ _

Drain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

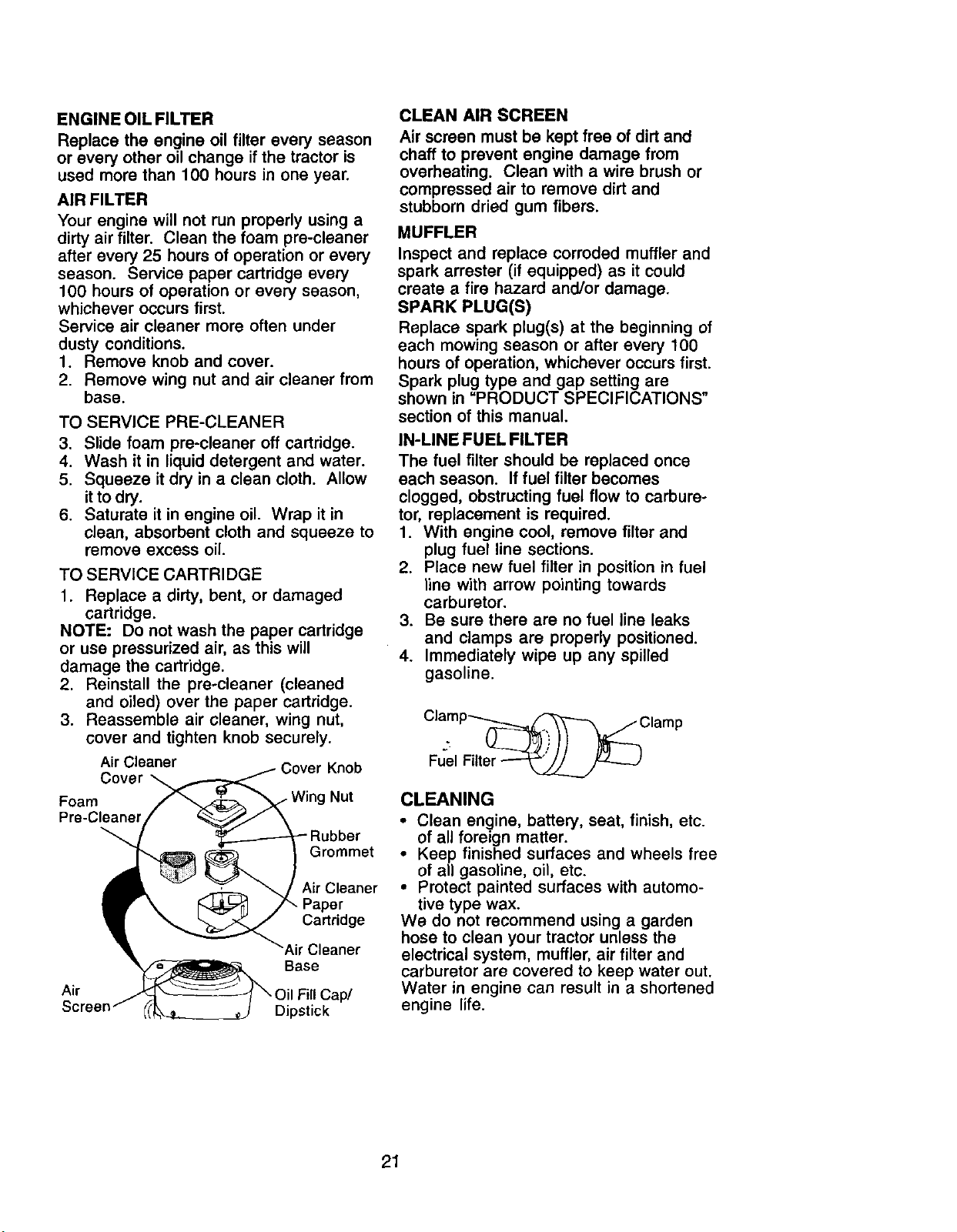

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change ifthe tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knob and cover.

2. Remove wing nut and air cleaner from

base.

TO SERVICE PRE-CLEANER

3. Slide foam pre-cleaner off cartridge.

4. Wash it in liquid detergent and water.

5. Squeeze it dry in a clean cloth. Allow

it to dry.

6. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

1. Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will

damage the cartridge.

2. Reinstall the pre-cleaner (cleaned

and oiled) over the paper cartridge.

3. Reassemble air cleaner, wing nut,

cover and tighten knob securely.

Air Cleaner

Foam .- Wing Nut

Pre-Cleaner

ber

Grommet

Air

Air Cleaner

Paper

Cartridge

Cleaner

Base

Fill Cap/

Dipstick

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Cla:p__}_ clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

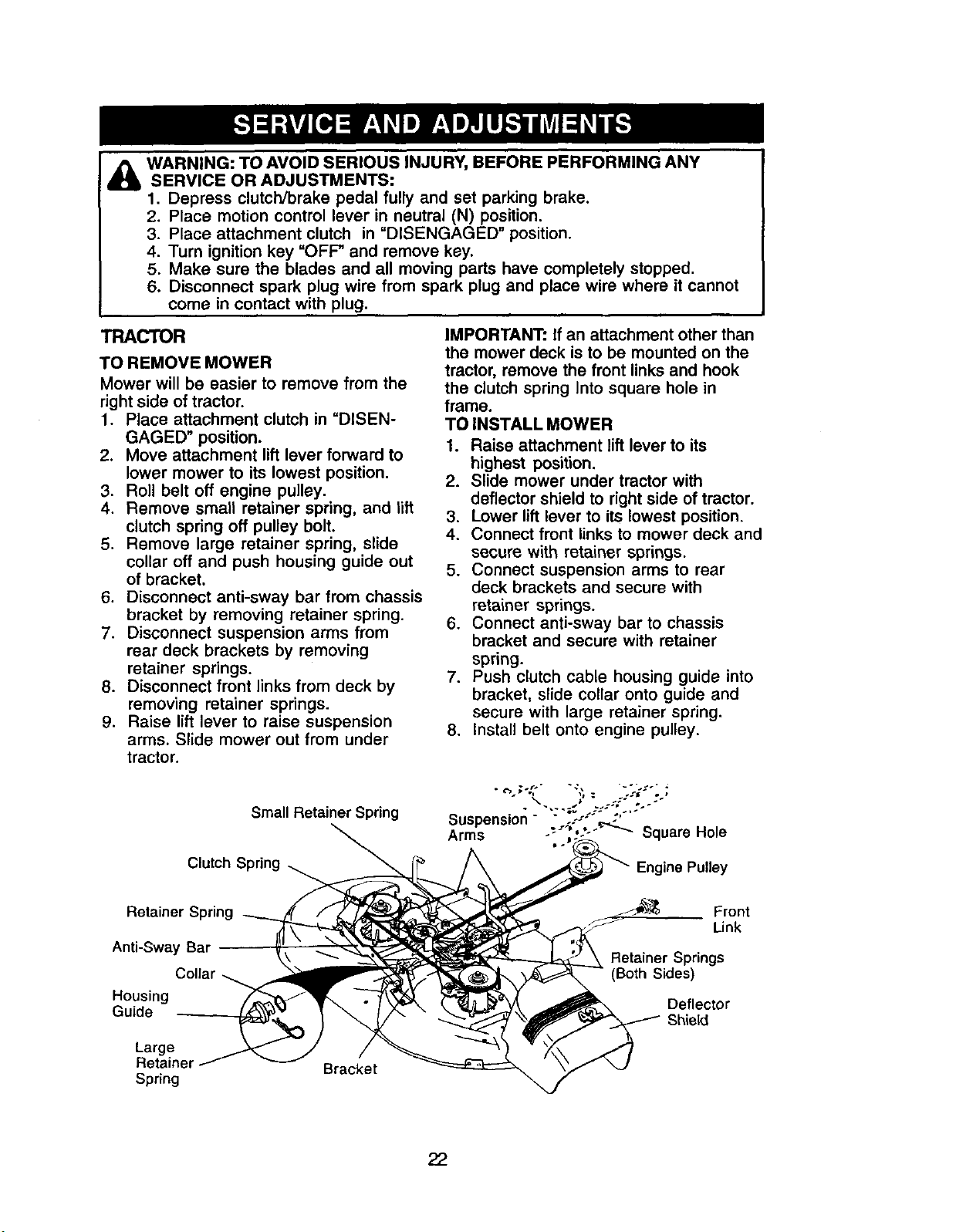

_lb WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANYSERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in =DISENGAGED" position.

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped•

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in =DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position•

3. Roll belt off engine pulley•

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Install belt onto engine pulley.

Small Retainer Spring

Clutch Spring _

Retainer Spring

Anti-Sway Bar

Housing

Guide

Large

Retaine_

Spring

Bracket

Engine Pulley

Front

Link

Retainer Springs

(Both Sides)

Deflector

Shield

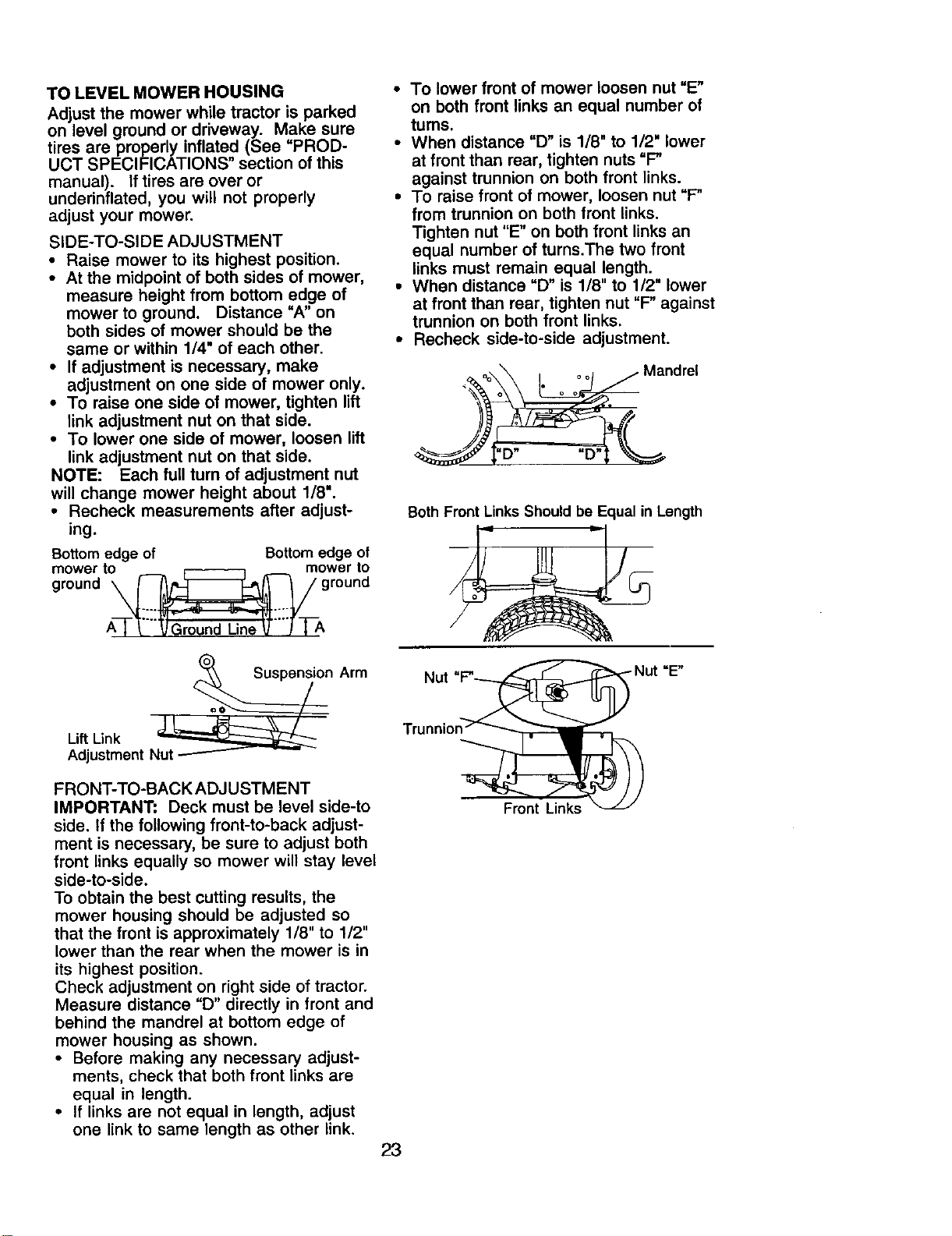

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual), if tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom edge of Bottom edge of

mower to mower to

ground _ ground

aro ine TA

n Arm

LiftUnk N_

Adjustment

FRONT-TO-BACK ADJ USTM ENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts =F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.The two front

links must remain equal length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Both Front Links Should be Equal in Length

Nut _._

Trunnion_.._'_r_

Front

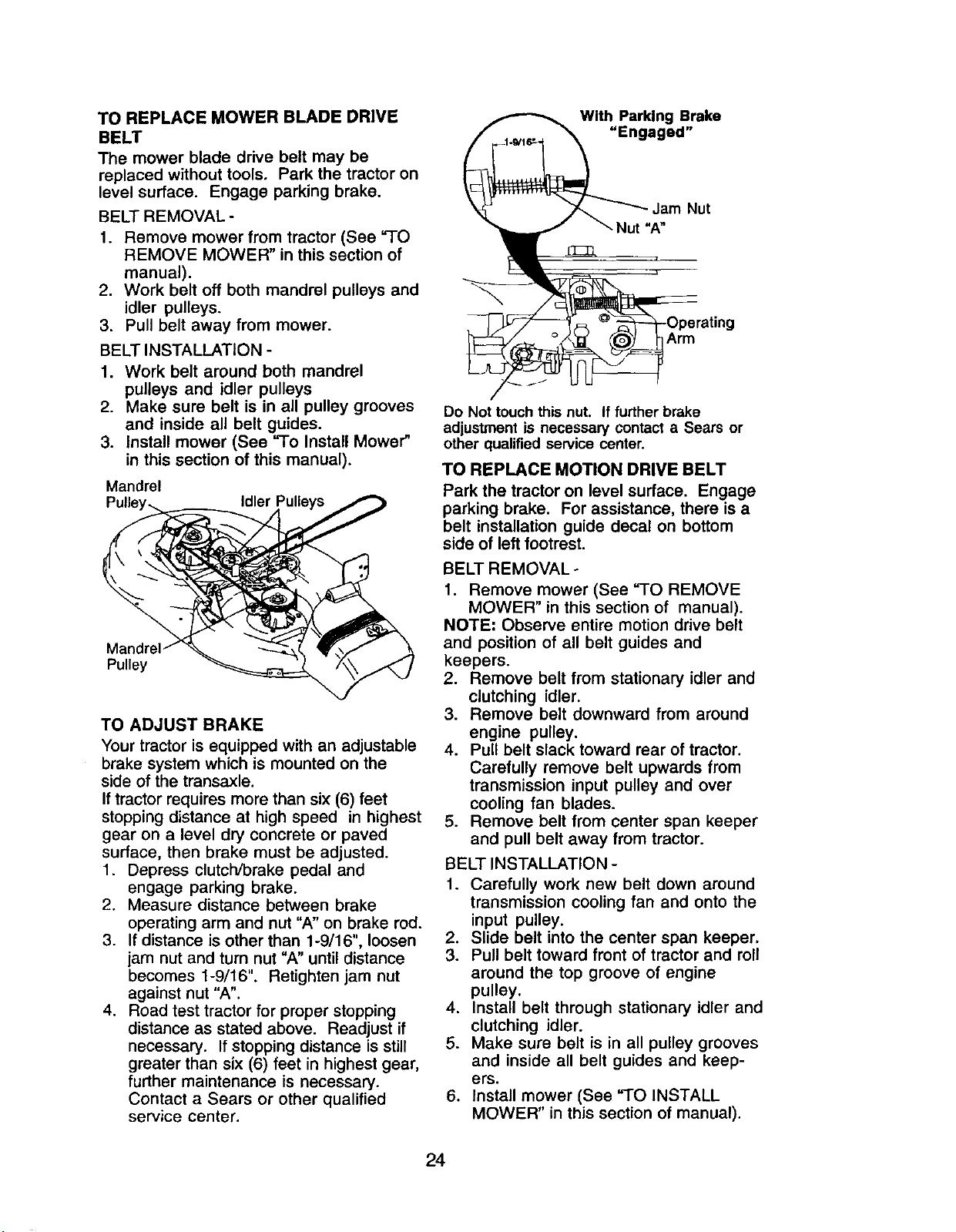

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "3-o Install Mower"

in this section of this manual),

Mandrel

Idler

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2, Measure distance between brake

operating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16", loosen

jam nut and turn nut "A" until distance

becomes 1-9/16". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest gear,

further maintenance is necessary.

Contact a Sears or other qualified

service center.

__ _AWithParking Brake

ngaged"

Jam Nut

Do Not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper,

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley,

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

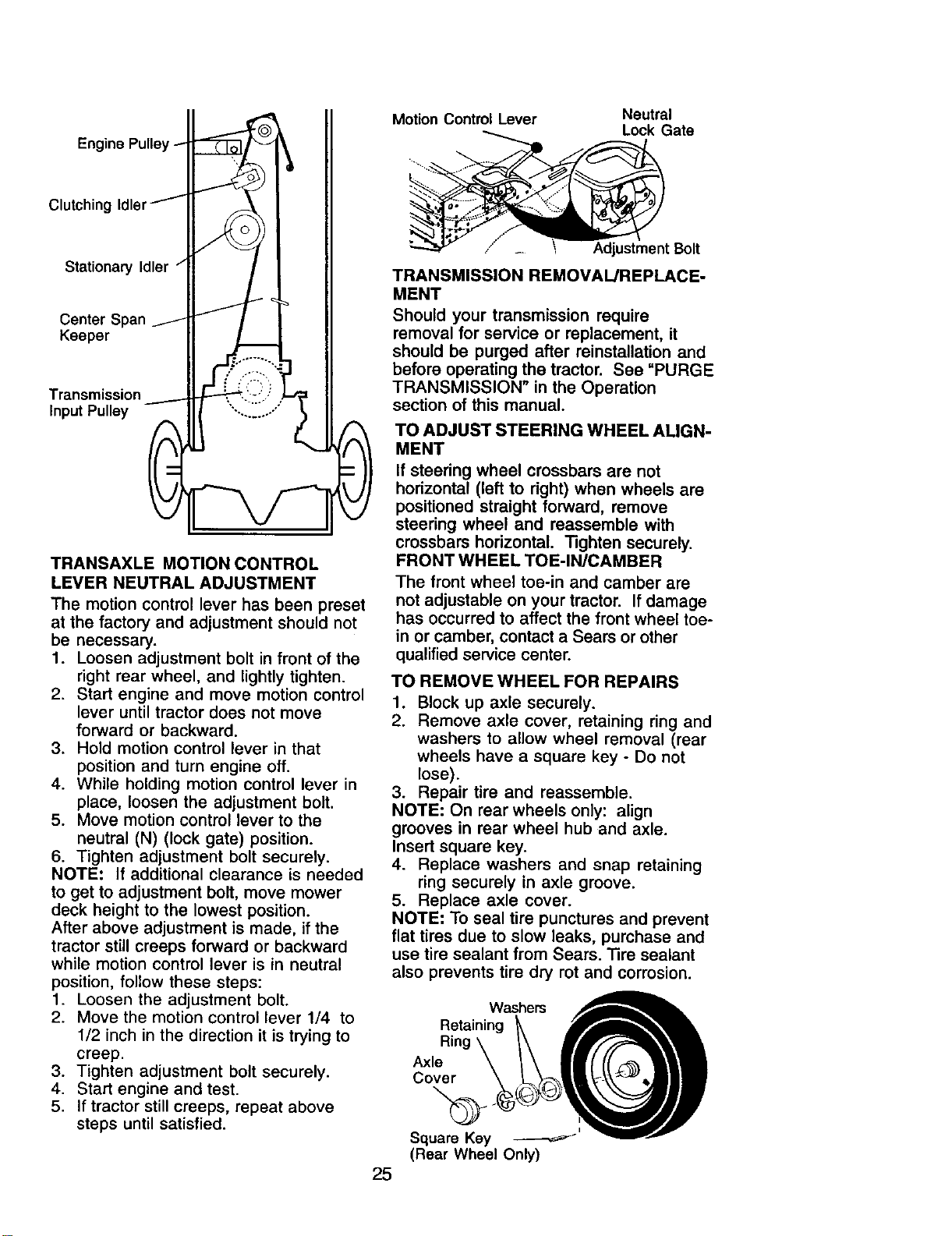

Motion Control Lever Neutral

Lock Gate

Clutching

Stationary Idler

Center S

Keeper

Transmission

Input Pulley

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever until tractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

! Adjustment Bolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to dght) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining _k __k

Ring, /\ If ' l

Axle \ I \ III11( _ II!1

Square Key -----_'

(Rear Wheel Only)

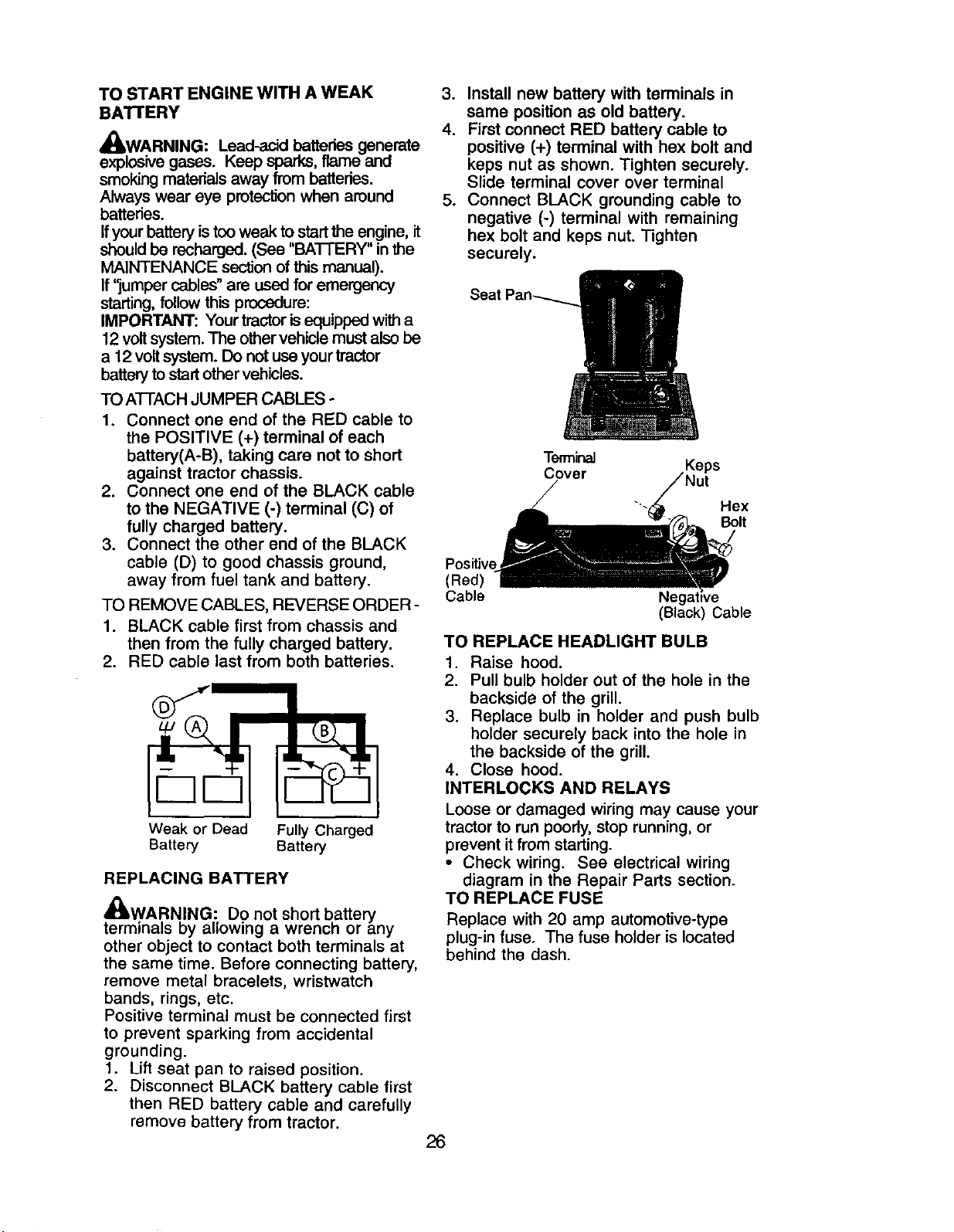

TO START ENGINE WITH A WEAK

BATTERY

_bWARNING: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BA-I-I-ERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped w_ a

12 volt system. The other vehicle must also be

a 12 volt system. Do not use your tractor

battery to start other vehicles.

TO ATFACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

41_WA.RN, ING: Do not short battery

terminals oy allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

Terminal Keps

Cover

Hex

Bolt

Positive

(Red)

Cable

(Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

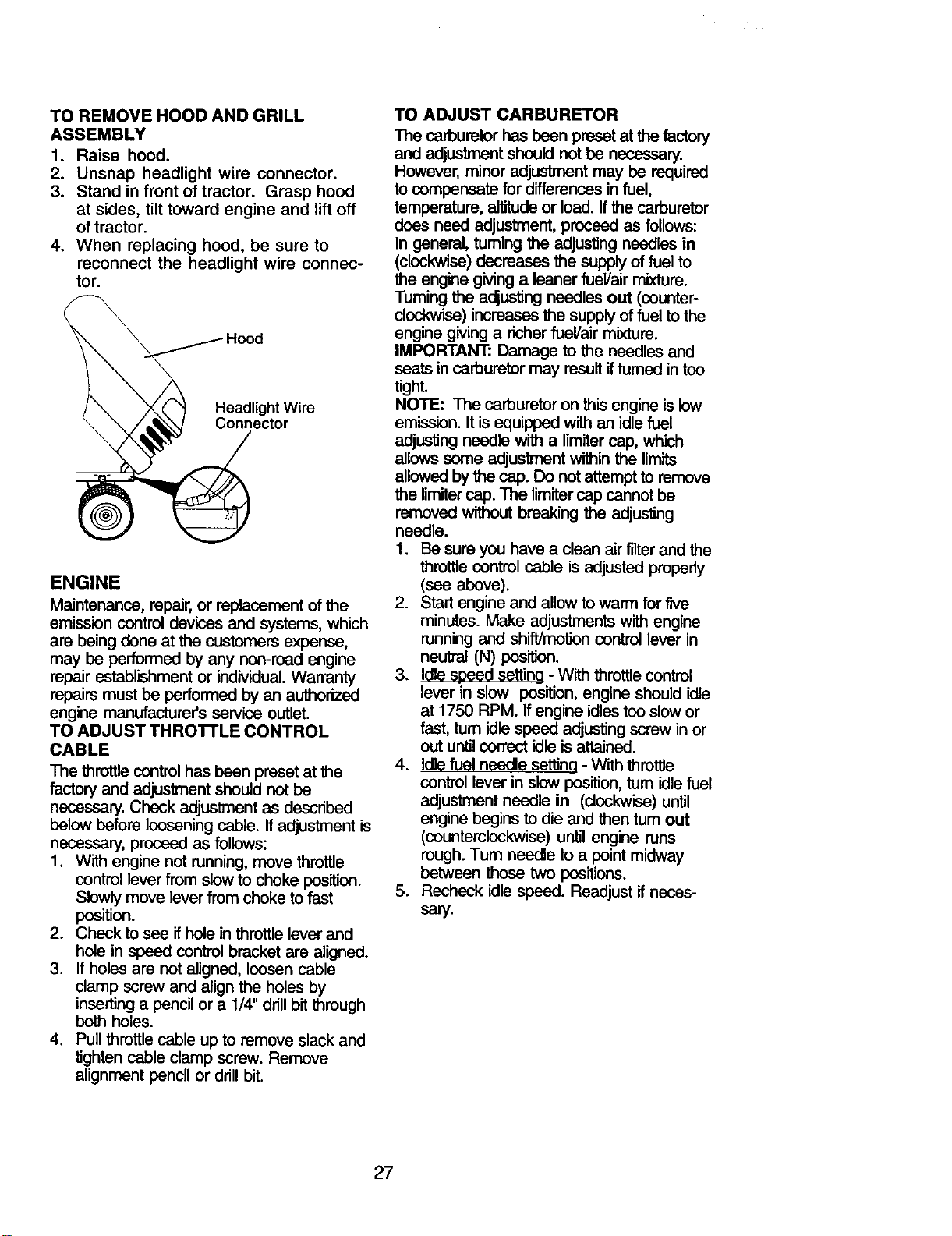

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THRO'R'LE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as described

below before loosening cable. If adjustment is

necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke position.

Slowly move lever from choke to fast

position.

2. Check to see if hole in throttle lever and

hole in speed control bracket are aligned.

3. If holes are not aligned, loosen cable

clamp screw and align the holes by

inserting a pencil or a 1/4" drill bit through

beth holes.

4. Pull throttle cable up to remove slack and

tighten cable clamp screw. Remove

alignment pencil or drill bit.

TO ADJUST CARBURETOR

The carburetor has been preset at the factory

and adjustment should not be necessary.

However, minor adjustment may be required

to compensate for differences in fuel,

temperature, altitude or load. If the carburetor

does need adjustment, proceed as follows:

In general, turning the adjusting needles in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fueVair mixture.

Turning the adjusting needles out (counter-

clockwise) increases the supply of fuel to the

engine giving a richer fuel/air mixture.

IMPORTANT: Damage to the needles and

seats in carburetor may result iftumed in too

tight.

NOTE: The carburetor on this engine is low

emission. It is equipped with an idle fuel

adjusting needle with a limiter cap, which

allows some adjustment within the limits

allowed by the cap. Do not attempt to remove

the limitercap. The limiter cap cannot be

removed without breaking the adjusting

needle.

1. Be sure you have a clean air filter and the

throttle control cable is adjusted properly

(see above).

2. Start engine and allow to warm for five

minutes. Make adjustments with engine

running and shift/motion control lever in

neutral (N) position.

3. Idle speed setting - With throttle control

lever in slow position, engine should idle

at 1750 RPM. If engine idles too slow or

fast, tum idle speed adjusting screw in or

out until correct idle is attained.

4. Idle fuel needle setting - With throttle

control lever in slow position, turn idle fuel

adjustment needle in (clockwise) until

engine begins to die and then tum out

(counterclockwise) until engine runs

rough. Tum needle to a point midway

between those two positions.

5. Recheck idle speed. Readjust if neces-

sary.

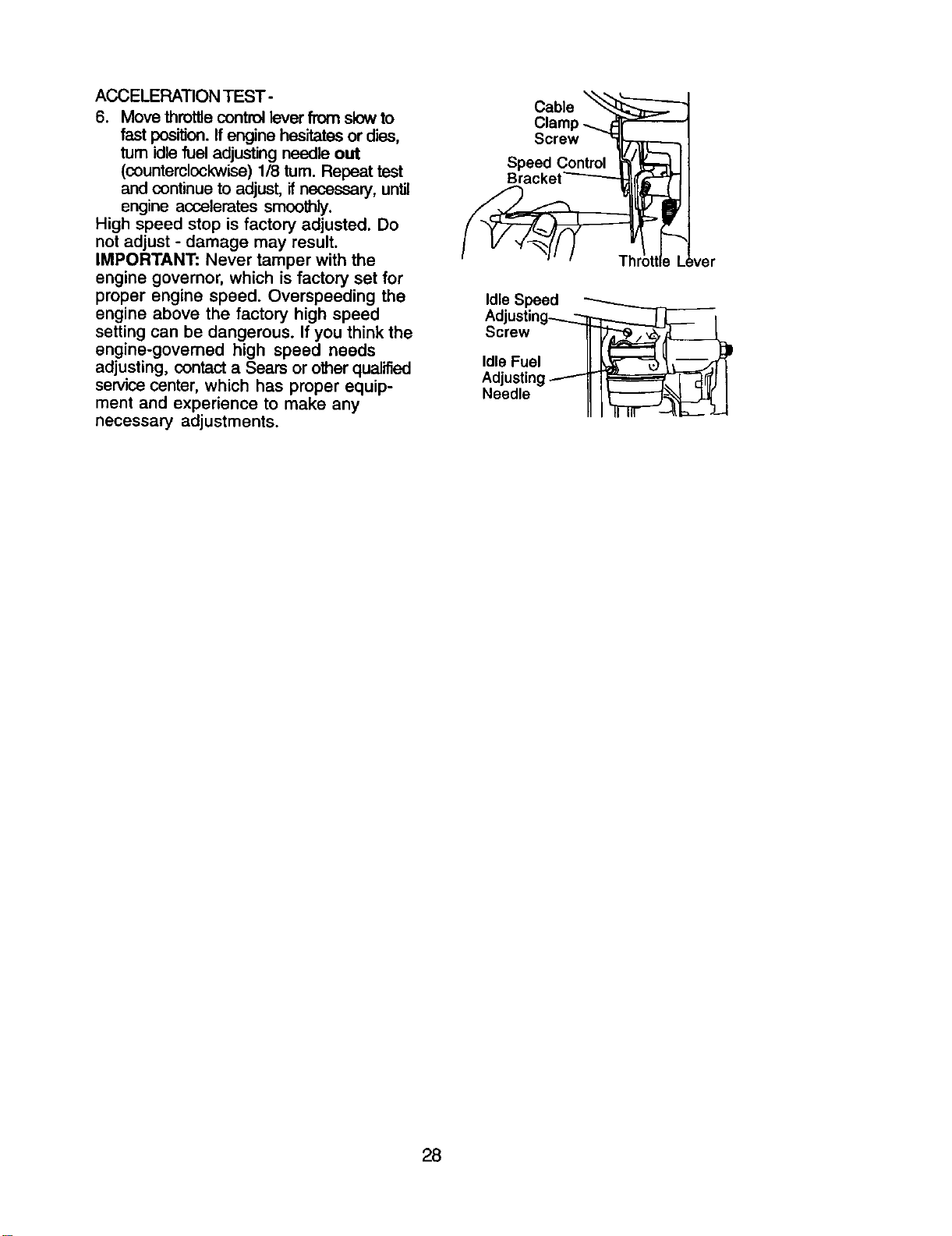

ACCELERATION TEST-

6. Move throttle control lever from slow to

fast position. If engine hesitates or dies,

turn idle fuel adjusting needle out

(counterclockwise) 1/8 tum. Repeat test

and continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any

necessary adjustments.

Cab,e

Clamp _F

Screw _:

BSrPeedeC°ntr°'------_I

,ver

Idle Speed

Adjusting_ I

Screw

Idle Fuel II_._F-_ ______._

Adjusting _-I _-_l I

.ee0,e

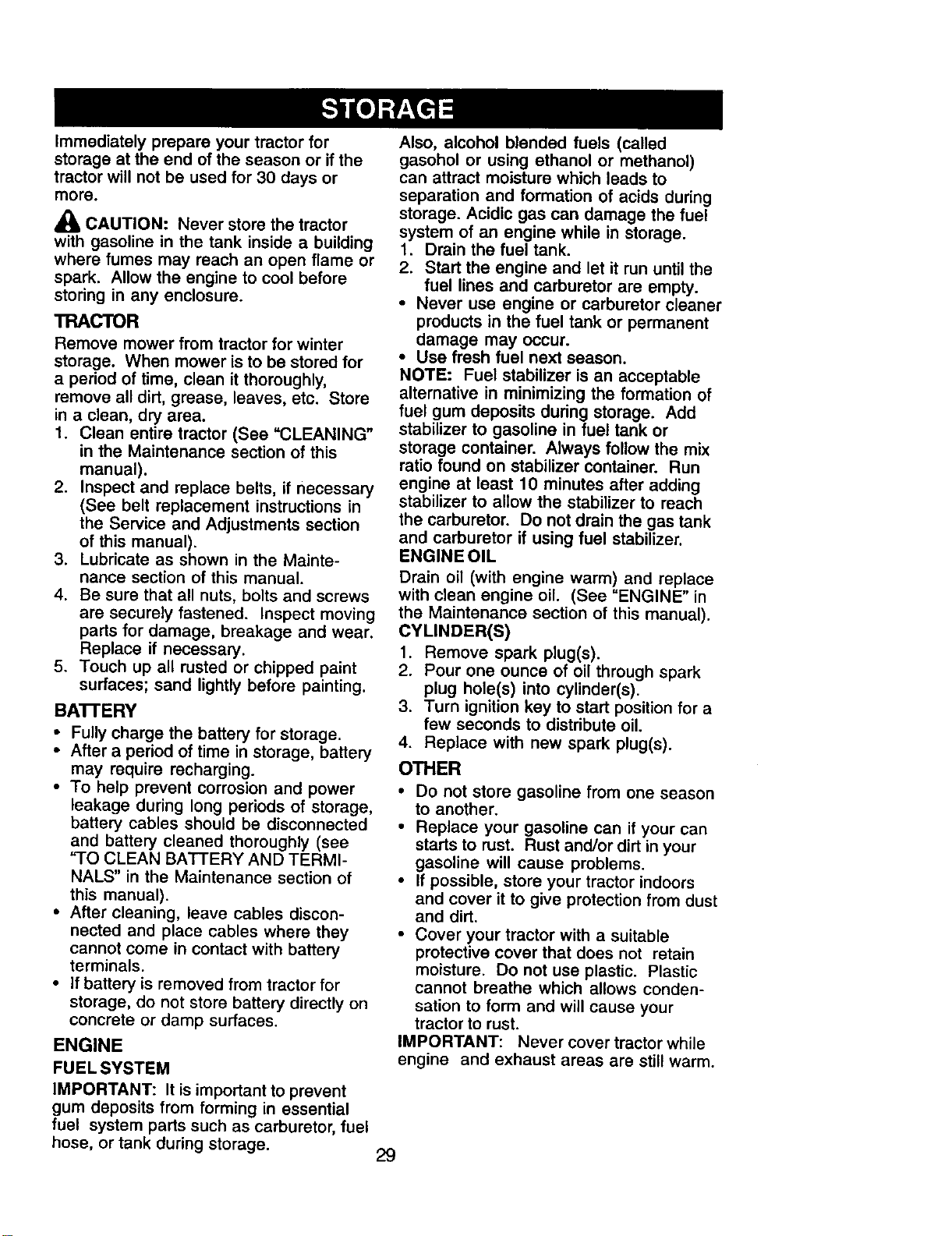

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BA'n'ERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or clamp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

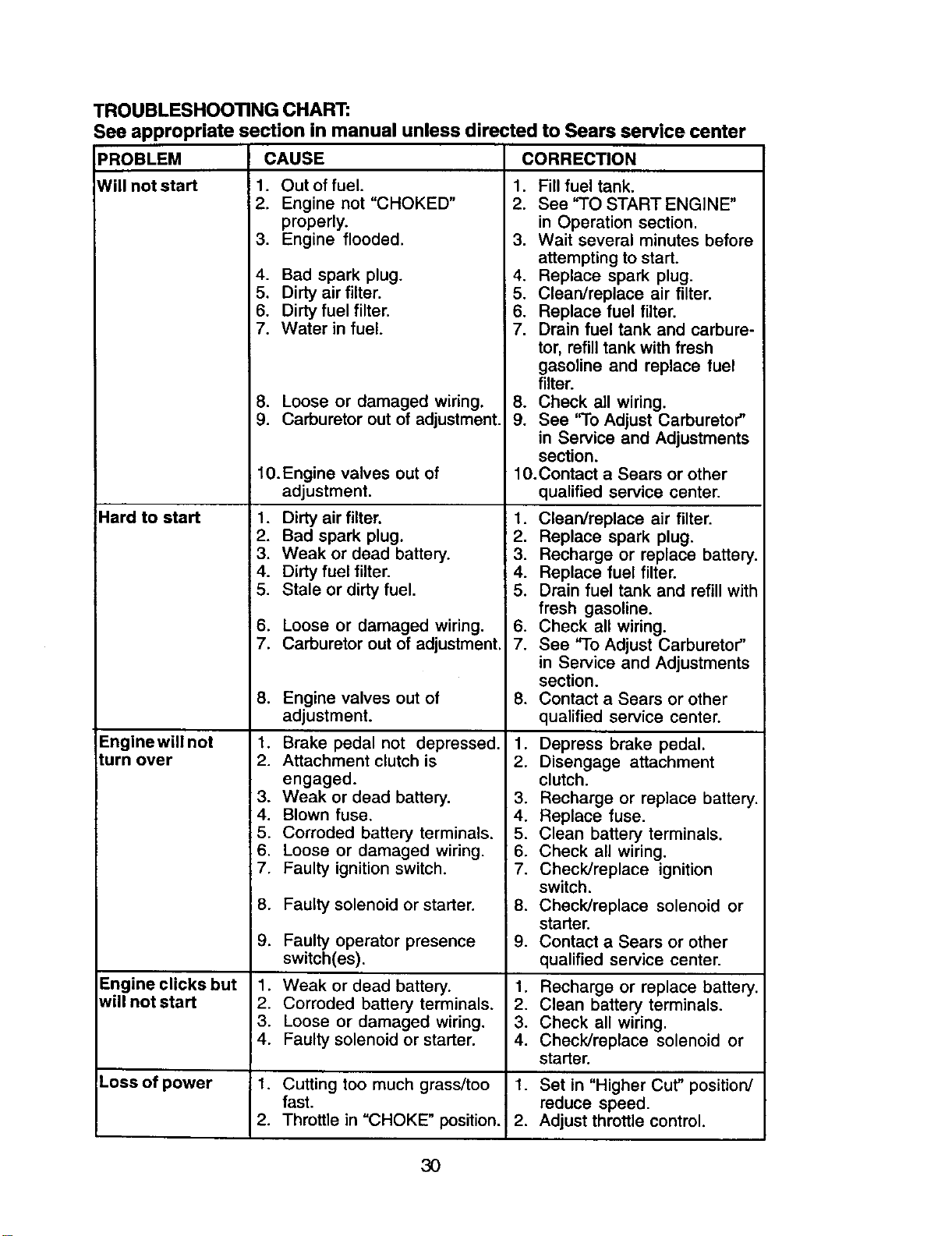

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Enginewill not

turn over

Engine clicks but

will not start

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

8. Faulty solenoid or starter.

Bad spark plug.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

Brake pedal not depressed. 1.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

9. Faulty operator presence

switch(es).

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

Clean/replace air filter.

Replace spark plug.

Recharge or replace battery.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress brake pedal.

Disengage attachment

clutch.

Recharge or replace battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

Loss of power 1. Cutting too much grass/too Set in "Higher Cut" position/

fast. reduce speed.

2. Throttle in "CHOKE" position. Adjust throttle control.

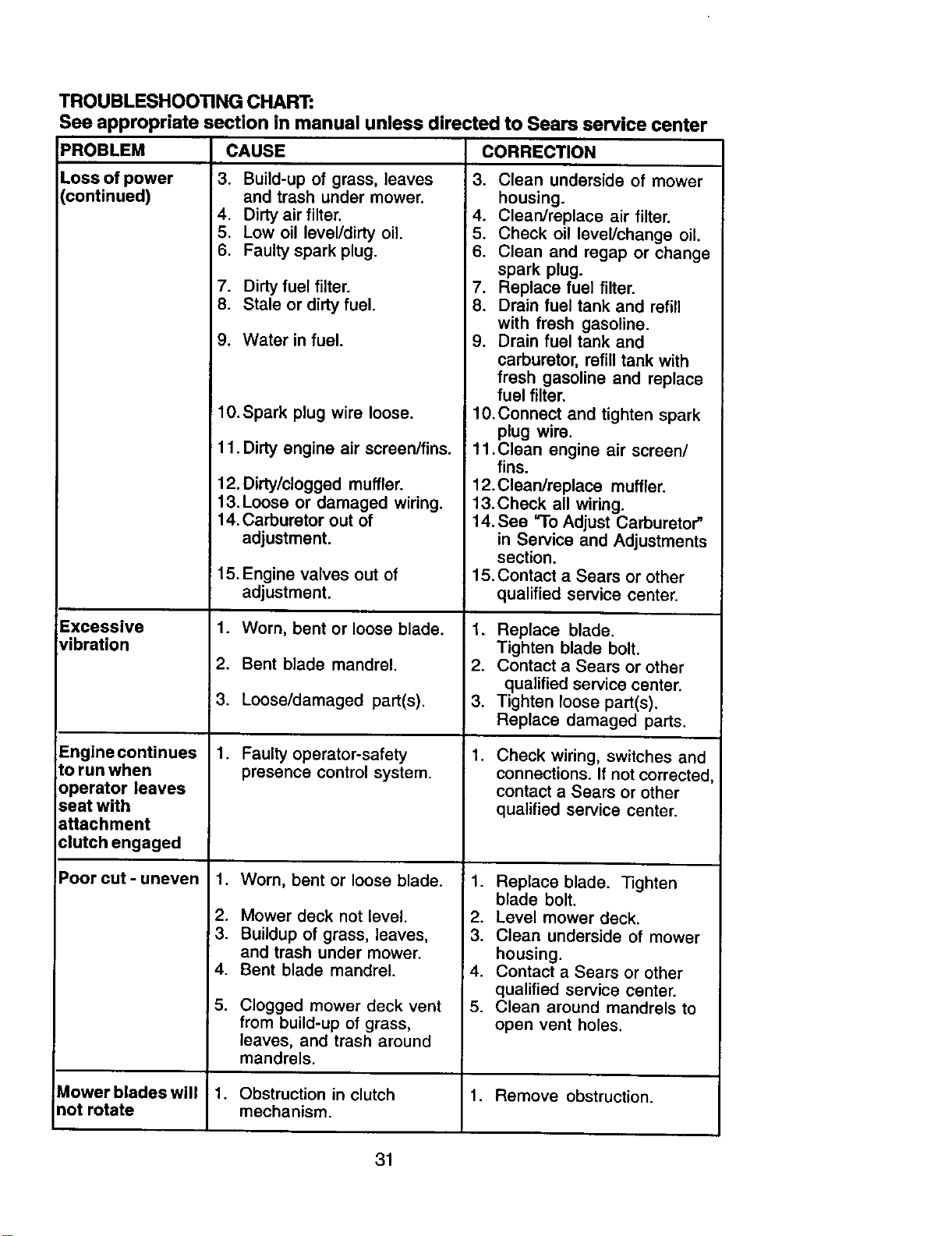

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Loss of power 3. Build-up of grass, leaves 3. Clean underside of mower

(continued)

Excessive

vibration

and trash under mower.

4. Dirty air filter.

5. Low oil leveVdirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

10.Connect and tighten spark

plug wire.

11 .Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts,

Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. l]ghten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

!Mower blades will 1. Obstruction in clutch 1. Remove obstruction,

not rotate mechanism.

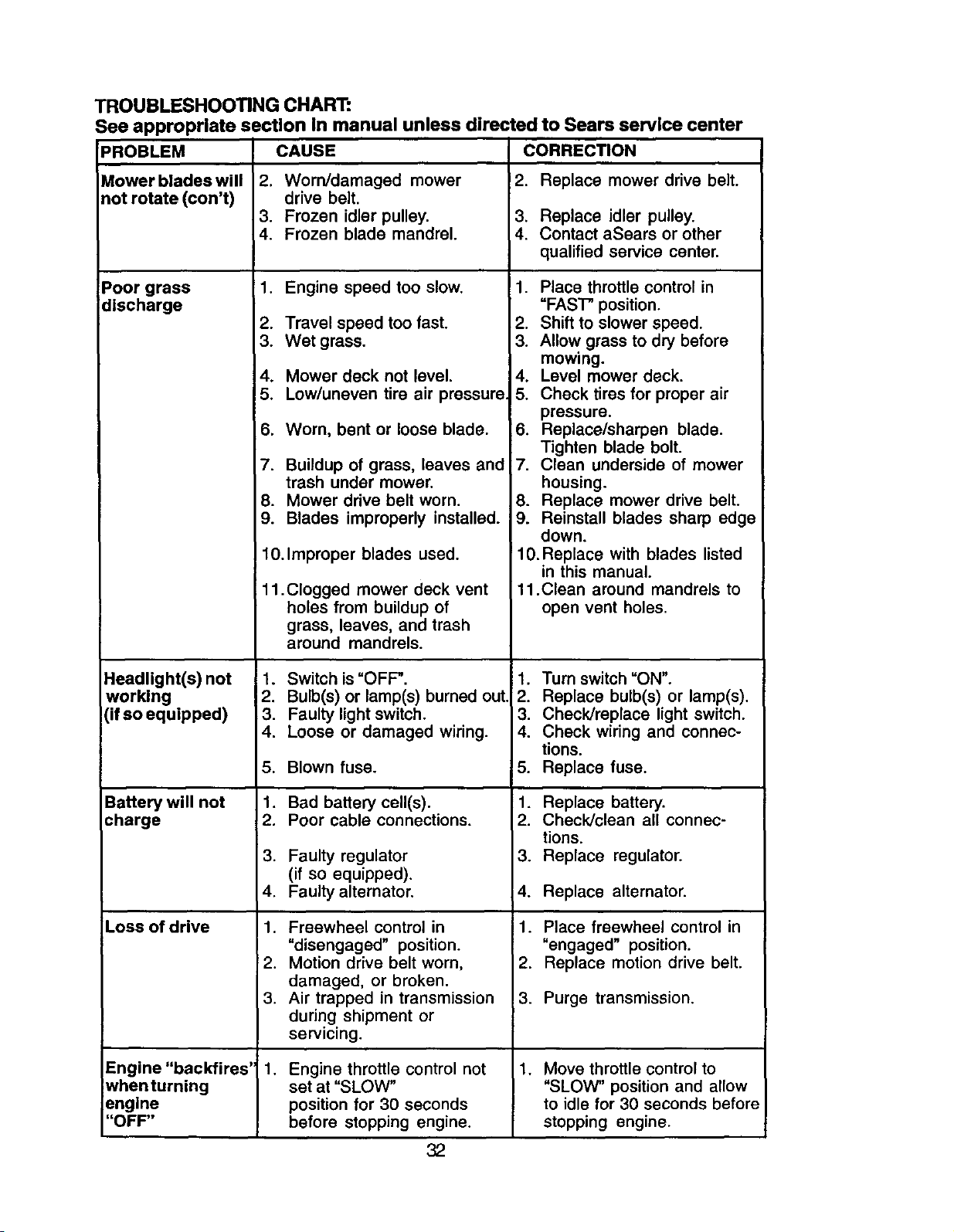

TROUBLESHOOTING CHART:

See approprlate section In manual unless dlrected to Sears service center

:PROBLEM

Mower blades will

not rotate (con't)

Poor grass

discharge

CAUSE

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Loss of drive 1.

Engine "backfires'

when turning

engine

"OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned out.

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

1. Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

CORRECTION

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact aSears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch =ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

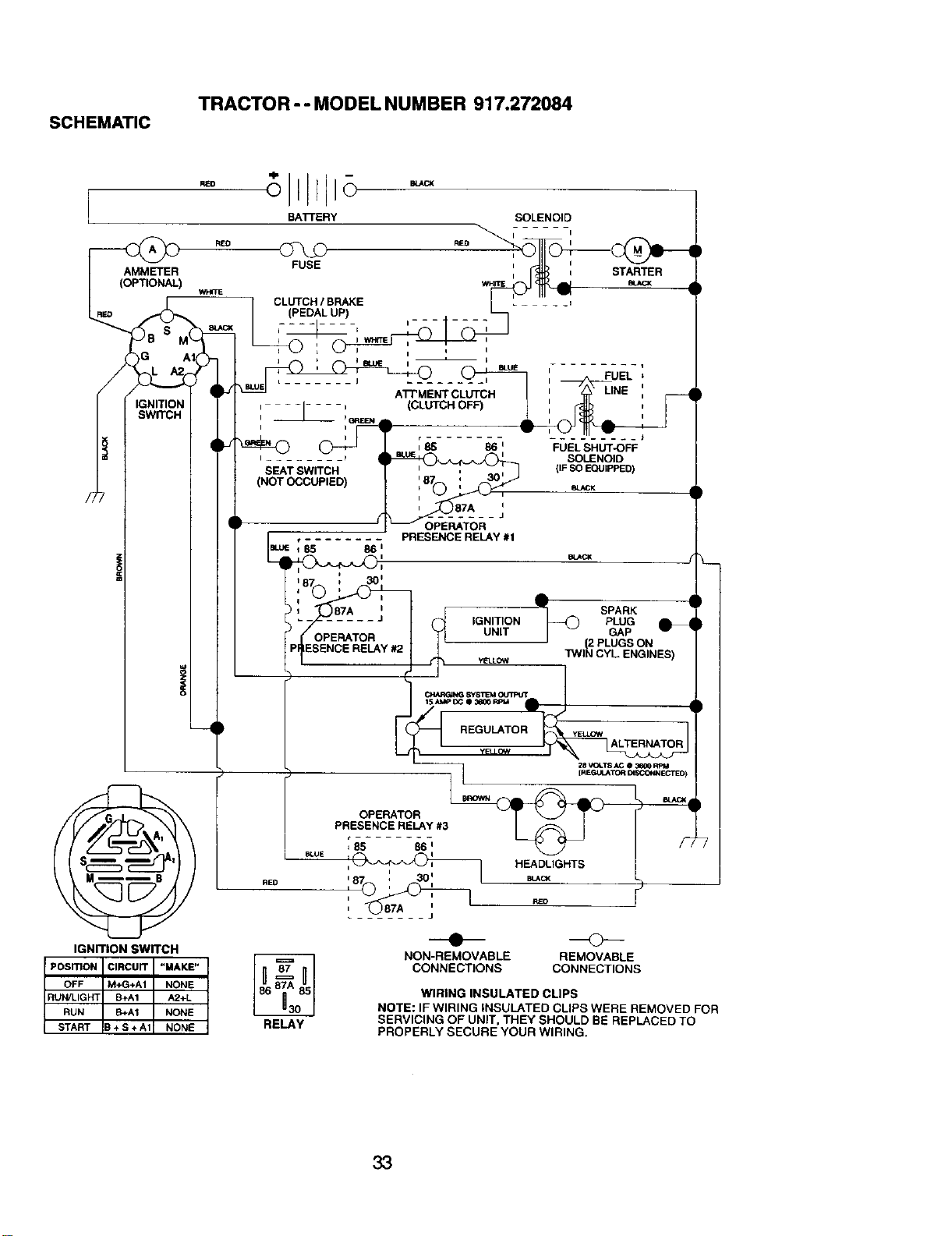

TRACTOR-- MODEL NUMBER 917.272084

SCHEMATIC

[

BATrERY SOLENOID

AMMETER FUSE

WHITE

CLUTCH / BRAKE

R_O (PEDAL UP)

I i I

G ,A , _, _eu_ ,_

ATi_MENT CLUTCH

IGNITION I / , (CLUTCH OFF)

SWITCH , _ p_ •

,_ *-

i 85 86 i FUEL SHUT-OFF

_ p __m.u_ i SOLENOID

SEAT SWITCH " _--',--_^i _ {IF SO EQUIPPED)

(NOT OCCUPIED) 187(_ _'_ eL_K

, 87A j

• PRESENCE RELAy #1

t85 86 1

187 _ 30

_ (

i V SPARK

t UN,T GAF

,GNmONI_ PLUGe_

_JO_TO,_=1 _ i v€'PLUGSON

15_ _ @ 3600 _d

REGULATOR yEUJDWALTERNATOR

y_LI t3_

OPERATOR e_WN_ t

PRESENCE RELAY #3

, , HEADLIGHTS

IGNITION SWITCH

! POSITION CIRCUIT "MAKE"

OFF M+G+AI NONE

RUN/LIGH_ B+A1 A2+L

RUN B+A1 NONE

START B + S + A1 NONE

RELAY

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

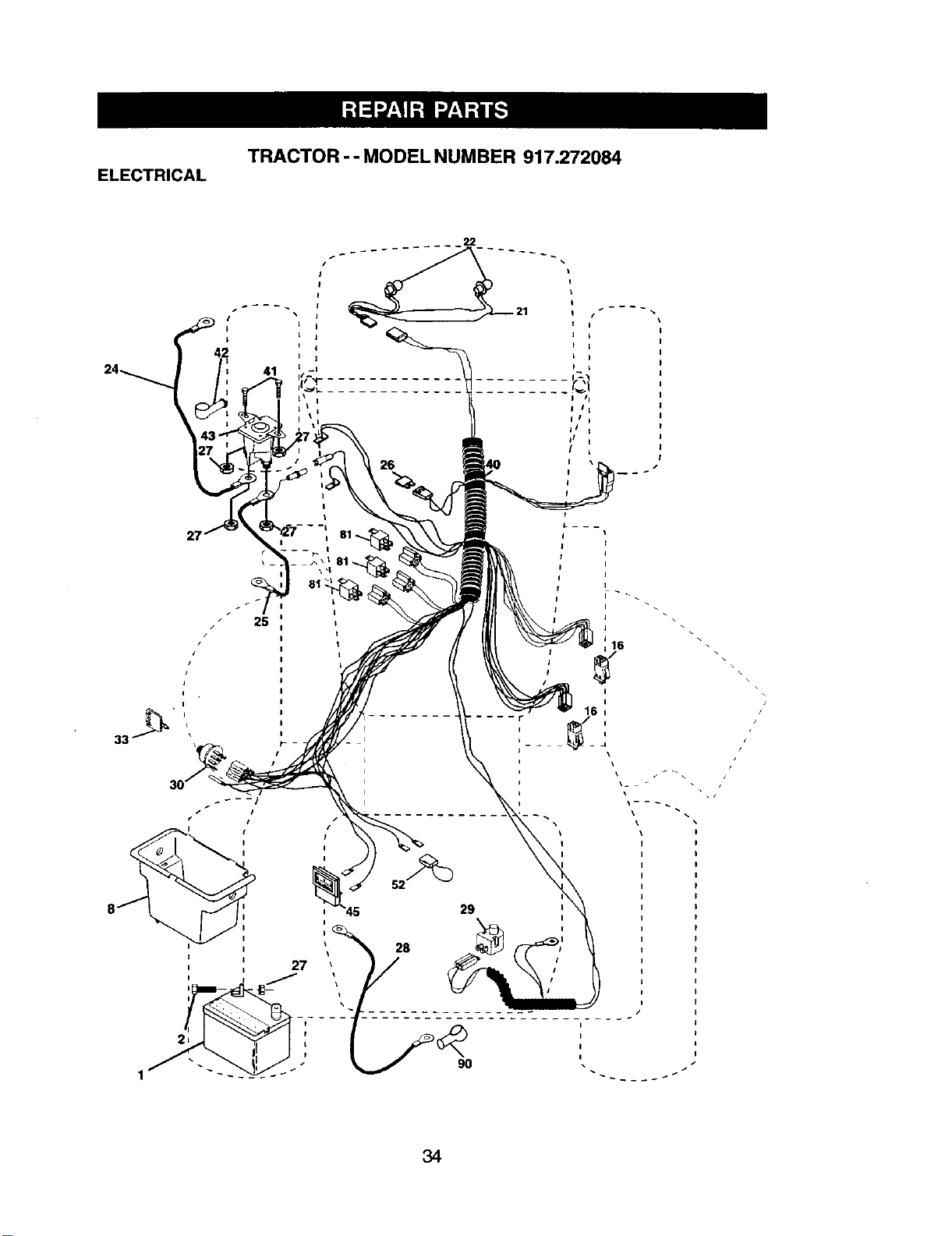

TRACTOR - - MODEL NUMBER 917.272084

• I

t I

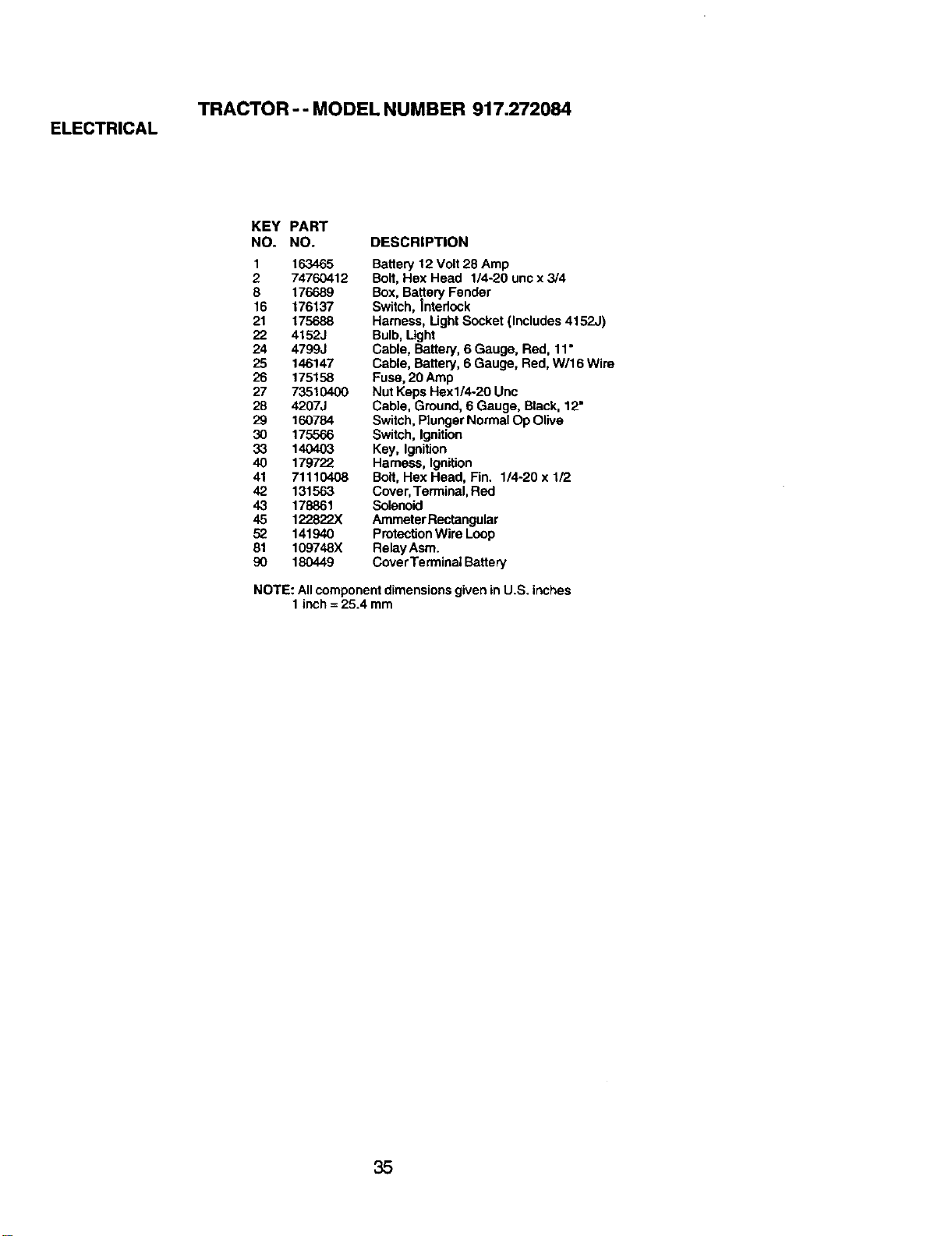

TRACTOR - - MODEL NUMBER 917.272084

ELECTRICAL

KEY PART

NO. NO.

1 163465

2 74760412

8 176689

16 176137

21 175688

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 160784

30 175566

33 140403

40 179722

41 71110408

42 131563

43 178861

45 1'Z2822X

52 141940

81 109748X

90 180449

DESCRIPTION

Battery12 Volt 28 Amp

Bolt,Hex Head 1/4-20 unc x 3/4

Box, Battery Fender

Switch, Interlock

Harness, Ught Socket (Includes 4152J)

Bulb,Light

Cable, Battery,6 Gauge, Red, 11"

Cable, Battery, 6 Gauge, Red, W/16 Wire

Fuse,20 Amp

Nut KepsHexl/4-20 Unc

Cable, Ground,6 Gauge, Black, 12"

Switch,PlungerNormal Op Olive

Switch, Ignition

Key, Ignition

Harness, Ignition

Bolt,Hex Head, Fin. 1/4-20 x 1/2

Cover,Terminal, Red

Solenoid

AmmeterRectangular

ProtectionWireLoop

Relay Asm.

CoverTerminat Battery

NOTE: All componentdimensionsgiven inU.S. inches

1 inch= 25.4 mm

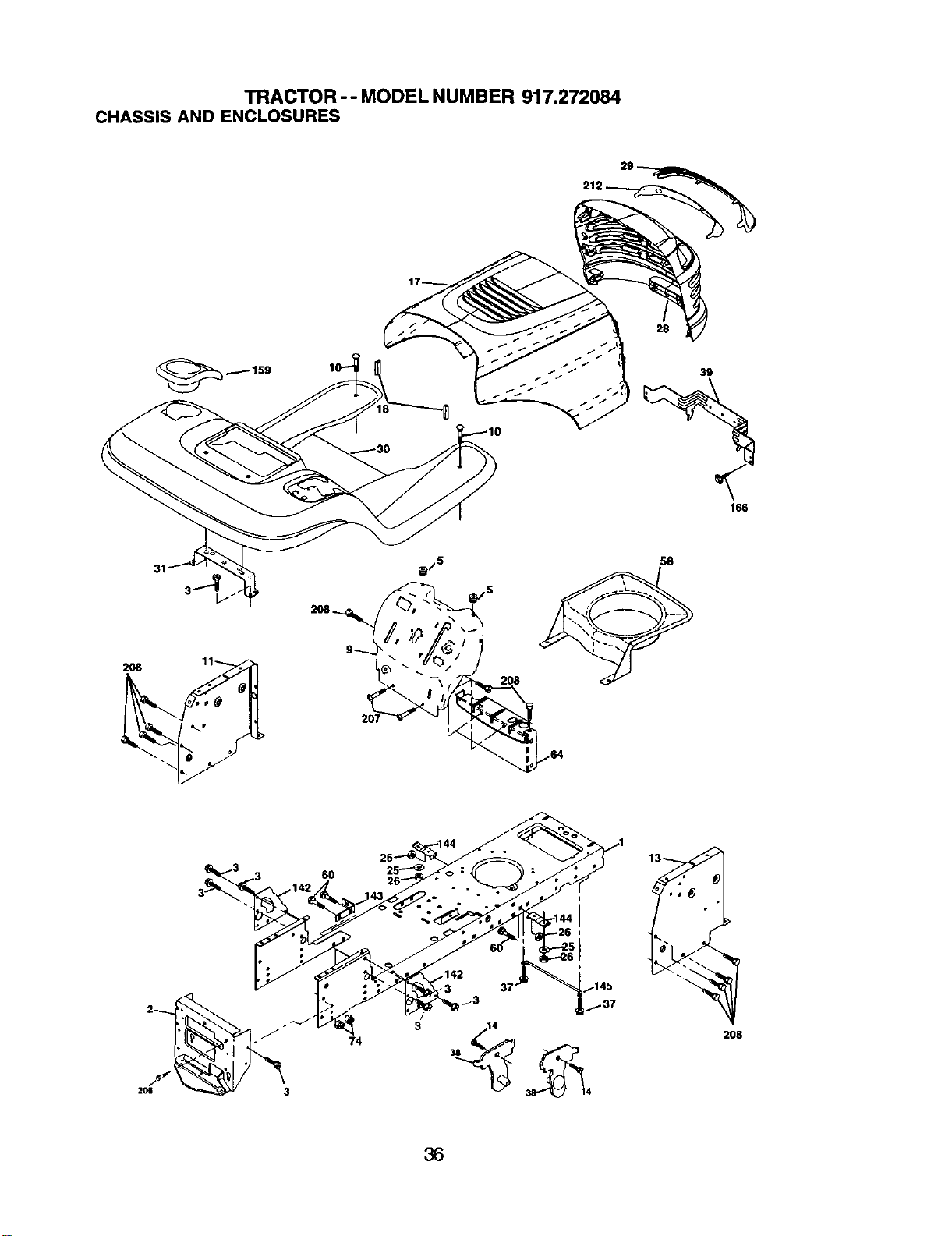

TRACTOR -- MODEL NUMBER 917.272084

CHASSIS AND ENCLOSURES

166

208.

208

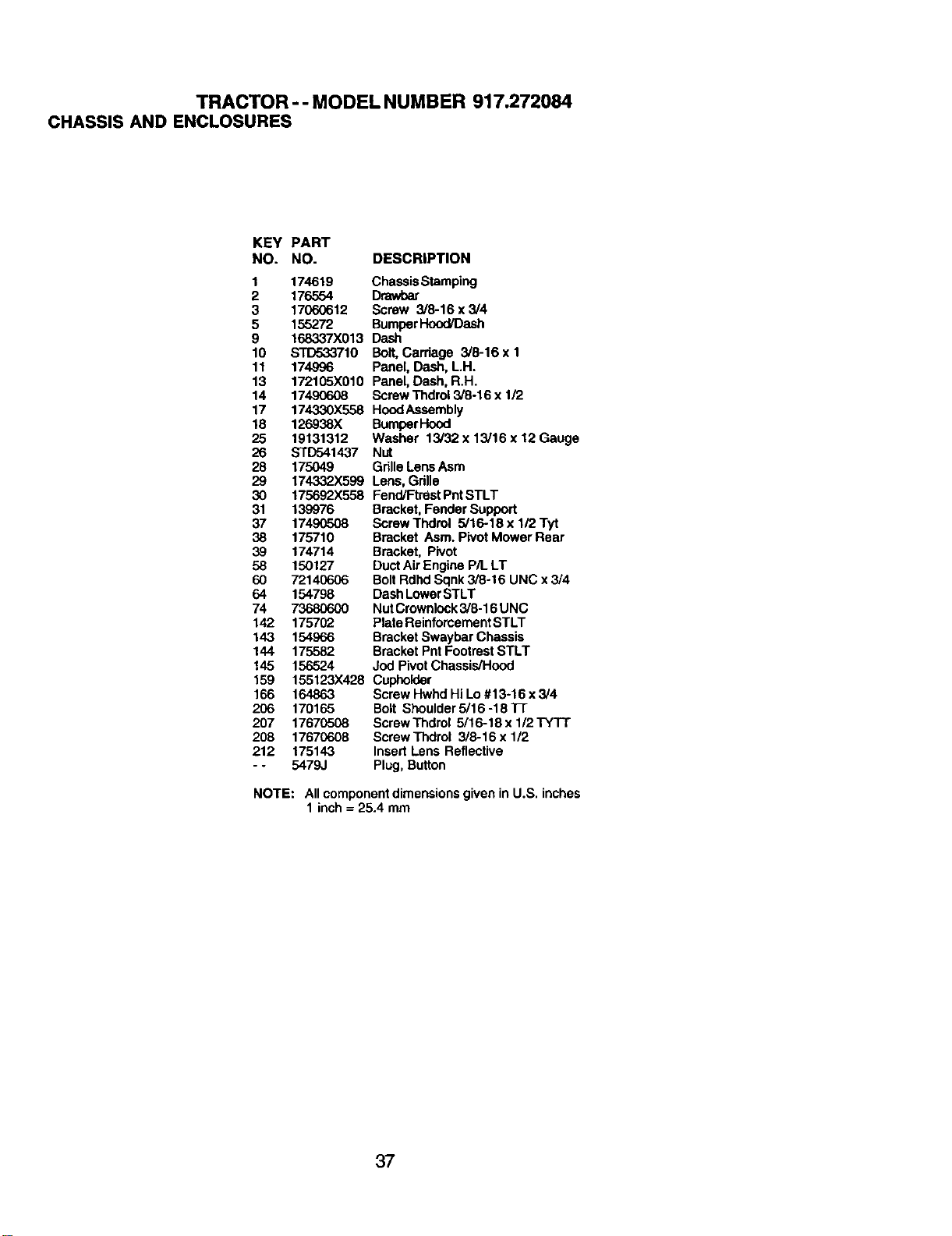

TRACTOR -- MODEL NUMBER 917.272084

CHASSISAND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 ChassisStamping

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumperHood/Dash

9 168337X013 Dash

10 STD533710 Bolt, Carriage 3/8-16xl

11 174996 Panel, Dash, LH.

13 172105X010 Panel,Dash. R.H.

14 174,90608 Screw Thdrol3/8-16 x 1/2

17 174330X558 HoodAssembly

18 126938X BumperHood

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Nut

28 175049 GrilleLensAsm

29 174332X599 Lens, Grille

30 175692X558 Fend/FtrestPntSTLT

31 139976 Bracket,Fender Support

37 17490508 ScrawThdrol 5/16-18 x 112Tyt

38 175710 Bracket Asm. PivotMower Rear

39 174714 Bracket. Pivot

58 150127 DuctAir Engine P/L LT

60 72140606 BoltRdhd Sqnk3/8-16 UNC x3/4

64 154798 DashLowerSTLT

74 73680600 NutCrownlock3/8-16 UNC

142 175702 PlateReinforcementSTLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Pnt FootrestSTLT

145 156524 Jod Pivot Chassis/Hood

159 155123X428 Cuphorder

166 164863 Screw Hwhd Hi Lo#13-16 x 3/4

206 170165 Bolt Shoulder5/16 -18 Tl"

207 17670508 ScrewThdrol 5/16-18x1/2TYTT

208 17670608 ScrewThdrol 3/8-16xl/2

212 175143 Insert Lens Reflective

- - 5479J PIL_g,Button

NOTE: All componentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

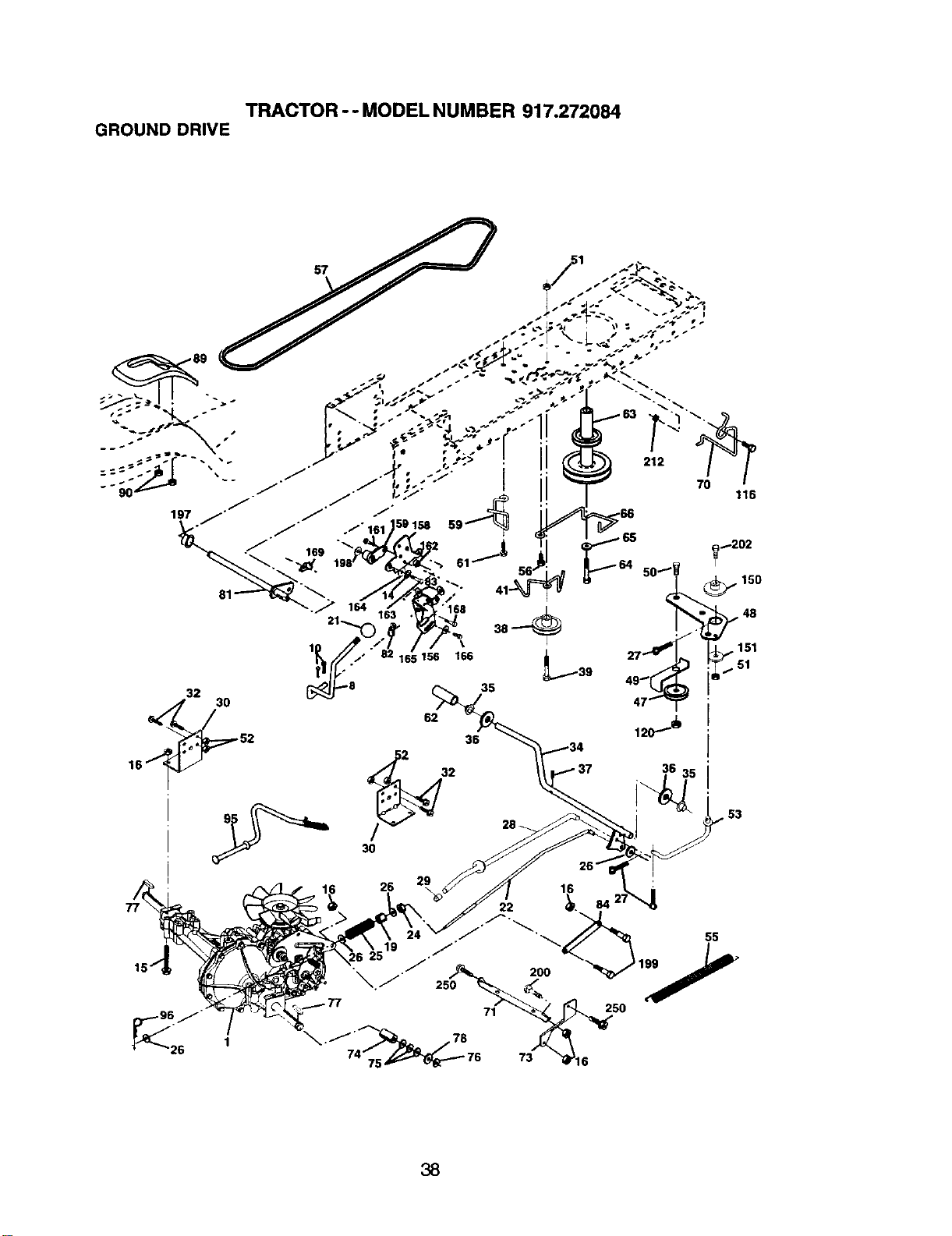

TRACTOR -- MODELNUMBER 917.272084

GROUNDDRIVE

16 3_ 52

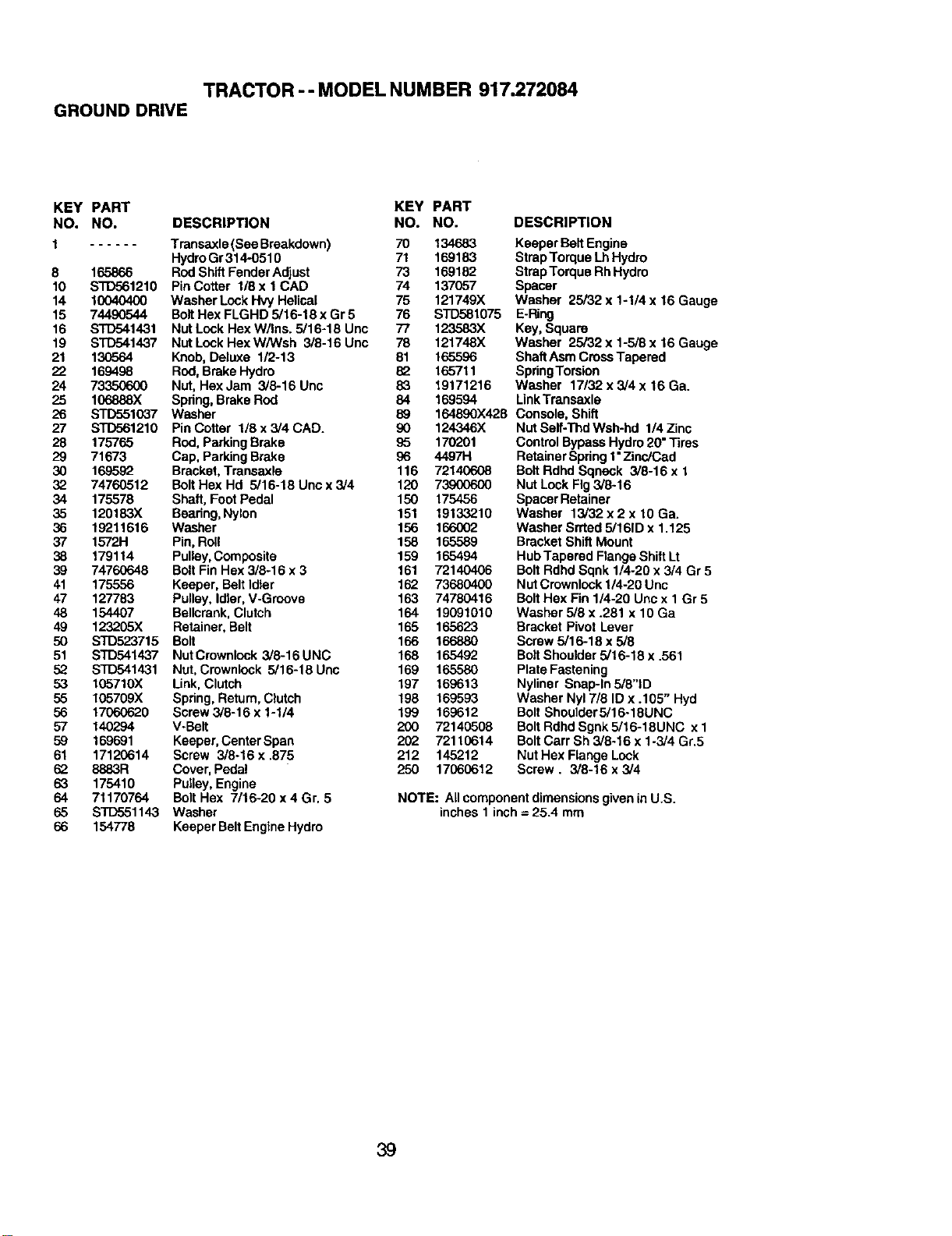

TRACTOR -- MODEL NUMBER 917.272084

GROUND DRIVE

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 Transaxle(See Breakdown) 70

HydroGr314-0510 71

8 165866 RodShiftFenderAdjust 73

10 STD561210 PinCotter 1/8 x 1 CAD 74

14 10040400 Washer LockHvy Helical 75

15 74490544 BoltHex FLGHD 5/16-18 x Gr 5 76

16 STD541431 Nut Lock Hex W/Ins. 5/16-18 Unc 77

19 STD5414,37 Nut LockHex W/Wsh 3/8-16 Unc 78

21 130564 Knob,Deluxe 112-13 81

22 169498 Rod,Brake Hydro 82

24 73350600 Nut, HexJam 3/8-16 Unc 83

25 106888X Spring,Brake Rod 84

26 STD551037 Washer 89

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 90

28 175765 ROd,ParkingBrake 95

29 71673 Cap, ParkingBrake 96

30 169592 Bracket, Transaxle 116

32 74760512 BoltHex Hd 5/16-18 Unc x 3/4 120

34 175578 Shaft, Foot Pedal 150

35 120183X Beadng, Nylon 151

36 19211616 Washer 156

37 1572H Pin, Roll 158

38 179114 Pulley,Composite 159

39 74760648 BoltFin Hex 3/8-16 x 3 161

41 175556 Keeper, Belt Idler 162

47 127783 Pulley, Idler, V-Greove 163

48 154407 Bellcrank, Clutch 164

49 123205X Retainer, Belt 165

50 STD523715 Bolt 166

51 STD541437 NutCrownlock 3/8-16UNC 168

52 STD541431 Nut, Crownlock 5/16-18 Uric 169

53 105710X Link, Clutch 197

55 105709X Spring, Return,Clutch 198

56 17060620 Screw 3/8-16 x 1-1/4 199

57 140294 V-Belt 200

59 169691 Keeper,Center Span 202

61 17120614 Screw 3/8-16 x .875 212

62 8883R Cover, Pedal 250

63 175410 Pulley,Engine

64 71170764 BoltHex 7/16-20 x 4 Gr, 5

65 STD551143 Washer

66 154778 Keeper BeltEngineHydro

PART

NO. DESCRIPTION

134683 Keeper Belt Engine

169183 Strap Torque LhHydro

169182 Strap Torque RhHydro

137057 Spacer

121749X Washer 25/32 x 1-1/4 x 16 Gauge

STD581075 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16 Gauge

165596 Shaft Asm CressTapered

165711 SpringTomion

19171216 Washer 17/32 x 3/4 x 16 Ga.

169594 LinkTmnssxle

164890X428 Console, Shift

124346X

170201

4497H

72140608

739006O0

175456

19133210

1660(_

165589

165494

72140406

7368O4OO

74780416

19091010

165623

166880

165492

165580

169613

169593

169612

72140508

72110614

145212

17060612

Nut Self-Thd Wsh-hd 1/4 Zinc

ControlBypass Hydro20" Tires

RetainerSpdng 1"Zioc/Cad

Bolt Rdhd Sqnock 3/8-16 x 1

Nut Lock Fig3/8-16

SpacerRetainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrtod 5/161Dx 1.125

Bracket Shift Mount

HubTapered Flange ShiftLt

BoltRdhd Sqnk 1/4-20 x3/4 Gr 5

Nut Crownlock1/4-20 Unc

BoltHex Fin 1/4-20 Unc x 1 Gr 6

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

BoltShoulder5/16-18 x .561

Plate Fastening

Nyliner Snap-In5/8"1D

Washer Nyl 7/8 ID x .105" Hyd

Bolt Shoulder5/16-18UNC

BoltRdhd Sgnk 5/16-16UNC x 1

BoltCarr Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Flange Lock

Screw. 3/8-16 x3/4

NOTE: All componentdimensionsgivenin U.S.

inches 1 inch = 25.4 mm

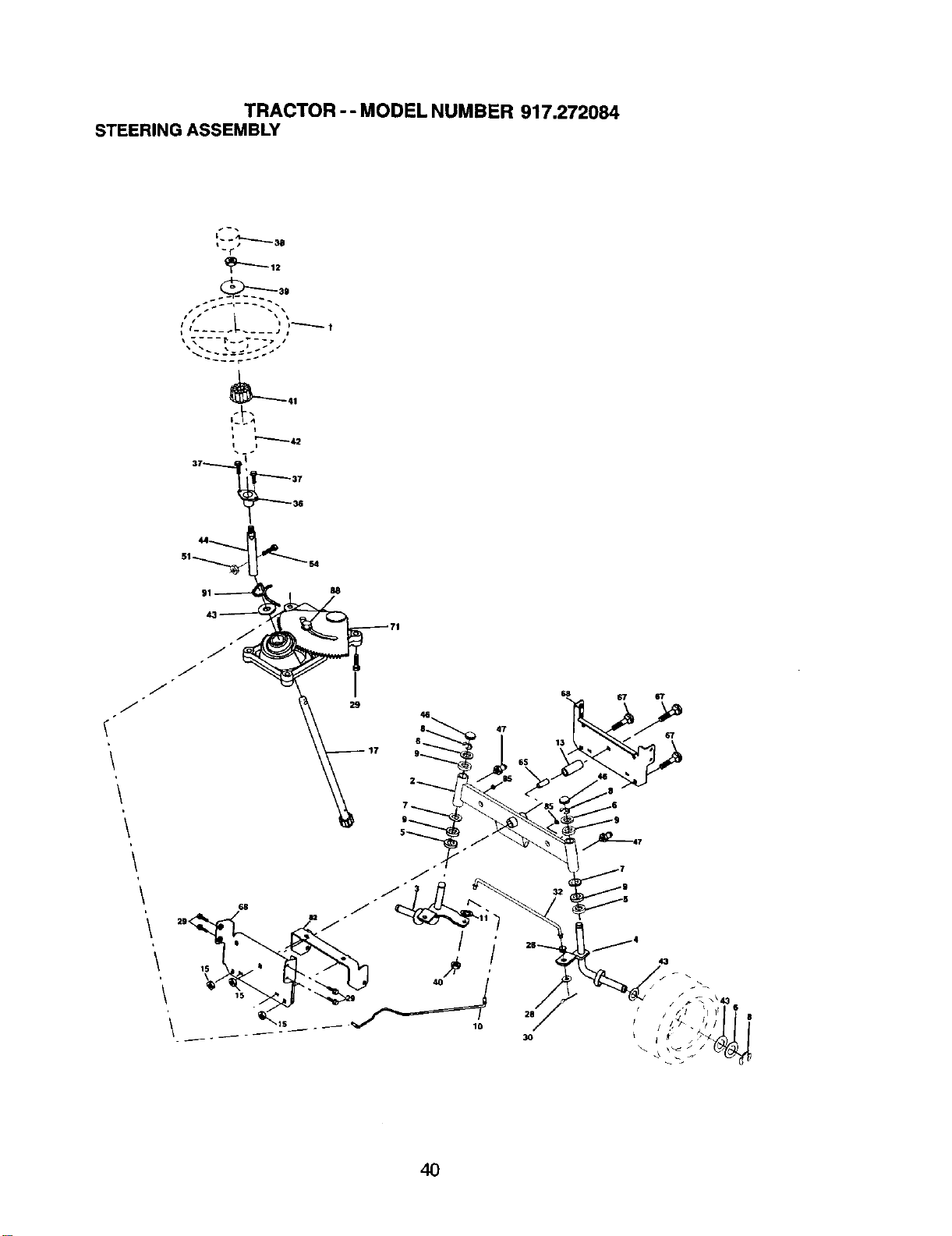

TRACTOR - - MODEL NUMBER 917.272084

STEERING ASSEMBLY

._3g

i i

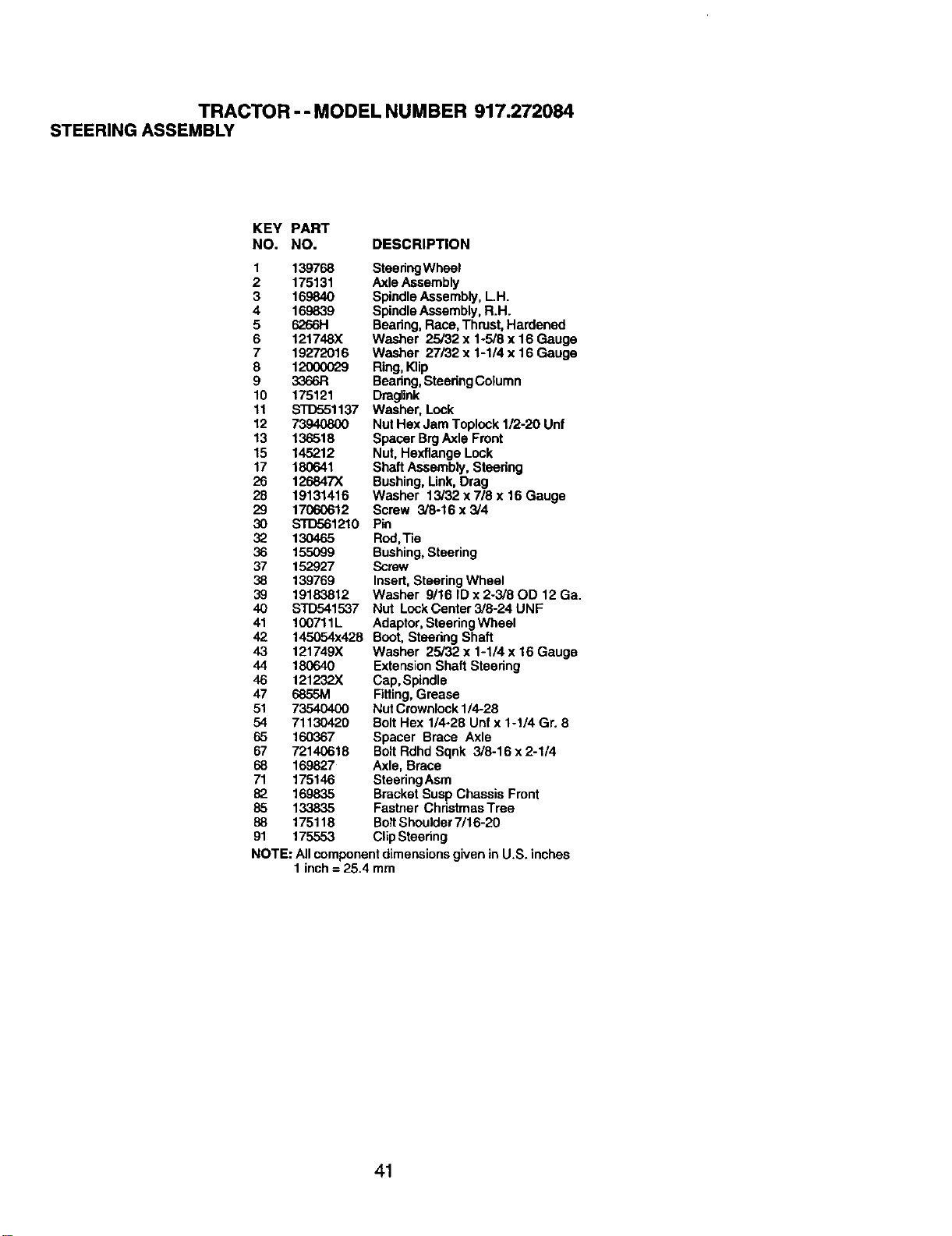

TRACTOR - - MODEL NUMBER 917.272084

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768 SteeringWheel

2 175131 Axle Assembly

3 169840 SpindleAssembly, L.H.

4 169839 SpindleAssembly, R.H.

5 6266H Bearing,Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring,Klip

9 3366R Bearing,Steedng Column

10 175121 Draglink

11 STD551137 Washer. Lock

12 73940800 Nut Hex Jam Toplock 1/2-20 Unf

13 136518 Spacer BrgAxle Front

15 145212 Nut, Hexflange Lock

17 180641 Shaft Assembly, Steedng

26 126847X Bushing,Link,Drag

28 19131416 Washer 13/32 x 7/8 x 16 Gauge

29 17060612 Screw 3/8-16 x 3/4

30 STD561210 Pin

32 130465 Red,Tie

36 155099 Bushing,Steering

37 152927 Screw

38 139769 Insert, SteeringWheel

39 19183812 Washer 9/16 ID x 2-3/80D 12 Ga.

40 STD541537 Nut LockCenter 3/8-24 UNF

41 100711L Adaptor,SteeringWheel

42 145054x428 Boot,Steedng Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

44 180640 Extension Shaft Steering

46 121232X Cap, Spindle

47 6855M Fitting,Grease

51 73540400 Nut Crownlock1/4-28

54 71130420 BoltHex 1/4-28 Unf x 1-!/4 Gr. 8

65 160367 Spacer Brace Axle

67 72140618 BoltRdhd Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 SteeringAsm

82 169835 Bracket Susp Chassis Front

85 133835 Fastner Christmas Trae

88 175118 BoltShoulder7/16-20

91 175553 ClipSteering

NOTE: All componentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

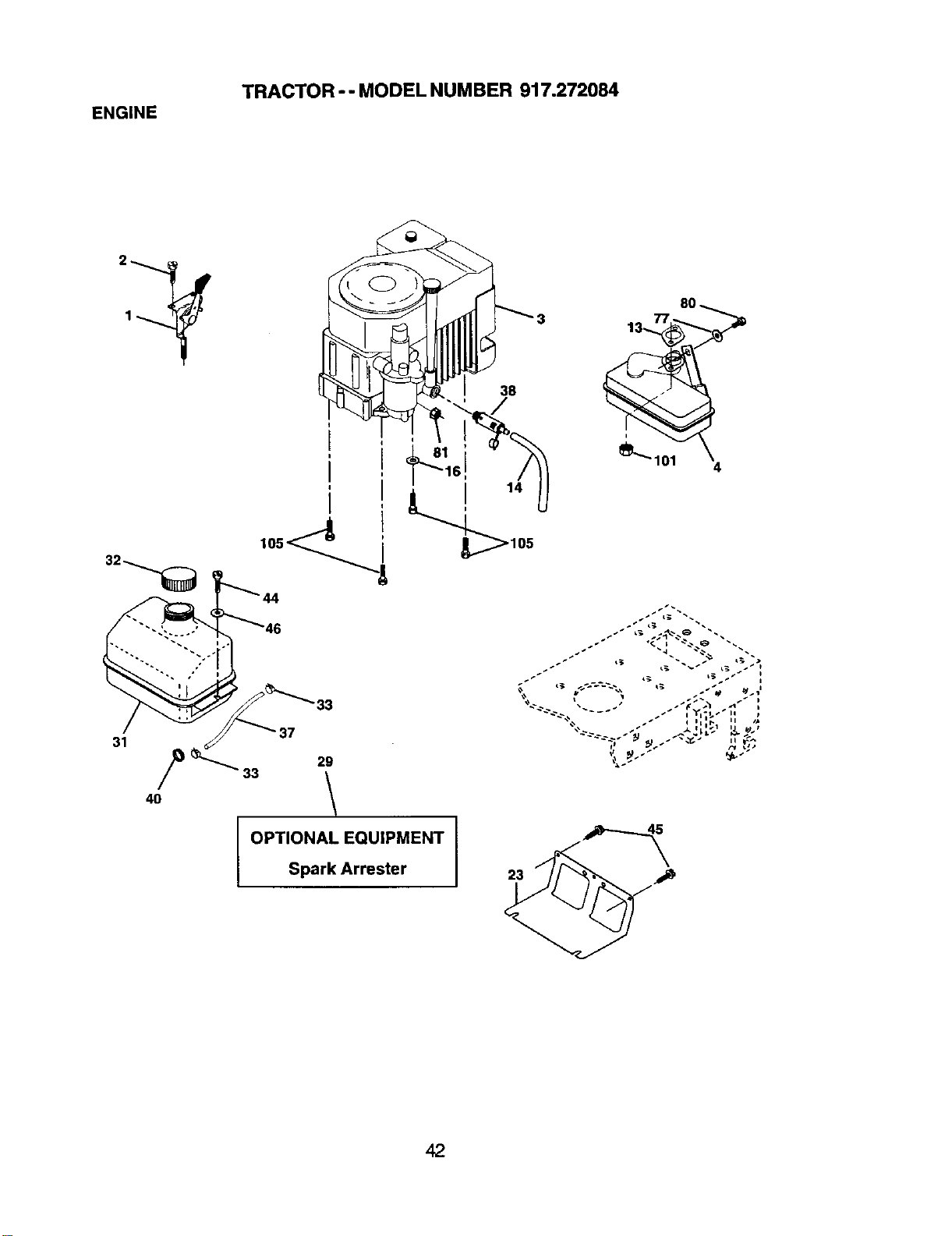

ENGtHE

TRACTOR'" MODEL HUMBER 917.272084

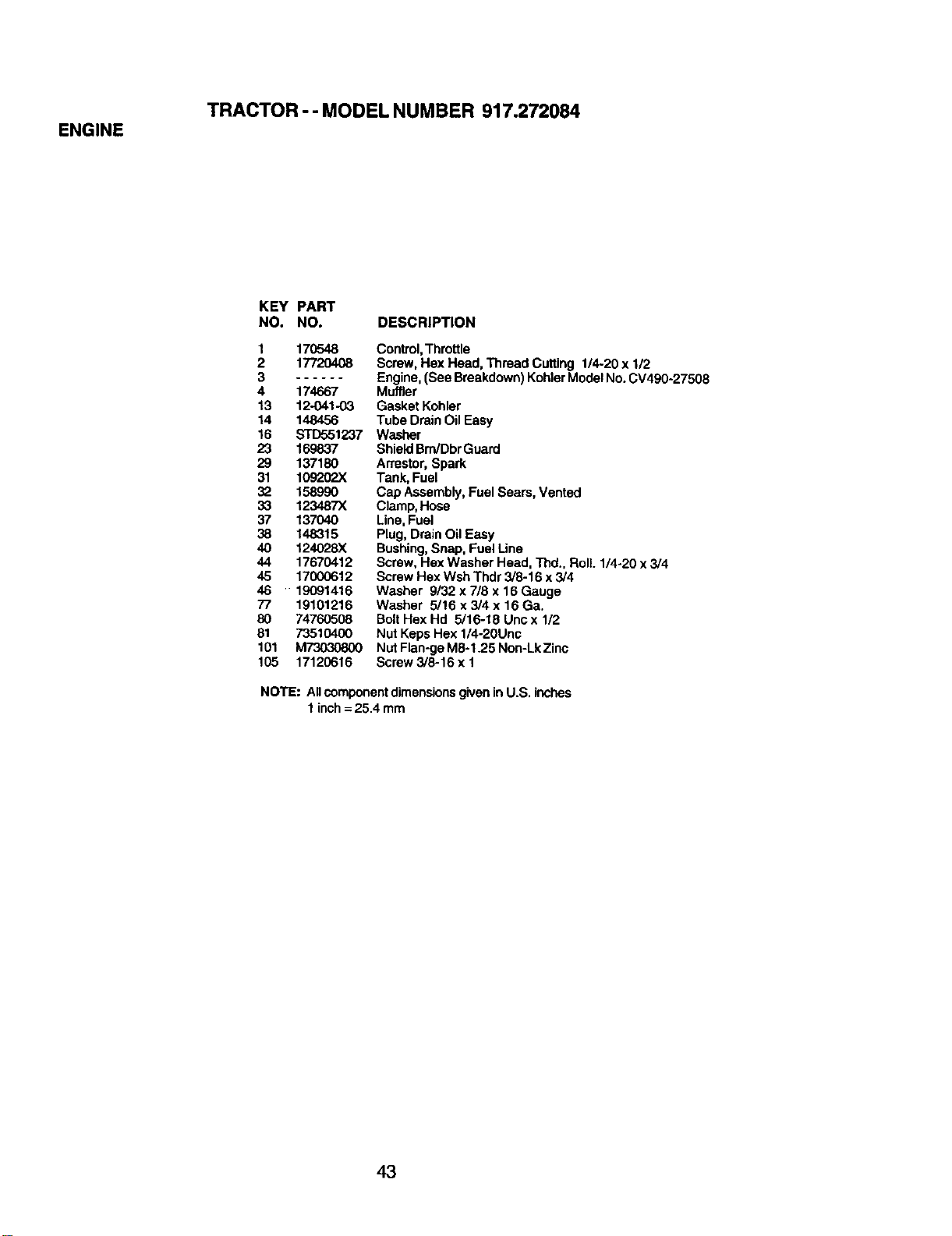

TRACTOR -- MODEL NUMBER 917.272084

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 17O548

2 17720408

4 174667

13 12-041-03

14 148456

16 STD551237

23 169837

29 137180

31 10920P_.X

32 158990

33 123487X

37 137040

38 148315

40 124028X

44 17670412

45 17000612

46 19G91416

77 19101216

80 74760508

81 73510400

101 M73030800

105 17120616

Control, Throttle

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2

Engine, (See Breakdown)KohlerModelNo. CV490-27508

Muffler

Gasket Kohler

Tube Drain OilEasy

Washer

ShieldBm/Dbr Guard

Arrestor,Spark

Tank, Fuel

Cap Assembly,Fuel Sears, Vented

Clamp,Hose

Line,Fuel

Plug, Drain Oil Easy

Bushing,Snap, Fuel Une

Screw, HexWasher Head, Thd., Roll. 1/4-20 x 3/4

Screw Hsx Wsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Gauge

Washer 5/16 x 3/4 x 16 Ga.

BoltHex Hd 5/16-18 Uncx 1/2

Nut Keps Hex 1/4-20Unc

Nut Flan-geM8-1.25 Non-LkZinc

Screw 3/8-16 x 1

NOTE: AllcomponentdimensionsgiveninU.S. inches

1inch= 25.4 mm

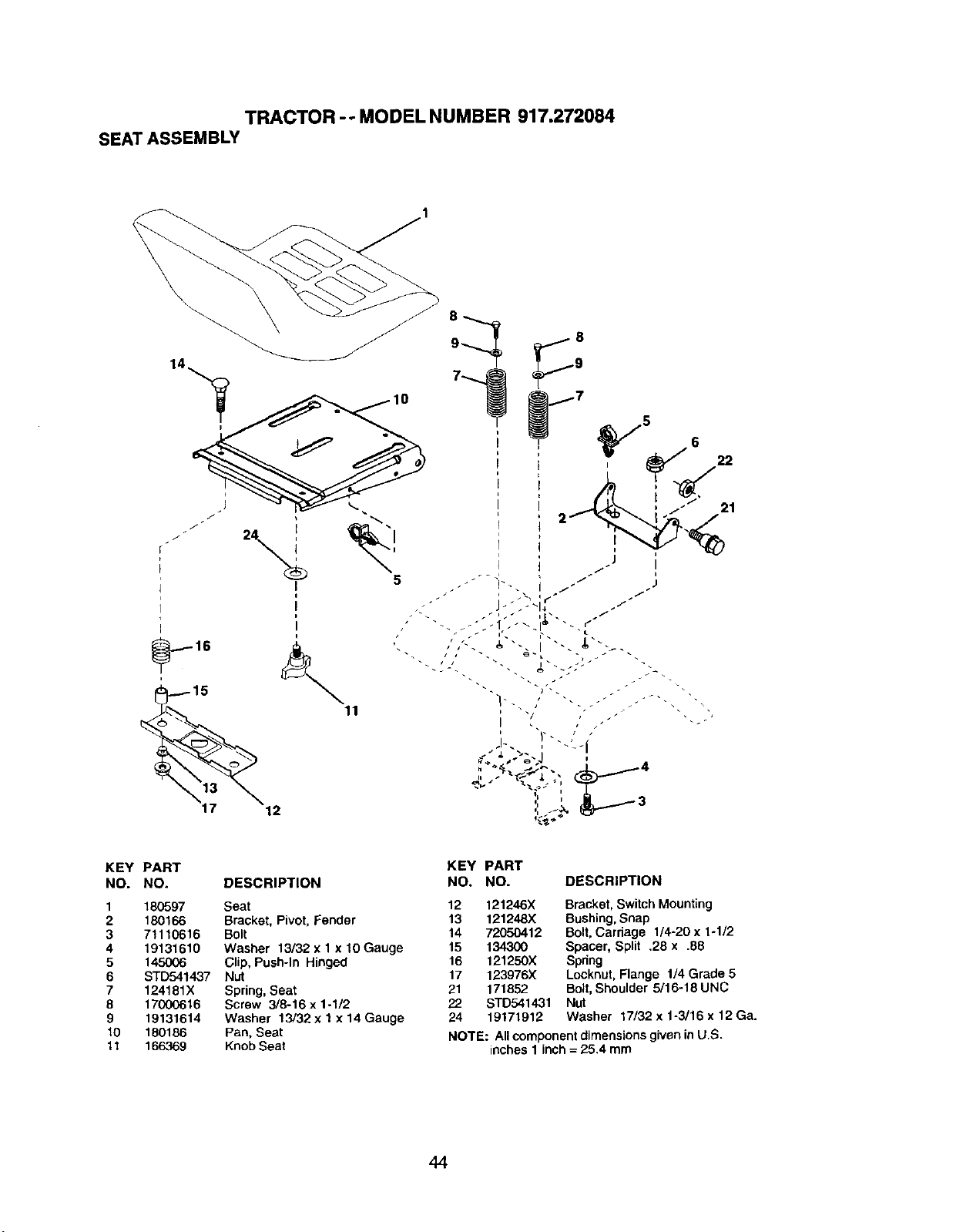

TRACTOR -o MODEL NUMBER 917.272084

SEATASSEMBLY

I 5

KEY PART

NO. NO.

1 180597

2 180166

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

DESCRIPTION

Seat

Bracket, Pivot, Fender

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring, Seat

Screw 3/8-16x 1-1/2

Washer 13/32 x 1 x 14 Gauge

Pan, Seat

Knob Seat

KEY PART

NO. NO. DESCRIPTION

12 121246X Bracket, Switch Mounting

13 121248X Bushing,Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976)( Locknut, Flange 1/4 Grade 5

21 171852 Bolt, Shoulder 5/16-18 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: Allcomponentdimensions given inU.S.

inches 1 inch= 25.4 mm

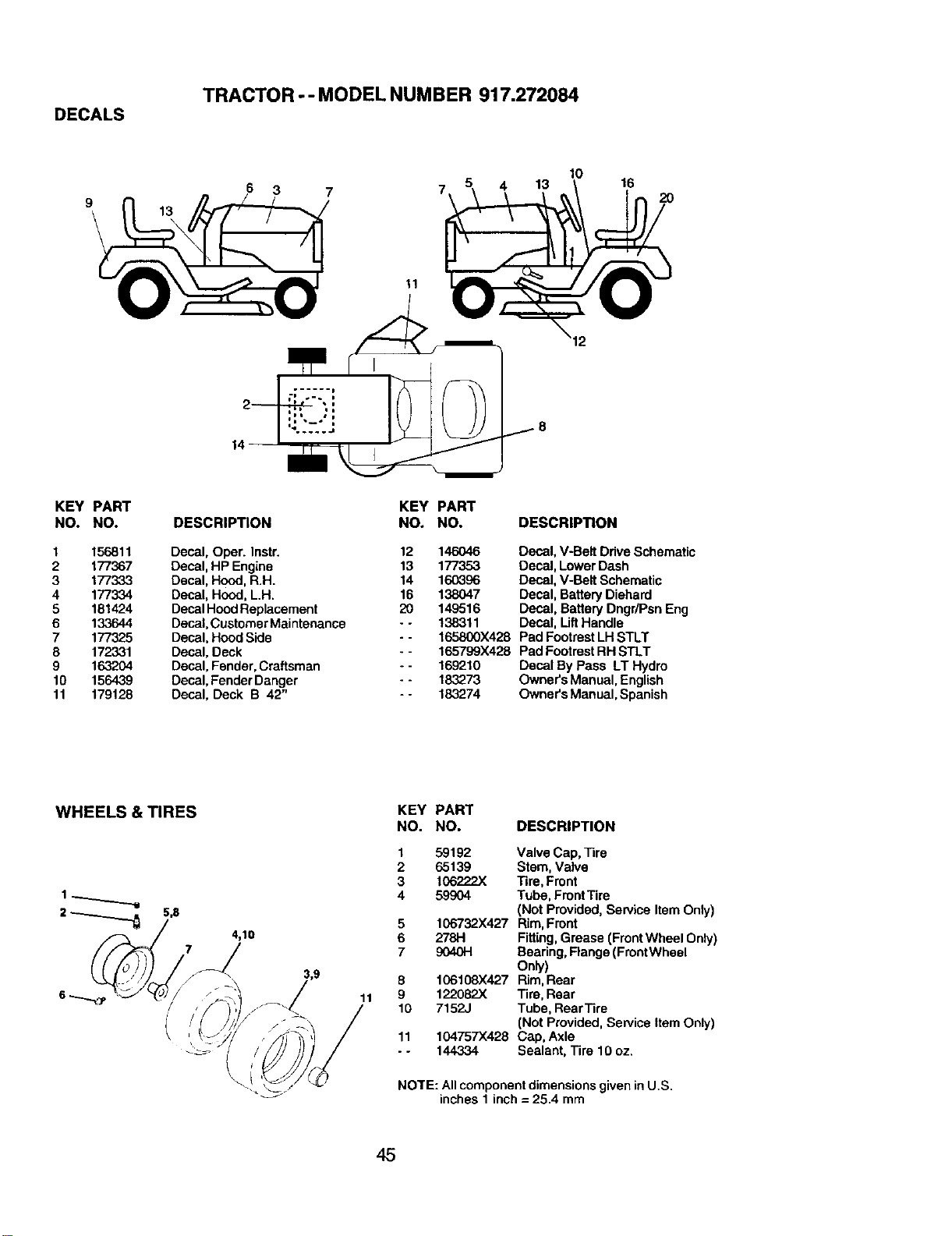

TRACTOR -- MODEL NUMBER 917.272084

DECALS

13 16

KEY PART

NO. NO. DESCRIPTION

1 156811 Decal, Oper. Instr.

2 177367 Decal, HP Engine

3 177333 Decal, Hood, R.H.

4 177334 Decal, Hood,L.H.

5 181424 DecalHood Replacement

6 133644 Decal, CustomerMaintenance

7 177325 Decal,Hood Side

8 172331 Decal, Deck

9 163204 Decal,Fender, Craftsman

10 156439 Decal,FenderDanger

11 179128 Decal, Deck B 42"

KEY

NO.

°.

PART

NO.

146O46

177353

160396

138047

149516

138311

t 65800X428

165799X428

169210

183273

183274

DESCRIPTION

Decal,V-Belt Drive Schematic

Decal,LowerDash

Decal,V-Belt Schematic

Decal, Battery Diehard

Decal, Battery Dngr/Psn Eng

Decal, LiftHandle

Pad FootrestLHSTLT

PadFootrest RHSTLT

Decal By Pass LT Hydro

Owner'sManual, English

Owner'sManual, Spanish

WHEELS & TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire, Front

4 59904 Tube, FmntTire

(Not Provided, Service Item Only)

5 106732X427 Rim,Front

6 278H Fitting,Grease (Front Wheel Only)

7 9040t-I Bearing, Flange(FrontWhsel

Only)

8 106108X427 Rim,Rear

9 122082X Tire, Rear

10 7152J Tube, RearTire

(Not Provided, Service Item Only)

11 104757X428 Cap, Axle

- - 144334 Sealant, Tire 10 oz.

NOTE: All component dimensionsgivenin U.S.

inches 1 inch = 25.4 mm

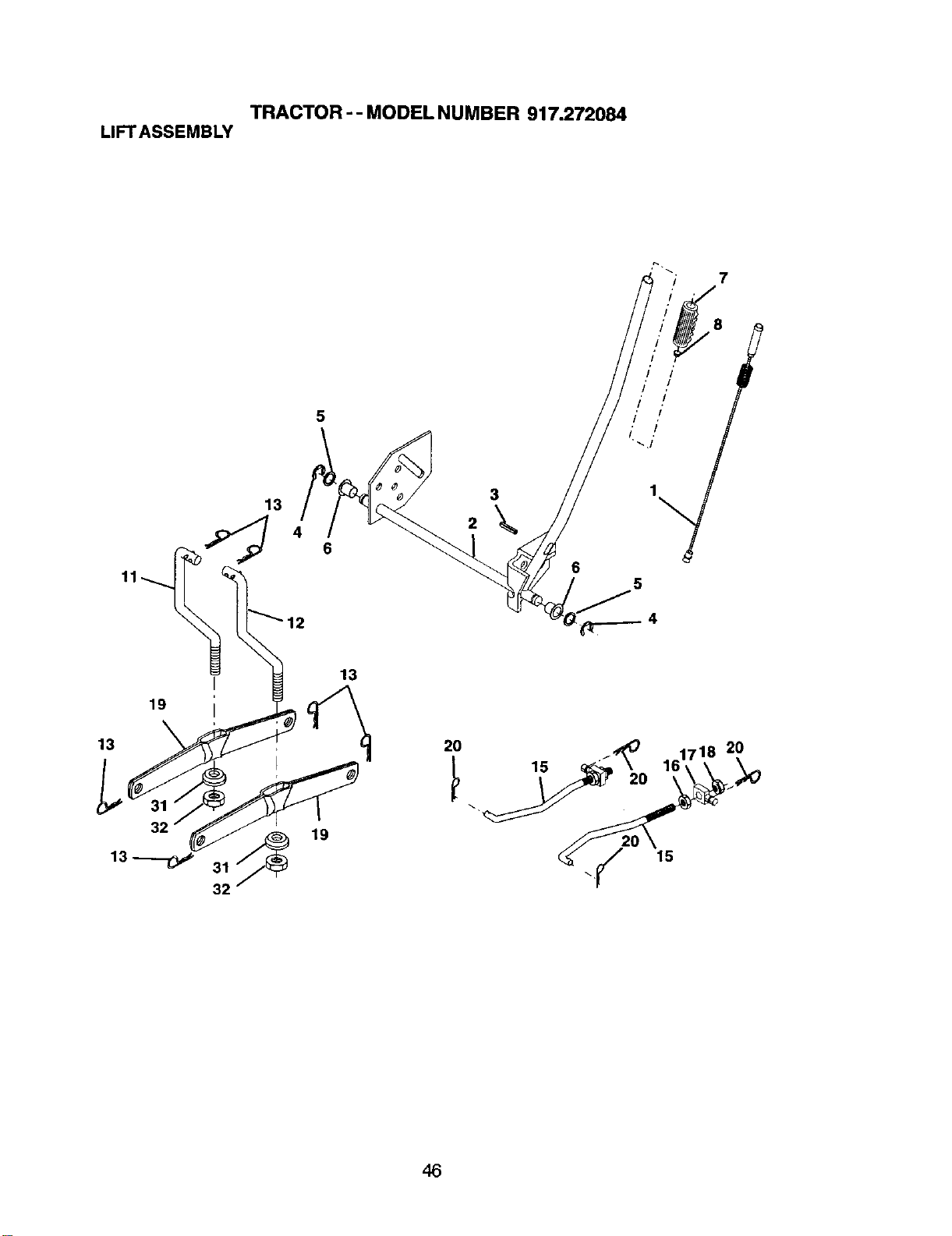

TRACTOR - - MODEL NUMBER 917.272084

LIFTASSEMBLY

/ /

I' J

I' ,/

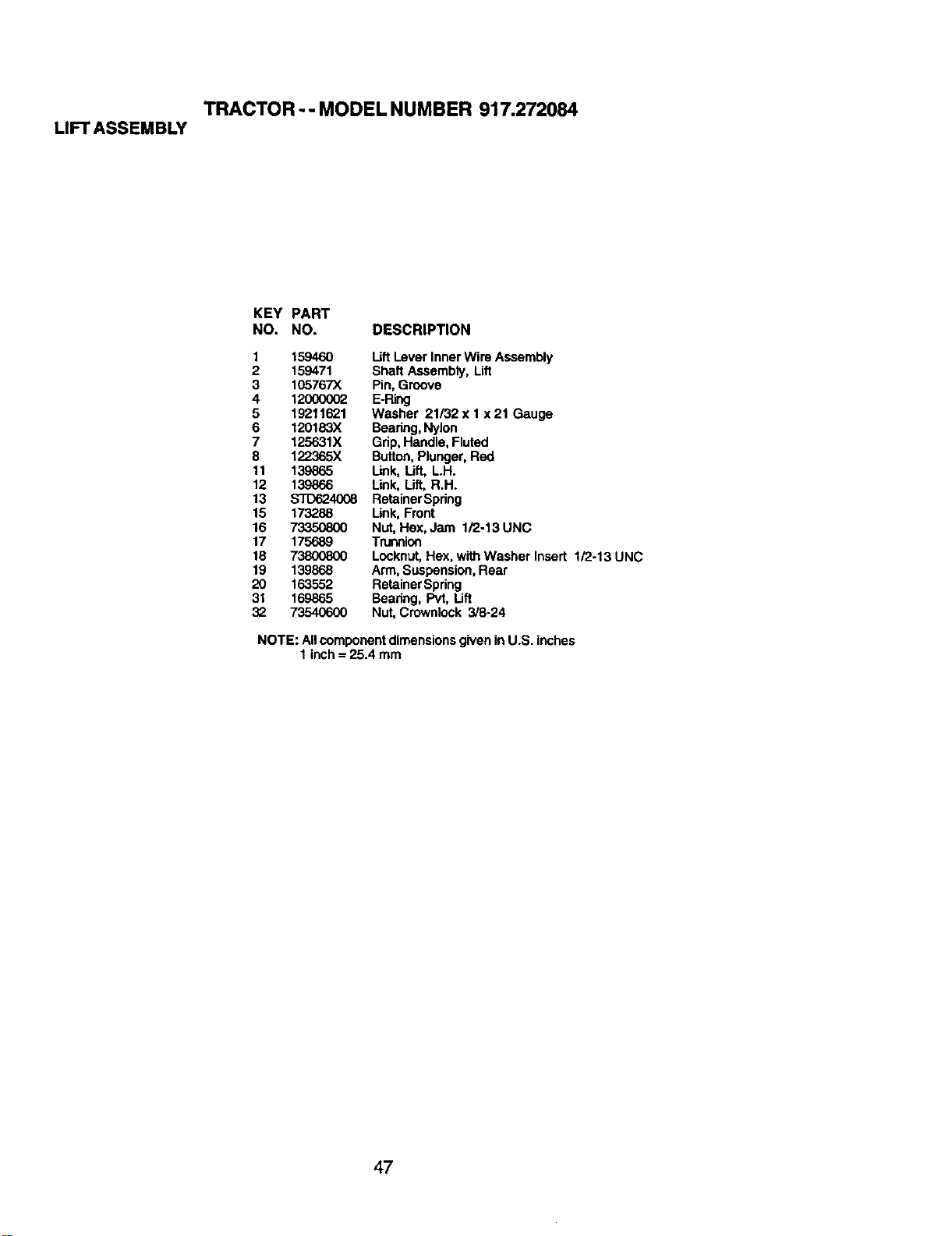

TRACTOR-- MODEL NUMBER 917.272084

LIFTASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Uft Lever Inner Wire Assembly

2 159471 Shaft Assembly, Lift

3 105767X Pin,Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x2t Gauge

6 120183X Beadng, Nylon

7 125631X Grip,Handle, Fluted

8 122365X Button,Plunger, Red

11 139865 Unk, Lift, L.H.

12 139866 Link, Lift, R.H.

13 STD624008 RetainerSpring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 175689 Trunnion

18 73800800 Locknut,Hex, with Washer Insert 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 RetainerSpring

31 169865 Beadng, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

NOTE: Allcomponent dimensionsgiven inU.S. inches

1 inch= 25.4 mm

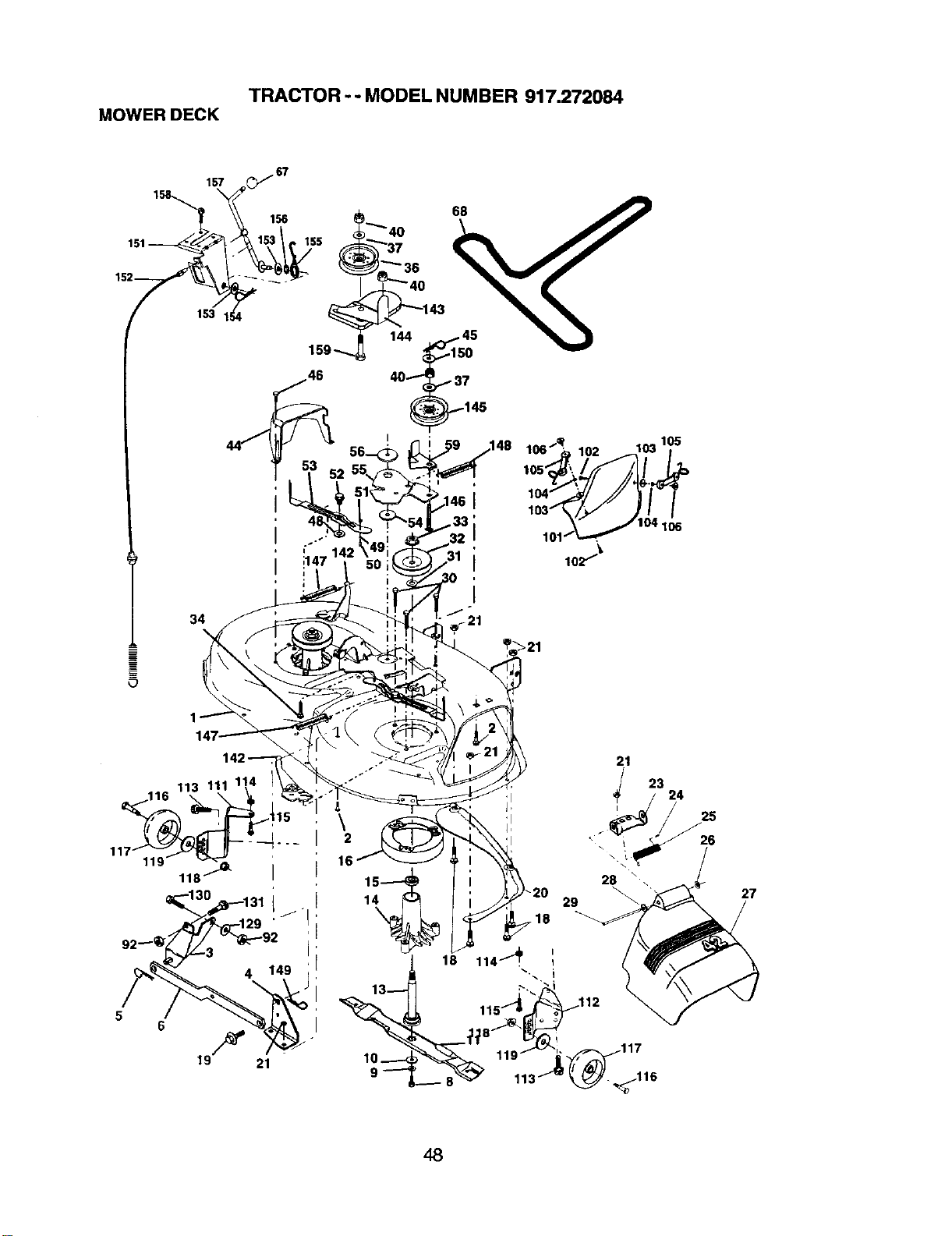

TRACTOR - oMODEL NUMBER 917.272084

MOWER DECK

147 142

,-37

105

103

119 118 "" _

19F 21

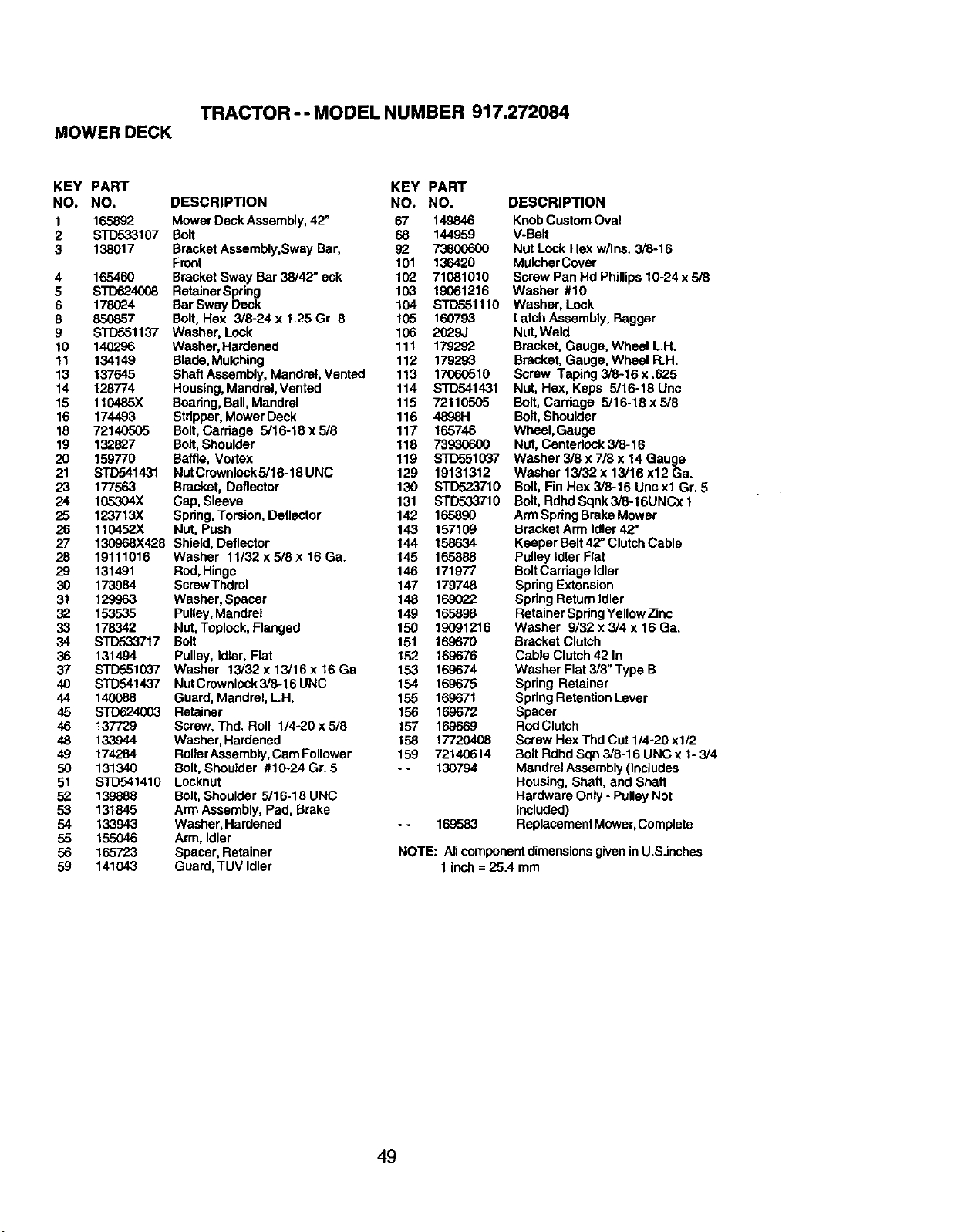

TRACTOR -- MODEL NUMBER 917.272084

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 Mower Dock Assembly,42" 67 149846

2 STD533107 Bolt 68 144959

3 138017 Bracket Assembly,Sway Bar, 92 73800600

Front 101 136420

4 165460 Bracket Sway Bar 38/42, ock 102 71081010

5 STD624008 RetainerSpdng 103 19061216

6 178024 Bar Sway Dock 104 STD551110

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 105 160793

9 STD551137 Washer, Lock 106 2029J

t0 140296 Washer, Hardened 111 179292

11 134149 Blade,Mulching 112 179293

13 137645 Shaft Assembly, Mandrel,Vented 113 17060510

14 128774 Housing,Mandrel, Vented 114 STD541431

15 110485X Bearing, Ball,Mandrel 115 72110r'.-.-.-.-.-.-.-.-_

16 174493 Stripper,Mower Deck 116 4898H

18 72140505 Bolt,Carriage 5/16-18 x 5/8 117 165746

19 132827 Bolt,Shoulder 118 73930600

20 159770 Baffle, Vortex 119 STD551037

21 STD541431 NutCrownlock5i16-18UNC 129 19131312

23 177563 Bracket, Deflector 130 STD523710

24 105304X Cap, Sleeve 131 STD533710

25 123713X Spring,Torsion, Deflector 142 165890

26 110452X Nut, Push 143 157109

27 130968X428 Shield, Deflector 144 158634

28 19111016 Washer 11/32x5/8x16Ga. 145 165888

29 131491 Rod,Hinge 146 171977

30 173984 ScrewThdrol 147 179748

31 129963 Washer, Spacer 148 169022

32 153535 Pulley,Mandret 149 165898

33 178342 Nut, Toplock,Flanged 150 19091216

34 STD533717 Bolt 151 169670

36 131494 Pulley, Idler, Rat 152 t69676

37 STD551037 Washer 13/32 x 13/16 x 16 Ga 153 169674

40 STD541437 NutCrownlock3/8-16UNC 154 169675

44 140088 Guard,Mandrel, L.H, 155 169671

45 STD624003 Retainer 156 169672

46 137729 Screw, Thd, Roll 1/4-20 x 5/8 157 169669

48 133944 Washer, Hardened 158 17720408

49 174284 RollerAssembly,Cam Follower 159 72140614

50 131340 Bolt, Shoulder #10-24 Gr.5 - - 130794

51 STD541410 Locknut

52 139888 Bolt,Shoulder 5/16-18 UNC

53 131845 ArmAssembly, Pad, Brake

54 133943 Washer, Hardened * - 169583

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard,TUV Idler

DESCRIPTION

KnobCustom Oval

V-Belt

Nut Lock Hex w/Ins. 3/8-16

MulcherCover

Screw Pan Hd Phillips10-24 x 5/8

Washer #10

Washer, Lock

LatchAssembly, Bagger

Nut,Weld

Bracket, Gauge, Wheel LH.

Bracket,Gauge, Wheel R.H.

Screw Taping 3/8-16 x .625

Nut, Hex, Keps 5/16o18 Unc

Bolt, Carriage 5/16-18 x 5/8

Bolt,Shoulder

Wheel,Gauge

Nut, Centedock3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x12 Ga.

Bolt, Fin Hex 3/8-16 UOCxl Gr. 5

Bolt, Rdhd Sqnk3/8-16UNCx 1

ArmSpdngBrakeMower

Bracket Arm Idler42,

Keeper Belt42"ClutchCable

Pulley Idler Flat

BoltCarriage Idler

SpringExtension

Spring ReturnIdler

RetainerSpringYellowZinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch42 In

Washer Flat 3/8" Type B

Spring Retainer

SpringRetentionLever

Spacer

RodClutch

Screw HexThd Cut 1/4-20 xl/2

Bolt Rdhd Sqn 3/8-16 UNC x 1- 3/4

MandrelAssembly(Includes

Housing, Shaft, and Shaft

Hardware Only- PulleyNot

Included)

ReplacementMower,Complete

NOTE: Allcomponentdimensionsgivenin U.S.inches

1 inch = 25.4 mrn

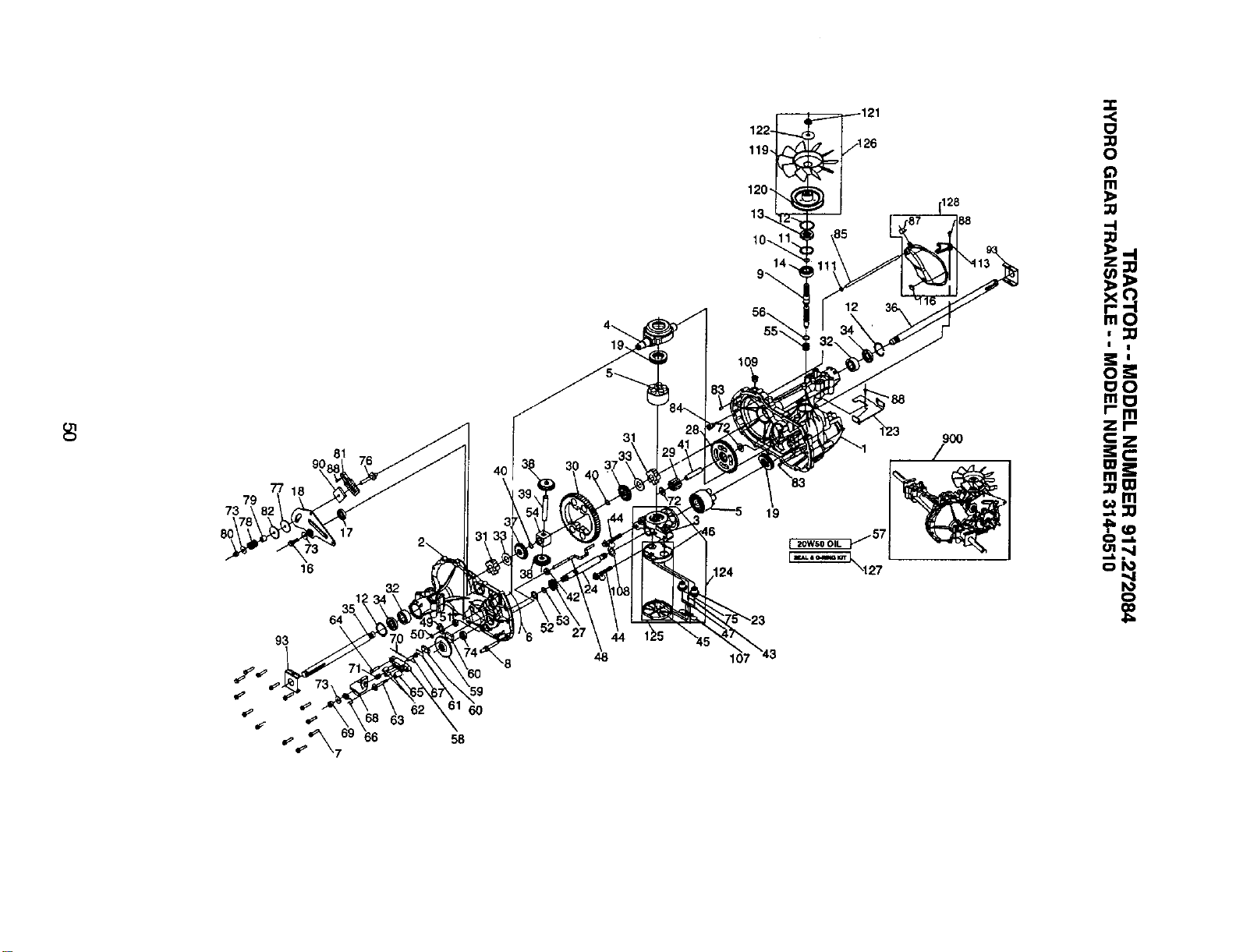

119-

120-

124

107

14.

_57

_127

! |

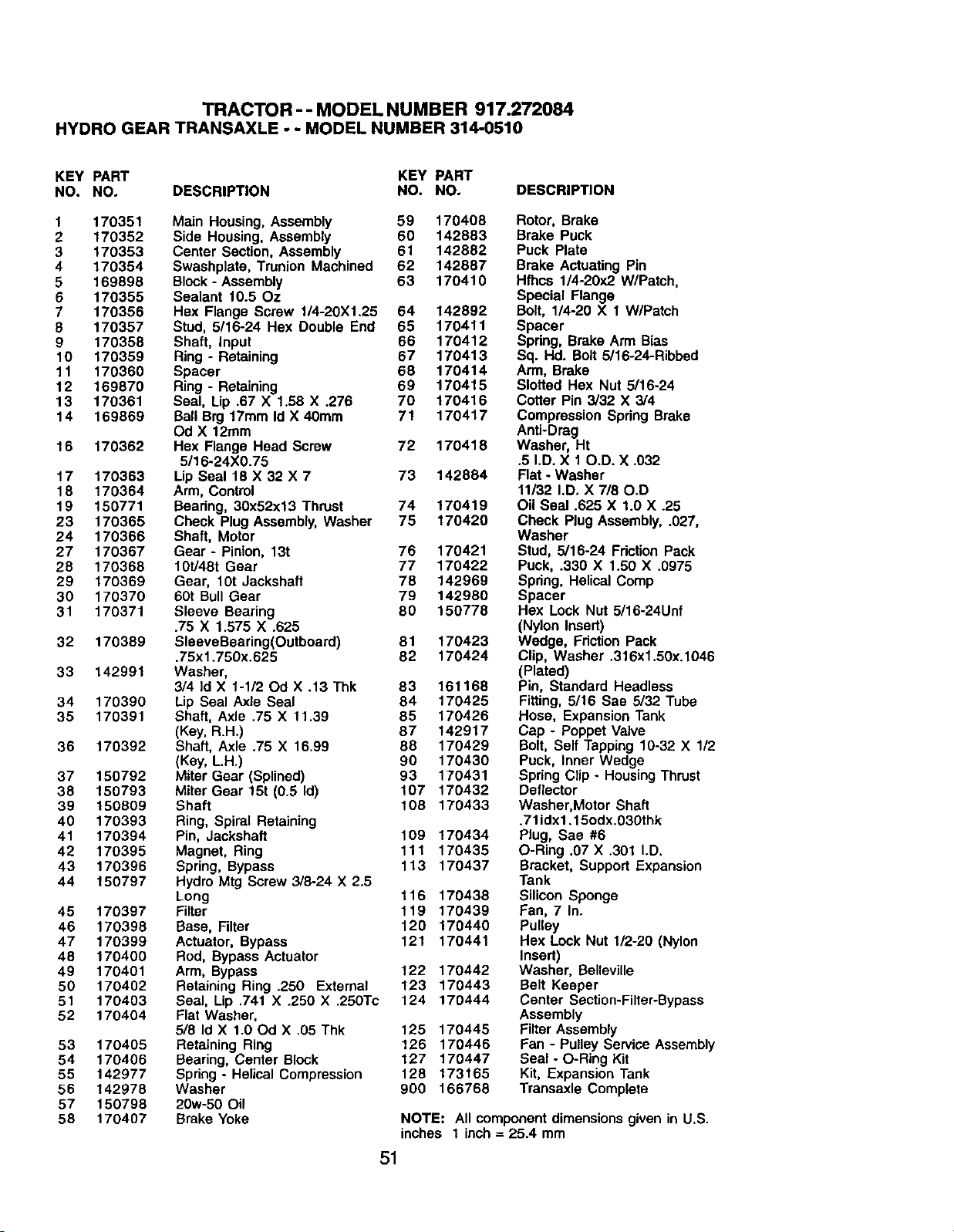

TRACTOR - - MODEL NUMBER 917.272084

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIP_ON

1 170351 Main Housing, Assembly 59 170408

2 170352 Side Housing, Assembly 60 142883

3 170353 Center Section, Assembly 61 142882

4 170354 Swashplate, Trunion Machined 62 142887

5 169896 Block - Assembly 63 170410

6 170355 Sealant 10.50z

7 170356 Hex Flange Screw 1/4-20X1.25 64 142892

8 170357 Stud, 5/16-24 Hex Double End 65 170411

9 170358 Shaft, Input 66 170412

10 170359 Ring - Retaining 67 170413

11 170360 Spacer 68 170414

12 169870 Ring - Retaining 69 170415

13 170361 Seal, Lip .67 X 1.58 X .276 70 170416

14 169869 Ball Brg 17ram Id X 40ram 71 170417

Od X 12ram

16 170362 Hex Flange Head Screw 72 170418

5/16-24X0.75

17 170363 Lip Seal 18 X 32 X 7 73 142884

18 170364 Arm, Control

19 150771 Beadng, 30x52x13 Thrust 74 170419

23 170365 Check Plug Assembly, Washer 75 170420

24 170366 Shaft, Motor

27 170367 Gear - Pinion, 13t 76 170421

28 170368 10t/48t Gear 77 170422

29 170369 Gear, 10t Jackshaft 78 142969

30 170370 60t Bull Gear 79 142980

31 170371 Sleeve Bearing 80 150778

.75 X 1.875 X .625

32 170389 SleeveBearing(Outboard) 81 170423

.75xl.75Ox.625 82 170424

33 142991 Washer,

3/4 Id X 1-1/20d X .13 Thk 83 161168

34 170390 Lip Seal Axle Seal 84 170425

35 170391 Shaft, Axle .75 X 11.39 85 170426

(Key, R.H,) 87 142917

36 170392 Shaft, Axle .75 X 16.99 88 170429

(Key, LH.) 90 170430

37 150792 Miter Gear (Splined) 93 170431

38 150793 Miter Gear 15t (0.5 Id) 107 170432

39 150809 Shaft 108 170433

40 170393 Ring, Spiral Retaining

41 170394 Pin, Jackshaft 109 170434

42 170395 Magnet, Ring 111 170435

43 170396 Spring, Bypass 113 170437

44 150797 Hydro Mtg Screw 3/8-24 X 2.5

Long 116 170438

45 170397 Filter 119 170439

46 170398 Base, Filter 120 170440

47 170399 Actuator, Bypass 121 170441

48 170400 Rod, Bypass Actuator

49 170401 Arm, Bypass 122 170442

50 170402 Retaining Ring .250 External 123 170443

51 170403 Seal, Lip .741 X .250 X .250Tc 124 170444

52 170404 Flat Washer,

5/8 Id X 1.00d X .05 Thk 125 170445

53 170405 Retaining Ring 126 170448

54 170408 Bearing, Center Block 127 170447

55 142977 Spring - Helical Compression 128 173165

56 142978 Washer 900 166768

57 150798 20w-50 Oil

58 170407 Brake Yoke

Rotor, Brake

Brake Puck

Puck Plate

Brake Actuating Pin

Hfhcs 1/4-20x2 W/Patch,

Special Flange

Bolt, 1/4-20 X 1 W/Patch

Spacer

Spdng, Brake Arm Bias

Sq. Hd. Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X 3/4

Compression Spring Brake

Anti-Drag

Washer, Ht

.5 I.D. X 10.D. X .032

Flat - Washer

11/32 I.D, X 7/80.D

Oil Seal .625 X 1.0 X .25

Chock Plug Assembly, .027,

Washer

Stud, 5/16-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical Comp

Spacer

Hex Lock Nut 5/16-24Unf

(Nylon Insert)

Wedge, Friction Pack

Clip, Washer .316x1.50x.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap - Poppet Valve

Bolt, Self Tapping 10-32 X 1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Deflector

Washer, Motor Shaft

.71idx1.15odx.030thk

Plug, Sae #6

O-Ring .07 X .301 I.D.

Bracket, Support Expansion

Tank

Silicon Sponge

Fan, 7 In.

Pulley

Hex Lock Nut 1/2-20 (Nylon

Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, Expansion Tank

Transaxle Complete

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

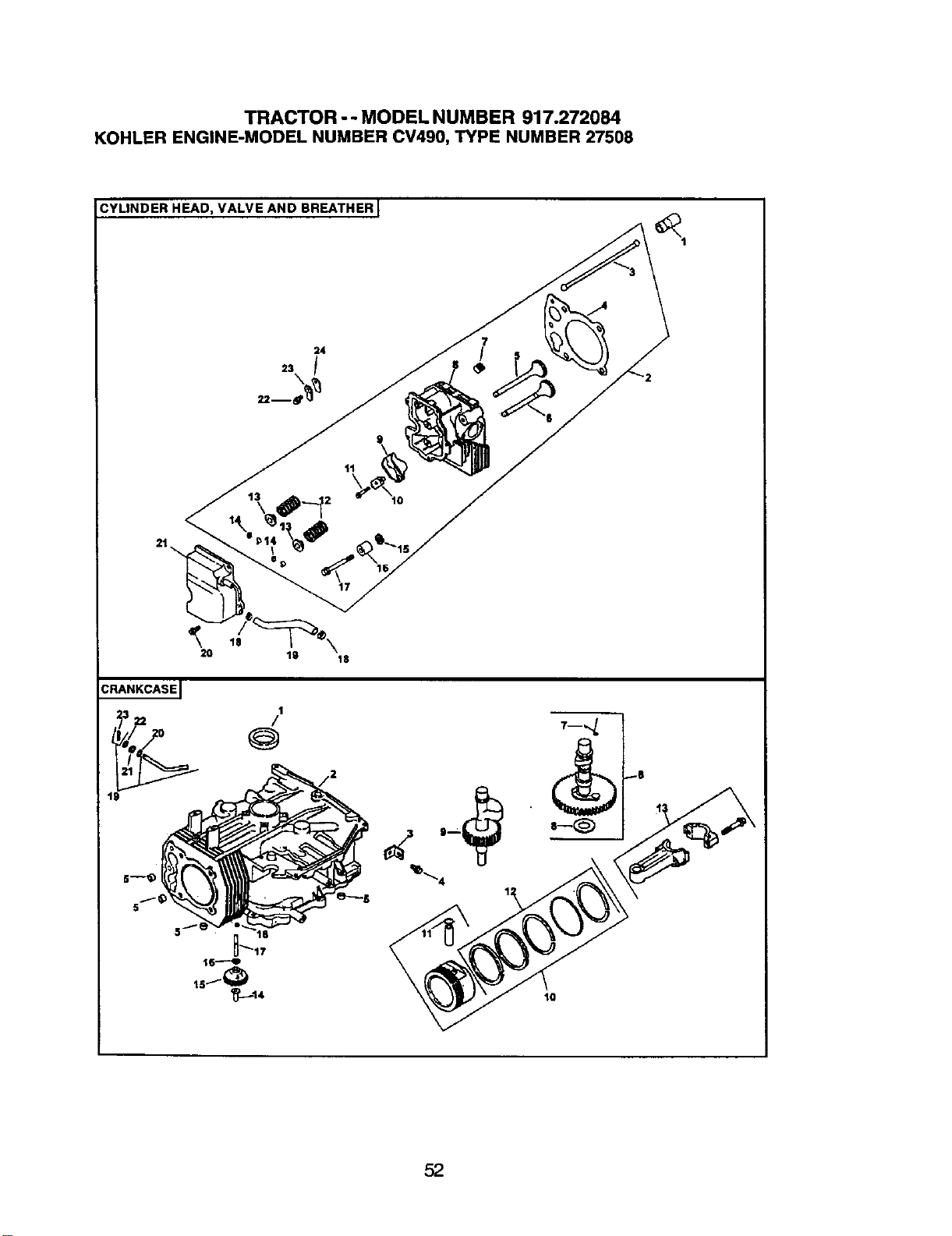

TRACTOR -- MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

CYLINDER HEAD, VALVE AND BREATHER I

20 19 18

CRANKCASEJ

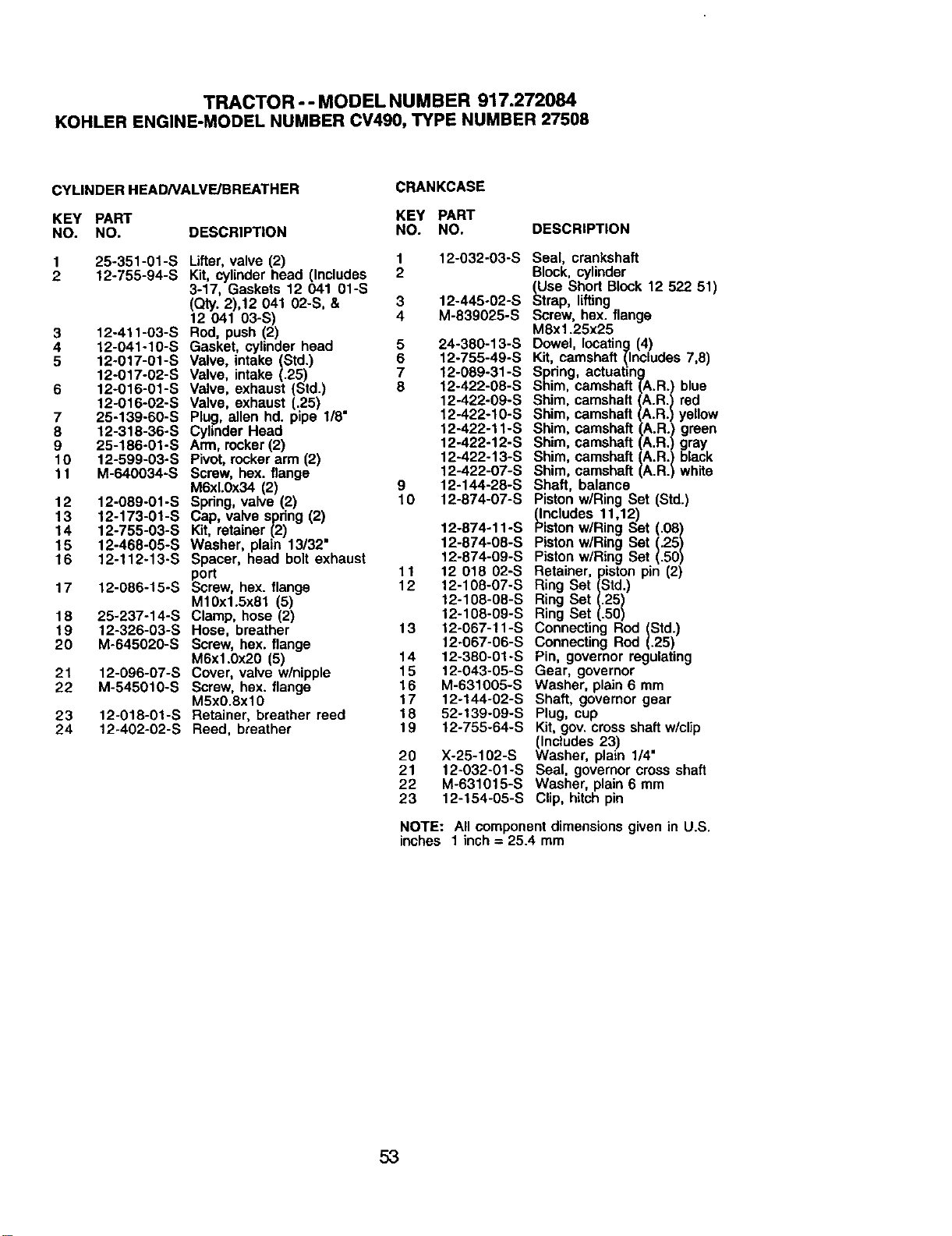

TRACTOR -- MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

CYLINDER HEADNALVE/BREATHER

CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 25-351-01-S Ufter, valve (2) 1 12-032-03-S

2 12-755-94-S Kit, cylinder head (Includes 2

3-17, Gaskets 12 041 01-S

(Qty. 2),12 041 02-S, & 3 12-445-02-S

12 041 03-S) 4 M-839025-S

3 12-411-O3-S Rod, push (2)

4 12-041-10-S Gasket, cylinder head 5 24-380-13-S

5 12-017-01-S Valve, intake (Std.) 6 12-755-49-S

12-017-02-S Valve, intake (.25) 7 12-089-31-S

6 12-016-01-S Valve, exhaust (Std.) 8 12-422-08-S

12-016-02-S Valve, exhaust (.25) 12-422-09-S

7 25-139-60-S Plug, allen hd. pipe 1/8" 12-422-10-S

8 12-318-36-S Cylinder Head 12-422-11-S

9 25-186-01-S Arm, rocker (2) 12-422-12-S

10 12-599-03-S Pivot, rocker arm (2) 12-422-13-S

11 M-640034-S Screw, hex. flange 12-422-07-S

M6xL0x34 (2) 9 12-144-28-S

12 12-089-01-S Spring, valve (2) 10 12-874-07-S

13 12-173-01-S Cap, valve spring (2)

14 12-755-03-S Kit, retainer (2) 12-874-11-S

15 12-468-05-S Washer, plain 13/32" 12-874-08-S

16 12-112-13-S Spacer, head bolt exhaust 12-874-09-S

port 11 12 018 02-S

17 12-086-15-S Screw, hex. flange 12 t2-108-07-S

M10x1.5x81 (5) 12-108-08-S

18 25-237-14-S Clamp, hose (2) 12-108-09-S

19 12-326-03-S Hose, breather 13 t2-067-11-S

20 M-645020-S Screw, hex. flange 12-067-06-S

M6xl.0x20 (5) 14 12-380-01-S

21 12-096-07-S Cover, valve w/nipple 15 12-043-05-S

22 M-545010-S Screw, hex. flange 16 M-631005-S

M5x0.8xl0 17 12-144-02-S

23 12-018-01-S Retainer, breather reed 18 52-139-09-S

24 12-402-02-S Reed, breather 19 12-755-64-S

20 X-25-102-S

21 12-032-01-S

22 M-631015-S

23 12-154-05-S

Seal, crankshaft

Block, cylinder

tUtse Short Block 12 522 51)

rap, lifting

Screw, hex. flange

M8x1.25x25

Dowel, locating (4)

Kit, camshaft (Includes 7,8)

Spring, actuating

Shim, camshaft (A.R.) blue

Shim, camshaft (A.R.) red

Shim, camshaft (A.R.) yellow

Shim, camshaft (A.R.) green

Shim, camshaft (A.R.) gray

Shim, camshaft (A.R.) black

Shim, camshaft (A.R.) white

Shaft, balance

Piston wiRing Set (Std.)

(Includes 11,12)

Piston w/Ring Set (.08)

P,slonw/R,ngSot 50)(:2S)

Piston wiring Set

Retainer, piston pin (2)

Ring Set (Std.)

Ring Set (.25)

Ring Set (.50)

Connecting Rod (Std.)

Connecting Rod (.25)

Pin, governor regulating

Gear, governor

Washer, plain 6 mm

Shaft, governor gear

Plug, cup

Kit, gov. cross shaft w/clip

(Includes 23)

Washer, plain 1/4"

Seal, governor cross shaft

Washer, plain 6 mm

Clip, hitch pin

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

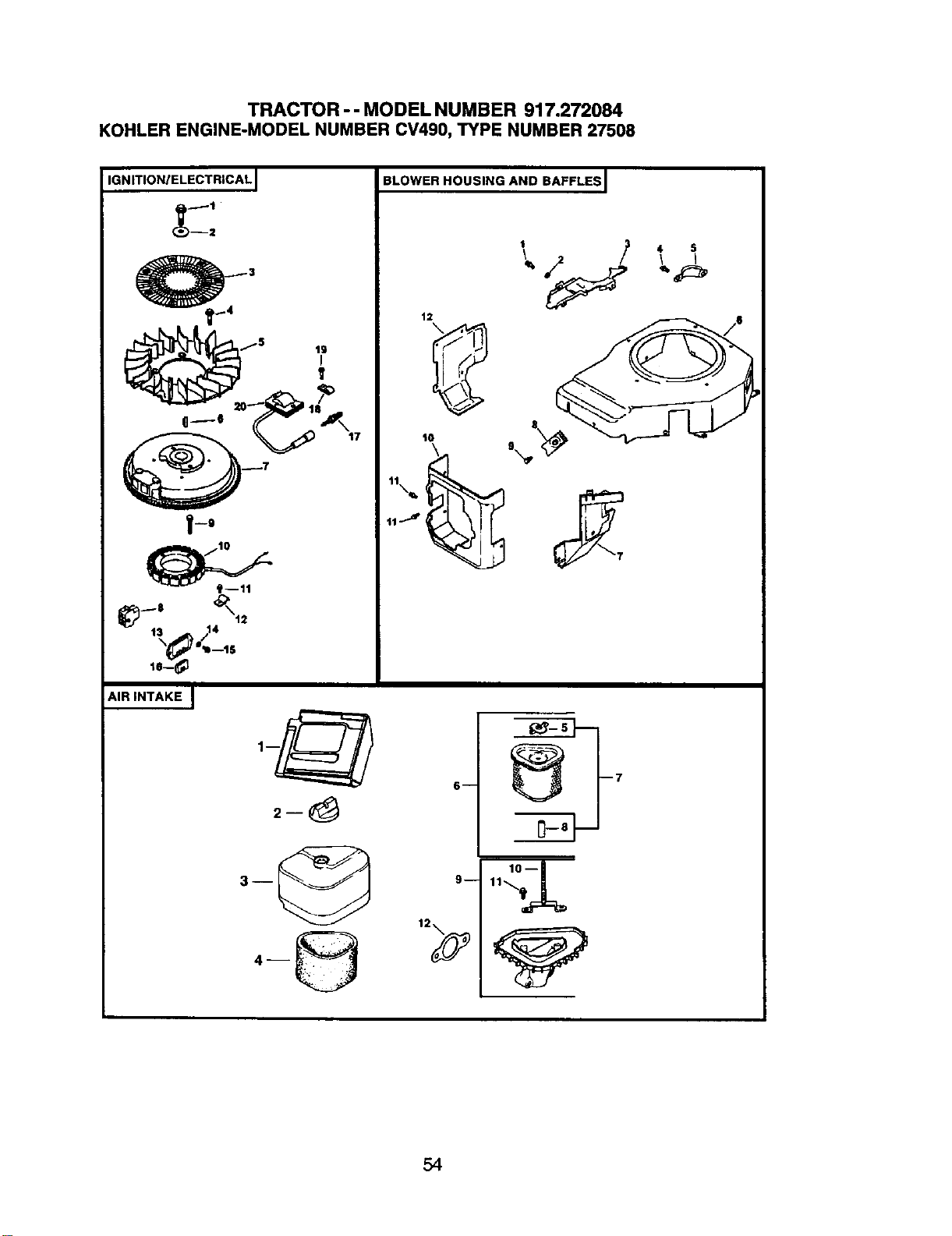

TRACTOR -- MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

IGN ITIONiELECTRICAL

BLOWER HOUSING AND BAFFLES I

4 5

50 9

--g

_8 _\12

AIR INTAKE I

6 n

--7

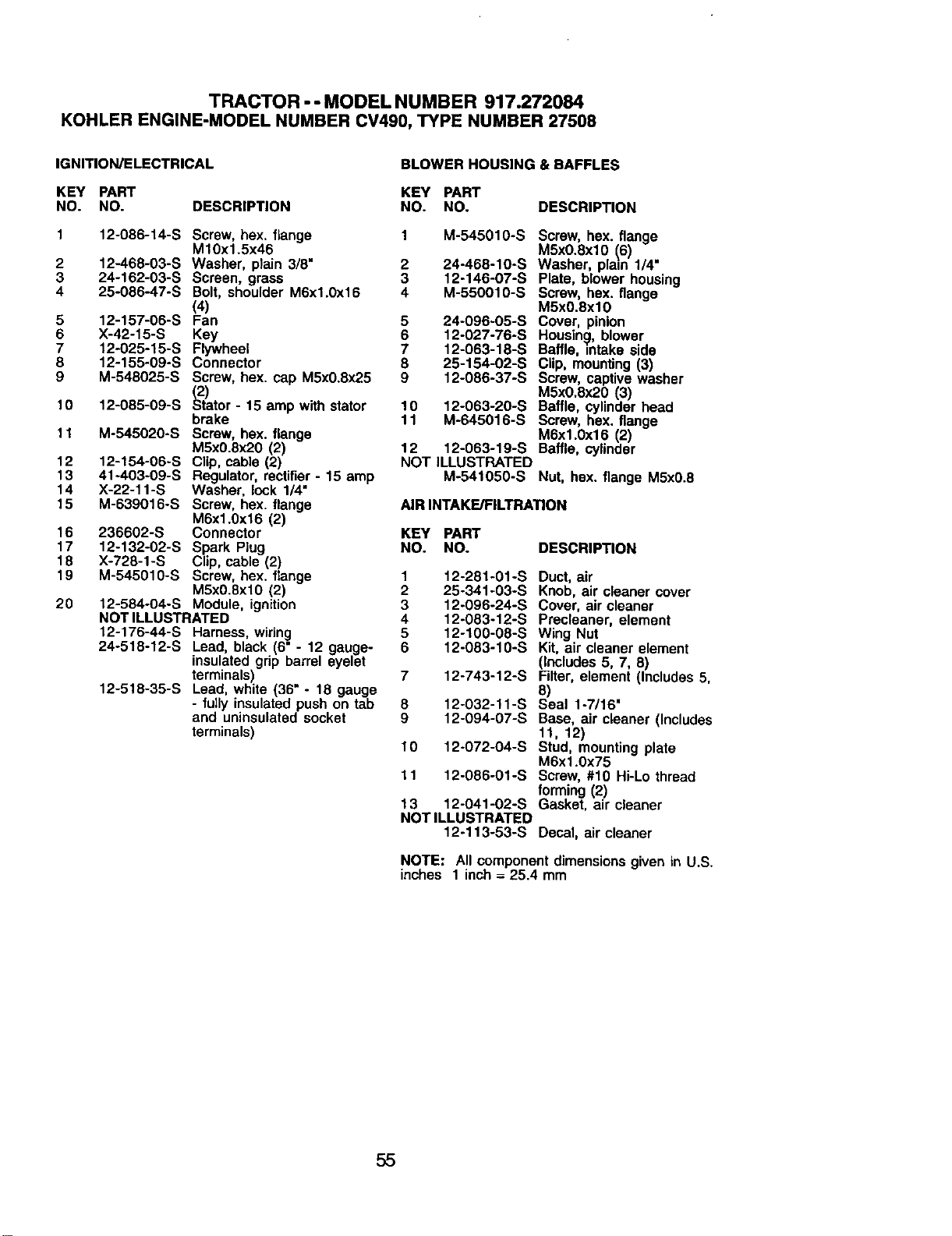

TRACTOR - - MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

IGNITION/ELECTRICAL

BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

12-086-14-S Screw, hex. flange

M10x1.5x46

12-468°03-S Washer, plain 3/8"

24-162-03-S Screen, grass

25-086o47-S Bolt, shoulder M6xl.0x16

(4)

12-157-06-S Fan

X-42-15-S Key

12-025-15-S Flywheel

12-155-09-S Connector

M-548025-S Screw, hex. cap M5xO.8x25

10 12-085-09-S _ator - 15 amp with staler 10

brake 11

Mo545020-S Screw, hex. flange

M5x0.8x20 (2)

12-154-06-S Clip cable (2)

41-403-09-S Regulator, rect fler - 15 amp

X-22-11-S Washer, lock 1/4"

M-639016-S Screw, hex. flange

M6xt .Ox16 (2)

236602-S Connector

12-132-02-S Spark Plug

Xo728-1-S Clip, cable (2)

M-545010-S Screw, hex. flange

M5x0.8xl0 (2)

12-584-04-S Module, ignition

NOT ILLUSTRATED

12-176-44-S Harness, wiring

24-518-12-S Lead black (6" - 12 gauge-

insulated grip barre eyelet

terminals)

12-518-35-S Lead, white (36" - 18 gauge

- fully insulated push on tab

and uninsulated socket

terminals)

M-545010-S

24-468-10-S

12-146-07-S

M-550010-S

24-096-05-S

12-027-76-S

12-063-18-S

25-154-02-S

12-086-37-S

12°063-20-S

M-645016-S

12 12-063-19-S

NOT ILLUSTRATED

M-541050-S

Screw, hex. flange

MSxO.SxtO (6)

Washer, plain 1/4"

Plate, blower housing

Screw, hex. flange

M5xO.8xlO

Cover, pinion

Housing, blower

Baffle, intake side

Clip,mounting (3)

Screw, captive washer

M5x0.Sx20 (3)

Baffle, cylinderhead

Screw, hex. flange

M6x1.0x16 (2)

Baffle, cylinder

Nut, hex. flange M5x0.8

AIR INTAKE/FILTRATION

KEY PART

NO. NO. DESCRIPTION

1 12-281-01-S Duct, air

2 25-341-03-S Knob, air cleaner cover

3 12-096-24-S Cover, air cleaner

4 12-083-12-S Precleaner, element

5 12-100-08-S Wing Nut

6 12-083o10-S Kit, air cleaner element

(Includes 5, 7, 8)

7 12-743-12-S Filter, element (Includes 5,

8 12-032-11-S Seal 1-7/16"

9 12-094-07-S Base, air cleaner (Includes

11, 12)

10 12-072-04-S Stud, mounting plate

M6x1.0x75

11 12-086-01-S Screw, #10 Hi-Lo thread

forming (2)

13 12-041-02-S Gasket, air cleaner

NOT ILLUSTRATED

12-113°53-S Decal, air cleaner

NOTE: All componentdimensionsgiven in U.S.

inches 1 inch= 25.4 mm

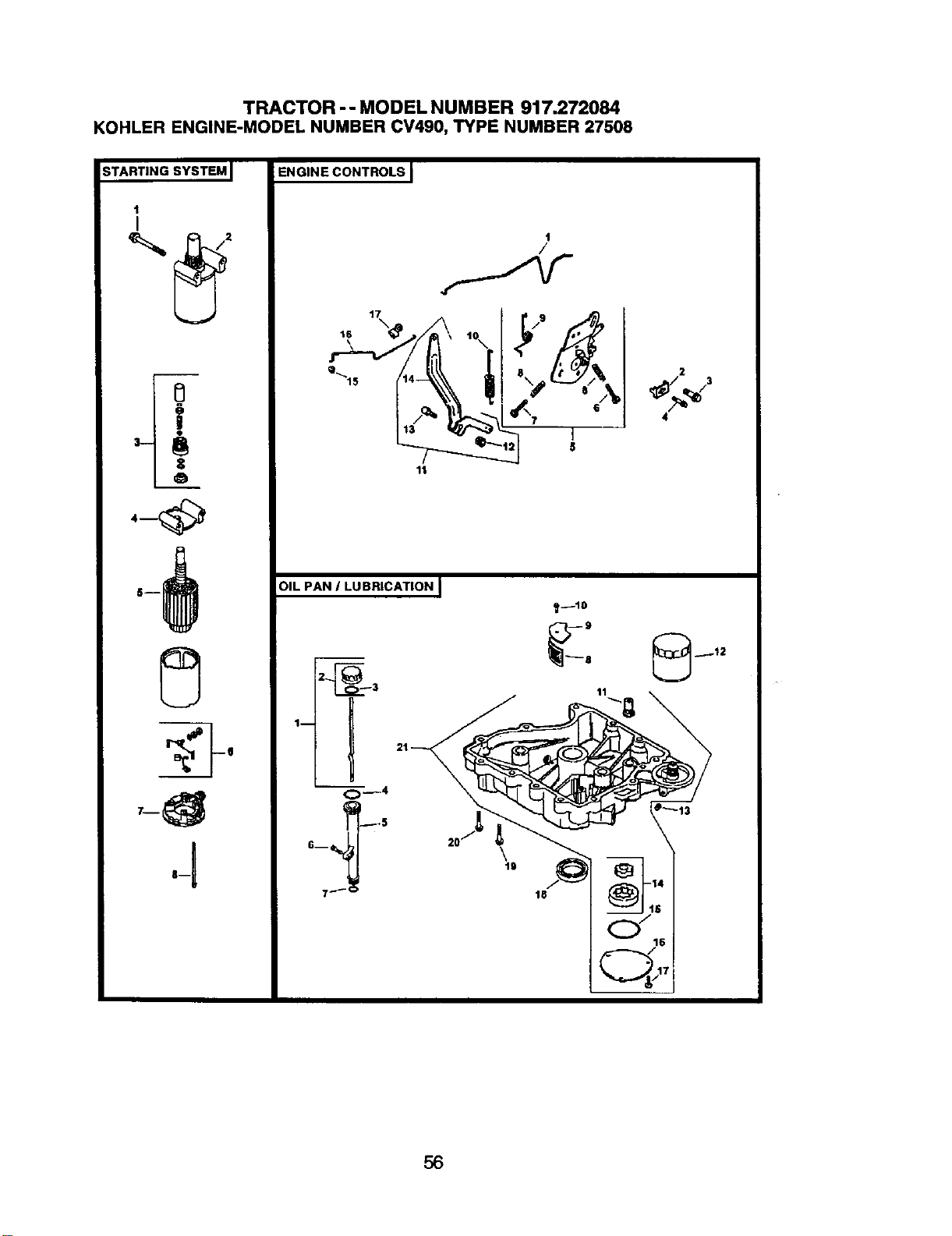

TRACTOR -- MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

STARTING SYSTEM I

,_i

ENGINE CONTROLS

OIL PAN/LUBRICATION I

7 18 _ t5

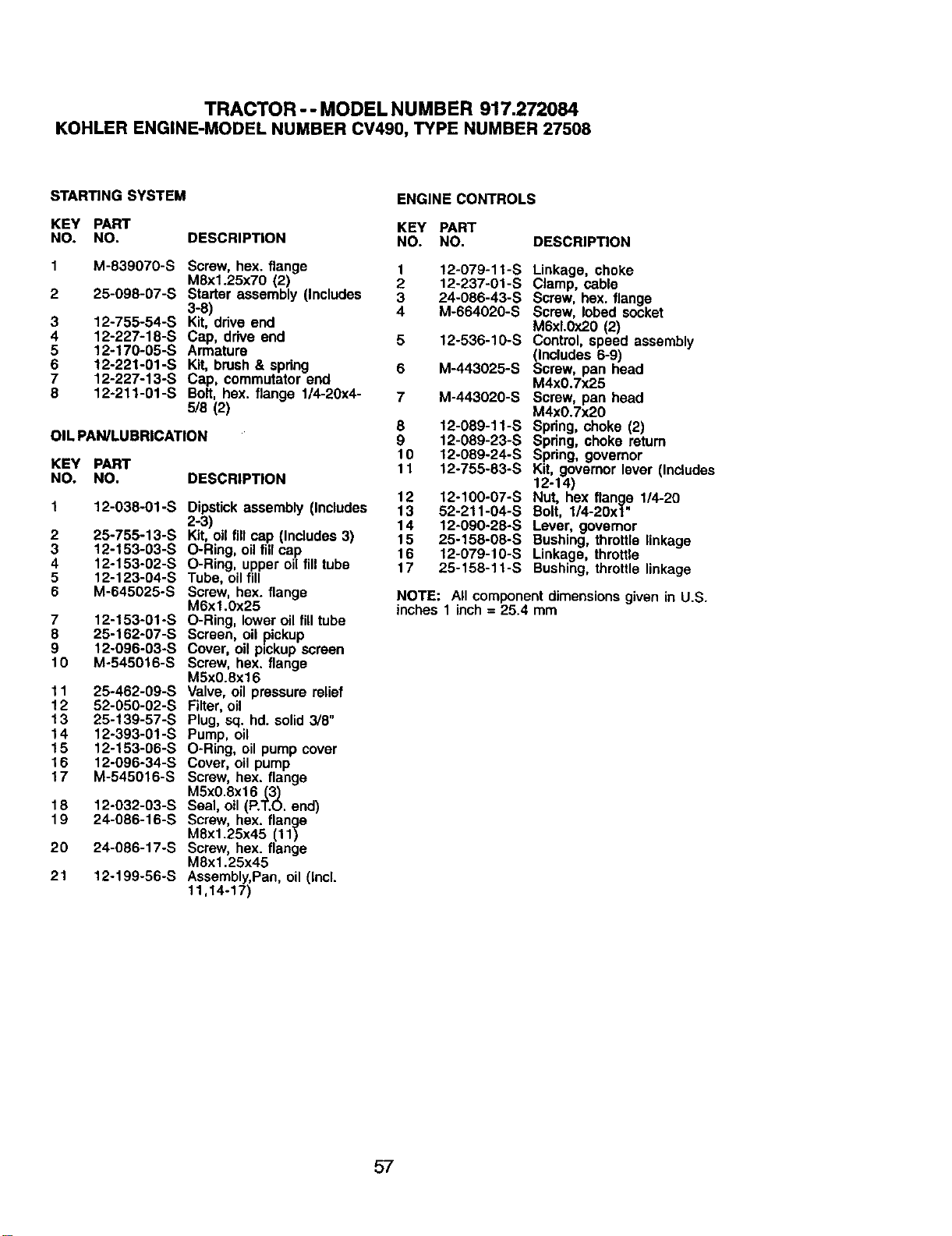

TRACTOR-- MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

STARTING SYSTEM

ENGINE CONTROLS

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

M-839070-S Screw, hex. flange t

M8x1.25x70 (2) 2

25-098-07-S Starter assembly (Includes 3

3-8) 4

12-755-54-S Kit, drive end

12-227-18-S Cap, dfive end 5

12-170-05-S Armature

12-221-01-S Kit, brash & spdng 6

12-227-13-S Cap, commutator end

12-211-01-S Bolt, he)(. flange 1/4-20x4- 7

5/8 (2)

OIL PAN/LUBRICATION

DESCRIPTION

KEY PART

NO. NO.

12-038-01-S

25-755-13-S

12-f 53-03-S

12-153-02-S

12-123-04-S

M-645025-S

12-153-0f-S

25-162-07-S

12-096-03-S

M-545016-S

25-462-09-S

52-050-02-S

25-139-57-S

12-393-01-S

12-153-08-S

12-096-34-S

M-545016-S

12-032-03-S

24-086-16-S

24-086-17-S

12-199-56-S

Dipstick assembly (includes

2-3)

Kit, oil fill cap (Includes 3)

O-Ring, oil fill cap

O-Ring, upper oil fill tube

Tube, oil fill

Screw, hex. flange

M6x1.0x25

O-Ring, lower oil fill tube

Screen, oil pickup

Cover, oil pickup screen

Screw, hex. flange

M5x0.8xl 6

VaNe, oil pressure relief

Filter, oil

Plug, sq. hd. solid 3/8"

Pump, oil

O-Ring, oil pump cover

Cover, oil pump

Screw, hex. flange

M5xO.8x16 (3)

Seal, oil (P.T.O. end)

Screw, hex. flange

M8x1.25x45 (11)

Screw, hex. flange

M8x1.25x45

Assembly, Pan, oil (Incl.

t1,14-17)

DESCR|P'rlON

12-079-11-S

12-237-01-S

24-086-43-S

M-664026-S

12-536-10-S

M-443025-S

M-443020-S

12-059-11-S

12-089-23-S

12-089-24-S

12-755-83-S

12-100-07-S

52-211-04-S

12-090-28-S

25-158-08-S

12-079-10-S

25-158-11-S

Linkage, choke

Clamp, cable

Screw, hex. flange

Screw, lobed socket

M6xl.0x20 (2)

Control,speed assembly

}l>_ncludesB-9)

rew, pan head

M4x0.7x25

Screw, pan head

M4x0.7x20

Spdng,choke (2)

Spring, choke return

Spring, governor

Kit, governorlever (Includes

12-14)

Nut, hex flange 1/4-20

Bolt, 1/4-20x1"

Lever, governor

Bushing,throttle linkage

Linkage, throttle

Bushing,throttlelinkage

NOTE: All componentdimensions given in U.S.

inches1 inch= 25.4 mm

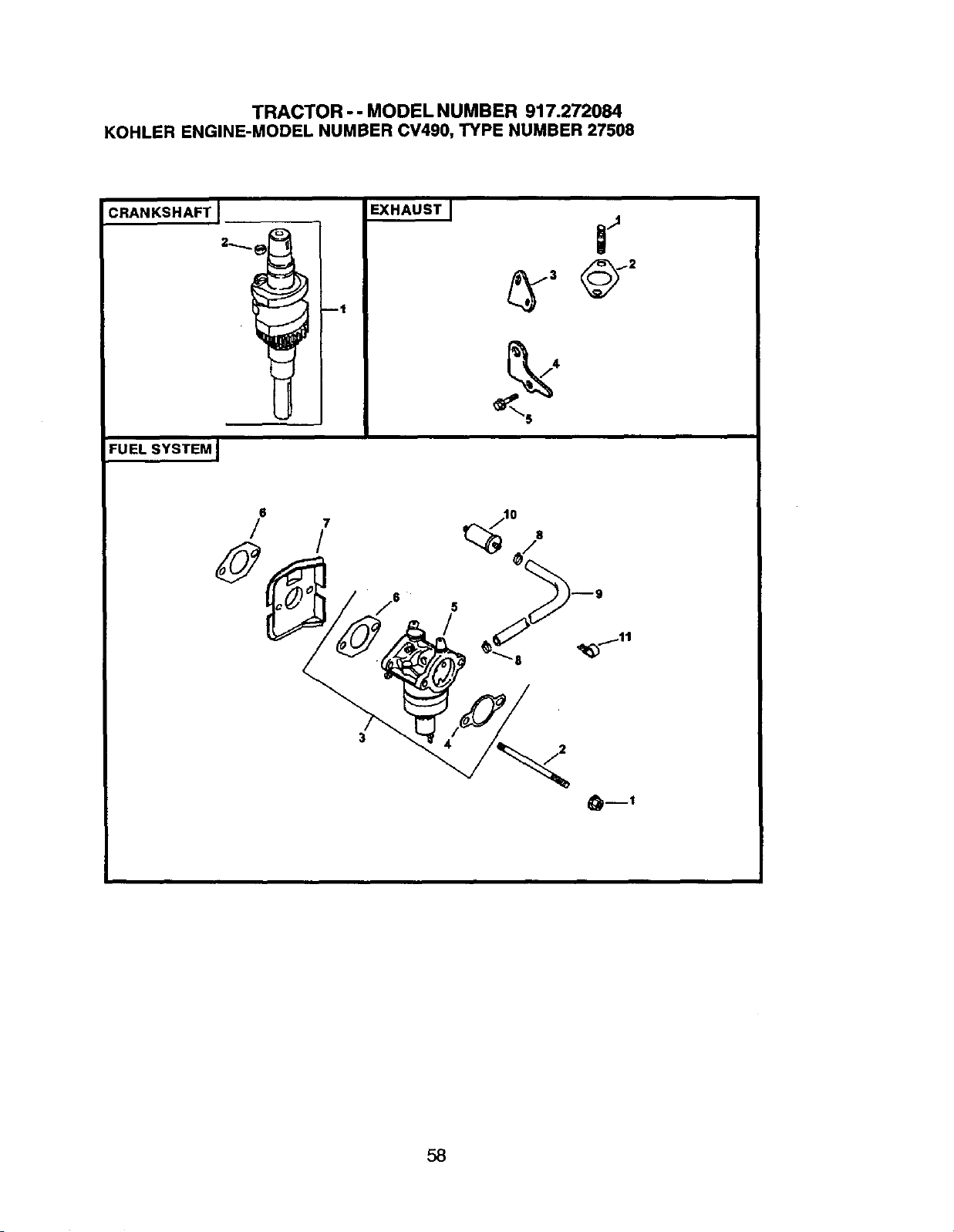

TRACTOR-- MODEL NUMBER 917.272084

KOHLER ENGINE-MODEL NUMBER CV490, TYPE NUMBER 27508

CRANKSHAFT I

EXHAUST

FUEL SYSTEM J

7 /t0 8

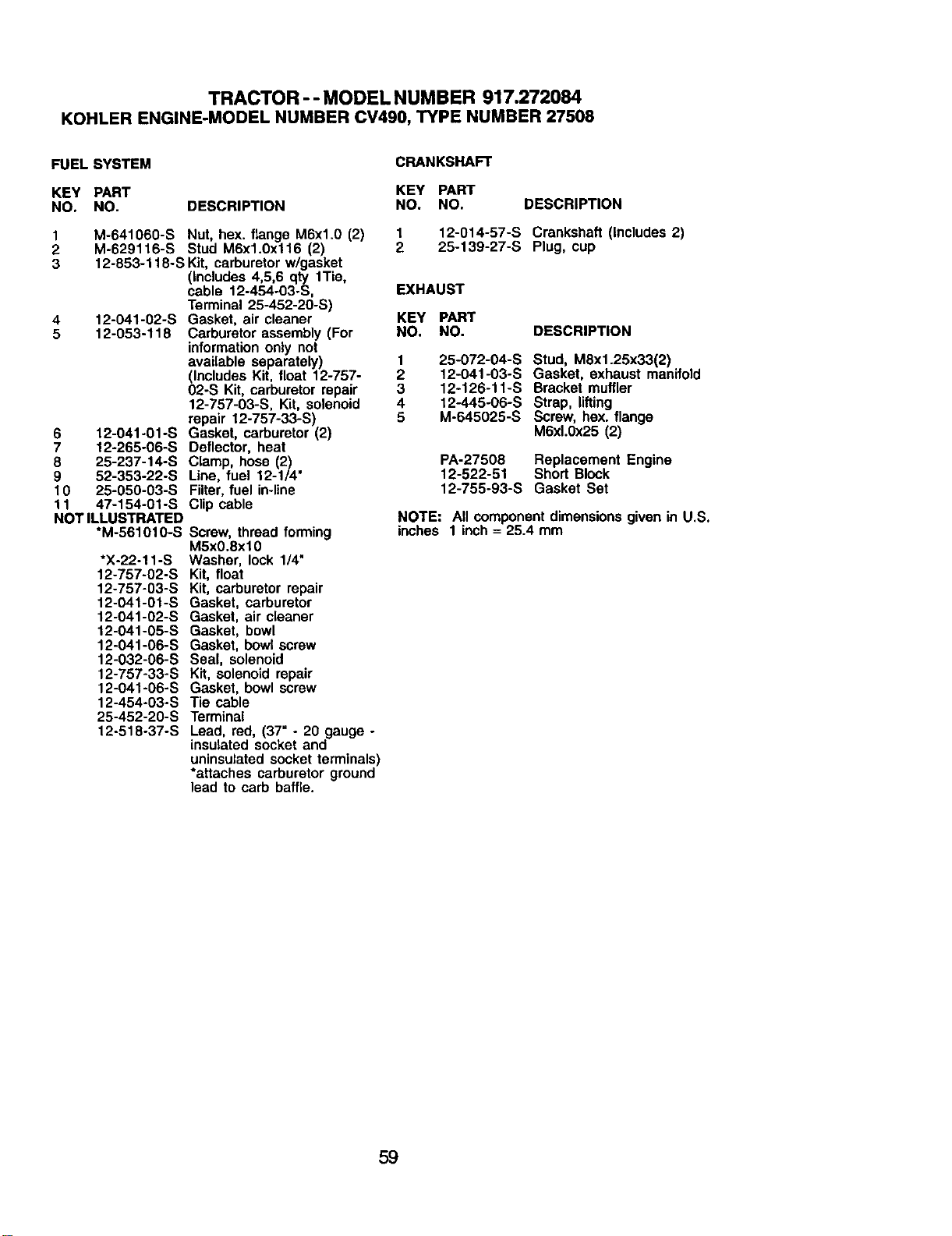

TRACTOR-- MODELNUMBER 917.272084

KOHLERENGINE-MODELNUMBERCV490,TYPENUMBER27508

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

M-641060-S Nut, hex. flange M6xl.0 (2)

M-629116-S Stud M6x1.0x116 (2)

12-853-118-S Kit, carburetor w/gasket

(Includes 4,5,6 qty 1Tie,

cable 12-454-03-S,

Terminal 25-452-20-S)

12-041-02-S Gasket, air cleaner

12-053-118 Carburetor assembly (For

information only net

available separately)

(Includes Kit, float 12-757-

02-S Kit, carburetor repair

12-757-03-S, Kit, solenoid

repair 12-757-33-S)

6 12-041-01-S Gasket, carburetor (2)

7 12-265-06-S Deflector, heat

8 25-237-14-S Clamp, hose (2)

9 52-353-22-S Line, fuel 12-1/4"

10 25-050-03-S Filter, fuel in-line

11 47-154-01-S Clip cable

NOT ILLUSTRATED

*M-561010-S

*X-22-11-S

12-757-02-S

12-757-03-S

12-041-01 -S

12-041-02-S

12-041-05-S

12-041-06-S

12-032-06-S

12-757-33-S

12-041-06-S

12-454-03-S

25-452-20-S

12-518-37-S

Screw, thread forming

M5x0.8xl0

Washer, lock 1/4"

Kit, float

Kit, carburetor repair

Gasket, carburetor

Gasket, air cleaner

Gasket, bowl

Gasket, bowl screw

Seal, solenoid

Kit, solenoid repair

Gasket, bowl screw

Tie cable

Terminal

Lead, red, (37" - 20 gauge -

insulated socket and

uninsulated socket terminals)

*attaches carburetor ground

lead to carb baffle.

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1 12-014-57-S Crankshaft (includes 2)

2 25-139-27-S Plug, cup

EXHAUST

KEY PART

NO, NO. DESCRIPTION

25-072-04-S Stud, M8x1.25x33(2)

12-041-03-S Gasket, exhaust manifold

12-126-11-S Bracketmuffler

12-445-06-S Strap, lifting

M-645025-S Screw, hex. flange

M6xl.0x25 (2)

PA-27508 Replacement Engine

12-522-51 Short Block

12-755-93-S Gasket Set

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line Indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold In the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears,com

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (u.sJ_) 1-800-361-6665 (Canada)

Para pecrir servicio de reparaci6n Au Canada pour service en frar_.ais:

a domicilio, y para ordenar piezas: I_800.LE.FOYERMC

1-888-SU-HOGAR sa (1-800-533-6937)

(1-888-784_ www.sears.ca

® Registered Trademark / Tu Trademark / SMService Mark of Seam, Roebuck and Co,

®Marca Registrada / TMMama de F&bdca / sa Marca de Servicio de Sears, Roebuck and Co.

Mc Marque de commerce / MDMarque d6posde de Sears, Roebuck and Co.

183273 Rev. 1 4.25.02 TR Printed in U.S.A.

Craftsman 917272084 LAWN TRACTOR 17.0 HP, 42" Mower Electric Start Automatic Transmission

Product's Documents

Owner's Manual

Specifications

Craftsman 917272084 Questions and Answers
