Estufa el ctrica
Modelos deslizables
% 5,:t_q 5::t r _r'_ ......... *
..................,.<_U,...,.,b_"y CI._

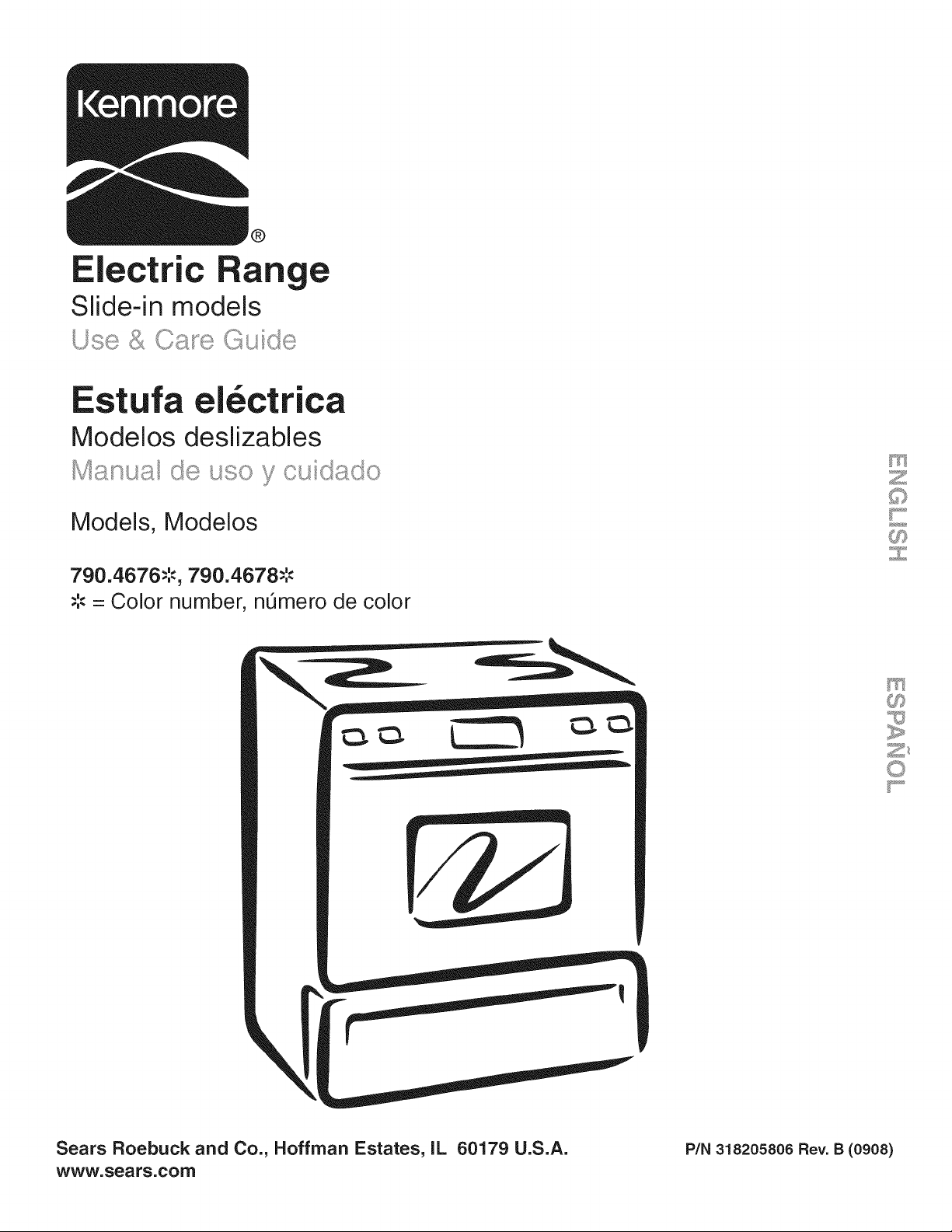

Models, Modelos
790.4676-,-, 790.46785
.,. = Color number, namero de color
Sears Roebuck and Co., Hoffrnan Estates, IL 60179 U.S.A.
www.sears.com
P/N 318205806 Rev, B (0908)

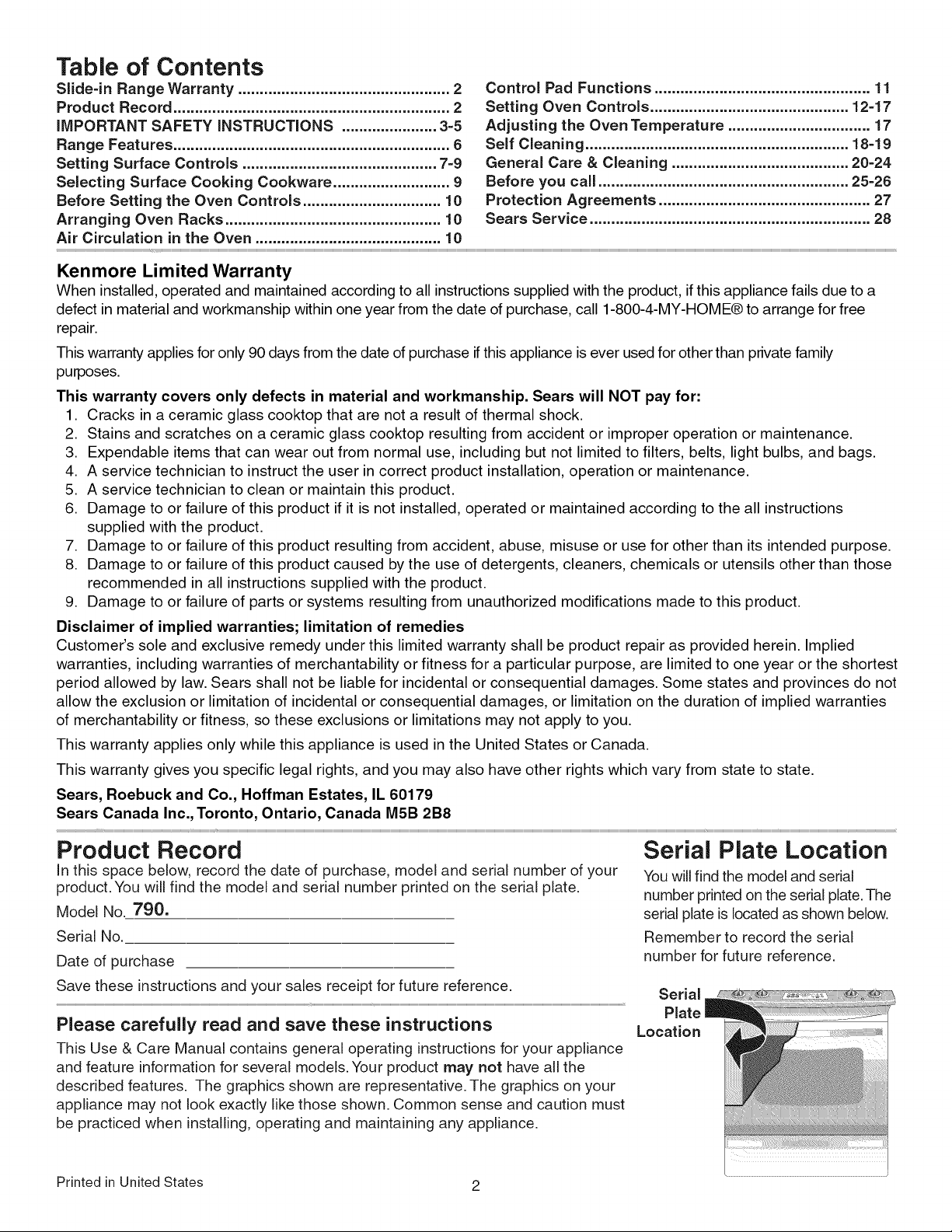

Table of Contents
Slide=in Range Warranty ................................................. 2
Product Record ................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ...................... 3=5
Range Features ................................................................ 6
Setting Surface Controls ............................................. 7=9
Selecting Surface Cooking Cookware ........................... 9
Before Setting the Oven Controls ................................ 10
Arranging Oven Racks .................................................. 10
Air Circulation in the Oven ........................................... 10

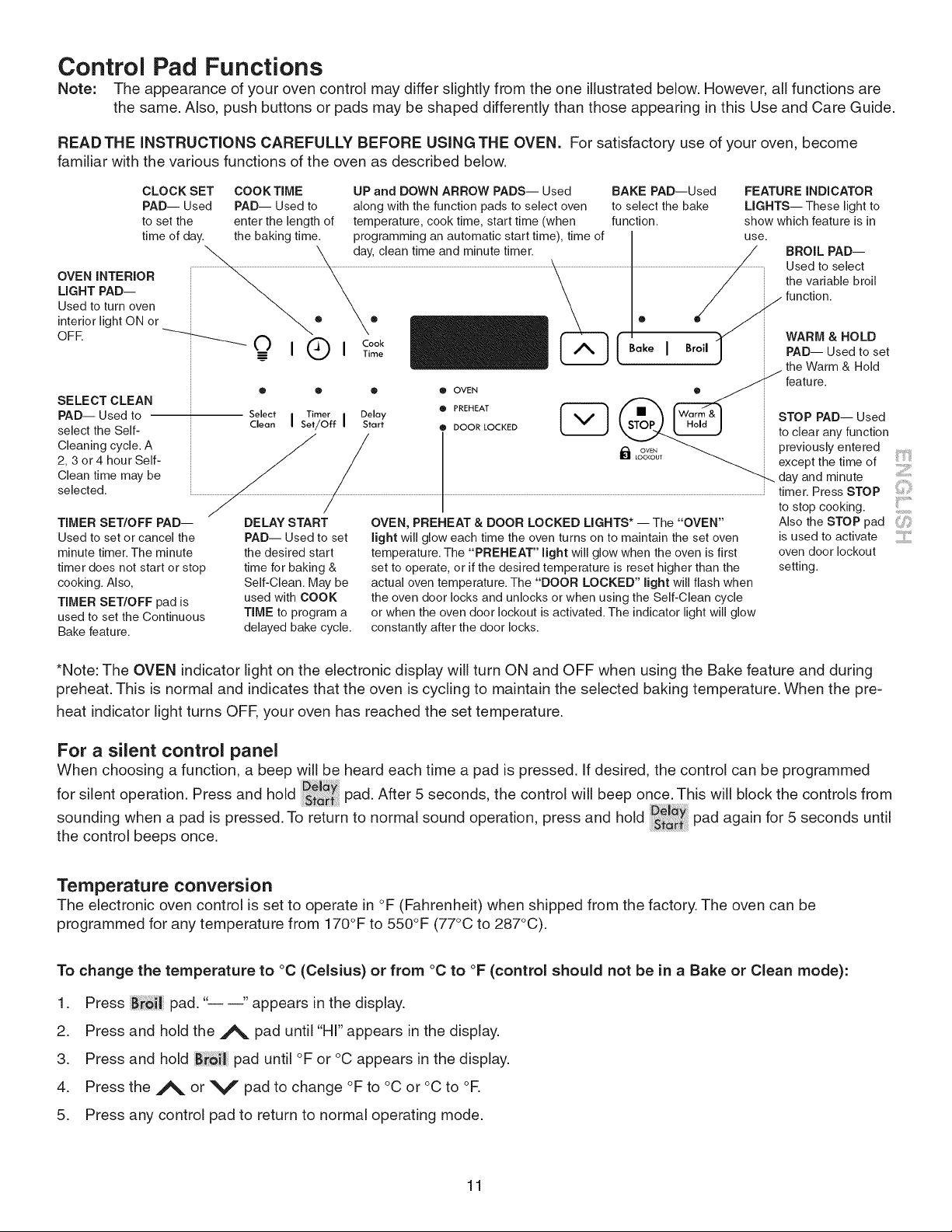

Control Pad Functions .................................................. 11
Setting Oven Controls .............................................. 12=17
Adjusting the Oven Temperature ................................. 17
Self Cleaning ............................................................. 18-19
General Care & Cleaning ......................................... 20=24
Before you call .......................................................... 25=26

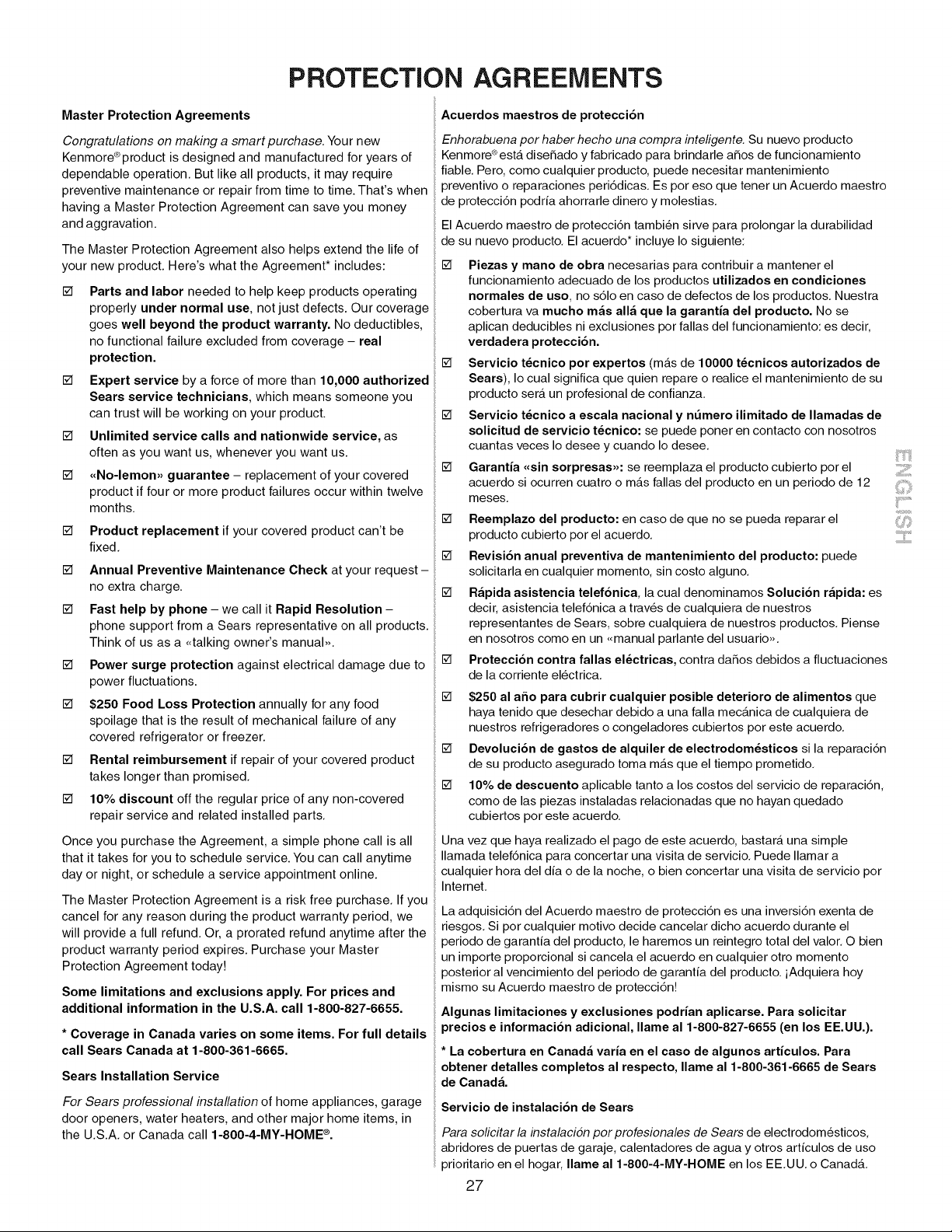

Protection Agreements ................................................. 27
Sears Service ................................................................. 28
Kenmore Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a
defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free
repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family
purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties
of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Product Record
In this space below, record the date of purchase, model and serial number of your
product. You will find the model and serial number printed on the serial plate.
Model No. 790.
Serial No.
Date of purchase
Save these instructions and your sales receipt for future reference.
Please carefully read and save these instructions
This Use & Care Manual contains general operating instructions for your appliance
and feature information for several models. Your product may not have all the
described features. The graphics shown are representative. The graphics on your
appliance may not look exactly like those shown. Common sense and caution must
be practiced when installing, operating and maintaining any appliance.
Serial Plate Location
You will find the model and serial
number printed on the serial plate. The
serial plate is located as shown below.
Remember to record the serial
number for future reference.
Serial
Plate
Location
Printed in United States 2

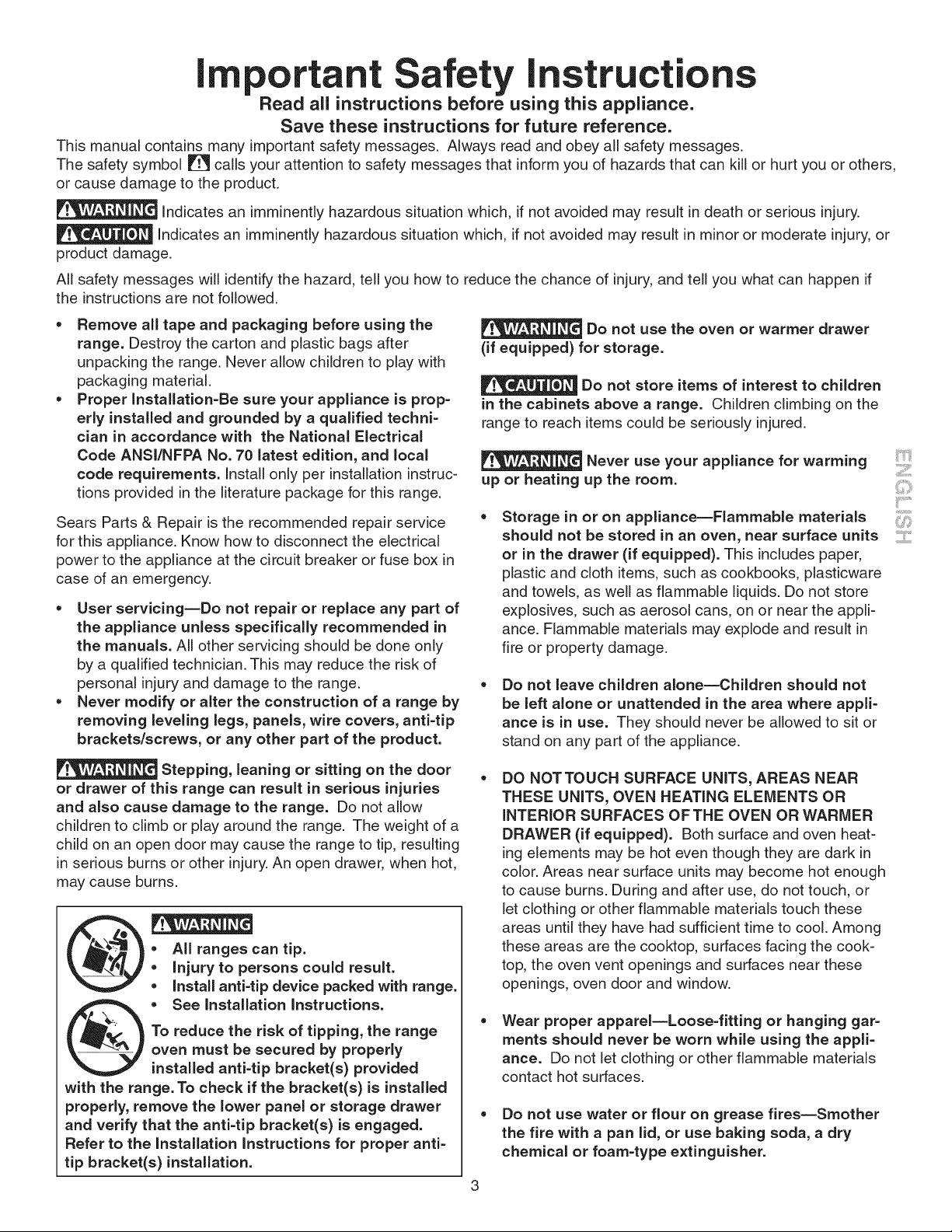

important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.

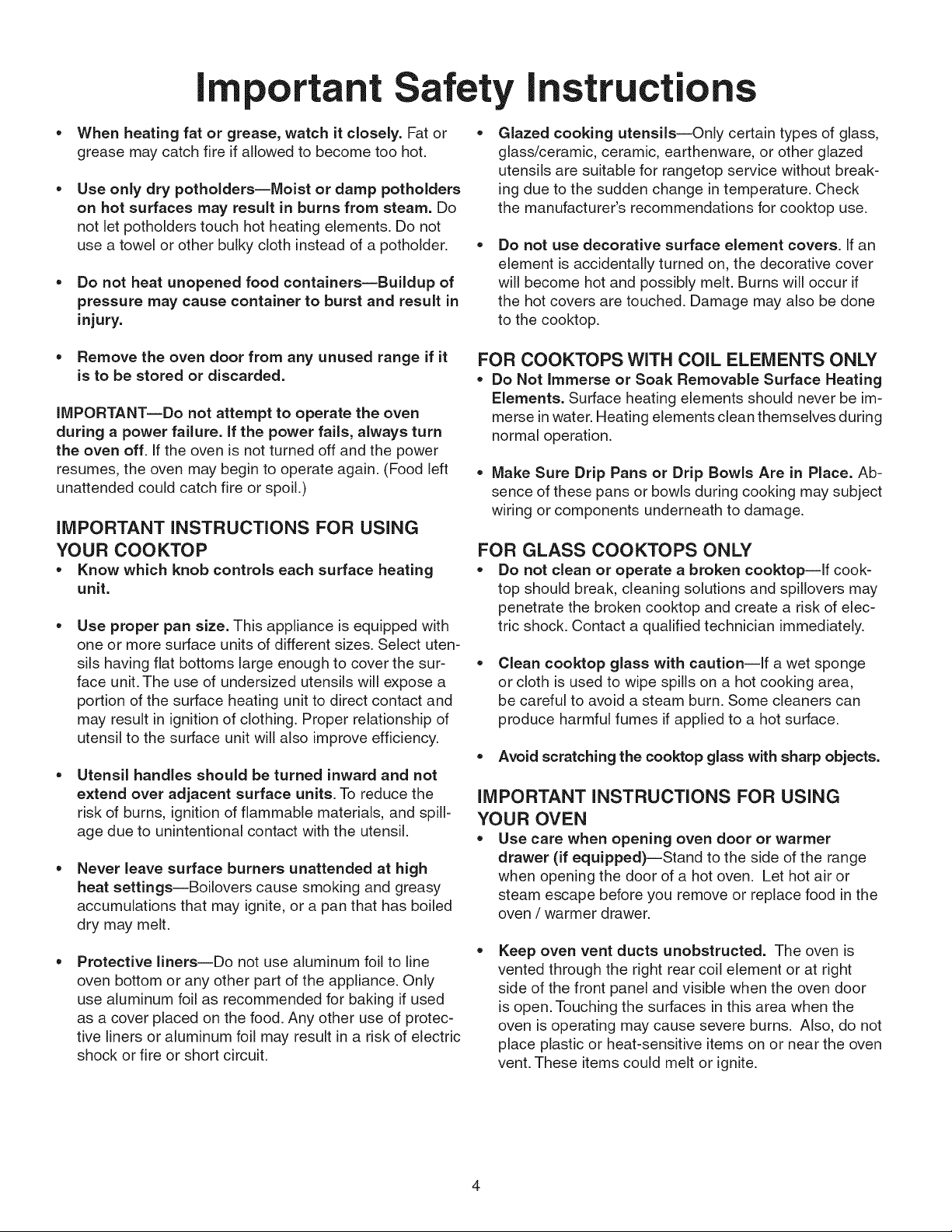

This manual contains many important safety messages. Always read and obey all safety messages.
The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others,
or cause damage to the product.
Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided may result in minor or moderate injury, or
product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
Proper Installation-Be sure your appliance is prop=
erly installed and grounded by a qualified techni-
cian in accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition, and local
code requirements. Install only per installation instruc-
tions provided in the literature package for this range.
Sears Parts & Repair is the recommended repair service
for this appliance. Know how to disconnect the electrical
power to the appliance at the circuit breaker or fuse box in
case of an emergency.
• User servicing--Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. All other servicing should be done only
by a qualified technician. This may reduce the risk of
personal injury and damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
Stepping, leaning or sitting on the door
or drawer of this range can result in serious injuries
and also cause damage to the range. Do not allow
children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, resulting
in serious burns or other injury. An open drawer, when hot,
may cause burns.
• All ranges can tip.
• Injury to persons could result.
• install anti-tip device packed with range.
. See Installation Instructions.
To reduce the risk of tipping, the range
oven must be secured by properly
installed anti=tip bracket(s) provided
with the range. To check if the bracket(s) is installed
properly, remove the lower panel or storage drawer
and verify that the anti-tip bracket(s) is engaged.
Refer to the installation Instructions for proper anti=
tip bracket(s) installation.
Do not use the oven or warmer drawer
(if equipped) for storage.
Do not store items of interest to children
in the cabinets above a range. Children climbing on the
range to reach items could be seriously injured.
Never use your appliance for warming
up or heating up the room .............
[};;
• Storage in or on appliance--Flammable materials
should not be stored in an oven, near surface units ....
or in the drawer (if equipped). This includes paper,
plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the appli-
ance. Flammable materials may explode and result in
fire or property damage.
Do not leave children alone--Children should not
be left alone or unattended in the area where appli-
ance is in use. They should never be allowed to sit or
stand on any part of the appliance.
DO NOTTOUCH SURFACE UNITS, AREAS NEAR
THESE UNITS, OVEN HEATING ELEMENTS OR
INTERIOR SURFACES OFTHE OVEN OR WARMER
DRAWER (if equipped). Both surface and oven heat-
ing elements may be hot even though they are dark in
color. Areas near surface units may become hot enough
to cause burns. During and after use, do not touch, or
let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among
these areas are the cooktop, surfaces facing the cook-
top, the oven vent openings and surfaces near these
openings, oven door and window.
Wear proper apparel--Loose-fitting or hanging gar-
ments should never be worn while using the appli-
ance. Do not let clothing or other flammable materials
contact hot surfaces.
• Do not use water or flour on grease fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam=type extinguisher.
3
important Safety instructions
When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
Use only dry potholders--Moist or damp potholders
on hot surfaces may result in burns from steam. Do
not let potholders touch hot heating elements. Do not
use a towel or other bulky cloth instead of a potholder.
Do not heat unopened food containers--Buildup of
pressure may cause container to burst and result in
injury.
Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for rangetop service without break-
ing due to the sudden change in temperature. Check
the manufacturer's recommendations for cooktop use.
Do not use decorative surface element covers, if an
element is accidentally turned on, the decorative cover
will become hot and possibly melt. Burns will occur if
the hot covers are touched. Damage may also be done
to the cooktop.
• Remove the oven door from any unused range if it
is to be stored or discarded.
IMPORTANT--Do not attempt to operate the oven
during a power failure. If the power fails, always turn
the oven off. If the oven is not turned off and the power
resumes, the oven may begin to operate again. (Food left
unattended could catch fire or spoil.)
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface heating
unit.
Use proper pan size. This appliance is equipped with
one or more surface units of different sizes. Select uten-
sils having flat bottoms large enough to cover the sur-
face unit. The use of undersized utensils will expose a
portion of the surface heating unit to direct contact and
may result in ignition of clothing. Proper relationship of
utensil to the surface unit will also improve efficiency.
Utensil handles should be turned inward and not
extend over adjacent surface units. To reduce the
risk of burns, ignition of flammable materials, and spill-
age due to unintentional contact with the utensil.
Never leave surface burners unattended at high
heat settings--Boilovers cause smoking and greasy
accumulations that may ignite, or a pan that has boiled
dry may melt.
Protective liners--Do not use aluminum foil to line
oven bottom or any other part of the appliance. Only
use aluminum foil as recommended for baking if used
as a cover placed on the food. Any other use of protec-
tive liners or aluminum foil may result in a risk of electric
shock or fire or short circuit.
FOR COOKTOPS WITH COIL ELEMENTS ONLY
• Do Not Immerse or Soak Removable Surface Heating
Elements. Surface heating elements should never be im-
merse in water. Heating elements clean themselves during
normal operation.
• Make Sure Drip Pans or Drip Bowls Are in Place. Ab-
sence of these pans or bowls during cooking may subject
wiring or components underneath to damage.
FOR GLASS COOKTOPS ONLY
• Do not clean or operate a broken cooktop--lf cook-
top should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of elec-
tric shock. Contact a qualified technician immediately.
Clean cooktop glass with caution--If a wet sponge
or cloth is used to wipe spills on a hot cooking area,
be careful to avoid a steam burn. Some cleaners can
produce harmful fumes if applied to a hot surface.
• Avoid scratching the cooktop glass with sharp objects.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use care when opening oven door or warmer
drawer (if equipped)--Stand to the side of the range
when opening the door of a hot oven. Let hot air or
steam escape before you remove or replace food in the
oven / warmer drawer.
Keep oven vent ducts unobstructed. The oven is
vented through the right rear coil element or at right
side of the front panel and visible when the oven door
is open. Touching the surfaces in this area when the
oven is operating may cause severe burns. Also, do not
place plastic or heat-sensitive items on or near the oven
vent. These items could melt or ignite.

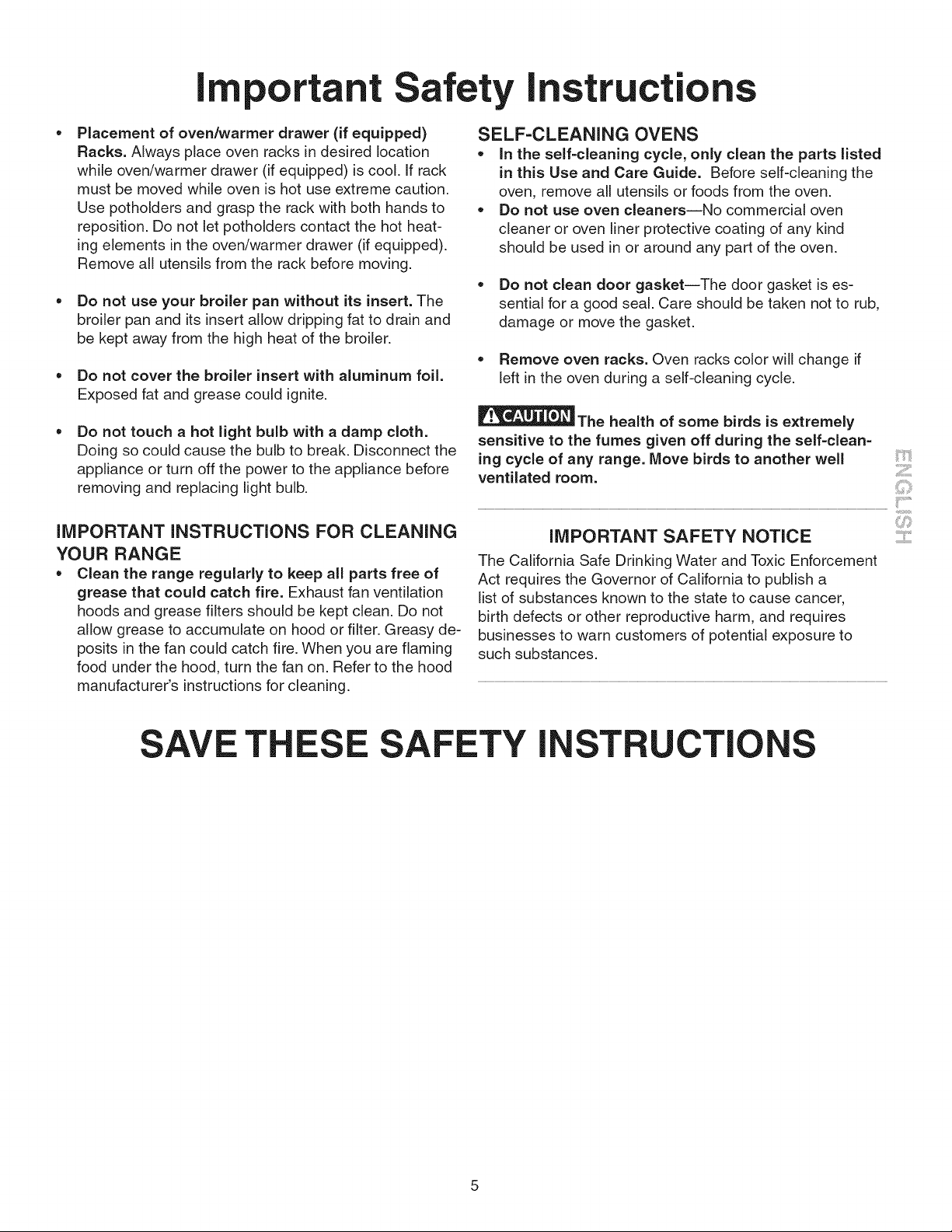

important Safety instructions
Placement of oven/warmer drawer (if equipped)
Racks. Always place oven racks in desired location
while oven/warmer drawer (if equipped) is cool. If rack
must be moved while oven is hot use extreme caution.
Use potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heat-
ing elements in the oven/warmer drawer (if equipped).
Remove all utensils from the rack before moving.
Do not use your broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and
be kept away from the high heat of the broiler.
Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
Do not touch a hot light bulb with a damp cloth.
Doing so could cause the bulb to break. Disconnect the
appliance or turn off the power to the appliance before
removing and replacing light bulb.
iMPORTANT iNSTRUCTiONS FOR CLEANING
YOUR RANGE
,, Clean the range regularly to keep all parts free of
grease that could catch fire. Exhaust fan ventilation
hoods and grease filters should be kept clean. Do not
allow grease to accumulate on hood or filter. Greasy de-
posits in the fan could catch fire. When you are flaming
food under the hood, turn the fan on. Refer to the hood
manufacturer's instructions for cleaning.
SELF-CLEANING OVENS
• In the self-cleaning cycle, only clean the parts listed
in this Use and Care Guide. Before self-cleaning the
oven, remove all utensils or foods from the oven.
• Do not use oven cleaners--No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
,, Do not clean door gasket--The door gasket is es-
sentia! for a good seal. Care should be taken not to rub,
damage or move the gasket.
,, Remove oven racks. Oven racks color will change if
left in the oven during a self-cleaning cycle,
mr_
;'''The health of some birds is extremely
sensitive to the fumes given off during the self-clean=
ing cycle of any range. Move birds to another well
ventilated room.
IM PC RTANT SAFETY NOTIC E
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a
list of substances known to the state to cause cancer,
birth defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to
such substances.
SAVE THESE SAFETY iNSTRUCTiONS
5

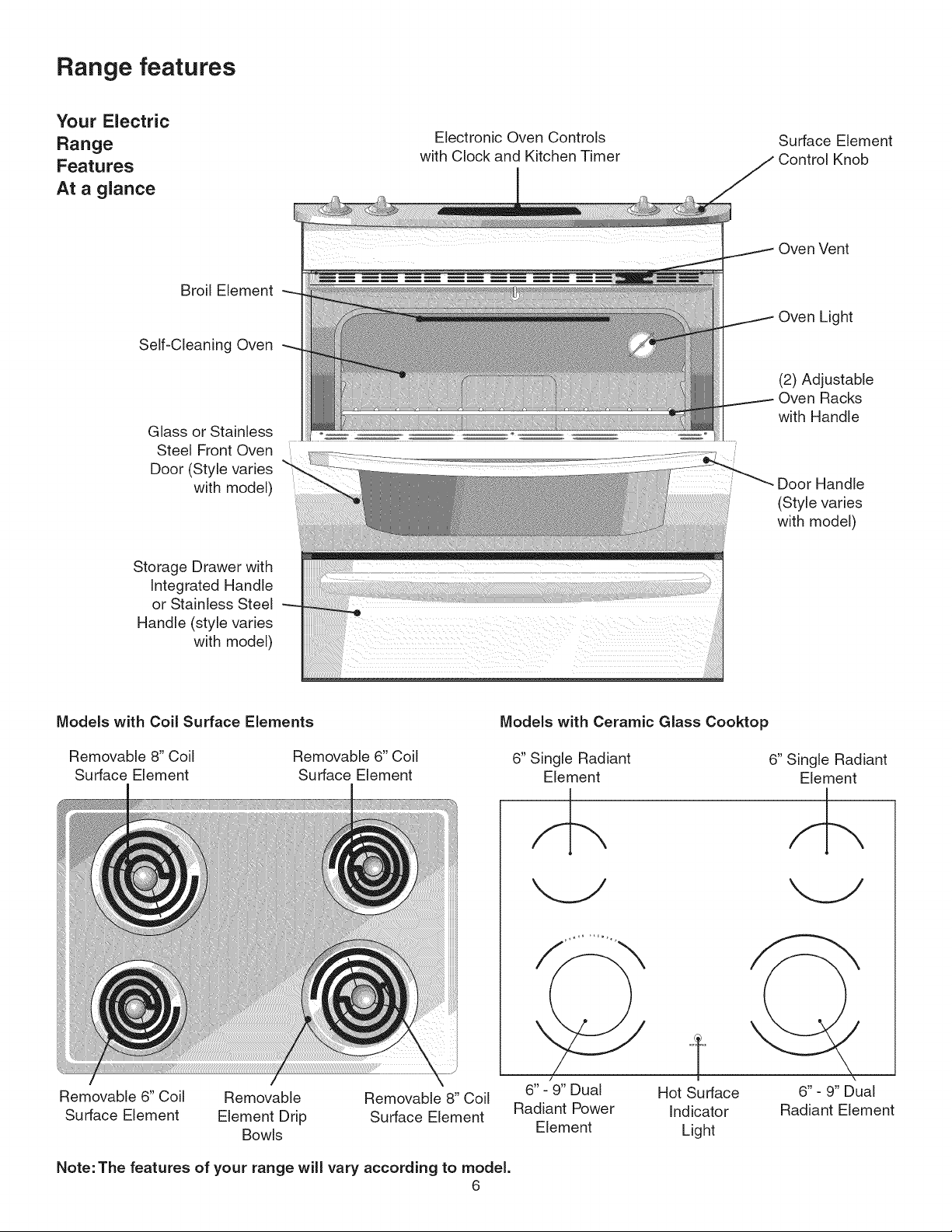

Range features
Your Electric
Range
Features
At a glance
Electronic Oven Controls
with Clock and Kitchen Timer
Surface Element
Knob
Oven Vent
Broil Element
Self-Cleaning Oven
Glass or Stainless
Steel Front Oven
Door (Style varies
with model)
Storage Drawer with
Integrated Handle
or Stainless Steel
Handle (style varies
with model)
Oven Light
(2) Adjustable
Oven Racks
with Handle
Door Handle
(Style varies
with model)
Models with Coil Surface Elements
Removable 8" Coil Removable 6" Coil
Surface Element Surface Element
Models with Ceramic Glass Cooktop
6" Single Radiant
Element
6" Single Radiant
Element
Removable 6" Coil
Surface Element
Removable
Element Drip
Bowls
Removable 8" Coil
Surface Element
Note: The features of your range will vary according to model,
6
6"- 9" Dual
Radiant Power
Element
Hot Surface
Indicator
Light
6"- 9" Dual
Radiant Element

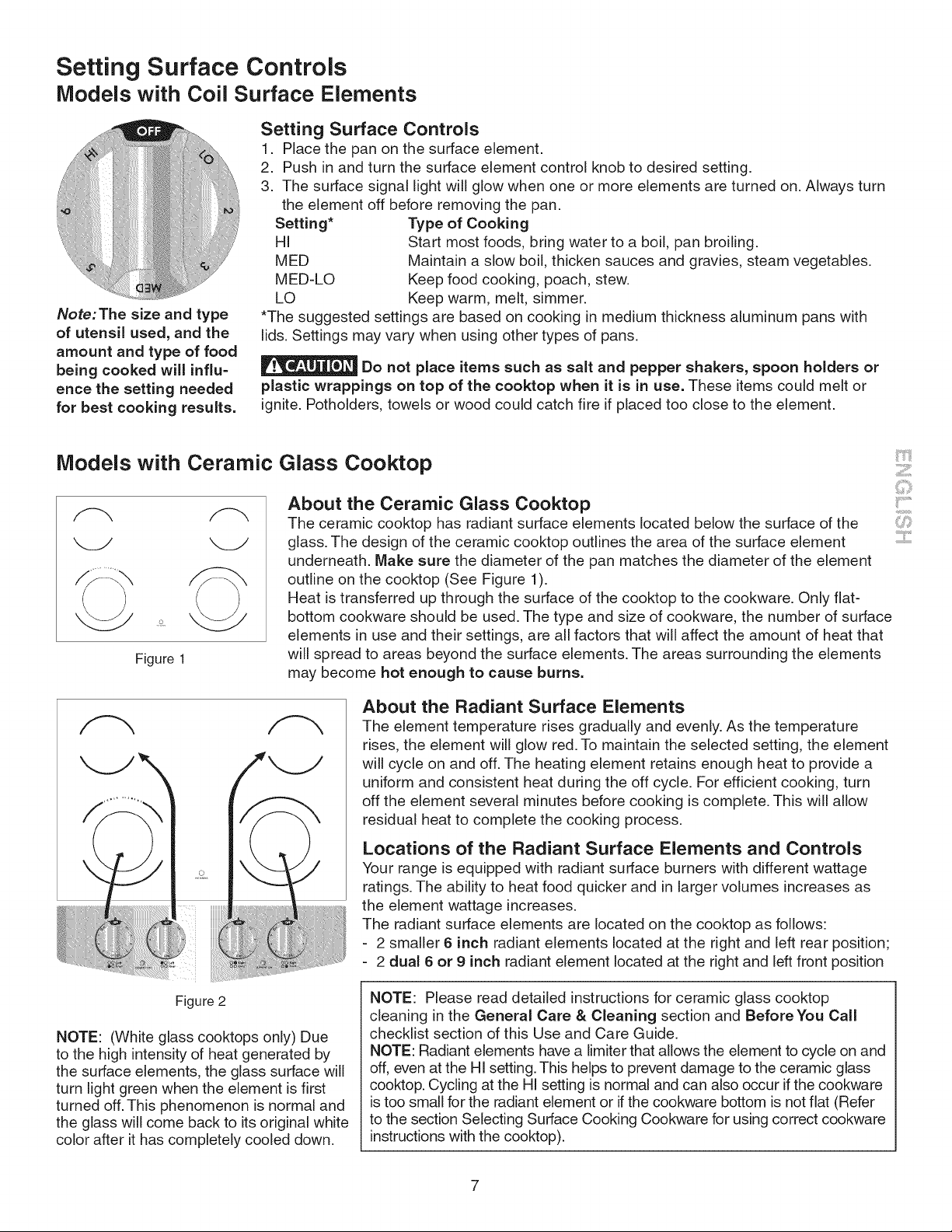

Setting Surface Controls
Models with Coil Surface Elements
Note: The size and type
of utensil used, and the
amount and type of food
being cooked will influ=
ence the setting needed
for best cooking results.
Setting Surface Controls
1. Place the pan on the surface element.
2. Push in and turn the surface element control knob to desired setting.
3. The surface signal light will glow when one or more elements are turned on. Always turn
the element off before removing the pan.
Setting* Type of Cooking
HI Start most foods, bring water to a boil, pan broiling.
MED Maintain a slow boil, thicken sauces and gravies, steam vegetables.
MED-LO Keep food cooking, poach, stew.
LO Keep warm, melt, simmer.
*The suggested settings are based on cooking in medium thickness aluminum pans with
lids. Settings may vary when using other types of pans.
Do not place items such as salt and pepper shakers, spoon holders or
plastic wrappings on top of the cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wood could catch fire if placed too close to the element.
Models with Ceramic Glass Cooktop
f---\
\
Figure 1
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located below' the surface of the
glass. The design of the ceramic cooktop outlines the area of the surface element
underneath. Make sure the diameter of the pan matches the diameter of the element
outline on the cooktop (See Figure 1).
Heat is transferred up through the surface of the cooktop to the cookware. Only flat-
iii!"?'_iiii
Z!ii!iiii:
........iii.......
bottom cookware should be used. The type and size of cookware, the number of surface
elements in use and their settings, are all factors that will affect the amount of heat that
will spread to areas beyond the surface elements. The areas surrounding the elements
may become hot enough to cause burns.
About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the temperature
rises, the element will glow red. To maintain the selected setting, the element
will cycle on and off. The heating element retains enough heat to provide a
uniform and consistent heat during the off cycle. For efficient cooking, turn
off the element several minutes before cooking is complete. This will allow
residual heat to complete the cooking process.
Locations of the Radiant Surface Elements and Controls
Your range is equipped with radiant surface burners with different wattage
ratings. The ability to heat food quicker and in larger volumes increases as
the element wattage increases.
The radiant surface elements are located on the cooktop as follows:
2 smaller 6 inch radiant elements located at the right and left rear position;
2 dual 6 or 9 inch radiant element located at the right and left front position
Figure 2
NOTE: (White glass cooktops only) Due
to the high intensity of heat generated by
the surface elements, the glass surface will
turn light green when the element is first
turned off. This phenomenon is normal and
the glass will come back to its original white
color after it has completely cooled down.
NOTE: Please read detailed instructions for ceramic glass cooktop
cleaning in the General Care & Cleaning section and BeforeYou Call
checklist section of this Use and Care Guide.
NOTE: Radiant elements have a limiter that allows the element to cycle on and
off, even at the HI setting. This helps to prevent damage to the ceramic glass
cooktop. Cycling at the HI setting is normal and can also occur if the cookware
is too small for the radiant element or if the cookware bottom is not flat (Refer
to the section Selecting Surface Cooking Cookware for using correct cookware
instructions with the cooktop).
7
Setting Surface Controls (cont'd)
Models with Ceramic Glass Cooktop (cont'd)
Surface Cooking Settings

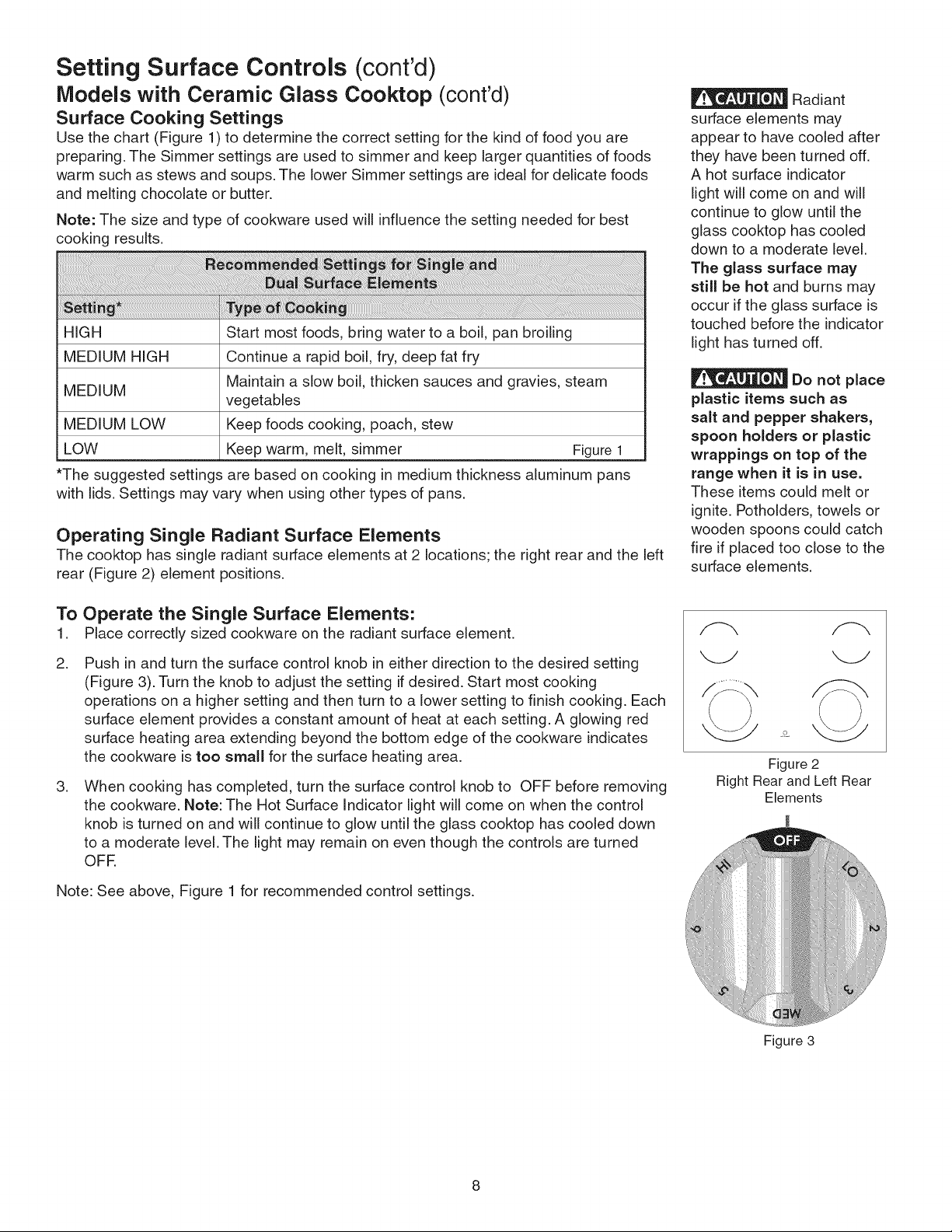

Use the chart (Figure 1) to determine the correct setting for the kind of food you are
preparing. The Simmer settings are used to simmer and keep larger quantities of foods
warm such as stews and soups. The lower Simmer settings are ideal for delicate foods
and melting chocolate or butter.
Note: The size and type of cookware used will influence the setting needed for best
cooking results.
HIGH Start most foods, bring water to a boil, pan broiling
MEDIUM HIGH Continue a rapid boil, fry, deep fat fry
Maintain a slow boil, thicken sauces and gravies, steam
MEDIUM
vegetables
MEDIUM LOW Keep foods cooking, poach, stew
LOW Keep warm, melt, simmer Figure 1
*The suggested settings are based on cooking in medium thickness aluminum pans
with lids. Settings may vary when using other types of pans.
Operating Single Radiant Surface Elements
The cooktop has single radiant surface elements at 2 locations; the right rear and the left
rear (Figure 2) element positions.
To Operate the Single Surface Elements:
1. Place correctly sized cookware on the radiant surface element.
,
Push in and turn the surface control knob in either direction to the desired setting
(Figure 3). Turn the knob to adjust the setting if desired. Start most cooking
operations on a higher setting and then turn to a lower setting to finish cooking. Each
surface element provides a constant amount of heat at each setting. A glowing red
surface heating area extending beyond the bottom edge of the cookware indicates
the cookware is too small for the surface heating area.
,
When cooking has completed, turn the surface control knob to OFF before removing
the cookware. Note: The Hot Surface Indicator light will come on when the control
knob is turned on and will continue to glow until the glass cooktop has cooled down
to a moderate level. The light may remain on even though the controls are turned
OFR
Note: See above, Figure 1 for recommended control settings.
Radiant
surface elements may
appear to have cooled after
they have been turned off.
A hot surface indicator
light will come on and will
continue to glow until the
glass cooktop has cooled
down to a moderate level.
The glass surface may
still be hot and burns may
occur if the glass surface is
touched before the indicator
light has turned off.
Do not place
plastic items such as
salt and pepper shakers,
spoon holders or plastic
wrappings on top of the
range when it is in use.
These items could melt or
ignite. Potholders, towels or
wooden spoons could catch
fire if placed too close to the
surface elements.
\Z
Figure 2
Right Rear and Left Rear
Elements
Figure 3
Setting Surface Controls (cont'd)
Models with Ceramic Glass Cooktop (cont'd)

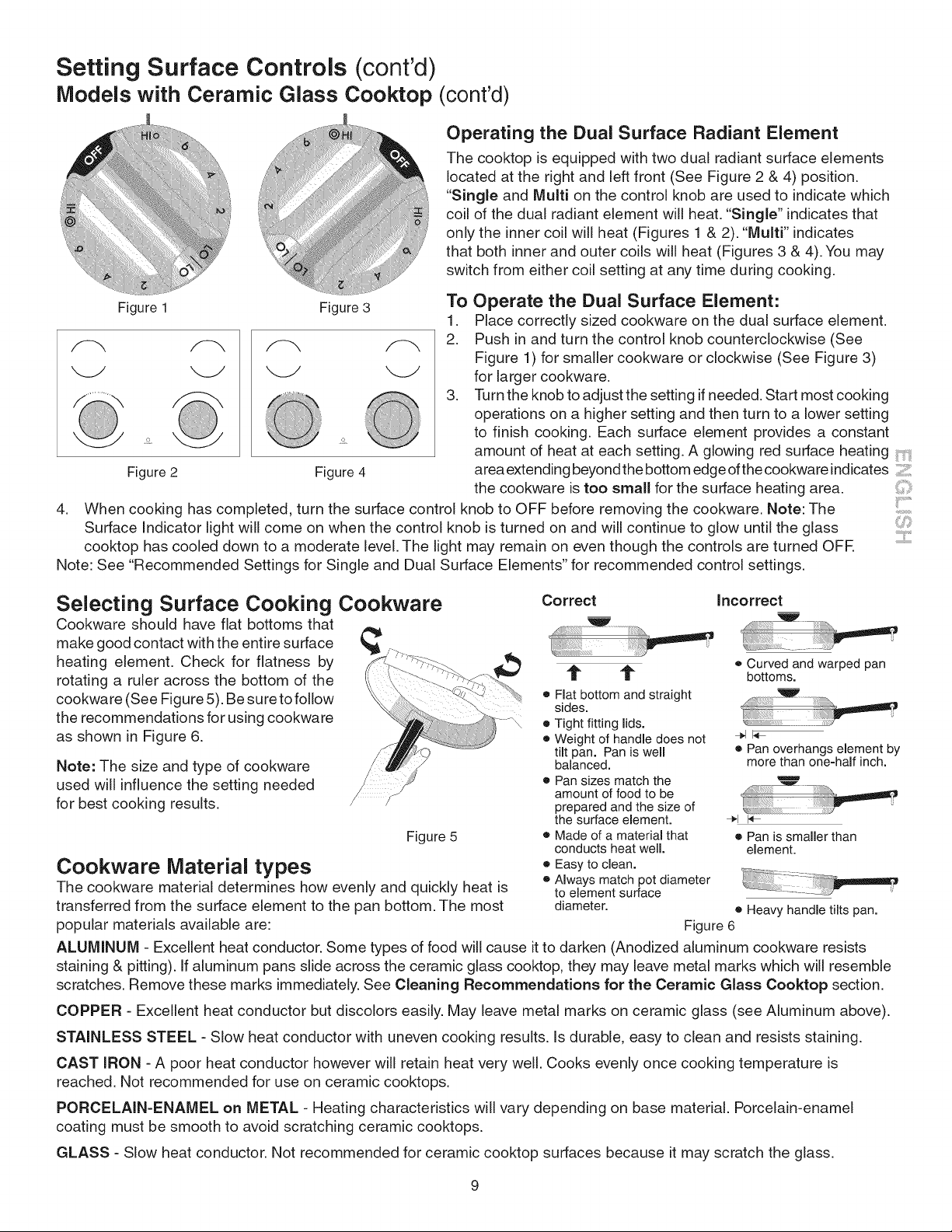

Operating the Dual Surface Radiant Element
The cooktop is equipped with two dual radiant surface elements
located at the right and left front (See Figure 2 & 4) position.
"Single and Multi on the control knob are used to indicate which
coil of the dual radiant element will heat. "Single" indicates that
only the inner coil will heat (Figures 1 & 2). "Multi" indicates
that both inner and outer coils will heat (Figures 3 & 4). You may
switch from either coil setting at any time during cooking.
Figure 1 Figure 3
Figure 2 Figure 4
To
1.
2.
,
4. When cooking has completed, turn the surface control knob to OFF before removing the cookware. Note: The
Surface Indicator light will come on when the control knob is turned on and will continue to glow until the glass
cooktop has cooled down to a moderate level. The light may remain on even though the controls are turned OFR
Note: See "Recommended Settings for Single and Dual Surface Elements" for recommended control settings.
Operate the Dual Surface Element:
Place correctly sized cookware on the dual surface element.
Push in and turn the control knob counterclockwise (See
Figure 1) for smaller cookware or clockwise (See Figure 3)
for larger cookware.
Turn the knob to adjust the setting if needed. Start most cooking
operations on a higher setting and then turn to a lower setting
to finish cooking. Each surface element provides a constant
amount of heat at each setting. A glowing red surface heating
area extending beyond the bottom edge ofthe cookware indicates
the cookware is too small for the surface heating area. ,,
t
Selecting Surface Cooking Cookware
Cookware should have flat bottoms that
make good contact with the entire surface
heating element. Check for flatness by
rotating a ruler across the bottom of the
cookware (See Figure 5). Be sure to follow
the recommendations for using cookware
as shown in Figure 6.
Note: The size and type of cookware
used will influence the setting needed
for best cooking results.
Figure 5
Cookware Material types
The cookware material determines how evenly and quickly heat is
transferred from the surface element to the pan bottom. The most
popular materials available are:
Correct incorrect
11" t
e Fiat bottom and straight
sides.
• Tight fitting lids.
® Weight of handledoes not
tilt pan. Pan is well
balanced.
e Pansizes matchthe
amountof foodto be
prepared andthe sizeof
the surfaceelement.
• Madeof a materialthat
conductsheat well.
• Easy to clean.
o Always match pot diameter
to elementsurface
diameter.
o Curved and warped pan
bottoms.
® Pan overhangs element by
more than one-half inch.
!
® Pan is smaller than
element.
o Heavy handle tilts pan.
Figure 6
ALUMINUM - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists
staining & pitting), If aluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will resemble
scratches. Remove these marks immediately. See Cleaning Recommendations for the Ceramic Glass Cooktop section.
COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).
STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.
CAST iRON - A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
PORCELAIN=ENAMEL on METAL - Heating characteristics will vary depending on base material. Porcelain-enamel
coating must be smooth to avoid scratching ceramic cooktops.
GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.
9

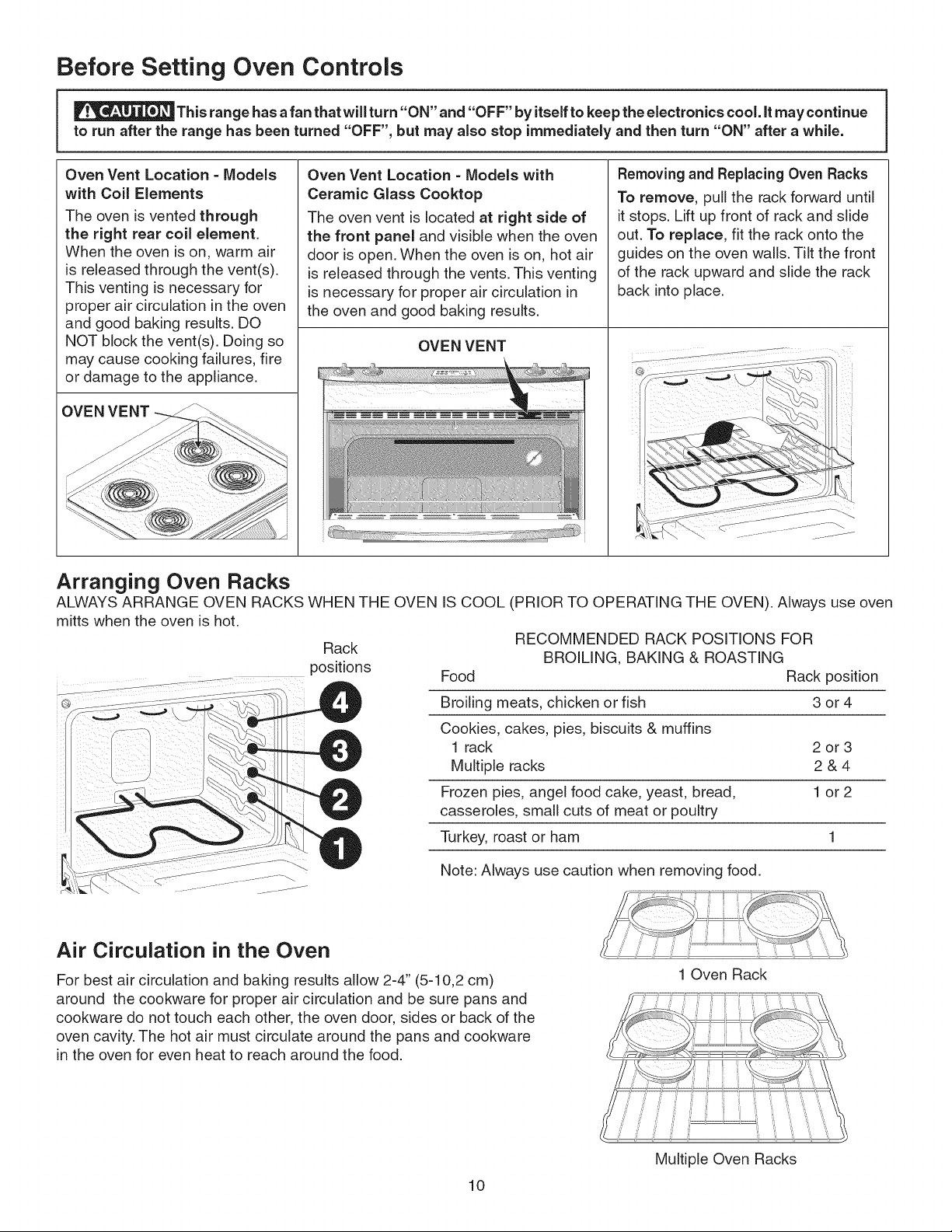

Before Setting Oven Controls
This range has a fan that will turn "ON" and "OFF" by itself to keep the electronics cool. it may continue
to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while.
Oven Vent Location - Models
with Coil Elements
The oven is vented through
the right rear coil element.
When the oven is on, warm air
is released through the vent(s).
This venting is necessary for
proper air circulation in the oven
and good baking results. DO
NOT block the vent(s). Doing so
may cause cooking failures, fire
or damage to the appliance.
OVEN VENT _ _..
Oven Vent Location - Models with
Ceramic Glass Cooktop
The oven vent is located at right side of
the front panel and visible when the oven
door is open. When the oven is on, hot air
is released through the vents. This venting
is necessary for proper air circulation in
the oven and good baking results.
OVENVENT
Removing and Replacing Oven Racks
To remove, pull the rack forward until
it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front
of the rack upward and slide the rack
back into place.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO OPERATING THE OVEN). Always use oven
mitts when the oven is hot.
RECOMMENDED RACK POSITIONS FOR
Rack BROILING, BAKING & ROASTING
positions
...... Food Rack position
Broiling meats, chicken or fish 3 or 4
Cookies, cakes, pies, biscuits & muffins
1 rack 2 or 3
Multiple racks 2 & 4
Frozen pies, angel food cake, yeast, bread, 1 or 2
casseroles, small cuts of meat or poultry
Turkey, roast or ham 1
Note: Always use caution when removing food.
Air Circulation in the Oven
For best air circulation and baking results allow 2-4" (5-10,2 cm)
around the cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or back of the
oven cavity. The hot air must circulate around the pans and cookware
in the oven for even heat to reach around the food.
10
1 Oven Rack
Multiple Oven Racks
Control Pad Functions
Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are
the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide.
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various functions of the oven as described below.
CLOCK SET COOK TiME UP and DOWN ARROW PADS-- Used SAKE PAD--Used
PAD-- Used PAD-- Used to along with the function pads to select oven to select the bake
to set the enter the length of temperature, cook time, start time (when function.
time of day. the baking time. programming an automatic start time), time of I use.
\ day, clean time and minute timer. I /
\
LIGHT PAD-- _ _ \ I /
Used to turn oven _ X \ I / ./'//
interior light ON or _e _e __ le •
OFF C) Cook I .
_ ,®,,mo 'r°"
SELECT CLEAN
PAD-- Used to
select the Self-
Cleaning cycle. A
2, 3 or 4 hour Self-
Clean time may be
selected.
FEATURE iNDiCATOR
LIGHTS-- These light to
show which feature is in
BROIL PAD--
Used to select
the variable broil
function.
WARM & HOLD
PAD-- Used to set
the Warm & Hold
_ featu re.
• • • 0 OVEN
Select Timer Delay .PREHEAT _ __ _
Clean I I TOP PAD-- Used
Set/Off Start Q DOOR LOCKED _-...._,,._ tO clear any function
_, Lo_o_ _ except the time of
day and minute
. timer. Press STOP
TIMER SET/OFF PAD--
Used to set or cancel the
minute timer. The minute
timer does not start or stop
cooking. Also,
TIMER SET/OFF pad is
used to set the Continuous
Bake feature.
DELAY START
PAD-- Used to set
the desired start
time for baking &
Self-Clean. May be
used with COOK
TIME to program a
delayed bake cycle.
OVEN, PREHEAT & DOOR LOCKED LIGHTS* -- The "OVEN"
light will glow each time the oven turns on to maintain the set oven
temperature. The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature. The "DOOR LOCKED" light will flash when
the oven door locks and unlocks or when using the Self-Clean cycle
or when the oven door lockout is activated. The indicator light will glow
constantly after the door locks.
iii!"?'_iiii
iiiiiii_il;_;!ii!iiill
to stop cooking.
Also the STOP pad
is used to activate
oven door lockout
setting.
*Note: The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and during
preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature, When the pre-
heat indicator light turns OFF, your oven has reached the set temperature,
For a silent control panel
When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed
for silent operation. Press and hold pad. After 5 seconds, the control will beep once. This will block the controls from
sounding when a pad is pressed. To return to normal sound operation, press and hold pad again for 5 seconds until
the control beeps once.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be
programmed for any temperature from 170°F to 550°F (77°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Press Broil pad." "appears in the display.
2. Press and hold the A pad until "HI" appears in the display,
3. Press and hold Broii pad until °F or °C appears in the display,
4. Press the A or V pad to change °Fto °C or °C to °R
5. Press any control pad to return to normal operating mode,
11
Setting Oven Controls
Note: The time of day must first be set in order to operate the oven.

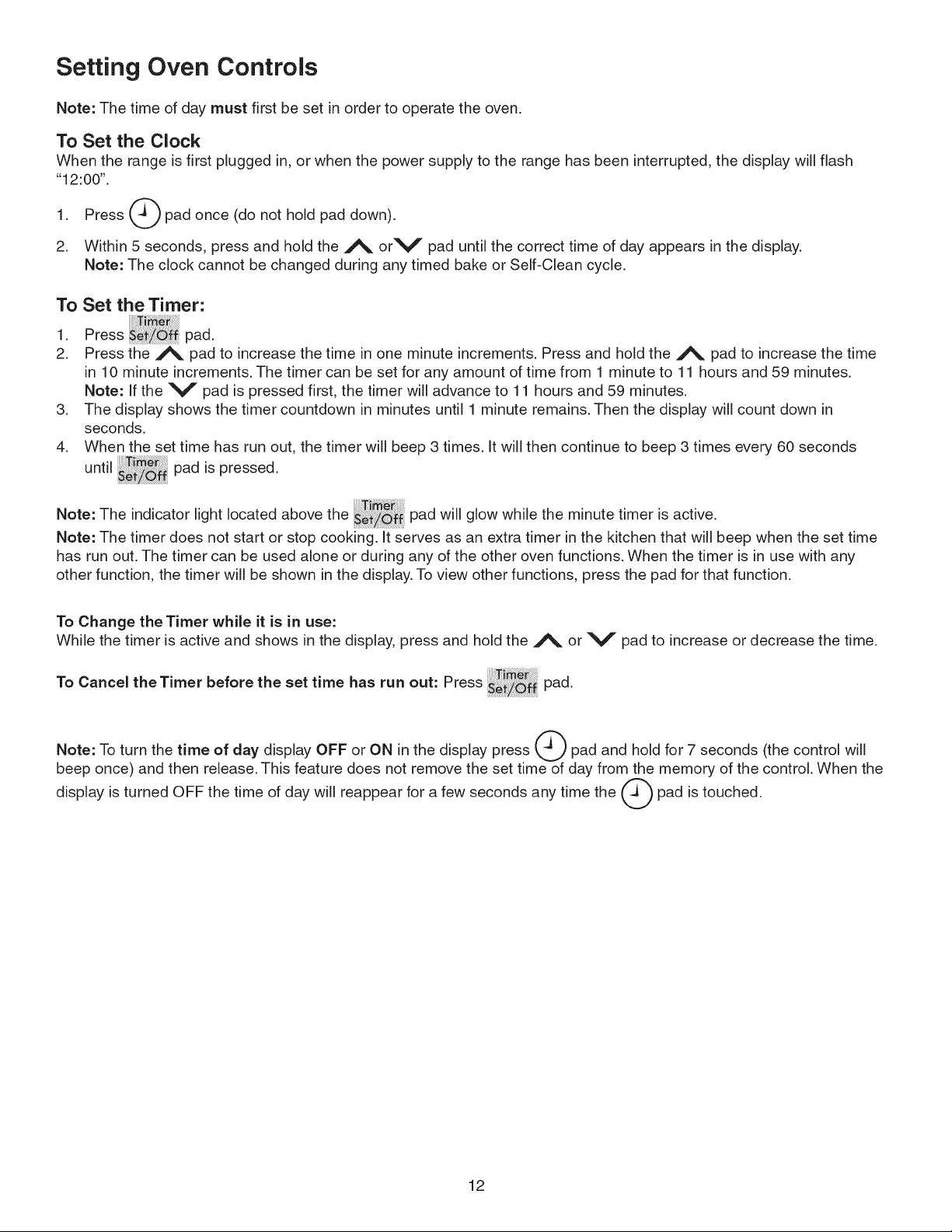

To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
1. Press _) pad once (do not hold pad down).
2. Within 5 seconds, press and hold the A orV pad until the correct time of day appears in the display.
Note: The clock cannot be changed during any timed bake or Self-Clean cycle.
To Set the Timer:
1. Press pad.
2. Press the ,j_ pad to increase the time in one minute increments. Press and hold the _ pad to increase the time
in 10 minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: If the V pad is pressed first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will count down in
seconds.
4. When the set time has run out, the timer will beep 3 times. It will then continue to beep 3 times every 60 seconds
until _/_{ pad is pressed.
Note: The indicator light located above the pad will glow while the minute timer is active.
Note: The timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the set time
has run out. The timer can be used alone or during any of the other oven functions. When the timer is in use with any
other function, the timer will be shown in the display. To view other functions, press the pad for that function.
To Change the Timer while it is in use:
While the timer is active and shows in the display, press and hold the ,j_ or V pad to increase or decrease the time.
To Cancel theTimer before the set time has run out: Press pad.
Note: To turn the time of day display OFF or ON in the display press (_ pad and hold for 7 seconds (the control will
beep once) and then release. This feature does not remove the set time of day from the memory of the control. When the
display is turned OFF the time of day will reappear for a few seconds any time the (_ pad is touched.
12
Setting Oven Controls (cont'd)

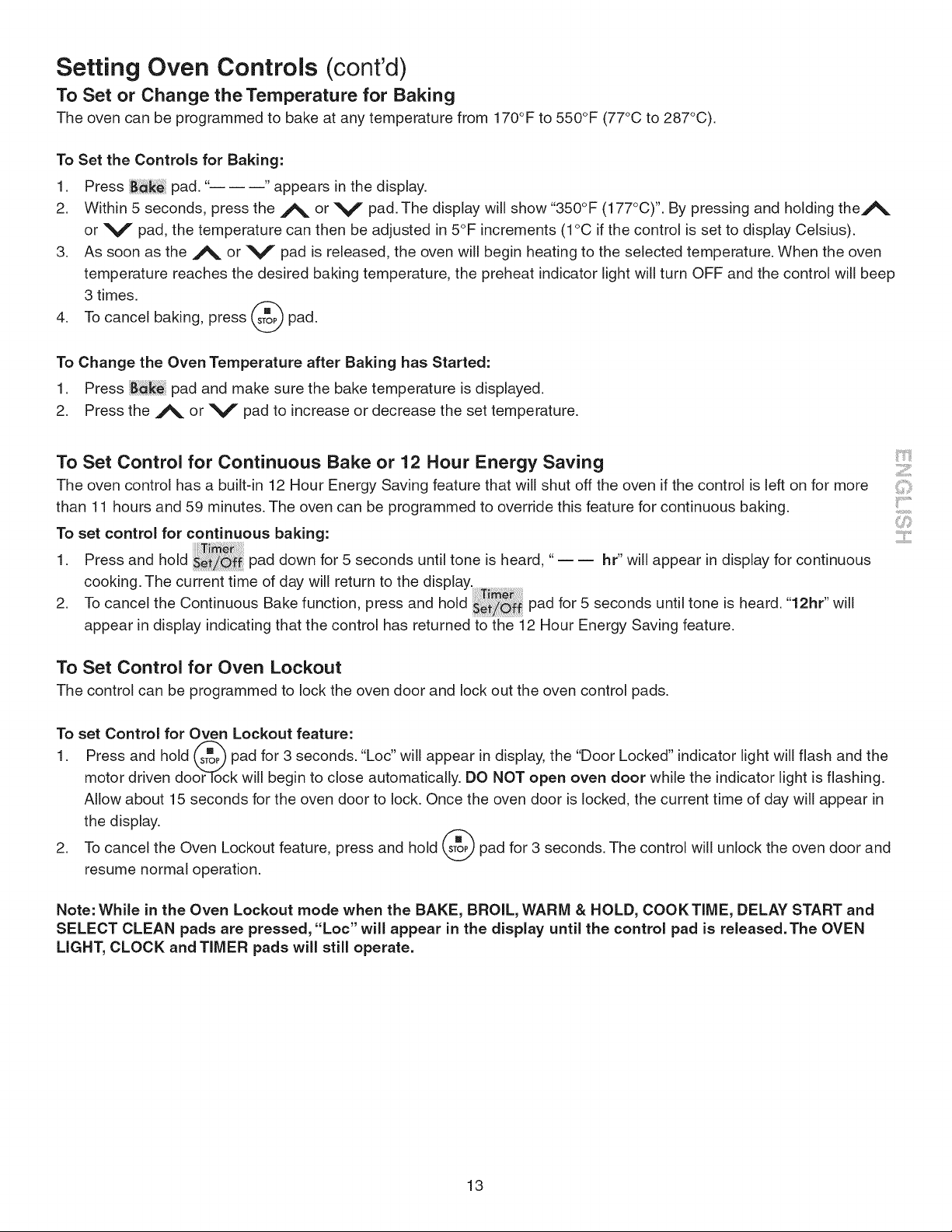

To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press B;_ke pad." "appears in the display.
2. Within 5 seconds, press the j%. or V pad. The display will show "350°F (177°C) ''. By pressing and holding thej_
or V pad, the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
3. As soon as the _%. or V pad is released, the oven will begin heating to the selected temperature. When the oven
temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control will beep
3 times.
4. To cancel baking, press (s_oP')pad.
To Change the Oven Temperature after Baking has Started:
1. Press pad and make sure the bake temperature is displayed.
2. Press the j_ or V pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more
than 11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking. ,,,
To set control for continuous baking:
1. Press and hold pad down for 5 seconds until tone is heard, "-- -- hr" will appear in display for continuous
cooking. The current time of day will return to the display.
. ,.
2. TocancetheContnuousBakefuncton,pressanonoo padfor5secondsuntiltoneisheard."12hr"will
appear in display indicating that the control has returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout
The control can be programmed to lock the oven door and lock out the oven control pads.
To set Control for Oven Lockout feature:
1. Press and hold ('s_p')pad for 3 seconds. "Loc" will appear in display, the "Door Locked" indicator light will flash and the
motor driven doorrock will begin to close automatically. DO NOT open oven door while the indicator light is flashing.
Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in
the display.
2. To cancel the Oven Lockout feature, press and hold _ pad for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: While in the Oven Lockout mode when the BAKE, BROIL, WARM & HOLD, COOKT[ME, DELAY START and
SELECT CLEAN pads are pressed, "Loc" will appear in the display until the control pad is released.The OVEN
LIGHT, CLOCK and TIMER pads will still operate.
13
Setting Oven Controls (cont'd)

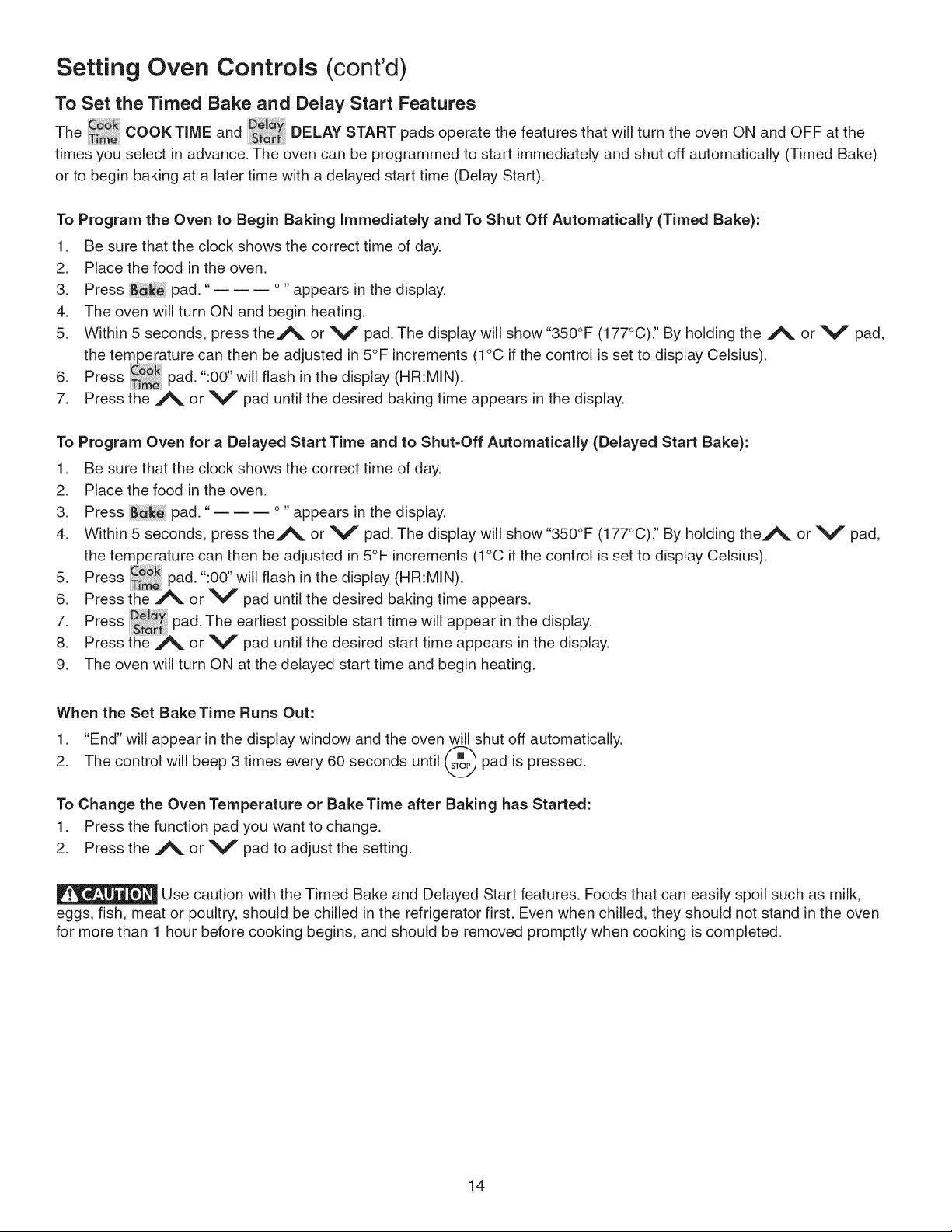

To Set the Timed Bake and Delay Start Features
The COOK TIME and DELAY START pads operate the features that will turn the oven ON and OFF at the
times you select in advance, The oven can be programmed to start immediately and shut off automatically (Timed Bake)
or to begin baking at a later time with a delayed start time (Delay Start),
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press pad.' .... appears in the display.
4. The oven will turn ON and begin heating.
5. Within 5 seconds, press theA or V pad. The display will show "350°F (177°C). '' By holding the A or V pad,
the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
Press ...... "
6. pao. :uu w flash in the display (HR:MIN).
7. Press the _ or V pad until the desired baking time appears in the display.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Start Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press pad.' .... appears in the display.
4. Within 5 seconds, press the_ or V pad. The display will show "350°F (177°C). '' By holding the_ or V pad,
the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
Press _k .......
5. pad. :00 will flash in the dtsplay (HR:MIN).
6. Press {he _ or V pad until the desired baking time appears.
7. Press pad. The earliest possible start time will appear in the display.
8. Press the _ or V pad until the desired start time appears in the display.
9. The oven will turn ON at the delayed start time and begin heating.
When the Set BakeTime Runs Out:
1. "End" will appear in the display window and the oven will shut off automatically.
2. The control will beep 3 times every 60 seconds until _ pad is
pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the A or V pad to adjust the setting.
Use caution with the Timed Bake and Delayed Start features. Foods that can easily spoil such as milk,
eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven
for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
14

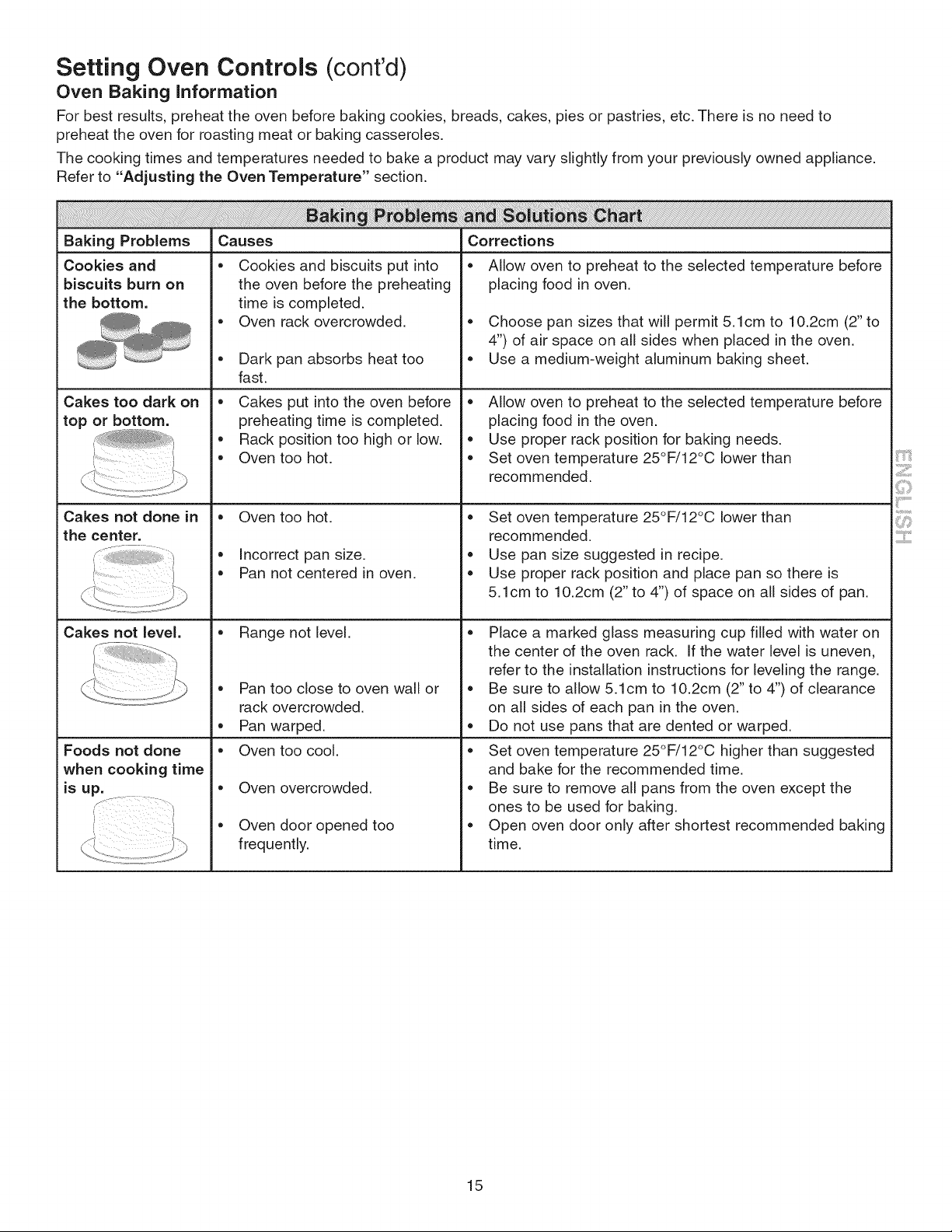

Setting Oven Controls (cont'd)
Oven Baking information
For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Refer to "Adjusting the Oven Temperature" section.
i!!i!i!ii_i_i_i!i_!!i!i_!!!i!ii_i_i_ii_!!_i_!_iiii!!!i!!__!!!_!!!!!!!!ii_i_iiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiii_i_!!ii!!iilil!i!!!_!_i_!i_!!!9__!ii_iliilii!!iii_!!!!!!!!!i_iiiii!!iiii!ii_il!91!!!!!i!i!iiiii_i_i_iiiiiiiii!iii!iiiiiiiiiiiiiiiiiiiiiiiiiigii_ii_!_i!!i!!!!!!_!_i,,_!_,_!_!_i_i!i!i_i_iiiiiiiliiiiili!!i_!_i_i!i_ii!i!iiiiiiiiiiii_!iiiiiiiiiiiiiiiiiiiiiiiiiig_iiiiiiiiiii_iiiiiiiiiii_iiiiiiiiiii_i_iii_ii_iiii!i_!i!i_!_!j!_!_!!i_i!;i_ii_iii!!_i!_;i_i!iiliiili!i_!_iaiii!ii__i_i!!aiii_i_iiii_ii_ii_i!iii_!_iii!i_ii_!i!_i_i_i_ii_ii_ii_ii_iiiiiiiiiiiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_iiiiiiiiiii_iiii_ii_ii_i_i_i_i_
Causes
Baking Problems
Cookies and
biscuits burn on
the bottom.
Cakes too dark on
top or bottom.
Cakes not done in
the center.
Cakes not level.
Foods not done
when cooking time
is up.
Cookies and biscuits put into
the oven before the preheating
time is completed.
Oven rack overcrowded.
Dark pan absorbs heat too
fast.
• Cakes put into the oven before
preheating time is completed.
• Rack position too high or low.
• Oven too hot.
• Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
Range not level.
• Pan too close to oven wall or
rack overcrowded.
• Pan warped.
• Oven too cool.
Oven overcrowded.
Oven door opened too
frequently.
Corrections
• Allow oven to preheat to the selected temperature before
placing food in oven.
• Choose pan sizes that will permit 5.1cm to 10.2cm (2" to
4") of air space on all sides when placed in the oven.
• Use a medium-weight aluminum baking sheet.
• Allow oven to preheat to the selected temperature before
placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F/12°C lower than
recommended.
• Set oven temperature 25°F/12°C lower than
recommended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is
5.1cm to 10.2cm (2" to 4") of space on all sides of pan.
• Place a marked glass measuring cup filled with water on
the center of the oven rack. If the water level is uneven,
refer to the installation instructions for leveling the range.
• Be sure to allow 5.1cm to 10.2cm (2" to 4") of clearance
on all sides of each pan in the oven.
• Do not use pans that are dented or warped.
• Set oven temperature 25°F/12°C higher than suggested
and bake for the recommended time.
• Be sure to remove all pans from the oven except the
ones to be used for baking.
• Open oven door only after shortest recommended baking
time.
........iii.......
15
Setting Oven Controls (cont'd)

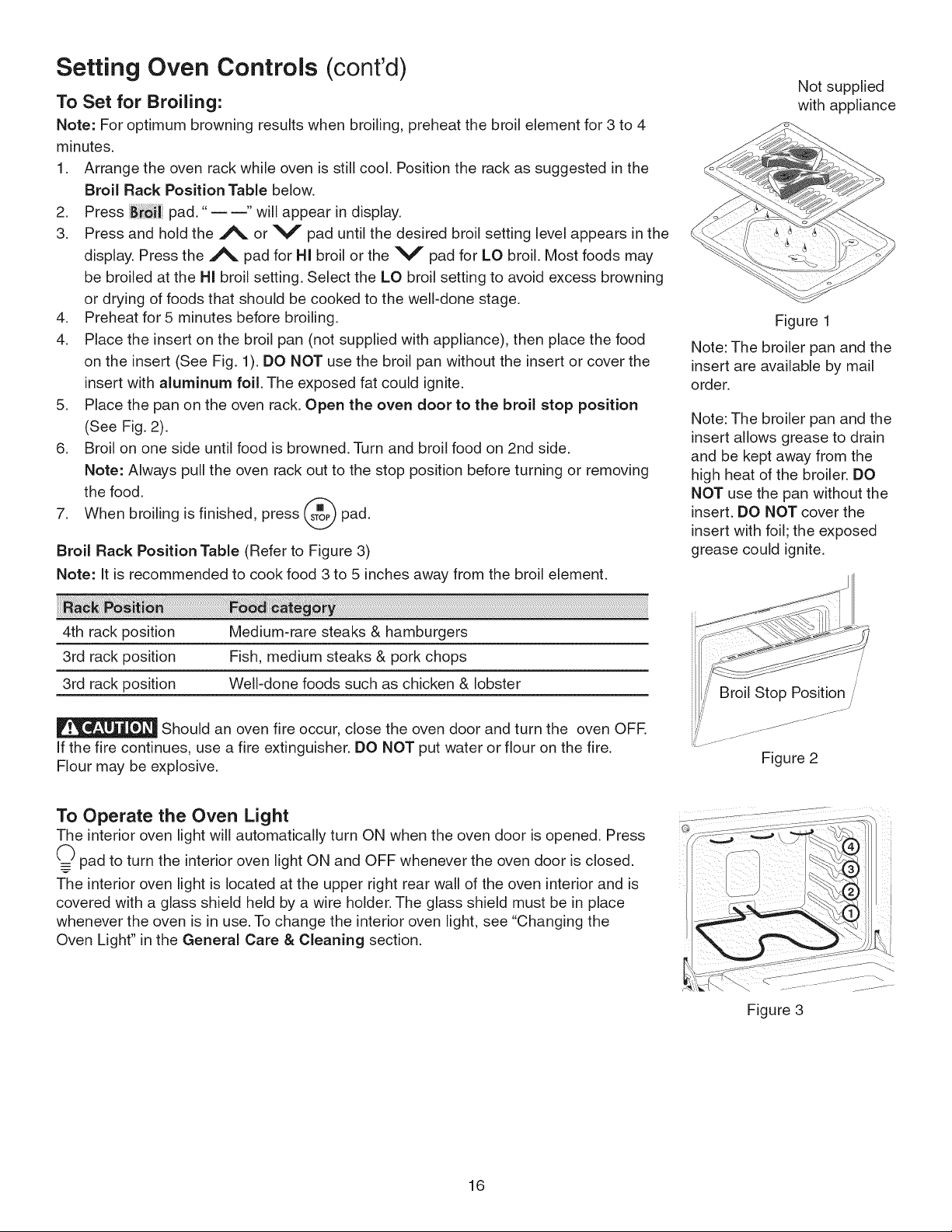

To Set for Broiling:
Note: For optimum browning results when broiling, preheat the broil element for 3 to 4
minutes.
1. Arrange the oven rack while oven is still cool. Position the rack as suggested in the
Broil Rack Position Table below.
2. Press _ro_i pad." "will appear in display.
3. Press and hold the ._ or V pad until the desired broil setting level appears in the
display. Press the A pad for HI broil or the V pad for LO broil. Most foods may
be broiled at the HI broil setting. Select the LO broil setting to avoid excess browning
or drying of foods that should be cooked to the well-done stage.
4. Preheat for 5 minutes before broiling.
4. Place the insert on the broil pan (not supplied with appliance), then place the food
on the insert (See Fig. 1). DO NOT use the broil pan without the insert or cover the
insert with aluminum foil. The exposed fat could ignite.
5. Place the pan on the oven rack. Open the oven door to the broil stop position
(See Fig. 2).
6. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the oven rack out to the stop position before turning or removing
the food.
broiling is finished, press ('s_P')pad.
7. When
Broil Rack Position Table (Refer to Figure 3)
Note: It is recommended to cook food 3 to 5 inches away from the broil element.
Not supplied
with appliance
Figure 1
Note: The broiler pan and the
insert are available by mail
order.
Note: The broiler pan and the
insert allows grease to drain
and be kept away from the
high heat of the broiler. DO
NOT use the pan without the
insert. DO NOT cover the
insert with foil; the exposed
grease could ignite.
4th rack position Medium-rare steaks & hamburgers
3rd rack position Fish, medium steaks & pork chops
3rd rack position Well-done foods such as chicken & lobster
Should an oven fire occur, close the oven door and turn the oven OFF.
If the fire continues, use a fire extinguisher. DO NOT put water or flour on the fire.
Flour may be explosive.
Broil Stop Position
jr
Figure 2
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven door is opened. Press
('-')=pad to turn the interior oven light ON and OFF whenever the oven door is closed.
The interior oven light is located at the upper right rear wall of the oven interior and is
covered with a glass shield held by a wire holder. The glass shield must be in place
whenever the oven is in use. To change the interior oven light, see "Changing the
Oven Light" in the General Care & Cleaning section.
16

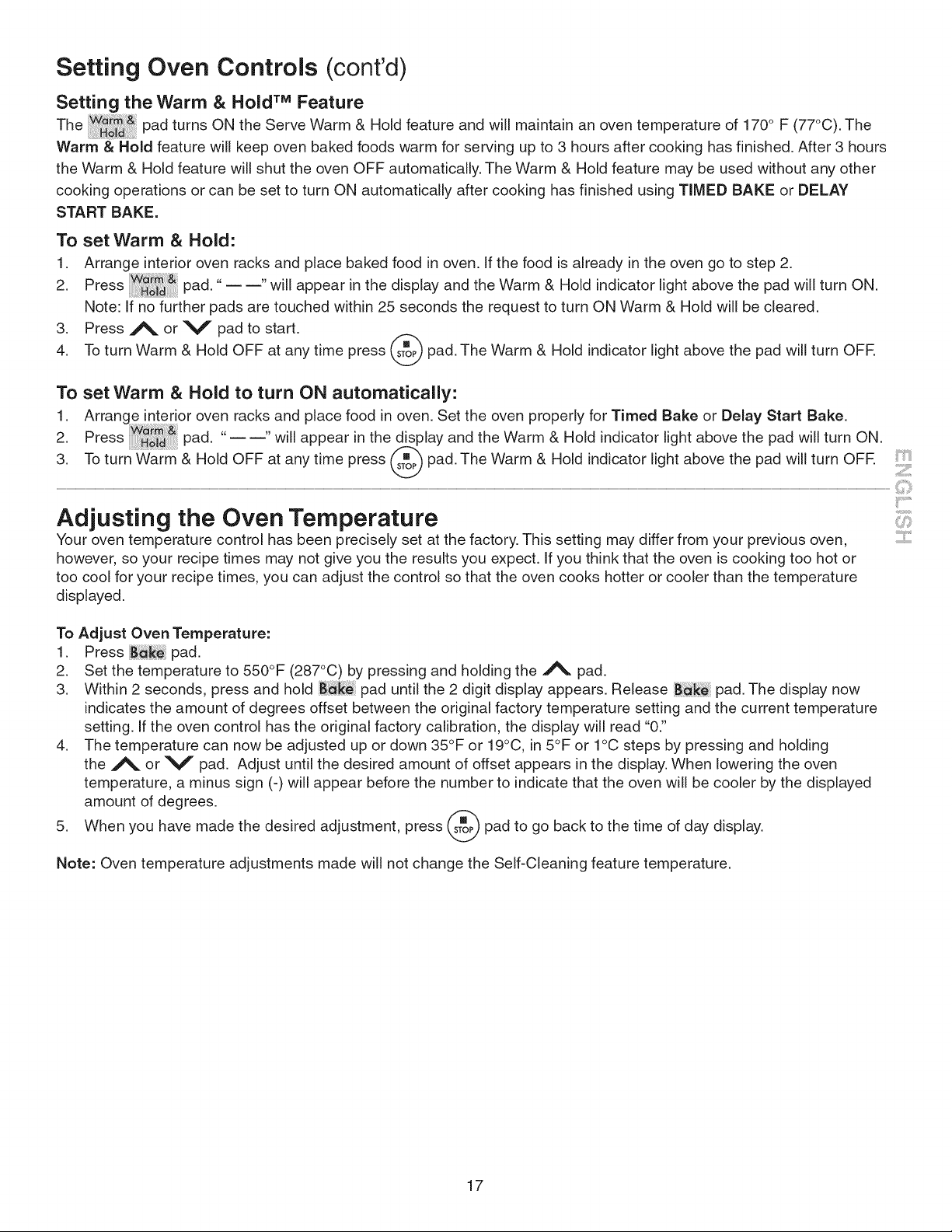

Setting Oven Controls (cont'd)
Setting the Warm & Hold TM Feature
The wa _,:_ pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170 ° F (77°C). The
Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours
the Warm & Hold feature will shut the oven OFF automatically. The Warm & Hold feature may be used without any other
cooking operations or can be set to turn ON automatically after cooking has finished using TIMED BAKE or DELAY
START BAKE.
To set Warm & Hold:
1. Arrange interior oven racks and place baked food in oven. If the food is already in the oven go to step 2.
,,
2. Press pad. "---- will appear in the display and the Warm & Hold indicator light above the pad will turn ON.
Note: If no further pads are touched within 25 seconds the request to turn ON Warm & Hold will be cleared.
3. Press A or V pad to start.
To turn Warm & Hold OFF at any time press (_,') pad. The Warm & Hold indicator light above the pad will turn OFR
4.
To set Warm & Hold to turn ON automatically:
1. Arrange !ntedor oven racks,,and place food in oven. Set the oven properly for Timed Bake or Delay Start Bake.
2. Press pad. " will appear in the display and the Warm & Hold indicator light above the pad will turn ON.
3. To turn Warm & Hold OFF at any time press _=_ pad. The Warm & Hold indicator light above the pad will turn OFF.
',cCy
Adjusting the Oven Temperature
Your oven temperature control has been precisely set at the factory. This setting may differ from your previous oven,
however, so your recipe times may not give you the results you expect. If you think that the oven is cooking too hot or
too cool for your recipe times, you can adjust the control so that the oven cooks hotter or cooler than the temperature
displayed.
To Adjust Oven Temperature:
1. Press pad.
2. Set the temperature to 550°F (287°C) by pressing and holding the .J_ pad.
3. Within 2 seconds, press and hold pad until the 2 digit display appears. Release pad. The display now
indicates the amount of degrees offset between the original factory temperature setting and the current temperature
setting. If the oven control has the original factory calibration, the display will read "0."
4. The temperature can now be adjusted up or down 35°F or 19°C, in 5°F or 1°C steps by pressing and holding
the _ or V pad. Adjust until the desired amount of offset appears in the display. When lowering the oven
temperature, a minus sign (-) will appear before the number to indicate that the oven will be cooler by the displayed
amount of degrees.
5. When you have made the desired adjustment, press (_T_,'_pad to go back to the time of day display.
'<C>'
Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.
17

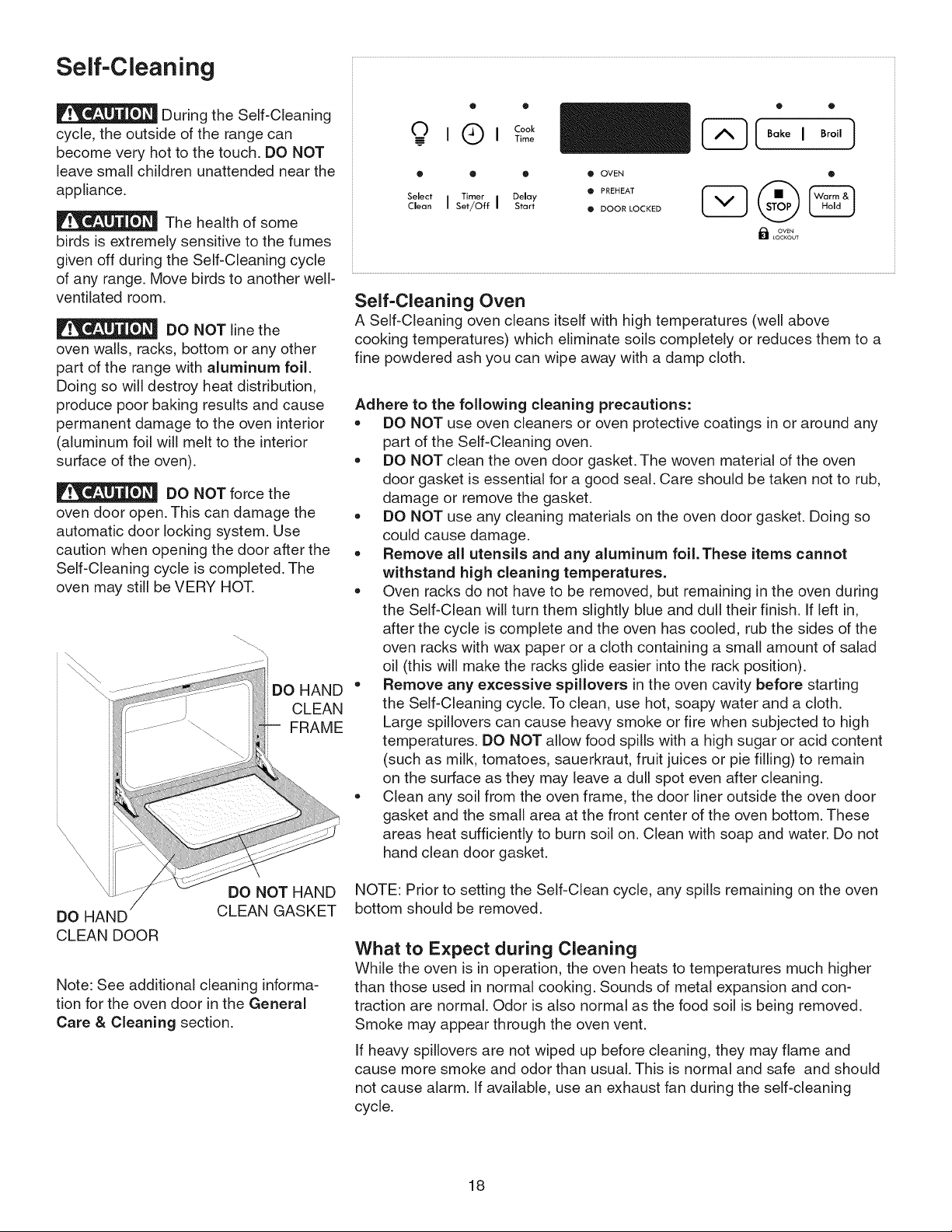

Self-Cleaning
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some
birds is extremely sensitive to the fumes
given off during the Self-Cleaning cycle
of any range. Move birds to another well-
ventilated room.
DO NOT line the
oven walls, racks, bottom or any other
part of the range with aluminum foil.
Doing so will destroy heat distribution,
produce poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the
oven door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
O I (Z) I CookTime BakeI BroW,
\
DO HAND "
CLEAN
FRAME
® ® ® . OVEN
SelectcleanI Timer I Delay .PREHEAT [_ (_ _
Set/Off Start . DOOR LOCKED
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above
cooking temperatures) which eliminate soils completely or reduces them to a
fine powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
• DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
• DO NOT clean the oven door gasket. The woven material of the oven
door gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
• DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
• Remove all utensils and any aluminum foil.These items cannot
withstand high cleaning temperatures.
• Oven racks do not have to be removed, but remaining in the oven during
the Self-Clean will turn them slightly blue and dull their finish, if left in,
after the cycle is complete and the oven has cooled, rub the sides of the
oven racks with wax paper or a cloth containing a small amount of salad
oil (this will make the racks glide easier into the rack position).
Remove any excessive spillovers in the oven cavity before starting
the Self-Cleaning cycle. To clean, use hot, soapy water and a cloth.
Large spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain
on the surface as they may leave a dull spot even after cleaning.
• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water. Do not
hand clean door gasket.
DO HAND
CLEAN DOOR
DO NOT HAND
CLEAN GASKET
Note: See additional cleaning informa-
tion for the oven door in the General
Care & Cleaning section.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.
What to Expect during Cleaning
While the oven is in operation, the oven heats to temperatures much higher
than those used in normal cooking. Sounds of metal expansion and con-
traction are normal. Odor is also normal as the food soil is being removed.
Smoke may appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they may flame and
cause more smoke and odor than usual. This is normal and safe and should
not cause alarm. If available, use an exhaust fan during the self-cleaning
cycle.
18

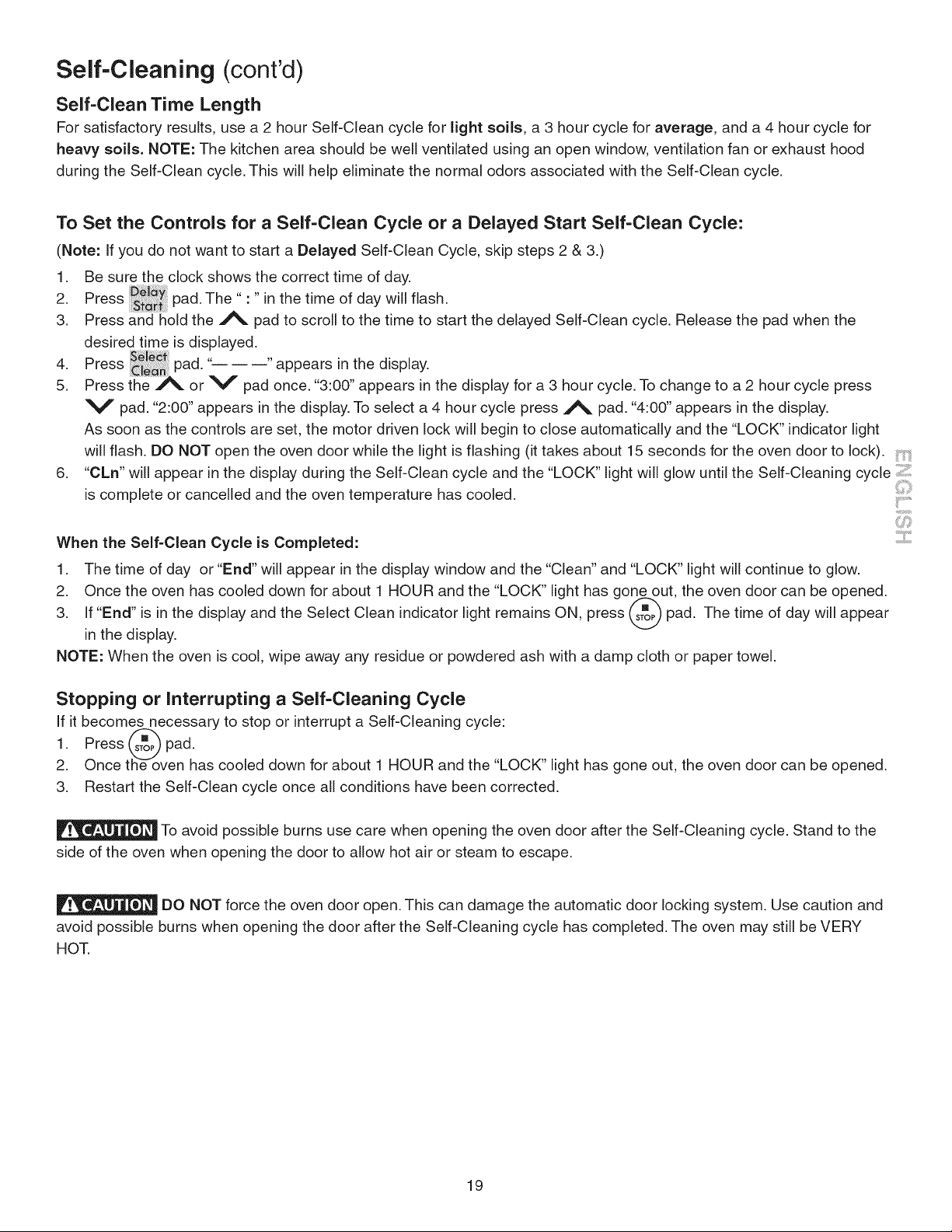

Self-Cleaning (cont'd)
Self-Clean Time Length
For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for average, and a 4 hour cycle for
heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood
during the Self-Clean cycle• This will help eliminate the normal odors associated with the Self-Clean cycle•
To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skip steps 2 & 3.)
1. Be sure the clock shows the correct time of day.
D_i_ ....
2. Press pad.The : in the time of day will flash•
3. Press and hold the A pad to scroll to the time to start the delayed Self-Clean cycle• Release the pad when the
desired time is displayed•
4. Press pad." "appears in the display.
5. Press the_ or V pad once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press
V pad. "2:00" appears in the display. To select a 4 hour cycle press _ pad. "4:00" appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the "LOCK" indicator light
will flash• DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock)•
6. "CLn" will appear in the display during the Self-Clean cycle and the "LOCK" light will glow until the Self-Cleaning cycle
is complete or cancelled and the oven temperature has cooled.
t
When the Self-Clean Cycle is Completed:
1. The time of day or "End" will appear in the display window and the "Clean" and "LOCK" light will continue to glow.
2• Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. If "End" is in the display and the Select Clean indicator light remains ON, press (s_P) pad. The time of day will
appear
in the display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel•
Stopping or interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning cycle:
• Press pad.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened•
3. Restart the Self-Clean cycle once all conditions have been corrected•
To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the
side of the oven when opening the door to allow hot air or steam to escape•
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and
avoid possible burns when opening the door after the Self-Cleaning cycle has completed• The oven may still be VERY
HOT.
19

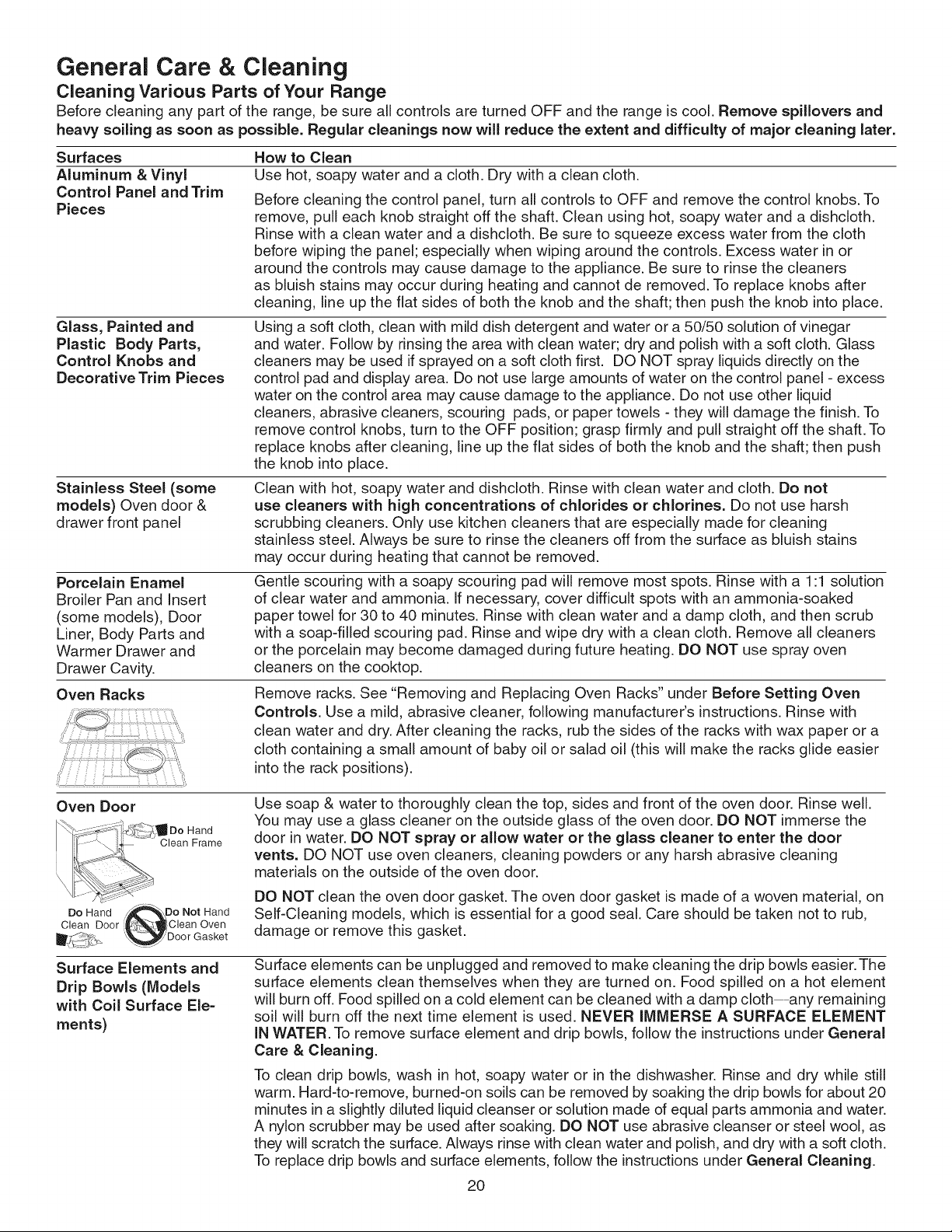

General Care & Cleaning
Cleaning Various Parts of Your Range
Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers and
heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.
Surfaces
Aluminum & Vinyl
Control Panel and Trim
Pieces
Glass, Painted and
Plastic Body Parts,
Control Knobs and
How to Clean
Use hot, soapy water and a cloth. Dry with a clean cloth.
Before cleaning the control panel, turn all controls to OFF and remove the control knobs. To
remove, pull each knob straight off the shaft. Clean using hot, soapy water and a dishcloth.
Rinse with a clean water and a dishcloth. Be sure to squeeze excess water from the cloth
before wiping the panel; especially when wiping around the controls. Excess water in or
around the controls may cause damage to the appliance. Be sure to rinse the cleaners
as bluish stains may occur during heating and cannot de removed. To replace knobs after
cleaning, line up the flat sides of both the knob and the shaft; then push the knob into place.
Decorative Trim Pieces
Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar
and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass
cleaners may be used if sprayed on a soft cloth first. DO NOT spray liquids directly on the
control pad and display area. Do not use large amounts of water on the control panel - excess
water on the control area may cause damage to the appliance. Do not use other liquid
cleaners, abrasive cleaners, scouring pads, or paper towels - they will damage the finish. To
remove control knobs, turn to the OFF position; grasp firmly and pull straight off the shaft. To
replace knobs after cleaning, line up the flat sides of both the knob and the shaft; then push
the knob into place.
Stainless Steel (some
models) Oven door &
drawer front panel
Clean with hot, soapy water and dishcloth. Rinse with clean water and cloth. Do not
use cleaners with high concentrations of chlorides or chlorines. Do not use harsh
scrubbing cleaners. Only use kitchen cleaners that are especially made for cleaning
stainless steel. Always be sure to rinse the cleaners off from the surface as bluish stains
may occur during heating that cannot be removed.
Porcelain Enamel
Broiler Pan and Insert
(some models), Door
Liner, Body Parts and
Warmer Drawer and
Drawer Cavity.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution
of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked
paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub
with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners
or the porcelain may become damaged during future heating. DO NOT use spray oven
cleaners on the cooktop.
Oven Racks Remove racks. See "Removing and Replacing Oven Racks" under Before Setting Oven
Controls. Use a mild, abrasive cleaner, following manufacturer's instructions. Rinse with
clean water and dry. After cleaning the racks, rub the sides of the racks with wax paper or a
cloth containing a small amount of baby oil or salad oil (this will make the racks glide easier
into the rack positions).
Oven Door
Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse well.
You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the
door in water. DO NOT spray or allow water or the glass cleaner to enter the door
vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive cleaning
materials on the outside of the oven door.
Do Hand ,_Do Not Hand
Clean Door (_!}Clean Oven
_'_,_ '_"Door Gasket
Surface Elements and
Drip Bowls (Models
with Coil Surface Ele-
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material, on
Self-Cleaning models, which is essential for a good seal. Care should be taken not to rub,
damage or remove this gasket.
merits)
Surface elements can be unplugged and removed to make cleaning the drip bowls easier. The
surface elements clean themselves when they are turned on. Food spilled on a hot element
will burn off. Food spilled on a cold element can be cleaned with a damp cloth any remaining
soil will burn off the next time element is used. NEVER IMMERSE A SURFACE ELEMENT
IN WATER. To remove surface element and drip bowls, follow the instructions under General
Care & Cleaning.
To clean drip bowls, wash in hot, soapy water or in the dishwasher. Rinse and dry while still
warm. Hard-to-remove, burned-on soils can be removed by soaking the drip bowls for about 20
minutes in a slightly diluted liquid cleanser or solution made of equal parts ammonia and water.
A nylon scrubber may be used after soaking. DO NOT use abrasive cleanser or steel wool, as
they will scratch the surface. Always rinse with clean water and polish, and dry with a soft cloth.
To replace drip bowls and surface elements, follow the instructions under General Cleaning.
2O

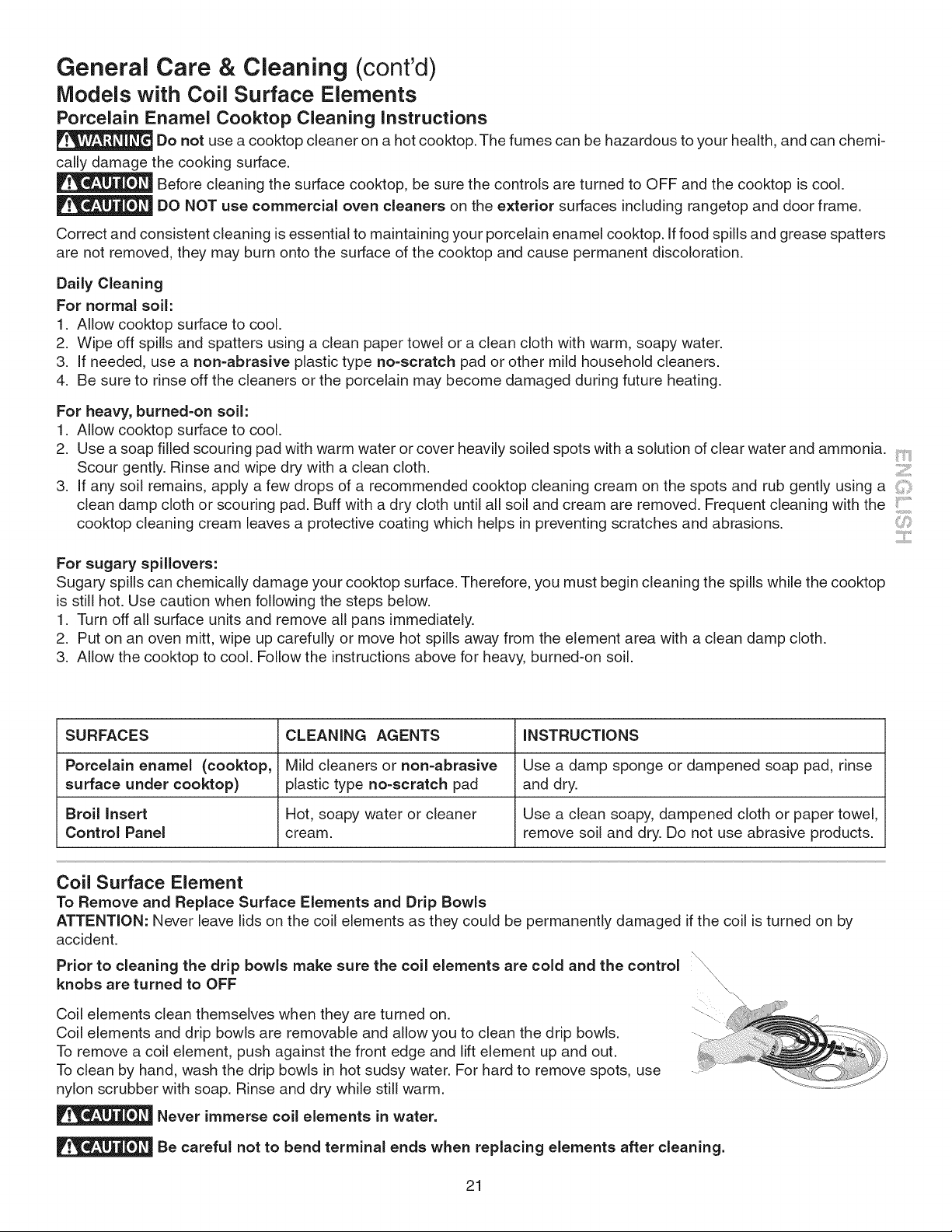

General Care & Cleaning (cont'd)
Models with Coil Surface Elements
Porcelain Enamel Cooktop Cleaning instructions
Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemi-
cally damage the cooking surface.
Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
DO NOT use commercial oven cleaners on the exterior surfaces including rangetop and door frame.
Correct and consistent cleaning is essential to maintaining your porcelain enamel cooktop. If food spills and grease spatters
are not removed, they may burn onto the surface of the cooktop and cause permanent discoloration.
Daily Cleaning
For normal soil:
1. Allow cooktop surface to cool.
2. Wipe off spills and spatters using a clean paper towel or a clean cloth with warm, soapy water.
3. If needed, use a non-abrasive plastic type no-scratch pad or other mild household cleaners.
4. Be sure to rinse off the cleaners or the porcelain may become damaged during future heating.
For heavy, burned=on soil:
1. Allow cooktop surface to cool.
.
.
Use a soap filled scouring pad with warm water or cover heavily soiled spots with a solution of clear water and ammonia. 'i
Scour gently. Rinse and wipe dry with a clean cloth.
If any soil remains, apply a few drops of a recommended cooktop cleaning cream on the spots and rub gently using a i'
clean damp cloth or scouring pad. Buff with a dry cloth until all soil and cream are removed. Frequent cleaning with the
t
cooktop cleaning cream leaves a protective coating which helps in preventing scratches and abrasions.
For sugary spillovers:
Sugary spills can chemically damage your cooktop surface. Therefore, you must begin cleaning the spills while the cooktop
is still hot. Use caution when following the steps below.
1. Turn off all surface units and remove all pans immediately.
2. Put on an oven mitt, wipe up carefully or move hot spills away from the element area with a clean damp cloth.
3. Allow the cooktop to cool. Follow the instructions above for heavy, burned-on soil.
SURFACES CLEANING AGENTS iNSTRUCTiONS
Porcelain enamel (cooktop, Mild cleaners or non-abrasive Use a damp sponge or dampened soap pad, rinse
surface under cooktop) plastic type no-scratch pad and dry.
Broil insert Hot, soapy water or cleaner Use a clean soapy, dampened cloth or paper towel,
Control Panel cream, remove soil and dry. Do not use abrasive products.
Coil Surface Element
To Remove and Replace Surface Elements and Drip Bowls
ATTENTION: Never leave lids on the coil elements as they could be permanently damaged if the coil is turned on by
accident.
\
Prior to cleaning the drip bowls make sure the coil elements are cold and the control \,
knobs are turned to OFF \\
Coil elements clean themselves when they are turned on.
Coil elements and drip bowls are removable and allow you to clean the drip bowls.
To remove a coil element, push against the front edge and lift element up and out.
To clean by hand, wash the drip bowls in hot sudsy water. For hard to remove spots, use
nylon scrubber with soap. Rinse and dry while still warm.
Never immerse coil elements in water.
Be careful not to bend terminal ends when replacing elements after cleaning.
21

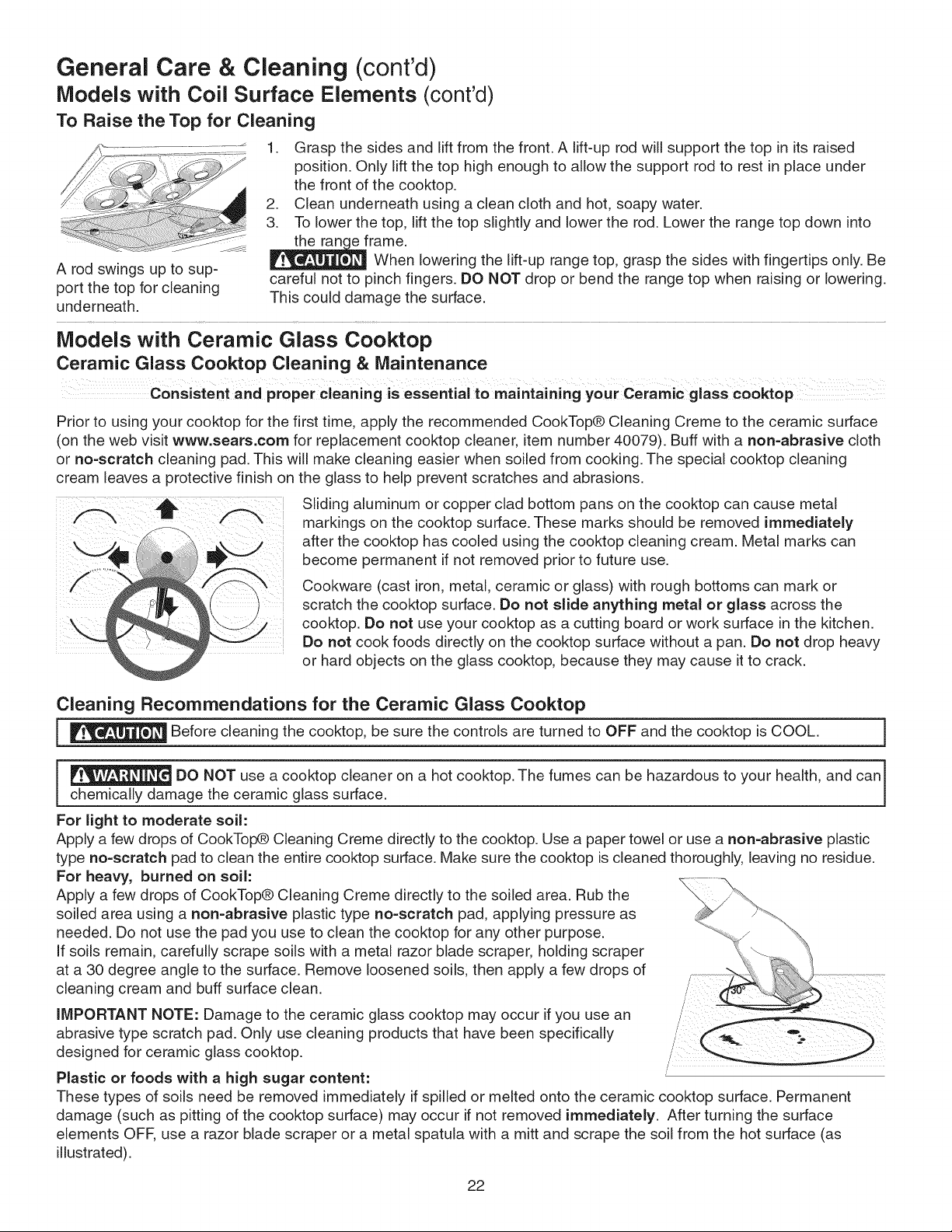

General Care & Cleaning (cont'd)
Models with Coil Surface Elements (cont'd)
To Raise the Top for Cleaning
............_ 1. Grasp the sides and lift from the front. A lift-up rod will support the top in its raised
position. Only lift the top high enough to allow the support rod to rest in place under
the front of the cooktop.
2. Clean underneath using a clean cloth and hot, soapy water.
3. To lower the top, lift the top slightly and lower the rod. Lower the range top down into
...._. _rame.
When lowering the lift-up range top, grasp the sides with fingertips only. Be
A rod swings up to sup- careful not to pinch fingers. DO NOT drop or bend the range top when raising or lowering.
port the top for cleaning
underneath. This could damage the surface.
Models with Ceramic Glass Cooktop
Ceramic Glass Cooktop Cleaning & Maintenance
.... Consistent and proper cleaning is essential to maintaining your Ceramic glass cooktop
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme to the ceramic surface
(on the web visit www.sears.com for replacement cooktop cleaner, item number 40079). Buff with a non-abrasive cloth
or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning
cream leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause metal
"_ i"-"k markings on the cooktop surface. These marks should be removed immediately
after the cooktop has cooled using the cooktop cleaning cream. Metal marks can
become permanent if not removed prior to future use.
/'f Cookware (cast iron. metal, ceramtc or glass) with rough bottoms can mark or
scratch the cooktop surface. Do not slide anything metal or glass across the
cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen.
Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy
or hard objects on the glass cooktop, because they may cause it to crack.
Cleaning Recommendations for the Ceramic Glass Cooktop
[_ Before the be the controls turned to OFF and the is COOL,
cleaning cooktop,
sure are
cooktop
]
_ DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can]
chemically damage the ceramic glass surface.
J
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or use a non=abrasive plastic
type no-scratch pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the
soiled area using a non=abrasive plastic type no=scratch pad, applying pressure as
needed. Do not use the pad you use to clean the cooktop for any other purpose.
If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper
at a 30 degree angle to the surface. Remove loosened soils, then apply a few drops of
cleaning cream and buff surface clean. J
/ )
/
IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur if you use an
abrasive type scratch pad. Only use cleaning products that have been specifically
designed for ceramic glass cooktop.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent
damage (such as pitting of the cooktop surface) may occur if not removed immediately. After turning the surface
elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as
illustrated).
22

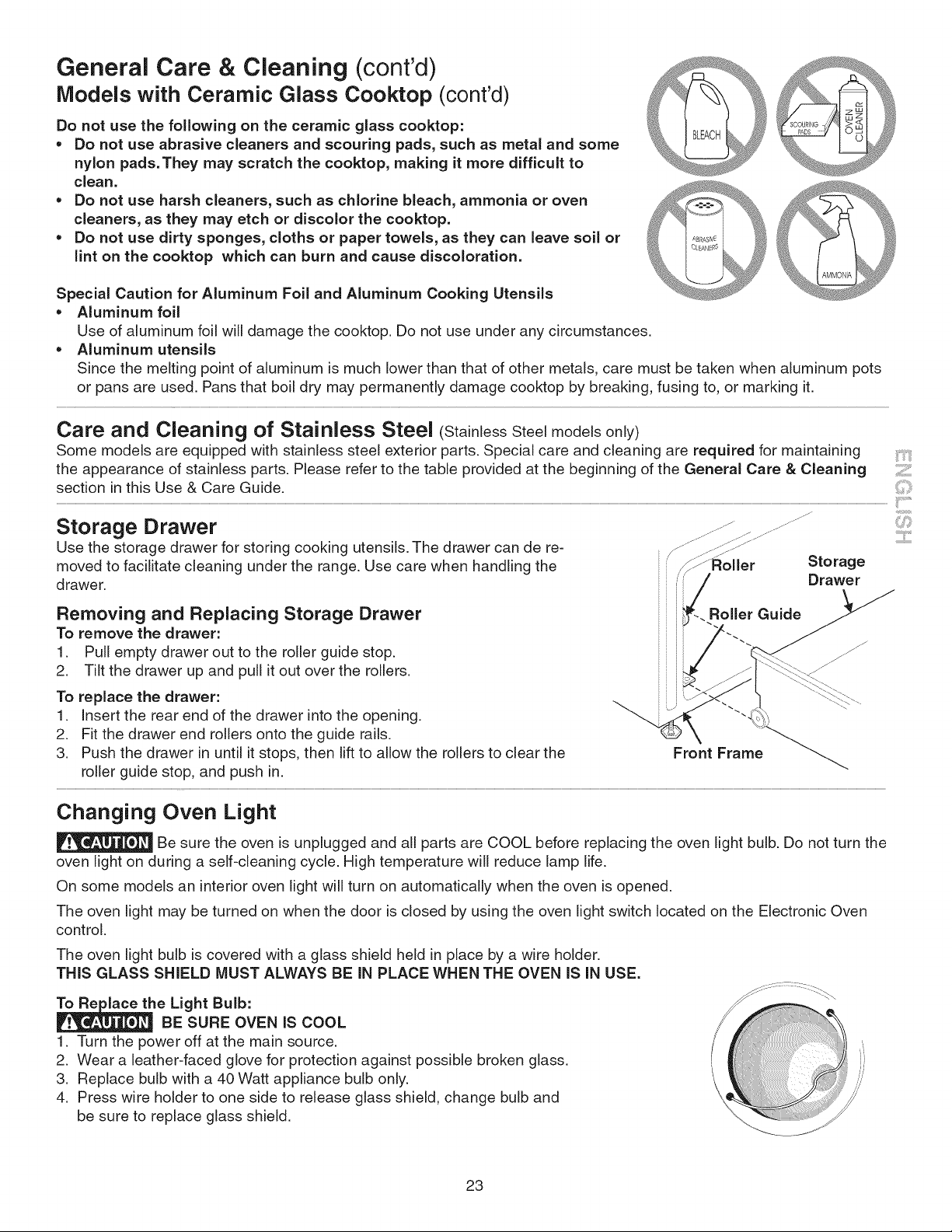

General Care & Cleaning (cont'd)
Models with Ceramic Glass Cooktop (cont'd)
Do not use the following on the ceramic glass cooktop:
• Do not use abrasive cleaners and scouring pads, such as metal and some
nylon pads. They may scratch the cooktop, making it more difficult to
clean.
• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven
cleaners, as they may etch or discolor the cooktop.
• Do not use dirty sponges, cloths or paper towels, as they can leave soil or
lint on the cooktop which can burn and cause discoloration.
Special Caution for Aluminum Foil and Aluminum Cooking Utensils
• Aluminum foil
Use of aluminum foil will damage the cooktop. Do not use under any circumstances.
• Aluminum utensils
Since the melting point of aluminum is much lower than that of other metals, care must be taken when aluminum pots
or pans are used. Pans that boil dry may permanently damage cooktop by breaking, fusing to, or marking it.
Care and Cleaning of Stainless Steel (StainlessSteel models only)
Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining
the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care & Cleaning
section in this Use & Care Guide.
Storage Drawer ........
Use the storage drawer for storing cooking utensils. The drawer can de re-
moved to facilitate cleaning under the range. Use care when handling the Storage
drawer. Drawer
Removing and Replacing Storage Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop. _J
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the rollers to clear the Front Frame
roller guide stop, and push in.
Changing Oven Light
Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the
oven light on during a self-cleaning cycle. High temperature will reduce lamp life.
On some models an interior oven light will turn on automatically when the oven is opened.
The oven light may be turned on when the door is closed by using the oven light switch located on the Electronic Oven
control.
The oven light bulb is covered with a glass shield held in place by a wire holder.
THIS GLASS SHIELD MUST ALWAYS BE IN PLACE WHEN THE OVEN IS IN USE.
e Light Bulb:
BE SURE OVEN IS COOL
1. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Replace bulb with a 40 Watt appliance bulb only.
4. Press wire holder to one side to release glass shield, change bulb and
be sure to replace glass shield.
23

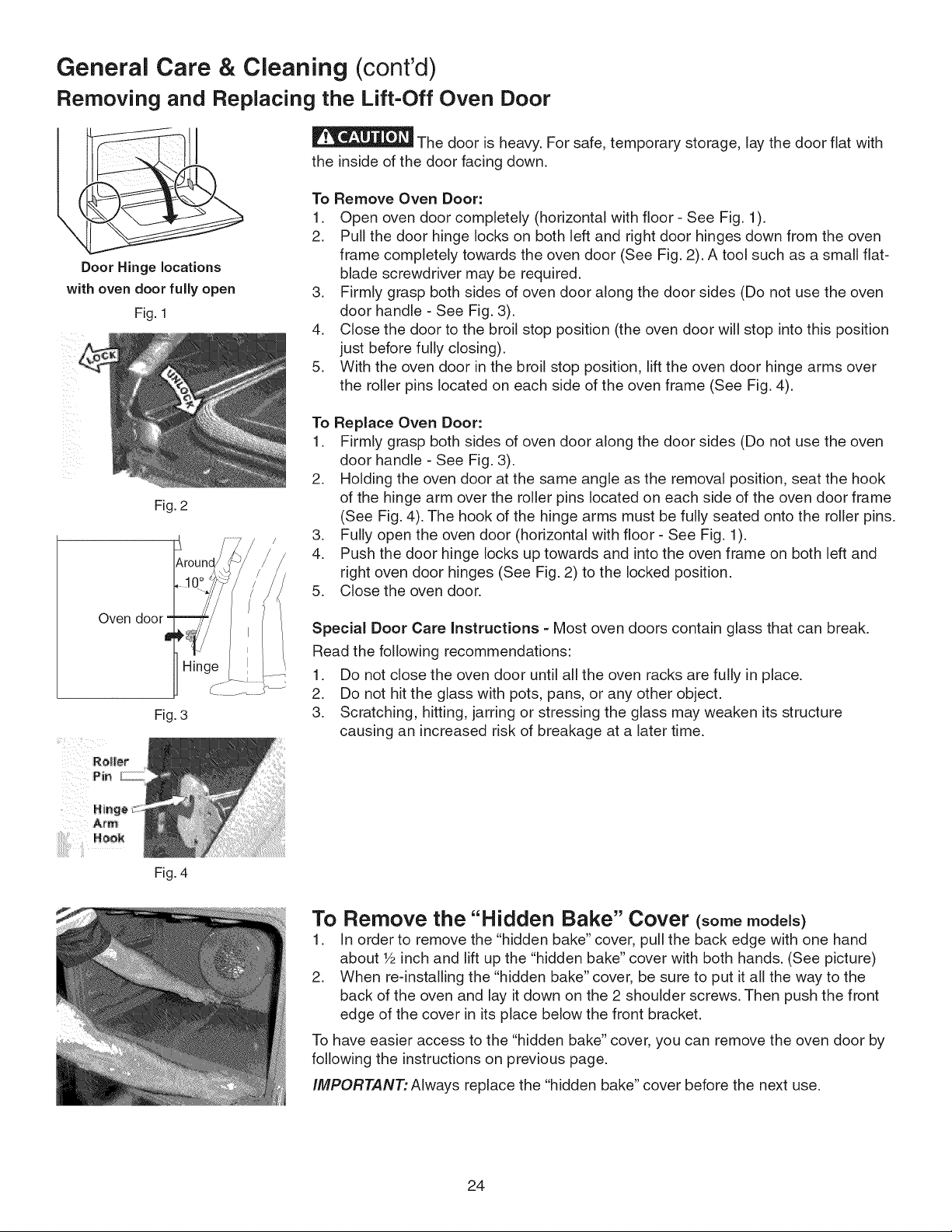

General Care & Cleaning (cont'd)
Removing and Replacing the Lift-Off Oven Door
The door is heavy. For safe, temporary storage, lay the door fiat with
the inside of the door facing down.
Door Hinge locations
with oven door fully open
Fig. 1
Fig. 2
Oven
Fig. 3
Fig. 4
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges down from the oven
frame completely towards the oven door (See Fig. 2). A tool such as a small flat-
blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the oven
door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will stop into this position
just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms over
the roller pins located on each side of the oven frame (See Fig. 4).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the oven
door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the hook
of the hinge arm over the roller pins located on each side of the oven door frame
(See Fig. 4). The hook of the hinge arms must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left and
right oven door hinges (See Fig. 2) to the locked position.
5. Close the oven door.
Special Door Care Instructions = Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure
causing an increased risk of breakage at a later time.
To Remove the "Hidden Bake" Cover (somemodels)
1. in order to remove the "hidden bake" cover, pull the back edge with one hand
about Y2inch and lift up the "hidden bake" cover with both hands. (See picture)
2. When re-installing the "hidden bake" cover, be sure to put it all the way to the
back of the oven and lay it down on the 2 shoulder screws. Then push the front
edge of the cover in its place below the front bracket.
To have easier access to the "hidden bake" cover, you can remove the oven door by
following the instructions on previous page.
IMPORTANT: Always replace the "hidden bake" cover before the next use.
24

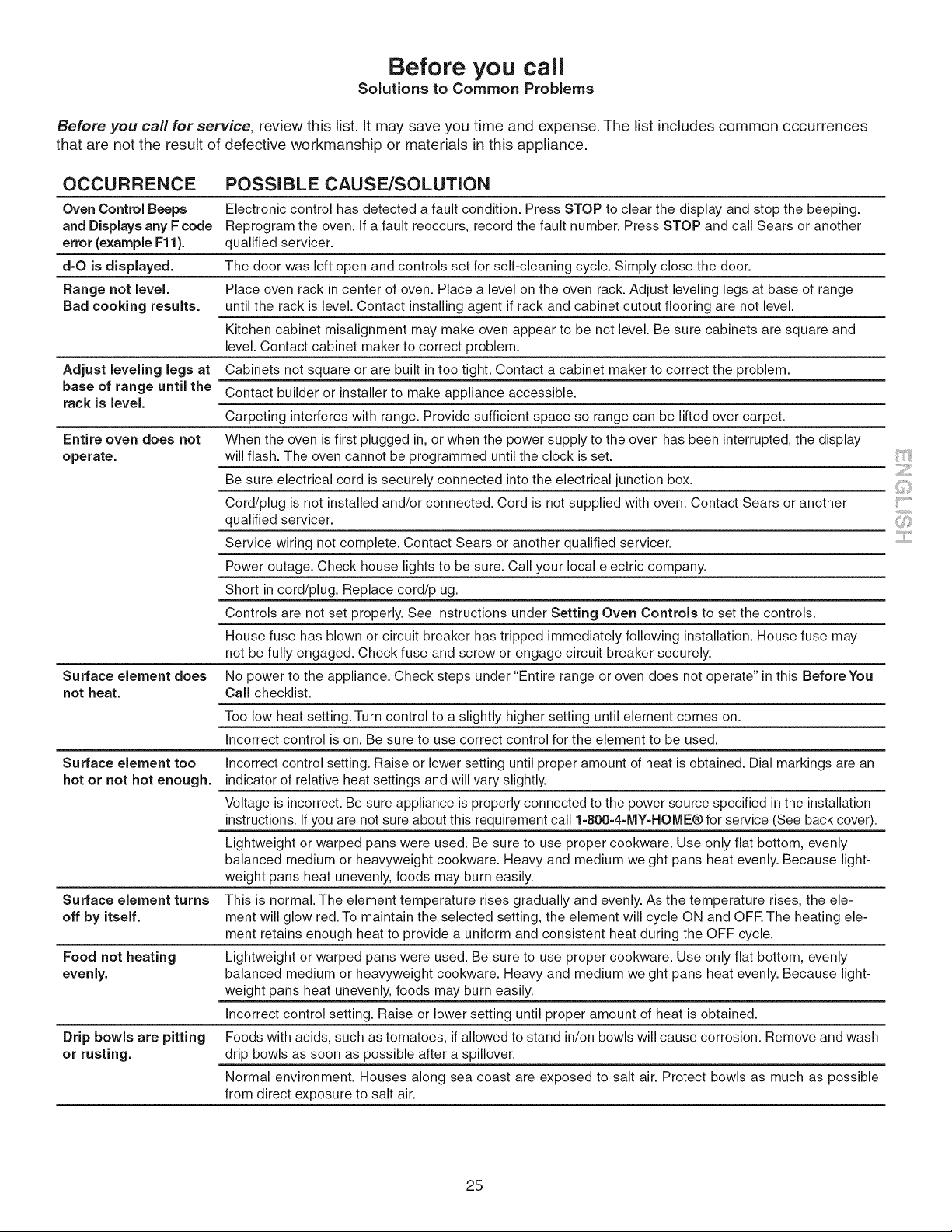

Before you call
Solutions to Common Problems
Before you carl for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven Control Beeps Electronic control has detected a fault condition. Press STOP to clear the display and stop the beeping.
and Displays any F code Reprogram the oven. If a fault reoccurs, record the fault number. Press STOP and call Sears or another
error (example F11). qualified servicer.
d=O is displayed. The door was left open and controls set for self-cleaning cycle. Simply close the door.
Range not level. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range
Bad cooking results, until the rack is level. Contact installing agent if rack and cabinet cutout flooring are not level.
Kitchen cabinet misalignment may make oven appear to be not level. Be sure cabinets are square and
level. Contact cabinet maker to correct problem.
Adjust leveling legs at Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
base of range until the
Contact builder or installer to make appliance accessible.
rack is level.
Carpeting interferes with range. Provide sufficient space so range can be lifted over carpet.
Entire oven does not When the oven is first plugged in, or when the power supply to the oven has been interrupted, the display
operate, will flash. The oven cannot be programmed until the clock is set.
Be sure electrical cord is securely connected into the electrical junction box.
Cord/plug is not installed and/or connected. Cord is not supplied with oven. Contact Sears or another
qualified servicer.
Service wiring not complete. Contact Sears or another qualified servicer.
Power outage. Check house lights to be sure. Call your local electric company.
Short in cord/plug. Replace cord/plug.
Controls are not set properly. See instructions under Setting Oven Controls to set the controls.
House fuse has blown or circuit breaker has tripped immediately following installation. House fuse may
not be fully engaged. Check fuse and screw or engage circuit breaker securely.
Surface element does No power to the appliance. Check steps under "Entire range or oven does not operate" in this Before You
not heat. Call checklist.
Too low heat setting. Turn control to a slightly higher setting until element comes on.
Incorrect control is on. Be sure to use correct control for the element to be used.
Surface element too Incorrect control setting. Raise or lower setting until proper amount of heat is obtained. Dial markings are an
hot or not hot enough, indicator of relative heat settings and will vary slightly.
Voltage is incorrect. Be sure appliance is properly connected to the power source specified in the installation
instructions. If you are not sure about this requirement call 1=800=4=MY=HOME®for service (See back cover).
Lightweight or warped pans were used. Be sure to use proper cookware. Use only flat bottom, evenly
balanced medium or heavyweight cookware. Heavy and medium weight pans heat evenly. Because light-
weight pans heat unevenly, foods may burn easily.
Surface element turns This is normal. The element temperature rises gradually and evenly. As the temperature rises, the ele-
off by itself, ment will glow red. To maintain the selected setting, the element will cycle ON and OFR The heating ele-
ment retains enough heat to provide a uniform and consistent heat during the OFF cycle.
Food not heating Lightweight or warped pans were used. Be sure to use proper cookware. Use only flat bottom, evenly
evenly, balanced medium or heavyweight cookware. Heavy and medium weight pans heat evenly. Because light-
weight pans heat unevenly, foods may burn easily.
Incorrect control setting. Raise or lower setting until proper amount of heat is obtained.
Drip bowls are pitting Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion. Remove and wash
or rusting, drip bowls as soon as possible after a spillover.
Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as much as possible
from direct exposure to salt air.
iii!"!il"_iiii
........iii.......
25

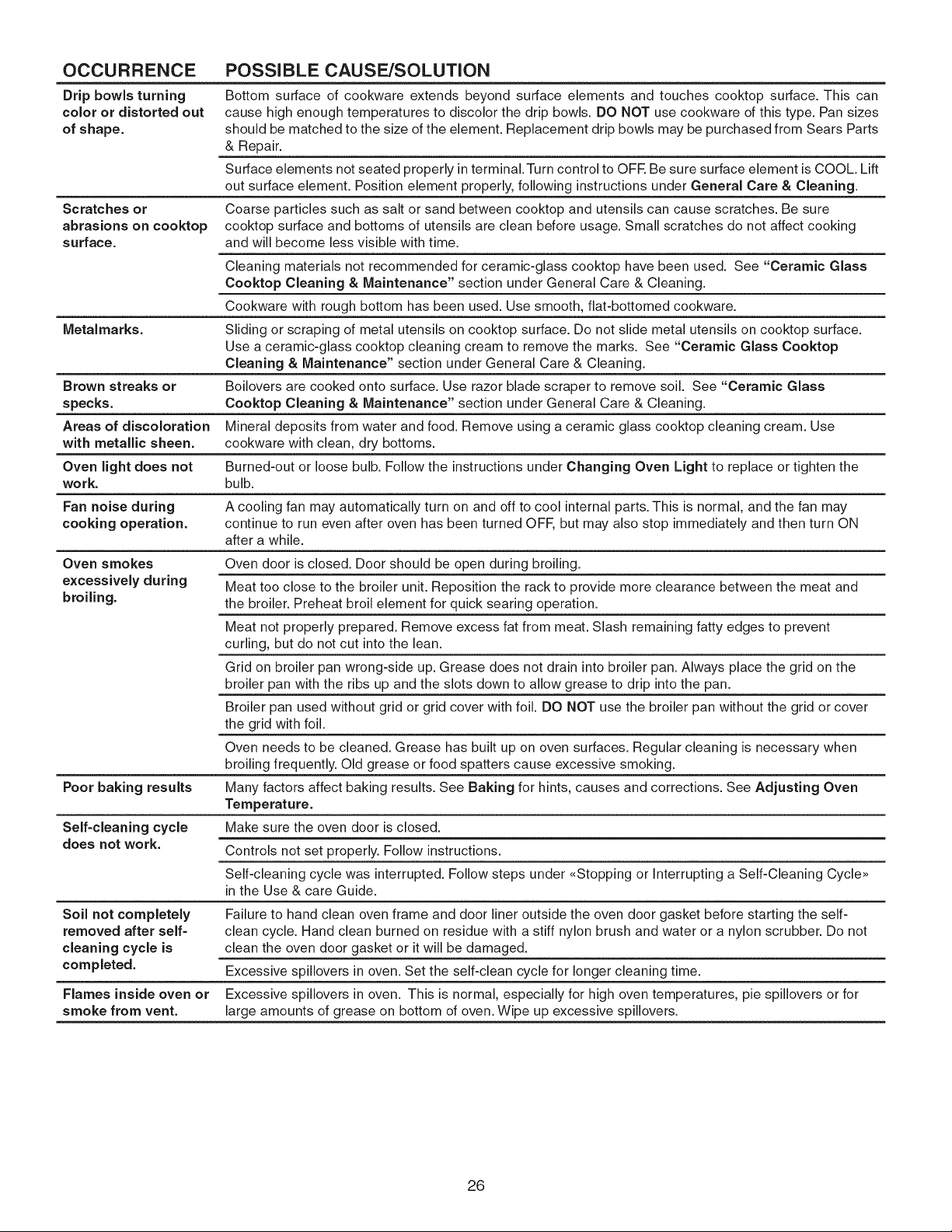

OCCURRENCE POSSIBLE CAUSE/SOLUTION
Drip bowls turning Bottom surface of cookware extends beyond surface elements and touches cooktop surface. This can
color or distorted out cause high enough temperatures to discolor the drip bowls. DO NOT use cookware of this type. Pan sizes
of shape, should be matched to the size of the element. Replacement drip bowls may be purchased from Sears Parts
& Repair.
Surface elements not seated properly in terminal.Turn control to OFR Be sure surface element is COOL. Lift
out surface element. Position element properly, following instructions under General Care & Cleaning.
Scratches or Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be sure
abrasions on cooktop cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking
surface, and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See "Ceramic Glass
Cooktop Cleaning & Maintenance" section under General Care & Cleaning.
Cookware with rough bottom has been used. Use smooth, fiat-bottomed cookware.
Metalmarks. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop surface.
Use a ceramic-glass cooktop cleaning cream to remove the marks. See "Ceramic Glass Cooktop
Cleaning & Maintenance" section under General Care & Cleaning.
Brown streaks or Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See "Ceramic Glass
specks. Cooktop Cleaning & Maintenance" section under General Care & Cleaning.
Areas of discoloration Mineral deposits from water and food. Remove using a ceramic glass cooktop cleaning cream. Use
with metallic sheen, cookware with clean, dry bottoms.
Oven light does not Burned-out or loose bulb. Follow the instructions under Changing Oven Light to replace or tighten the
work. bulb.
Fan noise during A cooling fan may automatically turn on and off to cool internal parts. This is normal, and the fan may
cooking operation, continue to run even after oven has been turned OFF, but may also stop immediately and then turn ON
after a while.
Oven smokes Oven door is closed. Door should be open during broiling.
excessively during Meat too close to the broiler unit. Reposition the rack to provide more clearance between the meat and
broiling, the broiler. Preheat broil element for quick searing operation.
Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges to prevent
curling, but do not cut into the lean.
Grid on broiler pan wrong-side up. Grease does not drain into broiler pan. Always place the grid on the
broiler pan with the ribs up and the slots down to allow grease to drip into the pan.
Broiler pan used without grid or grid cover with foil. DO NOT use the broiler pan without the grid or cover
the grid with foil.
Oven needs to be cleaned. Grease has built up on oven surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive smoking.
Poor baking results Many factors affect baking results. See Baking for hints, causes and corrections. See Adjusting Oven
Temperature.
Self-cleaning cycle Make sure the oven door is closed.
does not work. Controls not set properly. Follow instructions.
Self-cleaning cycle was interrupted. Follow steps under <<Stopping or Interrupting a Self-Cleaning Cycle_
in the Use & care Guide.
Soil not completely Failure to hand clean oven frame and door liner outside the oven door gasket before starting the self-
removed after self- clean cycle. Hand clean burned on residue with a stiff nylon brush and water or a nylon scrubber. Do not
cleaning cycle is clean the oven door gasket or it will be damaged.
completed. Excessive spillovers in oven. Set the self-clean cycle for longer cleaning time.
Flames inside oven or Excessive spillovers in oven. This is normal, especially for high oven temperatures, pie spillovers or for
smoke from vent. large amounts of grease on bottom of oven. Wipe up excessive spillovers.
26
PROTECTION AGREEMENTS
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore®product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money
and aggravation.
The Master Protection Agreement also helps extend the life of
your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles,
no functional failure excluded from coverage - real
protection.
[] Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you
can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] ,,No-lemon,, guarantee- replacement of your covered
product if four or more product failures occur within twelve
months.
[]
[]
[]
Product replacement if your covered product can't be
fixed.
Annual Preventive Maintenance Check at your request -
no extra charge.
Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative on all products.
Think of us as a ,4alking owner's manual,,.
[] Power surge protection against electrical damage due to
power fluctuations.
[] $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
[] Rental reimbursement if repair of your covered product
takes longer than promised.
[] 10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is all
that it takes for you to schedule service. You can call anytime
day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you
cancel for any reason during the product warranty period, we
will provide a full refund. Or, a prorated refund anytime after the
product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details
call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in
the U.S.A. or Canada call 1-800-4-MY-HOME ®.
Acuerdos maestros de protecci6n
Enhorabuena por haber hecho una compra inteligente. Su nuevo producto
Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento
fiable. Pero, como cualquier producto, puede necesitar mantenimiento
preventivo o reparaciones peri6dicas. Es por eso que tener un Acuerdo maestro
de protecci6n podria ahorrarle dinero y molestias.
El Acuerdo maestro de protecci6n tambien sirve para prolongar la durabilidad
de su nuevo producto. El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en condiciones
normales de uso, no s61o en case de defectos de los productos. Nuestra
cobertura va mucho mas alia que la garantia del producto. No se
aplican deducibles ni exclusiones per fallas del funcionamiento: es decir,
verdadera protecci6n.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos autorizados de
Sears), Io cual significa que quien repare o realice el mantenimiento de su
producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y ndmero ilimitado de Ilamadas de
solicitud de servicio t_cnico: se puede poner en contacto con nosotros
cuantas veces Io desee y cuando Io desee.
[] Garantia ,<sin sorpresas,,: se reemplaza el producto cubierto per el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo de 12
meses.
[] Reemplazo del producto: en case de que no se pueda reparar el
producto cubierto por el acuerdo.
[] Revisi6n anual preventiva de mantenimiento del producto: puede
solicitarla en cualquier momento, sin costo alguno.
[] Rapida asistencia telef6nica, la cual denominamos Soluci6n rapida: es
decir, asistencia telef6nica a traves de cualquiera de nuestros
representantes de Sears, sobre cualquiera de nuestros productos. Piense
en nosotros como en un ,,manual parlante del usuario_.
[] Protecci6n contra fallas el_ctricas, contra daSos debidos a fluctuaciones
de la corriente electrica.
[] $250 al aSo para cubrir cualquier posible deterioro de alimentos que
haya tenido que desechar debido a una falla mecanica de cualquiera de
nuestros refrigeradores o congeladores cubiertos per este acuerdo.
[] Devolucibn de gastos de alquiler de electrodom_sticos si la reparaci6n
de su producto asegurado toma masque el tiempo prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de reparaci6n,
come de las piezas instaladas relacionadas que no hayan quedado
cubiertos per este acuerdo.
Una vez que haya realizado el page de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hera del dia o de la noche, o bien concertar una visita de servicio per
Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n exenta de
riesgos. Si per cualquier motive decide cancelar dicho acuerdo durante el
periodo de garantia del producto, le haremos un reintegro total del valor. 0 bien
un importe proporcional si cancela el acuerdo en cualquier otro memento
posterior al vencimiento del periodo de garantia del producto, iAdquiera hey
mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los EE.UU.).
* La cobertura en Canada varia en el caso de algunos articulos. Para
obtener detalles completos al respecto, Ilame al 1-800-361-6665 de Sears
de Canada.
Servicio de instalaci6n de Sears
Para solicitar la instalacion por profesionales de Sears de electrodomesticos,
abridores de puertas de garaje, calentadores de agua y otros articulos de use
prioritario en el hogar, Ilame al 1-800-4-MY-HOME en los EE.UU. o CanadA.
27
iji!"?'_iiii
iiiiiii_ii:_:!ii!iiii:
ilii................
........iii.......
Your Home
For expert troubleshooting and home solutions advice:
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en fran(;ais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
SM
® Registered Trademark / TM Trademark / Service Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fabrica / SM Marca de Servicio de Sears Brands, LLC
MCMarque de commerce / MD Marque depos6e de Sears Brands, LLC © Sears Brands, LLC
