Ancona Elite
Gas Cooktop 36"
User Manual
&
Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the important information
regarding installation, safety and maintenance.
Keep these instructions for future reference.
1

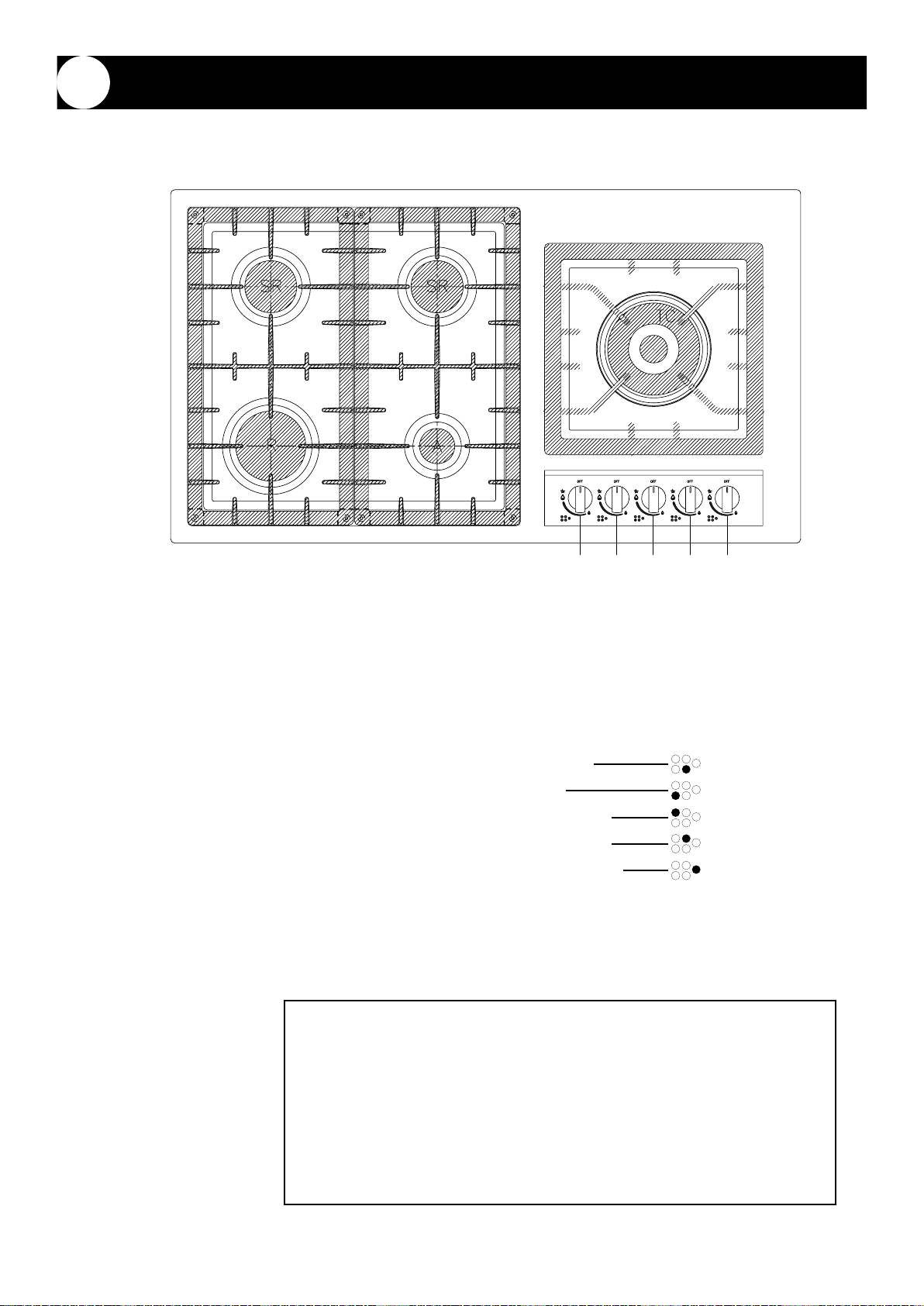

BUILT-IN GAS COOKTOP
• USERS OPERATING INSTRUCTIONS
• INSTALLATION ADVICE
IMPORTANT - PLEASE READ AND FOLLOW
Before beginning please read these instructions completely and carefully.
Do not remove permanently affixed labels, warnings, or plates from the product. This may
void the warranty.
Please observe all local and national codes and ordinances.

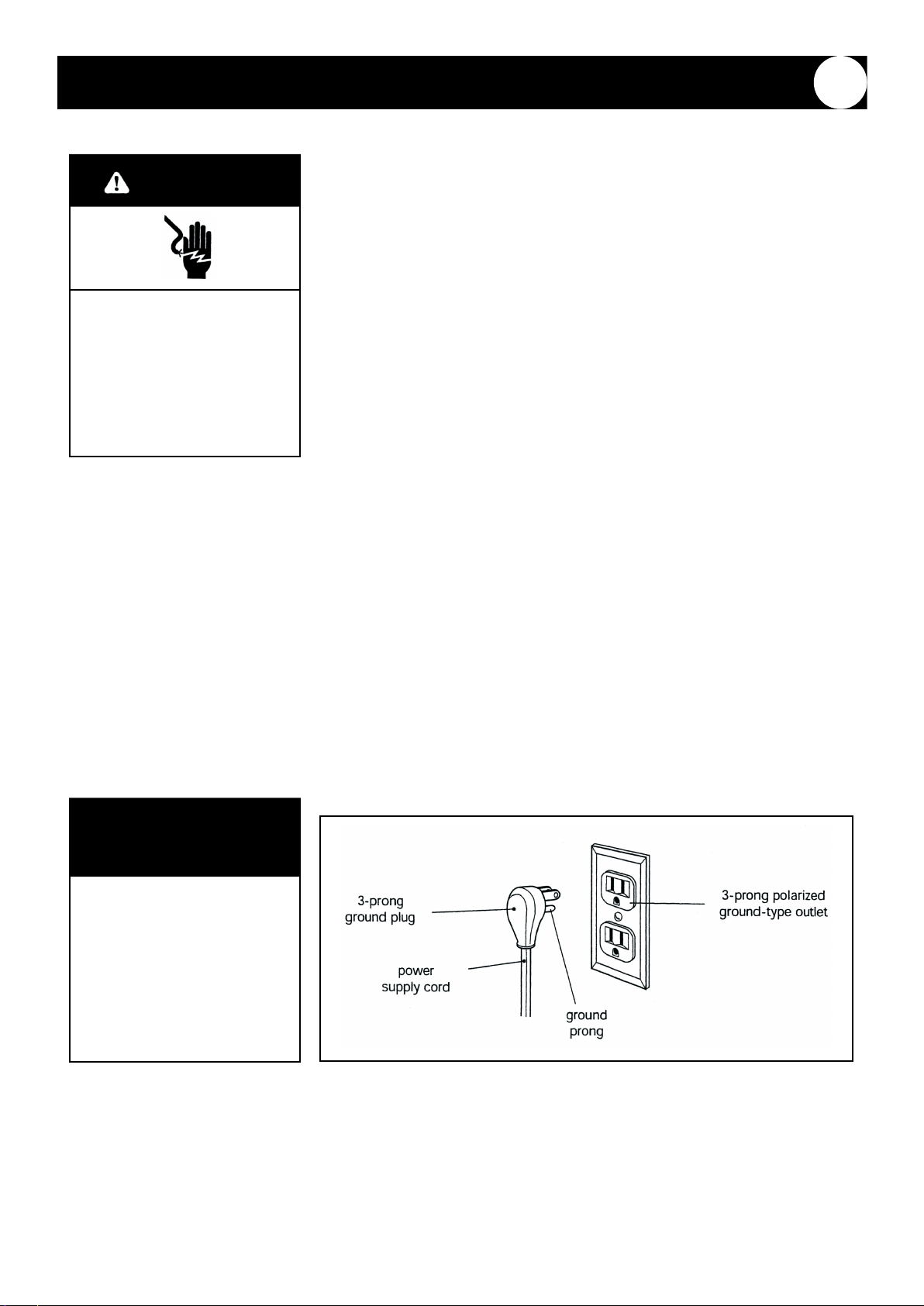

Please ensure that this product is properly grounded.
The installer should leave these instructions with the consumer who should retain for
local inspector’s use and for future reference.
The electrical plug should always be accessible
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition Electrical installation must be in accordance with the
National Electrical Code, ANSI/NFPA7O - latest edition and/or local codes. IN CANADA:
Installation must be in accordance with the current CAN/CGA-B149~1 National Gas
Installation Code or CANICGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian
Electrical Codes Parti and/or local codes.

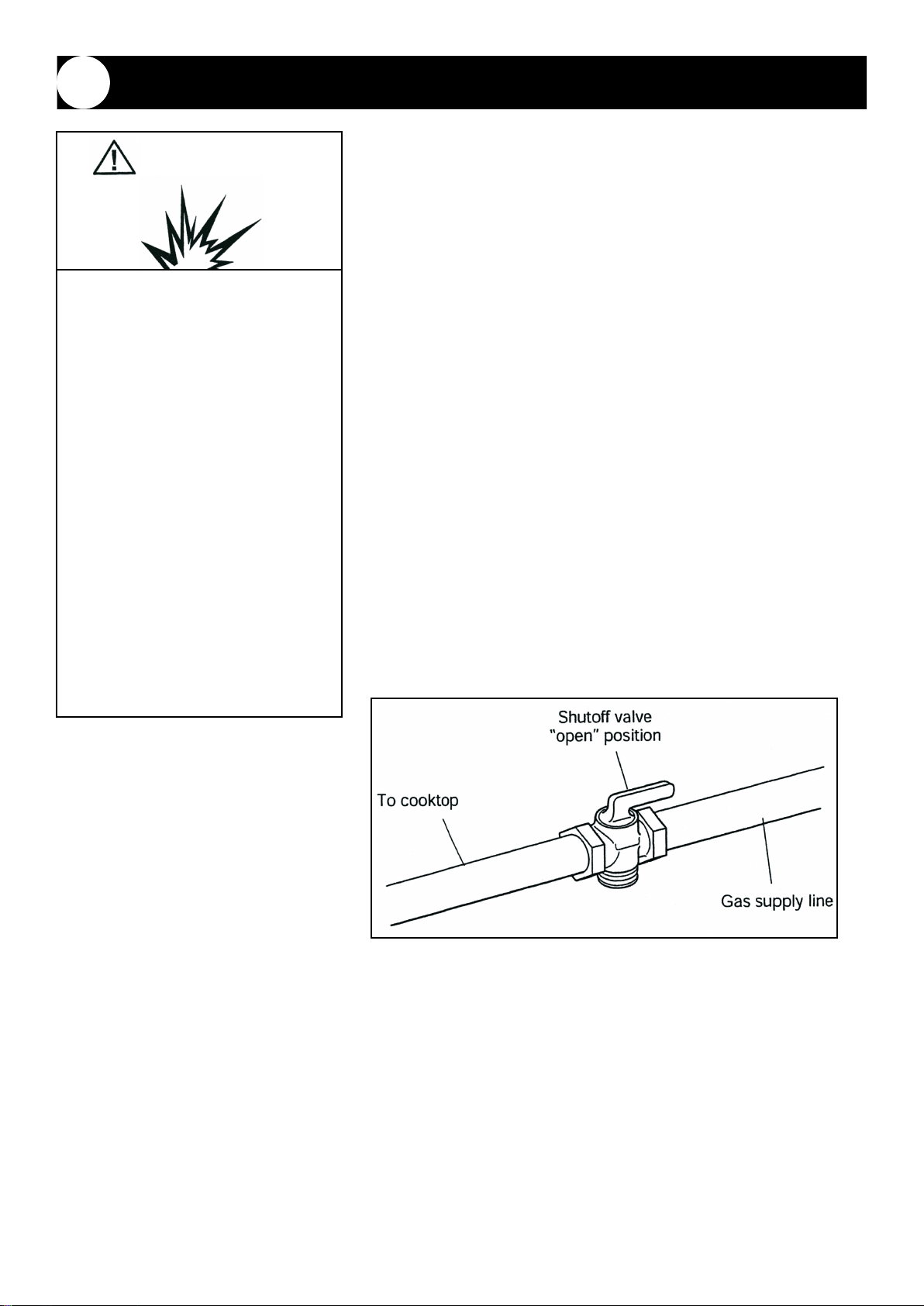

Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual gas
shut-off valve must be installed in the gas supply me ahead of the appliance in the gas stream for
safety and ease of service.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Do not store or use gasoline or other flammable vapors and Iiquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
Installation and service must be performed by a qualified installer, service agency, or the gas sup-
plier.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your buildinq.
• Immediately call your gas supplier from a neighbor’s phone. FoIIow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
√
√
√
√
√
√
√
√
√
√
√
√
√
√
- Eliminare bave e spigoli vivi di lavorazione (UNI EN 292/91)
- (i) = quote importanti ai fini dell'assemblaggio
- Attenzione : le zone in vista devono essere prive di qualsiasi
difettosità che ne pregiudichi l'aspetto estetico.
- Deburr and avoid manufacture's sharp edges (UNI EN 292/91)
- (i) = assembly critical dimensions
- Attention : surface that are indicated as to be in sight have to be
free from any compromising aesthetic defect.
DATA CREAZ. / first issue
MATERIALE / material
DISEGNATO / design by
SPECIFICA / instruction :
MODELLO / series
FIRMA
signature
DATA
date
MODIFICHE / modifications
DENOMINAZIONE / TITLE
CODICE INTERNO / internal reference
SOSTITUISCE / replace :
DERIVATO DAL / variations of :
TOLLERANZE GENERALI / general tolerances
RICHIEDENTE
required by
SCALA GENERALE / global scale DATA ULT. MOD. / last issue
european projection
TUTTE LE QUOTE PRESCINDONO
DAI TRATTA MENTI DI FINITURA
dimensions is intended clear
by any finishing or superficial
treatment
...
riferimento indice di modifica
26/10/2005
MicheleM
26/10/2005
ss.dft
X:X
LUNGHEZZE / lenght
ANGOLI / angular '
FORI / holes
- Eliminare bave e spigoli vivi di lavorazione (UNI EN 292/91)
- (i) = quote importanti ai fini dell'assemblaggio
- Attenzione : le zone in vista devono essere prive di qualsiasi
difettosità che ne pregiudichi l'aspetto estetico.
- Deburr and avoid manufacture's sharp edges (UNI EN 292/91)
- (i) = assembly critical dimensions
- Attention : surface that are indicated as to be in sight have to be
free from any compromi sing aesthetic defect.
DATA CREAZ. / first issue
MATERIALE / material
DISEGNATO / design by
SPECIFICA / instruction :
MODELLO / series
FIRMA
signature
DATA
date
MODIFICHE / modifications
DENOMINAZIONE / TITLE
CODICE INTERNO / internal reference
SOSTITUISCE / replace :
DERIVATO DAL / variations of :
TOLLERANZE GENERALI / general tolerances
RICHIEDENTE
required by
SCALA GENERALE / global scale
DATA ULT. MOD. / last issue
european projection
TUTTE LE QUOTE PRESCINDONO
DAI TRATTAMENTI DI FINITURA
dimensions is intended clear
by any finishing or superfic ial
treatment
...
riferimento indice di modifica
26/10/2005
MicheleM
26/10/2005
ss.dft
X:X
LUNGHEZZE / lenght
ANGOLI / angular '
FORI / holes
WARNING
The appliance should not be installed with a ventilation
system that blows air downward toward the range.
This type of ventilation system may cause ignition and
combustion problems with the gas cooking appliance
resulting in personal injury or unintended operation.
16

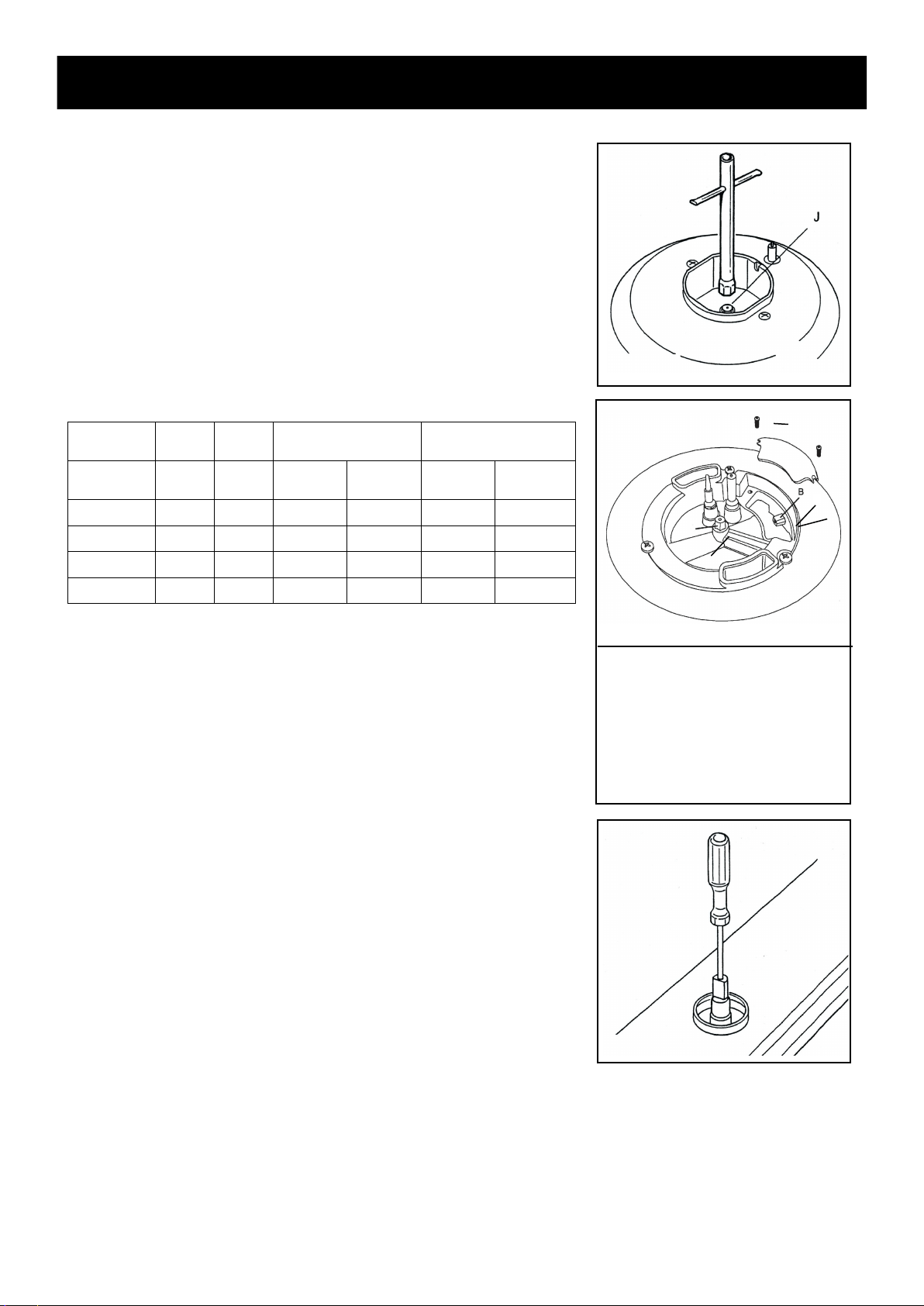

• Remove the gratings, the burner covers and the knobs;
• Using a wrench substitute the nozzle injectors “J” (fig: 5.4 - 5.5)
with those most suitable for the kind of gas for which it is to be
used.
fig. 5.4
When switching from one type of gas to another, the minimum flow
rate must also be correct: the flame should not go out even when
passing suddenly from maximum to minimum flame.
To regulate the ‘flame follow the instructions below:
• Light the burner
• Set the gas valve to minimum
On gas valves provided with adjustment screw in the centre of the
shaft (fig. 5.6) Using a screwdriver with max. diameter 3 mm, turn
the screw inside the tap until the correct setting is obtained.
For LP/PROPANE gas, tighten the adjustment screw completely.
After regulation repeat the operations indicated in paragraph “2.
Pressure regulator” at page 12.
If the cooktop has been disconnected and then connected again to
the gas supply line repeat the operations indicated in paragraph “5.
Leak Testing” at page 14.

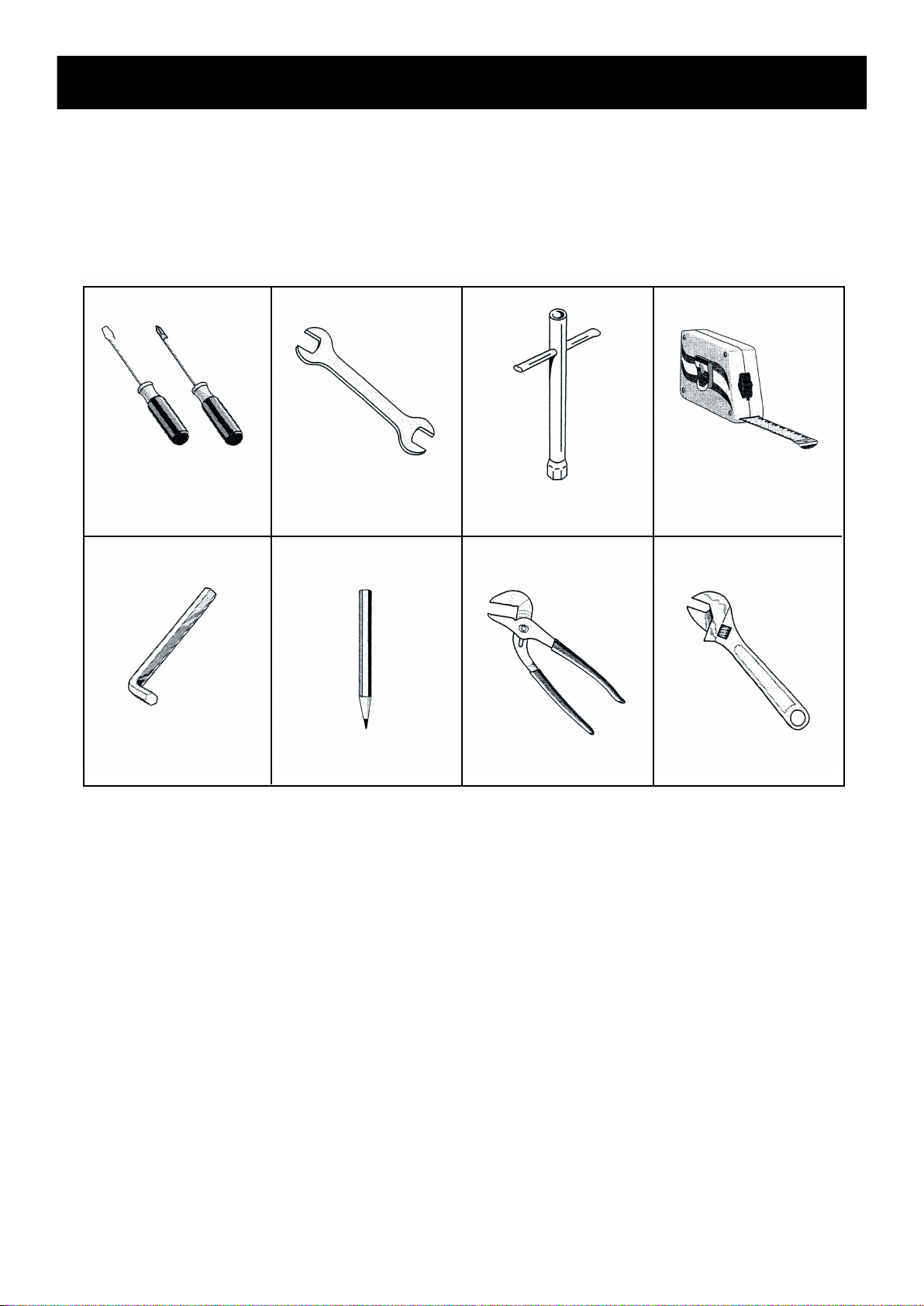

TOOLS NEEDED
A = T-handle wrench
B = wrench
C = screwdriver
A
J
B
J
C
fig. 5.5
fig. 5.
6
Save the orifices removed from the appliance for the future use
— 16 —
