NEC E988 98" Ultra High Definition Commercial Display User Manual

User’s Manual

Large Format Display

MODEL: E988

Please nd your model name on the label on the rear side of the monitor.

Table of Contents

Important Information ��2 Recommended Use & Maintenance ��9

Chapter 1 Installation

Setup Overview ��11

Mounting (for Customer) ��14

Changing the Logo Ornament Position ��14

Mounting (for Trained Installers) ��15

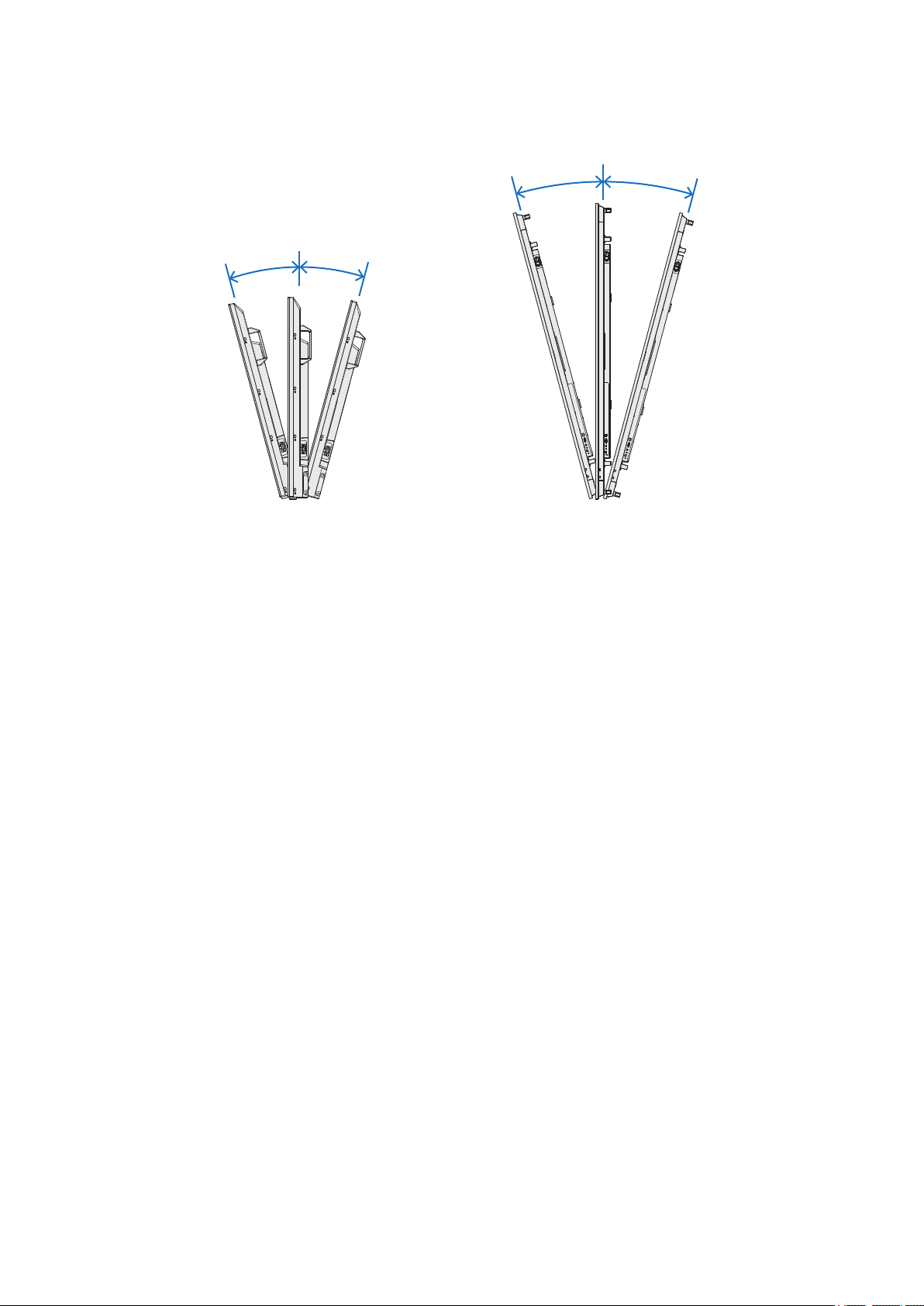

Orientation ��16

Ventilation Requirements ��18

Attaching Mounting Accessories ��19

Installing and Removing the Optional Table Top Stand ��20

Chapter 2 Parts Names and Functions

Control Panel ��22

Terminal Panel �� 23

Wireless Remote Control ��25

Chapter 3 Connections

Wiring Diagram ��27

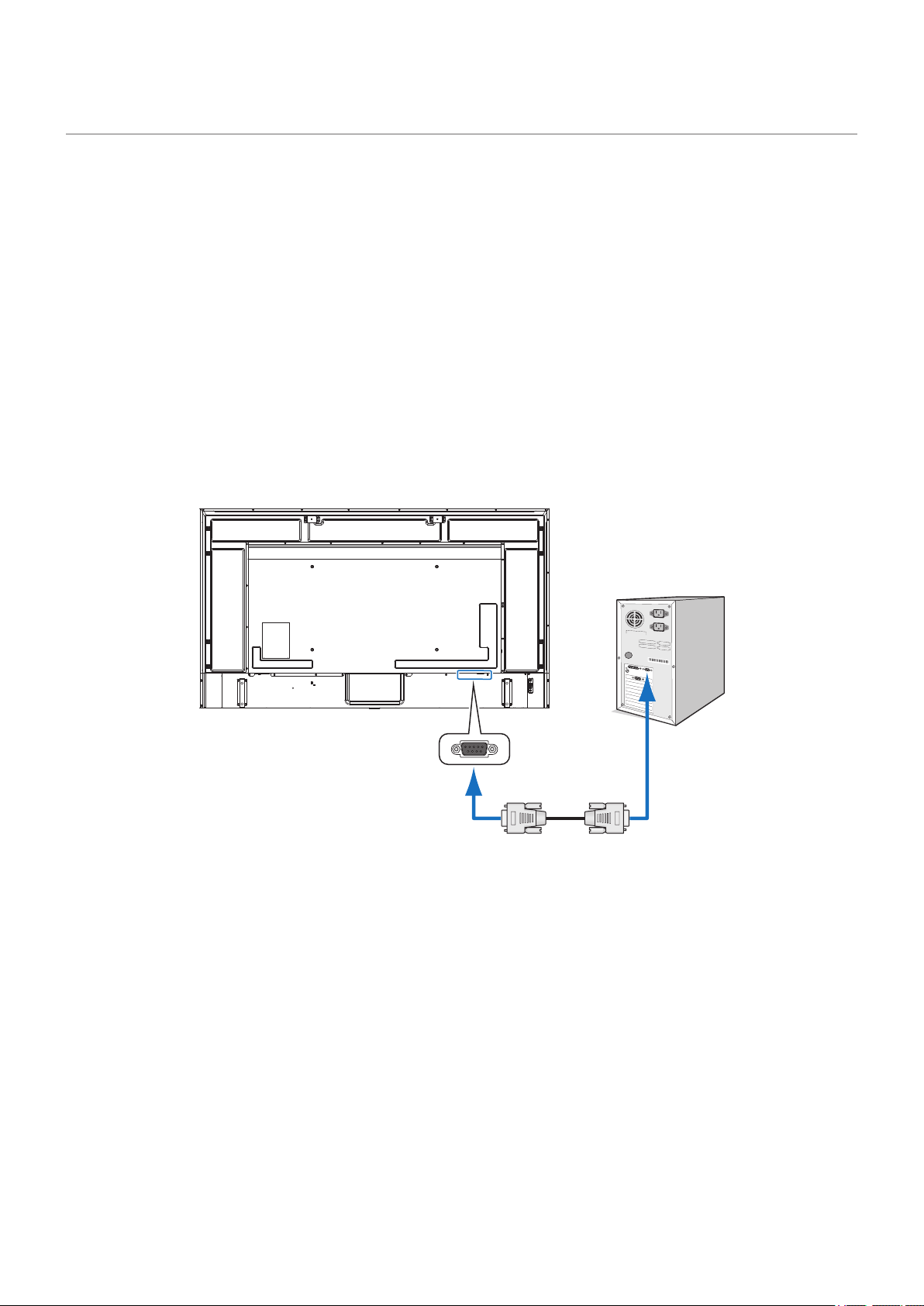

Connecting to a Personal Computer ��28

Connecting to a Media Device with HDMI ��29

HDMI-CEC Command ��30

Internal Video Sources ��31

Media Player ��31

Connecting a USB Device ��31

Chapter 4 Basic Operation

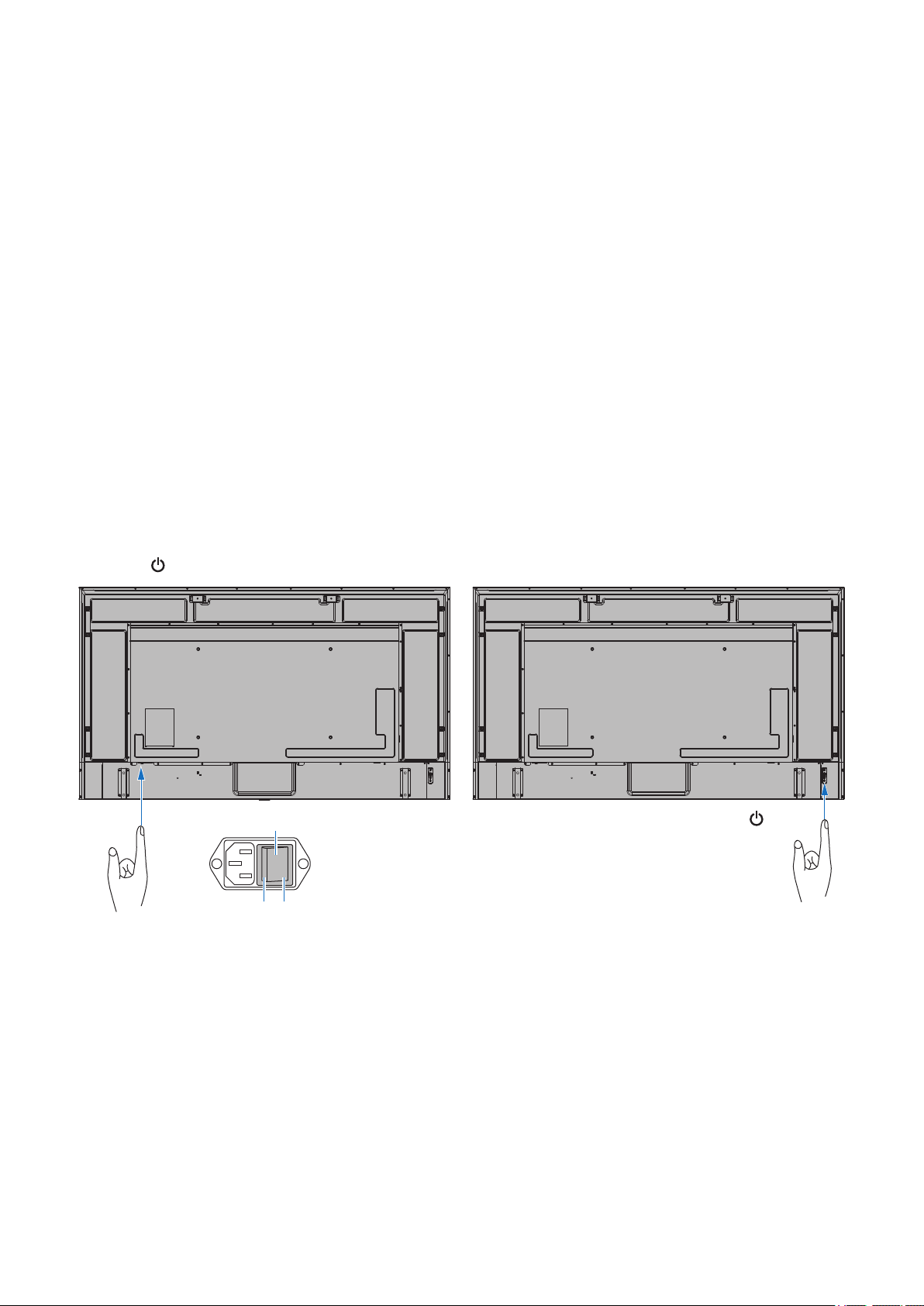

Power On and Off Modes �� 33

Power indicator status ��33

Energy Mode ��33

When [RS-232C] is selected for control, [Power supply]

and [Quick Start] are set to [Off] ��33

When [LAN] is selected for control, [Power supply] and

[Quick Start] are set to [Off] ��34

Operating Range for the Remote Control ��35

Showing the Information OSD ��36

Switching Between Sound Modes ��36

Switching Between Picture Modes �� 36

Setting the Aspect Ratio �� 37

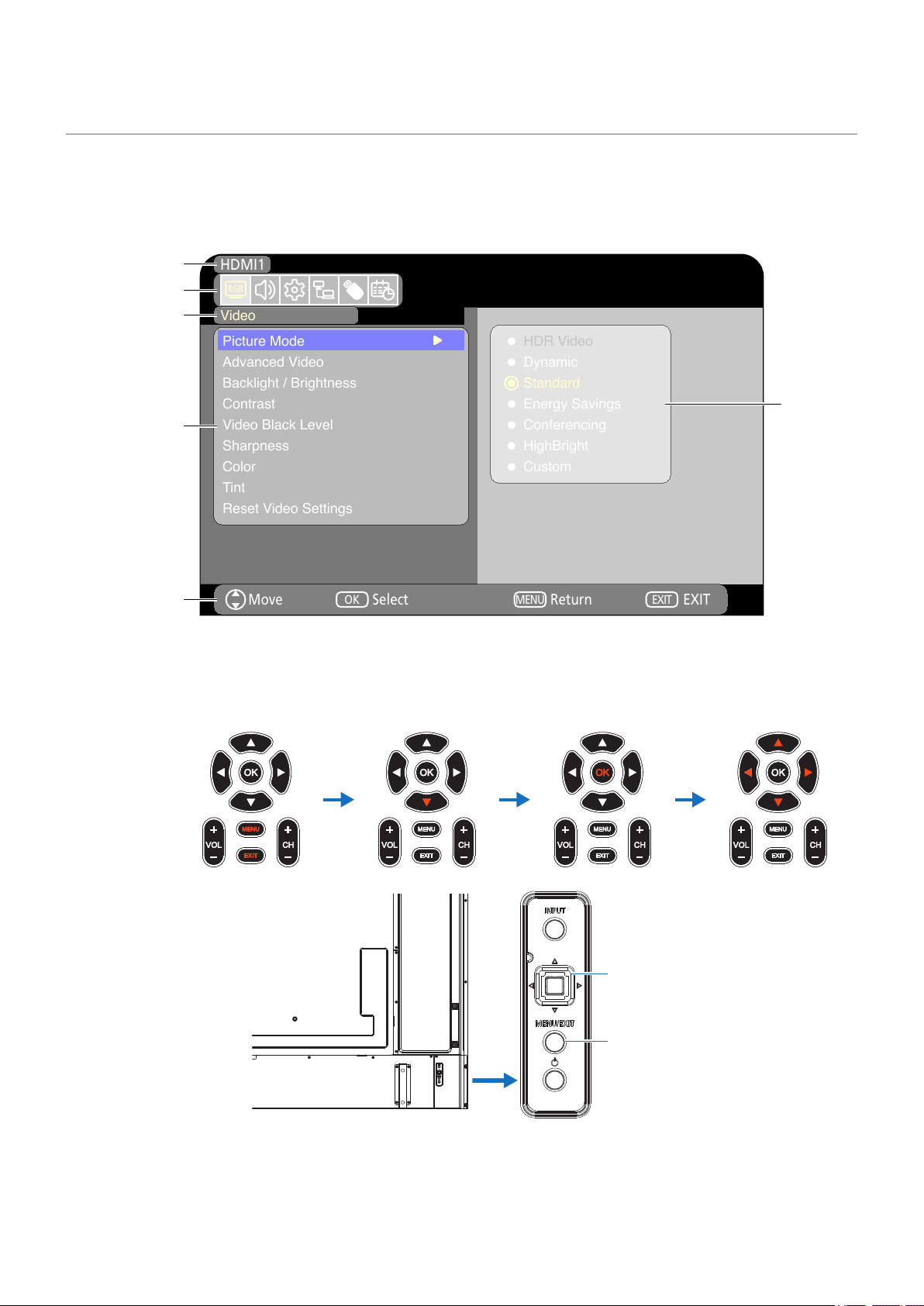

OSD (On-Screen Display) Controls �� 38

Using the Media Player Menu ��40

Chapter 5 Advanced Operation

Creating a Power Schedule ��44

Using Picture Modes ��45

Setting Security and Locking the Monitor Controls ��46

Locking the Button Controls ��47

Chapter 6 External Control

Controlling the Monitor via RS-232C ��50

Controlling the Monitor via LAN ��51

HTTP Browser ��52

Commands ��56

Chapter 7 Troubleshooting

When a problem occurs with the monitor�� 58

Nothing is displayed�� 58

The image is not displayed correctly�� 59

An instruction or caution screen is displayed�� 60

Others (when connected to a computer) ��60

Others (remote control, speakers) ��60

Others (when connected via RS-232C or LAN) ��61

When using a media player ��61

When using a video device ��61

Chapter 8 Specications

Compatible Signal List ��63 E988 ��64

Appendix A Trademark and Software License

Appendix B External Resources

Appendix C OSD Controls List

Video Settings ��68

Audio Settings ��70

Setup ��71

Control Settings ��73

Media Player ��74

Schedule ��75

Appendix D Manufacturer’s Recycling and Energy Information

Disposing of your old NEC product ��77

Energy Saving ��77

About Conversion Cables Used with the AV Terminal ��79

NOTE (1) The contents of this manual may not be reprinted in part or whole without permission.

(2) The contents of this manual are subject to change without notice.

(3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points, errors or omissions,

please contact us.

(4) The image shown in this manual is indicative only. If there is inconsistency between the image and the actual product, the actual product

shall govern.

(5) Notwithstanding articles (3) and (4), we will not be responsible for any claims on loss of prot or other matters deemed to result from using

this device.

(6) This manual is commonly provided to all regions so they may contain descriptions that are pertinent for other countries.

English - 1

Cable Information

CAUTION:  Use the provided specied cables with this product so as not to interfere with radio and television reception.

For mini D-Sub 15-pin and USB, use shielded signal cables with ferrite core.

For the HDMI and AV cables, use shielded signal cables.

The use of other types of cables and adapters may cause reception problems.

FCC Information

WARNING The Federal Communications Commission does not allow any modications or changes to the unit EXCEPT those specied by Sharp NEC

Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.

The user may nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV

Interference Problems.” This booklet is available from the U.S. Government Printing Ofce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

SUPPLIER’S DECLARATION OF CONFORMITY

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party Sharp NEC Display Solutions of America, Inc.

Address 3250 Lacey Rd, Ste 500

Downers Grove, IL 60515

Tel. No. (630) 467-3000

Type of Product: LCD Monitor

Equipment Classication: Class B Peripheral

Model: E988

• The intended primary use of this product is as an Information Technical Equipment in an ofce or domestic environment.

• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.

(For Customers in U.K.)

IMPORTANT

• The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW “Earth”

BLUE “Neutral”

BROWN “Live”

• As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the

terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E

or by the safety earth symbol or coloured green or green-and-yellow.

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

• Ensure that your equipment is connected correctly. If you are in any doubt consult a qualied electrician.

“WARNING THIS APPARATUS MUST BE EARTHED.”

English - 2

Important Information

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND

USING THE LCD COLOR MONITOR:

About the Symbols

To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well

as damage to property. The symbols and their meanings are described below. Be sure to understand them thoroughly before

reading this manual.

WARNING

Failing to heed this symbol and handling the product incorrectly could result in accidents

leading to major injury or death.

CAUTION

Failing to heed this symbol and handling the product incorrectly could result in personal

injury or damage to surrounding property.

Examples of symbols

This symbol indicates a warning or caution.

This symbol indicates a prohibited action.

This symbol indicates a mandatory action.

WARNING

UNPLUG THE

POWER CORD

Unplug the power cord if the product malfunctions.

Should the product emit smoke or strange odors or sounds, or if the product has been dropped

or the cabinet broken, turn off the product’s power, then unplug the power cord from the power

outlet. Contact your dealer for repairs.

Never try to repair the product on your own. Doing so is dangerous.

DO NOT MODIFY

Do not open or remove the product’s cabinet.

Do not disassemble the product.

There are high voltage areas in the product. Opening or removing product covers and modifying

the product may expose you to electric shock, re, or other risks.

Refer all servicing to qualied service personnel.

PROHIBITED

Do not use the product if it has structural damage.

If you notice any structural damage such as cracks or unnatural wobbling, please refer servicing

to qualied service personnel. If the product is used in this condition, the product may fall or cause

personal injury.

English - 3

WARNING

Handling the power cord.

PROHIBITED

Do not scratch or modify the cord.

• Do not place heavy objects on the cord.

• Do not let the weight of the product rest on the cord.

• Do not cover the cord with a rug, etc.

• Do not bend, twist or pull the cord with excessive force.

• Do not apply heat to the cord.

Handle the power cord with care. Damaging the cord could lead to re or electric shock. If the

cord gets damaged (exposed core wires, broken wires, etc.), turn off the product’s power, then

unplug the power cord from the power outlet. Ask your dealer to replace it.

DO NOT TOUCH

Do not touch the power plug if you hear thunder.

Doing so could result in electric shock.

DO NOT TOUCH

WITH WET HANDS

Do not connect or disconnect the power cord with wet hands.

It may cause an electric shock.

REQUIRED

Please use the power cord provided with this product in accordance with the power cord table.

Do not exceed the product's specied power supply voltage where it is installed. Doing so could

result in a re or electric shock. Please refer to the power supply voltage information in the

specication.

If a power cord is not supplied with this product, please contact us. For all other cases, please use

the power cord with the plug style that matches the power socket where the product is located.

The compatible power cord corresponds to the AC voltage of the power outlet and has been

approved by, and complies with, the safety standards in the country of purchase.

MUST BE

EARTHED

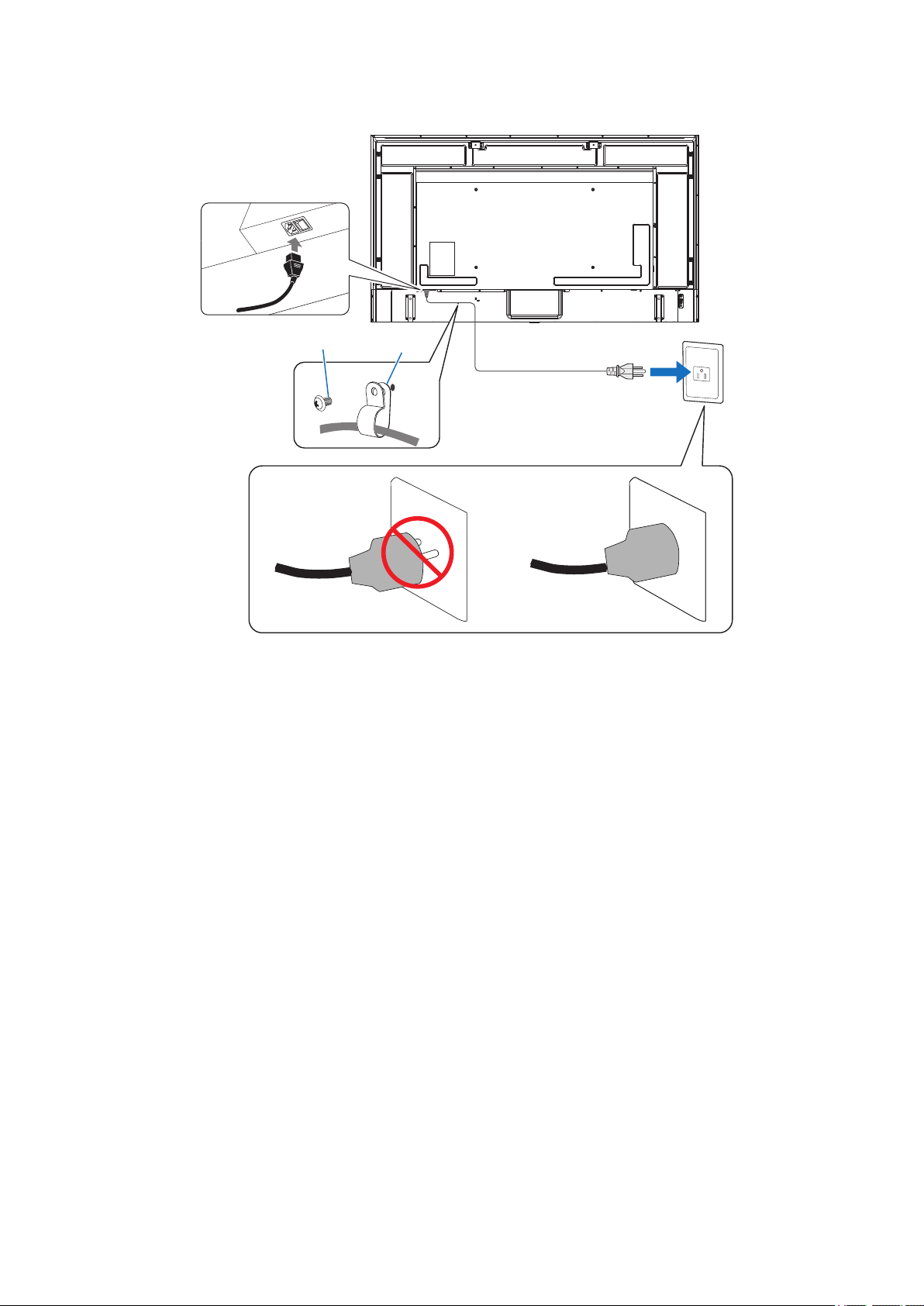

This equipment is designed to be used in the condition of the power cord connected to the earth.

If the power cord is not connected to the earth, it may cause electric shock. Please make sure the

power cord is connected to the wall outlet directly and earthed properly. Do not use a 2-pin plug

converter adapter.

REQUIRED

For proper installation it is strongly recommended to use a trained service person.

Failure to follow the standard installation procedures could result in damage to the product or

injury to the user or installer.

REQUIRED

Please install the product in accordance with the following information.

This product cannot be used or installed without the table top stand or other mounting accessory

for support.

When transporting, moving, or installing the product, please use as many people as necessary

(at least four) to be able to lift the product by the four handles without causing personal injury or

damage to the product.

• In order to install the monitor on ceiling or wall, use a lifting device attached to the eyebolts.

Do not lift the product only by people. The product may fall causing personal injury.

• DO NOT use this product on the oor with the table top stand. Please use this product on a

table or with a mounting accessory for support.

Please refer to the instructions included with the optional mounting equipment for detailed

information about attaching or removing.

Do not cover the vent on the product. Improper installation of the product may result in damage to

the product, an electric shock or re.

Do not install the product in the locations below:

• Poorly ventilated spaces.

• Near a radiator, other heat sources, or in direct sunshine.

• Continual vibration areas.

• Humid, dusty, steamy, or oily areas.

English - 4

WARNING

REQUIRED

• An environment where there are corrosive gases (sulfur dioxide, hydrogen sulde, nitrogen

dioxide, chlorine, ammonia, ozone, etc.).

• Outdoors.

• High-temperature environment where humidity changes rapidly and condensation is likely to

occur.

• A ceiling or wall that is not strong enough to support the product and mounting accessories.

Do not mount the product upside down.

REQUIRED

Prevent tipping and falling for earthquakes or other shocks.

To prevent personal injury or damage to the product caused by tipping over due to earthquakes or

other shocks, make sure to install the product in a stable location and take measures to prevent

falling.

The measures to prevent falling and tipping are intended for reducing the risk of injury, but may

not guarantee the effectiveness against all earthquakes.

The product may tip causing personal

injury.

• When using the product with the

optional table top stand, fasten the

product to a wall using a cord or chain

that can support the weight of the

product in order to prevent the product

from falling.

Depending on the table top stand, the

stand has the structure for preventing

tipping.

Please refer to the table top stand

manual.

• Be sure to remove the cord or chain

from the wall before moving the

product to prevent personal injury or

damage to the product.

Cord or chain

Clamp

Screw (M4)

Screw Holes

The product may fall causing personal injury.

• Do not attempt to hang the product using an installation safety wire.

• Please install the product in an area on the wall or ceiling strong enough to support the

weight of the product.

• Prepare the product using mounting accessories, such as hook, eyebolt, or mounting parts,

and then secure the product with a safety wire. The safety wire must not be tight.

• Please make sure the mounting accessories are strong enough to support the product

weight and size before installing it.

Stability Hazard.

The product may fall, causing serious personal injury or death. To prevent injury, this product must

be securely attached to the oor/wall in accordance with the installation instructions.

Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use stands or installation methods recommended by the manufacturer of the

product set.

• ALWAYS use furniture that can safely support the product.

• ALWAYS ensure the product is not overhanging the edge of the supporting furniture.

• ALWAYS educate children about the dangers of climbing on furniture to reach the product or

its controls.

English - 5

WARNING

REQUIRED

• ALWAYS route cords and cables connected to your product so they cannot be tripped over,

pulled or grabbed.

• NEVER place a product in an unstable location.

• NEVER place the product on tall furniture (for example, cupboards or bookcases) without

anchoring both the furniture and the product to a suitable support.

• NEVER place the product on cloth or other materials that may be located between the

product and supporting furniture.

• NEVER place items that might tempt children to climb, such as toys and remote controls, on

the top of the product or furniture on which the product is placed.

If the existing product is going to be retained and relocated, the same considerations as above

should be applied.

PROHIBITED

Do not place this product on a sloping or unstable cart, stand or table. Doing so could lead to

falling or tipping and cause personal injury.

PROHIBITED

Do not insert objects of any kind into the cabinet slots. It may cause electric shock, re, or product

failure. Keep objects away from children and babies.

If objects get into the cabinet slot, turn off the product’s power, then unplug the power cord from

the power outlet. Contact your dealer for repairs.

DO NOT WET

Do not spill any liquids into the cabinet or use your product near water.

Immediately turn off the power and unplug your product from the wall outlet, then refer servicing to

qualied service personnel. It may cause an electric shock or start a re.

Do not install the product under equipment that discharges water, such as air conditioners.

PROHIBITED

Do not use ammable gas sprays to remove dust when cleaning the product. Doing so could lead

to a re.

PROHIBITED

Usage of the product must not be accompanied by fatal risks or dangers that, could lead directly

to death, personal injury, severe physical damage or other loss, including nuclear reaction control

in nuclear facility, medical life support system, and missile launch control in a weapon system.

English - 6

CAUTION

Handling the power cord.

REQUIRED

The monitor should be installed close to an easily accessible power outlet.

REQUIRED

When connecting the power cord to the product’s AC IN terminal, make sure the connector is fully

and rmly inserted.

An incomplete connection of the power cord may cause overheating of the plug; it allows dust to

get on the plug connection, which can lead to a re. Touching the pins of a partially inserted plug

may lead to an electric shock. Fasten the power cord to the product by attaching the screw and

clamp to prevent loose connection. (Recommended Fasten Force: 120 - 190 N • cm).

REQUIRED

Handling the power cord by following below to avoid re or electric shock.

• When connecting or disconnecting the power cord, pull the power cord out by holding onto its

plug.

• Unplug the power cord from the power outlet before cleaning the product or when not planning

to use the product for an extended time.

• When the power cord or plug is heat or damaged, unplug the power cord from the power outlet,

and contact a qualied service person.

REQUIRED

Regularly dust off the power cord by using a soft dry cloth.

REQUIRED

Before moving the product, make sure the product power is off, then unplug the power cord

from the power outlet and check that all cables connecting the product to other devices are

disconnected.

PROHIBITED

Do not use the power cord with a power tap.

Adding an extension cord may lead to re as a result of overheating.

PROHIBITED

Do not bind the power cord and the USB cable.

It may trap heat and cause a re.

PROHIBITED

Do not connect to a LAN with excessive voltage.

When using a LAN cable, do not connect to a peripheral device with wiring that might have

excessive voltage. Excessive voltage on the LAN port may cause an electric shock.

PROHIBITED

Do not climb on the table where the product is installed. Do not install the product on a wheeled

table if the wheels on the table have not been properly locked. The product may fall, causing

damage to the product or personal injury.

REQUIRED

Installation, removal, and height adjustment of the optional table top stand.

• When installing the table top stand, handle the unit with care to avoid pinching your ngers.

• Installing the product at the wrong height can cause tipping.

Please install your product at proper height to prevent personal injury or damage to the product.

PROHIBITED

Do not push or climb on the product. Do not grab or hang onto the product. Do not rub or tap the

product with hard objects. The product may fall, causing damage to the product or personal injury.

PROHIBITED

Do not hit or strike the screen.

Do not push against the screen with a pointed object.

It can cause serious damage to the product or personal injury.

English - 7

CAUTION

REQUIRED

Incorrect usage of batteries can result in leaks or bursting.

• Use the specied batteries only.

• Insert batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the

battery compartment.

• Do not mix battery brands.

• Do not combine new and old batteries. This can shorten battery life or cause liquid leakage of

batteries.

• Remove dead batteries immediately to prevent battery acid from leaking into the battery

compartment.

If leaked battery uid gets on your skin or clothing, rinse immediately and thoroughly. If it gets

into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately.

Leaked battery uid that gets into your eye or your clothing may cause a skin irritation or

damage your eye.

• If you will not use the remote control for a long time, remove the batteries.

• Leaving a battery in an extremely high temperature surrounding environment, or a battery

subject to extremely low air pressure, that can result in an explosion or the leakage of

ammable liquid or gas.

• Properly dispose of depleted batteries. Disposal of a battery into water, re, or a hot oven, or

mechanically crushing, cutting, or modifying a battery can result in an explosion.

• Do not short-circuit the batteries.

• Do not charge the batteries. The batteries provided are not rechargeable.

• Contact your dealer or local authorities when disposing of batteries.

PROHIBITED

Do not stay in contact with the parts of the product that become hot for long periods of time. Doing

so may result in low-temperature burns.

REQUIRED

Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing

reections from the screen.

REQUIRED

We recommend wiping clean the ventilation holes a minimum of once a month. Failure to do so

could lead to re or electric shock or damage to the product.

REQUIRED

To ensure the product’s reliability, please clean the ventilation holes at the rear side of the cabinet

at least once a year to remove dirt and dust. Failure to do so could lead to re or electric shock or

damage to the product.

REQUIRED

Avoid locations with extreme temperatures and humidity. Failure to do so could lead to re or

electric shock or damage to the product. The usage environment for this product is as follows:

• The operating temperature: 0 °C to 40 °C/32 °F to 104 °F/

humidity: 20 to 80% (without condensation)

• The storage temperature: -20 °C to 60 °C/-4 °F to 140 °F/

humidity: 10 to 90% (without condensation)

English - 8

Plug Type North America European Continental U.K. Japanese

Plug Shape

Region

U.S.A./Canada EU (except U.K.) U.K. Japan

Voltage (V)

120* 230 230 100

* Please use this power cord under 125 V power supply.

NOTE:  This product can only be serviced in the country where it was purchased.

This display operates on 100-240 volts 50-60 Hz, AC current. Insert the power cord into a 100-240 volts 50-60 Hz outlet. The

mains plug is used as the disconnect device and shall remain readily operable.

English - 9

Recommended Use & Maintenance

Recommended Use

Ergonomics

To realize the maximum ergonomic benets, we recommend the following:

• For optimum performance of the monitor, allow 20 minutes for warming up. Avoid reproduction of still patterns on the monitor

for long periods of time to avoid image persistence (after image effects).

• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reections.

• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.

• Get regular eye checkups.

• Use the preset Size and Position controls with standard input signals.

• Use the preset color settings.

• Use non-interlaced signals.

• Do not view the primary color blue on a dark background. It is difcult to see and may cause eye fatigue due to insufcient

contrast.

Maintenance

Cleaning the LCD Screen

• When the LCD screen is dusty, please gently wipe with a soft cloth.

• Clean the LCD screen surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Please do not rub the LCD screen with a hard or abrasive material.

• Please do not apply pressure to the LCD screen surface.

• Please do not use OA cleaner as it will cause deterioration or discoloration on the LCD screen surface.

Cleaning the Cabinet

• Unplug the power supply.

• Gently wipe the cabinet with a soft cloth.

• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE:  DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner,

soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time.

These types of uids and materials can cause the paint to deteriorate, crack or peel.

English - 10

Chapter 1 Installation

This Chapter Includes

"Setup Overview" on page 11

"Mounting (for Customer)" on page 14

"Changing the Logo Ornament Position" on page 14

"Mounting (for Trained Installers)" on page 15

"Orientation" on page 16

"Ventilation Requirements" on page 18

"Attaching Mounting Accessories" on page 19

"Installing and Removing the Optional Table Top Stand" on page 20

Please read "Important Information" carefully before installation.

NOTE: 

For box contents, please refer to the Setup Manual.

Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations

could result in voiding the warranty.

English - 11

Setup Overview

1. Determine the installation location

NOTE To avoid scratching the LCD panel, always place a soft cloth, such as a blanket that is larger than the monitor’s

screen area, on the table before laying the monitor face down when installing the monitor stand or mounting

accessories.

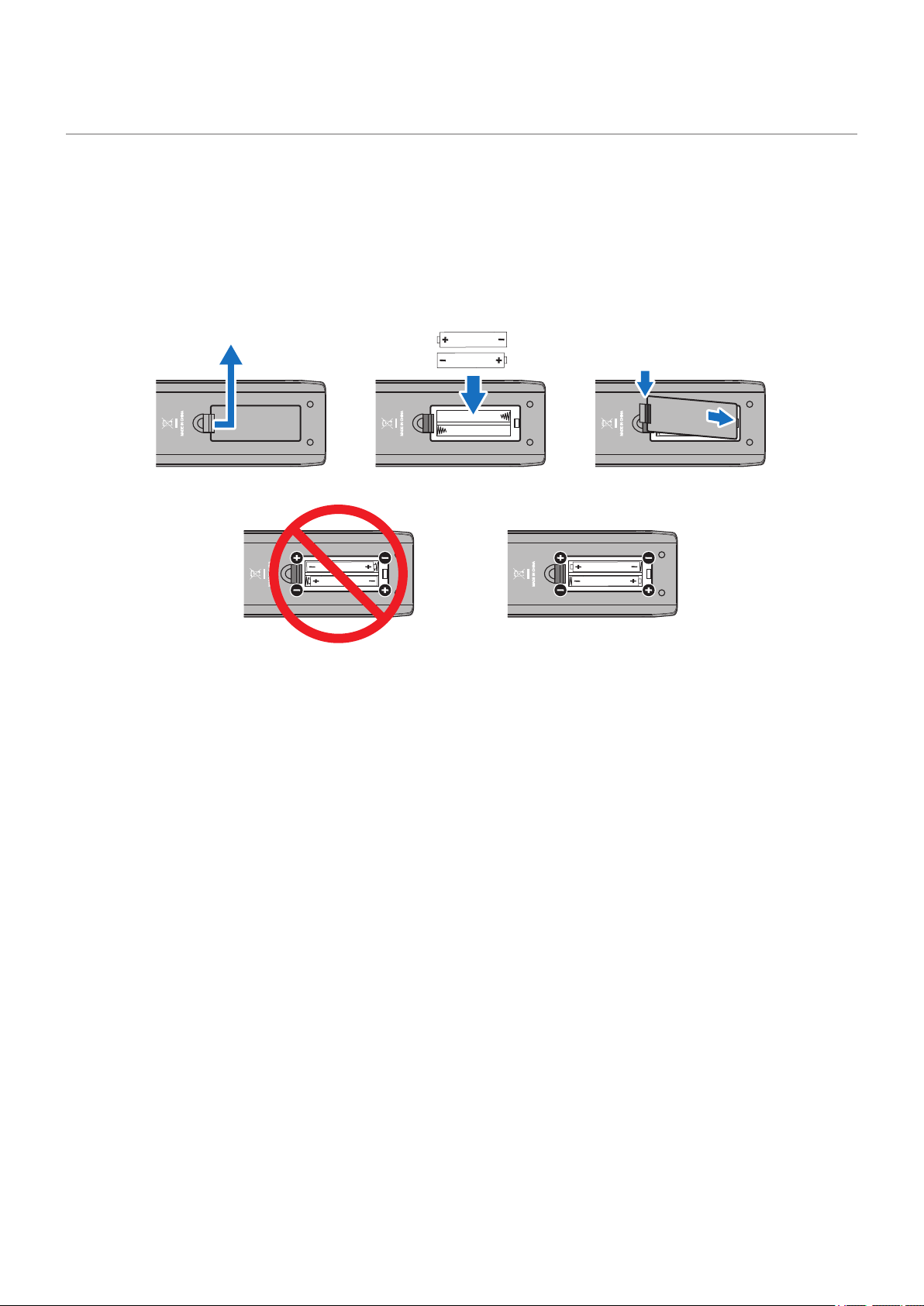

2. Install the remote control batteries

The remote control is powered by two 1.5 V AAA batteries.

To install or replace batteries:

NOTE • The batteries supplied with the remote control may become empty quickly depending on their condition.

Therefore, replace them with new batteries early.

• If you do not intend to use the remote control for a long period of time, remove the batteries.

• Use manganese or alkaline batteries only.

3. Connect external equipment

• To protect the external equipment, turn off the main power before making connections.

• Refer to the user’s manual of your equipment for further information.

NOTE Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in

loss of image.

English - 12

4. Connect the supplied power cord

Screw Clamp

5. Cable information

CAUTION Use the provided specied cables with this product so as not to interfere with radio and television reception.

For mini D-Sub 15-pin and USB, use shielded signal cables with ferrite core.

For the HDMI and AV cables, use shielded signal cables.

The use of other types of cables and adapters may cause reception problems.

6. Turn the power button on

Switch on the monitor power before turning the computer or external equipment on.

7. Operate the connected external equipment

Select the input source for the monitor to display the video from the external equipment on the screen.

8. Adjust the sound

Make volume adjustments when required.

9. Adjust the picture settings

When using an HDMI input terminal, select the appropriate setting between [Mode 0], [Mode 1], and [Mode 2] in [EDID]

under [HDMI Settings] in the [Setup] OSD menu.

English - 13

10. Recommended adjustments

The backlight used for this monitor has a limited life and its brightness decreases with the usage time.

Also, if the same still image is shown for a long time, “Image Persistence” may occur. “Image Persistence” is a phenomenon

in which the image of an LCD remains visible after the image has changed.

The “Image Persistence” is gradually eliminated by changing the screen, but if the same screen is shown for too long, the

“Image Persistence” will not disappear.

To avoid shortening the monitor’s lifetime, consider the following:

• Turn off the monitor's main power switch when not in use.

• Use the

button on the main unit or the button on the remote control to put the monitor in standby mode.

• If using a cover made of glass or acrylic to protect the panel surface of the main unit, the panel is sealed and the internal

temperature rises.

Reduce the monitor's brightness to prevent the internal temperature from rising. If the monitor is connected to a computer,

use the computer's power management function to control the monitor's automatic power off.

• Use [Schedule] in the OSD menu to automatically control the monitor's on and standby power states as required.

NOTE When using the schedule function, set [Current Time settings] in the [Schedule] OSD menu.

English - 14

Mounting (for Customer)

Contact your supplier as they may be able to provide a list of qualied installation professionals. Mounting the product on a wall

or ceiling and hiring a technician are the customer’s responsibility.

Maintenance

• Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting equipment. If a

problem is detected, refer to a qualied personnel or the supplier for service.

• Depending on the environment, the mounting location may weaken due to natural degradation. Regularly ask a qualied

personnel to inspect the mounting location and carry out maintenance.

Changing the Logo Ornament Position

When using the monitor in the portrait position, the logo ornament position can be changed.

Removing the logo ornament Unscrew the installed screw then take off the logo ornament.

Attaching the logo ornament Make sure the holes for the screws on the logo ornament and the holes for the

screws on the bezel are aligned. Reattach the logo ornament with the same screws that were removed when taking

the logo ornament off the product for repositioning. (Recommended Fasten Force: 30-40 N•cm).

NOTE:  Do not use any other screw to install the logo ornament.

Screw hole

Screw

English - 15

Mounting (for Trained Installers)

Carefully inspect the location where the unit is to be mounted. Not all walls or ceilings are capable of supporting the weight of

the monitor.

The weight of this monitor is provided in the specications (see "E988" on page 64).

The product warranty does not cover damage caused by improper installation, re-modeling, or natural disasters.

Failure to comply with these recommendations could result in voiding the warranty.

To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation

location.

Allow for adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the

monitor and from the mounting equipment.

Mounting bracket

Please note the following when mounting on a wall or ceiling:

• We recommend mounting interfaces that comply with UL1678 standard in North

America.

• For detailed information, refer to the instructions included with the mounting

equipment.

We strongly recommend using the screws as shown below.

If using screws longer than specied below, check the specications for the

depth of the bracket hole.

Screw Size Bracket Hole No Thread

Recommended Fasten Force

(A) (B) (C) (D)

M8 (4 pcs) 16-18 mm ≤ Ø 12 mm 6 mm 950-1600 N•cm

NOTE When used in a video wall conguration for a long time, a slight expansion of the monitors may happen due to

temperature changes. It is recommended that a gap of over one millimeter is kept between adjacent monitor

edges.

> 1.0 mm

Screw (A)

Monitor

Diameter (C)

Gap

Washers

Mounting

bracket

No thread (D)

Thickness of

the bracket

and washers

(B)

English - 16

Installing a safety wire

When installing the monitor to a wall or a ceiling, use commercially-available wall or ceiling mounting brackets, but also a safety

wire.

NOTE When installing, do not apply pressure to the LCD panel or excessive force to any part of the monitor by pushing or

leaning on it. This may cause the monitor to become distorted or damaged.

Possible locations for the handles used to attach the safety wire

Attach the safety wire to the handles shown in the gure below.

Solid line

Handle for safety wire in landscape position.

Dotted line

Handle for safety wire in portrait position.

Orientation

• When using the monitor in the portrait position, it should be rotated counterclockwise so that the right side is moved to the

top and the left side is moved to the bottom. Improper ventilation may shorten the lifetime of the monitor.

NOTE The OSD menu is always shown in the landscape orientation.

Power Indicator

• It cannot be installed upside down.

English - 17

The monitor cannot be used when inclined 16° or more.

NOTE Installing the monitor at an angle of 16° or more may cause a malfunction.

Within 15°

English - 18

Ventilation Requirements

When mounting the monitor in an enclosed space or recessed area, leave adequate room between the monitor and the

enclosure to allow heat to disperse, as shown below.

< 40°C

≥ 100 mm

≥ 30 mm

NOTE The maximum environmental operating temperature of the monitor is 40°C.

This monitor has internal temperature sensors.

NOTE If the monitor overheats, a “Warning” appears. If a “Warning” appears, stop using the monitor, turn off the power

and allow it to cool.

For more information on this function, see “Thermal Management” (

page 72).

If the monitor is used in an enclosed area or if the LCD panel is covered with an acrylic protective sheet, check the

temperature around the monitor.

English - 19

Attaching Mounting Accessories

Be careful to avoid tipping the monitor when attaching accessories.

1. Attach eyebolts for mounting

This model is equipped with pre-installed eyebolt brackets for attaching eyebolts (not included) to aid in mounting.

• Screw the eyebolts into the eyebolt holes in the eyebolt brackets as shown in the picture.

• Be sure the eyebolts are secure.

• Do not mount the monitor using only the eyebolts. Eyebolts are for temporary use only.

• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some

materials such as plaster / thin plastic board / wood before starting installation.

This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.

Install by the most suitable method for the material and the structure.

M10

2. Attach Mounting Accessories

Be careful to avoid tipping the monitor when attaching accessories.

Mounting Interface (M8)

600 mm

400 mm

Mounting accessories can be attached with the monitor in the face down position. To avoid scratching the LCD panel, always

place a soft cloth, such as a blanket that is larger than the monitor’s screen area, on the table before laying the monitor face

down. Make sure there is nothing on the table that can damage the monitor.

NOTE Prior to installation, place the monitor face down on a at even surface that is larger than the monitor screen.

Use a sturdy table that can easily support the weight of the monitor.

English - 20

Installing and Removing the Optional Table Top Stand

For installation, follow the instructions included with the stand or mounting equipment. Use only those devices recommended by

the manufacturer.

NOTE:  • Use the ST-801.

• ONLY use screws which are included with the optional table top stand.

Install the stand so the long end of the feet face forward.

• The monitor can only be used in the landscape orientation with the tabletop stand.

Optional table top stand

Table

Soft cloth

English - 21

Chapter 2 Parts Names and Functions

This Chapter Includes

"Control Panel" on page 22

"Terminal Panel" on page 23

"Wireless Remote Control" on page 25

English - 22

Control Panel

7 8

Central

Button (power button)

Switches between power on and standby. See

page 34.

MENU/EXIT Button

Opens the OSD menu when the OSD menu is closed.

Acts as a back button within the OSD menu to move to the

previous OSD menu.

Acts as an exit button to close the OSD menu when on the

main menu.

Multi-direction Key/Central Button*

v/w: Left/Right control.

• Navigates to the left or right through the OSD Control

menus.

• Increases or decreases adjustments for individual OSD

settings.

• Directly adjusts the VOLUME when the OSD menu is

closed.

s/r: Up/Down control.

• Navigates up or down through the OSD Control menus.

Central: (button press)

• Selects, or sets the setting for, the highlighted function in

the OSD menu.

*1: The v, w, r and s functions change according to the monitor orientation

(landscape/portrait).

INPUT Button

INPUT: Cycles through the available inputs when the OSD

menu is closed.

[HDMI1], [HDMI2], [HDMI3], [VGA(RGB)]/[VGA(YPbPr)],

[AV], [Media Player]. Input names are shown as their factory

preset name.

Security Slot

Security and theft protection lock slot compatible with

Kensington security cables/equipment.

NOTE For products, visit Kensington’s website.

Power Indicator

• Normal operation (On mode): Lit blue*

• Auto power save mode: Blinking red

• Auto standby mode: Lit red

• Turn off the monitor by the remote control: Glowing red

*2: If [Off] is selected under the [LED indicator] in the [Other settings] of the

[Setup] menu, the LED will not glow when the monitor is in active mode.

See

page 72.

Remote Control Sensor

Receives the signal from the remote control (when using the

wireless remote control). See

page 35.

Ambient light sensor

Detects the level of ambient light, allowing the monitor

to make automatic adjustments to the backlight setting,

resulting in a more comfortable viewing experience. Do not

cover this sensor. See

page 69.

English - 23

Terminal Panel

LAN

AC IN

MAIN

POWER

HDMI 1 HDMI 2 HDMI 3

VGA

AUDIO IN

USB

RS-232C

AUDIO OUT SPDIF OUT AV IN

POWER

SUPPLY

OUT

1 2

4 5 6 7 8

AC IN Connector

Connects with the supplied power cord.

Main Power Switch

On/Off switch to turn main power ON/OFF.

LAN port (RJ-45)

Use the HTTP server function and a Web browser on a

computer to manage the LAN settings of the monitor.

NOTE The LAN port of the monitor is not intended

to be connected directly to a public network

(including via routers rented by an Internet

service provider). This is the reason why

connecting the wired LAN port directly to a

public network is forbidden according to the

Telecommunications Business Act.

RS-232C input terminal (D-sub)

For connection to a computer. Receives control commands

from the computer.

USB Type-C port (power supply 5 V/ 3 A)

Check the shape of the connectors when connecting a USB

cable. When supplying power via the USB Type-C

port, use

a USB cable supporting 3 A.

Do not tie the USB cable. Otherwise, it may cause

overheating or re.

AUDIO OUT

Audio signal output from HDMI to an external device (stereo

receiver, amplier, etc.).

NOTE This connector is not a headphone terminal.

Digital audio output terminal

For connection to an audio device equipped with a digital

audio input terminal.

AV input terminal

For connection to a video output terminal (composite) of a

video player or other devices.

HDMI input terminals (HDMI1 (ARC)/HDMI2/HDMI3)

For connection to devices with digital video interface

complying with the HDMI standard. HDMI1 terminal also

supports ARC (Audio Return Channel) for audio output.

Connect an HDMI cable supporting ARC to this terminal.

Connect audio devices supporting ARC to the HDMI1 (ARC)

terminal.

NOTE ARC sends the monitor’s sound to the audio

equipment from the HDMI1 ARC terminal.

Use the included ARC-supported HDMI cable.

The audio equipment supporting ARC, such as

AV ampliers, will output the monitor’s audio.

The volume and other functions of the audio

equipment can be controlled with the included

remote control.

VGA input terminal

For connection to the video output terminal (analog) of a

computer.

When connecting the monitor to the video output terminal

(component) of a video player or another device, go to

[Setup] in the OSD menu -> [VGA Options] -> [VGA Mode],

and select [YPbPr].

English - 24

Audio input terminal (stereo mini jack)

For connection to the audio output terminal of a computer or

another device.

USB Type-A port

Can be used to display photos (still images) and play video

and music les stored in a USB storage device.

Check the shape of the connectors when connecting a USB

storage device or USB cable.

Internal Speaker

Handle

Label

English - 25

Wireless Remote Control

(

)

POWER Button

Switches between power on and off (standby).

NOTE To completely turn the power off, disconnect

the power plug from the outlet.

SOURCE Button

Cycles through the available inputs.

The input names are shown as their factory preset name.

MUTE Button

Silences the audio signal. Press the button again to restore

the previous volume.

Keypad

Press the buttons to enter numerical values, such as the

passwords.

Button

Not used with this monitor.

DASH Button

Not used with this monitor.

SOUND Button

Selects the sound mode.

Available sound modes are [Standard], [Music], [Movie], and

[Custom].

PICTURE Button

Selects the picture mode.

Available picture modes are [Dynamic], [Standard], [Energy

Savings], [Conferencing], [HighBright], [Custom], and [HDR

Video].

p, q, t, u, OK (cursor buttons)

Used to navigate inside and select the menus.

VOL- Button (volume minus button)

VOL+ Button (volume plus button)

Increases or decreases the audio output level.

MENU Button

Opens and closes the OSD menu.

EXIT Button

Closes the OSD menu.

CH- Button

CH+ Button

Not used with this monitor.

EPG Button

Not used with this monitor.

INFO Button

Shows/Hides the information OSD.

FREEZE Button (still image button)

Turns the still image function on/off.

MTS Button

Not used with this monitor.

CH.LIST Button

Not used with this monitor.

(

FAV Button

Not used with this monitor.

)

ASPECT Button

Selects the aspect ratio of the image between [Normal],

[1:1], [Full], and [Zoom].

CC Button

Press to activate the Closed Caption.

PLAY, PAUSE, STOP, ROTATE,

, , , (navigation buttons)

Used to operate the media player functions and the HDMI

CEC function.

English - 26

Chapter 3 Connections

This Chapter Includes

"Wiring Diagram" on page 27

"Connecting to a Personal Computer" on page 28

"Connecting to a Media Device with HDMI" on page 29

"HDMI-CEC Command" on page 30

"Internal Video Sources" on page 31

"Media Player" on page 31

"Connecting a USB Device" on page 31

Connecting External Equipment

NOTE:  • Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power

as this may result in loss of image.

• Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower the

sound level.

Before making connections

• Turn off the device’s power before connecting it to the monitor.

• Refer to the device’s user manual for available connection types and instructions for the device.

• We recommend turning off the monitor’s main power before connecting or disconnecting a USB storage device to avoid data

corruption.

English - 27

Wiring Diagram

LAN

HDMI 1 HDMI 2 HDMI 3

VGA

AUDIO IN

USB

RS-232C

AUDIO OUT SPDIF OUT AV IN

POWER

SUPPLY

OUT

Computer (RS-232C)

Video player

(composite)

Computer (HDMI)

Computer (stereo mini jack)

Computer (D-sub)

Video player (stereo mini-jack)

Video player (component)

USB storage device

Video player (HDMI)

Blu-ray or DVD player (HDMI)

AV amplier

External

speakers

Stereo Amplier

Power supply to external equipment:

5 V/3 A (max)

: Other signals

: Video signal

: Audio signal

NOTE When connecting the product to the video

output connector (component) of a video player

or another device, go to [Setup] in the OSD

menu -> [VGA Options] -> [VGA Mode], and

select [YPbPr].

English - 28

Connecting to a Personal Computer

Connecting to a Computer with HDMI

The monitor can be connected to and used with video players and computers equipped with an HDMI output. For more

information, refer to the user’s manual of the player or the other devices.

• Use an HDMI cable with the HDMI logo.

• It may take a moment for the signal to appear after turning on the device outputting the HDMI signal.

• Depending on the video card or driver used, the image may not be shown correctly.

• When you use a computer with HDMI, go to the OSD menu [Video] -> [Advanced Video] and set [Overscan] to [Auto] or

[Off].

• If the monitor’s main power is turned on after the connected computer has been turned on, the image may not be

displayed. In this case, turn off the computer then turn it on again.

• If the source signal is 4K (50 Hz/60 Hz), HDCP 2.2 or HDR, got to the OSD menu [Setup] -> [HDMI Settings] -> [EDID]

and set [Mode 2].

• When inputting a 4K signal, use a high-speed or premium high-speed HDMI cable.

English - 29

Connecting to a Media Device with HDMI

The monitor can be connected using a single HDMI cable to Blu-ray players, streaming media players, or game consoles for the

highest picture and audio quality. 4K UHD content is shown when the connected media player also supports 4K content.

Supports HDCP (High-bandwidth Digital Contents Protection) coding, a type of digital rights management that prevents high-

denition content, in Blu-ray discs, DVDs and streaming media, from being copied or broadcast illegally.

NOTE • Connect the HDMI cable when both the media player and the monitor are powered off.

• Use an HDMI cable with the HDMI logo.

• Some HDMI cables and devices may not show the image correctly due to different HDMI specications.

• With the implementation of HDCP, there may be cases in which certain content is protected by HDCP and might

not be displayed. This is not a malfunction.

Connecting to Audio Equipment with ARC Function

When audio equipment with the ARC function is connected to the HDMI1 (ARC) terminal of the monitor using the included ARC-

supported HDMI cable, the speakers connected to the audio equipment outputs the monitor’s sound.

• The sound output via HDMI1 (ARC) is not adjustable with the OSD menu.

• When the ARC function is activated, the monitor’s internal speakers are muted.

HDMI-CEC (Consumer Electronics Control)

HDMI-CEC provides compatible video devices connected via HDMI with the ability to communicate and allows limited control

between the device and the monitor. For example, turning on a Blu-ray player can immediately switch input to the Blu-ray player

without using the remote control. Not all devices are fully compatible, and, in some cases, the media device manufacturer may

only provide compatibility with its own monitors or TVs. See “HDMI-CEC Command” (

page 30).

When supported, the monitor’s remote control can be used to control the video device.

Enabling CEC

1. Connect an HDMI-CEC compatible device to the HDMI terminal.

Press the HDMI button on the remote control.

2. Press the MENU button to open the OSD menu.

3. In the OSD menu, go to [Setup] -> [HDMI Settings] -> and select [On] in [CEC].

4. In the OSD menu, go to [Setup] -> [HDMI Settings] -> [Device list] and press the OK button on the remote control.

When the device search is complete, connected devices are shown by their names.

5. In the OSD menu, select [Yes] under [Search device].

When the device search is complete, the HDMI terminals to which a device is connected are shown with the device name.

If no HDMI-CEC compatible device is found, make sure the device is connected, turned on, that it supports CEC, and that

CEC is enabled. Depending on the manufacturer, the CEC feature may have a different name. Refer to the device’s user

manual.

6. Press the EXIT button on the remote control.

English - 30

HDMI-CEC Command

Connect an HDMI-CEC compatible device to the HDMI terminal.

OSD menu HDMI-CEC

command name

Explanation Setting

CEC

(Consumer

Electronics

Control)

One Touch Play When an HDMI-CEC compatible device

is turned on, the monitor connected

to the device with an HDMI cable also

automatically turns on.

After the monitor powers on, Input

terminal automatically switches.

If the monitor is already turned on when

the HDMI-CEC compatible device is

turned on, it only changes the Input

terminal.

Setup

HDMI1

CEC

Auto Turn Off

Audio Receiver

Device list

Off

In the OSD menu, go to [Setup] -> [HDMI

Settings] -> and select [On] in [CEC].

Remote Control Pass

Through

The monitor’s remote control button

operation can function with HDMI-CEC

compatible devices connected with an

HDMI cable.

For example, part of the HDMI-CEC

compatible device menu can be operated

using the remote control.

Power Status The connected HDMI-CEC compatible

devices can obtain the monitor’s power

status, such as if the monitor is in standby

mode or on.

System Information This function obtains information from a

connected HDMI-CEC compatible device

(CEC version, physical address, etc.).

Auto Turn Off System Standby If the monitor is set to standby using the

remote control, the HDMI-CEC compatible

device connected with an HDMI cable

also goes into standby at the same time.

If the monitor goes into standby while

an HDMI-CEC compatible device is

recording, the device remains on.

Refer to the user’s manual supplied with

the HDMI-CEC compatible device for

further information.

In the OSD menu, go to [Setup] -> [HDMI

Settings] -> [CEC] and select [Enable] in

[Auto Turn Off].

Audio

Receiver

System Audio

Control

Connect audio equipment with the ARC

function to the HDMI1 (ARC) terminal

using the included ARC-supported HDMI

cable. The Volume buttons on the remote

control can control the volume of the

connected HDMI ARC audio equipment.

While this function is active, the monitor’s

internal speakers are automatically set to

MUTE.

In the OSD menu, go to [Setup] -> [HDMI

Settings] -> [CEC] and select [Enable] in

[Audio Receiver].

Search device Device OSD Name

Transfer

This function is used to obtain the name

of the connected devices.

In the OSD menu, go to [Setup] ->

[HDMI Settings] -> [CEC] -> [Device list]

and press the OK button on the remote

control.

Routing Control By selecting a device name, the HDMI-

CEC compatible device input switches to

the input you selected. After selecting the

device, the remote control operates for

the selected device.

NOTE Depending on the connected device, sometimes the device does not work properly.

English - 31

Internal Video Sources

Media Player

The internal Media Player will play audio and video les that are stored on a USB storage device. See page page 40 for

instructions on using the Media Player.

Compatible USB Storage Devices

If the USB storage device connected to the monitor is not recognized, check its format. The USB storage device used with the

Media Player should be in the FAT32 or FAT16 format. For more information on how to format a storage device, see the manual

or the help section of your Windows

computer.

Connect the USB storage device to the USB Type-A port of the monitor.

NOTE • The monitor is not guaranteed to work with all USB storage devices sold commercially.

• Check that the USB storage device is connected to the USB Type-A port of the monitor.

Connecting a USB Device

Connect a USB storage device to the USB Type-A of the monitor as shown in the gure below to display images and videos

using the Media Player function.

USB Type-A port

NOTE • Check the connector shape and orientation when connecting the USB device or cable.

• Do not connect a USB storage device to the monitor when the monitor is turned on. To prevent damage to the

monitor and possible corruption of the connected device’s data les, the monitor’s main power switch should be

off before making connections.

English - 32

Chapter 4 Basic Operation

This Chapter Includes

"Power On and Off Modes" on page 33

"Operating Range for the Remote Control" on page 35

"Showing the Information OSD" on page 36

"Switching Between Sound Modes" on page 36

"Switching Between Picture Modes" on page 36

"Setting the Aspect Ratio" on page 37

"OSD (On-Screen Display) Controls" on page 38

"Using the Media Player Menu" on page 40

English - 33

Power On and Off Modes

Power indicator status

The monitor operates as follows in On mode when no signal is input from an external device.

Mode Normal operation

(On mode)

Auto power save mode

(energy-saving mode)

Auto standby mode

(energy-saving mode)

Power indicator Lit blue Blinking red Lit red

Energy Mode

The three following modes are available on the monitor.

Setup

Move Select

HDMI1

Energy Mode

Power Save

Quick Start

Auto Power Down

Home

Return

EXIT

Retail

Office

LAN and RS-232C can be selected for the monitor control. The way the energy modes operate varies depending on the

selected control method.

When [RS-232C] is selected for control, [Power supply] and [Quick Start] are set to [Off]

Home/Ofce mode

• When no signal is input, “No signal” is displayed and the monitor enters the auto standby mode after a while.

• When a signal is input into the selected input terminal, the On mode is resumed.

When the AV terminal and VGA (YPbPr) terminal are selected, the On mode is not resumed even if a signal is input. In this

case, enable the Quick Start function. (With this function enabled, the On mode is resumed.)

Retail mode

• The monitor does not enter the energy-saving mode when no signal is input. (The On mode is maintained.)

NOTE If the monitor power is turned off while the monitor is in auto standby mode, it will still be in auto-standby mode

when it is turned on again.

English - 34

When [LAN] is selected for control, [Power supply] and [Quick Start] are set to [Off]

Home mode

• When no signal is input, “No signal” is displayed and the monitor enters the auto power save mode after a while.

• During auto power save mode, the monitor enters the auto standby mode if no LAN signal is received for 3 minutes.

If a LAN signal is input during auto standby mode, the auto power save mode is not resumed. To maintain the auto power

save mode, use the Ofce mode.

• When a signal is input into the selected input terminal, the On mode is resumed.

When the AV terminal and VGA (YPbPr) terminal are selected, the On mode is not resumed even if a signal is input. In this

case, enable the Quick Start function. (With this function enabled, the On mode is resumed.)

Retail mode

• The monitor does not enter the energy-saving mode when no signal is input. (The On mode is maintained.)

Ofce mode

• When no signal is input, “No signal” is displayed and the monitor enters the auto power save mode after a while.

The auto power save mode is maintained regardless of LAN signal input.

• When a signal is input into the selected input terminal, the On mode is resumed.

When the AV terminal and VGA (YPbPr) terminal are selected, the On mode is not resumed even if a signal is input. In this

case, enable the Quick Start function. (With this function enabled, the On mode is resumed.)

NOTE If the monitor power is turned off during auto power save mode or auto standby mode, the power-on mode will not

resume automatically when a signal is detected.

The Main Power switch must be in the ON position in order to power up the monitor using the POWER ON button on the remote

control or the

button on the Control Panel.

Main Power Switch

ONOFF

Button

English - 35

Operating Range for the Remote Control

Point the top on the remote control toward the monitor’s remote control sensor during button operation.

Use the remote control within a distance of about 7 m (23 ft.) from the remote control sensor, or within a horizontal and vertical

angle of 30° and within a distance of about 3.5 m (10 ft.).

NOTE The remote control system may not function when direct sunlight or

strong illumination strikes the remote control sensor, or near uorescent

lamps.

Handling the remote control

• Do not expose to strong shock.

• Do not allow water or other liquid to splash on the remote control. If the remote

control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Ask your supplier or your municipality for information on how to dispose of the

batteries.

• Do not open the remote control, except to install the batteries.

30°30°

English - 36

Showing the Information OSD

The Information OSD provides information such as the selected video input terminal, resolution, and IP address. Press the INFO

button on the remote control to bring up the information OSD.

HDMI1

1080p@60Hz

SDR

IP ADDRESS : 192.xxx.x.xx

Input name

Resolution

SDR / HDR information

IP address*

* When [Information OSD] is set to [On]:

White: Connected to a LAN

Red: Not connected to a LAN

NOTE When the input signal is [Media Player], the information OSD will not be displayed.

Switching Between Sound Modes

Press the SOUND button on the remote control to change the Sound Mode setting between Standard, Music, Movie, and

Custom.

Switching Between Picture Modes

Press the PICTURE button on the remote control to change the Picture Mode setting between Dynamic, Standard, Energy

Savings, Conferencing, HighBright, Custom, and HDR Video*.

* HDR Video can be selected only when an HDR signal is input.

English - 37

Setting the Aspect Ratio

Press the ASPECT button on the remote control to change the Aspect Ratio setting between Normal, 1:1, Full, and Zoom.

NOTE This setting cannot be changed when [Media Player] is selected for the input signal.

Normal 11 Full Zoom

Video signal

The aspect ratio of

the input signal is

maintained and the

image is enlarged/

reduced.

• Black bars are

added vertically or

horizontally.

• The screen is not cut,

neither vertically nor

horizontally.

The image is displayed

with the number of panel

pixels corresponding

to the resolution of the

input signal.

When the input signal

is larger than the

number of the panel

pixels, the aspect ratio

is maintained and the

image is reduced.

The aspect ratio of the

input signal is ignored

and the image is

enlarged.

• There are no black

bars, neither vertically

nor horizontally.

• The screen is not cut,

neither vertically nor

horizontally.

The aspect ratio of

the input signal is

maintained and the

image is enlarged.

• There are no black

bars, neither vertically

nor horizontally.

• Part of the image,

vertically or

horizontally, is not

displayed.

4096

2160

3840

2025

3840

2025

3840

2160

3840

2160

1920

1080

3840

2160

1920

1080

3840

2160

3840

2160

1920

960

3840

1920

960

3840

2160

3840

2160

1024

768

2880

2160

1024

768

3840

2160

3840

2160

NOTE Note that changing the aspect ratio to compress or stretch an image and display it publicly or for commercial

purposes in coffee shops, hotels, or other such places, may violate the rights of the copyright holder.

English - 38

OSD (On-Screen Display) Controls

The monitor features an OSD (On-Screen Display) menu that allows the user to easily adjust the screen.

By operating the menu displayed at the top of the screen, you will be able to adjust the brightness and the other screen settings.

OSD menu structure The OSD menu is composed of the following elements.

Video

Move Select

HDMI1

Picture Mode

Advanced Video

Backlight / Brightness

Contrast

Video Black Level

Sharpness

Color

Tint

Reset Video Settings

HDR Video

Dynamic

Standard

Energy Savings

Conferencing

HighBright

Custom

Return

EXIT

Input source

Selected

main menu

Sub menu

Adjustment

settings

Key guide

Main menu icons

Wireless

Remote

Control

Press MENU to open and

close the OSD menu.

Press the EXIT button to close

the OSD menu et stop OSD

operations.

Press

to navigate

through the sub menus.

Press the OK button to

select an item.

Press

, and

to select an adjustment

item and adjust the

values.

Monitor’s control panel

Press MENU/EXIT to open or exit the

OSD menu.

Move

keys to select the

function or setting to be adjusted. Press

Central to select an option.

English - 39

The function of each OSD menu element is briey explained below. For more details on the content of the menu, see “OSD

Controls List” (

page 67).

Video settings

Select one of the default picture modes, manually adjust the color settings, adjust the aspect

ratio, and adjust the other settings related to the image.

Audio settings

Adjust the volume, balance, equalizer, and the other settings related to the audio.

Setup settings

Display the monitor information, select the language, or return the settings to their default

values.

Control settings

Congure settings such as the network information.

Media Player settings

Congure the USB Demo Mode and other settings.

Schedule settings

Create auto power on/off schedules for the monitor and set the sleep timer.

English - 40

The Media Player plays image, video, and music les

located on a USB storage device connected to the USB

Type-A port of the monitor (

page 24).

To open the Media Player menu, press the SOURCE button

on the remote control and select [Media Player].

NOTE • Connect the USB storage device where the

les are stored to the USB Type-A port of the

monitor.

• The Media Player does not auto-rotate

content when changing the monitor’s

orientation from landscape to portrait and

vice versa. Content must be created in the

same orientation that matches the installed

orientation of the monitor to display correctly.

• The Media Player menu is always shown in

the landscape orientation.

Media Player Menu

This function can be used to display photos (still images)

and play video and music les stored in the USB storage

device.


Music Movie

USB

Input Select

Select the type of the le you want to play between [Photo],

[Music], and [Movie].

Selecting Files to Play

• Playing a le

Select a le using the

, and

buttons on the

remote control, and then press the

button.

Press the

button to pause the playback.

• Playing multiple les

1. Select les using the

, and

buttons on the

remote control.

2. Press the OK button on the remote control to add a

checkmark next to each le.

3. This saves the les as a playlist in the USB storage

device.

NOTE • The selected les play in the order they are

displayed in the folder.

• File names must contain only alphanumeric

characters.

Operation buttons

• Press the OK button on the remote control while playing

a le to display the OSD operation menu on the screen.

• Press the

buttons to highlight an item in the

operation menu and then press the OK button to select it.

• Press the

button on the remote control to close the

operation menu.

Slideshow Operation

• Select les using the

buttons and press the

button to start a slideshow.

Press the

button to pause the slideshow.

• To pause the slideshow using the OSD menu, select

Select

to resume the slideshow.

• Select

or press the button on the remote control

to return to the previous image.

• Select

or press the button on the remote control

to go to the next image.

• Select

or press the button on the remote control to

stop the slideshow.

Repeat play

Repeat setting can be congured for le playback. The

following modes can be selected.

- Repeat off

• No selected les.

- All les in the folder are played once, in the sorted

order.

• One or more selected les.

- Any les you checked are played once, in the sorted

order.

- Repeat one le

• - A le is playing: the current le plays on a loop.

- No le is playing: the highlighted le in the folder plays

on a loop.

• One or more selected les.

The rst checked le in the sorted order plays on a loop.

- Repeat all les

• No selected les.

- All les in the folder are played on a loop, in the sorted

order.

• One or more selected les.

- The selected les are played on a loop, in the sorted

order.

Using the Media Player Menu

English - 41

Other functions

• Select

to view the playlist of les.

You can also select the les to play from the list.

• While a le is being played, select

to show

information on the le being displayed.

Video and Music Operations

• Select les using the

buttons on the remote

control and press the

button to start playback.

Press the

button to pause the playback.

• To pause the playback using the OSD menu, select

Select

to resume the playback.

• Select

to start fast forward.

FF2X

FF4X

FF8X

FF16X

FF32X

(The sound is not output.)

(FF32X can be selected only when a video le is played.)

• Select

to start fast backward.

FB2X

FB4X

FB8X

FB16X

FB32X

(The sound is not output.)

(FB32X can be selected only when a video le is played.)

• Select

or press the button on the remote control

to return to the previous le.

• Select

or press the button on the remote control

to return to go to the next le.

• Select

or press the button on the remote control to

stop the playback.

Repeat play

Repeat setting can be congured for le playback. The

following modes can be selected.

- Repeat off

• No selected les.

- All les in the folder are played once, in the sorted

order.

• One or more selected les.

- Any les you checked are played once, in the sorted

order.

- Repeat one le

• - A le is playing: the current le plays on a loop.

- No le is playing: the highlighted le in the folder plays

on a loop.

• One or more selected les.

The rst checked le in the sorted order plays on a loop.

- Repeat all les

• No selected les.

- All les in the folder are played on a loop, in the sorted

order.

• One or more selected les.

- The selected les are played on a loop, in the sorted

order.

Other functions

• Select

to view the playlist of les.

You can also select the les to play from the list.

• While a le is being played, select

to show

information on the le being played.

NOTE • Only use USB mass storage class devices.

• We cannot guarantee to support all

commercially-available USB mass storage

devices.

• Do not use a USB hub.

• Do not use a multi-partition USB storage

device.

• The USB Type-A port of the monitor

supports 5 V / 500 mA. When using a

USB device of more than 500 mA, we

recommend using the AC adapter supplied

with the USB device.

• When connecting a USB device formatted

as FAT16 or FAT32 to a computer, a

message prompting you to scan and x

the USB device may appear. If that occurs,

execute “Scan and x”.

English - 42

Data Format for USB

Supported le system

FAT16 (max 2 GB),

FAT32 (max 4 GB)

Max folder level

Max number of photos

997

Photo mode

File extension Data format Min resolution (H x V) of


Max resolution (H x V) of


JPEG, JPG, JPE Baseline JPEG 75 x 75 pixels 15,360 x 8,640 pixels

Music mode

File extension Data format Max bit rate Max channel No.

MP3 MPEG1/2 Layer3 (MP3) 320 kbps 2 ch

Movie mode

Container format Supported video codec Supported audio codec

MPG, MPEG MPEG1, MPEG2, MPEG4 LPCM, MP3, AAC

TS MPEG2, H.264, HEVC/H.265 LPCM, MP3, AAC

MP4 MPEG2, MPEG4, H.263, H.264, HEVC/H.265 LPCM, MP3, AAC

WMV H.264, Windows Media Video 9 WMA 9, WMA 10 Pro

Video codec Max bit rate of video*

Max resolution (H x V) of

video

MPEG1 40 Mbps 1920 x 1080 @30 Hz

MPEG2 40 Mbps 1920 x 1080 @30 Hz

MPEG4 40 Mbps 1920 x 1080 @30 Hz

H.263 40 Mbps 1920 x 1080 @30 Hz

H.264 135 Mbps 3840 x 2160 @60 Hz

HEVC/H.265 100 Mbps 3840 x 2160 @60 Hz

Windows Media Video 9

(WMV3)

40 Mbps 1920 x 1080 @30 Hz

Audio codec Max bit rate of audio*

Max channel No.

LPCM 1.5 Mbps 5.1 ch*

MPEG1/2 Layer3 (MP3) 320 kbps 2 ch

AAC AAC-LC: 576 kbps

HE-AAC v1: 288 kbps

HE-AAC v2: 144 kbps

5.1 ch*

WMA 9 Standard 320 kbps 2 ch

WMA 10 Pro M0 192 kbps 2 ch

WMA 10 Pro M1 384 kbps 5.1 ch*

WMA 10 Pro M2 768 kbps 5.1 ch*

*1: It is played with down-converted to 2 ch.

*2: It may not play smoothly with a combination of max bit rate of video and audio.

NOTE Sometimes, it may not be possible to play a video le even when the conditions above are met.

The le may not be played properly depending on the bit rate.

Video les made with a codec not supported by the monitor cannot be played.

English - 43

Chapter 5 Advanced Operation

This Chapter Includes

"Creating a Power Schedule" on page 44

"Using Picture Modes" on page 45

"Setting Security and Locking the Monitor Controls" on page 46

"Locking the Button Controls" on page 47

English - 44

Creating a Power Schedule

The schedule function allows the monitor to automatically switch between power on and standby mode at different times.

To program the schedule (Press the OK button on the remote control to switch between Enable (

) /

Disable ( ).)

1. Enter the [SCHEDULE] menu in the OSD menu.

a. Use the

buttons on the remote control to select [Current

Time settings]. Press the OK button on the remote control.

b. Set date and time to the monitor:

Press the

buttons on the remote control to move between

the elds.

c. Use the

buttons on the remote control to set the date and

time.

2. After setting the time, press the MENU button on the remote

control.

3. Use the

buttons on the remote control to select [Schedule

settings].

a. Press the OK button on the remote control. Use the

buttons to navigate to the desired schedule number and press

the OK button to enable (

) it.

b. Press the

button on the remote control to navigate to the

schedule setting eld.

Press the

buttons to navigate through each setting eld.

To return to the schedule number setting, press the MENU

button.

c. Place the cursor on [Power On] and press the OK button on

the remote control to enable (

) [Power On]. Press the

buttons on the remote control to move between the hours and

minutes elds.

Use the

buttons on the remote control to set the time.

d. Use the

buttons on the remote control to place the cursor on [Power Off] and then press the OK button on the remote

control to enable (

) [Power Off]. Press the

buttons on the remote control to move between the hours and minutes

elds.

Use the

buttons on the remote control to set the time.

e. If a daily schedule is desired, choose [Every Day] using the

buttons and pressing the OK button to enable (

) it.

f. To set a schedule for a specic day, navigate the cursor to the desired day, [Mon - Sun], then press the OK button to

enable (

) it. The schedule will run once on the selected day.

g. To repeat a schedule on the same day(s), place the cursor on [Every Week] and pressing the OK button to enable (

) it.

The schedule will run every week on the selected day(s) [Mon - Sun].

4. After setting the schedule, press the MENU button on the remote control to return to the previous menu or press the EXIT

button to close the OSD menu.

NOTE • The [Current Time Setting] needs to be set before adding schedules.

• If multiple schedules are set, the monitor turns on or off according to the nearest time in the schedules.

• If the time settings of [Power On] and [Power Off] are the same, power on is given priority.

• When [Every Day] is selected, [Every Week] and [Mon - Sun] cannot be set.

• If the monitor remains for about two weeks or more with the power cord unplugged, the clock will not show the

correct time.

In this case, set the [Current Time settings] again.

HDMI1

Schedule

Sleep Timer

Current Time settings

Schedule settings

Year

Move Select

Return

EXIT

2022

Month

Day

Time

: Enable : Disable

HDMI1

Schedule

Sleep Timer

Current Time settings

Schedule settings

Settings

Move Select

Return

EXIT

2 3 4 5 6 7

•

Every Day

•

Every Week

•

Tue

•

Mon

•

Fri

•

Wed

•

Sat

•

Thu

•

Sun

•

Power Off

•

Power On

English - 45

Using Picture Modes

There are different picture modes available. They have been congured for different applications as described in the “Picture

Mode Types” table below.

To change picture modes

In the OSD menu, go the [Video] -> [Picture Mode], or press the PICTURE button on the remote control to select a mode.

HDR Video -> Dynamic -> Standard -> Energy Savings -> Conferencing -> HighBright -> Custom

Picture Mode Types

Picture Mode Purpose

HDR Video Setting for HDR format video (can be selected only when an HDR signal is input)

Dynamic High-contrast video setting

Standard Standard video setting

Energy Savings Video setting complying with the International Energy Star standard.

Conferencing Video setting suited for video conferences

HighBright Video setting suited for brighter environments

Custom Customizable settings

English - 46

Setting Security and Locking the Monitor Controls

Under normal operation, the monitor can be controlled by any person using the remote control or the monitor control panel. You

can prevent unauthorized use and changes to the monitor settings by enabling the security and lock settings.

The security and locking functions covered in this section are:

• Locking the monitor control panel buttons (See

page 22.)

• Locking the remote control buttons (See

page 25.)

English - 47

Locking the Button Controls

The lock settings prevent the monitor from responding to button presses on the remote control or monitor control panel. When

locking the button controls, some buttons can be congured to remain unlocked. Locking and unlocking the button controls do

not require a password.

Locking the Control Panel Buttons

The [Key Lock Settings] prevent the monitor from being controlled using the buttons on the monitor control panel.

Setup

Move Select

Input Labels

Key Lock Settings

IR Lock Settings

Power supply

LED Indicator

Mute Settings

Image Rotation

Thermal Management

Signal Information

Off

Mode 1

Mode 2

HDMI1

Return

EXIT

1. In the OSD menu, go to [Setup] -> [Other settings] and select [Key Lock Settings].

2. Select the key lock range.

• Off All buttons operate normally.

• Mode1 Only the power button and the input switching function operate.

• Mode2 All buttons are locked. (Only the power button can be used during standby mode.)

NOTE The buttons are locked 3 seconds after Mode1 or Mode2 has been selected.

Unlocking the Monitor Panel Button Controls

Carry out the following with the monitor in On mode.

•

OSD menu

To remove the lock and restore normal button operation, set the [Key Lock Settings] to [Off] using the remote

control.

•

Monitor buttons

To remove the lock and restore normal button operation, hold the MENU/EXIT button pressed for 5

seconds or more.

English - 48

Locking the Remote Control Buttons

The [IR Lock Settings] prevent the monitor from being controlled using the remote control.

Setup

Move Select

HDMI1

Input Labels

Key Lock Settings

IR Lock Settings

Power supply

LED Indicator

Mute Settings

Image Rotation

Thermal Management

Signal Information

Off

Return

EXIT

Mode 1

Mode 2

1. In the OSD menu, go to [Setup] -> [Other settings] and select [IR Lock Settings].

2. Select the key lock range.

• Off All buttons operate normally.

• Mode1 Only the POWER and the SOURCE buttons operate.

• Mode2 All buttons are locked. (Only the power button can be used during standby mode.)

NOTE The buttons are locked 3 seconds after Mode1 or Mode2 has been selected.

Unlocking the Remote Controls

Carry out the following with the monitor in On mode.

•

OSD menu

To remove the lock and restore normal button operation, set the [IR Lock Settings] to [Off] using the monitor

buttons.

•

Remote control

To remove the lock and restore normal button operation, hold the EXIT button pressed for 5 seconds or

more.

English - 49

Chapter 6 External Control

This Chapter Includes

"Controlling the Monitor via RS-232C" on page 50

"Controlling the Monitor via LAN" on page 51

"HTTP Browser" on page 52

"Commands" on page 56

Connecting an external device

There are two options to connect an external device to control the monitor.

• RS-232C Interface

Connecting an external device to the RS-232C terminal of the monitor.

• Network (LAN) Interface

Connecting a network to the LAN port of the monitor with a LAN cable.

English - 50

Controlling the Monitor via RS-232C

This monitor can be controlled by connecting a personal computer with an RS-232C terminal to the RS-232C terminal of the

monitor with a commercially-available RS-232C crossover cable. The following operations are possible.

• Turning the monitor on or putting it into standby.

• Switching between input signals.

• Switching between mute On and Off.

NOTE Set [Control Interface] under [Control Settings] to [RS-232C]

(page 73).

Connection

Monitor + computer.

• Turn off the monitor and the computer before connecting a computer to the monitor.

• First, turn the computer on, and then turn the monitor on.

• To control the monitor via commands sent from a computer connected with an RS-232C cable, use the control commands.

Instructions for the control commands can be found in “Commands” in “External Control” in this manual or in “External_

Control.pdf” (see “Appendix B External Resources”

page 66).

RS-232C Cable

Computer

RS-232C

NOTE • If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required.

• Contact your supplier for details.

• For the pin assignment, see “Pin Assignment RS-232C input/output”.

This monitor uses RXD, TXD and GND lines for RS-232C control.

A commercially-available crossover cable (not included) should be used for RS-232C control.

English - 51

Pin Assignment

RS-232C input / output

Pin No. Name

1 NC

2 RXD

3 TXD

4 NC

5 GND

6 NC

7 NC

8 NC

9 NC

This monitor uses RXD, TXD and GND lines for RS-232C control.

Controlling the Monitor via LAN

The monitor is equipped with a LAN port (RJ-45). Connecting the monitor to a network allows you to receive email notications

from the monitor and control the monitor from a computer via a network. To use a LAN connection, you are required to assign an

IP address to the monitor (page 73).

The monitor will obtain an IP address automatically when connected to a DHCP network.

NOTE Set [Control Interface] under [Control Settings] to [LAN]

(page 73).

Example of LAN connection

Server

Hub

NOTE Use a category 5 or higher LAN cable.

LAN cable

(commercially available)

D-sub 9-pin (monitor side)

English - 52

HTTP Browser

Overview

Connect the monitor with a commercially-available LAN cable to congure the LAN settings using the HTTP server function.

This monitor uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. Refer to the help les for

the Web browser to change the settings to use JavaScript and Cookies.

To access the HTTP server, launch a web browser on a computer connected to the same network as the monitor and enter the

following URL in the Web address eld.

Network Settings

http://<Address IP of the monitor>

NOTE • The control software can be downloaded from our website.

• By default, the IP address of the monitor is set automatically. After a reset, the IP address is obtained

automatically.

• Depending on the network environment, the display speed and response to commands or clicks on buttons may

be slow, or the operations may not be recognized. In such a case, consult your network administrator.

The monitor may not respond if the buttons shown on the browser are repeatedly pressed in rapid intervals. In

such a case, wait a moment and try again. If you still can’t get a response, turn the monitor off and then back on.

• If the monitor Network Settings screen does not appear in the Web browser, press the Ctrl+F5 keys to refresh

your Web browser.

• To control the monitor via a LAN, see “External_Control.pdf” in our Website (see “Appendix B External

Resources”

page 66). If the screen does not appear, clear the cache of the Web browser.

Preparation Before Use

Connect the monitor to the network using a commercially-available LAN cable before attempting to use browser operations.

Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting

method. Although the type of the proxy server will be a factor, it is possible that items that have been set will not be shown

depending on the effectiveness of the cache, and the settings congured from the browser may not be reected in operation. It

is recommended that a proxy server is not used unless the network environment requires it.

English - 53

Screen Adjustment Using a Browser

Access the following address to show HOME. Click the links on the left-hand column on the HOME screen to access the setting

screens.

http://<Address IP of the monitor>

The default login password is “admin”.

OSD Menu Settings in the Monitor Web Controls

The functions related to the network can be congured the same way as in the OSD menu using the links below.

Top

INPUT SOURCE: HDMI1

STATUS

PROTOCOL

STATUS

SYSTEM

MODEL NAME E988

SERIAL XXXXXXXXXX

FIRMWARE VERSION Vx.x.x / Vx.x.x

LOCAL TIME WWW MMM DD XX:XX:XX 20YY

UPTIME XXh XXm XXs

NETWORK

IP ADDRESS 192.168.0.10

SUBNET MASK 255.255.255.0

DEFAULT GATEWAY 0.0.0.0

DNS PRIMARY 0.0.0.0

DNS SECONDARY 0.0.0.0

MAC Address XX:XX:XX:XX:XX:XX

NETWORK

SYSTEM

LOGOUT

TCP

ROOMVIEW

CRESTRON CONTROL

AMX

NAME

OVERVIEW

English - 54

Network Settings

Click on “NETWORK” on the left-hand column on the HOME screen to enter the setting screen.

Top

INPUT SOURCE: HDMI1

STATUS

PROTOCOL

NETWORK SETTINGS

DHCP

INTERFACE

IP ADDRESS

192.168.0.10

Off

SUBNET MASK 255.255.255.0

DEFAULT GATEWAY 0.0.0.0

DNS PRIMARY 0.0.0.0

DNS SECONDARY 0.0.0.0

NETWORK

SYSTEM

LOGOUT

TCP

ROOMVIEW

CRESTRON CONTROL

AMX

NAME

DHCP Select a method for setting the IP ADDRESS.

Off: Sets xed network settings.

On: Obtains the network settings from the DHCP server on the network.

Manual DNS: Obtains the network settings from the DHCP server on the network but the DNS

is set manually.

NOTE Consult your network administrator if you have any trouble with the connection.

IP ADDRESS Set the IP address for the monitor connected to the network when [Off] is selected for [DHCP].

SUBNET MASK Set the subnet mask for the network to which the monitor is connected when [Off] is selected for

[DHCP].

DEFAULT GATEWAY Set the default gateway for the network to which the monitor is connected when [Off] is selected for

[DHCP].

Enter [0.0.0.0] to delete the setting.

DNS PRIMARY Enter the IP address of the primary DNS server of the network connected to the monitor.

NOTE Enter [0.0.0.0] to delete the setting.

DNS SECONDARY Enter the IP address of the secondary DNS server of the network connected to the monitor.

NOTE Enter [0.0.0.0] to delete the setting.

ROOMVIEW Settings

Click on “ROOMVIEW” on the left column below HOME.

The monitor supports Crestron’s ROOMVIEW, allowing multiple devices connected in the network to be managed and controlled

from a computer or a controller.

ROOMVIEW

Enables or Disables managing from the computer.

PORT Sets the Crestron port used for Ethernet communication.

For further information, visit

https://www.crestron.com

English - 55

CRESTRON CONTROL Settings

Click on “CRESTRON CONTROL” on the left column below HOME.

CRESTRON CONTROL

Enables or Disables managing from the controller.

CONTROLLER IP ADDRESS Sets the IP address of the CRESTRON SERVER.

IP ID Sets your CRESTRON SERVER IP ID.

PORT Sets the Crestron port used for Ethernet communication.

HINT The CRESTRON CONTROL settings are required only for use with Crestron’s ROOMVIEW.

For further information, visit

https://www.crestron.com

AMX Settings

Click on “AMX” on the left-hand column on the HOME screen to enter the setting screen.

AMX BEACON

When the monitor is connected to a network supporting the NetLinx control system by AMX, enables or

disables the function to send a beacon to the system from AMX Device Discovery.

NOTE When using a device that supports AMX Device Discovery, all AMX NetLinx control systems will recognize the

device and download the appropriate Device Discovery Module from an AMX server.

English - 56

Commands

Connecting the monitor to a computer via RS-232C or to a network via LAN allows for the transmission of commands to the

monitor, providing remote control of the monitor from a connected device. Instructions for each command format can be found in

“External_Control.pdf” in our Website (see “Appendix B External Resources”

page 66).

RS-232C Interface

Item Details

PROTOCOL RS-232C

BAUD RATE 9600 [bps]

DATA LENGTH 8 [bits]

PARITY NONE

STOP BIT 1 [bit]

FLOW CONTROL NONE

Network (LAN) Interface

Item Details

PROTOCOL TCP

PORT NUMBER 7142

COMMUNICATION SPEED AUTO setting (10/100 Mbps)

English - 57

Chapter 7 Troubleshooting

This Chapter Includes

"When a problem occurs with the monitor��" on page 58

"Nothing is displayed��" on page 58

"The image is not displayed correctly��" on page 59

"An instruction or caution screen is displayed��" on page 60

"Others (when connected to a computer)" on page 60

"Others (remote control, speakers)" on page 60

"Others (when connected via RS-232C or LAN)" on page 61

"When using a media player" on page 61

"When using a video device" on page 61

English - 58

When a problem occurs with the monitor...

In such a case, refer to the following.

Nothing is displayed...

Symptom Condition Cause and solution Reference

Nothing is displayed

on the screen.

The power indicator is off

In the OSD menu, [Setup]

-> [Other Settings] -> [LED

Indicator] is set to [On]

Check that the power cord is properly connected.

P.12

Use another device to check that power is correctly supplied

to the outlet.

The power indicator is lit

blue

A terminal with no signal input may be selected. Press the

input switch button to select a different input terminal.

P.22

Open the OSD menu and check the following settings. P.38

● If the OSD menu does not open, the monitor may be

malfunctioning.

Contact your supplier.

● If the OSD menu opens properly, the monitor is not

malfunctioning. Adjust [Backlight / Brightness] and

[Contrast] in the [Video] settings.

P.69

● If the image is not displayed after adjusting [Backlight /

Brightness] and [Contrast] in the OSD menu, check that

the connected device operates correctly. If the monitor is

connected to a computer, check the frequency, resolution,

and type of output signal on the computer.

P.28

The power indicator is lit

a color other than blue or

it is ashing.

The monitor automatically goes into standby at the preset

time period after the video signal is lost. Press the power on

button on the remote control or press the

button on the

monitor.

P.25,

P.33

Check that the signal cable is correctly connected to the

input and output terminals of the monitor and the connected

device.

P.27

Check that the power adaptor is properly connected. P.28

Check that the connected computer or video device is turned

on.

The image on the

screen disappeared.

The screen, on which

the image was correctly

displayed, turned black,

started to blink, or did not

display anything.*

The LCD panel needs to be replaced. Contact your supplier.

* The lifespan of the backlight used in the monitor may end.

Check for HDCP (High-bandwidth Digital Content Protection) content. HDCP is a system for preventing illegal copying of video

data sent over a digital signal. If you are unable to view material via the digital inputs, this does not necessarily mean that the

monitor is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected

by HDCP and might not be shown due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

English - 59

The image is not displayed correctly...

Symptom Cause and solution Reference

Black dots (dots not lit) or bright

dots (dots always lit) appear on

the screen.

This is due to the characteristics of LCD panels and is not a malfunction.

The brightness of the image is

not even.

This may happen depending on the content displayed. This is due to the

characteristics of LCD panels and is not a malfunction.

The shadow of thin vertical lines

appears on the screen.

This may happen depending on the content displayed. This is due to the

characteristics of LCD panels and is not a malfunction.

Moiré appears when detailed

patterns are displayed.

This may happen when detailed patterns are displayed. This is due to the

characteristics of LCD panels and is not a malfunction.

The colors do not look correct

depending on the viewing angle.

The tint may greatly vary depending on the viewing angle (the angle from

which the screen is viewed).

P.64

The display condition of the

screen is changing gradually.

The display condition changes gradually while the monitor is being used. The

ambient temperature may also have an impact on the display condition.

This is due to the characteristics of LCD panels and is not a malfunction.

P.13

After changing the screen, the

image of the previous screen

remains slightly.

When the same still image is displayed for a long time, this phenomenon of

persisting image may occur.

You may press the POWER button on the remote control or the of the

monitor to put the monitor on standby, or display changing images for about

one day until the persisting image disappears naturally.

If the still image is

displayed for a really long time, the persisting image may not disappear. This

is not a malfunction. It is recommended to turn the monitor off when not using

it.

The colors are not displayed

correctly.

Open the OSD menu and check the following settings. P.38

● If the OSD menu does not open properly, the monitor may be

malfunctioning.

Contact your supplier.

P.69,

P.69

● If the OSD menu opens properly, the monitor is not malfunctioning.

Select [Color] and adjust the colors as needed, or execute [Reset Video

Settings] under the [Video] settings to return the settings to their default

values.

P.69,

P.69

● If the OSD menu opens properly and the computer screen does not

appear correctly after executing [Reset Video Settings] under [Video],

check the connection to the computer as well as the frequency, resolution

and output signal type setting on the computer.

P.27,

P.63

The image is not displayed

correctly (problems not

mentioned above)

or the video is interrupted

momentarily.

The image quality may decrease or the video may be interrupted if a

transponder, a splitter, or a long cable is used. Replace the cable you are

using with a shielded cable, or connect directly to the monitor without using

a transponder or a splitter. If a twisted pair cable extender is used, make

sure it supports shielded cables. Noise may also appear on the screen or

the video may be interrupted depending on the usage environment and the

cable used.

Open the OSD menu and check the following settings.

P.38

● If the OSD menu does not open properly, the monitor may malfunction.

Contact your supplier.

● If the video is interrupted when an HDMI signal with the 3840 x 2160 or

4096 x 2160 resolution is input, use an HDMI cable supporting 4K.

The power turns off

automatically.

Check the setting in [Setup] -> [Power save settings] -> [Auto Power Down].

Set the [CEC] setting under [Setup] -> [HDMI Settings] to [Off].

Check the setting in [Schedule] -> [Sleep Timer].

P.71,

P.75

The monitor does not operate

according to the schedule

function.

Check the setting in [Schedule] -> [Current Time settings].

Enable [Power On] under [Schedule] -> [Schedule settings].

Enable [Power Off] under [Schedule] -> [Schedule settings].

P.75

The display is disturbed.

The display may be disturbed when power is turned on or when the settings

have been changed. This is not a malfunction.

English - 60

An instruction or caution screen is displayed...

Symptom Cause Solution Reference

A caution message is

displayed on the screen.*

Attention !

No Signal

Please check input signal or Connection.

The signal cable may not be connected

properly to the input or output terminals

of the monitor or the computer.

Check that the signal cable is securely

connected between the input terminal

of the monitor and the output terminal

of the connected device.

P.27

The HDMI input may have switched. Set the [CEC] setting under [Setup] ->

[HDMI Settings] to [Off].

P.71

The signal cable may be damaged. Check that the signal cable is not

damaged.

The computer may be turned off. Check that the computer is turned on.

The power management function of

the computer may be functioning.

Move the mouse or press a key on the

keyboard.

Out of Range

An improper signal may be input to the

monitor.

Change the frequency of the input

signal or the resolution of the

computer.

P.63

A signal with a resolution higher than

the resolution supported by the monitor

may be input.

Change the frequency of the input

signal or the resolution of the

computer.

P.63

A temperature warning is

displayed on the screen.

Warning!!

The internal temperature is high.



Please check the ambient temperature.

The ambient temperature exceeds the

operation guaranteed temperature.

Turn off the power of the monitor since

this problem may cause a malfunction.

P.72

*1 Depending on the computer, a proper signal may not be output immediately after changing the resolution or the frequency and the caution

may be displayed for a while. In such a case, wait for a while. If the screen display returns to normal, it means the input signal is correct.

Others (when connected to a computer)

Symptom Cause Solution

Cannot change the resolution

or the number of colors / The

resolution or the number of

colors is xed.

Sometimes, the signal cannot be input and

output.

Restart the monitor and the computer.

The video card driver may not be correctly

recognized by the OS.

Reinstall the video card driver. For more

information on the reinstallation procedure,

refer to the computer manual or the support

service for the computer.

Others (remote control, speakers)

Symptom Cause and solution Reference

The remote control is not

functioning.

● The batteries may be drained.

● Check that the batteries are inserted correctly (check the + and - sides).

● The [IR Lock Settings] may be set to [Mode 1] or [Mode 2].

P.11,

P.72

The video is displayed

but there is no sound.

● Check that the audio cable is correctly connected. Check also that the audio

balance is not fully set to one side only. If the balance is set to one side only, set

it to the center.

● The sound may be muted. Press the MUTE button on the remote control or the

main unit and check that the sound is output.

● The volume may be set to the minimum. Adjust the volume using the + and -

buttons on the main unit or the VOL + and - buttons on the remote control.

P.23,

P.25,

P.70

English - 61

Others (when connected via RS-232C or LAN)

Symptom Cause and solution Reference

Control via RS-232C is

not available.

Check that the RS-232C crossover cable is correctly connected. P.50

Control via LAN is not

available.

Check that the LAN cable (Cat.5 or higher) is correctly connected. P.51

Check that the Network Settings are correctly congured. P.51

When using a media player

Symptom Cause and solution Reference

The media player function

does not recognize the

USB storage device.

Check that a USB storage device is correctly connected to the USB port. P.31

When using a video device

Symptom Cause and solution Reference

There is no image and no

sound.

Check that the external device (video player, etc.) is correctly connected and

operates properly. For more information, see the manual of the external device.

P.27

The power management function of the monitor may be functioning. Check that

the external device is operating (playing).

There is no color or the

colors are abnormal.

Adjust the [Color] setting.

P.69

English - 62

Chapter 8 Specications

This Chapter Includes

"Compatible Signal List" on page 63

"E988" on page 64

English - 63

Compatible Signal List

Signal name Resolution

Scanning frequency HDMI

VGA

(RGB)

VGA

(YPbPr)

Remarks

Horizontal Vertical MODE0 MODE1 MODE2

VGA 640 x 480 31.5 kHz 60 Hz Yes Yes Yes Yes Yes

SVGA 800 x 600 37.9 kHz 60 Hz Yes Yes Yes Yes No

XGA 1024 x 768 48.4 kHz 60 Hz Yes Yes Yes Yes No

HD 1280 x 720 45.0 kHz 60 Hz Yes Yes Ye s Yes No

WXGA 1280 x 800 49.7 kHz 60 Hz Ye s Yes Ye s Yes No

SXGA 1280 x 1024 64.0 kHz 60 Hz Yes Yes Ye s Yes No

WXGA 1366 x 768 47.7 kHz 60 Hz Ye s Yes Ye s No No

SXGA+ 1400 x 1050 65.3 kHz 60 Hz Yes Yes Yes Yes No

WXGA+ 1440 x 900 55.9 kHz 60 Hz Yes Yes Yes Yes No

UXGA 1600 x 1200 75.0 kHz 60 Hz Yes Yes Yes Yes No

WSXGA+ 1680 x 1050 65.3 kHz 60 Hz Yes Yes Ye s Yes No

Full HD 1920 x 1080 67.5 kHz 60 Hz Yes No No Yes No

WQXGA 2560 x 1600 98.7 kHz 60 Hz No Yes Yes No No

4K 3840 x 2160 54.0 kHz 24 Hz No Yes Yes No No

3840 x 2160 56.3 kHz 25 Hz No Yes Yes No No

3840 x 2160 67.5 kHz 30 Hz No Yes Yes No No

3840 x 2160 112.5 kHz 50 Hz No No Yes No No

3840 x 2160 135.0 kHz 60 Hz No No Yes No No

Recommended

resolution

4096 x 2160 54.0 kHz 24 Hz No Yes Yes No No Compressed image

4096 x 2160 56.3 kHz 25 Hz No No Yes No No Compressed image

4096 x 2160 67.5 kHz 30 Hz No No Yes No No Compressed image

4096 x 2160 112.5 kHz 50 Hz No No Yes No No Compressed image

4096 x 2160 135.0 kHz 60 Hz No No Yes No No Compressed image

HDTV (1080p) 1920 x 1080 27.0 kHz 24 Hz Ye s Yes Ye s No Yes

1920 x 1080 28.1 kHz 25 Hz Yes Yes Ye s No Yes

1920 x 1080 33.8 kHz 30 Hz Yes Yes Ye s No Yes

1920 x 1080 56.3 kHz 50 Hz Yes Yes Ye s No Yes

1920 x 1080 67.5 kHz 60 Hz Yes Yes Ye s No Yes

HDTV (1080i) 1920 x 1080 (interlace) 28.1 kHz 50 Hz Yes Yes Yes No Yes

1920 x 1080 (interlace) 33.8 kHz 60 Hz Yes Yes Ye s No Yes

HDTV (720p) 1280 x 720 37.5 kHz 50 Hz Yes Yes Ye s No Yes

1280 x 720 45.0 kHz 60 Hz Ye s Yes Ye s No Yes

SDTV (576p) 720 x 576 31.3 kHz 50 Hz Yes Yes Yes No Yes

SDTV (480p) 720 x 480 31.5 kHz 60 Hz Yes Yes Yes No Yes

SDTV (576i) 720 x 576 (interlace) 15.6 kHz 50 Hz Yes Yes Yes No Yes

SDTV (480i) 720 x 480 (interlace) 15.7 kHz 60 Hz Yes Yes Yes No Yes

NOTE • Depending on the input signal’s resolution, characters may look blurred or gures may be distorted.

• Depending on the video card or driver used, the image may not be shown correctly.

English - 64

E988

Size (display size) 97.5" / 247.69 cm diagonal

Type of LCD Active Matrix Color TFT LCD

Viewable Size 2158.85 x 1214.35 mm

Resolution 3840 x 2160

Pixel Pitch 0.5622 mm

Color Over 1073 million colors

Brightness*

350 cd/m

(max.)

Contrast Ratio 1100:1

Viewing Angle 89° (typ) @ CR>10

Frequency

Horizontal

31 - 83 kHz (analog input)

15.625/15.734 kHz, 31 - 136 kHz (digital input)

Vertical

56 Hz, 60 Hz, 70 Hz, 75 Hz (analog input)

24 Hz, 30 Hz, 50 Hz, 60 Hz, 70 Hz, 75 Hz (digital input)

Pixel Clock

13.5 MHz, 25 MHz - 162 MHz (analog input)

25 MHz - 600 MHz (digital input)

Input

Terminals

VGA (RGB)*

Mini D-Sub 15-pin Analog RGB signal 0.7 Vp-p/75 Ω

VGA (YPbPr)*

Mini D-Sub 15-pin Component signal Luma Y: 1.0 Vp-p/75 Ω, Color Cb/Cr (Pb/Pr): 0.7 Vp-p/75 Ω

Video 3.5φ Mini Jack Composite signal 1.0 Vp-p/75 Ω

HDMI HDMI terminal

Digital YUV

Digital RGB

HDCP 1.4/2.2

Audio

Terminals

Audio input

Stereo Mini Jack 3.5 mm Ø Analog audio signal Stereo L/R 0.5 Vrms

HDMI terminal Digital audio signal PCM 2 ch 32, 44.1, 48 kHz (16/20/24 bits)

Audio output

Stereo Mini Jack 3.5 mm Ø Analog audio signal Stereo L/R

S/PDIF terminal Digital audio signal For digital audio output

HDMI (ARC) terminal*

Digital audio signal PCM 2 ch 32, 44.1, 48 kHz (16/20/24 bits)

Speaker Output Internal Speakers 10 W + 10 W (Stereo)

Control

Terminals

RS-232C 9 Pin D-sub x1

LAN RJ-45 10BASE-T / 100BASE-TX

USB Terminal

USB Type-A port For media player, DC 5 V / 500 mA (max)

USB Type-C port For power supply, DC 5 V / 3 A (max)

Operational

Environment

Temperature 0 - 40 °C / 32 - 104 °F

Humidity 20 - 80 % (without condensation)

Altitude 3000 m or less (Brightness may decrease with altitude)

Storage

Environment

Temperature –20 - 60 °C / –4 - 140 °F

Humidity 10 - 90 % (without condensation)

Power Supply

Power input AC 100 - 240 V 50/60 Hz

Input current 3.9 ‐ 1.6 A

Consumption

Full operation 350 W (standard value)

During power save (LED blinking red) 2.0 W or less*

During standby (LED lit red) 0.5 W or less*

Dimensions*

2194.7 (W) x 1250.2 (H) x 89.5 (D) mm / 86.40 (W) x 49.22 (H) x 3.52 (D)

inches (with handle)

2194.7 (W) x 1250.2 (H) x 84.3 (D) mm / 86.40 (W) x 49.22 (H) x 3.32 (D)

inches (without handle)

Weight Approx. 65.4 kg (144.2 lbs)

Mounting Interface 600 mm x 400 mm (M8, 4 Holes)

Inclination Angle ±15°

*1 When used with the default settings.

*2 Common terminal.

*3 HDMI1 only.

*4 Measurements are of the monitor only and do not include removable parts that protrude.

*5 The Brightness level changes depending on the input settings, picture settings, installation environment, and individual product characteristics.

The overall Brightness decreases as the product ages due to deterioration over time. It does not maintain a permanent brightness level throughout the product’s life.

Technical specications are subject to change without notice.

English - 65

Appendix A Trademark and Software

License

Microsoft

and Windows

are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or

other countries.

The terms HDMI, HDMI High-Denition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or

registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

CRESTRON and CRESTRON ROOMVIEW are trademarks or registered trademarks of Crestron Electronics, Inc. in the

United States and other countries.

Blu-ray is a trademark of Blu-ray Disc Association.

USB Type-C

and USB-C

are registered trademarks of USB Implementers Forum.

All other brands and product names are trademarks or registered trademarks of their respective owners.

[Notice] About the MPEG-4 AVC, MPEG-4 Visual license included in this product

1. MPEG AVC

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF

A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN

COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY

A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED

TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL

INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

2. MPEG-4 Visual

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND

NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL

STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER

LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND

COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

English - 66

Appendix B External Resources

Additional specication documents and accessories, and optional software applications referenced in this product manual are

listed below.

Regional websites

Global: https://www.sharp-nec-displays.com/global/

Asia-Pacic: https://www.sharp-nec-displays.com/ap/contact/index.html

North America: https://www.sharpnecdisplays.us/

Europe, Russia, Middle East and Africa: https://www.sharpnecdisplays.eu/p/hq/en/home.xhtml

Japan: https://www.sharp-nec-displays.com/jp/

Additional Documentation

External Control” PDF document

This document denes the communications protocol for externally controlling and querying the monitor via either RS-232C or

LAN. The protocol uses encoded binary and requires calculation of checksums, and most functionality in the monitor can be

controlled using these commands.

This document is available for download from our website in your region.

Software

Software is available for download on our website.

https://www.sharp-nec-displays.com/dl/en/dp_soft/lineup.html

NaViSet Administrator software

This free software is an advanced and powerful network-based control, monitoring and asset management system

for NEC monitors and projectors. The software is available for Microsoft Windows and macOS.

The latest version of the NaViSet Administrator software is available on our website.

English - 67

Appendix C OSD Controls List

This Chapter Includes

"Video Settings" on page 68

"Audio Settings" on page 70

"Setup" on page 71

"Control Settings" on page 73

"Media Player" on page 74

"Schedule" on page 75

Default values can be provided on request.

English - 68

Video Settings

Video

Picture Mode Provides pre-congured video settings suitable for various environments where this device

may be used, or customize settings to your preference.

HDR Video Video setting for the HDR format. (Can be selected only when an HDR signal is input.)

Dynamic High-contrast video setting.

Standard Standard setting.

Energy Savings Video setting complying with International Energy Star standard.

Conferencing Video setting suited for video conferences.

HighBright Maximum backlight brightness with higher color temperature for brighter ambient environments.

Custom Customizable settings.

Advanced Video Menu used to adjust detailed video settings.

Aspect Ratio Select the aspect ratio of the screen image. For more information, see “Setting the Aspect

Ratio” in this manual.

NOTE • [Zoom] cannot be used when a 4K signal is input

• [Zoom] cannot be used when an FHD signal is input.

Normal Maximizes the size without changing the aspect ratio.

1:1 Shows the image in a 1 by 1 pixel format. (If the input resolution is higher than the

recommended resolution, the image will be scaled down to t the screen).

Full Fills the entire screen even if the aspect ratio needs to be changed.

Zoom Fills the entire screen without changing the aspect ratio.

NOTE The areas of the image that are outside of the active screen area are not shown.

Overscan Selects the image display area.

Auto The image display area is set automatically.

On Approximately 95 % of the image will be shown on the screen.

Off The whole image is displayed within the screen area. This setting may cause noise at the

edges of the screen depending on the signal.

NOTE When you use a computer with an HDMI output, set it to [OFF].

Dimming Setting The brightness of the backlight is optimized, while the contrast can be increased and the power

consumption reduced.

Off The backlight is not controlled.

Dynamic Backlight Automatically adjusts the brightness level of the entire screen according to the input signal.

Local Dimming Automatically adjusts each of the clusters of the LCD backlight independently according to the

input signal.

English - 69

Video

Color Temperature Adjusts the color temperature of the entire screen.

A low color temperature will result in a reddish screen. A high color temperature will make the

screen bluish.

If a temperature needs further adjustment, the individual R/G/B/ levels of the white point can

be adjusted.

Cool High color temperature setting. The screen will be bluish.

Normal Intermediate setting.

Warm Low color temperature setting. The screen will be reddish.

Native Turns the color temperature adjustment off and displays the image with the panel

characteristics.

Custom Customizable settings.

Noise Reduction*

Reduces the image noise.

Adaptive Contrast*

Automatically adjusts the contrast according to the image. If [High] is set, the image is shown

clearly but the brightness variation may appear unnatural.

Gamma Adjusts the brightness of gray and other intermediate colors. (SDR)

Native Gamma correction is handled by the LCD panel.

2.2 Typical monitor gamma for use with a computer.

2.4 Typical gamma settings for use with video devices, such as DVDs and Blu-rays.

Ambient Light Sensing Automatically adjusts the brightness of the screen depending on ambient light within the room.

When set to [On], the brightness of the screen is adjusted automatically according to the room

brightness.

NOTE When set to [ON], [Backlight / Brightness] cannot be changed.

Color Enhance*

Changes the colors of the image and the saturation to create a more colorful image.

HDR Mode*

When the monitor detects an HDR signal, you can select preferred gamma correction from

[Low], [Mid] and [High].

Backlight / Brightness Adjusts the brightness of the image using the backlight.

Press the

and

the buttons to adjust the brightness. In general, use this function to adjust

the brightness.

NOTE When [On] is selected in [Ambient Light Sensing], this function cannot be

changed.

Contrast Adjusts the image brightness in relationship to the input signal. Press

button to adjust.

Video Black Level Adjusts the black luminance.

Sharpness*

Adjusts the crispness of the image. Press

button to adjust.

NOTE The lines may appear as double lines depending on the setting. In such a case,

lower the sharpness setting.

Color*

Adjusts the color density of the screen.

Press the

button to increase the density, or the

button to decrease it.

Tint*

Adjusts the color tint of the monitor screen between R0-R50 and G0-G50.

Reset Video Settings Returns all settings in the Video menu to their default values.

*1: Such as DVI signals through DVI/HDMI conversion cable, those signals with no InfoFrame information and analog RGB signals are not

supported.

*2: RGB signals are not supported.

English - 70

Audio Settings

Audio

Sound Mode Set pre-congured audio settings suitable for various environments where the monitor may be

used, or customize settings to your preference.

Standard Standard sound setting.

Music Optimized settings for music playback or audio in conference rooms.

Movie Surround sound for clarity in retail stores and other signage applications.

Custom Customizable settings.

Balance Press the

button to move the audio signal to the right. Press the

button to move the audio

signal to the left.

Surround Articially produces surround sound audio.

Internal Speakers Congures the settings for the internal speakers output.

Auto The sound is not output from the speakers when a cable is connected to the AUDIO OUT

terminal.

Off Sound is not output from the speakers.

On Sound is always output from the speakers.

Digital Output Select the optical digital audio format of the S/PDIF terminal.

RAW

Outputs in the RAW format.

PCM

Outputs in the PCM format.

Audio Input Selects whether to use the audio signal of the Audio In terminal when the audio signal is not

included in the HDMI signal (DVI signals, etc.).

HDMI

The HDMI terminal is used.

Audio in

The Audio in terminal is used.

Audio Delay Adjusts the delay time until the audio is output.

Reset Audio Settings Returns all settings in the Audio menu to their default values.

English - 71

Setup

OSD Settings

Language Select the language used in the OSD.

Transparency Set the transparency level of the OSD menu between 30%, 50%, 70% and Off.

The higher the percentage, the more transparent the OSD menu is.

Information OSD Displays or hides the Information OSD.

Information OSD contains the messages that are displayed on the screen when the input is

switched or when the state of the input signal changes.

Closed Caption Adjust the Closed Caption settings.

Caption Display / Analog Captions

Power save settings Enables or disables the monitor entering power saving mode.

Energy Mode Select a mode between Home, Retail, and Ofce.

For more information, see “Energy Mode”

page 33.

Power Save* Sets the time until the monitor enters the Power Save mode. When the set time has elapsed

after the input signal has been lost, the Power Save function is activated.

Quick Start When [On] is selected, the monitor will quickly return to the [On] state when a signal is

detected. Enabling this option increases standby power consumption.

Auto Power Down* When turned [On], the monitor turns off automatically after 4 hours without any operation.

Auto Input Change This function automatically selects the input terminal with an input signal.

When enabled, this option can detect and change inputs when a signal is applied or lost.

Press the INFO button on the remote control to display the selected input terminal on the

Information OSD.

None The monitor does not search for video signal on the other input connections.

First The monitor does not search for a video signal on the other input connections while the current

input has a video signal.

If the current input connection does not have video signal present, the monitor will search for

video signal on the other video input connections. If a video signal is found, the monitor will

switch from the current input to the input with the active video source automatically.

Custom The input terminals included in the search performed by the monitor can be selected.

HDMI Settings

CEC This function makes it possible to control a device supporting HDMI CEC connected to the

HDMI terminal.

When set to On, HDMI CEC is enabled.

EDID Sets the HDMI mode.

Mode 0

Max resolution is 1920 x 1080 (60 Hz).

Mode 1

Max resolution is 3840 x 2160 (30 Hz).

Mode 2

Max resolution is 3840 x 2160 (60 Hz), HDCP 2.2, or HDR.

Video Range Adjust the gradation range to be shown according to the video signal to improve the whiteout

and blackout of the image.

HPD Delay This function makes it possible to control the time until the video from the HDMI terminal is

displayed.

When set to Off, the time until the video is output can be reduced but the video may not be

output depending on the device. In such a case, set [HPD Delay] to On.

English - 72

Setup

VGA Options This option is only enabled when a VGA signal is input.

VGA Mode Select [RGB] or [YPbPr] depending on the signal received into the VGA input terminal.

Auto Adjust Automatically adjusts settings such as the image position.

H.Position Adjusts the horizontal position of the screen.

Press the

button to move the screen to the right or the

button to move it to the left.

V.Position Adjusts the vertical position of the screen.

Press the

button to move the screen to the top or the

button to move it to the bottom.

Clock Adjust this setting when vertical lines appear on the screen or when the size differs at the right

and left of the screen.

Phase Adjust this setting when noise appears in the horizontal direction, when the characters are

blurred, or when the contours are not sharp.

H.Resolution The video can be enlarged/reduced in the horizontal direction using this function only when

[Standard] is selected in [Aspect Ratio].

NOTE This function may not operate depending on the input signal.

V.Resolution The video can be enlarged/reduced in the vertical direction using this function only when

[Standard] is selected in [Aspect Ratio].

NOTE This function may not operate depending on the input signal.

Reset VGA Options Resets the VGA Options settings to their default values.

Other settings

Input Labels Renames the input terminal currently being displayed. Letters (A-Z), numbers (0-9), and some

symbols can be used.

Key Lock Settings Prevents the monitor from being controlled using the buttons on the monitor control panel.

Off

All buttons operate normally.

Mode 1

Only the power button and the input switching function operate.

Mode 2

All buttons are locked. (Only the power button can be used during standby mode.)

IR Lock Settings Prevents the monitor from being controlled using the remote control.

Off

All buttons operate normally.

Mode 1

Only the POWER and the SOURCE buttons operate.

Mode 2

All buttons are locked. (Only the power button can be used during standby mode.)

Power supply You can congure the power supply to the USB Type-C port.

The power consumption increases when set to [On].

LED Indicator Set it to Off to turn off the power indicator when the monitor is turned on (normally lit blue).

Mute Settings Allows you to mute the monitor’s audio and video output.

Audio

Mutes the audio output when the remote control’s MUTE button is pressed.

Video

Mutes the video output when the remote control’s MUTE button is pressed.

Audio & Video

Mutes the audio and video output when the remote control’s MUTE button

is pressed.

Image Rotation When [On] is selected, rotates the image 180 degree.

Thermal Management The monitor is equipped with thermal sensors and displays a warning when the ambient

temperature exceeds the operation guaranteed temperature. If a warning is displayed, turn the

monitor off since using the monitor in such environment may cause a malfunction.

Warning Message

A temperature warning is displayed on the screen when the internal

temperature has exceeded the operation guaranteed temperature.

Shutdown

The monitor turns off automatically when the internal temperature has

exceeded the operation guaranteed temperature.

Signal Information Displays the information regarding the input signal.

Monitor Information Displays the information regarding the monitor.

Factory Reset All settings except network are returned to factory default.

*: A countdown message appears before entering power save mode or power off.

English - 73

Control Settings

Control Interface NOTE Only one method, LAN or RS-232, can be used at a time.

LAN Sets network (LAN) control.

RS-232C Sets RS-232C control.

Network Settings Congures the network settings of the monitor.

DHCP

On

Obtains the network settings from the DHCP server on the network.

Off

Sets xed networks settings.

Manual DNS

Obtain the network settings from the DHCP server on the network but the DNS

is set manually.

IP ADDRESS Set the IP address of the monitor when [DHCP] is set to [Off].

SUBNET MASK Set the subnet mask data for the monitor connected to the network when [Off] is selected for

[DHCP].

DEFAULT GATEWAY Set the default gateway for the monitor connected to the network when [Off] is selected for

[DHCP].

DNS PRIMARY Enter the IP address of the primary DNS server of the network connected to the monitor.

NOTE Enter [0.0.0.0] to delete the setting.

DNS SECONDARY Enter the IP address of the secondary DNS server of the network connected to the monitor.

NOTE Enter [0.0.0.0] to delete the setting.

MAC ADDRESS Shows the monitor’s MAC ADDRESS.

This cannot be changed.

SAVE Saves the settings.

Monitor ID Sets an ID number for control.

The monitor ID number can be set between 1 and 100.

Reset Network Settings Returns the network settings to their default values.

English - 74

Media Player

USB Demo Mode Photos (still pictures), music and video les saved in the “NDS_DEMO” folder in the USB

storage device can be played automatically.

You can select the types of les to play in the USB Demo Mode.

NOTE

Enabling USB Demo Mode

To enable the USB Demo Mode, [Energy Mode] in the [Setup] menu must be set to [Retail].

NOTE

Starting USB Demo Mode

The playback of the les starts automatically under the following conditions.

• The USB Demo Mode has been enabled.

• A folder named “NDS_DEMO” exists in the USB storage device.

• No signal is being input in a terminal other than the USB port.

• There was no user operation for 10 seconds or more.

NOTE

Memo

• The POWER, VOLUME, and MUTE buttons on the remote control operate normally. If other buttons

are pressed, the playback stops and the input returns to the terminal used previously.

• The playback is also stopped is the USB storage device is removed.

• If the monitor is turned off during playback in USB Demo Mode, the next time the monitor is turned

on, playback will start automatically if the USB storage device is still connected.

UnPlug USB Device Select [Execute] before removing the USB device.

Caution Window Sets whether to display a caution window (On) or not (Off) when a le with a format or a codec

not supported by the monitor is played.

English - 75

Schedule

Sleep Timer* Sets the time until the monitor turns off automatically.

Off

10 minutes

15 minutes

30 minutes

60 minutes

90 minutes

120 minutes

180

minutes

240 minutes

can be selected.

Current Time settings Sets the current date and time.

NOTE If the monitor remains for about two weeks or more with the power cord

unplugged, the clock will not show the correct time.

In this case, set the [Current Time settings] again.

Year Sets the current year. Press the

button on the remote control to cycle to the current

year. Press the OK button to apply the change.

Month Sets the current month. Press the

button on the remote control to cycle to the current

month. Press the OK button to apply the change.

Day Sets the current day of the month. Press the

button on the remote control to cycle to

the current day. Press the OK button to apply the change.

Time Sets the current time. Select the hour eld, then press the

button on the remote control

to cycle to the current hour, then repeat this for the minutes eld. Press the OK button to apply

the change.

NOTE The monitor’s clock is a 24-hour format.

Schedule settings* Creates a working schedule for the monitor (see

page 44).

Press the

buttons to navigate and change the schedule settings. Press the OK

button on the remote control to select settings.

Settings Select the number and press the OK button to activate the schedule. The circle next to the

number has an outline when the schedule is enabled. Up to 7 schedules can be created and

enabled.

Press the

button to cycle through schedule numbers.

Power On

Power Off

Sets the monitor’s power state for the schedule. Select [Power On] if you want the schedule to

turn the monitor on at the specied time. Select [Power Off] if you want the schedule to turn the

monitor off at the specied time.

Set the time for the schedule.

Every Day Select this option to have the schedule repeat every day.

NOTE When [Every Day] is selected, [Every Week] and [Mon - Sun] cannot be set.

Every Week Enable or disables the option to have the schedule repeat every week.

Enable

- Repeat the schedule every week on the same day(s) of the week that you

select from [Mon - Sun].

Disable

- Execute the schedule one time on the specic day(s) you select from [Mon -

Sun].

Mon - Sun Select this option if the schedule is only going to run on one day or it is an irregular schedule.

*: A countdown message appears before entering power save mode or power off.

English - 76

Appendix D Manufacturer’s Recycling and

Energy Information

This Chapter Includes

"Disposing of your old NEC product" on page 77

"Energy Saving" on page 77

"About Conversion Cables Used with the AV Terminal" on page 79

We are strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to

minimize the burden placed on the environment. We are engaged in developing environmentally friendly products, and always

strive to help dene and comply with the latest independent standards from agencies such as ISO (International Organization for

Standardization) and TCO (Swedish Trades Union).

English - 77

Disposing of your old NEC product

The aim of recycling is to gain an environmental benet by means of re-use, upgrading, reconditioning or

reclamation of material. Dedicated recycling sites ensure that environmentally harmful components are properly

handled and securely disposed. To ensure the best recycling of our products, we offer a variety of recycling

procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has

reached the end of its life.

All required information concerning the disposal of the product and country-specic information on recycling

facilities can be found on our following websites:

https://www.sharpnecdisplays.eu/p/greenvision/en/greenvision.xhtml (in Europe)

https://www.sharp-nec-displays.com/jp/ (in Japan)

https://www.sharpnecdisplays.us/ (in USA).

Securing personal information Personally identiable information, such as IP addresses, may be saved on the

monitor. Before transferring or disposing of the monitor, clear this data by performing the network reset function.

Energy Saving

This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to

the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

For additional information visit:

https://www.sharpnecdisplays.us/ (in USA)

https://www.sharpnecdisplays.eu/p/hq/en/home.xhtml (in Europe)

https://www.sharp-nec-displays.com/global/index.html (Global)

For ErP requirement/For ErP (Network standby) requirement:

Except for conditions below:

[Energy Mode] is set to [Retail mode] or [Ofce mode].

[Quick Start] is set to [On].

[Auto Input Change] is set to [First] or [Custom].

[Power supply] is set to [On].

Power consumption (Blinking red): 2.0 W or less.

Time for power management function: 60 sec. (Default setting).

Power consumption (Lit red): 0.5 W or less.

Time for power management function: 3 min. (Default setting).

English - 78

WEEE Mark (European Directive 2012/19/EU and amendments)

Disposing of your used product In the European Union

EU-wide legislation as implemented in each Member State requires that used electrical and electronic

products carrying the mark (left) must be disposed of separately from normal household waste. This

includes monitors and electrical accessories, such as signal cables or power cords. When you dispose of

such products, please follow the guidance of your local authority or ask the shop where you purchased the

product, or if applicable, follow applicable legislation or agreement you may have. The mark on electrical and

electronic products may only apply to the current European Union Member States.uct, or if applicable, follow

applicable legislation or agreement you may have. The mark on electrical and electronic products may only

apply to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority

and ask for the correct method of disposal.

For EU The crossed-out wheeled bin implies that used batteries should not be put to the general household

waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in

accordance with legislation.

According to EU directive 2006/66/EC and amendments, the battery can’t be disposed improperly. The battery shall be

separated to collect by local service.

English - 79

About Conversion Cables Used with the AV Terminal

Use a commercially-available video cable with a 4-contact mini jack (φ3.5 mm) at one extremity for conversion cables to

connect to the AV terminal.

Check the wiring specication of the cable in advance and choose a proper cable.

NOTE *Different wiring specications may exist for 4-contact mini jack cables.

No. Signal

1 Video

2 Audio (left)

3 Audio (right)

4 GND

LAN

RS-232C

AUDIO OUT SPDIF OUT AV IN

POWER

SUPPLY

OUT

Example of RCA

connectors (male) -

4-contact mini jack cable

Example of RCA

connectors (female) -

4-contact mini jack cable

English - 80

Rev.1

NEC E988 98" Ultra High Definition Commercial Display

Product's Documents

User Manual English

Specifications

NEC E988 Questions and Answers
